ELECTRODOS PARA SOLDADURA
Diámetro: 1/8" - 5/32"
Uso: Tubería, fabricación en general.
Cualidades:
• Estándar en la industria de soldadura de tubería.
• Penetración profunda.
• Alta ductilidad.
Diámetro: 1/8"- 3/32" - 5/32"
Uso: Fabricación en general.
Cualidades:
• Para soldadura a tope y filete de placas delgadas. Buena apariencia del cordón.
• Buen golpeteo.
• Escoria fácil de eliminar.
• Arco suave y baja emisión de humos.
• Soldadura de CA con bajo OCV.
Código
S-6010.D-1/8
S-6010.D-3/32
S-6010.D-5/32
Descripción
Soldadura - 6010 x 1/8" - Kg
Soldadura - 6010 x 3/32" - Kg
Soldadura - 6010 x 5/32" - Kg

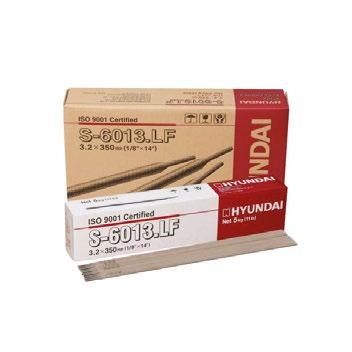

Código Descripción
S-6013.LF-1/8
S-6013.LF-3/32
S-6013.LF-5/32
Soldadura - 6013 x 1/8" - Kg
Soldadura - 6013 x 3/32" - Kg
Soldadura - 6013 x 5/32" - Kg
ELECTRODOS PARA SOLDADURA
Diámetro: 1/8"- 3/32" - 5/32"
Uso: Tubería, fabricación en general, construcción naval.
Cualidades:
• Estándar en la industria de soldadura de tuberías.
• Penetración profunda.
• Alta ductilidad.
Soldadura AC y DC.
Diámetro: 1/8"- 3/32" - 5/32"
Uso: Fabricación en acero pesado, construcción naval, tanques presurisados
Cualidades:
Para soldadura a tope y filete de placas delgadas.
• Buena resistencia al agrietamiento y rendimiento a los rayos X.
• Buenas propiedades mecánicas.
• Polvo de hierro y electrodo de tipo bajo hidrógeno (alta eficiencia).
Código
S-6011.D-1/8
S-6011.D-3/32
S-6011.D-5/32
S-6011.D-1/8-P
S-6011.D-3/32-P
Descripción
Soldadura - 6011 x 1/8" - Kg
Soldadura - 6011 x 3/32" - Kg
Soldadura - 6011 x 5/32" - Kg
Soldadura - 6011 x 1/8" - Paquete de 1 Kg
Soldadura - 6011 x 3/32" - Paquete de 1 Kg
Código
S-7018.G-1/8
S-7018.G-3/32
S-7018.G-5/32
S-7018.G-1/8-P
S-7018.G-3/32-P
S-7018.G-5/32-P
Descripción
Soldadura - 7018 x 1/8" - Kg
Soldadura - 7018 x 3/32" - Kg
Soldadura - 7018 x 5/32" - Kg
Soldadura - 7018 x 1/8" - Paquete de 1 Kg
Soldadura - 7018 x 3/32" - Paquete de 1 Kg
Soldadura - 7018 x 5/32" - Paquete de 1 Kg
ELECTRODOS PARA SOLDADURA
Diámetro: 1/8" - 5/32"
Uso: Fabricación en acero pesado, acero de baja resistencia de temperaturas, estructuras marinas.
Cualidades:
• Electrodo de hidrógeno extra bajo.
• Buen valor de impacto a -45° C. Paquete sellado al vacío (HDM ≤ 4 ml/100 g)
Código
S-7018.1H-1/8
S-7018.1H-5/32
S-7018.1H-1/8-P
S-7018.1H-5/32-P
Descripción
Soldadura – 7018 x 1/8” – H4R – Kg
Soldadura – 7018 x 5/32” – H4R – Kg
Soldadura - 7018 x 1/8" - H4R - Paquete de 1 Kg
Soldadura - 7018 x 5/32" - H4R - Paquete de 1 Kg
Diámetro: 1/8"
Uso: Fabricación en acero pesado, construcción naval, estructuras marinas.
Cualidades:
• Buena apariencia del cordón.
• Buena resistencia al agrietamiento.
• Buen rendimiento a los rayos X.
• Buenas propiedades en hidrógeno (alta eficiencia).
Código Descripción
S-8018.G-1/8
S-8018.G-5/32
Soldadura – 8018 x 1/8" – DC – Kg
Soldadura – 8018 x 5/32" – DC – Kg
ELECTRODOS PARA SOLDADURA
Diámetro: 1/8" - 5/32"
Uso: Acero de alta resistencia de baja aleación.
Cualidades:
• Polvo de hierro y electrodo de tipo bajo en hidrógeno (alta eficiencia).
• Buena resistencia al agrietamiento.
Buen rendimiento a los rayos X.
• Buen valor de impacto a -50° C.
Código
S-11018.M-1/8
S-11018.M-5/32
Descripción
Soldadura - 11018 x 1/8" - 1 kg
Soldadura - 11018 x 5/32" - 1 kg
Diámetro: 1/8"- 3/32"
Uso: Acero inoxidable (bajo contenido de carbono, 18% Cr-8% Ni).
Cualidades:
Buena resistencia a la corrosión y a los ambientes oxidantes.
• Escoria fácil de eliminar.
• Buena apariencia del cordón.
• Alta resistencia a la humedad (tipo 17).
Código
S-308L.16L-1/8
S-308L.16L-3/32
Descripción
Soldadura - Acero Inoxidable - 1/8" x 2.5 Kg
Soldadura - Acero Inoxidable - 3/32" x 2.5 kg
ALAMBRE PARA SOLDADURA
ALAMBRE SÓLIDO (Alta resistencia) SM-70
Uso: Fabricación estructural, barcos, puentes, automotriz, maquinaria.
Cualidades:
• Soldadura de todas las posiciones por transferencias de tipo de cortocircuito.
• Gas mixto.
• Buena apariencia del cordón y pocas salpicaduras.

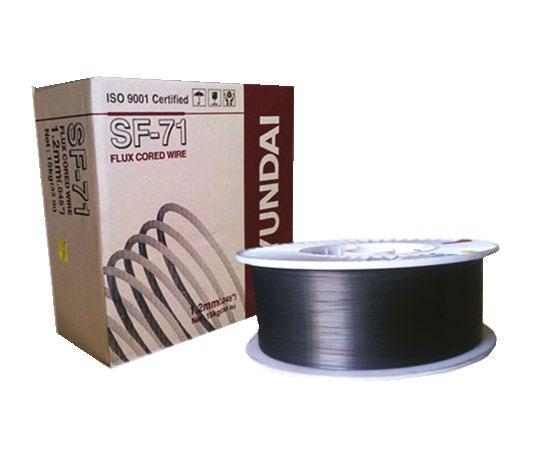

ALAMBRE TUBULAR (Alta resistencia) SF-71MC
Uso: Construcción naval, tuberías, barcos, fabricación en general y estructural.
Cualidades:
• Baja salpicadura y excelente rendimiento.
• Buen rendimiento de arco y escoria de congelación rápida.
Cumple con los requerimientos de la AWS D1.8 de soldadura sísmica.
Código
SM-70.ECO-0.9-15
SM-70.ECO-1.2-15
SM-70.ECO-1.6-15
SF-71MC-1.2MM
Código Descripción SF-71MC- 1.2 mm - 15 Kg
SF-71MC-1.6MM
1.6 mm - 15 Kg
ALAMBRE PARA SOLDADURA
SMT-4043
ALAMBRE DE ALUMINIO
Uso: Automotriz, bicicletas y motocicletas, reparación general y mantenimiento.
Cualidades:
• Metal de aporte de aluminio de silicio de apróximadamente 5%.
• Se puede recomendar para soldadura, 3003, 3004, 5052, 6061, 6063 y el metal de fundición 355, 356, 214.
• El color es gris después del anodizado.

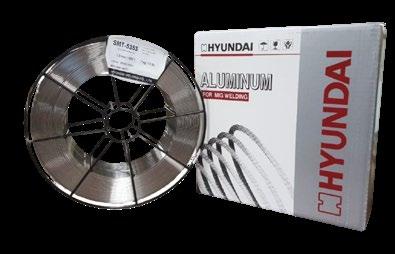

SMT-5356
ALAMBRE DE ALUMINIO
Uso: Equipos deportivos, envases comprimidos, construcción naval, ferrocarriles y automotriz.
Cualidades:
• Metal de aportación de aluminio y magnesio de apróximadamente el 5% que tiene una alta resistencia.
Alta resistencia a la corrosión. Combina bien el color con el metal después del anodizado.
Código
SMT-4043-0.8-0.5
SMT-4043-0.9-0.5
SMT-4043-1.2-0.5
Descripción
Aluminio - SMT4043 - 0.8 mm - 0.5 Kg Aluminio - SMT4043 - 0.9
Código Descripción
SMT-5356-0.9-0.5
SMT-5356-0.9-2.0
SMT-5356-0.9-7.0
SMT-5356-1.2-0.5
SMT-5356-1.2-2.0
SMT-5356-1.2-7.0
SMT-5356-1.6-2.0
SMT-5356-1.6-7.0
SMT5356 - 0.9 mm - 0.5 kg
SMT5356 - 0.9 mm - 2 kg
SMT5356 - 0.9 mm - 7 kg
SMT5356 - 1.2 mm - 0.5 kg
SMT5356 - 1.2 mm - 2 kg
SMT5356 - 1.2 mm - 7 kg
SMT5356 - 1.6 mm - 2 kg
SMT5356 - 1.6 mm - 7 kg
ALAMBRE PARA SOLDADURA

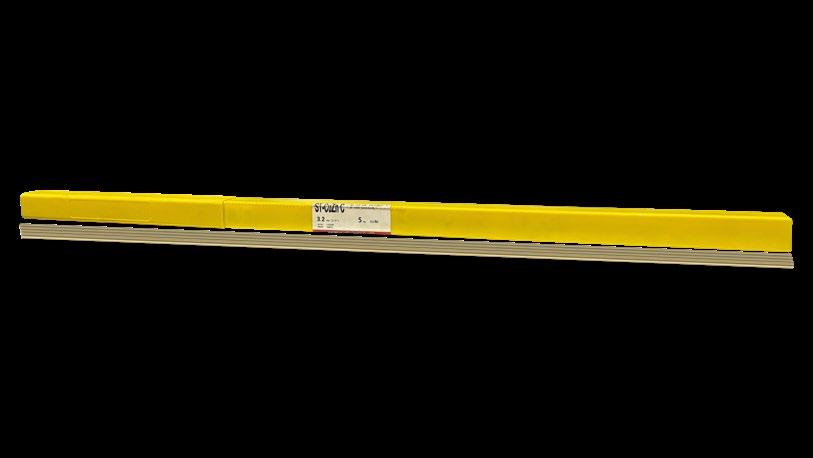

ST-CUZNC
SOLDADURA DE BRONCE
Uso: Reparación general, herrería ornamental, industria automotriz, mantenimiento de piezas de cobre, latón y acero.
FICHAS TÉCNICAS
Type : Cellulosic
Conformances
AWS A5.1/ ASME SFA5.1 E6010
JIS Z3211 E4310
EN ISO 2560-A-E38 0 C 2 1
KR 2
ABS 2, AWS A5.1 E6010
LR 2
BV 2
DNV·GL 2
NK KMW2
TÜV EN ISO 2560-A-E 38 0 C 2 1
DB EN ISO 2560-A-E 38 0 C 2 1
CWB CSA W48 E4310
CE
Applications
• Pipe line
• General fabrication Features
• Standard in the pipe welding industry
• Deep penetration
• High ductility (root pass)
Typical Welding Parameters / Amp.(A)
Welding Position
Current
70~100°C (158~212°F) X 0.5~1hr
Diameter / Packaging
Type : Cellulosic
Conformances
A WS A5.1/ ASME SFA5.1 E6011
JIS Z3211 E4311
EN ISO 2560-A-E38 0 C 1 1
KR 2
ABS 2
LR 2
BV 2
DNV·GL 2
NK KMW2
Applications
• Pipe line
• General fabrication
• Shipbuilding
Features
• Standard in the pipe welding industry
• Deep penetration
• High ductility (root pass)
• AC and DC welding
Welding Position
Typical Welding Parameters / Amp.(A)
Diameter / Packaging
Type : Rutile
Conformances
AWS A 5.1/ ASME SFA5.1 E6013
JIS Z3211 E4313
EN ISO 2560-A-E38 0 R 1 2
KR 2
ABS 2
LR 2
BV 2
DNV·GL 2
NK KMW2
CE
Applications
• General fabrication
Features
• Suitable for butt and fillet welding of thin plates
• Good restriking
• Good bead appearance
• Easy to remove slag
• Smooth arc and low fume
• AC welding with low ocv
Typical Chemical Composition of All-Weld Metal (%)
Welding Position
Typical Mechanical Properties of All-Weld Metal
Current AC or DC + Redrying Conditions
Diameter / Packaging
Typical Welding Parameters / Amp.(A)
(3/16)
(3/16)
(15/64)
S-7018.G
Conformances
AWS A5.1/ ASME SFA5.1 E7018
JIS Z3211 E4918
EN ISO 2560-A-E42 3 B 1 2
KR 3H10, 3Y H10
ABS 3H10, 3Y
LR 3YH15
BV 3YHH
DNV·GL 3YH10
NK KMW53HH
TÜV EN ISO 2560-A-E 42 3 B 1 2 H5
DB EN ISO 2560-A-E 42 3 B 1 2 H5
CWB CSA W48 E4918-H8
CE Applications
• Heavy steel fabrication
• Shipbuilding
• Pressure vessels Features
• Suitable for butt and fillet welding of heavy structure
• Good crack resistance and X-ray performance
• Good mechanical properties
• Iron powder and low hydrogen type electrode (high efficiency)
Typical Chemical Composition of All-Weld Metal (%)
Welding Position
Typical Mechanical Properties of All-Weld Metal
Typical Welding Parameters / Amp.(A)
Current
AC or DC +
Redrying Conditions
300~350°C (572~662°F) X 0.5~1hr
Diameter / Packaging
S-7018.1H
Type : Basic
Conformances
AWS A5.1/ ASME SFA5.1 E7018-1 H4R
JIS Z3211 E4918 H5
EN ISO 2560-A-E42 4 B 3 2 H5
ABS 4Y H5
LR 4Y H5
Applications
• Heavy steel fabrication
• Low temperature strength steel
• Offshore structure
Features
• Extra low hydrogen electrode
• Good impact value at -45°C
• Vacuum sealed package available (HDM ≤ 4ml/100g)
Diameter / Packaging
2.6 (3/32) 350 (14)
3.2 (1/8) 350 (14)
4.0 (5/32) 400 (16)
5.0 (3/16) 400 (16)
BV 4Y HHH
DNV·GL 4YH5
CWB CSA W48 E4918-1 H4
CE
Welding Position
Current
AC or DC +
Redrying Conditions
350~400°C (662~752°F) X 0.5~1hr
S-8018.G
Type : Basic
Conformances
AWS A5.5/ ASME SFA5.5 E8018-G
JIS Z3211 E5518
EN ISO 2560-A-E46 2 1Ni B 3 2
Applications
• Heavy steel fabrication
• Shipbuilding
• Offshore structure
Features
• Good bead appearance
• Good crack resistance
• Good X-ray performance
• Good mechanical properties
• Iron powder and low hydrogen type electrode (high efficiency)
Welding Position
Current AC or DC +
Redrying Conditions
300~350°C (572~662°F) X 0.5~1hr
Diameter / Packaging
Typical Chemical Composition of All-Weld Metal (%)
Typical Mechanical Properties of All-Weld Metal
Typical Welding Parameters / Amp.(A)
Conformances
AWS A5.5/ ASME SFA5.5 E11018-M
EN 757 E62 4 B 4 2
ABS AWS A5.5 E11018-M
Applications
• Low alloy high tensile steels
Features
• Iron powder and low hydrogen type electrode (high efficiency)
• Good crack resistance
• Good X-ray performance
• Good impact value at -50°C
Typical Chemical Composition of All-Weld Metal (%)
Typical Mechanical Properties of All-Weld Metal
Typical Welding Parameters / Amp.(A)
Welding Position
S-308L.16N[17]
Type : Rutile, Rutile-acid
Conformances
AWS A5.4/ ASME SFA5.4 E308L-16
JIS Z3221 ES308L-16 / EN ISO 3581-A-E 19 9 L R
AWS A5.4 / ASME SFA5.4 E308L-17
JIS Z3221 ES308L-17 / EN ISO 3581-A-E 19 9 L R
KR RD308L
ABS AWS A5.4 E308L-16
AWS A5.4 E308L-17
LR 304L
BV 308L
Applications
• Stainless steel (low carbon 18%Cr-8%Ni)
Features
• Good resistance to corrosion and oxidizing environments
• Easy to remove slag
• Good bead appearance
• High moisture resistance (17 type)
Diameter / Packaging
2.0 (5/64) 300 (12)
2.6 (3/32) 300 (12)
3.2 (1/8) 350 (14)
4.0 (5/32) 350 (14)
5.0 (3/16) 350 (14)
DNV·GL NV 308L
NK KD308L
CWB CSA W48 E308L-16
TÜV EN ISO 3581-A - E 19 9 L
DB DIN EN ISO 3581-A-E 19 9 L R
CE CCS 304L
Welding Position
Current
AC or DC ±
Redrying Conditions
350°C (662°F) X 1hr
SM-70eco
GAS METAL ARC WELDING CONSUMABLES FOR WELDING OF Mild & 490Mpa CLASS HIGH TENSILE STEEL
2015. 4
Specification
Applications
Characteristics on Usage
AWS A5.18
EN ISO 14341-A
ER70S-6
G 42 4 C1 3Si1
G 42 4 M21 3Si1
Butt and fillet welding of vehicles, buildings, ships, machinery and bridge
Note on Usage
SM-70 eco is a solid wire designed for all position welding by short-circuiting type transfer. As the deposition efficiency is high and penetration is deep, highly efficient welding can be performed
1. Use with CO2 / Argon + 15~25% CO2 gas.
2. Flow quantity of shielding gas should be 15-20ℓ/min. approximately.
3. Use wind screen against wind.
4. Keep distance between tip and base metal 6~15mm for less than 250A, and 15~25mm for more than 250A of welding current.
Mechanical Properties & Chemical Composition of All Weld Metal
Mechanical Properties of the weld metal Chemical Analysis of the weld metal(wt%) Welding Conditions
[ Joint Preparation & Layer Details ]
Method by AWS Rules
Diameter(mm) : 1.2mm
Shielding Gas : 100%CO2
Flow Rate(ℓ /min.) : 20
Amp./ Volt. : 280 / 32
Stick-Out(mm) : 20~25
Pre-Heat(℃) : R.T .
Interpass Temp.(℃) : 150± 15
Polarity : DC(+) Brand Name
No Spec
Mechanical Properties & Chemical Composition of All Weld Metal
Welding Conditions
[ Joint Preparation & Layer Details ]
SM-70 eco
Method by AWS Rules
Diameter(mm) : 1.2mm
Shielding Gas : Ar + 20%CO2
Flow Rate(ℓ /min.) : 20
Amp./ Volt. : 280 / 30
Stick-Out(mm) : 20~25
Pre-Heat(℃) : R.T .
Interpass Temp.(℃) : 150± 15
Polarity : DC(+)
Mechanical Properties of the weld metal
A5.18 ER70S-6 ≥ 400 ≥ 480 ≥ 22 ≥27J at –30℃
Chemical Analysis of the weld metal(wt%)
AWS A5.18 ER70S-6 No Spec
Proper Welding Condition
Proper Current Range
Hydrogen Analysis Using Mercury Method
Result(㎖/100g Weld Metal)
Chemical Composition of Wire
Chemical Composition of Wire (Wt%)
Approvals
Shipping Approvals
of shipping & Size(mm)
Shielding Gas Welding Position
B-G 49 A 3 C1 S6 (B-G 49A 3 C G6) 0.8-Unlimited
+20%CO2 F, H-Fil4YSMH15 0.8~1.6 - -
This test report is made for giving general information, and it's not meaning guarantee. Test results are changeable by
SF-71MC
Type : Rutile
Conformances
AWS A5.36/ ASME SFA5.36 E71T1-C1A2-CS2
E71T1-M21A2-CS2
(AWS A5.20/ ASME SFA5.20 E71T-1C/-1M/-9C/-9M/-12C-/12M)
EN ISO 17632-A-T 46 3 P M21 1
EN ISO 17632-A-T 46 2 P C1 1
ABS 3YSA H10
LR 3YS H10
BV SA3YM HH
Applications
• Shipbuilding
• Structural fabrication
• General fabrication
• Pipe line
• Offshore structure
Features
• Low spatter and excellent performance
• Good arc performance and fast freezing slag
• Use 100% CO 2 gas or Ar-CO 2 mixture(Dual gas)
• Better performance in V-up position
Diameter / Packaging
1.2 (0.045)
1.4 (0.052)
1.6 (1/16)
DNV·GL IIIYMS H10
TÜV EN ISO 17632-A-T 46 2 P C 1 H10 T 46 3 P M 1 H10
DB EN ISO 17632-A-T 46 2 P C1 1 H10
T 46 3 P M21 1 H10
CWB CSA W48 E491T-1(M)
/-9(M)/-12(M)-H8
CE
Welding Position Current
DC + Shielding Gas
100% CO 2
Ar + 20~25% CO 2
GAS METAL ARC WELDING CONSUMABLE FOR WELDING OF 6063 AL-ALLOY
HYUNDAI WELDING CO., LTD.
Specification
AWS A5.10
JIS Z3232
EN 573.3
ER 4043
A4043- WY
EN AW - 4043
Applications
Char acteristics on Usage
Note on Usage
Packing ISO 18273
S AL 4043
Automotive, Bicycle, and Motorcycle frames - general repair and maintenance
4043 is a about 5% Silicon Aluminum filler metal, it can be recomme nded for welding, 3003 , 3004 , 5052 , 6061, 6063 and the casting metal 355 , 356 , 214 , and the color is grey after anodizing
1. Make sure the consumbale has adapted the environment temperature before unpacking the package.
2. Remove dirt such as oil and dust from the groove before welding.
3. T he quality of the weld joint will be better if the humidity of the weldi ng room is controled.
Type of Current DC+
Spool
Chemical Composition & Diameter Tolarance of Consumable
Chemical Analysis of Consumable (wt%)
JIS Z3232
RT of weld matel
Welding Conditions
[ Joint Preparation & Layer Details ]
RT of weld matel1
Consumables
Method by AWS Spec.
Di ameter ( mm) : 1. 6mm
Base metal : 6063- O
A mp . / Vo l t. :
Travel speed(mm/min) :
Pre - Heat (℃)
Interpass Temp.(℃) 240/24 300 800 : R.T : 60~110
P o s i ti o n : Overhead
P o l ar i ty : DCEP
1.5mm: 2 1mm: 3
Requirements (Rounded indicati ons)
0.5mm: 12 up to1.9mm: ≤4 up to1.3mm: ≤5 up to0.5mm: ≤17 or 0.5mm: ≤108
Note1: In evaluating the radiograph, the center 150mm of the test specimen shall be considered, and all extra weld shall be disregarded.
Note2: Indications which do not exceed 0.4 mm diameter or length, or both, shall be disregarded, and indications larger than the large indications permitted can be regarded do not meet the requirements.
Note3: The results are obtained based on the experiment of the test specimen welded in flat position whi c h is demanded in EN14532.
This information is provided solely for the purpose of confirming product conformance with applicable standards The serviceability of a product or st ructure utilizing this type of information is and must be the sole responsibility of the builder/user Many variables beyond the control of HYUNDAI WEL DING CO , LTD affect the results obtained in applying this type of information These variables include, but are not limited to, welding procedure, shi elding gas, plate chemistry and temperature, weldment design, fabrication methods and service requirements
Mechanical Properties of welded joint
Mechanical Properties of welded joint Consumable
A5.10 ER 4043 Not Specified Not Specified
Note 1: During testing, the test specimen shall not reveal any one single flaw greater than 3 mm in any direction Flaws appearing at the corners of a test specimen shall be ignored in the evaluation unless there is evidence that they result from lack of fusion.
Appearance of Bead on plate
Flat(PA) , Base : 6063 - T5, 6mm
-4043
Approvals
AUTHORIZED APPROVAL DETAILS
SMT - 4043
ISO 18273 S Al 4043
0.8~4.0mm
ISO 18273 S Al 4043 0.8~4.0mm
GAS METAL ARC WELDING CONSUMABLE FOR WELDING OF 5083 AL-ALLOY
HYUNDAI WELDING CO., LTD.
Specification
AWSA5.10
JIS Z3232
EN 573.3
ISO 18273
Applications
Char acteristics on Usage
Note on Usage
Packing
ER 5356
A5356-WY
EN AW-5356
S AL 5356
It is considered as one of the most popular welding consumables in Al - alloy, used for welding casting Al - Mg alloys with maximum 5% Magnesium and parts of wrought alloy of 5000 series，6000 series and 7000 series Mainly applied in sports equipment, compressed container, the construction of ship, railway and in the automotive industry.
5356 is a about 5% Magnesium Aluminum filler metal which has high strength, high corrosion resistance, and matches the color well with the parent metal after anodizing.
1.Make sure the consumbale has adapted the environment temperature before unpacking the package.
2. Remove dirt such as oil and dust from the groove before welding.
3. The quality of the weld joint will be better if the humidity of the welding room is controled.
Chemical
Composition & Diameter Tolarance of Consumable
Chemical Analysis of Consumable (wt%)
Diameter Tolarance
RT of weld matel
Welding Conditions
Groove angle = 60˚
[ Joint Preparation & Layer Details ]
RT of weld matel1
Consumables
Method by AWS Spec.
Di ameter ( mm) : 1. 6mm
metal : 5 083- O
A mp . / Vo l t. : Travel speed(mm/min) :
Pre - Heat (℃)
Interpass Temp.(℃) 2 20 /2 3
P o s i ti o n : Overhead
P o l ar i ty : DCEP
AWS A5.102
14532 & ISO 10042
JIS Z3232 Results
(Rounded indications)
up to1.9mm: ≤4
1.5mm: 3 up to1.3mm: ≤5
SMT-5356 1mm: 3 up to0.5mm: ≤17
0.5mm: 13 or 0.5mm: ≤108
3
Note1: In evaluating the radiograph, the center 150 mm of the test specimen shall be considered, and all extra weld shall be disregarded. Note2: Indications which do not exceed 0.4 mm diameter or length, or both, shall be disregarded, and in dications larger than the large indications permitted can be regarded do not meet the requirements. Note3: The results are obtained based on the experiment of the test specimen welded in flat position which is demanded in EN14532.
Mechanical
Properties of welded joint
Mechanical Properties of welded joint
Note 1: During testing, the test specimen shall not reveal any one single flaw greater than 3 mm in any direction. Flaws appearing at the corners of a test specimen shall be ignored in the evaluation unless there is evidence that they result from lack of fusion.
Appearance of Bead on plate
Flat(PA) , Base : 6063 - T5, 6mm
Approvals
AUTHORIZED APPROVAL DETAILS
SMT - 5356
ISO 18273 S Al 5356
0.8~4.0mm
ISO 18273 S Al 5356
0.8~4.0mm
ST-CuZn C
AWS A5.8/ ASME SFA5.8 RBCuZn-C (Low Fuming Br onze)
HYUNDAI WELDING CO., LTD.
PRODUCT SPECIFICATIONS
AWS A5.8/ ASME SFA5.8 RBCuZn-C
ST-CuZn C
APPLICATIONS
KEY FEATURES
PACKING
Chemical Analysis of the Wire
- Brazing of Copper, Steel, Copper-Nickel, Cast-Iron and Carbide Cutting tools incrustation
- Most Popular for padding material of gas-welding and arc welding in brass
