DESCRIPTION

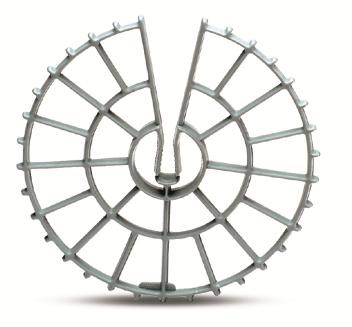

Aztec Space Wheel – PSW is molded from composite plastic, providing high durability and strength across a large temperature range.
APPLICATION
The Aztec PSW is a side form spacer that clips easily over rebar, providing proper cover spacing between the formwork and rebar.
PRODUCT SPECIFICATION
■ Available cover heights 3/8” to 3”
■ Concrete cover is defined as the distance from where reinforcement sits in hub of wheel to outside of wheel where it contacts the form.
FEATURES
■ Designed to fit a wide range of rebar and wire mesh sizes
■ Minimal surface contact
■ Standard “concrete Grey” color
■ Lightweight
BENEFITS
■ Quick and easy installation
APPROVALS / COMPLIANCE
■ ACI 315-99
■ CRSI requirements for Class 1 compliance
RELATED PRODUCTS
■ PLW AZTEC E-Z Lok Wheel
■ PFW BarTender Plastic Foundation Wheel
■ REBoot Plastic Foundation Boot
PSW - AZTEC® SPACE WHEEL™
ORDERING INFORMATION
AZTEC® SPACE WHEEL
MANUFACTURER
Dayton Superior Corporation 1125 Byers Road Miamisburg, OH 45342
Customer Service: 888-977-9600
Technical Services: 877-266-7732
Website: www.daytonsuperior.com
