TECHNICAL DATA SHEET
DESCRIPTION

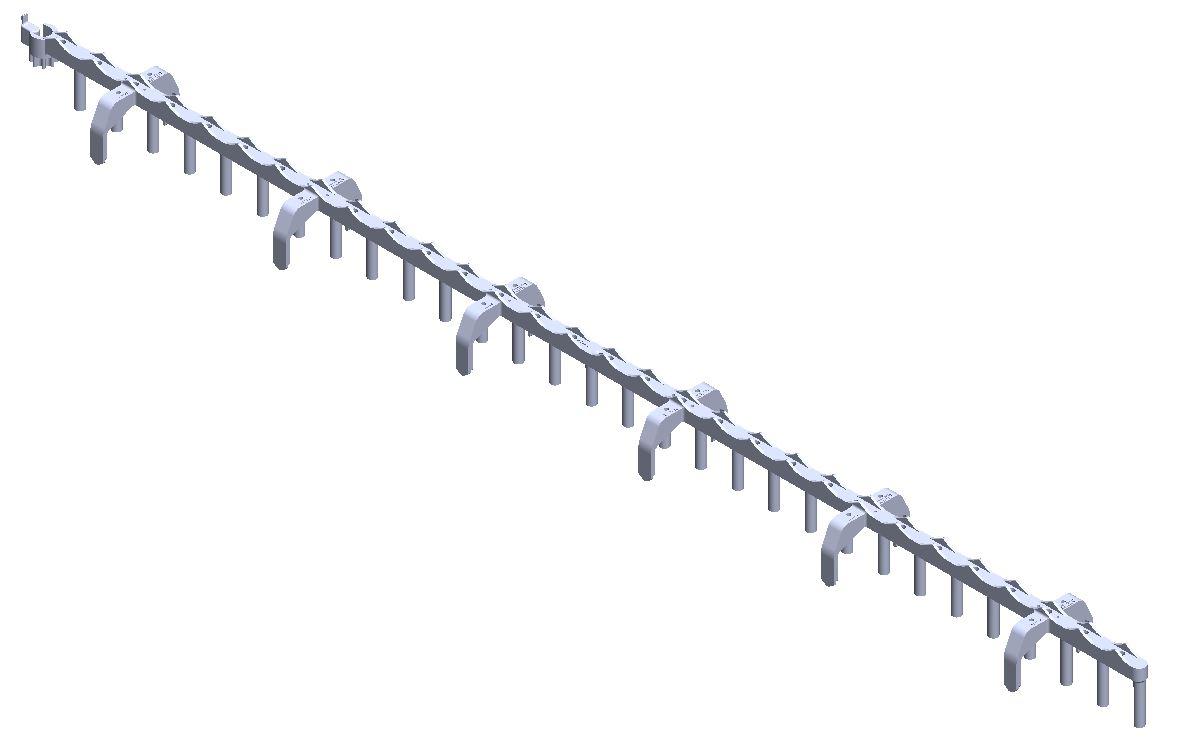

The EZ Connect Slab Bolster provides a continuous, strong and stable support for spacing rebar.
APPLICATION
The EZ Connect Slab Bolster supports rebar to provide proper concrete cover and can be easily connected to form multiple lengths of continuous bar support in 2.5 ft. increments.
PRODUCT SPECIFICATION
■ Heights from 3/4" to 3"
■ Available in 2.5', 5', & 10' lengths
■ Available in Standard & Heavy Gauges, depending on application needs
BENEFITS
■ Simple installation
■ Non-corrosive
■ Lightweight
■ Heavy gauge offering features a more robust spine in order to withstand side-impacts & torsional forces.
INSTALLATION
1. Connect the slab bolsters together for the desired length.
2. Place the continuous bar support on the form or surface so that the rebar can properly rest on the surface of the support.
HOW TO ORDER
Specify: (1) quantity, (2) name, (3) gauge, & (4) size
Example: 2 cartons, PSB Aztec EZ Connect Slab Bolster, Standard Gauge, 1" cover x 2-1/2' length
Aztec® EZ Connect™ PSB
ORDERING INFORMATION
AZTEC® E-Z CONNECT™ SLAB BOLSTER - HEAVY GAUGE
TECHNICAL DATA SHEET
WARRANTY (ACCESSORIES)
Limited Warranty. Dayton warrants, for a period of 60 days from the date of shipment (three years from the date of shipment in the case of formwork, excluding any consumable Products included with such formwork), that Products and any associated application drawings and engineering services provided by Dayton (“Ancillary Services”) will be free from defects in material and workmanship and, in the case of custom designed formwork, that the formwork will meet the specifications set forth in the design drawings approved by Dayton and Customer. Any claim under this warranty must be made in writing within such warranty period. If any Product and/or Ancillary Service covered by a timely claim are found to be defective, Dayton will, within a reasonable time, make any necessary repairs or corrections or, at Dayton’s option, replace the Product. Unless pre-authorized by Dayton in writing, Dayton will not accept any charges for correcting defects or accept the return of any Product. This warranty will not apply to any Products that have been subjected to misuse, neglect, storage damage, misapplication, accident or any other damage caused by any person other than Dayton, or that have not been maintained in accordance with Dayton’s specifications. THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES AS TO THE PRODUCTS AND ANCILLARY SERVICES. DAYTON MAKES NO OTHER WARRANTIES OR GUARANTEES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR OTHERWISE. THE REMEDIES SET FORTH IN THIS SECTION ARE CUSTOMER’S EXCLUSIVE REMEDY FOR BREACH OF WARRANTY.
MANUFACTURER
Dayton Superior Corporation 1125 Byers Road
Miamisburg, OH 45342
Customer Service: 888-977-9600
Technical Services: 877-266-7732
Website: www.daytonsuperior.com
