2024 Marin Bikes by Marin Mountain Bikes Inc.

2024 DEALER BOOK

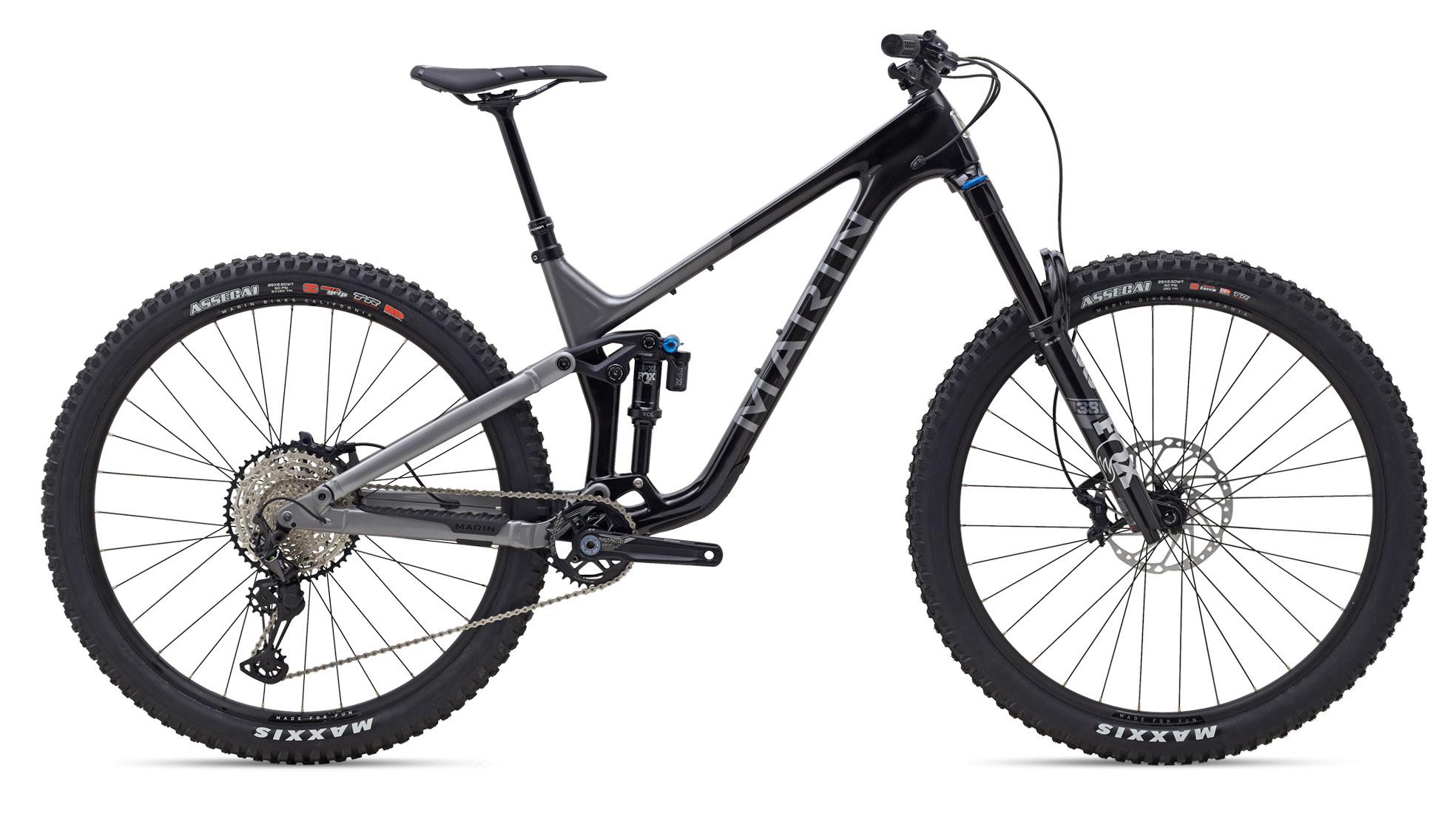

ALPINE TRAIL CARBON 2

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL

160mm / 150mm BLACK / SILVER

▶ Unidirectional carbon fiber/Series 4 MultiTrac frame, 150mm travel

▶ Fox 38 Performance fork w/160mm travel, Fox Float X shock

▶ Shimano SLX 12-speed drivetrain; SLX 4-piston disc brakes

▶ Marin 29mm inner rims, Maxxis Assegai 29” x 2.5” tires

▶ Also available as a frame kit

Specifications, pricing, and availability are subject to change without notice.

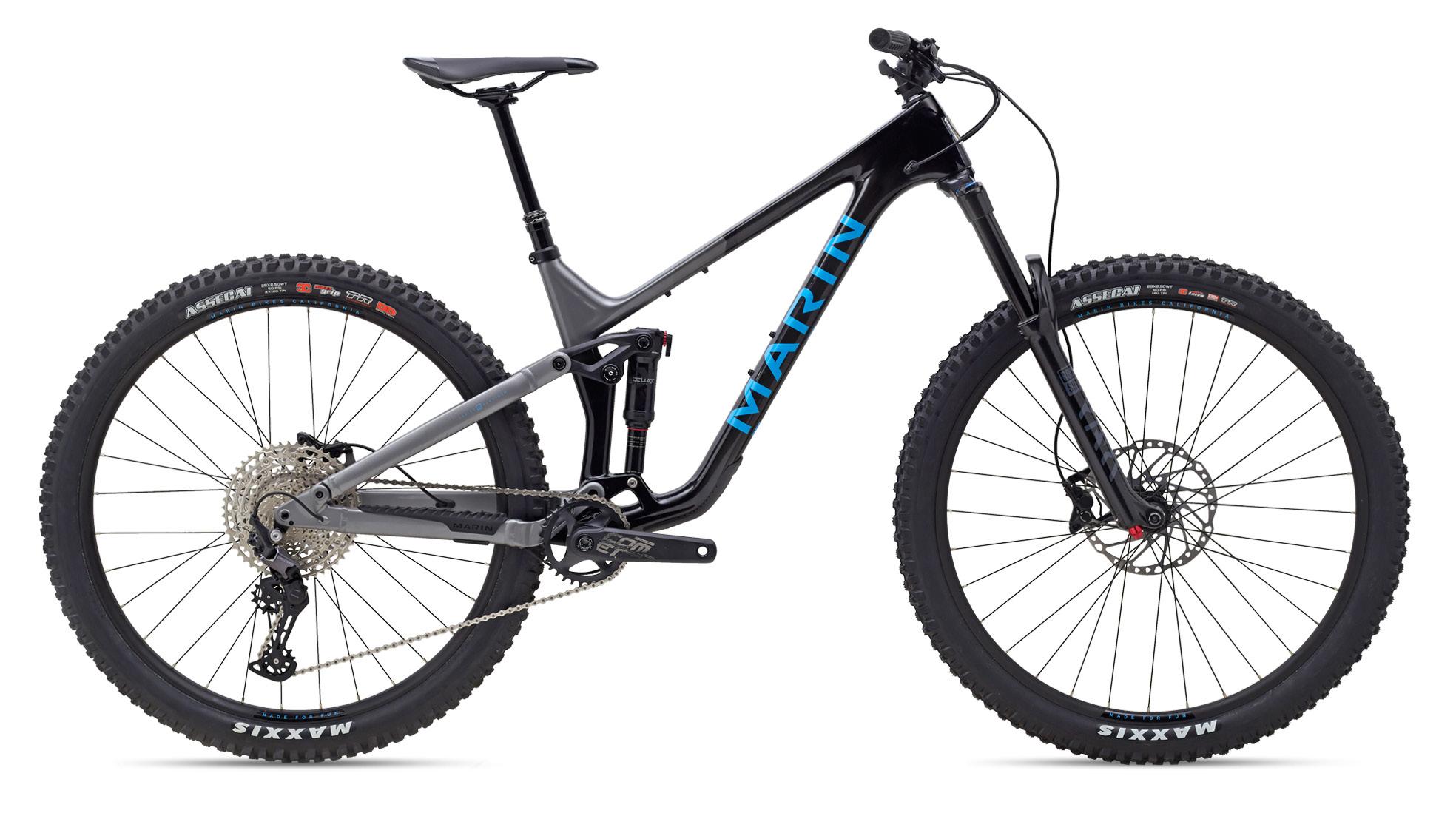

ALPINE TRAIL CARBON 1

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 29” 160mm / 150mm CARBON / BLUE

▶ Unidirectional carbon fiber/Series 4 MultiTrac frame, 150mm travel

▶ RockShox Yari RC fork w/160mm travel & Deluxe Select+ shock

▶ Shimano SLX 12-speed drivetrain; TRP Slate EVO 4-piston disc brakes

▶ Marin 29mm inner rims, Maxxis Assegai 29” x 2.5” tires

Specifications, pricing, and availability are subject to change without notice.

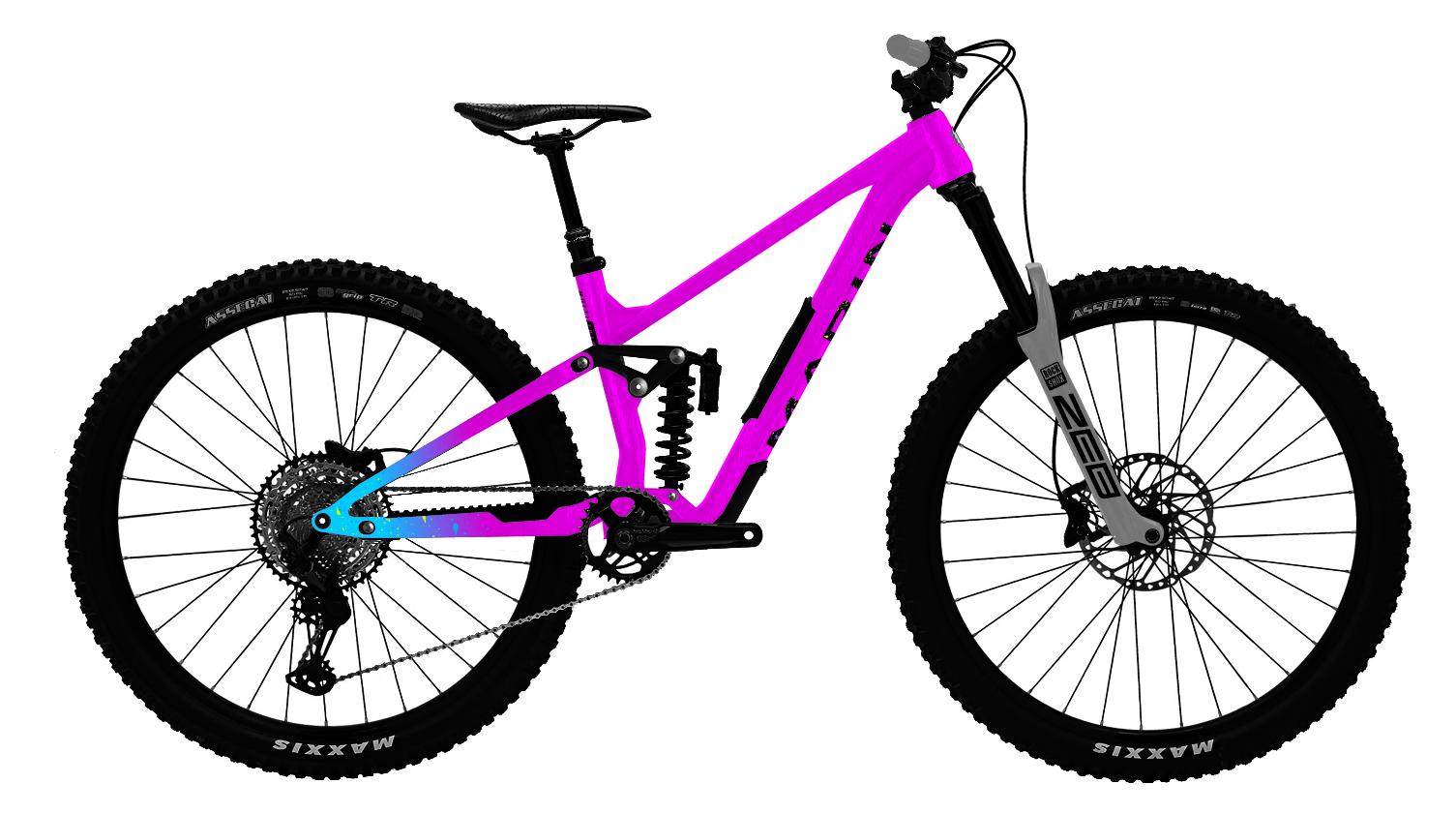

ALPINE TRAIL XR AXS

pre-production graphic rendering shown for color purposes only

SIZES:

WHEEL SIZE:

SUSPENSION: COLOR:

S / M / L / XL 29” 170mm / 160mm MAGENTA / BLUE

▶ All-new Series 4 aluminum MultiTrac LT frame, adjustable geometry, 160mm travel, adjustable rear wheel size & downtube storage

▶ RockShox Zeb Ultimate fork w/170mm travel & Super Deluxe Coil Ultimate shock

▶ New SRAM 12-speed drivetrain; SRAM Code Bronze 4-piston disc brakes

▶ Marin 29mm inner rims, Maxxis Assegai 29”/27.5” x 2.5” tires

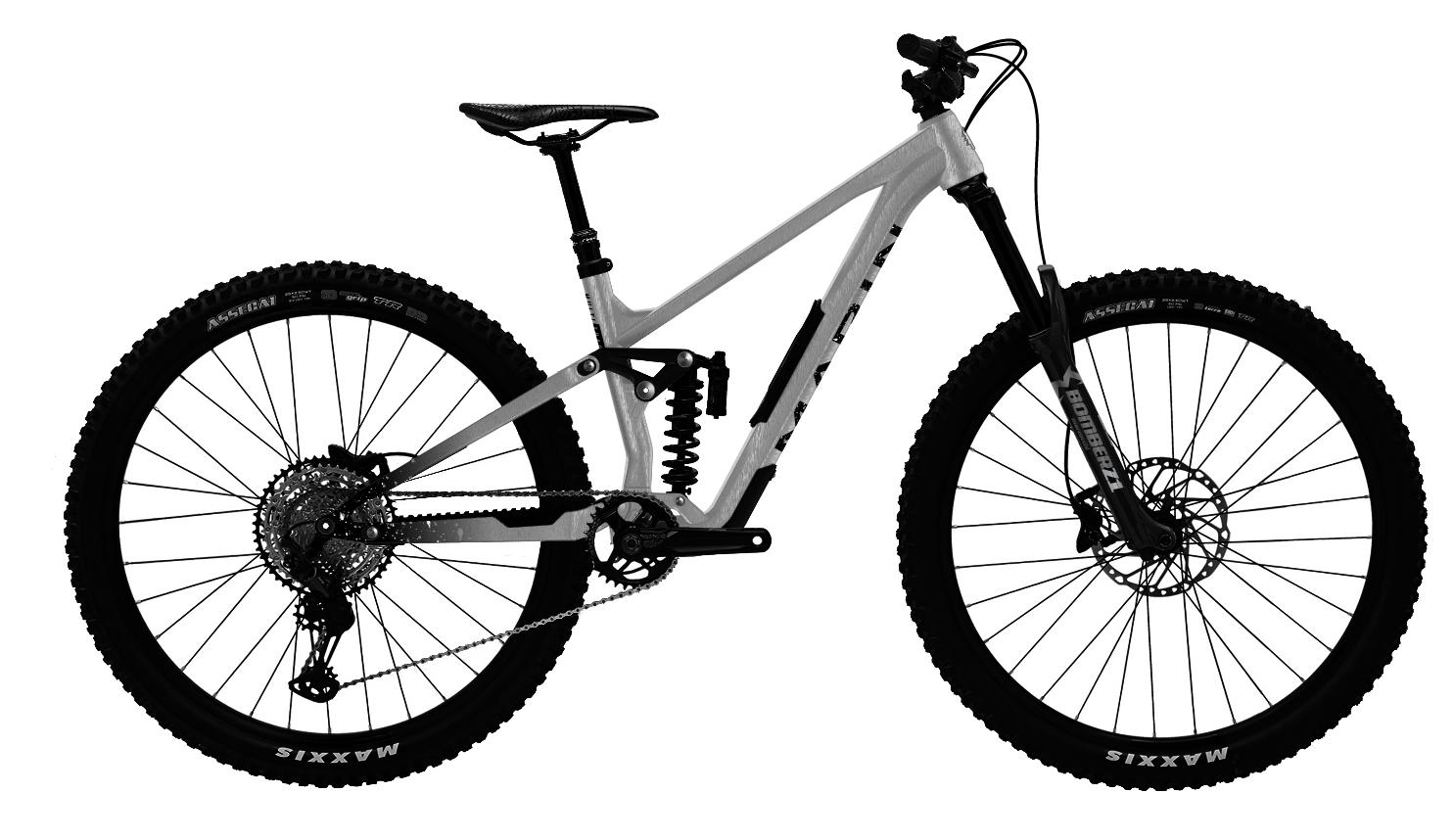

ALPINE TRAIL XR

pre-production graphic rendering shown for color purposes only

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 29” 170mm / 160mm BRUSHED ALLOY

▶ All-new Series 4 aluminum MultiTrac LT frame, Adjustable Geometry, 160mm travel, adjustable rear wheel size & downtube storage

▶ RockShox Zeb Ultimate fork w/170mm travel & Super Deluxe Coil Ultimate shock

▶ SRAM GX Eagle Lunar 12-speed drivetrain; SRAM DB8 4-piston disc brakes

▶ Marin 29mm inner rims, Maxxis Assegai 29”/27.5” x 2.5” tires

▶ Also available as a frame kit

Specifications, pricing, and availability are subject to change without notice.

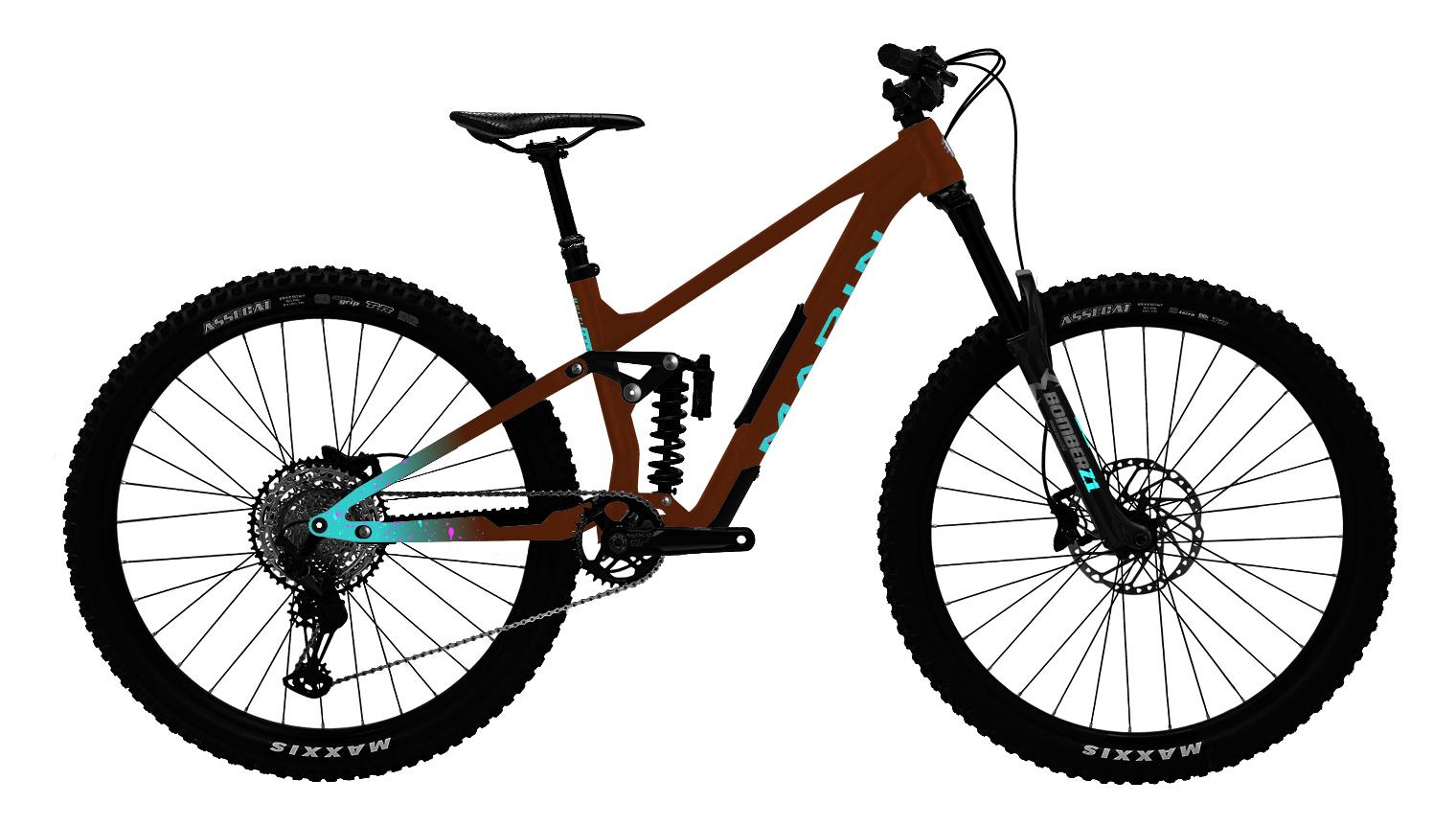

ALPINE TRAIL 1

pre-production graphic rendering shown for color purposes only

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 29” 170mm / 160mm BROWN / BLUE

▶ All-new Series 4 aluminum MultiTrac LT frame, Adjustable Geometry, 160mm travel, adjustable rear wheel size & downtube storage

▶ Fox 36 Rhythm fork w/170mm travel & Float Performance shock

▶ Shimano Deore 12-speed drivetrain; TRP Slate EVO 4-piston disc brakes

▶ Marin 29mm inner rims, Vee Tire Co. Flow Snap WCE 29”/27.5” x 2.6” tires

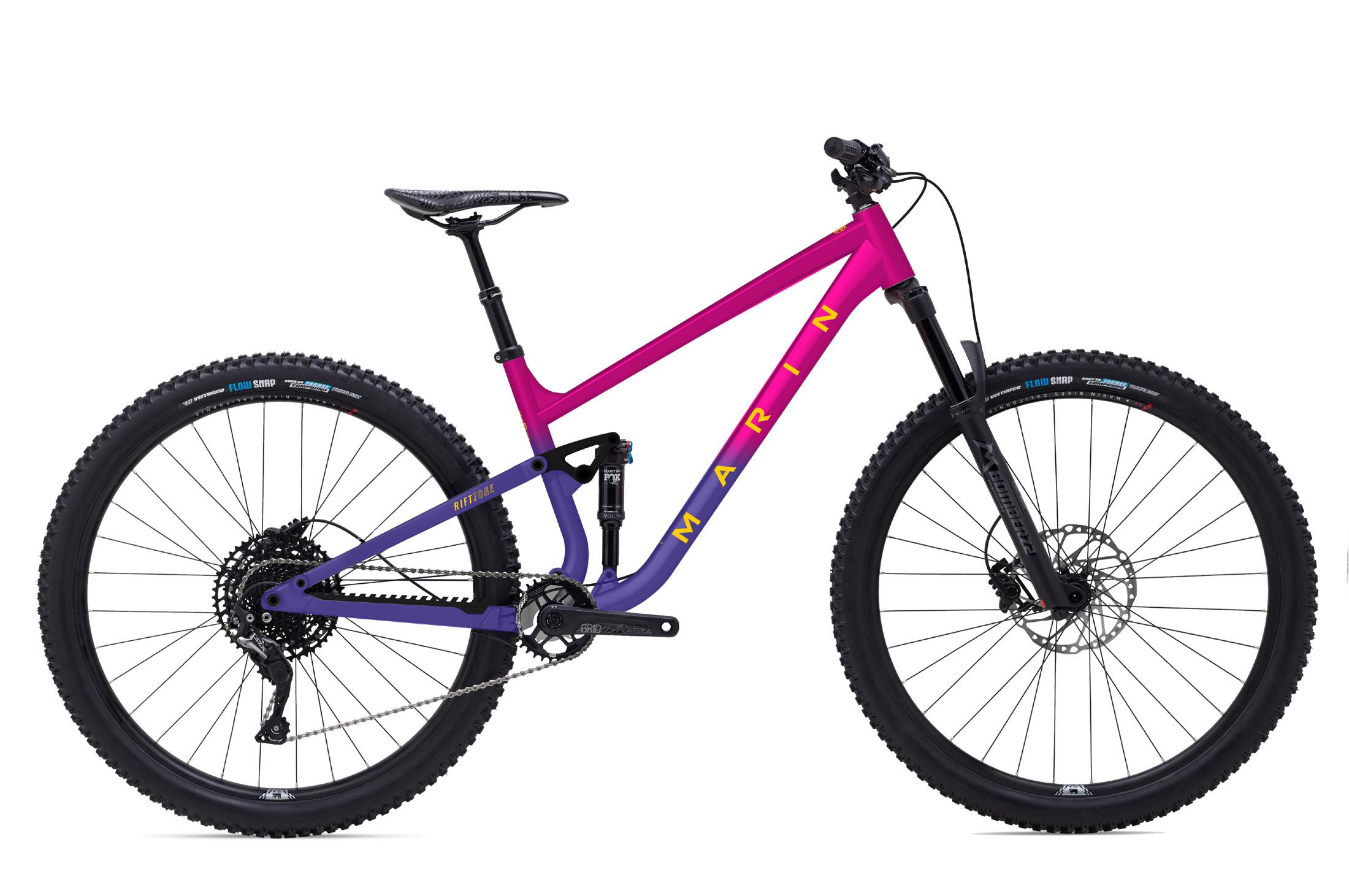

RIFT ZONE 29” XR AXS

pre-production graphic rendering shown for color purposes only

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 29” 150mm / 130mm MAGENTA / PURPLE

▶ Series 3 aluminum MultiTrac aluminum frame, 130mm travel

▶ RockShox Lyrik Select+ fork w/150mm travel & Super Deluxe Select+ shock

▶ New SRAM 12-speed drivetrain; SRAM Code Bronze 4-piston disc brakes

▶ Marin 29mm inner rims, Maxxis Assegai 29” x 2.5” tires

and

RIFT ZONE 29” XR

pre-production graphic rendering shown for color purposes only

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 29” 150mm / 130mm CHAMPAGNE / BROWN

▶ Series 3 aluminum MultiTrac aluminum frame, 130mm travel

▶ RockShox Lyrik Select+ fork w/150mm travel & Super Deluxe Select+ shock

▶ SRAM GX Eagle Lunar 12-speed drivetrain; SRAM DB8 4-piston disc brakes

▶ Marin 29mm inner rims, Maxxis Assegai 29” x 2.5” tires

RIFT ZONE 29” 2

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 29” 140mm / 130mm WHITE / GREY

▶ Series 3 aluminum MultiTrac aluminum frame, 130mm travel

▶ Marzocchi Bomber Z2 fork w/140mm travel & RockShox Deluxe Select shock

▶ Shimano Deore 12-speed drivetrain; Tektro 4-piston disc brakes

▶ Marin 29mm inner rims, Vee Tire Snap WCE 29” x 2.35” tires

Specifications, pricing, and availability are subject to change without notice.

RIFT ZONE 29” 1

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 29” 140mm / 130mm CHARCOAL / BLACK ORANGE / BLUE

▶ Series 3 aluminum MultiTrac aluminum frame, 130mm travel

▶ X-Fusion Slide Boost RC fork w/140mm travel & O2 Pro R shock

▶ Shimano Deore 11-speed drivetrain; Tektro 4-piston disc brakes

▶ Marin 29mm inner rims, Vee Tire Snap WCE 29” x 2.35” tires

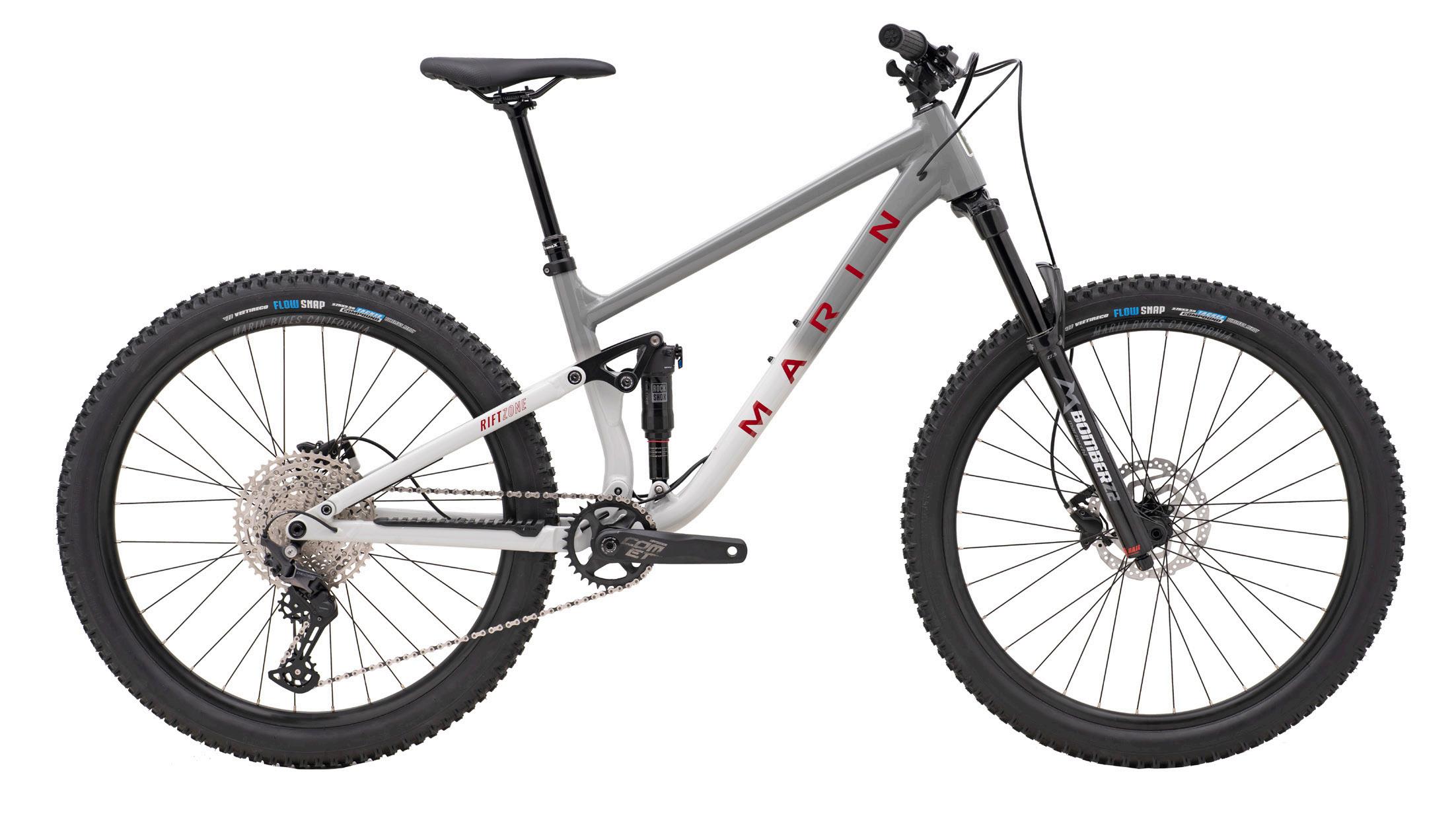

RIFT ZONE 27.5” 2

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL

27.5” 140mm / 130mm WHITE / GREY

▶ All-new Series 3 aluminum MultiTrac aluminum frame, 130mm travel

▶ Marzocchi Bomber Z2 fork w/140mm travel & RockShox Deluxe Select shock

▶ Shimano Deore 12-speed drivetrain; Tektro 4-piston disc brakes

▶ Marin 29mm inner rims, Vee Tire Snap WCE 27.5” x 2.35” tires

Specifications, pricing, and availability are subject to change without notice.

RIFT ZONE 27.5” 1

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR:

XS / S / M / L / XL

27.5” 140mm / 130mm CHARCOAL / BLACK ORANGE / BLUE

▶ All-new Series 3 aluminum MultiTrac aluminum frame, 130mm travel

▶ X-Fusion Slide Boost RC fork w/140mm travel & O2 Pro R shock

▶ Shimano Deore 11-speed drivetrain; Tektro 4-piston disc brakes

▶ Marin 29mm inner rims, Vee Tire Snap WCE 27.5” x 2.35” tires

Specifications, pricing, and availability are subject to change without notice.

SAN QUENTIN 29” 3

27.5” model shown for color purposes only

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL

27.5” 140mm WHITE / BLACK

▶ All-new Series 3 double butted aluminum frame w/thru axle

▶ Marzocchi Bomber Z2 fork w/140mm travel

▶ Shimano Deore 12-speed drivetrain; TRP Slate EVO 4-piston disc brakes

▶ Marin 29mm inner rims, Maxxis Assegai 29” x 2.5” tires

▶ Also available as a frame kit

SAN QUENTIN 29” 2

27.5” model shown for color purposes only

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL

27.5” 140mm BLUE / BLACK

▶ All-new Series 3 double butted aluminum frame w/thru axle

▶ X-Fusion Slide Boost fork w/140mm travel

▶ Shimano Deore 11-speed drivetrain; Tektro M535 4-piston disc brakes

▶ Marin 29mm inner rims, Vee Tire Flow Snap 29” x 2.6” tires

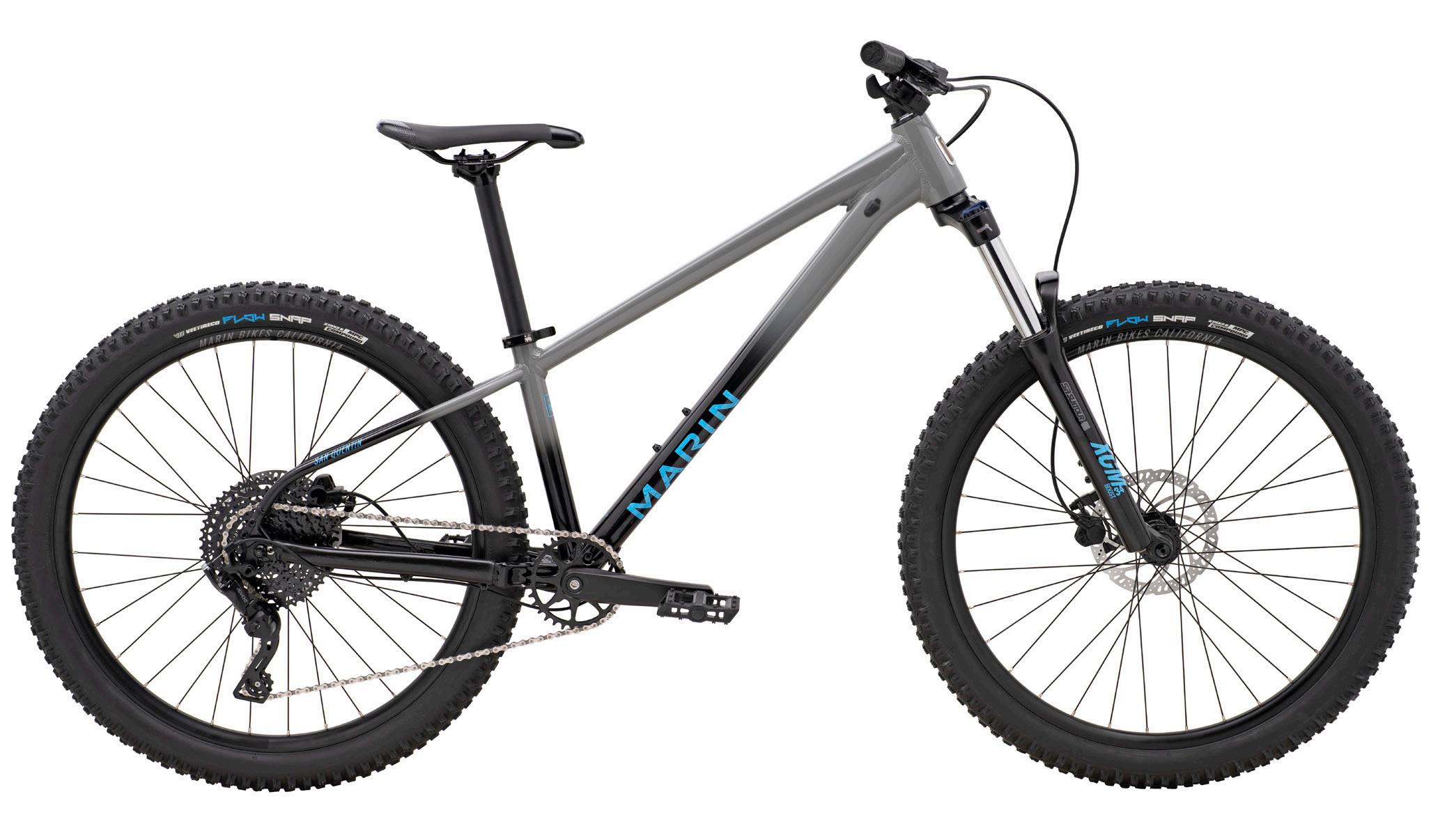

SAN QUENTIN 27.5” 3

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 27.5” 140mm WHITE / BLACK

▶ Series 3 double butted aluminum frame w/thru axle

▶ Marzocchi Bomber Z2 fork w/140mm travel

▶ Shimano Deore 12-speed drivetrain; TRP Slate EVO 4-piston disc brakes

▶ Marin 29mm inner rims, Maxxis Assegai 27.5” x 2.5” tires

▶ Also available as a frame kit

SAN QUENTIN 27.5” 2

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 27.5” 140mm BLUE / BLACK

▶ Series 3 double butted aluminum frame w/thru axle

▶ RockShox FS35 Silver fork w/140mm travel

▶ Shimano Deore 11-speed drivetrain; Tektro M535 4-piston disc brakes

▶ Marin 29mm inner rims, Vee Tire Flow Snap 27.5” x 2.6” tires Specifications, pricing, and availability are subject to

SAN QUENTIN 27.5” 1

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 27.5” 130mm GREY / BLACK TAN / BLACK

▶ Series 2 double butted aluminum frame

▶ SR/Suntour XCM34 Boost fork w/130mm travel

▶ microSHIFT 9-speed drivetrain; Tektro M275 hydraulic disc brakes

▶ Marin 29mm inner rims, Vee Tire Flow Snap 27.5” x 2.6” tires

Specifications, pricing, and availability are subject to change without notice.

BOBCAT TRAIL 5

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL

▶ Series 2 aluminum frame, 27.5” or 29” wheels

29” or 27.5” 120mm BLACK

▶ SR/Suntour XCR LOR-DS fork w/hydraulic lockout, 120mm travel

▶ Shimano Deore 11-speed drivetrain; MT201 hydraulic disc brakes

▶ Marin 29mm inner rims, 2.25” MTB tires

Specifications, pricing, and availability are

BOBCAT TRAIL 4

SIZES:

WHEEL SIZE:

SUSPENSION: COLOR:

S / M / L / XL

29” or 27.5”

▶ Series 2 aluminum frame, 27.5” or 29” wheels

▶ SR/Suntour XCM DS- fork w/hydraulic lockout, 120mm travel

▶ microSHIFT Advent 9-speed drivetrain; Tektro M275 hydraulic disc brakes

▶ Marin 25mm inner rims, 2.25” MTB tires

Specifications, pricing, and availability are subject to

BOBCAT TRAIL 3

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL

29” or 27.5” 120mm BLACK BLUE

▶ Series 2 aluminum frame, 27.5” or 29” wheels

▶ SR/Suntour XCM HLO fork w/hydraulic lockout, 120mm travel

▶ Shimano Altus 2x8 drivetrain; Tektro M275 hydraulic disc brakes

▶ Marin 25mm inner rims, 2.25” MTB tires

Specifications, pricing, and availability are subject to change without notice.

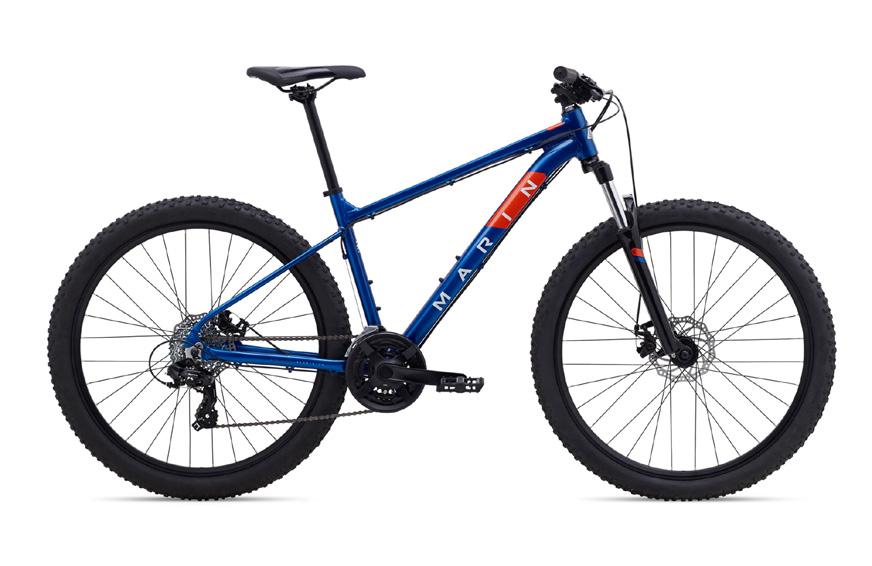

BOLINAS RIDGE 2

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR:

XS / S / M / L / XL

29” or 27.5” 100mm BLACK BLUE

▶ Series 1 aluminum frame, 27.5” or 29” wheels

▶ SR/Suntour XCM DS fork w/adjustable preload, 100mm travel

▶ Shimano Altus 3x8 drivetrain; Clark’s Clout hydraulic disc brakes

BOLINAS RIDGE 1

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR:

XS / S / M / L / XL

29” or 27.5”

▶ Series 1 aluminum frame, 27.5” or 29” wheels

▶ SR/Suntour XCE fork, adjustable preload, 100mm travel

▶ Shimano Tourney 3x7 drivetrain; Clark’s CMD-23 mechanical disc brakes

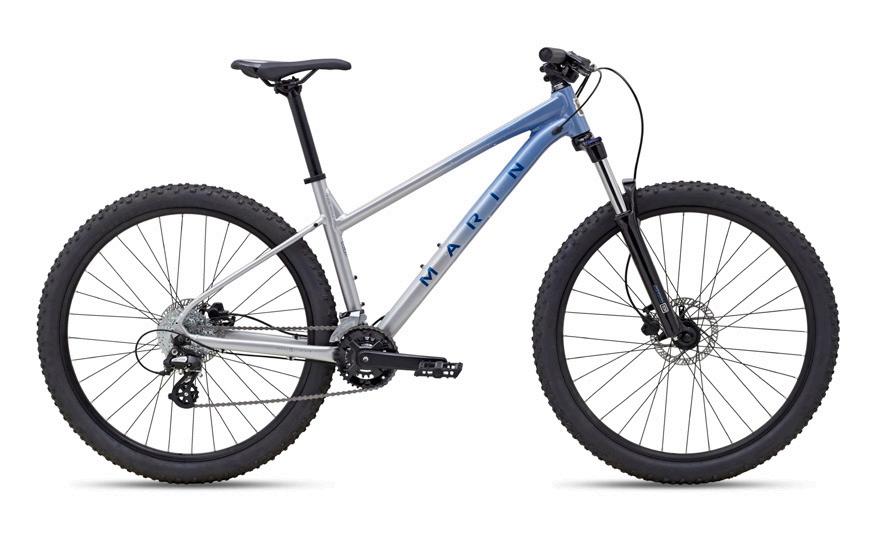

WILDCAT TRAIL 3

SIZES:

WHEEL SIZE:

SUSPENSION:

/ S / M / L

▶ Series 2 women’s-specific aluminum frame, 27.5” wheels

▶ SR/Suntour XCM HLO fork w/hydraulic lockout, 120mm travel

▶ Shimano Altus 2x8 drivetrain; Clark’s Clout hydraulic disc brakes

▶ Marin 25mm inner rims, 27.5” x 2.25” MTB tires

Specifications, pricing, and availability are subject to change without notice.

WILDCAT TRAIL 2

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: XS / S / M / L

▶ Series 1 aluminum frame, 27.5” wheels

▶ SR/Suntour XCM DS fork w/adjustable preload, 100mm travel

▶ Shimano Altus 3x8 drivetrain; Clark’s Clout hydraulic disc brakes

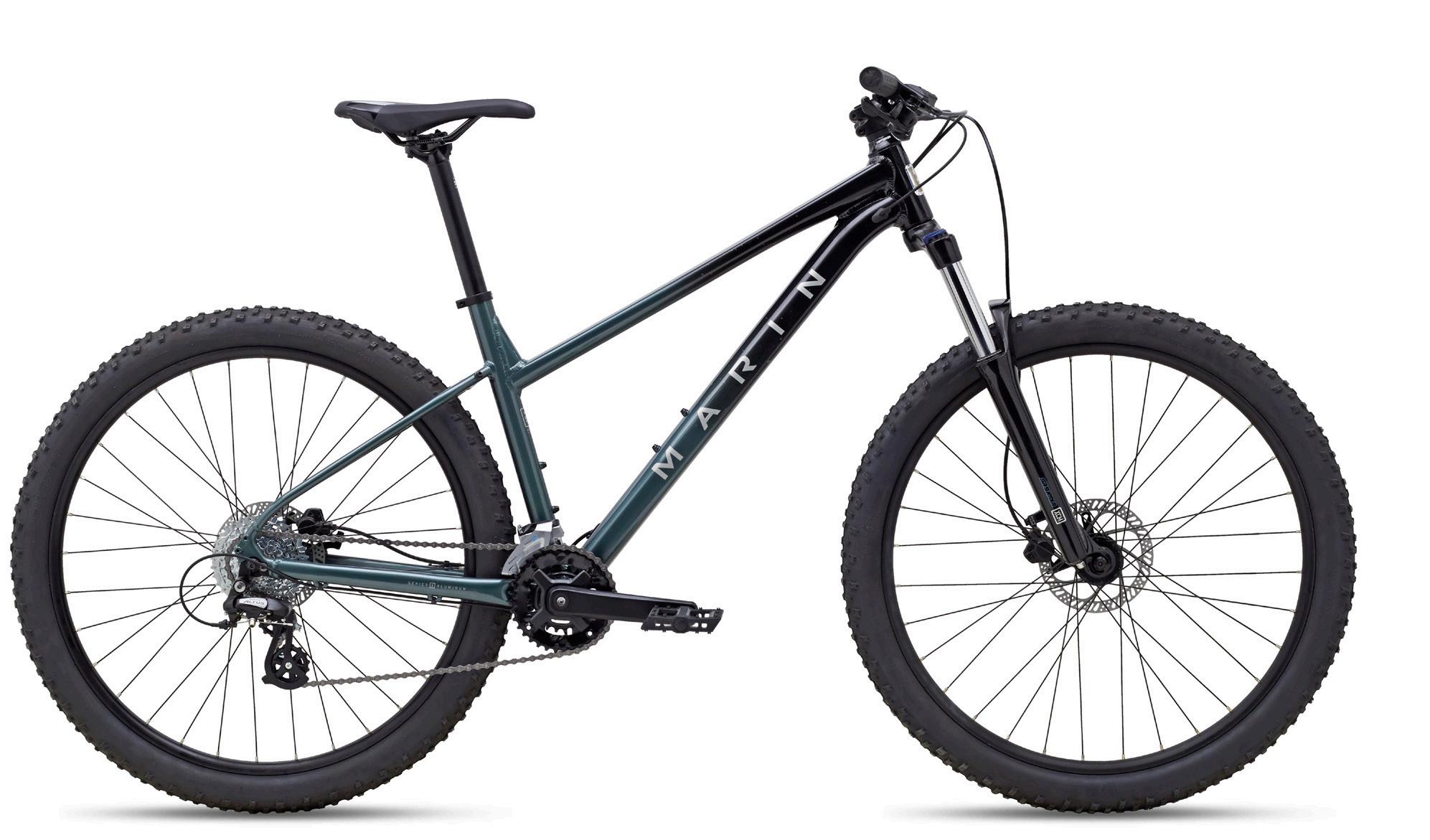

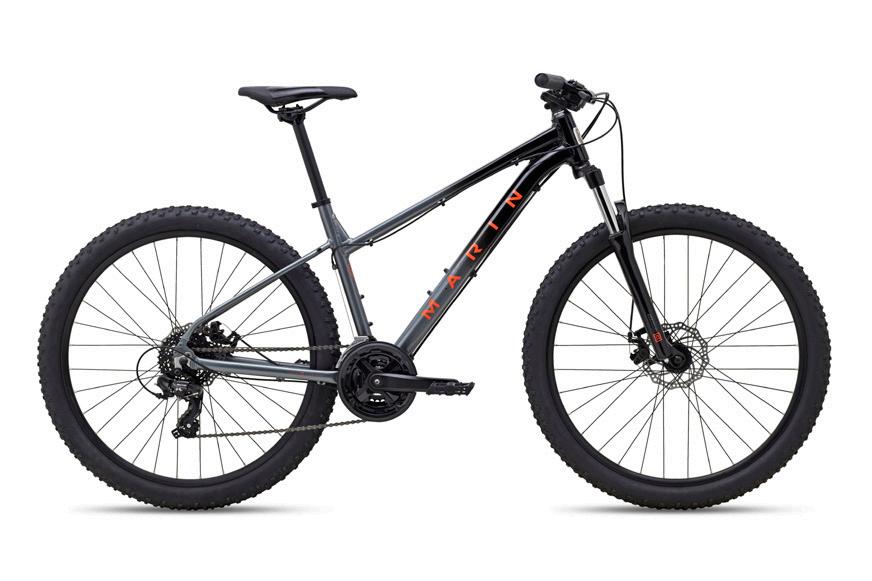

WILDCAT TRAIL 1

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR:

/ S / M / L

▶ Series 1 aluminum frame, 27.5” or 29” wheels

▶ SR/Suntour XCE fork, adjustable preload, 100mm travel

▶ Shimano Tourney 3x7 drivetrain; Clark’s CMD-23 mechanical disc brakes

TEAM MARIN 2

NEW

SIZES:

WHEEL SIZE:

SUSPENSION: COLOR: S / M / L / XL

▶ Superlight Series 4 double butted aluminum frame, 29” wheels

▶ Fox 34 StepCast fork w/120mm travel

▶ Shimano XT/SLX 12-speed drivetrain; TRP G-Spec FMR hydraulic disc brakes

▶ Marin 29mm inner rims, Maxxis Rekon Race 29” x 2.35” tires

TEAM MARIN 1

SIZES:

WHEEL SIZE:

SUSPENSION: COLOR: S / M / L / XL

▶ Superlight Series 4 double butted aluminum frame, 29” wheels

▶ RockShox Judy Silver TK fork w/120mm travel

▶ Shimano Deore 12-speed drivetrain; Tektro HDT280/285 hydraulic disc brakes

▶ Marin 29mm inner rims, Vee Tire Rail Rocco XC 29” x 2.3” tires

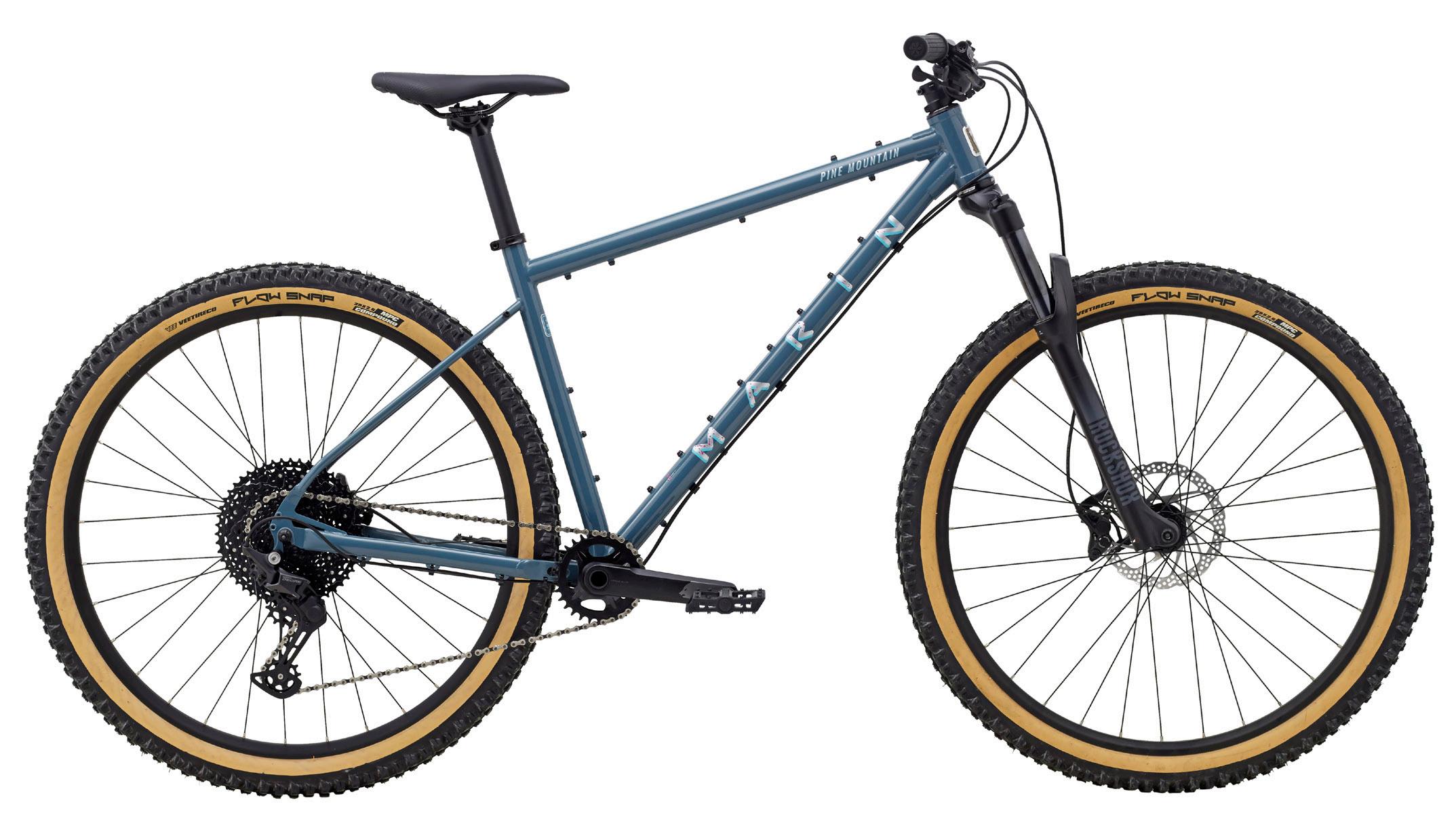

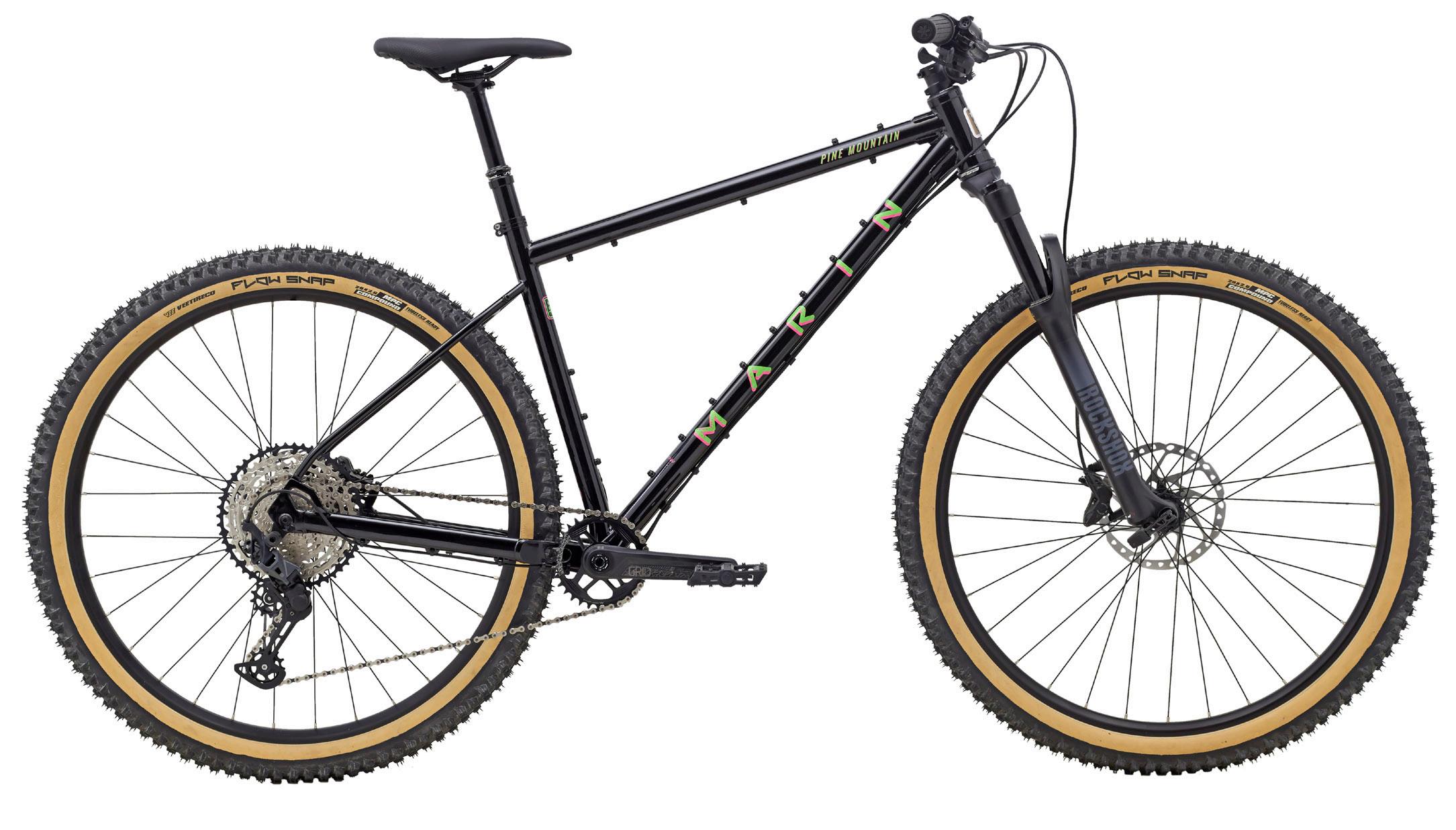

PINE MOUNTAIN 2

SIZES:

WHEEL SIZE:

SUSPENSION: COLOR: S / M / L / XL

▶ Series 3 double butted CrMo frame w/custom cast boost 148x12mm dropouts

▶ RockShox 35 Gold RL fork w/120mm travel

▶ Shimano SLX 12-speed drivetrain; TRP Slate EVO 4-piston disc brakes

▶ Marin 32mm inner, offset spoke rims, Vee Tire Flow Snap 29” x

PINE MOUNTAIN 1

SIZES: WHEEL SIZE:

SUSPENSION:

/ M / L / XL

▶ Series 2 double butted CrMo frame w/boost 141x9mm dropouts

▶ RockShox Recon RL fork w/120mm travel ▶ Shimano Deore 11-speed drivetrain; MT420/400 4/2 piston disc brakes ▶ Marin 32mm inner, offset spoke rims, Vee Tire

ALCATRAZ

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: SHORT / LONG 26” 100 mm BLUE / PINK BLACK / SILVER

▶ Series 3 aluminum frame w/horizontal single speed dropouts & chain tensioner

▶ Manitou Circus Expert fork

▶ 32t x 14t single speed drivetrain; Tektro M275 hydraulic disc brakes

▶ Marin 27mm inner rims, Vee Tire XCV 26” x 2.25” tires

▶ Also available as a frame kit

Specifications, pricing, and availability are subject to change without notice. frame kit colorway

HEADLANDS 2

NEW

SIZES:

WHEEL SIZE:

COLOR: 49 / 52 / 54 / 56 / 58 / 60

BLUE / GREEN / GREY

pre-production graphic rendering shown for color purposes

▶ Unidirectional Beyond Road carbon fiber frame, 1x specific

▶ Marin full carbon fork w/thru axle & eyelets

▶ SRAM Apex 12-speed drivetrain; Apex hydraulic disc brakes

▶ Marin 21mm inner rims, Vee Tire G-Sport 700x44mm tires, Dropper Post

▶ Also available as a frame kit

NEW HEADLANDS 1

SIZES:

WHEEL SIZE: COLOR:

pre-production graphic rendering shown for color purposes only

/ 52 / 54 / 56 / 58 / 60

▶ Unidirectional Beyond Road carbon fiber frame, 1x specific

▶ Marin full carbon fork w/thru axle & eyelets

▶ Shimano GRX 600 12-speed drivetrain; GRX hydraulic disc brakes

▶ Marin 21mm inner rims, Vee Tire G-Sport 700x44mm tires

GESTALT XR

pre-production graphic rendering shown for color purposes only

SIZES:

WHEEL SIZE:

COLOR: S / M / L / XL

BLACK / GREY

▶ Series 3 Beyond Road X aluminum frame, 1x specific

▶ Marin full carbon fork w/thru axle & eyelets

▶ SRAM Apex 12-speed drivetrain; Apex hydraulic disc brakes

▶ Marin 25mm inner rims, Vee Tire Rocket Man 700x44mm tires

▶ Dropper post

GESTALT X10

SIZES:

WHEEL SIZE:

COLOR: S / M / L / XL

▶ Series 3 Beyond Road X aluminum frame, 1x specific

▶ Marin full carbon fork w/thru axle & eyelets

▶ microSHIFT Advent 1x 10 wide-range drivetrain; Tektro C500 dual piston mechanical disc brakes

▶ Marin 25mm inner rims, Vee Tire Rocket Man 700x44mm tires Specifications,

GESTALT 2

SIZES:

WHEEL SIZE: COLOR: 50 / 52 / 54 / 56 / 58 / 60

▶ Series 3 Beyond Road aluminum frame

▶ Marin full carbon fork w/thru axle & eyelets

▶ Shimano GRX 2x10 drivetrain; Shimano GRX hydraulic disc brakes

▶ Marin 19mm inner rims, Vee Tire Zilent 700x35mm tires

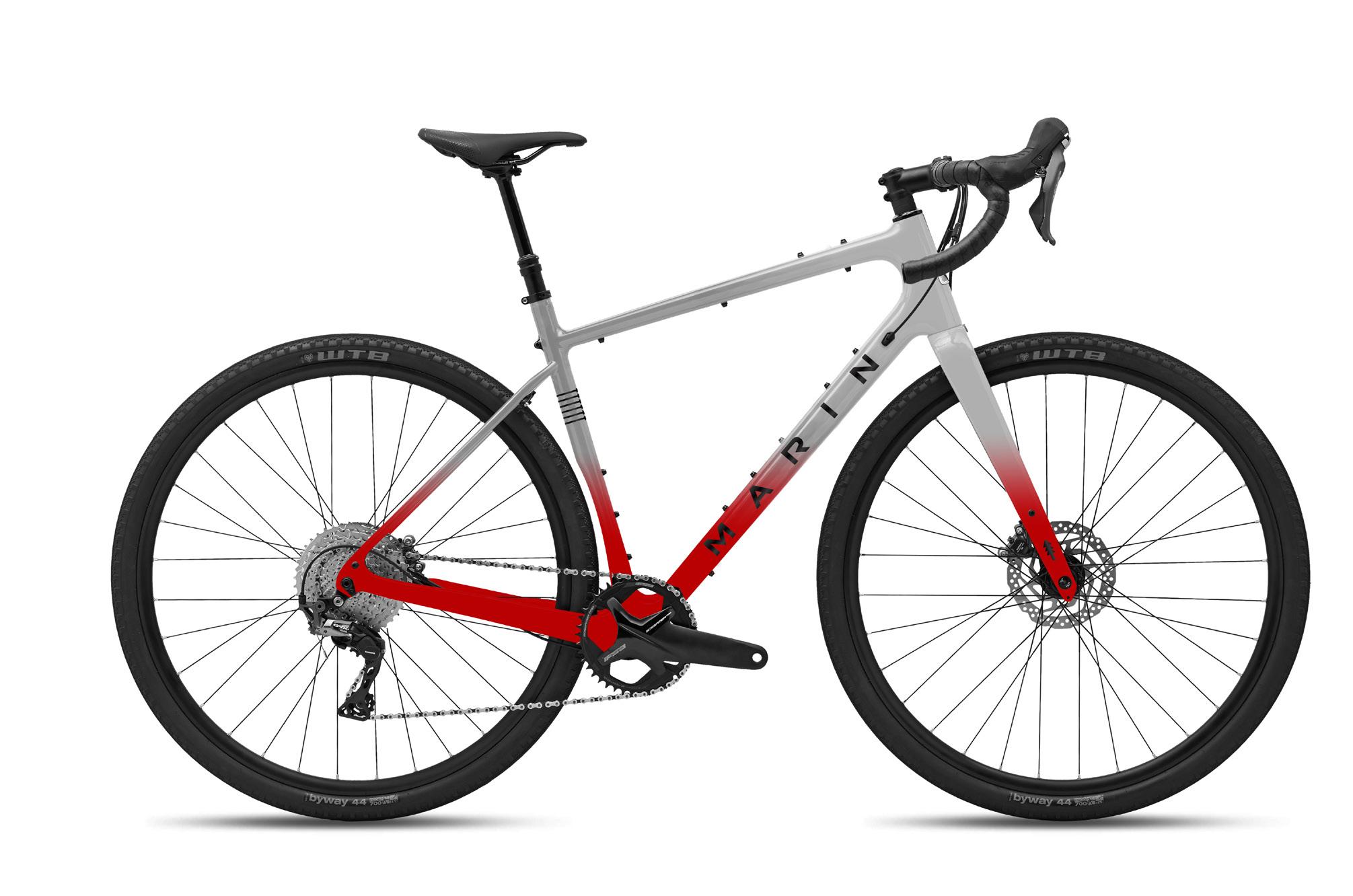

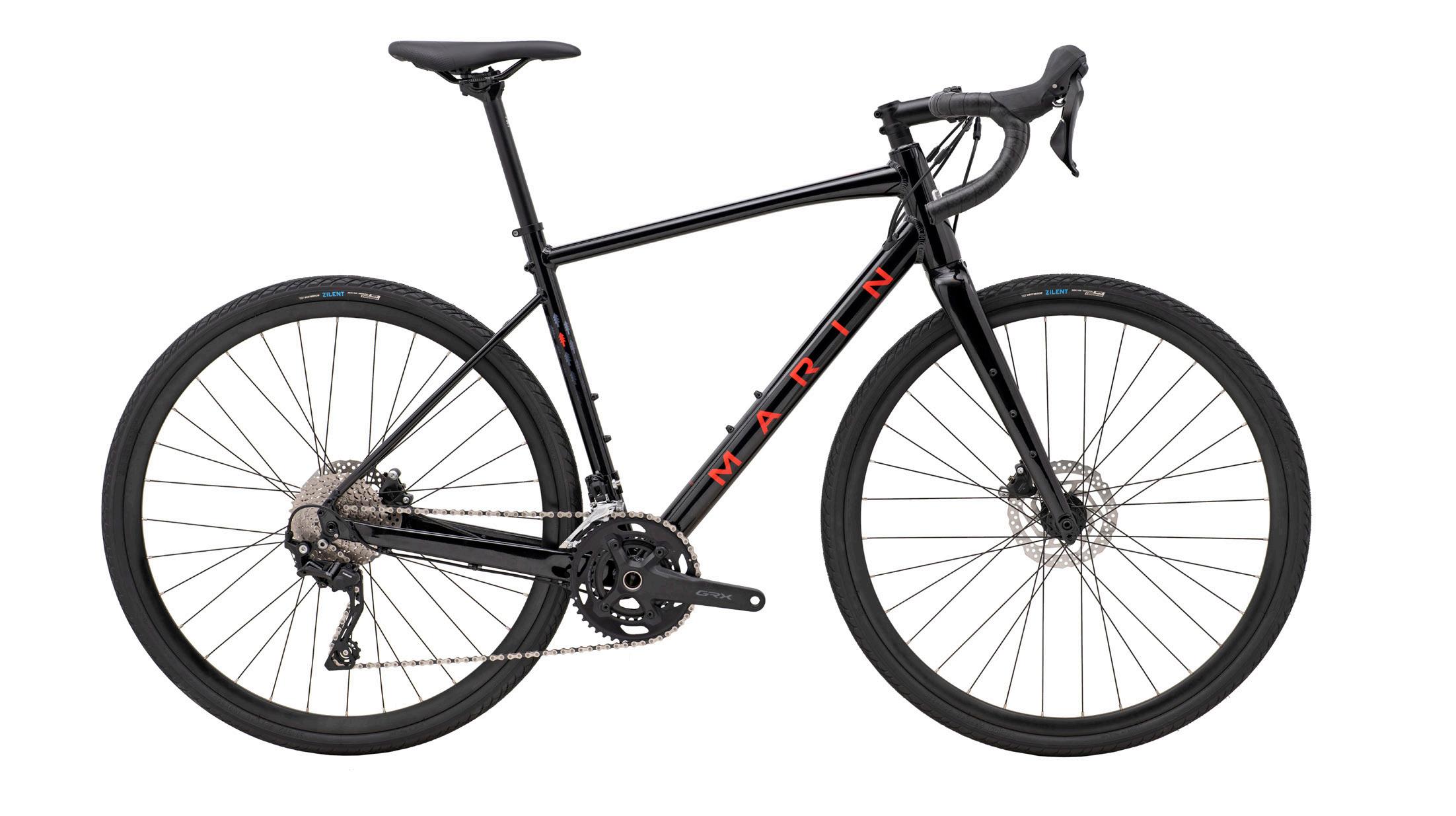

GESTALT 1

SIZES:

WHEEL SIZE:

COLOR: 50 / 52 / 54 / 56 / 58 / 60

▶ Series 3 Beyond Road aluminum frame

▶ Marin full carbon fork w/thru axle & eyelets

▶ Shimano Sora 2x9 drivetrain, Tektro C550 dual piston mechanical disc brakes

▶ Marin 21mm inner rims, Vee Tire Zilent 700x35mm tires Specifications,

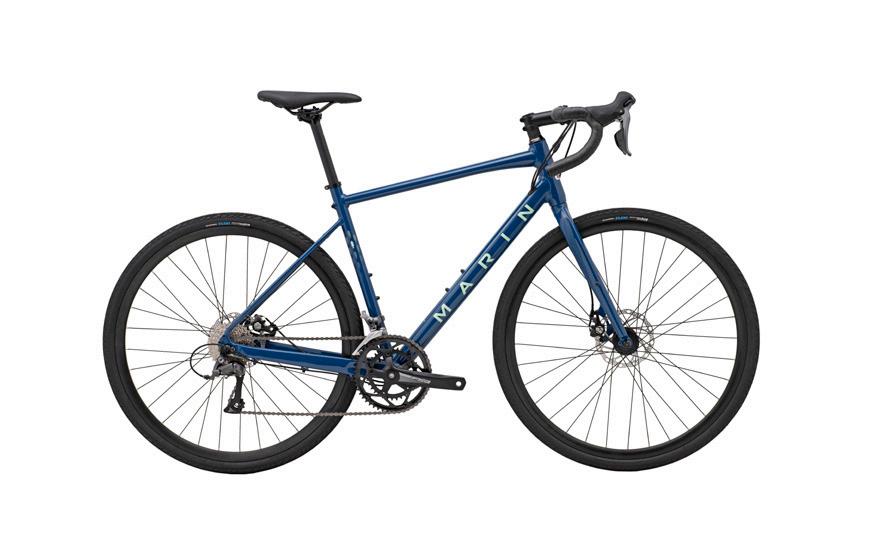

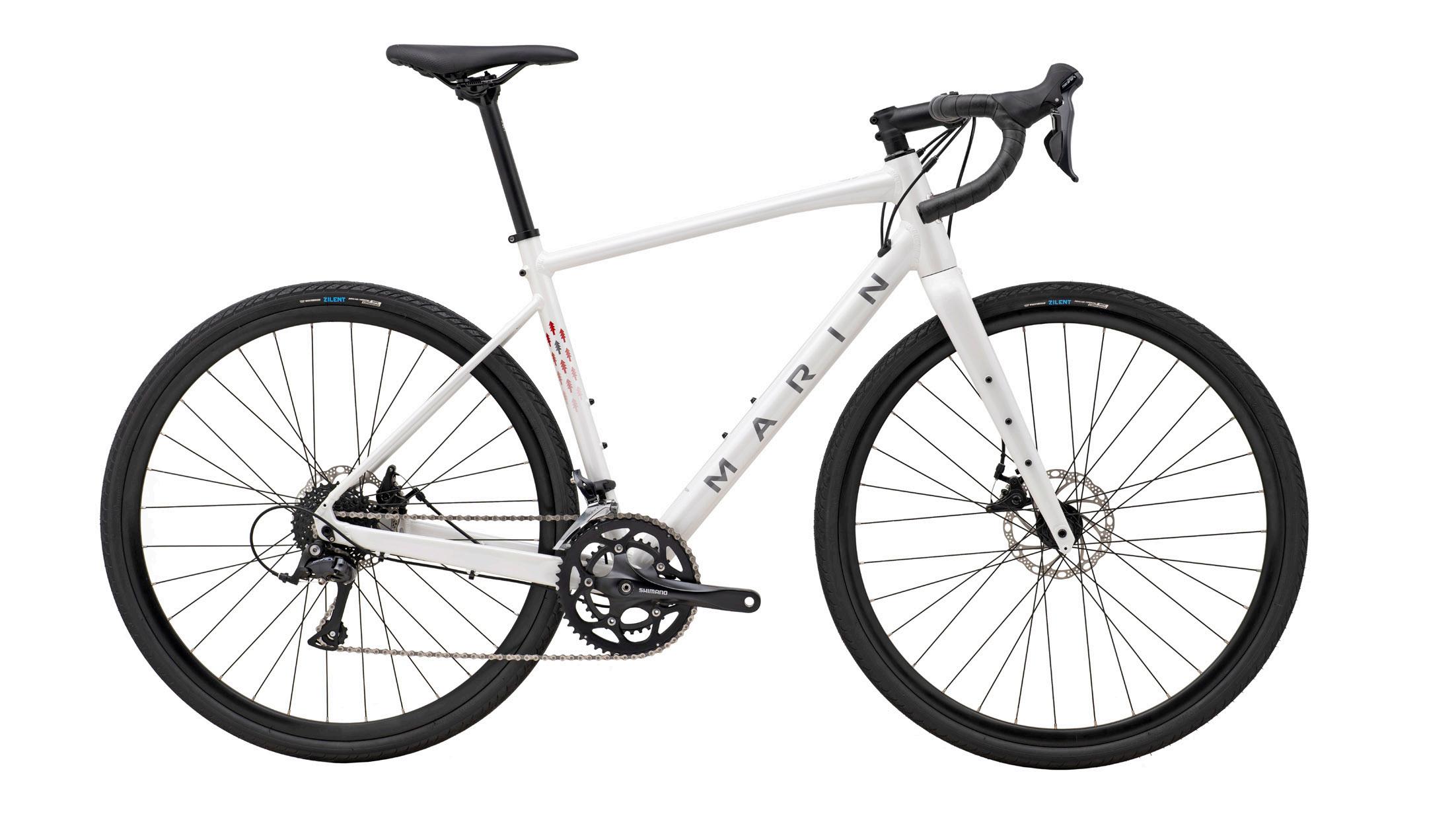

GESTALT

SIZES:

WHEEL SIZE:

COLOR: 50 / 52 / 54 / 56 / 58 / 60

▶ Series 2 Beyond Road aluminum frame

▶ Marin straight blade aluminum fork w/fender & rack eyelets

▶ Shimano Claris 2x8 drivetrain; Tektro C400 mechanical disc brakes

▶ Marin 19mm inner rims, Vee Tire Zilent 700x35mm tires

NICASIO 2

SIZES:

WHEEL SIZE:

COLOR:

50 / 52 / 54 / 56 / 58 / 60

700c BLUE

▶ Series 2 double butted CrMo Beyond Road frame w/142x12mm thru-axle dropouts

▶ Marin full carbon fork w/thru axle & eyelets

▶ Shimano 2x10 drivetrain, BR-4770 hydraulic disc brakes

▶ Marin 19mm inner rims, WTB Riddler Comp 700x37mm tires Specifications,

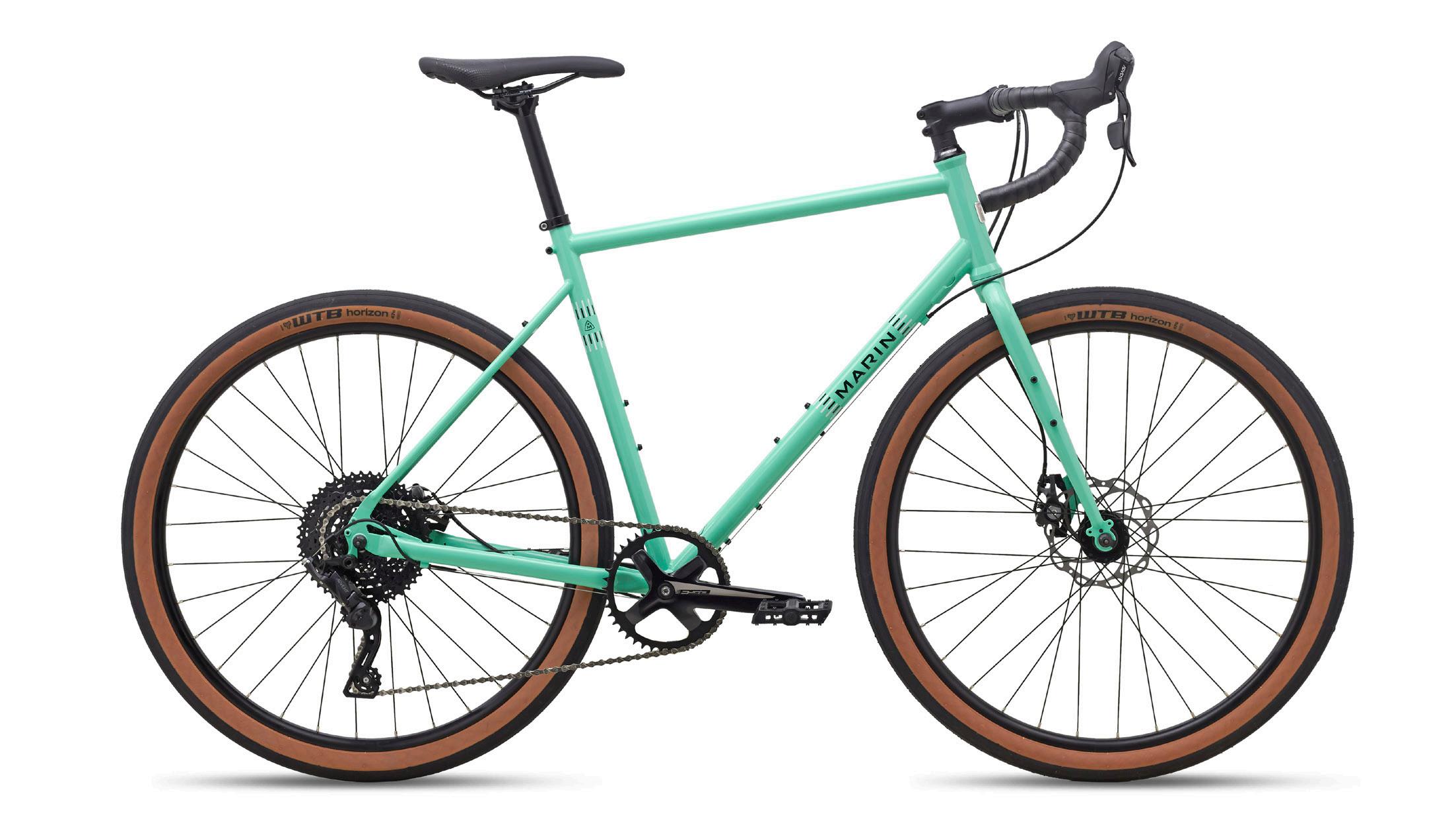

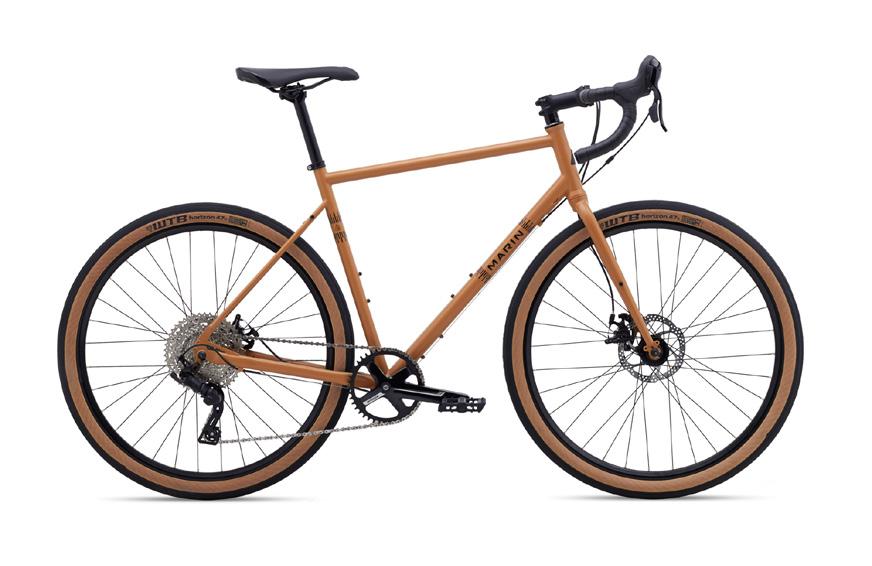

NICASIO+

SIZES:

WHEEL SIZE:

COLOR:

50 / 52 / 54 / 56 / 58 / 60 650b

FOREST SERVICE GREEN SATIN TAN

▶ Series 1 double butted CrMo Beyond Road frame

▶ Marin CrMo fork w/fender & rack eyelets

▶ microSHIFT Advent 1x9 wide-range drivetrain; Tektro M400 road mechanical disc brakes

▶ Marin 25mm inner width rims, WTB Horizon 650x47mm tires

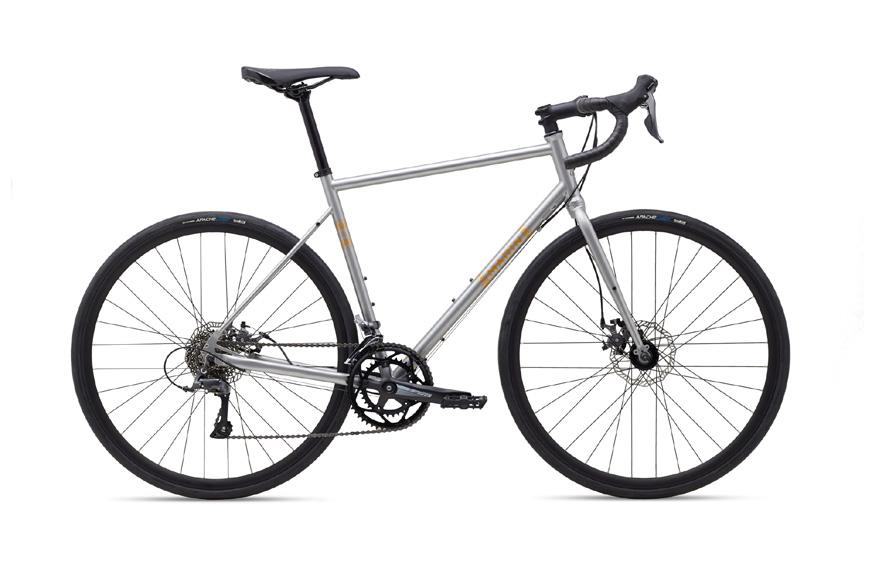

NICASIO

SIZES:

WHEEL SIZE: COLOR: 47 / 50 / 52 / 54 / 56 / 58 / 60

▶ Series 1 double butted CrMo Beyond Road frame

▶ Marin CrMo fork w/fender & rack eyelets

▶ Shimano Claris 2x8 drivetrain; Tektro M400 road mechanical disc brakes

▶ Marin 19mm inner width rims, Vee Tire Road Chief 700x30mm tires

Specifications,

and

LOMBARD 1

SIZES:

WHEEL SIZE:

COLOR:

49 / 52 / 54 / 56 / 58 / 60

700c

CHARCOAL

▶ Series 2 aluminum frame

▶ Marin straight blade aluminum fork w/fender & rack eyelets

▶ Shimano Sora 2x9 drivetrain; Tektro road mechanical disc brakes

▶ Marin 21mm inner width rims, Vee Tire G-Sport 700x40mm tires

FOUR CORNERS 2

pre-production graphic rendering shown for color purposes only

SIZES:

WHEEL SIZE: COLOR: XS / S / M / L / XL

700c or 650b

▶ All-new Series 3 double butted CrMo frame w/Biometric geometry, 650b or 700c

▶ Marin Series 3 CrMo fork w/ fender, rack & bottle cage eyelets

▶ SRAM Apex 1 12-speed drivetrain; Apex hydraulic disc brakes

▶ Marin double wall rims, Vee Tire Rocket Man 650/700x44mm tires

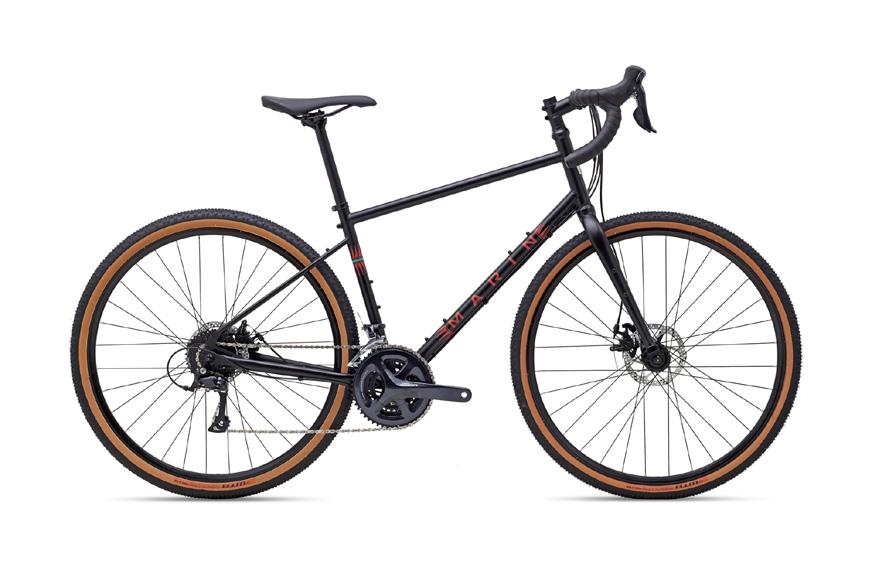

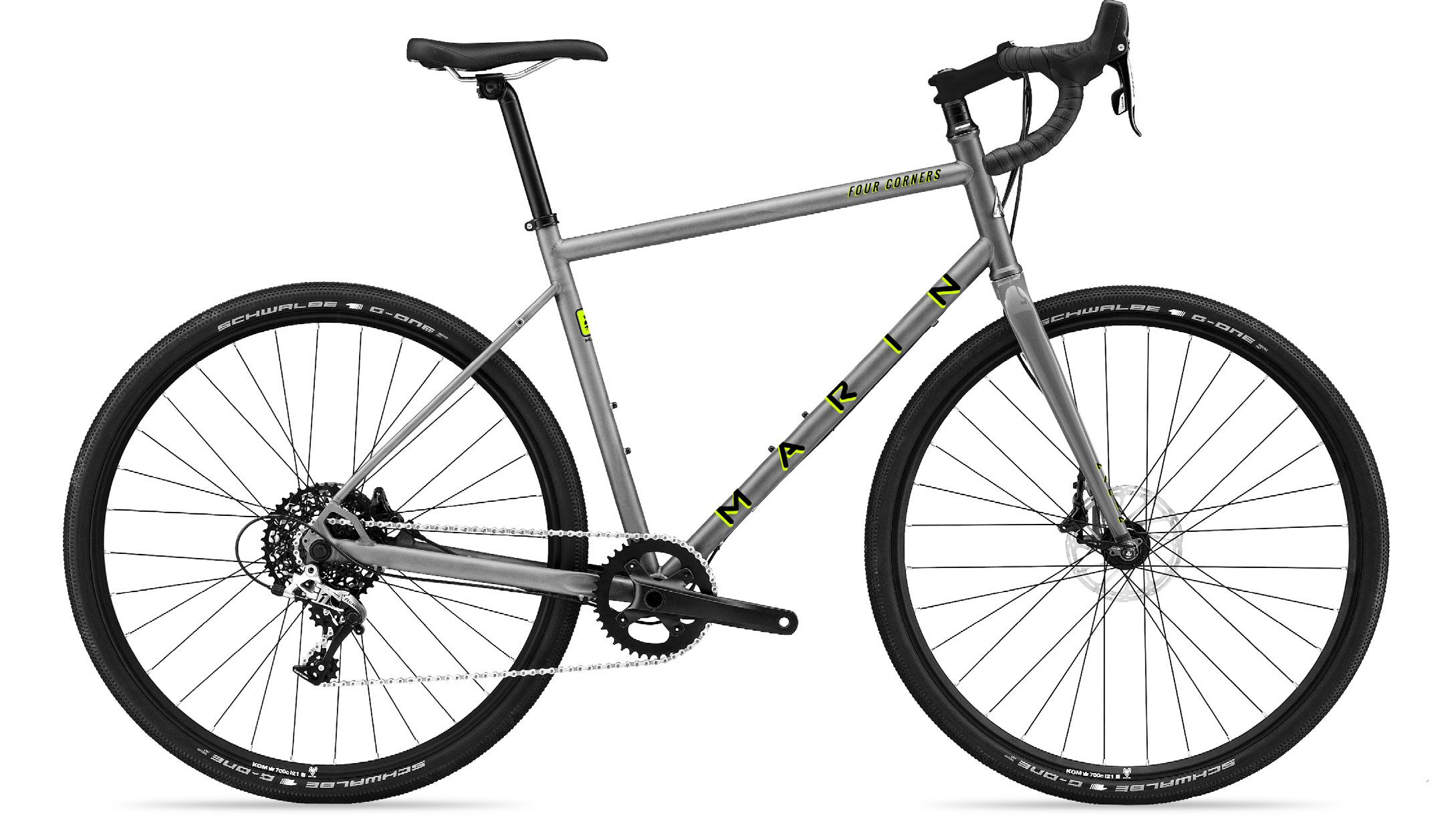

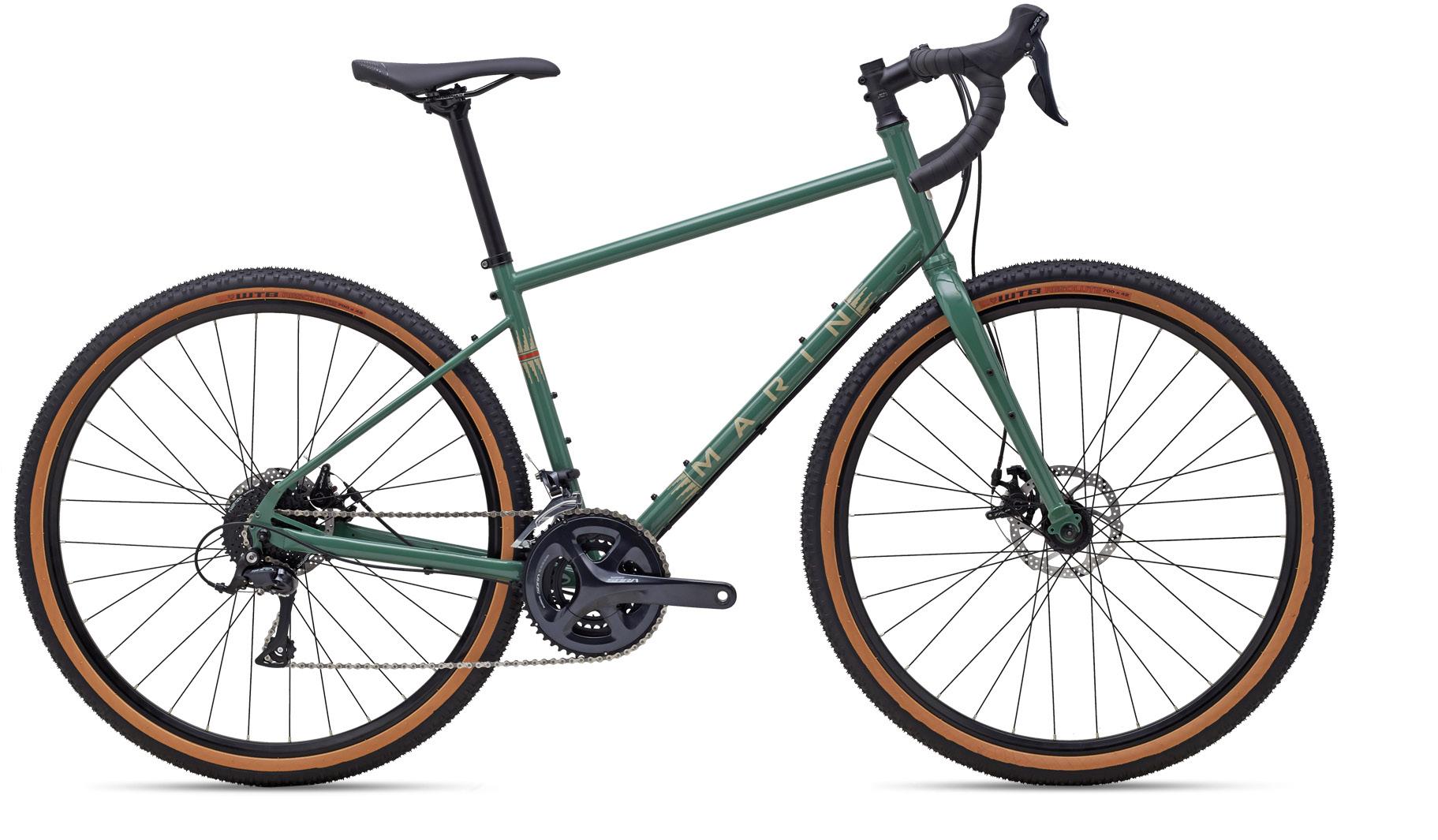

FOUR CORNERS

SIZES:

WHEEL SIZE:

COLOR:

XS / S / M / L / XL

700c or 650b

▶ Series 1 Utilitour CrMo frame w/Biometric geometry, 650b or 700c

▶ Marin CrMo fork w/fender, rack & bottle cage eyelets

▶ Shimano Sora 2x9 drivetrain; Tektro Spyre-C mechanical disc brakes

▶ Marin double wall rims, Vee Tire GPVee 650/700x40mm tires

Specifications, pricing, and availability are subject to change without notice.

DSX FS

SIZES:

WHEEL SIZE:

COLOR: S / M / L / XL

BLACK / GREY

▶ Series 3 butted & formed aluminum frame

▶ SR/Suntour GVX LOR suspension fork w/60mm travel, air spring, lockout

▶ Shimano SLX/Deore 12-speed wide-range drivetrain; Tektro HRD285 hydraulic disc brakes

▶ Marin 21mm inner width rims, Vee Tire Rocket Man 700x44mm tires

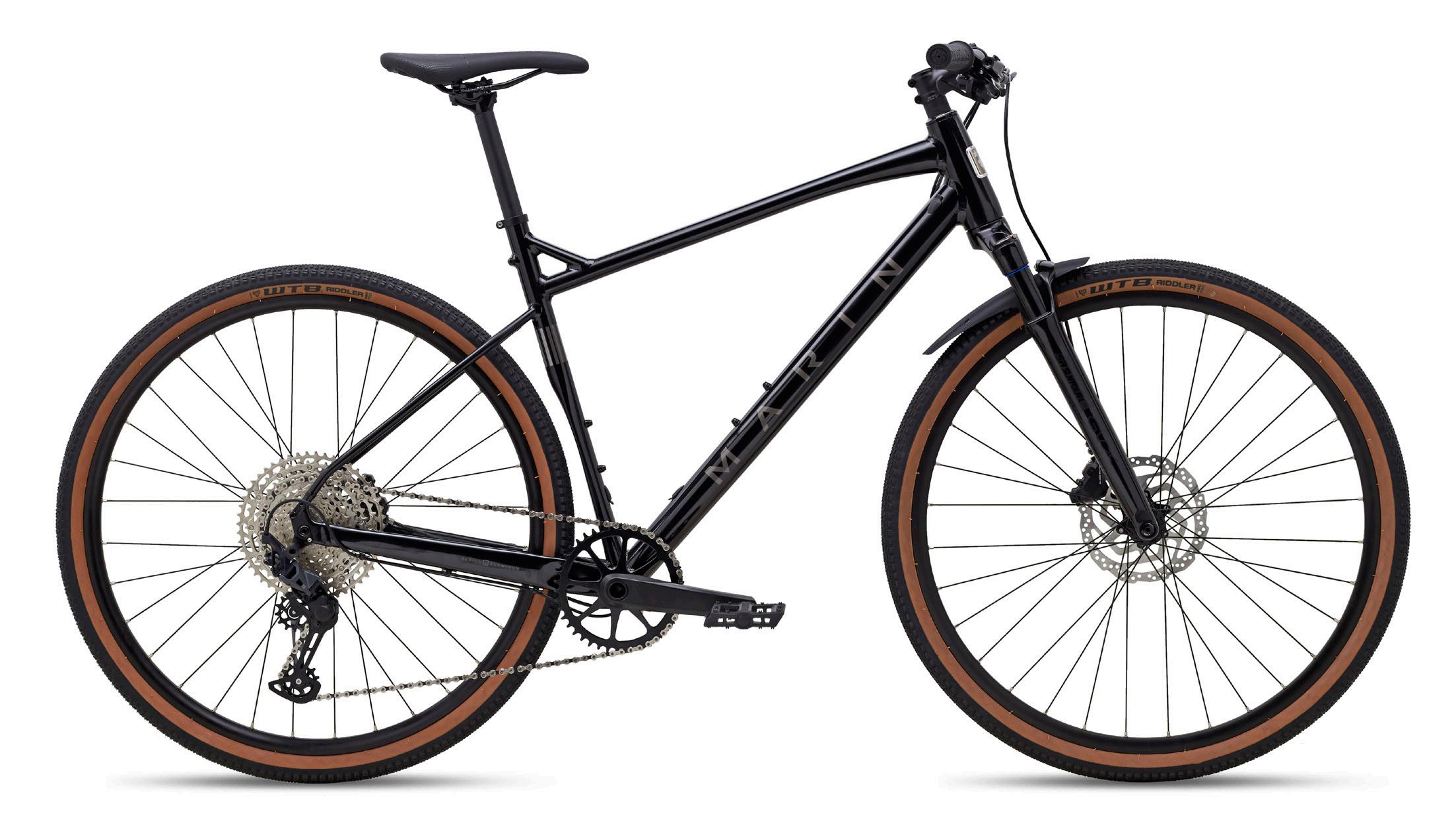

DSX 3

pre-production graphic rendering shown for color purposes only

SIZES:

WHEEL SIZE: COLOR: S / M / L / XL

▶ Series 3 butted & formed aluminum frame

▶ Marin full carbon fork w/thru axle & eyelets

▶ SRAM Apex 1 12-speed wide-range drivetrain; SRAM DB-S300 hydraulic disc brakes

▶ Marin 21mm inner width rims, Vee Tire Rocket Man 700x44mm tires

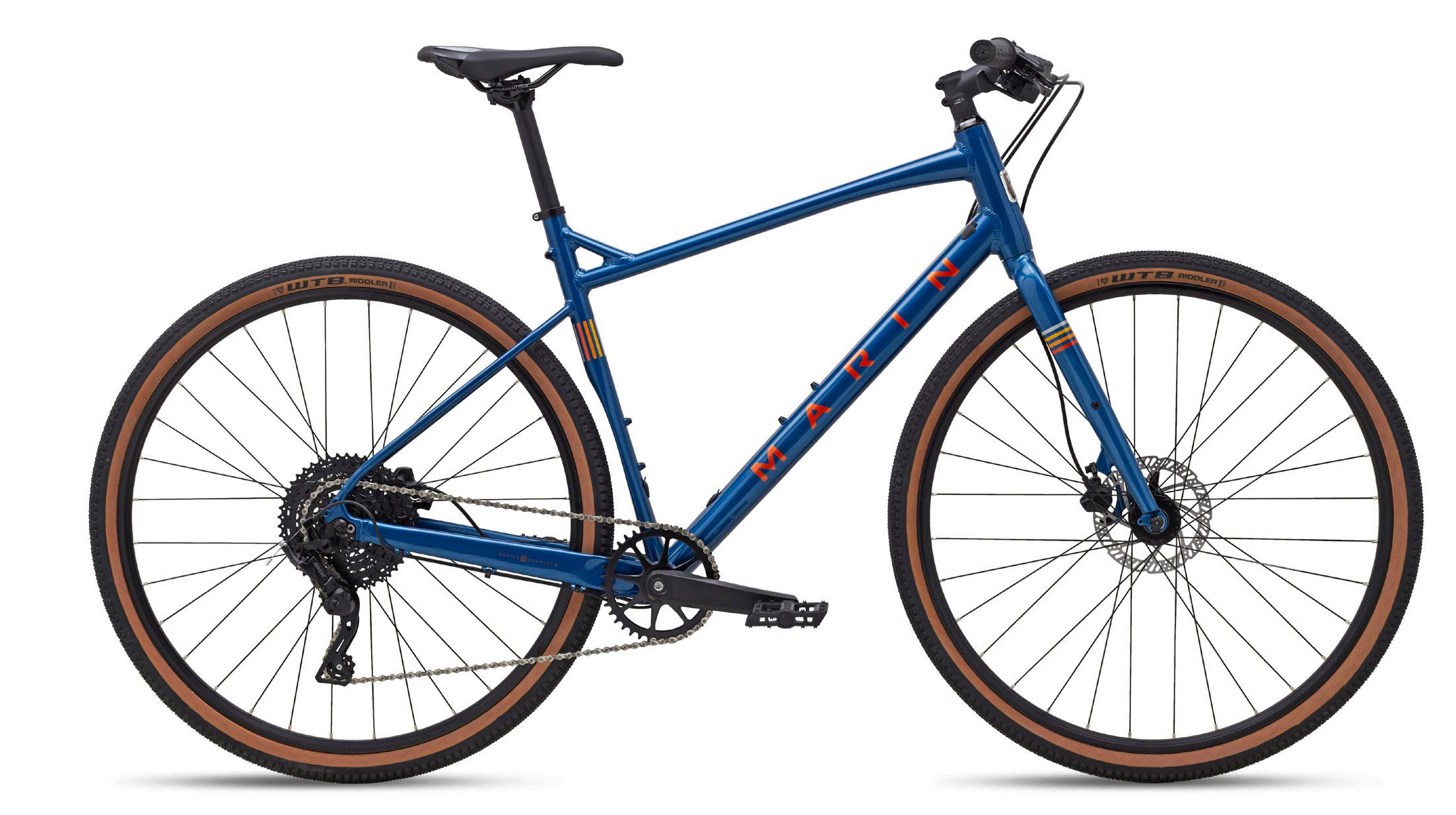

DSX 2

pre-production graphic rendering shown for color purposes only

SIZES:

WHEEL SIZE: COLOR: S / M / L / XL

▶ Series 3 butted & formed aluminum frame

▶ Marin full carbon fork w/thru axle & eyelets

▶ Shimano Deore 12-speed wide-range drivetrain; Tektro HD-R285 hydraulic disc brakes

▶ Marin 21mm inner width rims, WTB Riddler 700x45mm tires

DSX 1

pre-production graphic rendering shown for color purposes only

SIZES: WHEEL SIZE:

/ M / L / XL

▶ Series 3 butted & formed aluminum frame

▶ Marin full carbon fork w/thru axle & eyelets

▶ Shimano Deore 11-speed wide-range drivetrain; Tektro HD-R280 hydraulic disc brakes

▶ Marin 21mm inner width rims, WTB Riddler 700x45mm tires Specifications,

SIZES:

WHEEL SIZE:

COLOR: S / M / L / XL 700c

BLUE / ORANGE

▶ Series 2 aluminum frame w/internal cable routing, rack & fender mounts

▶ Marin straight blade aluminum fork w/fender & rack eyelets

▶ microSHIFT Advent Trail 9-speed wide-range drivetrain; Clark’s Clout hydraulic disc brakes

▶ Marin double wall rims, WTB Riddler 700x45mm tires

SAN RAFAEL DS2

SIZES:

WHEEL SIZE:

/ S / M / L / XL

▶ Series 2 hydroformed aluminum Dual Sport frame

▶ SR/Suntour NEX HLO fork w/63mm travel & hydraulic lockout

▶ Shimano Altus 2x8 speed drivetrain; Clark’s Clout hydraulic disc brakes

▶ Marin double wall rims, Vee Tire Rail 700x40mm tires

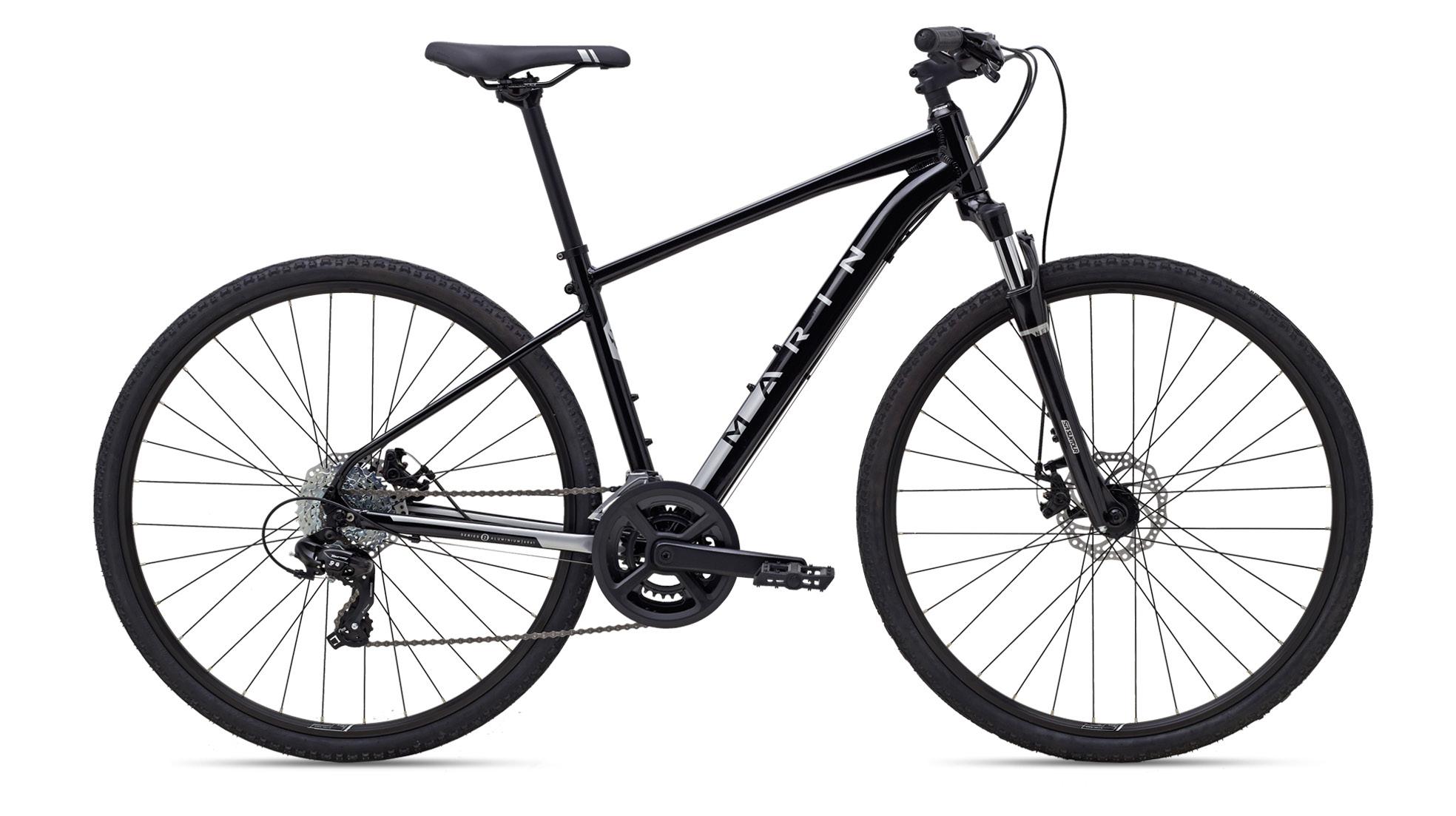

SAN RAFAEL DS1

SIZES:

WHEEL SIZE:

SUSPENSION: COLOR:

/ S / M / L /

▶ Series 2 hydroformed aluminum Dual Sport frame

▶ SR/Suntour NEX HLO fork w/63mm travel

▶ Shimano Tourney 2x7 speed drivetrain; Clark’s CMD mechanical disc brakes

▶ Marin double wall rims, Kenda Kahn 700x40mm tires

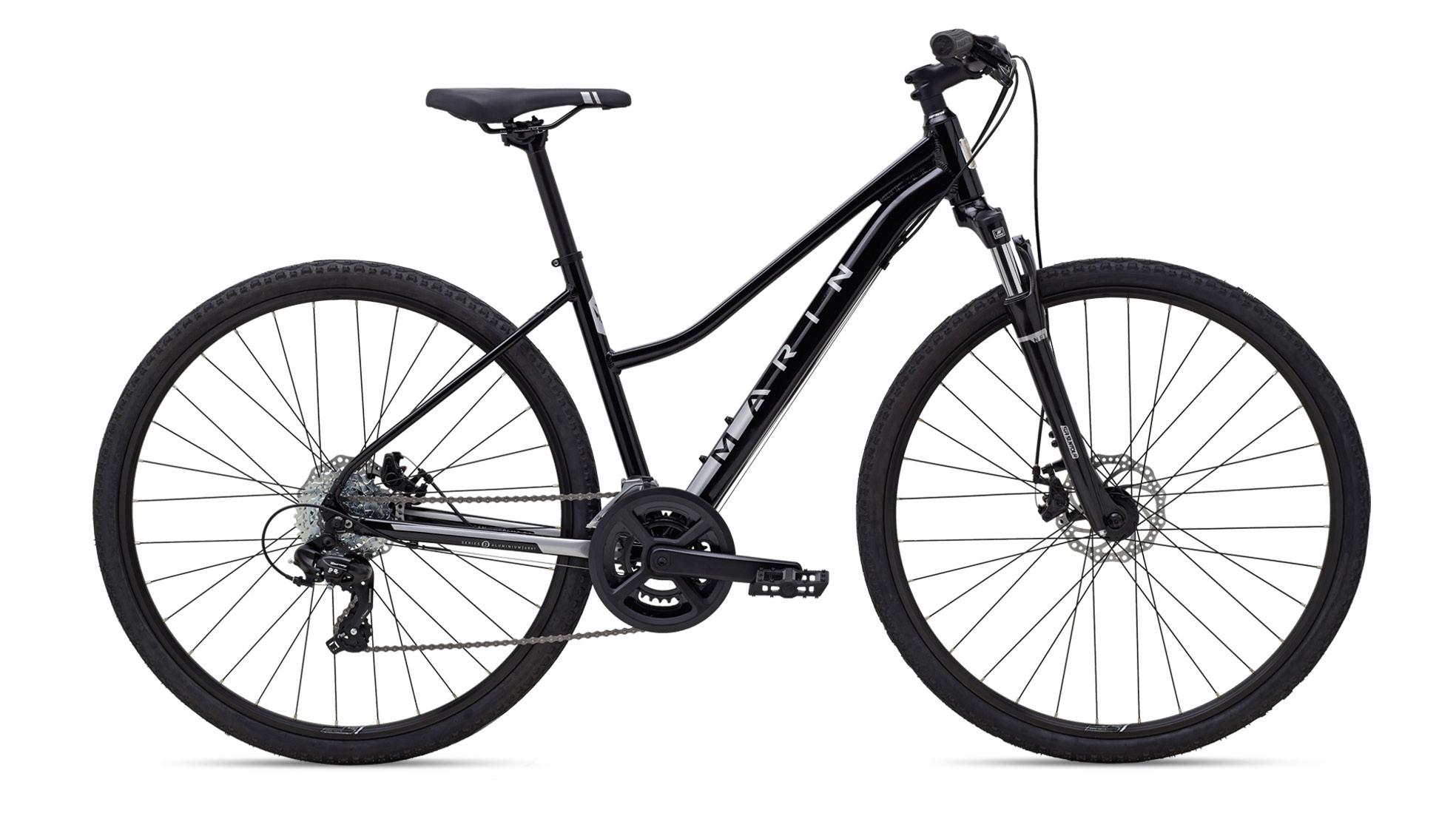

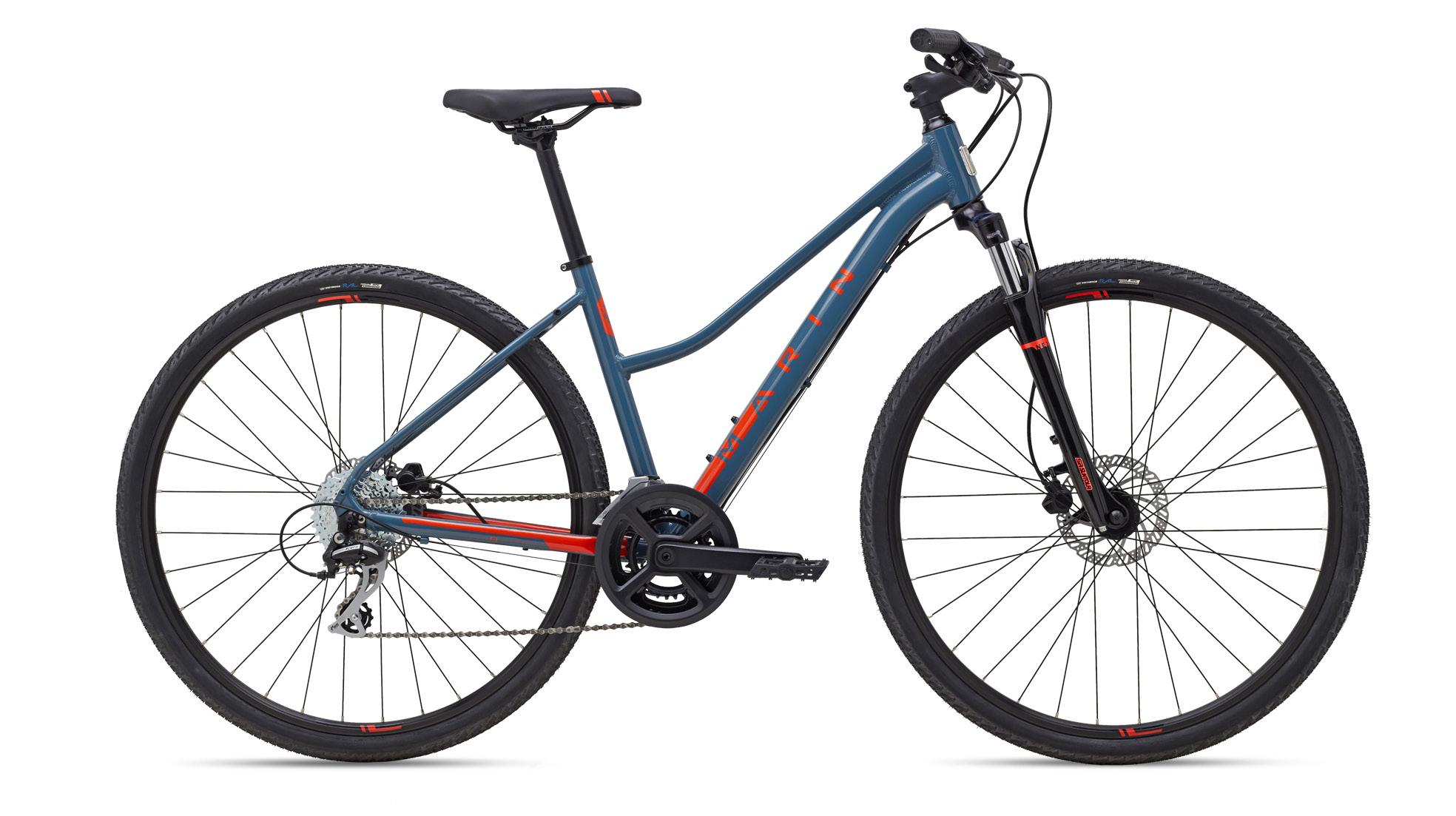

SAN ANSELMO DS2

SIZES:

WHEEL SIZE:

SUSPENSION: COLOR: S / M / L / XL

▶ Series 2 hydroformed aluminum step-thru Dual Sport frame

▶ SR/Suntour NEX HLO fork w/63mm travel & hydraulic lockout

▶ Shimano Altus 2x8 speed drivetrain; Clark’s Clout hydraulic disc brakes

▶ Marin double wall rims, Vee Tire Rail 700x40mm tires

SAN ANSELMO DS1

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL

▶ Series 2 hydroformed aluminum step-thru Dual Sport frame

▶ SR/Suntour NEX HLO fork w/63mm travel

▶ Shimano Tourney 2x7 speed drivetrain; Clark’s CMD mechanical disc brakes

▶ Marin double wall rims, Kenda Kahn 700x40mm tires

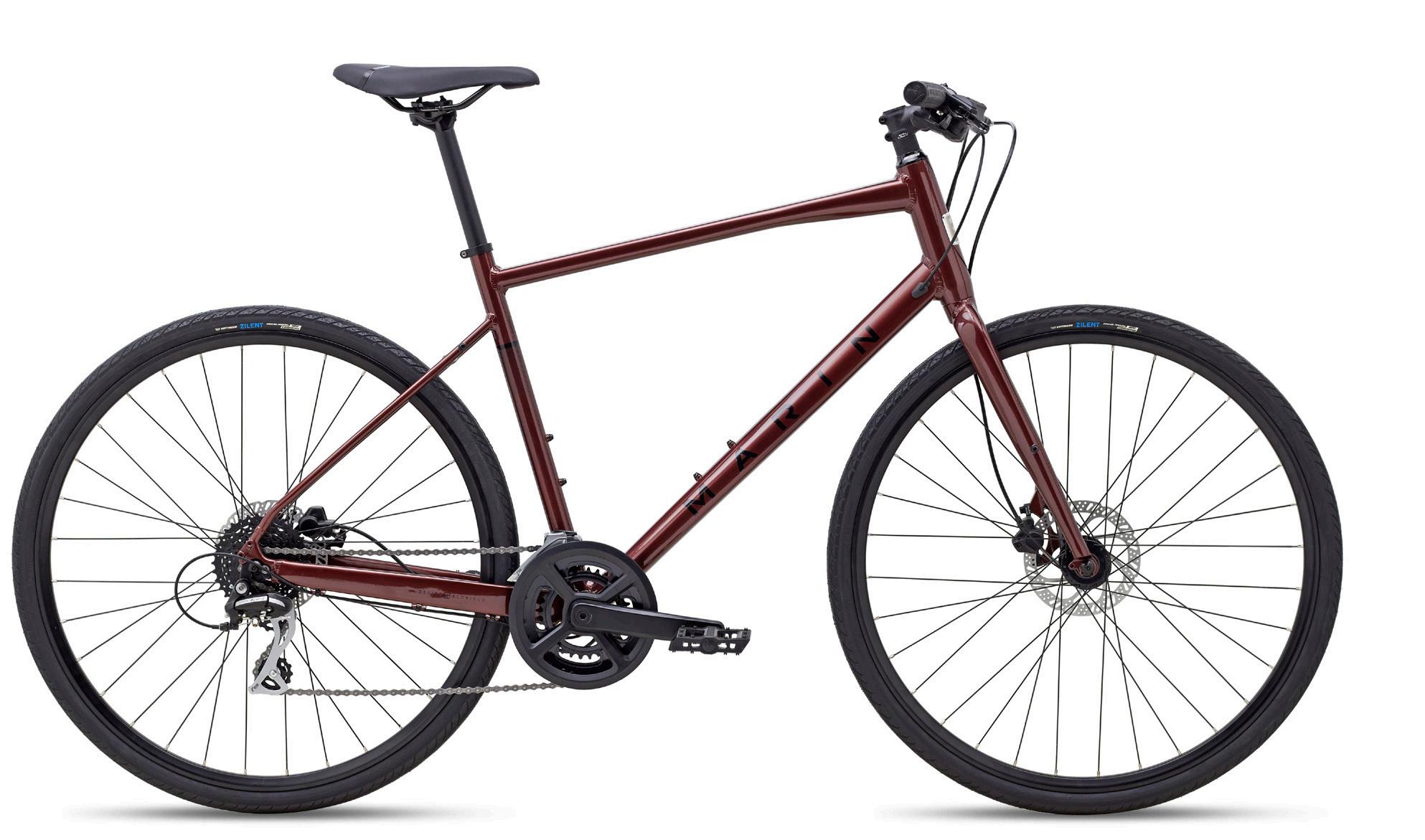

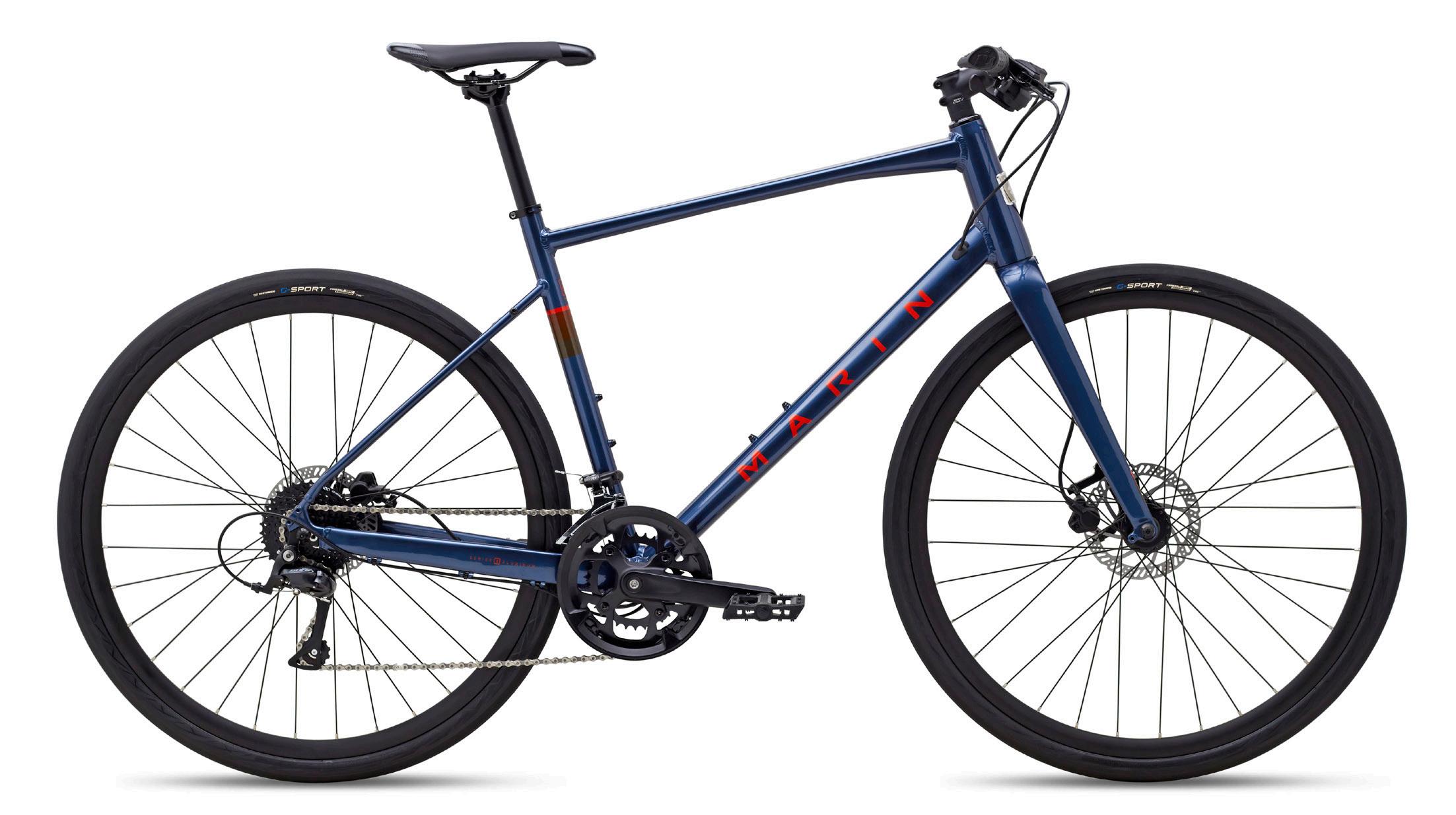

FAIRFAX 3

SIZES:

WHEEL SIZE:

COLOR: XS / S / M / L / XL 700c

BLUE / ORANGE

▶ Series 3 aluminum fitness frame

▶ Marin full carbon fork w/thru axle & eyelets

▶ microSHIFT R9 2x9 speed drivetrain; Clark’s Clout hydraulic disc brakes

▶ Marin 19mm inner width rims, Vee Tire G-Sport Protection 700x35mm tires Specifications,

FAIRFAX 2

SIZES:

WHEEL SIZE: COLOR:

/ S / M / L /

▶ Series 3 aluminum fitness frame

▶ Marin straight blade aluminum fork w/fender & rack eyelets

▶ Shimano Altus 2x8 speed drivetrain; Clark’s Clout hydraulic disc brakes

▶ Marin double wall rims, Vee Tire Zilent Protection 700x35mm tires

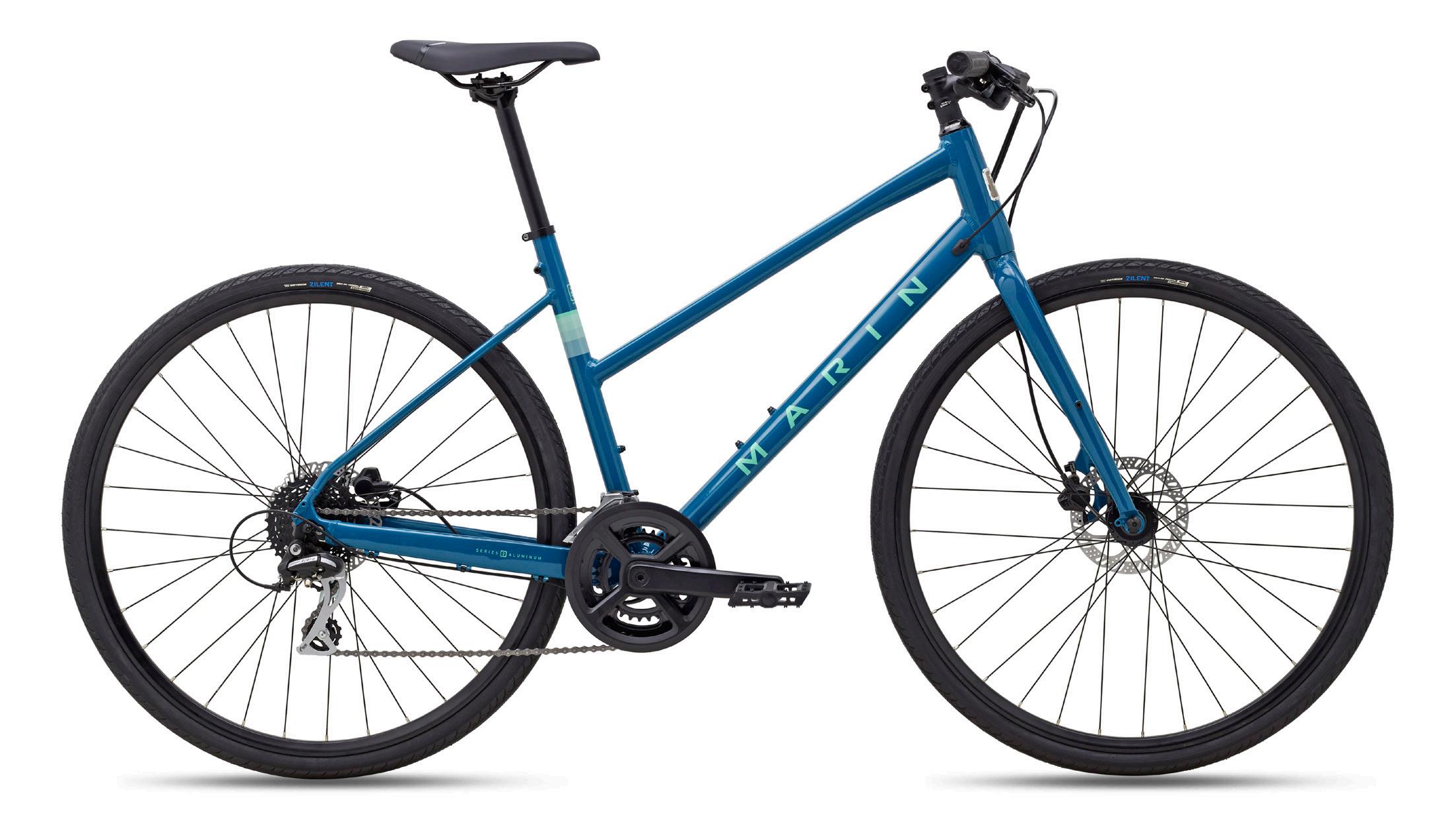

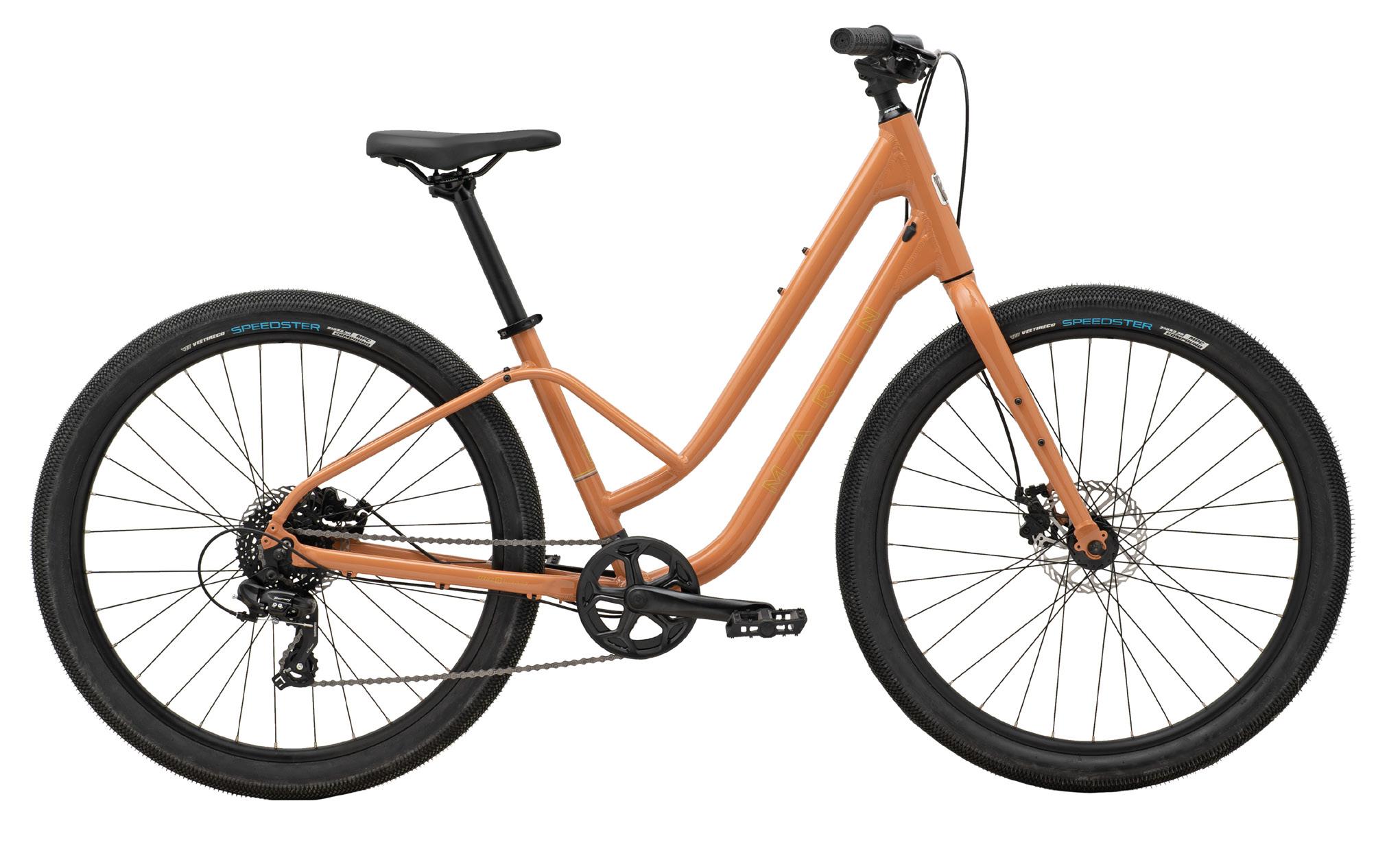

FAIRFAX ST 2

SIZES:

WHEEL SIZE:

COLOR:

/ S / M / L

▶ Series 3 aluminum step-thru fitness frame

▶ Marin straight blade aluminum fork w/fender & rack eyelets

▶ Shimano Altus 2x8 speed drivetrain; Clark’s Clout hydraulic disc brakes

▶ Marin double wall rims, Vee Tire Zilent Protection 700x35mm tires

Specifications,

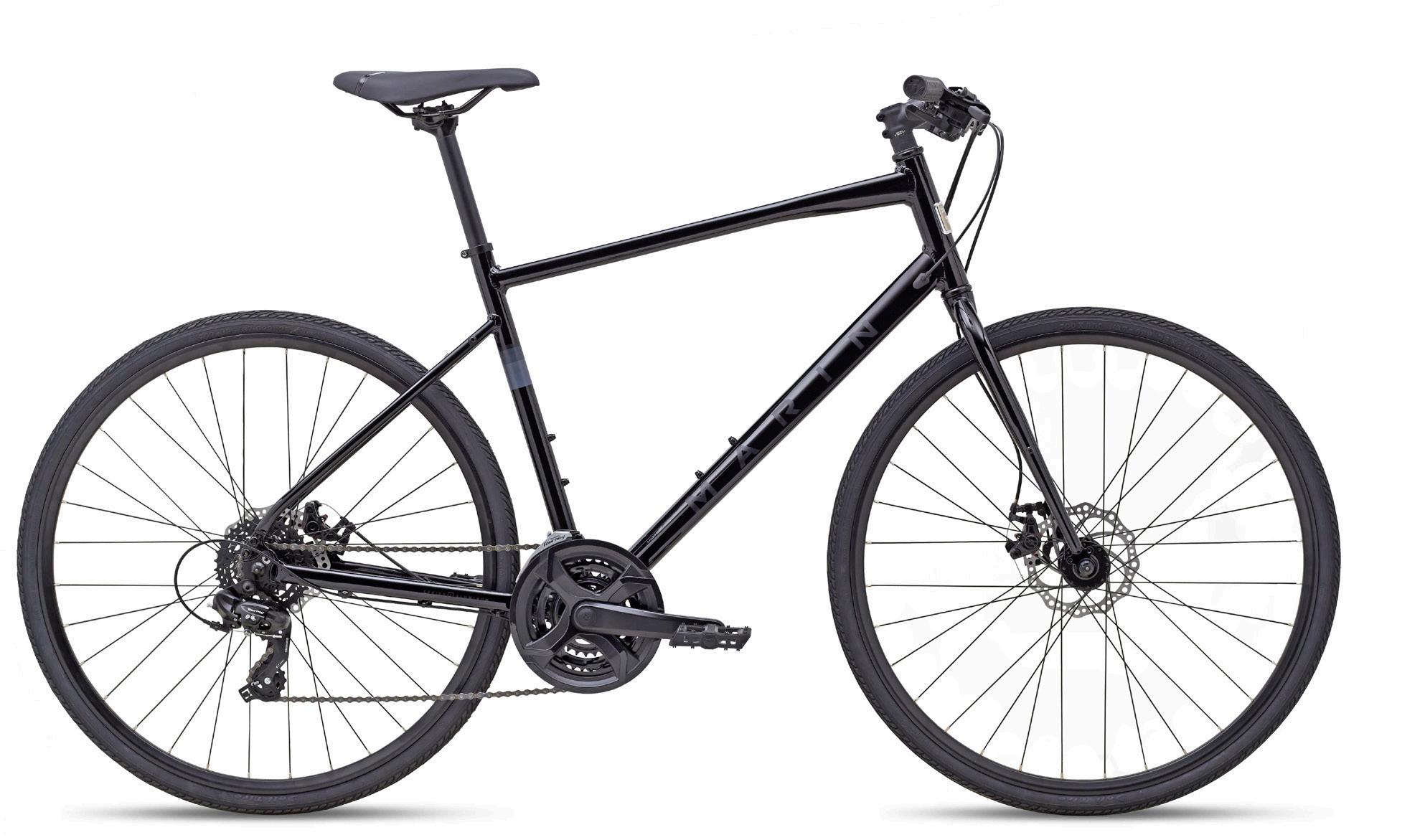

FAIRFAX 1

SIZES:

WHEEL SIZE:

COLOR:

XS / S / M / L / XL 700c

GLOSS BLACK BLUE / GREY

▶ Series 1 aluminum fitness frame

▶ Marin CrMo fork w/fender & rack eyelets

▶ Shimano Tourney 3x7 speed drivetrain; Clark’s CMD-23 mechanical disc brakes

▶ Marin double wall rims, 700x35mm fitness tires

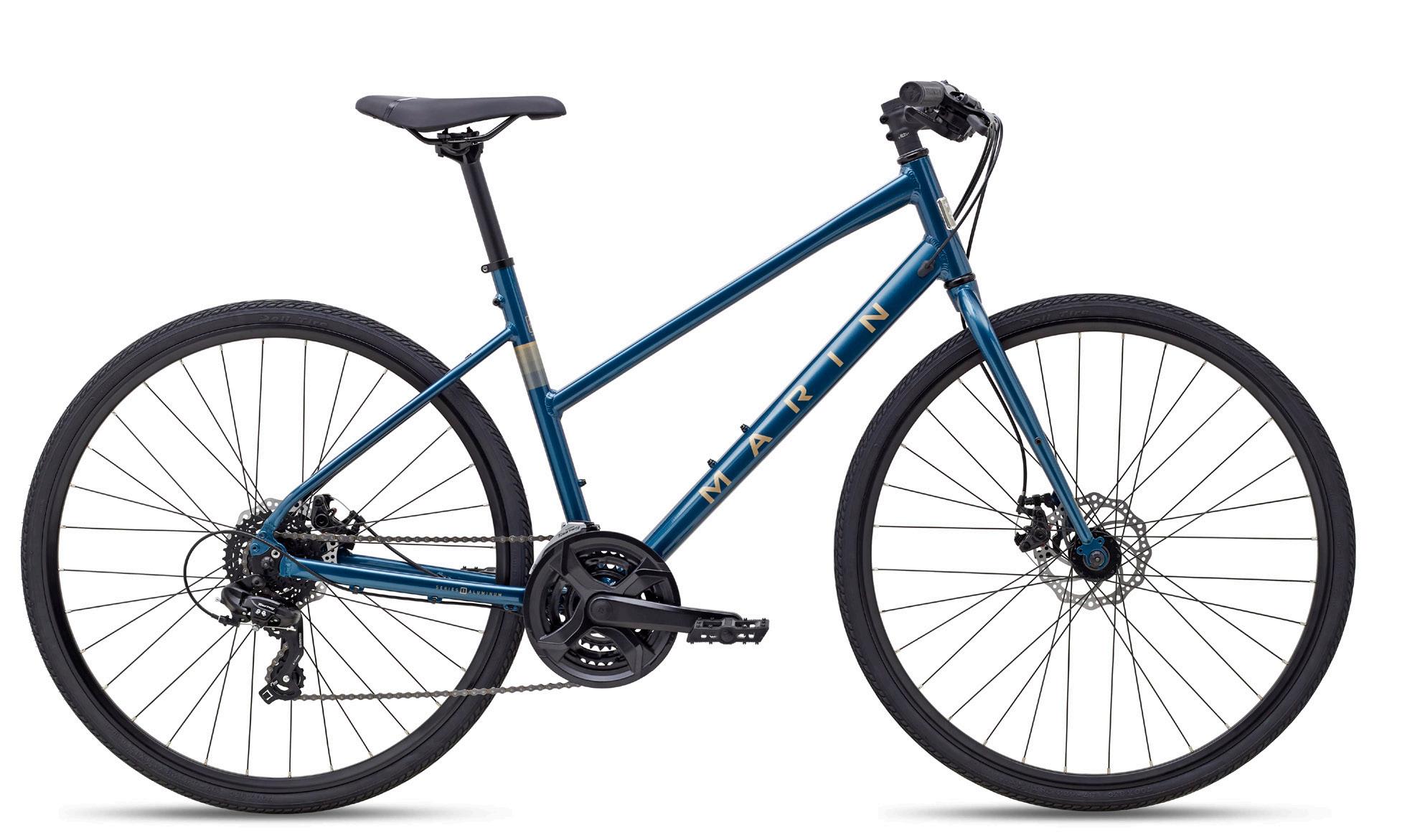

FAIRFAX ST 1

SIZES:

WHEEL SIZE: COLOR:

/ S / M / L

/ TAN

▶ Series 1 aluminum fitness frame

▶ Marin CrMo fork w/fender & rack eyelets

▶ Shimano Tourney 3x7 speed drivetrain; Clark’s CMD-23 mechanical disc brakes

▶ Marin double wall rims, 700x35mm fitness tires

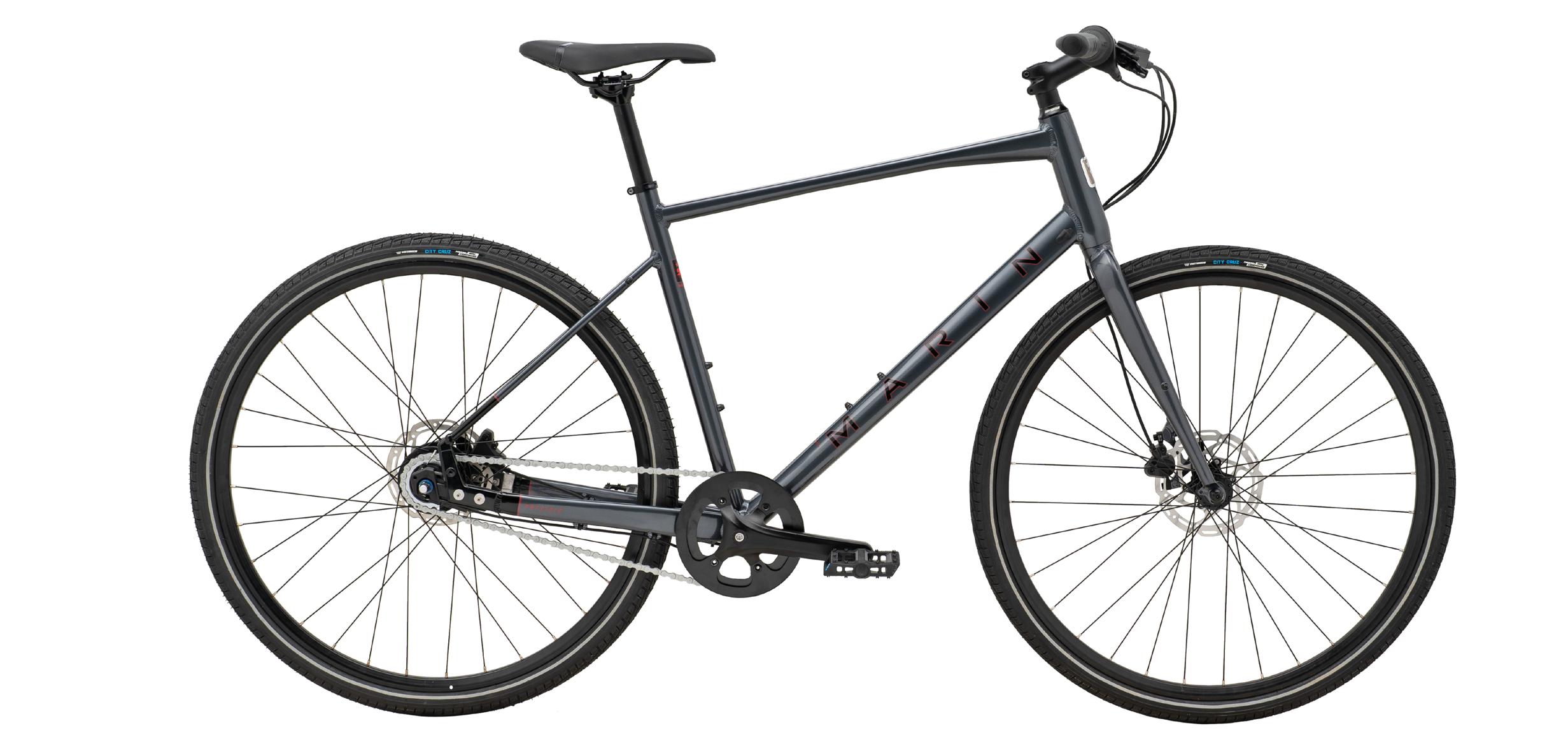

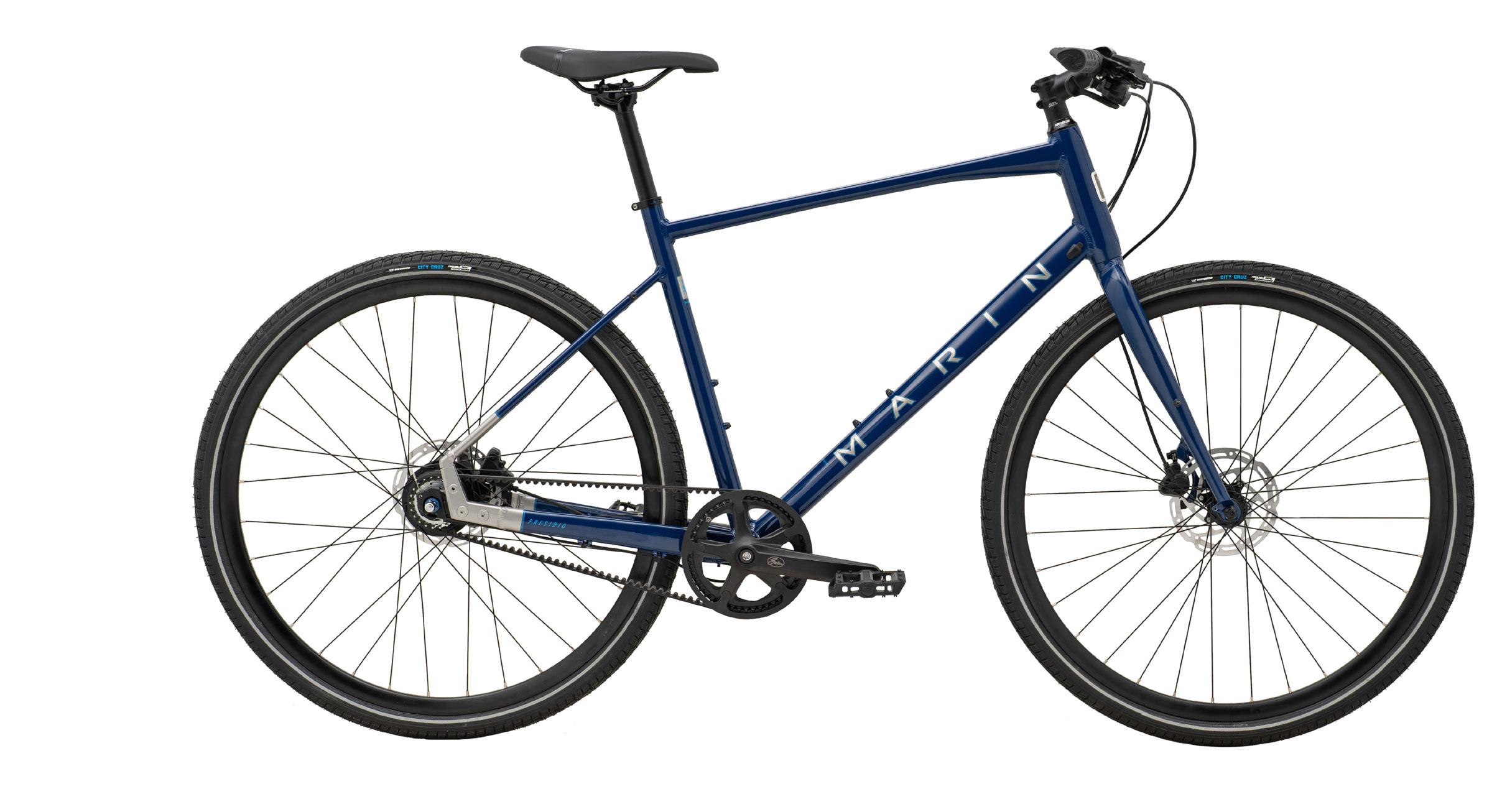

PRESIDIO 3

SIZES:

WHEEL SIZE: COLOR: XS / S / M / L / XL

▶ Series 2 aluminum commute frame

▶ Marin straight blade aluminum fork w/fender & rack eyelets

▶ Shimano Nexus 8D internally geared drivetrain, Gates Carbon Drive belt system

▶ Shimano U300 flat-mount hydraulic disc brakes

▶ Marin double wall rims, Vee Tire Baldy Puncture Protection 700x32mm tires

PRESIDIO 2

SIZES: WHEEL SIZE: COLOR:

/ S / M / L /

▶ Series 2 aluminum commute frame

▶ Marin straight blade aluminum fork w/fender & rack eyelets

▶ Shimano Nexus 7D internally geared drivetrain; U300 flat-mount hydraulic disc brakes

▶ Marin double wall rims, Vee Tire Baldy Puncture Protection 700x32mm tires

PRESIDIO 1

SIZES:

WHEEL SIZE:

COLOR:

/ S / M / L / XL

▶ Series 1 aluminum commute frame

▶ Marin CrMo fork w/fender & rack eyelets

▶ Shimano Altus 8-speed drivetrain; Clark’s Clout hydraulic disc brakes

▶ Marin double wall rims, 700x35mm fitness tires

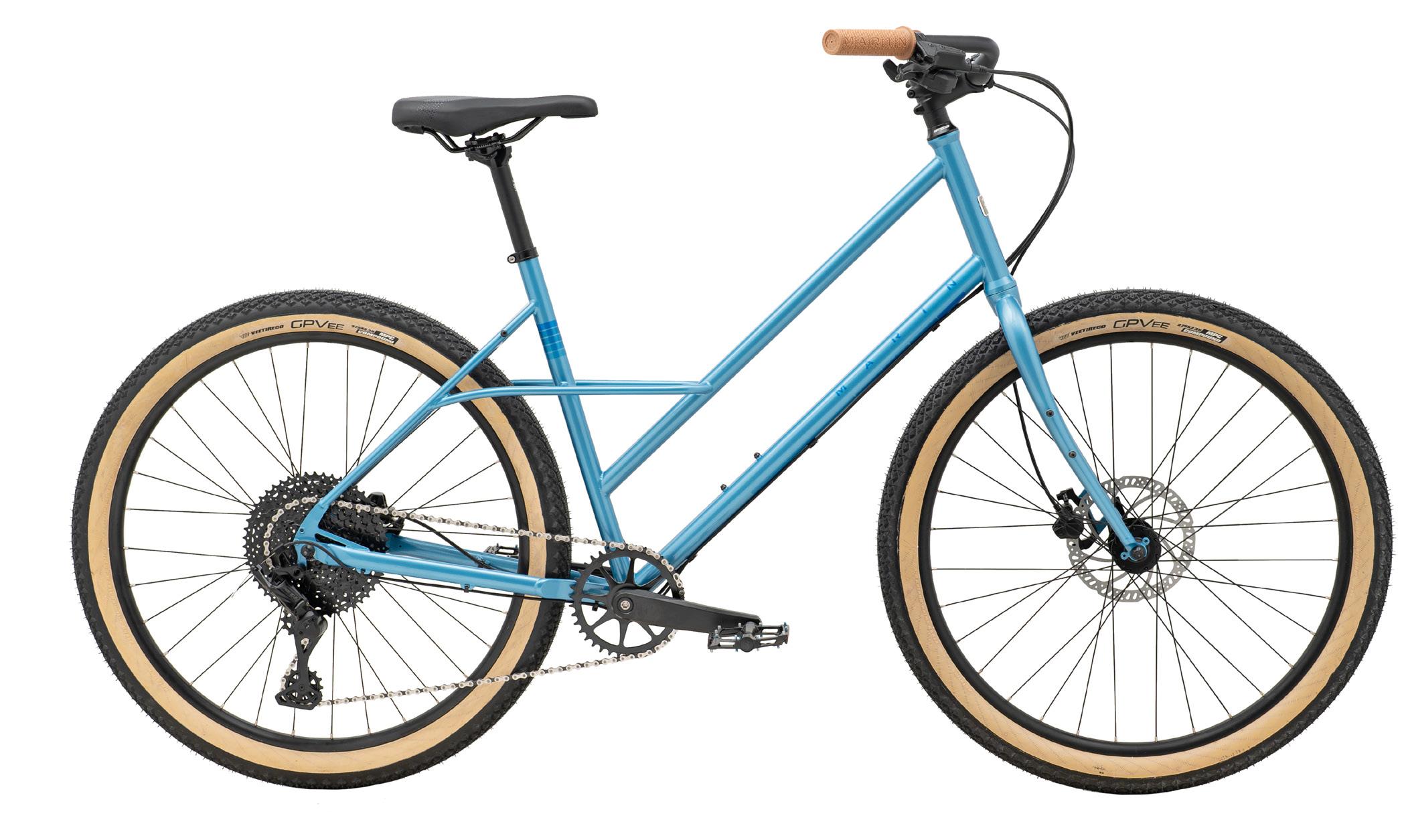

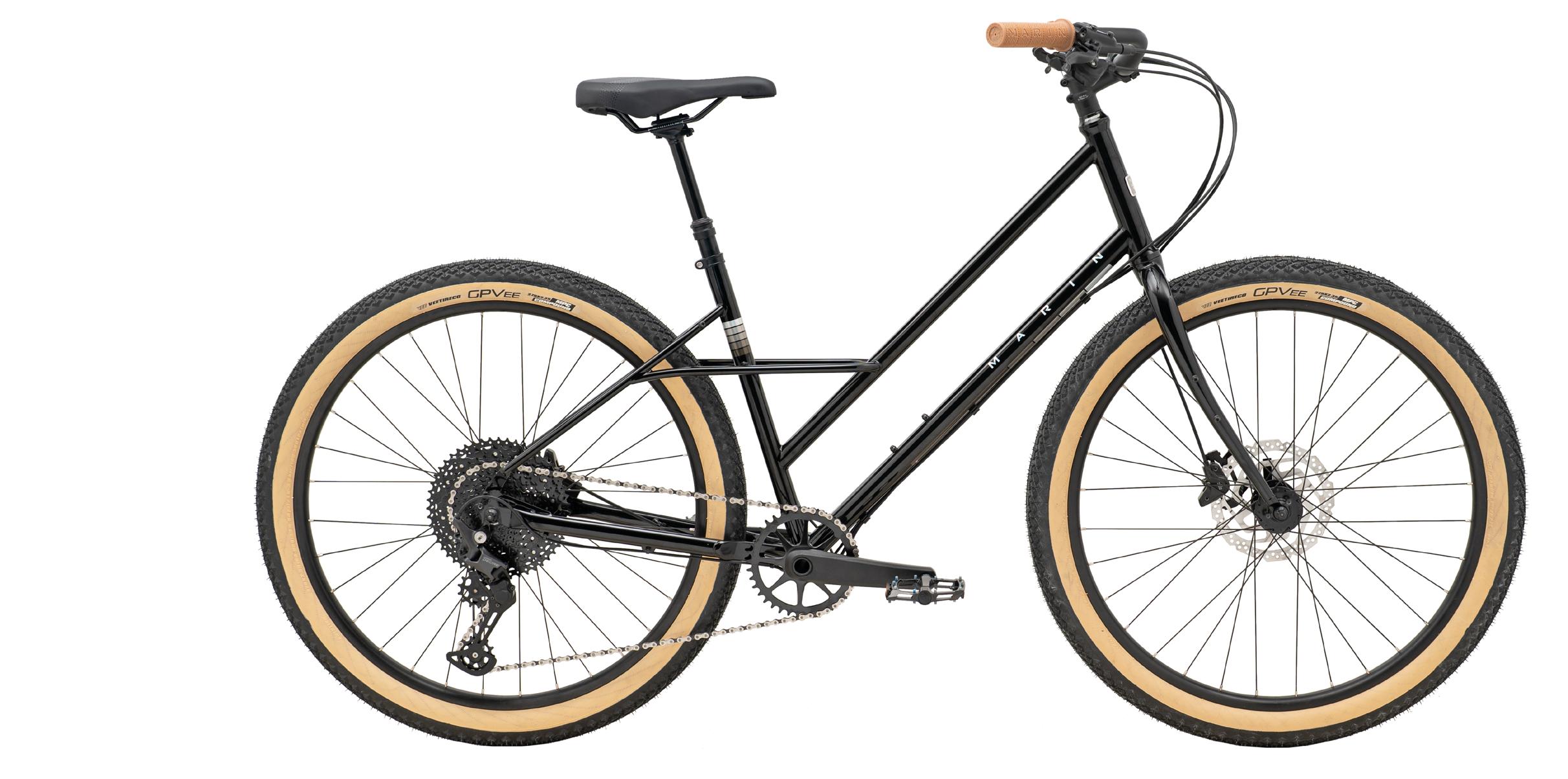

LARKSPUR 2

NEW

SIZES:

WHEEL SIZE:

COLOR: S / M / L

▶ Series 2 butted CrMo “adventure mixte” frame, 27.5” wheels

▶ Marin CrMo curved blade fork w/gear mounts

▶ Shimano Deore 11-speed wide range drivetrain; Deore hydraulic disc brakes

▶ Marin 27mm inner width rims, Vee GPVee 27.5” x 2.35” tires

LARKSPUR 1

SIZES:

WHEEL SIZE:

COLOR: S / M / L

▶ Series 2 butted CrMo “adventure mixte” frame, 27.5” wheels

▶ Marin CrMo curved blade fork w/gear mounts

▶ microSHIFT 10-speed wide range drivetrain; Tektro M275 hydraulic disc brakes

▶ Marin 27mm inner width rims, Vee GPVee 27.5” x 2.35” tires

MUIRWOODS

SIZES:

WHEEL SIZE: COLOR:

/ S / M / L /

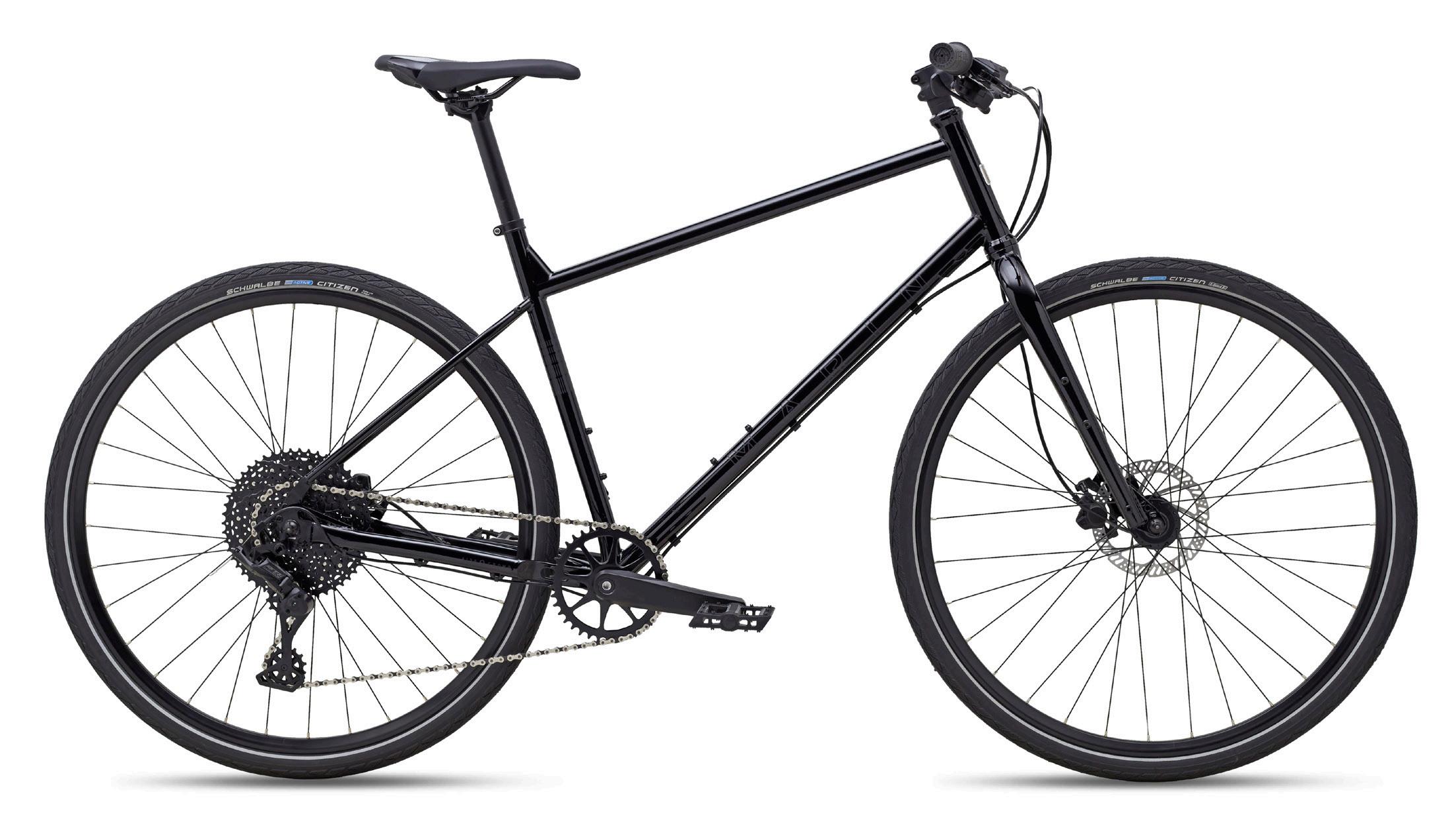

▶ Series 1 butted CrMo frame, 700c wheels

▶ Marin CrMo moto blade fork w/gear mounts

▶ microSHIFT 10-speed wide range drivetrain; Tektro M275 hydraulic disc brakes

▶ Marin double wall rims, Schwalbe Citizen 700x40mm tires

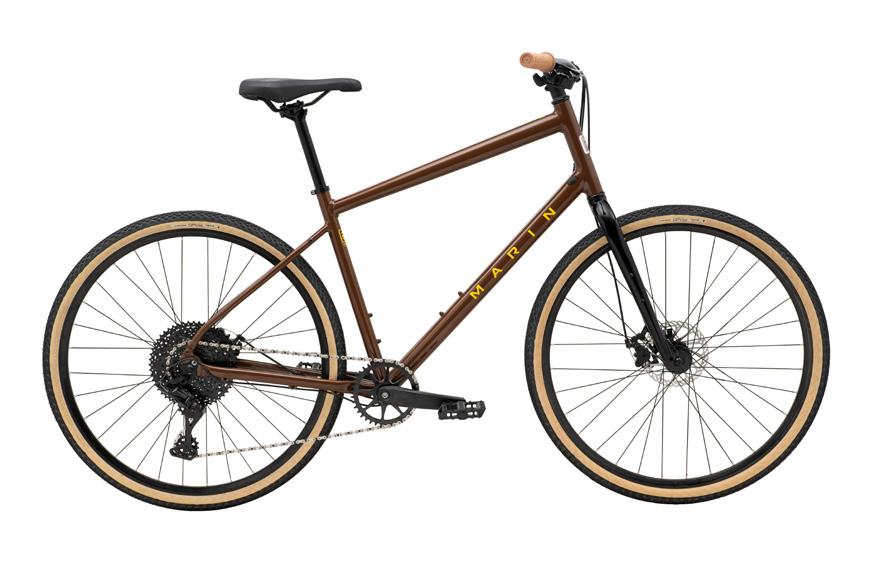

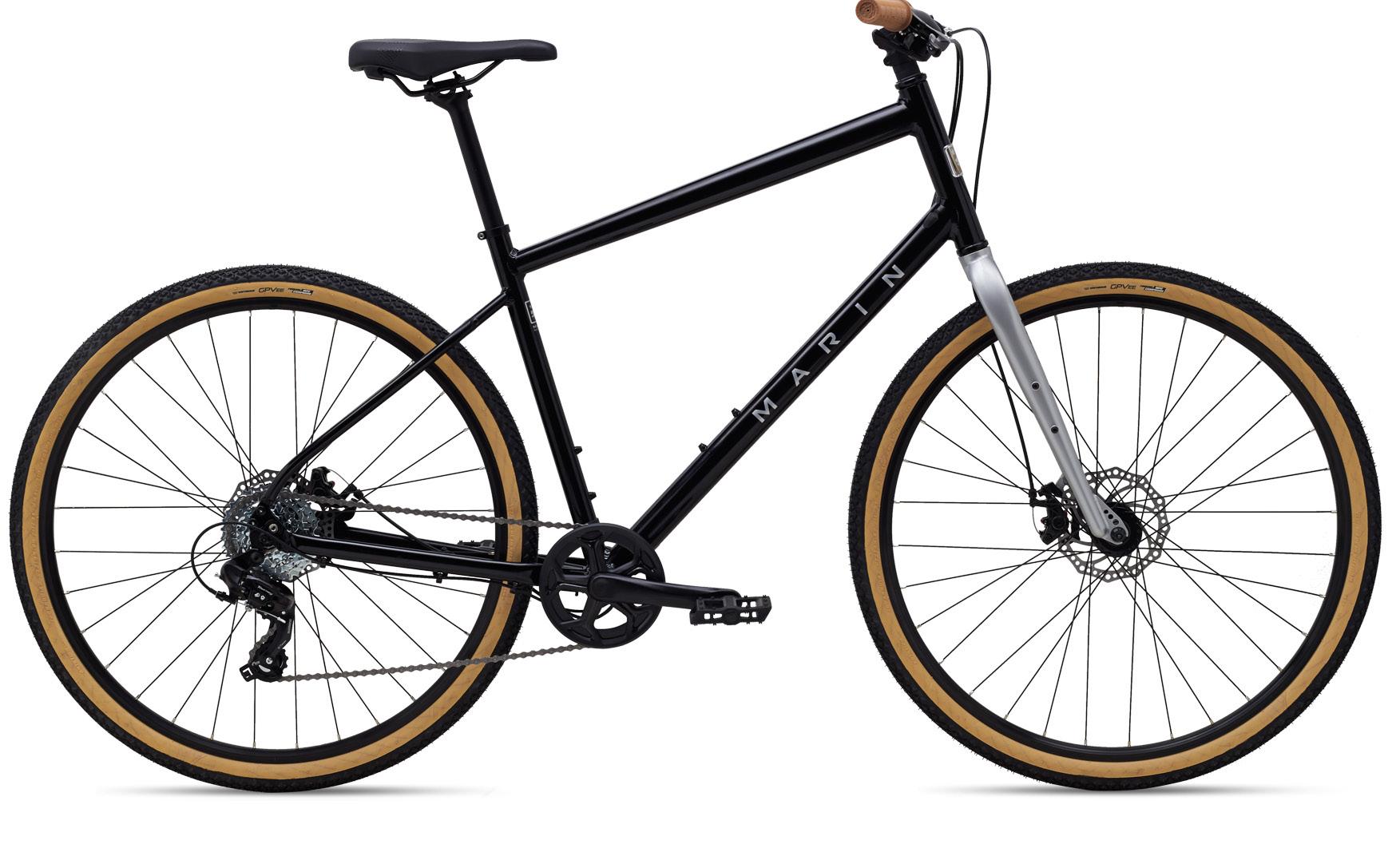

KENTFIELD 2

SIZES: WHEEL SIZE:

/ M / L / XL

▶ Series 1 aluminum hybrid frame

▶ Marin CrMo moto blade fork w/gear mounts

▶ microSHIFT 10-speed wide range drivetrain; Clark’s CMD-23 mechanical disc brakes

▶ Marin double wall rims, Vee Tire GPVee 700x40mm tires

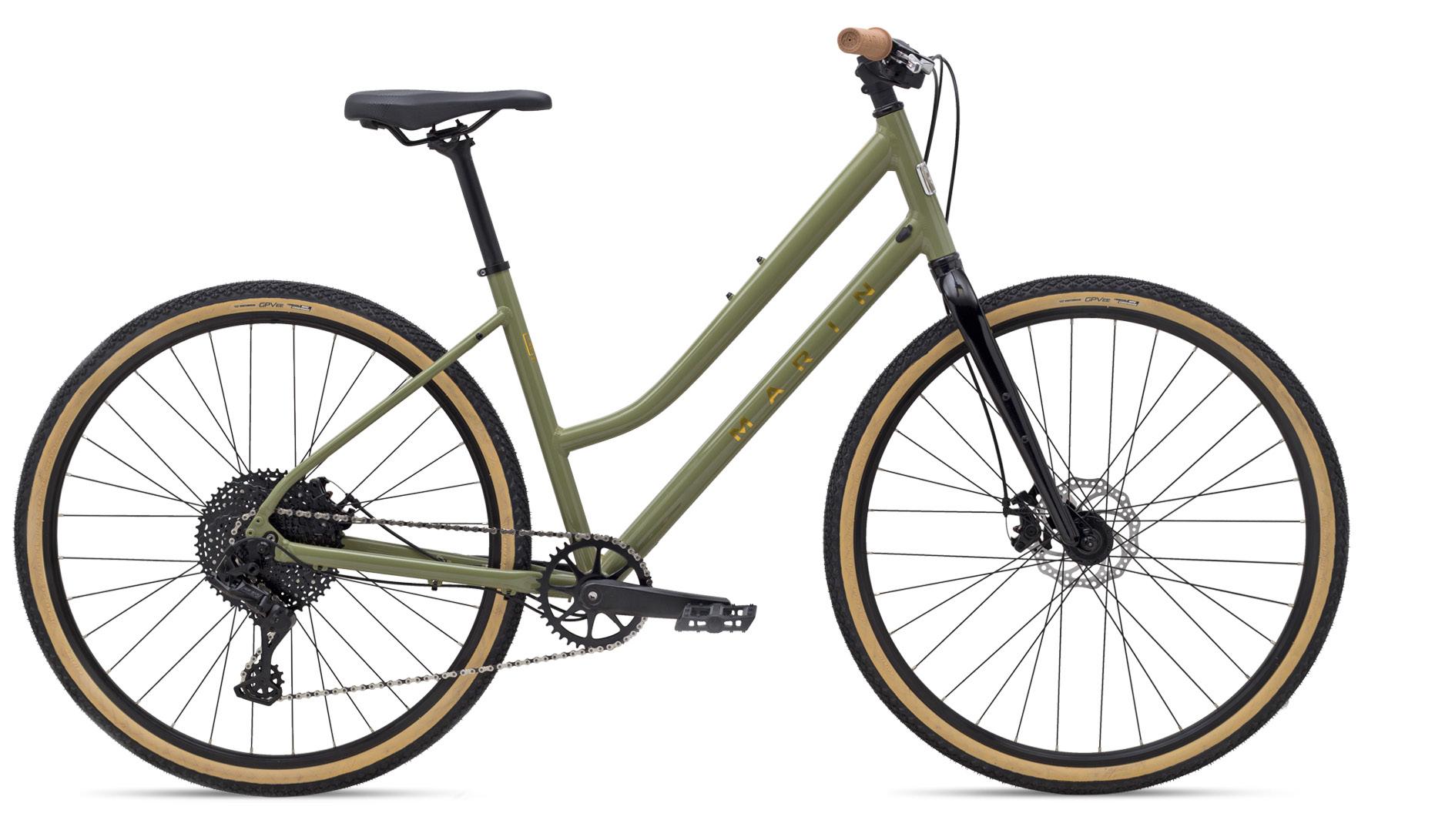

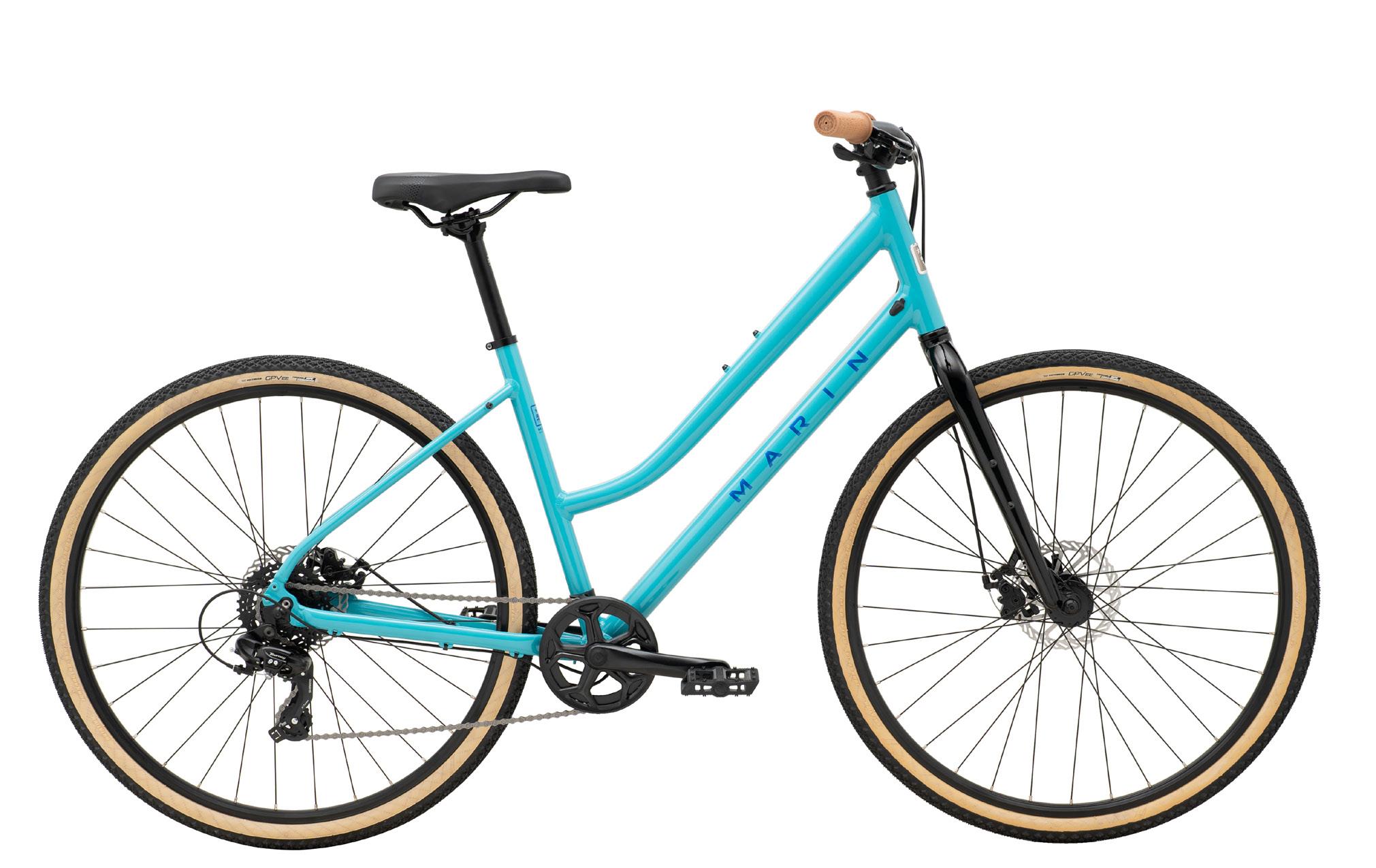

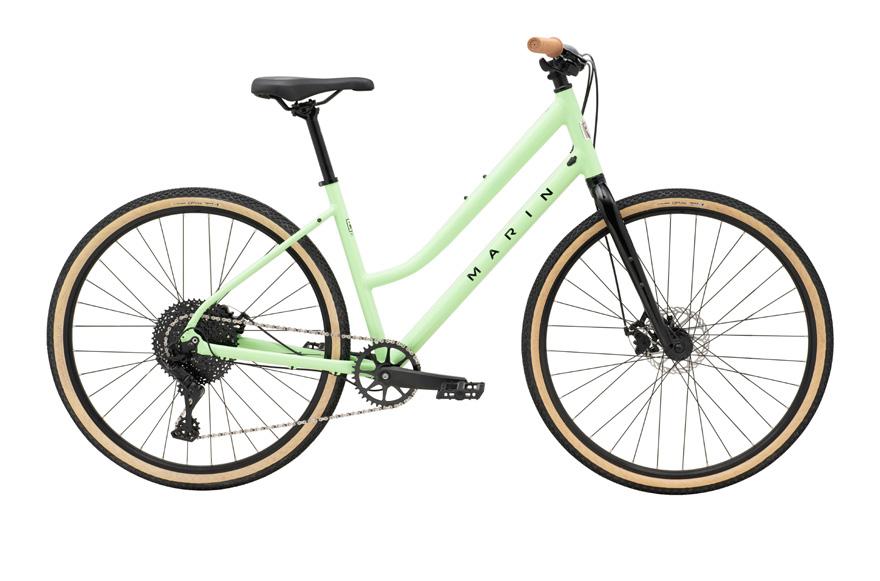

KENTFIELD ST 2

SIZES:

WHEEL SIZE:

COLOR: S / M / L

▶ Series 1 aluminum hybrid step-thru frame

▶ Marin CrMo moto blade fork w/gear mounts

▶ microSHIFT 10-speed wide range drivetrain; Clark’s CMD-23 mechanical disc brakes

▶ Marin double wall rims, Vee Tire GPVee 700x40mm tires

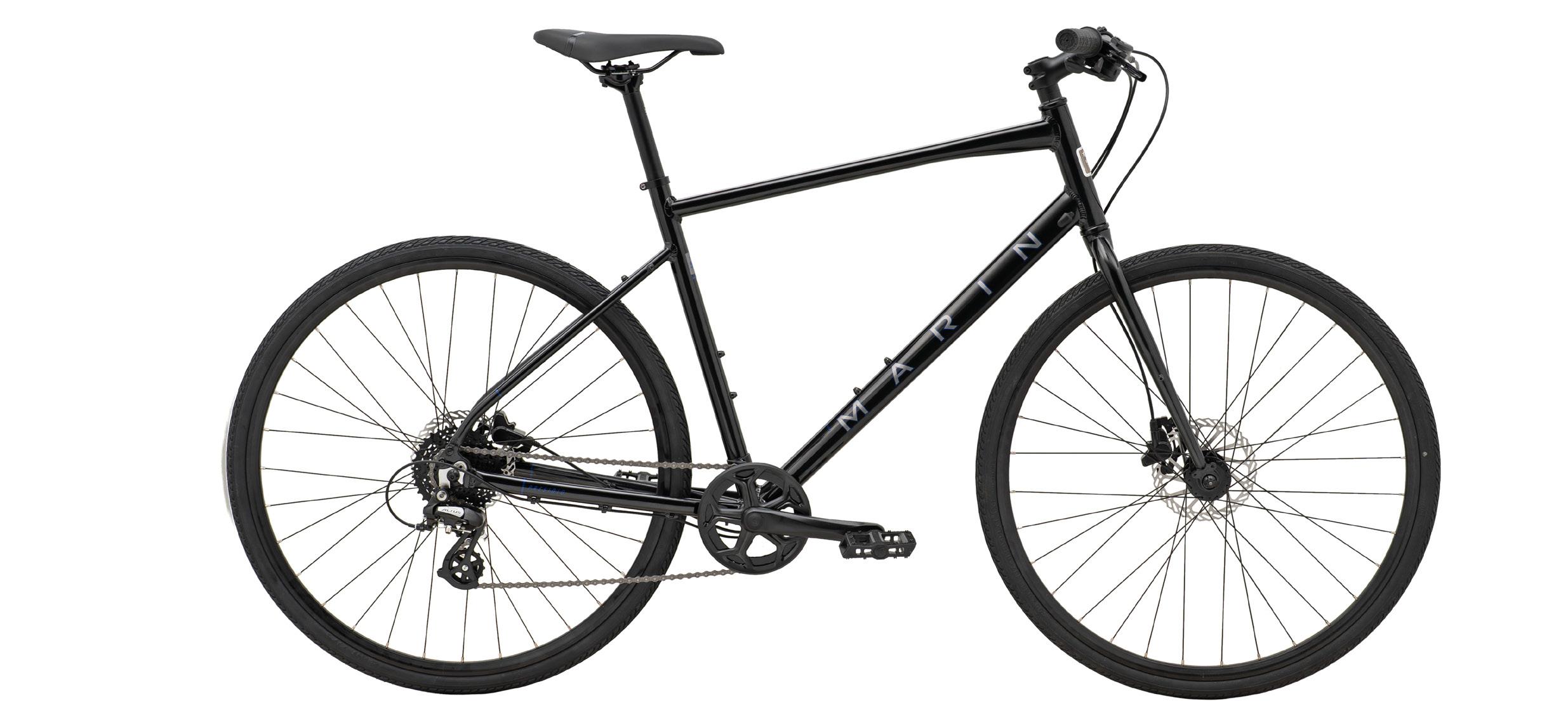

KENTFIELD 1

SIZES:

WHEEL SIZE: COLOR: S / M / L / XL

▶ Series 1 aluminum hybrid frame

▶ Marin CrMo moto blade fork w/gear mounts

▶ Shimano Tourney/Altus 7-speed drivetrain; Clark’s CMD-23 mechanical disc brakes

▶ Marin double wall rims, Vee Tire GPVee 700x40mm tires

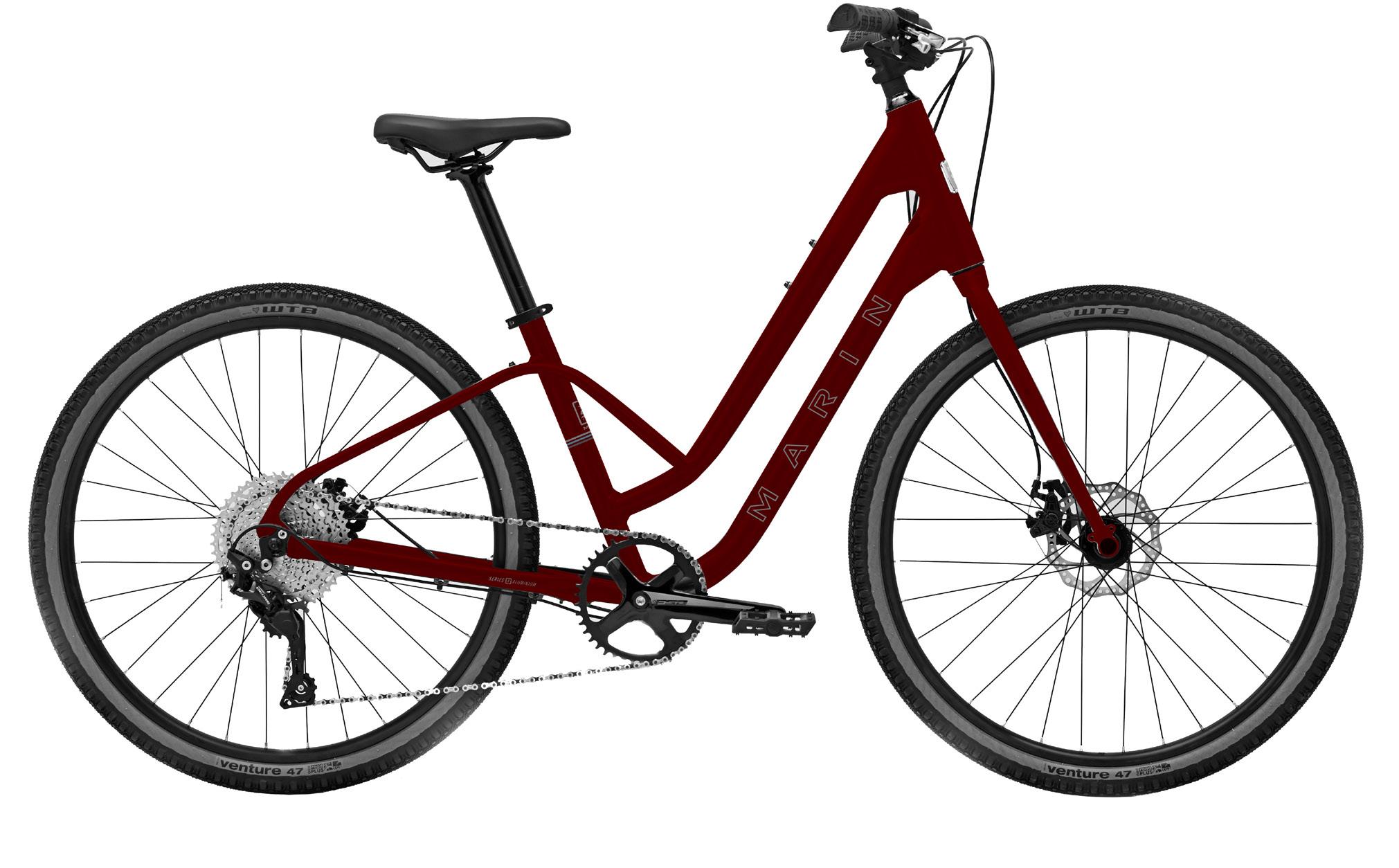

KENTFIELD ST 1

SIZES:

▶ Series 1 aluminum hybrid step-thru frame

▶ Marin CrMo moto blade fork w/gear mounts

▶ Shimano Tourney/Altus 7-speed drivetrain; Clark’s CMD-23 mechanical disc brakes

▶ Marin double wall rims, Vee Tire GPVee 700x40mm tires

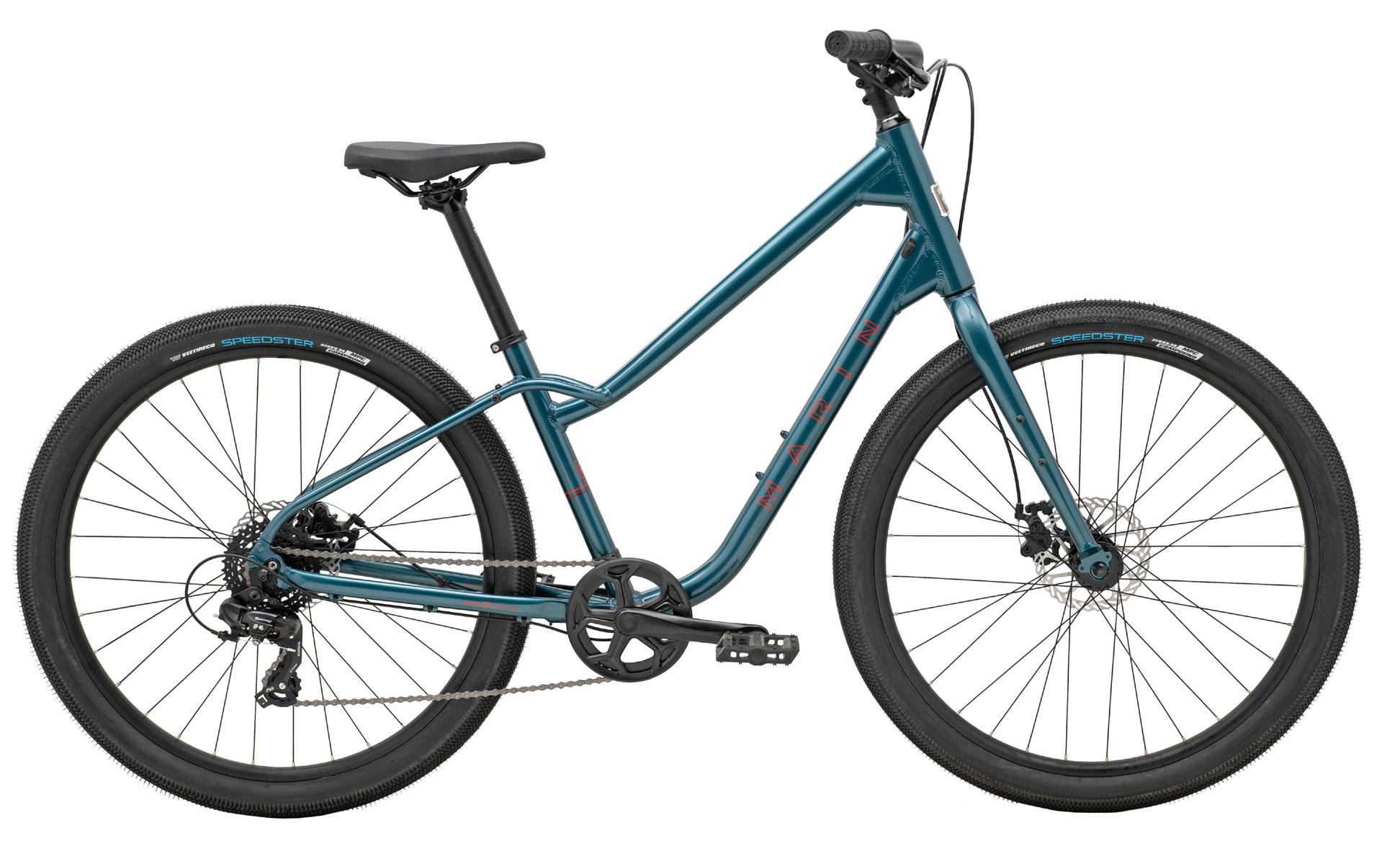

STINSON 2

▶ Series 1 aluminum comfort frame

▶ Marin CrMo fork w/fender & rack eyelets

▶ microSHIFT 9-speed drivetrain; Clark’s CMD-23 mechanical disc brakes

▶ Marin double wall rims, Vee Tire Speedster 27.5” x 2.35” tires

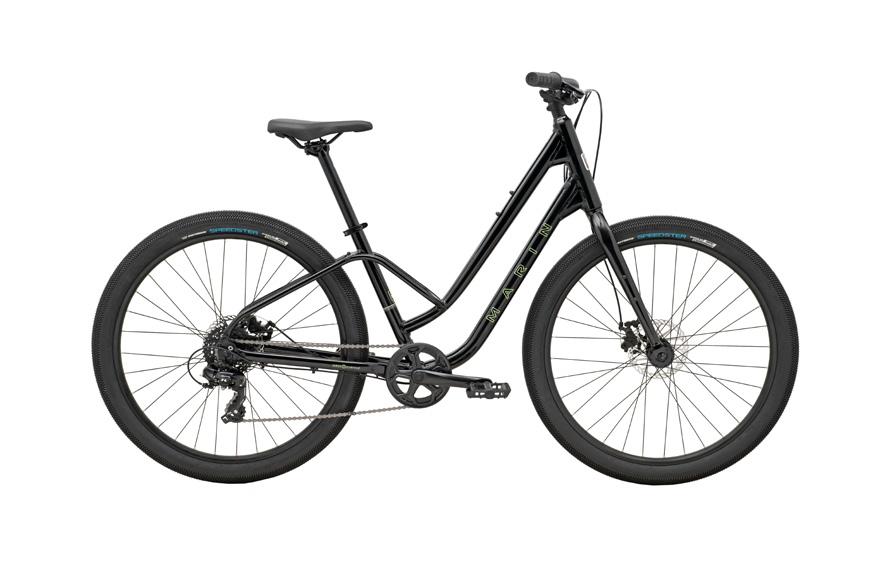

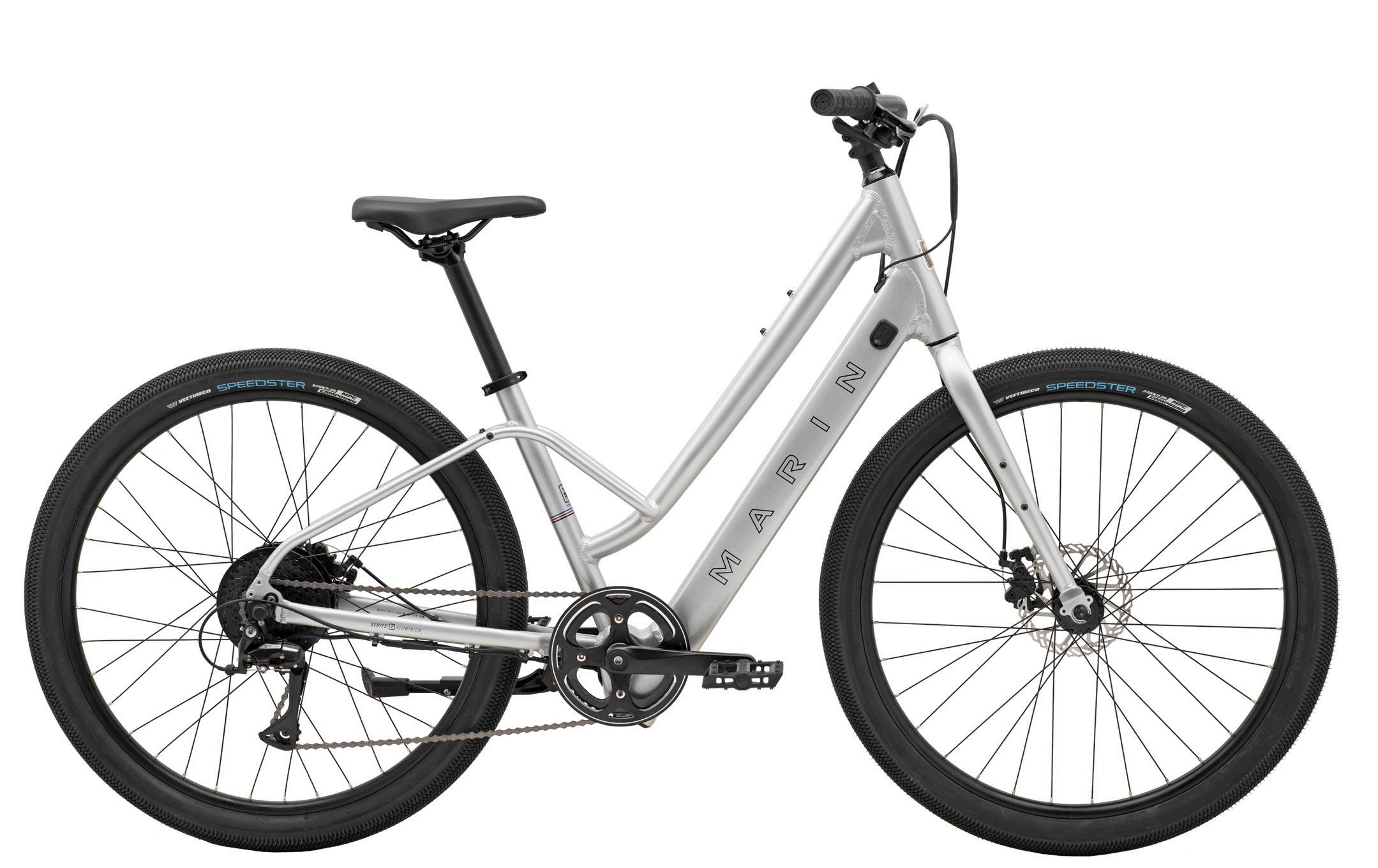

STINSON ST 2

pre-production graphic rendering shown for color purposes only

▶ Series 1 aluminum comfort step-thru frame

▶ Marin CrMo fork w/fender & rack eyelets

▶ microSHIFT 9-speed drivetrain; Clark’s CMD-23 mechanical disc brakes

▶ Marin double wall rims, Vee Tire Speedster 27.5” x 2.35” tires

STINSON 1

SIZES:

WHEEL SIZE: COLOR: S / M / L / XL

▶ Series 1 aluminum comfort frame

▶ Marin CrMo fork w/fender & rack eyelets

▶ Shimano Tourney/Altus 7-speed drivetrain; Clark’s CMD-23 mechanical disc brakes

▶ Marin double wall rims, Vee Tire GPVee 700x40mm tires

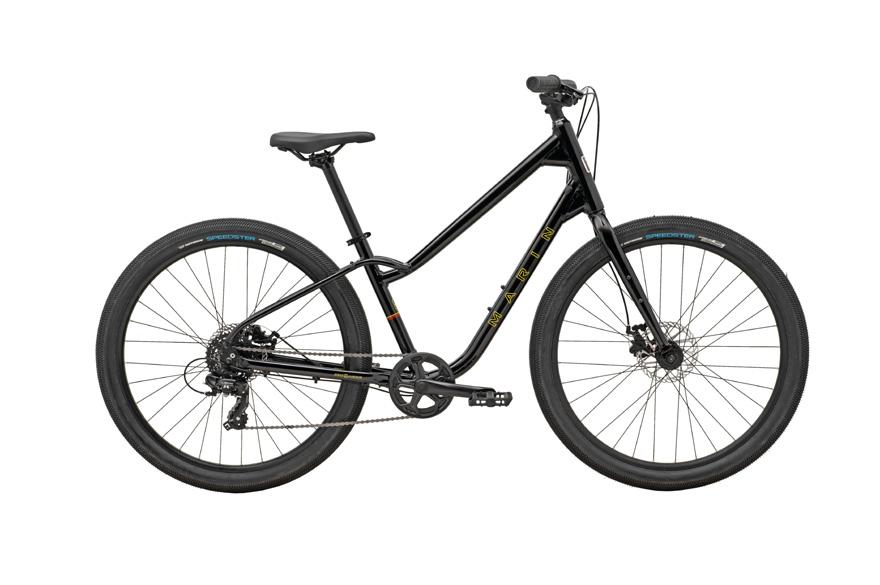

STINSON ST 1

SIZES:

▶ Series 1 aluminum comfort step-thru frame

▶ Marin CrMo fork w/fender & rack eyelets

▶ Shimano Tourney/Altus 7-speed drivetrain; Clark’s CMD-23 mechanical disc brakes

▶ Marin double wall rims, Vee Tire GPVee 700x40mm tires

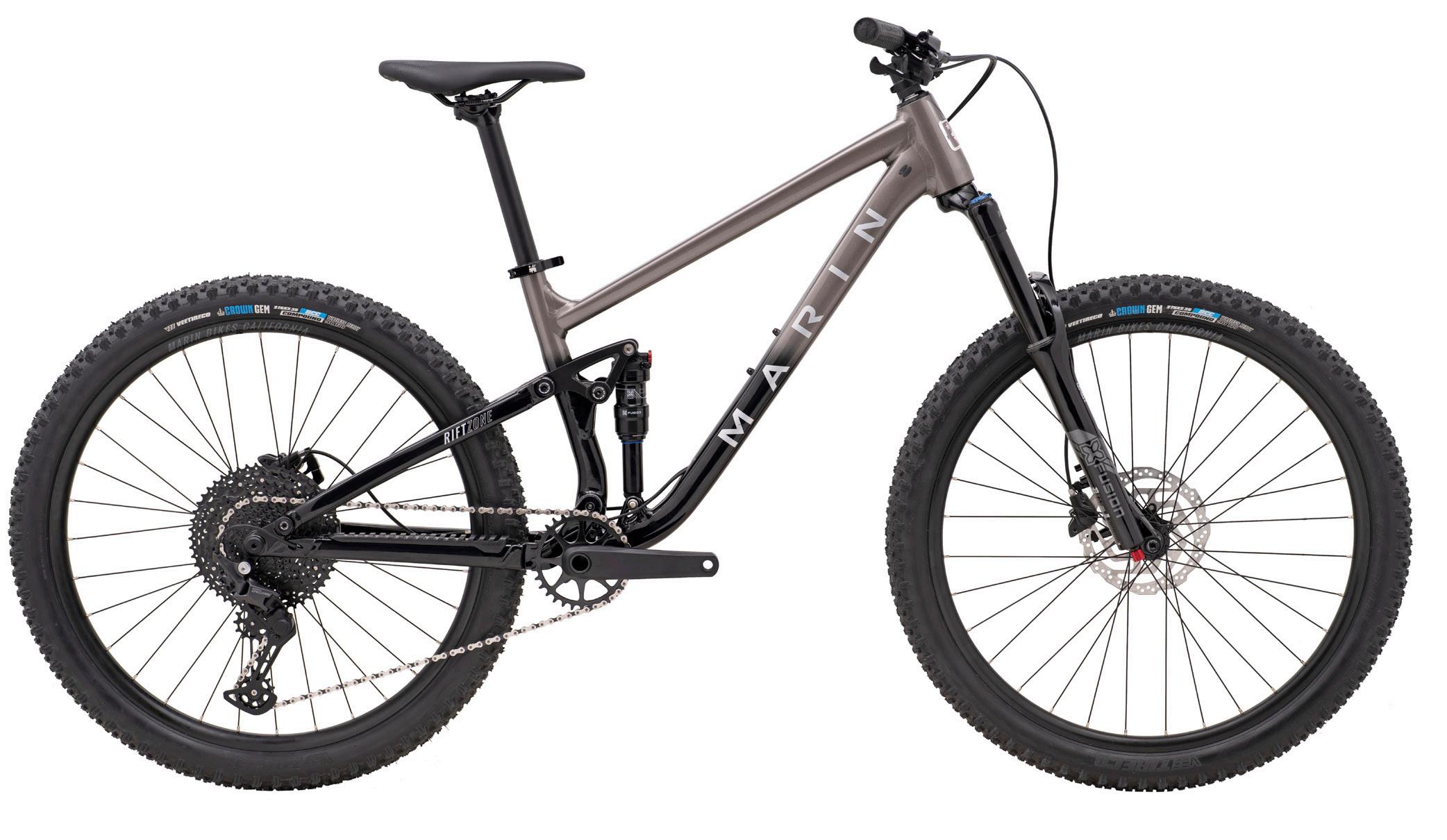

RIFT ZONE 26”

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: ONE SIZE 26” 130mm / 130mm TEAL / BLACK

▶ Series 3 aluminum MultiTrac aluminum frame, 130mm travel

▶ X-Fusion Velvet RLC fork w/130mm travel & O2 Pro R shock

▶ Shimano Deore 11-speed wide-range drivetrain; Tektro HDM-280 hydraulic disc brakes

▶ Marin 27mm inner rims, Vee Tire Flow Snap 26” x 2.4” tires

Specifications, pricing, and availability are subject to change without notice.

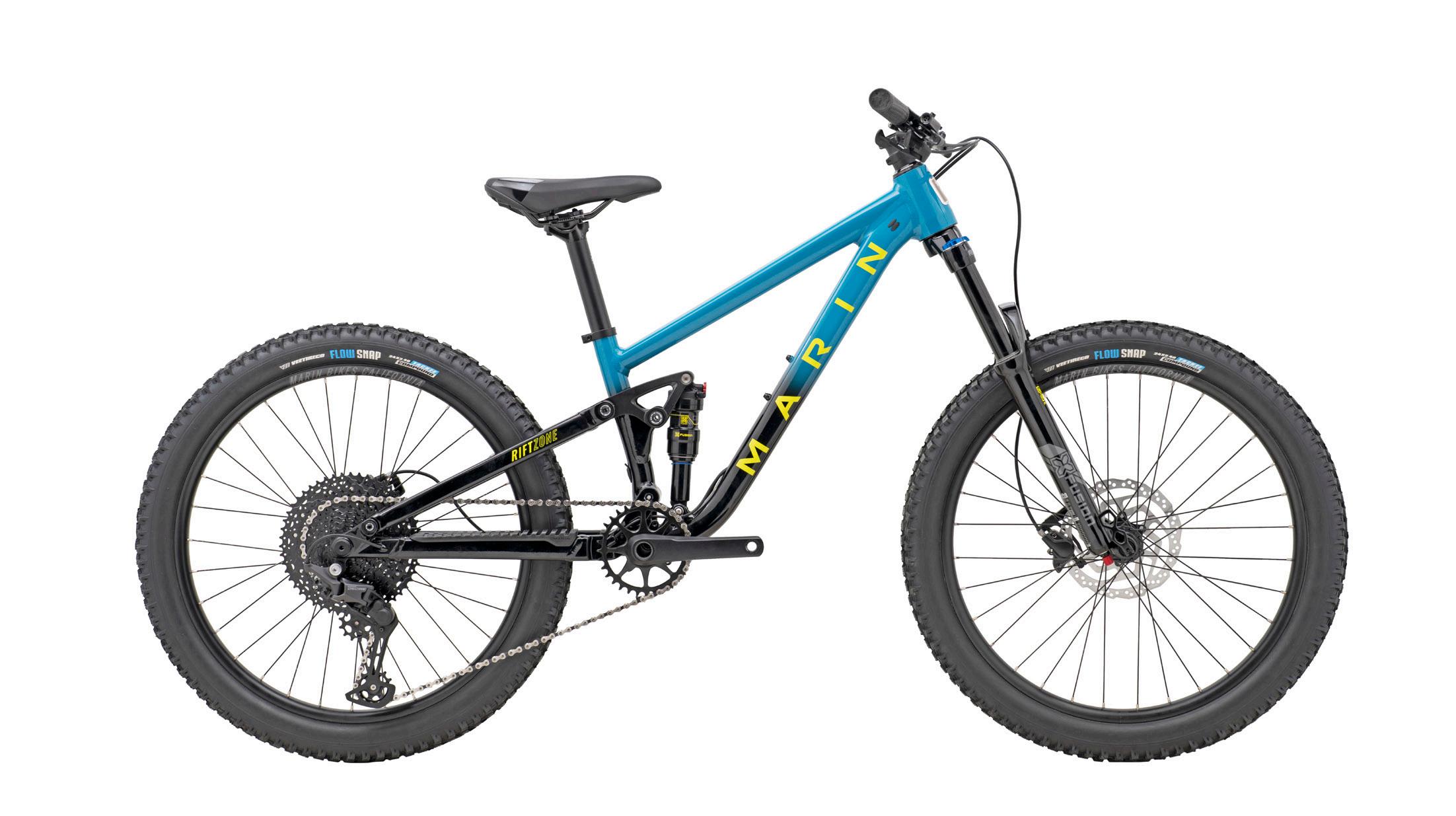

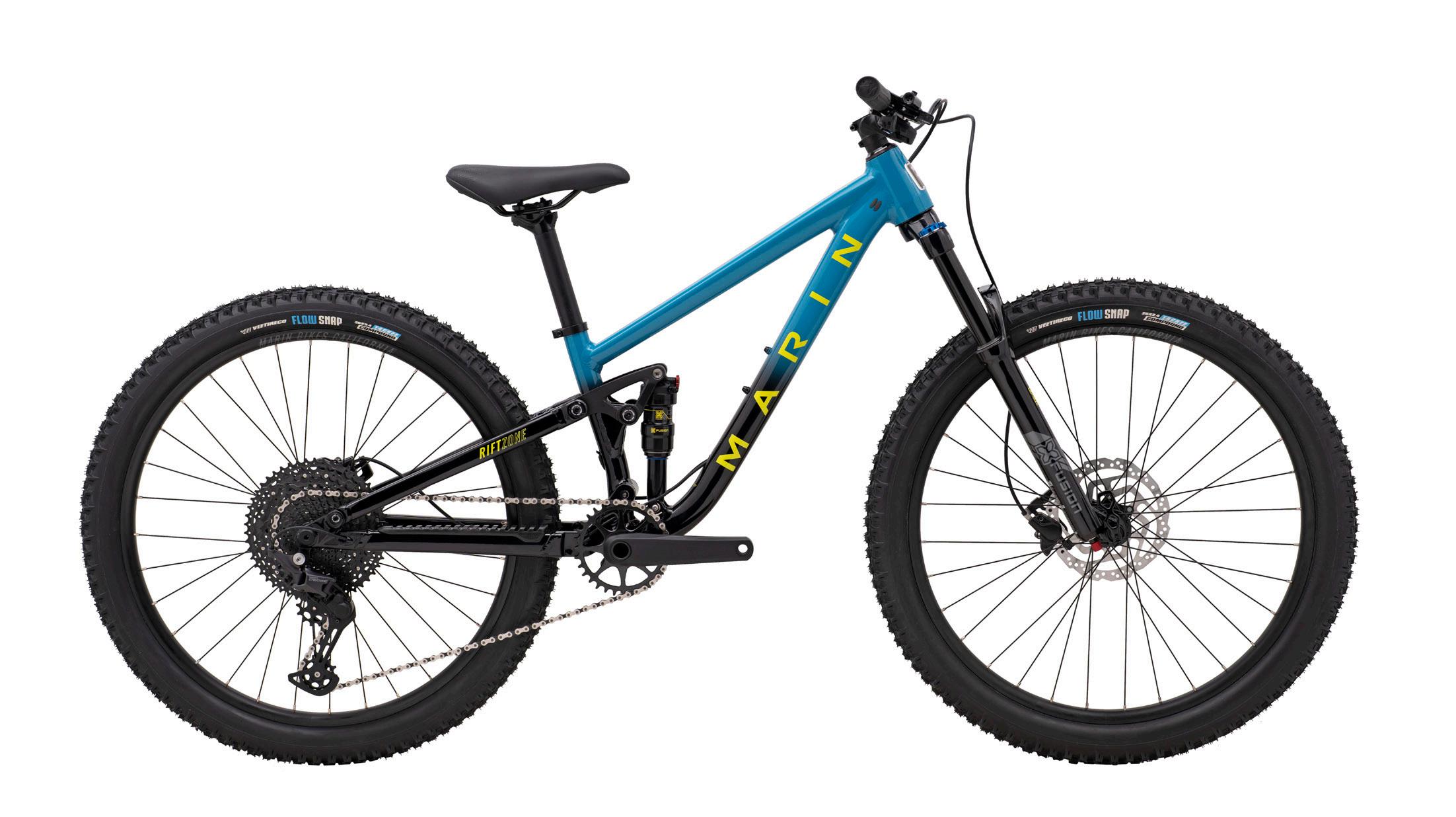

RIFT ZONE JR

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: ONE SIZE 24” 130mm / 130mm TEAL / BLACK

▶ Series 3 aluminum MultiTrac aluminum frame, 130mm travel

▶ X-Fusion Velvet RLC fork w/130mm travel & O2 Pro R shock

▶ Shimano Deore 11-speed wide-range drivetrain; Tektro HDM-280 hydraulic disc brakes

▶ Marin 27mm inner rims, Vee Tire Flow Snap 24” x 2.4” tires Specifications, pricing, and availability are

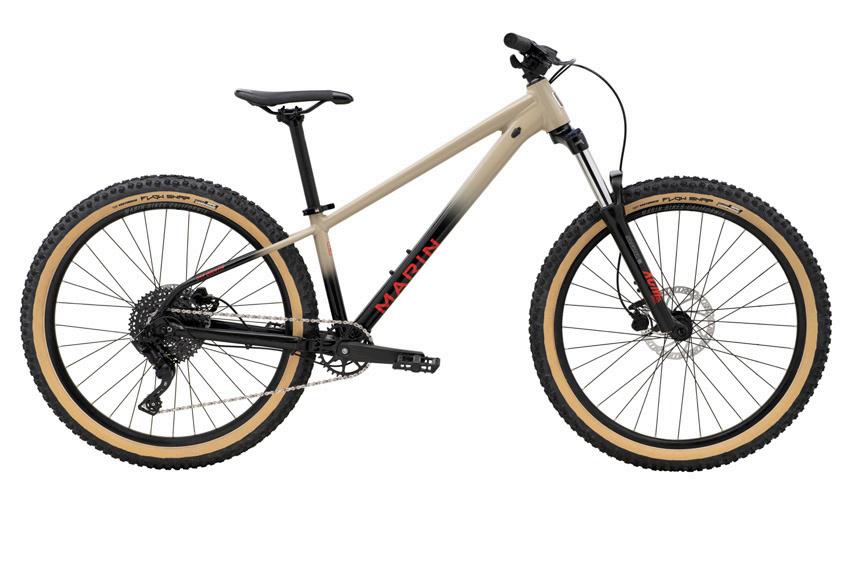

SAN QUENTIN 24”

SIZES: WHEEL SIZE:

SUSPENSION: COLOR: ONE SIZE 24” 100mm GREY / BLACK

▶ Series 2 aluminum frame, 24” wheels

▶ RockShox Judy Silver TK fork w/100mm travel, Solo Air

▶ microSHIFT Advent 9-speed wide-range drivetrain; Shimano MT201 hydraulic disc brakes

▶ Marin double wall rims, Vee Tire Flow Snap 24” x 2.6” tires

2023 model year and color shown, new color for 2024

SAN QUENTIN 20”

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: ONE SIZE 20” 80mm WHITE / BLACK

▶ Series 2 aluminum frame, 20” wheels

▶ SR/Suntour XCM 24 Boost fork w/80mm travel

▶ Shimano Altus 8-speed drivetrain; Tektro HD-J285 kids-specific hydraulic disc brakes

▶ Marin double wall rims, Vee Tire Crown Gem 20” x 2.6” tires

2023 model year and color shown, new color for 2024

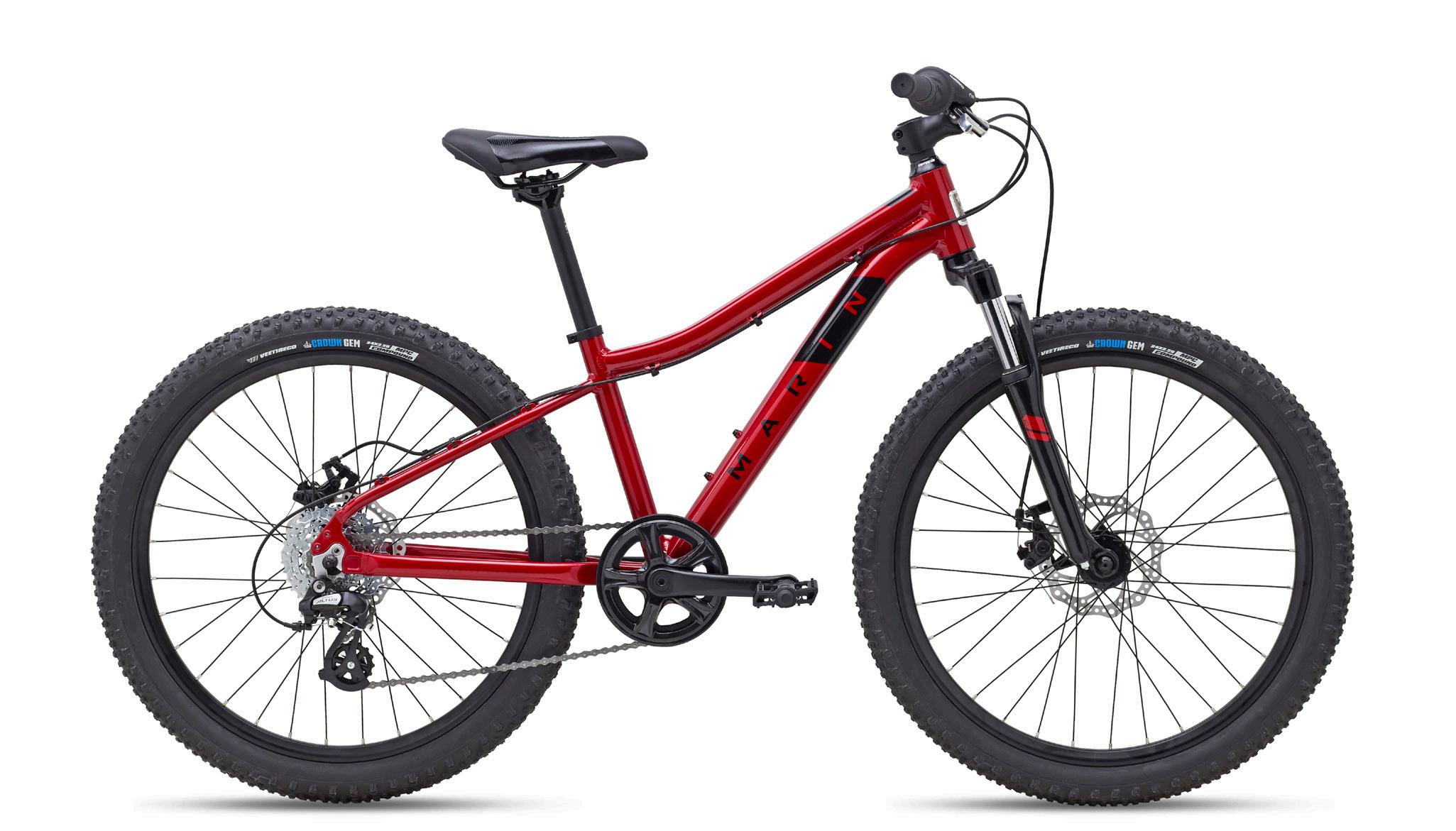

BAYVIEW TRAIL 24”

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: ONE SIZE 24” 50mm RED / BLACK GREY / MINT

▶ Series 1 aluminum ATB frame, 24” wheels

▶ SR/Suntour XCT Jr fork w/50mm travel

▶ Shimano Altus 7-speed drivetrain; Clark’s CMD-23 mechanical disc brakes

▶ Marin double wall rims, Vee Tire Crown Gem 24” x 2.25” tires

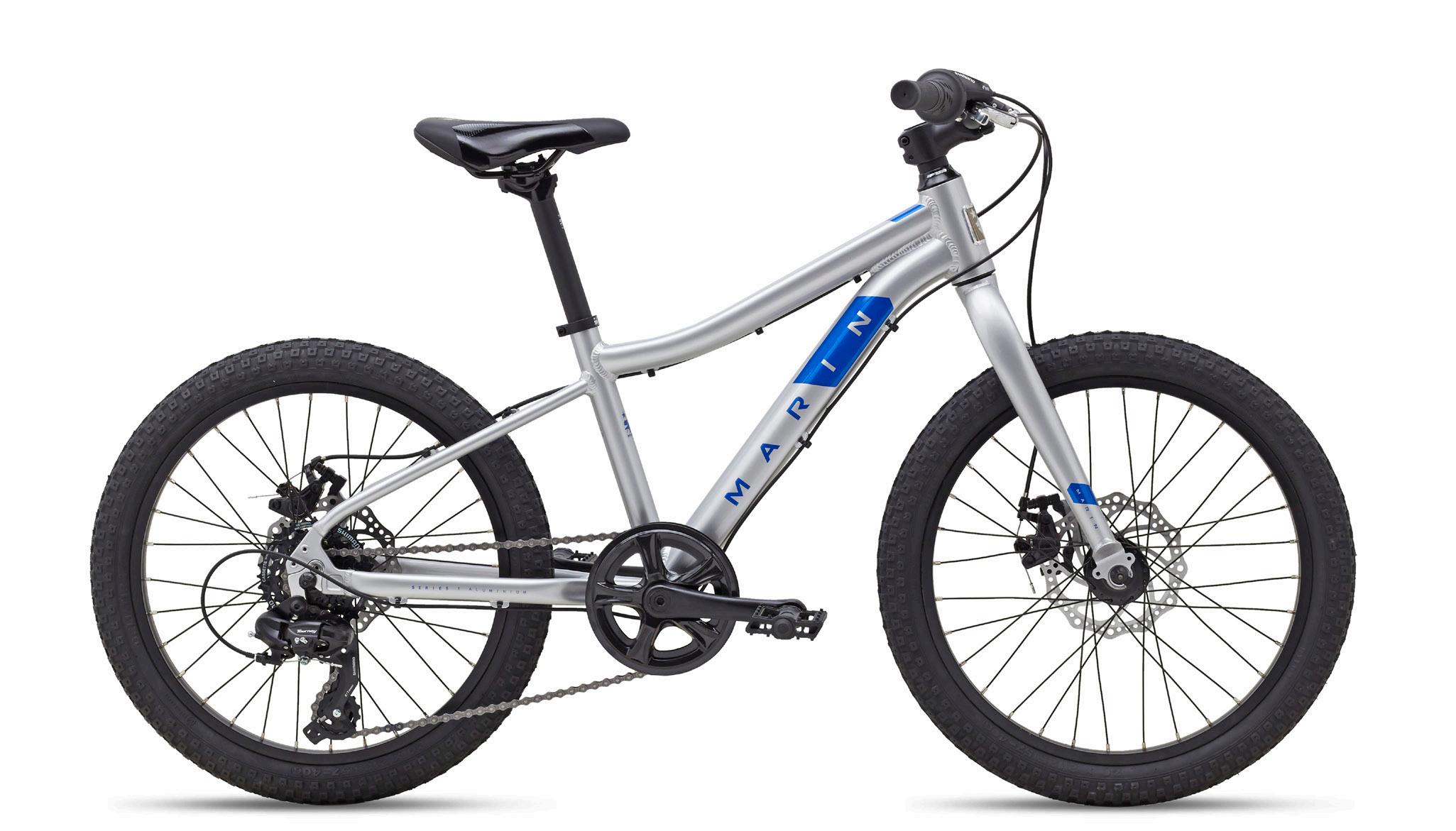

HIDDEN CANYON 20”

SIZES:

WHEEL SIZE:

COLOR: ONE SIZE 24” SILVER / BLUE TEAL / PINK

▶ Series 1 aluminum ATB frame, 24” wheels

▶ Steel rigid fork, 100mm spacing

▶ Shimano Tourney 7-speed drivetrain; Clark’s CMD-23 mechanical disc brakes

▶ Marin double wall rims, multi-surface 20” x 2.125” tires

Specifications,

ALPINE TRAIL E2

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL

29” F / 27.5” R 160mm / 150mm GREY / BLACK

▶ Series 4 aluminum MultiTrac frame w/integrated battery, 150mm travel, 29” front 27.5”/rear wheels

▶ Shimano STEPs EP801 drive unit, 85Nm, 630Wh battery

▶ Fox 38 Performance Elite fork w/160mm travel & DHX2 Performance Elite shock

▶ Shimano Deore 12-speed drivetrain; TRP DH-R EVO 4-piston disc brakes

Specifications, pricing, and availability are subject to change without notice.

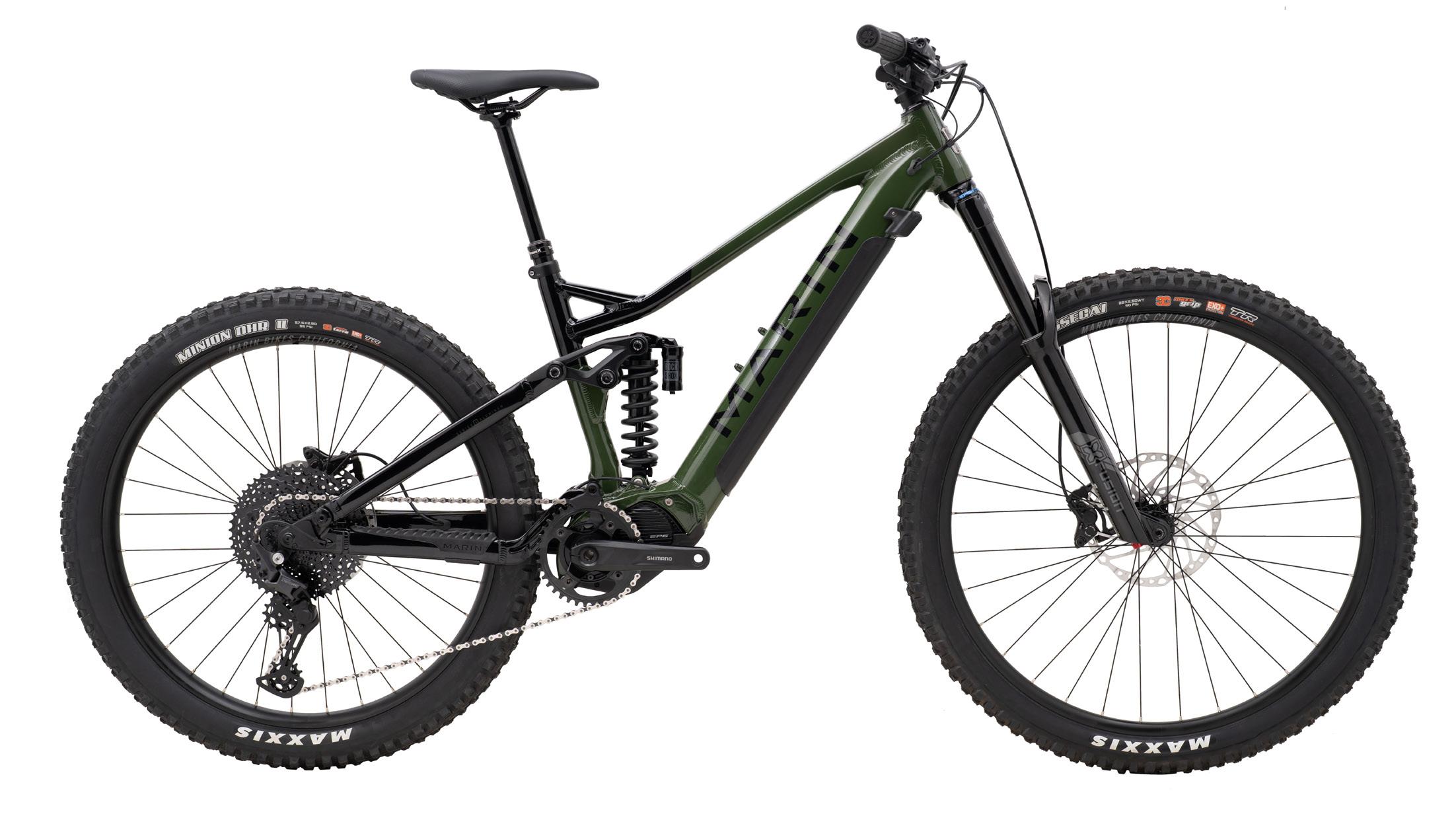

ALPINE TRAIL E1

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL

29” F / 27.5” R 160mm / 150mm GREEN / BLACK

▶ Series 4 aluminum MultiTrac frame w/integrated battery, 150mm travel, 29” front/27.5” rear wheels

▶ Shimano STEPs EP6 drive unit, 85Nm, 630Wh battery

▶ X-Fusion Trace 36 RC fork w/160mm travel & RockShox Super Deluxe Coil R shock

▶ Shimano Deore 11-speed drivetrain; TRP Slate EVO 4-piston disc brakes

Specifications, pricing, and availability are subject to change without notice.

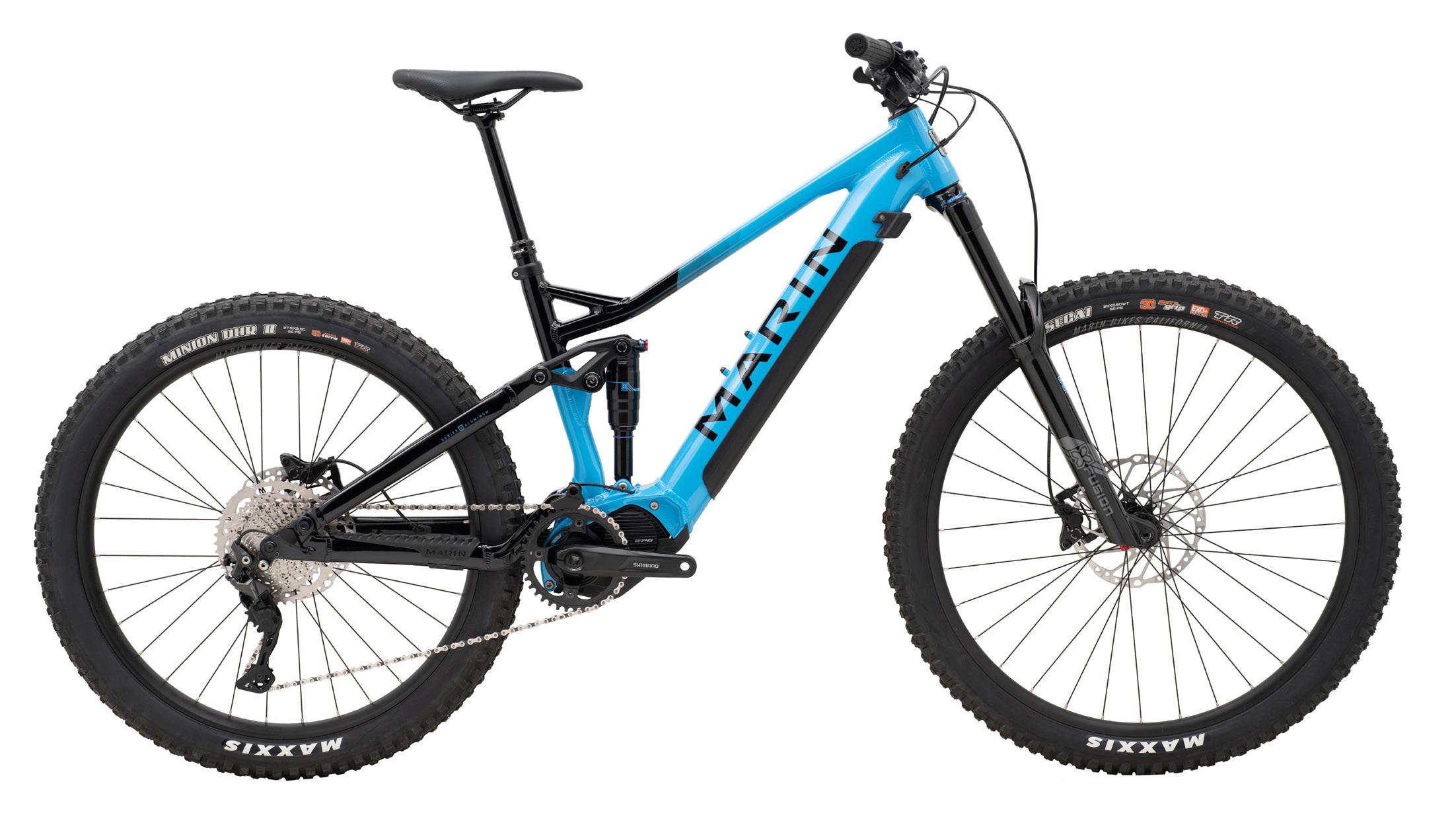

ALPINE TRAIL E

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL

29” F / 27.5” R 160mm / 150mm CYAN / BLACK

▶ Series 4 aluminum MultiTrac frame w/integrated battery, 150mm travel, 29” front/27.5” rear wheels

▶ Shimano STEPs EP6 drive unit, 85Nm, 504Wh battery

▶ X-Fusion Trace 36 RC fork w/160mm travel & O2 Pro RXC shock

▶ Shimano Deore 10-speed drivetrain; TRP Slate EVO 4-piston disc brakes

Specifications, pricing, and availability are subject to change without notice.

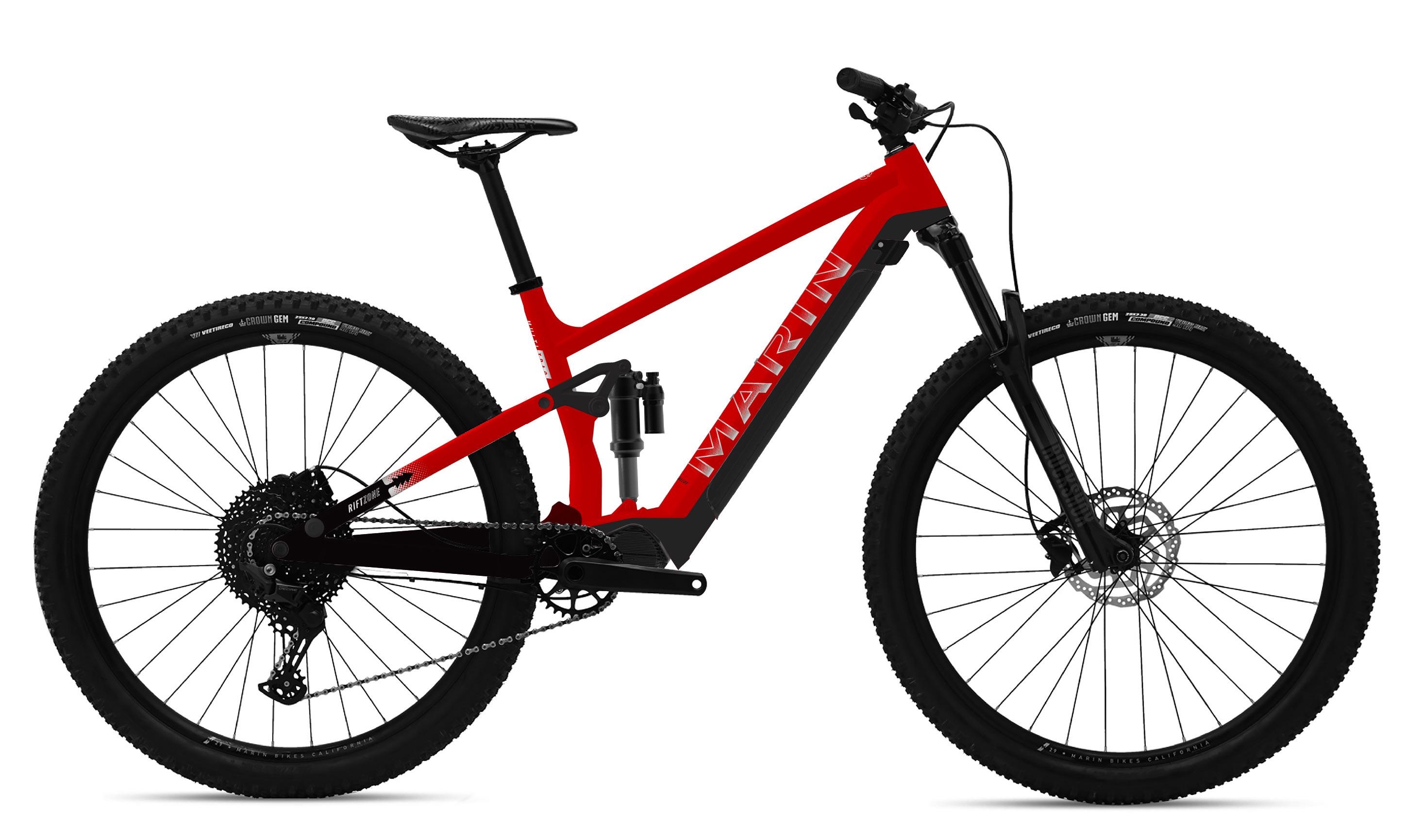

RIFT ZONE E XR

NEW

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 29” 150mm / 140mm RED / BLACK

pre-production graphic rendering shown for color purposes only

▶ Series 4 aluminum MultiTrac frame w/integrated battery, 140mm travel, 29” wheels

▶ Shimano STEPs EP801 drive unit, 85Nm, 630Wh battery

▶ RockShox Lyrik Ultimate, 150mm Travel & Super Deluxe Ultimate Shock

▶ SRAM GX Eagle AXS T-Type 12-speed drivetrain, Code Bronze Stealth disc brakes

▶ RockShox Reverb AXS dropper post

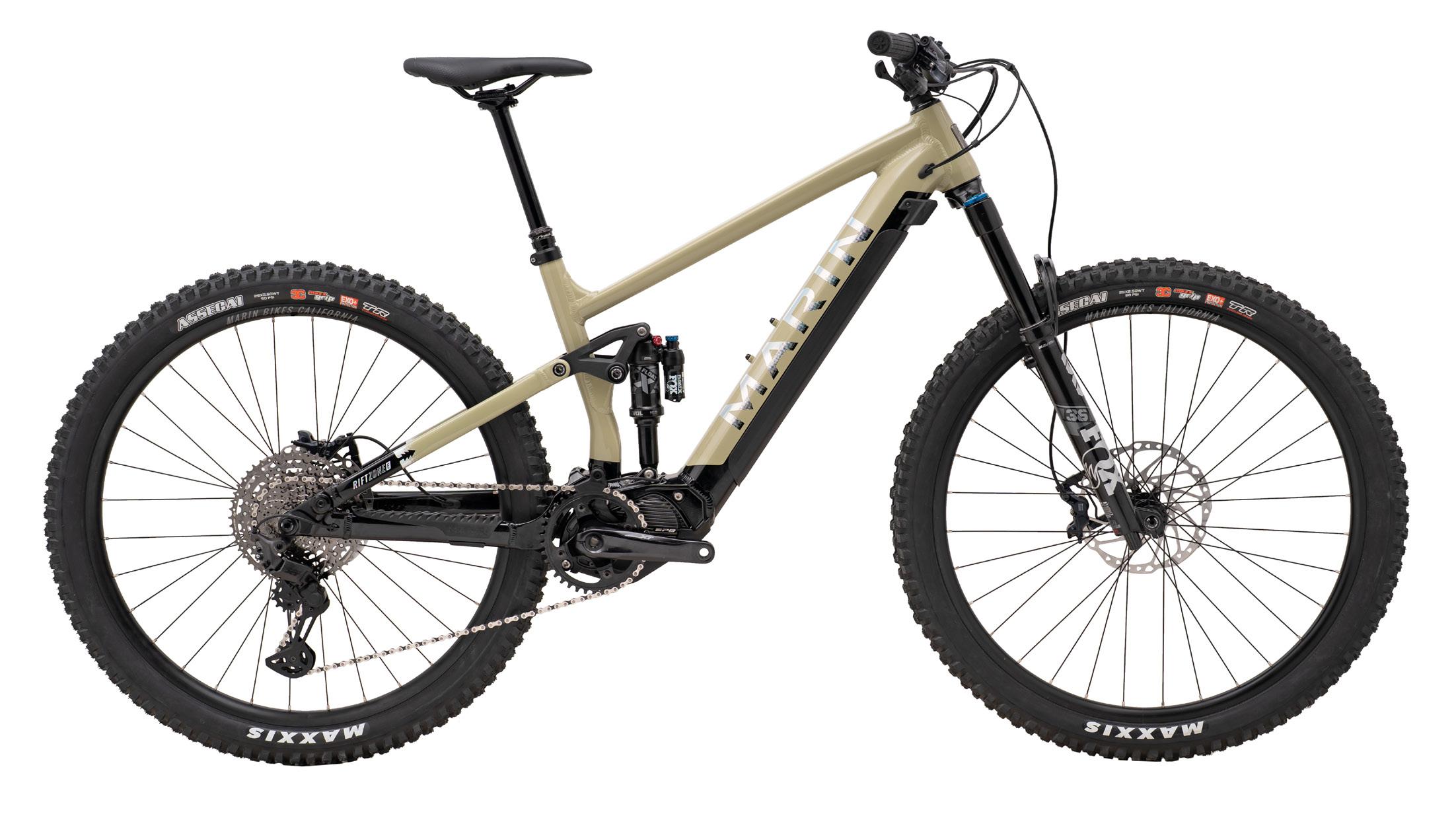

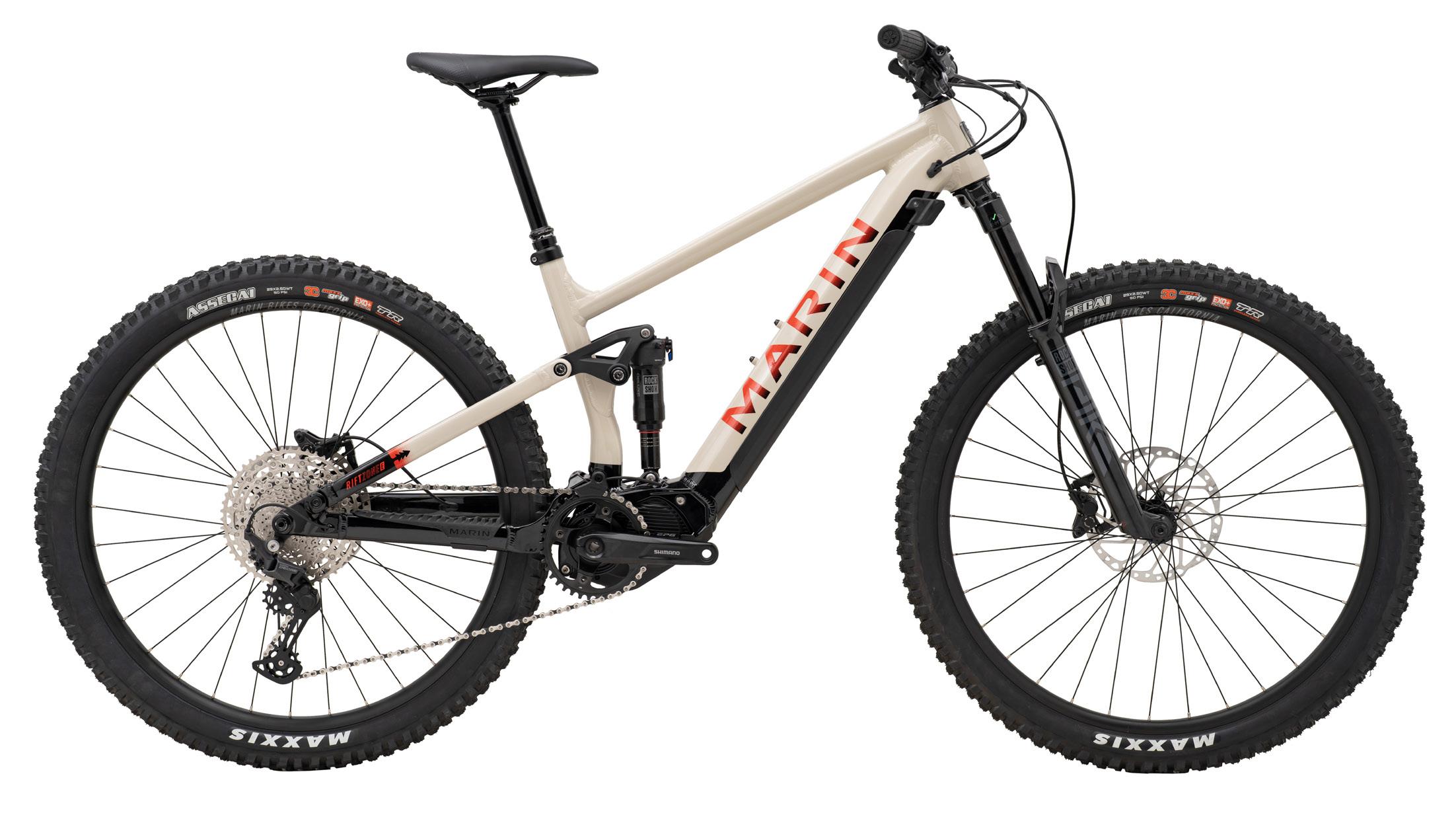

RIFT ZONE E2

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 29” 140mm / 140mm TAN / BLACK

▶ Series 4 aluminum MultiTrac frame w/integrated battery, 140mm travel, 29” wheels

▶ Shimano STEPs EP801 drive unit, 85Nm, 630Wh battery

▶ Fox 38 Performance Elite fork w/140mm travel & Float X Performance Elite shock

▶ Shimano XT LinkGlide 11-speed drivetrain; TRP DH-R EVO 4-piston disc brakes

Specifications, pricing, and availability are subject to change without notice.

RIFT ZONE E1

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 29” 140mm / 140mm CREAM / BLACK

▶ Series 4 aluminum MultiTrac frame w/integrated battery, 140mm travel, 29” wheels

▶ Shimano STEPs EP6 drive unit, 85Nm, 630Wh battery

▶ RockShox Pike fork w/140mm travel & Deluxe Select+ shock

▶ Shimano Deore 11-speed drivetrain; TRP Slate EVO 4-piston disc brakes

Specifications, pricing, and availability are subject to change without notice.

RIFT ZONE E

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 29” 140mm / 140mm GREY / BLUE

▶ Series 4 aluminum MultiTrac frame w/integrated battery, 140mm travel, 29” wheels

▶ Shimano STEPs EP6 drive unit, 85Nm, 504Wh battery

▶ RockShox 35 Silver R fork w/140mm travel, X-Fusion O2 Pro R shock

▶ Shimano Deore 10-speed drivetrain; TRP Slate EVO 4-piston disc brakes

Specifications, pricing, and availability are subject to change without notice.

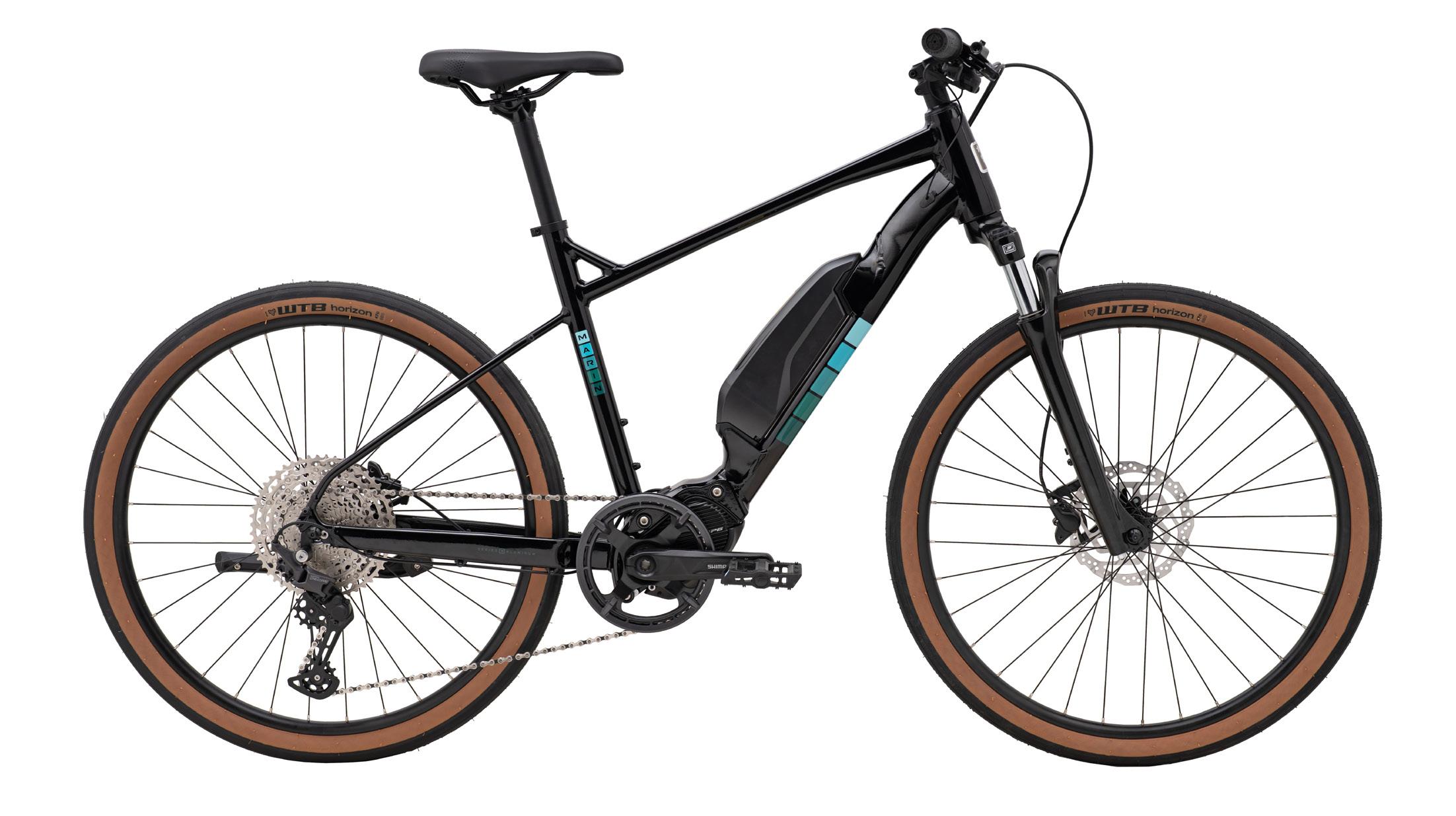

SAUSALITO E2

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L / XL 650b 63mm BLACK

▶ Series 3 butted & formed aluminum frame w/downtube battery mount, 650B wheels

▶ Shimano STEPs EP6 drive unit, 85Nm, 504Wh battery, Class 3 (28MPH)

▶ SR/Suntour NVX-E fork w/63mm travel

▶ Shimano Deore 11-speed drivetrain; MT201 hydraulic disc brakes

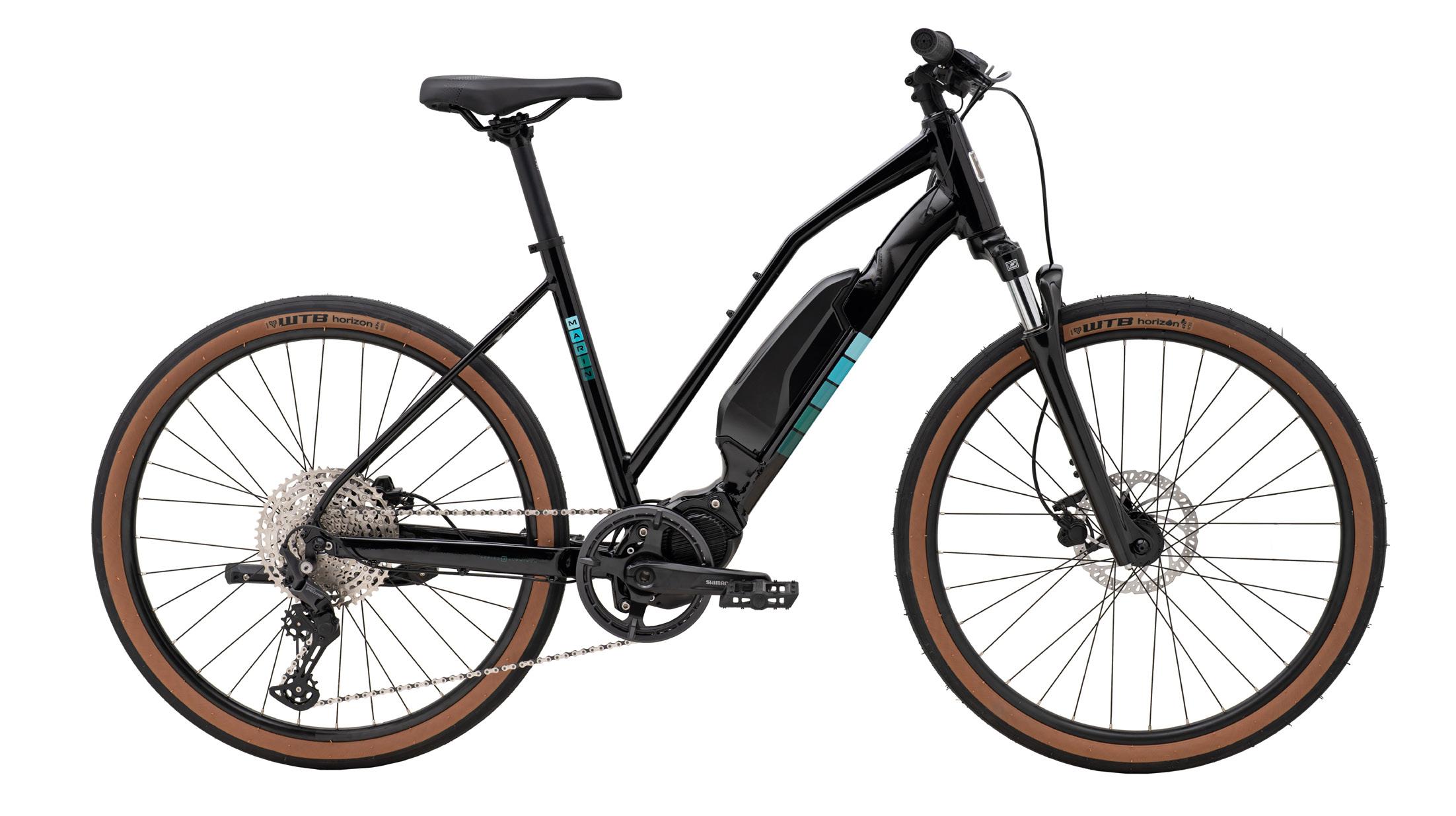

SAUSALITO ST E2

SIZES:

WHEEL SIZE:

SUSPENSION:

COLOR: S / M / L 650b 63mm BLACK

▶ Series 3 butted & formed aluminum step-thru frame w/downtube battery mount, 650B wheels

▶ Shimano STEPs EP6 drive unit, 85Nm, 504Wh battery, Class 3 (28MPH)

▶ SR/Suntour NVX-E fork w/63mm travel

▶ Shimano Deore 11-speed drivetrain; MT201 hydraulic disc brakes Specifications,

SAUSALITO E1

SIZES:

WHEEL SIZE: COLOR: S / M / L / XL

▶ Series 3 butted & formed aluminum frame w/downtube battery mount, 650B wheels

▶ Shimano STEPs E5000 drive unit, 40Nm, 418Wh battery, Class 1

▶ Marin CrMo moto blade fork w/gear mounts

▶ Shimano Deore 10-speed drivetrain; Tektro M275 hydraulic disc brakes

SAUSALITO ST E1

pre-production graphic rendering shown for color

SIZES:

WHEEL SIZE:

S / M / L

▶ Series 3 butted & formed aluminum step-thru frame w/downtube battery mount, 650B wheels

▶ Shimano STEPs E5000 drive unit, 40Nm, 418Wh battery, Class 1

▶ Marin CrMo moto blade fork w/gear mounts

▶ Shimano Deore 10-speed drivetrain; Tektro M275 hydraulic disc brakes

STINSON E NEW

SIZES:

WHEEL SIZE:

COLOR: S / M / L / XL 27.5” BLUE

▶ Series 1 aluminum comfort ebike-specific frame, 27.5” wheels

▶ Marin CrMo fork w/fender & rack eyelets

▶ Torque-sensing 250W rear hub motor system, 340Wh battery

▶ Shimano Tourney 8-speed drivetrain; Power CX7 mechanical disc brakes

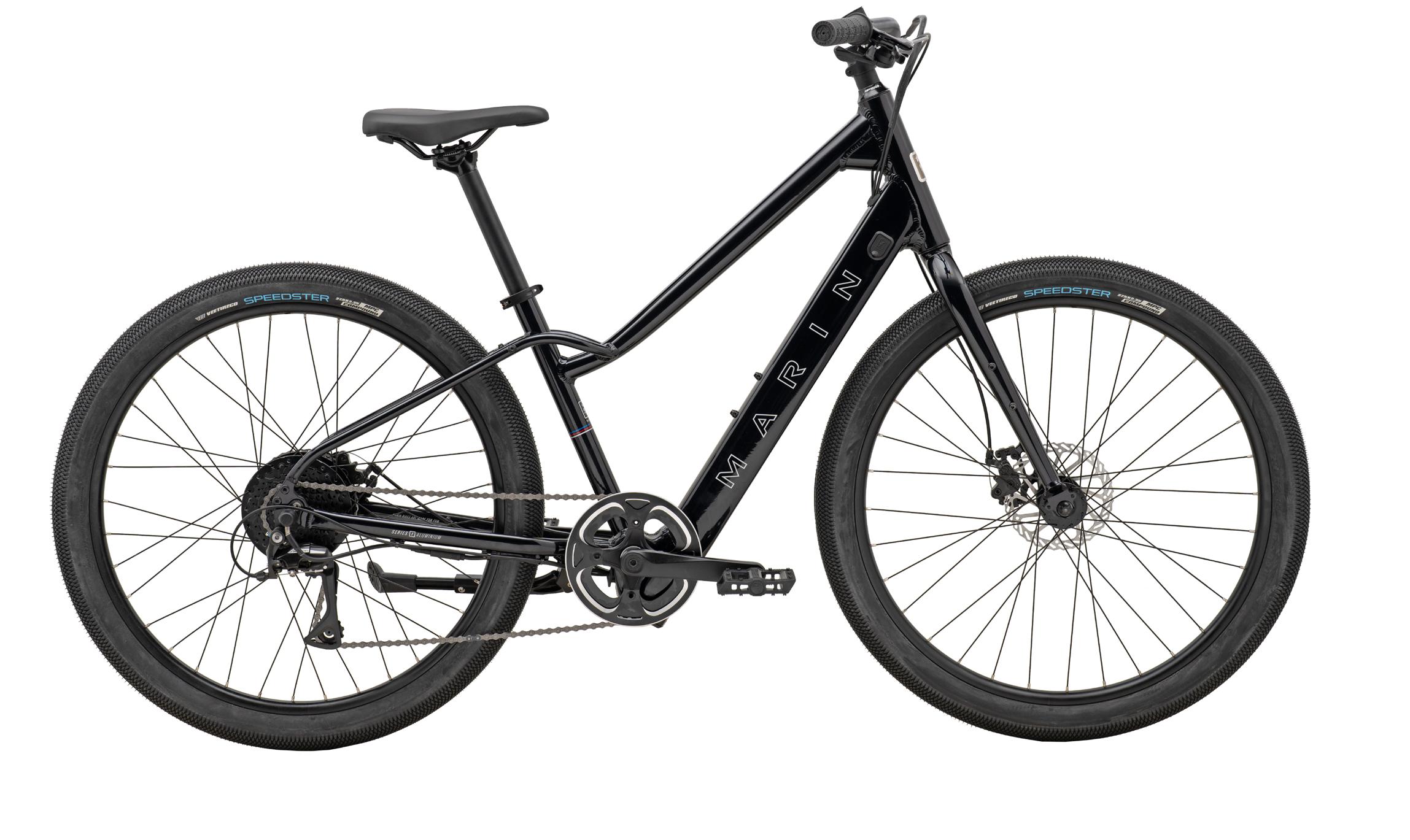

STINSON ST E

SIZES:

WHEEL SIZE: COLOR: S / M / L

▶ Series 1 aluminum comfort ebike-specific step-thru frame, 27.5” wheels

▶ Marin CrMo fork w/fender & rack eyelets

▶ Torque-sensing 250W rear hub motor, 309Wh battery

▶ Shimano Tourney 7-speed drivetrain; Power CX7 mechanical disc brakes

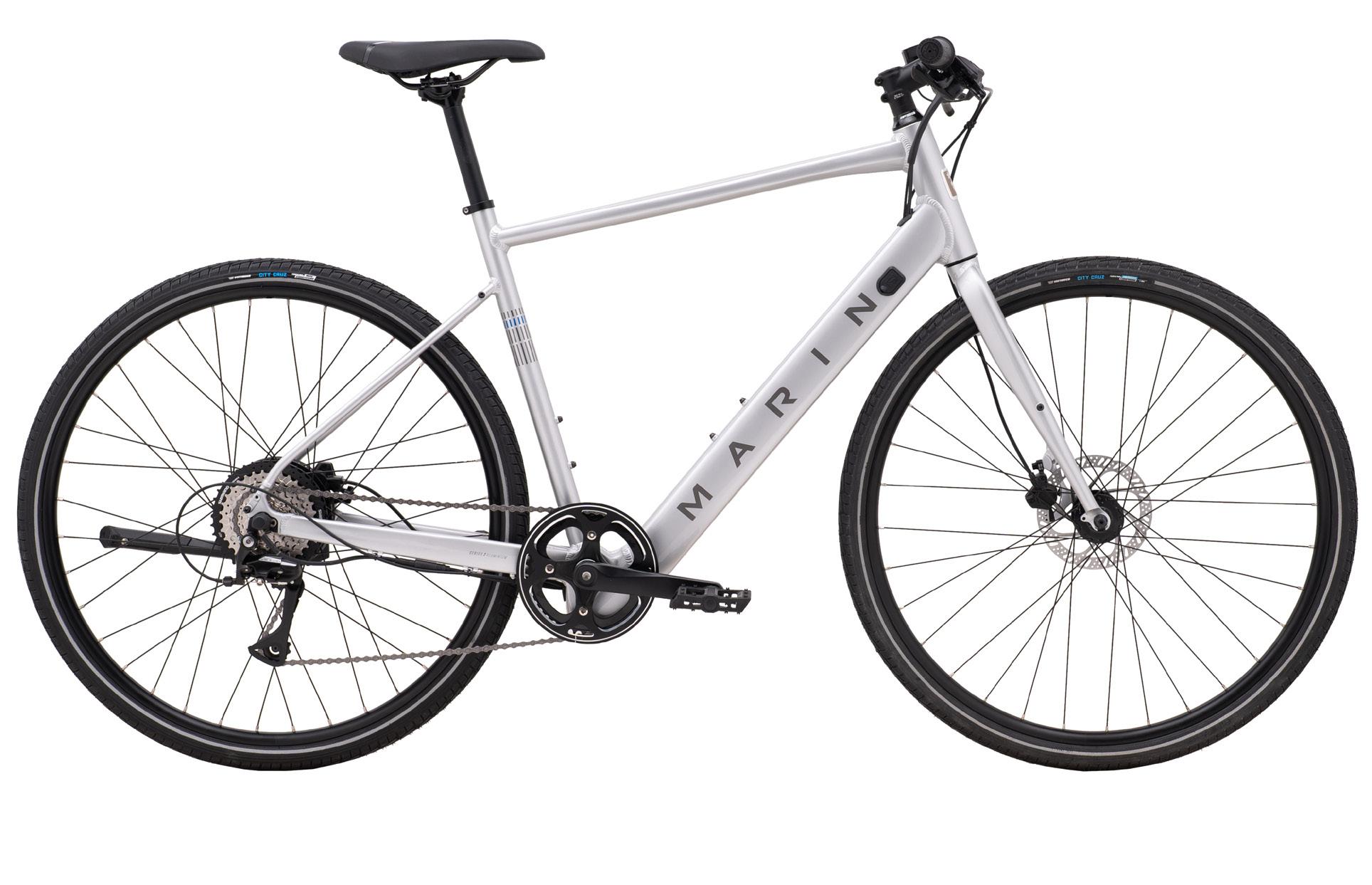

FAIRFAX E

SIZES:

WHEEL SIZE:

S / M / L

▶ Series 2 aluminum fitness frame, 700c wheels

▶ Marin aluminum fork w/fender & rack eyelets

▶ Torque-sensing 250W rear hub motor system, 340Wh battery

▶ Shimano Altus 8-speed drivetrain; Tektro HDM275 hydraulic disc brakes

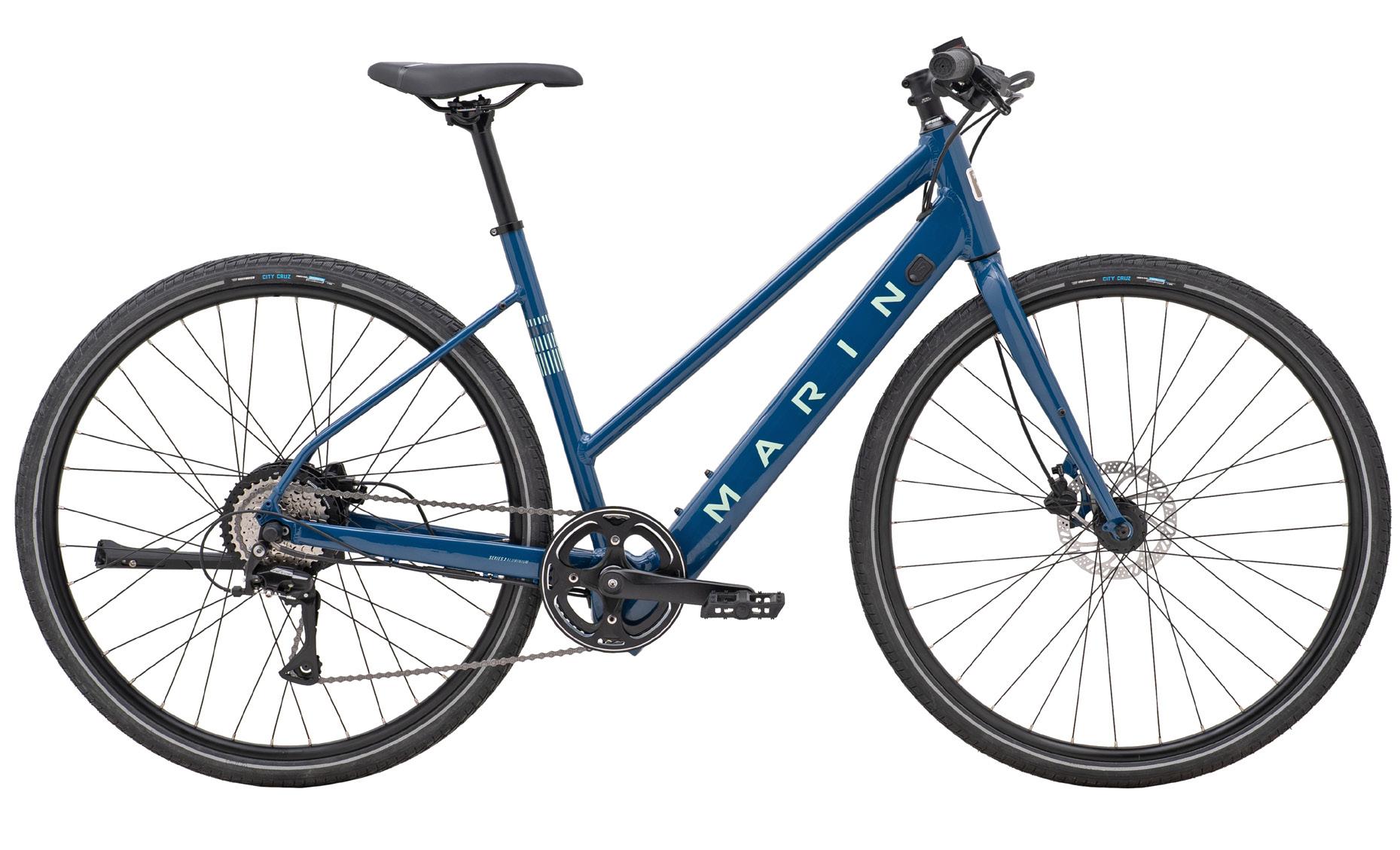

FAIRFAX ST E

SIZES:

WHEEL SIZE:

COLOR: S / M / L 700c BLUE

▶ Series 2 aluminum fitness frame, 700c wheels

▶ Marin aluminum fork w/fender & rack eyelets

▶ Torque-sensing 250W rear hub motor system, 340Wh battery

▶ Shimano Altus 8-speed drivetrain; Tektro HDM275 hydraulic disc brakes

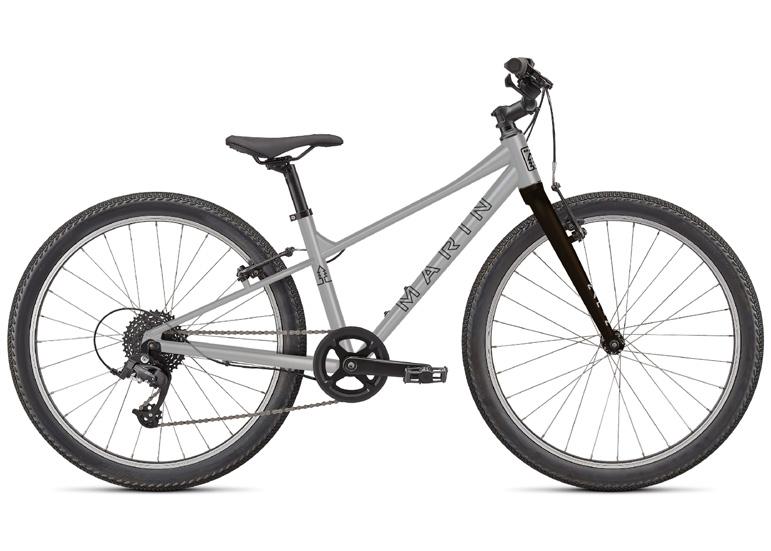

COAST TRAIL 24”

SIZES:

WHEEL SIZE: COLOR: S / M / L

pre-production graphic rendering shown for color purposes only

▶ Series 1 aluminum frame, 24” wheels

▶ Aluminum fork

▶ Lightweight aluminum components throughout

▶ Shimano 8-speed drivetrain

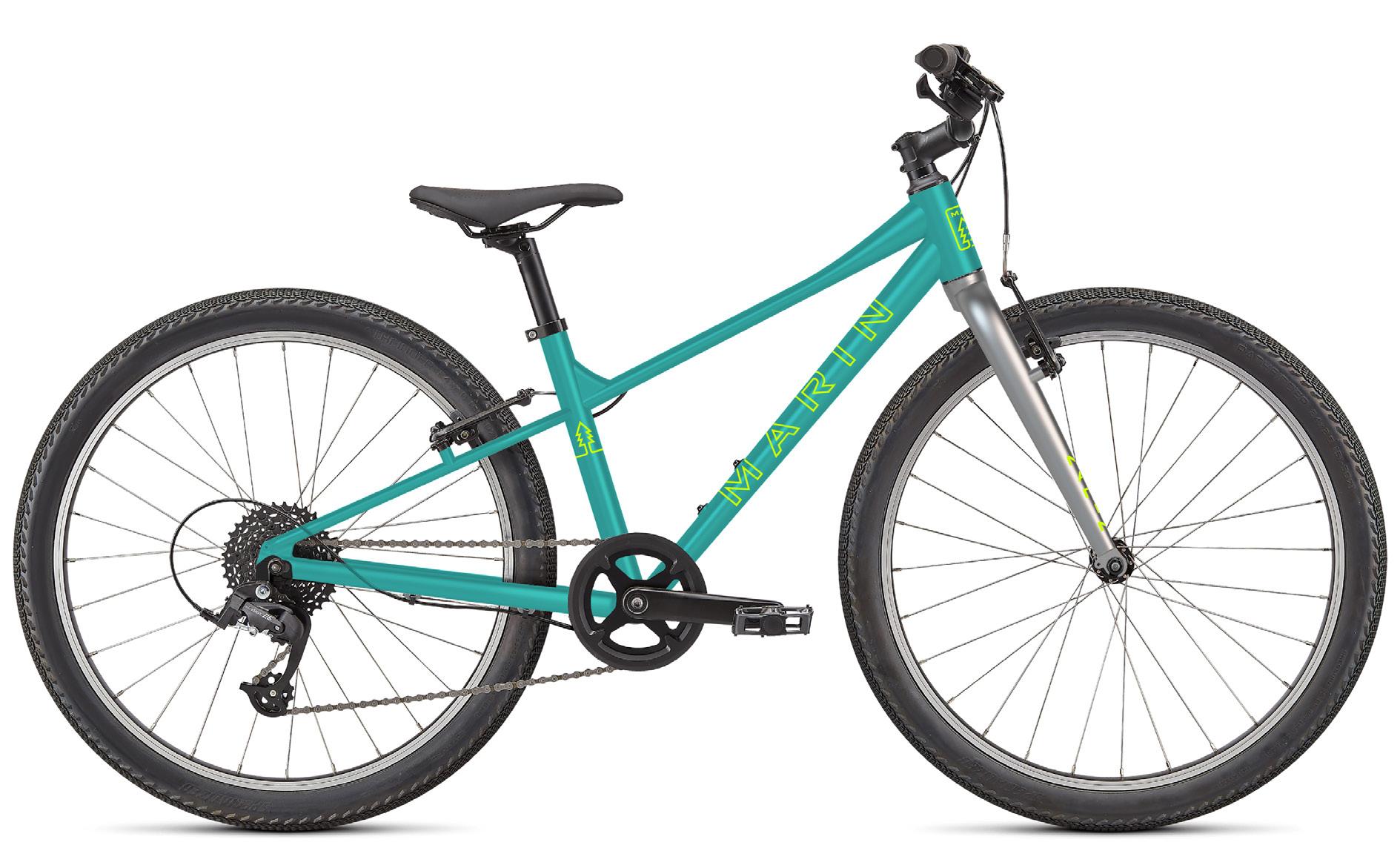

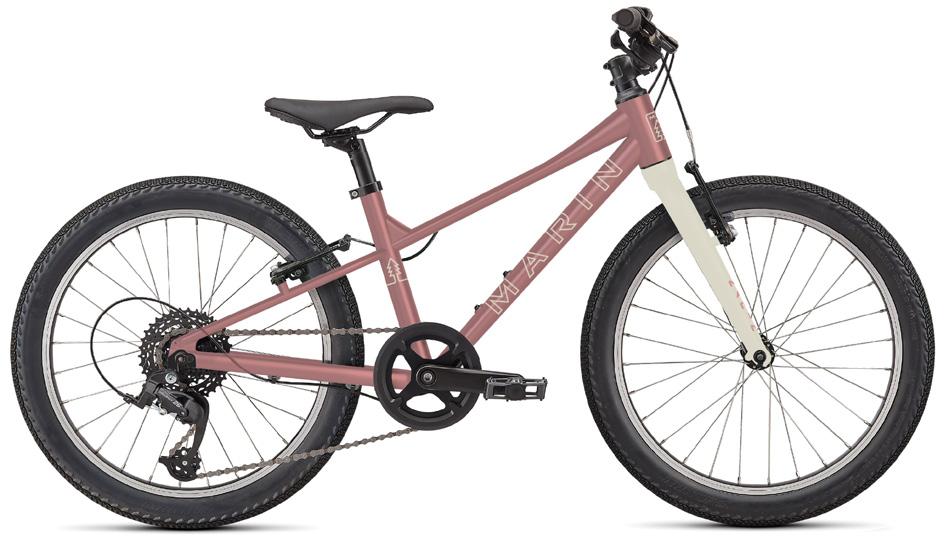

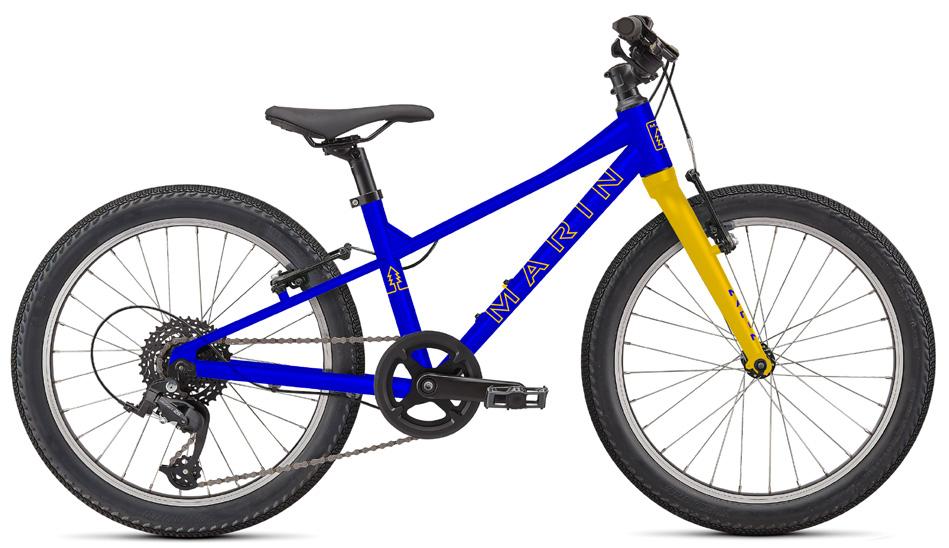

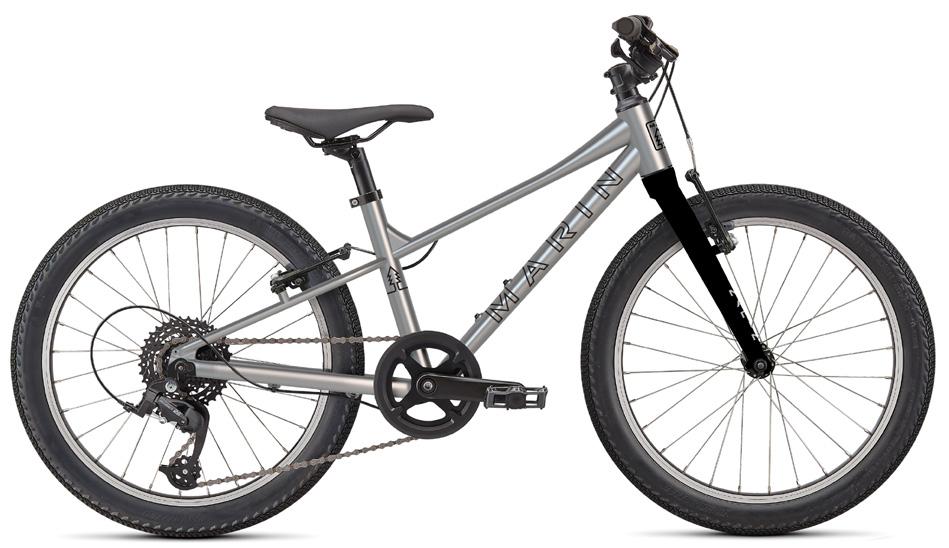

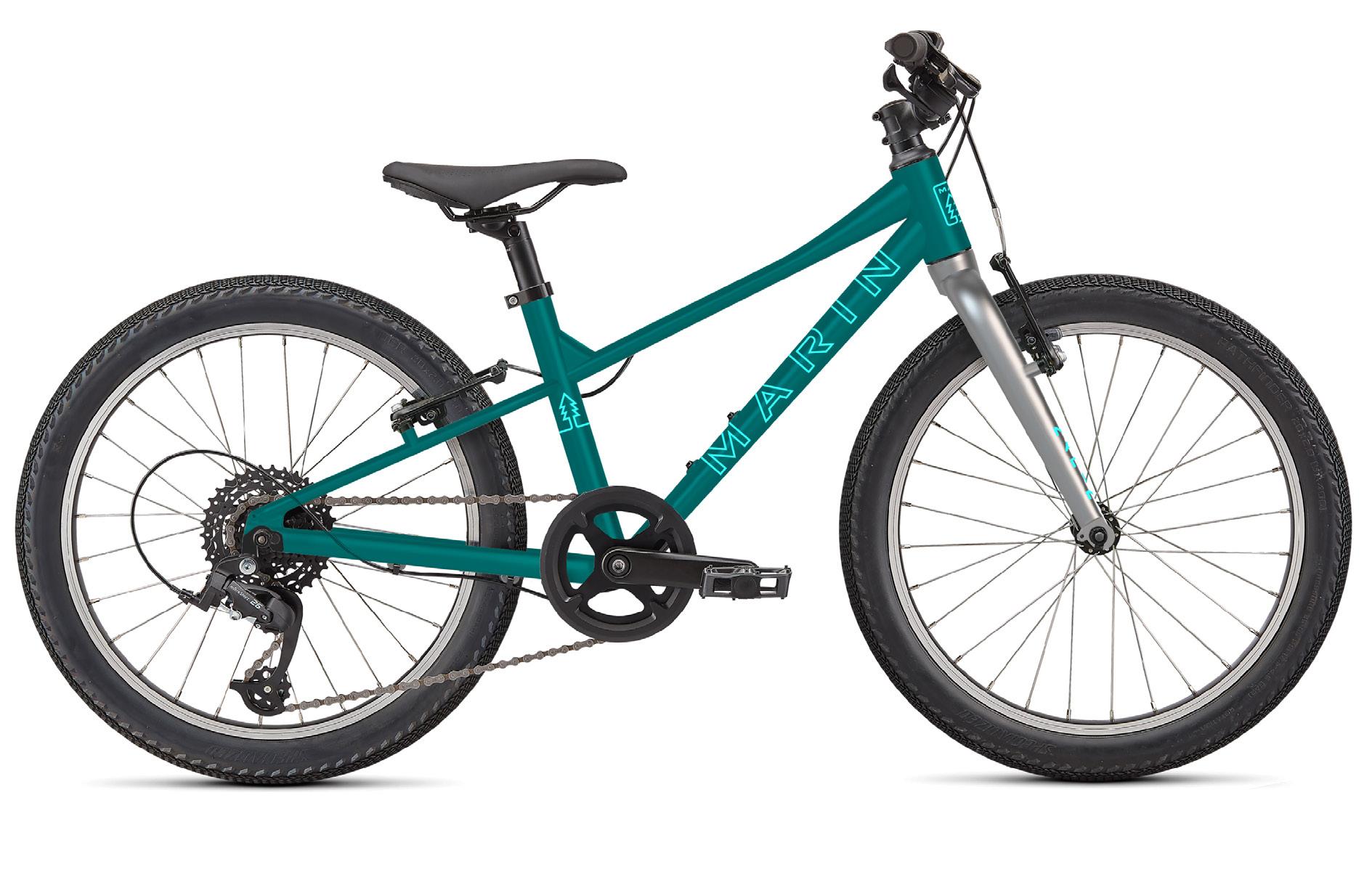

COAST TRAIL 20” 7

SIZES: WHEEL SIZE: COLOR: S / M / L

pre-production graphic rendering shown for color purposes only

▶ Series 1 aluminum frame, 20” wheels

▶ Aluminum fork

▶ Lightweight aluminum components throughout

Shimano 7-speed drivetrain

COAST TRAIL 20” 1

pre-production graphic rendering shown for color purposes only

SIZES:

WHEEL SIZE:

COLOR: S / M / L

▶ Series 1 aluminum frame, 20” wheels

▶ Aluminum fork

▶ Lightweight aluminum components throughout

▶ Single speed freewheel

SILVER BLACK

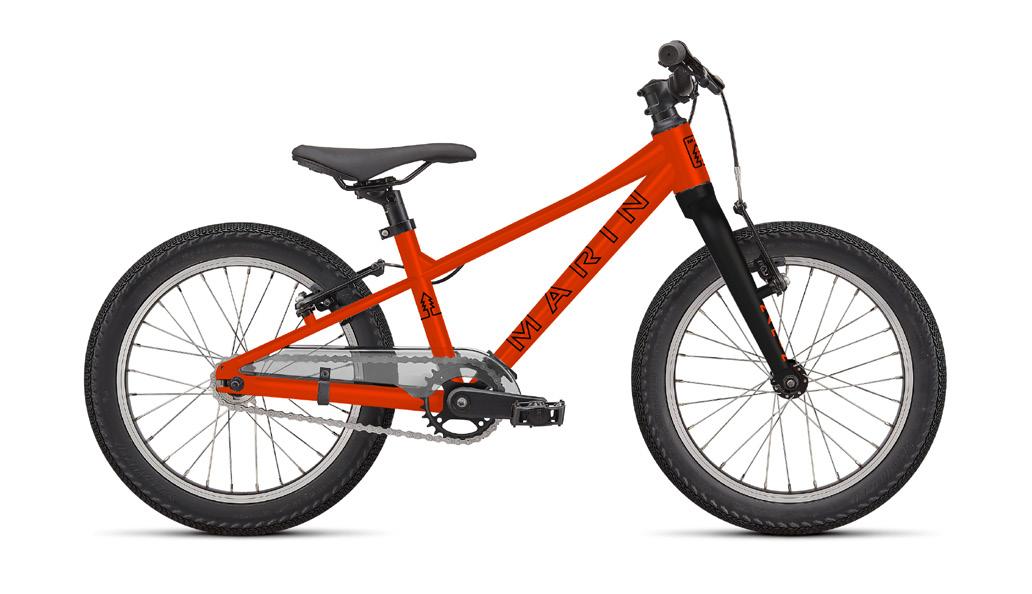

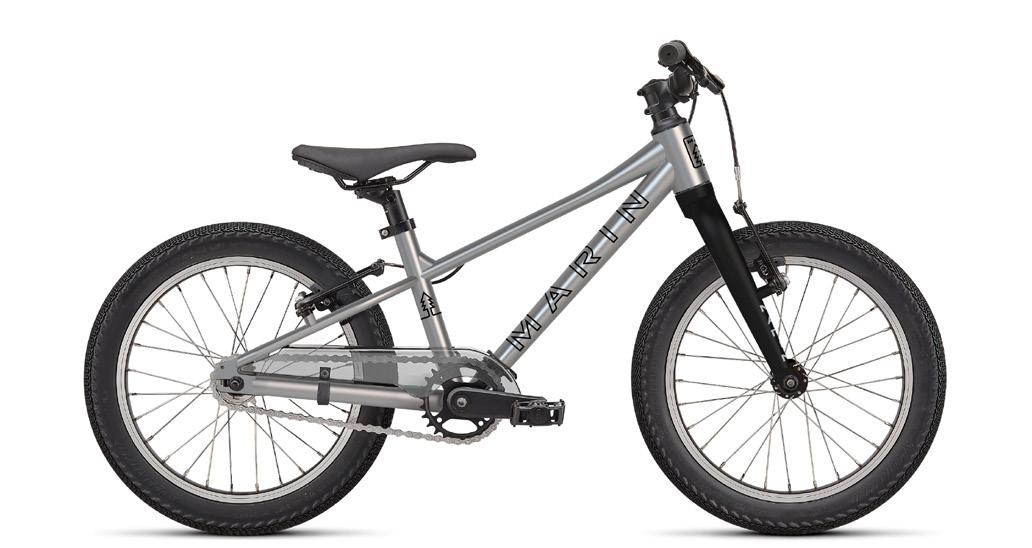

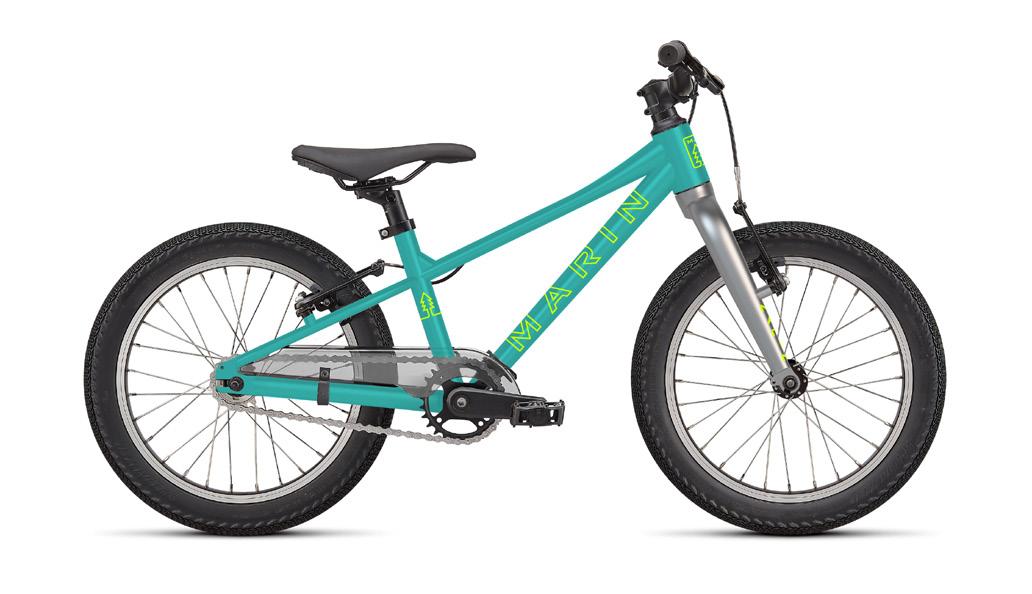

COAST TRAIL 16”

pre-production graphic rendering shown for color purposes only

SIZES:

SIZE:

/ M / L

▶ Series 1 aluminum frame, 16” wheels

▶ Aluminum fork

▶ Lightweight aluminum components throughout

▶ Single speed freewheel

SPECIFICATIONS

Alpine Trail Carbon 2 Frame

Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Alpine Trail Carbon 2 Front Suspension Fox 38 Performance Elite, 160mm Travel, 29” , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender

Alpine Trail Carbon 2 Rear Suspension Fox Float X, Performance, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount

Alpine Trail Carbon 2 Rim Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible

Alpine Trail Carbon 2 Hub Rear Shimano HB-MT510B, 148x12mm, Micro Spline Freehub Body, Centrlock Disc, 32H

Alpine Trail Carbon 2 Hub Front Shimano HF-MT410B, 110x15mm, Centerlock Disc, 32H

Alpine Trail Carbon 2 Spokes 14g Black Stainless Steel

Alpine Trail Carbon 2 Tires Maxxis Assegai 29x2.5”, MAXX TERRA, EXO+, Tubeless Compatible

Alpine Trail Carbon 2 Derailleur Rear Shimano XT 12-Speed, SGS

Alpine Trail Carbon 2 Derailleur Front -

Alpine Trail Carbon 2 Shift Lever Shimano SLX 12-Speed, I-Spec EV

Alpine Trail Carbon 2 Crankset FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing

Alpine Trail Carbon 2 Bottom Bracket MEGAEVO BB, 73mm BSA Threaded

Alpine Trail Carbon 2 Chain KMC X-12 Silver and Black

Alpine Trail Carbon 2 Cassette Shimano SLX M7100 Cassette, 12-Speed, 10-51T

Alpine Trail Carbon 2 Brakes Front Shimano SLX, 4-Piston Hydraulic Disc , 203mm Rotor

Alpine Trail Carbon 2 Brakes Rear Shimano SLX, 4-Piston Hydraulic Disc , 180mm Rotor

Alpine Trail Carbon 2 Brake Levers Shimano SLX Hydraulic, I-Spec EV

Alpine Trail Carbon 2 Handlebar Marin Trail Bar, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

Alpine Trail Carbon 2 Stem Marin CNC, 35mm Length, 35mm Bar Bore

Alpine Trail Carbon 2 Grips Marin Grizzly Lock-On

Alpine Trail Carbon 2 Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Alpine Trail Carbon 2 Seatpost X-Fusion Manic, 1x Shimano I-Spec EV Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

Alpine Trail Carbon 2 Saddle Marin Trail Speed Concept Pro

Alpine Trail Carbon 2 Pedals -

Alpine Trail Carbon 2

Alpine Trail Carbon 1

Extras Bolt-On Thru-Axle

Extras Downtube Protector

Frame Unidirectional Carbon Fiber Front Triangle, Series 4

Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear

Derailleur Housing, Chainstay Mounted Post Mount

Disc Brake, 148x12mm Boost Thru- Axle, 73mm

Threaded BB w/ ISCG05 Tabs

Alpine Trail Carbon 1 Front Suspension RockShox Yari RC, 29”, 160mm of Travel, Air Sprung, Debonair, Rebound and Compression Adjust, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset

Specifications, pricing, and availability are subject to change without notice.

Alpine Trail Carbon 1 Rear Suspension RockShox Deluxe Select+ RT, Debonair Air Spring, 2 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount

Alpine Trail Carbon 1 Rim Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

Alpine Trail Carbon 1 Hub Rear Shimano HB-MT410B, 148x12mm, Micro Spline Freehub Body, Centerlock Disc, 32H

Alpine Trail Carbon 1 Hub Front Shimano HF-MT410B, 110x15mm, Centerlock Disc, 32H

Alpine Trail Carbon 1 Spokes 14g Black Stainless Steel

Alpine Trail Carbon 1 Tires Maxxis Assegai 29x2.5”, MAXX TERRA, EXO+, Tubeless Compatible

Alpine Trail Carbon 1 Derailleur Rear Shimano Deore, 12-Speed, SGS

Alpine Trail Carbon 1 Derailleur Front -

Alpine Trail Carbon 1 Shift Lever Shimano Deore, 12-Speed, SL-6100-IR

Alpine Trail Carbon 1 Crankset FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

Alpine Trail Carbon 1 Bottom Bracket Mego EXO 73mm BSA

Alpine Trail Carbon 1 Chain KMC X-12 Silver and Black

Alpine Trail Carbon 1 Cassette Shimano, Deore M6100 12-Speed, 10-51T

Alpine Trail Carbon 1 Brakes Front Shimano BR-MT420, 4-Piston Hydraulic Disc, 203mm Rotor

Alpine Trail Carbon 1 Brakes Rear Shimano BR-MT420, 4-Piston Hydraulic Disc, 180mm Rotor

Alpine Trail Carbon 1 Brake Levers Shimano BL-M4100, I-Spec EV Compatible

Alpine Trail Carbon 1 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Alpine Trail Carbon 1 Stem Marin 3D Forged Alloy, 35mm

Alpine Trail Carbon 1 Grips Marin Grizzly Lock-On

Alpine Trail Carbon 1 Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Alpine Trail Carbon 1 Seatpost TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

Alpine Trail Carbon 1 Saddle Marin Speed Concept

Alpine Trail Carbon 1 Pedals -

Alpine Trail Carbon 1 Extras Bolt-On Thru-Axle

Alpine Trail Carbon 1 Extras Downtube Protector

Alpine Trail XR AXS Frame All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/ BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

Alpine Trail XR AXS Front Suspension RockShox Zeb Ultimate, 170mm Travel, 29”, 110x15mm Maxle Stealth, 44mm Offset

Alpine Trail XR AXS Rear Suspension RockShox Super Deluxe Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune

Alpine Trail XR AXS Rim Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

SPECIFICATIONS

Alpine Trail XR AXS Hub Rear Formula, DCL-3482, 148x12, 4 Sealed Bearings, XD Driver, 6-Bolt Disc, 32H

Alpine Trail XR AXS Hub Front Formula, DC-711, 110x15mm, 6-Bolt Disc, 32H

Alpine Trail XR AXS Spokes 14g Black Stainless Steel

Alpine Trail XR AXS Tires Maxxis Assegai MAXX GRIP, Front 29x2.5 EXO+, Rear 27.5x2.5” DoubleDown, Tubeless compatible

Alpine Trail XR AXS Derailleur Rear New SRAM 12-speed drivetrain

Alpine Trail XR AXS Derailleur Front -

Alpine Trail XR AXS Shift Lever SRAM AXS POD MMX

Alpine Trail XR AXS Crankset SRAM GX Eagle, 32T, 55MM CL, 170MM Length

Alpine Trail XR AXS Bottom Bracket SRAM DUB MTB 73

Alpine Trail XR AXS Chain SRAM GX Eagle T-Type

Alpine Trail XR AXS

Cassette SRAM GX 1275 T-Type 10-52T

Alpine Trail XR AXS Brakes Front SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor

Alpine Trail XR AXS Brakes Rear SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor

Alpine Trail XR AXS

Brake Levers SRAM Code Bronze Hydraulic Disc

Alpine Trail XR AXS Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

Alpine Trail XR AXS Stem Marin CNC, 35mm Length, 35mm Bar Bore

Alpine Trail XR AXS Grips Marin Grizzly Lock-On

Alpine Trail XR AXS Headset FSA Custom Headset, Adjustable HTA Design

Alpine Trail XR AXS

Seatpost TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm

Alpine Trail XR AXS Saddle Marin Speed Concept

Alpine Trail XR AXS Pedals -

Alpine Trail XR AXS

Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Alpine Trail XR AXS Extras Downtube Storage Bag

Alpine Trail XR Frame All New Series 4 6061 Aluminum, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/ BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

Alpine Trail XR Front Suspension RockShox Zeb Ultimate, 170mm Travel, 29”, 110x15mm Maxle Stealth, 44mm Offset

Alpine Trail XR Rear Suspension RockShox Super Deluxe Ultimate, 205x65, 30xM8 Lower Hardware, Custom Tune

Alpine Trail XR Rim Marin, Double Wall Alloy, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

Alpine Trail XR Hub Rear Formula, DCL-3482, 148x12, 4 Sealed Bearings, XD Driver, 6-Bolt Disc, 32H

Alpine Trail XR Hub Front Formula, DC-711, 110x15mm, 6-Bolt Disc, 32H

Alpine Trail XR Spokes 14g Black Stainless Steel

Alpine Trail XR Tires Maxxis Assegai MAXX GRIP, Front 29x2.5 EXO+, Rear 27.5x2.5” DoubleDown, Tubeless compatible

Alpine Trail XR Derailleur Rear SRAM GX Eagle Lunar

Alpine Trail XR Derailleur Front -

Specifications, pricing, and availability are subject to change without notice.

Alpine Trail XR Shift Lever SRAM GX Eagle Lunar MMX Mount

Alpine Trail XR Crankset SRAM GX Eagle, 32T, 55MM CL, 170MM Length

Alpine Trail XR Bottom Bracket SRAM DUB MTB 73

Alpine Trail XR Chain SRAM NX Eagle

Alpine Trail XR Cassette SRAM XG 1275 Eagle Cassette 10-52T

Alpine Trail XR

Brakes Front SRAM DB8 4-Piston Hydraulic Disc HSC 200mm Rotor

Alpine Trail XR Brakes Rear SRAM DB8 4-Piston Hydraulic Disc HSC 200mm Rotor

Alpine Trail XR Brake Levers SRAM DB8 Hydraulic Disc

Alpine Trail XR Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

Alpine Trail XR Stem Marin CNC, 35mm Length, 35mm Bar Bore

Alpine Trail XR Grips Marin Grizzly Lock-On

Alpine Trail XR Headset FSA Custom Headset, Adjustable HTA Design

Alpine Trail XR Seatpost TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm

Alpine Trail XR

Alpine Trail 1

Saddle Marin Speed Concept

Pedals -

Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Extras Downtube Storage Bag

Frame All New Series 4 6061 Aluminum Frame, 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

Front Suspension Fox 36 Rhythm, 170mm Travel, 29”, Grip Damper, 110x10 Kabolt, 44mm Offset

Rear Suspension Fox Float Performance, 205x65, 30xM8 Lower Hardware, Custom Tune

Rim Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

Hub Rear Shimano HB-MT410B, 148x12mm, Micro Spline Freehub Body, Centerlock Disc, 32H

Hub Front Shimano HF-MT410B, 110x15mm, Centerlock Disc, 32H

Spokes 14g Black Stainless Steel

Tires Vee Tire Flow Snap, 29x2.6” Front 27.5x2.5” Rear, Top 40 Compound, Enduro Core, 90 TPI, Tubeless Compatible

Derailleur Rear Shimano Deore, 12-Speed, SGS

Derailleur Front -

Shift Lever Shimano Deore, 12-Speed, SL-6100-IR

Crankset FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

Bottom Bracket Mego EXO 73mm BSA

Chain KMC X-12 Silver and Black

Cassette Shimano, Deore M6100 12-Speed, 10-51T

SPECIFICATIONS

Alpine Trail 1

Brakes Front Tektro Slate EVO, 4-Piston Hydraulic Disc , Resin Pads, 203mm Rotor

Alpine Trail 1 Brakes Rear Tektro Slate EVO, 4-Piston Hydraulic Disc , Resin Pads, 203mm Rotor

Alpine Trail 1 Brake Levers Tektro Slate EVO Hydraulic Lever, I-Spec EV Compatible

Alpine Trail 1 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Alpine Trail 1 Stem Marin 3D Forged Alloy, 35mm

Alpine Trail 1 Grips Marin Grizzly Lock-On

Alpine Trail 1 Headset FSA Custom Headset, Adjustable HTA Design

Alpine Trail 1 Seatpost TranzX, YSP39 1x Remote, 34.9 Seatpost Diameter, Travel S = 150mm, M/L = 170mm, XL = 200mm

Alpine Trail 1 Saddle Marin Speed Concept

Alpine Trail 1 Pedals -

Alpine Trail 1

Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Alpine Trail 1 Extras Downtube Storage Bag

Alpine Trail XR Alloy Frameset Frame All New Series 4 6061 Aluminum , 29” Wheels, 160mm Travel MultiTrac LT Suspension Platform, Integrated Downtube Storage, Adjustable Headset & CS Length/ BB Height, Full Internal Cable Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost

Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs

Alpine Trail XR Alloy Frameset Rear Suspension Fox DHX Factory Coil, 205x65, 30xM8 Lower Hardware, Custom Tune, Spring Rate S/M =350 LBS/IN, L/ XL =450 LBS/IN

Alpine Trail XR Alloy Frameset Headset FSA Custom Headset, Adjustable HTA Design

Alpine Trail XR Alloy Frameset

Extras Marin MTB Seat Clamp, Bolt Type

Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Alpine Trail XR Alloy Frameset Extras Downtube Storage Bag

Rift Zone

29” Carbon XR Frame All New Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Rift Zone

29” Carbon XR Front Suspension RockShox Lyrik Ultimate, 150mm Travel, 29”, 110x15mm Maxle Stealth, 44mm Offset

29” Carbon XR Rear Suspension RockShox Super Deluxe Ultimate, 210x55mm, 25xM8 Hardware, Custom Tune

Rift Zone

29” Carbon XR Rim Marin Aluminum Double Wall, 29mm Inner, Welded Joint, Disc Specific, Tubeless Compatible

29” Carbon XR Hub Rear Formula, DCL-3482, 148x12, 4 Sealed Bearings, XD Driver, 6-Bolt Disc, 32H

Rift Zone

29” Carbon XR Hub Front Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h

29” Carbon XR Spokes 14g Black Stainless Steel

29” Carbon XR Tires Maxxis Assegai 29x2.5, MAXX GRIP, EXO+ Casing, Tubeless Compatible

Rift Zone

29” Carbon XR Derailleur Rear New SRAM 12-speed drivetrain

Rift Zone

29” Carbon XR Derailleur Front -

Rift Zone

29” Carbon XR Shift Lever SRAM AXS POD MMX

Specifications, pricing, and availability are subject to change without notice.

Rift Zone 29” Carbon XR Crankset SRAM GX Eagle, 32T, 55MM CL, 170MM Length

Rift Zone 29” Carbon XR Bottom Bracket SRAM DUB MTB 73

Rift Zone 29” Carbon XR Chain SRAM GX Eagle T-Type

Rift Zone 29” Carbon XR Cassette SRAM GX 1275 T-Type 10-52T

Rift Zone 29” Carbon XR Brakes Front SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor

Rift Zone 29” Carbon XR Brakes Rear SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 180mm Rotor

Rift Zone 29” Carbon XR Brake Levers SRAM Code Bronze Hydraulic

Rift Zone 29” Carbon XR Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

Rift Zone 29” Carbon XR Stem Marin CNC, 35mm Length, 35mm Bar Bore

Rift Zone 29” Carbon XR Grips Marin Grizzly Lock-On

Rift Zone 29” Carbon XR Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Rift Zone 29” Carbon XR Seatpost TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm

Rift Zone 29” Carbon XR Saddle Marin Speed Concept

Rift Zone 29” Carbon XR Pedals -

Rift Zone 29” Carbon XR Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Rift Zone 29” Carbon 2 Frame All New Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Rift Zone 29” Carbon 2 Front Suspension Fox Performance 34 Float, 140mm Travel, 3-Position Micro Adjust Compression Adjustment, Rebound Adjustment, 110x15mm Kabolt Axle, 44mm Offset

Rift Zone 29” Carbon 2 Rear Suspension Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom

Rift Zone 29” Carbon 2 Rim Marin Aluminum Double Wall, 29mm Inner, Welded Joint, Disc Specific, Tubeless Compatible

Rift Zone 29” Carbon 2 Hub Rear Shimano HB-MT410B, 148x12mm, Microspline Freehub Body, Centerlock, Disc, 32H

Rift Zone 29” Carbon 2

Hub Front Shimano HF-MT410B, 110x15mm, Centerlock Disc, 32H

Rift Zone 29” Carbon 2 Spokes 14g Black Stainless Steel

Rift Zone 29” Carbon 2 Tires Front: Maxxis Assegai 29x2.5”, 3C MaxxTerra, EXO, Tubeless Compatible Rear: Maxxis Aggressor 29x2.5”, 3C Maxx Terra, EXO, Tubeless Compatible

Rift Zone 29” Carbon 2 Derailleur Rear Shimano XT, 12-Speed, SGS

Rift Zone 29” Carbon 2 Derailleur Front -

Rift Zone 29” Carbon 2 Shift Lever Shimano SLX 12-Speed, I-Spec EV

Rift Zone 29” Carbon 2 Crankset FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, MegaExo Spindle, Boost Spacing

Rift Zone 29” Carbon 2 Bottom Bracket MEGAEVO BB, 73mm BSA Threaded

Rift Zone 29” Carbon 2 Chain KMC X-12 Silver and Black

Rift Zone 29” Carbon 2 Cassette Shimano SLX M7100, 12-Speed, 10-51T

SPECIFICATIONS

Rift Zone 29” Carbon 2

Brakes Front TRP DH-R EVO 4-Piston Hydraulic Disc , 203mm 2.3mm Thick Rotor

Rift Zone 29” Carbon 2 Brakes Rear TRP DH-R EVO 4-Piston Hydraulic Disc , 180mm 2.3mm Thick Rotor

Rift Zone 29” Carbon 2 Brake Levers TRP DH-R EVO Hydraulic Disk Brakes

Rift Zone 29” Carbon 2 Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

Rift Zone 29” Carbon 2 Stem Marin CNC, 35mm Length, 35mm Bar Bore

Rift Zone 29” Carbon 2 Grips Marin Grizzly Lock On

Rift Zone 29” Carbon 2 Headset FSA No 42/47, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Rift Zone 29” Carbon 2 Seatpost TranzX YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm

Rift Zone 29” Carbon 2 Saddle Marin Speed Concept

Rift Zone 29” Carbon 2 Pedals -

Rift Zone 29” Carbon 2 Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Rift Zone

29” Carbon 1 Frame All New Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Rift Zone 29” Carbon 1 Front Suspension Fox Rhythm 34, 140mm Travel, 29”, 110x15mm Kabolt Thru-Axle, 44mm Offset

Rift Zone 29” Carbon 1 Rear Suspension Fox Float Performance, 210x55mm, 25xM8 Hardware, Custom Tune

Rift Zone

29” Carbon 1 Rim Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible

Rift Zone

29” Carbon 1 Hub Rear Shimano HB-MT410B, 148x12mm, Microspline Freehub Body, Centerlock, Disc, 32H

29” Carbon 1 Hub Front Shimano HF-MT410B, 110x15mm, Centerlock Disc, 32H

Rift Zone

29” Carbon 1 Spokes 14g Black Stainless Steel

29” Carbon 1 Tires Front: Maxxis Assegai 29x2.5”, 3C MaxxTerra, EXO, Tubeless Compatible Rear: Maxxis Aggressor 29x2.5”, 3C Maxx Terra, EXO, Tubeless Compatible

Rift Zone

29” Carbon 1 Derailleur Rear Shimano SLX, 12-Speed, SGS

Rift Zone

29” Carbon 1 Derailleur Front -

29” Carbon 1 Shift Lever Shimano SLX, 12-Speed, SL-7100R

29” Carbon 1 Crankset New FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, MegaExo Spindle, Boost Spacing

Rift Zone

29” Carbon 1 Bottom Bracket MegaExo 73mm BSA

Rift Zone

29” Carbon 1 Chain KMC X-12 Silver and Black

29” Carbon 1

Cassette Shimano, Deore M6100, 12-Speed, 10-51T

29” Carbon 1 Brakes Front Tektro Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

Rift Zone

29” Carbon 1 Brakes Rear Tektro Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 180mm Rotor

Rift Zone

29” Carbon 1 Brake Levers Tektro Slate EVO Hydraulic Lever, I-Spec EV Compatible

Specifications, pricing, and availability are subject to change without notice.

Rift Zone 29” Carbon 1 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Rift Zone 29” Carbon 1 Stem Marin 3D Forged Alloy, 35mm

Rift Zone 29” Carbon 1 Grips Marin Grizzly Lock On

Rift Zone 29” Carbon 1 Headset FSA No 42/47, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Rift Zone 29” Carbon 1 Seatpost TranzX YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm

Rift Zone 29” Carbon 1 Saddle Marin Speed Concept

Rift Zone 29” Carbon 1 Pedals -

Rift Zone 29” Carbon 1 Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Rift Zone 29” XR AXS Frame Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Rift Zone 29” XR AXS Front Suspension RockShox Lyrik Select+, 150mm Travel, 29” wheels, 110x15 Maxle Stealth, 42mm Offset

Rift Zone 29” XR AXS Rear Suspension RockShox Super Deluxe Select+, 210x55mm, 25xM8 Hardware, Custom Tune

Rift Zone 29” XR AXS Rim Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

Rift Zone 29” XR AXS Hub Rear Formula, DCL-3482, 148x12, 4 Sealed Bearings, XD Driver, 6-Bolt Disc, 32H

Rift Zone 29” XR AXS Hub Front Formula, DC-711, 110x15mm, 6-Bolt Disc, 32H

Rift Zone 29” XR AXS Spokes 14g Black Stainless Steel

Rift Zone 29” XR AXS Tires Maxxis Assegai, 29x2.5”, MAXX TERAA, EXO, Tubeless Compatible

Rift Zone 29” XR AXS Derailleur Rear New SRAM 12-speed drivetrain

Rift Zone 29” XR AXS Derailleur Front -

Rift Zone 29” XR AXS

Shift Lever SRAM AXS POD MMX

Rift Zone 29” XR AXS Crankset SRAM GX Eagle, 32T, 55MM CL, 170MM Length

Rift Zone 29” XR AXS Bottom Bracket SRAM DUB MTB 73

Rift Zone 29” XR AXS Chain SRAM GX Eagle T-Type

Rift Zone 29” XR AXS Cassette SRAM GX 1275 T-Type 10-52T

Rift Zone 29” XR AXS Brakes Front SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 200mm Rotor

Rift Zone 29” XR AXS Brakes Rear SRAM Code Bronze 4-Piston Hydraulic Disc, HSC 180mm Rotor

Rift Zone 29” XR AXS Brake Levers SRAM Code Bronze Hydraulic

Rift Zone 29” XR AXS Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

Rift Zone 29” XR AXS Stem Marin CNC, 35mm Length, 35mm Bar Bore

Rift Zone 29” XR AXS Grips Marin Grizzly Lock-On

Rift Zone 29” XR AXS Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Rift Zone 29” XR AXS

Seatpost TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm

Saddle Marin Speed Concept

Rift Zone 29” XR AXS Pedals -

SPECIFICATIONS

Rift Zone

29” XR AXS Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

29” XR Frame Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Rift Zone

29” XR Front Suspension RockShox Lyrik Select+, 150mm Travel, 29” wheels, 110x15 Maxle Stealth, 42mm Offset

Rift Zone 29” XR Rear Suspension RockShox Super Deluxe Select+, 210x55mm, 25xM8 Hardware, Custom Tune

Rift Zone

29” XR Rim Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible

29” XR Hub Rear Formula, DCL-3482, 148x12, 4 Sealed Bearings, XD Driver, 6-Bolt Disc, 32H

Rift Zone

29” XR Hub Front Formula, DC-711, 110x15mm, 6-Bolt Disc, 32H

Rift Zone 29” XR Spokes 14g Black Stainless Steel

Rift Zone

29” XR Tires Maxxis Assegai, 29x2.5”, MAXX TERAA, EXO, Tubeless Compatible

Rift Zone 29” XR Derailleur Rear SRAM GX Eagle Lunar

Rift Zone

29” XR Derailleur Front -

Rift Zone 29” XR Shift Lever SRAM GX Eagle Lunar MMX Mount

Rift Zone

29” XR

Crankset SRAM GX Eagle, 32T, 55MM CL, 170MM Length

29” XR Bottom Bracket SRAM DUB MTB 73

29” XR Chain SRAM NX Eagle

29” XR Cassette SRAM XG 1275 Eagle Cassette 10-52T

29” XR Brakes Front SRAM DB8 4-Piston Hydraulic Disc, HSC 200mm Rotor

29” XR Brakes Rear SRAM DB8 4-Piston Hydraulic Disc, HSC 180mm Rotor

29” XR

Brake Levers SRAM DB8 Hydraulic

Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

29” XR Stem Marin CNC, 35mm Length, 35mm Bar Bore

29” XR Grips Marin Grizzly Lock-On

29” XR Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

29” XR

Rift Zone 29” XR

Specifications, pricing, and availability are subject to change without notice.

Hub Rear Forged Alloy, 148x12mm, Quad Sealed Bearings, Standard Freehub Body, Centerlock Disc, 32H

Hub Front Forged Alloy, 110x15mm, Centerlock Disc, 32H

Rift Zone 29” XR Spokes 14g Black Stainless Steel

Rift Zone 29” XR Tires Maxxis Assegai, 29x2.5”, MAXX TERAA, EXO, Tubeless Compatible

Rift Zone 29” XR Derailleur Rear Shimano XT, 12-Speed, SGS

Rift Zone 29” XR Derailleur Front -

Rift Zone 29” XR

Shift Lever Shimano SLX, 12-Speed, SL-7100R

Rift Zone 29” XR Crankset FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, MegaExo Spindle, Boost Spacing

Rift Zone 29” XR

Seatpost TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm

29” XR Saddle Marin Speed Concept

29” XR Pedals -

29” XR

Rift Zone

Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

29” XR Frame Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

29” XR Front Suspension Marzocchi Bomber Z1 29”, Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset

Rift Zone 29” XR Rear Suspension Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom

Rift Zone

29” XR Rim Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible

Rift Zone 29” 2

Bottom Bracket MegaExo 73mm BSA

Chain KMC X-12 Silver and Black

Cassette Shimano, SLX 12-Speed, 10-51T

Brakes Front Shimano BR-MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor

Brakes Rear Shimano BR-MT420, 4-Piston Hydraulic Disc, Metallic Pads 180mm Rotor

Brake Levers Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem Marin 3D Forged Alloy, 35mm

Grips Marin Grizzly Lock On

Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm

Saddle Marin Speed Concept

Pedals -

Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Frame Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Front Suspension Marzocchi Bomber Z2 29”, Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset

Rear Suspension RockShox Deluxe Select RT, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware

Rim Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

Hub Rear Shimano HB-MT410B, 148x12mm, Microspline Freehub Body, Centerlock Disc, 32H

Hub Front Shimano HF-MT410B, 110x15mm, Centerlock Disc, 32H

Spokes

14g Black Stainless Steel

SPECIFICATIONS

Rift Zone 29” 2

Rift Zone

29” 2

Rift Zone 29” 2

Tires

Vee Tire Snap 29x2.35”, Top 40 Compound, GXE Core, 90 TPI, Tubeless compatible

Derailleur Rear Shimano Deore, 12-Speed, SGS

Derailleur Front -

Shift Lever Shimano Deore, 12-Speed, SL-M6100-R

Crankset FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

Bottom Bracket External Sealed Cartridge Bearing

Chain KMC X-12 Silver and Black

Cassette Shimano, Deore M6100, 12-Speed, 10-51T

Brakes Front Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

Brakes Rear Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

Brake Levers Shimano BL-MT201

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem Marin 3D Forged Alloy, 35mm

Grips Marin Grizzly Lock On

Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm

Saddle Marin Speed Concept

Pedals -

Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Rift Zone 29” 1 Frame Series 3 6061 Aluminum Frame, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Rift Zone 29” 1

Rift Zone

Front Suspension X-Fusion Slide Boost RC, 29”, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset

29” 1 Rear Suspension X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom

Rift Zone 29” 1

Rift Zone

Rim Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

29” 1 Hub Rear Shimano HB-MT200B, 141 QR, Standard Freehub Body, Centerlock Disc, 32H

Rift Zone 29” 1 Hub Front Shimano HF-MT400B, 110x15mm, Centerlock Disc, 32H

Rift Zone 29” 1

Spokes 14g Black Stainless Steel

Tires Vee Tire Snap 29x2.35”, Top 40 Compound, GXE Core, 90 TPI, Tubeless compatible

Derailleur Rear Shimano Deore, 11-Speed, SGS

Derailleur Front -

Shift Lever Shimano Deore, 11-Speed, SL-5100R

Rift Zone 29” 1 Crankset Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

Rift Zone

29” 1

Rift Zone 29” 1

Rift Zone

29” 1

Bottom Bracket External Sealed Cartridge Bearing

Chain KMC X-11 Silver and Black

Cassette SunRace, 11-Speed, 11-51T, ED Black

Brakes Front Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

Rift Zone 29” 1

Rift Zone 27.5” 2

Specifications, pricing, and availability are subject to change without notice.

Brakes Rear Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

Brake Levers Shimano BL-MT201

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem Marin 3D Forged Alloy, 35mm

Grips Marin MTN, Closed End

Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost Marin Alloy, 30.9mm

Saddle Marin Speed Concept

Pedals -

Extras Closed 9-12 Thru-Axle Bolt On System

Frame Series 3 6061 Aluminum, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Front Suspension Marzocchi Bomber Z2 27.5”, Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset

Rear Suspension RockShox Deluxe Select RT, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x50mm, M8x25mm Hardware

Rim Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

Hub Rear Shimano HB-MT410B, 148x12mm, Microspline Freehub Body, Centerlock Disc, 32H

Hub Front Shimano HF-MT410B, 110x15mm, Centerlock Disc, 32H

Spokes 14g Black Stainless Steel

Tires Vee Tire Snap 27.5x2.35”, Top 40 Compound, GXE Core, 90 TPI, Tubeless compatible

Derailleur Rear Shimano Deore, 12-Speed, SGS

Derailleur Front -

Shift Lever Shimano Deore, 12-Speed, SL-M6100-R

Crankset FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

Bottom Bracket MegaExo 73mm BSA

Chain KMC X-12 Silver and Black

Cassette Shimano, Deore 12-Speed, 10-51T

Brakes Front Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

Brakes Rear Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

Brake Levers Shimano BL-MT201

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem Marin 3D Forged Alloy, 35mm

Grips Marin Grizzly Lock On

Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm

Saddle Marin Speed Concept

SPECIFICATIONS

Rift Zone 27.5” 2

Rift Zone 27.5” 1

Rift Zone

Pedals -

Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Frame Series 3 6061 Aluminum Frame, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

27.5” 1 Front Suspension X-Fusion Sweep Boost RC, 27.5”, 140mm Travel, Compression and Rebound Adjustment, 110x15mm Thru Axle, 44mm Offset

Rift Zone 27.5” 1 Rear Suspension X-Fusion O2 Pro R, Custom Tune, 210x50mm, M8x25mm Hardware Top and Bottom

Rift Zone 27.5” 1

Rift Zone

Rim Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible

27.5” 1 Hub Rear Shimano HB-MT200B, 141 QR, Standard Freehub Body, Centerlock Disc, 32H

Rift Zone 27.5” 1 Hub Front Shimano HF-MT400B, 110x15mm, Centerlock Disc, 32H

Rift Zone

27.5” 1 Spokes 14g Black Stainless Steel

27.5” 1 Tires Vee Tire Snap 27.5x2.35”, Top 40 Compound, GXE Core, 90 TPI, Tubeless compatible

Rift Zone 27.5” 1

Rift Zone

27.5” 1

Rift Zone 27.5” 1

Rift Zone

27.5” 1

Rift Zone 27.5” 1

Rift Zone

27.5” 1

Rift Zone 27.5” 1

Rift Zone

27.5” 1

Rift Zone 27.5” 1

Rift Zone

27.5” 1

Rift Zone

27.5” 1

Derailleur Rear Shimano Deore, 11 Speed, SGS

Derailleur Front -

Shift Lever Shimano Deore, 11-Speed, SL-5100R

Crankset Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

Bottom Bracket External Sealed Cartridge Bearing

Chain KMC X-11 Silver and Black

Cassette SunRace, 11-Speed, 11-51T, ED Black

Brakes Front Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

Brakes Rear Shimano BR-MT200 Hydraulic Disc, 180mm Rotor

Brake Levers Shimano BL-MT201

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem Marin 3D Forged Alloy, 35mm

Grips Marin MTN, Closed End

Rift Zone 27.5” 1 Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Rift Zone 27.5” 1

Seatpost Marin Alloy, 30.9mm

Saddle Marin Speed Concept

Rift Zone 27.5” 1 Pedals -

Rift Zone 27.5” 1

Extras Closed 9-12 Thru-Axle Bolt On System

Rift Zone 29” Carbon XR Frame Set Frame All New Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Rift Zone

29” Carbon XR Frame Set Rear Suspension Fox Factory Series Coil, Coil Spring, Climb Switch, Rebound & Compression Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom

Rift Zone

29” Carbon XR Frame Set Headset FSA No 42/47, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Rift Zone 29” Carbon XR Frame Set Extras Marin MTB Seat Clamp, Bolt Type

Rift Zone 29” Carbon XR Frame Set

San Quentin 3 29”

Specifications, pricing, and availability are subject to change without notice.

Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Extras Downtube Protector

Frame All New Series 3 6061 Aluminum, Double Butted, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

Front Suspension Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle, 44mm Offset

Rim Marin Aluminum Double Wall, Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible

Hub Rear Shimano FH-TC500, 148x12, MicroSpline Freehub Body, Centerlock Disc, 32H

Hub Front Shimano HB-TC500, 110x15mm, Centerlock Disc, 32H

Spokes Nipples 14g Black Stainless Steel

San Quentin 3 29” Tires Maxxis Assegai, 29x2.5 MAXX TERRA, EXO Casing, Tubeless Compatible

San Quentin 3 29”

Derailleur Rear Shimano Deore, 12-Speed, SGS

San Quentin 3 29” Derailleur Front -

San Quentin 3 29”

Shift Lever Shimano Deore, 12-Speed, SL-6100IR

Crankset FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

Bottom Bracket MegaExo 73mm BSA

Chain KMC X-12 Silver and Black

Cassette Shimano, Deore 12-Speed, 10-51T

Brakes Front Tektro Slate EVO, 4-Piston Hydraulic, Resin Pads, 203mm Rotor

Brakes Rear Tektro Slate EVO, 4-Piston Hydraulic, Resin Pads, 180mm Rotor

Brake Levers Tektro Slate EVO Hydraulic Lever, I-Spec EV Compatible

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem Marin 3D Forged Alloy, 35mm

San Quentin 3 29” Grips Marin Grizzly Lock On

San Quentin 3 29” Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

San Quentin 3 29”

Seatpost TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M 150mm Travel, Size L-XL 170mm Travel, 30.9mm

Saddle Marin Speed Concept

San Quentin 3 29” Pedals Marin Oso OE Flat

San Quentin 3 29”

San Quentin 2 29”

Extras -

Frame All New Series 3 6061 Aluminum, Double Butted, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

Front Suspension X-Fusion Slide Boost RC, 29”, 140mm Travel, Compresion and Rebound Adjustment, 110x15mm Thru Axle, 44mm Offset

Rim Marin Aluminum Double Wall, Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible

SPECIFICATIONS

San Quentin 2 29”

Hub Rear Shimano FH-TC500, 148x12, Standard Freehub Body, Centerlock Disc, 32H

Hub Front Shimano HB-TC500, 110x15mm, Centerlock Disc, 32H

San Quentin 2 29” Spokes Nipples 14g Black Stainless Steel

San Quentin 2 29” Tires Vee Tire Co, Flow Snap, 27.5x2.6”, MPC Compound, Wire Bead

San Quentin 2 29” Derailleur Rear Shimano Deore, 11-Speed, SGS

San Quentin 2 29”

Derailleur Front -

San Quentin 2 29” Shift Lever Shimano Deore, 11-Speed, SL-5100R

San Quentin 2 29” Crankset Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

San Quentin 2 29” Bottom Bracket External Sealed Cartridge Bearing

San Quentin 2 29” Chain KMC X-11 Silver and Black

San Quentin 2 29”

Cassette Shimano CS-5100-11, 11-51T

San Quentin 2 29” Brakes Front Tektro M535 4-Piston Hydraulic, 180mm Rotor

San Quentin 2 29” Brakes Rear Tektro M535 4-Piston Hydraulic, 180mm Rotor

San Quentin 2 29” Brake Levers Tektro M535 Hydraulic

San Quentin 2 29” Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

San Quentin 2 29” Stem Marin 3D Forged Alloy, 35mm

San Quentin 2 29” Grips Marin Grizzly Lock On

San Quentin 2 29”

Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost TranzX, YSP18, 1x Remote, Size S 120mm Travel, Size M 150mm Travel, Size L-XL 170mm Travel, 30.9mm

San Quentin 2 29” Saddle Marin Speed Concept

San Quentin 2 29” Pedals Marin Oso OE Flat

San Quentin 2 29” Extras -

San Quentin 3 27.5

Frame Series 3 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

San Quentin 3 27.5 Front Suspension Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle

San Quentin 3 27.5 Rim Marin Aluminum Double Wall, Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible

San Quentin 3 27.5 Hub Rear Shimano FH-TC500, 148x12, MicroSpline Freehub Body, Centerlock Disc, 32H

San Quentin 3 27.5 Hub Front Shimano HB-TC500, 110x15mm, Centerlock Disc, 32H

San Quentin 3 27.5 Spokes Nipples 14g Black Stainless Steel

San Quentin 3 27.5 Tires Maxxis Assegai, 27.5x2.5 MAXX TERRA, EXO Casing, Tubeless Compatible

San Quentin 3 27.5

Derailleur Rear Shimano Deore, 12-Speed, SGS

Derailleur Front -

San Quentin 3 27.5 Shift Lever Shimano Deore, 12-Speed, SL-6100IR

San Quentin 3 27.5 Crankset FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing

San Quentin 3 27.5

Bottom Bracket

MegaExo 73mm BSA

Chain KMC X-12 Silver and Black

Cassette Shimano, Deore 12-Speed, 10-51T

San Quentin 3 27.5

San Quentin 2 27.5

Specifications, pricing, and availability are subject to change without notice.

Brakes Front Tektro Slate EVO, 4-Piston Hydraulic, Resin Pads, 203mm Rotor

Brakes Rear Tektro Slate EVO, 4-Piston Hydraulic, Resin Pads, 180mm Rotor

Brake Levers Tektro Slate EVO Hydraulic Lever, I-Spec EV Compatible

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem Marin 3D Forged Alloy, 35mm

Grips Marin Grizzly Lock On

Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M 150mm, L 170mm Travel, and Size XL 200mm Travel, 30.9mm

Saddle Marin Speed Concept

Pedals Marin Oso OE Flat

Extras -

Frame Series 3 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

Front Suspension Rock Shox FS35 Boost 15x110, 140mm Travel, Coil Spring w/Preload, External Rebound, 27.5”

Rim Marin Aluminum Double Wall, Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible

Hub Rear Shimano FH-TC500, 148x12, Standard Freehub Body, Centerlock Disc, 32H

Hub Front Shimano HB-TC500, 110x15mm, Centerlock Disc, 32H

Spokes Nipples 14g Black Stainless Steel

Tires Vee Tire Co, Flow Snap, 27.5x2.6”, MPC Compound, Wire Bead

Derailleur Rear Shimano Deore, 11-Speed, SGS

Derailleur Front -

Shift Lever Shimano Deore, 11-Speed, SL-5100R

Crankset Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

Bottom Bracket External Sealed Cartridge Bearing

Chain KMC X-11 Silver and Black

Cassette Shimano CS-5100-11, 11-51T

Brakes Front Tektro M535 4-Piston Hydraulic, 180mm Rotor

Brakes Rear Tektro M535 4-Piston Hydraulic, 180mm Rotor

Brake Levers

Tektro M535 Hydraulic

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem Marin 3D Forged Alloy, 35mm

Grips Marin Grizzly Lock On

Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

SPECIFICATIONS

San Quentin 2 27.5

Seatpost TranzX, YSP18, 1x Remote, All Sizes 170mm Travel, 30.9mm

Saddle Marin Speed Concept

Pedals Marin Oso OE Flat

San Quentin 2 27.5 Extras -

San Quentin 1 27.5

Frame Series 2 6061 Aluminum, Double Butted, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB

Front Suspension SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, 27.5”, Bolt-On Thru-Axle

Rim Marin Aluminum Double Wall, Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible

Hub Rear Forged Alloy, Quad Sealed Cartridge Bearings, Alloy Axle, QR type, 141mm Width, Centerlock Disc, Shimano Standard Freehub Body, 32H

San Quentin 1 27.5 Hub Front Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Centerlock Disc 32H

San Quentin 1 27.5

Spokes Nipples 14g Black Stainless Steel

San Quentin 1 27.5 Tires Vee Tire Co, Flow Snap, 27.5x2.6”, MPC Compound, Wire Bead

San Quentin 1 27.5

Derailleur Rear microSHIFT RD-M9195M, 9 Speed, With Clutch

Derailleur Front -

San Quentin 1 27.5 Shift Lever microSHIFT SL-M9195-R, 1x9 with Bearings

San Quentin 1 27.5

Crankset Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing

Bottom Bracket Sealed Cartridge Bearing, Square Taper

Chain KMC X-9

Cassette SunRace, 9 Speed, 11-46T

Brakes Front Tektro M275 Hydraulic 180mm Rotor

Brakes Rear Tektro M275 Hydraulic 180mm Rotor

Brake Levers Tektro M275 Hydraulic

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem Marin 3D Forged Alloy, 45mm

San Quentin 1 27.5 Grips Marin MTN, Closed End

San Quentin 1 27.5

San Quentin 3 29” Frameset

Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost Marin Alloy, 30.9mm

Saddle Marin Speed Concept

Pedals Marin Oso OE Flat

Extras -

Frame All New Series 3 6061 Aluminum, Double Butted Frame, 29” Wheels, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

San Quentin 3 29” Frameset Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

San Quentin 3 29” Frameset

San Quentin 3 27.5” Frameset

Bobcat Trail 5

Specifications, pricing, and availability are subject to change without notice.

Frame Series 3 6061 Aluminum, Double Butted, 27.5” Wheels, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB

Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Extras Marin Rubber Grommet Kit For Internal Cable Routing

Extras Bolt-On Thru-Axle

Extras Marin Seat Clamp

Frame Series 2 6061 Aluminum, 27.5” or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

Front Suspension SR Suntour XCR LOR-DS, Thru-Axle, 120mm Travel, Hydraulic Lockout, Damping Adjustment, 42mm (27.5”) and 46mm (29”) Offsets

Rim Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

Hub Rear Forged Alloy, Disc, 32H

Hub Front Forged Alloy, Disc, 32H

Bobcat Trail 5 Spokes 14g Black Stainless Steel

Bobcat Trail 5

Bobcat Trail 4

Extras Marin Rubber Grommet Kit For Internal Cable Routing

Extras Bolt-On Thru-Axle

Extras Marin Seat Clamp

Tires MTB, 27.5/29x2.25”

Derailleur Rear Shimano Deore 11-Speed w/Clutch

Derailleur Front -

Shift Lever Shimano Deore 11-Speed

Crankset Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring

Bottom Bracket External Sealed Cartridge Bearings

Chain KMC X11

Cassette SunRace 11-Speed, 11-51T

Brakes Front Shimano BR-MT201 Hydraulic Disc 160mm Rotor

Brakes Rear Shimano BR-MT201 Hydraulic Disc 160mm Rotor

Brake Levers Shimano BL-MT201

Handlebar Marin 31.8 Riser, 12mm Rise, 780mm Width

Stem Marin Alloy, 31.8mm Clamp, 45mm

Grips Marin MTB, Closed End

Headset FSA No.10-P

Seatpost Marin Alloy, 30.9

Saddle Marin MTB

Pedals Nylon Platform

Frame Series 2 6061 Aluminum, 27.5” or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

Front Suspension SR Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset

Bobcat Trail 4

Rim Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific

Hub Rear Forged Alloy, Disc, 32H

Hub Front Forged Alloy, Disc, 32H

Bobcat Trail 4 Spokes 14g Black Stainless Steel

SPECIFICATIONS

Bobcat Trail 4 Tires MTB, 27.5/29x2.25”

Bobcat Trail 4

Bolinas Ridge 2

Derailleur Rear microSHIFT Advent 9, Clutch

Derailleur Front

Bobcat Trail 4 Shift Lever microSHIFT Advent 9 Trail

Bobcat Trail 4

Crankset Alloy Crank, Steel Narrow-Wide Chainring, 32T

Bobcat Trail 4 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Bobcat Trail 4 Chain KMC X9

Bobcat Trail 4

Cassette SunRace 9-Speed, 11-46T

Brakes Front Tektro M275 Hydraulic Disc, 160mm Rotor

Bobcat Trail 4 Brakes Rear Tektro M275 Hydraulic Disc, 160mm Rotor

Bobcat Trail 4 Brake Levers Tektro M275 Hydraulic Disc

Bobcat Trail 4

Handlebar Marin 31.8 Riser, 12mm Rise, 780mm Width

Bobcat Trail 4 Stem Marin Alloy, 31.8mm Clamp, 45mm

Bobcat Trail 4 Grips Marin MTB, Closed End

Bobcat Trail 4 Headset FSA No.10-P

Bobcat Trail 4

Seatpost Marin Alloy, 30.9

Saddle Marin MTB

Bobcat Trail 4 Pedals Nylon Platform

Bobcat Trail 3 Frame Series 2 6061 Aluminum, 27.5” or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing

Bobcat Trail 3 Front Suspension SR Suntour XCM HLO, 120mm Travel, Hydraulic Lockout, 46mm Offset

Bobcat Trail 3 Rim Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific

Bobcat Trail 3 Hub Rear Forged Alloy, Disc, 32H

Bobcat Trail 3 Hub Front Forged Alloy, Disc, 32H

Bobcat Trail 3 Spokes 14g Black Stainless Steel

Bobcat Trail 3 Tires MTB, 27.5/29x2.25”

Bobcat Trail 3

Derailleur Rear Shimano Altus, 8-Speed

Derailleur Front Altus Double

Bobcat Trail 3 Shift Lever Shimano Altus SL-M315, 8-Speed

Bobcat Trail 3 Crankset Alloy Crank, Steel Chainrings, 36/22T

Bobcat Trail 3 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Bobcat Trail 3 Chain KMC Z8

Bobcat Trail 3 Cassette SunRace 8-Speed, 11-34T

Bobcat Trail 3 Brakes Front Tektro M275 Hydraulic Disc, 160mm Rotor

Bobcat Trail 3 Brakes Rear Tektro M275 Hydraulic Disc, 160mm Rotor

Bobcat Trail 3 Brake Levers Tektro M275 Hydraulic Disc

Bobcat Trail 3

Handlebar Marin 31.8 Riser, 12mm Rise, 780mm Width

Bobcat Trail 3 Stem Marin Alloy, 31.8mm Clamp, 45mm

Bobcat Trail 3 Grips Marin MTB, Closed End

Bobcat Trail 3 Headset FSA No.10-P

Bobcat Trail 3 Seatpost Marin Alloy, 30.9

Bobcat Trail 3

Saddle Marin MTB

Bobcat Trail 3 Pedals Nylon Platform

Specifications, pricing, and availability are subject to change without notice.

Frame Series 1 6061 Aluminum, 27.5”/29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes

Bolinas Ridge 2 Front Suspension SR Suntour XCM DS, 100mm Travel, Preload Adjustment, 46mm Offset

Bolinas Ridge 2 Rim Marin, Double Wall Alloy

Bolinas Ridge 2 Hub Rear Forged Alloy, Disc, 32H

Bolinas Ridge 2 Hub Front Forged Alloy, Disc, 32H

Bolinas Ridge 2 Spokes Black Stainless Steel

Bolinas Ridge 2 Tires MTB, 27.5/29x2.25”

Bolinas Ridge 2 Derailleur Rear Shimano Altus, 8-Speed

Bolinas Ridge 2 Derailleur Front Shimano FD-TY700

Bolinas Ridge 2 Shift Lever Shimano Altus 3x8-Speed

Bolinas Ridge 2 Crankset Alloy Crank, Steel Chainrings, 42/34/24T

Bolinas Ridge 2 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Bolinas Ridge 2 Chain KMC Z8

Bolinas Ridge 2 Cassette SunRace 8-Speed, 11-34T

Bolinas Ridge 2 Brakes Front Clark’s Clout Hydraulic Disc, 160mm Rotor

Bolinas Ridge 2 Brakes Rear Clark’s Clout Hydraulic Disc, 160mm Rotor

Bolinas Ridge 2 Brake Levers Clark’s Hydraulic

Bolinas Ridge 2 Handlebar Marin 31.8 Riser, 12mm Rise, 780mm Width

Bolinas Ridge 2 Stem Marin Alloy, 31.8mm, 45mm

Bolinas Ridge 2 Grips Marin MTB, Closed End

Bolinas Ridge 2 Headset FSA No.10-P

Bolinas Ridge 2 Seatpost Marin Alloy, 27.2mm

Bolinas Ridge 2 Saddle Marin MTB

Bolinas Ridge 2 Pedals Nylon Platform

Bolinas Ridge 1 Frame Series 1 6061 Aluminum, 27.5”/29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes

Bolinas Ridge 1 Front Suspension SR Suntour XCE Disc, 100mm Travel, Preload Adjustment, 46mm Offset

Bolinas Ridge 1 Rim Marin, Double Wall Alloy

Bolinas Ridge 1 Hub Rear Forged Alloy, Disc, 32H

Bolinas Ridge 1 Hub Front Forged Alloy, Disc, 32H

Bolinas Ridge 1 Spokes Black Stainless Steel

Bolinas Ridge 1 Tires MTB, 27.5/29x2.25”

Bolinas Ridge 1 Derailleur Rear Shimano Tourney, 7-Speed

Bolinas Ridge 1 Derailleur Front Shimano FD-TX500

Bolinas Ridge 1 Shift Lever Shimano Tourney 3x7-Speed

Bolinas Ridge 1 Crankset Alloy Crank, Steel Chainrings, 42/34/24T

Bolinas Ridge 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Bolinas Ridge 1 Chain KMC Z8

Bolinas Ridge 1 Cassette SunRace 7-Speed, 11-34T

Bolinas Ridge 1 Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Bolinas Ridge 1

Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Bolinas Ridge 1 Brake Levers Shimano w/ Integrated Shifters

SPECIFICATIONS

Bolinas Ridge 1 Handlebar Marin 31.8 Riser, 12mm Rise, 780mm Width

Bolinas Ridge 1 Stem Marin Alloy, 31.8mm, 45mm

Bolinas Ridge 1 Grips Marin MTB, Closed End

Bolinas Ridge 1 Headset FSA No.10-P

Bolinas Ridge 1 Seatpost Marin Alloy, 27.2mm

Bolinas Ridge 1 Saddle Marin MTB

Bolinas Ridge 1 Pedals Nylon Platform

Wildcat Trail 3 Frame Series 2 6061 Aluminum, Women’s Specific Frame, 27.5” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing Routing

Wildcat Trail 3 Front Suspension SR Suntour XCM HLO, 120mm Travel, Hydraulic Lockout, 46mm Offset

Wildcat Trail 3 Rim Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific

Wildcat Trail 3 Hub Rear Forged Alloy, Disc, 32H

Wildcat Trail 3 Hub Front Forged Alloy, Disc, 32H

Wildcat Trail 3 Spokes Black Stainless Steel

Wildcat Trail 3 Tires MTB, 27.5x2.25”

Wildcat Trail 3 Derailleur Rear Shimano Altus, 8-Speed

Wildcat Trail 3 Derailleur Front Altus Double

Wildcat Trail 3 Shift Lever Shimano Altus SL-M315, 8-Speed

Wildcat Trail 3 Crankset Alloy Crank, Steel Chainrings, 36/22T

Wildcat Trail 3 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Wildcat Trail 3 Chain KMC Z8

Wildcat Trail 3 Cassette SunRace 8-Speed, 11-34T

Wildcat Trail 3 Brakes Front Clark’s Clout Hydraulic Disc, 160mm Rotor

Wildcat Trail 3 Brakes Rear Clark’s Clout Hydraulic Disc, 160mm Rotor

Wildcat Trail 3 Brake Levers Clark’s Hydraulic

Wildcat Trail 3

Handlebar Marin 31.8 Riser, 12mm Rise, 740mm Width

Wildcat Trail 3 Stem Marin Alloy, 31.8mm Clamp, 45mm

Wildcat Trail 3 Grips Marin MTB, Closed End

Wildcat Trail 3 Headset FSA No.10-P

Wildcat Trail 3

Seatpost Marin Alloy, 30.9

Wildcat Trail 3 Saddle Marin MTB

Wildcat Trail 3 Pedals Nylon Platform

Wildcat Trail 2 Frame Series 1 6061 Aluminum, Women’s Specific Frame, 27.5” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes

Wildcat Trail 2 Front Suspension SR Suntour XCM DS, 100mm Travel, Preload Adjustment, 46mm Offset

Wildcat Trail 2 Rim Marin, Double Wall Alloy

Wildcat Trail 2 Hub Rear Forged Alloy, Disc, 32H

Wildcat Trail 2 Hub Front Forged Alloy, Disc, 32H

Wildcat Trail 2 Spokes Black Stainless Steel

Wildcat Trail 2 Tires MTB, 27.5x2.25”

Wildcat Trail 2 Derailleur Rear Shimano Altus, 8-Speed

Wildcat Trail 2 Derailleur Front Shimano FD-TY700

Wildcat Trail 2 Shift Lever Shimano Altus 3x8-Speed

Specifications, pricing, and availability are subject to change without notice.

Wildcat Trail 2 Crankset Alloy Crank, Steel Chainrings, 42/34/24T

Wildcat Trail 2

Wildcat Trail 1

Team Marin 2

Bottom Bracket Sealed Cartridge Bearings, Square Taper

Chain KMC Z8

Cassette SunRace 8-Speed, 11-34T

Brakes Front Clark’s Clout Hydraulic Disc, 160mm Rotor

Brakes Rear Clark’s Clout Hydraulic Disc, 160mm Rotor

Brake Levers Clark’s Hydraulic

Handlebar Marin 31.8 Riser, 12mm Rise, 780mm Width

Stem Marin Alloy, 31.8mm, 45mm

Grips Marin MTB, Closed End

Headset FSA No.10-P

Seatpost Marin Alloy, 27.2mm

Saddle Marin MTB

Pedals Nylon Platform

Frame Series 1 6061 Aluminum, Women’s Specific Frame, 27.5” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes

Front Suspension SR Suntour XCE Disc, 100mm Travel, Preload Adjustment, 46mm Offset

Rim Marin, Double Wall Alloy

Hub Rear Forged Alloy, Disc, 32H

Hub Front Forged Alloy, Disc, 32H

Spokes Black Stainless Steel

Tires MTB, 27.5x2.25”

Derailleur Rear Shimano Tourney, 7-Speed

Derailleur Front Shimano FD-TY500

Shift Lever Shimano Tourney 3x7-Speed

Crankset Alloy Crank, Steel Chainrings, 42/34/24T

Bottom Bracket Sealed Cartridge Bearings, Square Taper

Chain KMC Z8

Cassette SunRace 7-Speed, 11-34T

Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Brake Levers Shimano w/ Integrated Shifters

Handlebar Marin 31.8 Riser, 12mm Rise, 740mm Width

Stem Marin Alloy, 31.8mm Clamp, 45mm

Grips Marin Dual Density

Headset FSA No.10-P

Seatpost Marin Alloy, 27.2mm

Saddle Marin MTB

Pedals Nylon Platform

Frame Series 4 6061 Aluminum, 29” Wheels, Superlight Aluminum, Post-Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle

Front Suspension Fox 34 StepCast Performance, 120mm Travel, Alloy Tapered Steerer, Air Spring, 110x15mm Boost Spacing, Kabolt Thru-Axle, 44mm Offset

Specifications, pricing, and availability are subject to change without notice.

SPECIFICATIONS

Team Marin 2

Rim Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Specific, Tubeless Compatible

Team Marin 2 Hub Rear Shimano, 148x12mm, MicroSpline, Disc Specific, 32H

Team Marin 2 Hub Front Shimano, 110x15mm, Disc Specific, 32H

Team Marin 2 Spokes 14g Black Stainless Steel

Team Marin 2 Tires Maxxis Rekon Race, 29x2.35”, Folding Bead, Tubeless Ready

Team Marin 2 Derailleur Rear Shimano XT, RDM8100, 12-Speed

Team Marin 2 Derailleur Front -

Team Marin 2 Shift Lever Shimano SLX, SLM7100, 12-Speed

Team Marin 2 Crankset FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, MegaExo Spindle, Boost Spacing

Team Marin 2 Bottom Bracket MegaExo 73mm BSA

Team Marin 2 Chain KMC X12

Team Marin 2 Cassette Shimano SLX, CSM6100, 12-Speed, 10-51T

Team Marin 2 Brakes Front TRP G-Spec FMR Hydraulic Disc, 180mm Rotor

Team Marin 2 Brakes Rear TRP G-Spec FMR Flat Mount Hydraulic Disc, 160mm Rotor

Team Marin 2 Brake Levers TRP G-Spec FMR Hydraulic

Team Marin 2 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back

Team Marin 2 Stem Marin 3D Forged Alloy, 35mm

Team Marin 2 Grips Marin Single Clamp Locking

Team Marin 2 Headset FSA No 42ACB, 1 1/8” x 1 1/2”

Team Marin 2 Seatpost TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, All Other Sizes 150mm Travel, 30.9mm

Team Marin 2 Saddle Marin Speed Concept

Team Marin 2 Pedals Marin OSO OE Flat Pedal

Team Marin 1 Frame Series 4 6061 Aluminum, 29” Wheels, Superlight Aluminum, Post-Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle

Team Marin 1 Front Suspension RockShox Judy Silver TK, 120mm Travel, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset

Team Marin 1 Rim Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Specific, Tubeless Compatible

Team Marin 1 Hub Rear Shimano, 148x12mm, Micro Spline, Disc Specific, 32H

Team Marin 1 Hub Front Forged Aluminum, 110x15mm, Disc Specific, 32H

Team Marin 1 Spokes 14g Black Stainless Steel

Team Marin 1 Tires Vee Tire, Rail Rocco XC, 29x2.3”, Dual Control Compound, Folding Bead, Tubeless Ready

Team Marin 1 Derailleur Rear Shimano Deore, RDM6100, 12-Speed

Team Marin 1 Derailleur Front -

Team Marin 1 Shift Lever Shimano Deore, SLM6100, 12-Speed

Team Marin 1 Crankset Forged Alloy 1x12, Hollow Spindle, Steel Narrow Wide 32T Chainring

Team Marin 1 Bottom Bracket External Sealed Cartridge Bearings

Team Marin 1 Chain KMC X12

Team Marin 1 Cassette Shimano Deore, CS6100, 12-Speed, 10-51T

Team Marin 1

Brakes Front Tektro HDT280, Hydraulic Disc, 180mm Rotor

Team Marin 1 Brakes Rear Tektro HDR285 Flat-Mount Hydraulic Disc, 180mm Rotor

Team Marin 1

Brake Levers Tektro Hydraulic

Team Marin 1 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back

Team Marin 1 Stem Marin 3D Forged Alloy, 35mm

Team Marin 1 Grips Marin Single Clamp Locking

Team Marin 1

Headset FSA No 42ACB, 1 1/8” x 1 1/2”

Seatpost Marin Alloy, 30.9mm

Saddle Marin Speed Concept

Team Marin 1 Pedals Marin OSO OE Flat Pedal

Pine Mountain 2

Frame Series 3 Double Butted and Heat Treated CrMo, 29” Wheels, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts

Pine Mountain 2 Front Suspension RockShox 35 Gold RL, 120mm Travel, DebonAir, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Lite, 44mm Offset

Pine Mountain 2 Rim Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible

Pine Mountain 2

Hub Rear Shimano, Micro Spline 148x12mm, Disc Specific, 32H

Hub Front Forged Alloy, 110x15mm, Sealed Cartridge Bearings, Disc Specific, 32H

Pine Mountain 2 Spokes 14g Black Stainless Steel

Pine Mountain 2 Tires Vee Tire Flow Snap, 29x2.6”, Top 40 Compound, Enduro Core, 90 TPI, Tubeless Compatible

Pine Mountain 2 Derailleur Rear Shimano SLX, RD7100, 12-Speed

Pine Mountain 2 Derailleur Front -

Pine Mountain 2 Shift Lever Shimano SLX, SL7100, 12-Speed

Pine Mountain 2 Crankset FSA Grid, Modular 1x, 32T Direct Mount MegaTooth Chainring

Pine Mountain 2 Bottom Bracket FSA Outboard Cartridge Bearings

Pine Mountain 2 Chain KMC X12

Pine Mountain 2 Cassette Shimano SLX, CSM7100, 12-Speed, 10-51T

Pine Mountain 2 Brakes Front TRP Slate EVO, 4-Piston, Hydraulic Disc, 180mm Rotor

Pine Mountain 2 Brakes Rear TRP Slate EVO, 4-Piston, Hydraulic Disc, 180mm Rotor

Pine Mountain 2 Brake Levers TRP Slate EVO

Pine Mountain 2 Handlebar Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep

Pine Mountain 2 Stem Marin 3D Forged Alloy, 35mm

Pine Mountain 2

Grips Marin BearPaw Locking

Pine Mountain 2 Headset FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Pine Mountain 2 Seatpost TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, All Other Sizes 150mm Travel, 30.9mm

Pine Mountain 2

Saddle Marin Pine Mountain Trail

Pine Mountain 2 Pedals Marin Oso OE Flat

Pine Mountain 2 Extras Bolt-On Thru-Axle

SPECIFICATIONS

Pine Mountain 1 Frame Series 2 Double Butted CrMo, 29” Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts

Pine Mountain 1 Front Suspension RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset

Pine Mountain 1 Rim Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible

Pine Mountain 1 Hub Rear Forged Alloy, 141x9mm, Disc Specific, 32H

Pine Mountain 1 Hub Front Forged Alloy, 110x15mm, Disc Specific, 32H

Pine Mountain 1 Spokes 14g Black Stainless Steel

Pine Mountain 1 Tires Vee Tire Flow Snap, 29x2.6”, Wire Bead

Pine Mountain 1 Derailleur Rear Shimano Deore, RDM5100, 11-Speed

Pine Mountain 1 Derailleur Front -

Pine Mountain 1 Shift Lever Shimano Deore, SLM5100, 11-Speed

Pine Mountain 1 Crankset Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring

Pine Mountain 1 Bottom Bracket External Sealed Cartridge Bearings

Pine Mountain 1 Chain KMC X11

Pine Mountain 1 Cassette Shimano Deore, CSM5100, 11-Speed, 11-51T

Pine Mountain 1 Brakes Front Tektro HDM535, 4-Piston, Hydraulic Disc, 180mm Rotor

Pine Mountain 1 Brakes Rear Tektro HDM535, 4-Piston, Hydraulic Disc, 160mm Rotor

Pine Mountain 1 Brake Levers Tektro Hydraulic

Pine Mountain 1 Handlebar Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep

Pine Mountain 1 Stem Marin 3D Forged Alloy, 35mm

Pine Mountain 1 Grips Marin BearPaw Locking

Pine Mountain 1 Headset FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Pine Mountain 1 Seatpost Marin Alloy, 30.9mm

Pine Mountain 1 Saddle Marin Pine Mountain Trail

Pine Mountain 1 Pedals Marin Oso OE Flat

Alcatraz Frame Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Dropouts, 73mm Threaded BB, ISCG 05 Tabs

Alcatraz Front Suspension Manutou Circus Expert, 26”, 100mm Travel, Coil Spring, Taper Steerer Tube, 20x110mm Thru Axle

Alcatraz Rear Suspension -

Alcatraz Rim Marin Custom Extrusion, 27mm Inner, Pinned Joint

Alcatraz Hub Rear Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, 6-Bolt Disc, 32H

Alcatraz Hub Front Forged Alloy, 110x20mm, 6-Bolt Disc, 32H

Alcatraz Spokes 14g Black Stainless Steel

Alcatraz Tires Vee Tire, XCV 26x2.25”, LSG Compound, Wire Bead

Alcatraz Derailleur Rear -

Alcatraz Derailleur Front -

Alcatraz Shift Lever -

Alcatraz Crankset Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD

Specifications, pricing, and availability are subject to change without notice.

Alcatraz Bottom Bracket External Sealed Cartridge Bearings

Alcatraz Chain KMC HL-1

Alcatraz Cassette 14T Single Speed Cog

Alcatraz Brakes Front Tektro HDM275 Hydraulic Disc, 160mm Rotor

Alcatraz Brakes Rear Tektro HDM275 Hydraulic Disc, 160mm Rotor

Alcatraz Brake Levers Tektro HDM275

Alcatraz Handlebar Marin Riser, 6061 Double Butted Aluminum, 38mm Rise, 750mm Width, 4º Up, 9º Back

Alcatraz Stem Marin 3D Forged Alloy, 40mm

Alcatraz Grips Marin Single Clamp Locking

Alcatraz Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Alcatraz Seatpost Marin Alloy, 30.9mm

Alcatraz Saddle Marin DJ Saddle

Alcatraz Pedals Alloy Platform

Alcatraz

Alcatraz Frameset

Headlands 2

Extras Marin Chain Tension Device

Frame Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Dropouts, 73mm Threaded BB, ISCG 05 Tabs

Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Extras Marin Chain Tension Device

Extras Marin MTB Seat Clamp, Bolt Type

Frame Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts

Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Rim Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible

Hub Rear Forged Aluminum Alloy, Disc, 28H

Headlands 2 Hub Front Forged Aluminum Alloy, Disc, 28H

Headlands 2 Spokes Nipples Double Butted Stainless

Headlands 2 Tires Vee Tire Co., G-Sport, 700cx44, Tubeless Compatible

Headlands 2

Derailleur Rear SRAM Apex 1 12-Speed

Headlands 2 Derailleur Front

Headlands 2 Shift Lever SRAM Apex 1 1x12-Speed

Headlands 2 Crankset SRAM Apex 1, 40T

Headlands 2

Bottom Bracket SRAM DUB BSA

Chain SRAM NX

Cassette SRAM CS-XG-1275, 10-52T

Brakes Front SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor

Brakes Rear SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor

Brake Levers SRAM Apex 1 Hydraulic Disc

Handlebar Marin Butted Alloy, Compact 16º Flared Drop

Headlands 2 Stem Marin 3D Forged Alloy

SPECIFICATIONS

Headlands 2 Grips Marin Shock Absorbing Tape

Headlands 2 Headset FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Headlands 2 Seatpost TranzX YSP38J, Size 49-54 70mm, Size 56-60 105mm Travel, 27.2mm

Headlands 2 Saddle Marin Beyond Road Concept Elite

Headlands 2 Pedals -

Headlands 2 Extras Bolt-On Thru-Axles F and R

Headlands 1 Frame Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts

Headlands 1 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Headlands 1 Rim Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible

Headlands 1 Hub Rear Forged Aluminum Alloy, Disc, 32H

Headlands 1 Hub Front Forged Aluminum Alloy, Disc, 32H

Headlands 1 Spokes 14g Black Stainless Steel

Headlands 1 Tires Vee Tire Co., G-Sport, 700cx44, Tubeless Compatible

Headlands 1 Derailleur Rear Shimano GRX RDX812 Shadow Plus w/ Clutch

Headlands 1 Derailleur Front -

Headlands 1 Shift Lever Shimano GRX RX600

Headlands 1 Crankset Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 40T

Headlands 1 Bottom Bracket External Sealed Cartridge Bearings

Headlands 1 Chain KMC X11

Headlands 1 Cassette Shimano CSM8000, 11-Speed, 11/42T

Headlands 1 Brakes Front Shimano GRX Hydraulic Disc, 160mm Rotor

Headlands 1 Brakes Rear Shimano GRX Hydraulic Disc, 160mm Rotor

Headlands 1 Brake Levers Shimano GRX Hydraulic w/ Shifter

Headlands 1 Handlebar Marin Butted Alloy, Compact 16º Flared Drop

Headlands 1 Stem Marin 3D Forged Alloy

Headlands 1 Grips Marin Shock Absorbing Tape

Headlands 1 Headset FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Headlands 1 Seatpost Marin Alloy, 27.2mm

Headlands 1 Saddle Marin Beyond Road Concept

Headlands 1 Pedals -

Headlands 1 Extras Bolt-On Thru-Axles F and R

Headlands Frame Kit

Headlands Frame Kit Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Headlands Frame Kit Headset FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Headlands Frame Kit Extras Bolt-On Thru-Axles F and R, Marin CNC Seat Collar

Gestalt XR

Specifications, pricing, and availability are subject to change without notice.

Frame Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Gestalt XR Rim Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible

Gestalt XR

Hub Rear Forged Aluminum Alloy, 142x12mm, Disc, 32H

Gestalt XR Hub Front Forged Aluminum Alloy, 100x12mm, Disc, 32H

Gestalt XR Spokes Nipples 14g Black Stainless Steel

Gestalt XR Tires Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible

Gestalt XR

Derailleur Rear SRAM Apex 1 12-Speed

Gestalt XR Derailleur Front

Gestalt XR Shift Lever SRAM Apex 1 1x12-Speed

Gestalt XR Crankset SRAM Apex 1, 40T

Gestalt XR Bottom Bracket SRAM DUB BSA

Gestalt XR Chain SRAM NX

Gestalt XR Cassette SRAM CS-XG-1275, 10-52T

Gestalt XR Brakes Front SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor

Gestalt XR Brakes Rear SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor

Gestalt XR

Brake Levers SRAM Apex 1 Hydraulic Disc

Gestalt XR Handlebar Marin Butted Alloy, Compact 16º Flared Drop

Gestalt XR Stem Marin 3D Forged Alloy

Gestalt XR

Grips Marin Shock Absorbing Perforated Tape

Headset FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Gestalt XR Seatpost TranzX YSP38J, Size 49-54 70mm, Size 56-60 110mm Travel, 27.2mm

Gestalt XR Saddle Marin Beyond Road Concept Elite

Gestalt XR Pedals -

Gestalt XR Extras Bolt-On Thru-Axles F and R

Gestalt X10 Frame Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Gestalt X10 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Gestalt X10 Rim Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific

Gestalt X10

Hub Rear Forged Aluminum Alloy, Disc, 32H

Hub Front Forged Aluminum Alloy, Disc, 32H

Spokes 14g Black Stainless Steel

Tires Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible

Derailleur Rear MicroSHIFT Advent X 10-Speed Wide-Range

Derailleur Front -

Shift Lever microSHIFT Advent X 10-Speed

SPECIFICATIONS

Gestalt X10

Crankset Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T

Bottom Bracket External Sealed Cartridge Bearings

Gestalt X10 Chain KMC X10

Gestalt X10

Cassette SunRace 10-Speed, 11-51T

Brakes Front Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

Brakes Rear Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor

Brake Levers microSHIFT Advent X

Handlebar Marin Butted Alloy, Compact 16º Flared Drop

Gestalt X10 Stem Marin 3D Forged Alloy

Gestalt X10 Grips Marin Shock Absorbing Perforated Tape

Gestalt X10 Headset FSA No 42ACB, 1 1/8” x 1 1/2”

Gestalt X10 Seatpost Marin Alloy, 27.2mm

Gestalt X10 Saddle Marin Beyond Road Concept

Gestalt X10 Pedals -

Gestalt X10

Extras Bolt-On Thru-Axles F and R

Gestalt 2 Frame Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Gestalt 2 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Gestalt 2 Rim Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible

Gestalt 2 Hub Rear Forged Aluminum Alloy, Disc, 32H

Gestalt 2 Hub Front Forged Aluminum Alloy, Disc, 32H

Gestalt 2 Spokes 14g Black Stainless Steel

Gestalt 2 Tires Vee Tire Co., Zilent, 700x35

Gestalt 2 Derailleur Rear Shimano GRX, RX400, 10-Speed

Gestalt 2 Derailleur Front Shimano GRX RX400

Gestalt 2 Shift Lever Shimano GRX, RX400, 2x10-Speed

Gestalt 2 Crankset Shimano GRX, FC-RX600, 46/30T

Gestalt 2 Bottom Bracket Shimano

Gestalt 2 Chain KMC X10

Gestalt 2 Cassette Shimano, HG-5010, 11-36T

Gestalt 2 Brakes Front Shimano BR-RX400 Hydraulic Disc, 160mm Rotor

Gestalt 2 Brakes Rear Shimano BR-RX400 Hydraulic Disc, 160mm Rotor

Gestalt 2 Brake Levers Shimano w/ Integrated Shifters

Gestalt 2 Handlebar Marin Butted Alloy, Compact 12º Flared Drop

Gestalt 2 Stem Marin 3D Forged Alloy

Gestalt 2 Grips Marin Perforated Tape

Gestalt 2 Headset FSA No 42ACB, 1 1/8” x 1 1/2”

Gestalt 2 Seatpost Marin Alloy, 27.2mm

Gestalt 2 Saddle Marin Beyond Road Concept

Gestalt 2 Pedals Marin Oso OE Flat

Gestalt 2 Extras Bolt-On Thru-Axles F and R

Gestalt 1

Specifications, pricing, and availability are subject to change without notice.

Frame Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Gestalt 1 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Gestalt 1

Rim Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible

Hub Rear Forged Aluminum Alloy, 6-Bolt Disc, 32H

Gestalt 1 Hub Front Forged Aluminum Alloy, 6-Bolt Disc, 32H

Gestalt 1 Spokes 14g Black Stainless Steel

Gestalt 1 Tires Vee Tire Co., Zilent, 700x35

Gestalt 1 Derailleur Rear Shimano Sora 9-Speed

Gestalt 1

Derailleur Front Shimano Sora

Shift Lever Shimano Sora 2x9-Speed

Gestalt 1 Crankset Shimano R345 Octalink Compact, 50/34T

Gestalt 1

Bottom Bracket Shimano Octalink V2 Cartridge

Gestalt 1 Chain KMC X9

Gestalt 1 Cassette SunRace 9-Speed, 11-32T

Gestalt 1 Brakes Front Tektro MD-C550 Dual Piston Road Mechanical Disc, 160mm Rotor

Gestalt 1 Brakes Rear Tektro MD-C550 Dual Piston Road Mechanical Disc, 160mm Rotor

Gestalt 1

Brake Levers Shimano w/ Integrated Shifters

Handlebar Marin Butted Alloy, Compact 16º Flared Drop

Stem Marin 3D Forged Alloy

Gestalt 1 Grips Marin Perforated Tape

Gestalt 1

Gestalt (Base)

Headset FSA No 42ACB, 1 1/8” x 1 1/2”

Seatpost Marin Alloy, 27.2mm

Saddle Marin Beyond Road Concept

Pedals Marin Oso OE Flat

Frame Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts

Fork 6061 Aluminum, Straight-Blade, Post-Mount Disc

Rim Marin Aluminum Double Wall, 19mm Inner, 25mm Tall, Disc Specific

Hub Rear Forged Aluminum Alloy, 6-Bolt Disc, 32H

Hub Front Forged Aluminum Alloy, 6-Bolt Disc, 32H

Spokes 14g Black Stainless Steel

Tires Vee Tire Co., Zilent, 700x35

Derailleur Rear Shimano Claris 8-Speed

Derailleur Front Shimano Claris

Shift Lever Shimano Claris 2x8-Speed

Crankset FSA Tempo Compact, 50/34T

Bottom Bracket Sealed Bearing Square Taper

Chain KMC Z8

Cassette SunRace 8-Speed, 11-32T

Brakes Front Tektro MD-C400 Road Mechanical Disc, 160mm Rotor

Specifications, pricing, and availability are subject to change without notice.

SPECIFICATIONS

Gestalt (Base) Brakes Rear Tektro MD-C400 Road Mechanical Disc, 160mm Rotor

Gestalt (Base) Brake Levers Shimano w/ Integrated Shifters

Gestalt (Base) Handlebar Marin Butted Alloy, Compact 16º Flared Drop

Gestalt (Base) Stem Marin 3D Forged Alloy

Gestalt (Base) Grips Marin Perforated Tape

Gestalt (Base) Headset FSA No.8B

Gestalt (Base) Seatpost Marin Alloy, 27.2mm

Gestalt (Base) Saddle Marin Beyond Road Concept

Gestalt (Base) Pedals Marin Oso OE Flat

Nicasio 2 Frame Series 2 CrMo, Beyond Road Geometry, Thru-Axle, Disc Brake, Integrated Headset, Fender and Rack Mounts

Nicasio 2 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Nicasio 2 Rim Marin Aluminum Double Wall, 19mm Inner, Disc Specific

Nicasio 2 Hub Rear Forged Aluminum Alloy, Disc, 32H

Nicasio 2 Hub Front Forged Aluminum Alloy, Disc, 32H

Nicasio 2 Spokes 14g Black Stainless Steel

Nicasio 2 Tires Vee Tire Co., Zilent, 700x35, Tubeless Compatible

Nicasio 2 Derailleur Rear Shimano Tiagra

Nicasio 2 Derailleur Front Shimano Tiagra

Nicasio 2 Shift Lever Shimano Tiagra

Nicasio 2 Crankset FSA Omega MegaExo, 50/34T

Nicasio 2 Bottom Bracket FSA MegaExo

Nicasio 2 Chain KMC X10

Nicasio 2 Cassette Shimano 10-Speed, 11-34T

Nicasio 2 Brakes Front Shimano BR-4770 Hydraulic

Nicasio 2 Brakes Rear Shimano BR-4770 Hydraulic

Nicasio 2 Brake Levers Shimano Hydraulic w/ Integrated Shifters

Nicasio 2 Handlebar Marin Butted Alloy, Compact 12º Flared Drop

Nicasio 2 Stem Marin 3D Forged Alloy

Nicasio 2 Grips Marin Comfort Tape

Nicasio 2 Headset FSA No.42/ACB

Nicasio 2 Seatpost Marin Alloy, 27.2mm

Nicasio 2 Saddle Marin Beyond Road Concept

Nicasio 2 Pedals Commute Platform

Nicasio 2 Extras Bolt-On Thru-Axles F and R

Nicasio + Frame Series 1 Double Butted CrMo Beyond Road, 650B Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount

Nicasio + Fork CrMo, Fender and Rack Eyelets, IS Disc Mount

Nicasio + Rim Marin Aluminum Double Wall, 25mm Inner, Disc Specific

Nicasio + Hub Rear Forged Aluminum Alloy, Disc, 32H

Nicasio + Hub Front Forged Aluminum Alloy, Disc, 32H

Nicasio + Spokes 14g Black Stainless Steel

Nicasio + Tires WTB Horizon, 650Bx47mm

Nicasio + Derailleur Rear microSHIFT Advent, 1x9 w/ Clutch Mech

Nicasio + Derailleur Front N/A

Nicasio + Shift Lever microSHIFT Advent, 1x9 Specific

Nicasio + Crankset FSA Vero Pro, Narrow Wide, 42T

Nicasio + Bottom Bracket Sealed Cartridge Bearings, Square Taper

Nicasio + Chain KMC X9

Nicasio + Cassette SunRace 9-Speed, 11-46T

Nicasio + Brakes Front Tektro MDC400, Road Mechanical , 160mm Rotor

Nicasio + Brakes Rear Tektro MDC400, Road Mechanical , 160mm Rotor

Nicasio + Brake Levers MicroSHIFT Advent

Nicasio + Handlebar Marin Butted Alloy, Compact 16º Flared Drop

Nicasio + Stem Marin 3D Forged Alloy

Nicasio + Grips Marin Comfort Tape

Nicasio + Headset FSA ORBIT CE No.8B, Sealed Cartridge Bearings

Nicasio + Seatpost Marin Alloy, 27.2mm

Nicasio + Saddle Marin Beyond Road Concept

Nicasio + Pedals Marin Oso OE Flat

Nicasio Frame Series 1 Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount

Nicasio Fork CrMo, Fender and Rack Eyelets, IS Disc Mount

Nicasio Rim Marin Aluminum Double Wall, 19mm Inner, Disc Specific

Nicasio

Hub Rear Forged Aluminum Alloy, Disc, 32H

Hub Front Forged Aluminum Alloy, Disc, 32H

Nicasio Spokes 14g Black Stainless Steel

Nicasio Tires Vee Tire, Road Chief, 700Cx30, Wire Bead

Nicasio Derailleur Rear Shimano Claris 8-Speed

Nicasio Derailleur Front Shimano Claris

Nicasio Shift Lever Shimano Claris 2x8-Speed

Nicasio Crankset FSA Tempo Compact, 50/34T

Nicasio Bottom Bracket Sealed Cartridge Bearings, Square Taper

Nicasio Chain KMC Z8

Nicasio

Cassette SunRace 8-Speed, 11-32T

Nicasio Brakes Front Tektro MDC400, Road Mechanical , 160mm Rotor

Nicasio Brakes Rear Tektro MDC400, Road Mechanical , 160mm Rotor

Nicasio Brake Levers Shimano w/ Integrated Shifters

Nicasio

Handlebar Marin Butted Alloy, Compact 16º Flared Drop

Nicasio Stem Marin 3D Forged Alloy

Nicasio Grips Marin Comfort Tape

Nicasio Headset FSA ORBIT CE No.8B, Sealed Cartridge Bearings

Nicasio Seatpost Marin Alloy, 27.2mm

Nicasio

Lombard 1

Saddle Marin Beyond Road Concept

Pedals Marin Oso OE Flat

Frame Series 2 Lombard, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts

Fork 6061 Aluminum, Straight-Blade, Post-Mount Disc

Rim Marin Aluminum Double Wall, 21mm Inner

Hub Rear Forged Aluminum Alloy, Disc, 32H

SPECIFICATIONS

Lombard 1 Hub Front Forged Aluminum Alloy, Disc, 32H

Lombard 1 Spokes 14g Black Stainless Steel

Lombard 1 Tires Vee Tire, G-Sport, 700Cx40mm, Puncture Protection

Lombard 1

Derailleur Rear Shimano Sora 9-Speed

Lombard 1 Derailleur Front Shimano Sora

Lombard 1 Shift Lever Shimano Sora 2x9-Speed

Lombard 1 Crankset Marin 3D Forged Alloy, 48/32T Chainrings, Ring Guard

Lombard 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Lombard 1 Chain KMC X9

Lombard 1

Cassette Shimano HG-200, 11-34T

Lombard 1 Brakes Front Tektro Road Mechanical Disc, 160mm Rotor

Lombard 1 Brakes Rear Tektro Road Mechanical Disc, 160mm Rotor

Lombard 1 Brake Levers Shimano Sora 9-Speed STI

Lombard 1 Handlebar Marin Butted Alloy, Compact 16º Flared Drop

Lombard 1 Stem Marin 3D Forged Alloy

Lombard 1 Grips Marin Microfiber Tape

Lombard 1 Headset FSA No.8B

Lombard 1 Seatpost Marin Alloy, 27.2mm

Lombard 1 Saddle Marin Beyond Road Concept

Lombard 1 Pedals Marin Oso OE Flat

Four Corners 2 Frame Series 3 Double Butted CrMo, Size-Specific Wheels (XS, S = 650B, M, L, XL = 700C) Biometric Geometry, Fender and Rack Mounts, Thru-Axle, Flat Mount 160 Disc Mount

Four Corners 2 Fork Series 3 CrMo, Thru-Axle, Flat Mount 160 Disc Mount, Fender, Rack, and Bottle Cage Eyelets

Four Corners 2 Rim Marin Aluminum Double Wall, 25mm Inner, Disc Specific, Tubeless-Compatible

Four Corners 2 Hub Rear Forged Aluminum Alloy, Disc, 32H

Four Corners 2 Hub Front Forged Aluminum Alloy, Disc, 32H

Four Corners 2 Spokes 14g Black Stainless Steel

Four Corners 2 Tires Vee Tire Co., Rocket Man, 700x44, Tubeless-Compatible

Four Corners 2 Derailleur Rear SRAM Apex 1 12-Speed

Four Corners 2 Derailleur Front

Four Corners 2 Shift Lever SRAM Apex 1 1x12-Speed,

Four Corners 2 Crankset SRAM Apex 1, 40T

Four Corners 2 Bottom Bracket SRAM DUB BSA

Four Corners 2 Chain SRAM NX

Four Corners 2 Cassette SRAM CS-XG-1275, 10-52T

Four Corners 2 Brakes Front SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor

Four Corners 2 Brakes Rear SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor

Four Corners 2 Brake Levers SRAM Apex 1 Hydraulic Disc

Four Corners 2 Handlebar Marin Butted Alloy, Compact 16º Flared Drop

Four Corners 2 Stem Marin 3D Forged Alloy

Four Corners 2 Grips Marin Comfort Tape

Four Corners 2 Headset FSA No.42/ACB

Specifications, pricing, and availability are subject to change without notice.

Four Corners 2 Seatpost Marin Alloy, 27.2mm

Four Corners 2 Saddle Marin Beyond Road Concept

Four Corners 2 Pedals Marin Oso OE Flat

Four Corners 2 Extras Bolt-On Thru-Axles F & R

Four Corners 1 Frame Series 1 CrMo, Size-Specific Wheels (XS, S = 650B, M, L, XL = 700C) , Biometric Geometry, Fender and Rack Mounts, Disc Mount

Four Corners 1 Fork Series 1 CrMo, Fender, Rack, and Bottle Cage Eyelets, IS Disc Mount

Four Corners 1 Rim Marin Aluminum, Double Wall, Disc Specific

Four Corners 1 Hub Rear Forged Aluminum Alloy, Disc, 32H

Four Corners 1 Hub Front Forged Aluminum Alloy, Disc, 32H

Four Corners 1 Spokes 14g Black Stainless Steel

Four Corners 1 Tires Vee Tire Co., GPVee, 700/650x40

Four Corners 1 Derailleur Rear Shimano Sora 9-Speed

Four Corners 1 Derailleur Front Shimano Sora

Four Corners 1 Shift Lever Shimano Sora ST300 2x9-Speed

Four Corners 1 Crankset Forged Aluminum, 48/32T

Four Corners 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Four Corners 1 Chain KMC X9

Four Corners 1 Cassette Shimano HG200 9-Speed, 11-34T

Four Corners 1 Brakes Front Tektro Spyre-C Road Mechanical Disc, 160mm Rotor

Four Corners 1 Brakes Rear Tektro Spyre-C Road Mechanical Disc, 160mm Rotor

Four Corners 1 Brake Levers Shimano w/ Integrated Shifters

Four Corners 1 Handlebar Marin Butted Alloy, Compact 16º Flared Drop

Four Corners 1 Stem Marin 3D Forged Alloy

Four Corners 1 Grips Marin Comfort Bar Tape, Shock Absorbing Gel Pads

Four Corners 1 Headset FSA No.8D, Sealed Cartridge Bearings

Four Corners 1 Seatpost Marin Alloy, 27.2mm

Four Corners 1 Saddle Marin MTB

Four Corners 1 Pedals Marin Oso OE Flat

DSX FS Frame Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

DSX FS Fork SR Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts

DSX FS Rim Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible

DSX FS Hub Rear Shimano Forged Aluminum, 142x12mm, Microspline, Disc Specific, 32H

DSX FS Hub Front Forged Aluminum, 100x12mm, Disc Specific, 32H

DSX FS Spokes Nipples 14g Black Stainless Steel

DSX FS Tires Vee Tire Co. Rocketman, 700Cx44mm

DSX FS Derailleur Rear Shimano SLX, RD7100, 12-Speed

DSX FS Derailleur Front -

DSX FS Shift Lever Shimano Deore, SLM6100, 12-Speed

DSX FS Crankset Forged Aluminum, 42T Steel Narrow Wide Chainring

DSX FS Bottom Bracket Sealed Outboard Bearing

SPECIFICATIONS

DSX FS Chain KMC X12

DSX FS Cassette Shimano Deore, CSM6100, 12-Speed, 10-51T

DSX FS Brakes Front Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor

DSX FS Brakes Rear Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor

DSX FS Brake Levers Tektro Hydraulic

DSX FS Handlebar Marin MiniRiser

DSX FS Stem Marin 3D Forged Alloy

DSX FS Grips Marin MTB

DSX FS Headset FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

DSX FS Seatpost Marin Alloy

DSX FS Saddle Marin DSX

DSX FS Pedals Marin OSO OE Flat

DSX FS Extras Bolt-On Thru-Axles F and R

DSX (Base) Frame Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount

DSX (Base) Fork 6061 Aluminum, Straight-Blade, IS Disc Mount, Fender and Rack Eyelets

DSX (Base) Rim Marin Aluminum Double Wall, Disc Specific

DSX (Base) Hub Rear Forged Aluminum Alloy, Disc Specific, 32H

DSX (Base) Hub Front Forged Aluminum Alloy, Disc Specific, 32H

DSX (Base) Spokes Nipples 14g Black Stainless Steel

DSX (Base) Tires WTB Riddler, 700Cx45mm

DSX (Base) Derailleur Rear microSHIFT Advent 9, Clutch

DSX (Base) Derailleur Front

DSX (Base) Shift Lever microSHIFT Advent 9 Trail

DSX (Base) Crankset Alloy Crank, Steel Narrow-Wide Chainring, 38T

DSX (Base) Bottom Bracket Sealed Cartridge Bearings, Square Taper

DSX (Base) Chain KMC X9

DSX (Base) Cassette SunRace 9-Speed, 11-46T

DSX (Base) Brakes Front Clark’s Clout Hydraulic 160mm Rotor

DSX (Base) Brakes Rear Clark’s Clout Hydraulic 160mm Rotor

DSX (Base) Brake Levers Clark’s Hydraulic

DSX (Base) Handlebar Marin MiniRiser

DSX (Base) Stem Marin 3D Forged Alloy

DSX (Base) Grips Marin MTB

DSX (Base) Headset FSA, Orbit CE No.8B

DSX (Base) Seatpost Marin Alloy

DSX (Base)

Saddle Marin DSX

Pedals Marin OSO OE Flat

DSX 1 Frame Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

DSX 1 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

DSX 1 Rim Marin Aluminum Double Wall, 21mm Inner, Disc Specific

DSX 1 Hub Rear Forged Aluminum Alloy, 142x12mm, Disc Specific, 32H

DSX 1 Hub Front Forged Aluminum, 100x12mm, Disc Specific, 32H

Specifications, pricing, and availability are subject to change without notice.

DSX 1 Spokes Nipples 14g Black Stainless Steel

DSX 1 Tires WTB Riddler, 700Cx45mm

DSX 1 Derailleur Rear Shimano Deore, RDM5100, 11-Speed

DSX 1 Derailleur Front -

DSX 1 Shift Lever Shimano Deore, SLM5100, 11-Speed

DSX 1 Crankset Forged Aluminum, 42T Steel Narrow Wide Chainring

DSX 1 Bottom Bracket Sealed Cartridge

DSX 1 Chain KMC X11

DSX 1 Cassette Shimano, CSM5100, 11-Speed, 11-51T

DSX 1 Brakes Front Tektro HD-R280 Flat Mount Hydraulic 160mm Rotor

DSX 1 Brakes Rear Tektro HD-R280 Flat Mount Hydraulic 160mm Rotor

DSX 1 Brake Levers Tektro Hydraulic

DSX 1 Handlebar Marin MiniRiser

DSX 1 Stem Marin 3D Forged Alloy

DSX 1 Grips Marin MTB

DSX 1 Headset FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

DSX 1

Seatpost Marin Alloy

Saddle Marin DSX

DSX 1 Pedals Marin OSO OE Flat

DSX 1

DSX 2

Extras Bolt-On Thru-Axles F and R

Frame Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

Rim Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible

Hub Rear Shimano Forged Aluminum, 142x12mm, Microspline, Disc Specific, 32H

Hub Front Forged Aluminum, 100x12mm, Disc Specific, 32H

Spokes Nipples 14g Black Stainless Steel

DSX 2 Tires WTB Riddler, 700Cx45mm

DSX 2 Derailleur Rear Shimano Deore, RDM6100, 12-Speed

DSX 2 Derailleur Front -

DSX 2 Shift Lever Shimano Deore, SLM6100, 12-Speed

DSX 2 Crankset Forged Aluminum, 42T Steel Narrow Wide Chainring

DSX 2 Bottom Bracket Sealed Outboard Bearing

DSX 2 Chain KMC X12

DSX 2 Cassette Shimano Deore, CSM6100, 12-Speed, 10-51T

DSX 2

Brakes Front Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor

Brakes Rear Tektro HDR285 Flat Mount Hydraulic, 160mm Rotor

Brake Levers Tektro Hydraulic

DSX 2 Handlebar Marin MiniRiser

DSX 2 Stem Marin 3D Forged Alloy

DSX 2 Grips Marin MTB

DSX 2 Headset FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

DSX 2 Seatpost Marin Alloy

SPECIFICATIONS

DSX 2

Saddle Marin DSX

DSX 2 Pedals Marin OSO OE Flat

DSX 2 Extras Bolt-On Thru-Axles F and R

DSX 3 Frame Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle

DSX 3 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

DSX 3 Rim Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible

DSX 3 Hub Rear Shimano Forged Aluminum, 142x12mm, XDR, Disc Specific, 32H

DSX 3 Hub Front Forged Aluminum, 100x12mm, Disc Specific, 32H

DSX 3 Spokes Nipples 14g Black Stainless Steel

DSX 3 Tires Vee Tire Co. Rocketman, 700Cx44mm

DSX 3 Derailleur Rear SRAM Apex 1, 12-Speed

DSX 3 Derailleur Front -

DSX 3 Shift Lever SRAM NX 12-Speed

DSX 3 Crankset SRAM Apex 1, 40T

DSX 3 Bottom Bracket SRAM DUB BSA

DSX 3 Chain SRAM NX Eagle

DSX 3 Cassette SRAM CS-XG-1275, 10-52T

DSX 3 Brakes Front SRAM DB-S300 Flat Mount Hydraulic 160mm Rotor

DSX 3 Brakes Rear SRAM DB-S300 Flat Mount Hydraulic 160mm Rotor

DSX 3 Brake Levers SRAM Hydraulic

DSX 3 Handlebar Marin MiniRiser

DSX 3 Stem Marin 3D Forged Alloy

DSX 3 Grips Marin MTB

DSX 3 Headset FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

DSX 3 Seatpost Marin Alloy

DSX 3 Saddle Marin DSX

DSX 3 Pedals Marin OSO OE Flat

DSX 3 Extras Bolt-On Thru-Axles F and R

San Rafael DS2 Frame Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Disc Brake

San Rafael DS2 Fork SR Suntour NEX Disc HLO, 63mm Travel, Hydraulic Lockout, Preload Adjustment

San Rafael DS2 Rim Marin Aluminum Double Wall, Disc Specific

San Rafael DS2 Hub Rear Forged Aluminum Alloy, Disc, 32H

San Rafael DS2 Hub Front Forged Aluminum Alloy, Disc, 32H

San Rafael DS2 Spokes 14g Black Stainless Steel

San Rafael DS2 Tires Vee Tire, Rail, 700x40, Wire Bead

San Rafael DS2 Derailleur Rear Shimano Acera 8-Speed

San Rafael DS2 Derailleur Front Shimano FD-TY710

San Rafael DS2 Shift Lever Shimano Altus SL-M315, 8-Speed

San Rafael DS2 Crankset Forged Alloy Crank, 46/30T, Ring Guard

San Rafael DS2 Bottom Bracket Sealed Cartridge Bearings, Square Taper

San Rafael DS2 Chain KMC Z8

San Rafael DS2

San Rafael DS1

San Anselmo DS2

Specifications, pricing, and availability are subject to change without notice.

Cassette SunRace 8-Speed, 11-34T

Brakes Front Clark’s Clout Hydraulic Disc, 160mm Rotor

Brakes Rear Clark’s Clout Hydraulic Disc, 160mm Rotor

Brake Levers Clark’s Hydraulic

Handlebar Marin Alloy Riser

Stem Marin Alloy, 31.8mm Clamp

Grips Marin Ergonomic Locking

Headset FSA No.10-P

Seatpost Marin Alloy, 27.2mm

Saddle Marin Fitness Plush

Pedals Marin Oso OE Flat

Frame Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Disc Brake

Fork SR Suntour NEX, 63mm Travel, Preload Adjustment

Rim Marin Aluminum Double Wall

Hub Rear Forged Aluminum Alloy, 32H

Hub Front Forged Aluminum Alloy, 32H

Spokes 14g Stainless Steel

Tires Kenda Kahn, 700Cx40mmmm

Derailleur Rear Shimano Tourney, 7-Speed

Derailleur Front Shimano TY710

Shift Lever Shimano EF500 Shifter/Brake Lever Combo, 2x7Speed

Crankset Forged Alloy Crank, 46/30T, Ring Guard

Bottom Bracket Sealed Cartridge Bearings, Square Taper

Chain KMC Z8

Cassette SunRace 7-Speed, 11-34T

Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Brake Levers Shimano w/ Integrated Shifters

Handlebar Marin Alloy Riser

Stem Marin Alloy, 31.8mm Clamp

Grips Dual Density Ergonomic

Headset FSA No.10-P

Seatpost Marin Alloy, 27.2mm

Saddle Marin Fitness Plush

Pedals Marin Oso OE Flat

Frame Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Women’s Fit Geometry, Step Through Design, Disc Brake

Fork SR Suntour NEX Disc HLO, 63mm Travel, Hydraulic Lockout, Preload Adjustment

Rim Marin Aluminum Double Wall, Disc Specific

Hub Rear Forged Aluminum Alloy, Disc, 32H

Hub Front Forged Aluminum Alloy, Disc, 32H

Spokes 14g Black Stainless Steel

Tires Vee Tire, Rail, 700cx40mm, Wire Bead

SPECIFICATIONS

San Anselmo DS2

Derailleur Rear Shimano Acera 8-Speed

Derailleur Front Shimano FD-TY710

Shift Lever Shimano Altus SL-M315, 8-Speed

Crankset Forged Alloy Crank, 46/30T, Ring Guard

Bottom Bracket Sealed Cartridge Bearings, Square Taper

San Anselmo DS2 Chain KMC Z8

San Anselmo DS2

Cassette SunRace 8-Speed, 11-34T

Brakes Front Clark’s Clout Hydraulic Disc, 160mm Rotor

San Anselmo DS2 Brakes Rear Clark’s Clout Hydraulic Disc, 160mm Rotor

San Anselmo DS2

Brake Levers Clark’s Hydraulic

Handlebar Marin Alloy Riser

San Anselmo DS2 Stem Marin Alloy, 31.8mm Clamp

San Anselmo DS2 Grips Marin Ergonomic Locking

San Anselmo DS2 Headset FSA No.10-P

San Anselmo DS2 Seatpost Marin Alloy, 27.2mm

San Anselmo DS2 Saddle Marin Women’s Fitness Plush

San Anselmo DS2 Pedals Marin Oso OE Flat

San Anselmo DS1

Frame Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Women’s Fit Geometry, Step Through Design, Disc Brake

Fork SR Suntour NEX, 63mm Travel, Preload Adjustment

Rim Marin Aluminum Double Wall

Hub Rear Forged Aluminum Alloy, 32H

Hub Front Forged Aluminum Alloy, 32H

San Anselmo DS1 Spokes 14g Stainless Steel

San Anselmo DS1 Tires Kenda Kahn, 700Cx40mm

San Anselmo DS1

Derailleur Rear Shimano Tourney, 7-Speed

Derailleur Front Shimano TY710

San Anselmo DS1 Shift Lever Shimano EF500 Shifter/Brake Lever Combo, 2x7Speed

San Anselmo DS1 Crankset Forged Alloy Crank, 46/30T, Ring Guard

San Anselmo DS1 Bottom Bracket Sealed Cartridge Bearings, Square Taper

San Anselmo DS1 Chain KMC Z8

San Anselmo DS1 Cassette SunRace 7-Speed, 11-34T

San Anselmo DS1 Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

San Anselmo DS1 Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

San Anselmo DS1 Brake Levers Shimano w/ Integrated Shifters

San Anselmo DS1 Handlebar Marin Alloy Riser

San Anselmo DS1 Stem Marin Alloy, 31.8mm Clamp

San Anselmo DS1

Fairfax 3

Specifications, pricing, and availability are subject to change without notice.

Frame Series 3 Fitness, 6061 Aluminum, 700C Wheels, Relieved Tapered Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts, Fender, Rack, and Kickstand Mounts

Fairfax 3 Fork Marin Full Carbon w/ Tapered Steerer, Fender Eyelets

Fairfax 3 Rim Marin Aluminum Double Wall, 19mm ID, 25mm Tall, Disc Specific

Fairfax 3

Hub Rear Forged Aluminum Alloy, Disc, 32H

Fairfax 3 Hub Front Forged Aluminum Alloy, Disc, 32H

Fairfax 3 Spokes 14g Black Stainless Steel

Fairfax 3 Tires Vee Tire, G-Sport, 700Cx35mm, Puncture Protection, Wire Bead

Fairfax 3 Derailleur Rear Shimano Sora

Fairfax 3 Derailleur Front microSHIFT R9

Fairfax 3 Shift Lever microSHIFT R9 2x9 Flat Bar Road Shifters

Fairfax 3 Crankset Forged Alloy, 48/32T Chainrings, Ring Guard

Fairfax 3 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Fairfax 3 Chain KMC X9

Fairfax 3 Cassette Shimano, 9-Speed, 11-34T

Fairfax 3 Brakes Front Clark’s Clout Hydraulic Disc, 160mm Rotor

Fairfax 3 Brakes Rear Clark’s Clout Hydraulic Disc, 160mm Rotor

Fairfax 3 Brake Levers Clark’s Hydraulic

Fairfax 3 Handlebar Marin Alloy Flat, 31.8mm

Fairfax 3 Stem Marin 3D Forged Alloy

Fairfax 3 Grips Marin Ergonomic Locking

Fairfax 3 Headset FSA, No.42/CB

Fairfax 3 Seatpost Marin Alloy, 27.2mm

Fairfax 3 Saddle Marin Fitness Plush

Fairfax 3 Pedals Marin Oso OE Flat

Fairfax 2 Frame Series 2 Fitness, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender and Rack Mounts

Fairfax 2 Fork 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets

Fairfax 2 Rim Marin Aluminum Double Wall, Disc Specific

Fairfax 2 Hub Rear Forged Aluminum Alloy, Disc, 32H

Fairfax 2 Hub Front Forged Aluminum Alloy, Disc, 32H

Fairfax 2 Spokes 14g Black Stainless Steel

Fairfax 2 Tires Vee Tire, Zilent, 700Cx35mm, Puncture Protection, Wire Bead

Fairfax 2

Grips Dual Density Ergonomic

Headset FSA No.10-P

Seatpost Marin Alloy, 27.2mm

Saddle Marin Women’s Fitness Plush

San Anselmo DS1 Pedals Marin Oso OE Flat

Derailleur Rear Shimano Acera, 8-Speed

Derailleur Front Shimano TY710

Fairfax 2 Shift Lever Shimano Altus 2x8

Fairfax 2 Crankset Forged Alloy Crank, 46/30T, Ring Guard

Fairfax 2 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Fairfax 2 Chain KMC Z8

Fairfax 2 Cassette SunRace 8-Speed, 11-34T

Fairfax 2 Brakes Front Clark’s Clout Hydraulic Disc, 160mm Rotor

Fairfax 2 Brakes Rear Clark’s Clout Hydraulic Disc, 160mm Rotor

SPECIFICATIONS

Fairfax 2 Brake Levers Clark’s Hydraulic

Fairfax 2 Handlebar Marin Alloy Flat, 31.8mm

Fairfax 2 Stem Marin 3D Forged Alloy

Fairfax 2 Grips Marin Ergonomic Locking

Fairfax 2 Headset FSA, No.8B

Fairfax 2 Seatpost Marin Alloy, 27.2mm

Fairfax 2 Saddle Marin Fitness Plush

Fairfax 2 Pedals Marin Oso OE Flat

Fairfax 2 ST Frame Series 2 Fitness, Step-Thru Design, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender and Rack Mounts

Fairfax 2 ST Fork 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets

Fairfax 2 ST Rim Marin Aluminum Double Wall, Disc Specific

Fairfax 2 ST Hub Rear Forged Aluminum Alloy, Disc, 32H

Fairfax 2 ST Hub Front Forged Aluminum Alloy, Disc, 32H

Fairfax 2 ST Spokes 14g Black Stainless Steel

Fairfax 2 ST Tires Vee Tire, Zilent, 700Cx35mm, Puncture Protection, Wire Bead

Fairfax 2 ST Derailleur Rear Shimano Acera, 8-Speed

Fairfax 2 ST Derailleur Front Shimano TY710

Fairfax 2 ST Shift Lever Shimano Altus 2x8

Fairfax 2 ST Crankset Forged Alloy Crank, 46/30T, Ring Guard

Fairfax 2 ST Bottom Bracket Sealed Cartridge Bearings, Square Taper

Fairfax 2 ST Chain KMC Z8

Fairfax 2 ST Cassette SunRace 8-Speed, 11-34T

Fairfax 2 ST Brakes Front Clark’s Clout Hydraulic Disc, 160mm Rotor

Fairfax 2 ST Brakes Rear Clark’s Clout Hydraulic Disc, 160mm Rotor

Fairfax 2 ST Brake Levers Clark’s Hydraulic

Fairfax 2 ST Handlebar Marin Alloy Flat, 31.8mm

Fairfax 2 ST Stem Marin 3D Forged Alloy

Fairfax 2 ST Grips Marin Ergonomic Locking

Fairfax 2 ST Headset FSA, No.8B

Fairfax 2 ST Seatpost Marin Alloy, 27.2mm

Fairfax 2 ST Saddle Marin Fitness Plush

Fairfax 2 ST Pedals Marin Oso OE Flat

Fairfax 1 Frame Series 1 Fitness, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender, Rack and Kickstand Mounts

Fairfax 1 Fork Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets

Fairfax 1 Rim Marin Aluminum Double Wall, Disc Specific

Fairfax 1 Hub Rear Forged Aluminum Alloy, Disc, 32H

Fairfax 1 Hub Front Forged Aluminum Alloy, Disc, 32H

Fairfax 1 Spokes 14g Stainless Steel

Fairfax 1 Tires Fitness 700Cx35mm

Fairfax 1 Derailleur Rear Shimano Tourney, 7-Speed

Fairfax 1 Derailleur Front Shimano TY510

Fairfax 1 Shift Lever Shimano Shifter/Brake Lever Combo, 3x7-Speed

Specifications, pricing, and availability are subject to change without notice.

Fairfax 1 Crankset Alloy Crank, Steel Chainrings, 48/38/28T, Ring Guard

Fairfax 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Fairfax 1 Chain KMC Z8

Fairfax 1 Cassette SunRace 7-Speed, 11-34T

Fairfax 1 Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Fairfax 1 Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Fairfax 1 Brake Levers Shimano w/ Integrated Shifters

Fairfax 1 Handlebar Marin Alloy Flat, 31.8mm

Fairfax 1 Stem Marin Alloy Threadless

Fairfax 1 Grips Marin Commute

Fairfax 1 Headset FSA, Threadless

Fairfax 1 Seatpost Marin Alloy, 27.2mm

Fairfax 1 Saddle Marin Fitness Plush

Fairfax 1 Pedals Marin Oso OE Flat

Fairfax 1 ST Frame Series 1 Fitness, Step-Thru Design, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender, Rack and Kickstand Mounts

Fairfax 1 ST Fork Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets

Fairfax 1 ST Rim Marin Aluminum Double Wall, Disc Specific

Fairfax 1 ST Hub Rear Forged Aluminum Alloy, Disc, 32H

Fairfax 1 ST Hub Front Forged Aluminum Alloy, Disc, 32H

Fairfax 1 ST Spokes 14g Stainless Steel

Fairfax 1 ST Tires Fitness 700Cx35mm

Fairfax 1 ST Derailleur Rear Shimano Tourney, 7-Speed

Fairfax 1 ST Derailleur Front Shimano TY510

Fairfax 1 ST Shift Lever Shimano Shifter/Brake Lever Combo, 3x7-Speed

Fairfax 1 ST Crankset Alloy Crank, Steel Chainrings, 48/38/28T, Ring Guard

Fairfax 1 ST Bottom Bracket Sealed Cartridge Bearings, Square Taper

Fairfax 1 ST Chain KMC Z8

Fairfax 1 ST Cassette SunRace 7-Speed, 11-34T

Fairfax 1 ST Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Fairfax 1 ST Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Fairfax 1 ST Brake Levers Shimano w/ Integrated Shifters

Fairfax 1 ST Handlebar Marin Alloy Flat, 31.8mm

Fairfax 1 ST Stem Marin Alloy Threadless

Fairfax 1 ST Grips Marin Commute

Fairfax 1 ST Headset FSA, Threadless

Fairfax 1 ST Seatpost Marin Alloy, 27.2mm

Fairfax 1 ST Saddle Marin Fitness Plush

Fairfax 1 ST Pedals Marin Oso OE Flat

Presidio 3

Frame Series 2 Commute, 6061 Aluminum, 700C Wheels, Sliding Dropouts, Internal Cable Routing, Belt Drive Compatible, Flat-Mount Disc, Fender, Rack, and Integrated Kickstand Mounts

Presidio 3 Fork 6061 Aluminum, Straight-Blade, Post-Mount Disc

SPECIFICATIONS

Presidio 3 Rim Marin Aluminum Double Wall, 25mm Tall, Disc Specific

Presidio 3 Hub Rear Shimano Nexus 8D 8-Speed Internally Geared Hub, Disc, 32H

Presidio 3 Hub Front Forged Aluminum Alloy, Disc, 32H

Presidio 3 Spokes 14g Black Stainless Steel

Presidio 3 Tires Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead

Presidio 3 Derailleur Rear -

Presidio 3 Derailleur Front -

Presidio 3 Shift Lever microSHIFT SL 8-Speed IG Shifter

Presidio 3 Crankset Gates Carbon Drive S150, 50T

Presidio 3 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Presidio 3 Belt Gates Carbon Drive CDN Centertrack Belt, 118T

Presidio 3 Cog Gates Carbon Drive CDN Center Track, 22T

Presidio 3 Brakes Front Tektro Hydraulic, 160mm Rotor

Presidio 3 Brakes Rear Tektro Hydraulic, 160mm Rotor

Presidio 3 Brake Levers Tektro Hydraulic

Presidio 3 Handlebar Marin Alloy Flat Top Riser

Presidio 3 Stem Marin 3D Forged Alloy

Presidio 3 Grips Marin Ergonomic Locking

Presidio 3 Headset FSA Orbit CE, Sealed Cartridge Bearings

Presidio 3 Seatpost Marin Alloy, 27.2mm

Presidio 3 Saddle Marin Fitness

Presidio 3 Pedals Marin Oso OE Flat

Presidio 2 Frame Series 2 Commute, 6061 Aluminum, 700C Wheels, Sliding Dropouts, Internal Cable Routing, Belt Drive Compatible, Flat-Mount Disc, Fender, Rack, and Integrated Kickstand Mounts

Presidio 2 Fork 6061 Aluminum, Disc Brake, Straight-Blade

Presidio 2 Rim Marin Aluminum Double Wall, Disc Specific

Presidio 2 Hub Rear Shimano Nexus 7D 7-Speed Internally Geared Hub, Disc, 32H

Presidio 2 Hub Front Forged Aluminum Alloy, 32H

Presidio 2 Spokes 14g Black Stainless Steel

Presidio 2 Tires Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead

Presidio 2 Derailleur Rear -

Presidio 2 Derailleur Front -

Presidio 2 Shift Lever Shimano Nexus Twist Shifter 7-Speed

Presidio 2 Crankset Forged Alloy, 42T, 140mm, Ring Guard

Presidio 2 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Presidio 2 Chain KMC Z1RB w/ Anti-Corrosion Coating

Presidio 2 Cassette Shimano Nexus Cog, 19T

Presidio 2 Brakes Front Tektro Hydraulic, 160mm Rotor

Presidio 2 Brakes Rear Tektro Hydraulic, 160mm Rotor

Presidio 2 Brake Levers Tektro Hydraulic

Presidio 2 Handlebar Marin Alloy Flat

Presidio 2 Stem Marin Alloy

Presidio 2 Grips Dual Density Ergonomic

Presidio 2

Specifications, pricing, and availability are subject to change without notice.

Headset FSA No.8B

Presidio 2 Seatpost Marin Alloy, 27.2mm

Presidio 2 Saddle Marin Fitness Plush

Presidio 2 Pedals Marin Oso OE Flat

Presidio 1 Frame Series 1 Fitness, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender and Rack Mounts

Presidio 1

Fork Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets

Rim Marin Aluminum Double Wall, Disc Specific

Hub Rear Forged Aluminum Alloy, Disc, 32H

Presidio 1 Hub Front Forged Aluminum Alloy, Disc, 32H

Presidio 1 Spokes 14g Stainless Steel

Presidio 1 Tires Marin Fitness 700Cx38mm

Presidio 1 Derailleur Rear Shimano Altus

Presidio 1 Derailleur Front -

Presidio 1 Shift Lever Shimano Altus SL-M315, 8-Speed

Presidio 1 Crankset Forged Alloy, 38T, Ring Guard

Presidio 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Presidio 1

Chain KMC Z8

Cassette SunRace 8-Speed 11/34T

Brakes Front Clark’s Clout Hydraulic Disc, 160mm Rotor

Brakes Rear Clark’s Clout Hydraulic Disc, 160mm Rotor

Brake Levers Clark’s Hydraulic

Handlebar Marin Alloy Flat

Stem Marin Alloy

Presidio 1 Grips Marin Commute

Presidio 1

Larkspur 2

Headset FSA 888 Threadless

Seatpost Marin Alloy, 27.2mm

Saddle Marin Fitness Plush

Pedals Marin Oso OE Flat

Frame Series 2 Butted CrMo, 27.5” Wheels, Mixte Low-Step, Integrated Headset, Disc Brake, Kickstand Mount, Fender and Rack Mounts

Fork CrMo Steel, Curved Blade, Disc Specific, Fender and Rack Eyelets

Rim Marin Aluminum Double Wall, 27mm Internal, Disc Specific

Hub Rear Forged Aluminum Alloy, 32H

Hub Front Forged Aluminum Alloy, 32H

Spokes 14g Stainless Steel

Tires Vee Tire, GPVee, 27.5x2.35”, Wire Bead, Puncture Protection, Mixed Terrain Ready

Derailleur Rear Shimano Deore 11-Speed

Derailleur Front

Shift Lever Shimano Deore 11-Speed

Crankset Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 38T

Bottom Bracket Sealed Outboard Bearings

SPECIFICATIONS

Larkspur 2 Chain KMC X11

Larkspur 2 Cassette SunRace 11-Speed, 11-51T

Larkspur 2 Brakes Front Shimano BRMT410, Hydraulic, 180mm Rotor

Larkspur 2 Brakes Rear Shimano BRMT410, Hydraulic, 160mm Rotor

Larkspur 2 Brake Levers Shimano Deore Hydraulic

Larkspur 2 Handlebar Marin Alloy Sweeper

Larkspur 2 Stem Marin Alloy, 31.8mm Clamp

Larkspur 2 Grips Marin Adventure

Larkspur 2 Headset FSA Orbit CE No.8B

Larkspur 2 Seatpost TranzX YSP38J, 1x Shimano I-Spec EV Remote, Size S 70mm, All Other Sizes 110mm Travel,

Larkspur 2 Saddle Marin Adventure Plush

Larkspur 2 Pedals Marin Oso OE Flat

Larkspur 1 Frame Series 2 Butted CrMo, 27.5” Wheels, Mixte Low-Step, Integrated Headset, Disc Brake, Kickstand Mount, Fender and Rack Mounts

Larkspur 1 Fork CrMo Steel, Curved Blade, Disc Specific, Fender and Rack Eyelets

Larkspur 1 Rim Marin Aluminum Double Wall, 25mm Internal, Disc Specific

Larkspur 1 Hub Rear Forged Aluminum Alloy, 32H

Larkspur 1 Hub Front Forged Aluminum Alloy, 32H

Larkspur 1 Spokes 14g Stainless Steel

Larkspur 1 Tires Vee Tire, GPVee, 27.5x2.35”, Wire Bead, Puncture Protection, Mixed Terrain Ready

Larkspur 1 Derailleur Rear microSHIFT Advent X 10-Speed Wide Range

Larkspur 1 Derailleur Front

Larkspur 1 Shift Lever microSHIFT Advent X 10-Speed

Larkspur 1 Crankset Forged Alloy Crank, Steel Narrow Wide 38T Chainring

Larkspur 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Larkspur 1 Chain KMC X10

Larkspur 1 Cassette SunRace 10-Speed, 11-51T

Larkspur 1 Brakes Front Tektro HD-M275 Hydraulic, 180mm Rotor

Larkspur 1 Brakes Rear Tektro HD-M275 Hydraulic, 160mm Rotor

Larkspur 1 Brake Levers Tektro Hydraulic

Larkspur 1 Handlebar Marin Alloy Sweeper

Larkspur 1 Stem Marin Alloy, 31.8mm Clamp

Larkspur 1 Grips Marin Adventure

Larkspur 1 Headset FSA Orbit CE No.8B

Larkspur 1 Seatpost Marin Alloy, 27.2mm

Larkspur 1 Saddle Marin Adventure Plush

Larkspur 1 Pedals Marin Oso OE Flat

Kentfield 2 Frame Series 1 6061 Aluminum, 700C Wheels, Disc Specific, Kickstand Mount, Fender and Rack Mounts

Kentfield 2 Fork Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets

Kentfield 2 Rim Marin Aluminum Double Wall, Disc Specific

Kentfield 2 Hub Rear Forged Aluminum Alloy, 32H

Kentfield 2 Hub Front Forged Aluminum Alloy, 32H

Kentfield 2

Specifications, pricing, and availability are subject to change without notice.

Spokes 14g Stainless Steel

Kentfield 2 Tires Vee Tire, GPVee, 700Cx40mm, Wire Bead, Flat Protection, Mixed Terrain Ready

Kentfield 2 Derailleur Rear microSHIFT Advent X 10-Speed Wide Range

Kentfield 2 Derailleur Front

Kentfield 2 Shift Lever microSHIFT Advent X 10-Speed

Kentfield 2 Crankset Forged Alloy Crank, Steel Narrow Wide 38T Chainring

Kentfield 2 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Kentfield 2 Chain KMC X10

Kentfield 2 Cassette SunRace 10-Speed, 11-51T

Kentfield 2 Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Kentfield 2 Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Kentfield 2 Brake Levers Aluminum Lever

Kentfield 2 Handlebar Marin Alloy, 30mm Rise, 12˚ Backsweep Kentfield 2 Stem Marin Aluminum, 31.8mm Clamp Kentfield 2 Grips Marin Adventure

Kentfield 2 Headset FSA 888 Threadless Kentfield 2 Seatpost Marin Alloy, 27.2mm Kentfield 2 Saddle Marin Adventure Plush Kentfield 2 Pedals Marin Oso OE Flat

Kentfield 2 ST Frame Series 1 6061 Aluminum, 700C Wheels, Step Through Design, Kickstand Mount, Fender and Rack Mounts

Kentfield 2 ST Fork Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets

Kentfield 2 ST Rim Marin Aluminum Double Wall, Disc Specific

Kentfield 2 ST Hub Rear Forged Aluminum Alloy, 32H

Kentfield 2 ST Hub Front Forged Aluminum Alloy, 32H

Kentfield 2 ST Spokes 14g Stainless Steel

Kentfield 2 ST Tires Vee Tire, GPVee, 700Cx40mm, Wire Bead, Flat Protection, Mixed Terrain Ready

Kentfield 2 ST Derailleur Rear microSHIFT Advent X 10-Speed Wide Range

Kentfield 2 ST Derailleur Front

Kentfield 2 ST Shift Lever microSHIFT Advent X 10-Speed

Kentfield 2 ST Crankset Forged Alloy Crank, Steel Narrow Wide 38T Chainring

Kentfield 2 ST Bottom Bracket Sealed Cartridge Bearings, Square Taper

Kentfield 2 ST Chain KMC X10

Kentfield 2 ST Cassette SunRace 10-Speed, 11-51T

Kentfield 2 ST Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Kentfield 2 ST Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Kentfield 2 ST Brake Levers Aluminum Lever

Kentfield 2 ST Handlebar Marin Alloy, 30mm Rise, 12˚ Backsweep

Kentfield 2 ST Stem Marin Aluminum, 31.8mm Clamp

Kentfield 2 ST Grips Marin Adventure

Kentfield 2 ST Headset FSA 888 Threadless

Kentfield 2 ST Seatpost Marin Alloy, 27.2mm

SPECIFICATIONS

Kentfield 2 ST Saddle Marin Adventure Plush

Kentfield 2 ST Pedals Marin Oso OE Flat

Kentfield 1 Frame Series 1 City + Sport, 6061 Aluminum, 700C Wheels, Step Through Design, Fender and Rack Mounts

Kentfield 1 Fork Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets

Kentfield 1 Rim Marin Aluminum Double Wall, Disc Specific

Kentfield 1 Hub Rear Forged Aluminum Alloy, 32H

Kentfield 1 Hub Front Forged Aluminum Alloy, 32H

Kentfield 1 Spokes 14g Stainless Steel

Kentfield 1 Tires Vee Tire, GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready

Kentfield 1 Derailleur Rear Shimano Tourney 7-Speed

Kentfield 1 Derailleur Front

Kentfield 1 Shift Lever Shimano Altus 7-Speed RapidFire

Kentfield 1 Crankset Forged Alloy Crank, Steel 38T Chainring, Ring Guard

Kentfield 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Kentfield 1 Chain KMC Z8

Kentfield 1 Cassette SunRace 7-Speed, 11-34T

Kentfield 1 Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Kentfield 1 Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Kentfield 1 Brake Levers Aluminum Lever

Kentfield 1 Handlebar Marin Alloy, 30mm Rise, 12˚ Backsweep

Kentfield 1 Stem Marin Aluminum, 31.8mm Clamp

Kentfield 1 Grips Marin Adventure

Kentfield 1 Headset FSA 888 Threadless

Kentfield 1 Seatpost Marin Alloy, 27.2mm

Kentfield 1 Saddle Marin Adventure Plush

Kentfield 1 Pedals Marin Oso OE Flat

Kentfield 1 ST Frame Series 1 City + Sport, 6061 Aluminum, 700C Wheels, Step Through Design, Fender and Rack Mounts

Kentfield 1 ST Fork Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets

Kentfield 1 ST Rim Marin Aluminum Double Wall, Disc Specific

Kentfield 1 ST Hub Rear Forged Aluminum Alloy, 32H

Kentfield 1 ST Hub Front Forged Aluminum Alloy, 32H

Kentfield 1 ST Spokes 14g Stainless Steel

Kentfield 1 ST Tires Vee Tire, GPVee, 700Cx40mm, Wire Bead, Flat Protection, Mixed Terrain Ready

Kentfield 1 ST Derailleur Rear Shimano Tourney 7-Speed

Kentfield 1 ST Derailleur Front

Kentfield 1 ST Shift Lever Shimano Altus 7-Speed RapidFire

Kentfield 1 ST Crankset Forged Alloy Crank, Steel 38T Chainring, Ring Guard

Kentfield 1 ST Bottom Bracket Sealed Cartridge Bearings, Square Taper

Kentfield 1 ST Chain KMC Z8

Kentfield 1 ST Cassette SunRace 7-Speed, 11-34T

Specifications, pricing, and availability are subject to change without notice.

Kentfield 1 ST Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Kentfield 1 ST Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Kentfield 1 ST Brake Levers Aluminum Lever

Kentfield 1 ST Handlebar Marin Alloy, 30mm Rise, 12˚ Backsweep

Kentfield 1 ST Stem Marin Aluminum, 31.8mm Clamp

Kentfield 1 ST Grips Marin Adventure

Kentfield 1 ST Headset FSA 888 Threadless

Kentfield 1 ST Seatpost Marin Alloy, 27.2mm

Kentfield 1 ST Saddle Marin Adventure Plush

Kentfield 1 ST Pedals Marin Oso OE Flat

Stinson 2 Frame Series 1 Comfort, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts

Stinson 2 Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets

Stinson 2 Rim Marin Aluminum Double Wall, Disc Specific

Stinson 2 Hub Rear Forged Aluminum Alloy, 32H

Stinson 2 Hub Front Forged Aluminum Alloy, 32H

Stinson 2 Spokes 14g Stainless Steel

Stinson 2 Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection

Stinson 2

Derailleur Rear microSHIFT Advent 9-Speed Wide Range

Stinson 2 Derailleur Front -

Stinson 2 Shift Lever microSHIFT Advent 9-Speed

Stinson 2 Crankset Alloy Crank, Steel 38T Chainring, Ring Guard

Stinson 2 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Stinson 2 Chain KMC X9

Stinson 2 Cassette microSHIFT 9-Speed 11-46T

Stinson 2 Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Stinson 2 Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Stinson 2

Brake Levers Shimano w/ Integrated Shifters

Stinson 2 Handlebar Marin Alloy, 25mm Rise, 18˚ Backsweep

Stinson 2 Stem Marin Alloy, 31.8mm Clamp

Stinson 2 Grips Marin Adventure

Stinson 2 Headset FSA, TH No.10P

Stinson 2 Seatpost Marin Alloy, 30.9mm

Stinson 2

Saddle Marin Comfort

Pedals Marin Oso OE Flat

Stinson 2 ST Frame Series 1 Comfort, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts

Stinson 2 ST Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets

Stinson 2 ST Rim Marin Aluminum Double Wall, Disc Specific

Stinson 2 ST

Hub Rear Forged Aluminum Alloy, 32H

Hub Front Forged Aluminum Alloy, 32H

SPECIFICATIONS

Stinson 2 ST Spokes 14g Stainless Steel

Stinson 2 ST Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection

Stinson 2 ST Derailleur Rear microSHIFT Advent 9-Speed Wide Range

Stinson 2 ST Derailleur Front -

Stinson 2 ST Shift Lever microSHIFT Advent 9-Speed

Stinson 2 ST Crankset Alloy Crank, Steel 38T Chainring, Ring Guard

Stinson 2 ST Bottom Bracket Sealed Cartridge Bearings, Square Taper

Stinson 2 ST Chain KMC X9

Stinson 2 ST Cassette microSHIFT 9-Speed 11-46T

Stinson 2 ST Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Stinson 2 ST Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Stinson 2 ST Brake Levers Shimano w/ Integrated Shifters

Stinson 2 ST Handlebar Marin Alloy, 25mm Rise, 18˚ Backsweep

Stinson 2 ST Stem Marin Alloy, 31.8mm Clamp

Stinson 2 ST Grips Marin Adventure

Stinson 2 ST Headset FSA, TH No.10P

Stinson 2 ST Seatpost Marin Alloy, 30.9mm

Stinson 2 ST Saddle Marin Comfort

Stinson 2 ST Pedals Marin Oso OE Flat

Stinson 1 Frame Series 1 Comfort, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts

Stinson 1 Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets

Stinson 1 Rim Marin Aluminum Double Wall, Disc Specific

Stinson 1 Hub Rear Forged Aluminum Alloy, 32H

Stinson 1 Hub Front Forged Aluminum Alloy, 32H

Stinson 1 Spokes 14g Stainless Steel

Stinson 1 Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection

Stinson 1 Derailleur Rear Shimano Tourney, 7-Speed

Stinson 1 Derailleur Front

Stinson 1 Shift Lever Shimano Altus 7-Speed RapidFire

Stinson 1 Crankset Alloy Crank, Steel 38T Chainring, Ring Guard

Stinson 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper

Stinson 1 Chain KMC Z8

Stinson 1 Cassette SunRace 7-Speed, 11-34T

Stinson 1 Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Stinson 1 Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Stinson 1 Brake Levers Shimano w/ Integrated Shifters

Stinson 1 Handlebar Marin Alloy, 25mm Rise, 18˚ Backsweep

Stinson 1 Stem Marin Alloy

Stinson 1 Grips Marin Adventure

Stinson 1 Headset FSA, TH No.10P

Specifications, pricing, and availability are subject to change without notice.

Stinson 1 Seatpost Marin Alloy, 30.9mm

Stinson 1 Saddle Marin Comfort

Stinson 1 Pedals Marin Oso OE Flat

Stinson 1 ST Frame Series 1 Comfort, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts

Stinson 1 ST Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets

Stinson 1 ST Rim Marin Aluminum Double Wall, Disc Specific

Stinson 1 ST Hub Rear Forged Aluminum Alloy, 32H

Stinson 1 ST Hub Front Forged Aluminum Alloy, 32H

Stinson 1 ST Spokes 14g Stainless Steel

Stinson 1 ST Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection

Stinson 1 ST Derailleur Rear Shimano Tourney, 7-Speed

Stinson 1 ST Derailleur Front

Stinson 1 ST Shift Lever Shimano Altus 7-Speed RapidFire

Stinson 1 ST Crankset Alloy Crank, Steel 38T Chainring, Ring Guard

Stinson 1 ST Bottom Bracket Sealed Cartridge Bearings, Square Taper

Stinson 1 ST Chain KMC Z8

Stinson 1 ST Cassette SunRace 7-Speed, 11-34T

Stinson 1 ST Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Stinson 1 ST Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Stinson 1 ST

Brake Levers Shimano w/ Integrated Shifters

Stinson 1 ST Handlebar Marin Alloy, 25mm Rise, 18˚ Backsweep

Stinson 1 ST Stem Marin Alloy

Stinson 1 ST Grips Marin Adventure

Stinson 1 ST Headset FSA, TH No.10P

Stinson 1 ST Seatpost Marin Alloy, 30.9mm

Stinson 1 ST Saddle Marin Comfort

Stinson 1 ST Pedals Marin Oso OE Flat

Rift Zone 26”

Frame Series 3 6061 Aluminum, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Front Suspension X-Fusion Velvet RLC 26”, 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle

Rear Suspension X-Fusion O2 Pro R, 190x51mm, Custom Tune, M8x22.2mm Hardware

Rim Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

Hub Rear Forged Alloy, 135mm, Quad Sealed Bearings, Standard Freehub Body, Centerlock Disc, 32H

Hub Front Forged Alloy, 100x15mm, Centerlock Disc, 32H

Spokes 14g Stainless Steel

Tires Vee Tire Co, Flow Snap 26x2.4”, Tackee Compound, Wire Bead

Derailleur Rear Shimano Deore, 11 Speed, SGS

Derailleur Front -

SPECIFICATIONS

Rift Zone 26” Shift Lever Shimano Deore, 11-Speed, SL-5100R

Rift Zone 26” Crankset Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing, 170mm Length

Rift Zone 26” Bottom Bracket External Sealed Cartridge Bearings

Rift Zone 26” Chain KMC X-11 Silver and Black

Rift Zone 26” Cassette SunRace, 11-Speed, 11-51T, ED Black

Rift Zone 26” Brakes Front Shimano MT-201 Hydraulic Disc, 180mm Rotor

Rift Zone 26” Brakes Rear Shimano MT-201 Hydraulic Disc, 160mm Rotor

Rift Zone 26” Brake Levers Shimano BL-MT201 Hydraulic

Rift Zone 26” Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 12mm Rise, 720mm Width, 4º Up, 9º Back

Rift Zone 26” Stem Marin 3D Forged Alloy, 35mm

Rift Zone 26” Grips Marin MTN, Closed End

Rift Zone 26” Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Rift Zone 26” Seatpost Marin Alloy, 30.9mm

Rift Zone 26” Saddle Marin Speed Concept

Rift Zone 26” Pedals -

Rift Zone 26” Extras Closed 9-12 Thru-Axle Bolt On System

Rift Zone Jr. 24” Frame Series 3 6061 Aluminum, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs

Rift Zone Jr. 24” Front Suspension X-Fusion Velvet RLC 26”, 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle

Rift Zone Jr. 24” Rear Suspension X-Fusion O2 Pro R, 190x51mm, Custom Tune, M8x22.2mm Hardware

Rift Zone Jr. 24” Rim Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible

Rift Zone Jr. 24” Hub Rear Forged Alloy, 135mm, Quad Sealed Bearings, Standard Freehub Body, Centerlock Disc, 32H

Rift Zone Jr. 24” Hub Front Forged Alloy, 100x15mm, Centerlock Disc, 32H

Rift Zone Jr. 24” Spokes 14g Stainless Steel

Rift Zone Jr. 24” Tires Vee Tire Co, Flow Snap 24x2.4”, Tackee Compound, Wire Bead

Rift Zone Jr. 24” Derailleur Rear Shimano Deore, 11 Speed, SGS

Rift Zone Jr. 24” Derailleur Front -

Rift Zone Jr. 24” Shift Lever Shimano Deore, 11-Speed, SL-5100R

Rift Zone Jr. 24” Crankset Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, Direct Mount Type

Rift Zone Jr. 24” Bottom Bracket External Sealed Cartridge Bearings

Rift Zone Jr. 24” Chain KMC X-11 Silver and Black

Rift Zone Jr. 24” Cassette SunRace, 11-Speed, 11-51T, ED Black

Rift Zone Jr. 24” Brakes Front Shimano MT-201 Hydraulic Disc, 180mm Rotor

Rift Zone Jr. 24” Brakes Rear Shimano MT-201 Hydraulic Disc, 160mm Rotor

Rift Zone Jr. 24” Brake Levers Shimano BL-MT201 Hydraulic

Rift Zone Jr. 24”

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 12mm Rise, 720mm Width, 4º Up, 9º Back

Stem Marin 3D Forged Alloy, 35mm

Grips Marin MTN, Closed End

Rift Zone Jr. 24”

San Quentin 24”

Specifications, pricing, and availability are subject to change without notice.

Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost Marin Alloy, 30.9mm

Saddle Marin Speed Concept

Pedals -

Frame Series 2 6061 Aluminum, 24” Wheels, Disc Specific, 135mm Dropouts

San Quentin 24” Front Suspension RockShox Judy Silver TK, 100mm Travel, Solo Air, 110x15mm Maxle Stealth

San Quentin 24”

Rim Marin, Double Wall Alloy, 27mm Internal

Hub Rear Forged Aluminum, 32H, Disc Specific

Hub Front Forged Aluminum, 32H, Disc Specific

Spokes 14g Stainless Steel

Tires Vee Tire Crown Gem, 24”x2.6”, Wire Bead

San Quentin 24” Derailleur Rear microSHIFT Advent 9-Speed

San Quentin 24” Derailleur Front -

San Quentin 24”

Shift Lever microSHIFT Advent 9-Speed

Crankset Forged Alloy, Narrow Wide 30T, 152mm

Bottom Bracket Sealed Cartridge Bearings, Square Taper

Chain KMC X9

San Quentin 24” Cassette microSHIFT 9-Speed, 11-46T

San Quentin 24” Brakes Front Tektro HDM275 Hydraulic Disc, 160mm Rotor

San Quentin 24” Brakes Rear Tektro HDM275 Hydraulic Disc, 160mm Rotor

San Quentin 24” Brake Levers Tektro Hydraulic

San Quentin 24” Handlebar Marin Riser, 31.8 clamp, 30mm Rise, 590mm Width

San Quentin 24” Stem Marin Alloy, 35mm

San Quentin 24” Grips Marin MTB

San Quentin 24” Headset FSA No. 57E

San Quentin 24” Seatpost Marin Alloy, 30.9mm

San Quentin 24” Saddle Marin Kids MTB

San Quentin 24” Pedals Kids Specific Nylon Pedal

San Quentin 20” Frame Series 2 6061 Aluminum, 20” Wheels, Disc Specific, 135mm Dropouts

San Quentin 20” Front Suspension SR Suntour XCM 24 BOOST, 80mm Travel, 110mm Axle Spacing

San Quentin 20” Rim Marin, Double Wall Alloy, 25mm Internal

San Quentin 20” Hub Rear Forged Aluminum, 32H, Disc Specific

San Quentin 20” Hub Front Forged Aluminum, 32H, Disc Specific

San Quentin 20” Spokes 14g Stainless Steel

San Quentin 20” Tires Vee Tire Crown Gem, 20x2.6”, Wire Bead

San Quentin 20” Derailleur Rear Shimano Altus

San Quentin 20” Derailleur Front -

San Quentin 20” Shift Lever Shimano Altus SL-M315, 8-Speed

San Quentin 20” Crankset Forged Alloy, Narrow Wide 30T, 140mm

San Quentin 20”

Bottom Bracket Sealed Cartridge Bearings, Square Taper

San Quentin 20” Chain KMC Z8

San Quentin 20” Cassette Shimano 8-speed, 11-32T

San Quentin 20” Brakes Front Tektro HD-J285 Kid’s Specific Hydraulic Disc

San Quentin 20”

Brakes Rear Tektro HD-J285 Kid’s Specific Hydraulic Disc

SPECIFICATIONS

San Quentin 20”

Brake Levers Tektro Kid’s Specific Short Reach Lever for Hydraulic Brake

San Quentin 20” Handlebar Marin Riser, 31.8 clamp, 30mm Rise, 590mm Width

San Quentin 20” Stem Marin Alloy, 35mm

San Quentin 20” Grips Marin MTB

San Quentin 20” Headset FSA No. 10P

San Quentin 20” Seatpost Marin Alloy, 30.9mm

San Quentin 20” Saddle Marin Kids MTB

San Quentin 20” Pedals Kids Specific Nylon Pedal

Bayview Trail 24’’ Frame Series 1 6061 Aluminum, 24” Wheels, IS Seatstay Disc Mount, 135mm Dropouts

Bayview Trail 24’’ Front Suspension SR Suntour XCT Jr 24”, Pre-Load Adjust Coil Spring, 50mm Travel

Bayview Trail 24’’ Rim Marin, Double Wall Alloy

Bayview Trail 24’’ Hub Rear Forged Aluminum Alloy, 32H

Bayview Trail 24’’ Hub Front Forged Aluminum Alloy, 32H

Bayview Trail 24’’ Spokes 14g Stainless Steel

Bayview Trail 24’’ Tires Vee Tire Crown Gem, 24”x2.25”, Wire Bead

Bayview Trail 24’’ Derailleur Rear Shimano Altus, 7-Speed

Bayview Trail 24’’ Derailleur Front -

Bayview Trail 24’’ Shift Lever Shimano Revo Twist 1x7-Speed

Bayview Trail 24’’ Crankset Forged Alloy, 30T, 152mm, Ring Guard

Bayview Trail 24’’ Bottom Bracket Sealed Cartridge Bearings, Square Taper

Bayview Trail 24’’ Chain KMC Z8

Bayview Trail 24’’ Cassette SunRace, 7-Speed, 11-34T

Bayview Trail 24’’ Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Bayview Trail 24’’ Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Bayview Trail 24’’ Brake Levers Kids Specific Short Reach Alloy Lever

Bayview Trail 24’’ Handlebar Marin Riser, 30mm Rise, 580mm Width

Bayview Trail 24’’ Stem Marin Alloy, 40mm

Bayview Trail 24’’ Grips Marin Dual Density

Bayview Trail 24’’ Headset FSA No. 10P

Bayview Trail 24’’ Seatpost Marin Alloy, 27.2mm

Bayview Trail 24’’ Saddle Marin Kids MTB

Bayview Trail 24’’ Pedals Kids Specific Nylon Pedal

Hidden Canyon 20” Frame Series 1 6061 Aluminum, 20” Wheels, IS Seatstay Disc Mounts, 135mm Dropouts

Hidden Canyon 20” Front Suspension Steel Rigid Fork, 100mm Spacing, QR Lever

Hidden Canyon 20” Rim Marin, Double Wall Alloy

Hidden Canyon 20” Hub Rear Forged Aluminum Alloy, 32H

Hidden Canyon 20” Hub Front Forged Aluminum Alloy, 32H

Hidden Canyon 20” Spokes 14g Stainless Steel

Hidden Canyon 20” Tires Multi Surface, 20”x2.125”

Hidden Canyon 20” Derailleur Rear Shimano Tourney, 7-Speed

Hidden Canyon 20” Derailleur Front -

Hidden Canyon 20” Shift Lever Shimano Revo Twist 1x7-Speed

Hidden Canyon 20” Crankset Forged Alloy, 36T, 140mm, Ring Guard

Specifications, pricing, and availability are subject to change without notice.

Hidden Canyon 20” Bottom Bracket Sealed Cartridge Bearings, Square Taper

Hidden Canyon 20” Chain KMC Z8

Hidden Canyon 20” Cassette Shimano HG200, 7-Speed, 12-32T

Hidden Canyon 20” Brakes Front Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Hidden Canyon 20” Brakes Rear Clark’s CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Hidden Canyon 20” Brake Levers Kids Specific Short Reach Alloy Lever

Hidden Canyon 20” Handlebar Marin Riser, 30mm Rise, 580mm Width

Hidden Canyon 20” Stem Marin Alloy, 40mm

Hidden Canyon 20” Grips Marin Dual Density

Hidden Canyon 20” Headset FSA No. 10P

Hidden Canyon 20” Seatpost Marin Alloy, 27.2mm

Hidden Canyon 20” Saddle Marin Kids MTB

Hidden Canyon 20” Pedals Kids Specific Nylon Pedal

Alpine Trail E2

Frame Series 4 Alloy, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

Front Suspension Fox 38 Performance Elite, 160mm travel, 29” 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender

Rear Suspension Fox Float DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring Rate = 350lb, L/XL Spring Rate = 450lb

Rim Front: Marin Aluminum Double Wall, 29” Diameter, 32mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5” Diameter, 38mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible

Hub Rear Shimano HB-MT510B, 148x12mm, Micro Spline Freehub Body, Centerlock Disc, 32H

Hub Front Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

Spokes 14g Black Stainless Steel

Tires Front: Vee Tire Co Attack HPL, 29x2.5”, Top 40 Tubeless Compatible Rear: Vee Tire Co Crown Gem, 27.5x2.8”, TACKEE Compound , Tubeless Compatible

Derailleur Rear Shimano XT 12-Speed, SGS

Derailleur Front -

Shift Lever Shimano SLX 12-Speed, I-Spec EV

Crankset Shimano XT M8150, 160mm Length

Motor Shimano EP801, 250W, 85Nm

Chain KMC E12S, E-Bike Specific Chain

Cassette Shimano SLX M7100 Cassette, 12-Speed, 10-51T

Brakes Front Shimano SLX, 4-Piston Hydraulic Disc, 203mm Rotor

Brakes Rear Shimano SLX, 4-Piston Hydraulic Disc, 203mm Rotor w/ Speed Sensor

Brake Levers Shimano SLX Levers, I-Spec EV

Handlebar Marin Trail Bar, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

SPECIFICATIONS

Alpine Trail E2

Stem Marin CNC, 35mm Length, 35mm Bar Bore

Alpine Trail E2 Grips Marin Grizzly Lock On

Alpine Trail E2 Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Alpine Trail E2

Seatpost X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

Alpine Trail E2 Saddle Marin eMTB

Alpine Trail E2 Pedals Marin MTB Plastic

Alpine Trail E2 Battery BT-8036, Internal 630Wh

Alpine Trail E2 Display SC-E600

Alpine Trail E2 Switch SW-EN600L Left Hand Switch for Assist Mode Change

Alpine Trail E2 Extras Shimano CS-EM800 Chain Guide

Alpine Trail E2 Extras Shimano Battery Charger EC-E6002

Alpine Trail E1 Frame Series 4 Alloy Frame, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

Alpine Trail E1 Front Suspension X-Fusion Trace 36 RC, 160mm Travel, 29”, 110x15mm Bolt-On Axle, 44mm Offset

Alpine Trail E1 Rear Suspension RockShock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb

Alpine Trail E1

Rim Front: Marin Aluminum Double Wall, 29” Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5” Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

Alpine Trail E1 Hub Rear Shimano HB-MT400B, 148x12mm, Standard Freehub Body, Centerlock Disc, 32H

Alpine Trail E1

Hub Front Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

Spokes 14g Black Stainless Steel

Tires Front: Vee Tire Co Attack HPL, 29x2.5”, Top 40 Tubeless Compatible Rear: Vee Tire Co Crown Gem, 27.5x2.8”, TACKEE Compound Tubeless Compatible

Derailleur Rear Shimano Deore, Direct Attachment, 11-Speed, SGS

Derailleur Front -

Alpine Trail E1 Shift Lever Shimano Deore, 11-Speed, I Spec EV

Alpine Trail E1 Crankset Shimano EM600, 160mm Length

Alpine Trail E1 Motor Shimano EP6, 250 W, 85Nm

Alpine Trail E1 Chain KMC X-10E, Silver

Alpine Trail E1

Cassette SunRace 11-Speed, 11-51T

Brakes Front Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor

Brakes Rear Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor w/ Speed Sensor

Brake Levers Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem Marin 3D Forged Alloy, 35mm

Alpine Trail E1 Grips Marin Grizzly Lock On

Alpine Trail E1

Alpine Trail E (Base)

Specifications, pricing, and availability are subject to change without notice.

Headset FSA No 57E, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm

Saddle Marin eMTB

Pedals Marin MTB Plastic

Battery BT-8036, Internal 630Wh

Display SC-E600

Switch SW-EN600L Left Hand Switch for Assist Mode Change

Extras Shimano CS-EM800 Chain Guide

Extras Shimano Battery Charger EC-E6002

Frame Series 4 Alloy, 150mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

Alpine Trail E (Base) Front Suspension X-Fusion Trace 36 RC, 160mm Travel, 29”, 110x15mm Bolt-On Axle, 44mm Offset

Alpine Trail E (Base) Rear Suspension X-Fusion 02 PRO RXC, Compression and Rebound Adjustment, Custom Tune, 205x65 Trunnion Upper Mount, 25xM8 Lower Mount

Alpine Trail E (Base)

Alpine Trail E (Base) Hub Rear Shimano HB-MT400B, 148x12mm, Standard Freehub Body, Centerlock Disc, 32H

Alpine Trail E (Base) Hub Front Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

Alpine Trail E (Base) Spokes 14g Black Stainless Steel

Alpine Trail E (Base) Tires Front: Vee Tire Co Attack HPL, 29x2.5”, Top 40 Tubeless Compatible Rear: Vee Tire Co Crown Gem, 27.5x2.8”, TACKEE Compound , Tubeless Compatible

Alpine Trail E (Base)

Derailleur Rear Shimano Deore, 10-Speed

Derailleur Front -

Shift Lever Shimano Deore, 10-Speed, I Spec EV

Alpine Trail E (Base) Crankset Shimano EM600, 160mm Length

Alpine Trail E (Base)

Motor Shimano EP6, 250 W, 85Nm

Alpine Trail E (Base) Chain KMC X-10E, Silver

Alpine Trail E (Base)

Cassette Shimano Deore 10-speed 11-46T

Brakes Front Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor

Brakes Rear Shimano MT420, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor w/ Speed Sensor

Brake Levers Shimano MT4100 Hydraulic Lever, I-Spec EV Compatible

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem Marin 3D Forged Alloy, 35mm

Grips Marin Grizzly Lock On

Headset FSA No 57E, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm

SPECIFICATIONS

Alpine Trail E (Base) Saddle Marin eMTB

Alpine Trail E (Base) Pedals Marin MTB Plastic

Alpine Trail E (Base) Battery BT-8035L, Internal 504Wh

Alpine Trail E (Base) Display SC-E600

Alpine Trail E (Base) Switch SW-EN600L Left Hand Switch for Assist Mode Change

Alpine Trail E (Base) Extras Shimano CS-EM800 Chain Guide

Alpine Trail E (Base) Extras Shimano Battery Charger EC-E6002

Rift Zone

E XR Frame All New Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

Rift Zone E XR Front Suspension RockShox Lyrik Ultimate, 150mm Travel, 29”, 110x15 Maxle Stealth, 42mm Offset

Rift Zone E XR Rear Suspension RockShox Super Deluxe Ultimate, 210x55, 25mm x M8 Hardware, Custom Tune

Rift Zone E XR Rim Marin Aluminum Double Wall, 29” Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible

Rift Zone E XR Hub Rear Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt Disc, 32H

Rift Zone E XR Hub Front Formula DC-711, 110x15, 6-Bolt Disc, 32H

Rift Zone E XR Spokes 14g Black Stainless Steel

Rift Zone

E XR Tires Vee Tire Co Attack HPL, 29x2.5”, Top 40 Tubeless Compatible, Overide E-Specific Casing

Rift Zone

E XR Derailleur Rear SRAM GX AXS

Rift Zone E XR Derailleur Front -

Rift Zone

E XR Shift Lever SRAM AXS POD

Rift Zone E XR Crankset Shimano XT M8150, 160mm Length, 38T Steel SRAM Chainring

Rift Zone E XR Motor Shimano EP801, 250W, 85Nm

Rift Zone

E XR Chain SRAM GX

Rift Zone E XR Cassette SRAM CS-XS-1275, 10-52T

Rift Zone E XR Brakes Front SRAM Code Bronze, 4-Piston Hydraulic Disc, 200mm HS2 Rotor

Rift Zone E XR Brakes Rear SRAM Code Bronze, 4-Piston Hydraulic Disc, 200mm HS2 Rotor w/ Bolt on Speed Sensor

Rift Zone E XR Brake Levers SRAM Code Bronze Stealth

Rift Zone

E XR Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

Rift Zone

E XR Stem Marin CNC, 35mm Length, 35mm Bar Bore

Rift Zone E XR Grips Marin Grizzly Lock On

Rift Zone E XR Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Rift Zone E XR Seatpost Rock Shox Reverb AXS with POD remote, Size S: 125mm, Size M: 150mm, Size L/XL: 170mm

Rift Zone

E XR Saddle Marin eMTB

Rift Zone

E XR Pedals Marin MTB Plastic

Rift Zone E XR Battery BT-8036, Internal 630Wh

Rift Zone E XR Display SC-E600

Rift Zone E XR Switch SW-EN600L Left Hand Switch for Assist Mode Change

Rift Zone E XR Extras Shimano CS-EM800 Chain Guide

Rift Zone E XR Extras Shimano Battery Charger EC-E6002

Rift Zone E2

Specifications, pricing, and availability are subject to change without notice.

Frame All New Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

Front Suspension Fox 38 Performance Elite, 140mm travel, 29”, 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox FenderFox 38 Performance Elite, 140mm travel, 29”, 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox FenderFox 38 Performance Elite, 140mm travel, 29”, 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox FenderFox 38 Performance Elite, 140mm travel, 29”, 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox FenderFox 38 Performance Elite, 140mm travel, 29”, 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox FenderFox 38 Performance Elite, 140mm travel, 29”, 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender

Rear Suspension Fox Float X, Performance Elite Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom

Rim Marin Aluminum Double Wall, 29” Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible

Hub Rear Shimano HB-MT510B, 148x12mm, Micro Spline Freehub Body, Centerlock Disc, 32H

Hub Front Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

Spokes 14g Black Stainless Steel

Tires Vee Tire Co Attack HPL, 29x2.5”, Top 40 Tubeless Compatible, Overide E-Specific Casing

Derailleur Rear RD-M8130, DEORE XT, 11 Speed, SGS, Link Glide

Derailleur Front -

Shift Lever Shimano SL-M8130-R, DEORE XT, LinkGlide, I-Spec EV

Crankset Shimano XT M8150, 160mm Length

Motor Shimano EP801, 250W, 85Nm

Chain KMC E-11S

Cassette Shimano XT LG-600 LinkGlide Cassette, 11-Speed, 10-50T

Brakes Front TRP DH-R EVO 4-Piston Hydraulic Disc, 203mm 2.3mm Thick Rotor

Brakes Rear TRP DH-R EVO 4-Piston Hydraulic Disc, 203mm 2.3mm Thick Rotor w/ Bolt on Speed Sensor

Brake Levers TRP DH-R EVO Hydraulic Disk Brakes

Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back

Stem Marin CNC, 35mm Length, 35mm Bar Bore

Grips Marin Grizzly Lock On

Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm

Saddle Marin eMTB

Pedals Marin MTB Plastic

SPECIFICATIONS

Rift Zone E2

Rift Zone E1

Battery BT-8036, Internal 630Wh

Display SC-E600

Switch SW-EN600L Left Hand Switch for Assist Mode Change

Extras Shimano CS-EM800 Chain Guide

Extras Shimano Battery Charger EC-E6002

Frame All New Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

Rift Zone E1 Front Suspension RockShock Pike Base 29”, Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset

Rift Zone E1 Rear Suspension RockShox Deluxe Select+, Compression and Rebound Adjustment, 210x50, 25xM8 Lower and Upper Mount

Rift Zone E1

Rim Marin Aluminum Double Wall, 29” Diameter, 29mm

Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

Hub Rear Shimano HB-MT400B, 148x12mm, Standard Freehub Body, Centerlock Disc, 32H

Hub Front Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

Rift Zone E1 Spokes 14g Black Stainless Steel

Rift Zone E1 Tires Vee Tire Co Attack HPL, 29x2.5”, Top 40 Tubeless Compatible, Overide E-Specific Casing

Rift Zone E1

Rift Zone E (Base)

Derailleur Rear Shimano Deore, Direct Attachment, 11-Speed, SGS

Derailleur Front -

Shift Lever Shimano Deore, 11-Speed, I Spec EV

Crankset Shimano EM600, 160mm Length

Motor Shimano EP6, 250W, 85Nm

Chain KMC X-10E, Silver

Cassette SunRace 11-Speed, 11-51T

Brakes Front Tektro Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

Brakes Rear Tektro Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor, w/ Bolt on Speed Sensor

Brake Levers Tektro Slate EVO Hydraulic Lever, I-Spec EV Compatible

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem Marin 3D Forged Alloy, 35mm

Rift Zone E1 Grips Marin Grizzly Lock On

Rift Zone E1 Headset FSA No 57E, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Rift Zone E1

Seatpost TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm

Saddle Marin E-MTB Saddle

Rift Zone E1 Pedals Marin MTB Plastic

Rift Zone E1

Specifications, pricing, and availability are subject to change without notice.

Frame All New Series 4 Alloy, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor

Front Suspension RockShock 35 Silver R 29”, Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset

Rear Suspension X-Fusion 02 PRO R, Compression and Rebound Adjustment, Custom Tune, 210x50 25xM8 Lower Mount & Upper Mount

Rim Marin Aluminum Double Wall, 29” Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible

Hub Rear Shimano HB-MT400B, 148x12mm, Standard Freehub Body, Centerlock Disc, 32H

Hub Front Shimano MT-410B, 110x15mm, Centerlock Disc, 32H

Rift Zone E (Base) Spokes 14g Black Stainless Steel

Rift Zone E (Base) Tires Vee Tire Co Attack HPL, 29x2.5”, Top 40 Tubeless Compatible, Overide E-Specific Casing

Rift Zone E (Base)

Derailleur Rear Shimano Deore, Direct Attachment, 10-Speed SGS

Derailleur Front -

Shift Lever Shimano Deore, 10-Speed, I Spec EV

Crankset Shimano EM600, 160mm Length

Motor Shimano EP6, 250W, 85Nm

Chain KMC X-10E, Silver

Cassette Shimano Deore 10-speed 11-46T

Brakes Front Tektro Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor

Brakes Rear Tektro Slate EVO, 4-Piston Hydraulic Disc, Resin Pads, 203mm Rotor, w/ Bolt on Speed Sensor

Brake Levers

Tektro Slate EVO Hydraulic Lever, I-Spec EV Compatible

Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back

Stem Marin 3D Forged Alloy, 35mm

Grips Marin Grizzly Lock On

Headset FSA No 57E, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”

Seatpost TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm

Saddle Marin eMTB

Pedals Marin MTB Plastic

Battery BT-8035L, Internal 504Wh

Display SC-E600

Switch SW-EN600L Left Hand Switch for Assist Mode Change

Extras Shimano CS-EM800 Chain Guide

Extras Shimano Battery Charger EC-E6002

Battery BT-8036, Internal 630Wh

Rift Zone E1 Display SC-E600

Rift Zone E1

Switch SW-EN600L Left Hand Switch for Assist Mode Change

Extras Shimano CS-EM800 Chain Guide

Extras Shimano Battery Charger EC-E6002

Rift Zone EL 1

Sausalito 2 (USA/NZ)

Extras Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head

Frame Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts

SPECIFICATIONS

Sausalito 2 (USA/NZ) Fork SR Suntour NVX-E, 63mm Travel, Disc Specific

Sausalito 2 (USA/NZ) Rim Marin Aluminum Double Wall, Disc Specific

Sausalito 2 (USA/NZ) Hub Rear Forged Alloy, Disc Specific, 32H

Sausalito 2 (USA/NZ) Hub Front Forged Alloy, Disc Specific, 32H

Sausalito 2 (USA/NZ) Spokes 14g Black Stainless Steel

Sausalito 2 (USA/NZ) Tires WTB Horizon, 650Bx47, Wire Bead

Sausalito 2 (USA/NZ) Derailleur Rear Shimano Deore 11-Speed

Sausalito 2 (USA/NZ) Derailleur Front -

Sausalito 2 (USA/NZ) Shift Lever Shimano Deore 11-Speed

Sausalito 2 (USA/NZ) Crankset Forged Aluminum w/ 44T Steel Chairing

Sausalito 2 (USA/NZ) Motor Shimano Steps EP6 Drive Unit, 250W, 85Nm, Class 3 (28mph,45Km/h)

Sausalito 2 (USA/NZ) Bottom Bracket

Sausalito 2 (USA/NZ) Chain KMC E11S

Sausalito 2 (USA/NZ) Cassette Shimano Deore 11-Speed 11-51T

Sausalito 2 (USA/NZ) Brakes Front Shimano MT201 Hydraulic, 180mm Rotor

Sausalito 2 (USA/NZ) Brakes Rear Shimano MT201 Hydraulic, 180mm Rotor

Sausalito 2 (USA/NZ) Brake Levers Shimano MT201 Hydraulic

Sausalito 2 (USA/NZ) Handlebar Marin MiniRiser Alloy

Sausalito 2 (USA/NZ) Stem Marin Alloy

Sausalito 2 (USA/NZ) Grips Marin Adventure

Sausalito 2 (USA/NZ) Headset FSA No. 57E

Sausalito 2 (USA/NZ) Seatpost Marin Alloy, 30.9mm

Sausalito 2 (USA/NZ) Saddle Marin City Plush

Sausalito 2 (USA/NZ) Pedals Marin Oso OE Flat

Sausalito 2 (USA/NZ) Kickstand Rear Mount Alloy

Sausalito 2 (USA/NZ) Battery Shimano BT-EN605, 504Wh

Sausalito 2 ST (USA/NZ) Frame Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Low-Step Design, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts

Sausalito 2 ST (USA/NZ) Fork SR Suntour NVX-E, 63mm Travel, Disc Specific

Sausalito 2 ST (USA/NZ) Rim Marin Aluminum Double Wall, Disc Specific

Sausalito 2 ST (USA/NZ) Hub Rear Forged Alloy, Disc Specific, 32H

Sausalito 2 ST (USA/NZ) Hub Front Forged Alloy, Disc Specific, 32H

Sausalito 2 ST (USA/NZ) Spokes 14g Black Stainless Steel

Sausalito 2 ST (USA/NZ) Tires WTB Horizon, 650Bx47, Wire Bead

Sausalito 2 ST (USA/NZ) Derailleur Rear Shimano Deore 11-Speed

Sausalito 2 ST (USA/NZ) Derailleur Front -

Sausalito 2 ST (USA/NZ) Shift Lever Shimano Deore 11-Speed

Sausalito 2 ST (USA/NZ) Crankset Forged Aluminum w/ 44T Steel Chairing

Sausalito 2 ST (USA/NZ) Motor Shimano Steps EP6 Drive Unit, 250W, 85Nm, Class 3 (28mph,45Km/h)

Sausalito 2 ST (USA/NZ) Bottom Bracket

Sausalito 2 ST (USA/NZ) Chain KMC E11S

Sausalito 2 ST (USA/NZ) Cassette Shimano Deore 11-Speed 11-51T

Sausalito 2 ST (USA/NZ) Brakes Front Shimano MT201 Hydraulic, 180mm Rotor

Sausalito 2 ST (USA/NZ) Brakes Rear Shimano MT201 Hydraulic, 180mm Rotor

Sausalito 2 ST (USA/NZ) Brake Levers Shimano MT201 Hydraulic

Specifications, pricing, and availability are subject to change without notice.

Sausalito 2 ST (USA/NZ) Handlebar Marin MiniRiser Alloy

Sausalito 2 ST (USA/NZ) Stem Marin Alloy

Sausalito 2 ST (USA/NZ) Grips Marin Adventure

Sausalito 2 ST (USA/NZ) Headset FSA No. 57E

Sausalito 2 ST (USA/NZ) Seatpost Marin Alloy, 30.9mm

Sausalito 2 ST (USA/NZ) Saddle Marin City Plush

Sausalito 2 ST (USA/NZ) Pedals Marin Oso OE Flat

Sausalito 2 ST (USA/NZ) Kickstand Rear Mount Alloy

Sausalito 2 ST (USA/NZ) Battery Shimano BT-EN605, 504Wh

Sausalito 1 Frame Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts

Sausalito 1 Front Suspension Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets

Sausalito 1 Rim Marin Aluminum Double Wall, Disc Specific

Sausalito 1

Hub Rear Forged Alloy, Disc Specific, 32H

Sausalito 1 Hub Front Forged Alloy, Disc Specific, 32H

Sausalito 1 Spokes 14g Black Stainless Steel

Sausalito 1 Tires WTB Horizon, 650Bx47, Wire Bead

Sausalito 1 Derailleur Rear Shimano Deore 10-Speed

Sausalito 1 Derailleur Front -

Sausalito 1

Shift Lever Shimano Deore 10-Speed

Sausalito 1 Crankset Shimano, Aluminum w/ 44T Steel Chairing

Sausalito 1

Motor Shimano Steps E5000 Drive Unit, 250W, 40Nm, Class 1

Bottom Bracket

Chain KMC X10E

Cassette Shimano Deore 10-Speed 11-46T

Sausalito 1 Brakes Front Tektro HD-M275 Hydraulic, 180mm Rotor

Sausalito 1

Brakes Rear Tektro HD-M275 Hydraulic, 180mm Rotor

Brake Levers Tektro Hydraulic

Handlebar Marin MiniRiser Alloy

Sausalito 1 Stem Marin Alloy

Sausalito 1 Grips Marin Adventure

Sausalito 1

Headset FSA No. 57E

Seatpost Marin Alloy, 30.9mm

Saddle Marin City Plush

Sausalito 1 Pedals Marin Oso OE Flat

Sausalito 1

Sausalito 1 ST

Kickstand Rear Mount Alloy

Battery Shimano BT8014, 418Wh

Frame

Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Low-Step Design, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts

Front Suspension Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets

Rim Marin Aluminum Double Wall, Disc Specific

Hub Rear Forged Alloy, Disc Specific, 32H

Hub Front Forged Alloy, Disc Specific, 32H

SPECIFICATIONS

Sausalito 1 ST Spokes 14g Black Stainless Steel

Sausalito 1 ST Tires WTB Horizon, 650Bx47, Wire Bead

Sausalito 1 ST Derailleur Rear Shimano Deore 10-Speed

Sausalito 1 ST Derailleur Front -

Sausalito 1 ST Shift Lever Shimano Deore 10-Speed

Sausalito 1 ST Crankset Shimano, Aluminum w/ 44T Steel Chairing

Sausalito 1 ST Motor Shimano Steps E5000 Drive Unit, 250W, 40Nm, Class 1

Sausalito 1 ST Bottom Bracket

Sausalito 1 ST Chain KMC X10E

Sausalito 1 ST Cassette Shimano Deore 10-Speed 11-46T

Sausalito 1 ST Brakes Front Tektro HD-M275 Hydraulic, 180mm Rotor

Sausalito 1 ST Brakes Rear Tektro HD-M275 Hydraulic, 180mm Rotor

Sausalito 1 ST Brake Levers Tektro Hydraulic

Sausalito 1 ST Handlebar Marin MiniRiser Alloy

Sausalito 1 ST Stem Marin Alloy

Sausalito 1 ST Grips Marin Adventure

Sausalito 1 ST Headset FSA No. 57E

Sausalito 1 ST Seatpost Marin Alloy, 30.9mm

Sausalito 1 ST Saddle Marin City Plush

Sausalito 1 ST Pedals Marin Oso OE Flat

Sausalito 1 ST Kickstand Rear Mount Alloy

Sausalito 1 ST Battery Shimano BT8014, 418Wh

Stinson Electric Frame Series 1 Comfort, E-Bike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts

Stinson Electric Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets

Stinson Electric Rim Marin Aluminum Double Wall, Disc Specific

Stinson Electric Hub Rear Bafang 250 Watt Hub Motor, 40Nm, 36H

Stinson Electric Hub Front Forged Aluminum Alloy, 32H

Stinson Electric Spokes 14g Stainless Steel

Stinson Electric Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection

Stinson Electric Derailleur Rear Shimano Acera, 8-Speed

Stinson Electric Derailleur Front -

Stinson Electric Shift Lever Shimano Altus 8-Speed RapidFire

Stinson Electric Crankset Alloy Crank, Steel 38T Chainring, Ring Guard

Stinson Electric Bottom Bracket Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper

Stinson Electric Chain KMC Z8

Stinson Electric Cassette SunRace 8-Speed, 11-34T

Stinson Electric Brakes Front Clark’s CMD23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Stinson Electric Brakes Rear Clark’s CMD23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Stinson Electric Brake Levers Alloy, Long Pull

Stinson Electric Handlebar Marin Alloy, 25mm Rise, 18˚ Backsweep

Stinson Electric Stem Marin Alloy

Stinson Electric Grips Marin County

Specifications, pricing, and availability are subject to change without notice.

Stinson Electric Headset FSA, TH No.10P

Stinson Electric Seatpost Marin Alloy, 30.9mm

Stinson Electric Saddle Marin Comfort

Stinson Electric Pedals Marin Oso OE Flat

Stinson Electric Battery Bafang 340Wh, 36V, In-tube

Stinson Electric Controller Handlebar Mount LCD Switch & Display

Stinson Electric Kickstand Alloy Center-Mount

Stinson Electric ST Frame Series 1 Comfort, E-Bike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts

Stinson Electric ST Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets

Stinson Electric ST Rim Marin Aluminum Double Wall, Disc Specific

Stinson Electric ST Hub Rear Bafang 250 Watt Hub Motor, 40Nm, 36H

Stinson Electric ST Hub Front Forged Aluminum Alloy, 32H

Stinson Electric ST Spokes 14g Stainless Steel

Stinson Electric ST Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection

Stinson Electric ST Derailleur Rear Shimano Acera, 8-Speed

Stinson Electric ST Derailleur Front -

Stinson Electric ST Shift Lever Shimano Altus 8-Speed RapidFire

Stinson Electric ST Crankset Alloy Crank, Steel 38T Chainring, Ring Guard

Stinson Electric ST Bottom Bracket Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper

Stinson Electric ST Chain KMC Z8

Stinson Electric ST Cassette SunRace 8-Speed, 11-34T

Stinson Electric ST Brakes Front Clark’s CMD23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Stinson Electric ST Brakes Rear Clark’s CMD23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor

Stinson Electric ST Brake Levers Alloy, Long Pull

Stinson Electric ST Handlebar Marin Alloy, 25mm Rise, 18˚ Backsweep

Stinson Electric ST Stem Marin Alloy

Stinson Electric ST Grips Marin County

Stinson Electric ST Headset FSA, TH No.10P

Stinson Electric ST Seatpost Marin Alloy, 30.9mm

Stinson Electric ST Saddle Marin Comfort

Stinson Electric ST Pedals Marin Oso OE Flat

Stinson Electric ST Battery Bafang 340Wh, 36V, In-tube

Stinson Electric ST Controller Handlebar Mount LCD Switch & Display

Stinson Electric ST Kickstand Alloy Center-Mount

Fairfax Electric Frame Series 1 Fitness, E-Bike Specific, 6061 Aluminum, 700c Wheels, Disc Specific, Fitness Geometry, Kickstand Mount, Fender and Rack Mounts

Fairfax Electric Fork 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets

Fairfax Electric Rim Marin Aluminum Double Wall, Disc Specific

Fairfax Electric Hub Rear Bafang 250 Watt Hub Motor, 40Nm, 36H

Fairfax Electric Hub Front Forged Aluminum Alloy, 32H

SPECIFICATIONS

Fairfax Electric Spokes 14g Stainless Steel

Fairfax Electric Tires Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead

Fairfax Electric Derailleur Rear Shimano Acera, 8-Speed, Wide Range

Fairfax Electric Derailleur Front -

Fairfax Electric Shift Lever Shimano Altus 8-Speed RapidFire

Fairfax Electric Crankset Alloy Crank, Steel 42T Chainring, Ring Guard

Fairfax Electric Bottom Bracket Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper

Fairfax Electric Chain KMC X8

Fairfax Electric Cassette Shimano HG-400, 8-Speed, 11-40T

Fairfax Electric Brakes Front Tektro HDM-275 Hydraulic Disc, 160mm Rotor

Fairfax Electric Brakes Rear Tektro HDM-275 Hydraulic Disc, 160mm Rotor

Fairfax Electric Brake Levers Tektro Hydraulic

Fairfax Electric Handlebar Marin Alloy Flat

Fairfax Electric Stem Marin Alloy

Fairfax Electric Grips Marin County

Fairfax Electric Headset FSA, Orbit CE No.8B

Fairfax Electric Seatpost Marin Alloy, 27.2mm

Fairfax Electric Saddle Marin Fitness

Fairfax Electric Pedals Marin Marin Oso OE Flat

Fairfax Electric Battery Bafang 340Wh, 36V, In-tube

Fairfax Electric Controller Bafang Handlebar Mount LCD Switch & Display

Fairfax Electric Kickstand Alloy Rear-Mount

Fairfax Electric ST Frame Series 1 Fitness, E-Bike Specific, 6061 Aluminum, 700c Wheels, Disc Specific, Fitness Geometry, Step-Thru Top Tube, Kickstand Mount, Fender and Rack Mounts

Fairfax Electric ST Fork 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets

Fairfax Electric ST Rim Marin Aluminum Double Wall, Disc Specific

Fairfax Electric ST Hub Rear Bafang 250 Watt Hub Motor, 40Nm, 36H

Fairfax Electric ST Hub Front Forged Aluminum Alloy, 32H

Fairfax Electric ST Spokes 14g Stainless Steel

Fairfax Electric ST Tires Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead

Fairfax Electric ST Derailleur Rear Shimano Acera, 8-Speed, Wide Range

Fairfax Electric ST Derailleur Front -

Fairfax Electric ST Shift Lever Shimano Altus 8-Speed RapidFire

Fairfax Electric ST Crankset Alloy Crank, Steel 42T Chainring, Ring Guard

Fairfax Electric ST Bottom Bracket Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper

Fairfax Electric ST Chain KMC X8

Fairfax Electric ST Cassette Shimano HG-400, 8-Speed, 11-40T

Fairfax Electric ST Brakes Front Tektro HDM-275 Hydraulic Disc, 160mm Rotor

Fairfax Electric ST Brakes Rear Tektro HDM-275 Hydraulic Disc, 160mm Rotor

Fairfax Electric ST Brake Levers Tektro Hydraulic

Fairfax Electric ST Handlebar Marin Alloy Flat

Fairfax Electric ST Stem Marin Alloy

Fairfax Electric ST Grips Marin County

Specifications, pricing, and availability are subject to change without notice.

Fairfax Electric ST Headset FSA, Orbit CE No.8B

Fairfax Electric ST Seatpost Marin Alloy, 27.2mm

Fairfax Electric ST Saddle Marin Fitness

Fairfax Electric ST Pedals Marin Marin Oso OE Flat

Fairfax Electric ST Battery Bafang 340Wh, 36V, In-tube

Fairfax Electric ST Controller Bafang Handlebar Mount LCD Switch & Display

Fairfax Electric ST Kickstand Alloy Rear-Mount

Coast Trail 16” Frame Series 1 Lightweight Aluminum, Low Standover, 16” Wheels, Single Speed, Rim Brake

Coast Trail 16” Fork Series 1 Aluminum Rim brake

Coast Trail 16”

Rim Aluminum, CNC Brake Surface

Hub Rear Forged Aluminum Alloy, 16H

Hub Front Forged Aluminum Alloy, 16H

Coast Trail 16” Spokes 14g Stainless Steel

Coast Trail 16” Tires Marin X Vee Tire Co. Speedster, 16x2.0”

Coast Trail 16”

Derailleur Rear -

Coast Trail 16” Derailleur Front -

Coast Trail 16” Shift Lever -

Coast Trail 16”

Crankset Forged Alloy, 26T, 90mm Length

Bottom Bracket Sealed Cartridge Bearings, Square Taper

Chain KMC 1-Speed

Cassette Single Speed Freewheel, 20T

Brakes Front Linear Pull, Alloy

Brakes Rear Linear Pull, Alloy

Brake Levers Kid’s Specific Short Reach Alloy Lever

Handlebar Riser, 40mm Rise, 580mm Width, 19mm OD Grip Section

Stem Alloy, 40mm

Grips Single Densitiy, Thin Diameter Grip

Coast Trail 16” Headset Threadless

Coast Trail 16”

Seatpost Aluminum, 25.4mm, Integrated Saddle/Post

Coast Trail 16” Saddle Marin 16” Integrated Saddle/Post

Coast Trail 16”

Coast Trail 20” 1s

Pedals Kids Specific Nylon Pedal

Extras Full Chaincase

Frame Series 1 Lightweight Aluminum, Low Standover, 20” Wheels, Single Speed, Rim Brake

Fork Series 1 Aluminum Rim brake

Coast Trail 20” 1s Rim Aluminum, CNC Brake Surface

Coast Trail 20” 1s

Hub Rear Forged Aluminum Alloy, 28H

Hub Front Forged Aluminum Alloy, 28H

Spokes 14g Stainless Steel

Tires Marin X Vee Tire Co. Speedster, 20x2.0”

Derailleur Rear -

Coast Trail 20” 1s Derailleur Front -

Coast Trail 20” 1s

Shift Lever -

Crankset Forged Alloy, 34T, 140mm, Ring Guard

Bottom Bracket Sealed Cartridge Bearings, Square Taper

Chain KMC 1-Speed

Cassette Single Speed Freewheel, 16T

Specifications, pricing, and availability are subject to change without notice.

SPECIFICATIONS

Coast Trail 20” 1s Brakes Front Linear Pull, Alloy

Coast Trail 20” 1s Brakes Rear Linear Pull, Alloy

Coast Trail 20” 1s Brake Levers Kid’s Specific Short Reach Alloy Lever

Coast Trail 20” 1s Handlebar Marin Riser, 50mm Rise, 580mm Width, 19mm OD Grip Section

Coast Trail 20” 1s Stem Alloy, 40mm

Coast Trail 20” 1s Grips Single Densitiy, Thin Diameter Grip

Coast Trail 20” 1s Headset Threadless

Coast Trail 20” 1s Seatpost Aluminum, 27.2mm, Integrated Saddle/Post

Coast Trail 20” 1s Saddle Marin 20” Integrated Saddle/Post

Coast Trail 20” 1s Pedals Kids Specific Nylon Pedal

Coast Trail 20” 1s Extras Full Chaincase

Coast Trail 20” 7s Frame Series 1 Lightweight Aluminum, Low Standover, 20” Wheels, Replaceable Derailleur Hanger, Rim Brake

Coast Trail 20” 7s Fork Series 1 Aluminum , Rim brake

Coast Trail 20” 7s Rim Aluminum, CNC Brake Surface

Coast Trail 20” 7s Hub Rear Forged Aluminum Alloy, 28H

Coast Trail 20” 7s Hub Front Forged Aluminum Alloy, 28H

Coast Trail 20” 7s Spokes 14g Stainless Steel

Coast Trail 20” 7s Tires Marin X Vee Tire Co. Speedster, 20x2.0”

Coast Trail 20” 7s Derailleur Rear Shimano Tourney, 7-Speed

Coast Trail 20” 7s Derailleur Front -

Coast Trail 20” 7s Shift Lever Microshift TS39 Short-Reach 7-Speed

Coast Trail 20” 7s Crankset Forged Alloy, 34T, 140mm, Ring Guard

Coast Trail 20” 7s Bottom Bracket Sealed Cartridge Bearings, Square Taper

Coast Trail 20” 7s Chain KMC 7-Speed

Coast Trail 20” 7s Cassette SunRace, 7-Speed, 11-34T

Coast Trail 20” 7s Brakes Front Linear Pull, Alloy

Coast Trail 20” 7s Brakes Rear Linear Pull, Alloy

Coast Trail 20” 7s Brake Levers Kid’s Specific Short Reach Alloy Lever

Coast Trail 20” 7s Handlebar Marin Riser, 50mm Rise, 580mm Width, 19mm OD Grip Section

Coast Trail 20” 7s Stem Alloy, 40mm

Coast Trail 20” 7s Grips Single Densitiy, Thin Diameter Grip

Coast Trail 20” 7s Headset Threadless

Coast Trail 20” 7s Seatpost Aluminum, 27.2mm, Integrated Saddle/Post

Coast Trail 20” 7s Saddle Marin 20” Integrated Saddle/Post

Coast Trail 20” 7s Pedals Kids Specific Nylon Pedal

Coast Trail 24” Frame Series 1 Lightweight Aluminum, Low Standover, 24” Wheels, Replaceable Derailleur Hanger, Rim Brake

Coast Trail 24” Fork Series 1 Aluminum , Rim brake

Coast Trail 24” Rim Aluminum, CNC Brake Surface

Coast Trail 24” Hub Rear Forged Aluminum Alloy, 28H

Coast Trail 24” Hub Front Forged Aluminum Alloy, 28H

Coast Trail 24” Spokes 14g Stainless Steel

Coast Trail 24” Tires Marin X Vee Tire Co. Speedster, 24x2.0”

Coast Trail 24” Derailleur Rear Shimano Tourney, 7-Speed

Coast Trail 24” Derailleur Front -

Coast Trail 24” Shift Lever Microshift TS39 Short-Reach 8-Speed

Coast Trail 24”

Crankset Forged Alloy, 36T, 140mm, Ring Guard

Coast Trail 24” Bottom Bracket Sealed Cartridge Bearings, Square Taper

Coast Trail 24” Chain KMC 8-Speed

Coast Trail 24” Cassette SunRace, 8-Speed, 11-34T

Coast Trail 24” Brakes Front Linear Pull, Alloy

Coast Trail 24” Brakes Rear Linear Pull, Alloy

Coast Trail 24” Brake Levers Kid’s Specific Short Reach Alloy Lever

Coast Trail 24” Handlebar Marin Riser, 50mm Rise, 580mm Width, 19mm OD Grip Section

Coast Trail 24” Stem Alloy, 40mm

Coast Trail 24” Grips Single Densitiy, Thin Diameter Grip

Coast Trail 24” Headset Threadless

Coast Trail 24” Seatpost Aluminum, 27.2mm, Integrated Saddle/Post

Coast Trail 24” Saddle Marin 24” Integrated Saddle/Post

Coast Trail 24” Pedals Kids Specific Nylon Pedal

Specifications, pricing, and availability are subject to change without notice.

GEOMETRY

HARDTAIL / FLAT BAR

DROP BAR

Wildcat Trail

Specifications, pricing, and availability are subject to change without notice.

Muirwoods

Sausalito

Larkspur

Stinson
