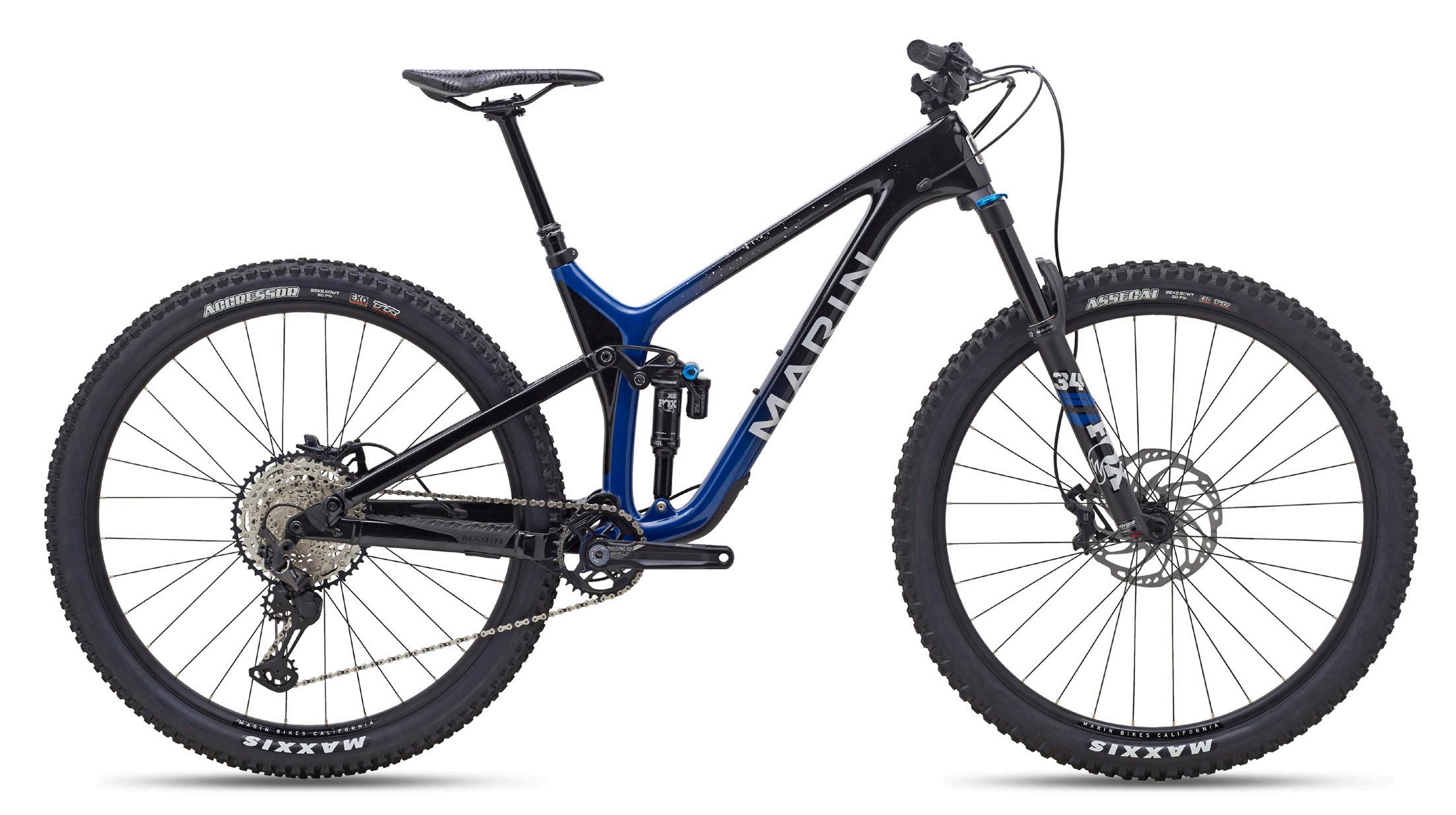

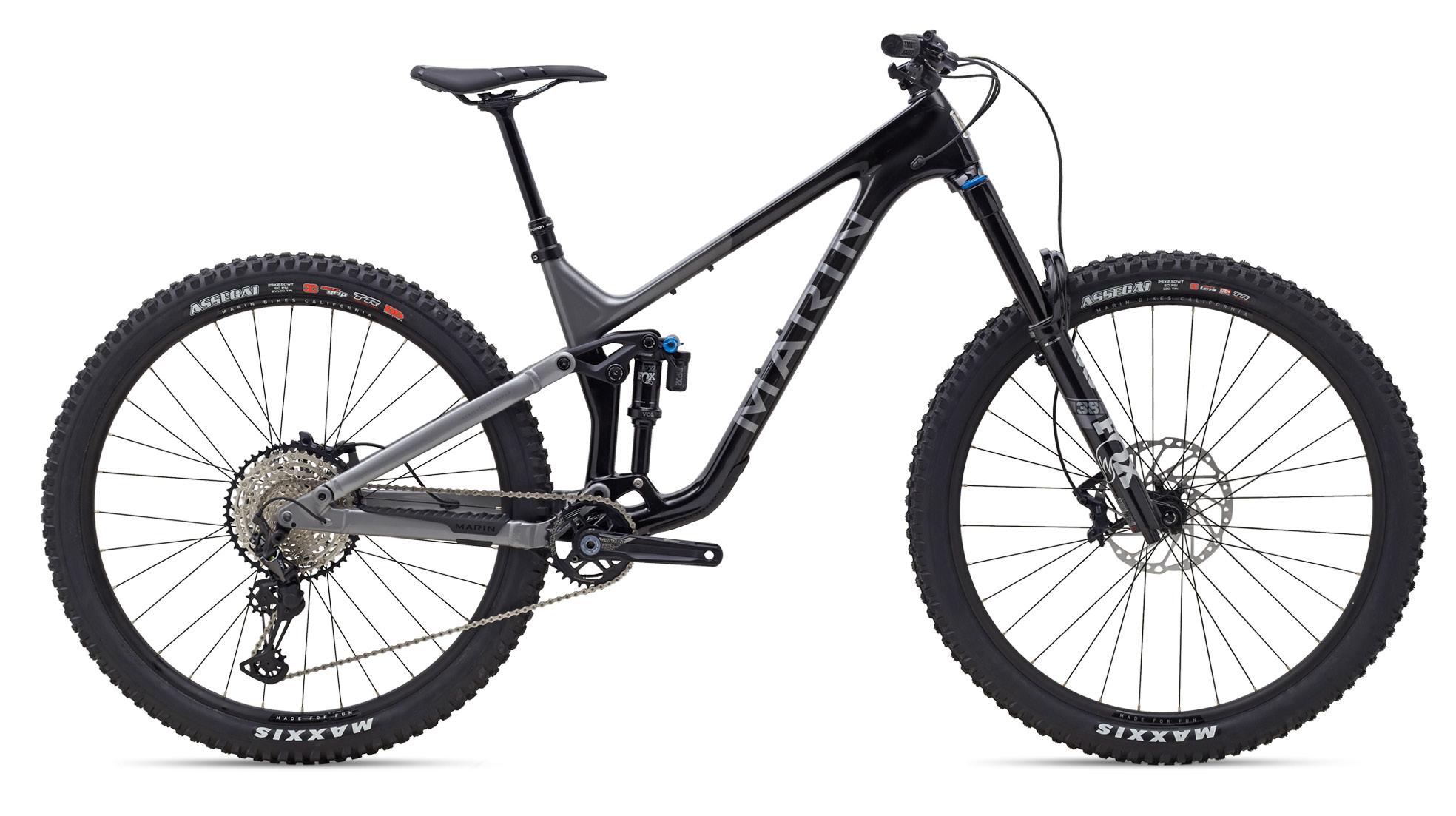

ALPINE TRAIL CARBON 2
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR:
S / M / L / XL
160mm / 150mm BLACK / SILVER
▶ Unidirectional carbon fiber/Series 4 MultiTrac frame, 150mm travel
▶ Fox 38 Performance fork w/160mm travel, Fox Float X shock
▶ Shimano SLX 12-speed drivetrain; SLX 4-piston disc brakes
▶ Marin 29mm inner rims, Maxxis Assegai 29” x 2.5” tires
▶ Also available as a frame kit
Specifications, pricing, and availability are subject to change without notice.
ALPINE TRAIL CARBON 1
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR:
S / M / L / XL 29” 160mm / 150mm CARBON / BLUE
▶ Unidirectional carbon fiber/Series 4 MultiTrac frame, 150mm travel
▶ RockShox Yari RC fork w/160mm travel & Deluxe Select+ shock
▶ Shimano SLX 12-speed drivetrain; TRP Slate EVO 4-piston disc brakes
▶ Marin 29mm inner rims, Maxxis Assegai 29” x 2.5” tires
Specifications, pricing, and availability are subject to change without notice.
ALPINE TRAIL XR
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL 29” 160mm / 150mm BLUE / BLACK
▶ Series 4 aluminum MultiTrac frame, 150mm travel
▶ Marzocchi Z1 Coil fork w/160mm travel & CR Coil shock
▶ Shimano SLX/XT 12-speed drivetrain; TRP Slate EVO 4-piston disc brakes
▶ Marin 29mm inner rims, Maxxis Assegai 29” x 2.5” tires
Specifications, pricing, and availability are subject to change without notice.

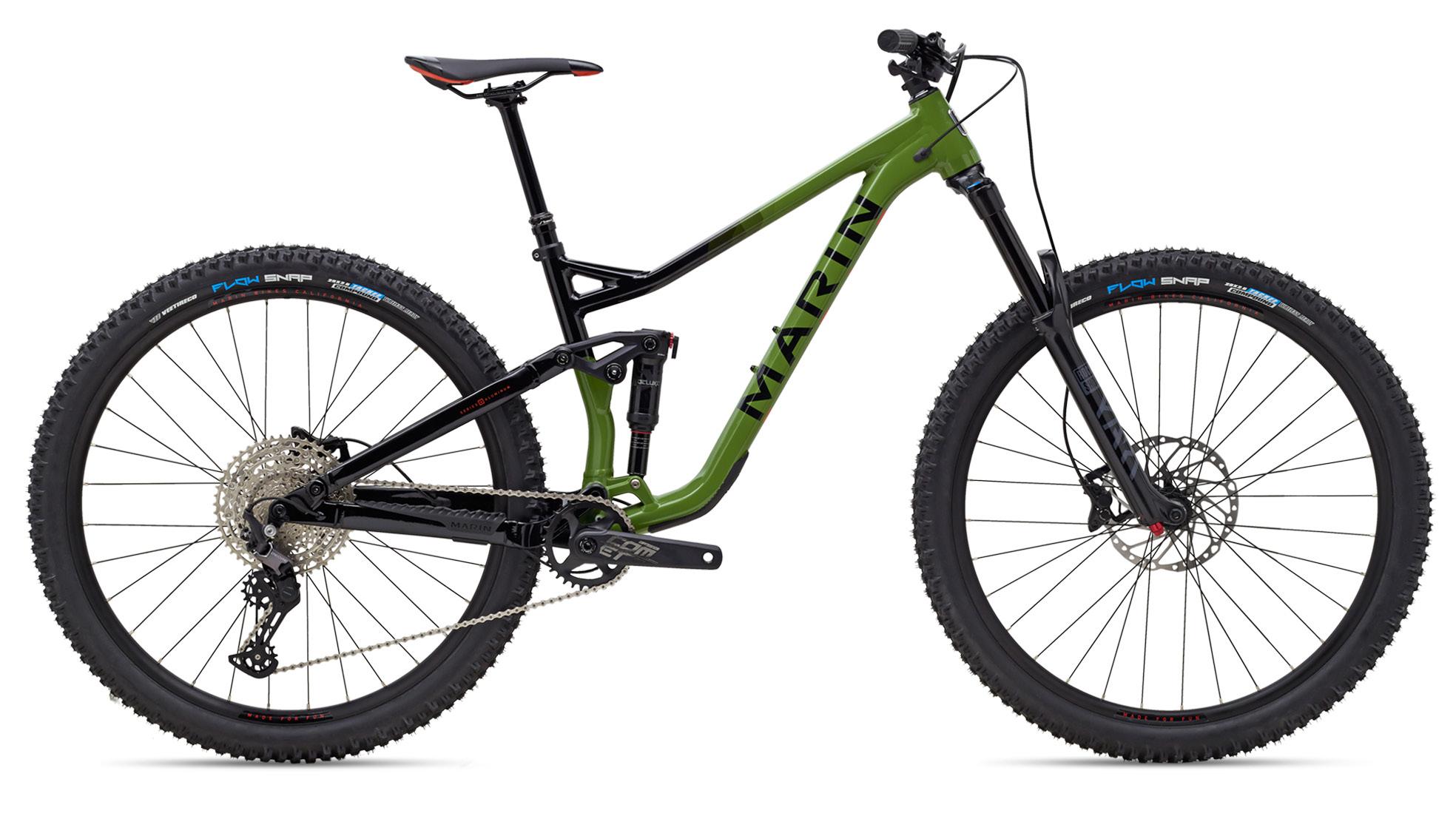

ALPINE TRAIL 7
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL 29” 160mm / 150mm GREEN / BLACK
▶ Series 4 aluminum MultiTrac frame, 150mm travel
▶ RockShox Yari RC fork w/160mm travel & Deluxe Select+ shock
▶ Shimano Deore 12-speed drivetrain; TRP Slate EVO 4-piston disc brakes
▶ Marin 29mm inner rims, Vee Tire Co. Flow Snap 29” x 2.6” tires Specifications, pricing, and availability are subject to
RIFT ZONE 29” CARBON XR
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR:
S / M / L / XL 29” 140mm / 125mm GREY / CARBON
▶ Unidirectional carbon fiber/Series 4 MultiTrac frame, 125mm travel
▶ Fox 36 Performance Elite Float fork w/140mm travel & Factory Series Coil shock
▶ Shimano SLX/XT 12-speed drivetrain; XT 4-piston disc brakes
▶ Marin 29mm inner rims, Maxxis Assegai 29” x 2.5” tires
▶ Also available as a frame kit
Specifications, pricing, and availability are subject to change without notice.
RIFT ZONE 29” CARBON 2
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL
140mm / 125mm BLUE / CARBON
▶ Unidirectional carbon fiber/Series 4 MultiTrac frame, 125mm travel
▶ Fox 34 Performance Float fork w/130mm travel & Float X shock
▶ Shimano SLX 12-speed drivetrain; TRP DH-R EVO 4-piston disc brakes
▶ Marin 29mm inner rims, Maxxis Assegai/Aggressor 29” x 2.5” tires
Specifications, pricing, and availability are subject to change without notice.

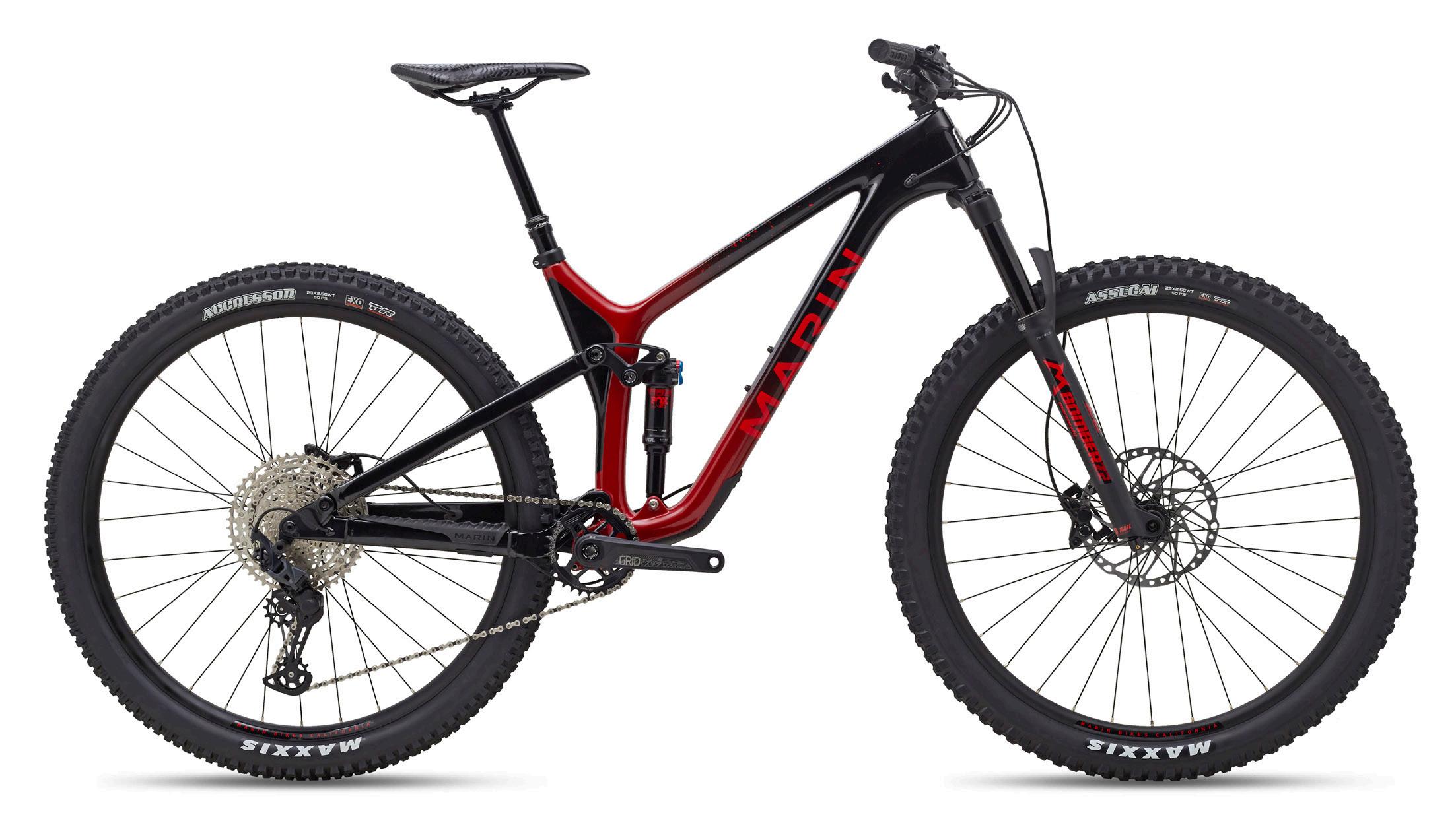

RIFT ZONE 29” CARBON 1
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL
140mm / 125mm RED / CARBON
▶ Unidirectional carbon fiber/Series 4 MultiTrac frame, 125mm travel
▶ Marzocchi Bomber Z2 fork w/130mm travel & Float DPS shock
▶ Shimano SLX 12-speed drivetrain; TRP Slate EVO 4-pistion disc brakes
▶ Marin 29mm inner rims, Maxxis Assegai/Aggressor 29” x 2.5” tires
Specifications, pricing, and availability are subject to change without notice.
RIFT ZONE 29” XR
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL
140mm / 130mm BLACK / GREEN
▶ All-new Series 3 aluminum MultiTrac aluminum frame, 130mm travel
▶ Marzocchi Bomber Z1 fork w/140mm travel & Float X shock
▶ Shimano SLX/XT 12-speed drivetrain; TRP Slate EVO 4-piston disc brakes
▶ Marin 29mm inner rims, Maxxis Assegai/Aggressor 29” x 2.5” tires
Specifications, pricing, and availability are subject to change without notice.

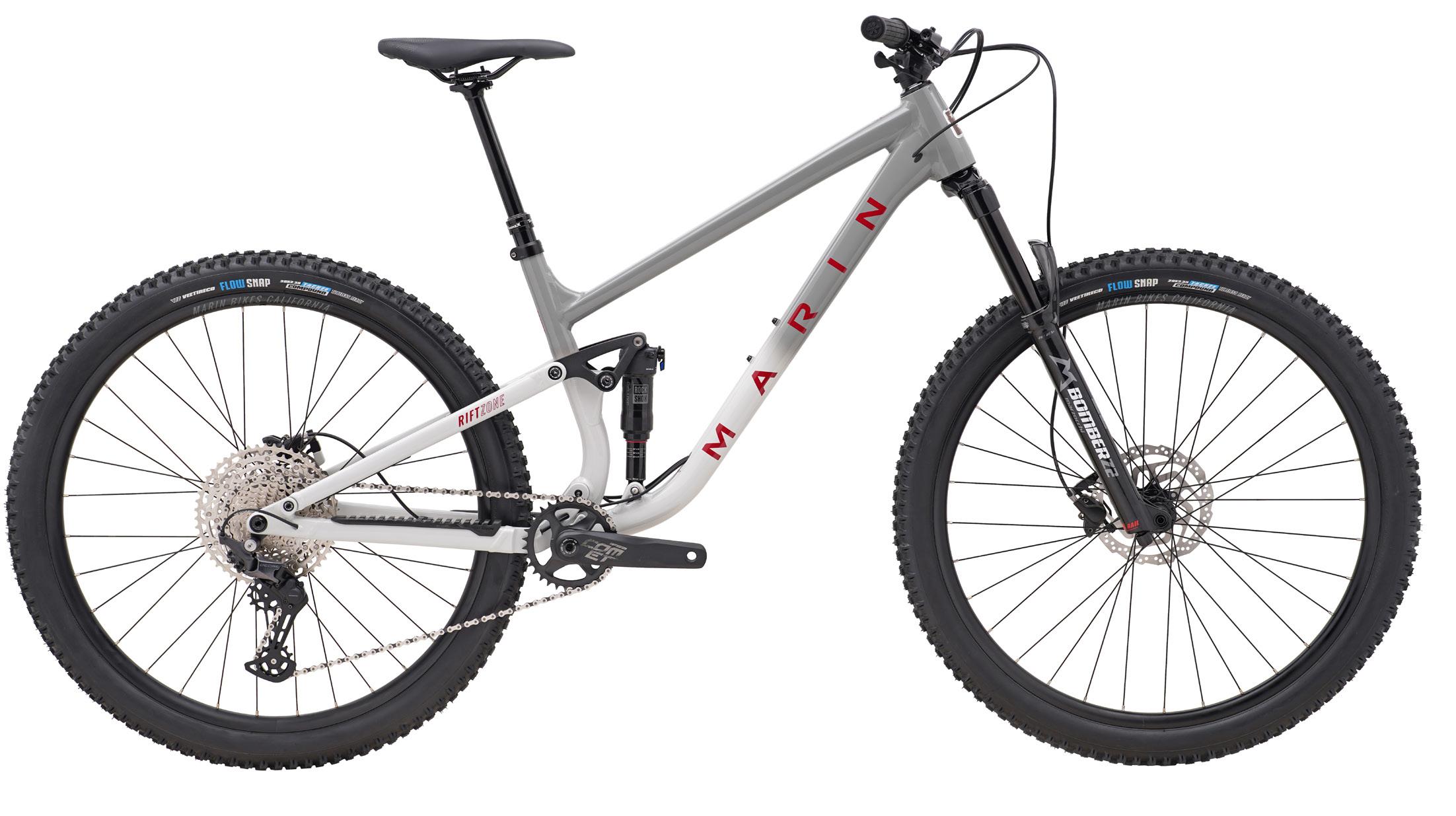

RIFT ZONE 29” 2
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL 29” 140mm / 130mm WHITE / GREY
▶ All-new Series 3 aluminum MultiTrac aluminum frame, 130mm travel
▶ Marzocchi Bomber Z2 fork w/140mm travel & RockShox Deluxe Select shock
▶ Shimano Deore 12-speed drivetrain; Tektro 4-piston disc brakes
▶ Marin 29mm inner rims, Vee Tire Flow Snap 29” x 2.35” tires
Specifications, pricing, and availability are subject to change without notice.

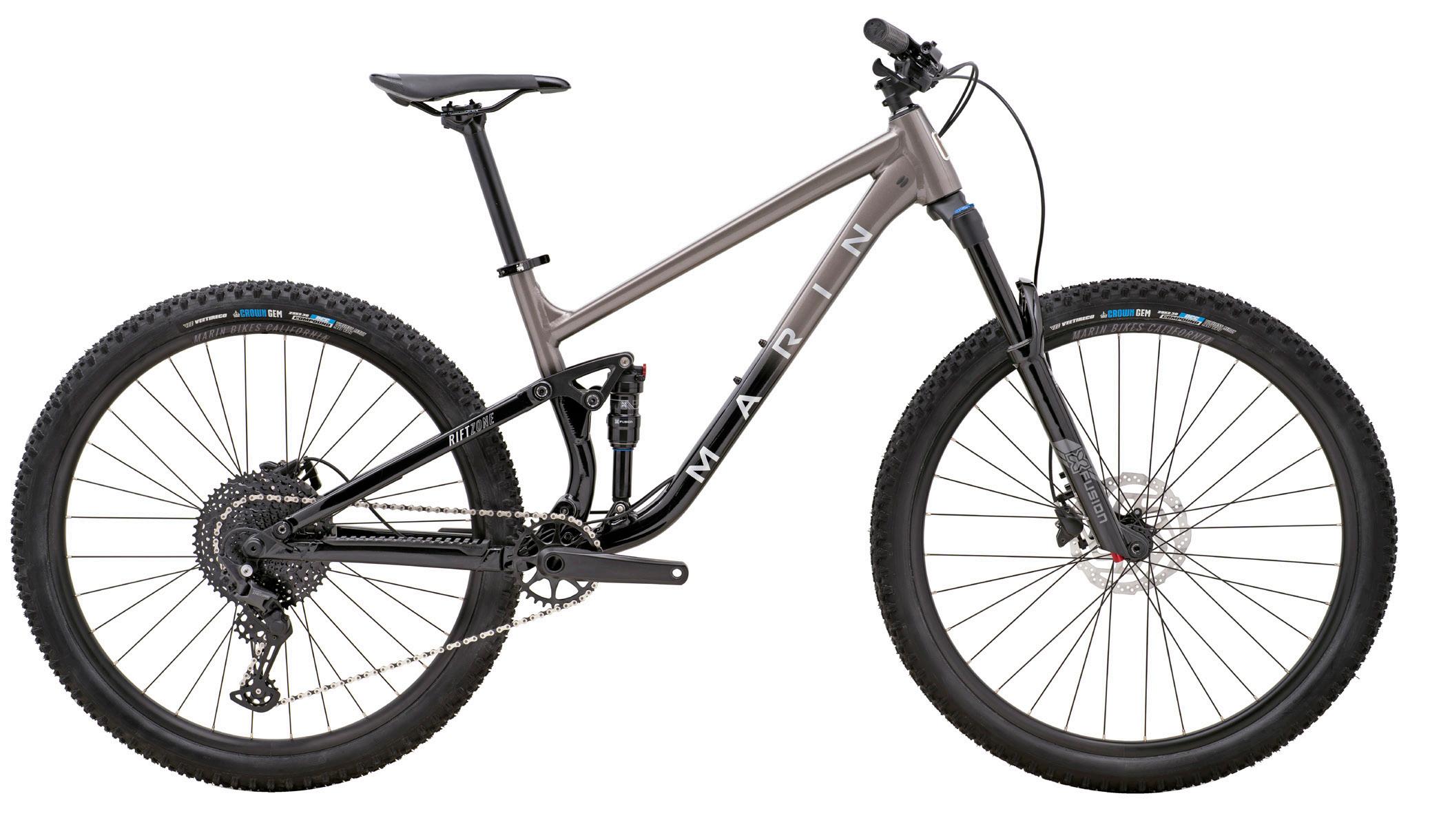

RIFT ZONE 29” 1
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL 29” 140mm / 130mm CHARCOAL / BLACK ORANGE / BLUE
▶ All-new Series 3 aluminum MultiTrac aluminum frame, 130mm travel
▶ X-Fusion Slide Boost RC fork w/140mm travel & O2 Pro R shock
▶ Shimano Deore 11-speed drivetrain; Tektro 4-piston disc brakes
▶ Marin 29mm inner rims, Vee Tire Crown Gem 29” x 2.35” tires

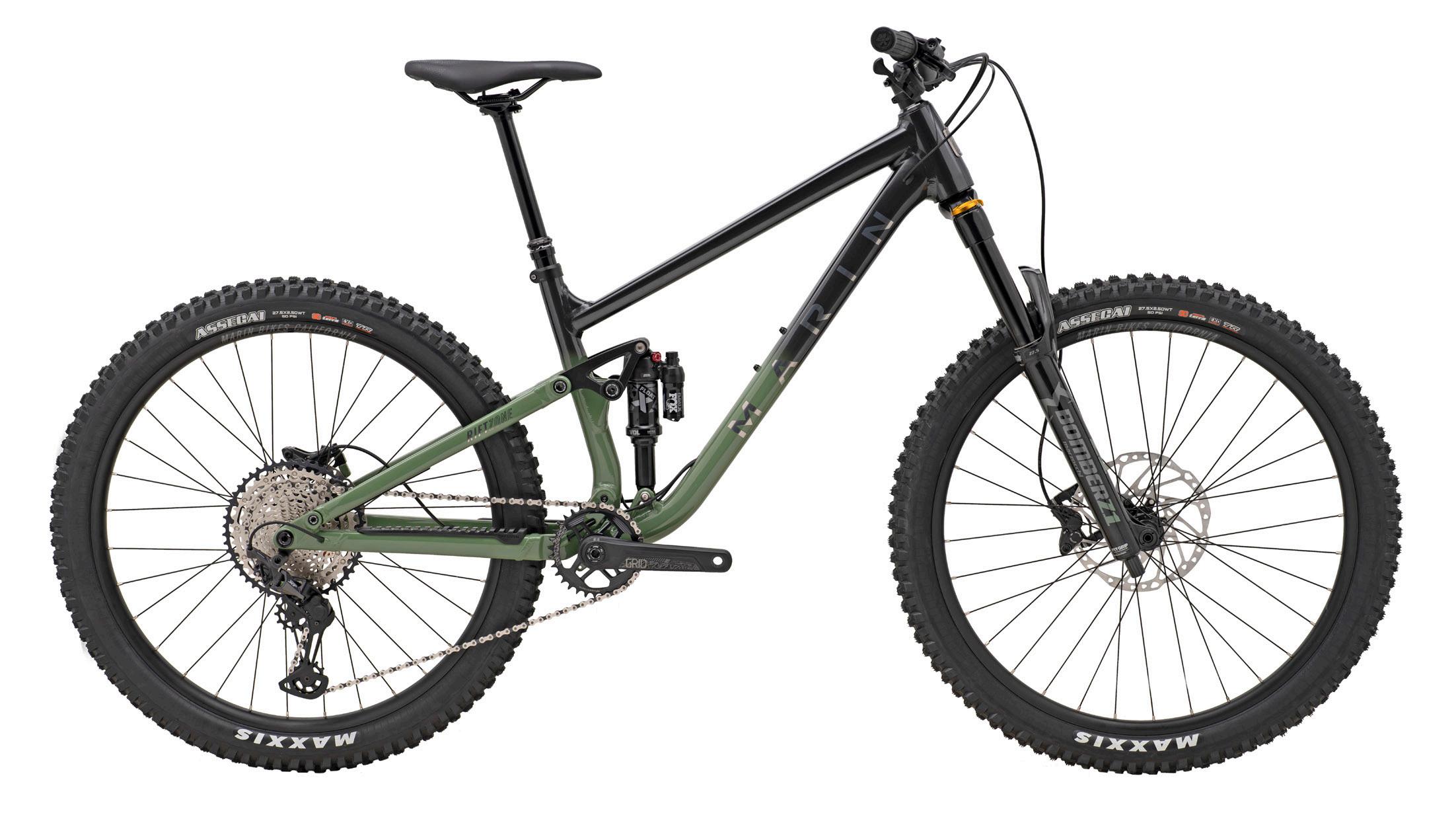

RIFT ZONE 27.5” XR
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL
27.5” 140mm / 130mm BLACK / GREEN
▶ All-new Series 3 aluminum MultiTrac aluminum frame, 130mm travel
▶ Marzocchi Bomber Z1 fork w/140mm travel & Float X shock
▶ Shimano SLX/XT 12-speed drivetrain; TRP Slate EVO 4-piston disc brakes
▶ Marin 29mm inner rims, Maxxis Assegai/Aggressor 27.5” x 2.5” tires
Specifications, pricing, and availability are subject to change without notice.
RIFT ZONE 27.5” 2
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL
27.5” 140mm / 130mm WHITE / GREY
▶ All-new Series 3 aluminum MultiTrac aluminum frame, 130mm travel
▶ Marzocchi Bomber Z2 fork w/140mm travel & RockShox Deluxe Select shock
▶ Shimano Deore 12-speed drivetrain; Tektro 4-piston disc brakes
▶ Marin 29mm inner rims, Vee Tire Flow Snap 27.5” x 2.35” tires
Specifications, pricing, and availability are subject to change without notice.

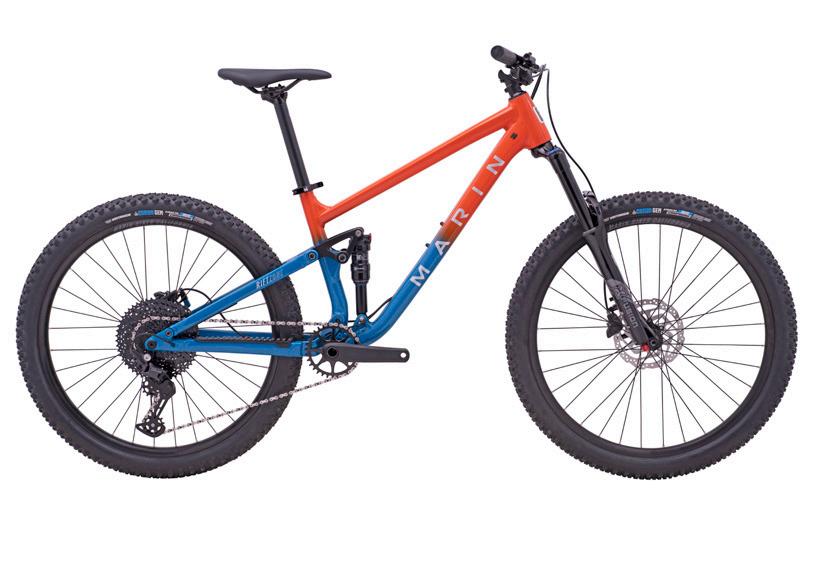

RIFT ZONE 27.5” 1
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR:
XS / S / M / L / XL
27.5” 140mm / 130mm
CHARCOAL / BLACK ORANGE / BLUE
▶ All-new Series 3 aluminum MultiTrac aluminum frame, 130mm travel
▶ X-Fusion Slide Boost RC fork w/140mm travel & O2 Pro R shock
▶ Shimano Deore 11-speed drivetrain; Tektro 4-piston disc brakes
▶ Marin 29mm inner rims, Vee Tire Crown Gem 27.5” x 2.35” tires
Specifications, pricing, and availability are subject to change without notice.

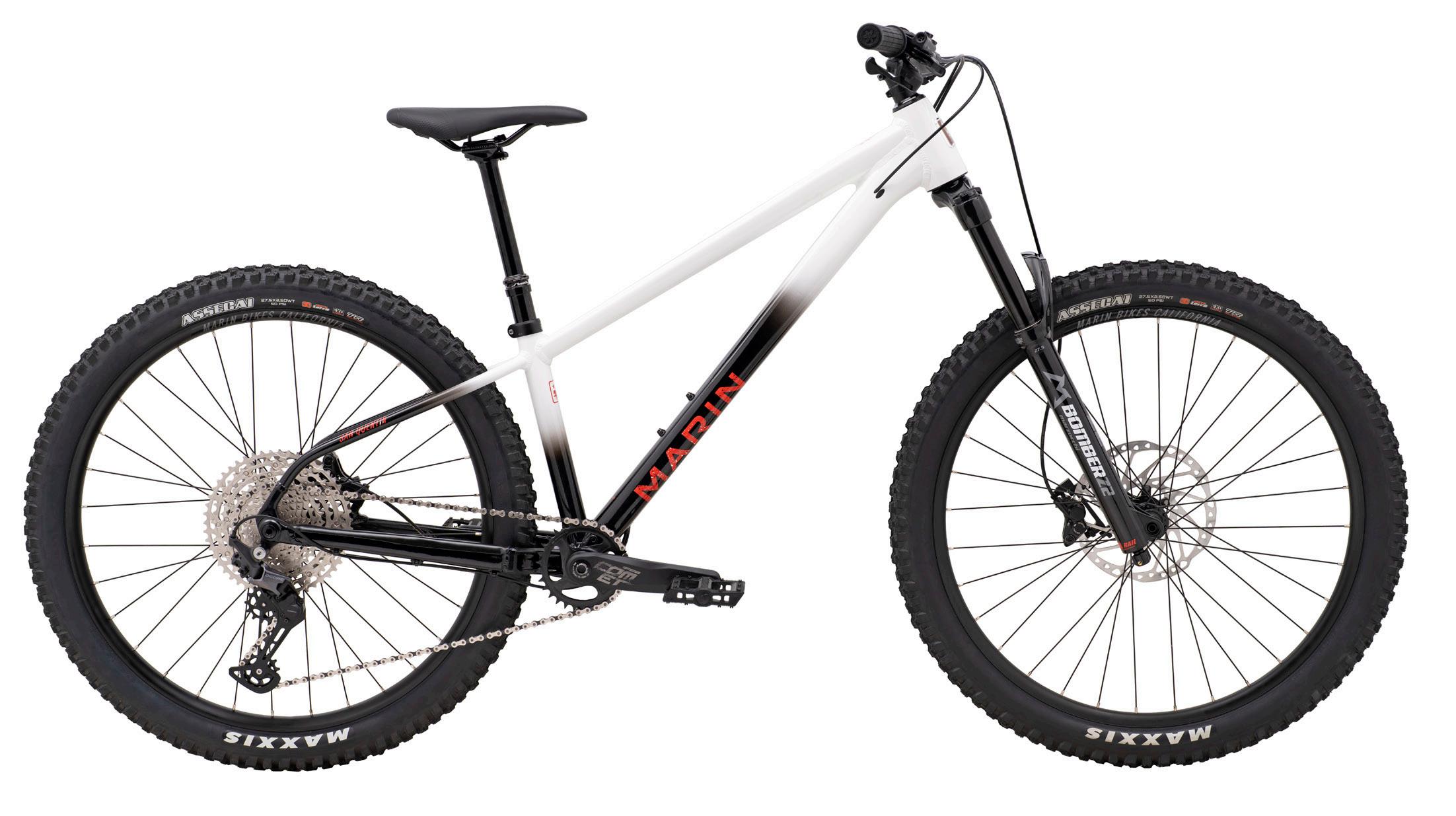

SAN QUENTIN 3
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL
140mm WHITE / BLACK
▶ All-new Series 3 double butted aluminum frame w/thru axle
▶ Marzocchi Bomber Z2 fork w/140mm travel
▶ Shimano SLX 12-speed drivetrain; TRP Slate EVO 4-piston disc brakes
▶ Marin 29mm inner rims, Vee Tire Attack HPL 27.5” x 2.5” tires
▶ Also available as a frame kit
SAN QUENTIN 2
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL 27.5” 140mm BLUE / BLACK
▶ All-new Series 3 double butted aluminum frame w/thru axle
▶ RockShox FS35 Silver fork w/140mm travel
▶ Shimano Deore 11-speed drivetrain; MT201 hydraulic disc brakes
▶ Marin 29mm inner rims, Vee Tire Flow Snap 27.5” x 2.6” tires
SAN QUENTIN 1
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL 27.5” 130mm GREY / BLACK TAN / BLACK
▶ All-new Series 2 double butted aluminum frame
▶ SR/Suntour XCM34 Boost fork w/130mm travel
▶ microSHIFT 9-speed drivetrain; Tektro M275 hydraulic disc brakes
▶ Marin 29mm inner rims, Vee Tire Flow Snap 27.5” x 2.6” tires Specifications,
EL ROY
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: REGULAR / GRANDE
BLUE
▶ Series 3 double butted and formed CrMo frame
▶ Marzocchi Z1 fork w/140mm travel
▶ Shimano Deore 12-speed drivetrain; MT420 4-piston disc brakes
▶ Marin 29mm inner rims, Maxxis Assegai 29” x 2.5” tires
▶ Also available as a frame kit

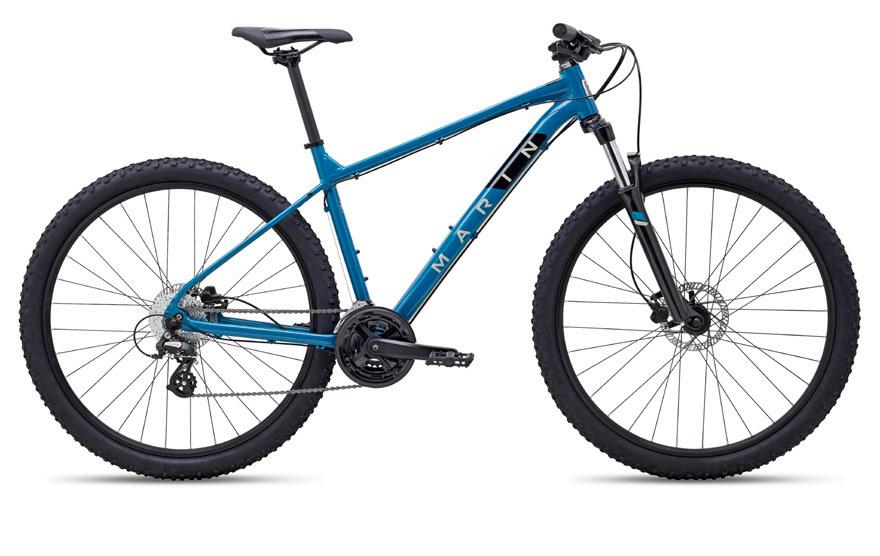

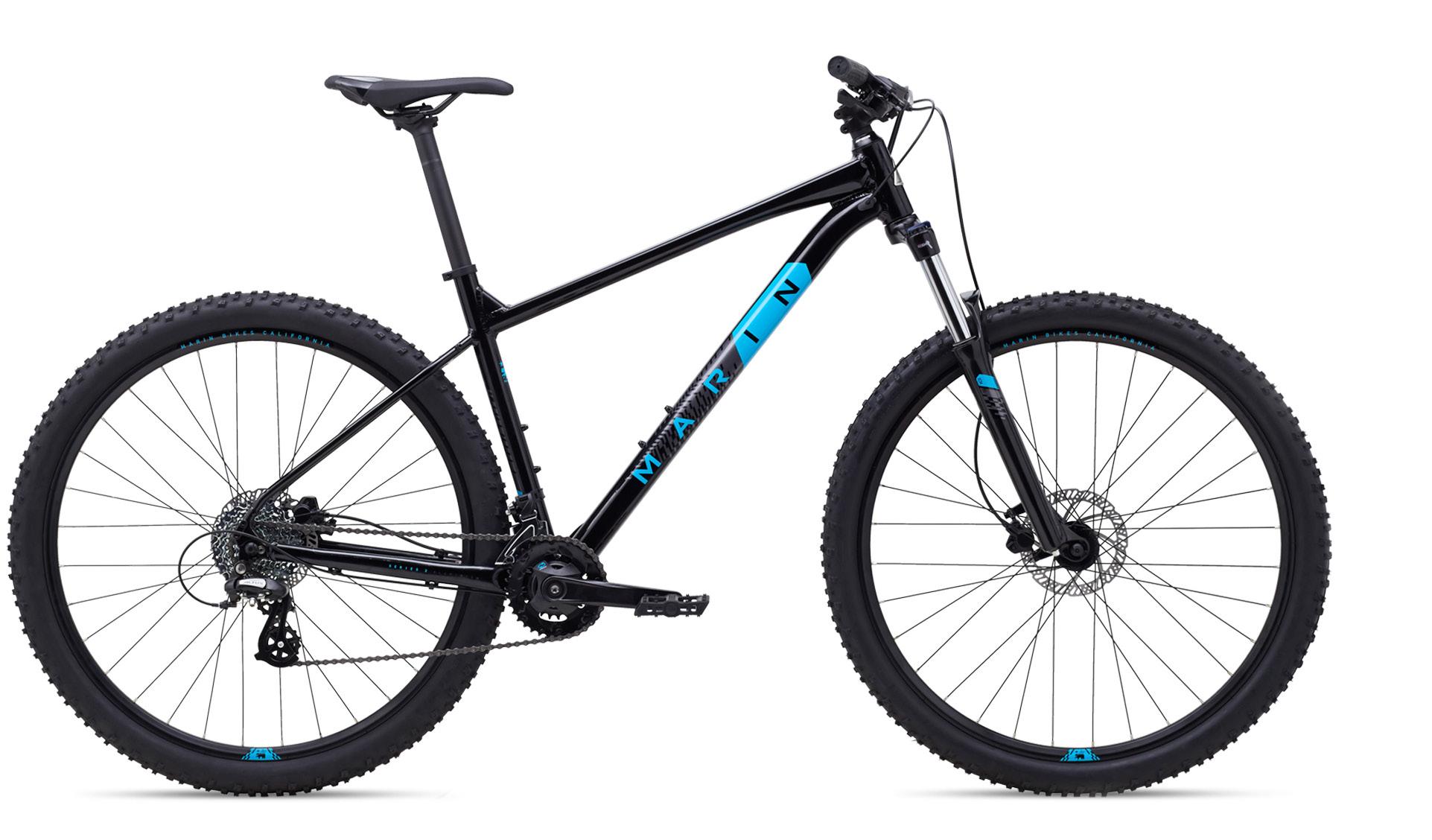

BOBCAT TRAIL 5
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL
▶ Series 2 aluminum frame, 27.5” or 29” wheels
29” or 27.5” 120mm BLACK
▶ SR/Suntour XCR fork w/hydraulic lockout, 120mm travel
▶ Shimano Deore 11-speed drivetrain; BT201 hydraulic disc brakes
▶ Marin 29mm inner rims, 2.25” MTB tires

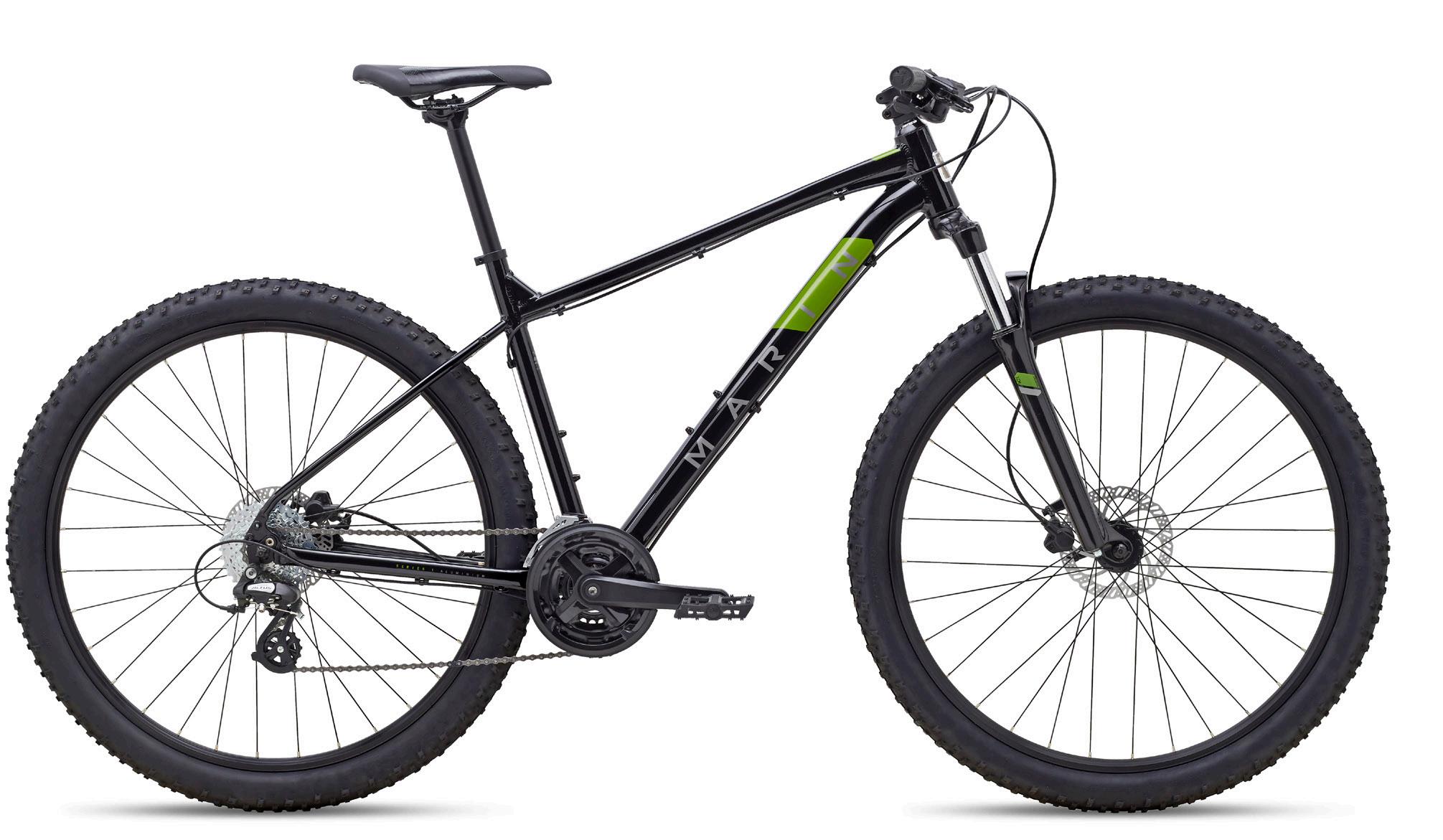

BOBCAT TRAIL 4
SIZES:
WHEEL SIZE:
SUSPENSION: COLOR:
S / M / L / XL
29” or 27.5”
▶ Series 2 aluminum frame, 27.5” or 29” wheels
▶ SR/Suntour XCM HLO-DS fork w/hydraulic lockout, 120mm travel
▶ microSHIFT Advent 9-speed drivetrain; Tektro M275 hydraulic disc brakes
▶ Marin 25mm inner rims, 2.25” MTB tires
BOBCAT TRAIL 3
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL
29” or 27.5” 120mm BLACK BLUE
▶ Series 2 aluminum frame, 27.5” or 29” wheels
▶ SR/Suntour XCM HLO fork w/hydraulic lockout, 120mm travel
▶ Shimano Altus 2x8 drivetrain; Tektro M275 hydraulic disc brakes
▶ Marin 25mm inner rims, 2.25” MTB tires
Specifications, pricing, and availability are subject to change without notice.
BOLINAS RIDGE 2
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR:
XS / S / M / L / XL
29” or 27.5”
▶ Series 1 aluminum frame, 27.5” or 29” wheels
▶ SR/Suntour XCM DS fork w/adjustable preload, 100mm travel
▶ Shimano Altus 3x8 drivetrain; Clark’s Clout hydraulic disc brakes
BOLINAS RIDGE 1
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR:
XS / S / M / L / XL
29” or 27.5”
▶ Series 1 aluminum frame, 27.5” or 29” wheels
▶ SR/Suntour XCE fork, adjustable preload, 100mm travel
▶ Shimano Tourney 3x7 drivetrain; Clark’s CMD-23 mechanical disc brakes

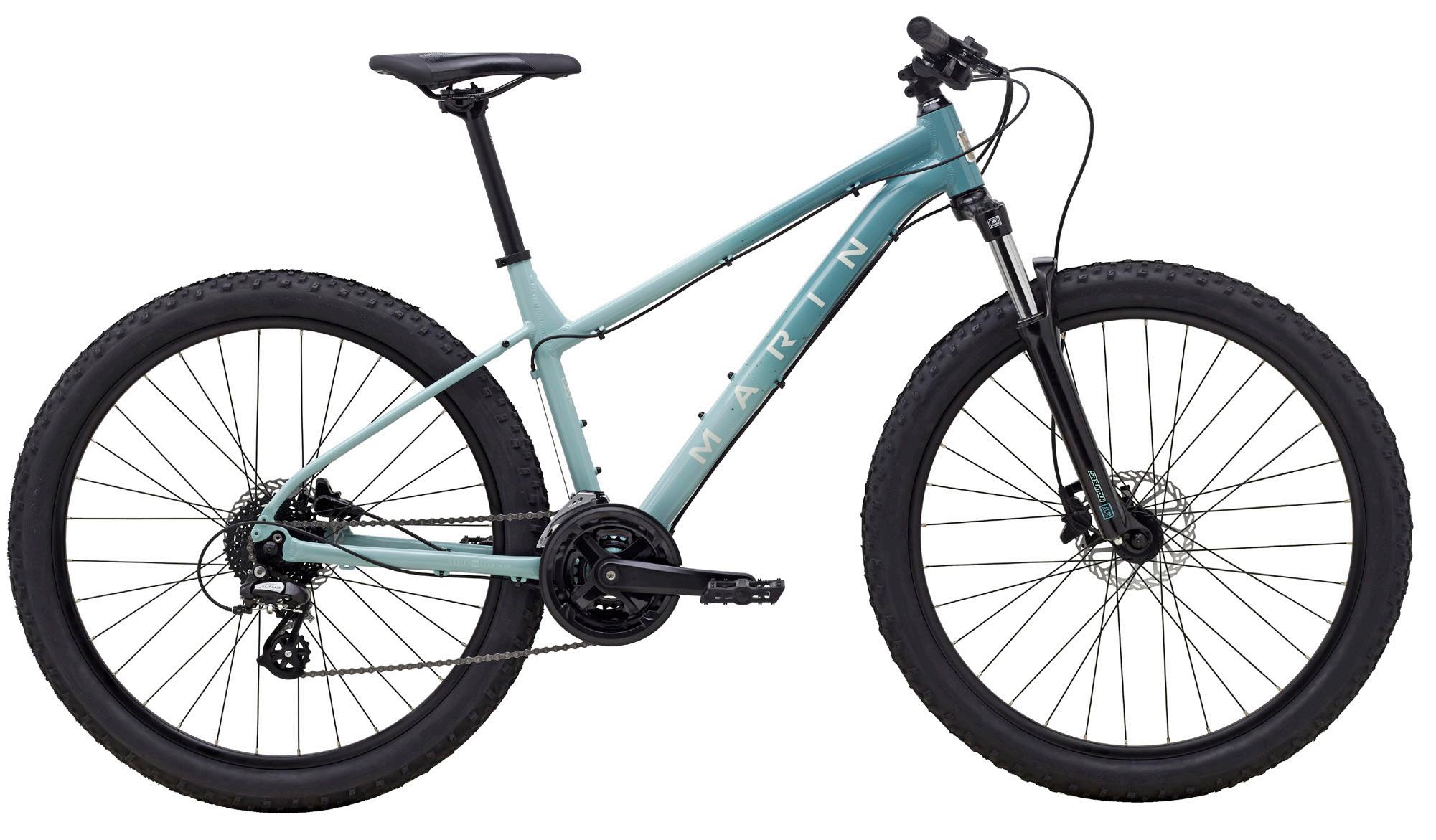

WILDCAT TRAIL 3
SIZES:
WHEEL SIZE:
SUSPENSION:
/ S / M / L
▶ Series 2 women’s-specific aluminum frame, 27.5” wheels
▶ SR/Suntour XCM HLO fork w/hydraulic lockout, 120mm travel
▶ Shimano Altus 2x8 drivetrain; Clark’s Clout hydraulic disc brakes
▶ Marin 25mm inner rims, 27.5” x 2.25” MTB tires
Specifications, pricing, and availability are subject to change without notice.
WILDCAT TRAIL 2
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR:
/ S / M / L
▶ Series 1 aluminum frame, 27.5” wheels
▶ SR/Suntour XCM DS fork w/adjustable preload, 100mm travel
▶ Shimano Altus 3x8 drivetrain; Clark’s Clout hydraulic disc brakes
WILDCAT TRAIL 1
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR:
/ S / M / L
▶ Series 1 aluminum frame, 27.5” or 29” wheels
▶ SR/Suntour XCE fork, adjustable preload, 100mm travel
▶ Shimano Tourney 3x7 drivetrain; Clark’s CMD-23 mechanical disc brakes

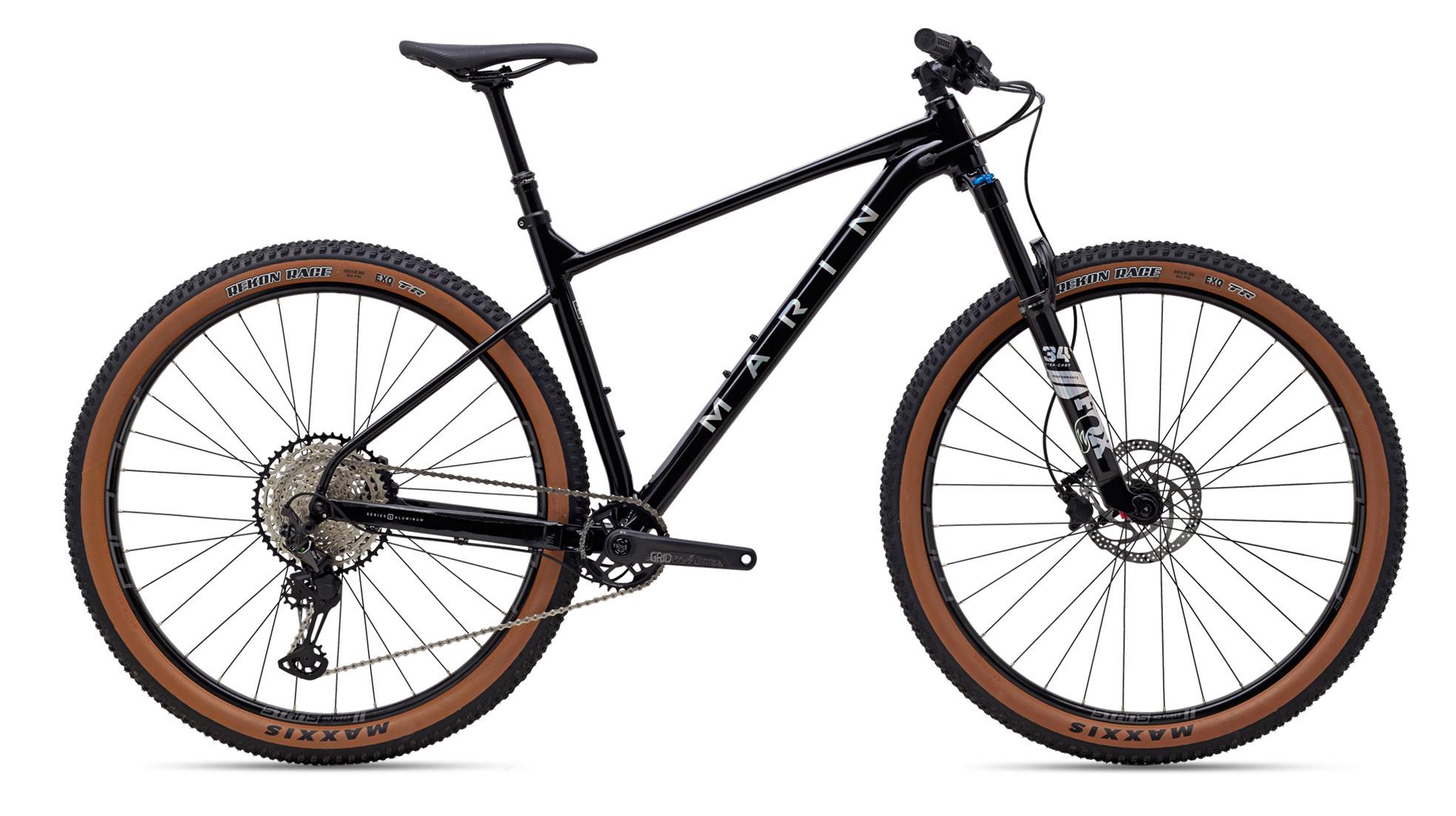

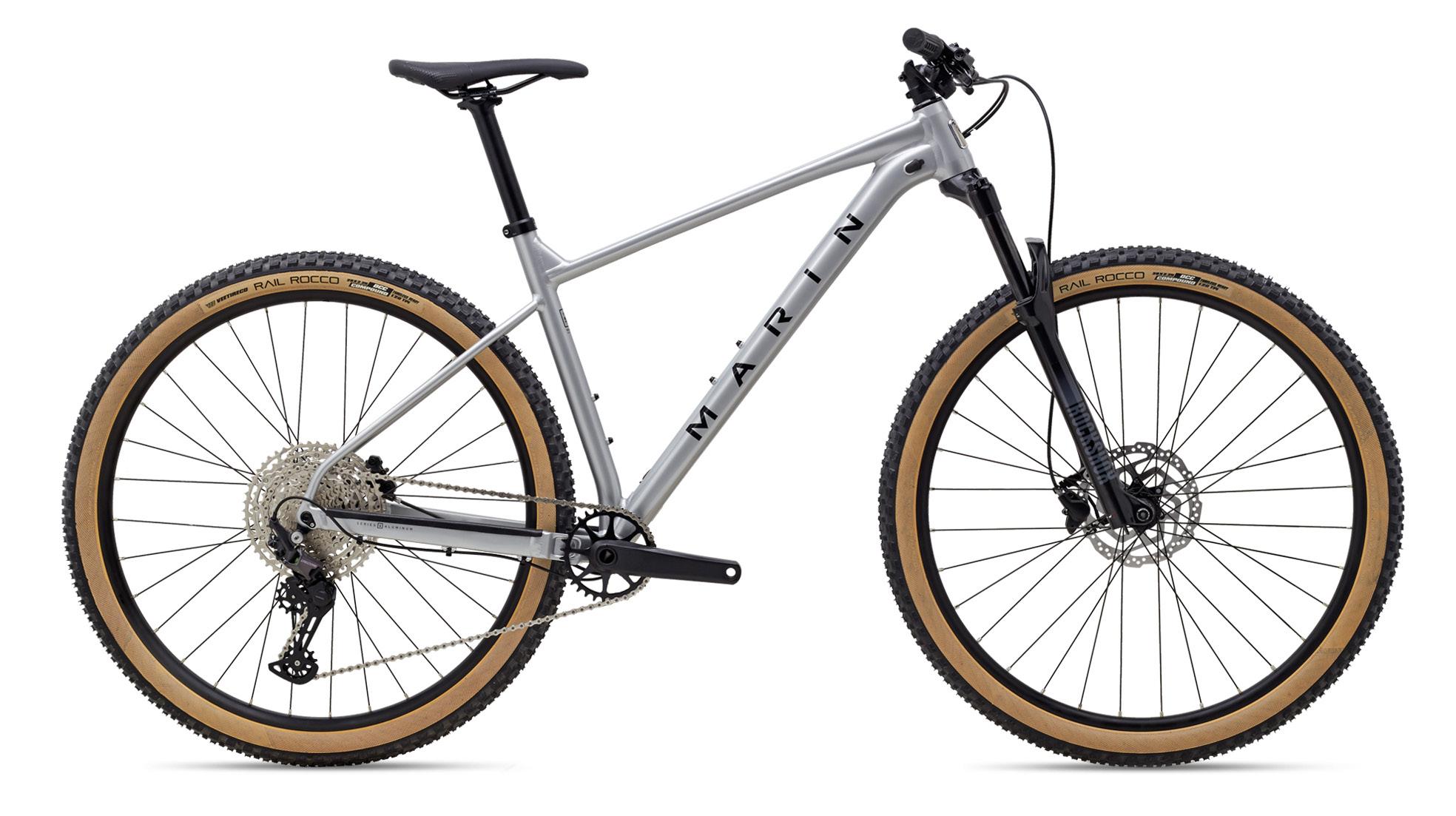

TEAM MARIN 2
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL
▶ Superlight Series 4 double butted aluminum frame, 29” wheels
▶ Fox 34 StepCast fork w/120mm travel
▶ Shimano SLX 12-speed drivetrain; TRP G-Spec FMR hydraulic disc brakes
▶ Marin 29mm inner rims, Maxxis Rekon Race 29” x 2.35” tires
TEAM MARIN 1
SIZES:
WHEEL SIZE:
SUSPENSION: COLOR: S / M / L / XL
▶ Superlight Series 4 double butted aluminum frame, 29” wheels
▶ RockShox Judy Silver TK fork w/120mm travel
▶ Shimano Deore 12-speed drivetrain; MT201 hydraulic disc brakes
▶ Marin 29mm inner rims, Vee Tire Rail Rocco XC 29” x 2.3” tires
PINE MOUNTAIN 2
SIZES:
WHEEL SIZE:
SUSPENSION: COLOR: S / M / L / XL
▶ Series 3 double butted CrMo frame w/custom cast boost 148x12mm dropouts
▶ RockShox 35 Gold RL fork w/120mm travel
▶ Shimano SLX 12-speed drivetrain; TRP Slate EVO 4-piston disc brakes
▶ Marin 32mm inner, offset spoke rims, Vee Tire Flow Snap 29” x 2.6” tires
PINE MOUNTAIN 1
SIZES: WHEEL SIZE:
SUSPENSION:
/ M / L / XL
▶ Series 2 double butted CrMo frame w/boost 141x9mm dropouts
▶ RockShox Recon RL fork w/120mm travel ▶ Shimano Deore 11-speed drivetrain; MT420/400 4/2 piston disc brakes ▶ Marin 32mm inner, offset spoke rims, Vee Tire

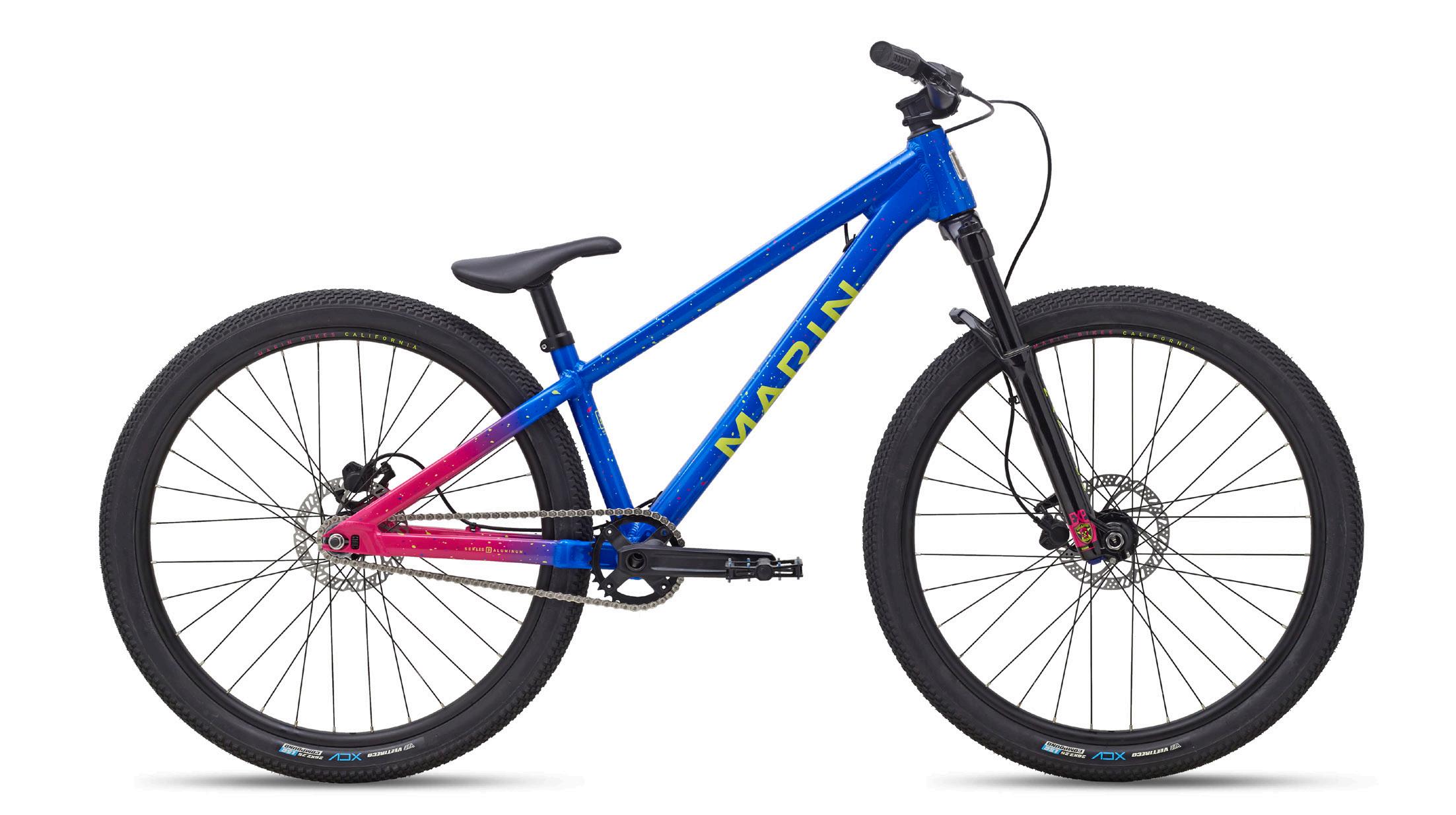

ALCATRAZ
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: SHORT / LONG
100 mm BLUE / PINK BLACK / SILVER
▶ Series 3 aluminum frame w/horizontal single speed dropouts & chain tensioner
▶ Manitou Circus Expert fork
▶ 32t x 14t single speed drivetrain; Tektro M275 hydraulic disc brakes
▶ Marin 27mm inner rims, Vee Tire XCV 26” x 2.25” tires
▶ Also available as a frame kit
Specifications, pricing, and availability are subject to change without notice. frame kit colorway
HEADLANDS 2
SIZES:
WHEEL SIZE:
COLOR: 49 / 52 / 54 / 56 / 58 / 60
700c BLACK / ORANGE
▶ Unidirectional Beyond Road carbon fiber frame, 1x specific
▶ Marin full carbon fork w/thru axle & eyelets
▶ Shimano GRX 800 12-speed drivetrain; GRX hydraulic disc brakes
▶ Marin 21mm inner rims, Vee Tire G-Sport 700x44mm tires
▶ Dropper post, Headlands frame kit available
HEADLANDS 1
SIZES:
WHEEL SIZE:
COLOR:
49 / 52 / 54 / 56 / 58 / 60
▶ Unidirectional Beyond Road carbon fiber frame, 1x specific
▶ Marin full carbon fork w/thru axle & eyelets
▶ Shimano GRX 600 12-speed drivetrain; GRX hydraulic disc brakes
▶ Marin 21mm inner rims, Vee Tire G-Sport 700x44mm tires Specifications,

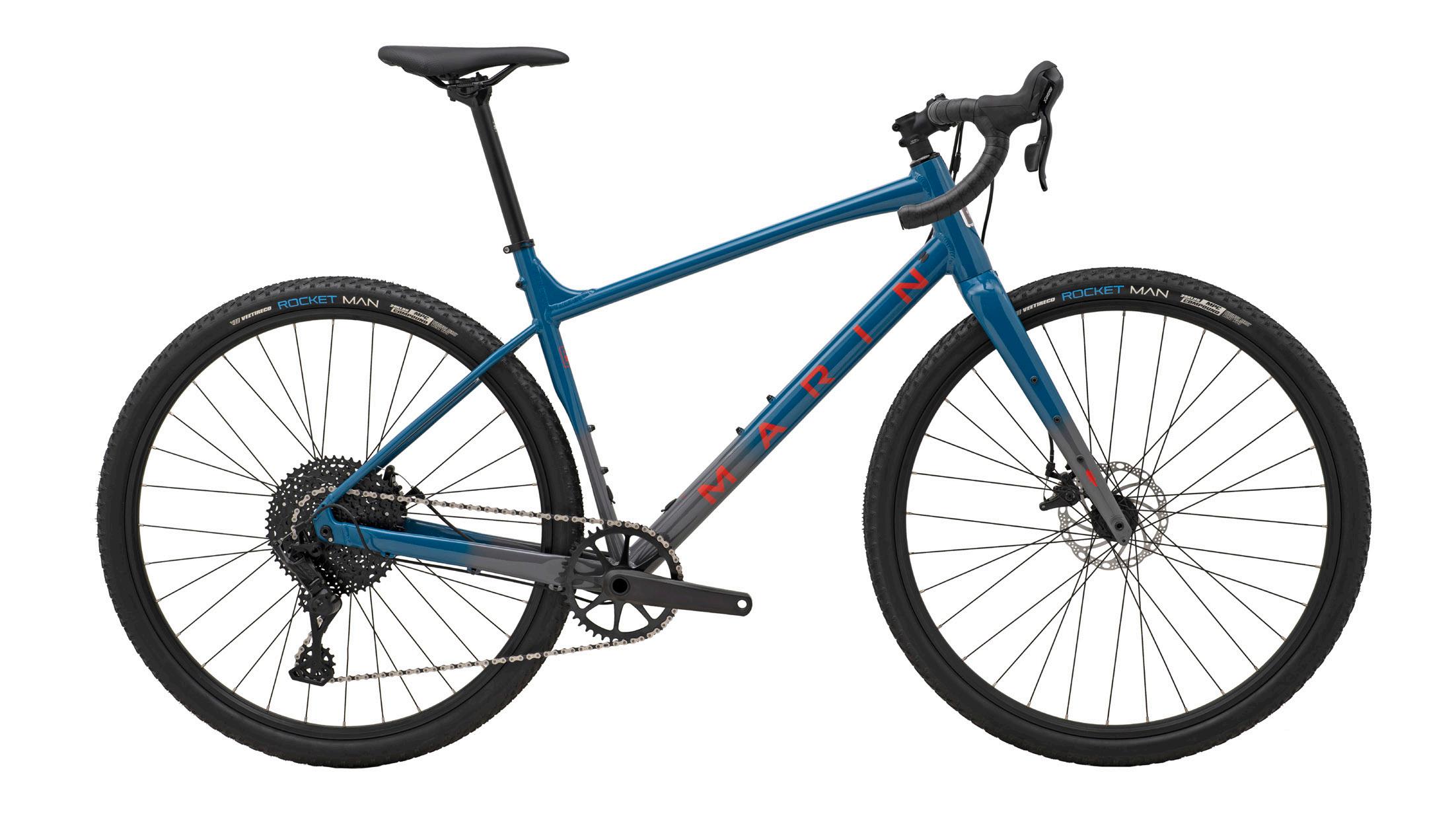

GESTALT XR
SIZES: WHEEL SIZE:
/ M / L /
▶ Series 3 Beyond Road X aluminum frame, 1x specific
▶ Marin full carbon fork w/thru axle & eyelets
▶ Shimano GRX 800 1x12 wide-range drivetrain; GRX hydraulic disc brakes
▶ Marin 25mm inner rims, Vee Tire Rocket Man 700x44mm tires
▶ Dropper post

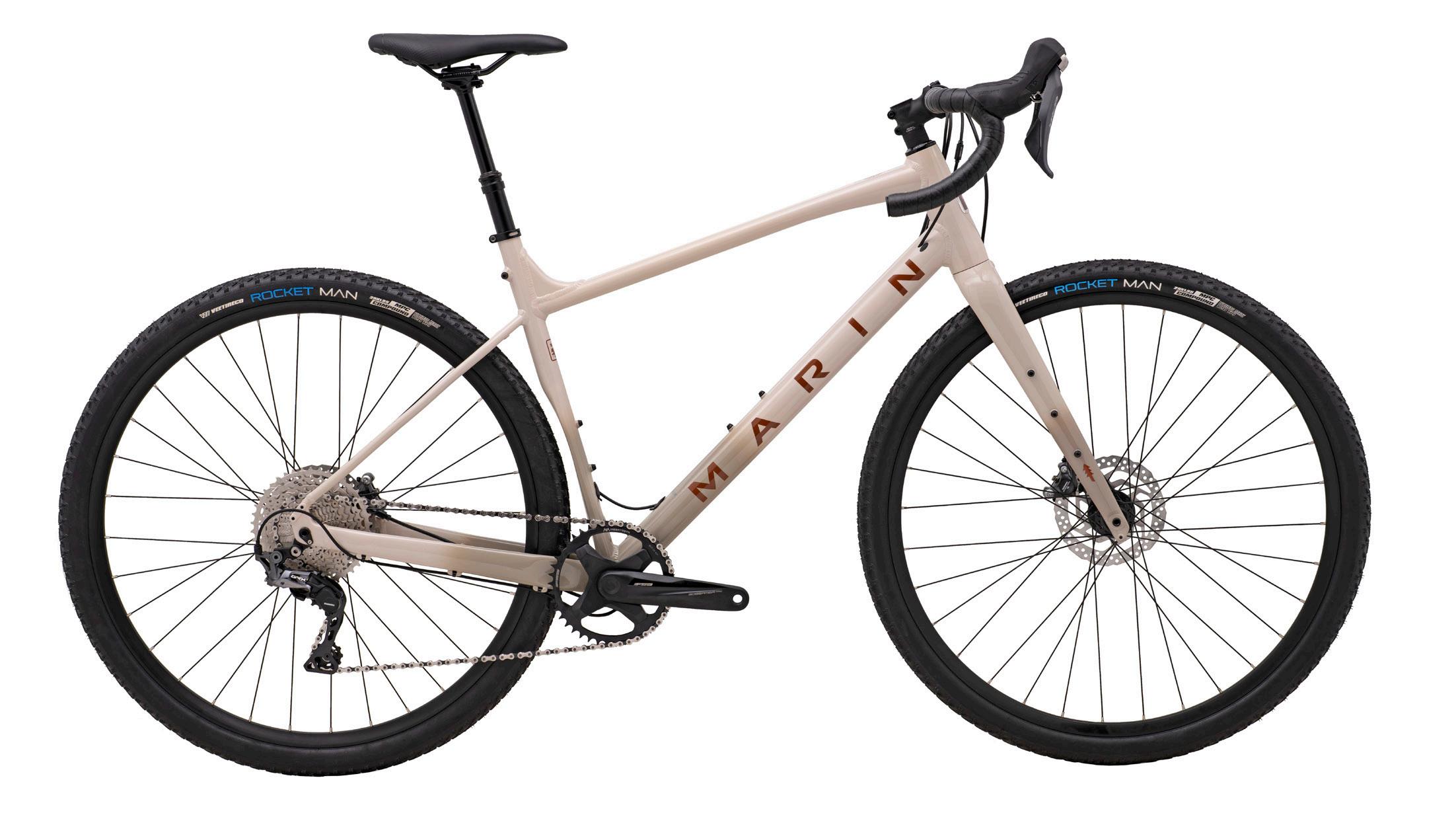

GESTALT X10
SIZES:
WHEEL SIZE:
COLOR: S / M / L / XL
▶ Series 3 Beyond Road X aluminum frame, 1x specific
▶ Marin full carbon fork w/thru axle & eyelets
▶ microSHIFT Advent 1x 10 wide-range drivetrain
▶ Tektro C500 dual piston mechanical disc brakes
▶ Marin 25mm inner rims, Vee Tire Rocket Man 700x44mm tires Specifications,

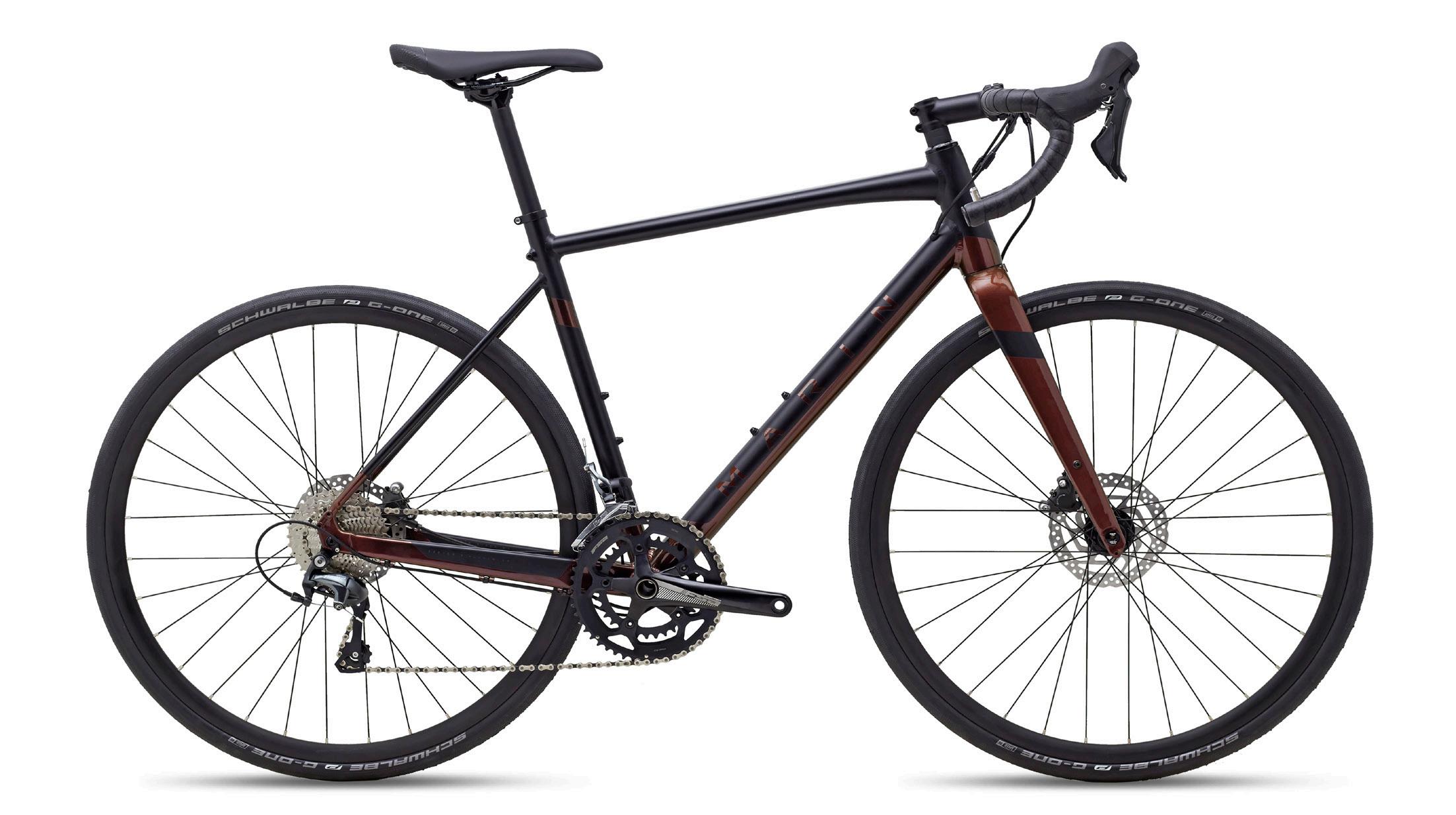

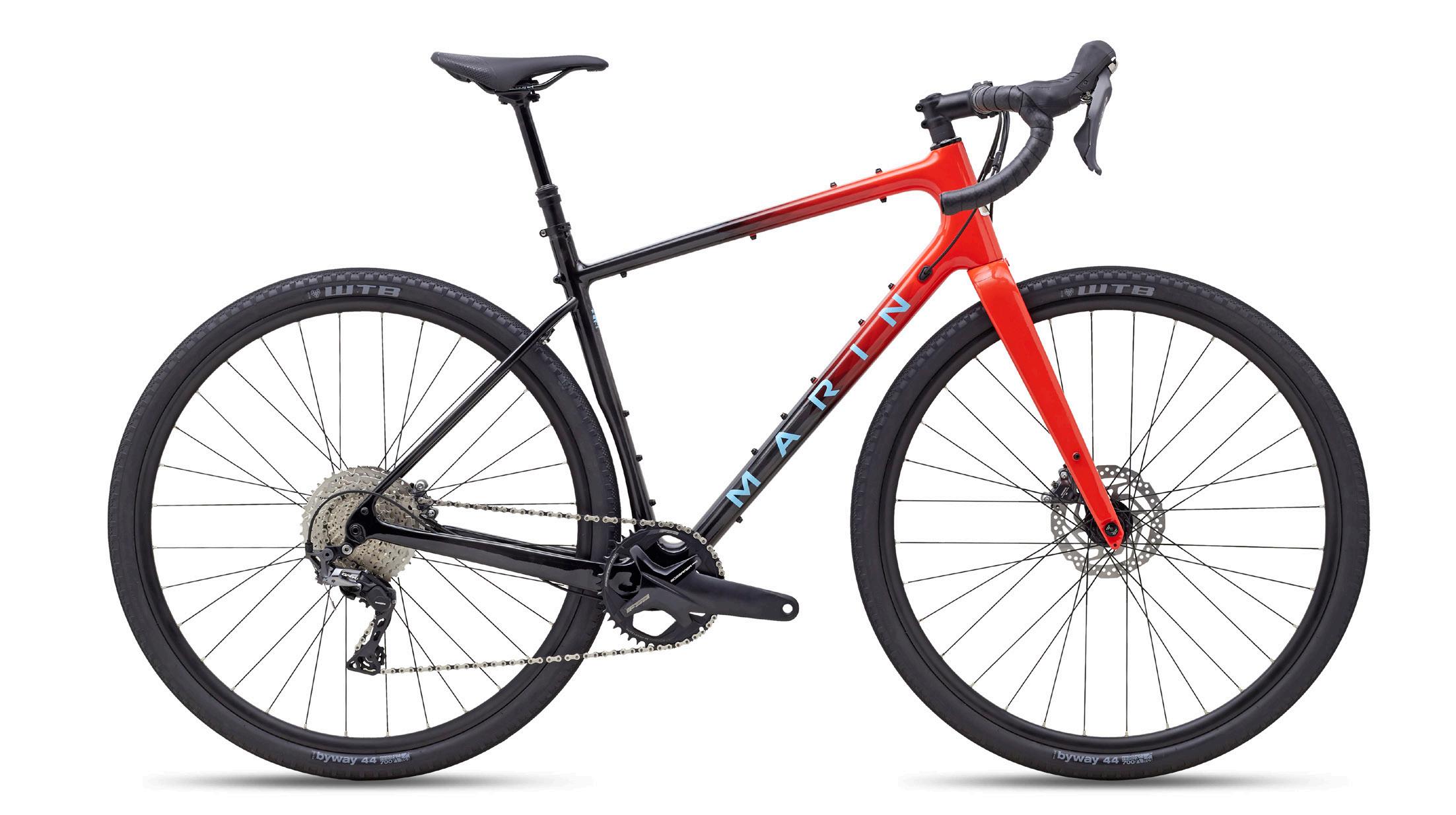

GESTALT 2.5
SIZES:
WHEEL SIZE:
COLOR:
50 / 52 / 54 / 56 / 58 / 60
700c
COPPER
▶ Series 3 Beyond Road aluminum frame
▶ Marin full carbon fork w/thru axle & eyelets
▶ Shimano Tiagra 2x10 drivetrain; Tiagra hydraulic disc brakes
▶ Marin 19mm inner rims, Schwalbe G-One 700x30mm tires Specifications,

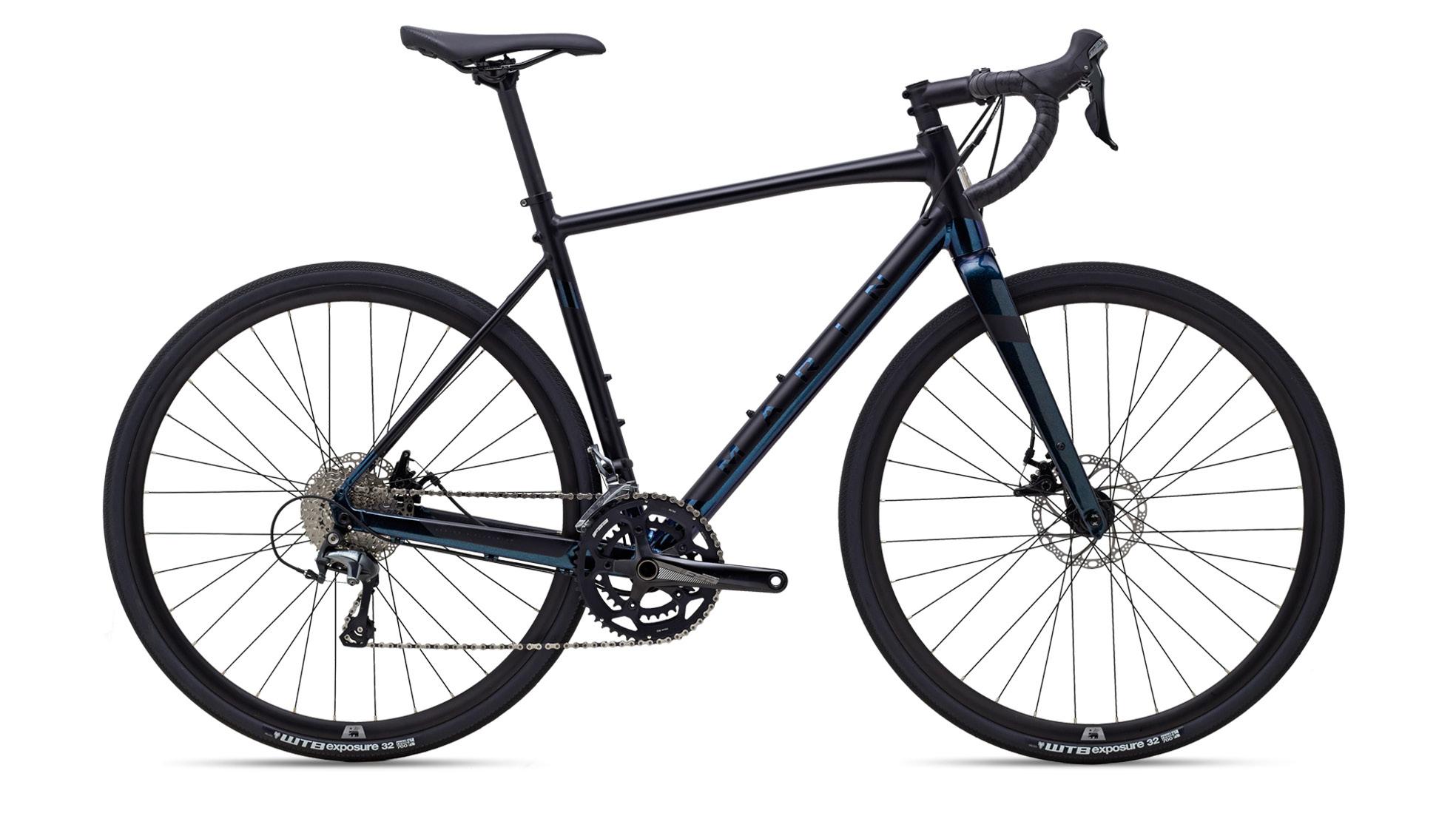

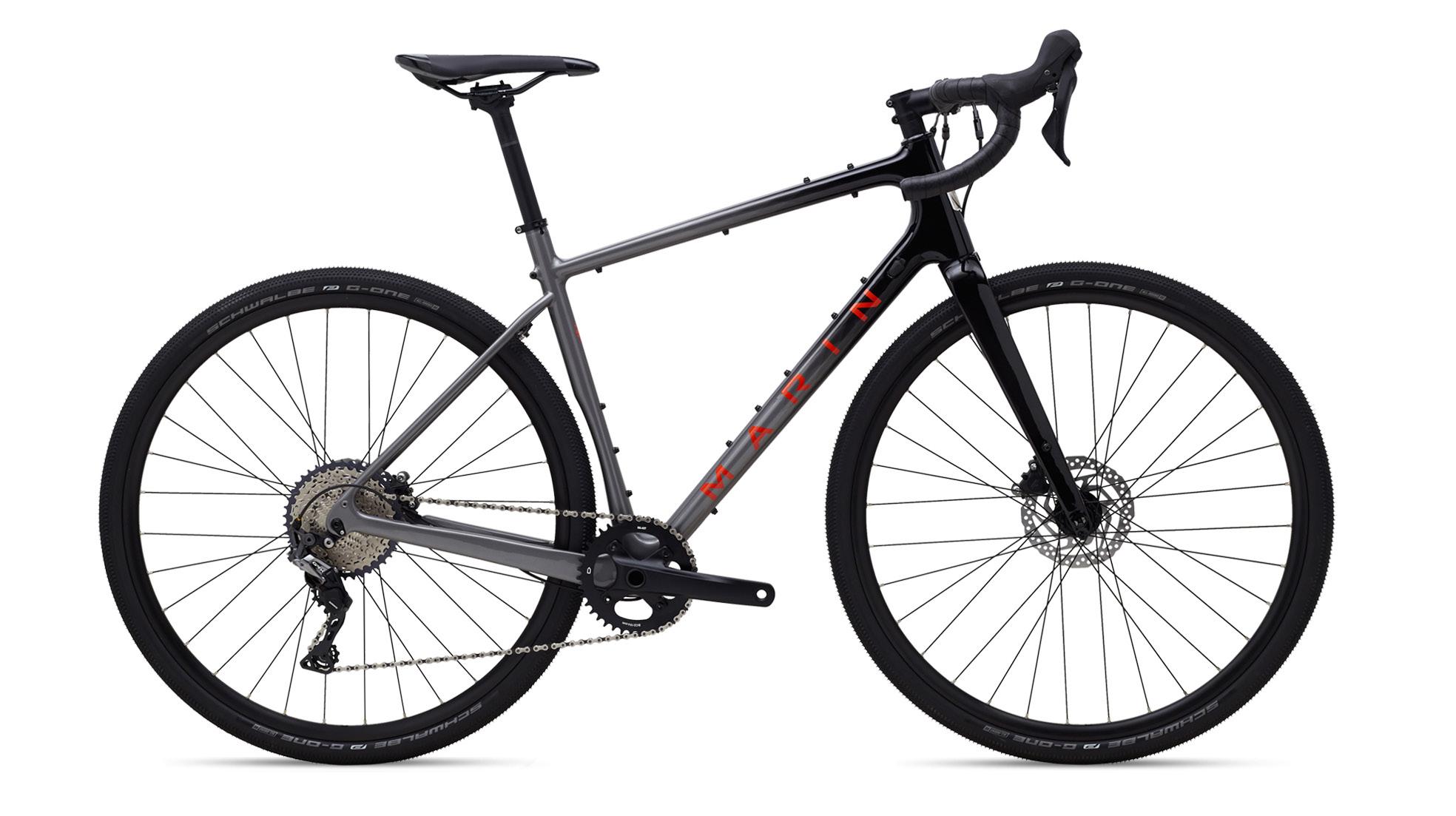

GESTALT 2
SIZES:
WHEEL SIZE:
COLOR:
50 / 52 / 54 / 56 / 58 / 60
▶ Series 3 Beyond Road aluminum frame
▶ Marin full carbon fork w/thru axle & eyelets
▶ Shimano Tiagra 2x10 drivetrain; Tektro C500 dual piston mechanical disc brakes
▶ Marin 19mm inner rims, WTB Exposure Comp 700x32mm tires
GESTALT 1
SIZES:
WHEEL SIZE:
COLOR: 50 / 52 / 54 / 56 / 58 / 60
▶ Series 3 Beyond Road aluminum frame
▶ Marin full carbon fork w/thru axle & eyelets
▶ Shimano Sora 2x9 drivetrain, Tektro C500 dual piston mechanical disc brakes
▶ Marin 21mm inner rims, Vee Tire Zilent 700x35mm tires Specifications,

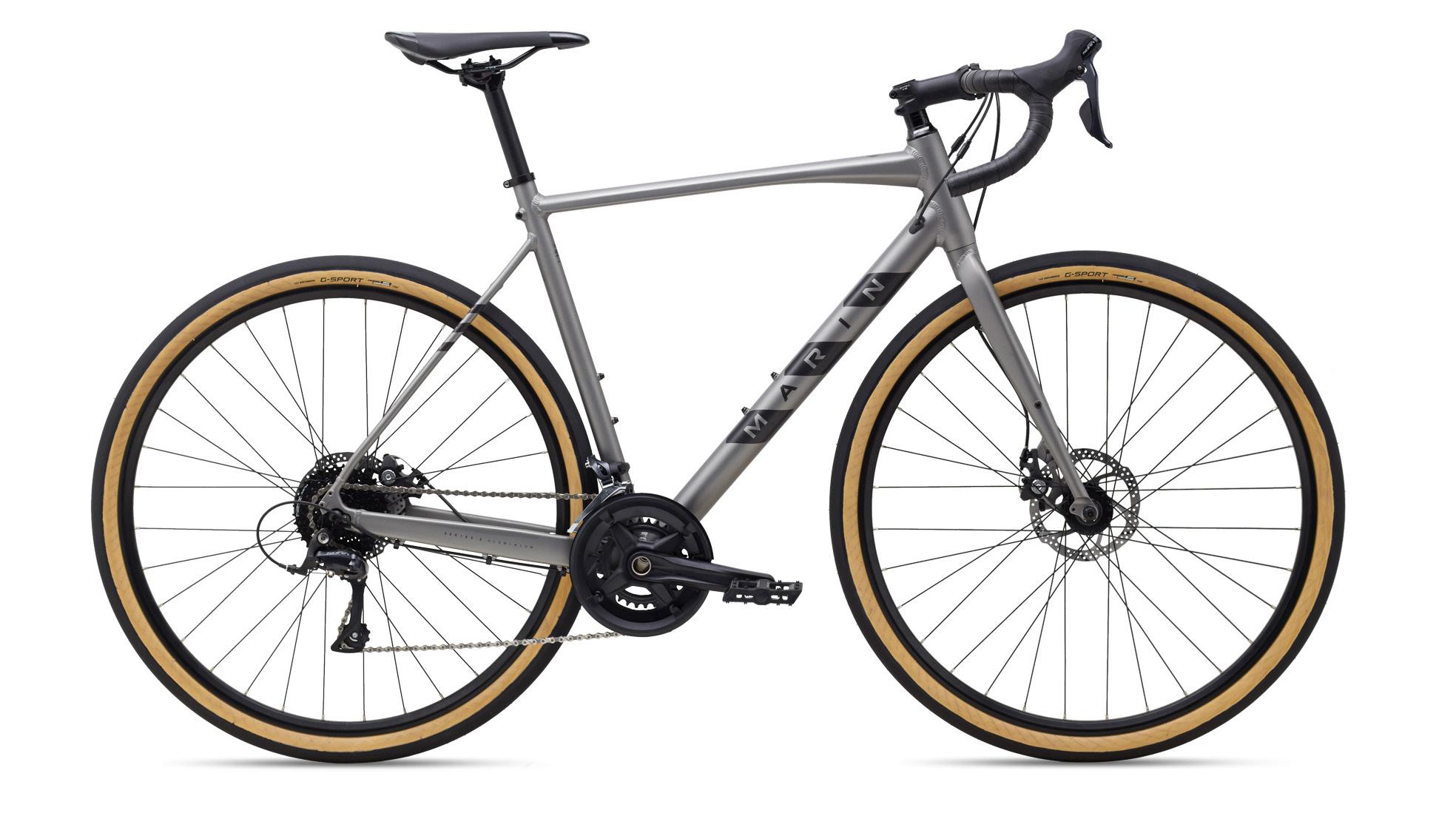

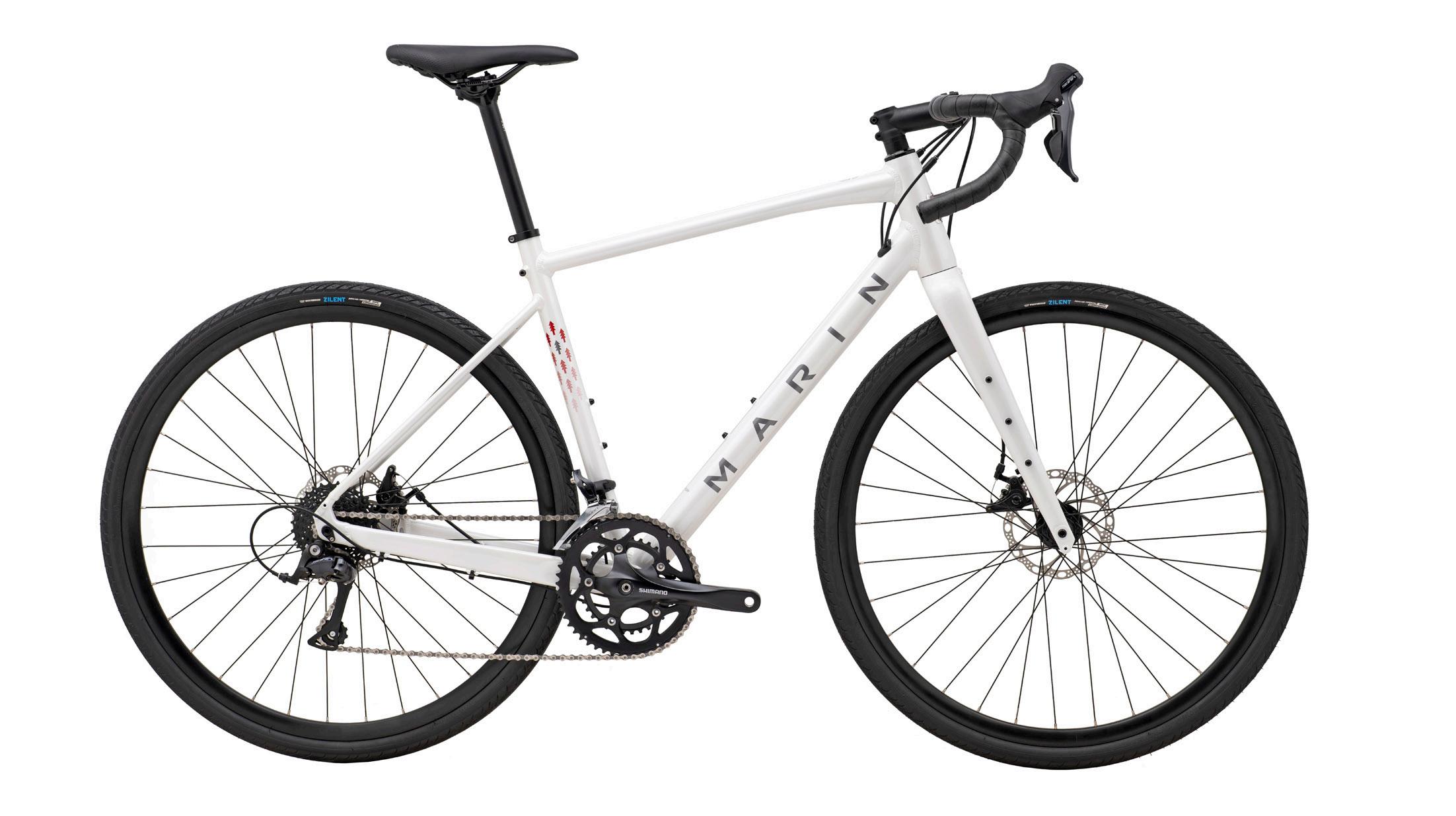

GESTALT
SIZES:
WHEEL SIZE:
COLOR: 50 / 52 / 54 / 56 / 58 / 60
▶ Series 2 Beyond Road aluminum frame
▶ Marin straight blade aluminum fork w/fender & rack eyelets
▶ Shimano Claris 2x8 drivetrain; Tektro C500 dual piston mechanical disc brakes
▶ Marin 19mm inner rims, Vee Tire Zilent 700x35mm tires

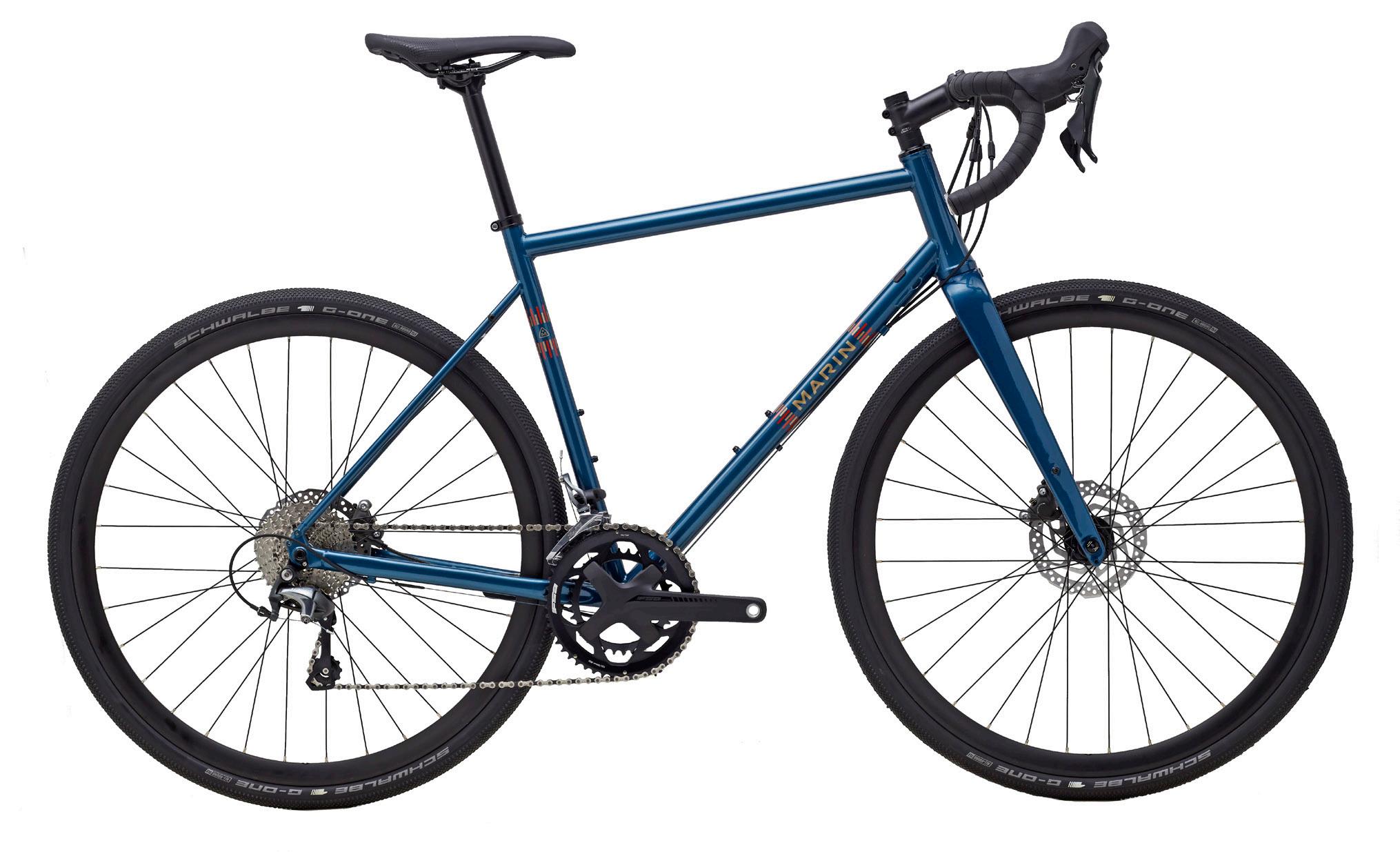

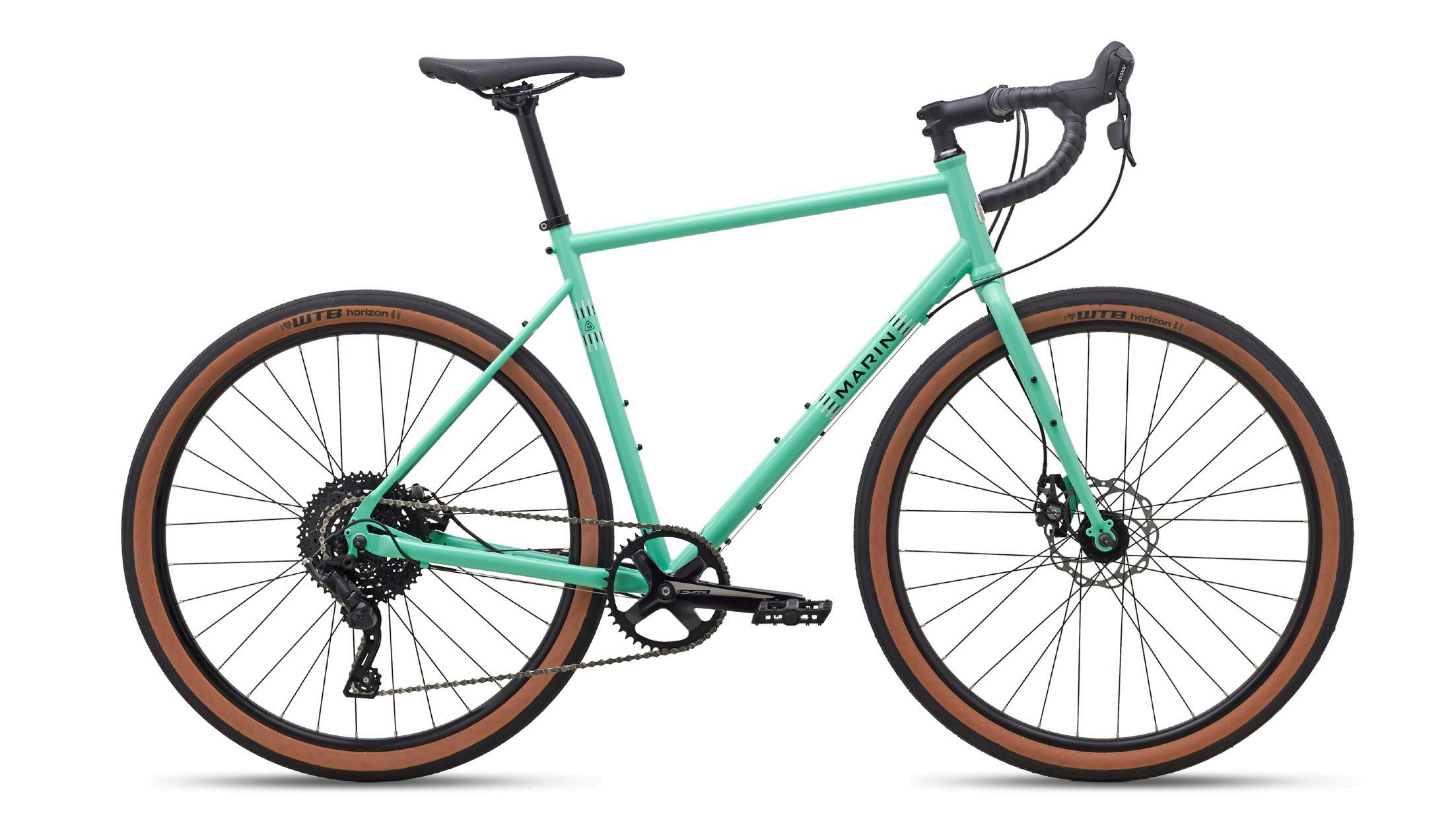

NICASIO 2
SIZES:
WHEEL SIZE:
COLOR:
50 / 52 / 54 / 56 / 58 / 60
700c BLUE
▶ Series 2 double butted CrMo Beyond Road frame w/142x12mm thru-axle dropouts
▶ Marin full carbon fork w/thru axle & eyelets
▶ Shimano 2x10 drivetrain, BR-4770 hydraulic disc brakes
▶ Marin 19mm inner rims, WTB Riddler Comp 700x37mm tires
Specifications,
NICASIO+
SIZES:
WHEEL SIZE:
COLOR: 50 / 52 / 54 / 56 / 58 / 60 650b FOREST SERVICE GREEN SATIN TAN
▶ Series 1 double butted CrMo Beyond Road frame
▶ Marin CrMo fork w/fender & rack eyelets
▶ microSHIFT Advent 1x9 wide-range drivetrain; Tektro road mechanical disc brakes
▶ Marin 25mm inner width rims, WTB Horizon 650x47mm tires

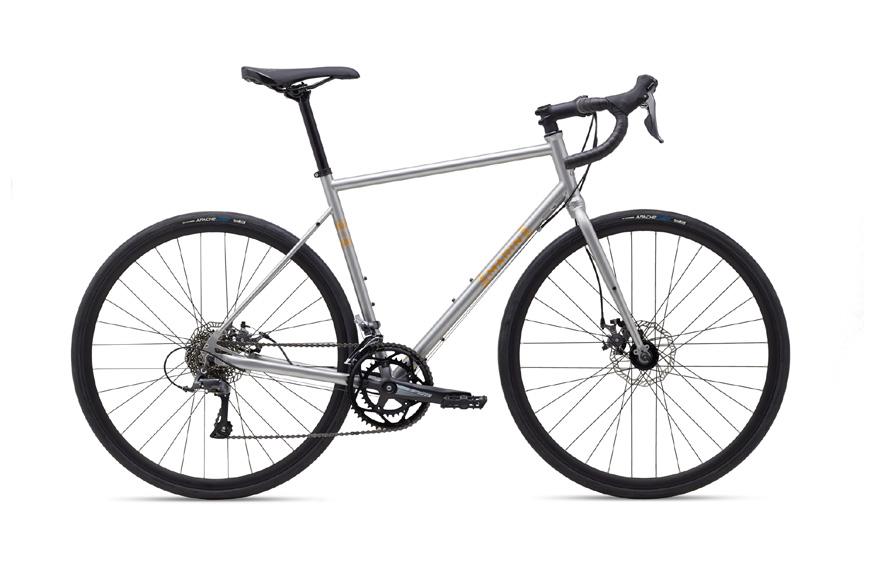

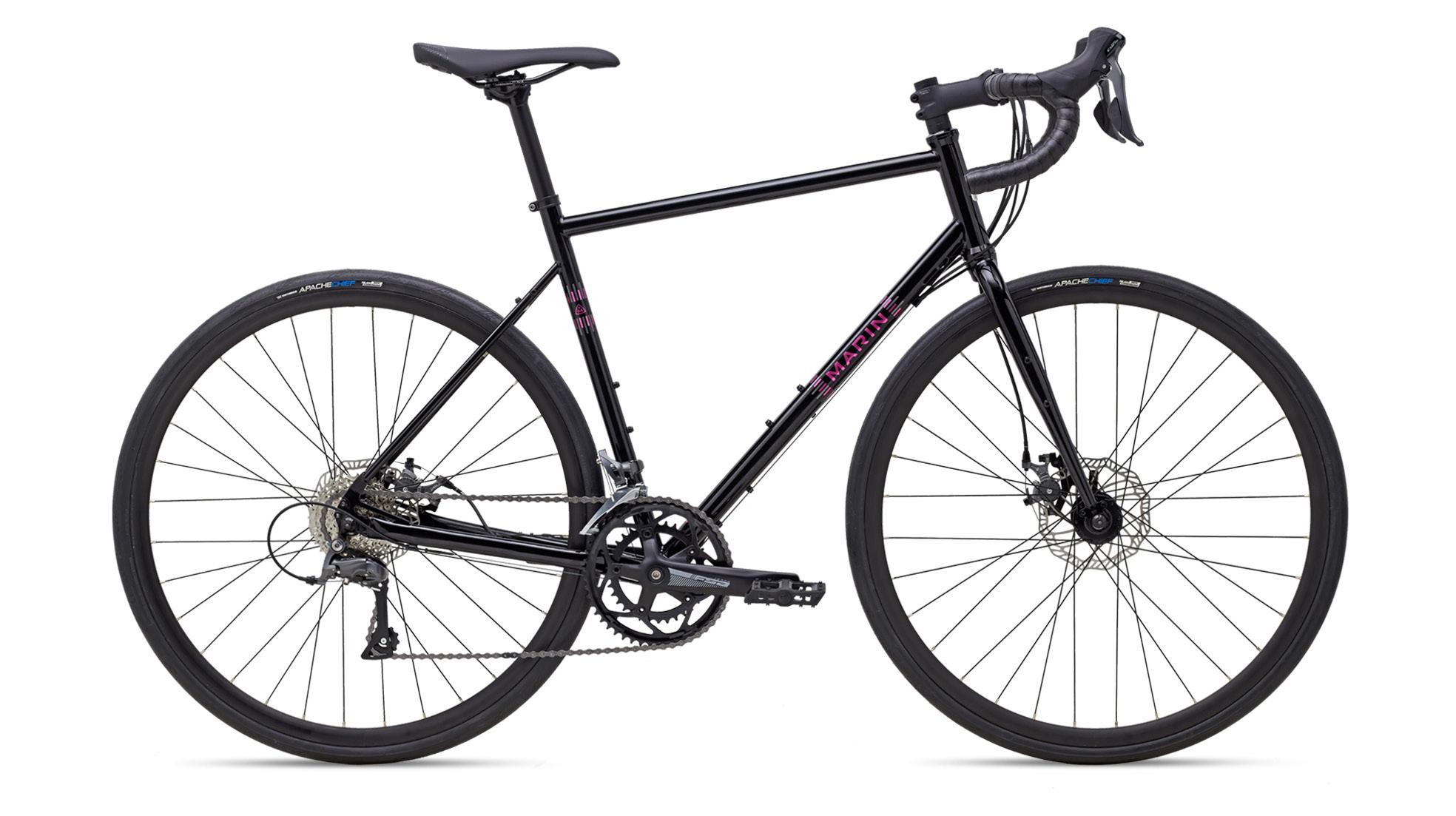

NICASIO
SIZES:
WHEEL SIZE: COLOR: 47 / 50 / 52 / 54 / 56 / 58 / 60
▶ Series 1 double butted CrMo Beyond Road frame
▶ Marin CrMo fork w/fender & rack eyelets
▶ Shimano Claris 2x8 drivetrain; Promax Render R road mechanical disc brakes
▶ Marin 19mm inner width rims, Vee Tire Apache Chief 700x30mm tires
and
LOMBARD 1
SIZES:
WHEEL SIZE:
COLOR:
49 / 52 / 54 / 56 / 58 / 60
700c
CHARCOAL
▶ Series 2 aluminum frame
▶ Marin straight blade aluminum fork w/fender & rack eyelets
▶ Shimano Sora 2x9 drivetrain; Tektro road mechanical disc brakes
▶ Marin 21mm inner width rims, Vee Tire G-Sport 700x40mm tires

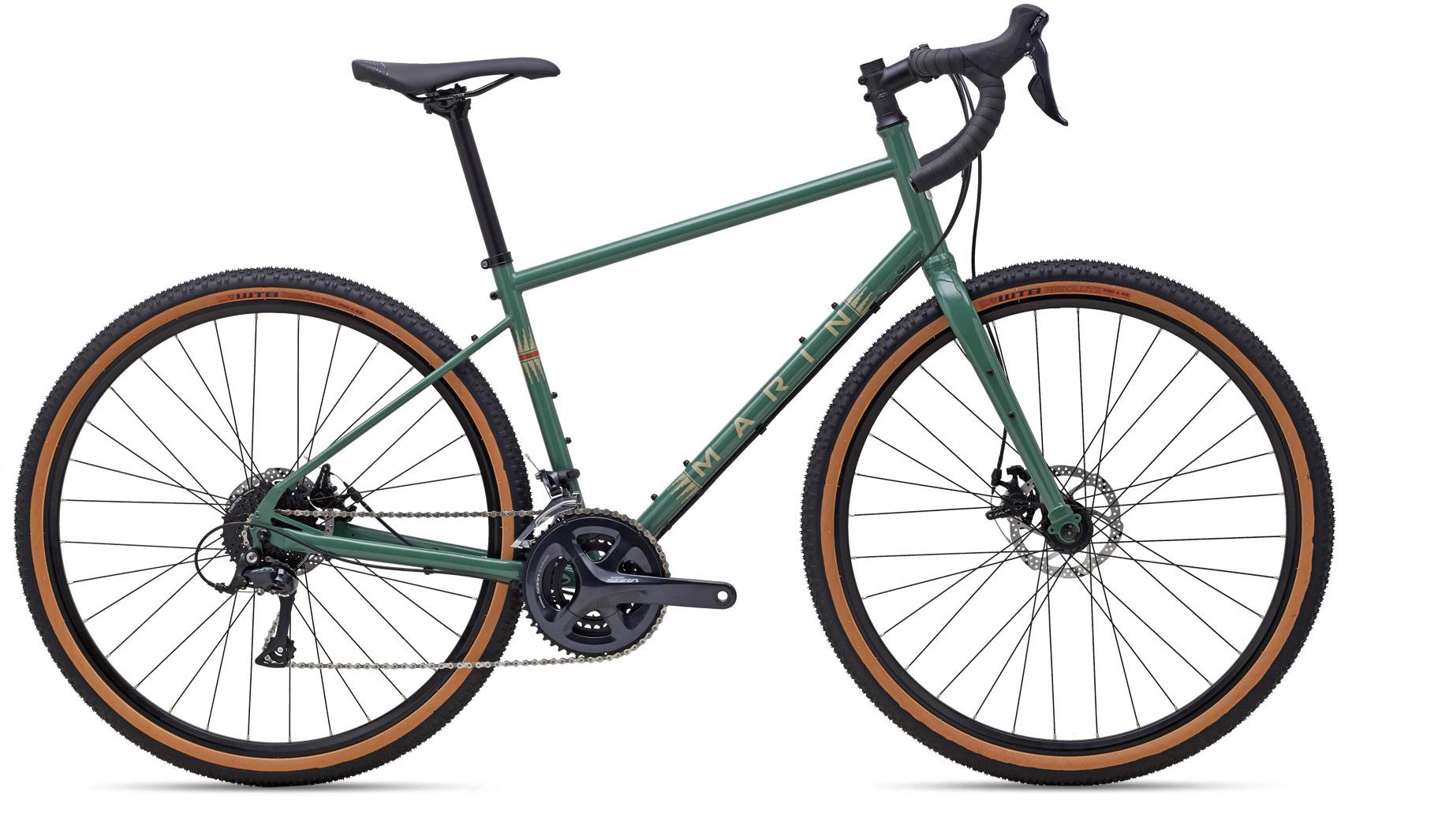

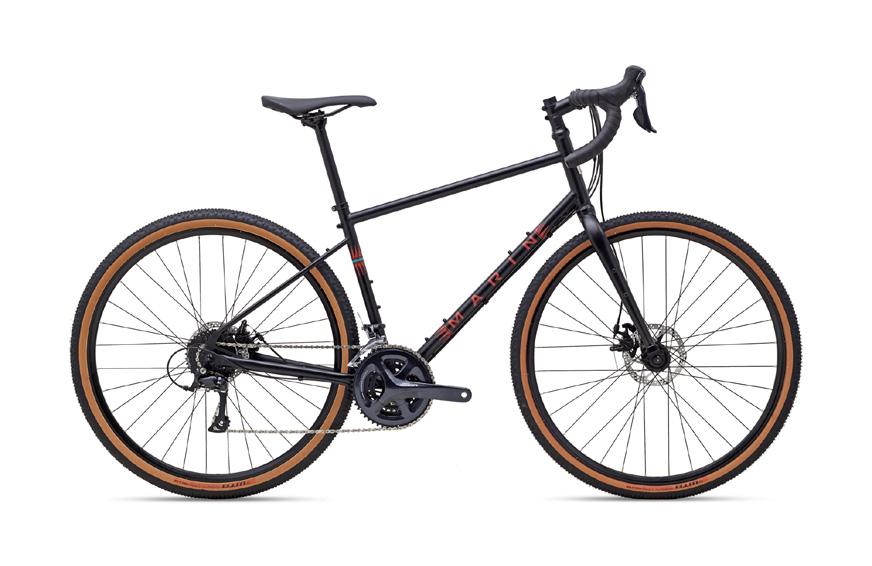

FOUR CORNERS
SIZES:
WHEEL SIZE:
COLOR:
XS / S / M / L / XL
700c or 650b
▶ Series 1 Utilitour CrMo frame, 650b or 700c
▶ Marin CrMo fork w/fender & rack eyelets
▶ Shimano Sora 3x9 drivetrain; Tektro Spyre-C mechanical disc brakes
▶ Marin double wall rims, Vee Tire GPVee 650/700x40mm Specifications,
DSX FS
SIZES:
WHEEL SIZE:
COLOR: S / M / L / XL
BLACK / GREY
▶ Series 3 butted & formed aluminum frame
▶ SR/Suntour GVX LOR suspension fork w/60mm travel, air spring, lockout
▶ Shimano Deore 12-speed wide-range drivetrain; Shimano hydraulic disc brakes
▶ Marin 21mm inner width rims, WTB Riddler 700x45mm tires
Specifications, pricing, and availability are subject to change without notice.

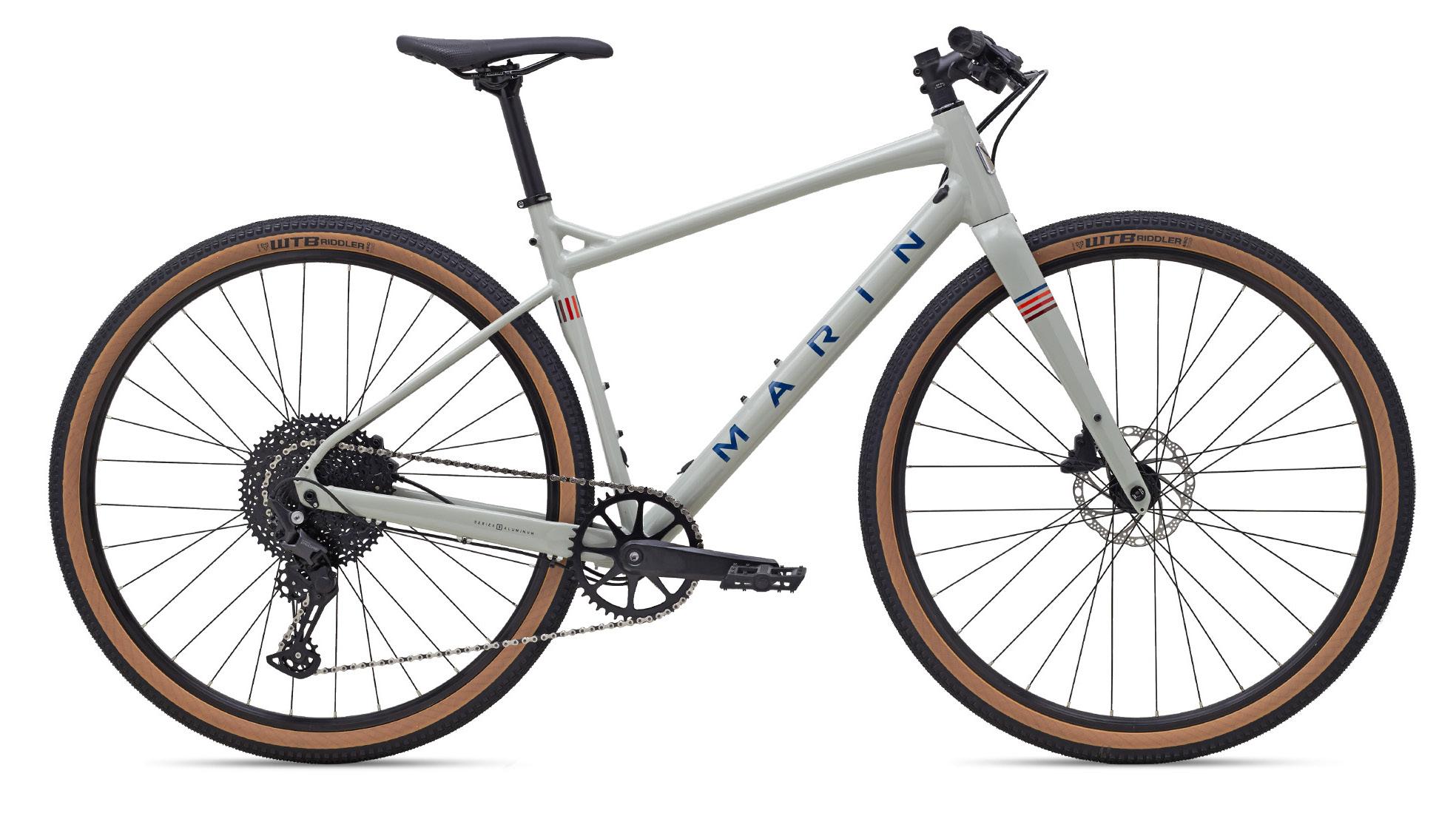

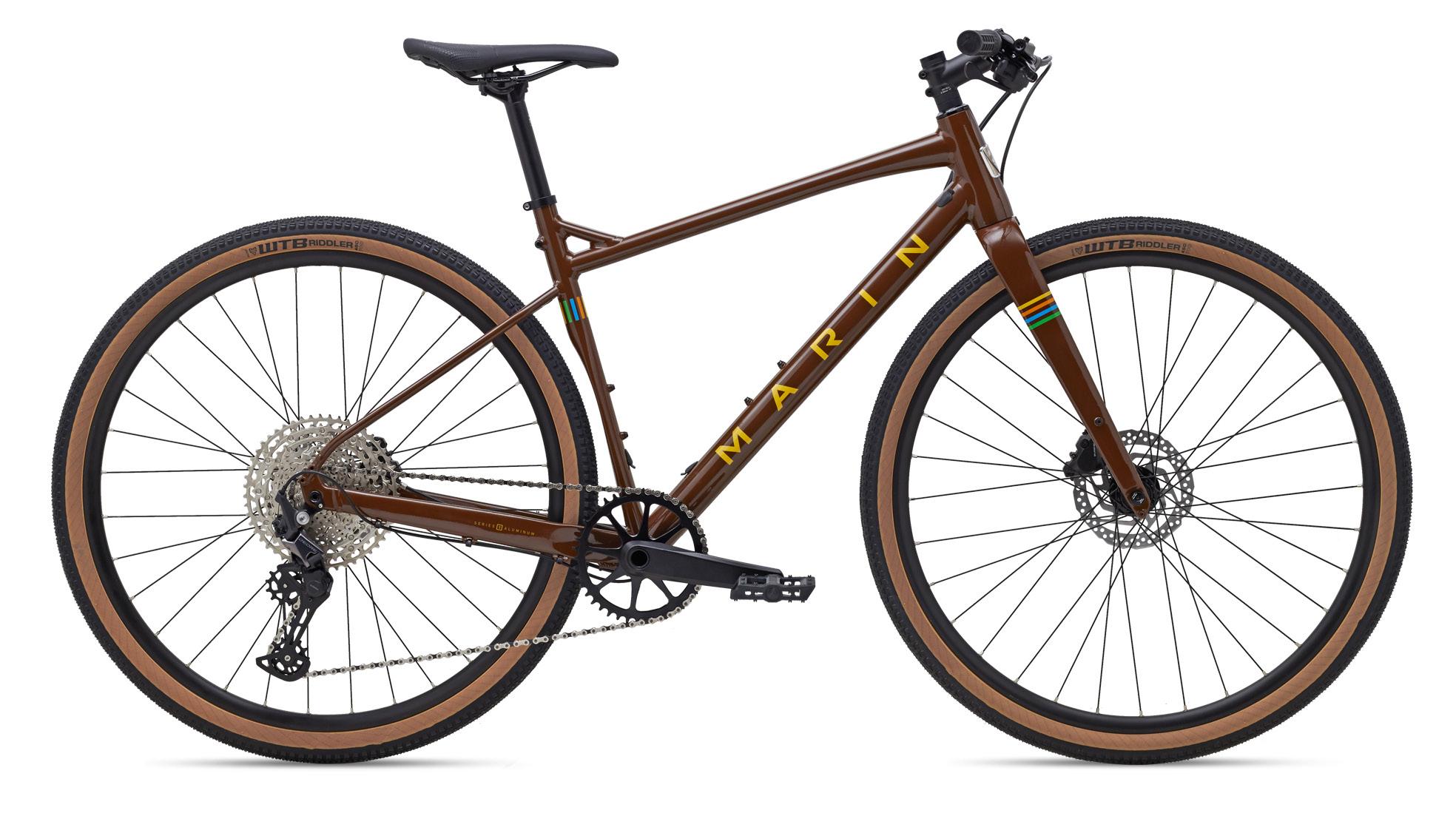

DSX 2
SIZES:
WHEEL SIZE:
COLOR: S / M / L / XL
▶ Series 3 butted & formed aluminum frame
▶ Marin full carbon fork w/thru axle & eyelets
▶ Shimano Deore 12-speed wide-range drivetrain; Shimano hydraulic disc brakes
▶ Marin 21mm inner width rims, Vee Tire Rocket Man 700x44mm tires Specifications,
DSX 1
SIZES:
WHEEL SIZE:
COLOR: S / M / L / XL
▶ Series 3 butted & formed aluminum frame
▶ Marin full carbon fork w/thru axle & eyelets
GREY / BLUE
▶ Shimano Deore 11-speed wide-range drivetrain; Tektro HD-R280 hydraulic disc brakes
▶ Marin 21mm inner width rims, WTB Riddler 700x45mm tires
Specifications, pricing, and availability are subject to change without notice.

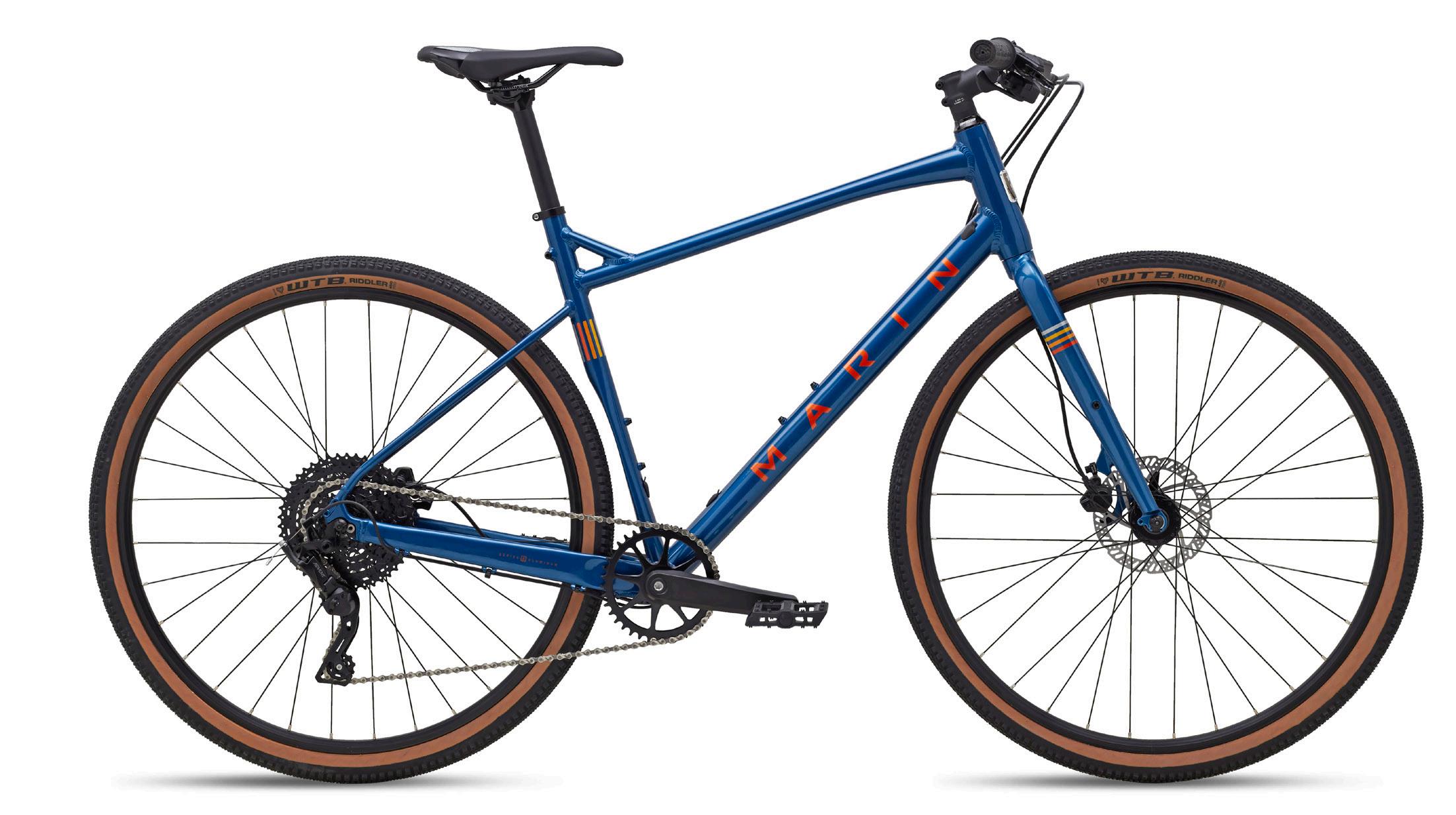

DSX
SIZES:
WHEEL SIZE:
COLOR: S / M / L / XL 700c
BLUE / ORANGE
▶ Series 2 aluminum frame w/internal cable routing, rack & fender mounts
▶ Marin straight blade aluminum fork w/fender & rack eyelets
▶ microSHIFT Advent Trail 9-speed wide-range drivetrain
▶ Clark’s Clout hydraulic disc brakes
▶ Marin double wall rims, WTB Riddler 700x45mm tires
SAN RAFAEL DS2
SIZES:
WHEEL SIZE:
/ S / M / L /
▶ Series 2 hydroformed aluminum Dual Sport frame
▶ SR/Suntour NEX HLO fork w/63mm travel & hydraulic lockout
▶ Shimano Altus 2x8 speed drivetrain; Clark’s Clout hydraulic disc brakes
▶ Marin double wall rims, Vee Tire Rail 700x40mm tires

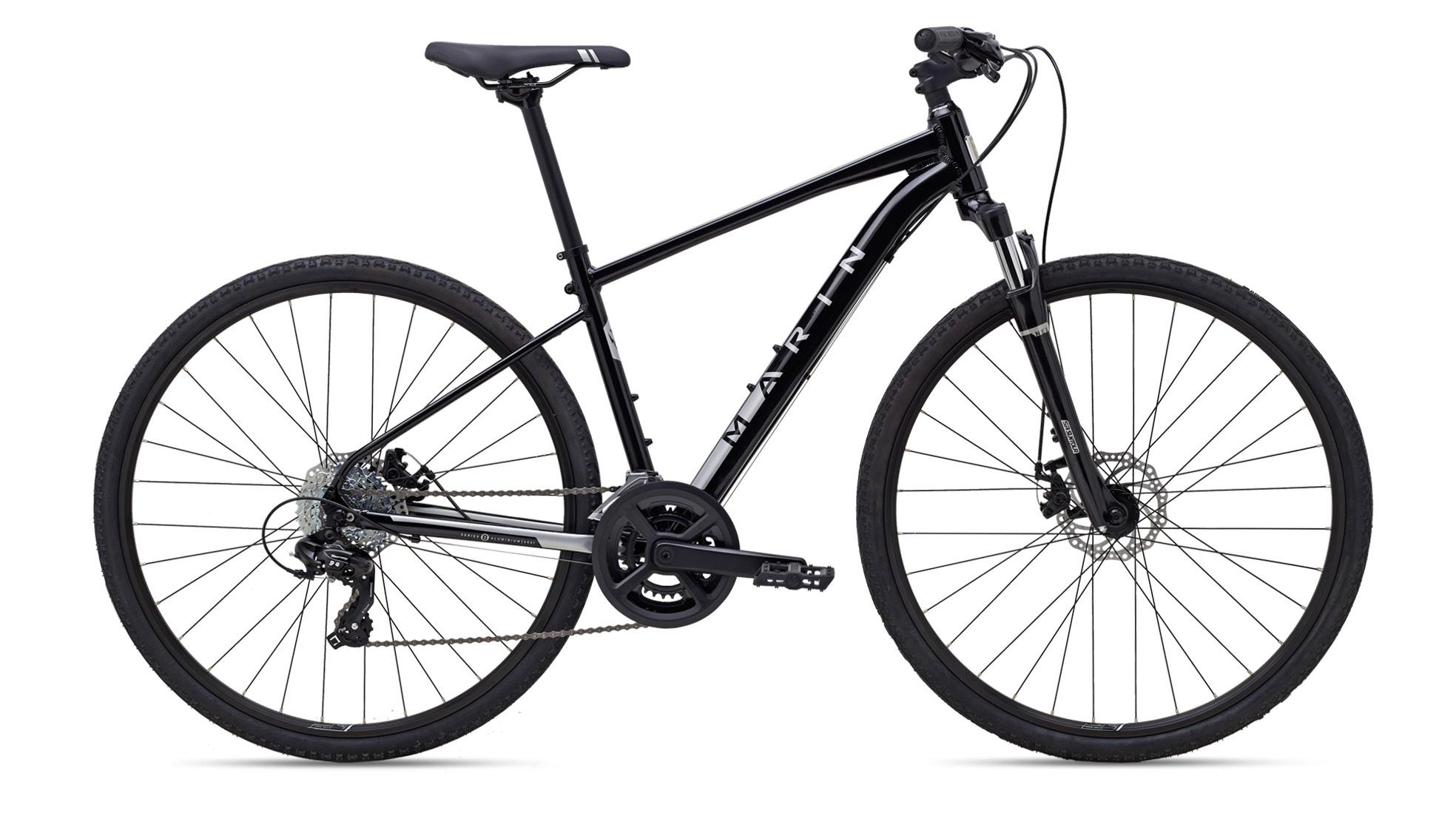

SAN RAFAEL DS1
SIZES:
WHEEL SIZE:
SUSPENSION: COLOR:
/ S / M / L /
▶ Series 2 hydroformed aluminum Dual Sport frame
▶ SR/Suntour NEX HLO fork w/63mm travel
▶ Shimano Tourney 2x7 speed drivetrain; Clark’s CMD mechanical disc brakes
▶ Marin double wall rims, Kenda Kahn 700x40mm tires

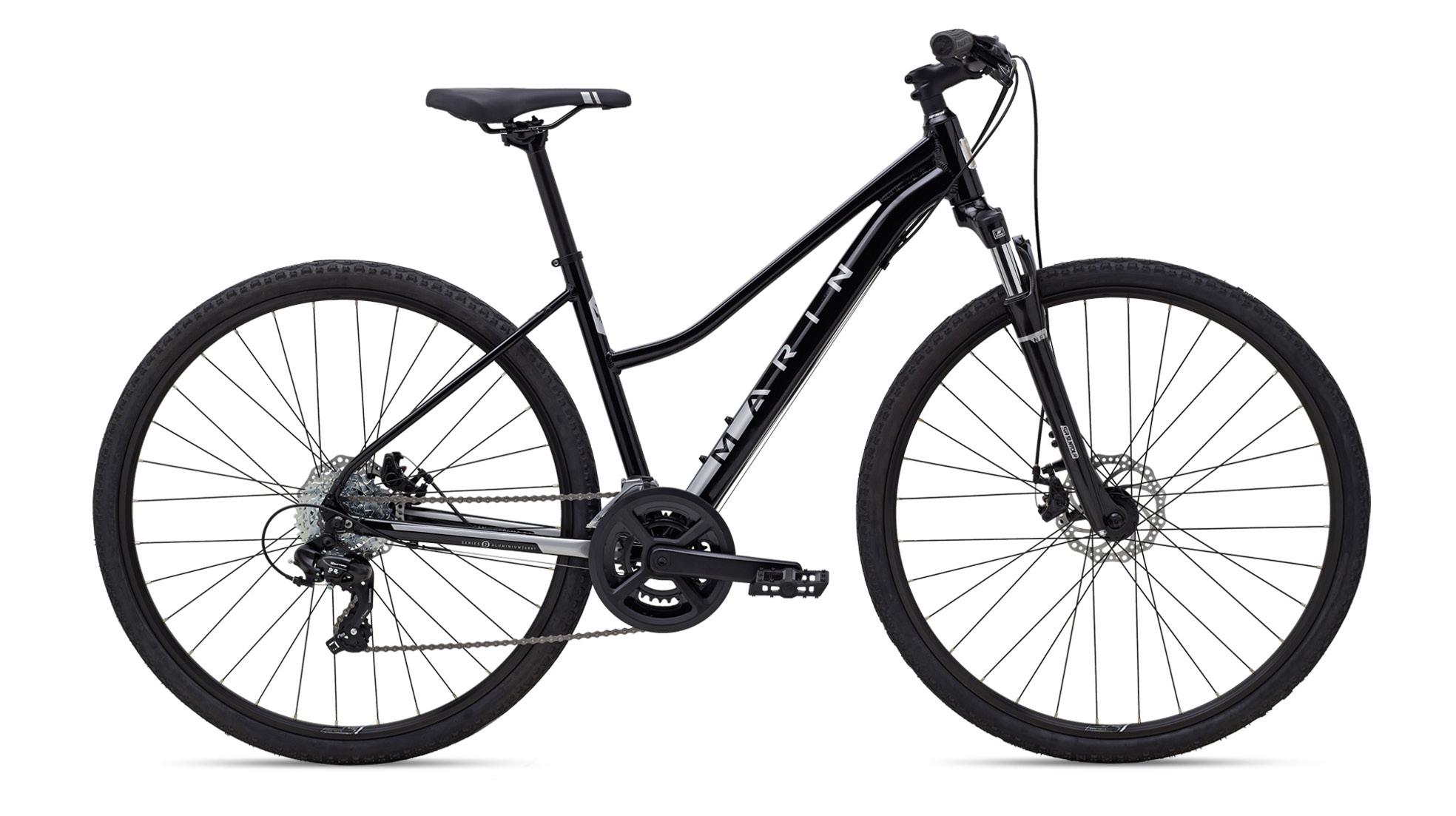

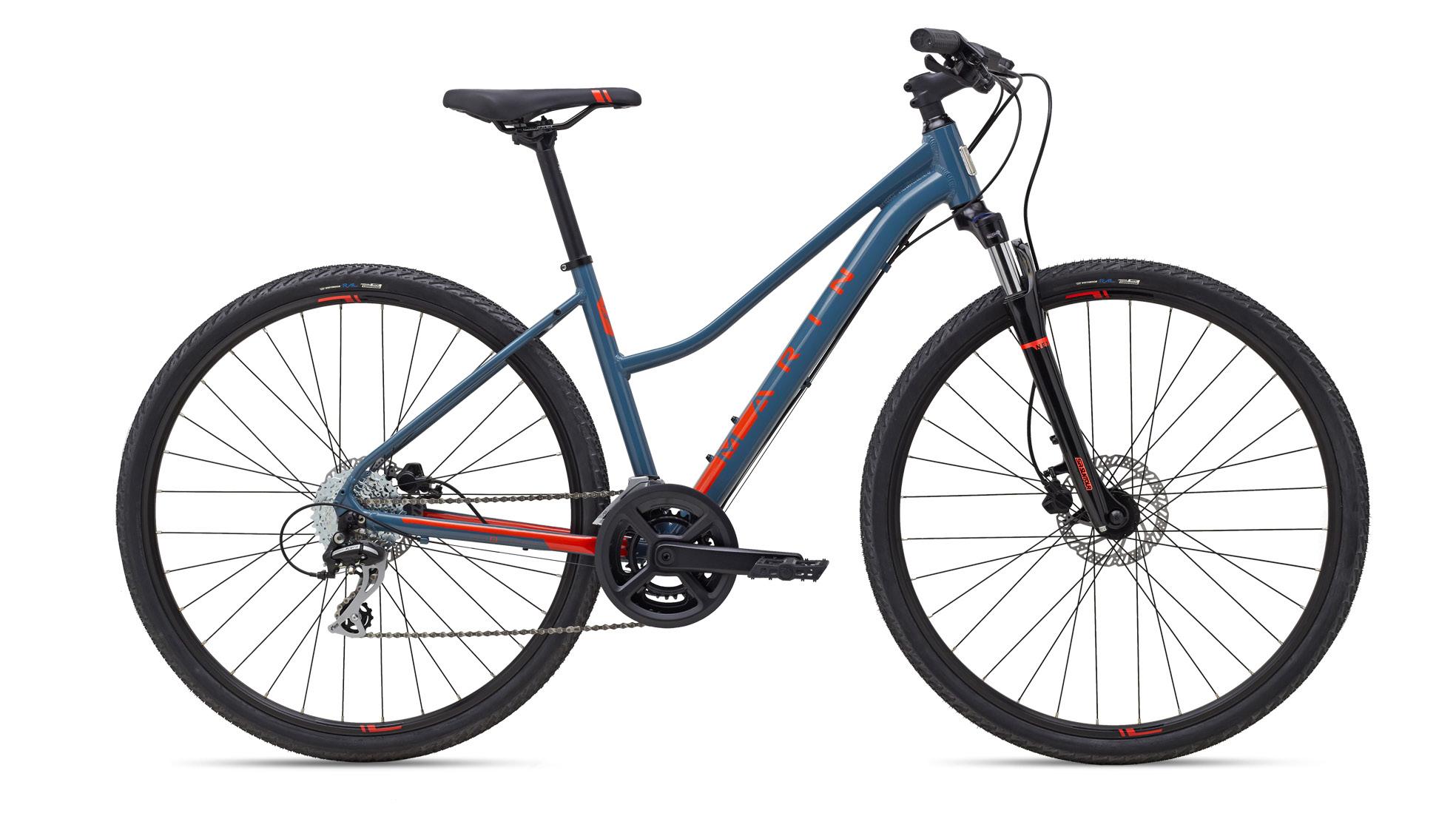

SAN ANSELMO DS2
SIZES:
WHEEL SIZE:
SUSPENSION: COLOR: S / M / L / XL
▶ Series 2 hydroformed aluminum step-thru Dual Sport frame
▶ SR/Suntour NEX HLO fork w/63mm travel & hydraulic lockout
▶ Shimano Altus 2x8 speed drivetrain; Clark’s Clout hydraulic disc brakes
▶ Marin double wall rims, Vee Tire Rail 700x40mm tires
SAN ANSELMO DS1
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL
▶ Series 2 hydroformed aluminum step-thru Dual Sport frame
▶ SR/Suntour NEX HLO fork w/63mm travel
▶ Shimano Tourney 2x7 speed drivetrain; Clark’s CMD mechanical disc brakes
▶ Marin double wall rims, Kenda Kahn 700x40mm tires

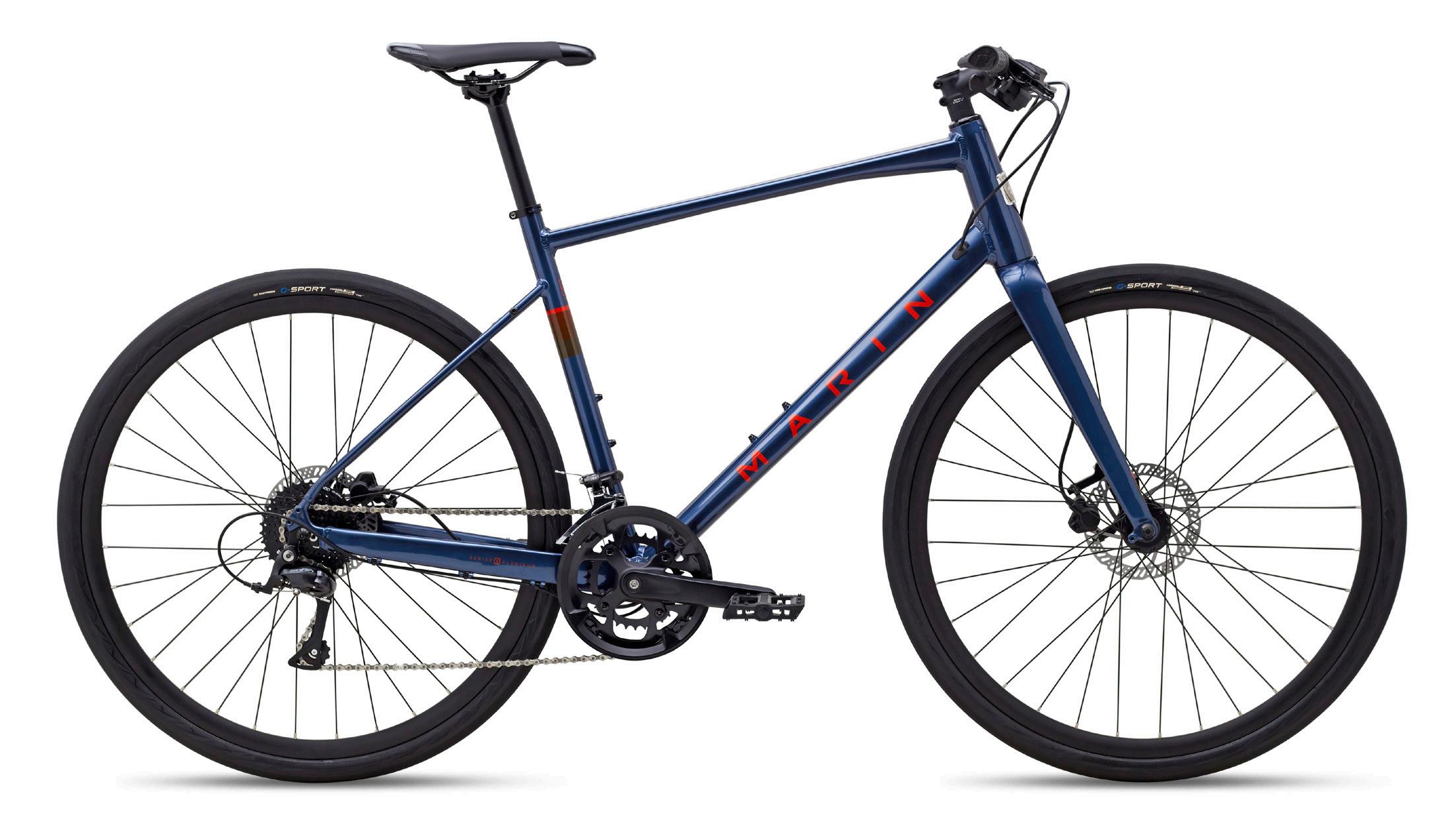

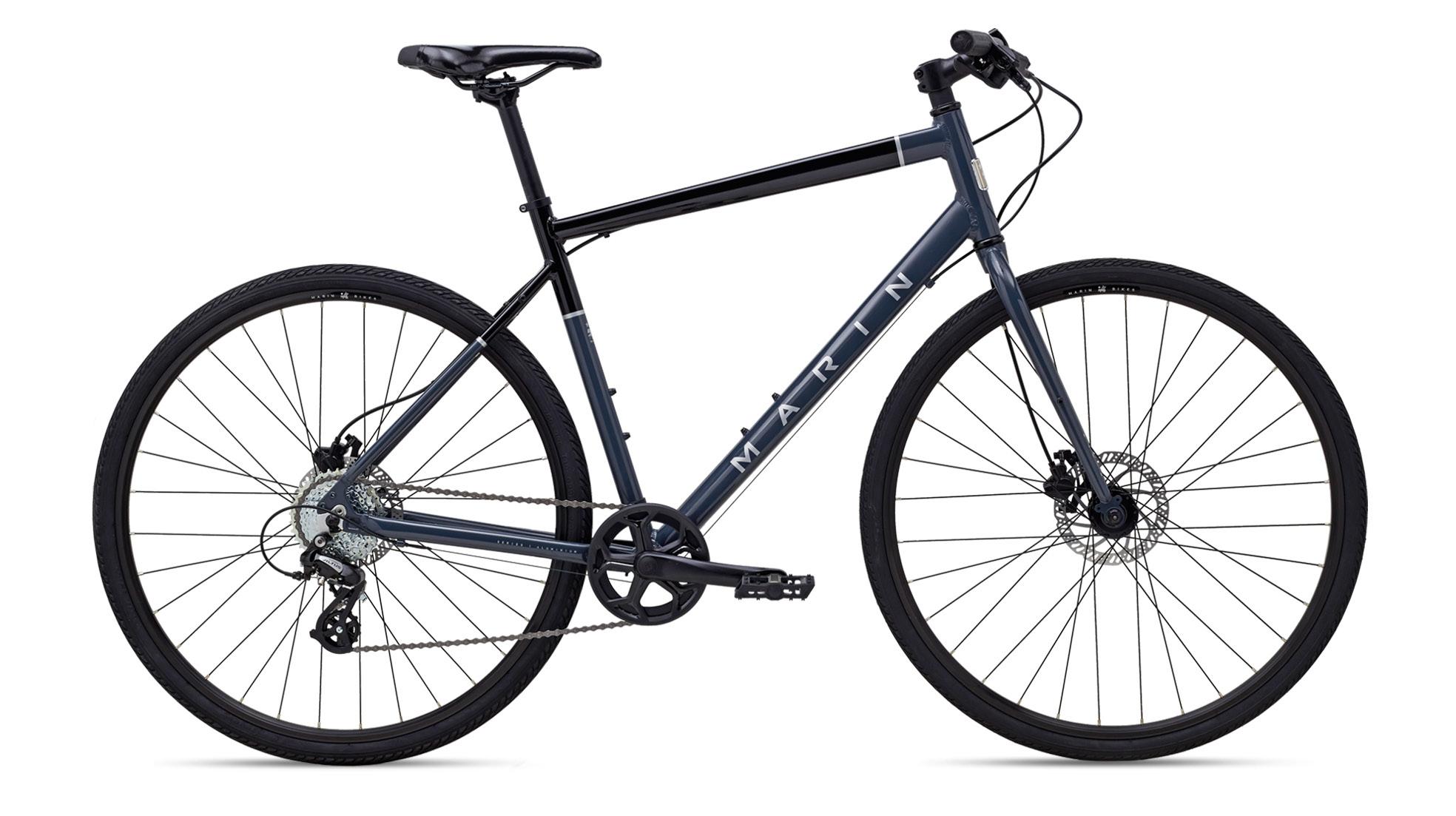

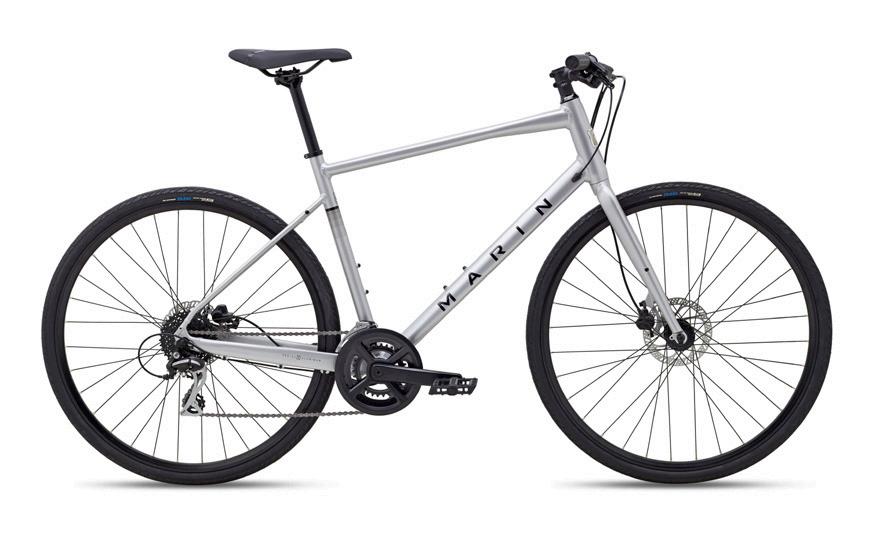

FAIRFAX 3
SIZES:
WHEEL SIZE:
COLOR: XS / S / M / L / XL
BLUE / ORANGE
▶ Series 3 aluminum fitness frame
▶ Marin full carbon fork w/thru axle & eyelets
▶ microSHIFT R9 2x9 speed drivetrain; Clark’s Clout hydraulic disc brakes
▶ Marin 19mm inner width rims, Vee Tire G-Sport Protection 700x35mm tires Specifications,
FAIRFAX 2
SIZES:
WHEEL SIZE: COLOR:
/ S / M / L /
▶ Series 3 aluminum fitness frame
▶ Marin straight blade aluminum fork w/fender & rack eyelets
▶ Shimano Altus 2x8 speed drivetrain; Clark’s Clout hydraulic disc brakes
▶ Marin double wall rims, Vee Tire Zilent Protection 700x35mm tires
FAIRFAX ST 2
SIZES:
WHEEL SIZE:
COLOR:
/ S / M / L
▶ Series 3 aluminum step-thru fitness frame
▶ Marin straight blade aluminum fork w/fender & rack eyelets
▶ Shimano Altus 2x8 speed drivetrain; Clark’s Clout hydraulic disc brakes
▶ Marin double wall rims, Vee Tire Zilent Protection 700x35mm tires Specifications,

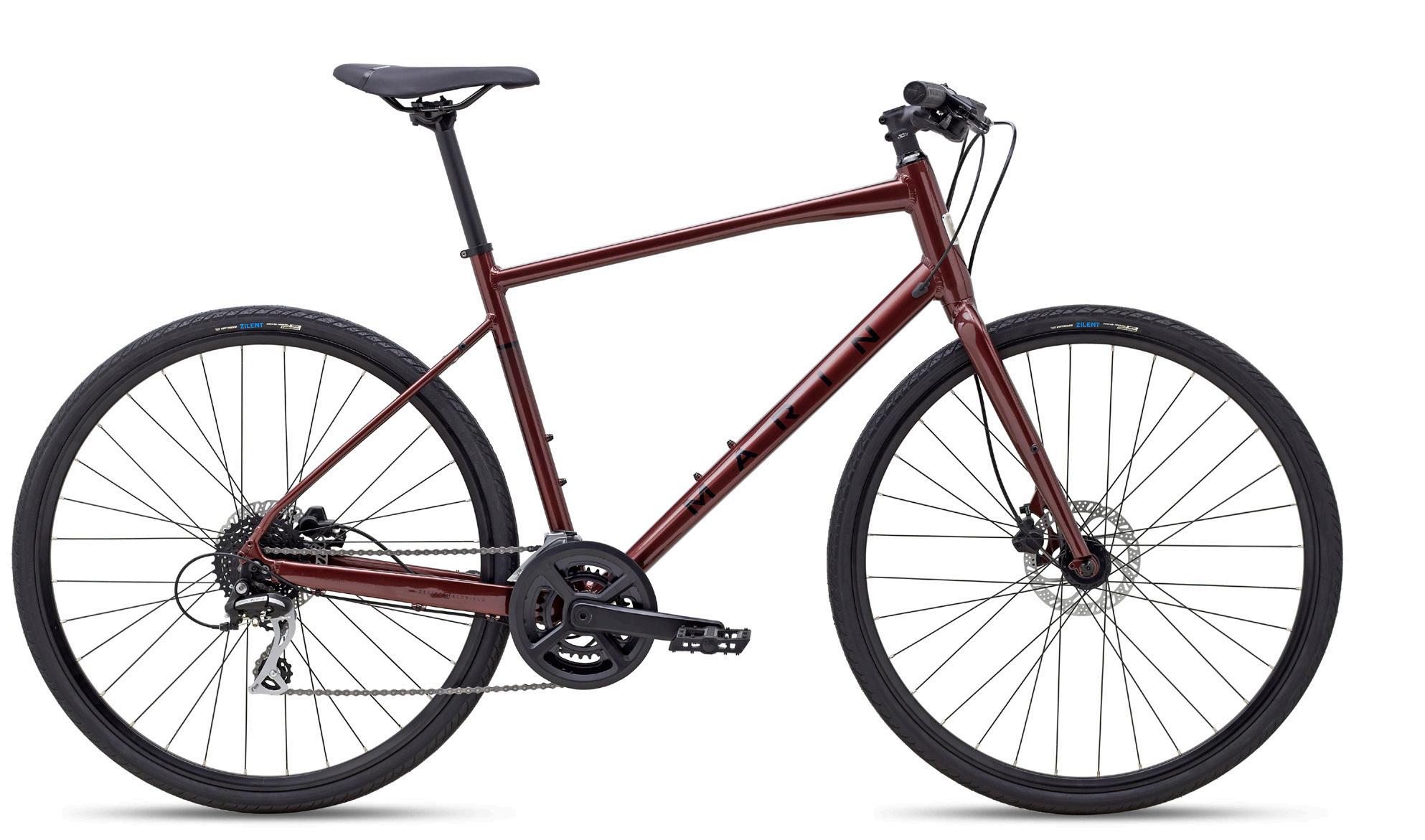

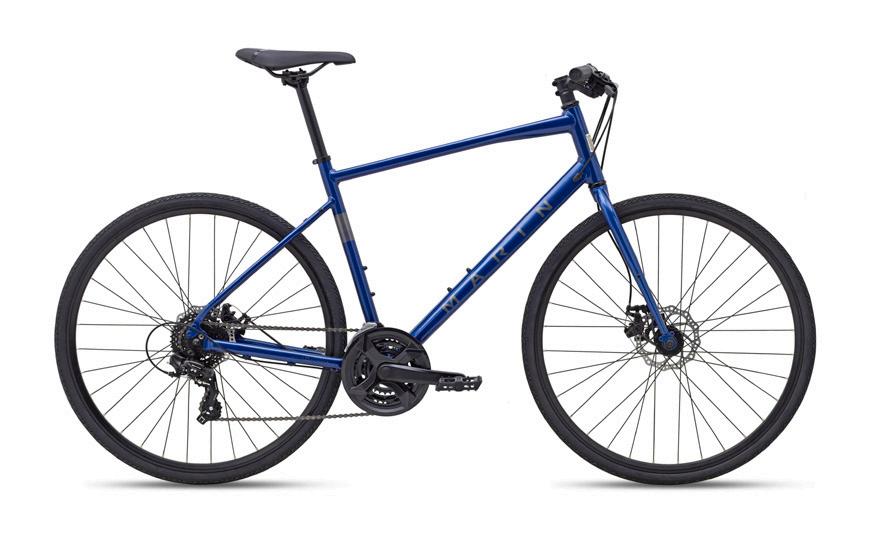

FAIRFAX 1
SIZES:
WHEEL SIZE:
COLOR:
XS / S / M / L / XL 700c
GLOSS BLACK BLUE / GREY
▶ Series 1 aluminum fitness frame
▶ Marin CrMo fork w/fender & rack eyelets
▶ Shimano Tourney 3x7 speed drivetrain; Clark’s CMD-23 mechanical disc brakes
▶ Marin double wall rims, 700x35mm fitness tires

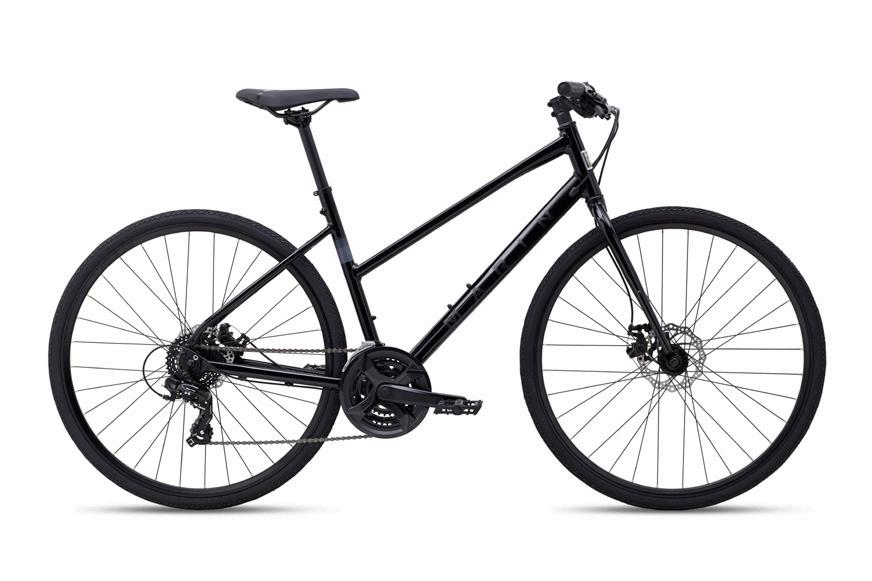

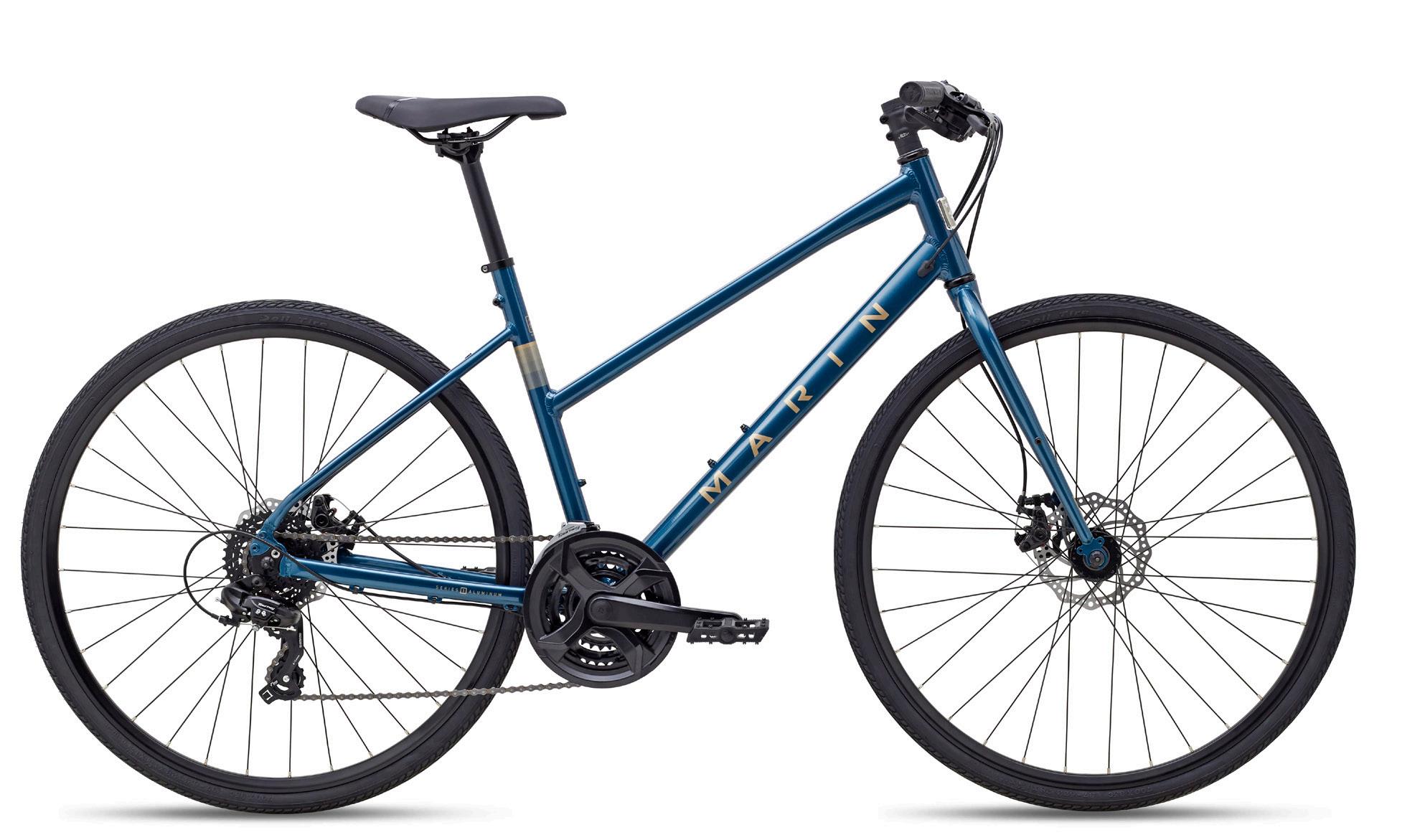

FAIRFAX ST 1
SIZES:
WHEEL SIZE: COLOR:
/ S / M / L
/ TAN
▶ Series 1 aluminum fitness frame
▶ Marin CrMo fork w/fender & rack eyelets
▶ Shimano Tourney 3x7 speed drivetrain; Clark’s CMD-23 mechanical disc brakes
▶ Marin double wall rims, 700x35mm fitness tires

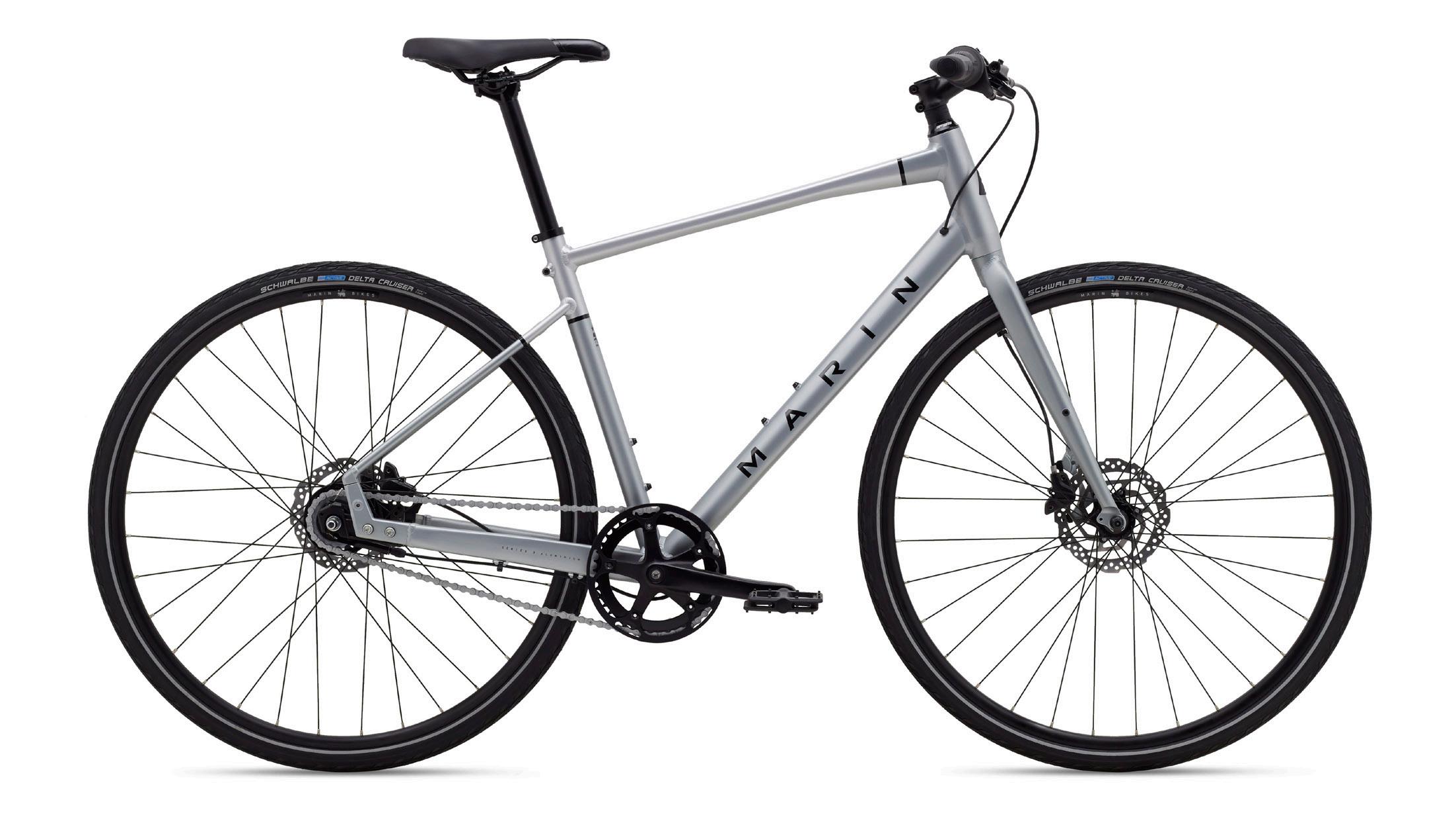

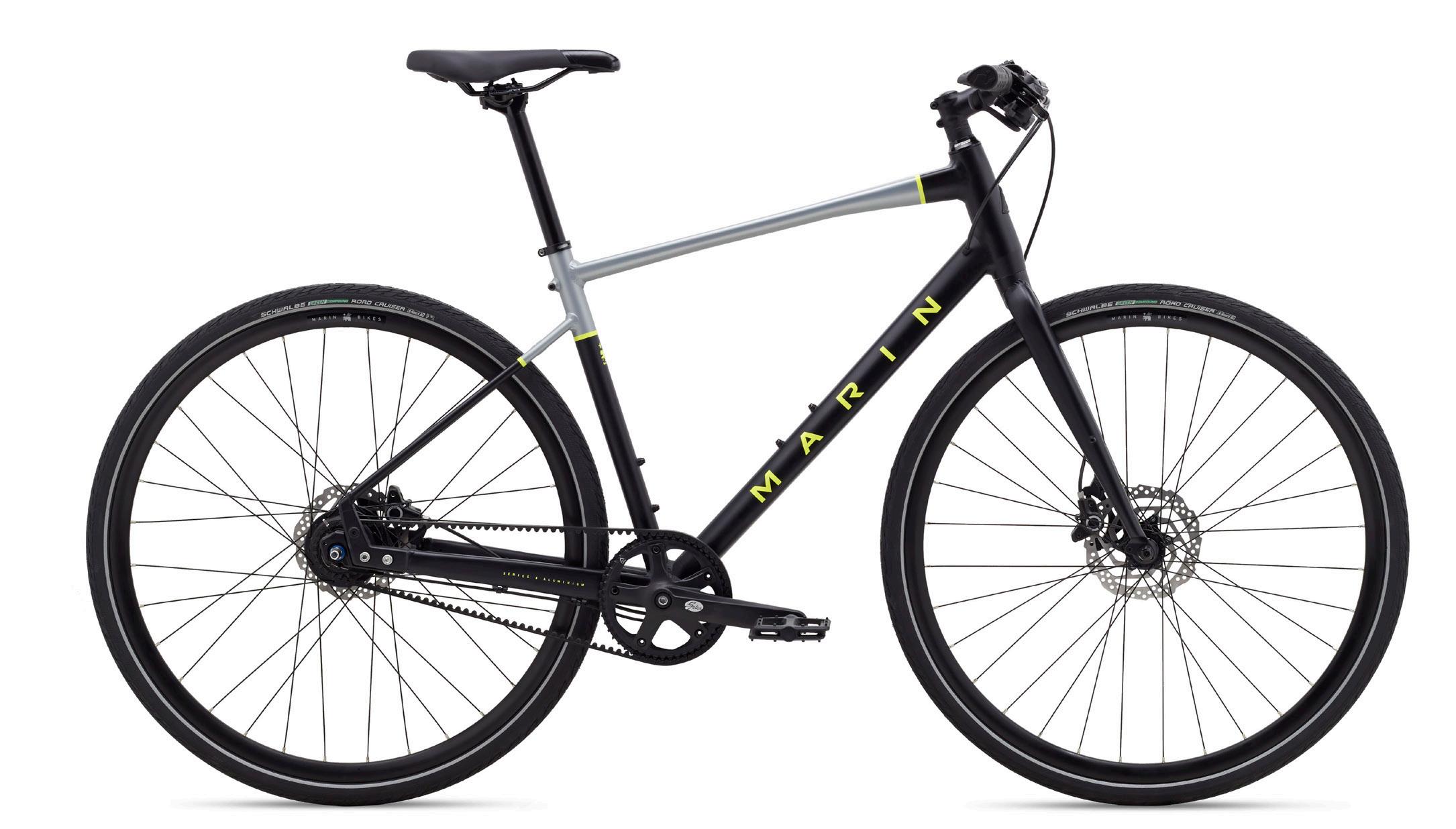

PRESIDIO 3
SIZES:
WHEEL SIZE:
/ S / M / L / XL
▶ Series 2 aluminum commute frame
▶ Marin straight blade aluminum fork w/fender & rack eyelets
▶ Shimano Nexus 8D internally geared drivetrain, Gates Carbon Drive belt system
▶ Shimano U300 flat-mount hydraulic disc brakes
▶ Marin double wall rims, Vee Tire Baldy Protection 700x32mm tires
PRESIDIO 2
SIZES: WHEEL SIZE:
/ S / M / L /
▶ Series 2 aluminum commute frame
▶ Marin straight blade aluminum fork w/fender & rack eyelets
▶ Shimano Nexus 7D internally geared drivetrain; U300 flat-mount hydraulic disc brakes
▶ Marin double wall rims, Vee Tire Baldy Protection 700x32mm tires
PRESIDIO 1
SIZES:
WHEEL SIZE:
COLOR:
/ S / M / L / XL
▶ Series 1 aluminum commute frame
▶ Marin CrMo fork w/fender & rack eyelets
▶ Shimano Altus 8-speed drivetrain; Clark’s Clout hydraulic disc brakes
▶ Marin double wall rims, 700x35mm fitness tires Specifications,

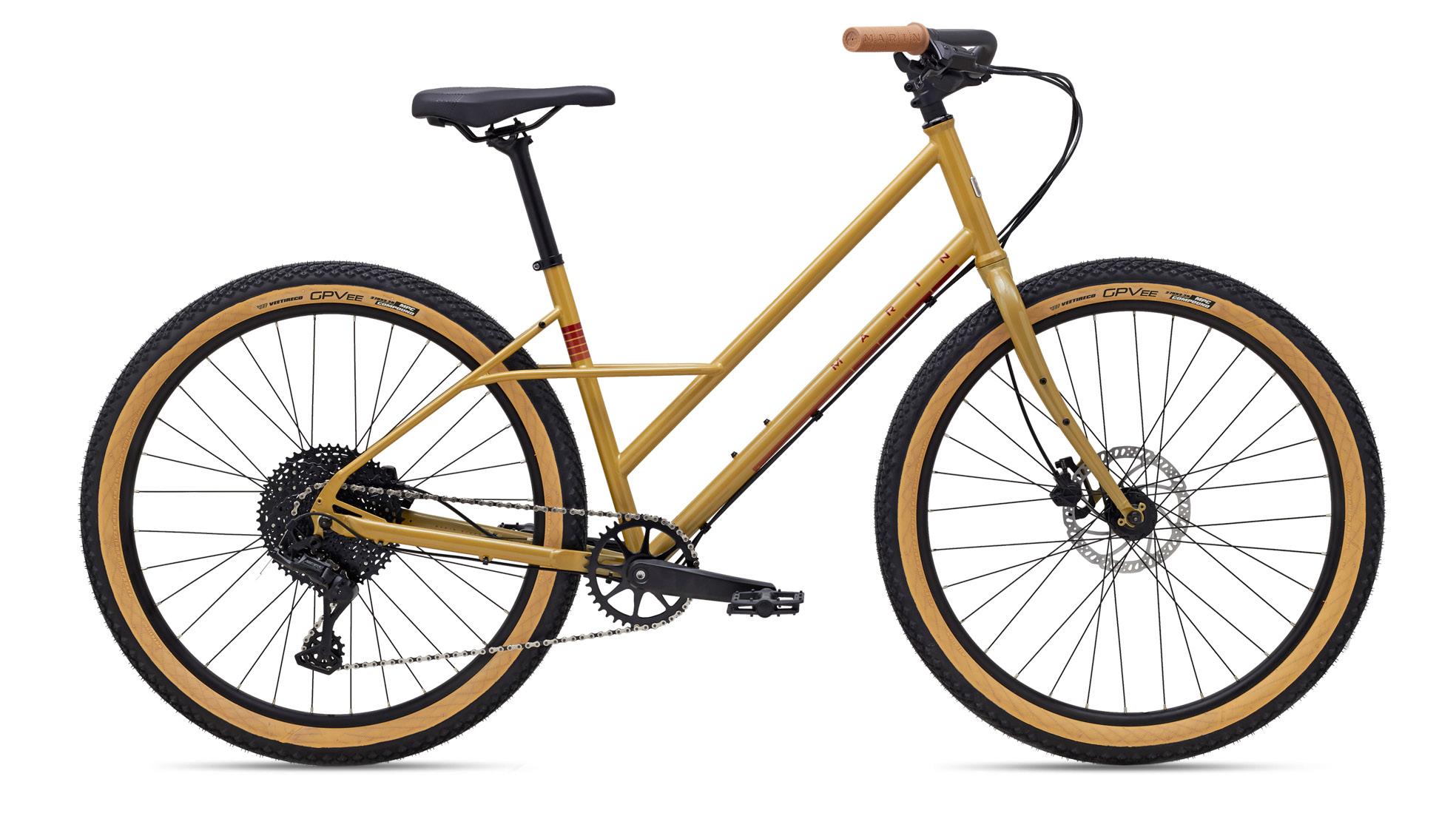

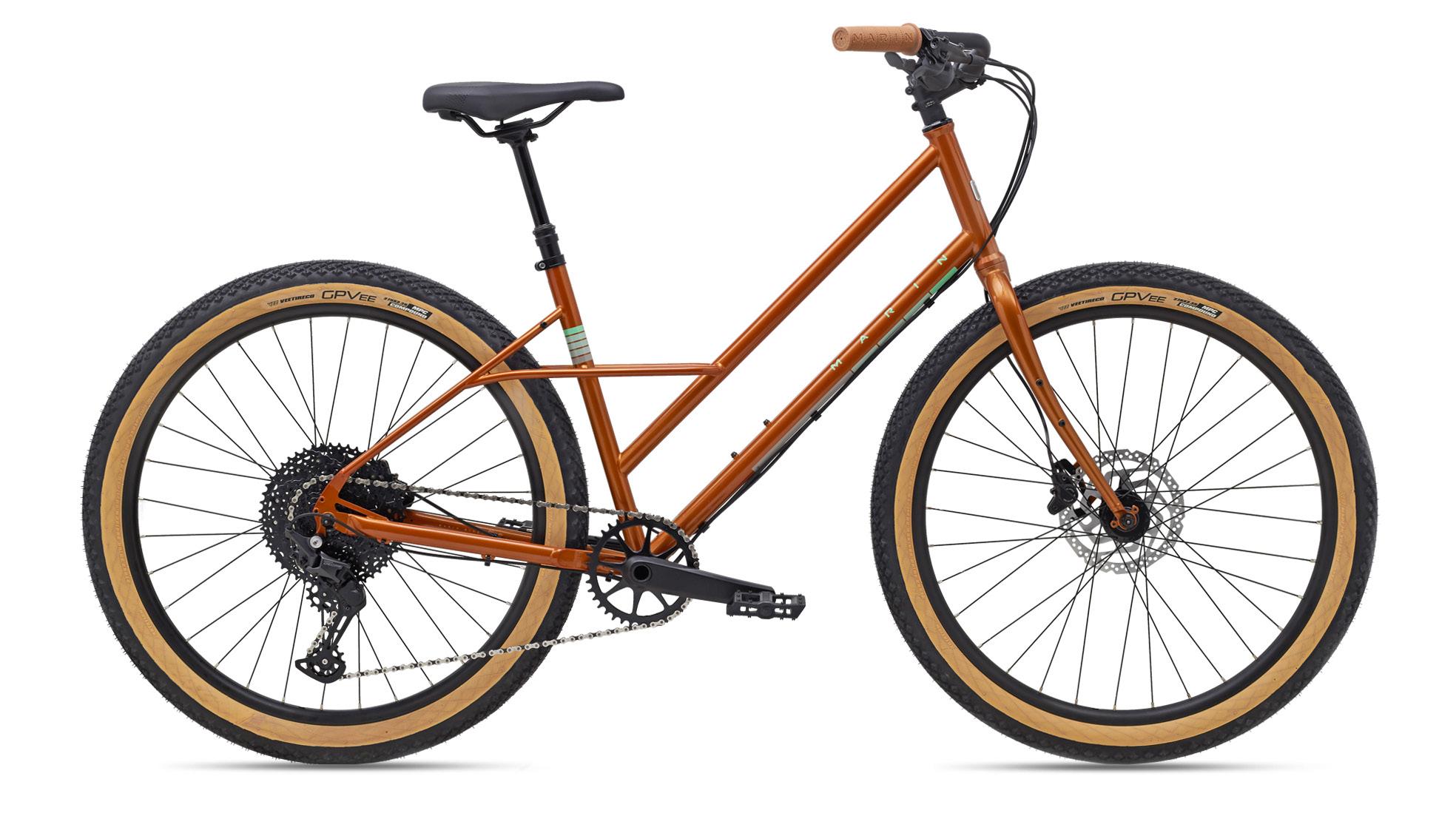

LARKSPUR 2
SIZES:
WHEEL SIZE:
COLOR: S / M / L
▶ Series 2 butted CrMo “adventure mixte” frame, 27.5” wheels
▶ Marin CrMo curved blade fork w/gear mounts
▶ Shimano Deore 11-speed wide range drivetrain; Deore hydraulic disc brakes
▶ Marin 27mm inner width rims, Vee GPVee 27.5” x 2.35” tires
LARKSPUR 1
SIZES:
WHEEL SIZE:
COLOR: S / M / L 27.5” YELLOW
▶ Series 2 butted CrMo “adventure mixte” frame, 27.5” wheels
▶ Marin CrMo curved blade fork w/gear mounts
▶ microSHIFT 10-speed wide range drivetrain; Tektro M275 hydraulic disc brakes
▶ Marin 27mm inner width rims, Vee GPVee 27.5” x 2.35” tires Specifications,
MUIRWOODS
SIZES:
WHEEL SIZE: COLOR:
/ S / M / L /
▶ Series 1 butted CrMo frame, 700c wheels
▶ Marin CrMo moto blade fork w/gear mounts
▶ microSHIFT 10-speed wide range drivetrain; Tektro M275 hydraulic disc brakes
▶ Marin double wall rims, Schwalbe Citizen 700x42mm tires

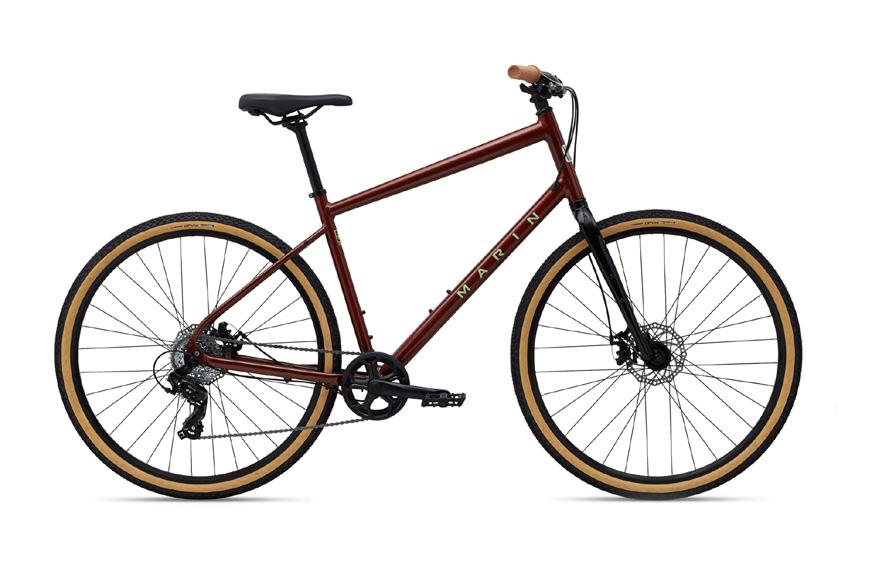

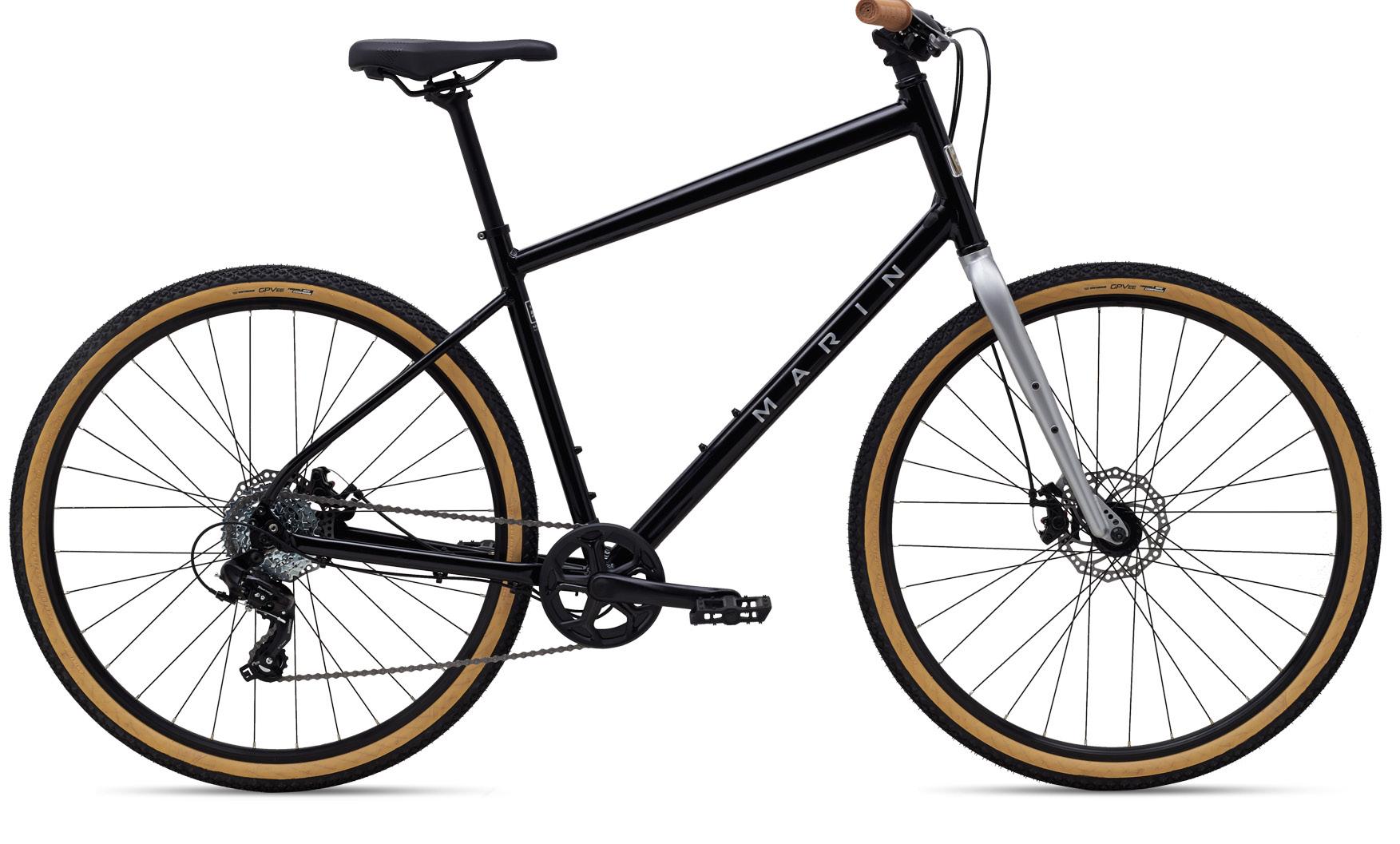

KENTFIELD 2
▶ Series 1 aluminum hybrid frame
▶ Marin CrMo moto blade fork w/gear mounts
▶ microSHIFT 10-speed wide range drivetrain; Clark’s CMD-23 mechanical disc brakes
▶ Marin double wall rims, Vee Tire GPVee 700x40mm tires

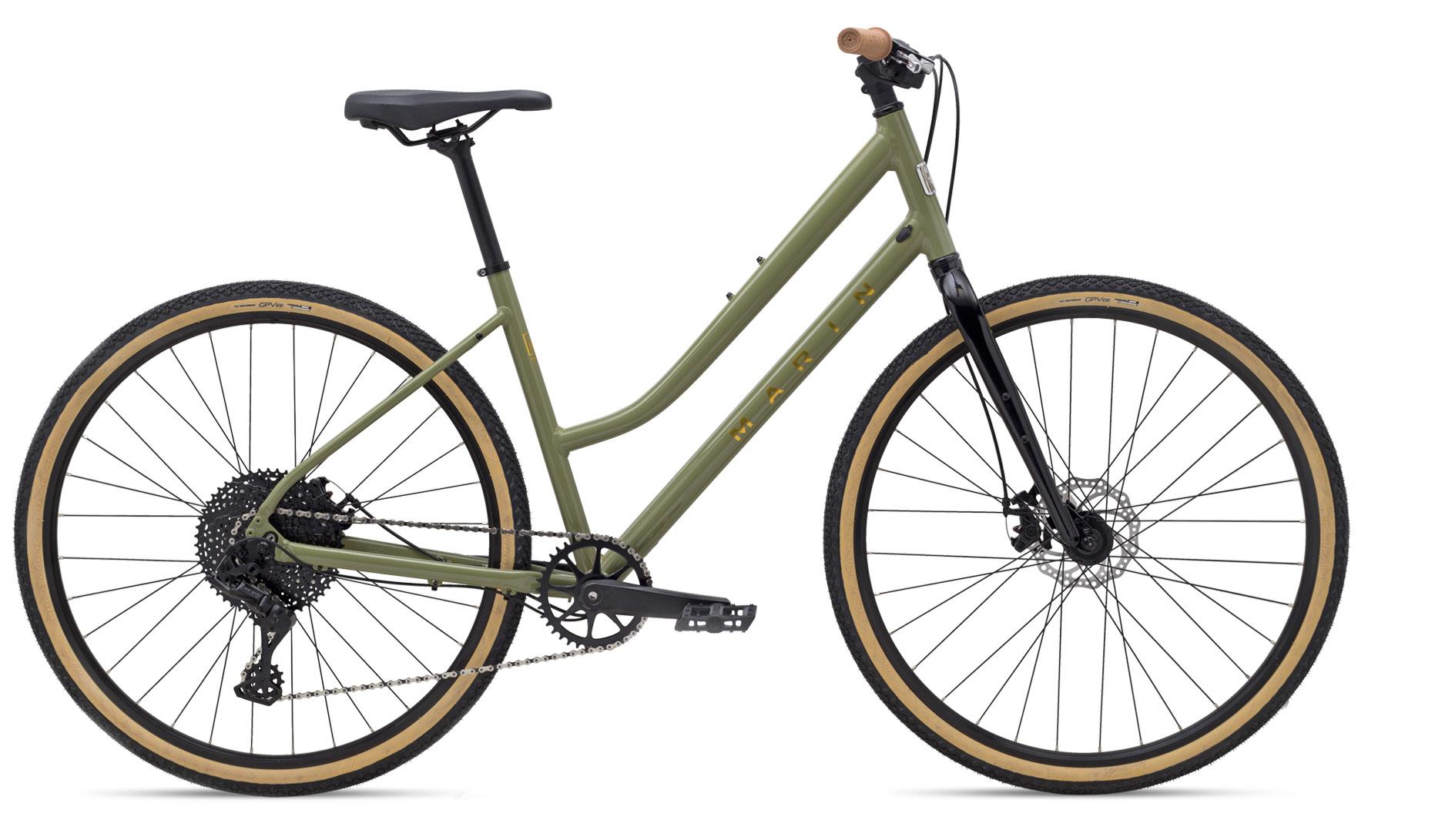

KENTFIELD ST 2
▶ Series 1 aluminum hybrid step-thru frame
▶ Marin CrMo moto blade fork w/gear mounts
▶ microSHIFT 10-speed wide range drivetrain; Clark’s CMD-23 mechanical disc brakes
▶ Marin double wall rims, Vee Tire GPVee 700x40mm tires
KENTFIELD 1
SIZES: WHEEL SIZE:
▶ Series 1 aluminum hybrid frame
▶ Marin CrMo moto blade fork w/gear mounts
▶ Shimano Tourney/Altus 7-speed drivetrain; Clark’s CMD-23 mechanical disc brakes
▶ Marin double wall rims, Vee Tire GPVee 700x40mm tires

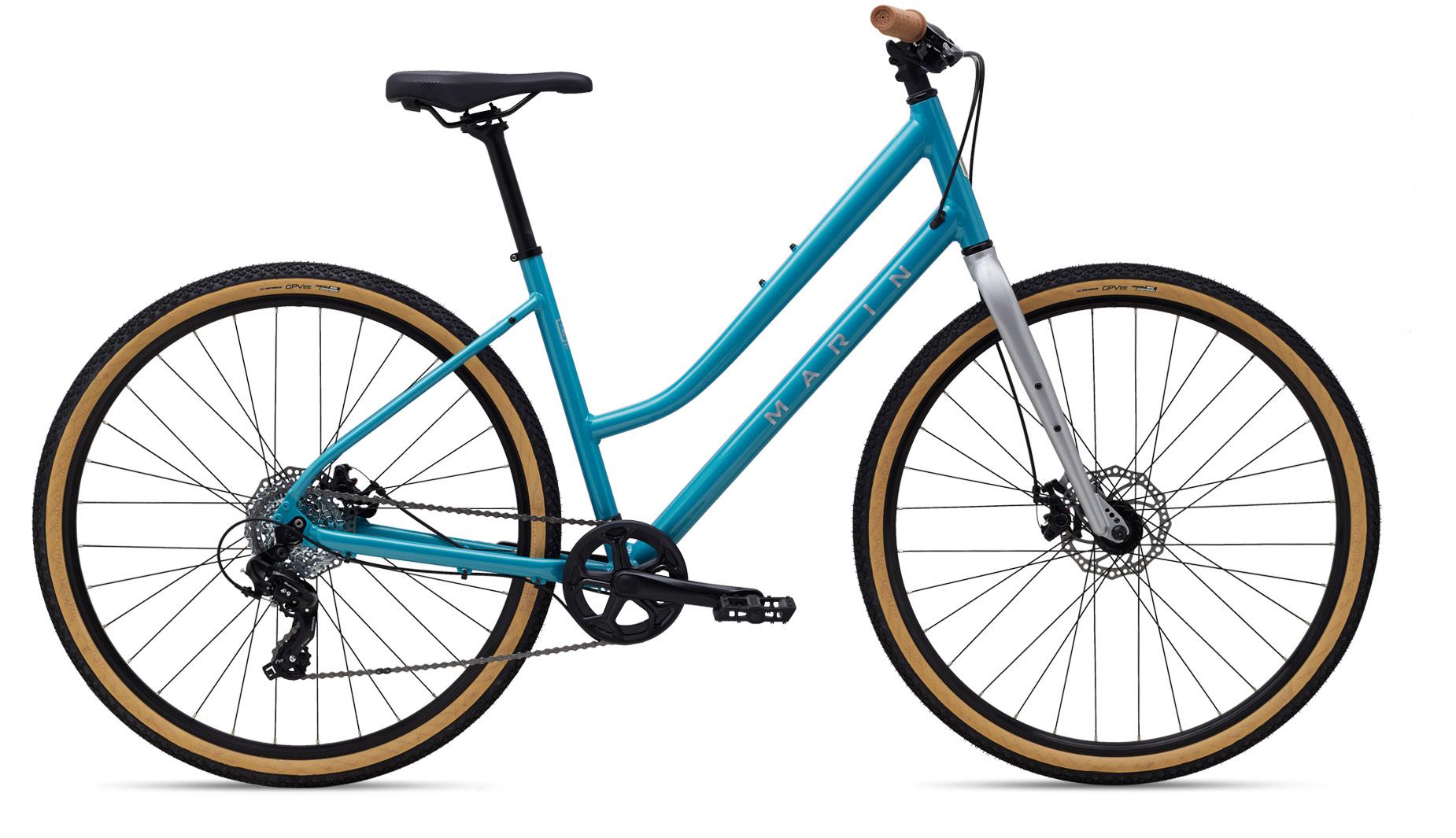

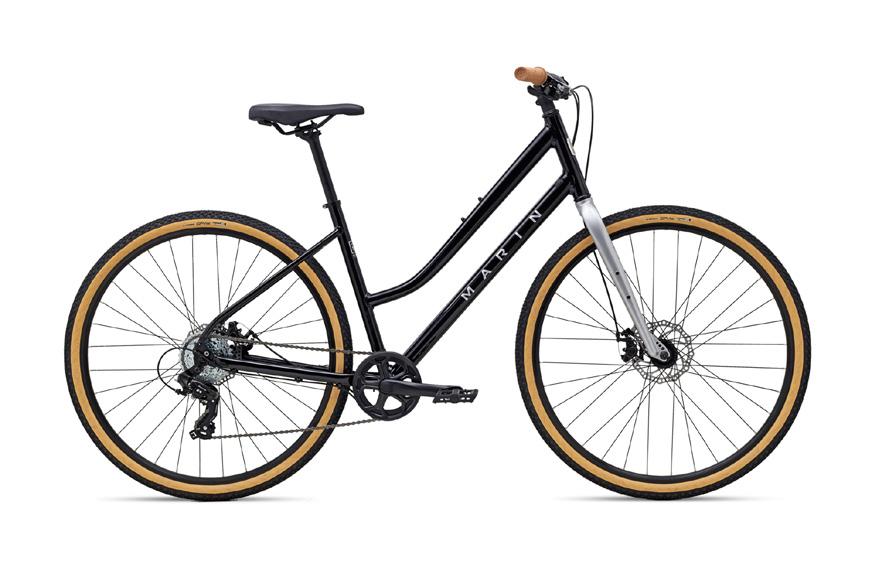

KENTFIELD ST 1
▶ Series 1 aluminum hybrid step-thru frame
▶ Marin CrMo moto blade fork w/gear mounts
▶ Shimano Tourney/Altus 7-speed drivetrain; Clark’s CMD-23 mechanical disc brakes
▶ Marin double wall rims, Vee Tire GPVee 700x40mm tires

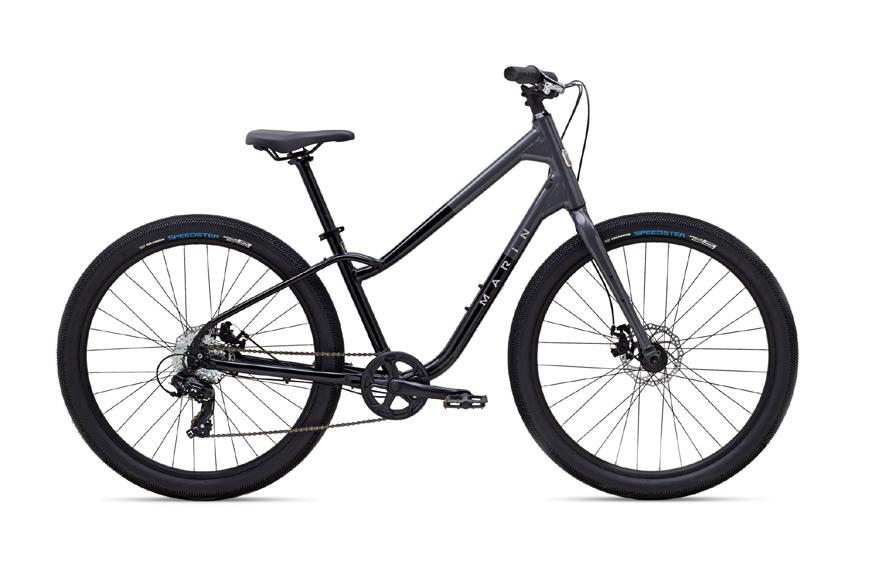

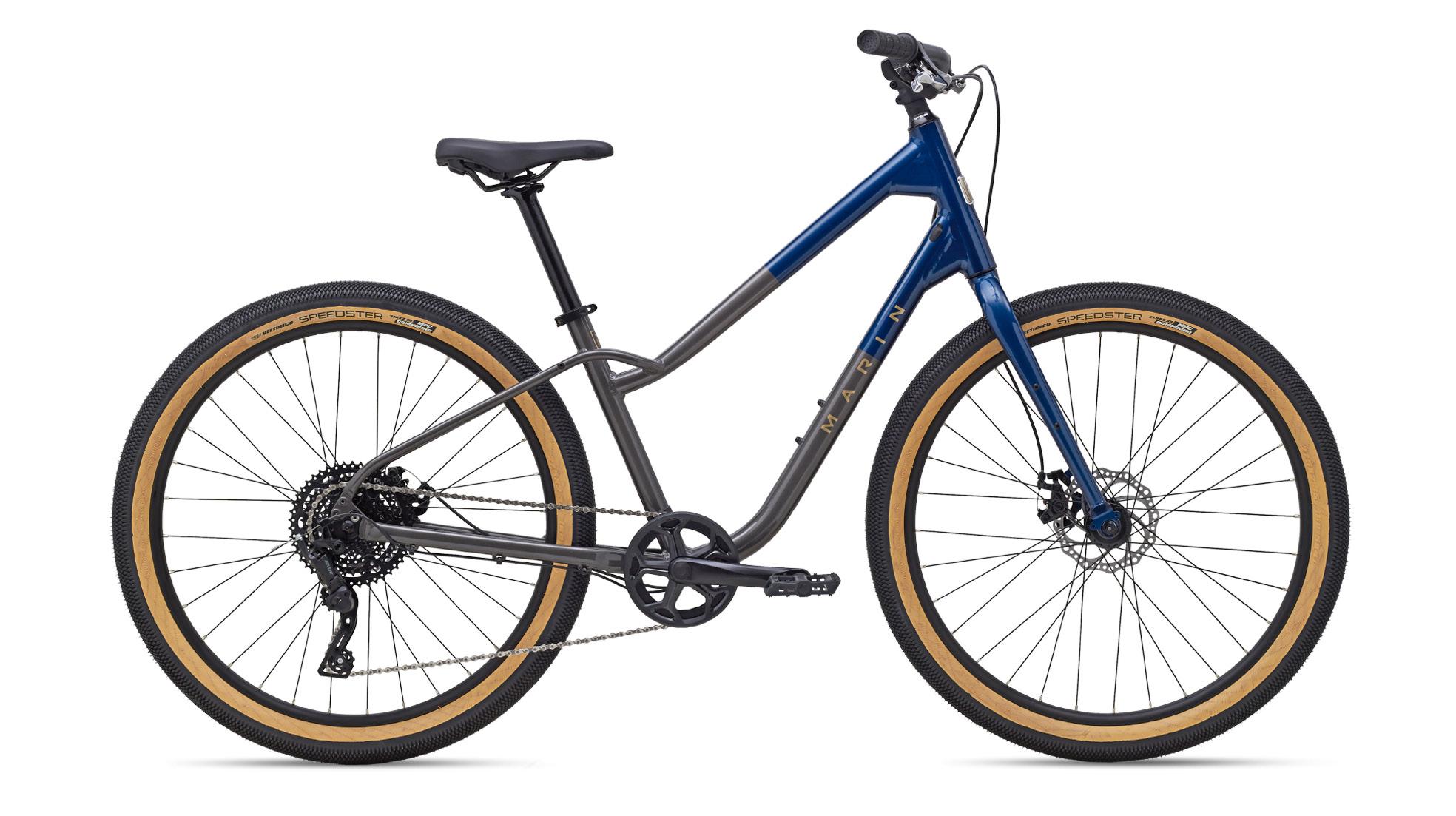

STINSON 2
SIZES:
WHEEL SIZE:
COLOR:
/ M / L / XL
CHARCOAL / BLUE
▶ Series 1 aluminum comfort frame
▶ Marin CrMo fork w/fender & rack eyelets
▶ microSHIFT 9-speed drivetrain; Clark’s CMD-23 mechanical disc brakes
▶ Marin double wall rims, Vee Tire Speedster 27.5” x 2.35” tires

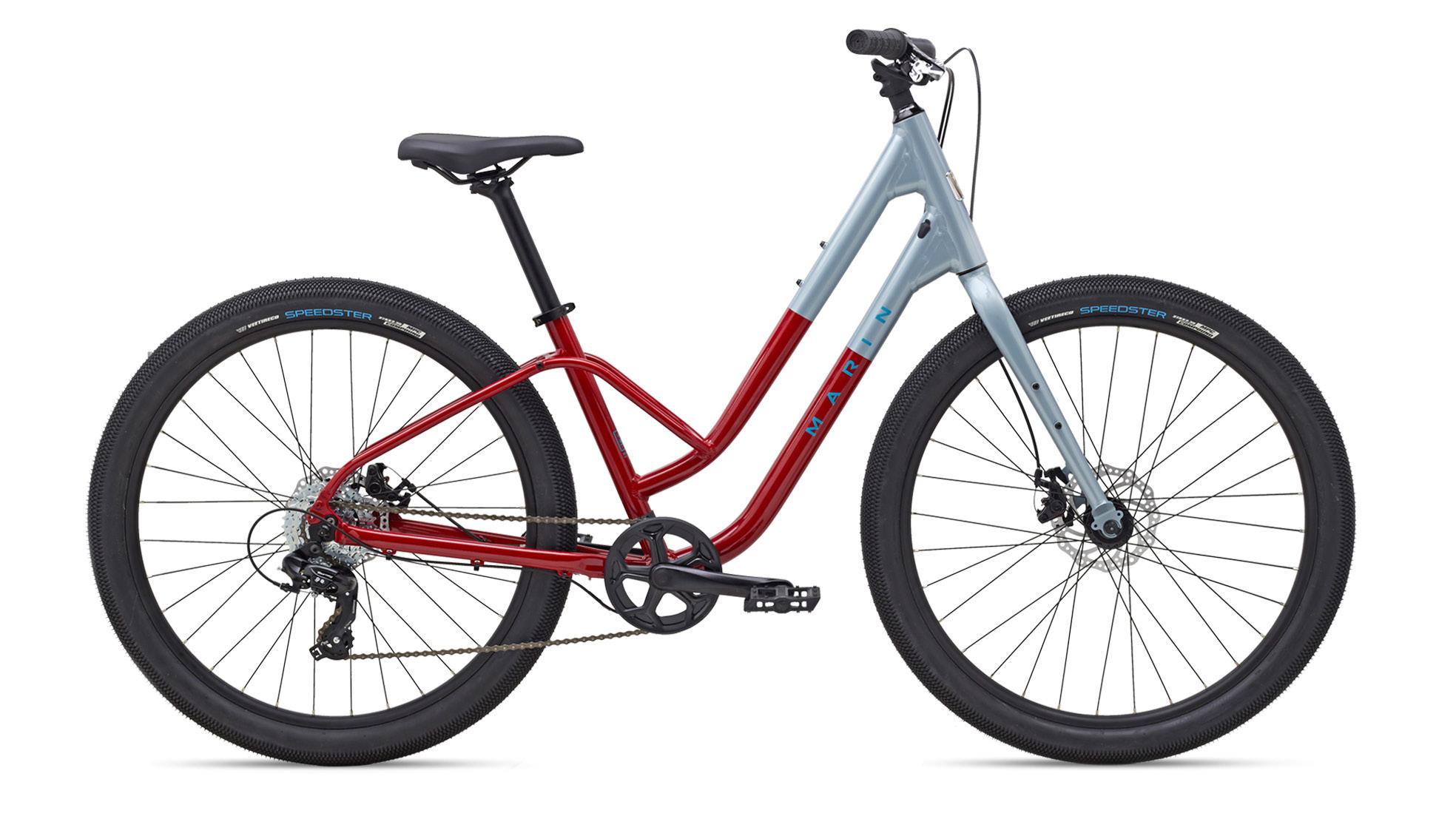

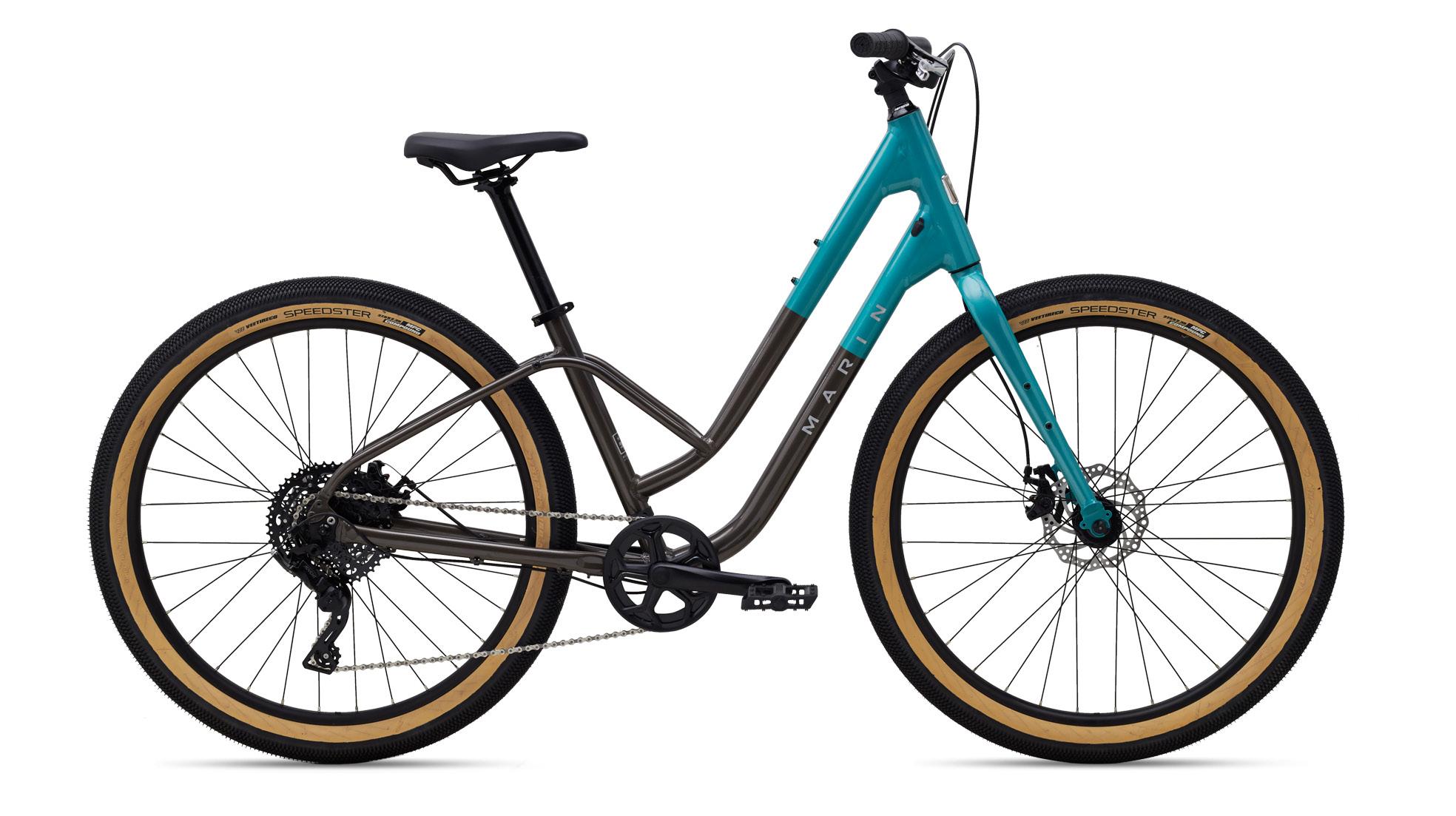

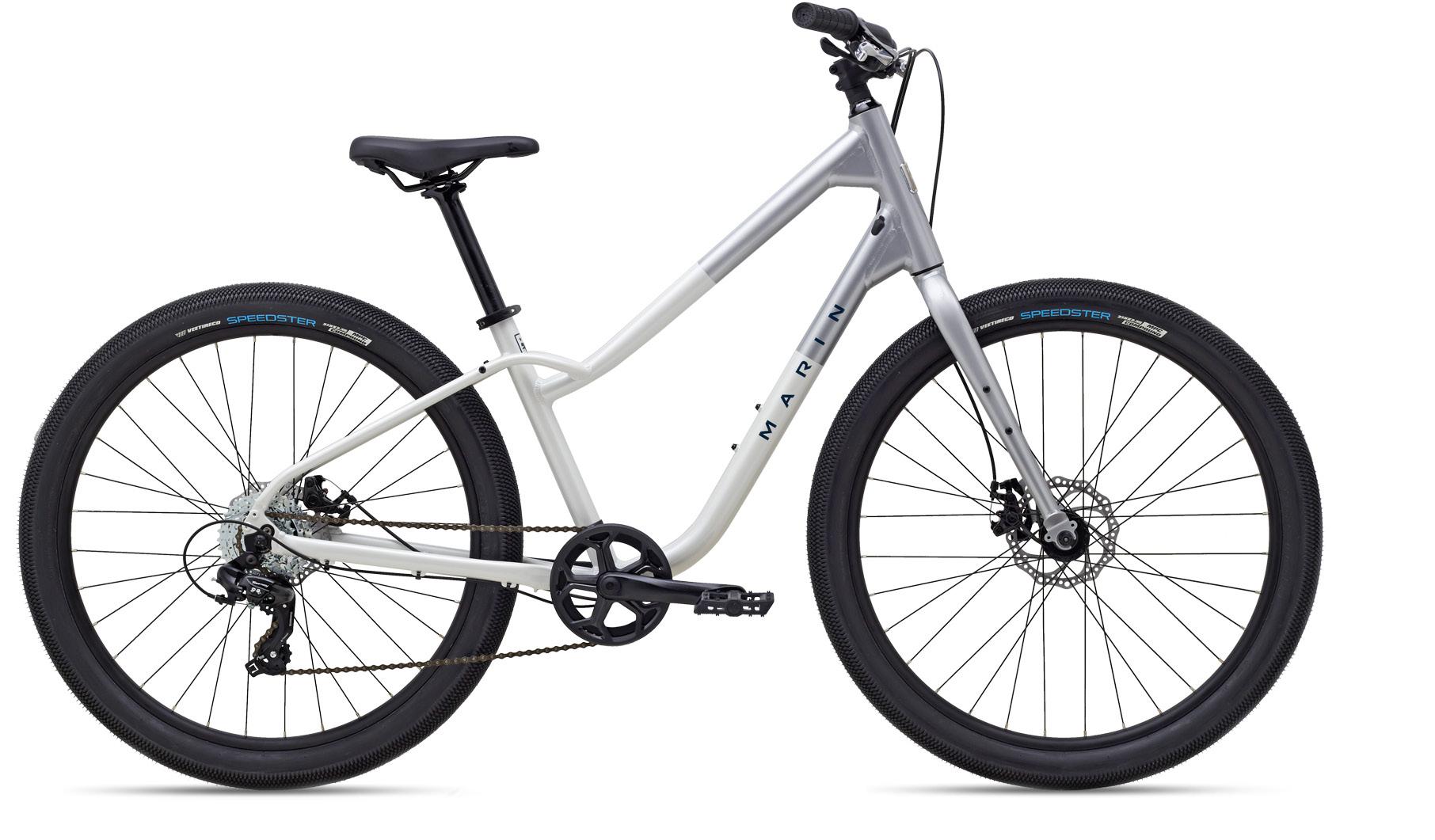

STINSON ST 2
▶ Series 1 aluminum comfort step-thru frame
▶ Marin CrMo fork w/fender & rack eyelets
▶ microSHIFT 9-speed drivetrain; Clark’s CMD-23 mechanical disc brakes
▶ Marin double wall rims, Vee Tire Speedster 27.5” x 2.35” tires
STINSON 1
SIZES:
WHEEL SIZE:
COLOR: S / M / L / XL 700c WHITE / SILVER CHARCOAL
▶ Series 1 aluminum comfort frame
▶ Marin CrMo fork w/fender & rack eyelets
▶ Shimano Tourney/Altus 7-speed drivetrain; Clark’s CMD-23 mechanical disc brakes
▶ Marin double wall rims, Vee Tire GPVee 700x40mm tires

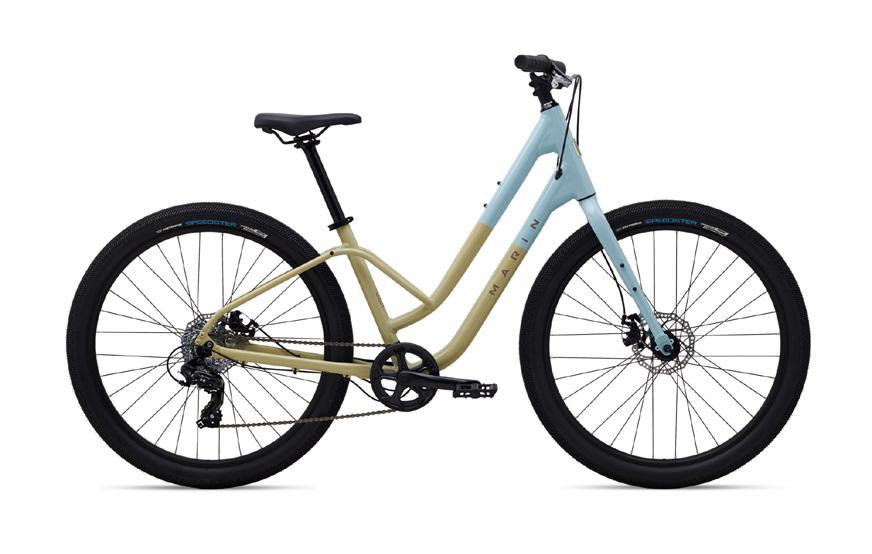

STINSON ST 1
SIZES:
WHEEL SIZE: COLOR:
/ M / L
▶ Series 1 aluminum comfort step-thru frame
▶ Marin CrMo fork w/fender & rack eyelets
▶ Shimano Tourney/Altus 7-speed drivetrain; Clark’s CMD-23 mechanical disc brakes
▶ Marin double wall rims, Vee Tire GPVee 700x40mm tires

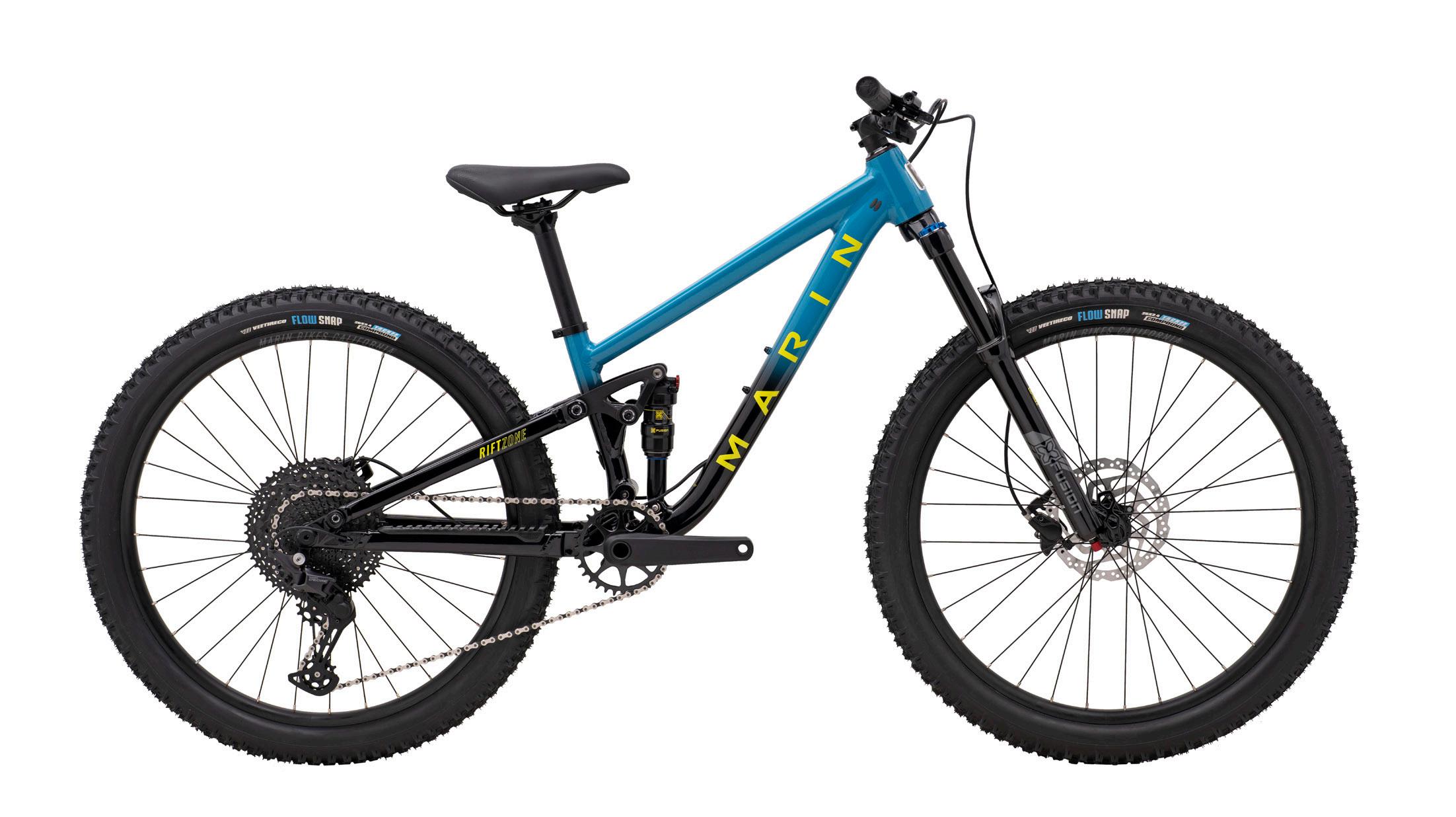

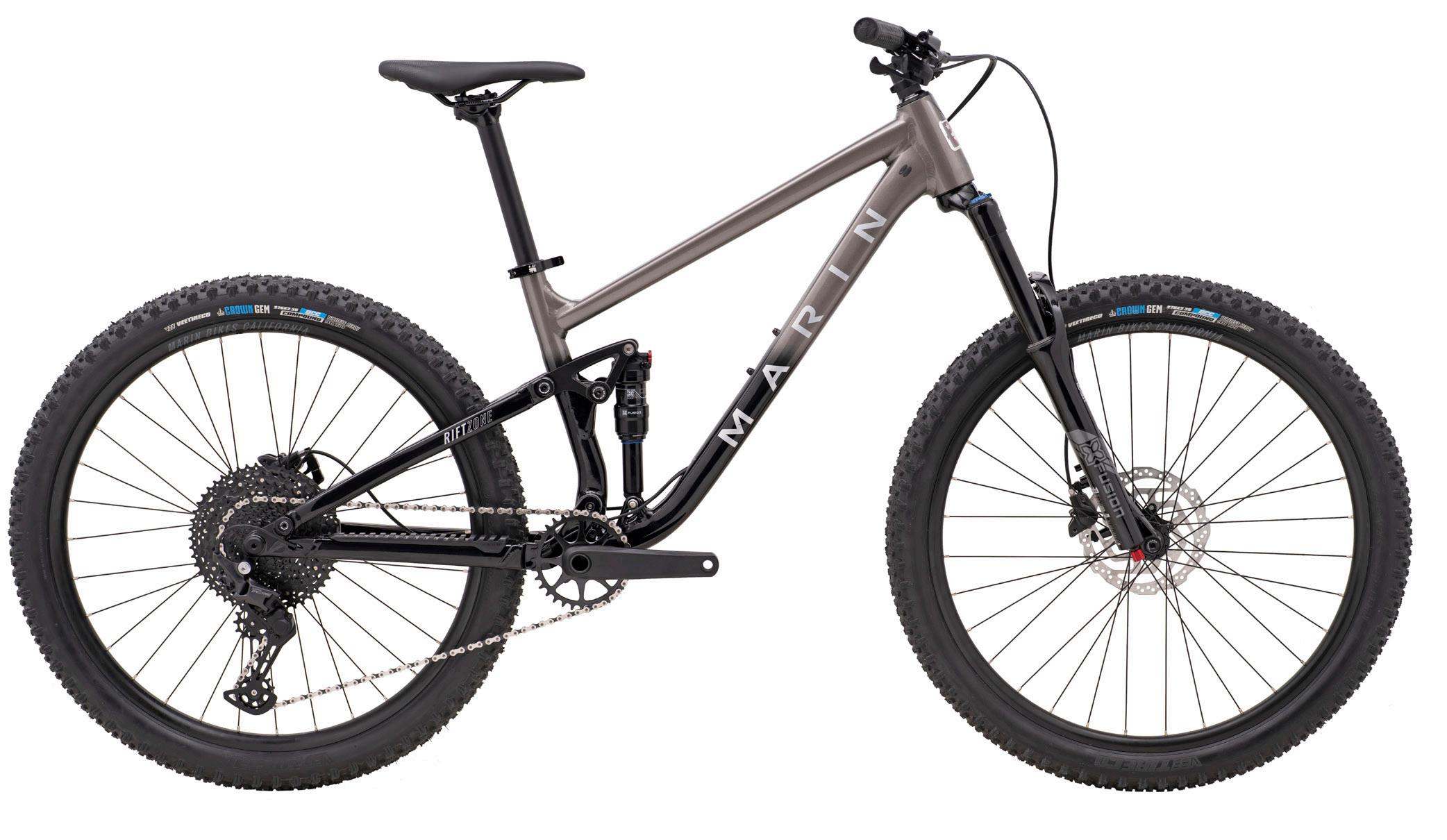

RIFT ZONE 26”
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: ONE SIZE 26” 130mm / 130mm TEAL / BLACK
▶ All-new Series 3 aluminum MultiTrac aluminum frame, 130mm travel
▶ X-Fusion Velvet RLC fork w/130mm travel & O2 Pro R shock
▶ Shimano Deore 11-speed wide-range drivetrain
▶ Tektro HDM-280 hydraulic disc brakes
▶ Marin 27mm inner rims, Vee Tire Flow Snap 26” x 2.4” tires
Specifications, pricing, and availability are subject to change without notice.

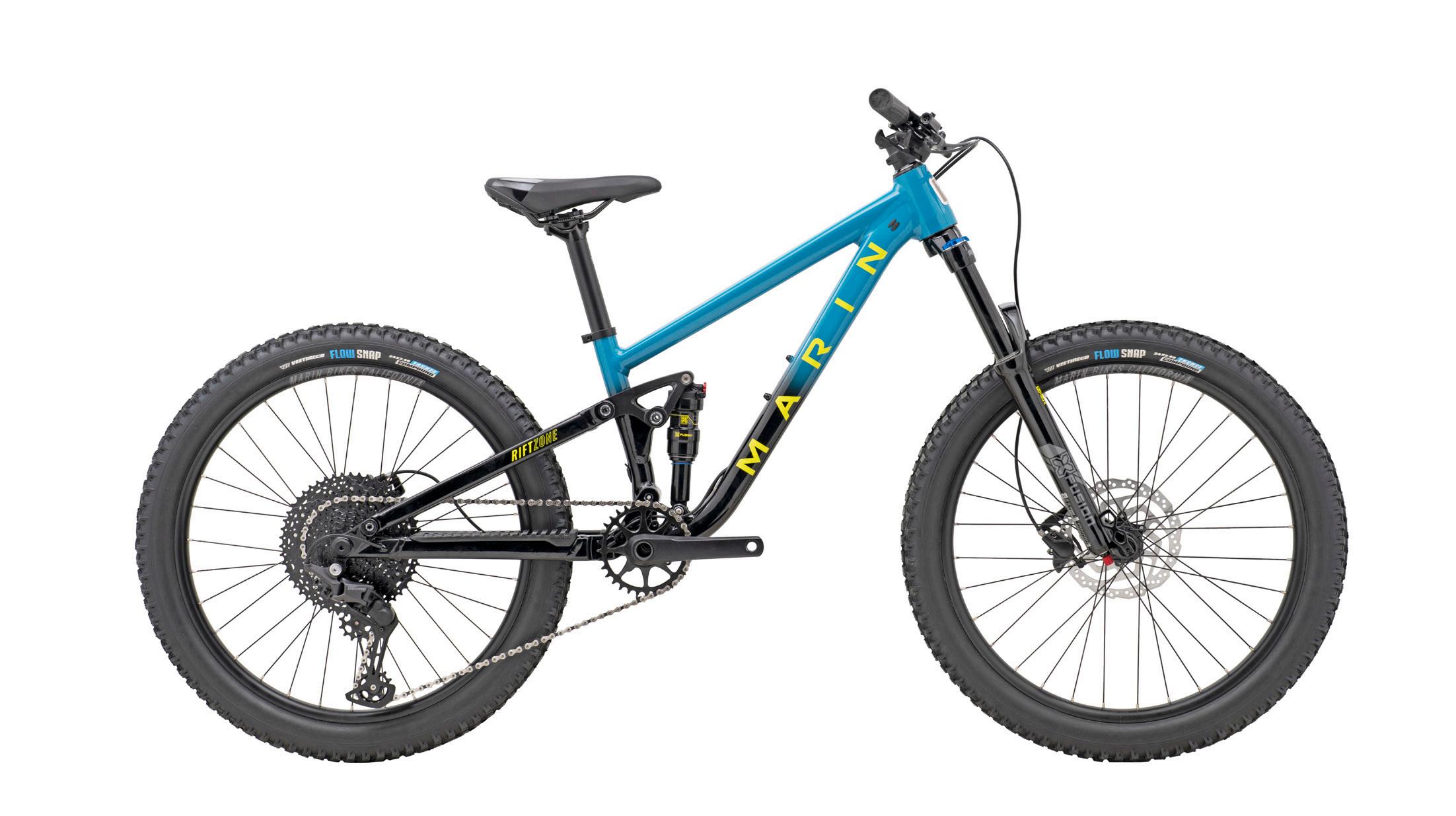

RIFT ZONE JR
SIZES:
WHEEL SIZE: SUSPENSION:
COLOR: ONE SIZE 24” 130mm / 130mm TEAL / BLACK
▶ All-new Series 3 aluminum MultiTrac aluminum frame, 130mm travel
▶ X-Fusion Velvet RLC fork w/130mm travel & O2 Pro R shock
▶ Shimano Deore 11-speed wide-range drivetrain
▶ Tektro HDM-280 hydraulic disc brakes
▶ Marin 27mm inner rims, Vee Tire Flow Snap 24” x 2.4” tires Specifications, pricing, and availability are subject to

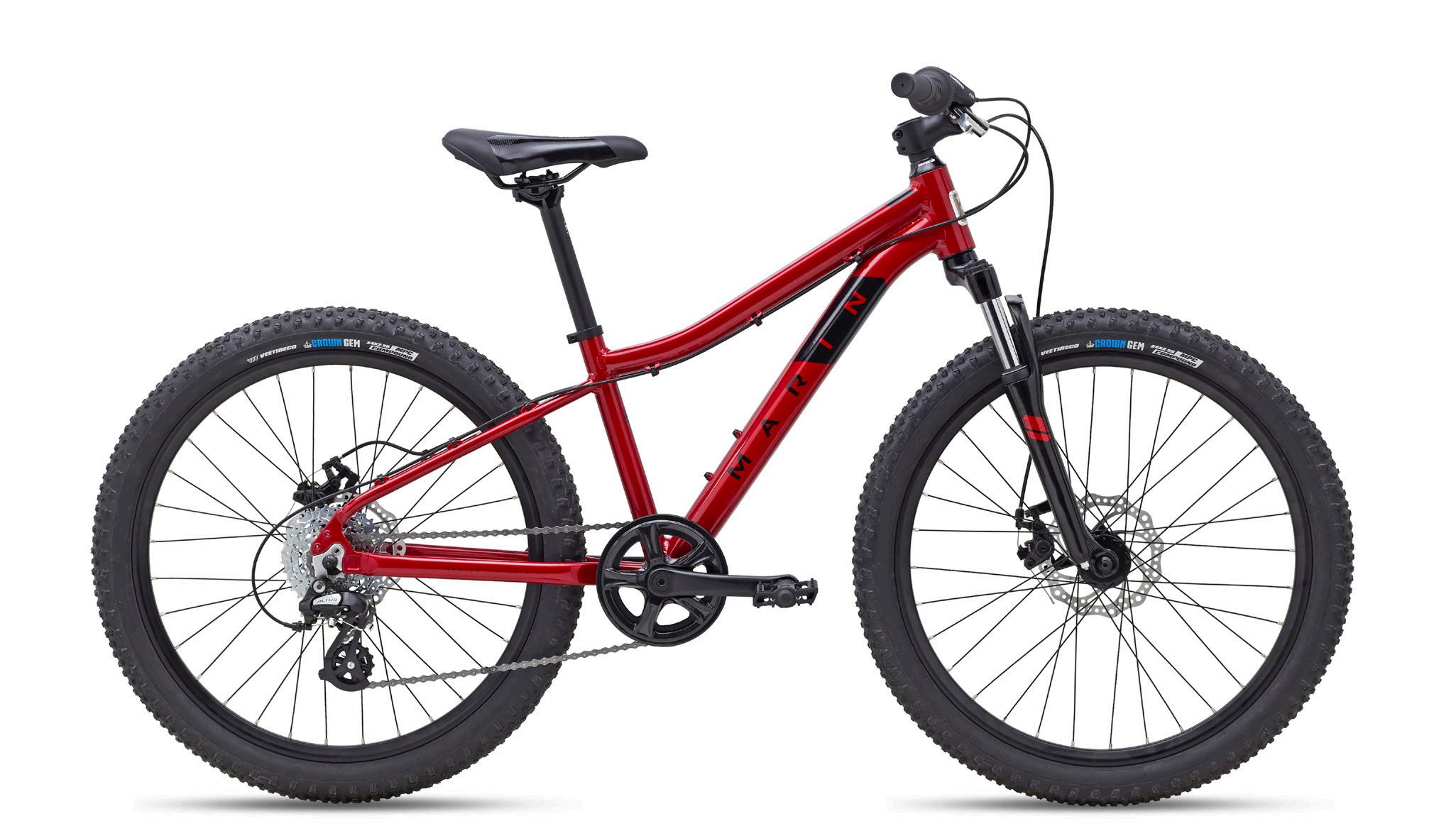

SAN QUENTIN 24”
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: ONE SIZE 24” 100mm RED / BLACK
▶ Series 2 aluminum frame, 24” wheels
▶ RockShox Judy Silver TK fork w/100mm travel, Solo Air
▶ microSHIFT Advent 9-speed wide-range drivetrain
▶ Shimano MT201 hydraulic disc brakes
▶ Marin double wall rims, Vee Tire Flow Snap 24” x 2.6” tires

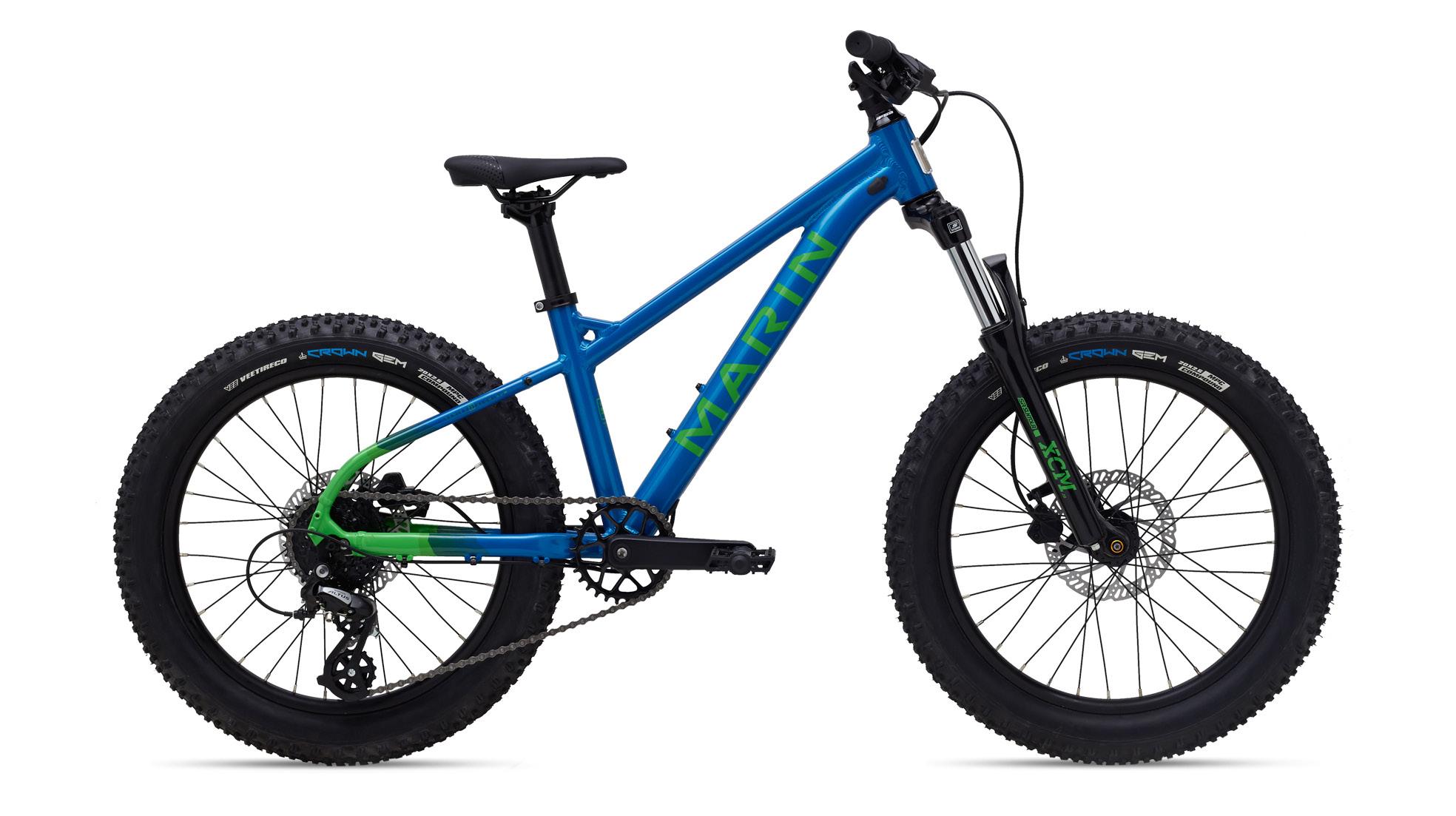

SAN QUENTIN 20”
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: ONE SIZE 20” 80mm BLUE / GREEN
▶ Series 2 aluminum frame, 20” wheels
▶ SR/Suntour XCM 24 Boost fork w/80mm travel
▶ Shimano Altus 8-speed drivetrain; Tektro HD-J285 kids-specific hydraulic disc brakes
▶ Marin double wall rims, Vee Tire Crown Gem 20” x 2.6” tires

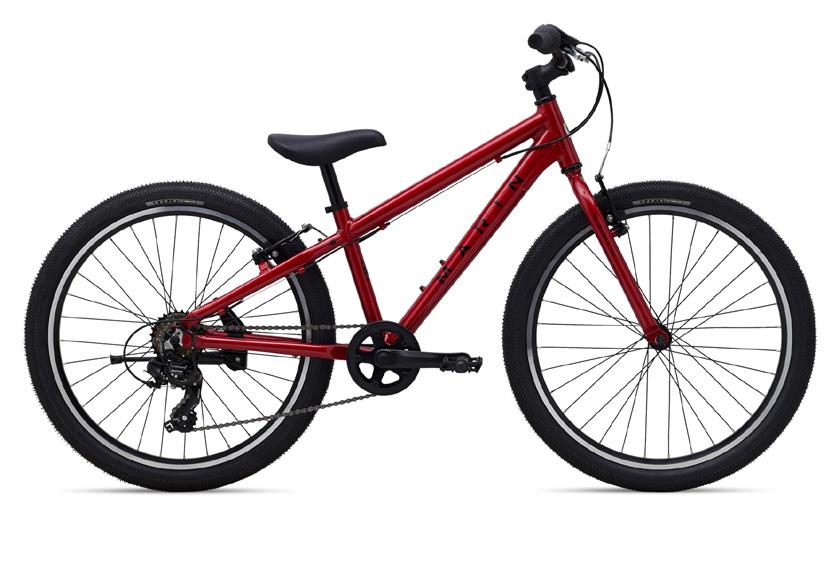

BAYVIEW TRAIL 24”
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: ONE SIZE 24” 50mm RED / BLACK GREY / MINT
▶ Series 1 aluminum ATB frame, 24” wheels
▶ SR/Suntour XCT Jr fork w/50mm travel
▶ Shimano Altus 7-speed drivetrain; Clark’s CMD-23 mechanical disc brakes
▶ Marin double wall rims, Vee Tire Crown Gem 24” x 2.25” tires
Specifications, pricing, and availability are subject to

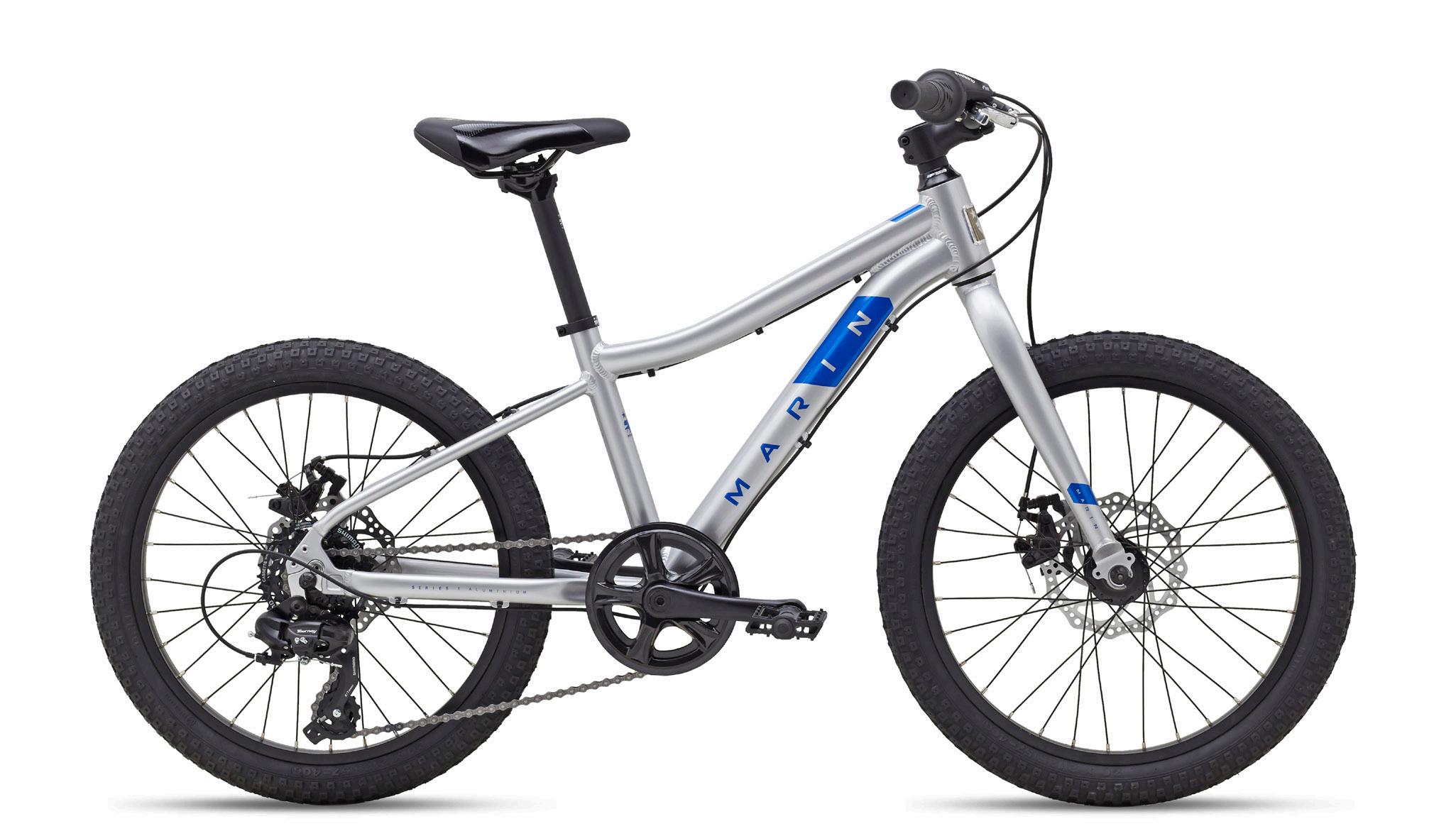

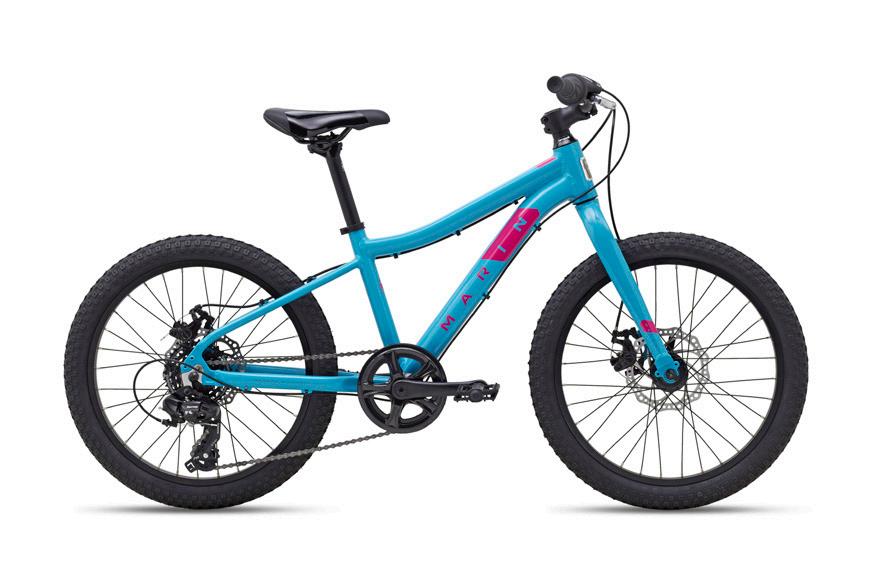

HIDDEN CANYON 20”
SIZES:
WHEEL SIZE:
COLOR: ONE SIZE 24” SILVER / BLUE TEAL / PINK
▶ Series 1 aluminum ATB frame, 24” wheels
▶ Steel rigid fork, 100mm spacing
▶ Shimano Tourney 7-speed drivetrain; Clark’s CMD-23 mechanical disc brakes
▶ Marin double wall rims, multi-surface 20” x 2.125” tires
Specifications,

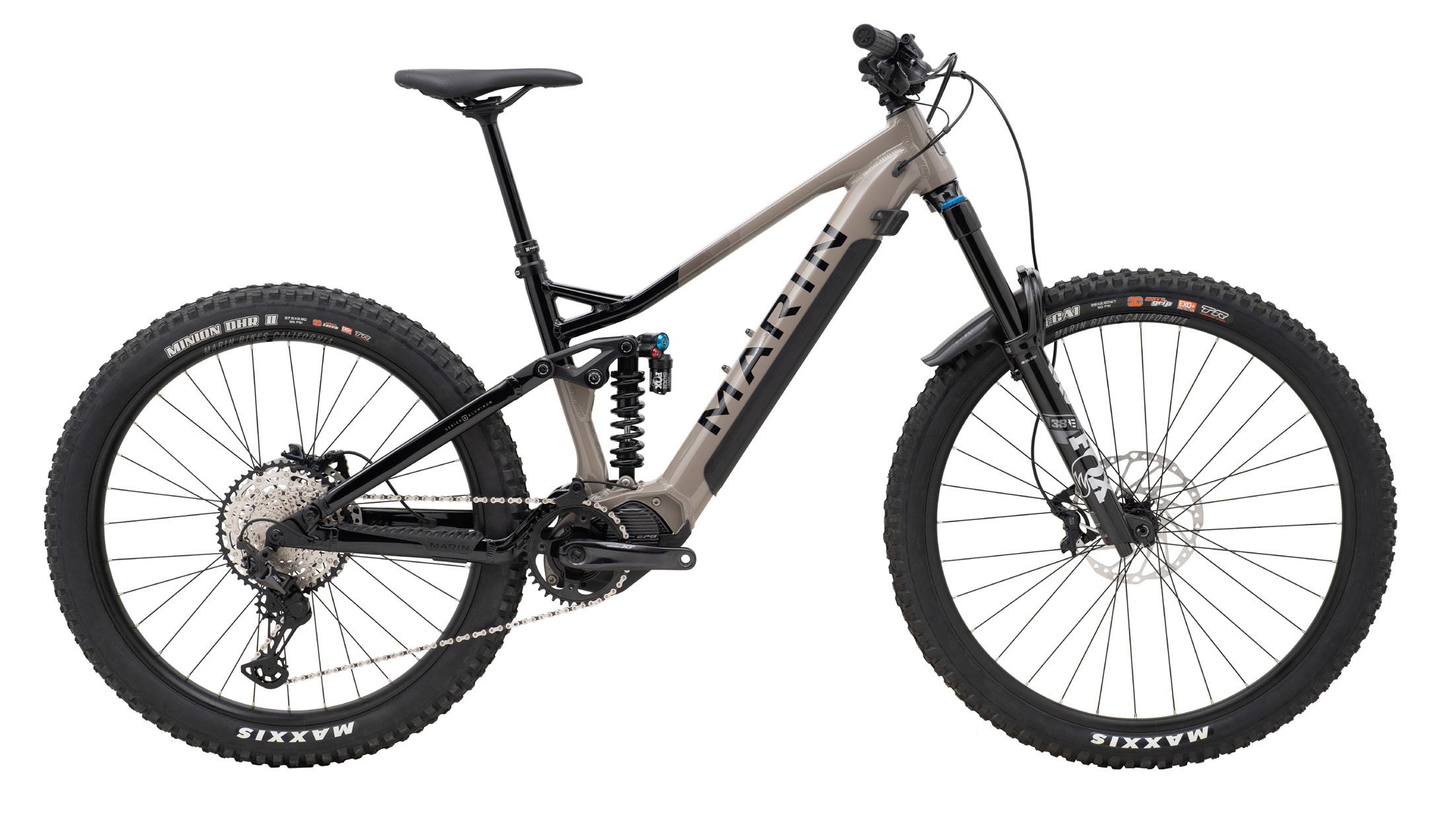

ALPINE TRAIL E2
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR:
S / M / L / XL
29” F / 27.5” R 160mm / 150mm
GREY / BLACK
▶ Series 4 aluminum MultiTrac frame w/integrated battery, 150mm travel
▶ 29”/27.5” wheels
▶ Shimano STEPs EP801 drive unit, 85Nm, 630Wh battery
▶ Fox 38 Performance Elite fork w/160mm travel & DHX2 Performance Elite shock
▶ Shimano Deore 12-speed drivetrain; TRP DH-R EVO 4-piston disc brakes
Specifications, pricing, and availability are subject to change without notice.
ALPINE TRAIL E1
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL
29” F / 27.5” R 160mm / 150mm GREEN / BLACK
▶ Series 4 aluminum MultiTrac frame w/integrated battery, 150mm travel
▶ 29”/27.5” wheels
▶ Shimano STEPs EP6 drive unit, 85Nm, 630Wh battery
▶ X-Fusion Trace 36 RC fork w/160mm travel & RockShox Super Deluxe Coil R shock
▶ Shimano Deore 11-speed drivetrain; TRP Slate EVO 4-piston disc brakes
Specifications, pricing, and availability are subject to change without notice.
ALPINE TRAIL E
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL
29” F / 27.5” R 160mm / 150mm CYAN / BLACK
▶ Series 4 aluminum MultiTrac frame w/integrated battery, 150mm travel
▶ 29”/27.5” wheels
▶ Shimano STEPs EP6 drive unit, 85Nm, 504Wh battery
▶ X-Fusion Trace 36 RC fork w/160mm travel & O2 Pro RXC shock
▶ Shimano Deore 10-speed drivetrain; TRP Slate EVO 4-piston disc brakes
Specifications, pricing, and availability are subject to change without notice.

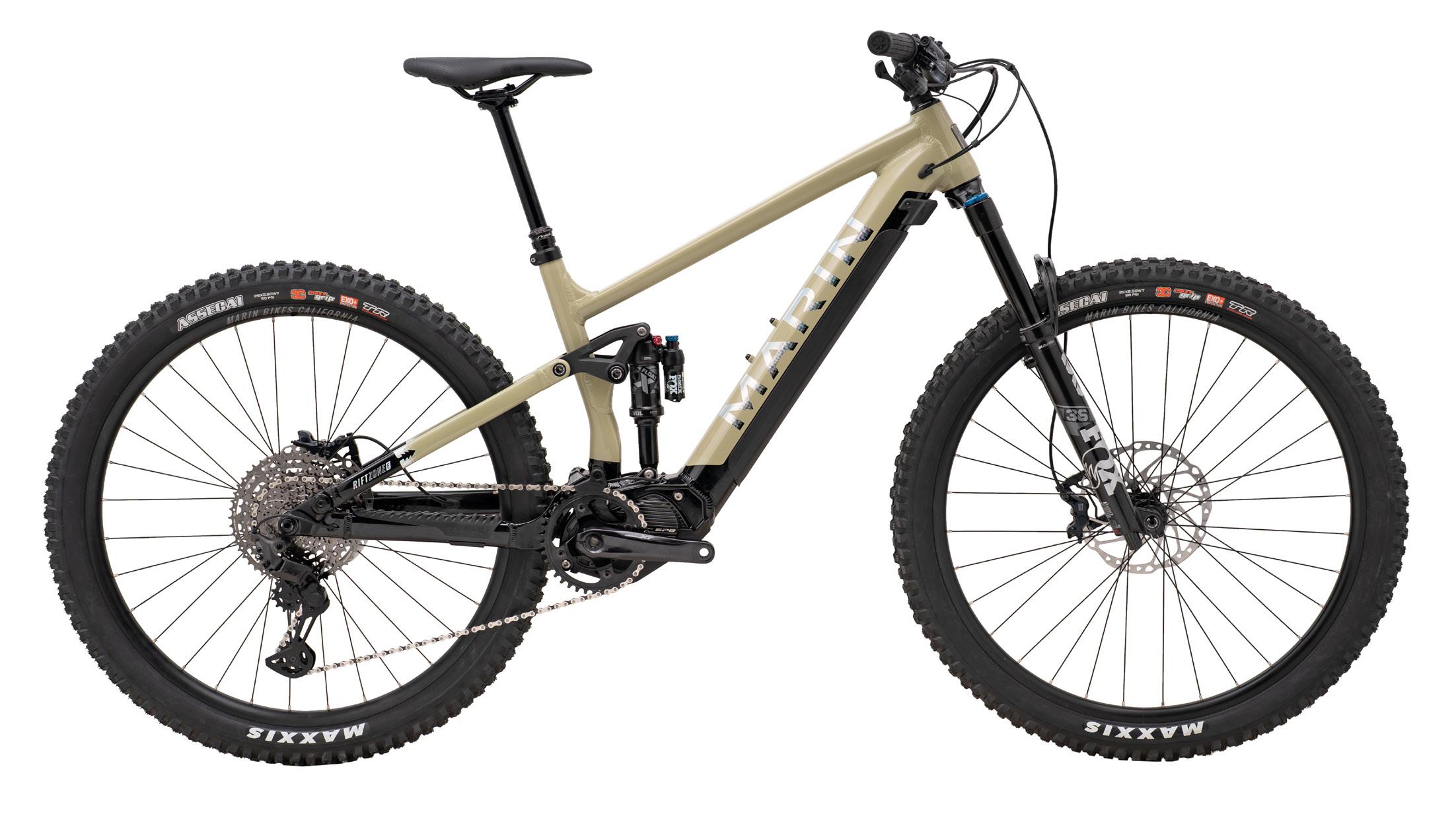

RIFT ZONE E2
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL 29” 140mm / 140mm TAN / BLACK
▶ Series 4 aluminum MultiTrac frame w/integrated battery, 140mm travel, 29” wheels
▶ Shimano STEPs EP801 drive unit, 85Nm, 630Wh battery
▶ Fox 38 Performance Elite fork w/140mm travel & Float X Performance Elite shock
▶ Shimano XT LinkGlide 11-speed drivetrain; TRP DH-R EVO 4-piston disc brakes
Specifications, pricing, and availability are subject to change without notice.
RIFT ZONE E1
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL 29” 140mm / 140mm CREAM / BLACK
▶ Series 4 aluminum MultiTrac frame w/integrated battery, 140mm travel, 29” wheels
▶ Shimano STEPs EP6 drive unit, 85Nm, 630Wh battery
▶ RockShox Pike fork w/140mm travel & Deluxe Select+ shock
▶ Shimano Deore 11-speed drivetrain; TRP Slate EVO 4-piston disc brakes
Specifications, pricing, and availability are subject to change without notice.
RIFT ZONE E
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL 29” 140mm / 140mm GREY / BLUE
▶ Series 4 aluminum MultiTrac frame w/integrated battery, 140mm travel, 29” wheels
▶ Shimano STEPs EP6 drive unit, 85Nm, 504Wh battery
▶ RockShox 35 Silver R fork w/140mm travel, X-Fusion O2 Pro R shock
▶ Shimano Deore 10-speed drivetrain; TRP Slate EVO 4-piston disc brakes
Specifications, pricing, and availability are subject to change without notice.

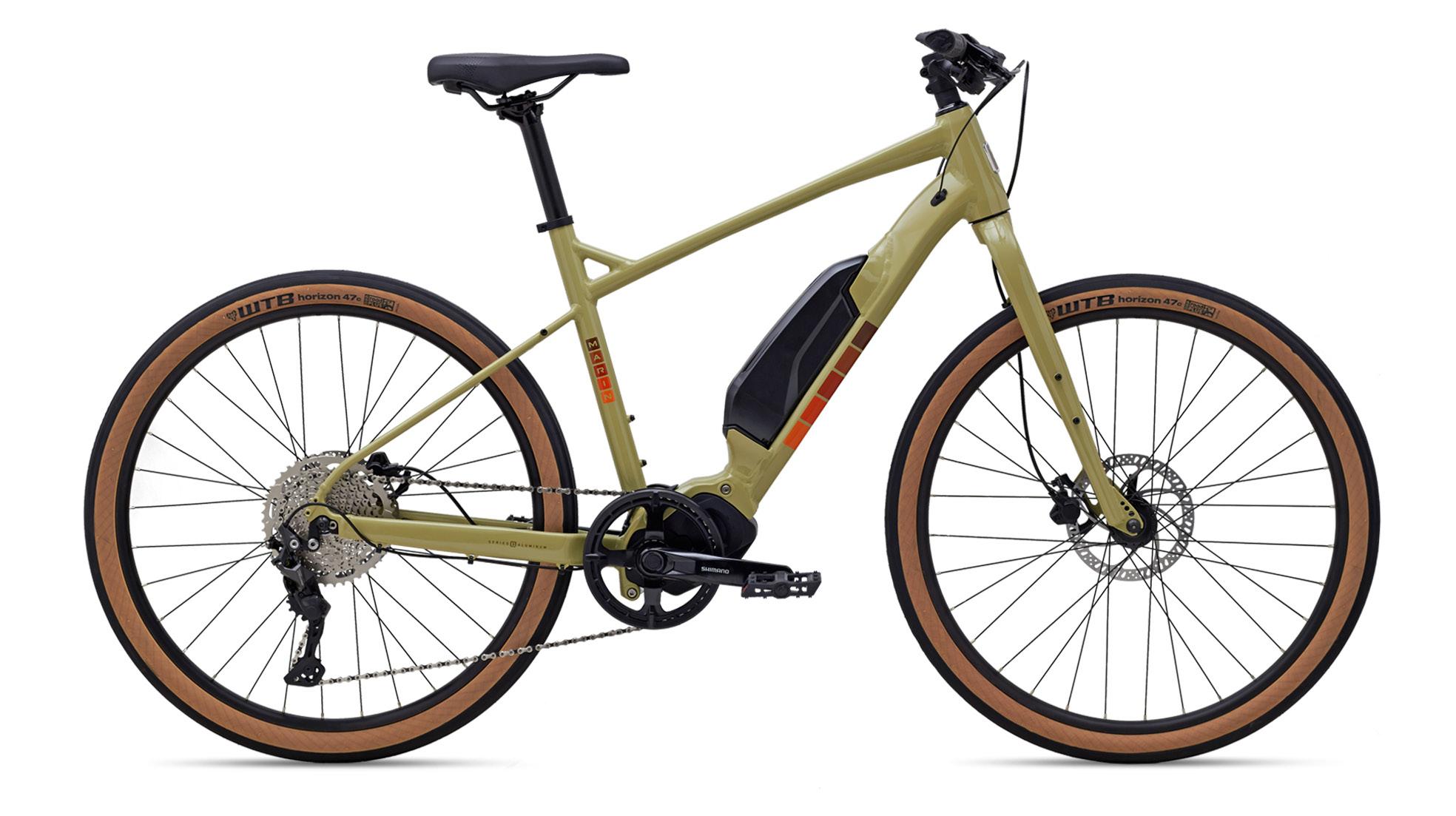

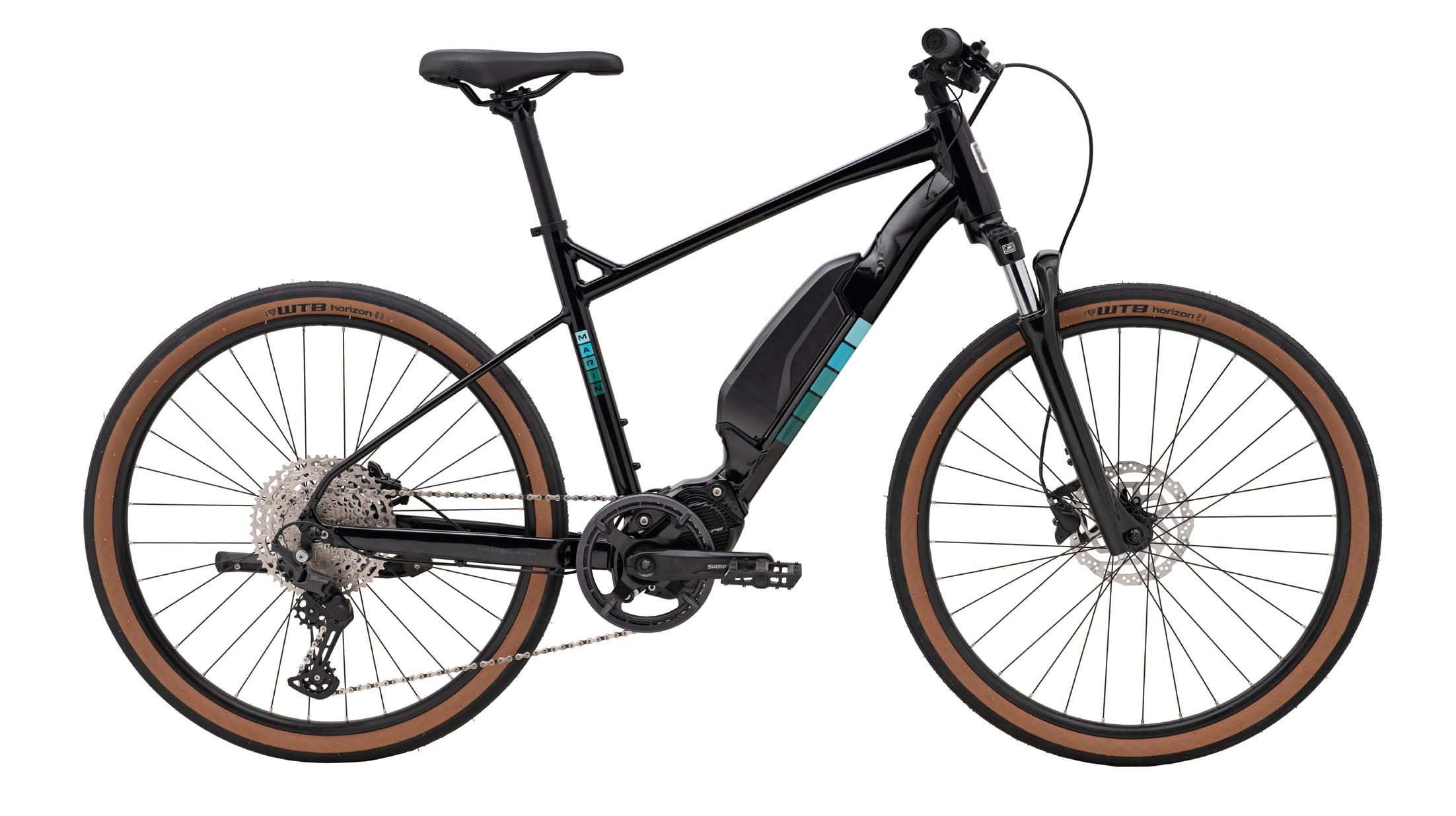

SAUSALITO E2
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L / XL
▶ Series 3 butted & formed aluminum frame w/downtube battery mount, 650B wheels
▶ Shimano STEPs EP6 drive unit, 85Nm, 504Wh battery, Class 3 (28MPH)
▶ SR/Suntour NVX-E fork w/63mm travel
▶ Shimano Deore 11-speed drivetrain; MT201 hydraulic disc brakes

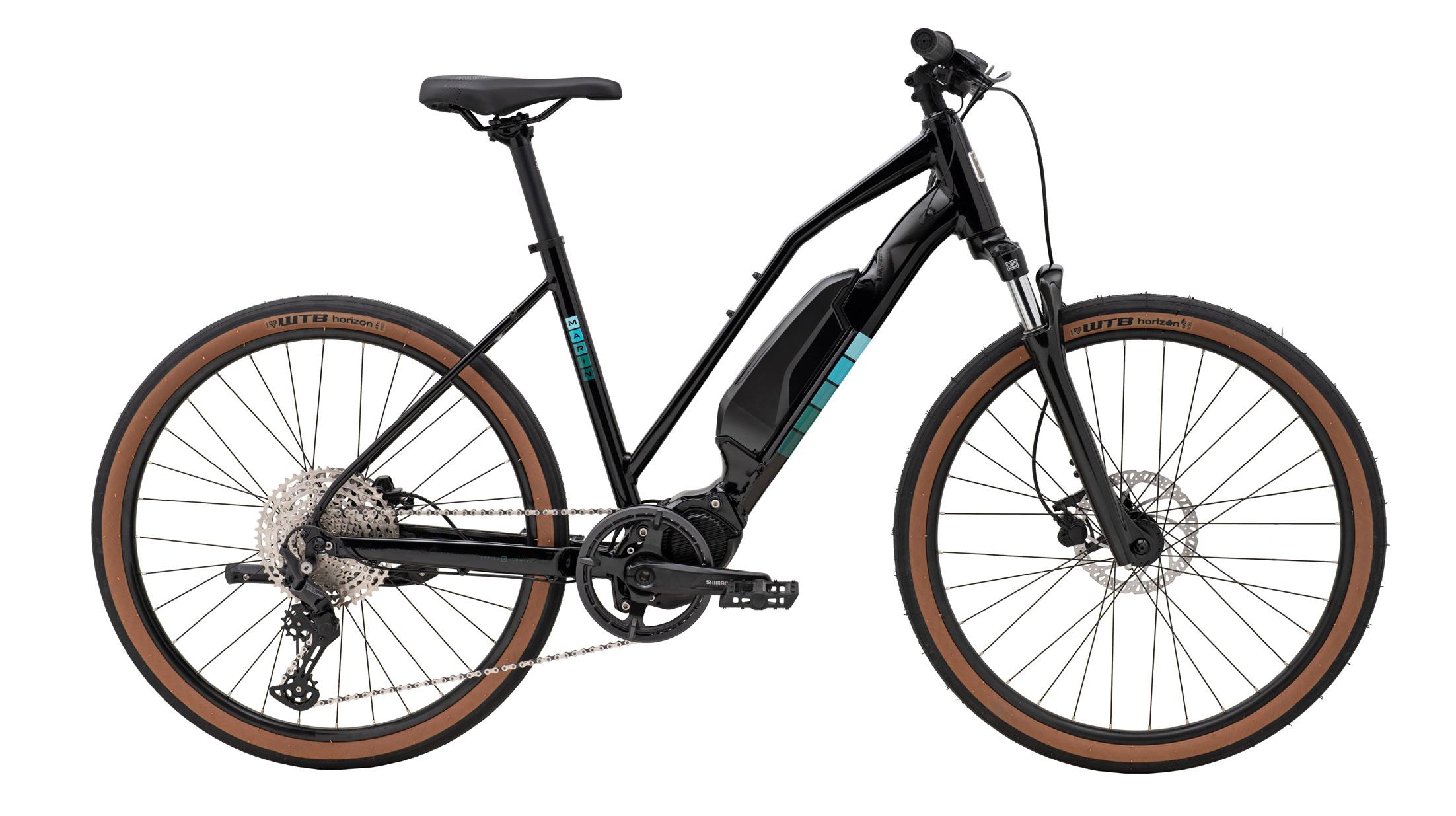

SAUSALITO ST E2
SIZES:
WHEEL SIZE:
SUSPENSION:
COLOR: S / M / L 650b 63mm BLACK
▶ Series 3 butted & formed aluminum step-thru frame w/downtube battery mount
▶ 650B wheels
▶ Shimano STEPs EP6 drive unit, 85Nm, 504Wh battery, Class 3 (28MPH)
▶ SR/Suntour NVX-E fork w/63mm travel
▶ Shimano Deore 11-speed drivetrain; MT201 hydraulic disc brakes Specifications,
SAUSALITO E1
SIZES:
WHEEL SIZE:
S / M / L /
▶ Series 3 butted & formed aluminum frame w/downtube battery mount, 650B wheels
▶ Shimano STEPs E5000 drive unit, 40Nm, 418Wh battery, Class 1
▶ Marin CrMo moto blade fork w/gear mounts
▶ Shimano Deore 10-speed drivetrain; Tektro M275 hydraulic disc brakes

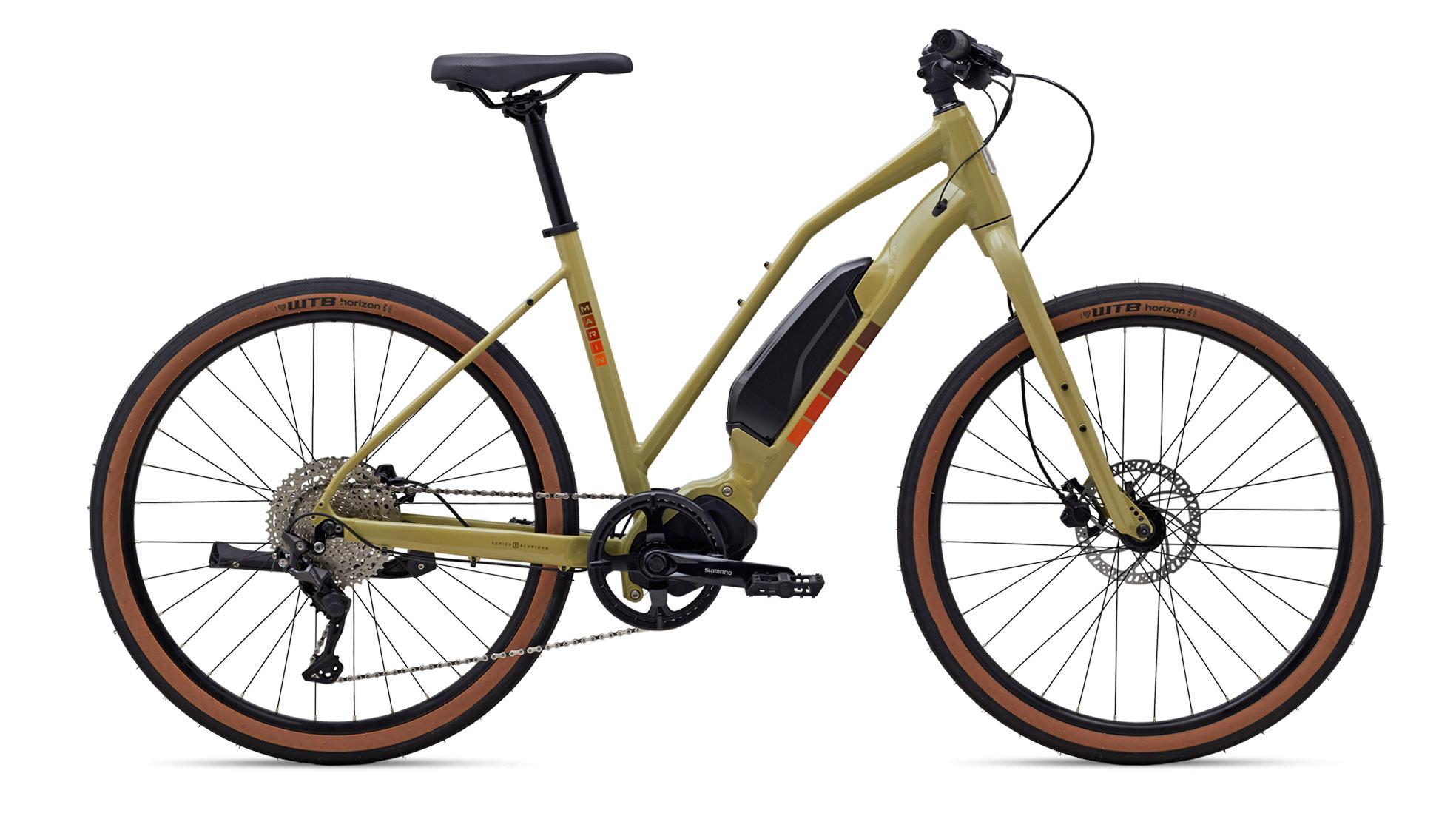

SAUSALITO ST E1
SIZES: WHEEL
▶ Series 3 butted & formed aluminum step-through frame w/downtube battery mount
▶ 650B wheels
▶ Shimano STEPs E5000 drive unit, 40Nm, 418Wh battery, Class 1
▶ Marin CrMo moto blade fork w/gear mounts
▶ Shimano Deore 10-speed drivetrain; Tektro M275 hydraulic disc brakes
STINSON E
SIZES:
WHEEL SIZE:
COLOR: S / M / L / XL
BLACK / CHARCOAL
▶ Series 1 aluminum comfort ebike-specific frame, 27.5” wheels
▶ Marin CrMo fork w/fender & rack eyelets
▶ Torque-sensing 250W rear hub motor, 309Wh battery
▶ Shimano Tourney 7-speed drivetrain; Power CX7 mechanical disc brakes

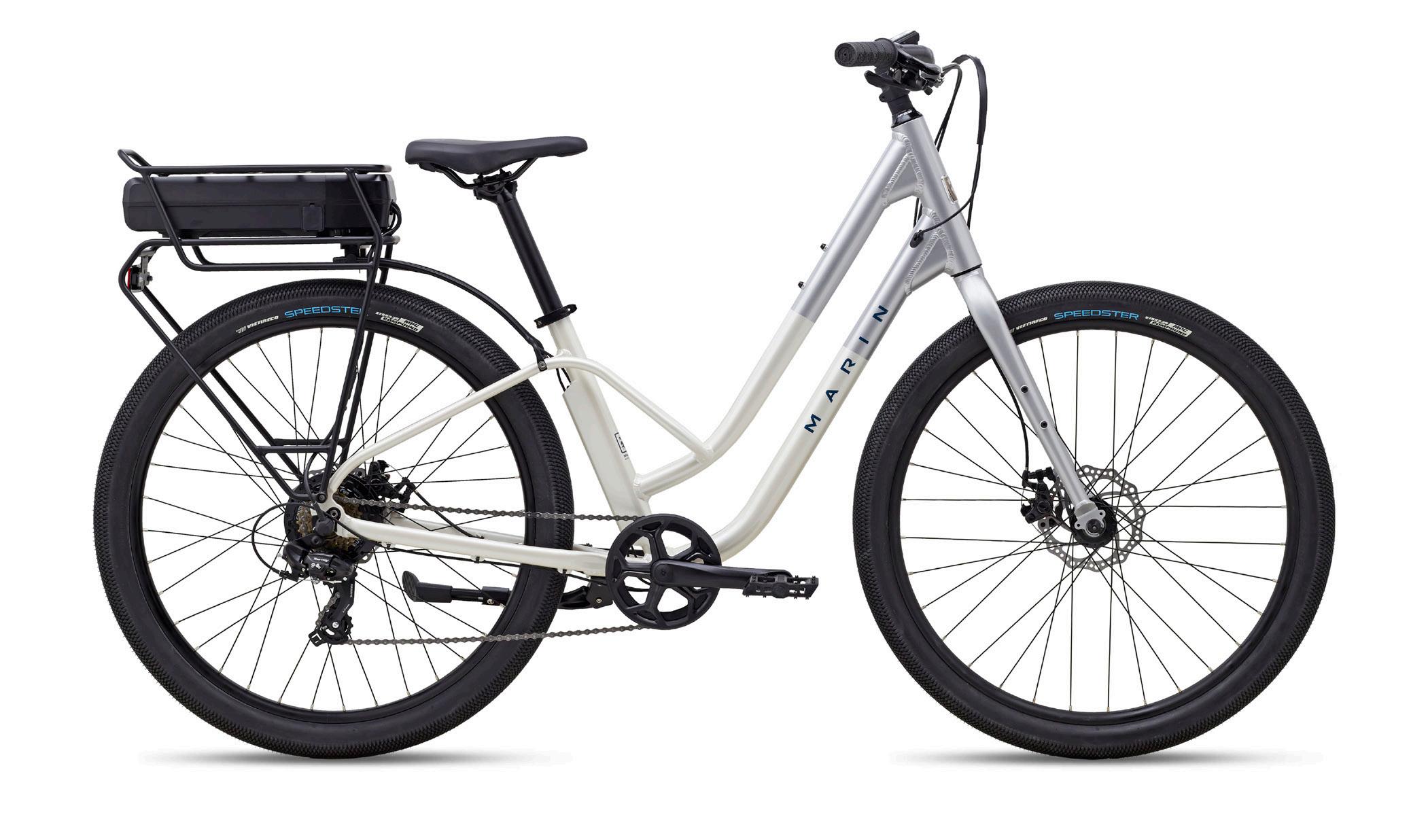

STINSON ST E
SIZES:
WHEEL SIZE:
COLOR: S / M / L 27.5” WHITE / SILVER
▶ Series 1 aluminum comfort ebike-specific step-thru frame, 27.5” wheels
▶ Marin CrMo fork w/fender & rack eyelets
▶ Torque-sensing 250W rear hub motor, 309Wh battery
▶ Shimano Tourney 7-speed drivetrain; Power CX7 mechanical disc brakes
Specifications, pricing, and availability are subject to change without notice.

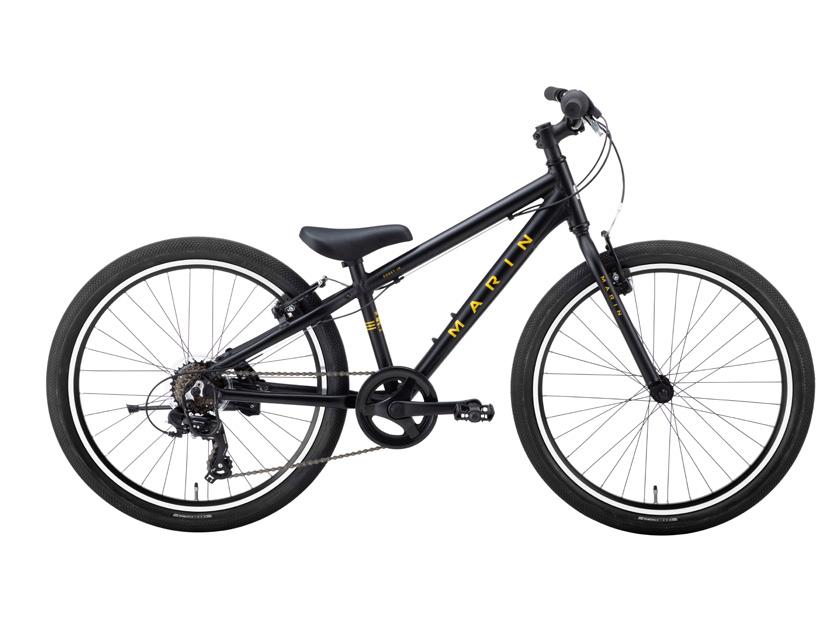

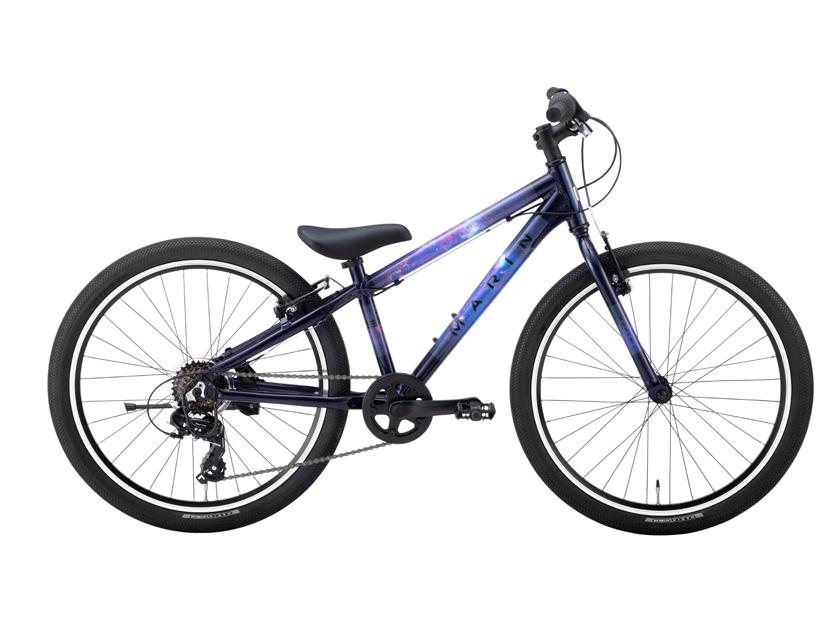

DONKY JR 24”
SIZES:
WHEEL SIZE:
COLOR: ONE SIZE 24” BLACK / GOLD
WHITE / SILVER
BLUE / BLACK RED / BLACK BLACK / SPACE
▶ Lightweight aluminum frame & steel fork
▶ Shimano 6-speed drivetrain w/freewheel
▶ Linear pull brakes, 24” alloy rims
DONKY JR 20”
SIZES:
WHEEL SIZE:
COLOR: ONE SIZE 20” BLACK / GOLD WHITE / SILVER
▶ Lightweight aluminum frame & steel fork
▶ Shimano 6-speed drivetrain w/freewheel
▶ Linear pull brakes, 20” alloy rims
Specifications, pricing, and availability are subject to

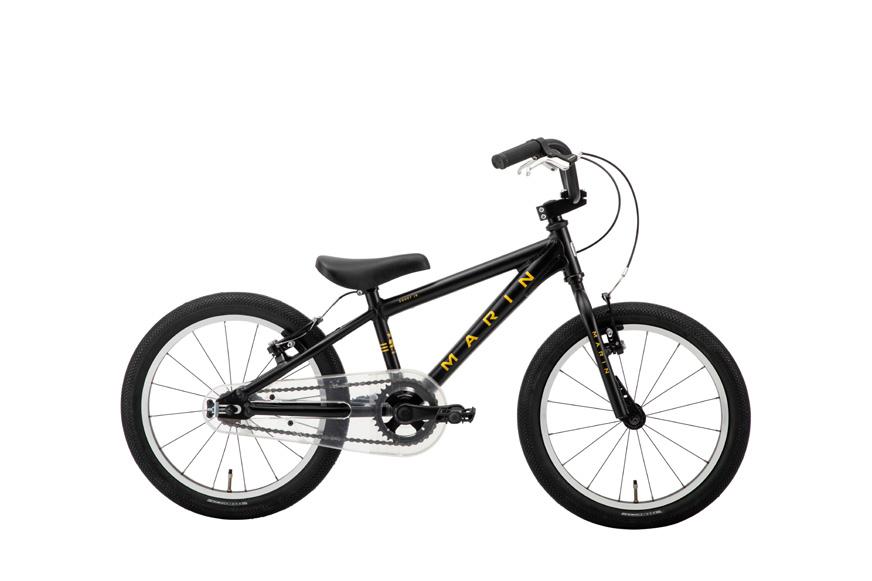

DONKY JR 18”
SIZES:
WHEEL SIZE:
COLOR: ONE SIZE 18”
BLACK / GOLD RED / BLACK WHITE / POLKADOT
▶ Lightweight aluminum frame & steel fork
▶ Single speed drivetrain w/freewheel
▶ Linear pull brakes, 18” alloy rims

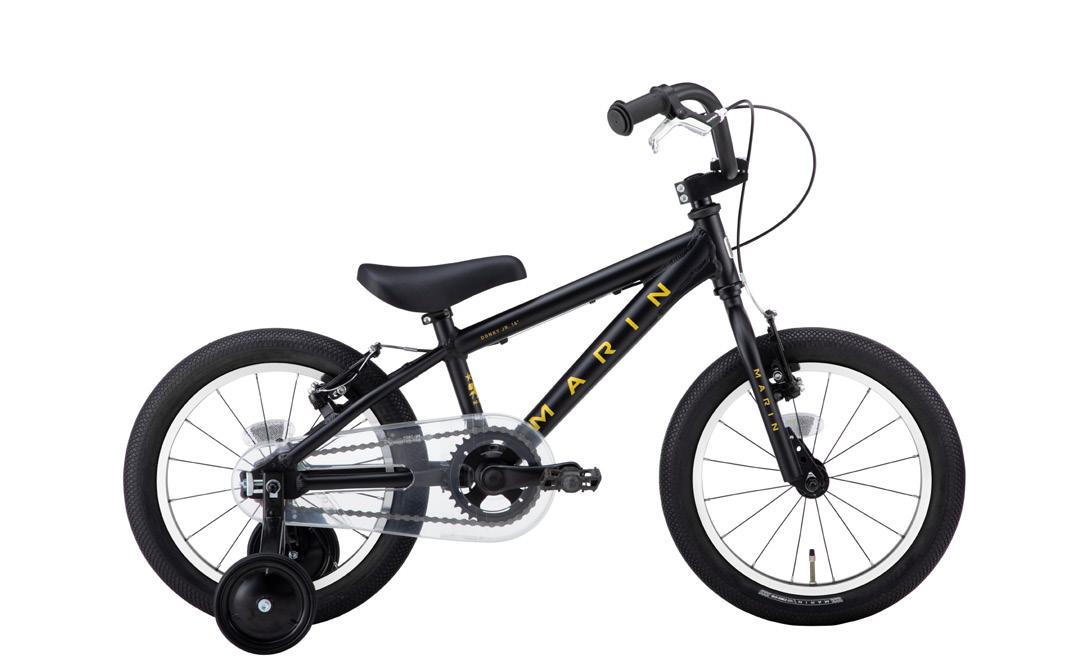

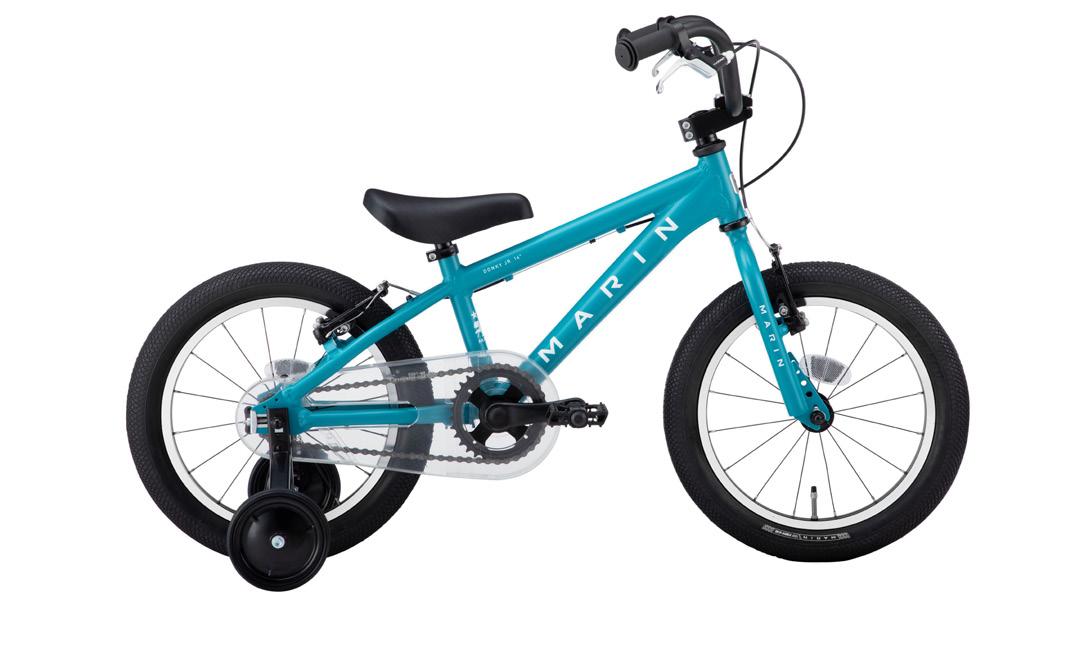

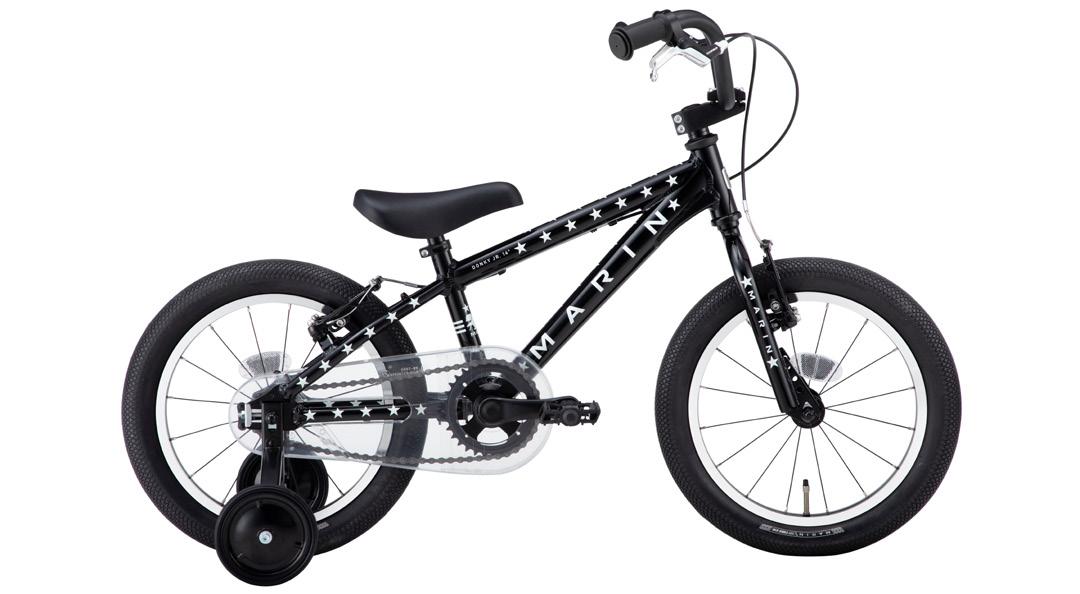

DONKY JR 16”
SIZES:
WHEEL SIZE:
COLOR: ONE SIZE 16” BLACK / GOLD
TURQUOISE / WHITE
BLACK / GLOW
WHITE / POLKADOT
▶ Lightweight aluminum frame & steel fork
▶ Single speed drivetrain w/freewheel
▶ Linear pull brakes, 16” alloy rims
▶ Includes training wheels Specifications,
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION

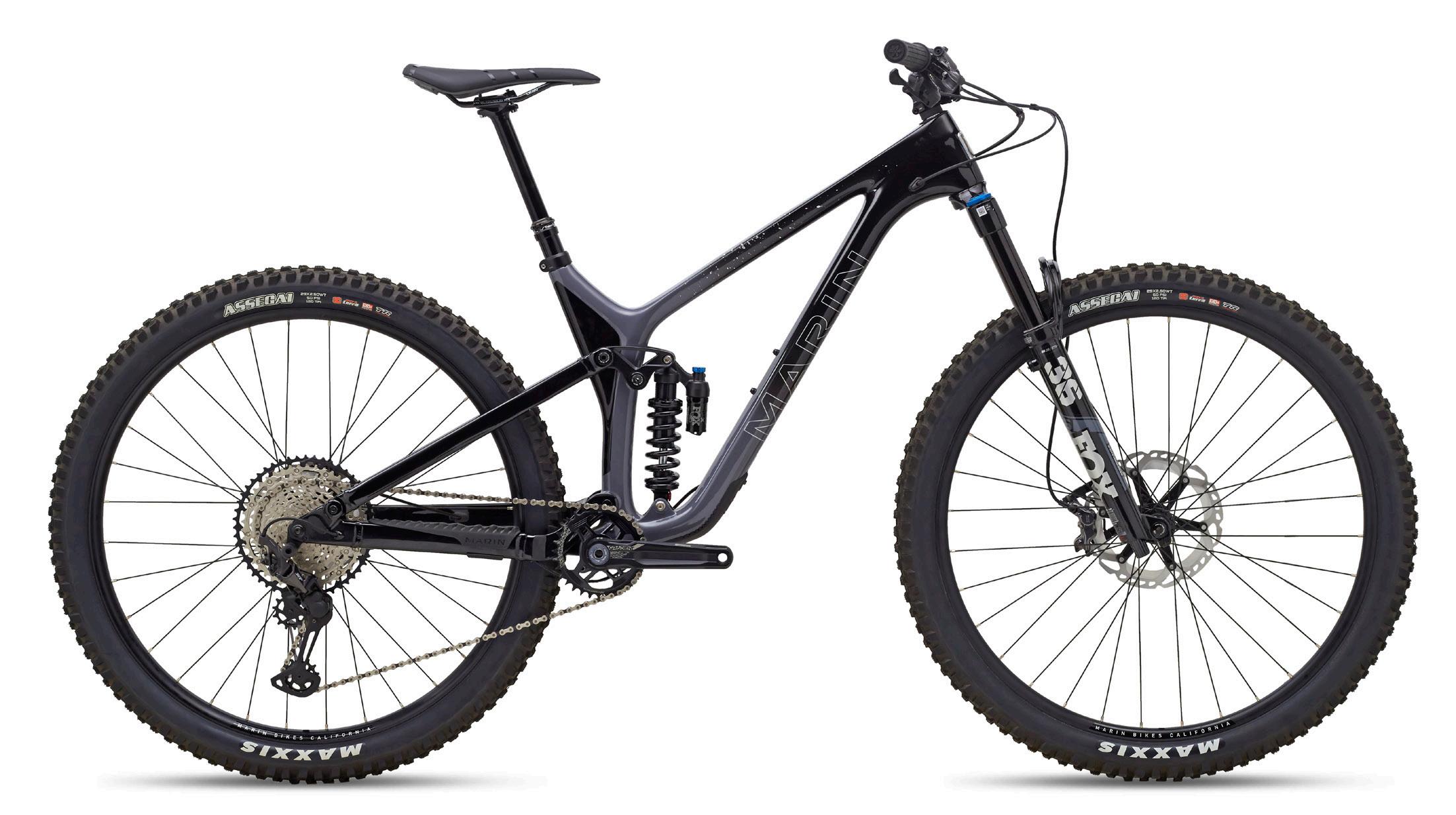

Alpine Trail Carbon 2 Frame Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Alpine Trail Carbon 2 Front Suspension Fox 38 Performance Elite, 160mm Travel, 29" 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
Alpine Trail Carbon 2 Rear Suspension Fox Float X, Performance, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount
Alpine Trail Carbon 2 Rim Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible
Alpine Trail Carbon 2 Hub Rear Forged Aluminum, 148x12mm, Disc, Microspline Freehub Body
Alpine Trail Carbon 2 Hub Front Forged Aluminum, 110x15mm, Disc
Alpine Trail Carbon 2 Spokes 14g Black Stainless Steel
Alpine Trail Carbon 2 Tires Maxxis Assegai 29x2.5”, Tubeless Compatible
Alpine Trail Carbon 2 Derailleur Rear Shimano SLX 12-Speed, SGS
Alpine Trail Carbon 2 Derailleur Front -
Alpine Trail Carbon 2 Shift Lever Shimano SLX 12-Speed,, SL-7100
Alpine Trail Carbon 2 Crankset FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Alpine Trail Carbon 2 Bottom Bracket MegaEvo BB, 73mm BSA Threaded
Alpine Trail Carbon 2 Chain KMC X-12 Silver and Black
Alpine Trail Carbon 2 Cassette Shimano, Deore M6100 12-Speed, 10-51T
Alpine Trail Carbon 2 Brakes Front Shimano SLX, 4-Piston Hydraulic Disc, 203mm Rotor
Alpine Trail Carbon 2 Brakes Rear Shimano SLX, 4-Piston Hydraulic Disc, 180mm Rotor
Alpine Trail Carbon 2 Brake Levers Shimano SLX Hydraulic, I-Spec EV
Alpine Trail Carbon 2 Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Alpine Trail Carbon 2 Stem Marin CNC, 35mm Length, 35mm Bar Bore
Alpine Trail Carbon 2 Grips Marin Single Clamp Locking
Alpine Trail Carbon 2 Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Alpine Trail Carbon 2 Seatpost X-Fusion Manic, 1x Shimano I-Spec EV Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Alpine Trail Carbon 2 Saddle Marin Trail Speed Concept Pro
Alpine Trail Carbon 2 Pedals -
Alpine Trail Carbon 2 Extras Bolt-On Thru-Axle
Alpine Trail Carbon 2 Extras Downtube Protector
Alpine Trail Carbon 1 Frame Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Housing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
Alpine Trail Carbon 1 Front Suspension RockShox Yari RC, 29”, 160mm of Travel, Air Sprung, Debonair, Rebound and Compression Adjust, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset
Alpine Trail Carbon 1 Rear Suspension RockShox Deluxe Select + RT, Debonair Air Spring, 2 Position Compression Adjustment, Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount
Alpine Trail Carbon 1 Rim Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Alpine Trail Carbon 1 Hub Rear Forged Aluminum, 148x12mm, Disc, Microspline Freehub Body
Alpine Trail Carbon 1 Hub Front Forged Aluminum, 110x15mm, Disc
Alpine Trail Carbon 1 Spokes 14g Black Stainless Steel
Alpine Trail Carbon 1 Tires Maxxis Assegai 29x2.5”, Tubeless Compatible
Alpine Trail Carbon 1 Derailleur Rear Shimano SLX, 12-Speed, SGS
MODEL COMPONENT DESCRIPTION
Alpine Trail Carbon 1 Derailleur Front -
Alpine Trail Carbon 1 Shift Lever Shimano Deore, 12-Speed, SL-6100
Alpine Trail Carbon 1 Crankset FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Alpine Trail Carbon 1 Bottom Bracket MegaExo 73mm BSA
Alpine Trail Carbon 1 Chain KMC X-12 Silver and Black
Alpine Trail Carbon 1 Cassette Shimano, Deore M6100 12-Speed, 10-51T
Alpine Trail Carbon 1 Brakes Front TRP Slate EVO, 4-Piston Hydraulic Disc, 203mm Rotor
Alpine Trail Carbon 1 Brakes Rear TRP Slate EVO, 4-Piston Hydraulic Disc, 180mm Rotor
Alpine Trail Carbon 1 Brake Levers TRP Slate EVO
Alpine Trail Carbon 1 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Alpine Trail Carbon 1 Stem Marin 3D Forged Alloy, 35mm
Alpine Trail Carbon 1 Grips Marin Single Clamp Locking
Alpine Trail Carbon 1 Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Alpine Trail Carbon 1 Seatpost TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Alpine Trail Carbon 1 Saddle Marin Speed Concept
Alpine Trail Carbon 1 Pedals -
Alpine Trail Carbon 1 Extras Bolt-On Thru-Axle
Alpine Trail Carbon 1 Extras Downtube Protector
Alpine Trail XR Frame Series 4 6061 Aluminum, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
Alpine Trail XR Front Suspension Marzocchi Z1 Coil, 160mm Travel, Sweep Adjust Damper, Rebound Adjustment, Black Stanchions, 110x15 Kabolt, 44mm Offset, Medium Coil Spring
Alpine Trail XR Rear Suspension Marzocchi CR Coil, Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, M8x25mm Lower Mount, S/M 350lb Spring, L/XL 450lb Spring
Alpine Trail XR Rim Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
Alpine Trail XR Hub Rear Forged Aluminum, 148x12mm, Disc, Microspline Freehub Body
Alpine Trail XR Hub Front Forged Aluminum, 110x15mm, Disc
Alpine Trail XR Spokes 14g Black Stainless Steel
Alpine Trail XR Tires Maxxis Assegai 29x2.5”, Tubeless Compatible
Alpine Trail XR Derailleur Rear Shimano XT 12-Speed, SGS
Alpine Trail XR Derailleur Front -
Alpine Trail XR Shift Lever Shimano SLX 12-Speed,, SL-7100
Alpine Trail XR Crankset FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Alpine Trail XR Bottom Bracket MegaEvo BB, 73mm BSA Threaded
Alpine Trail XR Chain KMC X-12 Silver and Black
Alpine Trail XR Cassette Shimano SLX M7100 Cassette, 12-Speed, 10-51T
Alpine Trail XR Brakes Front TRP Slate EVO, 4-Piston Hydraulic Disc Brake, 203mm Rotor
Alpine Trail XR Brakes Rear TRP Slate EVO, 4-Piston Hydraulic Disc Brake, 180mm Rotor
Alpine Trail XR Brake Levers TRP Slate EVO
Alpine Trail XR Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Alpine Trail XR Stem Marin CNC, 35mm Length, 35mm Bar Bore
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Alpine Trail XR Grips Marin Grizzy Lock On
Alpine Trail XR Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Alpine Trail XR Seatpost TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
Alpine Trail XR Saddle Marin Speed Concept
Alpine Trail XR Pedals -
Alpine Trail XR Extras Bolt-On Thru-Axle
Alpine Trail XR Extras Downtube Protector
Alpine Trail 7 Frame Series 4 6061 Aluminum, 29” Wheels, 150mm Travel MultiTrac Suspension Platform, Internal Dropper Post and Rear Derailleur Routing, Chainstay Mounted Post Mount Disc Brake, 148x12mm Boost Thru- Axle, 73mm Threaded BB w/ ISCG05 Tabs
Alpine Trail 7 Front Suspension RockShox Yari RC, 29”, 160mm of Travel, Air Sprung, Debonair, Compression and Rebound Adjustment, Fast Black Stanchions, 110x15mm Maxle Stealth, 42mm Offset
Alpine Trail 7 Rear Suspension RockShox Deluxe Select + RT, Debonair Air Spring, 2 Position Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount
Alpine Trail 7 Rim Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Alpine Trail 7 Hub Rear Forged Aluminum, 148x12mm, Disc, HG Freehub Body
Alpine Trail 7 Hub Front Forged Aluminum, 110x15mm, Disc
Alpine Trail 7 Spokes 14g Black Stainless Steel
Alpine Trail 7 Tires Vee Tire Co. Flow Snap, 29x2.6”, Top 40 Compound, Enduro Core, 72 TPI, Tubeless Compatible
Alpine Trail 7 Derailleur Rear Shimano Deore, 12-Speed, SGS
Alpine Trail 7 Derailleur Front -
Alpine Trail 7 Shift Lever Shimano Deore, 12-Speed, SL-6100
Alpine Trail 7 Crankset FSA Comet Heavy Duty, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Alpine Trail 7 Bottom Bracket MegaExo 73mm BSA
Alpine Trail 7 Chain KMC X-12 Silver and Black
Alpine Trail 7 Cassette SunRace, 12-Speed, 11-51T
Alpine Trail 7 Brakes Front TRP Slate EVO, 4-Piston Hydraulic Disc, 203mm Rotor
Alpine Trail 7 Brakes Rear TRP Slate EVO, 4-Piston Hydraulic Disc, 180mm Rotor
Alpine Trail 7 Brake Levers TRP Slate EVO
Alpine Trail 7 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Alpine Trail 7 Stem Marin 3D Forged Alloy, 35mm
Alpine Trail 7 Grips Marin Single Clamp Locking
Alpine Trail 7 Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Alpine Trail 7 Seatpost TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Alpine Trail 7 Saddle Marin Speed Concept
Alpine Trail 7 Pedals -
Alpine Trail 7 Extras Bolt-On Thru-Axle
Alpine Trail 7 Extras Downtube Protector
Rift Zone 29" Carbon XR Frame Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Rift Zone 29" Carbon XR Front Suspension Fox Performance Elite Float 36, 140mm Travel, GRIP 2 Damper, 110x15mm Kabolt Axle, 44mm Offset
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Rift Zone 29" Carbon XR Rear Suspension Fox Factory Series Coil, Coil Spring, Climb Switch, Rebound & Compresion Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
Rift Zone 29" Carbon XR Rim Marin Aluminum Double Wall, 29mm Inner, Welded Joint, Disc Specific, Tubeless Compatible
Rift Zone 29" Carbon XR Hub Rear Forged Alloy, 148x12mm,Disc, 32H, MS Freehub Body
Rift Zone 29" Carbon XR Hub Front Forged Alloy, 110x15mm, Disc, 32H
Rift Zone 29" Carbon XR Spokes 14g Black Stainless Steel
Rift Zone 29" Carbon XR Tires Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible
Rift Zone 29" Carbon XR Derailleur Rear Shimano XT, 12-Speed, SGS
Rift Zone 29" Carbon XR Derailleur Front -
Rift Zone 29" Carbon XR Shift Lever Shimano SLX, 12-Speed, SL-7100R
Rift Zone 29" Carbon XR Crankset FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Rift Zone 29" Carbon XR Bottom Bracket MegaEvo BB, 73mm BSA Threaded
Rift Zone 29" Carbon XR Chain KMC X-12 Silver and Black
Rift Zone 29" Carbon XR Cassette Shimano Deore M6100, 12-Speed, 10-51T
Rift Zone 29" Carbon XR Brakes Front Shimano XT, 4-Piston Hydraulic Disc, 203mm Rotor
Rift Zone 29" Carbon XR Brakes Rear Shimano XT, 4-Piston Hydraulic Disc, 180mm Rotor
Rift Zone 29" Carbon XR Brake Levers Shimano XT Hydraulic, I-Spec EV
Rift Zone 29" Carbon XR Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Rift Zone 29" Carbon XR Stem Marin CNC, 35mm Length, 35mm Bar Bore
Rift Zone 29" Carbon XR Grips Marin Grizzly Lock On
Rift Zone 29" Carbon XR Headset FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Rift Zone 29" Carbon XR Seatpost X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Rift Zone 29" Carbon XR Saddle Marin Trail Speed Concept Pro
Rift Zone 29" Carbon XR Pedals -
Rift Zone 29" Carbon XR Extras Bolt-On Thru-Axle
Rift Zone 29" Carbon 2 Frame Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Rift Zone 29" Carbon 2 Front Suspension Fox Performance 34 Float, 130mm Travel, 3-Position Micro Adjust Compression Adjustment, Rebound Adjustment, 110x15mm Kabolt Axle, 44mm Offset
Rift Zone 29" Carbon 2 Rear Suspension Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
Rift Zone 29" Carbon 2 Rim Marin Aluminum Double Wall, 29mm Inner, Welded Joint, Disc Specific, Tubeless Compatible
Rift Zone 29" Carbon 2 Hub Rear Forged Alloy, 148x12mm,Disc, 32H, MS Freehub Body
Rift Zone 29" Carbon 2 Hub Front Forged Alloy, 110x15mm, Disc, 32H
Rift Zone 29" Carbon 2 Spokes 14g Black Stainless Steel
Rift Zone 29" Carbon 2 Tires Front: Maxxis Assegai 29x2.5”, 3C MaxxTerra, EXO, Tubeless Compatible Rear: Maxxis Aggressor 29x2.5”, 3C Maxx Terra, EXO, Tubeless Compatible
Rift Zone 29" Carbon 2 Derailleur Rear Shimano SLX, 12-Speed, SGS
Rift Zone 29" Carbon 2 Derailleur Front -
Rift Zone 29" Carbon 2 Shift Lever Shimano SLX, 12-Speed, SL-7100R
Rift Zone 29" Carbon 2 Crankset FSA Gradient, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Rift Zone 29" Carbon 2 Bottom Bracket MegaEvo BB, 73mm BSA
MODEL COMPONENT DESCRIPTION
Rift Zone 29" Carbon 2 Chain KMC X-12 Silver and Black
Rift Zone 29" Carbon 2 Cassette SunRace, 12-Speed, 11-51T, ED Black
Rift Zone 29" Carbon 2 Brakes Front TRP DH-R EVO, 4-Piston Hydraulic Disc, 203mm Rotor
Rift Zone 29" Carbon 2 Brakes Rear TRP DH-R EVO, 4-Piston Hydraulic Disc, 180mm Rotor
Rift Zone 29" Carbon 2 Brake Levers TRP DH-R EVO
Rift Zone 29" Carbon 2 Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Rift Zone 29" Carbon 2 Stem Marin CNC, 35mm Length, 35mm Bar Bore
Rift Zone 29" Carbon 2 Grips Marin Grizzly Lock On
Rift Zone 29" Carbon 2 Headset FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Rift Zone 29" Carbon 2 Seatpost X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Rift Zone 29" Carbon 2 Saddle Marin Trail Speed Concept Pro
Rift Zone 29" Carbon 2 Pedals
Rift Zone 29" Carbon 2 Extras Bolt-On Thru-Axle
Rift Zone 29" Carbon 1 Frame Unidirectional Carbon Fiber Front Triangle, Series 4 Alloy Rear End, 29” Wheels, 125mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Rift Zone 29" Carbon 1 Front Suspension Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 130mm Travel, Kabolt Bolt-On Axle, 44mm Offset
Rift Zone 29" Carbon 1 Rear Suspension Fox Float DPS, Performance Series, EVOL Air Spring, 3 Position Compression Adjustment, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
Rift Zone 29" Carbon 1 Rim Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
Rift Zone 29" Carbon 1 Hub Rear Forged Alloy, 148x12mm, Quad Sealed Bearings, Disc, 32H, HG Freehub Body
Rift Zone 29" Carbon 1 Hub Front Forged Alloy, 110x15mm, Disc, 32H
Rift Zone 29" Carbon 1 Spokes 14g Black Stainless Steel
Rift Zone 29" Carbon 1 Tires Front: Maxxis Assegai 29x2.5”, 3C MaxxTerra, EXO, Tubeless Compatible Rear: Maxxis Aggressor 29x2.5”, 3C Maxx Terra, EXO, Tubeless Compatible
Rift Zone 29" Carbon 1 Derailleur Rear Shimano SLX, 12-Speed, SGS
Rift Zone 29" Carbon 1 Derailleur Front -
Rift Zone 29" Carbon 1 Shift Lever Shimano SLX, 12-Speed, SL-7100R
Rift Zone 29" Carbon 1 Crankset New FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Rift Zone 29" Carbon 1 Bottom Bracket MegaExo 73mm BSA
Rift Zone 29" Carbon 1 Chain KMC X-12 Silver and Black
Rift Zone 29" Carbon 1 Cassette Shimano, Deore M6100, 12-Speed, 10-51T
Rift Zone 29" Carbon 1 Brakes Front TRP Slate EVO, 4-Piston Hydraulic Disc, 203mm Rotor
Rift Zone 29" Carbon 1 Brakes Rear TRP Slate EVO, 4-Piston Hydraulic Disc, 180mm Rotor
Rift Zone 29" Carbon 1 Brake Levers TRP Slate EVO
Rift Zone 29" Carbon 1 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Rift Zone 29" Carbon 1 Stem Marin 3D Forged Alloy, 35mm
Rift Zone 29" Carbon 1 Grips Marin Grizzly Lock On
Rift Zone 29" Carbon 1 Headset FSA No 42/47, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Rift Zone 29" Carbon 1 Seatpost X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Rift Zone 29" Carbon 1 Saddle Marin Speed Concept
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Rift Zone 29" Carbon 1 Pedals -
Rift Zone 29" Carbon 1 Extras Bolt-On Thru-Axle
Rift Zone 29" XR Frame All New Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Rift Zone 29" XR Front Suspension Marzocchi Bomber Z1 29", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset
Rift Zone 29" XR Rear Suspension Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, M8x30mm Top, M8x25mm Bottom
Rift Zone 29" XR Rim Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, Tubeless Compatible
Rift Zone 29" XR Hub Rear Forged Alloy, 148x12mm,Disc, 32H, MS Freehub Body
Rift Zone 29" XR Hub Front Forged Alloy, 110x15mm, Disc, 32H
Rift Zone 29" XR Spokes 14g Black Stainless Steel
Rift Zone 29" XR Tires Maxxis Assegai, 29x2.5", MAXX TERAA, EXO, Tubeless Compatible
Rift Zone 29" XR Derailleur Rear Shimano XT, 12-Speed, SGS
Rift Zone 29" XR Derailleur Front -
Rift Zone 29" XR Shift Lever Shimano SLX, 12-Speed, SL-7100R
Rift Zone 29" XR Crankset FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Rift Zone 29" XR Bottom Bracket MegaExo 73mm BSA
Rift Zone 29" XR Chain KMC X-12 Silver and Black
Rift Zone 29" XR Cassette SunRace, 12-Speed, 11-51T, ED Black
Rift Zone 29" XR Brakes Front TRP Slate EVO, 4-Piston Hydraulic Disc, 203mm Rotor
Rift Zone 29" XR Brakes Rear TRP Slate EVO, 4-Piston Hydraulic Disc, 180mm Rotor
Rift Zone 29" XR Brake Levers TRP Slate EVO
Rift Zone 29" XR Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Rift Zone 29" XR Stem Marin 3D Forged Alloy, 35mm
Rift Zone 29" XR Grips Marin Grizzly Lock On
Rift Zone 29" XR Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Rift Zone 29" XR Seatpost TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
Rift Zone 29" XR Saddle Marin Speed Concept
Rift Zone 29" XR Pedals -
Rift Zone 29" XR Extras Bolt-On Thru-Axle
Rift Zone 29" 2 Frame All New Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Rift Zone 29" 2 Front Suspension Marzocchi Bomber Z2 29", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset
Rift Zone 29" 2 Rear Suspension RockShox Deluxe Select RT, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x55mm, M8x25mm Hardware
Rift Zone 29" 2 Rim Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Rift Zone 29" 2 Hub Rear Forged Alloy, 148x12mm, Quad Sealed Bearings, Disc, 32H, HG Freehub Body
Rift Zone 29" 2 Hub Front Forged Alloy, 110x15mm, Disc, 32H
Rift Zone 29" 2 Spokes 14g Black Stainless Steel
Rift Zone 29" 2 Tires Vee Tire Co. Flow Snap 29x2.35", Tackee Compound, Tubeless Ready
Rift Zone 29" 2 Derailleur Rear Shimano Deore, 12-Speed, SGS
Rift Zone 29" 2 Derailleur Front -
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Rift Zone 29" 2 Shift Lever Shimano Deore, 12-Speed, SL-M6100-R
Rift Zone 29" 2 Crankset FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Rift Zone 29" 2 Bottom Bracket External Sealed Cartridge Bearing
Rift Zone 29" 2 Chain KMC X-12 Silver and Black
Rift Zone 29" 2 Cassette SunRace, 12-Speed, 11-51T, ED Black
Rift Zone 29" 2 Brakes Front Tektro HDM-535 4-Piston Hydraulic Disc, 180mm Rotor
Rift Zone 29" 2 Brakes Rear Tektro HDM-535 4-Piston Hydraulic Disc, 180mm Rotor
Rift Zone 29" 2 Brake Levers Tektro HDM-535
Rift Zone 29" 2 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Rift Zone 29" 2 Stem Marin 3D Forged Alloy, 35mm
Rift Zone 29" 2 Grips Marin Grizzly Lock On
Rift Zone 29" 2 Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Rift Zone 29" 2 Seatpost TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
Rift Zone 29" 2 Saddle Marin Speed Concept
Rift Zone 29" 2 Pedals -
Rift Zone 29" 2 Extras Bolt-On Thru-Axle
Rift Zone 29" 1 Frame All New Series 3 6061 Aluminum Frame, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
Rift Zone 29" 1 Front Suspension X-Fusion Slide Boost RC, 29", 140mm Travel, Compression and Rebound Adjustment, 44mm Offset
Rift Zone 29" 1 Rear Suspension X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom
Rift Zone 29" 1 Rim Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Rift Zone 29" 1 Hub Rear Forged Alloy, 141QR, Disc, 32H, HG Freehub Body
Rift Zone 29" 1 Hub Front Forged Alloy, 110x15mm, Disc, 32H
Rift Zone 29" 1 Spokes 14g Black Stainless Steel
Rift Zone 29" 1 Tires Vee Tire Co. Crown Gem 29x2.35", Dual Control Compound, Tubeless Ready
Rift Zone 29" 1 Derailleur Rear Shimano Deore, 11-Speed, SGS
Rift Zone 29" 1 Derailleur Front -
Rift Zone 29" 1 Shift Lever Shimano Deore, 11-Speed, SL-5100R
Rift Zone 29" 1 Crankset Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Rift Zone 29" 1 Bottom Bracket External Sealed Cartridge Bearing
Rift Zone 29" 1 Chain KMC X-11 Silver and Black
Rift Zone 29" 1 Cassette SunRace, 11-Speed, 11-51T, ED Black
Rift Zone 29" 1 Brakes Front Tektro HDM-280 Hydraulic Disc, 180mm Rotor
Rift Zone 29" 1 Brakes Rear Tektro HDM-280 Hydraulic Disc, 180mm Rotor
Rift Zone 29" 1 Brake Levers Tektro HDM-280
Rift Zone 29" 1
Rift Zone 29" 1
Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Stem Marin 3D Forged Alloy, 35mm
Rift Zone 29" 1 Grips Marin MTN, Closed End
Rift Zone 29" 1 Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Rift Zone 29" 1
Seatpost Marin Alloy, 30.9mm
MODEL COMPONENT DESCRIPTION
Rift Zone 29" 1 Saddle Marin Speed Concept
Rift Zone 29" 1 Pedals -
Rift Zone 29" 1 Extras Closed 9-12 Thru-Axle QR System
Rift Zone 27.5" XR Frame All New Series 3 6061 Aluminum, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Rift Zone 27.5" XR Front Suspension Marzocchi Bomber Z1 27.5", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 37mm Offset
Rift Zone 27.5" XR Rear Suspension Fox Float X, Performance Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, M8x30mm Top, M8x25mm Bottom
Rift Zone 27.5" XR Rim Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible
Rift Zone 27.5" XR Hub Rear Forged Alloy, 148x12mm,Disc, 32H, MS Freehub Body
Rift Zone 27.5" XR Hub Front Forged Alloy, 110x15mm, Disc, 32H
Rift Zone 27.5" XR Spokes 14g Black Stainless Steel
Rift Zone 27.5" XR Tires Maxxis Assegai, 27.5x2.5", MAXX TERAA, EXO, Tubeless Compatible
Rift Zone 27.5" XR Derailleur Rear Shimano XT, 12-Speed, SGS
Rift Zone 27.5" XR Derailleur Front -
Rift Zone 27.5" XR Shift Lever Shimano SLX, 12-Speed, SL-7100R
Rift Zone 27.5" XR Crankset FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Rift Zone 27.5" XR Bottom Bracket MegaExo 73mm BSA
Rift Zone 27.5" XR Chain KMC X-12 Silver and Black
Rift Zone 27.5" XR Cassette SunRace, 12-Speed, 11-51T, ED Black
Rift Zone 27.5" XR Brakes Front TRP Slate EVO, 4-Piston Hydraulic Disc, 203mm Rotor
Rift Zone 27.5" XR Brakes Rear TRP Slate EVO, 4-Piston Hydraulic Disc, 180mm Rotor
Rift Zone 27.5" XR Brake Levers TRP Slate EVO
Rift Zone 27.5" XR Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Rift Zone 27.5" XR Stem Marin 3D Forged Alloy, 35mm
Rift Zone 27.5" XR Grips Marin Grizzly Lock On
Rift Zone 27.5" XR Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Rift Zone 27.5" XR Seatpost TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
Rift Zone 27.5" XR Saddle Marin Speed Concept
Rift Zone 27.5" XR Pedals -
Rift Zone 27.5" XR Extras Bolt-On Thru-Axle
Rift Zone 27.5" 2 Frame All New Series 3 6061 Aluminum, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs
Rift Zone 27.5" 2 Front Suspension Marzocchi Bomber Z2 27.5", Rail Damper with Sweep Adjustment, 140mm Travel, Kabolt Bolt-On Axle, 44mm Offset
Rift Zone 27.5" 2 Rear Suspension RockShox Deluxe Select RT, Debonair Air Sleeve, Rebound Adjustment, Custom Tune, 210x55mm, M8x25mm Hardware
Rift Zone 27.5" 2 Rim Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Rift Zone 27.5" 2 Hub Rear Forged Alloy, 148x12mm,Disc, 32H, HG Freehub Body
Rift Zone 27.5" 2 Hub Front Forged Alloy, 110x15mm, Disc, 32H
Rift Zone 27.5" 2 Spokes 14g Black Stainless Steel
Rift Zone 27.5" 2 Tires Vee Tire Co. Flow Snap 27.5x2.35", Tackee Compound, Tubeless Ready
Rift Zone 27.5" 2 Derailleur Rear Shimano Deore, 12-Speed, SGS
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Rift Zone 27.5" 2 Derailleur Front -
Rift Zone 27.5" 2 Shift Lever Shimano Deore, 12-Speed, SL-M6100-R
Rift Zone 27.5" 2 Crankset FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
Rift Zone 27.5" 2 Bottom Bracket MegaExo 73mm BSA
Rift Zone 27.5" 2 Chain KMC X-12 Silver and Black
Rift Zone 27.5" 2 Cassette SunRace, 12-Speed, 11-51T, ED Black
Rift Zone 27.5" 2 Brakes Front Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Rift Zone 27.5" 2 Brakes Rear Shimano BR-MT200 Hydraulic Disc, 180mm Rotor
Rift Zone 27.5" 2 Brake Levers Shimano BL-MT201
Rift Zone 27.5" 2 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Rift Zone 27.5" 2 Stem Marin 3D Forged Alloy, 35mm
Rift Zone 27.5" 2 Grips Marin Grizzly Lock On
Rift Zone 27.5" 2 Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Rift Zone 27.5" 2 Seatpost TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
Rift Zone 27.5" 2 Saddle Marin Speed Concept
Rift Zone 27.5" 2 Pedals -
Rift Zone 27.5" 2 Extras Bolt-On Thru-Axle
Rift Zone 27.5" 1 Frame All New Series 3 6061 Aluminum, 27.5” Wheels, 130mm Travel, MultiTrac Suspension Platform, 141 Boost Spacing (upgradable to 148x12), 73mm Threaded BB w/ ISCG05 Tabs
Rift Zone 27.5" 1 Front Suspension X-Fusion Sweep Boost RC, 27.5", 140mm Travel, Compresion and Rebound Adjustment, 110x15mm Thru Axle, 44mm Offset
Rift Zone 27.5" 1 Rear Suspension X-Fusion O2 Pro R, Custom Tune, 210x55mm, M8x25mm Hardware Top and Bottom
Rift Zone 27.5" 1 Rim Marin, Double Wall Alloy, 29mm Inner, Pinned Joint, Disc Specific, 32H, Tubeless Compatible
Rift Zone 27.5" 1 Hub Rear Forged Alloy, 141QR, Disc, 32H, HG Freehub Body
Rift Zone 27.5" 1 Hub Front Forged Alloy, 110x15mm, Disc, 32H
Rift Zone 27.5" 1 Spokes 14g Black Stainless Steel
Rift Zone 27.5" 1 Tires Vee Tire Co. Crown Gem 27.5x2.3", Dual Control Compound, Tubeless Ready
Rift Zone 27.5" 1 Derailleur Rear Shimano Deore, 11 Speed, SGS
Rift Zone 27.5" 1 Derailleur Front -
Rift Zone 27.5" 1 Shift Lever Shimano Deore, 11-Speed, SL-5100R
Rift Zone 27.5" 1 Crankset Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
Rift Zone 27.5" 1 Bottom Bracket External Sealed Cartridge Bearing
Rift Zone 27.5" 1 Chain KMC X-11 Silver and Black
Rift Zone 27.5" 1 Cassette SunRace, 11-Speed, 11-51T, ED Black
Rift Zone 27.5" 1 Brakes Front Tektro HDM-280 Hydraulic Disc, 180mm Rotor
Rift Zone 27.5" 1 Brakes Rear Tektro HDM-280 Hydraulic Disc, 180mm Rotor
Rift Zone 27.5" 1 Brake Levers Tektro HDM-280
Rift Zone 27.5" 1 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Rift Zone 27.5" 1 Stem Marin 3D Forged Alloy, 35mm
Rift Zone 27.5" 1 Grips Marin MTN, Closed End
Rift Zone 27.5" 1
No 57E, Semi-Sealed Cartridge
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Rift Zone 27.5" 1 Seatpost Marin Alloy, 30.9mm
Rift Zone 27.5" 1 Saddle Marin Speed Concept
Rift Zone 27.5" 1 Pedals -
Rift Zone 27.5" 1 Extras Closed 9-12 Thru-Axle QR System
San Quentin 3 Frame All New Series 3 6061 Aluminum, Double Butted, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB
San Quentin 3 Front Suspension Marzocchi Bomber Z2, 110x15mm Boost Spacing, 140mm Travel, Kabolt Axle
San Quentin 3 Rim Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Sleeved Joint, 32H, Tubeless Compatible
San Quentin 3 Hub Rear Forged Alloy, 148x12mm, Disc, HG Freehub Body
San Quentin 3 Hub Front Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Disc, 32H
San Quentin 3 Spokes Nipples 14g Black Stainless Steel
San Quentin 3 Tires Vee Tire Co., Attack HPL, 27.5x2.5", Tubeless Compatible
San Quentin 3 Derailleur Rear Shimano SLX, 12-Speed, SGS
San Quentin 3 Derailleur Front -
San Quentin 3 Shift Lever Shimano Deore, 12-Speed, SL-7100R
San Quentin 3 Crankset FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
San Quentin 3 Bottom Bracket MegaExo 73mm BSA
San Quentin 3 Chain KMC X-12 Silver and Black
San Quentin 3 Cassette SunRace, 12-Speed, 11-51T, ED Black
San Quentin 3 Brakes Front TRP Slate EVO, 4-Piston Hydraulic Disc, 203mm Rotor
San Quentin 3 Brakes Rear TRP Slate EVO, 4-Piston Hydraulic Disc, 180mm Rotor
San Quentin 3 Brake Levers TRP Slate EVO
San Quentin 3 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
San Quentin 3 Stem Marin 3D Forged Alloy, 35mm
San Quentin 3 Grips Marin Grizzly Lock On
San Quentin 3 Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
San Quentin 3 Seatpost TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, Size M 150mm, L 170mm Travel, and Size XL 200mm Travel, 30.9mm
San Quentin 3 Saddle Marin Speed Concept
San Quentin 3 Pedals Nylon Platform
San Quentin 3 Extras -
San Quentin 2 Frame All New Series 3 6061 Aluminum, Double Butted, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB
San Quentin 2 Front Suspension RockShox FS35 Silver, 110x15mm Boost Spacing, 140mm Travel, Maxle Stealth
San Quentin 2 Rim Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
San Quentin 2 Hub Rear Forged Alloy, 148x12, Disc, HG Freehub Body
San Quentin 2 Hub Front Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Disc, 32H
San Quentin 2 Spokes Nipples 14g Black Stainless Steel
San Quentin 2 Tires Vee Tire Co., Flow Snap, 27.5x2.6", MPC Compound, Wire Bead
San Quentin 2 Derailleur Rear Shimano Deore, 11-Speed, SGS
San Quentin 2 Derailleur Front -
San Quentin 2 Shift Lever Shimano Deore, 11-Speed, SL-5100R
MODEL COMPONENT DESCRIPTION
San Quentin 2 Crankset Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
San Quentin 2 Bottom Bracket External Sealed Cartridge Bearing
San Quentin 2 Chain KMC X-11 Silver and Black
San Quentin 2 Cassette SunRace, 11-Speed, 11-51T, ED Black
San Quentin 2 Brakes Front Shimano BR-MT201 Hydraulic Disc, 180mm Rotor
San Quentin 2 Brakes Rear Shimano BR-MT201 Hydraulic Disc, 180mm Rotor
San Quentin 2 Brake Levers Shimano BR-MT201 Hydraulic Disc
San Quentin 2 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
San Quentin 2 Stem Marin 3D Forged Alloy, 35mm
San Quentin 2 Grips Marin Grizzly Lock On
San Quentin 2 Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
San Quentin 2 Seatpost TranzX, YSP18, 1x Remote, Size S 120mm Travel, Size M 150mm Travel, Size L-XL 170mm Travel, 30.9mm
San Quentin 2 Saddle Marin Speed Concept
San Quentin 2 Pedals Nylon Platform
San Quentin 2 Extras -
San Quentin 1 Frame All New Series 2 6061 Aluminum, Double Butted, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB
San Quentin 1 Front Suspension SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, 27.5", Bolt-On Thru-Axle
San Quentin 1 Rim Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible
San Quentin 1 Hub Rear Forged Alloy, Quad Sealed Cartridge Bearings, QR type, 141mm Width, Disc, 32H, HG Freehub Body
San Quentin 1 Hub Front Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Disc, 32H
San Quentin 1 Spokes Nipples 14g Black Stainless Steel
San Quentin 1 Tires Vee Tire Co., Flow Snap, 27.5x2.6", MPC Compound, Wire Bead
San Quentin 1 Derailleur Rear microSHIFT RD-M9195M, 9 Speed, With Clutch
San Quentin 1 Derailleur Front -
San Quentin 1 Shift Lever microSHIFT SL-M9195-R, 1x9 with Bearings
San Quentin 1 Crankset Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing
San Quentin 1 Bottom Bracket Sealed Cartridge Bearing, Square Taper
San Quentin 1 Chain KMC X-9
San Quentin 1 Cassette Sunrace, 9 Speed, 11-46T
San Quentin 1 Brakes Front Tektro M275 Hydraulic Disc, 180mm Rotor
San Quentin 1 Brakes Rear Tektro M275 Hydraulic Disc, 180mm Rotor
San Quentin 1 Brake Levers Tektro M275 Hydraulic Disc
San Quentin 1 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
San Quentin 1 Stem Marin 3D Forged Alloy, 45mm
San Quentin 1 Grips Marin MTN, Closed End
San Quentin 1 Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
San Quentin 1 Seatpost Marin Alloy, 30.9mm
San Quentin 1 Saddle Marin Speed Concept
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
San Quentin 1 Pedals Nylon Platform
San Quentin 1 Extras -
El Roy Frame Series 3 Double Butted and Formed CrMo tubing, Integrated Drop-In Headset, External Rear Derailleur and Brake Housing, Internal Dropper Post Routing, 148x12mm Boost Rear Spacing, Post Mount Brake Mounts
El Roy Front Suspension Marzocchi Z1, 140mm Travel, EVOL Air Spring, GRIP Damper w/ Sweep Adjust, Kabolt 110 Axle, 44mm Offset
El Roy Rim Marin, Double Wall Alloy, 29mm Inner, Welded Joint, Disc Specific, 32H, Tubeless Compatible
El Roy Hub Rear Forged Alloy, 148x12mm, Disc
El Roy Hub Front Forged Alloy, 110x15mm, Disc
El Roy Spokes Nipples 14g Black Stainless Steel
El Roy Tires Maxxis Assegai 29x2.5", Tubeless Compatible
El Roy Derailleur Rear Shimano Deore, 12-Speed, SGS
El Roy Derailleur Front -
El Roy Shift Lever Shimano Deore, M6100, 12-Speed
El Roy Crankset FSA Comet, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Boost Spacing
El Roy Bottom Bracket MegaExo 73mm BSA
El Roy Chain KMC X-12 Silver and Black
El Roy Cassette Shimano, Deore 12-Speed, 10-51T
El Roy Brakes Front Shimano BR-MT420, 4-Piston Hydraulic, 203mm Rotor
El Roy Brakes Rear Shimano BR-MT420, 4-Piston Hydraulic Disc, 180mm Rotor
El Roy Brake Levers Shimano BL-M4100 Hydraulic Lever, I-Spec EV Compatible
El Roy Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
El Roy Stem Marin 3D Forged Alloy, 35mm
El Roy Grips Marin Grizzly Lock On
El Roy Headset FSA Orbit 40 No.42 ACB
El Roy Seatpost X Fusion Manic, Regular = 150mm Travel, Grande = 170mm Travel
El Roy Saddle Marin Speed Concept
El Roy Pedals -
El Roy Extras Bolt-On Thru-Axle
Bobcat Trail 5 Frame Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Bobcat Trail 5 Front Suspension SR Suntour XCR LOR-DS, Thru-Axle, 120mm Travel, Hydraulic Lockout, Damping Adjustment, 42mm (27.5") and 46mm (29") Offsets
Bobcat Trail 5 Rim Marin Aluminum Double Wall, 29mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Bobcat Trail 5 Hub Rear Forged Alloy, Disc, 32H
Bobcat Trail 5 Hub Front Forged Alloy, Disc, 32H
Bobcat Trail 5 Spokes 14g Black Stainless Steel
Bobcat Trail 5 Tires MTB, 27.5/29x2.25"
Bobcat Trail 5 Derailleur Rear Shimano Deore 11-Speed w/Clutch
Bobcat Trail 5 Derailleur Front -
Bobcat Trail 5 Shift Lever Shimano Deore 11-Speed
Bobcat Trail 5 Crankset Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Bobcat Trail 5 Bottom Bracket External Sealed Cartridge Bearings
Bobcat Trail 5 Chain KMC X11
Bobcat Trail 5 Cassette SunRace 11-Speed, 11-51T
Bobcat Trail 5 Brakes Front Shimano BR-MT201 Hydraulic Disc 160mm Rotor
Bobcat Trail 5 Brakes Rear Shimano BR-MT201 Hydraulic Disc 160mm Rotor
Bobcat Trail 5 Brake Levers Shimano BL-MT201
Bobcat Trail 5 Handlebar Marin 31.8 Riser, 12mm Rise, 780mm Width
Bobcat Trail 5 Stem Marin Alloy, 31.8mm Clamp, 45mm
Bobcat Trail 5 Grips Marin MTB, Closed End
Bobcat Trail 5 Headset FSA No.10-P
Bobcat Trail 5 Seatpost Marin Alloy, 30.9
Bobcat Trail 5 Saddle Marin MTB
Bobcat Trail 5 Pedals Nylon Platform
Bobcat Trail 4 Frame Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Bobcat Trail 4 Front Suspension SR Suntour XCM HLO-DS, 120mm Travel, Hydraulic Lockout, 46mm Offset
Bobcat Trail 4 Rim Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Bobcat Trail 4 Hub Rear Forged Alloy, Disc, 32H
Bobcat Trail 4 Hub Front Forged Alloy, Disc, 32H
Bobcat Trail 4 Spokes 14g Black Stainless Steel
Bobcat Trail 4 Tires MTB, 27.5/29x2.25"
Bobcat Trail 4 Derailleur Rear microSHIFT Advent 9, Clutch
Bobcat Trail 4 Derailleur Front
Bobcat Trail 4 Shift Lever microSHIFT Advent 9 Trail
Bobcat Trail 4 Crankset Alloy Crank, Steel Narrow-Wide Chainring, 32T
Bobcat Trail 4 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Bobcat Trail 4 Chain KMC X9
Bobcat Trail 4 Cassette SunRace 9-Speed, 11-46T
Bobcat Trail 4 Brakes Front Tektro M275 Hydraulic Disc, 160mm Rotor
Bobcat Trail 4 Brakes Rear Tektro M275 Hydraulic Disc, 160mm Rotor
Bobcat Trail 4 Brake Levers Tektro M275 Hydraulic Disc
Bobcat Trail 4 Handlebar Marin 31.8 Riser, 12mm Rise, 780mm Width
Bobcat Trail 4 Stem Marin Alloy, 31.8mm Clamp, 45mm
Bobcat Trail 4 Grips Marin MTB, Closed End
Bobcat Trail 4 Headset FSA No.10-P
Bobcat Trail 4 Seatpost Marin Alloy, 30.9
Bobcat Trail 4 Saddle Marin MTB
Bobcat Trail 4 Pedals Nylon Platform
Bobcat Trail 3 Frame Series 2 6061 Aluminum, 27.5" or 29” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing & Dropper Post Routing
Bobcat Trail 3 Front Suspension SR Suntour XCM HLO, 120mm Travel, Hydraulic Lockout, 46mm Offset
Bobcat Trail 3 Rim Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
MODEL COMPONENT DESCRIPTION
Bobcat Trail 3 Hub Rear Forged Alloy, Disc, 32H
Bobcat Trail 3 Hub Front Forged Alloy, Disc, 32H
Bobcat Trail 3 Spokes 14g Black Stainless Steel
Bobcat Trail 3 Tires MTB, 27.5/29x2.25"
Bobcat Trail 3 Derailleur Rear Shimano Altus, 8-Speed
Bobcat Trail 3 Derailleur Front Altus Double
Bobcat Trail 3 Shift Lever Shimano Altus SL-M315, 8-Speed
Bobcat Trail 3 Crankset Alloy Crank, Steel Chainrings, 36/22T
Bobcat Trail 3 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Bobcat Trail 3 Chain KMC Z8
Bobcat Trail 3 Cassette SunRace 8-Speed, 11-34T
Bobcat Trail 3 Brakes Front Tektro M275 Hydraulic Disc, 160mm Rotor
Bobcat Trail 3 Brakes Rear Tektro M275 Hydraulic Disc, 160mm Rotor
Bobcat Trail 3 Brake Levers Tektro M275 Hydraulic Disc
Bobcat Trail 3 Handlebar Marin 31.8 Riser, 12mm Rise, 780mm Width
Bobcat Trail 3 Stem Marin Alloy, 31.8mm Clamp, 45mm
Bobcat Trail 3 Grips Marin MTB, Closed End
Bobcat Trail 3 Headset FSA No.10-P
Bobcat Trail 3 Seatpost Marin Alloy, 30.9
Bobcat Trail 3 Saddle Marin MTB
Bobcat Trail 3 Pedals Nylon Platform
Bolinas Ridge 2 Frame Series 1 6061 Aluminum, 27.5”/29" Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes
Bolinas Ridge 2 Front Suspension SR Suntour XCM DS, 100mm Travel, Preload Adjustment, 46mm Offset
Bolinas Ridge 2 Rim Marin, Double Wall Alloy
Bolinas Ridge 2 Hub Rear Forged Alloy, Disc, 32H
Bolinas Ridge 2 Hub Front Forged Alloy, Disc, 32H
Bolinas Ridge 2 Spokes Black Stainless Steel
Bolinas Ridge 2 Tires MTB, 27.5/29x2.25"
Bolinas Ridge 2 Derailleur Rear Shimano Altus, 8-Speed
Bolinas Ridge 2 Derailleur Front Shimano FD-TY700
Bolinas Ridge 2 Shift Lever Shimano Altus 3x8-Speed
Bolinas Ridge 2 Crankset Alloy Crank, Steel Chainrings, 42/34/24T
Bolinas Ridge 2 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Bolinas Ridge 2 Chain KMC Z8
Bolinas Ridge 2 Cassette SunRace 8-Speed, 11-34T
Bolinas Ridge 2 Brakes Front Clark's Clout Hydraulic Disc, 160mm Rotor
Bolinas Ridge 2 Brakes Rear Clark's Clout Hydraulic Disc, 160mm Rotor
Bolinas Ridge 2 Brake Levers Clark's Hydraulic
Bolinas Ridge 2 Handlebar Marin 31.8 Riser, 12mm Rise, 780mm Width
Bolinas Ridge 2 Stem Marin Alloy, 31.8mm, 45mm
Bolinas Ridge 2 Grips Marin MTB, Closed End
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Bolinas Ridge 2 Headset FSA No.10-P
Bolinas Ridge 2 Seatpost Marin Alloy, 27.2mm
Bolinas Ridge 2 Saddle Marin MTB
Bolinas Ridge 2 Pedals Nylon Platform
Bolinas Ridge 1 Frame Series 1 6061 Aluminum, 27.5”/29" Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes
Bolinas Ridge 1 Front Suspension SR Suntour XCE Disc, 100mm Travel, Preload Adjustment, 46mm Offset
Bolinas Ridge 1 Rim Marin, Double Wall Alloy
Bolinas Ridge 1 Hub Rear Forged Alloy, Disc, 32H
Bolinas Ridge 1 Hub Front Forged Alloy, Disc, 32H
Bolinas Ridge 1 Spokes Black Stainless Steel
Bolinas Ridge 1 Tires MTB, 27.5/29x2.25"
Bolinas Ridge 1 Derailleur Rear Shimano Tourney, 7-Speed
Bolinas Ridge 1 Derailleur Front Shimano FD-TX500
Bolinas Ridge 1 Shift Lever Shimano Tourney 3x7-Speed
Bolinas Ridge 1 Crankset Alloy Crank, Steel Chainrings, 42/34/24T
Bolinas Ridge 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Bolinas Ridge 1 Chain KMC Z8
Bolinas Ridge 1 Cassette SunRace 7-Speed, 11-34T
Bolinas Ridge 1 Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Bolinas Ridge 1 Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Bolinas Ridge 1 Brake Levers Shimano w/ Integrated Shifters
Bolinas Ridge 1 Handlebar Marin 31.8 Riser, 12mm Rise, 780mm Width
Bolinas Ridge 1 Stem Marin Alloy, 31.8mm, 45mm
Bolinas Ridge 1 Grips Marin MTB, Closed End
Bolinas Ridge 1 Headset FSA No.10-P
Bolinas Ridge 1 Seatpost Marin Alloy, 27.2mm
Bolinas Ridge 1 Saddle Marin MTB
Bolinas Ridge 1 Pedals Nylon Platform
Wildcat Trail 3 Frame Series 2 6061 Aluminum, Women's Specific Frame, 27.5" Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, IS Chainstay Disc Mount, Internal Housing Routing
Wildcat Trail 3 Front Suspension SR Suntour XCM HLO, 120mm Travel, Hydraulic Lockout, 46mm Offset
Wildcat Trail 3 Rim Marin Aluminum Double Wall, 25mm Inner, Pinned Joint, Disc Specific
Wildcat Trail 3 Hub Rear Forged Alloy, Disc, 32H
Wildcat Trail 3 Hub Front Forged Alloy, Disc, 32H
Wildcat Trail 3 Spokes Black Stainless Steel
Wildcat Trail 3 Tires MTB, 27.5x2.25"
Wildcat Trail 3 Derailleur Rear Shimano Altus, 8-Speed
Wildcat Trail 3 Derailleur Front Altus Double
Wildcat Trail 3 Shift Lever Shimano Altus SL-M315, 8-Speed
Wildcat Trail 3 Crankset Alloy Crank, Steel Chainrings, 36/22T
Wildcat Trail 3 Bottom Bracket Sealed Cartridge Bearings, Square Taper
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Wildcat Trail 3 Chain KMC Z8
Wildcat Trail 3 Cassette SunRace 8-Speed, 11-34T
Wildcat Trail 3 Brakes Front Clark's Clout Hydraulic Disc, 160mm Rotor
Wildcat Trail 3 Brakes Rear Clark's Clout Hydraulic Disc, 160mm Rotor
Wildcat Trail 3 Brake Levers Clark's Hydraulic
Wildcat Trail 3 Handlebar Marin 31.8 Riser, 12mm Rise, 740mm Width
Wildcat Trail 3 Stem Marin Alloy, 31.8mm Clamp, 45mm
Wildcat Trail 3 Grips Marin MTB, Closed End
Wildcat Trail 3 Headset FSA No.10-P
Wildcat Trail 3 Seatpost Marin Alloy, 30.9
Wildcat Trail 3 Saddle Marin MTB
Wildcat Trail 3 Pedals Nylon Platform
Wildcat Trail 2 Frame Series 1 6061 Aluminum, Women's Specific Frame, 27.5” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes
Wildcat Trail 2 Front Suspension SR Suntour XCM DS, 100mm Travel, Preload Adjustment, 46mm Offset
Wildcat Trail 2 Rim Marin, Double Wall Alloy
Wildcat Trail 2 Hub Rear Forged Alloy, Disc, 32H
Wildcat Trail 2 Hub Front Forged Alloy, Disc, 32H
Wildcat Trail 2 Spokes Black Stainless Steel
Wildcat Trail 2 Tires MTB, 27.5x2.25"
Wildcat Trail 2 Derailleur Rear Shimano Altus, 8-Speed
Wildcat Trail 2 Derailleur Front Shimano FD-TY700
Wildcat Trail 2 Shift Lever Shimano Altus 3x8-Speed
Wildcat Trail 2 Crankset Alloy Crank, Steel Chainrings, 42/34/24T
Wildcat Trail 2 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Wildcat Trail 2 Chain KMC Z8
Wildcat Trail 2 Cassette SunRace 8-Speed, 11-34T
Wildcat Trail 2 Brakes Front Clark's Clout Hydraulic Disc, 160mm Rotor
Wildcat Trail 2 Brakes Rear Clark's Clout Hydraulic Disc, 160mm Rotor
Wildcat Trail 2 Brake Levers Clark's Hydraulic
Wildcat Trail 2 Handlebar Marin 31.8 Riser, 12mm Rise, 780mm Width
Wildcat Trail 2 Stem Marin Alloy, 31.8mm, 45mm
Wildcat Trail 2 Grips Marin MTB, Closed End
Wildcat Trail 2 Headset FSA No.10-P
Wildcat Trail 2 Seatpost Marin Alloy, 27.2mm
Wildcat Trail 2 Saddle Marin MTB
Wildcat Trail 2 Pedals Nylon Platform
Wildcat Trail 1 Frame Series 1 6061 Aluminum, Women's Specific Frame, 27.5” Wheels, Low Standover, 68mm BB shell, 135mm Forged Dropouts, Chainstay Mounted Disc Brakes
Wildcat Trail 1 Front Suspension SR Suntour XCE Disc, 100mm Travel, Preload Adjustment, 46mm Offset
Wildcat Trail 1 Rim Marin, Double Wall Alloy
Wildcat Trail 1 Hub Rear Forged Alloy, Disc, 32H
MODEL COMPONENT DESCRIPTION
Wildcat Trail 1 Hub Front Forged Alloy, Disc, 32H
Wildcat Trail 1 Spokes Black Stainless Steel
Wildcat Trail 1 Tires MTB, 27.5x2.25"
Wildcat Trail 1 Derailleur Rear Shimano Tourney, 7-Speed
Wildcat Trail 1 Derailleur Front Shimano FD-TY500
Wildcat Trail 1 Shift Lever Shimano Tourney 3x7-Speed
Wildcat Trail 1 Crankset Alloy Crank, Steel Chainrings, 42/34/24T
Wildcat Trail 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Wildcat Trail 1 Chain KMC Z8
Wildcat Trail 1 Cassette SunRace 7-Speed, 11-34T
Wildcat Trail 1 Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Wildcat Trail 1 Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Wildcat Trail 1 Brake Levers Shimano w/ Integrated Shifters
Wildcat Trail 1 Handlebar Marin 31.8 Riser, 12mm Rise, 740mm Width
Wildcat Trail 1 Stem Marin Alloy, 31.8mm Clamp, 45mm
Wildcat Trail 1 Grips Marin Dual Density
Wildcat Trail 1 Headset FSA No.10-P
Wildcat Trail 1 Seatpost Marin Alloy, 27.2mm
Wildcat Trail 1 Saddle Marin MTB
Wildcat Trail 1 Pedals Nylon Platform
Team Marin 2 Frame Series 4 6061 Aluminum, 29" Wheels, Superlight Aluminum Frame, Post-Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle
Team Marin 2 Front Suspension Fox 34 StepCast, 120mm Travel, Alloy Tapered Steerer, Air Spring, 110x15mm Boost Spacing, Kabolt Thru-Axle, 44mm Offset
Team Marin 2 Rim Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Disc Specific, Tubeless Compatible
Team Marin 2 Hub Rear Forged Aluminum, 148x12mm, Disc, 32H
Team Marin 2 Hub Front Forged Aluminum, 110x15mm, Disc, 32H
Team Marin 2 Spokes 14g Black Stainless Steel
Team Marin 2 Tires Maxxis Rekon Race, 29x2.35", Folding Bead, Tubeless Ready
Team Marin 2 Derailleur Rear Shimano SLX 12-Speed
Team Marin 2 Derailleur Front -
Team Marin 2 Shift Lever Shimano SLX 12-Speed
Team Marin 2 Crankset FSA Grid, Modular 1x, 32T Direct Mount Chainring, MegaTooth Technology, Mego EXO Spindle, Boost Spacing
Team Marin 2 Bottom Bracket MegaExo 73mm BSA
Team Marin 2 Chain KMC X12
Team Marin 2 Cassette SunRace 12-Speed, 11-51T
Team Marin 2 Brakes Front TRP G-Spec FMR Hydraulic Disc, 180mm Rotor
Team Marin 2 Brakes Rear TRP G-Spec FMR Flat Mount Hydraulic Disc, 160mm Rotor
Team Marin 2 Brakes Rear TRP G-Spec FMR Flat Mount Hydraulic Disc, 160mm Rotor
Team Marin 2 Brake Levers TRP G-Spec FMR Hydraulic
Team Marin 2 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back
Team Marin 2 Stem Marin 3D Forged Alloy, 35mm
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Team Marin 2 Grips Marin Single Clamp Locking
Team Marin 2 Headset FSA No 42ACB, 1 1/8" x 1 1/2”
Team Marin 2 Seatpost TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, All Other Sizes 150mm Travel, 30.9mm
Team Marin 2 Saddle Marin Speed Concept
Team Marin 2 Pedals Nylon Platform
Team Marin 1 Frame Series 4 6061 Aluminum, 29" Wheels, Superlight Aluminum Frame, Post-Mount Rear Brake, Internal Shifter and Dropper Post Routing, 148x12mm Boost Thru-Axle
Team Marin 1 Front Suspension RockShox Judy Silver TK, 120mm Travel, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
Team Marin 1 Rim Marin Aluminum Double Wall, 29mm Inner, Sleeve Joint, Disc Specific, Tubeless Compatible
Team Marin 1 Hub Rear Forged Aluminum, 148x12mm, Disc, 32H
Team Marin 1 Hub Front Forged Aluminum, 110x15mm, Disc, 32H
Team Marin 1 Spokes 14g Black Stainless Steel
Team Marin 1 Tires Vee Tire Co., Rail Rocco XC, 29x2.3", Dual Control Compound, Folding Bead, Tubeless Ready
Team Marin 1 Derailleur Rear Shimano Deore 12-Speed
Team Marin 1 Derailleur Front -
Team Marin 1 Shift Lever Shimano Deore 12-Speed
Team Marin 1 Crankset Forged Alloy 1x12, Hollow Spindle, Steel Narrow Wide 32T Chainring
Team Marin 1 Bottom Bracket External Sealed Cartridge Bearings
Team Marin 1 Chain KMC X12
Team Marin 1 Cassette Sunrace 12-Speed, 11-51T
Team Marin 1 Brakes Front Shimano BR-MT201 Hydraulic Disc, 180mm Disc Rotor
Team Marin 1 Brakes Rear Shimano BR-MT201/UR300 Flat-Mount Hydraulic Disc, 180mm Disc Rotor
Team Marin 1 Brake Levers Shimano BL-MT201 Hydraulic
Team Marin 1 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 4º Up, 9º Back
Team Marin 1 Stem Marin 3D Forged Alloy, 35mm
Team Marin 1 Grips Marin Single Clamp Locking
Team Marin 1 Headset FSA No 42ACB, 1 1/8" x 1 1/2”
Team Marin 1 Seatpost Marin Alloy, 30.9mm
Team Marin 1 Saddle Marin Speed Concept
Team Marin 1 Pedals Nylon Platform
Pine Mountain 2 Frame Series 3 Double Butted and Heat Treated CrMo, 29" Wheels, Custom Cast Boost 148x12mm Dropouts, 148x12mm Thru-Axle, 73mm Threaded BB, Plentiful Gear Mounts
Pine Mountain 2 Front Suspension RockShox 35 Gold RL, 120mm Travel, DebonAir, Alloy Tapered Steerer, 110x15mm Boost Spacing, Maxle Lite, 44mm Offset
Pine Mountain 2 Rim Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
Pine Mountain 2 Hub Rear Forged Aluminum, 148x12mm, Disc, 32H
Pine Mountain 2 Hub Front Forged Alloy, 110x15mm, Sealed Cartridge Bearings, Disc, 32H
Pine Mountain 2 Spokes 14g Black Stainless Steel
Pine Mountain 2 Tires Vee Tire Flow Snap, 29x2.6", Folding Bead, Tubeless Ready
Pine Mountain 2 Derailleur Rear Shimano SLX 12-Speed
Pine Mountain 2 Derailleur Front -
Pine Mountain 2 Shift Lever Shimano SLX 12-Speed
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Pine Mountain 2 Crankset FSA Grid, Modular 1x, 32T Direct Mount MegaTooth Chainring
Pine Mountain 2 Bottom Bracket FSA Outboard Cartridge Bearings
Pine Mountain 2 Chain KMC X12
Pine Mountain 2 Cassette SunRace 12-Speed, 11-51T
Pine Mountain 2 Brakes Front TRP Slate EVO, 4-Piston, Hydraulic Disc, 180mm Rotor
Pine Mountain 2 Brakes Rear TRP Slate EVO, 4-Piston, Hydraulic Disc, 180mm Rotor
Pine Mountain 2 Brake Levers TRP Slate EVO
Pine Mountain 2 Handlebar Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
Pine Mountain 2 Stem Marin 3D Forged Alloy, 35mm
Pine Mountain 2 Grips Marin BearPaw Locking
Pine Mountain 2 Headset FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Pine Mountain 2 Seatpost TranzX, YSP23JL, 1x Remote, Size S 125mm Travel, All Other Sizes 150mm Travel, 30.9mm
Pine Mountain 2 Saddle Marin Pine Mountain Trail
Pine Mountain 2 Pedals Nylon Platform
Pine Mountain 2 Extras Bolt-On Thru-Axle
Pine Mountain 1 Frame Series 2 Double Butted CrMo, 29" Wheels, Boost 141x9mm Open Dropout, 73mm Threaded BB, Plentiful Gear Mounts
Pine Mountain 1 Front Suspension RockShox Recon RL, 120mm Travel, Compression and Rebound Adjustment, Alloy Tapered Steerer, Solo Air Spring, 110x15mm Boost Spacing, Maxle Stealth, 51mm Offset
Pine Mountain 1 Rim Alloy Double-Wall, Offset Spoke, 32mm ID, Tubeless Compatible
Pine Mountain 1 Hub Rear Forged Alloy, 141x9mm, Disc, 32H
Pine Mountain 1 Hub Front Forged Alloy, 110x15mm, Disc, 32H
Pine Mountain 1 Spokes 14g Black Stainless Steel
Pine Mountain 1 Tires Vee Tire Flow Snap, 29x2.6", Wire Bead
Pine Mountain 1 Derailleur Rear Shimano Deore 11-Speed
Pine Mountain 1 Derailleur Front -
Pine Mountain 1 Shift Lever Shimano Deore 11-Speed
Pine Mountain 1 Crankset Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring
Pine Mountain 1 Bottom Bracket External Sealed Cartridge Bearings
Pine Mountain 1 Chain KMC X11
Pine Mountain 1 Cassette SunRace 11-Speed, 11-51T
Pine Mountain 1 Brakes Front Shimano MT420, 4-Piston, Hydraulic Disc, 180mm Rotor
Pine Mountain 1 Brakes Rear Shimano MT400, 2-Piston, Hydraulic Disc, 160mm Rotor
Pine Mountain 1 Brake Levers Shimano MT400 Hydraulic
Pine Mountain 1 Handlebar Marin Bedroll Bar, 50mm Rise, 780 Width, 10˚ Backsweep, 6˚ Upsweep
Pine Mountain 1 Stem Marin 3D Forged Alloy, 35mm
Pine Mountain 1 Grips Marin BearPaw Locking
Pine Mountain 1 Headset FSA Orbit ITA, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Pine Mountain 1 Seatpost Marin Alloy, 30.9mm
Pine Mountain 1 Saddle Marin Pine Mountain Trail
Pine Mountain 1 Pedals Nylon Platform
MODEL COMPONENT DESCRIPTION
Alcatraz Frame Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Dropouts, 73mm Threaded BB, ISCG 05 Tabs
Alcatraz Front Suspension Manutou Circus Expert, 26", 100mm Travel, Coil Spring, Taper Steerer Tube, 20x110mm Thru Axle
Alcatraz Rear Suspension -
Alcatraz Rim Marin Custom Extrusion, 27mm Inner, Pinned Joint
Alcatraz Hub Rear Forged Alloy, 135x10mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
Alcatraz Hub Front Forged Alloy, 110x20mm, Disc, 32H
Alcatraz Spokes 14g Black Stainless Steel
Alcatraz Tires Vee Tire Co., XCV 26x2.25”, LSG Compound, Wire Bead
Alcatraz Derailleur Rear -
Alcatraz Derailleur Front -
Alcatraz Shift Lever -
Alcatraz Crankset Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD
Alcatraz Bottom Bracket External Sealed Cartridge Bearings
Alcatraz Chain KMC HL-1
Alcatraz Cassette 14T Single Speed Cog
Alcatraz Brakes Front Tektro HDM275 Hydraulic Disc, 160mm Rotor
Alcatraz Brakes Rear Tektro HDM275 Hydraulic Disc, 160mm Rotor
Alcatraz Brake Levers Tektro HDM275
Alcatraz Handlebar Marin Riser, 6061 Double Butted Aluminum, 38mm Rise, 750mm Width, 4º Up, 9º Back
Alcatraz Stem Marin 3D Forged Alloy, 40mm
Alcatraz Grips Marin Single Clamp Locking
Alcatraz Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Alcatraz Seatpost Marin Alloy, 30.9mm
Alcatraz Saddle Marin DJ
Alcatraz Pedals Alloy Platform
Alcatraz Extras All New Marin Chain Tension Device
Headlands 2 Frame Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts
Headlands 2 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Headlands 2 Rim Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible
Headlands 2 Hub Rear Forged Aluminum Alloy, Disc, 28H
Headlands 2 Hub Front Forged Aluminum Alloy, Disc, 28H
Headlands 2 Spokes Nipples Double Butted Stainless
Headlands 2 Tires Vee Tire Co., G-Sport, 700cx44, Tubeless Compatible
Headlands 2 Derailleur Rear Shimano GRX RDX812 Shadow Plus w/ Clutch
Headlands 2 Derailleur Front -
Headlands 2 Shift Lever Shimano GRX STX801, 1x11-Speed, Integrated Dropper Lever
Headlands 2 Crankset FSA Gossamer Pro, Megatooth 42T Chainring, BB386EVO Alloy Spindle
Headlands 2 Bottom Bracket FSA MegaExo Threaded
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Headlands 2 Chain KMC X11
Headlands 2 Cassette Shimano, 11-Speed, 11/42T
Headlands 2 Brakes Front Shimano GRX Hydraulic Disc, 160mm Rotor
Headlands 2 Brakes Rear Shimano GRX Hydraulic Disc, 160mm Rotor
Headlands 2 Brake Levers Shimano GRX Hydraulic w/ Shifter and Integrated Dropper Lever
Headlands 2 Handlebar Marin Butted Alloy, Compact 16º Flared Drop
Headlands 2 Stem Marin 3D Forged Alloy
Headlands 2 Grips Marin Shock Absorbing Tape
Headlands 2 Headset FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Headlands 2 Seatpost TranzX YSP38J, Size 49-54 70mm, Size 56-60 105mm Travel, 27.2mm
Headlands 2 Saddle Marin Beyond Road Concept Elite
Headlands 2 Pedals -
Headlands 2 Extras Bolt-On Thru-Axles F and R
Headlands 1 Frame Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts
Headlands 1 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Headlands 1 Rim Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible
Headlands 1 Hub Rear Forged Aluminum Alloy, Disc, 32H
Headlands 1 Hub Front Forged Aluminum Alloy, Disc, 32H
Headlands 1 Spokes 14g Black Stainless Steel
Headlands 1 Tires Vee Tire Co., G-Sport, 700cx44, Tubeless Compatible
Headlands 1 Derailleur Rear Shimano GRX RDX812 Shadow Plus w/ Clutch
Headlands 1 Derailleur Front -
Headlands 1 Shift Lever Shimano GRX RX600
Headlands 1 Crankset Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 40T
Headlands 1 Bottom Bracket External Sealed Cartridge Bearings
Headlands 1 Chain KMC X11
Headlands 1 Cassette Shimano, 11-Speed, 11/42T
Headlands 1 Brakes Front Shimano GRX Hydraulic Disc, 160mm Rotor
Headlands 1 Brakes Rear Shimano GRX Hydraulic Disc, 160mm Rotor
Headlands 1 Brake Levers Shimano GRX Hydraulic w/ Shifter
Headlands 1 Handlebar Marin Butted Alloy, Compact 16º Flared Drop
Headlands 1 Stem Marin 3D Forged Alloy
Headlands 1 Grips Marin Shock Absorbing Tape
Headlands 1 Headset FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Headlands 1 Seatpost Marin Alloy, 27.2mm
Headlands 1 Saddle Marin Beyond Road Concept
Headlands 1 Pedals -
Headlands 1 Extras Bolt-On Thru-Axles F and R
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Gestalt XR Frame Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Gestalt XR Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Gestalt XR Rim Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible
Gestalt XR Hub Rear Forged Aluminum Alloy, 142x12mm, Disc, 32H
Gestalt XR Hub Front Forged Aluminum Alloy, 100x12mm, Disc, 32H
Gestalt XR Spokes Nipples 14g Black Stainless Steel
Gestalt XR Tires Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible
Gestalt XR Derailleur Rear Shimano GRX RDX812, Shadow w/ Clutch
Gestalt XR Derailleur Front -
Gestalt XR Shift Lever Shimano GRX GX8010, 1x11-Speed, Integrated Dropper Lever
Gestalt XR Crankset FSA Gossamer Pro, Megatooth 42T Chainring, BB386EVO Alloy Spindle
Gestalt XR Bottom Bracket FSA MegaExo Threaded
Gestalt XR Chain KMC X11
Gestalt XR Cassette Shimano CS-M5100 11-Speed, 11-42T
Gestalt XR Brakes Front Shimano GRX Hydraulic Disc, 160mm Rotor
Gestalt XR Brakes Rear Shimano GRX Hydraulic Disc, 160mm Rotor
Gestalt XR Brake Levers Shimano GRX Hydraulic w/ Shifter and Integrated Dropper Lever
Gestalt XR Handlebar Marin Butted Alloy, Compact 16º Flared Drop
Gestalt XR Stem Marin 3D Forged Alloy
Gestalt XR Grips Marin Shock Absorbing Perforated Tape
Gestalt XR Headset FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
Gestalt XR Seatpost TranzX YSP38J, Size 49-54 70mm, Size 56-60 110mm Travel, 27.2mm
Gestalt XR Saddle Marin Beyond Road Concept Elite
Gestalt XR Pedals -
Gestalt XR Extras Bolt-On Thru-Axles F and R
Gestalt X10 Frame Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Gestalt X10 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Gestalt X10 Rim Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific
Gestalt X10 Hub Rear Forged Aluminum Alloy, Disc, 32H
Gestalt X10 Hub Front Forged Aluminum Alloy, Disc, 32H
Gestalt X10 Spokes 14g Black Stainless Steel
Gestalt X10 Tires Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible
Gestalt X10 Derailleur Rear microSHIFT Advent X 10-Speed Wide-Range
Gestalt X10 Derailleur Front -
Gestalt X10 Shift Lever microSHIFT Advent X 10-Speed
Gestalt X10 Crankset Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T
Gestalt X10 Bottom Bracket External Sealed Cartridge Bearings
Gestalt X10 Chain KMC X10
Gestalt X10 Cassette SunRace 10-Speed, 11-51T
Gestalt X10
Brakes Front Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
MODEL COMPONENT DESCRIPTION
Gestalt X10 Brakes Rear Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
Gestalt X10 Brake Levers microSHIFT Advent X
Gestalt X10 Handlebar Marin Butted Alloy, Compact 16º Flared Drop
Gestalt X10 Stem Marin 3D Forged Alloy
Gestalt X10 Grips Marin Shock Absorbing Perforated Tape
Gestalt X10 Headset FSA No 42ACB, 1 1/8" x 1 1/2”
Gestalt X10 Seatpost Marin Alloy, 27.2mm
Gestalt X10 Saddle Marin Beyond Road Concept
Gestalt X10 Pedals
-Gestalt X10 Extras Bolt-On Thru-Axles F and R
Gestalt 2.5 Frame Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Gestalt 2.5 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Gestalt 2.5 Rim Marin Aluminum Double Wall, 19mm Inner, 24mm Tall, Disc Specific
Gestalt 2.5 Hub Rear Forged Aluminum Alloy, Disc, 32H
Gestalt 2.5 Hub Front Forged Aluminum Alloy, Disc, 32H
Gestalt 2.5 Spokes 14g Black Stainless Steel
Gestalt 2.5 Tires Schwalbe, G-One, 700Cx30mm
Gestalt 2.5 Derailleur Rear Shimano Tiagra 10-Speed
Gestalt 2.5 Derailleur Front Shimano Tiagra
Gestalt 2.5 Shift Lever Shimano Tiagra 2x10-Speed
Gestalt 2.5 Crankset FSA Gossamer, MegaExo Spindle, 50/34T
Gestalt 2.5 Bottom Bracket FSA MegaExo Threaded
Gestalt 2.5 Chain KMC X10
Gestalt 2.5 Cassette Shimano Tiagra HG-500, 11-34T
Gestalt 2.5 Brakes Front Shimano Tiagra Hydraulic, 160mm Rotor
Gestalt 2.5 Brakes Rear Shimano Tiagra Hydraulic, 160mm Rotor
Gestalt 2.5 Brake Levers Shimano w/ Integrated Shifters
Gestalt 2.5 Handlebar Marin Butted Alloy, Compact 12º Flared Drop
Gestalt 2.5 Stem Marin 3D Forged Alloy
Gestalt 2.5 Grips Marin Perforated Tape
Gestalt 2.5 Headset FSA No 42ACB, 1 1/8" x 1 1/2”
Gestalt 2.5 Seatpost Marin Alloy, 27.2mm
Gestalt 2.5 Saddle Marin Beyond Road Concept
Gestalt 2.5 Pedals Commute Platform
Gestalt 2.5 Extras Bolt-On Thru-Axles F and R
Gestalt 2 Frame Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Gestalt 2 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Gestalt 2 Rim Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible
Gestalt 2 Hub Rear Forged Aluminum Alloy, Disc, 32H
Gestalt 2 Hub Front Forged Aluminum Alloy, Disc, 32H
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Gestalt 2 Spokes 14g Black Stainless Steel
Gestalt 2 Tires Vee Tire Co., Zilent, 700x35
Gestalt 2 Derailleur Rear Shimano GRX, RX400, 10-Speed
Gestalt 2 Derailleur Front Shimano GRX RX400
Gestalt 2 Shift Lever Shimano GRX, RX400, 2x10-Speed
Gestalt 2 Crankset Shimano GRX, FC-RX600, 46/30T
Gestalt 2 Bottom Bracket Shimano
Gestalt 2 Chain KMC X10
Gestalt 2 Cassette Shimano, HG-5010, 11-36T
Gestalt 2 Brakes Front Shimano BR-RX400 Hydraulic Disc, 160mm Rotor
Gestalt 2 Brakes Rear Shimano BR-RX400 Hydraulic Disc, 160mm Rotor
Gestalt 2 Brake Levers Shimano w/ Integrated Shifters
Gestalt 2 Handlebar Marin Butted Alloy, Compact 12º Flared Drop
Gestalt 2 Stem Marin 3D Forged Alloy
Gestalt 2 Grips Marin Perforated Tape
Gestalt 2 Headset FSA No 42ACB, 1 1/8" x 1 1/2”
Gestalt 2 Seatpost Marin Alloy, 27.2mm
Gestalt 2 Saddle Marin Beyond Road Concept
Gestalt 2 Pedals Commute Platform
Gestalt 2 Extras Bolt-On Thru-Axles F and R
Gestalt 1 Frame Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Gestalt 1 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Gestalt 1 Rim Marin Aluminum Double Wall, 21mm Inner, 22mm Tall, Disc Specific, Tubeless Compatible
Gestalt 1 Hub Rear Forged Aluminum Alloy, 6-Bolt Disc, 32H
Gestalt 1 Hub Front Forged Aluminum Alloy, 6-Bolt Disc, 32H
Gestalt 1 Spokes 14g Black Stainless Steel
Gestalt 1 Tires Vee Tire Co., Zilent, 700x35
Gestalt 1 Derailleur Rear Shimano Sora 9-Speed
Gestalt 1 Derailleur Front Shimano Sora
Gestalt 1 Shift Lever Shimano Sora 2x9-Speed
Gestalt 1 Crankset Shimano R345 Octalink Compact, 50/34T
Gestalt 1 Bottom Bracket Shimano Octalink V2 Cartridge
Gestalt 1 Chain KMC X9
Gestalt 1 Cassette SunRace 9-Speed, 11-32T
Gestalt 1 Brakes Front Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
Gestalt 1 Brakes Rear Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
Gestalt 1 Brake Levers Shimano w/ Integrated Shifters
Gestalt 1 Handlebar Marin Butted Alloy, Compact 16º Flared Drop
Gestalt 1 Stem Marin 3D Forged Alloy
Gestalt 1 Grips Marin Perforated Tape
Gestalt 1 Headset FSA No 42ACB, 1 1/8" x 1 1/2”
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Gestalt 1 Seatpost Marin Alloy, 27.2mm
Gestalt 1 Saddle Marin Beyond Road Concept
Gestalt 1 Pedals Commute Platform
Gestalt (Base) Frame Series 2 Beyond Road, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts
Gestalt (Base) Fork 6061 Aluminum, Straight-Blade, Post-Mount Disc
Gestalt (Base) Rim Marin Aluminum Double Wall, 19mm Inner, 25mm Tall, Disc Specific
Gestalt (Base) Hub Rear Forged Aluminum Alloy, 6-Bolt Disc, 32H
Gestalt (Base) Hub Front Forged Aluminum Alloy, 6-Bolt Disc, 32H
Gestalt (Base) Spokes 14g Black Stainless Steel
Gestalt (Base) Tires Vee Tire Co., Zilent, 700x35
Gestalt (Base) Derailleur Rear Shimano Claris 8-Speed
Gestalt (Base) Derailleur Front Shimano Claris
Gestalt (Base) Shift Lever Shimano Claris 2x8-Speed
Gestalt (Base) Crankset FSA Tempo Compact, 50/34T
Gestalt (Base) Bottom Bracket Sealed Bearing Square Taper
Gestalt (Base) Chain KMC Z8
Gestalt (Base) Cassette SunRace 8-Speed, 11-32T
Gestalt (Base)
Brakes Front Tektro MD-C40 Road Mechanical Disc, 160mm Rotor
Gestalt (Base) Brakes Rear Tektro MD-C40 Road Mechanical Disc, 160mm Rotor
Gestalt (Base) Brake Levers Shimano w/ Integrated Shifters
Gestalt (Base) Handlebar Marin Butted Alloy, Compact 16º Flared Drop
Gestalt (Base) Stem Marin 3D Forged Alloy
Gestalt (Base) Grips Marin Perforated Tape
Gestalt (Base) Headset FSA No.8B
Gestalt (Base) Seatpost Marin Alloy, 27.2mm
Gestalt (Base) Saddle Marin Beyond Road Concept
Gestalt (Base) Pedals Commute Platform
Nicasio 2 Frame Series 2 CrMo, Beyond Road Geometry, Thru-Axle, Disc Brake, Integrated Headset, Fender and Rack Mounts
Nicasio 2 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Nicasio 2 Rim Marin Aluminum Double Wall, 19mm Inner, Disc Specific
Nicasio 2 Hub Rear Forged Aluminum Alloy, Disc, 32H
Nicasio 2 Hub Front Forged Aluminum Alloy, Disc, 32H
Nicasio 2 Spokes 14g Black Stainless Steel
Nicasio 2 Tires Vee Tire Co., Zilent, 700x35, Tubeless Compatible
Nicasio 2 Derailleur Rear Shimano Tiagra
Nicasio 2 Derailleur Front Shimano Tiagra
Nicasio 2 Shift Lever Shimano Tiagra
Nicasio 2 Crankset FSA Omega MegaExo, 50/34T
Nicasio 2 Bottom Bracket FSA MegaExo
Nicasio 2 Chain KMC X10
MODEL COMPONENT DESCRIPTION
Nicasio 2 Cassette Shimano 10-Speed, 11-34T
Nicasio 2 Brakes Front Shimano BR-4770 Hydraulic
Nicasio 2 Brakes Rear Shimano BR-4770 Hydraulic
Nicasio 2 Brake Levers Shimano Hydraulic w/ Integrated Shifters
Nicasio 2 Handlebar Marin Butted Alloy, Compact 12º Flared Drop
Nicasio 2 Stem Marin 3D Forged Alloy
Nicasio 2 Grips Marin Comfort Tape
Nicasio 2 Headset FSA No.42/ACB
Nicasio 2 Seatpost Marin Alloy, 27.2mm
Nicasio 2 Saddle Marin Beyond Road Concept
Nicasio 2 Pedals Commute Platform
Nicasio 2 Extras Bolt-On Thru-Axles F and R
Nicasio Frame Series 1 Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
Nicasio Fork CrMo, Fender and Rack Eyelets, IS Disc Mount
Nicasio Rim Marin Aluminum Double Wall, 19mm Inner, Disc Specific
Nicasio Hub Rear Forged Aluminum Alloy, Disc, 32H
Nicasio Hub Front Forged Aluminum Alloy, Disc, 32H
Nicasio Spokes 14g Black Stainless Steel
Nicasio Tires Vee Tire, Road Chief, 700Cx30, Wire Bead
Nicasio Derailleur Rear Shimano Claris 8-Speed
Nicasio Derailleur Front Shimano Claris
Nicasio Shift Lever Shimano Claris 2x8-Speed
Nicasio Crankset FSA Tempo Compact, 50/34T
Nicasio Bottom Bracket Sealed Cartridge Bearings, Square Taper
Nicasio Chain KMC Z8
Nicasio Cassette SunRace 8-Speed, 11-32T
Nicasio Brakes Front Promax Render R Road Mechanical Disc, 160mm Rotor
Nicasio Brakes Rear Promax Render R Road Mechanical Disc, 160mm Rotor
Nicasio Brake Levers Shimano w/ Integrated Shifters
Nicasio Handlebar Marin Butted Alloy, Compact 16º Flared Drop
Nicasio Stem Marin 3D Forged Alloy
Nicasio Grips Marin Comfort Tape
Nicasio Headset FSA ORBIT CE No.8B, Sealed Cartridge Bearings
Nicasio Seatpost Marin Alloy, 27.2mm
Nicasio Saddle Marin Beyond Road Concept
Nicasio Pedals Commute Platform
Nicasio + Frame Series 1 Double Butted CrMo Beyond Road, 650B Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
Nicasio + Fork CrMo, Fender and Rack Eyelets, IS Disc Mount
Nicasio + Rim Marin Aluminum Double Wall, 25mm Inner, Disc Specific
Nicasio + Hub Rear Forged Aluminum Alloy, Disc, 32H
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Nicasio + Hub Front Forged Aluminum Alloy, Disc, 32H
Nicasio + Spokes 14g Black Stainless Steel
Nicasio + Tires WTB Horizon, 650Bx47mm
Nicasio + Derailleur Rear microSHIFT Advent, 1x9 w/ Clutch Mech
Nicasio + Derailleur Front N/A
Nicasio + Shift Lever microSHIFT Advent, 1x9 Specific
Nicasio + Crankset FSA Vero Pro, Narrow Wide, 42T
Nicasio + Bottom Bracket Sealed Cartridge Bearings, Square Taper
Nicasio + Chain KMC X9
Nicasio + Cassette SunRace 9-Speed, 11-46T
Nicasio + Brakes Front Tektro Road Mechanical Disc, 160mm Rotor
Nicasio + Brakes Rear Tektro Road Mechanical Disc, 160mm Rotor
Nicasio + Brake Levers MicroSHIFT Advent
Nicasio + Handlebar Marin Butted Alloy, Compact 16º Flared Drop
Nicasio + Stem Marin 3D Forged Alloy
Nicasio + Grips Marin Comfort Tape
Nicasio + Headset FSA ORBIT CE No.8B, Sealed Cartridge Bearings
Nicasio + Seatpost Marin Alloy, 27.2mm
Nicasio + Saddle Marin Beyond Road Concept
Nicasio + Pedals Commute Platform
Lombard 1 Frame Series 2 Lombard, 6061 Aluminum, 700C Wheels, Relieved Head Tube and BB, Internal Cable Routing, Disc Specific Forged Dropouts w/ Mudguard and Rack Mounts
Lombard 1 Fork 6061 Aluminum, Straight-Blade, Post-Mount Disc
Lombard 1 Rim Marin Aluminum Double Wall, 21mm Inner
Lombard 1 Hub Rear Forged Aluminum Alloy, Disc, 32H
Lombard 1 Hub Front Forged Aluminum Alloy, Disc, 32H
Lombard 1 Spokes 14g Black Stainless Steel
Lombard 1 Tires Vee Tire, G-Sport, 700Cx40mm, Puncture Protection
Lombard 1 Derailleur Rear Shimano Sora 9-Speed
Lombard 1 Derailleur Front Shimano Sora
Lombard 1 Shift Lever Shimano Sora 2x9-Speed
Lombard 1 Crankset Marin 3D Forged Alloy, 48/32T Chainrings, Ring Guard
Lombard 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Lombard 1 Chain KMC X9
Lombard 1 Cassette Shimano HG-200, 11-34T
Lombard 1 Brakes Front Tektro Road Mechanical Disc, 160mm Rotor
Lombard 1 Brakes Rear Tektro Road Mechanical Disc, 160mm Rotor
Lombard 1 Brake Levers Shimano Sora 9-Speed STI
Lombard 1 Handlebar Marin Butted Alloy, Compact 16º Flared Drop
Lombard 1 Stem Marin 3D Forged Alloy
Lombard 1 Grips Marin Microfiber Tape
Lombard 1 Headset FSA No.8B
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Lombard 1 Seatpost Marin Alloy, 27.2mm
Lombard 1 Saddle Marin Beyond Road Concept
Lombard 1 Pedals Commute Platform
Four Corners Frame Utilitour Double Butted CrMo, Size-Specific Wheels (XS, S = 650B M, L, XL = 700C) Biometric Geometry, Fender and Rack Mounts, Disc Mount
Four Corners Fork CrMo, Fender, Rack, and Bottle Cage Eyelets, IS Disc Mount
Four Corners Rim Marin Aluminum, Double Wall, Disc Specific
Four Corners Hub Rear Forged Aluminum Alloy, Disc, 32H
Four Corners Hub Front Forged Aluminum Alloy, Disc, 32H
Four Corners Spokes 14g Black Stainless Steel
Four Corners Tires Vee Tire Co., GPVee, 700/650x40
Four Corners Derailleur Rear Shimano Sora 9-Speed
Four Corners Derailleur Front Shimano Sora
Four Corners Shift Lever Shimano Sora 3x9-Speed
Four Corners Crankset Shimano Sora Hollowtech II, 50/39/30T
Four Corners Bottom Bracket Shimano Hollowtech II
Four Corners Chain KMC X9
Four Corners Cassette Shimano HG200 9-Speed, 11-34T
Four Corners Brakes Front Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
Four Corners Brakes Rear Tektro Spyre-C Road Mechanical Disc, 160mm Rotor
Four Corners Brake Levers Shimano w/ Integrated Shifters
Four Corners Handlebar Marin Butted Alloy, Compact 16º Flared Drop
Four Corners Stem Marin 3D Forged Alloy
Four Corners Grips Marin Comfort Bar Tape, Shock Absorbing Gel Pads
Four Corners Headset FSA No.8D, Sealed Cartridge Bearings
Four Corners Seatpost Marin Alloy, 27.2mm
Four Corners Saddle Marin MTB
Four Corners Pedals Trekking Platform
DSX FS Frame Series 3 DSX, Supension Adjusted Geometry, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
DSX FS Fork SR Suntour GVX LOR, 60mm Travel, Air Spring, Rebound Adjust, Lockout, Integrated Fender Mounts
DSX FS Rim Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
DSX FS Hub Rear Forged Aluminum Alloy, 142x12mm, Disc, 32H
DSX FS Hub Front Forged Aluminum, 100x12mm, Disc, 32H
DSX FS Spokes Nipples 14g Black Stainless Steel
DSX FS Tires Vee Tire Co. Rocket Man, 700Cx44mm
DSX FS Derailleur Rear Shimano SLX 12-Speed
DSX FS Derailleur Front -
DSX FS Shift Lever Shimano Deore 12-Speed
DSX FS Crankset Forged Aluminum, 42T Steel Narrow Wide Chainring
DSX FS Bottom Bracket Sealed Outboard Bearing
DSX FS Chain KMC X12
MODEL COMPONENT DESCRIPTION
DSX FS Cassette SunRace 12-speed, 11-51
DSX FS Brakes Front Shimano MT201/UR300 Flat Mount Hydraulic Disc, 180mm Rotor
DSX FS Brakes Rear Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor
DSX FS Brake Levers Shimao Hydraulic
DSX FS Handlebar Marin MiniRiser
DSX FS Stem Marin 3D Forged Alloy
DSX FS Grips Marin MTB
DSX FS Headset FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
DSX FS Seatpost Marin Alloy
DSX FS Saddle Marin DSX
DSX FS Pedals Commute Platform
DSX FS Extras Bolt-On Thru-Axles F and R
DSX 2 Frame Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
DSX 2 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
DSX 2 Rim Marin Aluminum Double Wall, 21mm Inner, Disc Specific, Tubeless Compatible
DSX 2 Hub Rear Forged Aluminum, 148x12mm, Disc, 32H
DSX 2 Hub Front Forged Aluminum, 100x12mm, Disc, 32H
DSX 2 Spokes Nipples 14g Black Stainless Steel
DSX 2 Tires WTB Riddler, 700Cx45mm
DSX 2 Derailleur Rear Shimano Deore 12-Speed
DSX 2 Derailleur Front -
DSX 2 Shift Lever Shimano Deore 12-Speed
DSX 2 Crankset Forged Aluminum, 42T Steel Narrow Wide Chainring
DSX 2 Bottom Bracket Sealed Outboard Bearing
DSX 2 Chain KMC X12
DSX 2 Cassette SunRace 12-Speed, 11-51T
DSX 2 Brakes Front Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor
DSX 2 Brakes Rear Shimano MT201/UR300 Flat Mount Hydraulic Disc, 160mm Rotor
DSX 2 Brake Levers Shimao Hydraulic
DSX 2 Handlebar Marin MiniRiser
DSX 2 Stem Marin 3D Forged Alloy
DSX 2 Grips Marin MTB
DSX 2 Headset FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
DSX 2 Seatpost Marin Alloy
DSX 2 Saddle Marin DSX
DSX 2 Pedals Commute Platform
DSX 2 Extras Bolt-On Thru-Axles F and R
DSX 1 Frame Series 3 DSX, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
DSX 1 Fork Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
DSX 1 Rim Marin Aluminum Double Wall, 21mm Inner, Disc Specific
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
DSX 1 Hub Rear Forged Aluminum Alloy, 142x12mm, Disc, 32H
DSX 1 Hub Front Forged Aluminum, 100x12mm, Disc, 32H
DSX 1 Spokes Nipples 14g Black Stainless Steel
DSX 1 Tires WTB Riddler, 700Cx45mm
DSX 1 Derailleur Rear Shimano Deore 11-Speed
DSX 1 Derailleur Front -
DSX 1 Shift Lever Shimano Deore 11-Speed
DSX 1 Crankset Forged Aluminum, 42T Steel Narrow Wide Chainring
DSX 1 Bottom Bracket Sealed Cartridge
DSX 1 Chain KMC X11
DSX 1 Cassette SunRace 11-Speed, 11-51T
DSX 1 Brakes Front Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor
DSX 1 Brakes Rear Tektro HD-R280 Flat Mount Hydraulic Disc, 160mm Rotor
DSX 1 Brake Levers Tektro Hydraulic
DSX 1 Handlebar Marin MiniRiser
DSX 1 Stem Marin 3D Forged Alloy
DSX 1 Grips Marin MTB
DSX 1 Headset FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
DSX 1 Seatpost Marin Alloy
DSX 1 Saddle Marin DSX
DSX 1 Pedals Commute Platform
DSX 1 Extras Bolt-On Thru-Axles F and R
DSX (Base) Frame Series 2 DSX, 6061 Aluminum, Internal Cable Routing, Mudguard and Rack Mounts, IS Disc Mount
DSX (Base) Fork 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets
DSX (Base) Rim Marin Aluminum Double Wall, Disc Specific
DSX (Base) Hub Rear Forged Aluminum Alloy, Disc, 32H
DSX (Base) Hub Front Forged Aluminum Alloy, Disc, 32H
DSX (Base) Spokes Nipples 14g Black Stainless Steel
DSX (Base) Tires WTB Riddler, 700Cx45mm
DSX (Base) Derailleur Rear microSHIFT Advent 9, Clutch
DSX (Base) Derailleur Front
DSX (Base) Shift Lever microSHIFT Advent 9 Trail
DSX (Base) Crankset Alloy Crank, Steel Narrow-Wide Chainring, 38T
DSX (Base) Bottom Bracket Sealed Cartridge Bearings, Square Taper
DSX (Base) Chain KMC X9
DSX (Base) Cassette SunRace 9-Speed, 11-46T
DSX (Base) Brakes Front Clark's Clout Hydraulic Disc, 160mm Rotor
DSX (Base) Brakes Rear Clark's Clout Hydraulic Disc, 160mm Rotor
DSX (Base) Brake Levers Clark's Hydraulic
DSX (Base) Handlebar Marin MiniRiser
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
DSX (Base) Stem Marin 3D Forged Alloy
DSX (Base) Grips Marin MTB
DSX (Base) Headset FSA, Orbit CE No.8B
DSX (Base) Seatpost Marin Alloy
DSX (Base) Saddle Marin DSX
DSX (Base) Pedals Commute Platform
San Rafael DS2 Frame Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Disc Brake
San Rafael DS2 Fork SR Suntour NEX Disc HLO, 63mm Travel, Hydraulic Lockout, Preload Adjustment
San Rafael DS2 Rim Marin Aluminum Double Wall, Disc Specific
San Rafael DS2 Hub Rear Forged Aluminum Alloy, Disc, 32H
San Rafael DS2 Hub Front Forged Aluminum Alloy, Disc, 32H
San Rafael DS2 Spokes 14g Black Stainless Steel
San Rafael DS2 Tires Vee Tire Co., Rail, 700x40, Wire Bead
San Rafael DS2 Derailleur Rear Shimano Acera 8-Speed
San Rafael DS2 Derailleur Front Shimano FD-TY710
San Rafael DS2 Shift Lever microSHIFT TS39, 8-Speed
San Rafael DS2 Crankset Forged Alloy Crank, 46/30T, Ring Guard
San Rafael DS2 Bottom Bracket Sealed Cartridge Bearings, Square Taper
San Rafael DS2 Chain KMC Z8
San Rafael DS2 Cassette SunRace 8-Speed, 11-34T
San Rafael DS2 Brakes Front Clark's Clout Hydraulic Disc, 160mm Rotor
San Rafael DS2 Brakes Rear Clark's Clout Hydraulic Disc, 160mm Rotor
San Rafael DS2 Brake Levers Clark's Hydraulic
San Rafael DS2 Handlebar Marin Alloy Riser
San Rafael DS2 Stem Marin Alloy, 31.8mm Clamp
San Rafael DS2 Grips Marin Ergonomic Locking
San Rafael DS2 Headset FSA No.10-P
San Rafael DS2 Seatpost Marin Alloy, 27.2mm
San Rafael DS2 Saddle Marin Fitness Plush
San Rafael DS2 Pedals Dual Sport Platform
San Rafael DS1 Frame Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Disc Brake
San Rafael DS1 Fork SR Suntour NEX, 63mm Travel, Preload Adjustment
San Rafael DS1 Rim Marin Aluminum Double Wall
San Rafael DS1 Hub Rear Forged Aluminum Alloy, 32H
San Rafael DS1 Hub Front Forged Aluminum Alloy, 32H
San Rafael DS1 Spokes 14g Stainless Steel
San Rafael DS1 Tires Kenda Kahn, 700Cx40mmmm
San Rafael DS1 Derailleur Rear Shimano Tourney, 7-Speed
San Rafael DS1 Derailleur Front Shimano TY710
San Rafael DS1 Shift Lever Shimano EF500 Shifter/Brake Lever Combo, 2x7-Speed
San Rafael DS1 Crankset Forged Alloy Crank, 46/30T, Ring Guard
MODEL COMPONENT DESCRIPTION
San Rafael DS1 Bottom Bracket Sealed Cartridge Bearings, Square Taper
San Rafael DS1 Chain KMC Z8
San Rafael DS1 Cassette SunRace 7-Speed, 11-34T
San Rafael DS1 Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
San Rafael DS1 Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
San Rafael DS1 Brake Levers Shimano w/ Integrated Shifters
San Rafael DS1 Handlebar Marin Alloy Riser
San Rafael DS1 Stem Marin Alloy, 31.8mm Clamp
San Rafael DS1 Grips Dual Density Ergonomic
San Rafael DS1 Headset FSA No.10-P
San Rafael DS1 Seatpost Marin Alloy, 27.2mm
San Rafael DS1 Saddle Marin Fitness Plush
San Rafael DS1 Pedals Dual Sport Platform
San Anselmo DS2 Frame Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Women's Fit Geometry, Step Through Design, Disc Brake
San Anselmo DS2 Fork SR Suntour NEX Disc HLO, 63mm Travel, Hydraulic Lockout, Preload Adjustment
San Anselmo DS2 Rim Marin Aluminum Double Wall, Disc Specific
San Anselmo DS2 Hub Rear Forged Aluminum Alloy, Disc, 32H
San Anselmo DS2 Hub Front Forged Aluminum Alloy, Disc, 32H
San Anselmo DS2 Spokes 14g Black Stainless Steel
San Anselmo DS2 Tires Vee Tire Co., Rail, 700cx40mm, Wire Bead
San Anselmo DS2 Derailleur Rear Shimano Acera 8-Speed
San Anselmo DS2 Derailleur Front Shimano FD-TY710
San Anselmo DS2 Shift Lever Shimano Altus SL-M315, 8-Speed
San Anselmo DS2 Crankset Forged Alloy Crank, 46/30T, Ring Guard
San Anselmo DS2 Bottom Bracket Sealed Cartridge Bearings, Square Taper
San Anselmo DS2 Chain KMC Z8
San Anselmo DS2 Cassette SunRace 8-Speed, 11-34T
San Anselmo DS2 Brakes Front Clark's Clout Hydraulic Disc, 160mm Rotor
San Anselmo DS2 Brakes Rear Clark's Clout Hydraulic Disc, 160mm Rotor
San Anselmo DS2 Brake Levers Clark's Hydraulic
San Anselmo DS2 Handlebar Marin Alloy Riser
San Anselmo DS2 Stem Marin Alloy, 31.8mm Clamp
San Anselmo DS2 Grips Marin Ergonomic Locking
San Anselmo DS2 Headset FSA No.10-P
San Anselmo DS2 Seatpost Marin Alloy, 27.2mm
San Anselmo DS2 Saddle Marin Women's Fitness Plush
San Anselmo DS2 Pedals Dual Sport Platform
San Anselmo DS2 Frame Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Women's Fit Geometry, Step Through Design, Disc Brake
San Anselmo DS2 Fork SR Suntour NEX Disc HLO, 63mm Travel, Hydraulic Lockout, Preload Adjustment
San Anselmo DS2 Rim Marin Aluminum Double Wall, Disc Specific
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
San Anselmo DS2 Hub Rear Forged Aluminum Alloy, Disc, 32H
San Anselmo DS2 Hub Front Forged Aluminum Alloy, Disc, 32H
San Anselmo DS2 Spokes 14g Black Stainless Steel
San Anselmo DS2 Tires Vee Tire Co., Rail, 700cx40mm, Wire Bead
San Anselmo DS2 Derailleur Rear Shimano Acera 8-Speed
San Anselmo DS2 Derailleur Front Shimano FD-TY710
San Anselmo DS2 Shift Lever Shimano Altus SL-M315, 8-Speed
San Anselmo DS2 Crankset Forged Alloy Crank, 46/30T, Ring Guard
San Anselmo DS2 Bottom Bracket Sealed Cartridge Bearings, Square Taper
San Anselmo DS2 Chain KMC Z8
San Anselmo DS2 Cassette SunRace 8-Speed, 11-34T
San Anselmo DS2 Brakes Front Clark's Clout Hydraulic Disc, 160mm Rotor
San Anselmo DS2 Brakes Rear Clark's Clout Hydraulic Disc, 160mm Rotor
San Anselmo DS2 Brake Levers Clark's Hydraulic
San Anselmo DS2 Handlebar Marin Alloy Riser
San Anselmo DS2 Stem Marin Alloy, 31.8mm Clamp
San Anselmo DS2 Grips Marin Ergonomic Locking
San Anselmo DS2 Headset FSA No.10-P
San Anselmo DS2 Seatpost Marin Alloy, 27.2mm
San Anselmo DS2 Saddle Marin Women's Fitness Plush
San Anselmo DS2 Pedals Dual Sport Platform
San Anselmo DS1 Frame Series 2 Dual Sport, 6061 Aluminum, 700C Wheels, Women's Fit Geometry, Step Through Design, Disc Brake
San Anselmo DS1 Fork SR Suntour NEX, 63mm Travel, Preload Adjustment
San Anselmo DS1 Rim Marin Aluminum Double Wall
San Anselmo DS1 Hub Rear Forged Aluminum Alloy, 32H
San Anselmo DS1 Hub Front Forged Aluminum Alloy, 32H
San Anselmo DS1 Spokes 14g Stainless Steel
San Anselmo DS1 Tires Kenda Kahn, 700Cx40mm
San Anselmo DS1 Derailleur Rear Shimano Tourney, 7-Speed
San Anselmo DS1 Derailleur Front Shimano TY710
San Anselmo DS1 Shift Lever Shimano EF500 Shifter/Brake Lever Combo, 2x7-Speed
San Anselmo DS1 Crankset Forged Alloy Crank, 46/30T, Ring Guard
San Anselmo DS1 Bottom Bracket Sealed Cartridge Bearings, Square Taper
San Anselmo DS1 Chain KMC Z8
San Anselmo DS1 Cassette SunRace 7-Speed, 11-34T
San Anselmo DS1 Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
San Anselmo DS1 Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
San Anselmo DS1 Brake Levers Shimano w/ Integrated Shifters
San Anselmo DS1 Handlebar Marin Alloy Riser
San Anselmo DS1 Stem Marin Alloy, 31.8mm Clamp
San Anselmo DS1 Grips Dual Density Ergonomic
SPECIFICATIONS
San Anselmo DS1 Headset FSA No.10-P
San Anselmo DS1 Seatpost Marin Alloy, 27.2mm
San Anselmo DS1 Saddle Marin Women's Fitness Plush
San Anselmo DS1 Pedals Dual Sport Platform
Fairfax
Fairfax
Fairfax 3 Rim Marin Aluminum Double Wall, 19mm ID, 25mm Tall, Disc Specific
Fairfax 3 Hub Rear Forged Aluminum Alloy, Disc, 32H
Fairfax 3 Hub Front Forged Aluminum Alloy, Disc, 32H
Fairfax 3 Spokes 14g Black Stainless Steel
Fairfax 3 Tires Vee Tire Co., G-Sport, 700Cx35mm, Puncture Protection, Wire Bead
Fairfax
Fairfax
Fairfax
Fairfax
Fairfax
Fairfax 3 Chain KMC X9
Fairfax 3 Cassette Shimano, 9-Speed, 11-34T
Fairfax 3 Brakes Front Clark's Clout Hydraulic Disc, 160mm Rotor
Fairfax 3 Brakes Rear Clark's Clout Hydraulic Disc, 160mm Rotor
Fairfax 3 Brake Levers Clark's Hydraulic
Fairfax 3 Handlebar Marin Alloy Flat
Fairfax 3 Stem Marin 3D Forged Alloy
Fairfax 3 Grips Marin Ergonomic Locking
Fairfax 3 Headset FSA, No.42/CB
Fairfax 3 Seatpost Marin Alloy, 27.2mm
Fairfax 3 Saddle Marin Fitness Plush
Fairfax 3 Pedals Commute Platform
Fairfax 2 Frame Series 2 Fitness, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender and Rack Mounts
Fairfax 2 Fork 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets
Fairfax 2 Rim Marin Aluminum Double Wall, Disc Specific
Fairfax 2 Hub Rear Forged Aluminum Alloy, Disc, 32H
Fairfax 2 Hub Front Forged Aluminum Alloy, Disc, 32H
Fairfax 2 Spokes 14g Black Stainless Steel
Fairfax 2 Tires Vee Tire Co., Zilent, 700Cx35mm, Puncture Protection, Wire Bead
Fairfax 2 Derailleur Rear Shimano Acera, 8-Speed
Fairfax 2 Derailleur Front Shimano TY710
Fairfax 2 Shift Lever Shimano Altus 2x8
Fairfax 2 Crankset Forged Alloy Crank, 46/30T, Ring Guard
Fairfax 2 Bottom Bracket Sealed Cartridge Bearings, Square Taper
MODEL COMPONENT DESCRIPTION
Fairfax 2 Chain KMC Z8
Fairfax 2 Cassette SunRace 8-Speed, 11-34T
Fairfax 2 Brakes Front Clark's Clout Hydraulic Disc, 160mm Rotor
Fairfax 2 Brakes Rear Clark's Clout Hydraulic Disc, 160mm Rotor
Fairfax 2 Brake Levers Clark's Hydraulic
Fairfax 2 Handlebar Marin Alloy Flat
Fairfax 2 Stem Marin 3D Forged Alloy
Fairfax 2 Grips Marin Ergonomic Locking
Fairfax 2 Headset FSA, No.8B
Fairfax 2 Seatpost Marin Alloy, 27.2mm
Fairfax 2 Saddle Marin Fitness Plush
Fairfax 2 Pedals Fitness Platform
Fairfax 2 ST Frame Series 2 Fitness, Step-Thru Design, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender and Rack Mounts
Fairfax 2 ST Fork 6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets
Fairfax 2 ST Rim Marin Aluminum Double Wall, Disc Specific
Fairfax 2 ST Hub Rear Forged Aluminum Alloy, Disc, 32H
Fairfax 2 ST Hub Front Forged Aluminum Alloy, Disc, 32H
Fairfax 2 ST Spokes 14g Black Stainless Steel
Fairfax 2 ST Tires Vee Tire Co., Zilent, 700Cx35mm, Puncture Protection, Wire Bead
Fairfax 2 ST Derailleur Rear Shimano Acera, 8-Speed
Fairfax 2 ST Derailleur Front Shimano TY710
Fairfax 2 ST Shift Lever Shimano Altus 2x8
Fairfax 2 ST Crankset Forged Alloy Crank, 46/30T, Ring Guard
Fairfax 2 ST Bottom Bracket Sealed Cartridge Bearings, Square Taper
Fairfax 2 ST Chain KMC Z8
Fairfax 2 ST Cassette SunRace 8-Speed, 11-34T
Fairfax 2 ST Brakes Front Clark's Clout Hydraulic Disc, 160mm Rotor
Fairfax 2 ST Brakes Rear Clark's Clout Hydraulic Disc, 160mm Rotor
Fairfax 2 ST Brake Levers Clark's Hydraulic
Fairfax 2 ST Handlebar Marin Alloy Flat
Fairfax 2 ST Stem Marin 3D Forged Alloy
Fairfax 2 ST Grips Marin Ergonomic Locking
Fairfax 2 ST Headset FSA, No.8B
Fairfax 2 ST Seatpost Marin Alloy, 27.2mm
Fairfax 2 ST Saddle Marin Fitness Plush
Fairfax 2 ST Pedals Fitness Platform
Fairfax 1 Frame Series 1 Fitness, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender, Rack and Kickstand Mounts
Fairfax 1 Fork Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets
Fairfax 1 Rim Marin Aluminum Double Wall, Disc Specific
Fairfax 1 Hub Rear Forged Aluminum Alloy, Disc, 32H
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Fairfax 1 Hub Front Forged Aluminum Alloy, Disc, 32H
Fairfax 1 Spokes 14g Stainless Steel
Fairfax 1 Tires Fitness 700Cx35mm
Fairfax 1 Derailleur Rear Shimano Tourney, 7-Speed
Fairfax 1 Derailleur Front Shimano TY510
Fairfax 1 Shift Lever Shimano Shifter/Brake Lever Combo, 3x7-Speed
Fairfax 1 Crankset Alloy Crank, Steel Chainrings, 48/38/28T, Ring Guard
Fairfax 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Fairfax 1 Chain KMC Z8
Fairfax 1 Cassette SunRace 7-Speed, 11-34T
Fairfax 1 Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Fairfax 1 Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Fairfax 1 Brake Levers Shimano w/ Integrated Shifters
Fairfax 1 Handlebar Marin Alloy, 30mm Rise
Fairfax 1 Stem Marin Alloy Threadless
Fairfax 1 Grips Marin Commute
Fairfax 1 Headset FSA, Threadless
Fairfax 1 Seatpost Marin Alloy, 27.2mm
Fairfax 1 Saddle Marin Fitness Plush
Fairfax 1 Pedals Commute Platform
Fairfax 1 ST Frame Series 1 Fitness, Step-Thru Design, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender, Rack and Kickstand Mounts
Fairfax 1 ST Fork Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets
Fairfax 1 ST Rim Marin Aluminum Double Wall, Disc Specific
Fairfax 1 ST Hub Rear Forged Aluminum Alloy, Disc, 32H
Fairfax 1 ST Hub Front Forged Aluminum Alloy, Disc, 32H
Fairfax 1 ST Spokes 14g Stainless Steel
Fairfax 1 ST Tires Fitness 700Cx35mm
Fairfax 1 ST Derailleur Rear Shimano Tourney, 7-Speed
Fairfax 1 ST Derailleur Front Shimano TY510
Fairfax 1 ST Shift Lever Shimano Shifter/Brake Lever Combo, 3x7-Speed
Fairfax 1 ST Crankset Alloy Crank, Steel Chainrings, 48/38/28T, Ring Guard
Fairfax 1 ST Bottom Bracket Sealed Cartridge Bearings, Square Taper
Fairfax 1 ST Chain KMC Z8
Fairfax 1 ST Cassette SunRace 7-Speed, 11-34T
Fairfax 1 ST Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Fairfax 1 ST Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Fairfax 1 ST Brake Levers Shimano w/ Integrated Shifters
Fairfax 1 ST Handlebar Marin Alloy, 30mm Rise
Fairfax 1 ST Stem Marin Alloy Threadless
Fairfax 1 ST Grips Marin Commute
Fairfax 1 ST Headset FSA, Threadless
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Fairfax 1 ST Seatpost Marin Alloy, 27.2mm
Fairfax 1 ST Saddle Marin Fitness Plush
Fairfax 1 ST Pedals Commute Platform
Presidio 3 Frame Series 2 Commute, 6061 Aluminum, 700C Wheels, Sliding Dropouts, Internal Cable Routing, Belt Drive Compatible, Flat-Mount Disc, Fender, Rack, and Integrated Kickstand Mounts
Presidio 3 Fork 6061 Aluminum, Straight-Blade, Post-Mount Disc
Presidio 3 Rim Marin Aluminum Double Wall, 25mm Tall, Disc Specific
Presidio 3 Hub Rear Shimano Nexus 8D 8-Speed Internally Geared Hub, Disc, 32H
Presidio 3 Hub Front Forged Aluminum Alloy, Disc, 32H
Presidio 3 Spokes 14g Black Stainless Steel
Presidio 3 Tires Vee Tire Co., Baldy, 700Cx32mm, Puncture Protection, Reflective Sidewall, Wire Bead
Presidio 3 Derailleur Rear -
Presidio 3 Derailleur Front -
Presidio 3 Shift Lever microSHIFT SL 8-Speed IG Shifter
Presidio 3 Crankset Gates Carbon Drive S150, 50T
Presidio 3 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Presidio 3 Belt Gates Carbon Drive CDN Centertrack Belt, 115T
Presidio 3 Cog Gates Carbon Drive CDN Center Track, 22T
Presidio 3 Brakes Front Shimano MT-201 Hydraulic Disc, 160mm Rotor
Presidio 3 Brakes Rear Shimano U300 Flat-Mount Hydraulic Disc, 160mm Rotor
Presidio 3 Brake Levers Shimano Hydraulic
Presidio 3 Handlebar Marin Alloy Flat Top Riser
Presidio 3 Stem Marin 3D Forged Alloy
Presidio 3 Grips Marin Ergonomic Locking
Presidio 3 Headset FSA Orbit CE, Sealed Cartridge Bearings
Presidio 3 Seatpost Marin Alloy, 27.2mm
Presidio 3 Saddle Marin Fitness
Presidio 3 Pedals Commute Platform
Presidio 2 Frame Series 2 Commute, 6061 Aluminum, 700C Wheels, Sliding Dropouts, Internal Cable Routing, Belt Drive Compatible, Flat-Mount Disc, Fender, Rack, and Integrated Kickstand Mounts
Presidio 2 Fork 6061 Aluminum, Disc Brake, Straight-Blade
Presidio 2 Rim Marin Aluminum Double Wall, Disc Specific
Presidio 2 Hub Rear Shimano Nexus 7D 7-Speed Internally Geared Hub, Disc, 32H
Presidio 2 Hub Front Forged Aluminum Alloy, 32H
Presidio 2 Spokes 14g Black Stainless Steel
Presidio 2 Tires Vee Tire Co., Baldy, 700Cx32mm, Puncture Protection, Reflective Sidewall, Wire Bead
Presidio 2 Derailleur Rear -
Presidio 2 Derailleur Front -
Presidio 2 Shift Lever Shimano Nexus Twist Shifter 7-Speed
Presidio 2 Crankset Forged Alloy, 42T, 140mm, Ring Guard
Presidio 2 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Presidio 2 Chain KMC Z1RB w/ Anti-Corrosion Coating
MODEL COMPONENT DESCRIPTION
Presidio 2 Cassette Shimano Nexus Cog, 19T
Presidio 2 Brakes Front Shimano MT-201 Hydraulic Disc, 160mm Rotor
Presidio 2 Brakes Rear Shimano U300 Flat-Mount Hydraulic Disc, 160mm Rotor
Presidio 2 Brake Levers Shimano Hydraulic
Presidio 2 Handlebar Marin Alloy Flat
Presidio 2 Stem Marin Alloy
Presidio 2 Grips Dual Density Ergonomic
Presidio 2 Headset FSA No.8B
Presidio 2 Seatpost Marin Alloy, 27.2mm
Presidio 2 Saddle Marin Fitness Plush
Presidio 2 Pedals Commute Platform
Presidio 1 Frame Series 1 Fitness, 6061 Aluminum, 700C Wheels, Disc Brake, Internal Cable Routing, Fender and Rack Mounts
Presidio 1 Fork Cr-Mo Steel, Straight Blade, Disc Mount, Fender and Rack Eyelets
Presidio 1 Rim Marin Aluminum Double Wall, Disc Specific
Presidio 1 Hub Rear Forged Aluminum Alloy, Disc, 32H
Presidio 1 Hub Front Forged Aluminum Alloy, Disc, 32H
Presidio 1 Spokes 14g Stainless Steel
Presidio 1 Tires Marin Fitness 700Cx35mm
Presidio 1 Derailleur Rear Shimano Altus
Presidio 1 Derailleur Front -
Presidio 1 Shift Lever Shimano Altus SL-M315, 8-Speed
Presidio 1 Crankset Forged Alloy, 38T, Ring Guard
Presidio 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Presidio 1 Chain KMC Z8
Presidio 1 Cassette SunRace 8-Speed 11/34T
Presidio 1 Brakes Front Clark's Clout Hydraulic Disc, 160mm Rotor
Presidio 1 Brakes Rear Clark's Clout Hydraulic Disc, 160mm Rotor
Presidio 1 Brake Levers Clark's Hydraulic
Presidio 1 Handlebar Marin Alloy Flat
Presidio 1 Stem Marin Alloy
Presidio 1 Grips Marin Commute
Presidio 1 Headset FSA 888 Threadless
Presidio 1 Seatpost Marin Alloy, 27.2mm
Presidio 1 Saddle Marin Fitness Plush
Presidio 1 Pedals Commute Platform
Larkspur 2 Frame Series 2 Butted CrMo, 27.5” Wheels, Mixte Low-Step, Integrated Headset, Disc Brake, Kickstand Mount, Fender and Rack Mounts
Larkspur 2 Fork CrMo Steel, Curved Blade, Disc Specific, Fender and Rack Eyelets
Larkspur 2 Rim Marin Aluminum Double Wall, 27mm Internal, Disc Specific
Larkspur 2 Hub Rear Forged Aluminum Alloy, 32H
Larkspur 2 Hub Front Forged Aluminum Alloy, 32H
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Larkspur 2 Spokes 14g Stainless Steel
Larkspur 2 Tires Vee Tire Co., GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready
Larkspur 2 Derailleur Rear Shimano Deore 11-Speed
Larkspur 2 Derailleur Front n/a
Larkspur 2 Shift Lever Shimano Deore 11-Speed
Larkspur 2 Crankset Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 38T
Larkspur 2 Bottom Bracket Sealed Outboard Bearings
Larkspur 2 Chain KMC X11
Larkspur 2 Cassette SunRace 11-Speed, 11-51T
Larkspur 2 Brakes Front Shimano Deore Hydraulic, 180mm Rotor
Larkspur 2 Brakes Rear Shimano Deore Hydraulic, 160mm Rotor
Larkspur 2 Brake Levers Shimano Deore Hydraulic
Larkspur 2 Handlebar Marin Alloy Sweeper
Larkspur 2 Stem Marin Alloy, 31.8mm Clamp
Larkspur 2 Grips Marin Adventure
Larkspur 2 Headset FSA Orbit CE No.8B
Larkspur 2 Seatpost TranzX YSP38J, 1x Shimano I-Spec EV Remote, Size S 70mm, All Other Sizes 110mm Travel,
Larkspur 2 Saddle Marin Adventure Plush
Larkspur 2 Pedals Commute Platform
Larkspur 1 Frame Series 2 Butted CrMo, 27.5” Wheels, Mixte Low-Step, Integrated Headset, Disc Brake, Kickstand Mount, Fender and Rack Mounts
Larkspur 1 Fork CrMo Steel, Curved Blade, Disc Specific, Fender and Rack Eyelets
Larkspur 1 Rim Marin Aluminum Double Wall, 25mm Internal, Disc Specific
Larkspur 1 Hub Rear Forged Aluminum Alloy, 32H
Larkspur 1 Hub Front Forged Aluminum Alloy, 32H
Larkspur 1 Spokes 14g Stainless Steel
Larkspur 1 Tires Vee Tire Co., GPVee, 27.5x2.35", Wire Bead, Puncture Protection, Mixed Terrain Ready
Larkspur 1 Derailleur Rear microSHIFT Advent X 10-Speed Wide Range
Larkspur 1 Derailleur Front n/a
Larkspur 1 Shift Lever microSHIFT Advent X 10-Speed
Larkspur 1 Crankset Forged Alloy Crank, Steel Narrow Wide 38T Chainring
Larkspur 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Larkspur 1 Chain KMC X10
Larkspur 1 Cassette SunRace 10-Speed, 11-51T
Larkspur 1 Brakes Front Tektro HD-M275 Hydraulic, 180mm Rotor
Larkspur 1 Brakes Rear Tektro HD-M275 Hydraulic, 160mm Rotor
Larkspur 1 Brake Levers Tektro Hydraulic
Larkspur 1 Handlebar Marin Alloy Sweeper
Larkspur 1 Stem Marin Alloy, 31.8mm Clamp
Larkspur 1 Grips Marin Adventure
Larkspur 1 Headset FSA Orbit CE No.8B
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Larkspur 1 Seatpost Marin Alloy, 27.2mm
Larkspur 1 Saddle Marin Adventure Plush
Larkspur 1 Pedals Commute Platform
Muirwoods Frame Series 1 Butted CrMo, 29” Wheels, Integrated Headset, Disc Brake, Fender and Rack Mounts
Muirwoods Fork Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Muirwoods Rim Marin Aluminum, Double Wall, Disc Specific
Muirwoods Hub Rear Forged Aluminum Alloy, Disc, 32H
Muirwoods Hub Front Forged Aluminum Alloy, Disc, 32H
Muirwoods Spokes 14g Black Stainless Steel
Muirwoods Tires Schwalbe Citizen, 700Cx40mm, Reflective Sidewall, Puncture Resistant, Reflective Sidewall
Muirwoods Derailleur Rear MicroSHIFT Advent X 10-Speed
Muirwoods Derailleur Front
Muirwoods Shift Lever MicroSHIFT Advent X 10-Speed Trail
Muirwoods Crankset Forged Alloy Crank, Steel Narrow Wide 38T Chainring
Muirwoods Bottom Bracket Sealed Cartridge Bearings, Square Taper
Muirwoods Chain KMC X10
Muirwoods Cassette SunRace 10-Speed, 11-51T
Muirwoods Brakes Front Tektro M275 Hydraulic Disc, 180mm Rotor
Muirwoods Brakes Rear Tektro M275 Hydraulic Disc, 160mm Rotor
Muirwoods Brake Levers Tektro M275 Hydraulic Disc
Muirwoods Handlebar Marin Alloy Mini Riser
Muirwoods Stem Marin Alloy, 31.8mm Clamp
Muirwoods Grips Marin Custom
Muirwoods Headset FSA No.8B, Sealed Cartridge Bearings
Muirwoods Seatpost Marin Alloy, 27.2mm
Muirwoods Saddle Marin MTB
Muirwoods Pedals Commute Platform
Kentfield 2 Frame Series 1 6061 Aluminum, 700C Wheels, Disc Specific, Kickstand Mount, Fender and Rack Mounts
Kentfield 2 Fork Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Kentfield 2 Rim Marin Aluminum Double Wall, Disc Specific
Kentfield 2 Hub Rear Forged Aluminum Alloy, 32H
Kentfield 2 Hub Front Forged Aluminum Alloy, 32H
Kentfield 2 Spokes 14g Stainless Steel
Kentfield 2 Tires Vee Tire Co., GPVee, 700Cx40mm, Wire Bead, Flat Protection, Mixed Terrain Ready
Kentfield 2 Derailleur Rear microSHIFT Advent X 10-Speed Wide Range
Kentfield 2 Derailleur Front n/a
Kentfield 2 Shift Lever microSHIFT Advent X 10-Speed
Kentfield 2 Crankset Forged Alloy Crank, Steel Narrow Wide 38T Chainring
Kentfield 2 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Kentfield 2 Chain KMC X10
Specifications, pricing, and availability are subject to change without notice. MODEL COMPONENT DESCRIPTION
Kentfield 2 Cassette microSHIFT 10-Speed, 11-48T
Kentfield 2 Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Kentfield 2 Brake Levers Aluminum Lever
Kentfield 2 Handlebar Marin Alloy, 30mm Rise, 12˚ Backsweep
Kentfield 2 Stem Marin Aluminum, 31.8mm Clamp+D21
Kentfield 2 Grips Marin Adventure
Kentfield 2 Headset FSA 888 Threadless
Kentfield 2 Seatpost Marin Alloy, 27.2mm
Kentfield 2 Saddle Marin Adventure Plush
Kentfield 2 Pedals Commute Platform
Kentfield 2 ST Frame Series 1 6061 Aluminum, 700C Wheels, Step Through Design, Kickstand Mount, Fender and Rack Mounts
Kentfield 2 ST Fork Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Kentfield 2 ST Rim Marin Aluminum Double Wall, Disc Specific
Kentfield 2 ST Hub Rear Forged Aluminum Alloy, 32H
Kentfield 2 ST Hub Front Forged Aluminum Alloy, 32H
Kentfield 2 ST Spokes 14g Stainless Steel
Kentfield 2 ST Tires Vee Tire Co., GPVee, 700Cx40mm, Wire Bead, Flat Protection, Mixed Terrain Ready
Kentfield 2 ST Derailleur Rear microSHIFT Advent X 10-Speed Wide Range
Kentfield 2 ST Derailleur Front n/a
Kentfield 2 ST Shift Lever microSHIFT Advent X 10-Speed
Kentfield 2 ST Crankset Forged Alloy Crank, Steel Narrow Wide 38T Chainring
Kentfield 2 ST Bottom Bracket Sealed Cartridge Bearings, Square Taper
Kentfield 2 ST Chain KMC X10
Kentfield 2 ST Cassette microSHIFT 10-Speed, 11-48T
Kentfield 2 ST Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Kentfield 2 ST Brake Levers Aluminum Lever
Kentfield 2 ST Handlebar Marin Alloy, 30mm Rise, 12˚ Backsweep
Kentfield 2 ST Stem Marin Aluminum, 31.8mm Clamp
Kentfield 2 ST Grips Marin Adventure
Kentfield 2 ST Headset FSA 888 Threadless
Kentfield 2 ST Seatpost Marin Alloy, 27.2mm
Kentfield 2 ST Saddle Marin Adventure Plush
Kentfield 2 ST Pedals Commute Platform
Kentfield 1 Frame Series 1 City + Sport, 6061 Aluminum, 700C Wheels, Step Through Design, Fender and Rack Mounts
Kentfield 1 Fork Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Kentfield 1 Rim Marin Aluminum Double Wall, Disc Specific
Kentfield 1 Hub Rear Forged Aluminum Alloy, 32H
Kentfield 1 Hub Front Forged Aluminum Alloy, 32H
Kentfield 1 Spokes 14g Stainless Steel
Kentfield 1 Tires Vee Tire Co., GPVee, 700x40, Wire Bead, Flat Protection, Mixed Terrain Ready
Kentfield 1 Derailleur Rear Shimano Tourney 7-Speed
MODEL COMPONENT DESCRIPTION
Kentfield 1 Derailleur Front n/a
Kentfield 1 Shift Lever Shimano Altus 7-Speed RapidFire
Kentfield 1 Crankset Forged Alloy Crank, Steel 38T Chainring, Ring Guard
Kentfield 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Kentfield 1 Chain KMC Z8
Kentfield 1 Cassette SunRace 7-Speed, 11-34T
Kentfield 1 Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Kentfield 1 Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Kentfield 1 Brake Levers Aluminum Lever
Kentfield 1 Handlebar Marin Alloy, 30mm Rise, 12˚ Backsweep
Kentfield 1 Stem Marin Aluminum, 31.8mm Clamp
Kentfield 1 Grips Marin Adventure
Kentfield 1 Headset FSA 888 Threadless
Kentfield 1 Seatpost Marin Alloy, 27.2mm
Kentfield 1 Saddle Marin Adventure Plush
Kentfield 1 Pedals Commute Platform
Kentfield 1 ST Frame Series 1 City + Sport, 6061 Aluminum, 700C Wheels, Step Through Design, Fender and Rack Mounts
Kentfield 1 ST Fork Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Kentfield 1 ST Rim Marin Aluminum Double Wall, Disc Specific
Kentfield 1 ST Hub Rear Forged Aluminum Alloy, 32H
Kentfield 1 ST Hub Front Forged Aluminum Alloy, 32H
Kentfield 1 ST Spokes 14g Stainless Steel
Kentfield 1 ST Tires Vee Tire Co., GPVee, 700Cx40mm, Wire Bead, Flat Protection, Mixed Terrain Ready
Kentfield 1 ST Derailleur Rear Shimano Tourney 7-Speed
Kentfield 1 ST Derailleur Front
Kentfield 1 ST Shift Lever Shimano
Kentfield 1 ST Crankset Forged Alloy Crank, Steel 38T Chainring, Ring Guard
Kentfield 1 ST Bottom Bracket Sealed Cartridge Bearings, Square Taper
Kentfield 1 ST Chain KMC Z8
Kentfield 1 ST Cassette SunRace 7-Speed, 11-34T
Kentfield 1 ST Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Kentfield 1 ST Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Kentfield 1 ST Brake Levers Aluminum Lever
Kentfield 1 ST Handlebar Marin Alloy, 30mm Rise, 12˚ Backsweep
Kentfield 1 ST Stem Marin Aluminum, 31.8mm Clamp
Kentfield 1 ST Grips Marin Adventure
Kentfield 1 ST Headset FSA 888 Threadless
Kentfield 1 ST Seatpost Marin Alloy, 27.2mm
Kentfield 1 ST Saddle Marin Adventure Plush
Kentfield 1 ST Pedals Commute Platform
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Stinson 2 Frame Series 1 Comfort, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
Stinson 2 Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
Stinson 2 Rim Marin Aluminum Double Wall, Disc Specific
Stinson 2 Hub Rear Forged Aluminum Alloy, 32H
Stinson 2 Hub Front Forged Aluminum Alloy, 32H
Stinson 2 Spokes 14g Stainless Steel
Stinson 2 Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
Stinson 2 Derailleur Rear microSHIFT Advent 9-Speed Wide Range
Stinson 2 Derailleur Front -
Stinson 2 Shift Lever microSHIFT Advent 9-Speed
Stinson 2 Crankset Alloy Crank, Steel 38T Chainring, Ring Guard
Stinson 2 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Stinson 2 Chain KMC X9
Stinson 2 Cassette MicroSHIFT 9-Speed 11-46T
Stinson 2 Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Stinson 2 Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Stinson 2 Brake Levers Shimano w/ Integrated Shifters
Stinson 2 Handlebar Marin Alloy, 25mm Rise, 18˚ Backsweep
Stinson 2 Stem Marin Alloy, 31.8mm Clamp
Stinson 2 Grips Marin Adventure
Stinson 2 Headset FSA, TH No.10P
Stinson 2 Seatpost Marin Alloy, 30.9mm
Stinson 2 Saddle Marin Comfort
Stinson 2 Pedals Marin Comfort Platform
Stinson 2 ST Frame Series 1 Comfort, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
Stinson 2 ST Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
Stinson 2 ST Rim Marin Aluminum Double Wall, Disc Specific
Stinson 2 ST Hub Rear Forged Aluminum Alloy, 32H
Stinson 2 ST Hub Front Forged Aluminum Alloy, 32H
Stinson 2 ST Spokes 14g Stainless Steel
Stinson 2 ST Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
Stinson 2 ST Derailleur Rear microSHIFT Advent 9-Speed Wide Range
Stinson 2 ST Derailleur Front -
Stinson 2 ST Shift Lever microSHIFT Advent 9-Speed
Stinson 2 ST Crankset Alloy Crank, Steel 38T Chainring, Ring Guard
Stinson 2 ST Bottom Bracket Sealed Cartridge Bearings, Square Taper
Stinson 2 ST Chain KMC X9
Stinson 2 ST Cassette MicroSHIFT 9-Speed 11-46T
Stinson 2 ST Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Stinson 2 ST Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
MODEL COMPONENT DESCRIPTION
Stinson 2 ST Brake Levers Shimano w/ Integrated Shifters
Stinson 2 ST Handlebar Marin Alloy, 25mm Rise, 18˚ Backsweep
Stinson 2 ST Stem Marin Alloy, 31.8mm Clamp
Stinson 2 ST Grips Marin Adventure
Stinson 2 ST Headset FSA, TH No.10P
Stinson 2 ST Seatpost Marin Alloy, 30.9mm
Stinson 2 ST Saddle Marin Comfort
Stinson 2 ST Pedals Marin Comfort Platform
Stinson 1 Frame Series 1 Comfort, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
Stinson 1 Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
Stinson 1 Rim Marin Aluminum Double Wall, Disc Specific
Stinson 1 Hub Rear Forged Aluminum Alloy, 32H
Stinson 1 Hub Front Forged Aluminum Alloy, 32H
Stinson 1 Spokes 14g Stainless Steel
Stinson 1 Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
Stinson 1 Derailleur Rear Shimano Tourney, 7-Speed
Stinson 1 Derailleur Front
Stinson 1 Shift Lever Shimano Altus 7-Speed RapidFire
Stinson 1 Crankset Alloy Crank, Steel 38T Chainring, Ring Guard
Stinson 1 Bottom Bracket Sealed Cartridge Bearings, Square Taper
Stinson 1 Chain KMC Z8
Stinson 1 Cassette SunRace 7-Speed, 11-34T
Stinson 1 Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Stinson 1 Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Stinson 1 Brake Levers Shimano w/ Integrated Shifters
Stinson 1 Handlebar Marin Alloy, 25mm Rise, 18˚ Backsweep
Stinson 1 Stem Marin Alloy
Stinson 1 Grips Marin Adventure
Stinson 1 Headset
FSA, TH No.10P
Stinson 1 Seatpost Marin Alloy, 30.9mm
Stinson 1 Saddle Marin Comfort
Stinson 1 Pedals Marin Comfort Platform
Stinson 1 ST Frame Series 1 Comfort, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
Stinson 1 ST Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
Stinson 1 ST Rim Marin Aluminum Double Wall, Disc Specific
Stinson 1 ST Hub Rear Forged Aluminum Alloy, 32H
Stinson 1 ST Hub Front Forged Aluminum Alloy, 32H
Stinson 1 ST Spokes 14g Stainless Steel
Stinson 1 ST Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Stinson 1 ST Derailleur Rear Shimano Tourney, 7-Speed
Stinson 1 ST Derailleur Front
Stinson 1 ST Shift Lever Shimano Altus 7-Speed RapidFire
Stinson 1 ST Crankset Alloy Crank, Steel 38T Chainring, Ring Guard
Stinson 1 ST Bottom Bracket Sealed Cartridge Bearings, Square Taper
Stinson 1 ST Chain KMC Z8
Stinson 1 ST Cassette SunRace 7-Speed, 11-34T
Stinson 1 ST Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Stinson 1 ST Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Stinson 1 ST Brake Levers Shimano w/ Integrated Shifters
Stinson 1 ST Handlebar Marin Alloy, 25mm Rise, 18˚ Backsweep
Stinson 1 ST Stem Marin Alloy
Stinson 1 ST Grips Marin Adventure
Stinson 1 ST Headset FSA, TH No.10P
Stinson 1 ST Seatpost Marin Alloy, 30.9mm
Stinson 1 ST Saddle Marin Comfort
Stinson 1 ST Pedals Marin Comfort Platform
Rift Zone 26" Frame All New Series 3 6061 Aluminum, 26" Wheels, 130mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle), 73mm Threaded BB Rift Zone 26" Front Suspension X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle
Rift Zone 26" Rear Suspension X-Fusion O2 Pro R, 190x51mm, Custom Tune, M8x22.2mm Hardware
Rift Zone 26" Rim Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Rift Zone 26" Hub Rear Forged Alloy, 135mm, Quad Sealed Bearings, Centerlock Disc, 32H
Rift Zone 26" Hub Front Forged Alloy, 100x15mm, Centerlock Disc, 32H
Rift Zone 26" Spokes 14g Stainless Steel
Rift Zone 26" Tires Vee Tire Co., Flow Snap 26x2.4", Tackee Compound, Wire Bead
Rift Zone 26" Derailleur Rear Shimano Deore, 11 Speed, SGS
Rift Zone 26" Derailleur Front -
Rift Zone 26" Shift Lever Shimano Deore, 11-Speed, SL-5100R
Rift Zone 26" Crankset Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing, 170mm Length
Rift Zone 26" Bottom Bracket External Sealed Cartridge Bearings
Rift Zone 26" Chain KMC X-11 Silver and Black
Rift Zone 26" Cassette SunRace, 11-Speed, 11-51T, ED Black
Rift Zone 26" Brakes Front Tektro HDM-280 Hydraulic Disc, 180mm Rotor
Rift Zone 26" Brakes Rear Tektro HDM-280 Hydraulic Disc, 160mm Rotor
Rift Zone 26" Brake Levers Tektro HDM-280
Rift Zone 26" Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 12mm Rise, 720mm Width, 4º Up, 9º Back
Rift Zone 26" Stem Marin 3D Forged Alloy, 35mm
Rift Zone 26" Grips Marin MTN, Closed End
Rift Zone 26" Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Rift Zone 26" Seatpost Marin Alloy, 30.9mm
Rift Zone 26" Saddle Marin Speed Concept
Rift Zone 26" Pedals -
Rift Zone 26" Extras Closed 9-12 Thru-Axle QR System
Rift Zone Jr. 24" Frame All New Series 3 6061 Aluminum, 24" Wheel w/ Clearance for 26", 130mm Travel, MultiTrac Suspension Platform, 135mm Open Dropout (Upgradeable to 142x12mm Thru-Axle), 73mm Threaded BB
Rift Zone Jr. 24" Front Suspension X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle
Rift Zone Jr. 24" Rear Suspension X-Fusion O2 Pro R, 190x51mm, Custom Tune, M8x22.2mm Hardware
Rift Zone Jr. 24" Rim Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible
Rift Zone Jr. 24" Hub Rear Forged Alloy, 135mm, Quad Sealed Bearings, Centerlock Disc, 32H
Rift Zone Jr. 24" Hub Front Forged Alloy, 100x15mm, Centerlock Disc, 32H
Rift Zone Jr. 24" Spokes 14g Stainless Steel
Rift Zone Jr. 24" Tires Vee Tire Co., Flow Snap 24x2.4", Tackee Compound, Wire Bead
Rift Zone Jr. 24" Derailleur Rear Shimano Deore, 11 Speed, SGS
Rift Zone Jr. 24" Derailleur Front -
Rift Zone Jr. 24" Shift Lever Shimano Deore, 11-Speed, SL-5100R
Rift Zone Jr. 24" Crankset Marin Forged Alloy 1x11, Hollow Spindle, Steel Narrow Wide 32T Chainring, Direct Mount Type
Rift Zone Jr. 24" Bottom Bracket External Sealed Cartridge Bearings
Rift Zone Jr. 24" Chain KMC X-11 Silver and Black
Rift Zone Jr. 24" Cassette SunRace, 11-Speed, 11-51T, ED Black
Rift Zone Jr. 24" Brakes Front Tektro HDM-280 Hydraulic Disc, 180mm Rotor
Rift Zone Jr. 24" Brakes Rear Tektro HDM-280 Hydraulic Disc, 160mm Rotor
Rift Zone Jr. 24" Brake Levers Tektro HDM-280
Rift Zone Jr. 24" Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 12mm Rise, 720mm Width, 4º Up, 9º Back
Rift Zone Jr. 24" Stem Marin 3D Forged Alloy, 35mm
Rift Zone Jr. 24" Grips Marin MTN, Closed End
Rift Zone Jr. 24" Headset FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Rift Zone Jr. 24" Seatpost Marin Alloy, 30.9mm
Rift Zone Jr. 24" Saddle Marin Speed Concept
Rift Zone Jr. 24" Pedals -
San Quentin 24" Frame Series 2 6061 Aluminum, 24” Wheels, Disc Specific, 135mm Dropouts
San Quentin 24" Front Suspension RockShox Judy Silver TK, 100mm Travel, Solo Air, 110x15mm Maxle Stealth
San Quentin 24" Rim Marin, Double Wall Alloy, 27mm Internal
San Quentin 24" Hub Rear Forged Aluminum, 32H, Disc Specific
San Quentin 24" Hub Front Forged Aluminum, 32H, Disc Specific
San Quentin 24" Spokes 14g Stainless Steel
San Quentin 24" Tires Vee Tire Crown Gem, 24”x2.6”, Wire Bead
San Quentin 24" Derailleur Rear microSHIFT Advent 9-Speed
San Quentin 24" Derailleur Front -
San Quentin 24" Shift Lever microSHIFT Advent 9-Speed
MODEL COMPONENT DESCRIPTION
San Quentin 24" Crankset Forged Alloy, Narrow Wide 30T, 152mm
San Quentin 24" Bottom Bracket Sealed Cartridge Bearings, Square Taper
San Quentin 24" Chain KMC X9
San Quentin 24" Cassette MicroSHIFT 9-Speed, 11-46T
San Quentin 24" Brakes Front Shimano BR-MT201 Hydraulic, 160mm Rotor
San Quentin 24" Brakes Rear Shimano BR-MT201 Hydraulic, 160mm Rotor
San Quentin 24" Brake Levers Shimano Hydraulic
San Quentin 24" Handlebar Marin Riser, 31.8 clamp, 30mm Rise, 590mm Width
San Quentin 24" Stem Marin Alloy, 35mm
San Quentin 24" Grips Marin MTB
San Quentin 24" Headset FSA No. 57E
San Quentin 24" Seatpost Marin Alloy, 30.9mm
San Quentin 24" Saddle Marin Kids MTB
San Quentin 24" Pedals Kids Specific Nylon Pedal
San Quentin 20" Frame Series 2 6061 Aluminum, 20” Wheels, Disc Specific, 135mm Dropouts
San Quentin 20" Front Suspension SR Suntour XCM 24 BOOST, 80mm Travel, 110mm Axle Spacing
San Quentin 20" Rim Marin, Double Wall Alloy, 25mm Internal
San Quentin 20" Hub Rear Forged Aluminum, 32H, Disc Specific
San Quentin 20" Hub Front Forged Aluminum, 32H, Disc Specific
San Quentin 20" Spokes 14g Stainless Steel
San Quentin 20" Tires Vee Tire Co. Crown Gem, 20x2.6”, Wire Bead
San Quentin 20" Derailleur Rear Shimano Altus
San Quentin 20" Derailleur Front -
San Quentin 20" Shift Lever Shimano Altus SL-M315, 8-Speed
San Quentin 20" Crankset Forged Alloy, Narrow Wide 30T, 140mm
San Quentin 20" Bottom Bracket Sealed Cartridge Bearings, Square Taper
San Quentin 20" Chain KMC Z8
San Quentin 20" Cassette Shimano 8-speed, 11-32T
San Quentin 20" Brakes Front Tektro HD-J285 Kid's Specific Hydraulic Disc
San Quentin 20" Brakes Rear Tektro HD-J285 Kid's Specific Hydraulic Disc
San Quentin 20" Brake Levers Tektro Kid's Specific Short Reach Lever for Hydraulic Brake
San Quentin 20" Handlebar Marin Riser, 31.8 clamp, 30mm Rise, 590mm Width
San Quentin 20" Stem Marin Alloy, 35mm
San Quentin 20" Grips Marin MTB
San Quentin 20" Headset FSA No. 10P
San Quentin 20" Seatpost Marin Alloy, 30.9mm
San Quentin 20" Saddle Marin Kids MTB
San Quentin 20" Pedals Kids Specific Nylon Pedal
Bayview Trail 24'' Frame Series 1 6061 Aluminum, 24” Wheels, IS Seatstay Disc Mount, 135mm Dropouts
Bayview Trail 24'' Front Suspension SR Suntour XCT Jr 24", Pre-Load Adjust Coil Spring, 50mm Travel
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Bayview Trail 24'' Rim Marin, Double Wall Alloy
Bayview Trail 24'' Hub Rear Forged Aluminum Alloy, 32H
Bayview Trail 24'' Hub Front Forged Aluminum Alloy, 32H
Bayview Trail 24'' Spokes 14g Stainless Steel
Bayview Trail 24'' Tires Vee Tire Co. Crown Gem, 24”x2.25”, Wire Bead
Bayview Trail 24'' Derailleur Rear Shimano Altus, 7-Speed
Bayview Trail 24'' Derailleur Front -
Bayview Trail 24'' Shift Lever Shimano Revo Twist 1x7-Speed
Bayview Trail 24'' Crankset Forged Alloy, 30T, 152mm, Ring Guard
Bayview Trail 24'' Bottom Bracket Sealed Cartridge Bearings, Square Taper
Bayview Trail 24'' Chain KMC Z8
Bayview Trail 24'' Cassette Sunrace, 7-Speed, 11-34T
Bayview Trail 24'' Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Bayview Trail 24'' Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Bayview Trail 24'' Brake Levers Kids Specific Short Reach Alloy Lever
Bayview Trail 24'' Handlebar Marin Riser, 30mm Rise, 580mm Width
Bayview Trail 24'' Stem Marin Alloy, 40mm
Bayview Trail 24'' Grips Marin Dual Density
Bayview Trail 24'' Headset FSA No. 10P
Bayview Trail 24'' Seatpost Marin Alloy, 27.2mm
Bayview Trail 24'' Saddle Marin Kids MTB
Bayview Trail 24'' Pedals Kids Specific Nylon Pedal
Hidden Canyon 20'' Frame Series 1 6061 Aluminum, 20” Wheels, IS Seatstay Disc Mounts, 135mm Dropouts
Hidden Canyon 20'' Front Suspension Steel Rigid Fork, 100mm Spacing, QR Lever
Hidden Canyon 20'' Rim Marin, Double Wall Alloy
Hidden Canyon 20'' Hub Rear Forged Aluminum Alloy, 32H
Hidden Canyon 20'' Hub Front Forged Aluminum Alloy, 32H
Hidden Canyon 20'' Spokes 14g Stainless Steel
Hidden Canyon 20'' Tires Multi Surface, 20”x2.125”
Hidden Canyon 20'' Derailleur Rear Shimano Tourney, 7-Speed
Hidden Canyon 20'' Derailleur Front -
Hidden Canyon 20'' Shift Lever Shimano Revo Twist 1x7-Speed
Hidden Canyon 20'' Crankset Forged Alloy, 36T, 140mm, Ring Guard
Hidden Canyon 20'' Bottom Bracket Sealed Cartridge Bearings, Square Taper
Hidden Canyon 20'' Chain KMC Z8
Hidden Canyon 20'' Cassette Shimano HG200, 7-Speed, 12-32T
Hidden Canyon 20'' Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Hidden Canyon 20'' Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Hidden Canyon 20'' Brake Levers Kids Specific Short Reach Alloy Lever
Hidden Canyon 20'' Handlebar Marin Riser, 30mm Rise, 580mm Width
Hidden Canyon 20'' Stem Marin Alloy, 40mm
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Hidden Canyon 20'' Grips Marin Dual Density
Hidden Canyon 20'' Headset FSA No. 10P
Hidden Canyon 20'' Seatpost Marin Alloy, 27.2mm
Hidden Canyon 20'' Saddle Marin Kids MTB
Hidden Canyon 20'' Pedals Kids Specific Nylon Pedal
Kentfield 1 ST Derailleur Front -
Kentfield 1 ST Shift Lever Shimano Altus 7-Speed RapidFire
Kentfield 1 ST Crankset Forged Alloy Crank, Steel 38T Chainring, Ring Guard
Kentfield 1 ST Bottom Bracket Sealed Cartridge Bearings, Square Taper
Kentfield 1 ST Chain KMC Z8
Kentfield 1 ST Cassette SunRace 7-Speed, 11-34T
Kentfield 1 ST Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Kentfield 1 ST Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Kentfield 1 ST Brake Levers Aluminum Lever
Kentfield 1 ST Handlebar Marin Alloy, 30mm Rise, 12˚ Backsweep
Kentfield 1 ST Stem Marin Aluminum, 31.8mm Clamp
Kentfield 1 ST Grips Marin Adventure
Alpine Trail E2 Frame Series 4 Alloy, 150mm Multitrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Alpine Trail E2 Front Suspension Fox 38 Performance Elite, 160mm travel, 29" 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
Alpine Trail E2 Rear Suspension Fox Float DHX2, Performance Elite, Low Speed Compression and Rebound Adjustment, 205x65mm, Trunnion Upper Mount, 25mmxM8 Lower Mount, S/M Spring Rate = 350lb, L/XL Spring Rate = 450lb
Alpine Trail E2 Rim Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
Alpine Trail E2 Hub Rear Forged Aluminum, 148x12mm, Disc, 32H
Alpine Trail E2 Hub Front Forged Aluminum, 110x15mm, Disc, 32H
Alpine Trail E2 Spokes 14g Black Stainless Steel
Alpine Trail E2 Tires Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible Rear: Vee Tire Co Crown Gem, 27.5x2.8”, TACKEE Compound Tubeless Compatible
Alpine Trail E2 Derailleur Rear Shimano XT 12-Speed, SGS
Alpine Trail E2 Derailleur Front -
Alpine Trail E2 Shift Lever Shimano SLX 12-Speed
Alpine Trail E2 Crankset Shimano XT M8150, 160mm Length
Alpine Trail E2 Motor Shimano EP801, 250W, 85Nm
Alpine Trail E2 Chain KMC E12S, E-Bike Specific Chain
Alpine Trail E2 Cassette SunRace 12-Speed, 11-51T
Alpine Trail E2 Brakes Front TRP DH-R EVO, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor
Alpine Trail E2 Brakes Rear TRP DH-R EVO, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor w/ Speed Sensor
Alpine Trail E2
Alpine Trail E2
Brake Levers TRP DH-R EVO
Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Alpine Trail E2 Stem Marin CNC, 35mm Length, 35mm Bar Bore
Alpine Trail E2 Grips Marin Grizzly Lock On
MODEL COMPONENT DESCRIPTION
Alpine Trail E2 Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Alpine Trail E2 Seatpost X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Alpine Trail E2 Saddle Marin eMTB Saddle
Alpine Trail E2 Pedals Marin MTB Plastic
Alpine Trail E2 Battery BT-8036, Internal 630Wh
Alpine Trail E2 Display SC-E600 Display
Alpine Trail E2 Switch SW-EN600L Left Hand Switch for Assist Mode Change
Alpine Trail E2 Extras Shimano CS-EM800 Chain Guide
Alpine Trail E2 Extras Shimano Battery Charger EC-E6002
Alpine Trail E2 Extras CushCore, 29" Pro Front, Plus Rear, with CushCore Valve Stems
Alpine Trail E2 Extras Marin Tire Sealant 250ml, Squeeze Top with Valve Core Removal Tool Cap
Alpine Trail E1 Frame Series 4 Alloy, 150mm Multitrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Alpine Trail E1 Front Suspension X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset
Alpine Trail E1 Rear Suspension RockShock Super Deluxe Coil R, Rebound Adjustment, 205x65mm, 25mmxM8 Lower Hardware, S/M Spring Rate = 300lb, L/XL Spring Rate = 400lb
Alpine Trail E1 Rim Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Alpine Trail E1 Hub Rear Forged Aluminum, 148x12mm, Disc, 32H
Alpine Trail E1 Hub Front Forged Aluminum, 110x15mm, Disc, 32H
Alpine Trail E1 Spokes 14g Black Stainless Steel
Alpine Trail E1 Tires Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible Rear: Vee Tire Co Crown Gem, 27.5x2.8”, TACKEE Compound Tubeless Compatible
Alpine Trail E1 Derailleur Rear Shimano Deore, Direct Attachment, 11-Speed, SGS
Alpine Trail E1 Derailleur Front -
Alpine Trail E1 Shift Lever Shimano Deore, 11-Speed
Alpine Trail E1 Crankset Shimano EM600, 160mm Length
Alpine Trail E1 Motor Shimano EP6, 250 W, 85Nm
Alpine Trail E1 Chain KMC X-10E, Silver
Alpine Trail E1 Cassette SunRace 11-Speed, 11-51T
Alpine Trail E1 Brakes Front TRP Slate EVO, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor
Alpine Trail E1 Brakes Rear TRP Slate EVO, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor w/ Speed Sensor
Alpine Trail E1 Brake Levers TRP Slate EVO
Alpine Trail E1 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Alpine Trail E1 Stem Marin 3D Forged Alloy, 35mm
Alpine Trail E1 Grips Marin Grizzly Lock On
Alpine Trail E1 Headset FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Alpine Trail E1 Seatpost TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
Alpine Trail E1 Saddle Marin eMTB Saddle
Alpine Trail E1 Pedals Marin MTB Plastic
Alpine Trail E1 Battery BT-8036, Internal 630Wh
Alpine Trail E1 Display SC-E600 Display
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Alpine Trail E1 Switch SW-EN600L Left Hand Switch for Assist Mode Change
Alpine Trail E1 Extras Shimano CS-EM800 Chain Guide
Alpine Trail E1 Extras Shimano Battery Charger EC-E6002
Alpine Trail E1 Extras CushCore, 29" Pro Front, Plus Rear, with CushCore Valve Stems
Alpine Trail E1 Extras Marin Tire Sealant 250ml, Squeeze Top with Valve Core Removal Tool Cap
Alpine Trail E (Base) Frame Series 4 Alloy, 150mm Multitrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Alpine Trail E (Base) Front Suspension X-Fusion Trace 36 RC, 160mm Travel, 29", 110x15mm Bolt-On Axle, 44mm Offset
Alpine Trail E (Base) Rear Suspension X-Fusion 02 PRO RXC, Compression and Rebound Adjustment, Custom Tune, 205x65 Trunnion Upper Mount, 25xM8 Lower Mount
Alpine Trail E (Base) Rim Front: Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible; Rear: Marin Aluminum Double Wall, 27.5" Diameter, 38mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Alpine Trail E (Base) Hub Rear Forged Aluminum, 148x12mm, Disc, 32H
Alpine Trail E (Base) Hub Front Forged Aluminum, 110x15mm, Disc, 32H
Alpine Trail E (Base) Spokes 14g Black Stainless Steel
Alpine Trail E (Base) Tires Front: Vee Tire Co. Attack HPL, 29x2.5", Top 40 Tubeless Compatible Rear: Vee Tire Co Crown Gem, 27.5x2.8”, TACKEE Compound Tubeless Compatible
Alpine Trail E (Base) Derailleur Rear Shimano Deore, 10-Speed
Alpine Trail E (Base) Derailleur Front -
Alpine Trail E (Base) Shift Lever Shimano CUES 10-Speed
Alpine Trail E (Base) Crankset Shimano EM600, 160mm Length
Alpine Trail E (Base) Motor Shimano EP6, 250 W, 85Nm
Alpine Trail E (Base) Chain KMC X-10E, Silver
Alpine Trail E (Base) Cassette Shimano Deore 10-speed 11-46T
Alpine Trail E (Base) Brakes Front TRP Slate EVO, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor
Alpine Trail E (Base) Brakes Rear TRP Slate EVO, 4-Piston Hydraulic Disc, Metallic Pads, 203mm Rotor w/ Speed Sensor
Alpine Trail E (Base) Brake Levers TRP Slate EVO
Alpine Trail E (Base) Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Alpine Trail E (Base) Stem Marin 3D Forged Alloy, 35mm
Alpine Trail E (Base) Grips Marin Grizzly Lock On
Alpine Trail E (Base) Headset FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Alpine Trail E (Base) Seatpost TranzX, YSP18JL, 1x Remote, Size S 150mm Travel, All Other Sizes 170mm Travel, 30.9mm
Alpine Trail E (Base) Saddle Marin eMTB Saddle
Alpine Trail E (Base) Pedals Marin MTB Plastic
Alpine Trail E (Base) Battery BT-8035L, Internal 504Wh
Alpine Trail E (Base) Display SC-E600 Display
Alpine Trail E (Base) Switch SW-EN600L Left Hand Switch for Assist Mode Change
Alpine Trail E (Base) Extras Shimano CS-EM800 Chain Guide
Alpine Trail E (Base) Extras Shimano Battery Charger EC-E6002
Stinson 2 ST Pedals Marin Comfort Platform
Rift Zone E2 Frame All New Series 4 Alloy, 140mm Multitrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Rift Zone E2 Front Suspension Fox 38 Performance Elite, 140mm travel, 29" , 110x15mm Boost Kabolt Thru-Axle, 44mm Offset, Integrated Fox Fender
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Rift Zone E2 Rear Suspension Fox Float X, Performance Elite Series, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x50mm, M8x30mm Top, M8x25mm Bottom
Rift Zone E2 Rim Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Sleeved Joint, Disc Specific, Tubeless Compatible
Rift Zone E2 Hub Rear Shimano HB-MT510B, 148x12mm, Centerlock, Microspline Freehub Body
Rift Zone E2 Hub Front Shimano MT-410B, 110x15mm, centerlock Disc, 32H
Rift Zone E2 Spokes 14g Black Stainless Steel
Rift Zone E2 Tires Vee Tire Co. Attack HPL, 29x2.5", Tubeless Compatible
Rift Zone E2 Derailleur Rear RD-M8130, DEORE XT, 11 Speed, SGS, Link Glide
Rift Zone E2 Derailleur Front -
Rift Zone E2 Shift Lever Shimano SL-M8130-R, Deore XT, LinkGlide
Rift Zone E2 Crankset Shimano XT M8150, 160mm Length
Rift Zone E2 Motor Shimano EP801, 250W, 85Nm
Rift Zone E2 Chain KMC E-11S
Rift Zone E2 Cassette Shimano XT LG-600 LinkGlide Cassette, 11-Speed, 11-50T
Rift Zone E2 Brakes Front TRP DH-R EVO, 4-Piston Hydraulic Disc, 203mm Rotor
Rift Zone E2 Brakes Rear TRP DH-R EVO, 4-Piston Hydraulic Disc, 203mm Rotor w/ Speed Sensor
Rift Zone E2 Brake Levers TRP DH-R EVO
Rift Zone E2 Handlebar Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back
Rift Zone E2 Stem Marin CNC, 35mm Length, 35mm Bar Bore
Rift Zone E2 Grips Marin Grizzly Lock On
Rift Zone E2 Headset FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Rift Zone E2 Seatpost X-Fusion Manic, 1x Composite Remote, Size S 125mm Travel, Size M and L 150mm Travel, Size XL 170mm Travel, 30.9mm
Rift Zone E2 Saddle Marin eMTB Saddle
Rift Zone E2 Pedals Marin MTB Plastic
Rift Zone E2 Battery BT-EN806, Internal 630Wh
Rift Zone E2 Display SC-E600 Display
Rift Zone E2 Switch SW-EN600L Left Hand Switch for Assist Mode Change
Rift Zone E2 Extras Shimano CS-EM800 Chain Guide
Rift Zone E2 Extras Shimano Battery Charger EC-E6002
Rift Zone E2 Extras CushCore Pro Set 29" with CushCore Valve Stems
Rift Zone E2 Extras Marin Tire Sealant 250ml, Squeeze Top with Valve Core Removal Tool Cap
Rift Zone E1 Frame All New Series 4 Alloy, 140mm Multitrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Rift Zone E1 Front Suspension RockShox Pike Base 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset
Rift Zone E1 Rear Suspension RockShox Deluxe Select +, Compreson and Rebound Adjustment, 210x50, 25xM8 Lower and Upper Mount
Rift Zone E1 Rim Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Rift Zone E1 Hub Rear Shimano HB-MT400B, 148x12mm, Centerlock, Standard Freehub Body
Rift Zone E1 Hub Front Shimano MT-410B, 110x15mm, centerlock Disc, 32H
Rift Zone E1 Spokes 14g Black Stainless Steel
Rift Zone E1 Tires Vee Tire Co. Attack HPL, 29x2.5", Tubeless Compatible
Rift Zone E1 Derailleur Rear Shimano Deore, Direct Attachment, 11-Speed, SGS
MODEL COMPONENT DESCRIPTION
Rift Zone E1 Derailleur Front
Rift Zone E1 Shift Lever Shimano Deore, 11-Speed
Rift Zone E1 Crankset Aluminum, 160mm Length
Rift Zone E1 Motor Shimano EP6, 250W, 85Nm
Rift Zone E1 Chain KMC X-10E, Silver
Rift Zone E1 Cassette SunRace 11-Speed, 11-51T
Rift Zone E1 Brakes Front TRP Slate EVO, 4-Piston Hydraulic Disc, 203mm Rotor
Rift Zone E1 Brakes Rear TRP Slate EVO, 4-Piston Hydraulic Disc, 203mm Rotor w/ Speed Sensor
Rift Zone E1 Brake Levers TRP Slate EVO
Rift Zone E1 Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Rift Zone E1 Stem Marin 3D Forged Alloy, 35mm
Rift Zone E1 Grips Marin Grizzly Lock On
Rift Zone E1 Headset FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Rift Zone E1 Seatpost TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm
Rift Zone E1 Saddle Marin eMTB Saddle
Rift Zone E1 Pedals Marin MTB Plastic
Rift Zone E1 Battery BT-EN806, Internal 630Wh
Rift Zone E1 Display SC-E600 Display
Rift Zone E1 Switch SW-EN600L Left Hand Switch for Assist Mode Change
Rift Zone E1 Extras Shimano CS-EM800 Chain Guide
Rift Zone E1 Extras Shimano Battery Charger EC-E6002
Rift Zone E1 Extras CushCore Pro Set 29" with CushCore Valve Stems
Rift Zone E1 Extras Marin Tire Sealant 250ml, Squeeze Top with Valve Core Removal Tool Cap
Rift Zone E (Base) Frame All New Series 4 Alloy, 140mm Multitrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle, Built-in Rear Speed Sensor
Rift Zone E (Base) Front Suspension RockShox 35 Silver R 29", Motion Control Damper, 140mm Travel, Maxle Stealth Axle, 42mm Offset
Rift Zone E (Base) Rear Suspension X-Fusion 02 PRO R, Compression and Rebound Adjustment, Custom Tune, 210x50 25xM8 Lower Mount & Upper Mount
Rift Zone E (Base) Rim Marin Aluminum Double Wall, 29" Diameter, 29mm Inner Rim Width, Pinned Joint, Disc Specific, Tubeless Compatible
Rift Zone E (Base) Hub Rear Shimano HB-MT400B, 148x12mm, Centerlock, Standard Freehub Body
Rift Zone E (Base) Hub Front Shimano MT-410B, 110x15mm, centerlock Disc, 32H
Rift Zone E (Base) Spokes 14g Black Stainless Steel
Rift Zone E (Base) Tires Vee Tire Co. Attack HPL, 29x2.5", Tubeless Compatible
Rift Zone E (Base) Derailleur Rear Shimano Deore, Direct Attachment, 10-Speed SGS
Rift Zone E (Base) Derailleur Front -
Rift Zone E (Base) Shift Lever Shimano Deore, 10-Speed
Rift Zone E (Base) Crankset Aluminum, 160mm Length
Rift Zone E (Base) Motor Shimano EP6, 250W, 85Nm
Rift Zone E (Base) Chain KMC X-10E, Silver
Rift Zone E (Base) Cassette Shimano Deore 10-speed 11-46T
Rift Zone E (Base) Brakes Front TRP Slate EVO, 4-Piston Hydraulic Disc, 203mm Rotor
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Rift Zone E (Base) Brakes Rear TRP Slate EVO, 4-Piston Hydraulic Disc, 203mm Rotor w/ Speed Sensor
Rift Zone E (Base) Brake Levers TRP Slate EVO
Rift Zone E (Base) Handlebar Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back
Rift Zone E (Base) Stem Marin 3D Forged Alloy, 35mm
Rift Zone E (Base) Grips Marin Grizzly Lock On
Rift Zone E (Base) Headset FSA No 57E, Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Rift Zone E (Base) Seatpost TranzX, YSP18JL, 1x Remote,
E (Base) Display SC-E600 Display
Rift Zone E (Base) Switch SW-EN600L Left Hand Switch for Assist Mode Change
Rift Zone E (Base) Extras Shimano CS-EM800 Chain Guide
Rift Zone E (Base) Extras Shimano Battery Charger EC-E6002
Sausalito 2 (USA/AUS) Frame Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts
Sausalito 2 (USA/AUS) Fork SR Suntour NVX-E, 63mm Travel, Disc Specific
Sausalito 2 (USA/AUS) Rim Marin Aluminum Double Wall, Disc Specific
Sausalito 2 (USA/AUS) Hub Rear Forged Alloy, Disc Specific, 32H
Sausalito 2 (USA/AUS) Hub Front Forged Alloy, Disc Specific, 32H
Sausalito 2 (USA/AUS) Spokes 14g Black Stainless Steel
Sausalito 2 (USA/AUS) Tires WTB Horizon, 650Bx47, Wire Bead
Sausalito 2 (USA/AUS) Derailleur Rear Shimano Deore 11-Speed
Sausalito 2 (USA/AUS) Derailleur Front -
Sausalito 2 (USA/AUS) Shift Lever Shimano Deore 11-Speed
Sausalito 2 (USA/AUS) Crankset Forged Aluminum w/ 44T Steel Chairing
Sausalito 2 (USA/AUS) Motor Shimano Steps EP6 Drive Unit, 250W, 85Nm, Class 3 (28mph,45Km/h)
Sausalito 2 (USA/AUS) Bottom Bracket
Sausalito 2 (USA/AUS) Chain KMC E11S
Sausalito 2 (USA/AUS) Cassette Shimano Deore 11-Speed 11-51T
Sausalito 2 (USA/AUS) Brakes Front Shimano MT201 Hydraulic, 180mm Rotor
Sausalito 2 (USA/AUS) Brakes Rear Shimano MT201 Hydraulic, 180mm Rotor
Sausalito 2 (USA/AUS) Brake Levers Shimano MT201 Hydraulic
Sausalito 2 (USA/AUS) Handlebar Marin MiniRiser Alloy
Sausalito 2 (USA/AUS) Stem Marin Alloy
Sausalito 2 (USA/AUS) Grips Marin Adventure
Sausalito 2 (USA/AUS) Headset FSA No. 57E
Sausalito 2 (USA/AUS) Seatpost Marin Alloy, 30.9mm
Sausalito 2 (USA/AUS) Saddle Marin City Plush
Sausalito 2 (USA/AUS) Pedals Nylon Platform
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Sausalito 2 (USA/AUS) Kickstand Rear Mount Alloy
Sausalito 2 (USA/AUS) Battery Shimano BT-EN605, 504Wh
Sausalito 2 ST (USA/AUS) Frame Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Low-Step Design, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts
Sausalito 2 ST (USA/AUS) Fork SR Suntour NVX-E, 63mm Travel, Disc Specific
Sausalito 2 ST (USA/AUS) Rim Marin Aluminum Double Wall, Disc Specific
Sausalito 2 ST (USA/AUS) Hub Rear Forged Alloy, Disc Specific, 32H
Sausalito 2 ST (USA/AUS) Hub Front Forged Alloy, Disc Specific, 32H
Sausalito 2 ST (USA/AUS) Spokes 14g Black Stainless Steel
Sausalito 2 ST (USA/AUS) Tires WTB Horizon, 650Bx47, Wire Bead
Sausalito 2 ST (USA/AUS) Derailleur Rear Shimano Deore 11-Speed
Sausalito 2 ST (USA/AUS) Derailleur Front -
Sausalito 2 ST (USA/AUS) Shift Lever Shimano Deore 11-Speed
Sausalito 2 ST (USA/AUS) Crankset Forged Aluminum w/ 44T Steel Chairing
Sausalito 2 ST (USA/AUS) Motor Shimano Steps EP6 Drive Unit, 250W, 85Nm, Class 3 (28mph,45Km/h)
Sausalito 2 ST (USA/AUS) Bottom Bracket
Sausalito 2 ST (USA/AUS) Chain KMC E11S
Sausalito 2 ST (USA/AUS) Cassette Shimano Deore 11-Speed 11-51T
Sausalito 2 ST (USA/AUS) Brakes Front Shimano MT201 Hydraulic, 180mm Rotor
Sausalito 2 ST (USA/AUS) Brakes Rear Shimano MT201 Hydraulic, 180mm Rotor
Sausalito 2 ST (USA/AUS) Brake Levers Shimano MT201 Hydraulic
Sausalito 2 ST (USA/AUS) Handlebar Marin MiniRiser Alloy
Sausalito 2 ST (USA/AUS) Stem Marin Alloy
Sausalito 2 ST (USA/AUS) Grips Marin Adventure
Sausalito 2 ST (USA/AUS) Headset FSA No. 57E
Sausalito 2 ST (USA/AUS) Seatpost Marin Alloy, 30.9mm
Sausalito 2 ST (USA/AUS) Saddle Marin City Plush
Sausalito 2 ST (USA/AUS) Pedals Nylon Platform
Sausalito 2 ST (USA/AUS) Kickstand Rear Mount Alloy
Sausalito 2 ST (USA/AUS) Battery Shimano BT-EN605, 504Wh
Sausalito 1 Frame Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts
Sausalito 1 Front Suspension Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Sausalito 1 Rim Marin Aluminum Double Wall, Disc Specific
Sausalito 1 Hub Rear Forged Alloy, Disc Specific, 32H
Sausalito 1 Hub Front Forged Alloy, Disc Specific, 32H
Sausalito 1 Spokes 14g Black Stainless Steel
Sausalito 1 Tires WTB Horizon, 650Bx47, Wire Bead
Sausalito 1 Derailleur Rear Shimano Deore 10-Speed
Sausalito 1 Derailleur Front -
Sausalito 1 Shift Lever Shimano Deore 10-Speed
MODEL COMPONENT DESCRIPTION
Sausalito 1 Crankset Shimano, Aluminum w/ 44T Steel Chairing
Sausalito 1 Motor Shimano Steps E5000 Drive Unit, 250W, 40Nm, Class 1
Sausalito 1 Bottom Bracket
Sausalito 1 Chain KMC X10E
Sausalito 1 Cassette Shimano Deore 10-Speed 11-46T
Sausalito 1 Brakes Front Tektro HD-M275 Hydraulic, 180mm Rotor
Sausalito 1 Brakes Rear Tektro HD-M275 Hydraulic, 180mm Rotor
Sausalito 1 Brake Levers Tektro Hydraulic
Sausalito 1 Handlebar Marin MiniRiser Alloy
Sausalito 1 Stem Marin Alloy
Sausalito 1 Grips Marin Adventure
Sausalito 1 Headset FSA No. 57E
Sausalito 1 Seatpost Marin Alloy, 30.9mm
Sausalito 1 Saddle Marin City Plush
Sausalito 1 Pedals Nylon Platform
Sausalito 1 Kickstand Rear Mount Alloy
Sausalito 1 Battery Shimano BT8014, 418Wh
Sausalito 1 ST Frame Series 3 Butted and Formed 6061 Aluminum, 650B Wheel, Low-Step Design, Forged Motor Mount, Hydroformed Downtube Battery Mount, Integrated Wiring, Internal Housing, Kickstand, Rack, and Fender Mounts
Sausalito 1 ST Front Suspension Steel, Moto Blade, Disc Specific, Fender and Rack Eyelets
Sausalito 1 ST Rim Marin Aluminum Double Wall, Disc Specific
Sausalito 1 ST Hub Rear Forged Alloy, Disc Specific, 32H
Sausalito 1 ST Hub Front Forged Alloy, Disc Specific, 32H
Sausalito 1 ST Spokes 14g Black Stainless Steel
Sausalito 1 ST Tires WTB Horizon, 650Bx47, Wire Bead
Sausalito 1 ST Derailleur Rear Shimano Deore 10-Speed
Sausalito 1 ST Derailleur Front -
Sausalito 1 ST Shift Lever Shimano Deore 10-Speed
Sausalito 1 ST Crankset Shimano, Aluminum w/ 44T Steel Chairing
Sausalito 1 ST Motor Shimano Steps E5000 Drive Unit, 250W, 40Nm, Class 1
Sausalito 1 ST Bottom Bracket
Sausalito 1 ST Chain KMC X10E
Sausalito 1 ST Cassette Shimano Deore 10-Speed 11-46T
Sausalito 1 ST Brakes Front Tektro HD-M275 Hydraulic, 180mm Rotor
Sausalito 1 ST Brakes Rear Tektro HD-M275 Hydraulic, 180mm Rotor
Sausalito 1 ST Brake Levers Tektro Hydraulic
Sausalito 1 ST Handlebar Marin MiniRiser Alloy
Sausalito 1 ST Stem Marin Alloy
Sausalito 1 ST Grips Marin Adventure
Sausalito 1 ST Headset FSA No. 57E
Specifications, pricing, and availability are subject to change without notice.
MODEL COMPONENT DESCRIPTION
Sausalito 1 ST Seatpost Marin Alloy, 30.9mm
Sausalito 1 ST Saddle Marin City Plush
Sausalito 1 ST Pedals Nylon Platform
Sausalito 1 ST Kickstand Rear Mount Alloy
Sausalito 1 ST Battery Shimano BT8014, 418Wh
Stinson Electric Frame Series 1 Comfort, eBike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
Stinson Electric Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
Stinson Electric Rim Marin Aluminum Double Wall, Disc Specific
Stinson Electric Hub Rear 250 Watt Hub Motor, 36H
Stinson Electric Hub Front Forged Aluminum Alloy, 32H
Stinson Electric Spokes 14g Stainless Steel
Stinson Electric Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
Stinson Electric Derailleur Rear Shimano Tourney, 7-Speed
Stinson Electric Derailleur Front -
Stinson Electric Shift Lever Shimano Altus 7-Speed RapidFire
Stinson Electric Crankset Alloy Crank, Steel 38T Chainring, Ring Guard
Stinson Electric Bottom Bracket Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
Stinson Electric Chain KMC Z8
Stinson Electric Cassette Shimano 7-Speed Freewheel, 14-34T
Stinson Electric Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Stinson Electric Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Stinson Electric Brake Levers Alloy, Long Pull
Stinson Electric Handlebar Marin Alloy, 25mm Rise, 18˚ Backsweep
Stinson Electric Stem Marin Alloy
Stinson Electric Grips Marin Adventure
Stinson Electric Headset FSA, TH No.10P
Stinson Electric Seatpost Marin Alloy, 30.9mm
Stinson Electric Saddle Marin Comfort
Stinson Electric Pedals Marin Comfort Platform
Stinson Electric Battery 309Wh, 36V, Rear Carrier Mounted
Stinson Electric Controller Handlebar Mount Switch & LCD Display
Stinson Electric Carrier Marin Stinson E Custom Alloy w/ Pannier Mounts and Top Deck
Stinson Electric Kickstand Alloy Center-Mount
Stinson Electric ST Frame Series 1 Comfort, eBike Specific, 6061 Aluminum, 27.5” Wheels, Disc Specific, Low-Step Design, Comfort Control Geometry, Kickstand Mount, Fender and Rack Mounts
Stinson Electric ST Fork CrMo Steel, Straight Blade, Disc Specific, Fender and Rack Eyelets
Stinson Electric ST Rim Marin Aluminum Double Wall, Disc Specific
Stinson Electric ST Hub Rear 250 Watt Hub Motor, 36H
Stinson Electric ST Hub Front Forged Aluminum Alloy, 32H
Stinson Electric ST Spokes 14g Stainless Steel
Stinson Electric ST Tires Vee Tire Co. Speedster, 27.5”x2.35”, Puncture Protection
Specifications, pricing, and availability are subject to change without notice.
SPECIFICATIONS
MODEL COMPONENT DESCRIPTION
Stinson Electric ST Derailleur Rear Shimano Tourney, 7-Speed
Stinson Electric ST Derailleur Front -
Stinson Electric ST Shift Lever Shimano Altus 7-Speed RapidFire
Stinson Electric ST Crankset Alloy Crank, Steel 38T Chainring, Ring Guard
Stinson Electric ST Bottom Bracket Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
Stinson Electric ST Chain KMC Z8
Stinson Electric ST Cassette Shimano 7-Speed Freewheel, 14-34T
Stinson Electric ST Brakes Front Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Stinson Electric ST Brakes Rear Clark's CMD-23 Mechanical Disc, Shimano Pad Compatible, 160mm Rotor
Stinson Electric ST Brake Levers Alloy, Long Pull
Stinson Electric ST Handlebar Marin Alloy, 25mm Rise, 18˚ Backsweep
Stinson Electric ST Stem Marin Alloy
Stinson Electric ST Grips Marin Adventure
Stinson Electric
Stinson Electric
Headset FSA, TH No.10P
Seatpost Marin Alloy, 30.9mm
Stinson Electric ST Pedals Marin Comfort Platform
Stinson Electric ST Battery 309Wh, 36V, Rear Carrier Mounted
Stinson Electric ST Controller Handlebar Mount Switch & LCD Display
Stinson Electric ST Carrier Marin Stinson E Custom Alloy w/ Pannier Mounts and Top Deck
Stinson Electric ST Kickstand Alloy Center-Mount
Specifications, pricing, and availability are subject to change without notice.
GEOMETRY
HARDTAIL / FLAT BAR
DROP BAR
GEOMETRY
GEOMETRY
GEOMETRY
Bolinas
