INDUSTRIAL TRAINING INSTITUTE AT NASHIK, MAHARASHTRA
04 02 05 03 06
REJUVINATION OF THE TATA
OIL MILL LAND AND HAY
BUNDER PRECINT, SEWRI, MUMBAI
RESEARCH INSTITUTE FOR BIOLOGICAL AND ECOLOGICAL CONSERVATION AT DANDELI, KARNATAKA
C.P. KUKREJA TROPHY 2023 WORKING DRAWINGS MISCELLANEOUS

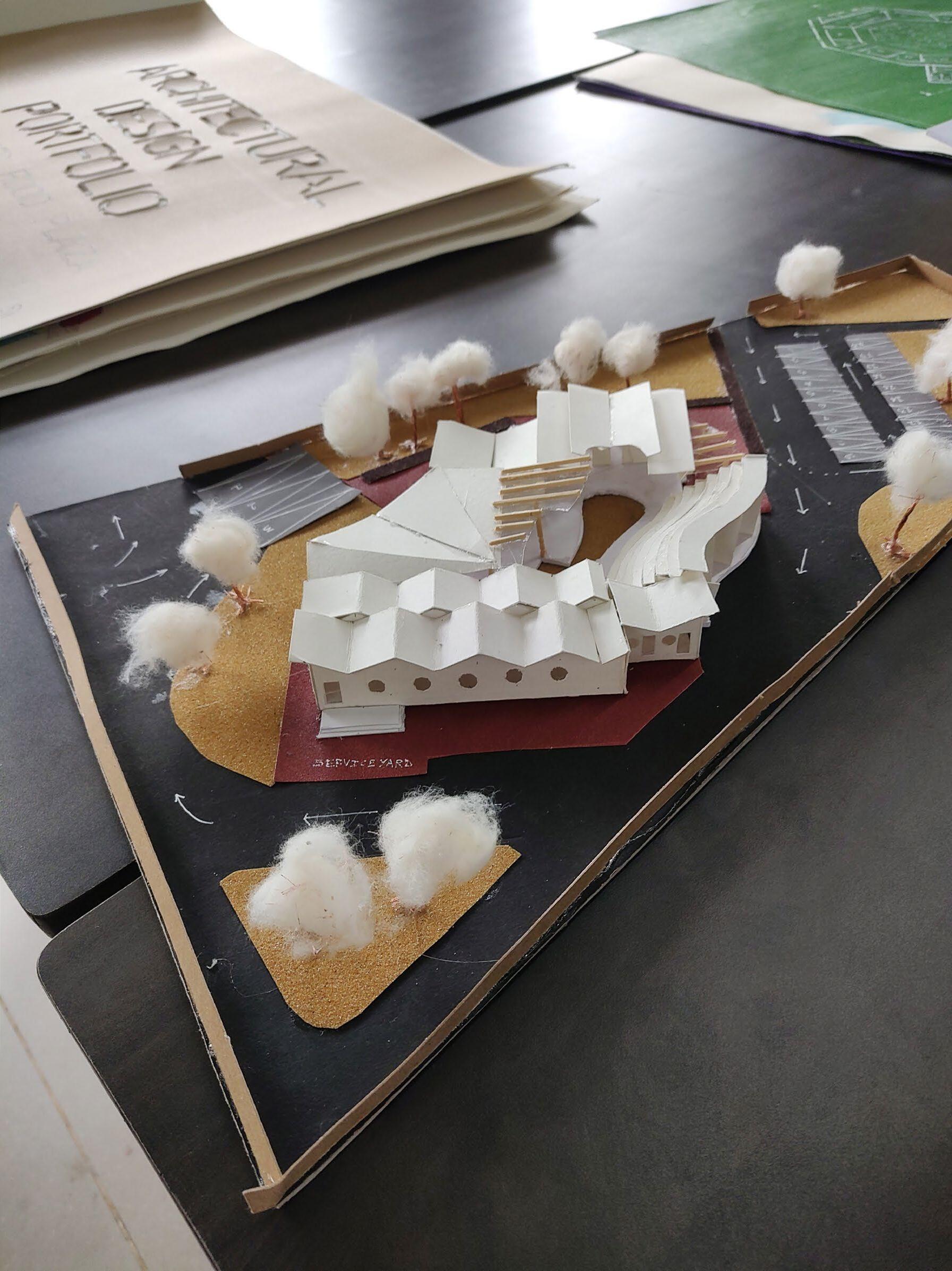

The proposed ITI (Industrial Training Institute) in Nashik aims to be a cutting-edge facility for vocational education and skill development. The design should incorporate modern educational standards, providing adaptable classrooms, labs, and workshops to support diverse training programs. Administrative areas, student facilities, and support services must be efficiently organized to create a functional and engaging environment. Sustainability is a key focus, with the design incorporating energy-efficient systems, sustainable materials, and eco-friendly practices. Accessibility and safety are paramount, ensuring the facility is inclusive and secure for all users. The architectural style should be contemporary, reflecting professionalism while integrating with the local context. The project must adhere to budgetary constraints and timelines while engaging with the local community to align with their needs. Overall, the ITI should foster a stimulating learning environment and contribute positively to both students and the surrounding area.
Climatic conditions
-Semi arid climate with scattered cloud cover
-Average annual rainfall is 1134 mm
-Average temperature is 28.5 degree Celsius
-April experiences the most heat of the year
-January is the coldest month
-The average relative humidity of Nashik is around 66 percent although it varies from around 44 percent during summer to 92 percent during monsoon
-Wind speed is around 13.3 mph

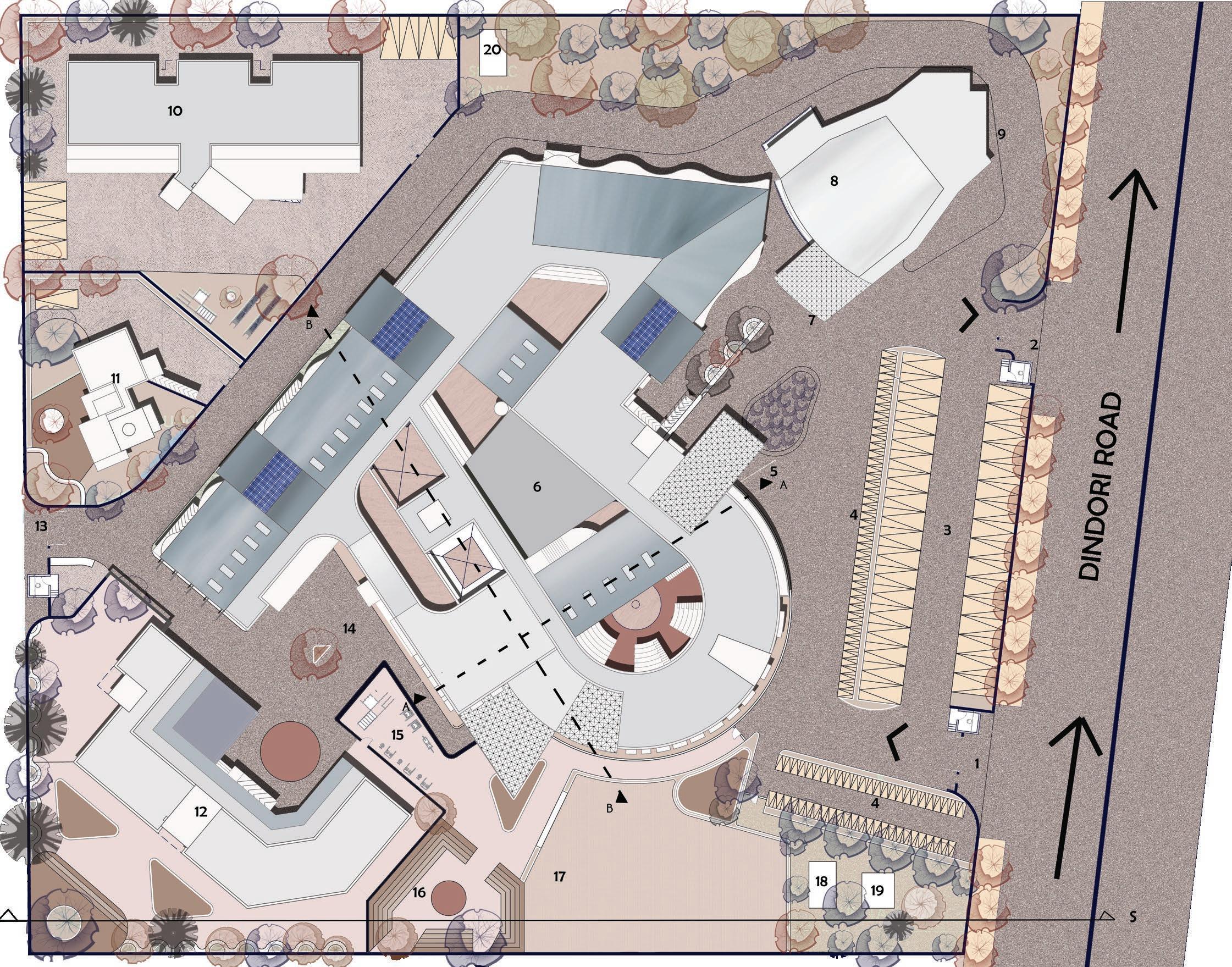

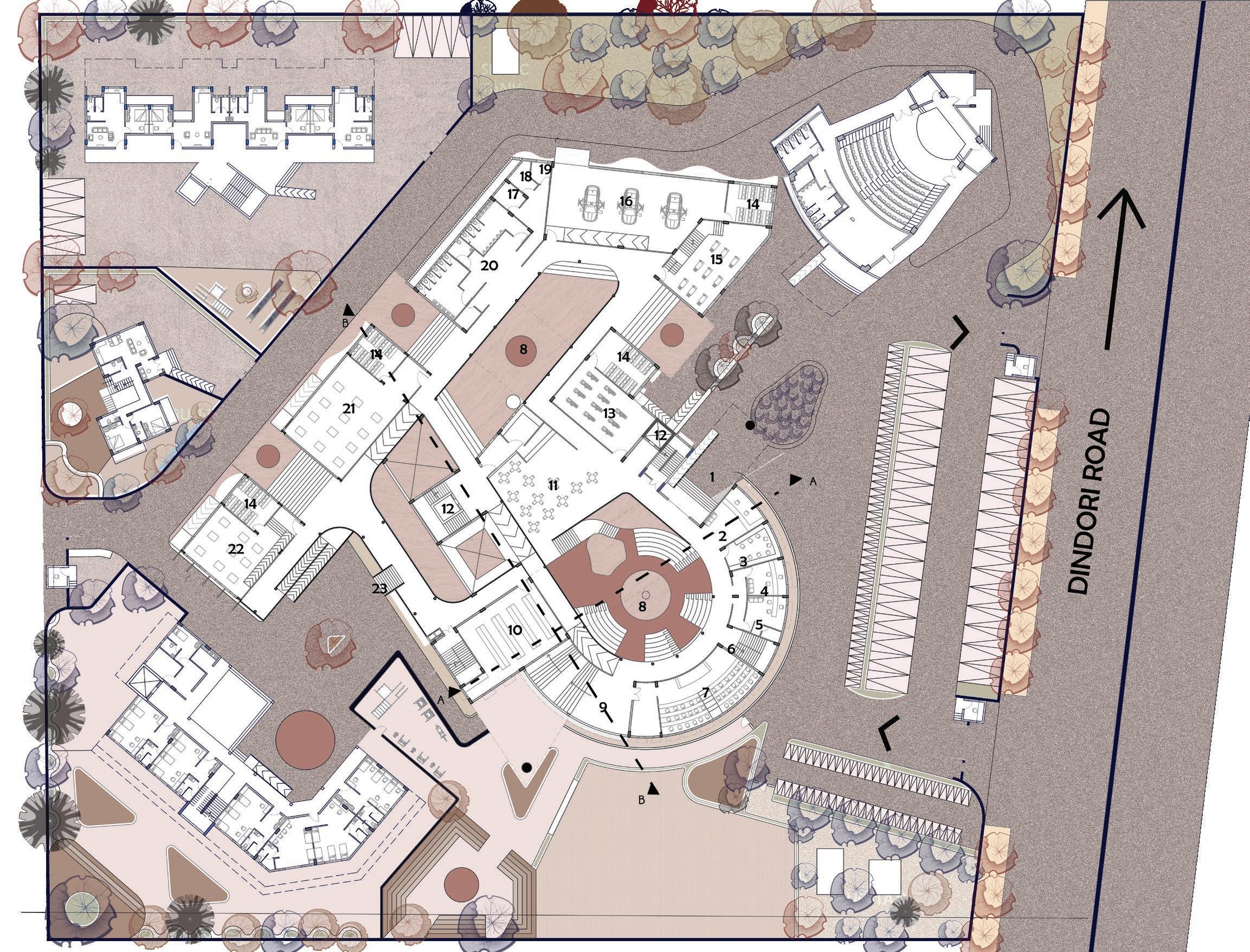

SWell connected to the road network, with Dindori Road to the north and internal roads to the south
WOTo establish the institute as a focal point in the region, potentially leading to further enhancement and development of the surrounding area

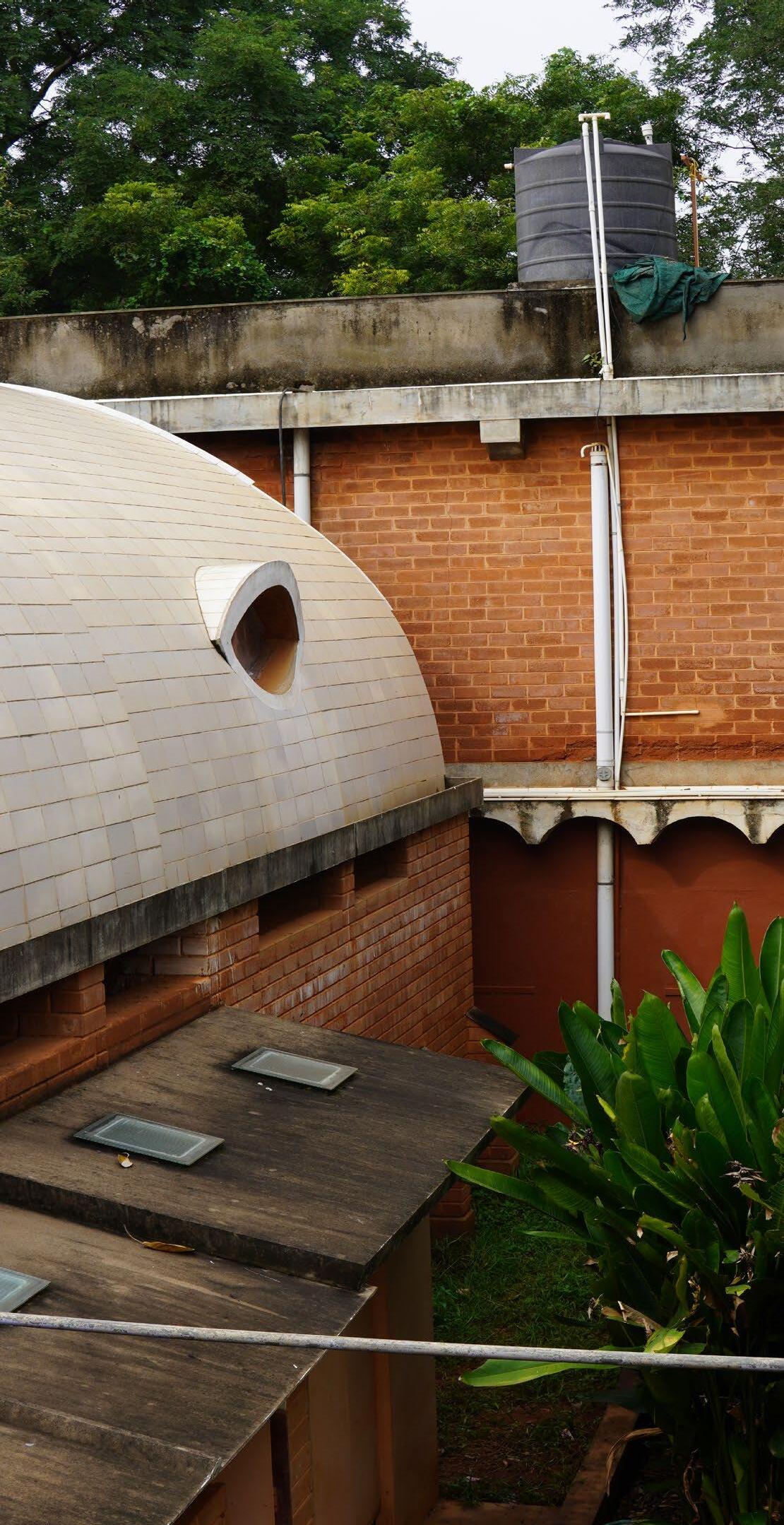

TThe site is situated in a relatively lower population density area. Opinions from the majority of the user population based on case studies

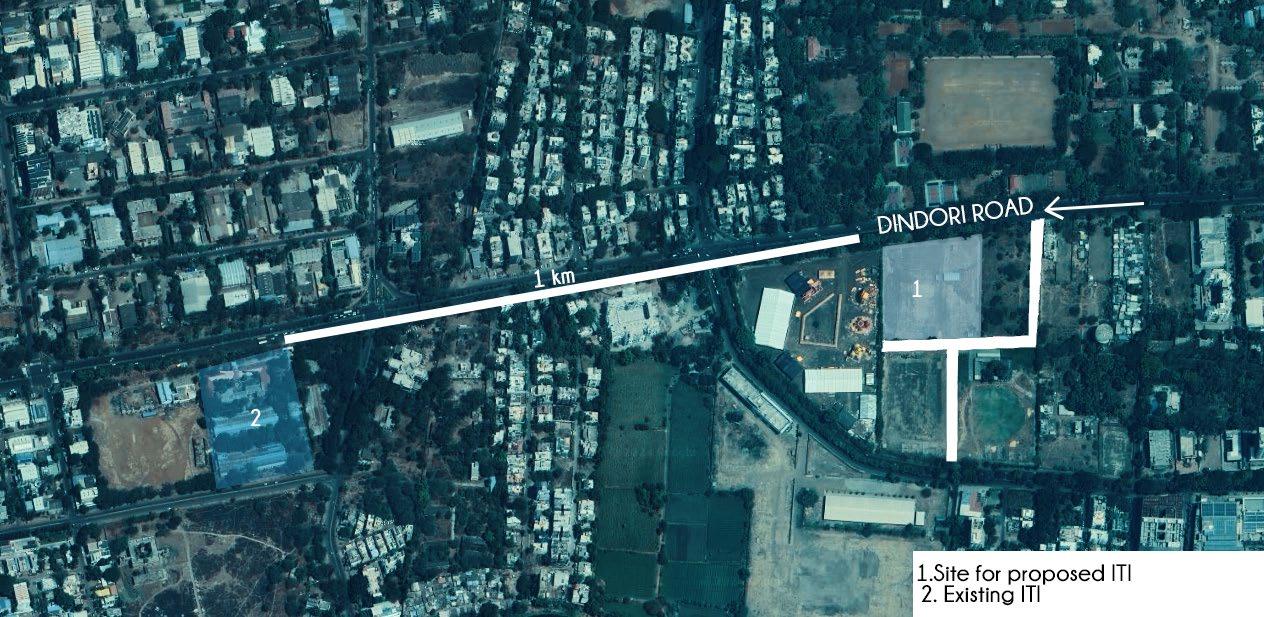

The existing ITI is located within a proximity of 1 km.
We lack any dedicated grounds or spaces for casual socializing and recreational activities with friends, apart from the classrooms.
Sometimes, during workshop lectures, we need to travel two floors to reach the classrooms.
We lack a dedicated space for engaging in and working on projects unrelated to our academics after lectures.
The workshop spaces we work in are very dull and lack natural light.

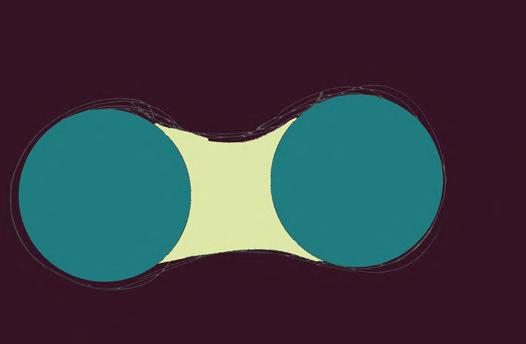

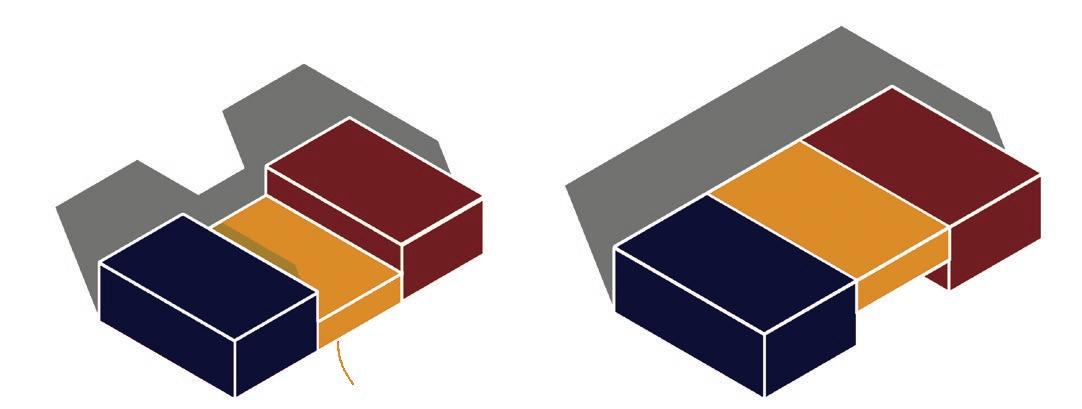

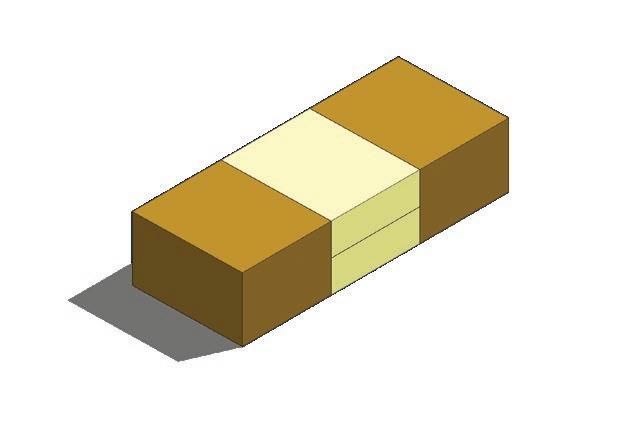

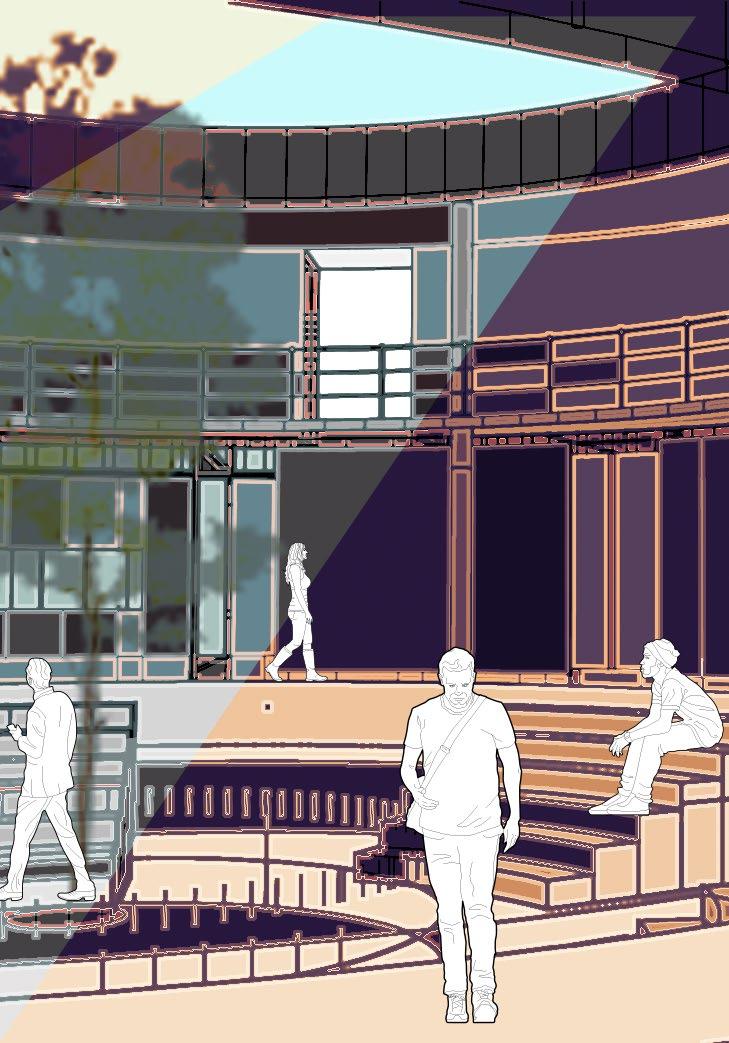

Lifting up the mass leading to creation of niche spaces to interact during breaks

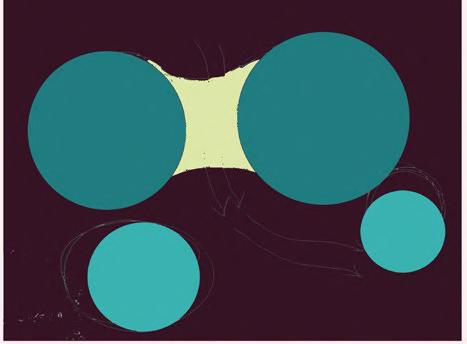

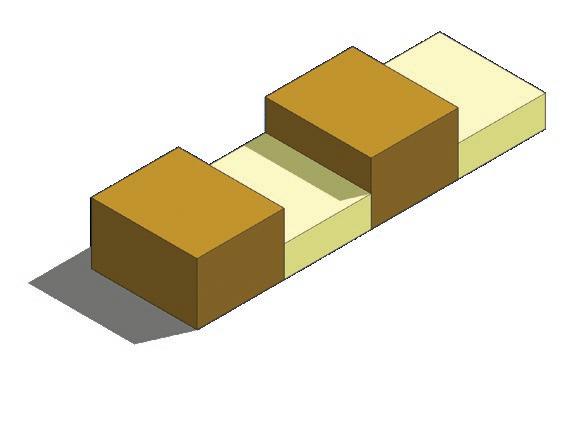

Interlocking the masses leading to creation of connecting workshops and classrooms

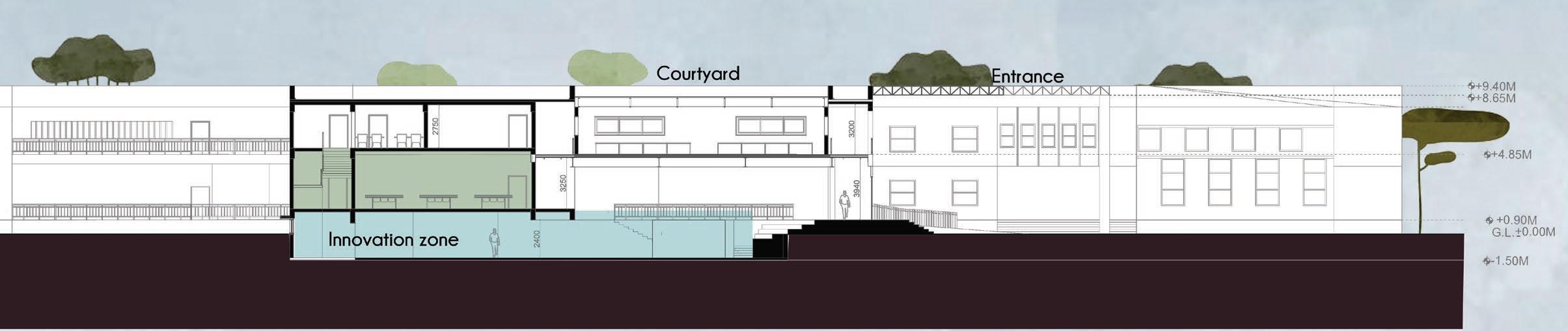

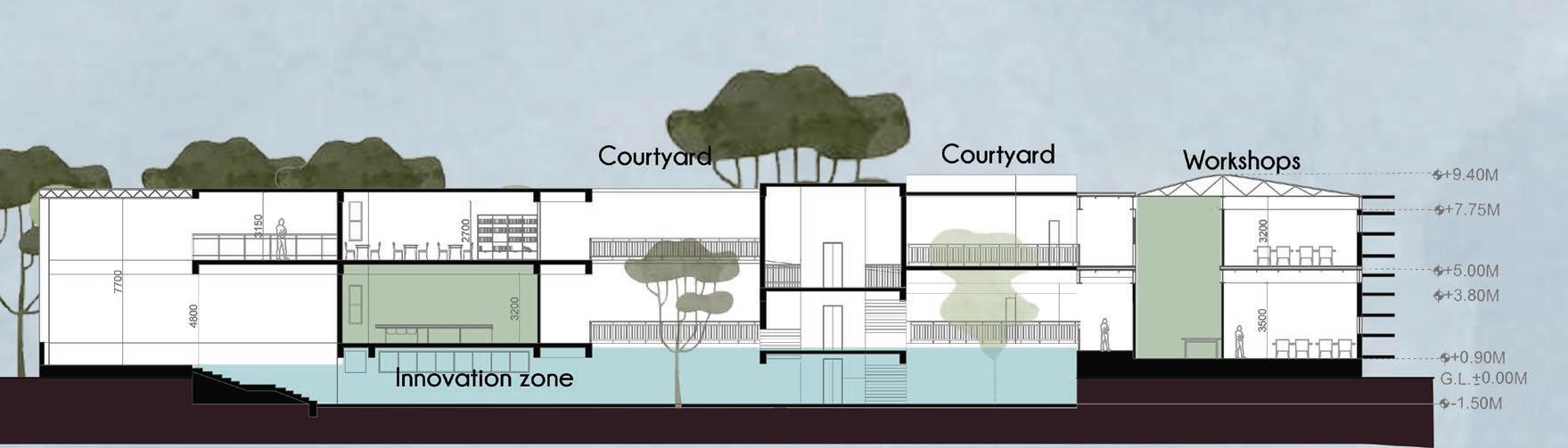

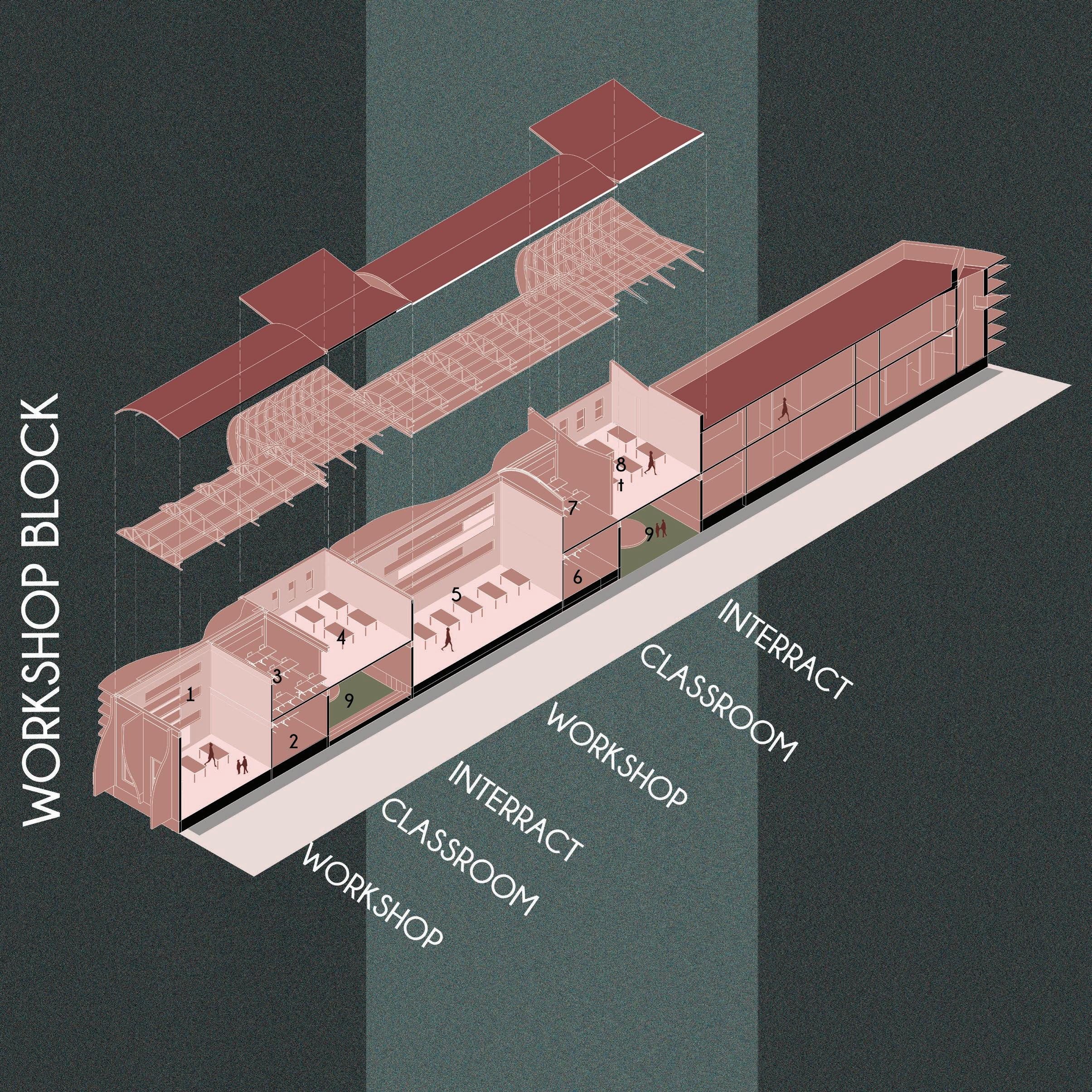

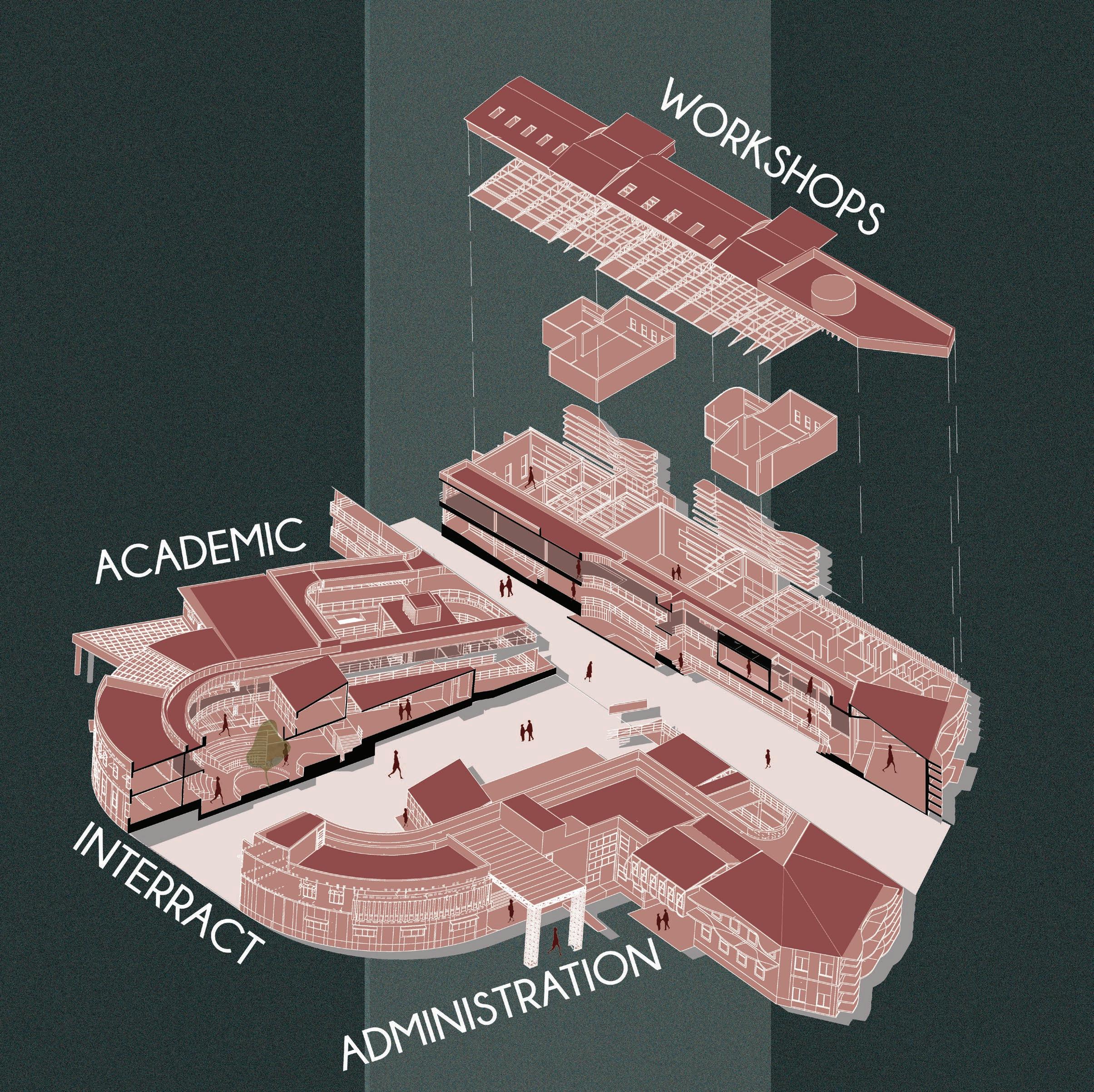

EXPLODED SECTIONAL AXONOMETRIC OF THE ACADEMIC BLOCK
EXPLODED SECTIONAL AXONOMETRIC
DETAIL OF WORKSHOP AREA

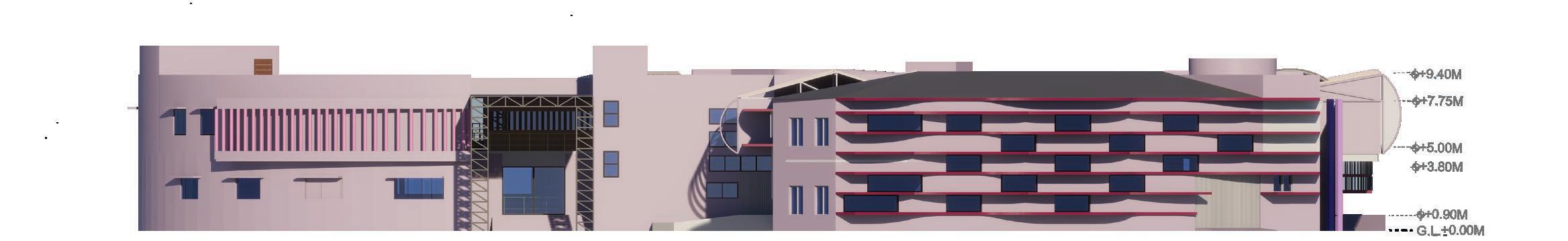

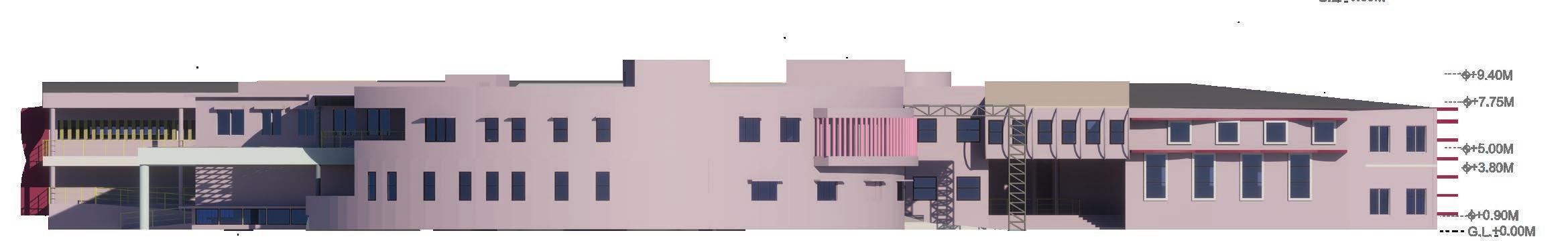

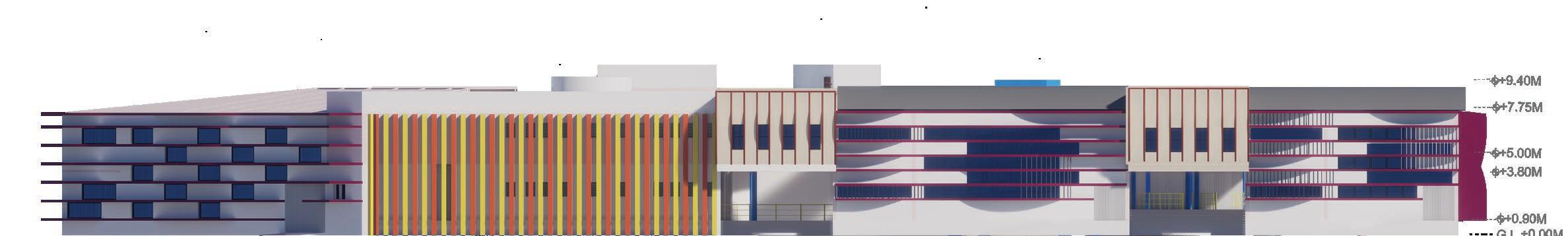

WEST ELEVATION
SOUTH ELEVATION
NORTH ELEVATION

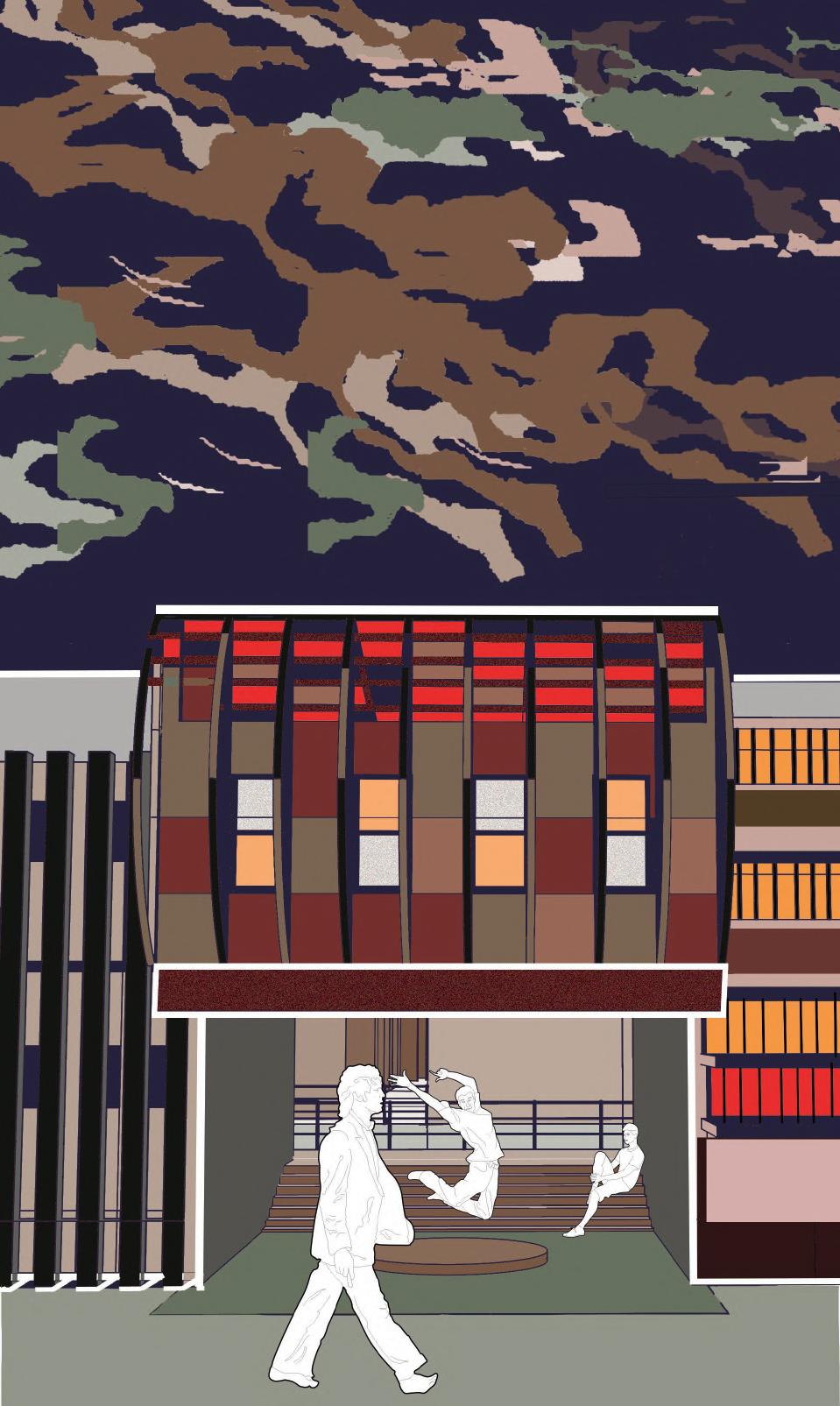

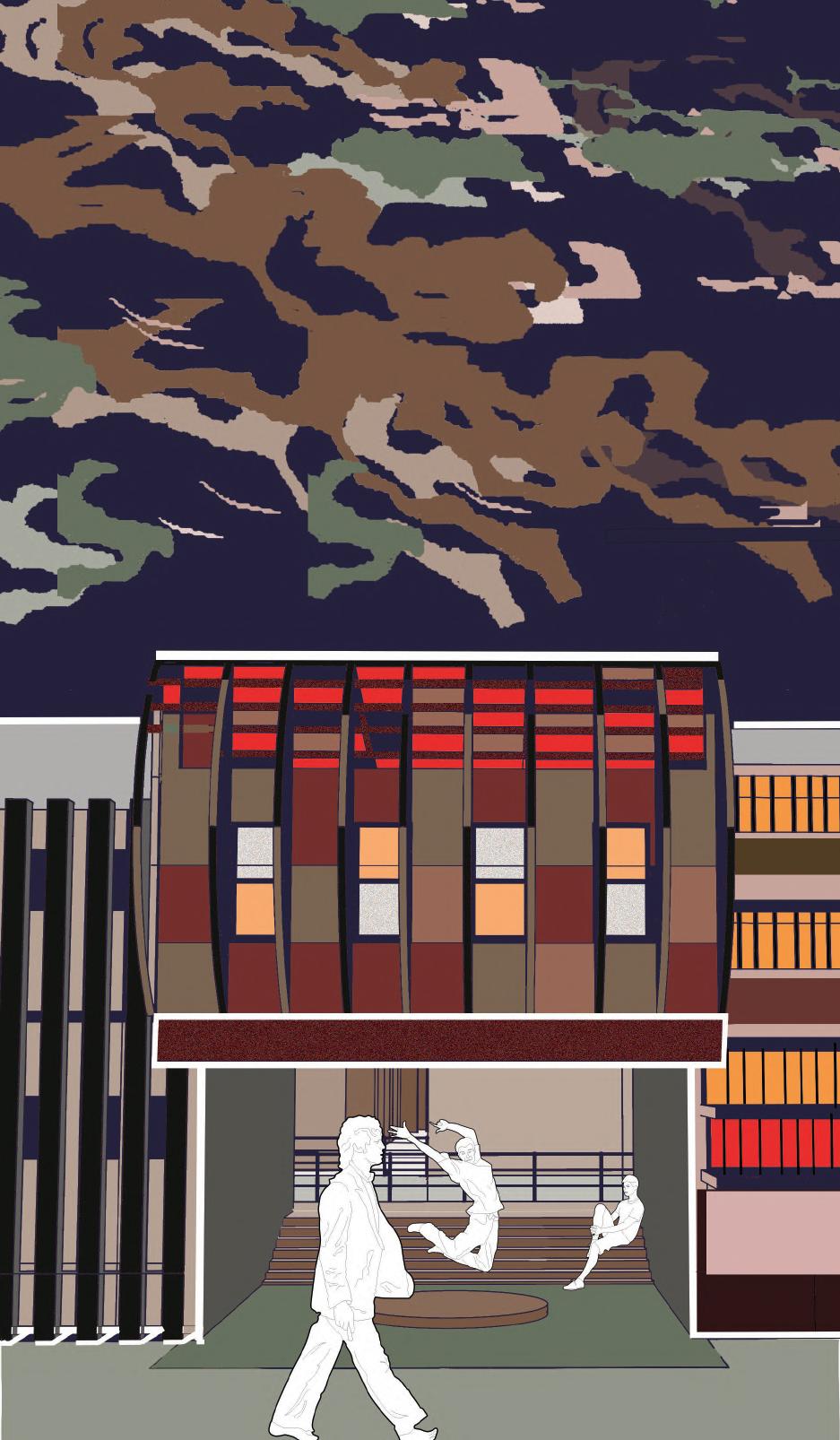

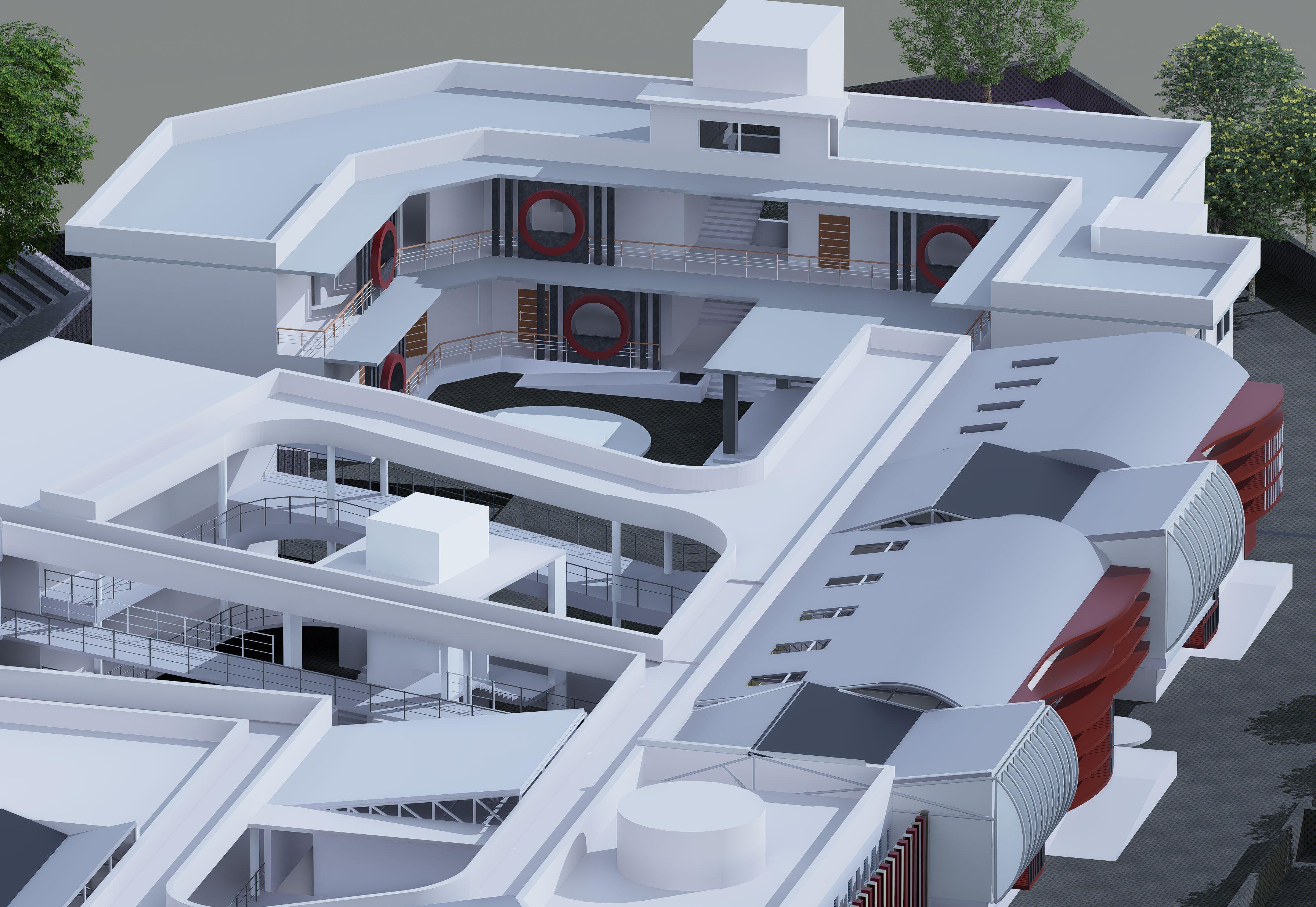

The south western facade of the academic block is protected with the help of fins which helps in cutting of the hash sun radiation into the space. The space below the extruded blocks acts as a space for the students to interact and relax during their breaks and after lectures. The platforms provided are to nourish and the artistic abilities within the students.

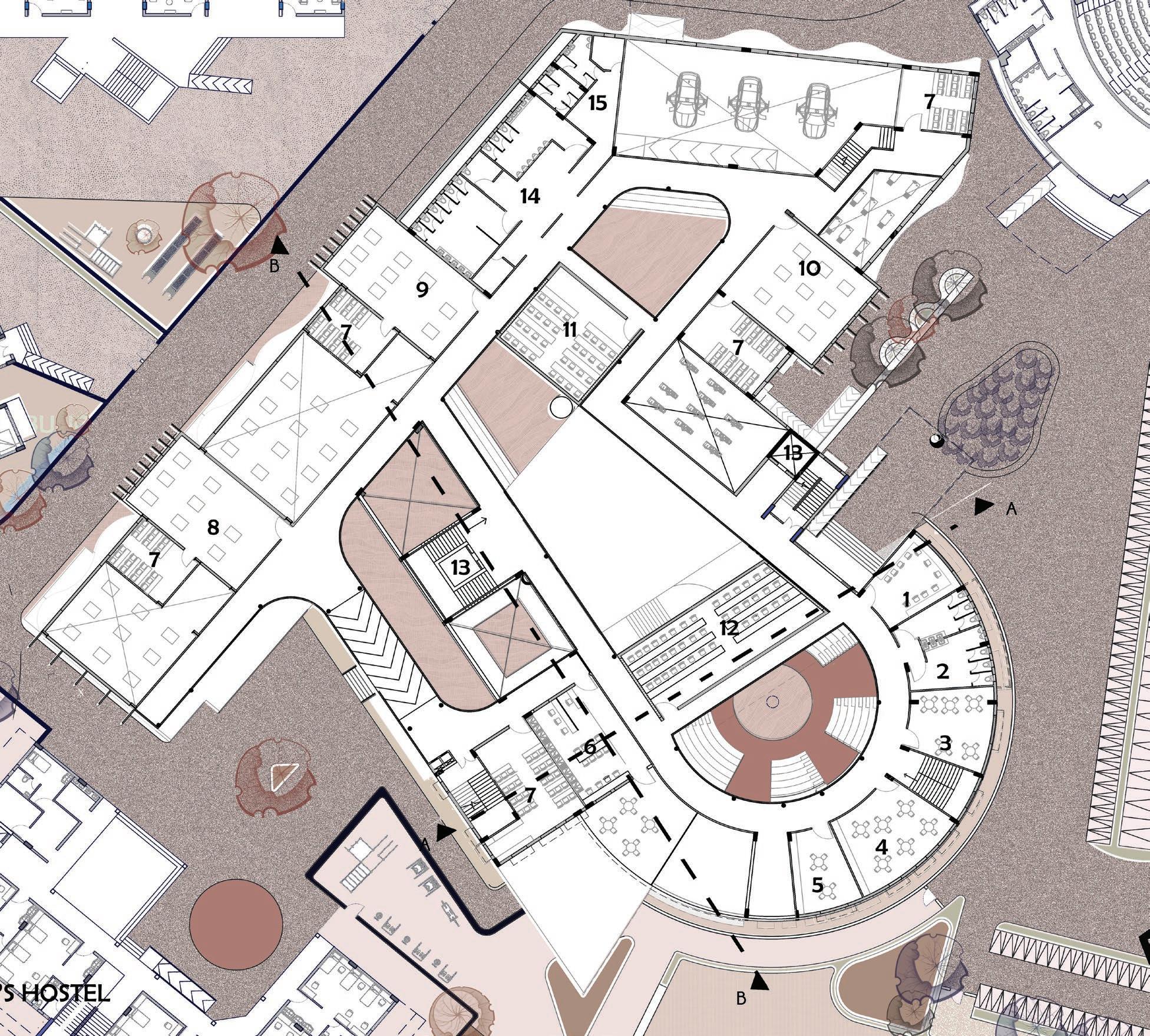

PLAN

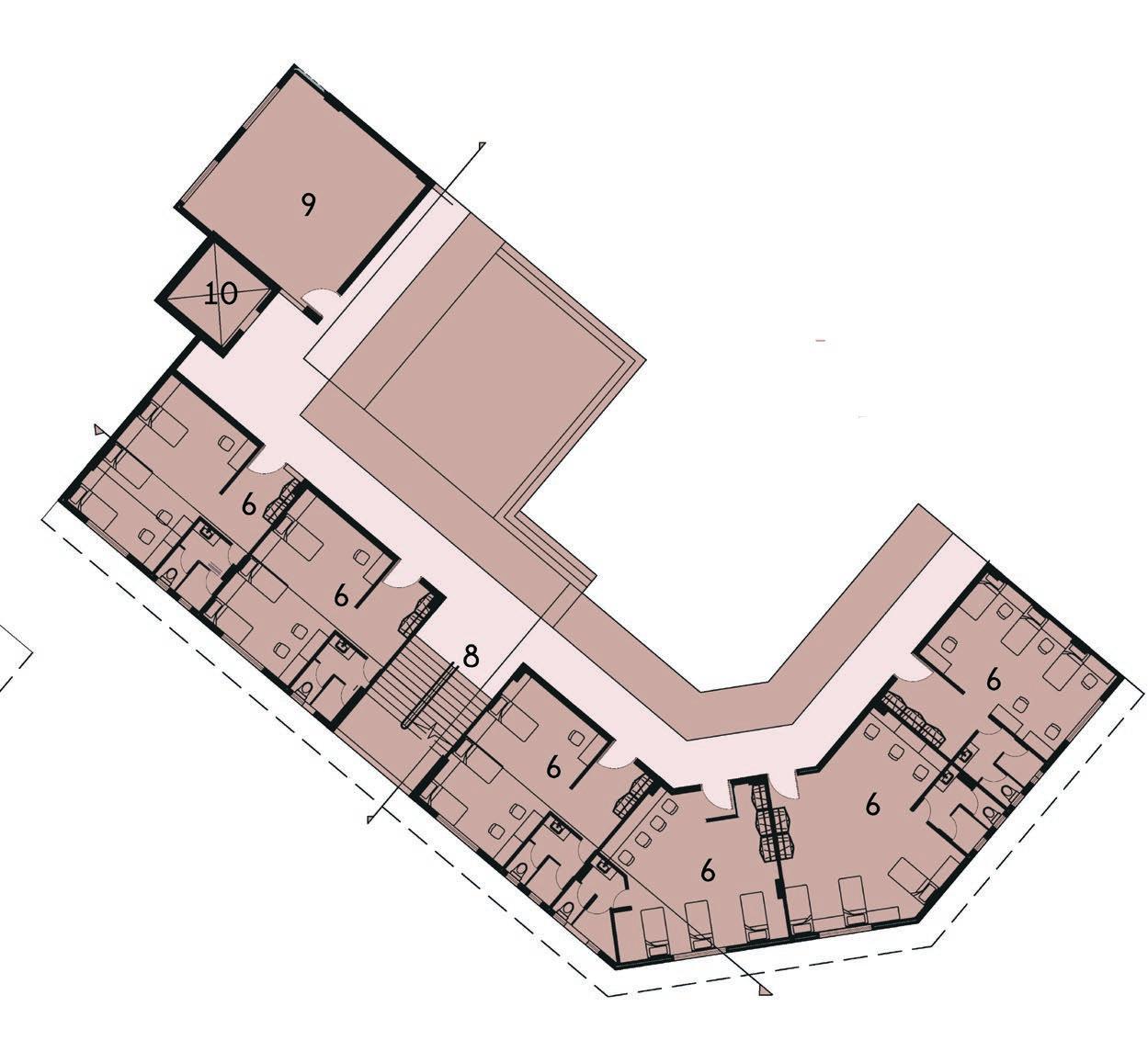

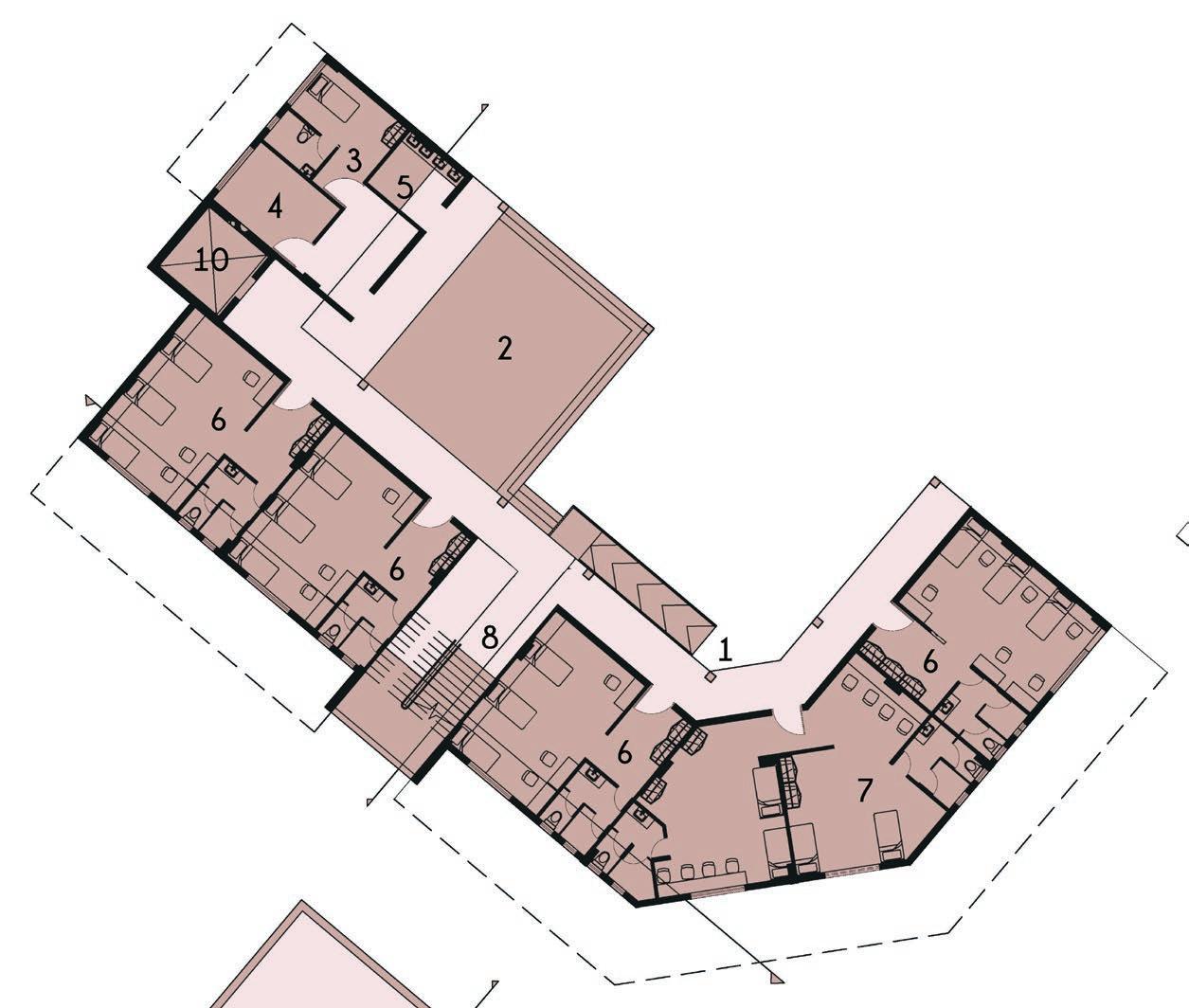

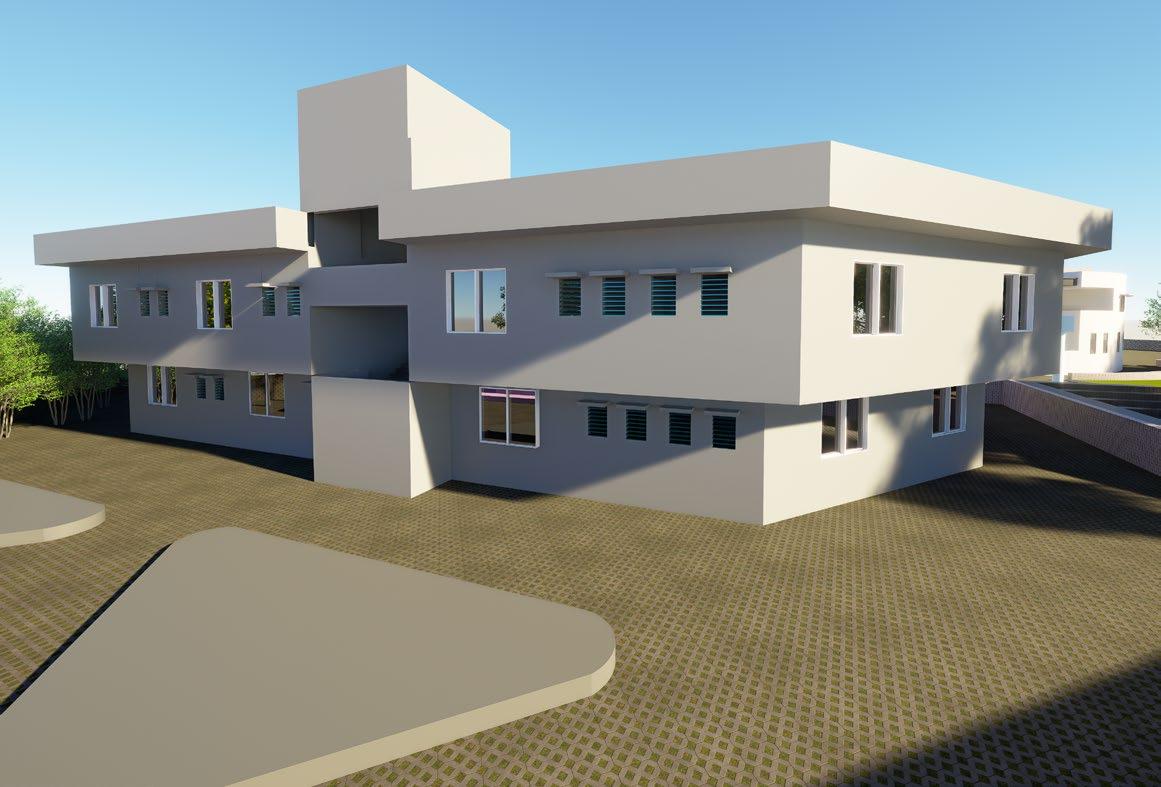

Hostel is the place where few students might feel along living away from their families. The U shaped mass of the building creates a centrally situated communication area which can be visible through the passages. Sitting areas are designed along the passages where one can read a book or just sit and relax during quiet times of the day.
1.Entrance
2. Mess area
3. Warden’s room
4. Laundry room
5.Handwash area for mess
6. Triple sharing room
7. Dormitory
8.Staircase
9. Games room

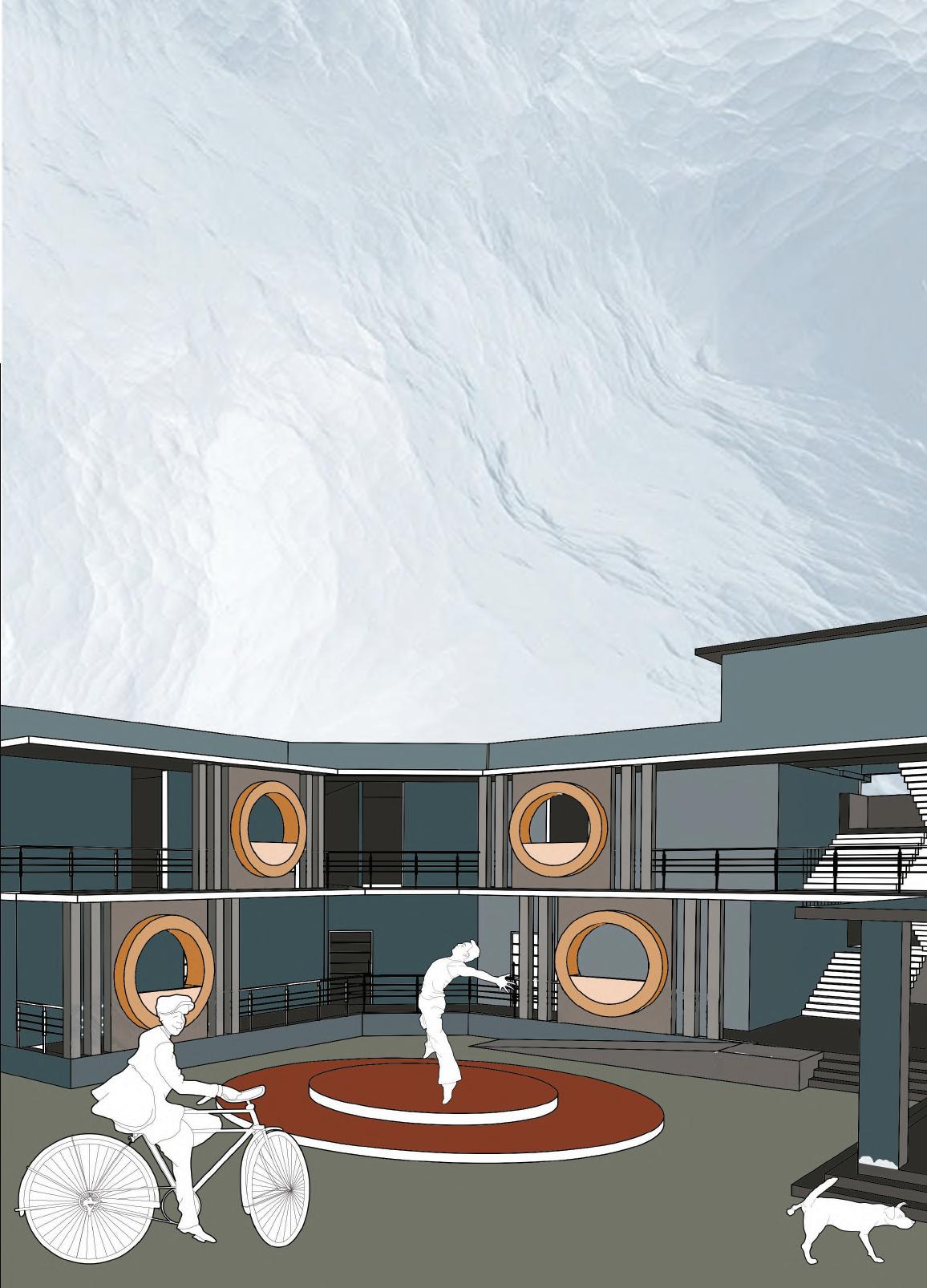

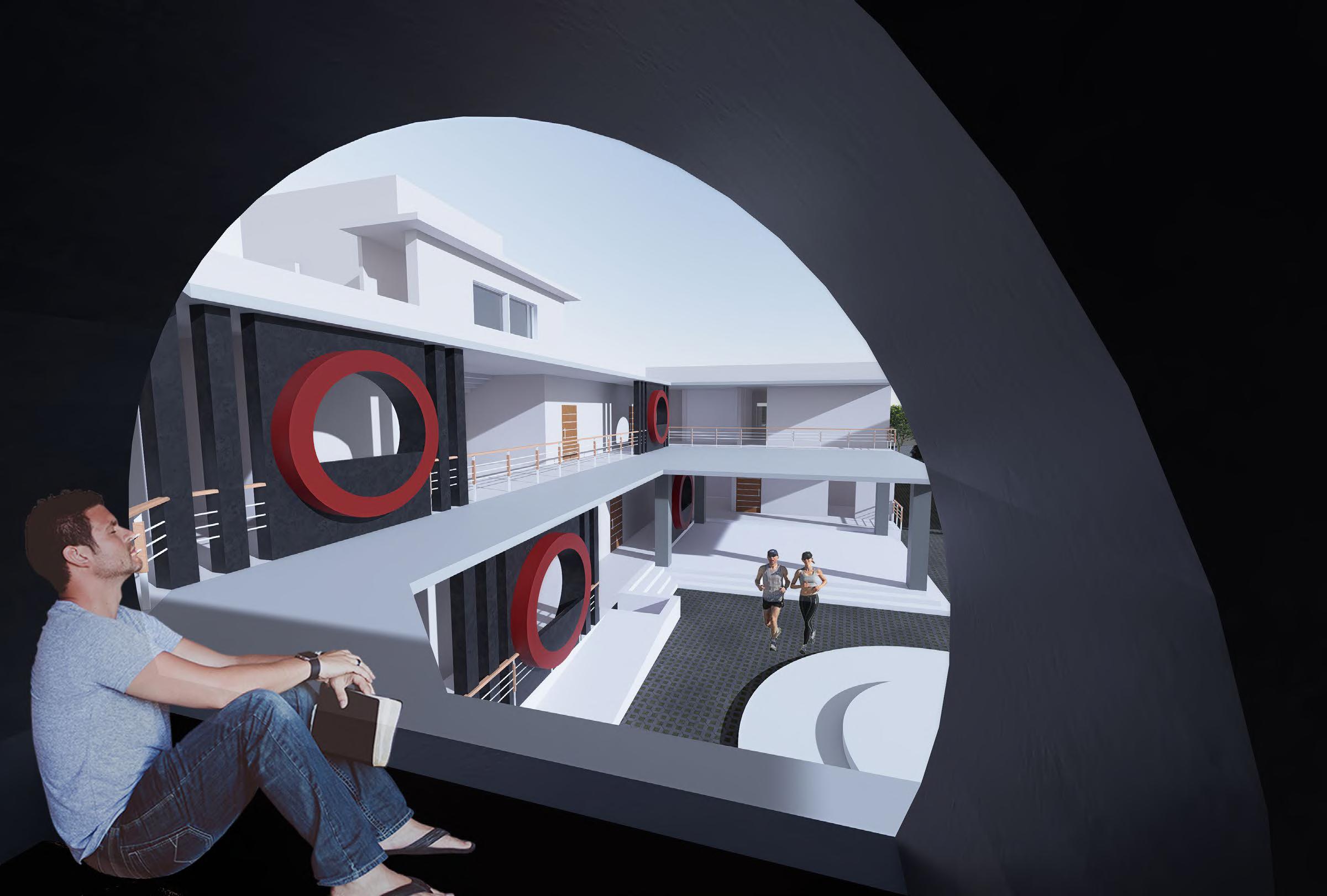

The corridors often act as a buzzing spot for the students in an hostel. A circular form placed along the corridors act as a space where they can just sit and rid a book or connect with their fellow peers.
To tackle the harsh sunlight from directly entering the rooms the mass of the building is extruded at every floor level by. by this every adjacent floor acts an overhanging which lets the indirect light to enter. to tackle the point load at the tip of the overhanging mass, inclined columns are introduced to provide structural stability.

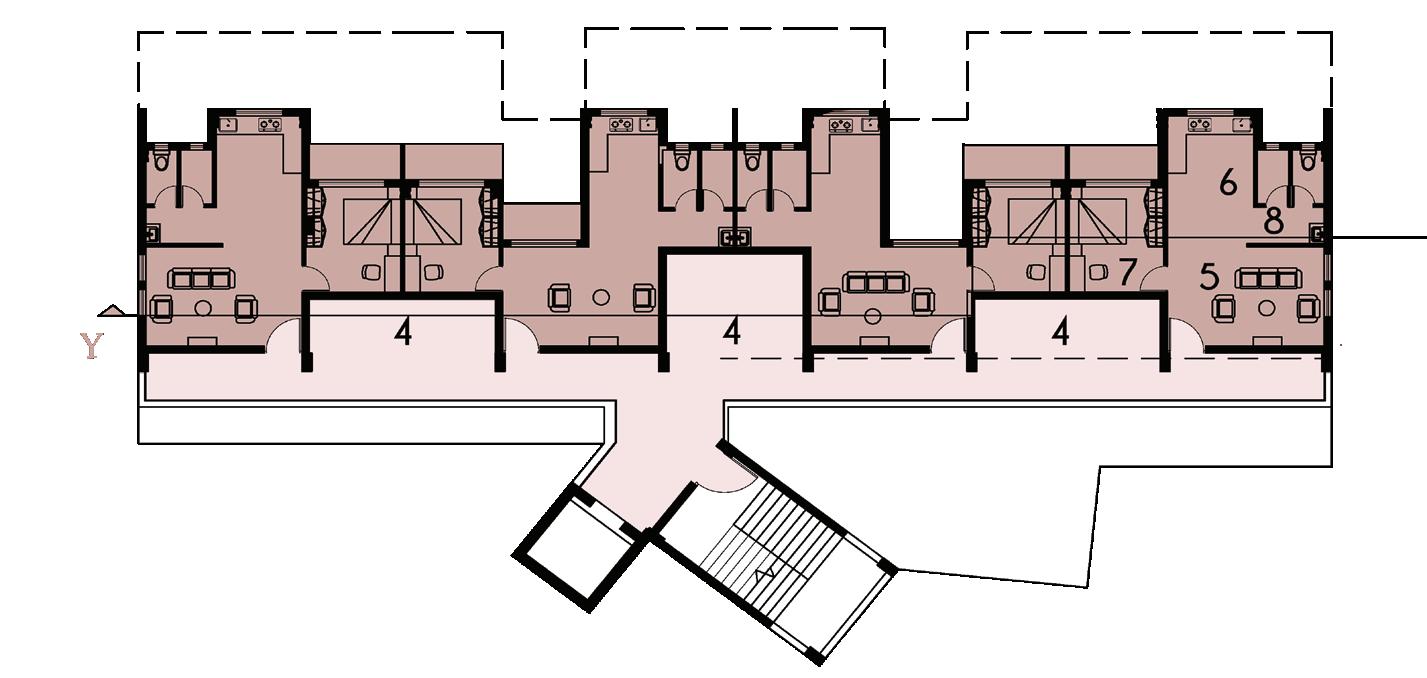

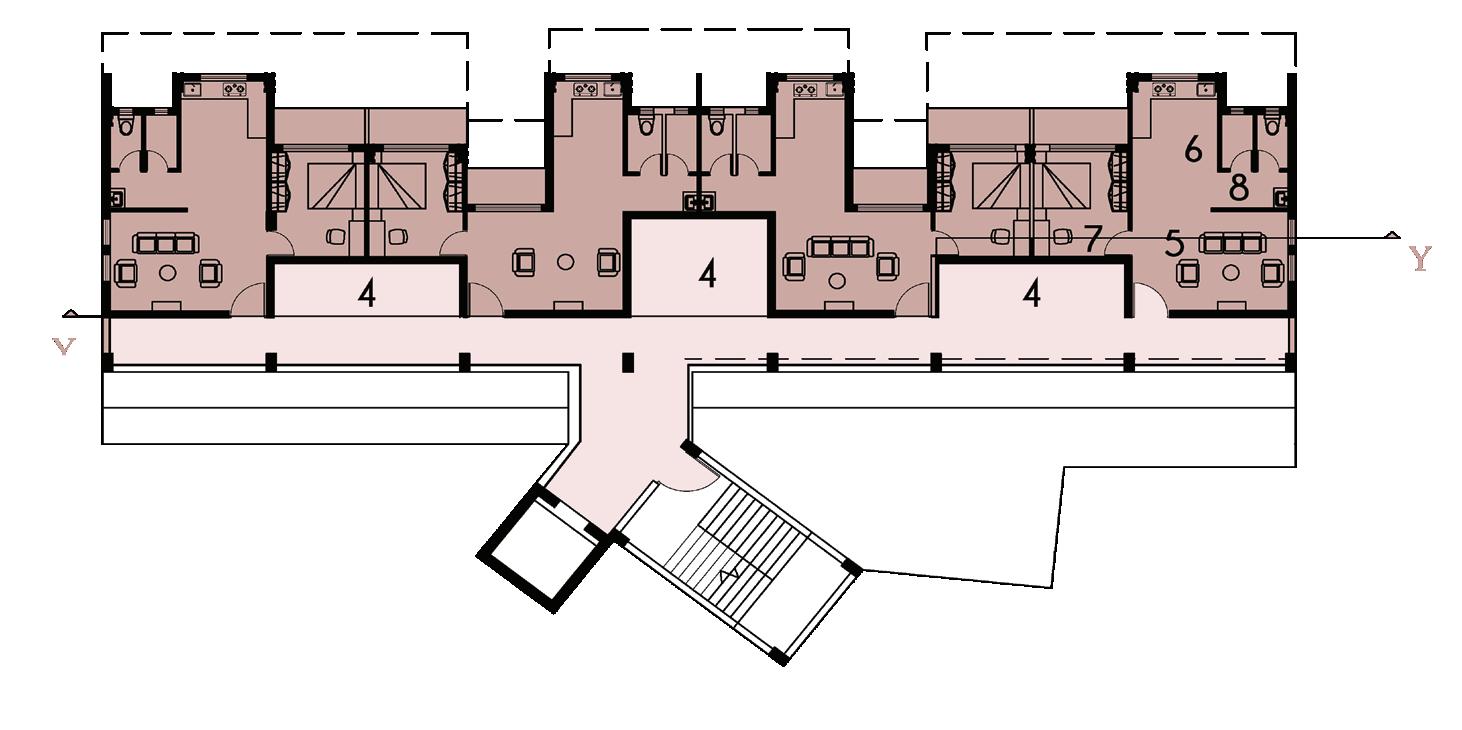

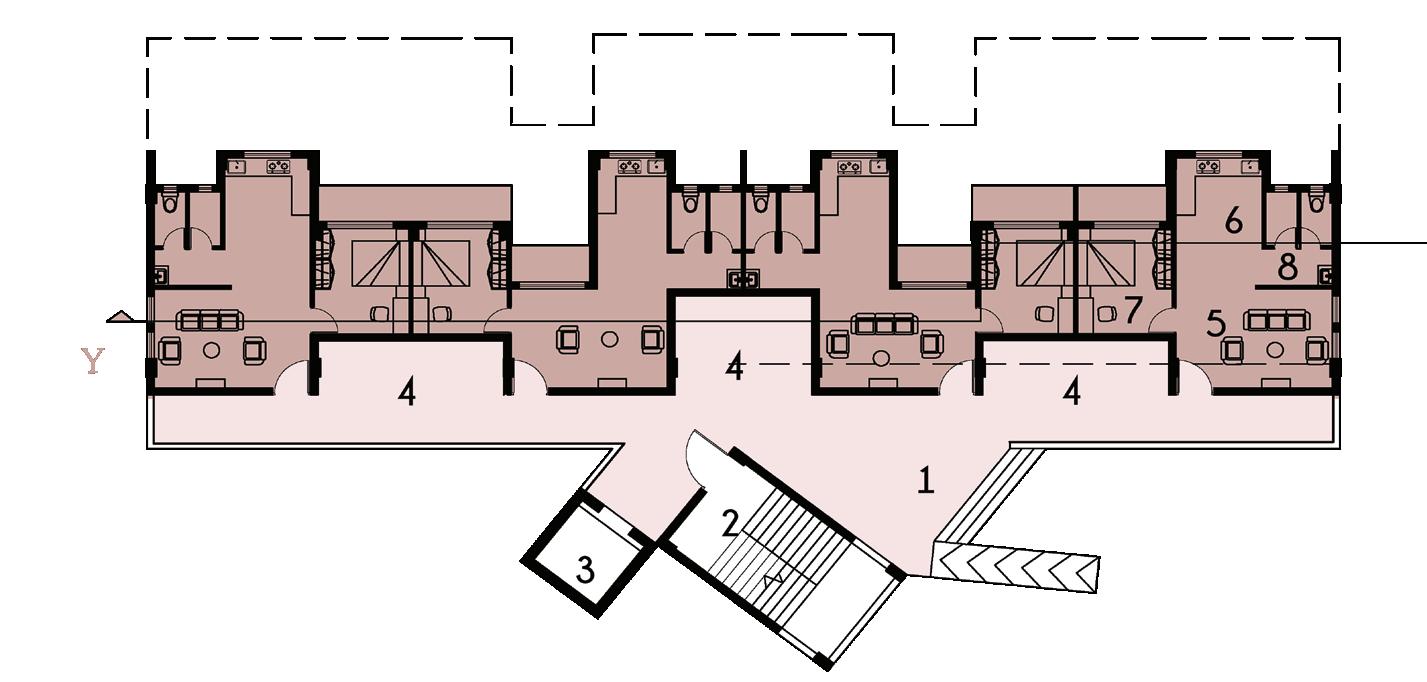

1.Entrance
2. Staircase
3. Lift
4. Niches for users as per their Personalization
5.Living room
6. Kitchen
7. Bedroom
8. Toilets
In the corridors of the staff quarters, a fascinating interplay of shadows is crafted by letting light pass through slabs that are partially covered with transparent polycarbonate sheets. This approach creates a dynamic visual effect, as the shifting light patterns enliven the space. The use of these materials ensures that the corridors stay vibrant and engaging, adding a sense of movement and intrigue to the environment.

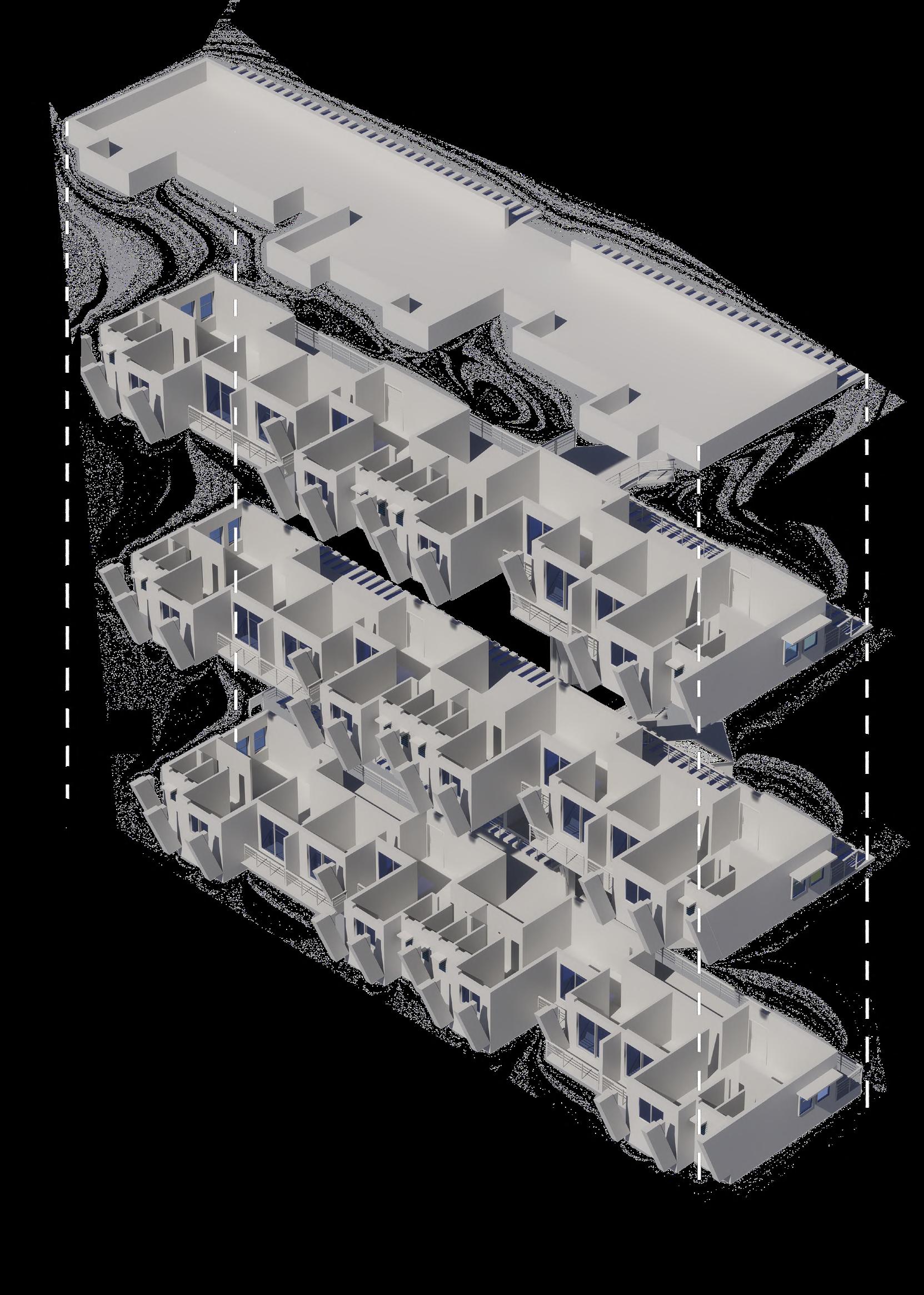

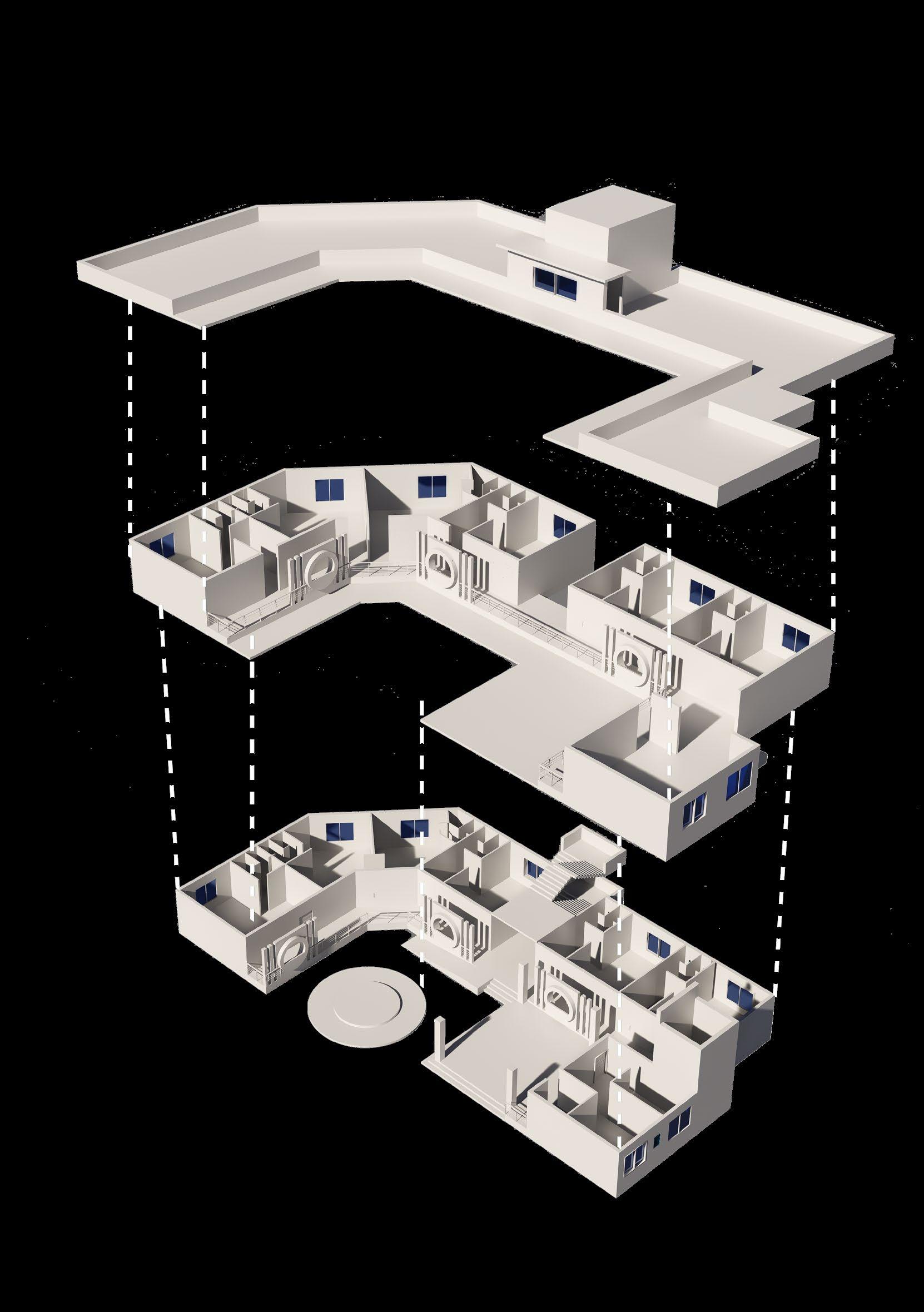

Exploded Axonometric view of hostel block
Exploded Axonometric view of Staff quarters
Mohammed Shaheer Landscape Trophy 2023
Creating an ecologically sensitive habitat within the confines of a city that is degraded by human activities. This project emphasizes on the rejuvination of the Tata Oil Mill Compound and the Hay Bunder Precinct located in the Southern Part of the city by designing an co existive environment
Creating an ecologically sensitive habitat within the confines of a city that is degraded by human activities. This project emphasizes on the rejuvination of the Tata Oil Mill Compound and the Hay Bunder Precinct located in the Southern Part of the city by designing an co existive environment

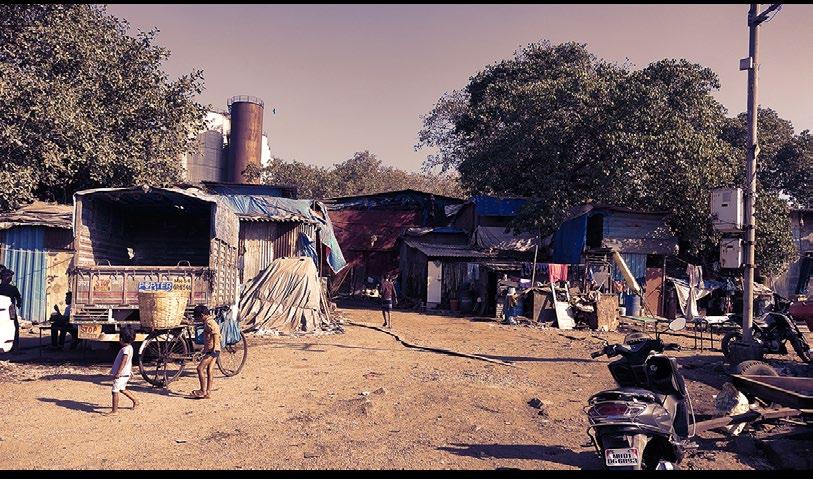

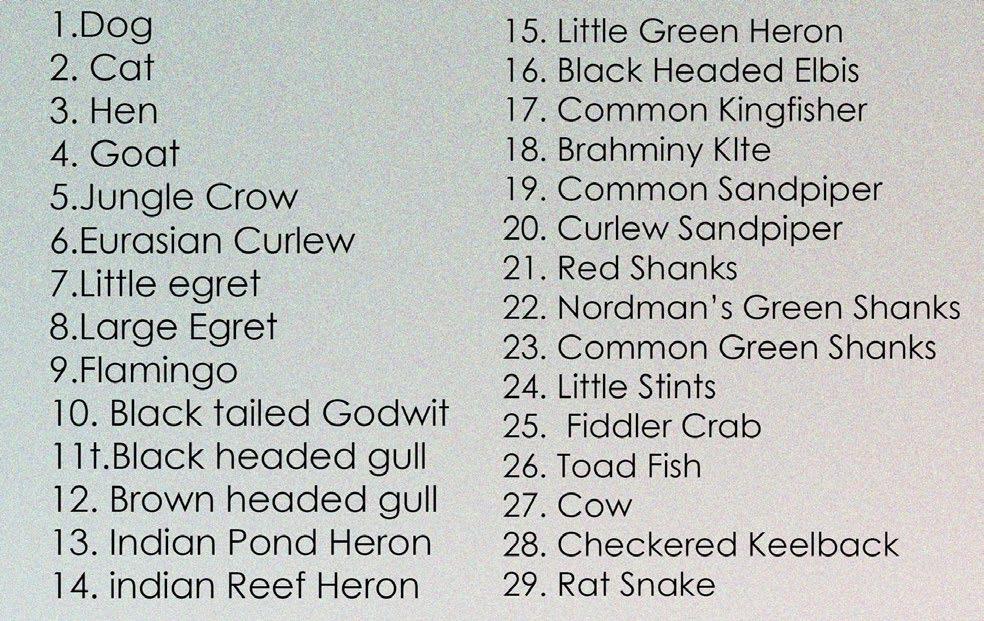

Dense informal settlements along the border with the sea have been formed resulting in generation of waste
Operating oil refineries around the site

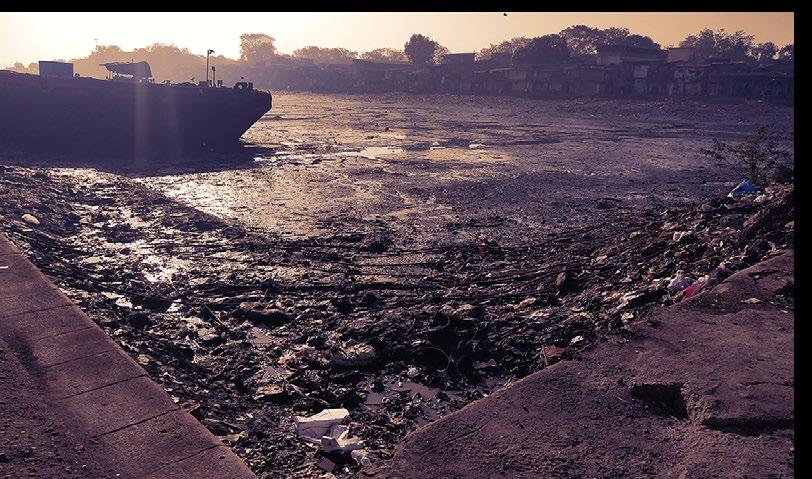

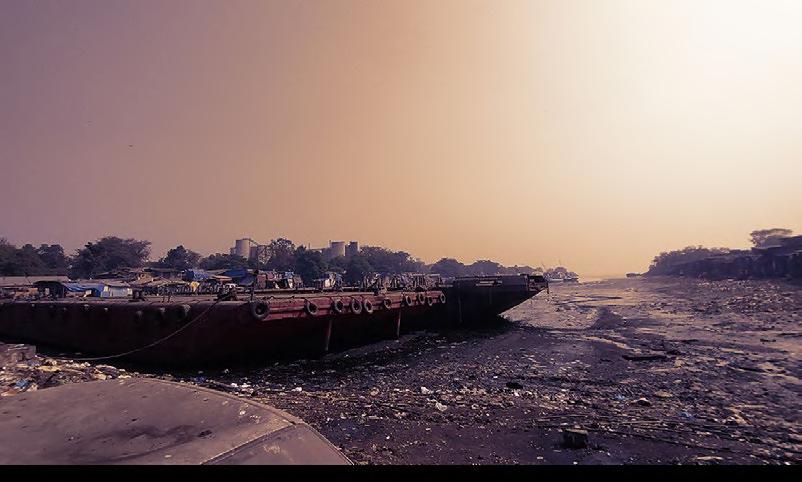

Due to the neglection and formation of the informal settlements around, the boundaries have been filled up with garbage and a huge sludge has settled which stops the larger ships from coming inside the bunder

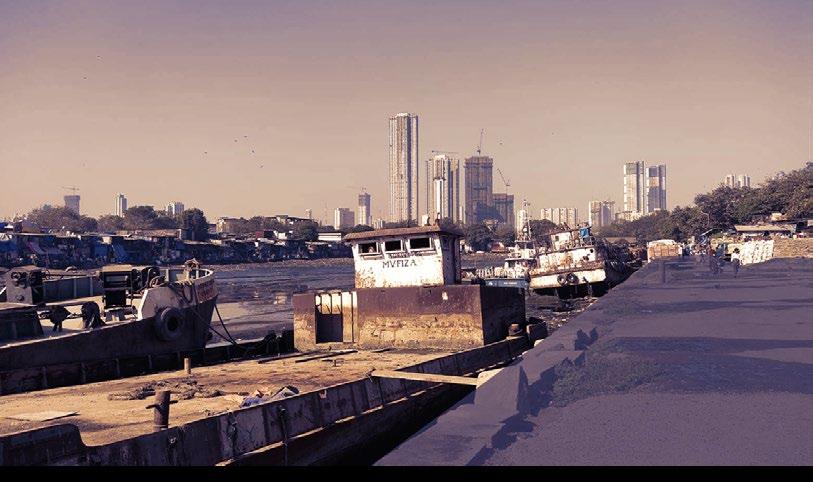

During high tides when the water is filled inside the bunder barges are parkes here
A huge corridor along the bouundary of the sea awaits a transformation

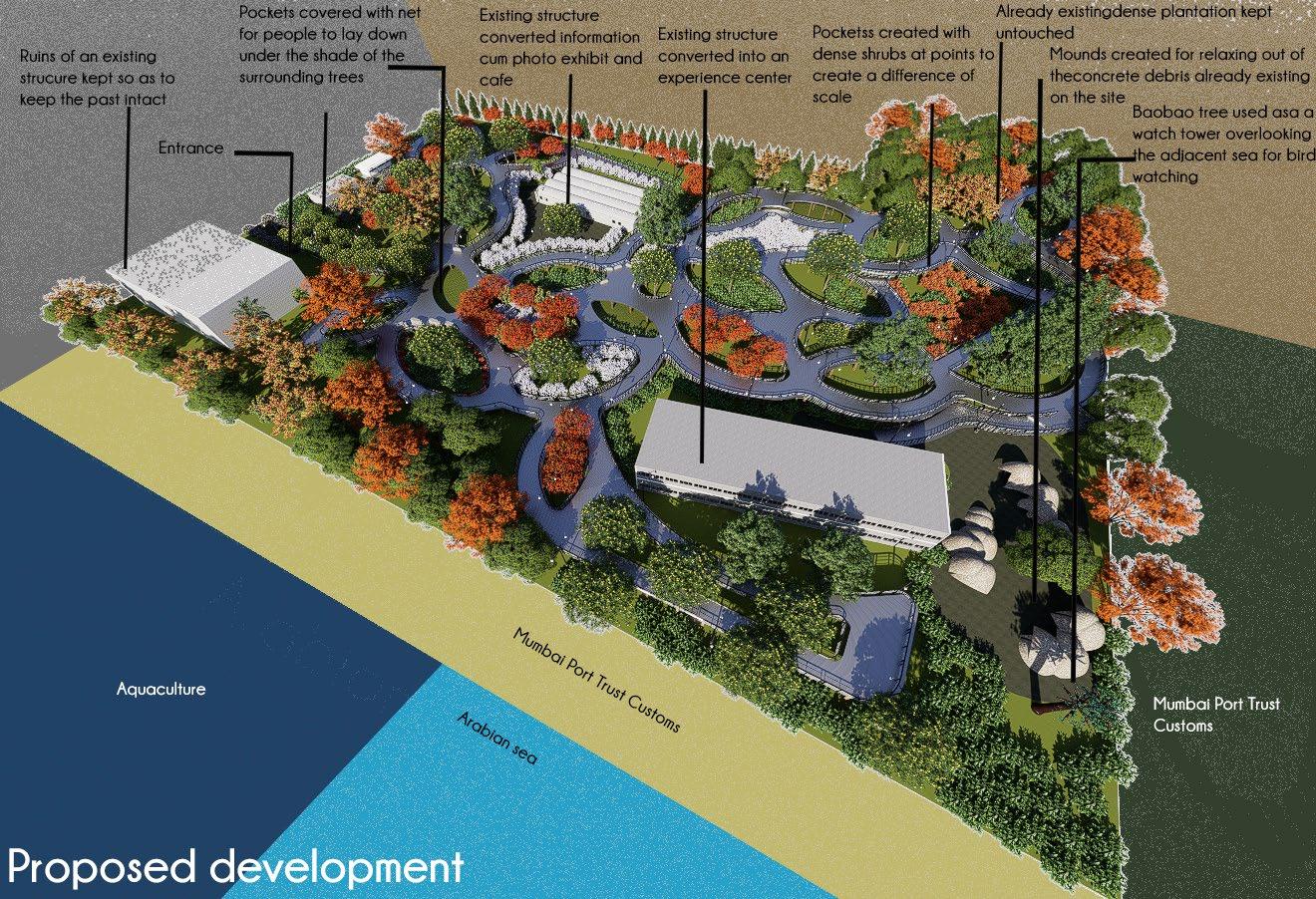

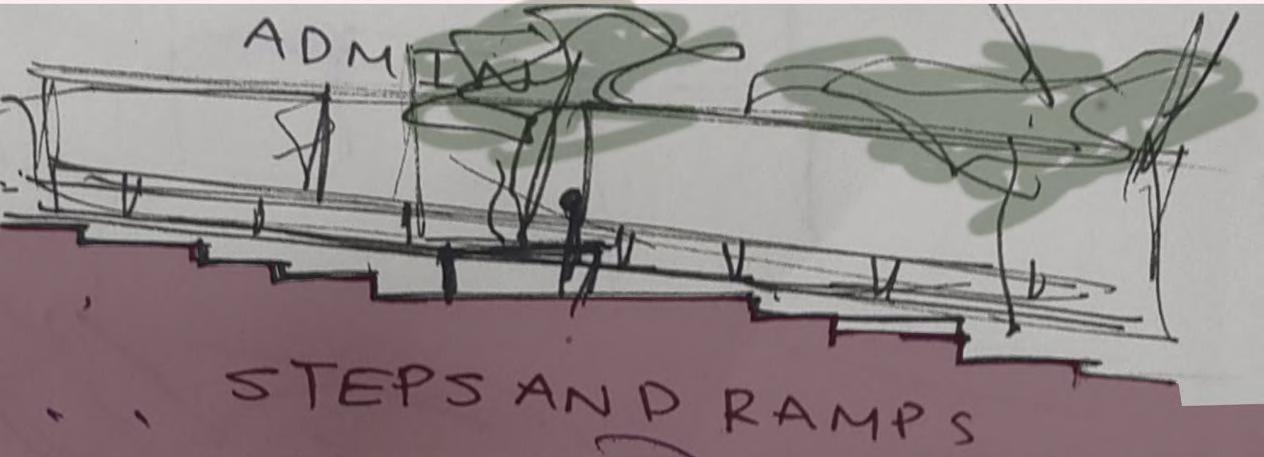

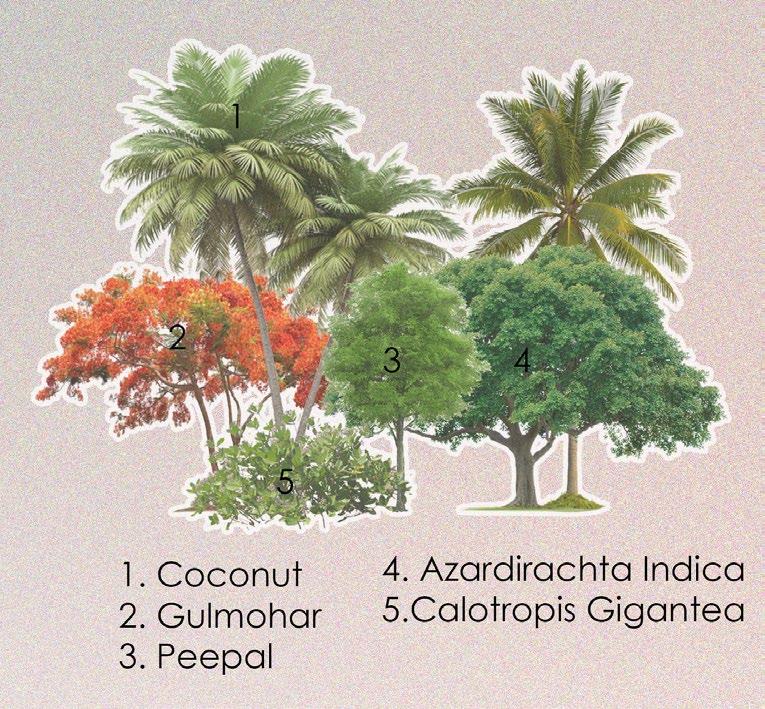

Site A- The Tata oil mill site consists of dense pockets of vegetation. this pockets have been marked and a ramp so that the existing ecology of the site doesn’t get disturbed. The is ramp designed such that it guides the user to cover and experience the entire site.

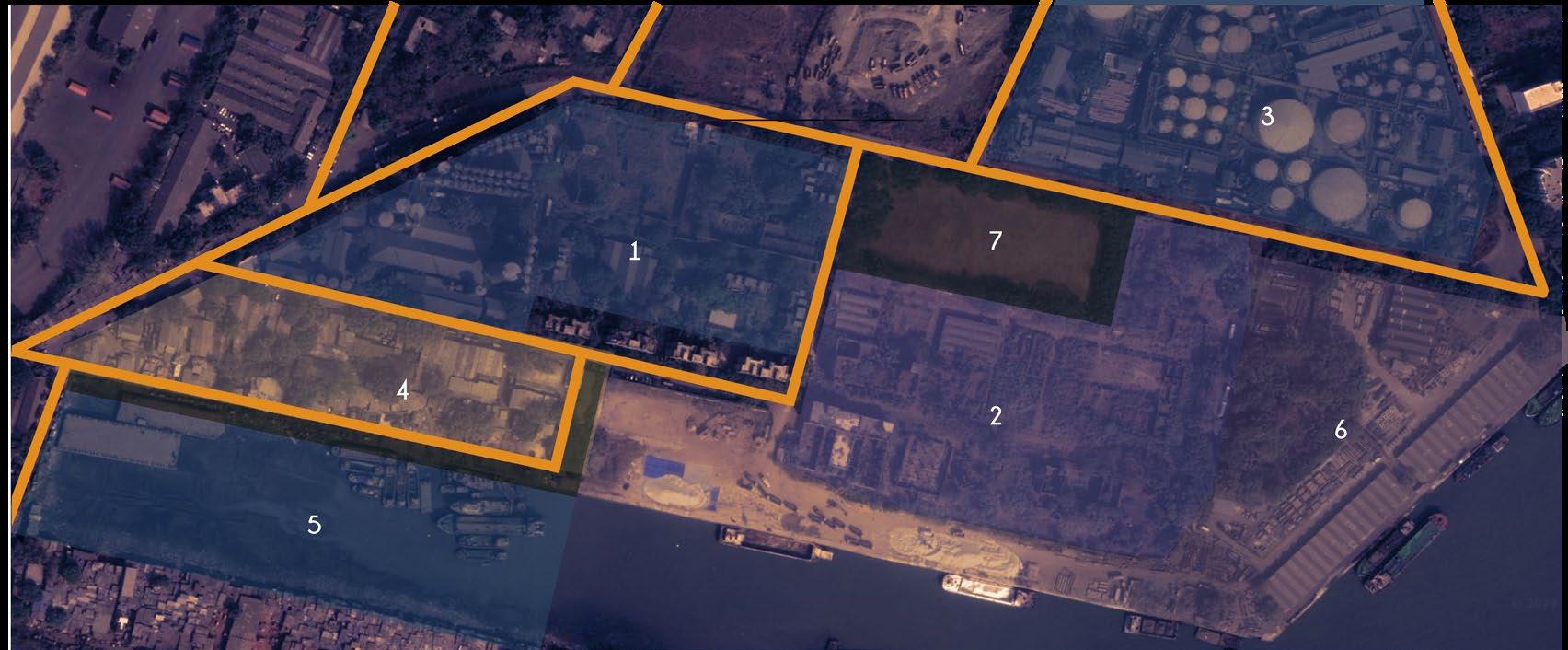

1. Defunct mills
2. Site A
3. Functional mills
4. Informal settlements
5. Reed bed system
6. M.B.P.T. customs
7. M.B.P.T. ground

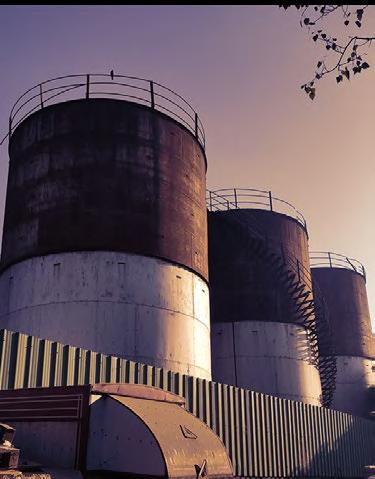

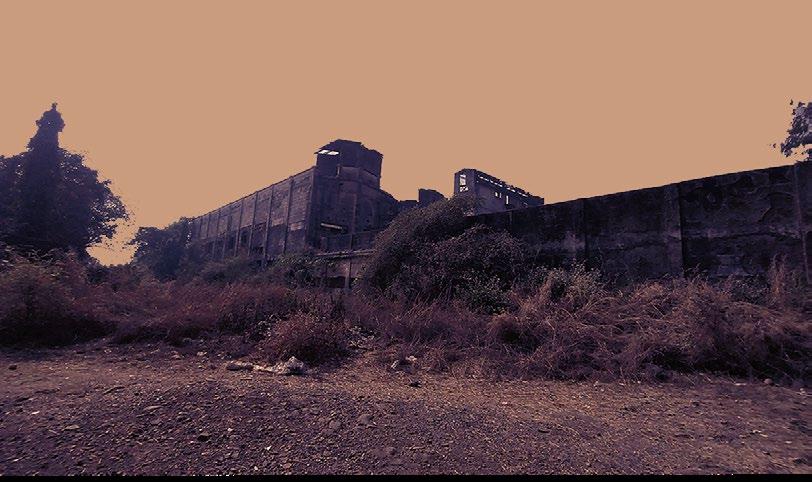

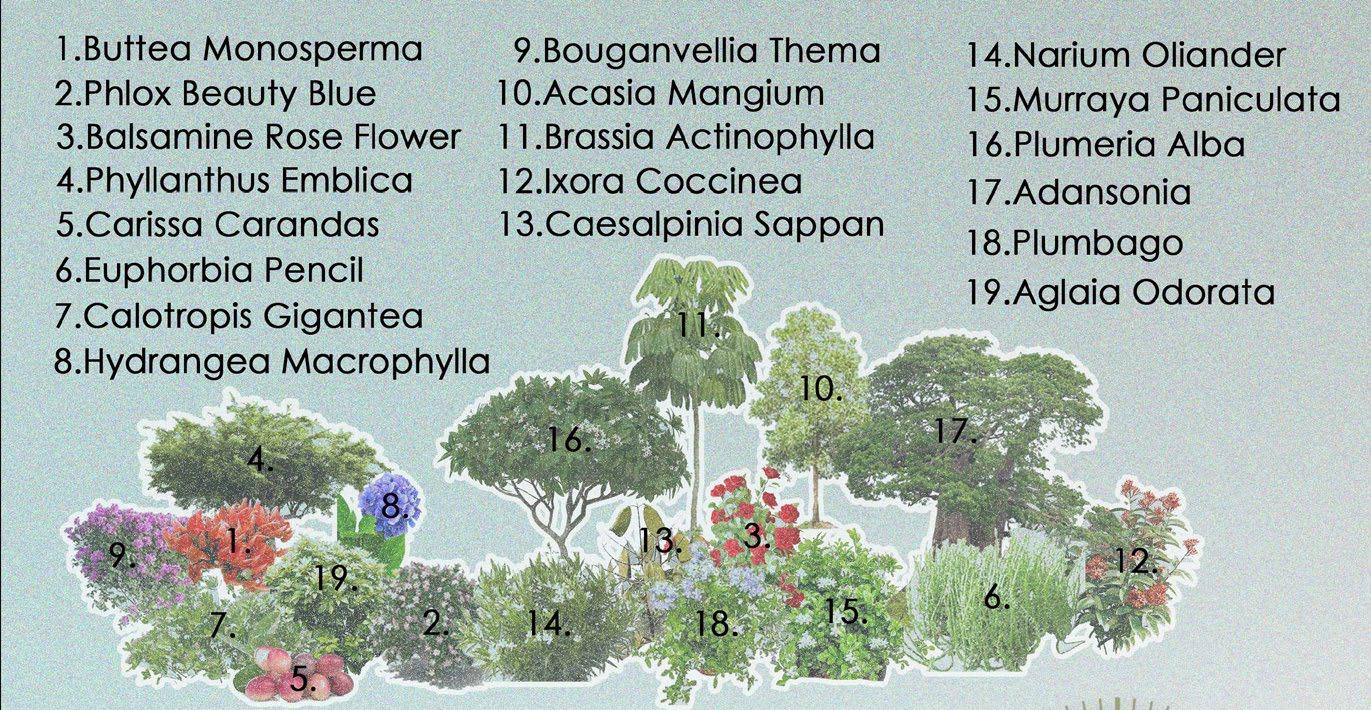

Shut down Tata oil mills site which because of neglection has a dense amount of marshes and its own ecology formed
A single form of petal derived from the boats on which the economy of the neighbourhood depends upon. An opening is kept in between allowing the natural habitat to flourish.
This single petal is overlapped with another allowing the pedestrian flow along the periphery
Repeating the process by considering the already existing pockets which are further divided into zones

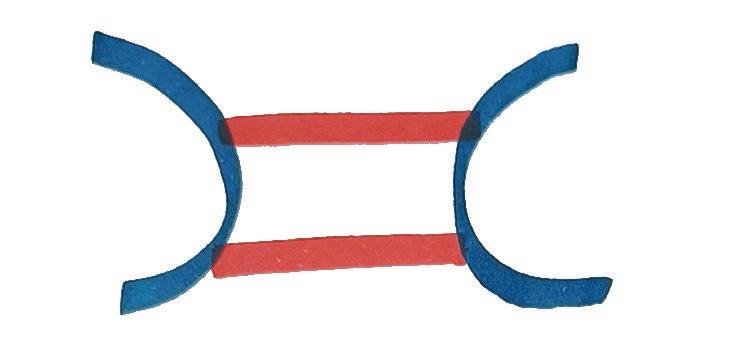

Connecting the pockets with a connector gives a feel of an avenue to the users

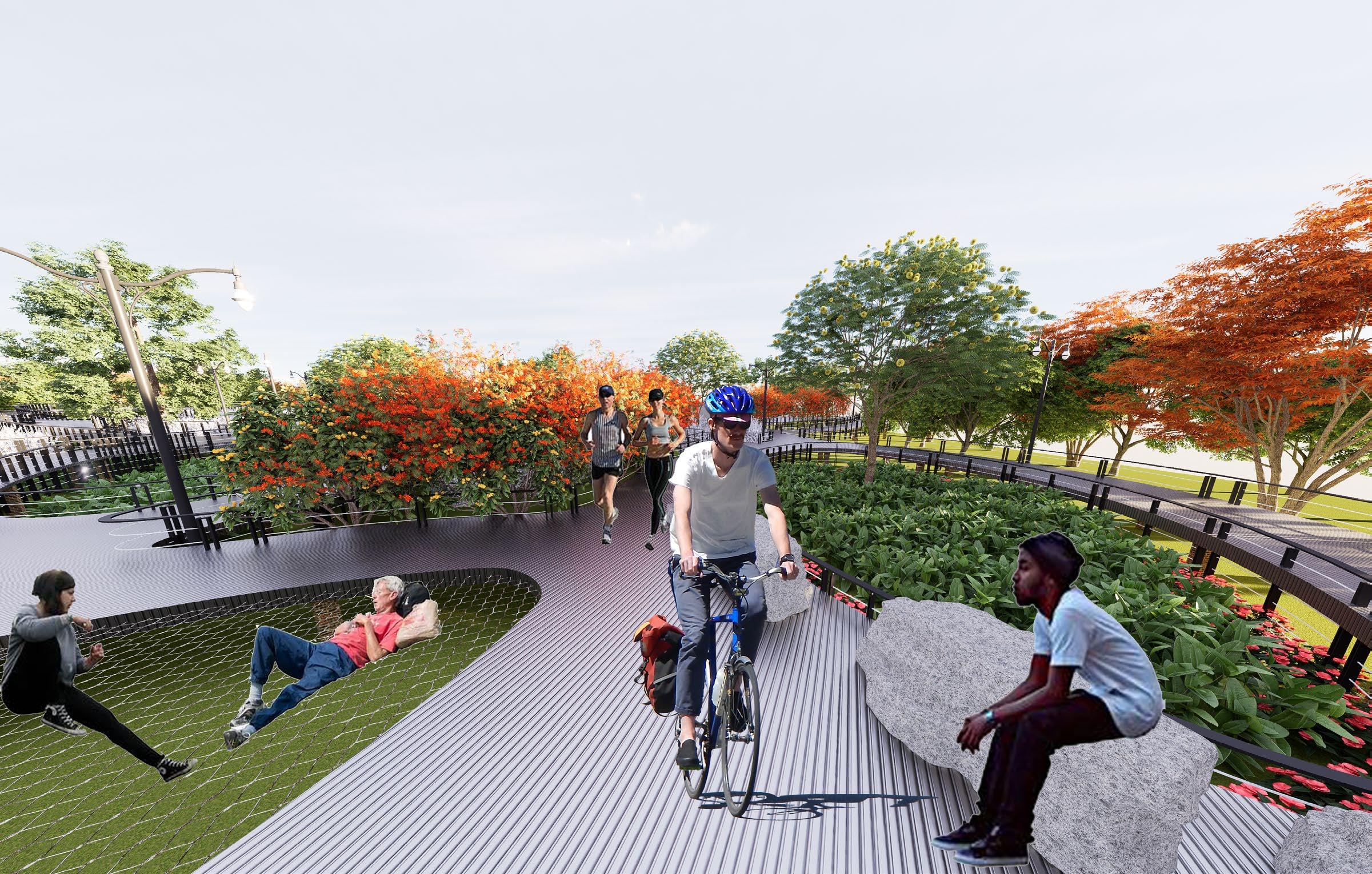

The pockets serve as cozy resting spots for users, while the surrounding pathway is designed for jogging, cycling, or enjoying the natural surroundings. This setup balances relaxation with active engagement, catering to various preferences.
Information center

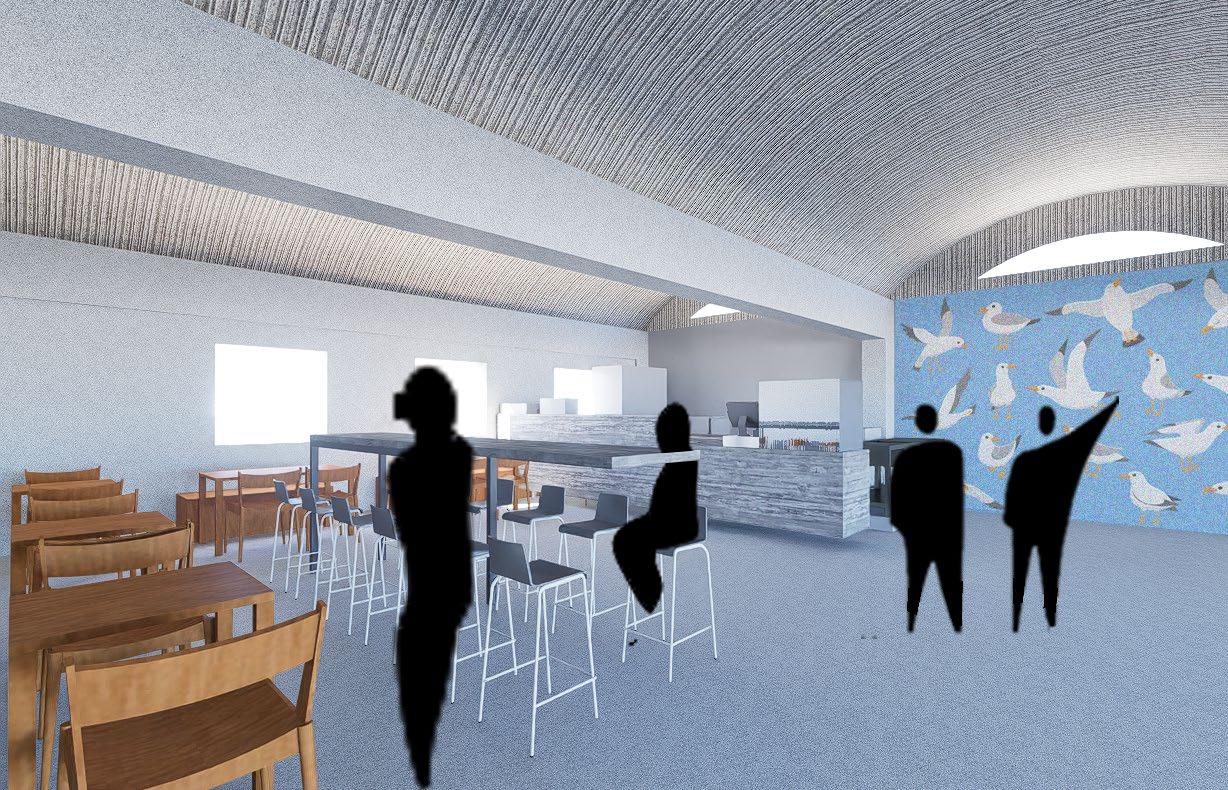

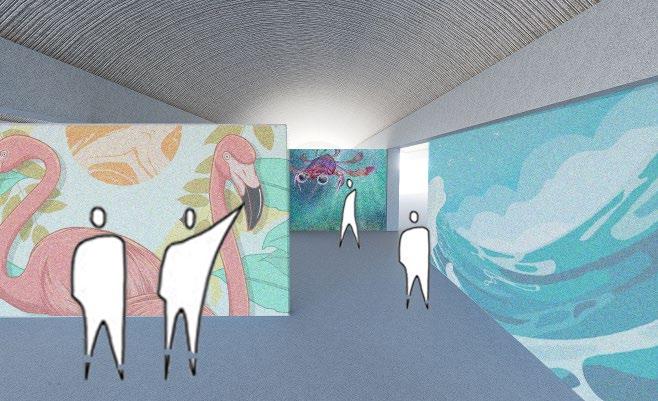

Interior View of Information center cum
Photo exhibit room

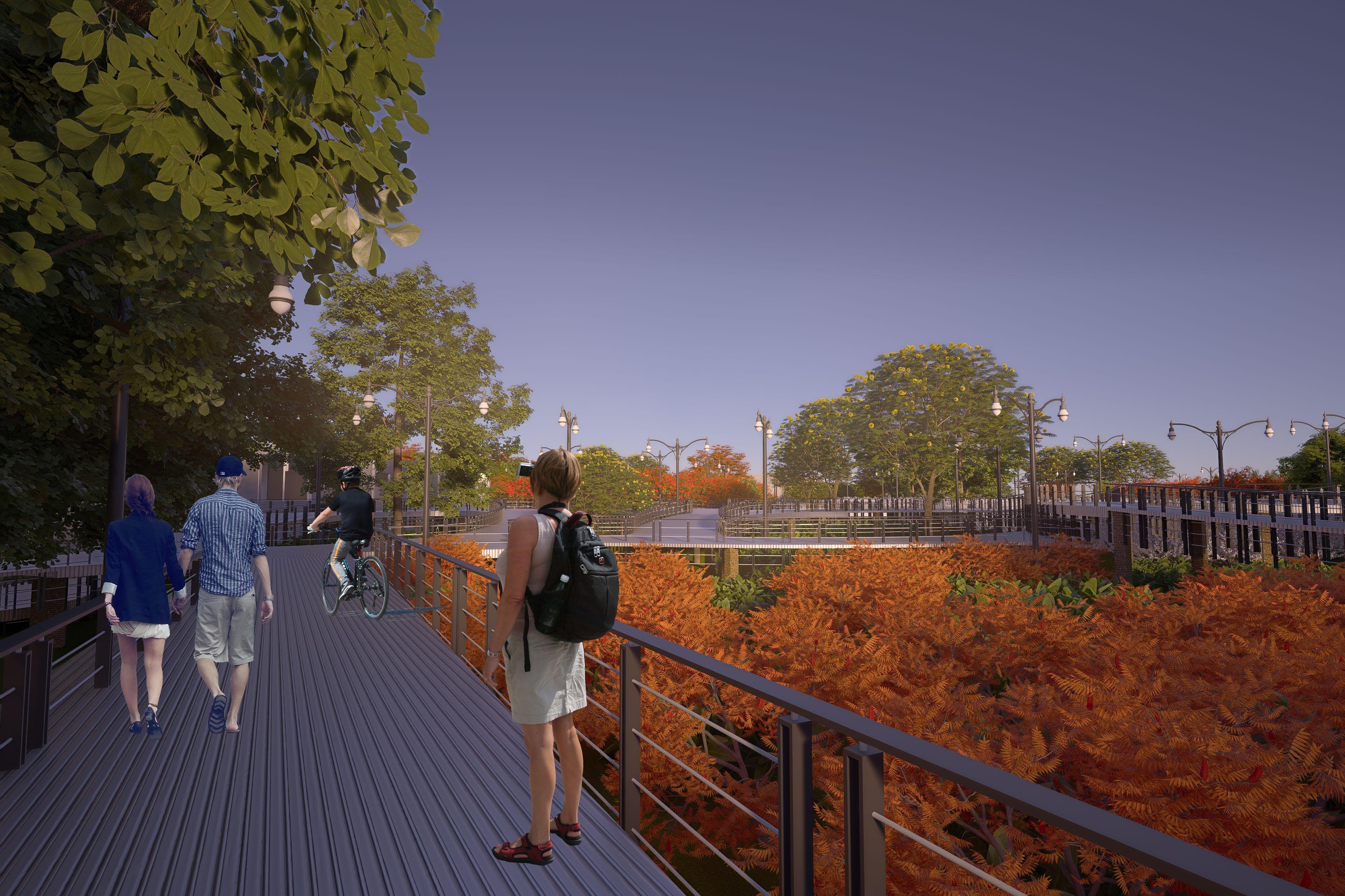

The view from the promenade offers a picturesque panorama, showcasing the users as they leisurely enjoy the expansive vistas afforded by the newly constructed decks. From this vantage point, one can see people scattered across the various levels of the promenade, savoring the fresh air and the stunning scenery. The decks, thoughtfully designed and meticulously crafted, provide an ideal setting for relaxation and reflection.

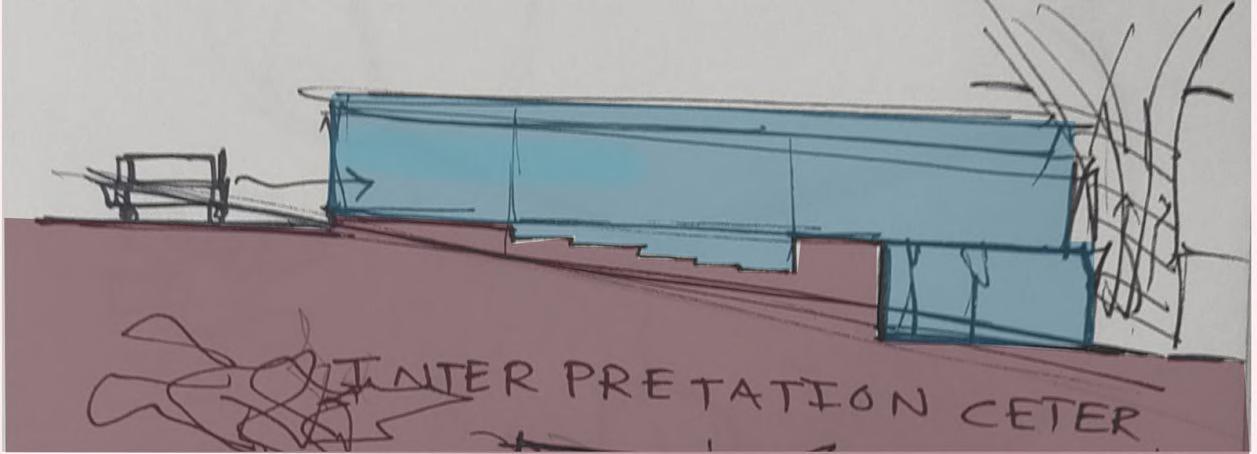

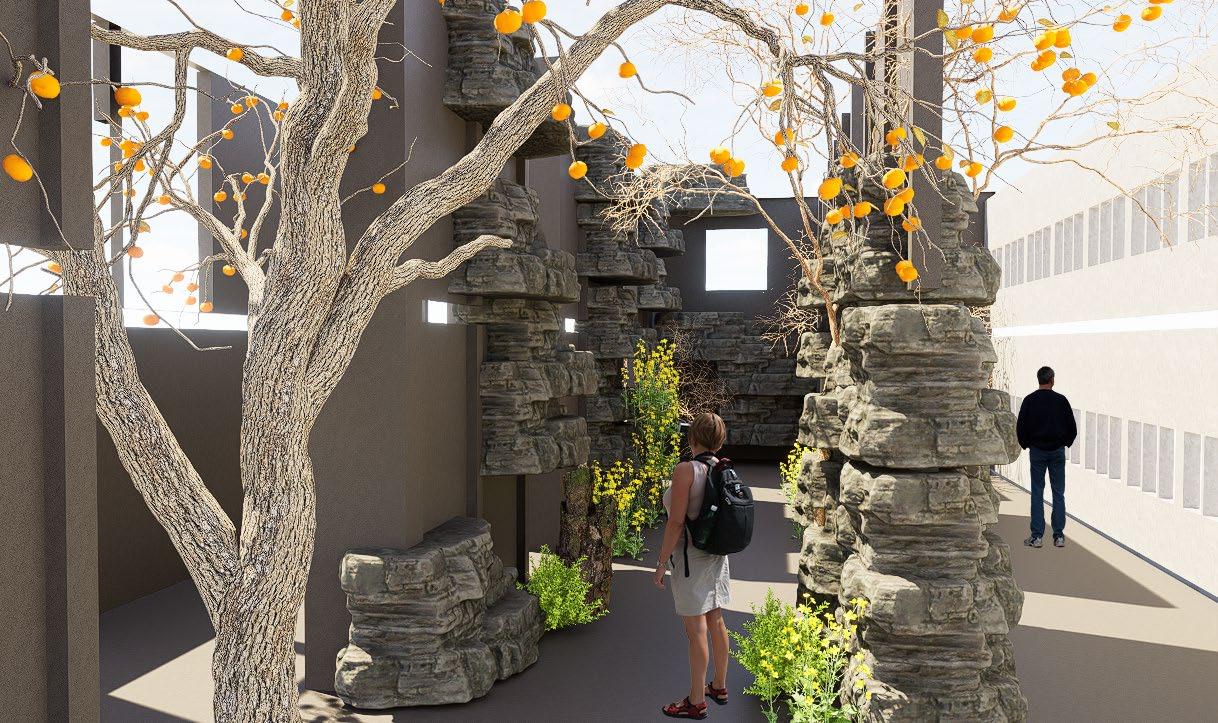

The remains of an existing structure on the site converted into an Experience center where the visitors can get a glimpse of the history

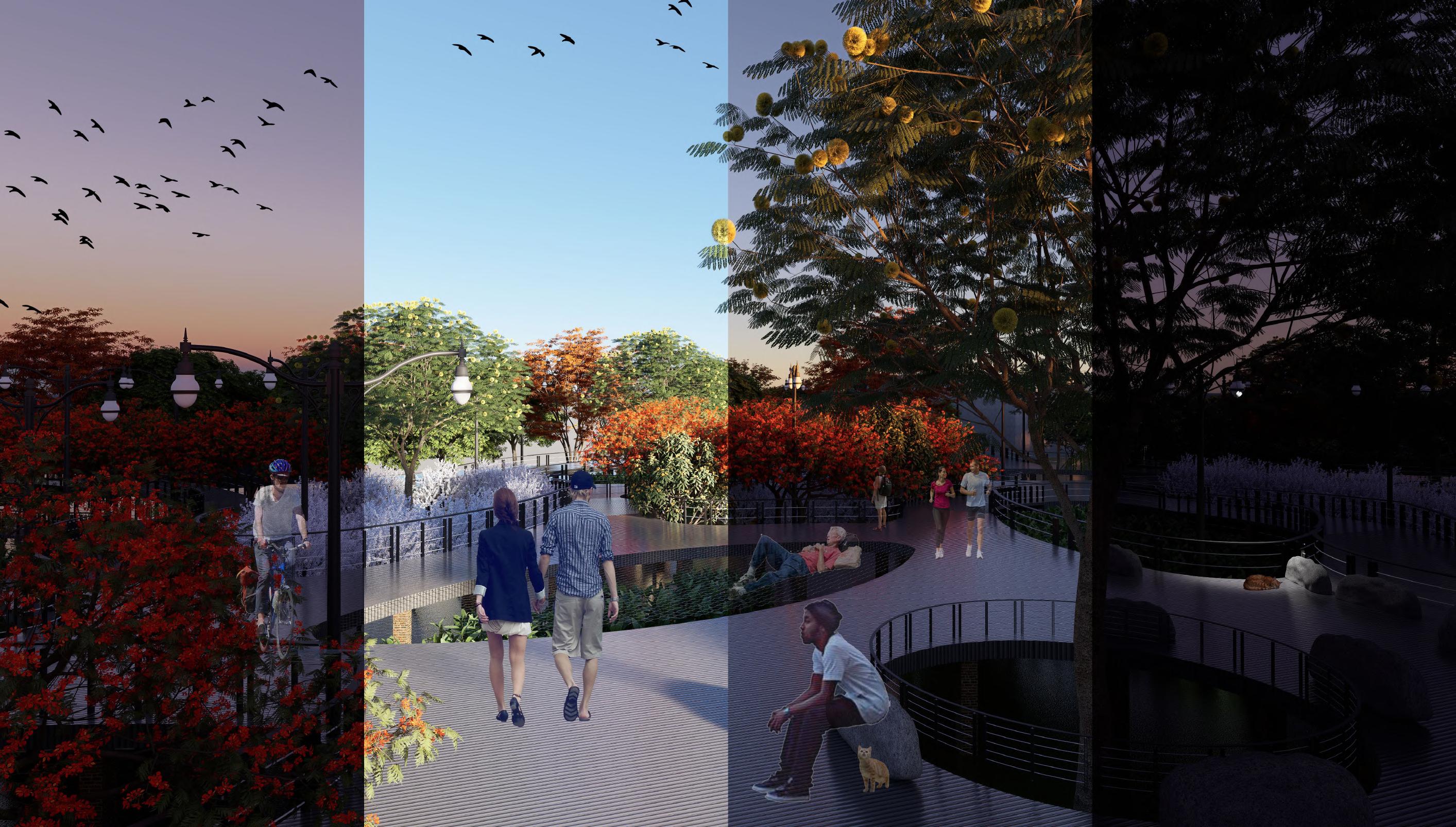

MORNING AFTERNOON EVENING NIGHT
This project presents a unique opportunity to create an architectural masterpiece that not only reflects the institute’s commitment to environmental stewardship but also harmoniously integrates with the stunning natural surroundings of the Western Ghats.
Dandeli, a region celebrated for its lush landscapes, diverse wildlife, and vital river systems, is the chosen location for RIBEC. This area, part of the UNESCO World Heritage-listed Western Ghats, is one of the world’s most ecologically significant regions, known for its endemic species and rich biodiversity
The architectural challenge here is to create a space that embodies the principles of sustainability and ecological harmony while serving as a cutting-edge research facility. The design should seamlessly blend with the natural environment, utilizing local materials and sustainable practices to minimize environmental impact. It should also facilitate a range of functions, from advanced laboratories and research offices to educational spaces and community outreach areas.

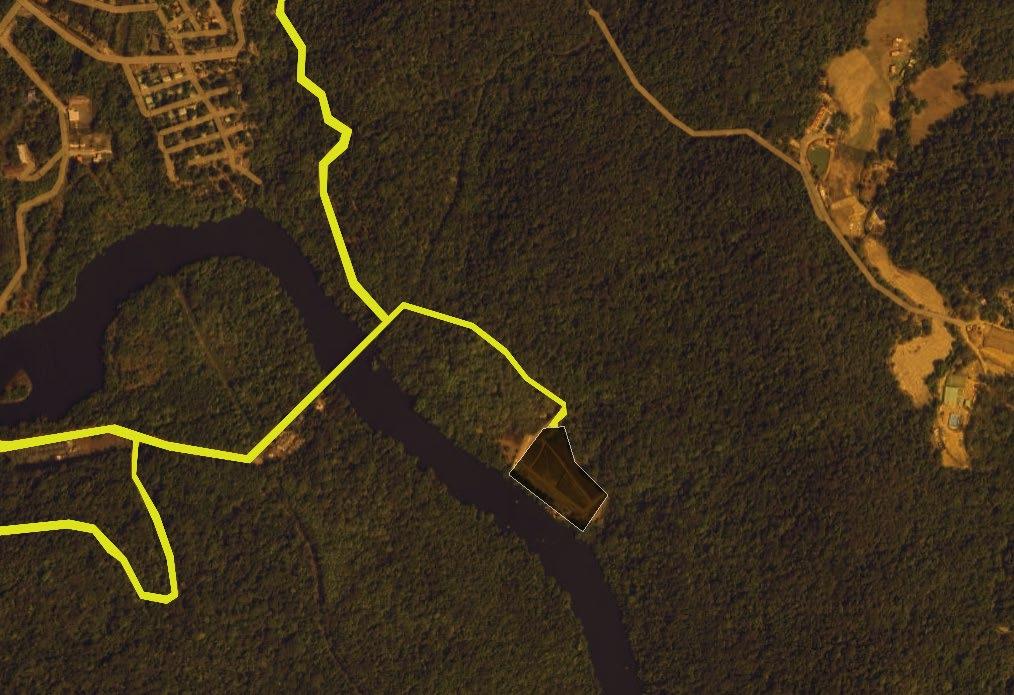

2nd largest wildlife sanctuary in Karnataka an Eco-sensitive zone.
Mode of transport to the site- Using 4 X 4 vehicles
Peak footfall seasonOctober to February
No. of researchers -10
No of Inhouse staff- 40
Visitors footfall- 100 persons per day
Climatic Conditions
Lies under Moderate Climatic zone
Average temperature - 24.4 degree celcius
Annual average rainfall - 1895 mm
Building materials extensively used for the proposed project
Bamboo and Laminated wood for the structural members and partitions
Felsite rock-Used for pavement and plinth of the spaces

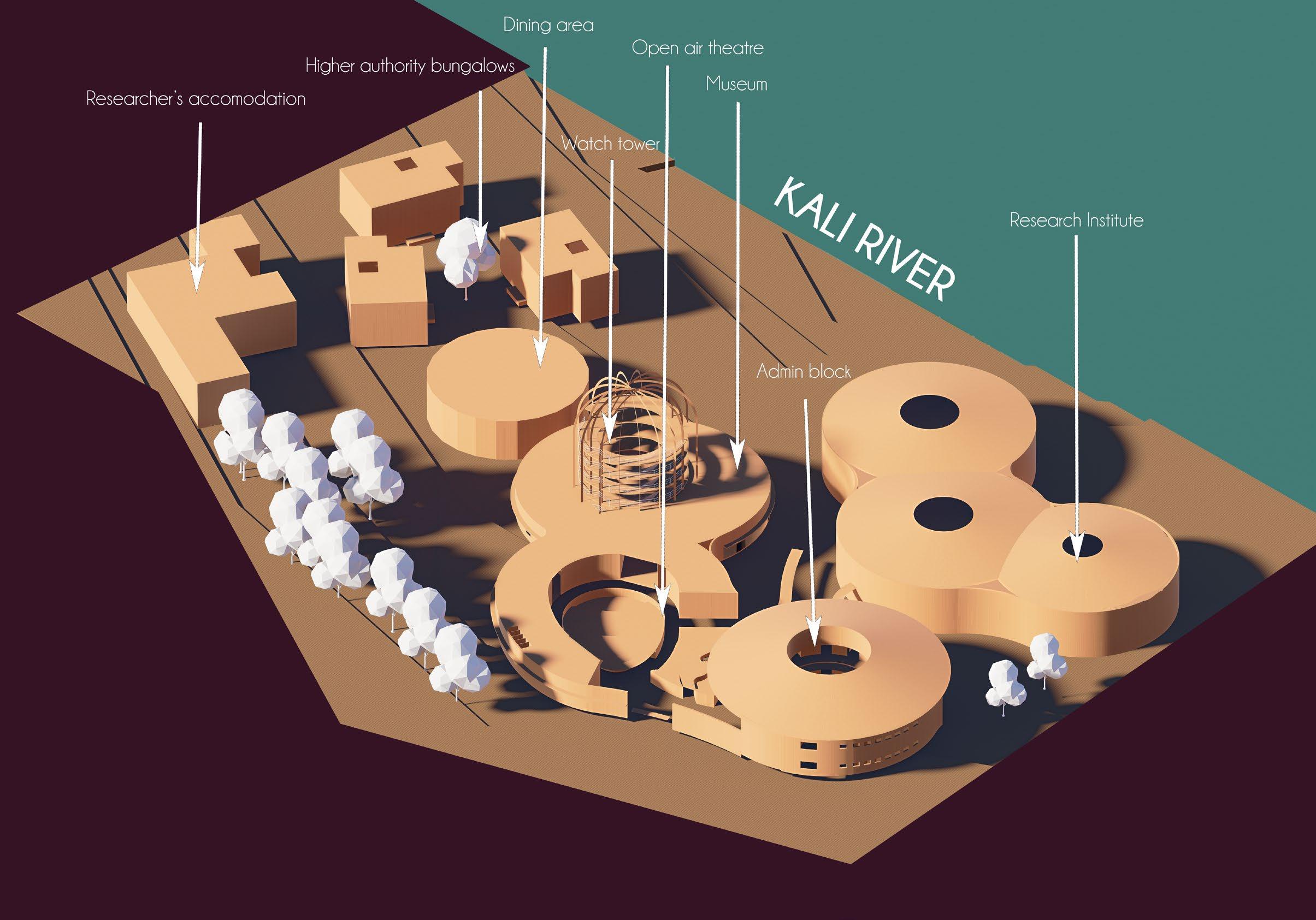

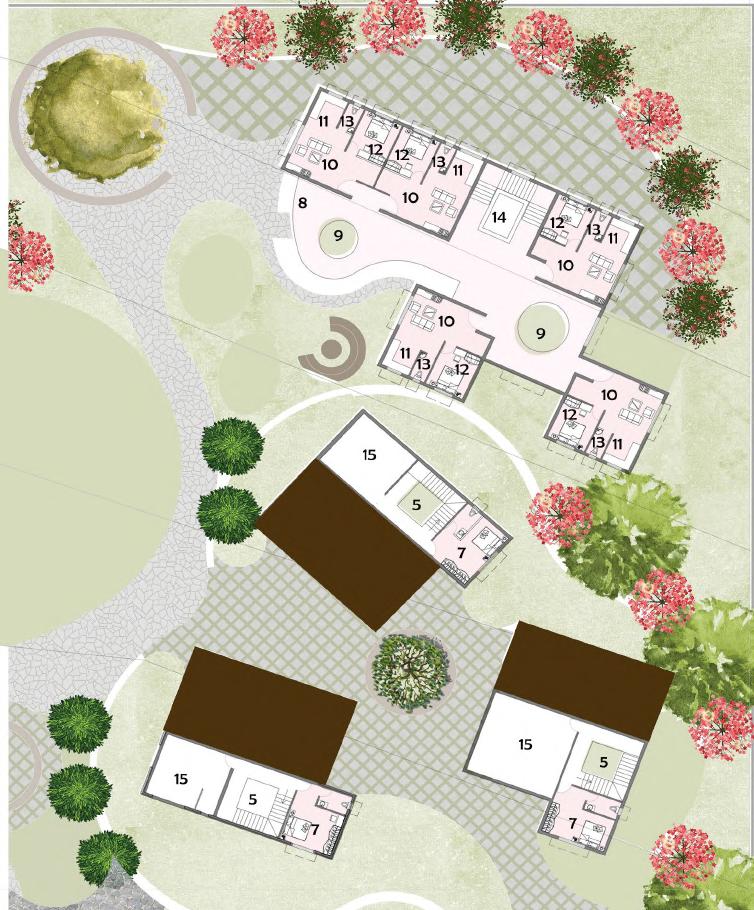

1. Entrance
2. Security cabin
3. Parking
4.Drop off
5. Service road
6. Information center
7. Administration block
8. Museum
9. Watch tower
10. Dining area
11. Conservation park

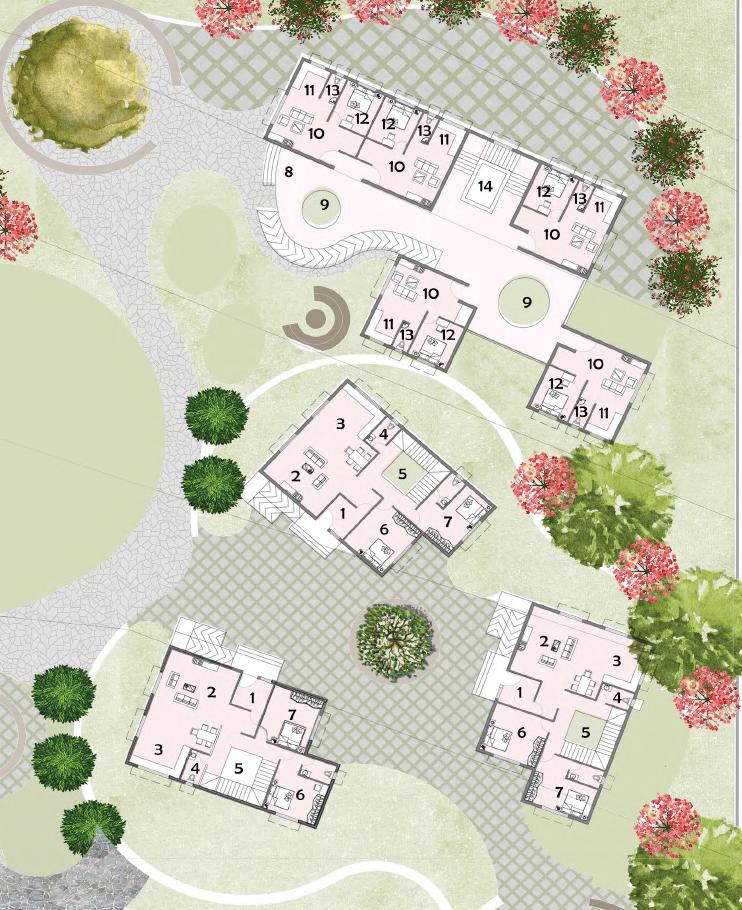

12. Researcher’s accommodation
13. Bungalows for higher authorities
14. Deck
15. Forum

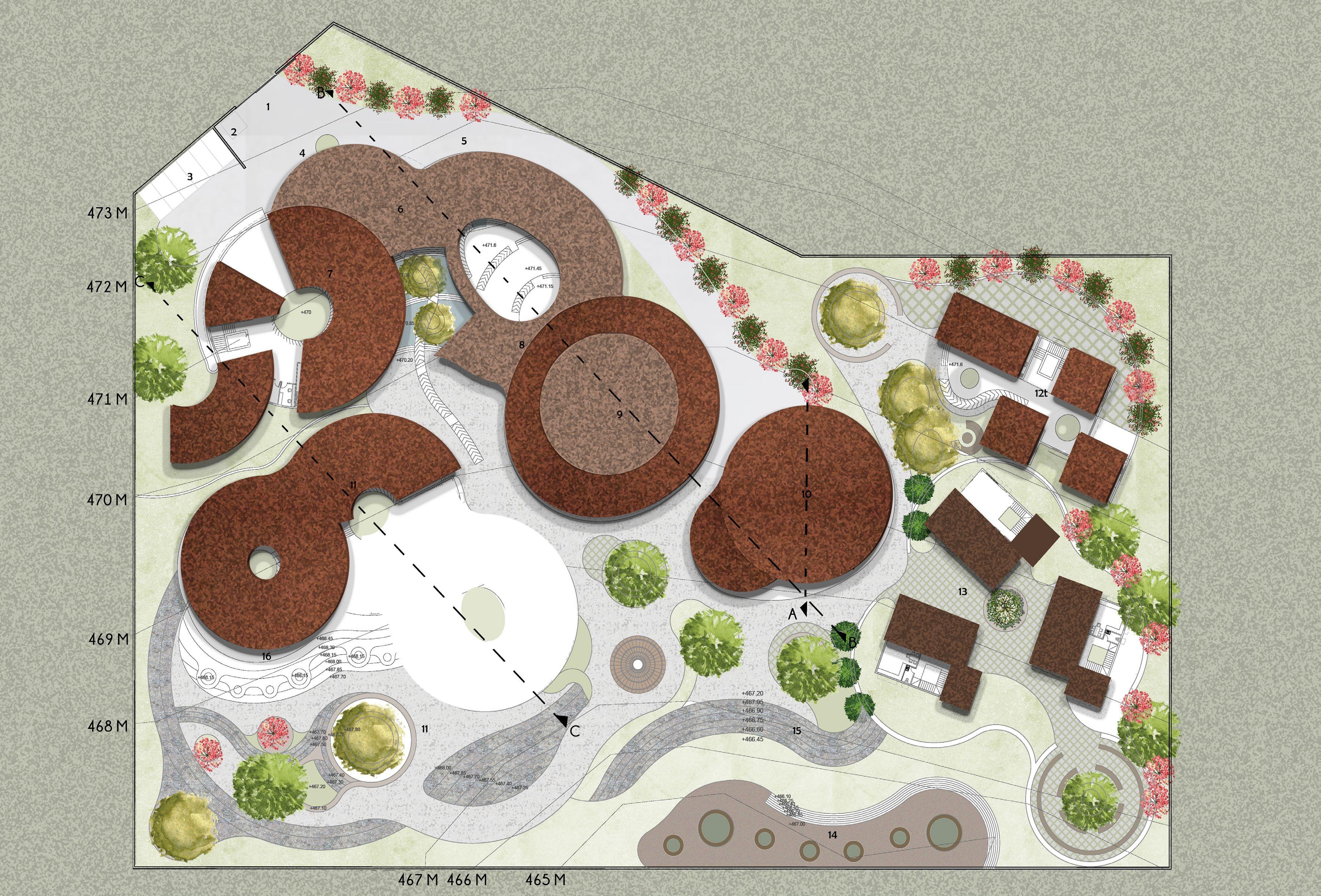

SITE PLAN AT ROOF LEVEL.
5. Staff dining
6. Toilet
7. Server room 8. Storage and record room

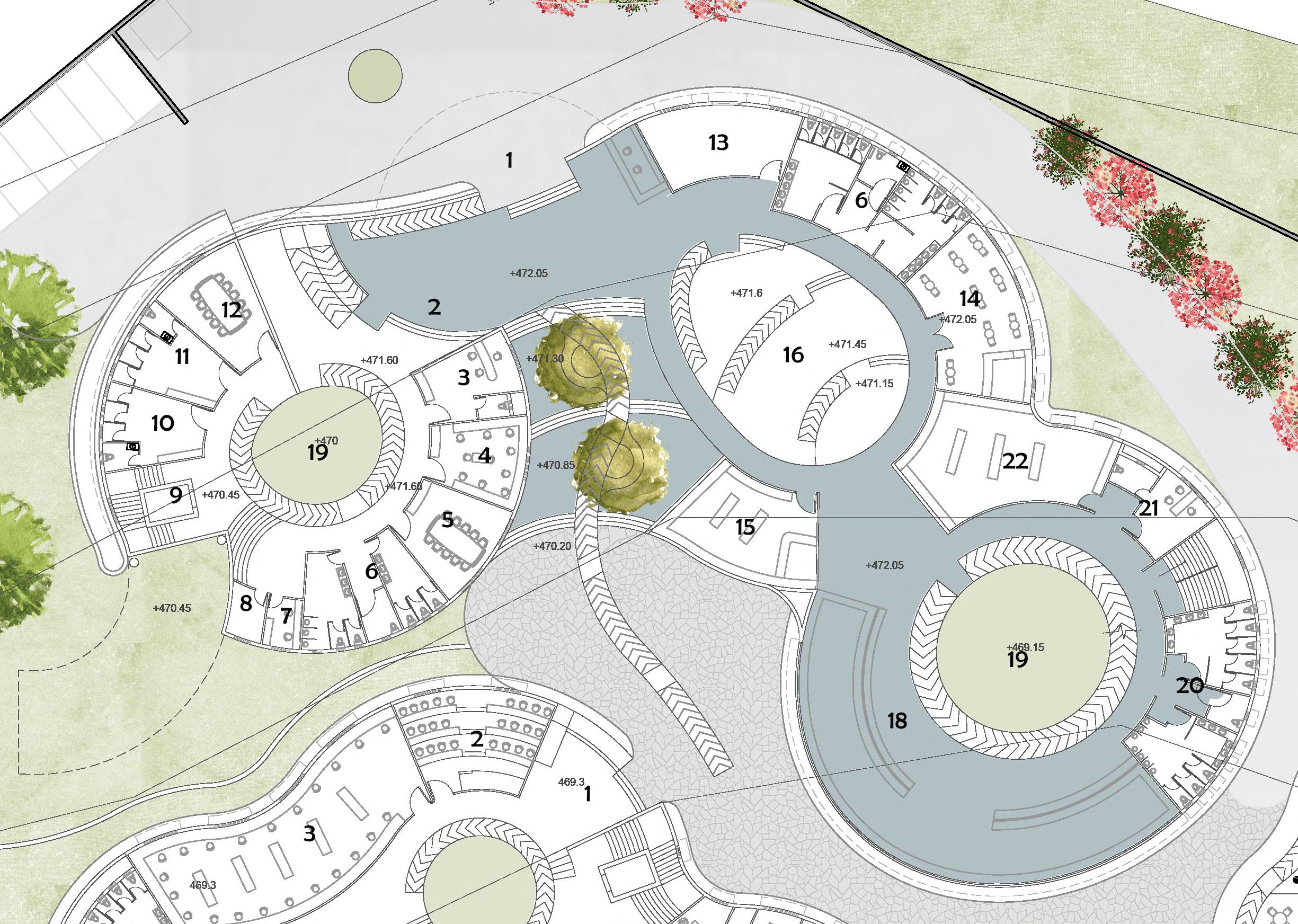

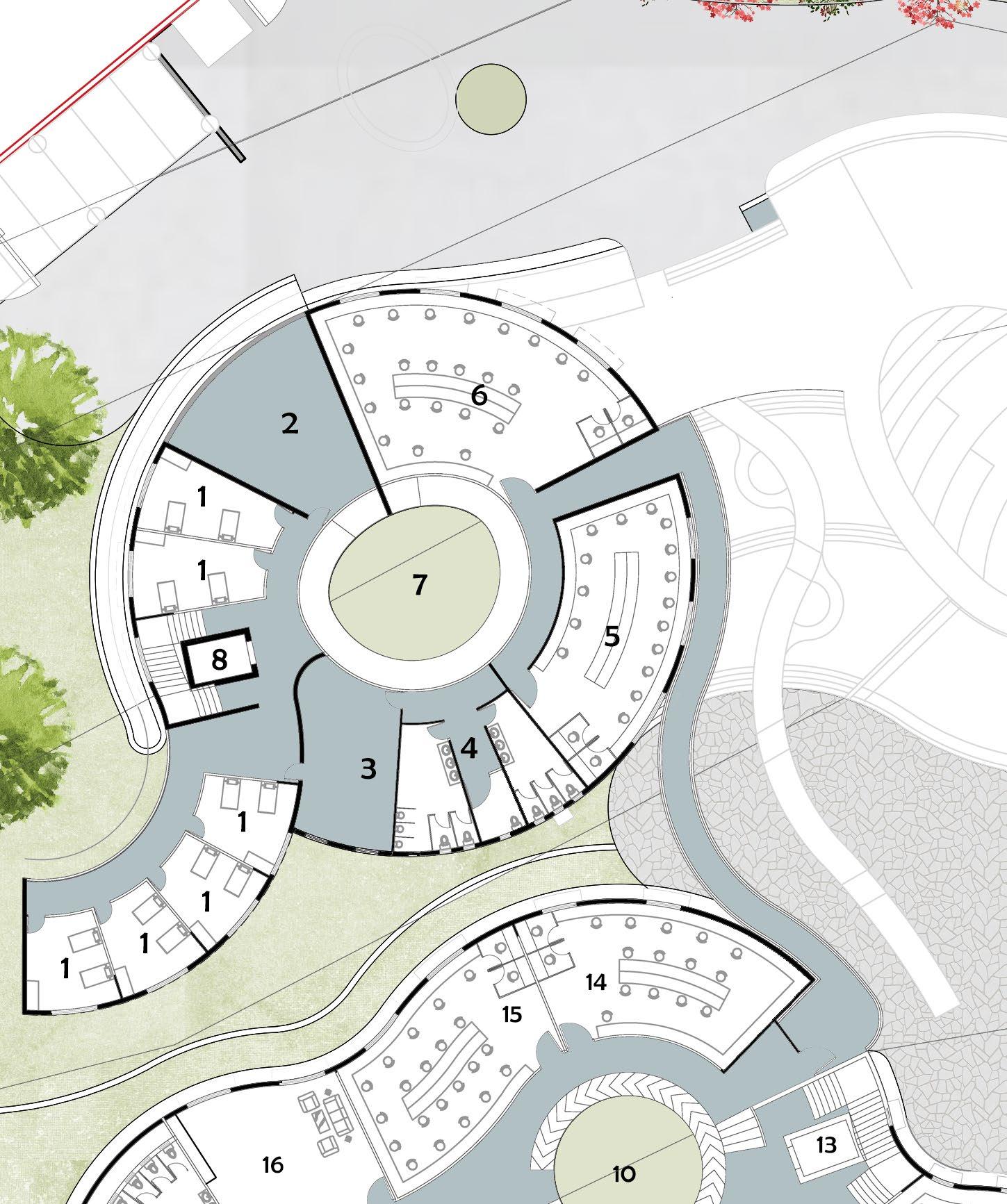

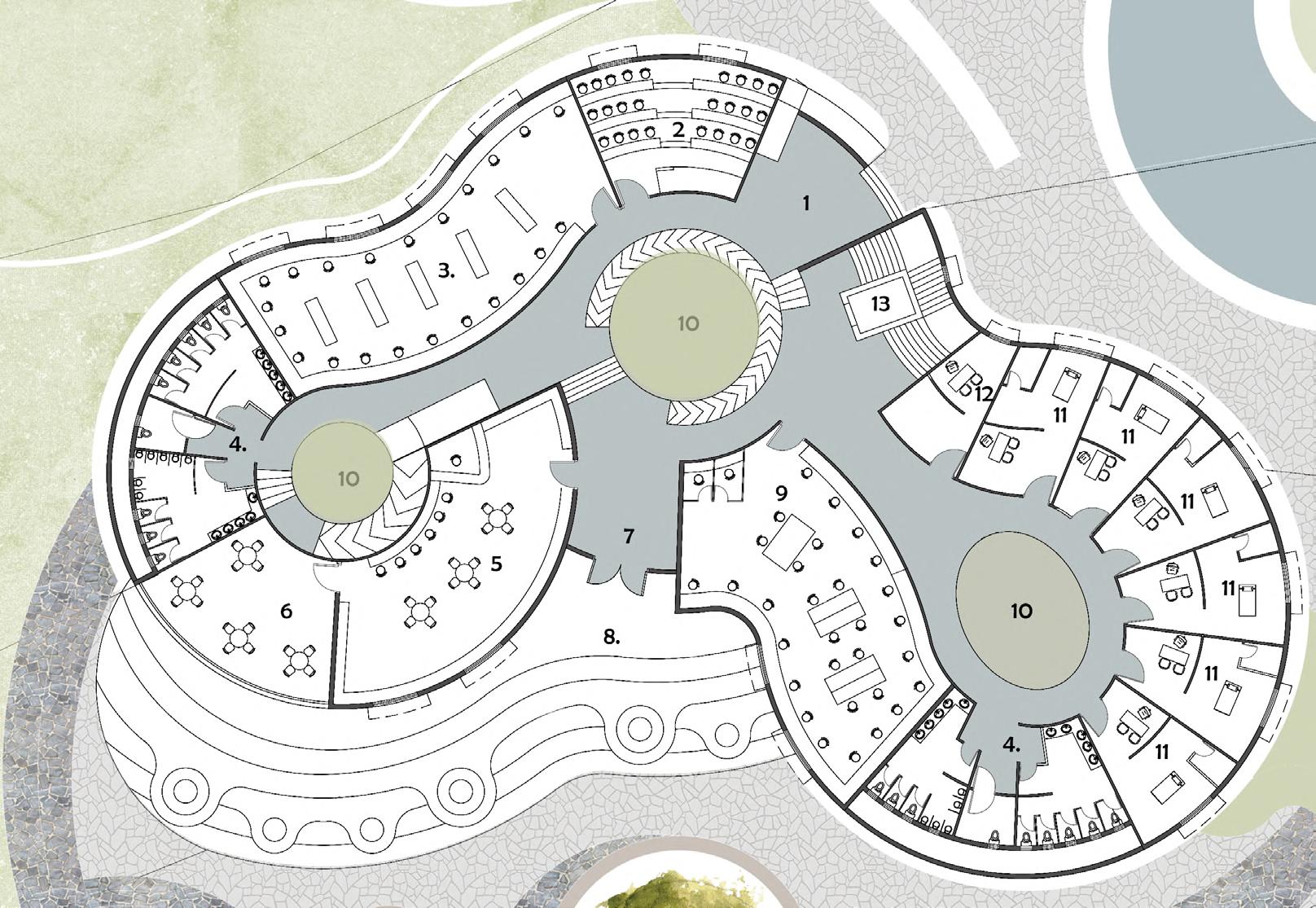

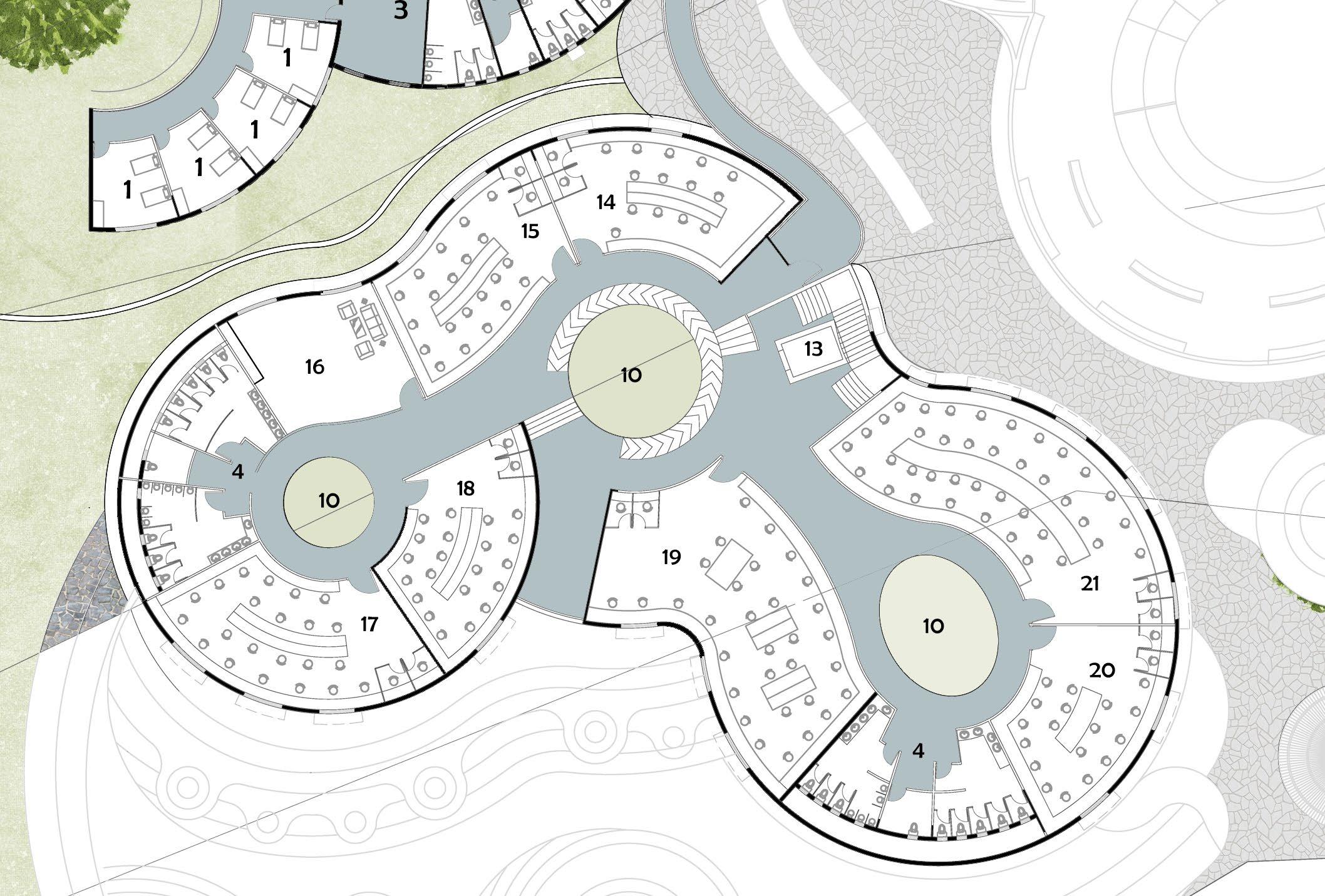

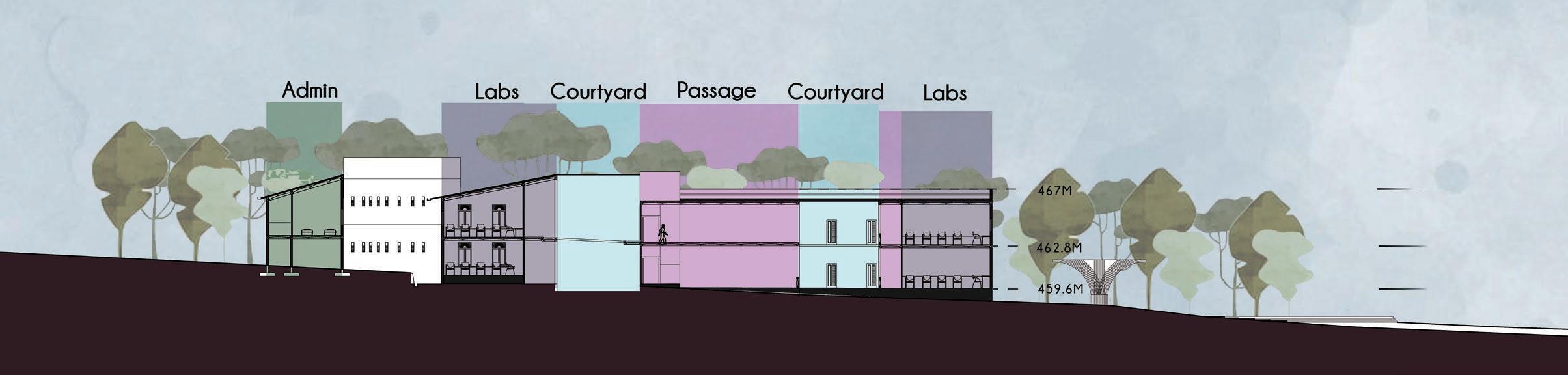

1.Entrance lobby
2. Seminar room
3. Plant herbarium
4. Toilet
5. Library
6.Open seating for library
7. Entrance to forum
8.Forum
9. Aves and birds lab
10.Internal Courtyard
11.Pre treatment area for animals.
12.Cabin for assistant veterinary
13. Lift
14. Bryophytes lab
15. Pteridophytes lab
16. Researcher’s lounge
17. Arthropoda lab
18. Gymnosperms lab
19. Fish lab
20. Angiosperms lab
21. Mammals lab

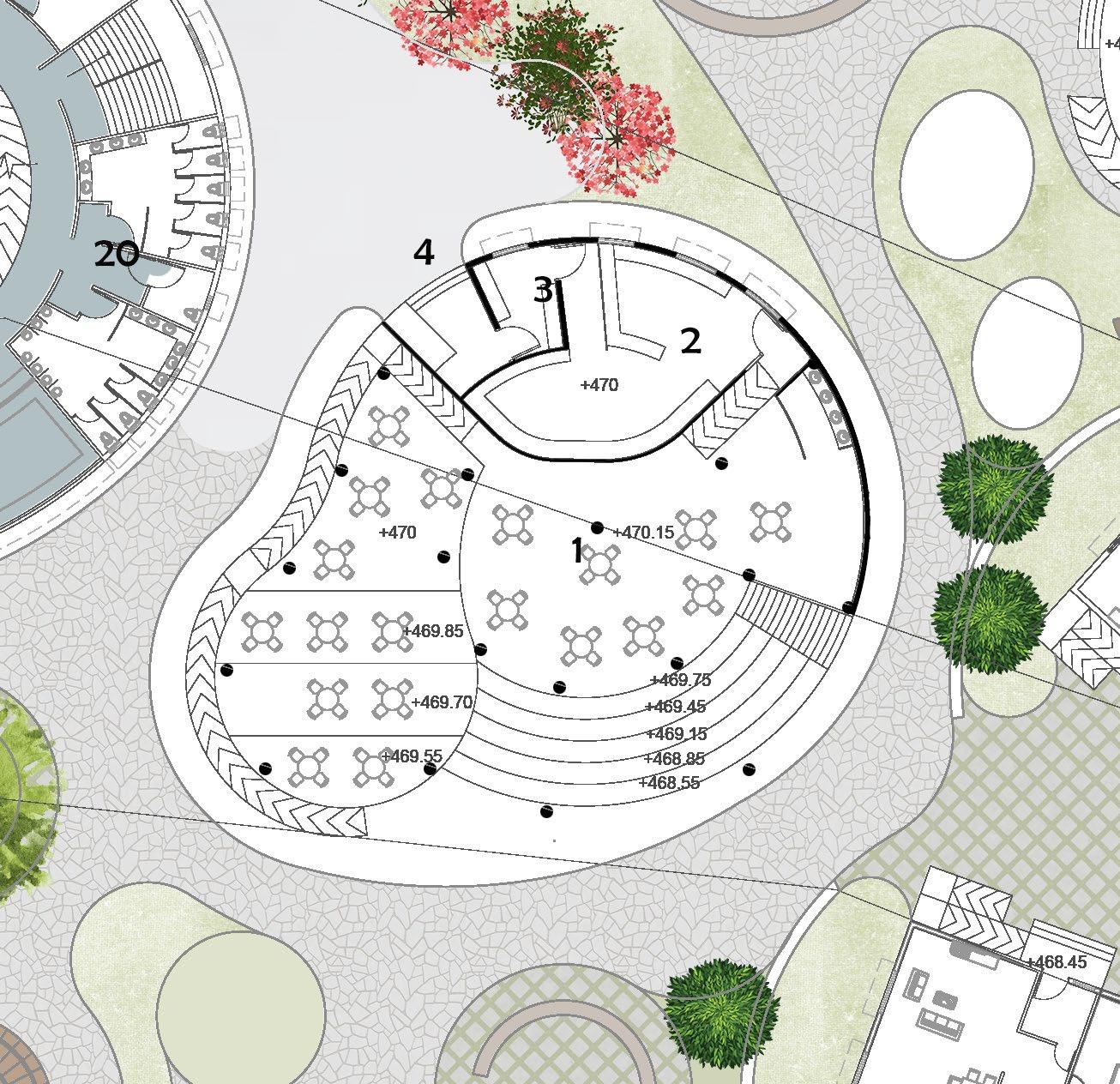

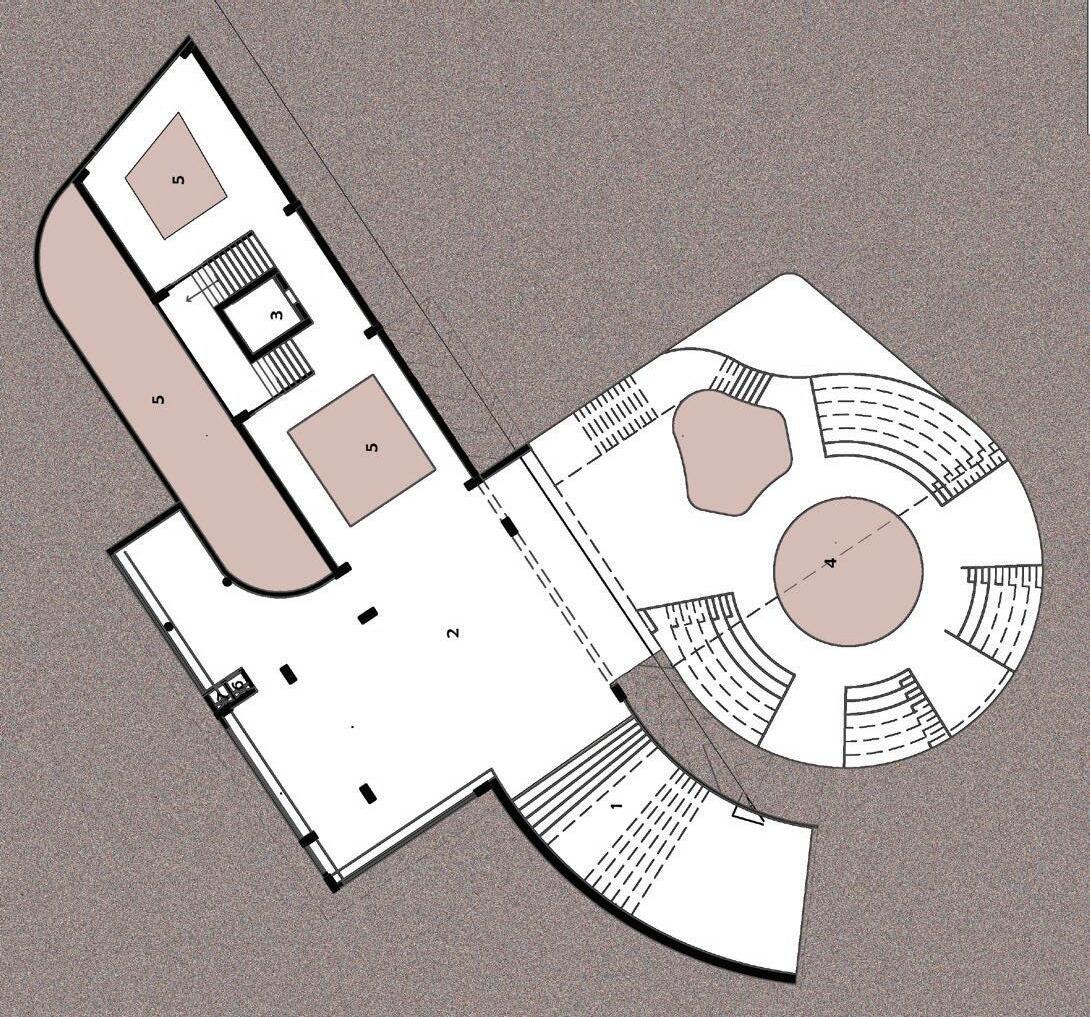

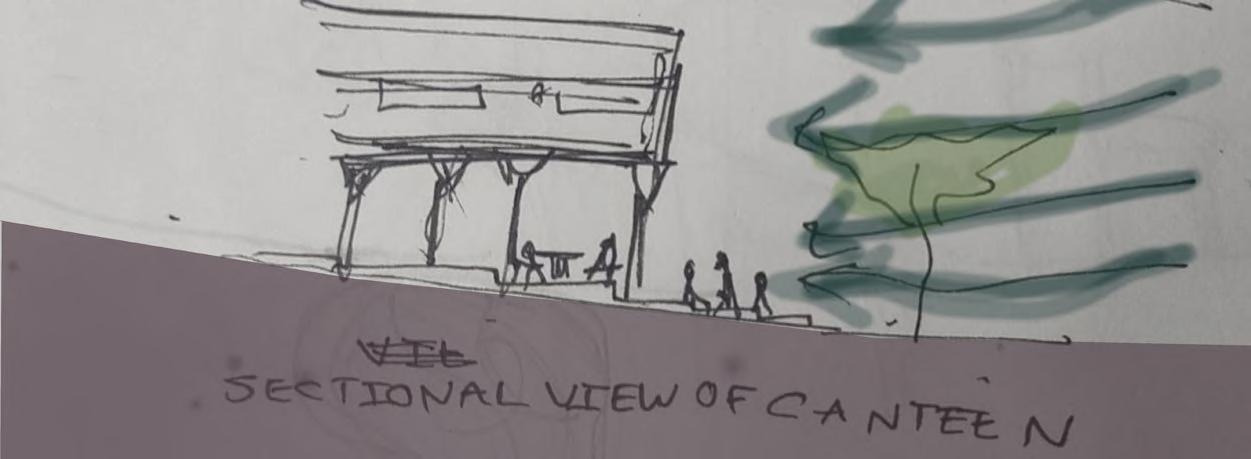

1. Seating area
2. Cooking area
3. Storage room
4. Service drop off

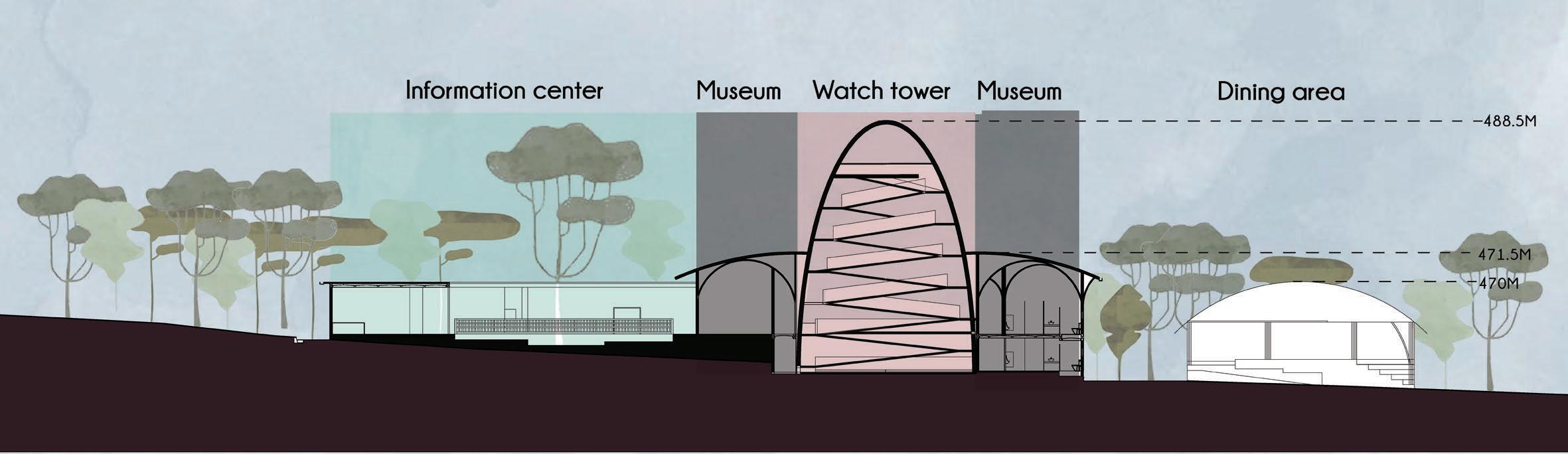

The watch tower becomes the central point of focus for the entire proposal . The watch tower is used as a mode of vertical movement for the museum. while reaching at the top of the watch tower, the ramp is also used as a photo gallery.

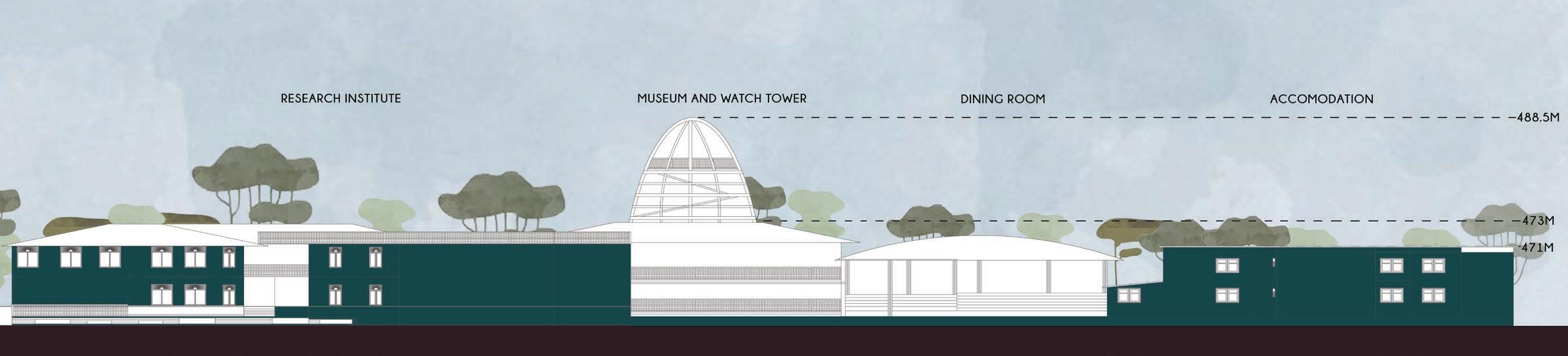

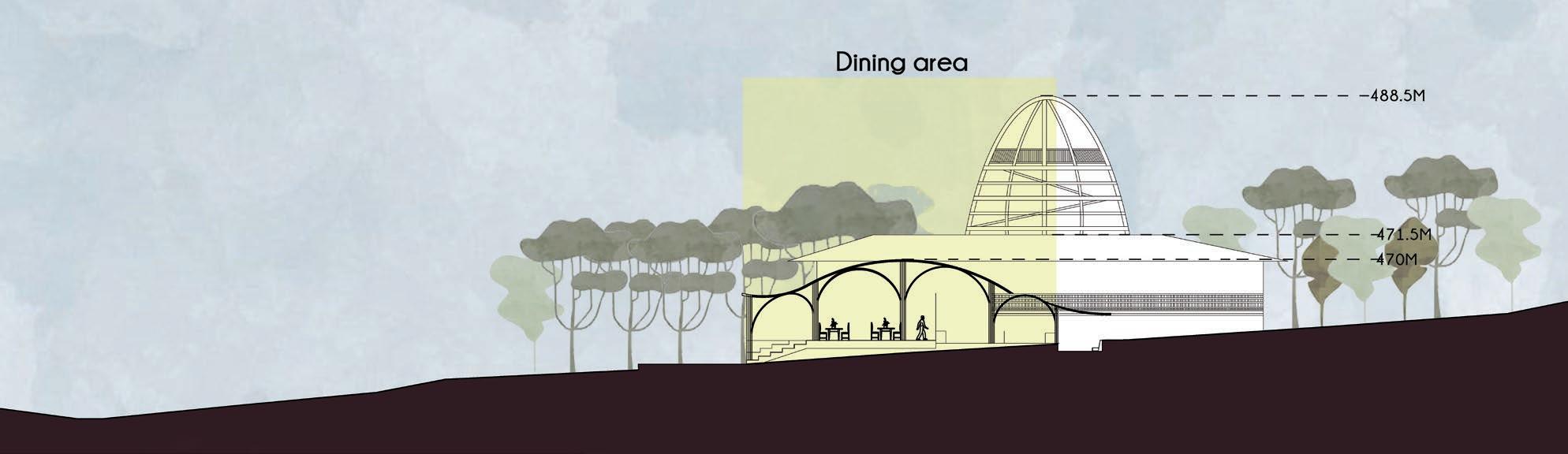

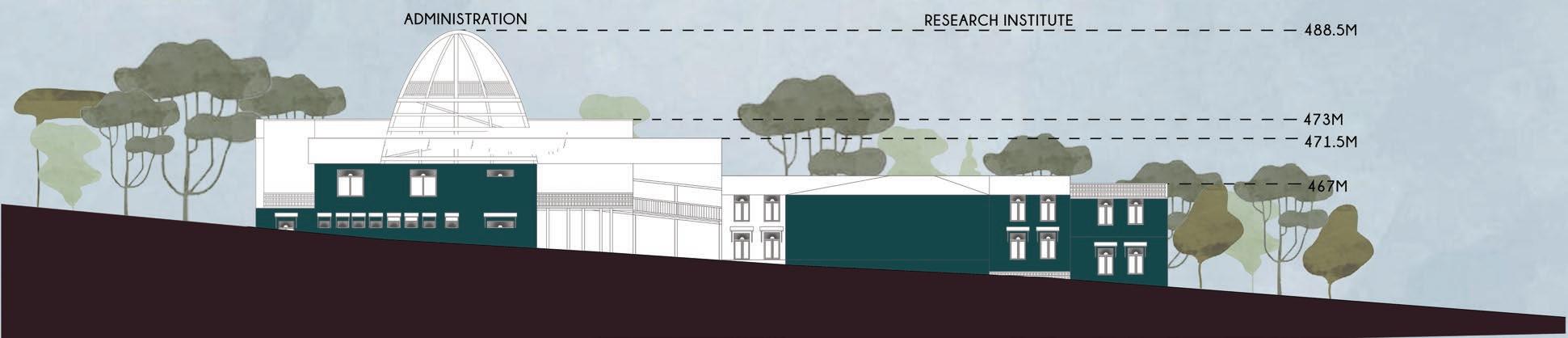

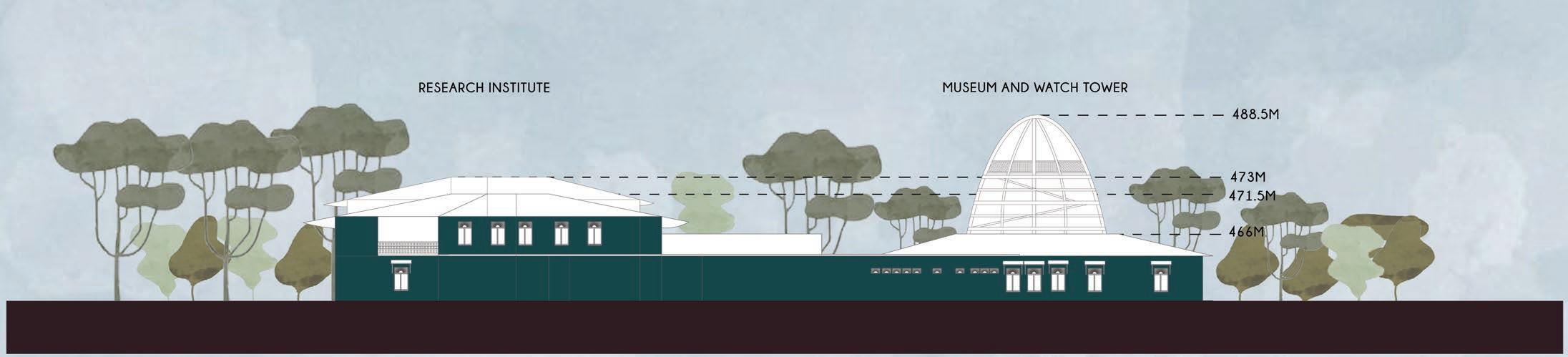

SOUTH ELEVATION
NORTH ELEVATION

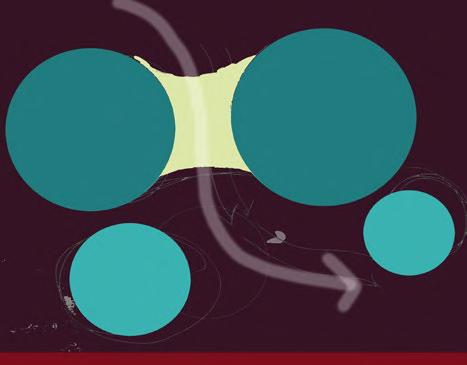

A wide Curved pathway
Introducing an overhead Bamboo bridge

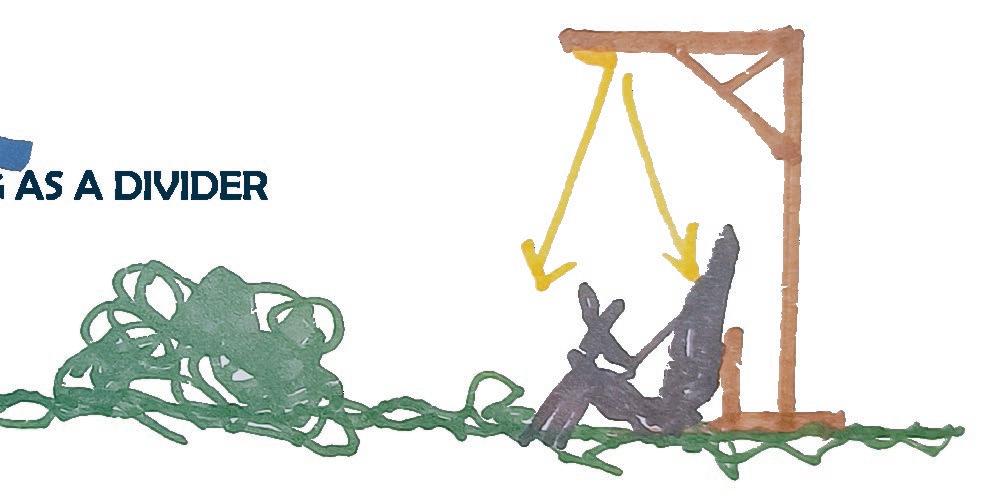

Introducing a tree to divide the passenger flow
Resting points in the accomodation zone to sit quietly

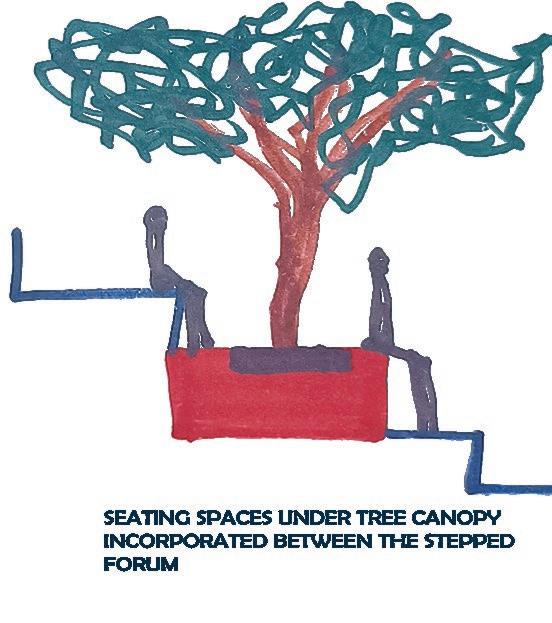

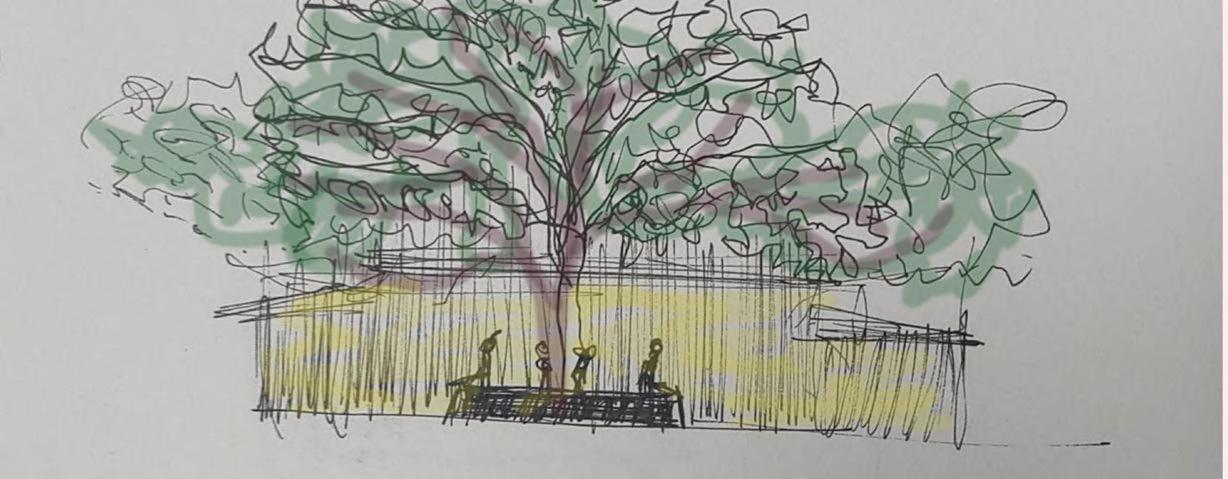

Seating spaces under tree canopy incorporated between the step forum

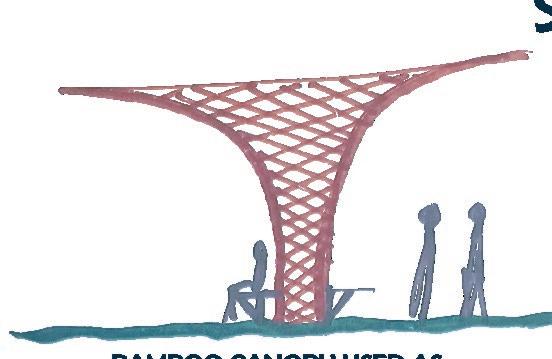

Bamboo canopy used as conservation points

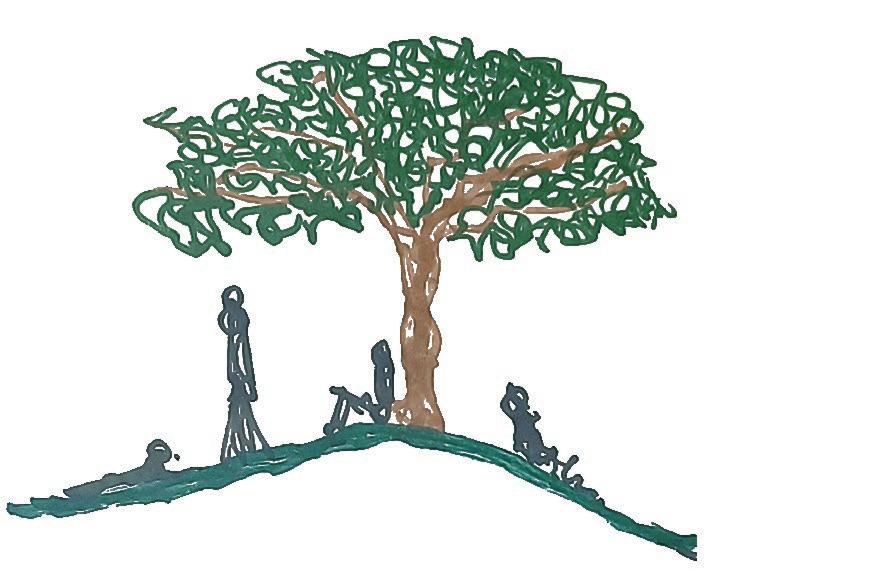

Mounds used as a spot for both socialising while with peers and having a quite time for the residing researchers

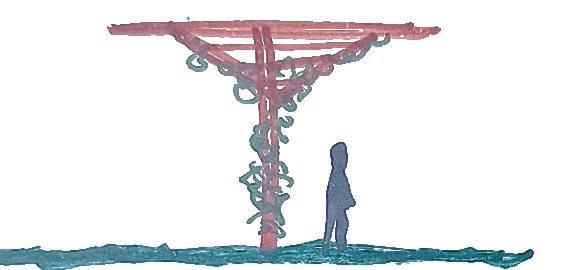

Bamboo canopy used as an element for the creepers to grow on them
COMPETITION
India’s landscape is adorned with a tapestry of architectural marvels that span centuries and civilizations. These monuments are not just physical structures; they are the living embodiments of India’s rich history, cultural diversity, and enduring legacy. As we contemplate the reimagining of these cherished treasures, we must tread carefully, for the delicate balance between preservation and innovation is our guiding principle.
This brief is a call to action, a summons to those who believe in the power of creativity to honor our past while shaping our future. In this formidable undertaking, participants are entrusted with a monumental challenge: to undertake India’s most cherished structures and monuments and reimagine/redesign them all while keeping their profound historical relevance intact within their existing locations. The selected Monument or structure could be a standalone entity or a part of any complex that has to have a positive social impact.
