REVIT

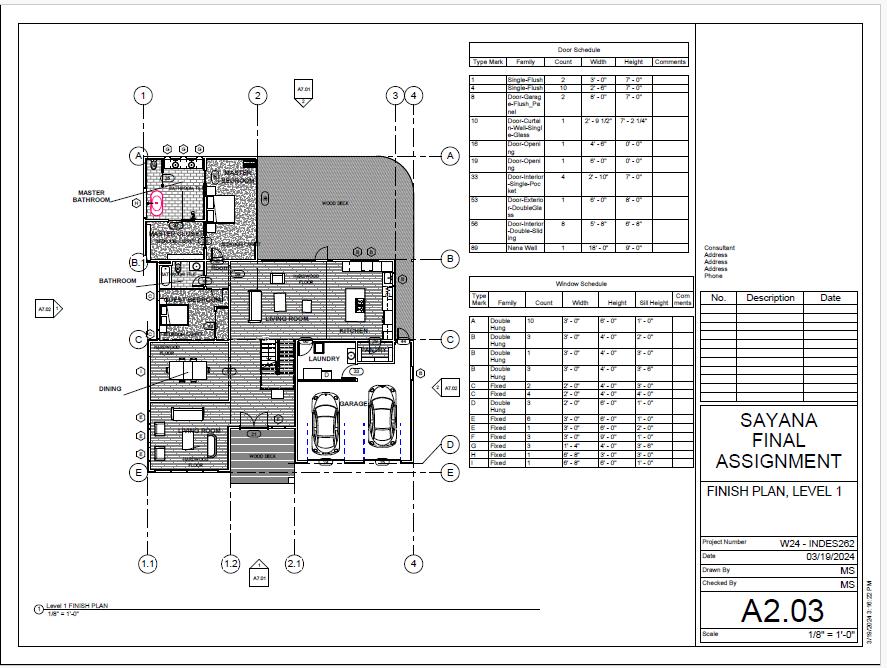

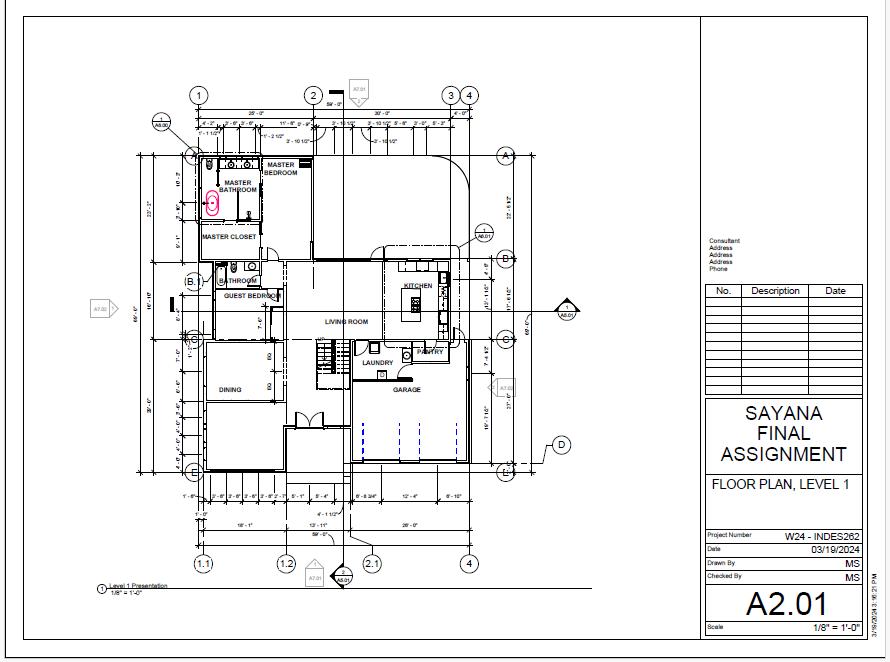

In Revit course work created Finished Floorplans, Finish plans with door and window schedules, Roof plan, Building sections, Enlarged plans, Exterior elevations, Interior elevations, Ceiling plans and 3d views. Please find examples of Floor plan and Finish plan below.
Design Intent
The Design concept is to give an illusion of shopping in a snow board pump track and give the illusion of pumping.
The Concept goes well with the purpose of the brand and will be environmentally friendly and fun for the rider to shop.
It needs to feel like you are set for snowboarding with some white shiny reflective surfaces to give the illusion of snow glittering in the sun on the mountain top.
Other Fun elements is to add metal finishes where possible like railings to feel like rustic arches.
SPACE

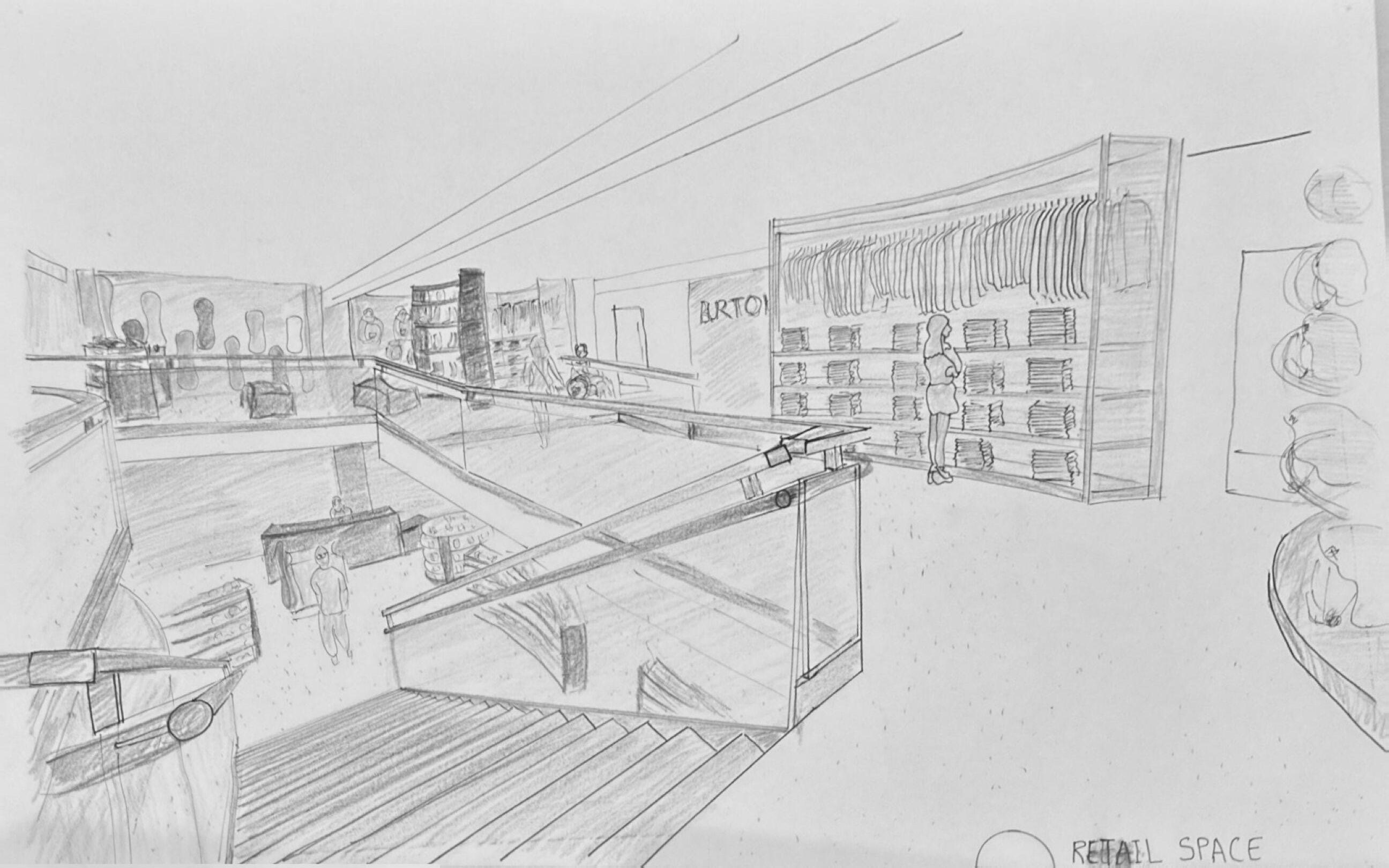

RETAIL

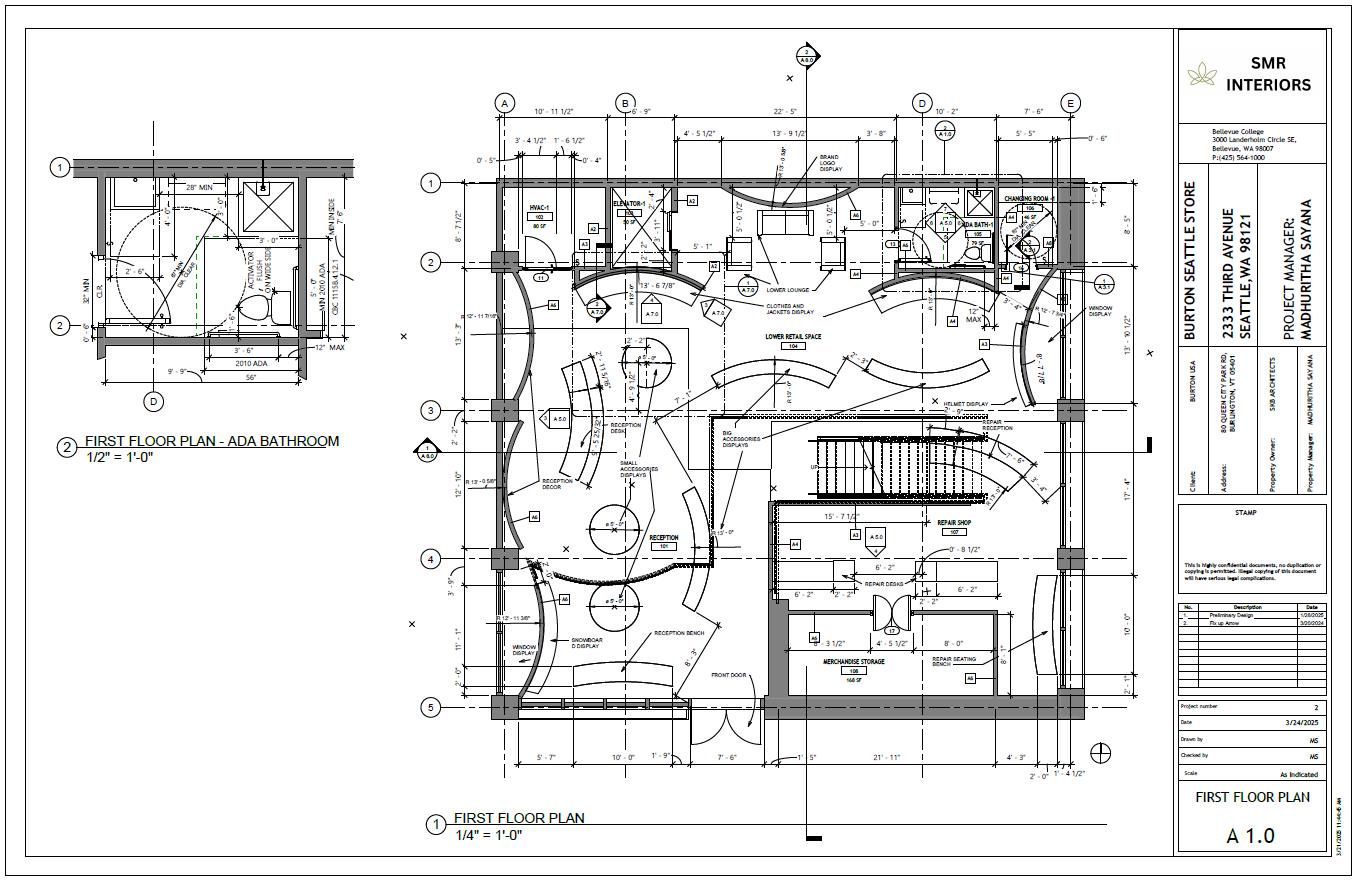

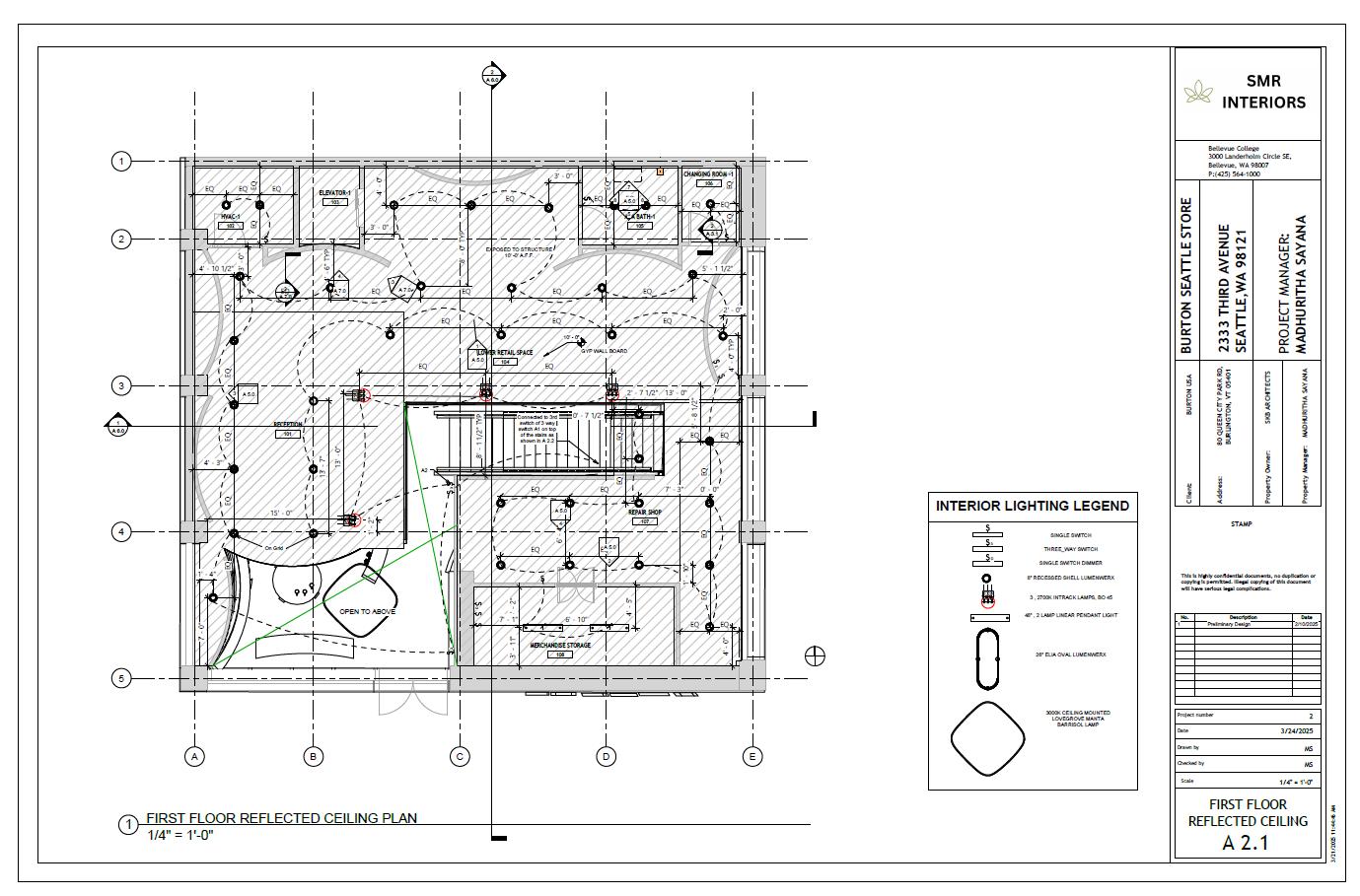

BURTON RETAIL STORE REVIT PLANS
HAVEN
A SAFE AND SUPPORTIVE COMMUNITY FOR YOUTH
Design Intent
The design concept is to make people feel that they are attending a fun event in the neighbourhood which feels inviting. It needs to be a place where everyone is free to express themselves.
A place where people don’t feel obligated to go but want to go to socialize ,build relationships,make connections, share contacts and aquire resources.

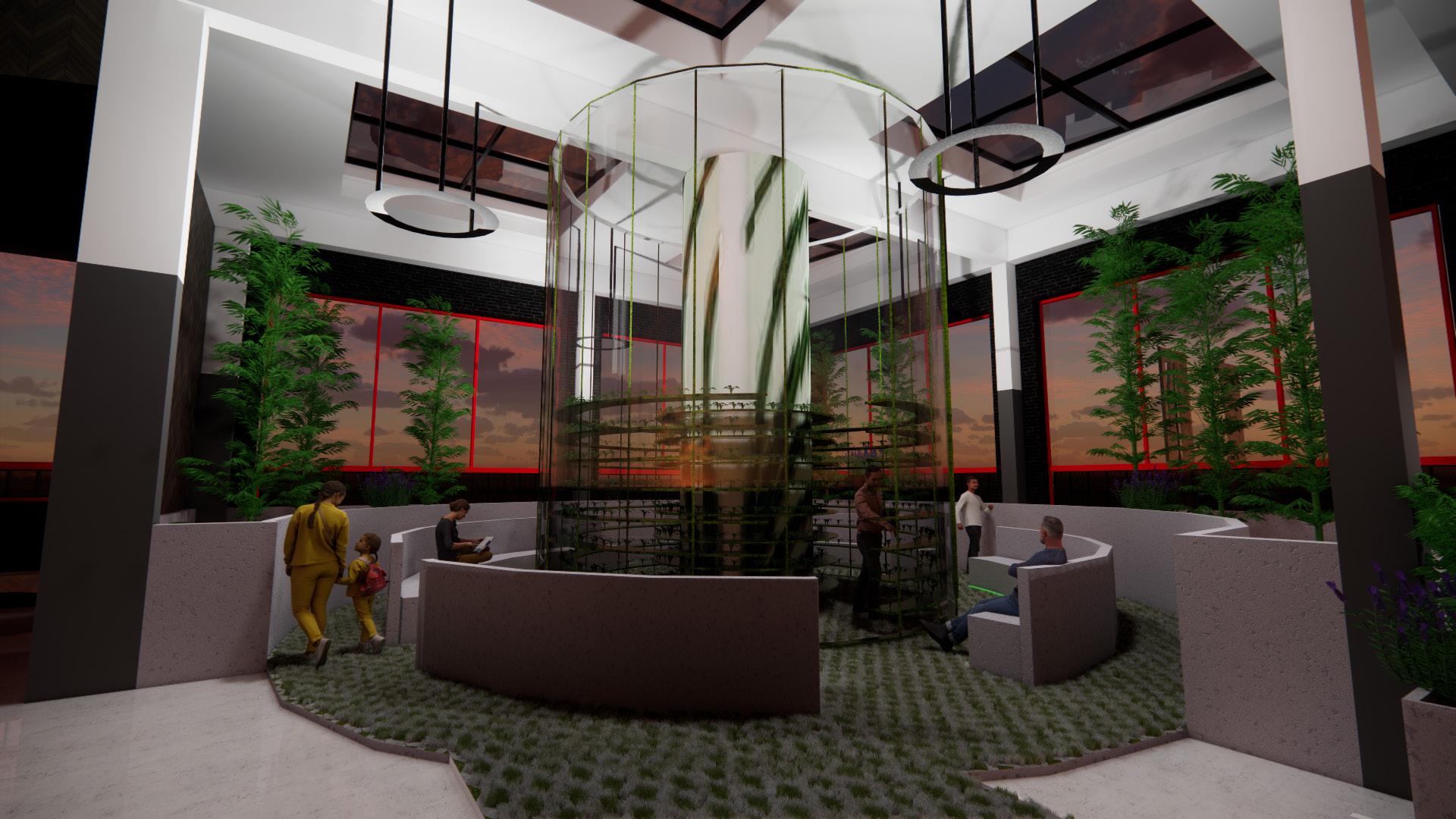

COMMUNITY GREEN HOUSE
DIPTIQUE
Design Intent

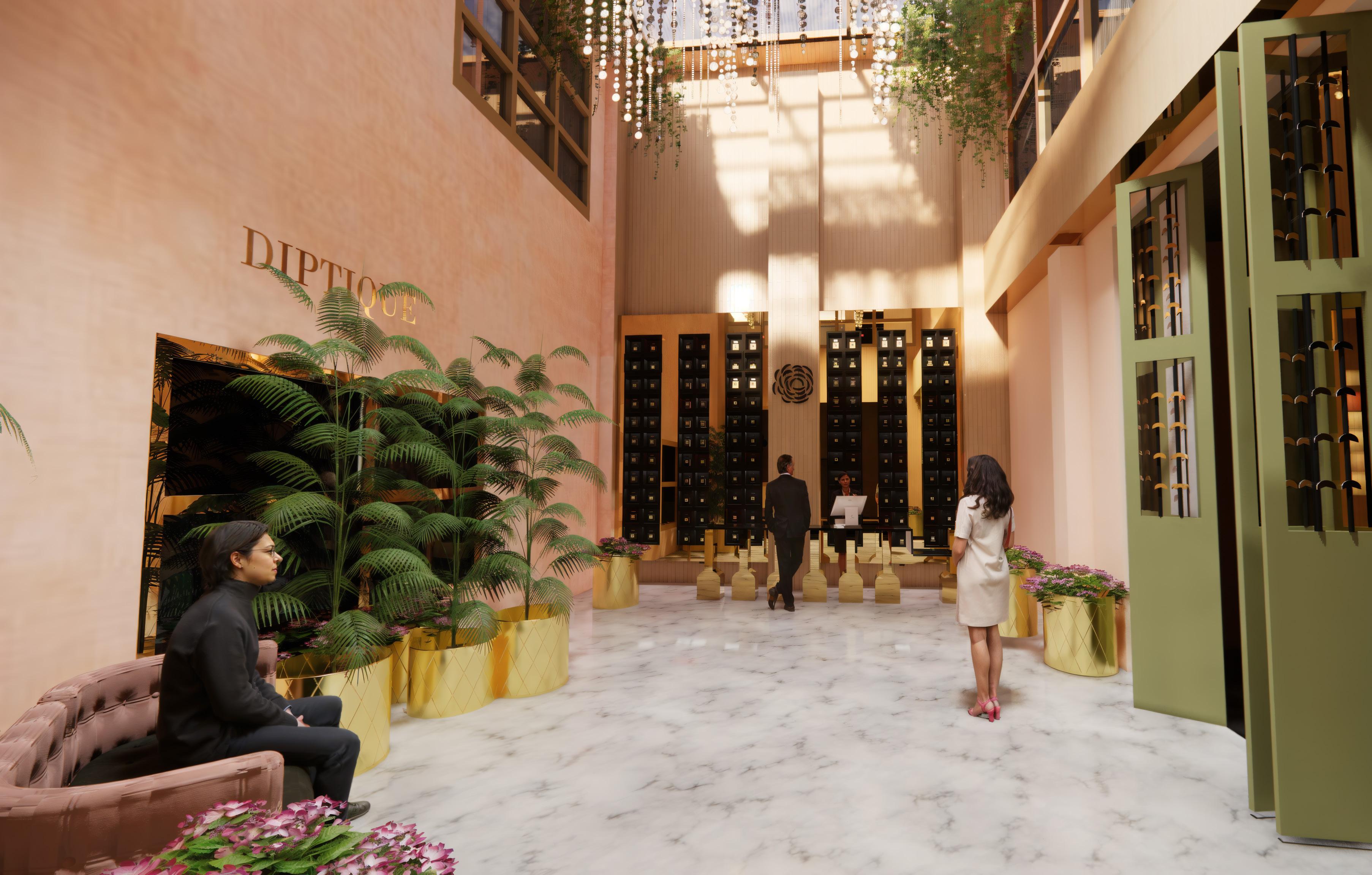

This is a high - end boutique hotel with the perfume Rose Roche from Diptique as inspiration.
The intent is to create a luxurious environment where guests feel effortlessly relaxed and immersed in comfort, warmth, and a sense of refined pampering that leaves them rejuvenated.
The space is designed to offer a sophisticated yet cozy retreat, allowing guests to unwind in style while feeling cared for, indulged, and restored.
LA ROSERAIE - A ROMANTIC SANCTUARY
ATRIUM
MY HOME
Design Intent
I had the opportunity to build my new home from presale, and instead of choosing the builder’s standard options, I customized the design to better suit my family’s needs. I carefully selected materials and made thoughtful changes to create a comfortable, functional home while staying within budget and minimizing unnecessary upgrades.
The goal was to achieve a more custom feel that works well for a large family. I chose colors and materials that make the space feel open, bright, and lively, while also being durable and easy to maintain so the home remains practical and kid-friendly.

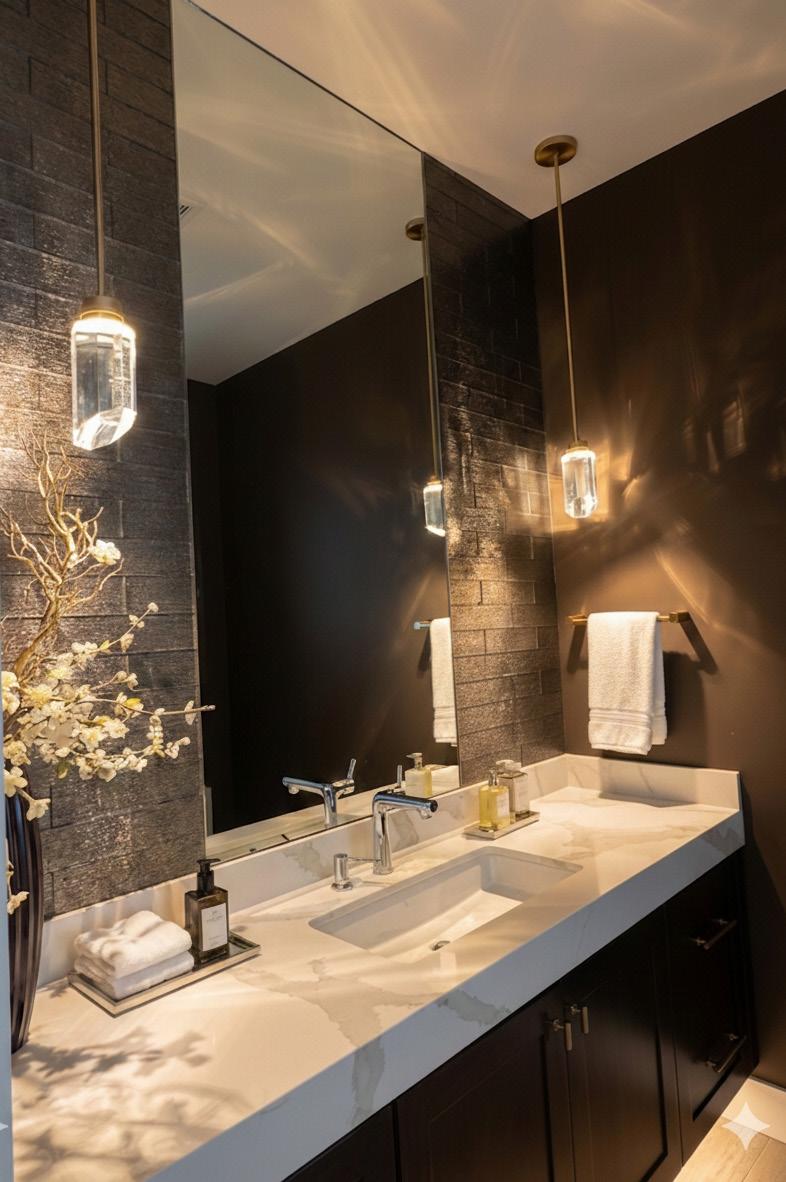

POWDER ROOM FINAL

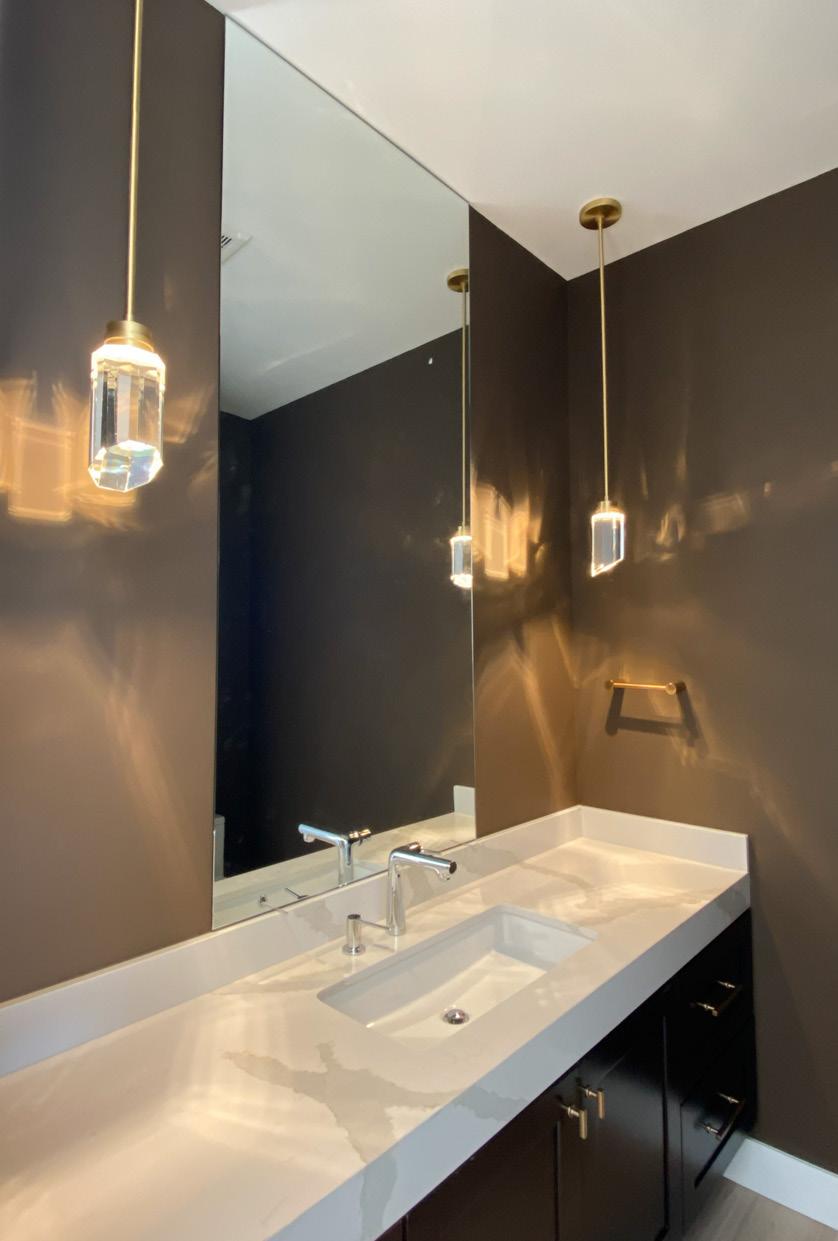

POWDER ROOM AFTER CABINET, COUNTERTOP ,LIGHTS & MIRROR INSTALL COMPLETE
MY REAL TIME INTERIOR DESIGN EXPERIENCE

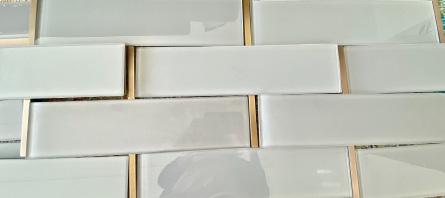

KITCHEN BACKSPLASH ITERATIONS SO IT INTEGRATES WITH THE POWDER ROOM

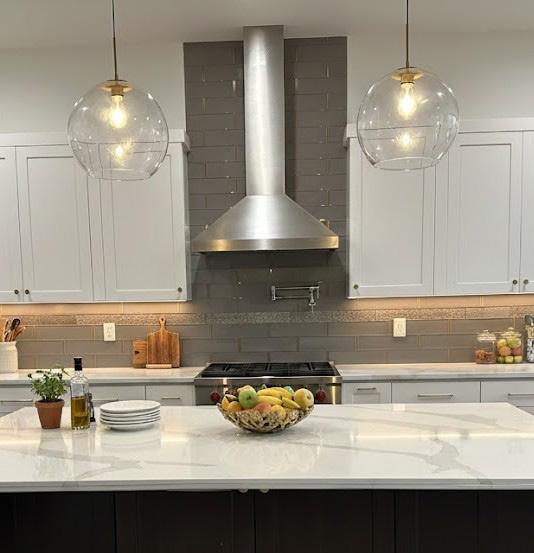

KITCHEN FINAL DESIGN
THANK YOU
