SHO WERING SOL UTIONS
Shower enclosures
PREMIUM COLLECTION
pinnacle8
The difference is in the detail
The pinnacle8 range of enclosures represents new heights in shower enclosure design, with selected products now available in three colour finishes, combining our iconic design with timeless elegance.
Featuring hinged, sliding, quadrant, centre fold and level access options, the pinnacle8 collection is characterised by a minimalist finger pull and easy fit wall posts with concealed fixings throughout. Manufactured in the beautiful Lake District, the pinnace8 range is 2000mm high and is backed by the Kudos Lifetime Guarantee against material of manufacturing defects for your complete peace of mind.
Rise & fall hinge
pinnacle8
hinged corner doors
The pinnacle8 hinged door is available in either chrome or matt black and in sizes ranging from 760mm to 1500mm. Featuring stylish rise and fall hinges, minimalist design with crystal clear seals, pinnacle8 will enhance any bathroom design.
Matt black hinged corner, left handed, on a slate effect connect2 tray.
Features
+ 8mm toughened safety glass
+ 2000mm high
+ Concealed fixings
+ Slimline profile with 20mm wall adjustment
+ Lifeshield™ Glass Protection
+ Crystal clear glass to glass seals
+ Die cast rise and fall hinges
+ Frameless side panels
+ Available in chrome and matt black
+ Lifetime Guarantee
+ Made in Britain
Codes & Dimensions §
***Please add L or R to the product code to indicate left or right handed door. When ordering matt black please add MBK to product codes
§ N.B Hinged Doors for Recess and Corner are not interchangeable
*Angled Stabilising Bracket for Doors (1000 & 1100mm) P8SB22
*Angled Stabilising Bracket for Doors 1200mm+ P8SB32

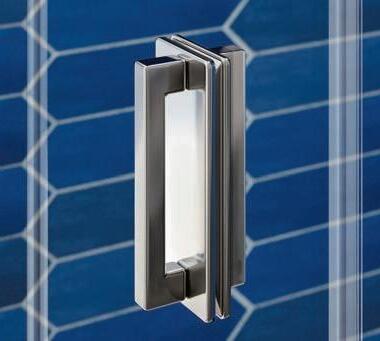

**Retro Fit Handle P8RH
† 10mm Extension Post P8SOS
* An optional angled stabilising bracket is available for larger doors if additional stability is required.
**An optional handle is available if required.
Both angled bracket and handle can be retro fitted and only need to be purchased if preferred.
† All doors and side panels can be extended in 10mm increments with an extension post (to a maximum of 20mm/ 2 posts per fixed panel side only)
Hinged corner doors are supplied left hand or right hand

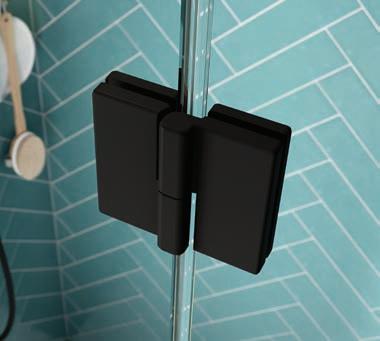

Matt black rise and fall hinge
pinnacle8
hinged recess doors
The pinnacle8 hinged door is available in either chrome or matt black and in sizes ranging from 760mm to 1500mm. Featuring stylish rise and fall hinges, minimalist design with crystal clear seals, pinnacle8 will enhance any bathroom design.

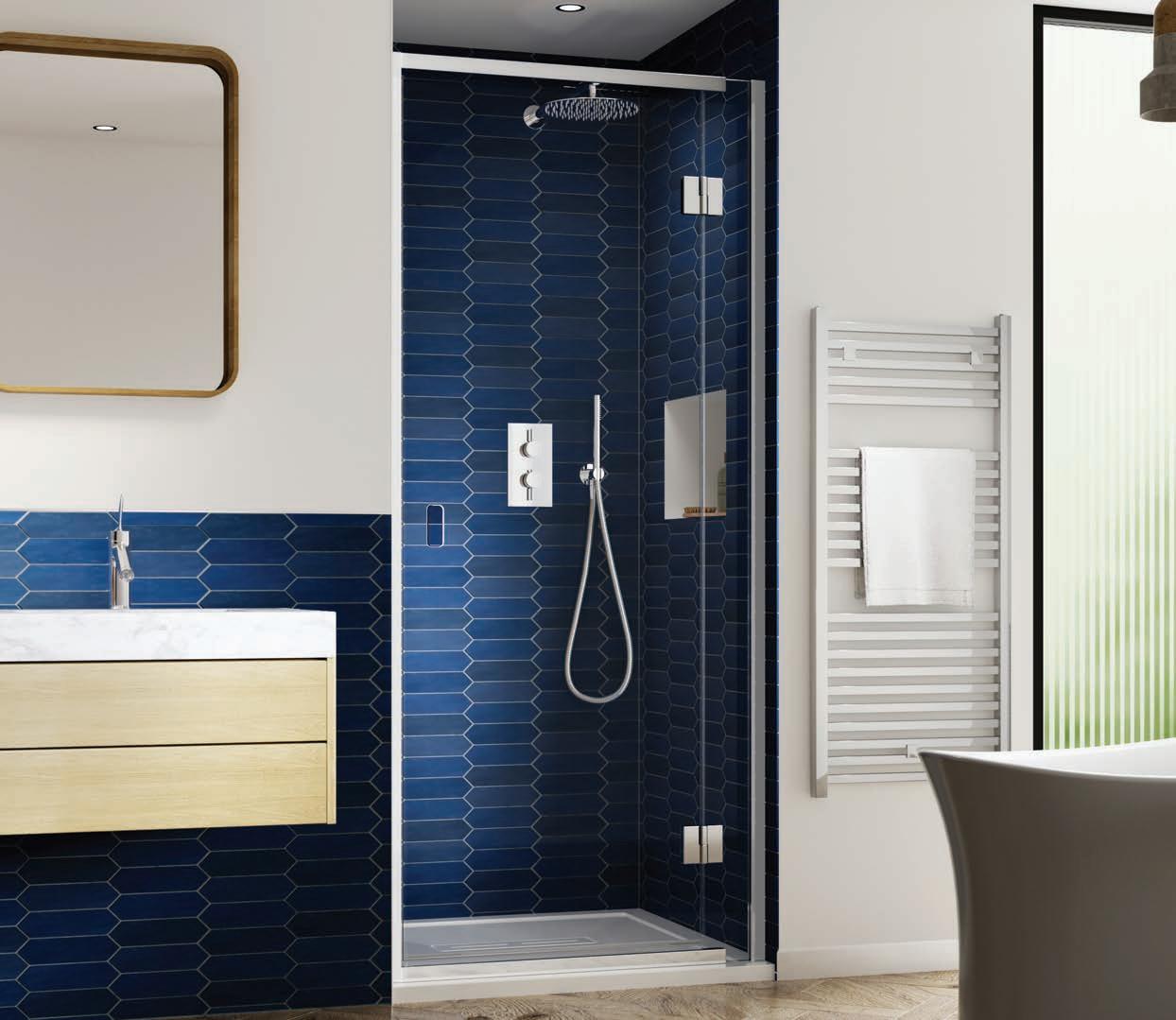

Chrome recess right hand hinged door on a connect2 tray.
+ 8mm toughened safety glass
+ 2000mm high
+ Concealed fixings
+ Slimline profile with 20mm wall adjustment
+ Lifeshield™ Glass Protection
+ Crystal clear glass to glass seals
+ Die cast rise and fall hinges
+ Available in chrome and matt black
+ Lifetime Guarantee
+ Made in Britain
*Angled Stabilising Bracket for Doors (1000 & 1100mm) P8SB22 *Angled Stabilising Bracket for Doors 1200mm+ P8SB32
is
Hinged recess
supplied left hand
pinnacle8
level access hinged corner doors
The pinnacle8 level access hinged door is available in sizes ranging from 800mm to 1200mm with side panels from 700mm to 1200mm. Stylish rise and fall hinges, minimalist frameless design with crystal clear seals, pinnacle8 will enhance any bathroom design. Level access right hand chrome hinged corner enclosure
+ 8mm toughened safety glass
+ 2000mm high
+ Level access
+ Slimline profile with 20mm wall adjustment
+ Lifeshield™ Glass Protection
+ Crystal clear glass to glass seals
+ Die cast rise and fall hinges
+ Frameless side panels
+ Optional retro fit handle
+ Available in chrome, matt black and brushed brass
+ Lifetime Guarantee
+ Made in Britain Layout
*** When ordering matt black add MBK and brushed brass please add BRG to the product codes
Note: Doesn’t apply to side panels.
***Product Code
**Retro Fit Handle P8RH
† 10mm Extension Post P8SOS
**An optional handle is available if required.
The handle can be retro fitted and only needs to be purchased if preferred.
† All doors and side panels can be extended in 10mm increments with an extension post (to a maximum of 20mm/ 2 posts per fixed panel side only)
*** When ordering matt black add MBK and brushed brass please add BRG to the product codes

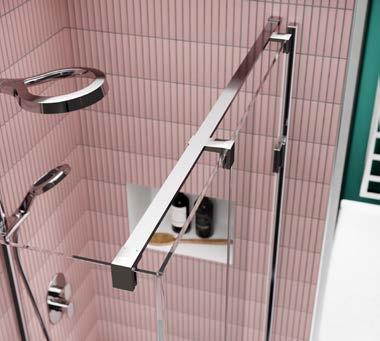

Stabilising Bar
pinnacle8
level access hinged recess doors
The pinnacle8 level access hinged door is available in sizes ranging from 800mm to 1200mm. Stylish rise and fall hinges, minimalist frameless design with crystal clear seals, pinnacle8 will enhance any bathroom design.

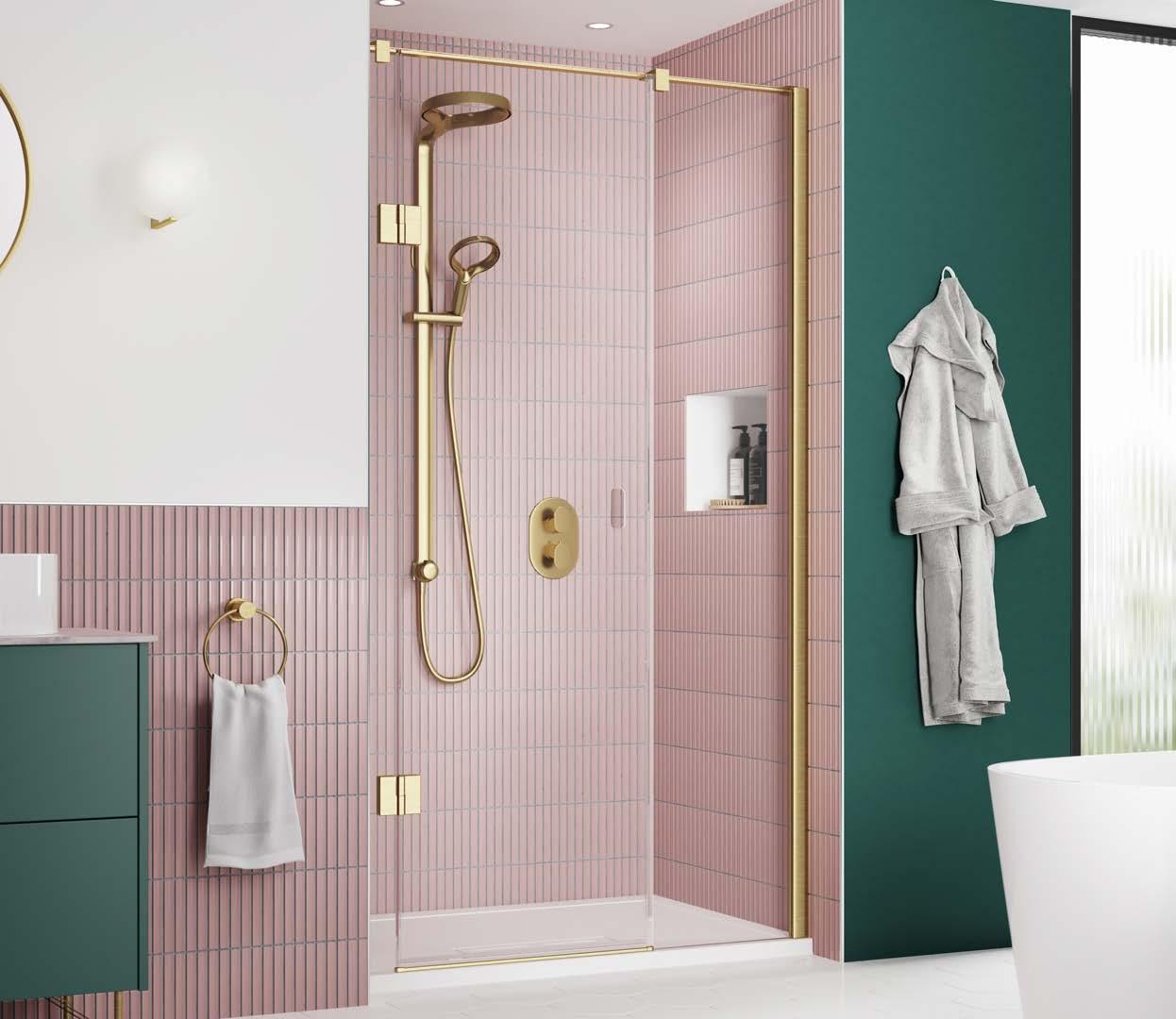

Level access left hand brushed brass hinged recess enclosure
+ 8mm toughened safety glass
+ 2000mm high
+ Level access
+ Slimline profile with 20mm wall adjustment
+ Lifeshield™ Glass Protection
+ Crystal clear glass to glass seals
+ Die cast rise and fall hinges
+ Frameless side panels
+ Optional retro fit handle
+ Available in chrome, matt black and brushed brass
+ Lifetime Guarantee
+ Made in Britain
Layout
Optional Items
**Retro Fit Handle P8RH
† 10mm Extension Post P8SOS
**An optional handle is available if required.
The handle can be retro fitted and only needs to be purchased if preferred.
† All doors and side panels can be extended in 10mm increments with an extension post (to a maximum of 20mm/ 2 posts per fixed panel side only)
Hinged

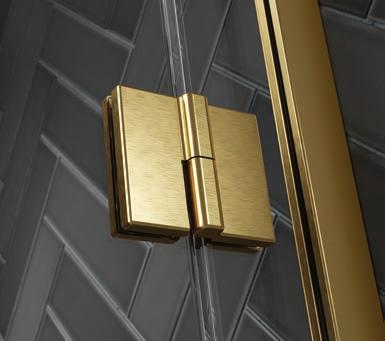

Die cast rise and fall hinge
pinnacle8

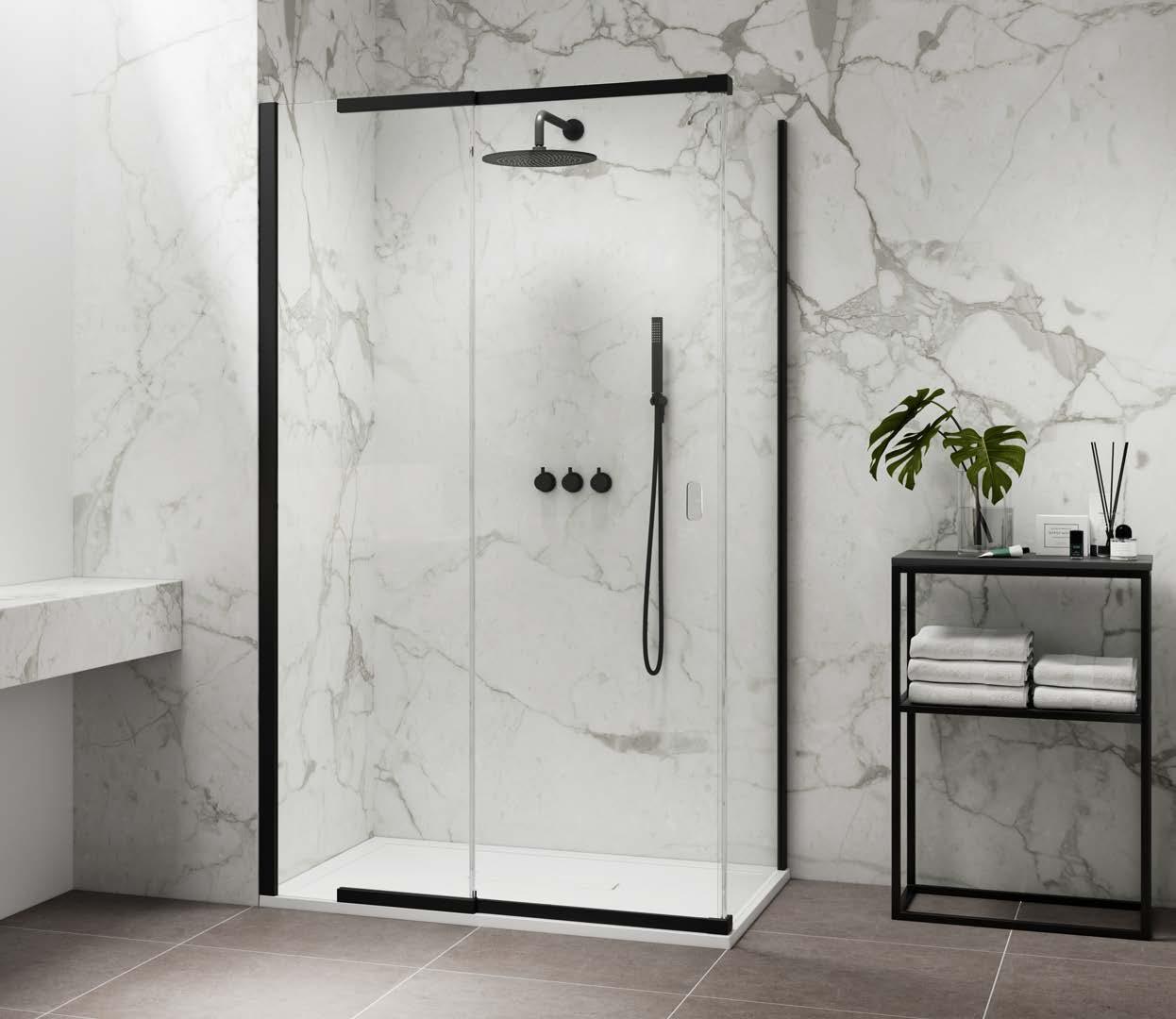

straight sliding corner doors
Available in chrome and matt black the pinnacle8 sliding corner door is available in sizes ranging from 1000mm - 1800mm. Perfect for the medium to large showering space. Semi-frameless with crystal clear seals these minimalist doors give an illusion of endless space.

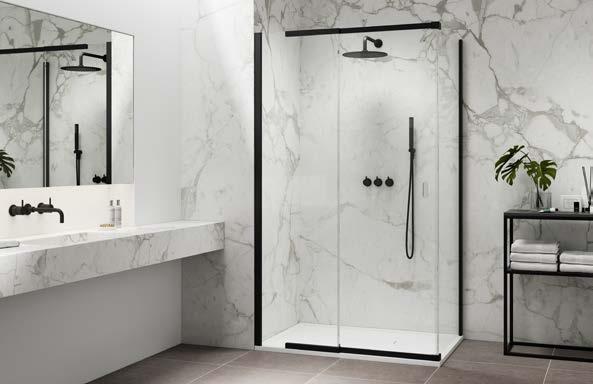

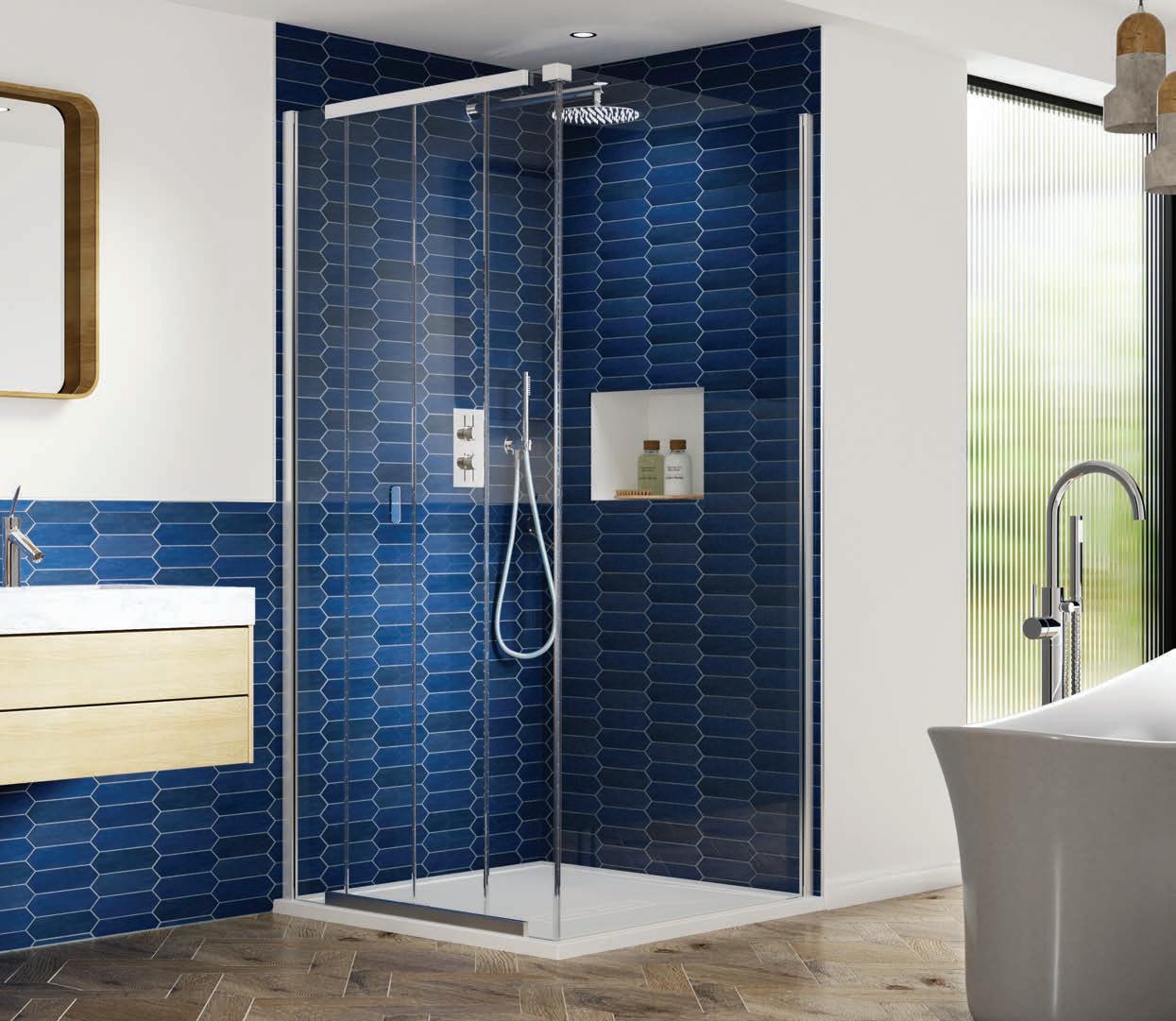

1200mm corner straight sliding door
+ 8mm toughened safety glass
+ 2000mm high
+ Concealed fixings
+ Slimline profile with 20mm wall adjustment
+ Lifeshield™ Glass Protection
+ Crystal clear glass to glass seals
+ Twin Rollers with stainless steel bearings
+ Available in chrome and matt black
+ Lifetime Guarantee
+ Made in Britain
*Angled Stabilising Bracket for Doors (1000 & 1100mm) P8SB22
*Angled Stabilising Bracket for Doors 1200mm+ P8SB32
**Retro Fit Handle P8RH † 10mm Extension Post P8SOS

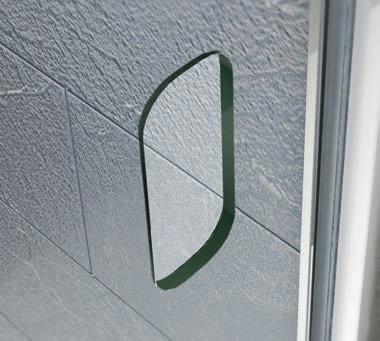

Minimalist finger pull
In a corner situation the door always closes to the side panel.
pinnacle8
straight sliding recess doors
Available in chrome and matt black finishes, the pinnacle8 sliding recess door is available in sizes ranging from 1000mm – 1800mm, perfect for the medium to large showering space. Featuring crystal clear seals, these minimalist doors give an illusion of endless space.
1200mm recess straight sliding door
Features
+ 8mm toughened safety glass
+ 2000mm high
+ Concealed fixings
+ Slimline profile with 20mm wall adjustment
+ Lifeshield™ Glass Protection
+ Crystal clear glass to glass seals
+ Twin Rollers with stainless steel bearings
+ Available in chrome and matt black
+ Lifetime Guarantee
+ Made in Britain
***When ordering matt black please add MBK to product codes
Optional Items
Product
*Angled Stabilising Bracket for Doors (1000 & 1100mm) P8SB22
*Angled Stabilising Bracket for Doors 1200mm+ P8SB32
**Retro Fit Handle P8RH
† 10mm Extension Post P8SOS
* An optional angled stabilising bracket is available for larger doors if additional stability is required.
**An optional handle is available if required.
Both angled bracket and handle can be retro fitted and only need to be purchased if preferred.
† All doors and side panels can be extended in 10mm increments
20mm/ 2 posts per fixed panel side only)

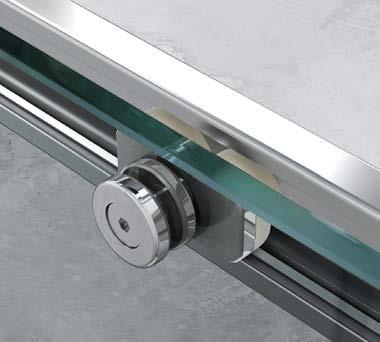

Door twin rollers
pinnacle8
level access straight sliding corner doors
Featuring chrome, matt black and brushed brass finishes, the pinnacle8 level access sliding door can be used to create corner, recess and 3 sided enclosures. This level access door is available in sizes ranging from 1200mm – 1500mm, perfect for the medium to large showering space.

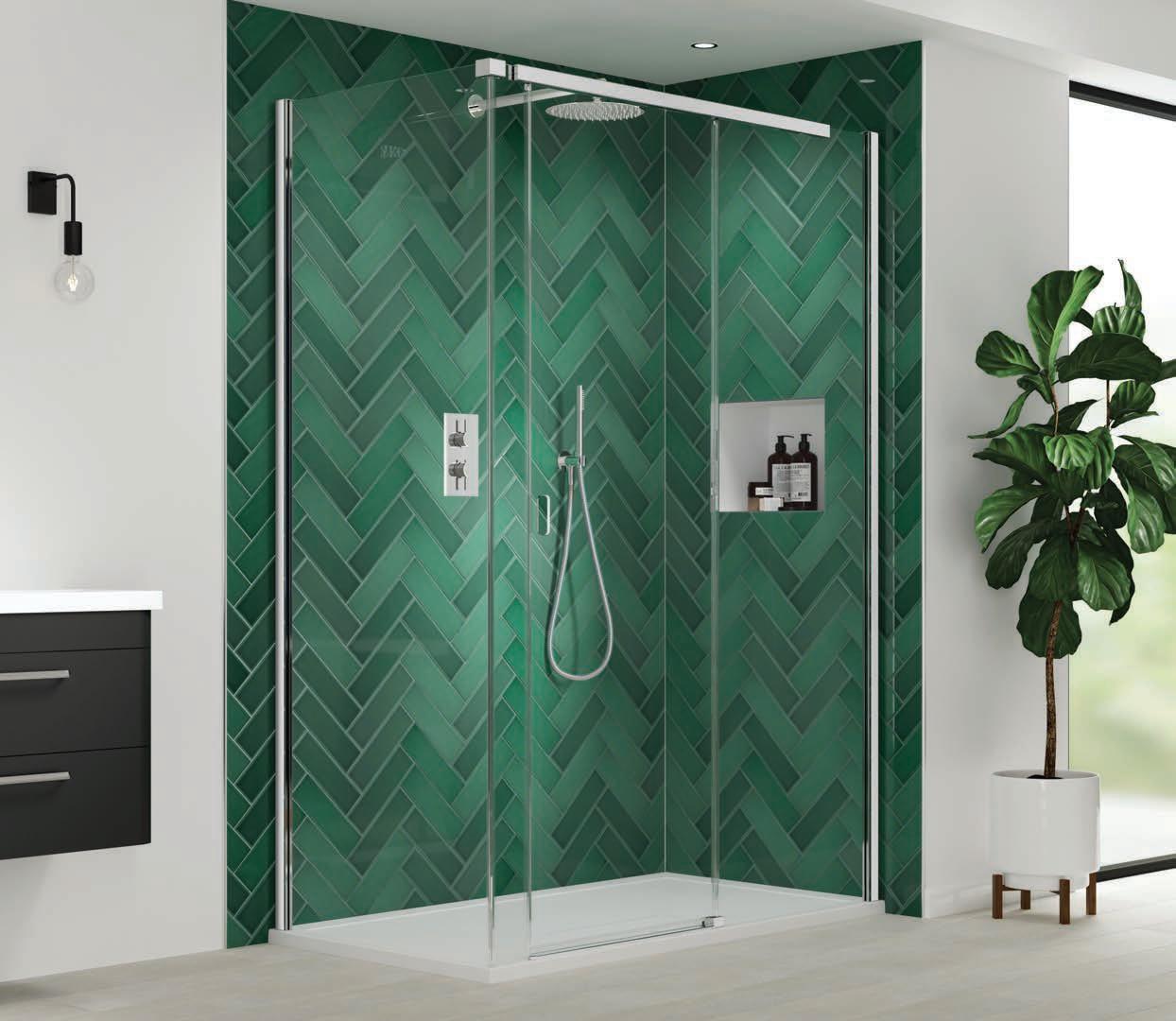

Chrome 1200mm right handed corner sliding door
Features
+ 8mm toughened safety glass
+ 2000mm high
+ Concealed fixings
+ Level access
+ Slimline profile with 20mm wall adjustment
+ Lifeshield™ Glass Protection
+ Crystal clear glass to glass seals
+ Twin Rollers with stainless steel bearings
+ Can be used to create 3 sided enclosures
+ Available in chrome, matt black and brushed brass
+ Lifetime Guarantee
+ Made in Britain Layout
Codes & Dimensions
***Please add L or R to the product code to indicate left or right handed door.
*** When ordering matt black add MBK and brushed brass please add BRG to the product codes
Optional Items
**Retro Fit Handle
P8RH
*Angled Stabilising Bracket for Doors (Optional) P8SB32
† 10mm Extension Post
* Angled stabilising bracket is required for additional stability.
**An optional handle is available if required.
*** When ordering matt black add MBK and brushed brass please add BRG to the product codes Level access sliding doors are supplied left or right handed
P8SOS
Both angled bracket and handle can be retro fitted and only need to be purchased if preferred.
† All doors and side panels can be extended in 10mm increments with an extension post (to a maximum of 20mm/ 2 posts per fixed panel side only)
Crystal clear glass to glass corner seals
PREMIUM COLLECTION
pinnacle8
level access straight sliding recess doors
Featuring chrome, matt black or brushed brass finishes the pinnacle8 level access sliding door is available in sizes ranging from 1200mm - 1500mm, perfect for the medium to large showering space.

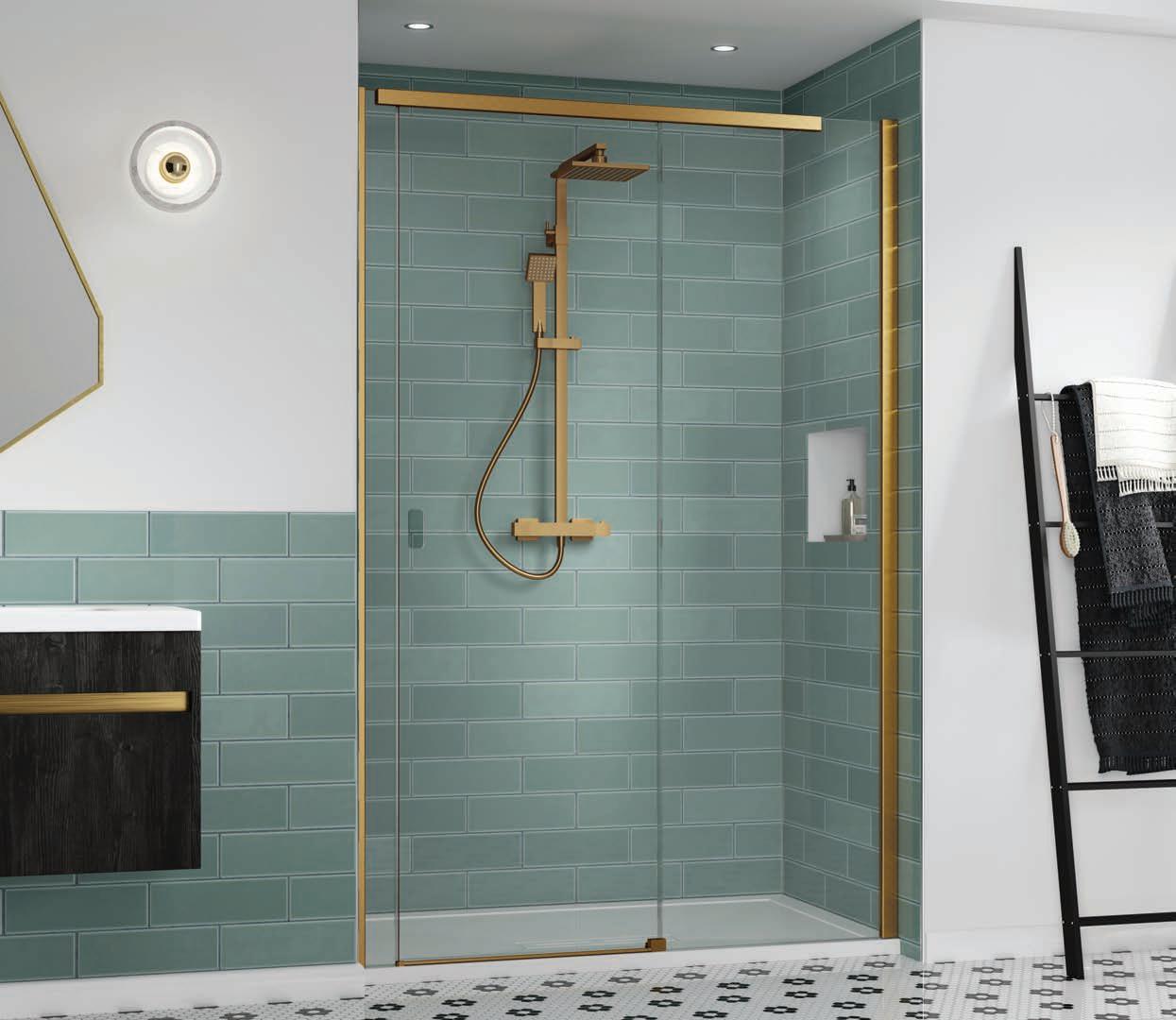

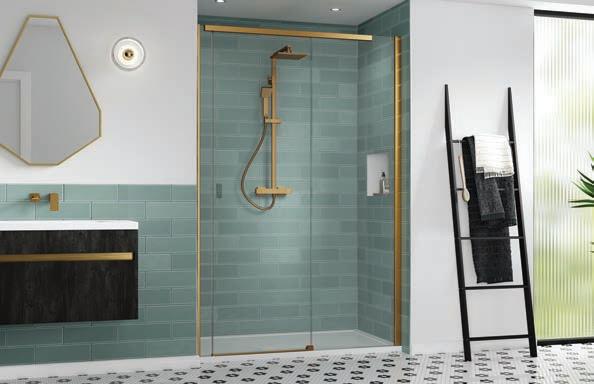

Brushed brass right hand 1200mm recess sliding door
Features
+ 8mm toughened safety glass
+ 2000mm high
+ Concealed fixings
+ Level access
+ Slimline profile with 20mm wall adjustment
+ Lifeshield™ Glass Protection
+ Crystal clear glass to glass seals
+ Twin Rollers with stainless steel bearings
+ Available in chrome, matt black and brushed brass
+ Lifetime Guarantee
+ Made in Britain Layout
Level access sliding doors are supplied left or right handed
Codes & Dimensions
***Please add L or R to the product code to indicate left or right handed door.
*** When ordering matt black add MBK and brushed brass please add BRG to the product codes
Optional Items
**Retro Fit Handle P8RH
*Angled Stabilising Bracket for Doors (Optional) P8SB32
† 10mm Extension Post P8SOS
* Angled stabilising bracket is required for additional stability.
**An optional handle is available if required.
Both angled bracket and handle can be retro fitted and only need to be purchased if preferred.
† All doors and side panels can be extended in 10mm increments with an extension post (to a maximum of 20mm/ 2 posts per fixed panel side only)
*** When ordering matt black add MBK and brushed brass please add BRG to the product codes

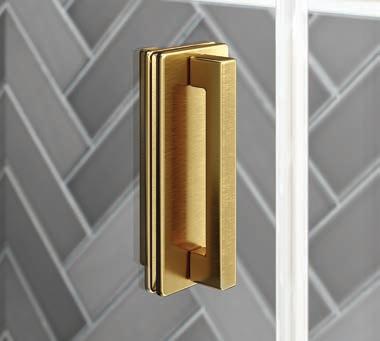

Brushed brass retro fit handle
PREMIUM COLLECTION

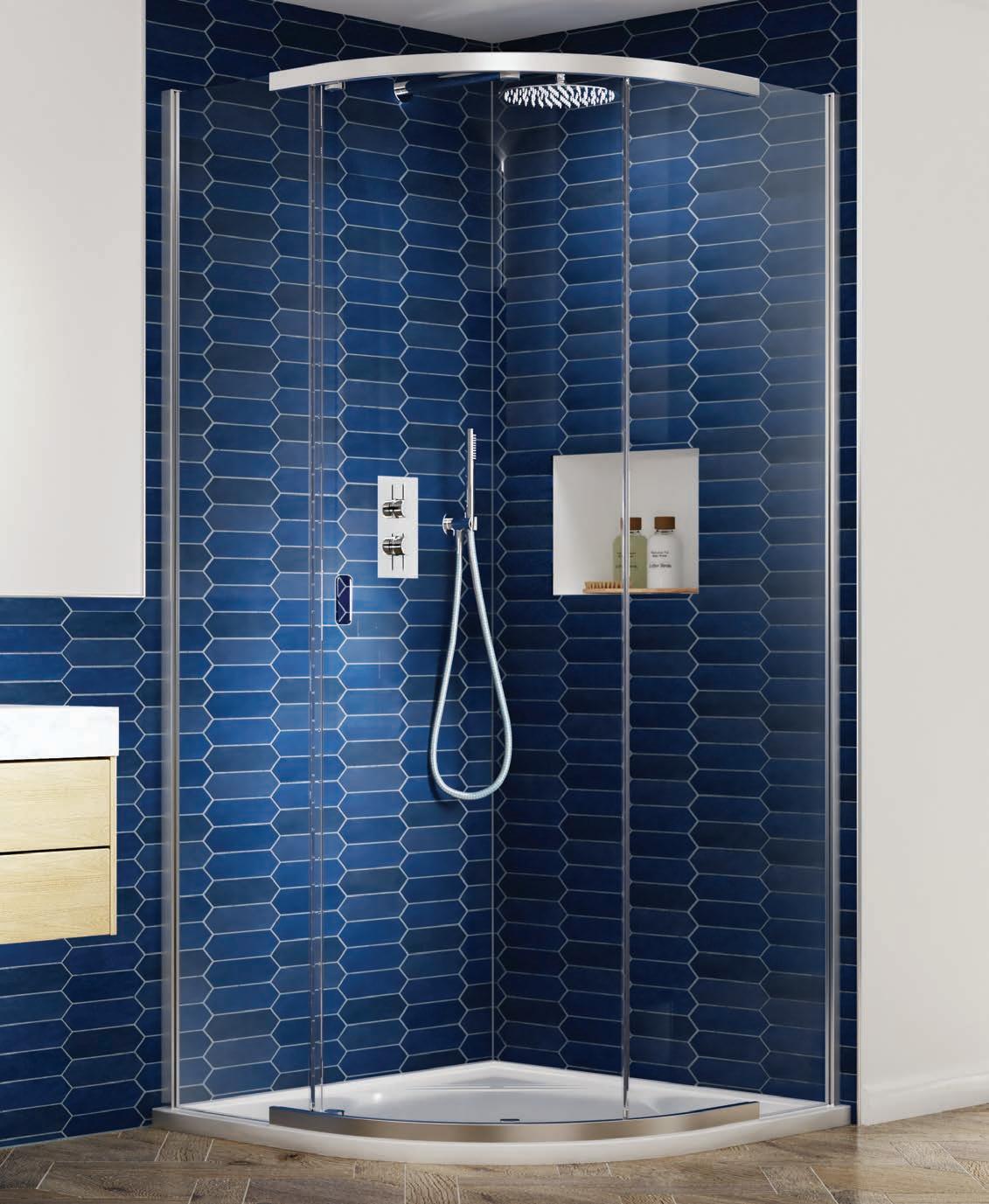

pinnacle8 quadrant
doors
Surround yourself with a panoramic seamless expanse of glass. The semi-frameless pinnacle8 Quadrant and Offset Quadrant features uninterrupted glass from wall to wall with its crystal clear seals and unique finger pull.

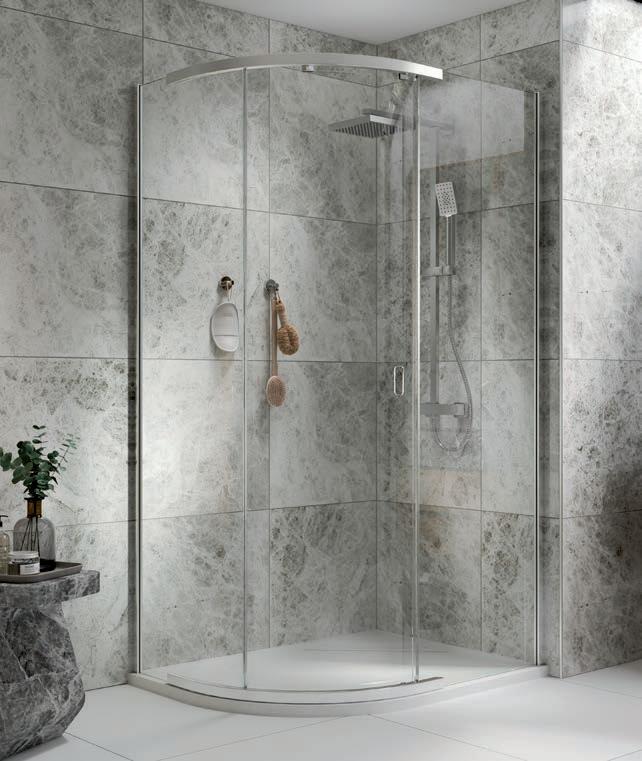

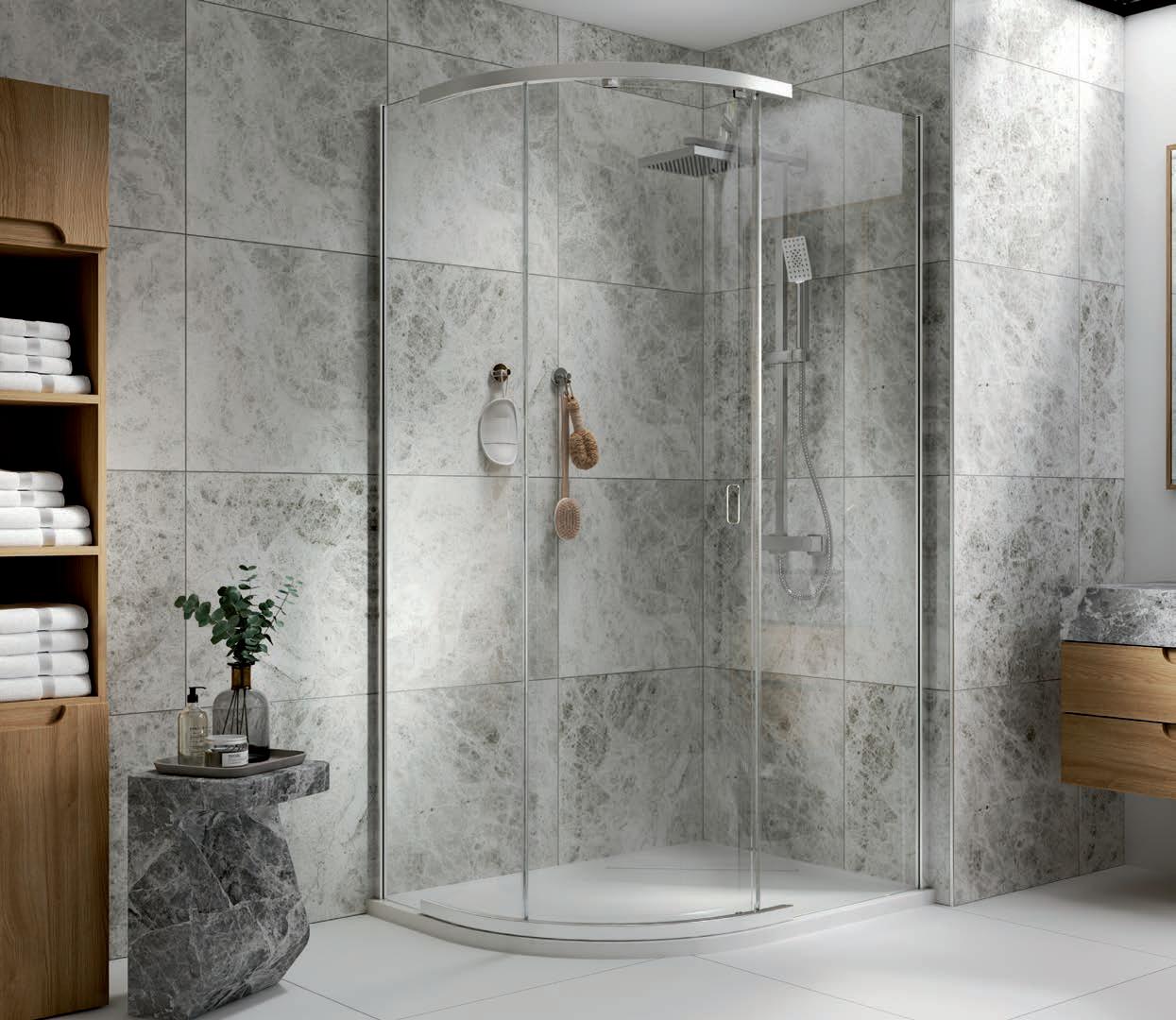

1200mm x 900mm right hand offset quadrant enclosure
Features
+ 8mm toughened safety glass
+ 2000mm high
+ Concealed fixings
+ Slimline profile with 20mm wall adjustment
+ Lifeshield™ Glass Protection
+ Crystal clear glass to glass seals
+ Twin Rollers with stainless steel bearings and dynamic adjustment
+ Semi-frameless panels
+ Die cast bottom guides
+ Available in chrome and matt black
+ Lifetime Guarantee
+ Made in Britain
Offset Quad Layout
Codes & Dimensions
Optional Items
Fit Handle
* An optional angled stabilising bracket is available for larger doors if additional stability is required.
**An optional handle is available if required.
Both angled bracket and handle can be retro fitted and only need to be purchased if preferred.
† All doors and side panels can be extended in 10mm increments with an extension post (to a maximum of 20mm/ 2 posts per fixed panel side only)
Layout
pinnacle8
level access quadrant doors
The pinnacle8 level access hinged quadrant and offset quadrant doors are simply stunning and will enhance any bathroom. Featuring stylish rise and fall hinges, these enclosures offer the perfect solution to those looking to future proof their bathroom space.
Features
+ 8mm toughened safety glass
+ 2000mm high
+ Concealed fixings
+ Level access
+ Slimline profile with 20mm wall adjustment
+ Lifeshield™ Glass Protection
+ Crystal clear glass to glass seals
+ Die cast rise and fall hinges
+ Available in chrome, matt black and brushed brass
+ Lifetime Guarantee
+ Made in Britain Layout
Codes & Dimensions §
*** When ordering matt black add MBK and brushed brass please add BRG to the product codes
Optional Items
Product
***Product Code
**Retro Fit Handle P8RH
† 10mm Extension Post P8SOS
**An optional handle is available if required.
† All doors and side panels can be extended in 10mm increments with an extension post (to a maximum of 20mm/ 2 posts per fixed panel side only)
*** When ordering matt black add MBK and brushed brass please add BRG to the product

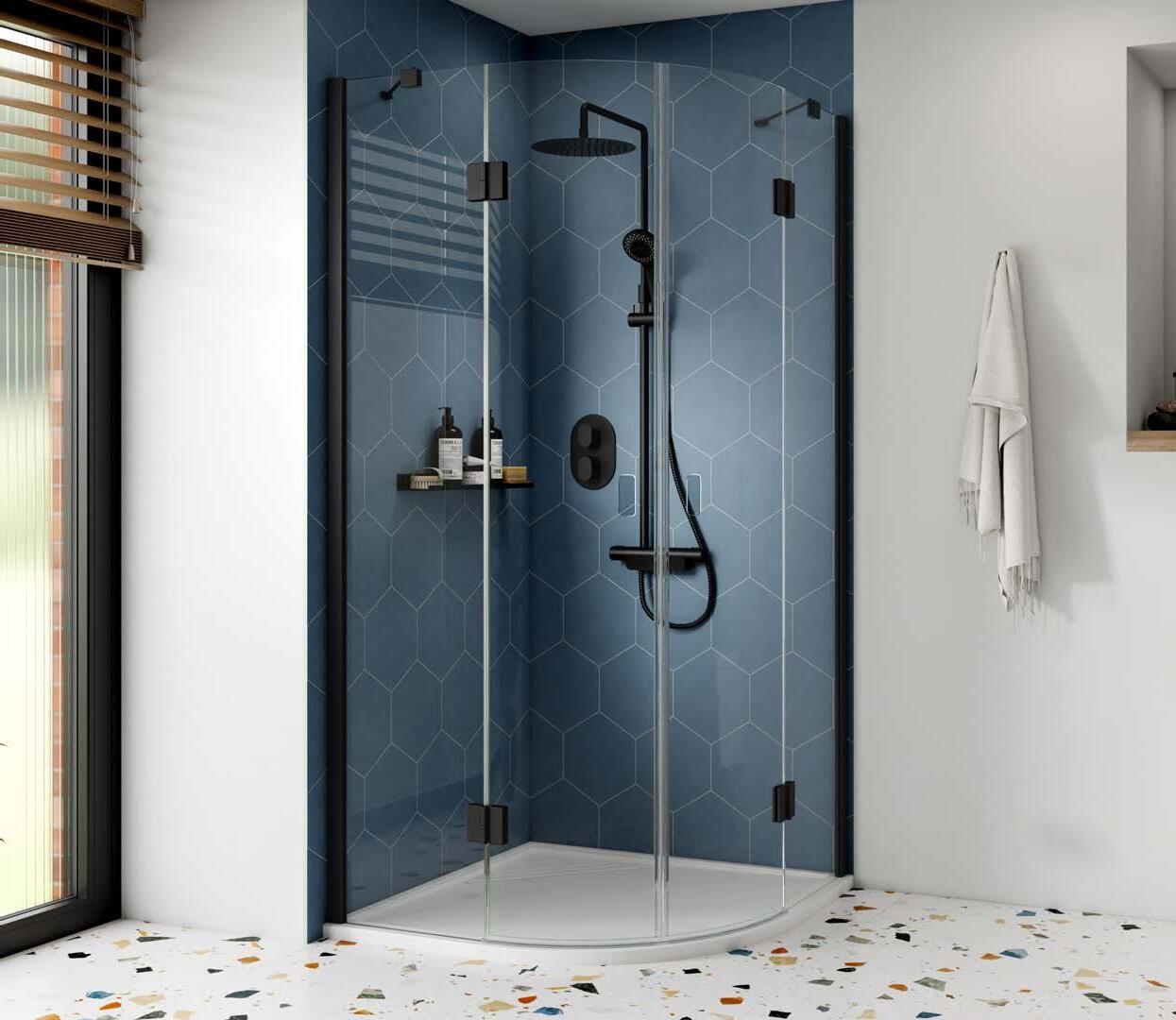

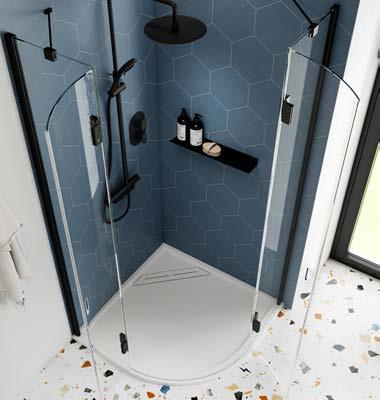

Matt black level access quad hinged doors open

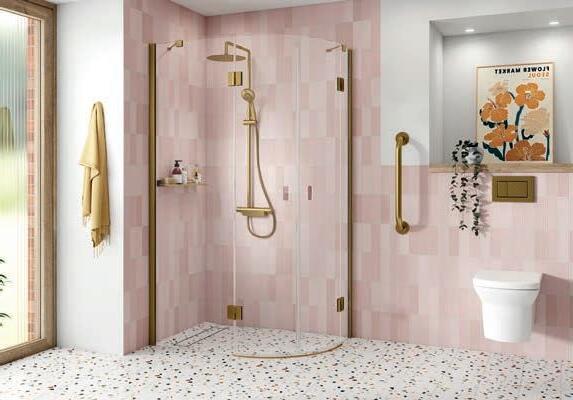

Brushed brass left hand level access offset quad
pinnacle8 centre folding doors
The space saving centre-folding door, available in sizes ranging from 800mm to 1000mm is just perfect for the small to medium showering space. With a hidden door mechanism, concealed magnets and crystal clear seals you have an uninterrupted glass door with a positive closing action.
Features
+ 8mm toughened safety glass
+ 2000mm high
+ Concealed fixings
+ Slimline profile with 20mm wall adjustment
+ Lifeshield™ Glass Protection
+ Crystal clear glass to glass seals
+ Twin Rollers with stainless steel bearings
+ Crystal clear corner seals
+ Lifetime Guarantee
+ Made in Britain
Codes & Dimensions
*Recess Measurement (Door only). *Corner Measurement (Door + 1 Panel).
Side Panels
Optional Items
Fit Handle
**An optional handle is available if required.
† All doors and side panels can be extended in 10mm increments with an extension post (to a maximum of 20mm/ 2 posts per fixed panel side only)
Concealed folding mechanism.
