REPORTABLE EMERGENCY GUIDE
Reportable, connected, complaint.
Lumineux is a family-run, UK-based manufacturer and distributor of quality LED lighting products. We have been providing a superb range of commercial and industrial lighting solutions for over 35 years and are founded on an approach of high quality, innovation and dependability.
LumiWave is our wireless emergency reporting system, designed to eliminate the hassle of manual testing. Its straightforward installation and commissioning process means that, whether retrofitted into an existing installation or implemented as part of a new system, LumiWave can support your building’s operational requirements. LumiWave operates using a dedicated LoRaWAN wireless protocol, delivering reliable communication without relying on congested short-range wireless technologies.
This flexible solution is available in two formats:
Local Cloud
System data and reports can be accessed remotely.
Data is managed on site using a local server & touchscreen user interface.
“An innovative solution to managing your organisation’s
emergency
lighting”
Key Features
Both versions enable users to carry out routine function and duration testing and to quickly identify faults using a clear and intuitive graphical floor plan display.
Secure network
LoRaWAN gatewaybased wireless communication
Out of the box installation
Test scheduling
Monthly & annual reporting
Simple out-of-thebox installation and commissioning
Programmable function and duration test scheduling
Automatic monthly and annual compliance reporting
LoRaWAN (Long Range Wide Area Network) is a low-power wireless communication technology designed for reliable data transmission across large buildings and complex environments. Operating on the licence-free 868 MHz band, LoRaWAN enables long-range, secure communication between devices and gateways without the need for a mesh network. Its robust, gateway-based architecture makes it ideal for systems such as emergency lighting, providing dependable monitoring with minimal infrastructure and power consumption.
Cloud
The Cloud platform is used to securely store compliance data and report on the realtime status of your building’s emergency lighting system, providing complete peace of mind that your installation remains fully operational at all times.
Any failures are automatically reported to the platform, identifying the exact location of the issue using a graphical floor plan display and detailing the fault. This enables efficient, fix-firsttime maintenance visits and reduces system downtime.
Multiple sites can be linked together within a single system, simplifying the management of large or multisite estates. Each site can also be equipped with a local touchscreen interface, allowing users to view system status instantly on site.
With cloud connectivity, system status and compliance reports can be accessed securely from anywhere, enabling remote monitoring, faster response times, and simplified compliance management across all locations.
Local
The local touchscreen user interface displays faults in a clear, intuitive graphical format, guiding users directly to any issues requiring attention. Function and duration test reports are securely stored on the on-site server and can be downloaded whenever required.
The system operates using a LoRaWAN wireless protocol, with luminaires communicating via LoRaWAN gateways to a dedicated
local server installed on site. This provides a secure, robust standalone solution without reliance on a mesh network.
The schedule and timing of function and duration tests can be programmed to suit the specific requirements of the building and its occupants.
Stay Compliant Stay Connected
Testing can be configured for out-of-hours operation, ensuring maximum lighting availability during normal occupancy. This maintains safety and compliance while allowing emergency lighting batteries to recharge fully following duration tests.
A Smarter Wireless System
A robust wireless monitoring system providing continuous status reporting of your building’s emergency lighting. The system operates using industryproven emergency lighting control protocols combined with LoRaWAN wireless communication, delivering reliable performance and full compliance.
The system can be configured as a standalone
local solution, with all compliance data stored securely on an on-site server and accessed via the local touchscreen interface. Compliance reports can be downloaded directly from the system when required.
The cloud platform version enables compliance data to be securely stored and provides real-time reporting on the status of your building’s emergency
Network
868 MHz long-range wireless protocol
Secure and highly resilient communication
Centralised gateway architecture (no mesh dependency)
Local
Local touchscreen with graphical floor plan layout
Local site server required Compliance reports stored locally
lighting from any location. This ensures peace of mind that the system remains fully operational at all times.
Any failures are automatically reported, identifying the exact location of the fault using a graphical floor plan display and indicating the affected luminaire component. This enables efficient, fix-firsttime maintenance visits and minimises system downtime.
Flexible solution
Reliability
Proven LoRaWAN wireless technology for dependable system operation
Stable communication across large and complex building layouts
Reliable transmission of test and fault data
Designed for continuous monitoring of emergency lighting systems
Supports consistent and accurate compliance reporting
Cloud
Remote access to system status and compliance reports
Multi-site monitoring from a single cloud dashboard
Real-time fault notifications across all connected locations
Rapid response
Send immediate commands to emergency luminaires via the network
Request real-time status updates through the gateway and server
High reliability communication ensures fast, dependable system response
Commissioning
Power the gateways
The system will automatically discover all connected devices
Plot devices directly onto the floor plan using the local touchscreen interface or the cloud platform
Platform
Live system status of all connected emergency luminaires
Remote configuration of function and duration test schedules
Automatic fault alerts with precise device location data
Secure access to compliance records and test history
Downloadable reports for regulatory inspection and auditing

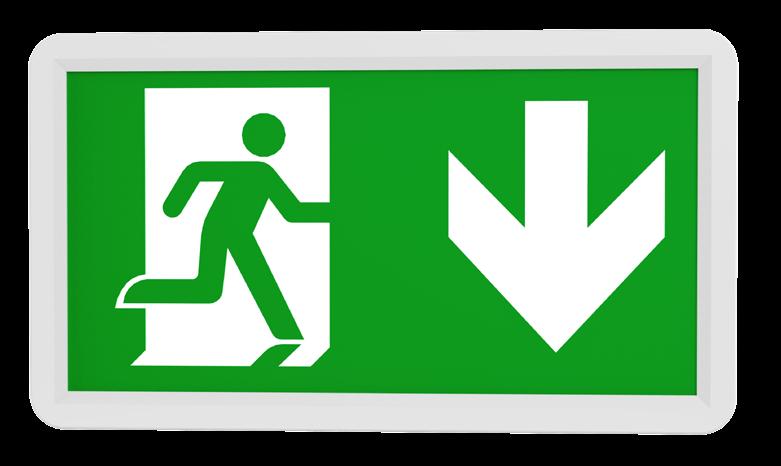

Elara

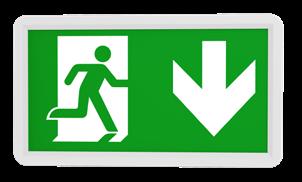

Exit Box White
• Maintained & Non-Maintained
• Cable Entry Points: Side, Top & Rear
• LiFePO4 battery technology
• Includes Up & Down Arrow
• Additional downward light
GENERAL INFORMATION
Part Number
470084-WH
Description Exit Box White Watts
TECHNICAL INFORMATION
Input
Operating
Class II
Standards BS 5266-1, EN 1838, EN 60598-2-22
EMERGENCY INFORMATION

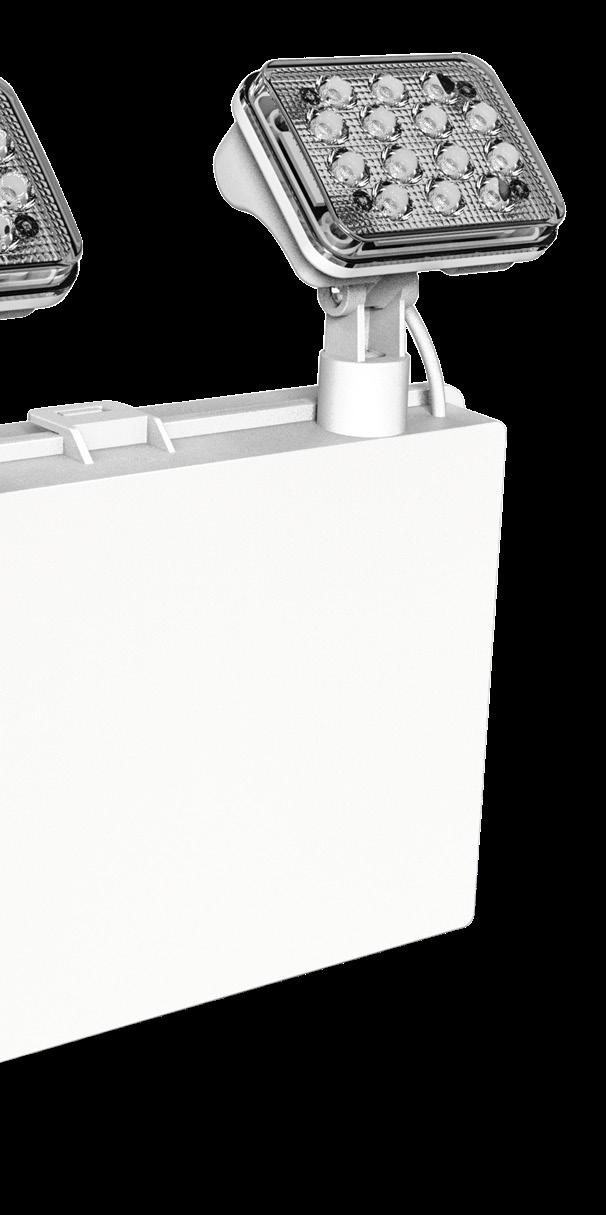

Calypso

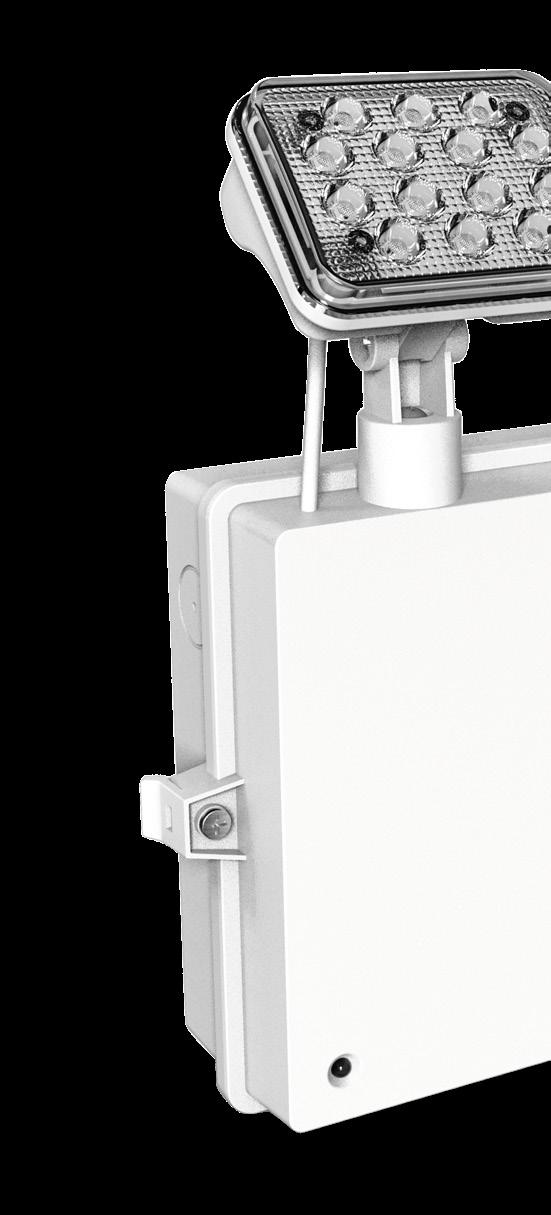

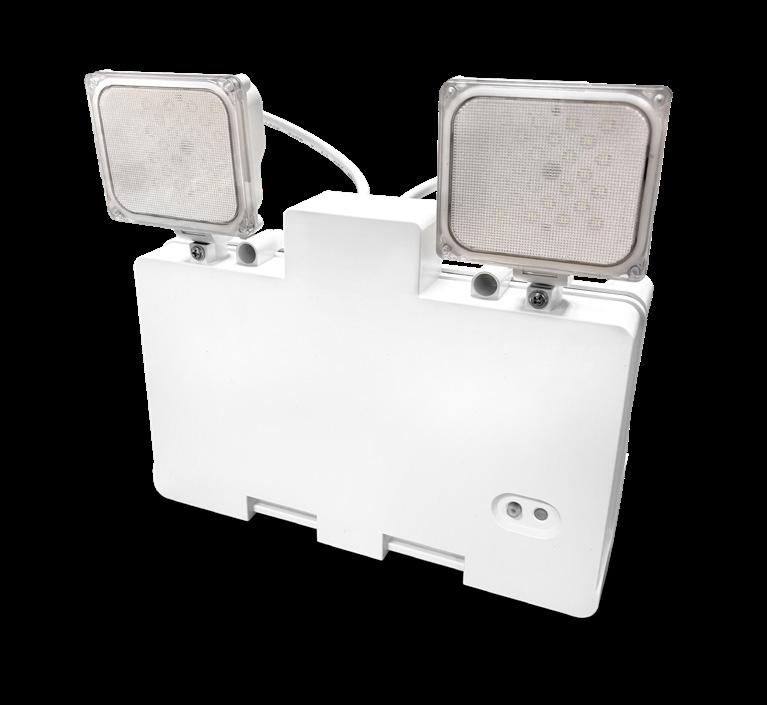

Twin Spot 4W White
GENERAL INFORMATION
• Non-Maintained
• Cable Entry Points: Side & Rear
• LiFePO4 battery technology
• Battery temperature protection
• Bracket to mount upside down included
Part
TECHNICAL INFORMATION Input
Standards
EMERGENCY INFORMATION
Twin Spot 8W White
GENERAL INFORMATION
• Non-Maintained
• Cable Entry Points: Side & Rear
• LiFePO4 battery technology
• Battery temperature protection
• Bracket to mount upside down included
Part
Description
TECHNICAL INFORMATION Input
EMERGENCY INFORMATION Battery
Charon

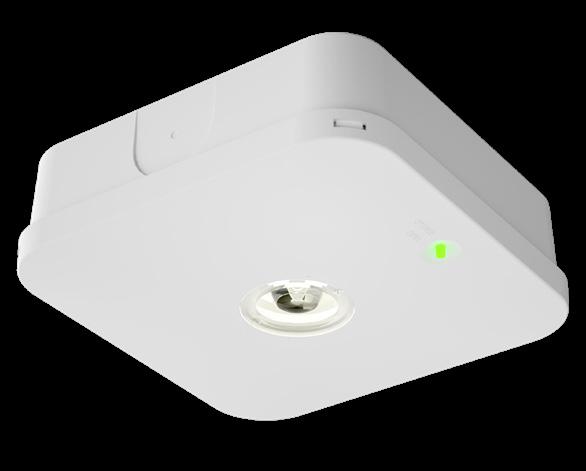

Surface Downlight White
• Non-Maintained
• LiFePO4 battery technology
• Battery temperature protection
• Round/oval lens interchangeable: Round lens for open areas, oval lens for corridors.
GENERAL INFORMATION Part
TECHNICAL INFORMATION
EMERGENCY INFORMATION

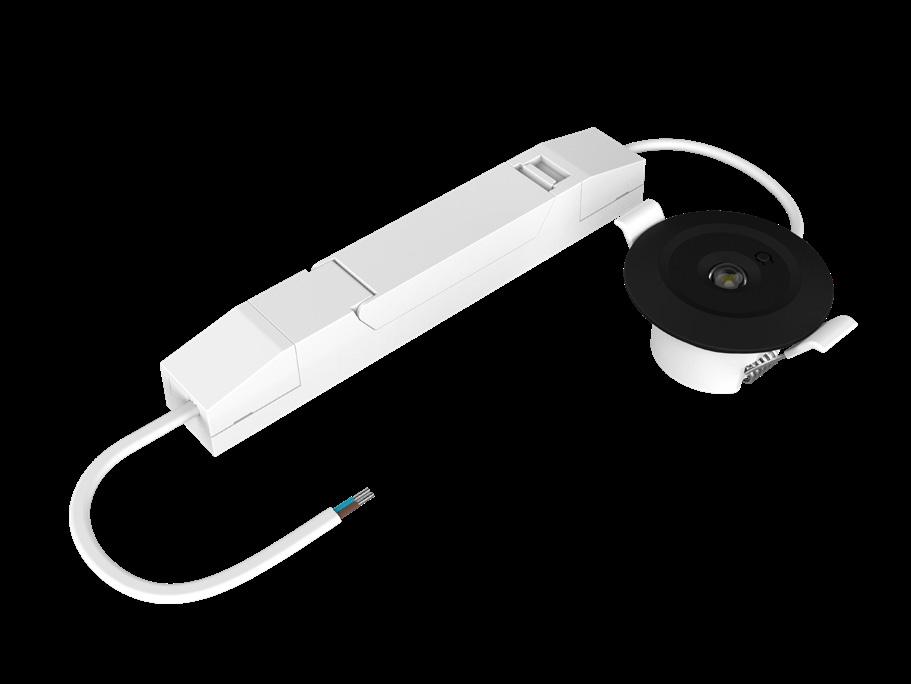

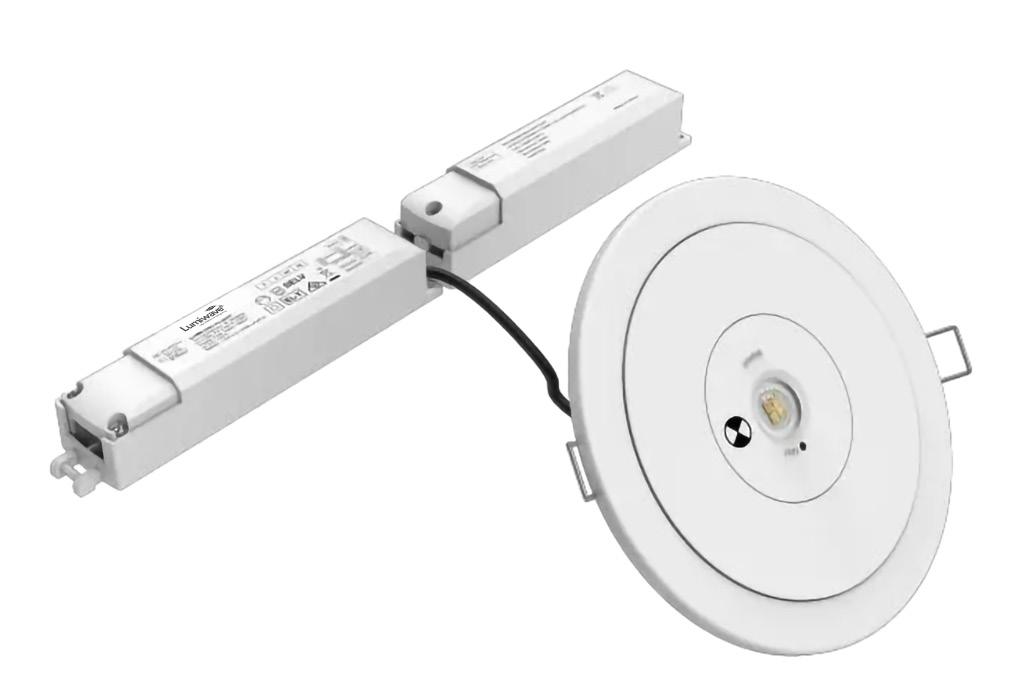

Rhea
Pin-Spot White Open Area & Corridor
• Non-Maintained
• LiFePO4 battery technology
• Battery temperature protection
• LED charge status display
• An ideal solution for ceiling constructions with void heights - as small as 130 mm
• Additional Bezels for larger cut-outs available
GENERAL INFORMATION
Part Numbers
470086-WH (Open Area) 470097-WH (Corridor)
Description Pin-Spot White Open Area
Watts 2W (Charging) 2W (Emergency)
Lumens 270 Lm
TECHNICAL INFORMATION
Input
EMERGENCY INFORMATION
Battery Type
Battery Specification
Emergency Duration 3 Hours
Emergency Type Non-maintained

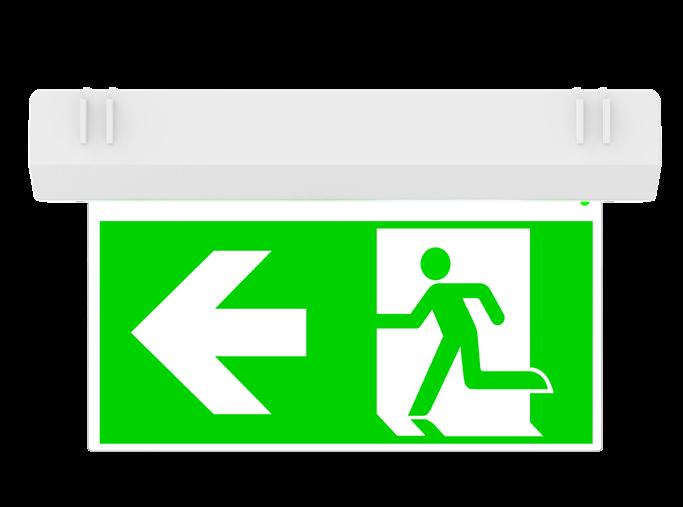

• Maintained & Non-Maintained
• LiFePO4 battery technology
• Suspension Kit available
• Complete set of arrow legends ( 6 pcs)
• Battery temperature protection
GENERAL INFORMATION
Description
TECHNICAL INFORMATION
Input
EMERGENCY INFORMATION Battery
• Maintained & Non-Maintained
• Cable Entry Points: End, Side & Rear
• LiFePO4 battery technology
• Battery temperature protection
GENERAL INFORMATION
Part Number 470080-WH
Description

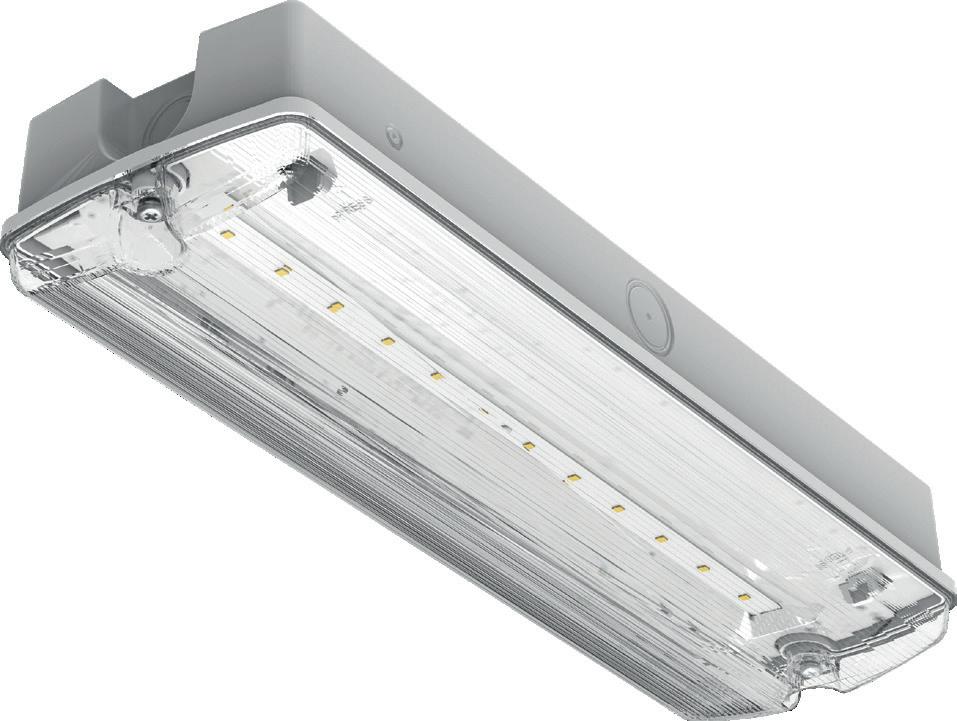

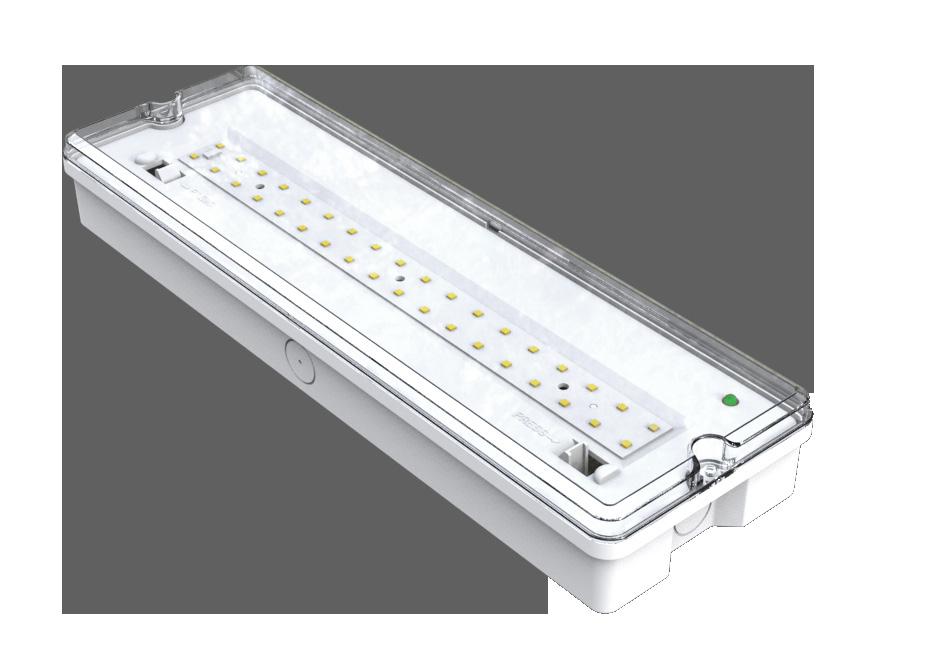

Bulkhead White Watts 3W (Charging) 1.5W (Emergency) Lumens 270lm Emergency, 350lm Maintained
TECHNICAL INFORMATION
Input
Operating
EMERGENCY INFORMATION
Battery Type
Battery Specification
Emergency
Emergency Type

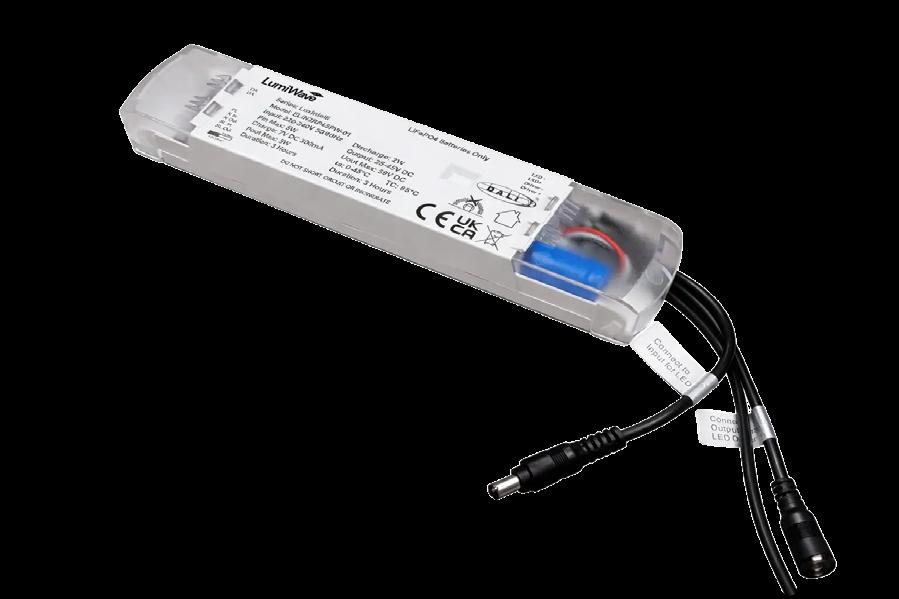

Bulkhead White

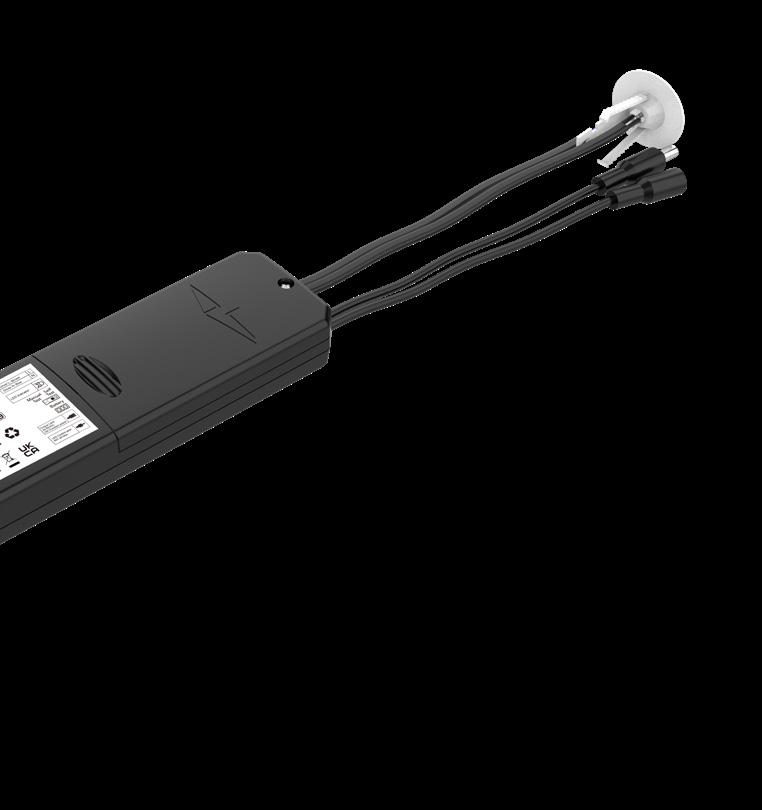

• Maintained & Non-Maintained
• LiFePO4 battery technology
• Supplied with jack connectors
• Battery temperature protection
GENERAL INFORMATION Part
Description
TECHNICAL INFORMATION
EMERGENCY INFORMATION Battery
/ 2W-Emergency

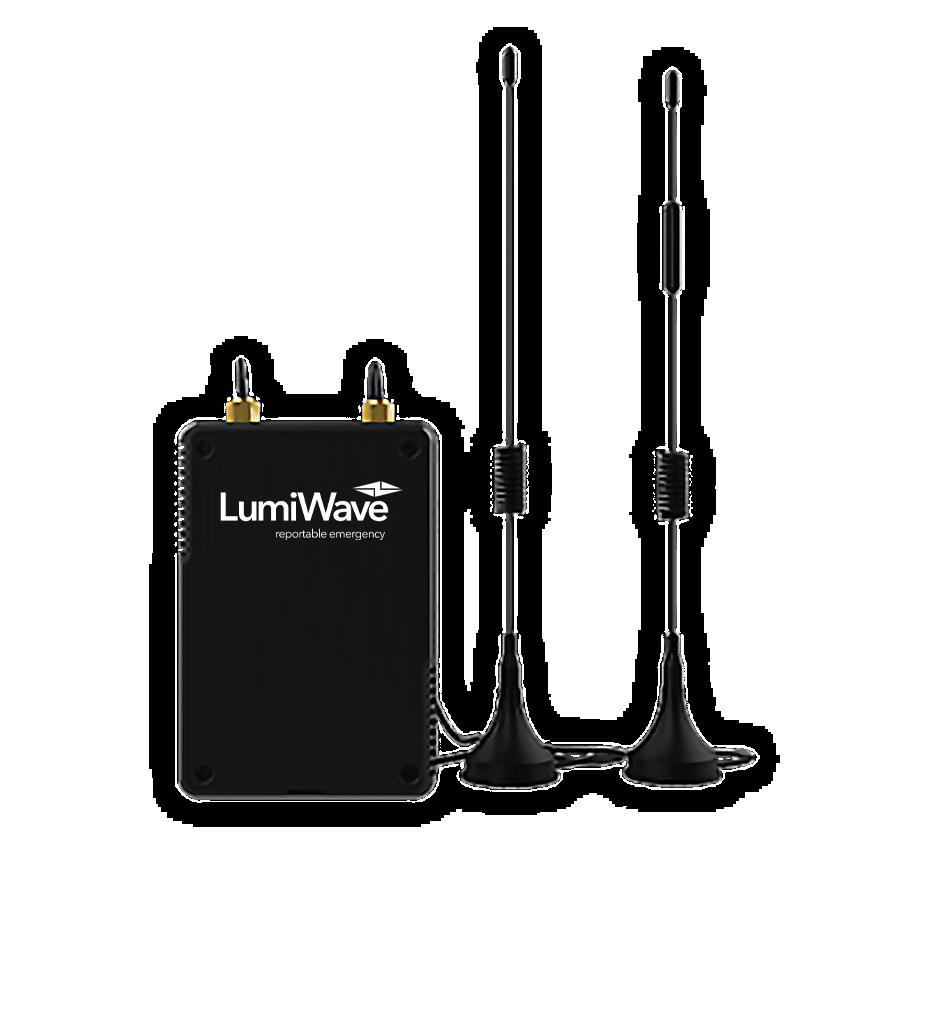

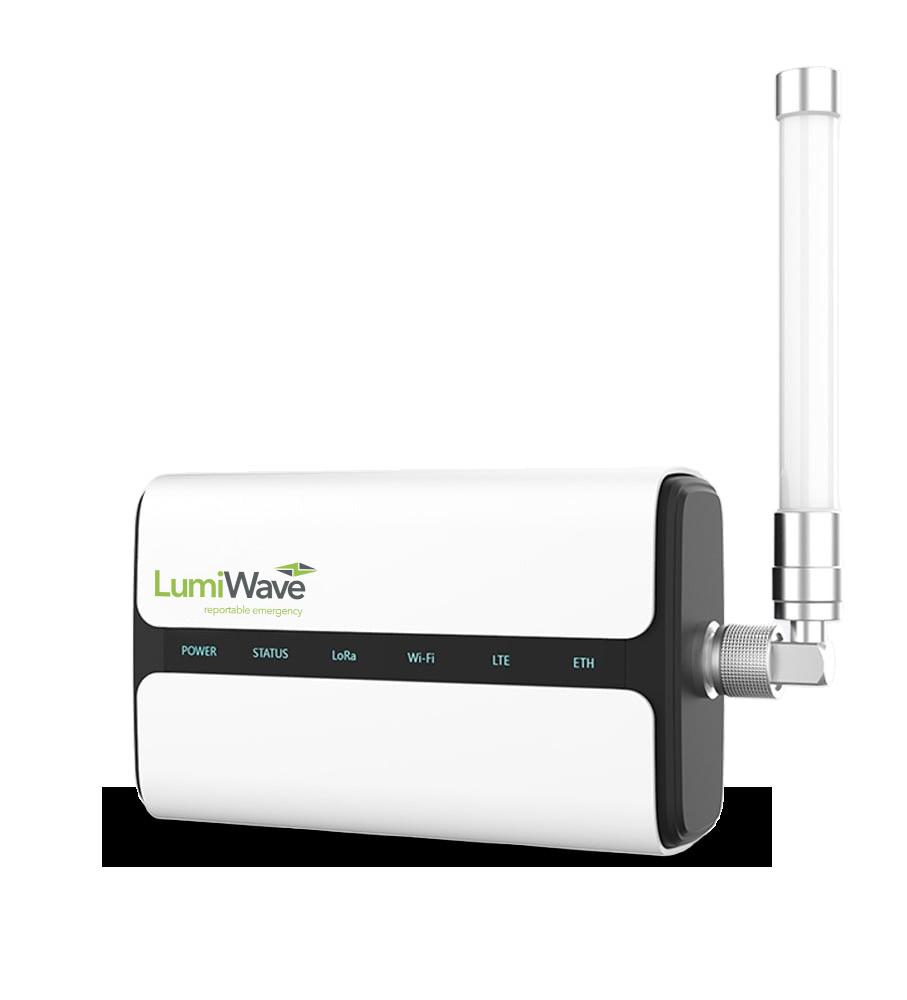

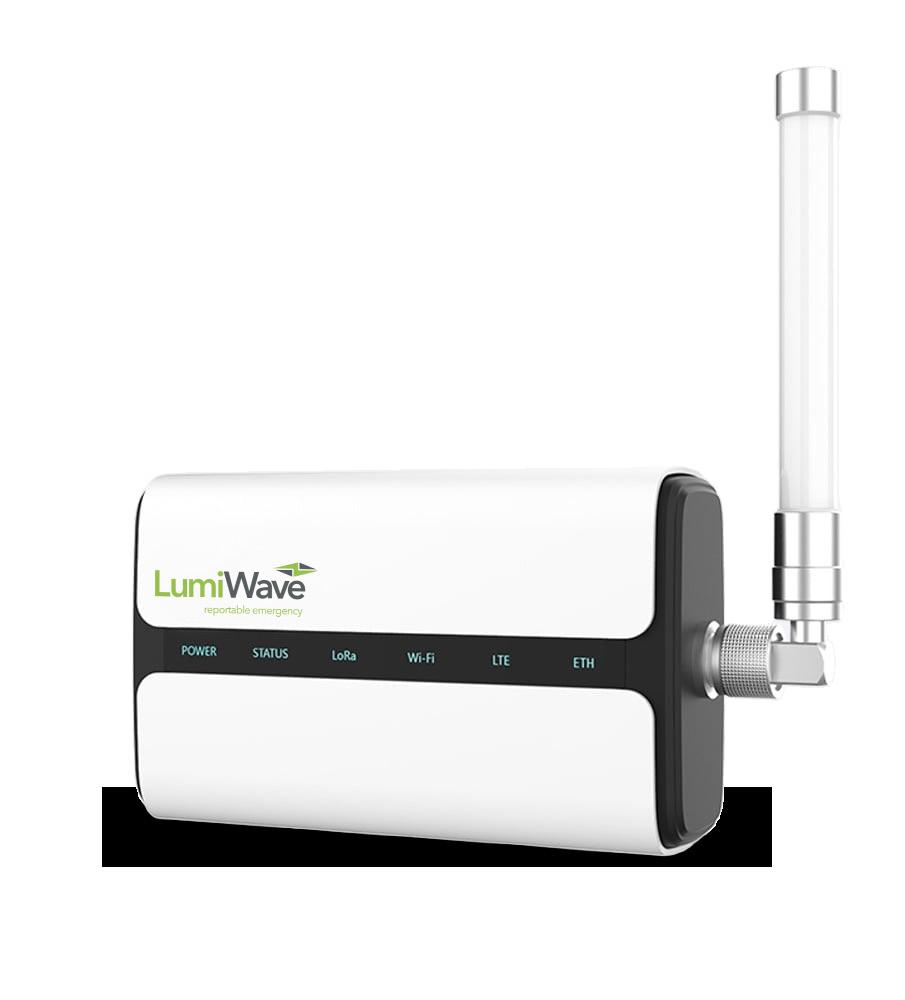

Gateways
Gateway infrastructure is engineered specifically for each project. Following assessment of the installation environment, the appropriate gateway type and quantity are specified to ensure reliable communication and optimum system performance. Reliable LoRaWAN wireless connectivity
• Optimised coverage through site-specific gateway placement
• Compatible with local and cloud system architectures
• Simplifies commissioning and system expansion
• Provides a stable foundation for long-term compliance monitoring
• IP65 Rated option available
• Server rack mount option
GENERAL INFORMATION
Part Number 470085
Description LumiWave Ariel Gateway

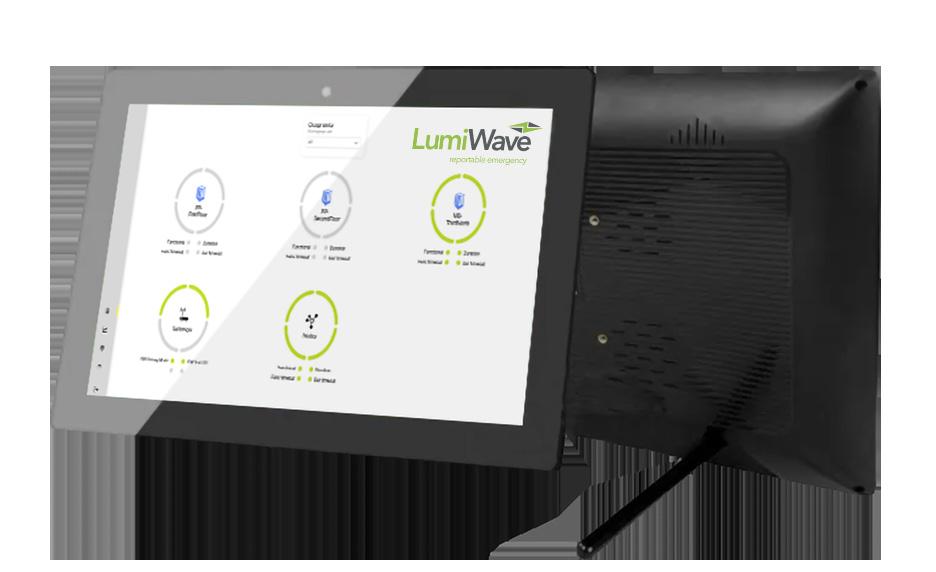

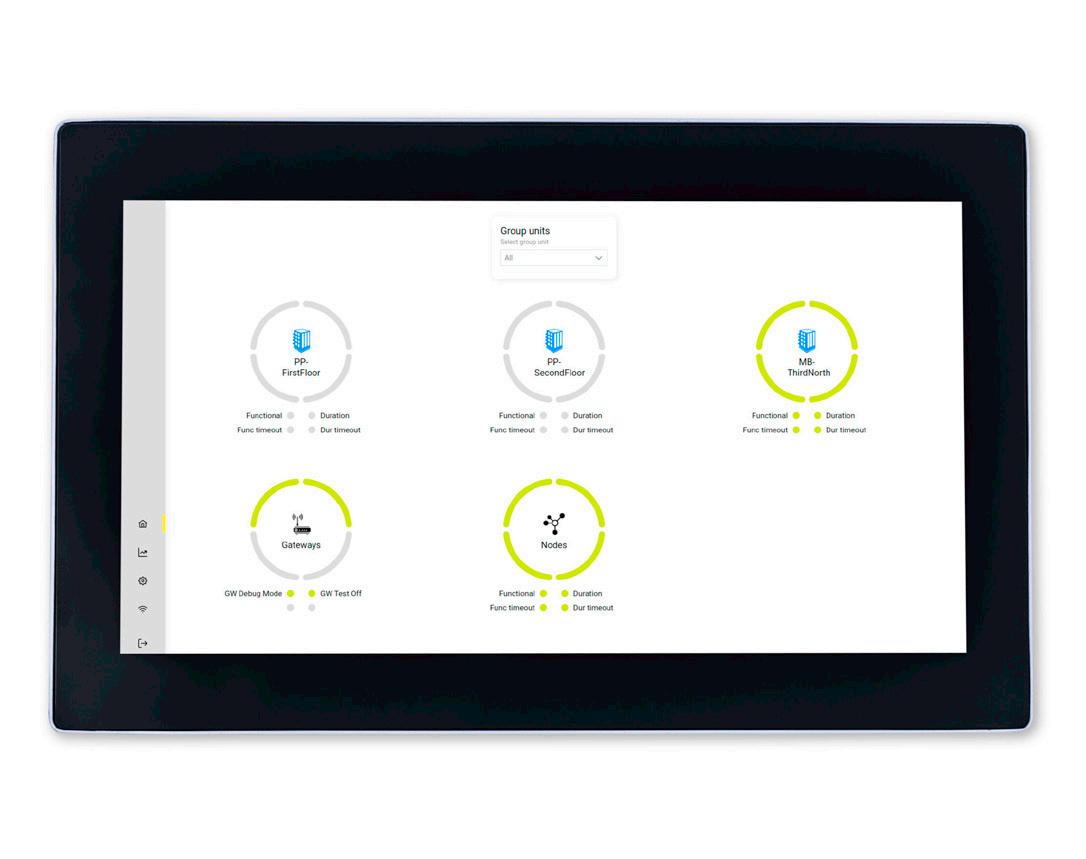

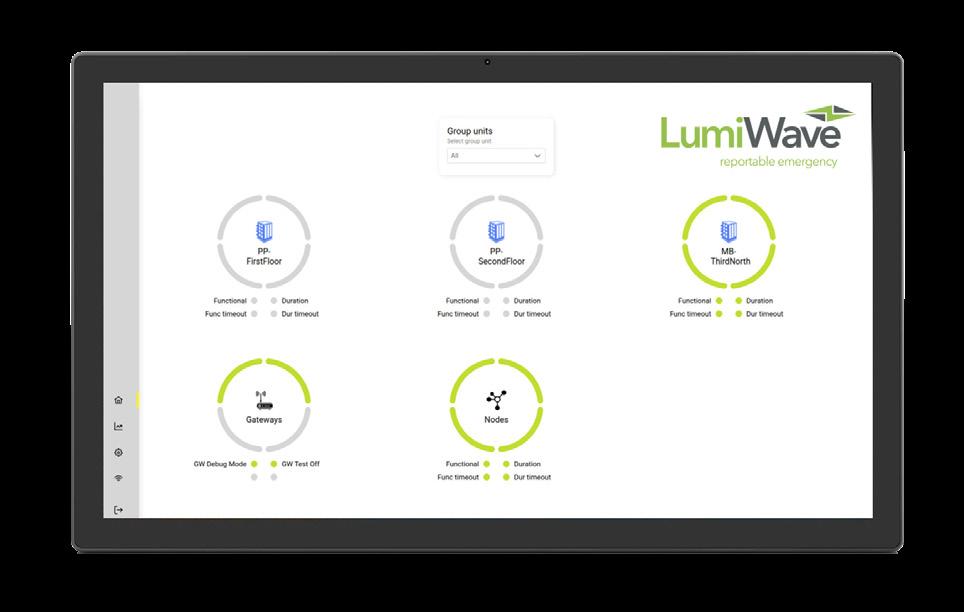

Touchscreen Interface
The LumiWave touchscreen provides a simple and intuitive local interface for monitoring and managing the emergency lighting system on site.
• PoE or mains powered
• 15.6” and 21” screen size options
• Wall-mounted or desk-mounted configurations
• Clear system overview with graphical floor plan display
• Simple, user-friendly interface for routine testing and fault identification
• Direct access to compliance reports and system status
• Easily programme test schedules GENERAL INFORMATION
What is E-SEL3?

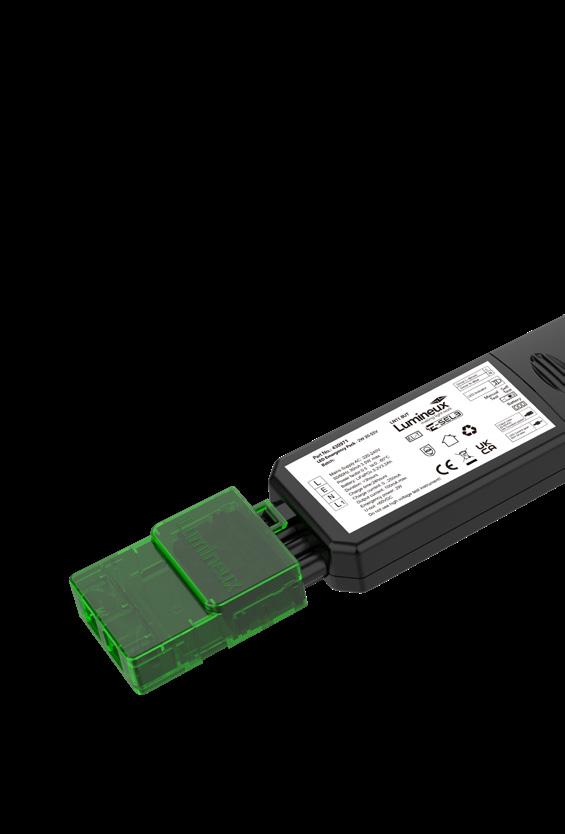

E-SEL3 gives the installer the option to select either a Self-Test or Manual emergency function while utilising the latest LiFePO4 battery technology.
Where you see the E-SEL3 logo, the product benefits from both Self-test and Manual Switching built in. We call it ‘Emergency Selectable’ or E-SEL3 for short.
Is your Emergency Lighting up to Standard?
We offer a full and free survey on emergency lighting, ensuring your safety lighting fits your needs and meets the latest regulations. All of our emergency fittings now come with E-SEL3 selectable emergency fitted as standard - this gives the installer the option to select either a Self-Test or Manual emergency function. Offering flexibility, easier maintenance, and better compliance, Self-test saves time and labour by automatically checking for faults, Manual mode gives full control when needed. Reliable, cost efficient options for busy maintenance staff.
Smart Lighting
truSmart Intelligent Lighting is the smart choice for any Industrial environment, offering total control over lighting to create the perfect setting for performance, safety, and experience. Whether it’s adjusting brightness, setting the ideal colour temperature, or programming lighting scenes for different settings or times of day, truSmart gives you complete flexibility—while ensuring energy is used efficiently.

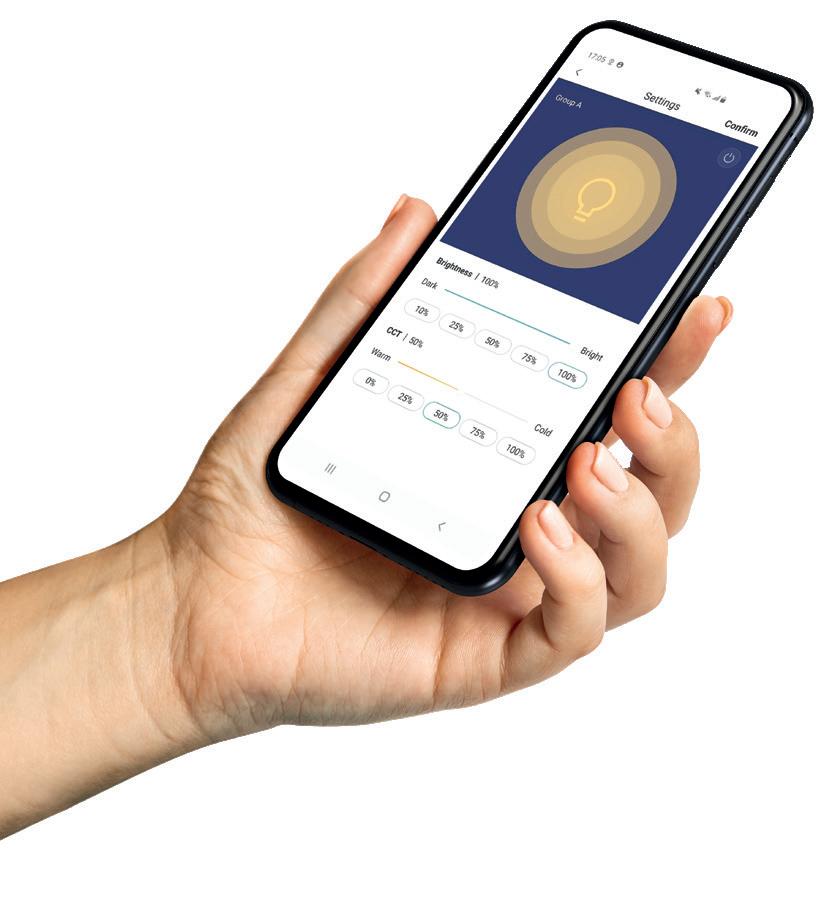

Designed with simplicity in mind, truSmart systems can be managed effortlessly via a mobile app or the truSmart Controller, making them easy for venue staff to operate without technical expertise.
Smart occupancy sensors, such as PIR detectors, are a valuable addition in hightraffic areas like locker rooms, corridors, and concourses. These sensors automatically switch off lighting when areas are unoccupied, helping reduce energy costs and supporting your sustainability goals.
Look for the truSmart logo on our products, it means you’re choosing intelligent technology that adapts to your needs, supports environmental responsibility, and helps create a high-performance and safe environment for staff.
CIRCADIAN RHYTHM (Human Centric)
What features do I need?
truSmart does so much – sometimes it can be overwhelming. That’s why we offer free consultations with our lighting experts, to understand exactly what you are looking to achieve and to build a tailored solution for you. If you have any questions, or would like to know more about truSmart, please visit www.lumineux.co.uk
