EDUCATION LIGHTING GUIDE

Lighting Specialists For Every Level of Education

Lumineux is a family-run, UK-based manufacturer and distributor of quality LED lighting products. We have been providing a superb range of commercial and industrial lighting solutions for over 35 years and are founded on an approach of high quality, innovation and dependability.

Education Lighting Solutions Tailored to You

At Lumineux Lighting, we’re proud to be a trusted, UK-based, family-run business with a long-standing reputation for quality and reliability. We understand the unique demands of educational environments, from early years to higher education, and offer tailored lighting solutions that enhance learning, improve wellbeing, whilst meeting compliance standards. Whether you’re lighting classrooms, sports halls, corridors, or outdoor areas our extensive product range combines performance, efficiency, and long-term value—backed by expert support every step of the way.

Why Upgrade Your Lighting?

Improved Concentration & Learning Outcomes

Quality lighting supports better focus, reduces eye strain, and helps create an environment conducive to learning.

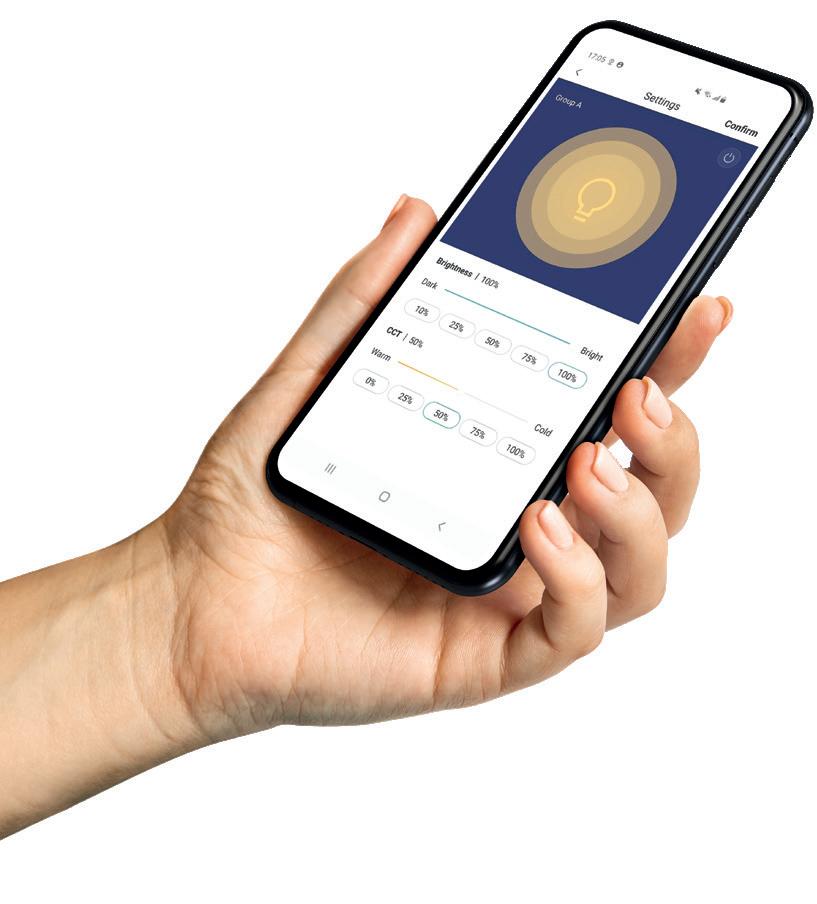

Future-Proofing with Smart Controls

Integrating daylight sensors, dimming, and presence detection helps optimise energy use and adapt spaces for multi-use environments.

Enhanced Wellbeing for Students & Staff

Modern lighting can mimic natural daylight, positively impacting mood, energy levels, and overall wellbeing.

Improved Safety & Security

Well-lit corridors, car parks, and outdoor spaces can reduce accidents and enhance security across your site.

Energy Efficiency & Cost Savings

LED technology significantly reduces energy consumption and maintenance costs—freeing up budgets for other priorities.

Sustainable & Environmentally Responsible

Compliance with Regulations & Standards

Upgraded lighting ensures compliance with current lighting regulations, including lux levels and emergency lighting requirements.

Lower carbon emissions and longer product lifespans support sustainability targets and demonstrate environmental responsibility.

Circadian rhythm Supports focus, mood, and sleep by aligning classroom lighting with natural body rhythms— enhancing learning, behaviour, and wellbeing.

“Efficient lighting leads to lower bills and higher performance.”

Cost Effectiveness

LED lighting cuts energy costs and needs little upfront investment.

Improved Performance

The right lighting boosts focus, vision, and mood.

Maintenance LEDs last longer, come with hassle-free warranties meaning fewer replacements.

Environment

Cut your carbon emissions, benefiting the planet.

From the largest sports hall to the smallest classroom, from dynamic workshops to bustling reception areas — our lighting solutions ensure the perfect light for every space, every time.

Wraysbury

Suitable for: Classrooms, Corridoors/Walkways, Offices & Reception Areas.

The Wraysbury backlit panel range offers efficient lighting. Supplied with connectors for easy installation, they include dimmable driver and E-SEL3 options. We have multiple options including Indirect, A-rated Ultra Efficient, UGR & 3CCT.

Olton UGR

Suitable for: Classrooms, Corridoors/Walkways, Offices & Receptions.

Specially designed for the educational sector, achieving <19 UGR in classrooms with aditional options of self-test emergency and microwave sensors.

Howden Plus

Suitable for: Corridoors/Walkways, Storage Rooms, Entrances, Stairwells

The Howden Plus Bulkhead is a durable, versatile lighting solution featuring a robust body, polycarbonate diffuser, selectable wattage and 3CCT for maximum flexibility in any setting.

Redbrook

Suitable for: Emergency Exits

The Redbrook Emergency Exit Box features an E-SEL3 selectable self-test or manual mode and a task light emergency option. Supplied with 4 directional legends and 20mm conduit entries for easy installation, it’s backed by a 5-year product and battery warranty.

Belmont

Suitable for: Sports Halls, Gymnasiums & Assembly Halls.

The High Impact Resistant Belmont is a robust Sports High Bay with outstanding performance and low glare. Customise your Belmont with multiple sensor, power and emergency options.

Frankly Plus

Suitable for: Building Illumination, Outdoor areas

The Frankly Plus is a professional-grade exterior floodlight delivering 180 lm/W with A-rated efficiency. Built for harsh environments with IP66 protection and advanced optics it offers durable, high-performance lighting for demanding outdoor applications.

Eyebrook

Suitable for: Corridoors/Walkways, Offices, Receptions & Storage Rooms.

The Eyebrook is a versatile and high-performance downlight, featuring interchangeable reflectors and trims that allow for easy customization. Designed with an aluminium heatsink, it delivers excellent thermal management, ensuring long-lasting performance and energy efficiency.

Lighting Colour Temperature Scale

2700K - 3000K Warm & Inviting

Adds a yellow tint while enhancing reds and oranges

4000K Efficient & Neutral Enhances all colours equally CCT Selectable Correlated Colour Temperature

6000K Vibrant & Attentive

Adds a bluish tint, flattens reds and enhances existing blues

Products that are CCT Selectable allow you to choose the colour temperature of the light using a switch on the fitting. This lets you adjust the light to suit different rooms or preferences without needing to change the fixture.

Classrooms WalkwaysCorridoors/ Offices

The perfect light for every space, every time.

Lumineux provides tailored lighting solutions for educational environments, enhancing indoor spaces with efficient, adaptable illumination that supports comfort, focus, and well-being for students and staff.

ScienceWorkshop/Technology&

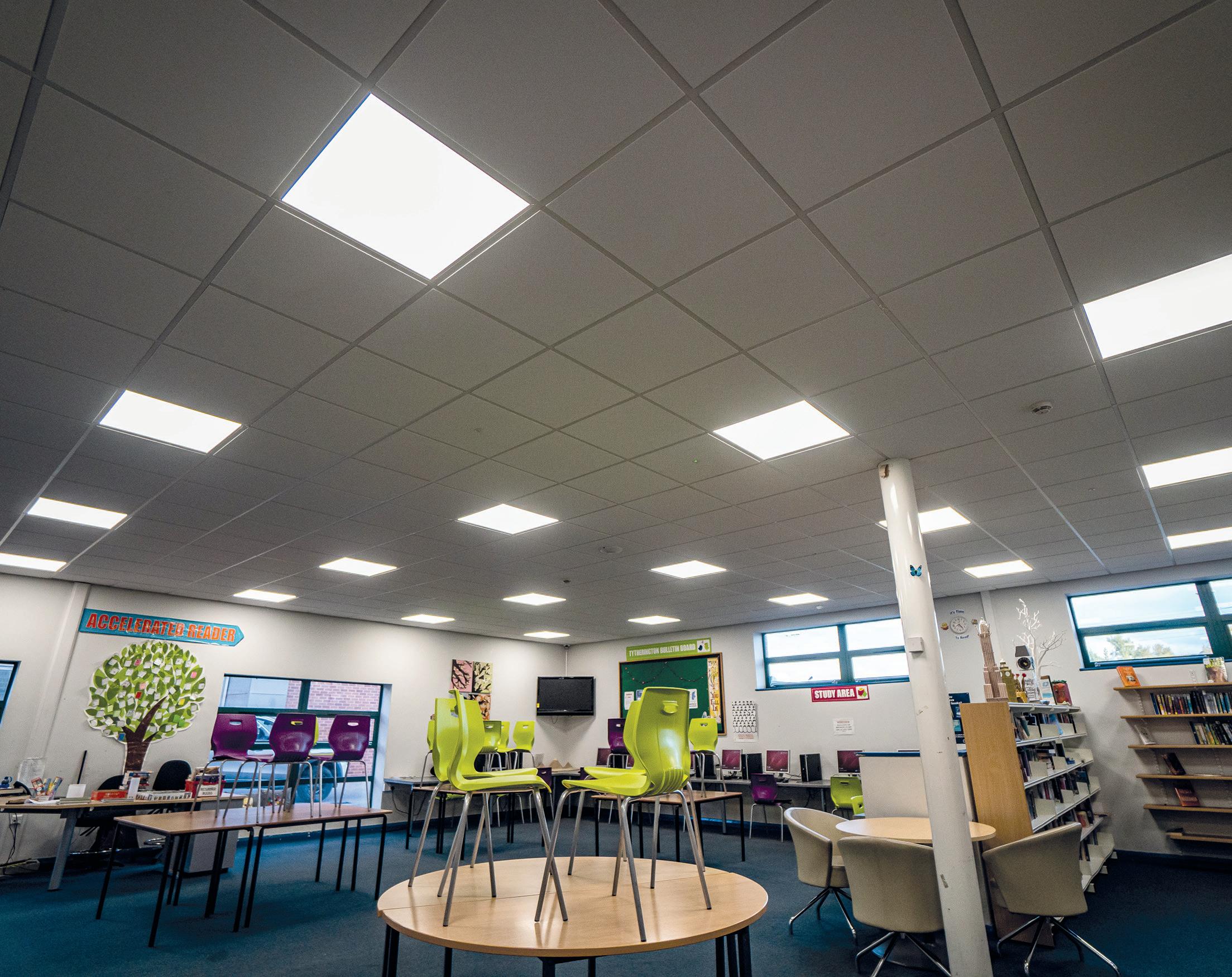

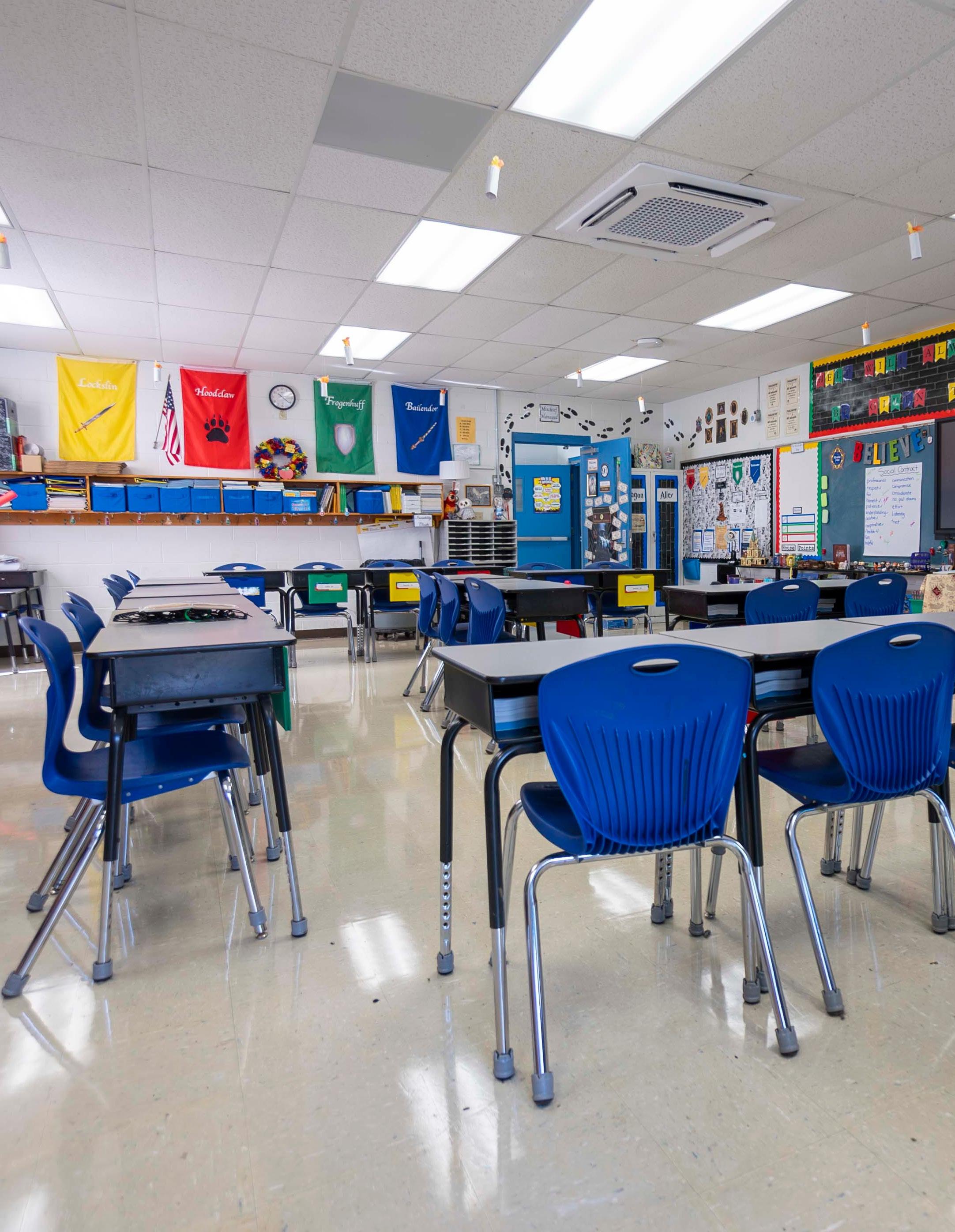

Classrooms

Bright, even, & comfortable.

Supporting concentration, reducing eye strain, and adapting to different activities, helping create a productive and engaging learning environment.

Reception

Warm, open, & welcoming.

Good lighting helps create a positive first impression for visitors and supports visibility for staff carrying out administrative tasks.

Reception

Storage Rooms

Corridoors/ Walkways

Consistent & safe. Ensuring clear visibility for movement through the building and helps maintain a welcoming and secure atmosphere.

Storage Room

Practical & functional. Good lighting provides clear visibility to safely locate and handle materials in spaces with limited natural light.

Stairwells

Consistent, glare-free lighting for safe movement.

Bright, even lighting helps prevent accidents, supports safety, and ensures clear visibility at all times of day.

Sports/ Assembly Halls

Entrances

Office

Supporting focus & comfortable. It needs to be bright enough for detailed work while creating a pleasant, professional space for staff and visitors.

Sports/Assembly Halls

Adaptable, evenly distributed lighting. Supporting a range of activities— from sports to performances— ensuring visibility, safety, and an engaging environment for students and audiences.

Outdoor Area

Visibility, safety, & security. It’s especially important around pathways, play areas, and entrances during darker hours, and can also enhance the overall appearance of the school grounds.

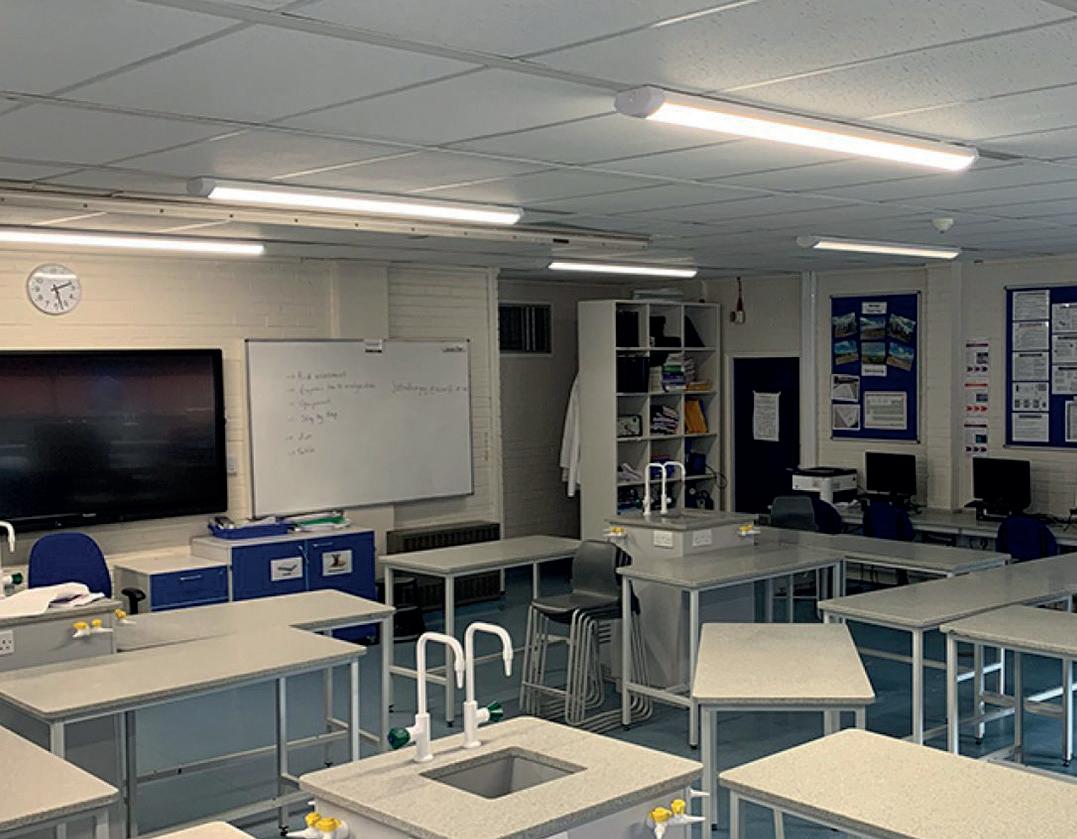

Workshop/Science & Technology

Bright & accurate for safety & precision. Good visibility supports hands-on tasks, helps students stay alert, and reduces the risk of accidents.

Entrances

Well-lit to ensure safety & create a welcoming feel. Proper lighting supports visibility during arrival and departure times and helps make the school more secure and inviting.

Emergency

Essential for guiding students & staff in the event of an emergency. It should automatically activate when needed and clearly illuminate exit routes, stairways, and key safety points.

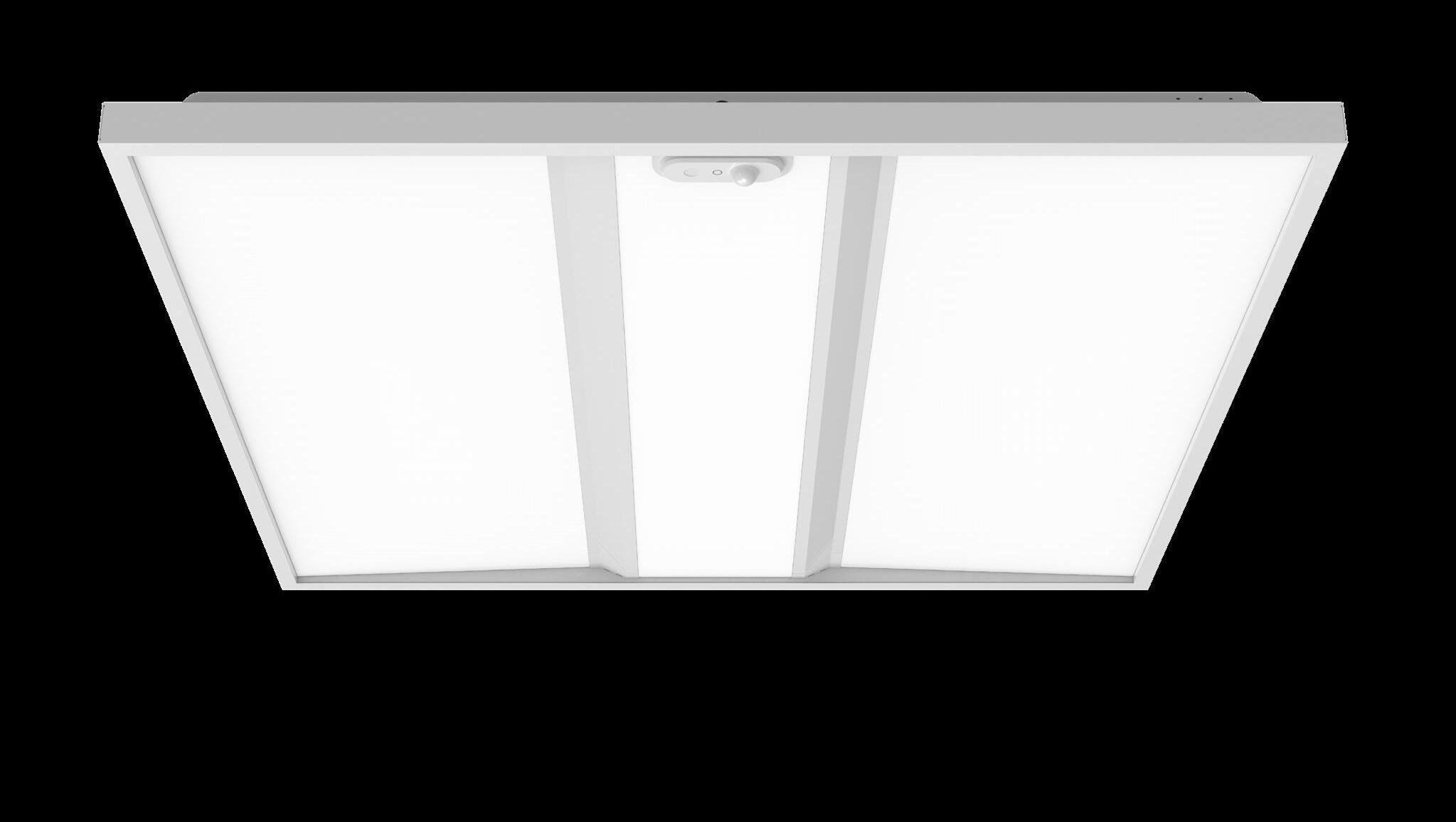

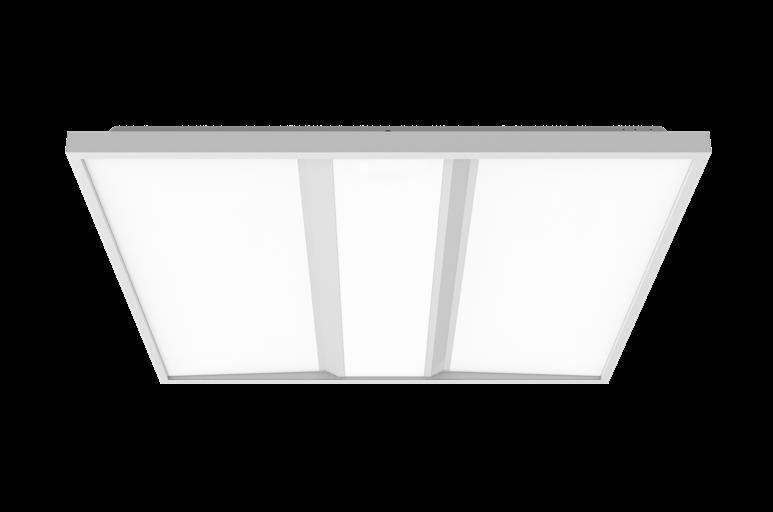

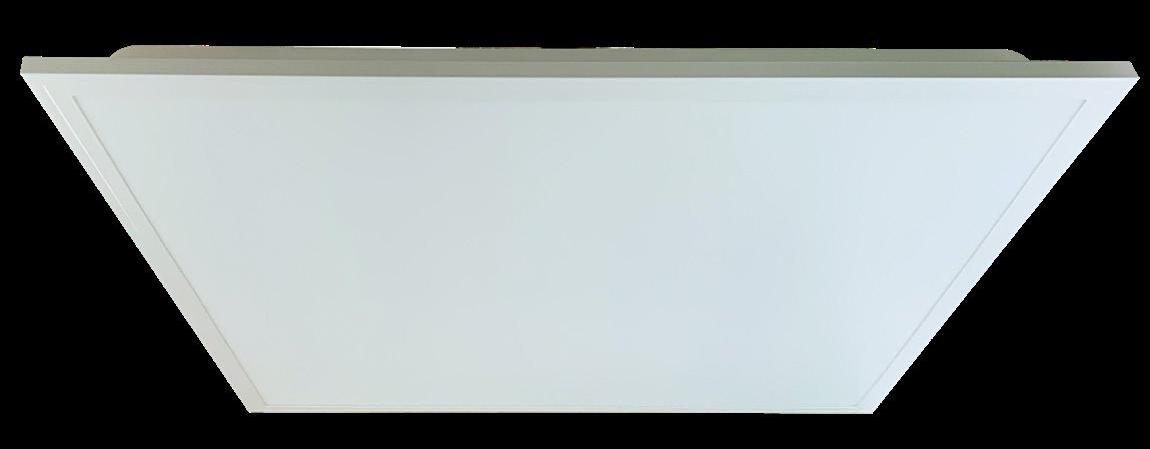

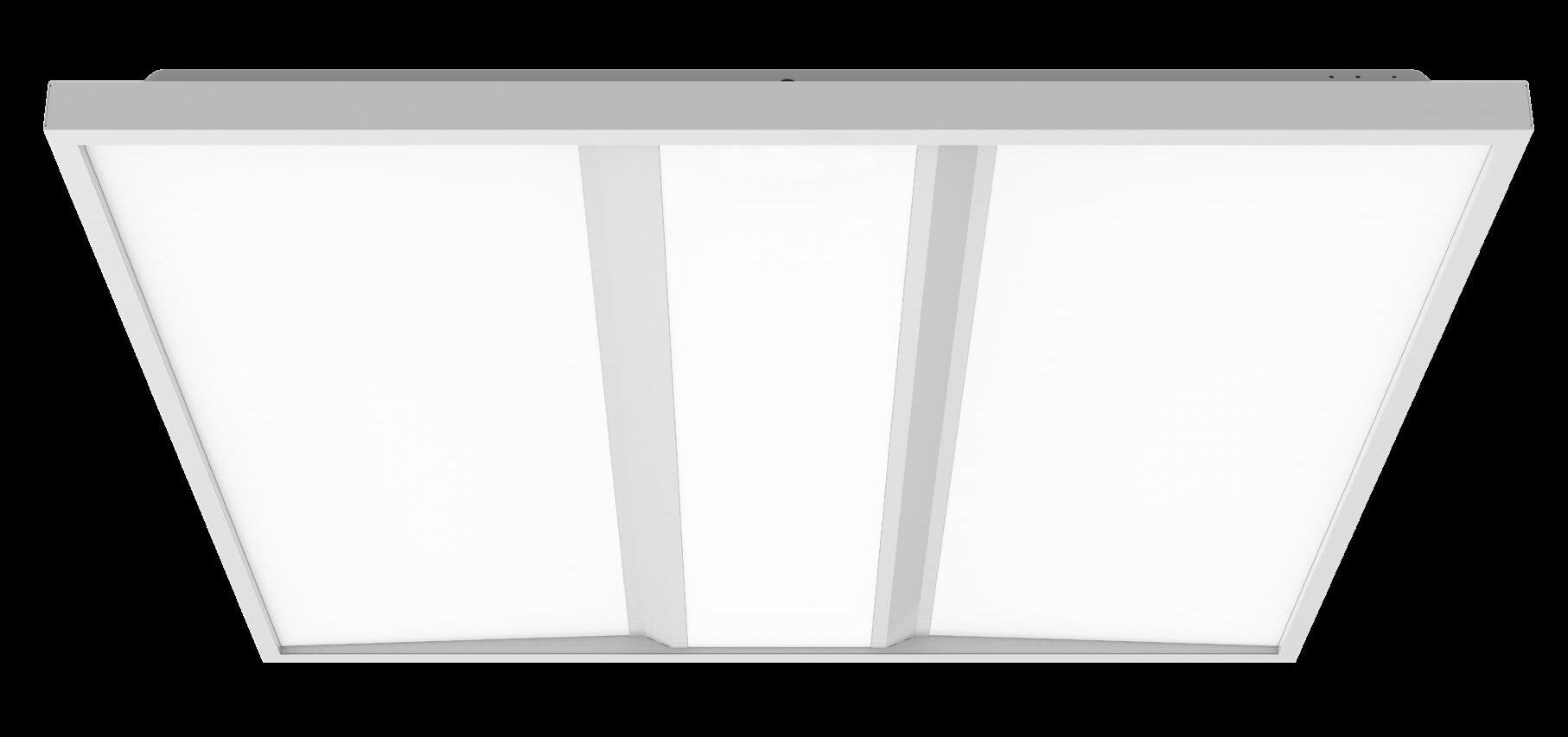

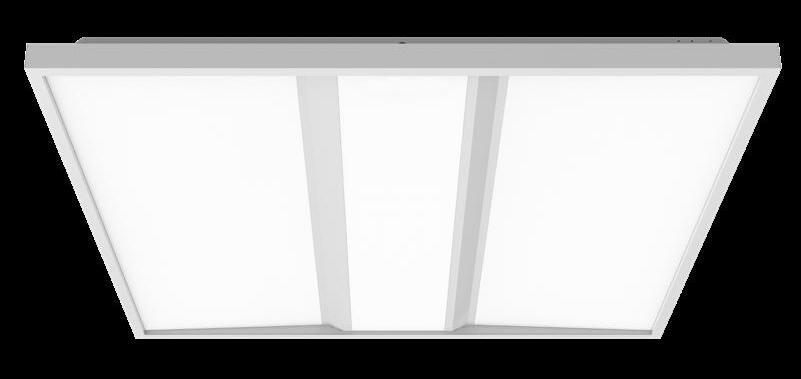

Wraysbury UGR IP65

600 x 600 Backlit Panel

• IP65 panel including IP65 driver

• Optic lens for even light distribution

• Better uniformity and heat dissipation

• Flicker free driver

• Microprismatic TP (a) diffuser

• <19 UGR

Light Colour Temperature: 4000K

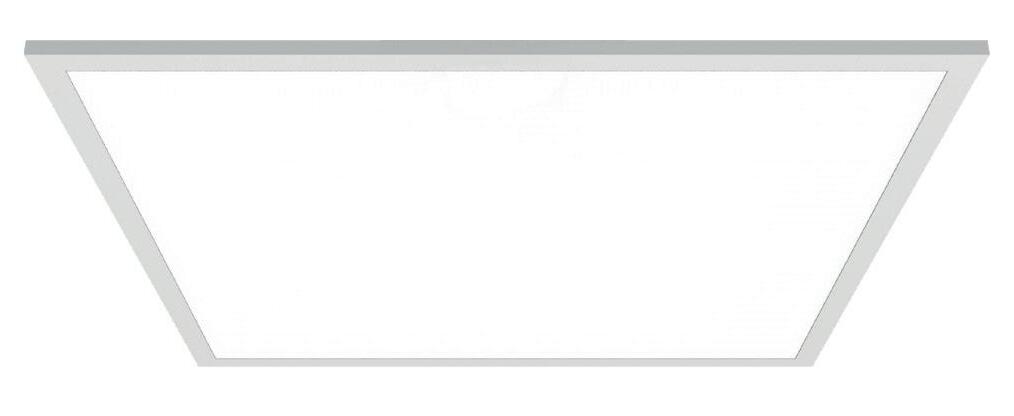

Wraysbury

• 600 x 600 & 1200 x 600 Options

• 3CCT(3000K,4000K & 6000K), 4000K & 5000K Options Available

• Microprismatic TP (a) diffuser

• 5 Year Product Warranty

• 120 lm/W

Wraysbury UGR

•

•

•

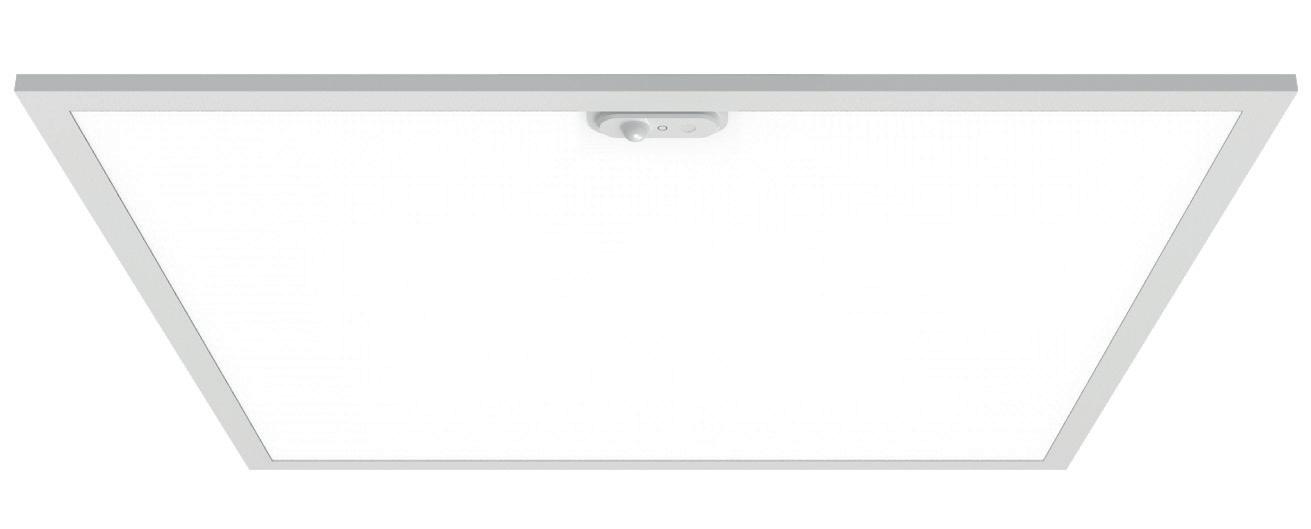

Wraysbury UGR 3CCT

• Optic lens for even light

• Better uniformity and heat dissipation

• Flicker free driver

• Microprismatic TP (a) diffuser

• CCT Switch for colour selection

UGR <19

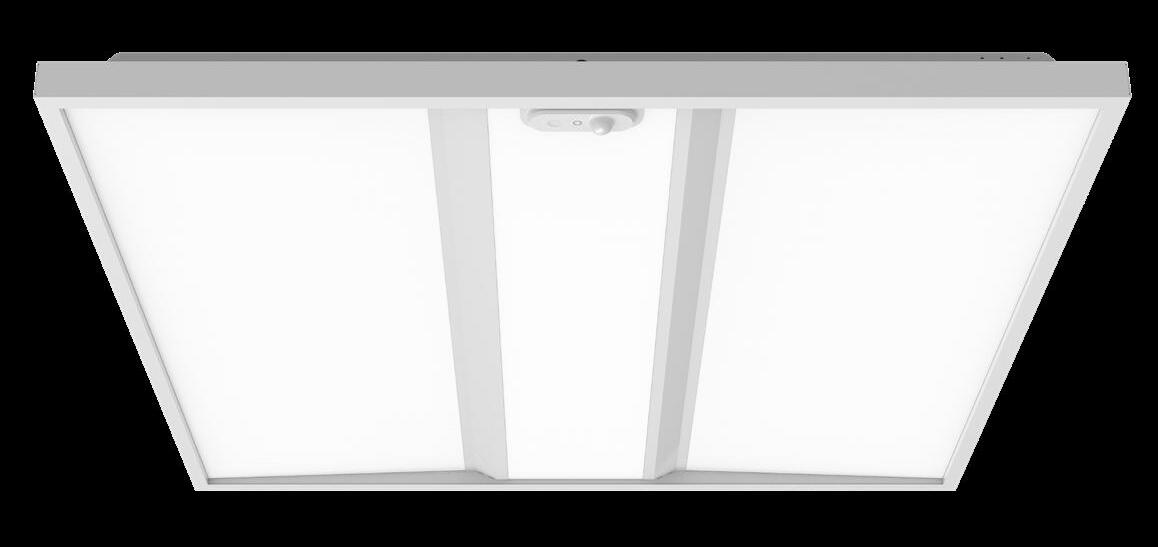

Wraysbury UGR Indirect

• Flicker free driver

• Optic lens for even light distribution

• Microprismatic

Wraysbury UGR Plus

• High efficiency, 175 lumens per watt

• Optic lens for even light distribution

• Better uniformity and heat dissipation

• Microprismatic TP (a) diffuser

• Flicker free driver

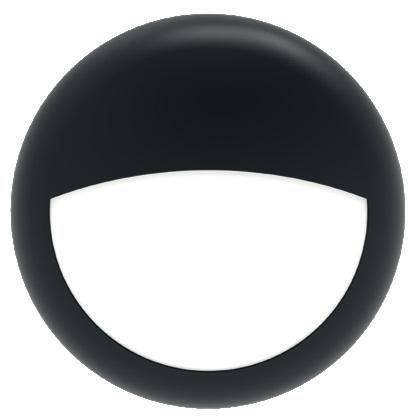

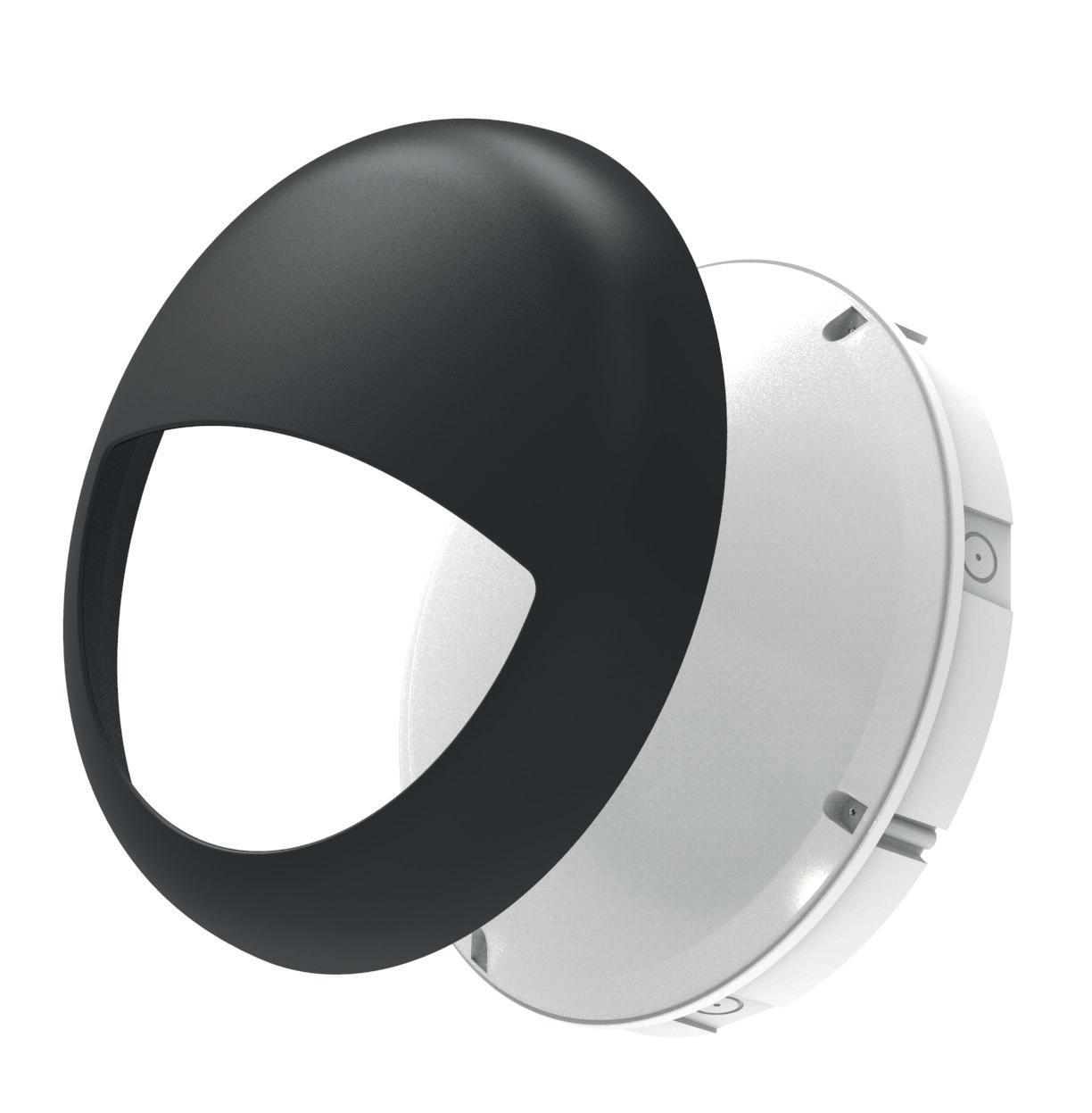

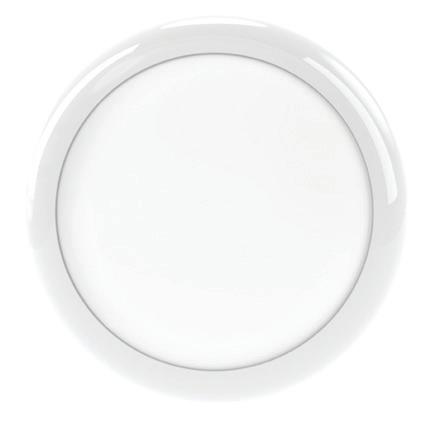

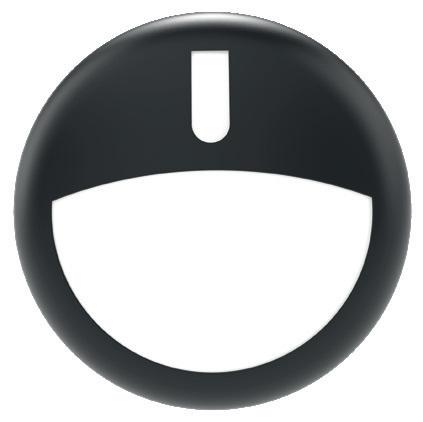

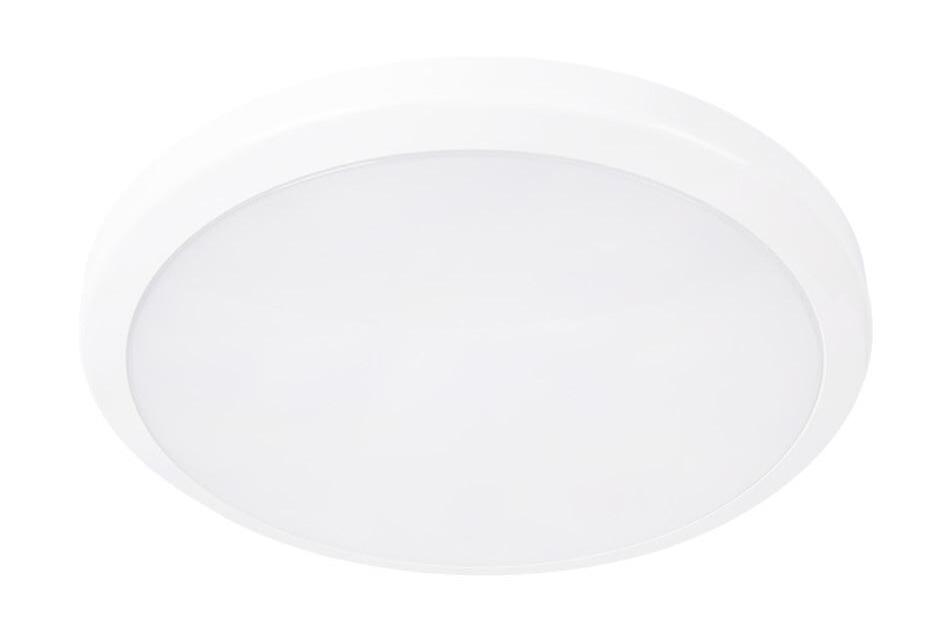

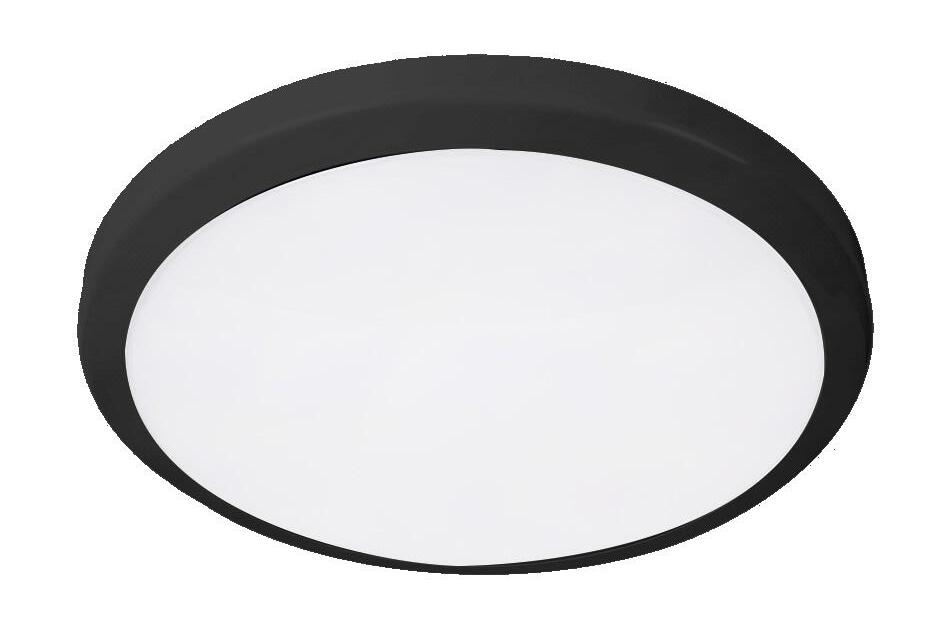

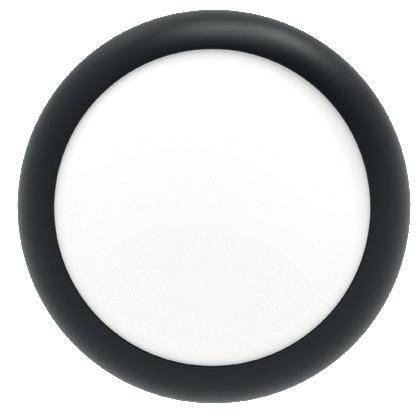

Hatherton

Wattage & 3CCT Selectable Multi Bulkhead

• Standard, step dim microwave sensor and emergency options available

• Tough and durable body with polycarbonate diffuser

• Wall and ceiling mount

• LED lifespan 60,000 hours L70

• x4 20mm conduit entry points

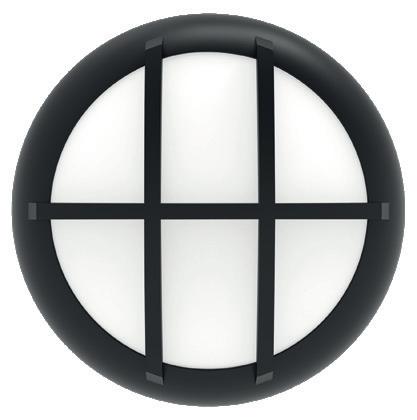

Howden Plus

•

•

•

•

•

•

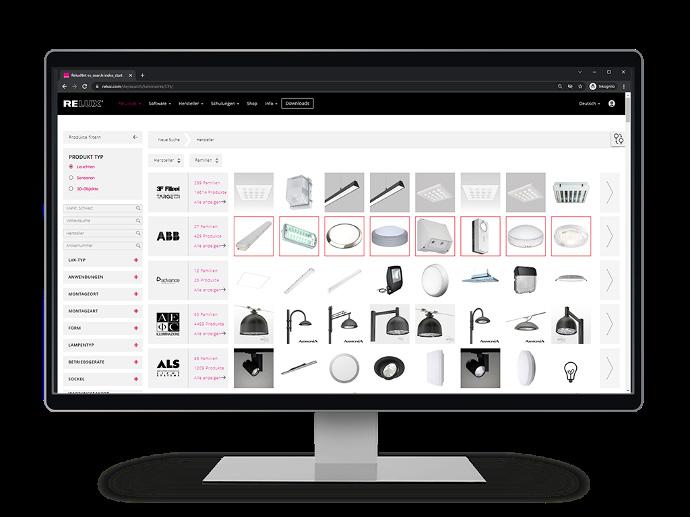

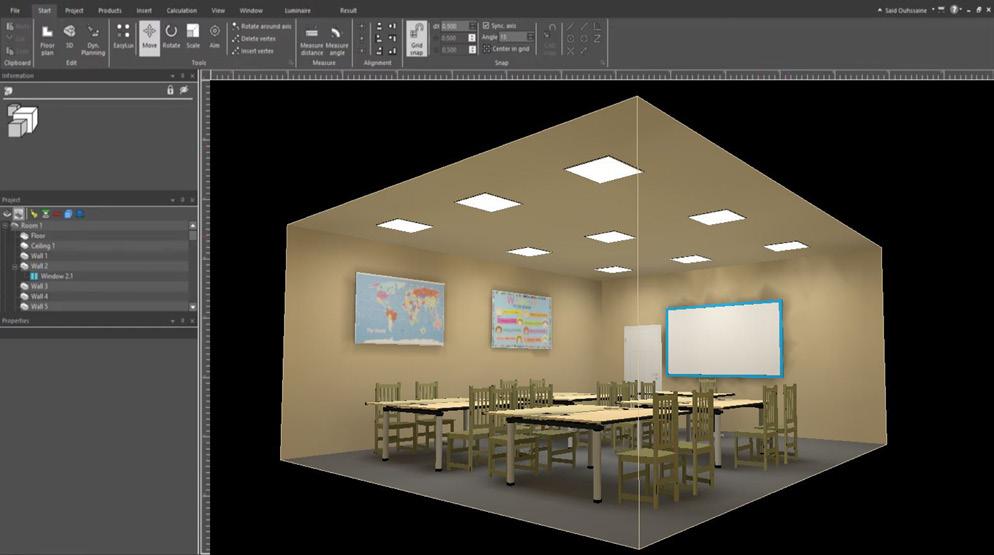

Lighting Design

Our lighting designers can help provide the correct lighting for your building or outdoor space. With over 60 years of combined experience in the lighting industry, our team understands the critical role that effective lighting design plays in any project. We recognise the value a skilled lighting engineer brings, ensuring that every design meets the required light levels and complies with current regulations.

FREE Lighting Design Service

Lumineux offers a comprehensive and free lighting design service aimed at offering the right solution, whilst also providing the very best energy and cost savings.

Site Survey Service

Lumineux’s experts can provide a site survey to maximise your lighting needs, whilst offering the best solution for your budget and the right products for the right environment.

Return on Investment

Our ROI calculator factors variables, including maintenance and occupancy of the environment, to ensure a comprehensive payback calculation.

On-Site Warranty

At Lumineux, we’re dedicated to providing not only high-quality lighting solutions but also peace of mind with our on-site warranty for your projects.

• Tough powder-coated steel body with polycarbonate TP (a) diffuser

• Stainless steel spring clips

• Flicker Free

• LED lifespan 70,000 hours L70

• Loch3 Quick Connector supplied

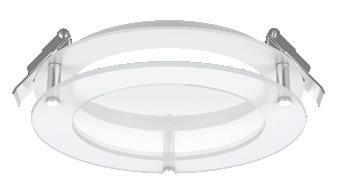

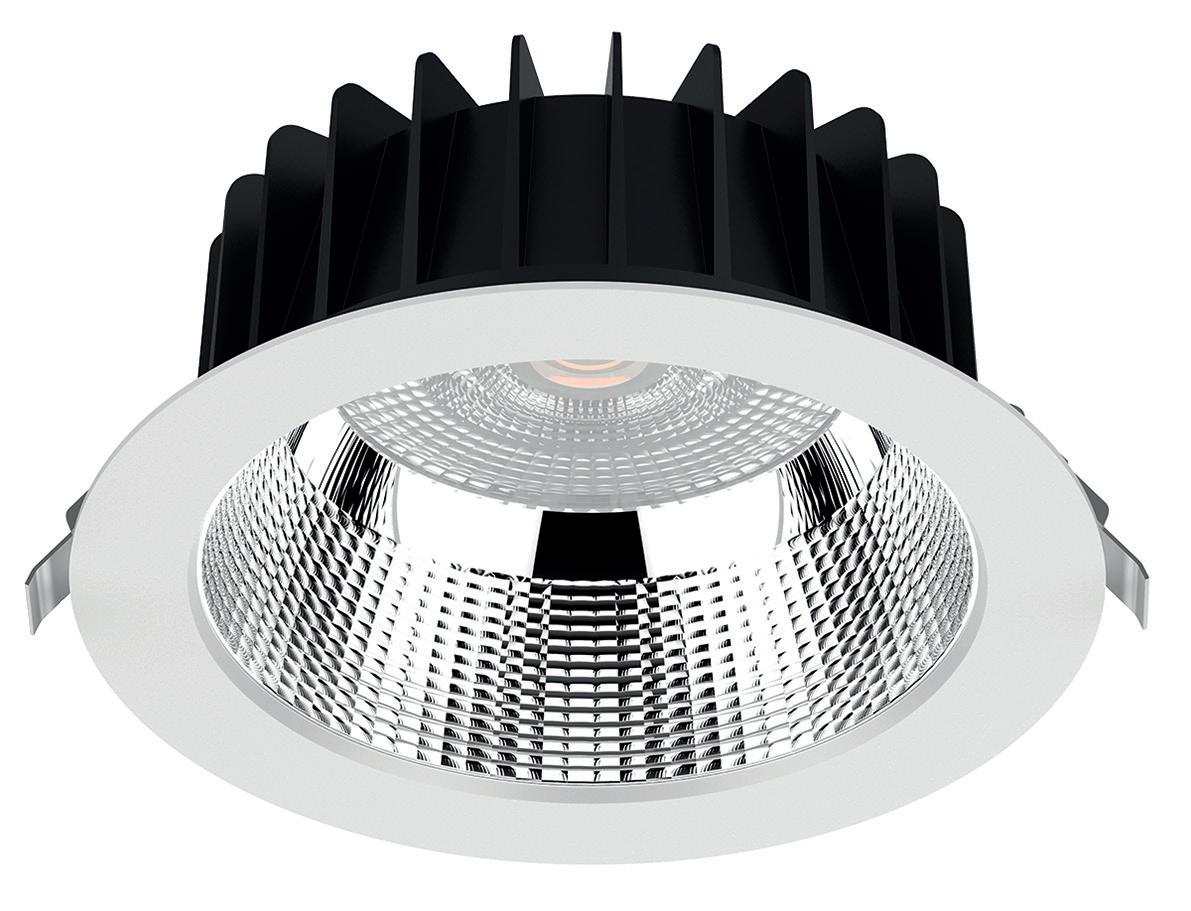

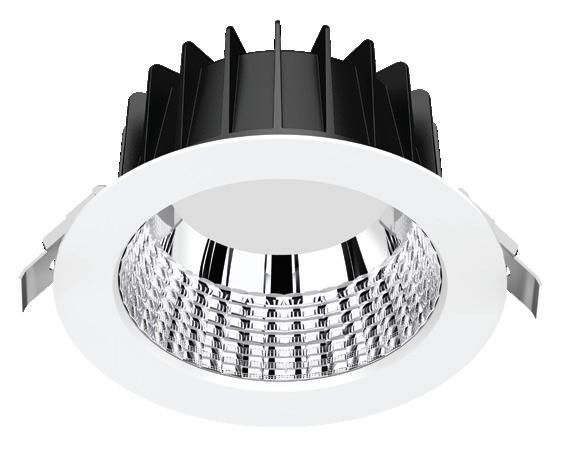

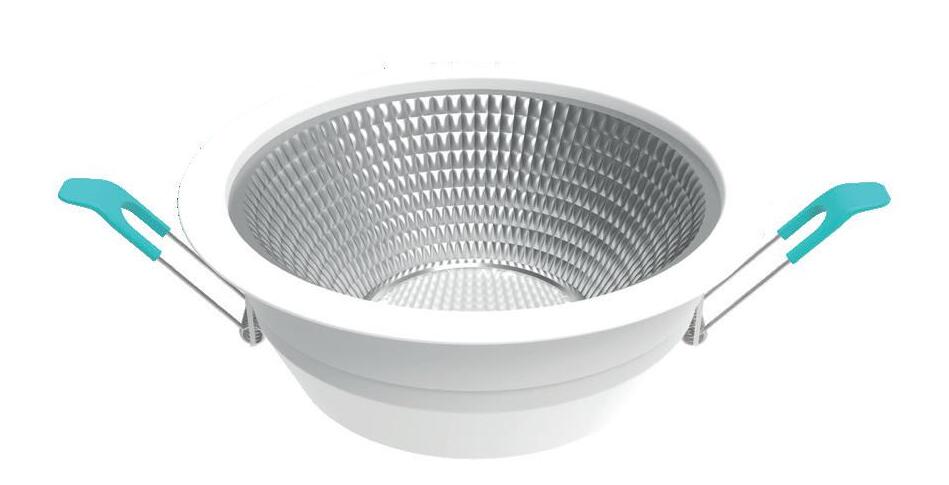

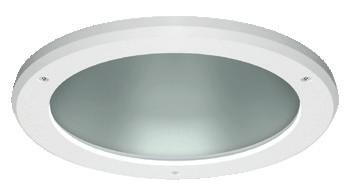

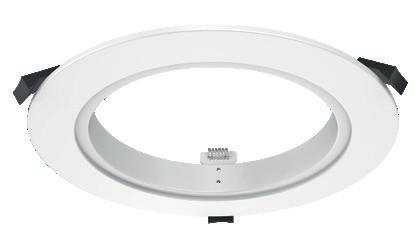

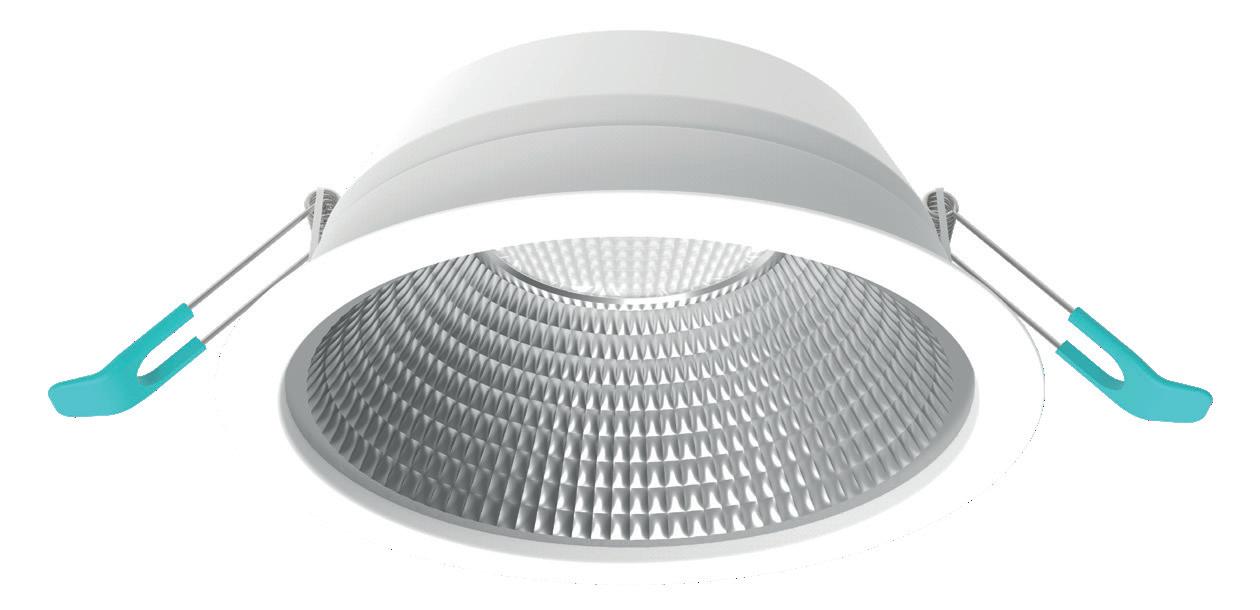

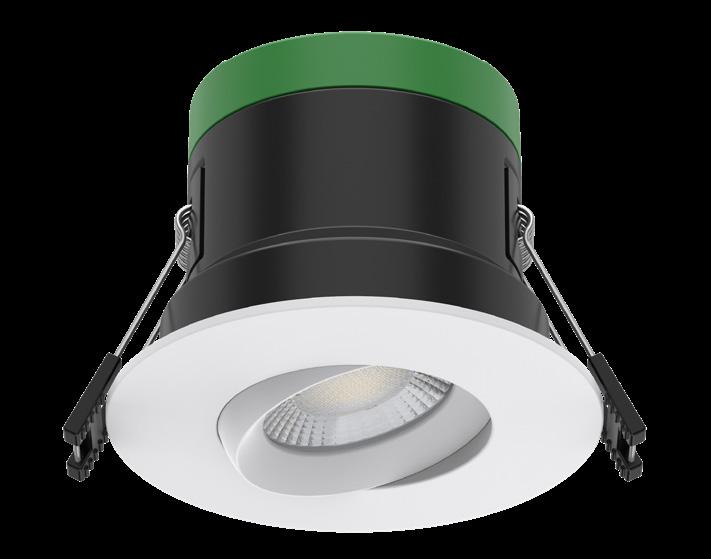

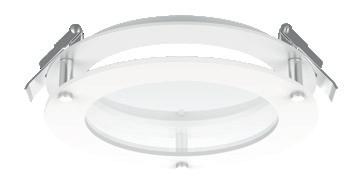

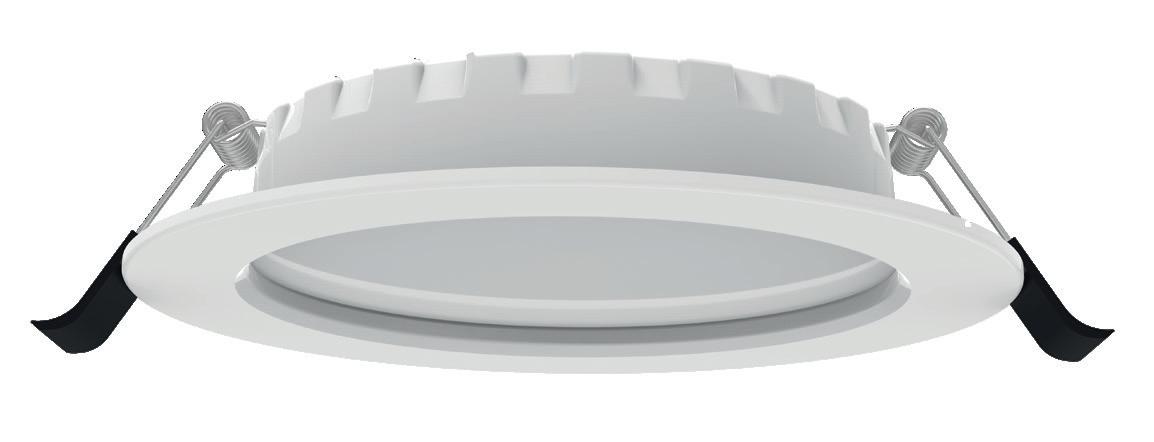

Eyebrook

Downlight

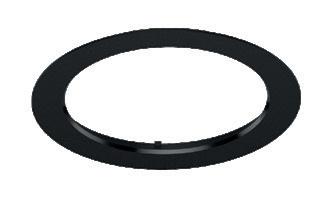

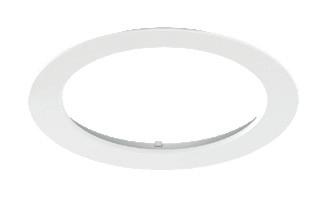

• Interchangeable reflectors and trims.

• Aluminium heatsink provides excellent thermals

• High efficiency up to 130 lm/W

• Low glare lens design

• Selectable wattage via driver

• Easy installation

emergency option available

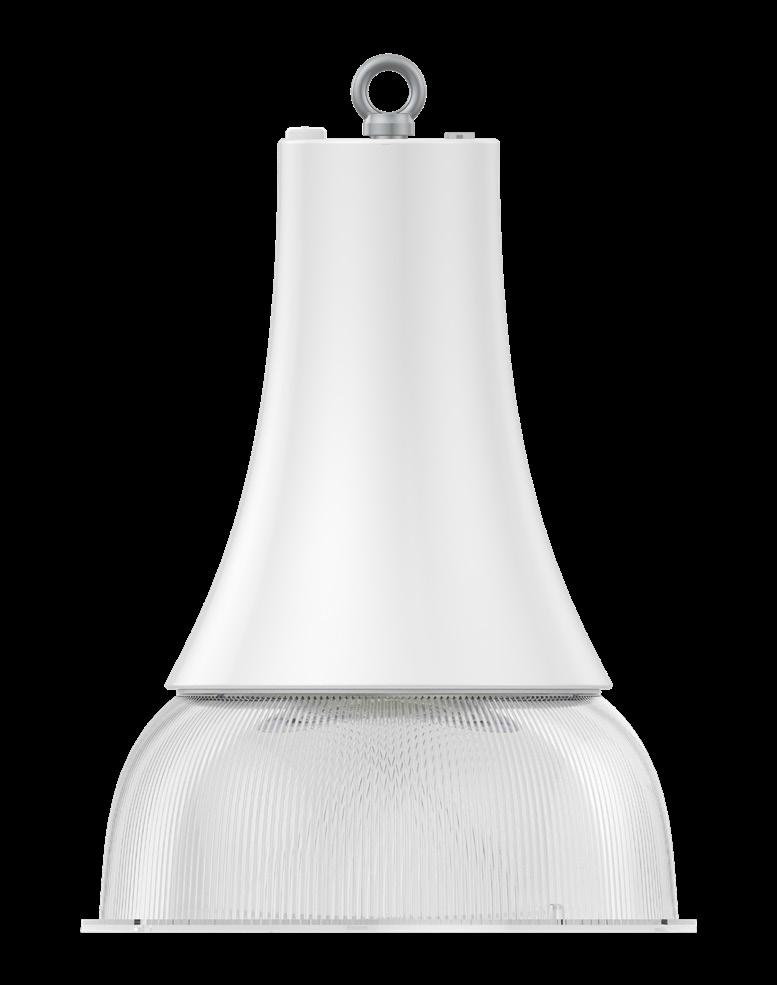

Blakeley

Pendant Light

• Wattage Selectable: 36W/48W/60W

• CCT Selectable: 3000K, 4000K, 5000K

• Compact modern cylindrical mounted design

• Easy installation

• Low glare polycarbonate reflector

• 5 Year Product Warranty

• 155 lm/W

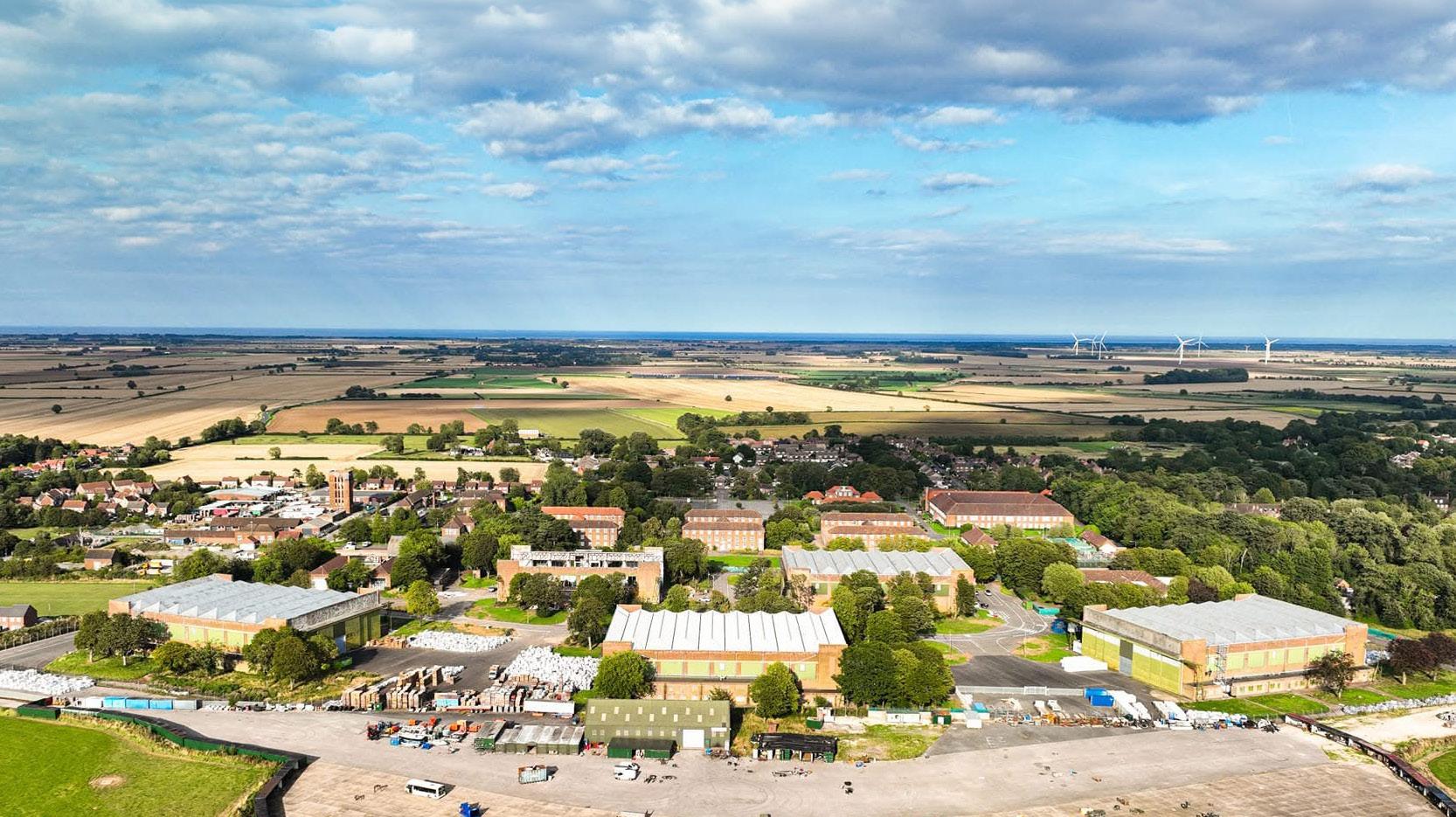

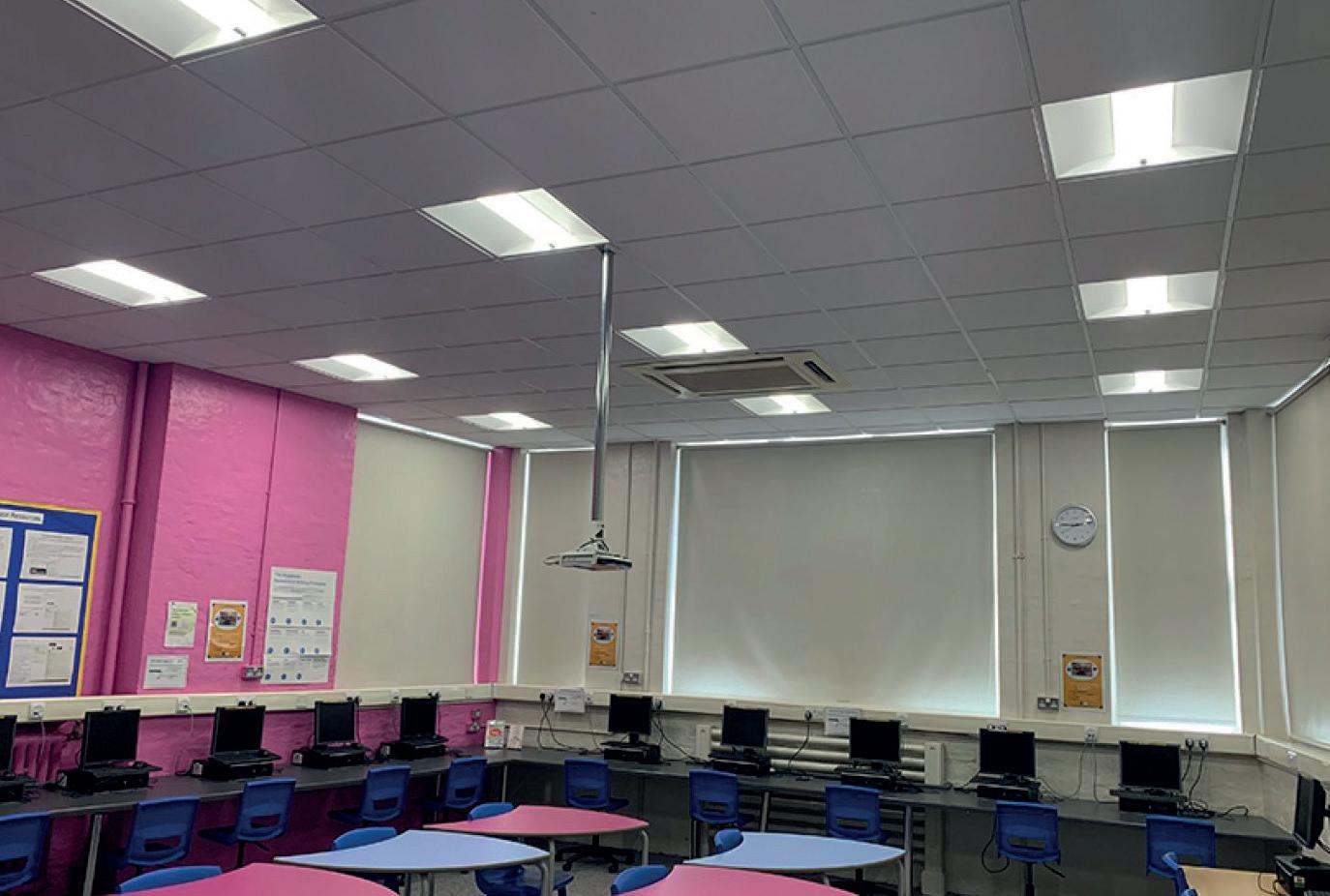

CASE STUDY

We installed over 650 luminaires across the site, all fitted with a variety of sensors and controls to maximise the energy saving. Our truSmart Battens and Troffers are equipped with daylight sensors, PIRs, and a Bluetooth mesh system as standard. The system is controlled via an app providing customisable light levels when needed, whilst allowing for the maximum energy savings to be felt throughout the key areas of this project.

Sixth Form College

This project was in a large sixth form college located in inner-city London. This college understood the importance of lighting in providing a comfortable, yet vibrant, environment to support the focus and general wellbeing of staff and pupils. Our key objectives were to improve the existing lighting levels and reduce the college’s energy usage – without compromising comfort or concentration levels.

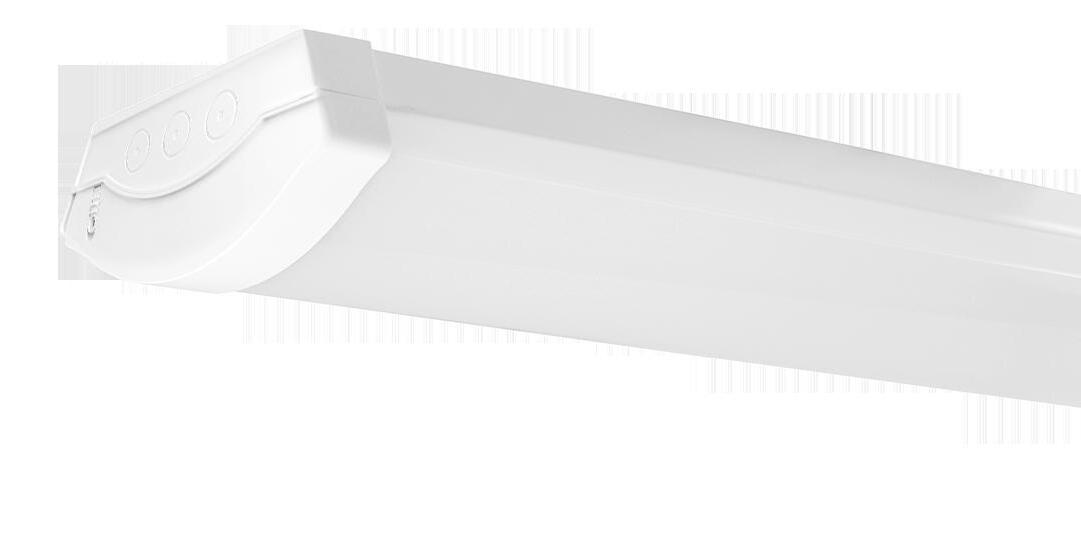

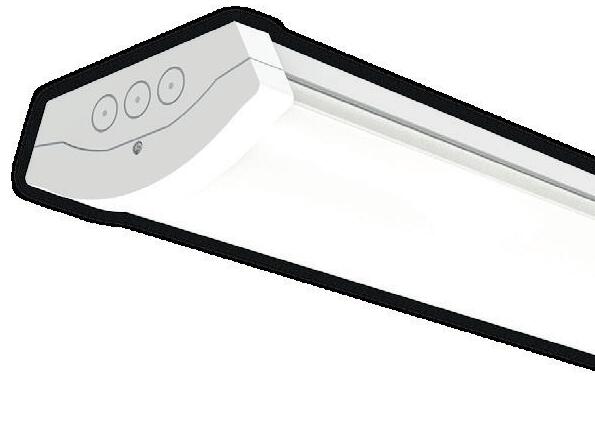

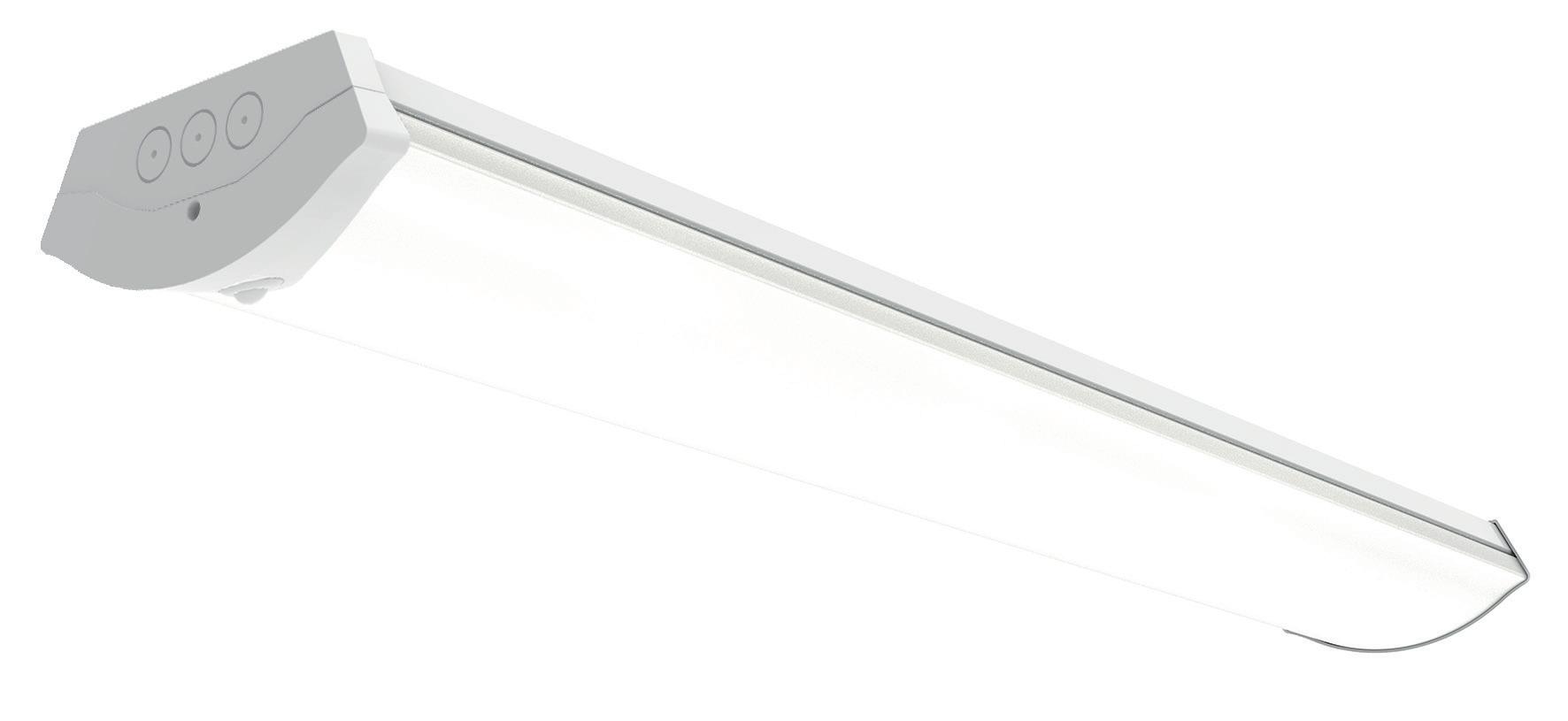

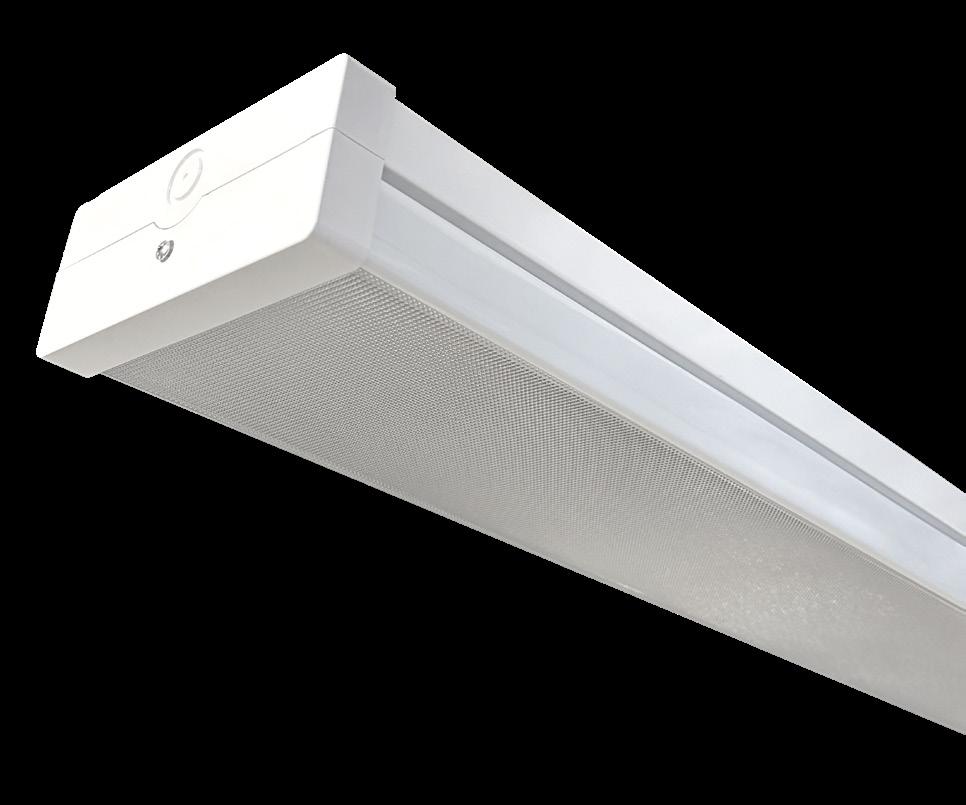

Olton UGR

• Wattage selectable: 16W/30W & 24W/46W

• Academic Batten

• Plug & Play emergency only

• UGR Opal, ribbed polycarbonate diffuser to reduce glare

• Multi 20mm conduit entry

• 5 Year Product Warranty

• 150 lm/W

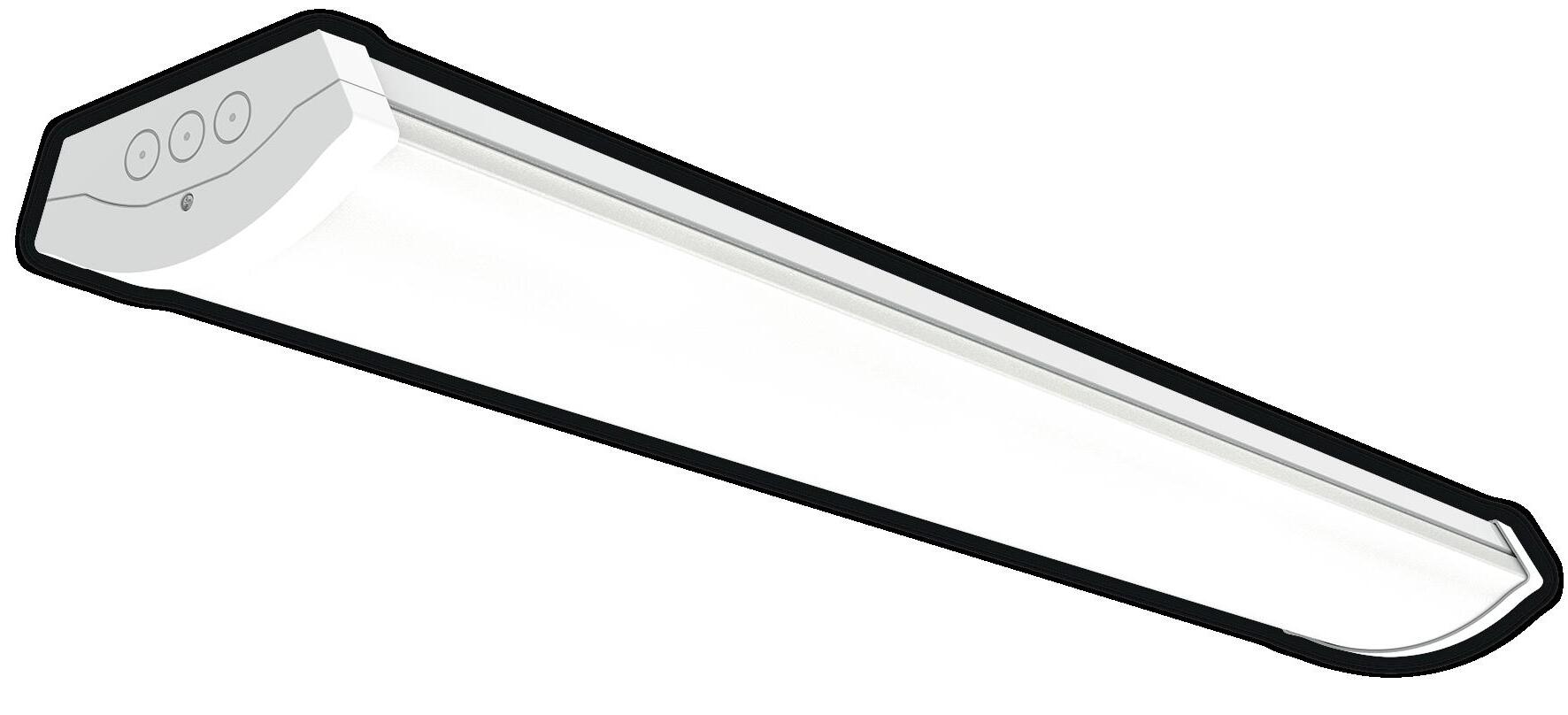

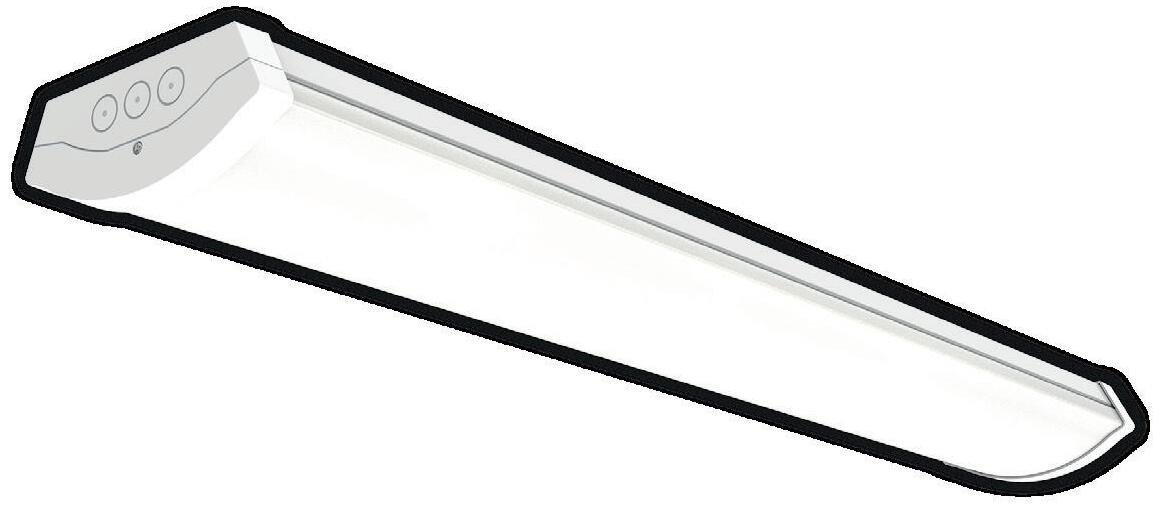

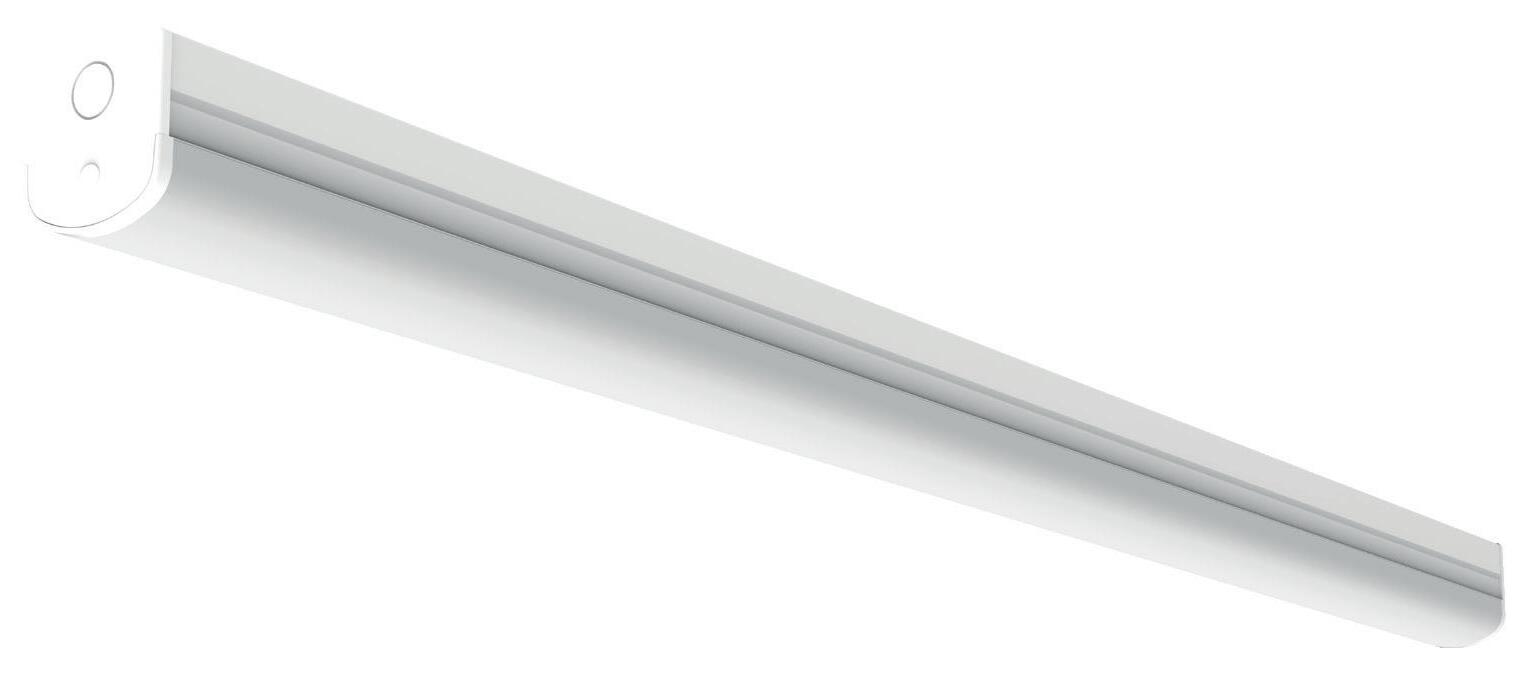

Ormesby

& Play Battens

• Wattage selectable: 16W/20W/25W/30W

• Plug & Play emergency only

• Conduit entry points at both ends

• UGR diffuser to reduce glare

• 5 Year Product Warranty

•

lm/W

Holywell Plus

Wattage and

Selectable Batten

• Wattage Selectable

• Unique opal diffuser design for optimum performance and light distribution

• Steel body construction with powder coat finish

• Conduit entry points at both ends

• Suitable for central BESA mounting

• Additional screw to secure end cap

• High efficiency 160 lm/W

A A G

Experience the next generation of lighting efficiency

From interior panels to rugged outdoor floodlights, every product in the range is built to deliver powerful illumination, cost savings and carbon reduction.

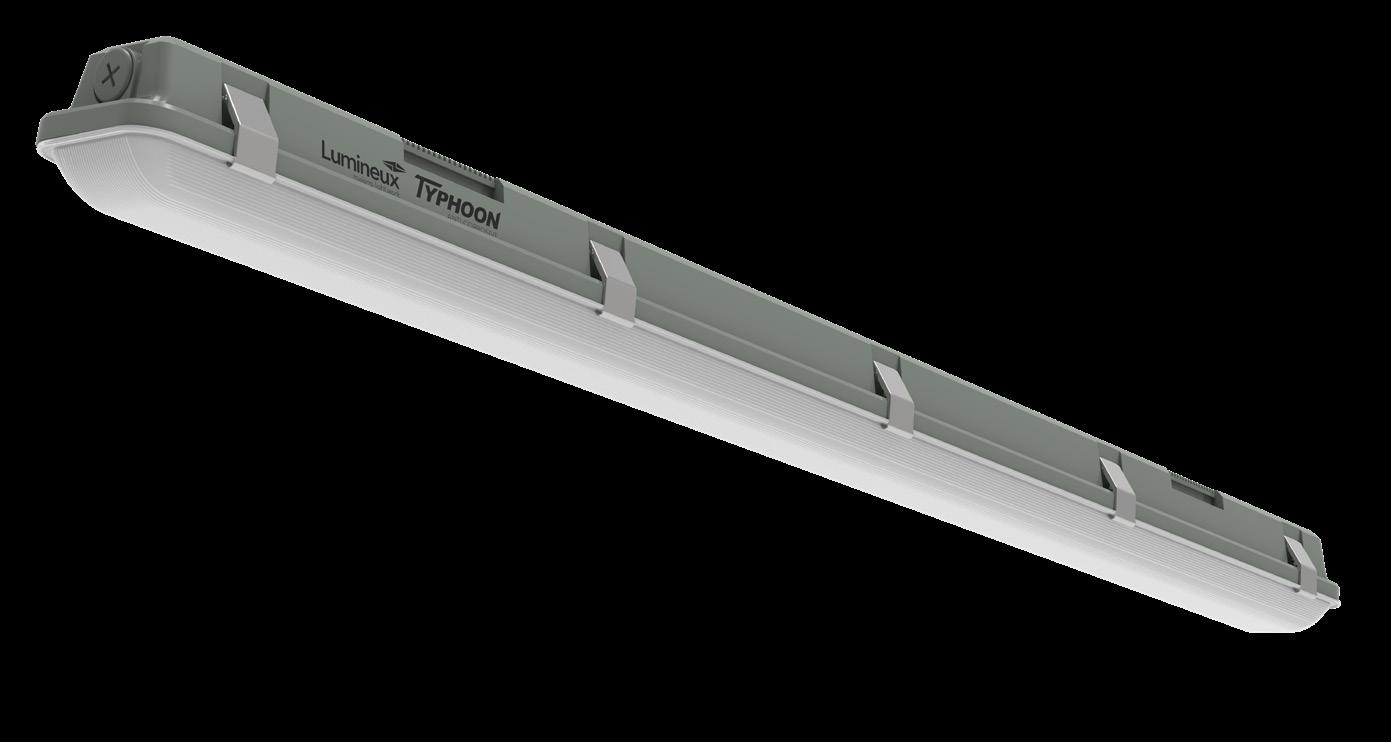

Typhoon 3CCT

• Unique opal diffuser design for optimum performance and light distribution

• Conduit entry points at both ends

• Suitable for central BESA mounting

• Pre-threaded M20 cable entry

• Unique opal diffuser design for optimum performance and light distribution

• Conduit entry points at both ends

• Suitable for central BESA mounting

• Pre-threaded M20 cable entry

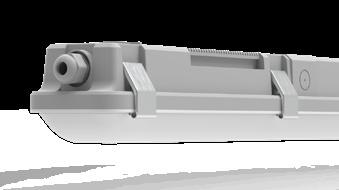

Wattage and 2CCT Selectable Anti-Corrosive

• 185lm/W output performance

• Opal Diffuser

• Wattage Selectable and 2CCT

• Pre-threaded M20 cable entry

• Designed for easy and rapid installation

High Output Anti-Corrosive

• 180lm/W output performance

• Opal Diffuser

• Pre-threaded M20 cable entry

• Designed for easy and rapid installation

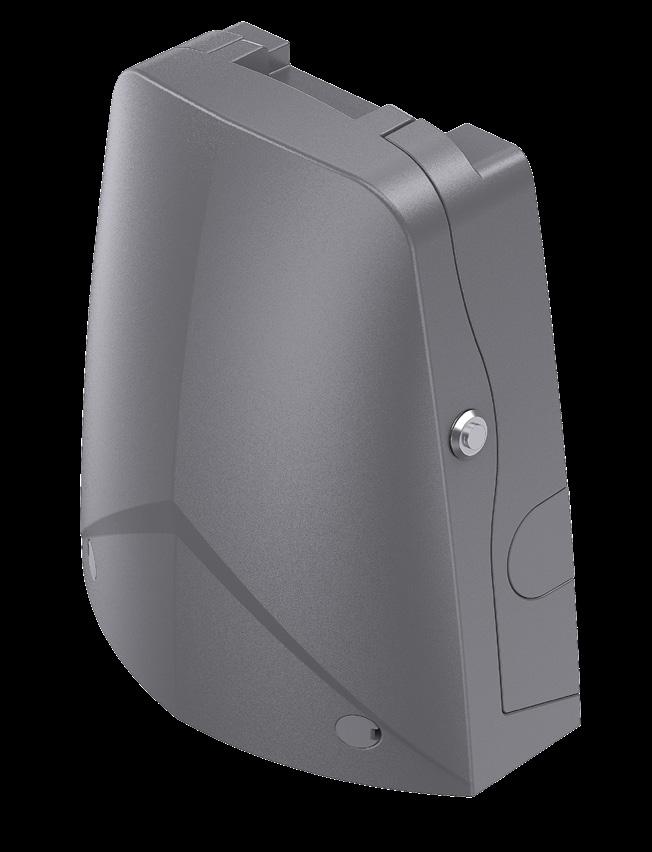

Rydal

Wattage & 3CCT Selectable Asymmetric Wallpack

• Dusk to Dawn sensor option built in as standard

• Hinged front provides quick access & ease of installation

• Product can be wall mounted over a standard round BESA box, providing efficient & secure dual sided conduit cable entry points

• Rydal wallpack is designed to reduce light pollution using Asymmetric optics, perfect for outdoor lighting

• Asymmetric optic - 70° x 140°

• No upward light, Reducing light pollution

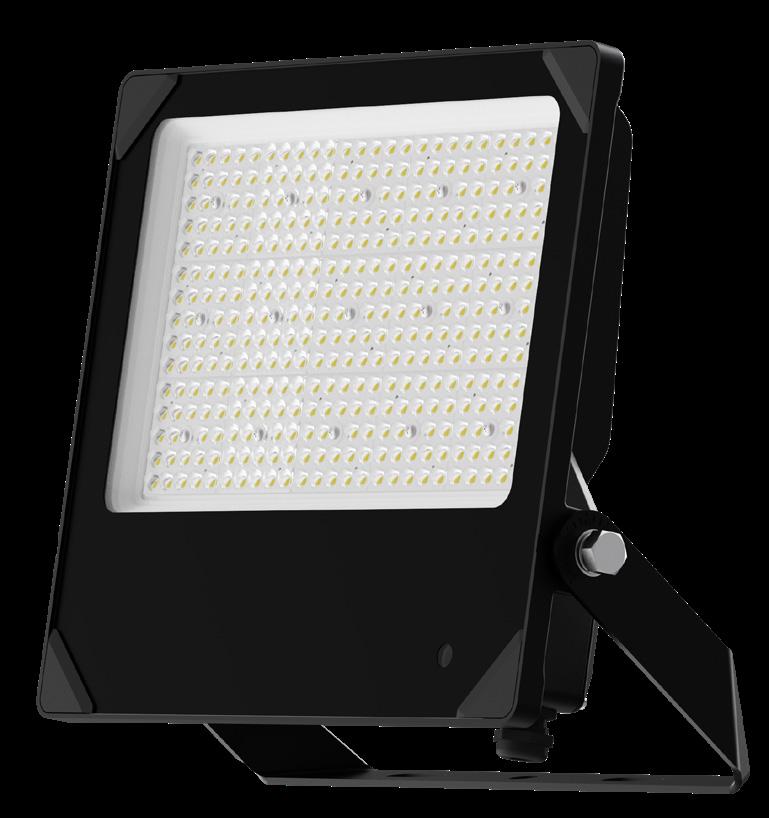

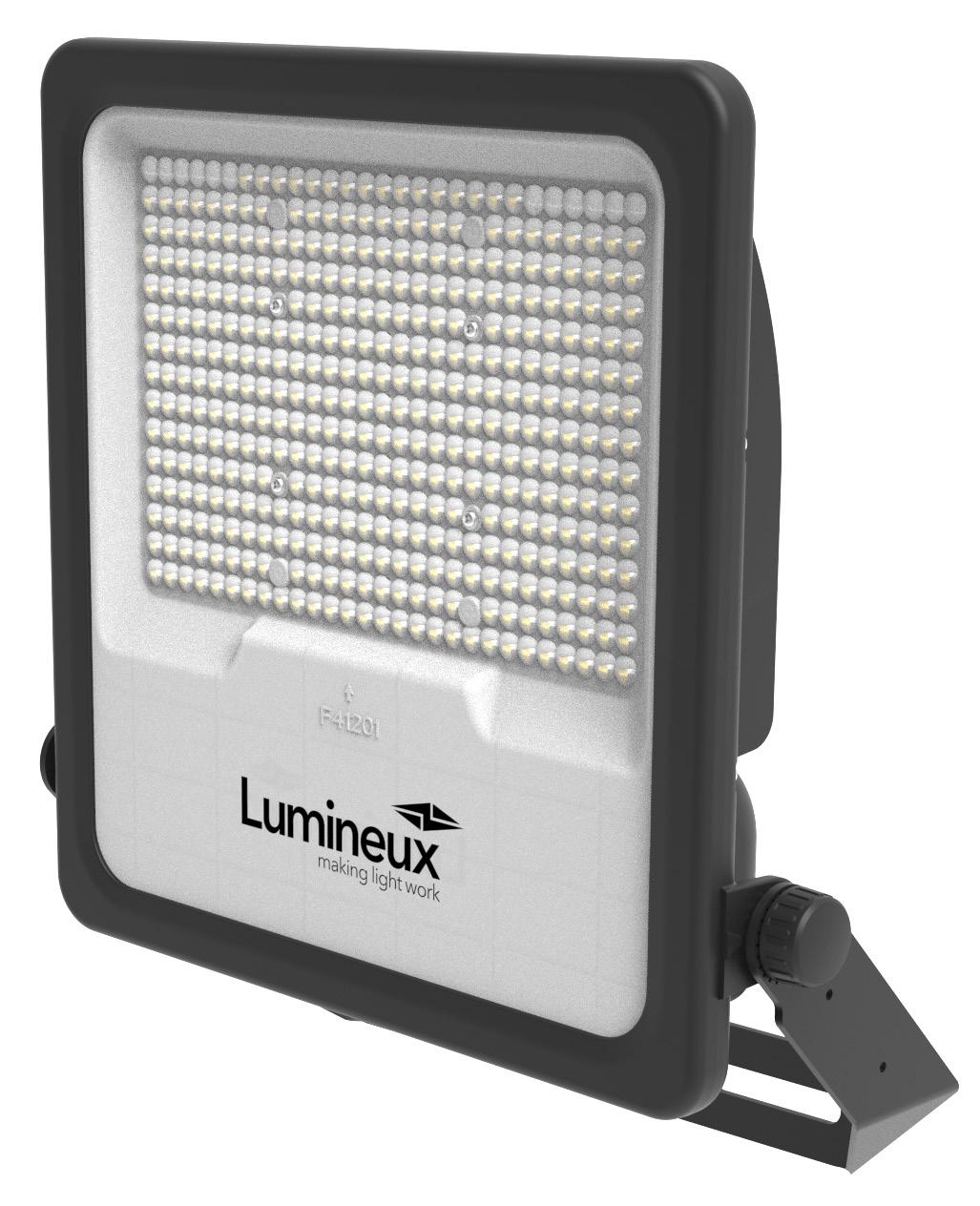

Frankly Plus

• Asymmetric optic - 50º x 120º P55D

• Supplied with 1.5M prewired H05RN-F cable

• Angled bracket for ease of installation

• 6kVA L/N-PE surge protection

• Diecast aluminium body

• Breather valve to prevent condensation

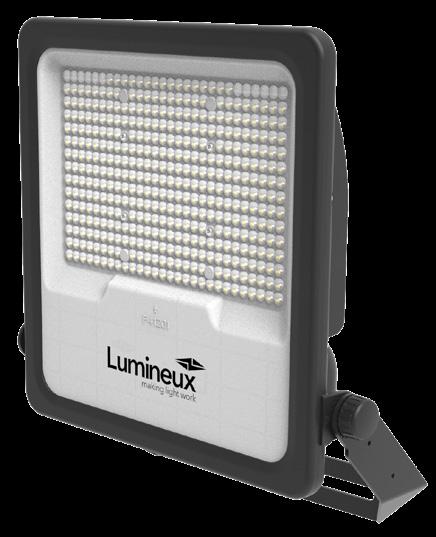

Thoresby

Wattage & CCT Selectable Floodlight

• Wattage Selectable

• 3CCT Selectable: 3000K, 4000K, 5000K

• Dusk till dawn built in as standard. (DD sensor is switchable ON-OFF)

• Symmetric & Asymmetric Optics

• IP66 & IK08 Rated

• Supplied with 1M prewired H05RN-F cable

• Loop in Loop Out

• 5 Year Product Warranty

• 150 lm/W

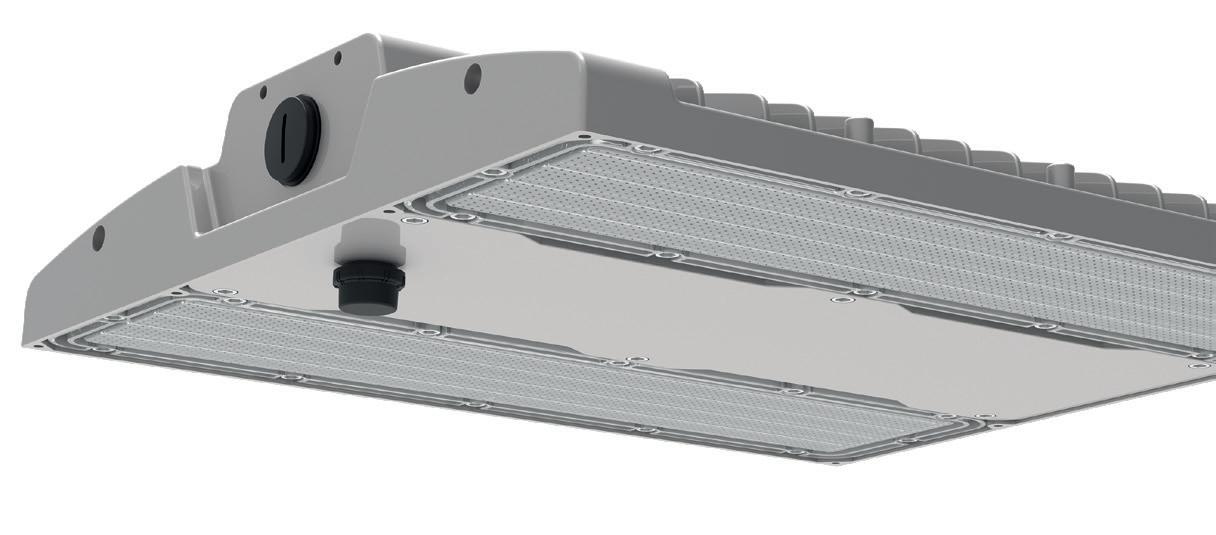

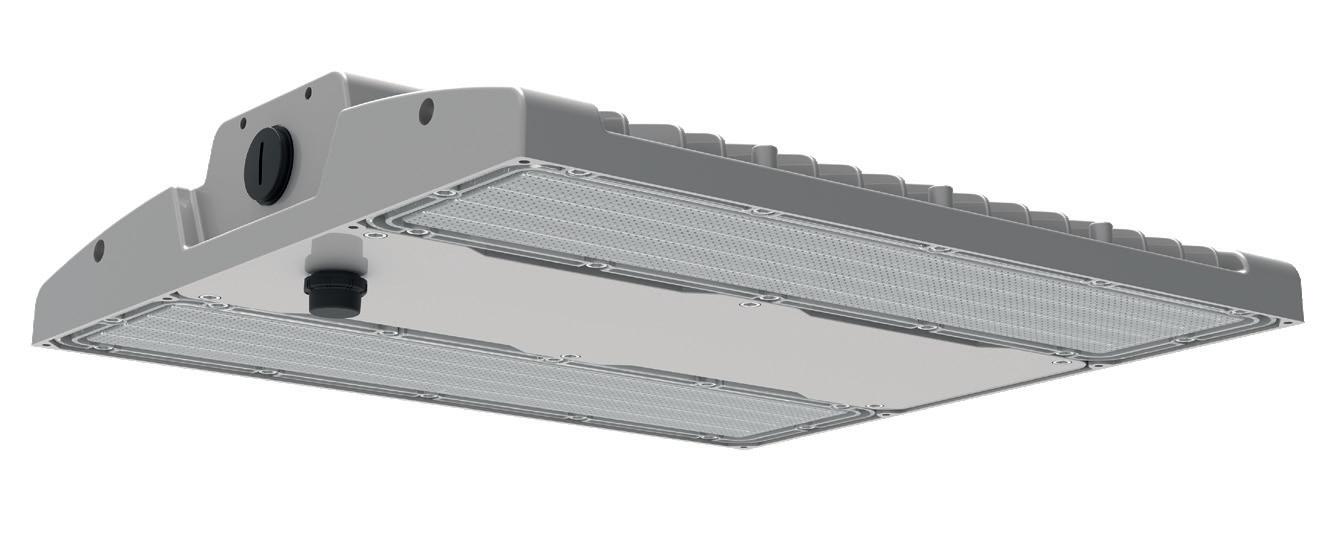

Belmont

Linear High Bay - Zhaga Plug & Play

• Fresnel optics for improved glare control

• Tough, impact resistant IK10 housing

• Plug & Play Options

CASE STUDY

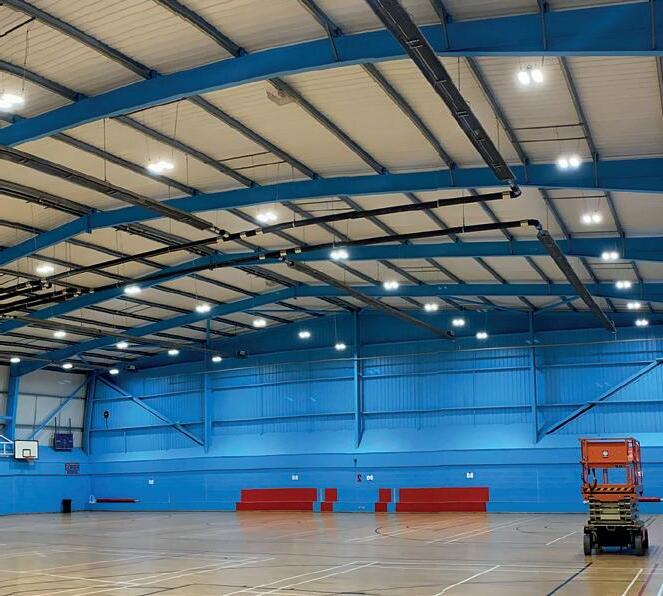

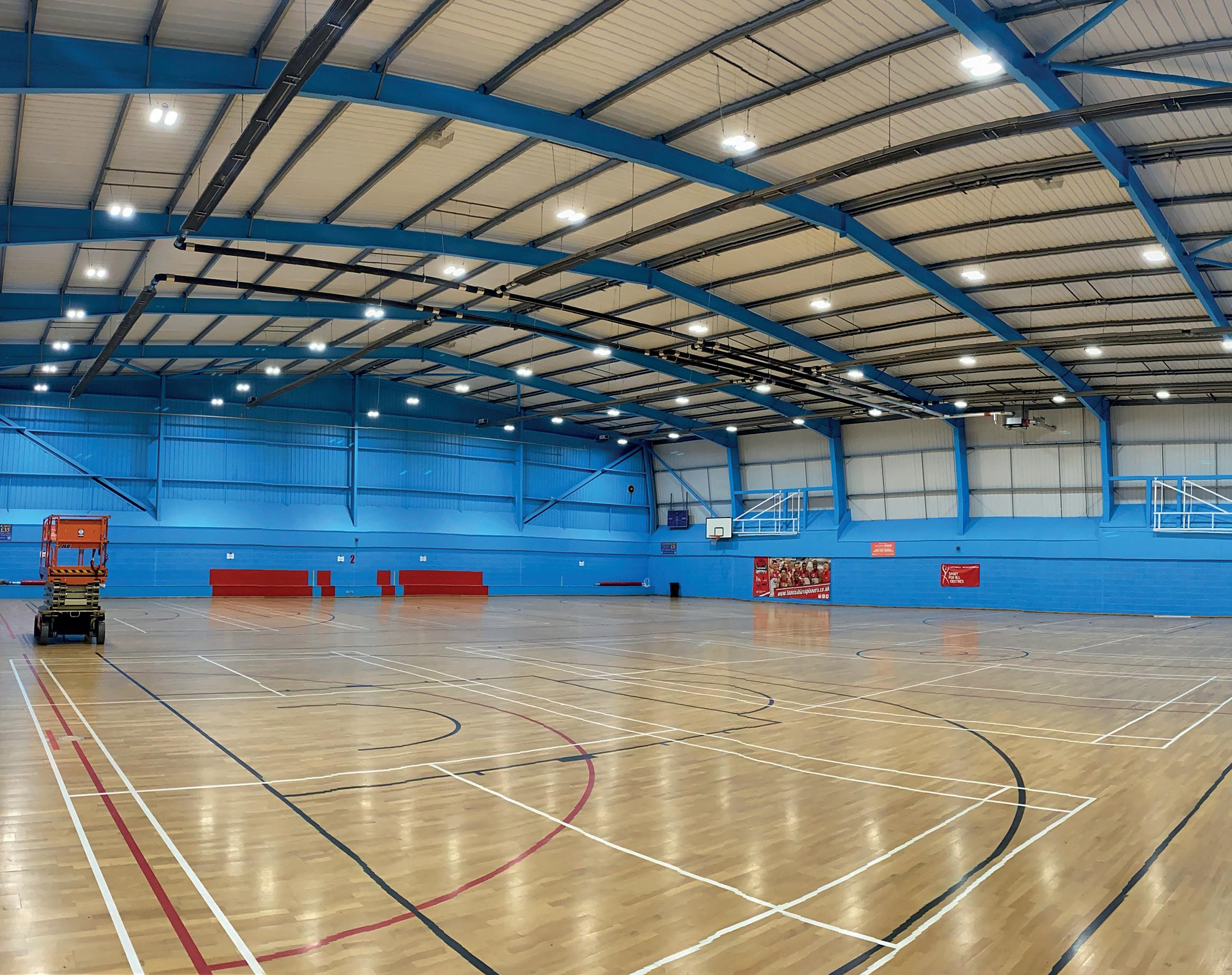

Philips High School

The Sports Hall at Philips High School has been transformed with the introduction of the 120W Belmont Linear High Bay. It’s tough and durable, impact resistant housing is perfect for the environment, whilst having a flicker-free driver with an IK10 impact rating.

“It’stoughanddurable,impact resistanthousingisperfectfor the environment”

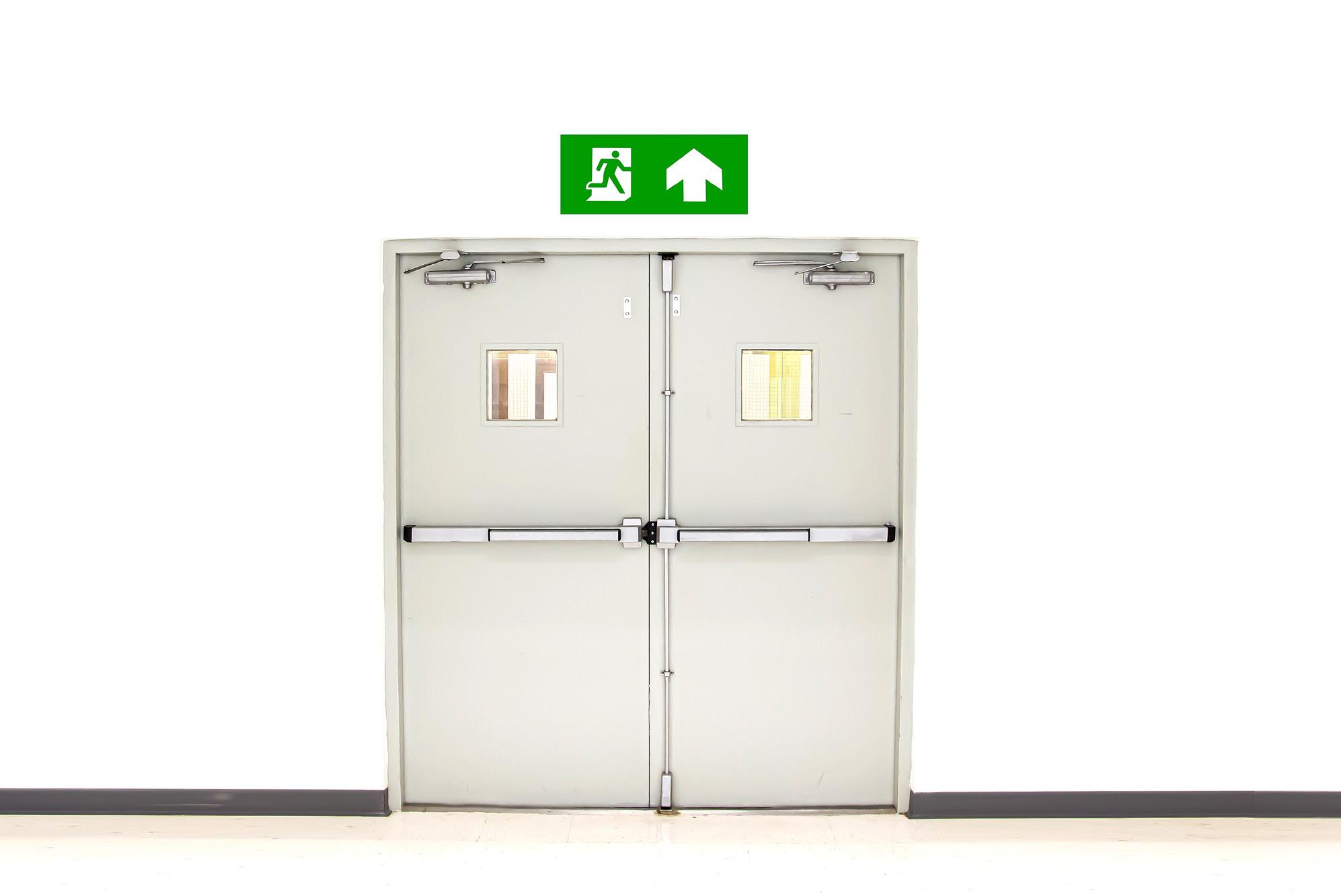

Is your Emergency Lighting up to Standard?

We offer a full and free survey on emergency lighting, ensuring your safety lighting fits your needs and meets the latest regulations. All of our emergency fittings now come with E-SEL3 selectable emergency fitted as standard - this gives the installer the option to select either a Self-Test or Manual emergency function. Offering flexibility, easier maintenance, and better compliance, Self-test saves time and labour by automatically checking for faults, Manual mode gives full control when needed. Reliable, cost efficient options for busy maintenance staff.

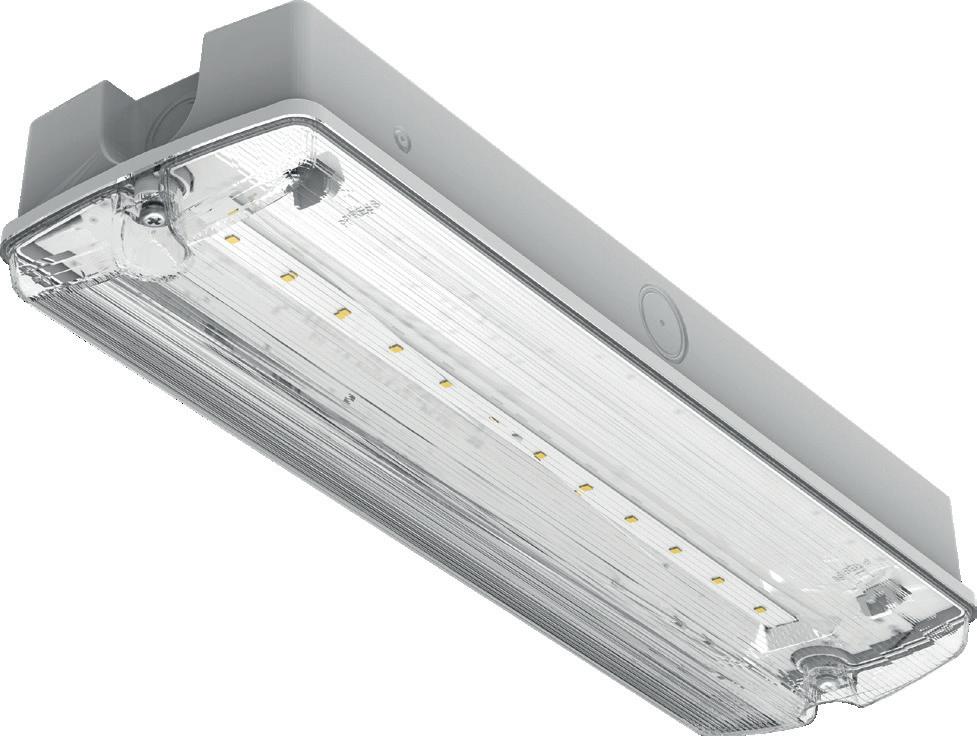

Darwell

Emergency Bulkhead

• Switchable Emergency - Self-Test / Manual

• Maintained / Non-maintained

• Multiple 20mm conduit entry points

• Loop in / Loop out terminals

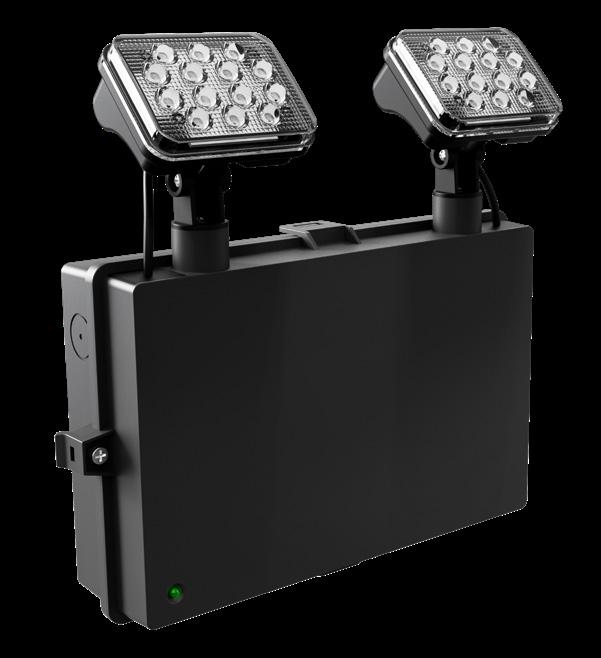

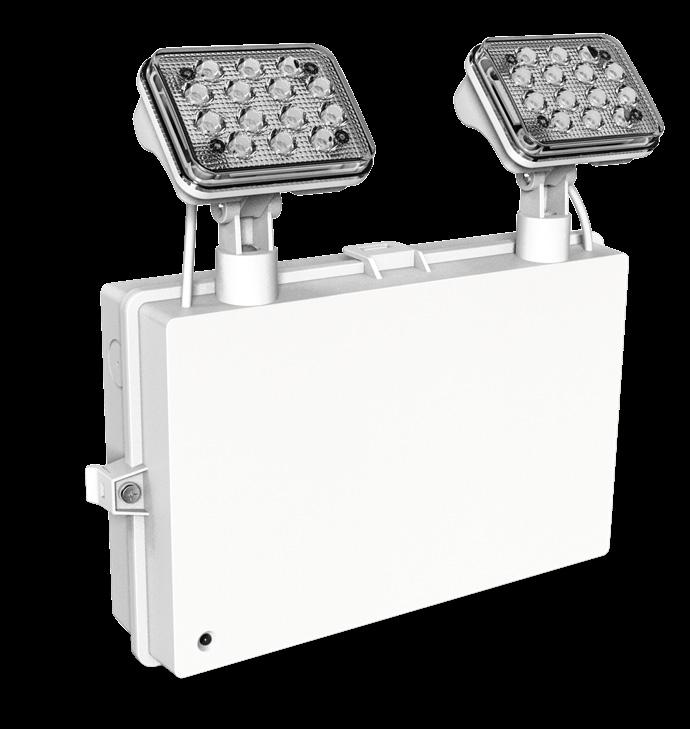

Draycote

Emergency Twin Spot

• Black/White polycarbonate body

• E-SEL3 Self-Test and Manual Switchable via dip-switch

• 360º Directional Heads

• Non-maintained only

• 20mm conduit entry - Side, Base & Rear

• Loop in / Loop out terminals

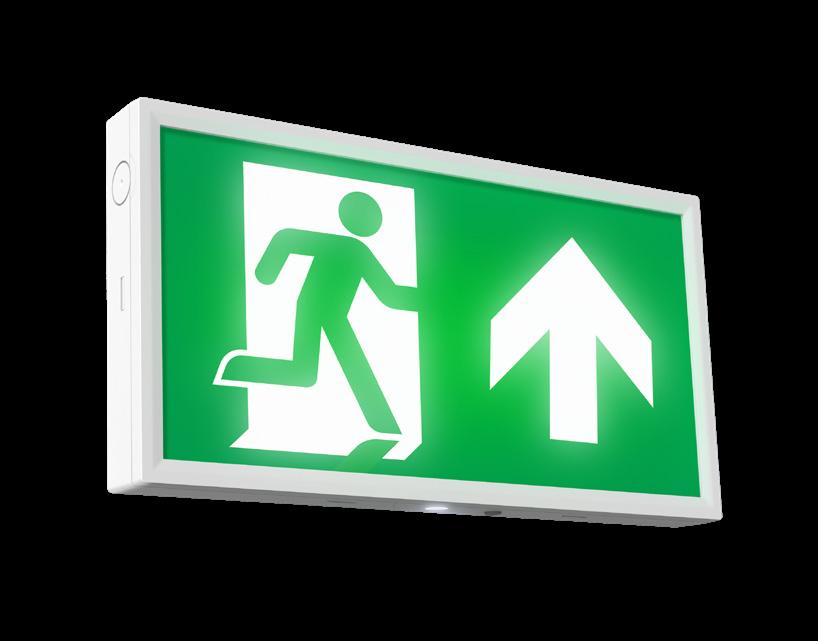

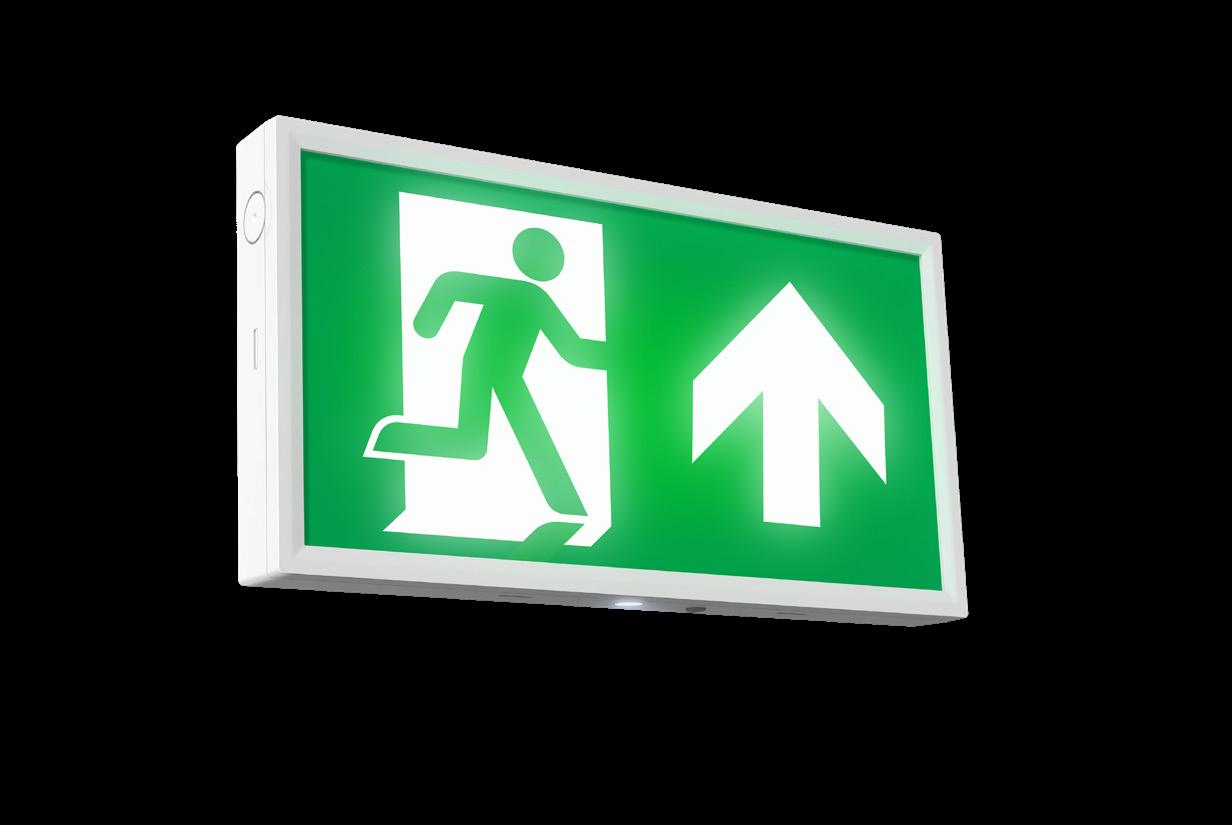

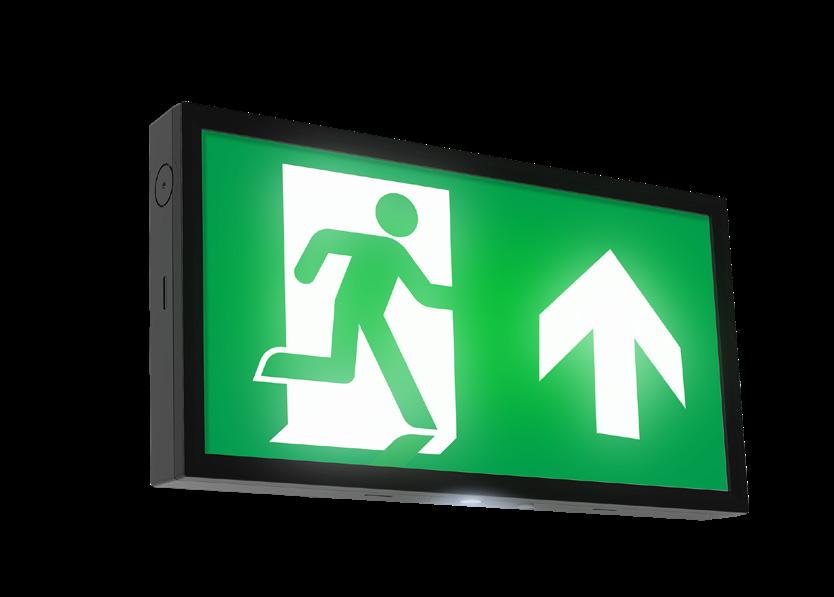

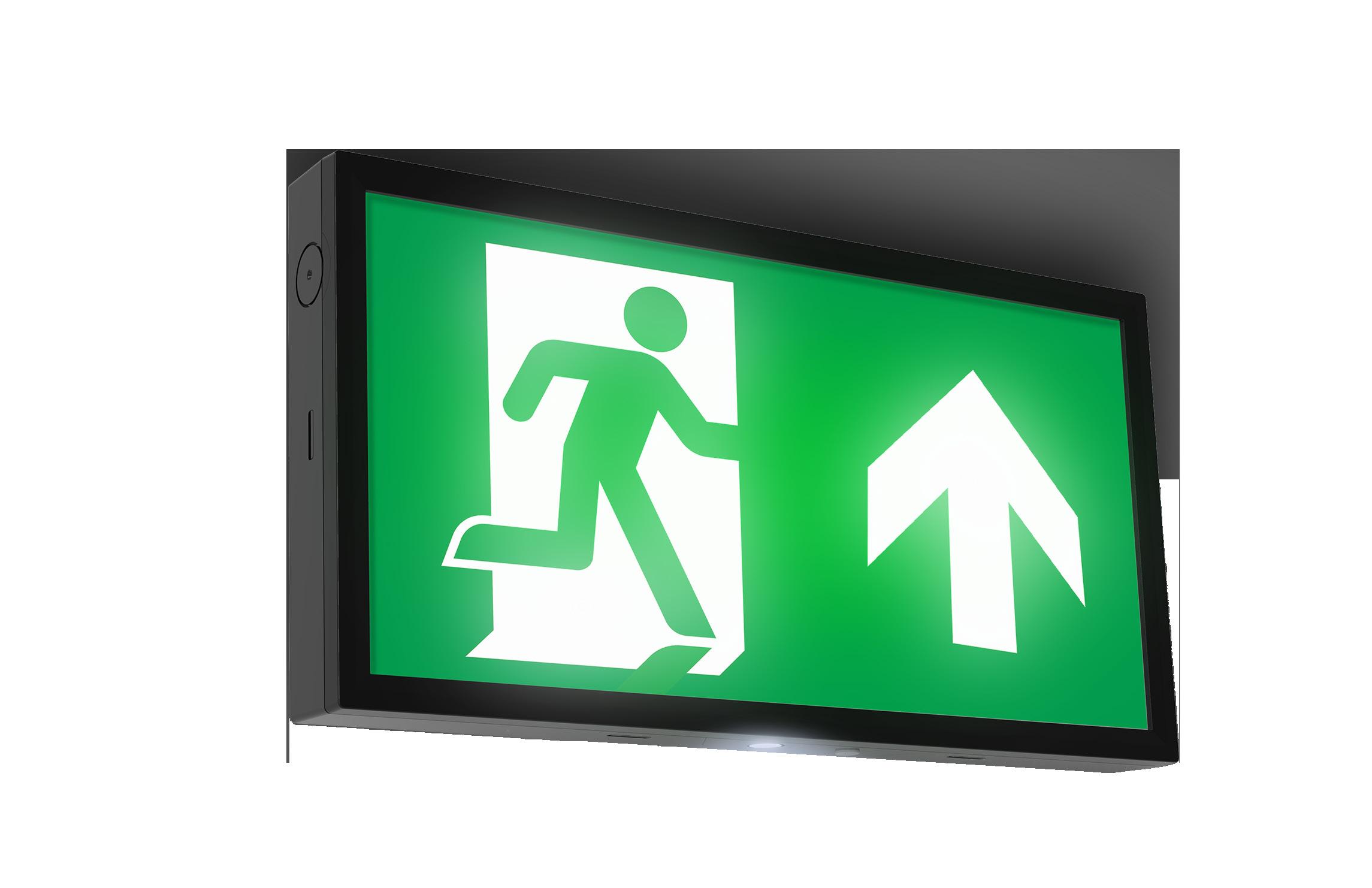

Redbrook

Emergency Exit Box

• 20mm conduit entry on sides, rear & top

• E-SEL3 Manual / Self Test selection inside

• Included in Box 4 legends, up, down, left & right (ISO7010 Legends as Standard)

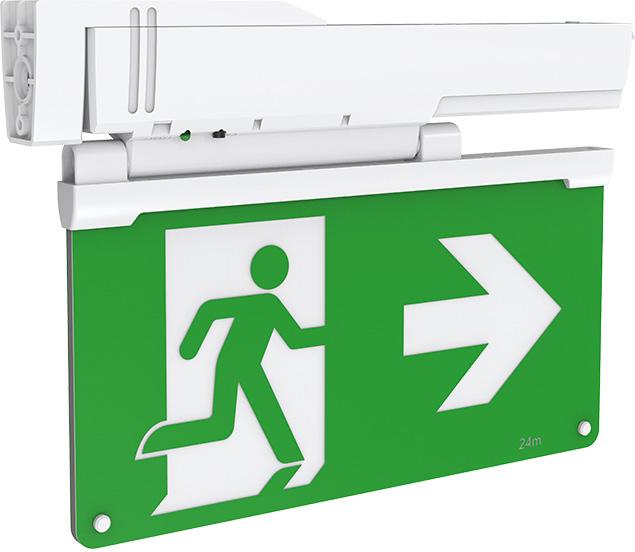

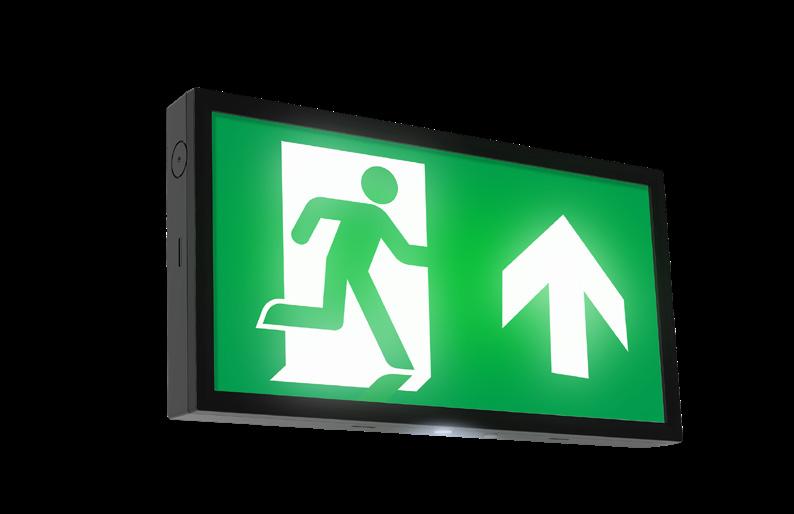

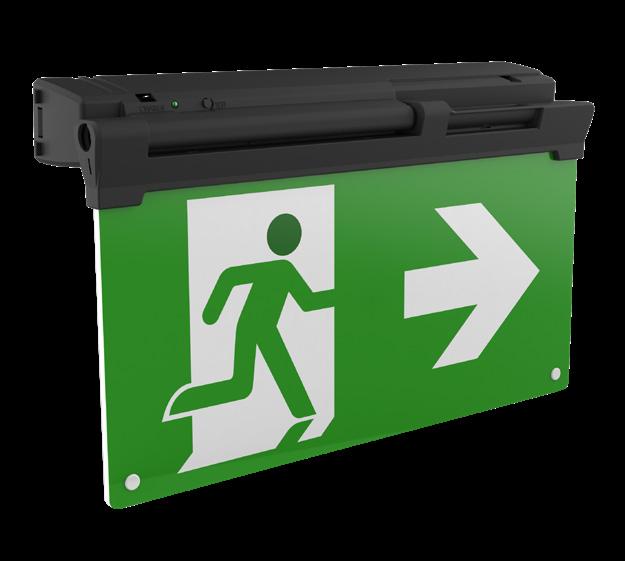

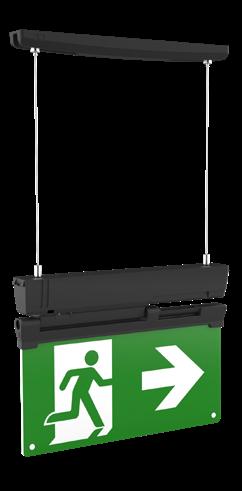

Fontburn

5 in 1 Emergency Exit Sign

• White/Black polycarbonate body with polycarbonate legends

• Maintained

• E-SEL3 Manual / Self Test selection inside

• Included in Box: 3 Legends for changing (UP/LEFT and RIGHT)

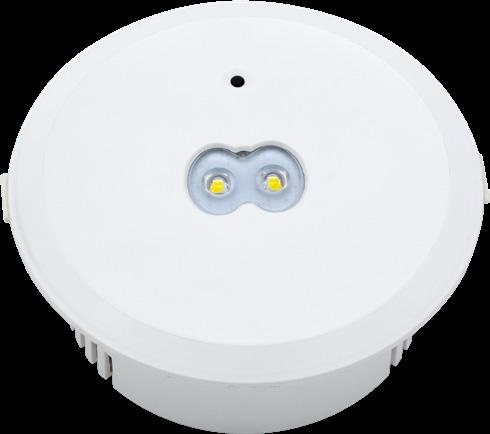

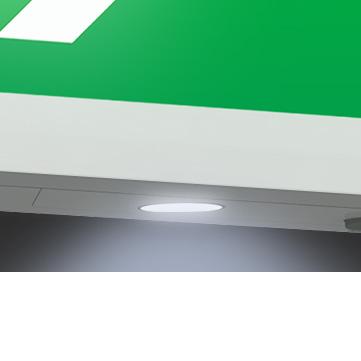

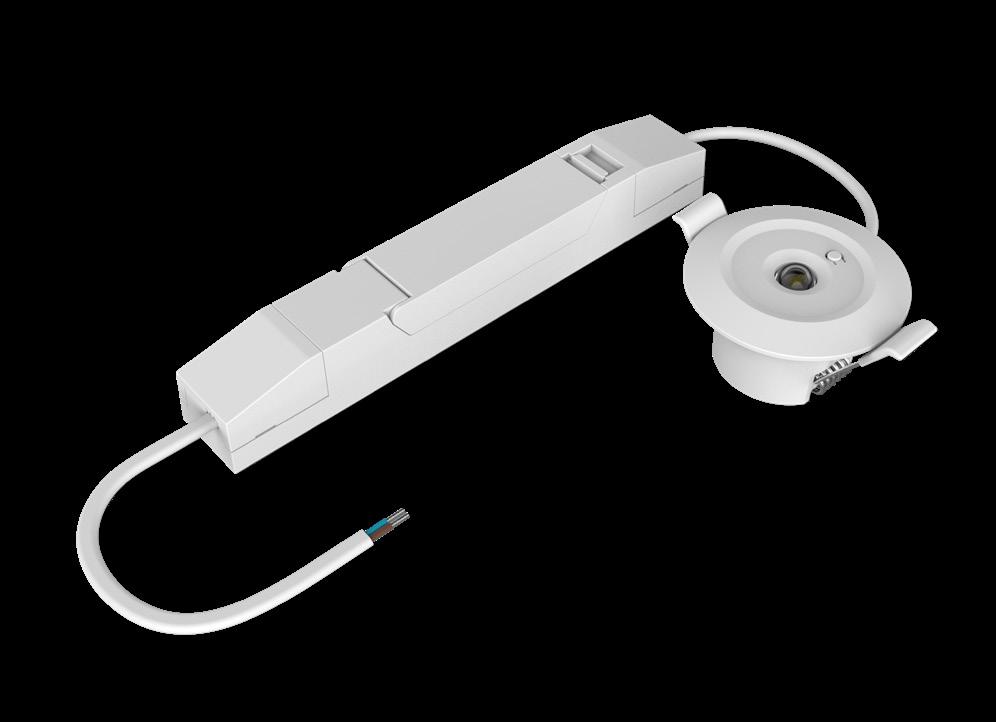

Woodhead

Emergency Downlight

• Black and White Bezel included

• LifePO4 battery

• E-SEL3 Manual / Self-Test selection inside

• Non-Maintained

• Recessed installation

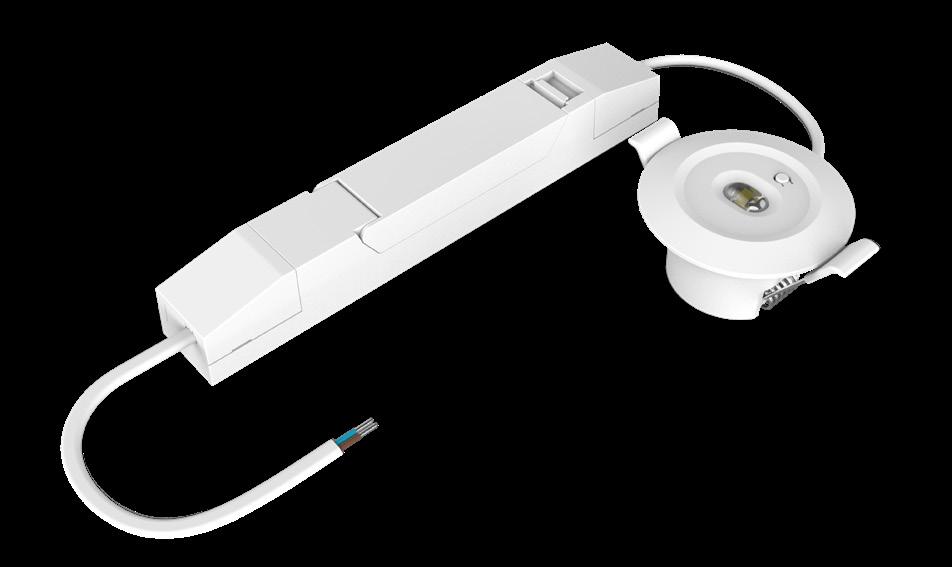

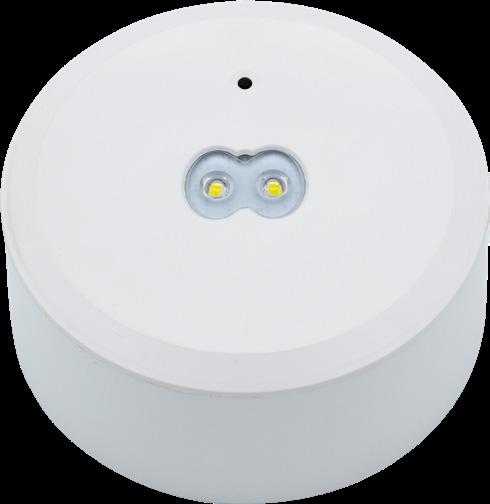

Woodhead

All-In-One Emergency Downlight

• Open Area & Corridor options available

• LifePO4 battery

• E-SEL3 Manual / Self-Test selection inside

• Non-Maintained

• Recessed or surface installation

INFORMATION

Lighting solutions tailored to you

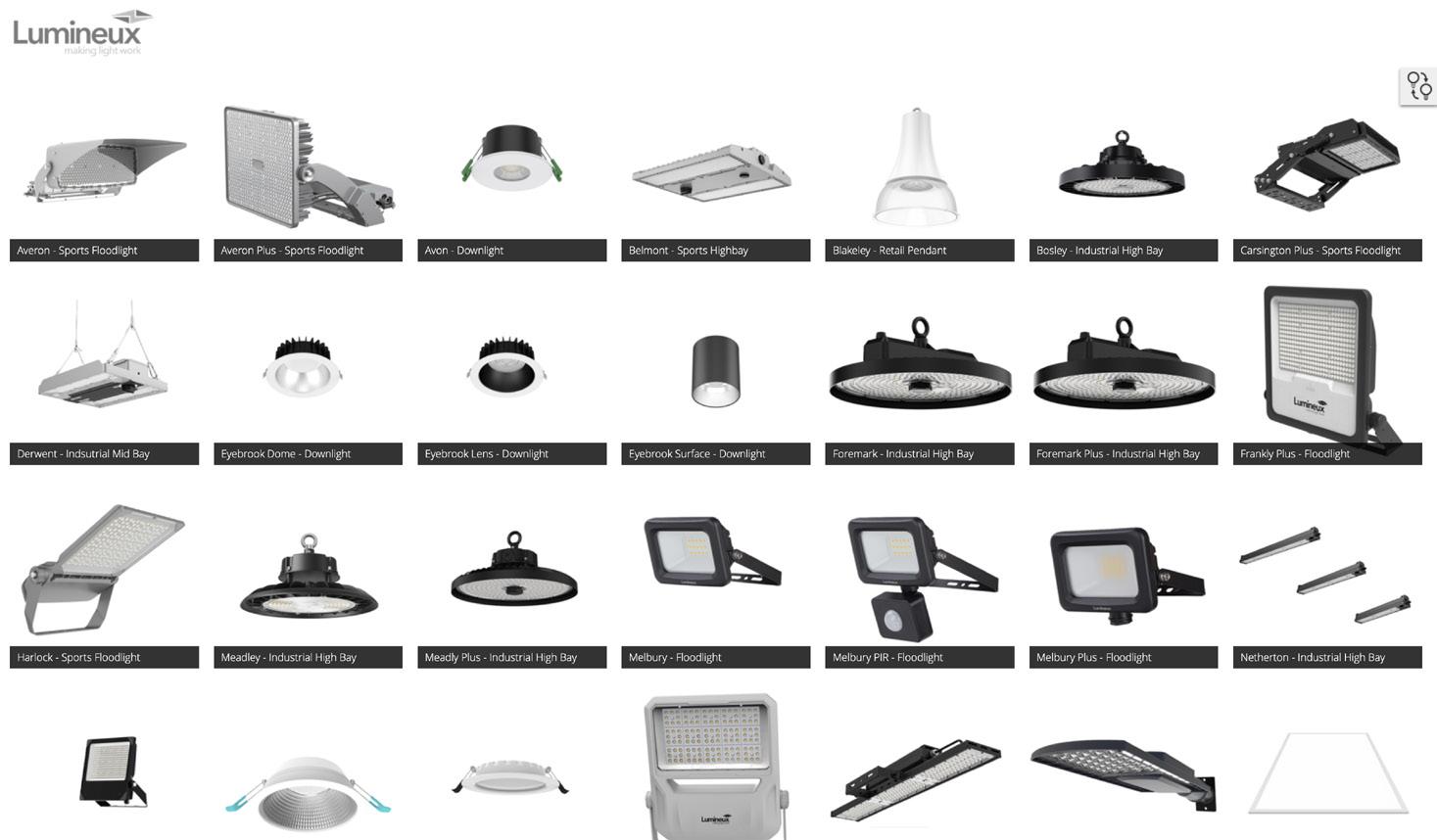

Discover the Lumineux portfolio through our collection of specialist brochures and lighting guides. From industrial and education environments to professional sports facilities, our sector-focused publications highlight the products, technologies and solutions designed to meet the unique demands of each space. Access our latest catalogue, application guides and smart emergency lighting solutions by scanning the QR code below.

View online

Take control of your emergency lighting system with cutting edge technology that keeps you connected, compliant and saves you money.

Introducing our wireless emergency lighting control system. Using a robust mesh network and DALI protocols, it ensures compliance and provides peace of mind. The local system stores compliance data, which can be retrieved via USB, while the Pro cloud version stores data and reports on your lighting’s status. Failures are instantly reported with exact location details on a floorplan, enabling a fix-first maintenance visit.

Smart Lighting

truSmart Intelligent Lighting is the smart choice for schools and educational environments, offering total control over lighting to create the perfect setting for learning. Whether it’s adjusting brightness, setting the ideal colour temperature, or programming lighting scenes for different times of day, truSmart gives you complete flexibility—while ensuring energy is used efficiently.

Designed with simplicity in mind, truSmart systems can be managed effortlessly via a mobile app or the truSmart Controller, making them easy for staff to operate without technical expertise.

Smart occupancy sensors, such as PIR detectors, are a valuable addition in high-traffic areas like corridors, staircases, and communal spaces. These sensors automatically switch off lighting when rooms are empty, reducing electricity use and helping schools lower their energy bills.

Look for the truSmart logo on our products—it means you’re choosing technology that adapts to your needs, supports sustainability, and creates a better environment for students and staff alike.

truSmart Features

What features do I need?

truSmart does so much – sometimes it can be overwhelming. That’s why we offer free consultations with our lighting experts, to understand exactly what you are looking to achieve and to build a tailored solution for you. If you have any questions, or would like to know more about truSmart, please visit www.lumineux.co.uk

600 x 600 Backlit Smart Panel

• Built in PIR/Daylight Sensor

• Optic lens for even light distribution

• Control/Group via the truSmart App

• Flicker free driver

• Wireless control

• Microprismatic TP (a) diffuser

• Built in PIR/Daylight Sensor

• Optic lens for even light distribution

• Control/Group via the truSmart App

• Flicker free driver

• Wireless control

• Microprismatic

(a)

truSmart Sierra

Academic Smart Batten Twin

• Built in PIR/Daylight Sensor

• Opal ribbed polycarbonate diffuser to reduce glare

• Multi 20mm conduit entry

• Control/Group via the truSmart App

• Self-Test emergency available

truSmart Clifton

Fire Rated Commercial Downlight

• Complies with parts B, C, E and L of Building Regulations

• Suitable for solid or stranded cable Ø 0.75 – 2.5mm2

• Replacable light source

• Suitable for Schools, Hotels & Corridors

• Fully tested for 30, 60 and 90 minutes fire rated

• Meets STA Pattern Book fire test requirements

• Dimmable via truSmart app or scene switch

Performance Criteria Guidelines

DfE Technical Annex 2E: Daylight & Electric Lighting November 2022

DfE Technical Annex 2E sets out the lighting standards for new and refurbished schools funded by the Department for Education. It ensures learning environments support student wellbeing and performance through appropriate daylight access, electric lighting levels, and glare control. The guidance also promotes energy efficiency, encouraging the use of LED lighting, daylight and occupancy sensors, and smart controls to reduce energy use and support Net Zero Carbon targets. The table below summarises the key lighting requirements schools must meet under this specification.

Source: DfE School Output Specification, November 2022

IP Rating

IP & IK Ratings Explained

The International Protection Rating / Ingress Protection Rating consists of the letters IP followed by two digits and an optional letter as defined in the international standard EN65029. The IP rating classifies the degrees of protection against dust, moisture and intrusion of solid objects. The IP number is split, the first digit represents protection against dust particles and the second digit represents the protection against moisture.

The table below shows the digits that conform with IP Rating. IK

IK08

The IK rating indicates the level of protection provided by enclosures against external mechanical impact, defined by standard IEC 62262 and IEC 60068-2-75:1997. IK ratings are identified by a code that consists of the letters IK followed by two digits. The two digits range from 00 to 10 and relate to how well the enclosure resists the impact of energy levels measured in joules.

IK01 0.14 joules impact. Impact of 0.25kg mass dropped from 56mm above impacted surface.

IK02 0.2 joules impact. Impact of 0.25kg mass dropped from 80mm above impacted surface.

IK03 0.35 joules impact. Impact of 0.25kg mass dropped from 140mm above impacted surface.

IK04 0.5 joules impact. Impact of 0.25kg mass dropped from 200mm above impacted surface.

IK05 0.7 joules impact. Impact of 0.25kg mass dropped from 280mm above impacted surface.

IK06 1 joules impact. Impact of 0.25kg mass dropped from 400mm above impacted surface.

IK07 2 joules impact. Impact of 0.5kg mass dropped from 400mm above impacted surface.

IK08 5 joules impact. Impact of 1.7kg mass dropped from 300mm above impacted surface.

IK09 10 joules impact. Impact of 5kg mass dropped from 200mm above impacted surface.

IK10 20 joules impact. Impact of 5kg mass dropped from 400mm above impacted surface.

Notes

General Information

UGR <19

Indicates low glare lighting suitable for comfortable environments like offices or classrooms.

At Lumineux, we have combined manual testing with self-testing to provide versatile and manageble emergency products.

Quick and easy to connect Plug & Play Emergency and Sensor modules are available for products with this logo.

Lumineux is leading the way in the next generation of LED Lighting! Products with this logo have maximised ROI due to new higher lumen efficiency and reduced wattage.

Easy to connect Loop-inLoop out connections in both 3 and 4 Pole.

At Lumineux we’re redefining efficiency of LED luminaires with our range of ultra efficient products. Our nextgen luminaires maximise lumens, energy saving and ROI - delivering performance you can count on.

UK energy labels and how to read them

Energy labels start from a green bar labelled ‘A’ and cascade down through the rainbow (and alphabet) to a red bar, labelled ‘F’. This scale represents the product’s energy consumption. The green bar being the most efficient and red the poorest.

The information, technical specification and photography contained in this catalogue is representative of general models and is correct at the time of going to press. All dimensions and weights given are advisory and should be checked and confirmed prior to any crucial installation procedures such as ceiling cut-outs taking place. Whilst suggestions regarding luminaire applications are given, it is the responsibility of the installer to verify suitability.

B&T Associates Ltd reserves the right to make any modification necessary to parts or details without prior notice. The information contained in its publication does not form part of any contract with B&T Associates Ltd. Any item supplied is done in full accordance of our Conditions of Sale. (A copy of which is available on request).
