Come out of the shadows

Designed with architectural intent, Lumenicon brings a timeless presence to public spaces, supported by proven performance over time.

Since its introduction, the Lumenicon family elevates cities, campuses, and urban environments. It delivers cohesive, responsible lighting that respects the night sky, ages gracefully, and meets the demands of long‑term use.

Timeless, Iconic Architectural Design

A sleek, low profile design that blends into modern and historic settings, ensuring visual continuity across the full family.

Proven Performance

Lighting real projects year after year, with reliable high output, efficient performance, roadway grade distributions, and long term durability.

A Family That Works Together

One design across multiple applications, from bollards to columns to Lumenicon Area Medium, with flexible options for consistent results.

Respect the Night Sky

Designed conciously, long before it was standard practice.

Family values

A family that delivers. With a wide range of optical options, Lumenicon offers flexibility for any application while maintaining a cohesive, coordinated lighting aesthetic across the entire project. Designed to stand out through innovation, it adapts seamlessly to diverse environments.

EASY ARCHITECTURAL

INTEGRATION LINES ANGLES

TWO TONES

AERATION

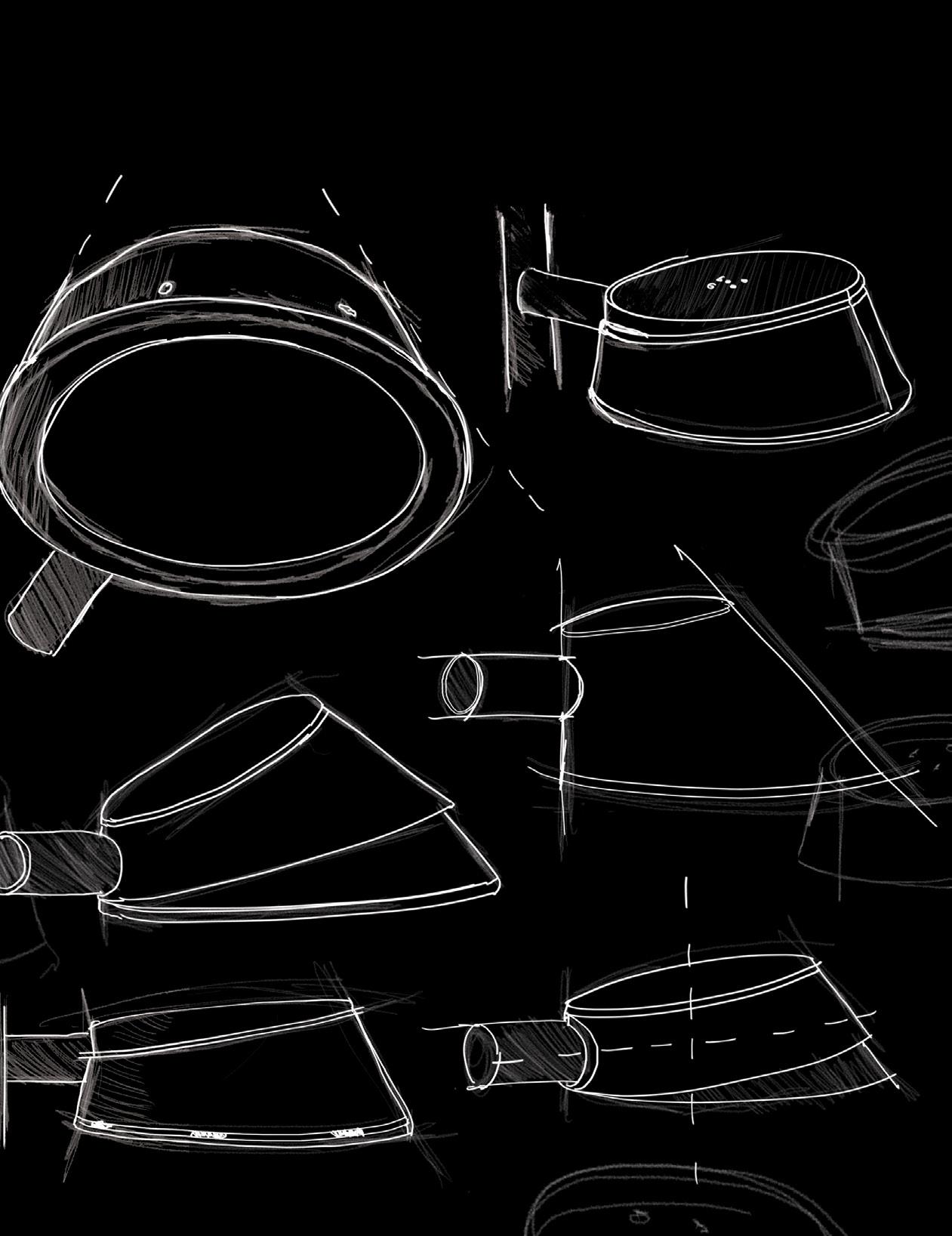

Illustrious design

Thoughtfully refined, Lumenicon brings a timeless, contemporary presence to any space. A wide range of optical options supports diverse design needs, while its clean, streamlined form integrates effortlessly with architecture. Inside, advanced technologies ensure performance and longevity to match its refined design.

• Iconic, sleek design

• 3G ANSI C136.31 – 2010 vibration rating

• UL certified

• Meets FCC requirements

• Round form factor blends with both rectilinear and rounded architecture

• IP66 rated LED chamber

• An uplight rating of U0

• IES roadway distributions

Quality and quantity

Regardless of the application or project, the Lumenicon family has the quality of light and the quantity of lumens to bring your landscape and streetscape designs to light. Safety and well lit lines of sight are the Lumenicon family’s passion.

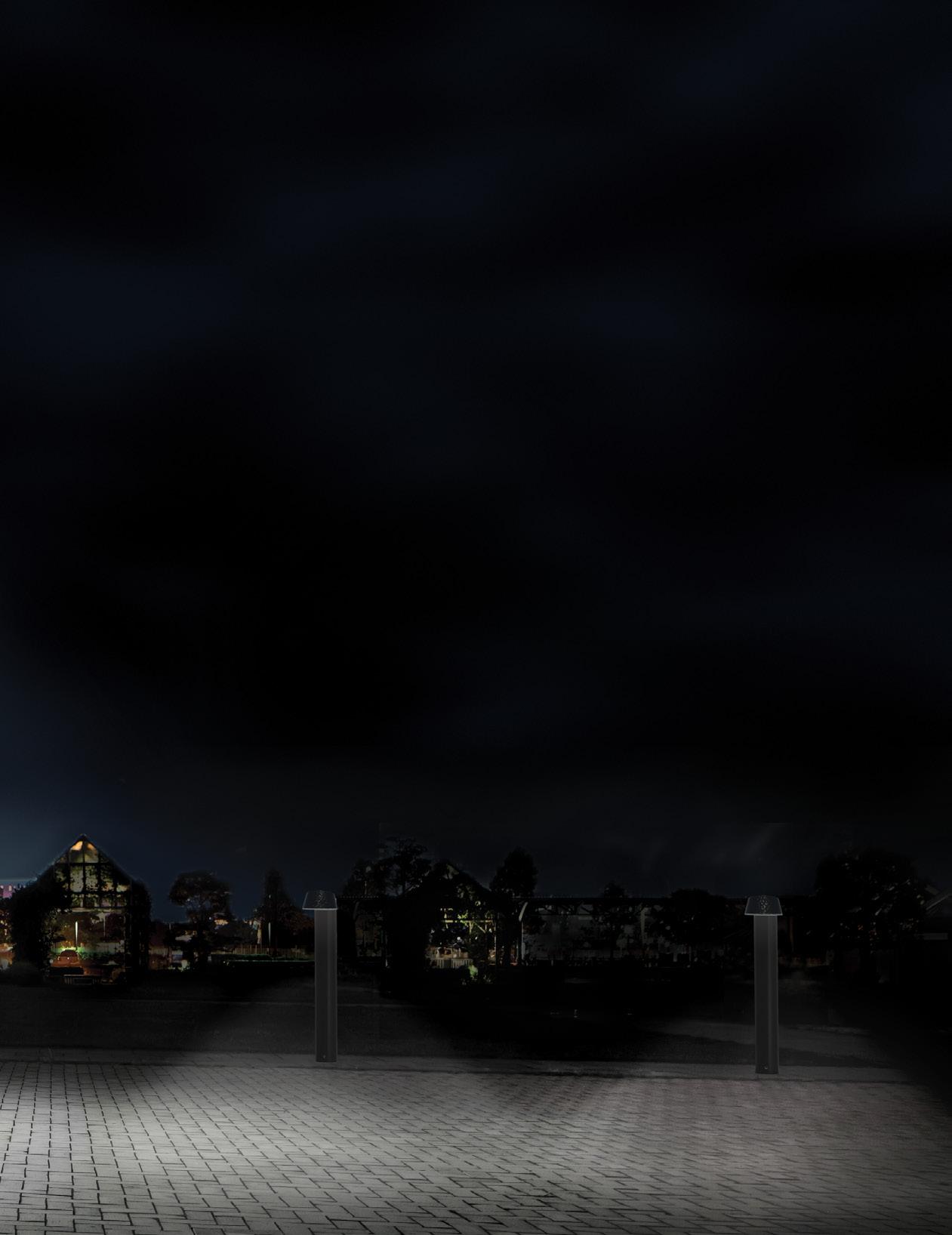

Respecting the night

The Lumenicon Bollard respects the night sky. With no upwards light, all the light's attention is focused on where you need to go and what you need to see, all while helping to keep the stars bright.

The Lumenicon Column and Area Medium also love the stars. With minimal light spillage, a spacing ratio of up to 8:1, backlight shields, as well as DarkSky compliant optics and color temperatures, you'll still be able to point out the constellations.

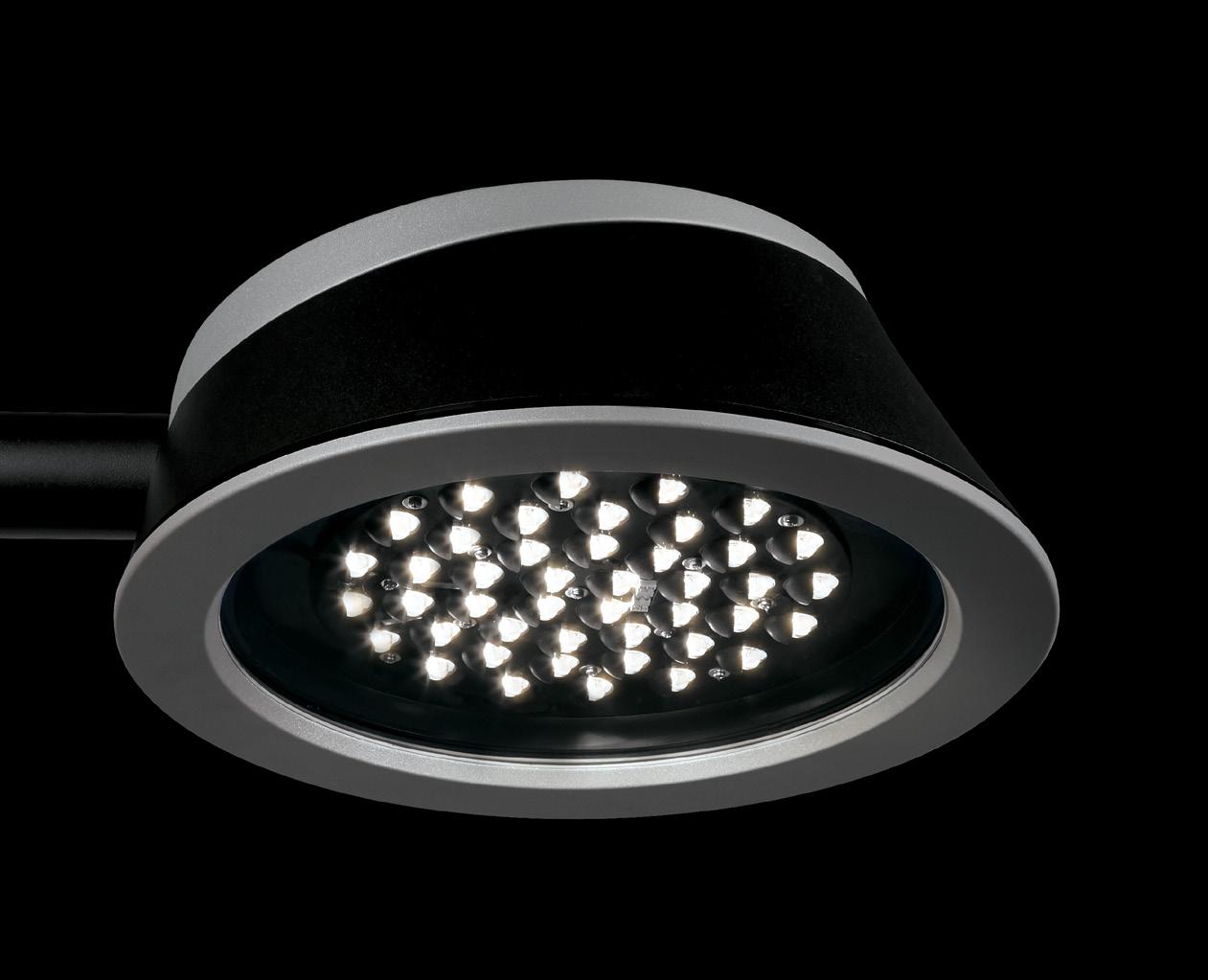

Under the hood

An innovative opening system makes Lumenicon’s plug and play components easy to access. The IP66 rated LED chamber is never left to the elements while still providing toolless access to the driver.

Seamless, magnetic closure system. No visible hardware.

10 kVA surge protector*

5 and 7 pin ANSI smart photocell receptacle*

Toolless driver maintenance

Offset, friction hinge system

Die cast Lumencool heat sink

Bubble level

Angular adjustment in +/– 1.5° increments

Plastic coated, rare earth magnet

Spring loaded U clamp and 316 stainless steel hardware

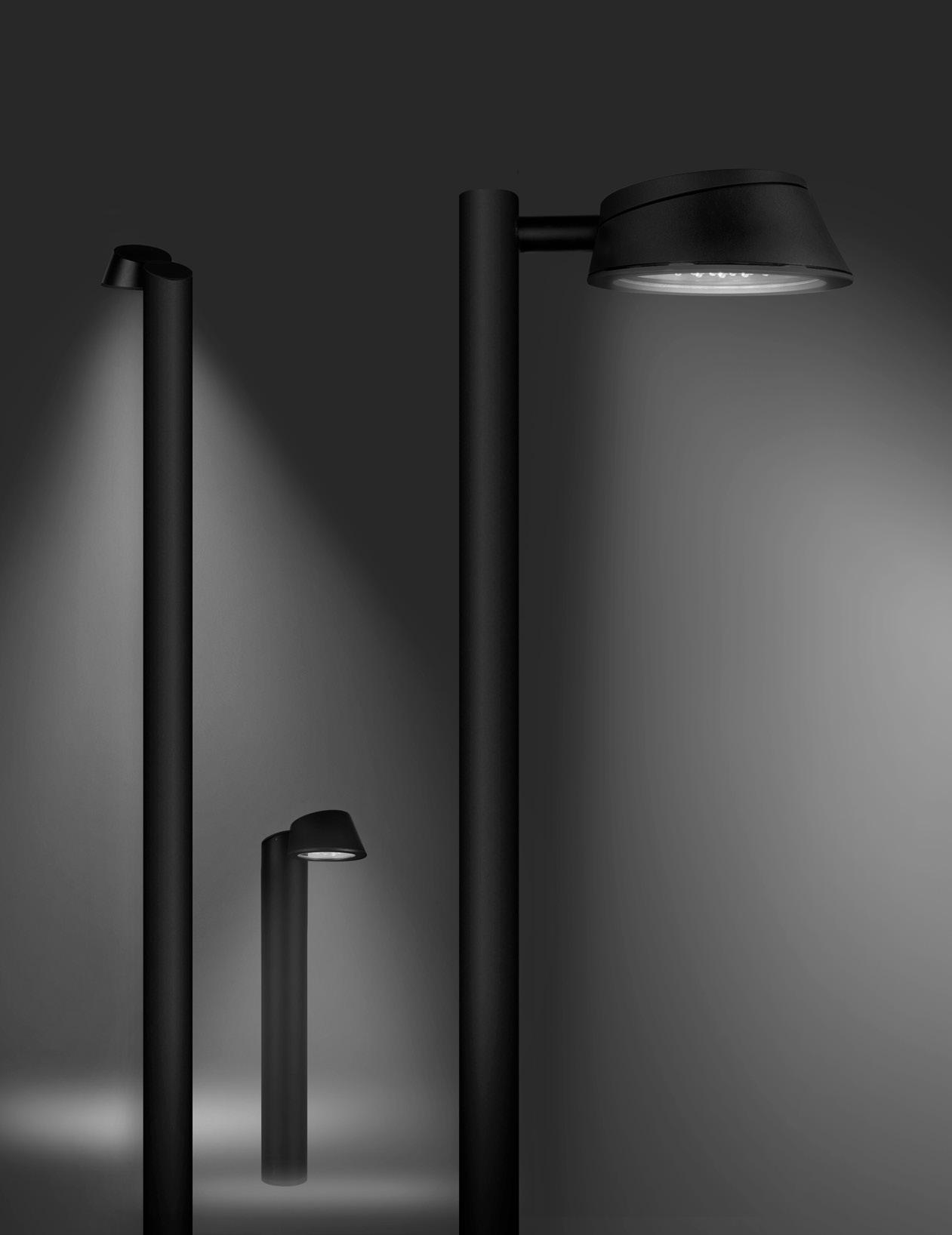

Versatility

Possessing a coordinated aesthetic throughout the entire family and a natural ability to blend with any number of spaces. Optics that are road worthy and optics that shrink the shadows, either way, safety is here to stay. It’s a new era of area lighting, and Lumenicon is ushering it in.

Lumenicon Bollard and Column

Outputs (nominal)

Distributions

Lumenicon Area Medium

Outputs (nominal)

Distributions

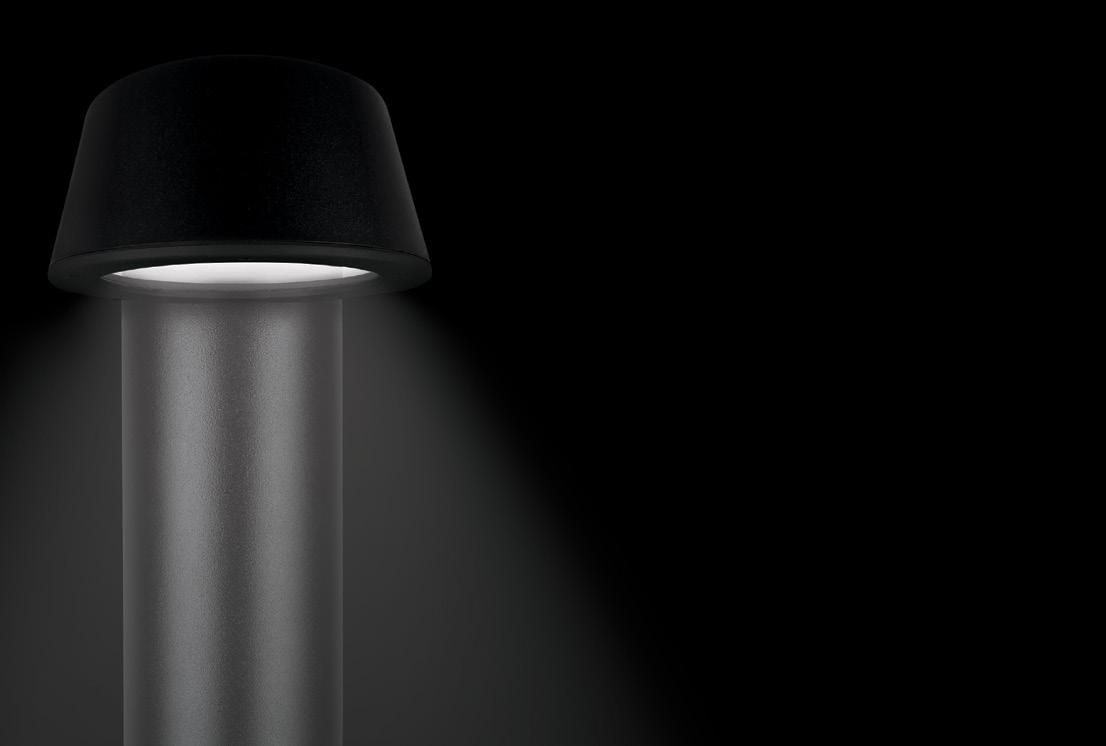

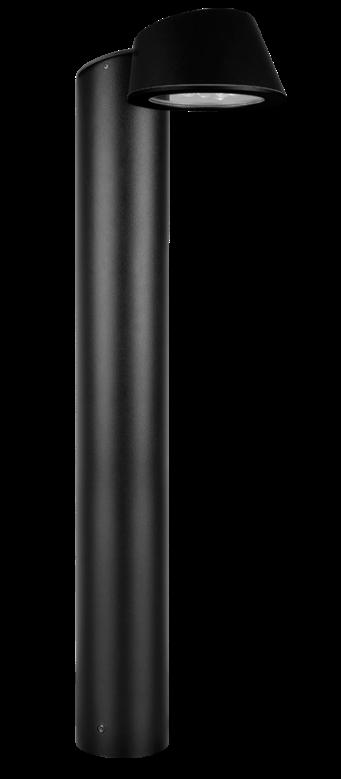

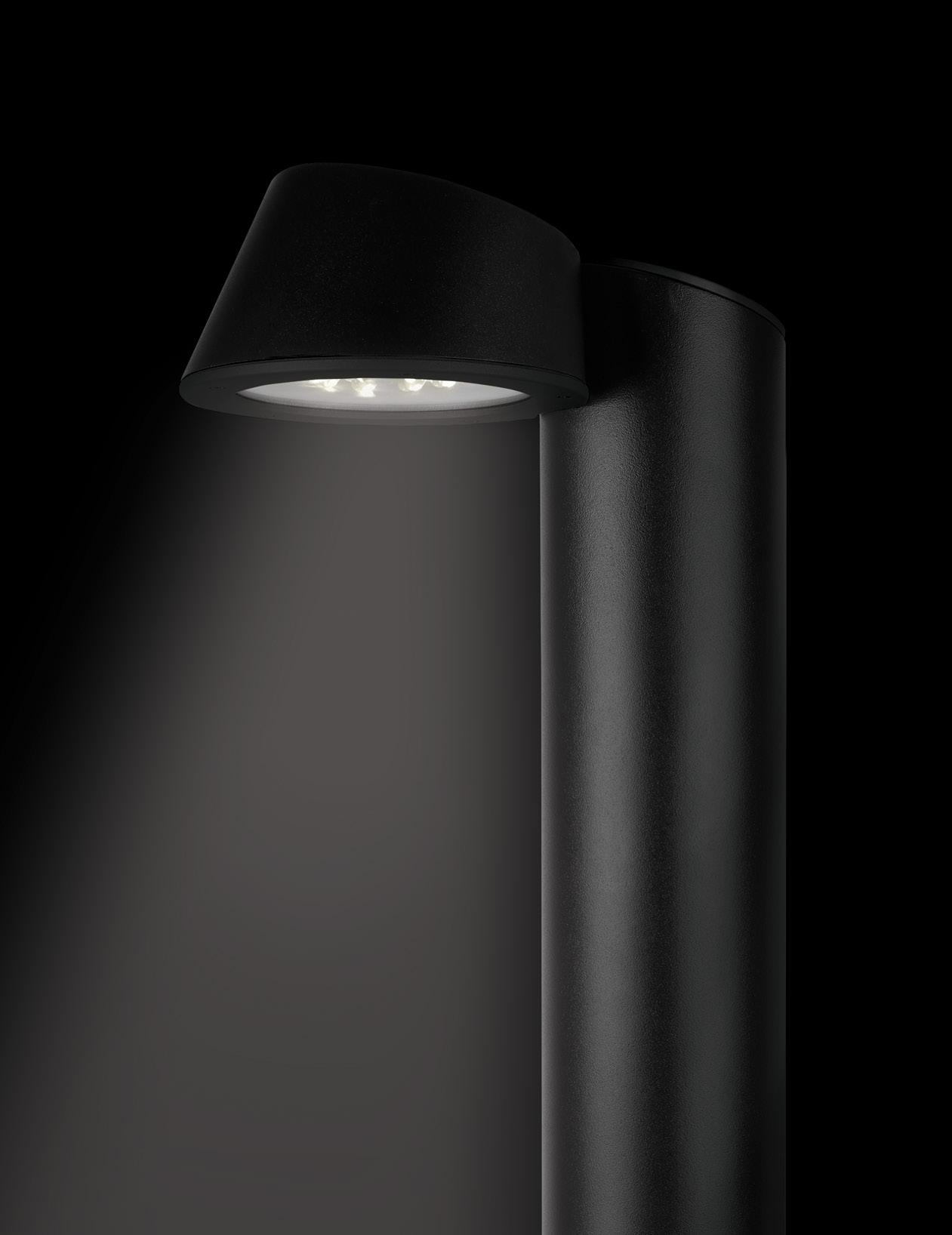

Lumenicon Bollard

No other bollard controls light like the Lumenicon Bollard, minimizing spill into the sky and glare for passersby. It provides safe, comfortable illumination for paths, sidewalks, cycleways, and public spaces. Durable and vandal resistant, it meets the demands of urban environments with confidence. Lumenicon Bollard, designed for visibility and built for the real world.

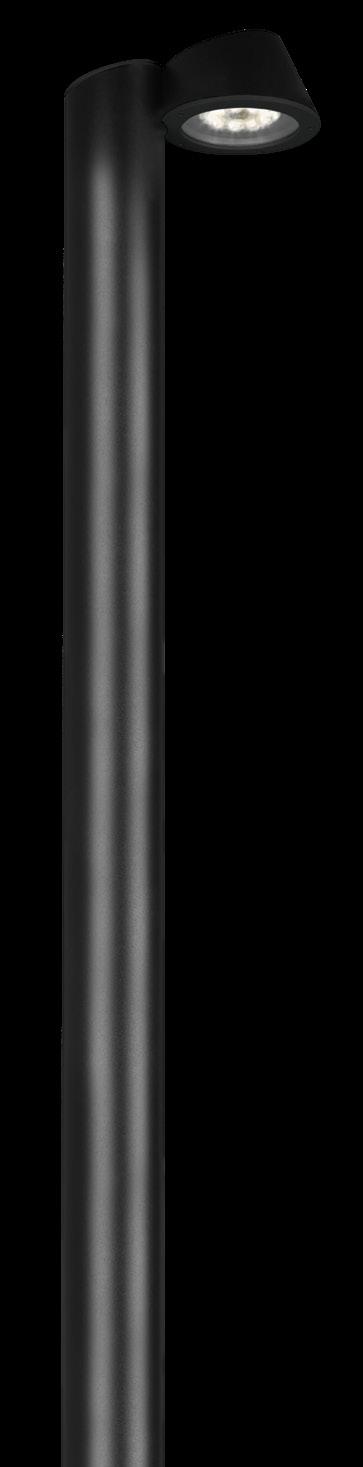

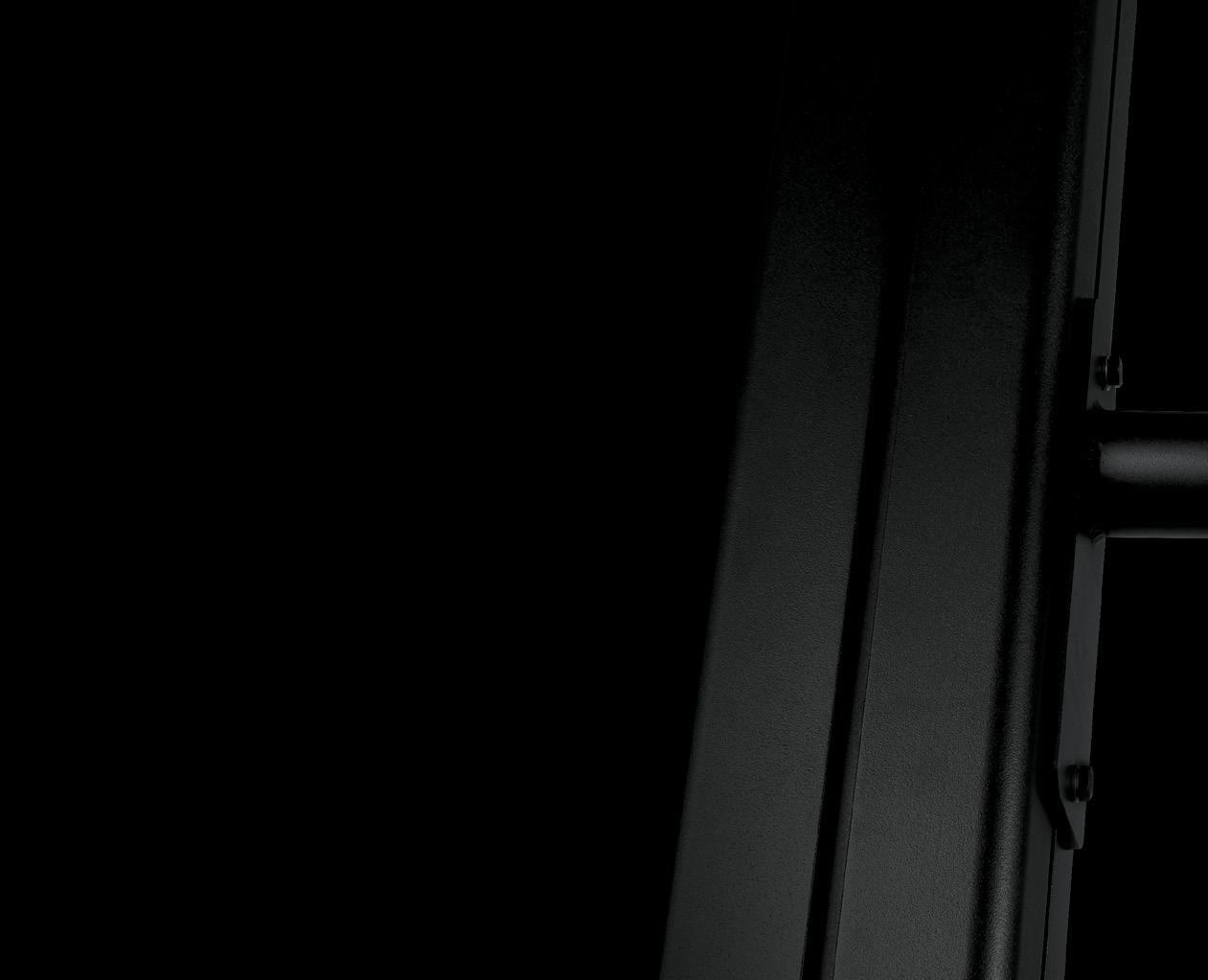

Lumenicon Column

If you want to make a city accessible and proud of its night scape, the Lumenicon Column is on your side. Capable of carrying a bollard and an overhead, the Column creates a unified aesthetic throughout a number of applications. With its flush, accessibility door, its multiple optic choices, and pulling off two luminations at once, the Lumenicon Column has your city covered.

Montreal, Quebec, Canada

Lighting Design: CS Design Photographer:

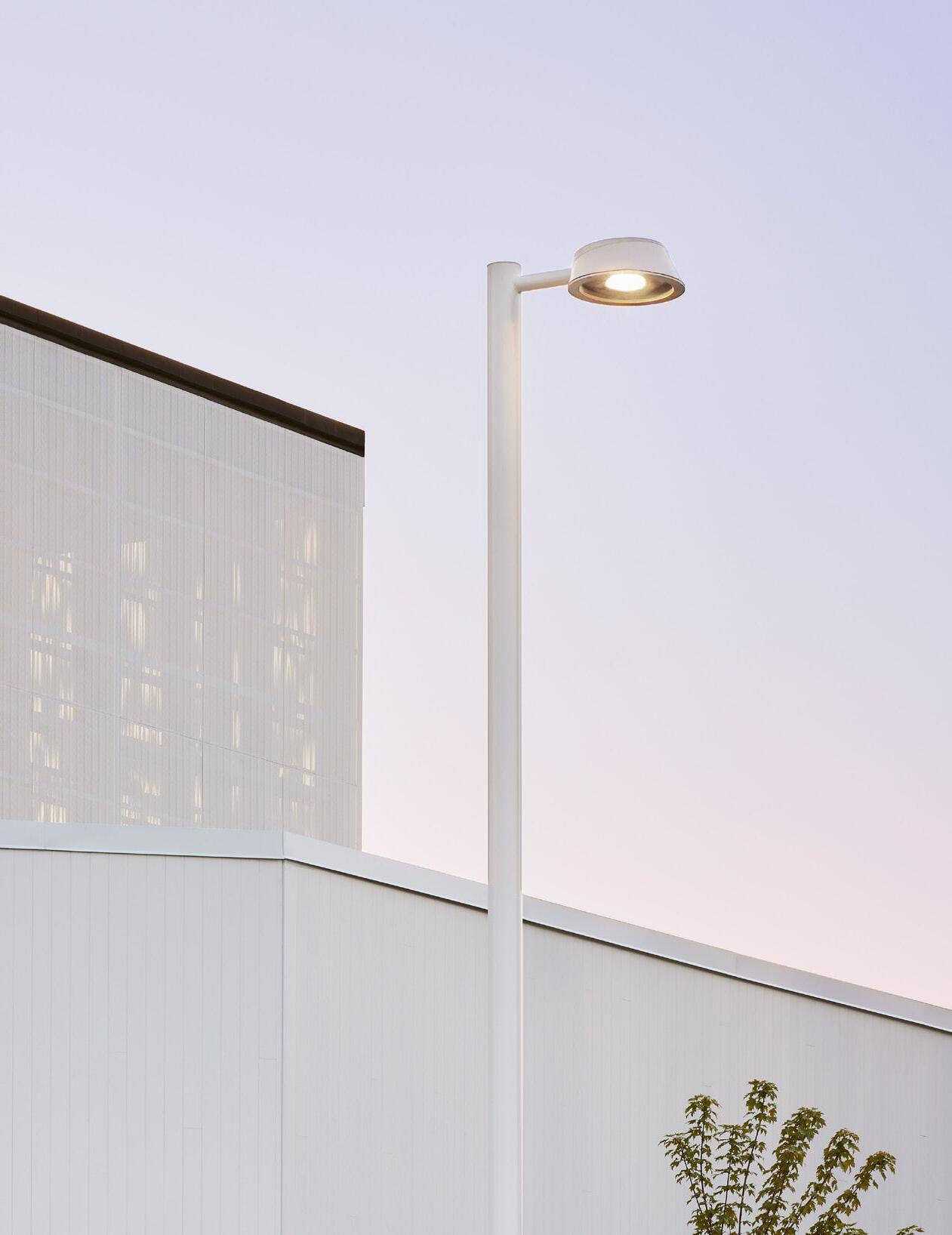

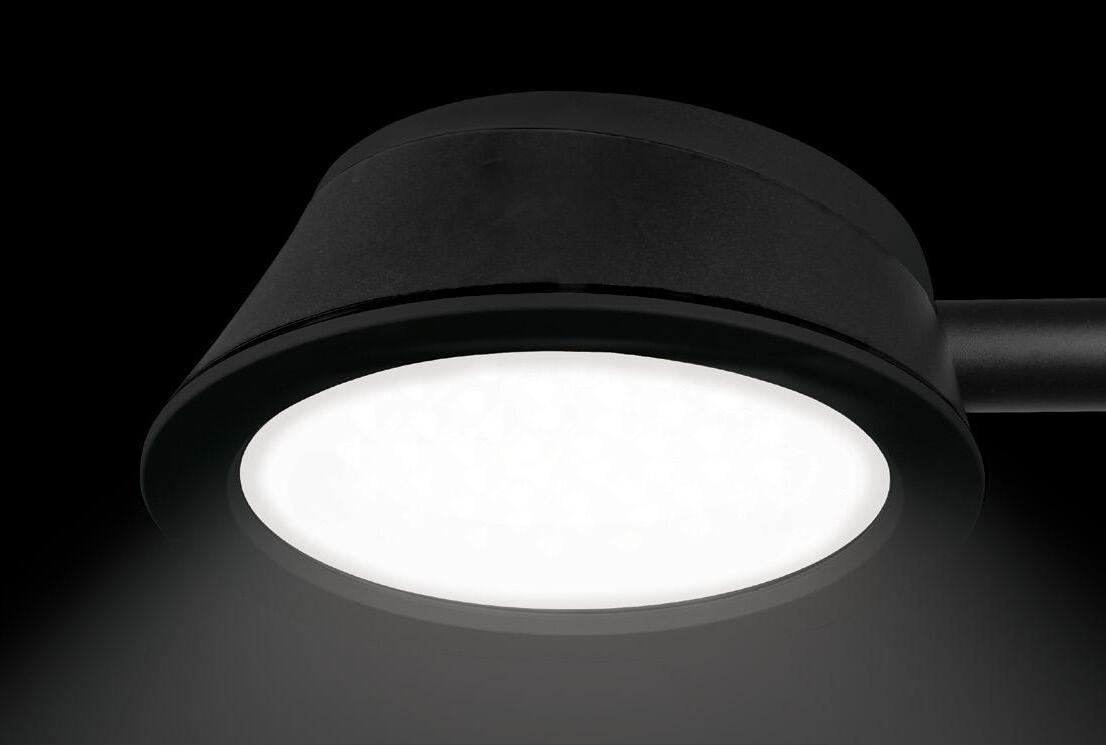

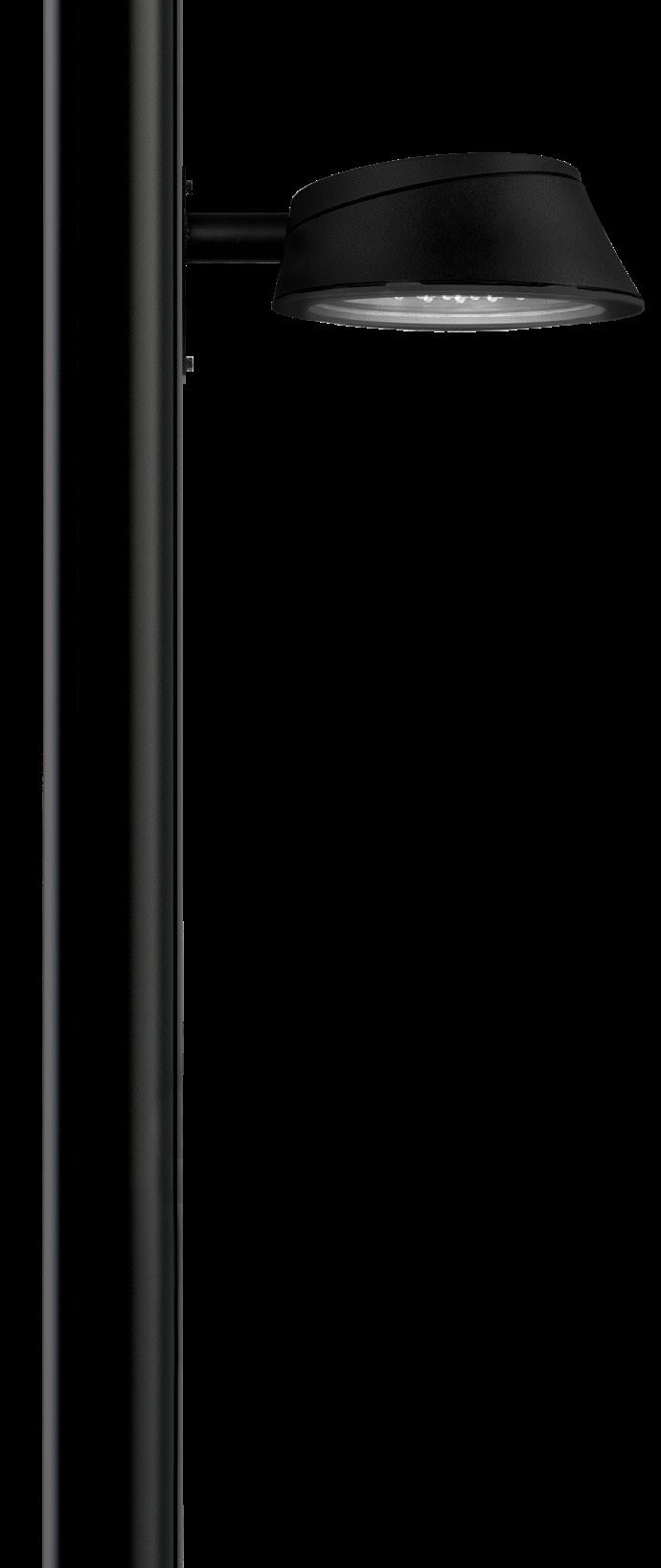

Lumenicon Area Medium

The Lumenicon Area Medium creates a consistent look while illuminating city streets, local roads, residential streets, parking lots and laneways. An innovative, toolless opening system makes the plug and play components easy to access. IP66 rated with phenomenal heat dissipation; the Lumenicon Area Medium is ready to take it to the streets (or parking lots, or building sides, or on ramps, or...). Consult Factory

Lumenicon adapts seamlessly to your project’s unique vision, integrating effortlessly into your creative lighting approach.

For projects requiring surface mounting, the Lumenicon Area Medium Wall Mount offers a refined and versatile solution, which can be further customized with Atelier LP to meet specific architectural constraints.

If standard options still don’t fully align with your needs, we go even further—leveraging our collaboration with Atelier LP to bring custom concepts to life with exceptional flexibility and precision.

Help from above

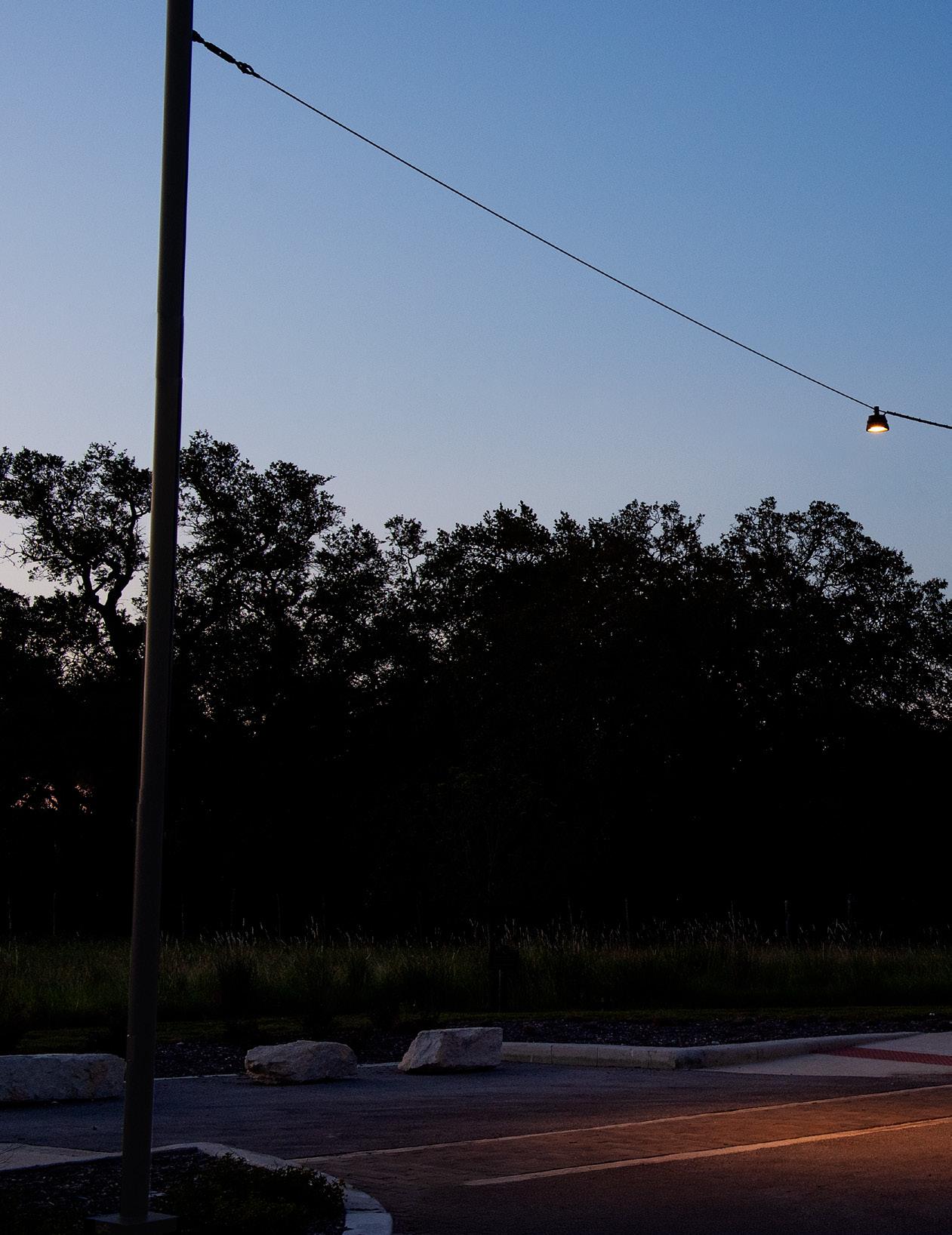

There is a street and area lighting pole for every Lumenicon occasion. Our Lumenpulse Lumentech Smart Pole (round or square) can handle all the bells and whistles: banners, multiple luminaires (from a number of Lumenpulse families), street signs; you name it. It lets lighting designers and urban planners do what they do best in any landscape or roadway, in the wind and weather.

Lumenicon luminaires can also be mounted on a variety of other pole options, from the curved pole look to a multiple tenon mount, there’s a pole to give your project its modern, signature look.

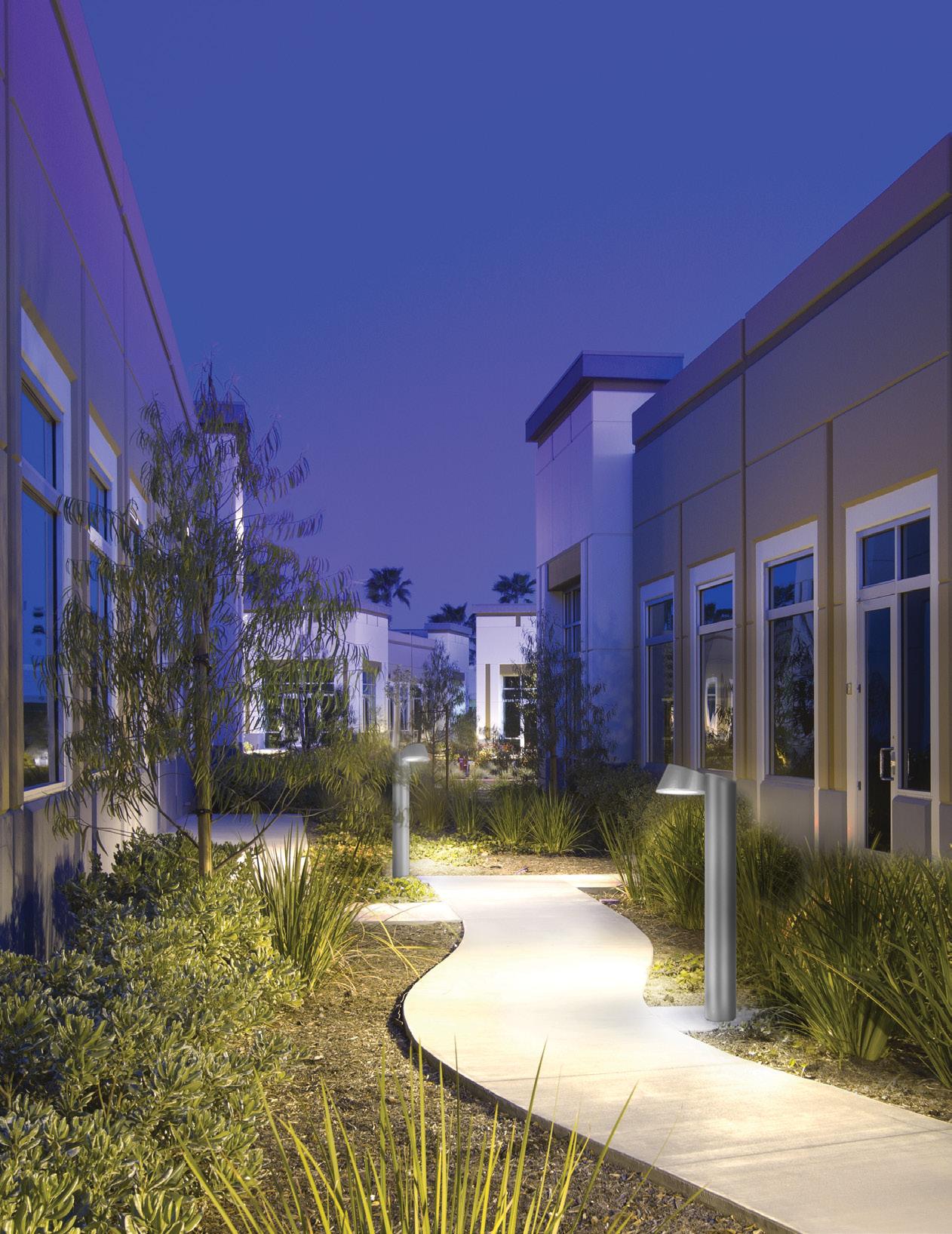

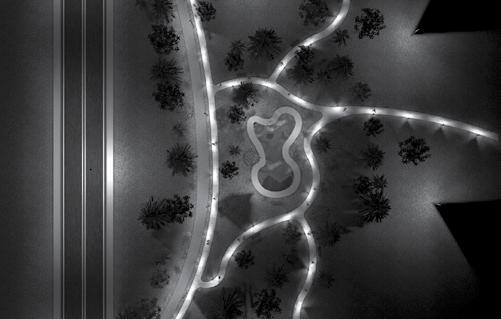

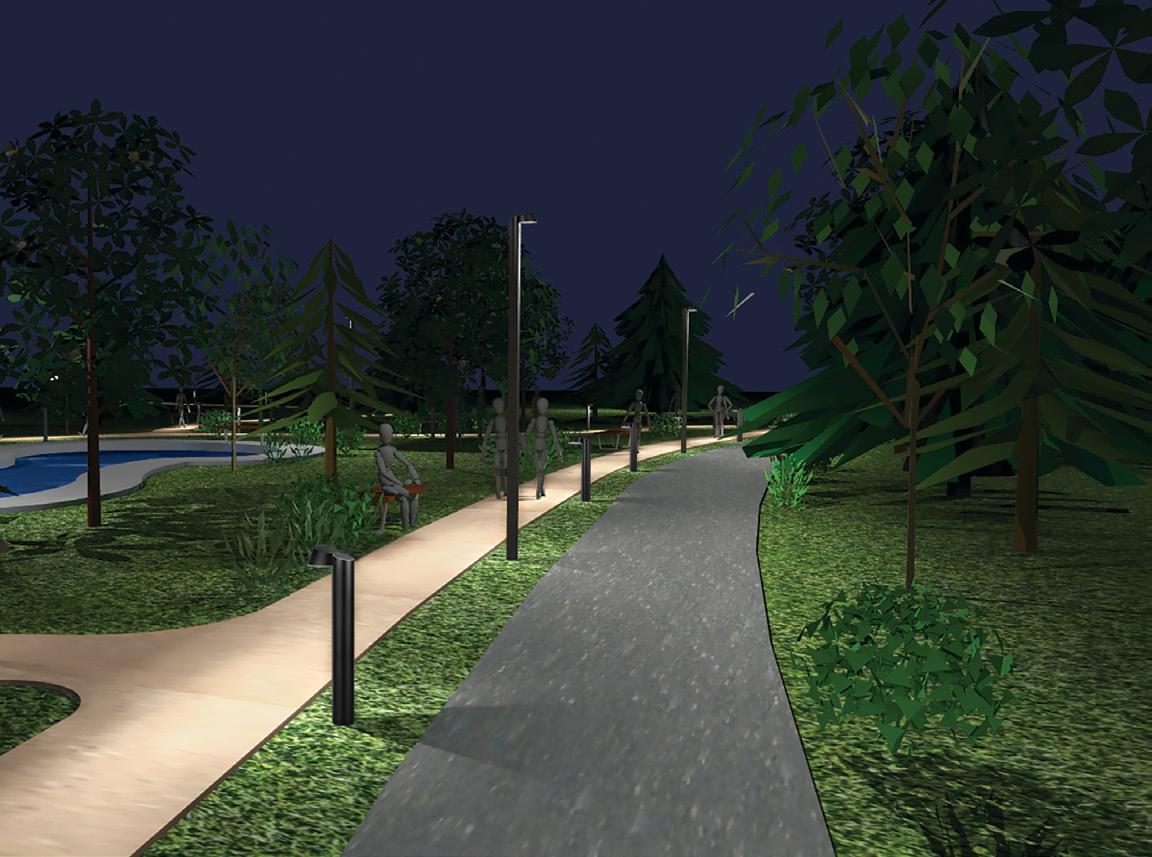

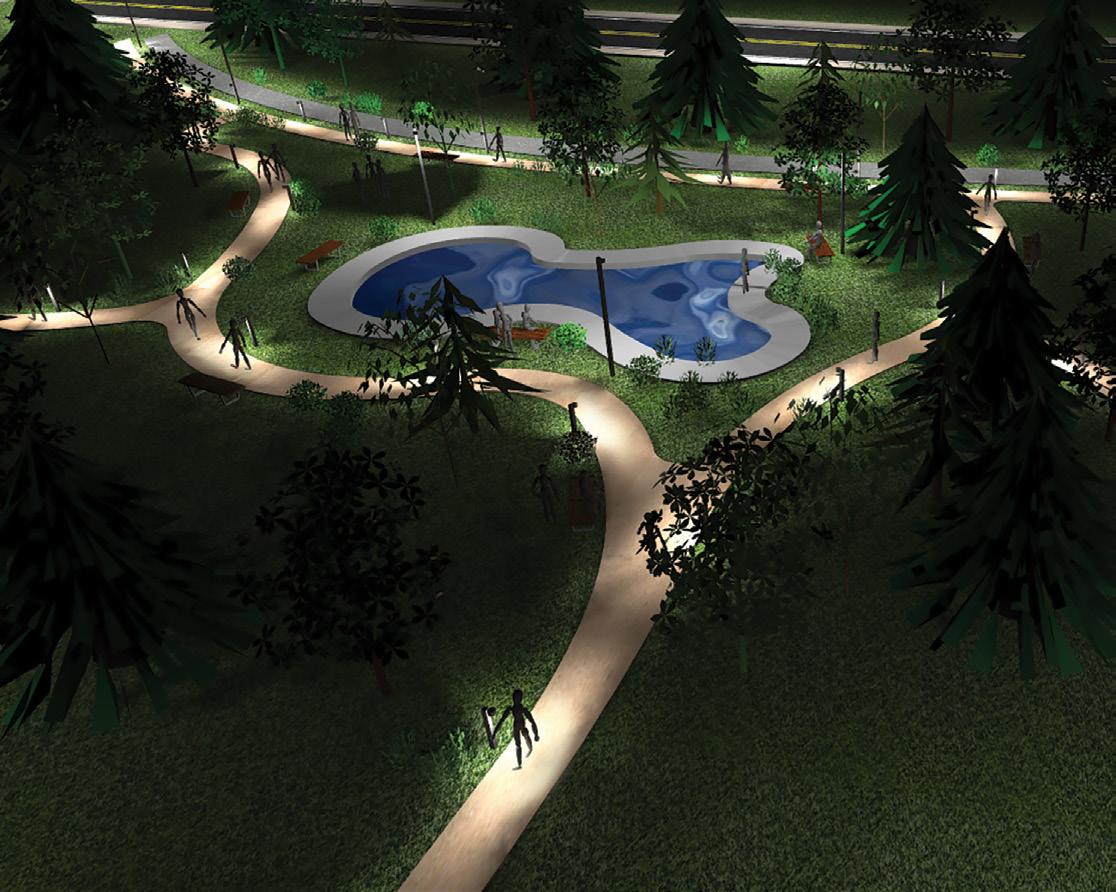

Pedestrian walkway

Lumenicon distributions help to increase tourism, reduce environmental impact, and create memorable experiences.

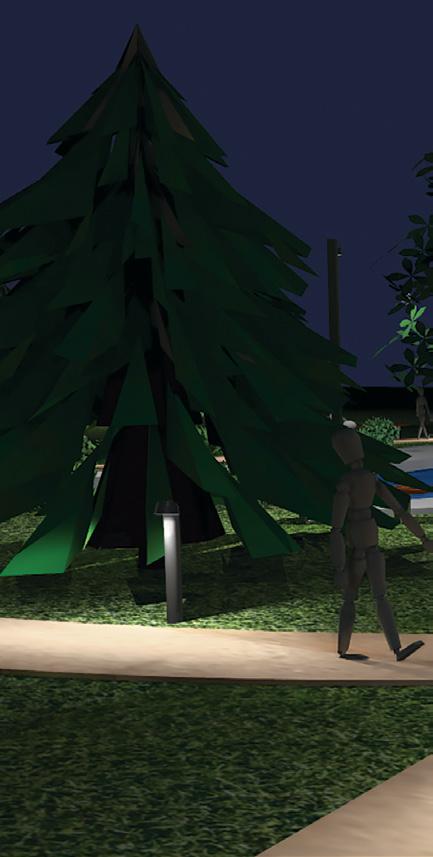

Lumenicon

Bollard Application

Summary

Lumenicon Bollard, 4000K, CRI 80+, SO

Mounting Height

3 ft

Pole Spacing

15 ft

Distribution

Type II

Summary

Lumenicon Bollard, 4000K, CRI 80+, SO

Mounting Height

3 ft

Pole Spacing

15 ft Distribution

Type IV

Lumenicon Column Application

Summary

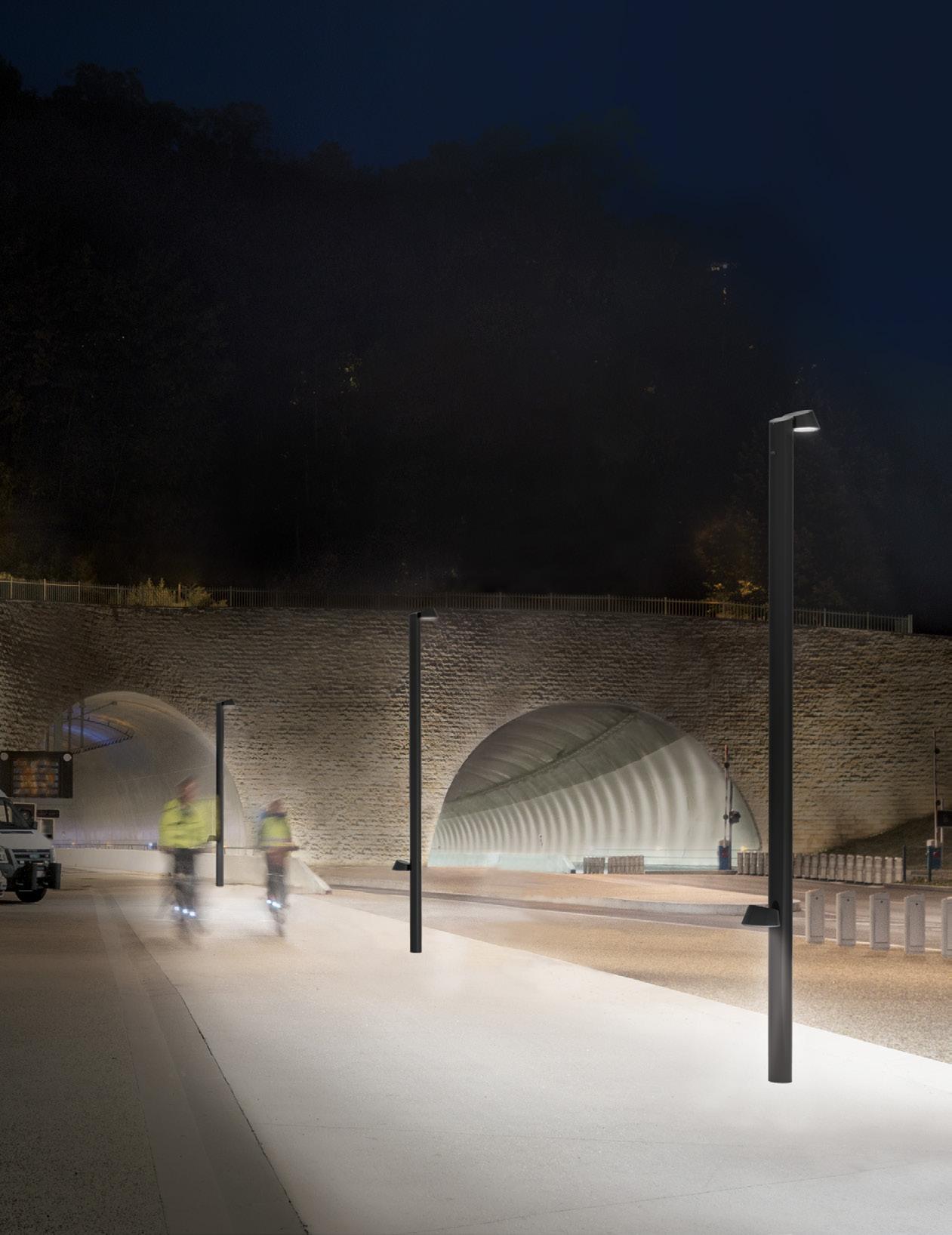

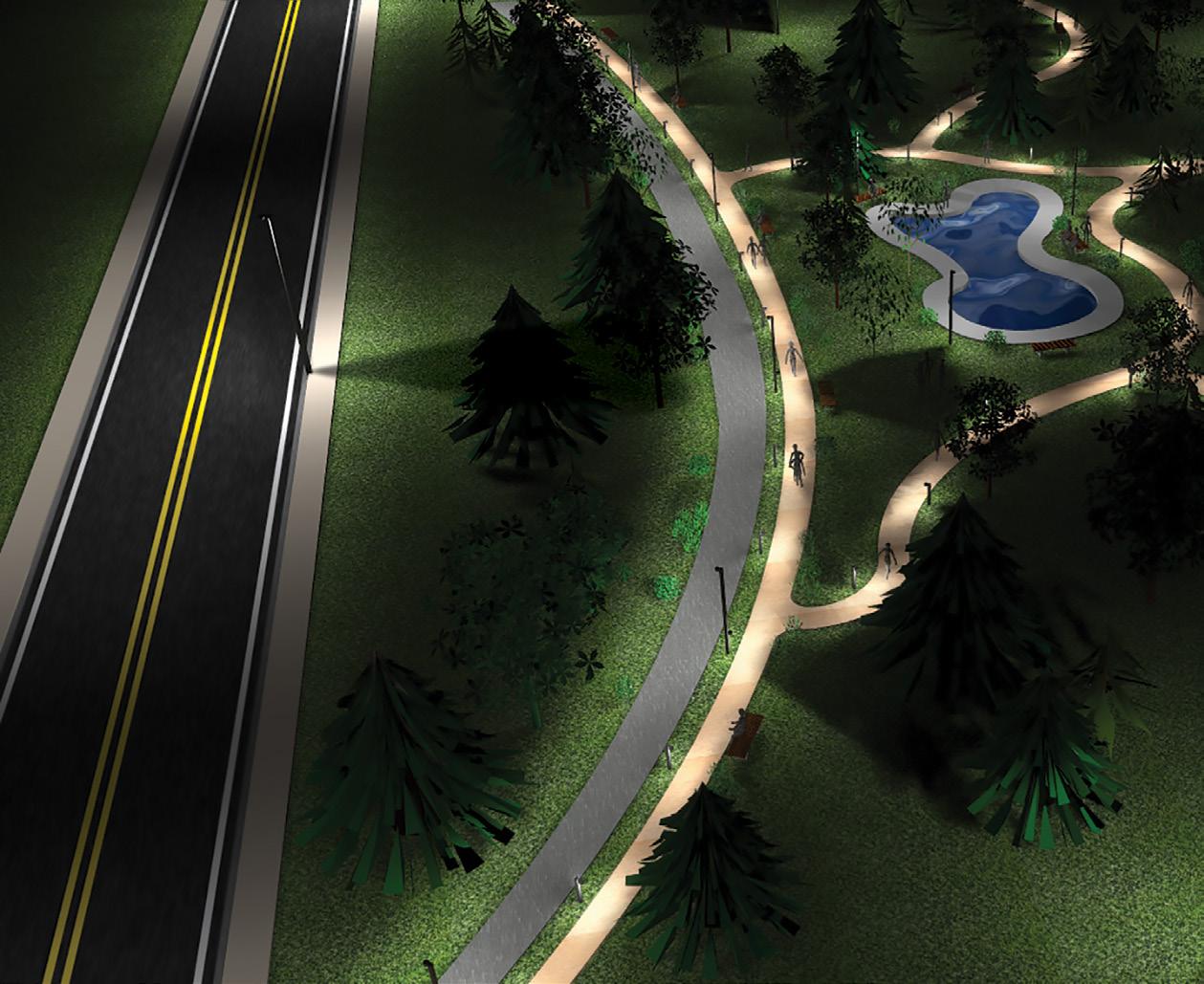

Bicycle path

Help cyclists pedal to where they are going safely, without an uncomfortable light spill. A route lit by Lumenicons is always the route most chosen.

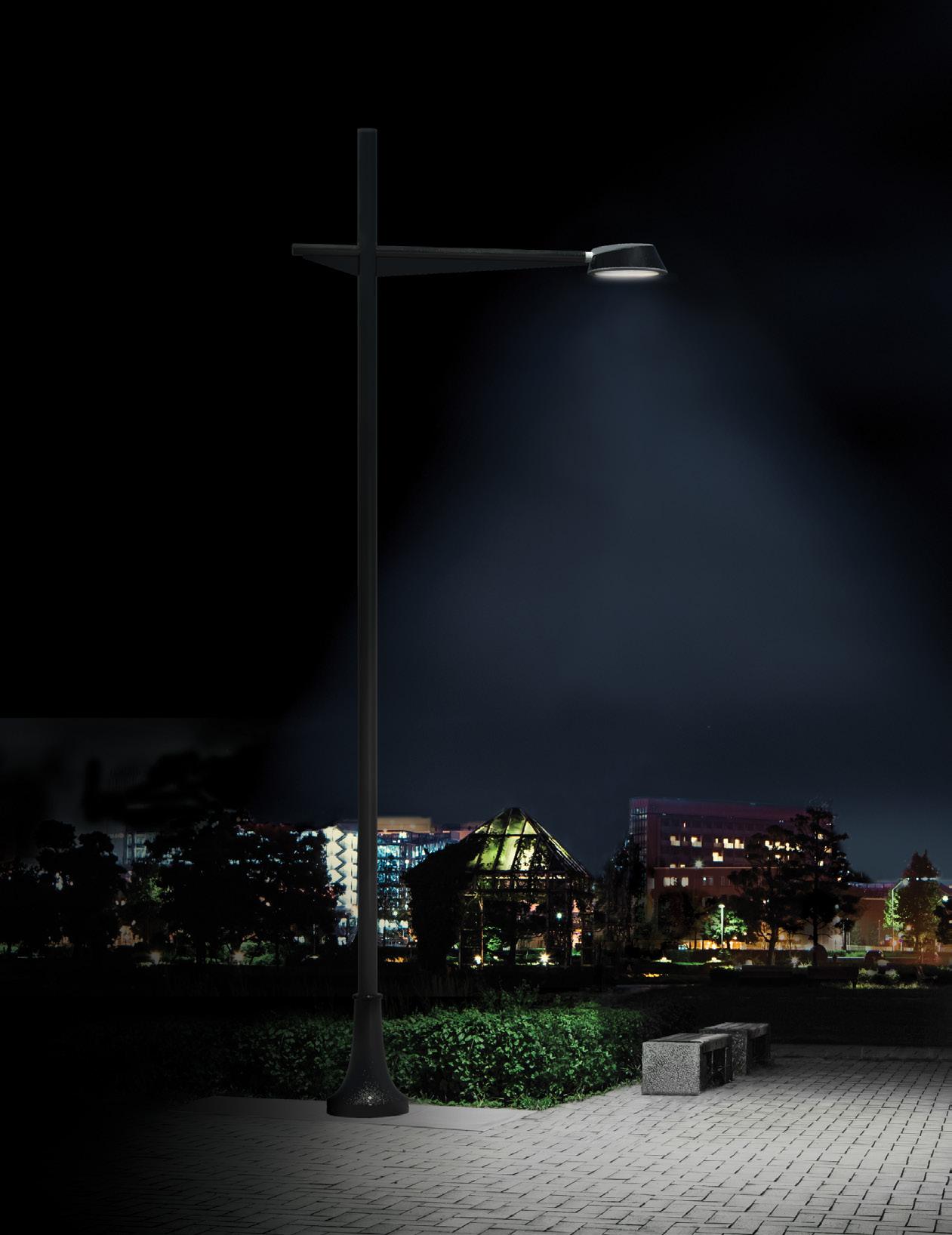

Lumenicon Area Medium Application

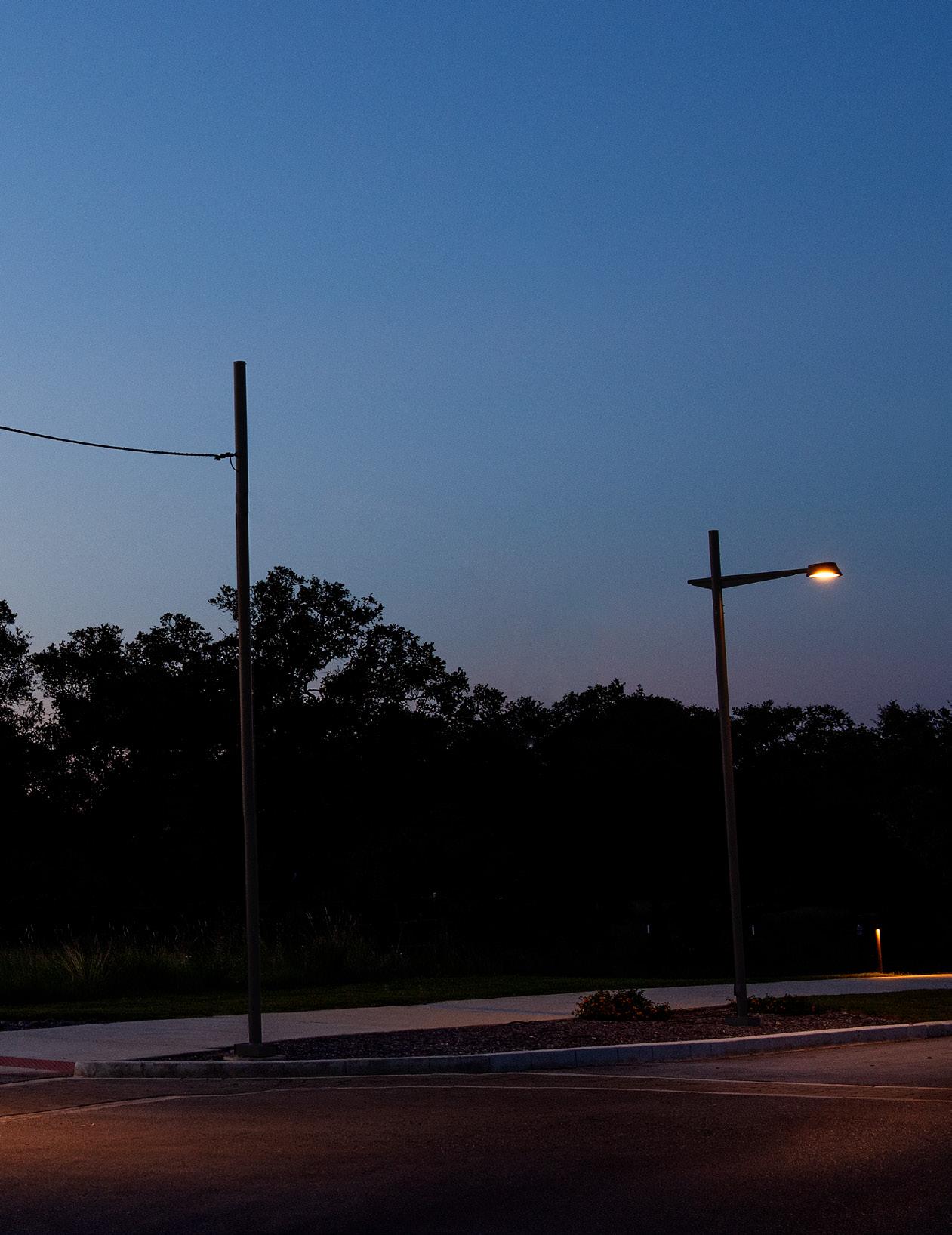

Streets and collector roads

Lumenicon luminaires increase safety and comfort for pedestrians, cyclists and motorists. Our distributions put light where it needs to be, right where you want it.

Summary

Lumenicon Area Medium, 4000K, CRI 80+, M110

Mounting Height

25 ft Pole Spacing

162 ft Distribution

Type III

Access road

Type II

Lumenicon Area Medium, 4000K, CRI 80+, Pole Mount

Mounting Height: 16 ft

Spacing Ratio: 7:1

Avg: 17.19 lux

Avg/Min: 3.58

5 ft Grid Resolution

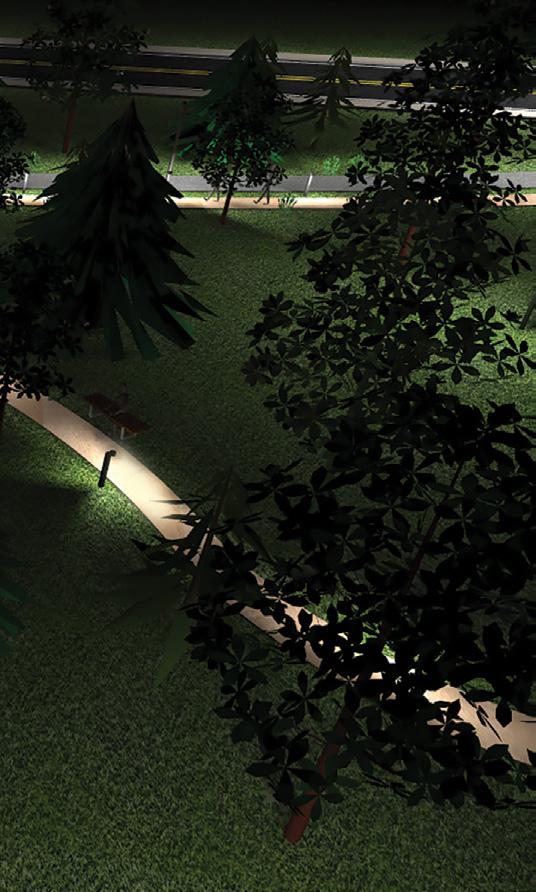

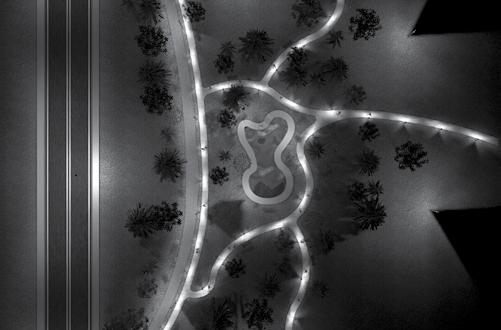

Sidewalk

Pedestrian walkway

Type II

Lumenicon Column, 4000K, CRI 80+

Mounting Height: 12 ft

Spacing Ratio: 5 :1

Avg: 8.07 lux

Avg/Min: 2.52 3 ft Grid Resolution

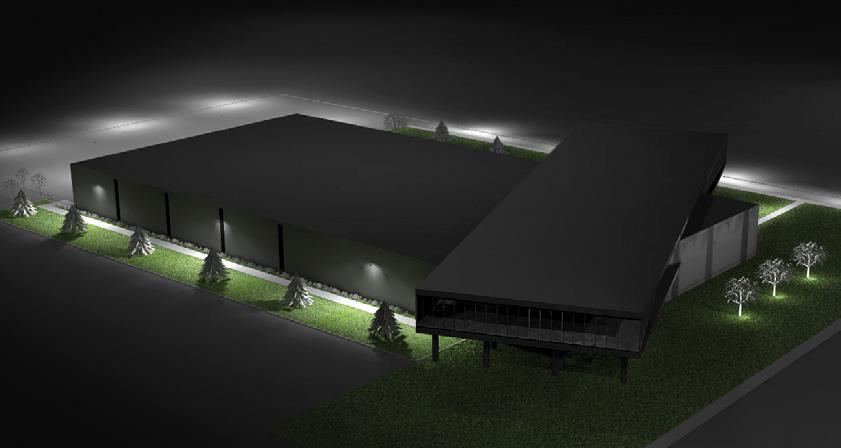

Parking lot

Recommended

Type IV

Lumenicon Area Medium, 4000K, CRI 80+, Pole Mount

Mounting Height: 26 ft

Spacing Ratio: 4 :1

Avg: 8.16 lux

Avg/Min: 3.26

10 ft Grid Resolution

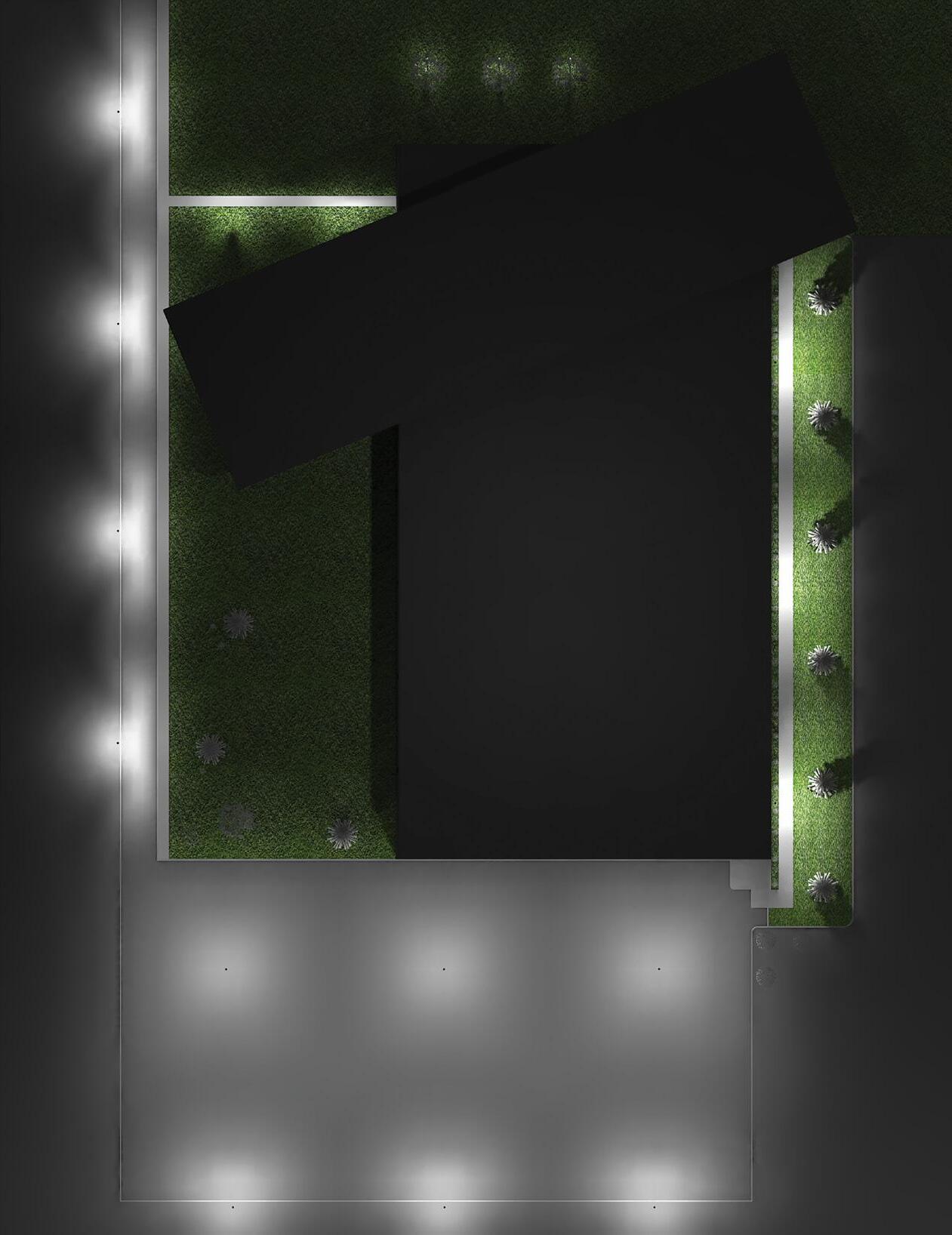

Parking lot

Recommended

Type III

Lumenicon Area Medium, 4000K, CRI 80+, Wall Mount

Mounting Height: 22 ft

Spacing Ratio: 6 :1

Avg: 12.54 lux

Avg/Min: 5.97

Vertical Min: 1.7 lux

5 ft Grid Resolution

Type VS

Lumenicon Area Medium, 4000K, CRI 80+, Pole Mount

Mounting Height: 26 ft

Spacing Ratio: 4 :1

Avg: 8.16 lux

Avg/Min: 3.26

10 ft Grid Resolution
