Lighting Life’s Path

Light That Considers People

At Lumenpulse, listening is central to how we innovate. By collaborating closely with our partners throughout the design process, we develop lighting solutions that balance performance, visual comfort, and creative flexibility— thoughtfully designed for the communities they serve.

Five Lighting Principles for Responsible Outdoor Lighting

The Illuminating Engineering Society (IES) and DarkSky International continue to call for lighting solutions that improve visual comfort while respecting the nighttime environment.

01 | Useful

All light should have a clear purpose.

02 | Targeted

Direct light so it falls only where it is needed.

03 | Low Level

Use the lowest light level required.

04 | Controlled

Use light only if it is needed.

05 | Warm-Colored

Use warmer spectrums where possible.

A Comprehensive Solution

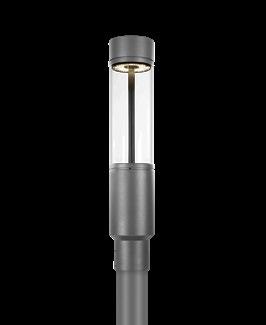

Lumenalta is a versatile family of classic, streamlined cylindrical bollards, columns, and post-top luminaires built around advanced optics.

Whether engineered for high performance, low-glare comfort, or bold color effects, Lumenalta delivers precise, impactful lighting exactly where it’s needed.

Optics Engineered for Purposeful Light

The Lumenalta family is designed for spaces that deserve more than illumination—they deserve intention. Its trio of optics gives designers the freedom to shape light with purpose. Together, they form a versatile family that delivers clarity, comfort, and stunning white or colored light in every application.

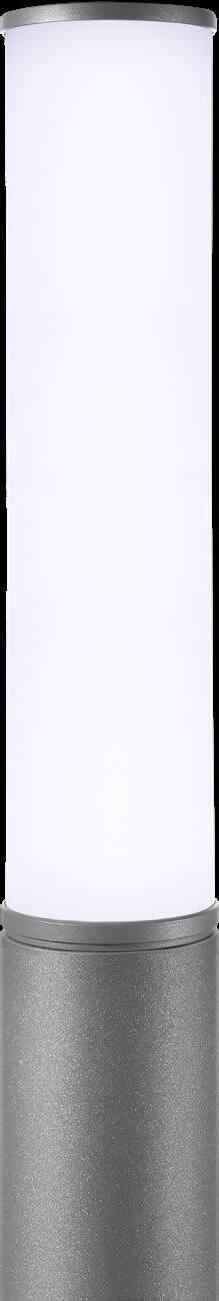

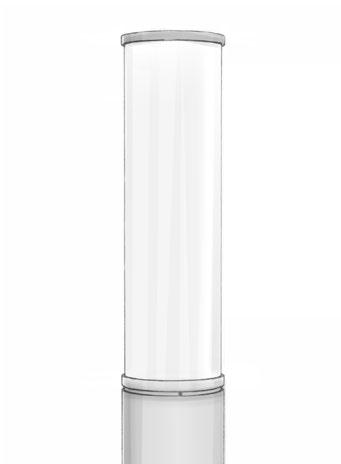

Direct View

A diffuser-lens design that emits superb luminance.

Directional

A faceted light guide that provides visual comfort.

A high performance optic that delivers excellent light control.

Invisio™

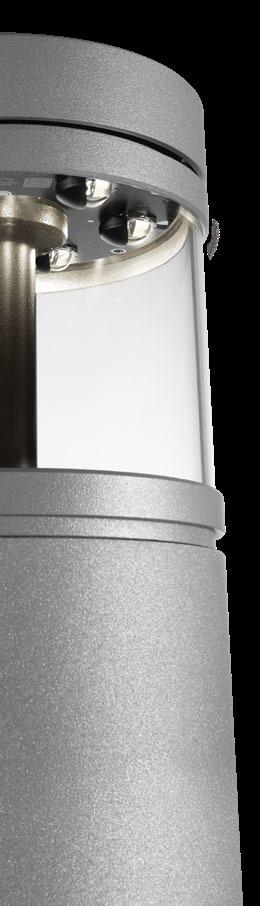

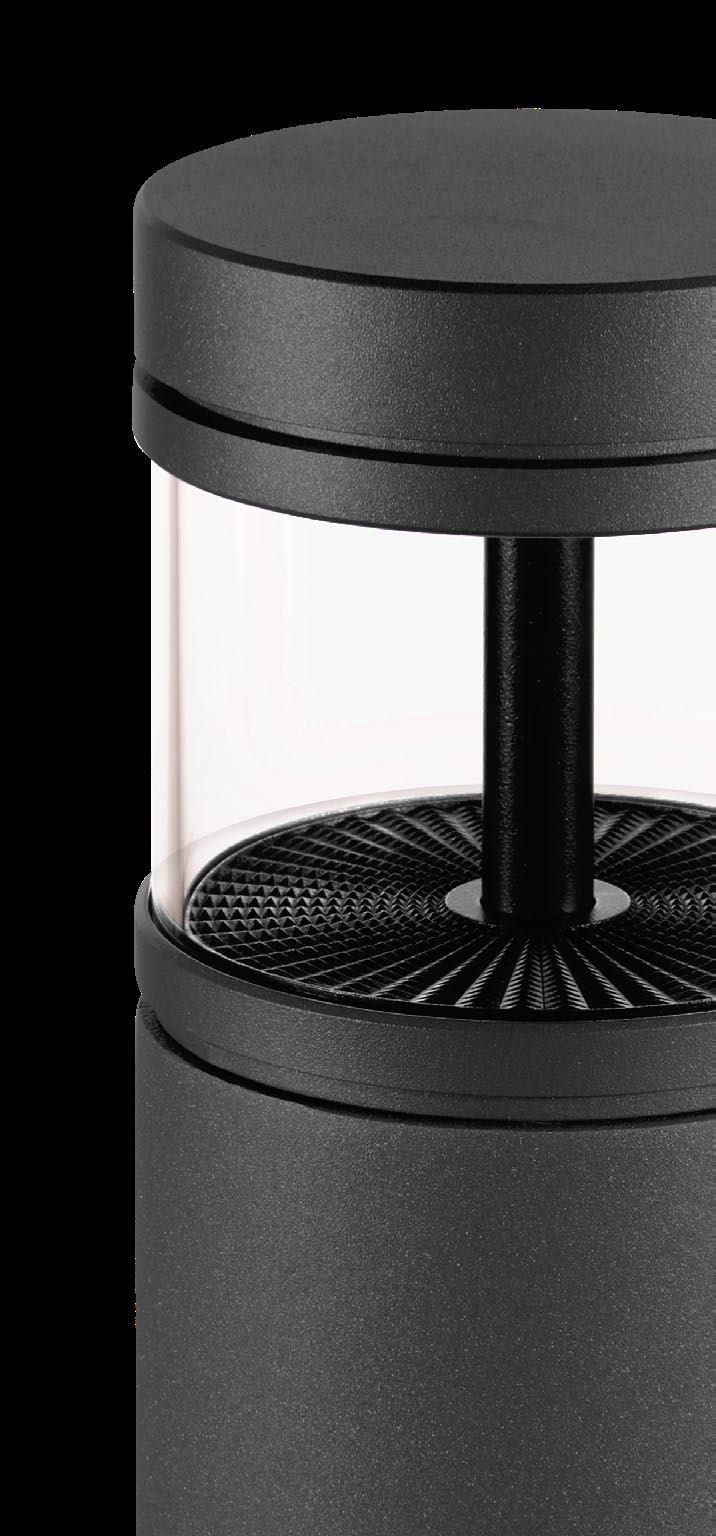

Directional Optic

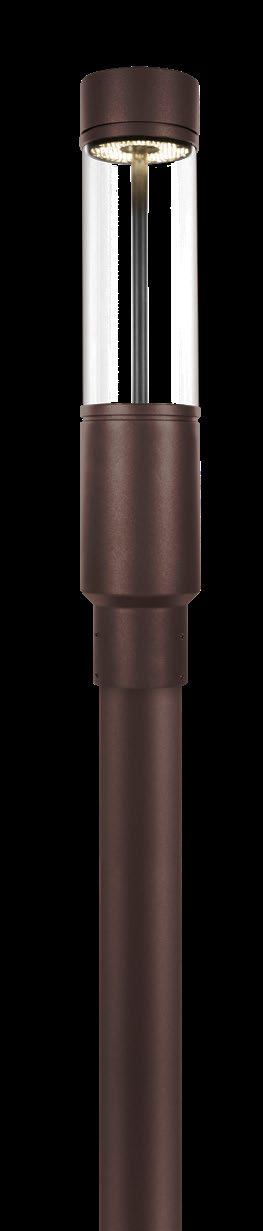

Lighting that Delivers

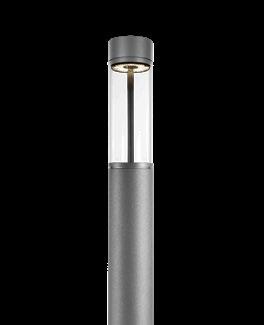

The Directional optic delivers high-performance illumination tailored for demanding outdoor environments— from parking lots to mixed vehiclepedestrian spaces and pedestrian spaces.

With outputs ranging from 500 to 8000 lumens across bollards, columns, and post-ups, it provides precise Types I-V distributions for maximum visibility and control.

An optional backlight shield and honeycomb louver enhance cut-off and comfort wherever needed.

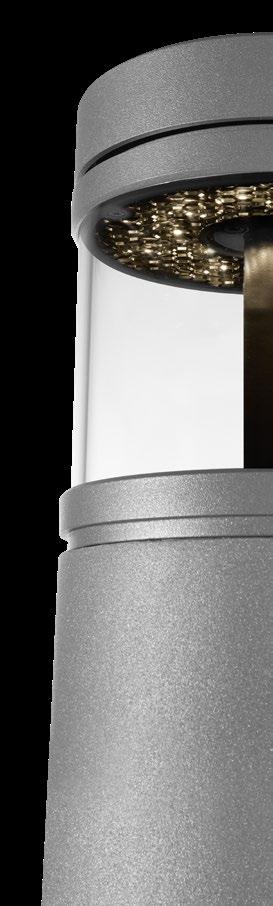

Honeycomb louver

Backlight shield

Inspired from acoustic panel designs, the Directional’s textured plate reduces reflected light from bouncing upward.

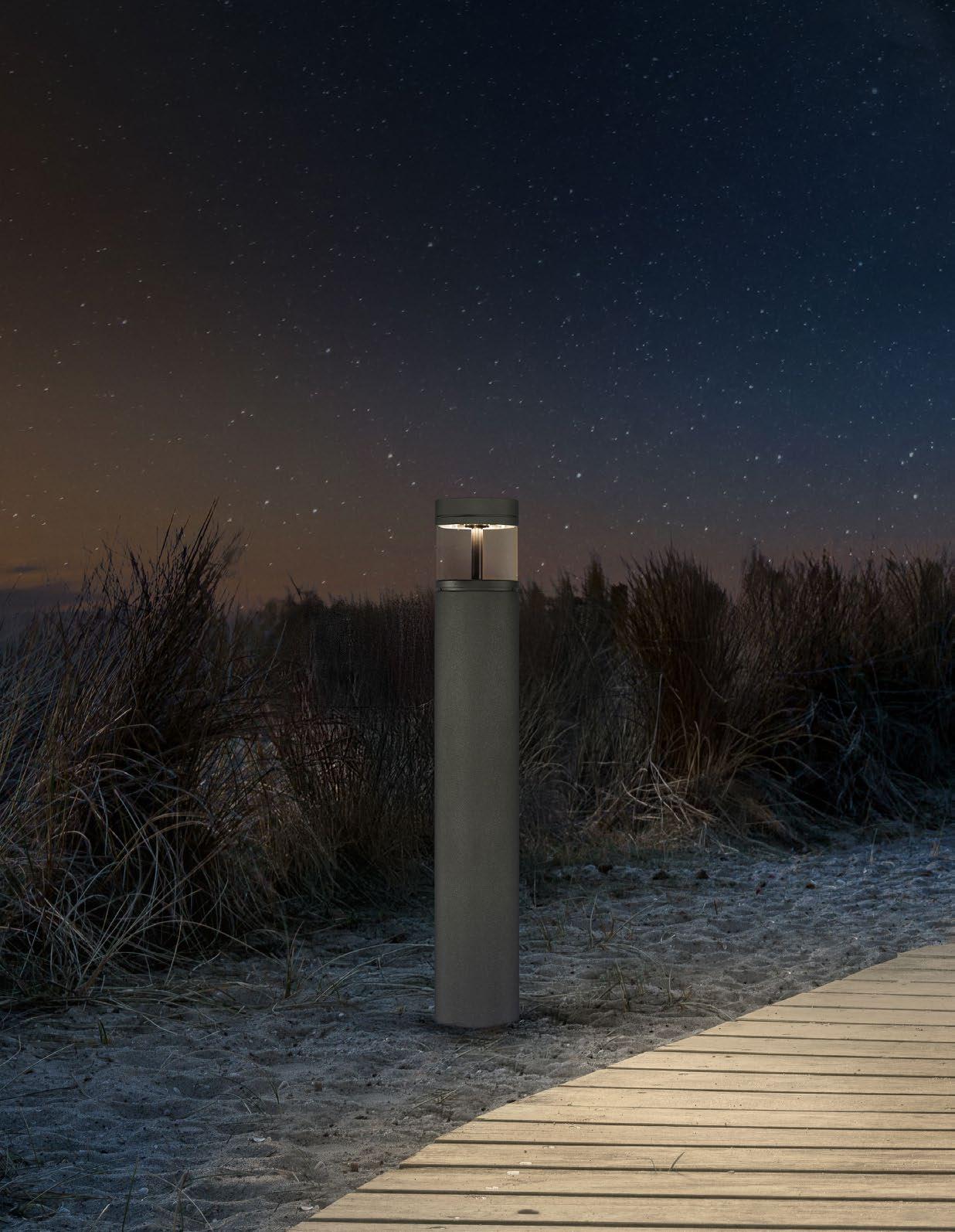

The Directional optic has DarkSky Approved configurations, ensuring it adheres to responsible lighting practices that protect the night environment. Its precise optical control minimizes glare, reduces uplight, and focuses illumination exactly where it’s needed.

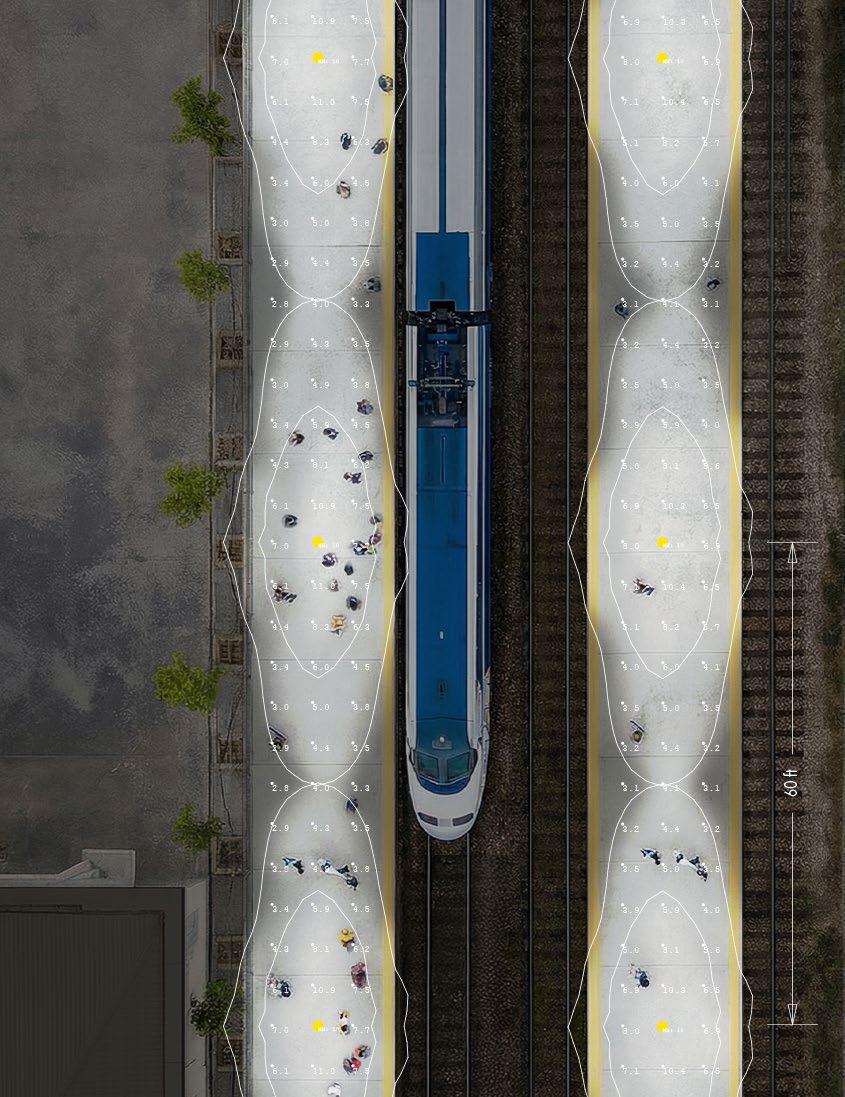

Type I Optics: CONCENTRATED FOR CLOSE RANGE TARGETS

Type I optics are designed for areas that require focused lighting directly beneath the lens, in order to minimize light spill through a narrow, precise distribution. This results in excellent spacing ratios and efficient coverage. These optics are well suited for passenger platforms as well as mixed cycling and pedestrian spaces.

Mounting Height: 10’

Luminaire(s): Lumenalta column, M80 output, 4000K, CRI 80+

Criteria: Between 50 lux / 5 fc – 100 lux / 10 fc, 4 max/min

Spacing: 60’

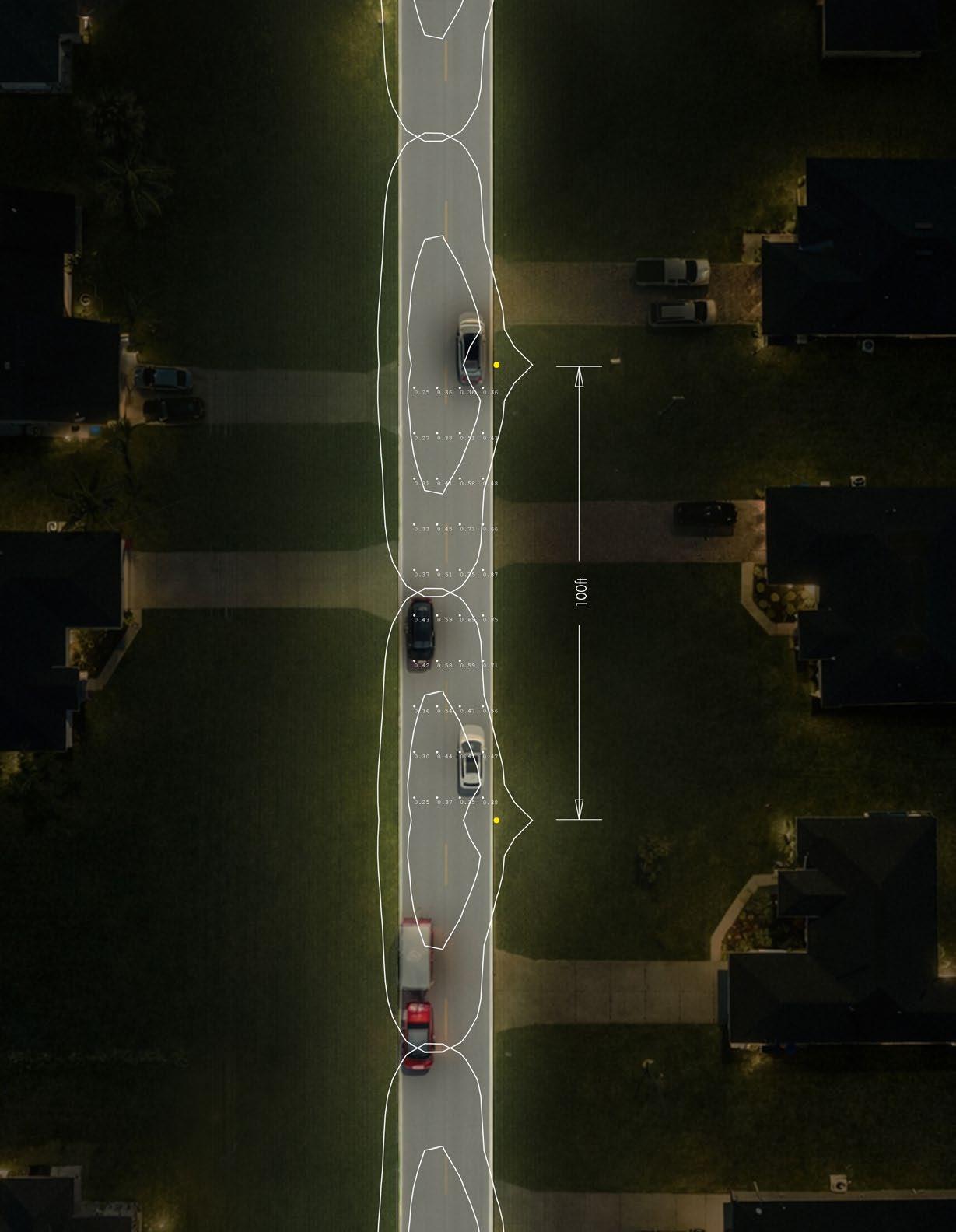

Type

II Optics:

FOR NARROW SPACES

Optimized for sidewalks, two-lane streets, cycle paths, pathways, and narrow overpasses, Type II optics provide elongated, targeted illumination exactly where it’s needed. Designed to enhance visibility and safety in compact urban spaces, this distribution ensures efficient light placement. Ideal for creating well-lit, pedestrian-friendly environments with precision and control.

Mounting Height: 20’

Luminaire(s): Lumenalta small, S25 output, 3000K, CRI 70+

Criteria: RP-08-25

Road - Collector Low Pedestrian Activity

0.4 cd/m², 4 avg/min, 8 max/min, 0.4 Lv max/L avg

Spacing: 100’

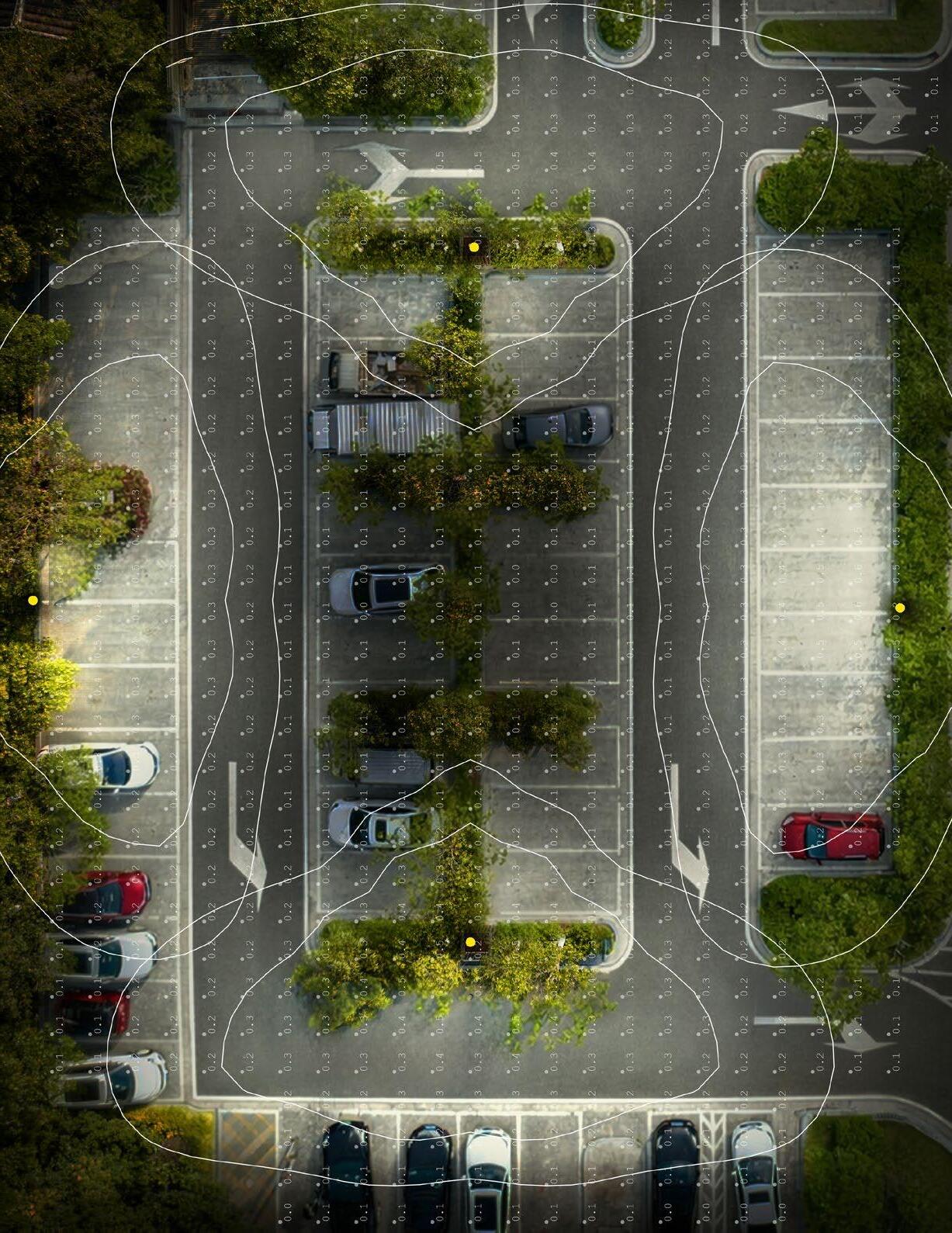

Type III Optics:

BALANCED COVERAGE FOR WIDER SPACE

Designed for cycle paths, three-lane streets, parking lots, parks, public spaces, and overpasses, Type III optics deliver a wide, lateral distribution that enhances visibility across broader areas. This distribution ensures even illumination, reducing dark spots while maintaining energy efficiency and optimal light placement. Ideal for urban and recreational environments, Type III optics create safer, more inviting spaces for both pedestrians and vehicles.

Mounting Height: 17’

Luminaire(s): Lumenalta small, S15 output, 2700K, CRI 80+

Criteria: RP-08-25

Parking lots – Drive aisles and parking areas

Avg 2 lux / 0.2 fc, 4 max/avg

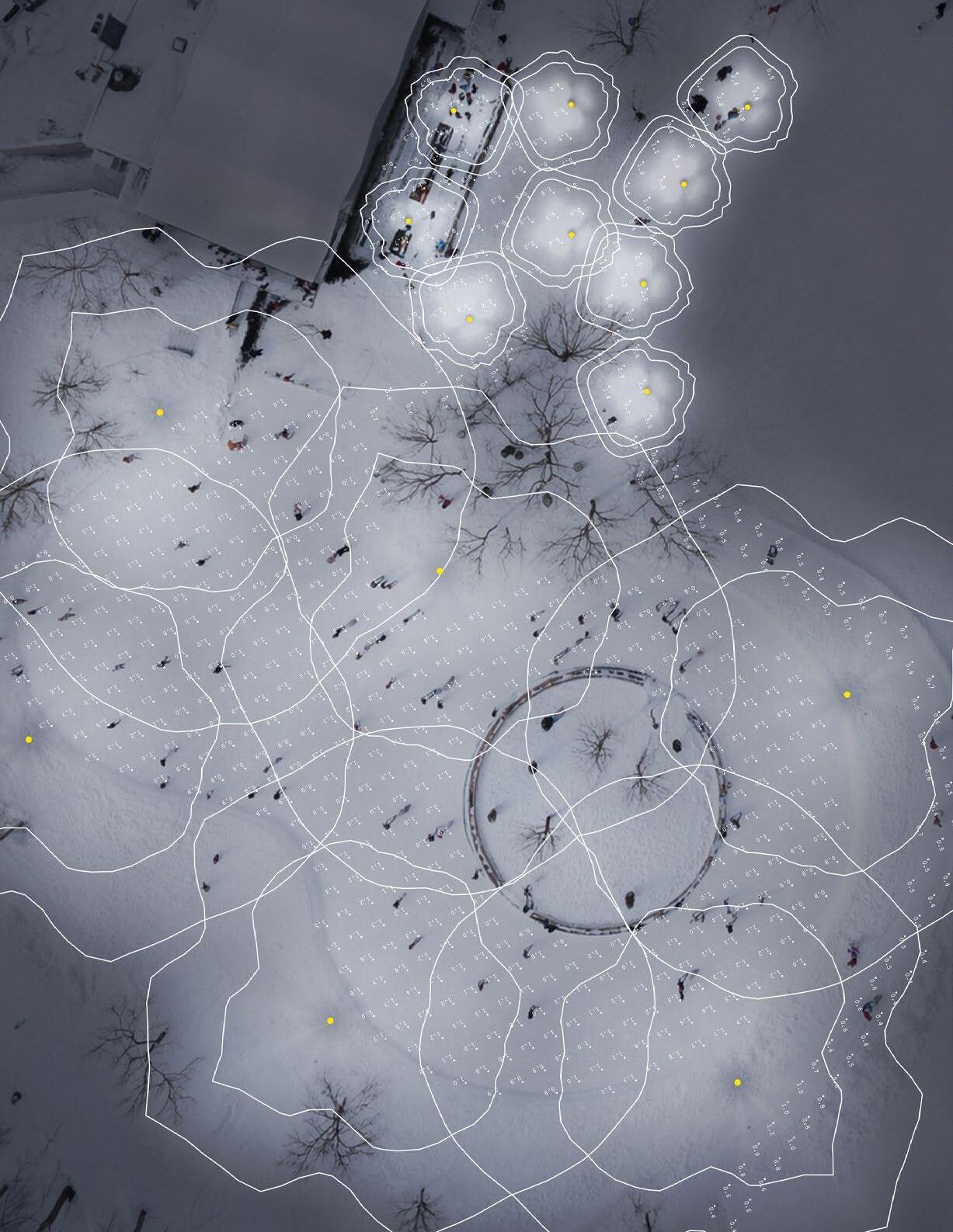

Type IV Optics:

DESIGNED FOR HIGH-USE, HIGH-PERFORMANCE SPACES

Perfect for transit hubs, truck zones, parking lots, campuses, parks, collector roads, and public spaces, Type IV optics provide a forwardthrow, asymmetrical light distribution that efficiently covers wide areas while reducing glare and light spill. This precision-focused design enhances visibility and safety in spaces where both pedestrian and vehicle traffic intersect. With optimized light placement, Type IV optics create well-lit, functional environments that balance performance, efficiency, and comfort.

Mounting Height: 20’ column + 3’ bollards

Luminaire(s): Lumenalta column, M80 output, 3000K, CRI 80+

Lumenalta bollard, XS07 output, 3000K, CRI 80+

Criteria: RP-06-24 - Skating Pond

Avg 10 lux / 1 fc, 4 max/min

RP-43-25 – LZ2 Terrasses, Patios, Decks

Avg 8-15 lux / 0.8-1.5 fc, 8 avg/min

LZ2 Walking areas adjacent to waterfront

Avg 10-20 lux / 1-2 fc, 10 avg/min

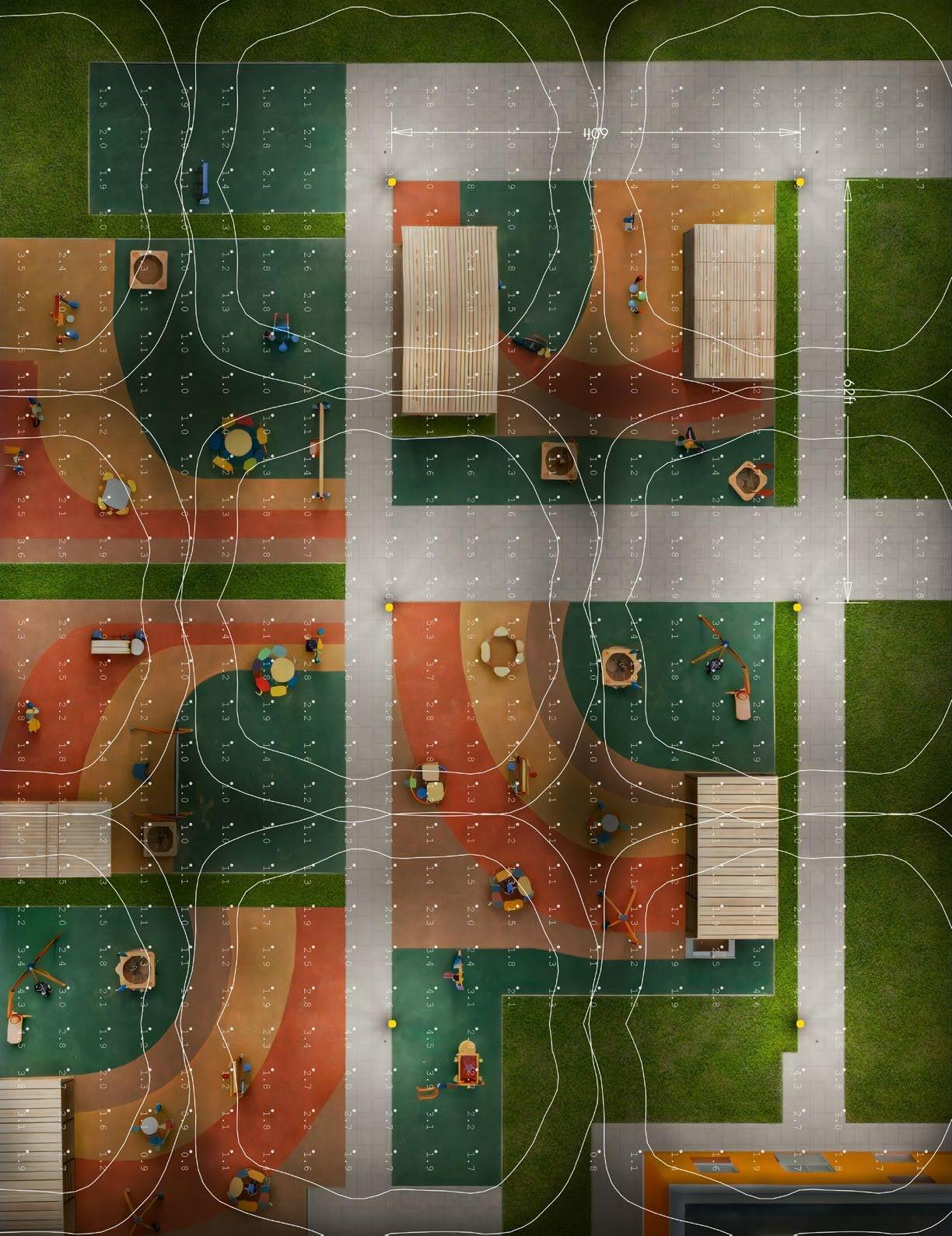

Type VS Optics: UNIFORM

ILLUMINATION

FOR OPEN SPACES

Designed for large parking lots, plazas, and open public areas, Type VS optics produce a uniform 360-degree light distribution that effectively illuminates spaces from a central location. The square beam pattern enhances spacing performance by minimizing overlap and maximizing useful light coverage. Type VS optics help create comfortable, well-lit environments in active shared spaces.

Mounting Height: 12’

Luminaire(s): Lumenalta column, M80 output, 2700K, CRI 80+

Criteria: RP-43-25 / LZ2 Playgrounds

Avg 20-40 lux / 2-4 fc, 5 avg/min

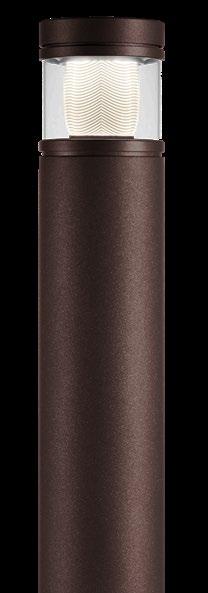

Invisio Optic

A New Era of Comfort

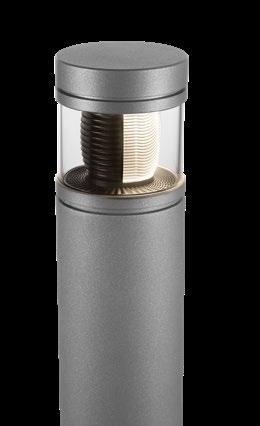

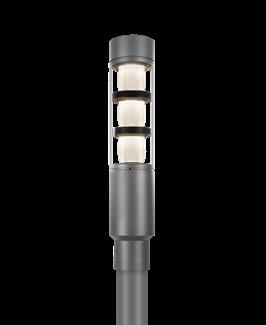

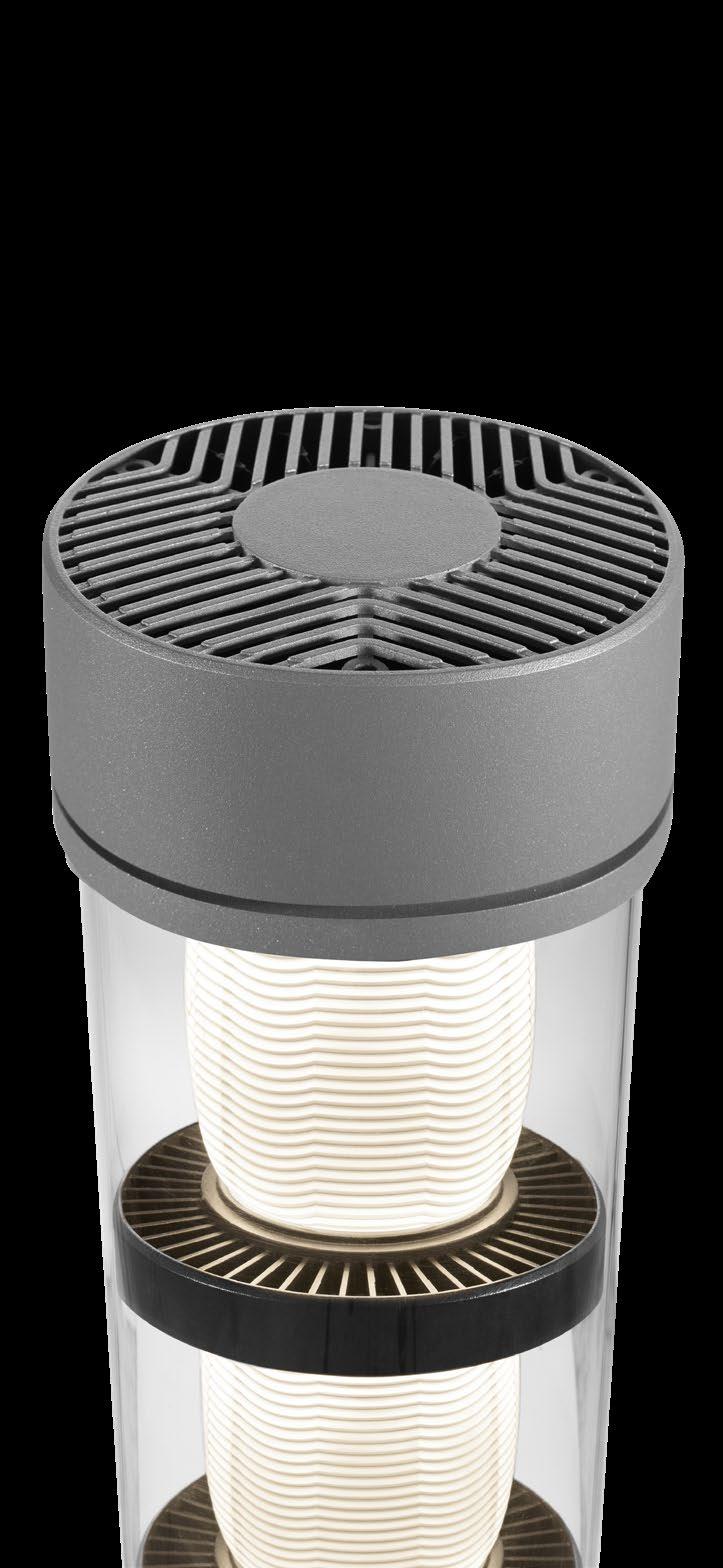

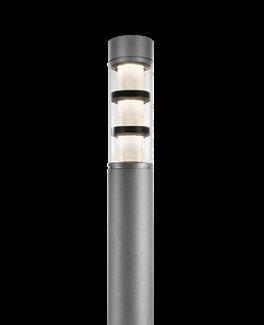

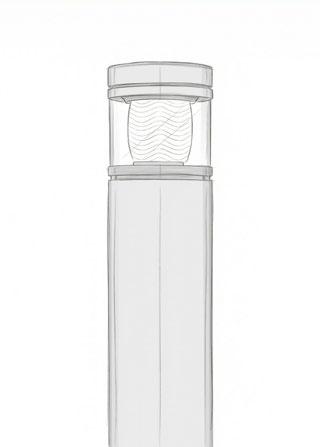

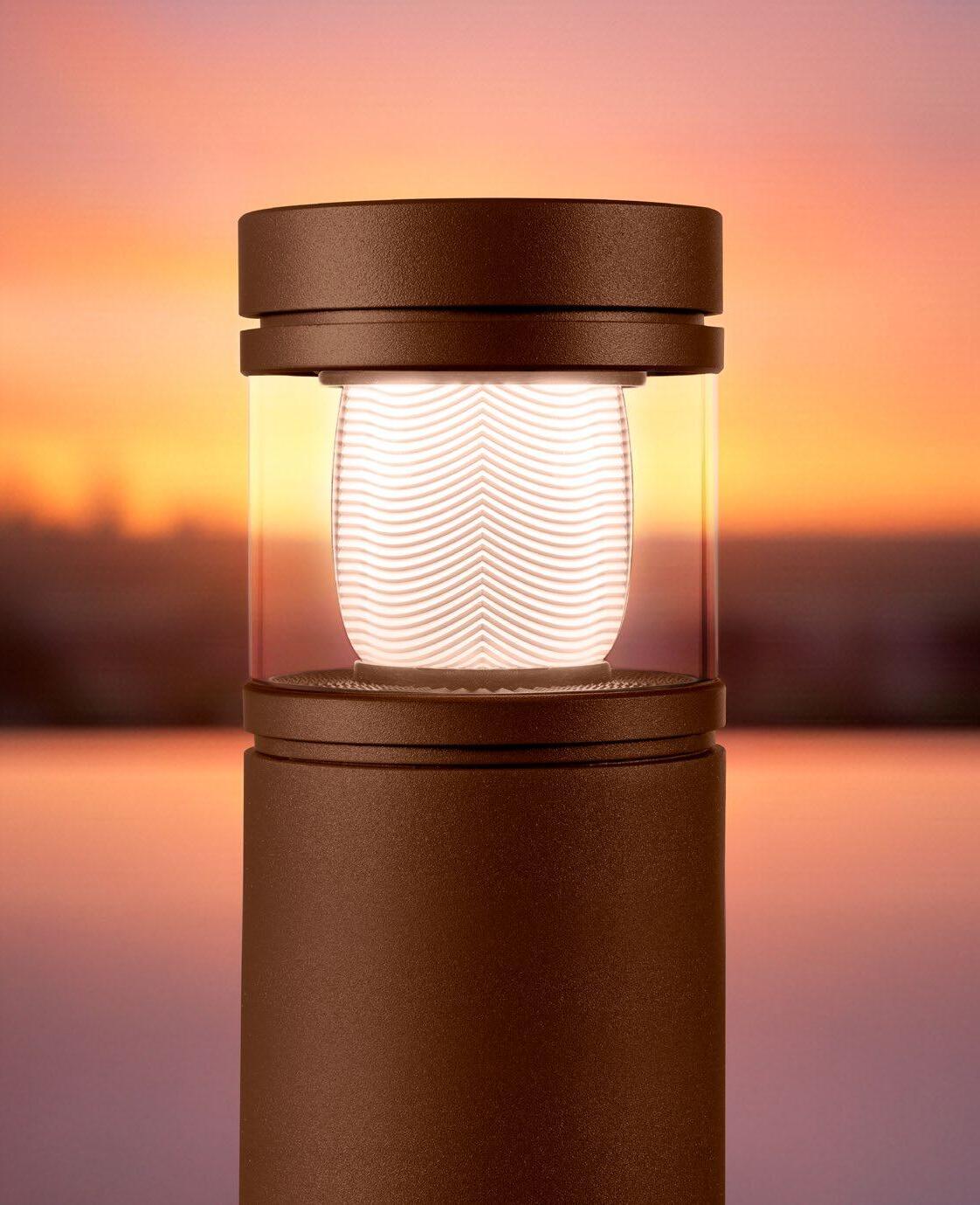

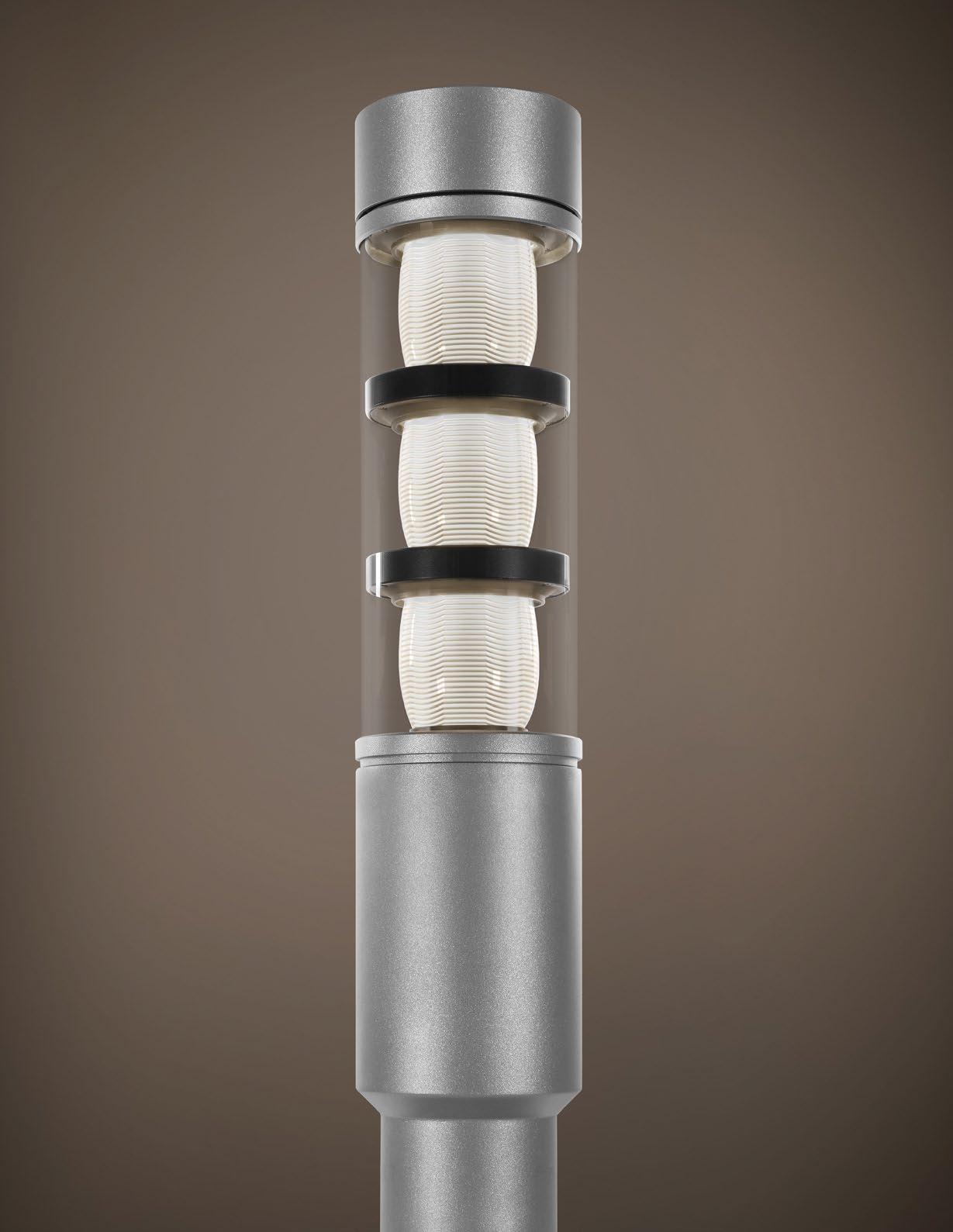

Lumenalta’s groundbreaking Invisio™ optic brings a new level of visual comfort to pedestrian-scale lighting, using a patented faceted light guide that hides the source and delivers exceptional uniformity.

The new-to-market design features a matte black reflector that minimizes surface brightness and keeps uplight to a minimum, with virtually no impact on distribution performance.

Available from 250 to 8000 lumens within symmetric or asymmetric distributions and an optional Asymmetric Shield accessory, Invisio is the perfect balance between comfort and performance.

Asymmetric Shield

A familiar form, reimagined

An organically inspired shape softens the presence of the Invisio optic, allowing it to integrate seamlessly into human-scaled environments. Evoking the clarity of prismatic glass, the rhythm of ocean waves, or a lighthouse on a shore, its sculptural design draws subtle inspiration from the natural world.

Asymmetric Type:

SOFTER LIGHT FOR

VIBRANT URBAN NIGHTS

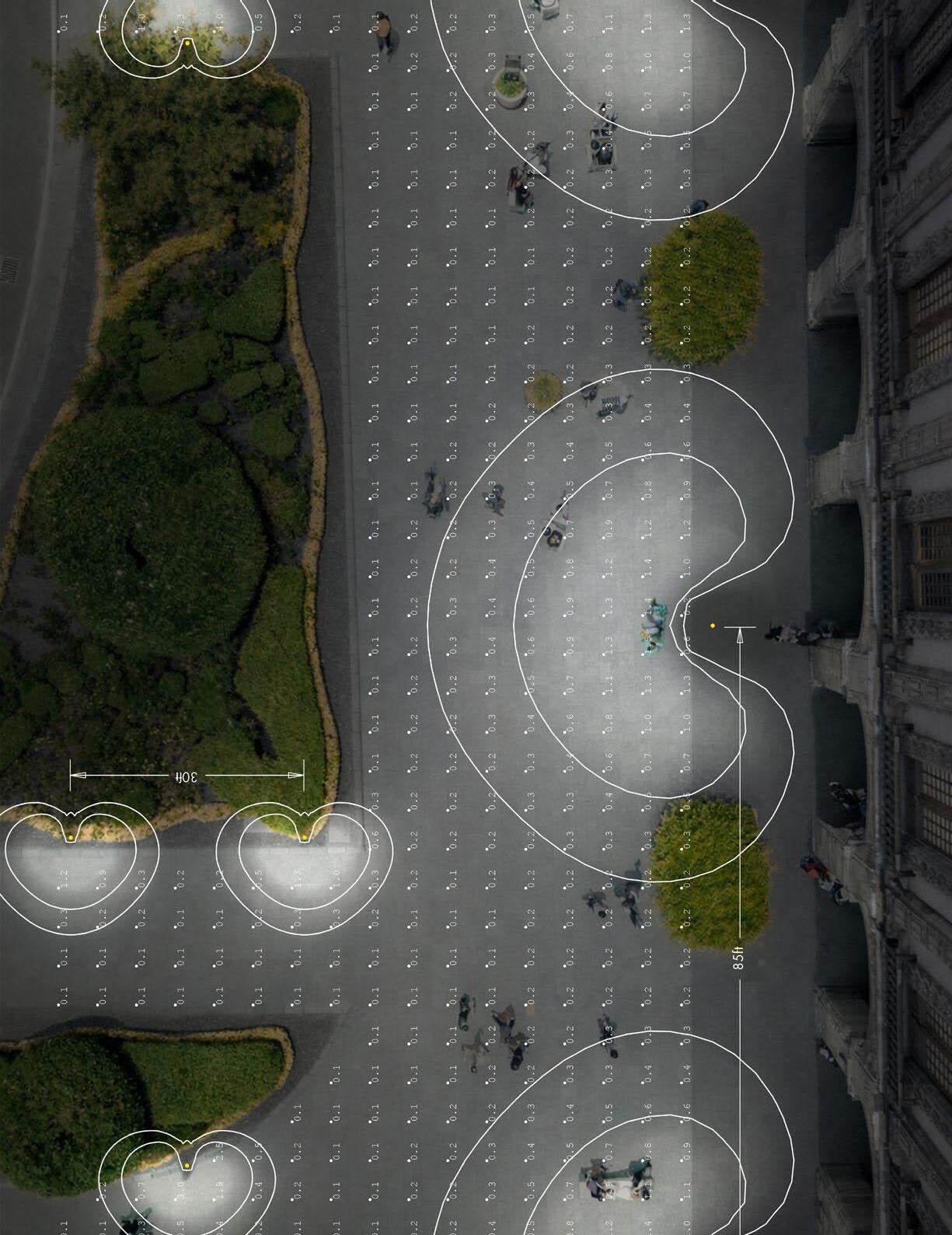

The Asymmetric distribution provides soft, smooth illumination that enhances faces and surrounding architectural elements. It contributes to a comfortable and visually pleasant nighttime atmosphere. It directs light to one side, making it versatile for a wide range of applications while maintaining a human-centered approach to lighting. Ideal for urban environments, the Asymmetric distribution helps create inviting outdoor spaces that encourage people to enjoy and engage with the city at night.

Mounting Height: 14’ post-up + 3’ bollards

Luminaire(s): Lumenalta column, H24, VHO, 2700K, CRI 80+

Lumenalta bollard, HO, 2700K CRI 80+

Criteria: RP-43-25 – Common pedestrian Areas for Parks, Malls, Campuses, Commercial Spaces

LZ2 Walking surfaces

Avg 4-8 lux / 0.4-0.8 fc, 10 avg/min

Spacing: Column 85’

Bollards 30’

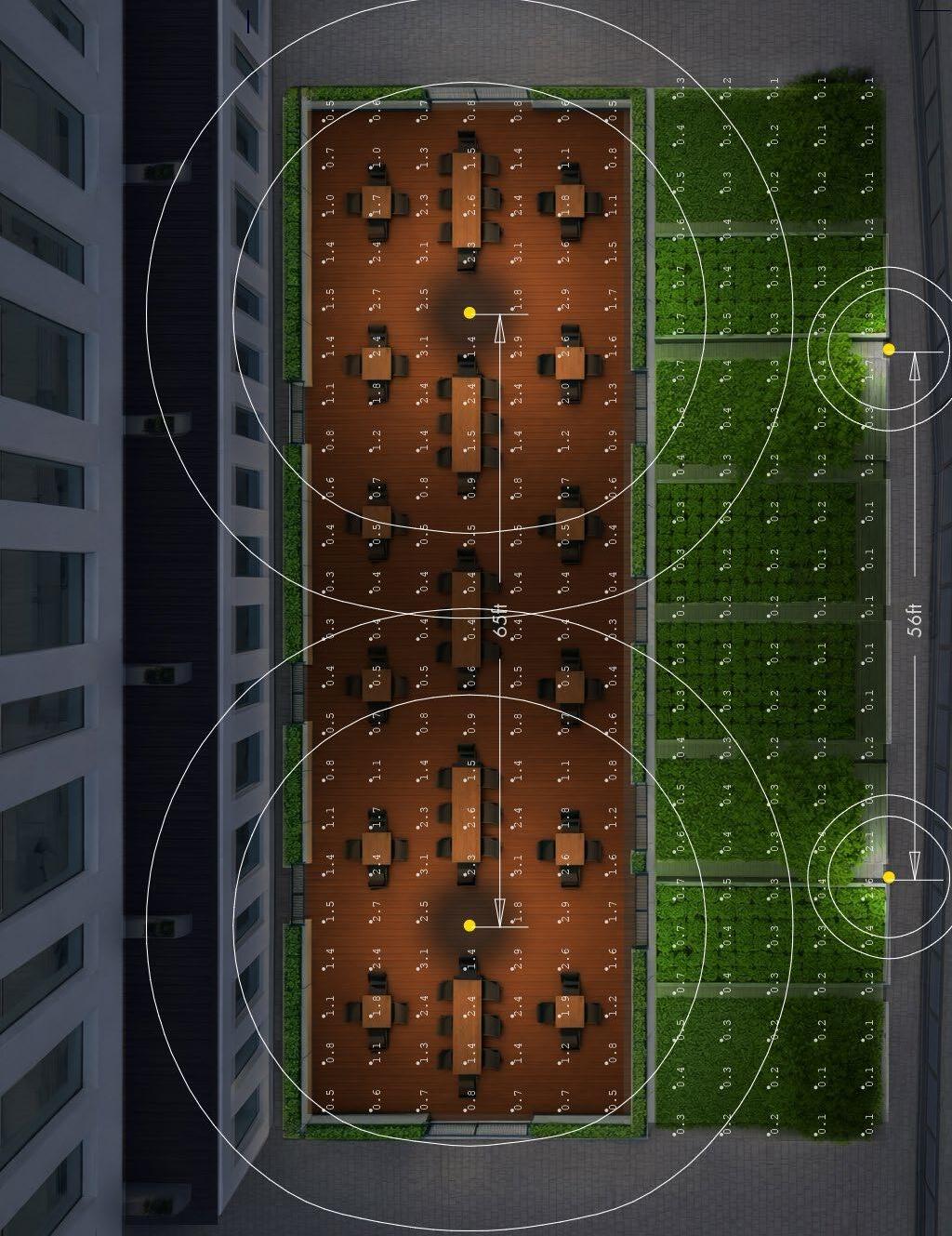

Symmetric Type:

UNIFORM LIGHT THAT BRINGS

SPACES TO LIFE

The Symmetric distribution is ideal for urban environments where lighting helps shape atmosphere and influence how people experience a space. It is well suited for restaurant patios, busy landscape areas, outdoor markets, and vibrant urban gathering places. With a best-in-class spacing ratio, it provides consistent, efficient illumination across large areas.

Mounting Height: 10’ columns + 2’ bollards

Luminaire(s): Lumenalta column, VHO output, 2200K, CRI 80+

Lumenalta bollard, VSO output, 2200K CRI 80+

Criteria: RP-43-25 – Atmosphere and Enjoyment

LZ2 Outdoor Restaurants and Dining Areas

Avg 8-15 lux / 0.8-1.5 fc, 8 avg/min

LZ2 Trees, Gardens, Landscape

Avg 0.5-4 lux / 0.05-0.4 fc, 10 avg/min

Spacing: Column 65’

Bollards 40’

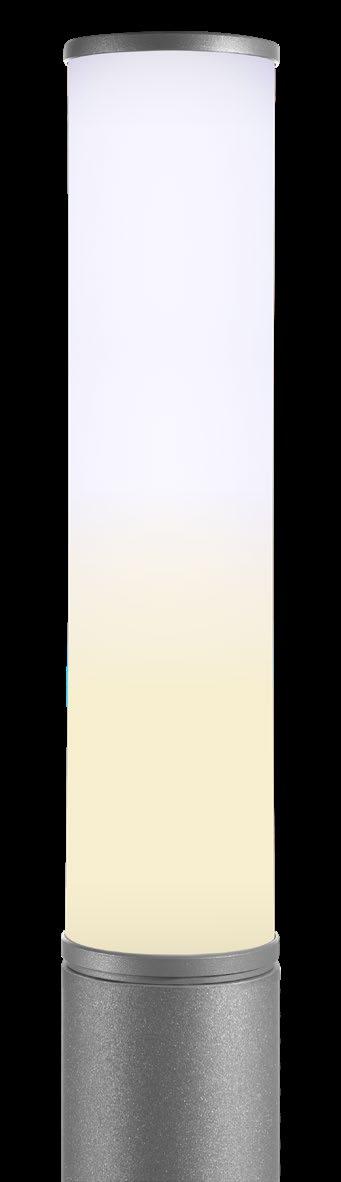

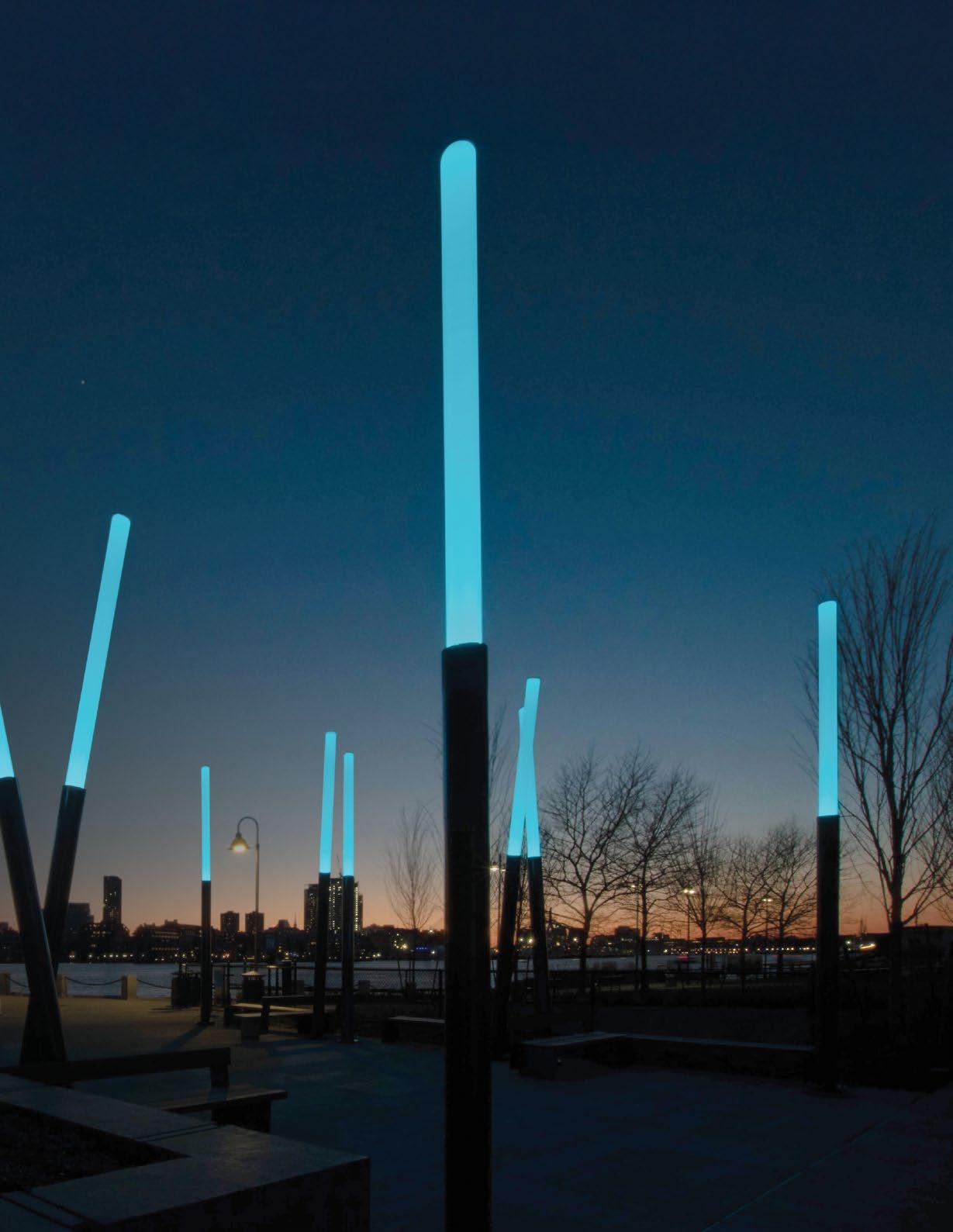

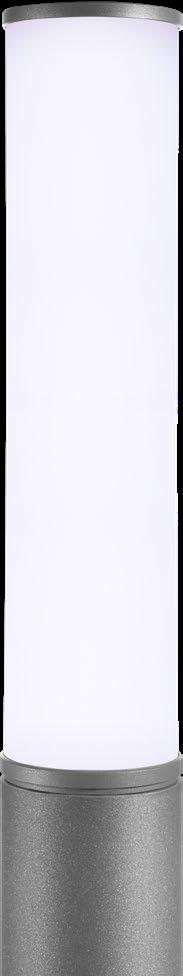

Direct View Optic

Where Light Becomes Expression

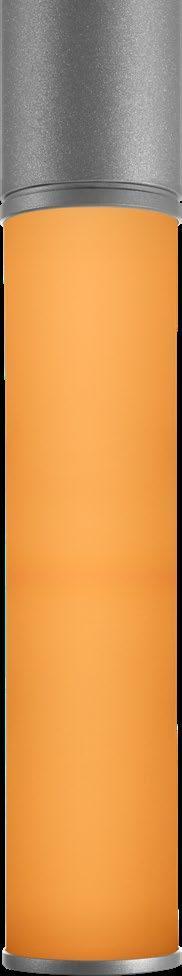

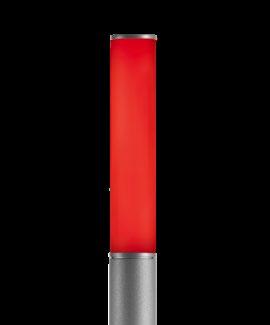

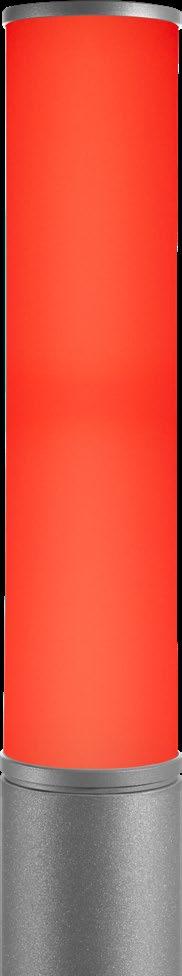

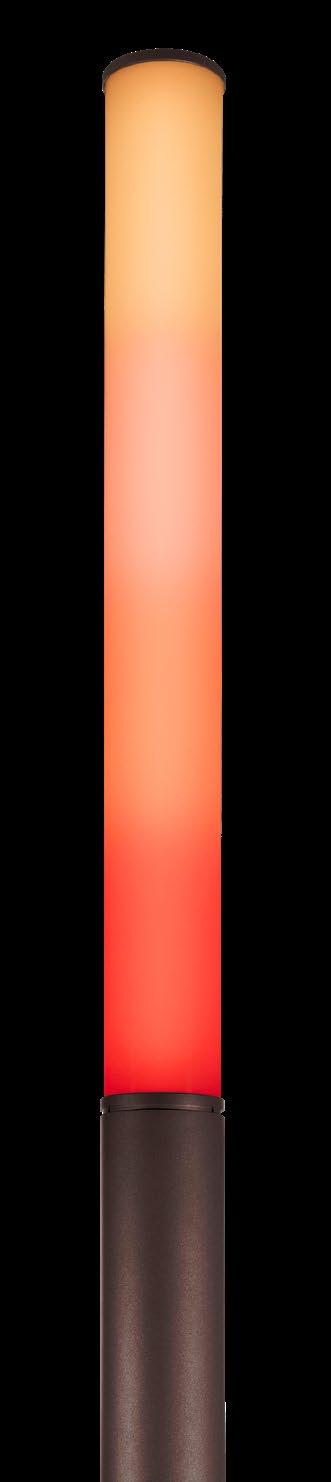

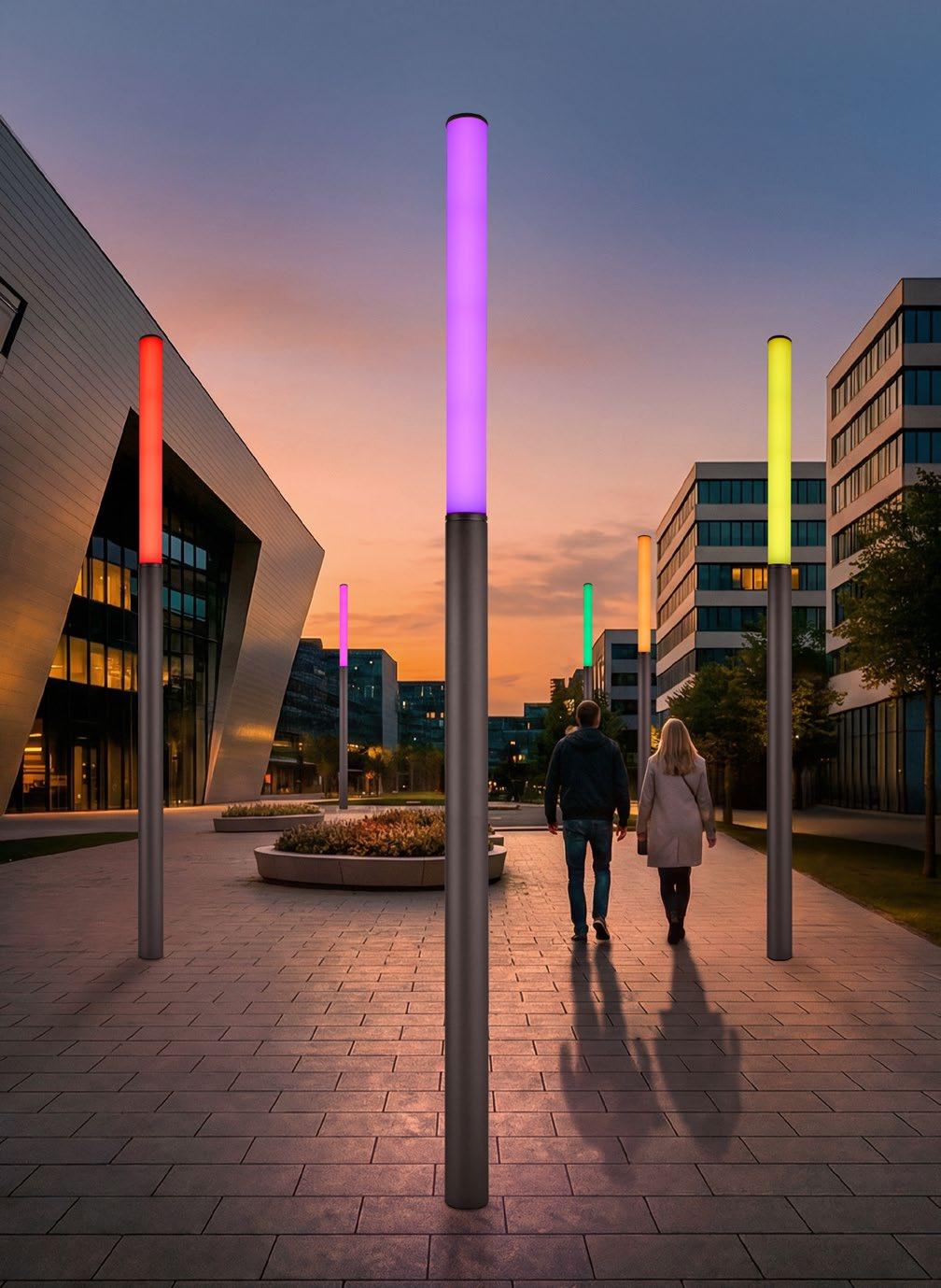

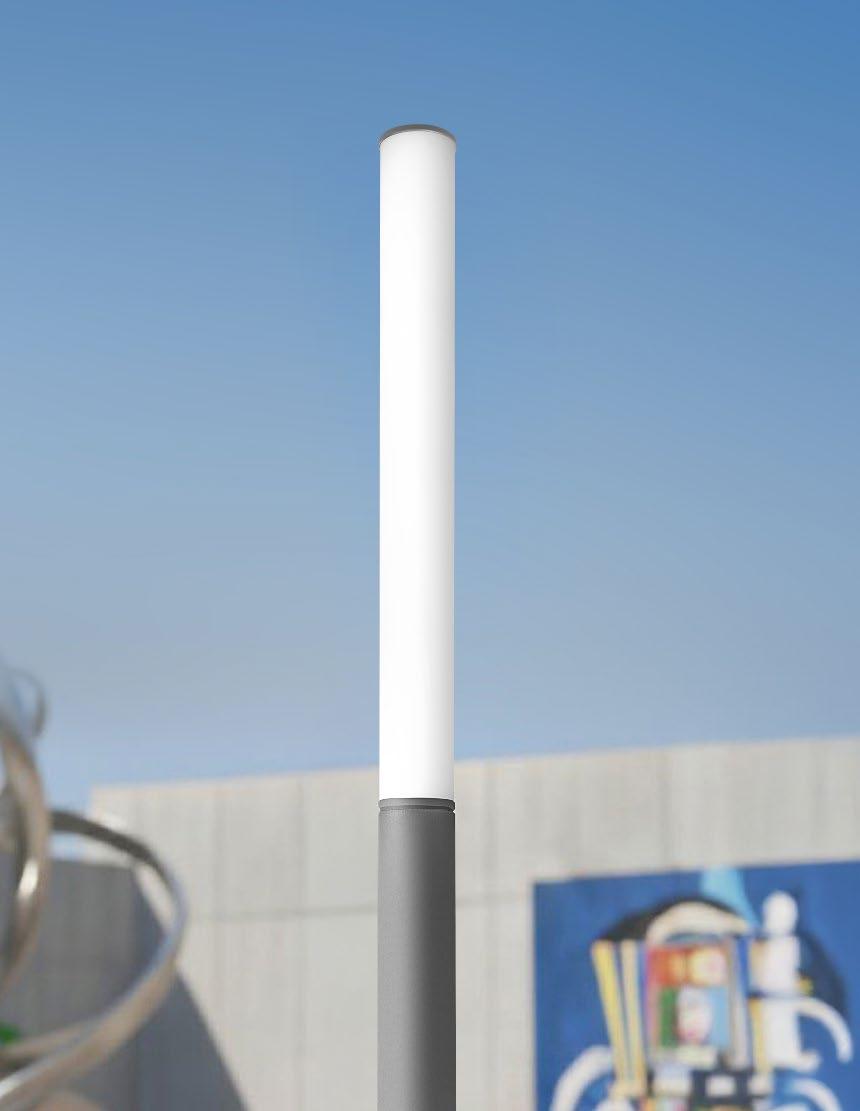

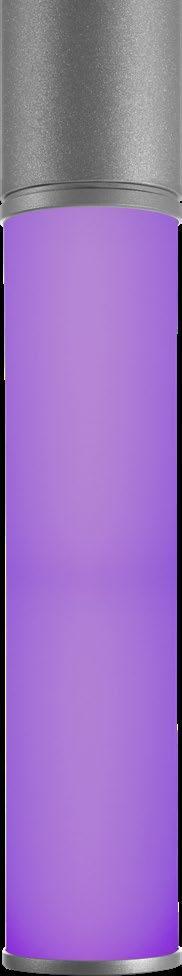

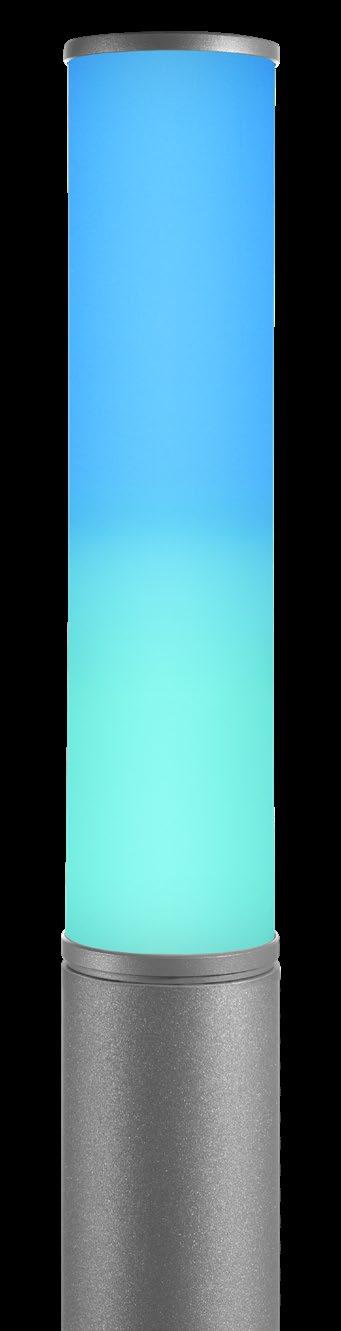

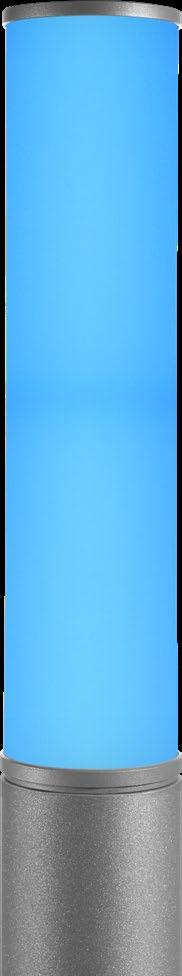

Available in static white or color changing, the Direct View optic provides ideal luminance for metropolitan wayfinding and artistic applications - offering flawless uniformity and saturation across its 1–4 foot lens heights.

Its dual-lens design evenly diffuses light for a clean, continuous viewing surface.

3-in-1

Luminaire

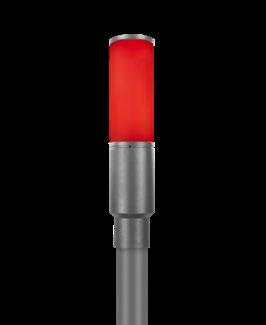

The first area fixture that blends Selectable White, Dynamic White with Dim-to-Warm and Color-Changing capabilities into a single,versatile luminaire.

Lumenalta with Opticolor+® offers unmatched creative control and color flexibility to pedestrian environments.

Users can shift from pure white to dynamic white to full color, all within one fixture, while precision optical testing ensures unwavering color uniformity at every output level.

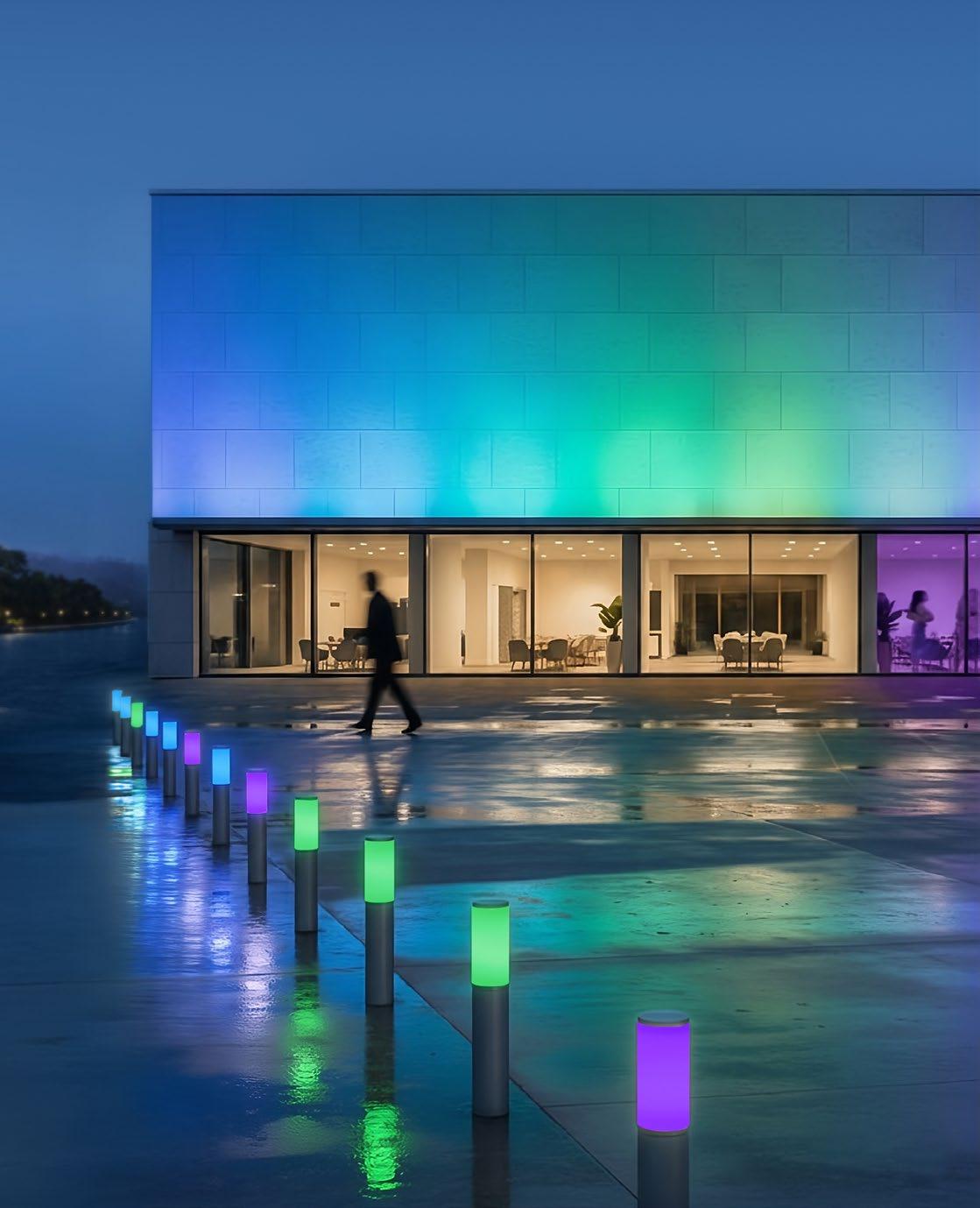

Your Palette, Expanded

Our Optidrive™ technology, paired with Opticolor+, enhances saturation and intelligently reallocates power across RGBW channels, giving the Direct View optic rich, consistent color.

As hues blend or stack, including the ability to modify colors per foot, the lens transforms into an illuminated canvas—turning light itself into a quiet, artistic gesture within the urban landscape.

Power Meets Precision—

Indoors or Out

Opticolor+ is offered across a wide range of product families, providing versatile solutions for diverse applications. From exterior grazing and interior general lighting to pedestrianscale artistic installations and beyond, the Opticolor+ platform adapts seamlessly to your project’s form factor and mounting requirements.

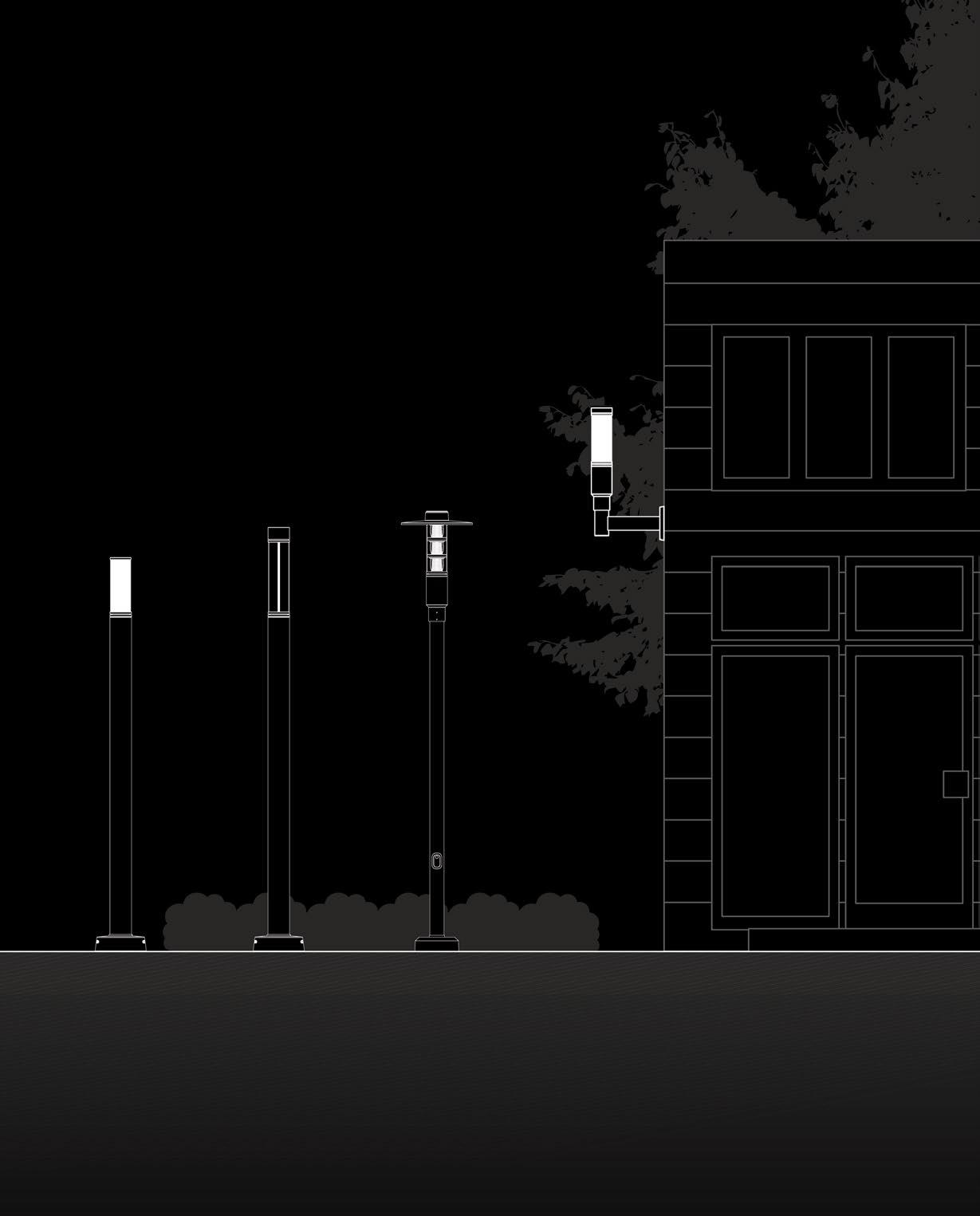

Shapes, Sizes, Styles –All Yours to Create

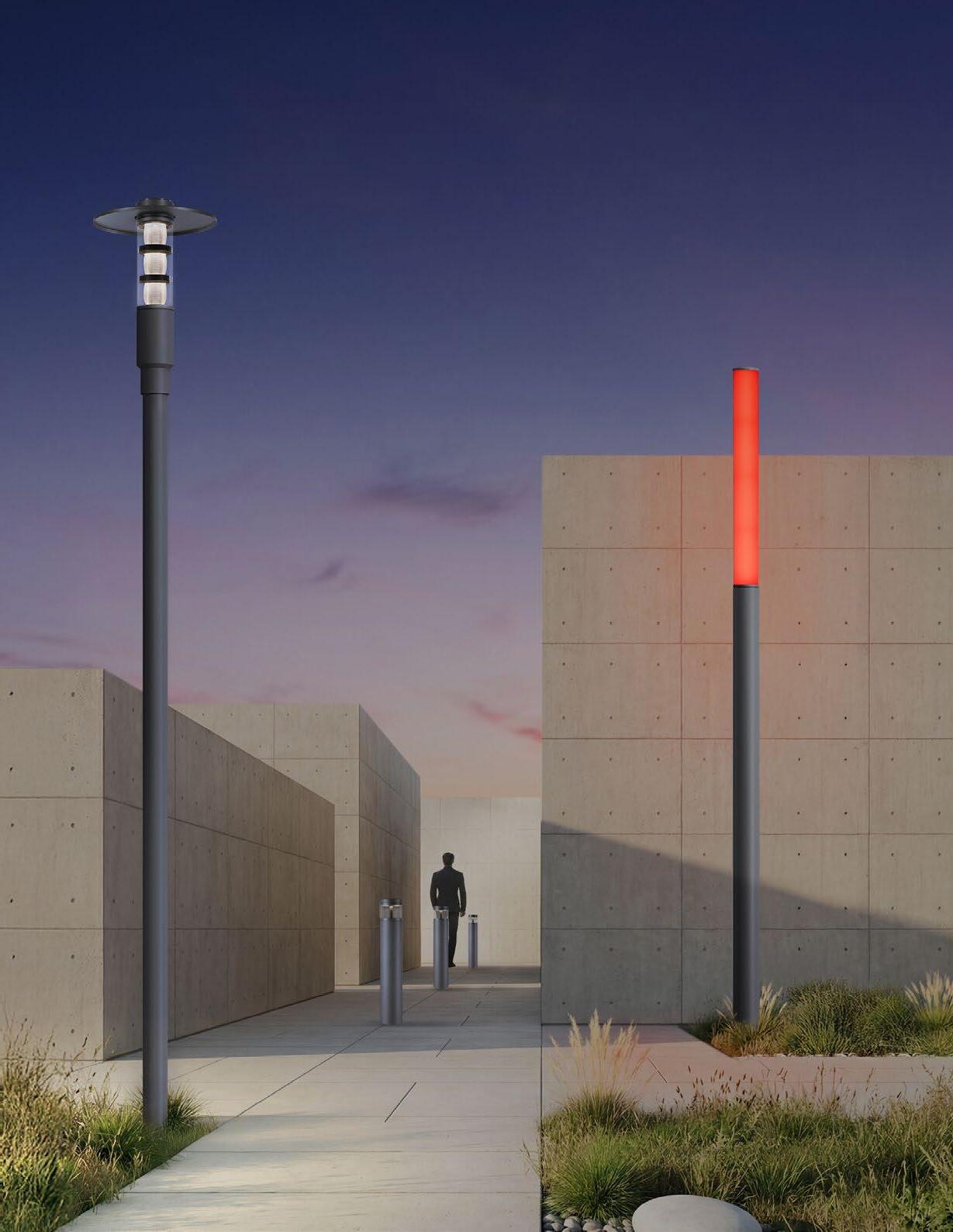

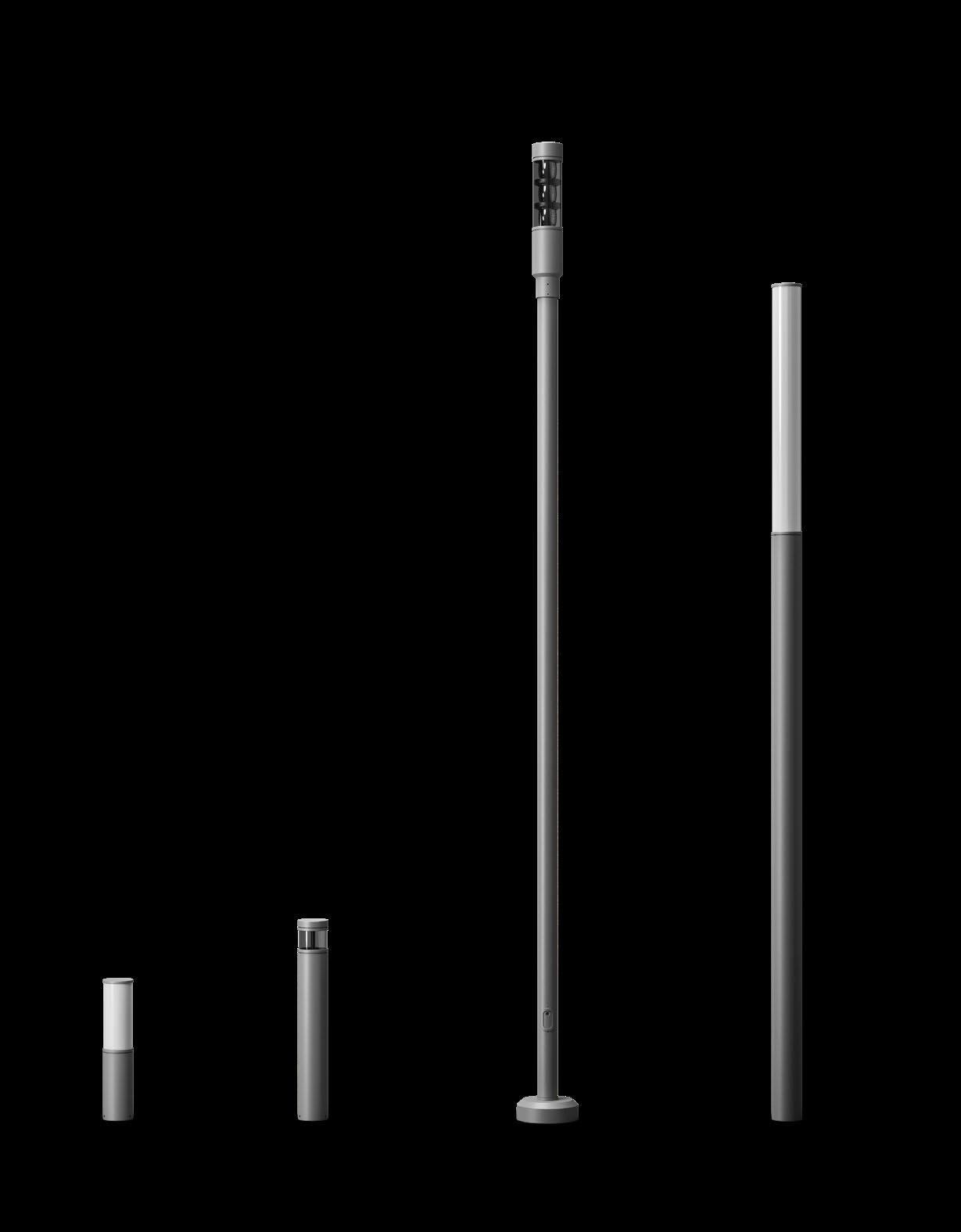

The Lumenalta family offers remarkable design flexibility, with multiple models, configurations and accessories that allow designers to shape each fixture to its environment.

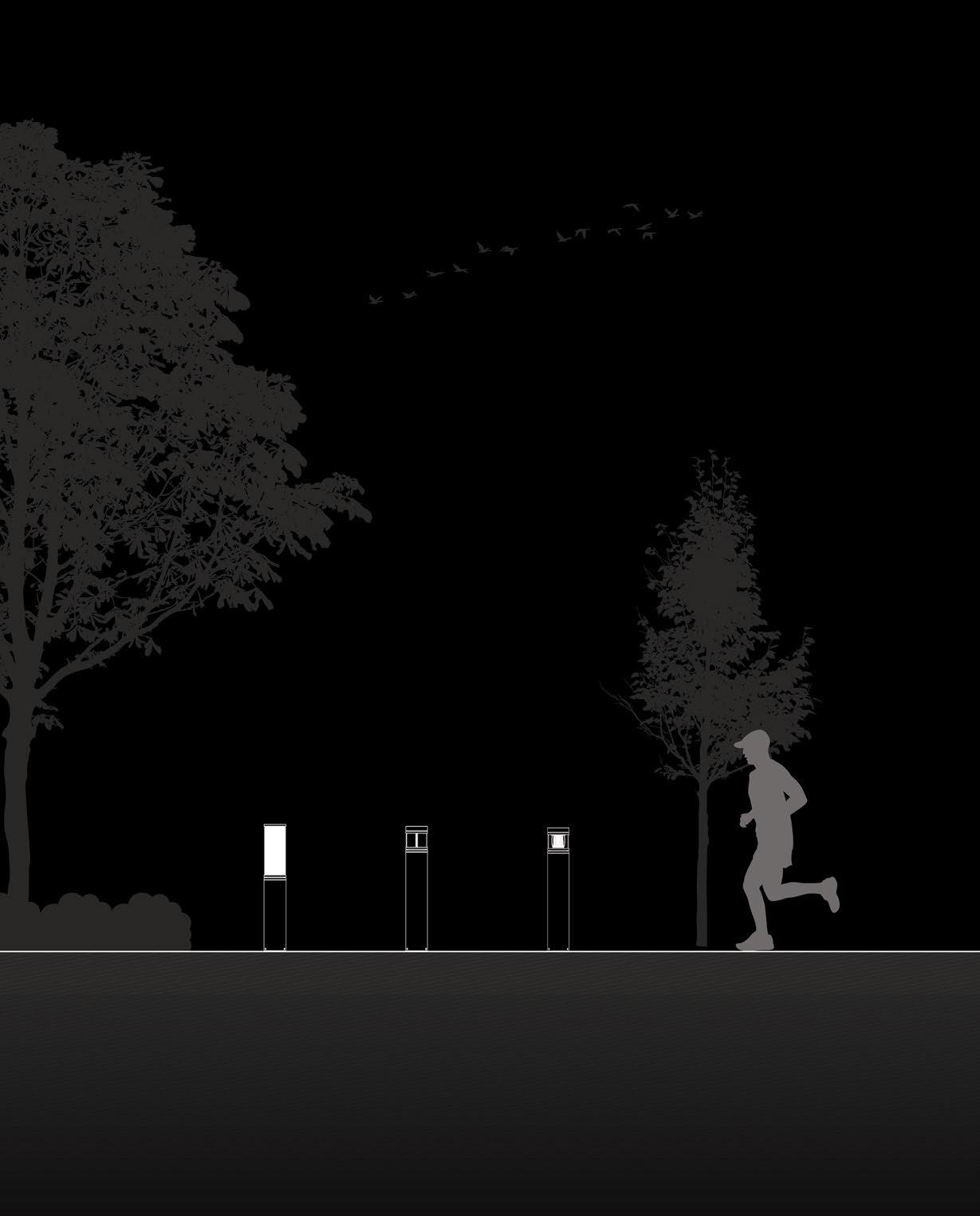

Bollards

Direct View Directional Invisio

*Consult Factory for Wall Mount

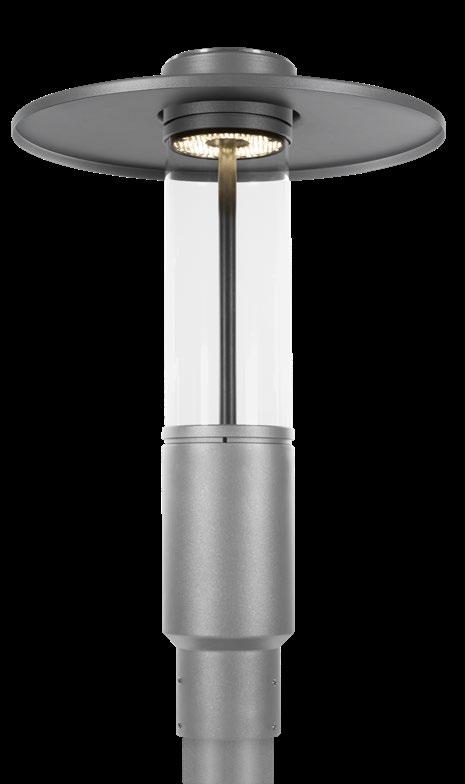

Add Flare to your Luminaire

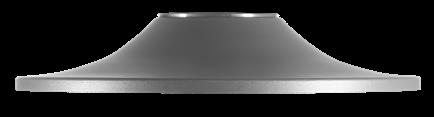

Choose from four optional decorative spinnings for added style and visual customization.

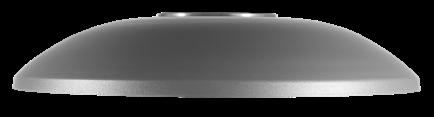

Curved Decorative Top

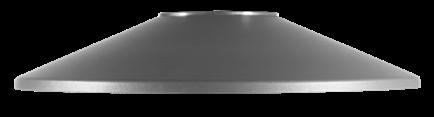

Conic Decorative Top

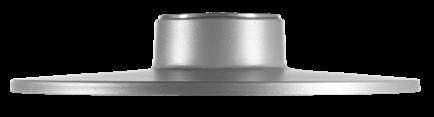

Flat Decorative Top

Domed Decorative Top

Precision Craftsmanship in Every Detail

Lumenalta focuses on the details that matter. Its minimalist construction— hidden screws, a flush access door, an all-black optical chamber and seamlessly integrated accessories—keeps every form clean and refined.

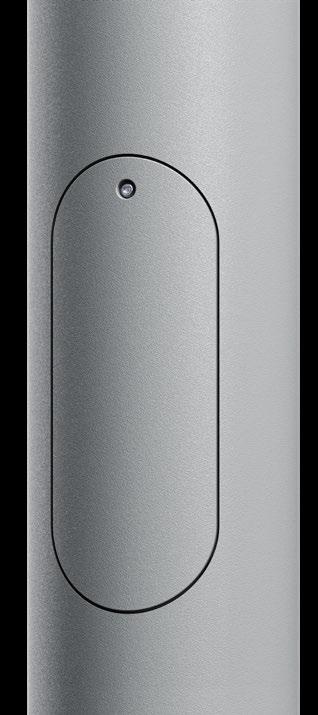

Access door

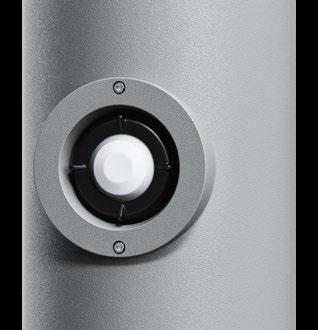

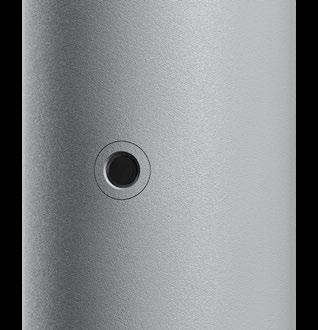

Photocell

Motion sensor

Reliability for the Long-Term

Extensive work has gone into Lumenalta’s design to meet objectives for mechanical resistance in harsh environments.

An IP66-rated optical chamber prevents water ingress and condensation, while its Lumencool™ design efficiently manages thermal performance through optimized airflow. Lumenalta has a VRBO rating for bridge and overpass applications, and a robust structure engineered to withstand wind speeds of up to 180 mph.

Lighting the future responsibly

We’re committed to a more eco-friendly product lifecycle, integrating precision optics that reduce light spill and glare, low-output options, and a durable mechanical design built for longevity.

These sustainable considerations extend across Lumenalta’s full lifecycle, from the moment it leaves our factory to beyond its warranty period.
