Perspective Schematic Design 20 July 2023
Smith Residence
Smith Residence Site Plan Schematic Design 20 July 2023
PARKING MOTORCOURT LAWN BRIDGE ENTRY GATE GUEST PARKING
GUEST
Smith Residence Site Plan with Existing Footprint Schematic Design 20 July 2023 EXISTING
Smith Residence Main Floor Plan Schematic Design 20 July 2023 GARAGE LAUNDRY PANTRY MUD HALL DINING DOG ROOM KITCHEN FOYER STAIR POWDER GREAT ROOM SCREENED PORCH POOL EXERCISE CLOSET CLOSET DRESSING ROOM PRIMARY BATHROOM PRIMARY BEDROOM HALL MOTORCOURT ENTRY COATS PATH ABOVE BUILT-INS DOG SHOWER DN DN DN UP BUILT-INS BUILT-INS ENCLOSED YARD 3200 CONDITIONED SF

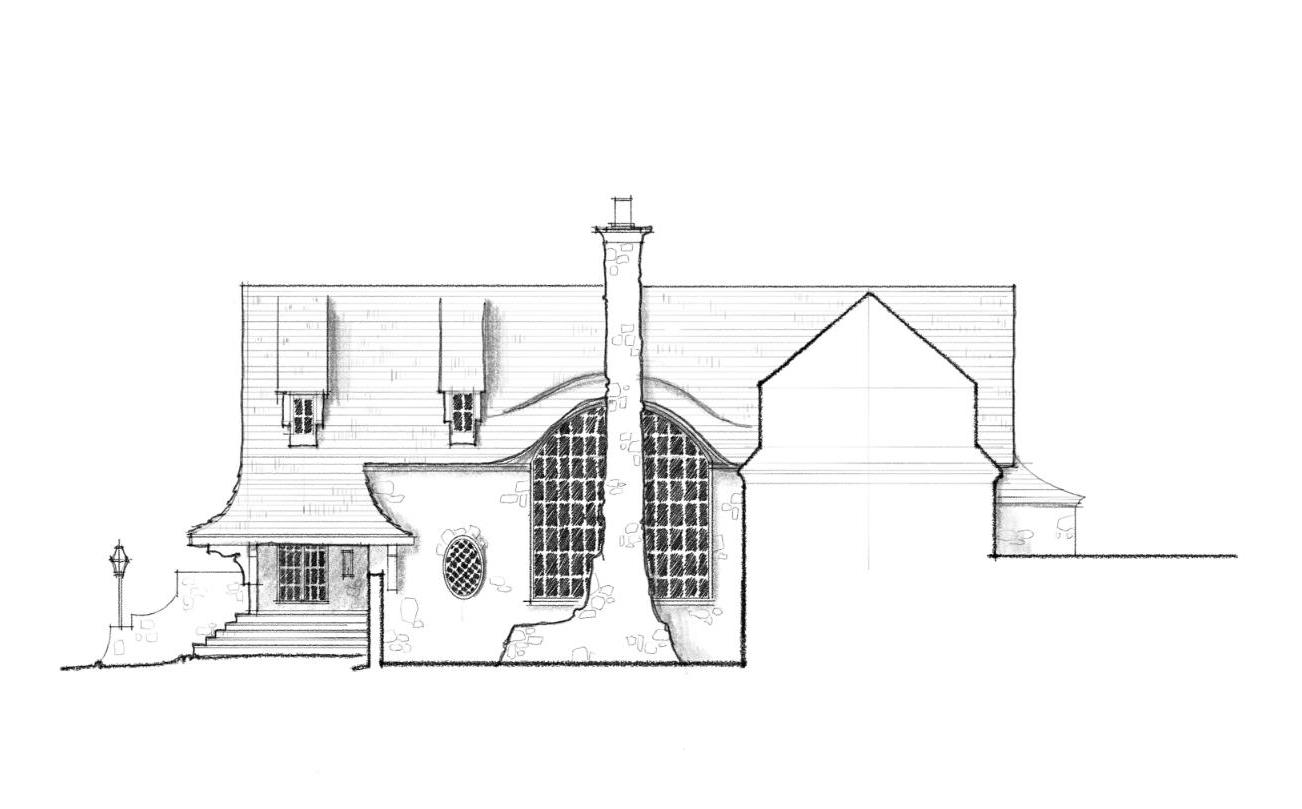

Smith Residence Exterior Elevation Schematic Design 20 July 2023 MOTORCOURT GARAGE
