LOERAKKER LED LINE
Luminaires for Hunter Douglas Ceilings
L14 linear luminaires for HeartFelt® & Luxalon®
Luminaires for elegant, seamless integration in Hunter Douglas
Interior Ceilings. Unlike other luminaires, these luminaires are mounted between or instead of the ceiling panels using innovative brackets. This results in a completely seamless appearance. In addition, installation is simple.
Playing with options
The luminaires are available in 3 widths (20, 30 and 40 mm) and are mounted between the ceiling panels. The 40 mm luminaire can also be installed instead of a panel, allowing for clean and playful designs. With a choice of prism or reflector, there are plenty of options for offices and general areas. The new UGR >20 prism also offers an attractive alternative for both applications thanks to the continuous light line.
The luminaires are available as standard in 6 lengths and can be seamlessly connected for endless elegant ceiling lighting. All possible options are also available in terms of light output and colour.
■ Seamless integration in Hunter Douglas ceiling systems
Various lengths, connectable into continuous light lines
L14 spotlight for Hunter Douglas HeartFelt®
The L14-D40, specially developed for HeartFelt® ceilings, is mounted not inside the panel but as an integrated part of a panel, unlike other spotlights. This ensures an optimal lumen per watt ratio. The spotlight is powder-coated in exactly the same colour as the HeartFelt® panels, resulting in seamless visual integration.
Cost-efficient installation
For installation, there is a choice of a mini-driver per luminaire or a central ‘plug & play’ solution suitable for up to 10 luminaires.
Sustainable and smart
The luminaires are made of aluminium and are available in matching HeartFelt® colours. They consist of 40% recycled aluminium, can be used circularly and are produced in the Netherlands. The luminaires are optionally available in a smart version.
Specifications
• High-quality Fortimo LEDs
• Light colours 830, 840, 850, 930 and 940
• Long lifetime > 80,000 hours
• High energy efficiency 130–165 lm/W
• Prismatic or reflector (low UGR)
• Optional integrated emergency lighting
• Optional DALI control
• Optional wireless dimming and sensing
• Halogen-free CCA wiring
■ Most efficient spotlight lighting
Sustainable spotlight lighting
These recessed spotlights have been specially developed for Derako® ceilings by Hunter Douglas and integrate seamlessly – without interrupted carriers or additional accessories. The appearance is luxurious and perfectly matches the warm, natural look of solid wood ceilings. In terms of finish: choice of round or square, three different beam angles, black, white or dark optic reflector and colour temperatures of 2700K, 3000K or 4000K. In short: all the flexibility and freedom to perfectly illuminate your interior design.
Specifications
• Philips Xitanium driver
• Black, white or dark optic reflector
• 2700K, 3000K and 4000K
• Dimmable

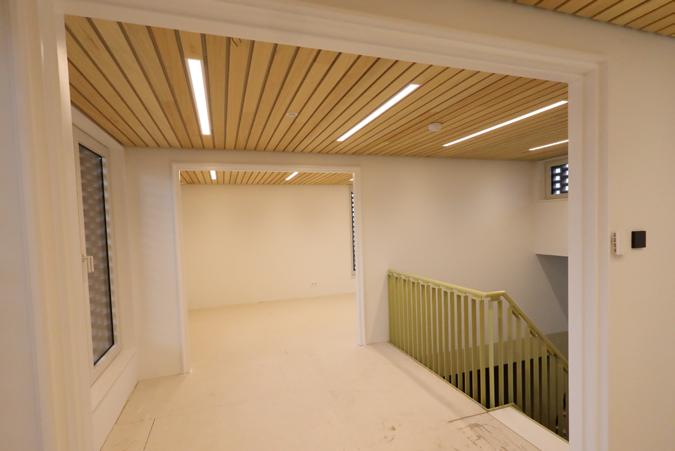

Integrated lighting for Hunter Douglas Derako®
■ Linear luminaire clicks seamlessly into ceiling
Specifications
• Philips Xitanium driver
• 3000K and 4000K
• UGR <19 suitable for offices
• Dimmable

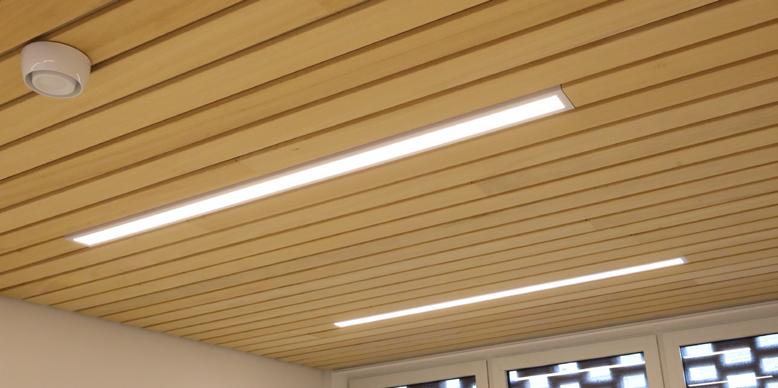

An innovation by Loerakker: instead of a pendant luminaire, there is now also the option to seamlessly mount these L14 luminaires in the installation slots of Derako® ceiling panels. In this way, a luminaire replaces a ceiling plank. The visual result is always highly refined. In addition, installation is extremely simple.
Stock and variations
These luminaires are available in white and black, standard 92 mm wide and 1500 mm long. These dimensions were chosen because they are the most popular sizes. Do you have other ideas for your project? Contact us – we are happy to think along. Because we produce in the Netherlands, we can act quickly and respond flexibly to non-standard colours and dimensions.
Specifications
• 48V power rail
• Lengths 1, 2, 3 metres (and connectable)
• Light colour 3000K
• Black version, white and grey optional

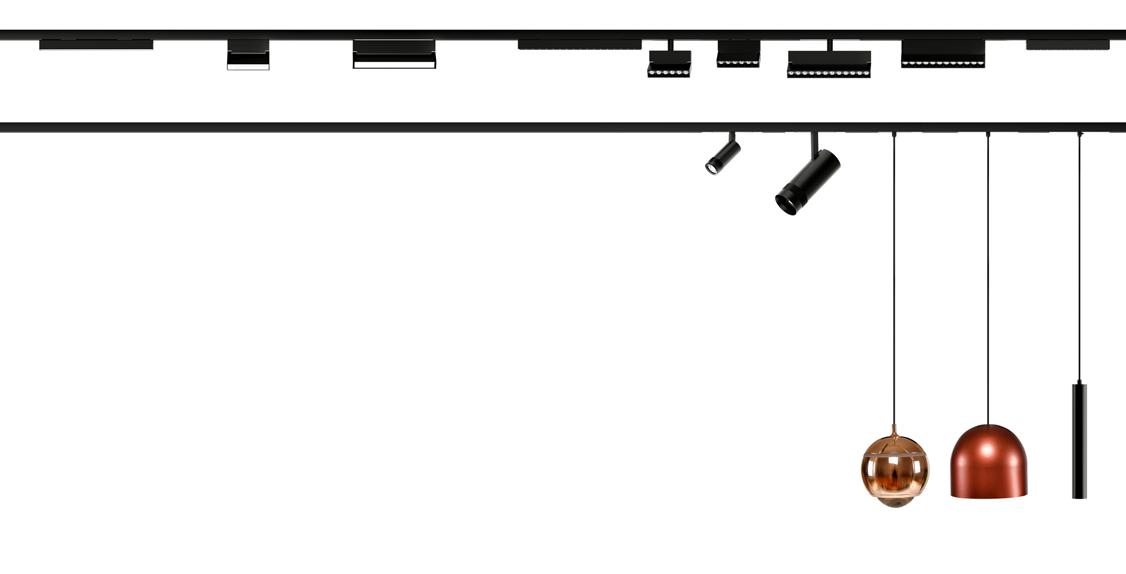

Track rail system for Hunter Douglas Interior Ceilings
Flexible use as main or supplementary lighting: linear luminaires, spotlights and pendant luminaires in a smart track rail system. The power rail fits perfectly between the panels of Hunter Douglas ceilings and is installed directly during ceiling installation. The system is easy to mount on any Hunter Douglas carrier, regardless of whether the ceiling is made of wood, felt or aluminium. The linear luminaires click magnetically into the rail and align completely flush with the panels, ensuring a clean and stylish finish.
Variations
In addition to the four linear luminaires, there is a choice of two spotlights and three different pendant luminaires. Do you have something else in mind? Contact Loerakker
LED Line. The luminaire range can be expanded, or we are happy to assist with custom solutions.

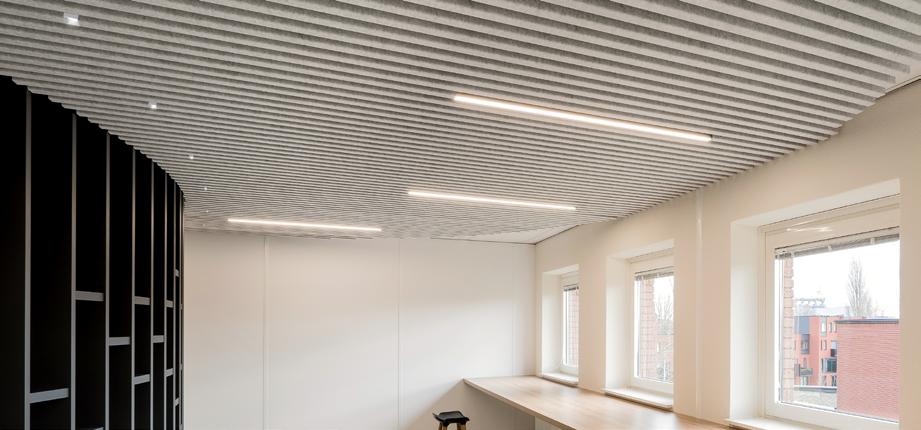

Hunter Douglas HeartFelt®
277 units L14-40-1134mm with reflector
Xitanium DALI drivers with GST18i5 connection
Special finish RAL 9003
Panel height 80mm
Supplied via Wolfs Verlichting

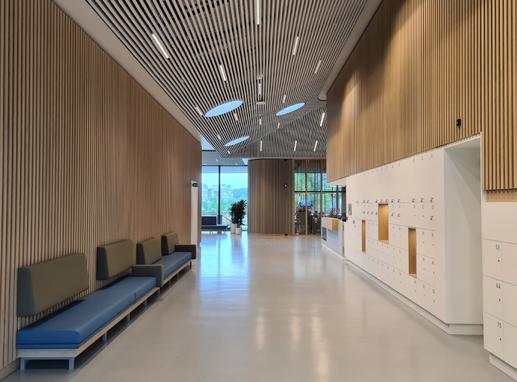

Omnia Wageningen University
Hunter Douglas HeartFelt®
L14-30 in 3 different lengths:
2 units 574mm
18 units 1134mm
19 units 1414mm
Central driverbox, DALI dimmable, 4 units equipped with emergency unit
Installation by Vink – van der Meer Electro BV
Hunter Douglas HeartFelt®
L14-40 with brackets for panel height 105mm
31 units 574mm
295 units 1134mm
900 units 1694mm
900 units 2254mm
121 units 2814mm
11 units L14-9150
92 x 1500 mm
RAL 9016
UGR <19
Prismatic diffuser, evenly illuminated
Seamless connection
Driver per luminaire

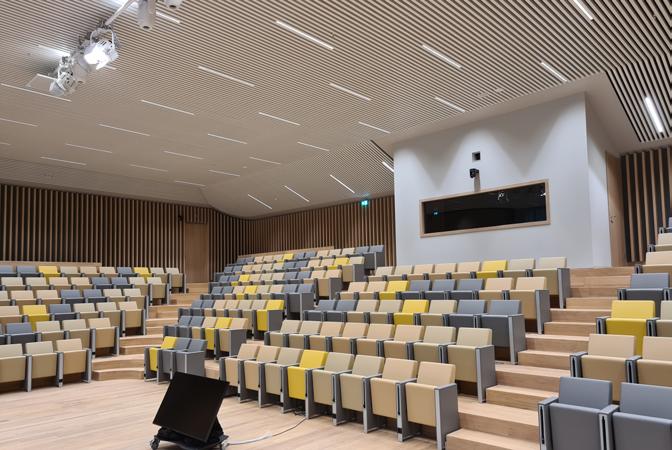

Theater De Krocht Zandvoort
Hunter Douglas Derako®

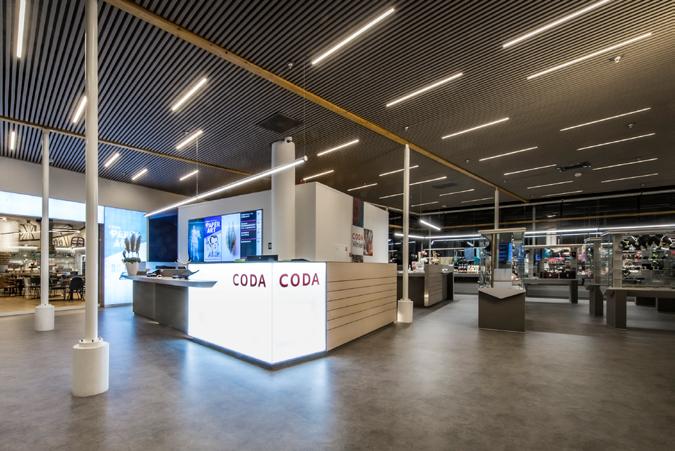

CODA
Hunter Douglas HeartFelt®
63 units L14-30 between the panels
Central driverbox with DALI and GST18i5
8 units L2 luminaires, suspended, length 2.8 m
Interior design by Klaaysen Design
32 units 1134mm
2 units 574mm
Installation by Intermontage
Hunter Douglas HeartFelt® L14-40
Wraptor Nootdorp
20 units 1134mm
2 units 1414mm
Design InterArc
Hunter Douglas Luxalon® L14-30
Hunter Douglas HeartFelt®
L14-40 in line with the panel
99 units 1134mm
Central driverbox with Zigbee dimmable drivers
21 wireless Zigbee sensors
Installation ByMJ
Ceiling contractor Bovero

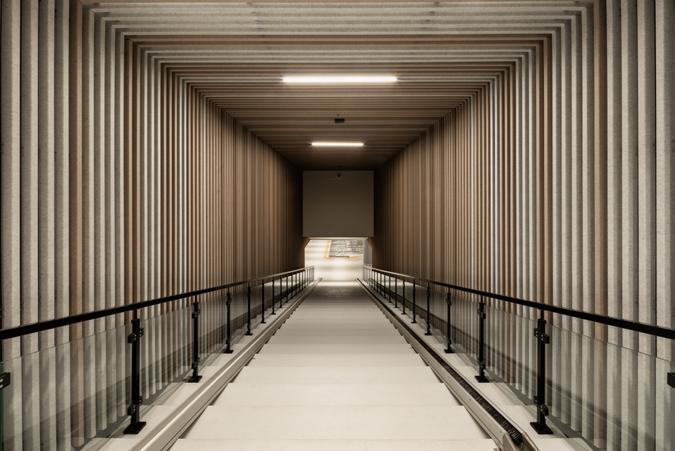

Bicycle shed Rotterdam
Bisonspoor Maarssen

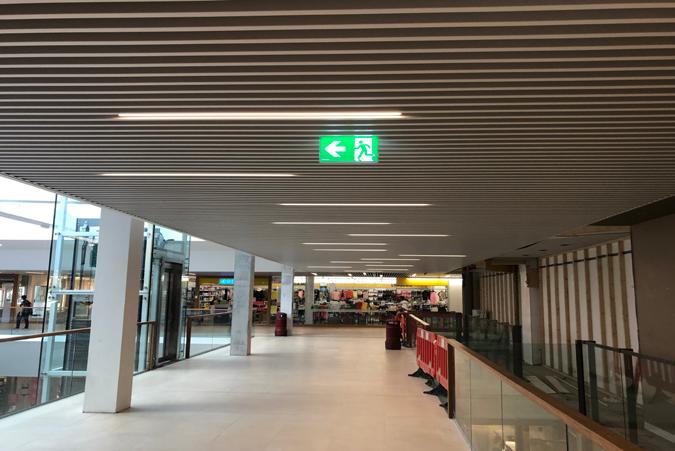

Hunter Douglas Luxalon®
L14-30 grey anodised
Central driverboxes with DALI and GST18i5
632 units 1414mm
Installation Terberg Totaal Installaties
13 units 1414mm
8 units 574mm
Installation De Rijk & Van Dorp Elektrotechniek
Hunter Douglas Architectural luminaires
Linear luminaire Ceiling type Colour options Download Spots HeartFelt® Luxalon® Derako® Derako® Lineair Grill
L14-20
L14-30
L14-R-30
L14-40
L14-R-40
L14-9150
L3-62-RI
L3-62-SI
L3-65
L14-D40
Specifications
Dialux file
Datasheet
Specifications
Dialux file
Datasheet
Specifications
Dialux file
Datasheet
Specifications
Dialux file
Datasheet
Specifications
Dialux file
Datasheet
Specifications
Dialux file
Datasheet
Specifications
Dialux file
Datasheet
Specifications
Dialux file
Datasheet
Specifications
Dialux file
Datasheet
Specifications
Dialux file
Datasheet
L14-TR-04-LR
L14-TR-02-SP27
L14-TR-02-SP39
L14-TR-03-HL15
L14-TR-03-HL38
Datasheet
Datasheet
Datasheet
Datasheet L14-TR-03-HL48
Datasheet L14-TR-01-RL3
Datasheet
HeartFelt® Luxalon® Derako® Grill
