LOERAKKER LED LINE
Better light for work, healthcare and education
Welcome
Having grown with a distinctive vision in the lighting market, our range has now become so extensive that it deserves its own catalogue. Here it is!
At the same time, we immediately point out that far more is possible than can be shown in this catalogue. At Loerakker LED Line, customisation – or rather flexibility –is possible at every stage of the purchasing process. For example, co-creating a new luminaire. Or something as simple as supplying luminaires in a specific colour. Welcome!
Welcome to Loerakker LED Line 4
Loerakker LED Line luminaires 10
Pendant luminaires, Downlighters, Spots, Wall luminaires, Surface-mounted luminaires, System and grid ceilings, Luminaires for linear ceilings (including Hunter Douglas)
Unique finishes 242
Contact 244
Welcome to Loerakker LED Line
Team of lighting
At Loerakker LED Line, a team of experienced lighting specialists is ready to develop an elegant lighting solution for any lighting challenge. The company is located in the centre of the Netherlands (next to IKEA in Amersfoort) and features office spaces, a lighting studio – where different lighting solutions can be experienced live – and a well-equipped production facility.
Vision on light
As a lighting company, we see many different lighting installations and have a clear understanding of how end users experience light. In many cases, there is considerable room for improvement. Many people genuinely suffer from poor lighting. Some even prefer to work in the dark. That is, of course, unacceptable. This is how our vision on indirect lighting emerged:
lighting specialists
back to basics. What is light? We see by virtue of reflection. So why not use the most obvious reflective surfaces? The ceiling and the walls.

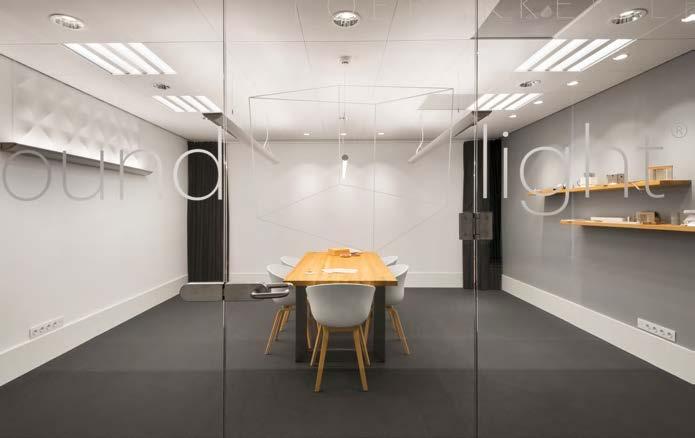

Surround Light
It is a matter of rethinking lighting: instead of directing light straight downwards, it is directed indirectly via the ceiling, creating a ‘cloud of light’ rather than a direct beam. Such a cloud provides an ideal lighting environment for work and learning spaces, as it most closely resembles natural daylight. Daylight is indirect, reflected everywhere and coming from all directions. Natural daylight – or something that closely approximates it – is simply the most pleasant light to be in. This is often immediately reflected in improved work or learning performance and reduced absenteeism.
Welcome to Loerakker LED Line
To support our vision on lighting, we developed our own luminaire range, with a clear focus on indirect light. Later in this catalogue, under ‘Surround Light’, we will return to this in more detail – the invention of Maarten Loerakker.
Production in the Netherlands
Maarten Loerakker: “We deliberately chose to produce in the Netherlands. The main advantage is the flexibility it gives us to offer extensive customisation. We work with short lead times and can also produce in small quantities. This gives us an advantage over competitors. We foresee a future in which every LED solution is derived from a standard – integrated into furniture, for example. When production is close at hand, every designed solution can actually be realised. This is how we want to be known: as the company that both designs and produces high-quality lighting solutions.”
Growing
by pioneering Loerakker LED Line originated as a new company alongside Koreman Lighting Maintenance, the company Maarten Loerakker joined in 2011
through a headhunter. As lighting maintenance is no longer a sustainable business model in the LED era, Maarten shifted his focus to lighting solutions and luminaire manufacturing. Projects for clients such as Vrije Universiteit Amsterdam, the Municipality of Amsterdam and OBA (Public Library Amsterdam) formed the foundation of Loerakker LED Line. The transition from bespoke luminaires to a proprietary luminaire range was therefore natural and straightforward.
Co-creation

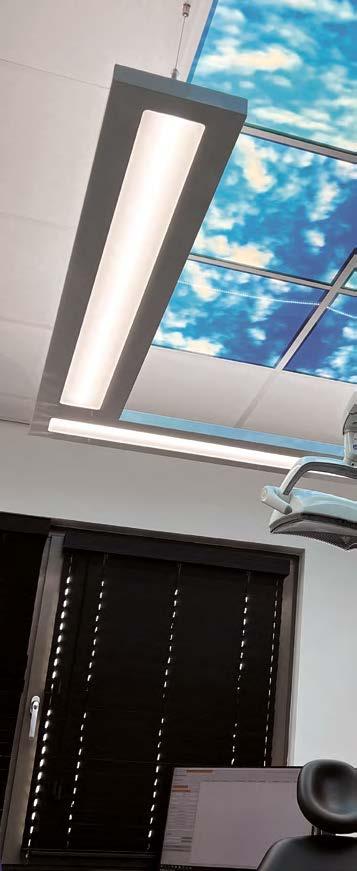

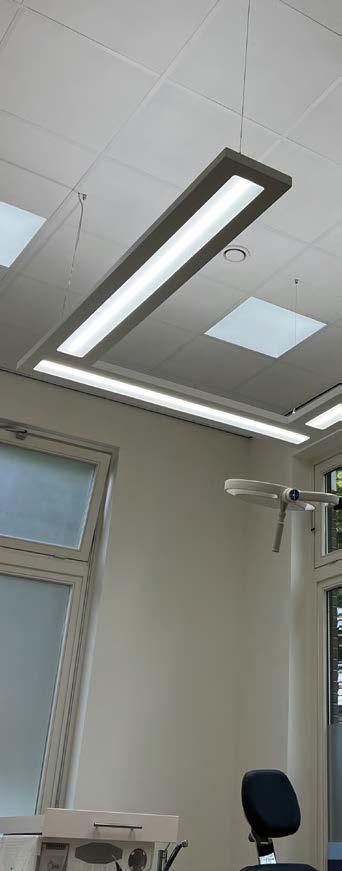

A good example is the L11, developed in close collaboration with a dentist. Dentists perform highly precise work all day long in demanding conditions. Good lighting is crucial: very high light levels combined with a specific light colour. The L14 is another example of ‘ultimate customisation’. Developed for Hunter Douglas ceilings (design system ceilings), this luminaire has become their standard. At the same time, it is also available for other lighting solutions and is applied in wooden and aluminium ceilings. In short: when we develop a bespoke product for a specific project, we preferably include it in our standard range.
Welcome to Loerakker LED Line
Social responsibility
Recently, Loerakker LED Line entered into a collaboration with Metafors (part of the Amfors Group, which provides employment to approximately 1,000 people with a distance to the labour market) to produce high-quality LED luminaires. Loerakker LED Line develops the luminaires, Metafors handles production – from the smallest aluminium components to complete assembly. This collaboration goes beyond project-based work; Metafors has also seconded an employee to Loerakker LED Line.
Lighting pioneer Maarten Loerakker
Maarten Loerakker – lighting philosopher, designer, owner, chairman of CIE Lighting Technology NL, member of the NEN lighting committee and the NSVV advisory board – has the ability to clearly translate complex technical matters into intelligent and elegant lighting solutions. After studying Photonics, he became fascinated by LED technology. In 2002, he became a co-shareholder of Triolight and was among the first in the Netherlands to actively work with LED lighting.
LED pioneer
As a manufacturer of flexible LED strips, Maarten successfully introduced a unique lighting concept to the market. In the years that followed, he developed many bespoke LED products for specific projects. This pioneering work is clearly reflected in the latest Loerakker LED Line luminaires. After acquiring a traditional lighting maintenance company, he developed his distinctive vision on lighting, translated into the unique luminaires of Loerakker LED Line.
Unique vision on lighting
“Light plays a crucial role. Awareness of the impact of light is surprisingly low, even though light is essential. I want there to be more attention for genuinely good lighting – especially in workplaces where the wellbeing and performance of high-value employees are highly valued. With the right lighting solutions, you can truly make a difference: more comfort, higher productivity and less absenteeism.”
Ambition with Loerakker
Loerakker: “Our ambition? To become a top-three player in the Dutch lighting market. I want to truly live up to our slogan: better light for work, healthcare and education. It is rewarding to see that people genuinely want our luminaires and experience the difference they make for end users. Ultimately, our entire philosophy revolves around the end user: they must feel comfortable in our lighting solutions. For tenants and building owners, the significantly lower energy costs of LED and indirect lighting provide an important added value. In short: better light for everyone.”

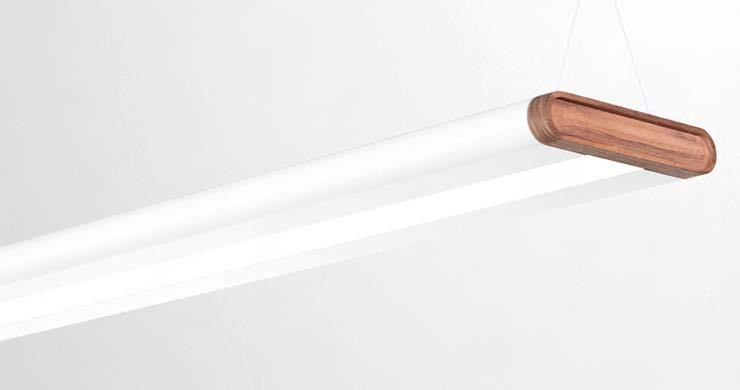

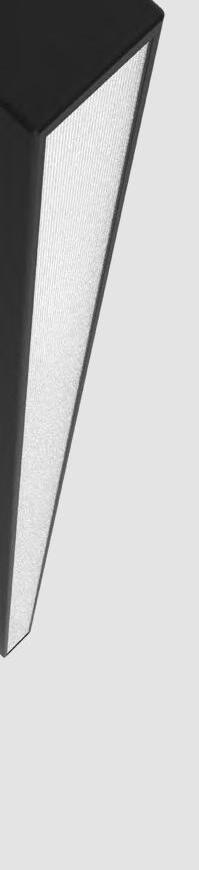

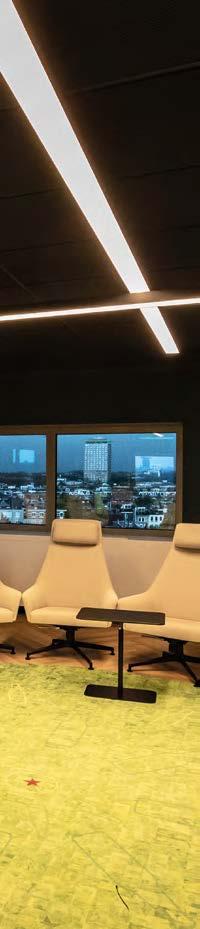

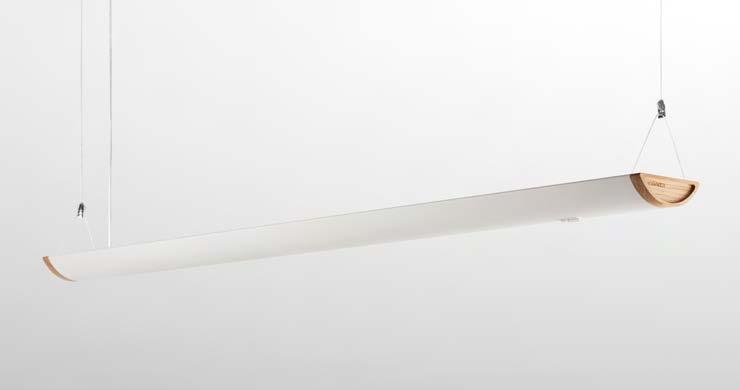

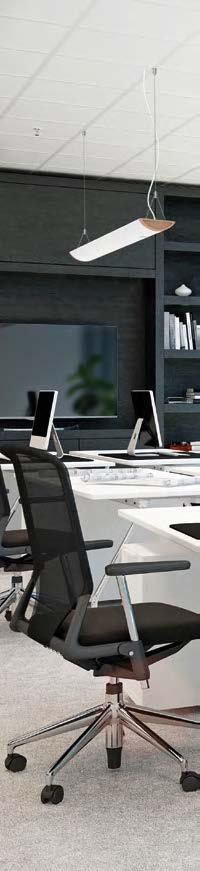

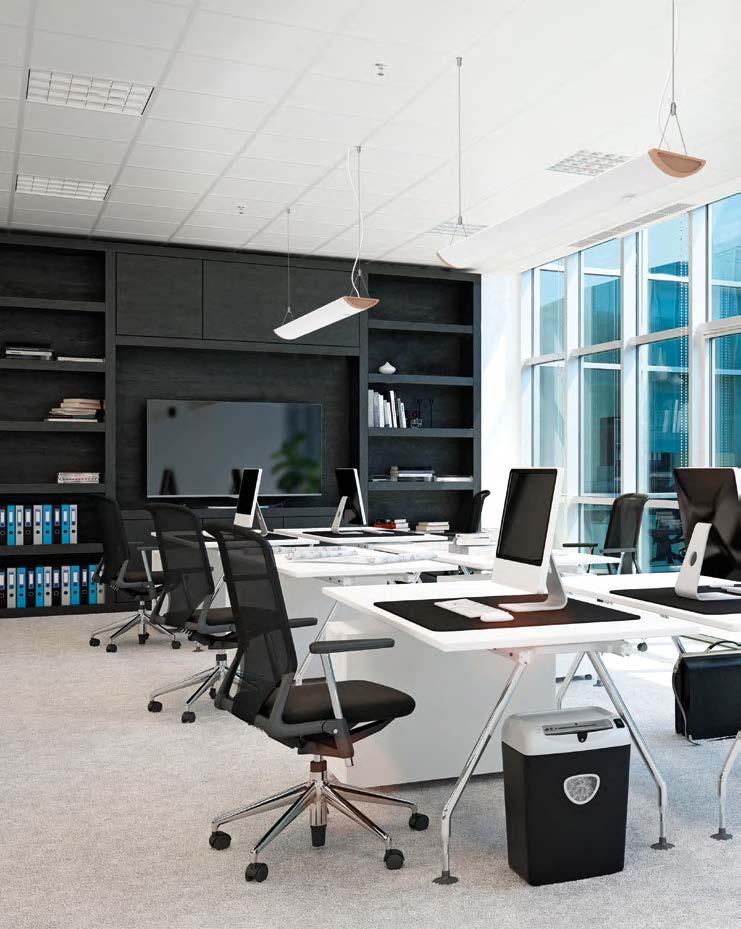

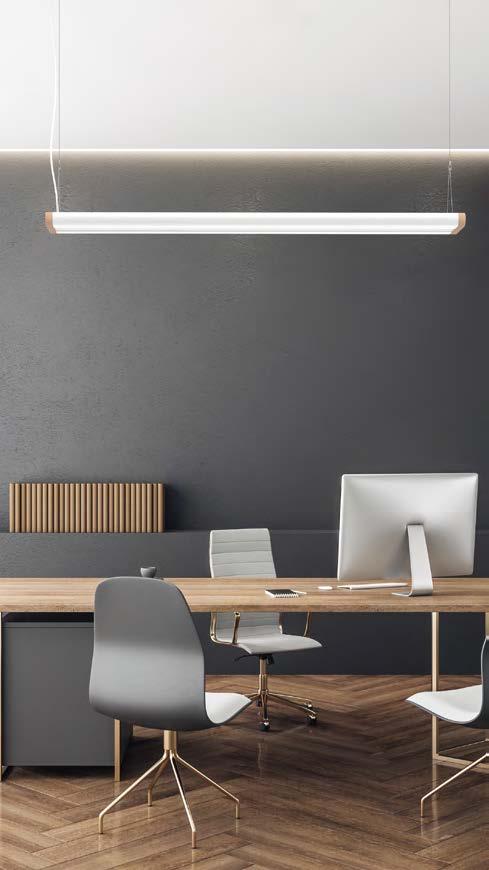

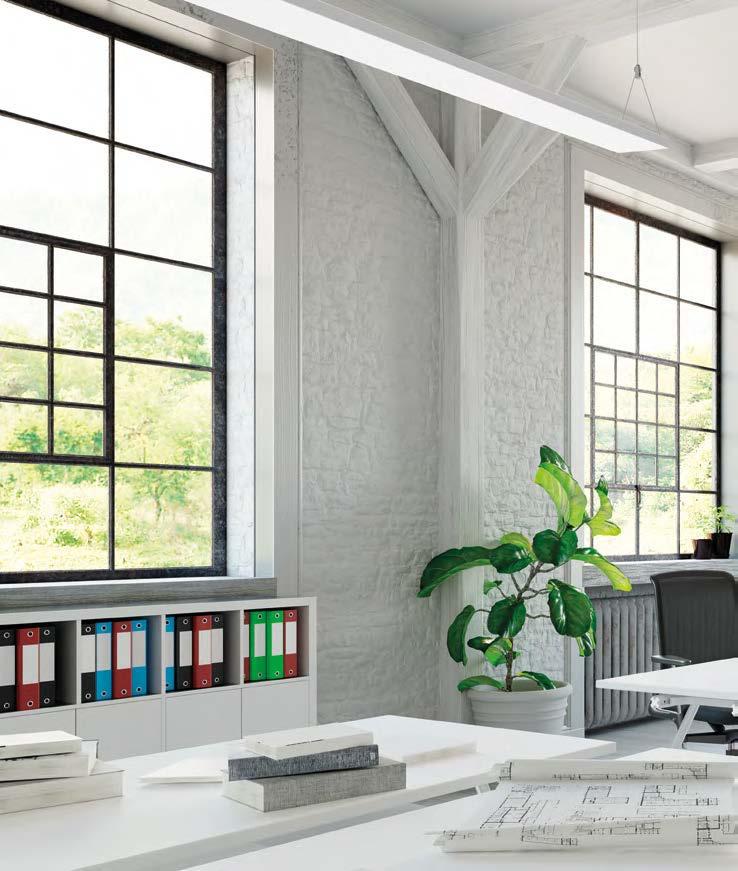

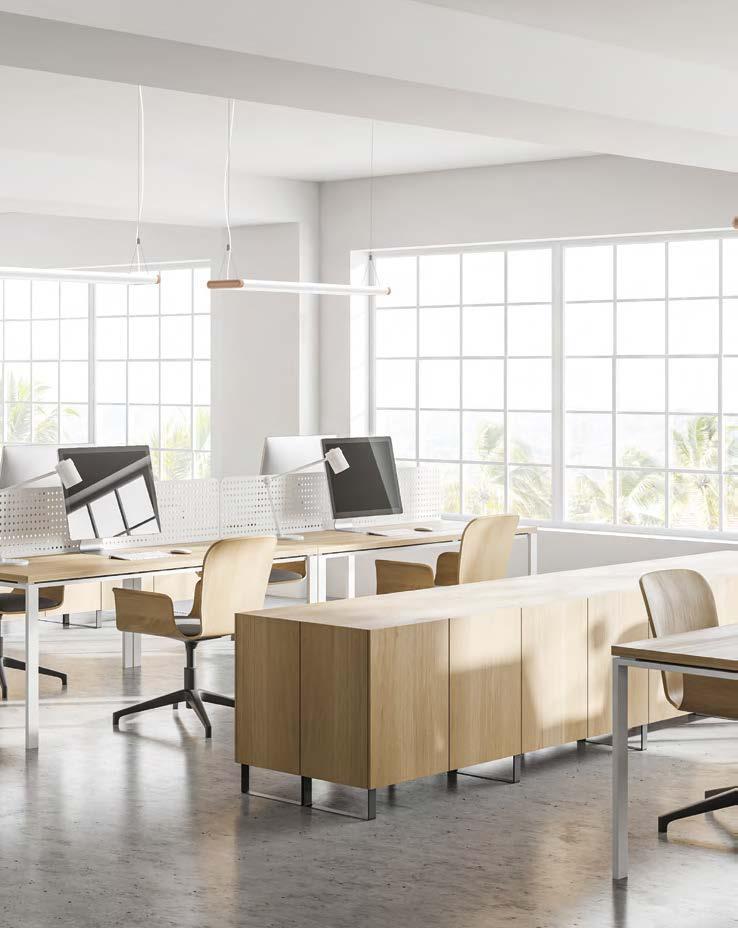

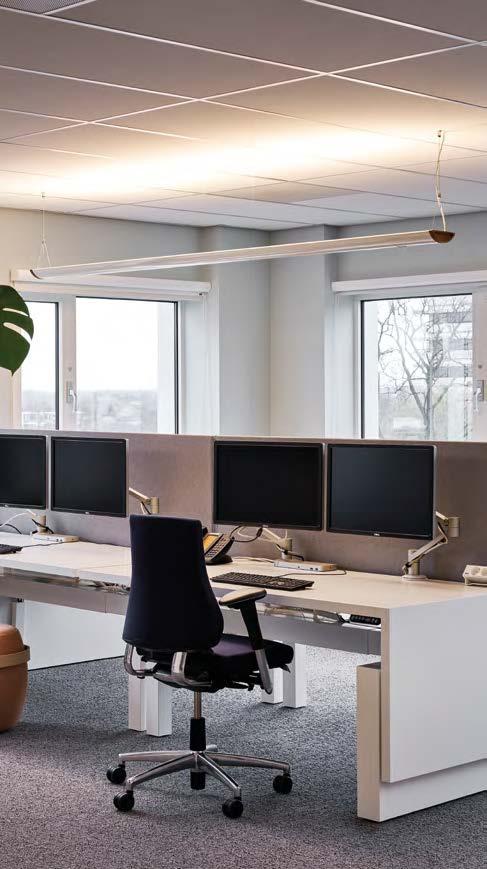

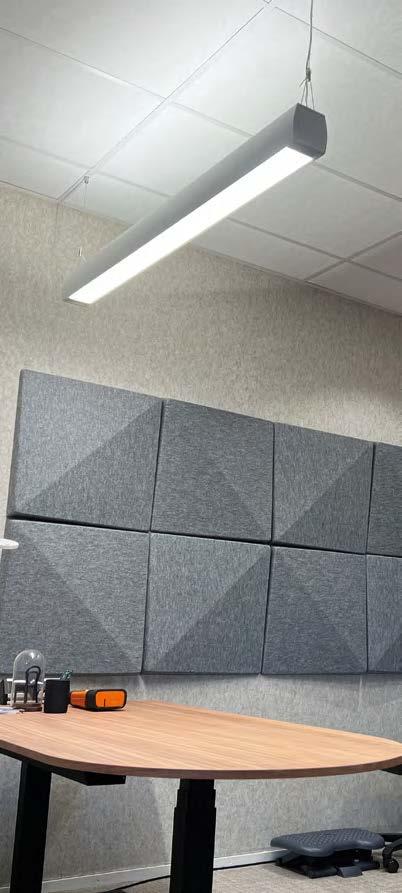

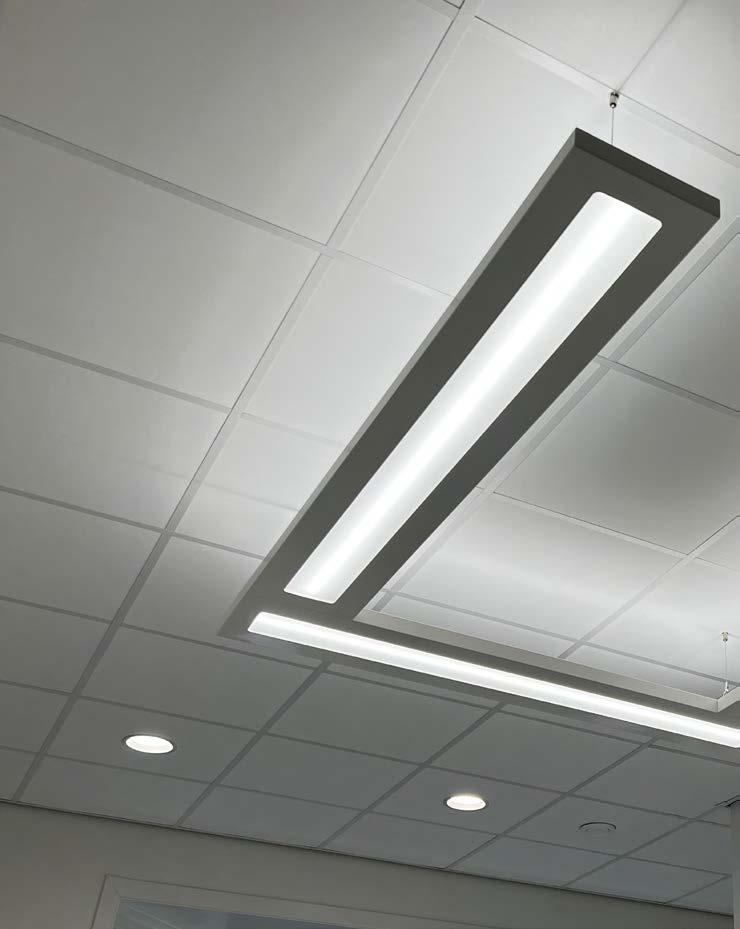

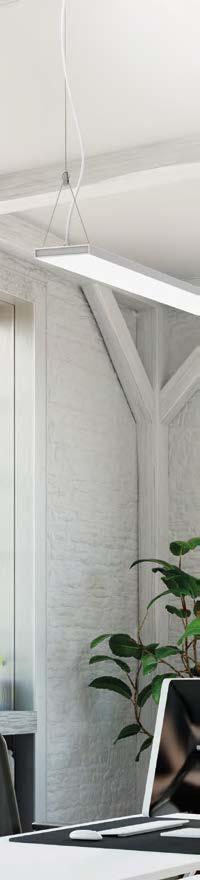

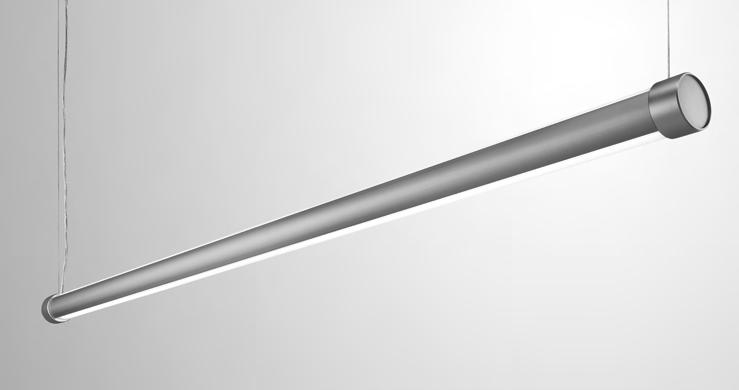

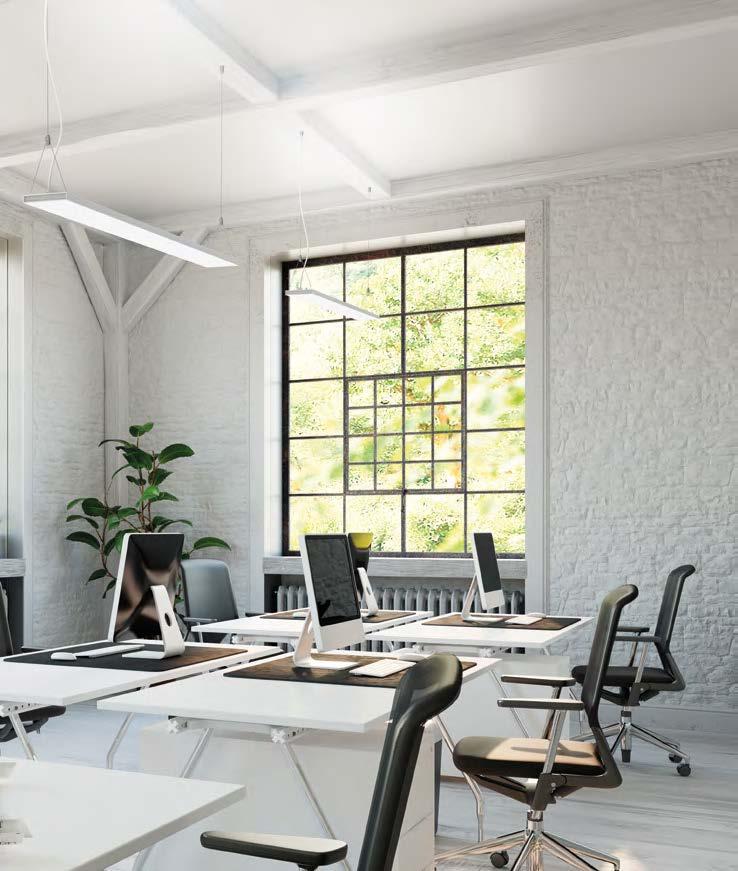

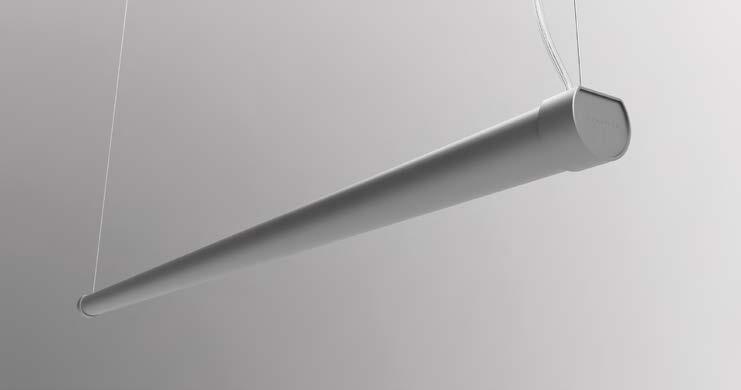

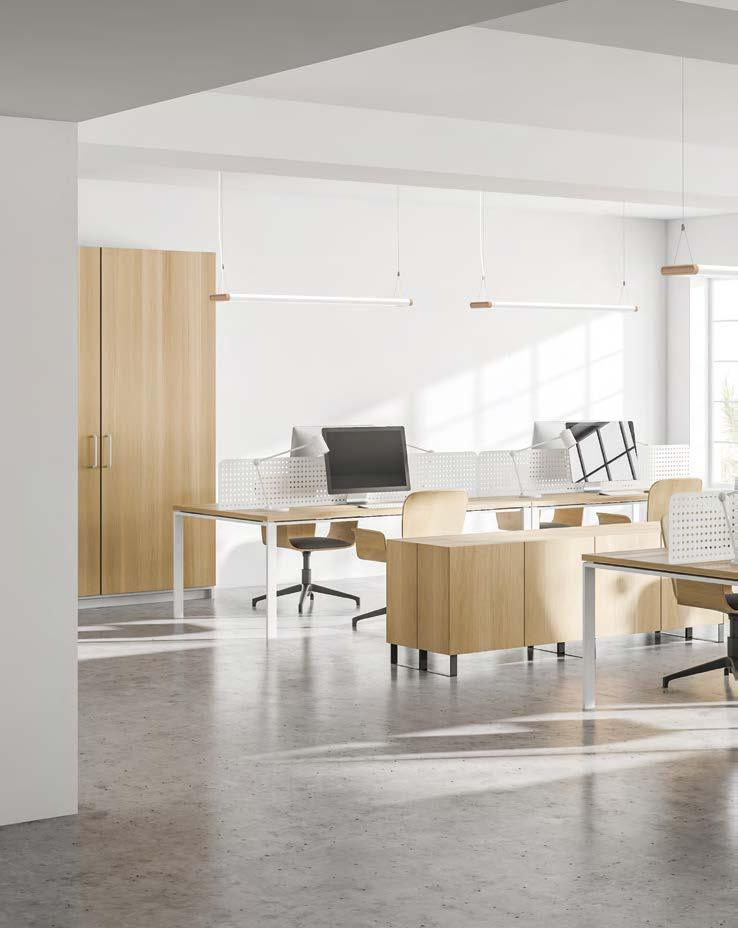

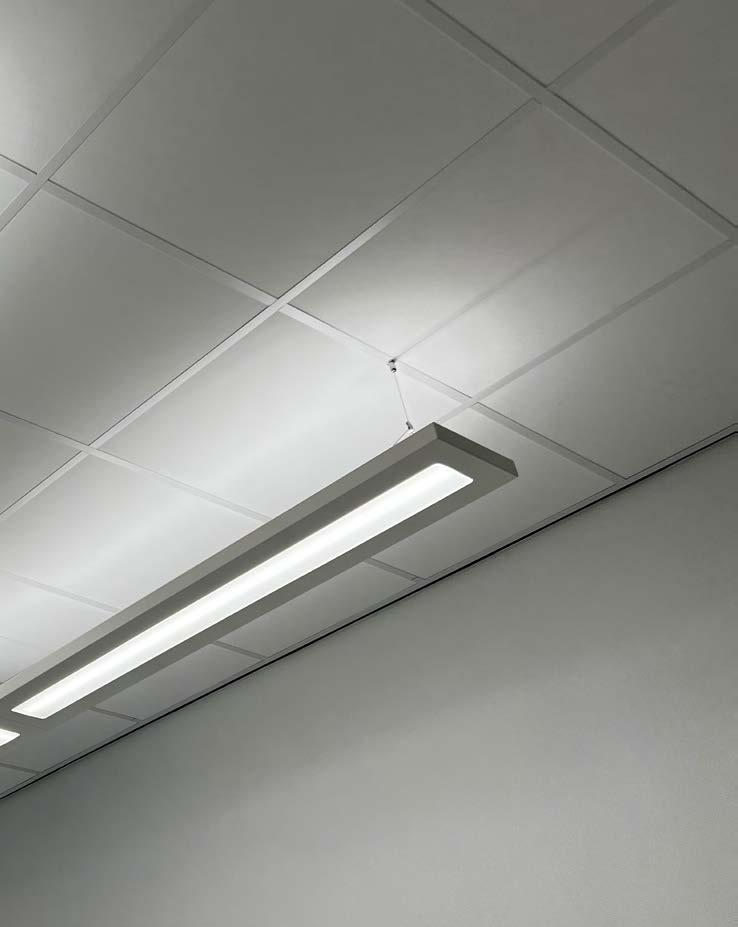

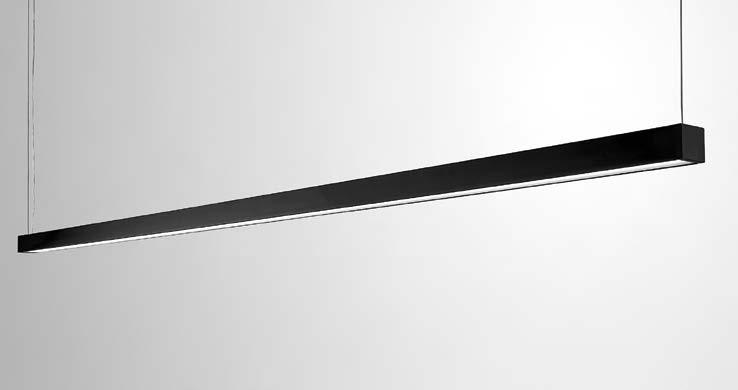

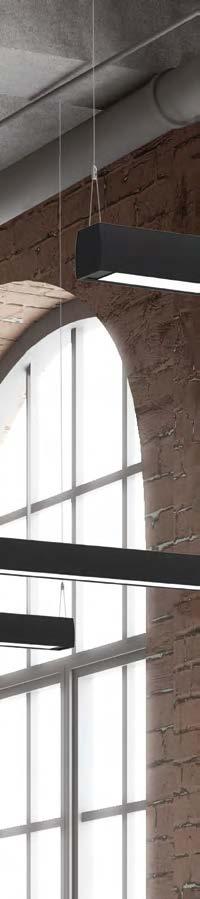

Indirect light L1

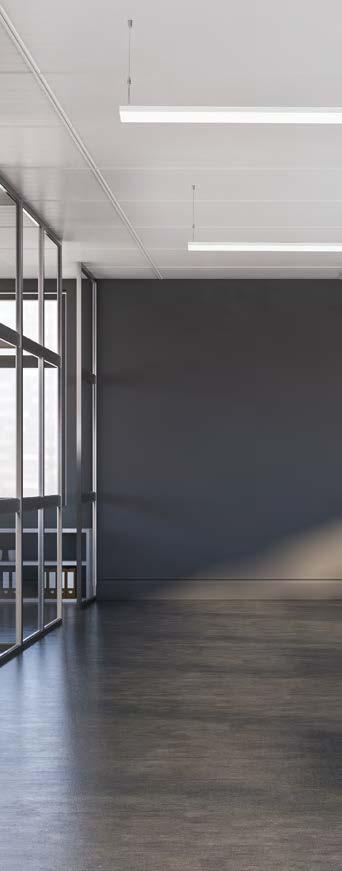

Pendant luminaire with indirect light
The L1 features high-quality Philips LEDs, can be fully customised in your own colour and signature and offers Surround Light as standard. This means that with these luminaires you approximate the daylight situation as closely as possible.
Pendant luminaires
PENDANT LUMINAIRE WITH SURROUND LIGHT
Comfortable light, minimalist design and sustainable innovation: the Loerakker led line has it all. Perhaps most importantly: every luminaire is custom-made as standard and therefore exactly what you need.
Fits in any space
You can choose as standard the colour of the luminaire, length (from 120 cm to 300 cm), colour temperature and output. If you prefer an authentic appearance, wooden accents are available; or choose your own RAL colour and make the lighting an integrated part of the interior.
In addition, there are optional extra features to choose from. The Loerakker led line is assembled in the Netherlands with a delivery time of 2 to 3 weeks within the standard options.
Configuration to your preference
If you choose a white (RAL 9016) or silver grey (RAL 9006) luminaire, expect a delivery time of 2 to 3 weeks. Any other colour is also possible, but this entails a longer delivery time. You also choose the end cap: oak wood or powder-coated aluminium in white (RAL 9016) or black. Other end caps are also possible, with a delivery time of 6 to 8 weeks. Check the extra features further on.
Pendant luminaires
Choice of length
Choose a standard length (120 cm, 150 cm, 200 cm, 250 cm and 300 cm) or any other length between 60 cm and 600 cm. The latter is also possible but involves customisation and therefore slightly longer delivery times. If you require something outside the standard options, please contact us.
Rule of thumb: allow one linear metre of L1 per 4.8 m².
Matching output
There is ample choice in output: Standard Output, High Output (HO), extra High Output (HO2) and for the most demanding situations High Output 3 (HO3). Thanks to the various lengths, we offer enormous variation in possibilities. A 120 cm luminaire starts at 4,400 lm output up to the HO3 variant with 16,000 lm. The 2.5 m luminaire starts with a standard output of 8,800 lm and in the HO3 variant increases to 34,000 lm.
And all this with remarkably high efficiency; depending on type and light colour, efficiency is never lower than 140 lm/W and can reach up to 180 lm/W.
Choose the light colour
In terms of light colour, the latest technologies offer many variations. Available light colours are 2700K, 3000K, 4000K, 5000K and 6500K. In addition, instead of the standard CRI 80, you can choose a higher CRI value of CRI 90.
Extra features
Dynamic light
The Loerakker led line can be equipped with dual LEDs that stimulate the natural day and night
rhythm. You feel less fatigued, suffer less from jet lag and are more productive. Experience the difference in our light studio in Amersfoort.
Dimming
With a dimming control you can regulate the output above your desk or worktable, particularly pleasant with changing daylight conditions.
Get to know Surround Light
Familiar with Dolby Surround? The Loerakker LED line offers a similar experience, but in the realm of lighting. A unique experience for everyone who works in it. Whether you sit behind a screen all day, in a meeting, or behind the counter. You simply work more comfortably, experience less fatigue and benefit more from your natural day and night rhythm. Discover all the benefits of Surround Light here
Extensive possibilities
Production of the Loerakker led line is sustainable, just like the product itself. Made of aluminium, this luminaire can be deployed circularly. Various options are available such as DALI, built-in wireless sensor or the Human Centric Lighting version. Because each luminaire is produced in the Netherlands (Amersfoort), the possibilities are endless and delivery times highly transparent.
Advantages
• Flicker-free lighting
• Long lifespan
• Customisation possible
• Fast delivery
• High comfort, higher productivity
• Produced in the Netherlands
• 100% sustainable
• 10-year warranty
Pendant luminaires
Specifications
Light source
Power
Beam angle
Luminous flux
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
Driver
Mains voltage
Material
Colour
End cap finish
Installation
Connection
Options
Dimming
Human Centric Lighting
Colour finish
Sensor
: Philips Fortimo Led Strip HV6F
: 1,2m: 30W - 120W
: 1,5m: 37W - 145W
: 2m: 45W - 180W
: 2,5m: 60W - 235W
: 3m: 75W | 250W
: 120° or Wide Beam: 175°
: 1,2m: 4.400lm - 16.000lm
: 1,5m: 5.500lm - 20.000lm
: 2m: 6.600lm | 25.000lm
: 2,5m: 8.800lm | 32.000lm
: 3m: 11.000lm | 35.000lm
: 2700K, 3000K, 4000K, 5000K or 6500K
: >80 of >90
: >100.000 hours
: >68.000 hours
: 10% per 100.000 hours
: Philips Xitanium
: 220-240VAC / 50-60Hz
: Control unit: sheet steel
: Housing: Aluminium
: Cover: Acrylic

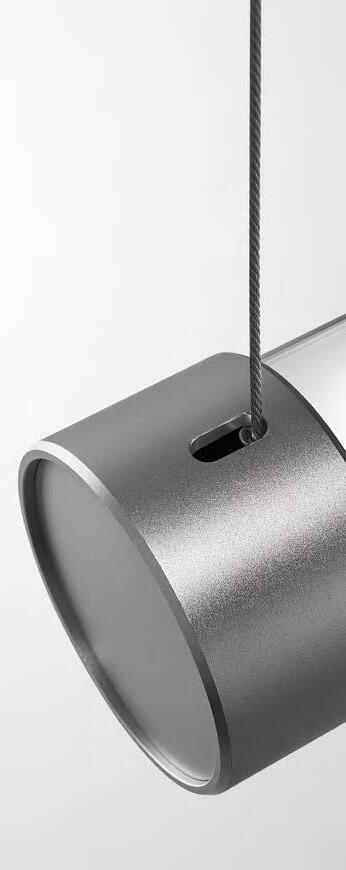

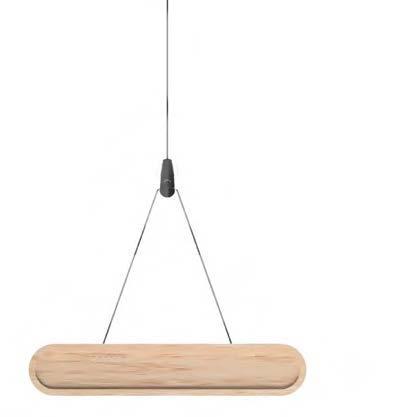

: End cap: Solid wood or solid aluminium
: White (RAL9016) or Silver grey (RAL9006)
fine texture
: Oak or powder-coated in housing colour

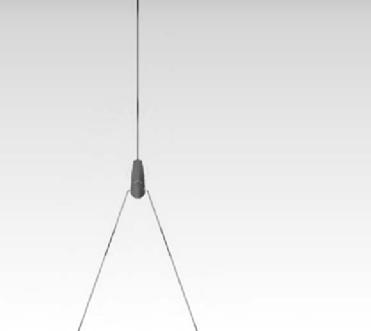

: Two suspension sets 1.5m length
: 3-core transparent connection cable
: Dali, Zigbee dimmable or sensor
: Dynamic white 2700K to 6500K
: RAL colour or special metal (see page 244)
: Daylight control
: Motion detection
: Dimmable via wall dimmer
: Group programming via Zigbee
Also available with a finish in bronze, copper, brass and corten steel (see page 244).
Radiation diagrams
Standard distribution suspension distance 40-150cm.
Dimensions
Extra wide beam for low ceilings. Suspension distance 16-40cm.
L-120 1280 1225
L-120-W 1280 1225
L-150 1560 1505
L-150-W 1560 1505
L-200-W 1940 1885 160-400 L-250 2450 2410 400-1500
L-250-W 2450 2410 160-400 L-300 3010 2955 400-1500 L-300-W 3010 2955 160-400
LoerakkerLightingBV Stettinweg7 3825PLAMERSFOORT T0334766445 info@loerakkerledline.nl

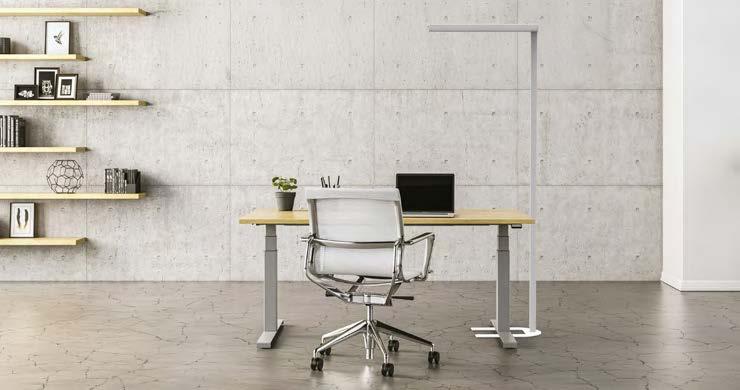

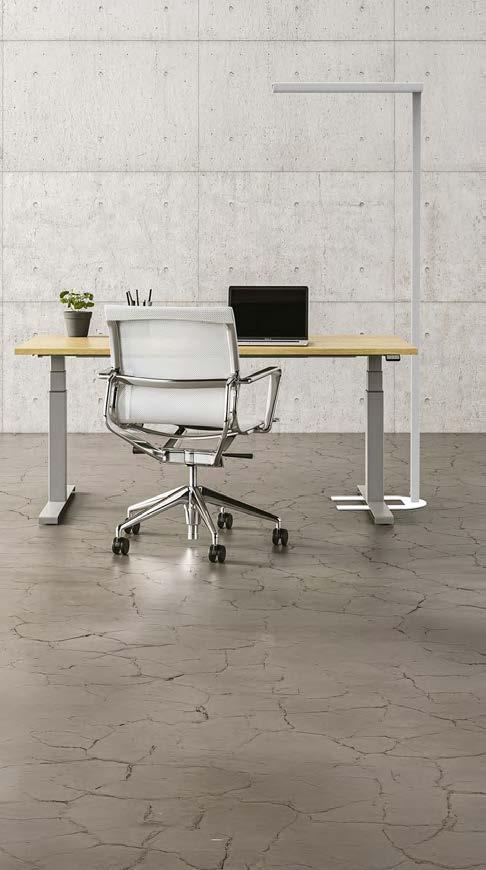

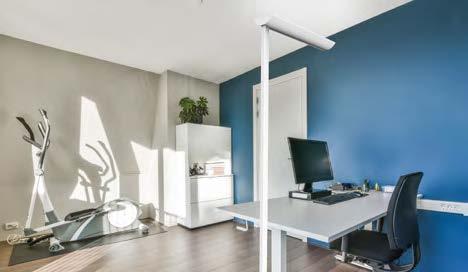

Floor luminaire with Surround Light
Healthy and sustainable lighting for work, healthcare and education. The L1 floor luminaire is equipped with high-quality Philips Fortimo LEDs, can be fully customised in its own colour and identity, and comes standard with Surround Light. This means that with these luminaires, the daylight situation is approximated as closely as possible. Production is sustainable and the result is impressive.
Floor luminaires
FLOOR LUMINAIRE WITH SURROUND LIGHT
Healthy and sustainable lighting for work, healthcare and education. The L1 floor luminaire is equipped with high-quality Philips Fortimo LEDs, can be fully customised in its own colour and identity, and comes standard with Surround Light. This means that with these luminaires, the daylight situation is approximated as closely as possible. Production is sustainable and the result is impressive.
Fits in any space
Comfortable light, minimalist design and sustainable innovation: the Loerakker LED line offers it all. The Loerakker LED line is manufactured in the Netherlands with a delivery time within the standard options of 3 to 4 weeks.
Choose the colour
A matter of taste and application. 3000K is warmer, for a comfortable and calm appearance. 4000K is cooler, for a more energetic appearance.
Features
With a dimming button, you can adjust the output above your desk or workstation. Particularly useful with the changing weather conditions in our region. The floor luminaire is equipped as standard with a Zigbee dimmable driver, operated via the included wireless dimming button.
Floor luminaires
Get to know Surround Light
Familiar with Dolby Surround? The Loerakker LED line offers a similar experience, but in the realm of lighting. A unique experience for everyone who works in it. Whether you sit behind a screen all day, in a meeting, or behind the counter. You simply work more comfortably, experience less fatigue and benefit more from your natural day and night rhythm. Discover all the benefits of Surround Light here
Choice of length
Choose a standard length (120 cm, 150 cm, 200 cm, 250 cm and 300 cm) or any other length between 60 cm and 600 cm. The latter is also possible but involves customisation and therefore slightly longer delivery times. If you require something outside the standard options, please contact us. Rule of thumb: allow one linear metre of L1 per 4.8 m2.
Matching output
There is ample choice in output: Standard Output, High Output (HO), extra High Output (HO2) and for the most demanding situations High Output 3 (HO3). Thanks to the various lengths, we offer enormous variation in possibilities. A 120 cm luminaire starts at 4,400 lm output up to the HO3 variant with 16,000 lm. The 2.5 m luminaire starts with a standard output of 8,800 lm and in the HO3 variant increases to 34,000 lm.
And all this with remarkably high efficiency; depending on type and light colour, efficiency is never lower than 140 lm/W and can reach up to 180 lm/W.
Choose the light colour
In terms of light colour, the latest technologies offer many variations. Available light colours
are 2700K, 3000K, 4000K, 5000K and 6500K. In addition, instead of the standard CRI 80, you can choose a higher CRI value of CRI 90.
Extra features
Dynamic light
The Loerakker led line can be equipped with dual LEDs that stimulate the natural day and night rhythm. You feel less fatigued, suffer less from jet lag and are more productive. Experience the difference in our light studio in Amersfoort.
Dimming
With a dimming control you can regulate the output above your desk or worktable, particularly pleasant with changing daylight conditions.
Extensive possibilities
Production of the Loerakker led line is sustainable, just like the product itself. Made of aluminium, this luminaire can be deployed circularly. Various options are available such as DALI, built-in wireless sensor or the Human Centric Lighting version. Because each luminaire is produced in the Netherlands (Amersfoort), the possibilities are endless and delivery times highly transparent.
Advantages
•Flicker-free lighting
•Long lifespan
•Customisation possible
•Fast delivery
•High comfort, higher productivity
•Produced in the Netherlands
•100% sustainable
•10-year warranty
Floor luminaires
Specifications
Light source
: Philips Fortimo Led Strip HV6F
Power : 114W
Beam angle
Luminous flux
Colour temperature
: 120°
: 16.000lm
: 3000K, 4000K
Colour rendering (Ra) : >80
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
Driver
Mains voltage
Material
Colour
Connection
Options
Dimming
: >80.000 hours
: >68.000 hours
: 10% per 100.000 hours
: Philips Xitanium
: 220-240VAC / 50-60Hz
: Control unit: sheet steel
: Housing: Aluminium
: Cover: Acrylic
: End cap: Solid aluminium
: White (RAL9016) fine texture
: 3-core connection cord Euro plug for grounded connection
: Yes, via the included wireless dimmer
Pendant luminaires

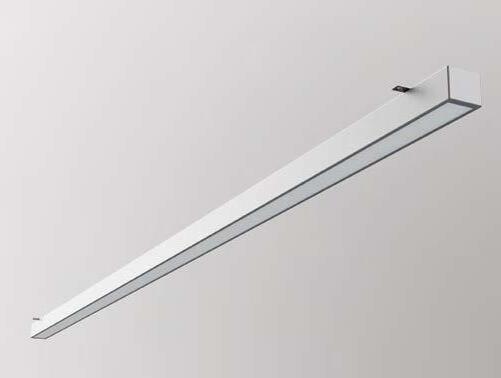

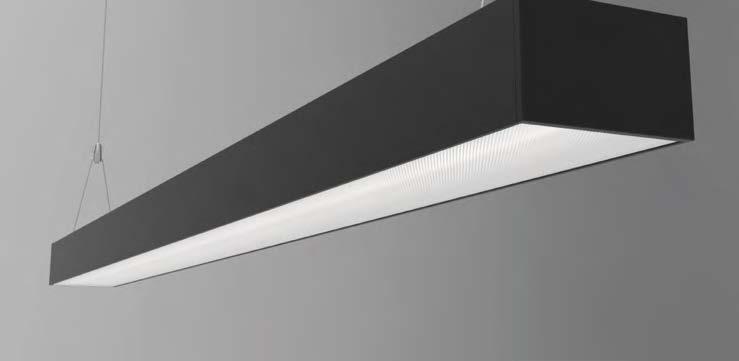

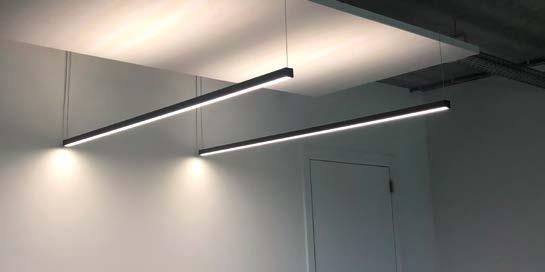

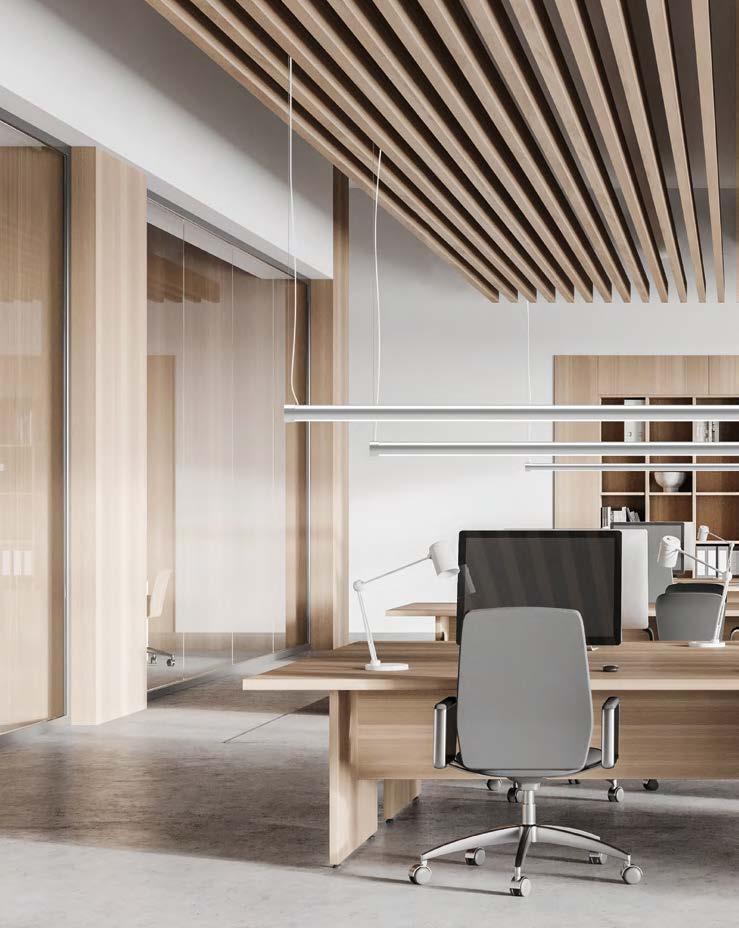

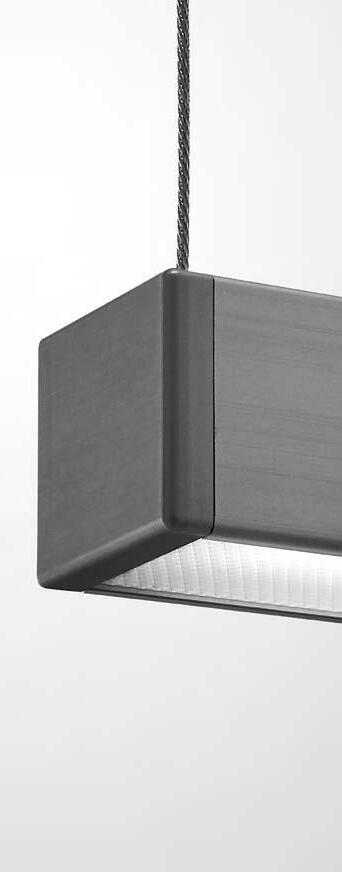

Pendant luminaire with direct and indirect light
In addition to standard Surround Light, the L2 also provides direct illumination. Like the other Loerakker luminaires, the L2 features high-quality Philips LEDs and can be fully customised in your own colour and signature.
Direct and indirect light
L2 PENDANT LUMINAIRE COMBINATION WITH SURROUND LIGHT
This may well be our most subtle and at the same time most versatile luminaire. With a tube diameter of just 53 mm, this minimalist design is suitable for many applications. The L2 combines direct and indirect lighting and is available as a pendant luminaire and as a wall luminaire.
Soft line of light
Not only the luminaire itself, but also the light of the L2 is beautiful to see. Specially developed diffusers create a soft homogeneous line of light that distributes light across the work surface. At the top, LED boards with synthetic shielding provide indirect lighting via the ceiling, resulting in a beautiful homogeneous light distribution. The luminaire is manufactured from clear anodised aluminium. The diameter of approximately 53 mm ensures a subtle yet powerful presence in any space.
Sustainable aluminium
Because this complete product is made of aluminium, it is highly sustainable. Aluminium can be recycled indefinitely without loss of quality. In fact, our aluminium
Pendant luminaires
luminaires already consist of 40% recycled aluminium. In addition, the luminaires can be deployed circularly. After the LEDs have reached their extremely long lifetime of more than 100,000 operating hours, the aluminium can be reused in two ways: recycling or refitting with new LEDs for renewed use.
Design and production in-house

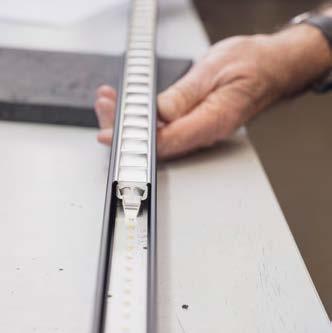

The design is based on three extrusion profiles: the base H-profile, on which LEDs are mounted directly onto the aluminium on both sides for maximum heat transfer. The aluminium cover cap connects almost seamlessly to the base profile. The polycarbonate diffuser cover cap has a precisely engineered diffusion effect, ensuring that the LED light points are just not visible while creating a beautifully even light image, with a maximum light transmission of 81%.
All mentioned extrusion profiles are stocked in six-metre lengths as standard, allowing endless variation in configurations. Due to the minimalist design, the driver is externally positioned. A separate driver box can be ordered for this purpose.
Get to know Surround Light
Familiar with Dolby Surround? The Loerakker LED line offers a similar experience, but in the realm of lighting. A unique experience for everyone who works in it. Whether you sit behind a screen all day, in a meeting, or behind the counter. You simply work more comfortably, experience less fatigue and benefit more from your natural day and night rhythm. Discover all the benefits of Surround Light here.
Extensive possibilities
Production of the Loerakker led line is sustainable, just like the product itself. Made of aluminium, this luminaire can be deployed circularly. Various options are available such as DALI or dimmable versions, built-in wireless sensor or the Human Centric Lighting version. Because each luminaire is produced in the Netherlands (Amersfoort), the possibilities are endless and delivery times highly transparent.
Advantages
•Flicker-free lighting
•Long lifespan
•Customisation possible
•Fast delivery
•High comfort, higher productivity
•Produced in the Netherlands
Specifications
Type : L2 Pendel direct/indirect
Light source : Philips Fortimo Led Strip LV6F
Power
Beam angle
Luminous flux
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
: 1,2m: 20W - 50W
: 1,5m: 25W - 63W
: 1,8m: 30W - 75W
: 2m: 35W - 87W
: 2,5m: 40W - 100W
: 3m: 50W - 126W
: 120°
: 1,2m: 3.000lm - 6.000lm
: 1,5m: 3.750lm - 7.500lm
: 1.8m: 4.500lm - 9.000lm
: 2m: 5.250lm - 10.500lm
: 2,5m: 6.000lm - 12.000lm
: 3m: 7.500lm - 15.000lm
: 3000K, 4000K, 5000K or 6500K
: >80 or >90
: >100.000 hours
: >68.000 hours
: 10% per 100.000 hours
Driver : External Philips Xitanium
Material
: Aluminium housing
: Acrylic cover
: Aluminium end cap
Colour : Clear or black anodised
Installation
Connection
Options
Dimming
Human Centric Lighting
Colour finish
Dimming
: Two suspension sets, 1.5m
: 2-core transparent cable
: DALI, Zigbee or sensor
: Dynamic white 2700K–6500K
: Brushed or anodised
: Wall dimming
: Zigbee group programming

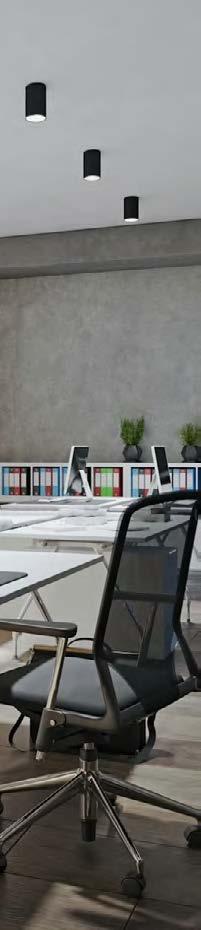

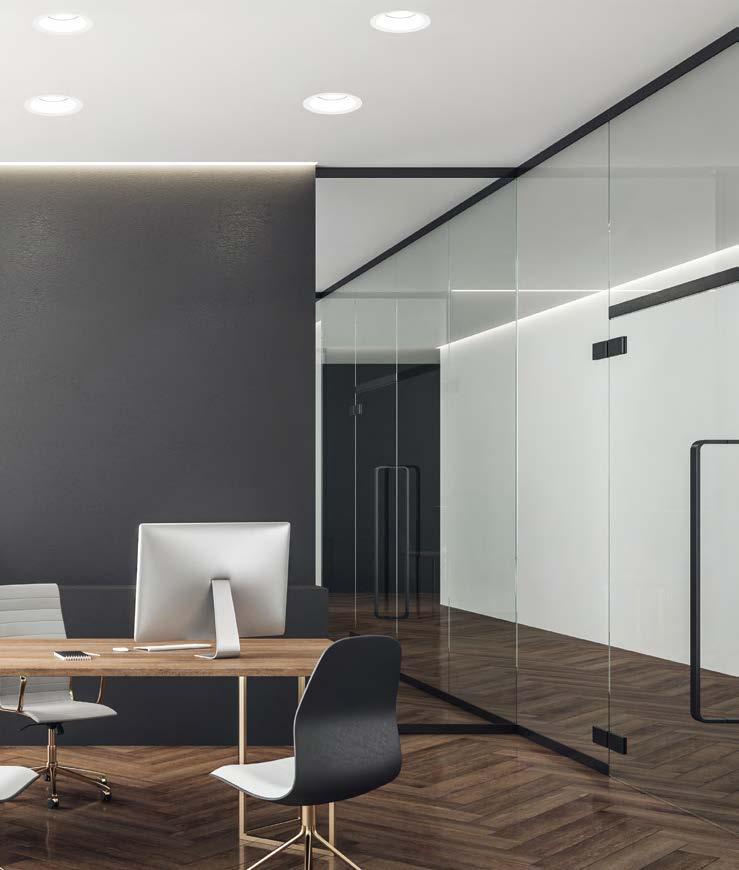

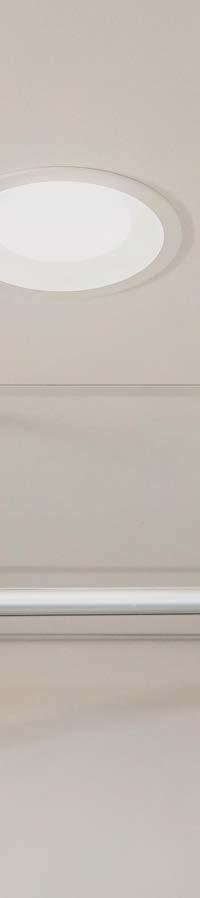

Downlighters | spotlights

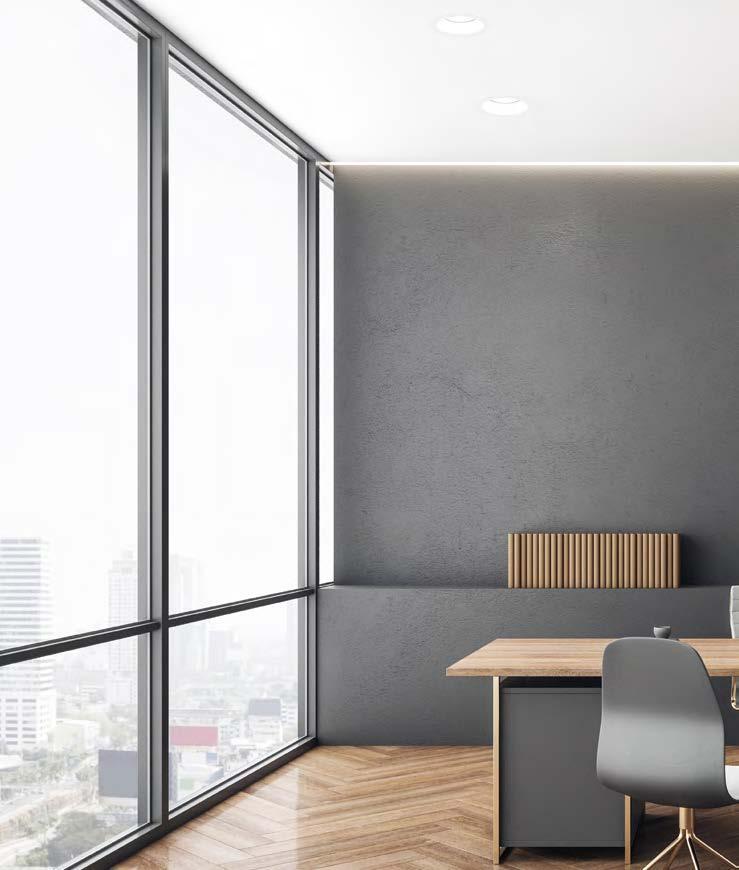

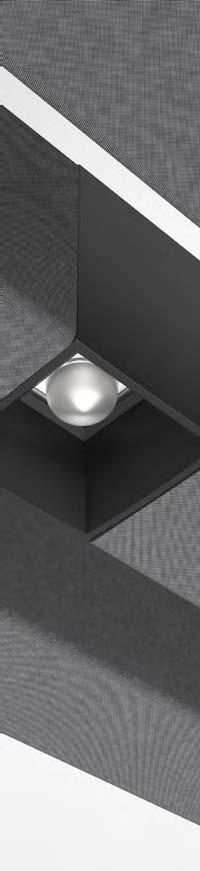

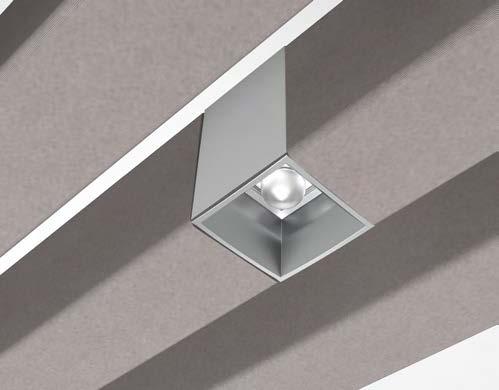

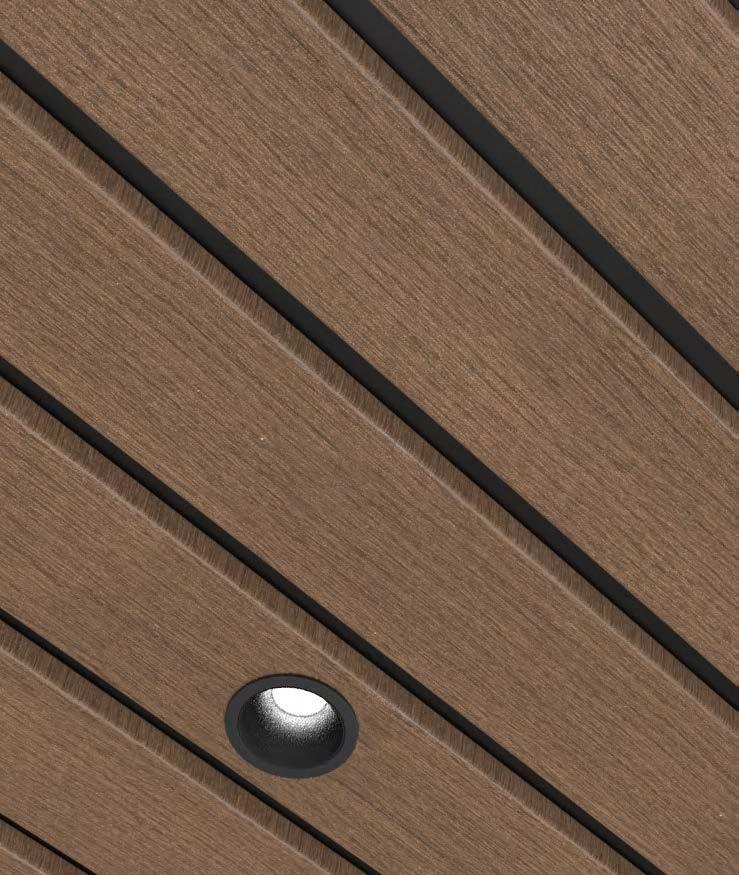

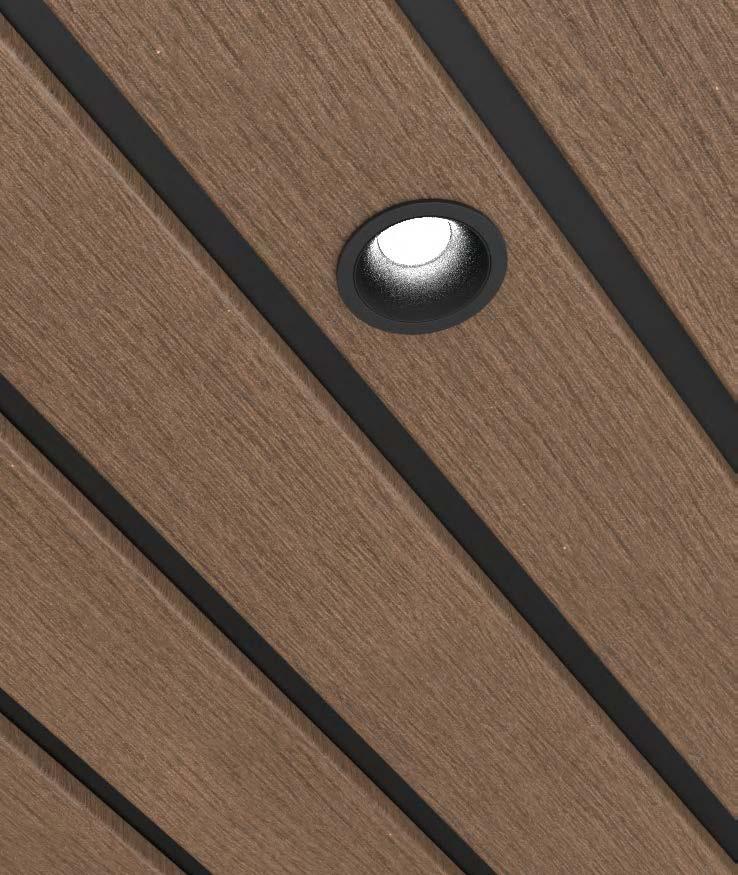

LED spotlight
The Loerakker spotlight is a sleek luminaire with an innovative aiming solution. The Sharp LED combined with a Philips driver creates a sustainable atmosphere in any space.
Downlighters | spotlights

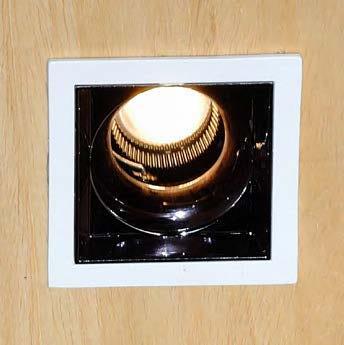

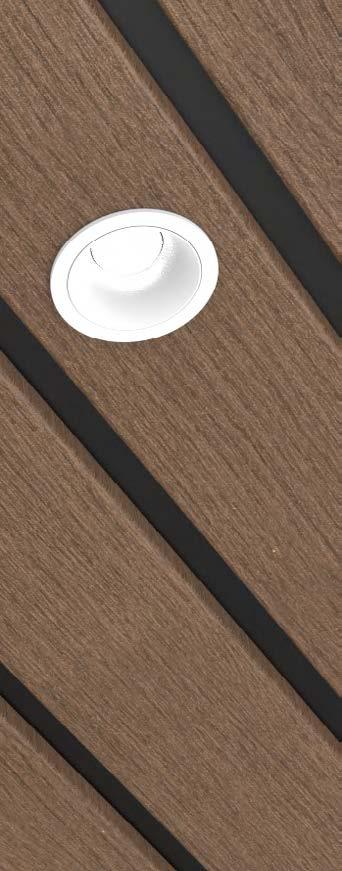

L3 SPOT
Compact and powerful spotlight for accents and contrasts. With a cut-out size of 80mm and installation depth of 55mm, it can be applied almost anywhere.
Spot without limitations
Compact and powerful spotlight for accents and contrasts. With a cut-out size of 80mm and installation depth of 55mm, it can be applied almost anywhere.
The L3-095 (95mm flange) is a subtle powerhouse. A specially developed plastic ring enables full gimbal adjustability.
This 50W halogen replacement includes a Philips Xitanium driver preset to the correct current. The LED holder also acts as heat sink for the Sharp LED.
Available in white (RAL 9016). Manufactured in the Netherlands with predictable delivery times.
Downlighters | spotlights
Advantages
• Flicker-free lighting
• Long lifespan
• Fast delivery
• High comfort and productivity
• Produced in the Netherlands
• 100% sustainable
• 10-year warranty
Downlighters | spotlights
Specifications
Type : L3-095
Light source : Sharp
Power : 8W
Beam angle : 45
Luminous flux : 850lm
Colour temperature : 3000K or 4000K
Colour rendering (Ra) : >80 or >90
Median useful life
L70B50
Median useful life
: >50.000 hours
L80B10 : >40.000 hours
Median useful life
L90B10
Driver failure rate
: 35.000 hours
: 1% per 5.000 hours
Ambient temperature : +25°C
Operating temperature : -20°C to +25°C
Driver : External Philips Xitanium
Input voltage
: 220-240VAC / 50-60Hz
Material : Housing: Aluminium, and steel
Colour : White RAL9016 fine texture or Black RAL9005
Installation : Built-in
Connection
Options
: 3-core connection cable
Dimming : Dali or Zigbee
Lumen output : Abnormal lumen flow
Downlighters | spotlights

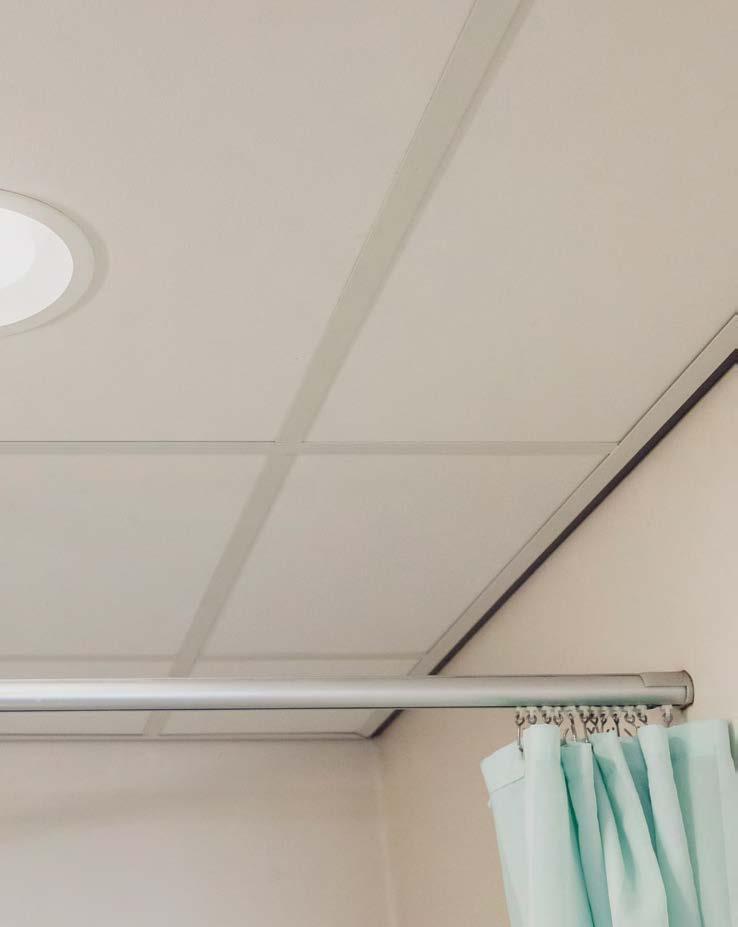

Powerful downlighter for optimal direct lighting: a beacon in halls, corridors or entrances. Choose from versions with a flange size of 170, 220 or 240. The L3 is equipped with high-quality LEDs from Philips and can be supplied in custom colours and with a distinctive signature.

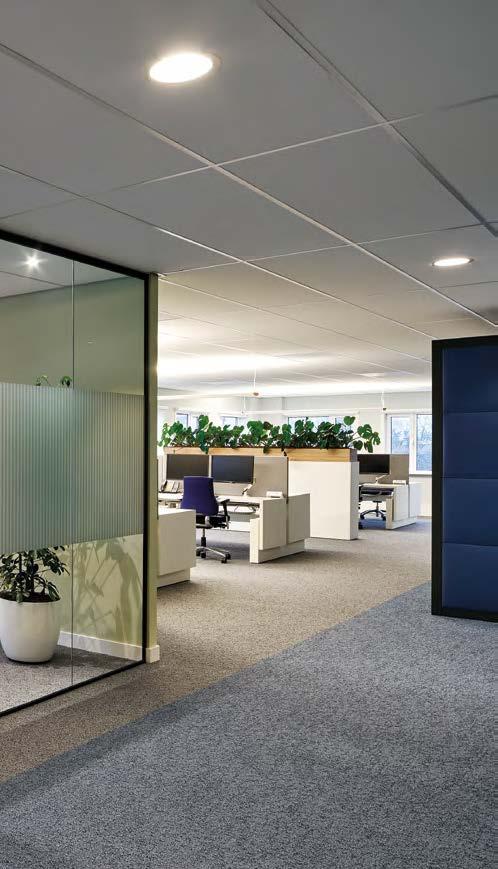

L3 Powerful downlighter
Downlighters | spotlights
L3 DOWNLIGHT (170 / 220 / 240)
The Loerakker L3 is a powerful downlighter for straightforward work. Traffic areas, halls, reception areas; this powerhouse comes into its own everywhere. We have completely redesigned this downlight; the heat sink has also been newly developed. After many simulations, a heat sink was created that dissipates heat from the LED in a built-in situation through natural airflow. This guarantees the lifespan of the LED.
High-quality Philips Fortimo LEDs
For this fixture, too, we like to use the very high-quality Philips Fortimo LED range. Whether it concerns a downlighter for an IT company or for a clothing store; the right LED is easily selected. Every Philips Fortimo LED can be used, from the special ‘Crisp White’ with an unrivaled white balance to a standard 830 or 840 version. We program the external Philips driver to the correct output and can provide it in various dimmable versions from Dali to 0-10V.
Ideal for renovation: non-standard flange sizes possible
Because most LED downlights are smaller than their conventional equivalents, you often encounter a problem with the existing installation size during renovations. Usually, an adapter ring is required in such cases.
Downlighters | spotlights
We have taken this into account in the design: the flange fits into the larger PL installation sizes. Should this not fit in an exceptional case, a nonstandard flange size is no problem at all. We manufacture the fixture in-house and provide custom work on a project basis.
Custom work and very short delivery times
We assemble the downlights to order. This means that everything can be selected per order: light color, lumen output, beam angle, and even the color of the flange. All while maintaining a short delivery time of 2-3 weeks.
Advantages
• Flicker-free lighting
• Long lifespan
• Customization possible
• Fast delivery
• High comfort, higher productivity
• Produced in the Netherlands
• 100% sustainable
• 10-year warranty
Downlighters | spotlights
Specifications
Type : L3
Light source
Power
Beam angle
Luminous flux
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Ambient temperature
Operating temperature
Driver
Input voltage
Material
Colour
Installation
Connection
Options
Dimming
Flush mounting dimensions
Lumen output
LED
: Philips Fortimo LED
: 5W to 30W
: XN: 8°, N: 15°, W: 32°, XW: 72°
: 800lm to 3.000lm
: 2700K, 3000K, 3500K, 4000K, 5000K
: >80 or >90
: >70.000 hours
: 50.000 hours
: +25°C
: -20°C to +25°C
: External Philips Xitanium
: 220-240VAC / 50-60Hz
: Housing: Aluminium
: Wit RAL9016 fine texture
: Recessed
: 2-core connection cable
: Dali, SR or Zigbee driver
: Non-standard flange size on request
: Non-standard lumen output
: Special versions such as: HCL, Crisp White, Meat, Fish, or other specials
Radiation diagrams
Dimensions
L3-N Narrow Beam
L3-XN Extra Narrow Beam
Downlighters | spotlights

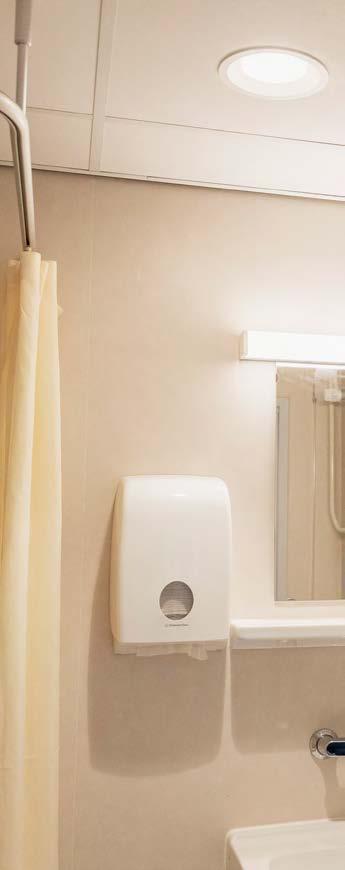

Downlighter Splash-proof
L3 IP44
The Loerakker L3-IP44 is a powerful, splash-proof downlighter with high-quality Philips Fortimo LEDs.
Downlighters | spotlights
Powerful splash-proof downlighter for demanding applications such as hospital wet rooms.
We have completely redesigned this downlight; the heat sink has also been newly developed.
Redesigned cooling system ensures long LED lifespan
After many simulations, a heat sink was created that dissipates heat from the LED in a built-in setting through natural airflow. This guarantees the lifespan of the LED.
Philips Fortimo LED range with programmable driver
For this fixture, too, we use the very high-quality Philips Fortimo LED range. Any Philips Fortimo LED can be used, from the special ‘Crisp White’ with an unparalleled white balance to a standard 830 or 840 version. We program the external Philips driver to the correct output and can supply it in various dimmable versions from DALI to 0-10V.
Downlighters | spotlights
Specifications
Type
Light source
: L3-IP44
: Philips Fortimo LED
Power : 5W to 30W
Beam angle
Luminous flux
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Ambient temperature
Operating temperature
Driver
Input voltage
Material
Colour
Installation
Connection
Options
Dimming
Flush mounting dimensions
Lumenoutput
LED
: XN: 8°, N: 15°, W: 32°, XW: 72°
: 800lm to 3.000lm
: 2700K, 3000K, 3500K, 4000K, 5000K
: >80 or >90
: >70.000 hours
: 50.000 hours
: +25°C
: -20°C to +25°C
: External Philips Xitanium
: 220-240VAC / 50-60Hz
: Housing: Aluminium
: Wit RAL9016 fine texture
: Recessed
: 2-core connection cable
: Dali, SR or Zigbee driver
: Non-standard flange size on request
: Non-standard lumen output
: Special versions such as: HCL, Crisp White, Meat, Fish, or other specials
L3-N Narrow Beam
L3-XN Extra Narrow Beam
Downlighters | spotlights
The round and square, compact LED recessed spotlights have been specially developed for use in Derako linear wooden ceilings.
Downlighters | spotlights

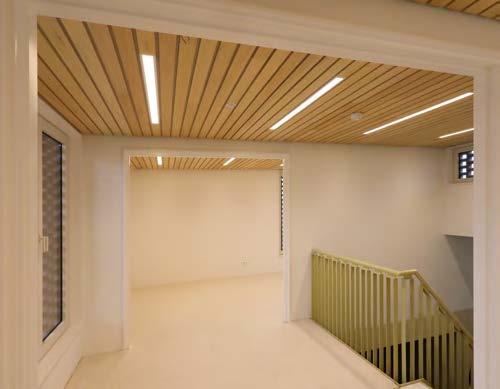

The L3-62-RI (round) and L3-62-SI (square) are compact LED recessed spotlights, specially developed for use in Derako linear wooden ceilings.
The L3-62-RI and L3-62-SI are the right choice when lighting needs to integrate into the ceiling design without compromising on light quality or appearance. Thanks to the minimalist design and limited installation dimensions, these fixtures fit seamlessly between the panels without disrupting the ceiling appearance.
Both versions combine a sleek design with functional light. The deep light source and reflector technology ensure low glare and controlled light beams, making the fixtures suitable for both general lighting and accent lighting.
The choice between round and square is purely aesthetic; technically, the fixtures are equivalent. This allows them to be easily combined within a single project.
Key features

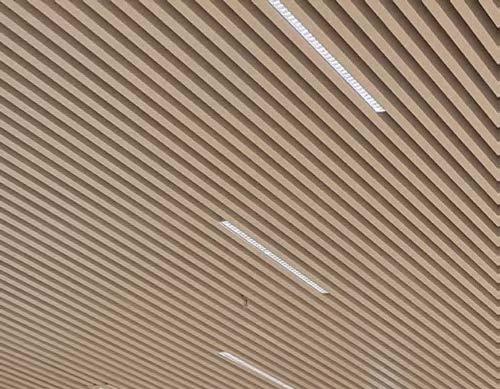

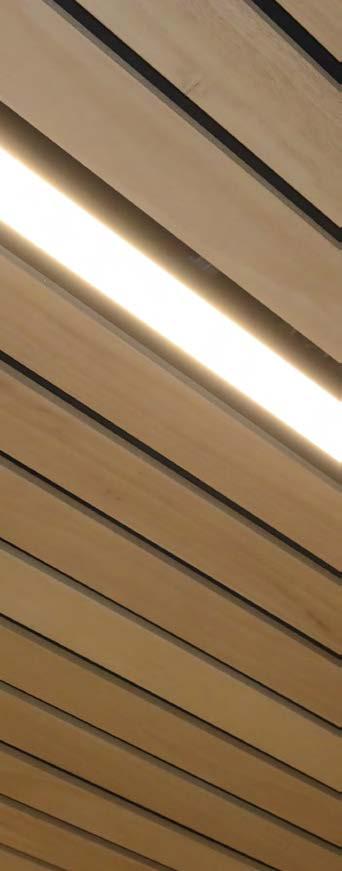

• Specially developed for Derako linear ceilings
• Available in round (RI) and square (SI)
• Compact installation dimensions, minimal visual impact
• Low glare due to recessed light source
• Suitable for accent and functional lighting
• Sleek finish in white (or other colors on request)
Applications
• Offices and meeting rooms
• Hospitality and retail
• Public buildings
• Architectural ceilings with wood panels
Downlighters | spotlights
Specifications
Type
: L3-62
Power : 8W
Luminous flux
Beam angle
Colour temperature
: 620lm
: 28°
: 3000K, 4000K
Colour rendering (Ra) : >90
UGR
Median useful life
L70B50
Median useful life
L70B10
Uitvalpercentage driver
Ambient temperature
Operating temperature
Driver
Input voltage
Material
Colour
Installation
Connection
Options
Dimming
: <19
: >70.000 hours
: 50.000
: 1% per 5.000 hours
: -20 tot 60°C
: -10 tot 45°C
: Philips Xitanium SELV
: 220-240VAC/ 50-60Hz
: Aluminium and poly carbonate
: 9016
: Recessed, plaster
: 3PW, 5PW, EUR
: Dali, Zigbee
Dimensions and Mounting options
L3-62-RI Recessed
L3-62-RS Plaster
L3-62-SI Recessed
L3-62-SS Plaster
Downlighters | spotlights
The L3-65 is a compact and versatile LED spotlight for projects where flexibility and aesthetics are desired. It is ideal when a single luminaire line needs to be deployed flexibly within a project, without compromising on design and light quality.
Downlighters | spotlights
Compact design spotlight with maximum flexibility
The L3-65 is a compact and versatile LED spotlight for projects where flexibility and aesthetics come together. With its cylindrical design and high-quality finish, this spotlight fits effortlessly into both modern and industrial interiors.
The fixture is based on a modular concept, allowing for various mounting options: recessed, surface-mounted, pendant, or track. This makes the L3-65 widely applicable within a single project, without compromising on uniformity of appearance.
With a powerful COB LED module, the L3-65 delivers high light quality (CRI 90) and a tight, controlled beam. A choice of different beam angles (including 26°, 32°, and 38°) makes the fixture suitable for both accent and general lighting.
The spotlight is available in multiple power levels and luminous fluxes (up to approx. 4000 lumens), allowing for easy matching to the application – from subtle accent lighting to powerful project lighting.
Key features
• Compact size (Ø65 mm)
• Modular system: one design, multiple applications
• High light quality (CRI 90)
• Choice of various beam angles
• Variably adjustable power
• Available with various dimming options (including DALI)
• Sleek finish in white, black, or aluminium
Applications
•Offices and meeting rooms
•Retail and showrooms
•Catering and hospitality
•Architectural projects
Mounting options
Downlighters | spotlights
Specifications
Type : L3-65
Light source : Luminus
Dimensions : ø65x130 (mm)
Power : 14W
Beam angle
Luminous flux
Colour temperature
: 38°
: 1870lm
: 3000K, 4000K
Colour rendering (Ra) : >90
UGR : <19
Median useful life
L70B50
Median useful life
L90B10
Ambient temperature
Operating temperature
Driver
Input voltage
: >70.000 hours
: 50.000 hours
: -20°C to +60°C
: -10°C to +45°C
: Philips Xitanium SELV
: 220-240VAC/ 50-60Hz
Material : Aluminium and polycarbonate
Colour : RAL9005, RAL9016
Installation
Connection
Options
Dimming
: Flush-mounted, surface-mounted, pendant, track
: 3PW, 5PW, EUR
: Dali, Zigbee
Dimensions and Mounting options
L3-65-TR Track mounted
L3-65-P Suspension
Ceiling mounted
L3-65-RP Track suspension
Recessed
Surface mounted
L3-65-WM Wall mounted
L3-65-INB
L3-65-PO
L3-65-OPB
Drivers for L3 and L13 Luminaires
For both the L3 and L13 luminaires, three driver options are available, each offering different input and output configurations as well as a range of connectivity possibilities. This provides installers with maximum flexibility and complete freedom of choice to suit a wide variety of installation requirements.
LDR-M-20W-C-3PW
LDR-M-20W-C-5PW
LDR-M-20W-C-EUR
LDR-M-36W-C-3PW
LDR-M-36W-C-5PW
LDR-M-36W-C-EUR
LDR-M-36W-MC-3PW
LDR-M-36W-MC-EUR
LDR-DS-20W-3PW
LDR-DS-20W-EUR
LDR-DS-30W-3PW
LDR-DS-30W-EUR
LDR-DS-40W-3PW
LDR-DS-40W-EUR
Driver configurations LDR-M
Driver configurations LDR-DS
Driver configurations LDR-WH
LDR-WH-20W-D-5PW
LDR-WH-20W-SR-3PW
LDR-WH-20W-SR-5PW
LDR-WH-20W-SR-EUR
LDR-WH-36W-D-5PW
LDR-WH-36W-3PW
LDR-WH-36W-5PW
LDR-WH-36W-EUR
LDR-WH-36W-SR-3PW
LDR-WH-36W-SR-5PW
LDR-WH-36W-SR-EUR
LDR-WH-50W-D-5PW
LDR-WH-50W-3PW
LDR-WH-50W-5PW
LDR-WH-50W-EUR
LDR-WH-50W-SR-3PW
LDR-WH-50W-SR-5PW
LDR-WH-50W-SR-EUR
LDR-WHD-20W
LDR-WHD-36W
LDR-WHD-50W
LDR-WHK-20W-D-5PW
LDR-WHK-20W-SR-3PW
LDR-WHK-20W-SR-5PW
LDR-WHK-20W-SR-EUR
LDR-WHK-36W-D-5PW
LDR-WHK-36W-3PW
LDR-WHK-36W-5PW
LDR-WHK-36W-EUR
LDR-WHK-36W-SR-3PW
LDR-WHK-36W-SR-5PW
LDR-WHK-36W-SR-EUR
LDR-WHK-50W-D-5PW
LDR-WHK-50W-3PW
LDR-WHK-50W-5PW
LDR-WHK-50W-EUR
LDR-WHK-50W-SR-3PW
LDR-WHK-50W-SR-5PW
LDR-WHK-50W-SR-EUR
Explanation of options:
D = Dali
SR = Sensor ready
MC = Zigbee MasterConnect
3PW = GSTi3
5PW = GSTi5
EUR = Euro plug
DS = DIP switch
Drivers for L3 and L13 Luminaires
Specifications LDR-M
MasterConnect (MC) Casambi
Manufacturer : Philips / Signify Philips / Signify
Type : Xitanium LED driver - Mini Xitanium LED driverWireless Casambi
Power : 6-36W 11-36W
Output current : 0,15-1,05 A (adjustable) 0,15-1,05 A (adjustable)
Output voltage : 24-48V DC 24-54V DC
Maximum output voltage : 60V 60V
Dimming : Wireless (Zigbee / BLE) Wireless (Casambi BLE)
Dimming range : 1-100% 1-100%
Input voltage : 220-240 V AC, 50/60 Hz 220-240 V AC, 50/60 Hz
Efficiency : >88% >90%
Power factor : 20,90 ≥0,90
Isolation : SELV SELV
IP-class : IP20 IP20
Lifespan : 50.000 uur 50.000 hours
Operating temperature : -25... +50 °C -20 ... +50 °C
Dimensions (L×W×H) : 97,2 × 43 × 30 mm 97,2 × 43 × 30 mm
Weight : 88 g 115 g
Installation : Built-in / Independent Built-in / Independent
Application : Indoor, connected lighting Indoor (retail, office, hospitality)
Certification : CE, ENEC, SELV, Zigbee/BLE CE, ENEC, SELV, Casambi
Specifications LDR-WH
Manufacturer : Philips / Signify
Type : Xitanium LED driver
Power : 20, 36, 50W
Output current : 0,15-1,05 A (adjustable)
Output voltage : 24–54V DC
Maximum output voltage : 60 V
Dimming : Not dimmable (fixed output)
Input voltage : 220–240V AC, 50/60 Hz
Efficiency : >89%
Power factor : ≥0,90
Isolation : SELV
IP-class : IP20
Lifespan : 50.000 hours
Operating temperature : −20 … +50 °C
Dimensions (L×W×H) : 200 × 75 × 32 mm
Weight : 217 g
Application : Indoor, spot & downlight
Certification : CE, ENEC, SELV
Specifications LDR-DS
Manufacturer : Philips / Signify
Type : Xitanium LED driver
Power : 20, 30, 40W
Output current : Adjustable via DIP-switch
Output voltage : 30-42V DC
Maximum output voltage : 60V
Dimming : Not dimmable (fixed output)
Input voltage : 220–240V AC, 50/60 Hz
Efficiency : >85%
Power factor : ≥0,93
Isolation : SELV
IP-class : IP20
Lifespan : 50.000 hours
Operating temperature : −20 … +50 °C
Dimensions (L×W×H) : 141 × 43 × 29 mm
Weight : 88 g
Application : Indoor, spot & downlight
Certification : CE, ENEC, SELV

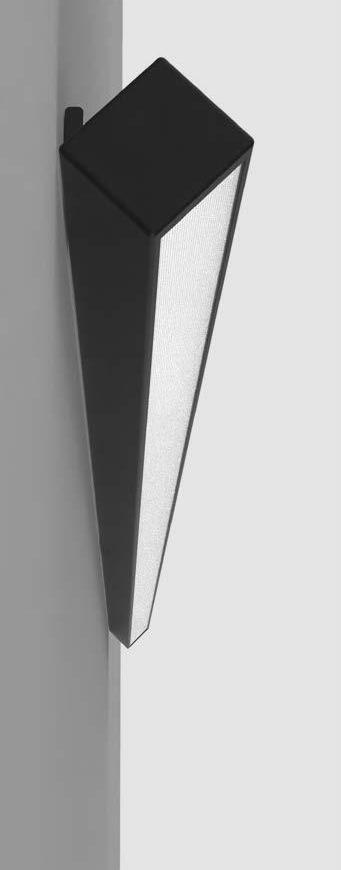

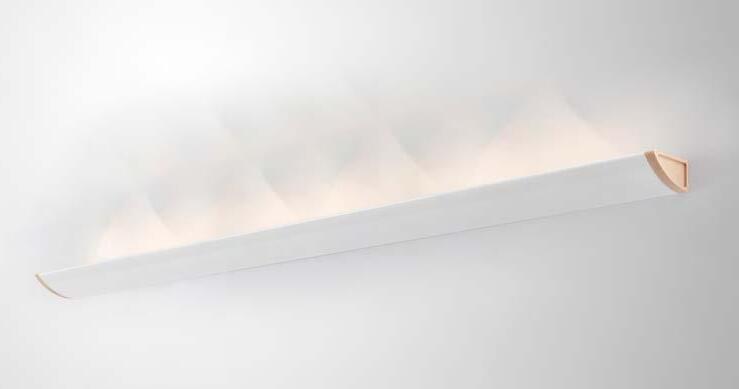

Indirect light
By popular demand: a wall luminaire matching the successful L1. The L4 also features high-quality Philips LEDs, can be fully customized in your own color and signature, and offers Surround Light as standard. This means that with these luminaires, you approximate daylight conditions as closely as possible.
Wall Luminaires
A particularly stylish and efficient lighting solution for a wide variety of applications and spaces. Wall luminaire matching the L1. Fully customisable and equipped with Surround Light. Asymmetrical light distribution ensures efficient ceiling illumination with minimal wall reflection. Available in custom lengths (60–600 cm). Output depends on length (15W–150W). Colour temperatures from 2700K to 6500K.
Indirect wall lighting
With the L4, the asymmetrical light output ensures good light distribution across the ceiling so that little light is lost to unnecessary reflections against the wall.
Wall mounting is simple: depending on the length, you can screw two or three stainless steel mounting clips to the wall onto which you ‘click’ the fixture.
Fits in every room
Comfortable light, minimalist design, and sustainably innovative; the Loerakker LED line has it all. But perhaps most importantly: every fixture is custom-made as standard and therefore exactly what you need. You have a standard choice of fixture color, length (up to 250 cm), color temperature, and wattage. If you opt for an authentic look, there are wooden end cap accents, or choose your own RAL color and make the lighting an integrated part of the interior.
Furthermore, there are extra features that you can choose optionally. The Loerakker LED line is assembled in the Netherlands with a delivery time of 2 to 3 weeks within the standard options.
Wall Luminaires
Full choice of length
Choose a standard length (120 cm, 150 cm, 200 cm, and 250 cm) or any other length between 60 cm and 600 cm. The latter is also possible, but requires custom work and a slightly longer delivery time. If you require something outside the standard options, please contact us.
Appropriate power
The power (and light output) depends on the length you choose. For a length of 120 cm, you have the choice of 30W or 60W. For 150 cm, 37.5W or 75W. For 200 cm, 45W and 90W. For 250 cm, there is a choice of 60W or 120W. For 300 cm, 75W or 150W.
Choose the light color
A matter of taste and application. 3,000K is warmer, for a comfortable and calm appearance. 4,000K is a bit cooler, for a more energetic look.
Extra features
Dynamic lighting
The Loerakker LED line is equipped with dual LEDs, which stimulate the natural day-night rhythm. You become less fatigued, suffer less from jet lag, and are more productive. Sounds good, but let us convince you: we can demonstrate the difference effectively in our lighting studio in Amersfoort.
Dimming
With a dimmer switch, you can regulate the power above your desk or work table. This is especially pleasant given the changeable weather in our country.
Get to know Surround Light
Familiar with Dolby Surround? The Loerakker LED line offers a similar experience, but in the realm of lighting. A unique experience for everyone who works in it. Whether you sit behind a screen all day, in a meeting, or behind the counter. You simply work more comfortably, experience less fatigue and benefit more from your natural day and night rhythm. Discover all the benefits of Surround Light here.
Plenty of possibilities
Production is sustainable. Just like the product itself, made of aluminum, glass, and wood, this product can be used in a circular manner. Various options are available, such as DALI or dimmable, a built-in wireless sensor, or the Human Centric Lighting version. Because every fixture is produced in the Netherlands (Amersfoort), the possibilities are endless—in consultation.
Advantages
• Indirect light: high comfort and productivity
•Flicker-free lighting
•Long lifespan
•Customisation possible
•Fast delivery
•Produced in the Netherlands
•10-year warranty
Wall Luminaires
Specifications
Type : L4
Light source
Power
: Philips Fortimo Led Strip HV6F
: 0,6m: 15W - 30W
: 1,2m: 30W - 60W
: 2m: 45W - 90W
: 2,5m: 60W - 120W
Beam angle : 120°
Luminous flux
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
: 0,6m: 2.200lm - 4400lm
: 1,2m: 4.400lm - 8000lm
: 2m: 6.600lm - 12.000lm
: 2,5m: 8.800lm - 16.000
: 2700K, 3000K, 4000K, 5000K, 6500K
: >80 or >90
: >100.000 hours
: 65.000 hours
: 10% per 100.000 hours
Driver : Philips Xitanium
Input voltage
Material
Colour
: 220-240VAC / 50-60Hz
: Control unit: sheet steel
: Housing: Aluminium
: Cover: Plastic
: End cap: Solid wood
: White (RAL9016) or Silver grey (RAL9006)
fine texture
End cap finish : Oak or colour-matched
Installation
Options
: Spring clips for wall mounting
Dimming : Dali or Zigbee
Colour finish
End cap finish
Mounting
: RAL colour or anodized finish
: Maranti, Walnut, Cherry, Bamboo, etc.
: Additional mounting bracket
L4 Mounting Bracket 450x40mm
Zinc-coated mounting bracket for the L4 indirect wall luminaires. Using this bracket, the luminaires are positioned 4 cm away from the wall, improving light distribution across both wall and ceiling. Knock-out openings are available on each side of the box for cable entry. Suitable for every L4 length.
Pendant luminaires
Pendant luminaire with direct and indirect light
An ideal luminaire for the stylish office where healthy, refined light is appreciated. The L7 features high-quality Philips LEDs, is fully customisable in your own colour and signature and, in addition to standard Surround Light, also provides direct illumination.
Direct and indirect light
Pendant luminaires

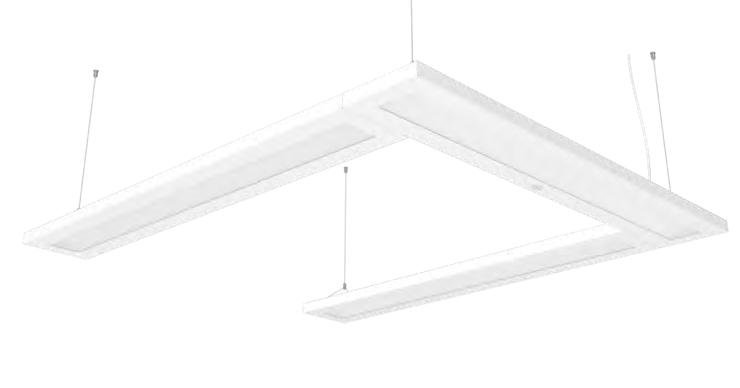

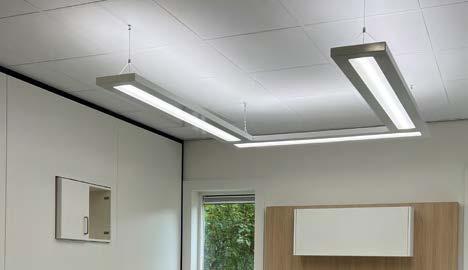

L7 PENDANT LUMINAIRE
COMBINATION WITH SURROUND LIGHT
The most advanced luminaire in the led line series. The starting points during development were stylish design and high-end quality, both in light experience and lifespan. The L7 offers the best of two worlds: indirect light combined with direct illumination.
Specially developed diffusers create a soft, homogeneous line of light that spreads across the work surface. At the top, two LED boards with synthetic shielding illuminate the ceiling, resulting in a beautiful homogeneous light distribution. The luminaire is made of aluminium and can be anodised or coated in any RAL colour. With a height of approximately 4 cm, it is subtle yet powerful in any space.
Smart extrusion profiles
The luminaire consists of two precisely engineered extrusion profiles with a clean rounded shape. These are connected using stainless steel connectors. Folded aluminium plates seal the top and bottom and also serve as LED holders. The drivers are integrated into the curvature of the extrusion profiles. Everything fits with precision down to a tenth of a millimetre. The sleek lines combined with wooden finishing create a striking feature in any interior.
Pendant luminaires
Pleasant light experience
The L7 delivers 70% indirect and 30% direct light as standard, though this ratio can be variably adjusted. The indirect LEDs are positioned to provide a wider beam angle, allowing suspension at 16 cm below the ceiling instead of the standard 50 cm. This is particularly beneficial in rooms with lower ceilings.
The direct light is shielded by a high-quality prismatic diffuser, ensuring even distribution while remaining comfortable to the eye. This luminaire can also be equipped with advanced wireless sensors. DALI and Zigbee drivers and sensors are available, as well as Human Centric Lighting.
Tip: The luminaires can be connected to form continuous light lines.
Get to know Surround Light
Familiar with Dolby Surround? The Loerakker LED line offers a similar experience, but in the realm of lighting. A unique experience for everyone who works in it. Whether you sit behind a screen all day, in a meeting, or behind the counter. You simply work more comfortably, experience less fatigue and benefit more from your natural day and night rhythm. Discover all the benefits of Surround Light here
Extensive possibilities
Production of the Loerakker led line is sustainable, just like the product itself. Made of aluminium, this luminaire can be used circularly. Various options are available such as DALI or Zigbee dimming, built-in wireless sensor or Human Centric Lighting.
Because each luminaire is produced in the Netherlands (Amersfoort), possibilities are endless and delivery times remain clear and manageable.
Advantages
•Indirect light: High comfort, higher productivity
•Flicker-free lighting
•Long lifetime
•Customization available
•Fast delivery
•Produced in the Netherlands
•100% sustainable
Pendant luminaires
Specifications
Type : L7
Light source
Power
Beam angle
Luminous flux
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
Driver
Input voltage
Material
Colour
Installation
Connection
Options
Dimming
Human Centric Lighting
Colour finish
Variable intensity
Sensor
: Philips Fortimo Led Strip HV6F
: 1,2m: 20W - 56W
: 1,5m: 25W - 70W
: 120° or Wide Beam: 175°
: 1,2m: 3420lm - 7570lm
: 1,5m: 4275lm - 9463lm
: 2700K, 3000K, 4000K, 5000K of 6500K
: >80 or >90
: >100.000 hours
: >68.000 hours
: 10% per 100.000 hours
: Philips Xitanium
: 220-240VAC / 50-60Hz
: Control unit: sheet steel
: Housing: Aluminium
: Cover: Acrylic
: End cap: Solid wood or solid aluminium
: White (RAL9016) or Silver grey (RAL9006)
fine texture
: Two suspension sets, 1.5m length
: 3-core connection transparent cable
: Dali, Zigbee dimmable or sensor
: Dynamic white 2700K to 6500K
: RAL colour or special metal (see page 244)
: Adjustable direct/indirect ratio
: Daylight control
: Motion detection
: Dimmable via wall dimmer
: Group programming via Zigbee
TypeA [mm] B [mm] L7-150-W1500
Direct and indirect light
Pendant luminaire with direct and indirect light
This is the most versatile luminaire on the market. Suspended, wallmounted or integrated into a cove. The dimensions are subtle at 3x3cm combined with an impressive amount of light. The L9 features high-quality Philips LEDs, is fully customisable in your own colour and signature and provides both Surround Light and direct illumination.
L9-P PENDANT LUMINAIRE
COMBINATION WITH SURROUND LIGHT
Indirect light combined with direct illumination. Suspended, wall-mounted or integrated into a cove. The specially developed diffusers create a soft homogeneous light line that distributes light beautifully across the work surface.
LED boards at the top with synthetic shielding illuminate the ceiling, ensuring a balanced light distribution. The luminaire is manufactured from aluminium and available clear or black anodised. Precisely milled end caps ensure a premium finish. Available as pendant (L9-P) or wall-mounted (L9-K).
Get to know Surround Light
Familiar with Dolby Surround? The Loerakker LED line offers a similar experience, but in the realm of lighting. A unique experience for everyone who works in it. Whether you sit behind a screen all day, in a meeting, or behind the counter. You simply work more comfortably, experience less fatigue and benefit more from your natural day and night rhythm. Discover all the benefits of Surround Light here
Pendant luminaires
Extensive possibilities
Sustainable production and aluminium construction allow circular deployment. Options include DALI or Zigbee dimming, built-in wireless sensor or Human Centric Lighting. Luminaires can be linked into continuous light lines.
Advantages
• Flicker-free lighting
• Long lifespan
• Customisation possible
• Fast delivery
• High comfort, higher productivity
• Produced in the Netherlands
• Overnight installation (no disruption)
• 100% sustainable
• 10-year warranty
Pendant luminaires
Specifications
Type
: L9-Pendant
Light source : Philips Fortimo LEDstrip 1R LV
Power
Beam angle
Luminous flux
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
Ambient temperature
Operating temperature
: 20W to 150W
: 120° Direct, 180° indirect
: 2200lm to 20.000lm
: 2700K, 3000K, 4000K, 5000K or 6500K
: >80 or >90
: >80.000 hours
: 50.000 hours
: 1% per 5.000 hours
: +25°C
: -20°C to +25°C
Driver : External Philips Xitanium
Input voltage
Material
Colour
Installation
Connection
Options
Dimming
Length
Colour finish
Radiation diagrams Direct/Indirect,
: 220-240VAC / 50-60Hz
: Housing: Aluminium
: Cover: Plastic
: Clear or black anodised
: Two or three suspension sets 1.5m length
: 2-core connection cable transparent
: Dali or Zigbee
: Custom lengths on request
: RAL colour or special metal (see page 244)
Direct and indirect light
This is the most versatile luminaire on the market. Indirect light combined with direct illumination. Suspended, wall-mounted or integrated into a cove. With its subtle 3x3cm dimensions combined with impressive light output, a compact powerhouse!

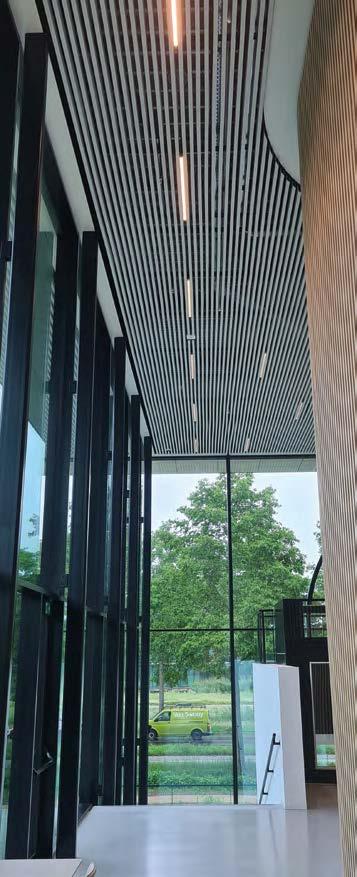

L9-K COVE LUMINAIRE COMBINATION WITH SURROUND LIGHT
Homogeneous light distribution
Specially developed diffusers create a soft homogeneous light line that distributes light across the work surface. LED boards at the top illuminate the ceiling, ensuring balanced light distribution.
High-quality finishing
Manufactured from aluminium and available clear or black anodised. Precisely milled end caps provide a premium finish. Available as pendant (L9-P), wall-mounted (L9-K) and Trackrail version. The base with integrated driver is Philips branded and can be set to various light outputs.
Get to know Surround Light
Familiar with Dolby Surround? The Loerakker LED line offers a similar experience, but in the realm of lighting. A unique experience for everyone who works in it. Whether you sit behind a screen all day, in a meeting, or behind the counter. You simply work more comfortably, experience less fatigue and benefit more from your natural day and night rhythm. Discover all the benefits of Surround Light here
Sustainable production
Sustainable production and aluminium construction allow circular deployment. Options include DALI or 0-10V dimming, built-in wireless sensor or Human Centric Lighting.
Specifications
Type
: L9-Cove
Light source : Philips Fortimo LEDstrip 1R LV
Power
Beam angle
Luminous flux
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
Ambient temperature
Operating temperature
: 20W to 100W
: 120° Direct
: 2200lm to 10.000lm
: 2700K, 3000K, 4000K, 5000K or 6500K
: >80 or >90
: >80.000 hours
: 50.000 hours
: 1% per 5.000 hours
: +25°C
: -20°C to +25°C
Driver : External Philips Xitanium
Input voltage
Material
Colour
Installation
Connection
Options
Dimming : Dali or Zigbee
Length : Custom lengths on request
: 220-240VAC / 50-60Hz
: Housing: Aluminium
: Cover: Plastic
: Clear or black anodised
: Hinge, bracket or clip
: 2-core connection cable
Colour finish : RAL colour or special metal (see page 244)
Mounting options
Hinge connection. Snap connection. Screw connection. “snap”
Pendant luminaires
This luminaire has been specially developed to enable indirect lighting with low ceilings. Versatile and suitable for illuminating showroom displays. Surround Light in a compact format.
Pendant luminaires
L10 LUMINAIRE FOR LOW CEILINGS WITH SURROUND LIGHT
Elegant light lines
Ideal for enabling indirect lighting in rooms with low ceilings. The specially developed lens creates a soft homogeneous light line that distributes light beautifully across the work surface. The luminaire can also be used, for example, to illuminate showroom displays. Surround Light in a compact format. The luminaire is manufactured from aluminium and available clear or black anodised.
Get to know Surround Light
Familiar with Dolby Surround? The Loerakker LED line offers a similar experience, but in the realm of lighting. A unique experience for everyone who works in it. Whether you sit behind a screen all day, in a meeting, or behind the counter. You simply work more comfortably, experience less fatigue and benefit more from your natural day and night rhythm. Discover all the benefits of Surround Light here.
Production is sustainable. Just like the product itself, made of aluminium, glass and wood, this product can be deployed circularly. Various options are available
Pendant luminaires
such as DALI or Zigbee dimming, or the Human Centric Lighting version. Because each luminaire is produced in the Netherlands (Amersfoort), the possibilities are endless in consultation.
Advantages
• Flicker-free lighting
• Long lifespan
• Customisation possible
• Fast delivery
• High comfort, higher productivity
• Produced in the Netherlands
• Overnight installation (no disruption)
• 100% sustainable
• 10-year warranty
Pendant luminaires
Specifications
Type : L10
Light source
Power
Beam angle
Luminous flux
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
Driver
Input voltage
Material
Colour
Installation
Connection
Options
Length
Light intensity
: Philips Fortimo Led Strip LV6F
: 1168mm: 19W
: 1448mm: 24W
: 1728mm: 28,5W
: 2008mm: 33W
: 2288mm: 41,2W
: 120° or Wide Beam: 175°
: 1168mm: 2500lm
: 1448mm: 3200lm
: 1728mm: 3750lm
: 2008mm: 4375lm
: 2288mm: 5000lm
: 2700K, 3000K, 4000K, 5000K or 6500K
: >80 or >90
: >100.000 hours
: >68.000 hours
: 10% per 100.000 hours
: External Philips Xitanium
: 220-240VAC / 50-60Hz
: Housing: Aluminium
: Cover: Acrylic
: Clear or black anodised
: Two suspension sets, 1.5m length
: 2-core connection cable transparent
: Custom lengths on request
: HO High Output
Direct and indirect light
L11
Sleek and effective, that best describes the Loerakker Led Line 11. Robust and to the point. The steel housing is solid and strong and the aluminium interior ensures proper heat dissipation. The prismatic diffuser on the visible side ensures minimal glare (UGR<19).

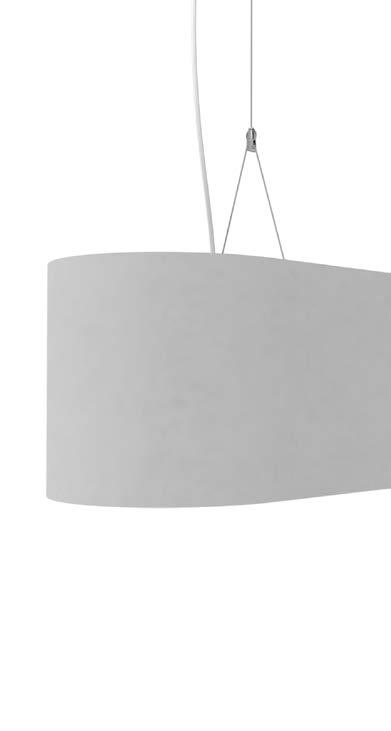

L11 PENDANT LUMINAIRE WITH SURROUND LIGHT
Customisation
The housing can be powder-coated in any desired colour. Check the additional options in the specifications. The luminaire is available as a single unit but can also be linked as a continuous line luminaire. This offers various custom solutions for practices, for example, where lighting is crucial for service delivery, such as dental or beauty treatments. Customisation and short delivery times: because the Loerakker led line is manufactured in the Netherlands, delivery times are clear and manageable.
Get to know Surround Light
Familiar with Dolby Surround? The Loerakker LED line offers a similar experience, but in the realm of lighting. A unique experience for everyone who works in it. Whether you sit behind a screen all day, in a meeting, or behind the counter. You simply work more comfortably, experience less fatigue and benefit more from your natural day and night rhythm. Discover all the benefits of Surround Light here.
Pendant luminaires
Sustainable
Production is sustainable. Just like the product itself, made of aluminium, glass and wood, this product can be deployed circularly. Various options are available such as DALI or Zigbee dimming, built-in wireless sensor or the Human Centric Lighting version. Because each luminaire is produced in the Netherlands (Amersfoort), the possibilities are endless in consultation.
Advantages
• Flicker-free lighting
• Long lifespan
• Customisation possible
• Fast delivery
• High comfort, higher productivity
• Produced in the Netherlands
• Overnight installation (no disruption)
• 100% sustainable
• 10-year warranty
Pendant luminaires
Specifications
Type : L11
Light source : Philips Fortimo Led Strip HV6F
Power
Luminous flux
Colour temperature
L11-M: 34W, HO: 69W, HO2: 115W
L11-L: 68W, HO: 138W, HO2: 230W
L11-U: 102W, HO: 207, HO2: 345W
L11-M: 4940lm, HO: 9880lm, HO2: 12.237lm
L11-L: 9880lm, HO: 19.760lm, HO2: 24.474lm
L11-U: 14.820lm, HO: 29.640, HO2: 36.711lm
: 3000K, 4000K, 5000K or 6500K
Colour rendering (Ra) : >80 or >94
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
Ambient temperature
Operating temperature
: >80.000 hours
: >50.000 hours
: 1% per 5.000 hours
: +25°C
: -20°C to +25°C
Driver : Integrated Philips Xitanium
Input voltage
Material
: 220-240VAC / 50-60Hz
: Housing: Steel
: Interior: Aluminium
: Cover: Plastic
Colour : RAL9016 fine texture
Installation
Connection
Options
Dimming
: Suspension sets 1.5m length
: 3-core connection cable
: Dali or Zigbee
Sensor : Wireless Zigbee sensor
LichtColour
Housing colour
Human Centric Lighting
Connection cable
: Alternative light colours
: RAL colour, textured or matt
: Adjustable dynamic white
: Wieland

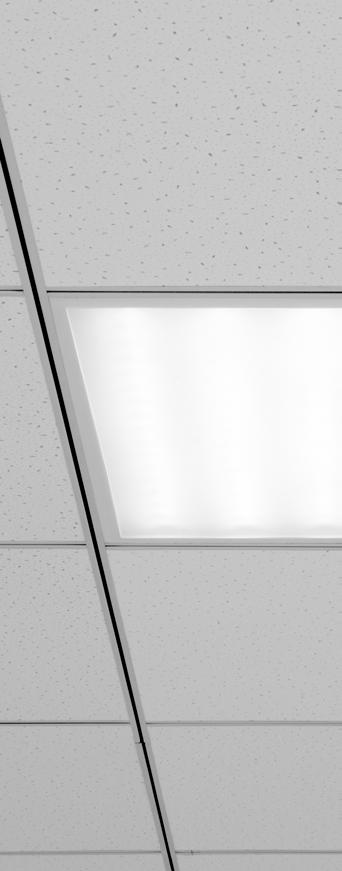

Recessed luminaires

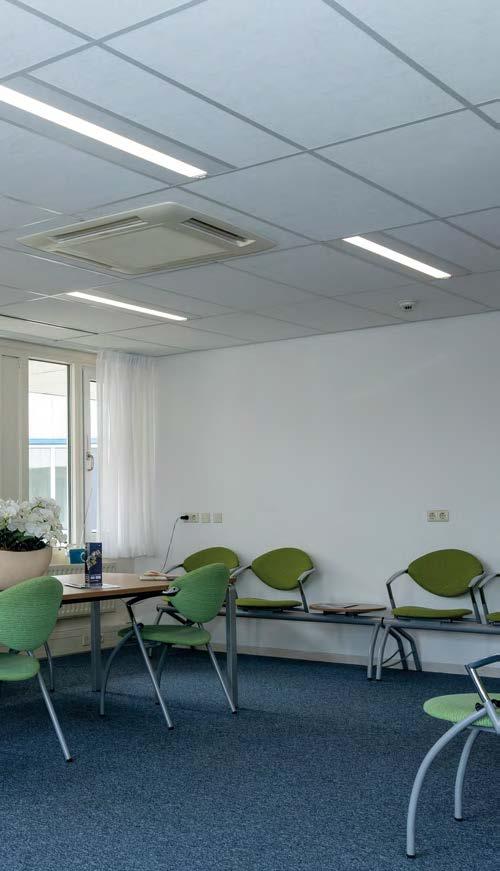

Recessed luminaire for suspended ceilings
The Loerakker led line features high-quality Philips LEDs and drivers. The solid folded sheet metal ensures a sturdy construction. The special prismatic plastic diffuser completes this product.
L12-R is a high-quality LED panel featuring integrated louver optics, a modern alternative to traditional louvre luminaires.

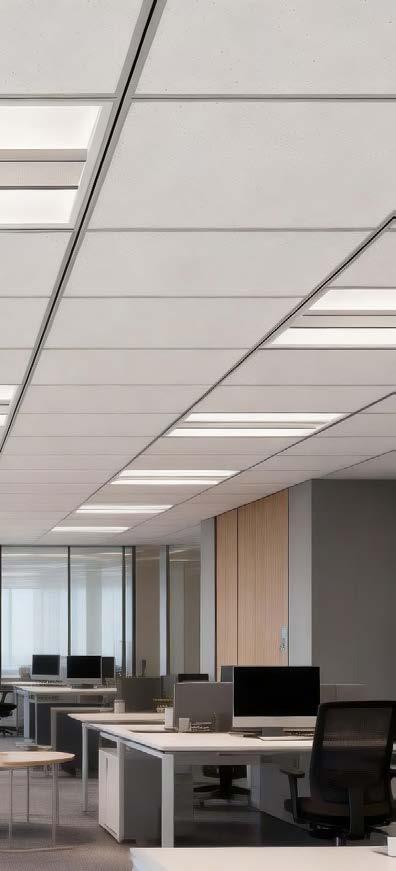

L12 System and bandraster ceilings

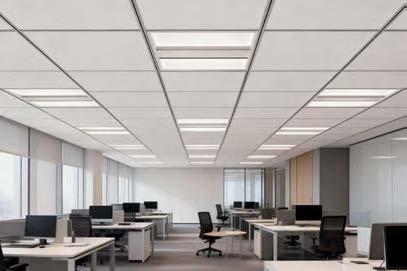

Recessed luminaires

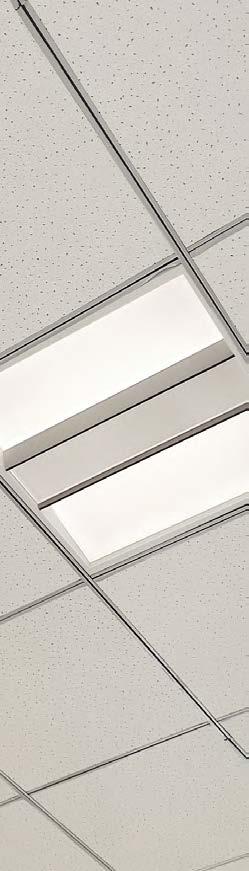

L12 LUMINAIRE FOR SYSTEM AND BANDRASTER CEILINGS
The L12 luminaires are standard recessed luminaires for suspended ceilings. Loerakker led line offers both a 60 x 60 cm and a 30 x 120 cm version. The metal housings are solid and strong. The special prismatic plastic light panels ensure low brightness in the visible surface. The Philips Fortimo LED boards used can be set to different power levels so that light output never becomes an issue.
Wireless sensors
These luminaires can be equipped with wireless sensors that can easily be dimmed using a separately available wireless dimmer. Daylight control and motion detection can therefore be easily integrated into a solid lighting solution without the need for additional cabling.
Clean appearance
The special LED colour prismatic plastic plates ensure an unrivalled lm/W ratio and a clean appearance. The L12 is standard white (RAL9016 fine texture). The exterior can be supplied in any RAL colour as desired. The Loerakker led line is manufactured in the Netherlands, ensuring clear delivery times.
Recessed luminaires
Advantages
• 152lm/W
• Flicker-free lighting
• Long lifespan >100,000 hours
• Customisation possible
• Fast delivery
• High comfort, higher productivity
• Produced in the Netherlands
• 10-year warranty
Recessed luminaires

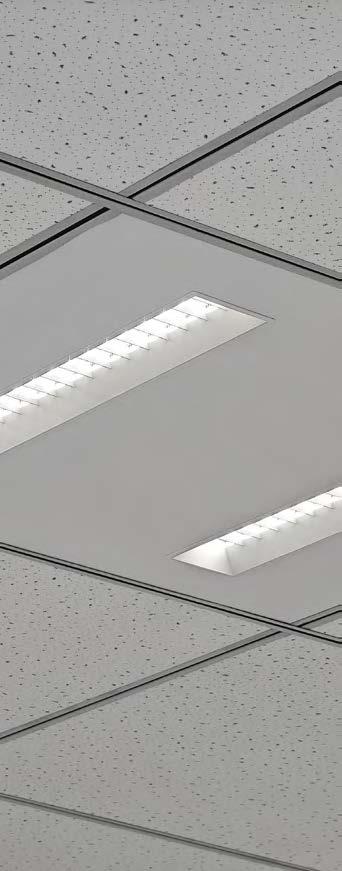

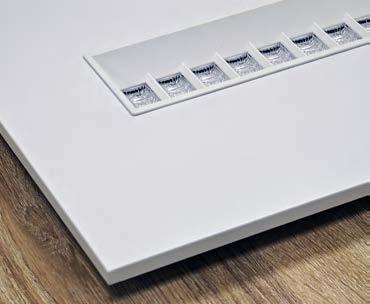

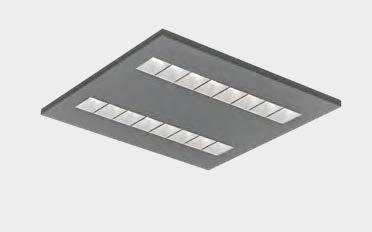

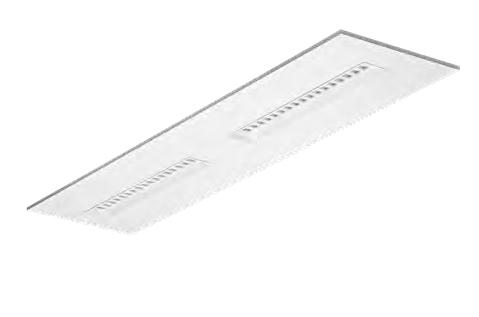

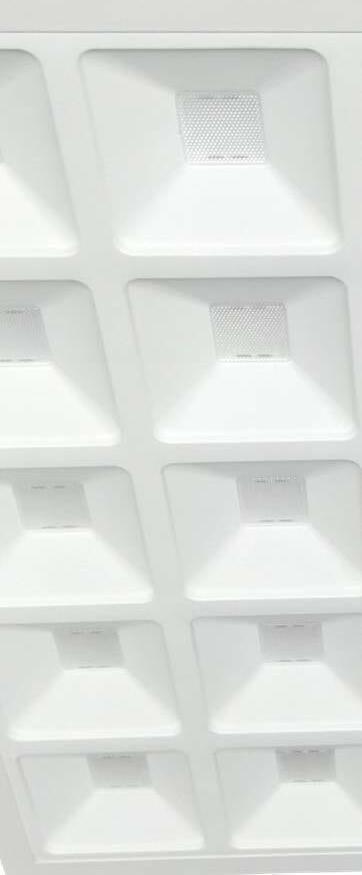

L12-R – LOUVER LED PANEL WITH
LOW GLARE AND
CLEAN LIGHT DISTRIBUTION
The L12-R is a high-quality LED panel featuring integrated louver optics, developed as a modern alternative to traditional louvre luminaires.
By combining a grille structure with microlens technology, glare is effectively reduced (UGR <19), while light is distributed in a controlled and comfortable manner throughout the space.
Compared to standard LED panels, the L12-R delivers a cleaner and more uniform light appearance, offering greater control over light output and minimal visibility into the light source. This results in a refined aesthetic and optimal visual comfort— essential in environments where lighting quality matters.
The L12-R is available in two formats:
• L12-R 6060 – standard size for modular ceilings
• L12-R 30120 – linear version for a more uniform ceiling appearance
With an efficiency of up to 120 lm/W and a wide beam angle (±80°), this luminaire combines performance with visual comfort.
Key Features
• Louver + microlens optics for low glare (UGR <19)
•Clean and controlled light distribution
•Efficiency up to approx. 120 lm/W
•CRI 80
•Flicker-free
•IP54 rated on the visible side
•Lifetime up to 50,000+ hours
• Suitable for 600×600 and 300×1200 modular ceilings
Applications
•Offices and screen-based workspaces
•Educational environments
•Retail
•General commercial and public buildings
The L12-R is the ideal choice when standard LED panels are too diffuse and greater control over glare and light distribution is required. A contemporary replacement for traditional louvre luminaires—more efficient, more comfortable, and visually refined.
Recessed luminaires
Specifications
Type : L12
Light source
: Philips Fortimo Led Strip HV6F
Power : 16W, HO: 32W
Beam angle : 120°
Luminous flux
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
Ambient temperature
Operating temperature
: 2437lm to 4874lm
: 2700K, 3000K, 4000K, 5000K or 6500K
: >80 or >90
: >100.000 hours
: 77.000 hours
: 10% > 100.000 hours
: +25°C
: -20°C to +25°C
Driver : Philips Xitanium
Input voltage
Material
Colour
Installation
Connection
Options
Dimming
HCL
Connection
Sensor
Extraction
Colour
OK version
: 220-240VAC / 50-60Hz
: Housing: steel, Diffuser Polycarbonaat
: White RAL9016 Fine texture
: Recessed or bandraster
: 3-core connection cable, Linect Wago, or Linect Wieland or different
: Dali or Zigbee
: Dynamic white 2700K - 6500K
: Wieland connection or different
: Daylight control
: Motion detection
: Dimmable via wall dimmer
: Group programming via Zigbee
: Plenum slots at no extra cost
: RAL Colour
: Green/White LED in combination with DALI
LED panel
Recessed luminaire for suspended ceiling flatpanel
The Loerakker flatpanel features high-quality Philips LEDs and driver. The solid aluminium extrusion frame ensures a sturdy construction. The special plastic diffuser completes this product.
L13 Suspended ceiling
LED panel
The Loerakker flatpanel luminaires are standard recessed luminaires for suspended ceilings but can also be used as pendant and surface-mounted luminaires. The aluminium housings are solid and strong. The special prismatic diffuser ensures low brightness in the visible surface (UGR<19). The Philips Fortimo LEDs used can be set to different power levels so that light output never becomes an issue.
The special prismatic LED plastic ensures an unrivalled lm/W ratio and an attractive appearance. The Loerakker flatpanel is standard white (RAL9010).
Advantages
•Flicker-free lighting
•Long lifespan
•UGR<19
•105lm/W
•High comfort, higher productivity
•Produced in the Netherlands
•5-year warranty
Specifications
Type : L13
Light source
: Philips Fortimo LED
Power : 23W, HO: 28W
Beam angle : 120°
Luminous flux
Colour temperature
: 2653lm, HO: 3380lm
: 3000K, 4000K, 6500K
Colour rendering (Ra) : >80
UGR
Median useful life
L70B50
Median useful life
L70B10
Driver failure rate
Ambient temperature
Operating temperature
Driver
Input voltage
Material
Colour
Installation
Connection
Options
Dimming
HO
Connection

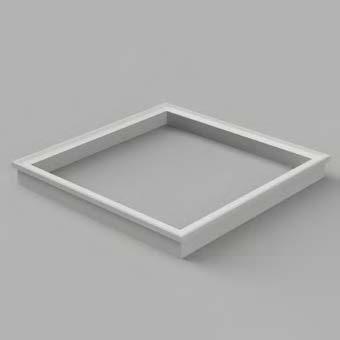

Surface-mounted frame
Suspension sets
: <19
: >70.000 hours
: 50.000 hours
: 1% per 5.000 hours
: -20 to 60°C
: -10°C to +45°C
: Philips Xitanium SELV
: 220-240VAC / 50-60Hz
: Housing: aluminium, Diffuser Polycarbonate
: White RAL9010
: Recessed suspended ceilings
: 3-core connection cable
: Dali or Zigbee
: High Output version
: Wieland connection
LoerakkerLightingbv Stettinweg7 3825PLAmersfoort 0334766445 info@loerakkerledline.nl
Maarten Loerakker
Loerakker Flat pane
Maarten Loerakker
L13 TROFFER RECESS LUMINAIRE
Efficient basic lighting for suspended ceilings
The L13-Troffer is a functional LED recessed luminaire for suspended ceilings, developed for uniform and comfortable basic lighting. The luminaire combines a sleek, timeless design with high light output and low glare, making it suitable for intensive daily use.
Thanks to its wide light distribution, the L13-Troffer ensures even lighting without shadows or distracting contrasts. This makes the luminaire ideal for offices, educational institutions, healthcare facilities, and commercial spaces where reliability and visual comfort are paramount.
The L13-Troffer is designed as a practical alternative to traditional fluorescent luminaires and integrates seamlessly into standard suspended ceilings. Installation is simple and maintenance-free, making the luminaire suitable for both new construction and renovation projects.
Benefits
•Efficient and uniform basic lighting
•Low glare, suitable for screen work
•Sleek and timeless design
• Replacement for traditional fluorescent
fixtures
• Suitable for office, healthcare, and education
•Easy installation in suspended ceilings
The L13-Troffer is the right choice when functionality, reliability, and cost control are the focus of the lighting plan.
HONEYCOMB RECESSED
LUMINAIRES FOR SUSPENDED CEILINGS: very low glare (UGR<15)
The Loerakker flat panel luminaires with HoneyComb shielding offer the same flexibility and ease of installation as standard recessed luminaires for suspended ceilings, but with very low brightness. As a result, the glare value in an average light calculation often comes out very low (UGR<15). The aluminium housings are robust and strong. Because we can configure the supplied Philips Xitanium LED driver during production to different current strengths, the amount of light need never be a problem.
The special prismatic LED plastic ensures an unparalleled lm/W ratio and an attractive appearance. The Loerakker flat panel is available in white (RAL 9010) as standard.
Benefits
•Flicker-free lighting
•Long lifespan
•UGR<15
•115lm/W
•High comfort, higher productivity
•Manufactured in the Netherlands
• Overnight assembly and installation (no nuisance)
•5-year warranty

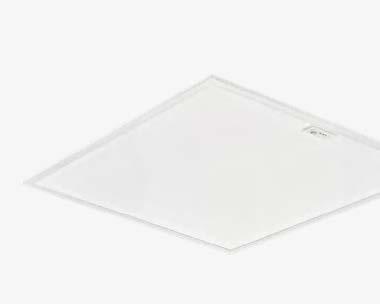

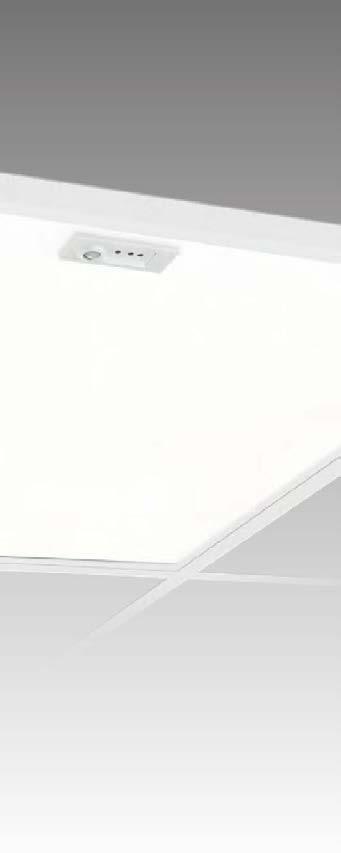

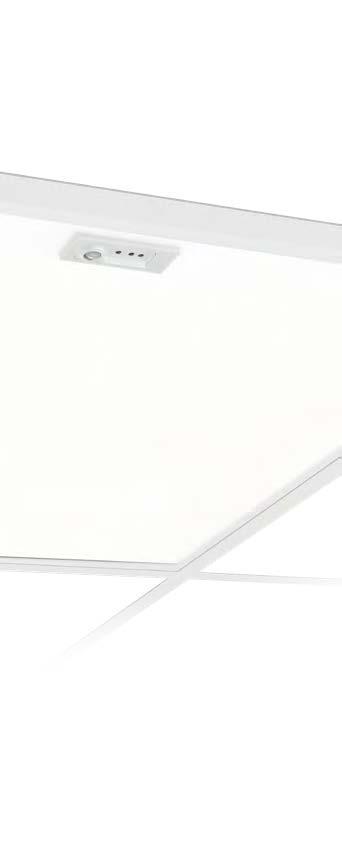

SMART LED PANEL RECESSED LUMINAIRE FOR SUSPENDED CEILINGS
L13-Smart – Smart and efficient office lighting
The L13-Smart is a high-quality LED recessed luminaire for suspended ceilings, developed for modern office and non-residential environments where energy efficiency, light quality, and smart control are central.
This luminaire is built around Signify Fortimo LED technology and delivers a high luminous output of up to 131 lm/W, with uniform light distribution and low glare (UGR <19). As a result, the L13-Smart easily meets the applicable standards for office lighting and computer workstations.
The L13-Smart comes standard with a wireless driver and integrated presence and daylight sensors, allowing the luminaire to automatically respond to usage and ambient light. This results in lower energy consumption, less manual operation, and lower operating costs. The L13-Smart is ideally suited for projects where smart lighting is not an option but a requirement, such as offices, schools, healthcare facilities, and commercial buildings.
Benefits
•High efficiency up to 131 lm/W
•Low glare, suitable for offices (UGR <19)
•Excellent light uniformity
•Long lifespan (>50,000 hours)
• Wireless driver with integrated sensor (presence & daylight)
•Energy-efficient and low-maintenance
• Suitable for standard 600×600 suspended ceilings
The L13-Smart is the logical choice for organizations that want to meet current energy requirements and make a futureproof investment in smart lighting.
Dimensions

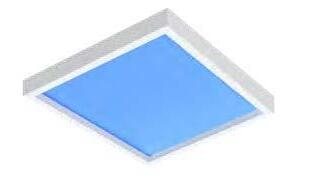

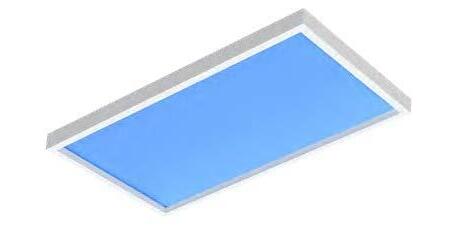

SKY RECESSED LUMINAIRE FOR SUSPENDED CEILINGS:
daylight experience without daylight
The L13-Sky brings the experience of a clear blue sky indoors. This ultra-slim LED recessed luminaire is designed for suspended ceilings and combines a realistic sky look with a wide, even light distribution. Ideal for spaces without natural daylight.
Thanks to the 120° beam angle and minimalist design, the L13-Sky integrates seamlessly into offices, healthcare environments, schools, and commercial spaces. The luminaire creates an open and calm atmosphere, without visual clutter or complex installation.
The focus of the L13-Sky is on experiencing the blue sky as realistically as possible. This makes the luminaire particularly suitable for applications where well-being, tranquility, and spaciousness are central.
Benefits
•Realistic blue-sky experience
•Ultra-slim design for suspended ceilings
•Wide and even light distribution (120°)
• Suitable for commercial, healthcare, and office environments
•Easy installation
If you are looking for a sleek recessed luminaire that does more than just illuminate, the L13-Sky is a functional and distinctive choice.
L13 HIGH EFFICIENCY RECESSED LUMINAIRES
Efficient basic lighting for suspended ceilings
L13-HE – High Efficiency LED panel up to 200 lm/W
The L13-HE has been developed for projects where maximum energy efficiency is paramount. With an efficiency of 160 to 200 lm/W, this LED panel belongs to the highest efficiency class within office and nonresidential lighting.
The luminaire delivers high light output at lower power consumption, resulting in immediate savings on energy consumption and operating costs. This makes the L13-HE extremely suitable for large-scale projects where return on investment and payback time are key considerations.
Despite the focus on efficiency, light quality remains high. The L13-HE offers uniform light distribution, low glare (suitable for computer work), and stable color rendering for comfortable working environments.
Applications
•Offices
•Education
•Healthcare institutions
•Retail and commercial spaces
•Large-scale renovation projects
Benefits
•Very high efficiency: 160–200 lm/W
•Lower energy costs per m2
•Suitable for suspended ceilings (600×600)
•Even and comfortable light distribution
•Long lifespan and low maintenance
• Ideal for energy optimization and sustainability
IN-LAY LUMINAIRE FOR SUSPENDED CEILING
GRILL
PANEL
L13-Grill LED panel with low glare (UGR<17)
The L13-Grill is a high-quality backlit LED panel with an integrated UGR lens structure. This luminaire combines high light output with very low glare (UGR <17), making it ideally suited for offices, schools, and other workplaces where visual comfort is essential.
Thanks to the specific grill and lens design, the light is distributed in a controlled manner across a beam angle of 120°, without harsh contrasts or annoying glare. Compared to traditional panels, the L13-Grill delivers higher light intensity and a calmer lighting effect.
The luminaire features a slim 595×595 mm housing (approx. 35 mm high) and fits into standard suspended ceilings. The optical module is sealed for its entire lifespan, eliminating the need for internal maintenance.
Applications
•Offices and computer workstations
•Education
•Retail
•Workplaces
Benefits
•Low glare: UGR <17
•Efficiency up to approx. 140 lm/W
•Light color 3000K or 4000K
•CRI 80
•120° light distribution
•Lifespan up to 50,000 hours (L70)
•5-year warranty

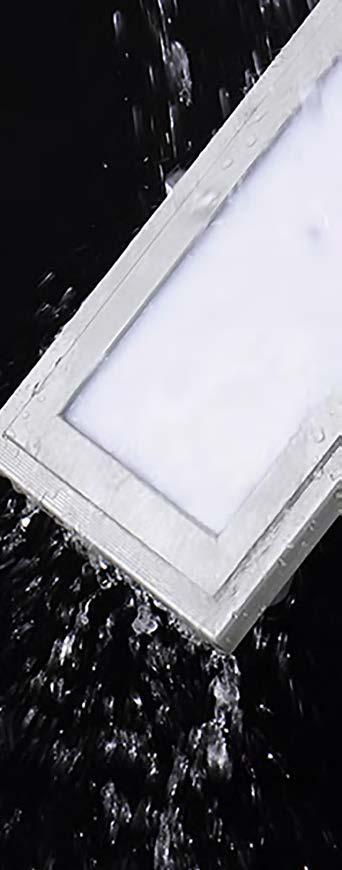

WATERPROOF RECESSED LUMINAIRE FOR SUSPENDED CEILINGS
L13 IP65 LED panel for damp and hygienic areas
The L13-IP is a robust LED recessed luminaire with IP65 protection, developed for environments where moisture, dust, and ease of cleaning play a role. This panel is suitable for applications where standard office lighting is insufficient.
Thanks to the enclosed construction, the luminaire is water- and dustproof on the visible side and resistant to cleaning. The uniform light distribution and low glare make the panel suitable for areas where both hygiene and visual comfort are important.
The L13-IP is used in, among others:
•Hospitals and healthcare facilities
•Cleanrooms and laboratories
•Food industry
•Commercial kitchens
•Production areas and wet zones
With efficient light output and durable LED technology, the luminaire is suitable for longterm and intensive use. The solid housing enables installation in environments with higher demands on safety and reliability.
Key features
• IP65 on the visible side (water and dustproof)
• Impact-resistant and enclosed construction
•Even light distribution
•Suitable for hygienic environments
•Low maintenance and energy-efficient
• Available in 600×600 and 1200×300 versions
The L13-IP is the right choice when standard LED panels fall short and protection against moisture and contamination is necessary.
Benefits
•IP65
•IK06
•Long lifespan
•UGR<19
•115lm/W
•Manufactured in the Netherlands
•5-year warranty
Fortimo LED
Fortimo HE BL Panel 6060
TW MD3
The Fortimo HE BL LED Panels are designed to light up spaces in office and commercial buildings. They offer an excellent performance (126 lm/W at 4000K CRI80), reliability (50,000 hours) and quality of light. It’s designed to meet the standards for office lighting (UGR possible).
Different sizes available to meet the different office requirements. The Fortimo HE BL TW Panels come with Xitanium Flextune drivers to perfectly match your application.
Key features
• Efficacy up to 133 lm/W on module level
• Different color temperatures selectable
• Good quality of light (CRI >80)
• Excellent color consistency of 3 SDCM
• Module is provided with integrated quick install connector
• Xi 45W 0.3-1.2A 48V MC FlexTune 230V driver included. AOC of 700mA preconfigured
Benefits
• Excellent light uniformity
• Meeting office standards for low UGR
• High flexibility of lumen output
• 5-year system warranty
LED Panel Accessories
By selecting the appropriate accessory, the panels can be easily adapted for pendant or surface-mounted installation, or integrated into different ceiling types such as plaster ceilings.
Key Features & Benefits
• Pendant cable set for suspended lighting applications
• Surface-mounted kits, including a standard and a basic version, for easy surface installation
• Recessed frames and clips for seamless integration into recessed ceilings, such as plasterboard systems
• Fully compatible with both Fortimo and Certaflux LED panels
• Refer to the application matrix to determine compatibility between accessories and panel types
Drivers for L3 and L13 Luminaires
For both the L3 and L13 luminaires, three driver options are available, each offering different input and output configurations as well as a range of connectivity possibilities. This provides installers with maximum flexibility and complete freedom of choice to suit a wide variety of installation requirements.
LDR-M-20W-C-3PW
LDR-M-20W-C-5PW
LDR-M-20W-C-EUR
LDR-M-36W-C-3PW
LDR-M-36W-C-5PW
LDR-M-36W-C-EUR
LDR-M-36W-MC-3PW
LDR-M-36W-MC-EUR
LDR-DS-20W-3PW
LDR-DS-20W-EUR
LDR-DS-30W-3PW
LDR-DS-30W-EUR
LDR-DS-40W-3PW
LDR-DS-40W-EUR
Driver configurations LDR-M
Driver configurations LDR-DS
Driver configurations LDR-WH
LDR-WH-20W-D-5PW
LDR-WH-20W-SR-3PW
LDR-WH-20W-SR-5PW
LDR-WH-20W-SR-EUR
LDR-WH-36W-D-5PW
LDR-WH-36W-3PW
LDR-WH-36W-5PW
LDR-WH-36W-EUR
LDR-WH-36W-SR-3PW
LDR-WH-36W-SR-5PW
LDR-WH-36W-SR-EUR
LDR-WH-50W-D-5PW
LDR-WH-50W-3PW
LDR-WH-50W-5PW
LDR-WH-50W-EUR
LDR-WH-50W-SR-3PW
LDR-WH-50W-SR-5PW
LDR-WH-50W-SR-EUR
LDR-WHD-20W
LDR-WHD-36W
LDR-WHD-50W
LDR-WHK-20W-D-5PW
LDR-WHK-20W-SR-3PW
LDR-WHK-20W-SR-5PW
LDR-WHK-20W-SR-EUR
LDR-WHK-36W-D-5PW
LDR-WHK-36W-3PW
LDR-WHK-36W-5PW
LDR-WHK-36W-EUR
LDR-WHK-36W-SR-3PW
LDR-WHK-36W-SR-5PW
LDR-WHK-36W-SR-EUR
LDR-WHK-50W-D-5PW
LDR-WHK-50W-3PW
LDR-WHK-50W-5PW
LDR-WHK-50W-EUR
LDR-WHK-50W-SR-3PW
LDR-WHK-50W-SR-5PW
LDR-WHK-50W-SR-EUR
Explanation of options:
D = Dali
SR = Sensor ready
MC = Zigbee MasterConnect
3PW = GSTi3
5PW = GSTi5
EUR = Euro plug
DS = DIP switch
Drivers for L3 and L13 Luminaires
Specifications LDR-M
MasterConnect (MC) Casambi
Manufacturer : Philips / Signify Philips / Signify
Type : Xitanium LED driver - Mini Xitanium LED driverWireless Casambi
Power : 6-36W 11-36W
Output current : 0,15-1,05 A (adjustable) 0,15-1,05 A (adjustable)
Output voltage : 24-48V DC 24-54V DC
Maximum output voltage : 60V 60V
Dimming : Wireless (Zigbee / BLE) Wireless (Casambi BLE)
Dimming range : 1-100% 1-100%
Input voltage : 220-240 V AC, 50/60 Hz 220-240 V AC, 50/60 Hz
Efficiency : >88% >90%
Power factor : 20,90 ≥0,90
Isolation : SELV SELV
IP-class : IP20 IP20
Lifespan : 50.000 uur 50.000 hours
Operating temperature : -25... +50 °C -20 ... +50 °C
Dimensions (L×W×H) : 97,2 × 43 × 30 mm 97,2 × 43 × 30 mm
Weight : 88 g 115 g
Installation : Built-in / Independent Built-in / Independent
Application : Indoor, connected lighting Indoor (retail, office, hospitality)
Certification : CE, ENEC, SELV, Zigbee/BLE CE, ENEC, SELV, Casambi
Specifications LDR-WH
Manufacturer : Philips / Signify
Type : Xitanium LED driver
Power : 20, 36, 50W
Output current : 0,15-1,05 A (adjustable)
Output voltage : 24–54V DC
Maximum output voltage : 60 V
Dimming : Not dimmable (fixed output)
Input voltage : 220–240V AC, 50/60 Hz
Efficiency : >89%
Power factor : ≥0,90
Isolation : SELV
IP-class : IP20
Lifespan : 50.000 hours
Operating temperature : −20 … +50 °C
Dimensions (L×W×H) : 200 × 75 × 32 mm
Weight : 217 g
Application : Indoor, spot & downlight
Certification : CE, ENEC, SELV
Specifications LDR-DS
Manufacturer : Philips / Signify
Type : Xitanium LED driver
Power : 20, 30, 40W
Output current : Adjustable via DIP-switch
Output voltage : 30-42V DC
Maximum output voltage : 60V
Dimming : Not dimmable (fixed output)
Input voltage : 220–240V AC, 50/60 Hz
Efficiency : >85%
Power factor : ≥0,93
Isolation : SELV
IP-class : IP20
Lifespan : 50.000 hours
Operating temperature : −20 … +50 °C
Dimensions (L×W×H) : 141 × 43 × 29 mm
Weight : 88 g
Application : Indoor, spot & downlight
Certification : CE, ENEC, SELV
Luminaires for linear ceilings
Originally developed for the HeartFelt® Ceiling System, the L14s are suitable for providing an attractive, integrated lighting solution for any linear ceiling. The L14 is available in 3 widths: 20mm, 30mm and 40mm, in 5 lengths (which are also connectable) and is equipped with a prism reflector. In addition, Loerakker offers a sophisticated track system for linear ceilings with a choice of eight different pendant luminaires and spotlights. The exclusive spotlight L14-D40 was developed for a panel width of 40mm. And the L14-9150 is specially designed for the DERAKO® Ceiling System by HunterDouglas.
HeartFelt® Registered trademark of Hunter Douglas - a HunterDouglas® product.
L14 Linear ceilings
QUICKLY GENERATE STABU2SPECIFICATION TEXT WITH HANDY CONFIGURATOR
Luminaires for linear ceilings
Unique, integrated lighting solution for linear ceilings
Variations with the HeartFelt® Ceiling System
The L14 is available in 3 widths: 20mm, 30mm, and 40mm luminaires for beautiful, seamless installation in the HeartFelt® ceiling by Hunter Douglas. The 20 mm luminaire fits between panels from a pitch of 60. Profile width 30 mm fits between panels from a pitch of 70 mm. The 40 mm version (from a pitch of 80 mm) can also be mounted in place of the felt panels. This allows this lighting system to offer plenty of possibilities for sleek and playful designs.
Mounting between the panels, 20, 30 and 40 mm profile
Mounting instead of the panels, 40 mm profile
Various lengths, connectable to form a light line
Luminaires for linear ceilings
Sustainable
The luminaires are manufactured from aluminium and clear or black anodized. They consist of 40% recycled aluminium and can be used circularly. Sustainable production takes place in the Netherlands. So count on short delivery times!
Seamless Clean alignment
Plug & play
Up to 6 luminaires per driver Driver per luminaire
Product Features
• 20 mm, 30 mm, and 40 mm wide luminaires (can be installed between or instead of the panels or ceiling sections)
• 5 Length sizes (which are also connectable)
• Luminaire in grey or black, matching felt colours
• Full choice of light colour and intensity
• High light output to comply with the STANDARD NEN-EN-1246-1
• Customization possible
• Produced in the Netherlands (short delivery time)
• 10-year warranty
Specifications
• High-quality Philips LEDs
• Light colours 830, 840, 850, 930, and 940
• Luminous flux of 1100 lm/ft
• Long lifetime > 80,000 hours
• High energy efficiency 115-165 lm/W
• Prismatic or reflector (low UGR)
• Optional integrated emergency lighting
• Optional DALI control
• Optional wireless dimming and sensing
• Also brackets for mounting in wooden ceilings (Derako)
You can download all specification texts for the L14 at bestek.loerakkerledline.nl
Mounting brackets
On page 192 you will find all info about brackets and drivers for the L14
Luminaires for linear ceilings
L14 – 20 LUMINAIRE FOR LINEAR CEILINGS
Combi lens reflector
The L14-20 is equipped with a special lens reflector combination; this ensures beautiful uniformity and a low glare value, making it extremely suitable for office environments. Luminaire housing made of aluminum extruded profile, black anodized. Black plastic end caps with subtle LOERAKKER logo. One meter 2-core cord with Wago mini connector so that the luminaires can be connected plug & play to one of our drivers. Suspension brackets to be ordered separately depending on the type of ceiling. Choice of two types of driver systems, central or decentralized (see further down).
Luminaires for linear ceilings
Specifications
Type : L14-R-20
Light source : MST LinLED 18mm Daisy LV
Dimensions : 28x20mm
Length : 574, -1134, -1414
Power
L14-R-20-574
L14-R-20-1134
L14-R-20-1414
Beam angle
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
: 12,8W, 1788lm
: 25,6W, 3576lm
: 32W, 4470lm
: 90° Direct
: 2700, 3000K, 4000K
: >80 only 3000K and 4000K or >90
: >80.000 hours
L90B10 : 50.000 hours
Ambient temperature : +25°C
Operating temperature
Driver
Material
Colour
Connection
: -20°C to +25°C
: External Philips Xitanium
: Base profile aluminum extrusion
: Brackets and end caps: aluminum
: Cover: Prismatic acrylic
: Clear or black anodised
: 2-wire BJB connector
Luminaires for linear ceilings
L14 – 30 LUMINAIRE FOR LINEAR CEILINGS
Reflector or prism
Rectangular LED recessed luminaire with external LED driver. Version with prismatic plastic diffuser or a reflector. Luminaire housing made of aluminum extruded profile, gray or black anodized. Gray plastic end caps with subtle LOERAKKER logo. Two-pole connection via push connector for both flexible and hard core wiring. Suspension brackets to be ordered separately depending on the type of ceiling. Choice of 2 types of drivers (see at the back of this catalogue).
Luminaires for linear ceilings
Specifications
Type : L14-30
Light source : Philips Fortimo Led Strip LV6F
Dimensions : 29x30mm
Length : 574, -1134, -1414, -1694, -2254, -2814
Power
L14-30-574
L14-30-1134
L14-30-1414
L14-30-1694
L14-30-2254
L14-30-2814
: 12W, 1500lm
: 23W, 3000lm
: 28W, 3750lm
: 34W, 4400lm
: 45W, 6000lm
: 54W, 7500lm
Non-standard lumen output: On request
Beam angle
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
: 120° Direct
: 3000K, 4000K, 5000K, 6500K
: >80 or >90
: >80.000 hours
L90B10 : 50.000 hours
Ambient temperature
Operating temperature
Driver
Material
Colour
: +25°C
: -20°C to +25°C
: External Philips Xitanium
: Base profile aluminum extruded
: Brackets and end caps: aluminum
: Cover: Prismatic acrylic
: Clear or black anodized Connection
: 2-wire BJB connector
Luminaires for linear ceilings
Specifications
Type : L14-R-30
Light source : Philips Fortimo Led Strip LV6F
Dimensions : 29x30mm
Length : 574, -1134, -1414
Power
L14-R-30-574 : 9W, 1415lm
L14-R-30-1134 : 18W, 2830lm
L14-R-30-1414
Beam angle
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
: 22W, 3539lm
: 120° Direct
: 3000K, 4000K, 5000K or 6500K
: >80 or >90 (just 3000K and 4000K)
: >80.000 hours
L90B10 : 50.000 hours
Ambient temperature : +25°C
Operating temperature
Driver
Material
Colour
: -20°C to +25°C
: External Philips Xitanium
: Base profile aluminum extruded
: Brackets and end caps: aluminum
: Cover: Aluminium louvre
: Clear or black anodized Connection
: 2-wire BJB connector
Luminaires for linear ceilings
L14 – 40 LUMINAIRE FOR LINEAR CEILINGS
Reflector or prism
Rectangular LED recessed luminaire with external LED driver. Version with prismatic plastic shield or a reflector. Luminaire housing made of aluminum extruded profile, grey or black anodized. Grey plastic end caps with subtle LOERAKKER logo. Two-pole connection via push connector for both flexible and hard core wiring. Suspension brackets to be ordered separately depending on the type of ceiling. Choice of 2 types of drivers (see at the back of this catalogue).
Luminaires for linear ceilings
Specifications
Type
: L14-40
Light source : Philips Fortimo Led Strip LV6F
Dimensions : 30x40mm
Length
Power
L14-40-574
L14-40-1134
L14-40-1414
L14-40-1694
L14-40-2254
L14-40-2814
: 574, -1134, -1414, -1694, -2254, -2814
: 12W, 1500lm
: 23W, 3000lm
: 28W, 3750lm
: 34W, 4400lm
: 45W, 6000lm
: 54W, 7500lm
Non-standard lumen output: On request
Beam angle
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Ambient temperature
Operating temperature
Driver
Material
Colour
Connection
: 120° Direct
: 2700K, 3000K, 4000K, 5000K, 6500K
: >80 or >90
: >80.000 hours
: 50.000 hours
: +25°C
: -20°C to +25°C
: External Philips Xitanium
: Base profile aluminum extrusion
: Brackets and end caps: aluminum
: Cover: Prismatic acrylic
: Clear or black anodized
: 2-wire BJB connector
L14-40-574574564
L14-40-113411341124
L14-40-141414141404
L14-40-169416941684
L14-40-225422542244
L14-40-281428142804
Luminaires for linear ceilings
Specifications
Type
: L14-R-40
Light source : Philips Fortimo Led Strip LV6F
Dimensions : 30x40mm
Length : 574, -1134, -1414
Power
L14-R-40-574 : 9W, 1415lm
L14-R-40-1134
L14-R-40-1414
Beam angle
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
: 18W, 2830lm
: 22W, 3539lm
: 120° Direct
: 3000K, 4000K, 5000K or 6500K
: >80 or >90 (just 3000K and 4000K)
: >80.000 hours
L90B10 : 50.000 hours
Ambient temperature : +25°C
Operating temperature
Driver
Material
Colour
Connection
: -20°C to +25°C
: External Philips Xitanium
: Base profile aluminum extrusion
: Brackets and end caps: aluminum
: Cover: Aluminum louvre
: Plain or black anodized
: 2-wire BJB connector
Dimensions
Luminaires for linear ceilings
L14-D40 SPOT HUNTERDOUGLAS HEARTFELT® CEILING
This spotlight has been specially developed for the HeartFelt® Ceiling System by Hunter Douglas. The dimensions correspond to the width of a lamella, 40 mm. The shape is designed so that the lamellas rest on the luminaire and connect seamlessly. The D40 is available in three colours: black, grey, and white, and optionally in a custom RAL colour. In addition, there is a choice of three matching reflector colours: black, aluminium, and white, as well as three beam angles.
Very easy installation
This luminaire is quick to install, as it can be clicked directly onto the HeartFelt® carrier without additional tools. It can also be suspended if no carrier is available in the desired position.
The Philips Xitanium LED driver can also be easily clicked onto the HeartFelt® carrier. With the robust plug & play Wago® mini connector system, up to five luminaires can be connected to a single LED driver
Luminaires for linear ceilings
The L14-20 is equipped with a special lensreflector combination. This ensures excellent uniformity and a low glare value, making it highly suitable for office environments. The luminaire housing is made of an aluminium extrusion profile, anodised in black. Black plastic end caps with a subtle LOERAKKER logo. One-metre pre-wired cable with Wago mini connector, allowing plug & play connection to one of our drivers. Suspension brackets are available separately, depending on the type of ceiling. Choice of two driver systems: central or decentralised.
Sustainable
The luminaires are made of aluminium and powder-coated. They consist of 40% recycled aluminium and can be used in circular applications. Sustainable production takes place in the Netherlands. Expect short lead times.
Advantages
• Integrated into HeartFelt® lamella H55, H80 and H105
•3 standard colours
•3 reflector colours
•Full choice of light colour
• Produced in the Netherlands (short lead time)
•10-year warranty
Specifications
Light colours 830, 840, 850, 930 en 940
Luminous flux of 600lm
Long lifetime > 80.000 hours
High energy efficiency 125 lm/W
Lens-reflector
Optional DALI control
Optional wireless dimming and sensing
Radiation diagram
Dimensions
Luminaires for linear ceilings
L14-TR TRACKLIGHTS FOR HEARTFELT CEILINGS
Flexible use as main or supplementary lighting: linear luminaires, spotlights and pendant luminaires in a smart track rail system. The track fits perfectly between the lamellas of Hunter Douglas ceilings and is installed simultaneously with the ceiling. The system can be easily mounted onto any Hunter Douglas carrier, regardless of whether the ceiling is made of wood, felt or aluminium. The linear luminaires click magnetically into the track and align completely flush with the lamellas, resulting in a clean and stylish finish.
With the L14-Tracklight, you bring a flexible and innovative system into your space that not only offers fast and easy installation, but also exceptional aesthetic value. The modular design makes it possible to adapt your space to changing needs, while the high-quality standard ensures reliability and a premium appearance. For the track rail spotlight and suspended tube, a choice can be made from five anodised colours.
Compatible with HEARTFELT®, DERAKO® and LUXALON® ceilings
The track rail can be directly mounted onto Hunter Douglas® carriers, ensuring seamless
integration with existing systems and a clean, uniform appearance.
Connectable
Effortlessly create your ideal lighting layout. The L14-Tracklight offers connectable rails that make flexibility and customisation simple, even in complex or large spaces.
Fast and flexible installation with magnetic
click system
With a revolutionary magnetic click connection, luminaires can be installed or repositioned easily and precisely. No tools required, no hassle.
Versatility in luminaires
Whether you need spotlights, pendant luminaires or linear lighting, the L14-Tracklight offers compatibility with various lighting fixtures to suit specific requirements and design styles.
Luminaires for linear ceilings
Specifications system
48V track rail
Lengths 1, 2, 3 metres (connectable)
Light colour 3.000K
Black version standard, white and grey optional
Input
TRACK LIGHT SYSTEEM LOERAKKER
L14-TR-03-HL38
Algemeen
L14-TR-03-HL38
40x300, 3000K, 399lm, 4.8W, Zwart
TRACK
L14-TR-03-HL48
Algemeen
L14-TR-03-HL48
98x119, 3000K, 613lm, 8.6W, Roodbruin
TRACK LIGHT SYSTEEM
L14-TR-04-LP
L14-TR-04-LP
Specificaties
Lichtbron
E iciëntie
CRI>90, 613lm, 8.6W
lm/W
Levensduur L90B10 >50.000
TRACK LIGHT SYSTEEM
L14-TR-04-LR
Dim type Niet dimbaar
Radiation diagram
Voeding inbegrepen Nee
Specificaties
Luminaires for linear ceilings
L14 - 9150
LUMINAIRE FOR LINEAR DERAKO® CEILING
This luminaire has been specially developed for the DERAKO® Ceiling System by Hunter Douglas. The dimensions correspond to the width of the wooden panels. For project-based applications, the luminaires can be custom-made to the required width. The shape is designed so that, just like the wooden panels, the luminaires can be clicked into the DERAKO® carrier system.
Matching colours
The L14-9150 is available in two colours, black and white, and optionally in a custom RAL colour. In addition, a choice can be made between light colours 3000K and 4000K. The 92 mm width with a length of 1500 mm will be kept in stock in black and white, 3000K and 4000K. Variations to this will be produced on a project basis with a lead time of approximately 12–14 weeks.
This luminaire is also quick to install, as it can be clicked directly onto the DERAKO® carrier without additional tools.
Luminaires for linear ceilings
The separately available Philips Xitanium LED driver can be supplied with a Wieland cable, euro plug, and DALI or Zigbee dimming.
The L14-9150 is equipped with a special prismatic diffuser. This ensures excellent uniformity and a low glare value, making it highly suitable for office environments. The luminaire housing is made of an aluminium extrusion profile, finished in black or white.
Advantages
•Integrated into DERAKO® linear ceiling
•2 standard colours
•Light colour 3000K or 4000K
•10-year warranty
Alternatives for this luminaire
L3-62
L3-65
Specifications
Light colours 830 en 840
Luminous flux of 3000lm
Long lifetime > 80.000 hours
Prismatic diffuser
Optional DALI control
Optional wireless dimming and sensing
Radiation diagram
Dimensions
Drivers for L14 luminaires
Choose an LDR-mini driver per luminaire, or a “plug and play” driver suitable for up to 6 luminaires. An emergency driver unit is optionally available for all drivers.
LDR-L14
Individual driver for L14 luminaire, mounted on top of the fixture.
•Available in 20, 36 and 43 Watt
•Connection options: Euro plug, Wieland or Wago
•Optional: DALI, Zigbee or SR for sensor integration
LDR Plug & Play
Do you have space for a driver box above the ceiling? The LDR-PP provides capacity for up to six luminaires.
• Philips Xitanium drivers
• Lifetime: 100,000 hours with a failure rate of 1% per 5,000 hours
• Housing made of bent aluminium, cover in black powdercoated zincor
•Weight: 1 kg
• Available in 36W, 75W and 150W (depending on number and length of luminaires)
•Dimming options: DALI, Zigbee or sensor drivers
Primary connection: 3-pole or 5-pole Wieland or Wago
Secondary connection: 2–6 Wago Mini Winsta
Supplied with interconnection cables and luminaire connection cable with Wago Mini Winsta connector.
Power + DALI via 5-pole Wieland or Wago
3-pole Wieland or Wago input Cable gland for DALI
3-pole Wieland or Wago
2–6 × Wago Mini Winsta
Mounting brackets for L14 luminaires
Installation
L14 luminaires can be installed between the panels, and in the case of the L14-40 also in place of the panels.
Panel height 55 mm (HL55)
Panel height 80 mm (HL80)
Panel height 105 mm (HL105)
L14-20
L14-30 (HF2)
L14-30 (HF1)
L14-40 (HF2)
L14-40 (HF1)
L14-40 instead of
Which aluminium bracket you require depends on:
1. the width of the L14 luminaire (choice of 20mm, 30mm or 40mm)
2. the height of a panel (55mm, 80mm or 105mm)
3. whether you want the luminaire slightly recessed (HF1 variant)
L14-20, 30 and 40 panel 55, between the panels
L14-40,
panel 55, in place of the panels
L14-30 between the panels from Module 70.
L14-40 between the panels from Module 80.
L14-40 installation between the panels.
L14-40 in place of panels from Module 80.
L14-40 installation in place of panels.
Emergency lighting for L14 luminaires
LDR2-NV
Dimensions
Specifications
Driver : Xitanium 36W 0.3-1A 54V 230V
Dimmable : Dali, MC(Zigbee) or SR (Sensor)
Max power : 36W
Current range : 0,3A - 1A
Failure rate : 1% per 5.000 hours
Ambient temperature : +25°C
Operating temperature : -20°C to +25°C
Input voltage : 220-240VAC / 50-60Hz
Lifetime : 50.000 hours
Battery lifetime : NiMH 4 years, LFP 7-8 years
Material : Aluminium, steel and stainless steel
TrustSight PRO 15–55V or TrustSight DALI 15–55V
TrustSight 6.4V 4-cell 3000mAh LFP battery or TrustSight 4.8V 4-cell 4000mAh LFP battery
Connection : Wieland 4-pole, or 3-pole for DALI or sensor
Pendant luminaires
A stylish ‘back to basics’ luminaire for a Surround Light experience. Taste is personal, but this luminaire fits beautifully in countless spaces. For example, in offices where functionality is key or in circulation areas for the visually impaired, in combination with the L1. The L15 is 150 cm long and available in white powder-coated aluminium.
L15 PENDANT LUMINAIRE WITH SURROUND LIGHT
Stylish Loerakker luminaire for an indirect lighting experience. Combines beautifully with, for example, the L1, where the L15 can be used in circulation areas. The L15 is available in one length (150 cm), offers various light colours and one light output. With a minimalist design made from bent sheet steel and aluminium housing, this luminaire is powder-coated in white RAL 9016 fine texture.
Revolutionary lighting solution
The L15 pendant luminaire 100% indirect is a revolutionary lighting solution for modern office environments. With a minimalist curved design in sheet steel and aluminium, we have developed a stylish luminaire that enhances any interior. The housing is powder-coated in white RAL 9016 fine texture for extra durability and improved brightness. In addition, the Philips LEDs are powered by an external driver for superior efficiency and reliability. Not only does this luminaire provide indirect lighting for natural conditions, it also reduces energy consumption, allowing you to save on utilities while still achieving the lighting you require. Whether you are an office employee, facility manager, manager or business owner – the L15 offers efficient and economical lighting solutions that make the right impression.
Pendant luminaires
External driver
The L15 pendant luminaire is powered by Philips LEDs with an external driver that helps maintain the recommended lifetime of the luminaire while providing additional benefits in terms of energy efficiency. Moreover, the external driver helps reduce overall lamp replacement costs and maintenance time/costs associated with replacing old lamps, as brightness is maintained longer compared to traditional light sources such as fluorescent or halogen.
Pure efficiency
The L15 pendant luminaire is designed for offices and other professional environments and can help facility owners, managers and employees achieve an optimal balance between work efficiency and quality of life thanks to its subtle yet efficient characteristics. The L15 provides the best lighting solution for offices seeking a modern professional aesthetic without compromising on performance or energy savings.
Get acquainted with Surround Light
Get to know Surround Light
Familiar with Dolby Surround? The Loerakker LED line offers a similar experience, but in the realm of lighting. A unique experience for everyone who works in it. Whether you sit behind a screen all day, in a meeting, or behind the counter. You simply work more comfortably, experience less fatigue and benefit more from your natural day and night rhythm. Discover all the benefits of Surround Light here.
Production is sustainable. Just like the product itself, made of aluminium, it can be deployed circularly. Because each luminaire is produced in the Netherlands (Amersfoort), delivery times are highly attractive.
Advantages
•Flicker-free lighting
•Long lifespan
•Fast delivery
•High comfort, higher productivity
•Produced in the Netherlands
•100% sustainable
•10-year warranty
Pendant luminaires
Specifications
Type : L15
Light source : Philips Fortimo Led Strip LV6F
Power : 36W
Beam angle
Luminous flux
: 120° or Wide Beam: 175°
: 5884lm
: Wide Beam: 5332lm
Colour temperature : 2700K, 3000K, 4000K, 5000K or 6500K
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
Driver
Input voltage
Material
Colour
Installation
Connection
Options
: >80 or >90
: >100.000 hours
: >68.000 hours
: 10% per 100.000 hours
: External Philips Xitanium
: 220-240VAC / 50-60Hz
: Housing: Steel
: Cover: Acrylic
: Ral 9016 fine texture
: Two suspension sets, 1.5m length
: 2-core connection cable transparent
Dimming : Dali or Zigbee (wireless)
Colour finish
: RAL colour or special metal (see page 244)
Dimensions
Pendant luminaires
A homely lamp that not only creates a cozy atmosphere but also delivers a huge amount of light? The L16 60 is a unique combination. A Surround Light experience thanks to the indirect distribution of light via ceilings and walls, combined with generous illumination above the dining or meeting table through the direct light from the round fixture.
Pendant luminaires
L16-60 PENDANT LUMINAIRE WITH SURROUND LIGHT
This pendant lamp creates the perfect balance between direct and indirect light, resulting in a bright space without the harshness of direct lighting that can feel uncomfortable in compact workspaces. It also looks great in offices or institutions thanks to the fabric shade, which provides a warm, homely appearance while still delivering high light output through powerful Philips LEDs.
Behind its attractive design lies advanced technology, particularly an aluminium plate that is innovatively bent to cool the LEDs and support the lampshade. Workplace safety always comes first, and one of the reasons for this is that the product provides 80% indirect lighting—meaning no glare during those crucial moments that require full concentration.
Human Centric Lighting version
Optionally, a Human Centric Lighting version can be selected, allowing the colour temperature to be adjusted. This Loerakker LED line uses dual LEDs to stimulate the natural day-night rhythm. You experience less fatigue, less jet lag, and improved productivity. Sounds good—but come and see for yourself: in our lighting studio in Amersfoort, we can clearly demonstrate the difference.
Pendant luminaires
Get to know Surround Light
Familiar with Dolby Surround? The Loerakker LED line offers a similar experience, but in the realm of lighting. A unique experience for everyone who works in it. Whether you sit behind a screen all day, in a meeting, or behind the counter. You simply work more comfortably, experience less fatigue and benefit more from your natural day and night rhythm. Discover all the benefits of Surround Light here.
Sustainable and versatile
Because the Loerakker LED line is manufactured in the Netherlands, delivery times are predictable and possibilities are endless. Production is sustainable. Like the product itself—made from aluminium—the L16 can be used in a circular way. Optionally, luminaires can be equipped with a DALI dimmable driver or a built-in wireless sensor. This creates a smart luminaire with daylight control, motion detection, and dimming via an optional wireless control button.
Advantages
•Flicker-free lighting
•Long lifespan
•Customisation possible
•Fast delivery
•High comfort, higher productivity
•Manufactured in the Netherlands
•Overnight installation (no disruption)
•100% sustainable
•10-year warranty
Pendant luminaires
Specifications
Type
Light source
Power
Beam angle
Luminous flux
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
Driver
Input voltage
Material
Colour
Installation
Connection
Options
Dimming
Human Centric Lighting
Colour finish
Variable intensity
: L16-60
: Philips Fortimo Led Strip HV6F
: Direct/Indirect: 40W, HO: 75,7W
: Indirect: 31,4W, HO: 61,6W
: 120°
: Direct/Indirect: 6336lm, HO: 11.386lm
: Indirect: 5176lm, HO: 10.988lm
: 2700K, 3000K, 4000K, 5000K or 6500K
: >80 or >90
: >100.000 hours
: >68.000 hours
: 10% per 100.000 hours
: Philips Xitanium
: 220-240VAC / 50-60Hz
: Control unit: sheet steel
: Housing: Aluminium and fabric
: Cover: Acrylic
: Choice of various fabrics
: Three suspension sets 1.5m length
: 3-core connection transparent cable
: Dali, Zigbee dimmable
: Dynamic white 2700K to 6500K
: Choice of various fabrics
: Adjustable direct/indirect ratio
Pendant luminaires
A homely lamp that delivers a true sea of light? The L16 110 offers it all. A Surround Light experience thanks to indirect lighting via ceilings and walls, combined with generous illumination above dining or meeting tables through the direct light from the oval luminaire.
L16 110 PENDANT LUMINAIRE WITH SURROUND LIGHT
This pendant lamp creates the perfect balance between direct and indirect light, resulting in a bright space without the harshness of direct lighting that can feel uncomfortable in compact workspaces. It also looks great in offices or institutions thanks to the fabric shade, which provides a warm appearance while still delivering high light output through powerful Philips LEDs.
Behind its attractive design lies advanced technology, particularly an aluminium plate that is innovatively bent to cool the LEDs and support the lampshade. Workplace safety is essential, which is why this product provides 80% indirect lighting—minimising glare during critical moments that require full concentration.
Human Centric Lighting version
Optionally, a Human Centric Lighting version can be selected, allowing the colour temperature to be adjusted. This Loerakker LED line uses dual LEDs to stimulate the natural day-night rhythm. You experience less fatigue, less jet lag, and improved productivity. Sounds good—but come
Pendant luminaires
and see for yourself: in our lighting studio in Amersfoort, we can clearly demonstrate the difference.
Get to know Surround Light
Familiar with Dolby Surround? The Loerakker LED line offers a similar experience, but in the realm of lighting. A unique experience for everyone who works in it. Whether you sit behind a screen all day, in a meeting, or behind the counter. You simply work more comfortably, experience less fatigue and benefit more from your natural day and night rhythm. Discover all the benefits of Surround Light here
Sustainable and versatile
Because the Loerakker LED line is manufactured in the Netherlands, delivery times are predictable and possibilities are endless. Production is sustainable. Like the product itself—made from aluminium—the L16 can be used in a circular way. Optionally, luminaires can be equipped with a DALI dimmable driver or a built-in wireless sensor. This creates a smart luminaire with daylight control, motion detection, and dimming via an optional wireless control button.
Advantages
•Flicker-free lighting
•Long lifespan
•Customisation possible
•Fast delivery
•High comfort, higher productivity
•Manufactured in the Netherlands
•100% sustainable
•10-year warranty
Pendant luminaires
Specifications
Type
Light source
Power
Beam angle
Luminous flux
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
: L16-110
: Philips Fortimo Led Strip HV6F
: Direct/Indirect: 60,1W, HO: 112,4W
: Indirect: 37,2W, HO: 69,6W
: 120°
: Direct/Indirect: 8606lm, HO: 15.169lm
: Indirect: 6234lm, HO: 10.988lm
: 2700K, 3000K, 4000K, 5000K or 6500K
: >80 or >90
: >100.000 hours
: >68.000 hours
: 10% per 100.000 hours
Driver : Philips Xitanium
Input voltage
Material
Colour
Installation
Connection
Options
Dimming
Human Centric Lighting
Colour finish
Variable intensity
: 220-240VAC / 50-60Hz
: Control unit: sheet steel
: Housing: Aluminium and fabric
: Cover: Acrylic
: Choice of various fabrics
: Three suspension sets 1.5m length
: 3-core connection transparent cable
: Dali, Zigbee dimmable
: Dynamic white 2700K to 6500K
: Choice of various fabrics
: Adjustable direct/indirect ratio
Pendant luminaires
The L17, with its subtle bell-shaped lines, offers a Surround Light experience and provides a strong amount of light on desks or meeting tables. Made of aluminium with milled aluminium end caps, the pendant has both a playful and robust appearance. Available in three lengths (1.2 m, 1.5 m and 2.5 m) and can be powder-coated in any desired RAL colour.
Direct and indirect light
Pendant luminaires
L17 PENDANT LUMINAIRE WITH SURROUND LIGHT
The aluminium extrusion profile gives the luminaire a robust yet playful appearance, further enhanced with powder coating in any RAL colour—RAL 9016 fine texture as standard. Multiple length options allow full adaptation to any office space.
The Philips Xitanium driver is integrated into the luminaire to efficiently power the LED boards. Ideal for optimally lighting any workspace with versatile direct or indirect lighting. Each luminaire can be equipped with wireless dimmable drivers or sensors for daylight and presence detection. Highoutput (HO) versions are also available to ensure maximum brightness.
Human Centric Lighting version
Optionally, a Human Centric Lighting version can be selected, allowing the colour temperature to be adjusted. This Loerakker LED line uses dual LEDs to stimulate the natural day-night rhythm. You experience less fatigue, less jet lag, and improved productivity. Sounds good—but come and see for yourself: in our lighting studio in Amersfoort, we can clearly demonstrate the difference.
Pendant luminaires
Get to know Surround Light
Familiar with Dolby Surround? The Loerakker LED line offers a similar experience, but in the realm of lighting. A unique experience for everyone who works in it. Whether you sit behind a screen all day, in a meeting, or behind the counter. You simply work more comfortably, experience less fatigue and benefit more from your natural day and night rhythm. Discover all the benefits of Surround Light here.
Sustainable and versatile
Because the Loerakker LED line is manufactured in the Netherlands, delivery times are predictable and possibilities are endless. Production is sustainable. Like the product itself—made from aluminium—the L16 can be used in a circular way. Optionally, luminaires can be equipped with a DALI dimmable driver or a built-in wireless sensor. This creates a smart luminaire with daylight control, motion detection, and dimming via an optional wireless control button.
Advantages
• Flicker-free lighting
• Long lifespan
• Customisation possible
• Fast delivery
• High comfort, higher productivity
• Manufactured in the Netherlands
• 100% sustainable
• 10-year warranty
Specifications
Type : L17
Light source : Philips Fortimo LEDstrip 1R HV
Power : 120: 25W - 110W
150: 32W - 125W
235: 50W - 150W
290: 60W - 200W
Beam angle
Luminous flux
Colour temperature
Colour rendering (Ra)
Median useful life
L70B50
Median useful life
L90B10
Driver failure rate
Ambient temperature
Operating temperature
Driver
Input voltage
Material
Colour
Installation
Connection
Options
Dimming
Human Centric Lighting
Colour finish
Sensor
: 120°
: 120: 4250lm - 15210lm
150: 5000lm - 17886lm
235: 7750lm - 30500lm
290: 9500lm - 35750lm
: 2700K, 3000K, 4000K, 5000K en 6500K
: >80 or >94
: >80.000 hours
: 50.000 hours
: 1% per 5.000 hours
: +25°C
: -20°C to +25°C
: Integrated Philips Xitanium
: 220-240VAC / 50-60Hz
: Housing: Aluminium
: Cover: Plastic
: RAL9005 or RAL9016 fine texture
: Two suspension sets 120 and 150 length
: Three suspension sets 235 and 290 length
: 3-core connection cable
: Dali, or Zigbee
: Dynamic white 2700K to 6500K
: RAL colour or special metal (see page 244)
: Daylight control
: Motion detection
: Dimmable via wall dimmer
: Group programming via Zigbee
L18 Direct light
Pendant luminaire with direct light
The L18 linear luminaire combines a clean, simple design with versatile lighting options and delivers a powerful light output in any space. An ideal choice for offices, schools, retail environments and other public spaces.
Pendant luminaires
L18 LINEAR LUMINAIRE
DIRECT
Manufactured from aluminium extrusion, this luminaire offers maximum flexibility in application: it can be used as a standalone luminaire in various lengths, or as a continuous light line, both suspended and surface-mounted. In addition, the light line can optionally be equipped with sensors and emergency power supplies. The combination of these functionalities makes the L18 linear luminaire an ideal choice for offices, schools, retail environments and other public spaces.
Maximum flexibility and customisation
The L18 is available in no fewer than nine lengths, ranging from 600 mm to 2850 mm, and can be powder coated in any desired RAL colour for a perfectly matched finish.
The prismatic diffuser, an added advantage, can be supplied in lengths of up to 6 metres and can be easily clicked into the profile during installation. This is particularly beneficial when creating longer continuous light lines.
The L18 linear luminaire offers not only functional advantages but also aesthetic ones. The slim design and the option to powder coat in any desired colour ensure seamless integration into a wide range of interior styles. In addition, the prismatic
diffuser provides a diffuse and uniform light distribution, resulting in pleasant and comfortable illumination within the space.
Sustainable, cost-saving
The sustainability of the L18 linear luminaire is another key aspect. The luminaire is equipped with high-quality LED light sources that ensure a long service life and energy savings. In addition, it is possible to opt for a daylight sensor and motion sensor, ensuring
Pendant luminaires
that lighting is only activated when required. This not only reduces costs but also lowers the carbon footprint.
In short, the L18 linear luminaire offers not only versatile lighting solutions, but also aesthetic and sustainable benefits. Thanks to the various options and customisation possibilities, the luminaire is suitable for a wide range of applications and can be fully tailored to user requirements. An ideal choice for any space that requires both functional and visually appealing lighting.
Ideal control
The Philips Xitanium driver is integrated into the luminaire to control our Philips Fortimo LED boards as efficiently as possible. Ideal for optimally illuminating any workspace. Each luminaire can subsequently be equipped with wireless dimmable drivers or sensors for daylight and presence detection, ensuring maximum ease of use. High output (HO) versions are also available in all listed lengths, ensuring that you will never experience a lack of light. Choose from various fixed light colours, both in colour temperature and colour rendering.
Human Centric Lighting version
Optionally, a Human Centric Lighting version can be selected, allowing the colour temperature to
be adjusted dynamically. This Loerakker LED line is equipped with dual LEDs, which stimulate the natural day and night rhythm. You will experience less fatigue, reduced jet lag and increased productivity. It sounds promising, but experience it yourself: in our lighting studio in Amersfoort we can clearly demonstrate the difference.
Smart luminaire made in the Netherlands
As the Loerakker LED line is manufactured in the Netherlands, lead times are predictable and possibilities are virtually unlimited. Production is sustainable. As with the product itself, made from aluminium, the L18 can be applied in a circular way.
There are various options available, such as DALI or Zigbee dimmable, integrated wireless sensors or the Human Centric Lighting version. This results in a smart luminaire with daylight control, motion detection and dimming via a separately available wireless dimming switch.
Advantages
• Flicker-free lighting
• Long service life
• Fast delivery
• High comfort, increased productivity
• Manufactured in the Netherlands
• Overnight installation (no disruption)
• 100% sustainable
• 10-year warranty
Pendant luminaires
Specifications
Type : L18
Light source
Power
Beam angle
Light output
Colour temperature
Colour rendering (Ra)
Median useful lifetime
L70B50
Median useful lifetime
L90B10
: Philips Fortimo LED strip 1R HV
: 60: 12W - 25W
90: 18W - 36W
120: 24W - 48W
150: 30W - 60W
170: 36W - 72W
200: 42W - 84W
230: 48W - 76W
250: 54W - 108W
280: 60W - 120W
: 120˚
: 60: 1200lm - 2500lm
90: 1800lm - 3600lm
120: 2400lm - 4800lm
150: 3000lm - 6000lm
170: 3600lm - 7200lm
200: 4200lm - 8400lm
230: 4800lm - 7600lm
250: 5400lm - 10800lm
280: 6000lm - 12000lm
: 2700K, 3000K, 4000K, 5000K and 6500K
: >80 or >94
: >80,000 hours
: 50,000 hours
Driver failure rate : 1% per 5,000 hours
Ambient temperature : +25˚C
Operating temperature
Driver
Input voltage
: -20˚C to +25˚C
: Integrated Philips Xitanium
: 220-240VAC / 50-60Hz
Material : Housing: Aluminium
Cover: Plastic
Colour : RAL9005 or RAL9016 fine texture
Installation
Connection
Options
: Two suspension sets for 120 and 150 length
Three suspension sets for 235 and 290 length
Surface-mounted
: 3-core connection cable
Dimming : Dali, or Zigbee
Human Centric Lighting
: Tunable white 2700K to 6500K
Finish : RAL colour or special metal (see page 244)
Sensor : Daylight control
Motion detection
Dimmable via wall dimmer
Group programming via Zigbee
Radiation diagram
Dimensions with sensor
TypeA [mm]
[mm]
L18-60-S 614 560 563 0-3000
L18-90-S894 840 843 0-3000
L18-120-S1174 1120 1123 0-3000
L18-150-S1454 1400 1403 0-3000
L18-170-S1734 1680 1683 0-3000
L18-200-S2014 1960 1963 0-3000
L18-230-S22942240 (1120,1120)2243 0-3000
L18-250-S25742520 (1260,1260)2523 0-3000
L18-280-S28542800 (1400,1400)2803 0-3000
Dimensions without sensor
TypeA [mm] B [mm] C [mm]
L18-60573 520 563 0-3000
L18-90853 800 843 0-3000
L18-1201133
L18-1501413
L18-1701693
L18-2001973 1920 1963 0-3000
L18-23022532200 (1100,1100)2243 0-3000
L18-25025332480 (1240,1240)2523 0-3000
L18-28028132760 (1380,1380)2803 0-3000
Pendant luminaires
The L21 is a groundbreaking fixture that provides both direct and indirect lighting, introducing an innovative lighting concept. With its flexible design and the use of bendable aluminum, the L21 offers unparalleled versatility in application and design freedom.
Direct and indirect light
L21 SURROUNDLIGHT LINEAR FIXTURE
COMBI INDIRECT & DIRECT
With the L21, you create a perfect balance between functional and atmospheric lighting. This makes the fixture ideal for a wide range of spaces, from commercial environments to residential projects.
The bendable aluminum ensures that the L21 is fully adaptable to any design, no matter how challenging. This provides architects and designers with maximum creative freedom to bring their vision to life
Aesthetic and functional
The sleek, minimalist design of the L21 integrates seamlessly into any interior while delivering an impressive light output.
The durability of the L21 linear fixture is another key aspect. Equipped with highquality LED light sources, it ensures a long lifespan and energy efficiency. Additionally, options for a daylight sensor and motion sensor are available, ensuring the light is only activated when needed. This not only reduces costs but also lowers CO2 emissions.
In summary, the L21 linear fixture offers not only versatile lighting solutions but also aesthetic and sustainable benefits. With various options and customization possibilities, the fixture is suitable for diverse applications and can be fully tailored to the user’s preferences. An ideal choice for any space in need of functional and beautiful lighting.
Pendant luminaires
Versatility
You can choose from the shapes pictured below ‘dimensions’ on the next pages. Additionally, the total dimensions, width, height, and optionally rounded corners can be customized. Share your preferences with us, and we will assess what is feasible.
Quality
The Philips Xitanium driver is integrated into the fixture to control our Philips Fortimo LED boards as efficiently as possible. Each fixture can then be equipped with wireless dimmable drivers or sensors for daylight and presence detection, ensuring maximum convenience. For extra brightness, high-output (HO) versions are also available, so you’ll never lack light. Choose from various fixed light colors, with options for both color temperature and color rendering.
Human centric lighting model
Optionally, you can choose the Human Centric Lighting version, where the color temperature can be adjusted variably. This Loerakker LED line is equipped with dual LEDs, which help stimulate the natural day and night rhythm. This results in less fatigue, reduced jet lag, and increased productivity. Sounds great, but let yourself be convinced: in our lighting studio in Amersfoort, we can clearly demonstrate the difference.
Sustainable and versatile
Because the Loerakker LED line is made in the Netherlands, delivery times are manageable, and the possibilities are endless. The production process is sustainable. Like the product itself, made of aluminum, the L21 can be used in a circular manner.
Various options are available, such as DALI or Zigbee dimming, a built-in wireless sensor, or the Human Centric Lighting version. This creates a smart fixture with daylight control, motion detection, and dimming capabilities via a separately purchasable wireless dimming button.
Benefits
• Flicker-free lighting
• Long lifespan
• Fast delivery
• High comfort, even higher productivity
• Produced in the Netherlands
• Overnight assembly and installation (no disruption)
• 100% sustainable
• 10-year warranty
Pendant luminaires
Specifications
Type
: L21-series
Light source : Lumileds
Power
Efficiency
Beam angle
Colour temperature
Colour rendering (Ra)
UGR
Median useful lifetime
L70B50
Median useful lifetime
L70B10
Driver failure rate
Ambient temperature
Operating temperature
Input voltage
: 10-60W/meter
: 100-120lm/W
: Variable
: 2700K, 3000K, 4000K, 6500K, DW, RGB
: >80, >90
: <19
: >70.000 hours
: 50.000 hours
: 1% per 5.000 hours
: -20 to 60°C
: -10°C to +45°C
: 220-240VAC / 50-60Hz
Material : Aluminium and polycarbonate
IP-value
Colour
: 20
: RAL9005, RAL9016, Custom
Installation : Pendant, surface-mounted
Connection : 3PW, 5PW, EUR
Options
Dimming : Dali, Zigbee, Casambi
Radiation diagram
60/90/100/120/150/180 3,5/4,5/5/6/8/10 3,5/6,8/8/1060/90/120 Circle piece 60/90/120/150/180/240 3,5/4,5/5/6/8/10/12/1503,5/6,8/8/10/12,5 -
Powder coating in all colors
With powder coating, we use various color pigments and finishes, such as solid colors, textures, or special effects. The color spectrum in powder coating is much more extensive than in anodizing. This allows you to have your fixtures finished in your own (corporate identity) colors.
Metal spraying
An innovative, unique finish. Fine metal powder is mixed with plastic and then sprayed onto the surface to be treated. After drying, the plastic is polished away, leaving a real metal surface.
L1 with bronze finish
L9P with copper finish
✴ Unique finishes
Anodizing
With anodizing, a surface treatment, you can choose between normal brushed metal, sanded metal, or a pearl-smooth surface. Not only does this process provide a protective oxide coating
on the metal, but you can also achieve special aesthetic effects with it. The color selection is limited; if you are looking for unique or spectacular colors, choose powder coating.
You can then brush, polish, or sand it. Exactly what you prefer. A super strong coating with a unique appearance.
L9P with brass finish
Finish: normal brushed anodized
L17 with Corten steel finish
Maarten Loerakker: “Indirect LED light is something you truly have to experience. In our light studio I demonstrate the difference: indirect, direct and a combination. Visit us or make an appointment.”
Loerakker Lighting, Stettinweg 7, 3825 PL Amersfoort
033 47 66 445
info@loerakkerledline.nl loerakkerledline.nl
