PRODUCTS CATALOG SCALES

CRANE SCALES INDUSTRIAL WEIGHING MODULES

Scales

Counting scales, weight/price/amount scales, pocket scales. Approved scales: CE-M, UKCA, OIML R76, ATEX, IP69K.

Digital crane scales for suspended loads

CE marked hooks and shackles. Ultra-light crane scales, for bridge cranes, portable with briefcase for transport, with remote-control with display, with possibility of printing and weights totalization. Approved crane scales: CE-M, UKCA, OIML R76.

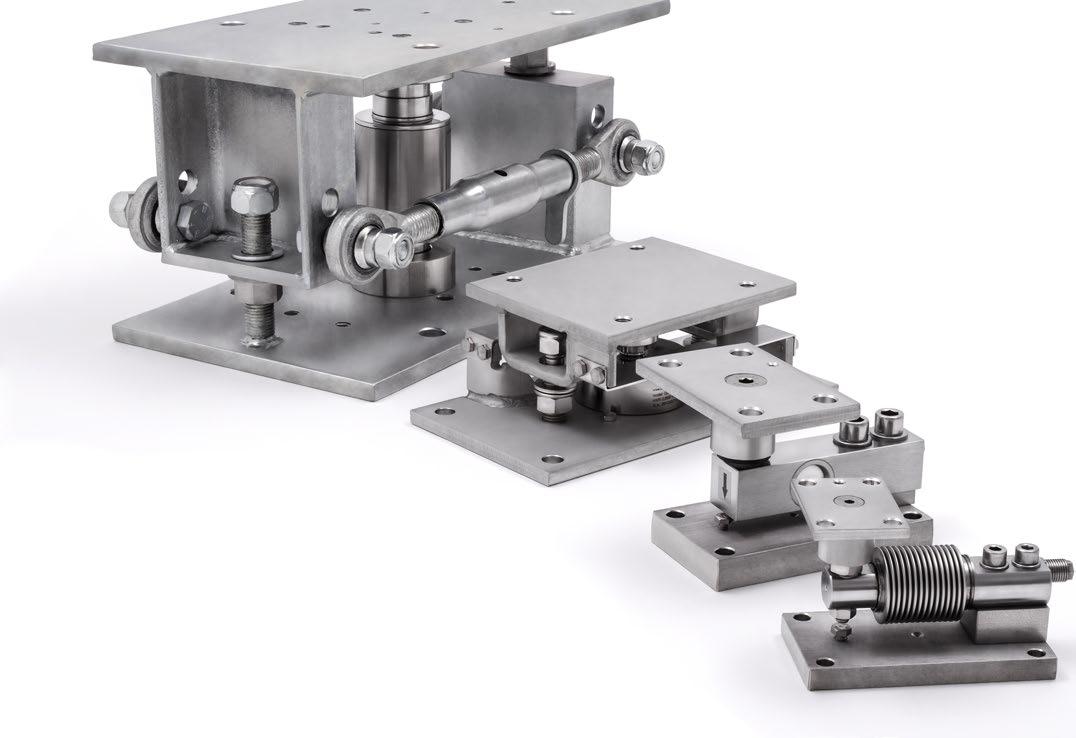

Weighing platforms and modules

Suitable solutions to implement industrial scales and industrial weighing systems. Single cell or 4 load cells industrial platforms. Weighing platforms with inspectable loading plate. Pallet-weighing. Weighing bars. Approved platforms: CE-M, UKCA, OIML R60, ATEX, IECEx, IP69K. Approved pallet truck scale: OIML R76.

CERTIFICATIONS

European Conformity Mark (CE)

UKCA CERTIFICATION (UK Conformity Assessed) for the United Kingdom

MODULE D AND EU TYPE EXAMINATION CERTIFICATE FOR Non-Automatic Weighing Instruments (NAWI)

OIML APPROVAL

ATEX CERTIFICATION

IECEx CERTIFICATION

Testing, calibration, quality control

NTEP CERTIFICATION

Calibration services accredited by Accredia for load cells and load cells + instrument, performed in our laboratory LAT No. 02141 for force values between 2 and 100 kN, according to UNI EN ISO 376 and ASTM E74 standards.

Accredia is the Sole National accreditation body (European Regulation 765/2008) and guarantees compliance with standards and the reliability of conformity certificates issued on the market. The Accredia calibration certificate is an official document recognized worldwide because it is covered by the EA, IAF, and ILAC Mutual Recognition Agreements.

In our laboratory, we also perform calibration reports for force values between 0.5 and 5000 kN (compression) and between 0.5 and 600 kN (tension).

POCKET SCALES

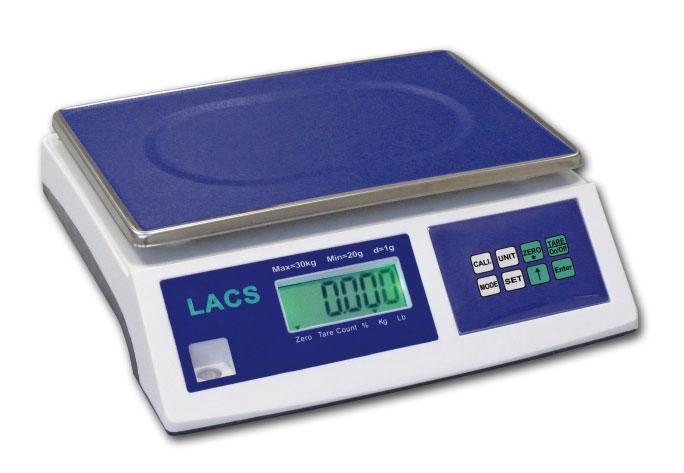

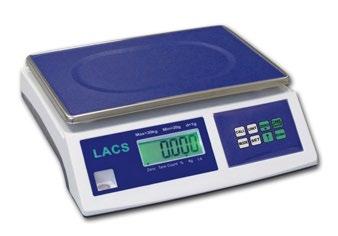

BENCH COUNTING SCALES

DESCRIPTION MAIN

 Stainless steel plate.

 6-digit backlit LCD display (30 mm height).

 8-key waterproof keyboard.

 Bubble level and adjustable feet.

 4 V rechargeable internal battery, 4 Ah capacity.

 Operating time: 70 hours.

 External battery charger 230 VAC included.

 Weight indication.

 Piece counting.

 Weight indication as a percentage.

 RS232 output for connection to PC.

 Weight checking (HIGH/LOW) with acoustic alarm.

CERTIFICATIONS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Calibration report

BENCH COUNTING SCALES

DIMENSIONS (mm)

TECHNICAL FEATURES

Power supply

Internal battery

Display resolution

Units of measure

Serial port

Baud rate

Humidity (condensate free)

Storage temperature

Working temperature

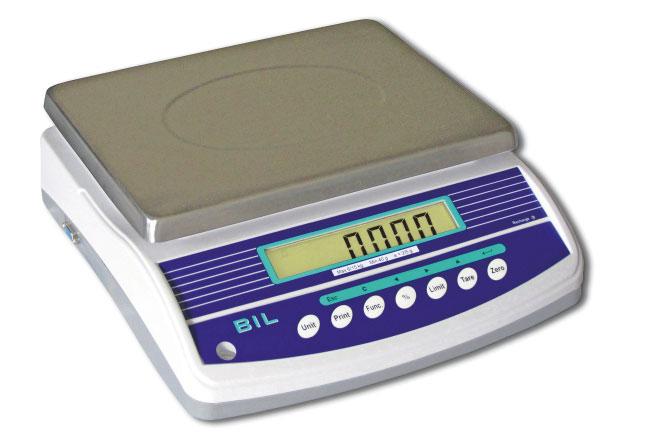

BENCH COUNTING SCALES

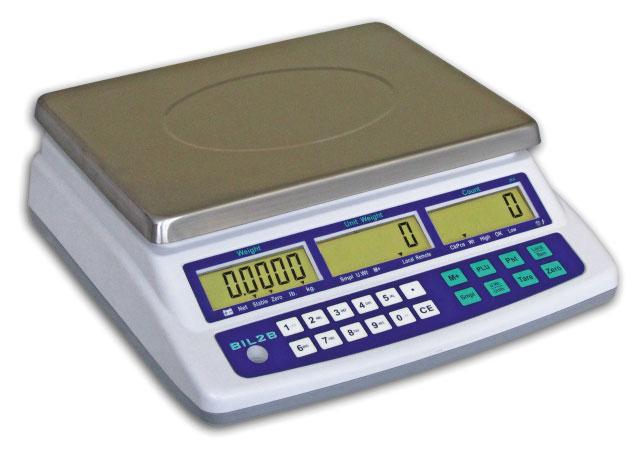

C3 APPROVED - 3000 division - MULTIRANGE

DESCRIPTION

 Stainless steel plate.

 RS232 output for connection to PC or external printer.

 6-digit backlit LCD display (24 mm height).

 7-key waterproof keyboard.

 Bubble level and adjustable feet.

 6 V rechargeable internal battery, 4 Ah capacity.

 Operating time: 70 hours.

 External battery charger 100-240 VAC included.

 Auto power-off.

CERTIFICATIONS

OIML R76:2006, class III, 3000 divisions

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Calibration report

Conformity assessment (initial verification)

MAIN FUNCTIONS

 Piece counting with sequence display of: number of pieces, average unit weight, total weight of the pieces on the scale.

 Automatic/manual totalization of the weighings.

 Weight indication as a percentage.

 Weight/pieces/percentage checking (HIGH/LOW) with acoustic and visual alarm.

 Receipt printing via STAVT II external printer: customizable header, date, time, net weight, average unit weight, number of pieces on the scale, total weight, total number of pieces.

BENCH COUNTING SCALES

DIMENSIONS (mm)

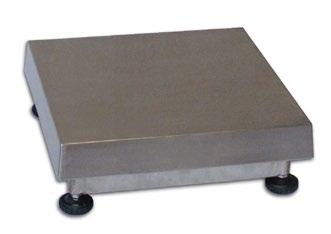

STEEL LOADING PLATE

TECHNICAL FEATURES

Power supply

Internal battery 6 V, 4 Ah capacity

Linearity <0.01% full scale

Display resolution

Units of measure

Serial port

Baud rate

Humidity (condensate free)

Storage temperature

Working temperature

OPTIONS ON REQUEST

DESCRIPTION

Stainless steel deep tray. Dimensions: 230x300x40 mm.

Rechargeable battery 6 V, 4.5 Ah capacity.

Desktop thermal printer.

The Company reserves the right to make changes to the technical data, drawings and images without notice.

BENCH COUNTING SCALES - REMOTE PLATFORM INPUT

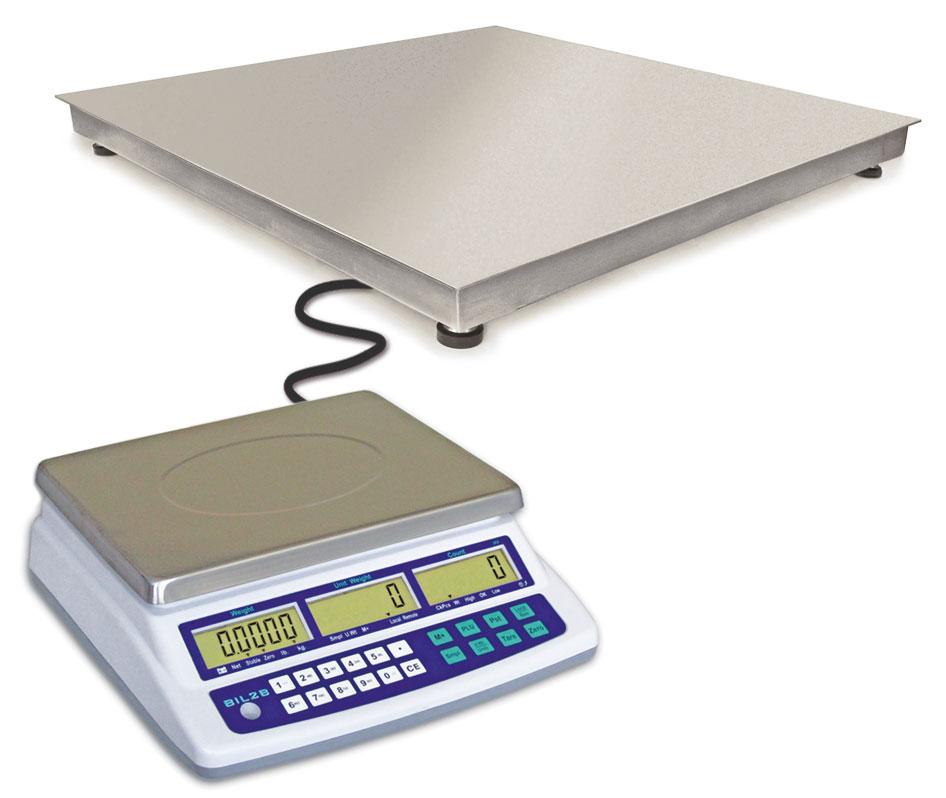

Counting scales connectable to remote weighing platform for weighing and counting of the large quantities:

• ACN / AIN / MN single cell platforms

• P / P-INOX 4 cells platforms

DESCRIPTION

 Stainless steel plate.

 RS232 output for connection to PC or external printer.

 Remote platform input (connector included).

 3x 6-digit backlit LCD display (20 mm height).

 20-key waterproof keyboard.

 Bubble level and adjustable feet.

 6 V rechargeable internal battery, 4 Ah capacity.

 Operating time: 70 hours.

 External battery charger 100-240 VAC included.

 Auto power-off.

MAIN FUNCTIONS

 Piece counting with simultaneous display of: number of pieces, average unit weight, total weight of the pieces on the scale.

 100 storable items (PLU) with the following parameters: name, preset tare value, average unit weight.

 Automatic/manual totalization of the weighings.

 Weight indication as a percentage.

 Weight/pieces/percentage checking (HIGH/LOW) with acoustic and visual alarm.

 Optional receipt printing via STAVT II external printer: customizable header, date, time, item name, scale ID, scale type, net weight, average unit weight, number of pieces on the scale, total weight, total number of pieces.

CERTIFICATIONS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Calibration report

DIMENSIONS (mm)

STEEL LOADING PLATE

TECHNICAL FEATURES

Power supply

Internal battery 6 V, 4 Ah capacity

Linearity <0.01% full scale

Display resolution

Units of measure

Serial port

Remote platform input

Baud rate

Humidity (condensate free)

Storage temperature

Working temperature

OPTIONS ON REQUEST

Stainless steel deep tray. Dimensions: 230x300x40 mm.

Rechargeable battery 6 V, 4.5 Ah capacity.

5-pin circular connector (included)

Desktop thermal printer.

The Company reserves the right to make changes to the technical data, drawings and images without notice.

SWIVEL DISPLAY COLUMN

DESCRIPTION

 Stainless steel plate.

 RS232 output for connection to external printer.

 Backlit LCD displays on both sides, 3x 6-digit (20 mm height).

 20-key waterproof keyboard.

 Bubble level and adjustable feet.

 6 V rechargeable internal battery, 4 Ah capacity.

 Operating time: 70 hours.

 External battery charger 100-240 VAC included.

 Auto power-off.

CERTIFICATIONS

OIML R76:2006, class III, 3000 divisions

Equivalent of the CE marking for the United Kingdom

Conformity assessment (initial verification)

MAIN FUNCTIONS

 Simultaneous display of: weight, unit price, amount.

 100 storable items (PLU) with unit price.

 Price unit setting: €/kg - €/100 g.

 Automatic cancellation of price and tare.

 Totalization of partial amounts.

 Automatic change calculation.

 Optional non-fiscal receipt printing via STAVT II external printer: customizable header, date, time, net weight, unit price, amount per item, total amount.

DIMENSIONS (mm)

TECHNICAL FEATURES

Power supply

Internal battery

Linearity

Display resolution

Units of measure

Serial port

Baud rate

Humidity (condensate free)

Storage temperature

Working temperature

OPTIONS ON REQUEST

Stainless steel deep tray. Dimensions: 230x300x40 mm.

Rechargeable battery 6 V, 4.5 Ah capacity.

Desktop thermal printer.

The Company reserves the right to make changes to the technical data, drawings and images without notice.

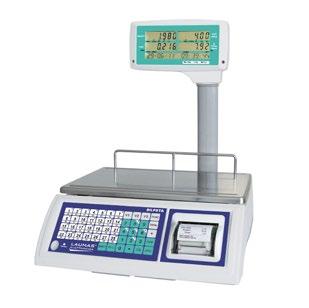

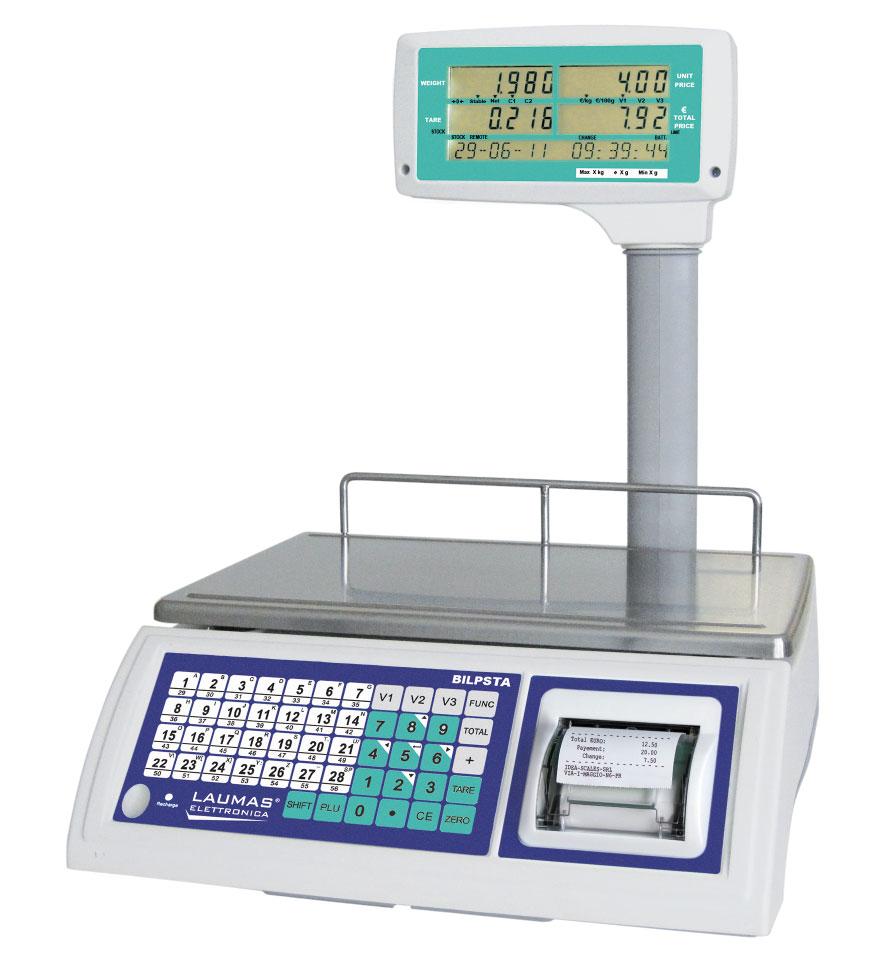

BILPSTA

PRICE COMPUTING RETAIL SCALE WITH INTEGRATED PRINTER

DESCRIPTION

 Integrated thermal printer with real-time clock/calendar.

 Stainless steel plate.

 Backlit LCD displays on both sides, 4x 6-digit (15 mm height) and 1x 18-digit (10 mm height).

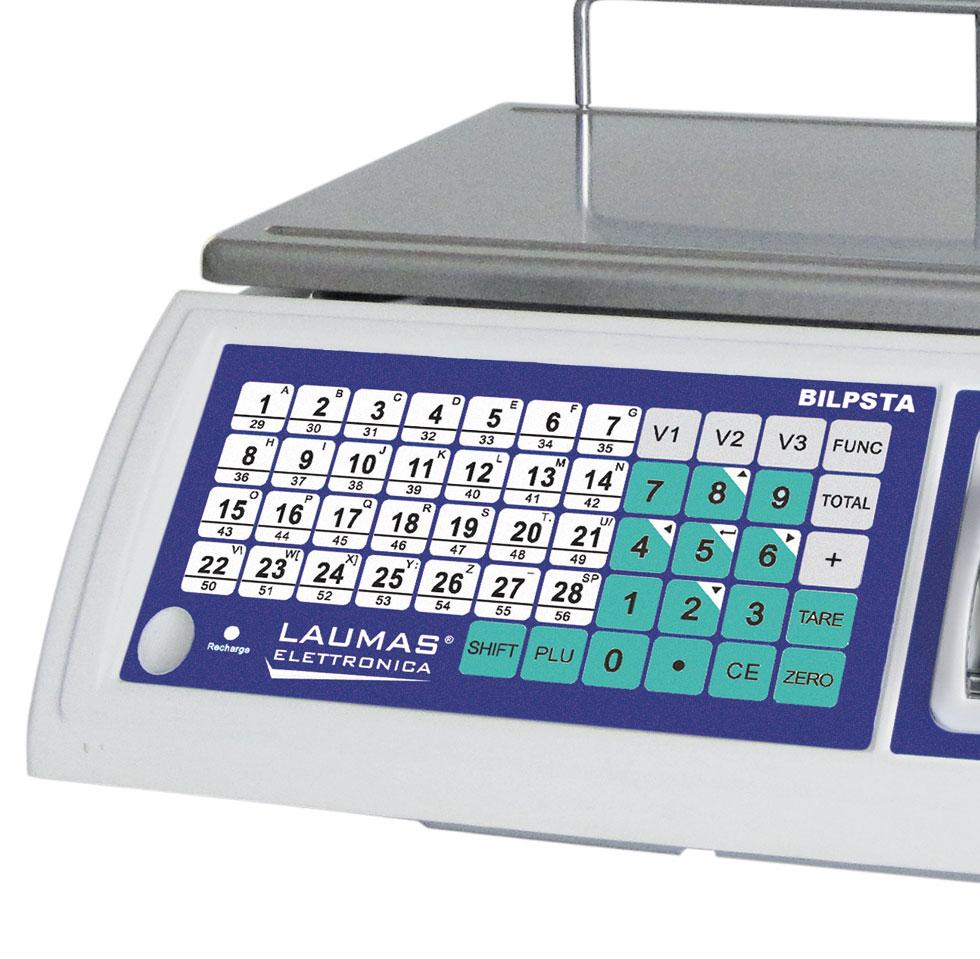

 50-key waterproof keyboard.

 Bubble level and adjustable feet.

 6 V rechargeable internal battery, 10 Ah capacity.

 Operating time: 100 hours.

 External battery charger 100-240 VAC included.

 Auto power-off.

MAIN FUNCTIONS

 Simultaneous management of 3 operators.

 Simultaneous display of: weight, unit price, amount, tare, date and time or customized message.

 Display of amount per item and total amount.

 Price unit setting: €/kg - €/100 g.

 Preset tare.

 Automatic cancellation of price and tare.

 100 storable items (PLU) with the following parameters: name, code, price unit, unit sales price, unit purchase price, preset tare, stock.

 56 PLU directly retrievable via keyboard.

 Items selling by number of pieces.

 Automatic change calculation.

 Management of purchase prices and suppliers.

 Automatic or manual loading of stocks.

 Printing of amount per item, total amount and change.

 Printing of sales and purchase archives, stocks, under-stock items.

 Non-fiscal receipt printing: customizable header, date, time, operator number, item name, net weight, unit price, amount per item, total amount, change and customized message.

CERTIFICATIONS

OIML R76:2006, class III, 3000 divisions

Equivalent of the CE marking for the United Kingdom

Conformity assessment (initial verification)

BILPSTA

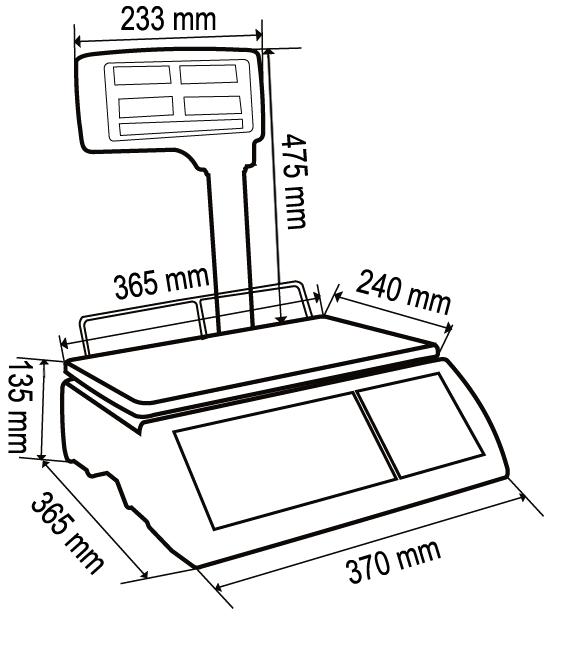

DIMENSIONS (mm)

TECHNICAL FEATURES

Power supply

Internal battery 6 V, 10 Ah capacity

Linearity <0.01% full scale

Display resolution

Units of measure

Serial port

Baud rate

Humidity (condensate free)

Storage temperature

Working temperature

METROLOGICAL SPECIFICATIONS OF TYPE-APPROVED INSTRUMENTS

Applied standards

Operation modes multi-interval

Accuracy class

Maximum number of scale verification divisions 3000 (class III)

OPTIONS ON REQUEST

DESCRIPTION

Stainless steel deep tray. Dimensions: 240x340x40 mm.

Rechargeable battery 6 V, 10 Ah capacity.

Thermal paper roll for weight/price/amount scales.

Adhesive thermal paper roll.

CODE

The Company reserves the right to make changes to the technical data, drawings and images without notice.

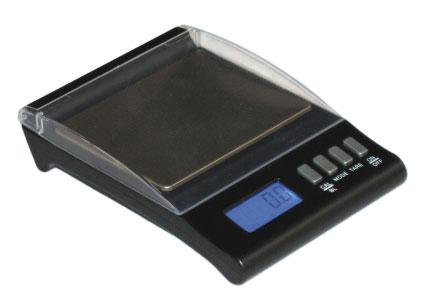

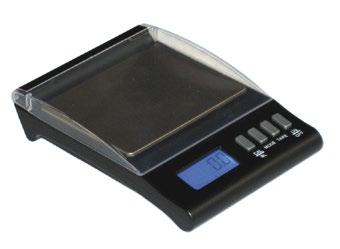

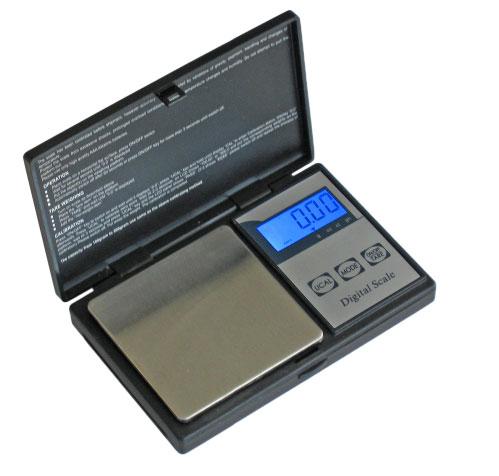

PRECISION POCKET SCALES

DESCRIPTION

capacity 0.5 kg

 Compact professional electronic scales for weighing operations anywhere.

 5-digit backlit LCD display (14 mm height).

 Protection cover.

 Stainless steel plate.

 Waterproof keyboard.

 AAA 1.5V batteries, 80-hour operating time.

TECHNICAL FEATURES

Loading plate

Keyboard

Display resolution

Units of measure

Humidity (condensate free)

Storage temperature

Working temperature

CERTIFICATIONS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Calibration report

MAIN FUNCTIONS

 Weight indication.

 Tare weight zero setting.

 Calibration.

 Auto power-off.

The Company reserves the right to make changes to the technical data, drawings and images without notice.

capacity 3 kg

C2PRODUCTS

CRAne sCALes

Up to 300 kg

Divisions: 10 g ÷ 50 g Up to 30000 kg

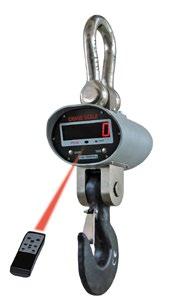

Divisions: 1 kg ÷ 10 kg DIGITAL CRANE SCALES FOR BRIDGE CRANES

Up to 12000 kg

Divisions: 0.2 kg ÷ 5 kg

Up to 5000 kg

Divisions: 0.5 kg ÷ 1 kg

Up to 30000 kg

Divisions: 5 kg

Up to 1000 kg

Divisions: 0.1 kg ÷ 0.2 kg

Up to 20000 kg

Divisions: 0.5 kg ÷ 5 kg

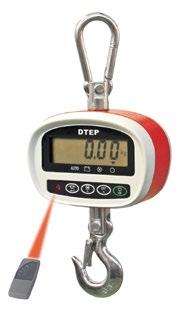

DTEP

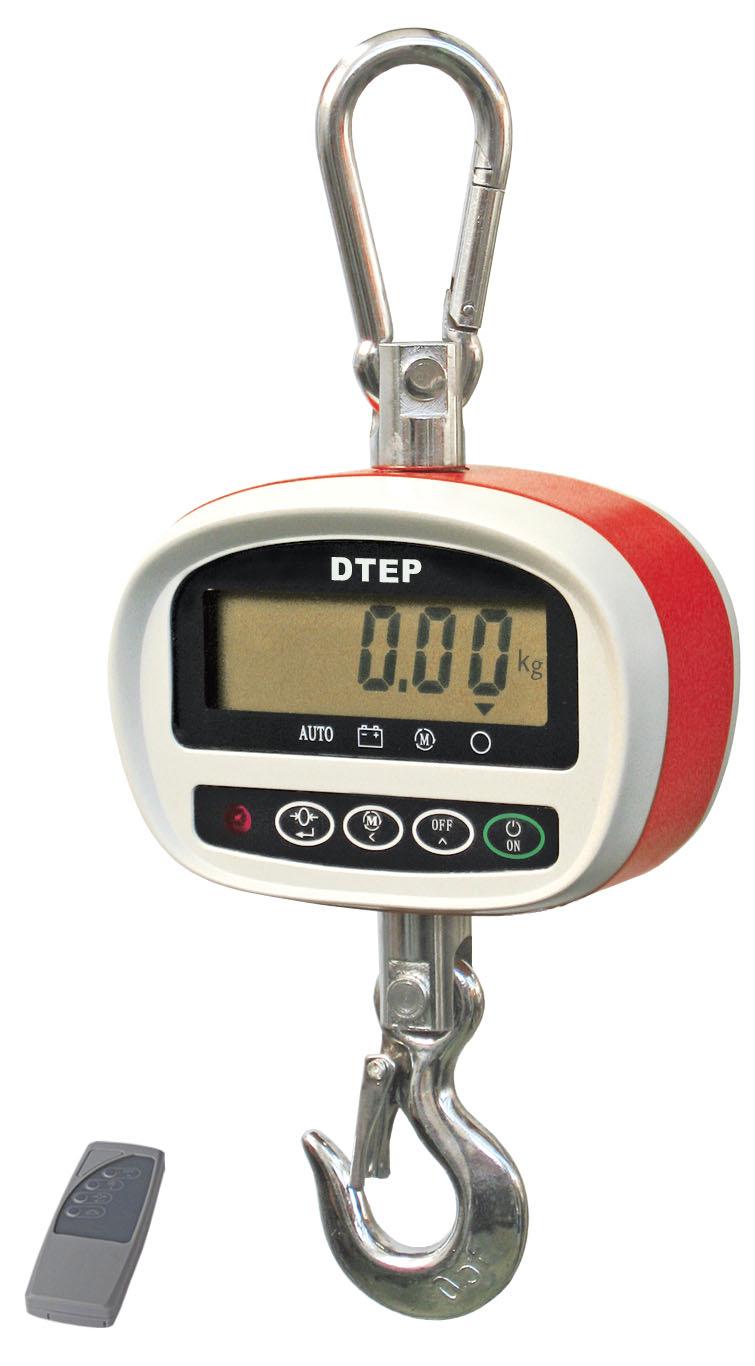

DIGITAL CRANE SCALE

Capacity up to 300 kg

DESCRIPTION

 ABS crane scale with upper swivel shackle and lower swivel hook.

 5-digit backlit LCD display (20 mm height).

 4 signalling symbols.

 IP54 protection rating.

 4 batteries 1.5 V AA type included.

 Operating time: 80 hours.

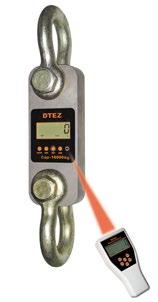

 Remote control with range up to 10 m line of sight.

MAIN FUNCTIONS

 Weight zero setting.

 Tare weight zero setting.

 Reading division setting.

 Units of measure setting: kg - lb.

 Auto power-off.

CERTIFICATIONS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Calibration report

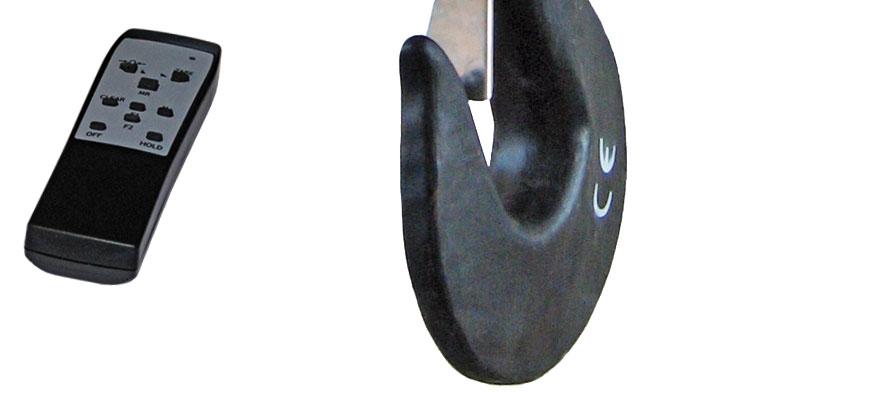

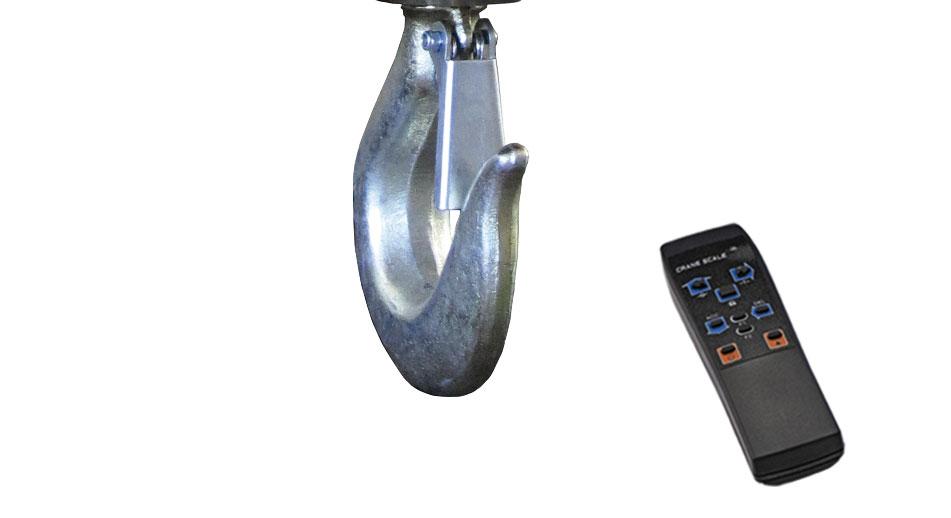

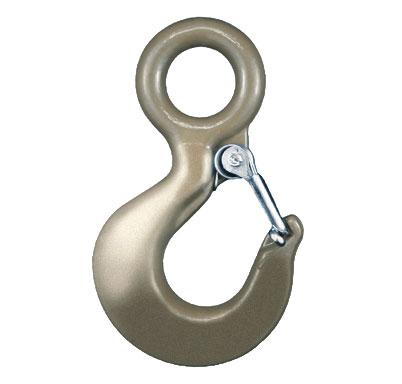

SWIVEL SHACKLE AND HOOK

DIGITAL CRANE SCALE

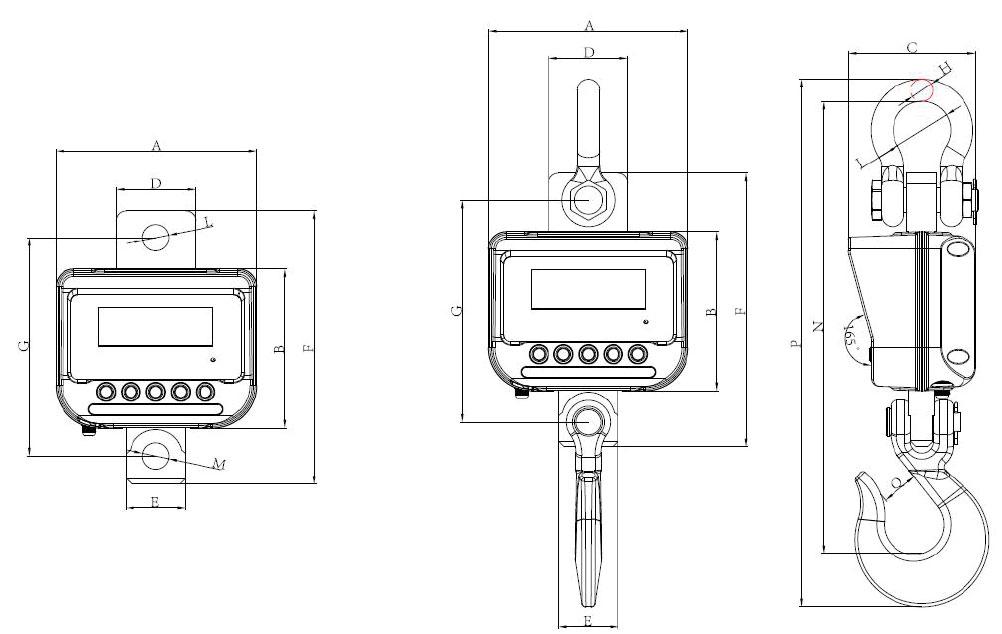

DIMENSIONS (mm)

TECHNICAL FEATURES

Accuracy class (% of full scale)

Safe overload (% of full scale)

Ultimate overload (% of full scale)

Humidity (condensate free)

Working temperature

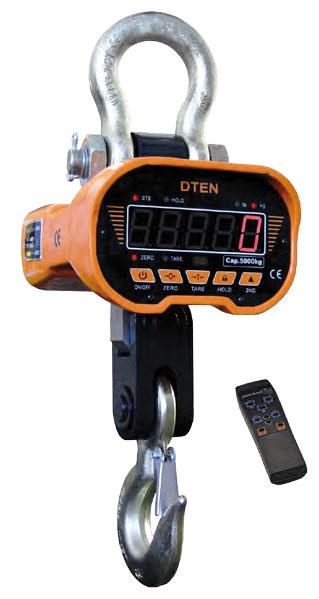

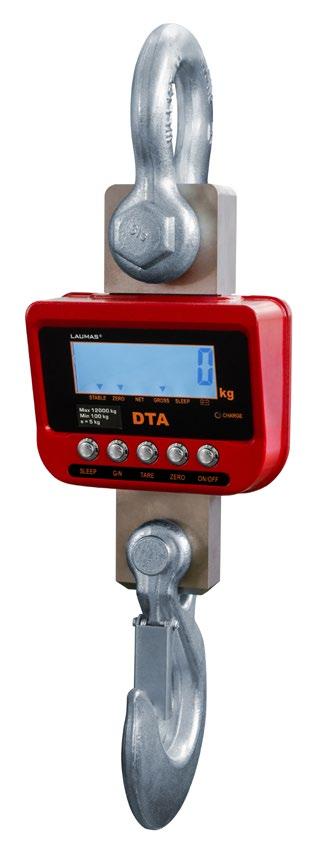

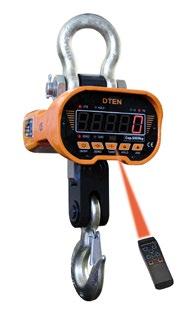

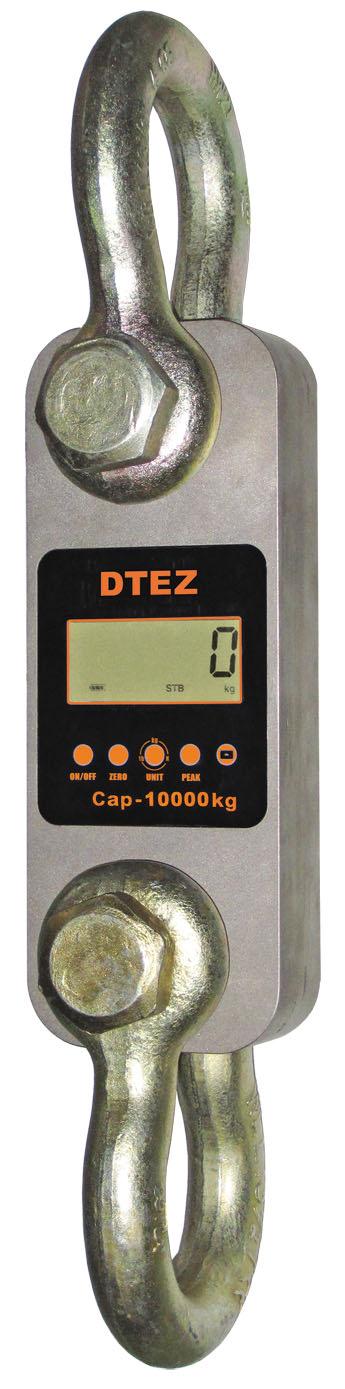

DIGITAL PORTABLE CRANE SCALE

Capacity up to 30 tons

DESCRIPTION

 Crane scale in high resistance aluminum alloy (for capacities from 3000 to 5000 kg) and steel (for capacities from 10000 to 30000 kg) complete with upper and lower shackles.

 5-digit backlit LCD display (25 mm height).

 10 signalling symbols.

 IP64 protection rating.

 3 batteries 1.5 V AA type included.

 Operating time: 50 hours.

 Aluminum case included (for capacities from 3000 to 10000 kg).

 Hook for for 3 to 10 tons capacity (option on request).

 Remote control with range up to 15 m line of sight (option on request).

MAIN FUNCTIONS

 Weight totalizing.

 Semi-automatic tare (net/gross weight).

 Weight zero setting.

 Tare weight zero setting.

 Displaying of the maximum weight value reached (peak).

 Units of measure setting: kg - t - N - kN - lb.

 Energy saving mode.

 Auto power-off.

 Access to calibration functions via remote control (option on request).

HOOK (option on request)

REMOTE CONTROLS (options on request)

CASE INCLUDED (for capacities from 3000 to 10000 kg) CAPACITY

CERTIFICATIONS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Calibration report

DIGITAL PORTABLE CRANE SCALE

DIMENSIONS (mm)

mm 3000 kg5000 kg A260285 B123123 C3955 D103120 H1365405 H2555635 E5565 FØ51Ø58 G3034 L3753 10000 kg20000 kg30000 kg 320375420 120128138 557284 183230265 535660740 840 95 Ø92Ø127Ø146 537082 mm

TECHNICAL FEATURES

Accuracy class (% of full scale)

Safe overload (% of full scale)

Ultimate overload (% of full scale)

Humidity (condensate free)

Working temperature

OPTIONS ON REQUEST

DESCRIPTION

Remote control with display, range up to 15 m line of sight. Hook for capacities up to 3000 kg Hook for capacities up to

APPROVED DIGITAL CRANE SCALE

Capacity up to 12000 kg

DESCRIPTION

 Approved die-cast aluminum crane scale complete with upper shackle and lower hook; suitable for bridge crane.

 6-digit backlit LCD display (30 mm height).

 IP65 protection rating.

 7.4 V rechargeable internal battery, 5200 mAh capacity.

 Operating time: 60 hours.

 External battery charger 100-240 VAC included.

MAIN FUNCTIONS

 Semi-automatic tare (net/gross weight).

 Weight zero setting.

 Tare weight zero setting.

 High resolution visualization.

 Remote control functions: high resolution, zero, net weight, stand-by.

 Energy saving mode.

 Remote control with range up to 20 m line of sight. CAPACITY

CERTIFICATIONS

OIML R76:2006, class III, 3000 divisions

Conformity assessment (initial verification)

Compliant to machinery directive 2006/42/EC and EN 13155:2003/A2:2009

CERTIFICATIONS ON REQUEST

Calibration report

DIMENSIONS (mm)

Capacity

600kg201160128.580602702191950.8232341547742.9 1500kg201160128.580602702191950.8232341547742.9 3000kg201160128.58060275219.5225826.526.545653250.8 6000kg201160128.5958032024825.468.3303052862463.5 12000kg201160128.59580330247.531.882.5363655766063.5

TECHNICAL FEATURES

Working load limit without releasing the load (% of full scale)

Safe overload (% of full scale)

Working temperature

DIGITAL CRANE SCALE

Capacity up to 5000 kg

DESCRIPTION

 Die-cast aluminum crane scale complete with upper shackle and lower swivel hook; suitable for bridge crane.

 5-digit semi-alphanumeric red LED display (30 mm height).

 6 signalling LED.

 IP64 protection rating.

 Brightness control.

 6 V rechargeable internal battery, 3,2 Ah capacity (spare battery included).

 Operating time: 80 hours.

 External battery charger 230 VAC included.

 Remote control with range up to 10 m line of sight.

MAIN FUNCTIONS

 HOLD function (lock of the displayed weight).

 Number of weighed values and totalized weight value.

 Semi-automatic tare (net/gross weight) and preset tare.

 Weight zero setting.

 Tare weight zero setting.

 Storing of the number of overloadings.

 Reading division setting.

 Units of measure setting: kg - lb.

 Energy saving mode.

 Auto power-off.

CERTIFICATIONS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Calibration report

DIGITAL CRANE SCALE

DIMENSIONS

TECHNICAL FEATURES

Accuracy class (% of full scale)

Safe overload (% of full scale)

Ultimate overload (% of full scale)

Humidity (condensate free)

Working temperature

DIGITAL CRANE SCALE

Capacity up to 30 tons

DESCRIPTION

 Die-cast aluminum crane scale complete with upper shackle and lower hook; suitable for bridge crane.

 5-digit semi-alphanumeric red LED display (58 mm height).

 2 signalling LED.

 IP64 protection rating.

 Brightness control.

 6 V rechargeable internal battery, 10 Ah capacity.

 Operating time: 80 hours.

 External battery charger 230 VAC included.

 Remote control with range up to 15 m line of sight.

MAIN FUNCTIONS

 HOLD function (lock of the displayed weight).

 Number of weighed values and totalized weight value.

 Semi-automatic tare (net/gross weight) and preset tare.

 Weight zero setting.

 Tare weight zero setting.

 Units of measure setting: kg - lb.

 Energy saving mode.

 Auto power-off.

CERTIFICATIONS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Calibration report

DIGITAL CRANE SCALE

DIMENSIONS

TECHNICAL FEATURES

Accuracy class (% of full scale)

Safe overload (% of full scale)

Ultimate overload (% of full scale)

Humidity (condensate free)

Working temperature

DIGITAL CRANE SCALE

SWIVEL HOOK

Capacity from 500 kg to 1000 kg

Capacity from 3000 kg to 20000 kg

DESCRIPTION

 Die-cast aluminum crane scale complete with upper shackle and lower hook; suitable for bridge crane.

 5-digit semi-alphanumeric red LED display (30 mm height).

 5/6 signalling LED.

 IP64 protection rating.

 Brightness control.

 Capacity from 500 kg to 1000 kg: 6 V rechargeable internal battery, 5 Ah capacity. Operating time: 80 hours.

 Capacity from 3000 kg to 20000 kg: 6 V rechargeable internal battery, 10 Ah capacity.Operating time: 140 hours.

 External battery charger 230 VAC included.

 Remote control with range up to 10 m line of sight.

MAIN FUNCTIONS

 HOLD function (lock of the displayed weight).

 Number of weighed values and totalized weight value.

 Semi-automatic tare (net/gross weight) and preset tare.

 Weight zero setting.

 Tare weight zero setting.

 Storing of the number of overloadings.

 Reading division setting.

 Units of measure setting: kg - lb.

 Energy saving mode.

 Auto power-off.

CERTIFICATIONS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Calibration report

DTEN

DIMENSIONS (mm)

3000 kg5000 kg10000 kg20000 kg A500590750950 B92112130220 C41586080 D749095140 E32355575

TECHNICAL FEATURES

Accuracy class (% of full scale)

Safe overload (% of full scale)

Ultimate overload (% of full scale)

Humidity (condensate free)

Working temperature

WeIGHInG MoDULes

Up to 600 kg

OIML R60

Up to 600 kg

OIML R60

Painted steel tubular structure

300x300 mm

400x400 mm

600x600 mm

800x800 mm

AISI

300x300 mm

400x400 mm

600x600 mm

800x800 mm

AISI

Up to 300 kg

OIML R60

Up to 300 kg

OIML R60

Painted steel tubular structure 460x600 mm

PLATFORMS WITH 4 LOAD CELLS

Up to 1500 kg

OIML R60

Up to 3000 kg

OIML R60

Up to 1500 kg

OIML R60

Up to 3000 kg

OIML R60

Up to 1000 kg

OIML R60

Painted steel structure

1250x1250 mm

1200x1500 mm

1500x1500 mm

AISI 304 stainless steel structure

1250x1250 mm

1500x1500 mm

Ultra-light anodized aluminum structure 1200x1600 mm

Up to 3000 kg

OIML R60

AISI 304 stainless steel structure

800x800 mm

1000x1000 mm

1250x1250 mm

1500x1500 mm

InDUstRIAL WeIGHInG MoDULes

PALLET TRUCK SCALE

SINGLE CELL PLATFORM WITH STAINLESS STEEL LOADING PLATE

Capacity up to 600 kg

 Painted steel tubular structure.

 AISI 304 stainless steel loading plate.

 Aluminum alloy IP65 load cell.

 Feet in galvanized steel and polyamide.

 Connection for indicator-holder column.

CERTIFICATIONS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

ATEX II 2GD (zone 1-2-21-22)

IECEx (zone 1-2-21-22)

NTEP - compliant to the metrological standards of United States and Canada

DIMENSIONS (mm)

ELECTRICAL CONNECTIONS

OPTIONS ON REQUEST

STAINLESS STEEL SINGLE CELL PLATFORM

Capacity up to 600 kg

 AISI 304 stainless steel tubular structure.

 AISI 304 stainless steel loading plate.

 Aluminum alloy IP65 load cell.

 Feet in stainless steel and polyamide.

 Connection for indicator-holder column.

CELL PROTECTION KIT

for capacities from 60 to 300 kg

ON REQUEST

CERTIFICATIONS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

ATEX II 2GD (zone 1-2-21-22)

IECEx (zone 1-2-21-22)

NTEP - compliant to the metrological standards of United States and Canada

STAINLESS STEEL SINGLE CELL PLATFORM

DIMENSIONS (mm)

ELECTRICAL CONNECTIONS

OPTIONS ON REQUEST

STAINLESS STEEL IP68 SINGLE CELL PLATFORM

Capacity up to 300 kg

 AISI 304 stainless steel tubular structure.

 AISI 304 stainless steel loading plate.

 Welded stainless steel IP68 load cell (on request: IP69K).

 Feet in stainless steel and polyamide.

 Connection for indicator-holder column.

CERTIFICATIONS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Declaration of conformity + IP69K marking protection rating

Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from a distance of max 150 mm)

Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)

ATEX II 2GD (zone 1-2-21-22)

IECEx (zone 1-2-21-22)

NTEP - compliant to the metrological standards of United States and Canada

STAINLESS STEEL IP68 SINGLE CELL PLATFORM

DIMENSIONS (mm)

ELECTRICAL CONNECTIONS

SHIELD + SIGNAL WHITE GREEN + EXCITATION + REF./SENSE GREEN YELLOW RED BLUE

- SIGNAL RED WHITE

- EXCITATION - REF./SENSE BLACK BLUE BLACK YELLOW where provided

OPTIONS ON REQUEST

DESCRIPTION

Stainless steel indicator-holder column (Ø38 mm, height 700 mm). Stainless steel bracket for platform mounting.

Non-standard capabilities.

SINGLE CELL PLATFORM WITH STAINLESS STEEL LOADING PLATE

Capacity up to 300 kg

 Painted steel tubular structure.

 AISI 304 stainless steel loading plate.

 Aluminum alloy IP65 load cell.

 Feet in galvanized steel and polyamide.

 Connection for indicator-holder column.

CERTIFICATIONS

ON REQUEST

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

ATEX II 2GD (zone 1-2-21-22)

IECEx (zone 1-2-21-22)

SINGLE CELL PLATFORM WITH STAINLESS STEEL LOADING PLATE

ELECTRICAL CONNECTIONS

SHIELD + SIGNAL GREEN + EXCITATION + REF./SENSE RED BLUE - SIGNAL WHITE

- EXCITATION - REF./SENSE BLACK YELLOW where provided

OPTIONS ON REQUEST

DESCRIPTION

Stainless steel indicator-holder column (Ø38 mm, height 700 mm). Painted steel bracket for platform mounting.

Non-standard capabilities.

The Company reserves the right to make changes to the technical data, drawings and images without notice.

 Painted steel platform.

 4 FTP load cells in AISI 420 stainless steel - IP68 (on request: IP69K).

 IP67 stainless steel junction box with equalization board and 6-wire output cable (length: 5 m).

 Inspectable compartments for load cells and junction box.

 Galvanized steel adjustable feet, self-centering on sphere.

 Two M12 holes for lifting eyebolts.

CAPACITY

CERTIFICATIONS

DIMENSION (mm)

WEIGHT (kg) ON REQUEST ACCURACY CLASS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Declaration of conformity + IP69K marking protection rating

LOAD CELLS

Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from a distance of max 150 mm)

Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)

ATEX II 2GD (zone 1-2-21-22)

IECEx (zone 1-2-21-22)

PAINTED STEEL PLATFORM - 4 LOAD CELLS IP68

DIMENSIONS (mm)

ELECTRICAL CONNECTIONS

OPTIONS ON REQUEST

DESCRIPTION

TELP pit frame in galvanized steel with centering plates. For platforms:

mm

MR access ramp in painted steel.

Dimensions:

mm

Stainless steel indicator-holder column (Ø38 mm, height 700 mm). Painted steel bracket for floor mounting.

AISI 304 stainless steel PPV constraint against lateral displacement and overturning (1 piece).

Non-standard capabilities.

The Company reserves the right to make changes to the technical data, drawings and images without notice.

STAINLESS STEEL PLATFORM - 4 LOAD CELLS IP68

Capacity up to 3000 kg

 AISI 304 stainless steel platform.

 4 FT-P load cells in 17-4 PH stainless steel - IP68 (on request: IP69K).

 IP67 stainless steel junction box with equalization board and 6-wire output cable (length: 5 m).

 Inspectable compartments for load cells and junction box.

 AISI 304 stainless steel adjustable feet, self-centering on sphere.

 Two M12 holes for lifting eyebolts.

ACCURACY CLASS

CAPACITY

CERTIFICATIONS

DIMENSION (mm)

(kg) ON REQUEST

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Declaration of conformity + IP69K marking protection rating

LOAD CELLS

Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from a distance of max 150 mm)

Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)

ATEX II 2GD (zone 1-2-21-22)

IECEx (zone 1-2-21-22)

STAINLESS STEEL PLATFORM - 4 LOAD CELLS IP68

DIMENSIONS (mm)

ELECTRICAL CONNECTIONS

SHIELD

+ SIGNAL GREEN

+ EXCITATION + REF./SENSE RED BLUE

- SIGNAL WHITE

- EXCITATION - REF./SENSE BLACK YELLOW where provided

OPTIONS ON REQUEST

DESCRIPTION

TELP pit frame in galvanized steel with centering plates. For platforms:

1250x1250 mm

mm

Stainless steel access MR ramp. Dimensions: 1250x1060x110 mm

Stainless steel indicator-holder column (Ø38 mm, height 700 mm).

Stainless steel bracket for floor mounting.

AISI 304 stainless steel PPV constraint against lateral displacement and overturning (1 piece).

Non-standard capabilities.

The Company reserves the right to make changes to the technical data, drawings and images without notice.

ULTRA-LIGHT ALUMINUM PLATFORM - 4 LOAD CELLS IP68

 Ultra-light anodized aluminum platform.

 Integrated ramps and sideguards.

 4 load cells FTP 500 kg

AISI 420 stainless steel - IP68 (on request: IP69K).

 IP67 stainless steel junction box with equalization board and 6-wire output cable (length: 5 m).

 Galvanized steel adjustable feet, self-centering on sphere.

 Carrying handles and wheels.

CERTIFICATIONS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Declaration of conformity + IP69K marking protection rating

Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from a distance of max 150 mm)

Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)

ATEX II 2GD (zone 1-2-21-22)

IECEx (zone 1-2-21-22)

ELECTRICAL CONNECTIONS

SHIELD

+ SIGNAL GREEN

+ EXCITATION + REF./SENSE RED BLUE

- SIGNAL WHITE

- EXCITATION - REF./SENSE BLACK YELLOW

OPTIONS ON REQUEST

DESCRIPTION

Stainless steel indicator-holder column (Ø38 mm, height 700 mm).

- Painted steel mobile pedestal.

- Stainless steel mobile pedestal.

Non-standard capabilities.

Capacity up to 3000 kg

 AISI 304 stainless steel platform with tipper loading plate.

 4 load cells FT-P 500 kg or FT-P 1000 kg 17-4 PH stainless steel - IP68 (on request: IP69K).

 IP67 stainless steel junction box with equalization board and 6-wire output cable (length: 5 m).

 AISI 304 stainless steel adjustable feet, self-centering on sphere.

 4 lifting lugs.

CLASS

CERTIFICATIONS

(kg) ON REQUEST

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Declaration of conformity + IP69K marking protection rating

Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from a distance of max 150 mm)

Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)

ATEX II 2GD (zone 1-2-21-22)

IECEx (zone 1-2-21-22)

STAINLESS STEEL INSPECTABLE PLATFORM - 4 LOAD CELLS IP68

DIMENSIONS (mm)

ELECTRICAL CONNECTIONS

OPTIONS ON REQUEST

DESCRIPTION

TELP pit frame in galvanized steel with centering plates. For platforms:

Stainless steel indicator-holder column (Ø38 mm, height 700 mm). Stainless steel bracket for floor mounting.

The Company reserves the right to make changes to the technical data, drawings and images without notice.

PX - PXI

PALLET SCALE - 4 LOAD CELLS IP68

 PX:

- Painted steel structure.

- 4 load cells FTP 1000 kg AISI 420 stainless steel - IP68 (on request: IP69K).

- Galvanized steel adjustable feet, self-centering on sphere.

 PXI:

- AISI 304 stainless steel structure.

- 4 load cells FT-P 1000 kg 17-4 PH stainless steel - IP68 (on request: IP69K).

- AISI 304 stainless steel adjustable feet, self-centering on sphere.

 IP67 stainless steel junction box with equalization board and 6-wire output cable (length: 5 m).

 Carrying handle and wheels.

CERTIFICATIONS

Equivalent of the CE marking for the United Kingdom

CERTIFICATIONS ON REQUEST

Declaration of conformity + IP69K marking protection rating

Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from

Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)

ATEX II 2GD (zone 1-2-21-22)

IECEx (zone 1-2-21-22)

PX - PXI

PALLET SCALE - 4 LOAD CELLS IP68

OPTIONS ON REQUEST

ELECTRICAL CONNECTIONS

SHIELD + SIGNAL GREEN + EXCITATION + REF./SENSE RED BLUE

DESCRIPTION

Stainless steel indicator-holder column (Ø38 mm, height 700 mm).

- Painted steel mobile pedestal.

- Stainless steel mobile pedestal.

Non-standard capabilities.

The Company reserves the right to make changes to the technical data, drawings and images without notice.

PALLET TRUCK SCALE

Capacity up to 2500 kg

CAPACITY

FORKS DIMENSIONS (mm)

DESCRIPTION

 Pallet truck scale with integrated weighing system.

 Legal for trade use CE-M approved versions, class III, with CE marking and conformity assessment (initial verification) according to 2014/31/UE, EN 45501, OIML R76.

 High strength steel forks (thickness: 4 mm).

 WDESKL weight indicator, IP67 protection rating (to know the functions and technical features of the instrument, refer to the dedicated data sheet).

 4 load cells FTP 1000 kg AISI 420 stainless steel - IP68 (on request: IP69K).

 Rubber steering wheels (Ø200 mm) and polyurethane fork roller.

 12 V rechargeable battery, 7 Ah capacity, supplied already installed inside the column of the pallet truck scale. Operating time: 16 hours.

 Power supply included.

 Switch inclinometer included in the approved version, maximum inclination: 3.5%.

MAIN FUNCTIONS

 Net/gross weight.

 Piece counting.

 Weight totalizing.

 Non-fiscal receipt printing via integrated thermal printer (option on request).

Printout example refers to the integrated printer.

DATE: 12/04/19 15:20:32

PALLET TRUCK SCALE

CERTIFICATIONS

OIML R76:2006, class III, 3000 divisions

Equivalent of the CE marking for the United Kingdom

Conformity assessment (initial verification)

DIMENSIONS (mm)

OPTIONS ON REQUEST

DESCRIPTION

Integrated thermal printer: 24 columns, paper end sensor and head temperature sensor, energy saving mode, operating temperature: -20÷70 °C, operating humidity: 20%÷80%, paper roll included (width: 58 mm - grammage: 55÷70 g/m2 - outside diameter: 50 mm). Alibi memory.

CODE

The Company reserves the right to make changes to the technical data, drawings and images without notice.

LOAD CELLS AND MOUNTING KITS

LAUMAS offers a wide range of load cells of the most common types in the main industrial sectors providing for each of them the quality, availability and assistance.

For all load cells, LAUMAS is able to provide suitable mounting kits, with the aim of obtaining the correct application of the cell and maximum reliability and accuracy, and compatibly with the mechanical, electrical and pneumatic connections present on the weighing structure.

ELECTRONIC INSTRUMENTATION FOR WEIGHING AND BATCHING SYSTEMS

LAUMAS produces Weight Indicators and Transmitters for PC/PLC connection to the most important international brands (Siemens, Rockwell Automation, Allen-Bradley, B&R Automation, Omron, Beckhoff, Schneider, Panasonic, Mitsubishi, Bosch Rexroth, Vipa, ABB, etc.) through the main fieldbuses on the market (Modbus RTU, Modbus TCP, PROFIBUS DP, PROFINET IO, Ethernet/IP, Ethernet TCP/IP, EtherCAT, POWERLINK, DeviceNet, CANopen, CC-Link, CCLink IE, IO-Link, SERCOS III, etc.).

The wide range of products and components for industrial weighing systems is designed to be in compliance with the most relevant industry standards and is certified by the most established national and international bodies.

43022

PHONE (+39) 0521 683124

FAX (+39) 0521 681091

EXPORT SALES DEPARTMENT: sales@laumas.it
