Innovation in Weighing
AL COU ON N TI
HT
SU
EI
G
E
A
ON W
RES
L CI
NA
PRODUCTS CATALOG
S AND M
EN

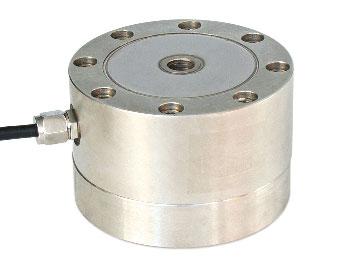

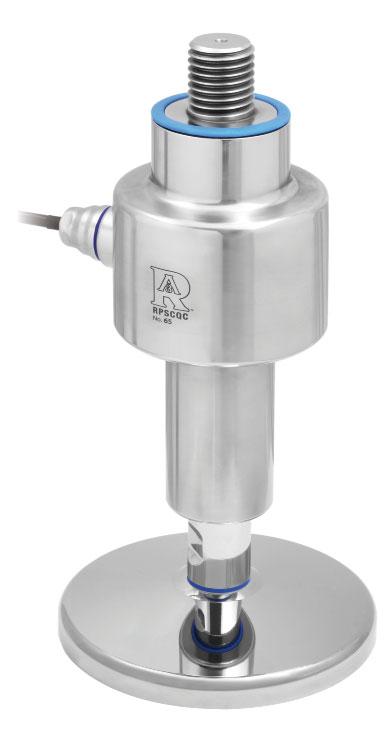

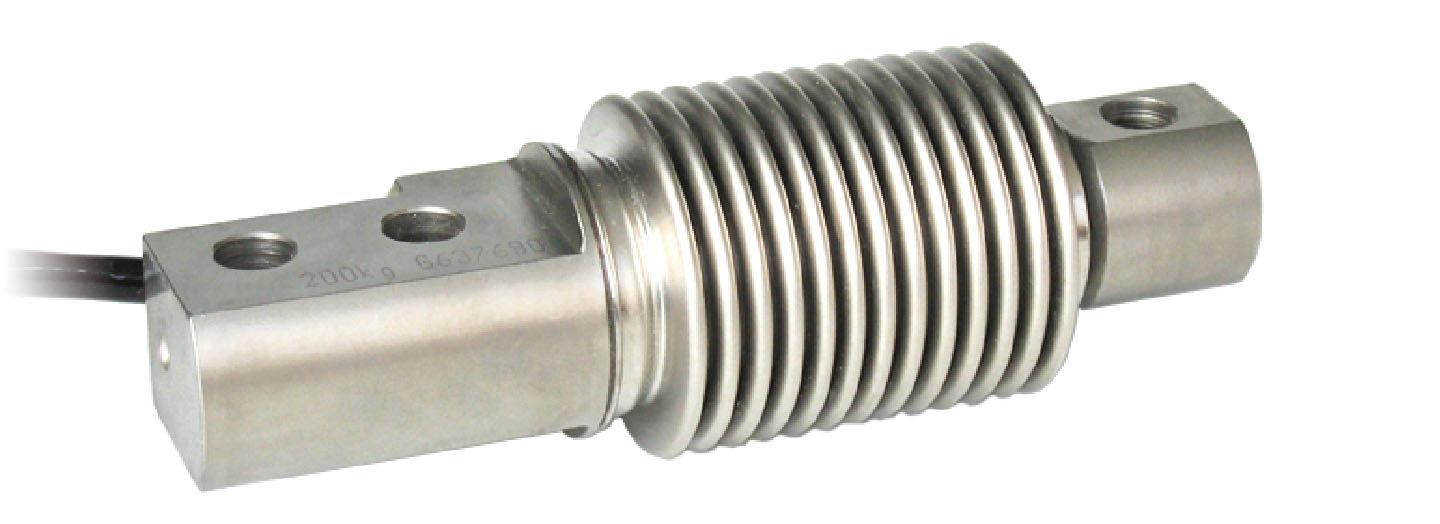

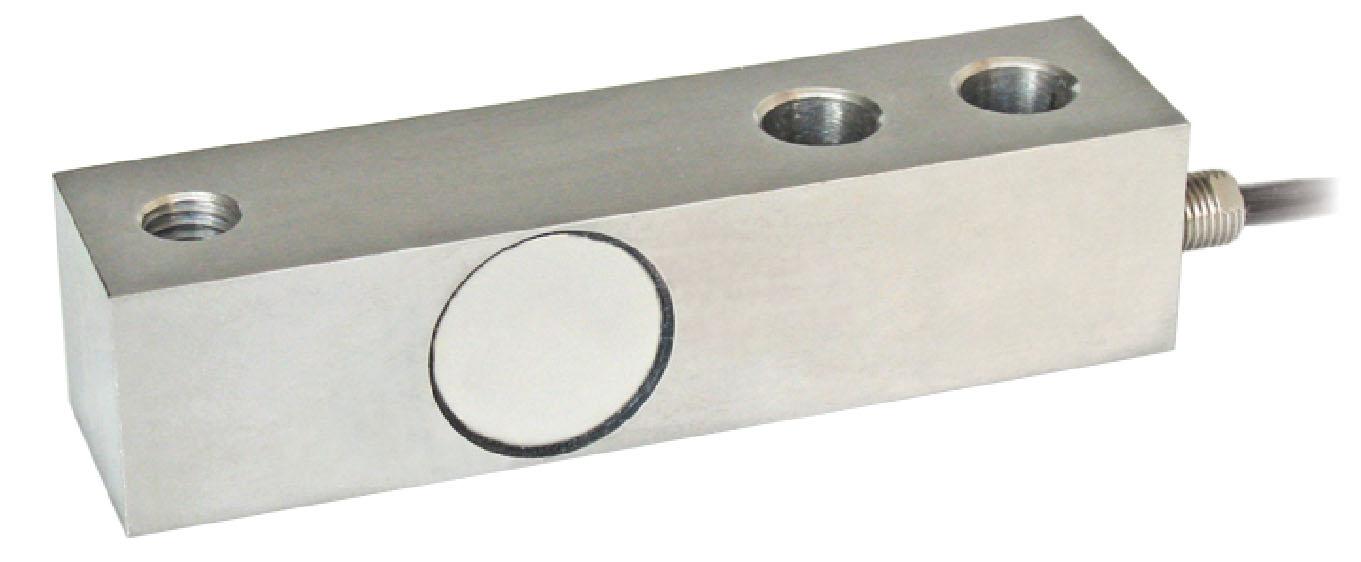

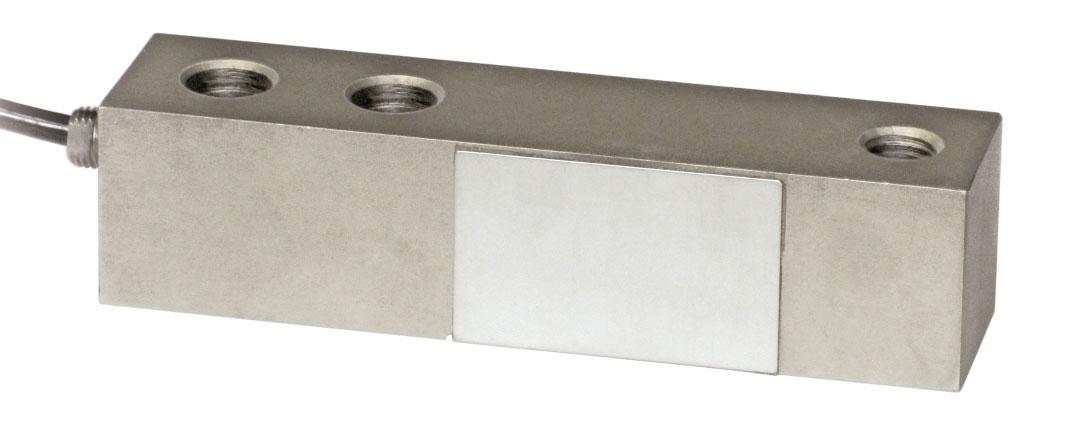

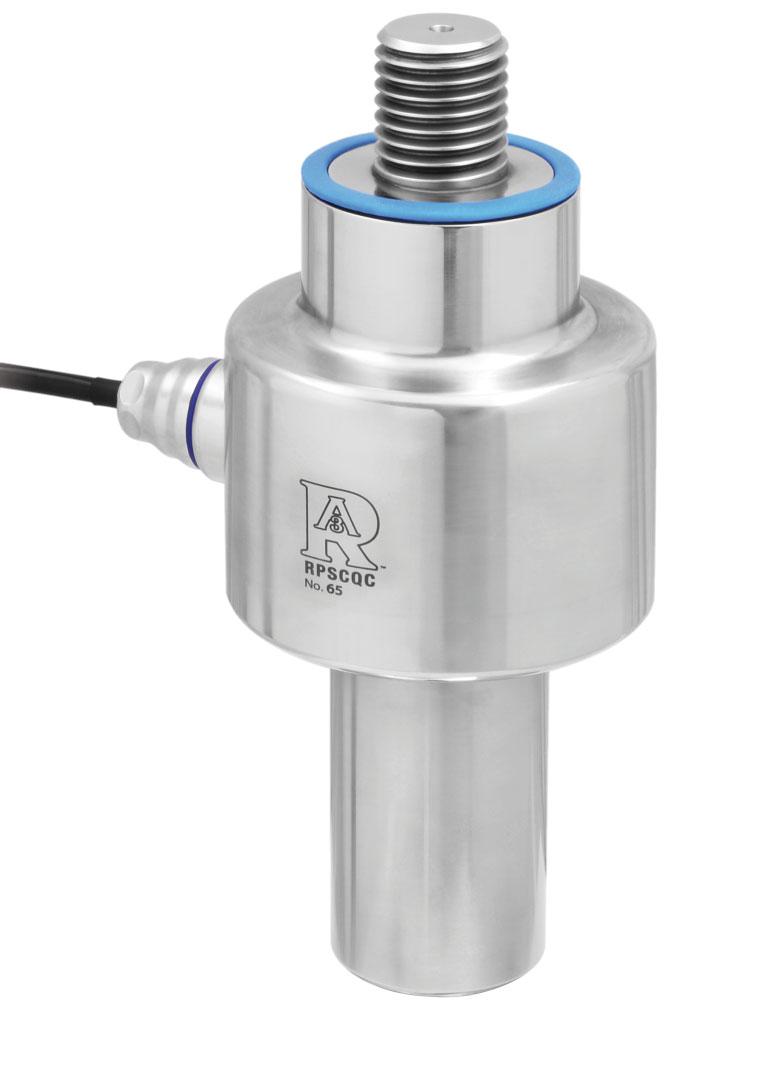

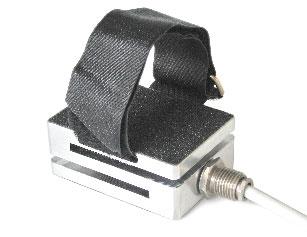

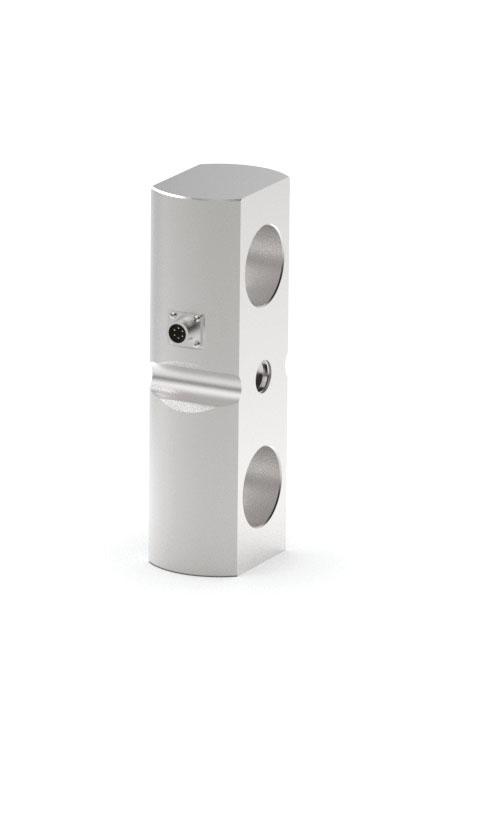

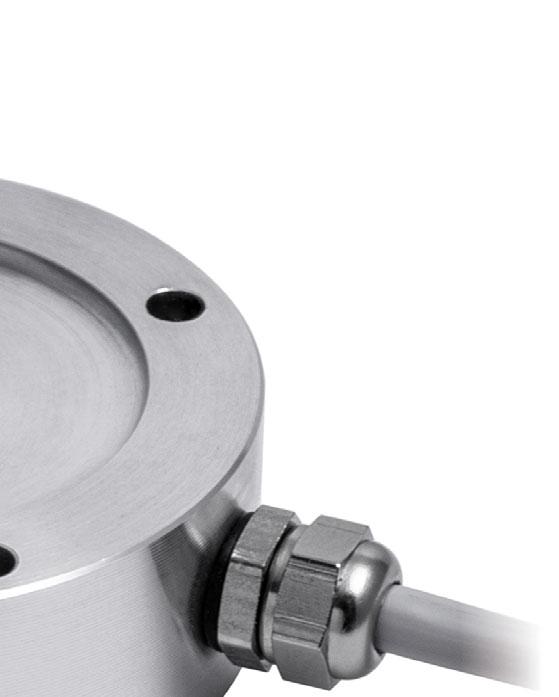

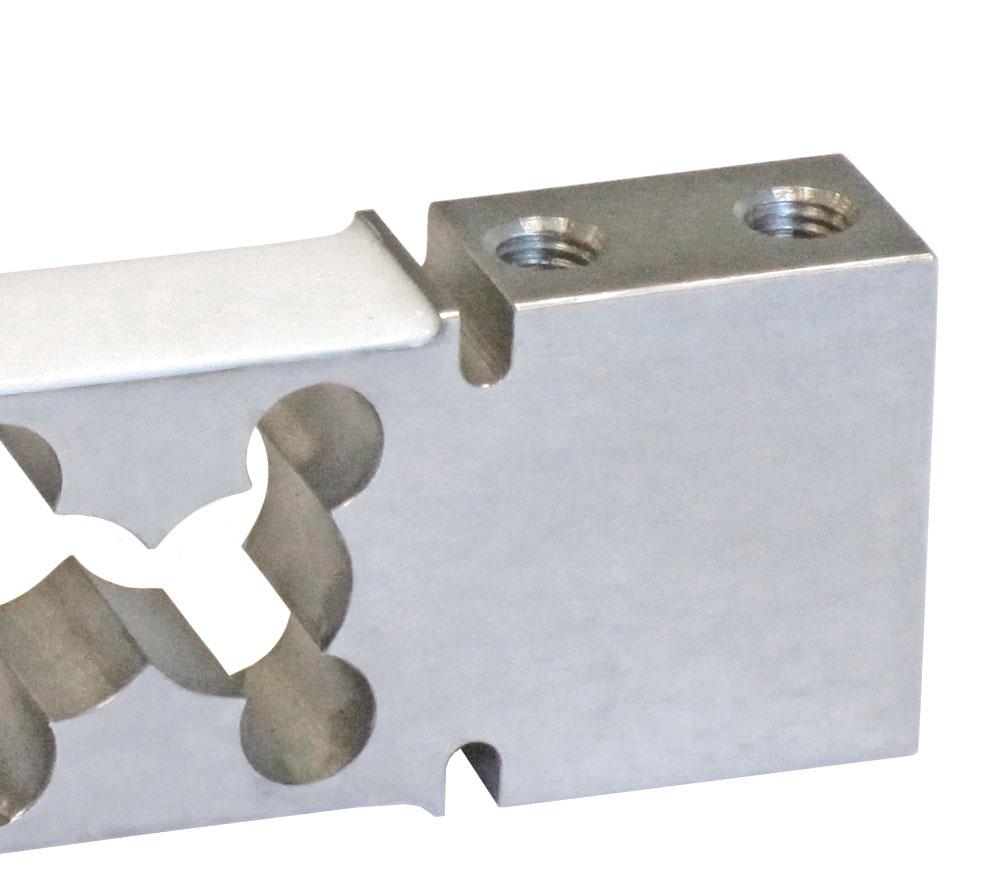

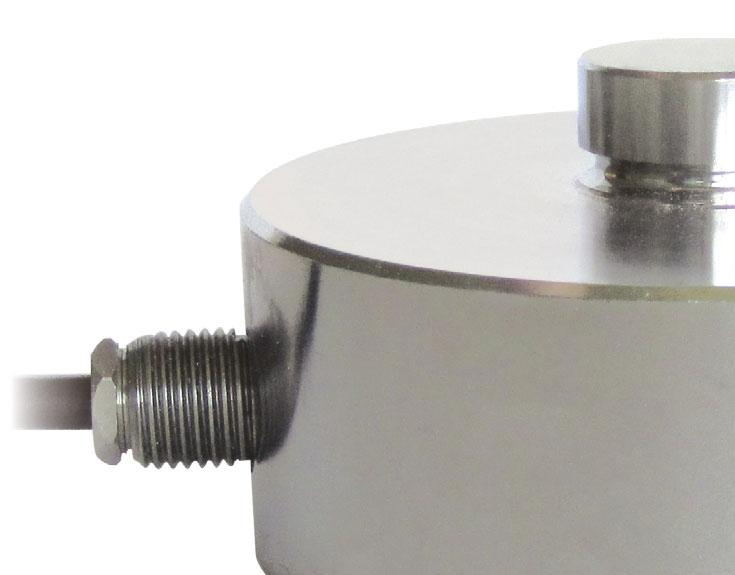

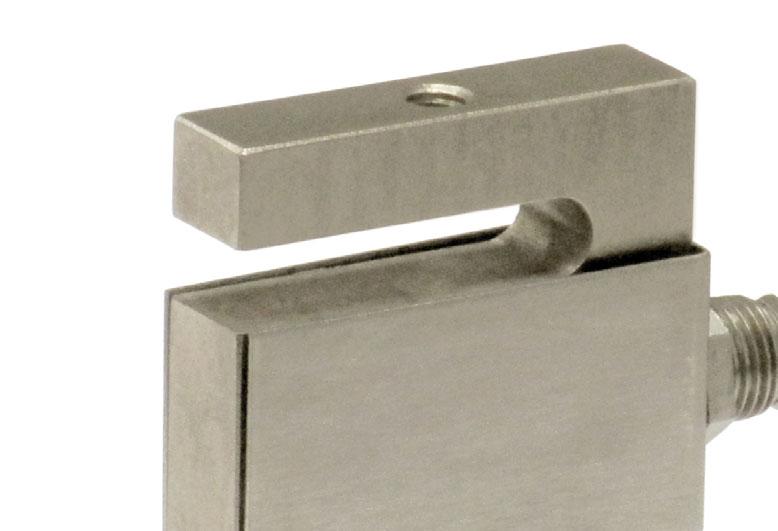

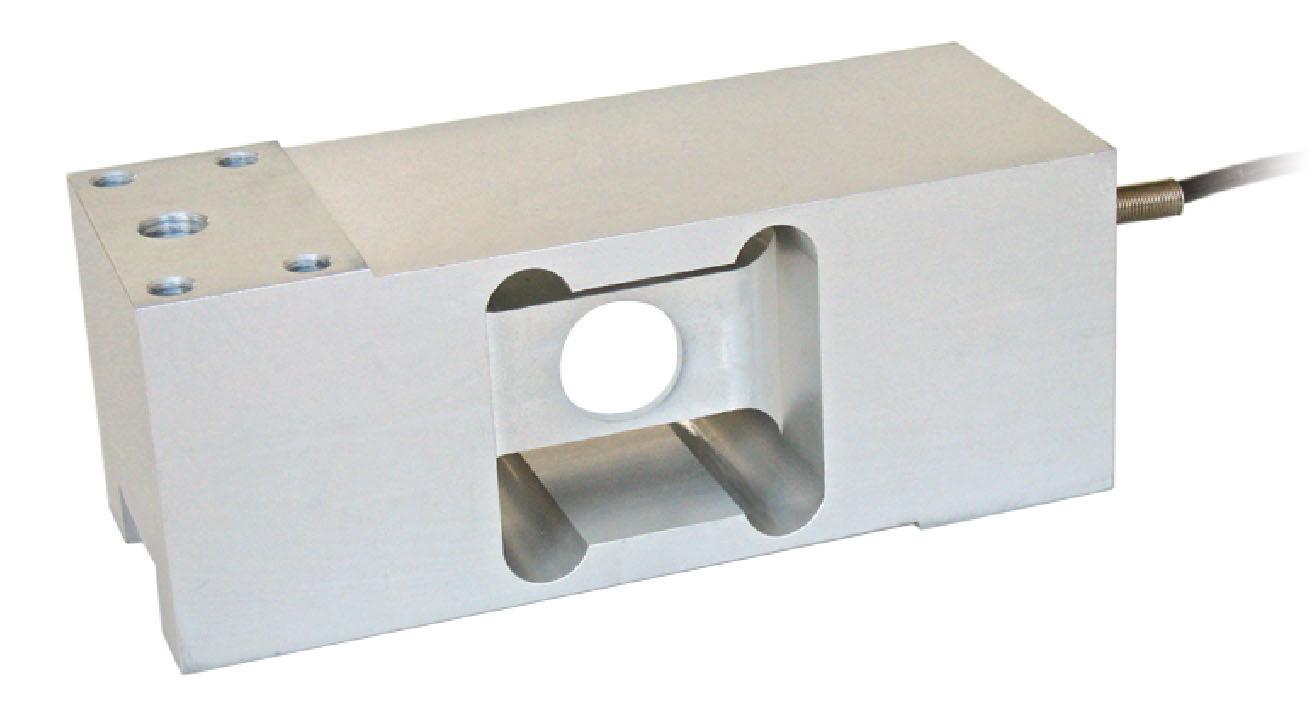

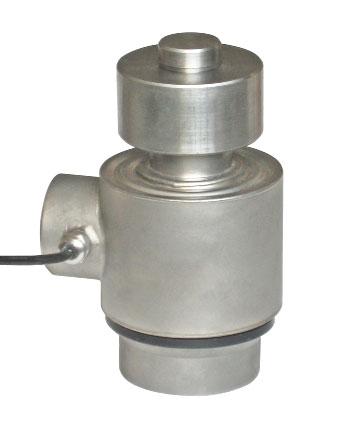

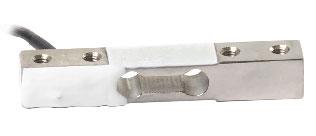

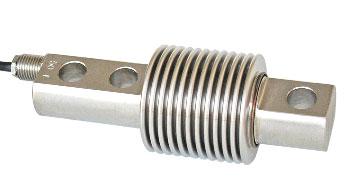

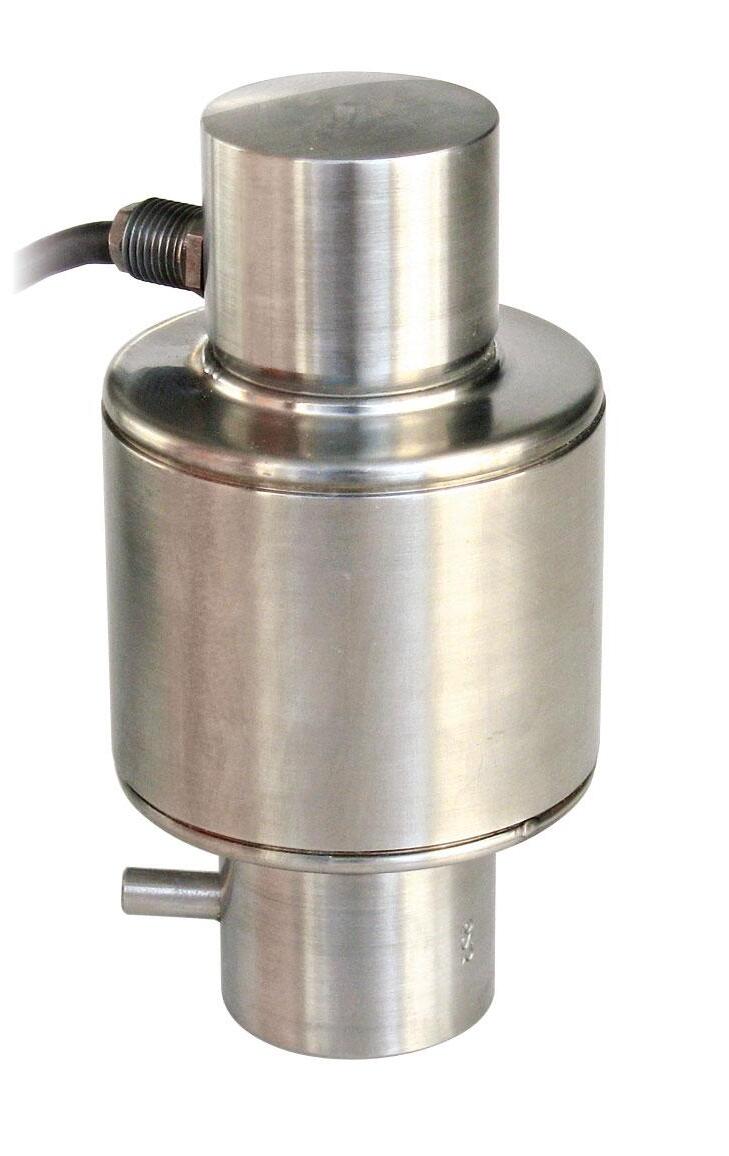

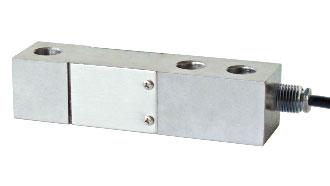

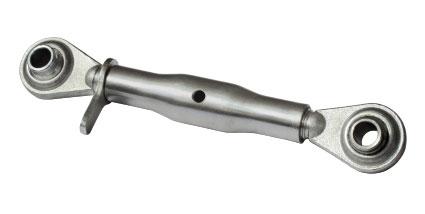

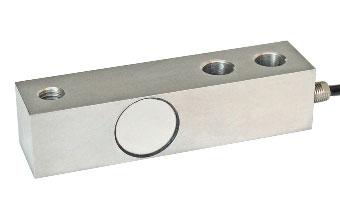

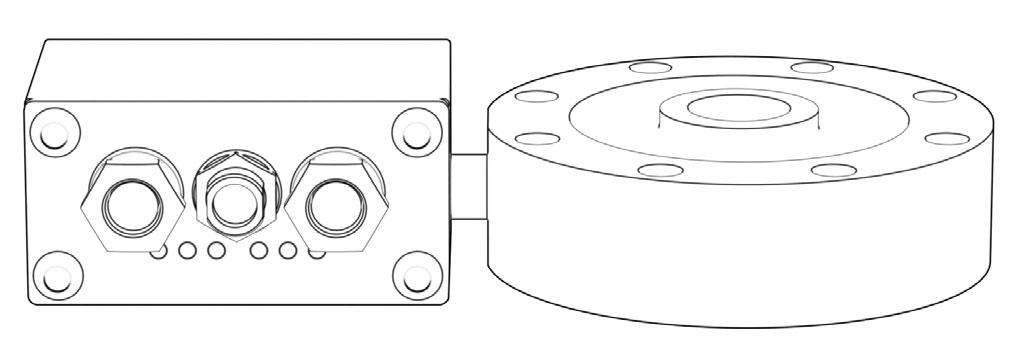

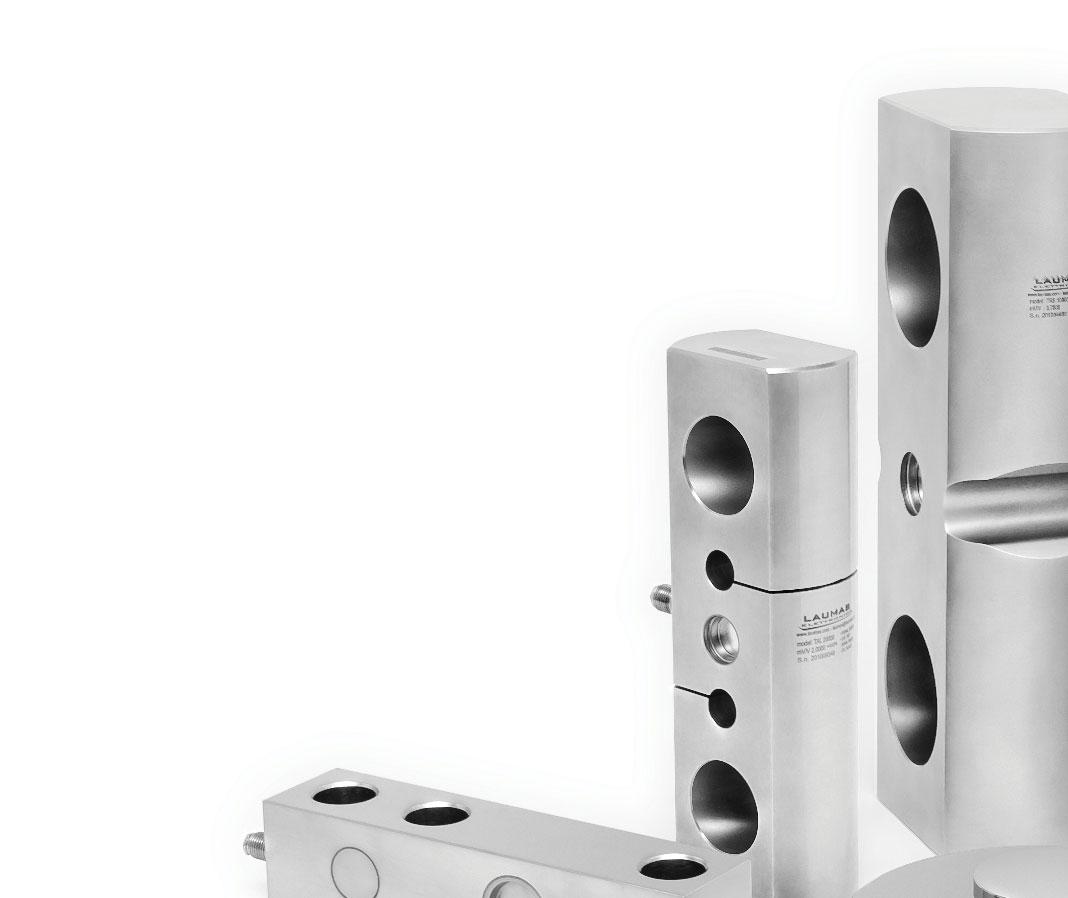

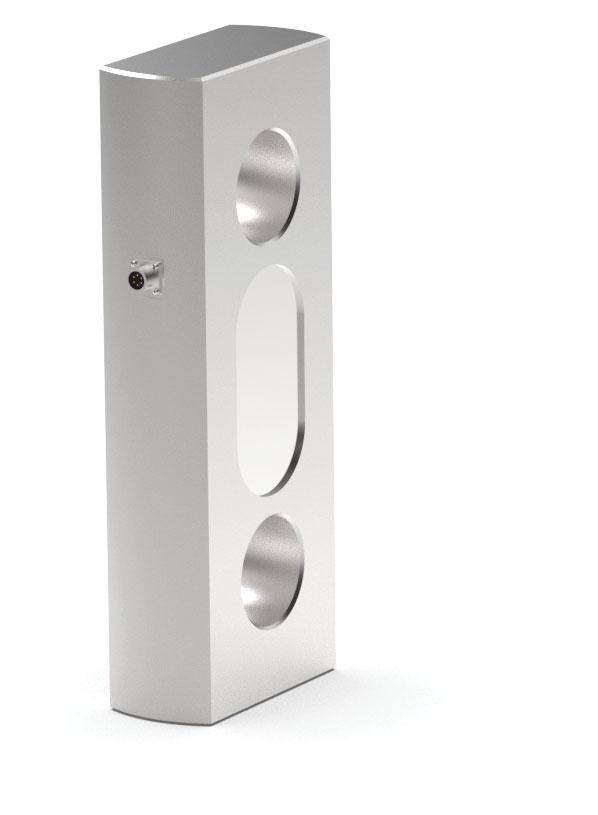

A1 LOAD CELLS

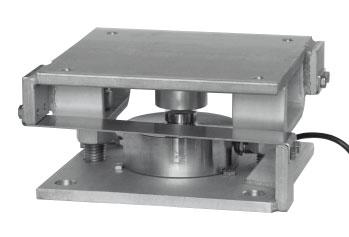

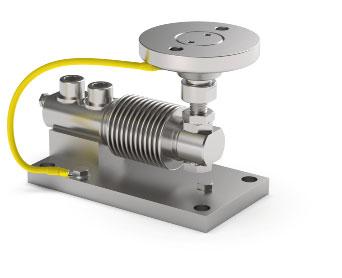

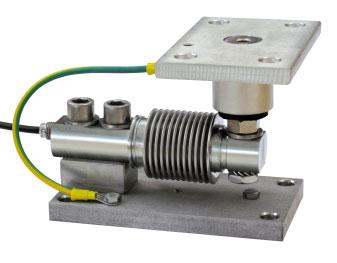

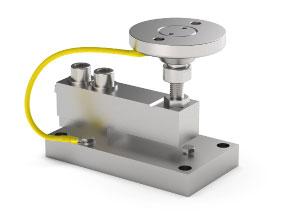

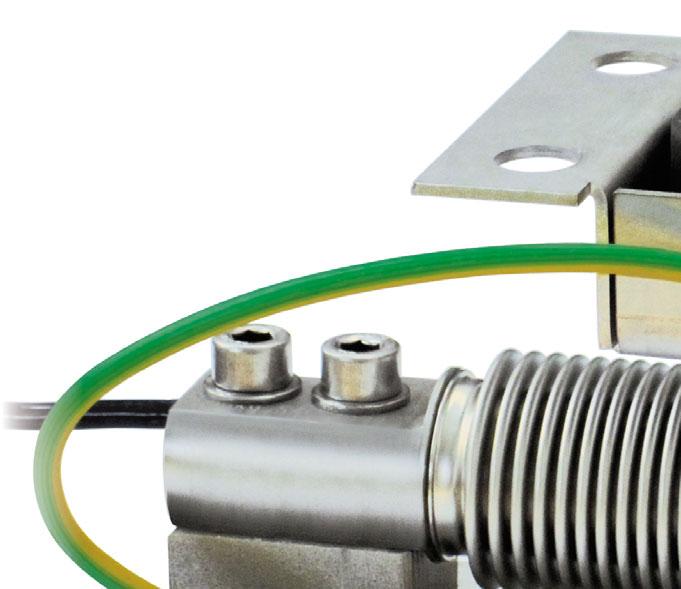

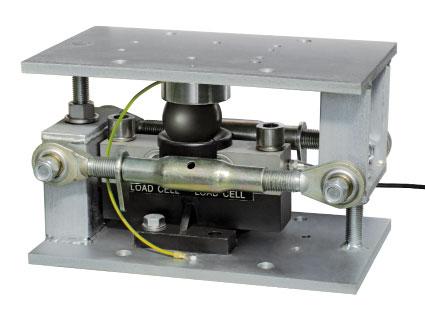

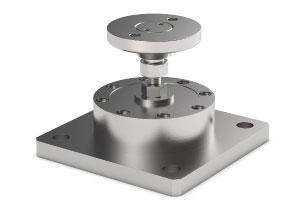

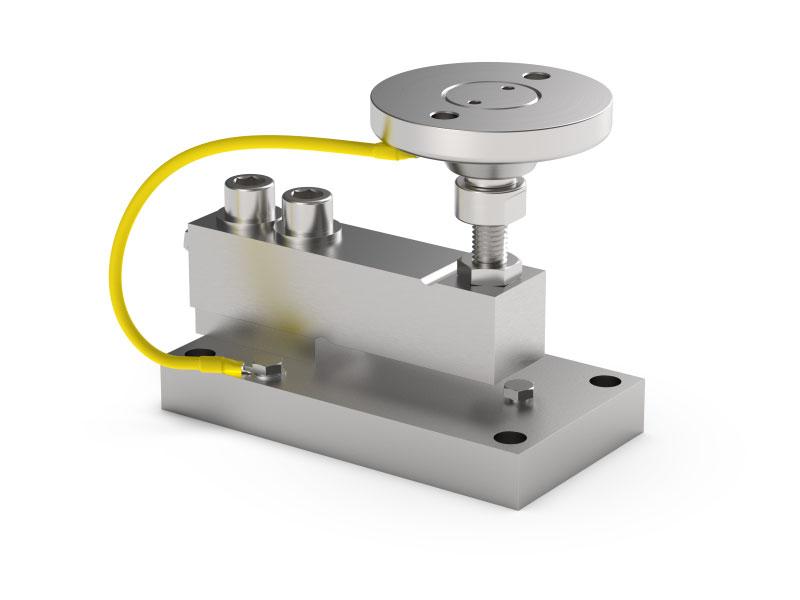

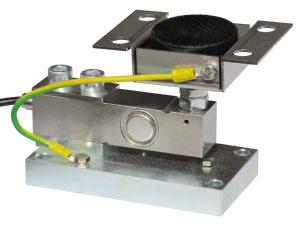

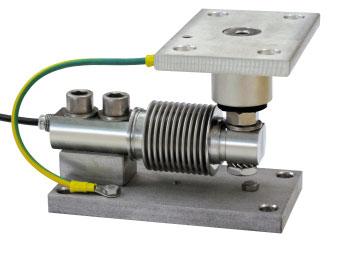

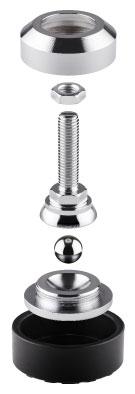

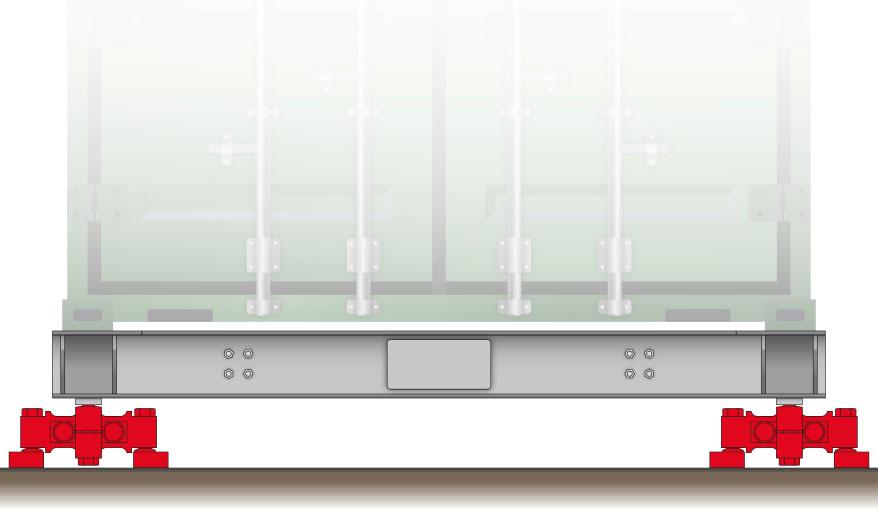

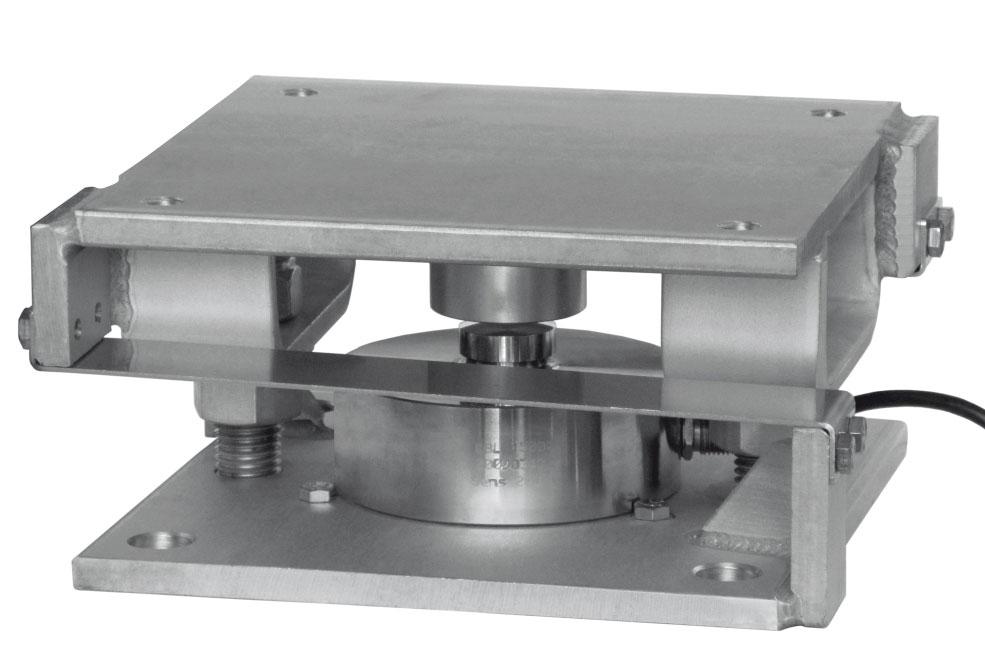

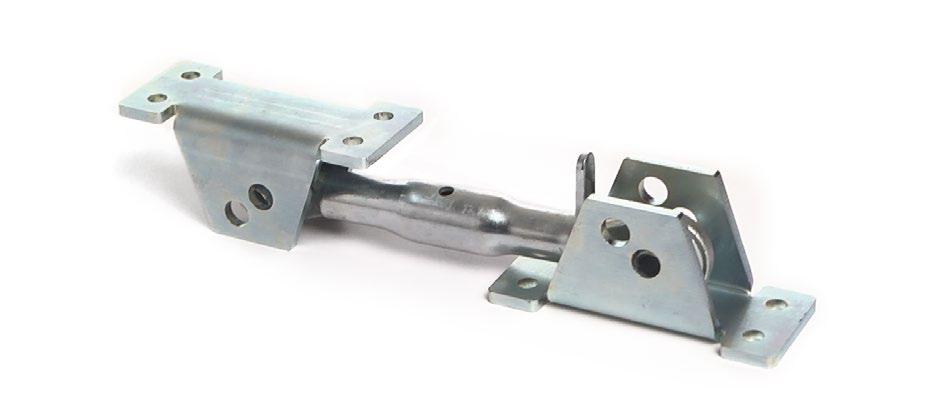

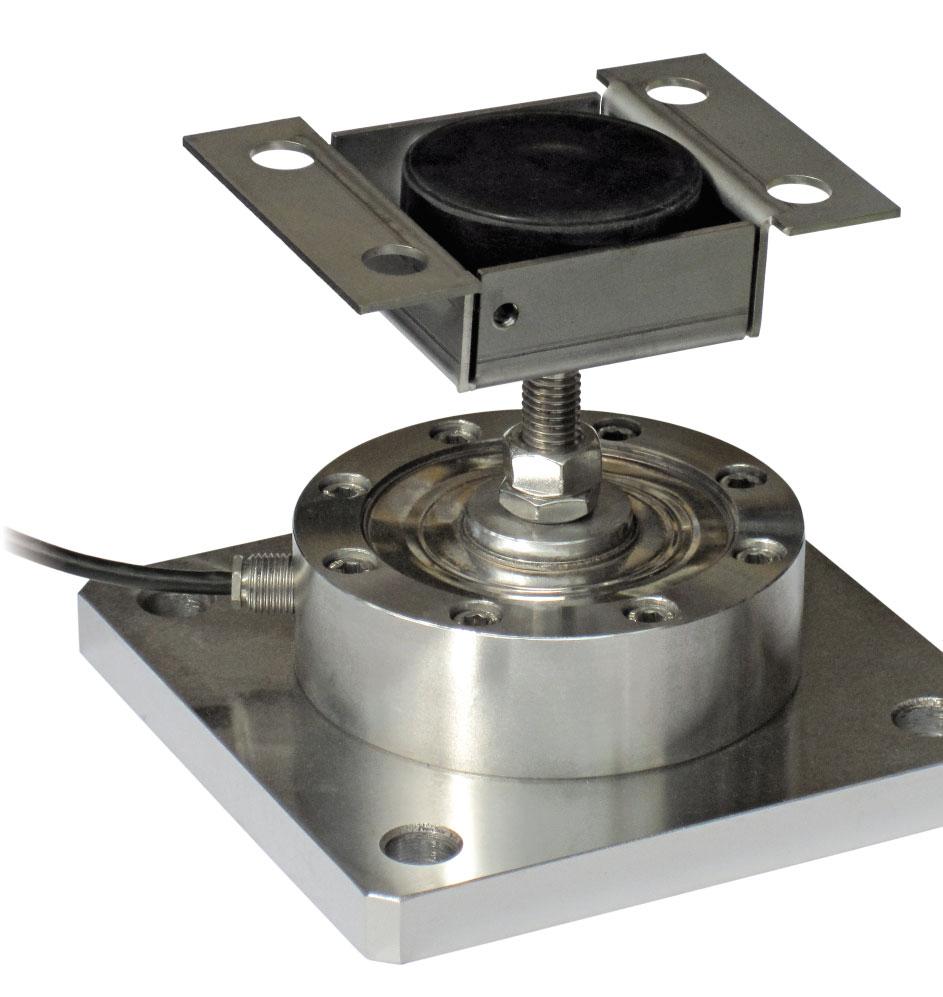

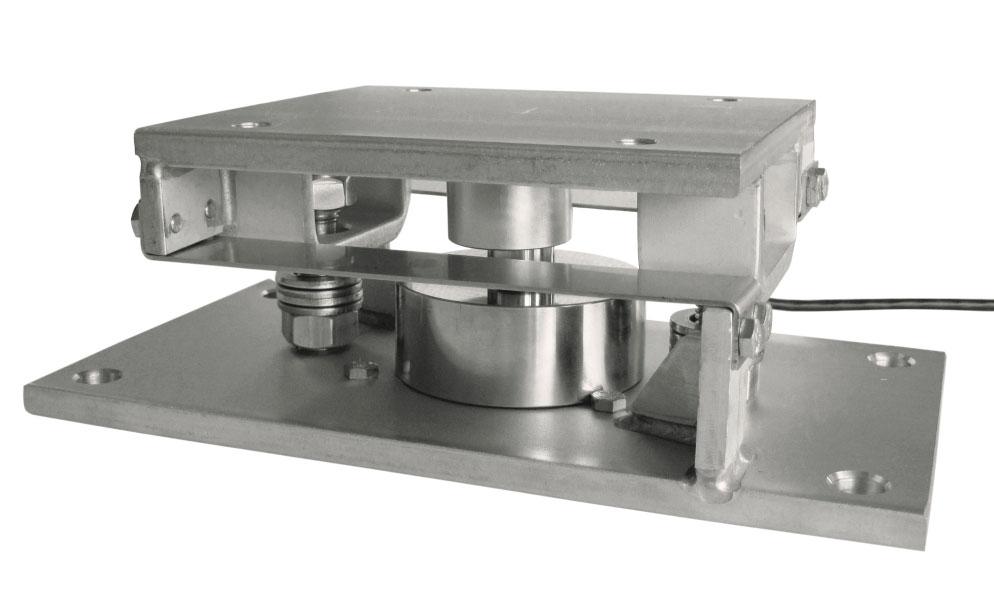

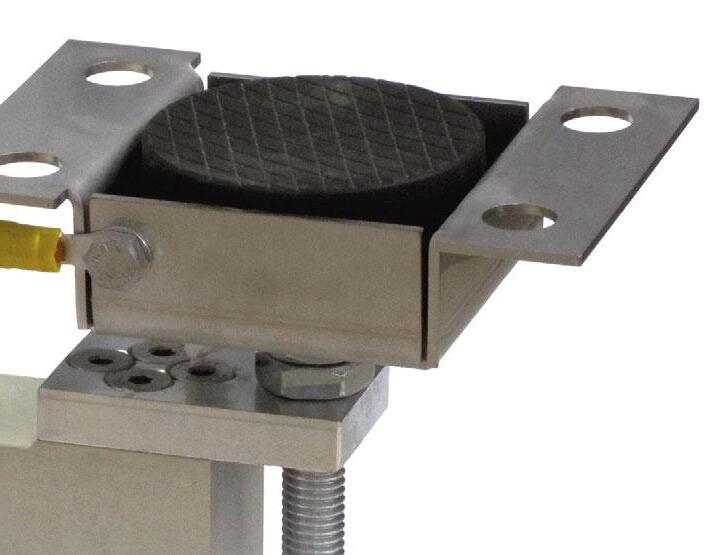

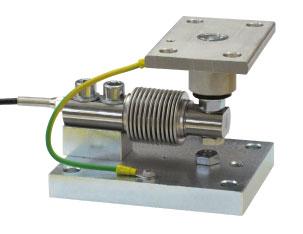

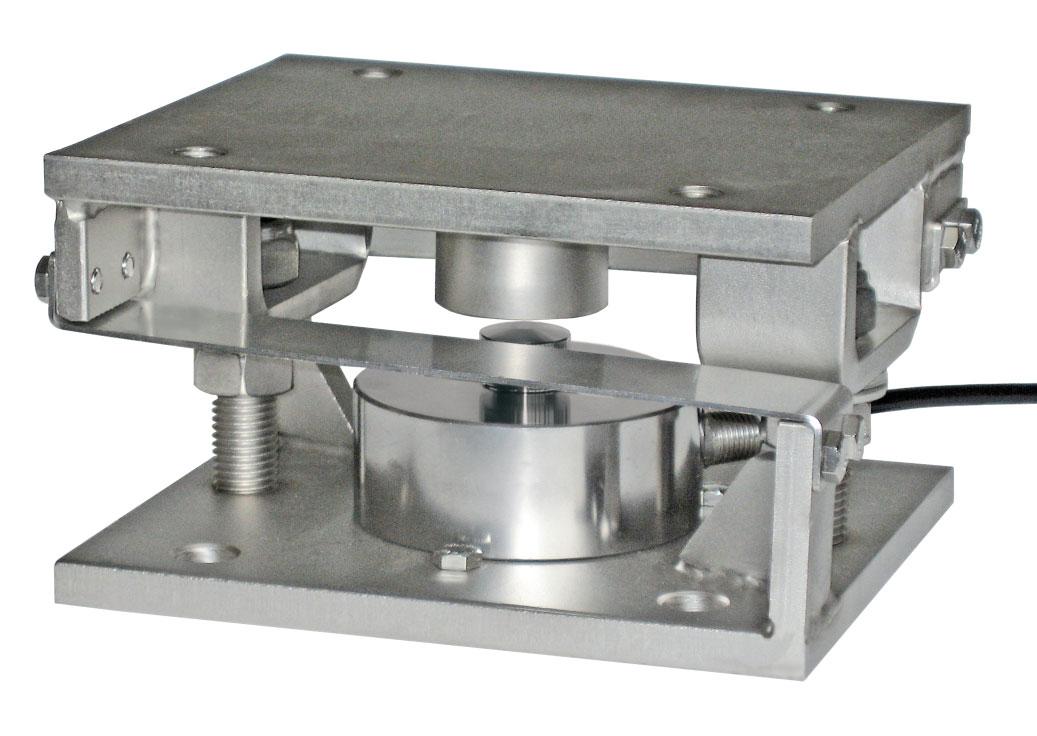

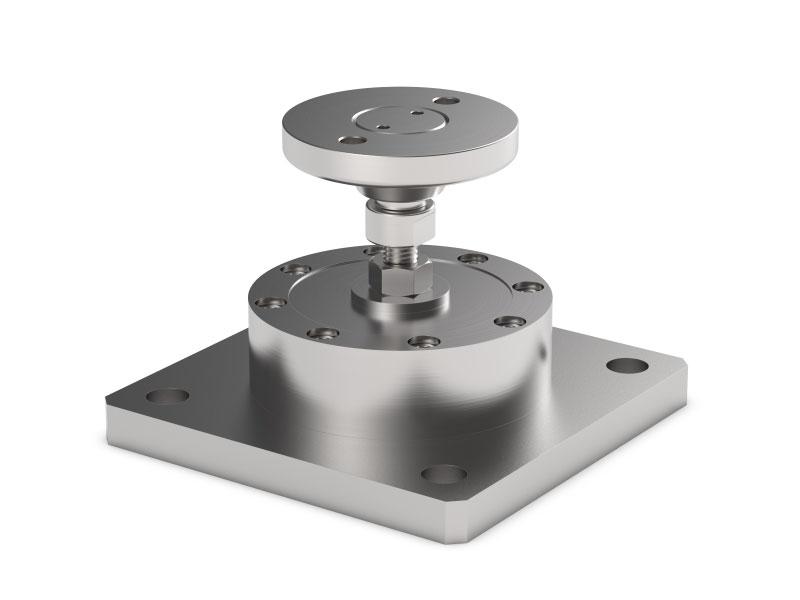

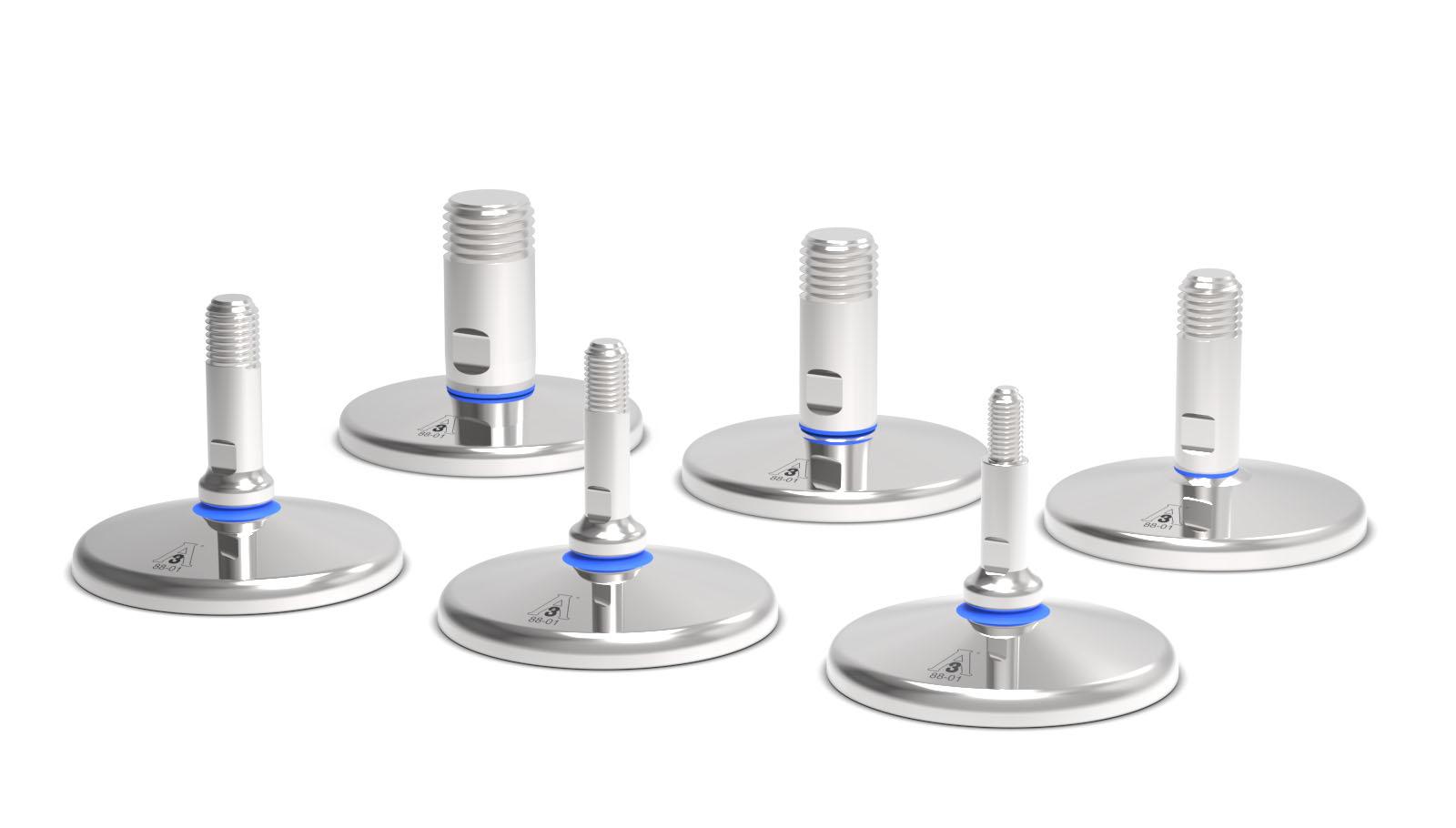

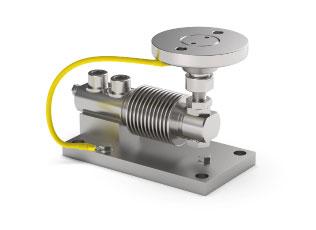

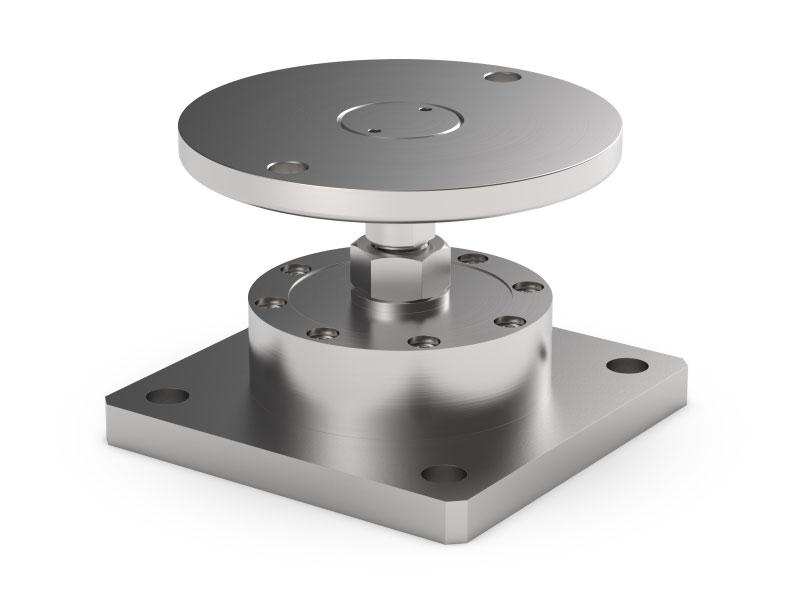

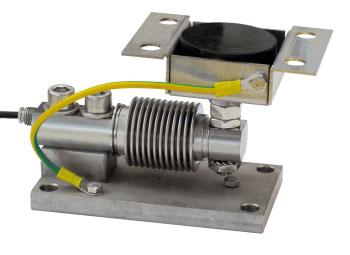

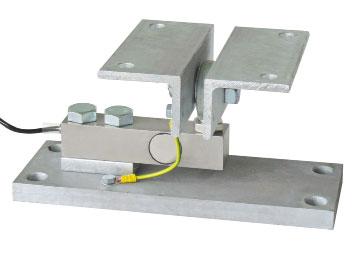

A2 MOUNTING KITS

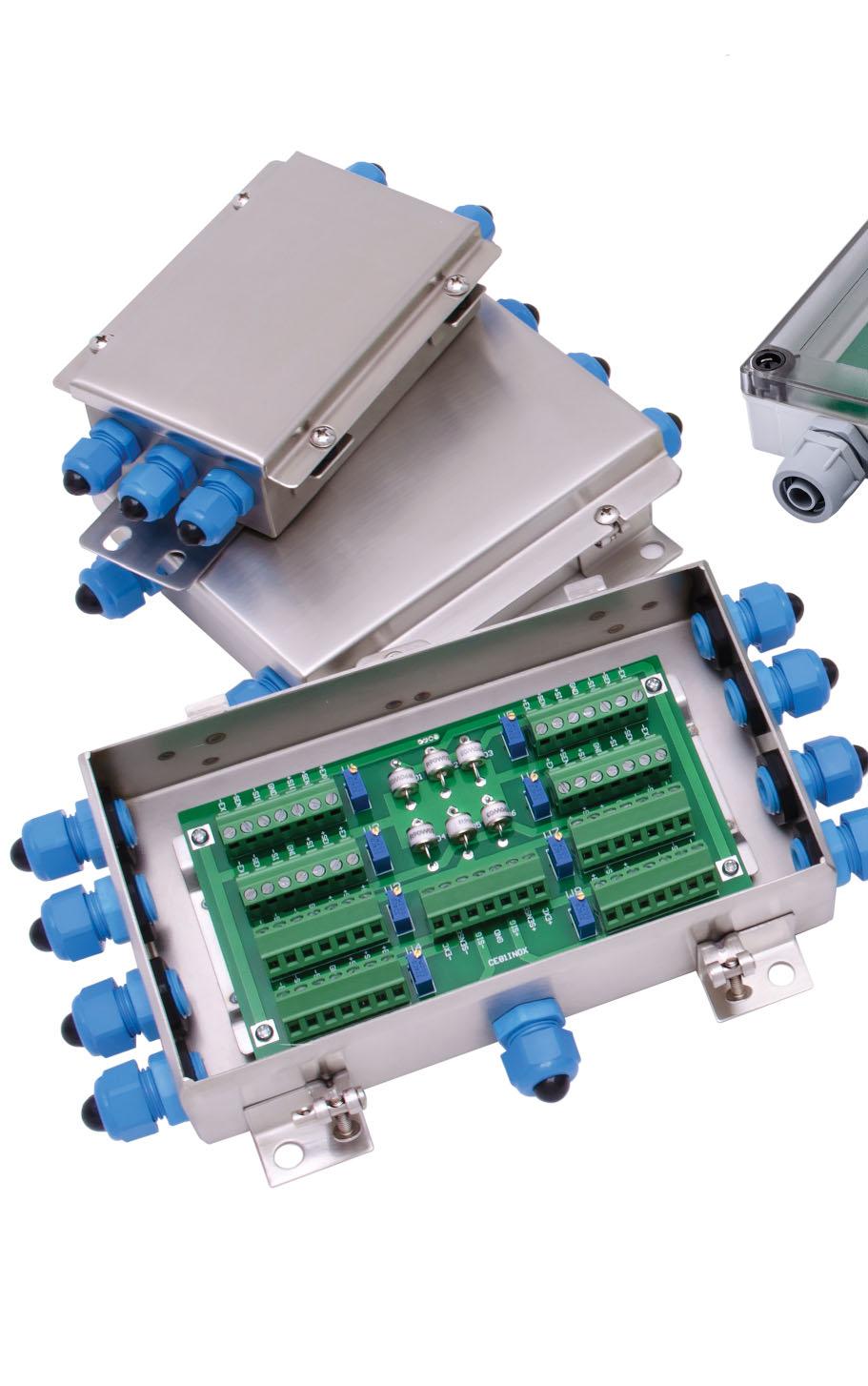

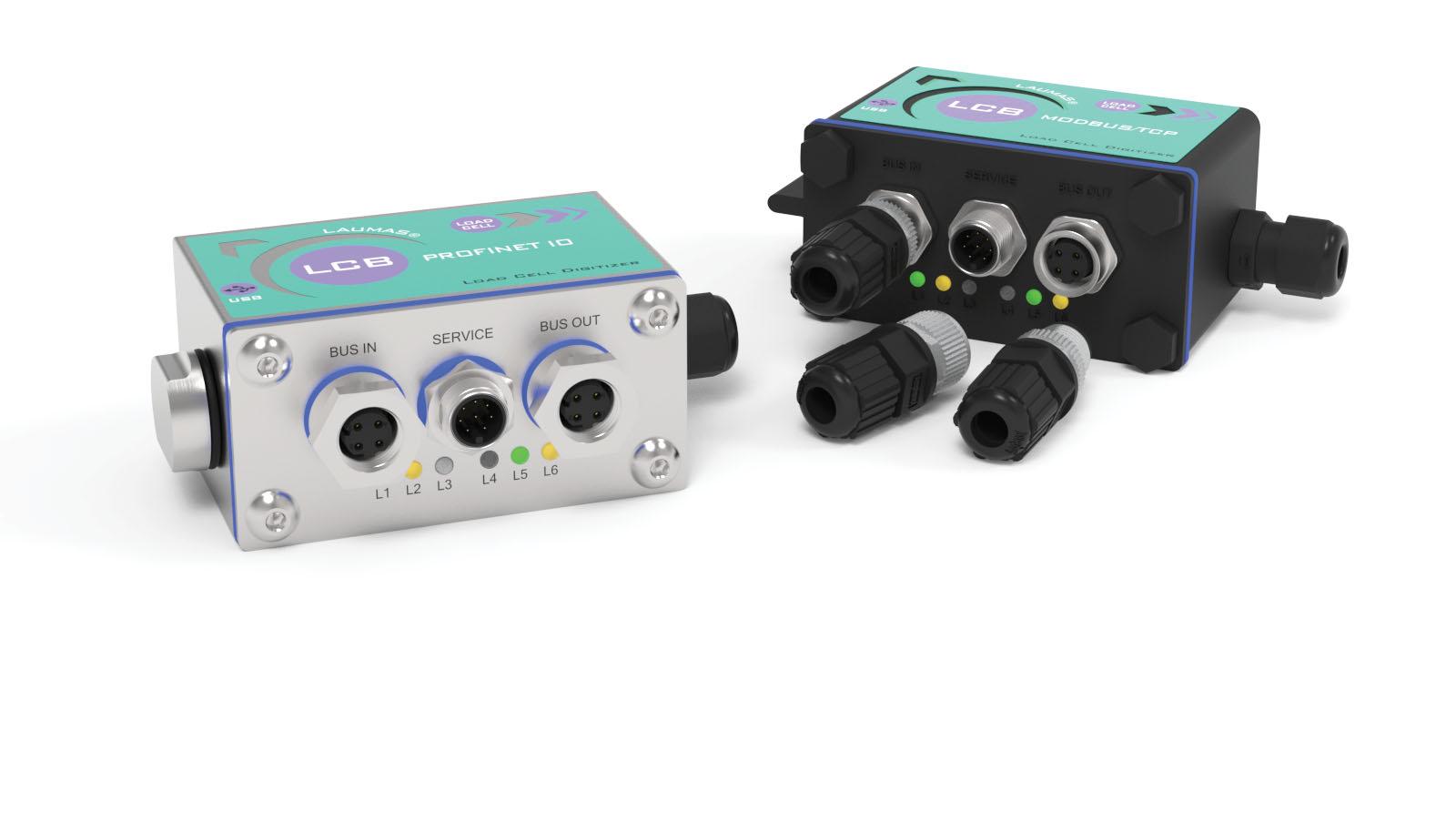

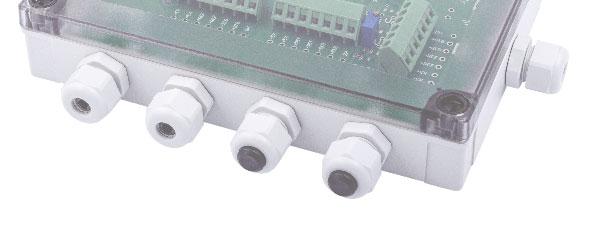

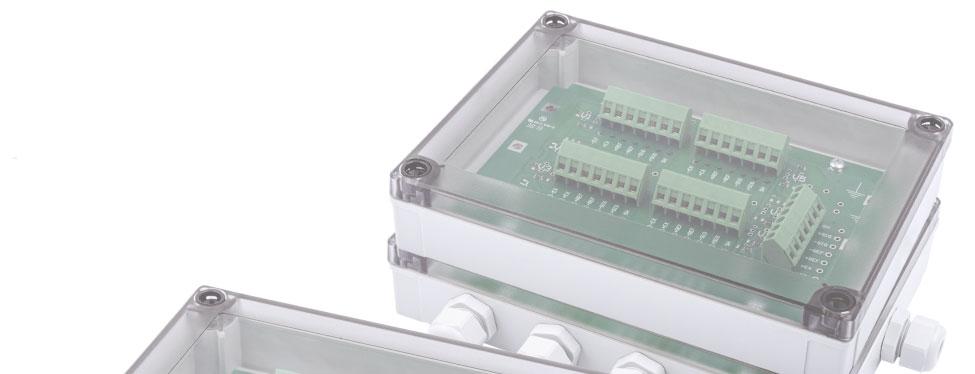

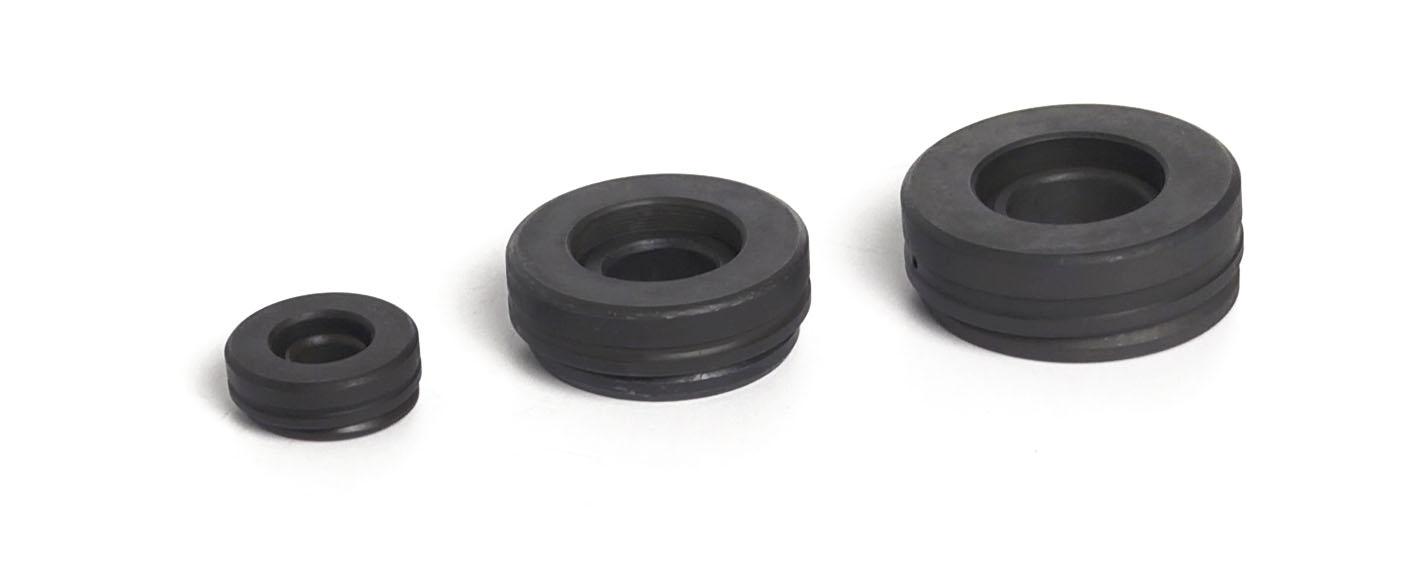

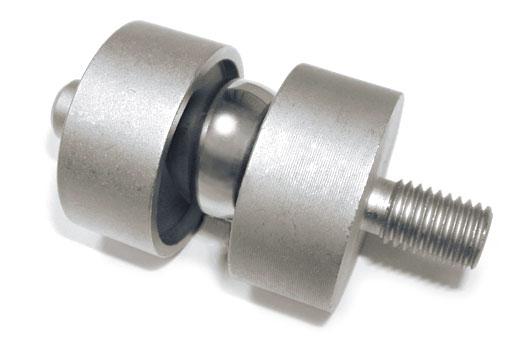

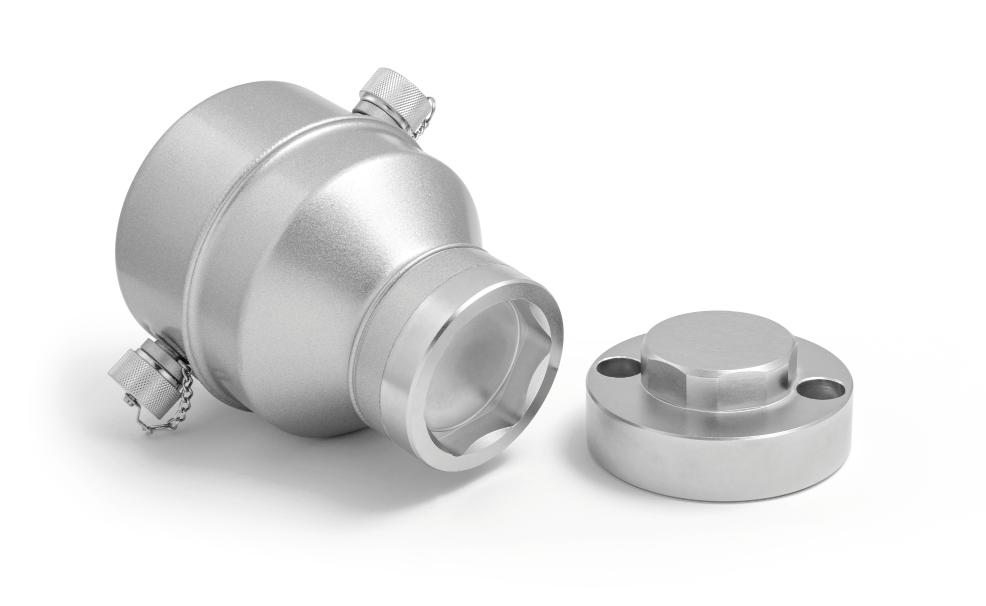

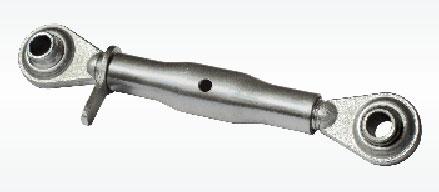

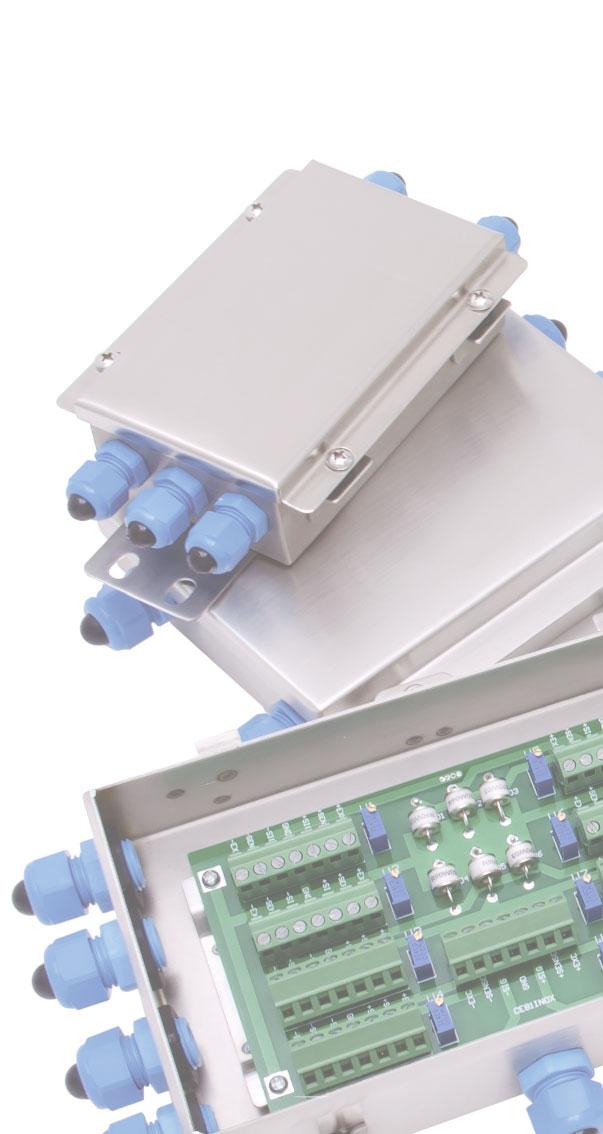

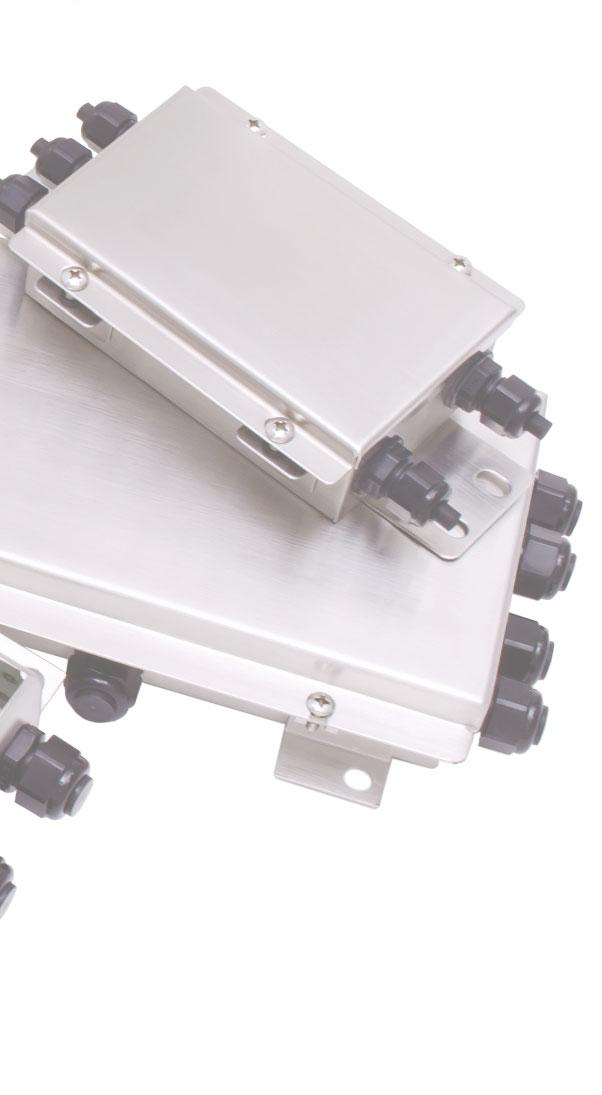

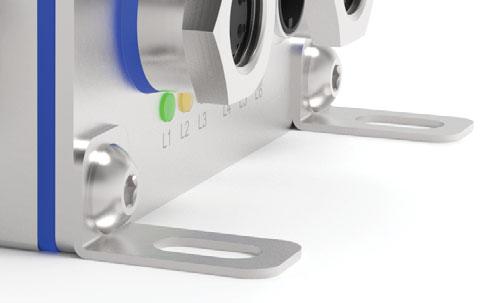

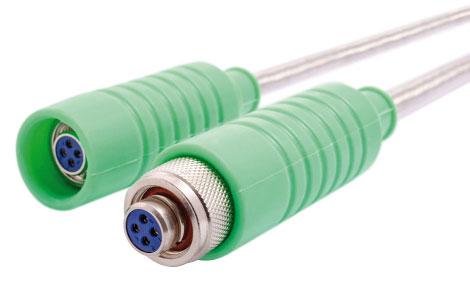

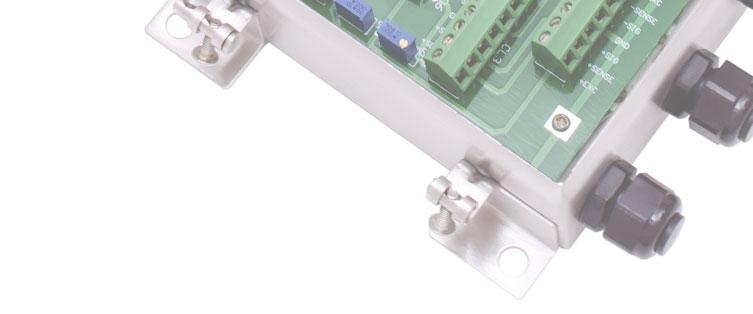

A3 COMPLEMENTARY ACCESSORIES
IP69K

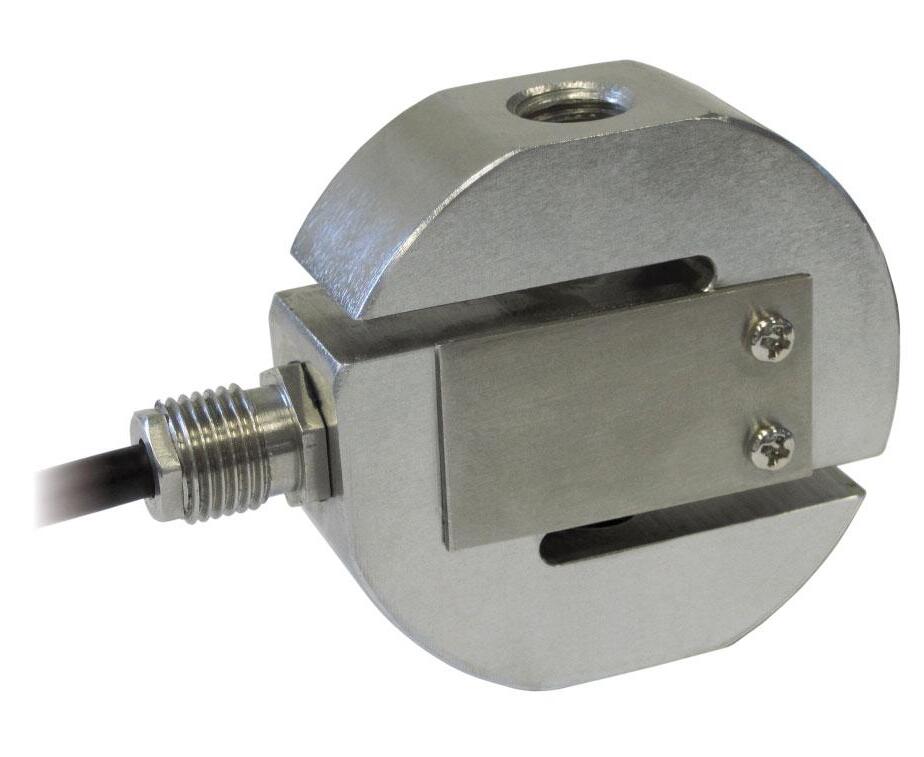

LOAD CELLS

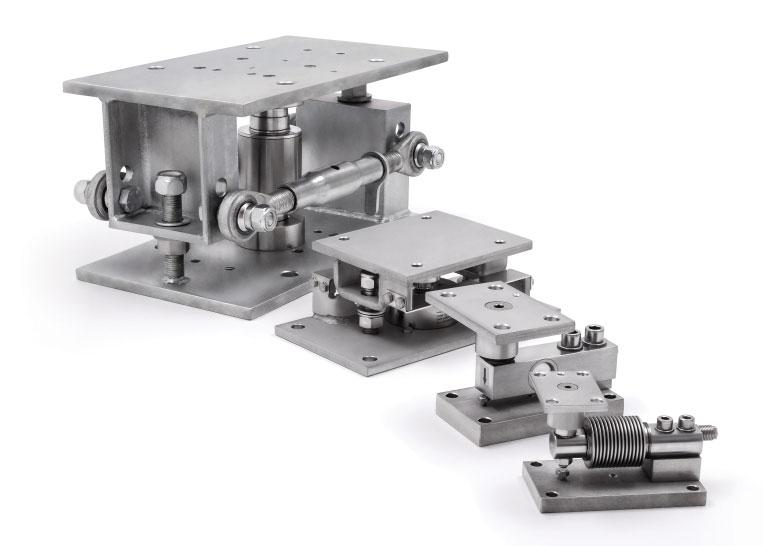

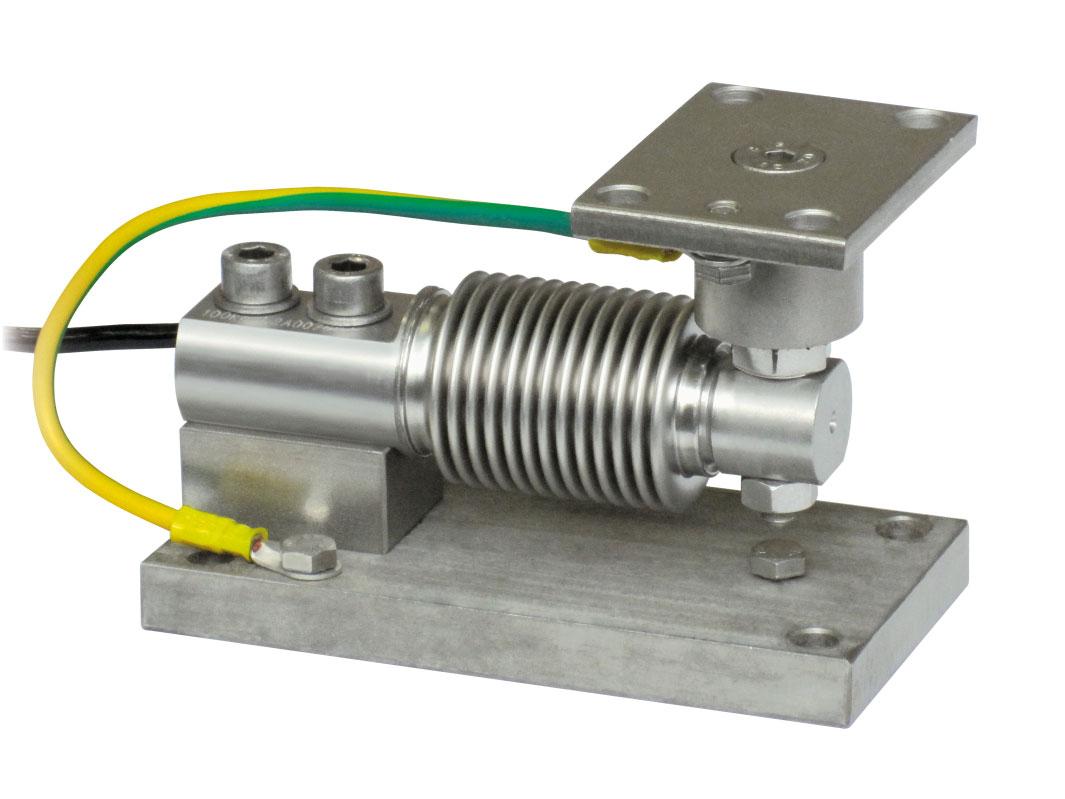

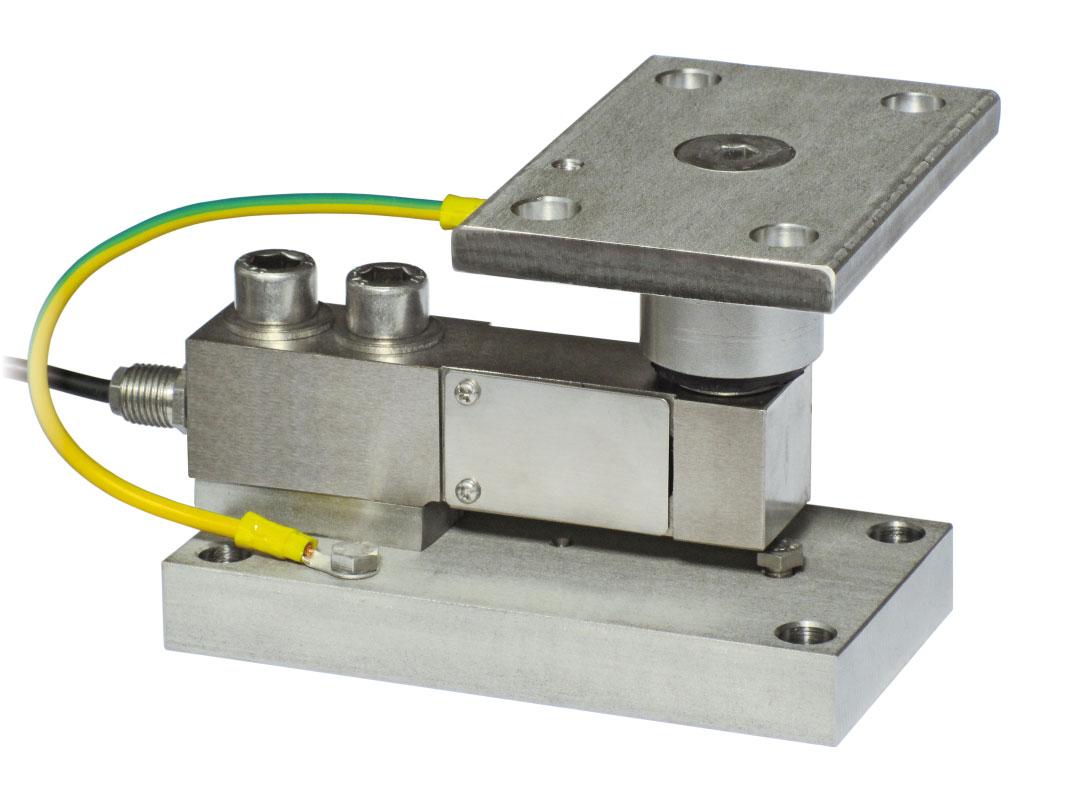

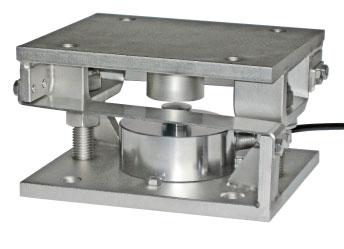

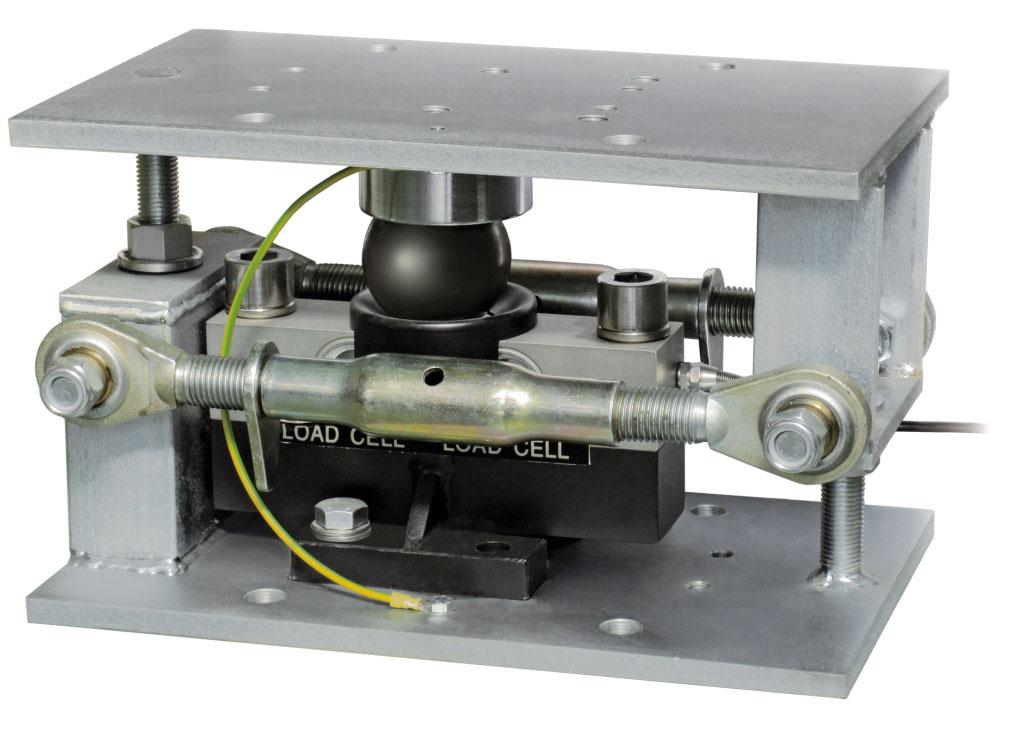

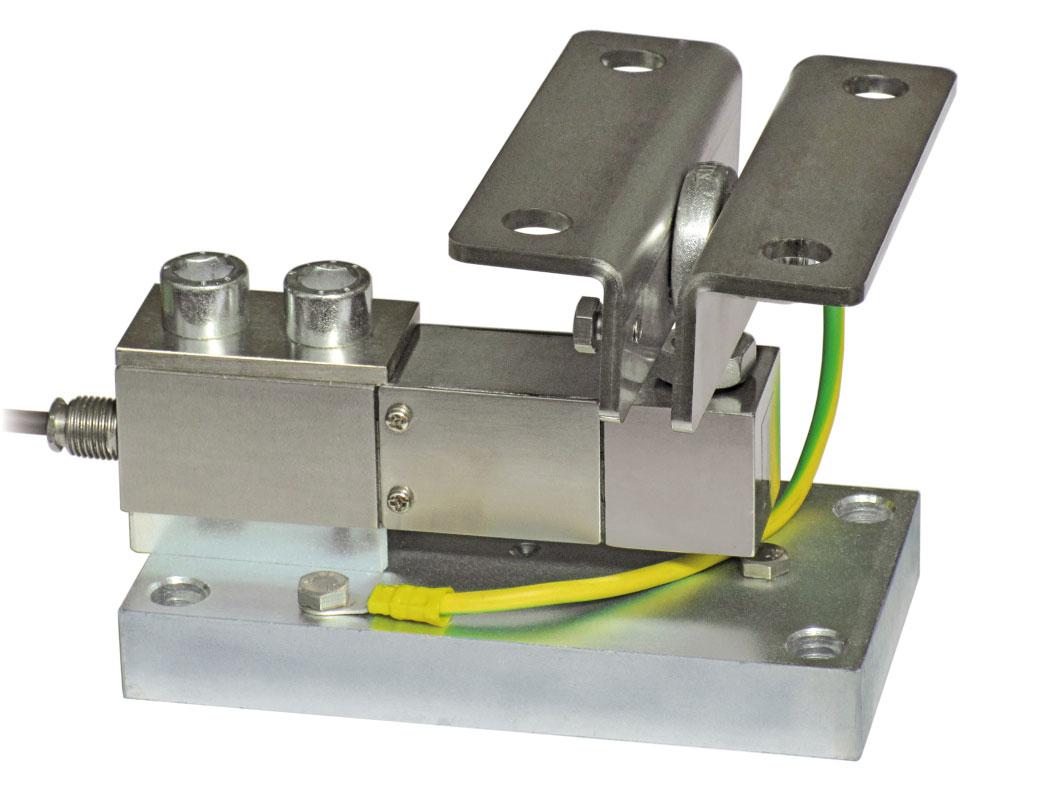

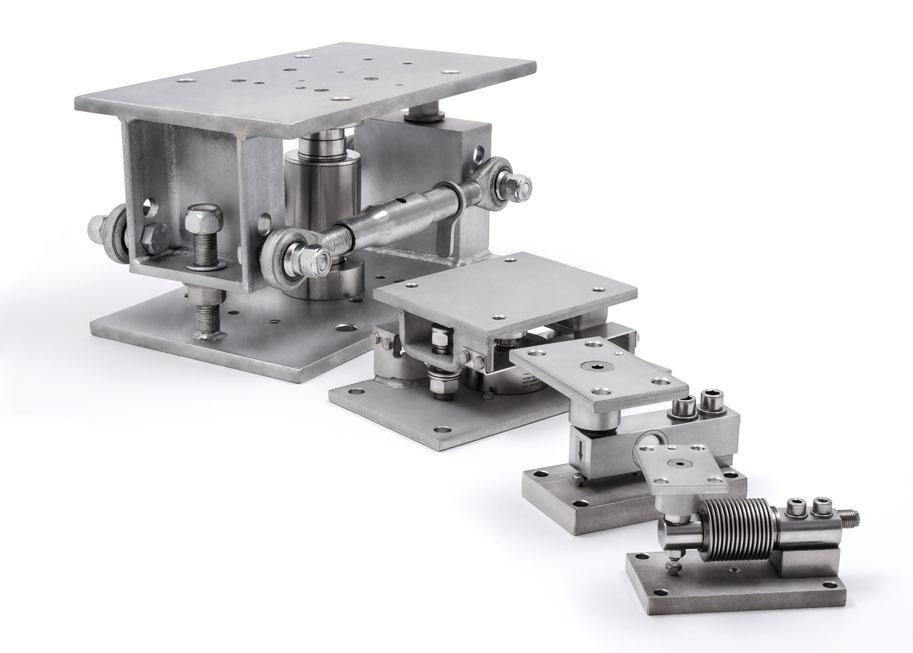

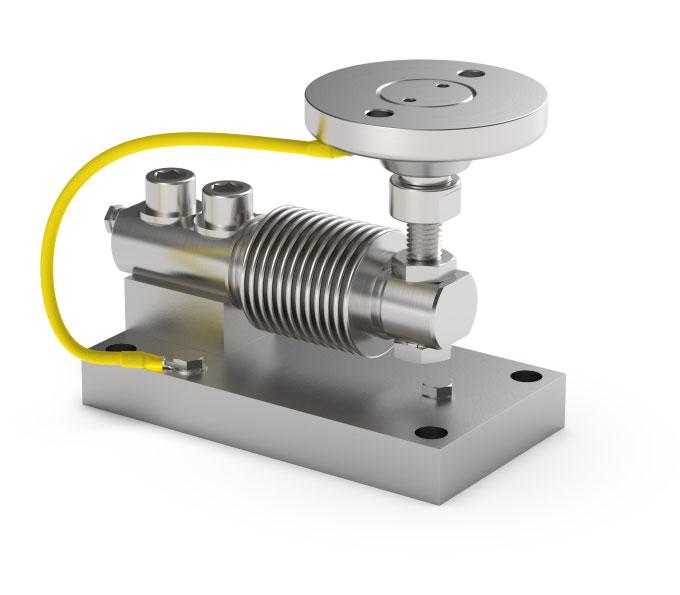

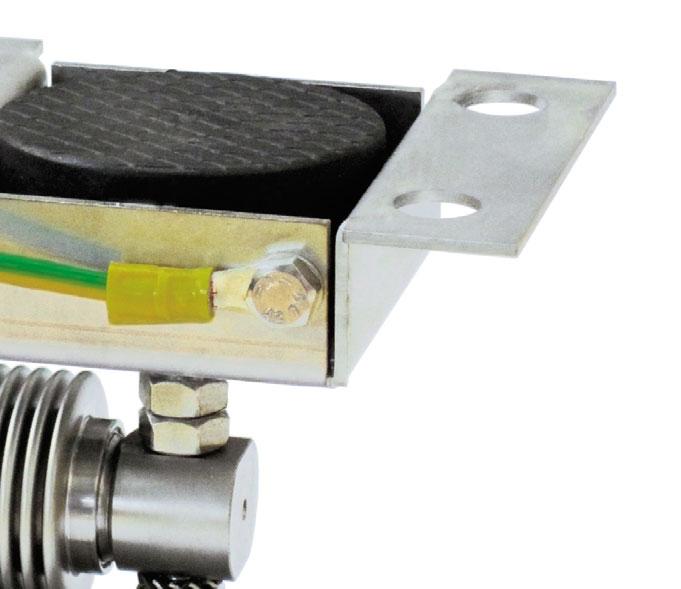

MOUNTING KITS
LAUMAS offers a wide range of load cells of the most common types in the main industrial sectors providing for each of them the quality, availability and assistance.
For all load cells, LAUMAS is able to provide suitable mounting kits, with the aim of obtaining the correct application of the cell and maximum reliability and accuracy, and compatibly with the mechanical, electrical and pneumatic connections present on the weighing structure.
CERTIFICATIONS
AL COU ON N TI
ON W
RES
L CI
NA
EAC CERTIFICATION
EI
G
HT
SU
UKCA CERTIFICATION (UK Conformity Assessed) for the United Kingdom
E
A
European Conformity Mark (CE)
S AND M
OIML APPROVAL
3-A SANITARY STANDARDS
NTEP CERTIFICATION
ATEX CERTIFICATION
IECEx CERTIFICATION
EAC Ex CERTIFICATION
FM HazLoc (Hazardous Locations) CERTIFICATION
PAC CERTIFICATION (Pattern Approval Certificate)
CPA CERTIFICATION (Chinese Pattern Approval)
EN EN1090
IP69K
Declaration of conformity IP69K marking protection rating
Ex NEPSI CERTIFICATION
Testing, calibration, quality control Calibration services accredited by Accredia for load cells and load cells + instrument, performed in our laboratory LAT No. 02141 for force values between 2 and 100 kN, according to UNI EN ISO 376 and ASTM E74 standards. Accredia is the Sole National accreditation body (European Regulation 765/2008) and guarantees compliance with standards and the reliability of conformity certificates issued on the market. The Accredia calibration certificate is an official document recognized worldwide because it is covered by the EA, IAF, and ILAC Mutual Recognition Agreements. In our laboratory, we also perform calibration reports for force values between 0.5 and 5000 kN (compression) and between 0.5 and 600 kN (tension).
Contents PRODUCTS CATALOG
PAGE
LAUMAS S.r.l. Fax: (+39) 0521 681091
A1
LOAD CELLS
A1.1

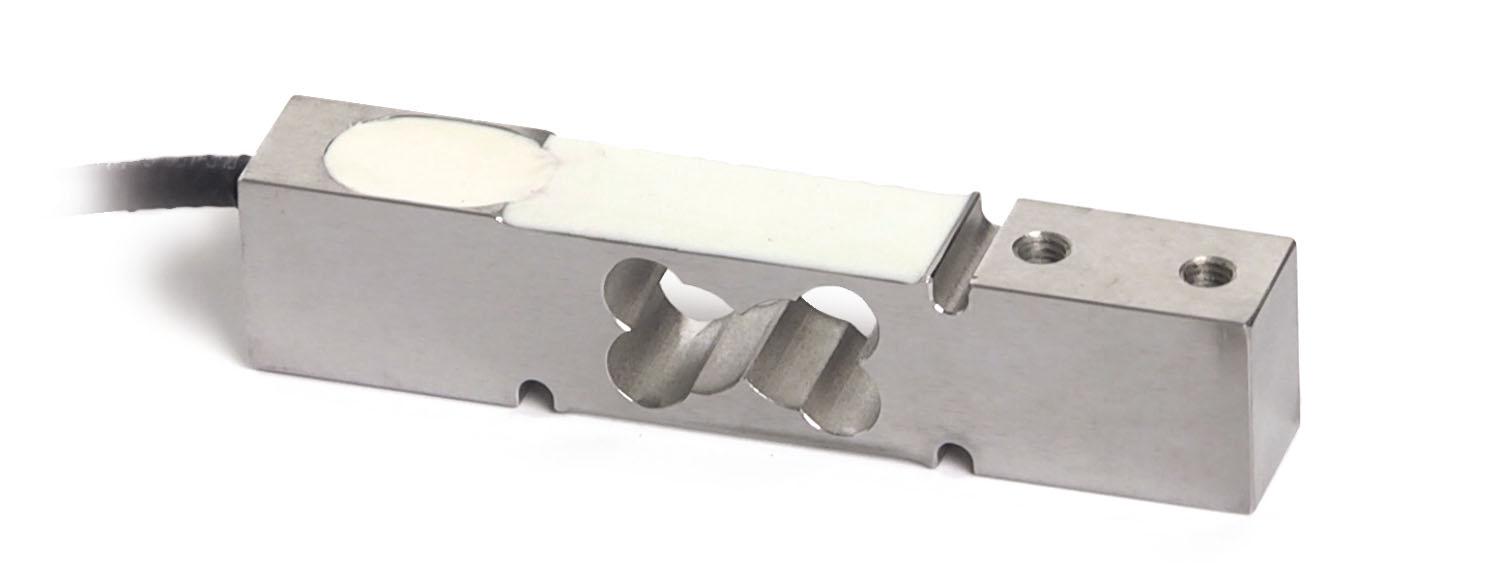

SINGLE-POINT 4
A1.2

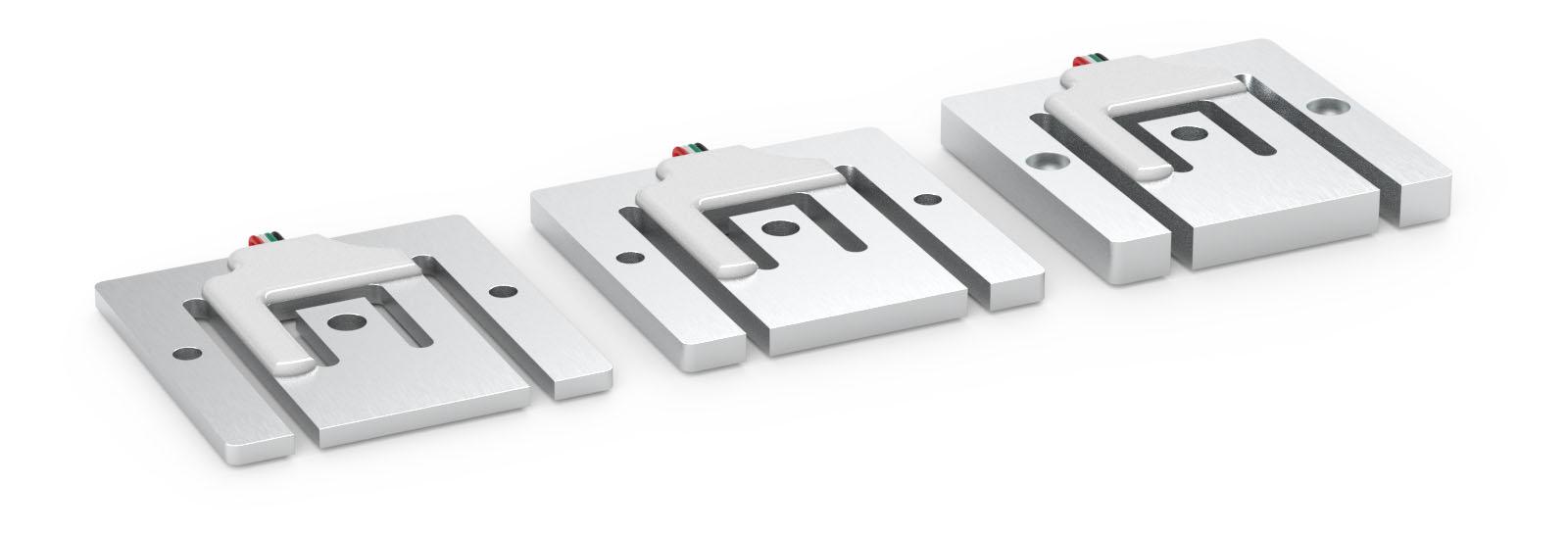

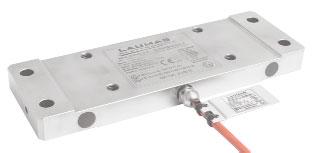

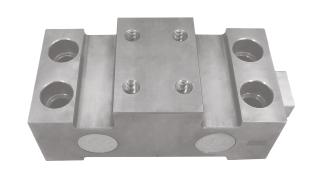

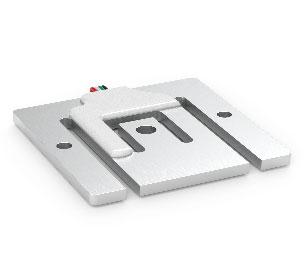

PLANAR BEAM
35
A1.3

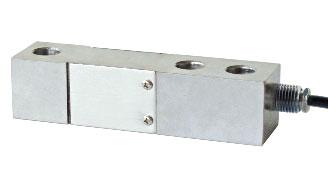

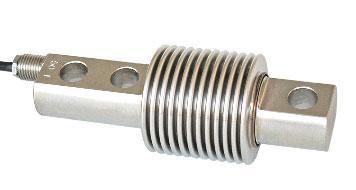

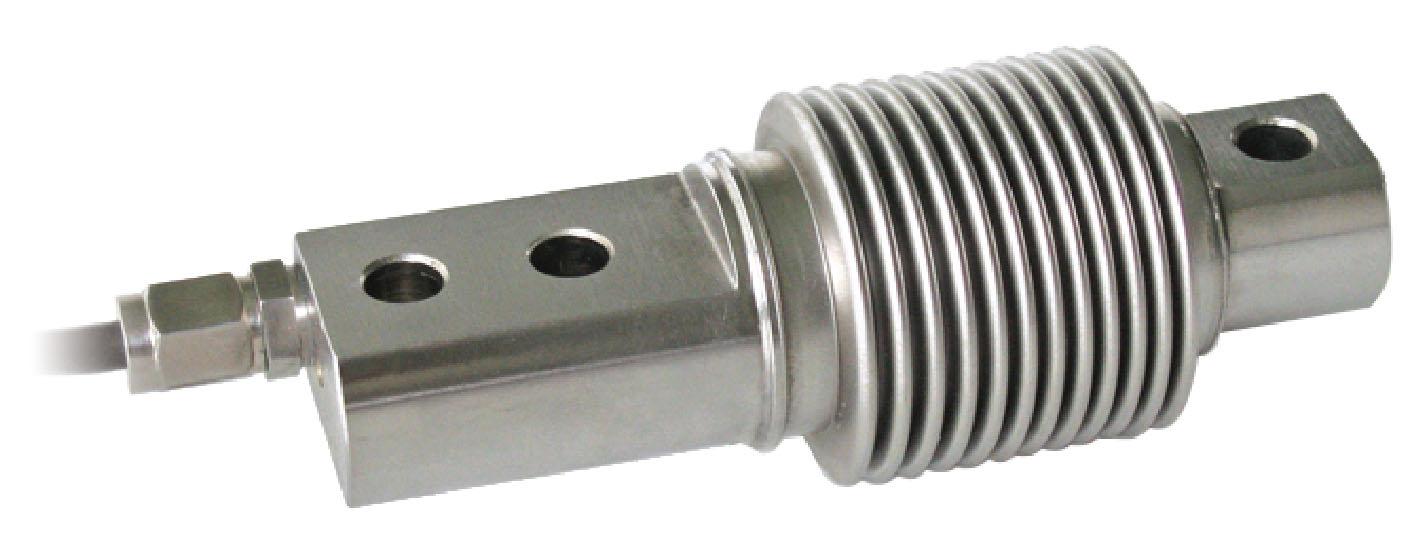

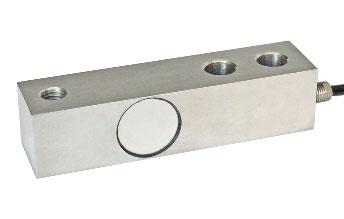

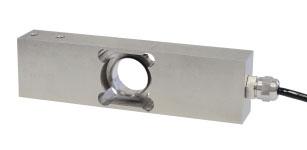

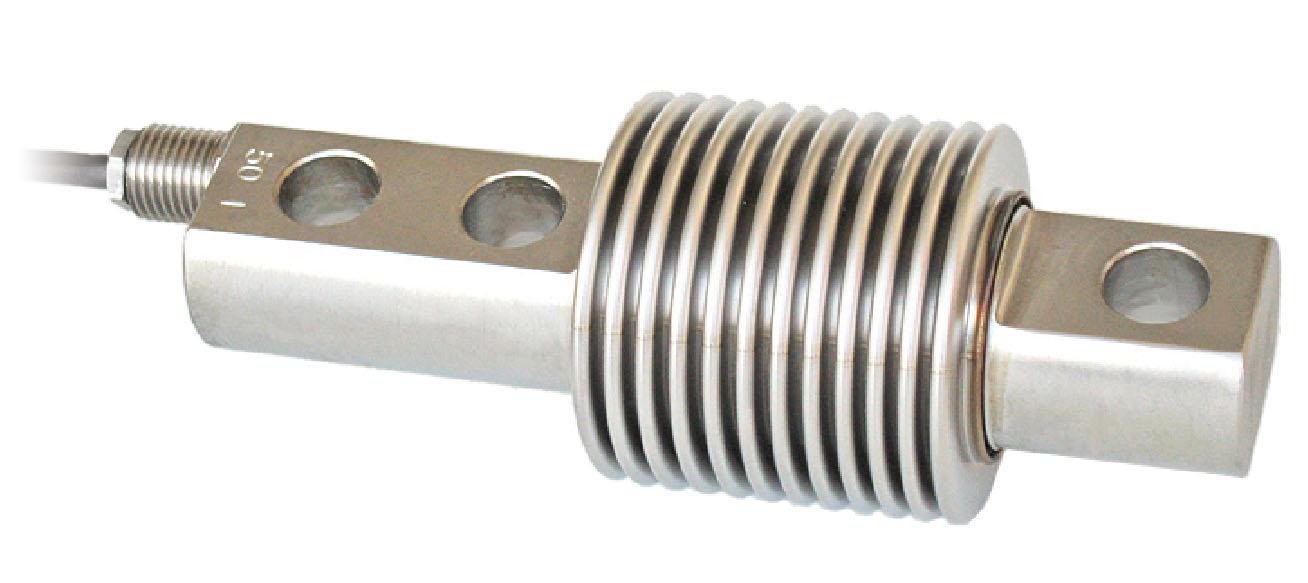

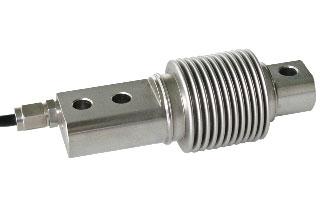

BENDING BEAM
39
A1.4

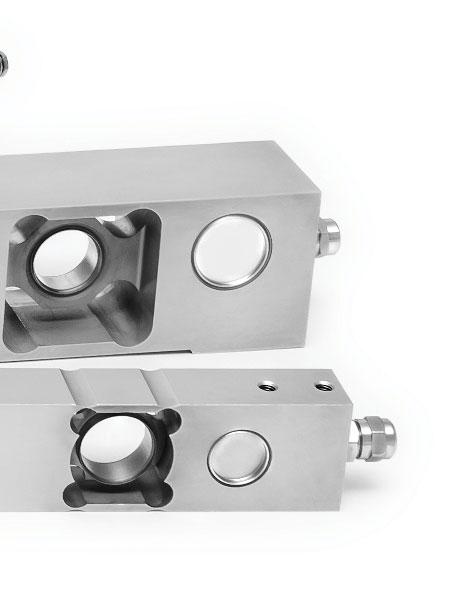

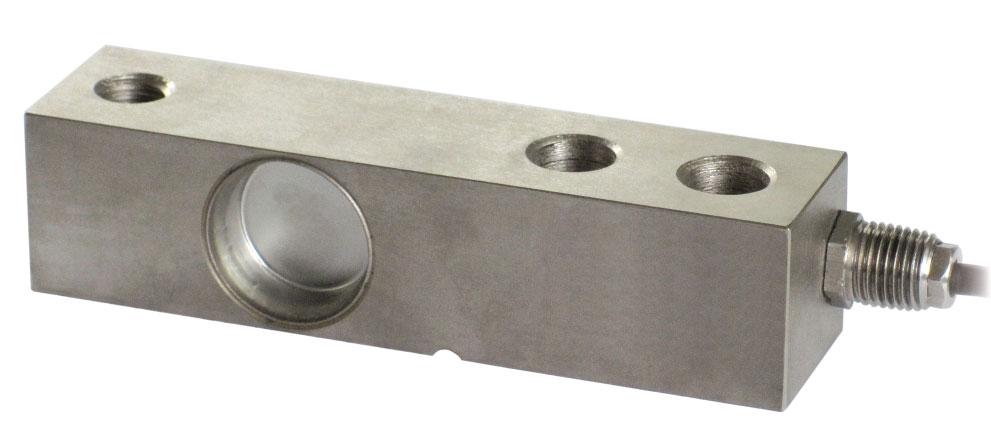

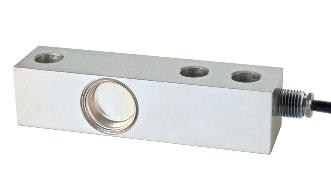

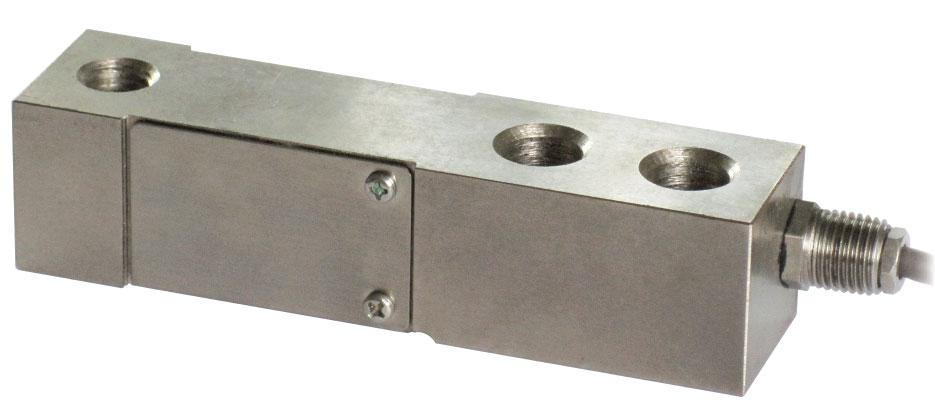

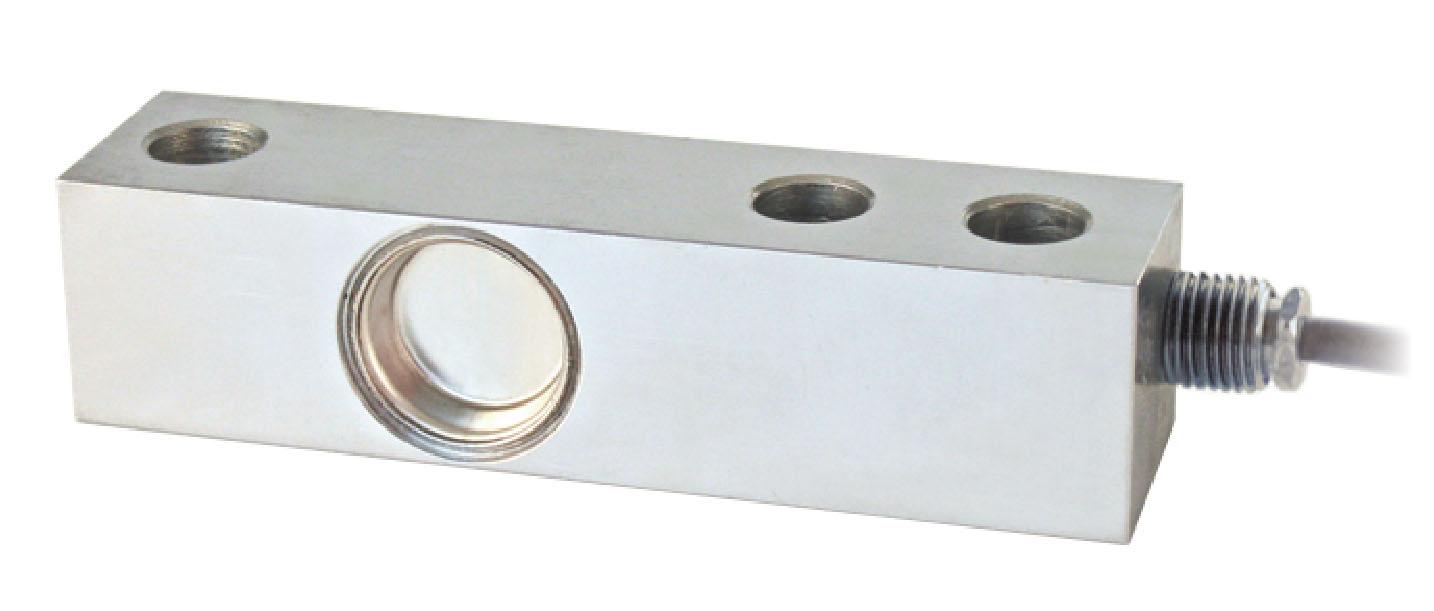

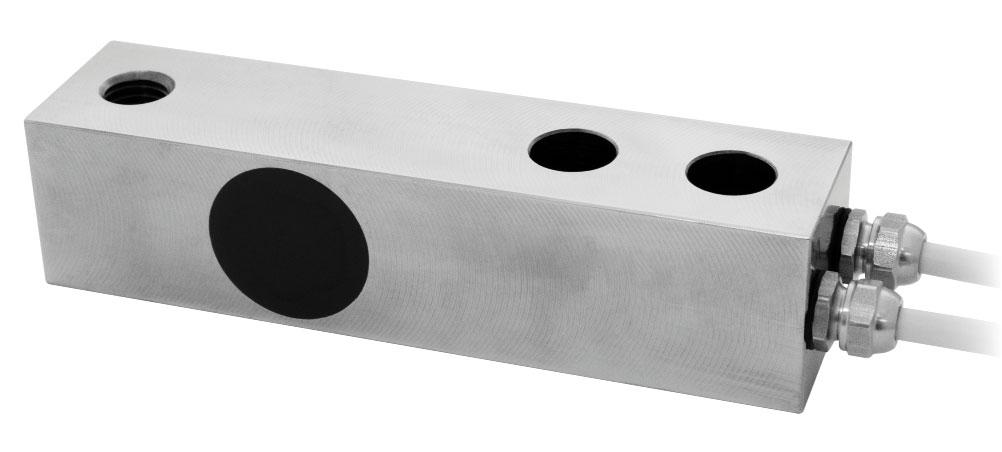

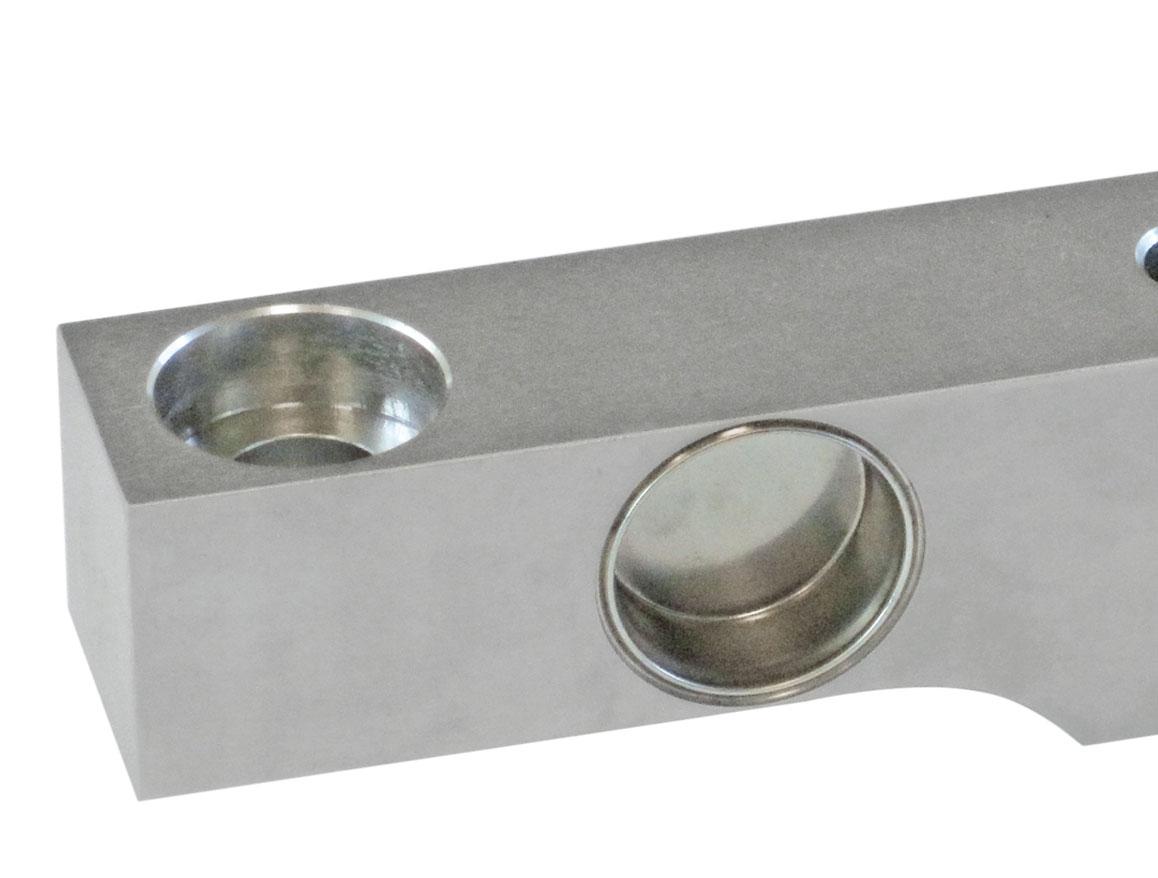

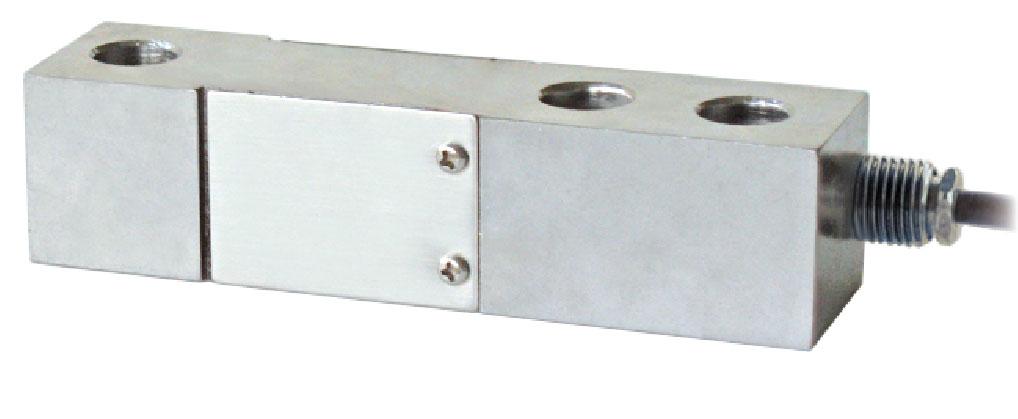

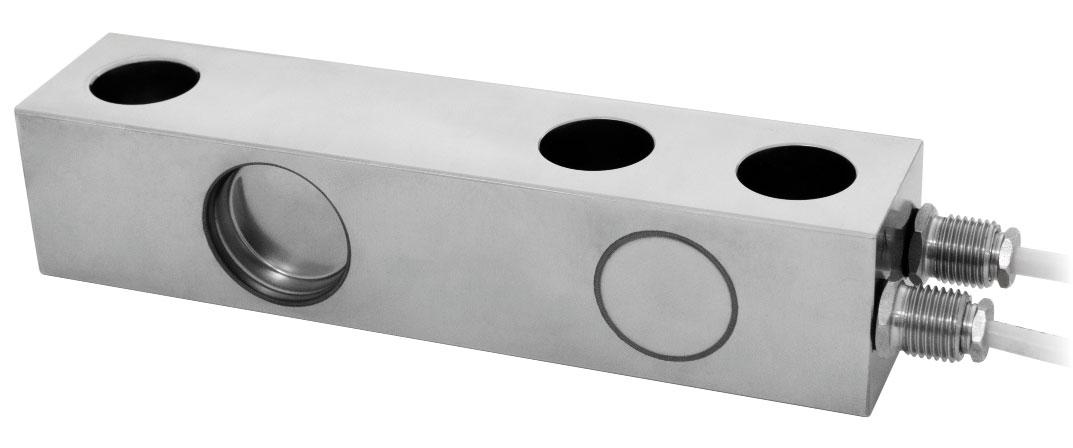

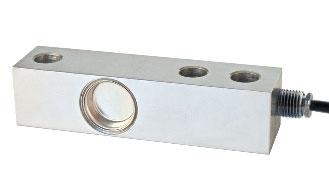

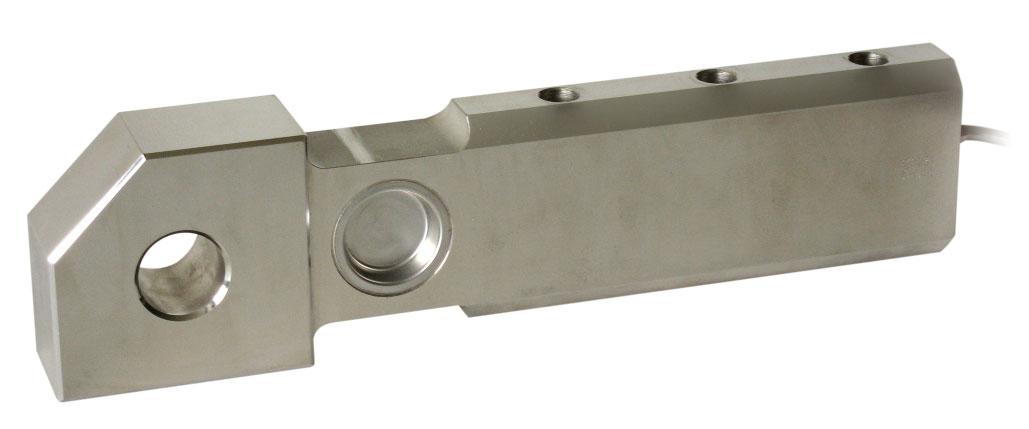

SHEAR BEAM
53

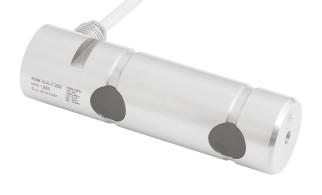

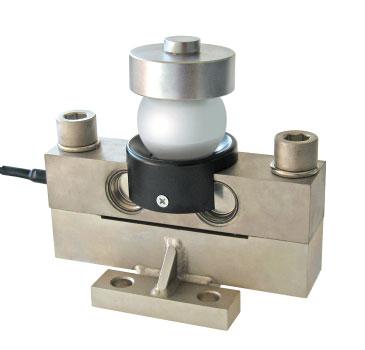

A1.5

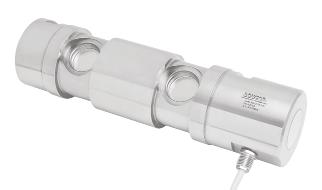

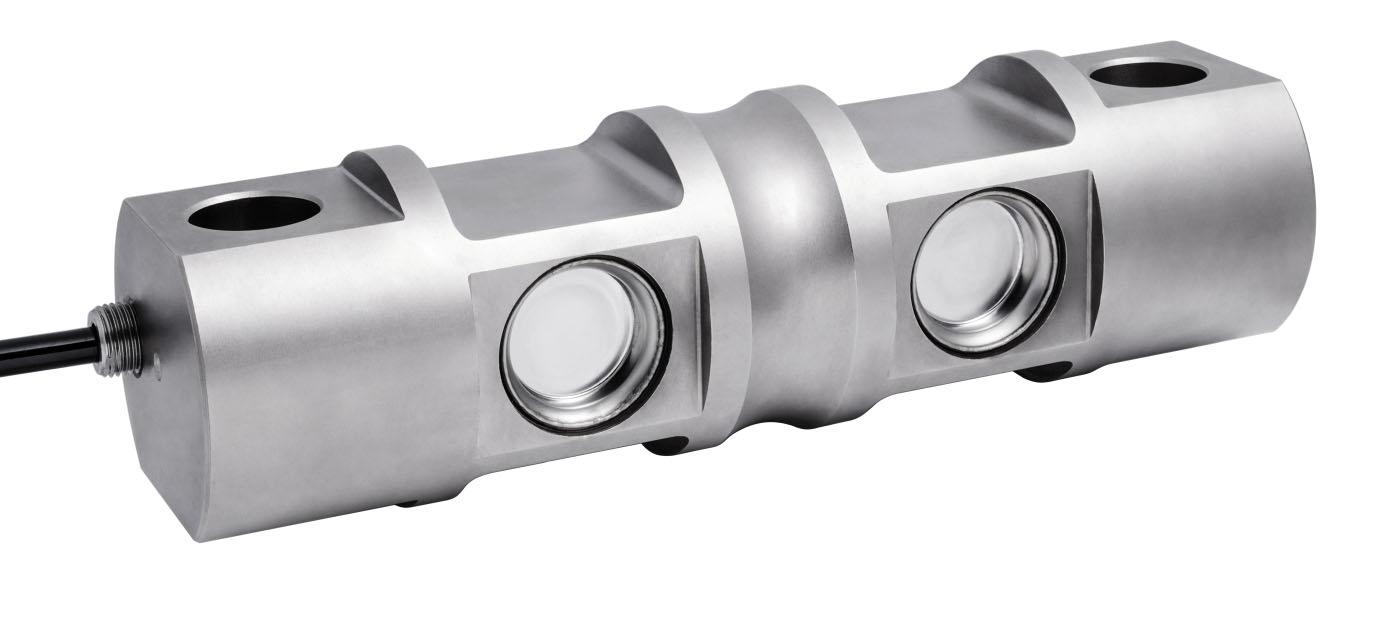

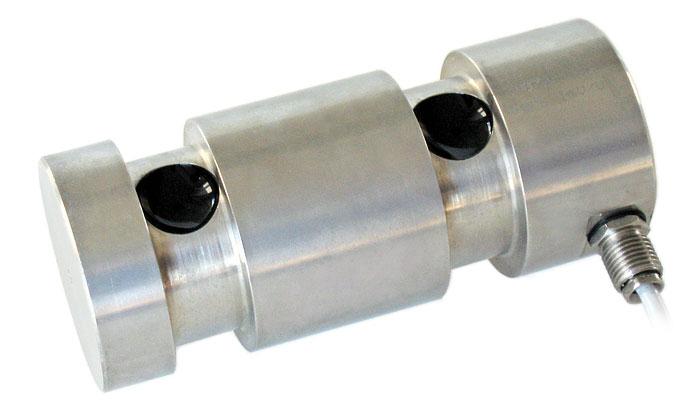

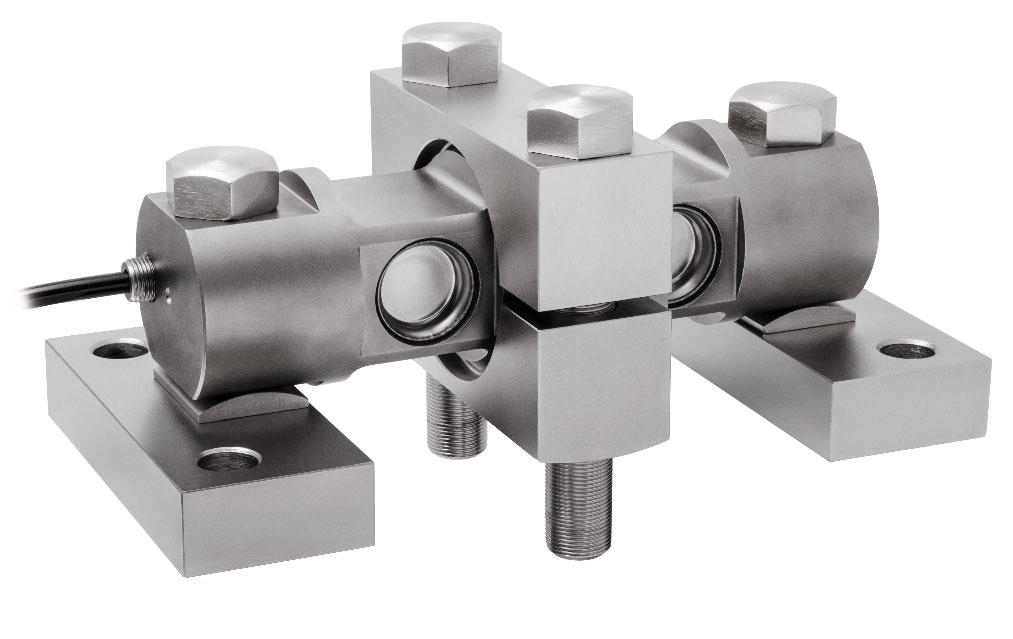

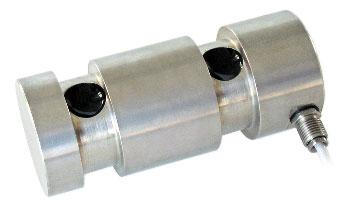

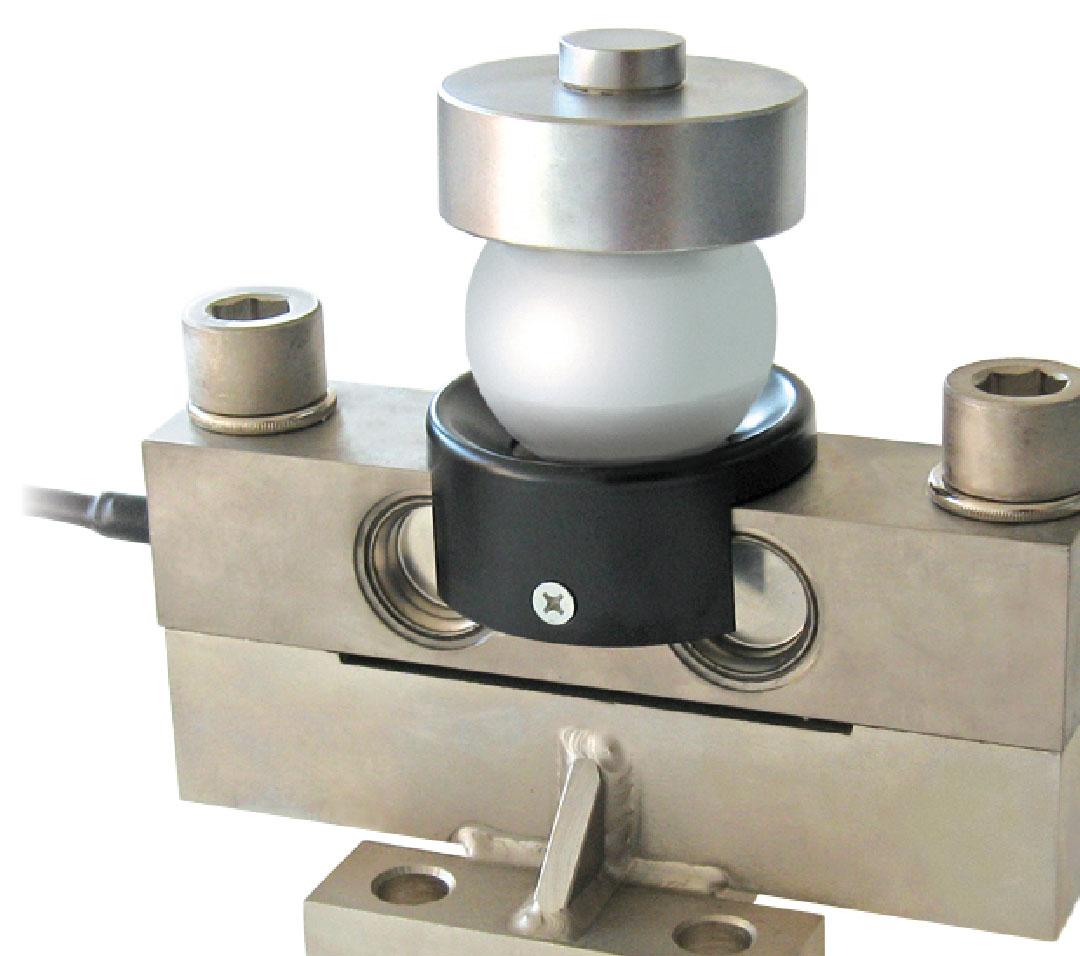

DOUBLE SHEAR BEAM
67

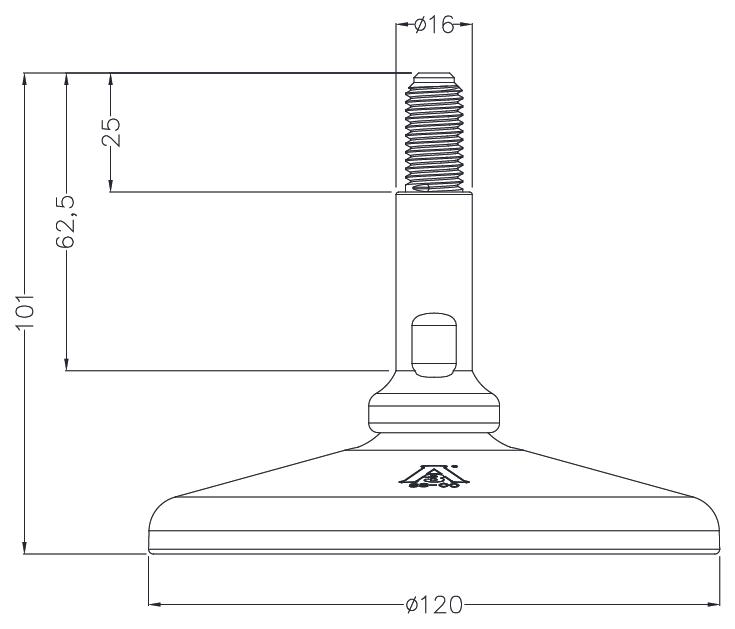

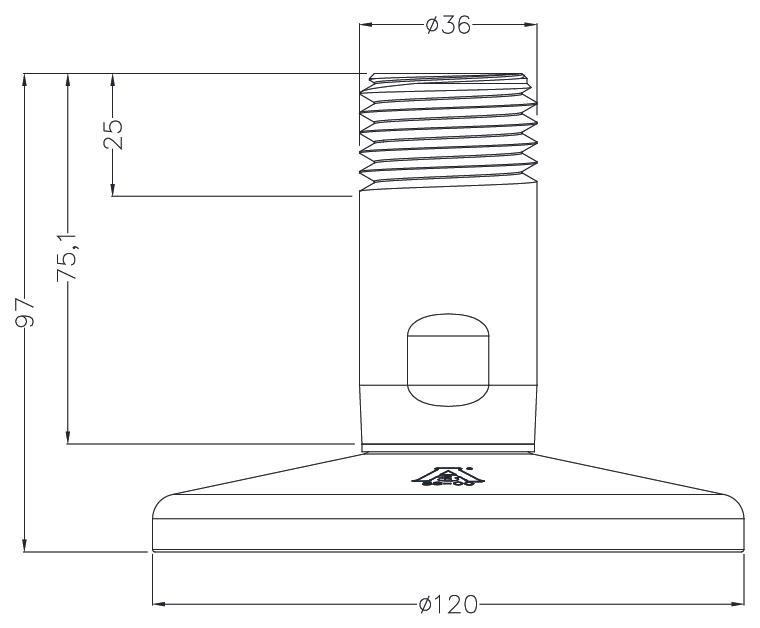

A1.6

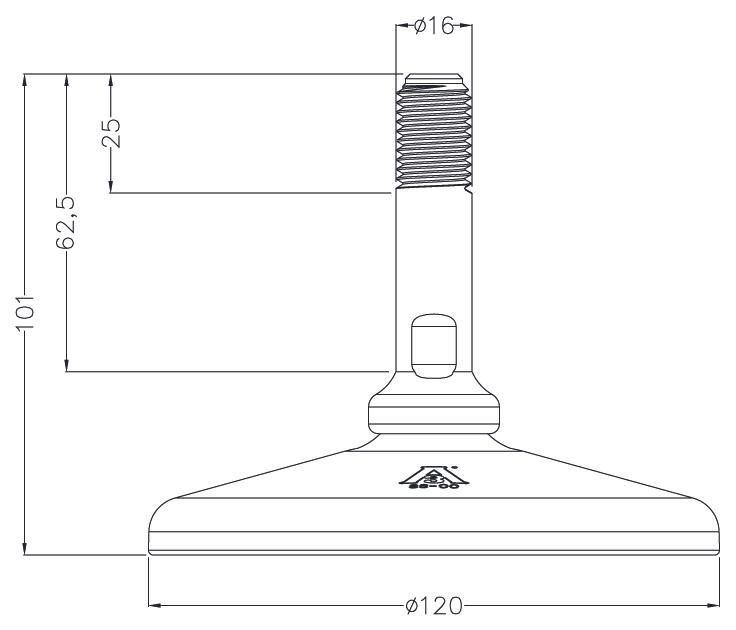

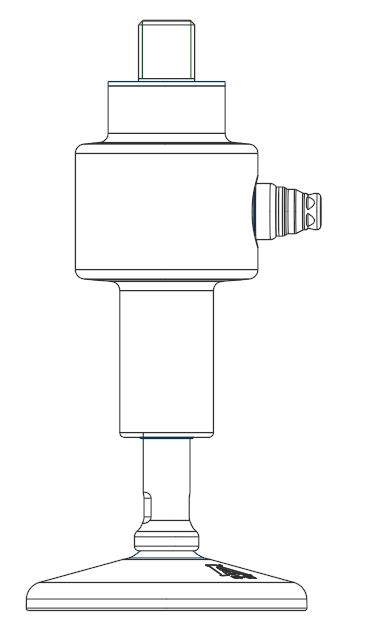

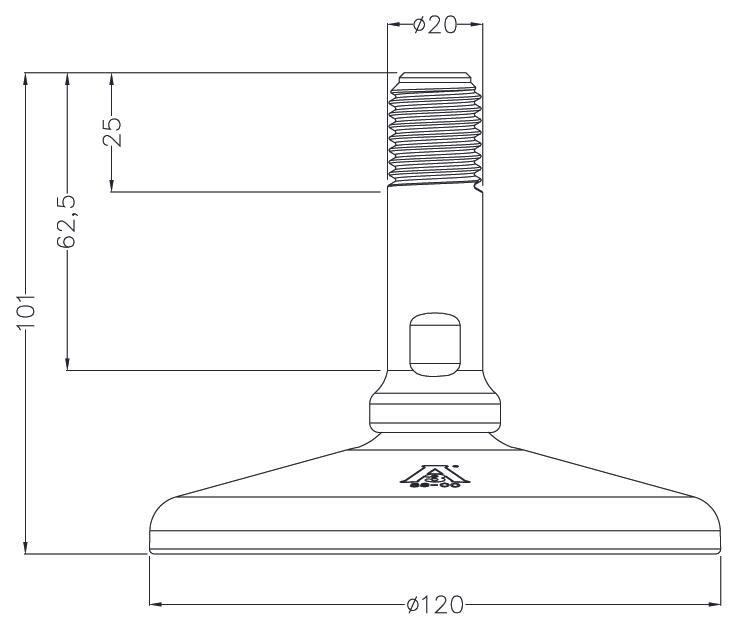

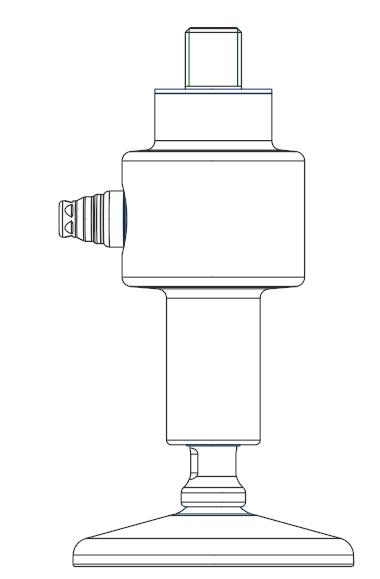

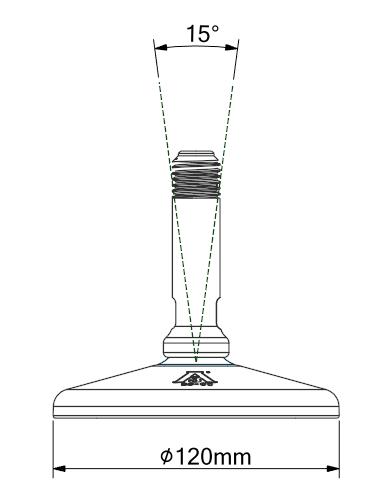

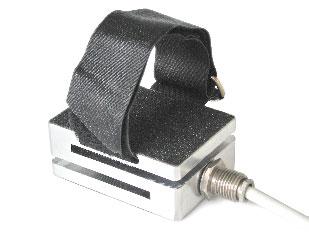

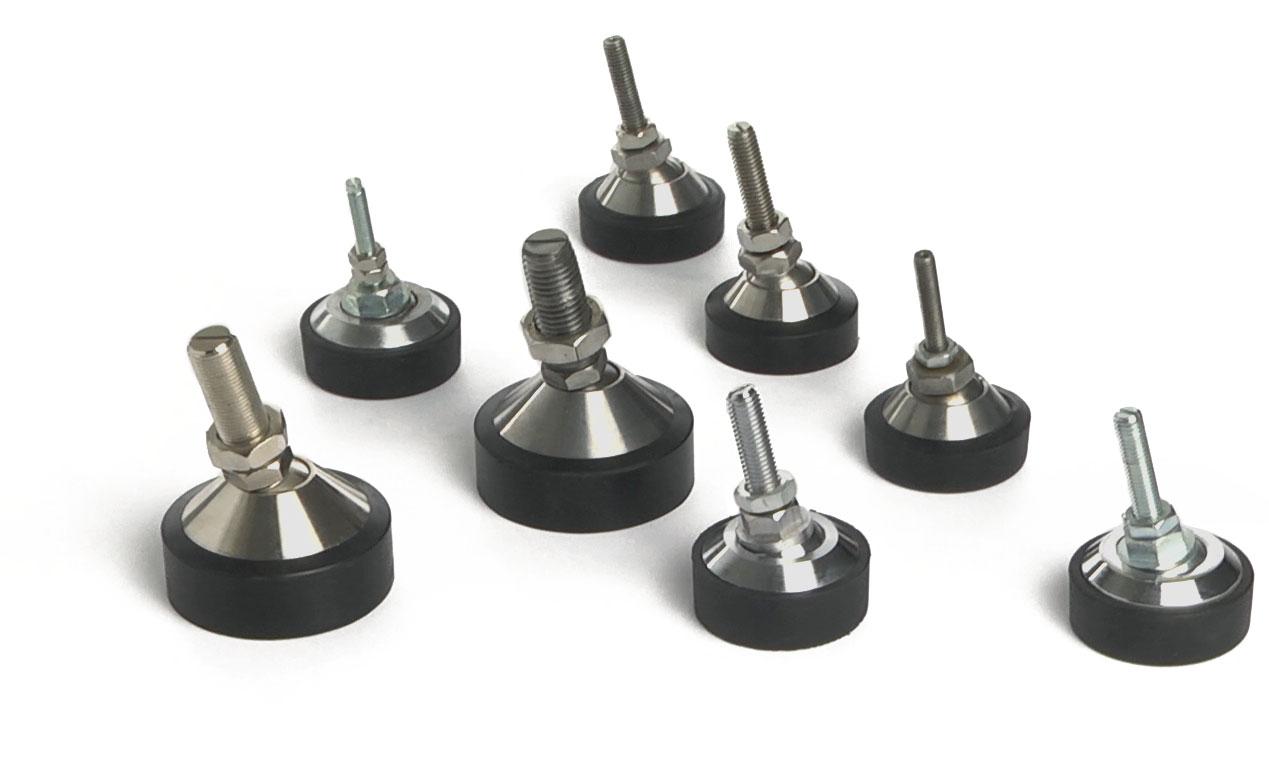

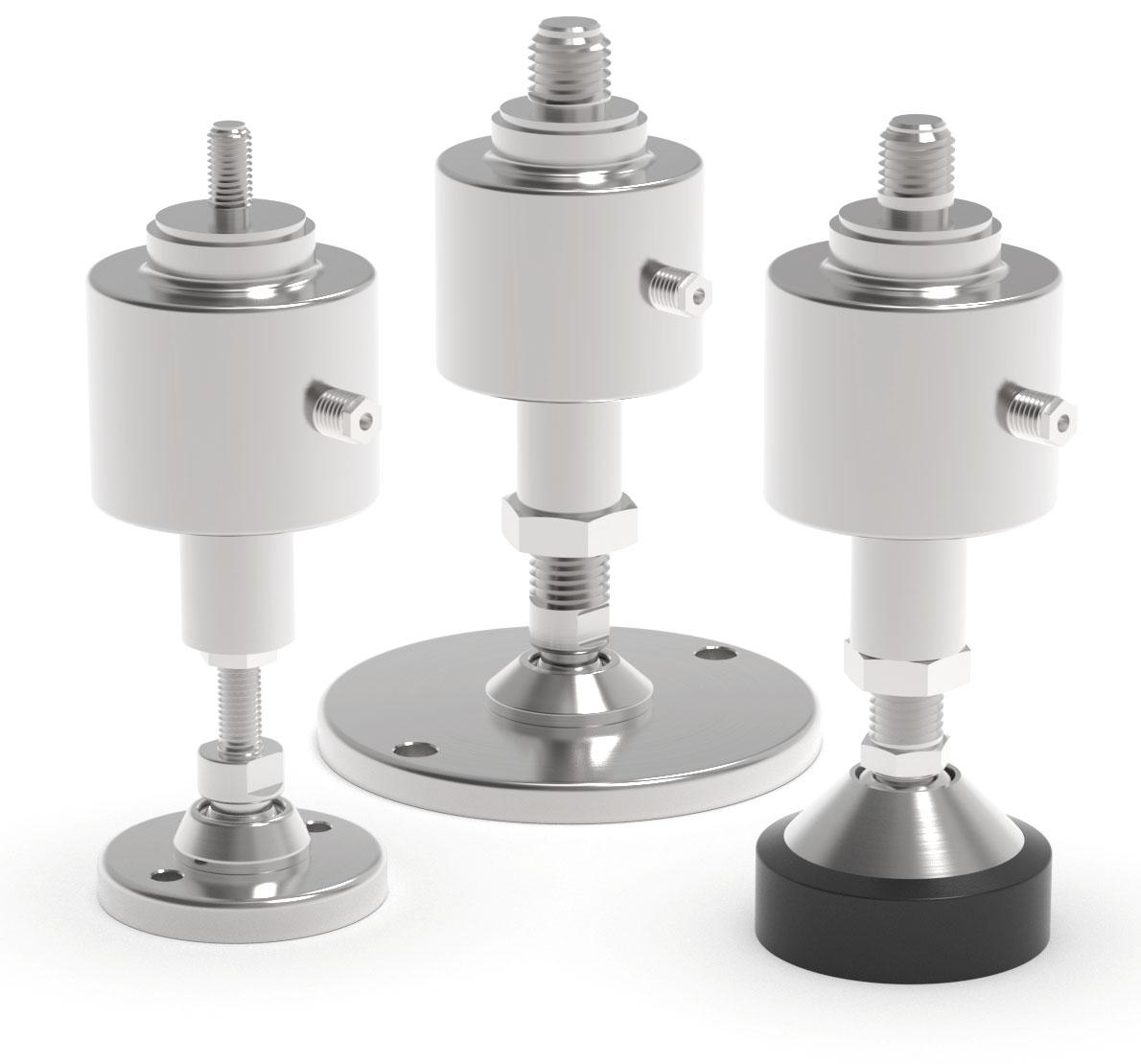

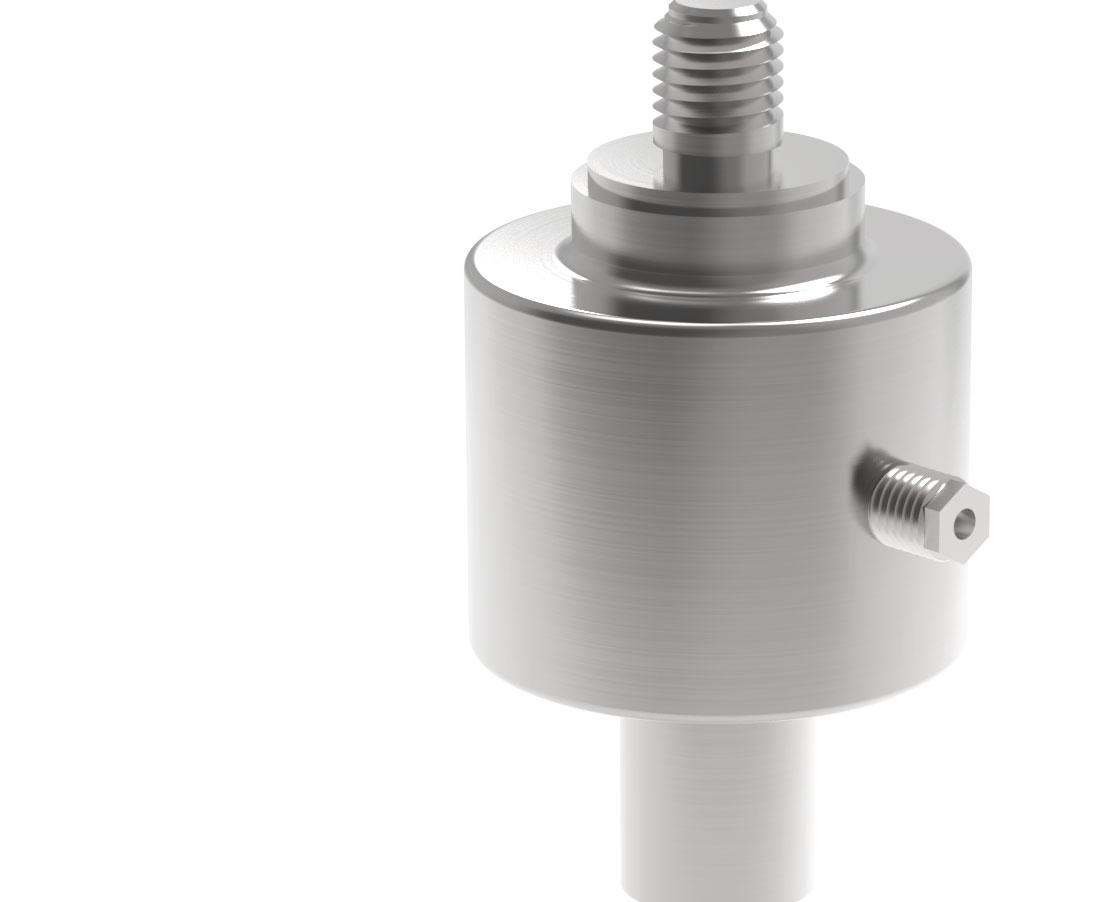

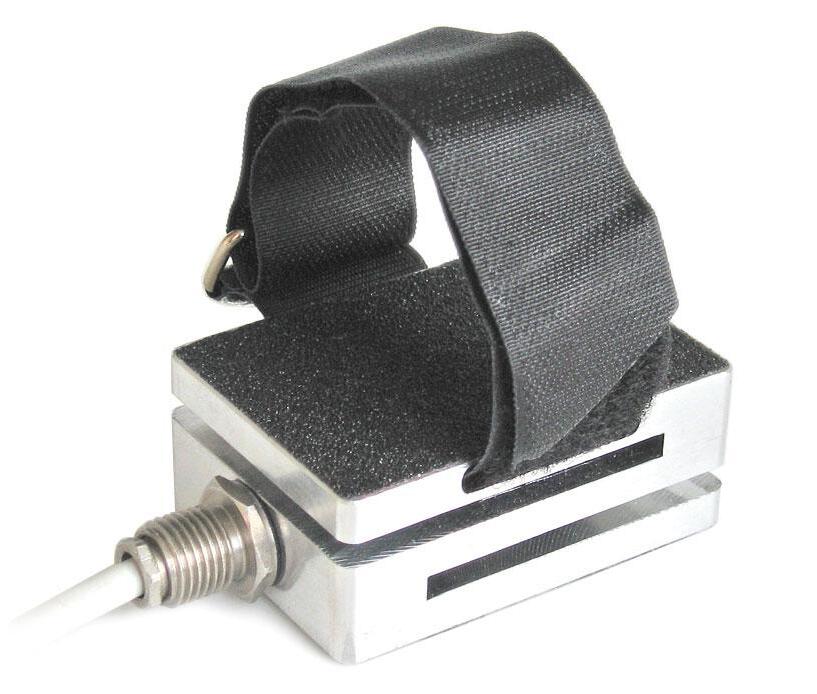

FOR FOOT
75

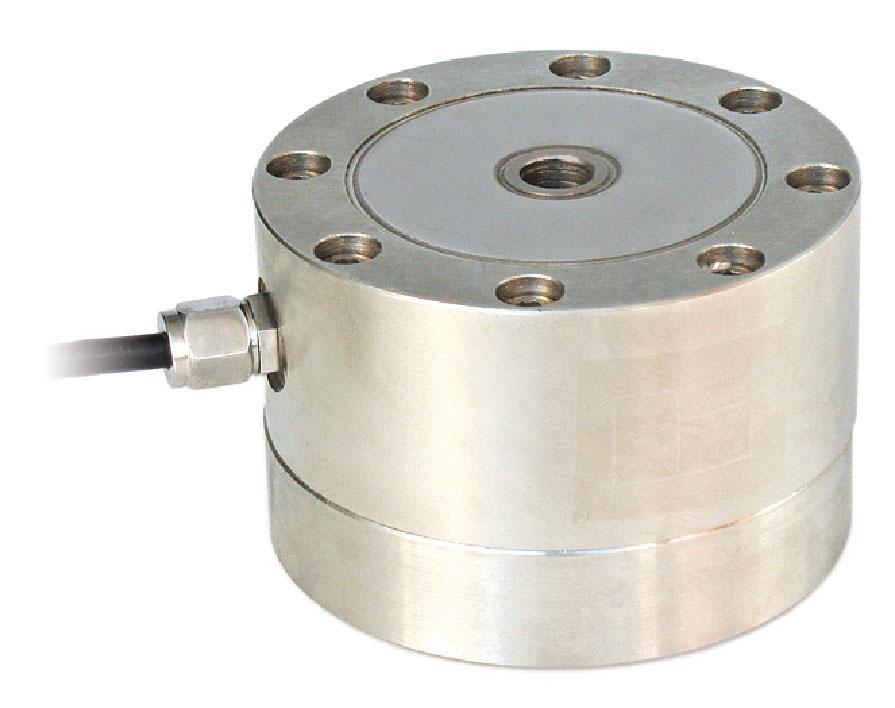

A1.7

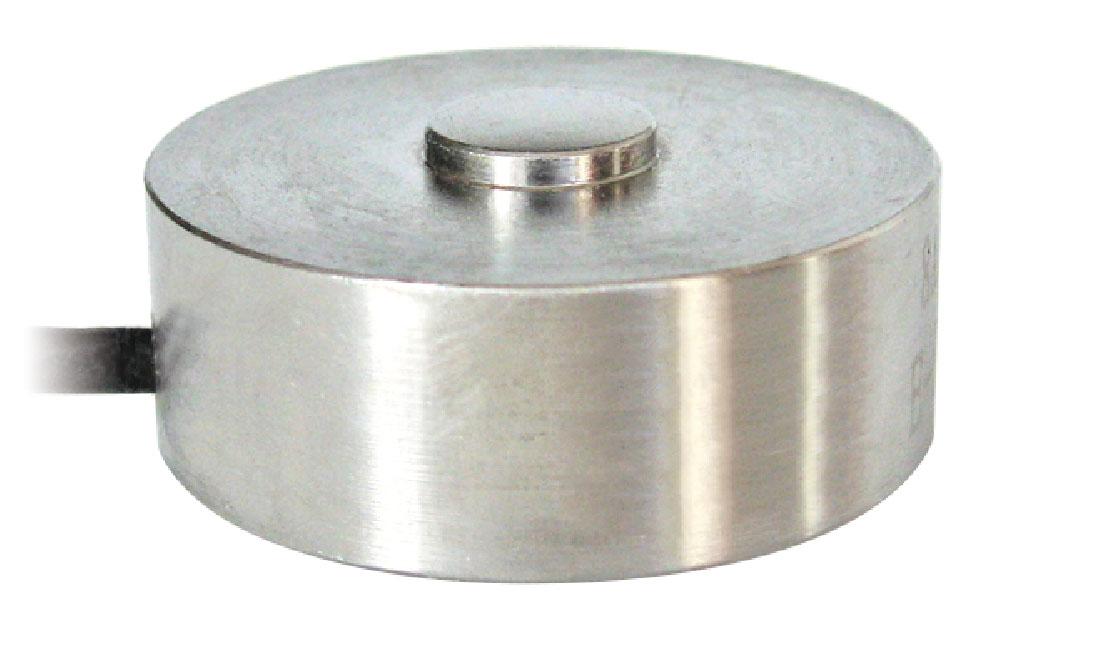

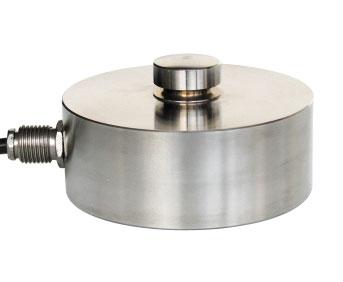

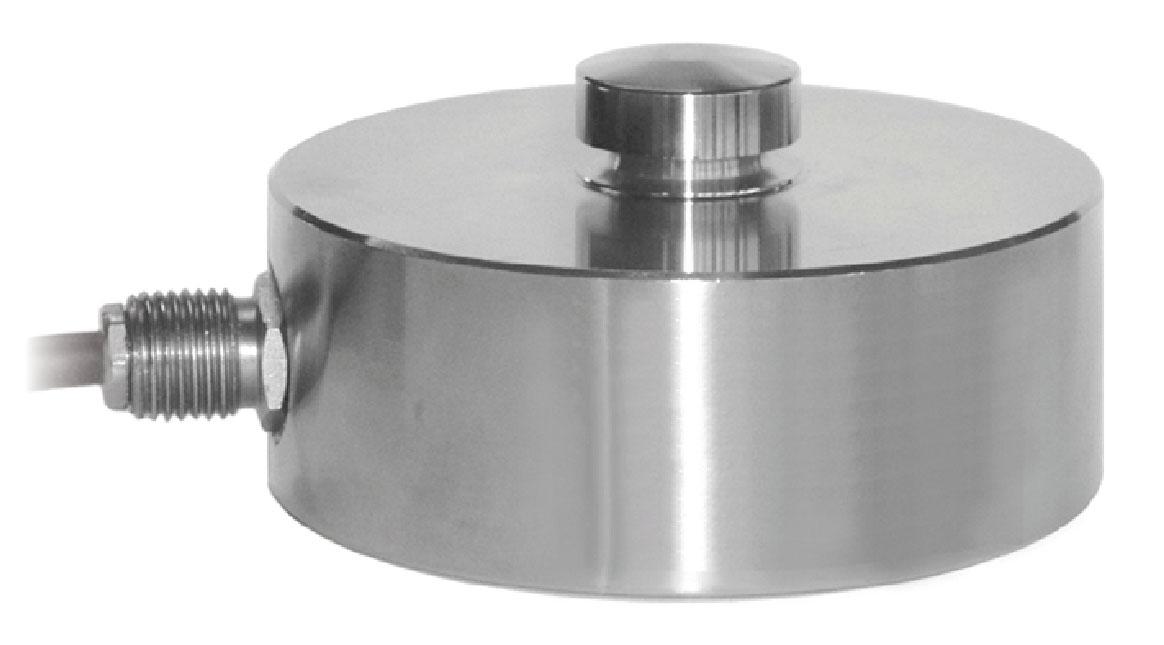

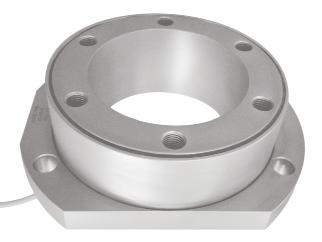

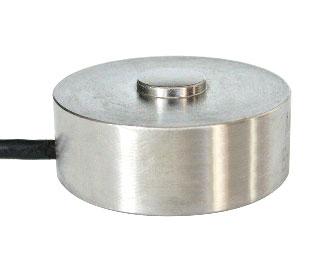

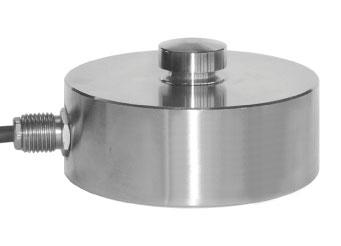

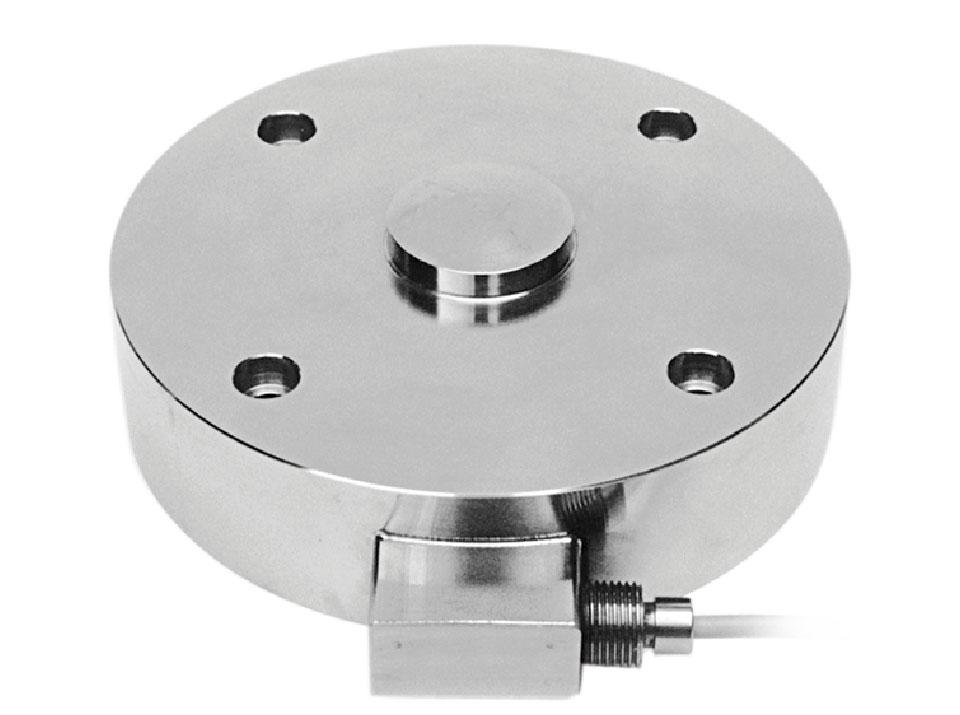

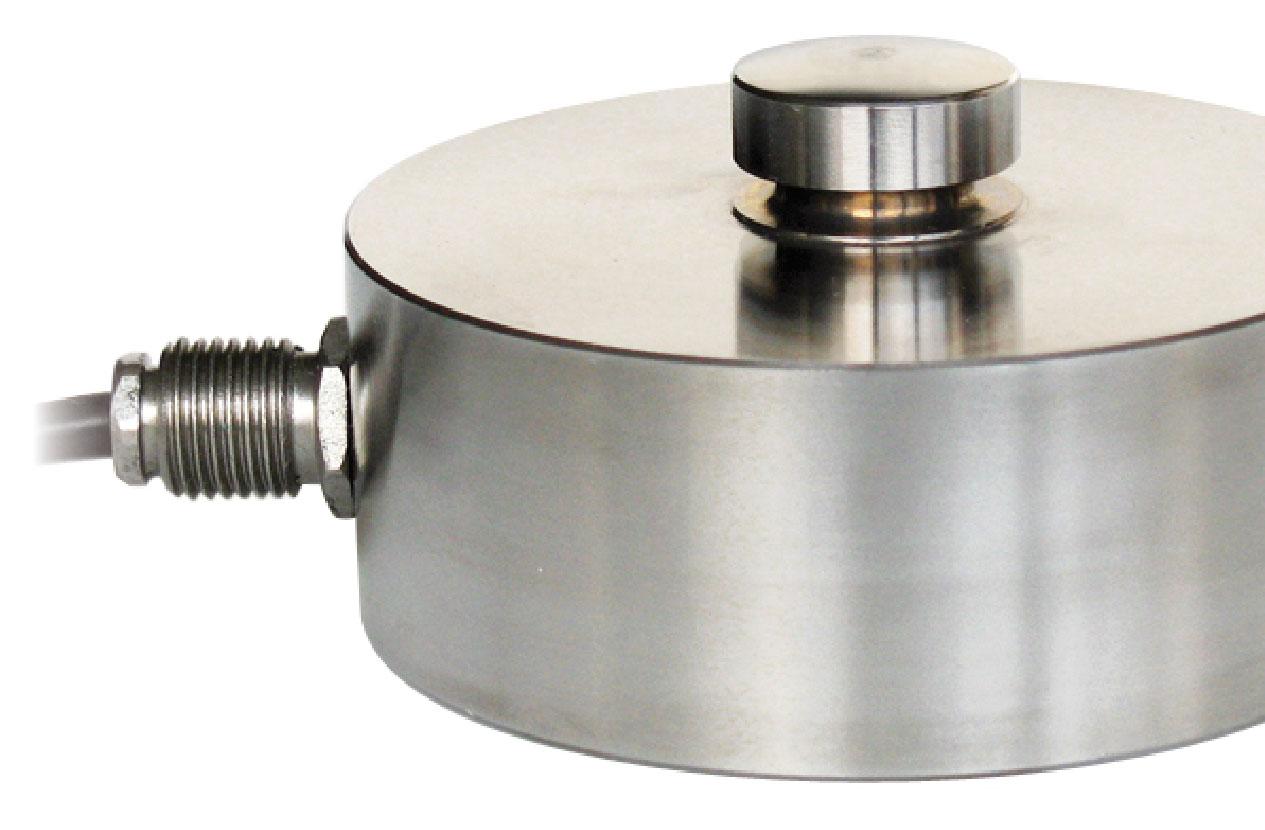

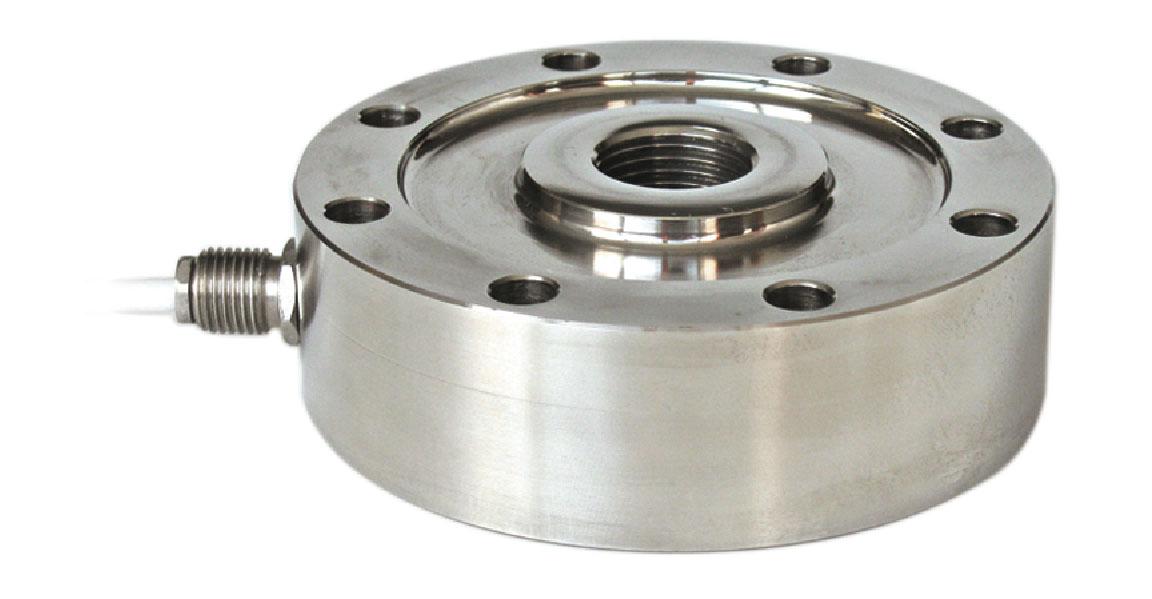

COMPRESSION-LOW PROFILE
81
A1.8

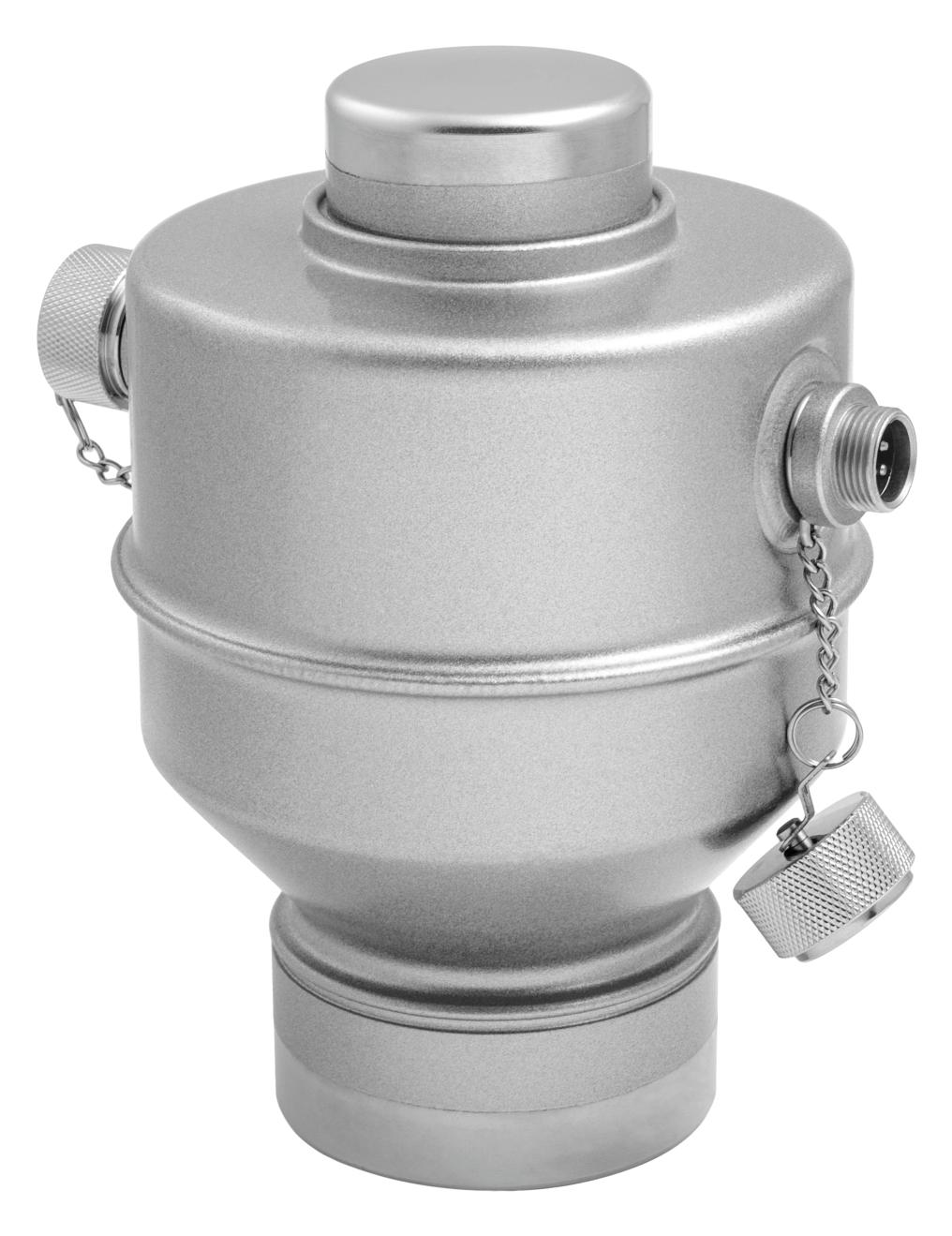

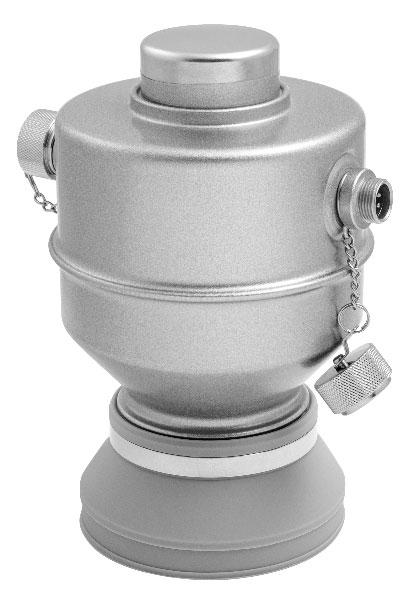

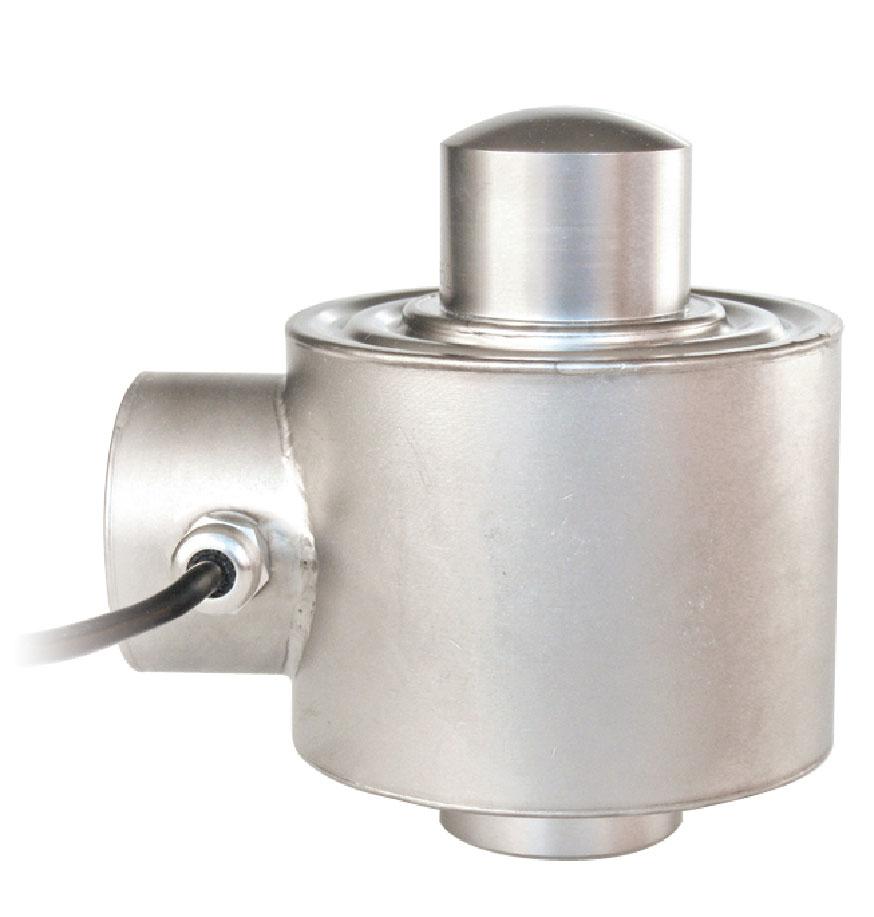

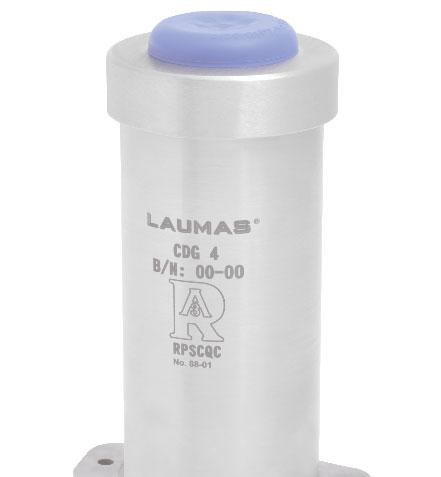

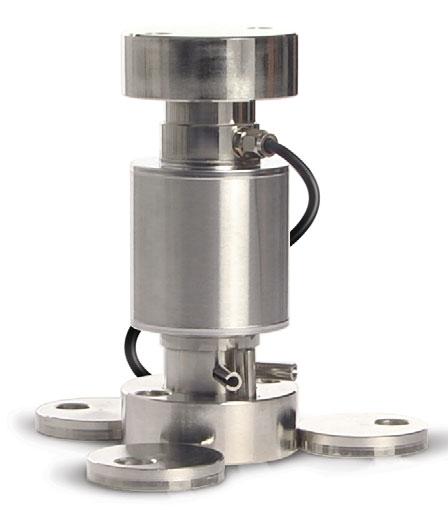

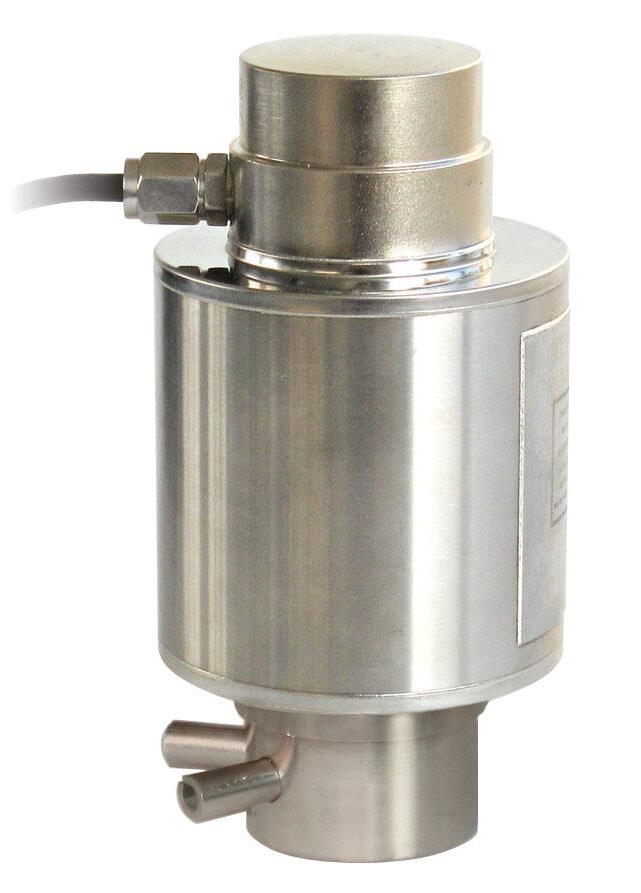

COLUMN 99
A1.9

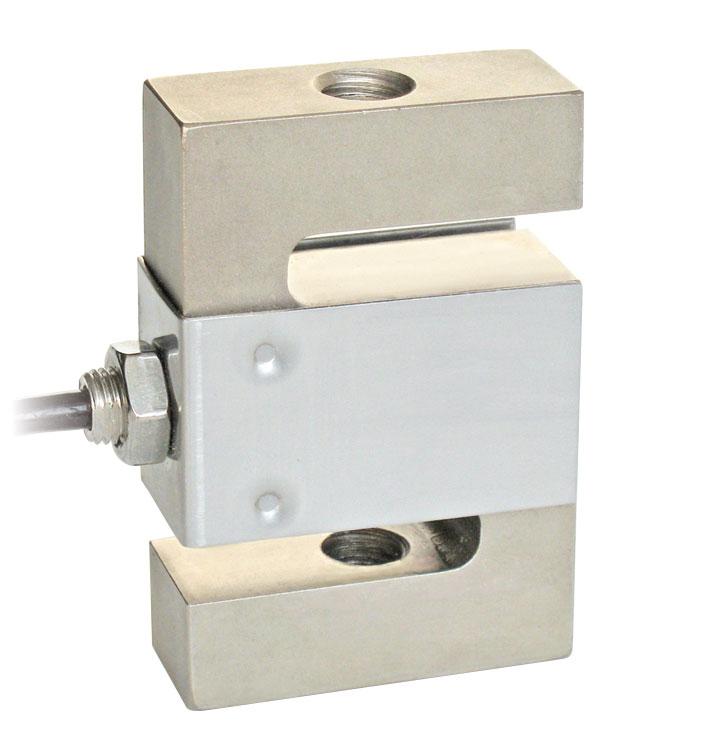

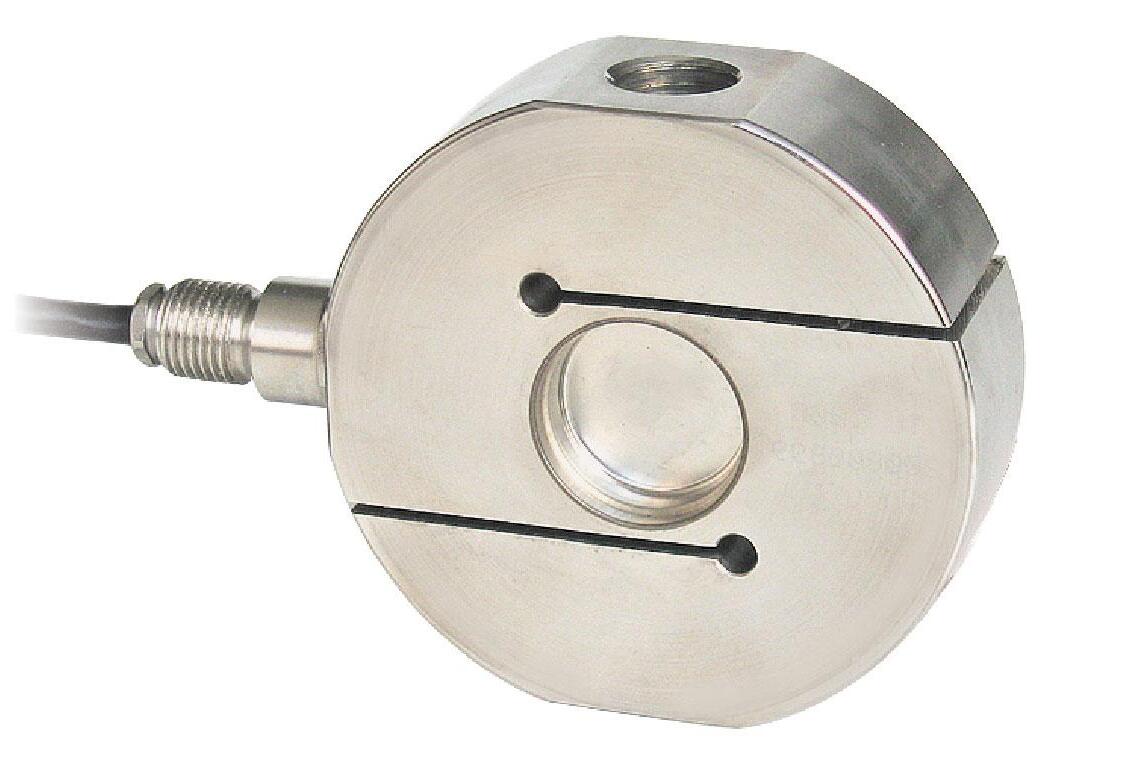

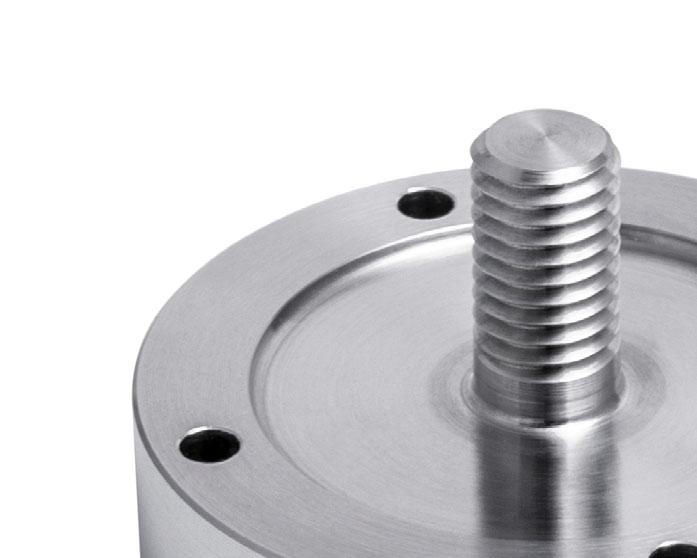

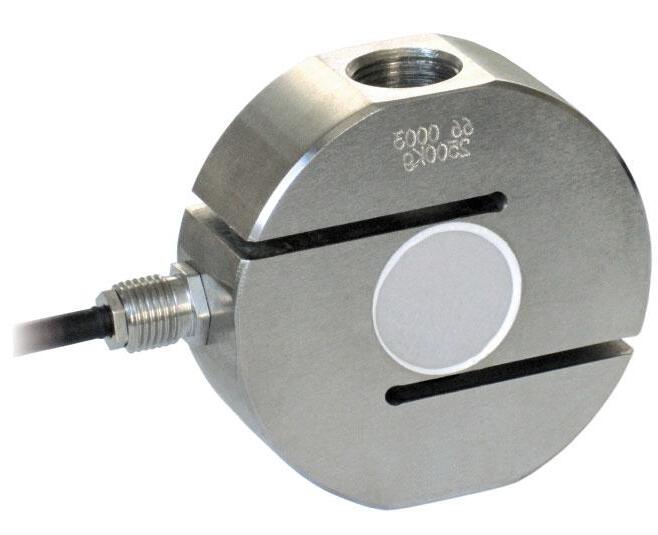

COMPRESSION / TENSION
110
A1.10

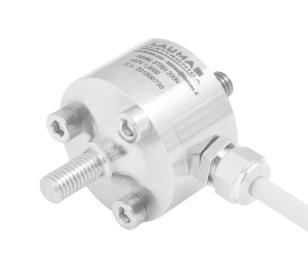

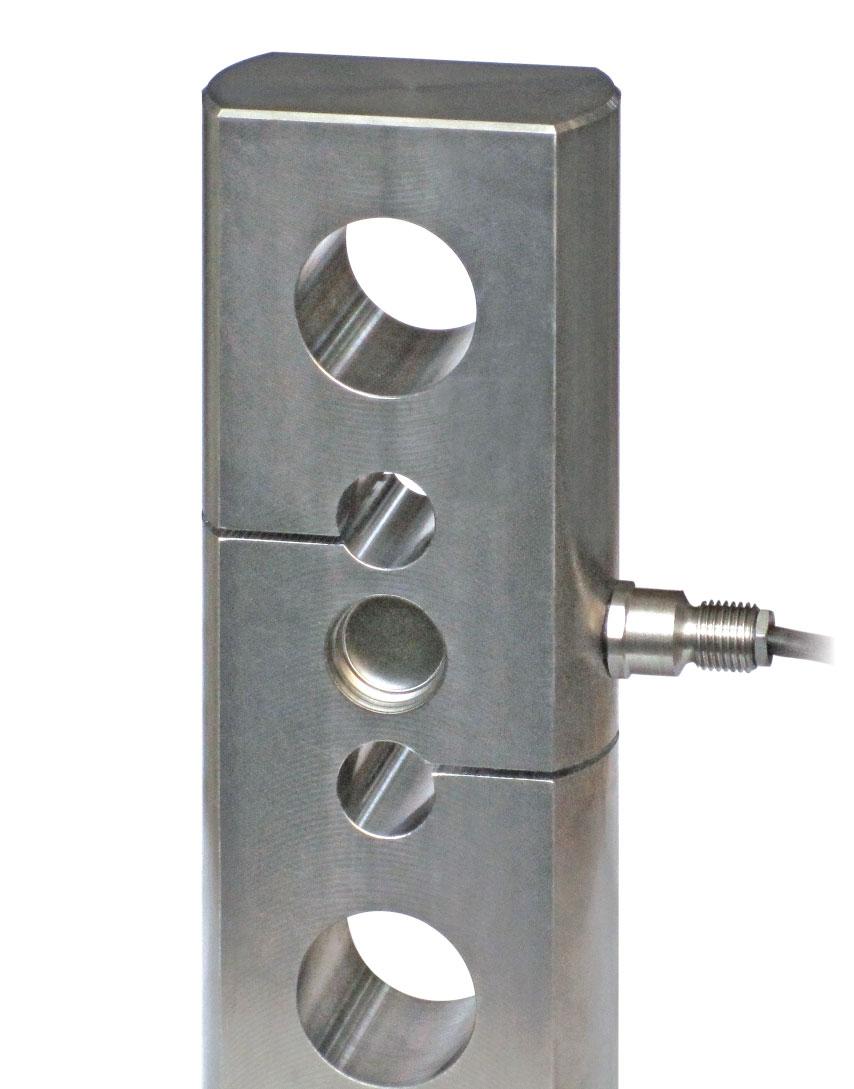

TENSION (COMPRESSION)
120
A1.11

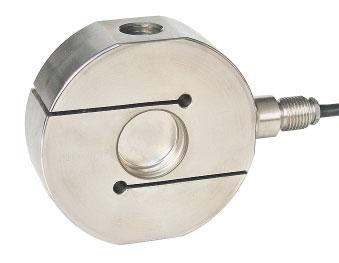

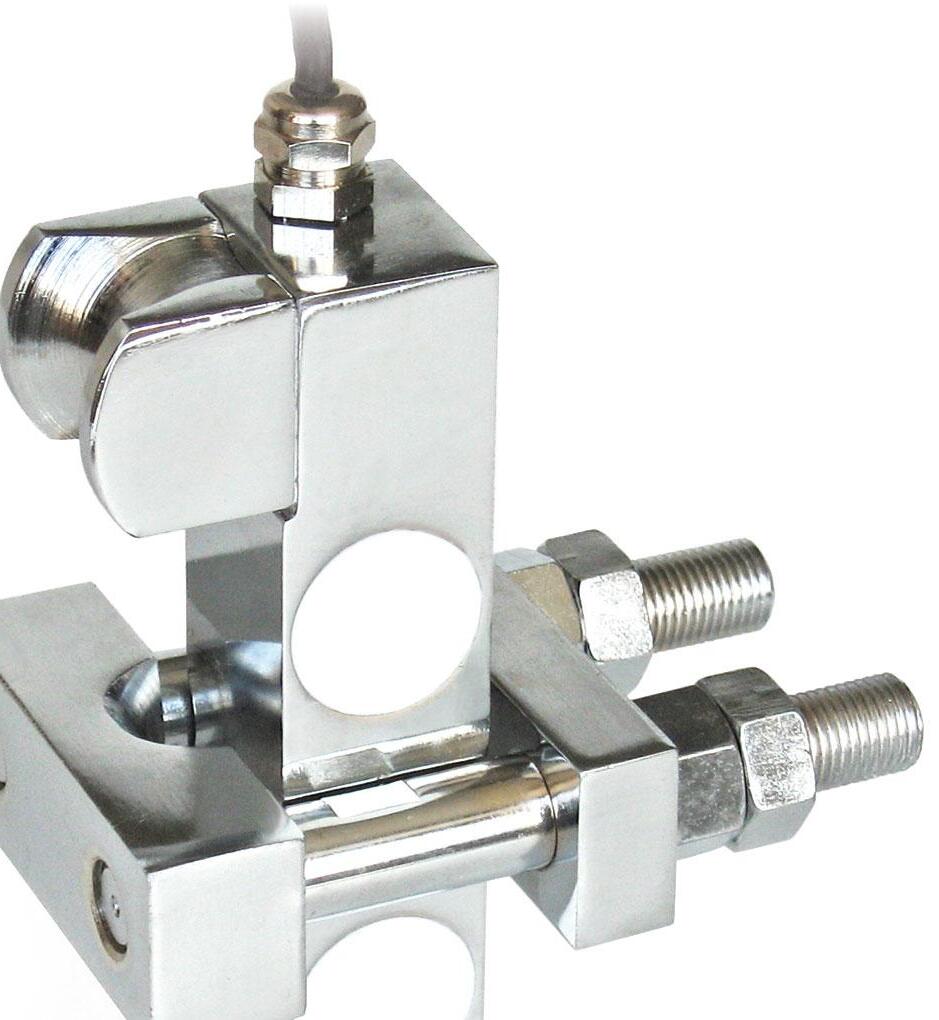

TENSION 133
A1.12

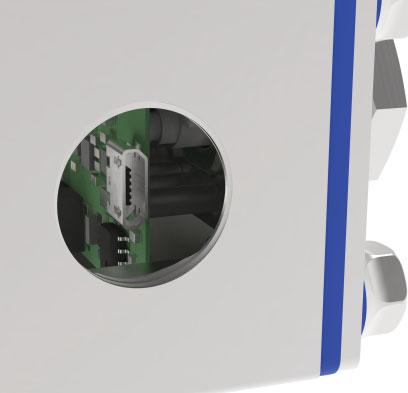

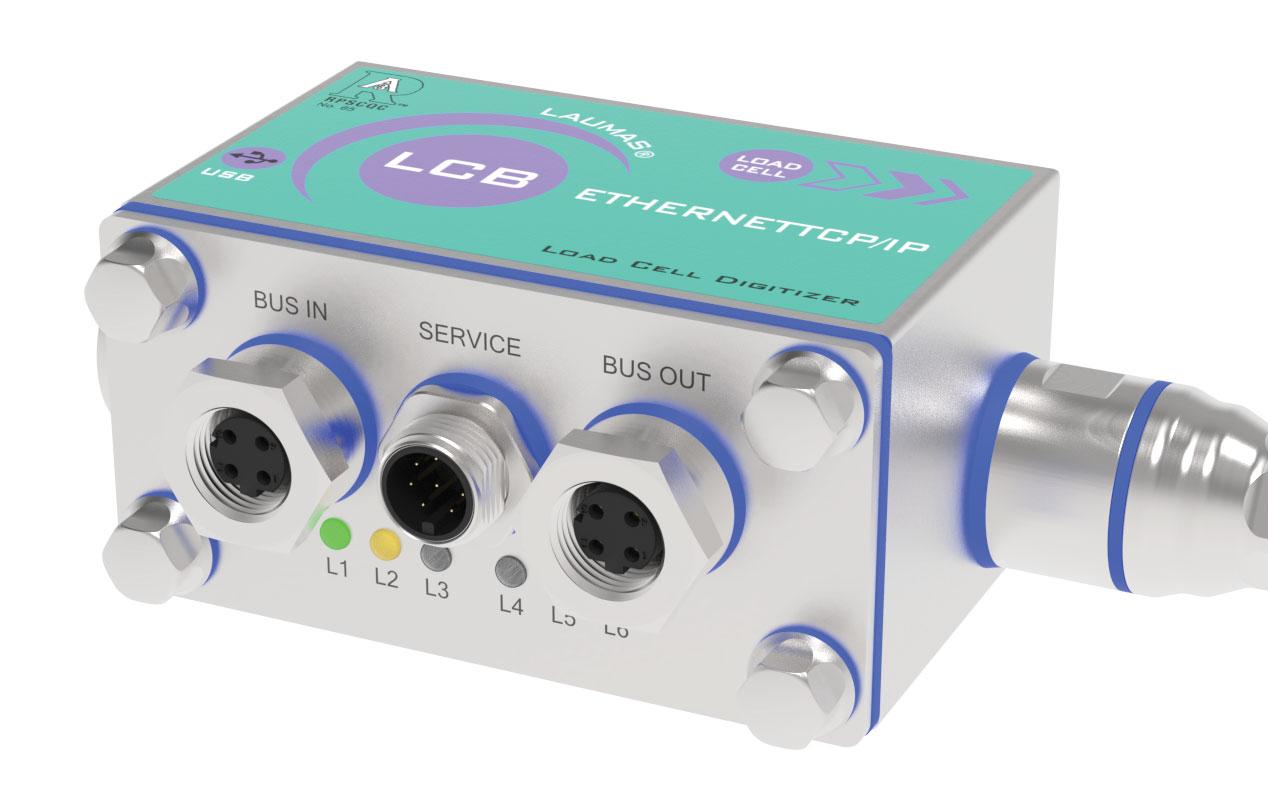

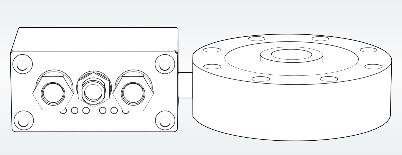

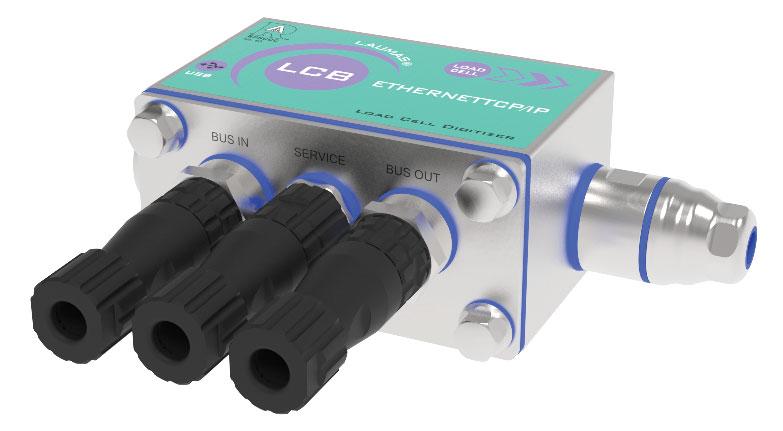

DIGITAL LOAD CELLS
139
A1.13

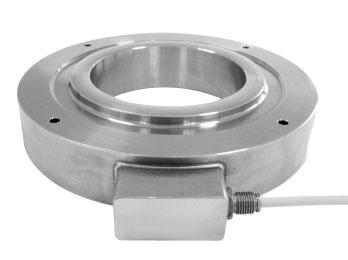

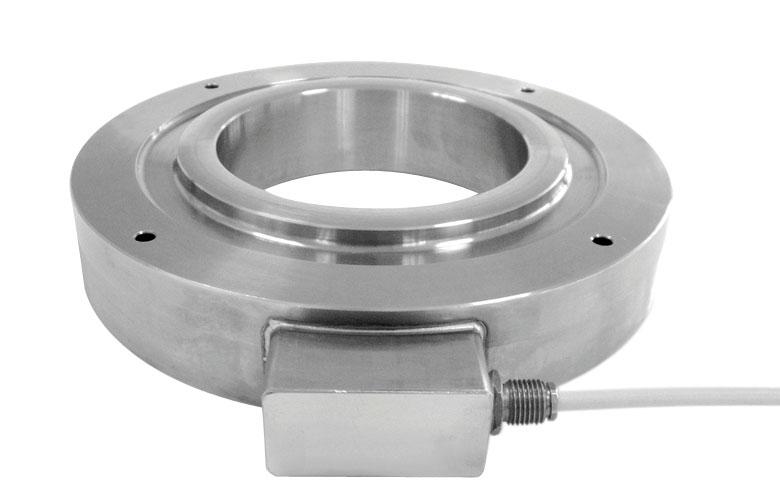

SPECIAL LOAD CELLS
147
A2

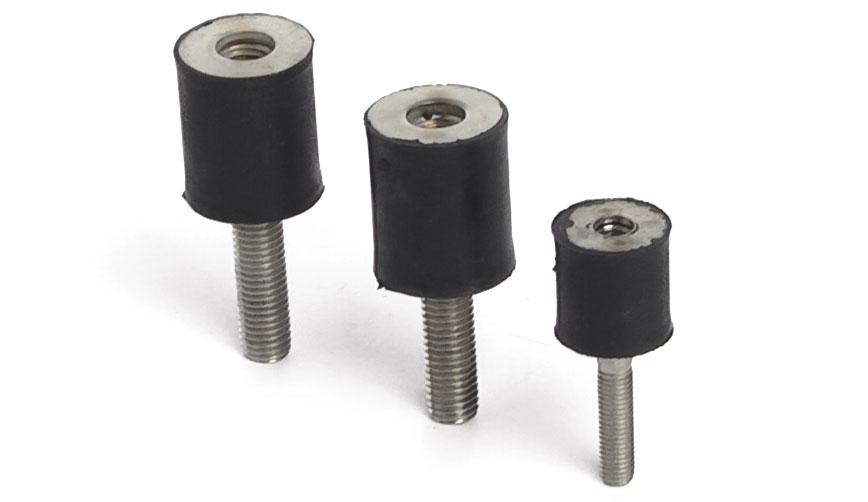

MOUNTING KITS
A2.1
for SINGLE-POINT load cells
157
A2.2

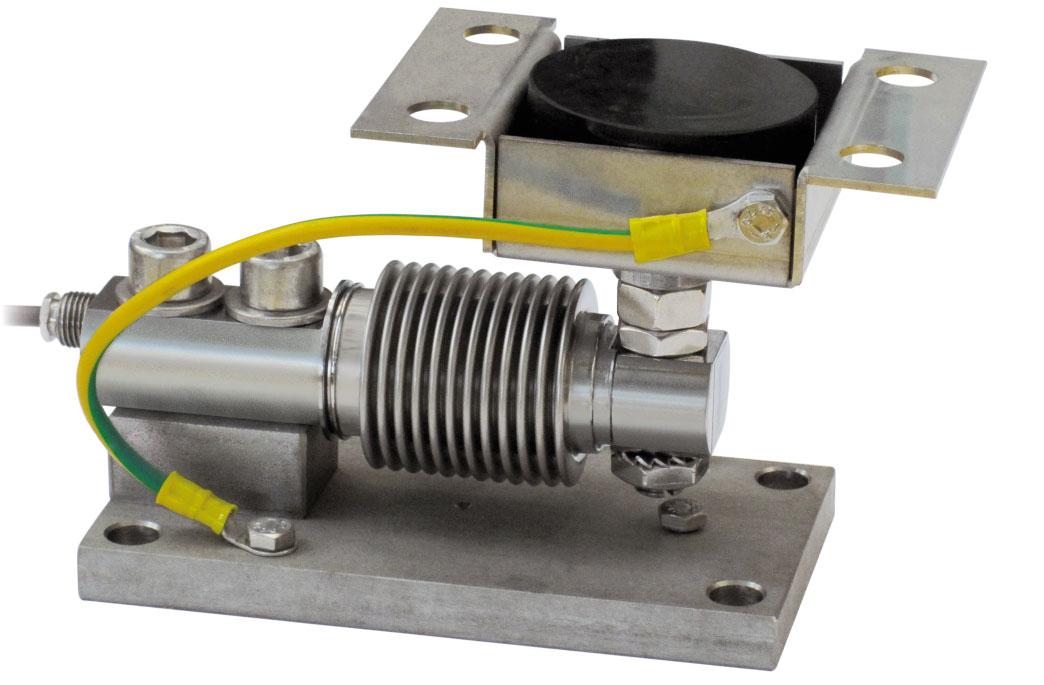

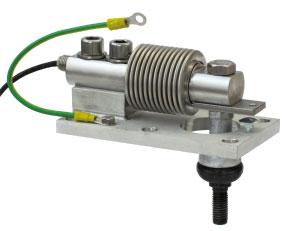

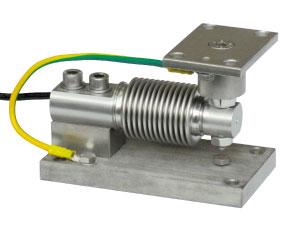

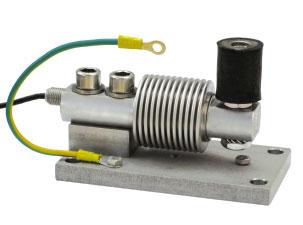

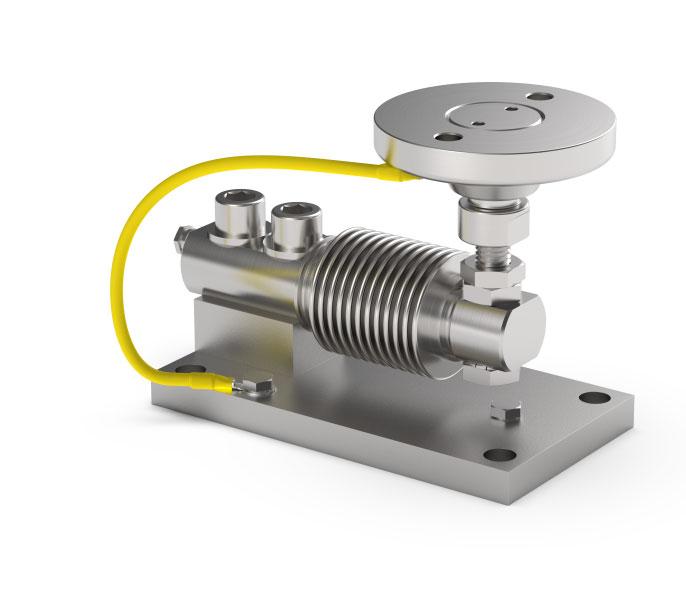

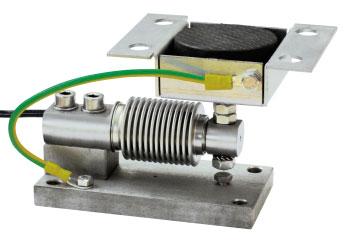

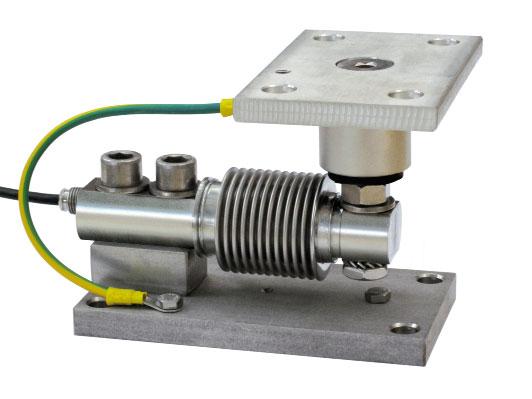

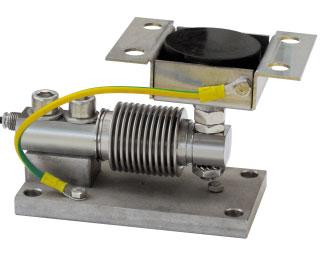

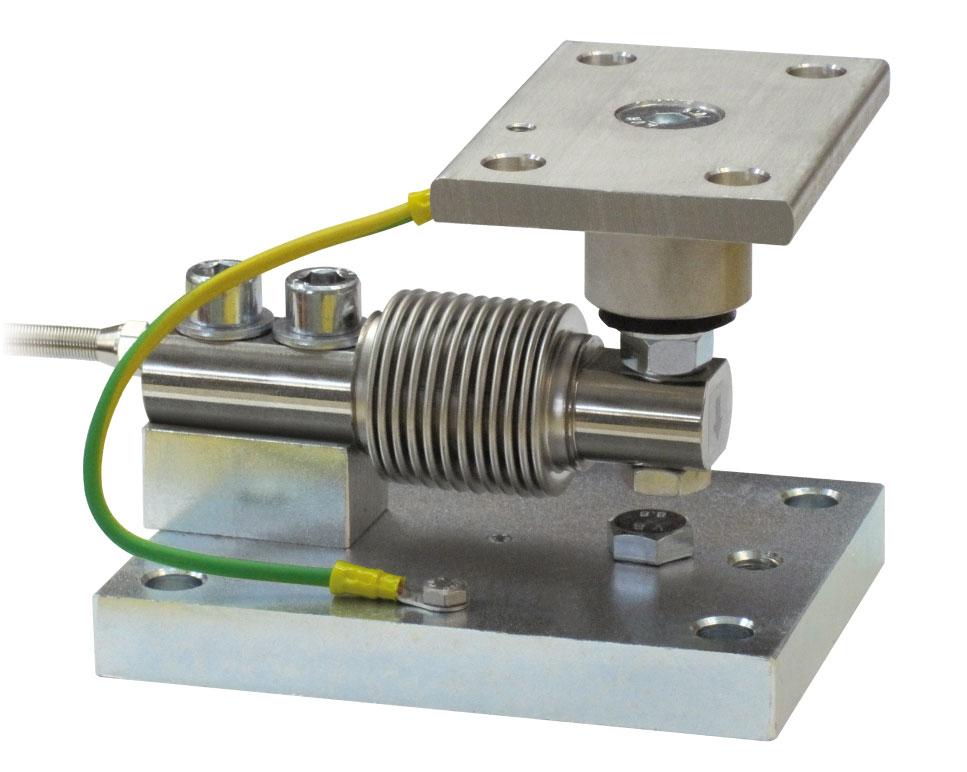

for BENDING BEAM load cells
161

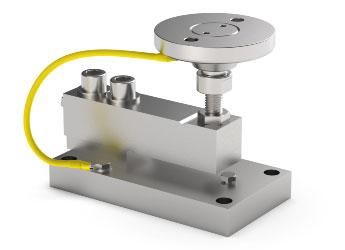

A2.3

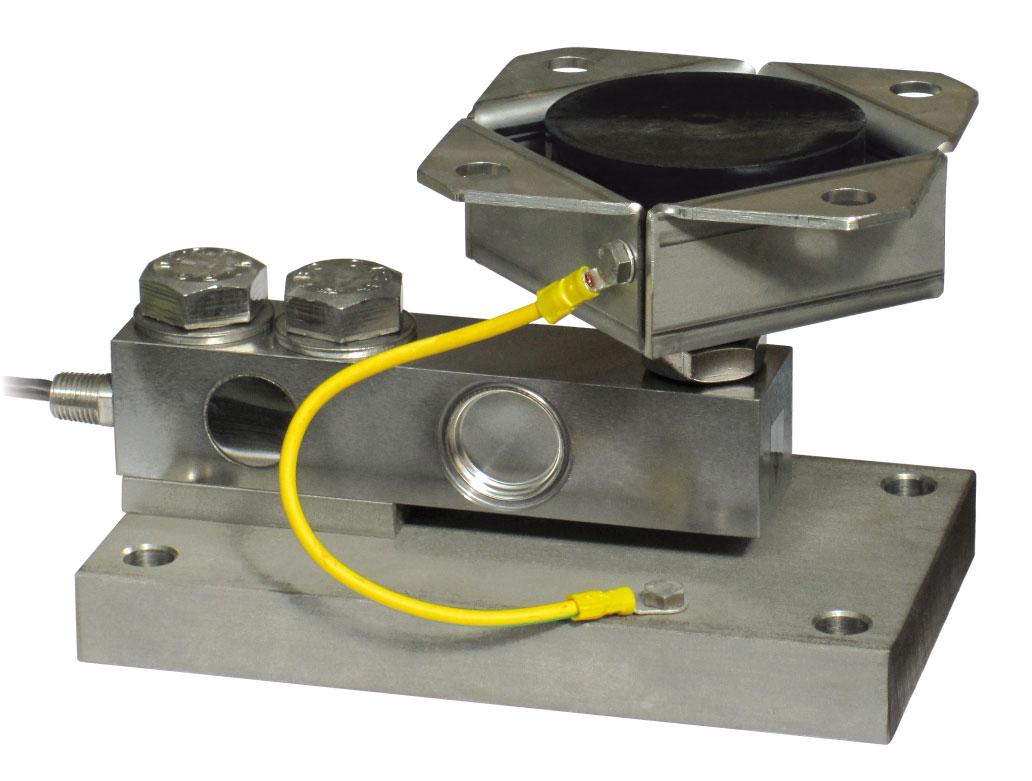

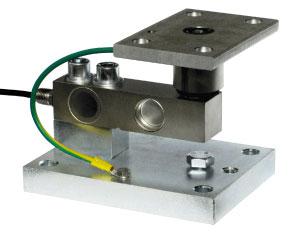

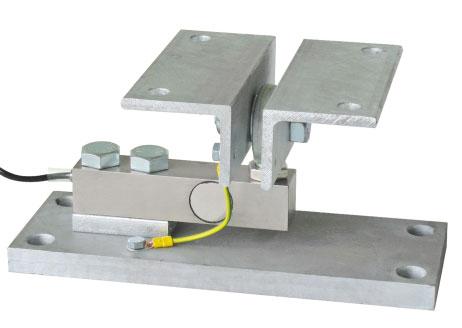

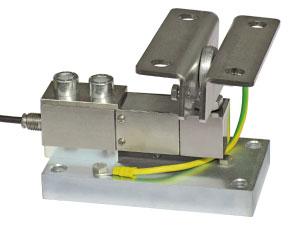

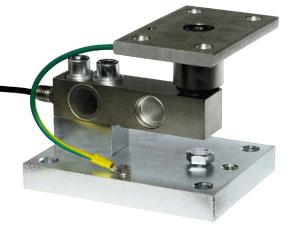

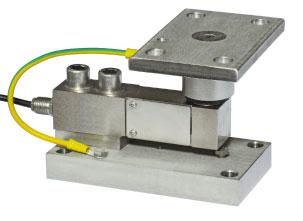

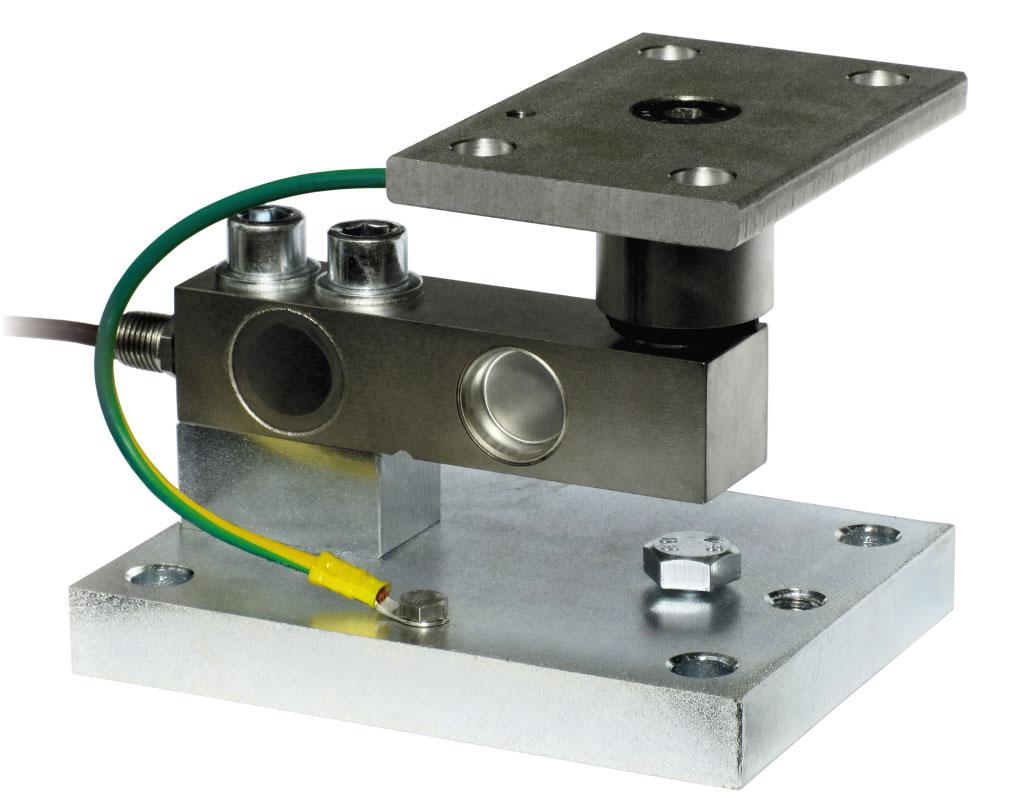

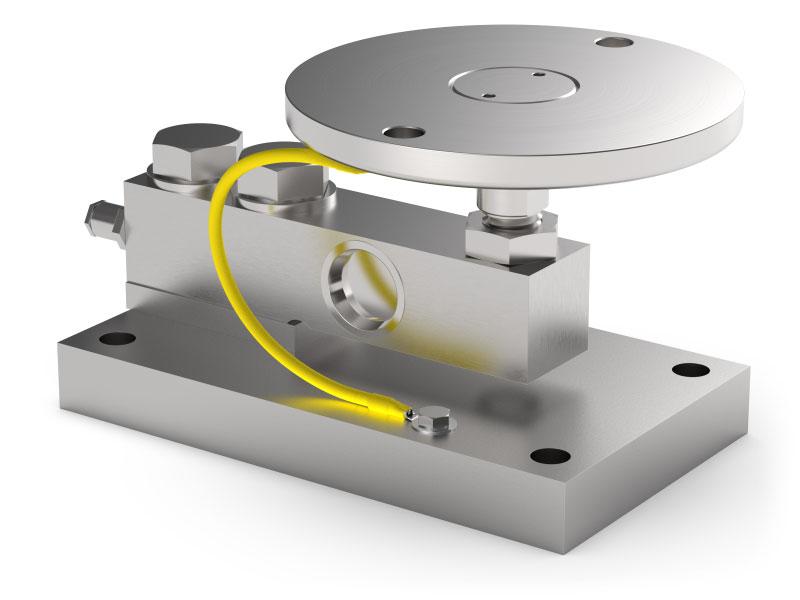

for SHEAR BEAM load cells
181
A2.4

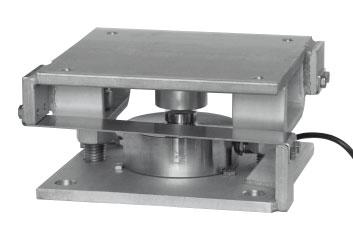

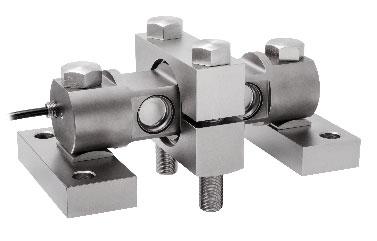

for DOUBLE SHEAR BEAM / COLUMN load cells
197

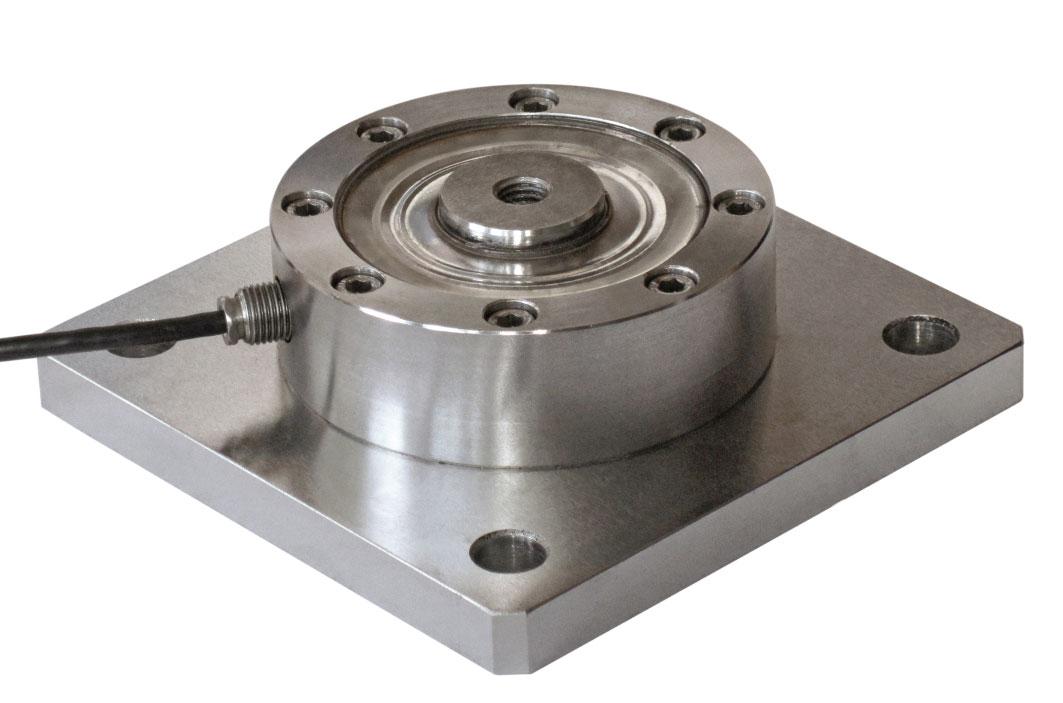

A2.5

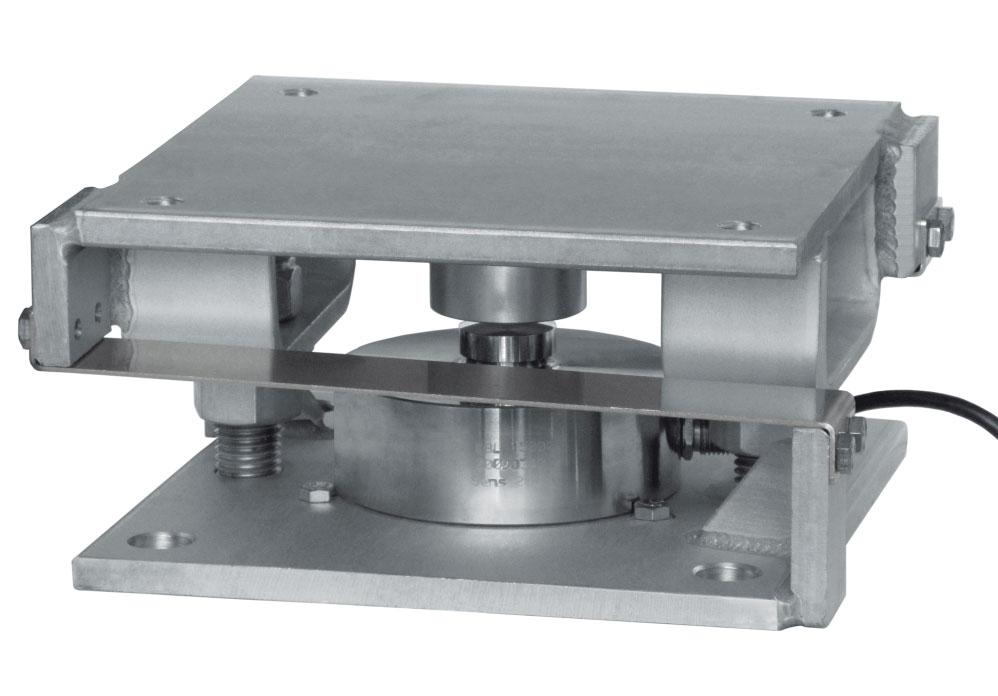

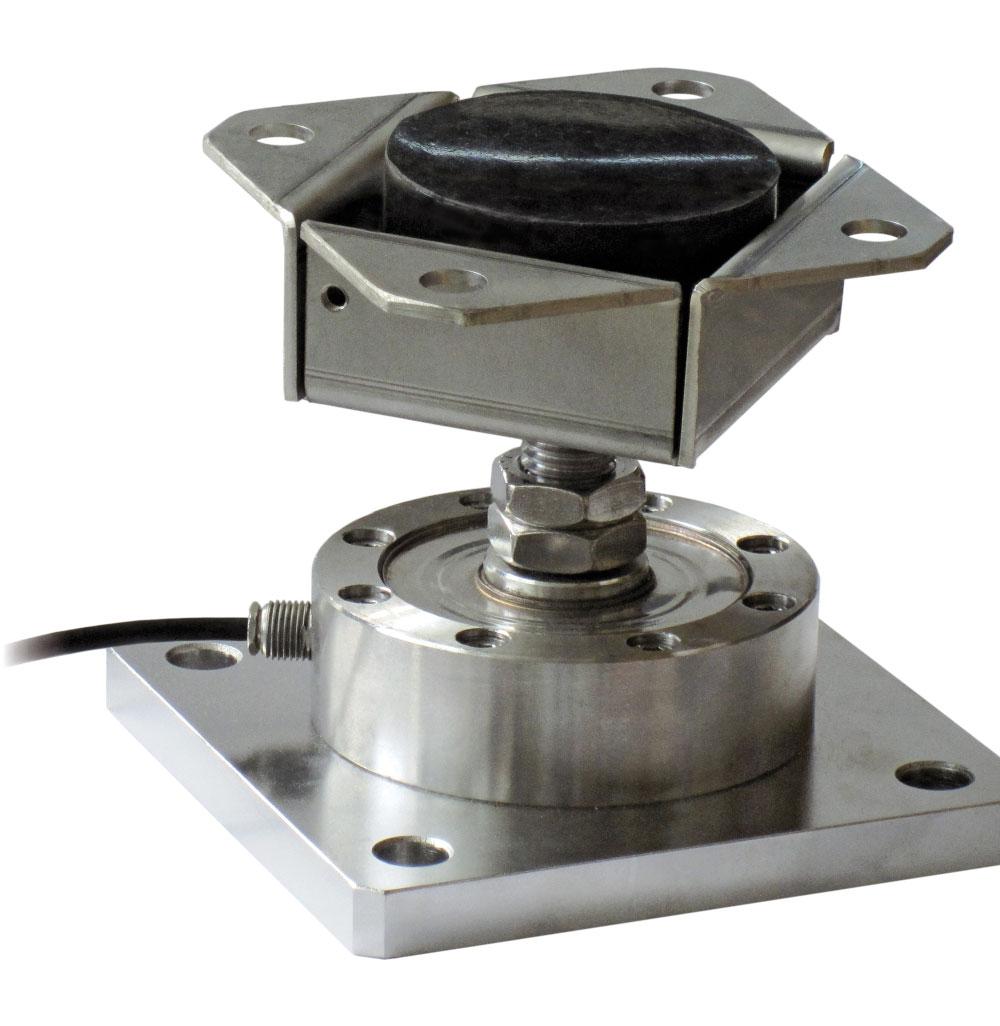

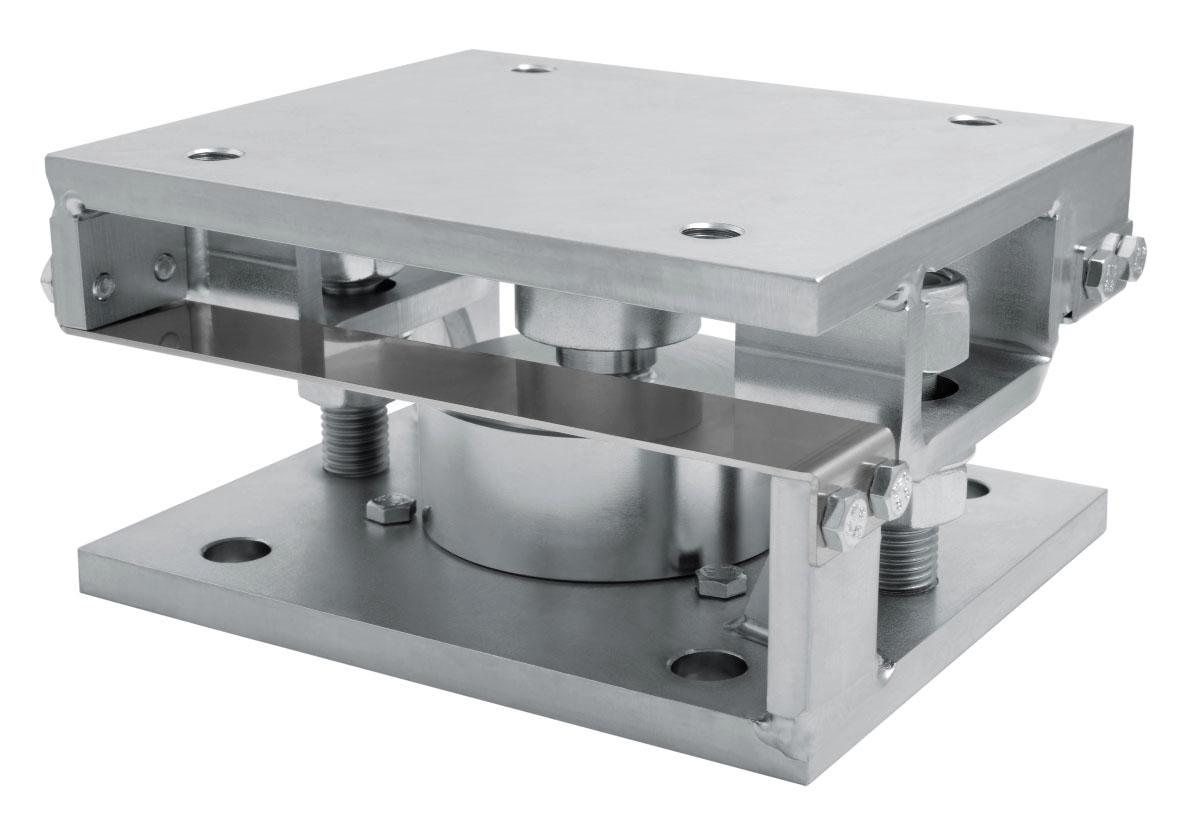

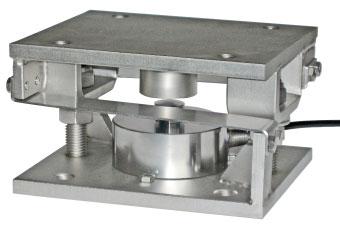

for COMPRESSION-LOW PROFILE load cells
202

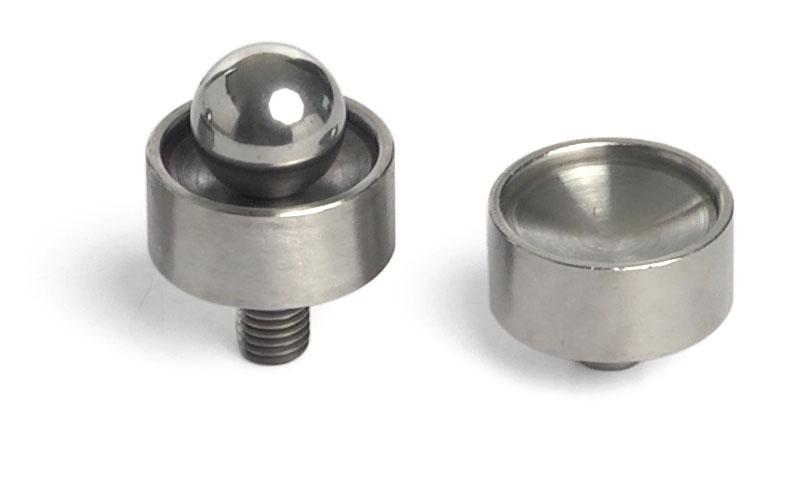

A3

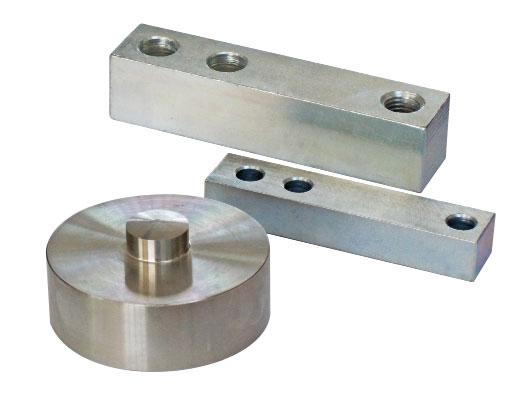

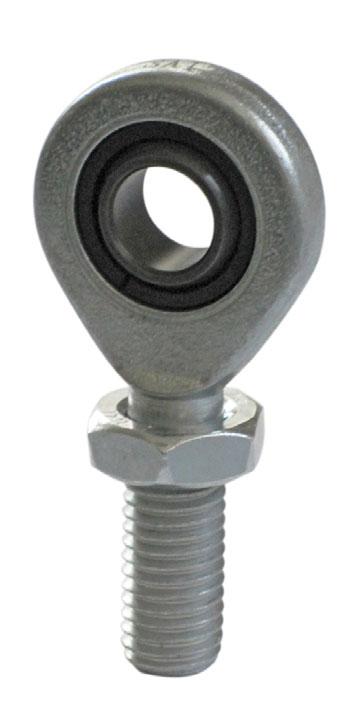

COMPLEMENTARY ACCESSORIES
224
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
4
A1 - LOAD CELLS PRODUCTS CATALOG
Capacity
Platform
PAGE
A1.1

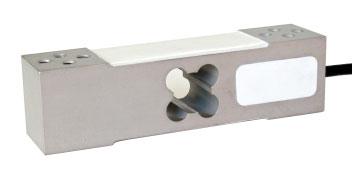

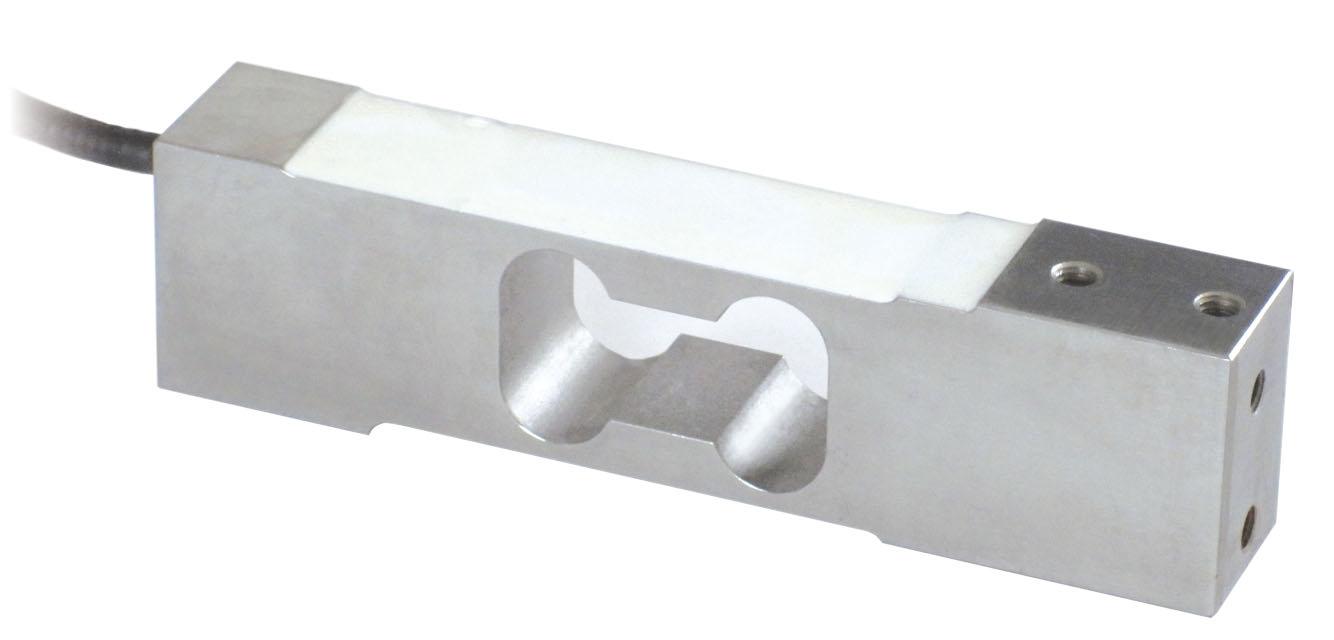

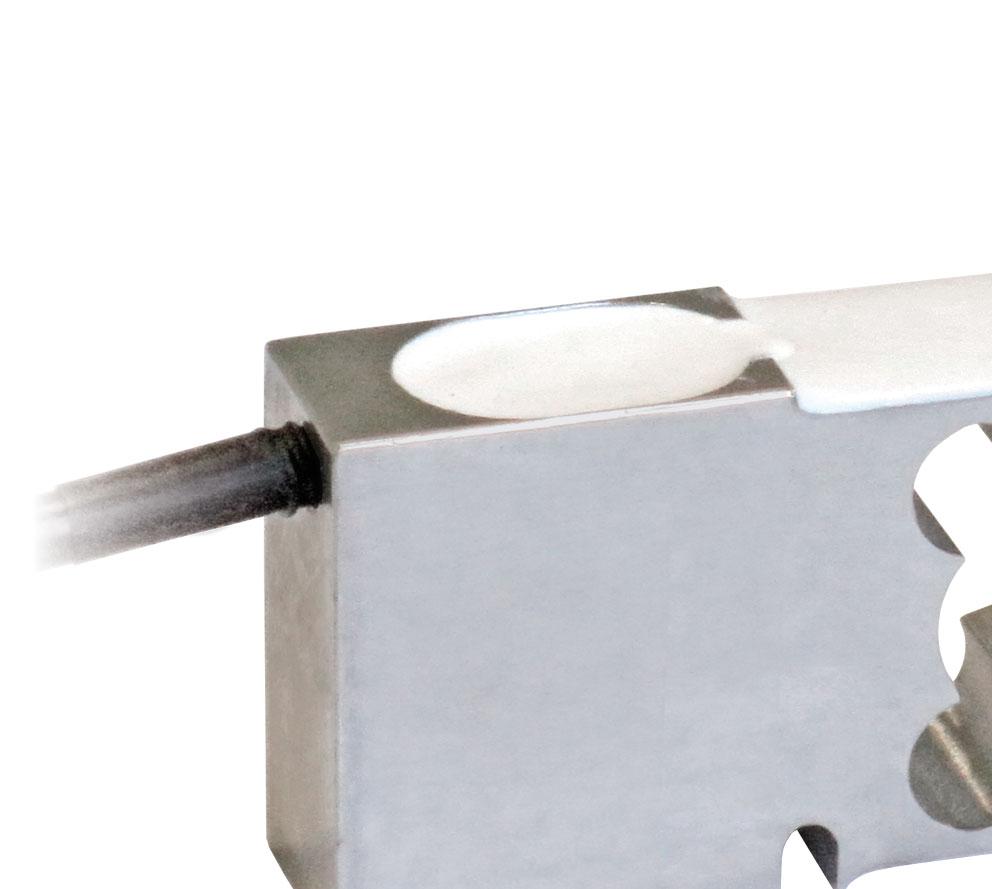

SINGLE-POINT
AF
5, 15, 50 kg
150x150 mm
6
AS
0.25, 0.5, 1 kg
200x200 mm
8
ALL
3, 5, 10, 15, 20, 30, 50 kg
250x350 mm
10
PRC
6, 15, 30, 50 kg
350 x 350 mm
12
3, 6, 15 kg
250 x 400 mm
30, 50 kg
400 x 600 mm
10, 15, 20, 30, 50, 100 kg
400 x 400 mm
10, 20, 50 kg
400 x 400 mm
AU AZL
14 16
AZLI
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
18 100, 200, 300, 500 kg
800 x 800 mm
AZS
10, 30, 50, 100, 200 kg
400 x 400 mm
21
PTC
30, 50, 75, 100, 150 kg
400 x 400 mm
23
AM
60, 100, 150, 200, 300 kg
400 x 400 mm
25
APL
50, 100, 150, 200, 300, 500 kg
600 x 600 mm
27
PEC
75, 150, 300, 500 kg
600 x 600 mm
29
AR
500, 1000 kg
800 x 800 mm
31
ATL
1000, 2000 kg
1200 x 1200 mm
33
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
5
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
6

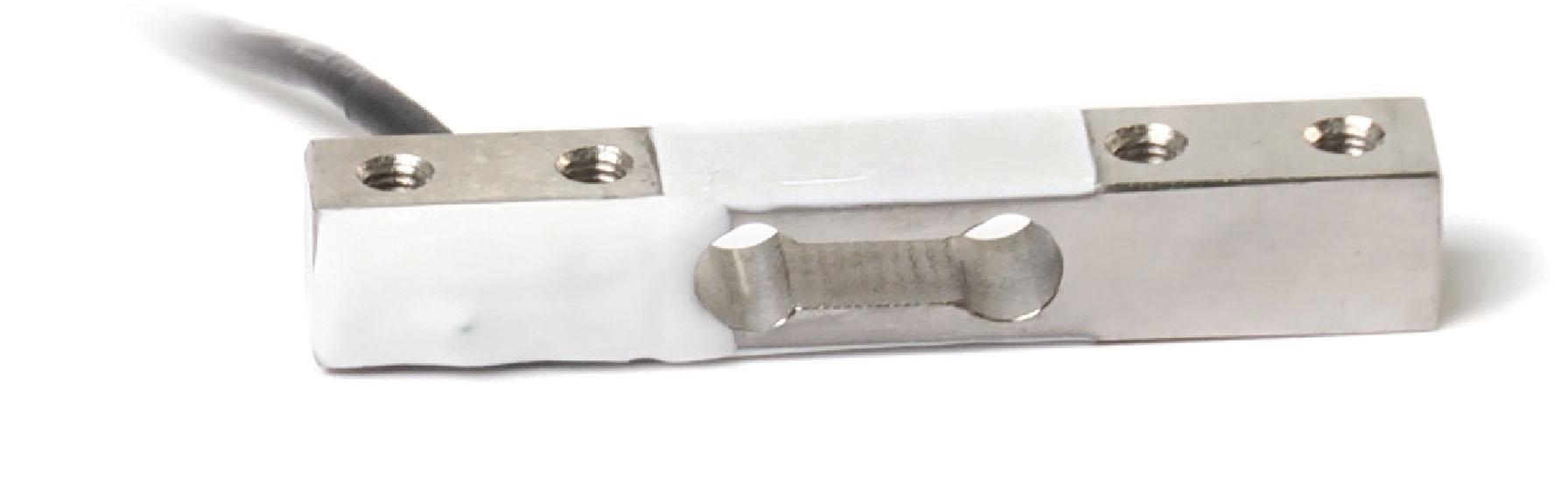

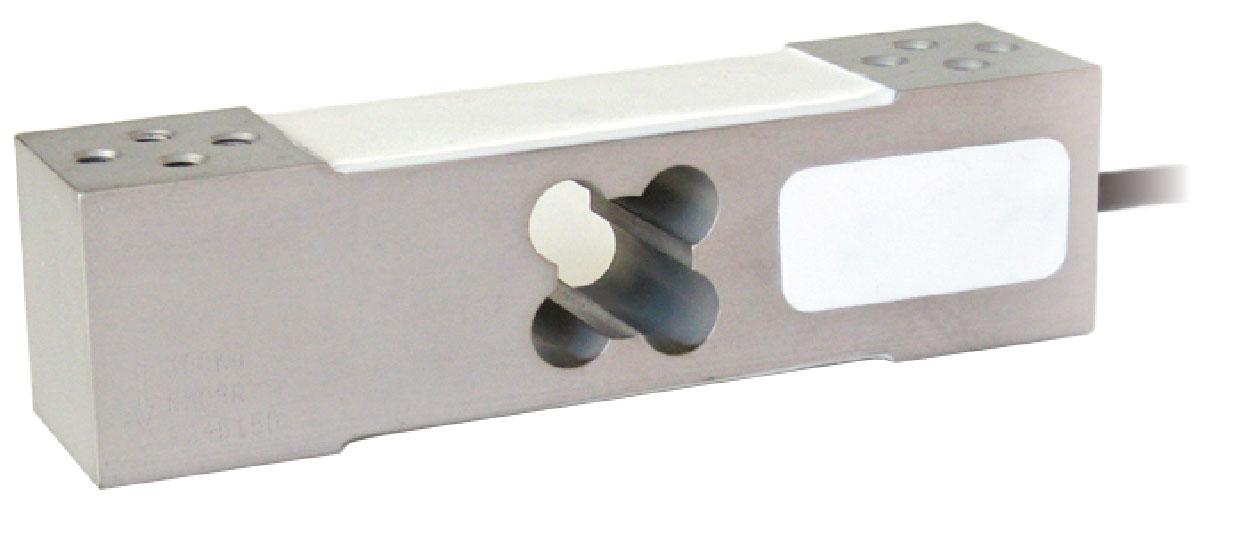

AF SINGLE-POINT LOAD CELL for platforms 150x150 mm
Manufactured according to oIML r60 standards
Capacity from 5 kg to 50 kg
AISI 420 STAINLESS STEEL COMBINED ERROR ≤ ±0.05% IP65 ProTEcTIoN rATINg
CAPACITY
kg
PLATFORM (mm)
NET WEIGHT (kg)
5
150 x 150
0.13
15
150 x 150
0.13
50
150 x 150
0.13
CERTIFICATIONS complies with the Eurasian customs Union regulations Equivalent of the cE marking for the United Kingdom CERTIFICATIONS ON REQUEST
calibration report ATEX (zone 2-22)
R e v. 0 . 0
complies with the Eurasian customs Union regulations for use in potentially explosive atmospheres complies with chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
7
AF SINGLE-POINT LOAD CELL for platforms 150x150 mm DIMENSIONS (mm) MOUNTING SURFACE
12.9
24
24 MOUNTING SURFACE
12.7
4x M5
39
14
6.5
14
80 For the load cell fixing screws, provide the tightening torque indicated in the table Screw
M5
Screw class Tightening torque
6.8
8.8
4.5 Nm
6 Nm
TECHNICAL FEATURES Material
AISI 420 stainless steel
Nominal load (E max)
5 - 15 - 50 kg
combined error
≤±0.05%
Protection rating
IP65
rated output
3 mV/V ±10%
Input resistance
410 Ω ±40
Temperature effect on zero
0.005% °C
output resistance
350 Ω ±5
Temperature effect on span
0.005% °C
Zero balance
±2%
compensated temperature range
-10 °C / +40 °C
Insulation resistance
>2000 MΩ
operating temperature range
-20 °C / +60 °C
Safe overload (% of full scale)
150%
creep at nominal load in 30 minutes
0.05%
Ultimate overload (% of full scale)
200%
Max supply voltage without damage
10 V
Deflection at nominal load
0.5 mm
ELECTRICAL CONNECTIONS 3m
SHIELD
cable diameter
4 mm
+ SIgNAL
grEEN
cores
4 x 0.20 mm2
+ EXcITATIoN
rED
- SIgNAL
WHITE
- EXcITATIoN
BLAcK
R e v. 0 . 0
cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
8

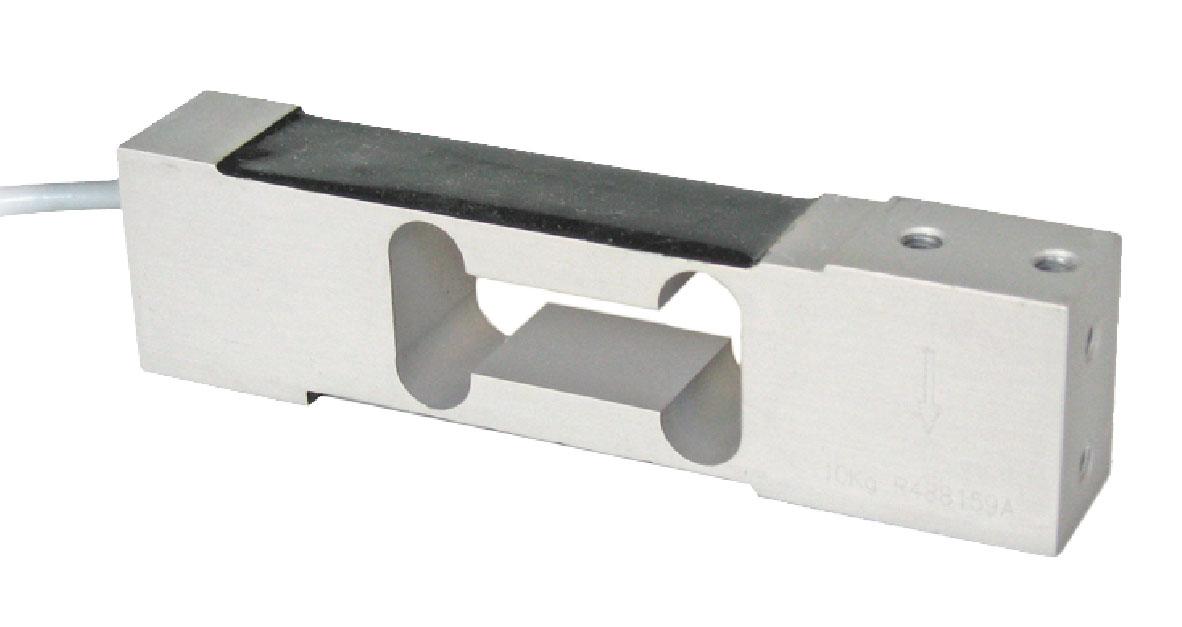

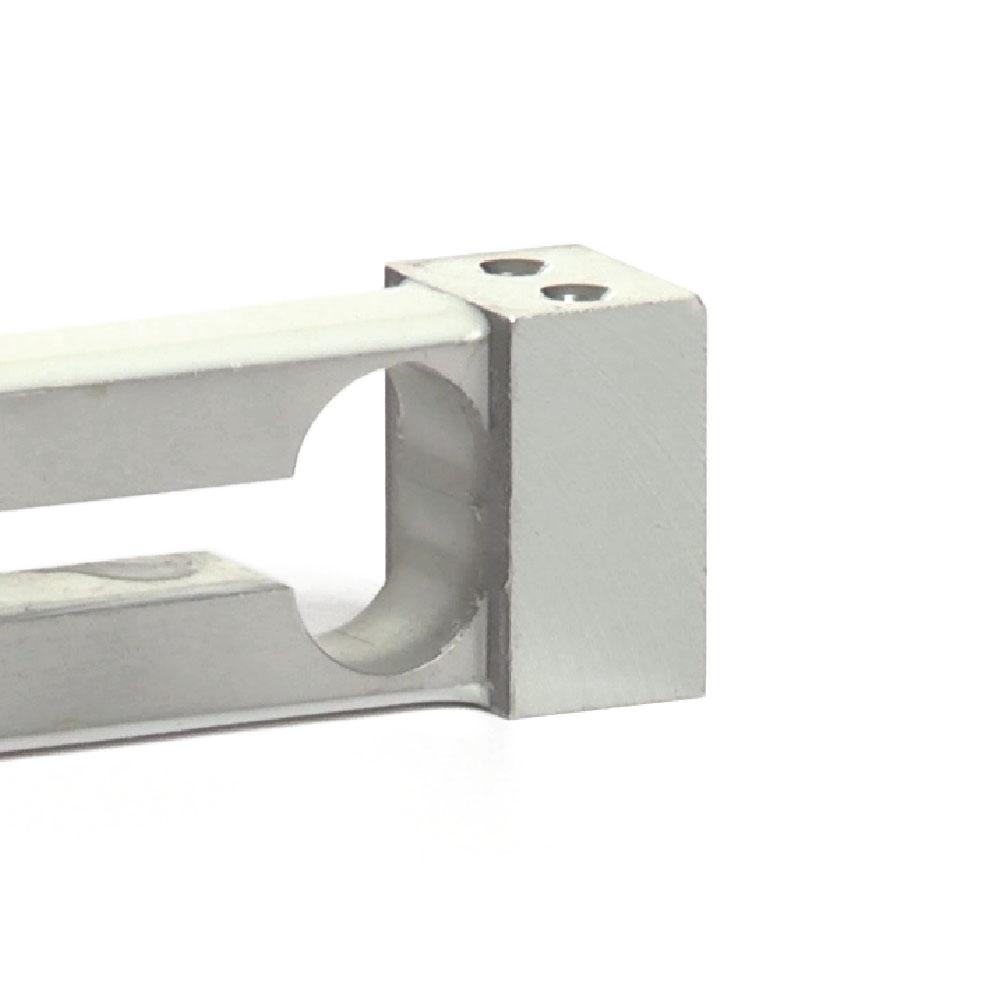

AS SINGLE-POINT LOAD CELL for platforms 200x200 mm
Manufactured according to OIML R60 standards
Capacity from 0.25 kg to 1 kg
ALUMINUM ALLOY COMBINED ERROR ≤ ±0.03% IP65 PROTECTION RATING
kg
CAPACITY
PLATFORM (mm)
NET WEIGHT (kg)
0.25
200 x 200
0.1
0.5
200 x 200
0.1
1
200 x 200
0.1
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report ATEX (zone 2-22)
R e v. 0 . 0
Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
9
AS SINGLE-POINT LOAD CELL for platforms 200x200 mm DIMENSIONS (mm)
MOUNTING SURFACE
22
12
12 MOUNTING SURFACE
7
15
4x M3x0.5
For the load cell fixing screws, provide the tightening torque indicated in the table
58
Screw
70
Screw class
6.8
8.8
Tightening torque
1 Nm
1.3 Nm
M3
TECHNICAL FEATURES Material
Aluminum alloy
Nominal load (E max)
0.25 - 0.50 - 1.00 kg
Combined error
≤±0.03%
Protection rating
IP65
Rated output
1 mV/V ±20%
Input resistance
410 Ω ±10
Temperature effect on zero
0.0025% °C
Output resistance
350 Ω ±3
Temperature effect on span
0.0025% °C
Zero balance
±2%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>2000 MΩ
Operating temperature range
-20 °C / +60 °C
Safe overload (% of full scale)
200%
Creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
400%
Max supply voltage without damage
15 V
Deflection at nominal load
0.3 mm
ELECTRICAL CONNECTIONS 3m
SHIELD
Cable diameter
2.5 mm
+ SIGNAL
GREEN
Cores
4 x 0.20 mm2
+ EXCITATION
RED
- SIGNAL
WHITE
- EXCITATION
BLACK
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
10

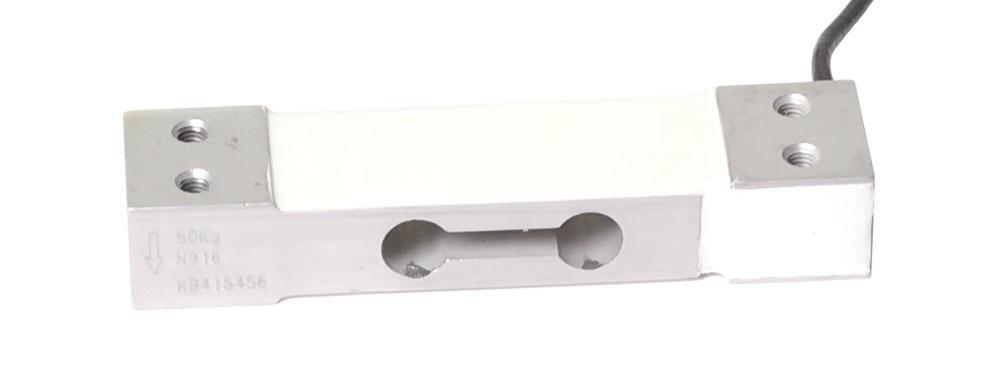

ALL AL COU ON N TI
HT
SU
EI
G
E
A
ON W
RES
L CI
NA

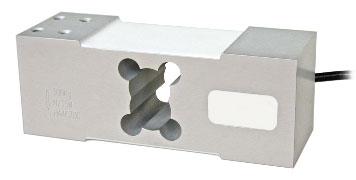

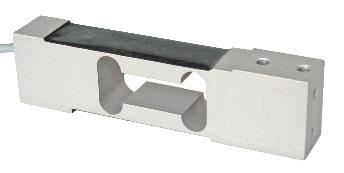

SINGLE-POINT LOAD CELL for platforms 250x350 mm
S AND M
Capacity from 3 kg to 50 kg
ACCURACY CLASS
kg
AL COU ON N TI
L CI
NET WEIGHT (kg)
3
250 x 350
0.2
5
250 x 350
0.2
10
250 x 350
0.2
15
250 x 350
0.2
20
250 x 350
0.2
30
250 x 350
0.2
50
250 x 350
0.2
HT
SU
G
E
A
C5
EI
C4
RES
PLATFORM (mm)
C3
ON W
CAPACITY
NA
ALUMINUM ALLOY COMBINED ERROR ≤ ±0.02% (0.017% C4; 0.014% C5) IP65 PROTECTION RATINg
S AND M
ON REQUEST
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report ATEX (zone 2-22) OIML R60 C4/C5 Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres
HT
SU
EI
G
E
A
ON W
RES
L CI
NA
Complies with Chinese market regulations for use in potentially explosive atmospheres AL COU ON N TI
S AND M
NTEP - Complies with United States regulations for legal for trade use
COMPLEMENTARY ACCESSORIES DESCRIPTION
R e v. 0 . 0

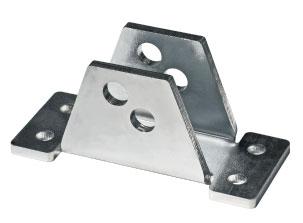

Pair of stainless steel tension brackets. Maximum static load: 50 kg.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
STAFFEALL
ISO
9001
ISO 14001
www.laumas.com
11
ALL SINGLE-POINT LOAD CELL for platforms 250x350 mm DIMENSIONS (mm) MOUNTING SURFACE
25
22
STAFFEALL TENSION STAINLESS STEEL BRACKETS TENSION STAINLESS STELL BRACKETS (max load 50 kg) (max load 50 kg)
M6x1
25
48.6
MOUNTING SURFACE
4x M6x1
130
15
30
M6x1
106
12
For the load cell fixing screws, provide the tightening torque indicated in the table
12
M6
Screw
130
Screw class Tightening torque
6.8
8.8
7.5 Nm
10 Nm
TECHNICAL FEATURES Material
Aluminum alloy
OIML R60 Accuracy class • Verification intervals
C3 • 3000
Nominal load (E max)
C4 • 4000
C5 • 5000
3 - 5 - 10 - 15 - 20 - 30 - 50 kg
Minimum verification interval (V min) Combined error
E max / 10000
E max / 15000
E max / 20000
≤±0.02%
≤±0.017%
≤±0.014%
Protection rating
IP65
Rated output
2 mV/V ±10%
Input resistance
409 Ω ±6
Temperature effect on zero
0.0014% °C
Output resistance
350 Ω ±3
Temperature effect on span
0.0017% °C
Zero balance
≤±2%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-35 °C / +65 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.015%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
18 V
Deflection at nominal load
0.5 mm
ELECTRICAL CONNECTIONS Cable length
3m
Cable diameter
3.8 mm
Cores
4 x 0.20 mm
SHIELD
R e v. 0 . 0
2
+ SIgNAL
gREEN
+ EXCITATION
RED
- SIgNAL
WHITE
- EXCITATION
BLACK
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
12

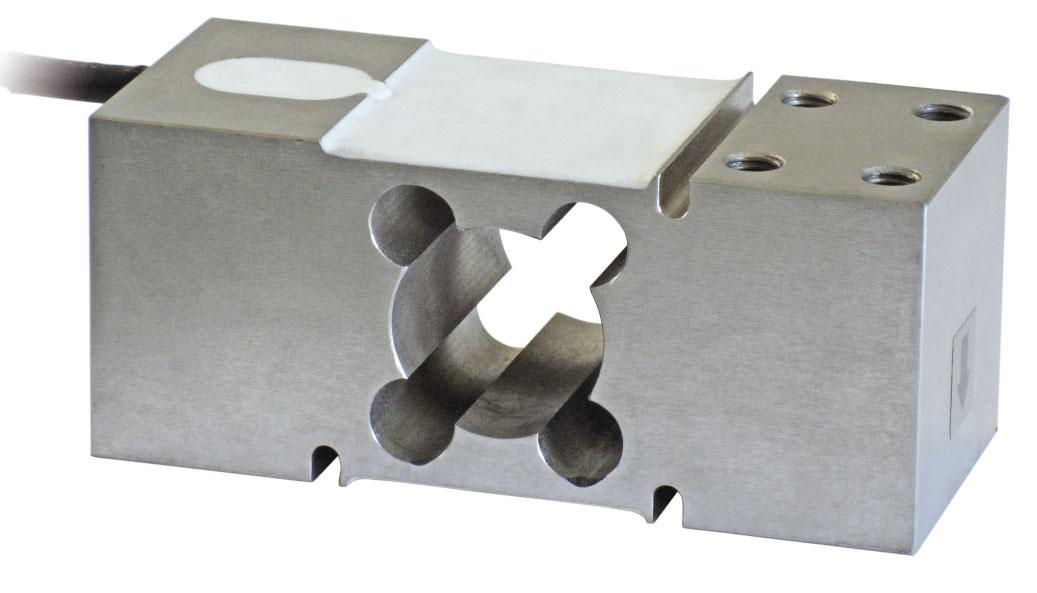

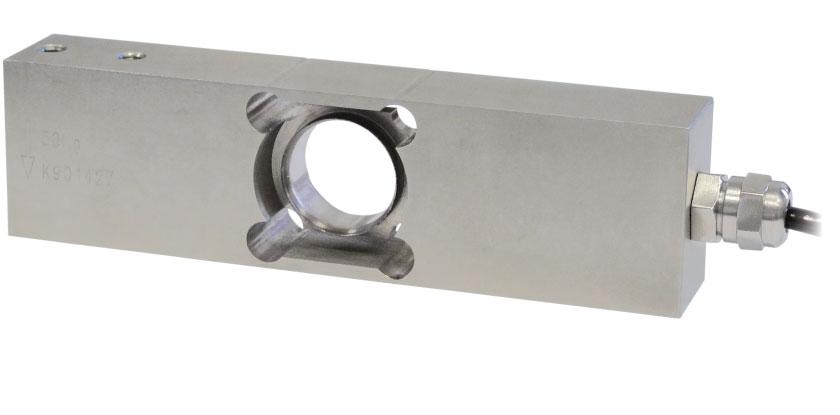

PRC SINGLE-POINT LOAD CELL for platforms 350x350 mm
Manufactured according to OIML R60 standards
Capacity from 6 kg to 50 kg
AISI 420 STAINLESS STEEL COMBINED ERROR ≤ ±0.02% IP67 PROTECTION RATINg CAPACITY
kg
PLATFORM (mm)
NET WEIGHT (kg)
6
350 x 350
0.4
15
350 x 350
0.4
30
350 x 350
0.4
50
350 x 350
0.4
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report ATEX (zone 2-22) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
COMPLEMENTARY ACCESSORIES CODE

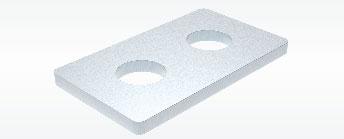

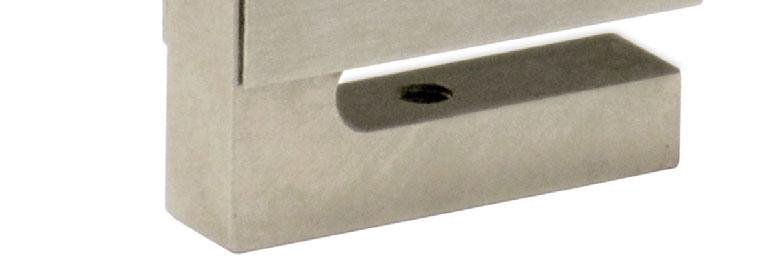

Stainless steel drawn block.
BLOCPRC
R e v. 0 . 0
DESCRIPTION
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
13
PRC SINGLE-POINT LOAD CELL for platforms 350x350 mm DIMENSIONS (mm)
MOUNTING SURFACE
32.5 .95
1/4 gas
10
10
20
25
BLOCPRC
31 32.5
2x Ø8.5
MOUNTING SURFACE
15
4x M6x1
15
7.5
19
65
19
15
19
1/4 gas
7.5
6
19
6
118 For the load cell fixing screws, provide the tightening torque indicated in the table Screw
M6
Screw class Tightening torque
6.8
8.8
7.5 Nm
10 Nm
TECHNICAL FEATURES Material
AISI 420 stainless steel
Nominal load (E max)
6 - 15 - 30 - 50 kg
Combined error
≤±0.02%
Protection rating
IP67
Rated output
2 mV/V ±10%
Input resistance
380 Ω ±10
Temperature effect on zero
0.002% °C
Output resistance
350 Ω ±5
Temperature effect on span
0.002% °C
Zero balance
±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-20 °C / +60 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.3 mm
ELECTRICAL CONNECTIONS 3m
SHIELD
Cable diameter
5 mm
+ SIgNAL
gREEN
Cores
6 x 0.20 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIgNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
14

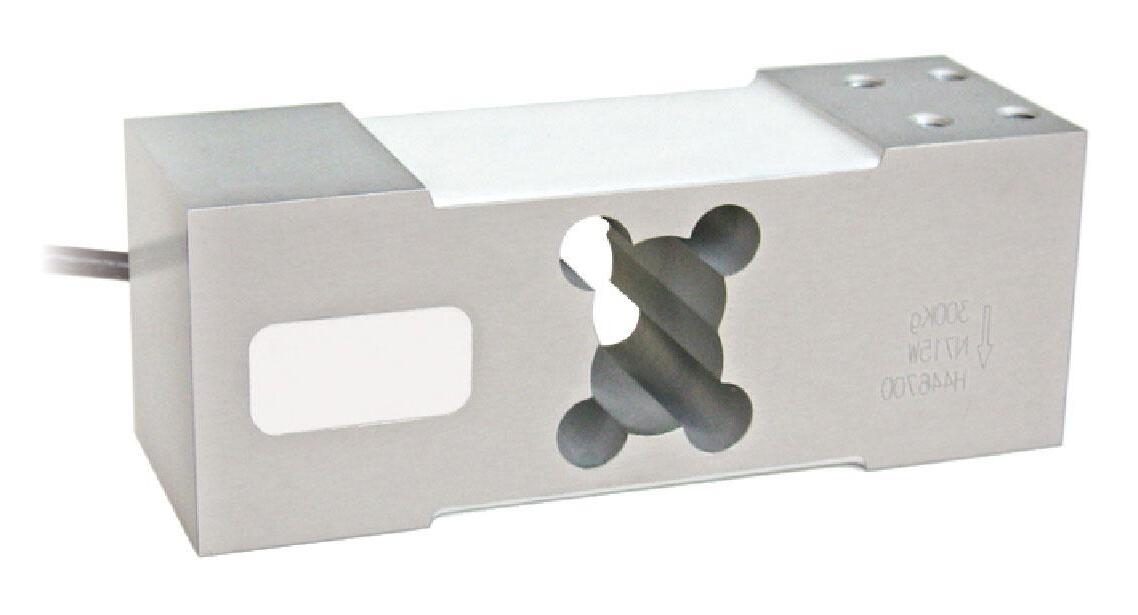

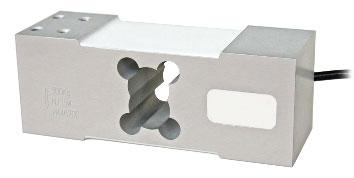

AU SINGLE-POINT LOAD CELL for platforms 250x400/400x600 mm
Manufactured according to OIML R60 standards
Capacity from 3 kg to 50 kg
ALUMINUM ALLOY COMBINED ERROR ≤ ±0.02% IP65 PROTECTION RATING
CAPACITY
kg
PLATFORM (mm)
NET WEIGHT (kg)
3
250 x 400
0.5
6
250 x 400
0.5
15
250 x 400
0.5
30
400 x 600
0.5
50
400 x 600
0.5
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report ATEX (zone 2-22) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres
R ev. 0 .0
Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
15
AU SINGLE-POINT LOAD CELL for platforms 250x400/400x600 mm DIMENSIONS (mm) MOUNTING SURFACE
30
70
24 12
23
24
23
12
8 12
12 8 50 MOUNTING SURFACE
8xF
L
3 - 6 - 15 kg 30 - 50 kg
130
L
18
30
F
M4x0.7
M6x1
For the load cell fixing screws, provide the tightening torque indicated in the table Screw
M4
Screw class Tightening torque
M6
6.8
8.8
6.8
8.8
2.2 Nm
3 Nm
7.5 Nm
10 Nm
TECHNICAL FEATURES Material
Aluminum alloy
Nominal load (E max)
3 - 6 - 15 - 30 - 50 kg
Combined error
≤±0.02%
Protection rating
IP65
Rated output
2 mV/V ±10%
Input resistance
410 Ω ±10
Temperature effect on zero
0.0025% °C
Output resistance
350 Ω ±3
Temperature effect on span
0.0025% °C
Zero balance
±2%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>2000 MΩ
Operating temperature range
-20 °C / +60 °C
Safe overload (% of full scale)
120%
Creep at nominal load in 30 minutes
0.025%
Ultimate overload (% of full scale)
200%
Max supply voltage without damage
15 V
Deflection at nominal load
0.5 mm
ELECTRICAL CONNECTIONS 3m
SHIELD
Cable diameter
4 mm
+ SIGNAL
GREEN
Cores
4 x 0.20 mm2
+ EXCITATION
RED
- SIGNAL
WHITE
- EXCITATION
BLACK
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
16

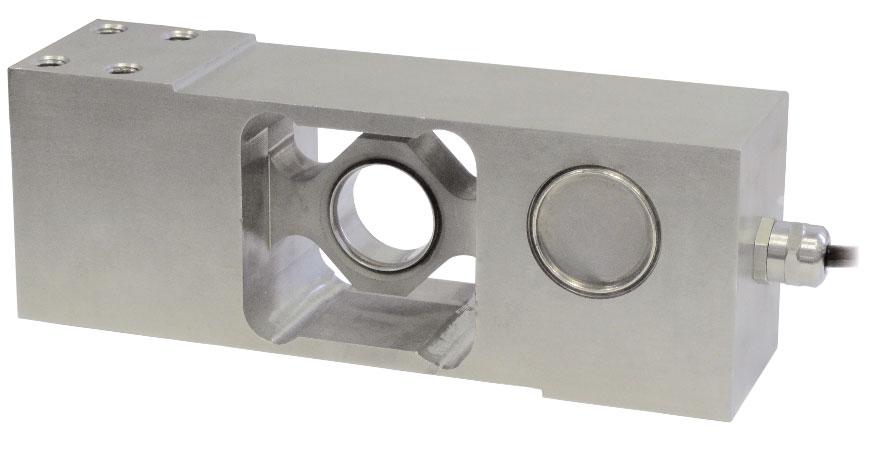

AZL AL COU ON N TI
HT
SU
EI
G
E
A
ON W
RES
L CI
NA
SINGLE-POINT LOAD CELL for platforms 400x400 mm
S AND M
Capacity from 10 kg to 100 kg

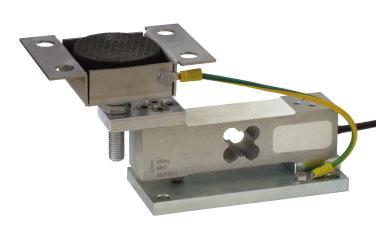

MOUNTING KIT
ALUMINUM ALLOY COMBINED ERROR ≤ ±0.02% (0.017% C4) IP65 PROTECTION RATING NA
AL COU ON N TI
L CI
ACCURACY CLASS
kg
NET WEIGHT (kg)
400 x 400
0.4
15
400 x 400
0.4
20
400 x 400
0.4
30
400 x 400
0.4
50
400 x 400
0.4
400 x 400
0.4
10
SU
HT
E
A
G
EI
C4
RES
PLATFORM (mm)
C3
ON W
CAPACITY
T8AZL Can be used for systems with at least 3 supports
S AND M
–
100
– ON REQUEST
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report ATEX (zone 2-22) OIML R60 C4 Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres
HT
SU
EI
G
E
A
ON W
RES
L CI
NA
Complies with Chinese market regulations for use in potentially explosive atmospheres AL COU ON N TI
S AND M
NTEP - Complies with United States regulations for legal for trade use
COMPLEMENTARY ACCESSORIES CODE

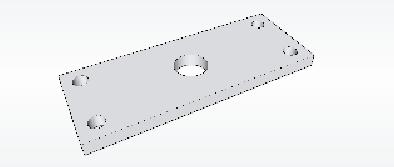

Stainless steel drawn block.
BLOCPRC
R e v. 0 . 0
DESCRIPTION
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
17
AZL SINGLE-POINT LOAD CELL for platforms 400x400 mm DIMENSIONS (mm)
MOUNTING SURFACE
34
10
40
31
8.5
15
19
11
BLOCPRC
31
2x Ø8.5 15
74
MOUNTING SURFACE
15
15
6x M6x1
19
6
25.4
6
5.8
19
100.4
19
For the load cell fixing screws, provide the tightening torque indicated in the table
5.8
Screw
M6
Screw class
150
Tightening torque
6.8
8.8
7.5 Nm
10 Nm
TECHNICAL FEATURES Material
Aluminum alloy
OIML R60 Accuracy class • Verification intervals Nominal load (E max) Minimum verification interval (V min) Combined error
C3 • 3000
C4 • 4000
10 - 15 - 20 - 30 - 50 - 100 kg
15 - 20 - 30 - 50 kg
E max / 12000
E max / 20000
≤±0.02%
≤±0.017%
Protection rating
IP65
Rated output
2 mV/V ±10%
Input resistance
409 Ω ±6
Temperature effect on zero
0.0017% °C
Output resistance
350 Ω ±3
Temperature effect on span
0.0014% °C
Zero balance
≤±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-35 °C / +65 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
18 V
Deflection at nominal load
0.5 mm
ELECTRICAL CONNECTIONS 6m
SHIELD
Cable diameter
5 mm
+ SIGNAL
GREEN
Cores
6 x 0.20 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIGNAL
WHITE
- EXCITATION - REF./SENSE
BLACK BROWN
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
18
AZLI AL COU ON N TI
HT
E
A
EI
G
SU
ON W
RES
L CI
NA
SINGLE-POINT LOAD CELL for platforms 400x400/800x800 mm
S AND M
Capacity from 10 kg to 50 kg Capacity from 100 kg to 500 kg
MOUNTINg KIT
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.02% (0.017% C4) IP68 PROTECTION RATINg
NA
AL COU ON N TI
L CI
ACCurACY CLASS
kg
NET WEIGHT (kg)
400 x 400
0.9
20
400 x 400
0.9
50
400 x 400
1
10
SU
G
HT
E
A
EI
C4
RES
PLATFOrM (mm)
C3
ON W
CAPACITY
T8AZL
capacity 50 kg
Can be used for systems with at least 3 supports
S AND M
–
100
–
800 x 800
2.7
200
–
800 x 800
2.7
300
–
800 x 800
2.8
500
–
800 x 800
2.8
ON rEQuEST
CErTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CErTIFICATIONS ON rEQuEST
Declaration of conformity + IP69K marking protection rating IP69K
Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from a distance of max 150 mm) Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)
Calibration report ATEX (zone 2-22) ATEX/IECEx (zone 1-21) OIML R60 C4 Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres FM HazLoc - Complies with the United States and Canada regulations for use in potentially explosive atmospheres
RES
HT
SU
EI
G
E
A
ON W
R ev. 0 .0
L CI
NA
Complies with Chinese market regulations for use in potentially explosive atmospheres AL COU ON N TI
S AND M
NTEP - Complies with United States regulations for legal for trade use
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
19
AZLI SINGLE-POINT LOAD CELL for platforms 400x400/800x800 mm DIMENSIONS (mm) MOUNTING SURFACE
10 - 50 kg
MOUNTING SURFACE
43
100 - 500 kg
64
19
40
12
22
34
34
M6x0.5
12
2
MOUNTING SURFACE
43 8x M8x1.25
45
25
6
19
100
19
6
150
30
7x M6x1
7
18
MOUNTING SURFACE
19
19
122
18
174
EXAMPLE EXAMPLEOF OF APPLICATION APPLICATION 200 mm
7
EXAMPLE EXAMPLEOF OF APPLICATION APPLICATION 400 mm
200 mm
400 mm
PLATFORM PLATFORM PLATFORM PLATFORM
For the load cell fixing screws, provide the tightening torque indicated in the table Screw
M6
Screw class
R e v. 0 . 0
Tightening torque
M8
6.8
8.8
6.8
8.8
7.5 Nm
10 Nm
19 Nm
25 Nm
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
20
AZLI SINGLE-POINT LOAD CELL for platforms 400x400/800x800 mm TECHNICAL FEATurES Material
17-4 PH stainless steel
OIML R60 Accuracy class • Verification intervals Nominal load (E max) Minimum verification interval (V min) Combined error
C3 • 3000
C4 • 4000
10 - 20 - 50 - 100 - 200 - 300 - 500 kg
10 - 20 - 50 kg
E max / 10000
E max / 40000
≤±0.02%
≤±0.017%
Protection rating
IP68
Rated output
2 mV/V ±10%
Input resistance
350 Ω ±3.5
Temperature effect on zero
0.0017% °C
Output resistance
350 Ω ±3.5
Temperature effect on span
0.0014% °C
Zero balance
±2%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-35 °C / +65 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
18 V
Deflection at nominal load
0.5 mm
ELECTrICAL CONNECTIONS Cable length
3m
SHIELD
Cable diameter
5 mm
+ SIgNAL
gREEN
Cores
4/6 x 0.20 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIgNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW
where provided
COMPLEMENTArY ACCESSOrIES CODE
Stainless steel drawn block for capacities up to 50 kg.
BLOCPRC
Stainless steel drawn block for capacities from 100 to 500 kg.
BLOCAPL
R e v. 0 . 0
DESCrIPTION
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
21
AZS SINGLE-POINT LOAD CELL for platforms 400x400 mm
Manufactured according to OIML R60 standards
Capacity from 10 kg to 200 kg
MOUNTINg KIT
T8AZL Can be used for systems with at least 3 supports
AISI 420 STAINLESS STEEL COMBINED ERROR ≤ ±0.03% IP67 PROTECTION RATINg CAPACITY
kg
PLATFORM (mm)
NET WEIGHT (kg)
10
400 x 400
1
30
400 x 400
1
50
400 x 400
1
100
400 x 400
1
200
400 x 400
1
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report ATEX (zone 2-22) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
COMPLEMENTARY ACCESSORIES CODE
Stainless steel drawn block.
BLOCPRC
R ev. 0 .0
DESCRIPTION
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
22
AZS SINGLE-POINT LOAD CELL for platforms 400x400 mm DIMENSIONS (mm)
MOUNTING SURFACE
34
40
14
20
12
18
1.5
BLOCPRC
10
45
31 MOUNTING SURFACE
31 2x Ø8.5
6
19
100
19
15
25
12.5 12.5
15
6x M6x1
6
6
19
6
For the load cell fixing screws, provide the tightening torque indicated in the table Screw
M6
Screw class Tightening torque
6.8
8.8
7.5 Nm
10 Nm
TECHNICAL FEATURES Material
AISI 420 stainless steel
Nominal load (E max)
10 - 30 - 50 - 100 - 200 kg
Combined error
≤±0.03%
Protection rating
IP67
Rated output
2 mV/V ±10%
Input resistance
385 Ω ±30
Temperature effect on zero
0.0025% °C
Output resistance
350 Ω ±3
Temperature effect on span
0.0025% °C
Zero balance
±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>2000 MΩ
Operating temperature range
-20 °C / +60 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
18 V
Deflection at nominal load
0.5 mm
ELECTRICAL CONNECTIONS 6m
SHIELD
Cable diameter
5 mm
+ SIgNAL
gREEN
Cores
6 x 0.20 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIgNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW
R ev. 0 .0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
23
PTC SINGLE-POINT LOAD CELL for platforms 400x400 mm
Manufactured according to oIML r60 standards
Capacity from 30 kg to 150 kg
AISI 420 STAINLESS STEEL COMBINED ERROR ≤ ±0.02% IP67 ProTEcTIoN rATINg
CAPACITY
kg
PLATFORM (mm)
NET WEIGHT (kg)
30
400 x 400
0.75
50
400 x 400
0.75
75
400 x 400
0.75
100
400 x 400
0.75
150
400 x 400
0.75
CERTIFICATIONS complies with the Eurasian customs Union regulations Equivalent of the cE marking for the United Kingdom CERTIFICATIONS ON REQUEST
calibration report ATEX (zone 2-22)
R e v. 0 . 0
complies with the Eurasian customs Union regulations for use in potentially explosive atmospheres complies with chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
24
PTC SINGLE-POINT LOAD CELL for platforms 400x400 mm DIMENSIONS (mm)
MOUNTING SURFACE
32.5
14
40
1/4 gas
32.5 4x M8x1.25
MOUNTING SURFACE
1/4 gas
A
kg 30÷100 19 A
15
7.5
19
65
19
150 25
7.5
118
For the load cell fixing screws, provide the tightening torque indicated in the table Screw
M8
Screw class Tightening torque
6.8
8.8
19 Nm
25 Nm
TECHNICAL FEATURES Material
AISI 420 stainless steel
Nominal load (E max)
30 - 50 - 75 - 100 - 150 kg
combined error
≤±0.02%
Protection rating
IP67
rated output
2 mV/V ±10%
Input resistance
385 Ω ±30
Temperature effect on zero
0.002% °C
output resistance
350 Ω ±5
Temperature effect on span
0.002% °C
Zero balance
±1%
compensated temperature range
-10 °C / +40 °C
Insulation resistance
>5000 MΩ
operating temperature range
-20 °C / +60 °C
Safe overload (% of full scale)
150%
creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.3 mm
ELECTRICAL CONNECTIONS 3m
SHIELD
cable diameter
4 mm
+ SIgNAL
grEEN
cores
6 x 0.20 mm2
+ EXcITATIoN + REF./SENSE
rED BLUE
- SIgNAL
WHITE
- EXcITATIoN - REF./SENSE
BLAcK YELLoW
R e v. 0 . 0
cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
25
AM AL COU ON N TI
HT
E
A
EI
G
SU
ON W
RES
L CI
NA
SINGLE-POINT LOAD CELL for platforms 400x400 mm
S AND M
Capacity from 60 kg to 300 kg
MOUNTINg KIT
T8AM
ALUMINUM ALLOY COMBINED ERROR ≤ ±0.02% (0.017% C4; 0.014% C5) IP65 PROTeCTION RATINg HT
SU
RES
NA
AL COU ON N TI
G
E
A
C5
EI
C4
ON W
C3
L CI
ACCuRACY CLASS
kg
CAPACITY
S AND M
Can be used for systems with at least 3 supports
PLATFORM (mm)
NET WEIGHT (kg)
60
–
400 x 400
0.6
100
–
400 x 400
0.6
150
–
400 x 400
0.6
200
–
400 x 400
0.6
400 x 400
0.6
300 ON REQuEST
CERTIFICATIONS OIML R60 C3 Complies with the eurasian Customs Union regulations equivalent of the Ce marking for the United Kingdom CERTIFICATIONS ON REQuEST
Calibration report ATeX (zone 2-22) OIML R60 C4/C5 Complies with the eurasian Customs Union regulations for use in potentially explosive atmospheres
HT
SU
EI
G
E
A
ON W
RES
L CI
NA
Complies with Chinese market regulations for use in potentially explosive atmospheres AL COU ON N TI
S AND M
NTeP - Complies with United States regulations for legal for trade use
R e v. 0 . 0
COMPLEMENTARY ACCESSORIES
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
DESCRIPTION
CODE
Stainless steel and rubber waterproof kit.
IP68AM
galvanized steel drawn block.
BLOCT8Z
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
26

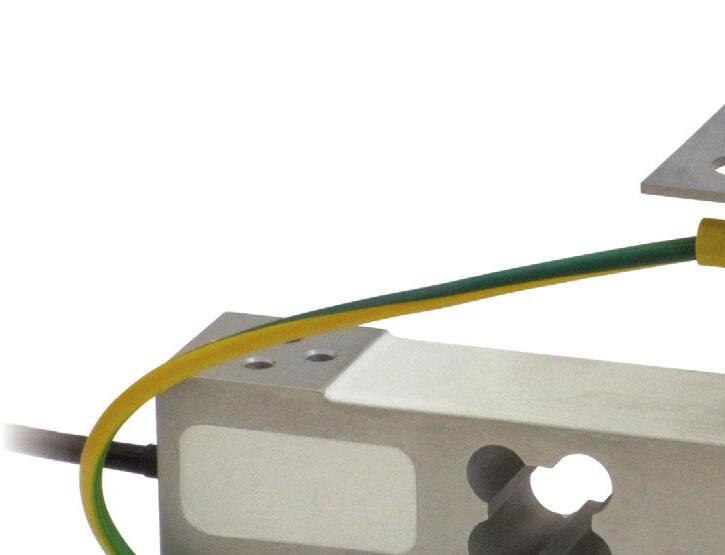

AM SINGLE-POINT LOAD CELL for platforms 400x400 mm DIMENSIONS (mm)
MOUNTING SURFACE
33
40
10
23
BLOCT8Z
EXAMPLEOF OFAPPLICATION APPLICATION EXAMPLE 36
33
8x M6x1
200 mm 4x Ø7
17.5 17.5 19
98
17.5
17.5
10 15 10
35
7 9.5 9.5
PLATFORM PLATFORM
10 7.5 7.5 10
MOUNTING SURFACE
200 mm
11
19
6
7
150
For the load cell fixing screws, provide the tightening torque indicated in the table M6
Screw Screw class Tightening torque
6.8
8.8
7.5 Nm
10 Nm
TECHNICAL FEATuRES Material
Aluminum alloy
OIML R60 Accuracy class • Verification intervals
C3 • 3000
Nominal load (E max)
C4 • 4000
C5 • 5000
60 - 100 - 150 - 200 - 300 kg
Minimum verification interval (V min) Combined error
300 kg
E max / 10000
E max / 15000
E max / 20000
≤±0.02%
≤±0.017%
≤±0.014%
Protection rating
IP65
Rated output
2 mV/V ±10%
Input resistance
406 Ω ±6
Temperature effect on zero
0.003% °C
Output resistance
350 Ω ±3
Temperature effect on span
0.002% °C
Zero balance
≤±2%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-35 °C / +65 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.025%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
18 V
Deflection at nominal load
0.5 mm
ELECTRICAL CONNECTIONS Cable length
3m
Cable diameter
5 mm
Cores
4 x 0.20 mm
SHIeLD
R e v. 0 . 0
2
+ SIgNAL
gReeN
+ eXCITATION
ReD
- SIgNAL
WHITe
- eXCITATION
BLACK
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
27
APL SINGLE-POINT LOAD CELL for platforms 600x600 mm
Capacity from 50 kg to 500 kg
ALUMINUM ALLOY COMBINED ERROR ≤ ±0.02% (0.017% C4) IP65 PROTECTION RATING ACCurACY CLASS
kg
CAPACITY
C4
PLATFOrM (mm)
NET WEIGHT (kg)
50
–
600 x 600
1.7
100
–
600 x 600
1.7
150
600 x 600
1.7
200
600 x 600
1.7
300
600 x 600
1.7
500
600 x 600
1.7
C3
ON rEQuEST
CErTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CErTIFICATIONS ON rEQuEST
Calibration report ATEX (zone 2-22) OIML R60 C4 Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
COMPLEMENTArY ACCESSOrIES CODE
Stainless steel and rubber waterproof kit (Ø 107x245 mm cable gland included)
IP68APL
Stainless steel drawn block.
BLOCAPL
R e v. 0 . 0
DESCrIPTION
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
28
APL SINGLE-POINT LOAD CELL for platforms 600x600 mm DIMENSIONS (mm)
MOUNTING SURFACE
32
43
32
5
65
BLOCAPL
EXAMPLE OF APPLICATION
EXAMPLE OF APPLICATION
43 4x Ø9
43
300 mm
MOUNTING SURFACE
300 mm
PLATFORM PLATFORM
60
15
30
60
30
8x M8x1.25
19
17
15
7
7
19
19
122
For the load cell fixing screws, provide the tightening torque indicated in the table
7
M8
Screw
174
Screw class Tightening torque
6.8
8.8
19 Nm
25 Nm
TECHNICAL FEATurES Material
Aluminum alloy
OIML R60 Accuracy class • Verification intervals Nominal load (E max) Minimum verification interval (V min) Combined error
C3 • 3000
C4 • 4000
50 - 100 - 150 - 200 - 300 - 500 kg
150 - 200 - 300 - 500 kg
E max / 12000
E max / 15000
≤±0.02%
≤±0.017%
Protection rating
IP65
Rated output
2 mV/V ±10%
Input resistance
409 Ω ±6
Temperature effect on zero
0.0017% °C
Output resistance
350 Ω ±3
Temperature effect on span
0.0014% °C
Zero balance
≤±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-35 °C / +65 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.015%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
18 V
Deflection at nominal load
0.5 mm
ELECTrICAL CONNECTIONS 3m
SHIELD
Cable diameter
6 mm
+ SIGNAL
GREEN
Cores
6 x 0.20 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIGNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW
R ev. 0 .0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
29
PEC SINGLE-POINT LOAD CELL for platforms 600x600 mm
Manufactured according to OIML R60 standards
Capacity from 75 kg to 500 kg
AISI 420 STAINLESS STEEL COMBINED ERROR ≤ ±0.02% IP67 PROTECTION RATING
CAPACITY
kg
PLATFORM (mm)
NET WEIGHT (kg)
75
600 x 600
1.8
150
600 x 600
1.8
300
600 x 600
2
500
600 x 600
2
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report ATEX (zone 2-22) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
COMPLEMENTARY ACCESSORIES CODE
Stainless steel drawn block.
BLOCPEC
R ev. 0 .0
DESCRIPTION
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
30
PEC SINGLE-POINT LOAD CELL for platforms 600x600 mm DIMENSIONS (mm) MOUNTING SURFACE
32.5
1/4 gas
5
50
BLOCPEC
14
32.5 EXAMPLE OF APPLICATION EXAMPLE OF APPLICATION
4x Ø9
32.5
300 mm
300 mm
MOUNTING SURFACE PLATFORM
8x M8x1.25 50
10
50
30
30
1/4 gas
19
6
10
7.5
15
7.5
19
65
19
7.5
For the load cell fixing screws, provide the tightening torque indicated in the table
118
Screw
M8
Screw class Tightening torque
6.8
8.8
19 Nm
25 Nm
TECHNICAL FEATURES Material
AISI 420 stainless steel
Nominal load (E max)
75 - 150 - 300 - 500 kg
Combined error
≤±0.02%
Protection rating
IP67
Rated output
2 mV/V ±10%
Input resistance
385 Ω ±30
Temperature effect on zero
0.002% °C
Output resistance
350 Ω ±5
Temperature effect on span
0.002% °C
Zero balance
±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-20 °C / +60 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.3 mm
ELECTRICAL CONNECTIONS 3m
SHIELD
Cable diameter
5 mm
+ SIGNAL
GREEN
Cores
6 x 0.20 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIGNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
31
AR SINGLE-POINT LOAD CELL for platforms 800x800 mm
Manufactured according to OIML R60 standards
Capacity from 500 kg to 1000 kg
ALUMINUM ALLOY COMBINED ERROR ≤ ±0.05% IP65 PROTECTION RATING
kg
PLATFORM (mm)
NET WEIGHT (kg)
500
800 x 800
2.2
1000
800 x 800
2.3
CAPACITY
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres
R e v. 0 . 0
Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
32
AR SINGLE-POINT LOAD CELL for platforms 800x800 mm DIMENSIONS (mm) MOUNTING SURFACE
42 14
20
14
25
37.5
75
21
2 30
42 MOUNTING SURFACE
28
7.5
37.5
8x M8x1.25
47
56
60
75
1/2 - 12UNF
8
25
25
124
8
For the load cell fixing screws, provide the tightening torque indicated in the table
190
M8
Screw Screw class Tightening torque
6.8
8.8
19 Nm
25 Nm
TECHNICAL FEATURES Material
Aluminum alloy
Nominal load (E max)
500 - 1000 kg
Combined error
≤±0.05%
Protection rating
IP65
Rated output
2 mV/V ±10%
Input resistance
410 Ω ±10
Temperature effect on zero
0.0025% °C
Output resistance
350 Ω ±3
Temperature effect on span
0.0025% °C
Zero balance
±2%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>2000 MΩ
Operating temperature range
-20 °C / +60 °C
Safe overload (% of full scale)
120%
Creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
200%
Max supply voltage without damage
15 V
Deflection at nominal load
0.5 mm
ELECTRICAL CONNECTIONS Cable length
3m
Cable diameter
5 mm
Cores
4/6 x 0.20 mm
SHIELD
2
+ SIGNAL
GREEN
+ EXCITATION + REF./SENSE
RED BLUE
- SIGNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW/BROWN
R e v. 0 . 0
where provided The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
33

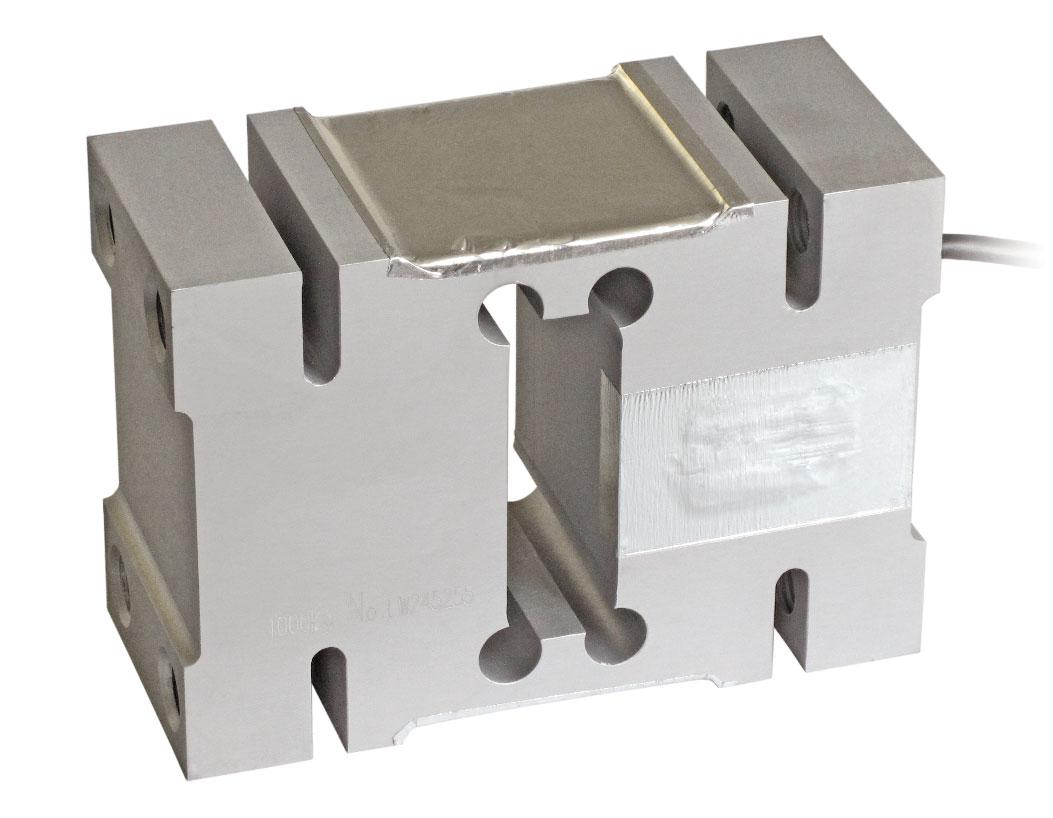

ATL SINGLE-POINT LOAD CELL for platforms 1200x1200 mm
Capacity from 1000 kg to 2000 kg
ALUMINUM ALLOY COMBINED ERROR ≤ ±0.02% IP65 PROTECTION RATING
ACCURACY CLASS
kg
CAPACITY
PLATFORM (mm)
NET WEIGHT (kg)
1000
1200 x 1200
3.8
2000
1200 x 1200
3.8
C3
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres
R ev. 0 .0
Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
34
ATL SINGLE-POINT LOAD CELL for platforms 1200x1200 mm DIMENSIONS (mm) 176 8 13
76
13 8
15
29
46
15
152
24
15
62.5
95
125
8xM16x2
62.5
15
29
76
EXAMPLEOF OF APPLICATION EXAMPLE APPLICATION
Platform 1200 PLATFORM 1200x x1200 1200 mm mm
600mm
600mm
For the load cell fixing screws, provide the tightening torque indicated in the table Screw
M16
Screw class Tightening torque
6.8
8.8
165 Nm
215 Nm
TECHNICAL FEATURES Material
Aluminum alloy
OIML R60 Accuracy class • Verification intervals
C3 • 3000
Nominal load (E max)
1000 - 2000 kg
Minimum verification interval (V min)
E max / 7000
Combined error
≤±0.02%
Protection rating
IP65
Rated output
2 mV/V ±10%
Input resistance
406 Ω ±6
Temperature effect on zero
0.0017% °C
Output resistance
350 Ω ±3
Temperature effect on span
0.0014% °C
Zero balance
≤±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-35 °C / +65 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
18 V
Deflection at nominal load
0.8 mm
ELECTRICAL CONNECTIONS 3m
SHIELD
Cable diameter
6 mm
+ SIGNAL
BLUE
Cores
6 x 0.20 mm2
+ EXCITATION + REF./SENSE
RED BROWN
- SIGNAL
WHITE
- EXCITATION - REF./SENSE
YELLOW BLACK
R ev. 0 .0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
35
A1 - LOAD CELLS PRODUCTS CATALOG
Capacity
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
A1.1
PLANAR BEAM
PLP
22, 45, 110 kg
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
PAGE
37
ISO
9001
ISO 14001
www.laumas.com
36
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
37

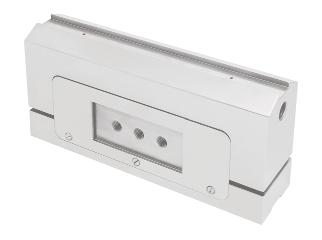

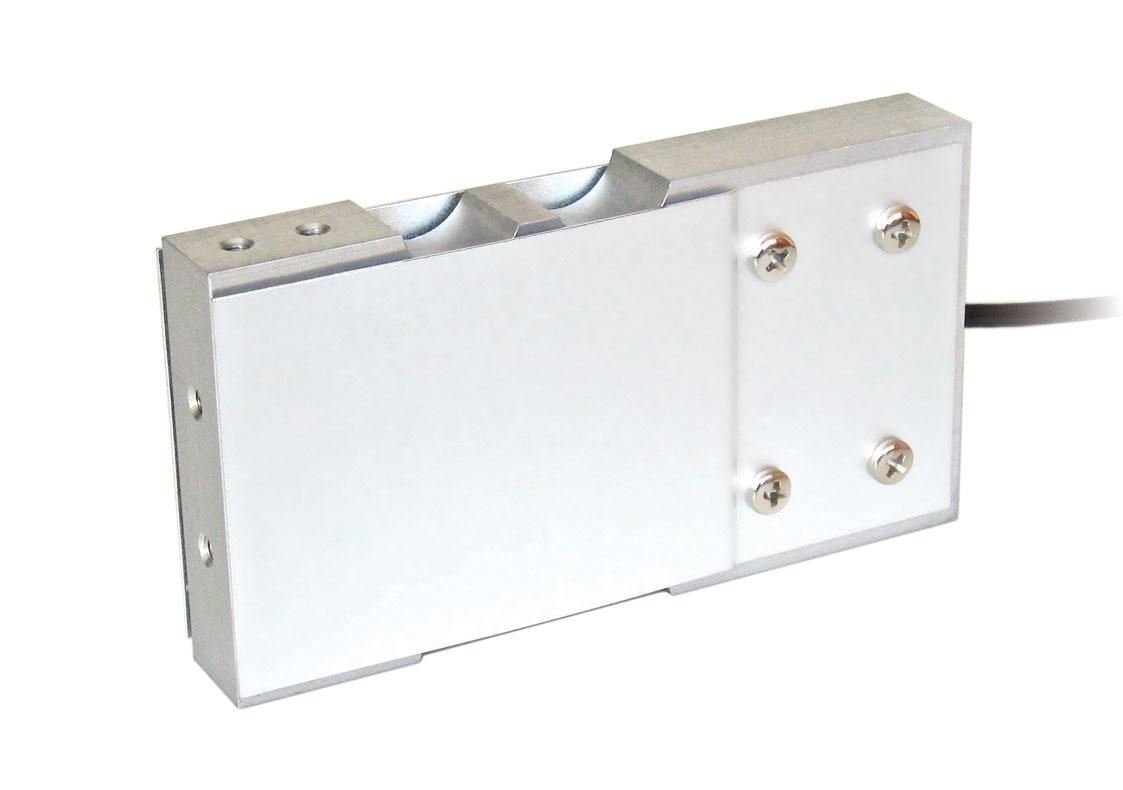

PLP PLANAR BEAM LOAD CELLS
Manufactured according to OIML R60 standards
Capacity from 22 kg to 110 kg
anOdIzed aLUMInUM aLLOY COMBINED ERROR ≤ ±0.023% IP65 PROteCtIOn RatIng
kg
NET WEIGHT (kg)
22
-
45
-
110
-
CAPACITY
CERTIFICATIONS equivalent of the Ce marking for the United Kingdom
Re v. 0 . 0
CERTIFICATIONS ON REQUEST
OIML R60 C3
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
38
PLP PLANAR BEAM LOAD CELLS
D
DIMENSIONS (mm)
53
63.5
4.6
6.2
33.02
H2 63.5
kg
22
45
110
D
Ø 4.6
Ø 4.6
Ø 7.4
H2
-
-
3.2
H1
3.31
4.89
7.58
H1
TECHNICAL FEATURES Material
anodized aluminum alloy
Minimum verification interval (V min)
22 - 45 - 110 kg
Combined error
≤±0.023%
Protection rating
IP65
Rated output
1.0 mV/V ± 0.1
Input resistance
1065 Ω ±15
temperature effect on zero
0.002% °C
Output resistance
1000 Ω ±10
temperature effect on span
0.002% °C
zero balance
≤±5.0%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>5000 MΩ (50 VdC)
Operating temperature range
-35 °C / +65 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.017%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
18 V
deflection at nominal load
0.43 mm (22 kg) 0.7 mm (45 kg) 0.4 mm (110 kg)
ELECTRICAL CONNECTIONS 1.5 m
SHIeLd
Flat ribbon cable
AWG26
+ SIgnaL
gReen
Outline diameter
1.2 ± 0.1 mm
+ eXCItatIOn
Red
- SIgnaL
WHIte
- eXCItatIOn
BLaCK
Re v. 0 . 0
Cable lenght
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
39
A1 - LOAD CELLS PRODUCTS CATALOG
Capacity
PAGE
A1.2
BENDING BEAM
FCOL
5, 10, 20, 50, 100, 200, 350, 500 kg
41
FCAX*
30, 50, 75, 150, 300, 500 kg
44
FCAL
50, 75, 150, 300 kg
46
FTP*
75, 150, 300 kg
48
FTK*
75, 150, 300 kg
51
SHEAR / BENDING BEAM load cells
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
40
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
41
FCOL AL COU ON N TI
RES
HT
SU
EI
G
E
A
ON W

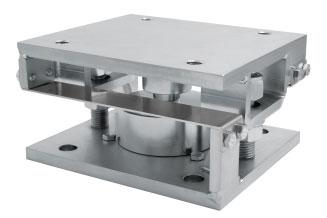

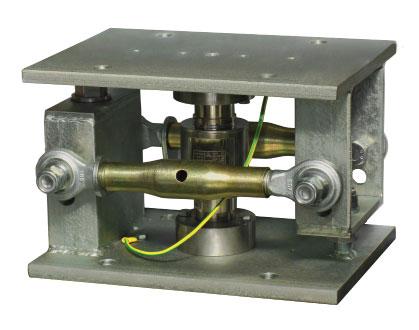

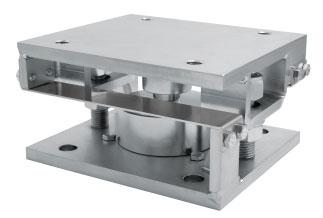

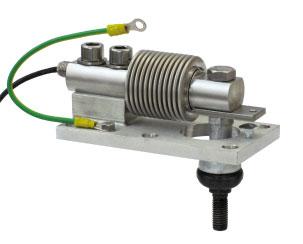

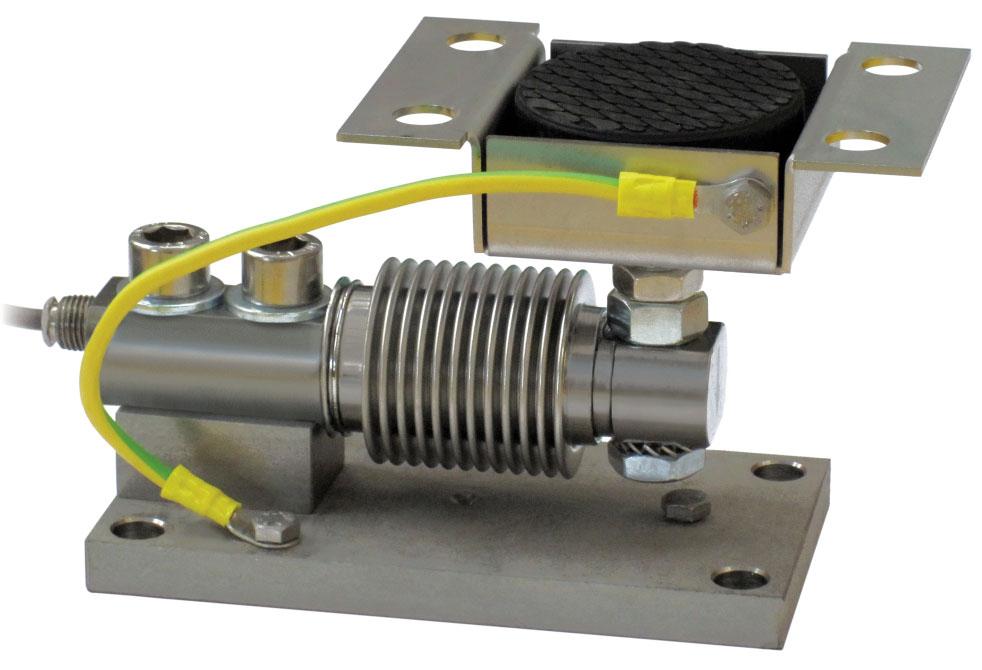

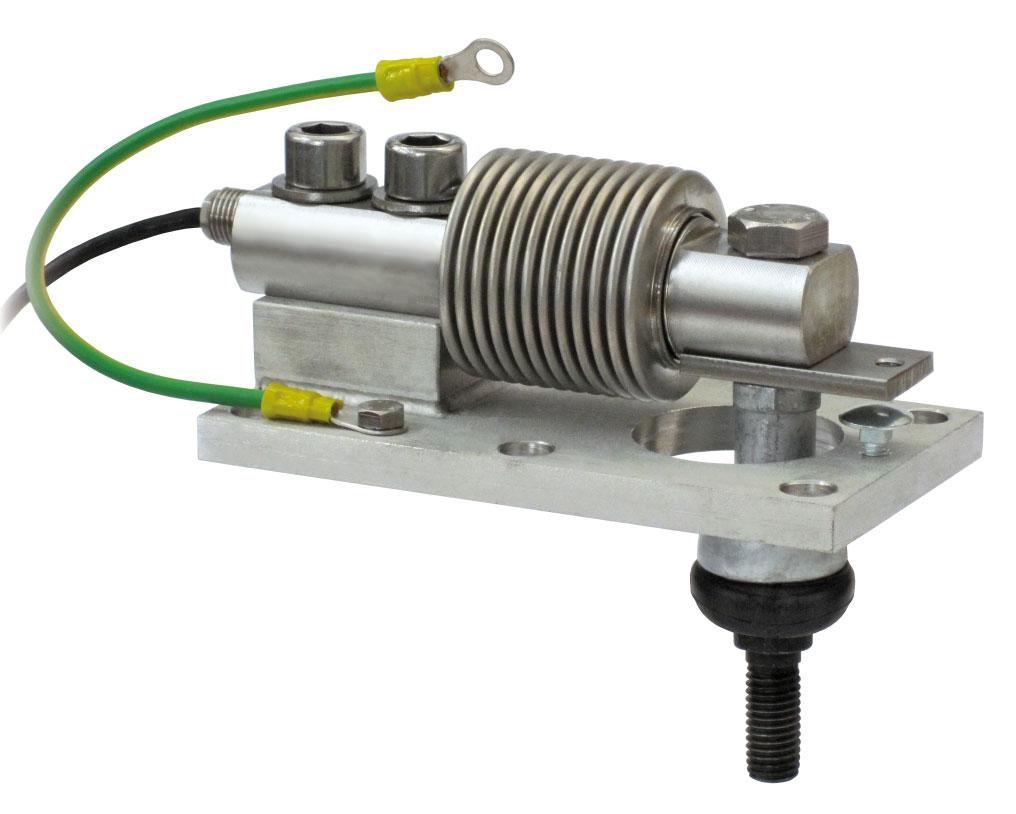

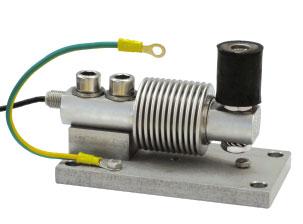

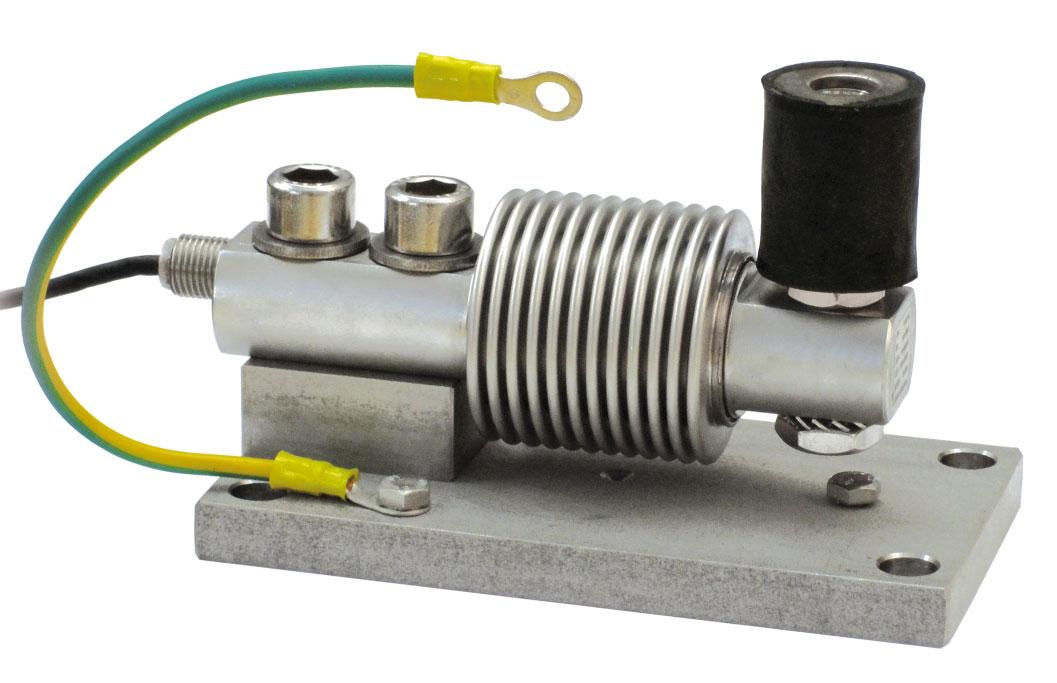

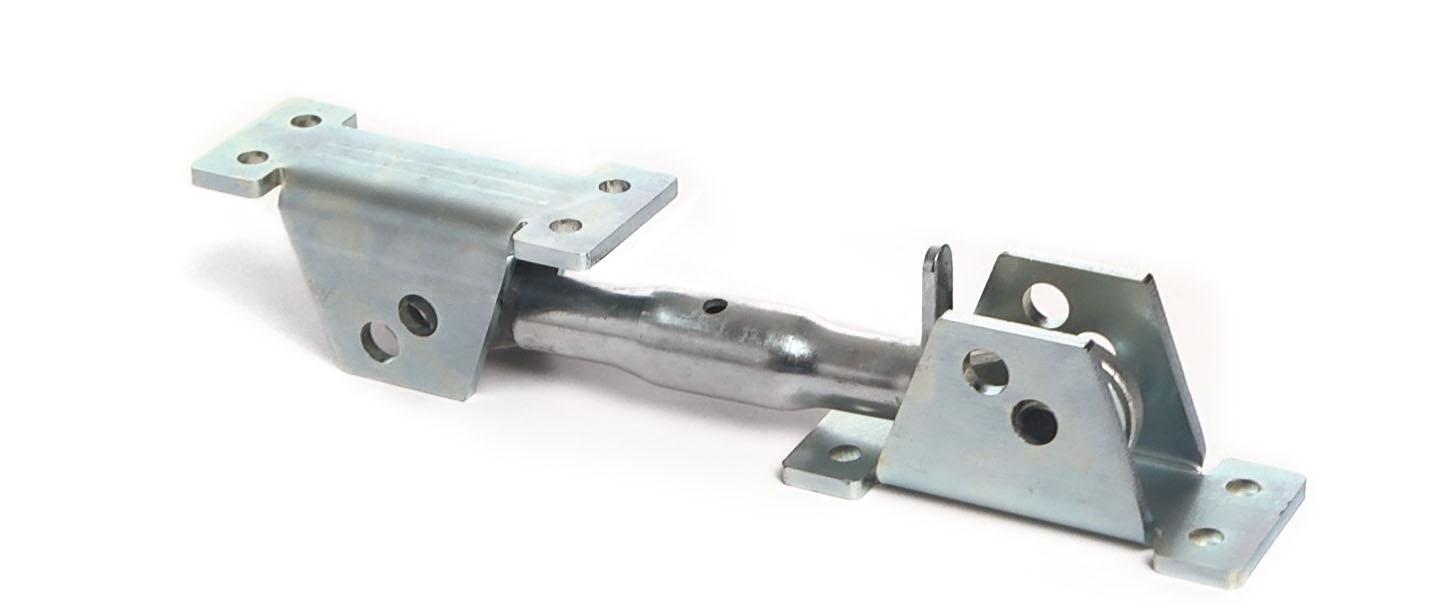

MOUNTING KITS
L CI
NA

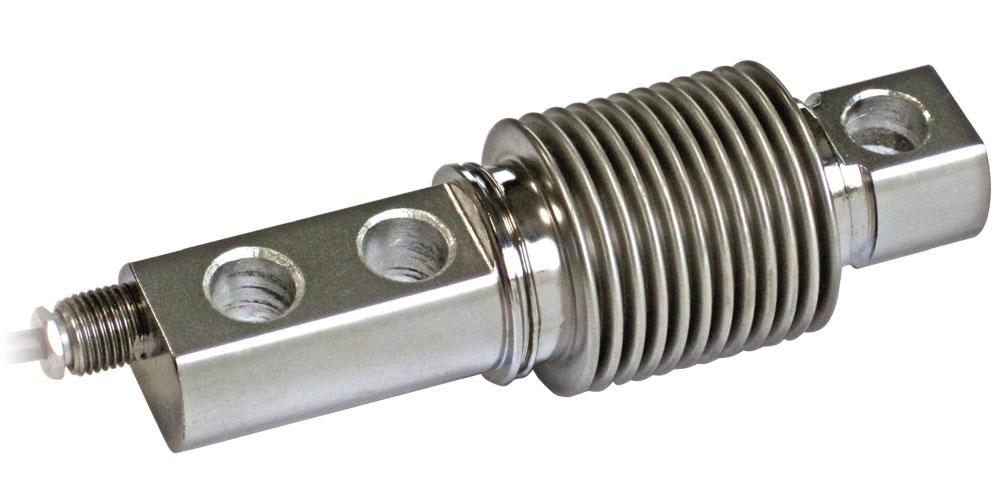

BENDING BEAM LOAD CELLS
S AND M
Capacity from 5 kg to 500 kg TFCPV series
TFCGP
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.02% (0.017% C4) IP68 PROTECTION RATING
NA
RES
SU
–
HT
E
A
–
AL COU ON N TI
G
EI
C4
ON W
5
C3
L CI
ACCURACY CLASS
kg
CAPACITY
TFCFSB
S AND M
NET WEIGHT (kg)
–
0.4
10
–
0.4
20
–
0.4
50
0.4
100
0.4
200
0.4
350
0.4
500
0.4 ON REQUEST
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report ATEX (zone 2-22) ATEX/IECEx (zone 1-21) OIML R60 C4 Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres FM HazLoc - Complies with the United States and Canada regulations for use in potentially explosive atmospheres
RES
HT
SU
EI
G
E
A
ON W
Re v. 0. 0
L CI
NA
Complies with Chinese market regulations for use in potentially explosive atmospheres AL COU ON N TI
S AND M
NTEP - Complies with United States regulations for legal for trade use
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
42
FCOL BENDING BEAM LOAD CELLS
42
38
C
DIMENSIONS (mm)
21.2
A
B
C
5-200kg
Ø8.2
23
20
350-500kg
Ø10.3
24
19
MOUNTING SURFACE
STAFFE INOX A TRAZIONE TENSION STAINLESS STEEL (carico max 100 kg) load 100 kg) BRACKETS (max
3x A
88
B
31.8
M8x1.25
10
18
82
M8x1.25
120
For the load cell fixing screws, provide the tightening torque indicated in the table Screw Screw class
M10 8.8
6.8
8.8
19 Nm
25 Nm
37 Nm
50 Nm
Re v. 0. 0
Tightening torque
M8 6.8
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
43
FCOL BENDING BEAM LOAD CELLS TECHNICAL FEATURES Material
17-4 PH stainless steel
OIML R60 Accuracy class • Verification intervals
-
Nominal load (E max)
C3 • 3000
5 kg
Minimum verification interval (V min)
-
Combined error
C4 • 4000
10 - 20 - 50 - 100 - 200 -350 - 500 kg E max / 10000
E max / 15000
≤±0.02%
≤±0.017%
Protection rating
IP68
Rated output
2 mV/V ±1%
Input resistance
460 Ω ±50
Temperature effect on zero
0.002% °C
Output resistance
350 Ω ±3.5
Temperature effect on span
0.0014% °C
Zero balance
≤±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-35 °C / +65 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
18 V
Deflection at nominal load
0.4 mm
Calibrated current output
ELECTRICAL CONNECTIONS Cable length
3m
SHIELD
Cable diameter
5 mm
+ SIGNAL
BIANCO
Cores
4 x 0.22 mm2
+ EXCITATION
GREEN
- SIGNAL
RED
- EXCITATION
BLACK
Re v. 0. 0
COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
Pair of tension stainless steel brackets. Maximum static load: 100 kg
STAFFEFC
The Company re se r ve s the r ight to make cha ng es to t he technica l d a t a , d ra wings a nd ima g es wit ho ut no t ice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
44
FCAX BENDING BEAM AND SHEAR LOAD CELLS
Manufactured according to oIML r60 standards
BENDING BEAM: capacity from 30 kg to 500 kg SHEAR BEAM: capacity from 750 kg to 1500 kg
MoUNTING KITS
AISI 420 STAINLESS STEEL COMBINED ERROR ≤ ±0.02% IP68 ProTECTIoN rATING TFPVEN1090 series
TFPV series
T12FCAGP
TFGP series
TFAST
kg
NET WEIGHT (kg)
30
0.6
50
0.6
75
0.6
150
0.6
300
0.7
500
0.7
750
0.7
1000
0.7
1500
0.7
CAPACITY
TFFSB
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report LAT Accredia calibration certificate ISo 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22)
R e v. 0 . 0
Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
45
FCAX BENDING BEAM AND SHEAR LOAD CELLS COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
Pair of tension stainless steel brackets. Maximum static load: 300 kg
STAFFEFCA
DIMENSIONS (mm)
16.5
25
82
13 STAFFE INOX A TRAZIONE (carico max 300 kg)
TENSION STAINLESS STEEL
1/4 GAS 22
13
13 51
24.5
MOUNTING SURFACE
M12 x 1.75
30
96
13
35
45
TENSION STAINLESS STELL300 BRACKETS BRACKETS (max load kg) (max load 300 kg)
136.5
For the load cell fixing screws, provide the tightening torque indicated in the table Screw
M12 x 1.75
M12
Screw class Tightening torque
6.8
8.8
50 Nm
79 Nm
TECHNICAL FEATURES Material
AISI 420 stainless steel
Nominal load (E max)
30 - 50 - 75 - 150 - 300 - 500 - 750 - 1000 - 1500 kg
Combined error
≤±0.02%
Protection rating
IP68
rated output
2 mV/V ±0.4%
Input resistance
385 Ω ±5
Temperature effect on zero
0.002% °C
output resistance
350 Ω ±5
Temperature effect on span
0.002% °C
Zero balance
±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>5000 MΩ
operating temperature range
-20 °C / +50 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.4 mm
ELECTRICAL CONNECTIONS Cable length
5m
Cable diameter
5 mm
Cores
6 x 0.22 mm
SHIELD
R e v. 0 . 0
2
+ SIGNAL
GrEEN
+ EXCITATIoN + REF./SENSE
rED BLUE
- SIGNAL
WHITE
- EXCITATIoN - rEF./SENSE
BLACK YELLoW
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
46
FCAL BENDING BEAM LOAD CELLS
Capacity from 50 kg to 300 kg
AISI 420 STAINLESS STEEL COMBINED ERROR ≤ ±0.017% IP68 PROTECTION RATING
MOUNTING KITS
TFPVEN1090
TFPV series
ACCurACY CLASS
kg
CAPACITY
T12FCAGP
C3
TFAST
TFGP series
TFFSB
NET WEIGHT (kg)
50
0.5
75
0.5
150
0.5
300
0.5
CErTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CErTIFICATIONS ON rEQuEST
Calibration report ATEX (zone 2-22) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
COMPLEMENTArY ACCESSOrIES CODE
Pair of tension stainless steel brackets. Maximum static load: 300 kg
STAFFEFCA
R e v. 0 . 0
DESCrIPTION
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
47
FCAL BENDING BEAM LOAD CELLS DIMENSIONS (mm)
25
16
13
82.5
STAFFE INOX A TRAZIONE
1/4 gas
(carico max 300 kg) TENSION STAINLESS STEEL TENSION STAINLESS STELL BRACKETS BRACKETS (max load 300 kg)
22
M12x1.75
13
13 52.5
30.5
30
MOUNTING SURFACE
96
13
34
50
(max load 300 kg)
136.5 M12x1.75
For the load cell fixing screws, provide the tightening torque indicated in the table M12
Screw Screw class Tightening torque
6.8
8.8
50 Nm
79 Nm
TECHNICAL FEATurES Material
AISI 420 stainless steel
OIML R60 Accuracy class • Verification intervals
C3 • 3000
Nominal load (E max)
50 - 75 -150 - 300 kg
Minimum verification interval (V min)
E max / 10000
Combined error
≤±0.017%
Protection rating
IP68
Rated output
2.0 mV/V ±0.1%
Input resistance
400 Ω ±20
Temperature effect on zero
0.002% °C
Output resistance
350 Ω ±3
Temperature effect on span
0.0012% °C
Zero balance
±2%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-20 °C / +50°C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.016%
Ultimate overload (% of full scale)
200%
Max supply voltage without damage
15 V
Deflection at nominal load
0.4 mm
ELECTrICAL CONNECTIONS 3m
SHIELD
Cable diameter
4 mm
+ SIGNAL
GREEN
Cores
4 x 0.22 mm2
+ EXCITATION
RED
- SIGNAL
WHITE
- EXCITATION
BLACK
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
48
FTP SHEAR BEAM AND BENDING LOAD CELLS
MoUNTING KITS
BENDING BEAM: capacity from 75 kg to 300 kg PS series
T12FTAGP
PV80EN1090
PV80
PVEN1090
PV - PVZ
TF500/2000 series
TFPS2000 series
SHEAR BEAM: capacity from 500 kg to 10000 kg
AISI 420 STAINLESS STEEL COMBINED ERROR ≤ ±0.02% IP67 - IP68 ProTEcTIoN rATING
kg
CAPACITY
ACCuRACY CLASS
C3
NET WEIGHT (kg)
75
0.9
150
0.9
300
0.9
500
0.9
750
0.9
1000
0.9
1500
0.9
2000
0.9 1.6
5000
–
1.6
10000
–
3.8
R e v. 0 . 0
3000
–
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
49
FTP SHEAR BEAM AND BENDING LOAD CELLS CERTIFICATIONS oIML r60 c3 complies with the Eurasian customs Union regulations Equivalent of the cE marking for the United Kingdom CERTIFICATIONS ON REQuEST
Declaration of conformity + IP69K marking protection rating
Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from a distance of max 150 mm) Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)
IP69K
calibration report LAT Accredia calibration certificate ISo 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) ATEX (zone 1-21) IEcEx (zone 1-21) complies with the Eurasian customs Union regulations for use in potentially explosive atmospheres complies with chinese market regulations for use in potentially explosive atmospheres complies with chinese market regulations for legal for trade use
DIMENSIONS (mm)
75 - 300 kg
500 - 10000 kg
C
C
H
H
I
1/4 gas
I
1/4 gas
G
B
G
B
MOUNTING SURFACE
MOUNTING SURFACE
75 - 2000 kg 3000 - 5000 kg 10000 kg
171.5
222.5
B
M12x1.75
M20x2.5
M24x2
C
Ø 13.5
Ø 21
Ø 26.2
D
76.2
95.3
123.8
E
25.4
38.1
50.8
F
15.7
19.1
25.4
G
53
76
102
H
32
38
51
I
16
19
25.5
1.5
1.5
2x C
2x C
H
130
H
A
D
E
F
15
D
A
E
F
15
A
For the load cell fixing screws, provide the tightening torque indicated in the table Screw Screw class
M20
M24
8.8
6.8
8.8
6.8
8.8
50 Nm
79 Nm
290 Nm
400 Nm
500 Nm
690 Nm
R e v. 0 . 0
Tightening torque
M12 6.8
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
50
FTP SHEAR BEAM AND BENDING LOAD CELLS TECHNICAL FEATuRES Material
AISI 420 stainless steel
OIML R60 Accuracy class • Verification intervals Nominal load (E max) Minimum verification interval (V min)
C3 • 3000
-
75 - 150 - 300 - 500 - 750 1000 - 1500 - 2000 kg
3000 - 5000 - 10000 kg
E max / 15000
-
combined error
≤±0.02%
Protection rating
IP67 (75 - 300 kg), IP68 (500 - 10000 kg)
Input resistance
385 Ω ±10
400 Ω ±15
output resistance
350 Ω ±3
350 Ω ±5
rated output
2 mV/V ±0.4%
Max supply voltage without damage
15 V
Temperature effect on zero
0.002% °C
Zero balance
±2%
Temperature effect on span
0.0012% °C
Insulation resistance
≥5000 MΩ
compensated temperature range
-10 °C / +40 °C
Safe overload (% of full scale)
150%
operating temperature range
-20 °C / +70 °C
Ultimate overload (% of full scale)
200%
creep at nominal load in 30 minutes
0.03%
Deflection at nominal load
0.4 mm
ELECTRICAL CONNECTIONS 5 m (75-5000 kg); 10 m (10000 kg)
SHIELD
cable diameter
5 mm
+ SIGNAL
GrEEN
cores
6 x 0.25 mm2
+ EXcITATIoN + rEF./SENSE
rED BLUE
- SIGNAL
WHITE
- EXcITATIoN - rEF./SENSE
BLAcK YELLoW
R e v. 0 . 0
cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
51
FTK BENDING BEAM AND SHEAR LOAD CELLS
BENDING BEAM: capacity from 75 kg to 300 kg
SHEAR BEAM: capacity from 500 kg to 5000 kg
MOUNTING KITS
AISI 4340 NICKEL PLATED STEEL COMBINED ERROR ≤ ±0.02% IP67 - IP68 PROTECTION RATING
PS
PVEN1090
CAPACITY
PV80 - PV60Z
PV - PVZ
TFPS2000 series
TF500/2000 series
kg
ACCuRACY CLASS
C3
NET WEIGHT (kg)
75
–
1
150
–
1
300
–
1
500
–
1
1000
1.1
2000
1.1
3000
1.1
5000
1.1
T12FTAGP
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQuEST
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22)
R e v. 0 . 0
Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
52
FTK BENDING BEAM AND SHEAR LOAD CELLS DIMENSIONS (mm) 3000 - 5000 kg
500 - 1000 - 2000 kg
75 - 150 - 300 kg Ø13.5
Ø13.5
M20x2.5 1/4 gas
1/4 gas
1/4 gas
32
32
38.1
8
M12x1.75
52
38.1
32 76.2
25.4
12.6
15.8
2
2x Ø20
2x Ø13
23
34
12.6
72.5 MOUNTING SURFACE
MOUNTING SURFACE
2
2x Ø13
Ø22
52
M12x1.75
MOUNTING SURFACE
76.2
25.4
19
15.8
95.3
38.1
19.1
171.5
130
130
For the load cell fixing screws, provide the tightening torque indicated in the table M12
Screw Screw class Tightening torque
M20
6.8
8.8
6.8
8.8
50 Nm
79 Nm
290 Nm
400 Nm
TECHNICAL FEATuRES Material
AISI 4340 nickel plated steel -
C3 • 3000
75 -150 - 300 - 500 kg
1000 - 2000 - 3000 - 5000 kg
-
E max / 12000
OIML R60 Accuracy class • Verification intervals Nominal load (E max) Minimum verification interval (V min) Combined error
≤±0.02%
Protection rating
IP67 (75 - 300 kg), IP68 (500 - 5000 kg)
Rated output
2 mV/V ±0.1%
Input resistance
400 Ω ±10
Temperature effect on zero
0.002% °C
Output resistance
352 Ω ±2
Temperature effect on span
0.0012% °C
Zero balance
±2%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-20 °C / +70 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
250%
Max supply voltage without damage
15 V
Deflection at nominal load
0.6 mm
ELECTRICAL CONNECTIONS Cable length
6m
Cable diameter
5 mm
Cores
6 x 0.24 mm
SHIELD
2
+ SIGNAL
GREEN
+ EXCITATION + REF./SENSE
RED BLUE
- SIGNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW/BROWN
R e v. 0 . 0
COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
Special steel block for capacities up to 2000 kg.
PIASTRINO
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
53
A1 - LOAD CELLS PRODUCTS CATALOG
Capacity
PAGE
A1.3
SHEAR BEAM
FTK*
500, 1000, 2000, 3000, 5000 kg
51
FT-P
500, 1000, 2000 kg
55
FTKL
500, 1000, 1500, 2000, 3000, 5000 kg
57
FTZ
500, 1000, 2000, 5000 kg
59
FTZA
500, 1000, 2000, 5000, 7500, 10000 kg
61
FCAX*
750, 1000, 1500 kg
44
FTP*
500, 750, 1000, 1200, 1500, 2000, 3000, 5000, 10000 kg
48
FTH
5000, 10000 kg
63
FTPDOP
1000, 6000 kg
65
SHEAR / BENDING BEAM load cells
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
54
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
55
FT-P SHEAR BEAM LOAD CELLS
MOUNTING KITS
Capacity from 300 kg to 2000 kg
PV - PVZ
TFPS2000 series
T12FTAGP
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.02% IP68 PROTECTION RATING TF500/2000 series
ACCuRACY CLASS
kg
CAPACITY
C3
NET WEIGHT (kg)
300
0.8
500
0.9
1000
0.9
2000
0.9
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQuEST
Declaration of conformity + IP69K marking protection rating IP69K
Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from a distance of max 150 mm) Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) ATEX (zone 1-21) IECEx (zone 1-21)
R e v. 0 . 0
Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
56
FT-P SHEAR BEAM LOAD CELLS DIMENSIONS (mm) 13.5
32
16
1/4 gas
M12x1.75
52 MOUNTING SURFACE
1.5
32
2xØ13.5
76.2
25.4
15
15.7
For the load cell fixing screws, provide the tightening torque indicated in the table M12
Screw Screw class
130
Tightening torque
6.8
8.8
50 Nm
79 Nm
TECHNICAL FEATuRES Material
17-4 PH stainless steel
OIML R60 Accuracy class • Verification intervals
C3 • 3000
Nominal load (E max)
300 - 500 - 1000 - 2000 kg
Minimum verification interval (V min)
E max / 10000
Combined error
≤±0.02%
Protection rating
IP68
Rated output
2 mV/V ±0.4%
Input resistance
385 Ω ±10
Temperature effect on zero
0.002% °C
Output resistance
350 Ω ±3
Temperature effect on span
0.0012% °C
Zero balance
±2%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-20 °C / +70°C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.016%
Ultimate overload (% of full scale)
200%
Max supply voltage without damage
15 V
Deflection at nominal load
0.4 mm
ELECTRICAL CONNECTIONS 5m
SHIELD
Cable diameter
5 mm
+ SIGNAL
GREEN
Cores
6 x 0.25 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIGNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
57
FTKL AL COU ON N TI
HT
E
A
EI
G
SU
ON W
RES
L CI
NA
SHEAR BEAM LOAD CELLS
S AND M
Capacity from 500 kg to 5000 kg
AISI 4340 NICKEL PLATED STEEL COMBINED ERROR ≤ ±0.02% (0.017% C4; 0.014% C5) IP67 PROTECTION RATING MOUNTING KITS
NA
RES
C5
G
EI
C4
ON W
C3
AL COU ON N TI
L CI
ACCURACY CLASS
kg
CAPACITY
TFPS2000 series
HT
SU
PV - PVZ
E
A
PVEN1090
S AND M
T12FTAGP
TF500/2000 series
NET WEIGHT (kg)
500
0.8
1000
0.8
1500
0.9
2000
0.9
3000
1.7
5000
1.7 ON REQUEST
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) ATEX/IECEx (zone 1-21) OIML R60 C4/C5 Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres FM HazLoc - Complies with the United States and Canada regulations for use in potentially explosive atmospheres
RES
HT
SU
EI
G
E
A
ON W
R e v. 0 . 0
L CI
NA
Complies with Chinese market regulations for use in potentially explosive atmospheres AL COU ON N TI
S AND M
NTEP - Complies with United States regulations for legal for trade use
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
58
FTKL SHEAR BEAM LOAD CELLS COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
Special steel block for capacities up to 2000 kg.
PIASTRINO
DIMENSIONS (mm) F
H
7
G
3/8 - 24 UNF
D
500 kg
E
MOUNTING SURFACE
L
M
B
C
2x I
N A
1000 - 1500 2000 kg
3000 - 5000 kg
A
130
130
171.5
B
-
32.8
39.1
C
31.8
31.8
38.1
D
53.2
53.2
76.2
E
Ø13.5
Ø13.5
Ø19.8
F
M12x1.75
M12x1.75
M18x1.5 19.3
G
16
16
H
31.8
31.8
38.1
I
Ø13.5
Ø13.5
Ø19.8 19.1
L
15.8
15.8
M
25.4
25.4
38.1
N
76.2
76.2
95.3
For the load cell fixing screws, provide the tightening torque indicated in the table M12
Screw Screw class Tightening torque
M18
6.8
8.8
6.8
8.8
50 Nm
79 Nm
205 Nm
280 Nm
TECHNICAL FEATURES Material
AISI 4340 nickel plated steel C3 • 3000
OIML R60 Accuracy class • Verification intervals
C4 • 4000
C5 • 5000
500 - 1000 - 1500 kg 2000 - 3000 - 5000 kg
Nominal load (E max) Minimum verification interval (V min) Combined error
E max / 10000
E max / 15000
≤±0.02%
≤±0.017%
500 - 1000 kg 1500 - 2000 kg
3000 - 5000 kg
E max / 20000
E max / 18000
≤±0.014% IP67
Protection rating Rated output
3 mV/V ±0.1%
Input resistance
350 Ω ±3.5
Temperature effect on zero
0.0018% °C
Output resistance
350 Ω ±3.5
Temperature effect on span
0.0014% °C
Zero balance
≤±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-35 °C / +65 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
18 V
Deflection at nominal load
0.4 mm
ELECTRICAL CONNECTIONS 4 m (500-2000 kg); 6 m (3000-5000 kg)
SHIELD
Cable diameter
5 mm
+ SIGNAL
GREEN
Cores
4 x 0.22 mm2
+ EXCITATION
RED
- SIGNAL
WHITE
- EXCITATION
BLACK
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
59
FTZ SHEAR BEAM LOAD CELLS
Capacity from 500 kg to 5000 kg
MOUNTING KITS
PS
TFPS2000 series
PV80EN1090
PV80
PVEN1090
PV - PVZ
TF500/2000 series
T12FTAGP
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.02% IP67 PROTECTION RATING
ACCuRACY CLASS
kg
CAPACITY
C3
NET WEIGHT (kg)
500
0.9
1000
0.9
2000
0.9
5000
1.5
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQuEST
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) ATEX/IECEx (zone 1-21) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres FM HazLoc - Complies with the United States and Canada regulations for use in potentially explosive atmospheres
R ev. 0 .0
Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
60
FTZ SHEAR BEAM LOAD CELLS DIMENSIONS (mm)
F
H
3/8 - 24 UNF
G
7 E
D MOUNTING SURFACE
B
2x I
N
M
L
500 - 1000 2000 kg
5000 kg
A
130
171.5
B
31.3
36.8
D
56
76
E
Ø13.5
Ø20.7 M20x2.5
F
M12x1.75
G
15.8
19
H
31.3
36.8 Ø20.7
I
Ø13.5
L
15.8
19
M
25.4
38.1
N
76.2
95.3
A For the load cell fixing screws, provide the tightening torque indicated in the table M12
Screw Screw class Tightening torque
M20
6.8
8.8
6.8
8.8
50 Nm
79 Nm
290 Nm
400 Nm
TECHNICAL FEATuRES Material
17-4 PH stainless steel
OIML R60 Accuracy class • Verification intervals
C3 • 3000
Nominal load (E max)
500 - 1000 - 2000 kg
Minimum verification interval (V min)
5000 kg
E max / 7500
E max / 9000
Combined error
≤±0.02%
Protection rating
IP67
Rated output
3 mV/V ±0.27%
Input resistance
350 Ω ±3.5
Temperature effect on zero
0.0018% °C
Output resistance
350 Ω ±3.5
Temperature effect on span
0.0014% °C
Zero balance
≤±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-35°C / +65°C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
18 V
Deflection at nominal load
0.4 mm
Max supply voltage without damage
ELECTRICAL CONNECTIONS 6m
SHIELD
Cable diameter
5 mm
+ SIGNAL
GREEN
Cores
4 x 0.20 mm2
+ EXCITATION
RED
- SIGNAL
WHITE
- EXCITATION
BLACK
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
61
FTZA SHEAR BEAM LOAD CELLS
Capacity from 500 kg to 10000 kg
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.02% (0.017% C4) IP68 PROTECTION RATING
ACCURACY CLASS
kg
CAPACITY
C3
C4
NET WEIGHT (kg)
500
2.1
1000
2.1
2000
2.1
5000
–
4.2
7500
–
4.2
10000
–
4.2
ON REQUEST
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) OIML R60 C4 Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres
R ev. 0 . 0
Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
62
FTZA SHEAR BEAM LOAD CELLS DIMENSIONS (mm)
H1
H2
G
E
F
500 kg 1000 kg 2000 kg
D
A B D E F G H1 H2 I L M N
MOUNTING SURFACE
2x I
B
7
3/8 - 24 UNF
N
M
L
A
203.2 36.48 101.6 Ø30.3 Ø17.5 11.9 47.63 36.5 Ø14 19.05 63.5 98.45
5000 kg 7500 kg
10000 kg
235 47.5
235 55
111.2 Ø41.3 Ø25.5 15.75 69.9 47.6 Ø22 20.6 66.7 123.8
111.2 Ø41.3 Ø25.5 15.75 69.9 58.6 Ø25 20.6 66.7 123.8
For the load cell fixing screws, provide the tightening torque indicated in the table M12
Screw Screw class Tightening torque
M20
M24
6.8
8.8
6.8
8.8
6.8
8.8
50 Nm
795 Nm
290 Nm
400 Nm
500 Nm
690 Nm
TECHNICAL FEATURES Material
17-4 PH stainless steel
OIML R60 Accuracy class • Verification intervals Nominal load (E max) Minimum verification interval (V min)
C3 • 3000
C4 • 4000
500 - 1000 - 2000 5000 - 7500 - 10000 kg
500 - 1000 - 2000 kg
E max / 10000
E max / 15000
≤±0.02%
Combined error
≤±0.017% IP68
Protection rating Rated output
2 mV/V ±0.2%
Input resistance
350 Ω ±3.5
Temperature effect on zero
0.0018% °C
Output resistance
350 Ω ±3.5
Temperature effect on span
0.0014% °C
Zero balance
<±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-35 °C / +65°C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
18 V
Deflection at nominal load
0.4 mm
Calibrated current output
ELECTRICAL CONNECTIONS 5 m (500-7500 kg); 10 m (10000 kg)
SHIELD
Cable diameter
5 mm
+ SIGNAL
GREEN
Cores
4 x 0.20 mm2
+ EXCITATION
RED
- SIGNAL
WHITE
- EXCITATION
BLACK
R ev. 0 . 0
Cable length
T he Co m p a ny res er ves t he r ight t o m a ke c h a n g e s t o t h e t e c h n i cal d at a, d raw i n g s a n d i m a g e s w i t h ou t n ot i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
63
FTH SHEAR BEAM LOAD CELLS FOR ON-BOARD VEHICLE WEIGHING
Manufactured according to OIML R60 standards
Capacity from 5000 kg to 10000 kg
SPECIAL STEEL COMBINED ERROR ≤ ±0.1% IP68 ProTECTIon rATIng
kg
CAPACITY
NET WEIGHT (kg)
5000
15.5
10000
16.2
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report LAT Accredia calibration certificate ISo 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX II 1g 2D (zone 0-1-2-21-22) (
-
)
IECEx (zone 0-1-2-20-21-22)
R ev. 0 .0
Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
64
FTH SHEAR BEAM LOAD CELLS FOR ON-BOARD VEHICLE WEIGHING DIMENSIONS (mm)
Ø40
A
12
55
45
103
115
A-A
A
60
12 48
250
120
Esempio diof applicazione a Example application a 4 celle di carico with 4 load cells
60
48
3x Ø19
80
80
40
450
LOAD CELL
TECHNICAL FEATURES Material
Special steel
nominal load (E max)
5000 - 10000 kg
Combined error
≤±0.1%
Protection rating
IP68
rated output
1 mV/V ±0.5%
Input resistance
400 Ω ±20
Temperature effect on zero
0.005% °C
Output resistance
352 Ω ±3
Temperature effect on span
0.005% °C
Zero balance
±2%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>5000 MΩ
operating temperature range
-30 °C / +70 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.1%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.4 mm
ELECTRICAL CONNECTIONS 10 m
SHIELD
Cable diameter
6 mm
+ SIgnAL
grEEn
Cores
6 x 0.24 mm2
+ EXCITATIon + REF./SENSE
rED BLUE
- SIgnAL
WHITE
- EXCITATIon - REF./SENSE
BLACK YELLoW
R ev. 0 .0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
65
FTPDOP SHEAR BEAM LOAD CELLS
capacity 6000 kg
capacity 1000 kg
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.03% IP67 - IP68 ProTEcTIoN rATINg TWo oUTPUT cABLES For DUAL SAFETY SYSTEMS
kg
CAPACITY
NET WEIGHT (kg)
1000
0.93
6000
1.54
CERTIFICATIONS complies with the Eurasian customs Union regulations Equivalent of the cE marking for the United Kingdom CERTIFICATIONS ON REQUEST
calibration report LAT Accredia calibration certificate ISo 376 or ASTM E74 for capacities from 1000 kg to 10000 kg
Re v. 0 . 0
ATEX (zone 2-22) ATEX/IEcEx (zone 1-21)
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
66
FTPDOP SHEAR BEAM LOAD CELLS DIMENSIONS (mm)
6000 kg
1000 kg Ø21
Ø21
Ø21
19
38
31.5
19
Ø10.2
25.4
76.2
12.7
M20 x 2.5
15.7 13±1
19
95.3
130
38.1
19.1
22±1
171.5
3x Ø13.5
PONTE "B"
=
=
38
31.5
PONTE "B"
PONTE "A"
57
PONTE "A"
76
2 pressacavi M8
MOUNTING SURFACE
2 x 1/4 gas
MOUNTING SURFACE
TECHNICAL FEATURES Material
17-4 PH stainless steel
Nominal load (E max)
1000 - 6000 kg
combined error
≤±0.03%
Protection rating
IP67 (1000 kg) - IP68 (6000 kg)
rated output
2 mV/V ±0.1%
Input resistance
370 Ω ±10
Temperature effect on zero
0.005% °C
output resistance
355 Ω ±5
Temperature effect on span
0.005% °C
Zero balance
±2%
compensated temperature range
-10 °C / +50 °C
Insulation resistance
>5000 MΩ
operating temperature range
-20 °C / +70 °C
Safe overload (% of full scale)
150%
creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.25 mm
ELECTRICAL CONNECTIONS cable length
5 m+5 m (1000 kg); 10 m+10 m (6000 kg)
SHIELD
cable diameter
5 mm
+ SIgNAL
grEEN
cores
6 x 0.25 mm
+ EXcITATIoN + rEF./SENSE
rED BLUE
- SIgNAL
WHITE
- EXcITATIoN - rEF./SENSE
BLAcK YELLoW
R e v. 0. 0
2
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
67
A1 - LOAD CELLS PRODUCTS CATALOG
Capacity
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
PAGE
A1.4
DOUBLE SHEAR BEAM
DTL
25000 kg
69
DTX
20 klb ÷ 60 klb 9 ton ÷ 27 ton
73
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
68
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
69
DTL DOUBLE SHEAR BEAM LOAD CELLS
Capacity 25000 kg
MOUNTING KIT
VCOKDTL
AISI 4340 NICKEL PLATED STEEL COMBINED ERROR ≤ ±0.02% IP68 PROTECTION RATING ACCURACY CLASS
kg
CAPACITY
C3
25000
NET WEIGHT (kg)
16
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report ATEX (zone 2-22) ATEX/IECEx (zone 1-21) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres FM HazLoc - Complies with the United States and Canada regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
COMPLEMENTARY ACCESSORIES CODE
Galvanized steel plate.
PIATTODTL
R e v. 0 . 0
DESCRIPTION
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
70
DTL DOUBLE SHEAR BEAM LOAD CELLS DIMENSIONS (mm)
Ø88 Ø30
11 Ø76
12
PIATTO DTL
225
50
90
90
4x Ø13
Ø30
15
15
15
15
25
20
80
25
4x Ø18
22.5
80 125
17.5
240
210
100 135
Weight = 16 kg
TECHNICAL FEATURES Material
AISI 4340 nickel plated steel
OIML R60 Accuracy class • Verification intervals
C3 • 3000
Nominal load (E max)
25000 kg
Minimum verification interval (V min)
E max / 15000
Combined error
≤±0.02%
Protection rating
IP68
Rated output
2 mV/V ±0.1%
Input resistance
700 Ω ±7
Temperature effect on zero
0.002% °C
Output resistance
700 Ω ±7
Temperature effect on span
0.002% °C
Zero balance
≤±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-35 °C / +65 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.016%
Ultimate overload (% of full scale)
200%
Max supply voltage without damage
18 V
Deflection at nominal load
0.6 mm
ELECTRICAL CONNECTIONS 20 m
SHIELD
Cable diameter
6 mm
+ SIGNAL
GREEN
Cores
4 x 0.22 mm2
+ EXCITATION
RED
- SIGNAL
WHITE
- EXCITATION
BLACK
R e v. 0 . 0
Cable length
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
71
DTL DOUBLE SHEAR BEAM LOAD CELLS APPLICATION 3 SUPPORTS STRUCTURES 1 load cell (A) + 2 hinges (B)
LEVEL MEASUREMENTS “Point support hinge” can be used in combination with the load cells for measuring the level of liquid or weighing powder products that do not require a high degree of precision. It is absolutely necessary that the structure to weight has a uniform shape and is geometrically divisible.
B A
B A
x3
x2
B
It must be perfectly level and the type of product to be weighed must enable horizontal positioning, as if it were a liquid (otherwise it loading systems which distribute the product/load uniformlyare required). The electronic weight display will show the effective weight multiplying the signal by two or three, depending on the application.
A
B x2
B
A
B
4 SUPPORTS STRUCTURES 2 load celss (A) + 2 hinges (B) B A
B A
x3 B
A
x2
B 120°
B
A
x2120° 120°
B
Hinges support
120°
120° 120°
HINGE PIATTODTL DTL
WEIGHING STRUCTURES NOT SUBJECT TO KNOCKS OR WIND EFFECT
The load cell, equipped with bases plus ball, is designed for weighing structures not subject to knocks or wind effect. PIATTODTL is designed for facilitate the load cell installation and removal; it will be enough to lift 1 mm the structure. The different bending radius between the ball and the bases which contain it, makes that any side shifts lead to on increase of the structure.
10 mm
10 mm
Platform to be grounded
20 mm
PIATTODTL DTL
R e v. 0 . 0
Platform to be grounded
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
DTL
72
DOUBLE SHEAR BEAM LOAD CELLS
WEIGHING STRUCTURES SUBJECT TO KNOCKS OR WIND EFFECT
The VCOKDTL mounting kit is equipped with two stay rods against lateral forces with an ultimate tensile strength of 10000 kg each, and two threaded rods (22 mm diameter) with nuts to use as a jack for the insertion and extraction of the cells and with two self-locking nuts for anti-tilt function.To ensure the stability of the structure, the designer must consider further contrivances according to the following conditions: knocks and vibrations; B B B A B BA wind effect; seismic conditions; hardness of support structure.
A
A
x3
A
x3
B
A
x2 B
B
3 SUPPORTS STRUCTURES
120°
120°
A
x2 B
x2 BA
B
DTL + VCOKDTL
4 SUPPORTS STRUCTURES
120°
120° 120°
R e v. 0 . 0
120°
x2
B
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
73
DTX DOUBLE SHEAR BEAM LOAD CELLS
Capacity from 20 klb to 60 klb
MOUNTING KIT
VDTX
AISI 4340 NICKEL PLATED STEEL COMBINED ERROR ≤ ±0.02% IP68 PROTECTION RATING
kg
CAPACITY
ACCURACY CLASS
C3
NET WEIGHT (kg)
20klb / 9 ton
2.7
30klb / 13.6 ton
7.75
40klb / 18 ton
7.78
50klb / 23 ton
8.3
60klb / 27 ton
8.5
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) ATEX/IECEx (zone 1-21) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres FM HazLoc - Complies with the United States and Canada regulations for use in potentially explosive atmospheres
R e v. 0 . 0
Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
74
DTX DOUBLE SHEAR BEAM LOAD CELLS
R
DIMENSIONS (mm)
G
ØH
ØE
F D C
B A
20 klb 30-60 klb
A 206 260
B 174.6 215
C 15.7 22.4
D 133 165
ØE 16.7 27
F 21.6 25.7
G 28.4 60.2
ØH 49.5 76.2
R 12.7 25.4
TECHNICAL FEATURES Material
AISI 4340 nickel plated steel
OIML R60 Accuracy class • Verification intervals
C3 • 3000
Nominal load (E max)
20, 30, 40, 50, 60 klb
Minimum verification interval (V min)
E max / 10000 - E max / 15000
Combined error
≤±0.023%
Protection rating
IP68
Rated output
3.0 mV/V ±0.267%
Input resistance
700 Ω ±7
Temperature effect on zero
0.002% °C
Output resistance
700 Ω ±7
Temperature effect on span
0.002% °C
Zero balance
≤±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-35 °C / +65 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.016%
Ultimate overload (% of full scale)
300%
18 V
Deflection at nominal load
0.6 mm
Max supply voltage without damage
ELECTRICAL CONNECTIONS 9m
Cable diameter
5 mm (20klb)
Cores
4 x 0.22 mm2
R e v. 0 . 0
Cable length
SHIELD
/
8 mm (30klb-60klb)
+ SIGNAL
GREEN
+ EXCITATION
RED
- SIGNAL
WHITE
- EXCITATION
BLACK
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
75
A1 - LOAD CELLS PRODUCTS CATALOG
Capacity
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
PAGE
A1.5
FOR FOOT
FLC
75, 150, 300, 500, 1000, 2000, 5000, 10000 kg
77
FLC 3A
1000, 2000, 5000, 10000, 20000 kg
79
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
76
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
77
FLC COMPRESSION LOAD CELL - FOR FOOT
Capacity from 75 kg to 10000 kg
EXAMPLE oF INSTALLATIoN WITH STr ANd Sb2 SErIES FEET
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.07% IP67 ProTEcTIoN rATINg AdjuSTAbLE HEIgHT
kg
THREAD
NET WEIGHT (kg)
75
M12x1.75
1.70
150
M12x1.75
1.70
300
M12x1.75
1.70
500
M12x1.75
1.70
1000
M12x1.75
1.40
2000
M12x1.75
1.70
5000
M20x2.5
1.80
10000
M24x3
1.70
CAPACITY
Foot not included.
CERTIFICATIONS Equivalent of the cE marking for the united Kingdom CERTIFICATIONS ON REQUEST
calibration report LAT Accredia calibration certificate ISo 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22)
COMPLEMENTARY ACCESSORIES DESCRIPTION
Re v. 0 . 0
AISI 304 stainless steel plate for constraints against lateral forces and anti-tilt. only for Sb2 series feet.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
CODE
M12
PPV
M20
PPV80
ISO
9001
ISO 14001
www.laumas.com
78

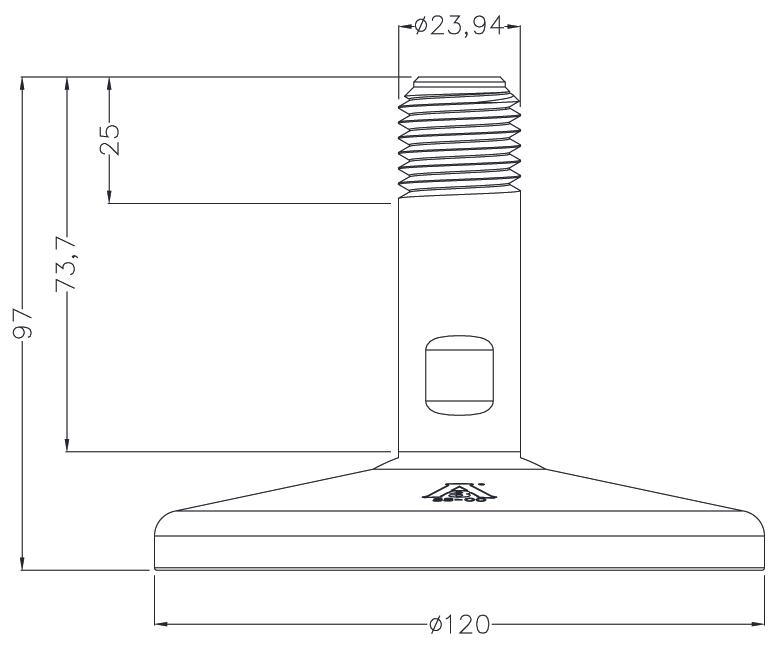

FLC COMPRESSION LOAD CELL - FOR FOOT DIMENSIONS AND TECHNICAL SPECIFICATIONS
cAPAcITY
X
H1 (FLC+SB2) H2 (FLC+STR)
75 kg
M12x1.75
150 kg
M12x1.75
300 kg
M12x1.75
500 kg
M12x1.75
1000 kg
M12x1.75
2000 kg
M12x1.75
5000 kg
M20x2.5
10000 kg
M24x3
190÷200 mm
Installation notes:
screw the foot all the way in; slightly unscrew the foot to adjust (maximum excursion: 10 mm); tighten the fixing nut.
182÷192 mm
-
For further information see the STr and Sb2 data sheets
TECHNICAL FEATURES Material
17-4 PH stainless steel
Nominal load
75 - 150 - 300 - 500 - 1000 - 2000 - 5000 - 10000 kg
combined error
≤±0.07%
Protection rating
IP67
rated output
2.0 mV/V ±5%
Input resistance
350 Ω ±20
Temperature effect on zero
0.002% °C
output resistance
350 Ω ±5
Temperature effect on span
0.002% °C
Zero balance
±1%
compensated temperature range
-10 °C / +50 °C
Insulation resistance
>5000 MΩ
operating temperature range
-20 °C / +60°C
Safe overload (% of full scale)
120%
creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
200%
Max supply voltage without damage
20 Vdc
deflection at nominal load
0.1 mm
ELECTRICAL CONNECTIONS cable length
5 m (75-5000 kg); 10 m (10000 kg)
SHIELd
cable diameter
5 mm
+ SIgNAL
grEEN
cores
6 x 0.20 mm
+ EXcITATIoN + REF./SENSE
rEd bLuE
- SIgNAL
WHITE
- EXcITATIoN - rEF./SENSE
bLAcK YELLoW
R e v. 0. 0
2
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
79
FLC 3A HYGIENIC COMPRESSION LOAD CELL - FOR FOOT
Capacity from 1000 kg to 20000 kg EXAMPLE Of INSTALLATION ON HyGIENIC fOOT
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.1% IP69K PROTECTION RATING CAbLE SuITAbLE fOR CONTACT wITH fOOd AdjuSTAbLE HEIGHT HyGIENIC dEvICE RPSCQC AuTHORIzEd by 3-A SSI. kg
THREAD
NET WEIGHT (kg)
1000
M12
1.6
2000
M12
1.52
5000
M16
1.7
5000
M20
1.7
10000
M24
1.7
10000
M30
2.21
20000
M36
2.5
CAPACITY
Foot not included.
CERTIFICATIONS Equivalent of the CE marking for the united Kingdom American standard that regulates the design, production and use of hygienic equipment CERTIFICATIONS ON REQUEST
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg
R e v. 0. 0
ATEX (zone 2-22) ATEX/IECEx (zone 1-21)
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
80
FLC 3A HYGIENIC COMPRESSION LOAD CELL - FOR FOOT DIMENSIONS AND TECHNICAL SPECIFICATIONS
ANGuLAR AdjuSTMENT CAPACITy
X
L (mm)
M (mm)
1000 kg
M12x1.75
24
40
2000 kg
M12x1.75
24
40
5000 kg
M16x2
30
40
5000 kg
M20x2.5
35
40
10000 kg
M24x3
50
40
10000 kg
M30x3.5
50
50
20000 kg
M36x4
50
50
H (FLC+HD)
200÷210 mm
Installation notes:
screw the foot all the way in; slightly unscrew the foot to adjust (maximum excursion: 10 mm).
for further information see the Hd data sheets On request: hygienic foot with dowel fastening For other types of hygienic, non-hygienic feet or customizations contact https://martinlevelling.it
TECHNICAL FEATURES Material
17-4 PH stainless steel
Nominal load
1000 - 2000 - 5000 - 10000 - 20000 kg
Combined error
≤±0.1%
Protection rating
IP69K
Rated output
2.0 mV/V ±0.1%
Input resistance
350 Ω ±20
Temperature effect on zero
0.005% °C
Output resistance
350 Ω ±5
Temperature effect on span
0.005% °C
zero balance
±1%
Compensated temperature range
-10 °C / +50 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-20 °C / +70°C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.05%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
5 ÷ 15 vdC
deflection at nominal load
0.3 mm
ELECTRICAL CONNECTIONS Cable length
5 m: 1000 kg, 2000 kg, 5000 kg, 10000 kg (M24) 10 m: 10000 kg (M30), 20000 kg
SHIELd
Cable diameter
5 mm
+ SIGNAL
GREEN
Cores
6 x 0.20 mm
+ EXCITATION + REF./SENSE
REd bLuE
- SIGNAL
wHITE
- EXCITATION - REf./SENSE
bLACK bROwN
R e v. 0. 0
2
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
81
A1 - LOAD CELLS PRODUCTS CATALOG
Capacity
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
PAGE
A1.6
COMPRESSION-LOW PROFILE
CK
200, 500, 1000, 2500 kg
83
CLS
1000, 2000, 5000 kg
85
CBL
250, 500, 1000, 2500, 5000, 7500, 10000, 12500, 15000, 30000, 50000, 100000 kg
87
CX
1000, 2500, 5000, 7500, 10000, 15000, 30000 kg
91
CBX
15000, 30000, 50000 kg
94
CBLS
200000, 300000, 500000, 750000 kg
97
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
82
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
83
CK COMPRESSION LOAD CELLS - LOW PROFILE
Manufactured according to oIML r60 standards
Capacity from 200 kg to 2500 kg
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.5% IP67 ProTEcTIoN rATINg
kg
NET WEIGHT (kg)
200
0.11
500
0.08
1000
0.17
2500
0.17
CAPACITY
CERTIFICATIONS complies with the Eurasian customs Union regulations Equivalent of the cE marking for the United Kingdom CERTIFICATIONS ON REQUEST
calibration report LAT Accredia calibration certificate ISo 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22)
R e v. 0 . 0
complies with the Eurasian customs Union regulations for use in potentially explosive atmospheres complies with chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
84
CK COMPRESSION LOAD CELLS - LOW PROFILE DIMENSIONS (mm)
D
120°
B
A
E
C
F
kg 200 kg 500
kg 1000 kg 2500
A
8.2
14
B
10
16
C
Ø 32
Ø 38
D
Ø 8.1
Ø 10
E
M3
M3
F
Ø 25.4
Ø 31.4
TECHNICAL FEATURES Material
17-4 PH stainless steel
Nominal load (E max)
200 - 500 - 1000 - 2500 kg
combined error
≤±0.5%
Protection rating
IP67
rated output
1 mV/V ±15%
Input resistance
400 Ω ±100
Temperature effect on zero
0.005% °C
output resistance
350 Ω ±5
Temperature effect on span
0.005% °C
Zero balance
±1%
compensated temperature range
-10 °C / +50 °C
Insulation resistance
>5000 MΩ
operating temperature range
-20 °C / +70 °C
Safe overload (% of full scale)
120%
creep at nominal load in 30 minutes
0.3%
Ultimate overload (% of full scale)
200%
Max supply voltage without damage
15 V
Deflection at nominal load
0.3 mm
ELECTRICAL CONNECTIONS 5m
SHIELD
cable diameter
3 mm
+ SIgNAL
grEEN
cores
4 x 0.25 mm2
+ EXcITATIoN
rED
- SIgNAL
WHITE
- EXcITATIoN
BLAcK
R e v. 0 . 0
cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
85
CLS COMPRESSION LOAD CELLS - LOW PROFILE
Manufactured according to oIML r60 standards
Capacity from 1000 kg to 5000 kg
AISI 420 STAINLESS STEEL COMBINED ERROR ≤ ±0.03% IP68 ProTECTIoN rATINg INTEgrATED STAINLESS STEEL LoWEr PLATE MoUNTINg KITS
PVCLSEN1090
PVCLS
PV80CLSEN1090
kg
CAPACITY
PV80CLS
PSCLS series
NET WEIGHT (kg)
1000
4.1
2000
4.1
5000
4.1
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22)
R e v. 0 . 0
Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
86
CLS COMPRESSION LOAD CELLS - LOW PROFILE DIMENSIONS (mm) 4x Ø14 17.5
F kg 1000
M12 x 1.75
kg 2000
M12 x 1.75
kg 5000
M20 x 2.5
90
150
115
105 34
17.5 150
7
M6x1
17.5
115
17.5
*
15
1/4 gas
3 35
max 32.5
16
F
Peso : 4.2 kg
WARNING! Max dimension todiinsert the boltbullone to allowper the ATTENZIONE! Massima quota inserimento * corretto cell to perform properlycella funzionamento
TECHNICAL FEATURES Material
AISI 420 stainless steel
Nominal load (E max)
1000 - 2000 - 5000 kg
Combined error
≤±0.03%
Protection rating
IP68
rated output
2 mV/V ±0.4%
Input resistance
385 Ω ±10
Temperature effect on zero
0.002% °C
output resistance
350 Ω ±3
Temperature effect on span
0.012% °C
Zero balance
±1%
Compensated temperature range
-10 °C / +50 °C
Insulation resistance
>5000 MΩ
operating temperature range
-20 °C / +70 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
250%
Max supply voltage without damage
15 V
Deflection at nominal load
0.3 mm
ELECTRICAL CONNECTIONS 10 m
SHIELD
Cable diameter
6 mm
+ SIgNAL
grEEN
Cores
6 x 0.25 mm2
+ EXCITATIoN + REF./SENSE
rED BLUE
- SIgNAL
WHITE
- EXCITATIoN - REF./SENSE
BLACK YELLoW
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
87
CBL COMPRESSION LOAD CELLS - LOW PROFILE
Capacity from 250 kg to 100000 kg MoUNTINg KITS
V10000/V10275-EN1090 series
V15000/V100000-EN1090 series
Z10000
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.03% (0.02% C3) IP68 ProTEcTIoN rATINg
kg
CAPACITY
Z15000/100000 series
ACCURACY CLASS
NET WEIGHT (kg)
C2
C3
250
–
–
–
1.1
500
–
–
–
1.1
1000
–
–
–
1.1
2500
1.1
5000
1.1
7500
1.1
10000
1.1
12500
–
15000
–
–
–
2.1
30000
–
–
–
3.8
50000
–
–
–
8.6
100000
–
–
–
9.1
1.6
R e v. 0 . 0
ON REQUEST
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
88
CBL COMPRESSION LOAD CELLS - LOW PROFILE CERTIFICATIONS oIML r60 c2 complies with the Eurasian customs Union regulations Equivalent of the cE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Declaration of conformity + IP69K marking protection rating IP69K
Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from a distance of max 150 mm) Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)
calibration report LAT Accredia calibration certificate ISo 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) ATEX/IEcEx (zone 1-21) oIML r60 c3 complies with the Eurasian customs Union regulations for use in potentially explosive atmospheres complies with chinese market regulations for use in potentially explosive atmospheres complies with the regulations of the russian Federation for legal for trade use complies with chinese market regulations for legal for trade use
TECHNICAL FEATURES Material
17-4 PH stainless steel -
c2 • 2000
c3 • 3000
250 - 500 - 1000 - 15000 kg 30000 - 50000 - 100000 kg
2500 - 5000 kg 7500 - 10000 kg
2500 - 5000 - 7500 kg 10000 - 12500 kg
-
E max / 15000
E max / 15000
≤±0.03%
≤±0.03%
≤±0.02%
OIML R60 Accuracy class • Verification intervals Nominal load (E max) Minimum verification interval (V min) combined error
IP68
Protection rating rated output
2 mV/V ±0.1%
Input resistance
700 Ω ±10
Temperature effect on zero
0.005% °C
output resistance
700 Ω ±10
Temperature effect on span
0.003% °C
Zero balance
±1%
Temperature range oIML r60
-10 °C / +40 °C
Insulation resistance
>10000 MΩ
compensated temperature range
-20 °C / +70 °C
Safe overload (% of full scale)
150%
operating temperature range
-30 °C / +90 °C
Ultimate overload (% of full scale)
300%
creep at nominal load in 30 minutes
0.03%
Deflection at nominal load
0.4 mm
Max supply voltage without damage
15 V
ELECTRICAL CONNECTIONS cable length
5 m*(250-10000 kg); 10 m (12500-100000 kg)
SHIELD
cable diameter
5 mm
+ SIgNAL
grEEN
cores
6 x 0.14 mm
+ EXcITATIoN + REF./SENSE
rED BLUE
- SIgNAL
WHITE
- EXcITATIoN - rEF./SENSE
BLAcK YELLoW
2
*) On request: 10 m long cable version
R e v. 0 . 0
The ATEX/IECEx zone 1–21 (except for 250 kg and 500 kg capacities) and OIML R60 C3 approved load cells are equipped with a 10 m long cable
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
89
CBL COMPRESSION LOAD CELLS - LOW PROFILE OPTIONS ON REQUEST DESCRIPTION
10 m long cable version for 1000-10000 kg capacities
AISI 420 stainless steel load cell version (not OIML approved)
Two redundant strain gauges Wheatstone bridges (350 Ω) with two output cables; for dual safety systems
COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
AISI 304 stainless steel threaded upper base for compression load cells.
M12x1.75 mm
BASESUPFIL
AISI 304 stainless steel turned lower base for compression load cells.
Ø110x22 mm Ø140x23 mm Ø180x23 mm
BINF100 BINF126 BINF165
BASESUP P10000
Turned upper and lower bases in AISI 304 stainless steel. Load cell capacity: up to 12500 kg.
BASESUP BASEINF
Lower plate and turned lower base in AISI 304 stainless steel. Load cell capacity: up to 12500 kg.
BASEINF PIASTrA200
R e v. 0 . 0
Lower plate and turned upper base in AISI 304 stainless steel. Load cell capacity: up to 12500 kg.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
90
CBL COMPRESSION LOAD CELLS - LOW PROFILE DIMENSIONS (mm) D
kg A B C D E F
E
C
B
1/4 gas
F
A
250 : 50000 12500 15000 30000 100000 Ø82 Ø100 Ø126 Ø164 54 48 80 44 32 35 40 60 Ø22 Ø28 Ø35 Ø60 26 14 14 14 15 15 15 15
BASESUP BASESUP
BASESUP 4x Ø15
22 5
4
PIASTRA200
17.5
4x Ø14
PIASTRA200
25
P10000
68
BASEINF
BASEINF
10
P10000
load cell
81
71
load cell
load cell
24
17.5
115
18 90 25
17.5
M8x1.25
18
17.5
2
22
90
200
BASEINF 150
BoLTS To FIX
BOLTS TO FIX THE LOAD CELL THELoAD cELL
150
115
50
150
25
25
150 200
BASESUPFIL
C D 11
60
Ø26
B
10
M12x1.75
BINF
Ø11
A
B
C
BINF100
Ø110
22
Ø102
D 2
BINF126
Ø140
23
Ø128
3
BINF165
Ø180
23
Ø167
3
A
R e v. 0 . 0
Ø60
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
91
CX COMPRESSION LOAD CELLS - LOW PROFILE
Capacity from 1000 kg to 30000 kg
AISI 420 STAINLESS STEEL COMBINED ERROR ≤ ±0.05% IP68 ProTECTIoN rATINg
MoUNTINg KITS
V10000 - V10275
V15000 - V30000 - V100000
kg
CAPACITY
Z10000
Z15000/100000
NET WEIGHT (kg)
CODE
1000
1.1
CX1000L
2500
1.1
CX2500L
5000
1.1
CX5000L
7500
1.1
CX7500L
10000
1.1
CX10000L
15000
1.4
CX15000L
30000
2.2
CX30000L
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Declaration of conformity + IP69K marking protection rating IP69K
Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from a distance of max 150 mm) Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)
Calibration report LAT Accredia calibration certificate ISo 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22)
R e v. 0 . 0
Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
92
CX COMPRESSION LOAD CELLS - LOW PROFILE TECHNICAL FEATURES Material
AISI 420 stainless steel
Nominal load (E max)
1000, 2500, 5000, 7500, 10000, 15000, 30000 kg
Combined error
≤±0.05%
Protection rating
IP68
rated output
2 mV/V ±0.4%
Input resistance
Temperature effect on zero
0.002% °C
output resistance
700 Ω ±5
Temperature effect on span
0.002% °C
Zero balance
±2%
Compensated temperature range
765 Ω ±15
-10 °C / +50 °C
Insulation resistance
>5000 MΩ
operating temperature range
-20 °C / +60 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.4 mm
ELECTRICAL CONNECTIONS Cable length
10 m
Cable diameter
5 mm
Cores
6 x 0.25 mm
SHIELD
2
+ SIgNAL
grEEN
+ EXCITATIoN + rEF./SENSE
rED BLUE
- SIgNAL
WHITE
- EXCITATIoN - rEF./SENSE
BLACK YELLoW
COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
AISI 304 stainless steel threaded upper base for compression load cells.
M12x1.75 mm
BASESUPFIL
AISI 304 stainless steel turned lower base for compression load cells.
Ø110x22 mm
BINF100
BASESUP P10000
Turned upper and lower bases in AISI 304 stainless steel. Load cell capacity: up to 15000 kg.
BASESUP BASEINF
Lower plate and turned lower base in AISI 304 stainless steel. Load cell capacity: up to 15000 kg.
BASEINF PIASTrA200
R e v. 0 . 0
Lower plate and turned upper base in AISI 304 stainless steel. Load cell capacity: up to 15000 kg.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
93
CX COMPRESSION LOAD CELLS - LOW PROFILE DIMENSIONS (mm) 3x I
1000 : 15000 30000
D
E
H
C
B
1/4 gas
F
A
G
A
Ø82
B
44
48
C
32
35
D
Ø22
Ø28
E
14
14
F
18
18
G
Ø70
Ø80
H
17
23
I
M8
M10
Ø100
BASESUP BASESUP
BASESUP 4x Ø15
22 5
4
PIASTRA200
17.5
4x Ø14
PIASTRA200
25
P10000
68
BASEINF
BASEINF
10
P10000
load cell
81
71
load cell
load cell
24
17.5
115
18 90 25
17.5
M8x1.25
18
17.5
2
22
90
200
BASEINF 150
BoLTS To FIX
BOLTS TO FIX CELL THE LOAD CELL THE LoAD
150
115
50
150
25
25
150 200
BASESUPFIL
BINF C D
60
11
Ø26
B
10
M12x1.75
BINF100
A
B
C
D
Ø110
22
Ø102
2
Ø11 A
R e v. 0 . 0
Ø60
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
94
CBX COMPRESSION LOAD CELLS - LOW PROFILE
MoUNTINg KITS Manufactured according to oIML r60 standards
Capacity from 15000 kg to 50000 kg V10000/V10275-EN1090 series
V15000/V100000-EN1090 series
Z10000
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.035% IP68 ProTEcTIoN rATINg Z15000/100000 series
kg
CAPACITY
NET WEIGHT (kg)
15000
1.4
30000
2.2
50000
3.8
CERTIFICATIONS complies with the Eurasian customs Union regulations Equivalent of the cE marking for the United Kingdom CERTIFICATIONS ON REQUEST
calibration report ATEX (zone 2-22) ATEX/IEcEx (zone 1-21) complies with the Eurasian customs Union regulations for use in potentially explosive atmospheres complies with chinese market regulations for use in potentially explosive atmospheres
OPTIONS ON REQUEST DESCRIPTION
R e v. 0 . 0
Two redundant strain gauges Wheatstone bridges (350 Ω) with two output cables; for dual safety systems
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
95
CBX COMPRESSION LOAD CELLS - LOW PROFILE TECHNICAL FEATURES Material
17-4 PH stainless steel
Nominal load (E max)
15000 - 30000 - 50000 kg
combined error
≤±0.035%
Protection rating
IP68
rated output
2 mV/V ±0.1%
Input resistance
Temperature effect on zero
0.005% °C
output resistance
700 Ω ±5
Temperature effect on span
0.005% °C
Zero balance
±1%
compensated temperature range
700 Ω ±5
-10 °C / +50 °C
Insulation resistance
>10000 MΩ
operating temperature range
-20 °C / +70 °C
Safe overload (% of full scale)
150%
creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.4 mm
ELECTRICAL CONNECTIONS cable length
10 m
cable diameter
5 mm
cores
6 x 0.14 mm
SHIELD
2
+ SIgNAL
grEEN
+ EXcITATIoN + REF./SENSE
rED BLUE
- SIgNAL
WHITE
- EXcITATIoN - rEF./SENSE
BLAcK YELLoW
COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
AISI 304 stainless steel threaded upper base for compression load cells.
M12x1.75 mm
BASESUPFIL
AISI 304 stainless steel turned lower base for compression load cells.
Ø110x22 mm Ø140x23 mm
BINF100 BINF126
Lower plate and turned upper base in AISI 304 stainless steel. Load cell capacity: up to 15000 kg.
BASESUP P10000
Turned upper and lower bases in AISI 304 stainless steel. Load cell capacity: up to 15000 kg.
BASESUP BASEINF
Lower plate and turned lower base in AISI 304 stainless steel. Load cell capacity: up to 15000 kg.
BASEINF PIASTrA200
AISI 304 stainless steel adapter for mounting kit:
R e v. 0 . 0
- V15000 - V30000 - V100000
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
for Ø82 mm load cells for Ø100 mm load cells for Ø126 mm load cells
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ADAT100 ADAT126 ADAT165
ISO
9001
ISO 14001
www.laumas.com
96
CBX COMPRESSION LOAD CELLS - LOW PROFILE DIMENSIONS (mm) D
kg A B C D E F
E
C
B
1/4 gas
A
F
15000 Ø82 44 32 Ø22 14 15
30000 Ø100 48 35 Ø28 14 15
50000 Ø126 54 40 Ø35 14 15
BASESUP BASESUP
BASESUP 4x Ø15
22 5
4
PIASTRA200
17.5
4x Ø14
PIASTRA200
25
P10000
68
BASEINF
BASEINF
10
P10000
load cell
81
71
load cell
load cell
24
17.5
115
18 90 25
17.5
M8x1.25
18
17.5
2
22
90
200
BASEINF 150
BoLTS To FIX
BOLTS TO FIX THE LOAD CELL THELoAD cELL
150
115
50
150
25
25
150 200
BASESUPFIL
C D 11
60
Ø26
B
10
M12x1.75
BINF
Ø11
A
B
C
BINF100
Ø110
22
Ø102
D 2
BINF126
Ø140
23
Ø128
3
BINF165
Ø180
23
Ø167
3
A
R e v. 0 . 0
Ø60
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
kg
1500
A B C D E F
Ø82 44 32 Ø22 14 15
97
CBLS COMPRESSION LOAD CELLS - LOW PROFILE
Manufactured according to OIML r60 standards
Capacity from 200000 kg to 750000 kg
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.10% IP68 PrOTEcTION rATINg
kg
CAPACITY
NET WEIGHT (kg)
200000
20
300000
42
500000
60
750000
60
CERTIFICATIONS complies with the Eurasian customs Union regulations Equivalent of the cE marking for the United Kingdom CERTIFICATIONS ON REQUEST
calibration report ATEX (zone 2-22) ATEX/IEcEx (zone 1-21) complies with the Eurasian customs Union regulations for use in potentially explosive atmospheres complies with chinese market regulations for use in potentially explosive atmospheres
OPTIONS ON REQUEST DESCRIPTION
Two redundant strain gauges Wheatstone bridges (350 Ω) with two output cables; for dual safety systems
COMPLEMENTARY ACCESSORIES DESCRIPTION
R e v. 0 . 0
Upper loading base.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
CODE
Dimensions:
Maximum static load:
Ø119 mm; h=60 mm Ø198 mm; h=60 mm Ø198 mm; h=89 mm
200000 kg 300000 kg 500000 - 750000 kg
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
BOTTONE200 BOTTONE BOTTONE750
9001
ISO 14001
www.laumas.com
98
CBLS COMPRESSION LOAD CELLS - LOW PROFILE DIMENSIONS (mm)
F
4x G
O
Base di loading carico Upper superiore base
P
H
N M
1/2 GAS G1
300t
500-750t
Ø229
Ø299
Ø299
B
Ø136.5
Ø228
Ø230
C
Ø87
Ø155
Ø155
D
60
73
106
E
10
12
14
F
Ø200
Ø260
Ø260
G
Ø10.5
Ø12.5
Ø12.5 Ø18.5
G1
Ø16.5
Ø18.5
G2
10.5
12.5
12.5
H
142±1
180±2
180±2 25
30
25
60
50
50
weight
20kg
42kg
60kg
200t
300t
500-750t
M
Ø119
Ø198
Ø198
E
I L
I
D
G2
Q
C
200t A
5
B A
L
N
Ø88
Ø156
Ø158
O
60
60
89
P
5
5
9
Q
125
140
200
TECHNICAL FEATURES Material
17-4 PH stainless steel
Nominal load (E max)
200000 - 300000 - 500000 - 750000 kg
combined error
≤±0.10%
Protection rating
IP68
rated output
2 mV/V ±0.1%
Input resistance
700 Ω ±20
Temperature effect on zero
0.005% °C
Output resistance
700 Ω ±5
Temperature effect on span
0.005% °C
Zero balance
±1%
compensated temperature range
-20 °C / +70 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-30 °C / +90 °C
Safe overload (% of full scale)
150%
creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.4 mm
ELECTRICAL CONNECTIONS 10 m
SHIELD
cable diameter
5 mm
+ SIgNAL
grEEN
cores
6 x 0.14 mm2
+ EXcITATION + REF./SENSE
rED BLUE
- SIgNAL
WHITE
- EXcITATION - REF./SENSE
BLAcK BrOWN
R e v. 0 . 0
cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
99
A1 - LOAD CELLS PRODUCTS CATALOG
Capacity
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
PAGE
A1.7
COLUMN
COK
15000, 25000, 50000 kg
101
COD
25000, 50000 kg
103
CO
25000 kg
106
COL
30000 kg
108
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
100
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
101
COK COLUMN LOAD CELLS
Capacity from 15000 kg to 50000 kg
MOUNTINg KIT
VCOKDTL
AISI 4340 NICKEL PLATED STEEL COMBINED ERROR ≤ ±0.02% IP68 PROTECTION RATINg KITCOK MOUNTINg ACCESSORY INCLUDED ACCURACY CLASS
kg
CAPACITY
NET WEIGHT (kg)
C3
15000
3.3
25000
3.5
50000
3.7
25000
4
Anti-rat Cable ON REQUEST
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report ATEX (zone 2-22) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
R ev. 0 .0
Complies with the regulations of the Russian Federation for legal for trade use
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
102
COK COLUMN LOAD CELLS COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
AISI 5140 nickel plated steel accessory composed by antirotation system, protective rubber seal, 2 bases (upper and lower) and 3 self-centering cylindrical plates.
KITCOK
DIMENSIONS (mm) Ø 11
Ø 85 64 Ø165
Ø 44 Ø 48
COK
KITCOK
Ø 76 149
200
150
max 4°
3 x Ø17 120°
max 10
Anti-rotation Perno antirotazione pin
0° 12
COK weight: 3 kg KITCOK weight: 2.7 kg
Ø 85
TECHNICAL FEATURES Material
AISI 4340 nickel plated steel
OIML R60 Accuracy class • Verification intervals
C3 • 3000
Nominal load (E max)
15000 - 25000 - 50000 kg
Minimum verification interval (V min)
E max / 10000
Combined error
≤±0.02%
Protection rating
IP68
Rated output
2 mV/V ±0.1%
Input resistance
780 Ω ±20
Temperature effect on zero
0.002% °C
Output resistance
700 Ω ±10
Temperature effect on span
0.002% °C
Zero balance
±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-30 °C / +70°C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
250%
Max supply voltage without damage
15 V
Deflection at nominal load
0.6 - 1 mm
ELECTRICAL CONNECTIONS 20 m
SHIELD
Cable diameter
6 mm
+ SIgNAL
gREEN
Cores
6 x 0.22 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIgNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW
R ev. 0 .0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
103
COD COLUMN DIGITAL LOAD CELLS
DESCRIPTION
AISI 4340 nickel-plated steel body and AISI 304 stainless steel shell Combined error ≤ ±0.014% IP69K protection rating Two-connector digital output Compatible with WINOX BGE and WTAB BGE Load cell bases with anti-rotation mechanism Earthing cable Pipe clamps Lightning and electrical shock protection
R ev. 0 .0
CAPACITY
ACCURACY CLASS
kg
NET WEIGHT (kg)
CONNECTION CABLE
25000
3.5
-
50000
3.7
-
25000
3.5
5 metres
50000
3.7
5 metres
25000
3.5
10 metres
50000
3.7
10 metres
LAUMAS S.r.l. Fax: (+39) 0521 681091
C5
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
104
COD COLUMN DIGITAL LOAD CELLS CERTIFICATIONS OIML R60 C5 Equivalent of the CE marking for the United Kingdom Declaration of conformity + IP69K marking protection rating IP69K
Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from a distance of max 150 mm) Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)
CERTIFICATIONS ON REQUEST
Calibration report Complies with Chinese market regulations for legal for trade use
OPTIONS ON REQUEST DESCRIPTION
Anti-rat cable for connecting to indicator, length: 20 m, equipped with connector on one end only.
Anti-rat cable, length: 10 m, equipped with connector on both ends.
Anti-rat cable, length: 5 m, equipped with connector on both ends.
DIMENSIONS (mm) 2xØ83.5
25 10
35
2xØ64
Ø99
R ev. 0 .0
4xØ15
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
4xØ10
22
12
10
35
129
140
150
200
Ø105
2xM8
ISO
9001
ISO 14001
www.laumas.com
105
COD COLUMN DIGITAL LOAD CELLS TECHNICAL FEATURES Material
AISI 4340 nickel-plated steel body and AISI 304 stainless steel shell
OIML R60 Accuracy class • Verification intervals
C5 • 5000
Nominal load (E max)
25000 - 50000 kg
Minimum verification interval (V min)
E max / 10000
Combined error
≤±0.014%
Protection rating
IP69K
Temperature effect on zero
0.0015% °C
Recommended power supply voltage
9÷12 VDC
Temperature effect on span
0.0015% °C
Safe overload (% of full scale)
150%
Compensated temperature range
-10 °C / +40 °C
Ultimate overload (% of full scale)
300%
Operating temperature range
-30 °C / +70°C
RS485 serial interface
Halfduplex
Creep at nominal load in 30 minutes
0.02%
Maximum transmission distance
1200 m
Max supply voltage without damage
20 VDC
ELECTRICAL CONNECTIONS Cable length
5 m/10 m
Cable diameter
8.8 mm
Cores
4 x 0.2 mm
SHIELD
2
+ RS485
WHITE
+ EXCITATION
BLUE
- RS485
RED
- EXCITATION
BLACK
EXAMPLE OF APPLICATION Connection in series of the load cells
WINOX BGE
R e v. 0 . 0
WTAB BGE
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
106
CO COLUMN LOAD CELLS
Capacity 25000 kg
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.017% IP68 PROTECTION RATINg LIgHTNINg PROTECTION
ACCURACY CLASS
kg
CAPACITY
NET WEIGHT (kg)
C4
25000
2.4 ON REQUEST
CERTIFICATIONS OIML R60 C4 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report ATEX (zone 2-22) ATEX/IECEx (zone 1-21) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres FM HazLoc - Complies with the United States and Canada regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres Complies with the regulations of the Russian Federation for legal for trade use
R e v. 0 . 0
COMPLEMENTARY ACCESSORIES
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
DESCRIPTION
CODE
Stainless steel accessory composed by anti-rotation system with O-ring and 2 bases (upper and lower).
KITCO
Kit composed by 2 AISI 5140 nickel plated steel plates (upper and lower) for KITCO bases.
PIACO
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
107
CO COLUMN LOAD CELLS DIMENSIONS (mm) 150 11 15
CO
118.5
33
PIACO
66
KITCO
load cell CO
50
186.5
Ø 40
*
3
15
Anti-rotation system Sistema antirotazione *(pin and O-ring) (perno più O-ring)
Ø89
150
PIACO
KITCO
Base base superiore Upper
Ø30.4
Ø18
30 27 20
Lower Base base inferiore
Ø18
17.5
17.5
17.5
3 42 70 76
Lower plate Piastra inferiore 17.5
Upper Piastraplate superiore
65 100
46 29
11
65 100
70 43 30
CO = 2.4 kg KITCO = 1.8 kg PIACO = 3.4 kg
Ø 40
17.5
115 150
115 150
17.5
TECHNICAL FEATURES Material
17-4 PH stainless steel
OIML R60 Accuracy class • Verification intervals
C4 • 4000
Nominal load (E max)
25000 kg
Minimum verification interval (V min)
E max / 15000
Combined error
≤±0.017%
Protection rating
IP68
Rated output
2 mV/V ±1%
Input resistance
700 Ω ±7
Temperature effect on zero
0.002% °C
Output resistance
700 Ω ±7
Temperature effect on span
0.002% °C
Zero balance
±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-30 °C / +65°C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.02%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
18 V
Deflection at nominal load
0.6 - 1 mm
ELECTRICAL CONNECTIONS 15 m
SHIELD
Cable diameter
5 mm
+ SIgNAL
gREEN
Cores
4 x 0.24 mm2
+ EXCITATION
RED
- SIgNAL
WHITE
- EXCITATION
BLACK
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
108
COL COLUMN LOAD CELLS
Capacity 30000 kg
MOUNTINg KIT
VCOKDTL
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.017% IP68 PROTECTION RATINg
ACCURACY CLASS
kg
CAPACITY
NET WEIGHT (kg)
C4
30000
2.4 ON REQUEST
CERTIFICATIONS OIML R60 C4 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report ATEX (zone 2-22) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres Complies with the regulations of the Russian Federation for legal for trade use
COMPLEMENTARY ACCESSORIES CODE
Hardened AISI 420 stainless steel accessory composed by anti-rotation system, protective rubber seal, 2 bases (upper and lower) and 3 self-centering cylindrical plates.
KITCOL
R e v. 0 . 0
DESCRIPTION
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
109
COL COLUMN LOAD CELLS DIMENSIONS (mm) Ø165
Ø85
3 x Ø 17.5
F
Ø64
Ø11
120°
1/4 gas
Ø 44
E KITCOL
0°
12
A
B
C
200
150
123
Ø 76
COL
C
A
F
B
D
D max. E ( max. angle) F ( curvature radius) weight 13
160°
5°
2.4 kg
KITCOL weight = 3 kg
TECHNICAL FEATURES Material
17-4 PH stainless steel
OIML R60 Accuracy class • Verification intervals
C4 • 4000
Nominal load (E max)
30000 kg
Minimum verification interval (V min)
E max / 10000
Combined error
≤±0.017%
Protection rating
IP68
Rated output
2 mV/V ±0.1%
Input resistance
800 Ω ±30
Temperature effect on zero
0.002% °C
Output resistance
700 Ω ±10
Temperature effect on span
0.0012% °C
Zero balance
±2%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Operating temperature range
-30 °C / +70°C
Safe overload (% of full scale)
120%
Creep at nominal load in 30 minutes
0.016%
Ultimate overload (% of full scale)
200%
15 V
Deflection at nominal load
0.6 - 1 mm
Max supply voltage without damage Calibrated current output
ELECTRICAL CONNECTIONS 20 m
SHIELD
Cable diameter
6 mm
+ SIgNAL
gREEN
Cores
6 x 0.22 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIgNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
110
A1 - LOAD CELLS PRODUCTS CATALOG
Capacity
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
PAGE
A1.8
COMPRESSION / TENSION
CLBT
50, 100, 500 kg
112
CL
500, 1000, 2000, 5000, 10000, 20000, 30000, 60000, 100000, 150000, 200000 kg
111
CLR
500, 1000, 2000, 5000, 10000, 20000, 30000, 60000, 100000, 200000 kg
116
CLK
10000, 20000 kg
118
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
111
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
112
CLBT COMPRESSION/TENSION LOAD CELLS
Manufactured according to OIML r60 standards
Capacity from 50 kg to 500 kg
50-100 kg: ALUMINUM ALLOY (AvIONAL) 500 kg: 17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.05% IP65 PrOTECTION rATINg
CAPACITY
kg
NET WEIGHT (kg)
50
0,15
100
0,15
500
0,25
COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
Lower base
BINFCLBT
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report
R e v. 0. 0
ATEX (zone 2-22) ATEX/IECEx (zone 1-21)
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
113
CLBT COMPRESSION/TENSION LOAD CELLS DIMENSIONS (mm) CLBT
BINFCLBT
4x Ø3.25
4x M3
PRESSACAVO M6
8.5
8.5
Ø3
Ø3
M8
1
20
15
5
30
Ø45
M8
Ø32,5 Ø45
TECHNICAL FEATURES Material Nominal load (E max)
Aluminum alloy (Avional)
17-4 PH stainless steel
50 - 100 kg
500 kg
Combined error
≤±0.05%
Protection rating
IP65
rated output
2 mV/V ±10%
Input resistance
Temperature effect on zero
0.005% °C
Output resistance
700 Ω ±5
Temperature effect on span
0.005% °C
Zero balance
±1%
Compensated temperature range
-20 °C / +70 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-30 °C / +90 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 20 minutes
0.03%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
5÷15 v
Deflection at nominal load
0.3 mm
700 Ω ±20
ELECTRICAL CONNECTIONS Cable length
5m
Cable diameter
5 mm
Cores
6 x 0.088 mm
SHIELD
R e v. 0. 0
2
+ SIgNAL
grEEN
+ EXCITATION + REF./SENSE
rED BLUE
- SIgNAL
WHITE
- EXCITATION - REF./SENSE
BLACK BrOWN
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
114
CL COMPRESSION/TENSION LOAD CELLS
Manufactured according to OIML R60 standards
Capacity from 500 kg to 200000 kg
17-4 PH STAINLESS STEEL BIDIRECTIONAL TENSION AND COMPRESSION COMBINED ERROR ≤ ±0.05% PROtECtION RatINg: IP68 (500 - 60000 kg) - IP67 (100000 - 200000 kg)
kg
NET WEIGHT (kg)
500
1.2
1000
1.2
2000
1.2
5000
1.7
10000
1.8
20000
4.8
30000
5.3
60000
5.4
100000
12
150000
15
200000
25
CAPACITY
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) ATEX/IECEx (zone 1-21) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
OPTIONS ON REQUEST DESCRIPTION
R e v. 0 . 0
two redundant strain gauges Wheatstone bridges (350 Ω) with two output cables; for dual safety systems.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
115
CL COMPRESSION/TENSION LOAD CELLS DIMENSIONS (mm)
H
F
B
kg 500 kg 1000 kg 2000
G
L
C
E D A
8x I 12x I (CL kg 200000)
1/4 gas
kg 20000 kg 5000 kg 30000 kg 10000 kg 60000
kg 100000 kg 150000 kg 200000
A
Ø 85
Ø 94
Ø 136
Ø 175
Ø 213
Ø 254
B
Ø 99
Ø 109
Ø 164
Ø 219
Ø 249
Ø 299
C
Ø 31
Ø 38
Ø 70
Ø 88
Ø 140
Ø 170
D
Ø 72
Ø 78
Ø 113
Ø 135
Ø 176
Ø 210
E
M20 x1.5
M24 x 2
M48 x 3
M64 x 4
M72 x 4
M90 x 6 5
F
2
2
5
5
5
G
1.5
1.5
2
3
3
3
H
30
35
50
70
70
80
I (•)
Ø 8.5
Ø 8.5
Ø 16.5
Ø 26
Ø 26
Ø 26
L
68.5
73.5
101
128.5
143.5
168.5
Weight
1.1
1.4
5
11
16
26
For the load cell fixing screws (•), provide the tightening torque indicated in the table Screw
M8
Screw class tightening torque
6.8
a2-70
15 Nm
M16 8.8
a2-80
6.8
20 Nm
a2-70
120 Nm
M24
8.8
a2-80
6.8
160 Nm
a2-70
8.8
400 Nm
a2-80
550 Nm
for capacities of 10000, 30000, 60000, 150000, 200000 kg use screws of class 8.8 or higher
TECHNICAL FEATURES Material
17-4 PH stainless steel
Nominal load (E max)
500 - 1000 - 2000 - 5000 - 10000 - 20000 - 30000 - 60000 - 100000 - 150000 - 200000 kg
Combined error
≤±0.05%
Protection rating
IP68 (500 - 60000 kg), IP67 (100000 - 200000 kg)
Rated output
2 mV/V ±0.3%
Input resistance
700 Ω ±20
Temperature effect on zero
0.005% °C
Output resistance
700 Ω ±5
temperature effect on span
0.005% °C
Zero balance
±1%
Compensated temperature range
-20 °C / +70 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-30 °C / +90 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.3%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.3 mm
ELECTRICAL CONNECTIONS 5m
SHIELD
Cable diameter
5 mm
+ SIGNAL
GREEN
Cores
6 x 0.14 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIGNAL
WHItE
- EXCITATION - REF./SENSE
BLaCK BROWN/YELLOW
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
116
CLR COMPRESSION/TENSION LOAD CELLS Capacity from 500 kg to 200000 kg
17-4 PH STAINLESS STEEL SPokE TyPE STrucTurE COMBINED ERROR ≤ ±0.03% PROtECtION RatINg: IP68 (500 - 30000 kg) - IP67 (60000 - 200000 kg) HIgH fatIguE REsIstaNCE: OvER 20 MIllION wORkINg CyClEs kg
CONNECTION TYPE
NET WEIGHT (kg)
500
cable gland M8
-
1000
cable gland M8
-
cable gland M8
-
connector
-
cable gland M8
-
connector
-
cable gland M8
-
connector
-
cable gland M8
-
connector
-
cable gland M8
-
connector
-
60000
connector
-
100000
connector
-
200000
connector
-
CAPACITY
2000 5000 10000 20000 30000
CERTIFICATIONS Equivalent of the cE marking for the united kingdom CERTIFICATIONS ON REQUEST
calibration report
Re v. 0. 0
ATEX (zone 2-22) ATEX/IEcEx (zone 1-21)
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
117
CLR COMPRESSION/TENSION LOAD CELLS DIMENSIONS (mm) 10000 - 30000 kg
Ø90
Ø150
Ø185
3
M12
21 M36x3
3
3
16
19
34
40
44
2
2
2000 - 5000 kg
2
500 - 1000 kg
M24x2
Ø135
Ø110
Ø65
8x Ø13
Ø70
Ø160
Ø50
Ø130
Ø19.9
8x Ø11
100000 kg
200000 kg
Ø240
Ø295
Ø390
60
123 4
M45x3 Ø160
M80x4 Ø200
12x Ø17
M120x4 Ø270
Ø330
24x Ø26
Ø185
Ø250
Ø125
16x Ø21
Ø85
Ø200
4
3
50
30
105
62
3
5
60000 kg
2
Ø75
4x Ø6.6
TECHNICAL FEATURES Material
17-4 PH stainless steel
Nominal load (E max)
500 - 1000 - 2000 - 5000 - 10000 - 20000 - 30000 - 60000 - 100000 - 200000 kg
combined error
≤±0.03%
Protection rating
IP68 (500 - 30000 kg), IP67 (60000-200000 kg)
rated output
2 mv/v ±0.1%
Input resistance
700 Ω ±20
Temperature effect on zero
0.005% °C
output resistance
700 Ω ±5
Temperature effect on span
0.005% °C
Zero balance
±1%
compensated temperature range
-10 °C / +50 °C
Insulation resistance
>5000 MΩ
operating temperature range
-20 °C / +70 °C
safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.05%
ultimate overload (% of full scale)
300%
Max supply voltage without damage
5 ÷ 15 VDc
Deflection at nominal load
0.35 mm
ELECTRICAL CONNECTIONS cable length
5m
cable diameter
5 mm
cores
6 x 0.14 mm
SHIELD
Re v. 0. 0
2
+ SIGNAL
GrEEN
+ EXcITATIoN + REf./sENsE
rED BLuE
- SIGNAL
wHItE
- EXcITATIoN - REf./sENsE
BLAck BROwN/yEllOw
The Company re se r ve s the r ight to make cha ng es to t he technica l d a t a , d ra wings a nd ima g es wit ho ut no t ice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
118
CLK COMPRESSION/TENSION LOAD CELLS
Manufactured according to OIML R60 standards
Capacity from 10000 kg to 20000 kg
SPECIAL STEEL BIDIRECTIONAL TENSION AND COMPRESSION COMBINED ERROR ≤ ±0.1% IP67 PROTECTION RATINg
kg
CAPACITY
NET WEIGHT (kg)
10000
10.5
20000
11
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22)
R e v. 0 . 0
Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
119
CLK COMPRESSION/TENSION LOAD CELLS DIMENSIONS (mm)
27.5
Ø11
55
2.5 Ø133
Ø155 2
Ø106
2 1
50
90
M30x2
50
20
8x M10x75 2
8x M10x1.5
TECHNICAL FEATURES Material
Special steel
Nominal load (E max)
10000 - 20000 kg
Combined error
≤ ±0.1%
Protection rating
IP67
Rated output
2 mV/V ±0.3%
Input resistance
352 Ω ±3
Temperature effect on zero
0.002% °C
Output resistance
400 Ω ±20
Temperature effect on span
0.002% °C
Zero balance
±1%
Compensated temperature range
-10 °C / +50 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-30 °C / +70 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
200%
Max supply voltage without damage
15 V
Deflection at nominal load
0.3 mm
ELECTRICAL CONNECTIONS 12 m
SHIELD
Cable diameter
6 mm
+ SIgNAL
gREEN
Cores
6 x 0.24 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIgNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
120
A1 - LOAD CELLS PRODUCTS CATALOG
Capacity
PAGE
A1.9
TENSION (COMPRESSION)
SA
15, 30, 60 kg
122
SL
25, 100, 200, 300, 500, 1000, 2500 kg
124
50, 100, 200, 300 kg
CTOL
127 500, 1000, 2500, 5000 kg
CTL
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
100, 200, 300, 500, 1000, 2500, 5000, 7500, 10000, 12500 kg
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
130
www.laumas.com
121
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
122
SA TENSION (COMPRESSION) LOAD CELLS
Capacity from 15 kg to 60 kg
AISI 4140 NICKEL PLATED STEEL COMBINED ERROR ≤ ±0.02% IP65 PROTECTION RATINg ACCuRACY CLASS
kg
CAPACITY
NET WEIGHT (kg)
C3
15
0.28
30
0.28
60
0.28
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQuEST
Calibration report ATEX (zone 2-22) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
COMPLEMENTARY ACCESSORIES DESCRIPTION
Dimensions:
Load cell capacity:
M6x1
15÷60 kg
EM
R e v. 0 . 0
galvanized C40 steel ball-andsocket joint with nut
CODE
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
123
SA TENSION (COMPRESSION) LOAD CELLS DIMENSIONS (mm)
10.5
Overall dimensions with ball-and-socket joints Ball andwith socket joints Overall dimensions ball-and-socket joints
13
10
51
4.5 Ø6
1/4 gas
≈˜ 115.5
36.5
47
63.5
17.5 10.5
2xM6x1
Example Example of of application on the application on tension bar bar the tension mechanical mechanical scale scale
6
TECHNICAL FEATuRES Material
AISI 4140 nickel plated steel
OIML R60 Accuracy class • Verification intervals
C3 • 3000
Nominal load (E max)
15 - 30 - 60 kg
Minimum verification interval (V min)
E max / 8000
Combined error
≤±0.02%
Protection rating
IP65
Rated output
2 mV/V ±10%
Input resistance
381 Ω ±10
Temperature effect on zero
0.0017% °C
Output resistance
350 Ω ±10
Temperature effect on span
0.0013% °C
Zero balance
±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-20 °C / +60°C
Safe overload (% of full scale)
120%
Creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.2 mm
ELECTRICAL CONNECTIONS 3m
SHIELD
Cable diameter
4 mm
+ SIgNAL
gREEN
Cores
4 x 0.24 mm2
+ EXCITATION
RED
- SIgNAL
WHITE
- EXCITATION
BLACK
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
124
SL AL COU ON N TI
HT
E
A
EI
G
SU
ON W
RES
L CI
NA
TENSION (COMPRESSION) LOAD CELLS
S AND M
Capacity from 25 kg to 2500 kg
AISI 4340 NICKEL PLATED STEEL COMBINED ERROR ≤ ±0.02% (0.017% C4) IP67 PROTECTION RATINg
NA
RES
SU
–
HT
E
A
–
AL COU ON N TI
G
EI
C4
ON W
25
C3
L CI
ACCURACY CLASS
kg
CAPACITY
S AND M
NET WEIGHT (kg)
–
100
0.4 0.6
200
–
0.6
300
–
0.6
500
0.7
1000
0.9
2500
1.6 ON REQUEST
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) ATEX/IECEx (zone 1-21) OIML R60 C4 Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres FM HazLoc - Complies with the United States and Canada regulations for use in potentially explosive atmospheres
RES
HT
SU
EI
G
E
A
ON W
R e v. 0 . 0
L CI
NA
Complies with Chinese market regulations for use in potentially explosive atmospheres AL COU ON N TI
S AND M
NTEP - Complies with United States regulations for legal for trade use
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
125
SL TENSION (COMPRESSION) LOAD CELLS COMPLEMENTARY ACCESSORIES DESCRIPTION
DIMENSIONS
LOAD CELL CAPACITY
CODE
stainless steel
M12x1.75 M20x1.5
200-1000 kg 2500 kg
EM-INOX
galvanized C40 steel
M8x1.25 M10x1.5 M12x1.75 M20x1.5
25 kg 100 kg 200-1000 kg 2500 kg
EM
Ball-and-socket joint with nut:
DIMENSIONS (mm)
F1
M
Overalldimensions dimensionswith with Overall ball-and-socket ball-and-socketjoints joints
C
B
J G
Example of application on the tension bar mechanical scale
D
E
M
L
H
N
A
I
F
A
B
C
D
E
F
F1
G
H
I
J
L
M
N ((≈) ˜)
25 kg
76.2
50.8
15.7
M8x1.25
10
14.5
12.7
Ø8
54
8
6.5
42.5
11.5
129
100 kg
76.2
50.8
15.3
M10x1.5
9
22.4
19
Ø10
62.5
9
7.5
48.5
14
142
22.4
19
Ø12
71
10
8.5
54.5
16.5
154
200 kg 300 kg
8 76.2
50.8
14.4
M12x1.75
500 kg
9 9
76.2
50.8
12.5
M12x1.75
10
28.9
25.4
Ø12
71
10
8.5
54.5
16.5
159
2500 kg
101.6
76.2
20
M20x1.5
6
28.9
25.4
Ø20
104.5
16
13.5
77.5
27
217
R e v. 0 . 0
1000 kg
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
126
SL TENSION (COMPRESSION) LOAD CELLS TECHNICAL FEATURES Material
AISI 4340 nickel plated steel
OIML R60 Accuracy class • Verification intervals Nominal load (E max) Minimum verification interval (V min) Combined error
-
C3 • 3000
C4 • 4000
25 kg
100 - 200 - 300 kg 500 - 1000 - 2500 kg
100 - 200 - 300 kg 500 - 1000 - 2500 kg
-
E max / 10000 E max / 15000
E max / 20000
≤±0.02%
≤±0.02%
≤±0.017%
Protection rating
IP67
Rated output
2 mV/V ±0.2%
Input resistance
350 Ω ±3.5
Temperature effect on zero
0.0015% °C
Output resistance
350 Ω ±3.5
Temperature effect on span
0.0017% °C
Zero balance
±1%
Compensated temperature range
-10 °C / +40 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-35 °C / +65 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
18 V
Deflection at nominal load
0.4 mm
ELECTRICAL CONNECTIONS Cable length
5 m (25 - 300 kg); 10 m (500 - 2500 kg)
SHIELD
Cable diameter
5 mm
+ SIgNAL
gREEN
Cores
4 x 0.24 mm
+ EXCITATION
RED
- SIgNAL
WHITE
- EXCITATION
BLACK
R e v. 0 . 0
2
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
127
CTOL TENSION (COMPRESSION) LOAD CELLS Manufactured according to oIML r60 standards
Capacity from 50 kg to 300 kg Capacity from 500 kg to 5000 kg
AISI 420 STAINLESS STEEL COMBINED ERROR ≤ ±0.03% IP67 ProTEcTIoN rATINg
kg
NET WEIGHT (kg)
50
0.7
100
0.7
200
0.7
300
0.7
500
0.7
1000
1.4
2500
1.4
5000
2.7
CAPACITY
CERTIFICATIONS complies with the Eurasian customs Union regulations Equivalent of the cE marking for the United Kingdom CERTIFICATIONS ON REQUEST
calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22)
R e v. 0 . 0
complies with the Eurasian customs Union regulations for use in potentially explosive atmospheres complies with chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
128
CTOL TENSION (COMPRESSION) LOAD CELLS COMPLEMENTARY ACCESSORIES DESCRIPTION
DIMENSIONS
LOAD CELL CAPACITY
CODE
stainless steel
M12x1.75 M16x2 M20x1.5 M24x2
50-500 kg 1000 kg 2500 kg 5000 kg
EM-INoX
galvanized c40 steel
M12x1.75 M16x2 M20x1.5 M24x2
50-500 kg 1000 kg 2500 kg 5000 kg
EM
Ball-and-socket joint with nut:
DIMENSIONS (mm) B with ball-and-socket ball-and-socket joints joints Overall dimensions with
1/4 gas
M
J
G
C
L
N
H
A
I
E
F
M
D
B
C
D
E
F
G
H
I
J
L
M
N ((≈) ˜)
50 kg 500 kg
59.5
63.5
14.5
M12x1.75
17
22
Ø12
71
10
8.5
54.5
16.5
140
1000 kg
78
82
21
M16x2
17
30
Ø17
92
14
11.5
69.5
22.5
176
2500 kg
78
82
21
M20x1.5
17
30
Ø20
104.5
16
13.5
77.5
27
191
5000 kg
90
102
24
M24x2
17
45
Ø25
126
20 17.5
94.5
31.5
230
R e v. 0 . 0
A
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
129
CTOL TENSION (COMPRESSION) LOAD CELLS TECHNICAL FEATURES Material
AISI 420 stainless steel
Nominal load (E max)
50 - 100 - 200 - 300 - 500 - 1000 - 2500 - 5000 kg
combined error
≤±0.03%
Protection rating
IP67
rated output
2 mV/V ±0.4%
Input resistance
385 Ω ±30
Temperature effect on zero
0.0025% °C
output resistance
350 Ω ±10
Temperature effect on span
0.0025% °C
Zero balance
±2%
compensated temperature range
>2000 MΩ
-10 °C / +40 °C
Insulation resistance
operating temperature range
-20 °C / +60 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
250%
Max supply voltage without damage
15 V
Deflection at nominal load
0.4 mm
ELECTRICAL CONNECTIONS 10 m
SHIELD
cable diameter
6 mm
+ SIgNAL
grEEN
cores
6 x 0.20 mm2
+ EXcITATIoN + REF./SENSE
rED BLUE
- SIgNAL
WHITE
- EXcITATIoN - REF./SENSE
BLAcK YELLoW
R e v. 0 . 0
cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
130
CTL TENSION (COMPRESSION) LOAD CELLS
Capacity from 100 kg to 12500 kg
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.02% IP68 PROTECTION RATINg
CAPACITY
kg
ACCURACY CLASS
100
–
–
0.7
200
–
–
0.7
300
–
–
0.7
NET WEIGHT (kg)
C3
500
1.4
1000
1.4
2500
1.4
5000
2.6
7500
2.7
10000
3.7
12500
4.8 ON REQUEST
CERTIFICATIONS OIML R60 C3 Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Declaration of conformity + IP69K marking protection rating IP69K
Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from a distance of max 150 mm) Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) ATEX/IECEx (zone 1-21) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
R ev. 0 .0
Complies with the regulations of the Russian Federation for legal for trade use Complies with Chinese market regulations for legal for trade use
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
131
CTL TENSION (COMPRESSION) LOAD CELLS DIMENSIONS (mm)
D
Overall ball-and-socketjoints joints Overalldimensions dimensions with with ball-and-socket G
I
L
N
H
A
1/4 gas
M
C
J
B
F
M
E
100 kg 200 kg 300 kg
500 kg 1000 kg
2500 kg
A
60
78
78
90
103
B
63
82
82
102
114
5000 kg 10000 kg 12500 kg 7500 kg 120 129
C
14.5
21
21
24
30.5
37
D
M12x1.75
M16x2
M20x1.5
M24x2
M30x2
M36x3
E
29
29
29
29
29
29
F
22
30
30
45
50
55
G
Ø12
Ø17
Ø20
Ø25
Ø30
Ø35
H
71
92
104.5
126
146.5
181
I
10
14
16
20
22
25
J
8.5
11.5
13.5
17.5
19.5
21.5
L
54.5
69.5
77.5
94.5
110
140
M (˜ ) N (≈)
16.5
22.5
27
31.5
36.5
41
143
175
190
235
260
324
OPTIONS ON REQUEST DESCRIPTION
Two redundant strain gauges Wheatstone bridges (350 Ω) with two output cables; for dual safety systems.
COMPLEMENTARY ACCESSORIES DESCRIPTION
DIMENSIONS
LOAD CELL CAPACITY
CODE
stainless steel
M12x1.75 M16x2 M20x1.5 M24x2
100-300 kg 500-1000 kg 2500 kg 5000-7500 kg
EM-INOX
galvanized C40 steel
M12x1.75 M16x2 M20x1.5 M24x2 M30x2 M36x3
100-300 kg 500-1000 kg 2500 kg 5000-7500 kg 10000 kg 12500 kg
EM
R e v. 0 . 0
Ball-and-socket joint with nut:
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
132
CTL TENSION (COMPRESSION) LOAD CELLS TECHNICAL FEATURES Material
17-4 PH stainless steel
OIML R60 Accuracy class • Verification intervals Nominal load (E max)
-
C3 • 3000
100 - 200 - 300 kg
500 - 1000 - 2500 - 5000 kg 7500 - 10000 - 12500 kg
Minimum verification interval (V min)
E max / 10000
Combined error
≤±0.02%
Protection rating
IP68
Rated output
2 mV/V ±0.1%
Input resistance
350 Ω ±5
Temperature effect on zero
0.005% °C
Output resistance
350 Ω ±2
Temperature effect on span
0.003% °C
Zero balance
±1%
Temperature range OIML R60
-10 °C / +40 °C
Insulation resistance
≥5000 MΩ
Compensated temperature range
-20 °C / +70 °C
Safe overload (% of full scale)
150%
Operating temperature range
-30 °C / +90 °C
Ultimate overload (% of full scale)
300%
Creep at nominal load in 30 minutes
0.05%
Deflection at nominal load
0.3 mm
Max supply voltage without damage
15 V
ELECTRICAL CONNECTIONS Cable length
10 m
Cable diameter
5 mm
Cores
6 x 0.14 mm
SHIELD
R e v. 0 . 0
2
+ SIgNAL
gREEN
+ EXCITATION + REF./SENSE
RED BLUE
- SIgNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
133
A1 - LOAD CELLS PRODUCTS CATALOG
Capacity
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
PAGE
A1.10
TENSION
TAL
5000, 10000, 20000 kg
135
TBT
30000, 40000, 50000, 60000, 100000, 250000 kg
137
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
134
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
135
TAL TENSION LOAD CELLS
Manufactured according to OIML R60 standards
Capacity from 5000 kg to 20000 kg
17-4 PH STAINLESS STEEL HOLES FOR STANDARD SHACKLES COMBINED ERROR ≤ ±0.03% IP68 PROTECTION RATINg
kg
CAPACITY
NET WEIGHT (kg)
5000
4.5
10000
4.6
20000
6.6
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report LAT Accredia calibration certificate ISO 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) ATEX/IECEx (zone 1-21) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
OPTIONS ON REQUEST DESCRIPTION
R e v. 0 . 0
Two redundant strain gauges Wheatstone bridges (350 Ω) with two output cables; for dual safety systems.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
136
TAL TENSION LOAD CELLS DIMENSIONS (mm)
D
F
kg 5000 kg 10000 kg 20000
E
H
1/4 gas
D
C
+/-0.2
G
10
B
A
A
76
82
B
45
54
C
33
52
D
35
47
E
130
166
F
106
112
G
100
130
H
200
260
TECHNICAL FEATURES Material
AISI 420 stainless steel
Nominal load (E max)
5000 - 10000 - 20000 kg
Combined error
≤±0.03%
Protection rating
IP68
Rated output
2 mV/V ±0.1%
Input resistance
Temperature effect on zero
0.005% °C
Output resistance
350 Ω ±5
Temperature effect on span
0.003% °C
Zero balance
±1%
Compensated temperature range
350 Ω ±5
-20 °C / +70 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-30 °C / +90 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.3 mm
ELECTRICAL CONNECTIONS Cable length
10 m
SHIELD
Cable diameter
5 mm
+ SIgNAL
gREEN
6 x 0.14 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIgNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW/BROWN
R e v. 0 . 0
Cores
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
137
TBT TENSION LOAD CELLS Manufactured according to OIML R60 standards
Capacity from 30000 kg to 100000 kg
Capacity 250000 kg
17-4 PH STAINLESS STEEL HOLES FOR STANDARD SHACKLES COMBINED ERROR ≤ ±0.08% IP67 - IP68 PROtECtION RatINg kg
CAPACITY
NET WEIGHT (kg)
30000
11
40000
11
50000
11
60000
11
100000
22
250000
64
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
Calibration report ATEX (zone 2-22) ATEX/IECEx (zone 1-21) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
OPTIONS ON REQUEST DESCRIPTION
R e v. 0 . 0
two redundant strain gauges Wheatstone bridges (350 Ω) with two output cables; for dual safety systems.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
138
TBT TENSION LOAD CELLS DIMENSIONS (mm)
B
D
A
E
H
C F
C
D
C
kg 30000 kg 40000 kg 50000 kg 60000
kg 100000
kg 250000
A
100
127
240
B
78
88
110
C
Ø 58
Ø 71
Ø 102
D
50
70
120
E
180
200
360
F
90
120
185
G
65
68
136
H
280
340
600
G
TECHNICAL FEATURES Material
17-4 PH stainless steel
Nominal load (E max)
30000 - 40000 - 50000 - 60000 - 100000 - 250000 kg
Combined error
≤±0.08%
Protection rating
IP68 (30000 - 100000 kg), IP67 (250000 kg)
Rated output
1.0 mV/V ±0.1%
Input resistance
350 Ω ±20
Temperature effect on zero
0.005% °C
Output resistance
350 Ω ±5
temperature effect on span
0.005% °C
Zero balance
±1%
Compensated temperature range
-20 °C / +70 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-30 °C / +90 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.3 mm
ELECTRICAL CONNECTIONS 10 m
SHIELD
Cable diameter
6 mm
+ SIgNaL
gREEN
Cores
6 x 0.14 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIgNaL
WHItE
- EXCITATION - REF./SENSE
BLACK BROWN
R e v. 0 . 0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
139
A1 - LOAD CELLS PRODUCTS CATALOG
PAGE
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
A1.11
DIGITAL LOAD CELLS
LCB
-
141
LCB 3A
-
144
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
140
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
141
LCB UNIVERSAL LOAD CELLS DIGITIZER
DESCRIPTION
INPUTS/OUTPUTS AND COMMUNICATION
LCB transforms an analog load cell (mV/V output) into a digital
1 micro USB port. 3 relay outputs controlled by the setpoint values or via protocols. 2 digital inputs: status reading via serial communication protocols. 1 load cell input.
one; it can also be used on existing load cells to digitize the weighing system. Conceived for IoT applications (Internet of Things). PC configuration software via micro USB port. Status LED of the communication interface. Mounting: wired or integral to the load cell body via standard ¼ GAS fitting (specific adapters for different threads are supplied on request). IP67 box in AISI 304 stainless steel or PA66 nylon reinforced with glass fiber (dimensions: 90x40x107 mm including flying connectors). Suitable for wall mounting (supports included: 2 fixing holes Ø 6 mm; centre distance: 68 mm). 3x IP67 M12 flying connectors included in the supply. The instrument can be configured and managed using the free “Instrument Manager” PC software, which you can download from www.laumas.com.
SUPPORTS FOR WALL MOUNTING
MICRO USB FOR PC CONFIGURATION
EXAMPLE OF APPLICATION WITH LOAD CELL
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom UL Recognized component - Complies with United States and Canada regulations
R ev. 0 .0
FIELDBUSES
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
142
LCB UNIVERSAL LOAD CELLS DIGITIZER INTERFACES AND FIELDBUSES
RS485. Male M12 circular connector, A-coded, 5-pin. Female M12 circular connector, A-coded, 5-pin. Baud rate: 2400, 4800, 9600, 19200, 38400, 115200 (bit/s).
coming soon
RS485 + analog output. Current: 0÷20 mA; 4÷20 mA (up to 400 Ω). Voltage: 0÷10 V; 0÷5 V (min 2 kΩ). Male M12 circular connector, A-coded, 5-pin. Female M12 circular connector, A-coded, 5-pin. IO-Link. 2x male M12 circular connector, A-coded, 4-pin. The instrument works as device in a IO-Link network. CANopen. Male M12 circular connector, A-coded, 5-pin. Female M12 circular connector, A-coded, 5-pin. The instrument works as slave in a CANopen synchronous network. CC-Link IE Field Basic. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as slave in a CC-Link IE Field Basic network. CC-Link. Male M12 circular connector, A-coded, 4-pin. Female M12 circular connector, A-coded, 5-pin. The instrument works as Remote Device Station in a CC-Link network and occupies 3 stations.
coming soon
Profibus DP. Male M12 circular connector, B-coded, 5-pin. Female M12 circular connector, B-coded, 5-pin. The instrument works as slave in a Profibus DP network.
coming soon
Modbus/TCP. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as slave in a Modbus/TCP network. Ethernet TCP/IP. Female M12 circular connector, D-coded, 4-pin. The instrument works in an Ethernet TCP/IP network and it is accessible via web browser.
coming soon
Ethernet/IP. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as adapter in an Ethernet/IP network. PROFINET IO. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as device in a PROFINET IO network. EtherCAT. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as slave in an EtherCAT network. POWERLINK. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as slave in a Powerlink network.
R ev. 0 .0
SERCOS III. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as slave in a Sercos III network.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
143
LCB UNIVERSAL LOAD CELLS DIGITIZER MAIN FUNCTIONS
Connections to:
BASE PROGRAM
Hysteresis and setpoint value setting.
- PLC via analog output or fieldbuses; - PC/PLC via RS485 (up to 99 instruments with line repeaters, up to 32 without line repeaters); - up to 4 load cells in parallel by junction box. TCP/IP WEB APP: integrated software in combination with the Ethernet TCP/IP version for remote supervision, management and control of the instrument. Digital filter to reduce the effects of weight oscillation. Theoretical calibration (via PC software) and real calibration (with sample weights and the possibility of weight linearization up to 8 points). Calibration via characterization values of the load cell. Tare weight zero setting. Automatic zero setting at power-on. Gross weight zero tracking. Semi-automatic tare (net/gross weight) and preset tare. Semi-automatic zero. Direct connection between RS485 and RS232 without converter. Configuration backup and restore via PC software.
SINGLE PRODUCT LOADING PROGRAM 99 settable formulas. Automatic fall calculation. Tolerance error control. Precision batching through slow function. Precision batching through tapping function. Consumption storage. Batching start via external contact or fieldbus.
TECHNICAL FEATURES Power supply and consumption
12÷24 VDC ±10%; 5 W
Number of load cells • Load cells supply
up to 4 (350 Ω) - 4/6 wires • 3.3 VDC/40 mA
Linearity • Analog output linearity
<0.01% full scale • <0.01% full scale
Thermal drift • Analog output thermal drift
<0.0005% full scale/°C • <0.003% full scale/°C
A/D Converter
24 bit (16000000 points) - 4.8 kHz
Divisions (with measurement range ±10 mV and sensitivity 2 mV/V)
±999999 • 6.6 nV/d
Measurement range
±26 mV
Usable load cells sensitivity
±7 mV/V
Conversions per second
500
Decimals • Display increments
0÷4 • x1 x2 x5 x10 x20 x50 x100
Digital filter • Readings per second
3 filter types • 5÷500
Relay outputs
3 - max 115 VAC/150 mA - 24 VDC/200 mA
Digital inputs
2 - 5÷24 VDC
Micro USB port
B type - USB 2.0 (full-speed)
Humidity (condensate free)
85%
Storage temperature
-30 °C +80 °C
Working temperature
-20 °C +50 °C
Relay outputs
3 - max 30 VAC, 60 VDC
Max wall mounting height
2m
Equipment to be powered by PS2 power source
OPTIONS ON REQUEST DESCRIPTION
R ev. 0 .0
Load cell + instrument wiring.
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
144
LCB3A HYGIENIC UNIVERSAL DIGITIZER FOR LOAD CELLS
MICRO USB FOR PC CONFIGURATION
DESCRIPTION
LCB3A transforms an analog load cell (mV/V output) into a digital one; it can also be used on existing load cells to digitize the weighing system. Hygienic device RPSCQC authorized by 3-A SSI. Conceived for IoT applications (Internet of Things). PC configuration software via micro USB port. Status LED of the communication interface. Mounting: wired or integral to the load cell body via standard ¼ GAS fitting (specific adapters for different threads are supplied on request). IP67 AISI 304 stainless steel box (dimensions: 90x40x107 mm including flying connectors). 3 M12 hygienic connectors with solder terminals included in the supply. The instrument can be configured and managed using the free “Instrument Manager” PC software, which you can download from www.laumas.com.
INPUTS/OUTPUTS AND COMMUNICATION
1 micro USB port. 3 relay outputs controlled by the setpoint values or via protocols. 2 digital inputs: status reading via serial communication protocols. 1 load cell input.
CERTIFICATIONS Complies with the Eurasian Custom Union regulations Equivalent of the CE marking for the United Kingdom American standard that regulates the design, production and use of hygienic equipment UL Recognized component - Complies with United States and Canada regulations
R ev. 0 .0
FIELDBUSES
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
145
LCB3A HYGIENIC UNIVERSAL DIGITIZER FOR LOAD CELLS INTERFACES AND FIELDBUSES
RS485. Male M12 circular connector, A-coded, 5-pin. Female M12 circular connector, A-coded, 5-pin. Baud rate: 2400, 4800, 9600, 19200, 38400, 115200 (bit/s).
coming soon
RS485 + analog output. Current: 0÷20 mA; 4÷20 mA (up to 400 Ω). Voltage: 0÷10 V; 0÷5 V (min 2 kΩ). Male M12 circular connector, A-coded, 5-pin. Female M12 circular connector, A-coded, 5-pin. IO-Link. 2x male M12 circular connector, A-coded, 4-pin. The instrument works as device in a IO-Link network. CANopen. Male M12 circular connector, A-coded, 5-pin. Female M12 circular connector, A-coded, 5-pin. The instrument works as slave in a CANopen synchronous network. CC-Link IE Field Basic. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as slave in a CC-Link IE Field Basic network. CC-Link. Male M12 circular connector, A-coded, 4-pin. Female M12 circular connector, A-coded, 5-pin. The instrument works as Remote Device Station in a CC-Link network and occupies 3 stations.
coming soon
Profibus DP. Male M12 circular connector, B-coded, 5-pin. Female M12 circular connector, B-coded, 5-pin. The instrument works as slave in a Profibus DP network.
coming soon
Modbus/TCP. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as slave in a Modbus/TCP network. Ethernet TCP/IP. Female M12 circular connector, D-coded, 4-pin. The instrument works in an Ethernet TCP/IP network and it is accessible via web browser.
coming soon
Ethernet/IP. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as adapter in an Ethernet/IP network. PROFINET IO. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as device in a PROFINET IO network. EtherCAT. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as slave in an EtherCAT network. POWERLINK. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as slave in a Powerlink network.
R ev. 0 .0
SERCOS III. 2x female M12 circular connectors, D-coded, 4-pin. The instrument works as slave in a Sercos III network.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
146
LCB3A HYGIENIC UNIVERSAL DIGITIZER FOR LOAD CELLS MAIN FUNCTIONS
Connections to:
BASE PROGRAM
Hysteresis and setpoint value setting.
- PLC via analog output or fieldbuses; - PC/PLC via RS485 (up to 99 instruments with line repeaters, up to 32 without line repeaters); - up to 4 load cells in parallel by junction box. TCP/IP WEB APP: integrated software in combination with the Ethernet TCP/IP version for remote supervision, management and control of the instrument. Digital filter to reduce the effects of weight oscillation. Theoretical calibration (via PC software) and real calibration (with sample weights and the possibility of weight linearization up to 8 points). Calibration via characterization values of the load cell. Tare weight zero setting. Automatic zero setting at power-on. Gross weight zero tracking. Semi-automatic tare (net/gross weight) and preset tare. Semi-automatic zero. Direct connection between RS485 and RS232 without converter. Configuration backup and restore via PC software.
SINGLE PRODUCT LOADING PROGRAM 99 settable formulas. Automatic fall calculation. Tolerance error control. Precision batching through slow function. Precision batching through tapping function. Consumption storage. Batching start via external contact or fieldbus.
TECHNICAL FEATURES Power supply and consumption
12÷24 VDC ±10%; 5 W
Number of load cells • Load cells supply
up to 4 (350 Ω) - 4/6 wires • 3.3 VDC/40 mA
Linearity • Analog output linearity
<0.01% full scale • <0.01% full scale
Thermal drift • Analog output thermal drift
<0.0005% full scale/°C • <0.003% full scale/°C
A/D Converter
24 bit (16000000 points) - 4.8 kHz
Divisions (with measurement range ±10 mV and sensitivity 2 mV/V)
±999999 • 6.6 nV/d
Measurement range
±26 mV
Usable load cells sensitivity
±7 mV/V
Conversions per second
500
Decimals • Display increments
0÷4 • x1 x2 x5 x10 x20 x50 x100
Digital filter • Readings per second
3 filter types • 5÷500
Relay outputs
3 - max 115 VAC/150 mA - 24 VDC/200 mA
Digital inputs
2 - 5÷24 VDC
Micro USB port
B type - USB 2.0 (full-speed)
Humidity (condensate free)
85%
Storage temperature
-30 °C +80 °C
Working temperature
-20 °C +50 °C
Relay outputs
3 - max 30 VAC, 60 VDC
Max wall mounting height
2m
R ev. 0 .0
Equipment to be powered by PS2 power source
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
147
A1 - LOAD CELLS PRODUCTS CATALOG
Capacity
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
PAGE
A1.12
SPECIAL LOAD CELLS
A1.12.1
pin
LAU
5000, 10000, 20000 kg
A1.12.2
for foot brake
LPED
100 kg
A1.12.3
anchor
CA
30000, 50000, 75000, 100000, 125000, 150000, 180000, 250000 kg
153
Capacity
PAGE
151
ROPE Ø mm
A1.12.4
for wire rope measuring
FUN
2000 kg 4000 kg 10000 kg 20000 kg 40000 kg
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
149
6÷14 mm 10÷18 mm 16÷26 mm 24÷36 mm 24÷36 mm
155
ISO
9001
ISO 14001
www.laumas.com
148
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
149
LAU PIN LOAD CELLS
Manufactured according to OIML R60 standards
Capacity from 5000 kg to 20000 kg
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.1% IP67 ProTEcTIoN rATINg
kg
CAPACITY
NET WEIGHT (kg)
5000
2.9
10000
3.2
20000
3.4
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
calibration report LAT Accredia calibration certificate ISo 376 or ASTM E74 for capacities from 1000 kg to 10000 kg ATEX (zone 2-22) ATEX/IEcEx (zone 1-21) Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
OPTIONS ON REQUEST DESCRIPTION
R ev. 0 .0
Two redundant strain gauges Wheatstone bridges (350 Ω) with two output cables; for dual safety systems
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
150
LAU PIN LOAD CELLS DIMENSIONS (mm)
143 20
120 20
50
20
15
8 12
19
58.5
(from -0.03 to -0.05) Ø 60
8
15
25
70
25
1/4 gas
1/4 gas
TECHNICAL FEATURES Material
17-4 PH stainless steel
Nominal load (E max)
5000 - 10000 - 20000 kg
combined error
≤±0.1%
Protection rating
IP67
rated output
1 mV/V ±0.1%
Input resistance
Temperature effect on zero
0.005% °C
Output resistance
350 Ω ±5
Temperature effect on span
0.005% °C
Zero balance
±1%
Compensated temperature range
-20 °C / +70 °C
Insulation resistance
>5000 MΩ
operating temperature range
-30 °C / +90 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
400%
Max supply voltage without damage
15 V
Deflection at nominal load
0.4 mm
350 Ω ±20
ELECTRICAL CONNECTIONS 10 m
SHIELD
cable diameter
5 mm
+ SIgNAL
grEEN
Cores
6 x 0.14 mm2
+ EXcITATIoN + REF./SENSE
rED BLUE
- SIgNAL
WHITE
- EXcITATIoN - REF./SENSE
BLACK BROWN
R ev. 0 .0
Cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
151
LPED COMPRESSION LOAD CELL FOR FOOT BRAKE
Manufactured according to oIML r60 standards
Capacity 100 kg
ALUMINUM COMBINED ERROR ≤ ±0.08% IP65 ProtectIoN rAtINg FLeXIBLe cABLe
CAPACITY
kg
NET WEIGHT (kg)
100
0.4
CERTIFICATIONS complies with the eurasian customs Union regulations equivalent of the ce marking for the United Kingdom CERTIFICATIONS ON REQUEST
calibration report
OPTIONS ON REQUEST DESCRIPTION
R e v. 0 . 0
Two redundant strain gauges Wheatstone bridges (350 Ω) with two output cables; for dual safety systems
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
152
LPED COMPRESSION LOAD CELL FOR FOOT BRAKE DIMENSIONS (mm)
50
30
F
Anti skid Rivestimento antisdrucciolo coating
70 Belt Fibbia
TECHNICAL FEATURES Material
Aluminum
Nominal load (E max)
100 kg
combined error
≤±0.08%
Protection rating
IP65
rated output
1 mV/V ±0.2%
Input resistance
350 Ω ±50
temperature effect on zero
0.005% °C
output resistance
350 Ω ±5
temperature effect on span
0.003% °C
Zero balance
±1%
compensated temperature range
-20 °C / +70 °C
Insulation resistance
>5000 MΩ
operating temperature range
-30 °C / +90 °C
Safe overload (% of full scale)
150%
creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.25 mm
ELECTRICAL CONNECTIONS 2m
+ SIgNAL
BroWN
cable diameter
5 mm
+ eXcItAtIoN
BLUe
cores
4 x 0.25 mm2
- SIgNAL
WHIte
- eXcItAtIoN
BLAcK
R e v. 0 . 0
cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
153
CA ANCHOR LOAD CELLS
Manufactured according to oIML r60 standards
Capacity from 30000 kg to 250000 kg
17-4 PH STAINLESS STEEL COMBINED ERROR ≤ ±0.1% IP68 ProTEcTIoN rATINg
kg
Ø INTERNAL
Ø EXTERNAL
NET WEIGHT (kg)
30000
50 mm
163 mm
5
50000
50 mm
163 mm
5
75000
50 mm
163 mm
5
50000
75 mm
163 mm
5
75000
75 mm
163 mm
5
75000
120 mm
229 mm
9
100000
120 mm
229 mm
9
125000
120 mm
229 mm
9
125000
165 mm
275 mm
14
150000
165 mm
275 mm
14
180000
165 mm
275 mm
14
180000
225 mm
320 mm
20
250000
225 mm
320 mm
20
CAPACITY
CERTIFICATIONS complies with the Eurasian customs Union regulations Equivalent of the cE marking for the United Kingdom CERTIFICATIONS ON REQUEST
calibration report ATEX (zone 2-22) ATEX/IEcEx (zone 1-21)
R e v. 0 . 0
complies with the Eurasian customs Union regulations for use in potentially explosive atmospheres complies with chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
154
CA ANCHOR LOAD CELLS OPTIONS ON REQUEST DESCRIPTION
Two redundant strain gauges Wheatstone bridges (350 Ω) with two output cables; for dual safety systems.
COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
Galvanized steel plates for load distribution.
PIAS
TECHNICAL FEATURES - DIMENSIONS 4x Ø6.5 D E
F
5
6.5
6.5
2
B
25
A
60 C
30000 - 50000 75000 125000 - 180000 75000 kg 75000 kg 125000 kg 180000 kg 250000 kg A B C D E F kg
163 131.5 145 95 50 45 5
163 131.5 145 95 75 45 5
229 186.5 207 150 120 45 9
275 231 252 195 165 45
320 285 302 250 225 55 20
14
1/4 gas
Material
17-4 PH stainless steel
Nominal load (E max)
30000 - 50000 - 75000 - 100000 - 125000 - 150000 - 180000 - 250000 kg
combined error
≤±0.1%
Protection rating
IP68
rated output
2 mV/V ±0.1%
Input resistance
700 Ω ±20
Temperature effect on zero
0.005% °C
output resistance
700 Ω ±5
Temperature effect on span
0.005% °C
Zero balance
±1%
compensated temperature range
-20 °C / +70 °C
Insulation resistance
>5000 MΩ
operating temperature range
-30 °C / +90 °C
Safe overload (% of full scale)
150%
creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
300%
Max supply voltage without damage
15 V
Deflection at nominal load
0.4 mm
ELECTRICAL CONNECTIONS 5m
SHIELD
cable diameter
5 mm
+ SIgNAL
grEEN
cores
6 x 0.14 mm2
+ EXcITATIoN + REF./SENSE
rED BLUE
- SIgNAL
WHITE
- EXcITATIoN - REF./SENSE
BLAcK BroWN
R e v. 0 . 0
cable length
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
155
FUN LOAD CELLS FOR WIRE ROPE MEASURING
Manufactured according to OIML R60 standards
Capacity from 2000 kg to 40000 kg
AISI 4140 NICKEL PLATED STEEL LOAD LIMITING ACCURACY ±2% ON FULL SCALE IP67 PROTECTION RATING SUITABLE AS LOAD LIMITER FOR LIFTING EQUIPMENT RAPID MOUNTING (also on pre-existing lifting systems)
kg
WIRE ROPE TENSION
DIAMETER ROPE (mm)
NET WEIGHT (kg)
up to
2000
Ø 6 ÷ Ø 14
2.4
up to
4000
Ø 10 ÷ Ø 18
2.4
up to
10000
Ø 16 ÷ Ø 26
2.4
up to
20000
Ø 24 ÷ Ø 36
7.5
up to
40000
Ø 24 ÷ Ø 36
7.5
CERTIFICATIONS Complies with the Eurasian Customs Union regulations Equivalent of the CE marking for the United Kingdom CERTIFICATIONS ON REQUEST
ATEX (zone 2-22)
R ev. 0 .0
Complies with the Eurasian Customs Union regulations for use in potentially explosive atmospheres Complies with Chinese market regulations for use in potentially explosive atmospheres
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
156
FUN LOAD CELLS FOR WIRE ROPE MEASURING DIMENSIONS (mm)
G
F
I 16
H
A
A
B
C D
E
L
N
M Wire Rope rope tension tension Wire rope Max Tensione fune Diametro fune diameter ire diameter rope diameter Tension(max) of wire rope WRope
A
B
C
D
E
F
G
H
I
L
28 28 28 39
28 28 28 40
30 30 30 45
51 54 56 82
41 43 43 67
15 15 15 24
160 160 160 260
22
Ø 10 - 18 Ø 16 - 26 Ø 24 - 36
30 30 30 45
22 22 34
76 108 M14x2 76 113 M14x2 76 119 M14x2 108 173 M18x2,5
Ø 24 - 36
45
39
40
45
82
67
24 260
34
108 173 M18x2,5
2000 kg
Ø 6 - 14
4000 kg 10000 kg 20000 kg 40000 kg
M
N
SCREW TIGHTENING TORQUES Diameter of the steel cable (mm)
5
6 - 6.5
7-8
9 - 10
11 - 13
14
15 - 16
17 - 19
20 - 22
23 - 26
28 - 30
32 - 34
36 - 40
Tightening torque (Nm)
2.0
5.2
6.0
9.0
20
25
30
42
51
67
75
88
106
TECHNICAL FEATURES Material
AISI 4140 nickel plated steel
Nominal load (E max)
2000 - 4000 - 10000 - 20000 - 40000 kg
Load limiting accuracy on full scale
±2%
Protection rating
IP67
Rated output
3 mV/V ±0.1%
Input resistance
450/750/1050 Ω ±50
Temperature effect on zero
0.005% °C
Output resistance
350/700/1000 Ω ±20
Temperature effect on span
0.005% °C
Zero balance
±2%
Compensated temperature range
-10 °C / +50 °C
Insulation resistance
>5000 MΩ
Operating temperature range
-30 °C / +70 °C
Safe overload (% of full scale)
150%
Creep at nominal load in 30 minutes
0.03%
Ultimate overload (% of full scale)
200%
Max supply voltage without damage
15 V
Deflection at nominal load
0.5 mm
ELECTRICAL CONNECTIONS Cable length
6m
SHIELD
Cable diameter
5 mm
+ SIGNAL
GREEN
Cores
4/6 x 0.14 mm2
+ EXCITATION + REF./SENSE
RED BLUE
- SIGNAL
WHITE
- EXCITATION - REF./SENSE
BLACK YELLOW
R ev. 0 .0
where provided The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
157
A2 - MOUNTING KITS PRODUCTS CATALOG
APPLICATION RANGE
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
A2.1
for SINGLE-POINT load cells
T8
up to 300 kg
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
for LOAD CELLS
PAGE
AZL, AZLI, AZS, AM
159
ISO
9001
ISO 14001
www.laumas.com
158
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
159
T8 MOUNTING KIT for SINGLE-POINT load cells Series load cells:
AZLI - AZL - AZS - AM
Up to 300 kg application range
MAX STATIC LOAD
kg
FOR LOAD CELLS
NET WEIGHT (kg)
CODE
200
AZLI (max 50 kg) - AZL - AZS
1.7
T8AZL
300
AM
1.7
T8AM
Load cell not included
DESCRIPTION
Adjustable upper plate in galvanized steel (PPVZ). Lower plate and block in galvanized steel. Constraint against lateral forces and anti-tilt by galvanized steel self-centering joint foot.
Compensation for any misalignments of the support plates of the structure.
R e v. 0 . 0
Adjustable height. Locking screw to avoid damage during transport and installation. Can be used for systems with at least 3 supports.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
160
T8 MOUNTING KIT for SINGLE-POINT load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
During the transport and installation the lock (*)
Ø60
must touch under the load cell. After installation, move the lock away from the load cell. Interconnect the lower plates to the earthing. In case of structure with four-point support, if one-point does not touch the support base of the foot, you must proceed to adjust foot height. For the load cell fixing screws (•), provide a tightening torque of 7.5 Nm.
SB2 - galvanized steel (M12x1.75) SB2 - galvanized steel (M12x1.75) PPVZ
118
BLOCT8CZ
load cell
*
BLOCT8Z T8Z
T8Z
PPVZ
19.5
26
4x Ø13 15
Ø31.5
130
50 15
10
80
A
4x Ø9
27.5
A
40
27.5
27.5
4x Ø7 (•)
15 20
70
60
10
15
Section A-A
90
10
19
28.5
150
BLOCT8Z
2 M6x1
BLOCT8CZ
62.5
M12 x 1.75
7
SB2 steel SB2 -- galvanized galvanized steel
10
B
B 56
7
45
19
(M12x1.75 mm)
35
10 25
35
10
20
10
86
Section B-B 10
15
120
36
7
19
21
9
Ø60 POSSIBLE UPPER PLATEPOSITIONS POSITIONS POSSIBLE UPPER PLATE
MOUNTING AND PLACINGSTRUCTURE STRUCTURE FIXING TO THE WEIGHED STRUCTURE
STRUCTURE
R e v. 0 . 0
mounting surface
mounting surface
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
161
A2 - MOUNTING KITS PRODUCTS CATALOG
APPLICATION RANGE
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
for LOAD CELLS
PAGE
A2.2
for BENDING BEAM load cells
TFCFSB
up to 300 kg
FCOL
163
TFCPV
up to 300 kg
FCOL
165
TFCGP
up to 300 kg
FCOL
167
TFFSB
up to 500 kg
FCAL, FCAX
169
TFAST
up to 500 kg
FCAL, FCAX
171
TFPVEN1090
up to 1500 kg
FCAL, FCAX
173
TFPV
up to 1500 kg
FCAL, FCAX
175
TFGP
up to 1500 kg
FCAL, FCAX
177
T12
up to 2000 kg
FCAL, FCAX FTK, FTKL, FTP, FT-P, FTZ
179
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
162
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
163
TFCFSB MOUNTING KIT for BENDING BEAM load cells Series load cells:
FCOL
Up to 300 kg application range
MAX STATIC LOAD
kg
300
FOR LOAD CELLS
FCOL
NET WEIGHT (kg)
CODE
1.2
TFCFSB
Load cell not included
DESCRIPTION
Compression joint in AISI 304 stainless steel and rubber. Lower plate and block in AISI 304 stainless steel. Compensation for any misalignments of the support plates of the structure.
R e v. 0 . 0
Locking screw to avoid damage during transport and installation. Can be used for systems with at least 3 supports.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
164
TFCFSB MOUNTING KIT for BENDING BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
During the transport and installation the lock (*)
must touch under the load cell. After installation, move the lock away from the load cell. Connect the structure to be weighed by means of copper wire, then connect all the lower plates to the earthing system. In case of structure with four-point support, if one-point does not touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts. For the load cell fixing screws (•), provide a tightening torque of 19 Nm.
86
ANTIV35 (M8x1.25)
load cell BLOCTFC
* PIATFC
PIATFC
BLOCTFC
15
27.5 7.5
2x Ø9
70
15
2x M8x1.25 (•)
7.5 27.5
40 4x Ø9
115
10
20
10
12
10 18
12
135
ANTIV35 (M8x1.25) Ø25 12
25
MOUNTING PLACING STRUCTURE FIXINGAND TO THE WEIGHED STRUCTURE
30
63
STRUCTURE
R e v. 0 . 0
M8x1.25
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
165
TFCPV MOUNTING KIT for BENDING BEAM load cells Series load cells:
FCOL
Up to 300 kg application range
MAX STATIC LOAD
kg
FOR LOAD CELLS
NET WEIGHT (kg)
CODE
200
FCOL
1.7
TFCPV
200
FCOL
1.7
TFCPVZ
300
FCOL (350 - 500 kg)
1.7
TFCPV10
300
FCOL (350 - 500 kg)
1.7
TFCPVZ10
Load cell not included
DESCRIPTION
Adjustable upper plate in AISI 304 stainless steel (PPV) or galvanized steel (PPVZ).
Lower plate and block in AISI 304 stainless steel. Constraint against lateral forces and anti-tilt by AISI 304 stainless
R e v. 0 . 0
steel (TFCPV, TFCPVZ, TFCPV10) or galvanized steel (TFCPVZ10) self-centering joint foot. Compensation for any misalignments of the support plates of the structure. Partial height adjustment. Locking screw to avoid damage during transport and installation.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
166
TFCPV MOUNTING KIT for BENDING BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
During the transport and installation the lock (*) must touch SB2 -- stainless SB2 stainlesssteel steel(M8x1.25) (M8x1.25) SB2 -- stainless SB2 stainlesssteel steel(M10x1.50) (M10x1.50) SB2 - galvanized (M10x1.50) SB2 galvanizedsteel steel (M10x1.50)
Ø60 PPV PPVZ
108
under the load cell. After installation, move the lock away from the load cell. Interconnect the lower plates to the earthing. In case of structure with four-point support, if one-point does not touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts. For the load cell fixing screws (•), provide a tightening torque of 19 Nm.
load cell BLOCTFC
*
PIATFC
PIATFC
PPV PPVZ
BLOCTFC
60
15
Ø31.5
40
70
15
2x M8x1.25 (•)
26
4x Ø13
15
27.5 7.5
2x Ø9
7.5 27.5
40
115
10
12
50 15
12
10 18
15
10
20
80
4x Ø9
90
15
120
28.5
135 2 M6x1
MOUNTING AND PLACING STRUCTURE
FIXING TO THE WEIGHED STRUCTURE STRUCTURE
62.5
STRUCTURE
SB2-- stainless stainless steel SB2 steel
SB2 -- stainless stainless steel SB2 steel SB2 steel SB2-- galvanized galvanized steel
(M8x1.25)
17
mounting surface
17
92 mounting surface
92
50
POSSIBLE UPPER PLATE POSITIONS
POSSIBLE UPPER PLATE POSITIONS
50
(M10x1.50)
R e v. 0 . 0
Ø60
Ø60
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
167
TFCGP MOUNTING KIT for BENDING BEAM load cells Series load cells:
FCOL
Up to 300 kg application range
MAX STATIC LOAD
kg
300
FOR LOAD CELLS
FCOL
NET WEIGHT (kg)
CODE
1.3
TFCGP
Load cell not included
DESCRIPTION
Upper plate with a compression joint in AISI 304 stainless steel and rubber.
Lower plate and block in AISI 304 stainless steel. Compensation for any misalignments of the support plates of the
R e v. 0 . 0
structure. Locking screw to avoid damage during transport and installation. Can be used for systems with at least 3 supports.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
168
TFCGP MOUNTING KIT for BENDING BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
During the transport and installation the lock (*)
must touch under the load cell. After installation, move the lock away from the load cell. Interconnect the lower plates to the earthing. In case of structure with four-point support, if one-point does not touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts. For the load cell fixing screws (•), provide a tightening torque of 19 Nm.
ANTIV35 (M8x1.25)
91
PIAGPTFC
load cell BLOCTFC
* PIATFC
PIATFC
2x Ø9
55
50
15
2x M8x1.25 (•)
7.5
40
35
7.5
4x Ø9
15
7.5
4x Ø9
7.5
7.5
70
PIAGPTFC
BLOCTFC
7.5
70
10
115
10 18
82
31
20
12
6
10
55
25
135
10 18
12 Ø27
ANTIV35 M8x1.25
MOUNTING AND PLACINGSTRUCTURE STRUCTURE FIXING TO THE WEIGHED
POSSIBLE UPPER PLATE POSITIONS POSITIONS
Ø25 12
STRUCTURE
M8
R e v. 0 . 0
63
25
STRUCTURE
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
169
TFFSB MOUNTING KIT for BENDING BEAM load cells Series load cells:
FCAL - FCAX
Up to 500 kg application range
MAX STATIC LOAD
kg
FOR LOAD CELLS
NET WEIGHT (kg)
CODE
500
FCAL - FCAX
1.5
TFFSB
Load cell not included
DESCRIPTION
Compression joint in AISI 304 stainless steel and rubber. Lower plate and block in AISI 304 stainless steel. Compensation for any misalignments of the support plates of the structure.
R e v. 0 . 0
Locking screw to avoid damage during transport and installation. Can be used for systems with at least 3 supports.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
170
TFFSB MOUNTING KIT for BENDING BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
During the transport and installation the lock (*)
98
ANTIV40 (M12x1.75)
must touch under the load cell. After installation, move the lock away from the load cell. Connect the structure to be weighed by means of copper wire, then connect all the lower plates to the earthing system. In case of structure with four-point support, if one-point does not touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts. For the load cell fixing screws (•), provide a tightening torque of 50 Nm.
load cell BLOCT
* PIATF
PIATF
BLOCT
15
10
2x Ø13
15
30
2x M12x1.75 (•)
80
44
10
30
4x Ø11
130
10
12
20
10
10
25
9
150
ANTIV40 M12x1.75
FIXING TO THE WEIGHED STRUCTURE
MOUNTING AND PLACING STRUCTURE
37 15
Ø30 STRUCTURE
R e v. 0 . 0
75
M12
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
171
TFAST MOUNTING KIT for BENDING BEAM load cells Series load cells:
FCAL - FCAX
Up to 500 kg application range
MAX STATIC LOAD
kg
FOR LOAD CELLS
NET WEIGHT (kg)
CODE
500
FCAL - FCAX
1.5
TFAST
Load cell not included
DESCRIPTION
R e v. 0 . 0
Aluminum alloy tension ball joint. AISI 304 stainless steel lower plate. Locking screw to avoid damage during transport and installation.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
172
TFAST MOUNTING KIT for BENDING BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
During the transport and installation the lock (*) must
touch under the load cell. After installation, move the lock away from the load cell. Connect the structure to be weighed by means of copper wire, then connect all the lower plates to the earthing system. For the load cell fixing screws (•), provide a tightening torque of 79 Nm.
load cell
*
Tension ball joint Tension ball joint
TF FORO 2x Ø12.5 (•)
Ø45
A
10
A
91
60
80
10
6x Ø11
132
TF FORO
10
65
65
10
M12x1.75
150
44 12.5
12.5
30
Section A-A
12MA
R e v. 0 . 0
10
25.4
74.6
40
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
173
TFPVEN1090 MOUNTING KIT for BENDING BEAM load cells Series load cells:
EN
FCAL - FCAX
Up to 1500 kg application range Certification EN1090
TFPVEN1090
MAX STATIC LOAD
TFPV2000EN1090
kg
FOR LOAD CELLS
NET WEIGHT (kg)
500
FCAL - FCAX
2
TFPVEN1090
FCAX
2
TFPV2000EN1090
1500
CODE
Load cell not included.
DESCRIPTION
Constraint against lateral forces and anti-tilt by AISI 304 stainless steel self-centering joint foot.
Lower plate and block in AISI 304 stainless steel. Compensation for any misalignments of the support plates of the structure.
Re v. 0 . 0
Partial height adjustment. Locking screw to avoid damage during transport and installation.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
174
TFPVEN1090 MOUNTING KIT for BENDING BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
During the transport and installation the lock (*) must touch
Ø80
under the load cell. After installation, move the lock away from the load cell. Interconnect the plates to the earthing. In case of structure with four-point support, if one-point does not touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts.
125
117
STR (M12x1.75)
load cell
PIATF PIATF2000
PIATF
BLOCT
STR (M12x1.75)
15
10
2x Ø13
15
30
2x M12x1.75
80
44
20
10
30
4x Ø11
130
10
10
25
9
12
10
150
10
PIATF2000
80
30
2x M12x1.75
30
4x Ø11
10
MOUNTING AND PLACING STRUCTURE FIXING TO THE WEIGHED STRUCTURE
130
10
STRUCTURE
STRUCTURE
20
10
R e v. 0. 0
150
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
175
TFPV MOUNTING KIT for BENDING BEAM load cells Series load cells:
FCAL - FCAX
Up to 1500 kg application range
TFPV TFPV2000
MAX STATIC LOAD
TFPVZ
kg
FOR LOAD CELLS
NET WEIGHT (kg)
CODE
500
FCAL - FCAX
2
TFPV
500
FCAL - FCAX
2
TFPVZ
FCAX
2
TFPV2000
1500 Load cell not included
DESCRIPTION
Adjustable upper plate in AISI 304 stainless steel (PPV) or galvanized steel (PPVZ).
Lower plate and block in AISI 304 stainless steel. Constraint against lateral forces and anti-tilt by AISI 304 stainless
R e v. 0 . 0
steel (TFPV, TFPV2000) or galvanized steel (TFPVZ) self-centering joint foot. Compensation for any misalignments of the support plates of the structure. Partial height adjustment. Locking screw to avoid damage during transport and installation.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
176
TFPV MOUNTING KIT for BENDING BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS SB2 steelsteel SB2- -stainless stainless SB2 steelsteel SB2- -galvanized galvanized (M12x1.75)
Ø60 PPV PPVZ
110
under the load cell. After installation, move the lock away from the load cell. Interconnect the plates to the earthing. In case of structure with four-point support, if one-point does not touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts. For the load cell fixing screws (•), provide a tightening torque of 50 Nm.
load cell BLOCT
118
During the transport and installation the lock (*) must touch
* PIATF PIATF2000
PIATF
PPV PPVZ
BLOCT
60 Ø31.5
15 80
80
44
50
15
40
15
10 30
2x M12x1.75 (•)
26
4x Ø13
2x Ø13
15
20
10
30
4x Ø11
130
10
10
25
15
9
90
15
120
12
10
28.5
150
2 M6x1
PIATF2000 10
62.5
80
30
2x M12x1.75 (•)
SB2 steel SB2- -galvanized galvanized steel (M12x1.75)
SB2 steel SB2- -stainless stainless steel (M12x1.75)
10
30
4x Ø11
10
50
130
150
Ø60
MOUNTING AND PLACING STRUCTURE FIXING TO THE WEIGHED STRUCTURE STRUCTURE
17
22
20
86
92
45
10
Ø60
POSSIBLE UPPER PLATE PLATE POSITIONS POSSIBLE UPPER POSITIONS
STRUCTURE
R e v. 0 . 0
mounting surface
mounting surface
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
177
TFGP MOUNTING KIT for BENDING BEAM load cells Series load cells:
FCAL - FCAX
Up to 1500 kg application range
kg
FOR LOAD CELLS
NET WEIGHT (kg)
CODE
500
FCAL - FCAX
2.3
TFGP
1500
FCAL - FCAX
2.3
TFGP2000
MAX STATIC LOAD
Load cell not included
DESCRIPTION
Upper plate with a compression joint in AISI 304 stainless steel
R e v. 0 . 0
and rubber. Lower plate and block in AISI 304 stainless steel. Compensation for any misalignments of the support plates of the structure. Locking screw to avoid damage during transport and installation. Can be used for systems with at least 3 supports.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
178
TFGP MOUNTING KIT for BENDING BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
During the transport and installation the lock (*)
ANTIV45 (M12x1.75)
113
PIAGP
121
must touch under the load cell. After installation, move the lock away from the load cell. Interconnect the lower plates to the earthing. In case of structure with four-point support, if onepoint does not touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts. For the load cell fixing screws (•), provide a tightening torque of 50 Nm.
load cell BLOCT
* PIATF PIATF2000
7
PIATF
PIAGP
10
4x Ø13
50
80
80
30
2x M12 x 1.75 (•)
10
30
4x Ø11
130
10
10
90
15
15
12
120
43
10
150
10
PIATF2000
Ø34
30
2x M12 x 1.75 (•)
BLOCT
80
2x Ø13
ANTIV45
15
Ø30
130
15 44
10
42
20
20
79
10
37
10
15
30
4x Ø11
10
150
FIXING TO THEAND WEIGHED MOUNTING PLACINGSTRUCTURE STRUCTURE
R e v. 0 . 0
STRUCTURE
25
9
M12x1.75 POSSIBLE UPPER PLATEPOSITIONS POSITIONS POSSIBLE UPPER PLATE
STRUCTURE
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
179
T12 MOUNTING KIT for BENDING BEAM load cells Series load cells:
FCAL - FCAX - FTK - FTKL - FTP - FT-P - FTZ
Up to 2000 kg application range
T12FCAGP
MAX STATIC LOAD
T12FTAGP
kg
FOR LOAD CELLS
NET WEIGHT (kg)
1500
FCAL - FCAX
4
T12FCAGP
2000
FTK - FTKL - FTP - FT-P - FTZ
4
T12FTAGP
CODE
Load cell not included
DESCRIPTION
Upper plate with a compression joint in AISI 304 stainless steel and rubber.
Lower plate and block in galvanized steel. Compensation for any misalignments of the support plates of the structure.
R e v. 0. 0
Locking screw to avoid damage during transport and installation. Can be used for systems with at least 3 supports.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
180
T12 MOUNTING KIT for BENDING BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
During the transport and installation the lock (*) must touch under
In case of structure with four-point support, if one-point does not
the load cell. After installation, move the lock away from the load cell. Interconnect the lower plates to the earthing.
touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts. For the load cell fixing screws (•), provide a tightening torque of 79 Nm.
for load cell: FTK - FTKL - FTP - FT-P - FTZ (max 2000 kg)
for load cell: FCAL - FCAX (max 1500 kg)
for load cell: FTK - FTKL - FTL - FTP - FT-P - FTZ (max 2000kg) ANTIV40 (M12x1.75)
for load cell: FCAX - FCAL (max 1500kg)
PIAGP
127
127
load cell
load cell
*
BLOCT12C
ANTIV45 (M12x1.75)
PIAGP
BLOCT12C
* PIAT12FCA
PIAT12FCA
18.5
13.5 PIAT12FCA
PIAT12FCA
BLOCT12C
18.5
25
16
10
25
13.5
PIAGP
15
15 15
BLOCT12C
15
PIAT12FCA
2x Ø13
Ø13
4x Ø13
A
25
A
15
90
80
51
4x M12x1.75 (•)
120
BLOCT12C
CORRECT POSITIONNING OF OF THE CORRECT POSITIONNING METAL BLOCK ON ON LOWER THE METAL BLOCK THEPLATE LOWER PLATE
50
CORRECTPOSITIONNING POSITIONNING OFOF THE CORRECT BLOCK ON LOWER PLATE THEMETAL METAL BLOCK ON THE LOWER PLATE
4x Ø13
25
15
16
90
15
120
15
10
130
15
10
15
43
160 Section A-A
Ø34 18.5
25
25
ANTIV40 (M12x1.75 mm)
ANTIV45 (M12x1.75 mm)
STRUCTURE
37 15 79
M12
R e v. 0. 0
75
FIXING TO THE WEIGHED STRUCTURE MOUNTING AND PLACING STRUCTURE
POSSIBLE UPPER PLATE POSITIONS POSSIBLE PIAGP PLATE POSITIONS
Ø30
37 15
Ø30
13.5
STRUCTURE
M12
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
181
A2 - MOUNTING KITS PRODUCTS CATALOG
APPLICATION RANGE
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
for LOAD CELLS
PAGE
A2.3
for SHEAR BEAM load cells
TF500/2000
up to 2000 kg
FTK, FTKL, FTP, FT-P, FTZ
183
PVEN1090
up to 2000 kg
FTK, FTKL, FTP, FT-P, FTZ
185
PV - PVZ
up to 2000 kg
FTK, FTKL, FTP, FT-P, FTZ
187
TFPS2000
up to 2000 kg
FTK, FTKL, FTP, FT-P, FTZ
189
PV80EN1090
up to 5000 kg
FTK, FTP, FTZ
191
PV80 PV60Z
up to 5000 kg
FTK, FTP, FTZ
193
PS
up to 10000 kg
FTK, FTP, FTZ
195
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
182
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
183
TF500/2000 MOUNTING KIT for SHEAR BEAM load cells Series load cells:
FTK - FTKL - FTP - FT-P - FTZ
Up to 2000 kg application range
MAX STATIC LOAD
kg
FOR LOAD CELLS
NET WEIGHT (kg)
CODE
500
FTK - FTKL - FTP - FT-P - FTZ
2.3
TF500
2000
FTK - FTKL - FTP - FT-P - FTZ
2.9
TF2000
2000
FTK - FTKL - FTP - FT-P - FTZ
2.9
TF2000Z
Load cell not included.
DESCRIPTION
Upper plate with a compression joint in AISI 304 stainless steel and rubber.
Lower plate and block in AISI 304 stainless steel (TF500, TF2000) or in galvanized steel (TF2000Z).
Compensation for any misalignments of the support plates of the structure.
R ev. 0 .0
Locking screw to avoid damage during transport and installation. Can be used for systems with at least 3 supports.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
184
TF500/2000 MOUNTING KIT for SHEAR BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
During the transport and installation the lock (*) must touch under the load cell. After
PIAGP 15
installation, move the lock away from the load cell. Interconnect the plates to the earthing. In case of structure with four-point support, if one-point does not touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts. For the load cell fixing screws (•), provide a tightening torque of 50 Nm for TF500/TF2000 and 79 Nm for TF2000Z.
Ø13
50 15
80
4x Ø13
TF500
ANTIV40 (M12x1.75)
90
15
PIAGP
15
43
115
10
120
load cell
BLOCT
*
Ø34
PIATF
TF2000 / TF2000Z
ANTIV40 (M12x1.75)
BLOCT
BLOCTF BLOCTFZ
15
15
15
2x Ø13
15
PIAGP
53.4
113
44
20
*
BLOCTF/-Z
10
load cell
14.4 10
PIATF2000/-Z
25
PIATF2000
2x M12x1.75 (•)
PIATF2000Z
60
80
2x M12x1.75 (•)
60
80
14
10
10
PIATF
25
9
4x Ø11 10
10
4x Ø11
10
130
10
10
130 Section C-C
20
12
Section B-B
10
10
25
88
10
27
25
150
ANTIV40 (M12x1.75) Ø30
POSSIBLE UPPER PLATE POSITIONS
POSSIBLE UPPER PLATE POSITIONS
37 15
27
MOUNTING AND PLACING STRUCTURE
FIXING TO THE WEIGHED STRUCTURE STRUCTURE
STRUCTURE
M12
R e v. 0 . 0
75
88 150
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
185
PVEN1090 MOUNTING KIT for SHEAR BEAM load cells Series load cells:
EN
FTK - FTKL - FTP - FT-P - FTZ
Up to 2000 kg application range Certification EN1090
kg
MAX STATIC LOAD
FOR LOAD CELLS
2000
FTK - FTKL - FTP - FT-P - FTZ
CODE
NET WEIGHT (kg)
2.7
PVEN1090
Load cell not included.
DESCRIPTION
Constraint against lateral forces and anti-tilt by AISI 304 stainless steel self-centering joint foot.
Lower plate and block in AISI 304 stainless steel. Compensation for any misalignments of the support plates of the structure.
R e v. 0. 0
Adjustable height. Locking screw to avoid damage during transport and installation.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
186
PVEN1090 MOUNTING KIT for SHEAR BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
During the transport and installation the lock (*) must touch
Ø80
under the load cell. After installation, move the lock away from the load cell. Interconnect the plates to the earthing. In case of structure with four-point support, if one-point does not touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts.
125
STR (M12 x 1.75)
load cell
BLOCTF
*
BLOCTF
2x Ø12.5
15
15
PIATF2000
25
14
10
14.4
53.4
STR (M12x1.75)
10
PIATF2000
60
80
2x M12x1.75
A
A
10
4x Ø11
130
10
20
10
10
25
115 150
MOUNTING ANDWEIGHED PLACING STRUCTURE STRUCTURE FIXING TO THE
R e v. 0. 0
STRUCTURE
STRUCTURE
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
187
PV - PVZ MOUNTING KIT for SHEAR BEAM load cells Series load cells:
FTK - FTKL - FTP - FT-P - FTZ
Up to 2000 kg application range
MAX STATIC LOAD
kg
FOR LOAD CELLS
NET WEIGHT (kg)
CODE
2000
FTK - FTKL - FTP - FT-P - FTZ
2.7
PV
2000
FTK - FTKL - FTP - FT-P - FTZ
2.7
PVZ
Load cell not included.
DESCRIPTION
Adjustable upper plate in AISI 304 stainless steel (PPV) or galvanized steel (PPVZ).
Lower plate and block in AISI 304 stainless steel (PV) or galvanized steel (PVZ).
Constraint against lateral forces and anti-tilt by AISI 304 stainless
R e v. 0 . 0
steel (TFPV, TFPV2000) or galvanized steel (TFPVZ) self-centering joint foot. Compensation for any misalignments of the support plates of the structure. Adjustable height. Locking screw to avoid damage during transport and installation.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
188
PV - PVZ MOUNTING KIT for SHEAR BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
During the transport and installation the lock (*) must touch
under the load cell. After installation, move the lock away from the load cell. Interconnect the plates to the earthing. In case of structure with four-point support, if one-point does not touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts. For the load cell fixing screws (•), provide a tightening torque of 50 Nm for PV and 79 Nm for PVZ.
60
SB2 --stainless steel SB2 stainless steel SB2 --galvanized steel SB2 galvanized steel
PPV PPVZ
118
(M12 x 1.75)
load cell
*
BLOCTF /-Z PIATF2000/ -Z
PPV PPVZ
BLOCTF BLOCTFZ
26
4x Ø13
Ø31.5
14
80
25
15
10
14.4
50
40
15 15
15
2x Ø12.5
60
53.4
15
90
15
120
10
28.5
PIATF2000 PIATF2000Z
2 M6x1 62.5
60
80
2x M12x1.75 (•)
A
A
SB2 steel SB2--galvanized galvanized steel (M12x1.75)
SB2 steel SB2--stainless stainless steel (M12x1.75)
10
4x Ø11
10 50
130
20
86
92
45
10
115 150
Ø60
MOUNTING ANDWEIGHED PLACING ST RUCTUR E FIXING TO THE STRUCTURE STRUCTURE
17
25
20
10
Ø60
POSSIBLEUPPER UPPER PLATE ITION S POSSIBLE PLATEPOS POSITIONS
STRUCTURE
mounting surface
R e v. 0 . 0
urface
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
189
TFPS2000 MOUNTING KIT for SHEAR BEAM load cells Series load cells:
FTK - FTKL - FTP - FT-P - FTZ
Up to 2000 kg application range
MAX STATIC LOAD
kg
FOR LOAD CELLS
NET WEIGHT (kg)
CODE
2000
FTK - FTKL - FTP - FT-P - FTZ
2.7
TFPS2000
2000
FTK - FTKL - FTP - FT-P - FTZ
2.7
TFPS2000INOX
Load cell not included.
DESCRIPTION
AISI 304 stainless steel upper plate. Lower plate and block in galvanized steel (TFPS2000) or in stainless steel (TFPS2000INOX).
Constraint against lateral forces and anti-tilt by means of ball-and-
R e v. 0 . 0
socket joint with nut in galvanized C40 steel (TFPS2000) or in stainless steel (TFPS2000INOX). Compensation for any misalignments of the support plates of the structure. Adjustable height. Locking screw to avoid damage during transport and installation.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
190
TFPS2000 MOUNTING KIT for SHEAR BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
During the transport and installation the lock (*) must touch
TFPS2000
under the load cell. After installation, move the lock away from the load cell. Interconnect the plates to the earthing. In case of structure with four-point support, if one-point does not touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts. For the load cell fixing screws (•), provide a tightening torque of 79 Nm.
ANGOLARE x2
111
EM (M12x1.75)
load cell
*
BLOCTFZ
PIATF2000Z
ANGOLARE x2
TFPS2000INOX
BLOCTFZ BLOCTF
EM-INOX (M12x1.75)
25.4
14
load cell
*
10
BLOCTF
PIATF2000
53.4
4x Ø13
4x Ø13
15
50
90 15
15
90
120
15
TFPS2000INOX
15
TFPS2000
120
14
111
15 15
2x Ø12.5
15
15
50
80
15
80
10
PIATF2000Z PIATF2000
EM (M12 x 1.75)
60
80
2x M12x1.75 (•)
EM-INOX (M12 x 1.75)
10
4x Ø11
130
10
20
10
10
25
115
R e v. 0 . 0
150
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
191
PV80EN1090 MOUNTING KIT for SHEAR BEAM load cells Series load cells:
EN
FTP - FTZ
Up to 5000 kg application range Certification EN1090
kg
MAX STATIC LOAD
5000
FOR LOAD CELLS
NET WEIGHT (kg)
FTP - FTK - FTZ
6.9
CODE
PV80EN1090
Load cell not included.
DESCRIPTION
Constraint against lateral forces and anti-tilt by AISI 304 stainless steel self-centering joint foot.
Lower plate and block in AISI 304 stainless steel. Compensation for any misalignments of the support plates of the structure.
R e v. 0. 0
Adjustable height. Locking screw to avoid damage during transport and installation.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
192
PV80EN1090 MOUNTING KIT for SHEAR BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
Interconnect the plates to the earthing. In case of structure with four-point support, if one-point
150
does not touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts.
130
STR (M20 x 2.5)
load cell BLOCT18INOX PIAT19INFINOX
PIAT19INFINOX
BLOCT18INOX
20
20
15
2x Ø20
19
38
19
10
90
120
2x M20x2.50
4x Ø13 15
76
15
180
15
25
STR (M20x2.5)
17
38
155 210
MOUNTING AND PLACING STRUCTURE FIXING TO THE WEIGHED STRUCTURE
R e v. 0. 0
STRUCTURE
STRUCTURE
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
193
PV80 - PV60Z MOUNTING KIT for SHEAR BEAM load cells Series load cells:
FTP - FTZ - FTK
Up to 5000 kg application range
kg
MAX STATIC LOAD
FOR LOAD CELLS
NET WEIGHT (kg)
CODE
5000
FTP - FTK - FTZ
6.9
PV80
5000
FTP - FTK - FTZ
6.7
PV60Z
Load cell not included
DESCRIPTION
Adjustable upper plate in AISI 304 stainless steel (PPV80) or galvanized steel (PPV60Z)
Lower plate and block in AISI 304 stainless steel (PV80) or galvanized steel (PV60Z).
Constraint against lateral forces and anti-tilt by AISI 304 stainless steel (PV80) or galvanized steel (PV60Z) self-centering joint foot.
Compensation for any misalignments of the support plates of the
R e v. 0 . 0
structure. Adjustable height.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
194
PV80 - PV60Z MOUNTING KIT for SHEAR BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
Interconnect the plates to the earthing. In case of structure with four-point support, if one-point
Ø80
SB2 SB2 -- stainless stainlesssteel steel SB2 SB2 -- galvanized galvanizedsteel steel (M20x2.50)
does not touch the upper part of the mounting kit, you must proceed to insert a shim before fixing the bolts. For the load cell fixing screws (•), provide a tightening torque of 280 Nm.
138
PPV80 / PPV60Z
load cell
BLOCT18INOX / BLOCT18 PIAT19INFINOX / PIAT18INF
PPV80
PPV60Z
4 x Ø13 BLOCT18INOX BLOCT18
2x Ø20
20
Ø38
4 x Ø13
20
Ø36
38
19
10
19
90
90
41,7
71.5
SB2 -- galvanized galvanized steel SB2 steel
POSSIBLE PLATEPOSITIONS POSITIONS POSSIBLEUPPER UPPER PLATE
(M20x2.5)
PIAT18INF
52
mounting surface
110
15
2x M18x2.50 (PIAT18INF) (•) 2x M20x2.50 (PIAT19INFINOX) (•)
22
mounting surface
90
120
40
M6 x 1
87
PIAT19INFINOX
4
3
63.5
41
M6 x 1
34
3
3 79
12
12
76
Ø62 4x Ø13
MOUNTING ANDWEIGHED PLACING STRUCTURE FIXING TO THE STRUCTURE
SB2 - stainless SB2 stainlesssteel steel
STRUCTURE
180
15
105
15
50
15
(M20x2.5)
25
25
STRUCTURE
17
38
155
R e v. 0 . 0
210
Ø80
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
195
PS MOUNTING KIT for SHEAR BEAM load cells Series load cells:
FTP - FTZ - FTK
Up to 10000 kg application range
kg
MAX STATIC LOAD
5000 10000
NET WEIGHT (kg)
CODE
FTK - FTP - FTZ (3000 - 5000 kg)
10.5
PS
FTP
15.5
PS10T
FOR LOAD CELLS
Load cell not included.
DESCRIPTION
Upper plate, lower plate and block in galvanized steel. Constraint against lateral forces and anti-tilt by ball-and-socket joint. Compensation for any misalignments of the support plates of the structure.
R e v. 0 . 0
Adjustable height.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
196
PS MOUNTING KIT for SHEAR BEAM load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
Interconnect the plates to the earthing. In case of structure with four-point support, proceed to the height adjustment, if one-point does not touch the upper part of the mounting kit. For the load cell fixing screws (•), provide a tightening torque of 290 Nm for PS and 690 Nm for PS10T.
PS
PS10T
PANGOLARE10000 x2
PANGOLARE x2
M24x2
158
186
M20x2.5
load cell
load cell PBLOC10000
PBLOC
80
80 20
80 20
80
30
PPIASTRA10000
20
PPIASTRA
140
140 20
140
180
20 20
20
140
20
PPIASTRA10000 20
20
PPIASTRA
2x M20x2.5 (•)
80
120
80
2x M24x3 (•)
4x Ø21
40
38
20
212
20
4x Ø21 20
20
20
65.4
50.8
233.8
330
PBLOC
2x Ø24 25
M20x2.5
M24x2
MOUNTING AND PLACING STRUCTURE
FIXING TO THE WEIGHED STRUCTURE STRUCTURE
STRUCTURE
25
20 20
25.4
50.8
25.8 15
19 15
38
20
390
PBLOC10000 2x Ø22
19
120
20
180
4x Ø16
4x Ø16
102
R e v. 0 . 0
76
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
197
A2 - MOUNTING KITS PRODUCTS CATALOG
APPLICATION RANGE
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
for LOAD CELLS
PAGE
A2.4
for DOUBLE SHEAR BEAM / COLUMN load cells
VCOKDTL
up to 50000 kg
DTL, COL, COK
199
VDTX
up to 60klb/27 ton
DTX
201
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
198
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
199
VCOKDTL MOUNTING KIT for DOUBLE SHEAR BEAM/COLUMN load cells Series load cells:
DTL - COL - COK
Up to 50000 kg application range
DOUBLE SHEAR BEAM load cells
kg
MAX STATIC LOAD
50000
COLUMN load cells
FOR LOAD CELLS
DTL - COL - COK
NET WEIGHT (kg)
CODE
39
VCOKDTL
Load cell not included
DESCRIPTION
Galvanized steel upper and lower plate. Galvanized steel plate (for DOUBLE SHEAR BEAM load cell). Upper and lower bases (for COLUMN load cell). Two integrated galvanized steel stay rods with dual ball-and-
R ev. 0 .0
socket joints suitable to counter the lateral force. Anti-tilt constraint consisting of two threaded rods with self-locking nut.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
200
VCOKDTL MOUNTING KIT for DOUBLE SHEAR BEAM/COLUMN load cells Example of weighing structures subject to knocks or wind effect
DIMENSIONS AND TECHNICAL SPECIFICATIONS Upper and lower plates 3 must rest completely on not deformable surfaces. To ensure the stability of the structure, the system designer must predict any further precaution against side shifts and anti-tilt in function of: knocks and vibrations, wind effect, seismic conditions and hardness of support structure.
DTL + VCOKDTL
for DOUBLE SHEAR BEAM load cells (DTL):
B
Install the weighed system using only the mounting kit without the
A
load cell 1 and inserting in its place a piece of pipe (Ø40x220 mm): unscrewing the nuts 5 and take off one of the two threaded rods 4 and the plate 2 . To finish the installation (weldings, etc..), take off the piece of pipe and the plate 2 ; to place the plate 2 on the load cell 1 and insert them in mounting kit. Fix the load cell and the plate by using the bolts provided. Connect lower and upper plates 3 to the earthing system 9 then loosen nuts 6 ; verify that the threaded rod 8 slides into the hole; turn anti-tilt nuts 7 to a distance of 1 mm from plate.
A
x3
3 SUPPORTS STRUCTURES
8
7
258
4 SUPPORTS STRUCTURES
120°
5 6
15
8
250
420
1
Load cell.
2
Galvanized steel plate (PIATTODTL).
3
Galvanized steel upper and lower plates (PIACOKDTL).
4
Galvanized steel turnbuckle with horizontal constrainer function (TENDITORE300).
5
Self-locking nut Ø18.
6
Nut Ø22 to be used as jack.
7
Anti-tilt self-locking nut Ø22.
8
Threaded rod Ø22.
9
Copper wire for earthing connection.
32.5
PIACOKDTL
3
4x Ø20
32.5
2
9
1
230
4
7 5 6
8
15
2
250
420
3
R ev. 0 .0
3
117.5
185 420
117.5
3 15
3
3
250
for COLUMN load cells (COL - COK): Install the weighed system using only the mounting kit without the load cell 1 and inserting in its place a piece of pipe (Ø44x152 mm): unscrewing the nuts 5 , take off one of the two threaded rods 4 and the lower base 2 . To finish the installation (weldings, etc..), take off the piece of pipe and the lower base 2 ; replace the load cell 1 on the lower base 2 and insert them in mounting kit. Connect lower and upper plates 3 to the earthing system 9 then loosen nuts 6 ; verify that the threaded rod 8 slides into the hole; turn anti-tilt nuts 7 to a distance of 1 mm from plate.
185
3
8
B
3
4
1
A
120°
2 9
B x2
B
120°
A
x2
B
15
3
B
1
Load cell.
2
Upper and lower bases.
3
Galvanized steel upper and lower plates (PIACOKDTL).
4
Galvanized steel turnbuckle with horizontal constrainer function (TENDITORE300).
5
Self-locking nut Ø18.
6
Nut Ø22 to be used as jack.
7
Anti-tilt self-locking nut Ø22.
8
Threaded rod Ø22.
9
Copper wire for earthing connection.
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
201
VDTX MOUNTING KIT for DOUBLE SHEAR BEAM load cells Series load cells:
DTX
Up to 60 klb/27 ton application range
COMPRESSION
DESCRIPTION
Nickel-plated steel alloy mounting kit for rigid
TRACTION
attachment of the load cell.
It prevents horizontal movement.
MAX STATIC LOAD
klb / c.a. ton
60 klb / 27 ton
FOR LOAD CELLS
DTX 30 klb÷60 klb
NET WEIGHT (kg)
CODE
16.9
VDTX
Load cell not included.
215.9 50 M24
DIMENSIONS AND TECHNICAL SPECIFICATIONS 2-M24x1.5x100
30
38
The base plates must be placed on non-deformable surface. To ensure the stability of the structure, the system designer must predict any further precaution against side shifts and anti-tilt in function of: knocks and vibrations, wind effect, seismic conditions and hardness of support structure.
23
2-M24x1.5x150
22 66.5
20
258.9
Example of application: container weighing
150
5 50
165.8
50
45
110
118
R e v. 0 . 0
160
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
202
A2 - MOUNTING KITS PRODUCTS CATALOG
APPLICATION RANGE
LAUMAS S.r.l. Fax: (+39) 0521 681091
for LOAD CELLS
PAGE
A2.5
for COMPRESSION-LOW PROFILE load cells
PVCLSEN1090
up to 2000 kg
CLS 1000 - 2000 kg
204
PVCLS
up to 2000 kg
CLS 1000 - 2000 kg
206
PV80CLSEN1090
up to 5000 kg
CLS 5000 kg
208
PV80CLS
up to 5000 kg
CLS 5000 kg
210
PSCLS
up to 5000 kg
CLS 1000 - 2000 kg CLS 5000 kg
212
V10000/ V10275EN1090
up to 15000 kg
CBL, CBX
214
Z10000
up to 15000 kg
CBL, CBX
216
V15000/ V100000EN1090
up to 100000 kg
CBL, CBX
218
Z15000/ 100000
up to 100000 kg
CBL, CBX
221
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
203
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
204
PVCLSEN1090 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells Series load cells:
EN
CLS
Up to 2000 kg application range Certification EN1090
kg
MAX STATIC LOAD
2000
FOR LOAD CELLS
CLS (1000 - 2000 kg)
NET WEIGHT (kg)
CODE
0.6
PVCLSEN1090
Load cell not included.
DESCRIPTION
Constraint against lateral forces and anti-tilt by AISI 304 stainless
R e v. 0. 0
steel self-centering joint foot. Compensation for any misalignments of the support plates of the structure. Adjustable height.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
205
PVCLSEN1090 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
Finished the installation by means of a copper wire, connect
Ø80
the upper supporting plate with the lower supporting plate, then connect all the lower plates to the earthing system. In case of structure with four-point support, if one-point does not touch the support base of the foot, you must proceed to adjust foot height.
110 (max 125)
STR (M12x1.75)
CLS 1000 kg - 2000 kg
CLS 1000 kg - 2000 kg
150
115
17.5
4x Ø14
M12x1.75 STR (M12x1.75)
17.5
1/4 gas
17.5
115
17.5
150
Peso : 4.2 kg
105 WARNING! ATTENZIONE! * Massima Max dimension insert the bolt to quota ditoinserimento bullone
90 34
per corretto funzionamento cella allow the cell to perform properly
35
*
15
32.5
16
3
7
M6x1
FIXING TO THE WEIGHED STRUCTURE MOUNTING AND PLACING STRUCTURE
STRUCTURE
Re v. 0 . 0
STRUCTURE
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
206
PVCLS MOUNTING KIT for COMPRESSION - LOW PROFILE load cells Series load cells:
CLS
Up to 2000 kg application range
kg
MAX STATIC LOAD
2000
FOR LOAD CELLS
CLS (1000 - 2000 kg)
NET WEIGHT (kg)
CODE
0.6
PVCLS
Load cell not included
DESCRIPTION
Adjustable upper plate in AISI 304 stainless steel (PPV). Constraint against lateral forces and anti-tilt by stainless steel self-centering joint foot.
Compensation for any misalignments of the support plates of the structure.
R ev. 0 .0
Adjustable height.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
207
PVCLS MOUNTING KIT for COMPRESSION - LOW PROFILE load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
Finished the installation by means of a copper wire, connect
Ø60
the upper supporting plate with the lower supporting plate, then connect all the lower plates to the earthing system. In case of structure with four-point support, if one-point does not touch the support base of the foot, you must proceed to adjust foot height.
PPV
SB2 steel SB2 - stainless stainless steel
CLS 1000 kg - 2000 kg
PPV
CLS 1000 kg - 2000 kg
60 26
4x Ø13
Ø31.5
50 15
150
115
80
40
15
17.5
4x Ø14
*
118 (max 126)
32.5
(M12x1.75)
15
M12x1.75
90
15
120
17.5
28.5
1/4 gas
17.5
115
2 M6x1 62.5
17.5
150
Peso : 4.2 kg
SB2--stainless stainless steel steel SB2 (M12x1.75)
105 90
50
34
92
ATTENZIONE! * WARNING! Massima quota dito inserimento Max dimension insert thebullone bolt to
35
*
17
per corretto funzionamento cella allow the cell to perform properly
15
32.5
16
3
Ø60
7
M6x1
MOUNTING ANDWEIGHED PLACING STRUCTURE FIXING TO THE STRUCTURE STRUCTURE
POSSIBLE UPPER UPPER PLATE POSSIBLE PLATEPOSITIONS POSITIONS
STRUCTURE
R ev. 0 .0
mounting surface
mounting surface
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
208
PV80CLSEN1090 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells Series load cells:
EN
CLS
Up to 5000 kg application range Certification EN1090
kg
FOR LOAD CELLS
NET WEIGHT (kg)
5000
CLS (5000 kg)
1.5
MAX STATIC LOAD
CODE
PV80CLSEN1090
Load cell not included.
DESCRIPTION
Constraint against lateral forces and anti-tilt by AISI 304 stainless steel self-centering joint foot.
Compensation for any misalignments of the support plates of the structure.
R e v. 0. 0
Adjustable height.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
209
PV80CLSEN1090 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
Finished the installation by means of a copper wire, connect
4x Ø14
CLS 5000 kg
150
17.5 115
32.5
STR (M20x2.5)
CLS 5000 kg
110 (max 125)
Ø150
the upper supporting plate with the lower supporting plate, then connect all the lower plates to the earthing system. In case of structure with four-point support, if one-point does not touch the support base of the foot, you must proceed to adjust foot height.
M20x2.5
1/4 gas
17.5
STR (M20x2.5)
17.5
115
17.5
150
Peso : 4.2 kg
105
WARNING! ATTENZIONE! * Massima quota di Max dimension toinserimento insert the bolt to
90
bullone percell corretto allow the to perform properly funzionamento cella
34
35
*
15
32.5
16
3
7
M6x1
MOUNTING AND PLACING STRUCTURE FIXING TO THE WEIGHED STRUCTURE
R e v. 0. 0
STRUCTURE
STRUCTURE
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
210
PV80CLS MOUNTING KIT for COMPRESSION - LOW PROFILE load cells Series load cells:
CLS
Up to 5000 kg application range
kg
FOR LOAD CELLS
NET WEIGHT (kg)
5000
CLS (5000 kg)
1.5
MAX STATIC LOAD
CODE
PV80CLS
Load cell not included.
DESCRIPTION
Adjustable upper plate in AISI 304 stainless steel (PPV80). Constraint against lateral forces and anti-tilt by stainless steel self-centering joint foot.
Compensation for any misalignments of the support plates of the structure.
R ev. 0 .0
Adjustable height.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
211
PV80CLS MOUNTING KIT for COMPRESSION - LOW PROFILE load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
Finished the installation by means of a copper wire, connect
the upper supporting plate with the lower supporting plate, then connect all the lower plates to the earthing system. In case of structure with four-point support, if one-point does not touch the support base of the foot, you must proceed to adjust foot height.
Ø80
SB2 - stainlesssteel steel (M20x2.5) SB2 - stainless (M20x2.5)
32.5
138
PPV80
CLS 5000 kg
CLS 5000 kg
*
PPV80 4x Ø13 17.5
4x Ø14
90
150
115
123
Ø38
M20x2.5
1/4 gas
17.5
90
115
17.5
150
41
17.5
3
Peso : 4.2 kg
105 123
90 34
35
*
WARNING! ATTENZIONE! * Massima quota di inserimento bullone Max dimension to insert the bolt to per corretto funzionamento allow the cell to performcella properly
SB2 stainlesssteel steel SB2 - stainless (M20x2.5)
15
32.5
16
3
7
STRUCTURE
mounting surface
mounting surface
25
STRUCTURE
POSSIBLE PLATE POSITIONS POSITIONS POSSIBLE UPPER UPPER PLATE
50
MOUNTING ANDWEIGHED PLACING STRUCTURE FIXING TO THE STRUCTURE
105
M6x1
R ev. 0 .0
Ø80
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
212
PSCLS MOUNTING KIT for COMPRESSION - LOW PROFILE load cells Series load cells:
CLS
Up to 5000 kg application range
kg
FOR LOAD CELLS
NET WEIGHT (kg)
CODE
2000
CLS 1000-2000 kg
3.6
PSCLS2000
5000
CLS 5000 kg
3.6
PSCLS
Load cell not included.
DESCRIPTION
Adjustable upper plate in hot galvanized steel. Constraint against lateral forces and anti-tilt by ball-and-socket joint Compensation for any misalignments of the support plates of the structure.
R ev. 0 .0
Adjustable height.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
213
PSCLS MOUNTING KIT for COMPRESSION - LOW PROFILE load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
Finished the installation by means of a copper wire, connect
the upper supporting plate with the lower supporting plate, then connect all the lower plates to the earthing system.
PSCLS PANGOLARE
PSCLS2000 M20x2.5
ANGOLARE
99 (max 111)
*
CLS 5000 kg
32.5
32.5
CLS 1000 - 2000 kg
142 (max 150)
EM (M12x1.75)
*
ATTENZIONE! Max Massima quota di inserimento bullone funzionamento cella dimension to insert the boltper tocorretto allow the cell to perform properly * WARNING!
4x Ø16 4x Ø13
80
15
50
180
140 20
15
90
120
15
20
35
15
80
140
21
21
182
EM M12x1.75
M20x2.5
MOUNTING PLACING STRUCTURE STRUCTURE FIXING TOAND THE WEIGHED
R e v. 0 . 0
STRUCTURE
STRUCTURE
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
214
V10000/V10275-EN1090 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells Series load cells:
EN
CBL - CBX - CX
Up to 15000 kg application range
V10000/V10000EN1090
kgEN
MAX STATIC LOAD
FOR LOAD CELLS
NET WEIGHT (kg)
CODE
15000
–
CBL (250 ÷ 12500 kg) - CBX (15000 kg) CX (1000 ÷ 15000 kg)
5.7
V10000
15000
–
CBL (250 ÷ 12500 kg) - CBX (15000 kg) CX (1000 ÷ 15000 kg)
6.9
V10275
15000
CBL (250 ÷ 12500 kg) - CBX (15000 kg) CX (1000 ÷ 15000 kg)
5.7
V10000EN1090
15000
CBL (250 ÷ 12500 kg) - CBX (15000 kg) CX (1000 ÷ 15000 kg)
6.9
V10275EN1090
B B
B B
Load cell not included.
A A
V10275/V10275EN1090
A A
DESCRIPTION x3
x3
A A
x2 x2
B B
x2 x2
AISI 304 stainless steel upper and lower plates. steel laminas againstBlateral forces. B stainless AISI 304 B B A A Anti-tilt constraint consisting of two threaded rods with self-locking nut. HORIZONTAL CONSTRAINTS ORIENTATION IN STRUCTURES WITH 3-POINT SUPPORT
Example of application
B B
HORIZONTAL CONSTRAINTS ORIENTATION IN STRUCTURES WITH 4-POINT SUPPORT HORIZONTAL CONSTRAINTS
120°
120° 120°
120°
120°
120°
COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
AISI 304 stainless steel shim for V10000/V10000EN1090:
R e v. 0. 0
h 0.5 mm h 1 mm h 2 mm
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
SPVZ1005 SPVZ101 SPVZ102
ISO
9001
ISO 14001
www.laumas.com
215
V10000/V10275-EN1090 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS Upper and lower plates 2 must rest completely on not deformable surfaces. To ensure the stability of the structure, the system designer must predict any further precaution against side shifts and anti-tilt in function of: knocks and vibrations, wind effect, seismic conditions and hardness of support structure.
17.5
Upper Upperplate plate
4x M12 x 1.75
17.5
150
the load cell 1 and inserting in its place a piece of pipe (1-2 mm higher than the load cell). To finish the installation (weldings, etc..), remove the piece of pipe and then removing the bolts to fix the the load cell 7 insert the load cell 1 in mounting kit. Connect lower and upper plates 2 to the earthing system then loosen nuts 5 ; verify that the threaded rod 4 slides into the hole; turn anti-tilt nuts 6 to a distance of 1 mm from plate. Tighten the three bolts to fix the load cell 7 .
115
Install the weighed system using only the mounting kit without
115
30
30
175 V10275 lower plate plate V10275/V10275EN1090 - Lower
17.5
17.5
Lower plate- Lower plate V10000/V10000EN1090
4x Ø14
150
load cell
115
115
150
4x Ø14
load cell
2x M16x2
17.5
17.5
2x M16x2
17.5
240
115
30
17.5
2
AISI 304 stainless steel upper and lower plates.
3
AISI 304 stainless steel laminas with horizontal constraint function.
4
Threaded rod.
5
Nut to be used as jack.
6
Anti-tilt self-locking nut.
7
M6 bolts to fix the load cell.
3 1 5
5
10
4
R e v. 0. 0
2
6
10
2
95
Load cell.
75
1
30
175
275
7
2
7
2
4
7
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
216
Z10000 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells Series load cells:
CBL - CBX - CX
Up to 15000 kg application range
DESCRIPTION
Upper and lower plates in galvanized S355JR construction steel. AISI 304 stainless steel laminas against lateral forces. Anti-tilt constraint consisting of two threaded rods with self-locking nut.
kg
MAX STATIC LOAD
B B
A A
FOR LOAD CELLS
B B
x3 x3
A A
x2 x2
B B
B B
HORIZONTAL CONSTRAINTS ORIENTATION IN STRUCTURES WITH 3-POINT SUPPORT
120°
120° 120°
120°
B B
CBL (250 ÷ 12500 kg) - CBX (15000 kg) CX (1000 ÷ 15000 kg)
15000
Load cell not included.
A A
NET WEIGHT (kg)
CODE
5.7
Z10000
x2 x2
A A
Example of application
B B
HORIZONTAL CONSTRAINTS ORIENTATION IN STRUCTURES WITH 4-POINT SUPPORT
120°
HORIZONTAL CONSTRAINTS
120°
COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
AISI 304 stainless steel shim:
R e v. 0. 0
h 0.5 mm h 1 mm h 2 mm
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
SPVZ1005 SPVZ101 SPVZ102
ISO
9001
ISO 14001
www.laumas.com
217
Z10000 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
Upper and lower plates 2 must rest completely on not deformable surfaces. To ensure the stability of the structure, the system designer must predict any further precaution against side shifts and anti-tilt in function of: knocks and vibrations, wind effect, seismic conditions and hardness of support structure.
Install the weighed system using only the mounting kit without
the load cell 1 and inserting in its place a piece of pipe (1-2 mm higher than the load cell). To finish the installation (weldings, etc..), remove the piece of pipe and then removing the bolts to fix the the load cell 7 insert the load cell 1 in mounting kit. Connect lower and upper plates 2 to the earthing system then loosen nuts 5 ; verify that the threaded rod 4 slides into the hole; turn anti-tilt nuts 6 to a distance of 1 mm from plate. Tighten the three bolts to fix the load cell 7 .
Lower plate Lower plate 17.5
17.5
Upper plate Upper plate
4x Ø14
150
115
115
150
4x M12 x 1.75
load cell
17.5
17.5
2x M16x2
115
30
115
30
30
175
2
Upper and lower plates in galvanized S355JR construction steel.
3
AISI 304 stainless steel laminas with horizontal constraint function.
4
Threaded rod.
5
Nut to be used as jack.
6
Anti-tilt self-locking nut.
7
M6 bolts to fix the load cell.
3 1 5
5
10
4
R e v. 0. 0
2
6
10
2
75
Load cell.
95
1
30
175
7
2
7
2
4
7
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
218
V15000/V100000-EN1090 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells Series load cells:
EN
CBL - CBX - CX
Up to 100000 kg application range
DESCRIPTION
AISI 304 stainless steel upper and lower plates. AISI 304 stainless steel laminas against lateral forces. Anti-tilt constraint consisting of two threaded rods with self-locking nut.
MAX STATIC LOAD
EN kg
FOR LOAD CELLS
CODE
30000
–
CBL (15000 kg) - CBX (30000 kg) - CX (30000 kg)
9
V15000
50000
–
CBL (30000 kg) - CBX (50000 kg)
17.5
V30000
100000
–
CBL (50000 kg) - CBL (100000 kg)
33.5
V100000
CBL (15000 kg) - CBX (30000 kg) - CX (30000 kg)
9
V15000EN1090
50000
CBL (30000 kg) - CBX (50000 kg)
17.5
V30000EN1090
x3 x3100000 A A
CBL (50000 kg) - CBL (100000 kg)
33.5
V100000EN1090
B 30000 B
A A
NET WEIGHT (kg)
B B
A A
x2 x2
Load cell not included.
B B
B B
A A
B B
x2 x2 B B
Example of application HORIZONTAL CONSTRAINTS ORIENTATION IN STRUCTURES WITH 3-POINT SUPPORT
120°
120°
120°
HORIZONTAL CONSTRAINTS
120°
Re v. 0. 0
120°
120°
HORIZONTAL CONSTRAINTS ORIENTATION IN STRUCTURES WITH 4-POINT SUPPORT
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
219
V15000/V100000-EN1090 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
AISI 304 stainless steel shim: V15000/V15000EN1090
h 0.5 mm h 1 mm h 2 mm
SPVZ1505 SPVZ151 SPVZ152
V30000/V30000EN1090
h 0.5 mm h 1 mm h 2 mm
SPVZ3005 SPVZ301 SPVZ302
V100000/V100000EN1090
h 0.5 mm h 1 mm h 2 mm
SPVZ10005 SPVZ1001 SPVZ1002
AISI 304 stainless steel adapter: V15000/V15000EN1090 V30000/V30000EN1090 V100000/V100000EN1090
for load cells for load cells for load cells
Ø82 mm Ø100 mm Ø126 mm
ADAT100 ADAT126 ADAT165
TENDITORE300
Galvanized steel anchor plate for TENDITORE300 Net weight: 1.5 kg
PTEND
Re v. 0. 0
Galvanized steel turnbuckle with dual ball-and-socket. Net weight: 2.10 kg Working load: 2500 kg Ultimate overload: 10000 kg
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
220
V15000/V100000-EN1090 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
Upperplate plate Upper
Upper and lower plates 2 must rest completely on not deformable surfaces. To ensure the stability of the structure, the system designer must predict any further precaution against side shifts and anti-tilt in function of: knocks and vibrations, wind effect, seismic conditions and hardness of support structure.
4x H
D
C
PIEDE SERBATOIO
Install the weighed system using only the mounting kit without the load cell 1 and inserting in its place a piece of pipe (1-2 mm higher than the load cell).
F
To finish the installation (weldings, etc..), remove the piece of pipe and then
removing the bolts to fix the the load cell 7 insert the load cell 1 in mounting 6 kit. 8 PIEDE SERBATOIO 2 to the earthing system then loosen nuts 5 and upper plates Connect lower ; verify that7the threaded rod 4 slides into the hole; turn anti-tilt nuts 6 to a distance of 1 mm from plate. Tighten the three bolts to1fix the load cell 7 .
6
PIEDE SERBATOIO
M
7
5
2
5
TENDITORE300
E
4x I
1
4
D C
Lower plate
Lower plate
3
V15000/V15000EN1090 V30000/V30000EN1090
B
C
D
E
102 10 200 160 10 TENDITORE300 132 12 250 185 12
V100000/V100000EN1090 155 15
320 250 15
F
G
H
I
L
47
20 M12x1.75 Ø17 M20x2.5 35
Weight
40
9 kg
M24x3
60
17 kg
M20x2.5 Ø23 M30x3.5
70
34 kg
70 32.5 M18x2.5 Ø20 95
M
PIEDE SERBATOIO
load cell
8
D
A
C
4
2x L
Dimensions (mm)
G
1
Load cell.
2
AISI 304 stainless steel upper and lower plates.
3
AISI 304 stainless steel laminas with horizontal constraint function.
4
Threaded rod.
5
Nut to be used as jack.
6
Anti-tilt self-locking nut.
7
M6 bolts to fix the load cell.
B
2
3
A
TANK PIEDE FOOT SERBATOIO
4
7
5
2
7
2
4
7
CONSTRAINTS PLACEMENT ON 3/4 SUPPORTS: the horizontal constraints can be positioned both on supports and on the four sides, centrally between two supports.
TANK PIEDE FOOT SERBATOIO
STRUCTURE WITH 3-POINT SUPPORT 1 CONSTRAINT FOR SUPPORT
120°
6
1
Application example: how to make further horizontal constraints with the TENDITORE300 accessory
STRUCTURE WITH 4-POINT SUPPORT
2 CONSTRAINTS FOR SUPPORT
120°
120°
2
5
B
120°
G
D
1 CONSTRAINT FOR SUPPORT
2 CONSTRAINTS FOR SUPPORT
120°
Re v. 0. 0
120°
The Company re se r ve s the r ight to make cha ng es to t he technica l d a t a , d ra wings a nd ima g es wit ho ut no t ice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
221
Z15000/100000 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells Series load cells:
CBL - CBX - CX
Up to 100000 kg application range
DESCRIPTION
Upper and lower plates in galvanized S355JR construction steel. AISI 304 stainless steel laminas against lateral forces. Anti-tilt constraint consisting of two threaded rods with self-locking nut.
kg
MAX STATIC LOAD
CODE
30000
CBL (15000 kg) - CBX (30000 kg) - CX (30000 kg)
9
Z15000
50000
CBL (30000 kg) - CBX (50000 kg)
17.5
Z30000
33.5
Z100000
B B
B A A kg) CBL (50000 kg) -BCBL (100000
100000
A A
NET WEIGHT (kg)
FOR LOAD CELLS
Load cell not included.
x3 x3
A A
x2 x2
B B
B B
HORIZONTAL CONSTRAINTS ORIENTATION IN STRUCTURES WITH 3-POINT SUPPORT
120°
120°
x2 x2 A A
B B
Example of application
HORIZONTAL CONSTRAINTS ORIENTATION IN STRUCTURES WITH 4-POINT SUPPORT
120°
HORIZONTAL CONSTRAINTS
120°
Re v. 0. 0
120°
120°
B B
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
222
Z15000/100000 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells COMPLEMENTARY ACCESSORIES DESCRIPTION
CODE
AISI 304 stainless steel shim: Z15000
h 0.5 mm h 1 mm h 2 mm
SPVZ1505 SPVZ151 SPVZ152
Z30000
h 0.5 mm h 1 mm h 2 mm
SPVZ3005 SPVZ301 SPVZ302
Z100000
h 0.5 mm h 1 mm h 2 mm
SPVZ10005 SPVZ1001 SPVZ1002
AISI 304 stainless steel adapter: Z15000 Z30000 Z100000
for load cells for load cells for load cells
Ø82 mm Ø100 mm Ø126 mm
ADAT100 ADAT126 ADAT165
TENDITORE300
Galvanized steel anchor plate for TENDITORE300 Net weight: 1.5 kg
PTEND
Re v. 0. 0
Galvanized steel turnbuckle with dual ball-and-socket. Net weight: 2.10 kg Working load: 2500 kg Ultimate overload: 10000 kg
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
223
Z15000/100000 MOUNTING KIT for COMPRESSION - LOW PROFILE load cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
Upper plate
Upper plate
Upper and lower plates 2 must rest completely on not deformable surfaces. To ensure the stability of the structure, the system designer must predict any further precaution against side shifts and anti-tilt in function of: knocks and vibrations, wind effect, seismic conditions and hardness of support structure.
4x H
D
C
PIEDE SERBATOIO
Install the weighed system using only the mounting kit without the load cell 1 and inserting in its place a piece of pipe (1-2 mm higher than the load cell).
F
To finish the installation (weldings, etc..), remove the piece of pipe and then
removing the bolts to fix the the load cell 7 insert the load cell 1 in mounting 6 kit. 8 PIEDE SERBATOIO 2 to the earthing system then loosen nuts 5 and upper plates Connect lower ; verify that7the threaded rod 4 slides into the hole; turn anti-tilt nuts 6 to a distance of 1 mm from plate. Tighten the three bolts to1fix the load cell 7 .
6
PIEDE SERBATOIO
M
7
5
2
5
TENDITORE300
E
4x I
1
4
D C
Lower Lowerplate plate
3
4 D
40
9 kg
PIEDE SERBATOIO
M24x3
60
17 kg
70
34 kg
2x L
M20x2.5 Ø23 M30x3.5
G
102 10
200 160 10
47
20 M12x1.75 Ø17 M20x2.5
Z30000
132 12
250TENDITORE300 185 12 70 32.5 M18x2.5 Ø20
Z100000
155 15 320 250 15
95
35
load cell
Weight
F
H
I
L
D
C
M
E
Z15000
B
C
A
8
Dimensions (mm)
G Load cell.
2
Upper and lower plates in galvanized S355JR construction steel.
3
AISI 304 stainless steel laminas with horizontal constraint function.
4
Threaded rod.
5
Nut to be used as jack.
6
Anti-tilt self-locking nut.
7
M6 bolts to fix the load cell.
B
2
3
2
6
1
A
1
G
D
5
B
4
7
5
2
Application example: how to make further horizontal constraints with the TENDITORE300 accessory
TANK PIEDE FOOT SERBATOIO
120°
120°
4
7
CONSTRAINTS PLACEMENT ON 3/4 SUPPORTS: the horizontal constraints can be positioned both on supports and on the four sides, centrally between two supports.
STRUCTURE WITH 4-POINT SUPPORT
2 CONSTRAINTS FOR SUPPORT
120°
120°
2
TANK PIEDE FOOT SERBATOIO
STRUCTURE WITH 3-POINT SUPPORT 1 CONSTRAINT FOR SUPPORT
7
1 CONSTRAINT FOR SUPPORT
2 CONSTRAINTS FOR SUPPORT
120°
Re v. 0. 0
120°
The Company re se r ve s the r ight to make cha ng es to t he technica l d a t a , d ra wings a nd ima g es wit ho ut no t ice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
224
A3 - COMPLEMENTARY ACCESSORIES PRODUCTS CATALOG
APPLICATION RANGE
A3.1
PAGE
Horizontal constraints for mounting kits
TENDITORE300 up to 100000 kg PTEND
LAUMAS S.r.l. Fax: (+39) 0521 681091
for LOAD CELLS
-
227
A3.2
Self-centering adjustable feet
SB2 - PXC
up to 5000 kg
FCAL, FCAX, FCOL, FTK, FTKL, FTP, FT-P, FTZ
229
STR
up to 10000 kg
FCAL, FCAX, FCOL, FTK, FTKL, FTP, FT-P, FTZ, FLC
231
HD
up to 20000 kg
FLC 3A
233
A3.3
Adjustable upper plate
PPV PPVZ PPV80 PPV60Z
up to 5000 kg
-
235
A3.4
Accessory with ball
ACCSFER
up to 5000 kg
FTK, FT-P, FTKL, FTZ, FTP, CLS
236
A3.5
Compression joint
ANTIV
up to 2000 kg
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
FCOL, FTKL, FCAL, FCAX, FTP, FT-P, FTK, FTZ, CLS
ISO
9001
ISO 14001
237
www.laumas.com
225
A3 - COMPLEMENTARY ACCESSORIES PRODUCTS CATALOG
APPLICATION RANGE
A3.6 EM
LAUMAS S.r.l. Fax: (+39) 0521 681091
PAGE
-
238
FTK, FT-P, FTKL, FTZ, FTP, CLS
239
-
240
Ball-and-socket joint up to 112 kN (dynamic) up to 146 kN (static)
A3.7
Axial spherical plain bearings
SNODOGE
up to 10000 kg
A3.8
Level measurements - false cells
ML
up to 100000 kg
• •
for LOAD CELLS
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
226
Notes PRODUCTS CATALOG
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
227
TENDITORE300 - PTEND Horizontal constraints for mounting kits Up to 100000 kg application range
CODE
DESCRIPTION
Galvanized steel turnbuckle with dual ball-and-socket. Net weight: Working load: Ultimate overload:
TENDITORE300
2.10 kg 2500 kg 10000 kg
Galvanized steel anchor plate for TENDITORE300
1.5 kg
Net weight:
DIMENSIONS
PTEND
DESCRIPTION
Suitable for static applications; place
TENDITORE300 2kg
Ø19.3
the constraints in a horizontal position. Turnbuckle lock for constraint adjustment. LOCK
30
300 - 350
30
44
180 APPLICATION EXAMPLE
EXAMPLE OF APPLICATION
132
8
50
40
4x Ø13
20
80
20
2kg
WEIGHED SISTEMASTRUCTURE PESATO
M27x3
PTEND
105
R e v. 0 . 0
WEIGHED STRUCTURE SISTEMA PESATO
98
2x Ø19 8
49
66
85
190
20
LAUMAS S.r.l. Fax: (+39) 0521 681091
150
• •
20
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
85
ISO
9001
ISO 14001
www.laumas.com
228
TENDITORE300 - PTEND Horizontal constraints for mounting kits APPLICATION EXAMPLE: HOW TO MAKE MOUNTING KITS WITH HORIZONTAL CONSTRAINTS By a copper wire, connect the upper supporting plate with the lower supporting plate, then link together the lower plates to the earthing system. To ensure the stability of the structure, the system designer must predict any further precaution against side shifts and anti-tilt in function of: knocks and vibrations, wind effect, seismic conditions and hardness of support structure.
Application example with compression load cells
TANK PIEDE FOOT SERBATOIO
Application example with column load cells 6 7
TENDITORE300
8
TANK PIEDE FOOT SERBATOIO
7
6
TANK PIEDE FOOT SERBATOIO
1 5
2
5
1
4
3
4 8
TANK PIEDE FOOT SERBATOIO
TENDITORE300
1
Load cell.
2
Mounting kit for column load cell.
3
AISI 304 stainless steel upper and lower bases.
4
Threaded rod.
5
Nut to be used as jack.
6
Anti-tilt self-locking nut.
7
Washer.
8
Hole diameter 20 mm larger than the bolt.
Application example with V15000 - V30000 - V100000 mounting kits
TANK PIEDE FOOT SERBATOIO
TANK PIEDE FOOT SERBATOIO
STRUCTURE WITH 3-POINT SUPPORT 1 CONSTRAINT FOR SUPPORT
120°
120°
STRUCTURE WITH 4-POINT SUPPORT
2 CONSTRAINTS FOR SUPPORT
120°
120°
CONSTRAINTS PLACEMENT ON 3/4 SUPPORTS: the horizontal constraints can be positioned both on supports and on the four sides, centrally between two supports.
1 CONSTRAINT FOR SUPPORT
2 CONSTRAINTS FOR SUPPORT
120°
R e v. 0 . 0
120°
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
229
SB2 - PXC Self-centering joint feet For BENDING BEAM and SHEAR BEAM load cells Up to 5000 kg application range
MAX STATIC LOAD
kg
THREAD
DIMENSIONS
500
M8
Ø60 x H 92 mm
500
M10
Ø60 x H 92 mm
2000
M12
Ø60 x H 92 mm
5000
M20
Ø80 x H 105 mm
2000
M12
Ø60 x H 78 mm
2000
M12
Ø62 x H 86 mm
5000
M20
Ø62 x H 110 mm
2000
M12
Ø60 x H 78 mm
MATERIAL
stainless steel
stainless steel galvanized steel galvanized steel
NET WEIGHT (kg)
SERIES
0.3
SB2
0.3
SB2
0.4
SB2
0.9
SB2
0.4
PXC
0.4
SB2
0.9
SB2
0.4
PXC
R e v. 0 . 0
Nuts and washers included.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
230
SB2 - PXC Self-centering joint feet DIMENSIONS AND APPLICATION SB2 SB2- stainless - acciaiosteel inox M10x1.5
SB2 SB2- -stainless acciaio steel inox M12x1.75
SB2 - stainless SB2 - acciaiosteel inox M20x2.5
105 25
92 Ø60
Ø60
Ø80
PXC PXC- stainless - acciaiosteel/ inox/ galvanized steel acciaio zincato M12x1.75
SB2 steel SB2--galvanized acciaio zincato M12x1.75
SB2 steel SB2--galvanized acciaio zincato M20x2.5
22
13
22
74
86
42
110
45
52
Ø60
17
17
17
92
92
50
50
50
50
SB2 SB2- stainless - acciaiosteel inox M8x1.25
Ø60
Ø62
Ø62
Application example EXAMPLE OF APPLICATION
WEIGHING STRUCTURE WEIGHED STRUCTURE
MOUNTING SURFACE LOAD DIRECTION
load cell
R e v. 0 . 0
SAFETY BOLT
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
231
STR Ball-mounted self-centering pluggable feet H 102 mm: for BENDING BEAM and SHEAR BEAM load cells H 89 mm: for FLC load cells Up to 10000 kg application range
kg
THREAD
DIMENSIONS
2000
M12x1.75
Ø80 x H 102 mm
5000
M20x2.5
Ø150 x H 102 mm
2000
M12x1.75
Ø80 x H 89 mm
5000
M20x2.5
Ø150 x H 89 mm
10000
M24x3
Ø150 x H 89 mm
MATERIAL
NET WEIGHT (kg)
0.6
stainless steel
1.9 0.6 1.9
stainless steel
1.9
R e v. 0. 0
MAX STATIC LOAD
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
232
STR Ball-mounted self-centering pluggable feet DIMENSIONS 2000 kg
5000 kg
R e v. 0. 0
10000 kg
Th e Com p any re se r ve s t h e r i g h t to m ake c h a n ge s to t h e te c h n i ca l d a t a , d ra w i n gs a n d i m a ge s w i t h o u t n o t i ce.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
233
HD Self-centering adjustable hygienic feet
Up to 20000 kg application range
kg
THREAD
DIMENSIONS
2000
M12
Ø120 x H 101 mm
0.3
5000
M16
Ø120 x H 101 mm
0.3
5000
M20
Ø120 x H 101 mm
10000
M24
Ø120 x H 97 mm
10000
M30
Ø120 x H 97 mm
0.9
20000
M36
Ø120 x H 97 mm
0.4
MAX STATIC LOAD
MATERIAL
NET WEIGHT (kg)
0.4
stainless steel
0.4
On request: pluggable hygienic foot, with holes for fixing to the floor.
For other types of hygienic or customized feet, please contact https://martinlevelling.it
CERTIFICATIONS
R e v. 0 . 0
Equivalent of the CE marking for the United Kingdom American standard that regulates the design, production and use of hygienic equipment
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
234
HD Self-centering adjustable hygienic feet DIMENSIONS AND APPLICATION 2000 kg M12 x 1.75
5000 kg M16 x 2
5000 kg M20 x 2.5
10000 kg M24 x 3
10000 kg M30 x 3.5
20000 kg M36 x 4
R e v. 0 . 0
EXAMPLE OF APPLICATION
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
235
PPV - PPVZ - PPV80 - PPV60Z Adjustable upper plate For SINGLE-POINT, BENDING BEAM, SHEAR BEAM and COMPRESSION load cells Plates for constraint against lateral forces and anti-tilt. For self-centering joint foot.
Up to 5000 kg application range
PPV
PPV80
PPVZ
kg
MAX STATIC LOAD
MATERIAL
PPV60Z
NET WEIGHT (kg)
CODE
2000
AISI 304 stainless steel
200
PPV
2000
galvanized steel
200
PPVZ
5000
AISI 304 stainless steel
600
PPV80
5000
galvanized steel
641
PPV60Z
DIMENSIONS (mm) PPV60Z
PPV80
PPV-PPVZ
4 x Ø13
4x Ø13
60 26
4x Ø13 15
Ø31.5 Ø38
19
71.5
90
123
50
80
40
Ø36
15
45°
45°
41
28.5
M6 x 1
M6x1 62.5
41,7
R ev. 0 .0
123
4
63.5
3
40
90
2
3
90
15
90 120
12
15
71.5
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
236
ACCSFER Accessory with ball Up to 5000 kg application range
MAX STATIC LOAD
kg
FOR LOAD CELLS
DIMENSIONS
NET WEIGHT (kg)
2000
FTK - FT-P - FTKL FTZ - FTP - CLS
M12x1.75
0.3
5000
FTK - FTKL - FTZ (5000 kg) FTP (3000-5000 kg) - CLS (5000 kg)
M20x2.5
0.4
DIMENSIONS AND APPLICATION
DESCRIPTION
Ø12
Ø20
Stainless steel accessory with ball to compensate for misalignment of the support plates.
58
58
11
Ø40
11
Ø40
Ø25
21
79 21
79
Ø25
M12x1.75
M20x2.5
Max static load CARICO MASSIMO STATICO 2000kg kg 2000
Max static load CARICO MASSIMO STATICO 5000kg kg 5000
Application example EXAMPLE OF APPLICATION
WEIGHING STRUCTURE WEIGHED STRUCTURE
LOAD DIRECTION
load cell
R ev. 0 .0
MOUNTING SURFACE
SAFETY BOLT
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
237
ANTIV Compression joint Up to 2000 kg application range
kg
MAX STATIC LOAD
FOR LOAD CELLS
DIMENSIONS
NET WEIGHT (kg)
FCOL
M8x1.25
0.04
ANTIV35
2000
FTKL - FCAL - FCAX - FTP FT-P - FTK - FTZ - CLS
M12x1.75
0.1
ANTIV40
2000
FCAL - FCAX
M12x1.75
0.1
ANTIV45
500
Ø25
Ø30
Ø30
compensate for any misalignments of the support plates.
Can be used for systems with at least 3 supports.
37
37
15
Stainless steel and rubber compression joints to
15
ANTIV45
12
ANTIV40
80
75
43
38
30
38
DESCRIPTION
ANTIV35
63
25
DIMENSIONS AND APPLICATION
CODE
M8x1.25
M12x1.75
Max static load 500kg
Max static load 2000kg
M12x1.75 Max static load 2000kg
EXAMPLE OF APPLICATION
R e v. 0 . 0
WARNING! Tighten until it stops without forcing, to avoid damaging the rubber-coated joint.
WEIGHED STRUCTURE STRUTTURA PESATA
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
238
EM Ball-and-socket joints with nut
For TENSION (COMPRESSION) load cells
THREAD
MATERIAL
M12 M16 M20 M24
STATIC LOAD RATINGS kN
NET WEIGHT (kg)
24.5
0.08
45
0.19
60
0.30
83
0.60
stainless steel
M6 M8 M10 M12 M16 M20 M24 M30 M36
galvanized C40 steel
8.1
0.02
12.9
0.04
17.6
0.06
24.5
0.08
45
0.19
60
0.30
83
0.60
110
0.93
146
1.45
CODE
EM-INOX
EM
DIMENSIONS stainless steel steel stainless
E F B
A
B
C
D
E
F
G
M12x1.75
Ø12
72
55
10
8.5
28 36
M16x2
Ø17
88.5
65.5
14
11.5
M20x1.5
Ø20
104
77
16
13.5
43
M24x2
Ø25
124
92
20
18
53
18
G
D
C
galvanized C40 steel galvanized C40 steel
R e v. 0 . 0
A
M6x1
Ø6
47
36.5
6
4.5
M8x1.25
Ø8
54
42.5
8
6.5
22
M10x1.5
Ø10
62.5
48.5
9
7.5
26
M12x1.75
Ø12
71
54.5
10
8.5
28
M16x2
Ø17
92
69.5
14
11.5
36
M20x1.5
Ø20
104.5
77.5
16
13.5
43
M24x2
Ø25
126
94.5
20
17.5
53
M30x2
Ø30
146.5
110
22
19.5
65
M36x3
Ø35
181
140
25
21.5
82
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
239
SNODOGE Axial spherical plain bearings Series load cells:
FTK - FT-P - FTKL - FTZ - FTP - CLS
Up to 10000 kg application range
MAX STATIC LOAD kg
DESCRIPTION
FOR LOAD CELLS
2000
Axial spherical plain bearing
CLS, FTK, FTKL, FTP, FT-P, FTZ
0.07
SNODOGE12
5000
Kit composed by bearing, galvanized bolt (20x80 mm) and washer (22x60 mm).
CLS (5000 kg), FTK (3000-5000 kg), FTKL, FTZ (5000 kg), FTP (3000-5000 kg)
0.3
SNODOGE20
10000
Kit composed by bearing, galvanized bolt (24x100 mm) and washer (26x72 mm).
FTP 10000 kg
0.9
SNODOGE25
DIMENSIONS AND APPLICATION
DESCRIPTION
Hardened 100Cr6 steel bearing to compensate for misalignment of the support plates.
SNODOGE25
20
13
SNODOGE20
22.5
SNODOGE12
CODE
NET WEIGHT (kg)
12
20
25
35
55
62
EXAMPLE OF APPLICATION Application example WEIGHED STRUCTURE WEIGHING STRUCTURE
ENDG HHI G IG EEI W W
SNODOGE
SNODOGE
R e v. 0 . 0
load cell
E RRE TUU CCT U U TRR SST
LOAD DIRECTION
LOAD DIRECTION
load cell
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
240
ML Level measurements - false cells
Up to 100000 kg application range
kg
CAPACITY
EQUIVALENT TO LOAD CELLS
MATERIAL
NET WEIGHT (kg)
FCOL
Galvanized steel
0.5
1500
FCAL (30-300 kg) - FCAX (30-1500 kg)
Galvanized steel
0.6
2000
FTP (75-2000 kg) - FTK (75-2000 kg) FTKL (500-2000 kg) - FTZ (500-2000 kg) FT-P (300-2000 kg)
Galvanized steel
0.9
5000
FTP (3000-5000 kg) - FTK (3000-5000 kg) FTKL (3000-5000 kg) - FTZ (5000 kg)
Galvanized steel
1.6
BENDING BEAM
200
SHEAR BEAM
COMPRESSION-LOW PROFILE
15000
CBL (250-12500 kg) - CBX (15000 kg)
Stainless steel
1.4
30000
CBL (15000 kg) - CBX (30000 kg)
Stainless steel
2.2
50000
CBL (30000 kg) - CBX (50000 kg)
Stainless steel
4
CBL (50000-100000 kg)
Stainless steel
10.5
100000
DESCRIPTION
Structural mechanical steel elements that can be used in
R e v. 0 . 0
combination with the load cells for measuring the level of liquid or weighing powder products that do not require a high degree of precision. They do not transmit any electrical signals. They can be mounted on the same mounting kits as the load cells.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
241
ML Level measurements - false cells DIMENSIONS AND TECHNICAL SPECIFICATIONS
To enable use of the false cells, it is
absolutely necessary that the structure to weigh has a uniform shape and is geometrically divisible. It must be perfectly level and the type of product to be weighed must enable horizontal positioning, as if it were a liquid (otherwise, loading systems which distribute the product/load uniformly are required). Mounting kits should be used for all supports (also for those with false cells), because, apart from simplifying and optimising cell assembly, they enable future replacement of false cells with real versions, accuracy and the reliability of the weighing process needs to be improved.
The weight indicator will show the effective
F
F
C
C F
F
Signal mV x 3
Signal mV x 2
STRUCTURE WITH 4-POINT SUPPORT 2 LOAD CELLS + 2 FALSE CELLS C
F
C
F
Signal mV x 2
C = SUPPORT FOOT WITH LOAD CELL F = SUPPORT FOOT WITH FALSE CELL
G
G
G
G
H
F
H
F
STRUCTURE WITH 3-POINT SUPPORT 1 LOAD CELL + 2 FALSE CELLS
weight multiplying the signal by two or three, depending on the application.
B
B
I
E
D
C
E
A
C
D A
200 kg
1500 kg
2000 kg
5000 kg
171.5
A
120
137
A
130
B
30
30
B
32
40
C
10
17.5
C
15
19
D
18
24.5
D
25.5
38
E
82
81.5
E
76
95
F
Ø9.5
Ø13
F
Ø14
Ø22
G
Ø8.5
Ø13
G
Ø14
Ø20
H
20
22
H
32
38
I
M12
M20
B
H
C
R e v. 0 . 0
A
15000 kg
30000 kg
50000 kg
100000 kg
Ø165
A
Ø82
Ø100
Ø126
B
32
35
40
60
C
Ø22
Ø28
Ø35
Ø60
H
44
48
54
80
The Comp any res er ves the right to make cha nges to the technica l da ta , dra wings a nd ima ges witho ut no tice.
LAUMAS S.r.l. Fax: (+39) 0521 681091
• •
SALES DEPARTMENT: sales@laumas.it Phone: (+39) 0521 683124
ISO
9001
ISO 14001
www.laumas.com
CUSTOM LOAD CELLS
Production of load cells based on CUSTOMERS REQUESTS LAUMAS designs and manufactures “CUSTOM” load cells to offer the best solutions to customer needs. Customizations are designed to solve specific customer problems and meet the needs of particular applications in special conditions, even for use in potentially explosive atmospheres (Atex-IECEx). • Pre-amplified load cells • Biaxial and triaxial • Two strain gauges Wheatstone bridges • Torque detection • Special cables high / low temperature with non-standard thermal compensation
JUNCTION BOXES
IP67
IP68
AISI 304 stainless steel or ABS junction boxes, including equalization boards or parallel connection boards, to connect from 1 to 4 or from 5 to 8 load cells. Lightning and electrical shock protection device. ATEX certified versions: II 1G Ex ia IIC T4 -20 °C ≤ Tamb +60 °C II 1D Ex ta IIIC T85°C -20 °C ≤ Tamb +60 °C Hygienic version: hygienic device RPSCQC authorized by 3-A SSI.
PHONE (+39) 0521 683124
SALES DEPARTMENT: sales@laumas.it
(+39) 0521 681091
43022 MONTECHIARUGOLO (PR) - ITALY
LAUMAS S.r.l. VIA I MAGGIO N. 6
FAX
