IDEA SCALES CATALOG SCALES AND WEIGHING SYSTEMS

Idea Scales Catalog No. 4.1

LAUMAS has operated in the INDUSTRIAL WEIGHING AND BATCHING market since 1984, with applications in different industrial sectors. In 2010 LAUMAS launches on the market the new product line with the IDEA SCALES brand entirely dedicated to the scales sector. With the publication of the 4th catalog IDEA SCALES we propose new products that further expand the possibilities of solutions in all sectors of use.

General foreign sales conditions Guarantee 24 months from the delivery document date. All repairs under warranty are carried out in our laboratories ex-works Montechiarugolo (PR). The guarantee covers only defected parts and includes the replacement parts and labour. It is possible to have the repair in guarantee on condition that the returned product has not been transformed, damaged or repaired without authorization. No guarantee is applicable on returned products without the original label and/or serial number. No guarantee against misuse. Batteries: Laumas provides 1 year guarantee from the date of delivery note, against material defects or battery manufacturing faults.

Electronic instrumentation spare parts When requesting spare parts, please quote the serial number of the product.

Insurance POLICY LIABILITY PRODUCTS stipulated with primary insurance company, coverage up to 5,000,000 € damages to third parties.

Authorized Returns No returns will be accepted without our authorization. The returns will be credited with 20% reduction of standard material and 30% reduction of personalized material. All shipping and packing costs paid by the customer. Concerning returned goods with calibrated versions and options (such as calibration, the first periodic verification, certifications) will be credited the amount of item regardless of the calibration, adjustements and the options.

Documentation Prices are with 1 copy of documentation included (1 copy per supply), further copies are paid by the customer.

Customized Documentation On request, labels and documentation with customer logo.

Packing Cardboard boxes and pallets. The prices include packaging. The weights of the products listed in this brochure are indicative and are exclusive of packaging.

IDEA SCALES N. 4.1

LAUMAS®

System and product certifications All EC-M approved scales are subjected to conformity assessment that Laumas is able to perform on instruments equipped with the "EU type examination" certificate, with the approval of its own PRODUCTION QUALITY ASSURANCE SYSTEM. Approved scales (Directive 2014/31/EU). By law, all scales used in the following applications must be approved: a) determination of mass for commercial transactions; b) determination of mass for the calculation of a toll, tariff, tax, bonus, penalty, remuneration, indemnity or similar type of payment; c) determination of mass for the application of laws or regulations; or for expert opinions given in court proceedings; d) determination of mass in the practice of medicine for weighing patients for the purposes of monitoring, diagnosis and treatment; e) determination of mass for making up medicines on prescription in a pharmacy and determination of mass in analyses carried out in medical and pharmaceutical laboratories; f) determination of price on the basis of mass for the purposes of direct sales to the public and the making-up of prepackages;

UKCA CERTIFICATION (UK Conformity Assessed) for the United Kingdom The UKCA (UK Conformity Assessed) marking is the equivalent of the UK CE marking.

EC-M approved scales must then be subjected to a periodical verification, which will ascertain that their metrological reliability - and therefore public confidence - is preserved in time, and also that the integrity of seals - also of an electronic nature - labels or other protection elements required by the laws in force is maintained.

QUALITY MANAGEMENT SYSTEM CERTIFICATION according to UNI EN ISO 9001:2015 ENVIRONMENTAL MANAGEMENT SYSTEM CERTIFICATION according to UNI EN ISO 14001 2004 obtained through TÜV Italia, a body belonging to the large international group TÜV SÜD D-FORM AND EU TYPE-EXAMINATION FOR NAWI INSTRUMENTS D FORM: CONFORMITY TO TYPE BASED ON QUALITY ASSURANCE OF THE PRODUCTION PROCESS, issued by a Notified Body and applicable to Non-Automatic Weighing Instruments. LAUMAS carries out said EC-M Conformity/Approval evaluations autonomously on instruments accompanied by a "EU type examination" certificate confirming that the weighing instrument is legal for trade use (Directive 2014/31/EU). ATEX CERTIFICATION LAUMAS is able to provide equipment marked ATEX with "EU type examination" certificate for use in potentially explosive atmosphere (Directive 2014/34/EU - ATEX ; zone 0-1-2 gas ; zone 20-21-22 dust). IECEx CERTIFICATION LAUMAS is able to provide equipment marked IECEx with "IECEx CoC" Certificate for use in potentially explosive atmospheres (Standards: IEC 60079-0, 60079-11, 60079-31, 60079-15; zone 0-1-2 gas ; zone 20-21-22 dust). EAC CERTIFICATION The certificate indicates the product's compliance with Russian regulations and its suitability for export to the countries of the Eurasian Customs Union (Russia, Belarus, Armenia, Kyrgyzstan and Kazakhstan). The EAC mark replaces the GOST mark.

AL COU ON N TI

ON W

RES

L CI

EAC EX CERTIFICATION LAUMAS is able to provide equipment marked EAC Ex with Certificate of Conformity for use in potentially explosive atmosphere in the Eurasian Customs Union (Russia, Belarus, Armenia, Kyrgyzstan and Kazakhstan). TR CU 012 Standards; zone 0-1-2 gas; zone 20-21-22 dust.

S AND M

NTEP CERTIFICATION This Certificate indicates that the product meets applicable technical requirements of Handbook 44 published by the National Institute of Standards and Technology (NIST) for the National Conference on Weights and Measures (NCWM). This Certificate indicates that the device meets applicable requirements for commercial weighing and measuring equipment in the U.S. and Canada (for legal for trade use).

OIML APPROVAL This Certificate indicates that the product meets recommendations defined by International Organization of Legal Metrology (OIML). OIML R51: Check weighers. OIML R60: Metrological regulation for load cells. OIML R61: Automatic gravimetric filling instruments. OIML R76: Metrological and technical requirements for non-automatic weighing instruments. “UL RECOGNIZED COMPONENT" CERTIFICATION This Certificate indicates that the component, intended for use in a complete product or system, meets UL requirements in accordance with the U.S. and Canadian regulations. NMI CERTIFICATION for Australia This Certificate indicates that the product complies with the Australian regulations for legal use with third parties. Regulation 60 of the National Measurement Regulations 1999, with reference to NMI R 76 standard (Non-automatic weighing instruments). NEW ZEALAND

“New Zealand Certificate of Approval” CERTIFICATION This certificate indicates that the product complies with the Weights and Measures Regulations 1999 for legal for trade use. PAC CERTIFICATION (Pattern Approval Certificate) This certificate "Pattern Approval Certificate" certifies that the product complies with the legal metrology regulations of the Russian Federation for weighing instruments for legal for trade use. CPA CERTIFICATION (Chinese Pattern Approval) This certificate indicates that the product complies with the weights and measures regulations of the People's Republic of China for legal for trade use.

LAUMAS®

IDEA SCALES N. 4.1

Content index Single cell platform scales ISC

pp.

8 9 10

Capacity: ACN Platform: Weight indicator:

6 kg / 15 kg / 30 kg / 60 kg / 150 kg / 300 kg / 600 kg 300x300 mm / 400x400 mm / 600x600 mm / 800x800 mm WLIGHT / WDESKL

Available versions: C3 Approved / C3-Multirange

ISM

pp.

11 12

Capacity: MN Platform: Weight indicator:

75 kg / 150 kg / 300 kg 460x600 mm WLIGHT / WDESKL

Available versions: C3 Approved / C3-Multirange

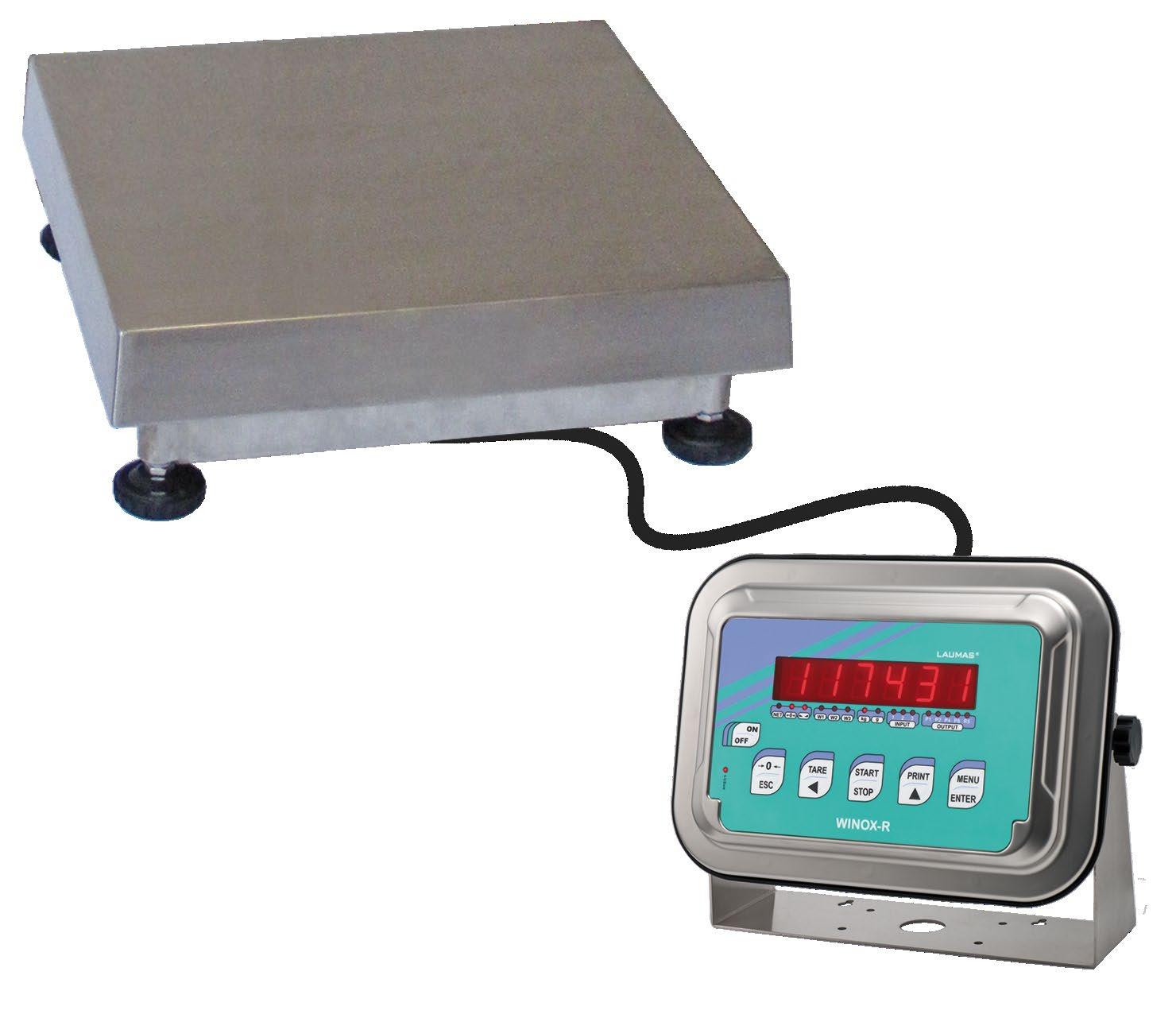

ISI

pp.

Stainles steel

13 14 15

Capacity: AIN Platform: Weight indicator:

6 kg / 15 kg / 30 kg / 60 kg / 150 kg / 300 kg / 600 kg 300x300 mm / 400x400 mm / 600x600 mm / 800x800 mm WLIGHT / WINOXR

Available versions: C3 Approved / C3-Multirange

ISIL

pp.

IP68/IP69K stainless steel

16 17

Capacity: AILN Platform: Weight indicator:

30 kg / 60 kg / 150 kg / 300 kg 400x400 mm / 600x600 mm WINOXR

Available versions: C3 Approved / C3-Multirange

Single cell platform approved scales for statistical checking of prepackages ISC-G

pp.

18 19

Capacity: ACN Platform: Weight indicator:

6 kg / 15 kg / 30 kg / 60 kg / 150 kg 300x300 mm / 400x400 mm / 600x600 mm WTABG

C3-Multirange approved versions

ISM-G

pp.

18 19

Capacity: MN Platform: Weight indicator:

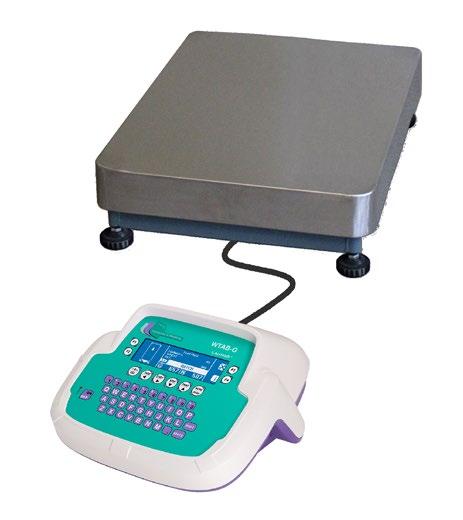

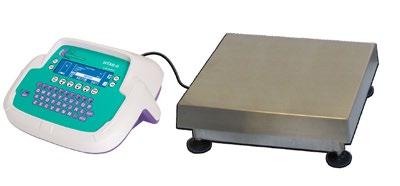

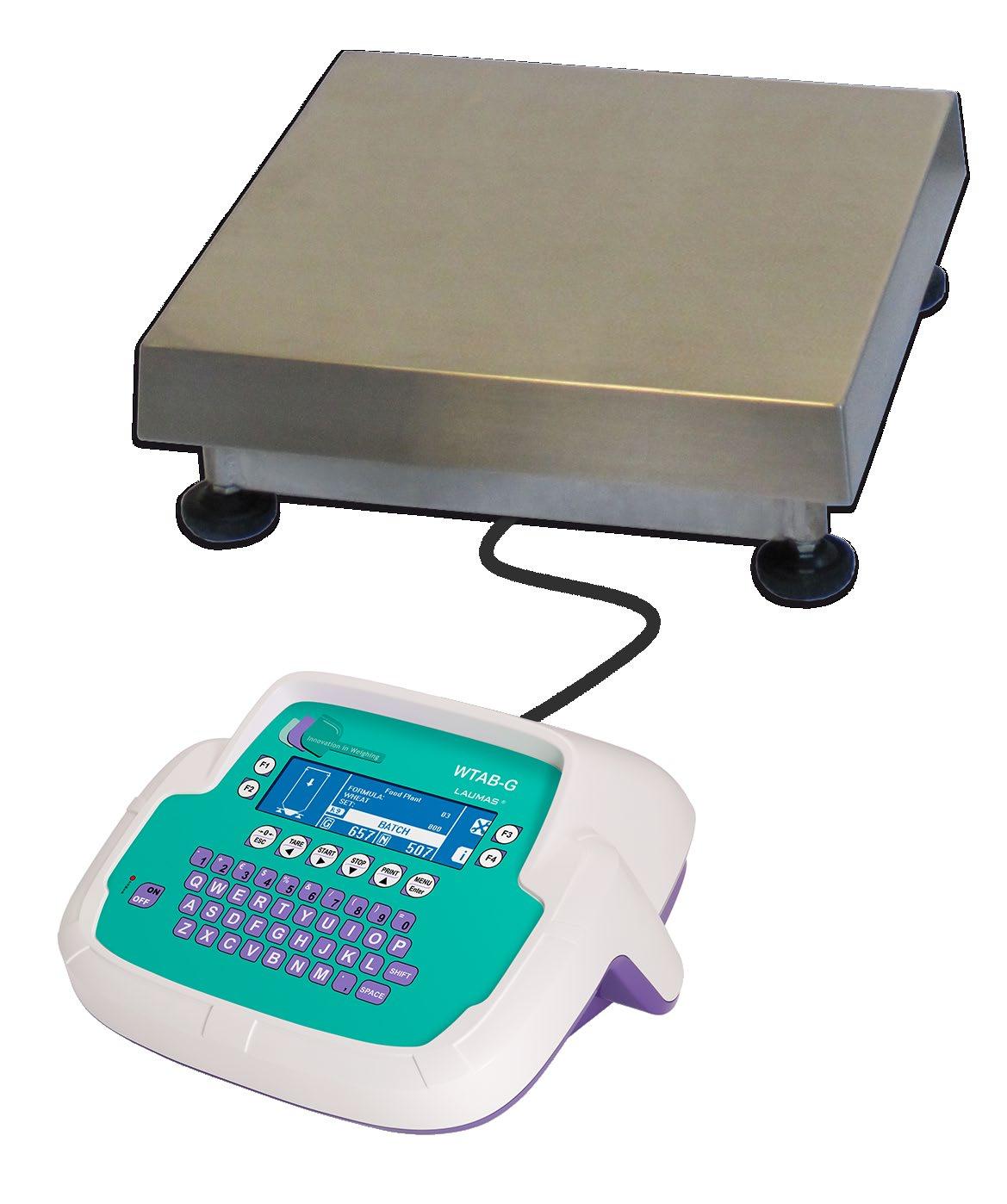

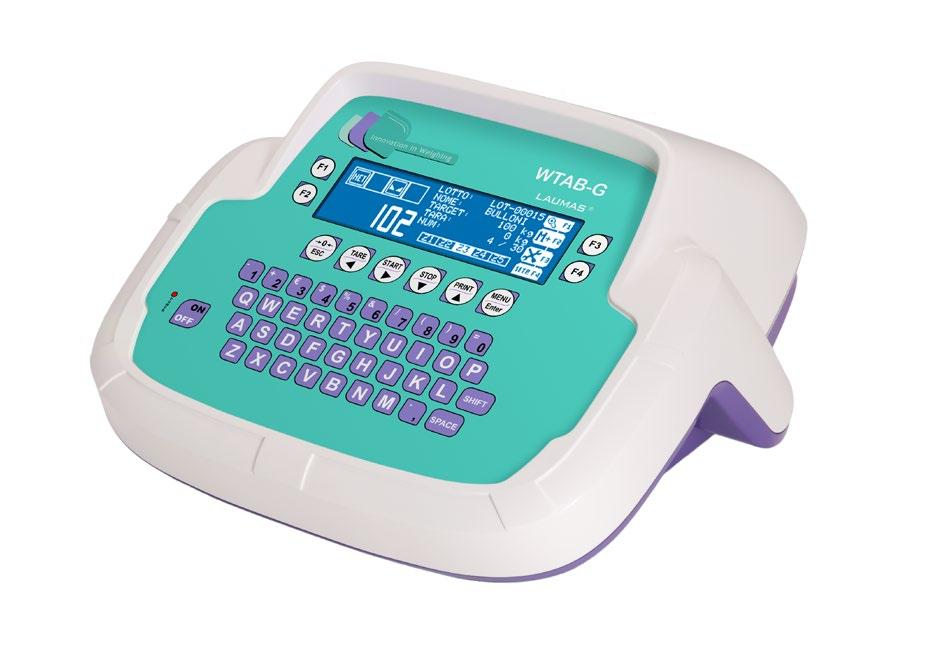

60 kg / 150 kg 460x600 mm WTABG

C3-Multirange approved versions

ISI-G Stainless steel

pp.

18 19

Capacity: AIN Platform: Weight indicator:

6 kg / 15 kg / 30 kg / 60 kg / 150 kgg 300x300 mm / 400x400 mm / 600x600 mm WTABG

C3-Multirange approved versions

Options on request for single cell platform scales

IDEA SCALES N. 4.1

LAUMAS®

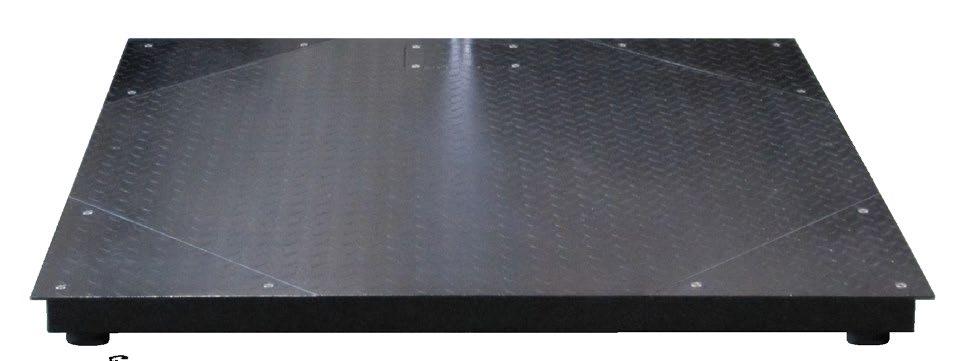

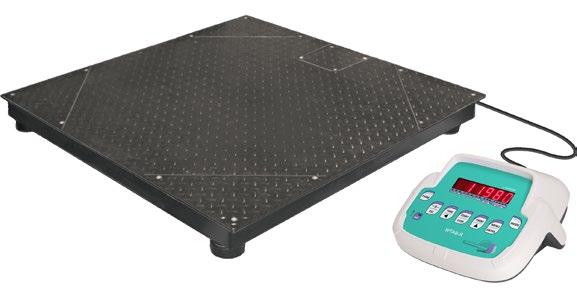

Content index 4 cells platform scales ISP

pp.

21 22 23

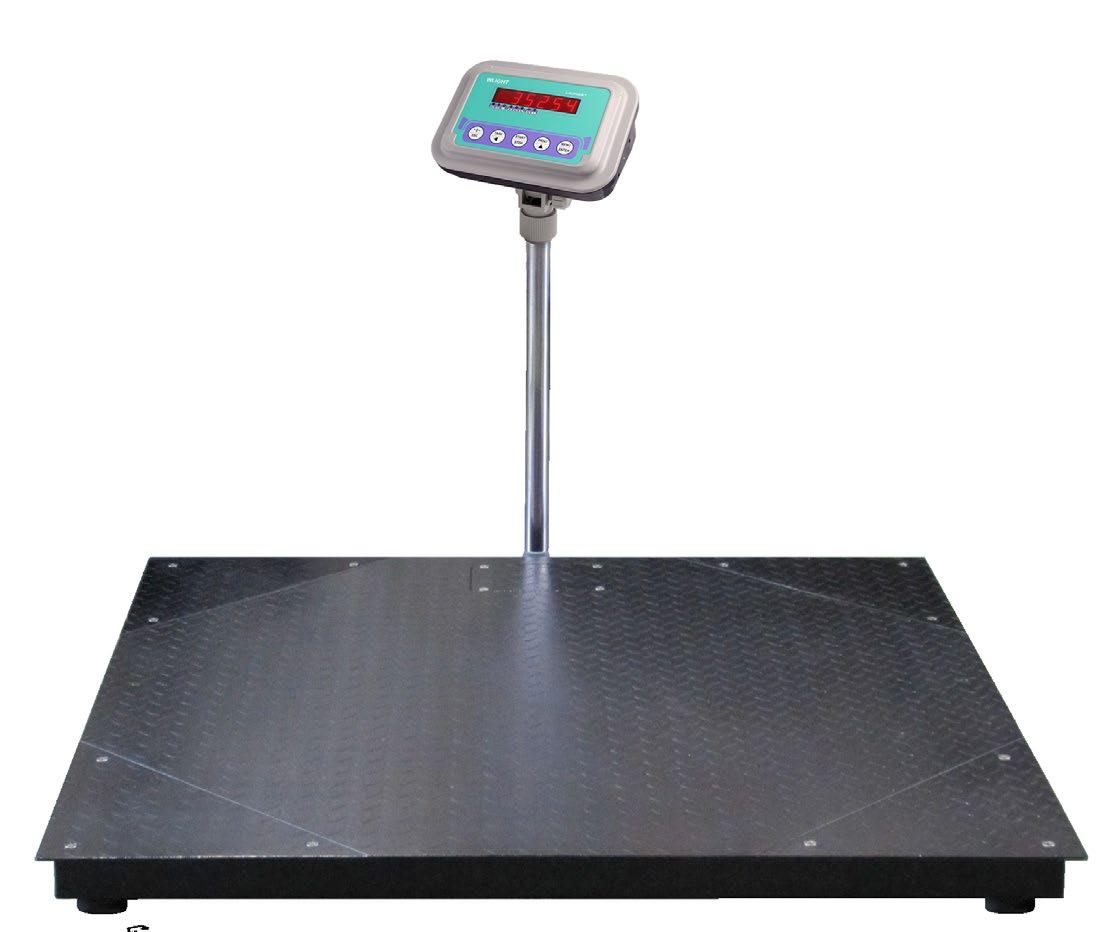

Capacity: P Platform: Weight indicator:

1500 kg / 3000 kg 1250x1250 mm / 1200x1500 mm / 1500x1500 mm WLIGHT / WDESKL

Available versions: C3 Approved / C3-Multirange / C5-Multirange

ISPI

pp.

IP68/IP69K stainless steel

24 25

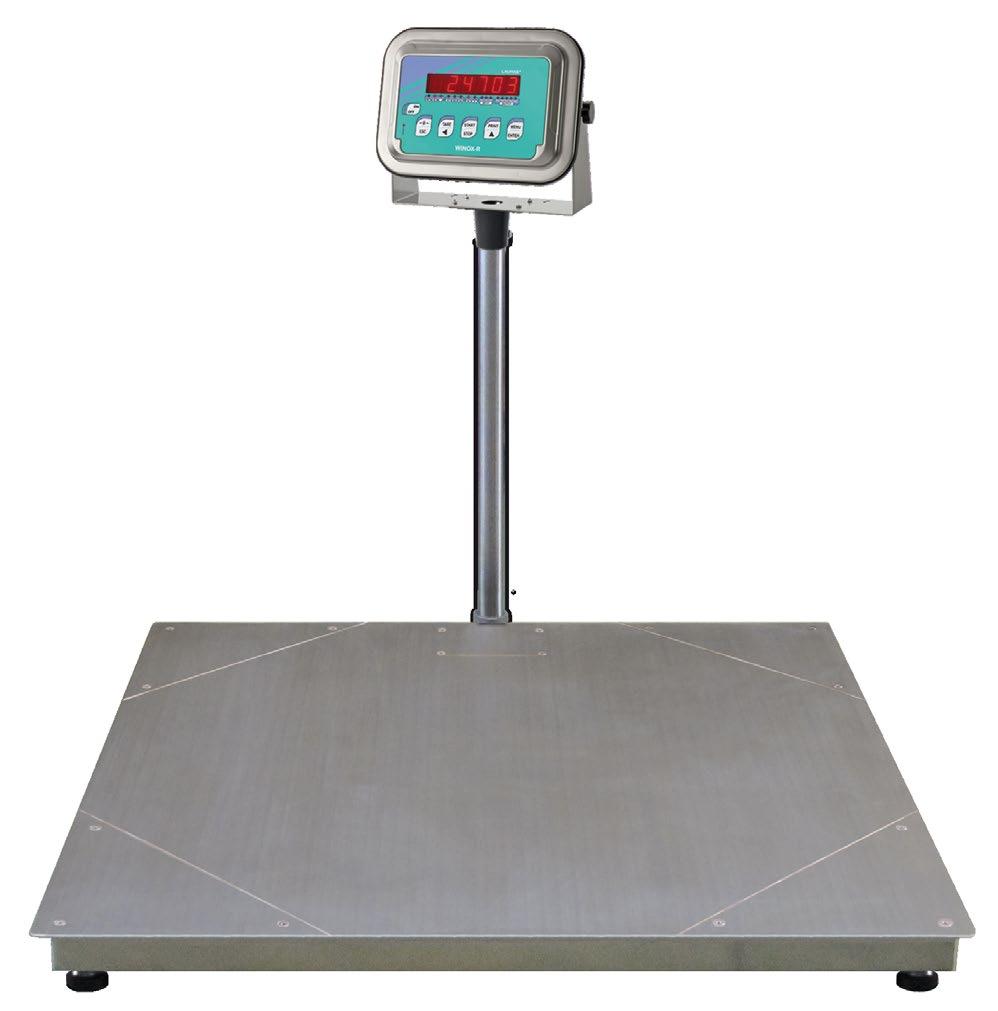

Capacity: P-INOXN Platform: Weight indicator:

1500 kg / 3000 kg 1250x1250 mm / 1500x1500 mm WLIGHT / WINOXR

Available versions: C3 Approved / C3-Multirange

ISPM

pp.

aluminum

26 27

Capacity: PM Platform: Weight indicator:

1000 kg 1200x1600 mm WLIGHT / WDESKL / WINOXR

Available versions: C3 Approved / C3-Multirange

4 cells platform scales for diagnostic ISP-H

pp.

28 29

1500 kg / 3000 kg 1250x1250 mm / 1200x1500 mm / 1500x1500 mm WTABR CLM8INOX

Capacity: P Platform: Weight indicator: Intelligent junction box:

Available versions: C3 Approved / C3-Multirange / C5-Multirange

ISPI-HE

pp.

IP68/IP69K stainless steel

28 29

1500 kg / 3000 kg 1250x1250 mm / 1500x1500 mm WINOXR CLM8INOX

Capacity: P-INOXN Platform: Weight indicator: Intelligent junction box:

Available versions: C3 Approved / C3-Multirange

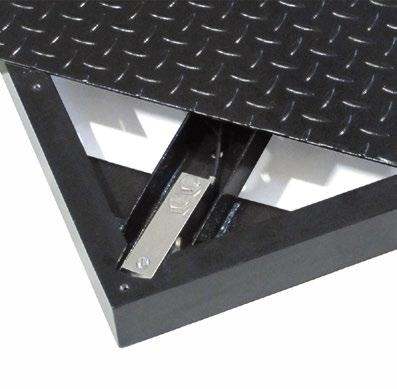

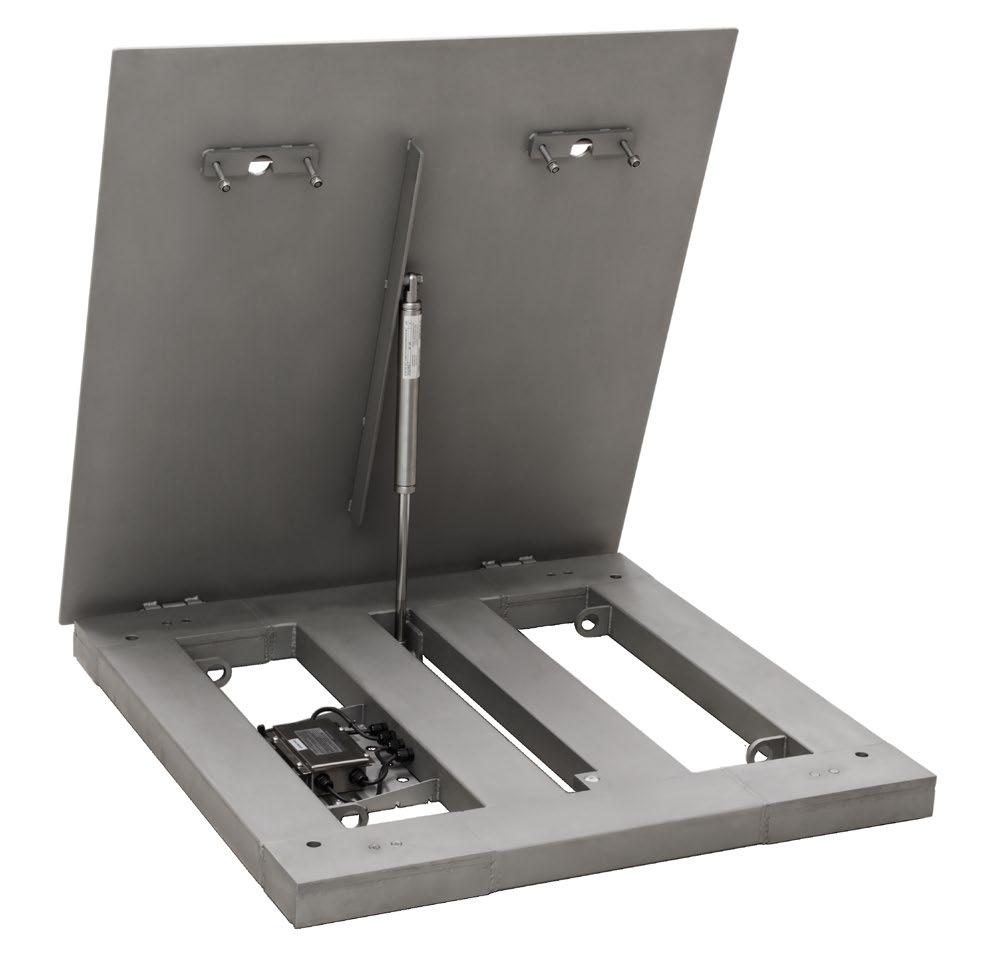

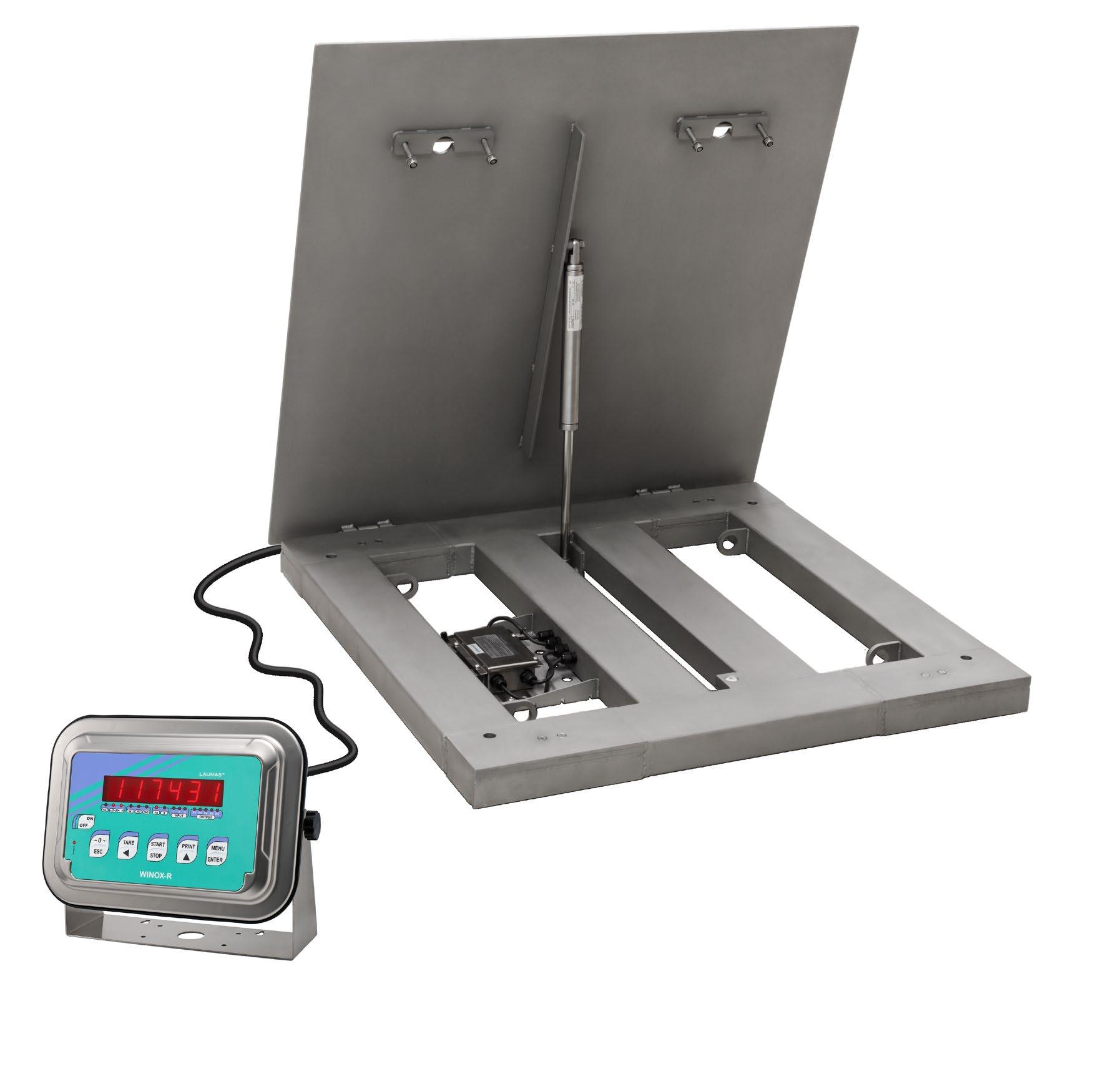

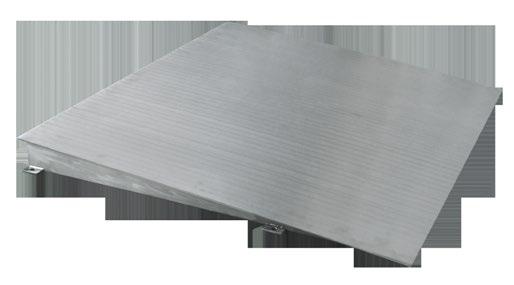

4 cells platform scales with liftable loading top ISPO

pp.

IP68/IP69K stainless steel

30 31

Capacity: PO Platform: Weight indicator:

600 kg / 1500 kg / 3000 kg 800x800 mm / 1000x1000 mm / 1250x1250 mm / 1500x1500 mm WINOXR

Available versions: C3 Approved / C3-Multirange

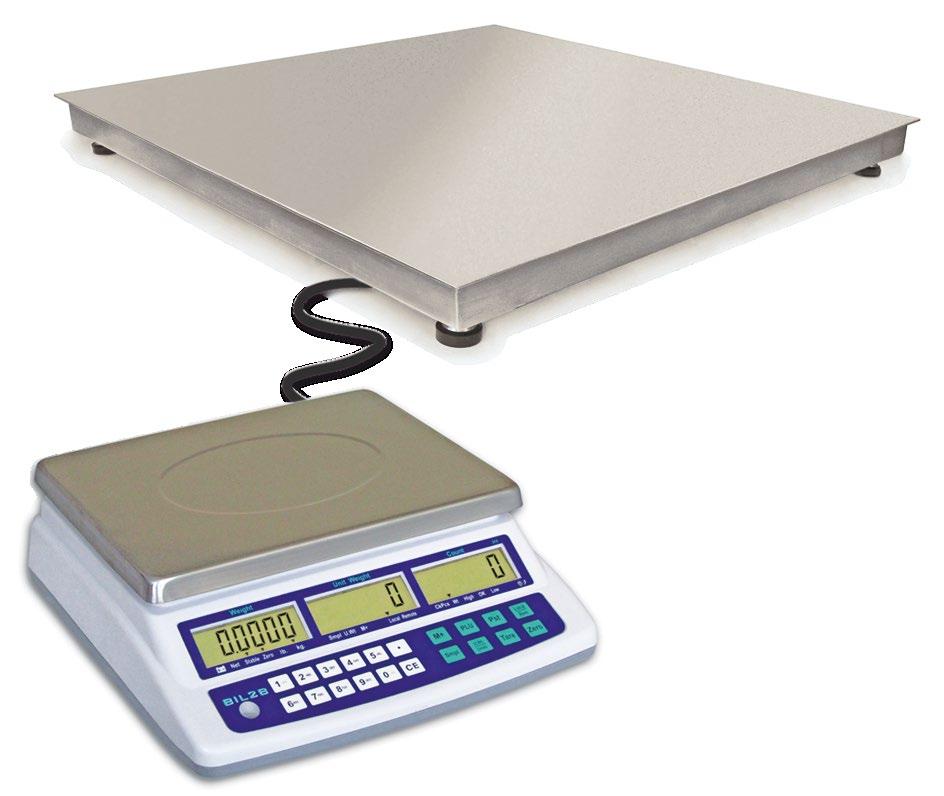

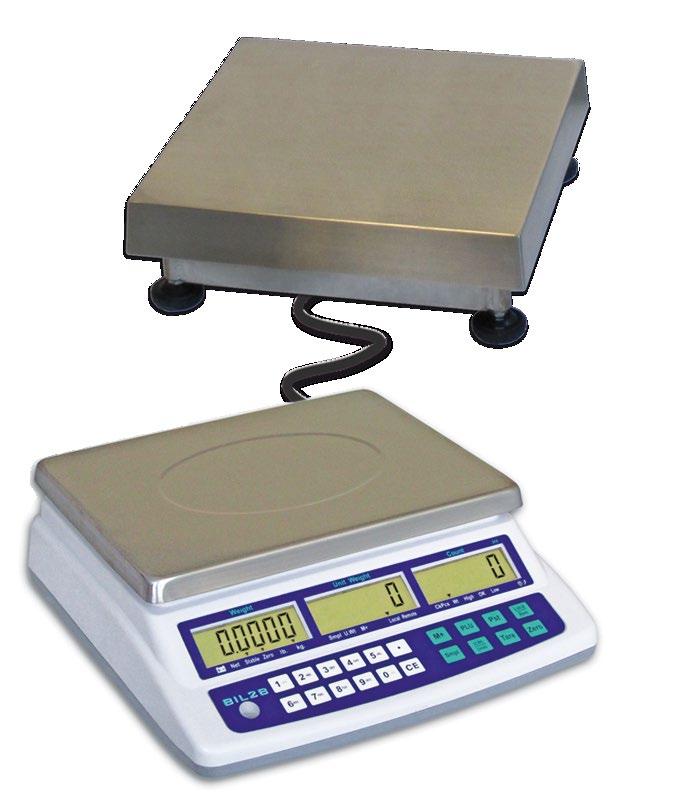

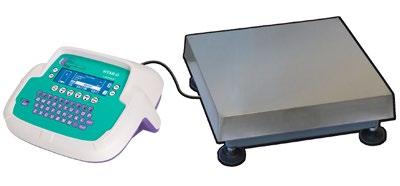

Counting scale with remote platform ISBIL2B

pp.

32 33 34

Capacity: Single cell remote platform: 4 cells remote platform: Scale:

6 kg / 15 kg / 30 kg / 60 kg / 150 kg / 300 kg / 600 kg 1500 kg / 3000 kg ACN / AIN / MN P / P-INOX BIL2B

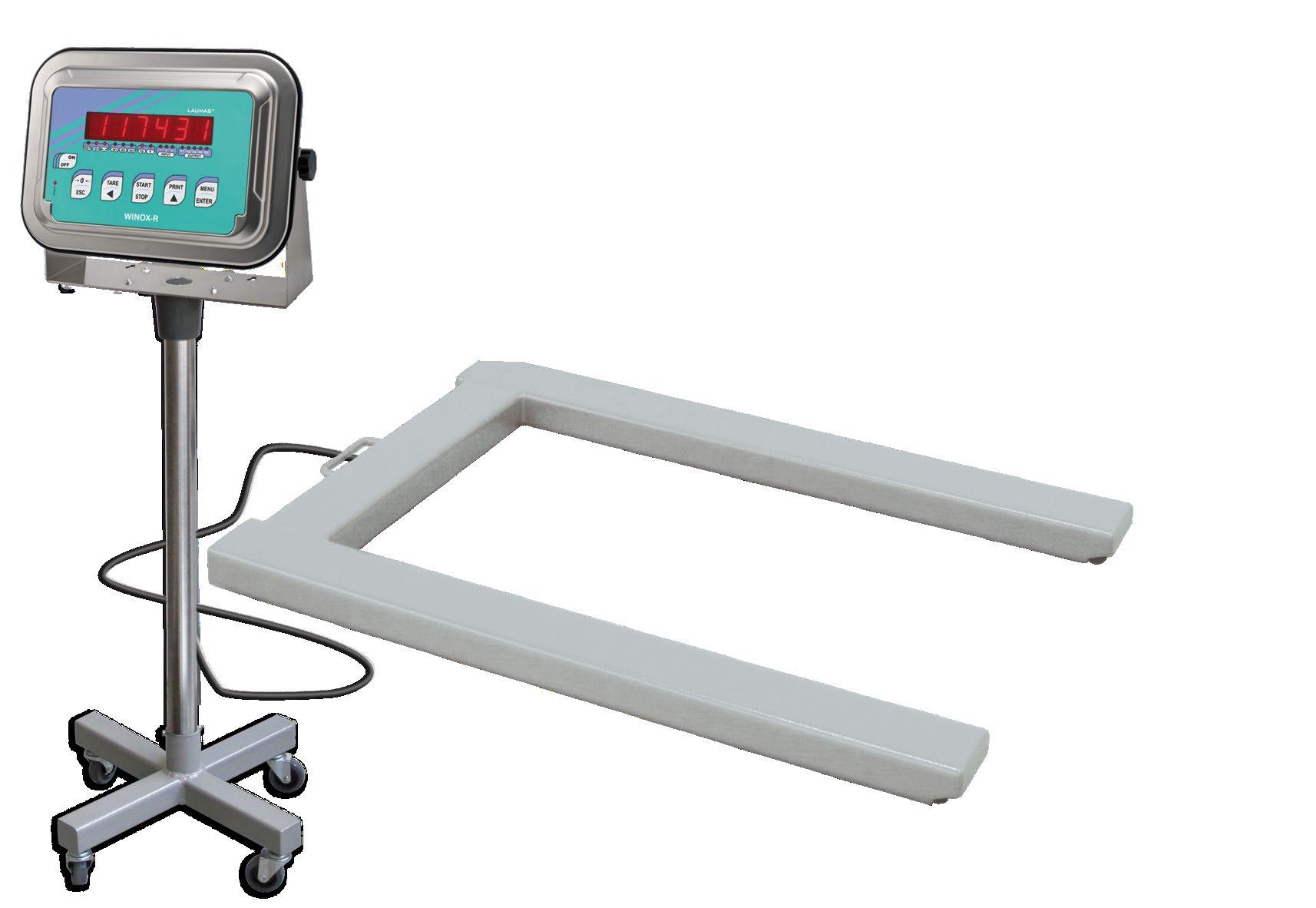

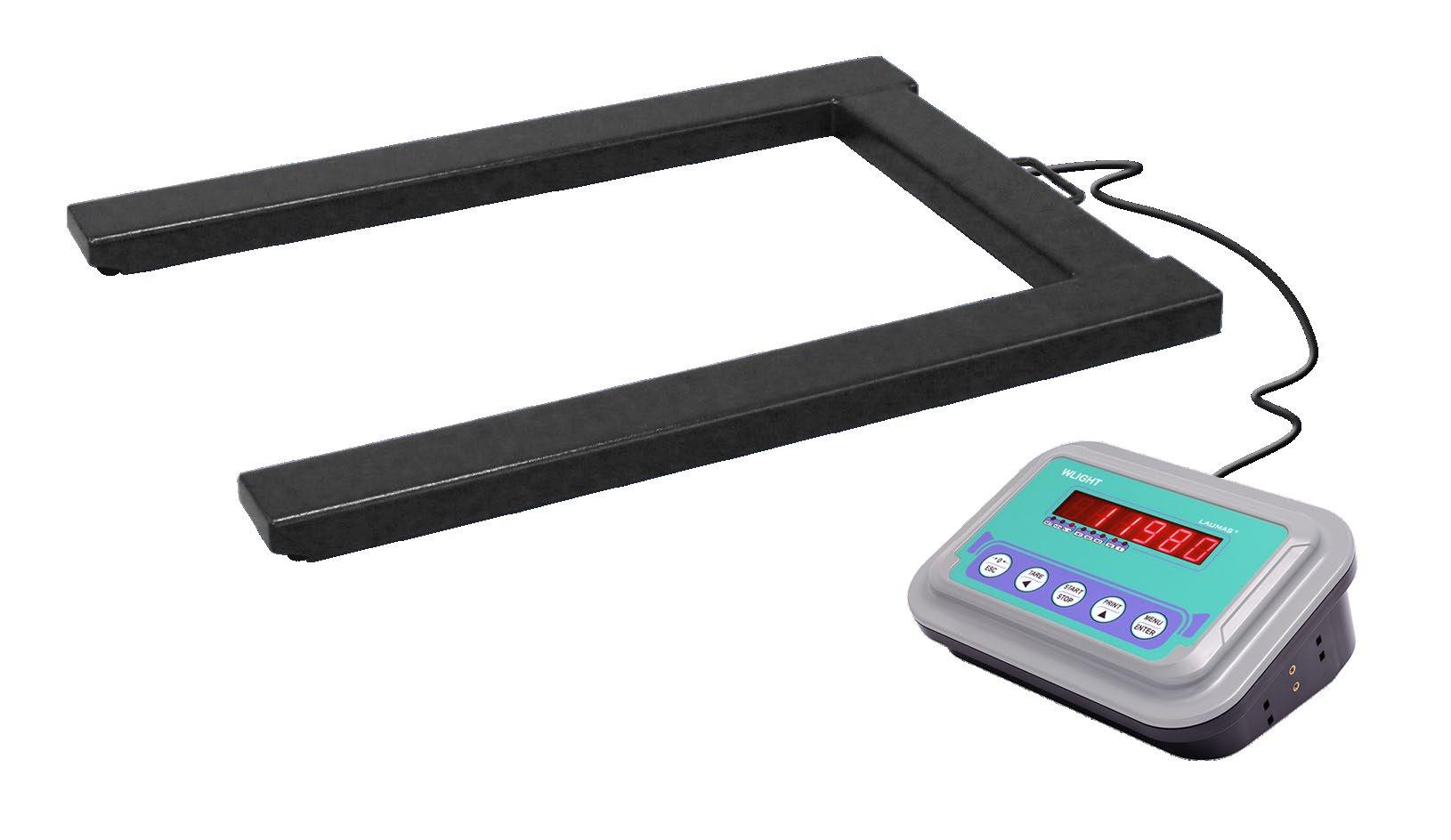

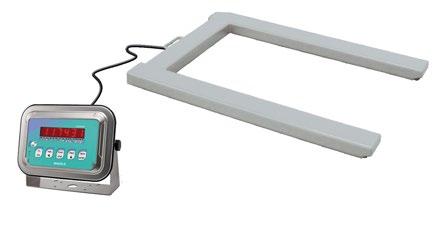

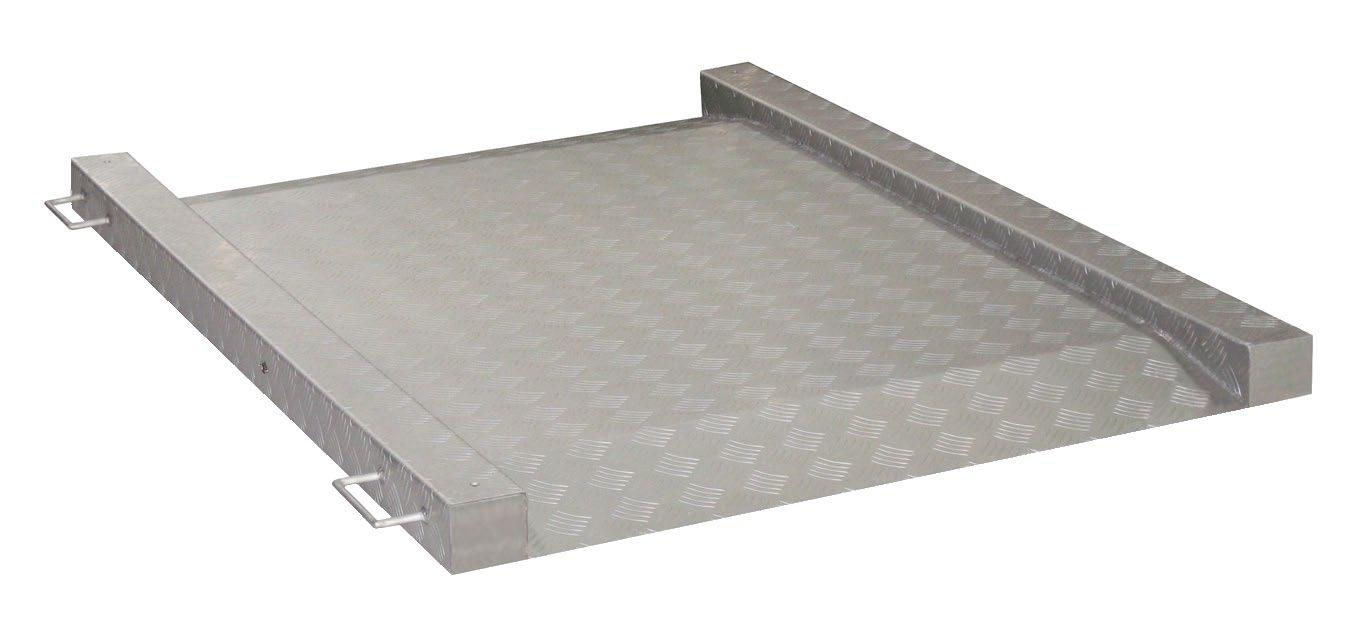

4 cells pallet-weighing scales ISPX

pp.

35 36

Capacity: PX Pallet-weighing: Weight indicator:

3000 kg 1250x840 mm H 95 mm WLIGHT / WDESKL

Available versions: C3 Approved / C3-Multirange

ISPXI

IP68/IP69K stainless steel

pp.

35 37

Capacity: PXI Pallet-weighing: Weight indicator:

3000 kg 1250x840 mm H 95 mm WLIGHT / WINOXR

Available versions: C3 Approved / C3-Multirange

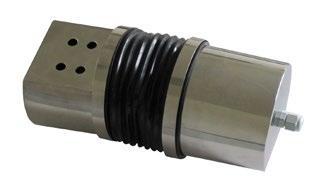

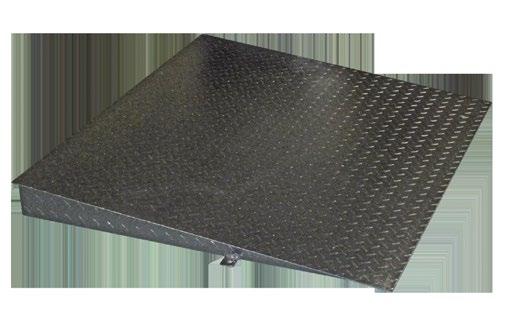

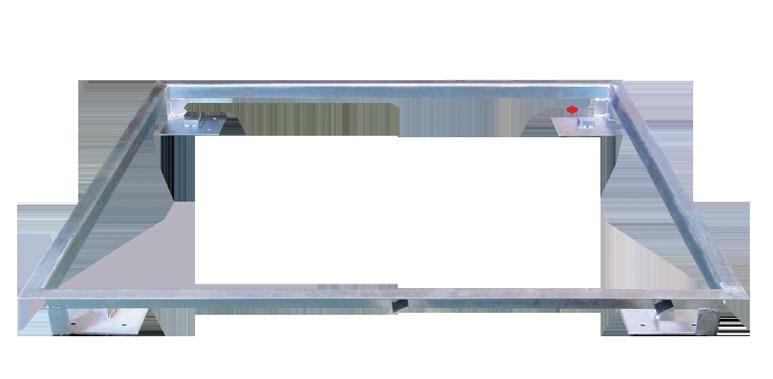

Options on request for 4 cells platform scales LAUMAS®

IDEA SCALES N. 4.1

38 5

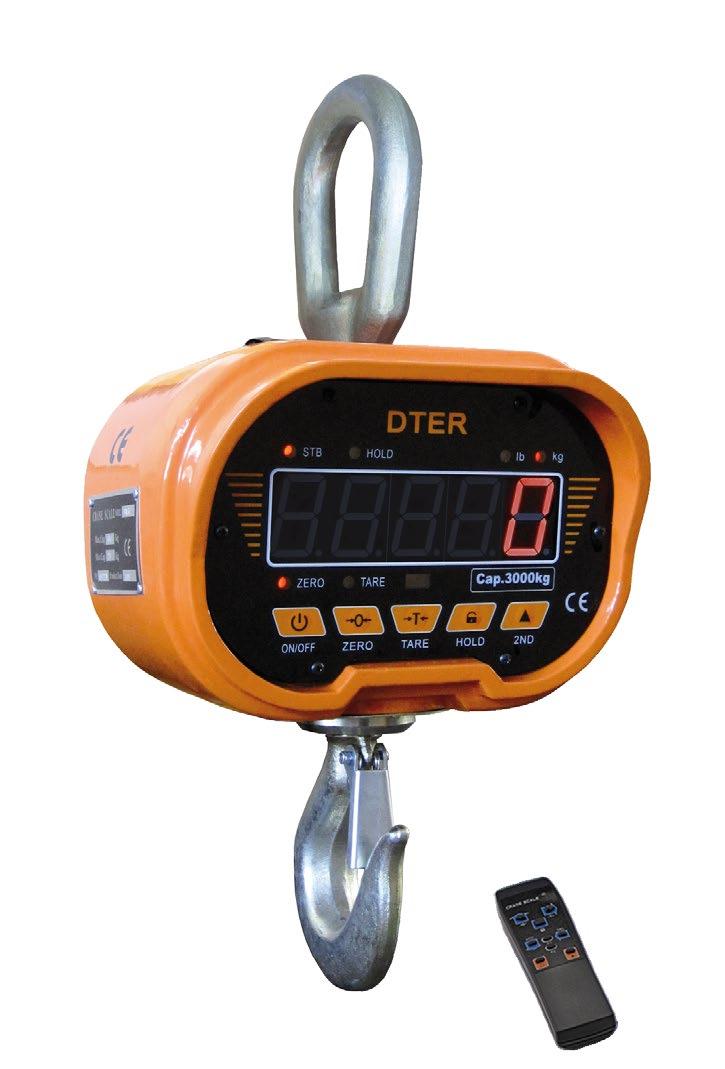

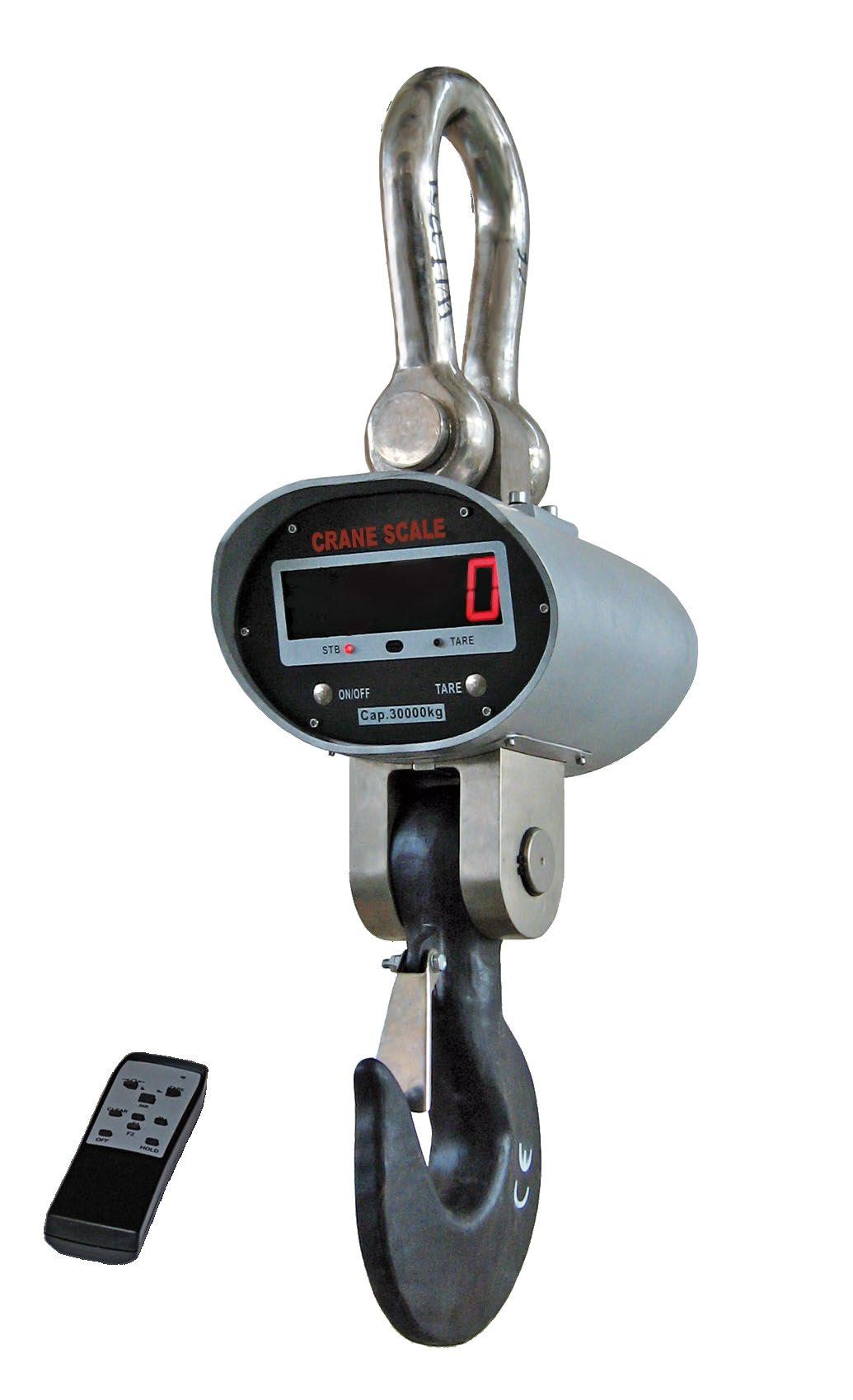

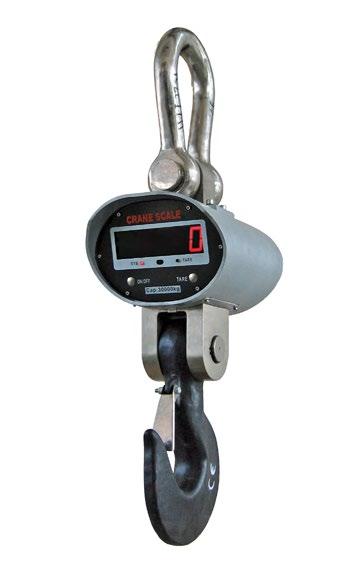

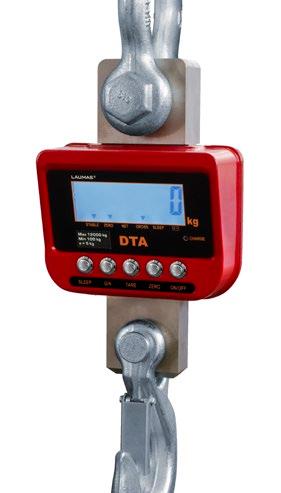

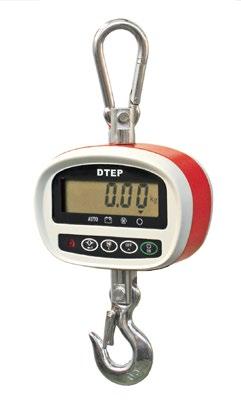

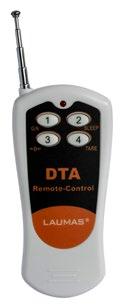

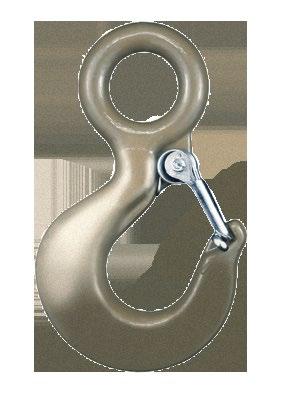

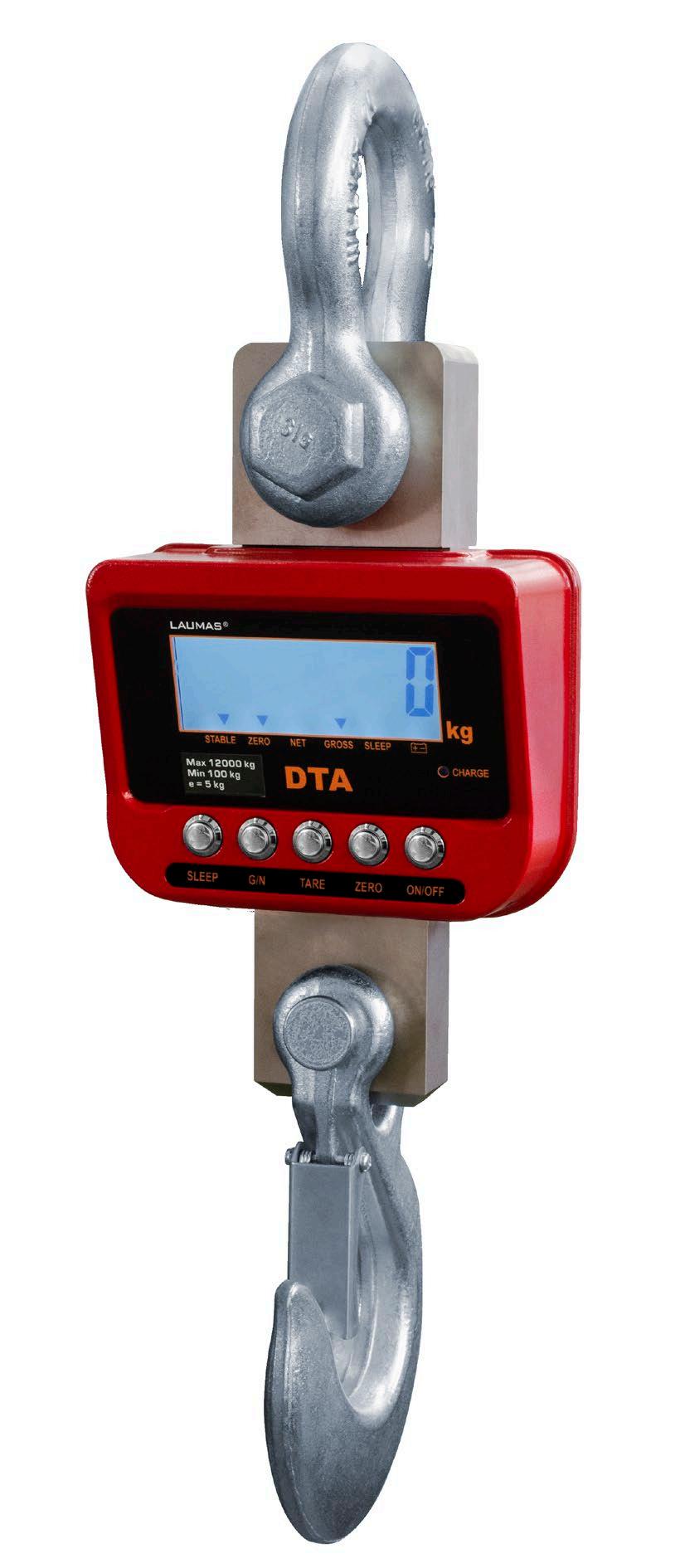

Content index Digital crane scales DTA

Capacity:

600 kg / 1500 kg / 3000 kg / 6000 kg / 12000 kg

C3 approved version

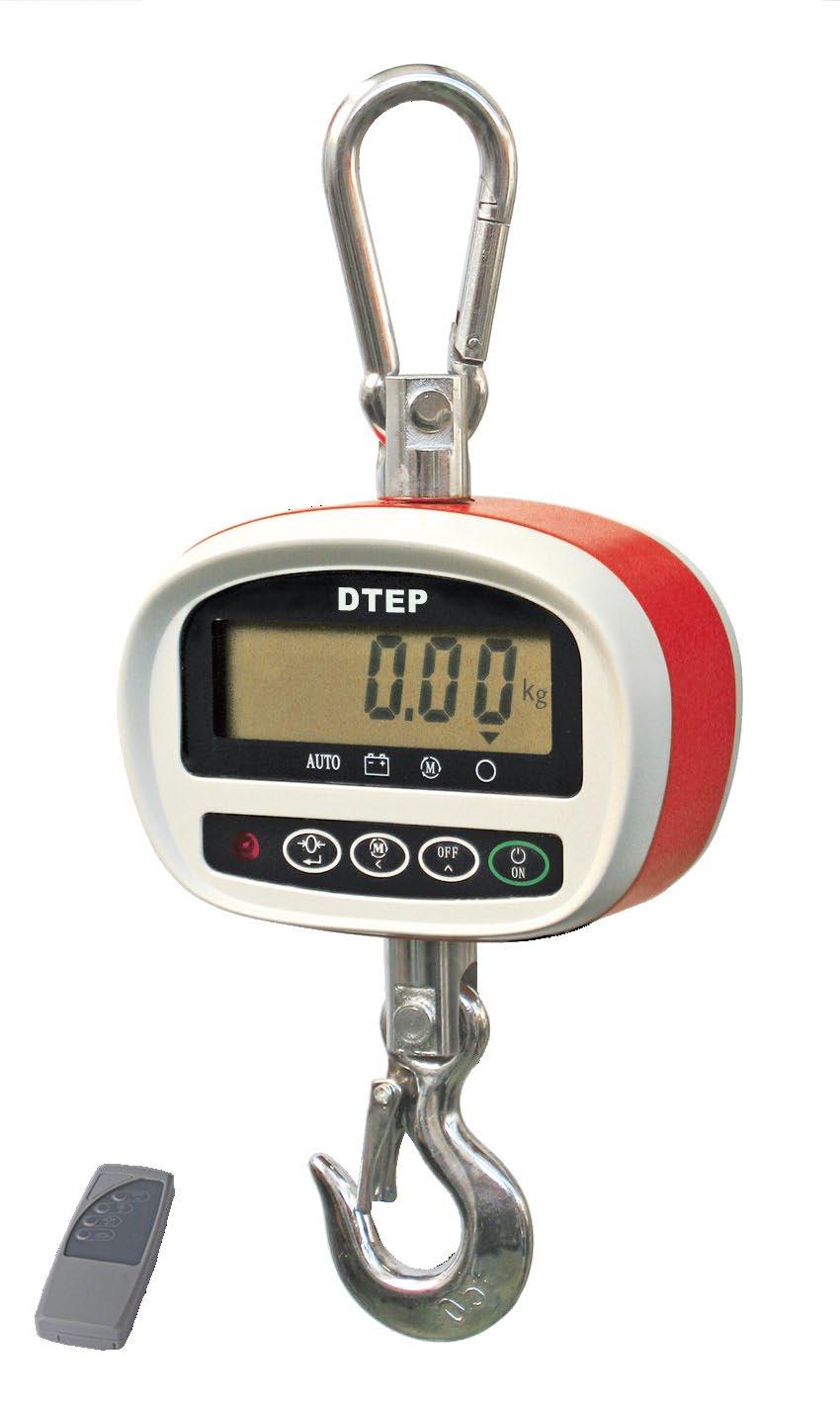

DTEP

Capacity:

50 kg / 150 kg / 300 kg

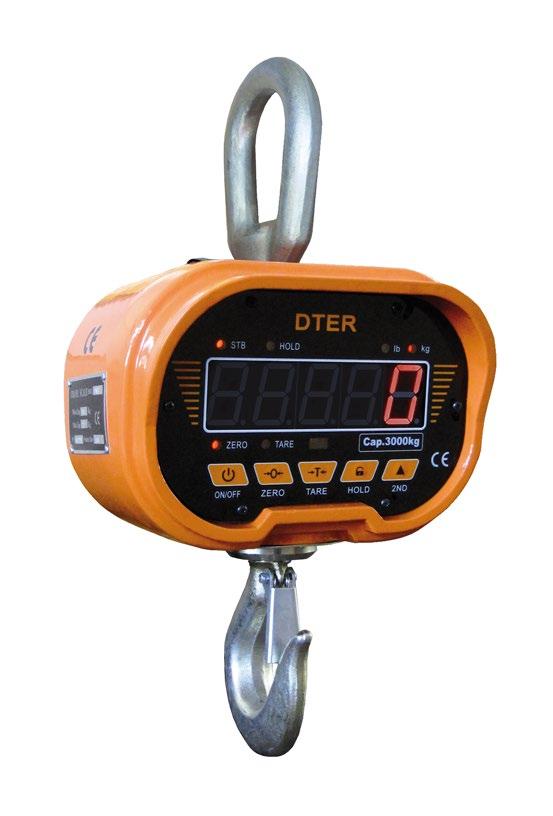

DTER

Capacity:

3000 kg / 5000 kg

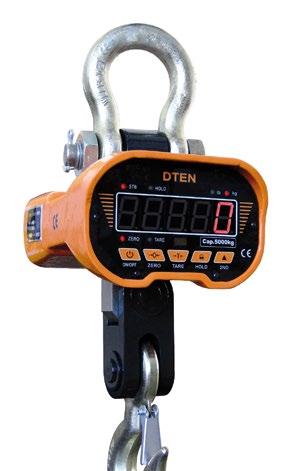

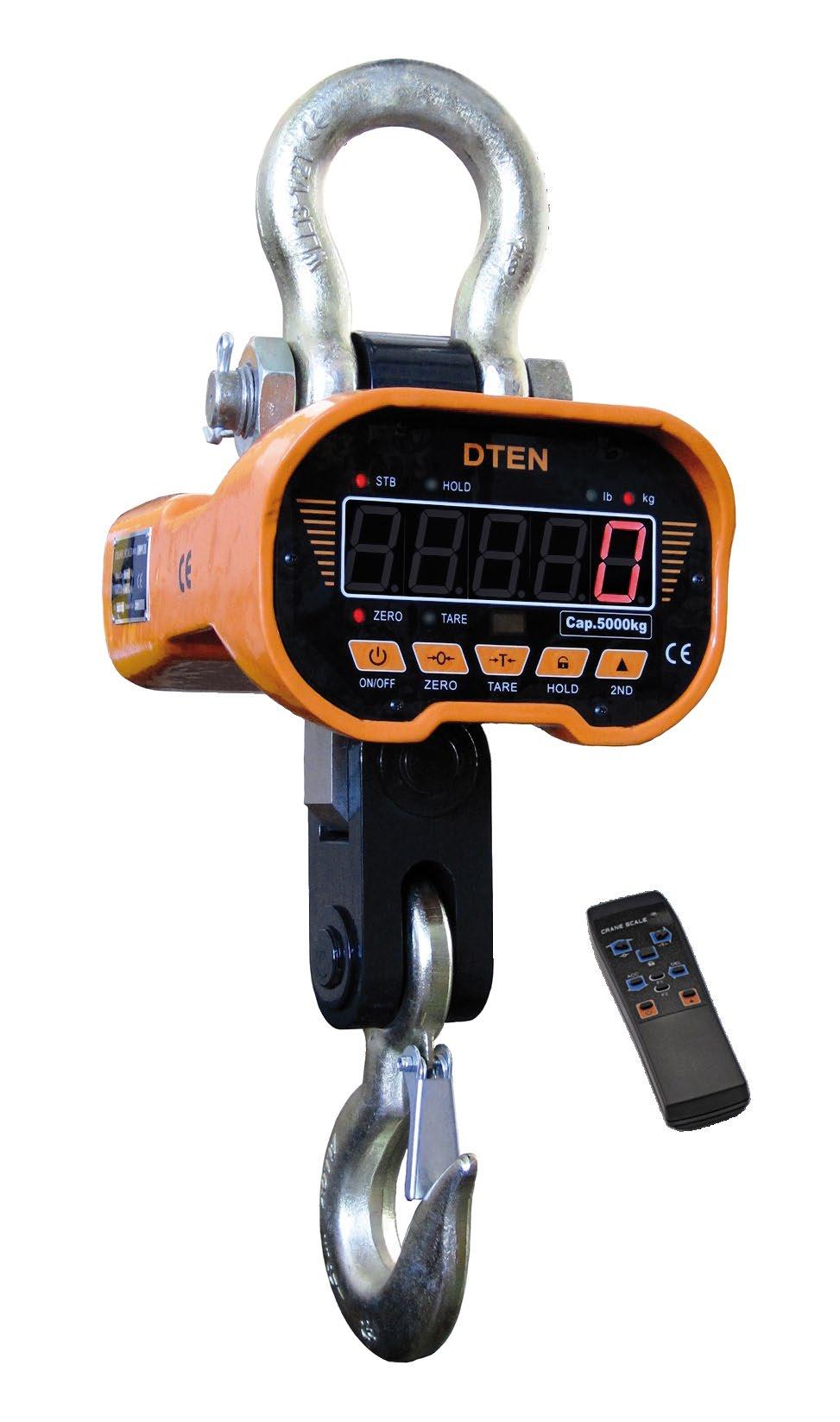

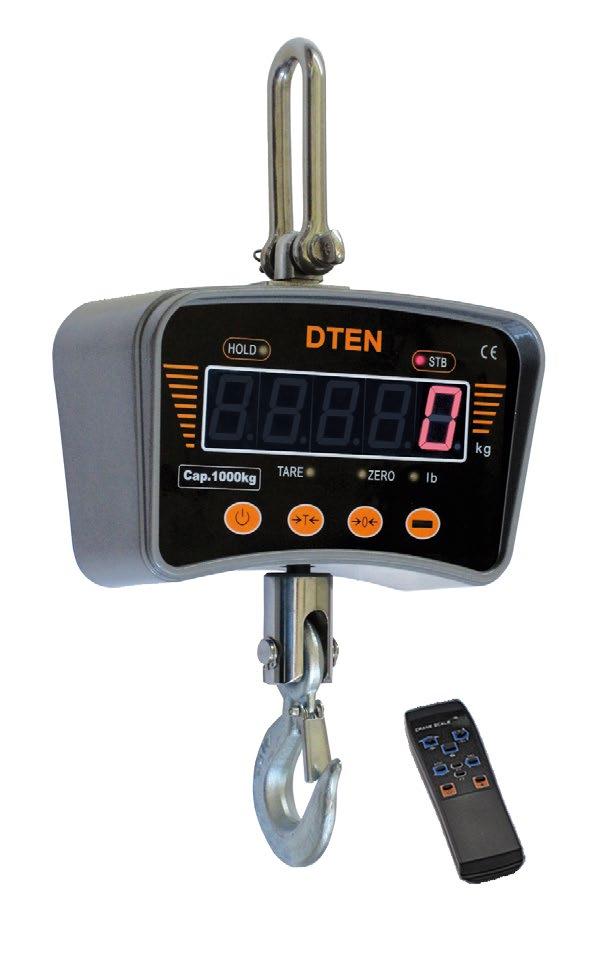

DTEN

Capacity:

500 kg / 1000 kg / 3000 kg / 5000 kg / 10000 kg / 20000 kg

DTE

Capacity:

30000 kg

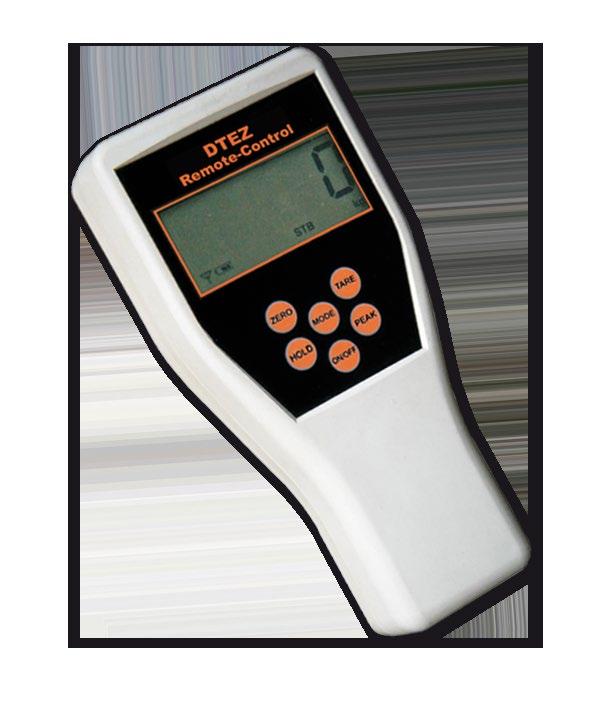

DTEZ

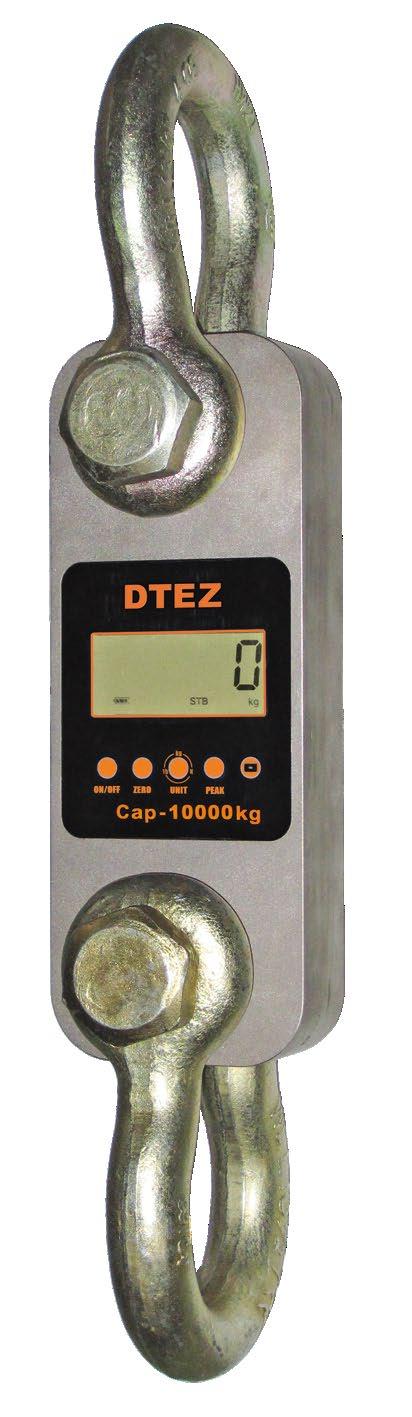

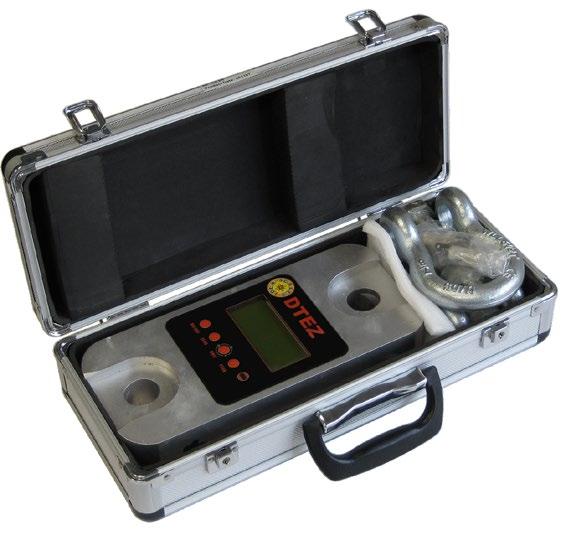

Capacity:

3000 kg / 5000 kg / 10000 kg / 20000 kg / 30000 kg

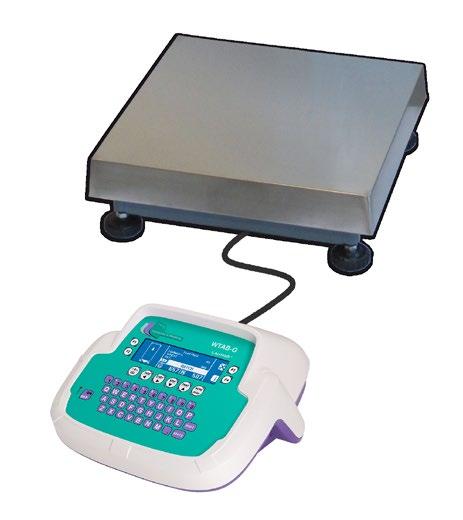

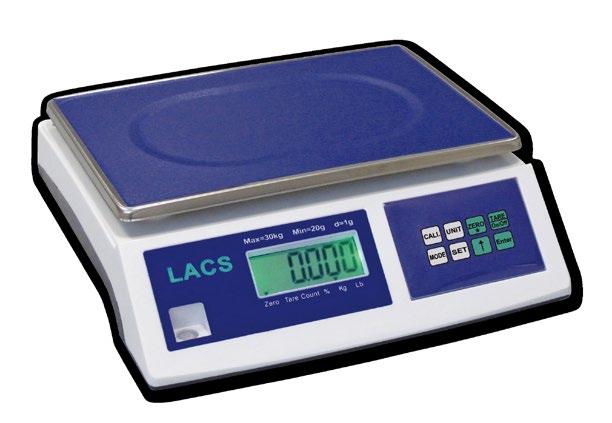

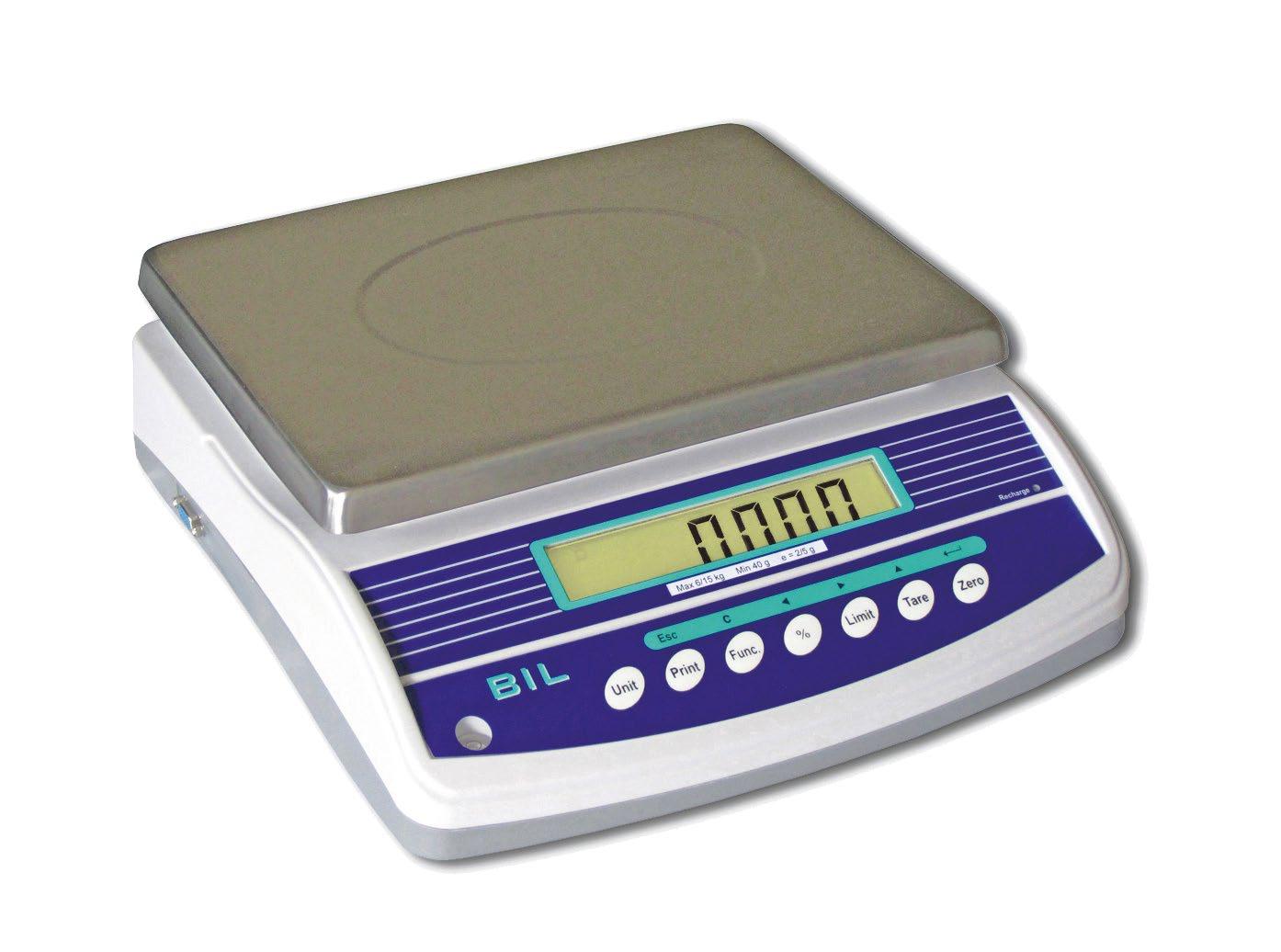

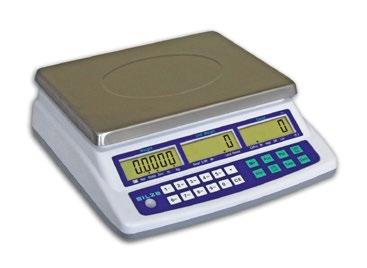

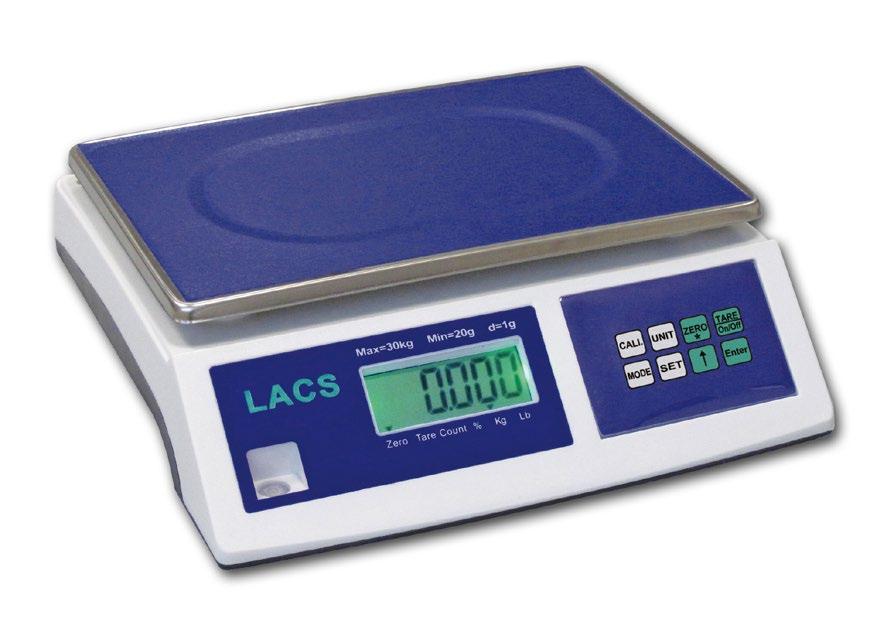

Bench counting scales LACSN

Capacity: Weighing plate:

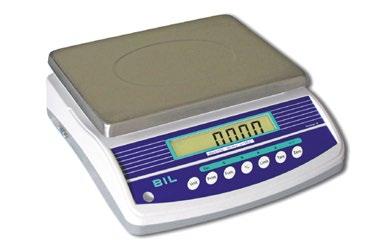

BIL

Capacity: Weighing plate:

6 kg / 15 kg / 30 kg 230x335 mm

6 kg / 15 kg / 30 kg 225x295 mm

Available C3-Multirange approved version

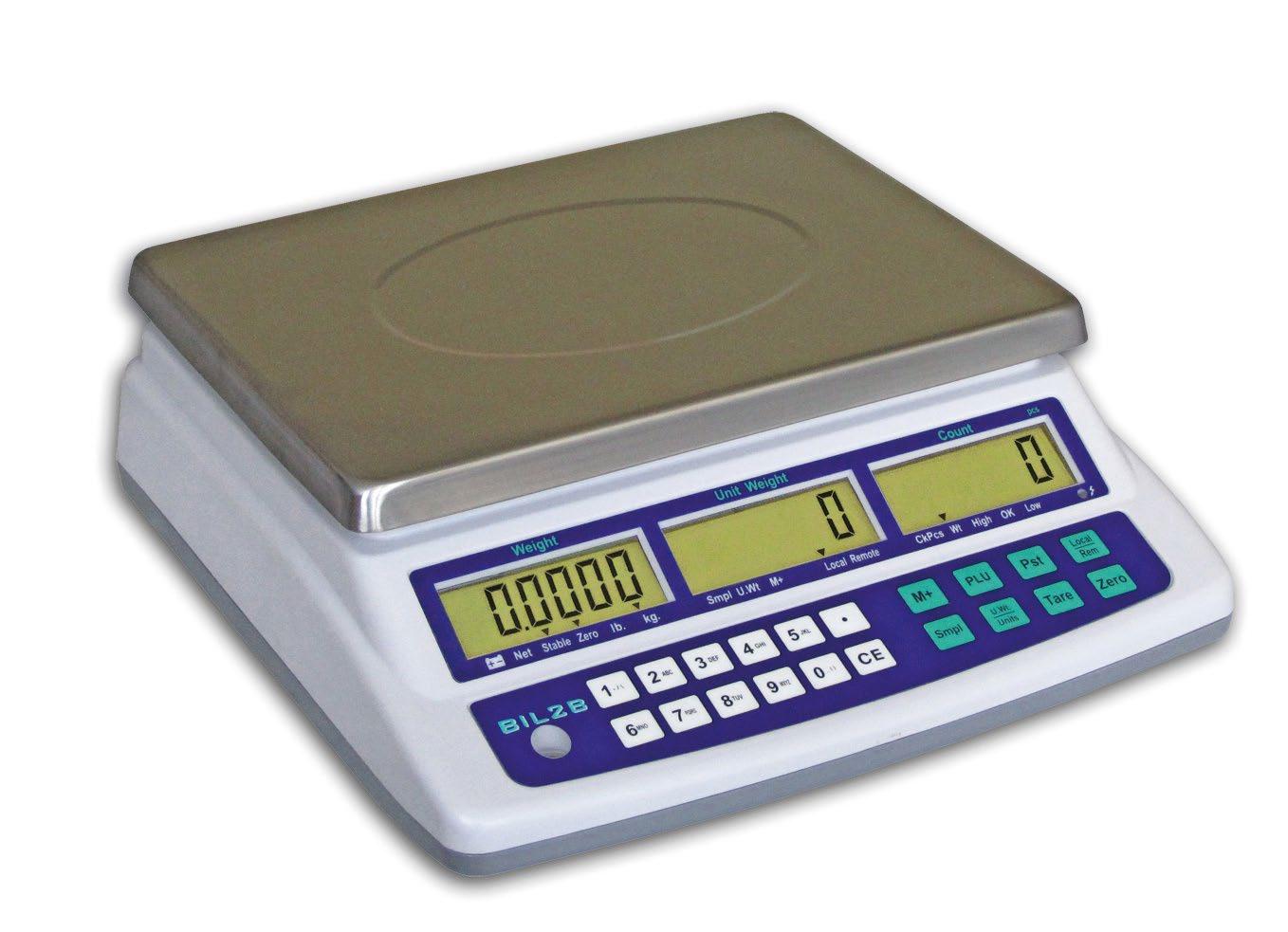

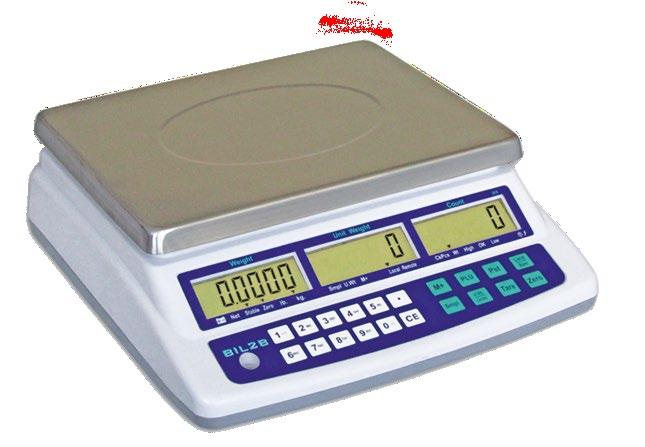

BIL2B

Capacity: Weighing plate:

6 kg / 15 kg / 30 kg 225x295 mm

Connection to remote platform for counting large quantities: - capacity: 6 kg / 15 kg / 30 kg / 60 kg / 150 kg / 300 kg / 600 kg / 1500 kg / 3000 kg - single cell platform: ACN / AIN / MN - 4 cells platform: P / P-INOX

IDEA SCALES N. 4.1

LAUMAS®

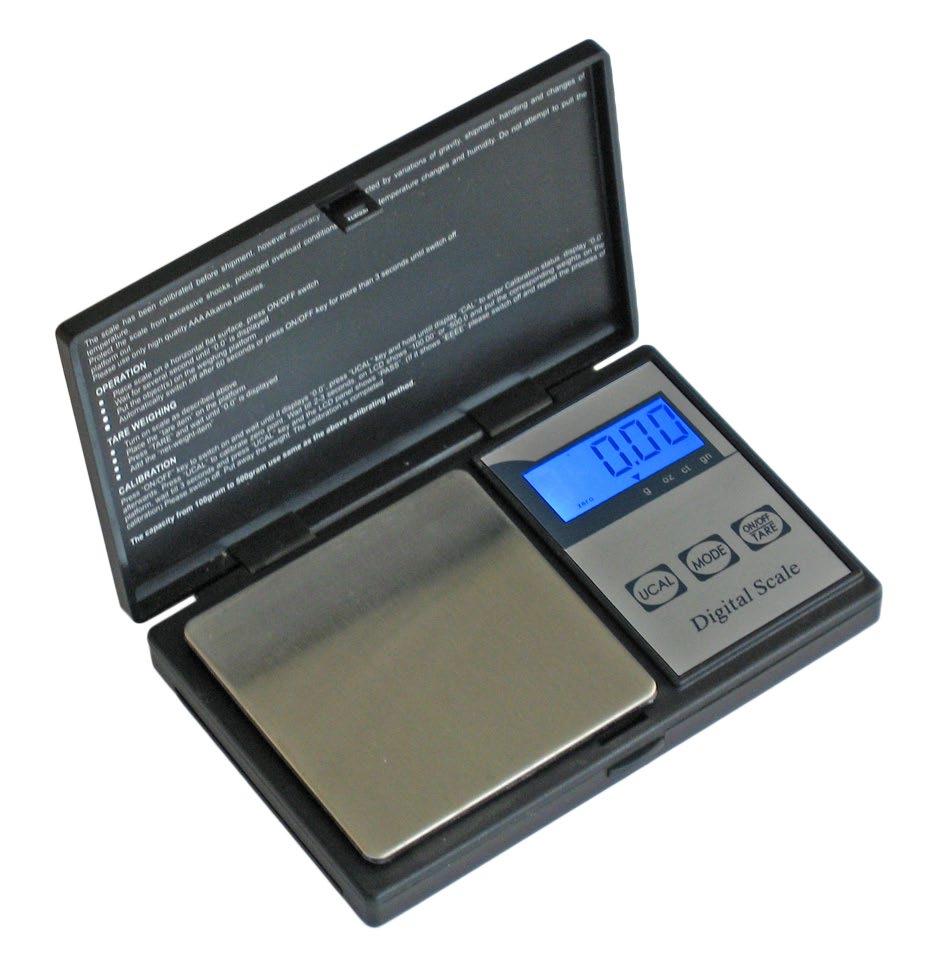

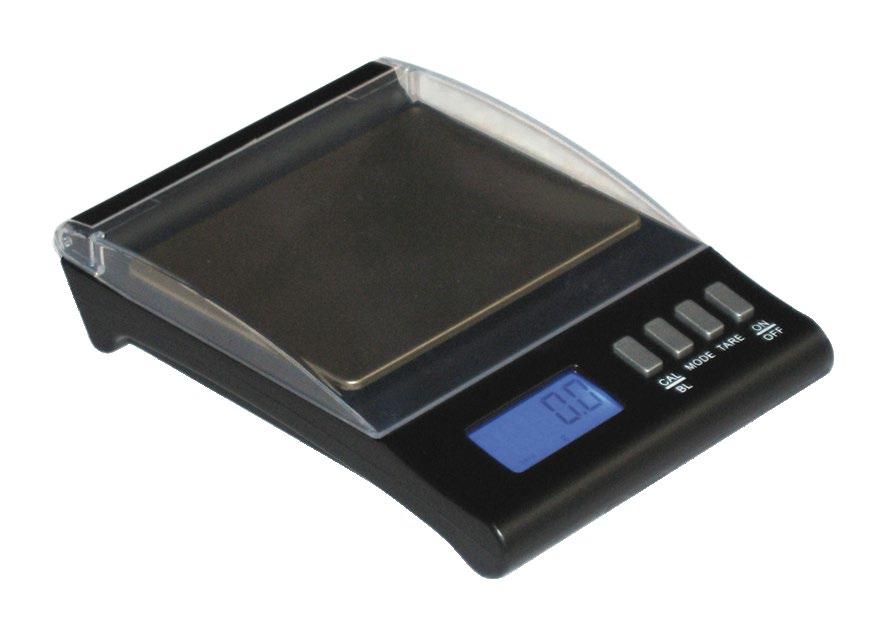

Content index Precision pocket scales LBIL

Capacity: Weighing plate:

0.5 kg / 3 kg 60x60 mm / 84x68 mm

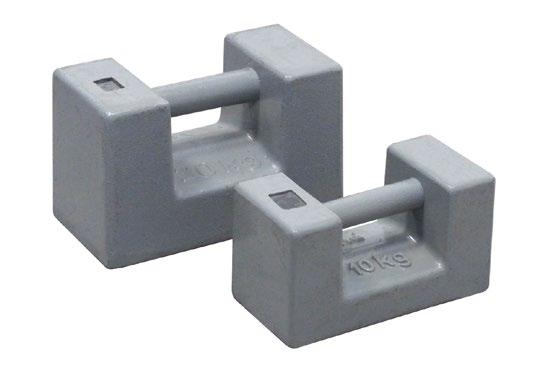

Sample weights PC

Nominal value: Composition:

5 kg / 10 kg / 20 kg Painted cast iron

M1 accuracy class according to OIML R111-1

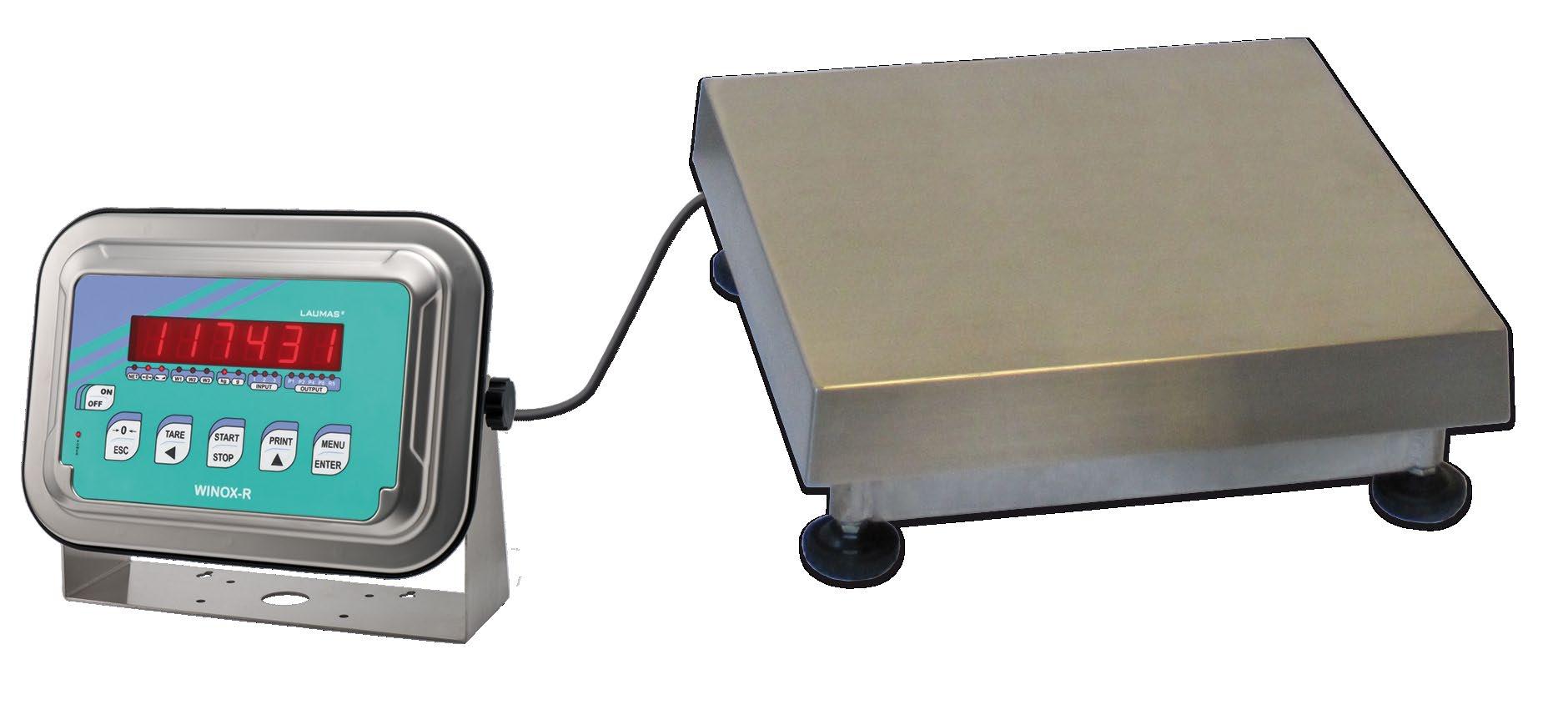

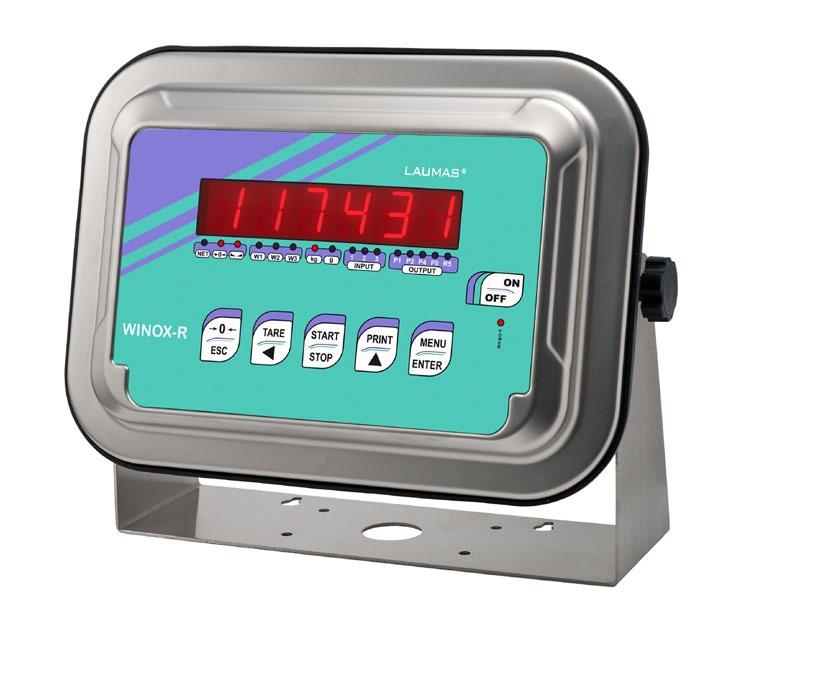

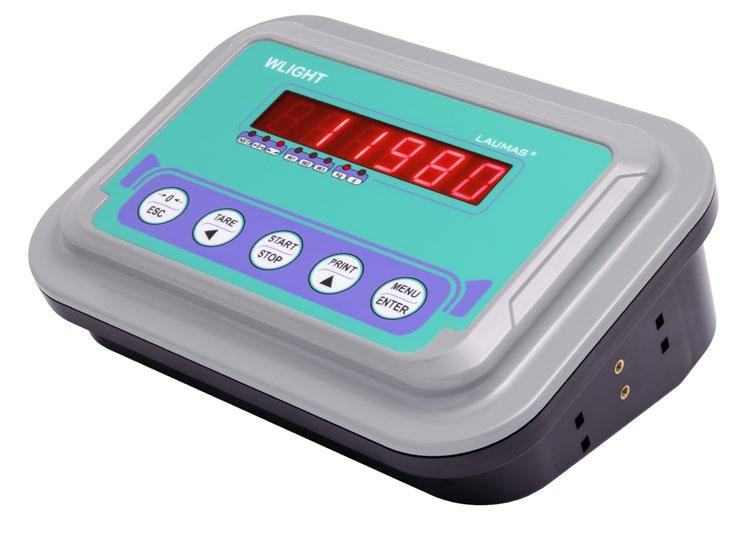

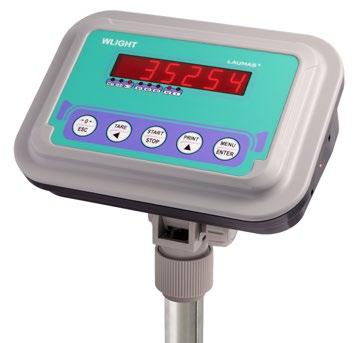

Weight indicators WLIGHT

Weight indicator ABS

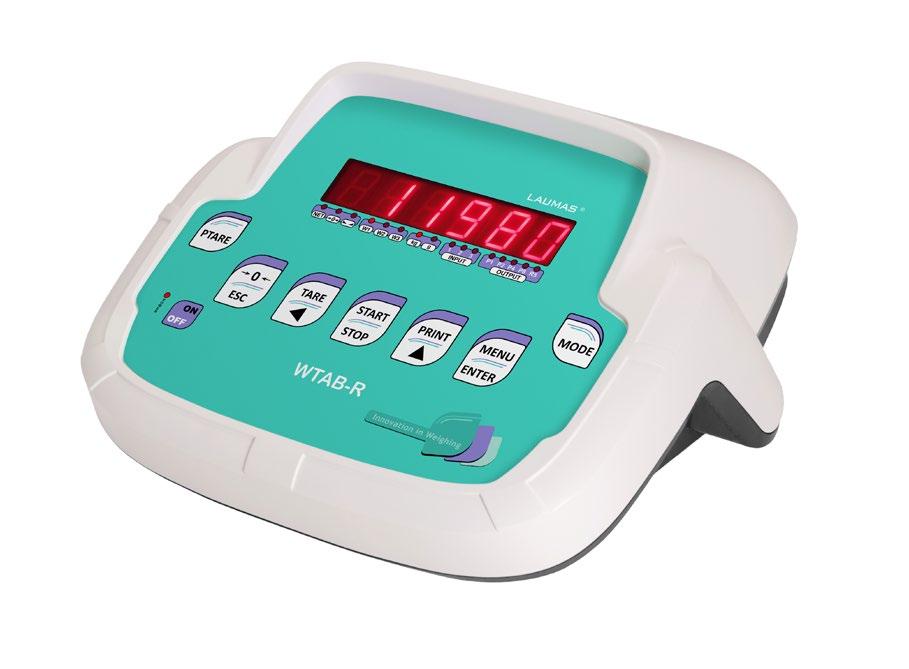

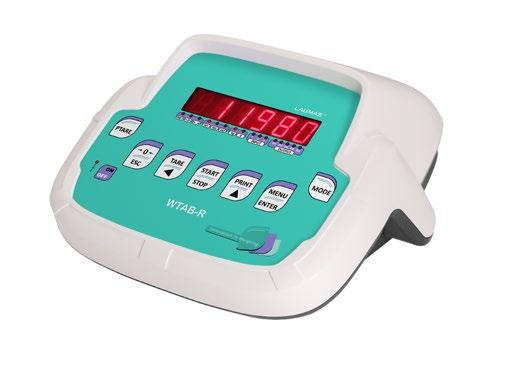

WTABR

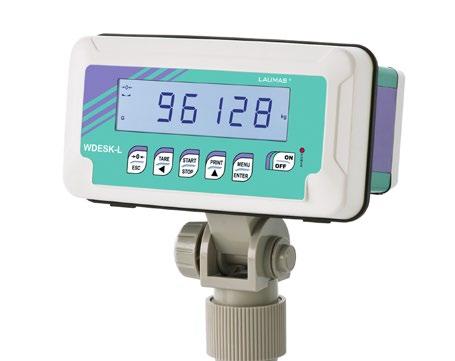

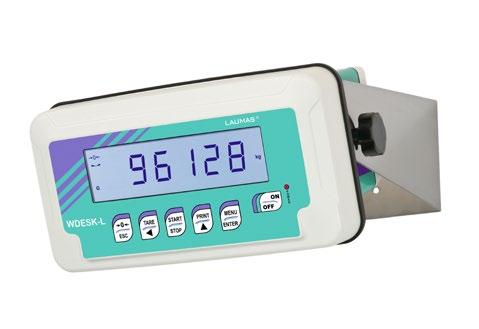

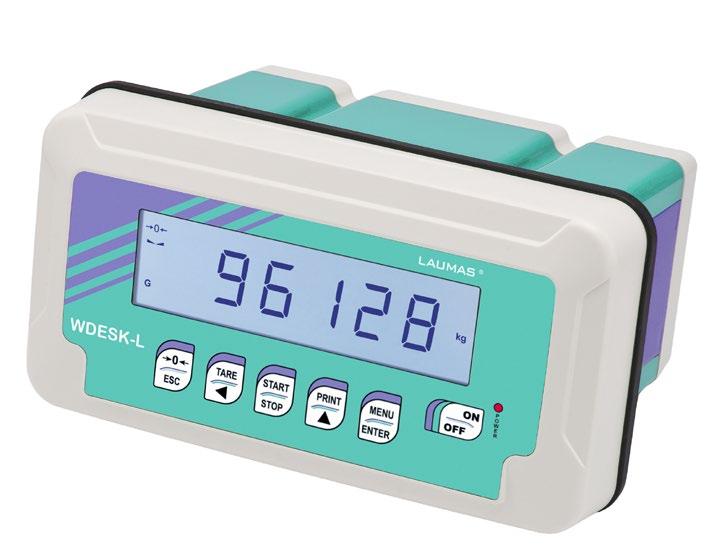

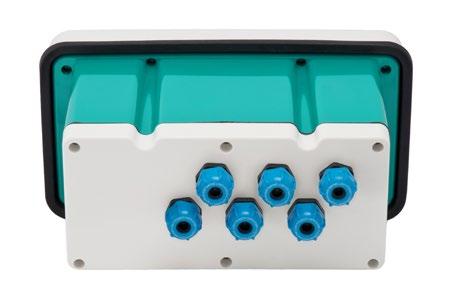

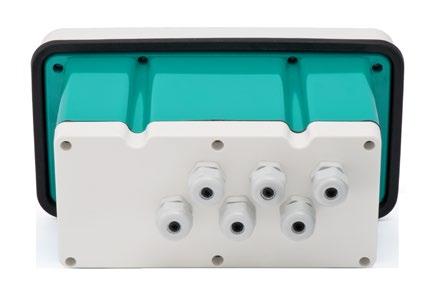

WDESKL

Weight indicator Optional field buses IP67 ABS

WTABG

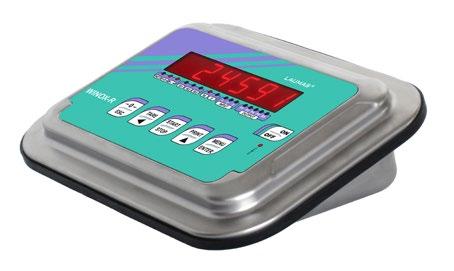

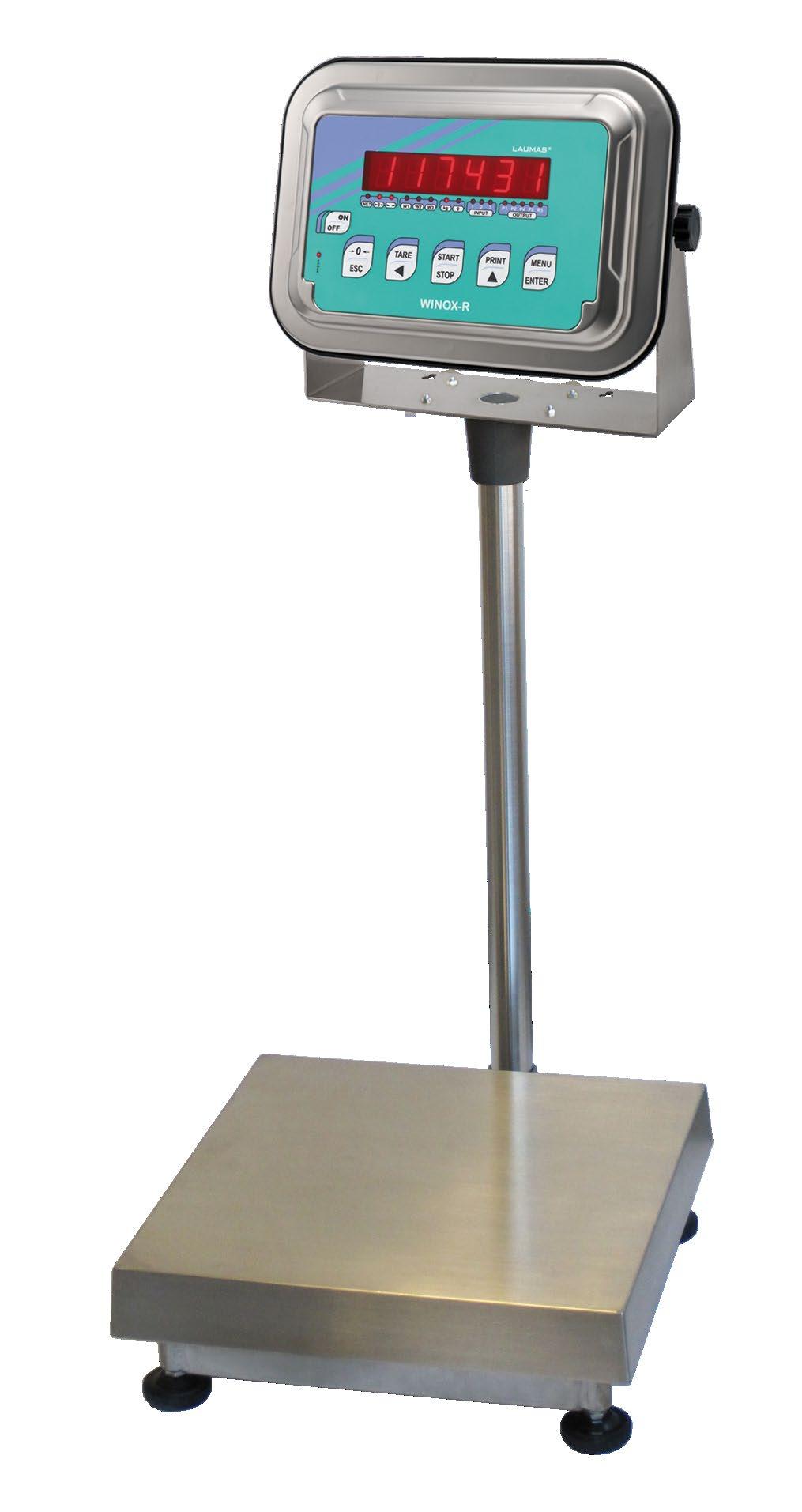

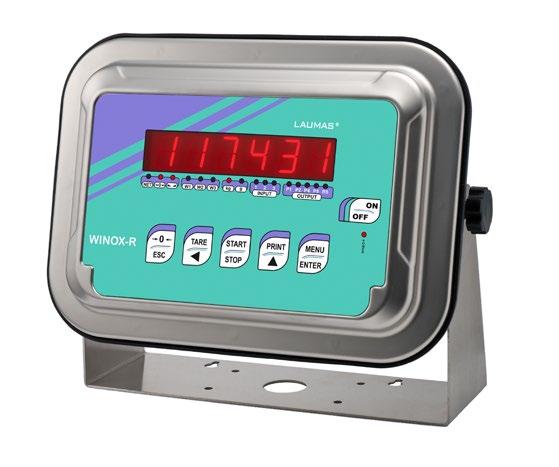

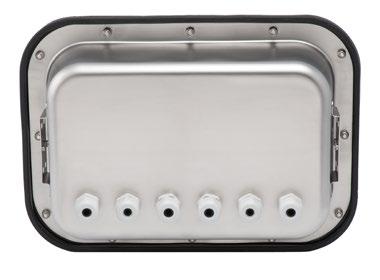

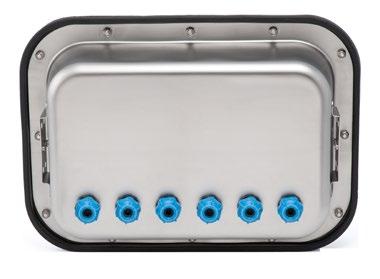

WINOXR

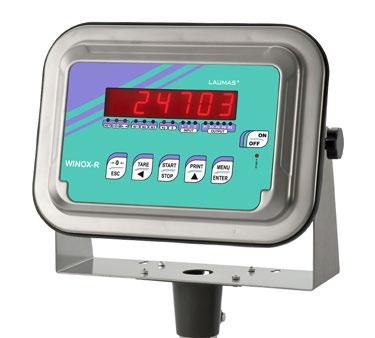

Weight indicator Optional field buses IP68/IP69K stainless steel

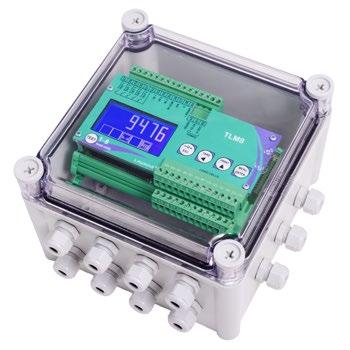

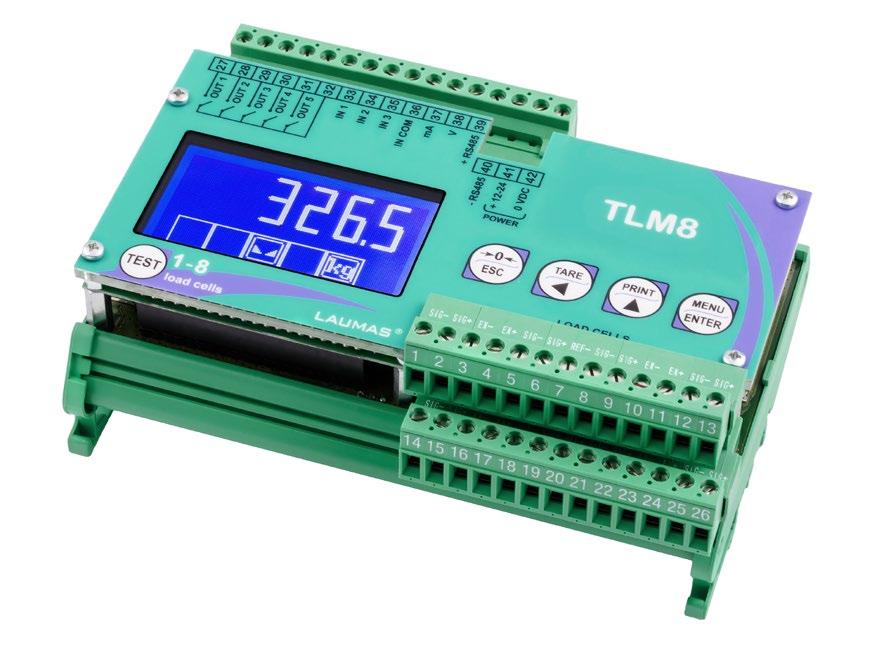

TLM8

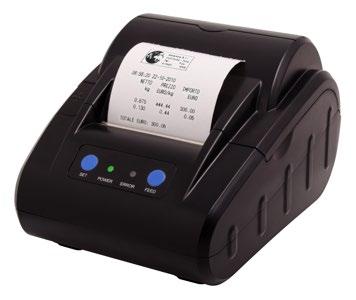

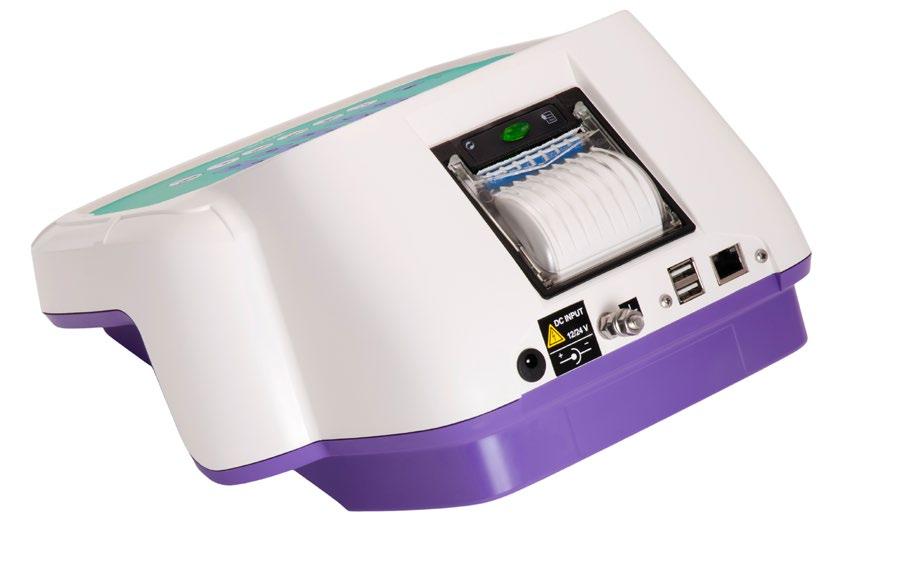

Weight indicator Integrated printer Optional fieldbuses ABS Weight indicator Integrated printer Graphic LCD display Optional fieldbuses ABS

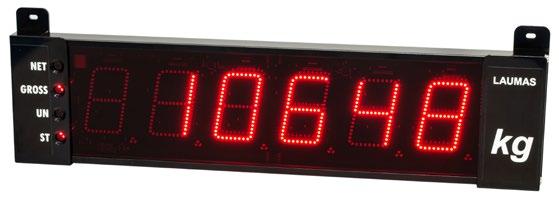

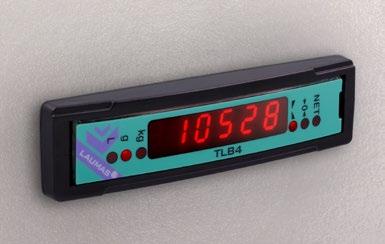

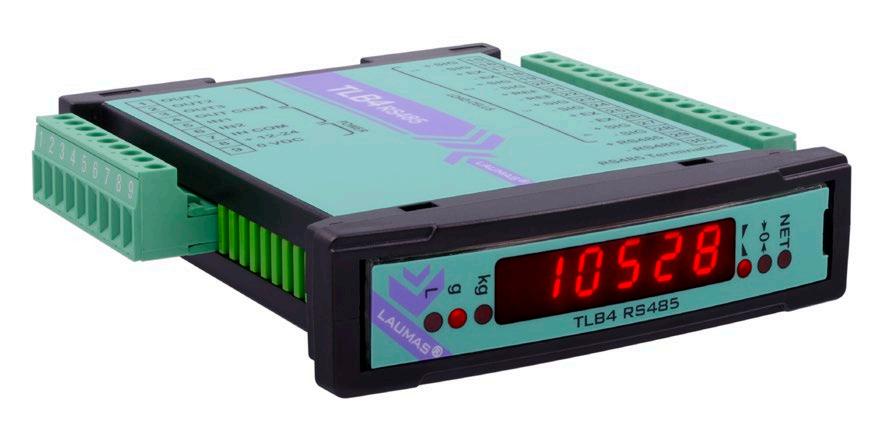

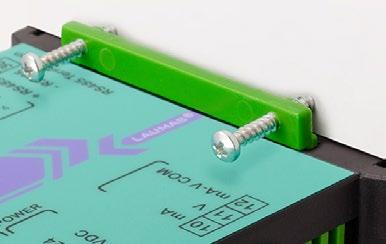

Multi-channel weight transmitters TLB4

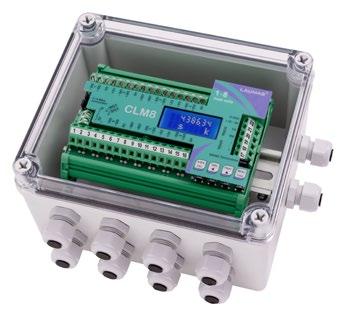

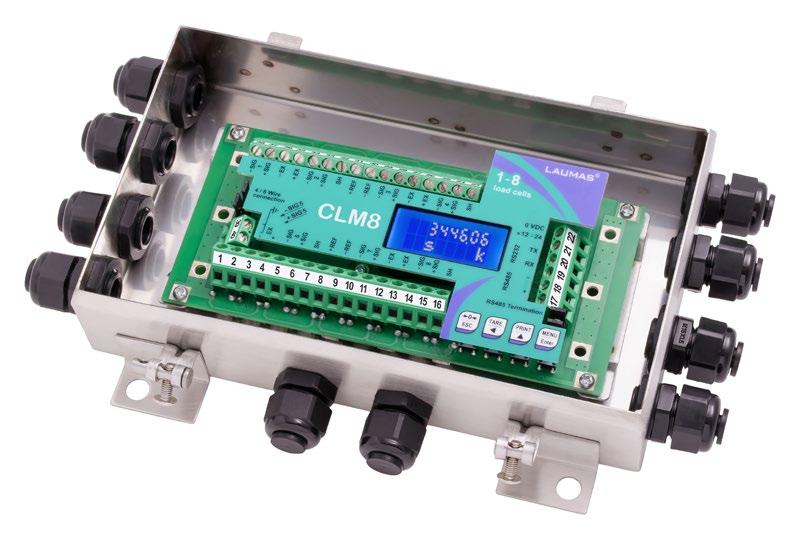

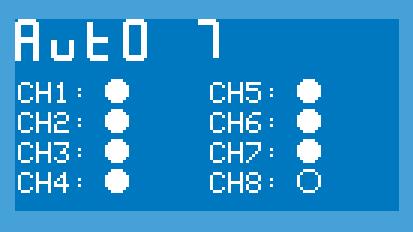

CLM8INOX

LAUMAS®

4 independent channels

8 independent channels Graphic LCD display

Intelligent junction box 8 independent channels Inclinometer function IP67 stainless steel

IDEA SCALES N. 4.1

Single cell platform scales

ISC CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). CAPACITY:

6 kg / 15 kg / 30 kg / 60 kg / 150 kg / 300 kg / 600 kg

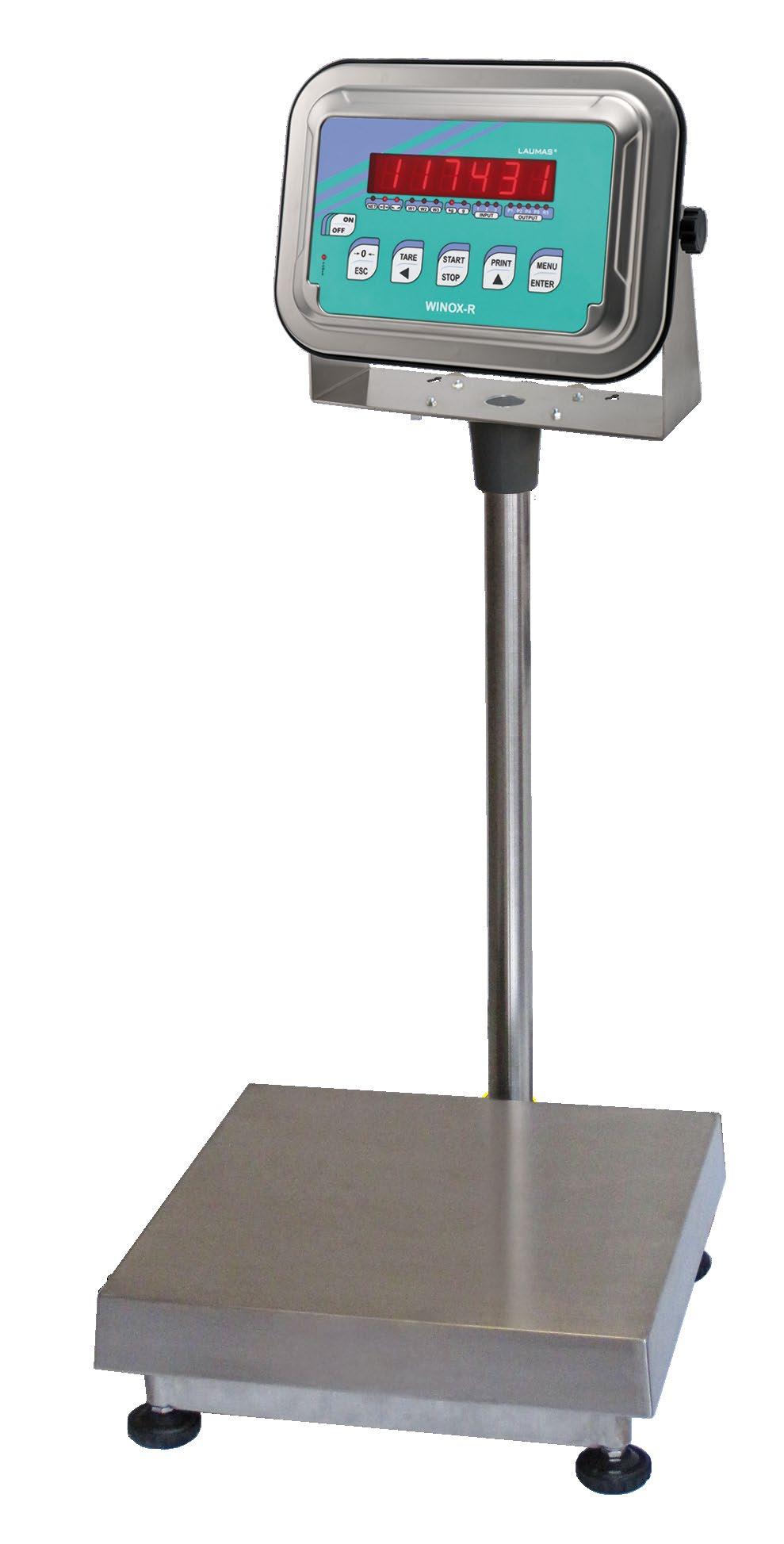

PLATFORM:

ACN: 300x300 mm / 400x400 mm / 600x600 mm / 800x800 mm

• Painted steel tubular structure. • AISI 304 stainless steel laid loading top. • IP65 aluminum alloy load cell. • Galvanized steel and polyamid feet. WEIGHT INDICATOR:

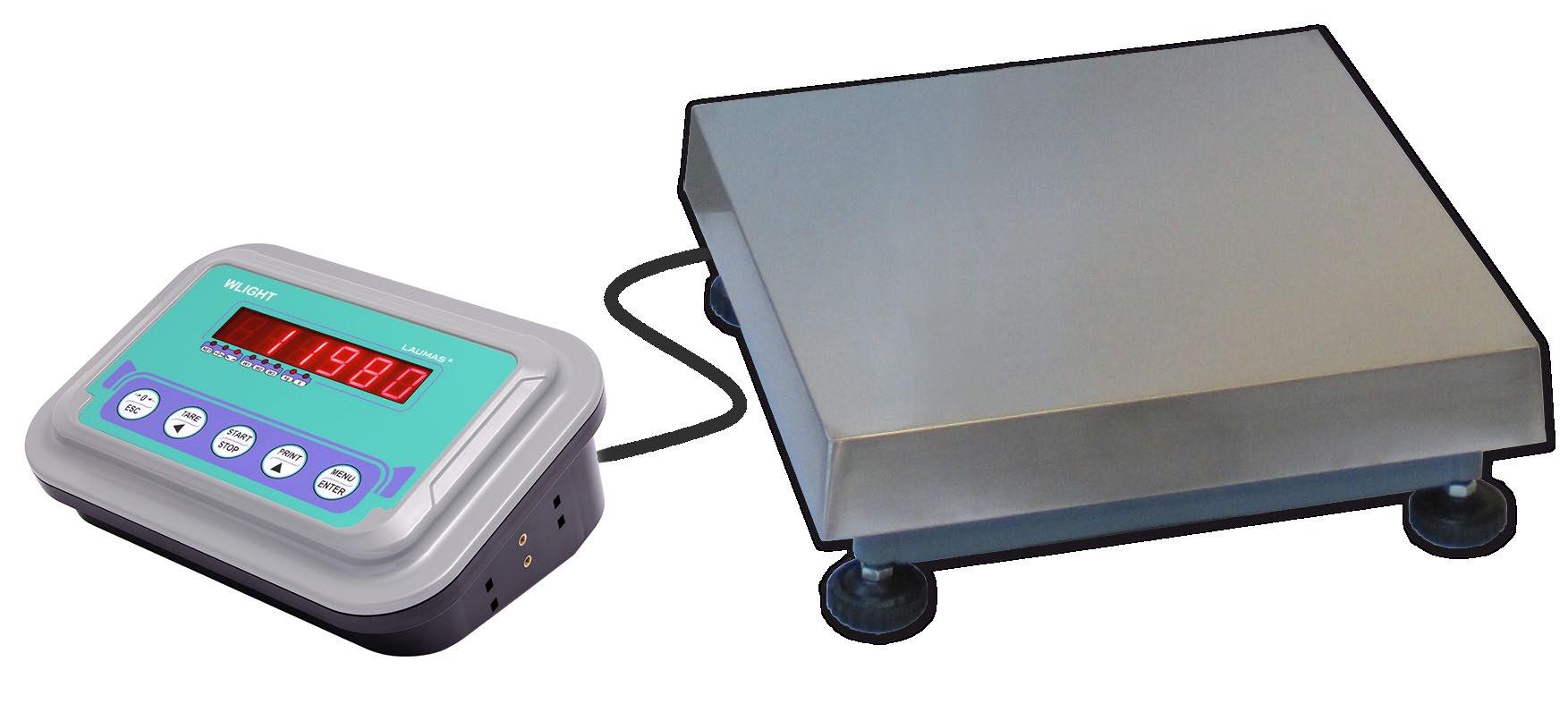

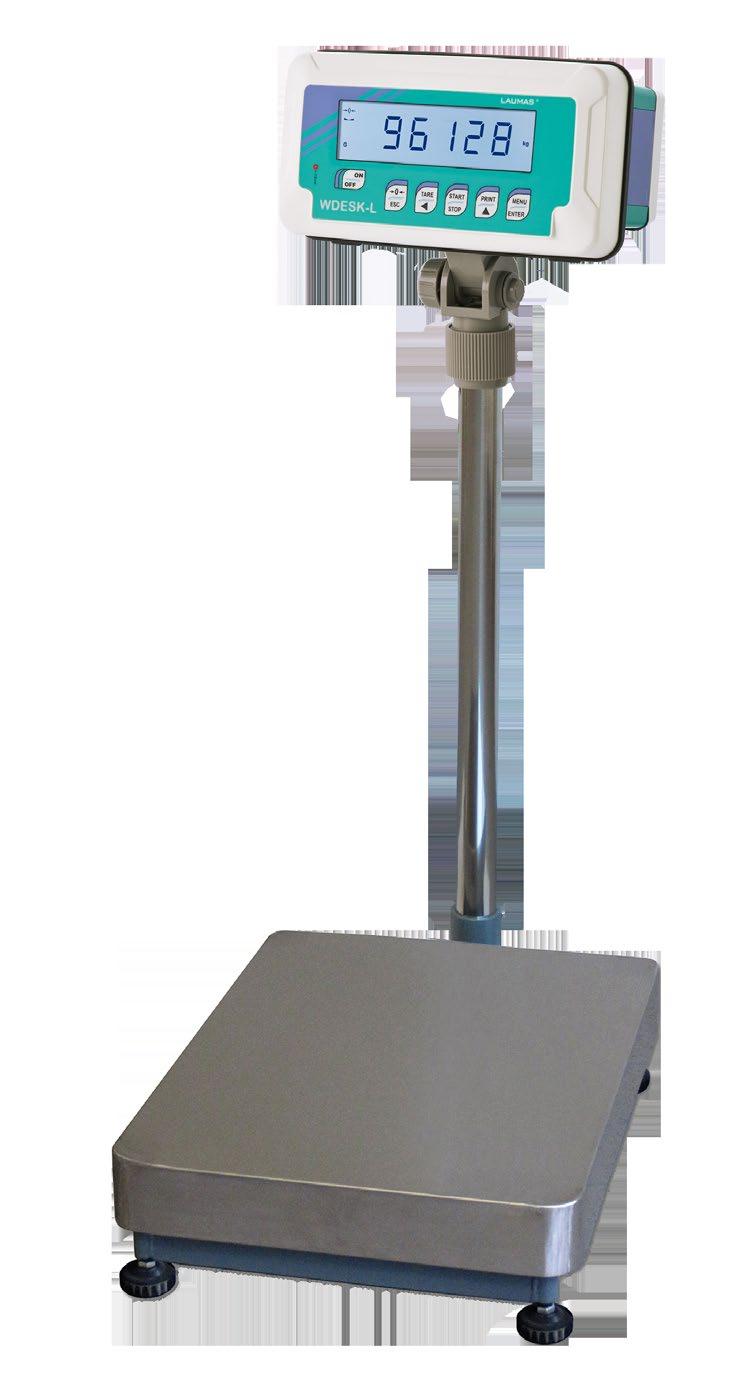

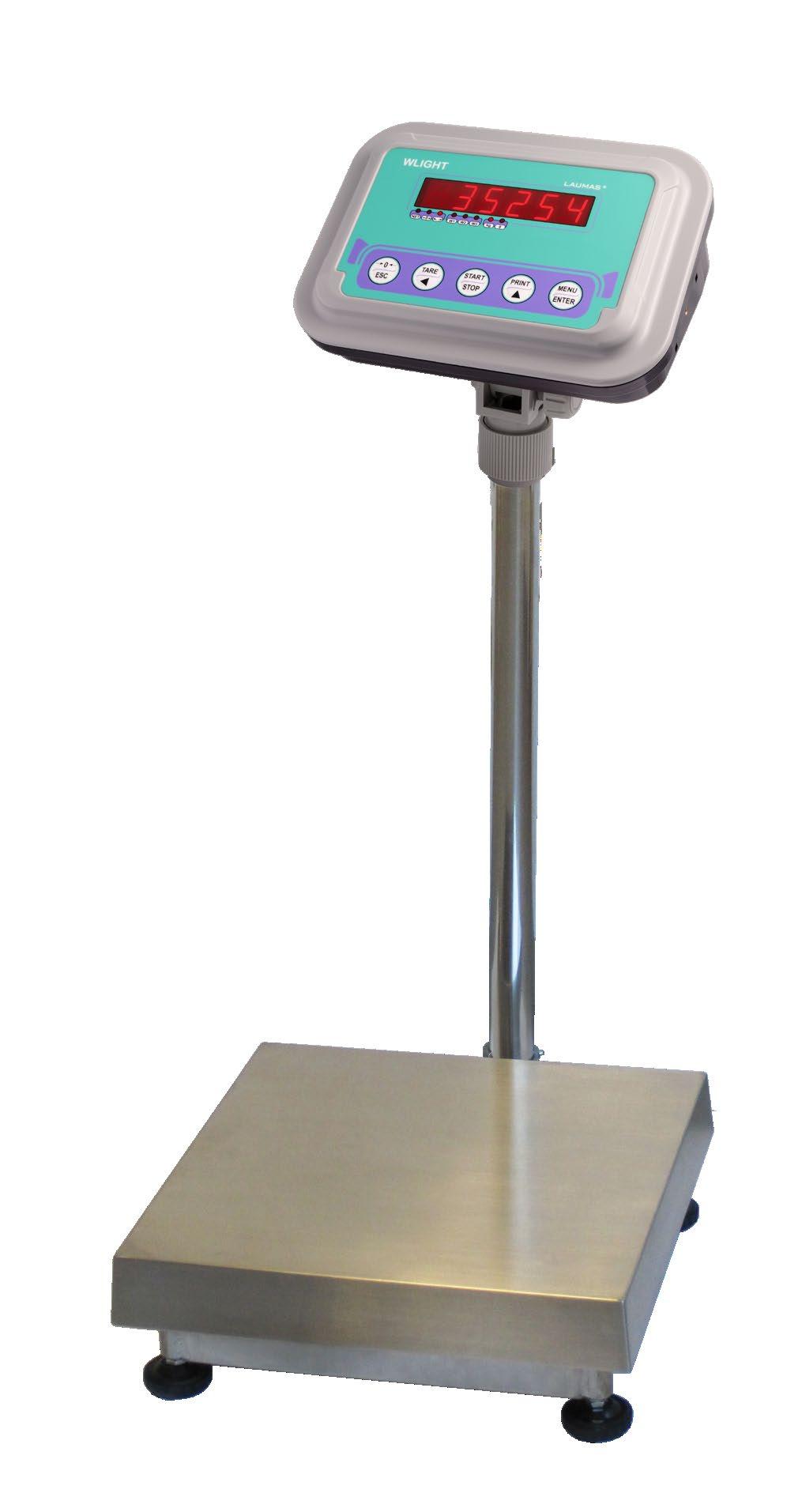

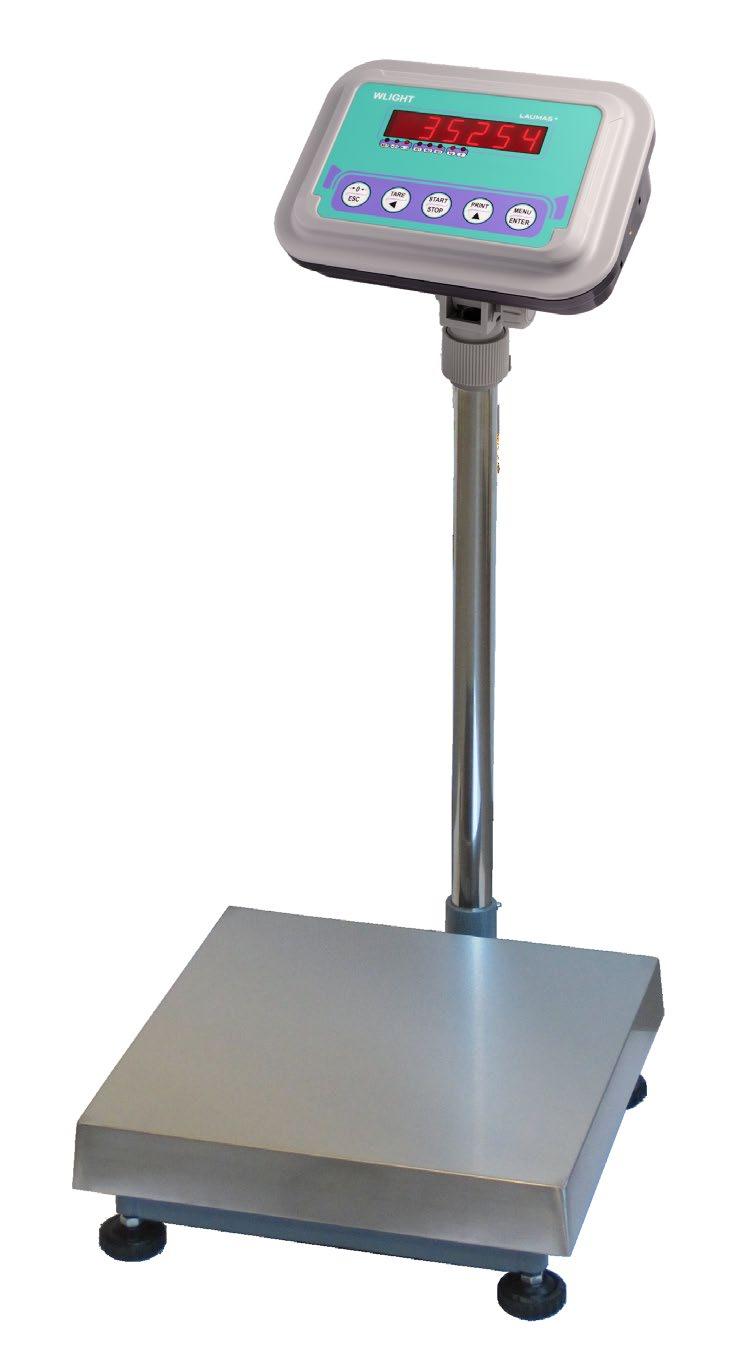

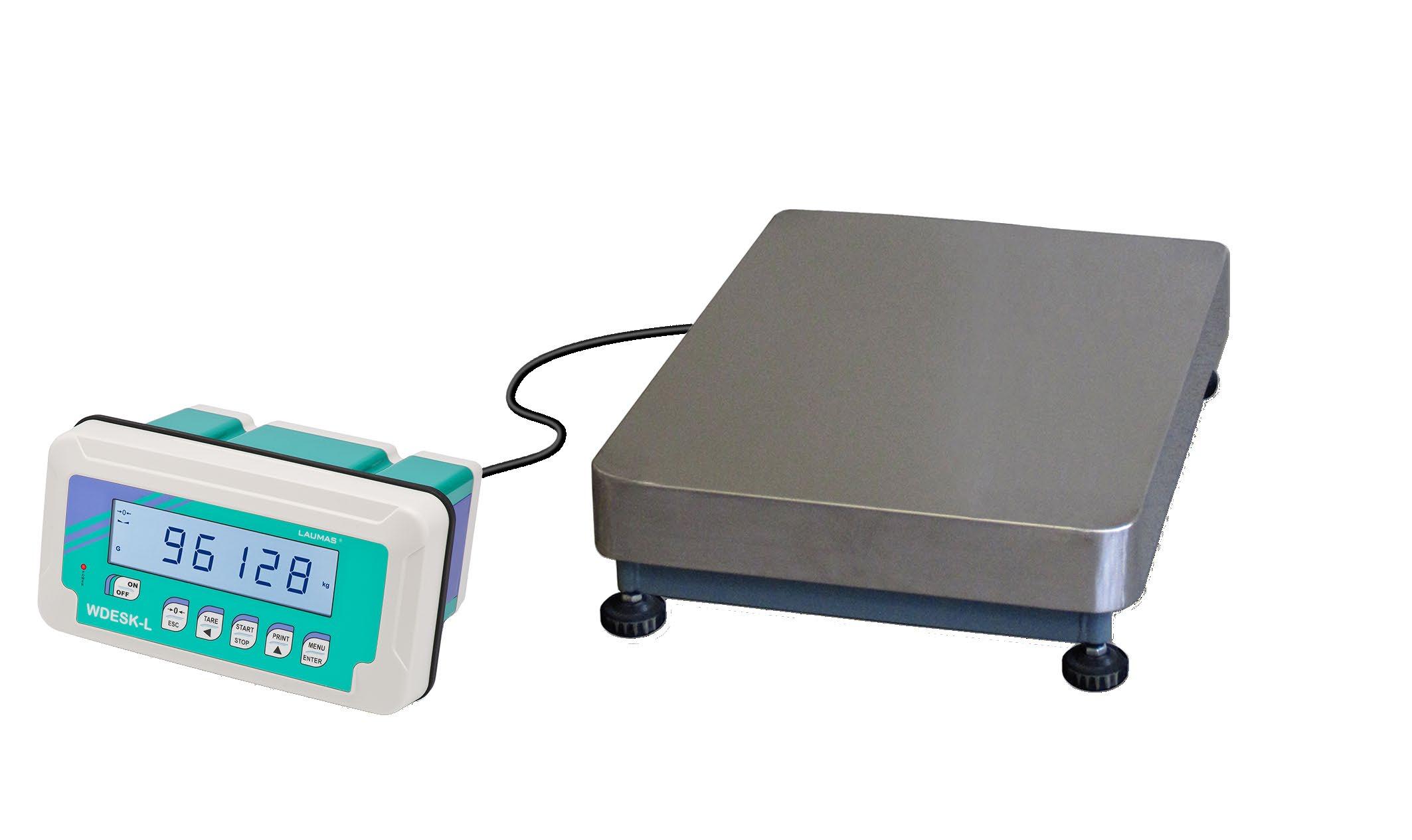

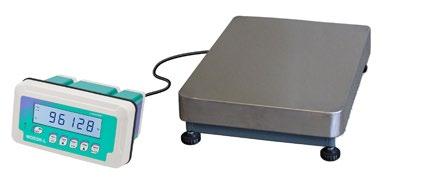

WLIGHT / WDESKL • Freestanding weight indicator or mounting on stainless steel column.

On request version for hazardous areas IECEx / ATEX.

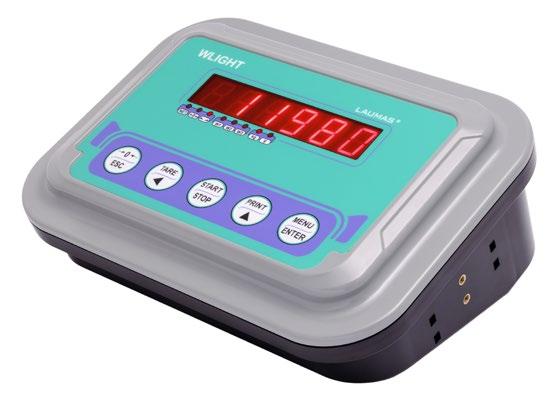

WLIGHT

WDESKL

ACN

COLUMN MOUNTING

Optional fieldbuses:

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Single cell platform scales

ISC / WLIGHT FREE STANDING CAPACITY Max1

Max2

DIVISION e1

COLUMN MOUNTING

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

FOR INTERNAL USE 6 kg

0.2 g

300x300 mm

ISC6F0A

7.2 kg

ISC6F0B

8.3 kg

15 kg

0.5 g

300x300 mm

ISC15F0A

7.2 kg

ISC15F0B

8.3 kg

30 kg

300x300 mm

ISC30F0A

7.2 kg

ISC30F0B

8.3 kg

60 kg

400x400 mm

ISC60F0A

9.7 kg

ISC60F0B

10.8 kg

150 kg

400x400 mm

ISC120F0A

9.7 kg

ISC120F0B

10.8 kg

150 kg

600x600 mm

ISC150F0A

24.9 kg

ISC150F0B

26 kg

300 kg

10 g

600x600 mm

ISC300F0A

24.9 kg

ISC300F0B

26 kg

600 kg

20 g

800x800 mm

ISC600F0A

52.9 kg

ISC600F0B

54 kg

C3 APPROVED - 3000 divisions 6 kg

300x300 mm

ISC6F1A

7.2 kg

ISC6F1B

8.3 kg

15 kg

300x300 mm

ISC15F1A

7.2 kg

ISC15F1B

8.3 kg

30 kg

10 g

300x300 mm

ISC30F1A

7.2 kg

ISC30F1B

8.3 kg

60 kg

20 g

400x400 mm

ISC60F1A

9.7 kg

ISC60F1B

10.8 kg

150 kg

50 g

400x400 mm

ISC120F1A

9.7 kg

ISC120F1B

10.8 kg

150 kg

50 g

600x600 mm

ISC150F1A

24.9 kg

ISC150F1B

26 kg

300 kg

100 g

600x600 mm

ISC300F1A

24.9 kg

ISC300F1B

26 kg

600 kg

200 g

800x800 mm

ISC600F1A

52.9 kg

ISC600F1B

54 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 3 kg

6 kg

300x300 mm

ISC6F2A

7.2 kg

ISC6F2B

8.3 kg

6 kg

15 kg

300x300 mm

ISC15F2A

7.2 kg

ISC15F2B

8.3 kg

15 kg

30 kg

10 g

300x300 mm

ISC30F2A

7.2 kg

ISC30F2B

8.3 kg

30 kg

60 kg

10 g

20 g

400x400 mm

ISC60F2A

9.7 kg

ISC60F2B

10.8 kg

60 kg

150 kg

20 g

50 g

400x400 mm

ISC120F2A

9.7 kg

ISC120F2B

10.8 kg

60 kg

150 kg

20 g

50 g

600x600 mm

ISC150F2A

24.9 kg

ISC150F2B

26 kg

150 kg

300 kg

50 g

100 g

600x600 mm

ISC300F2A

24.9 kg

ISC300F2B

26 kg

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

Single cell platform scales

ISC / WDESKL FREE STANDING CAPACITY Max1

Max2

DIVISION e1

COLUMN MOUNTING

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

0.2 g

300x300 mm

400x400 mm

600x600 mm

10 g

600x600 mm

20 g

800x800 mm

ISC6D0B ISC15D0B ISC30D0B ISC60D0B ISC120D0B ISC150D0B ISC300D0B ISC600D0B

8.3 kg

300x300 mm

ISC6D0A ISC15D0A ISC30D0A ISC60D0A ISC120D0A ISC150D0A ISC300D0A ISC600D0A

7.2 kg

0.5 g

FOR INTERNAL USE 6 kg 15 kg 30 kg 60 kg 150 kg 150 kg 300 kg 600 kg

7.2 kg 7.2 kg 9.7 kg 9.7 kg 24.9 kg 24.9 kg 52.9 kg

8.3 kg 8.3 kg 10.8 kg 10.8 kg 26 kg 26 kg 54 kg

C3 APPROVED - 3000 divisions 6 kg 15 kg 30 kg 60 kg 150 kg 150 kg 300 kg 600 kg

300x300 mm

10 g

300x300 mm

20 g

400x400 mm

50 g

400x400 mm

50 g

600x600 mm

100 g

600x600 mm

200 g

800x800 mm

ISC6D1A ISC15D1A ISC30D1A ISC60D1A ISC120D1A ISC150D1A ISC300D1A ISC600D1A

7.2 kg 7.2 kg 7.2 kg 9.7 kg 9.7 kg 24.9 kg 24.9 kg 52.9 kg

ISC6D1B ISC15D1B ISC30D1B ISC60D1B ISC120D1B ISC150D1B ISC300D1B ISC600D1B

8.3 kg 8.3 kg 8.3 kg 10.8 kg 10.8 kg 26 kg 26 kg 54 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 3 kg 6 kg 15 kg 30 kg 60 kg 60 kg 150 kg

6 kg 15 kg 30 kg 60 kg 150 kg 150 kg 300 kg

300x300 mm

10 g

300x300 mm

10 g

20 g

400x400 mm

20 g

50 g

400x400 mm

20 g

50 g

600x600 mm

50 g

100 g

600x600 mm

ISC6D2A ISC15D2A ISC30D2A ISC60D2A ISC120D2A ISC150D2A ISC300D2A

7.2 kg 7.2 kg 7.2 kg 9.7 kg 9.7 kg 24.9 kg 24.9 kg

ISC6D2B ISC15D2B ISC30D2B ISC60D2B ISC120D2B ISC150D2B ISC300D2B

8.3 kg 8.3 kg 8.3 kg 10.8 kg 10.8 kg 26 kg 26 kg

Please refer to the weight indicator data sheet for optional Fieldbuses.

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Single cell platform scales

ISM CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). CAPACITY:

75 kg / 150 kg / 300 kg

PLATFORM:

MN: 460x600 mm

• Painted steel tubular structure. • AISI 304 stainless steel laid loading top. • IP65 aluminum alloy load cell. • Galvanized steel and polyamid feet. WEIGHT INDICATOR:

WLIGHT / WDESKL • Freestanding weight indicator or mounting on stainless steel column.

On request version for hazardous areas IECEx / ATEX.

WDESKL

WLIGHT

COLUMN MOUNTING

Optional fieldbuses:

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

Single cell platform scales

ISM / WLIGHT FREE STANDING CAPACITY Max1

DIVISION e1

Max2

COLUMN MOUNTING

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

460x600 mm

10 g

460x600 mm

ISM75F0B ISM150F0B ISM300F0B

24 kg

460x600 mm

ISM75F0A ISM150F0A ISM300F0A

22.9 kg

ISM60F1A ISM150F1A ISM300F1A

22.9 kg

ISM60F1B ISM150F1B ISM300F1B

24 kg

22.9 kg

24 kg

22.9 kg

ISM60F2B ISM150F2B ISM300F2B

NET WEIGHT

FOR INTERNAL USE 75 kg 150 kg 300 kg

22.9 kg 22.9 kg

24 kg 24 kg

C3 APPROVED - 3000 divisions 60 kg 150 kg 300 kg

20 g

460x600 mm

50 g

460x600 mm

100 g

460x600 mm

22.9 kg 22.9 kg

24 kg 24 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 30 kg 60 kg 150 kg

60 kg 150 kg 300 kg

10 g

20 g

460x600 mm

20 g

50 g

460x600 mm

50 g

100 g

460x600 mm

ISM60F2A ISM150F2A ISM300F2A

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

460x600 mm

10 g

460x600 mm

ISM75D0B ISM150D0B ISM300D0B

24 kg

460x600 mm

ISM75D0A ISM150D0A ISM300D0A

22.9 kg

ISM60D1A ISM150D1A ISM300D1A

22.9 kg

ISM60D1B ISM150D1B ISM300D1B

24 kg

ISM60D2A ISM150D2A ISM300D2A

22.9 kg

ISM60D2B ISM150D2B ISM300D2B

24 kg

22.9 kg

24 kg 24 kg

ISM / WDESKL FREE STANDING CAPACITY Max1

DIVISION e1

Max2

COLUMN MOUNTING NET WEIGHT

FOR INTERNAL USE 75 kg 150 kg 300 kg

22.9 kg 22.9 kg

24 kg 24 kg

C3 APPROVED - 3000 divisions 60 kg 150 kg 300 kg

20 g

460x600 mm

50 g

460x600 mm

100 g

460x600 mm

22.9 kg 22.9 kg

24 kg 24 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 30 kg 60 kg 150 kg

60 kg 150 kg 300 kg

10 g

20 g

460x600 mm

20 g

50 g

460x600 mm

50 g

100 g

460x600 mm

22.9 kg 22.9 kg

24 kg 24 kg

Please refer to the weight indicator data sheet for optional Fieldbuses.

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Stainless steel single cell platform scales

ISI CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). CAPACITY:

6 kg / 15 kg / 30 kg / 60 kg / 150 kg / 300 kg / 600 kg

PLATFORM:

AIN: 300x300 mm / 400x400 mm / 600x600 mm / 800x800 mm

• AISI 304 stainless steel tubular structure. • AISI 304 stainless steel laid loading top. • IP65 aluminum alloy load cell. • Stainless steel and polyamid feet. • Load cell protection kit included for 60 kg / 150 kg / 300 kg capacities. WEIGHT INDICATOR:

WLIGHT / WINOXR • Freestanding weight indicator or mounting on stainless steel column.

On request version for hazardous areas IECEx / ATEX.

AIN

WINOXR - IP68*

WLIGHT

IP68 LOAD CELL PROTECTION KIT included for AIN platforms: 60 kg / 150 kg / 300 kg capacities

COLUMN MOUNTING

Optional fieldbuses: *) On request IP69K

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

Stainless steel single cell platform scales

ISI / WLIGHT FREE STANDING CAPACITY Max1

Max2

DIVISION e1

COLUMN MOUNTING

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

300x300 mm

ISI6F0A

6.5 kg

ISI6F0C

7.6 kg

FOR INTERNAL USE 6 kg

0.2 g

15 kg

0.5 g

300x300 mm

ISI15F0A

6.5 kg

ISI15F0C

7.6 kg

30 kg

300x300 mm

ISI30F0A

6.5 kg

ISI30F0C

7.6 kg

60 kg

400x400 mm

ISI60F0A

9.4 kg

ISI60F0C

10.5 kg

150 kg

400x400 mm

ISI120F0A

9.4 kg

ISI120F0C

10.5 kg

150 kg

600x600 mm

ISI150F0A

23.5 kg

ISI150F0C

24.6 kg

300 kg

10 g

600x600 mm

ISI300F0A

23.5 kg

ISI300F0C

24.6 kg

600 kg

20 g

800x800 mm

ISI600F0A

48.4 kg

ISI600F0C

49.5 kg

C3 APPROVED - 3000 divisions 6 kg

300x300 mm

ISI6F1A

6.5 kg

ISI6F1C

7.6 kg

15 kg

300x300 mm

ISI15F1A

6.5 kg

ISI15F1C

7.6 kg

30 kg

10 g

300x300 mm

ISI30F1A

6.5 kg

ISI30F1C

7.6 kg

60 kg

20 g

400x400 mm

ISI60F1A

9.4 kg

ISI60F1C

10.5 kg

150 kg

50 g

400x400 mm

ISI120F1A

9.4 kg

ISI120F1C

10.5 kg

150 kg

50 g

600x600 mm

ISI150F1A

23.5 kg

ISI150F1C

24.6 kg

300 kg

100 g

600x600 mm

ISI300F1A

23.5 kg

ISI300F1C

24.6 kg

600 kg

200 g

800x800 mm

ISI600F1A

48.4 kg

ISI600F1C

49.5 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 3 kg

6 kg

300x300 mm

ISI6F2A

6.5 kg

ISI6F2C

7.6 kg

6 kg

15 kg

300x300 mm

ISI15F2A

6.5 kg

ISI15F2C

7.6 kg

15 kg

30 kg

10 g

300x300 mm

ISI30F2A

6.5 kg

ISI30F2C

7.6 kg

30 kg

60 kg

10 g

20 g

400x400 mm

ISI60F2A

9.4 kg

ISI60F2C

10.5 kg

60 kg

150 kg

20 g

50 g

400x400 mm

ISI120F2A

9.4 kg

ISI120F2C

10.5 kg

60 kg

150 kg

20 g

50 g

600x600 mm

ISI150F2A

23.5 kg

ISI150F2C

24.6 kg

150 kg

300 kg

50 g

100 g

600x600 mm

ISI300F2A

23.5 kg

ISI300F2C

24.6 kg

IP68 LOAD CELL PROTECTION KIT included for AIN platforms: 60 kg / 150 kg / 300 kg capacities

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Stainless steel single cell platform scales

ISI / WINOXR IP68* FREE STANDING CAPACITY Max1

Max2

DIVISION e1

COLUMN MOUNTING

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

300x300 mm

ISI6E0A

7.1 kg

ISI6E0C

8.2 kg

FOR INTERNAL USE 6 kg

0.2 g

15 kg

0.5 g

300x300 mm

ISI15E0A

7.1 kg

ISI15E0C

8.2 kg

30 kg

300x300 mm

ISI30E0A

7.1 kg

ISI30E0C

8.2 kg

60 kg

400x400 mm

ISI60E0A

10 kg

ISI60E0C

11.1 kg

150 kg

400x400 mm

ISI120E0A

10 kg

ISI120E0C

11.1 kg

150 kg

600x600 mm

ISI150E0A

24.1 kg

ISI150E0C

25.2 kg

300 kg

10 g

600x600 mm

ISI300E0A

24.1 kg

ISI300E0C

25.2 kg

600 kg

20 g

800x800 mm

ISI600E0A

49 kg

ISI600E0C

50.1 kg

C3 APPROVED - 3000 divisions 6 kg

300x300 mm

ISI6E1A

7.1 kg

ISI6E1C

8.2 kg

15 kg

300x300 mm

ISI15E1A

7.1 kg

ISI15E1C

8.2 kg

30 kg

10 g

300x300 mm

ISI30E1A

7.1 kg

ISI30E1C

8.2 kg

60 kg

20 g

400x400 mm

ISI60E1A

10 kg

ISI60E1C

11.1 kg

150 kg

50 g

400x400 mm

ISI120E1A

10 kg

ISI120E1C

11.1 kg

150 kg

50 g

600x600 mm

ISI150E1A

24.1 kg

ISI150E1C

25.2 kg

300 kg

100 g

600x600 mm

ISI300E1A

24.1 kg

ISI300E1C

25.2 kg

600 kg

200 g

800x800 mm

ISI600E1A

49 kg

ISI600E1C

50.1 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 3 kg

6 kg

300x300 mm

ISI6E2A

7.1 kg

ISI6E2C

8.2 kg

6 kg

15 kg

300x300 mm

ISI15E2A

7.1 kg

ISI15E2C

8.2 kg

15 kg

30 kg

10 g

300x300 mm

ISI30E2A

7.1 kg

ISI30E2C

8.2 kg

30 kg

60 kg

10 g

20 g

400x400 mm

ISI60E2A

10 kg

ISI60E2C

11.1 kg

60 kg

150 kg

20 g

50 g

400x400 mm

ISI120E2A

10 kg

ISI120E2C

11.1 kg

60 kg

150 kg

20 g

50 g

600x600 mm

ISI150E2A

24.1 kg

ISI150E2C

25.2 kg

150 kg

300 kg

50 g

100 g

600x600 mm

ISI300E2A

24.1 kg

ISI300E2C

25.2 kg

Please refer to the weight indicator data sheet for optional Fieldbuses.

IP68 LOAD CELL PROTECTION KIT included for AIN platforms: 60 kg / 150 kg / 300 kg capacities

*) On request IP69K

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

IP68* stainless steel single cell platform scales

ISIL CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). CAPACITY:

30 kg / 60 kg / 150 kg / 300 kg

PLATFORM:

AILN: 400x400 mm / 600x600 mm

• AISI 304 stainless steel tubular structure. • AISI 304 stainless steel laid loading top. • IP68* welded stainless steel load cell. • Stainless steel and polyamid feet. WEIGHT INDICATOR:

WINOXR • Freestanding weight indicator or mounting on stainless steel column.

On request version for hazardous areas IECEx / ATEX.

AILN

WINOXR - IP68*

COLUMN MOUNTING

Optional fieldbuses: *) On request IP69K

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

IP68* stainless steel single cell platform scales

ISIL / WINOXR IP68* FREE STANDING CAPACITY Max1

Max2

DIVISION e1

PLATFORM L x W mm

ITEM CODE

COLUMN MOUNTING NET WEIGHT

ITEM CODE

NET WEIGHT

FOR INTERNAL USE 30 kg

400x400 mm

ISIL30E0A

11 kg

ISIL30E0C

12.1 kg

60 kg

400x400 mm

ISIL60E0A

14 kg

ISIL60E0C

15.1 kg

150 kg

400x400 mm

ISIL150E0A

14 kg

ISIL150E0C

15.1 kg

200 kg

600x600 mm

ISIL200E0A

25 kg

ISIL200E0C

26.1 kg

300 kg

10 g

600x600 mm

ISIL300E0A

26 kg

ISIL300E0C

27.1 kg

C3 APPROVED - 3000 division 30 kg

10 g

400x400 mm

ISIL30E1A

11 kg

ISIL30E1C

12.1 kg

60 kg

20 g

400x400 mm

ISIL60E1A

14 kg

ISIL60E1C

15.1 kg

150 kg

50 g

400x400 mm

ISIL150E1A

14 kg

ISIL150E1C

15.1 kg

150 kg

50 g

600x600 mm

ISIL200E1A

25 kg

ISIL200E1C

26.1 kg

300 kg

100 g

600x600 mm

ISIL300E1A

26 kg

ISIL300E1C

27.1 kg

C3 APPROVED - 3000 division - MULTIRANGE 15 kg

30 kg

10 g

400x400 mm

ISIL30E2A

11 kg

ISIL30E2C

12.1 kg

30 kg

60 kg

10 g

20 g

400x400 mm

ISIL60E2A

14 kg

ISIL60E2C

15.1 kg

60 kg

150 kg

20 g

50 g

400x400 mm

ISIL150E2A

14 kg

ISIL150E2C

15.1 kg

60 kg

150 kg

20 g

50 g

600x600 mm

ISIL200E2A

25 kg

ISIL200E2C

26.1 kg

150 kg

300 kg

50 g

100 g

600x600 mm

ISIL300E2A

26 kg

ISIL300E2C

27.1 kg

Please refer to the weight indicator data sheet for optional Fieldbuses.

*) On request IP69K

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

Single cell platform approved scales for statistical checking of prepackages This statistical checking of prepackages function can be used in accordance with Act no.690 dated 25/10/78 and DPR (Italian Presidential Decree) no.391 dated 26/05/80; check with local supervisory authorities if it is also applicable in your Country.

CE-M Certificate: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). These scales allow immediate, simple and reliable verification of the weight of the prepackaged products: during the control procedure, the weight indicator will check both the actual weight of individual samples, and the lot statistics according to the calculated average value. CAPACITY:

6 kg / 15 kg / 30 kg / 60 kg / 150 kg

PLATFORM:

ACN: 300x300 mm / 400x400 mm / 600x600 mm Painted frame and AISI 304 stainless steel loading plate.

MN: 460x600 mm

AIN: 300x300 mm / 400x400 mm / 600x600 mm AISI 304 stainless steel frame and loading plate. WEIGHT INDICATOR:

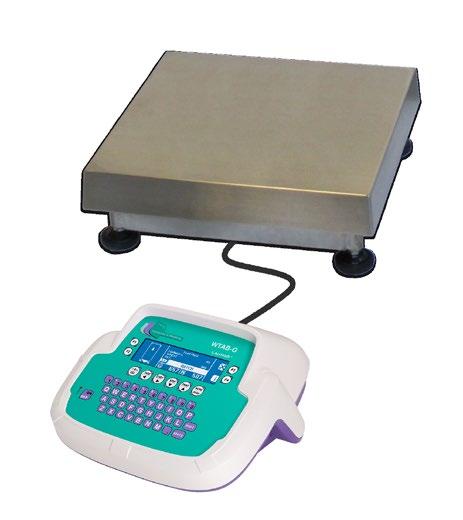

WTABG LCD graphic display and integrated thermal printer.

STATISTICAL CHECKING: ----------------------W--BASE Addr:01 DATE: 12/04/19 15:20:32 LOT CHECK: LOT: ITEM:

STOP LOT-00015 BULLONI

TARGET: 100 kg Dev.Std: 2.257 kg M.WEIGHT: 102.20 kg L.WEIGHT: 98.86 kg ----------------------Z ( % ) NUM NET( kg) 1: 000.0 000 0 2: 000.0 000 0 3: 096.6 029 2959 4: 003.3 001 107 5: 000.0 000 0 T: 030 3066 ----------------------LOT CHECK: SUCCESS ----------------------Z3 SAMPLE 030/030 NET 103 kg PTARE 10 kg Z3 SAMPLE 029/030 NET 103 kg PTARE 10 kg . . . . . . Z3 SAMPLE 002/030 NET 102 kg PTARE 10 kg Z3 SAMPLE 001/030 NET 102 kg PTARE 10 kg ----------------------LOT CHECK: START DATE: 12/04/19 15:17:51 LOT: LOT-00015 ITEM: BULLONI TYPE: STANDARD QUANTITY: 150 Z1: NET<90 Z2: 90<NET<95 Z3: 95<NET<105 Z4: 105<NET<110 Z5: NET>110 -----------------------

WTABG

Lot check status Name of checked lot Name of ckecked item Product nominal net weight Standard deviation Average weight of checked samples Minimum acceptable average weight Summary of samples in tolerance zones ZONE 1 ZONE 2 ZONE 3 ZONE 4 ZONE 5 Toal checked samples Statistical check outcome Tolerance zone and sample number Sample net weight Preset tare associated with item

Lot check status Lot check start date Name of checked lot Name of checked item Type of check performed Quantity of elements in the lot Definition of tolerance zones with respect to sample net weight

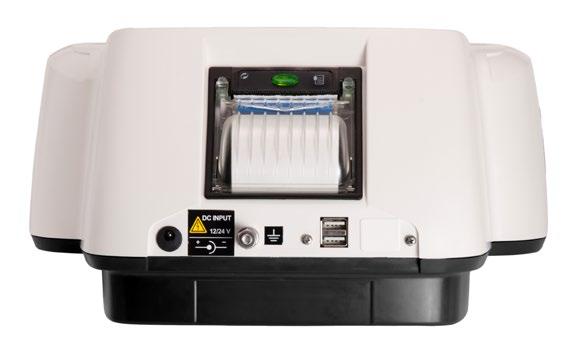

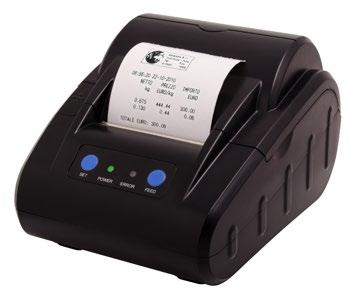

THERMAL PRINTER

Optional fieldbuses:

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Single cell platform approved scales for statistical checking of prepackages

ISC-G / WTABG / ACN FREE STANDING CAPACITY Max1

Max2

DIVISION e1

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ISC6G2A ISC15G2A ISC30G2A ISC60G2A ISC120G2A ISC150G2A

7.6 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 3 kg 6 kg 15 kg 30 kg 60 kg 60 kg

6 kg 15 kg 30 kg 60 kg 150 kg 150 kg

300x300 mm

10 g

300x300 mm

10 g

20 g

400x400 mm

20 g

50 g

400x400 mm

20 g

50 g

600x600 mm

7.6 kg 7.6 kg 10.1 kg 10.1 kg 25.3 kg

Please refer to the weight indicator data sheet for optional Fieldbuses.

ISM-G / WTABG / MN FREE STANDING CAPACITY Max1

Max2

DIVISION e1

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ISM60G2A ISM150G2A

23.3 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 30 kg 60 kg

60 kg 150 kg

10 g

20 g

460x600 mm

20 g

50 g

460x600 mm

23.3 kg

Please refer to the weight indicator data sheet for optional Fieldbuses.

ISI-G / WTABG / AIN FREE STANDING CAPACITY Max1

Max2

DIVISION e1

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ISI6G2A ISI15G2A ISI30G2A ISI60G2A ISI120G2A ISI150G2A

6.9 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 3 kg 6 kg 15 kg 30 kg 60 kg 60 kg

6 kg 15 kg 30 kg 60 kg 150 kg 150 kg

300x300 mm

10 g

300x300 mm

10 g

20 g

400x400 mm

20 g

50 g

400x400 mm

20 g

50 g

600x600 mm

6.9 kg 6.9 kg 9.8 kg 9.8 kg 23.9 kg

Please refer to the weight indicator data sheet for optional Fieldbuses.

IP68 LOAD CELL PROTECTION KIT included for AIN platforms: 60 kg / 150 kg / 300 kg capacities

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

Options on request for single cell platform scales DESCRIPTION Calibration report - Up to 30 kg. Calibration report - Up to 3000 kg. CE-M Approved version (4000 divisions) for capacities up to 300 kg. Alibi memory for approved weight indicators Non-standard capacity (max) and division (e) version. STAVTII Desk thermal printer, 32 columns with RTC (clock calendar). WTABG weight indicator

Integrated thermal printer.

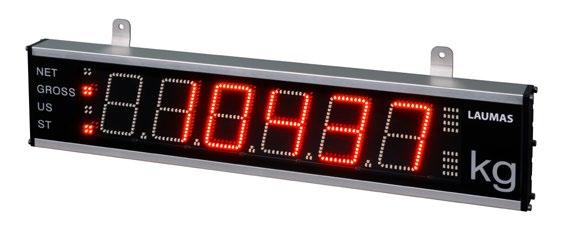

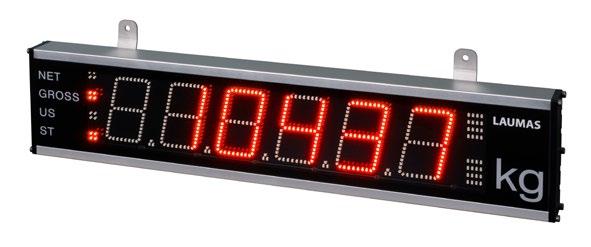

RIP6100IP65 IP65 external remote display with traffic light in anodised aluminum profile. Red/green LED display, 6 digit (h 95 mm). RIP6100N IP30 digital remote display in painted aluminum profile. Red LED display, 6 digit (h 90 mm). Declaration of conformity + IP69K* marking protection rating. AILN platform load cells WINOXR weight indicator WLIGHT weight indicator

8 NiMH rechargeable batteries, 1.2 V, AA type.

WDESKL weight indicator

8 NiMH rechargeable batteries, 1.2 V, AA type, non-removable.

WINOXR weight indicator

12.2 V rechargeable lead battery, 2.8 Ah capacity.

WTABG weight indicator

12.2 V rechargeable lead battery, 2.8 Ah capacity.

ATEX versions with the declaration of conformity of whole system. IECEx versions. *) Water protection in case of high-pressure or steam jet cleaning (test: pressurized water is sprayed from a distance of max 150 mm) Water pressure: 100 bar; temperature: 80 °C; test duration: 250 seconds (reference standard: DIN 40050-9)

STAVTII

IDEA SCALES N. 4.1

RIP6100IP65

For further information on the products, please refer to the data sheets on www.laumas.com

RIP6100N

LAUMAS®

4 IP68 cells platform scales

ISP CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). CAPACITY:

1500 kg / 3000 kg

PLATFORM:

P: 1250x1250 mm / 1200x1500 mm / 1500x1500 mm • Painted steel structure, with inspectable loading top on cells and juction box sides. • 4 IP68 AISI 420 stainless steel shear beam load cell. • IP67 stainless steel junction box with equalization board and 6-output wires cable. • Galvanized steel self-centering adjustable jointed feet. • 2x M12 holes for lifting.

WEIGHT INDICATOR:

WLIGHT / WDESKL • Freestanding weight indicator or mounting on stainless steel column.

On request version for hazardous areas IECEx / ATEX.

WLIGHT

WDESKL

COLUMN MOUNTING

Optional fieldbuses:

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

4 IP68 cells platform scales

ISP / WLIGHT FREE STANDING CAPACITY Max1

Max2

DIVISION e1

COLUMN MOUNTING

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

FOR INTERNAL USE 1500 kg

100 g

1250x1250 mm

ISP1250F0AS5

117.9 kg

ISP1250F0BS5

119 kg

1500 kg

100 g

1200x1500 mm

ISP1215F0AS5

131.9 kg

ISP1215F0BS5

133 kg

1500 kg

100 g

1500x1500 mm

ISP1500F0AS5

159.9 kg

ISP1500F0BS5

161 kg

3000 kg

200 g

1250x1250 mm

ISP1250F0A

117.9 kg

ISP1250F0B

119 kg

3000 kg

200 g

1200x1500 mm

ISP1215F0A

131.9 kg

ISP1215F0B

133 kg

3000 kg

200 g

1500x1500 mm

ISP1500F0A

159.9 kg

ISP1500F0B

161 kg

C3 APPROVED - 3000 divisions 1500 kg

500 g

1250x1250 mm

ISP1250F1AS5

117.9 kg

ISP1250F1BS5

119 kg

1500 kg

500 g

1200x1500 mm

ISP1215F1AS5

131.9 kg

ISP1215F1BS5

133 kg

1500 kg

500 g

1500x1500 mm

ISP1500F1AS5

159.9 kg

ISP1500F1BS5

161 kg

3000 kg

1 kg

1250x1250 mm

ISP1250F1A

117.9 kg

ISP1250F1B

119 kg

3000 kg

1 kg

1200x1500 mm

ISP1215F1A

131.9 kg

ISP1215F1B

133 kg

3000 kg

1 kg

1500x1500 mm

ISP1500F1A

159.9 kg

ISP1500F1B

161 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 600 kg

1500 kg

200 g

500 g

1250x1250 mm

ISP1250F2AS5

117.9 kg

ISP1250F2BS5

119 kg

600 kg

1500 kg

200 g

500 g

1200x1500 mm

ISP1215F2AS5

131.9 kg

ISP1215F2BS5

133 kg

600 kg

1500 kg

200 g

500 g

1500x1500 mm

ISP1500F2AS5

159.9 kg

ISP1500F2BS5

161 kg

1500 kg

3000 kg

500 g

1 kg

1250x1250 mm

ISP1250F2A

117.9 kg

ISP1250F2B

119 kg

1500 kg

3000 kg

500 g

1 kg

1200x1500 mm

ISP1215F2A

131.9 kg

ISP1215F2B

133 kg

1500 kg

3000 kg

500 g

1 kg

1500x1500 mm

ISP1500F2A

159.9 kg

ISP1500F2B

161 kg

C5 APPROVED - 5000 divisions - MULTIRANGE 500 kg

1000 kg

100 g

200 g

1250x1250 mm

ISP1250F2AS5C5

117.9 kg

ISP1250F2BS5C5

119 kg

500 kg

1000 kg

100 g

200 g

1200x1500 mm

ISP1215F2AS5C5

131.9 kg

ISP1215F2BS5C5

133 kg

500 kg

1000 kg

100 g

200 g

1500x1500 mm

ISP1500F2AS5C5

159.9 kg

ISP1500F2BS5C5

161 kg

1000 kg

2500 kg

200 g

500 g

1250x1250 mm

ISP1250F2AC5

117.9 kg

ISP1250F2BC5

119 kg

1000 kg

2500 kg

200 g

500 g

1200x1500 mm

ISP1215F2AC5

131.9 kg

ISP1215F2BC5

133 kg

1000 kg

2500 kg

200 g

500 g

1500x1500 mm

ISP1500F2AC5

159.9 kg

ISP1500F2BC5

161 kg

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

4 IP68 cells platform scales

ISP / WDESKL FREE STANDING CAPACITY Max1

Max2

DIVISION e1

COLUMN MOUNTING

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

100 g

1250x1250 mm

100 g

1500x1500 mm

200 g

1250x1250 mm

200 g

1200x1500 mm

200 g

1500x1500 mm

ISP1250D0BS5 ISP1215D0BS5 ISP1500D0BS5 ISP1250D0B ISP1215D0B ISP1500D0B

119 kg

1200x1500 mm

ISP1250D0AS5 ISP1215D0AS5 ISP1500D0AS5 ISP1250D0A ISP1215D0A ISP1500D0A

117.9 kg

100 g

ISP1250D1AS5 ISP1215D1AS5 ISP1500D1AS5 ISP1250D1A ISP1215D1A ISP1500D1A

117.9 kg

ISP1250D1BS5 ISP1215D1BS5 ISP1500D1BS5 ISP1250D1B ISP1215D1B ISP1500D1B

119 kg

ISP1250D2AS5 ISP1215D2AS5 ISP1500D2AS5 ISP1250D2A ISP1215D2A ISP1500D2A

117.9 kg

ISP1250D2BS5 ISP1215D2BS5 ISP1500D2BS5 ISP1250D2B ISP1215D2B ISP1500D2B

119 kg

ISP1250D2AS5C5 ISP1215D2AS5C5 ISP1500D2AS5C5 ISP1250D2AC5 ISP1215D2AC5 ISP1500D2AC5

117.9 kg

ISP1250D2BS5C5 ISP1215D2BS5C5 ISP1500D2BS5C5 ISP1250D2BC5 ISP1215D2BC5 ISP1500D2BC5

119 kg

FOR INTERNAL USE 1500 kg 1500 kg 1500 kg 3000 kg 3000 kg 3000 kg

131.9 kg 159.9 kg 117.9 kg 131.9 kg 159.9 kg

133 kg 161 kg 119 kg 133 kg 161 kg

C3 APPROVED - 3000 divisions 1500 kg 1500 kg 1500 kg 3000 kg 3000 kg 3000 kg

500 g

1250x1250 mm

500 g

1200x1500 mm

500 g

1500x1500 mm

1 kg

1250x1250 mm

1 kg

1200x1500 mm

1 kg

1500x1500 mm

131.9 kg 159.9 kg 117.9 kg 131.9 kg 159.9 kg

133 kg 161 kg 119 kg 133 kg 161 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 600 kg 600 kg 600 kg 1500 kg 1500 kg 1500 kg

1500 kg 1500 kg 1500 kg 3000 kg 3000 kg 3000 kg

200 g

500 g

1250x1250 mm

200 g

500 g

1200x1500 mm

200 g

500 g

1500x1500 mm

500 g

1 kg

1250x1250 mm

500 g

1 kg

1200x1500 mm

500 g

1 kg

1500x1500 mm

131.9 kg 159.9 kg 117.9 kg 131.9 kg 159.9 kg

133 kg 161 kg 119 kg 133 kg 161 kg

C5 APPROVED - 5000 divisions - MULTIRANGE 500 kg 500 kg 500 kg 1000 kg 1000 kg 1000 kg

1000 kg 1000 kg 1000 kg 2500 kg 2500 kg 2500 kg

100 g

200 g

1250x1250 mm

100 g

200 g

1200x1500 mm

100 g

200 g

1500x1500 mm

200 g

500 g

1250x1250 mm

200 g

500 g

1200x1500 mm

200 g

500 g

1500x1500 mm

131.9 kg 159.9 kg 117.9 kg 131.9 kg 159.9 kg

133 kg 161 kg 119 kg 133 kg 161 kg

Please refer to the weight indicator data sheet for optional Fieldbuses.

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

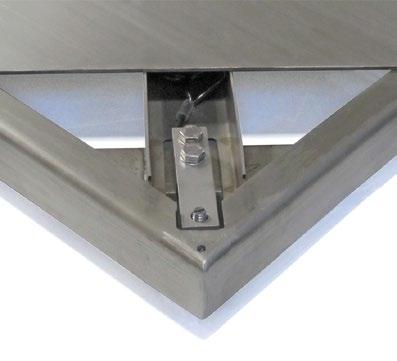

Stainless steel platform scales with 4 IP68* cells

ISPI CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). CAPACITY:

1500 kg / 3000 kg

PLATFORM:

P-INOX: 1250x1250 mm / 1500x1500 mm • AISI 304 stainless steel structure, with inspectable loading top on cells and juction box sides. • 4 IP68* 17-4 PH stainless steel shear beam load cell. • IP67 stainless steel junction box with equalization board and 6-output wires cable. • AISI 304 stainless steel self-centering adjustable jointed feet. • 2x M12 holes for lifting.

WEIGHT INDICATOR:

WLIGHT / WINOXR • Freestanding weight indicator or mounting on stainless steel column.

On request version for hazardous areas IECEx / ATEX.

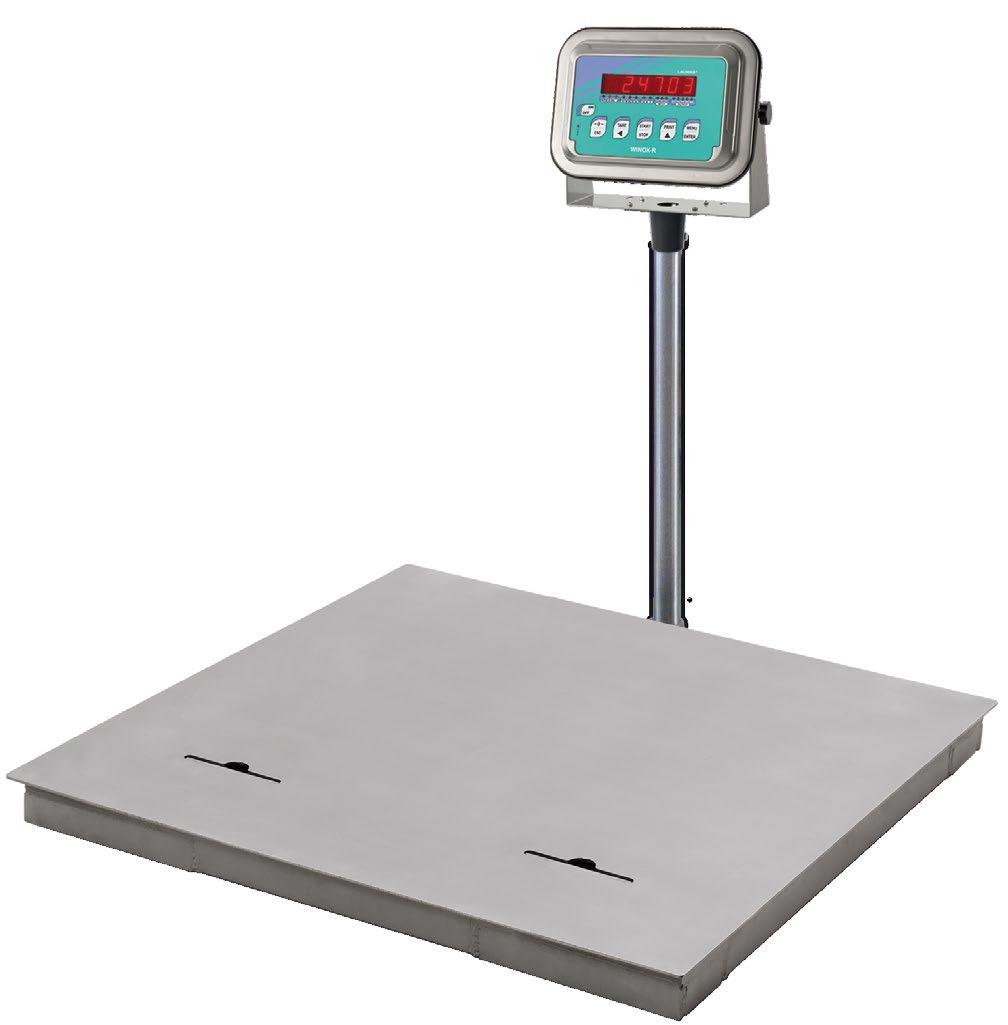

P-INOX

WINOXR - IP68*

COLUMN MOUNTING

WLIGHT

Optional fieldbuses: *) On request IP69K

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Stainless steel platform scales with 4 IP68* cells

ISPI / WLIGHT FREE STANDING CAPACITY Max1

Max2

DIVISION e1

COLUMN MOUNTING

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

FOR INTERNAL USE 1500 kg

100 g

1250x1250 mm

ISPI1250F0AS5

117.9 kg

ISPI1250F0CS5

119 kg

1500 kg

100 g

1500x1500 mm

ISPI1500F0AS5

156.9 kg

ISPI1500F0CS5

158 kg

3000 kg

200 g

1250x1250 mm

ISPI1250F0A

117.9 kg

ISPI1250F0C

119 kg

3000 kg

200 g

1500x1500 mm

ISPI1500F0A

156.9 kg

ISPI1500F0C

158 kg

1250x1250 mm

ISPI1250F1AS5

117.9 kg

ISPI1250F1CS5

119 kg

C3 APPROVED - 3000 divisions 1500 kg

500 g

1500 kg

500 g

1500x1500 mm

ISPI1500F1AS5

156.9 kg

ISPI1500F1CS5

158 kg

3000 kg

1 kg

1250x1250 mm

ISPI1250F1A

117.9 kg

ISPI1250F1C

119 kg

3000 kg

1 kg

1500x1500 mm

ISPI1500F1A

156.9 kg

ISPI1500F1C

158 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 600 kg

1500 kg

200 g

500 g

1250x1250 mm

ISPI1250F2AS5

117.9 kg

ISPI1250F2CS5

119 kg

600 kg

1500 kg

200 g

500 g

1500x1500 mm

ISPI1500F2AS5

156.9 kg

ISPI1500F2CS5

158 kg

1500 kg

3000 kg

500 g

1 kg

1250x1250 mm

ISPI1250F2A

117.9 kg

ISPI1250F2C

119 kg

1500 kg

3000 kg

500 g

1 kg

1500x1500 mm

ISPI1500F2A

156.9 kg

ISPI1500F2C

158 kg

ISPI / WINOXR IP68* FREE STANDING CAPACITY Max1

Max2

DIVISION e1

COLUMN MOUNTING

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

FOR INTERNAL USE 1500 kg

100 g

1250x1250 mm

ISPI1250E0AS5

118.5 kg

ISPI1250E0CS5

119.6 kg

1500 kg

100 g

1500x1500 mm

ISPI1500E0AS5

157.5 kg

ISPI1500E0CS5

158.6 kg

3000 kg

200 g

1250x1250 mm

ISPI1250E0A

118.5 kg

ISPI1250E0C

119.6 kg

3000 kg

200 g

1500x1500 mm

ISPI1500E0A

157.5 kg

ISPI1500E0C

158.6 kg

C3 APPROVED - 3000 division 1500 kg

500 g

1250x1250 mm

ISPI1250E1AS5

118.5 kg

ISPI1250E1CS5

119.6 kg

1500 kg

500 g

1500x1500 mm

ISPI1500E1AS5

157.5 kg

ISPI1500E1CS5

158.6 kg

3000 kg

1 kg

1250x1250 mm

ISPI1250E1A

118.5 kg

ISPI1250E1C

119.6 kg

3000 kg

1 kg

1500x1500 mm

ISPI1500E1A

157.5 kg

ISPI1500E1C

158.6 kg

C3 APPROVED - 3000 division - MULTIRANGE 600 kg

1500 kg

200 g

500 g

1250x1250 mm

ISPI1250E2AS5

118.5 kg

ISPI1250E2CS5

119.6 kg

600 kg

1500 kg

200 g

500 g

1500x1500 mm

ISPI1500E2AS5

157.5 kg

ISPI1500E2CS5

158.6 kg

1500 kg

3000 kg

500 g

1 kg

1250x1250 mm

ISPI1250E2A

118.5 kg

ISPI1250E2C

119.6 kg

1500 kg

3000 kg

500 g

1 kg

1500x1500 mm

ISPI1500E2A

157.5 kg

ISPI1500E2C

158.6 kg

Please refer to the weight indicator data sheet for optional Fieldbuses. *) On request IP69K

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

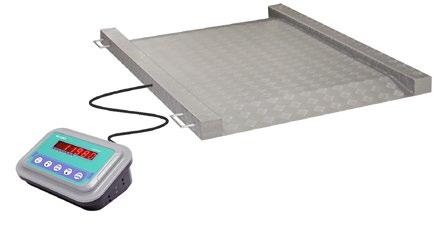

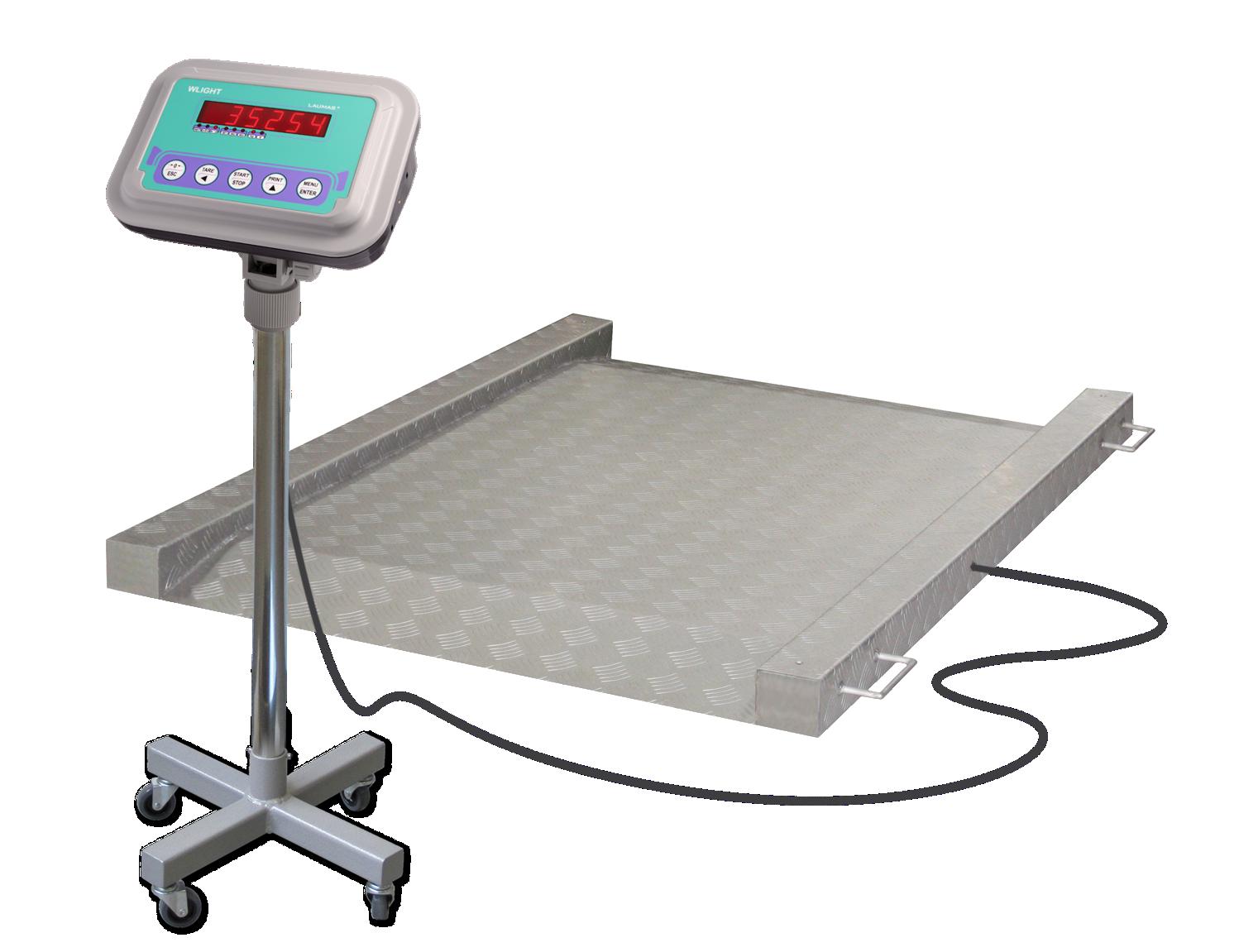

Aluminum platform scales with 4 IP68 cells and integrated ramp

ISPM CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). CAPACITY:

1000 kg

PLATFORM:

PM: 1200x1600 mm

- loading plan

1000x1150 mm

• Ultra-light anodized aluminum structure with up/down ramps and side rails suitable for weighing trolleys. • 4 IP68 AISI 420 stainless steel shear beam load cell. • IP67 stainless steel junction box with equalization board and 6-output wires cable. • Galvanized steel self-centering adjustable jointed feet. • Handles and wheels ofr inclined transport. WEIGHT INDICATOR:

WLIGHT / WDESKL / WINOXR • Freestanding weight indicator or mounting on stainless steel mobile column.

On request version for hazardous areas IECEx / ATEX.

WLIGHT

WINOXR - IP68*

WDESKL

MOBILE COLUMN

Optional fieldbuses: *) On request IP69K

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Aluminum platform scales with 4 IP68 cells and integrated ramp

ISPM / WLIGHT FREE STANDING CAPACITY Max1

Max2

DIVISION e1

MOBILE COLUMN MOUNTING

LOADING PLAN L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

1000x1150 mm

ISPMF0A

69.9 kg

ISPMF0D

72.6 kg

1000x1150 mm

ISPMF1A

69.9 kg

ISPMF1D

72.6 kg

1000x1150 mm

ISPMF2A

69.9 kg

ISPMF2D

72.6 kg

LOADING PLAN L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

1000x1150 mm

ISPMD0A

69.9 kg

ISPMD0D

72.6 kg

1000x1150 mm

ISPMD1A

69.9 kg

ISPMD1D

72.6 kg

ISPMD2A

69.9 kg

ISPMD2D

72.6 kg

FOR INTERNAL USE 1000 kg

100 g

C3 APPROVED - 3000 divisions 1000 kg

500 g

C3 APPROVED - 3000 divisions - MULTIRANGE 600 kg

1000 kg

200 g

500 g

ISPM / WDESKL FREE STANDING CAPACITY Max1

Max2

DIVISION e1

MOBILE COLUMN MOUNTING

FOR INTERNAL USE 1000 kg

100 g

C3 APPROVED - 3000 divisions 1000 kg

500 g

C3 APPROVED - 3000 divisions - MULTIRANGE 600 kg

1000 kg

200 g

500 g

1000x1150 mm

Please refer to the weight indicator data sheet for optional Fieldbuses.

ISPM / WINOXR IP68* FREE STANDING CAPACITY Max1

Max2

DIVSION e1

MOBILE COLUMN MOUNTING

LOADING PLAN L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

1000x1150 mm

ISPME0A

70.5 kg

ISPME0D

73.2 kg

1000x1150 mm

ISPME1A

70.5 kg

ISPME1D

73.2 kg

ISPME2A

70.5 kg

ISPME2D

73.2 kg

FOR INTERNAL USE 1000 kg

100 g

C3 APPROVED - 3000 divisions 1000 kg

500 g

C3 APPROVED - 3000 divisions - MULTIRANGE 600 kg

1000 kg

200 g

500 g

1000x1150 mm

Please refer to the weight indicator data sheet for optional Fieldbuses.

*) On request IP69K

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

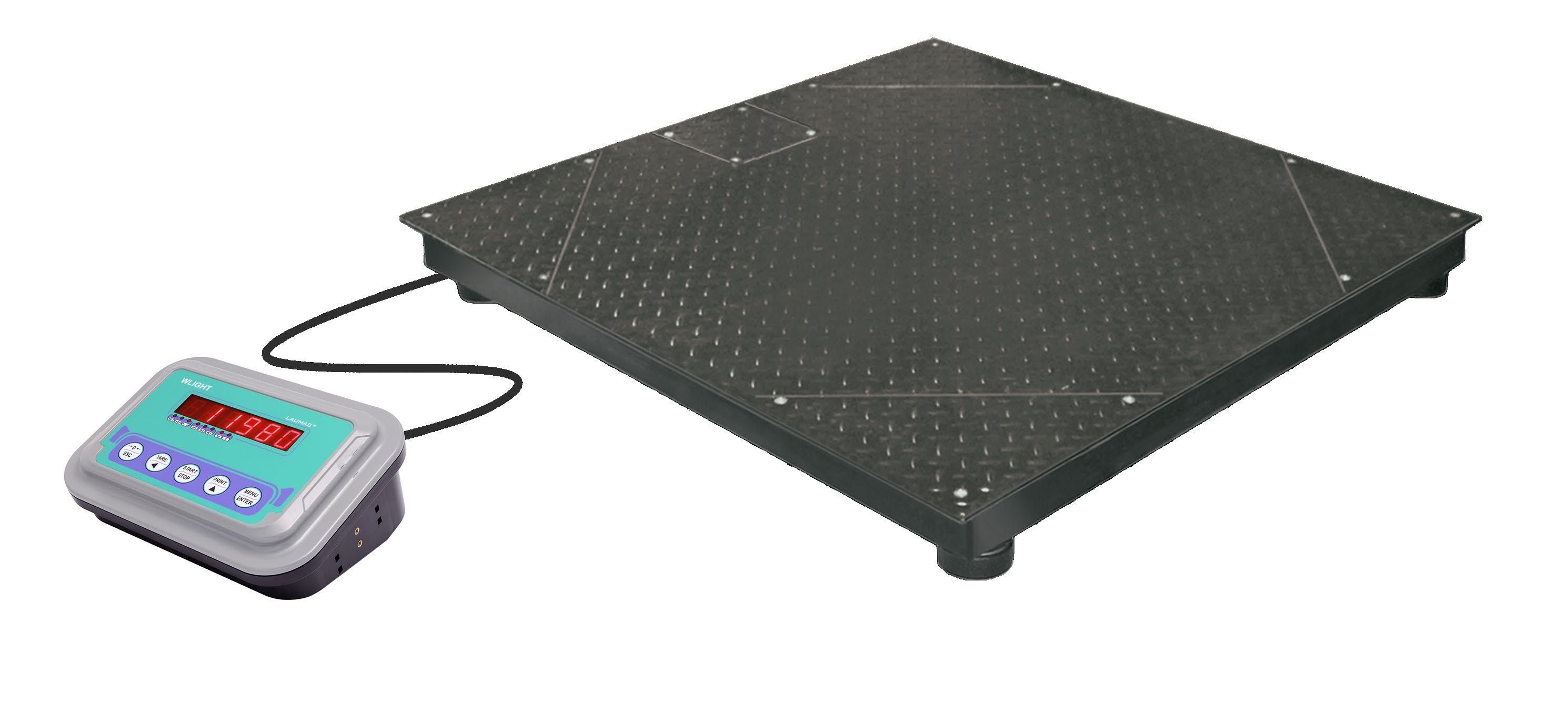

Diagnostic painted/stainless steel platform scales with 4 IP68* cells

ISP-H / ISPI-HE CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). CAPACITY:

1500 kg / 3000 kg

PLATFORM: JUNCTION BOX:

P: 1250x1250 mm / 1200x1500 mm / 1500x1500 mm P-INOX: 1250x1250 mm / 1500x1500 mm CLM8INOX

WEIGHT INDICATOR:

WTABR / WINOXR

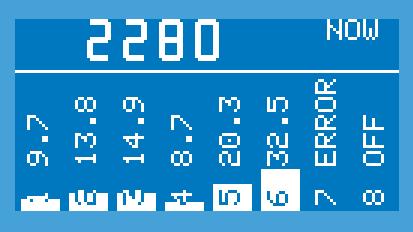

The CLM8 intelligent junction box series allows the use of advanced functions that can be managed entirely by the connected weight indicator. • Monitoring and direct management of each connected load cell. • Immediate reporting of malfunctions directly on the weight indicator display. • Load cells digital equalization. • Load distribution: weight percentage indication on each load cell. • Automatic diagnostics: load distribution control to identify malfunctions. • Events archive: storing the last 50 events (calibration, zeroing, errors, equalization). On request version for hazardous areas IECEx / ATEX.

ISP-H

CLM8INOX

WTABR

ISPI-HE - Stainless steel version

P-INOX

CLM8INOX

WINOXR - IP68*

Optional fieldbuses: *) On request IP69K

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Diagnostic painted/stainless steel platform scales with 4 IP68* cells

ISP-H / CLM8INOX / WTABR FREE STANDING CAPACITY Max1

Max2

DIVISION e1

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

100 g

1250x1250 mm 1200x1500 mm

100 g

1500x1500 mm

200 g

1250x1250 mm

200 g

1200x1500 mm

200 g

1500x1500 mm

ISP1250H0AS5 ISP1215H0AS5 ISP1500H0AS5 ISP1250H0A ISP1215H0A ISP1500H0A

118.6 kg

100 g

ISP1250H1AS5 ISP1215H1AS5 ISP1500H1AS5 ISP1250H1A ISP1215H1A ISP1500H1A

118.6 kg

ISP1250H2AS5 ISP1215H2AS5 ISP1500H2AS5 ISP1250H2A ISP1215H2A ISP1500H2A

118.6 kg

ISP1250H2AS5C5 ISP1215H2AS5C5 ISP1500H2AS5C5 ISP1250H2AC5 ISP1215H2AC5 ISP1500H2AC5

118.6 kg

FOR INTERNAL USE 1500 kg 1500 kg 1500 kg 3000 kg 3000 kg 3000 kg

132.6 kg 160.6 kg 118.6 kg 132.6 kg 160.6 kg

C3 APPROVED - 3000 divisions 1500 kg 1500 kg 1500 kg 3000 kg 3000 kg 3000 kg

500 g

1250x1250 mm

500 g

1200x1500 mm

500 g

1500x1500 mm

1 kg

1250x1250 mm

1 kg

1200x1500 mm

1 kg

1500x1500 mm

132.6 kg 160.6 kg 118.6 kg 132.6 kg 160.6 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 600 kg 600 kg 600 kg 1500 kg 1500 kg 1500 kg

1500 kg 1500 kg 1500 kg 3000 kg 3000 kg 3000 kg

200 g

500 g

1250x1250 mm

200 g

500 g

1200x1500 mm

200 g

500 g

1500x1500 mm

500 g

1 kg

1250x1250 mm

500 g

1 kg

1200x1500 mm

500 g

1 kg

1500x1500 mm

132.6 kg 160.6 kg 118.6 kg 132.6 kg 160.6 kg

C5 APPROVED - 5000 divisions - MULTIRANGE 500 kg 500 kg 500 kg 1000 kg 1000 kg 1000 kg

1000 kg 1000 kg 1000 kg 2500 kg 2500 kg 2500 kg

100 g

200 g

1250x1250 mm

100 g

200 g

1200x1500 mm

100 g

200 g

1500x1500 mm

200 g

500 g

1250x1250 mm

200 g

500 g

1200x1500 mm

200 g

500 g

1500x1500 mm

132.6 kg 160.6 kg 118.6 kg 132.6 kg 160.6 kg

Please refer to the weight indicator data sheet for optional Fieldbuses.

ISPI-HE / CLM8INOX / WINOXR IP68* FREE STANDING CAPACITY Max1

Max2

DIVISION e1

COLUMN MOUNTING

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

100 g

1250x1250 mm

200 g

1250x1250 mm

200 g

1500x1500 mm

ISPI1250HE0CS5 ISPI1500HE0CS5 ISPI1250HE0C ISPI1500HE0C

120.1 kg

1500x1500 mm

ISPI1250HE0AS5 ISPI1500HE0AS5 ISPI1250HE0A ISPI1500HE0A

119 kg

100 g

ISPI1250HE1AS5 ISPI1500HE1AS5 ISPI1250HE1A ISPI1500HE1A

119 kg

ISPI1250HE1CS5 ISPI1500HE1CS5 ISPI1250HE1C ISPI1500HE1C

120.1 kg

ISPI1250HE2AS5 ISPI1500HE2AS5 ISPI1250HE2A ISPI1500HE2A

119 kg

ISPI1250HE2CS5 ISPI1500HE2CS5 ISPI1250HE2C ISPI1500HE2C

120.1 kg

FOR INTERNAL USE 1500 kg 1500 kg 3000 kg 3000 kg

158 kg 119 kg 158 kg

159.1 kg 120.1 kg 159.1 kg

C3 APPROVED - 3000 divisions 1500 kg 1500 kg 3000 kg 3000 kg

500 g

1250x1250 mm

500 g

1500x1500 mm

1 kg

1250x1250 mm

1 kg

1500x1500 mm

158 kg 119 kg 158 kg

159.1 kg 120.1 kg 159.1 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 600 kg 600 kg 1500 kg 1500 kg

1500 kg 1500 kg 3000 kg 3000 kg

200 g

500 g

1250x1250 mm

200 g

500 g

1500x1500 mm

500 g

1 kg

1250x1250 mm

500 g

1 kg

1500x1500 mm

158 kg 119 kg 158 kg

159.1 kg 120.1 kg 159.1 kg

Please refer to the weight indicator data sheet for optional Fieldbuses. *) On request IP69K

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

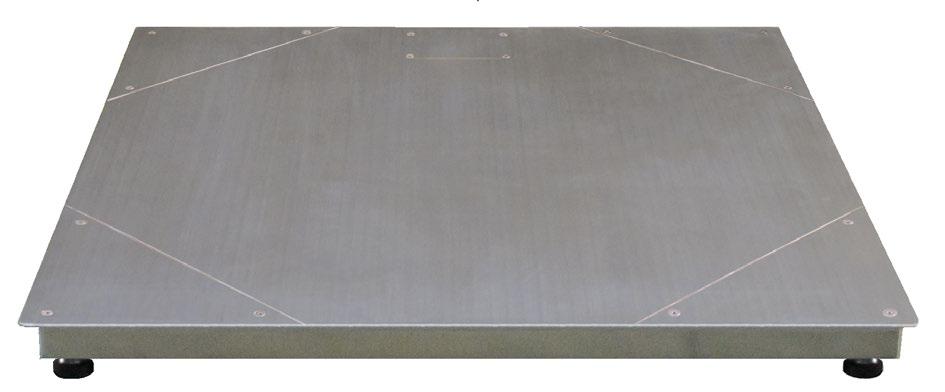

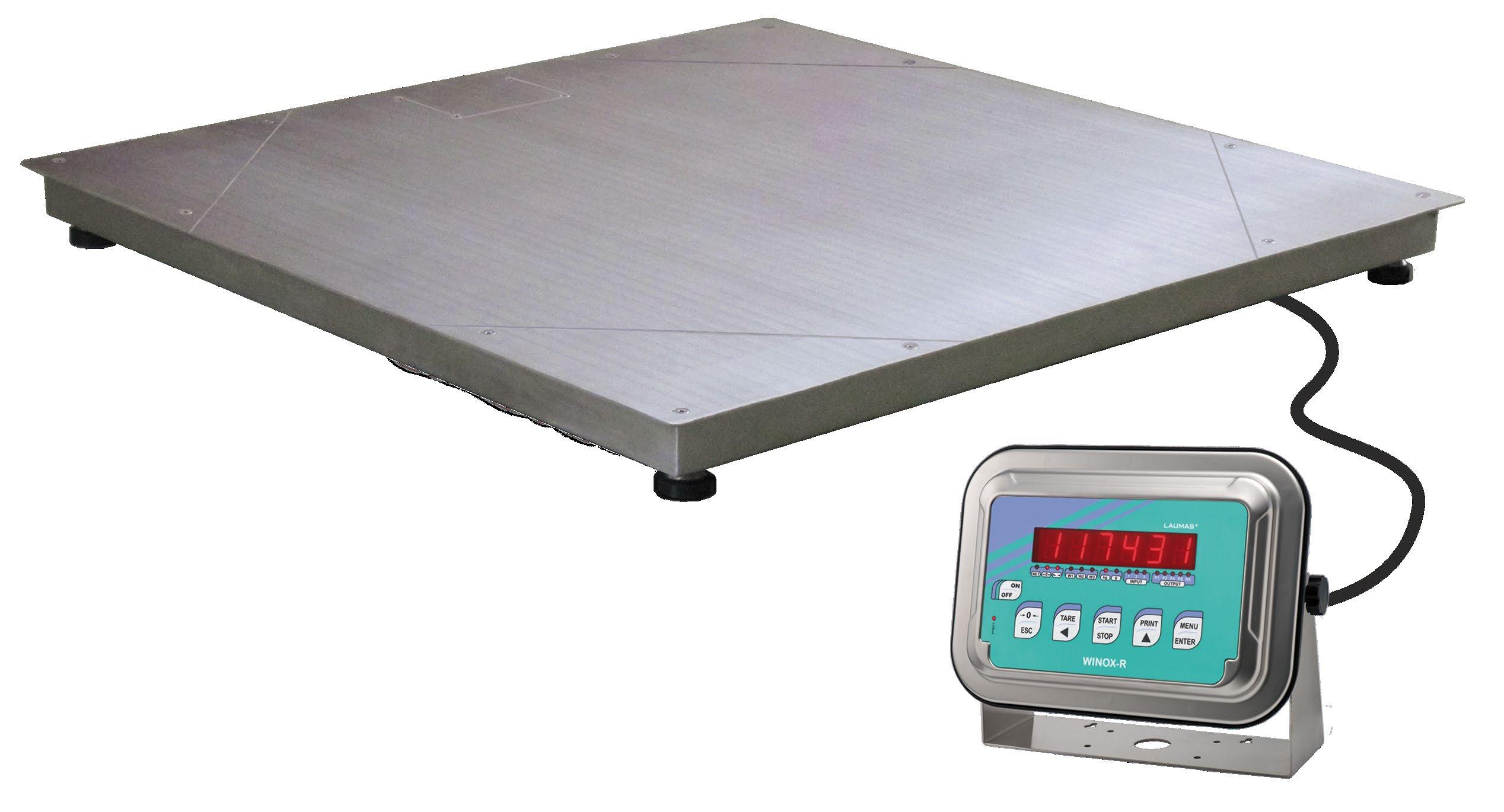

Stainless steel platform scales with 4 IP68* cells and liftable loading top

ISPO CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). CAPACITY:

600 kg / 1500 kg / 3000 kg

PLATFORM:

PO: 800x800 mm / 1000x1000 mm / 1250x1250 mm / 1500x1500 mm • AISI 304 stainless steel structure with liftable loading top by gas lift piston. • 4 IP68* 17-4 PH stainless steel shear beam load cells. • IP67 stainless steel junction box with equalization board and 6-output wires cable. • AISI 304 stainless steel self-centering adjustable jointed feet. • 4 welded eyelets for platform lifting.

WEIGHT INDICATOR:

WINOXR • Freestanding weight indicator or mounting on stainless steel column.

On request version for hazardous areas IECEx / ATEX.

WINOXR - IP68* COLUMN MOUNTING

Optional fieldbuses: *) On request IP69K

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Stainless steel platform scales with 4 IP68* cells and liftable loading top

ISPO / WINOXR IP68* FREE STANDING CAPACITY Max1

Max2

DIVISION e1

COLUMN MOUNTING

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

20 g

800x800 mm

ISPO800I600E0A

69.5 kg

ISPO800I600E0C

70.6 kg

FOR INTERNAL USE 600 kg 600 kg

50 g

1000x1000 mm

ISPO1000I600E0A

88.5 kg

ISPO1000I600E0C

89.6 kg

1500 kg

100 g

1000x1000 mm

ISPO1000I1500E0A

88.5 kg

ISPO1000I1500E0C

89.6 kg

1500 kg

100 g

1250x1250 mm

ISPO1250I1500E0A

128.5 kg

ISPO1250I1500E0C

129.6 kg

1500 kg

100 g

1500x1500 mm

ISPO1500I1500E0A

168.5 kg

ISPO1500I1500E0C

169.6 kg

3000 kg

200 g

1250x1250 mm

ISPO1250I3000E0A

128.5 kg

ISPO1250I3000E0C

129.6 kg

3000 kg

200 g

1500x1500 mm

ISPO1500I3000E0A

168.5 kg

ISPO1500I3000E0C

169.6 kg

C3 APPROVED - 3000 divisions 600 kg

200 g

800x800 mm

ISPO800I600E1A

69.5 kg

ISPO800I600E1C

70.6 kg

600 kg

200 g

1000x1000 mm

ISPO1000I600E1A

88.5 kg

ISPO1000I600E1C

89.6 kg

1500 kg

500 g

1000x1000 mm

ISPO1000I1500E1A

88.5 kg

ISPO1000I1500E1C

89.6 kg

1500 kg

500 g

1250x1250 mm

ISPO1250I1500E1A

128.5 kg

ISPO1250I1500E1C

129.6 kg

1500 kg

500 g

1500x1500 mm

ISPO1500I1500E1A

168.5 kg

ISPO1500I1500E1C

169.6 kg

3000 kg

1 kg

1250x1250 mm

ISPO1250I3000E1A

128.5 kg

ISPO1250I3000E1C

129.6 kg

3000 kg

1 kg

1500x1500 mm

ISPO1500I3000E1A

168.5 kg

ISPO1500I3000E1C

169.6 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 300 kg

600 kg

100 g

200 g

800x800 mm

ISPO800I600E2A

69.5 kg

ISPO800I600E2C

70.6 kg

300 kg

600 kg

100 g

200 g

1000x1000 mm

ISPO1000I600E2A

88.5 kg

ISPO1000I600E2C

89.6 kg

600 kg

1500 kg

200 g

500 g

1000x1000 mm

ISPO1000I1500E2A

88.5 kg

ISPO1000I1500E2C

89.6 kg

600 kg

1500 kg

200 g

500 g

1250x1250 mm

ISPO1250I1500E2A

128.5 kg

ISPO1250I1500E2C

129.6 kg

600 kg

1500 kg

200 g

500 g

1500x1500 mm

ISPO1500I1500E2A

168.5 kg

ISPO1500I1500E2C

169.6 kg

1500 kg

3000 kg

500 g

1 kg

1250x1250 mm

ISPO1250I3000E2A

128.5 kg

ISPO1250I3000E2C

129.6 kg

1500 kg

3000 kg

500 g

1 kg

1500x1500 mm

ISPO1500I3000E2A

168.5 kg

ISPO1500I3000E2C

169.6 kg

Please refer to the weight indicator data sheet for optional Fieldbuses.

*) On request IP69K

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

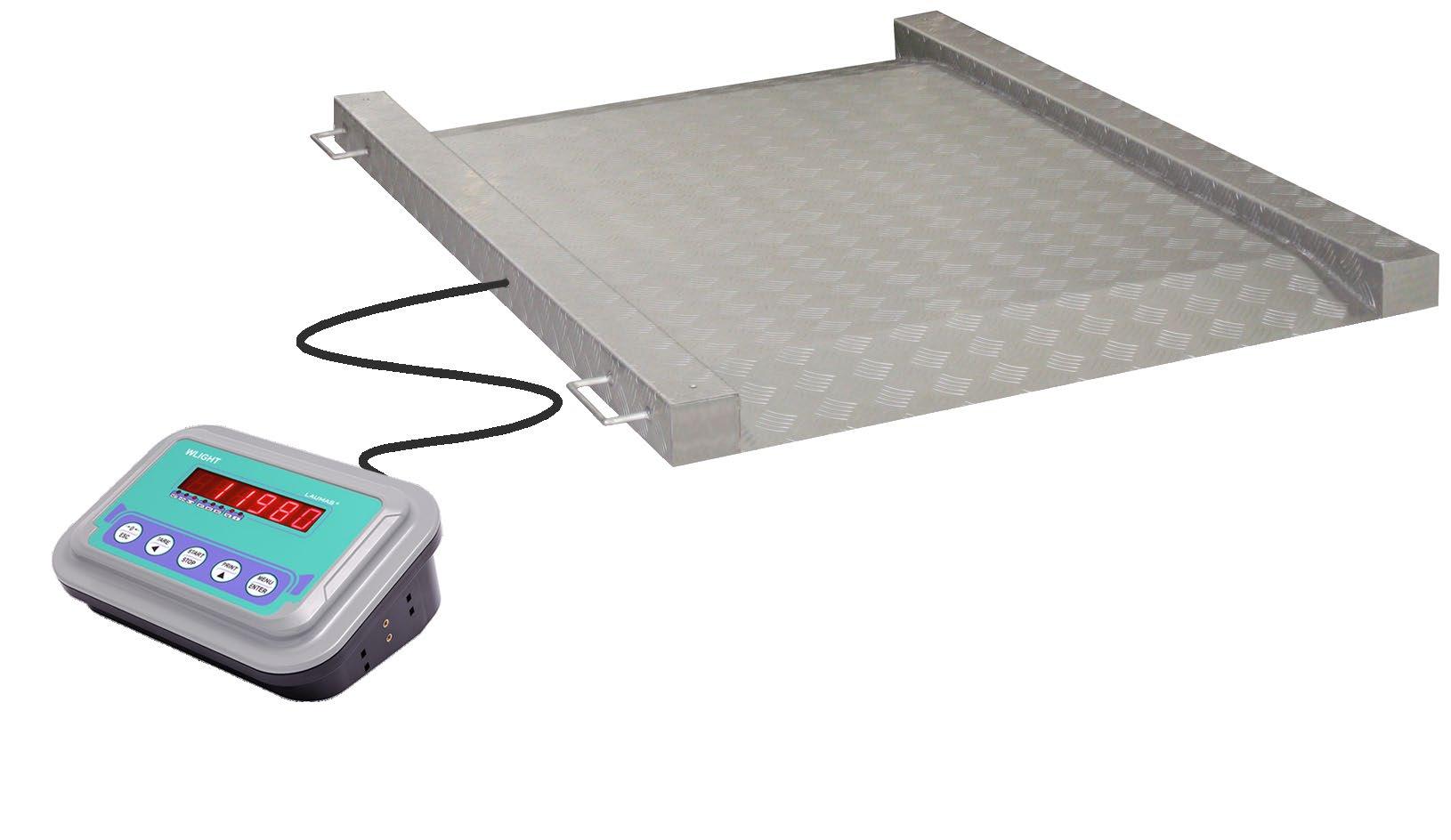

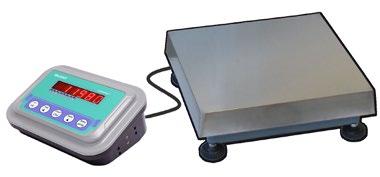

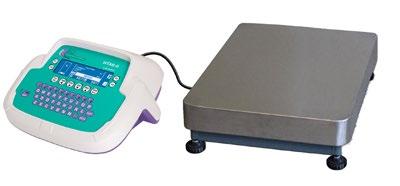

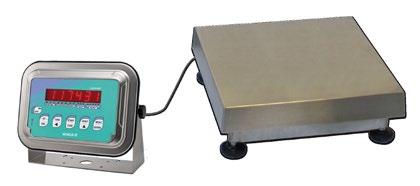

Counting scale with remote platform

ISBIL2B CAPACITY:

6 kg / 15 kg / 30 kg / 60 kg / 75 kg / 150 kg / 300 kg / 600 kg / 1500 kg / 3000 kg

SINGLE CELL REMOTE PLATFORM:

ACN / MN / AIN

4 CELLS REMOTE PLATFORM:

P / P-INOX

BIL2B scale: • Stainless steel loading plate. • RS232 output for connection to PC or external printer. • Remote platform input. • 3x 6-digit backlit LCD display (20 mm height). • 20-key waterproof keyboard. • Bubble level and adjustable feet. • 6 V rechargeable internal battery, 4 Ah capacity. • Operating time: 70 hours. • Power supply included.

• Simultaneous displaying of the number of pieces, the average unit weight of each piece, total weight of the pieces. • Counting function also on remote weighing platform. • Storing up to 100 items (PLU memories), for each item you can store and recall from keypad: alphanumeric description (name), preset tare value, average unit weight calculated by automatic sampling or settable by keypad.

Calibration report for scale and platform included.

PIATTOBAC

(on request see BIL2B sheet)

STAVTII Receipt example via optional printer (see BIL2B sheet)

IDEA SCALES N. 4.1

----------------------DATE: 12/04/19 15:20:32 LOCAL SCALE ID 005983 NAME: xxxxx 1.9965 kg NET 199.484 g U.N 10 PCS TOTAL ----------------------7,9855 kg TW 30 TPC 3 NO -----------------------

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Counting scale with single cell remote platform

ISBIL2B / ACN COUNTING SCALE

CAPACITY Max

DIVISION e

SINGLE CELL PLATFORM

CAPACITY Max

DIVISION e

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

60 kg 150 kg 150 kg 300 kg 600 kg 60 kg 150 kg 150 kg 300 kg 600 kg 60 kg 150 kg 150 kg 300 kg 600 kg

400x400 mm 400x400 mm

600x600 mm

10 g

600x600 mm

20 g

800x800 mm

400x400 mm

600x600 mm

10 g

600x600 mm

20 g

800x800 mm

400x400 mm

600x600 mm

10 g

600x600 mm

20 g

800x800 mm

ISBIL2B6C60 ISBIL2B6C120 ISBIL2B6C150 ISBIL2B6C300 ISBIL2B6C600 ISBIL2B15C60 ISBIL2B15C120 ISBIL2B15C150 ISBIL2B15C300 ISBIL2B15C600 ISBIL2B30C60 ISBIL2B30C120 ISBIL2B30C150 ISBIL2B30C300 ISBIL2B30C600

13.6 kg

FOR INTERNAL USE 6 kg

15 kg

30 kg

0.1 g

0.2 g

0.5 g

13.6 kg 28.8 kg 28.8 kg 56.8 kg 13.6 kg 13.6 kg 28.8 kg 28.8 kg 56.8 kg 13.6 kg 13.6 kg 28.8 kg 28.8 kg 56.8 kg

ISBIL2B / MN COUNTING SCALE

CAPACITY Max

DIVISION e

SINGLE CELL PLATFORM

CAPACITY Max

DIVISION e

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

75 kg 150 kg 300 kg 75 kg 150 kg 300 kg 75 kg 150 kg 300 kg

460x600 mm 460x600 mm

10 g

460x600 mm

10 g

460x600 mm

10 g

460x600 mm

ISBIL2B6M75 ISBIL2B6M150 ISBIL2B6M300 ISBIL2B15M75 ISBIL2B15M150 ISBIL2B15M300 ISBIL2B30M75 ISBIL2B30M150 ISBIL2B30M300

26.8 kg

FOR INTERNAL USE 6 kg

15 kg

30 kg

0.1 g

0.2 g

0.5 g

26.8 kg 26.8 kg 26.8 kg 26.8 kg 26.8 kg 26.8 kg 26.8 kg 26.8 kg

ISBIL2B / AIN inox COUNTING SCALE

CAPACITY Max

DIVISION e

SINGLE CELL PLATFORM

CAPACITY Max

DIVISION e

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

60 kg 150 kg 150 kg 300 kg 600 kg 60 kg 150 kg 150 kg 300 kg 600 kg 60 kg 150 kg 150 kg 300 kg 600 kg

400x400 mm 400x400 mm

600x600 mm

10 g

600x600 mm

20 g

800x800 mm

400x400 mm

600x600 mm

10 g

600x600 mm

20 g

800x800 mm

400x400 mm

600x600 mm

10 g

600x600 mm

20 g

800x800 mm

ISBIL2B6I60 ISBIL2B6I120 ISBIL2B6I150 ISBIL2B6I300 ISBIL2B6I600 ISBIL2B15I60 ISBIL2B15I120 ISBIL2B15I150 ISBIL2B15I300 ISBIL2B15I600 ISBIL2B30I60 ISBIL2B30I120 ISBIL2B30I150 ISBIL2B30I300 ISBIL2B30I600

13.3 kg

FOR INTERNAL USE 6 kg

15 kg

30 kg

0.1 g

0.2 g

0.5 g

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

13.3 kg 27.4 kg 27.4 kg 52.3 kg 13.3 kg 13.3 kg 27.4 kg 27.4 kg 52.3 kg 13.3 kg 13.3 kg 27.4 kg 27.4 kg 52.3 kg

IDEA SCALES N. 4.1

Counting scale with 4 cells remote platform

ISBIL2B / P COUNTING SCALE

CAPACITY Max

DIVISION e

4 CELLS PLATFORM

CAPACITY Max

DIVISION e

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

1500 kg

100 g

1250x1250 mm

ISBIL2B6P1250S5

121.8 kg

1500 kg

100 g

1200x1500 mm

ISBIL2B6P1215S5

135.8 kg

1500 kg

100 g

1500x1500 mm

ISBIL2B6P1500S5

163.8 kg

3000 kg

200 g

1250x1250 mm

ISBIL2B6P1250

121.8 kg

3000 kg

200 g

1200x1500 mm

ISBIL2B6P1215

135.8 kg

3000 kg

200 g

1500x1500 mm

ISBIL2B6P1500

163.8 kg

1500 kg

100 g

1250x1250 mm

ISBIL2B15P1250S5

121.8 kg

1500 kg

100 g

1200x1500 mm

ISBIL2B15P1215S5

135.8 kg

1500 kg

100 g

1500x1500 mm

ISBIL2B15P1500S5

163.8 kg

3000 kg

200 g

1250x1250 mm

ISBIL2B15P1250

121.8 kg

3000 kg

200 g

1200x1500 mm

ISBIL2B15P1215

135.8 kg

3000 kg

200 g

1500x1500 mm

ISBIL2B15P1500

163.8 kg

1500 kg

100 g

1250x1250 mm

ISBIL2B30P1250S5

121.8 kg

1500 kg

100 g

1200x1500 mm

ISBIL2B30P1215S5

135.8 kg

1500 kg

100 g

1500x1500 mm

ISBIL2B30P1500S5

163.8 kg

3000 kg

200 g

1250x1250 mm

ISBIL2B30P1250

121.8 kg

3000 kg

200 g

1200x1500 mm

ISBIL2B30P1215

135.8 kg

3000 kg

200 g

1500x1500 mm

ISBIL2B30P1500

163.8 kg

FOR INTERNAL USE

6 kg

0.1 g

15 kg

0.2 g

30 kg

0.5 g

ISBIL2B / P-INOX COUNTING SCALE

CAPACITY Max

DIVISION e

4 CELLS PLATFORM

CAPACITY Max

DIVISION e

PLATFORM L x W mm

ITEM CODE

NET WEIGHT

1500 kg

100 g

1250x1250 mm

ISBIL2B6PI1250S5

121.8 kg

1500 kg

100 g

1500x1500 mm

ISBIL2B6PI1500S5

160.8 kg

3000 kg

200 g

1250x1250 mm

ISBIL2B6PI1250

121.8 kg

3000 kg

200 g

1500x1500 mm

ISBIL2B6PI1500

160.8 kg

1500 kg

100 g

1250x1250 mm

ISBIL2B15PI1250S5

121.8 kg

1500 kg

100 g

1500x1500 mm

ISBIL2B15PI1500S5

160.8 kg

3000 kg

200 g

1250x1250 mm

ISBIL2B15PI1250

121.8 kg

3000 kg

200 g

1500x1500 mm

ISBIL2B15PI1500

160.8 kg

1500 kg

100 g

1250x1250 mm

ISBIL2B30PI1250S5

121.8 kg

1500 kg

100 g

1500x1500 mm

ISBIL2B30PI1500S5

160.8 kg

3000 kg

200 g

1250x1250 mm

ISBIL2B30PI1250

121.8 kg

3000 kg

200 g

1500x1500 mm

ISBIL2B30PI1500

160.8 kg

FOR INTERNAL USE 6 kg

15 kg

30 kg

0.1 g

0.2 g

0.5 g

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

4 IP68*cells pallet-weighing scales

ISPX / ISPXI stainless steel CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). CAPACITY:

3000 kg

PALLET-WEIGHING:

1250x840 mm H 95 mm • PX: painted steel structure. 4 IP68 AISI 420 stainless steel shear beam load cells. Galvanized steel jointed feet. • PXI: AISI 304 stainless steel structure. 4 IP68* 17-4 PH stainless steel shear beam load cells. AISI 304 stainless steel jointed feet. • IP67 stainless steel junction box with equalization board and 6-output wires cable. • Wheels and handles for moving.

WEIGHT INDICATOR:

WLIGHT / WINOXR / WDESKL • Freestanding weight indicator or mounting on stainless steel mobile column.

On request version for hazardous areas IECEx / ATEX.

WINOXR IP68*

WLIGHT

PXI WDESKL

MOBILE COLUMN

Optional fieldbuses: *) On request IP69K

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

4 IP68 cells pallet-weighing scales

ISPX / WLIGHT FREE STANDING CAPACITY Max1

Max2

DIVISION e1

MOBILE COLUMN MOUNTING

LOADING PLAN L x W x H mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

1250x840x95 mm

ISPXF0A

38.9 kg

ISPXF0D

41.6 kg

1250x840x95 mm

ISPXF1A

38.9 kg

ISPXF1D

41.6 kg

1250x840x95 mm

ISPXF2A

38.9 kg

ISPXF2D

41.6 kg

LOADING PLAN L x W x H mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

1250x840x95 mm

ISPXD0A

38.9 kg

ISPXD0D

41.6 kg

1250x840x95 mm

ISPXD1A

38.9 kg

ISPXD1D

41.6 kg

ISPXD2A

38.9 kg

ISPXD2D

41.6 kg

FOR INTERNAL USE 3000 kg

200 g

C3 APPROVED - 3000 divisions 3000 kg

1 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 1500 kg

3000 kg

500 g

1 kg

ISPX / WDESKL FREE STANDING CAPACITY Max1

Max2

DIVISION e1

MOBILE COLUMN MOUNTING

FOR INTERNAL USE 3000 kg

200 g

C3 APPROVED - 3000 divisions 3000 kg

1 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 1500 kg

3000 kg

500 g

1 kg

1250x840x95 mm

Please refer to the weight indicator data sheet for optional Fieldbuses.

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

4 IP68*cells pallet-weighing scales

ISPXI / WLIGHT FREE STANDING CAPACITY Max1

Max2

DIVISION e1

MOBILE COLUMN MOUNTING

LOADING PLAN L x W x H mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

1250x840x95 mm

ISPXIF0A

38.9 kg

ISPXIF0D

41.6 kg

1250x840x95 mm

ISPXIF1A

38.9 kg

ISPXIF1D

41.6 kg

ISPXIF2A

38.9 kg

ISPXIF2D

41.6 kg

FOR INTERNAL USE 3000 kg

200 g

C3 APPROVED - 3000 divisions 3000 kg

1 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 1500 kg

3000 kg

500 g

1 kg

1250x840x95 mm

ISPXI / WINOXR IP68* FREE STANDING CAPACITY Max1

Max2

DIVISION e1

MOBILE COLUMN MOUNTING

LOADING PLAN L x W x H mm

ITEM CODE

NET WEIGHT

ITEM CODE

NET WEIGHT

1250x840x95 mm

ISPXIE0A

39.5 kg

ISPXIE0D

42.2 kg

1250x840x95 mm

ISPXIE1A

39.5 kg

ISPXIE1D

42.2 kg

ISPXIE2A

39.5 kg

ISPXIE2D

42.2 kg

FOR INTERNAL USE 3000 kg

200 g

C3 APPROVED - 3000 divisions 3000 kg

1 kg

C3 APPROVED - 3000 divisions - MULTIRANGE 1500 kg

3000 kg

500 g

1 kg

1250x840x95 mm

Please refer to the weight indicator data sheet for optional Fieldbuses.

*) On request IP69K

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

Options on request for 4 cells platform scales DESCRIPTION TELP pit frame with centering plates. 800x800 mm AISI 304 stainless steel 1000x1000 mm AISI 304 stainless steel 1250x1250 mm AISI 304 stainless steel 1250x1250 mm cold galvanized steel 1250x1500 mm cold galvanized steel 1500x1500 mm AISI 304 stainless steel 1500x1500 mm cold galvanized steel

PO platforms PO platforms PO / P‑INOX platforms P platforms P platforms PO / P‑INOX platforms P platforms

Platform access MR ramps. 1250x1060 mm 1250x1060 mm 1500x1060 mm

P‑INOXN platforms P platforms P platforms

AISI 304 stainless steel painted steel painted steel

Calibration report - Up to 3000 kg. Alibi memory for approved weight indicators Non-standard capacity (max) and division (e) version. STAVTII Desk thermal printer, 32 columns with RTC (clock calendar). WTABR weight indicator

Integrated thermal printer.

RIP6100IP65 IP65 external remote display with traffic light in anodised aluminum profile. Red/green LED display, 6 digit (h 95 mm). RIP6100N IP30 digital remote display in painted aluminum profile. Red LED display, 6 digit (h 90 mm). Declaration of conformity + IP69K* marking protection rating. Load cells of 4 cells platform WINOXR weight indicator WLIGHT weight indicator

8 NiMH rechargeable batteries, 1.2 V, AA type.

WDESKL weight indicator

8 NiMH rechargeable batteries, 1.2 V, AA type, non-removable.

WINOXR weight indicator

12.2 V rechargeable lead battery, 2.8 Ah capacity.

WTABR weight indicator

12.2 V rechargeable lead battery, 2.8 Ah capacity.

STAVTII

TELP

IDEA SCALES N. 4.1

RIP6100IP65

painted steel

For further information on the products, please refer to the data sheets on www.laumas.com

RIP6100N

AISI 304 stainless steel

LAUMAS®

Approved digital crane scales

DTA

| Suitable for bridge cranes |

CE-M certificate: 2014/31/EU, EN 45501, OIML R76 class III legal for trade use with CE marking and conformity assessment (Initial verification) compliant to Machinery Directive 2006/42/EC and EN 13155. • Approved die-cast aluminum crane scale with top shackle and swivel bottom hook. • 6-digit backlit LCD display (30 mm height) with power saving function. • Rechargeable internal battery 7.4 V 5200 mAh, approx. 60-hour continued operating time. • External battery charger 100-240 VAC/12 VDC 2500 mAh included in the supply. • Remote control with operating range up to 20 m free field.

CAPACITY Max

DIVISION e

• Net weight and gross indicator. • Tare weight zero setting. • High resolution display. • Battery charge level control.

NET WEIGHT

C3 APPROVED - 3000 divisions 600 kg

200 g

8.5 kg

1500 kg

500 g

8.5 kg

3000 kg

1 kg

9.9 kg

6000 kg

2 kg

17 kg

12000 kg

5 kg

20 kg

20 m

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Digital crane scales

DTEP • ABS crane scale with top swivel shackle and bottom swivel hook. • 5-digit backlit LCD display (20 mm height), 7 segment with power saving function. • 4 AA 1.5V batteries, 80-hour operating time. • Remote control with operating range up to 10 m free field. • Tare weight zero setting.

CAPACITY Max

DIVISION e

NET WEIGHT

FOR INTERNAL USE 50 kg

10 g

green

1.2 kg

150 kg

20 g

yellow

1.2 kg

300 kg

50 g

red

1.2 kg

SWIVEL SHACKLE AND HOOK

10 m

OPTIONS ON REQUEST Calibration report

DTER

| Suitable for bridge cranes |

• Diacast aluminum crane scale with top shackle and swivel bottom hook. • 5-digit red LED display (30 mm height), 7 segment with power saving function. • Rechargeable internal battery 6V 5Ah, 80-hour operating time. (spare battery included in the supply). • External battery charger 230 VAC/9 VDC 1A included in the supply. • Remote control with operating range up to 10 m free field.

CAPACITY Max

DIVISION e

• Tare weight zero setting. • Predetermined tare setting. • Net weight and gross indicator. • Hold function (block of the displayed weight). • Memory overload. • Individual weighing and weights totalization.

NET WEIGHT

FOR INTERNAL USE 3000 kg

500 g

11.5 kg

5000 kg

1 kg

15.5 kg

OPTIONS ON REQUEST Calibration report

LAUMAS®

SWIVEL HOOK

For further information on the products, please refer to the data sheets on www.laumas.com

10 m

IDEA SCALES N. 4.1

Digital crane scales

DTEN

| Suitable for bridge cranes |

• Diacast aluminum crane scale with top shackle and bottom hook. • 5-digit red LED display (30 mm height), 7 segment with power saving function. • DTEN500/1: rechargeable internal battery 6V 5Ah, 80-hour operating time; • DTEN3/5/10/20: rechargeable internal battery 6V 10Ah, 140-hour operating time. • External battery charger 230 VAC/9 VDC 1A. • Remote control with operating range up to 10 m free field.

CAPACITY Max

DIVISION e

• Steady weight acoustic alarm. • Hold function (block of the displayed weight). • Individual weighing and weights totalization. • Predetermined tare setting. • Net weight and gross indicator. • Tare weight zero setting. • Memory overload. 3 ÷ 20 t

NET WEIGHT

FOR INTERNAL USE

0.5 ÷ 1 t

500 kg

100 g

4.8 kg

1000 kg

200 g

4.8 kg

3000 kg

500 g

15.8 kg

5000 kg

1 kg

23.2 kg

10000 kg

2 kg

46 kg

20000 kg

5 kg

75 kg

SWIVEL HOOK

10 m

OPTIONS ON REQUEST Calibration report

DTE

| Suitable for bridge cranes |

• Diacast aluminum crane scale with top shackle and bottom hook. • 5-digit red LED display (58 mm height), 7 segment. • Rechargeable internal battery 6V 10Ah, 80-hour operating time, external battery charger 230 VAC/9 VDC 1A. • Remote control with operating range up to 15 m free field. • Automatic power saving function. • Steady weight signaling LED.

CAPACITY Max

DIVISION e

• Net weight and gross indicator. • Hold function (block of the displayed weight). • Memory overload. • Individual weighing and weights totalization. • Tare weight zero setting.

NET WEIGHT

15 m

FOR INTERNAL USE 30000 kg

5 kg

175 kg

OPTIONS ON REQUEST Calibration report

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Portable digital crane scales

DTEZ • High-strength aluminum alloy crane scales (capacity 3000/5000 kg) and steel crane scales (capacity 10000/20000/30000 kg). • 5-digit backlit LCD display (25 mm height), 7 segment with power saving function. • 3 AA 1.5V batteries, 50-hour operating time. • Remote control with operating range up to 15 m free field (options on request).

• Steady weight signaling LED. • Displaying of the maximum weight value reached (peak). • Weight totalizing. • Tare weight zero setting. • Net weight and gross indicator.

Aluminum briefcase included.

CAPACITY Max

DIVISION e

NET WEIGHT

FOR INTERNAL USE 3000 kg

1 kg

aluminum

6.4 kg

5000 kg

2 kg

aluminum

8.8 kg

10000 kg

5 kg

steel

24 kg

20000 kg

10 kg

steel

45 kg

30000 kg

10 kg

steel

62 kg

OPTIONS ON REQUEST Remote control for autonomatic calibration and weight display via radio Hook for capacity: - up to 3000 kg - 3000÷5000 kg - 5000÷10000 kg Calibration report

m 15

REMOTE CONTROL

LAUMAS®

GANCIO

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

Bench counting scales

LACSN • Weight indication. • Piece counting. • Weight indication as a percentage. • RS232 output for connection to PC. • Weight checking (HIGH/LOW) with acoustic alarm.

• Stainless steel loading plate. • 6-digit backlit LCD display (30 mm height). • 8-key waterproof keyboard. • Bubble level and adjustable feet.. • Rechargeable internal battery 4 V 4 Ah. • Operating time: 70 hours. • Power supply included.

CAPACITY Max

DIVISION e

LOADING PLATE

NET WEIGHT

FOR INTERNAL USE 6 kg

0.2 g

230x335 mm

2.8 kg

15 kg

0.5 g

230x335 mm

2.8 kg

30 kg

230x335 mm

2.8 kg

OPTIONS ON REQUEST Calibration report

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Bench counting scales

BIL CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). • Stainless steel loading plate. • RS232 output for connection to PC or external printer. • 6-digit backlit LCD display (24 mm height). • 7-key waterproof keyboard. • Bubble level and adjustable feet.. • Rechargeable internal battery, 6 V 4 Ah capacity. • Operating time: 70 hours. • Power supply included. • Auto power-off.

• Piece counting with sequence display of: number of pieces, average unit weight, total weight of the pieces on the scale. • Automatic/manual totalization of the weighings. • Weight indication as a percentage. • Weight/pieces/percentage checking (HIGH/LOW) with acoustic and visual alarm. • Optional receipt printing via STAVT II external printer: customizable header, date, time, net weight, average unit weight, number of pieces on the scale, total weight, total number of pieces.

CAPACITY Max1 Max2

DIVISION e1 e2

LOADING PLATE

NET WEIGHT

FOR INTERNAL USE 6 kg

0.1 g

225x295 mm

3.9 kg

15 kg

0.2 g

225x295 mm

3.9 kg

30 kg

0.5 g

225x295 mm

3.9 kg

C3 APPROVED - 3000 division - MULTIRANGE 3 kg

6 kg

225x295 mm

6 kg

15 kg

225x295 mm

15 kg

30 kg

10 g

225x295 mm

OPTIONS ON REQUEST

CODE

Calibration report Desk thermal printer, 32 columns with RTC (clock calendar).

STAVTII

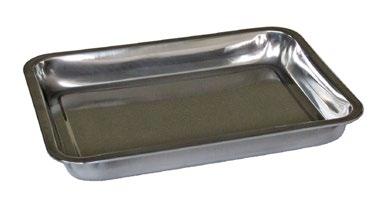

Stainless steel deep tray. L 300 x W 230 x H 40 mm

PIATTOBAC

----------------------DATE: 12/04/19 15:20:32

PIATTOBAC

STAVTII Example of receipt printed via optional printer

4000

U.W.

99,9447 g/p

PCS

40pcs

No.

Total

40pcs

----------------------

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

Bench counting scales

BIL2B • Stainless steel loading plate. • RS232 output for connection to PC or external printer. • Remote platform input (connector included). • 3x 6-digit backlit LCD display (20 mm height). • 20-key waterproof keyboard. • Bubble level and adjustable feet. • Rechargeable internal battery, 6 V 4 Ah. • Operating time: 70 hours. • Power supply included. • Auto power-off.

CAPACITY Max

• Piece counting with simultaneous display of: number of pieces, average unit weight, total weight of the pieces on the scale. • 100 storable items (PLU) with the following parameters: name, preset tare value, average unit weight. • Automatic/manual totalization of the weighings. • Weight indication as a percentage. • Weight/pieces/percentage checking (HIGH/LOW) with acoustic and visual alarm. • Optional receipt printing via STAVT II external printer: customizable header, date, time, item name, scale ID, scale type, net weight, average unit weight, number of pieces on the scale, total weight, total number of pieces.

DIVISION e

LOADING PLATE

NET WEIGHT

FOR INTERNAL USE 6 kg

0.1 g

225x295 mm

4.8 kg

15 kg

0.2 g

225x295 mm

4.8 kg

30 kg

0.5 g

225x295 mm

4.8 kg

OPTIONS ON REQUEST

CODE

Calibration report Desk thermal printer, 32 columns with RTC (clock calendar).

STAVTII

Stainless steel deep tray. L 300 x W 230 x H 40 mm

PIATTOBAC

STAVTII Example of receipt printed via optional printer

----------------------DATE: 12/04/19 15:20:32 LOCAL SCALE ID 005983 NAME: xxxxx 1.9965 kg NET 199.484 g U.N 10 PCS TOTAL ----------------------7,9855 kg TW 30 TPC 3 NO -----------------------

ISBIL2B Series counting scales connectable to remote weighing platform for weighing and counting of the large quantities: • ACN / AIN / MN single cell platforms • P / P-INOX 4 cells platforms for details see pages 33-34-35 45

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Precision pocket scales

LBIL • Compact professional electronic scales for weighing operations anywhere. • 5-digit backlit LCD display (14 mm height). • Protection cover. • Stainless steel loading plate. • Waterproof keyboard. • AAA 1.5V batteries, 80-hour operating time. • Tare weight zero setting.

3 kg

CAPACITY Max

DIVISION e

LOADING PLATE

NET WEIGHT

FOR INTERNAL USE 0.5 kg

0.05 g

60x60 mm

100 g

3 kg

0.1 g

84x68 mm

280 g

OPTIONS ON REQUEST

0.5 kg

Calibration report

Sample weights

PC NOMINAL VALUE HT150 painted cast iron masses with handle

TOLERANCE

DIMENSIONS L x W x H mm

M1 accuracy class according to OIML R111-1 5 kg

± 250 mg

152x77x84 mm

10 kg

± 500 mg

193x97x109 mm

20 kg

± 1000 mg

234x117x139 mm

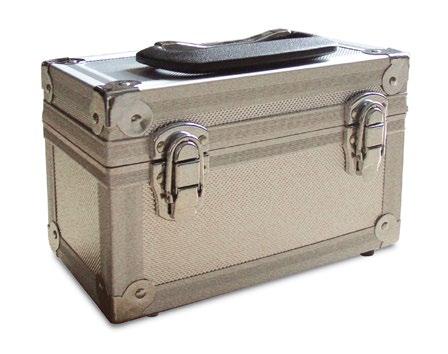

OPTIONS ON REQUEST Aluminum case with carrying handle

Case - mass 5 kg Case - mass 10 kg Case - mass 20 kg

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

AL COU ON N TI

ON W

RES

L CI

Weight indicators S AND M

CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). Description: • ABS weight indicator (dim.: 120x200x280 mm). IP40 protection rating. 6-digit semi-alphanumeric red LED display (20 mm height). 8 signaling LED. 5-key keyboard. Real-time clock/calendar with buffer battery. • Display range 999999. • Universal power supply included 24 VDC/1 A - 100÷240 VAC input. • Installation: desk, wall, column. • Designed to operate with 8 NiMH rechargeable batteries, 1.2 V, AA type (not included). • IP40 D-SUB connectors. • RS232 serial ports (ModBus RTU, ASCII Laumas) for PC/PLC, printer or remote display connection.

WLIGHT

Main functions: • Piece counting. • Weight totalizing. • Tare weight zero setting. • Automatic zero setting at power-on. • Gross weight zero tracking. • Net/Gross function for manual batchings. • Semi-automatic tare (net/gross weight) and preset tare • Semi‑automatic zero. • Displaying of the maximum weight value reached (peak). • Direct connection between RS485 and RS232 without converter. • Optional: print of gross weight, net weight, tara (date, time, logo, customer header with external printer). • Minimum input signal for scale verification division 0.2 μV/VSI.

Stainless steel bracket for wall mounting

Indicator-holder bracket and column

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

AL COU ON N TI

RES

L CI

ON W

NEW ZEALAND

Weight indicators S AND M

CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). Description: • WDESKL: ABS weight indicator, desk version with 6 M16x1.5 cable glands (dim.: 122x226x164 mm). IP67 protection rating. 6-digit backlit LCD semialphanumeric display (20 mm height), 7 segment - 46 indicator symbols. • WINOXR: AISI 304 stainless steel weight indicator with adjustable bracket (dim. with bracket: 206x290x187 mm; dim. without bracket: 206x286x108 mm). 6 M16x1.5 cable glands. IP68* protection rating. 6-digit semi-alphanumeric red LED display (20 mm height) - 16 signaling LED. • 6-key keyboard. • Real-time clock/Calendar with buffer battery. • Display range: 999999. • Universal power supply 24 VDC/1 A - 100÷240 VAC input. • Installation: desk, wall, column, front panel. • 5 relay digital outputs, 3 optoisolated PNP digital inputs. • RS485/RS232 serial ports (ModBus RTU, ASCII Laumas). • Connections to intelligent junction boxes or to other Multi-channel instruments. • Different instrument versions for various connections types: cable glands, D-SUB connectors, removable terminal board and connectors. • Current or voltage 16 bit analog output (on request). • Ethernet and USB port (on request) • WiFi module (on request). Optional fieldbuses (on request). Main functions: • Single/multi product batching program; 99 settable formulas. On request formulas selection by external selector switch. • Piece counting. • Weight totalizing. • Tare weight zero setting. • Automatic zero setting at power-on. • Gross weight zero tracking. • Semi-automatic tare (net/gross weight) and preset tare. • Semi‑automatic zero. • Displaying of the maximum weight value reached (peak). • Direct connection between RS485 and RS232 without converter. • Hysteresis and setpoint value setting. • Optional: weight value printing with date and time via keyboard or external contact. • Minimum input signal for scale verification division 0.2 μV/VSI.

WDESKL

M16x1.5 Standard version - IP67

ATEX II 3GD version (zone 2-22)

Indicator-holder bracket and column

Stainless steel bracket for wall mounting

WINOXR IP68* M16x1.5 Standard version - IP68*

Indicator-holder bracket and column

Stainless steel bracket for wall mounting ATEX II 3GD version (zone 2-22) IECEx version (zone 2-22)

Desk version

Optional fieldbuses:

*) On request IP69K

LAUMAS®

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

AL COU ON N TI

RES

L CI

ON W

NEW ZEALAND

Weight indicators S AND M

CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). Description: • ABS desk weight indicator (dim.: 315x315x170 mm). IP40 protection rating. Real-time clock/calendar with buffer battery. • WTABR: 6-digit semi-alphanumeric red LED display (20 mm height) - 16 signaling LED. 8-key keyboard. • WTABG: backlit LCD graphic display, resolution: 240x64 pixel, visible area: 133x39 mm. 50-key keyboard. • Display range: 999999. • Universal power supply included 24 VDC/1 A - 100÷240 VAC input. • 5 relay digital outputs, 3 optoisolated PNP digital inputs. • RS485/RS232 serial ports (ModBus RTU, ASCII Laumas). • Connections to intelligent junction boxes or to other Multi-channel instruments. • D-SUB connectors. • Current or voltage 16 bit analog output (on request). • Ethernet and USB port (on request) • WiFi module (on request). • Integrated thermal printer (on request): 24 column, paper end sensor, working temperature: 0÷50 °C, humidity: 20%÷80%, paper roll included (width: 57 ±0.5 mm - outside diameter: 50 mm). • Barcode reader and PC keyboard management via USB (WTABG) Optional fieldbuses (on request). Main functions: • Piece counting. • Weight totalizing. • Tare weight zero setting. • Automatic zero setting at power-on. • Gross weight zero tracking. • Semi-automatic tare (net/gross weight) and preset tare. • 9 preset tare values that can be stored. • Semi‑automatic zero. • Displaying of the maximum weight value reached (peak). • Direct connection between RS485 and RS232 without converter. • Hysteresis and setpoint value setting. • Weight value printing with date and time via keyboard or external contact. • TCP/IP WEB APP: integrated software in combination with the WiFi module and Ethernet TCP/IP options for remote supervision, management and control of the instrument. • Minimum input signal for scale verification division 0.2 μV/VSI.

WTABR

WTABG STATISTICAL CHECKING OF PREPACKAGES

WTABG specific functions: • Statistical checking of prepackages. • 99 items database with association of a preset tare value, 3 setpoint values and 2 values for weight thresholds function (HIGH/LOW). • Weight thresholds function (HIGH/LOW) shown on the display. • Customizable name of the production lot. • Support for USB barcode reader. • Zeroing of the weighings progressive number. • Barcodes printing by lot name, item name, weighings progressive number.

Statistical checking of prepackages

D-SUB connectors - IP40

Integrated thermal printer (on request)

Optional fieldbuses:

IDEA SCALES N. 4.1

For further information on the products, please refer to the data sheets on www.laumas.com

LAUMAS®

Multi-channel weight transmitters NEW ZEALAND

CE-M approved versions: 2014/31/EU, EN 45501, OIML R76 class III, legal for trade use with CE marking and conformity assessment (Initial verification). Description: • The Multi-channel weight transmitters allow to have same benefits and performance of an advanced digital weighing system even using analog load cells. • TLB4: 6-digit red LED semialphanumeric display (8 mm height), 7 segment - 6 indicator LED. 4 buttons for the system calibration. 4 load cell dedicated inputs. 3 relay logic outputs, 2 optoisolated PNP logic inputs. RS485 serial port. Front panel or back panel mounting on Omega/DIN rail. Extractable screw terminal boards. • TLM8: Backlit graphic LCD display, transmissive STN, white on blue, 128x64 pixel resolution, 60x32 mm visible area. 5-key keypad for the system calibration. 8 load cell dedicated inputs. 5 relay digital outputs, 3 optoisolated PNP digital inputs. RS485 serial port. Current or voltage 16 bit analog output. Back panel mounting on Omega/DIN rail or IP67 junction box for field mounting (on request box versions). Extractable screw terminal boards. • CLM8: Backlit alphanumeric LCD display, two-line by 8-digit (5 mm height), visible area: 38x16 mm. 4-key keyboard. 8 load cell dedicated inputs. RS485/RS232 serial ports. Lightning and electrical shock protection device. Available in: naked version (board only), or for back panel mounting on Omega/DIN rail version or in box version; IP67 polycarbonate box; IP67 stainless steel AISI 304 box. • Display range: 999999. Optional fieldbuses (on request only for TLB4 and TLM8). Main functions: • 4 or 8 independent channels for load cells: monitoring and direct management of each connected load cell. • Digital equalization. • Load distribution analysis on the 4 or 8 channels with backups archive: storing, consultation, printing (TLM8: load distribution synoptic analysis). • Load and zero automatic diagnostics. TEST key on TLM8 for direct access to the diagnostic functions. • Event log: data backups archive. • All multi-channel functions can be managed by a weight indicator W series connected via RS485 serial port (excluding indicators with graphic display). • Tare weight zero setting. • Automatic zero setting at power-on. • Gross weight zero tracking. • Semi-automatic tare (net/gross weight) and preset tare. • Semi‑automatic zero. • Direct connection between RS485 and RS232 without converter. • Hysteresis and setpoint value setting.

CLM8

TLB4

4 INDEPENDENT CHANNELS

Front panel mounting (fixing kit included)

TLM8

8 INDEPENDENT CHANNELS

IP67 box version

Activity status of the 8 channels

Load distribution value in % on each active channel

INTELLIGENT JUNCTION BOX 8 INDEPENDENT CHANNELS INCLINOMETER function (on request) Tilt compensation of the weighing system up to ±10 degrees via inclinometer (not included). The weight correction is also valid for systems approved for legal for trade use.

IP67 box version

CLM8INOX

LAUMAS®

CLM8I

CLM8

For further information on the products, please refer to the data sheets on www.laumas.com

IDEA SCALES N. 4.1

www.laumas.com

WEIGHING PLATFORMS AND MODULES - BENCH SCALES COUNTING SCALES - CRANE SCALES

Phone (+39) 0521 683124 Fax (+39) 0521 681091 LAUMAS S.r.l. Via I Maggio N. 6 43022 MONTECHIARUGOLO (PR) ITALY

Sales department: sales@laumas.it
