(EW407) 77 CW408 (EW408) 80
(EWAC1) 76 CWB1 (EWB1) 79
75
(EW518) 74
CW519 (EW519) 75
CW521 (EW521) 78
CW527 (EW527) 74
CW530 (EW530) 73
CW531 (EW531) 78
CW535 (EW535) 79
CW537 (EW537) 78
CW544 (EW544) 78
CW552 (EW552) 72
CW554 (EW554) 76
CW556 (EW556) 77
CW557 (EW557) 75
CW575 (EW575) 73 CW582 (EW582) 76
CW590 (EW590) 78
CW597 (EW597) 73
CW598 (EW598) 74
(EW157) 79 DW159 (EW159) 75
DW161 (EW161) 73
DW179 (EW179) 76
DW180 (EW180) 79
DW182 (EW182) 73
DW190 (EW190) 80
DW207 (EW207) 74
DW307 (EW307) 75
DW308 (EW308) 74
DW371 (EW371) 80
DW406 (EW406) 73
DW456 (EW456) 77
DW467 (EW467) 80
DW548 (EW548) 74
DW549 (EW549) 74
DW550 (EW550) 74
DW633 (EW633) 72
DW634 (EW634) 77
DW635 (EW635) 77
DW636 (EW636) 77
DW637 (EW637) 77
DW639 (EW639) 72
DW640 (EW640) 74
DW641 (EW641) 75
DW642 (EW642) 76
DW643 (EW643) 72
DW644 (EW644) 74
DW645 (EW645) 75
DW648 (EW648) 77
DW650 (EW650) 77
DW651 (EW651) 72
DW652 (EW652) 72
DW653 (EW653) 73
DW654 (EW654) 72
DW655 (EW655) 77
NW053 (NE053) 64 NW055 (NE055) 69 NW057 (NE057) 66 NW059 (NE059) 68 NW060 (NE060) 69
NW062 (NE062) 66
NW063 (NE063) 69
NW067 (NE067) 68
NW068 (NE068) 71
NW070 (NE070) 66
NW071 (NE071) 65
NW073 (NE073) 65
NW078 (NE078)
(NE082)
(NE085)
(NE086) 70
(NE087) 68
(NE088)
(EGM13) 18
RGM14 (EGM14) 18
RGM15 (EGM15) 18
RGM16 (EGM16) 18
RP03 (RPE03) 30
RP04 (RPE04) 29
RP06 (RPE06) 31
RP08 (RPE08) 29
RP42 (RPE42) 30
RP45 (RPE45) 31
RP46 (RPE46) 31
RP47 (RPE47) 31
RP48 (RPE48) 31
RP49 (RPE49) 30
RP50 (RPE50) 31
RP51 (RPE51) 31
RP52 (RPE52) 31
RP54 (RPE54) 30
RP55 (RPE55) 30
RP56 (RPE56) 31
RP57 (RPE57) 29 RS
RS13 (ES13) 14
RS22 (ES22) 15
RS27 (ES27) 13
RS31 (ES31) 13
RS47 (ES47) 15
RS48 (ES48) 15
RS49 (ES49) 14
RS51 (ES51) 15
RS52 (ES52) 15
RS55 (ES55) 15
RS56 (ES56) 15
RS57 (ES57) 14
RS58 (ES58) 13
RS68 (ES68) 14
RS69 (ES69) 14
RS70 (ES70) 14
RS71 (ES71) 14
RS76 (ES76) 15
RS81 (ES81) 13
RS84 (ES84) 13
RS86 (ES86) 14
RS87 (ES87) 13
RS88 (ES88) 13
RS89 (ES89) 13
RS91 (ES91) 15
RS92 (ES92) 14
RS98 (ES98) 16
RS100 (ES100) 15
RS101 (ES101) 17
RS103 (ES103) 16
RS104 (ES104) 16
RS105 (ES105) 16
RS106 (ES106) 16
RS107 (ES107) 16
RS108 (ES108) 16
RS116 (ES116) 16
RS118 (ES118) 15
RS119 (ES119) 15
RS120 (ES120) 15
RS121 (ES121) 15
RS122 (ES122) 15
RS123 (ES123) 13
RS124 (ES124) 14
RS125 (ES125) 15
RS127 (ES127) 15
RS128 (ES128) 15
RS130 (ES130) 14
RS131 (ES131) 14
RS132 (ES132) 14
RS133 (ES133) 14
RS134 (ES134) 15
RS135 (ES135) 15
RS136 (ES136) 15
RS138 (ES138) 17
RS139 (ES139) 17
RS140 (ES140) 17
RS142 (ES142) 17
RS144 (ES144) 17
(NE043)
RS35 (ES35) 15
RS40 (ES40) 14
RS45 (ES45) 15
RS46 (ES46) 15
RS145 (ES145) 17
RS150 (ES150) 16
RS158 (ES158) 15
102
104
방염 컬러 Flame Retardant

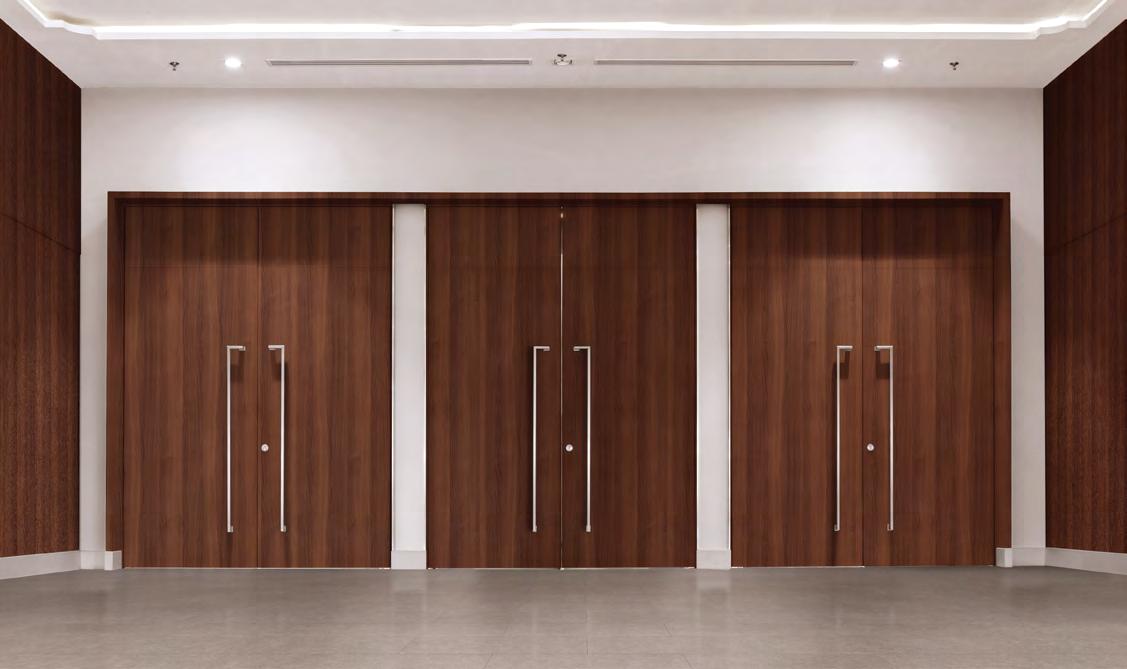

도어 코디네이션 컬러 DOOR + BENIF
비방염 컬러 Non-Flame Retardant 해당 컬러는 샘플북 마지막 페이지 시공 유의사항을 반드시
Be sure to follow the application instructions at the back of the sample book for the relevant color. 보드 코디네이션 컬러 BORTE + BENIF
Discover various information about LX Hausys Architectural Film online.
https://m.lxzin.com/zin/category/a120000
창호 코디네이션 컬러 WINDOW + BENIF LX지인 인테리어필름의 Repeated Image들을 확인해 보세요. Please check the repeated images of LX Z:IN Architectural Film. https://m.lxzin.com/zin/category/dep2/a121000
생각하는 LX지인 인테리어필름
LX지인 인테리어필름 방염제품은 재활용을 어렵게 하는 기존 이형지의 PE(폴리에틸렌) 코팅 성분을 점토 재질 코팅으로 바꾸고, 시공 시 발생할 수 있는 기포를 손쉽게 제거할 수 있게 하여 높은 시공성을 유지하면서 재활용 성능을 획기적으로 높였습니다.
및 신뢰도를 관리함으로써 안정적인 친환경 제품
재활용 성능 확보 (이형지) 재활용 성능을 인정받기 위해서는 환경표지 인증기준 ‘EL103(2023) 종이 점착 테이프 및 종이 점착 시트’의 ‘알칼리 해리성’ TEST를 통과해야 하고, LX지인 인테리어필름 방염제품은 본 기준을 만족하였습니다.
알칼리 해리성 TEST
개선하여 환경유해인자로부터 안전하고 쾌적한 교육 환경을 조성할 계획입니다. 환경표지 인증서, 제품 구매내역서, 공사 전·중·후
및 제품
환경표지 인증 제품 사용 여부를 증빙해야 합니다. *서울특별시교육청보건안전진흥원 환경지원과, 2024년 어린이활동공간 시설 개선비 지원계획 발췌
NaOH 용액에 넣고 이형지 시료가 펄프와 분리되는 것을 확인 금속망 위에 분리된 펄프
적합하여야 합니다.
1. 박리지로서 환경마크 인증을 받은 ‘박리지 원지’를 사용하여야 합니다. 재활용을 어렵게 하는 래미네이트지 등을 사용하지 않아야 하며, 사용하는 박리제는 알칼리 해리성 (또는 수용성 및 수분산성)이어야 합니다.
제품 PW(클래식 우드) BW(빅 우드), NW(프리미엄 우드), TW(텍스처 우드), BM(빅 스톤), CW/DW/SW(우드), DP/NV(듀얼), EL(콘크리트/모르타르), ML/NS(스톤), RP/MS(메탈), RGM/RS(솔리드) ST(소프트 터치) SF(텍스타일) SM(미스티) ※ 프탈레이트계 물질을
BIG STONE
BM015
BM013 Big Granite Big Granite
BM009
BM019 Big Granite Galaxy Marble BM012

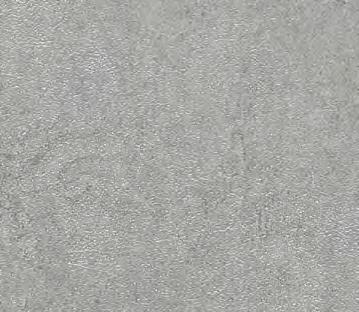

Concrete
BM011 Bulky Concrete
BM006
CONCRETE / MORTAR
CONCRETE / MORTAR
ML92

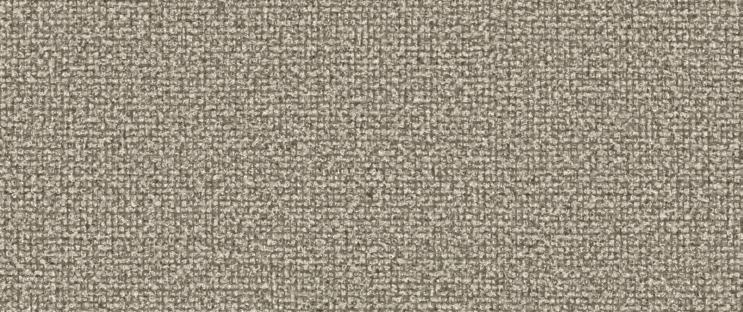

TEXTILE

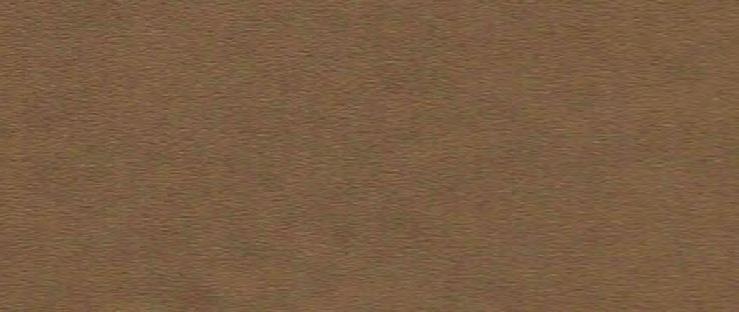

LEATHER
CERTIFICATION
CE 인증 유럽 연합(EU) 안전성 검증 규격입니다. 화재 전파 속도뿐 아니라 연기 발생 정도와 잔존 불꽃 시간 평가를 통과하여 제품의 안정성을 입증받았습니다. (인증번호 2812-CPR-KA5008, 방염 전 제품 대상)
UKCA 인증 영국에서 요구하는 제품 안정성 및 사용 적합성 검증 규격입니다. 화재 전파성 및 연기발생 정도, 잔존 불꽃 시간 평가를 통과하여 제품의 안전성을 입증 받았습니다. (인증번호 1121-CPR-UK-KA7750, 방염
심사를 통해 지속적인
안정성 기준까지 만족하였습니다. (module B : 74092/A0, module D : SMS.MED2.D/110255/C.0)
- 인증서와 제품 리스트 세부사항들은 QR을 확인해 보세요.
철도
철도 자재용 성능검사 철도 내부 인테리어에 사용되는 PVC 필름에 대해 제품의 화염전파성 및 열 방출률, 유독가스 방출률 등을 EN 45545-2:2013+A1 2015에 근거하여 SGS 국제시험기관에서 Test하여 최고 등급 HL3를 만족하였습니다. (성적서 No. AJFS1906005916FF-01, 방염 전 제품)

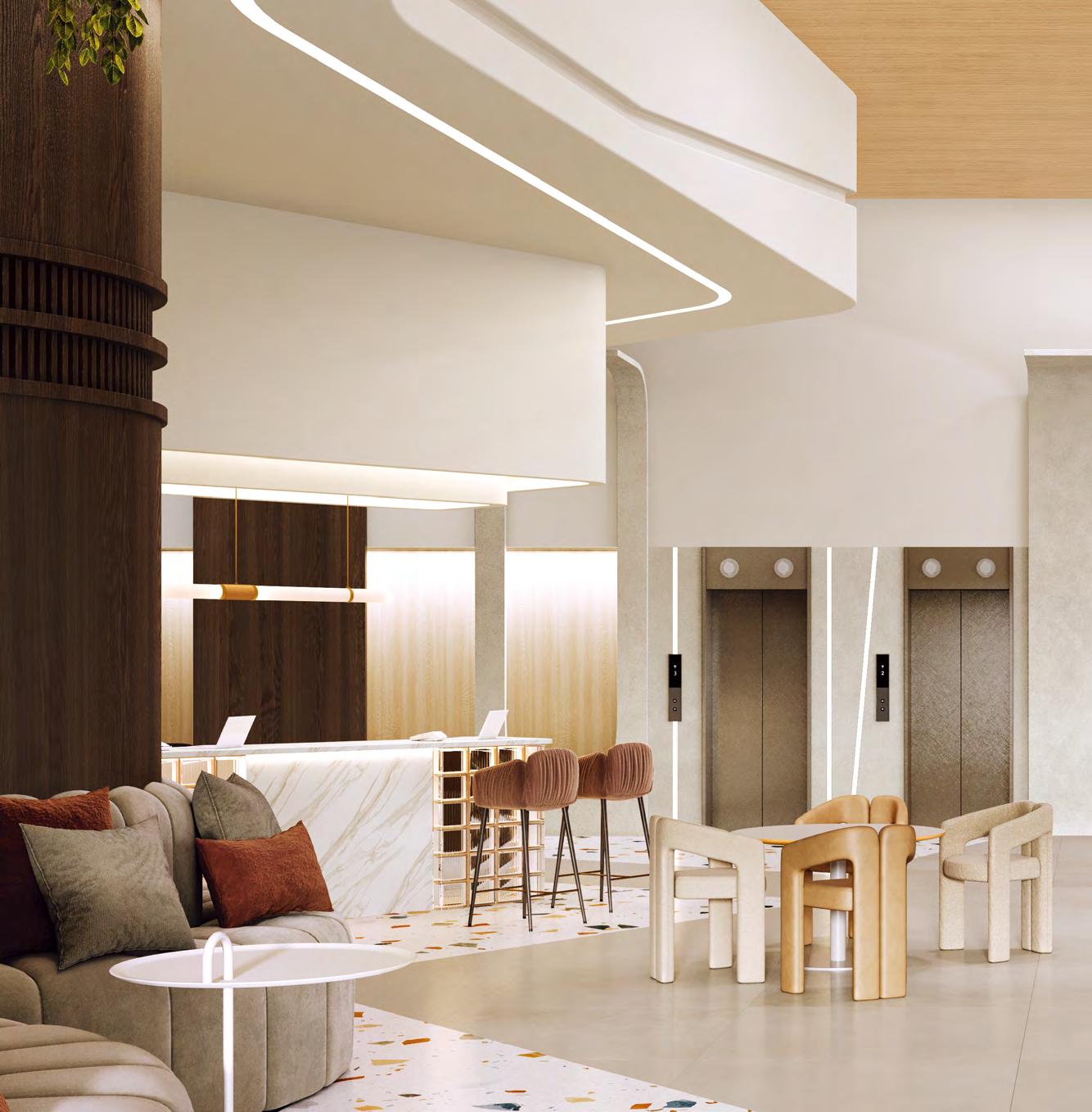

Interior
Space
KFI Certifcation
It is Korean Flame Retardant Certifcate. LX Hausys uses fre retardants approved by Korea Fire Institute, and only products that have passed the fame retardant test can be released to the market. (Certifcates are issued for products that pass the test)
CE Marking
CE marking indicates that a product has been evaluated to meet EU safety requirements. Our products were tested for the level of smoke generation and the duration of residual fames as well as the speed of fre spread, and were deemed to meet EU’s safety requirements. (Certifcation No. 2812-CPR-KA5008, for all fame-retardant products)
UKCA Marking
The UKCA marking indicates that a product meets UK government’s product safety and usability conformance standards. Our products were tested for fre spread, the level of smoke generation, and the duration of residual fames, and were deemed to satisfy safety requirements. (Certifcation No. 1121-CPR-UK-KA7750, all fame-retardant products)
ASTM test to assess fame/smoke spread characteristics
Our products were tested by Korea Conformity Laboratories in compliance with the ASTM E84-21a standard for fame and smoke spread, and were granted the highest performance rating of A Class. (Test Report CT23-085727E, all fame-retardant products)
IMO Certifcation
The IMO establishes international standards for testing the surface fammability of materials used in ships and ofshore structures. Our products were evaluated not only for fame spread, toxic gas generation, and heat release, but also for manufacturing processes to satisfy continuous production management safety requirements in compliance with these standards. (Module B : 74092/A0, Module D SMS.MED2.D/110255/C.0)
- Please scan the QR code for detailed information of the certifcate and the product list.
Railway
Performance Testing for Railway Materials
Our PVC flms used for railway interior purposes were tested by SGS, an international Testing, Inspection and Certifcation (TIC) company, in conformity with EN 45545-2:2013+A1 2015 for fame spread, heat release, and taxic gas emission, and successfully satisfed the highest HL3 Hazard Level requirements. (Test Report No. AJFS1906005916FF-01, all fame-retardant products)
Eco-Friendly LX Hausys is constantly striving to minimize substances harmful to the human body and the environment, considering the safety and environment of customers and builders.
HumanFriendliness
EnvironmentFriendliness
Eco-Friendly construction materials certifcation
We have obtained the highest level in the verifcation of harmful substances in building materials in accordance with the Healthy Building Material Certifcation (HB Mark) established by the Korea Air Cleaning Association. However, please note that the safety of these materials in contact with food has not been verifed. Also, there are some colors that have not been certifed, so please check the certifcation document for more information. (Group Standard Certifcation No. HB2679G22-01)
The European textile product quality certifcation
This certifcation verifes the absence of approximately 200 harmful substances in products that come into contact with skin, such as general products, bedding, toys, and interior materials. BENIF's Solid colors were the frst in the industry to obtain a 1st class certifcation (Baby Class) under this standard, which confrms their suitability for use in clothing and toys for infants and toddlers under 3 years of age. (Certifcation No. SE025 164519 TESTEX)
Environmental Product Declaration (EPD)
It is a system that evaluates the environmental impact of the entire process, spanning raw materials, production, distribution, use, and disposal of certifed products, and encourages environmental improvements. BENIF Wood (CW, DW, FW, SW) has obtained this certifcation and is continuously striving for environmental improvement.
(Environmental Product Certifcation No. 2020-483)
INSTALLATION INSTRUCTIONS
3. 프라이머 처리 (PM-04)
밀도에 따라 시공 접착력의 차이 및 방염 성능의 차이가 발생하므로 밀도가 균일한 MDF를 사용하도록 합니다.
- 도장면은 알코올로 표면의 오염물을 제거해야 하며 용제에 의한 도장면의 손상을 확인하고, 요철부위는 퍼티 처리 후 샌드페이퍼로 연마하고 이물질을 먼지떨이 붓으로 제거해야 합니다.
- 철판류는 알코올, 락카신나를 이용하여 표면의 오염물질을 제거한 후 용접에 의한 요철부위는 퍼티로 처리하고, 샌드페이퍼로 표면을 연마한 후 이물질을 먼지털이 붓으로 제거해야 합니다. 소비자가 선정한 제품의 이상 유무(패턴명, 외관 상태 등)에 대해 사전 검수 작업을 해야 합니다. 필름 시공은 목 공사 후 도장 및 도배 전 단계에서 시행해야 합니다.
샌드페이퍼로 연마하거나 퍼티 처리 후 시공해야 합니다.
필름 시공 시 프라이머는 LX하우시스 전용 수성프라이머(PM-04)를 사용해야 합니다.
프라이머 처리 시 피착재 중 목재류(MDF, PB 등)의 절단면은 프라이머 흡수율이 높기 때문에
프라이머를 2~3회 도포할 수 있도록 합니다. 중복 도포는 먼저 도포한 프라이머가 완전히 건조된 후 실시합니다.
프라이머의 권장 희석비율과 건조시간은 아래와 같으니 참고해 주시기 바랍니다.
수성프라이머와 물의 혼합비
시기 월 프라이머 물 건조시간(권장)
동절기 12~3월 1 1 24 춘추절기 4~5월, 10~11월 1 1.5 12 하절기 6~9월 1 2 8
필름 시공은 반드시 시방서의 시공 지침에 따라 시공해야 하며, 상세 사항은 시공 매뉴얼을 참조하시기 바랍니다.
(service.lxhausys.co.kr - 자료실)
시공 시 재단된 필름의 절단면이 최대한 보이지 않게 시공해야 합니다.
최대한 피착재가 보이지 않도록 필름 시공을 해야 합니다.
제품 Lot간 색상 차이가 발생할 수 있으므로 Lot를 구분하여 시공해야 합니다.
시공 전 72시간부터 시공 후 48시간까지는 현장 온도를 15~25℃로 유지해야 합니다.
동절기 시, 외부에 제품을 방치할 경우, 기온 하락에 따른 점착력 저하 현상이 발생할 수 있습니다.
SW, EL 본 제품들은 표면 필름층이 없고 표면 처리만 되어 있는 제품이므로, 모서리 부위를 양모펠트나 면장갑으로 강하게 문질러 꺾을 시 인쇄층이 손상될 수 있으니 주의해서 사용해야 합니다. 표면 처리층으로 인해 필름 겹침 시공 시 슬립이 날 수 있으니, 수성프라이머 PM-04 원액을 도포 후 충분히 건조하여 시공해야 합니다.
SN(SNE) 외관에 이물질이 돌출되지 않도록 부착면에 샌딩 작업을 철저히 하고 MDF 면을 깨끗이 유지한 상태에서 랩핑하기를 추천드립니다. 제품 특성상 충분히 표면에 압착하여 붙여야 하며, 꺾임 부위 및 겹침 부위 들뜸이 발생하지 않도록 더 많은 힘을 가해 마무리해 주시기 바랍니다.
PW, SF, NS, GW, GT 일반 제품에 비해 제품이 두껍고 엠보의 깊이나 형상이 다르므로 프라이머 처리 후 제품을 충분히 표면에 압착하여 붙여야 하며 꺾임 부위 및 겹침 부위 들뜸이 발생하지 않도록 더 많은 힘을 가해 마무리 해주시기 바랍니다. ST(STE) 겹침 부위 들뜸이
바랍니다.
필름 시공은 반드시 시방서의 시공 지침에 따라 시공해야 합니다. 시공 방법 및 피착재(MDF 등)에 관하여 시방서와 다른 류의 피착재에 시공할 경우, LX하우시스 및 대리점에 문의하여 시공 가능성을 확인해야 합니다. - 아크릴류 피착재에 시공 시 기포가 발생할 수 있으니 LX하우시스 및 대리점에 문의하여 확인 후 시공 바랍니다. LX하우시스 인테리어필름의 유통기한은 공장 생산일로부터 2년간 유효합니다.
보관 조건은 높은 온도, 습도를 피하여 주시고, 직사광선이 없는 곳에 보관해 주시기 바랍니다. 온도 20℃, 습도 50%가 가장 적당합니다. 이동 및 운송 시,
1. Preliminary Work
• It is necessary to check the type and condition of the adherend(MDF, etc.) on which the film is applied to see if any problems may occur during installation.
- In the case of MDF, it is recommended to use MDF with uniform density, as variations in installation adhesion and flame retardant performance may occur depending on the density.
- The painted surface should be cleaned with alcohol to remove contaminants and checked for damage by the solvent. The uneven areas should be polished with sandpaper after putting treatment and foreign matters should be removed with a dust brush.
- For iron plates, after removing contaminants from the surface with alcohol or lacquer, the uneven areas caused by welding should be treated by puttying. Foreign matters should be removed with a dust brush after polishing the surface with sandpaper.
• It is necessary to perform preliminary inspections to see whether the product selected by the consumer has defects. (pattern name, appearance, etc.)
• Film installation should be carried out after carpentry work and before painting and wallpapering.
2. Surface Pre-work
3. Primer Treatment (PM-04)
• The cross-section(cutting) part of the adherend(MDF, etc.) where the film will be applied must be sufficiently polished with sandpaper.
- In particular, in the case of wood(MDF, PB, etc.), the smoothness of bent and joint parts is important. Therefore, if the surface condition is rough after inspecting in advance, it must be sufficiently polished with sandpaper or putty treatment before installation.
When applying the film, LX Hausys proprietary water-based primer (PM-04) must be used.
For the primer treatment, the cut surface of wood(MDF, PB, etc.) among the adherends has a high primer absorption rate, so the primer should be applied 2-3 times. Overlapping is done after the primer applied before has been completely dried.
Please take note of the recommended dilution ratio and drying time for Primer as provided below.
Ratio of mixing water and waterbased primer
4. Installation Methods
5. Installation Instructions for Specific Products
Time Month Primer Water Drying time (recommended)
Film installation must be carried out in accordance with the installation guidelines in the specification sheet, and for further details, please refer to the installation manual.(service.lxhausys.co.kr - reference)
During installation the cut surface of the film should not be visible as much as possible.
Film should be applied in a way that the substrate is not visible as much as possible.
Color differences may occur between product lots, so it is necessary to sort the lots for installation.
The site temperature should be maintained at 15~25℃ from 72 hours before installation to 48 hours after installation. In winter, if the product is left outside, adhesion may decrease due to a drop in temperature.
SW, EL These products have undergone surface treatment only, and thus do not have any surface film layer. If you strongly rub the corners with wool felt or cotton gloves, the printed layer may be damaged, so please use our product carefully.
Due to the surface treatment layer, it may slip when film is overlapped. Therefore, the installation should be done after applying the water-based primer PM-04 undiluted solution and drying it sufficiently.
SN(SNE) It is recommended to thoroughly sand the attachment area and ensure the MDF surface is clean before wrapping to prevent any protrusion of foreign substances on the exterior.
Given the inherent characteristics of the product, ensure sufficient adhesion between the product and the surface. Apply extra pressure during the finishing process to prevent lifting at folded or overlapping areas.
PW, SF, NS, GW, GT When installing products that are thicker and have a different depth or shape of embossing than regular products, it is necessary to apply sufficient pressure to attach the product to the surface after primer treatment. Also, it is important to apply more force to the folding and overlapping areas to prevent any lifting.
ST(STE) Apply extra pressure during the finishing process to prevent lifting at overlapping areas.
6. Other Precautions
Film installation must be carried out according to the installation standards of the specification.
For installation methods and adherends(MDF, etc.), in case of the installation on a different type of adherend from the specifications, you must contact LX Hausys or a vendor to confirm the feasibility of installation.
- Air bubbles may occur during installation on acrylic adherends, so please check with LX Hausys or a vendor before installation.
The shelf life of LX Hausys Architectural Film is valid for two years from the date of factory production. Please store the product in a place away from high temperature and humidity and avoid direct sunlight. The ideal conditions for storage are 20℃ temperature and 50% humidity.
When moving or transporting the product, please avoid dropping it as the product may break due to impact (especially during the winter season).
Please be advised that release paper may undergo contraction or expansion during processing and storage due to the impact of heat and moisture. We recommend utilizing release paper measurements as a point of reference, and when cutting, we suggest providing extra margin beyond the actual dimensions of the adhering surface.
For products with deep embossing, special attention should be paid during installation to ensure sufficient adhesion through stronger pressure, as the area of adhesive installation on overlapping parts may be reduced.
