Graphic & Video Editing: Adobe Photoshop, Adobe After Effects (AE), Adobe Illustrator (Ai), Adobe InDesign (Id)
Interest: Basketball, Football, Travelling, Boxing, Calligraphy, Chinese Painting, Guqin, Fitness
Public exhibition space, cultural space, art space
Individual Projects
Author:Shengming Li production time:08.2023-12.2023
Architectural Projects
Location:Nanning, Guangxi, China
Neutral Buildings That Will Impact the World
Group work
Team member:Shengming Li,Xinyu Ma,Changyu Lu,Li Zehui,Xinyu Ma.
Date:02.2024
Evolo-2024 Skyscraper Competition
TYPHOEUS
Addressing natural disasters and protecting the environment and people's lives
Group work
Team member:Shengming Li,Kaiyi Chi,XINyang Yu,Jiaqi Wang. Date:04.2024
Sustainable Suture
Connecting public space with green space in busy cities
Individual Projects
Author:Shengming Li production time:05.2024-08.2024
Landscape design projects Location:Shangha,China
Other work
Some of the daily design assignments with hand drawings.
Individual Projects
Author:Shengming Li production time:09.2022-06.2024 During the university years
01 WAFFLE IRON
Individual Projects
Author:Shengming Li production time：08.2023-12.2023
Architectural Projects

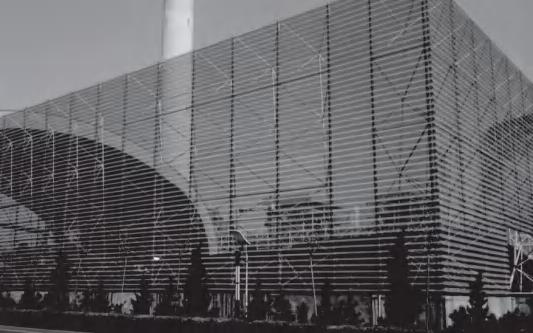

Project Description:The project is located in Nanning, Guangxi, China, where an old sewage treatment plant has been in operation for more than 20 years, occupying a large area and wasting urban space, with a lack of exhibition and performance venues around it. I researched the innovation of modern water purification technology and renovated the wastewater treatment plant, designing a large-scale exhibition hall on the basis of the original open space, which consists of a canopy and a cylindrical structure. The roof structure resembles a waffle, hence the name.
影响周边低区住宅
河边公园有严重污水味
周边地价昂贵
园区内空地过多
占地与功能不成正比
公园闻到污水味
缺少特色吸引游客
周边道路陈旧开裂
杂草生长
周边环境缺乏保护
没有良好宣传保护环境
缺少展览表演场所
缺少艺术建筑地标
实际问题 在实际设计中解决问题体现
将气味散发部分转移位置，或使之密闭
改善净水工序，减少气味排出 寻找和改善气味来源
设计建设展览馆
利用空地，改善环境
Heavy sewage odour from riverside park
Expensive land prices in the neighbourhood
Improve water purification processes to reduce odour elimination
Identify and improve sources of odour
利用空地建设场馆，为市民提供更多功能
Too many vacant sites in factories
Utilise
改善气味来源，重建或翻新公园
建设艺术展览馆与公园结合
Occupancy not proportional to function
The park smells like sewage
Lack
打理周边绿植，科学智能照顾周边环境
通过整改环境，治理水系
周边道路进行建设改善，将周边环境与展馆 ，公园结合
Weed growth
Lack of protection of the surrounding environment
展览形式让市民明白保护环境的意义
展馆内增加文化元素，预留表演场地
建筑外立面吸引游客，形成当地特色
No good publicity to protect the environment
Lack of exhibition and performance venues
Lack of artistic architectural landmarks
Building Elevations
Four elevations of the right, left, front & back of the building. The right side has the largest difference in height of the glass curtain wall, falling straight down from the top to the ground. The left side shows the main entrance of the building, where the height of each cylinder of the building is clearly visible. On the front side, you can clearly see the curved surface cutting the top and bottom of the cylinder, and the entrance is the arc formed by the glass curtain wall. On the back side, the glass is dripping from the top to the ground with a sense of water flow or waterfall.
Back of the building
02
MIDDLE LAND
Group work
Team member:Shengming Li,Xinyu Ma,Changyu Lu,Li Zehui,Xinyu Ma.
Date:02.2024
Evolo-2024 Skyscraper Competition

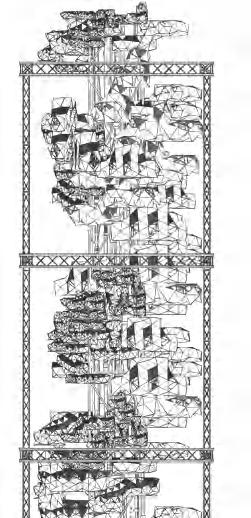

Description:The building we designed is called ‘Middle land’, a building that represents neutrality. Our idea of a neutral skyscraper comes from a number of disputes. With the intensification of international friction and competition for resources, various kinds of frictions may become more frequent in the future, whether they are military conflicts or economic disputes. We create such a space in order to bring more security to the lives of ordinary people and neutrals, it is not only a utilisation of space, but also a sense of neutrality and distance conveying a beautiful ideal of future human living space. The building is surrounded by a frame structure equipped with lifts and mechanical arms that can be easily dismantled and erected to extend the height of the building upwards. In the middle of the structure are the building's pipes and various facilities. The building consists of countless small monoliths, each representing a different space with a different function. Each monolith is supported by telescopic poles, each of which is connected by a movable sphere that can be folded and compressed when not in use to save space, as well as transported for fabrication. Our buildings are usually not freestanding, but are constructed where they are needed, and are dismantled without damaging the environment or taking up land. We are neutral not only in war, but also in politics and religion. We will approach these issues with neutrality and respect. In terms of architecture, we design public spaces that represent neutrality, such as churches. Our architecture hopes to provide security and basic livelihoods for ordinary people in any dispute.
religiousbeliefs.
Note: The internal and external mechanisms operate simultaneously according to the timeline.

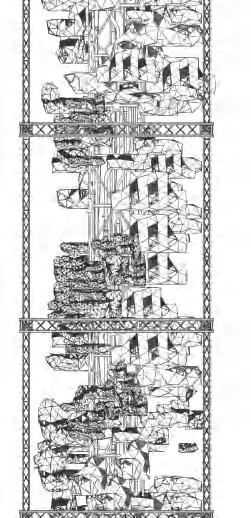

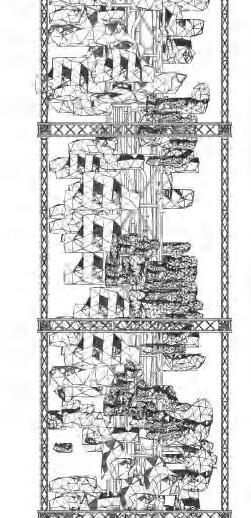

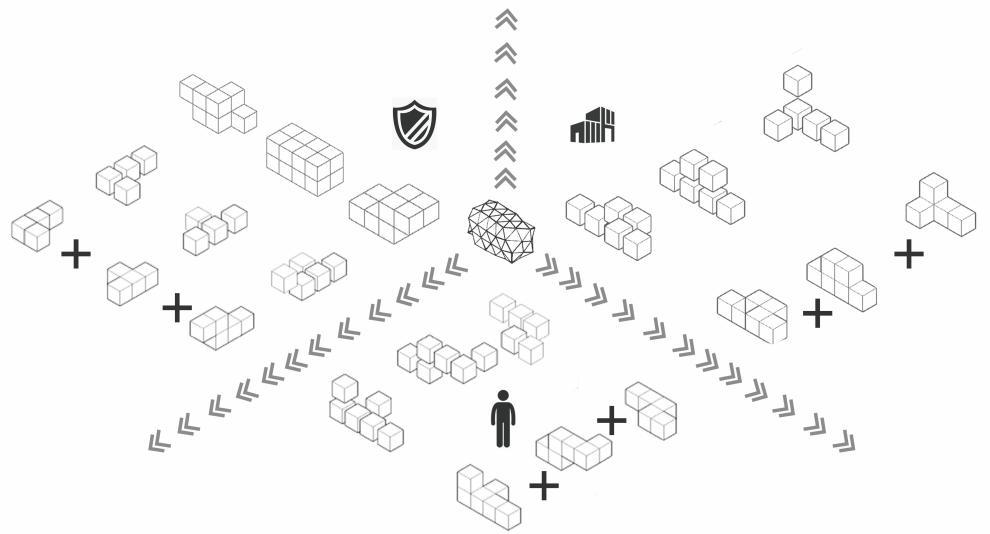

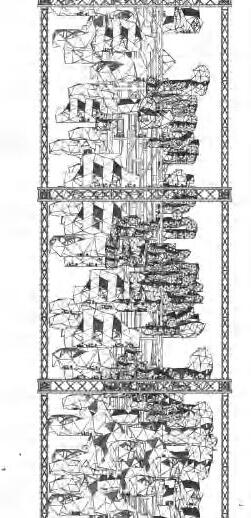

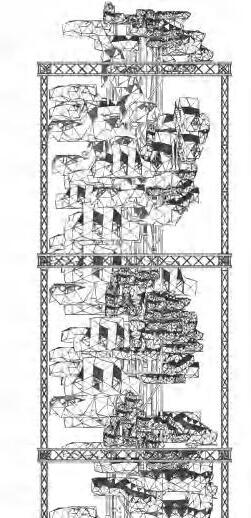

This part mainly reflects the formation of clusters through the combination of monolithic units, and a variety of combination forms to construct different architectural forms. One section connects the buttresses of the columns, and the other end connects with other spaces to form a connected space with a strong sense of form.

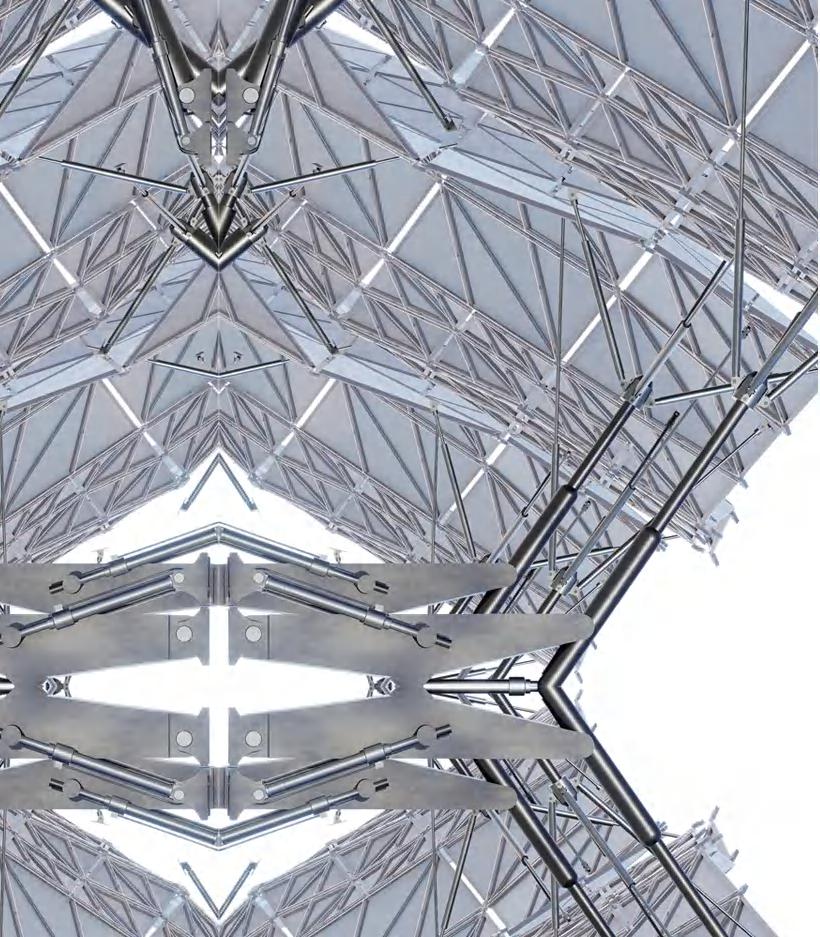

Folding mchanisms
A spherical joint connector consists of a spherical joint and a rod that can move around the sphere. Its function is primarily to provide multi-axis freedom of movement and adjustment
Spherical connectors allow forces to be spread over multiple axes of the connector, which reduces the concentration of forces.
The structure modifies and combines two conventional ball joint con- nectors, allowing the connected objects to be rotated and tilted in all directions.
Spherical joint connec- tors usually use simple connections such as threads or pins, making installation and removal easier and quicker.
Hydraulic telescopic rods are telescopic devices that are adjusted by means of a hydraulic system and are used in construction for applications.
The hydraulic pump in the system converts the liquid pressure into mechanical energy, which pushes the piston in the hydraulic cylinder to move.
The hydraulic system en- sures the stability of the telescopic rod so that there is no sudden or abnormal movement during operation.
Hydraulic telescopic rods allow for precise positional control through accurate control of hydraulic pres- sure, and their retracted state saves space by sig- nificantly reducing their
This internal floor plan is designed to ensure that personnel who are neutral in a war environment can live in relative safety and comfort while being equipped to respond to a variety of emergencies.
Entrance area: includes a reception area and security checkpoints to ensure that personnel entering the building are properly screened.
Main living area: includes basic facilities such as bedrooms, kitchens and bathrooms.
Shelter Areas: Located in the core of the building or on the basement level, designed with strong walls and emergency facilities.
Storage Area: An area used for storing supplies such as food, medicines and necessities.
Medical Zone: An area with first aid equipment and necessary medical
who are neutral in a war environment can live in relative safety and comfort while being equipped to respond to a variety of emergencies.
Entrance area: includes a reception area and security checkpoints to ensure that personnel entering the building are properly screened. Main living area: includes basic facilities such as bedrooms, kitchens and bathrooms.
Shelter
Medical
Multi-purpose
The hinge consists of two metal plates and tubular components that interconnect the two structures and allow them to rotate relative to each other.
Hinge hinges have a high load-bearing capacity to support and bear the weight of objects.
Hinges enable the open- ing and closing of objects by providing a stable axis of rotation that rotates the object and precisely controls the angle and position of rotation.
Hinge hinges save space by allowing rotational movement of objects within a limited space, which also facilitates the design of collapsible build- ings.
Hinge
Hydraulic telescopic rod
Spherical joint connector
03 TYPHOEUS
Group work
Team member:Shengming Li,Kaiyi Chi,XINyang Yu,Jiaqi Wang.
Date:04.2024

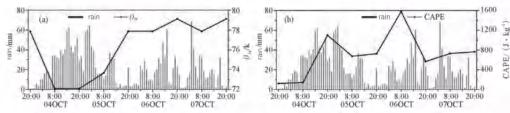

Description:Nowadays, disasters are becoming more and more frequent, floods, rainstorms, typhoons, dust storms and other weather frequently appear, many areas and people suffer from disasters. We designed this device according to the disaster, and submitted a patent, can be used in different places to protect against disasters. It has movable panels and support frames to cope with different weather and disasters. The panels change according to the flow or direction of water to divert wind and water to reduce the impact. Our main goal is to protect people's lives without destroying the environment, and to turn environmental disasters into resources that can be used, such as water from rising rivers that can be recycled or channelled into farmland for irrigation.

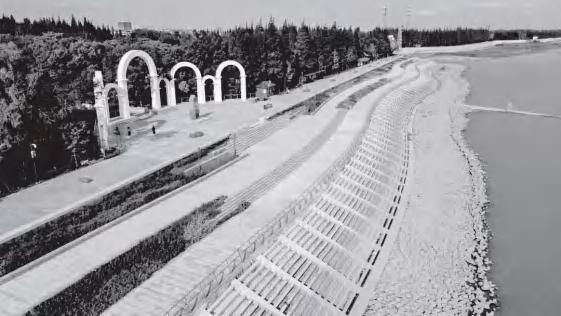

MARINE DISASTERS

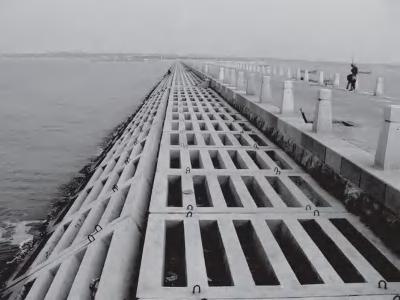

Marine disasters refer to abnormal or drastic changes in the natural environment of the oceans, resulting in disasters occurring at sea or on the coast. Marine hazards mainly include catastrophic waves, sea ice, red tides, tsunamis and storm surges; and there are also "El Niño" and "La Niña" phenomena, typhoons and other catastrophic phenomena related to the oceans and the atmosphere.
STRUCTURAL ISSUES ANALYSIS
The main marine hazards of the site have been analyzed in the previous section, and in order to build buildings that can withstand the effects of the hazards, it is possible to think in terms of structure. It is known that conventional coastal buildings are mostly immovable structures, which lack flexibility in responding to marine issues. In this case, we refer to the structure of intertidal crustaceans, which triggers us to think about the possibility of designing buildings with movable structures.
ARCHITECTURE CREATURE CONCLUSION
DISASTROUS
Conventional buildings need to be strong, functional and aestheticallypleasing through building technology, building function and building image.
The intertidal zone is the area of the coast between the mean high tide and the low tide. Buildings here need to withstand the physical and chemical effects of seawater.
Most of the organisms distributed along intertidal coasts are highly adaptive to the rapid changes in the surrounding environment, such as the rise and fall of the sea water and changes in temperature. Immovable structure Movable structure
can only withstand marine hazards by increasing building stiffness. Reference to intertidal organisms that utilize movable structures to buffer forces.
MACRO-CONTROL THESE ARE THE CHARACTERISTICS THAT THE GUARDS NEED TO ACHIEVE FACTORS
DISASTROUS Dual human and natural factors
Reduction
Controllability
The hydraulic transmission can output large thrust or large torque, and can realize large tonnage movement. The installation of hydraulic components has great flexibility, and can form complex systems that are difficult to compose with other transmission methods, and can be operated with high precision and agility. The hydraulic system can also work well in extreme climatic environments. Because the moving parts in each hydraulic component work in the oil and can be lubricated by themselves, the service life of the components is long. Hydraulic components are easy to be serialized, standardized and generalized, and are easy to design, manufacture, maintain and popularize. Hydraulic system design: the
STRUCTURE SELECTION

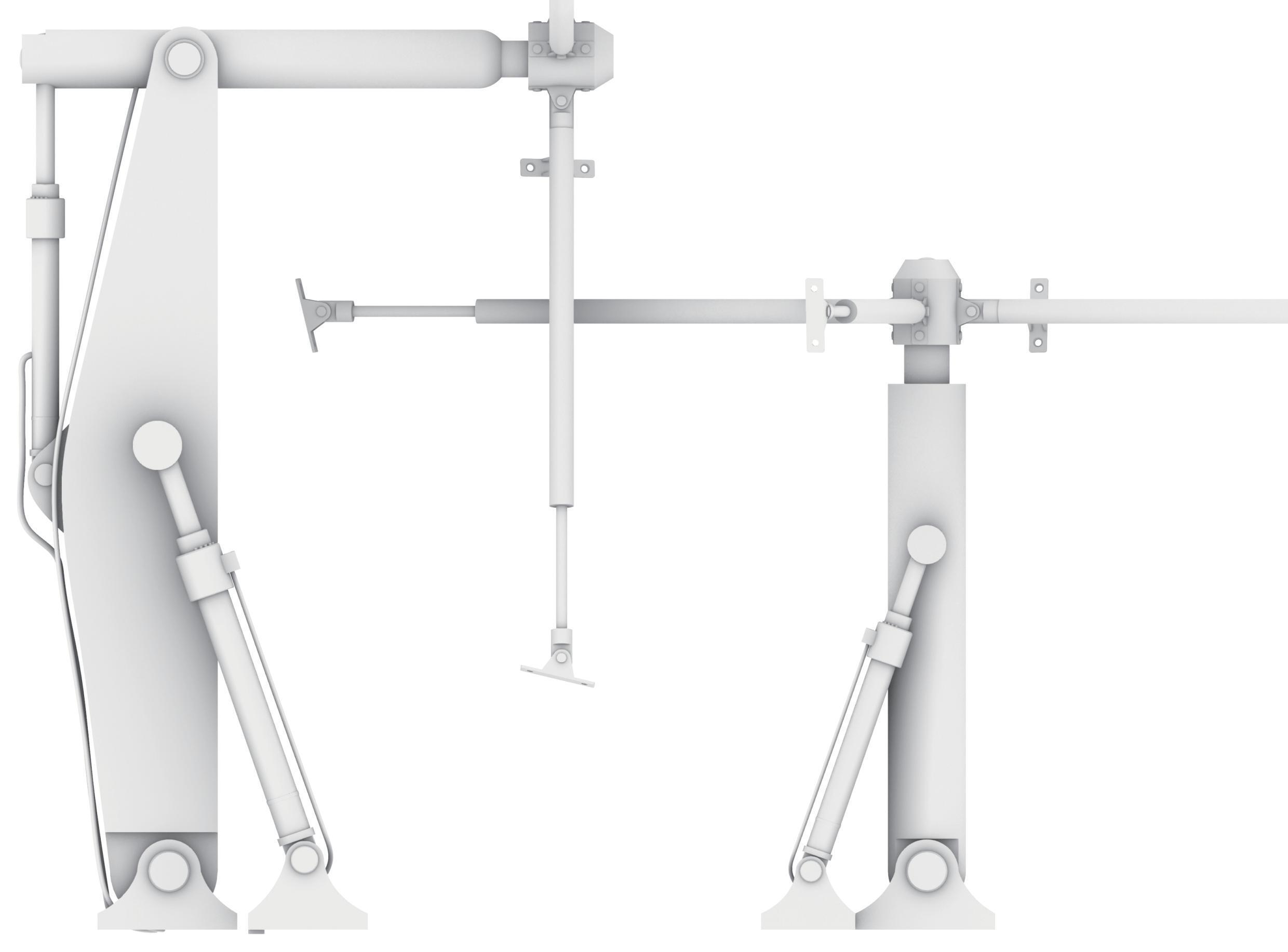

In this page, we have selected the structural parts and materials. By arranging and designing the rods, various forms of anti-coastal disaster devices were formed. This page provides a detailed description of the structure and lists several available forms.
The extremity of the rod is connected by welding to a single earring for the rod, which is connected to the double earring support with a circular plunger pin.
Flange is a connection of flanges, gaskets and bolts that are interconnected to form a sealed structure. There are holes in the flange, and the bolts make the two flanges tightly connected.
Pins are used for coupling, locking parts or for assembly positioning, cylindrical pins are fixed in the hole by the interference, used to fix the parts, transmission of power, or as a positioning device.
Number the piston cylinders of different specifications.By comparing the specification GB/T2348-1993, the different kinds of rods are categorised in terms of size to arrive at the specific selection of rods.
Number the piston cylinders of different specifications.By comparing the specification GB/T2348-1993, the different kinds of rods are categorised in terms of size to arrive at the specific selection of rods.
Number the piston cylinders of different specifications. By comparing the specification GB/T23481993 the different kinds of rods are categorised in terms of size to arrive at the specific selection of rods.
04
SUSTAINABLE SUTURE
Individual Projects
Author:Shengming Li production time:05.2024-08.2024
Landscape design projects

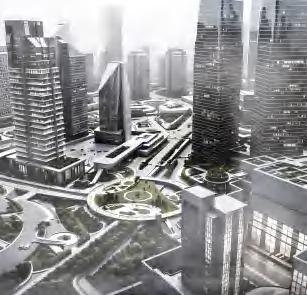

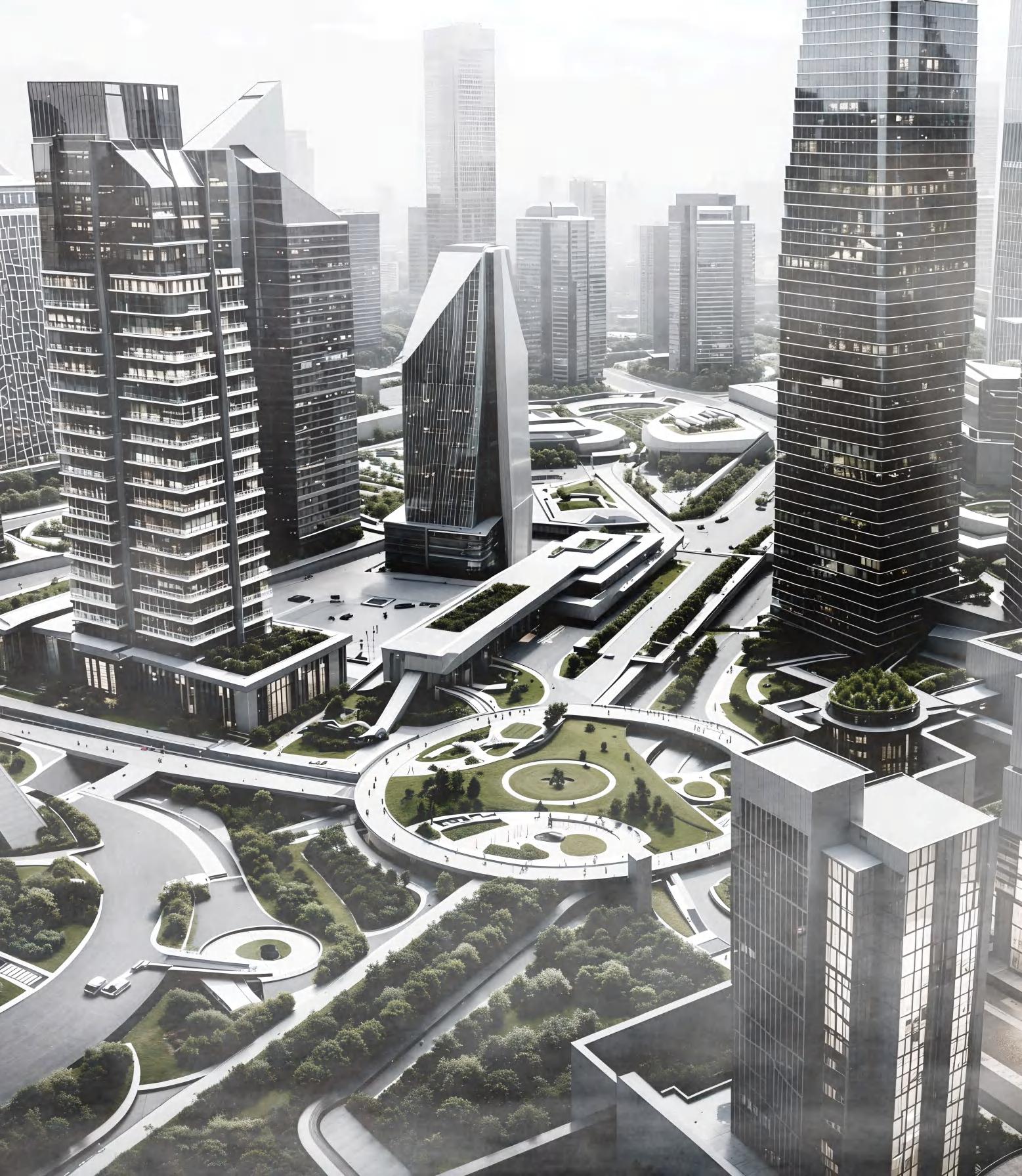

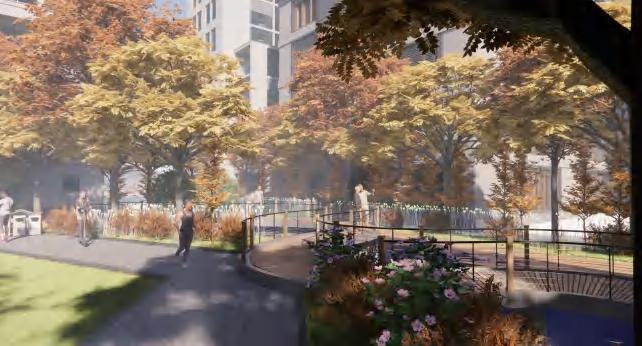

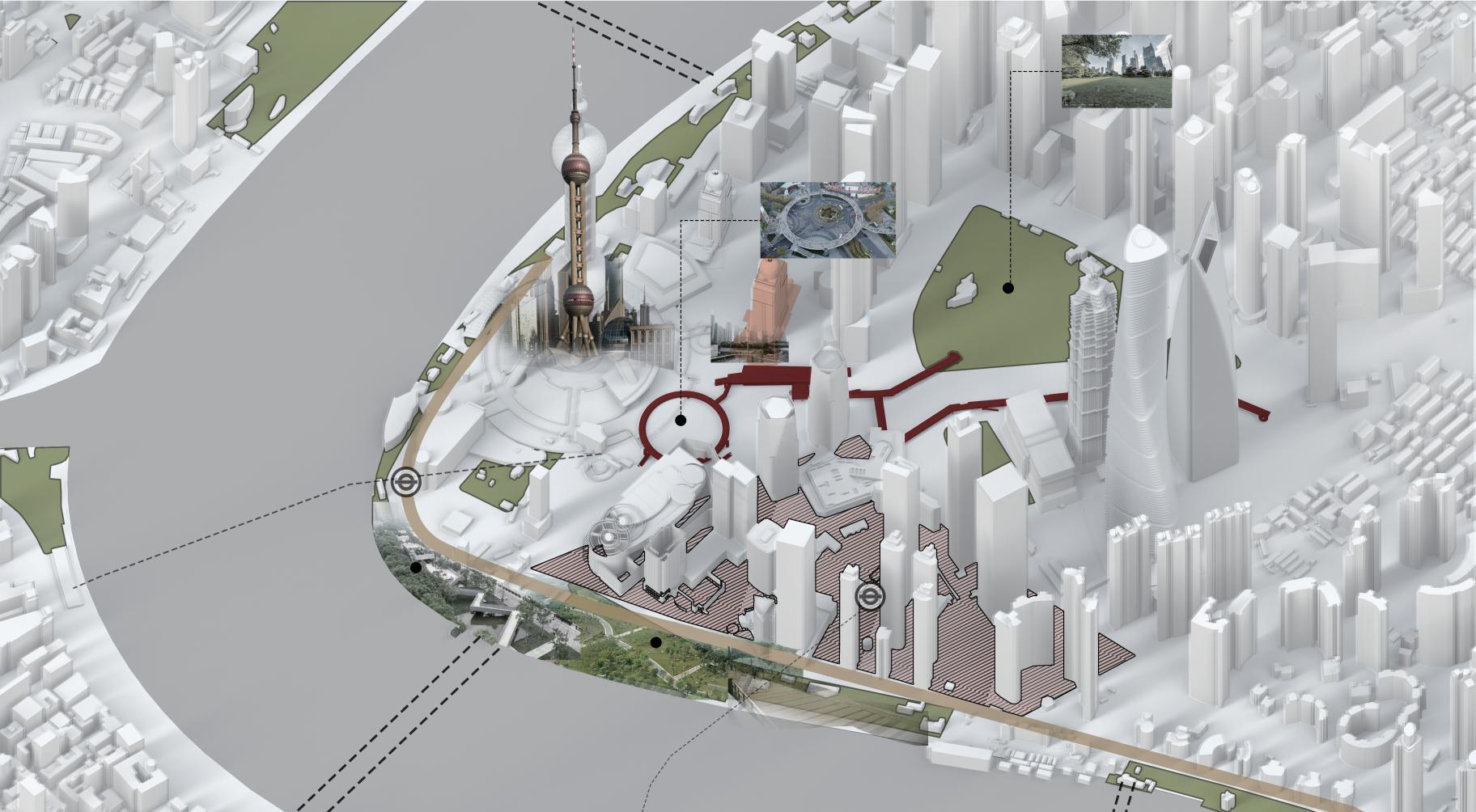

Project Description:This project is located in Lujiazui, Shanghai, China. The project is located in the city centre, surrounded by high-end shopping malls, office buildings and high-end residential communities. There are also many tourists who visit the city to go shopping or shopping, but the lack of connection between the surrounding buildings or green spaces makes it difficult for tourists or residents to travel between them. This project connects multiple spaces and creates a variety of functions for the convenience of the people, such as sitting, playing, taking photos and sightseeing, and so on.
Other works

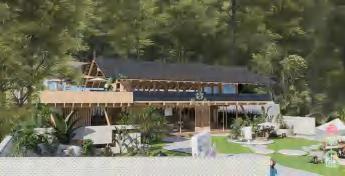

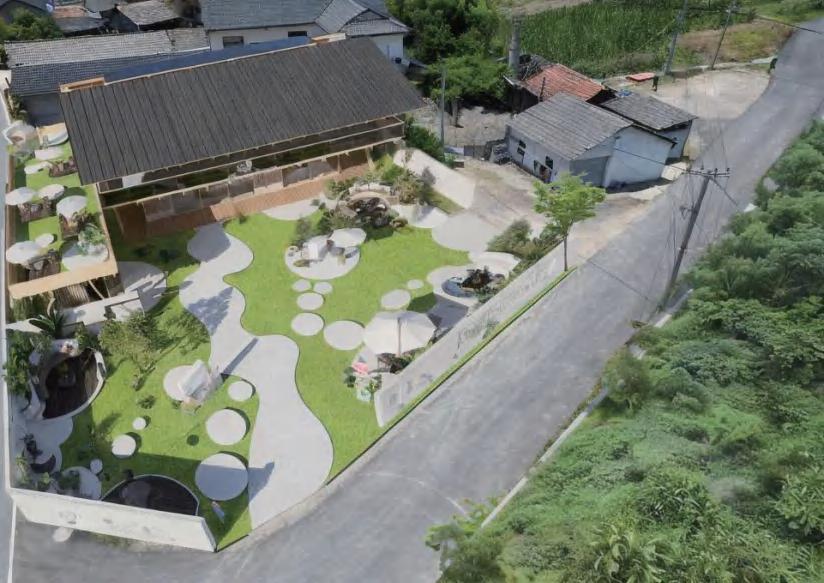

Bamboo Handicraft Workshop---Rural site improvements
The unused site in the village of Anji, Zhejiang Province, China was transformed and redesigned, the village is rich in highquality bamboo, bamboo for sale all over the country and even the world, for the revitalisation of the countryside and the development of the local culture, we designed the site, which can provide tourists with a photo shoot and card with handicrafts to make their own at the same time to develop the local economy.

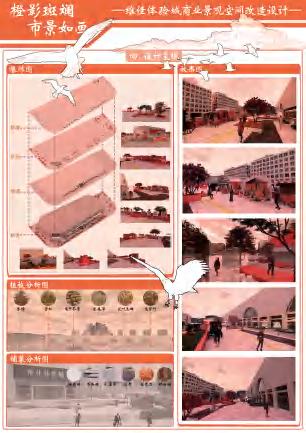

According to the actual shopping mall street landscape in Wuhan, China, combined with the surrounding environment and industry, to carry out transformation and analysis, the design of flash mob street and shopping mall supporting, shopping mall set up and road greening and other transformation.

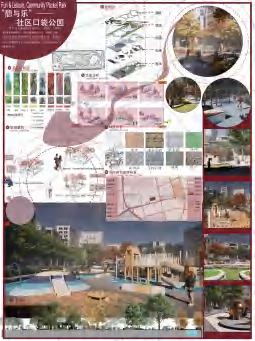

Rest and Play - Community Pocket Park, Community Transformation Project Mars Theme Restaurant - Commercial Interior Design
This project is located in Jiangxia District, Wuhan, Hubei Province, China. It is a former abandoned park next to the soon-to-be-redeveloped community centre for the elderly, surrounded by hospitals, offices, kindergartens, etc., but more residential. It is a small urban pocket park, which we have designed by adding features and elements such as an activity area for the elderly, a children's play area, a fitness area, and a water feature to the site.

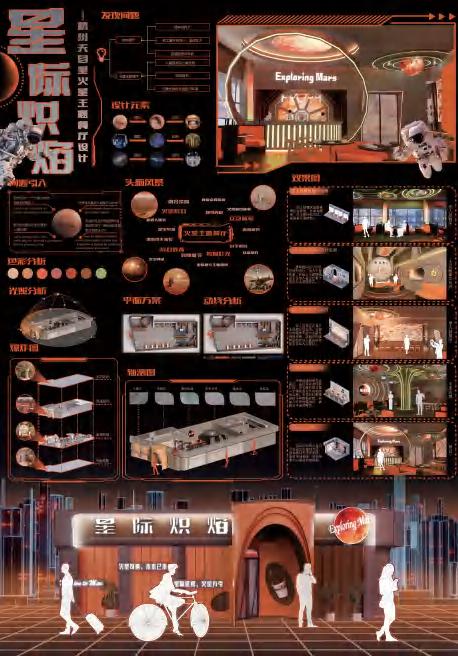

This design project is located in Hangzhou Tianmuli business district, China, we will be a building in the business district of the ground floor shop as our commercial interior design of the site, we examined the actual situation of the business district and the surrounding business, the design of this Mars theme restaurant shop, so that people in the shop to eat in the immersive, in line with the contemporary popularity of the more fashionable netroots photographic card restaurant.
Other works

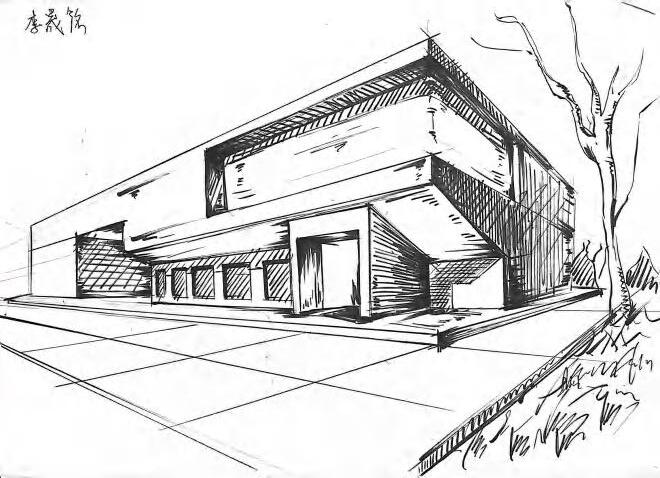

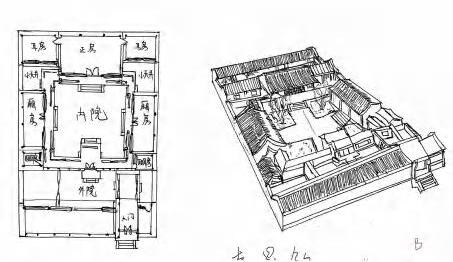

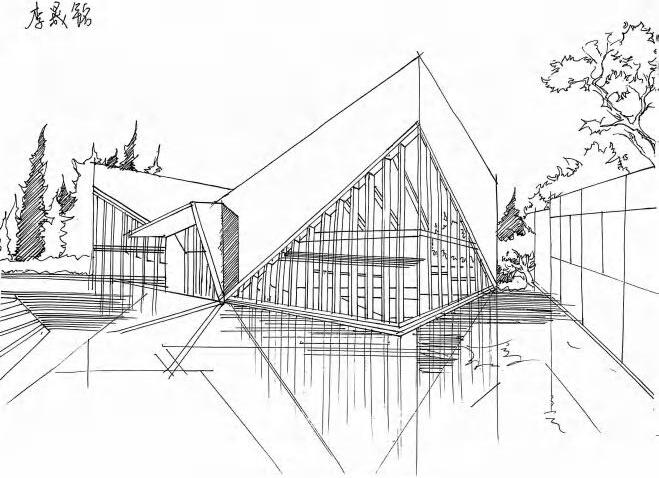

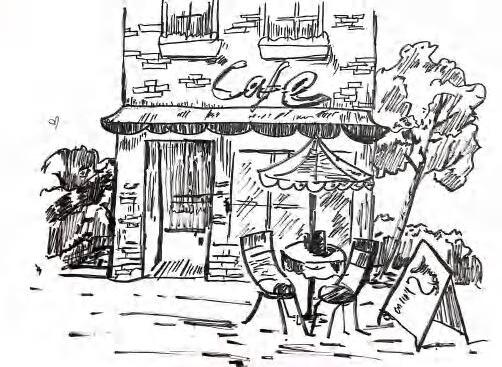

Hand-painted manuscripts
Some personal manuscripts from university, some copied, some sketched.
Name:Shengming Li
WUHAN UNIVERSITY OF COMMUNICATION
Undergraduate Degree in Environmental Design
E-mail: 1227998498@qq.com
Tel: +86 18178606071
Special Thanks
Special thanks to my family for their support, especially my parents, who have always supported my choices from choosing a major at university to studying abroad, and always gave me advice and accompanied me when I was lost.
Special thanks to my school, Wuhan Media College, for making my time at university unique and for the knowledge I have gained.
Special thanks to the School of Design and its teachers who taught me a lot of professional knowledge and gave me a lot of advice on my studies.
School of Architecture, Design and Planning; Prof Michael Muir, Prof Dagmar Reinhardt
Special thanks to Prof. Fan Fei, Ms. Wei Ziyi, Ms. Wang Run, and Counsellor Chen Lin for their education and guidance.
Special thanks to my friends and classmates for helping me and learning from each other in school and group work.
Special thanks to my tutors, Mr Junzhu Zhang, Mr Xie, and Mr Du.
Deepened my understanding of architecture and my ability to work together.
Deepened my understanding of architecture and my ability to co-operate.
