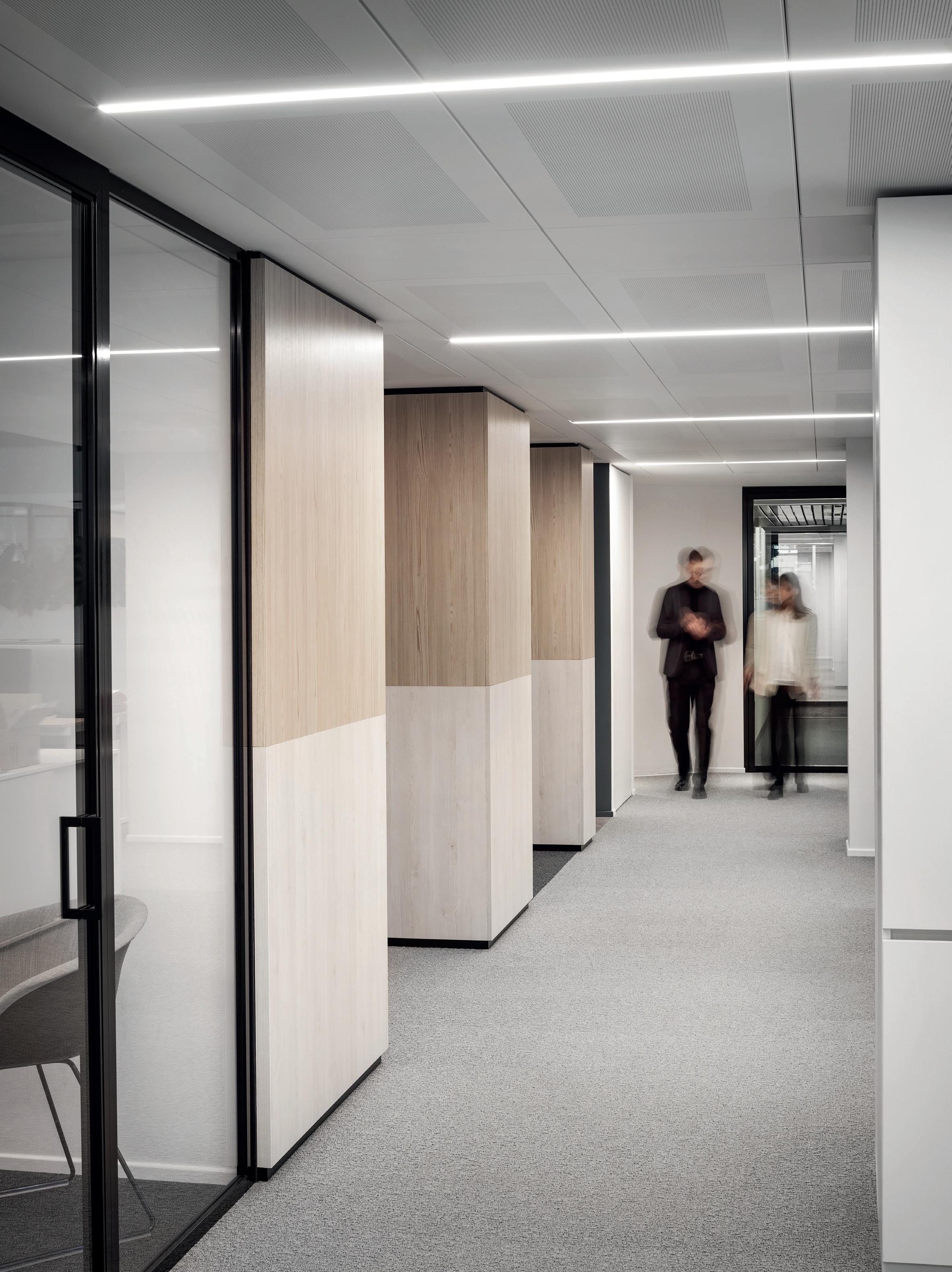

vektron ceiling solutions

The plans on the following pages show that one space (e.g. 40m2) can be interpreted in several ways, implementing different ceiling systems and integrations. Our designers and engineers will work to achieve the best made-to-measure solution for the needs of your project and budget.

Wall-to-wall

Wall-to-wall ceiling systems stretch over the entire surface of the room.

Having the highest flexibility, this is the most commonly used ceiling type.

It offers an easy access to the ceiling plenum and integrates mutiple building services (lighting, clima, ventilation,...) inside the ceiling area.

Different edge finishing options or wall connections are available: C-, L-, W-wall profile

Ceiling-in-ceiling

Ceiling-in-ceiling ceiling systems combine traditional (plasterboard) ceilings with vektron ceiling tiles.

This method offers the same advantages as a wallto-wall installation (easy access to the ceiling plenum, integration of building services), but without the need to cut tiles to size on site.

Ceiling raft

Ceiling rafts are suspended ceilings. This design is most commonly used in combination with visible or industrial concrete ceilings.

Using ceiling rafts drastically improves sound absorption in such rooms and still allows integration of lighting and other building services in workplace areas.

Ceiling installation

To learn more about the installation of our ceiling systems, simply scan the QR-code on the right to watch an instruction video.

3 vektron ceiling solutions

vektron ceiling solutions legend

Edge finishing

C-wall profile

• L: 2400mm

• vektron white

L-wall profile

• L: 2400mm

• vektron white

adjustable wall profile + j-profile

edge cover

• plaster connection

• L: 2400mm

• vektron white

half clip-in profile

• L: 1800mm

edge cover 24 / edge cover 80

• L: made to measure

• vektron white

Visible construction

C-grid

• 2400 x 100mm

• vektron white

rytmi lamella

• natural anodised

• L: 4200

Tiles

full perfo clip-in

• 600 x 273mm

• perforation R1

• vektron white

full perfo clip-in

• 600 x 600mm

• perforation R1

• vektron white

full perfo lay-on

• 1500 x 300mm

• perforation R1

• vektron white

full perfo hook-on

• 1200 x 400mm

• perforation R1

• vektron white

full perfo rytmi clip-in

• 210 0 x175mm

• perforation R1

• vektron white

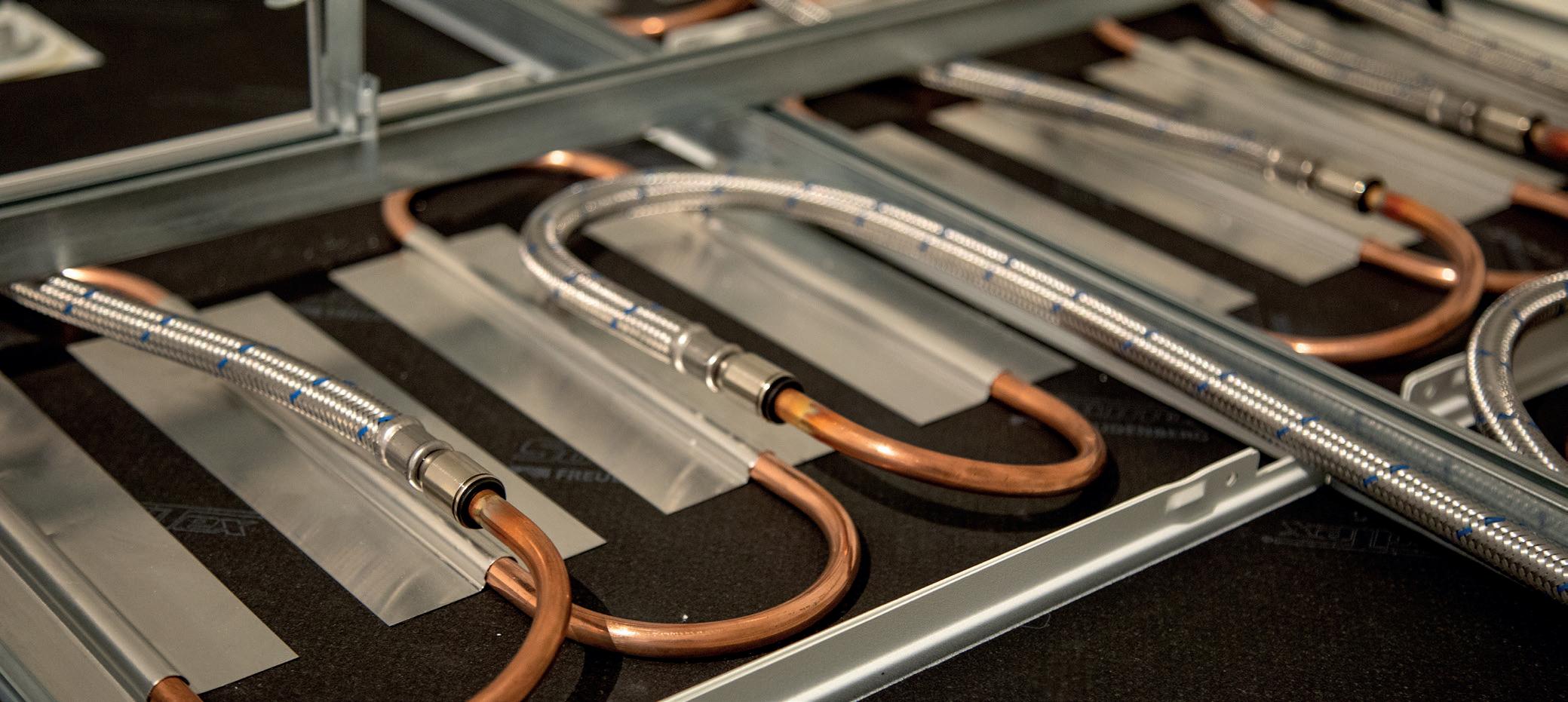

Clima tiles

clima

6RR/100mm SL540 Ø10mm

• full perfo R1 clip-in 600 x 600mm vektron white

clima

2RR/85mm SL2040 Ø10mm

• full perfo R1 rytmi clip-in 2100 x 175mm vektron white

Lighting in CS

aplis 60 downlight

• full perfo R1 clip-in

600 x 600mm

vektron white

• tilekit, cut-out in tile

• luminaire: kreon white

cali 40 recessed mounted in vektron ceiling

• luminaire: kreon white

cana 80 recessed mounted profile

• luminaire & profile: kreon white

• recessed profile

rei downlight recessed mounted profile

• profile: kreon white

• recessed profile

super down flush

• PMMA CDP + PMMA diffusing film

• non-perfo clip-in

600 x 600mm

vektron white

• cut-out in tile

tenno 1x5

• full perfo R1 clip-in

600 x 600mm

vektron white

• cut-out in tile

tenno 2x5

• full perfo R1 clip-in

600 x 600mm

vektron white

• cut-out in tile

tenno 5x5

• full perfo R1 clip-in

600 x 600mm

vektron white

• cut-out in tile

Ventilation

fuo square (Ø125, Ø160, Ø200)

• non-perfo clip-in

600 x 600mm vektron white

• top connection

fuo C2 (Ø125)

• full perfo R1 clip-in

600x600mm

vektron white

• top connection or side connection

fuo C2 (Ø160)

• full perfo R1 clip-in

600 x 600mm vektron white

• top connection or side connection

fuo C2 (Ø200)

• full perfo R1 clip-in

600 x 600mm

vektron white

• top connection or side connection

vento 18 (1x Ø125)

• L: 1000m

• insulated plenum

• RAL 9010

vento 18 (2x Ø125)

• L: 1500m

• insulated plenum

• RAL 9010

vento 24 (1x Ø125)

• L: 1000m

• insulated plenum

• RAL 9010

vento 24 (2x Ø125)

• L: 1500m

• insulated plenum

• RAL 9010

vento 45 (1x Ø160)

• L: 1000m

• insulated plenum

• RAL 9010

vento dummy profile

• RAL 9010

4 kreon.com/vektron

vektron ceiling solutions subconstruction

Subconstruction

upper part nonius hanger (XXX = height in centimeters)

lower part nonius hanger for BR

lower part nonius hanger nonius locking clip

VK770184-xxx

VB770261

VK770184

VK710113

●

VK770033

VK770123

kreon.com/vektron 5

secondary clip-in carrier H0 3600mm

◼

primary clip-in carrier H25 3600mm

◼

clip-in carrier H50 3600mm

◼

cross connector H0

●

vektron ceiling solutions 6 cross connector H25 VK770133 ● end cross connector H0 VK770125 ● end cross connector H25 VK770135 ● T-connection + carrier splice VK770163 ◼ T-connection short VK770164 ◼ clip-in carrier mounting corner VK770034

vektron ceiling types clip-in wall-to-wall

office - 40m² lay-out subconstruction

7 kreon.com/vektron

detail

edge finishing options

8 vektron ceiling solutions

detail AA' detail BB'

clip-in tile to be cut 9,45

C-wall pro le 2400mm + clips

clip-in tile

C-wall pro le 2400mm + clips clip-in tile to be cut clip-in tile C-wall profile L-wall profile W-wall profile

vektron ceiling types clip-in

ceiling-in-ceiling

office - 40m²

9 kreon.com/vektron

subconstruction

lay-out

Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision date Revision drawn by Drawing Scale Original cad file Adres Kreon CS m² presentatie Kreon ceiling solutions open office_Edge cover gypsum connection 1/20, detail 1/5 Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi O Wall to wall O Ceiling-in-ceiling O Ceiling raft O Wall cladding O Bulkhead O Tech tiles O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility be measured on site. This plan valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as a basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 5000 9600 4200 AA' BB' ceiling solutions office 40.32 m² Edge finishing 27.6m pcs. Edge cover gypsum connection 2400mm White Type 1.1 112 pcs. full perfo clip-in 600x600mm perforation R1White Tiles Detail BB' Gypsum connection 15 clip-in tile clip-in tile gypsum connection 2400mm gypsumd over by others cs ceiling height = gypsum height by others Detail AA' Gypsum connection 15 clip-in tile clip-in tile gypsum connection 2400mm gypsumd over by others cs ceiling height = gypsum height by others 10 1 2 Office 4200 AA' BB' Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision date Revision drawn by Drawing Scale Original cad file Adres Kreon CS m² presentatie Kreon ceiling solutions open office_Edge cover gypsum connection 1/20, detail 1/5 Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi O Wall to wall O Ceiling-in-ceiling O Ceiling raft O Wall cladding O Bulkhead O Tech tiles O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and is not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 5000 9600 4200 AA' BB' ceiling solutions office 40.32 m² Edge finishing 27.6m pcs. Edge cover gypsum connection 2400mm White Type 1.1 112 pcs. full perfo clip-in 600x600mm perforation R1White Tiles Detail BB' Gypsum connection 15 clip-in tile clip-in tile gypsum connection 2400mm gypsumd over by others cs ceiling gypsumheight height by others 1 Detail AA' Gypsum connection 15 clip-in tile clip-in tile gypsum connection 2400mm gypsumd over by others cs ceiling gypsumheight height by others 10 1 5 2 5 3 Office 9600 4200 AA' BB'

detail AA'

detail

10 vektron ceiling solutions

BB' clip-in tile clip-in tile gypsum connection 2400mm plastered over by others gypsum by others clip-in tile clip-in tile gypsum connection 2400mm plastered over by others gypsum by others Edge cover gypsum connection edge finishing

vektron ceiling types clip-in

ceiling raft

office - 40m²

lay-out

11 kreon.com/vektron

subconstruction

Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision date Revision drawn by Drawing Scale Original cad file Adres Kreon CS m² presentatie Kreon ceiling solutions open office_Edge cover 80 1/20, detail 1/5 Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi O Wall to wall O Ceiling-in-ceiling O Ceiling raft O Wall cladding O Bulkhead O Tech tiles O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility be measured on site. This plan valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as a basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 10400 5000 1600 1600 9644 4244 2200 2200 2400 2400 2400 2400 2400 2400 2400 2400 AA' BB' ceiling solutions office 40.93m² Edge finishing 27.78m Edge cover 80 length see catalogue White 600 Type 1.1 112 pcs. full perfo clip-in 600x600mm perforation R1White Tiles Detail AA' Edge cover 80 clip-in tile custom made clip-in tile edge cover 80 length see catalogue cs ceiling height 10 Detail BB' Edge cover 80 clip-in tile custom made clip-in tile edge cover 80 length see catalogue cs ceiling height 7 2 Detail AA' Edge cover 24 clip-in tile custom made clip-in tile edge cover 24 length see catalogue cs ceiling height 10 Detail BB' 10400 5000 Office 4244 2400 AA' BB' Project number Architect Type Revision drawn by Drawing Original cad file Adres O Rytmi O O Ceiling raft O Wall cladding O O O O checked measured plans be discussed directly with kreon consultancy. This plan serves as a basis/proposal and not an implementation plan! 1600 9644 4244 2200 2400 BB' ceiling solutions office custom clip-in edge length ceiling 10 made cs 1 7 Detail AA' custom clip-in edge length ceiling 1600 1600 9644 4244 2200 2200 2400 2400 2400 2400 2400 2400 2400 2400 BB'

12 vektron ceiling solutions

clip-in tile custom made clip-in tile edge cover 80 length see catalogue clip-in tile custom made clip-in tile edge cover 80 length see catalogue Edge cover 24 24 22 detail edge finishing Edge cover 80 80 22

detail AA' detail BB'

vektron ceiling types clip-in wall-to-wall

corridor - 40m²

lay-out

13 kreon.com/vektron

subconstruction Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision date Revision drawn by Drawing Scale Original cad file Adres Kreon CS m² presentatie Kreon ceiling solutions open office_Hook-on 1/20, detail 1/5 Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi O Wall to wall O Ceiling-in-ceiling O Ceiling raft O Wall cladding O Bulkhead O Tech tiles O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility be measured on site. This plan is valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as a basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date ceiling solutionsCorridor 39.84m² Edge finishing Type 1.1 112pcs. full perfo Clip-in 600x600mm perforation R1White Tiles 34.4m C-wall profile L2400mm White 34.4m L-wall profile L2400mm White L-wall profile 2400mm Detail AA' C-wall +L-wall profile 3 2 C-wall profile 2400mm + clips clip-in tile cs ceiling height 2 Detail AA' AA' AA'

detail AA'

detail

edge finishing options

14 vektron ceiling solutions

L-wall profile 2400mm C-wall profile 2400mm + clips clip-in tile C-wall profile L-wall profile W-wall profile

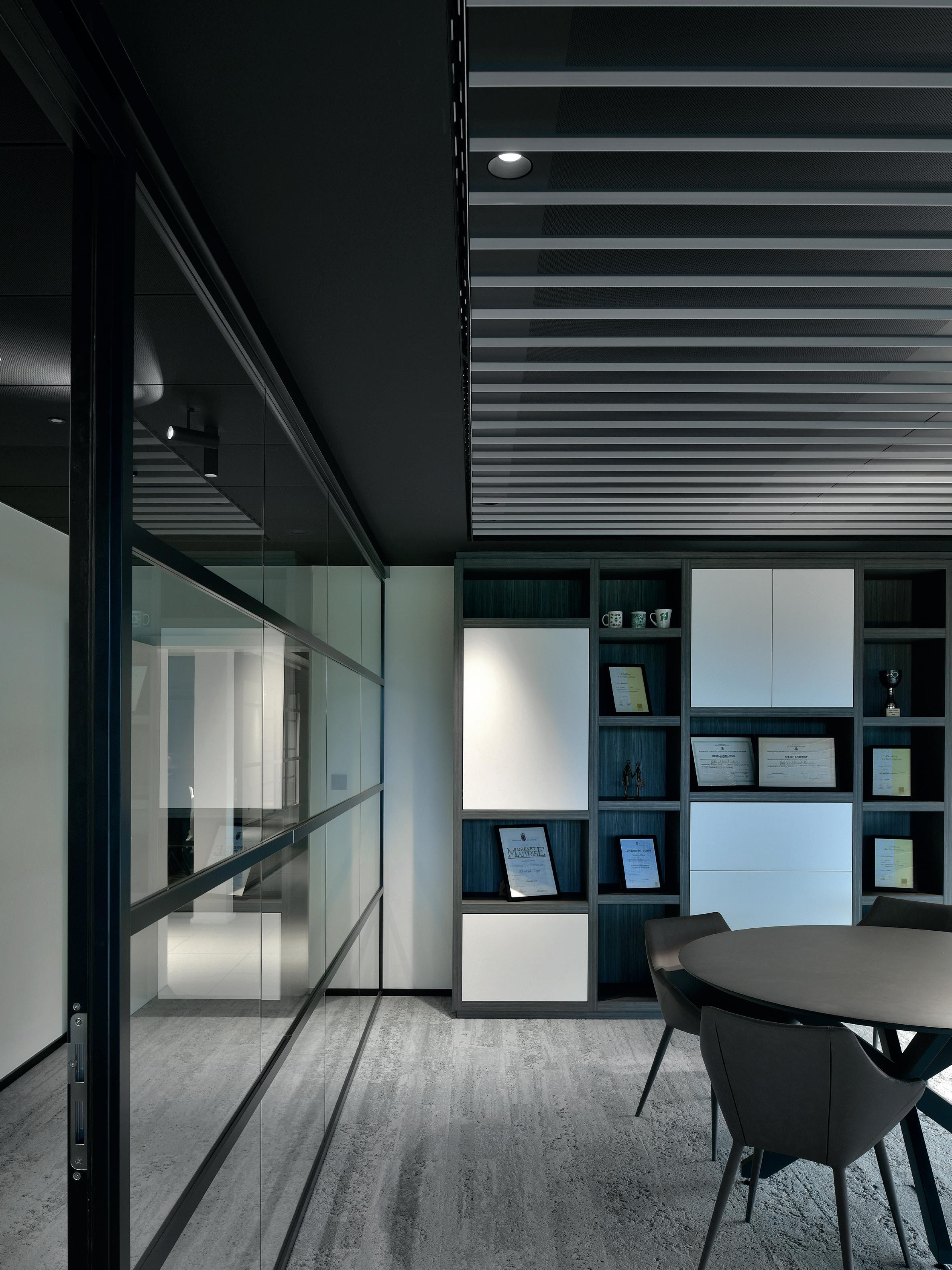

vektron ceiling types

rytmi ceiling-in-ceiling

office - 40m² lay-out subconstruction

15 kreon.com/vektron

Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision date Revision drawn by Drawing Scale Original cad file Adres Kreon CS m² presentatie Kreon ceiling solutions open office_Rytmi 1/20, detail 1/5 Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi O Wall to wall O Ceiling-in-ceiling O Ceiling raft O Wall cladding O Bulkhead O Tech tiles O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan is valid only conjunction with the plans the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and is not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 10400 5000 4200 AA' BB' ceiling solutions office 40.14 m² Edge finishing 8.4m Half clip-in profile 1800mm 2100 Type 1.1 108pcs. full perfo rytmi clip-in 2100x175mm perforation R1White Tiles 53 pcs. rytmi lamella natural anodised L4200mm cs ceiling height half clip-in profile Rytmi lamella 2x half clip-in profile Rytmi clip-in tile upstanding edge by others Detail AA' Half clip-in profile Rytmi clip-in tile upstanding edge by others cs ceiling height Rytmi lamella 2x half clip-in profile 1 3 Detail BB' upstanding edge by others 10400 5000 AA' BB' 9556 4200 Contact Date first proposal Project number project Revision Revision date Revision drawn by Scale Original cad file Kreon solutions 1/20, detail 1/5 Oona de 16/12/2021 SP19/0300 Lay-on O Hook-on O Rytmi Wall wall Ceiling-in-ceiling O Ceiling raft O Wall cladding tiles O Ventilation Audio O Emergency O Clima O Lighting nv All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan is valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Signature Date 10400 5000 9556 AA' BB' ceilingoffice 40.14 m² Edge finishing 8.4m Half clip-in profile 1800mm Type 108pcs. full perfo rytmi clip-in 2100x175mm perforation R1White Tiles 53 pcs. rytmi lamella natural anodised L4200mm 4200 1 cs ceiling height clip-in Rytmi 2x half clip-in profile tile upstanding edge by others Detail AA' Half clip-in profile Rytmi clip-in tile upstanding edge by others cs ceiling height Rytmi lamella 2x half clip-in profile 1 5 1 3 Detail BB' upstanding edge by others 10400 5000 AA' BB' 9556

detail AA'

detail

edge

16 vektron ceiling solutions

BB' rytmi clip-in tile upstanding edge by others rytmi lamella 2x half clip-in pro le half clip-in profile rytmi lamella 2x half clip-in profile rytmi clip-in tile half clip-in profile rytmi lamella finishing and lamella

vektron ceiling types lay-on

wall-to-wall

office - 40m² lay-out subconstruction

17 kreon.com/vektron

Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision date Revision drawn by Drawing Scale Original cad file Adres Kreon CS m² presentatie Kreon ceiling solutions open office_lay-on 1/20, detail 1/5 Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi O Wall to wall O Ceiling-in-ceiling O Ceiling raft O Wall cladding O Bulkhead O Tech tiles O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 9600 4200 AA' BB' Type 1.1 96 pcs. full perfo lay-on 1500x300mm perforation R1 White 2400 Type 0.1 12 pcs. C-grid 2400x100mm White ceiling solutions office 40.32 m² Tiles 30.8m C-wall profile L2400mm White Edge finishing 1 C-wall profile 2400mm + clips C-wall profile 2400mm + clips Lay-on tile C-grid Lay-on tile Detail BB' C-wall profile Detail AA' C-wall profile Lay-on tile to be cut Lay-on tile to be cut 9600 4200 AA' BB' Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision drawn by Drawing Scale Original cad file Adres Kreon CS m² presentatie Kreon ceiling solutions open office_lay-on 1/20, detail 1/5 Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi O Wall to wall O Ceiling-in-ceiling O Ceiling raft O Wall cladding O Bulkhead O O Ventilation Audio O Emergency O O Lighting nv © All dimensions must be checked by the contractor on its own responsibility be measured on site. This plan valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as a basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 9600 4200 BB' Type 1.1 96 pcs. full perfo lay-on 1500x300mm perforation R1 White 2400 Type 0.1 12 pcs. C-grid 2400x100mm White ceiling solutions office 40.32 m² Tiles 30.8m C-wall profile L2400mm White Edge finishing 1 C-wall profile 2400mm + clips C-wall profile 2400mm + clips Lay-on tile C-grid Lay-on tile Detail BB' C-wall profile Detail AA' C-wall profile Lay-on tile to be cut Lay-on tile to be cut 9600 4200 AA' BB'

detail

edge

18 vektron ceiling solutions

detail AA' detail BB'

lay-on

C-grid

➀

C-wall pro le 2400mm + clips

tile

lay-on tile to be cut

C-wall pro le 2400mm + clips

lay-on tile lay-on tile to be cut

finishing options C-wall profile L-wall profile W-wall profile

vektron ceiling types

hook-on wall-to-wall

19 kreon.com/vektron

lay-out corridor - 40m²

detail AA'

adjustable

detail

edge finishing

Adjustable wall profile + J-profile

20 vektron ceiling solutions

wall profile + J-profile hook on tile adjustable wall profile + J-profile

21 kreon.com/vektron

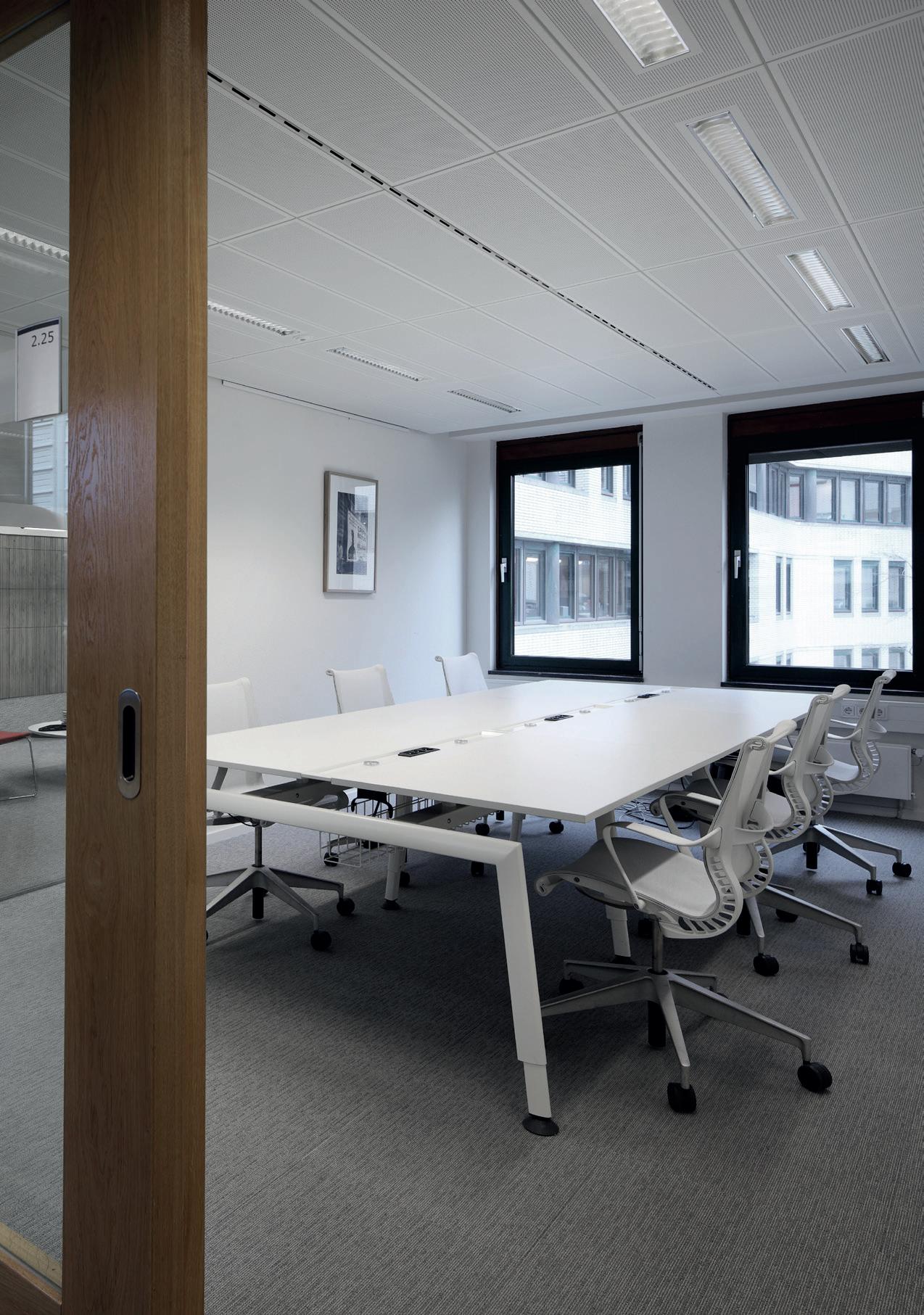

vektron lighting

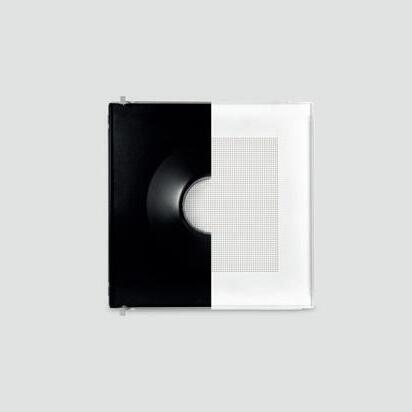

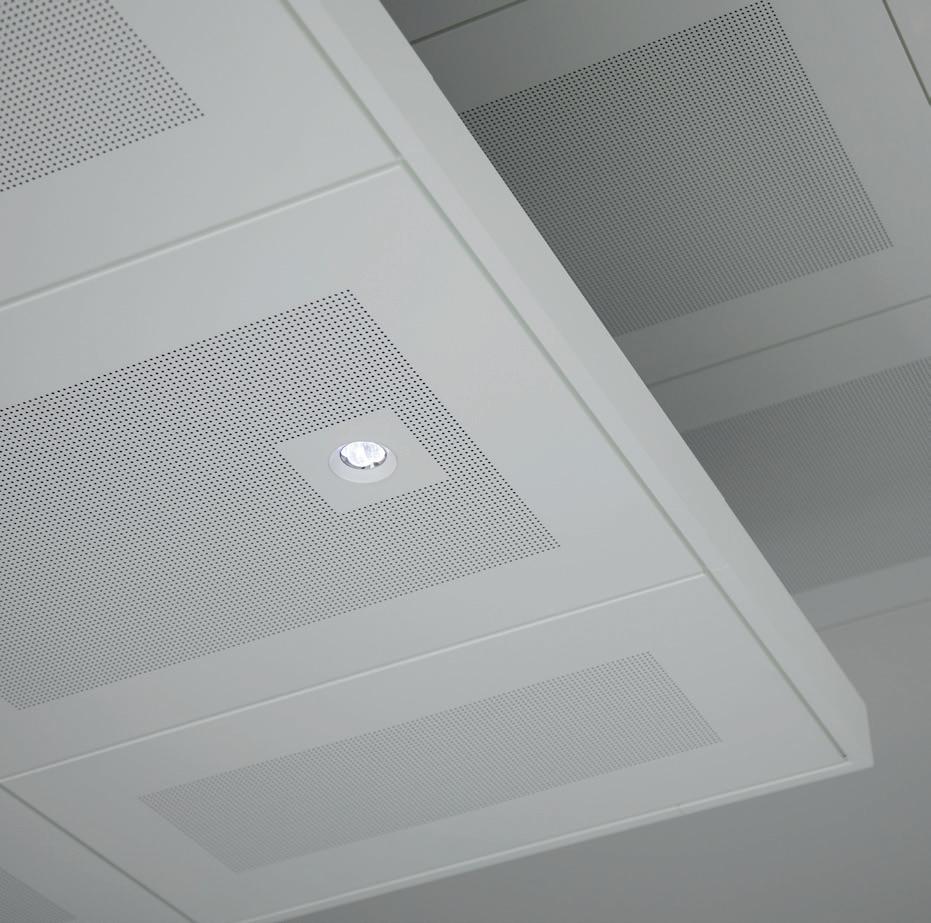

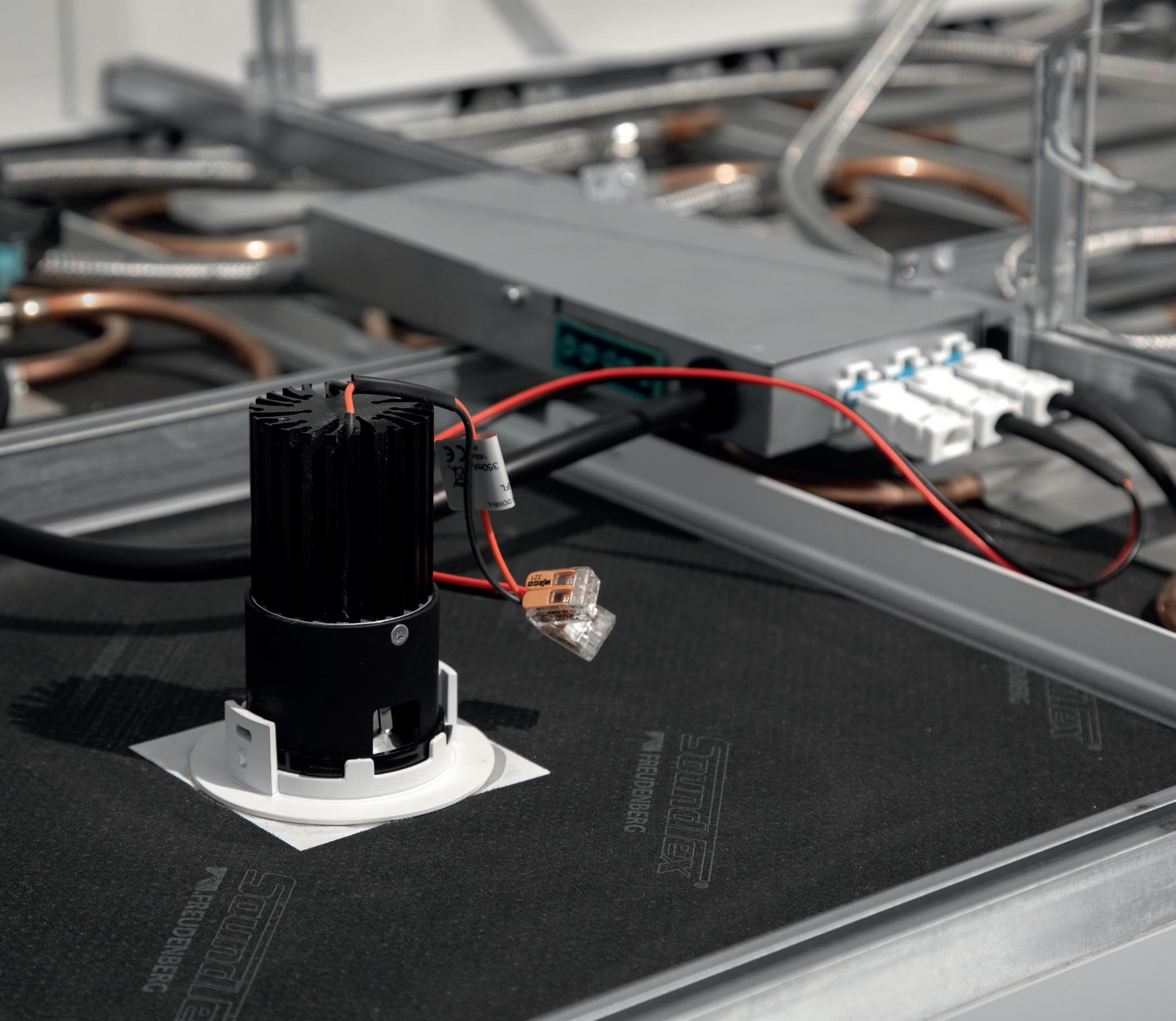

vektron lighting aplis 60

product name vektron aplis 60 downlight, flood symbol

general information

application luminaire for vektron ceilings

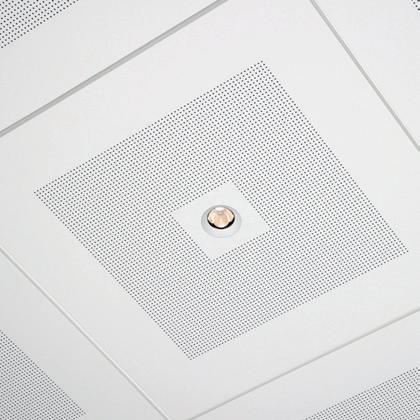

description fully recessed fixed spotlight for integrated installation in vektron ceiling systems

integration in-tile

protection class 1

IP classification 40

certification CE

electric gear included

dimensions

luminaire Ø 60mm

H 77mm

tile

dimensions 600 x 600mm

min. width tile 100mm

plenum space

min. depth 90mm ➊

illuminant

output 1034lm

CRI 90+

CCT 3000K

drive current 350mA

lamptype LED

wattage 12W

beam angle 54°

optical systems

diffusor / optic RMJ reflector

UGR ≤19 (4H8H, S=0.25H)

gear type switching/dimming DALI

input voltage 230V

cable, plug/connector 3m cable with male connector + female connector (5-pole)

material and surface

luminaire

material zamak, die-cast

surface treatment

cataphoretically painted

colour kreon white tile

material

galvanised steel non-perforated or perforated (with acoustic fleece)

surface treatment polyester powder coating

colour vektron white

REMARKS ➊ Minimum depth of plenum space is based on the height of the luminaire, including brackets and driver. Required plenum space for subconstruction is not taken into account.

24 vektron ceiling solutions Ø60 77

vektron lighting aplis 60

aplis 60 downlight clip-in tile min. installation height 100mm incl. subconstruction

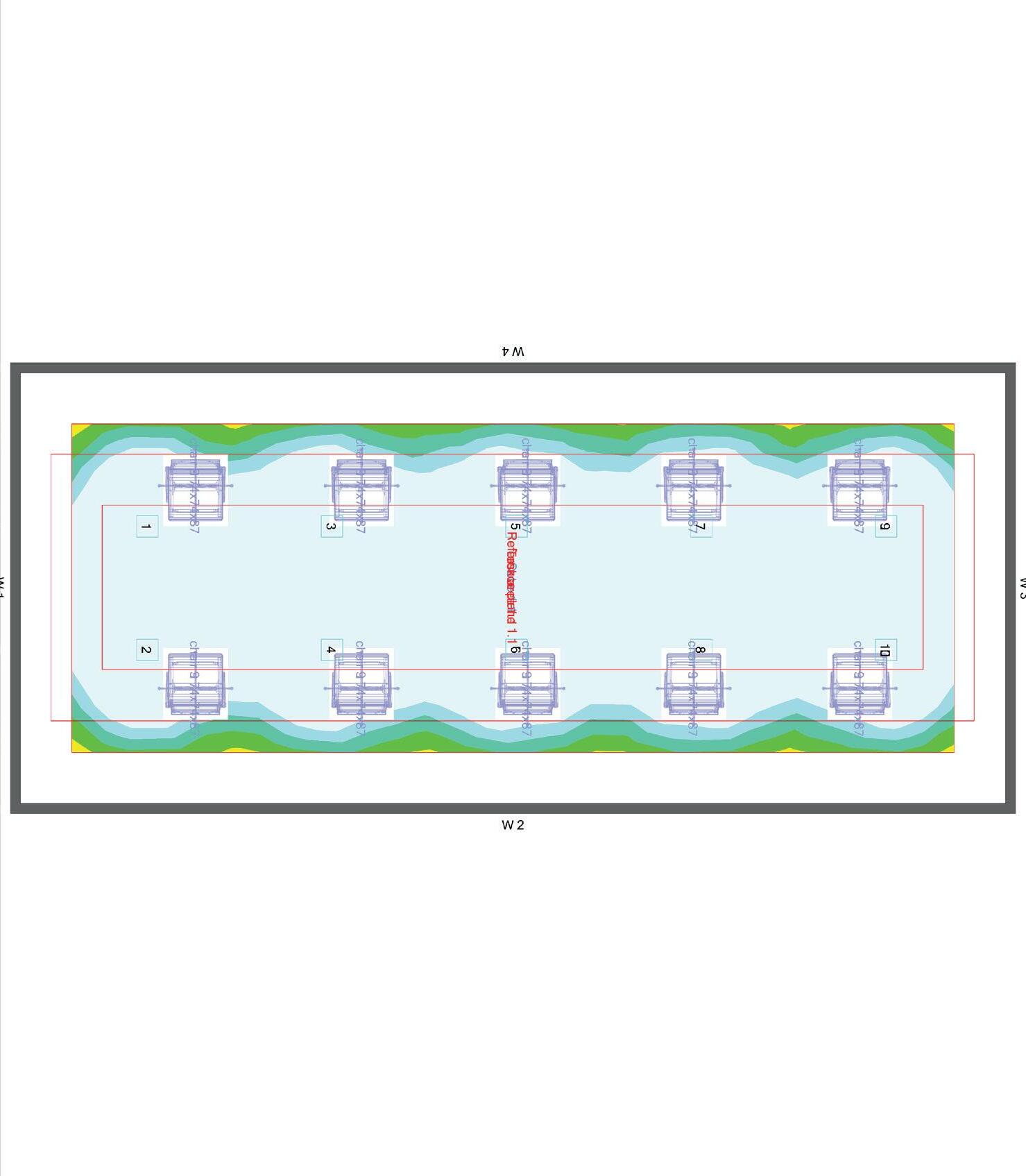

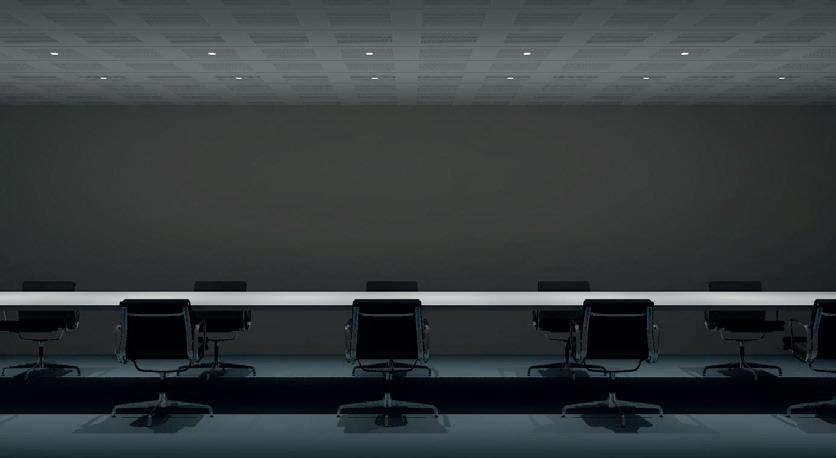

25 kreon.com/vektron office - 40m² lay-out relux detail AA' CS ceiling height 2700mm

clip-in tile

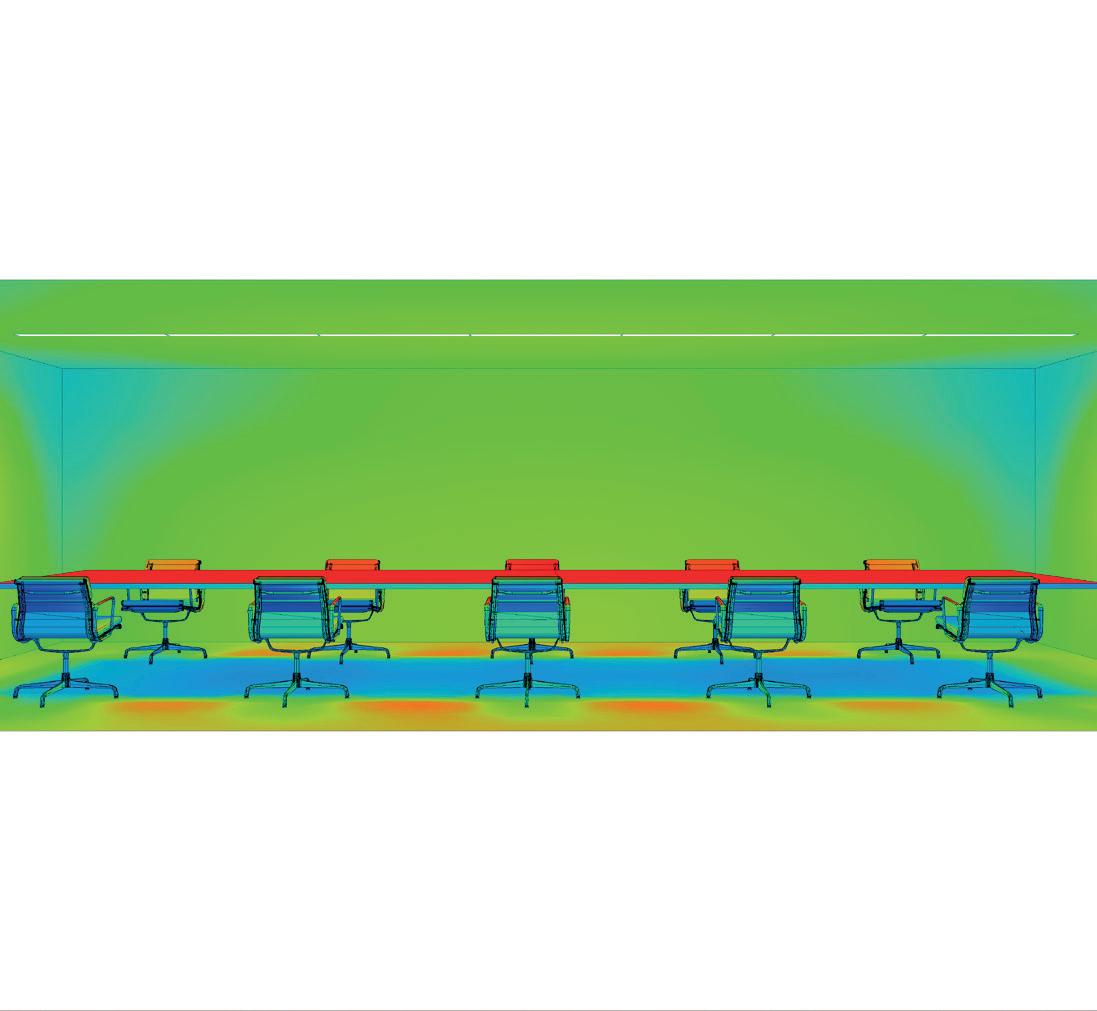

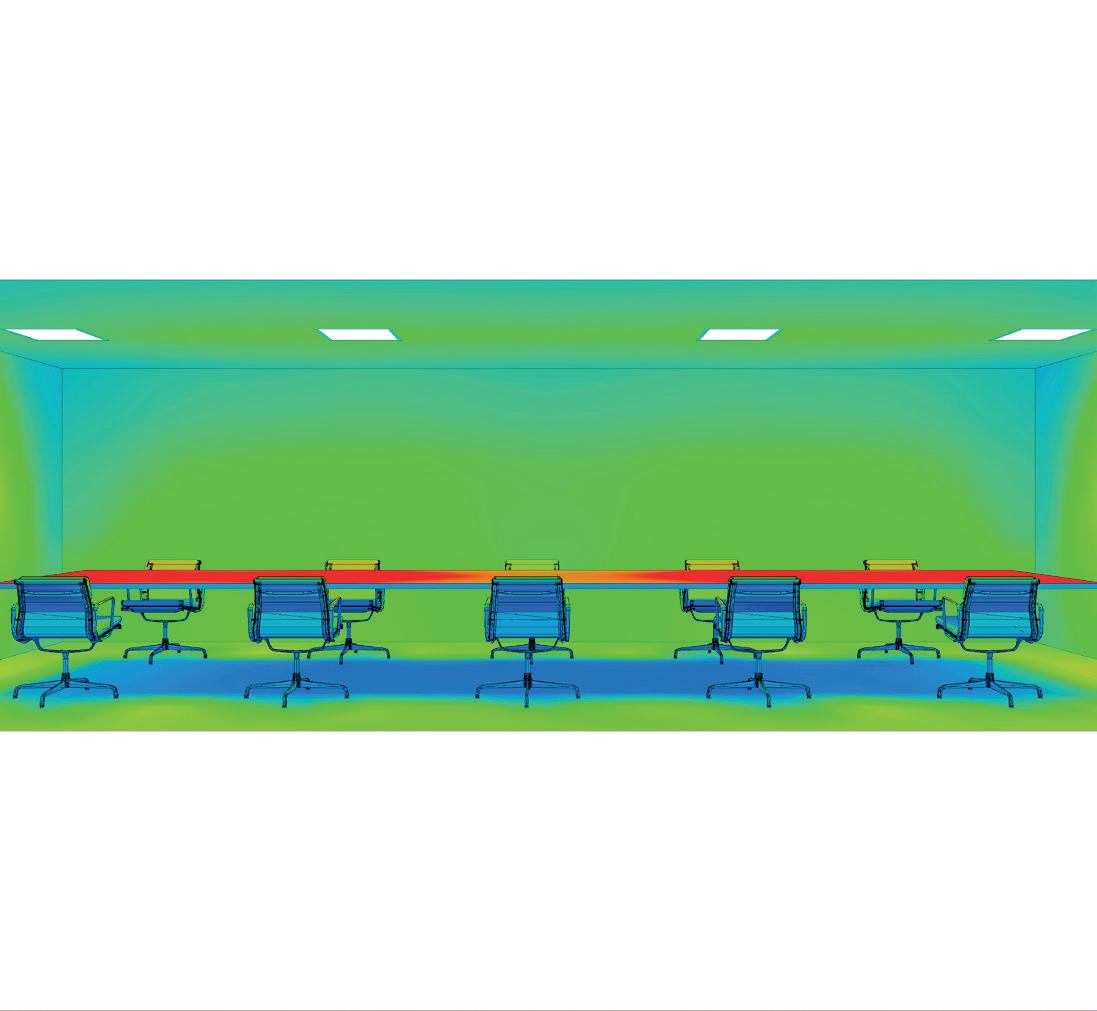

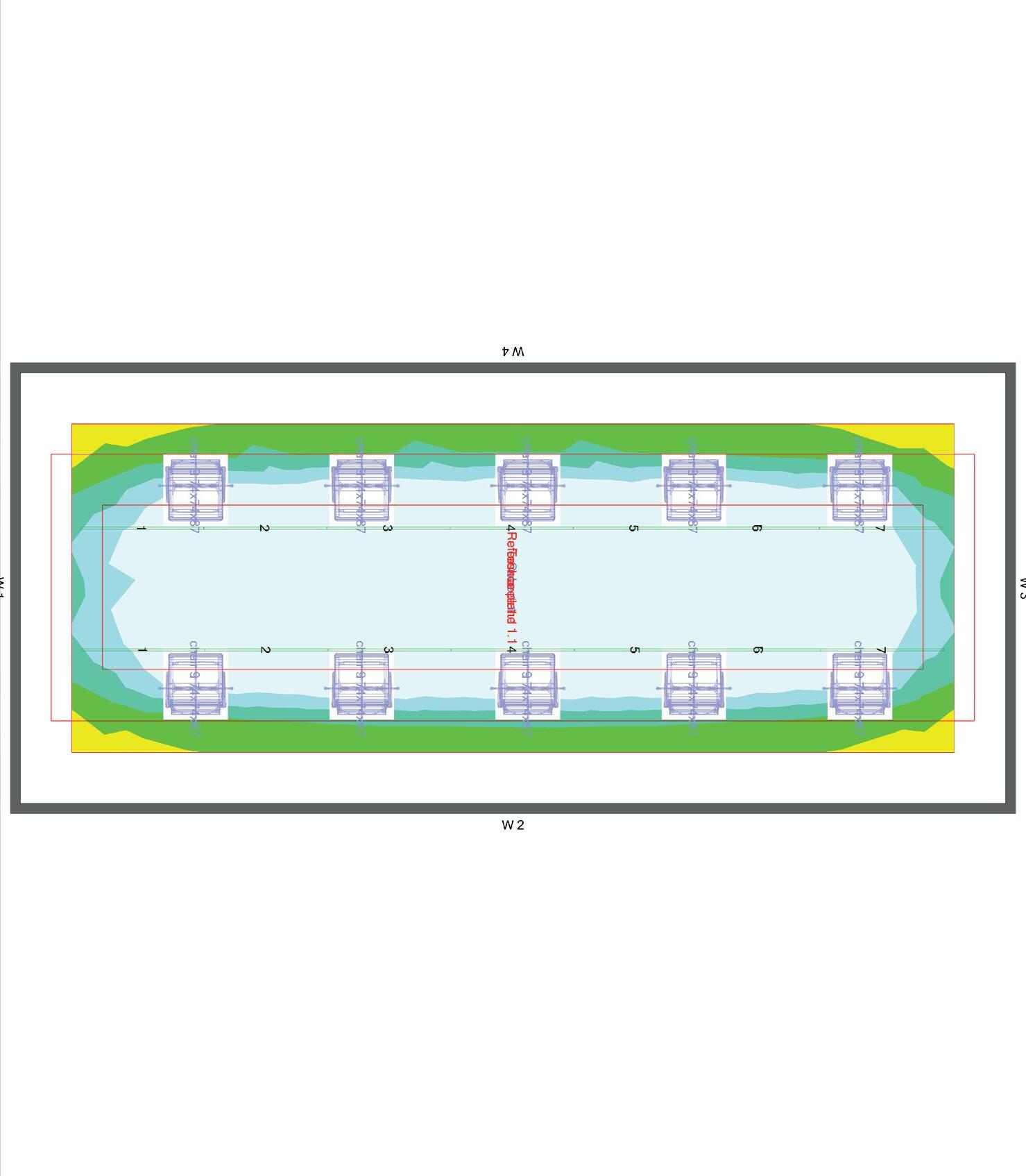

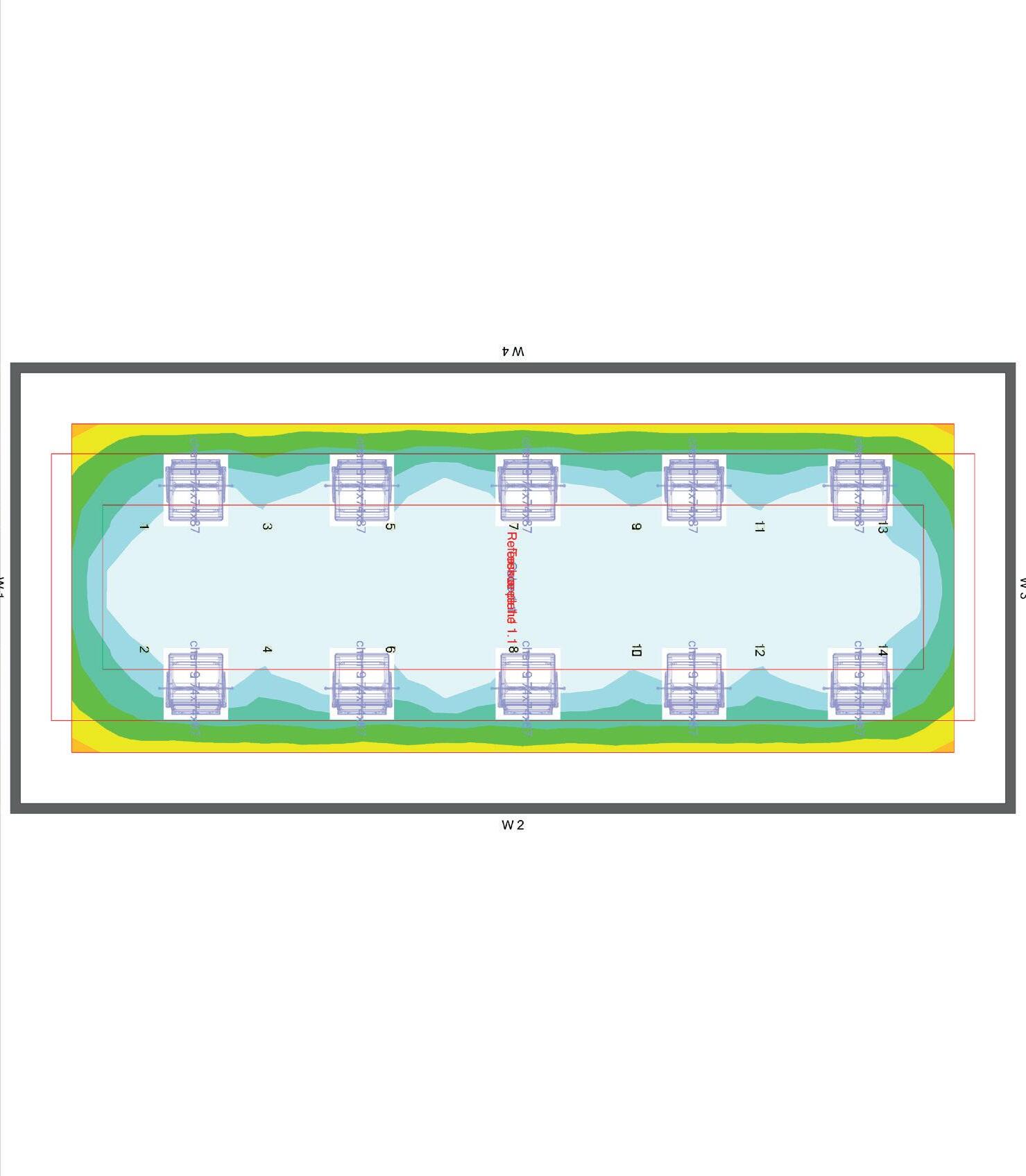

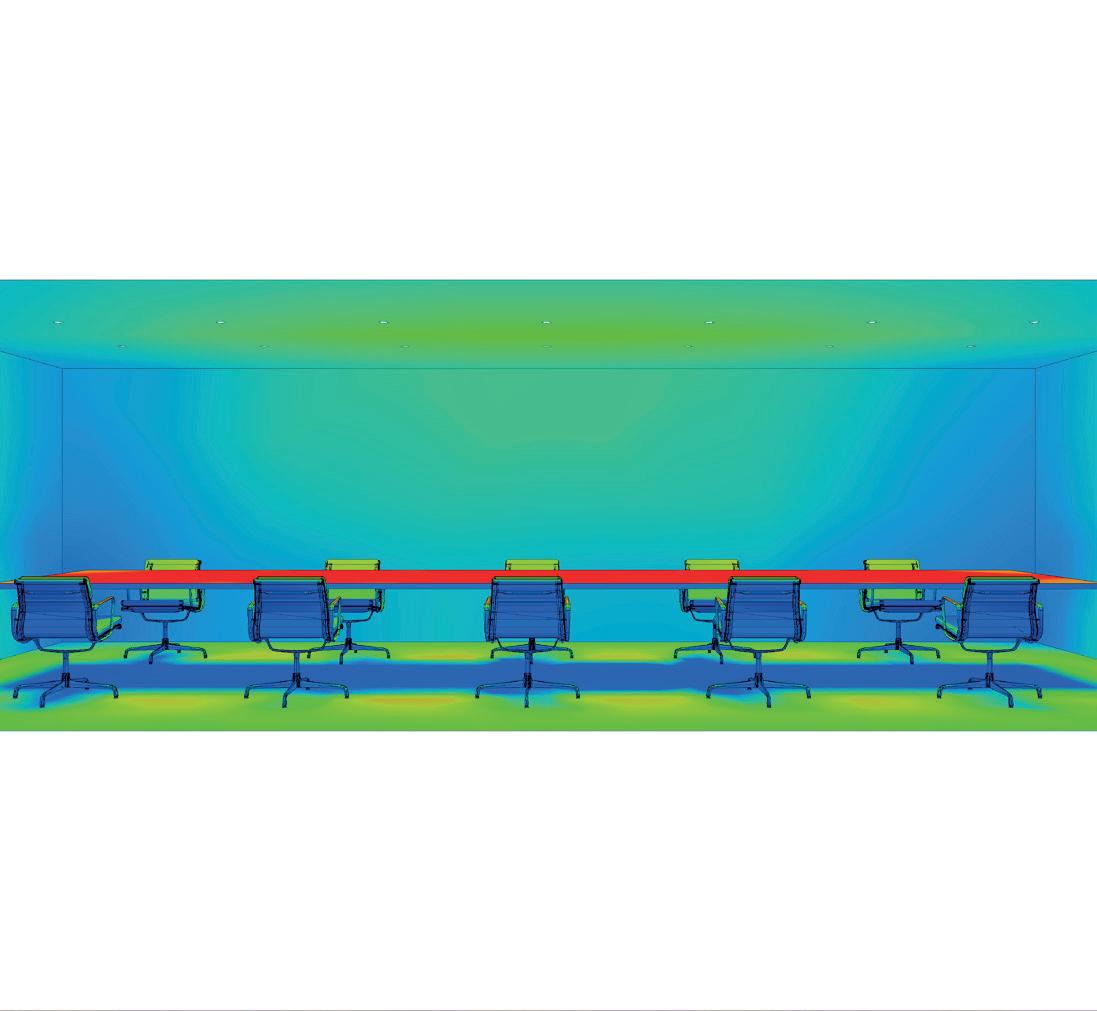

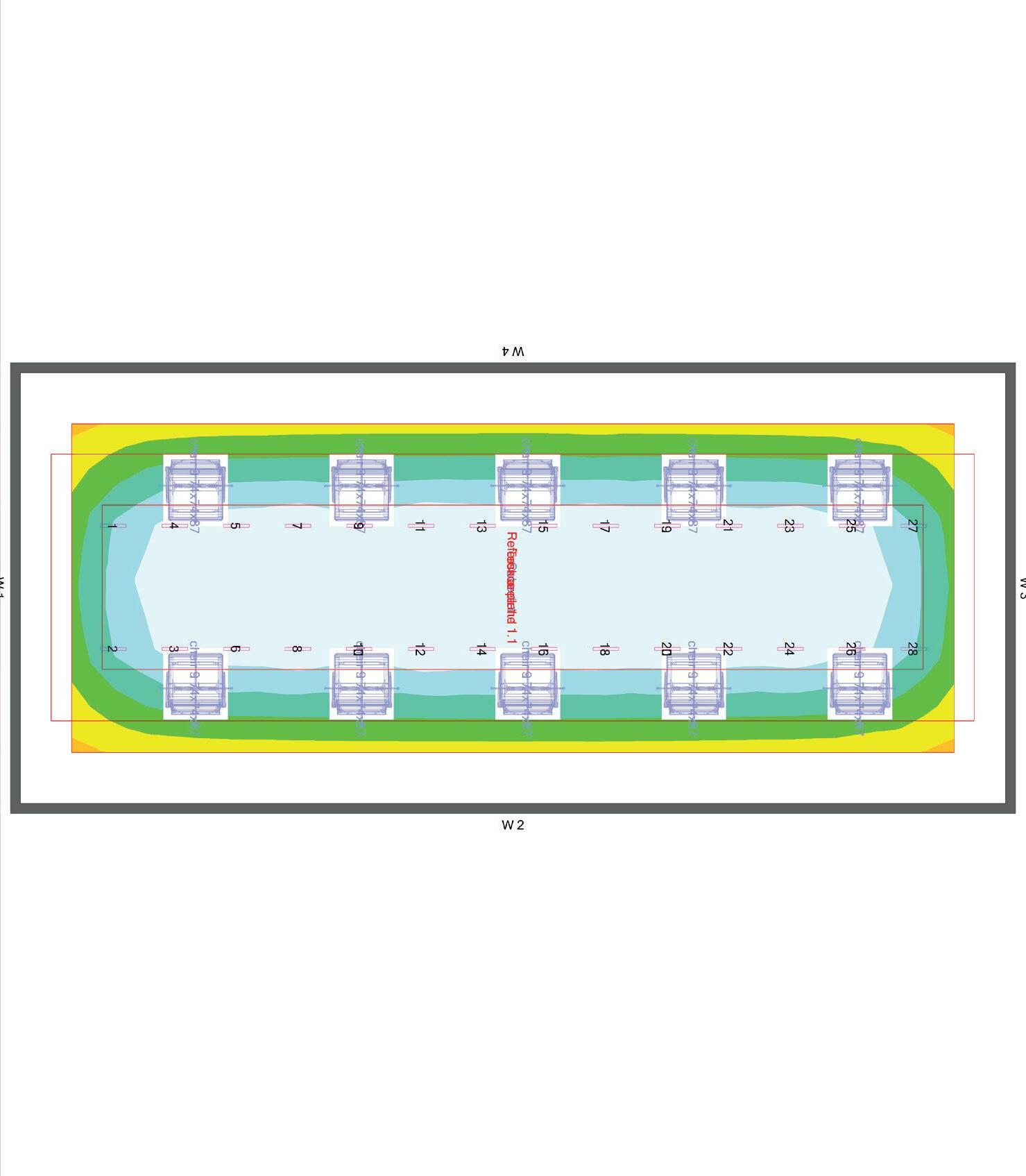

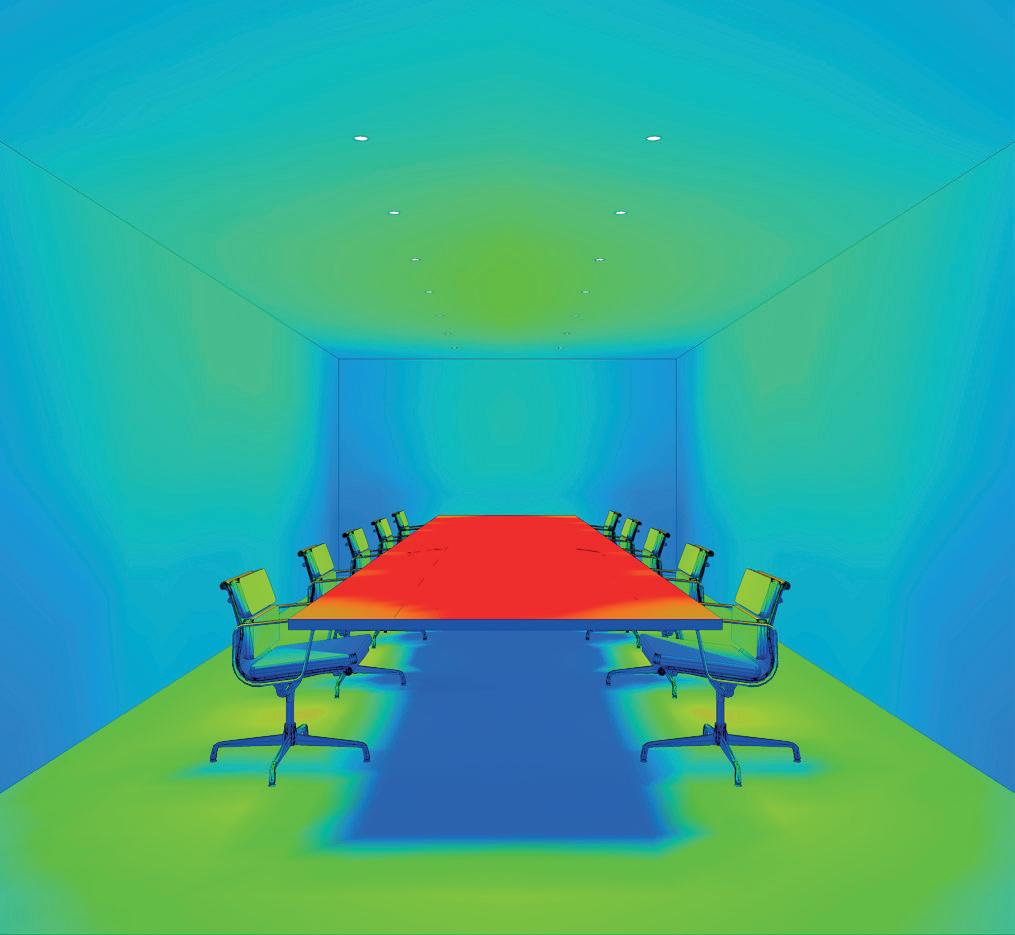

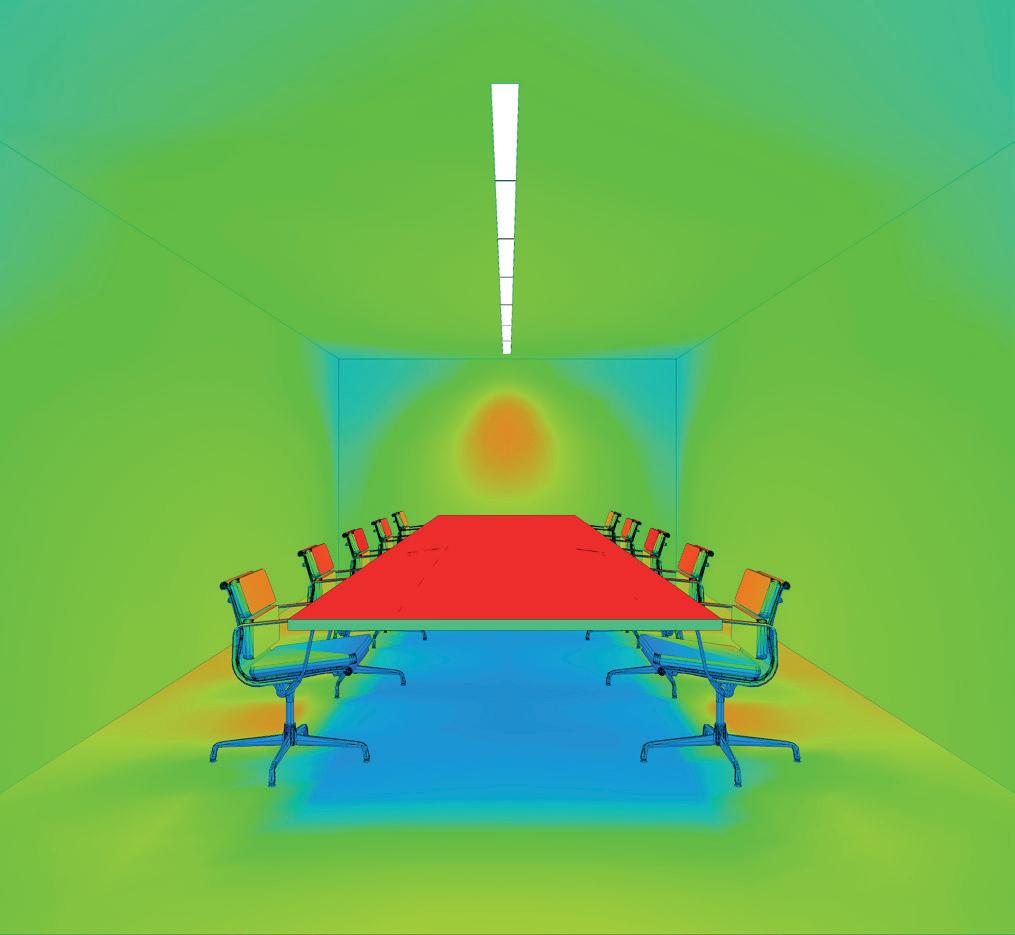

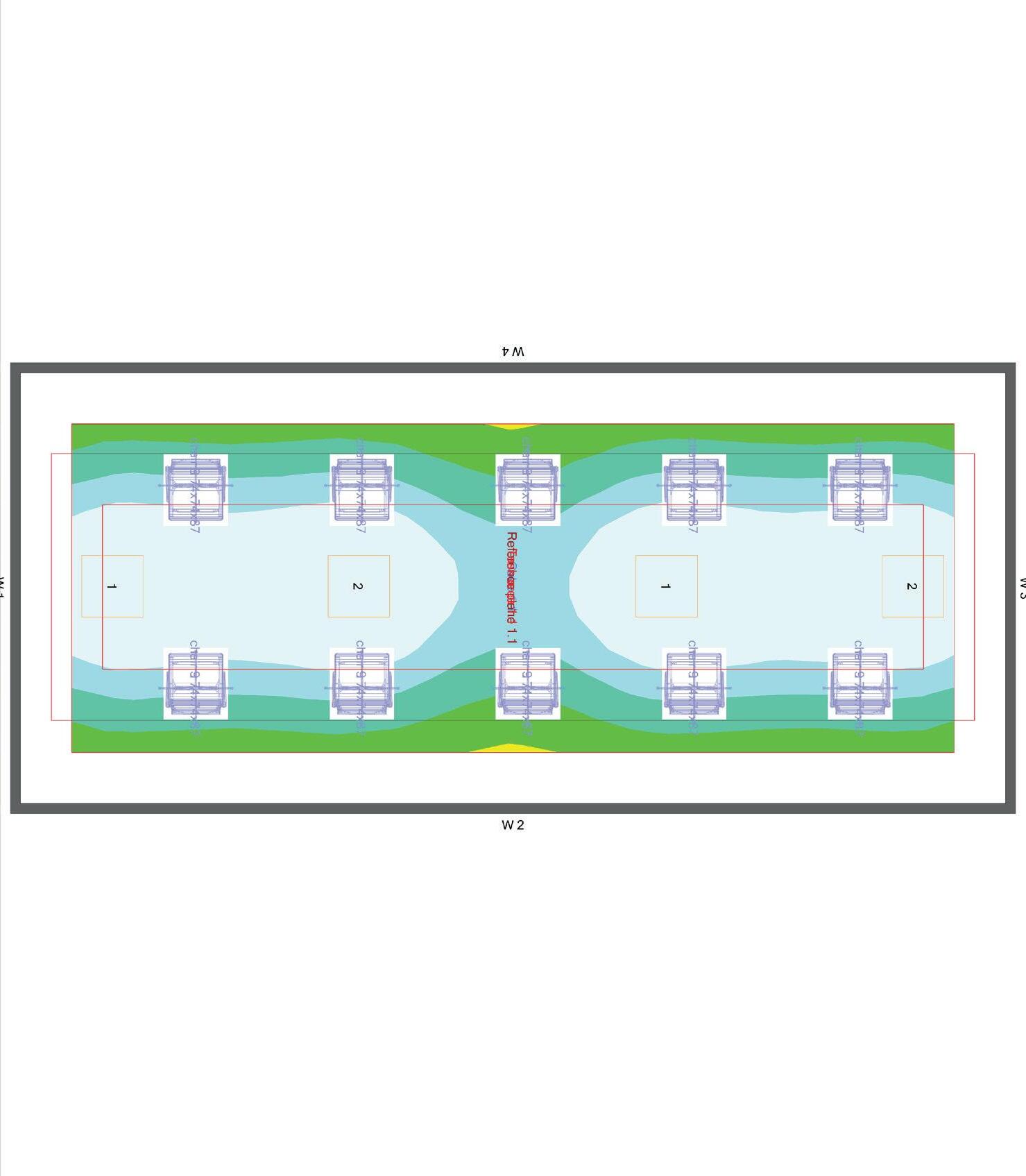

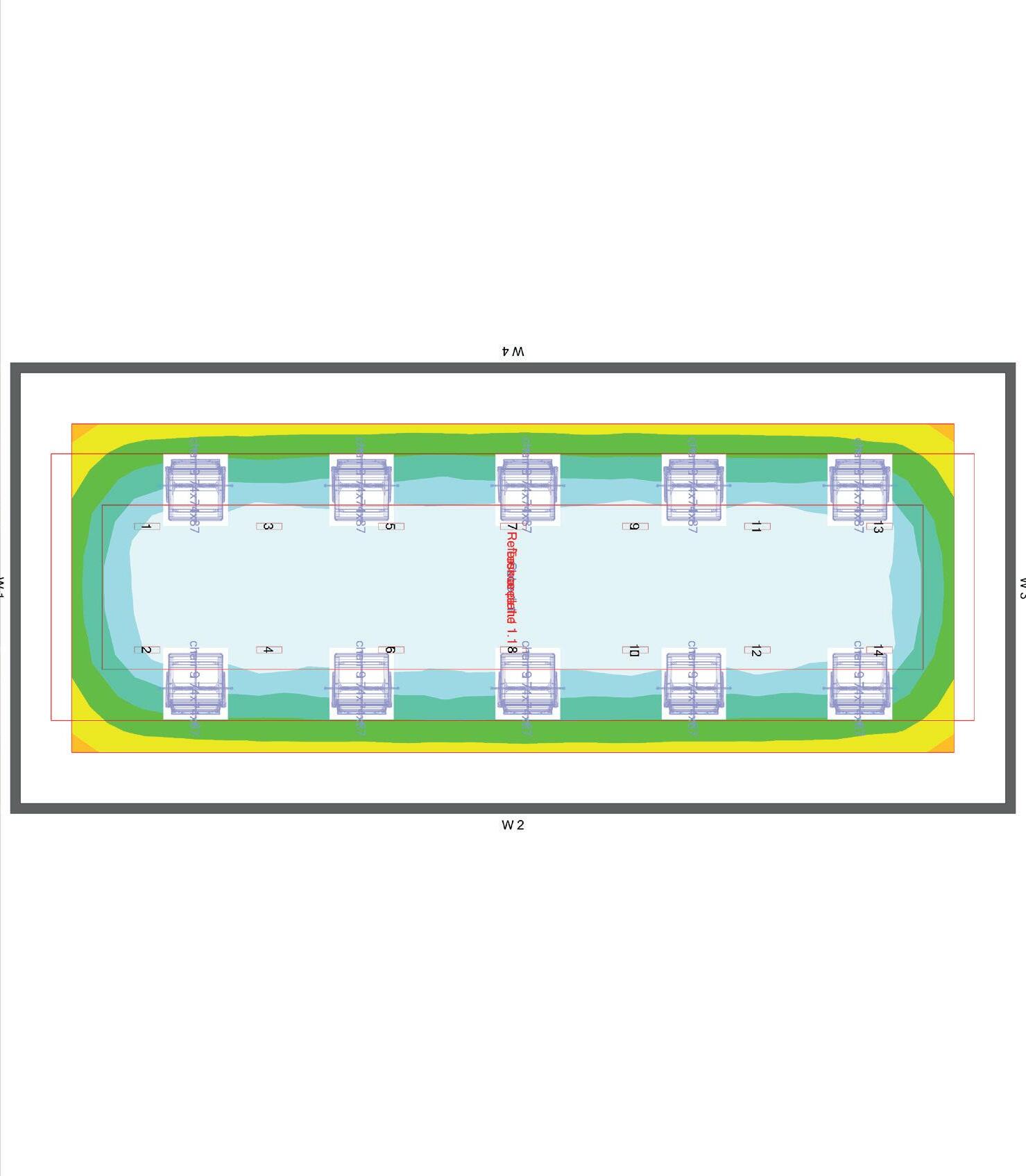

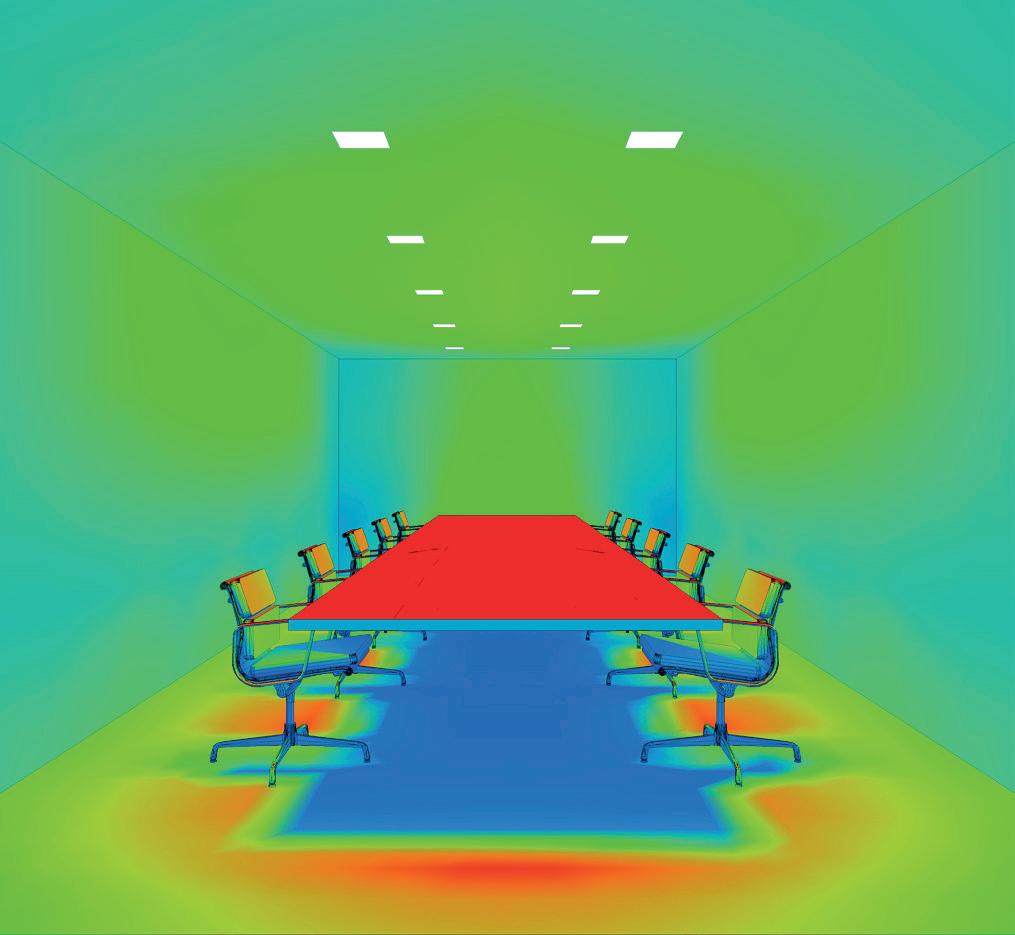

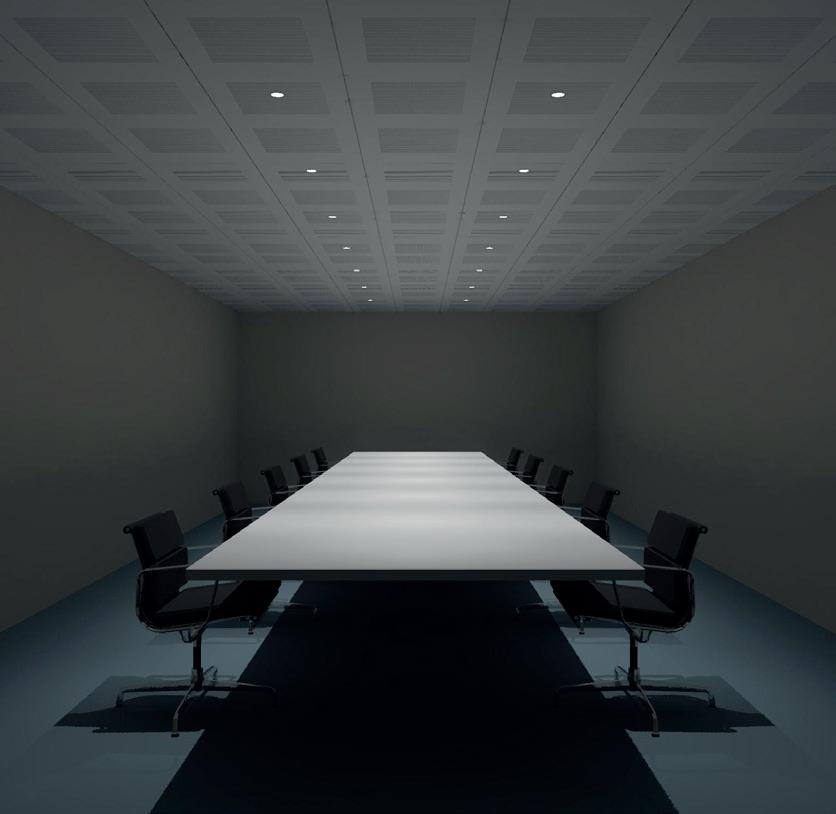

2.3 Calculation results, Aplis 60 2.3.9 Pseudo colours, Reference plane 1.1 (E) Object Installation Project number Date Kreon CS m² presentatie Relux berekening kantoor kreon 26.11.2021 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 [m] 0 1 2 3 4 5 6 7 8 9 [m] N 0 50 100 200 300 400 500 Illuminance [lx] Height reference plane : 0.80 m Average illuminance Em : 458 lx Minimum illuminance Emin : 163 lx Maximum illuminance Emax : 745 lx Uniformity Uo Emin/Em : 1 : 2.81 (0.36) Diversity Ud Emin/Emax : 1 : 4.58 (0.22) Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision date Revision drawn by Drawing Scale Original cad file Adres Kreon CS m² presentatie Kreon ceiling solutions open office_Aplis 60 1/20, detail 1/5 Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi O Wall to wall O Ceiling-in-ceiling O Ceiling raft O Wall cladding O Bulkhead O Tech tiles O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan is valid only conjunction with the plans the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 9600 4200 AA' Type FL 14pcs. Type A1.1 14pcs. Lighting in CS 600 Type 1.1 98pcs. full perfo clip-in 600x600mm perforation R1White ceiling solutions office 40.32 m² Tiles 30.8m C-wall profile L2400mm White Edge finishing Aplis 60 Clip-in full perfo R1 clip-in 600x600mm White Tilekit cutout in tile driver Dali 5-pole con. aplis 60 downlight LED 12W 350mA 9027 FL white fl Detail AA' Aplis 60 cs ceiling height 1 Aplis 60 downlight Clip-in tile min installation height 100mm clip-in tile

26 vektron ceiling solutions Room data Reflectance W1 5.00 50.00% W2 10.40 50.00% W3 5.00 50.00% W4 10.40 50.00% W5 -W6 -Floor - 20.00% Ceiling - 70.00% Room height [m] 2.70 Height of ref. plane [m] 0.80 Height of luminaire plane [m] 2.70 General Calculation algorithm used Average indirect fraction Height of luminaire plane 2.70m Maintenance factor 0.85 Total luminous flux of all lamps 14518.00lm Total power 182.0W Total power per area (40.32 m²) 4.51W/m2 (0.99W/m2/100lx) Workplace Task area Surrounding Background Task area 1 Em 603lx 355lx 258lx Emin 389lx 128lx 163lx Emin/Em (Uo) 0.64 0.36 0.063 Position 0.80m 0.80m Evaluation area 1 Reference plane 1.1 Horizontal Em 458lx Emin 163lx Emin/Em (Uo) 0.36 Emin/Emax (Ud) 0.22 Position 0.80m Major surfaces Em Uo M 1.5 (Ceiling) 95lx 0.54 M 1.1 (Wall) 56lx 0.62 M 1.2 (Wall) 60lx 0.50 M 1.3 (Wall) 58lx 0.63 M 1.4 (Wall) 60lx 0.50 Type No.\Make 1 14 Luminaire aplis 60 downlight 2.3 2.3.13 Object Installation Project number Date 0 50 100 200 300 400 500 2.3 Calculation results, Aplis 60 2.3.12 3D pseudo colours, View from the front (E) Object Installation Project number Date : : Kreon CS m² presentatie : Relux berekening kantoor kreon : 26.11.2021 www.kreon.com Page 30/193 Kreon CS m² presentatie_no tiles_R3.1_2021__Relux.rdf 0 50 100 200 300 400 500 Illuminance [lx]

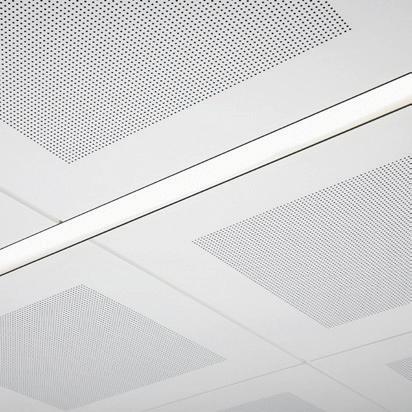

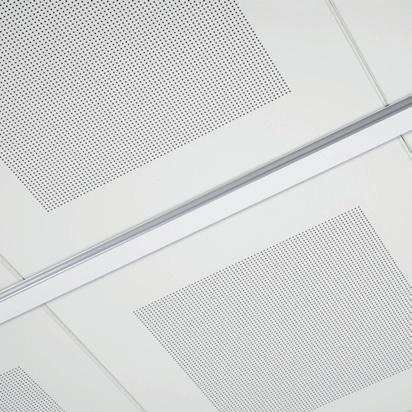

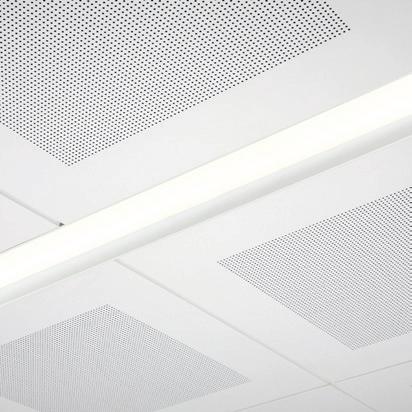

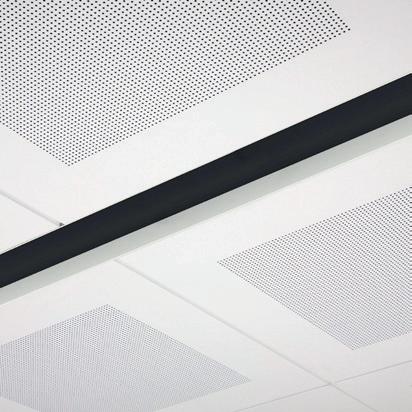

vektron lighting cali 40

product name vektron cali 40

symbol

general information

application luminaire for vektron ceilings

description continuous light line mounted in between tiles integration between-tiles

protection class 1

IP classification 40

certification CE

electric gear included

dimensions

luminaire

LxW min. 420mm x 54mm

H 98mm

plenum space min. depth 108mm ➊

illuminant output 2644lm/m

CRI 3000K

CCT 80 drive current 24Vdc

lamptype LED wattage 28,8W/m

beam angle 105,8°

optical systems

diffusor / optic acryl satin

UGR ≤28 (4H8H, S=0.25H)

gear

type switching/dimming DALI

input voltage 230V

cable, plug/connector 3m cable with male connector + female connector (5-pole)

material and surface profile

material aluminium, extruded

surface treatment & colour kreon white painted / black anodized

REMARKS ➊ Minimum depth of plenum space is based on the height of the luminaire, including brackets and driver. Required plenum space for subconstruction is not taken into account.

28 vektron ceiling solutions 58 49 91,3 54 50 98

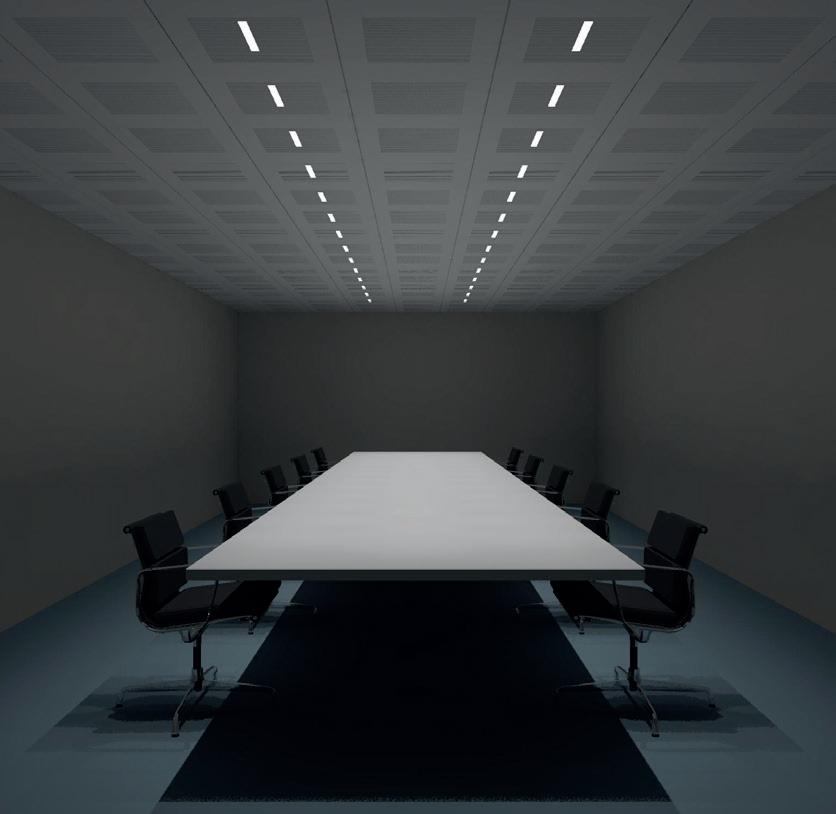

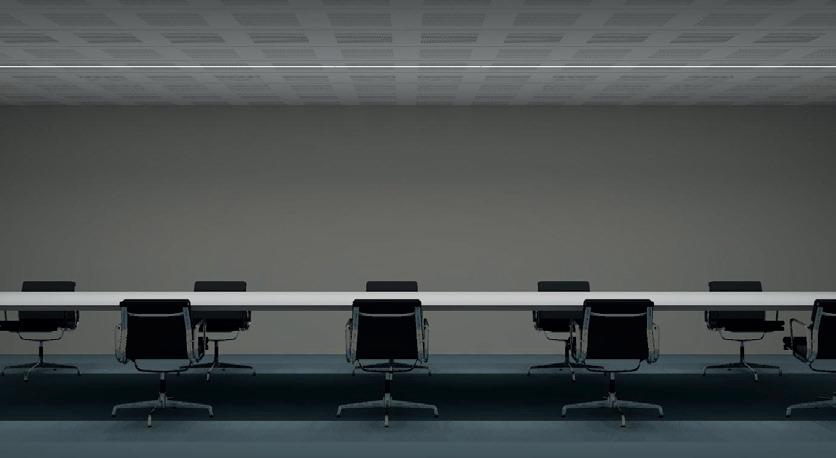

29 kreon.com/vektron office - 40m² lay-out relux detail AA' clip-in tile CS ceiling height 2700mm cali 40 profile min. installation height 108mm incl. subconstruction Revision Revision date Revision drawn by Drawing Scale Original cad file open office_Cali 1/20, detail 1/5 O O O O O O O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan is valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and is not an implementation plan! www.kreon.com consultancy@kreon.com Date 9600 4200 4200 4200 Cali 40 profile recessed mounted in kreon ceiling LED 28.8W Type G1 L= 8400mm 1pcs. driver DALI 5-pole con. 8030 White Type 1.1 28 pcs. perforation R1White Type 1.1 98 pcs. perforation R1White ceiling solutions office 40.32 m² 30.8m C-wall profile L2400mm Edge finishing cs ceiling height 1 Cali 40 profile min installation height 108mm

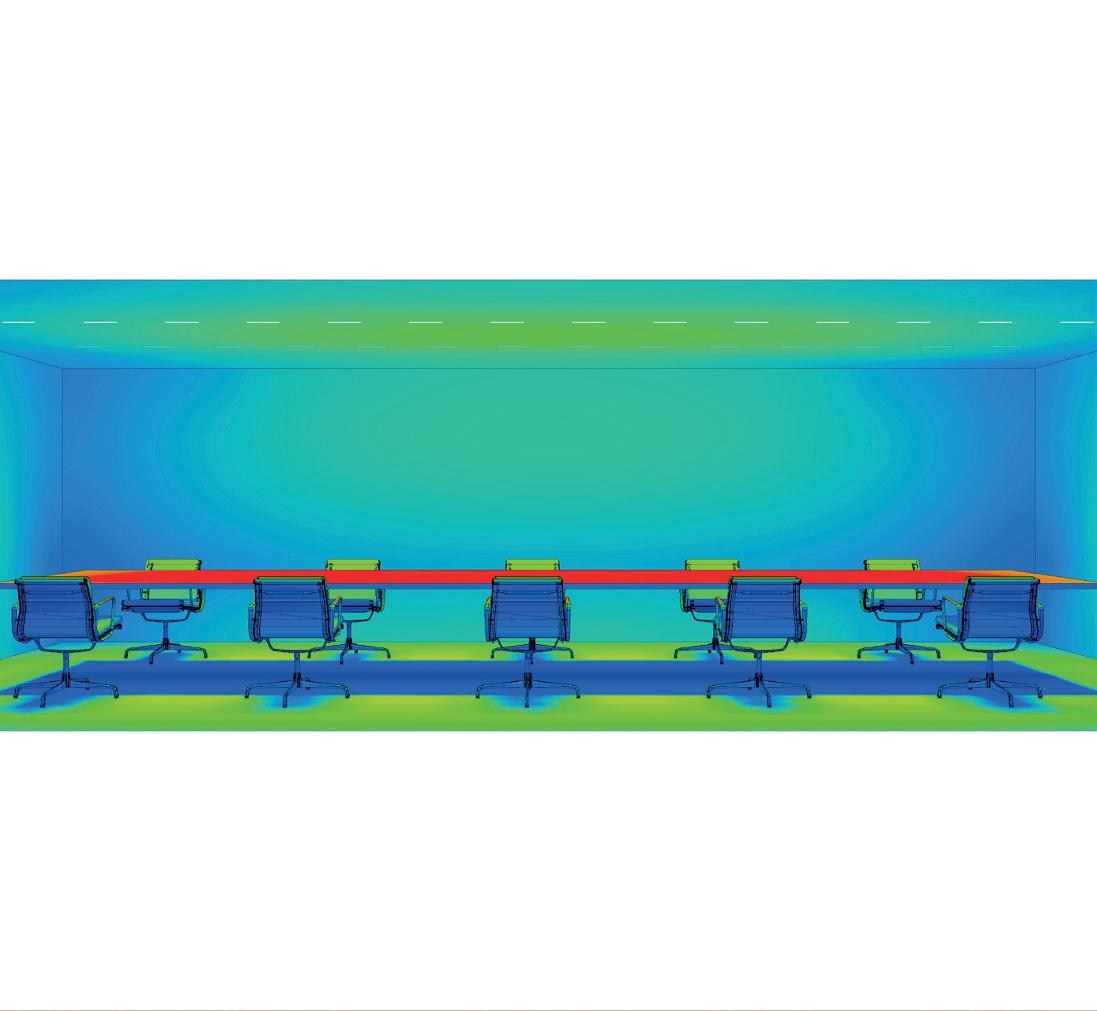

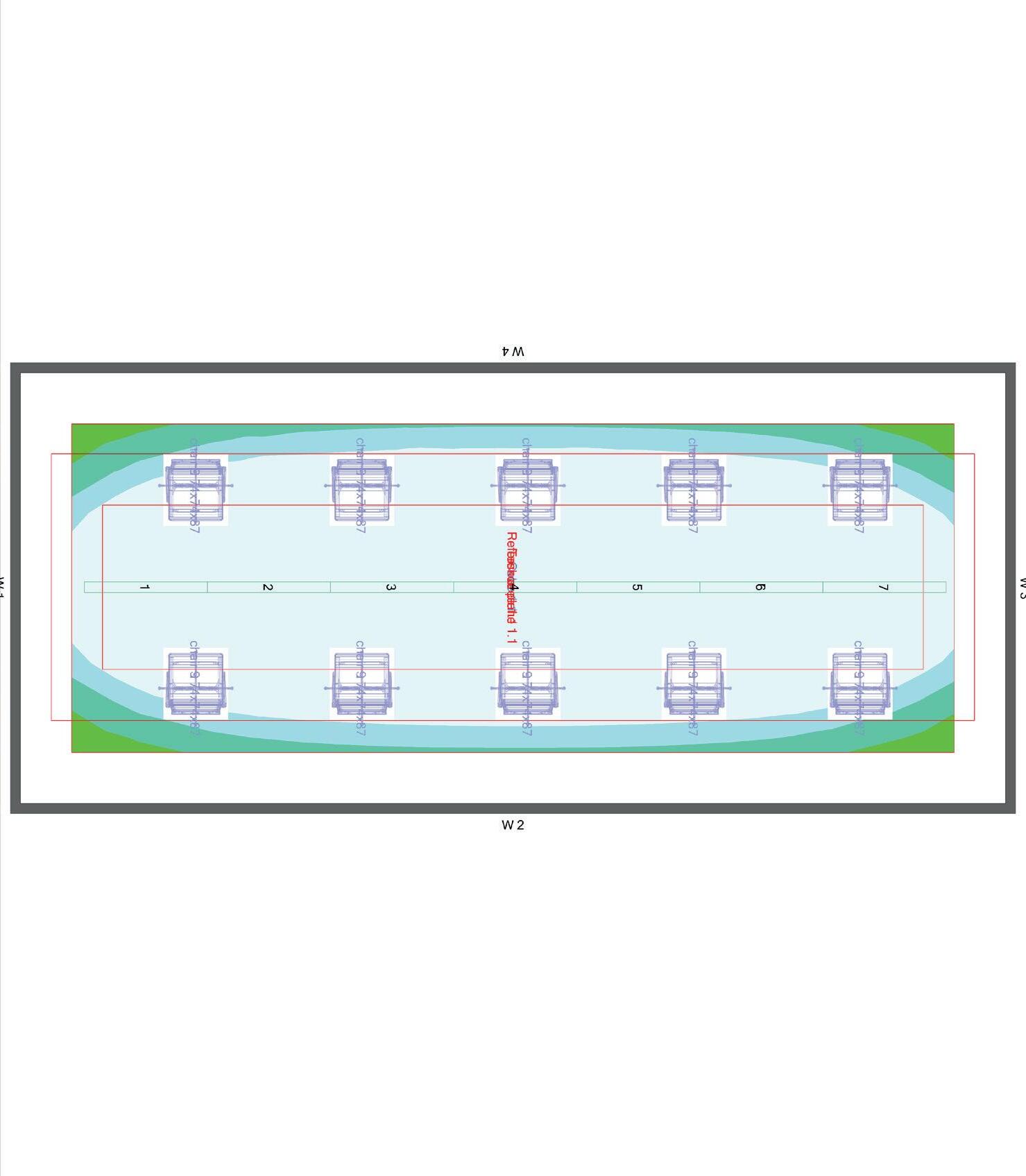

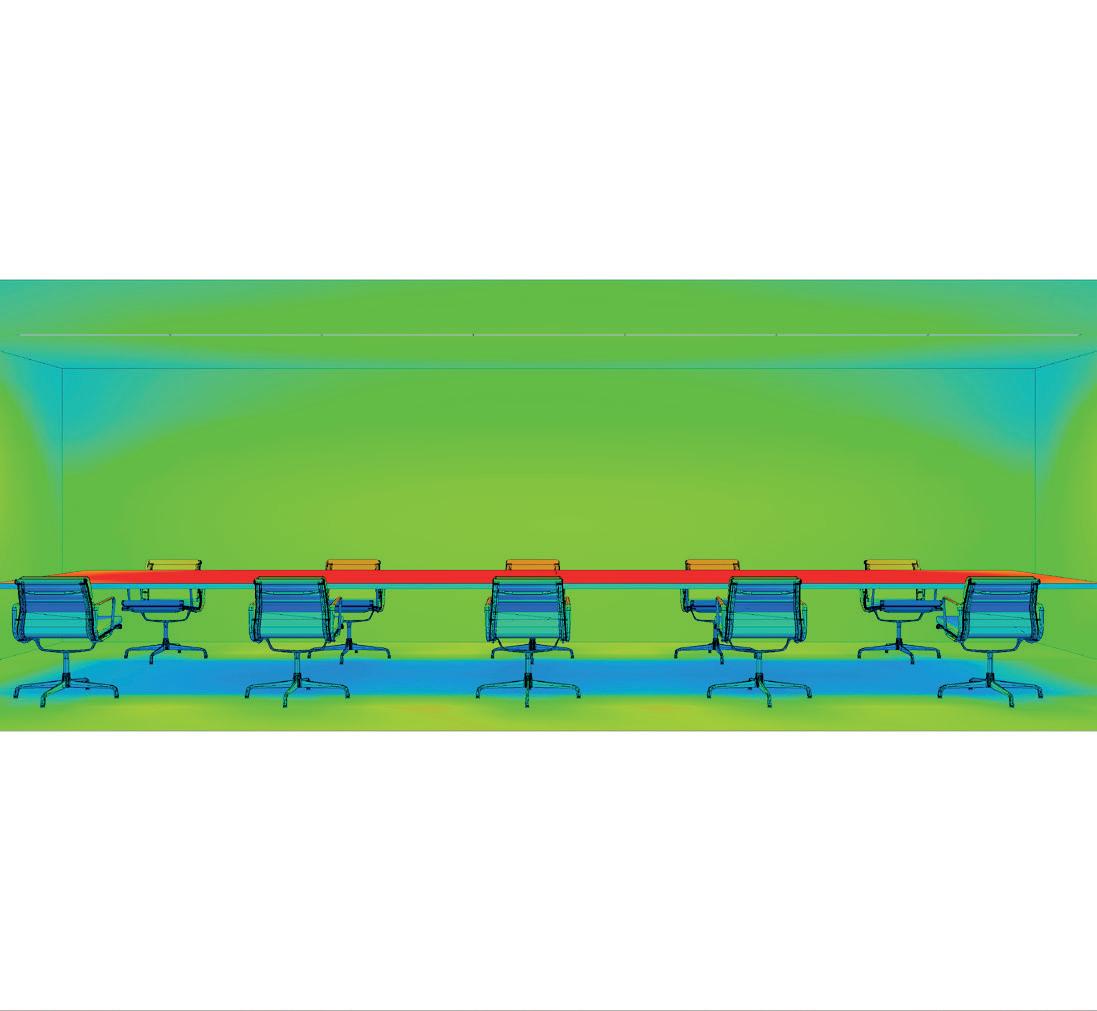

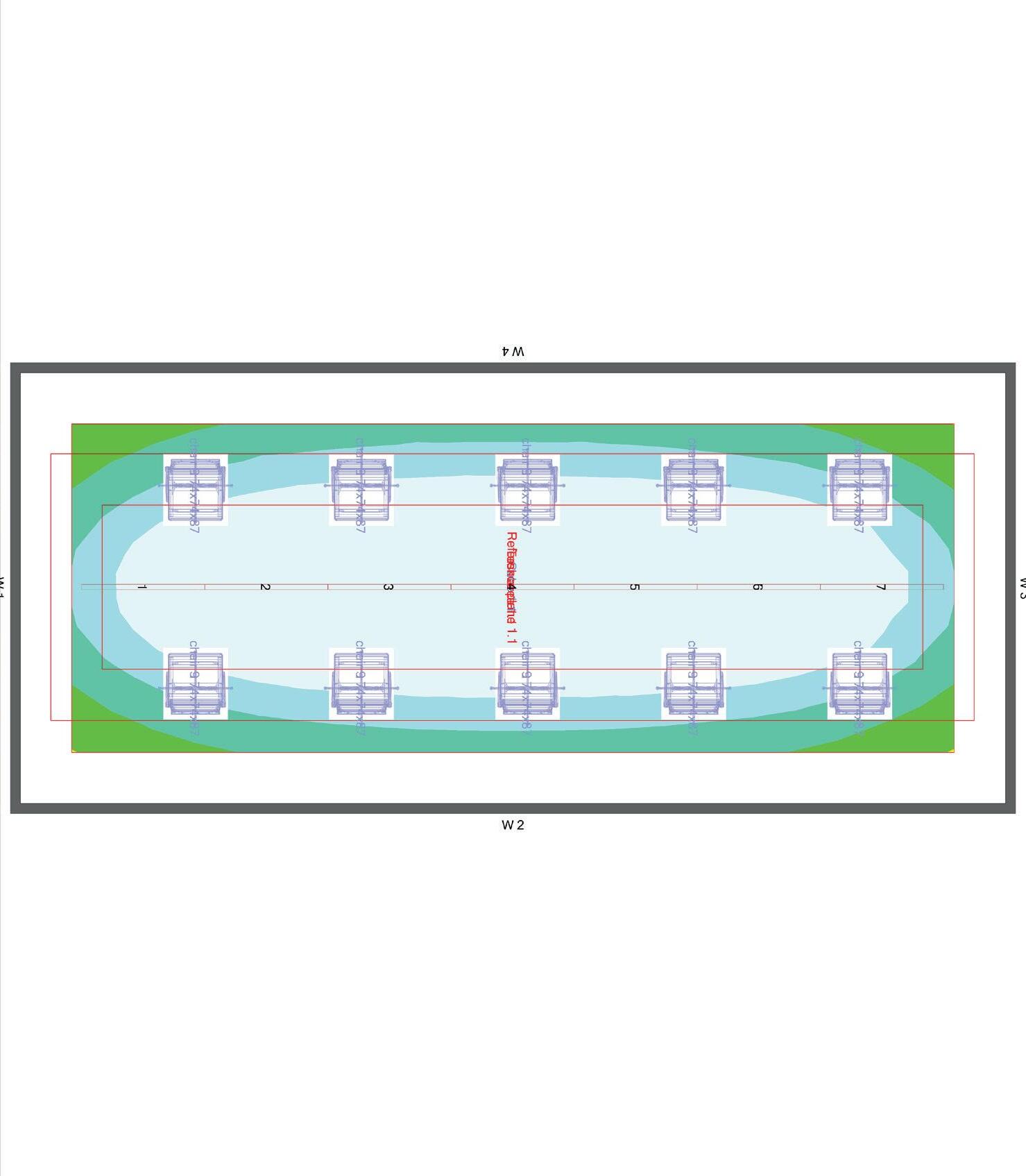

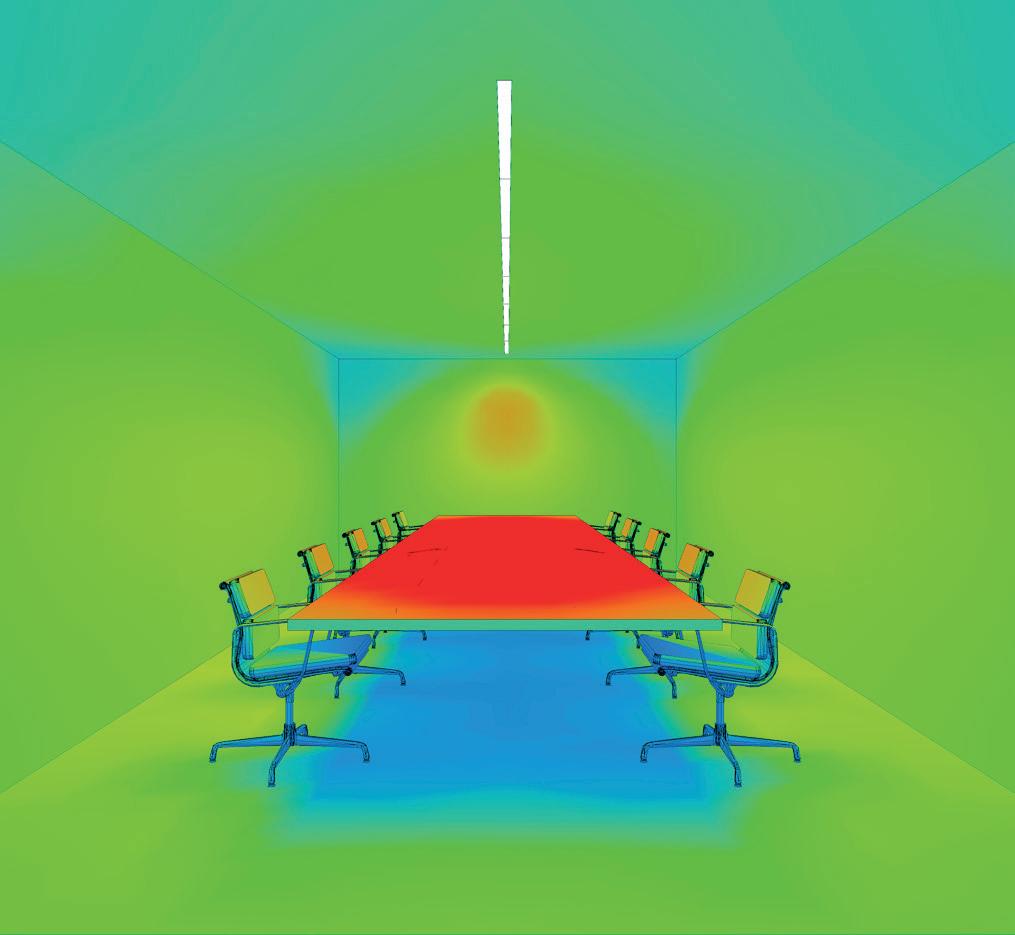

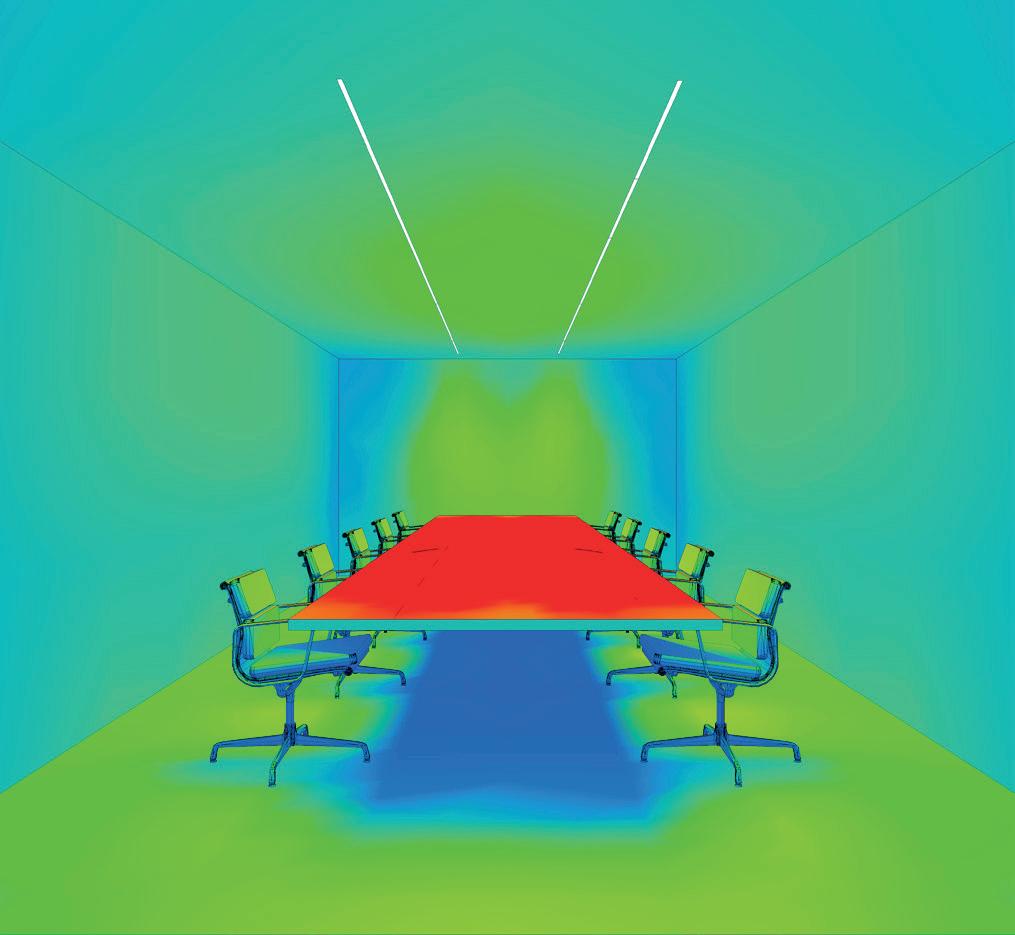

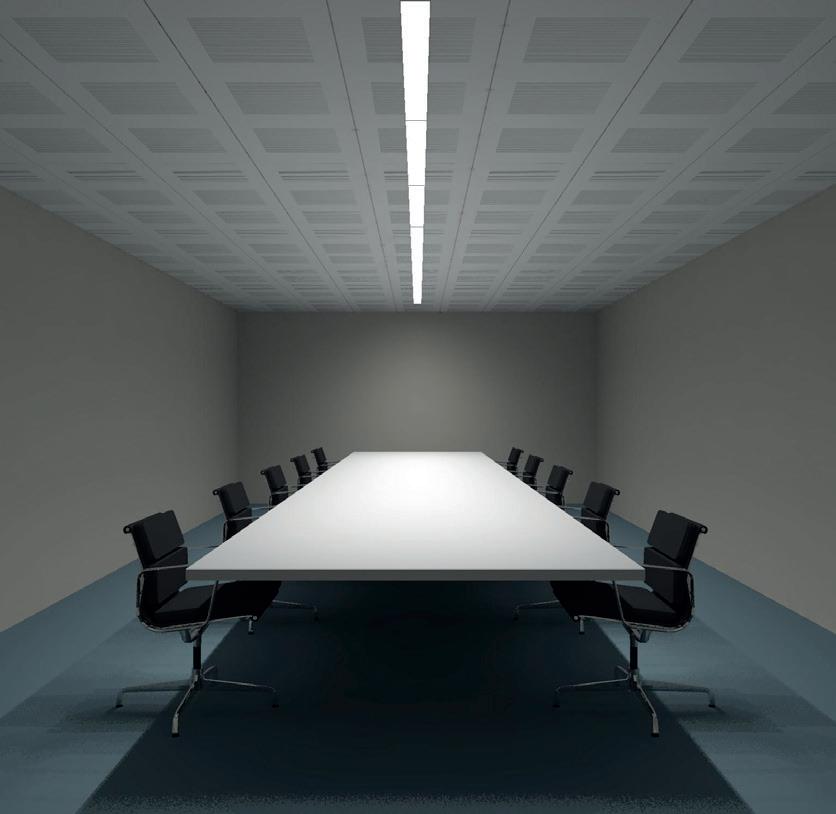

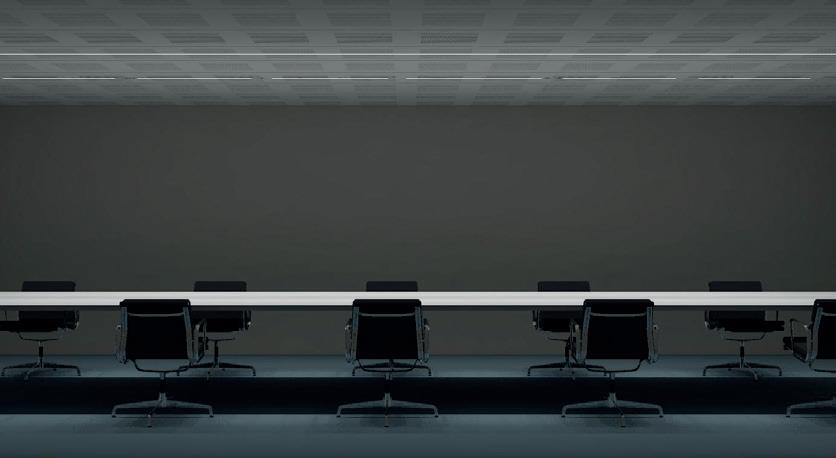

5.3 Calculation results, Cali (8030 white) 5.3.9 Pseudo colours, Reference plane 1.1 (E) Object Installation Project number Date Kreon CS m² presentatie Relux berekening kantoor kreon 26.11.2021 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 [m] 0 1 2 3 4 5 6 7 8 9 [m] N 0 50 100 200 300 400 500 Illuminance [lx] Height reference plane : 0.80 m Average illuminance Em : 489 lx Minimum illuminance Emin : 238 lx Maximum illuminance Emax : 717 lx Uniformity Uo Emin/Em : 1 : 2.06 (0.49) Diversity Ud Emin/Emax : 1 : 3.01 (0.33)

vektron lighting cali 40

30 vektron ceiling solutions Room data Reflectance W1 5.00 50.00% W2 10.40 50.00% W3 5.00 50.00% W4 10.40 50.00% W5 -W6 -Floor - 20.00% Ceiling - 70.00% Room height [m] 2.70 Height of ref. plane [m] 0.80 Height of luminaire plane [m] 2.70 General Calculation algorithm used Average indirect fraction Height of luminaire plane 2.70m Maintenance factor 0.85 Total luminous flux of all lamps 21560.00lm Total power 228.2W Total power per area (40.32m²) 5.66W/m2 (1.16W/m2/100lx) Workplace Task area Surrounding Background Task area 1 Em 613lx 396lx 342lx Emin 401lx 230lx 238lx Emin/Em (Uo) 0.65 0.58 0.70 Position 0.80m 0.80m Evaluation area 1 Reference plane 1.1 Horizontal Em 489lx Emin 238lx Emin/Em (Uo) 0.49 Emin/Emax (Ud) 0.33 Position 0.80m Major surfaces Em Uo M 1.5 (Ceiling) 128lx 0.64 M 1.1 (Wall) 231lx 0.58 M 1.2 (Wall) 190lx 0.55 M 1.3 (Wall) 230lx 0.59 M 1.4 (Wall) 192lx 0.55 Type No.\Make 12 7 Luminaire cali 40 L = 8400mm 5.3 5.3.13 Object Installation Project number Date 0 50 100 200 300 400 500 5.3 Calculation results, Cali (8030 white) 5.3.12 3D pseudo colours, View from the front (E) Object Installation Project number Date : : Kreon CS m² presentatie : Relux berekening kantoor kreon : 26.11.2021 www.kreon.com Page 84/193 Kreon CS m² presentatie_no tiles_R3.1_2021__Relux.rdf 0 50 100 200 300 400 500 Illuminance [lx]

vektron lighting cana 80

product name vektron cana 80 profile symbol

general information

application profile for vektron ceilings

description continuous profile mounted in between tiles integration between-tiles

IP classification 20

certification CE

dimensions

luminaire

LxW L x 102mm

H 140mm + 22mm (bracket)

plenum space min. depth 172mm

material and surface profile

material aluminium, extruded

surface treatment cataphoretically painted colour kreon white painted / black anodized

optional accessories

corner cut corner cut, 90°

product name ligna 80 in-cana

general information

application luminaire for recessed profile in vektron ceilings

description continuous profile mounted in between tiles integration between-tiles

IP classification 40

certification CE

dimensions

luminaire

LxW L x 102mm

H 140mm + 22mm (bracket)

plenum space min. depth 172mm ➊

illuminant output 3130lm/m

CRI 90+

CCT 3000K

lamptype LED wattage 40,7W/m

optical systems

diffusor / optic acryl satin

UGR ≤22 (4H8H, S=0.25H)

gear

type switching/dimming DALI

input voltage 230V

cable, plug/connector 3m cable with male connector + female connector (5-pole)

REMARKS

➊ Minimum depth of plenum space is based on the height of the luminaire, including brackets and driver.

Required plenum space for subconstruction is not taken into account.

32 vektron ceiling solutions 102 117 140 22

102 117 162

vektron lighting cana 80

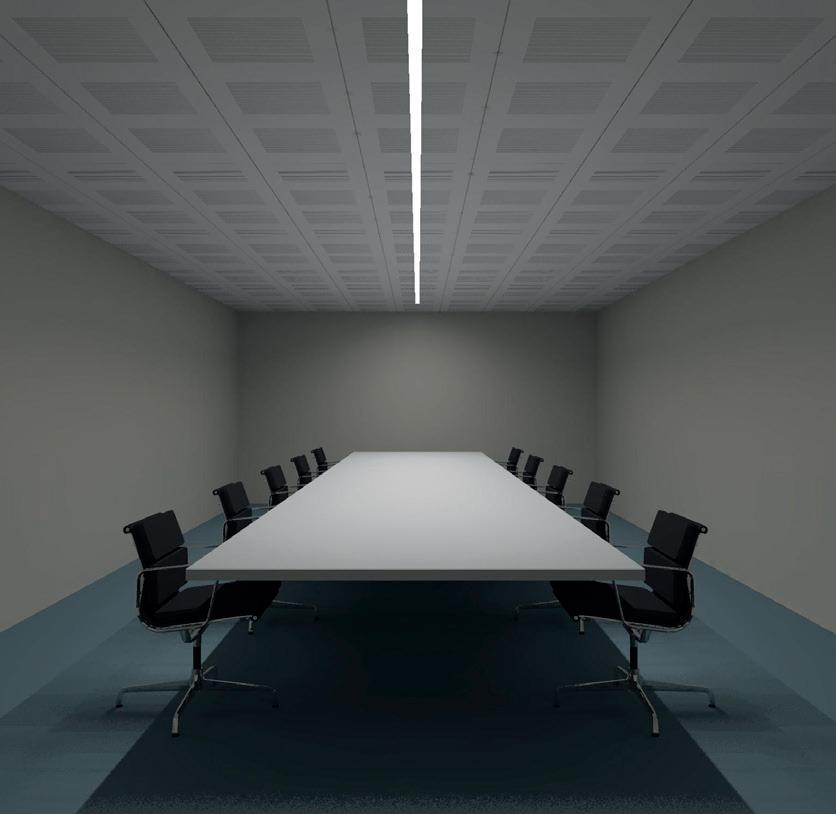

33 kreon.com/vektron office - 40m² lay-out relux detail AA' Revision Revision date Revision drawn by Drawing Original cad file open office_Cana 80 1/20, detail 1/5 O O O O O O O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan is valid only conjunction with the plans the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and is not an implementation plan! www.kreon.com consultancy@kreon.com Date 9600 4200 Type 1.1 28 pcs. perforation R1White Type 1.1 98 pcs. perforation R1White ceiling solutions office40.32 m² 30.8m C-wall profile Edge finishing Type G2 L=8400mm 1pc. Cana 80 profile recessed mounted in kreon ceiling LED 40.7W/m 9030 DD driver DALI 5-pole con. White cs ceiling height min. installation height 185mm

clip-in tile CS ceiling height 2700mm cana 80 profile min. installation height 185mm incl. subconstruction 10.3 Calculation results, Cana 80ligna 10.3.9 Pseudo colours, Reference plane 1.1 (E) Object Installation Project number Date Kreon CS m² presentatie Relux berekening kantoor kreon 26.11.2021 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 [m] 0 1 2 3 4 5 6 7 8 9 [m] N 0 50 100 200 300 400 500 Illuminance [lx] Height reference plane : 0.80 m Average illuminance Em : 694 lx Minimum illuminance Emin : 274 lx Maximum illuminance Emax : 1110 lx Uniformity Uo Emin/Em : 1 : 2.54 (0.39) Diversity Ud Emin/Emax : 1 : 4.04 (0.25)

34 vektron ceiling solutions Room data Reflectance W1 5.00 50.00% W2 10.40 50.00% W3 5.00 50.00% W4 10.40 50.00% W5 -W6 -Floor - 20.00% Ceiling - 70.00% Room height [m] 2.70 Height of ref. plane [m] 0.80 Height of luminaire plane [m] 2.70 General Calculation algorithm used Average indirect fraction Height of luminaire plane 2.70m Maintenance factor 0.85 Total luminous flux of all lamps 26251.96lm Total power 341.6W Total power per area (40.32m²) 8.47W/m2 (1.22W/m2/100lx) Workplace Task area Surrounding Background Task area 1 Em 928lx 529lx 411lx Emin 561lx 270lx 274lx Emin/Em (Uo) 0.60 0.51 0.67 Position 0.80m 0.80m Evaluation area 1 Reference plane 1.1 Horizontal Em 694lx Emin 274lx Emin/Em (Uo) 0.39 Emin/Emax (Ud) 0.25 Position 0.80m Major surfaces Em Uo M 1.5 (Ceiling) 168lx 0.57 M 1.1 (Wall) 239lx 0.48 M 1.2 (Wall) 171lx 0.56 M 1.3 (Wall) 245lx 0.48 M 1.4 (Wall) 173lx 0.56 Type No.\Make 11 7 Luminaire cana 80 ligna L = 8400mm 10.3 10.3.13 Object Installation Project number Date 0 50 100 200 300 400 500 10.3 Calculation results, Cana 80 - ligna 10.3.12 3D pseudo colours, View from the front (E) Object Installation Project number Date : : Kreon CS m² presentatie : Relux berekening kantoor kreon : 26.11.2021 www.kreon.com Page 174/193 Kreon CS m² presentatie_no tiles_R3.1_2021__Relux.rdf 0 50 100 200 300 400 500 Illuminance [lx]

vektron lighting rei downlight

product name vektron rei downlight profile

symbol

general information application luminaire for vektron ceilings description profile system with downlight optic mounted in between tiles integration between-tiles

protection class 1

IP classification 20

certification CE

electric gear included

dimensions

luminaire

LxW L x 58mm (L = min. 1040mm / max. 3828mm)

H 73mm

plenum space min. depth 83mm ➊

illuminant output 713lm/m

CRI 80+ / 90+

CCT 3000K

lamptype LED

wattage 25,7W/m

optical systems

diffusor / optic Linear Sine Prism (LSP) PMMA clear (acrylic) diffusor UGR ≤25 (4H8H, S=0.25H)

gear

type switching/dimming DALI

input voltage 230V

cable, plug/connector 3m cable with male connector + female connector (5-pole)

material and surface profile

material aluminium, extruded

colour & surface treatment kreon white painted / black anodized

REMARKS

➊ Minimum depth of plenum space is based on the height of the luminaire, including brackets and driver. Required plenum space for subconstruction is not taken into account.

36 vektron ceiling solutions

68 58 73

37 kreon.com/vektron office - 40m² lay-out relux Revision Revision date Revision drawn by Drawing Scale Original cad file open office_Rei 1/20, detail 1/5 O O O O O O O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility be measured on site. This plan valid only conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Date 9600 4200 Type 1.1 56 pcs. perforation R1White Type 1.1 84 pcs. perforation R1White ceiling solutions office 40.32 m² 30.8m C-wall profile L2400mm Edge finishing Type L=8400mm 2pcs. Rei downlight profile recessed mounted driver DALI 5-pole con. white LED 25.7W/m 9030 DD cs ceiling height 1 Rei downlight profile min installation height 106mm detail AA' clip-in tile CS ceiling height 2700mm rei downlight profile min. installation height 106mm incl. subconstruction

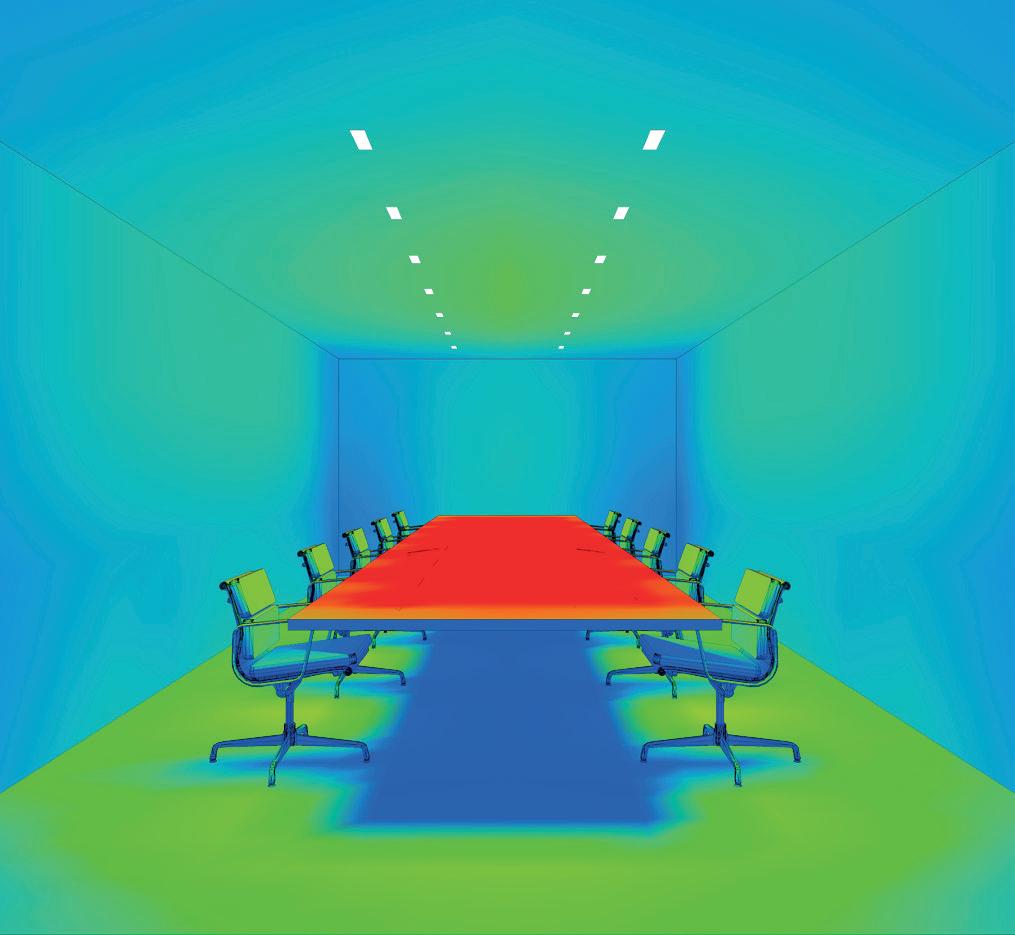

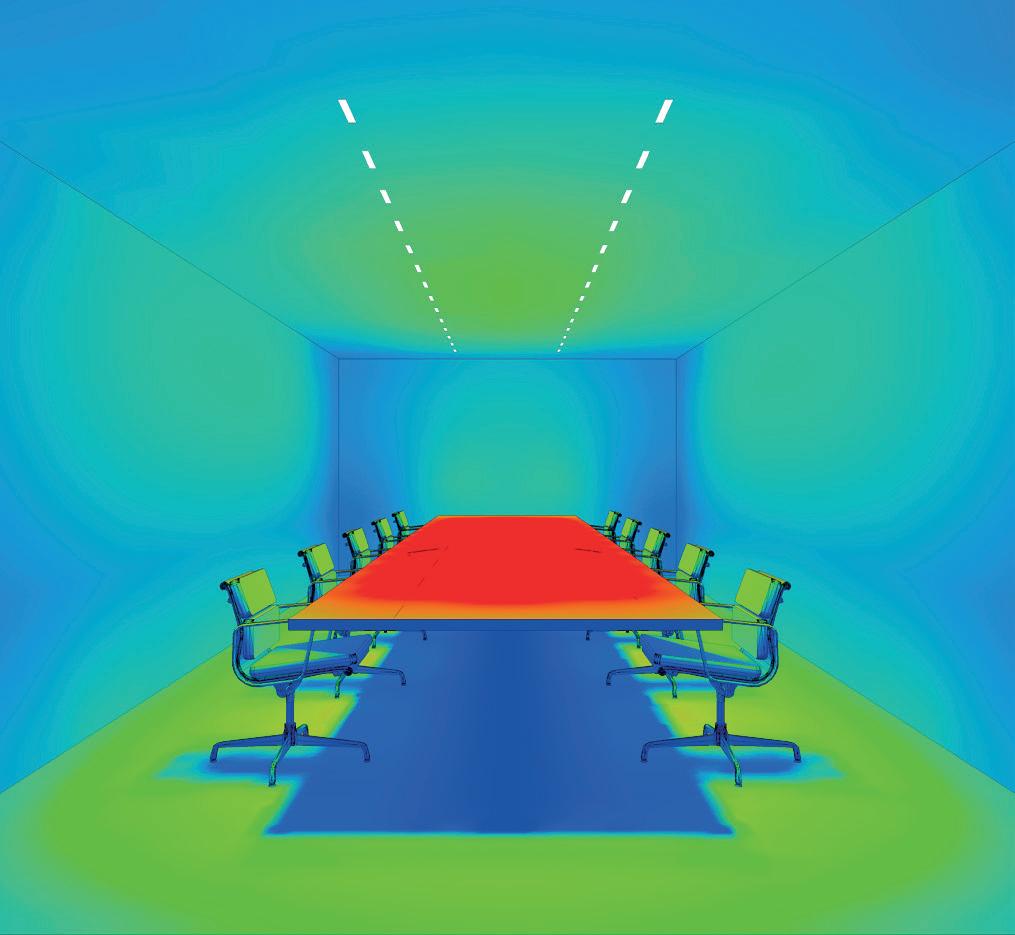

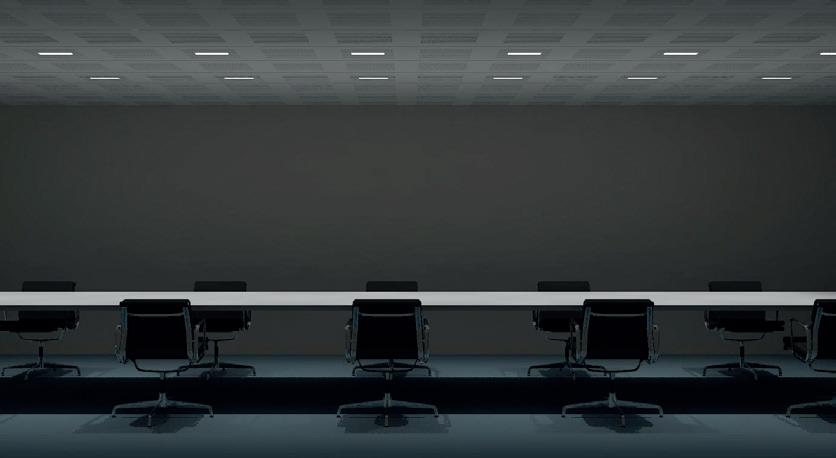

9.3 Calculation results, Rei downlight 9.3.9 Pseudo colours, Reference plane 1.1 (E) Object Installation Project number Date Kreon CS m² presentatie Relux berekening kantoor kreon 26.11.2021 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 [m] 0 1 2 3 4 5 6 7 8 9 [m] N 0 50 100 200 300 400 500 Illuminance [lx] Height reference plane : 0.80 m Average illuminance Em : 484 lx Minimum illuminance Emin : 176 lx Maximum illuminance Emax : 729 lx Uniformity Uo Emin/Em : 1 : 2.75 (0.36) Diversity Ud Emin/Emax : 1 : 4.13 (0.24)

vektron lighting rei downlight

38 vektron ceiling solutions Room data Reflectance W1 5.00 50.00% W2 10.40 50.00% W3 5.00 50.00% W4 10.40 50.00% W5 -W6 -Floor - 20.00% Ceiling - 70.00% Room height [m] 2.70 Height of ref. plane [m] 0.80 Height of luminaire plane [m] 2.70 General Calculation algorithm used Average indirect fraction Height of luminaire plane 2.70m Maintenance factor 0.85 Total luminous flux of all lamps 17108.00lm Total power 431.9W Total power per area (40.32m²) 10.71W/m2 (2.21W/m2/100lx) Workplace Task area Surrounding Background Task area 1 Em 658lx 391lx 250lx Emin 428lx 166lx 176lx Emin/Em (Uo) 0.65 0.42 0.71 Position 0.80m 0.80m Evaluation area 1 Reference plane 1.1 Horizontal Em 484lx Emin 176lx Emin/Em (Uo) 0.36 Emin/Emax (Ud) 0.24 Position 0.80m Major surfaces Em Uo M 1.5 (Ceiling) 111lx 0.57 M 1.1 (Wall) 148lx 0.45 M 1.2 (Wall) 76lx 0.69 M 1.3 (Wall) 146lx 0.46 M 1.4 (Wall) 75lx 0.68 Type No.\Make 12 14 Luminaire rei downlight L = 2x 8400mm 9.3 9.3.13 Object Installation Project number Date 0 50 100 200 300 400 500 9.3 Calculation results, Rei downlight 9.3.12 3D pseudo colours, View from the front (E) Object Installation Project number Date : : Kreon CS m² presentatie : Relux berekening kantoor kreon : 26.11.2021 www.kreon.com Page 156/193 Kreon CS m² presentatie_no tiles_R3.1_2021__Relux.rdf 0 50 100 200 300 400 500 Illuminance [lx]

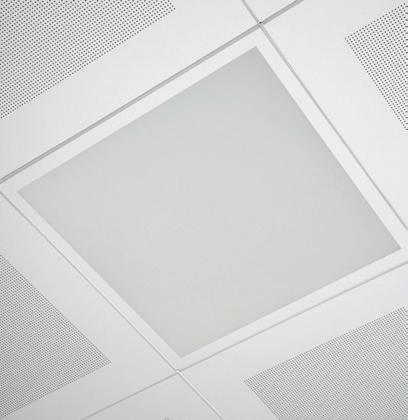

vektron lighting super down

product name vektron super down, without louvre

symbol

general information

application luminaire for vektron ceilings

description recessed luminaire with diffuser for vektron ceilings

integration in-tile

protection class 1

IP classification 20

certification CE electric gear included

dimensions

luminaire

LxW 600 x 600mm

H 86mm

tile

dimensions 600x600mm

min. width tile 600mm

plenum space min. depth 100mm ➊

illuminant output 4660lm

CRI 90+

CCT 3000K drive current 300mA

lamptype LED wattage 45W

optical systems

diffuser / optic PMMA conicle de-glaring prism + PMMA diffusing film

UGR ≤19 (4H8H, S=0.25H)

gear type switching/dimming DALI

input voltage 230V cable, plug/connector 3m cable with male connector + female connector (5-pole)

REMARKS

➊ Minimum depth of plenum space is based on the height of the luminaire, including brackets and driver. Required plenum space for subconstruction is not taken into account.

40 vektron ceiling solutions

600 86 112

vektron lighting super down

41 kreon.com/vektron

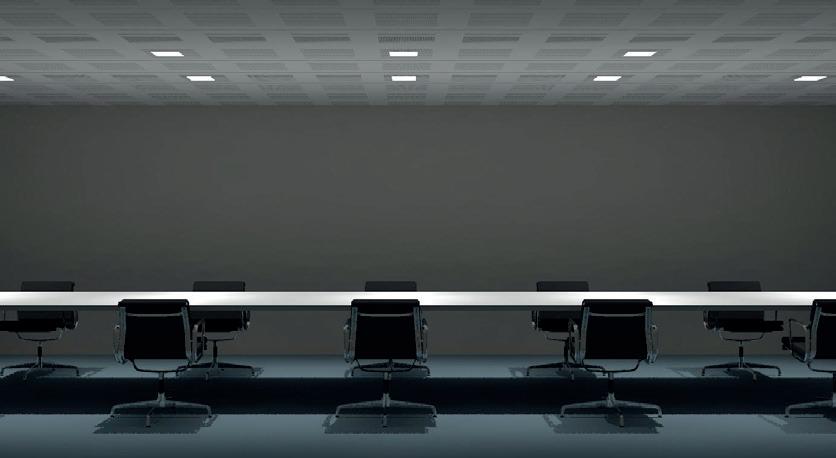

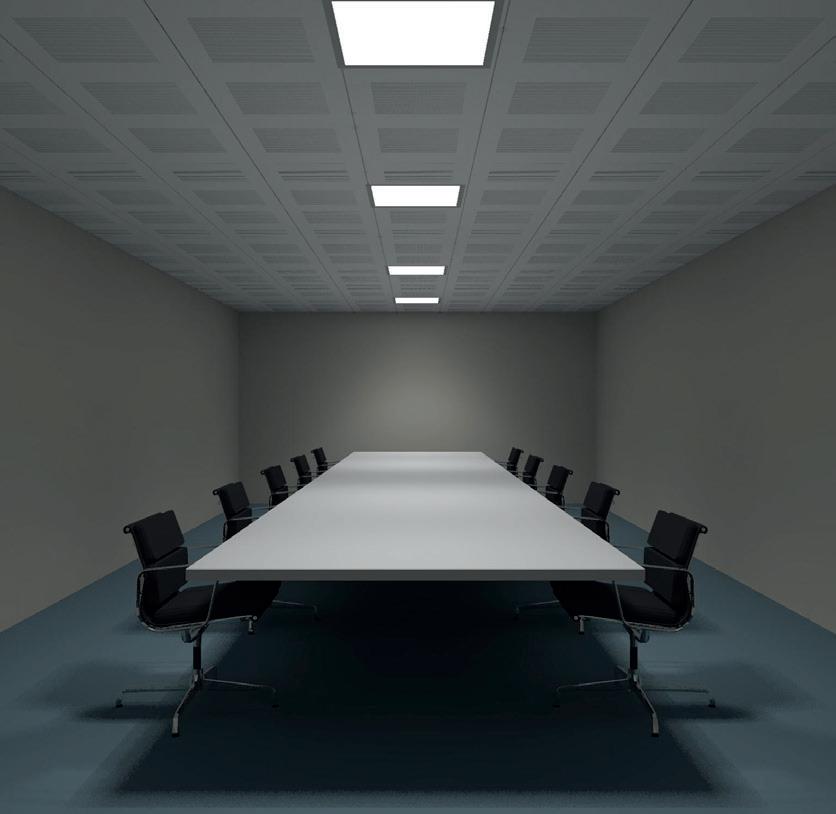

lay-out relux CS ceiling height 2700mm super down flush clip-in tile min. installation height 120mm incl. subconstruction clip-in tile detail AA' Revision Revision date Revision drawn by Drawing Scale Original cad file open office_Superdown 1/20, detail 1/5 O O O O O O O Ventilation Audio O Emergency O O Clima O Lighting nv All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan is valid only in conjunction with the plans the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Date 9600 4200 LED 45W 300mA 8030 Type S 4 pcs. CDP +FLEX G2 diffuser 600x600mm White driver Dali 5-pole con. Type 1.1 108pcs. perforation R1White ceiling solutions office 40.32 m² 30.8m C-wall profile Edge finishing White cs ceiling height 5 1

office - 40m²

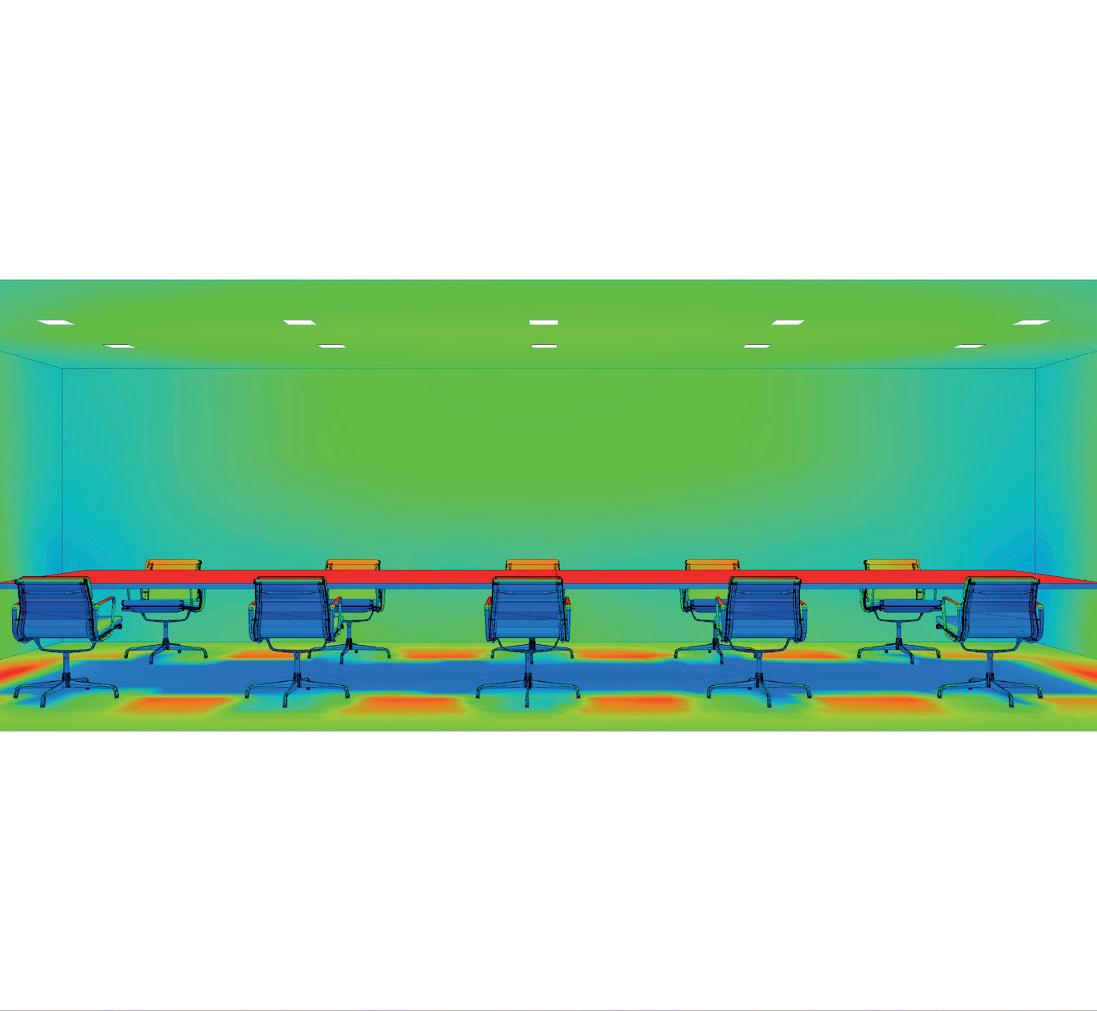

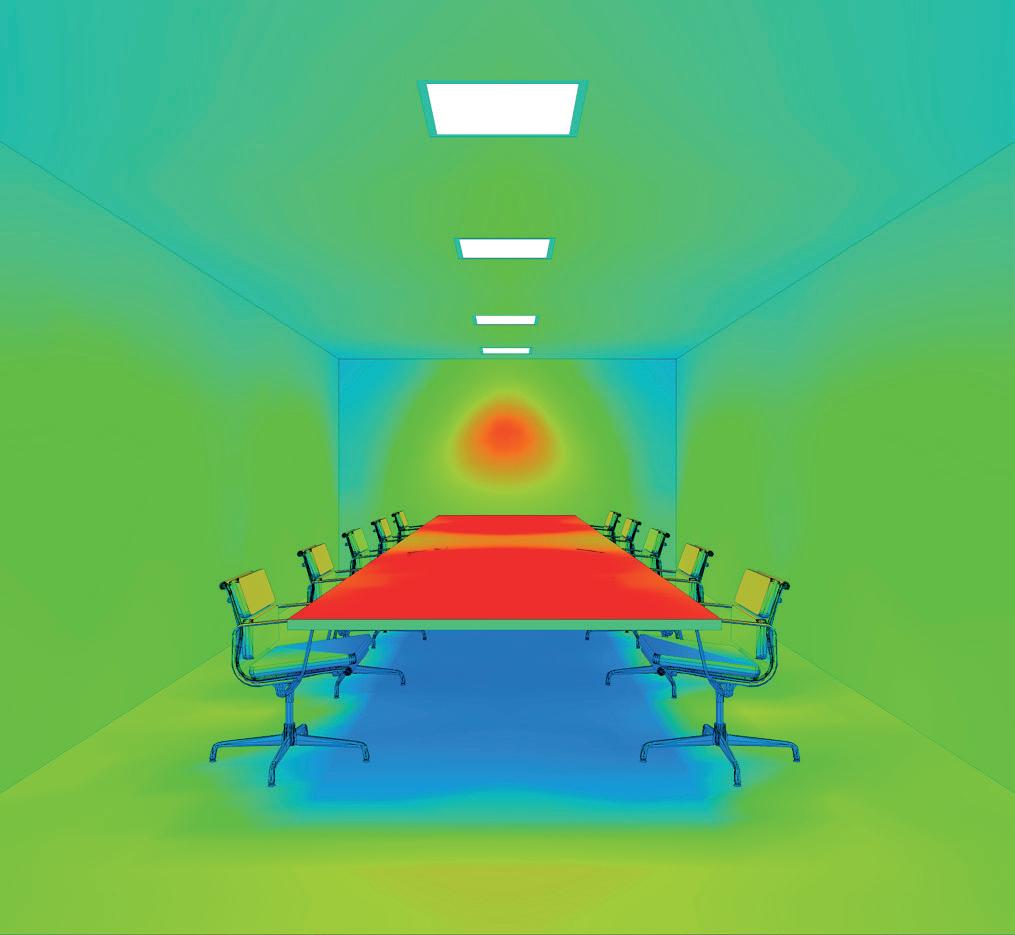

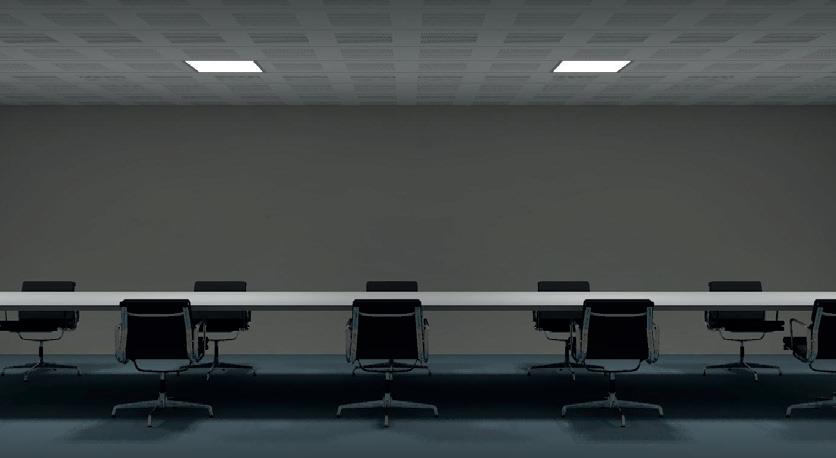

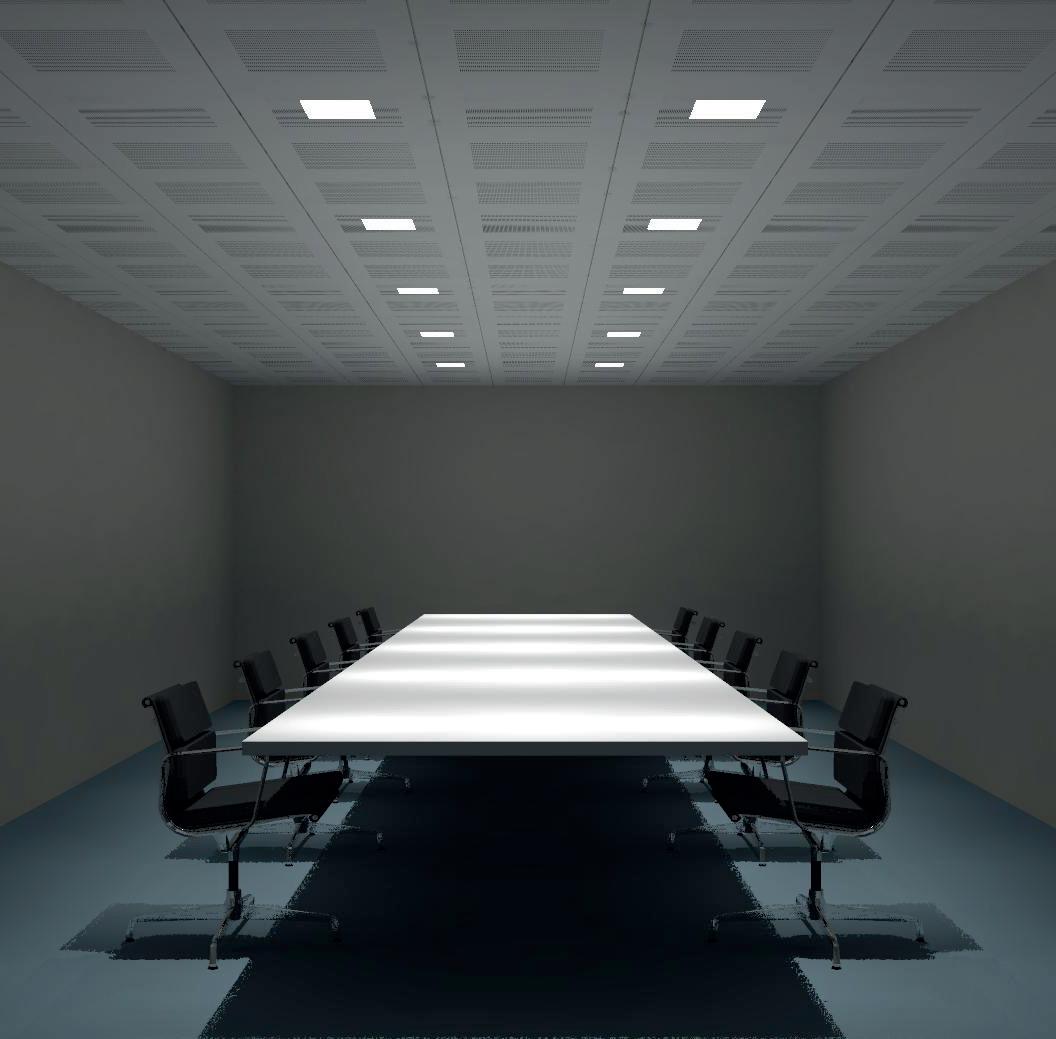

6.3 Calculation results, Super Down flush (CDP) 6.3.9 Pseudo colours, Reference plane 1.1 (E) Object Installation Project number Date Kreon CS m² presentatie Relux berekening kantoor kreon 26.11.2021 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 [m] 0 1 2 3 4 5 6 7 8 9 [m] N 0 50 100 200 300 400 500 Illuminance [lx] Height reference plane : 0.80 m Average illuminance Em : 437 lx Minimum illuminance Emin : 221 lx Maximum illuminance Emax : 649 lx Uniformity Uo Emin/Em : 1 : 1.97 (0.51) Diversity Ud Emin/Emax : 1 : 2.93 (0.34)

42 vektron ceiling solutions Room data Reflectance W1 5.00 50.00% W2 10.40 50.00% W3 5.00 50.00% W4 10.40 50.00% W5 -W6 -Floor - 20.00% Ceiling - 70.00% Room height [m] 2.70 Height of ref. plane [m] 0.80 Height of luminaire plane [m] 2.70 General Calculation algorithm used Average indirect fraction Height of luminaire plane 2.70m Maintenance factor 0.85 Total luminous flux of all lamps 18640.32lm Total power 180.0W Total power per area (40.32m²) 4.46W/m2 (1.02W/m2/100lx) Workplace Task area Surrounding Background Task area 1 Em 544lx 399lx 282lx Emin 374lx 229lx 221lx Emin/Em (Uo) 0.69 0.57 0.78 Position 0.80m 0.80m Evaluation area 1 Reference plane 1.1 Horizontal Em 437lx Emin 221lx Emin/Em (Uo) 0.51 Emin/Emax (Ud) 0.34 Position 0.80m Major surfaces Em Uo M 1.5 (Ceiling) 106lx 0.71 M 1.1 (Wall) 230lx 0.46 M 1.2 (Wall) 124lx 0.78 M 1.3 (Wall) 228lx 0.46 M 1.4 (Wall) 126lx 0.78 Type No.\Make 6 4 Luminaire super down 6.3 6.3.13 Object Installation Project number Date 0 50 100 200 300 400 500 6.3 Calculation results, Super Down flush (CDP) 6.3.12 3D pseudo colours, View from the front (E) Object Installation Project number Date : : Kreon CS m² presentatie : Relux berekening kantoor kreon : 26.11.2021 www.kreon.com Page 102/193 Kreon CS m² presentatie_no tiles_R3.1_2021__Relux.rdf 0 50 100 200 300 400 500 Illuminance [lx]

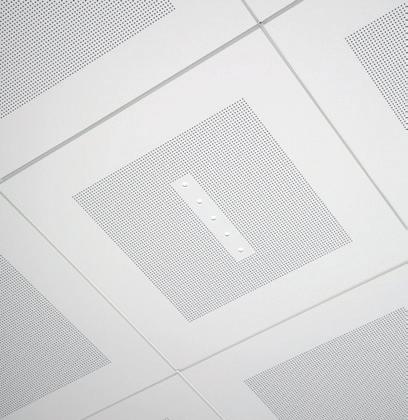

vektron lighting tenno

1x5

product name vektron tenno 1x5

symbol

general information

application recessed luminaire for vektron ceilings

description highly advanced LED system with patented lens optic integration in-tile

protection class 1

IP classification 20 certification CE

electric gear included

dimensions

luminaire

LxW 65 x 270mm

H 79mm

tile

dimensions 600 x 600mm

min. width tile 75 x 280mm

plenum space min. depth 89mm ➊

illuminant fixture

lumen 449lm

CRI 90

CCT 3000K

lamptype LED

wattage 7W drive current 500mA

optical systems

diffusor / optic highly advanced LED system, patented lens optic, double focus light beam

beam angle 46°

UGR ≤19 (4H8H, S=0.25H)

gear type switching/dimming DALI

input voltage 230V

cable, plug/connector 3m cable with male connector + female connector (5-pole)

material and surface

luminaire

material aluminium

surface treatment wet painting tile

material

galvanised steel non-perforated or perforated (with acoustic fleece)

surface treatment polyester powder coating

colour vektron white

REMARKS

➊ Minimum depth of plenum space is based on the height of the luminaire, including brackets and driver. Required plenum space for subconstruction is not taken into account.

44 vektron ceiling solutions

270 Ø10 50 non-perfo zone 65 263 79

vektron lighting tenno 1x5

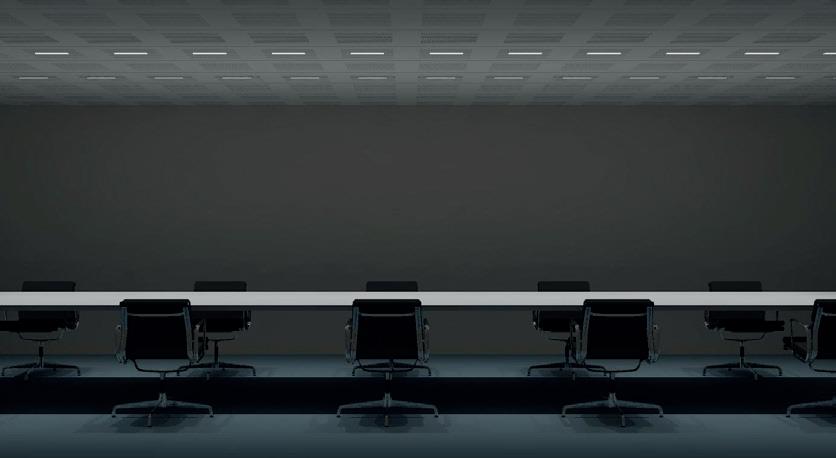

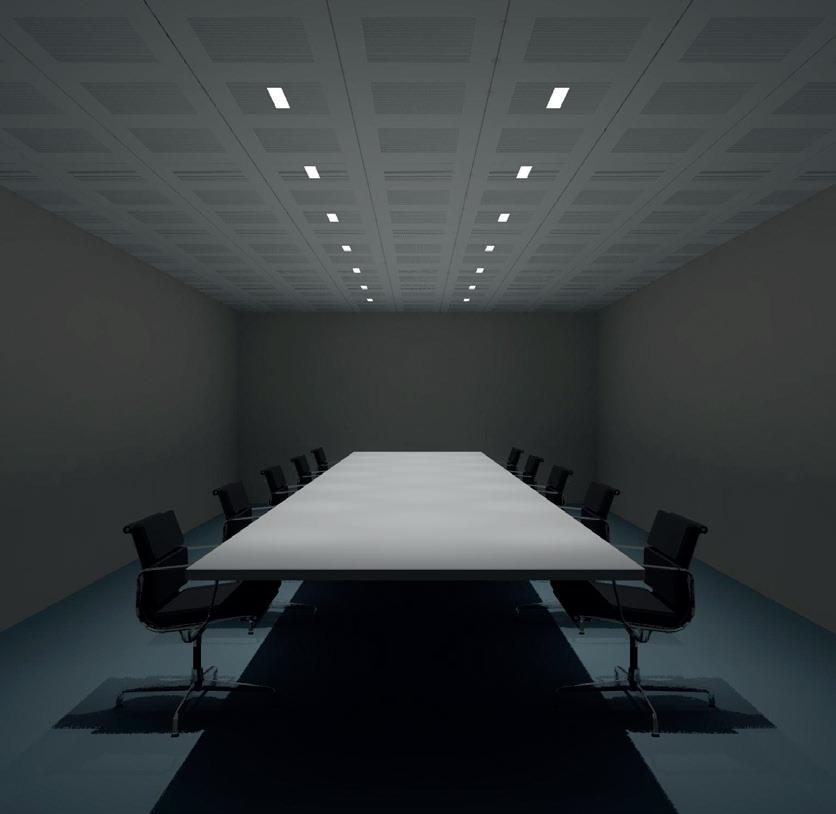

45 kreon.com/vektron office - 40m² lay-out relux detail AA' tenno 1x5 gear incl. clip-in tile min. installation height 90mm incl. subconstruction CS ceiling height 2700mm clip-in tile open office_Tenno 1x5 O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and is not an implementation plan! www.kreon.com consultancy@kreon.com Date 9600 4200 AA' LED 7W 500mA 9030 Type T1.1 28pcs. ceiling solutions office 40.32 m² Edge finishing cs ceiling height

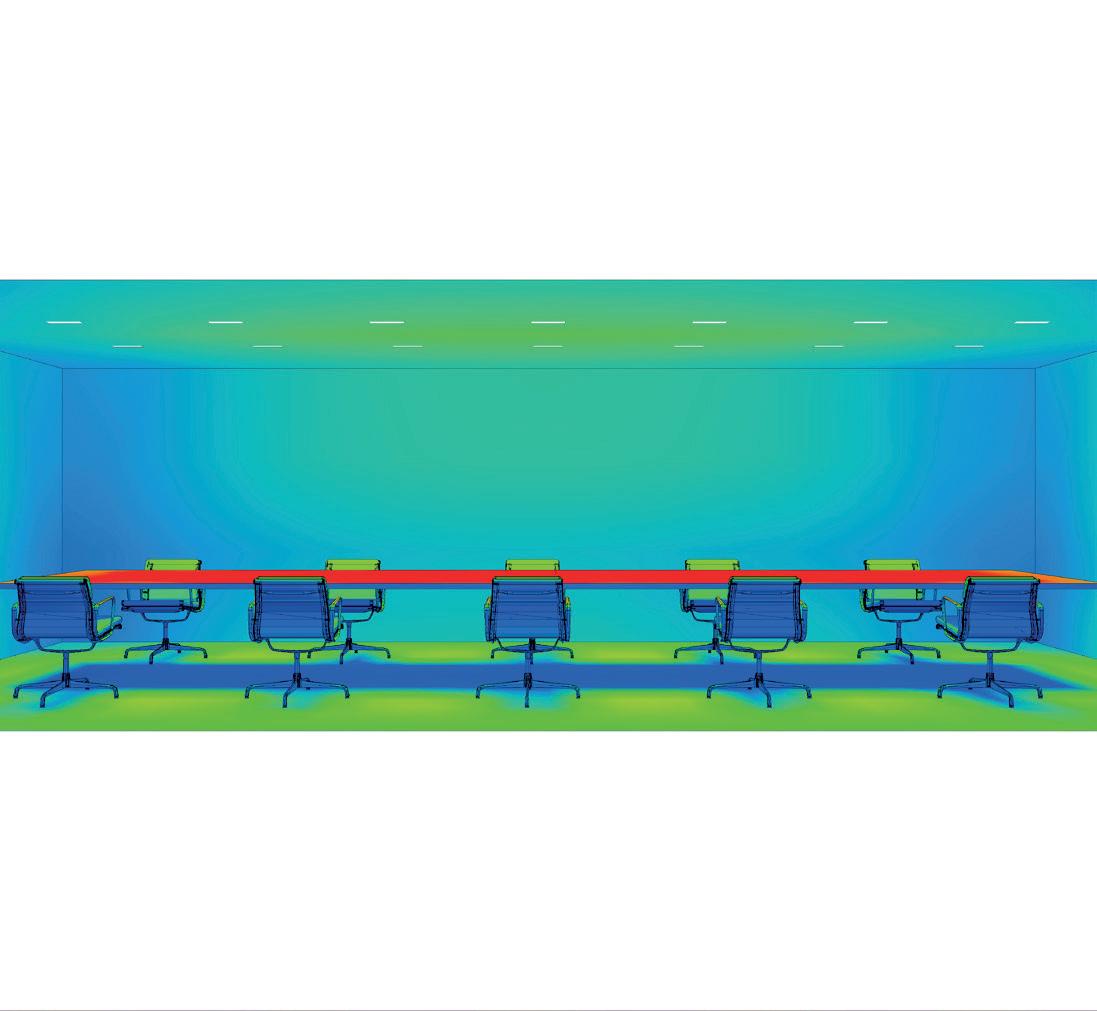

3.3 Calculation results, Tenno 1x5 3.3.9 Pseudo colours, Reference plane 1.1 (E) Object Installation Project number Date Kreon CS m² presentatie Relux berekening kantoor kreon 26.11.2021 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 [m] 0 1 2 3 4 5 6 7 8 9 [m] N 0 50 100 200 300 400 500 Illuminance [lx] Height reference plane : 0.80 m Average illuminance Em : 402 lx Minimum illuminance Emin : 142 lx Maximum illuminance Emax : 584 lx Uniformity Uo Emin/Em : 1 : 2.84 (0.35) Diversity Ud Emin/Emax : 1 : 4.12 (0.24)

46 vektron ceiling solutions Room data Reflectance W1 5.00 50.00% W2 10.40 50.00% W3 5.00 50.00% W4 10.40 50.00% W5 -W6 -Floor - 20.00% Ceiling - 70.00% Room height [m] 2.70 Height of ref. plane [m] 0.80 Height of luminaire plane [m] 2.70 General Calculation algorithm used Average indirect fraction Height of luminaire plane 2.70m Maintenance factor 0.85 Total luminous flux of all lamps 13132.00lm Total power 252.0W Total power per area (40.32m²) 6.25W/m2 (1.55W/m2/100lx) Workplace Task area Surrounding Background Task area 1 Em 536lx 310lx 226lx Emin 374lx 125lx 142lx Emin/Em (Uo) 0.70 0.40 0.63 Position 0.80m 0.80m Evaluation area 1 Reference plane 1.1 Horizontal Em 402lx Emin 142lx Emin/Em (Uo) 0.35 Emin/Emax (Ud) 0.24 Position 0.80m Major surfaces Em Uo M 1.5 (Ceiling) 87lx 0.54 M 1.1 (Wall) 60lx 0.67 M 1.2 (Wall) 56lx 0.58 M 1.3 (Wall) 61lx 0.68 M 1.4 (Wall) 56lx 0.57 Type No.\Make 3 28 Luminaire tenno 1x5 3.3 3.3.13 Object Installation Project number Date 0 50 100 200 300 400 500 3.3 Calculation results, Tenno 1x5 3.3.12 3D pseudo colours, View from the front (E) Object Installation Project number Date : : Kreon CS m² presentatie : Relux berekening kantoor kreon : 26.11.2021 www.kreon.com Page 48/193 Kreon CS m² presentatie_no tiles_R3.1_2021__Relux.rdf 0 50 100 200 300 400 500 Illuminance [lx]

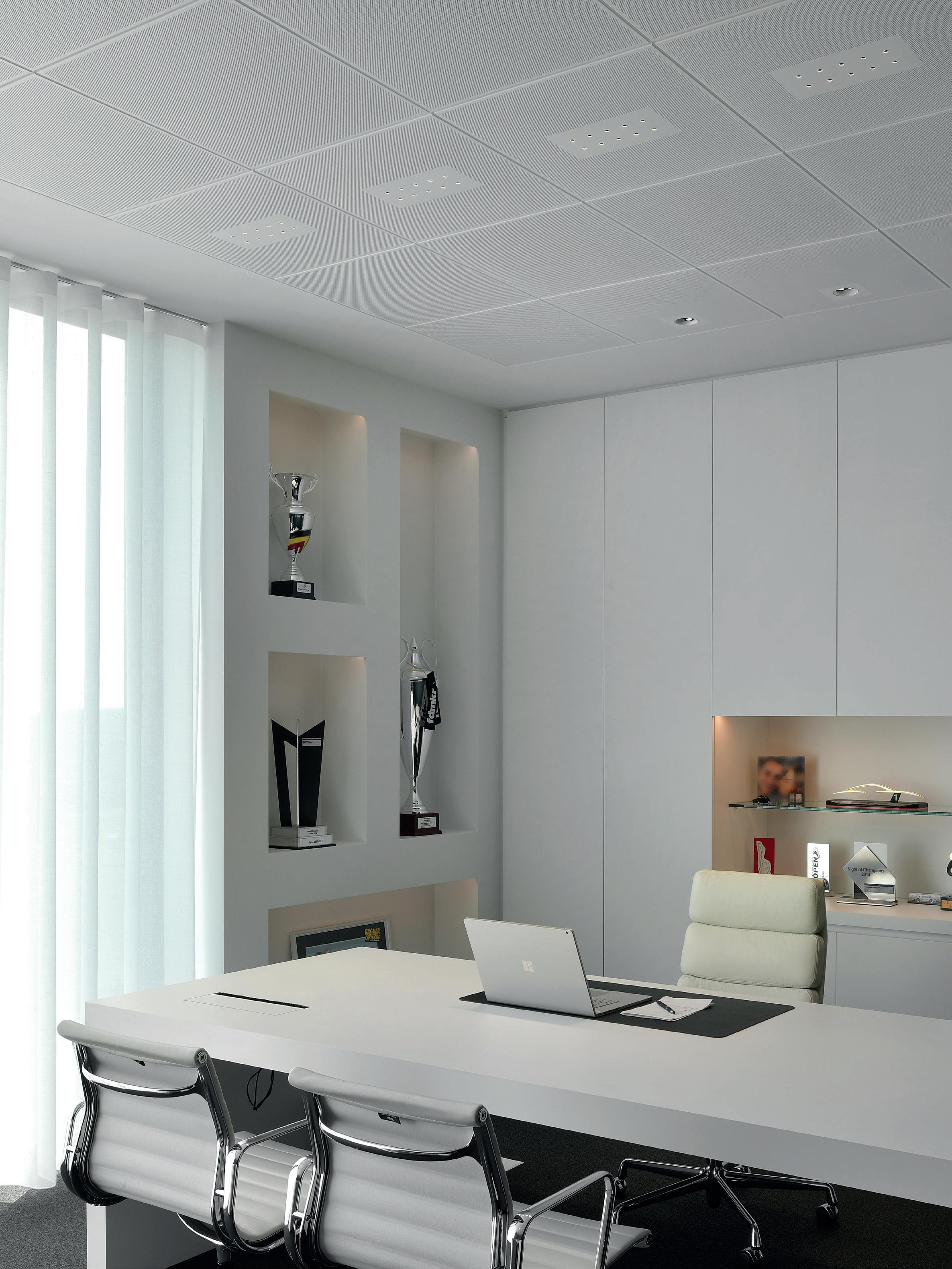

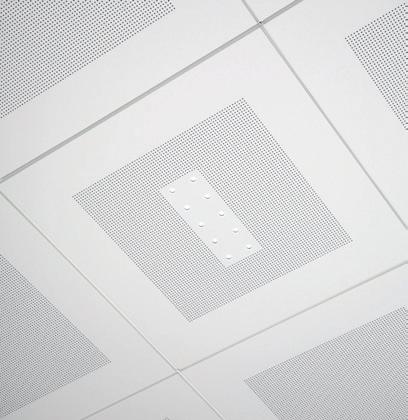

vektron lighting tenno

2x5

product name vektron tenno 2x5

symbol

general information

application recessed luminaire for vektron ceilings

description highly advanced LED system with patented lens optic integration in-tile

protection class 1

IP classification 20

certification CE

electric gear included

dimensions

luminaire

LxW 120 x 270mm

H 79mm

tile

dimensions 600 x 600mm

min. width tile 130 x 280mm

plenum space min. depth 89mm ➊

illuminant fixture

lumen 898lm

CRI 90

CCT 3000K

lamptype LED

wattage 14W drive current 500mA

optical systems

diffusor / optic highly advanced LED system, patented lens optic, double focus light beam

beam angle 46°

UGR ≤19 (4H8H, S=0.25H)

gear type switching/dimming DALI

input voltage 230V

cable, plug/connector 3m cable with male connector + female connector (5-pole)

material and surface

luminaire

material aluminium

surface treatment wet painting tile

material

galvanised steel non-perforated or perforated (with acoustic fleece)

surface treatment polyester powder coating

colour vektron white

REMARKS

➊ Minimum depth of plenum space is based on the height of the luminaire, including brackets and driver. Required plenum space for subconstruction is not taken into account.

48 vektron ceiling solutions

270 Ø10 50 non-perfo zone 120 263 79

vektron lighting tenno 2x5

49 kreon.com/vektron office - 40m² lay-out relux detail AA' Revision Revision date Revision drawn by Drawing Scale Original cad file open office_Tenno 2x5 1/20, detail 1/5 O O O O O O O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan is valid only conjunction with the plans the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Date 9600 4200 AA' LED 14W 500mA 9030 Type T1.1 14pcs. full perfo R1 clip-in 600x600mm White driver Dali 5-pole con. Type 1.1 98 pcs. perforation R1White ceiling solutions office 40.32 m² 30.8m C-wall profile Edge finishing cs ceiling height 1 min. installation height 90mm

tenno 2x5 gear incl. clip-in tile min. installation height 90mm incl. subconstruction CS ceiling height 2700mm clip-in tile 4.3 Calculation results, Tenno 2x5 4.3.9 Pseudo colours, Reference plane 1.1 (E) Object Installation Project number Date Kreon CS m² presentatie Relux berekening kantoor kreon 26.11.2021 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 [m] 0 1 2 3 4 5 6 7 8 9 [m] N 0 50 100 200 300 400 500 Illuminance [lx] Height reference plane : 0.80 m Average illuminance Em : 407 lx Minimum illuminance Emin : 145 lx Maximum illuminance Emax : 597 lx Uniformity Uo Emin/Em : 1 : 2.81 (0.36) Diversity Ud Emin/Emax : 1 : 4.12 (0.24)

50 vektron ceiling solutions Room data Reflectance W1 5.00 50.00% W2 10.40 50.00% W3 5.00 50.00% W4 10.40 50.00% W5 -W6 -Floor - 20.00% Ceiling - 70.00% Room height [m] 2.70 Height of ref. plane [m] 0.80 Height of luminaire plane [m] 2.70 General Calculation algorithm used Average indirect fraction Height of luminaire plane 2.70m Maintenance factor 0.85 Total luminous flux of all lamps 13132.00lm Total power 252.0W Total power per area (40.32m²) 6.25W/m2 (1.54W/m2/100lx) Workplace Task area Surrounding Background Task area 1 Em 543lx 308lx 230lx Emin 366lx 108lx 145lx Emin/Em (Uo) 0.67 0.35 0.63 Position 0.80m 0.80m Evaluation area 1 Reference plane 1.1 Horizontal Em 407lx Emin 145lx Emin/Em (Uo) 0.36 Emin/Emax (Ud) 0.24 Position 0.80m Major surfaces Em Uo M 1.5 (Ceiling) 87lx 0.53 M 1.1 (Wall) 56lx 0.68 M 1.2 (Wall) 57lx 0.56 M 1.3 (Wall) 56lx 0.68 M 1.4 (Wall) 57lx 0.56 Type No.\Make 4 14 Luminaire tenno 2x5 4.3 4.3.13 Object Installation Project number Date 0 50 100 200 300 400 500 4.3 Calculation results, Tenno 2x5 4.3.12 3D pseudo colours, View from the front (E) Object Installation Project number Date : : Kreon CS m² presentatie : Relux berekening kantoor kreon : 26.11.2021 www.kreon.com Page 66/193 Kreon CS m² presentatie_no tiles_R3.1_2021__Relux.rdf 0 50 100 200 300 400 500 Illuminance [lx]

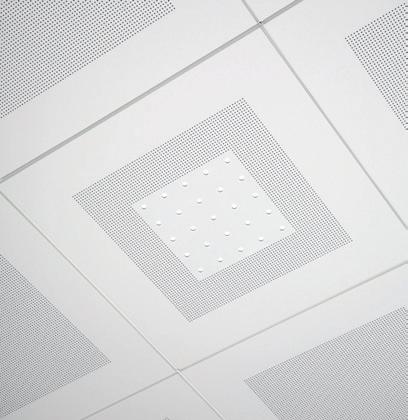

vektron lighting tenno

5x5

product name vektron tenno 5x5

symbol

general information

application recessed luminaire for vektron ceilings

description highly advanced LED system with patented lens optic integration in-tile

protection class 1

IP classification 20

certification CE electric gear included

dimensions

luminaire

LxW 270 x 270mm

H 79mm

tile

dimensions 600 x 600mm

min. width tile 280 x 280mm

plenum space min. depth 89mm ➊

illuminant fixture lumen 2245lm

CRI 90

CCT 3000K

lamptype LED wattage 35W drive current 500mA

optical systems

diffusor / optic highly advanced LED system patented lens optic double focus light beam

beam angle 46°

UGR ≤19 (4H8H, S=0.25H)

gear type switching/dimming DALI

input voltage 230V

cable, plug/connector 3m cable with male connector + female connector (5-pole)

material and surface

luminaire

material aluminium

surface treatment wet painting

tile

material galvanised steel non-perforated or perforated (with acoustic fleece)

surface treatment polyester powder coating

colour vektron white

REMARKS

➊ Minimum depth of plenum space is based on the height of the luminaire, including brackets and driver. Required plenum space for subconstruction is not taken into account.

52 vektron ceiling solutions

270 Ø10 50 non-perfo zone 270 263 79

53 kreon.com/vektron office - 40m² lay-out relux detail AA'

tenno 5x5 gear incl. clip-in tile min. installation height 90mm incl. subconstruction CS ceiling height 2700mm clip-in tile Revision Revision date Revision drawn by Drawing Scale Original cad file open office_Tenno 5x5 1/20, detail 1/5 O O O O O O O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and is not an implementation plan! www.kreon.com consultancy@kreon.com Date 9600 4200 LED 35W 500mA 9030 Type 10 pcs. 600x600mm White driver Dali 5-pole con. Type 1.1 102pcs. perforation R1White ceiling solutions office 40.32 m² 30.8m C-wall profile Edge finishing cs ceiling height 3 5 2 min. installation height 90mm 8.3 Calculation results, Tenno 5x5 8.3.9 Pseudo colours, Reference plane 1.1 (E) Object Installation Project number Date Kreon CS m² presentatie Relux berekening kantoor kreon 26.11.2021 0.0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 [m] 0 1 2 3 4 5 6 7 8 9 [m] N 0 50 100 200 300 400 500 Illuminance [lx] Height reference plane : 0.80 m Average illuminance Em : 707 lx Minimum illuminance Emin : 289 lx Maximum illuminance Emax : 1200 lx Uniformity Uo Emin/Em : 1 : 2.45 (0.41) Diversity Ud Emin/Emax : 1 : 4.14 (0.24)

vektron lighting tenno 5x5

54 vektron ceiling solutions Room data Reflectance W1 5.00 50.00% W2 10.40 50.00% W3 5.00 50.00% W4 10.40 50.00% W5 -W6 -Floor - 20.00% Ceiling - 70.00% Room height [m] 2.70 Height of ref. plane [m] 0.80 Height of luminaire plane [m] 2.70 General Calculation algorithm used Average indirect fraction Height of luminaire plane 2.70m Maintenance factor 0.85 Total luminous flux of all lamps 23440.00lm Total power 440.0W Total power per area (40.32m²) 10.91W/m2 (1.54W/m2/100lx) Workplace Task area Surrounding Background Task area 1 Em 919lx 562lx 397lx Emin 682lx 252lx 289lx Emin/Em (Uo) 0.74 0.45 0.73 Position 0.80m 0.80m Evaluation area 1 Reference plane 1.1 Horizontal Em 707lx Emin 289lx Emin/Em (Uo) 0.41 Emin/Emax (Ud) 0.24 Position 0.80m Major surfaces Em Uo M 1.5 (Ceiling) 151lx 0.58 M 1.1 (Wall) 107lx 0.70 M 1.2 (Wall) 98lx 0.65 M 1.3 (Wall) 114lx 0.71 M 1.4 (Wall) 98lx 0.65 Type No.\Make 10 10 Luminaire tenno 5x5 8.3 8.3.13 Object Installation Project number Date 0 50 100 200 300 400 500 8.3 Calculation results, Tenno 5x5 8.3.12 3D pseudo colours, View from the front (E) Object Installation Project number Date : : Kreon CS m² presentatie : Relux berekening kantoor kreon : 26.11.2021 www.kreon.com Page 138/193 Kreon CS m² presentatie_no tiles_R3.1_2021__Relux.rdf 0 50 100 200 300 400 500 Illuminance [lx]

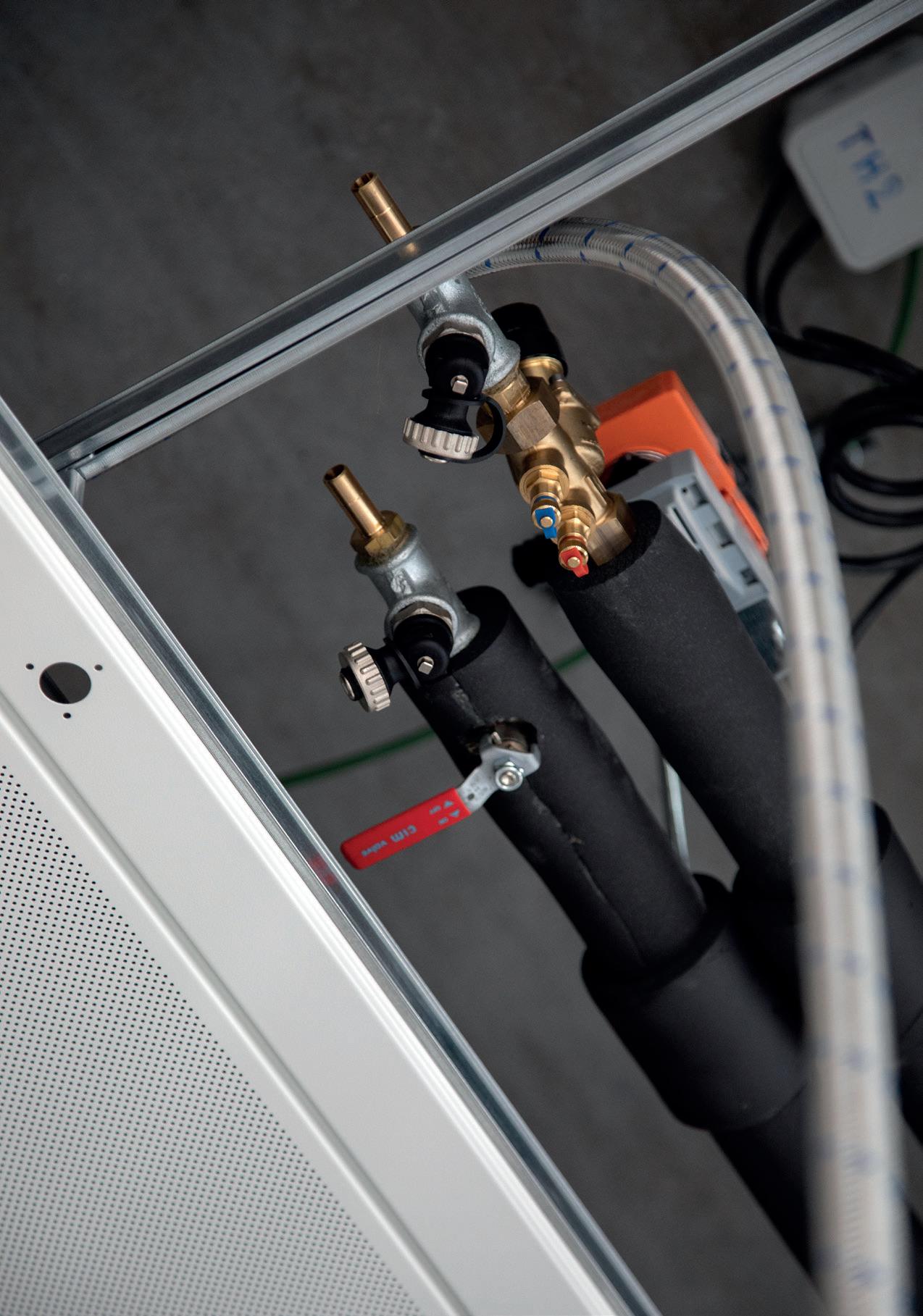

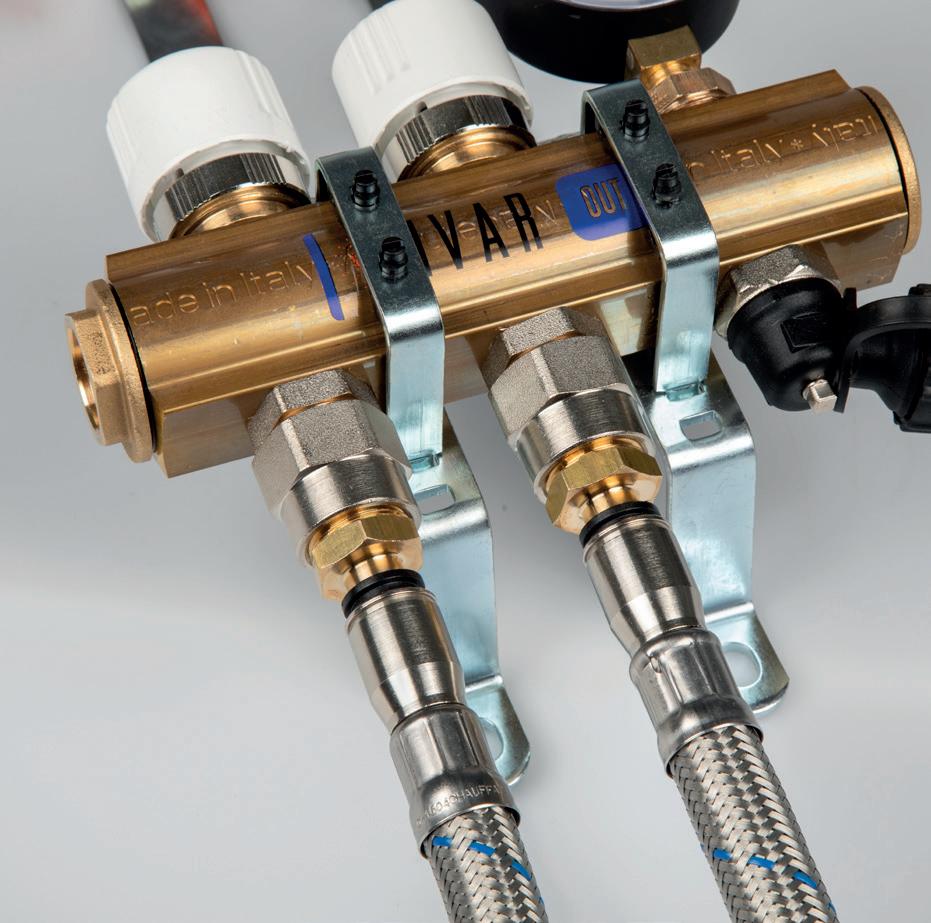

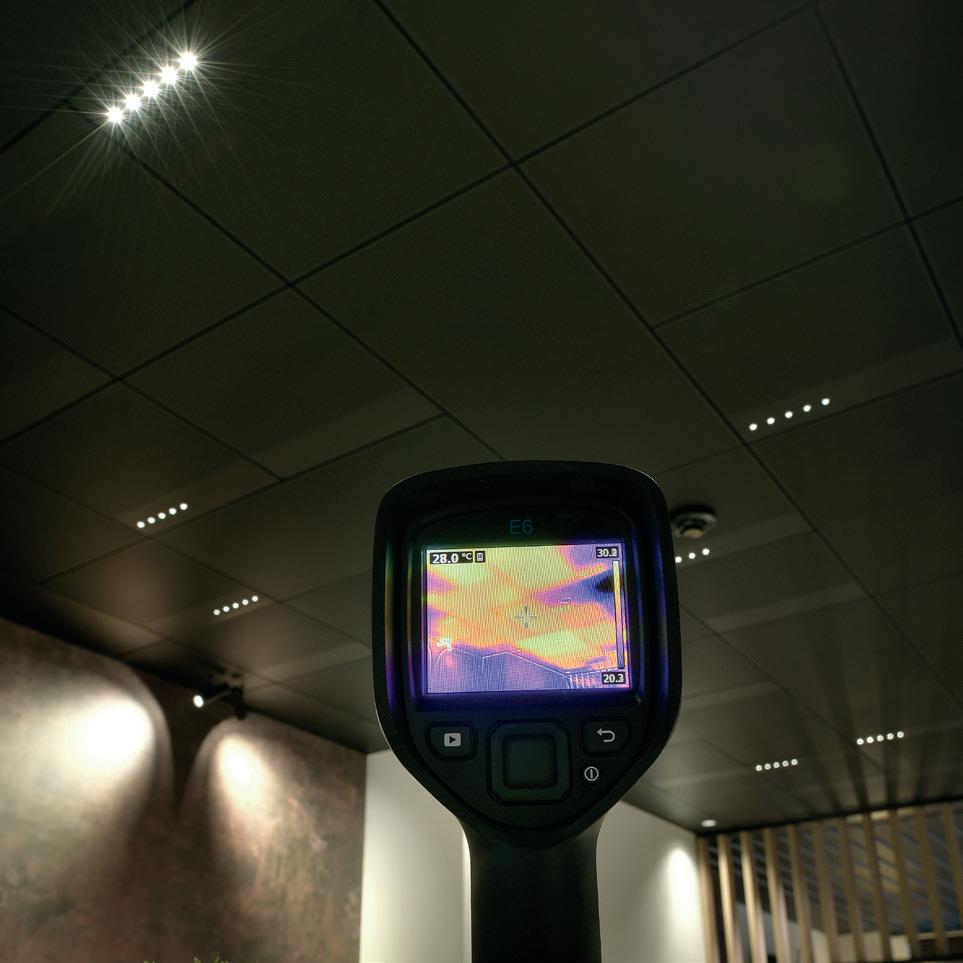

55 kreon.com/vektron vektron clima

56 vektron ceiling solutions

vektron clima clip-in wall-to-wall

57 kreon.com/vektron

- 40m² lay-out clima activation 50% lay-out clima activation 75% data Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Adres Kreon CS m² presentatie Kreon ceiling solutions Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi Wall to wall Ceiling-in-ceiling Ceiling raft Wall cladding Bulkhead Tech tiles © All dimensions must be checked by the contractor on its own responsibility valid only in conjunction with the plans of the expert engineer, structural engineer, be discussed directly with kreon consultancy. This plan serves as a basis/proposal Customer Name Signature 9600 4200 12x7 tiles in serie Total cooling capacity: Total heating capacity: 600 Clima 6RR/100mm full perfo 600x600mm perforation Clima tiles ceiling solutions office 40.32 m² Tiles C-wall profile L2400mm White Edge finishing Clima cooling entry 15°C return 17°C room 26°C full perfo 600x600mm perforation Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision date Revision drawn by Drawing Scale Original cad file Adres Kreon CS m² presentatie Kreon ceiling solutions open office_c-wall_clima 1/2 1/20, Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi O Wall to wall O Ceiling-in-ceiling O Ceiling raft O Wall cladding O Bulkhead O Tech tiles O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility be measured on site. This plan valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as a basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 9600 4200 9x7 tiles in serie Total cooling capacity: 2142W53.13W/m² Total Heating capacity: 2079W51.56W/m² Clima 6RR/100mm SL540 Ø10mm full perfo clip-in 600x600mm perforation R1White Clima tiles Type C1.1 63pcs. ceiling solutions office 40.32 m² (clima activation Tiles 30.8m pcs. C-wall profile L2400mm White Edge finishing Clima cooling heating entry 15°C 38°C return 17°C 36°C room 26°C 22°C 600 Type 1.1 49 pcs. full perfo clip-in 600x600mm perforation R1White

office

clima 6RR/100mm SL540 Ø10mm T entry T return T room Cooling 15°C 17°C 26°C Heating 38°C 36°C 22°C 50% 75% Total cooling capacity 2142W 53,1W/m2 2856W 70,8W/m2 Total heating capacity 2079W 51,6W/m2 2772W 68,8W/m2 9x7 tiles in serie 12x7 tiles in serie

vektron clima clip-in

ceiling-in-ceiling

58 vektron ceiling solutions lay-out clima activation 50% lay-out clima activation 75% office - 40m² data Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Adres Kreon CS m² presentatie Kreon ceiling solutions Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi Wall to wall Ceiling-in-ceiling Ceiling raft Wall cladding Bulkhead Tech tiles © All dimensions must be checked by the contractor on its own responsibility valid only in conjunction with the plans of the expert engineer, structural engineer, be discussed directly with kreon consultancy. This plan serves as basis/proposal Customer Name Signature 10400 5000 9600 4200 ceiling solutions office 40.32 m² (clima Edge finishing Edge cover gypsum connection 2400mm White 600 Clima 6RR/100mm full perfo clip-in 600x600mm perforation Clima tiles Clima cooling T entry 15°C T return 17°C T room 26°C full perfo clip-in 600x600mm perforation Tiles 12x7 tiles in serie Total cooling capacity: Total heating capacity: Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision date Revision drawn by Drawing Scale Original cad file Adres Kreon CS m² presentatie Kreon ceiling solutions open office_Edge cover gypsum con._clima 1/2 1/20, detail 1/5 Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi O Wall to wall O Ceiling-in-ceiling O Ceiling raft O Wall cladding O Bulkhead O Tech tiles O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan is valid only in conjunction with the plans the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 9600 4200 ceiling solutions office 40.32 m² (clima activation Edge finishing 27.6m pcs. Edge cover gypsum connection 2400mm White Clima 6RR/100mm SL540 Ø10mm full perfo clip-in 600x600mm perforation R1White Clima tiles Type C1.1 63 pcs. Clima cooling heating T entry 15°C 38°C T return 17°C 36°C T room 26°C 22°C 600 Type 1.1 49 pcs. full perfo clip-in 600x600mm perforation R1White Tiles 9x7 tiles in serie Total cooling capacity: 2142W 53.13W/m² Total Heating capacity: 2079W 51.56W/m²

vektron clima clip-in

ceiling raft

59 kreon.com/vektron lay-out clima activation 50% lay-out clima activation 75% data Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Adres Kreon CS m² presentatie Kreon ceiling solutions Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi Wall to wall Ceiling-in-ceiling Ceiling raft Wall cladding Bulkhead Tech tiles © All dimensions must be checked by the contractor on its own responsibility valid only in conjunction with the plans of the expert engineer, structural engineer, be discussed directly with kreon consultancy. This plan serves as a basis/proposal Customer Name Signature 10400 5000 1600 1600 9644 4244 2200 2200 2400 2400 2400 2400 2400 2400 2400 2400 ceiling solutions office 40.93m² Edge finishing Edge cover length see White Clima 6RR/100mm full perfo 600x600mm perforation Clima tiles Clima cooling entry 15°C return 17°C room 26°C 600 full perfo 600x600mm perforation Tiles 17x5 tiles in serie Total cooling capacity: Total heating capacity: Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision date Revision drawn by Drawing Scale Original cad file Adres Kreon CS m² presentatie Kreon ceiling solutions open office_Edge cover 80_clima 1/2 1/20, Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi O Wall to wall O Ceiling-in-ceiling O Ceiling raft O Wall cladding O Bulkhead O Tech tiles O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility be measured on site. This plan valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as a basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 10400 5000 1600 1600 9644 4244 2200 2200 2400 2400 2400 2400 2400 2400 2400 2400 ceiling solutions office 40.93m² (clima activation Edge finishing 27.78m Edge cover 80 length see catalogue White Clima 6RR/100mm SL540 Ø10mm full perfo clip-in 600x600mm perforation R1White Clima tiles Type C1.1 65pcs. Clima cooling heating entry 15°C 38°C return 17°C 36°C room 26°C 22°C 600 Type 1.1 47 pcs. full perfo clip-in 600x600mm perforation R1White Tiles 12x5 tiles in serie Total cooling capacity: 2730W 66.70W/m² Total Heating capacity: 3640W 88.93W/m² office - 40m²

clima 6RR/100mm SL540 Ø10mm T entry T return T room Cooling 15°C 17°C 26°C Heating 38°C 36°C 22°C 50% 75% Total cooling capacity 2730W 66,7W/m2 3588W 87,7W/m² Total heating capacity 3650W 88,9W/m2 3760W 116,3W/m2 12x5 tiles in serie 17x5 tiles in serie

vektron clima

rytmi ceiling-in-ceiling

60 vektron ceiling solutions lay-out clima activation 50% lay-out clima activation 75% data Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision date Revision drawn by Drawing Scale Original cad file Adres Kreon CS m² presentatie Kreon ceiling solutions open office_Rytmi_clima 1/2 1/20, Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi O Wall to wall O Ceiling-in-ceiling O Ceiling raft O Wall cladding O Bulkhead O Tech tiles O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility be measured on site. This plan valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as a basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 10400 5000 9556 4200 9x6 tiles in serie Total cooling capacity:1998W 49.78W/m² Total heating capacity: 1890W -47.09W/m² ceiling solutions office 40.14 m² (clima activation Edge finishing 8.4m Half clip-in profile 53 pcs. rytmi lamella natural anodised L4200mm Clima 2RR/85mm SL2040 Ø10mm full perfo rytmi clip-in 2100x175mm perforation R1White Clima tiles Type C1.1 54pcs. Clima cooling heating entry 15°C 38°C return 17°C 36°C room 26°C 22°C 2100 Type 54pcs. full perfo rytmi clip-in 2100x175mm perforation R1White Tiles 4200 Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Adres Kreon CS m² presentatie Kreon ceiling solutions Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi Wall to wall Ceiling-in-ceiling Ceiling raft Wall cladding Bulkhead Tech tiles © All dimensions must be checked by the contractor on its own responsibility valid only in conjunction with the plans of the expert engineer, structural engineer, be discussed directly with kreon consultancy. This plan serves as a basis/proposal Customer Name Signature 10400 5000 9556 4200 ceiling solutions office 40.14 m² Edge finishing Half clip-in rytmi lamella natural anodised L4200mm Clima 2RR/85mm full perfo 2100x175mm perforation Clima tiles Clima cooling entry 15°C return 17°C room 26°C 2100 full perfo 2100x175mm perforation Tiles 4200 13x6 tiles in serie Total cooling capacity: Total heating capacity: office - 40m²

clima 2RR/85mm SL2040 Ø10mm T entry T return T room Cooling 15°C 17°C 26°C Heating 38°C 36°C 22°C 50% 75% Total cooling capacity 1998W 49,8W/m2 2886W 71,9W/m2 Total heating capacity 1890W 47,1W/m2 2730W 68,0W/m2 9x6 tiles in serie 13x6 tiles in serie

61 kreon.com/vektron

vektron ventilation

62 vektron ceiling solutions

vektron ventilation fuo C2

general information

description

perforated air supply diffuser type air diffuser combined with vektron perforated tiles purpose diffuser for supply of conditioned air, integrated in vektron ceilings

application

The perforated diffuser is used for the supply of the conditioned air with a fix temperature difference in respect to the room temperature. This diffuser has a diffusing effect over 360°. The specific air pattern is resulting in a minimal pollution of the ceiling.

membrane materials

integration diffusers to be installed on top of vektron ceiling substructure panels metal tiles out of hot dipped galvanized steel with a minimum zinc coating of 50g/m² dimensions as per the dimensions of the delivered ceiling system. The visible border of the tile contains a shadow joint of 3mm wide and 8mm deep.

paint finishing panels have a electrostatically polyester applied powder coating with a paint thickness of minimum 60μ. colour identical to the metal ceiling panels gloss for vektron standard colours in between 3% and 7% depending on the colour perforation available perforations:

- square pitched perforation, diameter 2.5mm, pitch 5.50mm, perforation degree 16%

- diagonal pitched perforation, diameter 1.8mm, pitch 2.47mm, perforation degree 21%.

- a non perforated border is possible, depending on the size of the diffuser.

63 kreon.com/vektron

C2 symbol

product name fuo

Ø125 Ø200 Ø160

5 5 5 5 Ø2.5 Ø1.80 2 4 7 4 94 16% perforation 21% perforation acces to ceiling void All ceiling panels to be removable.

technical information

general information standard perforated tiles

- temperature differences of ΔT = 10K can be achieved

- the plenumbox, insulated or not, has a round side or top connection

All types can be ordered with side plenum (insulated as an option)

in mm. The mentioned perfo size, is the minimum size required of the perforation field.

64 vektron ceiling solutions

installation dimensions B N A H B N A H top connection side connection Ø125 Ø160 Ø200 Ø125 Ø160 Ø200 N 125 160 200 125 160 200 A 600 600 600 600 600 600 B 580 580 580 545 545 545 H 153 165 175 204 239 279 min. perfo size ≥393 ≥393 ≥593 ≥393 ≥393 ≥593 All

supply airflow & sound level max. airflow at NR 35m3/h top connection side connection Ø125 Ø160 Ø200 Ø125 Ø160 Ø200 16% perforation 150m3/h 260m3/h 350m3/h 153m3/h 260m3/h 440m3/h 21% perforation 190m3/h 320m3/h 440m3/h 165m3/h 260m3/h 460m3/h

dimensions

65 kreon.com/vektron

- 40m²

office

lay-out fuo C2 Ø125 lay-out fuo C2 Ø160 Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Original cad file Adres Kreon CS m² presentatie open office_c-wall_Ventilation C2-125 1/20, detail 1/5 Oona Op de Weerdt Clip-in Lay-on Hook-on Rytmi Wall to wall Ceiling-in-ceiling Ceiling raft Wall cladding Bulkhead Tech tiles nv © All dimensions must be checked by the contractor on its own responsibility be measured on site. This plan valid only in conjunction with the plans of the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as a basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 9600 4200 AA' pulsion 570m³/h extraction 570m³/h ceiling solutions office 40.32 m² Tiles 30.8m C-wall profile L2400mm White Edge finishing top/or side connection Ventilation _top connection cs ceiling height 1 Fuo C2 top connection installation Height 250mm secondary hvac flexible tube by others clip-in tile top connection Detail AA' Fuo C2top connection cs ceiling height 1 clip-in tile Detail AA' Fuo C2side connection Fuo C2 side onnection installation Height 204mm secondary hvac flexible tube by others Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Adres Kreon CS m² presentatie Kreon ceiling solutions Oona Op de Weerdt 17/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi Wall to wall Ceiling-in-ceiling Ceiling raft Wall cladding Bulkhead Tech tiles © All dimensions must be checked by the contractor on its own responsibility valid only in conjunction with the plans of the expert engineer, structural engineer, be discussed directly with kreon consultancy. This plan serves as a basis/proposal Customer Name Signature 9600 4200 AA' pulsion 640m³/h extraction 640m³/h 600 full perfo clip-in 600x600mm perforation ceiling solutions office 40.32 m² Tiles C-wall profile L2400mm White Edge finishing Fuo 2 Ø160 full perfo 600x600mm top/or 35NR 600 Ventilation _top connection 1 clip-in tile Fuo C2 Ø160 top connection Detail AA' Fuo C2top connection Detail AA' 1 Fuo C2 Ø160 side connection clip-in tile Detail AA' Fuo C2side connection lay-out fuo C2 Ø200 9600 4200 AA'

vektron ventilation fuo C2

detail AA'

fuo C2 top connection

detail AA'

fuo C2 side connection

data

fuo C2 (top connection) installation depth Ø125 250mm

Ø160 295mm

Ø200 375mm

secondary HVAC exible tube by others

clip-in tile clip-in tile

fuo C2 top connection

fuo C2 (side connection) installation depth 280mm

fuo C2 (side connection) installation depth Ø125 204mm Ø160 239mm

Ø200 279mm

secondary HVAC exible tube by others

fuo C2 side connection clip-in tile clip-in tile

fuo C2 pulsion extraction total air exchange value based on noise rating (NR)

REMARK: airflow based on 40m³/h/person, room occupancy 10 people

66 vektron ceiling solutions

Ø125 570m3/h 570m3/h P3 + E3 diffusers 35

190m³/h Ø160 640m3/h 640m3/h P2 + E2 diffusers 35 - 320m³/h Ø200 440m3/h 440m3/h P1 + E1 diffusers 35 - 440m³/h

vektron ventilation fuo square

product name fuo square symbol

Ø125 Ø200 Ø160

general information

description square diffuser with adjustable air pattern type fuo square with tap connection

purpose diffusers for conditioned air distribution integrated in vektron ceiling application

The diffuser is used for supply and exhaust of cooled or heated air in facilities such as offices, shopping centres. The diffuser can be mounted in the ceiling where high aesthetic standards are required. Adjustable air pattern.

membrane materials

panel vektron 600x600mm cassette panels manufactured from 0.5mm hot dipped galvanized steel with a minimum zinc coating of 50g/m². diffuser Factory integrated in a metal ceiling panel. Dimensions depending on the type, made out of aluminum and galvanized steel.

tile edges The visible tile edge is formed creating a shadow joint 6mm wide and 8mm deep in all directions.

perforation patterd Non perforated. Perforation available on request, depending on the type and panel size.

paint finishing Diffuser and panel have electrostatically applied polyester powder coating with a minimum paint thickness of minimum 60μ. colour Same colour as the used ceiling.

gloss For the standard range of vektron colours a gloss in between 3%-10% is obtained depending on the colour.

acces to ceiling plenum All ceiling panels to be removable.

technical information

general information

air pattern adjustable in 5 positions in between vertical and horizontal air pattern.

vertical air pattern horizontal air pattern

- removable deflector plate

- painted according to the ceiling

- cylindrical air flow adjuster available on request

68 vektron ceiling solutions

dimensions and spigotdiameters B A N top connection Ø125 Ø160 Ø200 N 123 158 198 A 194 260 290 B 228 317 357 All dimensions in mm. supply airflow & sound level max. airflow at NR 35 m3/h top connection Ø125 Ø160 Ø200 182m3/h 315m3/h 420m3/h

69 kreon.com/vektron

- 40m²

lay-out fuo square Ø200 9600 4200 AA' lay-out fuo square Ø125 lay-out fuo square Ø160 Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision date Revision drawn by Drawing Scale Original cad file Adres Kreon CS m² presentatie Kreon ceiling solutions open office_c-wall_Ventilation FuoSQ 125 1/20, detail 1/5 Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi O Wall to wall O Ceiling-in-ceiling O Ceiling raft O Wall cladding O Bulkhead O Tech tiles O Ventilation Audio O Emergency O O Clima O Lighting nv © All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan is valid only conjunction with the plans the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 9600 4200 AA' pulsion 480m³/h extraction 480m³/h Type 1.1 106 pcs. full perfo clip-in 600x600mm perforation R1White ceiling solutions office 40.32 m² Tiles 30.8m C-wall profile L2400mm White Edge finishing Type 0.1 SQ 125 pcs. Ventilation _top connection Fuo Square Ø125 full perfo R1 clip-in 600x600mm White top connection 30-35Db 160-180 m³/h Detail AA' Fuo Square 125 clip-in tile 1 Fuo Square Ø125 clip-in tile top connection cs ceiling height Fuo Square min installation Height 240mm secondary hvac flexible tube by others 2 Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Adres Kreon CS m² presentatie Kreon ceiling solutions Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi Wall to wall Ceiling-in-ceiling Ceiling raft Wall cladding Bulkhead Tech tiles © All dimensions must be checked by the contractor on its own responsibility valid only conjunction with the plans the expert engineer, structural engineer, be discussed directly with kreon consultancy. This plan serves as basis/proposal Customer Name Signature 9600 4200 AA' pulsion 650m³/h extraction 650m³/h full perfo 600x600mm perforation ceiling solutions office 40.32 m² Tiles C-wall profile L2400mm White Edge finishing Ventilation _top 600 Fuo Square full perfo 600x600mm top connection 30-35Db Detail AA' Fuo Square 160 clip-in tile 1 Fuo Square clip-in top connection 2

office

vektron ventilation fuo square

detail AA'

fuo square Ø125

clip-in tile

fuo square Ø160

clip-in tile

fuo square Ø200

clip-in tile

data fuo square

fuo square (top connection) min. installation depth 240mm secondary HVAC exible tube by others

square (Ø125)

fuo square (top connection) min. installation depth 240mm

HVAC exible tube by others

square (Ø160)

fuo square (top connection) min. installation depth 400mm

extraction total air exchange value based on noise rating (NR)

REMARK: airflow based on 40m³/h/person, room occupancy 10 people

70 vektron ceiling solutions

fuo

secondary

fuo square (Ø200)

secondary HVAC exible tube by others

Ø125 480m3/h 480m3/h P3 + E3 diffusers 35 - 160-180m³/h Ø160 650m3/h 650m3/h P2 + E2 diffusers 35 - 325-375m³/h Ø200 450m3/h 450m3/h P1 + E1 diffusers 35 - 450-520m³/h

pulsion

vektron ventilation vento

product name vento symbol

general information

18 24 45

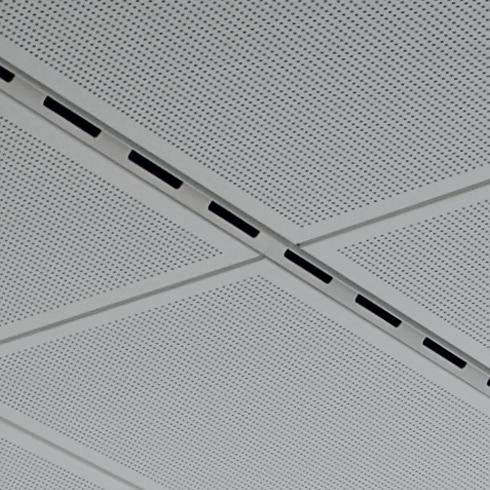

description integrated air diffuser for vektron ceilings and gypsum ceilings. Draught free air distribution through reduced discharge air velocity. type inductive linear ambient air diffuser purpose aesthetic ventilation lines for a wider diffusion of fresh air over larger areas.

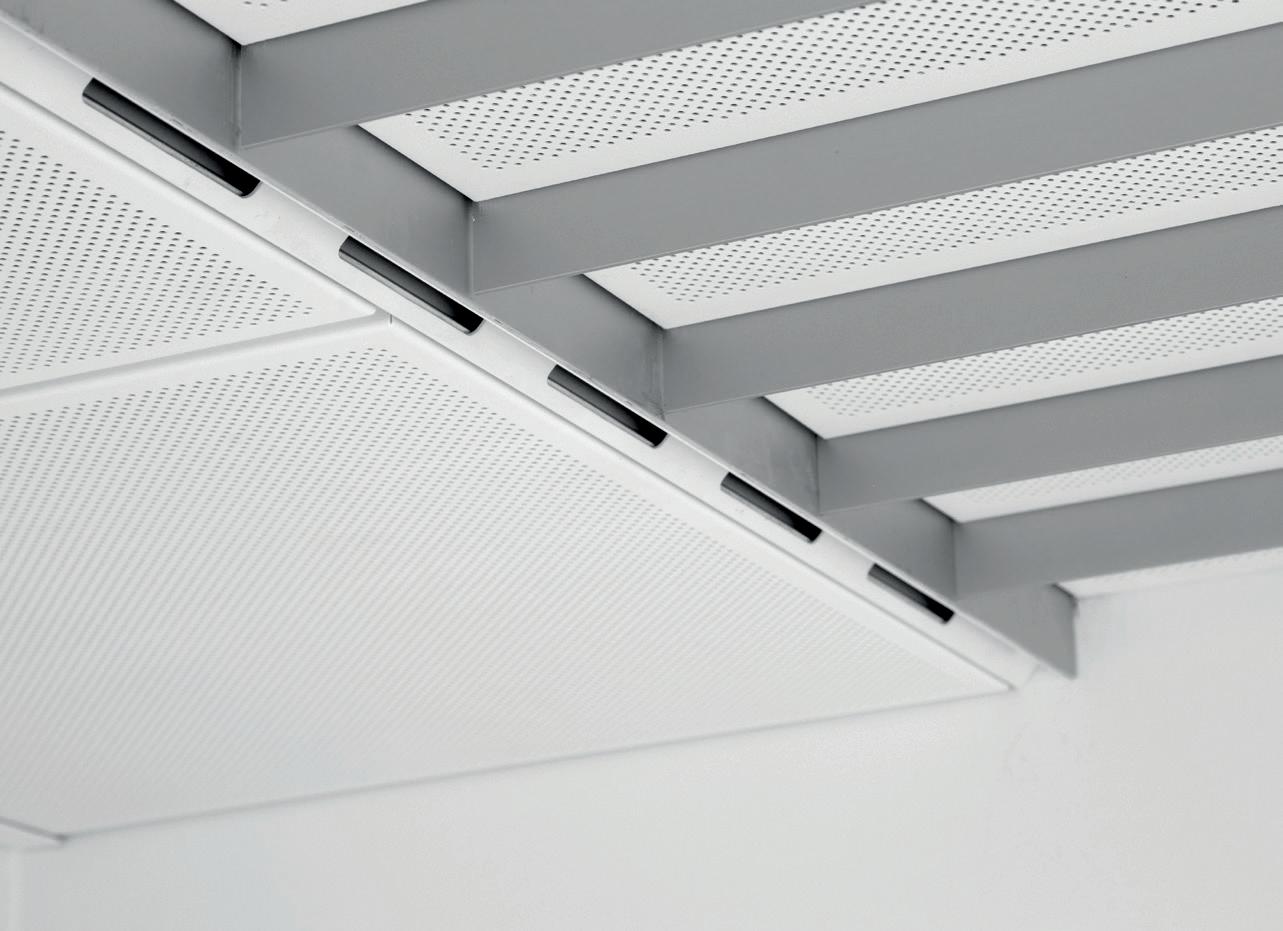

application elegant discharge profiles offer freedom of design for architects without sacrificing comfort and performance in office or residential areas. Due to 3-way air pattern under 45° entry angle, air is mixed to create draught free pulsion.

types

fixed air direction

widths 18mm, 24mm

temperature difference possible -14K

COANDA effect no

insulated plenumbox optional

angle -45° to +45° with horizontal plane (fixed)

directional air direction

widths 24mm, 45mm

temperature difference possible -10K

COANDA effect no

insulated plenumbox optional

angle -15° to +15° with horizontal plane in steps of 15°

technical information

colours RAL9010, RAL9005

other RAL colours on demand distance between parallel profiles ≥2500mm side profile details vektron ceiling and/or gypsum profile interchangeable

72 vektron ceiling solutions

supply airflow, pressure drop & sound level fixed air direction directional air direction vento 18 vento 24 vento 24 vento 45 air exchange rate (per hour) 2 6 6 12 6 12 6 12 L p = 30dB (A) V max (m3/hm) 88 71 85 74 93 81 214 186 Δp (Pa) 19 12 12 9 14 11 9 7 v s (m/s) < 0,12 < 0,12 < 0,15 < 0,15 < 0,17 < 0,17 < 0,17 < 0,17 L p = 35dB (A) V max (m3/hm) 111 89 107 93 118 102 270 235 Δp (Pa) 30 19 20 15 23 17 15 11 v s (m/s) < 0,12 < 0,12 < 0,15 < 0,15 < 0,17 < 0,17 < 0,17 < 0,17 L p = 40dB (A) V max (m3/hm) 140 112 135 118 148 129 339 296 Δp (Pa) 48 31 31 23 36 27 23 18 v s (m/s) < 0,12 < 0,12 < 0,15 < 0,15 < 0,17 < 0,17 < 0,17 < 0,17

73 kreon.com/vektron office - 40m² lay-out vento 18 lay-out vento 24

Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Revision Revision date Revision drawn by Drawing Original cad file Adres Kreon CS m² presentatie open office_C-wall_Vento 18 1/20, detail 1/5 Oona Op de Weerdt Clip-in Lay-on Hook-on Rytmi nv © All dimensions must be checked by the contractor on its own responsibility or be measured on site. This plan is valid only conjunction with the plans the expert engineer, structural engineer, (interior)architect. Deviations should be discussed directly with kreon consultancy. This plan serves as basis/proposal and not an implementation plan! www.kreon.com consultancy@kreon.com Customer Name Signature Date 9600 4200 Dummy 18 L=500 Dummy 18 L=500 Dummy 18 L=500 Dummy 18 L=500 vento 18 L=1000 vento 18 L=1500 vento 18 L=1000 vento 18 L=1500 vento 18 L=1000 vento 18 L=1500 vento 18 L=1000 vento 18 L=1500 AA' ceiling solutions office 40.32m² Tiles 30.8m C-wall profile L2400mm White Edge finishing Ventilation pulsion 445m³/h extraction 445m³/h L=1500mm 2x d125 insulated plenum 30-35Db 106-133m³/h L=1000mm 1x d125 30-35Db 71-89m³/h perforation R1White vento 18 L=1500 C-wall profile 2400mm clips clip-in tile Detail AA' Vento 18 9600 4200 AA' Contact Drawn by Date first proposal Project number Architect Type of project PROJECT Adres Kreon CS m² presentatie Kreon ceiling solutions Oona Op de Weerdt 16/12/2021 SP19/0300 O Clip-in O Lay-on O Hook-on O Rytmi Wall to wall Ceiling-in-ceiling Ceiling raft Wall cladding Bulkhead Tech tiles © All dimensions must be checked by the contractor on its own responsibility valid only conjunction with the plans the expert engineer, structural engineer, be discussed directly with kreon consultancy. This plan serves as basis/proposal Customer Name Signature vento 24 L=1500 vento 24 L=1000 Dummy 24 L=500 vento 24 L=1500 vento 24 L=1000 Dummy 24 L=500 vento 24 L=1500 vento 24 L=1000 Dummy 24 L=500 vento 24 L=1500 vento 24 L=1000 Dummy 24 L=500 full perfo 600x600mm perforation ceiling solutions office 40.32 m² Tiles C-wall profile L2400mm White Edge finishing Ventilation pulsion 465m³/h extraction 465m³/h vento 24 L=1500mm insulated 30-35Db vento 24 vento 24 L=1000mm insulated 30-35Db vento 24 L=1000 vento 24 L=1500 Dummy L=247 576 full perfo 600x576mm perforation C-wall profile 2400mm clips clip-in tile to be cut Detail AA' Vento 24 9600 4200 AA' 9600 4200 vento 45 L=1000 vento 45 L=1000 Dummy 45 L=1000 vento 45 L=1000 vento 45 L=1000 Dummy 45 L=1000 AA' 9600 lay-out vento 45

vektron ventilation vento

pulsion extraction total air exchange value based on noise rating (NR)

REMARK: airflow based on 40m³/h/person, room occupancy 10 people

74 vektron ceiling solutions

detail

vento

445m3/h 445m3/h P5m

E5m: 89m3/hm 1000mm: 35

71-89m³/h 1500mm:

vento 24 465m3/h 465m3/h P5m

E5m: 93m3/hm 1000mm: 35

74-93m³/h 1500mm: 35

111-139m³/h vento 45 470m3/h 470m3/h P2m + E2m: 235m3/hm 1000mm: 35 - 189-235m³/h

data

AA'

35 - 106-133m³/h

vento 18 vento

vento

detail

vento

AA'

vektron project references

Cover:

Project: Elektro Born & Meyer

Location: Luxembourg

Architect: Thillens & Thillens

Photographer: Serge Brison

Products: rytmi ceiling-in-ceiling vento

Page 22:

Project: HQ VolkerWessels

Location: Rijsen, the Netherlands

Architect: Reitsema & partners architecten

Photographer: Serge Brison

Products: clip-in ceiling-in-ceiling rei downlight

Page 23:

Project: EMAX

Location: Dilsen, Belgium

Architect: Architectuur Depot

Photographer: kreon

Products: clip-in wall-to-wall aplis 60 fuo square

Page 27:

Project: Shiseido

Location: Milan, Italy

Architect: Unispace

Photographer: Alberto Strada

Products: clip-in ceiling-in-ceiling cali 40

Page 31:

Project: Thillens & Thillens

Location: Luxembourg

Architect: Thillens & Thillens

Photographer: Serge Brison

Products: clip-in ceiling raft cana 80

Page 35:

Project: Office project

Location: Utrecht, the Netherlands

Contractor: Delektro

Products: clip-in ceiling-in-ceiling rei downlight

Page 39:

Project: Euronics

Location: Wommelgem, Belgium

Architect: Tecro & Krea

Photographer: Arne Jennard

Products: clip-in wall-to-wall super down

Page 43:

Project: Creutz & Partners

Location: Luxembourg

Architect: Plan76

Radermacher & Schoffers Architectes

Photographer: Serge Brison

Products: clip-in ceiling-in-ceiling

tenno 1x5

Page 47:

Project: Belgium Racing

Location: Lommel, Belgium

Architect: Pas Interieurconcepten

Photographer: Serge Brison

Products: clip-in ceiling-in-ceiling tenno 2x5 ato twin

Page 51:

Project: Orrick

Location: London, United Kingdom

Architect: TPBennett Architects

Chapman Bathurst M & E Engineers

Photographer: Arne Jennard

Products: clip-in ceiling-in-ceiling tenno 5x5

Page 55-56:

Project: B&B Ohles

Location: St. Vith, Belgium

Photographer: Serge Brison

Products: clip-in wall-to-wall

tenno 1x5

holon 40 directional clima (on top of tile)

Page 61-62:

Project: Belgium Racing

Location: Lommel, Belgium

Architect: Pas Interieurconcepten

Photographer: Serge Brison

Products: clip-in ceiling-in-ceiling

fuo square

tenno 2x5

holon 40 directional

Page 62:

Project: Nationaal Archief

Location: Den Haag, the Netherlands

Architect: Kuypers installaties

Photographer: Arne Jennard

Products: clip-in ceiling raft

Page 67:

Project: Business center Avrora

Location: Moscow, Russia

Architect: UNK Project

Photographer: Alexey Zadorov

Products: rytmi ceiling-in-ceiling vento

tenno 1x5

Page 71:

Project: Elektro Born & Meyer

Location: Luxembourg

Architect: Thillens & Thillens

Photographer: Alexey Zadorov

Products: clip-in wall-to-wall

fuo square vento

aplis in-line 80

kreon.com/vektron 75

Price chart cover:

Project: B&B Ohles

Location: St. Vith, Belgium

Photographer: Serge Brison

Products: rytmi aplis 60 tenno 2x5

Price chart overleaf:

Project: Gymna

Location: Diepenbeek, Belgium

Architect: GDb engineering

Photographer: Serge Brison

Products: clip-in cali 40

vektron offices

kreon HQ

Industrieweg Noord 1152 3660 Oudsbergen

Belgium

T +32 89 81 97 80 belgium@kreon.com www.kreon.com

kreon Austria Kärntner Ring 4 1010 Vienna Austria

T +43 1 715 44 25 austria@kreon.com

kreon China / The Belgian House Changle Road Lane 672, No. 33, Building No. 5, Jingan, Shanghai China

T +86 183 1711 3541 china@kreon.com

kreon France 5, rue d’Aboukir 75002 Paris

France

T +33 1 44 50 53 54 france@kreon.com

kreon Germany

Brühler Straße 11-13 50968 Cologne

Germany

Tel +49 221 937 22 0 germany@kreon.com

kreon Italy Via V. Forcella 5 20144 Milano Italy

T +39 02 89 42 08 46 italy@kreon.com

kreon Middle East & India

Dubai Airport Free Zone Area (DAFZA) West Wing 6 Office 6 WA 634

P.O. Box 293889 Dubai

United Arab Emirates

T +971 56 705 2522 middle.east@kreon.com

kreon Inc.

North America & Canada 20 Murray Hill Parkway Suite #180

East Rutherford NJ 07073

United States of America +1 (201) 298-44 48 usa@kreon.com

kreon Poland

T +48 504 788 355 poland@kreon.com

kreon Scandinavia

T +45 (0)7137 0239 hassan.elhindi@kreon.com

kreon South East Asia

63a Club Street

Singapore 069 437

Singapore

T +65 62 22 33 93 singapore@kreon.com

kreon Spain & Portugal

Ángel Guimera 7-9 local C Barcelona 08017

Spain

T +34 600 462 551 spain@kreon.com

kreon Switzerland

Neufeldweg 6 5103 Möriken

Switzerland

T +41 61 316 74 01 switzerland@kreon.com

kreon The Netherlands

Danzigerbocht 39 1013 AM Amsterdam

The Netherlands

T +31 (0)6 52 391 680 the.netherlands@kreon.com

kreon Turkey

Sehit Murat Demirli Cad. Resadiye Yolu 76 Alemdag-Ümraniye 34794

Istanbul

Turkey

T +90 216 430 86 00 turkey@kreon.com

kreon UK

67 Maltings Place

169 Tower Bridge Road

London

SE1 3LJ

United Kingdom

T +44 (0)20 7740 2112 uk@kreon.com

vektron design guide

vektron ceiling solutions design guide

vektron ceiling solutions

Ceiling raft

Ceiling installation

vektron ceiling solutions legend

Lighting in CS

vektron ceiling solutions subconstruction

vektron ceiling types clip-in wall-to-wall

office - 40m² lay-out subconstruction

vektron ceiling types clip-in

ceiling-in-ceiling

vektron ceiling types clip-in

ceiling raft

office - 40m²

lay-out

vektron ceiling types clip-in wall-to-wall

vektron ceiling types

rytmi ceiling-in-ceiling

office - 40m² lay-out subconstruction

vektron ceiling types lay-on

wall-to-wall

office - 40m² lay-out subconstruction

vektron ceiling types

hook-on wall-to-wall

vektron lighting aplis 60

vektron lighting aplis 60

vektron lighting cali 40

vektron lighting cana 80

vektron lighting cana 80

vektron lighting rei downlight

vektron lighting super down

vektron lighting super down

vektron lighting tenno

1x5

vektron lighting tenno 1x5

vektron lighting tenno

2x5

vektron lighting tenno 2x5

vektron lighting tenno

5x5

vektron clima clip-in wall-to-wall

vektron clima clip-in

ceiling-in-ceiling

vektron clima clip-in

ceiling raft

vektron clima

rytmi ceiling-in-ceiling

vektron ventilation fuo C2

vektron ventilation fuo square

vektron ventilation vento

vektron project references

vektron offices
