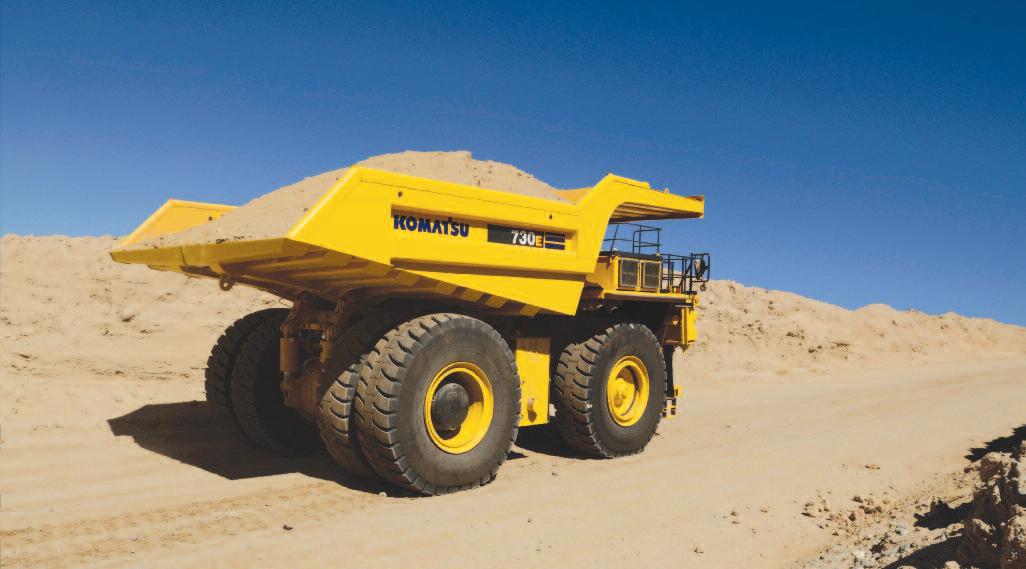

730E 730E
E L E C T R I C D R I V E T R U C K

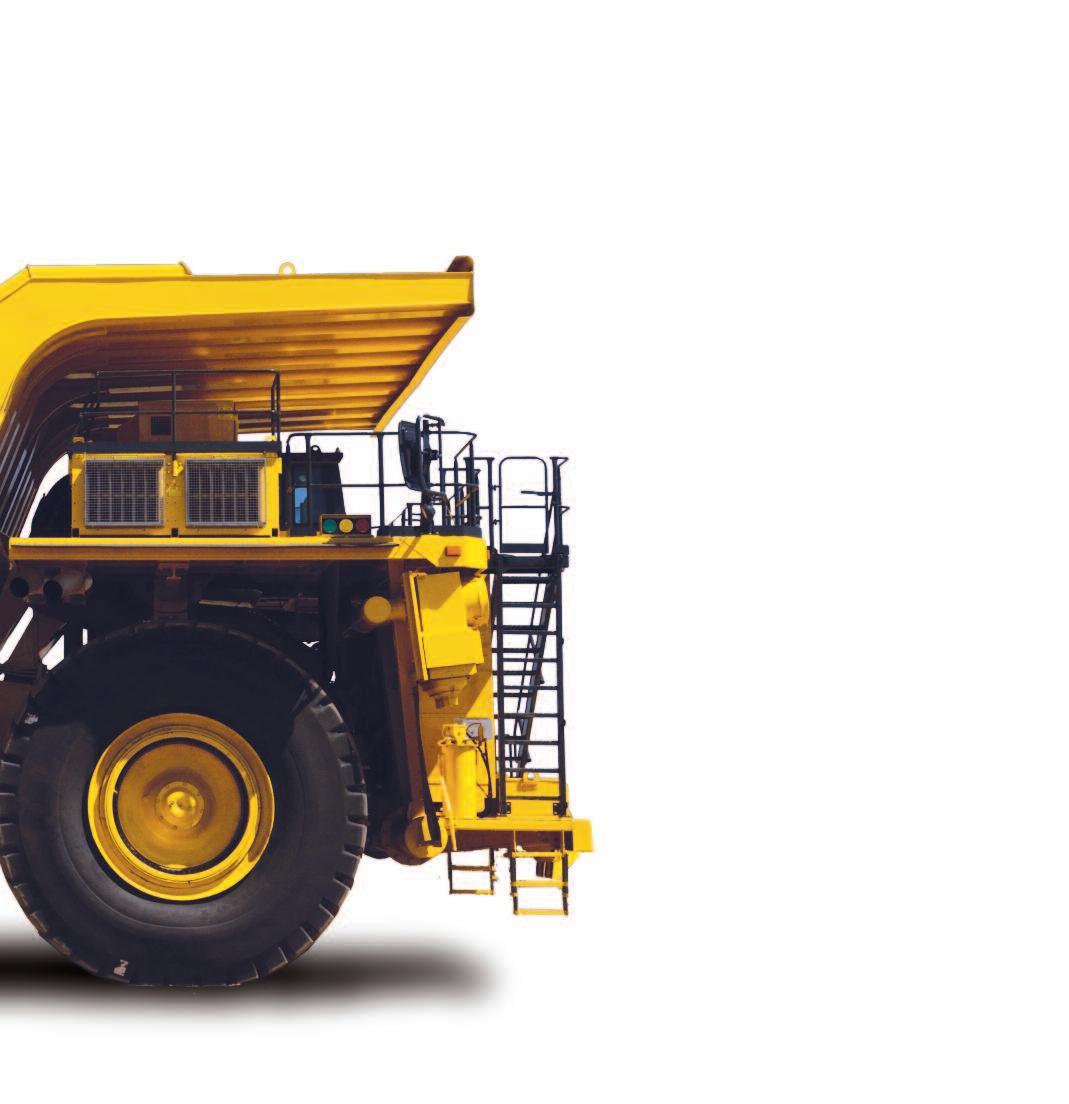

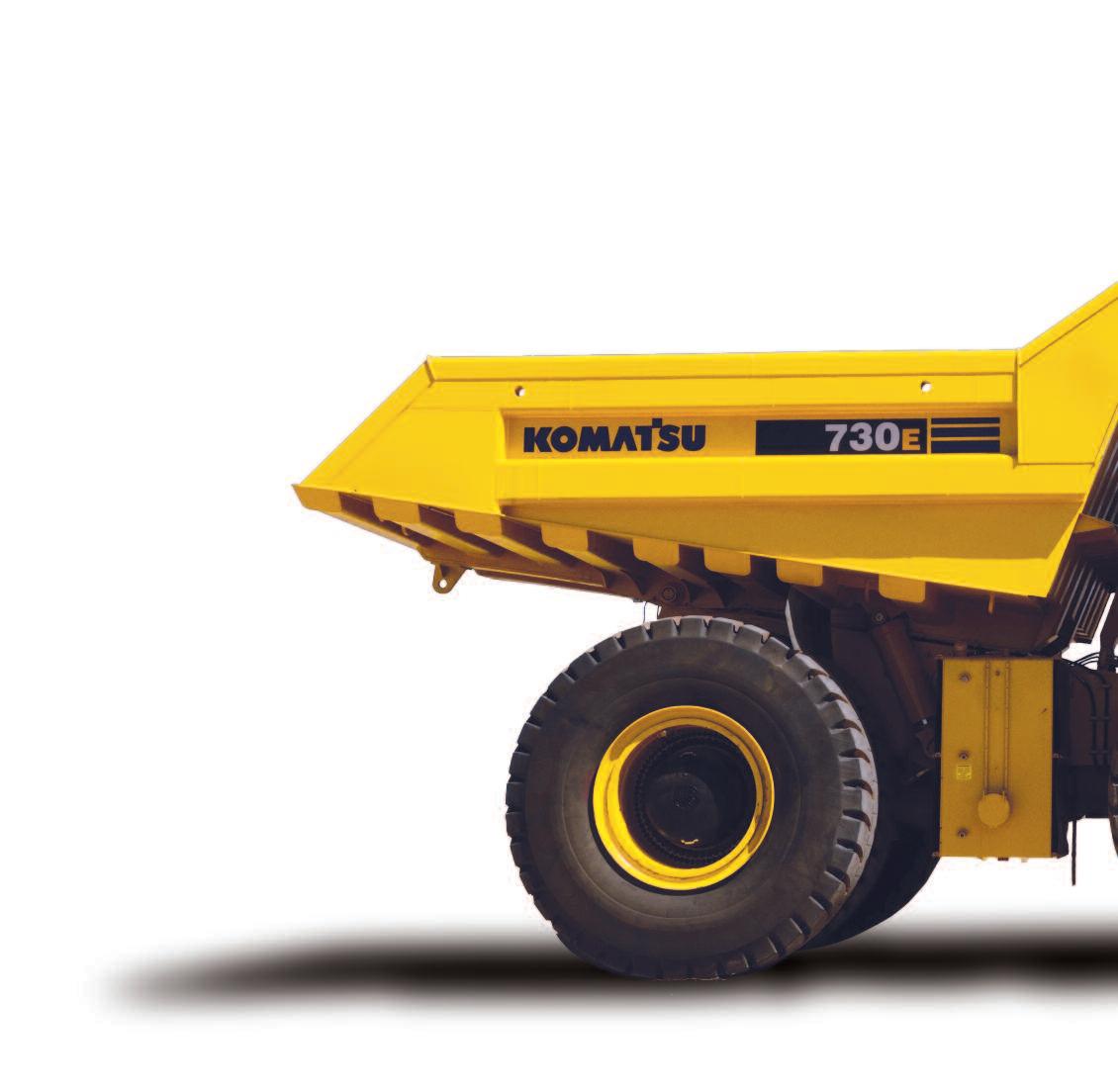

WALK-AROUND
Productivity Features
● High performance Komatsu SSDA16V159 engine
Gross horsepower 1492 kW 2,000 HP
● IGBT AC electric drive system
● 2387 kW 3,200 HP continuous retarding capability
● Automatic speed control (retard & propel) with automotive style cruise control
● Traction (spin-slide) control
● Customer specific body
● Tight turning radius 13 6 m 44' 6"
● Payload Meter III®
Reliability Features
● Frame structurally enhanced for 181 tonne 200 short ton payload
● Proven wheelmotor design based on GEB25 and 788
● Simple and reliable hydraulic system
● Steering and brake accumulators
● Hydraulically actuated disc brakes
● Compact inverter
● Contactorless retarding with quad choppers
Environmentally Friendly
● Optional Tier 4 compliant Komatsu SSDA16V159 engine
● Fuel efficient engine
Operator Environment
● Ergonomically designed spacious cab with improved visibility
● Fully adjustable driving position settings
● Four post ROPS/FOPS Level 2 Cab
● Advanced dash panel with payload display
● AM/FM/CD/MP3/USB radio
● Isolated cab mounts
Easy Maintenance
● KOMTRAX Plus allows immediate diagnostics of key engine, chassis, and drive system components
● Automatic lubrication system
● In-tank quick fill fuel system
● Flange type rims
● Optional smart (speed) rims

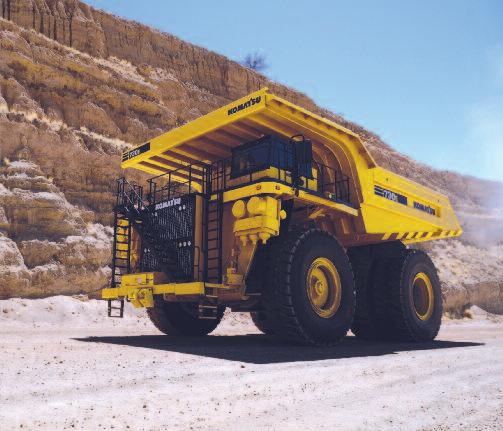

PRODUCTIVITY FEATURES

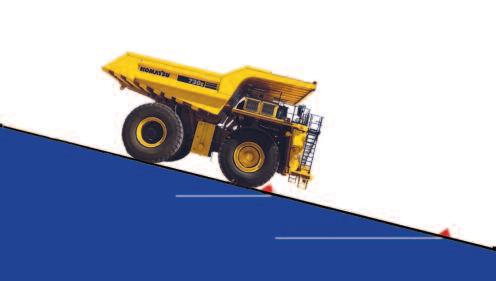

Electric Dynamic Retarder
The 2387 kW 3,200 HP retarding system provides state of the ar t braking capacity for navigating today’s mining applications which contain steep continuous descents and shar p switchbacks The continuous retarding capacity enhances the productivity of the vehicle operator, while eliminating the need for excessive mechanical braking effor t
IGBT AC Electric Drive System
Inver tex II® AC control system offers independent control of the rear wheelmotors, which in tur n provides outstanding traction-ability dur ing wet and slipper y conditions, thus improving tire wear and operator confidence.
The air cooled Insulated Gate Bipolar Transistor (IGBT) inver ter system technology provides the highest available reliability The IGBT inver ter is more compact and much simpler than the design of its predecessor, the Gate Tur n Off (GTO) inver ter, which improves ser viceability and routine maintenance
Traction (Spin-Slide) Control
During slipper y events caused by inclement weather conditions and/or application severity, the wheel Spin-Slide technology will detect and correct any wheel spin control events. Spin-Slide Control operates automatically and independently of the ser vice brakes During propulsion, "wheel slip control” reduces non-productive wheel spin in low traction conditions During retarding, "wheel slide control” prevents wheel lockup and subsequent sliding
Automatic Speed Control
While in retard or propel, the operator has the ability to select a comfor table travel speed. Automatic Speed Control simultaneously manages the speed of each wheel independently to allow for any immediate adjustments needed dur ing slipper y underfoot conditions
Customer Specific Body
For all tr ucks, Komatsu goes through the Body Wor ksheet (BW) process to ensure that each body is designed to meet the requirements for each specific application while carr ying its rated payload. Komatsu wor ks with each customer to understand all of the mater ial proper ties at a mine site and to identify the appropr iate liner package
Komatsu offers a standard all-welded steel, flat floor body with a full canopy and hor izontal bolsters This body includes a dr iver side eyebrow, body up sling, and r ubber mounts on the frame
• Standard Body Struck Capacity: 117 m3 153 yd3
• Standard Body SAE Heaped 2:1: 148 m3 193 yd3
• Standard Komatsu Body Weight: 28169 kg 62,100 lbs

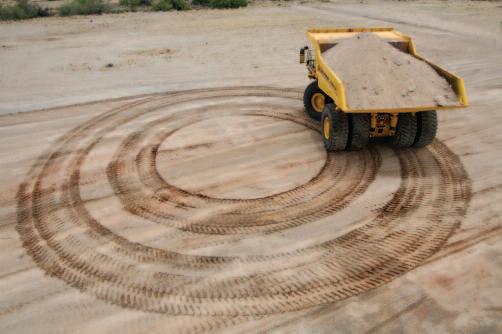

Tight Turning Radius
By using double acting hydraulic steer ing cylinders with a sixpoint ar ticulation linkage, the power steer ing system provides steer ing control with minimal operator effor t The tur ning radius is 13 6 m 44' 6", which provides excellent maneuverability for tight load g and dumping conditions The steer ing accumulators comply with ISO-5010 standards 13 6 m 44'6" radius 13 6 m 44'6" radius
Payload Meter III® (PLM III)
PLM III is an electronic system that monitors and records payload infor mation for Komatsu’s off-highway mining tr ucks The accurate and reliable payload measurement system is designed to help optimize payload, maximize productivity and reduce the life cycle cost of the machine. PLM III tracks and records the following key production parameters:
• Payload
• Empty Carr y-Back
• Operator Identification
• Haul Cycle, Loading, Dumping Time and Date
• Distance Traveled (Loaded and Empty)
• Cycle Time Infor mation
• Maximum Speeds (Loaded and Empty)
• TMPH Estimate for Front and Rear Tires
• Average Speed (Loaded and Empty)

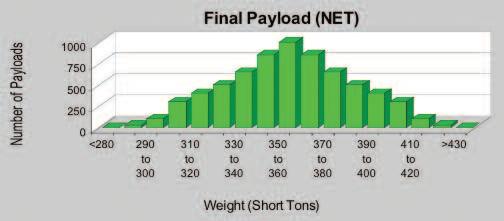

Example of Payload Summary
Hydropneumatic Suspension
Hydrair II® is a suspension system that utilizes four nitrogen-over-oil cylinders This suspension system is designed to maximize machine productivity by providing the operator with a smooth and comfor table r ide By absorbing shocks to the chassis dur ing operation, Hydrair II® contr ibutes to the durability of the machine’s frame and components.
Nitrogen gas Oil
OPERATOR ENVIRONMENT
Ergonomically Designed Cab
The Komatsu 730E cab design provides a comfor table and productive environment to meet today’s mining demands. The cab includes tinted windows, heating and air conditioning, acoustical insulation, double sealed doors, and provides filtered and pressur ized air
Operator Seat
Komatsu recognizes that operator comfor t is a key to productivity in today’s mining environment The five-way adjustable operator seat and the tilt-telescopic steer ing column provide an optimum dr iving posture for increased operator comfor t and control over the machine The air suspension seat absorbs vibrations transmitted from the machine, reducing operator fatigue A 76 mm 3" wide three-point seat belt is provided as standard equipment.

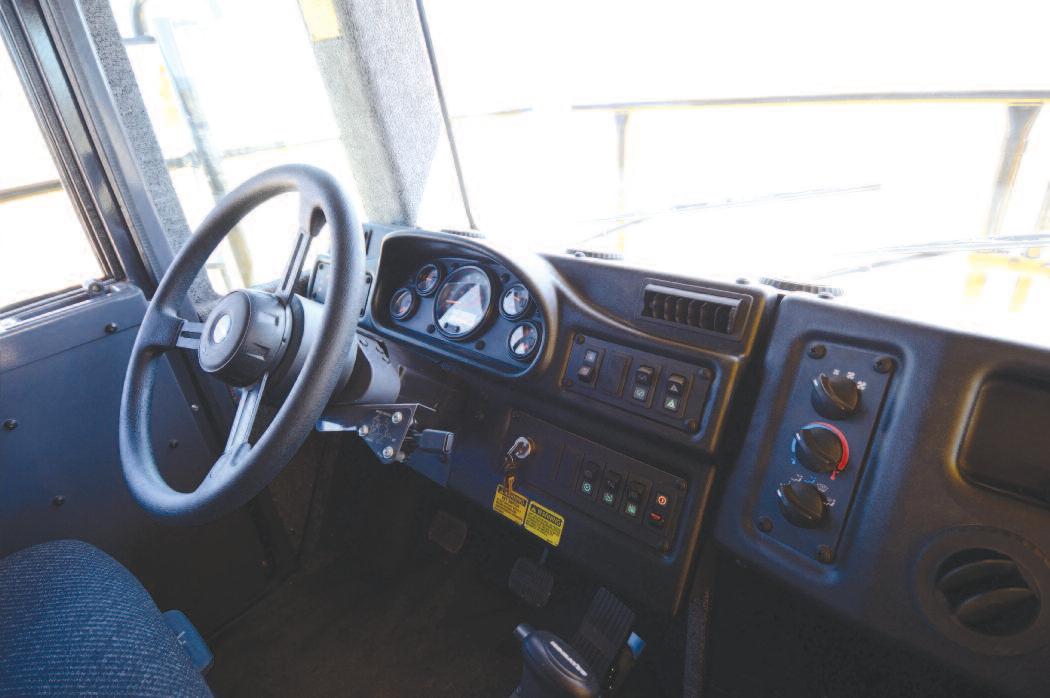

Automotive Style Instrument Panel
The 730E comes with a new operator fr iendly dash configuration which includes lighted gauges, switches, and infor mation panel This allows the operator to see the status of the machine dur ing operation and infor ms them of any faults An instr uctive message will appear after any fault is detected on the machine

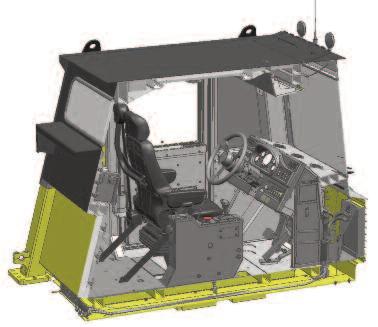

Built-in ROPS and FOPS Structure
Integral ROPS/FOPS Level 2 cab These structures confor m to ISO standards 3471 and 3449

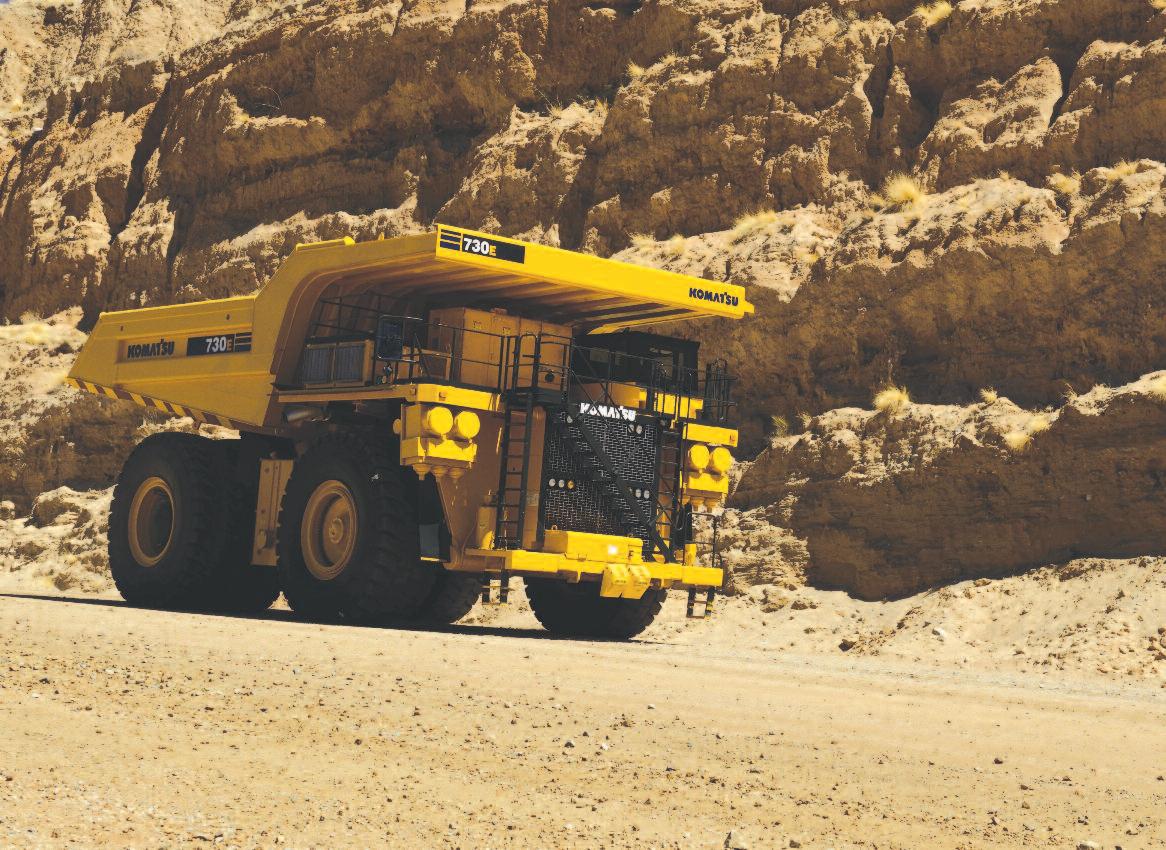

RELIABILITY FEATURES

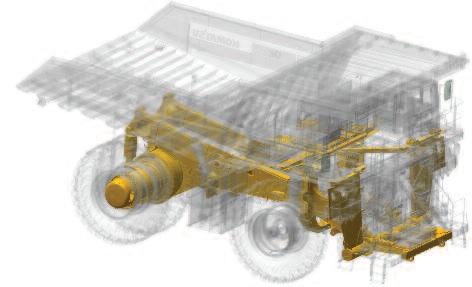

Structurally Enhanced Frame Design
By using advanced computer-aided design, finite element analysis, and full-scale dynamic and static testing, the frame design has been str ucturally enhanced to carr y 181 tonne 200 shor t tons and provides the highest reliability in the industr y

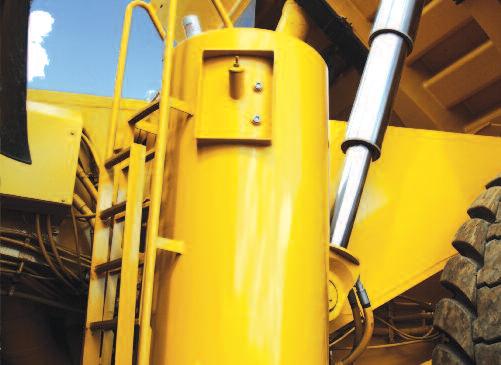

Simple and Reliable Hydraulic System

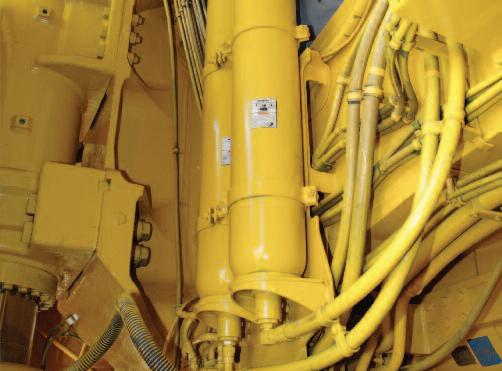

The hydraulic system is a proven and reliable design with fewer par ts than other OEMs. The system utilizes a common tank, and therefore, common fluid for steer ing, braking, and hoisting In-line, replaceable filtration elements provide additional hydraulic system protection from contamination
To keep downtime to a minimum, Komatsu developed a sub-frame pump module that can be removed and replaced as a single unit This reduces change-out time and allows easy access to the hydraulic pump module
Castings Used in High Stress Areas
To increase frame reliability, steel castings have been incor porated at key frame pivot points and key load bear ing cr itical por tions of the frame This includes the rear body pivot and horsecollar sections
Steering and Brake Accumulators
In the event that the hydraulic pressure in the steer ing or braking system drops below an acceptable minimum, nitrogen-charged accumulators will automatically apply the brakes so that the tr uck may be stopped There are separate accumulators for the braking and steer ing systems

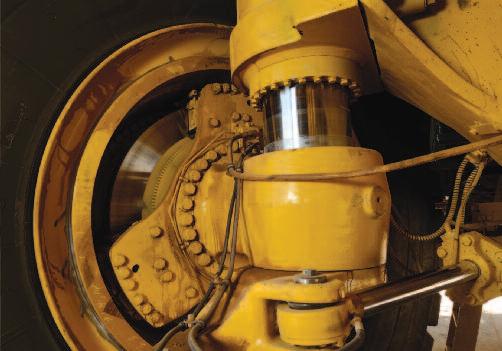

GEB35 with Combo Brake

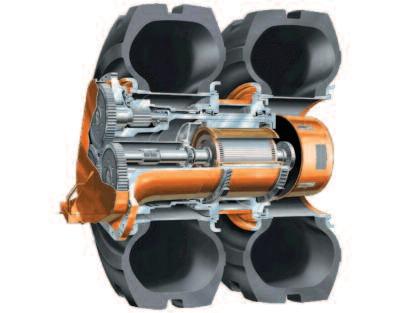

The GEB35 is a proven wheelmotor design based on the GEB25 and 788 It has a standard gear ratio of 30 8:1 and is designed for 12% equivalent grades
Fully Hydraulic Dry Disc Brakes

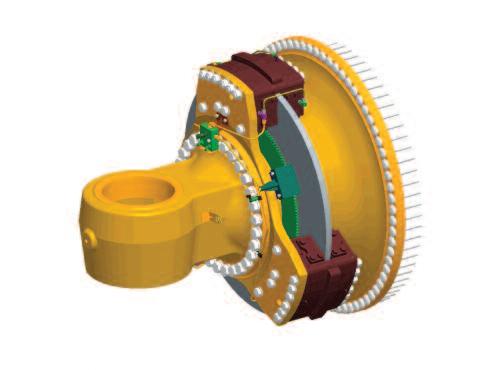

The 730E comes standard with four-wheel hydraulically actuated dr y disc ser vice brakes By using a fully hydraulic braking system, the for mation of water and sedimentstypical in air actuated braking systems - is no longer present This prevents contamination, freezing and corrosion from affecting ser vice brake component life
*Stops in 81% of ISO 3450 allowable distance
Komatsu 730E
ISO Standard

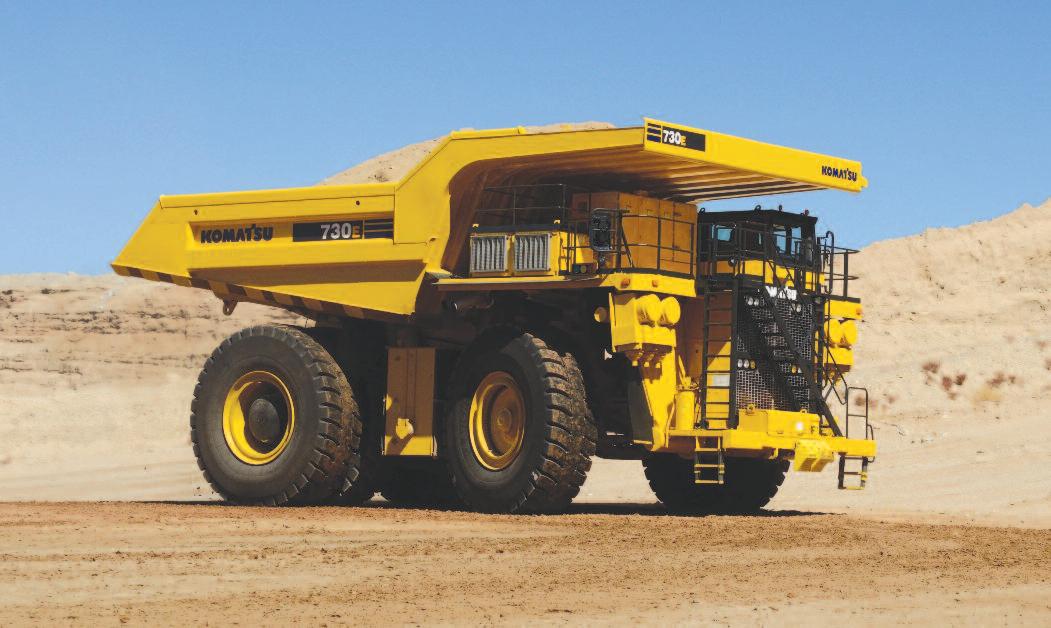

EASY MAINTENANCE
Advanced Monitoring System – On-board Diagnostics
The Komatsu advanced monitor ing system identifies maintenance items to the operator, reduces diagnostic times, indicates oil and filter replacement hours, and displays fault codes This monitor ing system is designed to maximize machine availability
Automatic Lubrication System
The automatic lubrication system is designed to reduce downtime for lubrication by having a centralized location that automatically distributes grease to all lubrication points

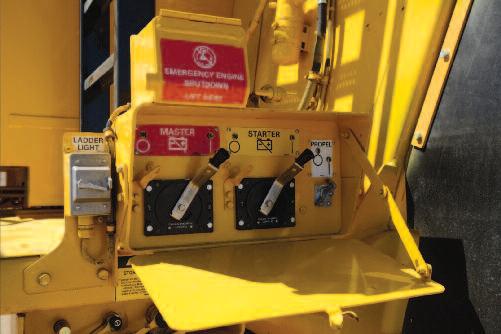

Battery Isolation Station
This box contains shutdown, lockout and light switches making it easier to perform basic maintenance functions at ground level Component switches include:
• Engine shutdown
• Access ladder light switch
• Master disconnect switch
• Star ter disconnect switch
• Propel lockout lever
• LED indicator lights (on/off)

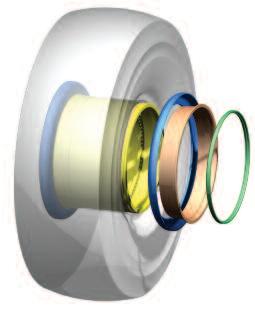

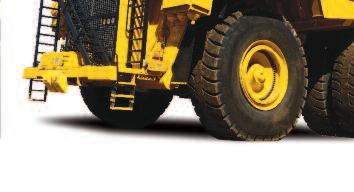

Flange Type Tire Rims
The flange type r ims allow easy removal and installation of the tires and minimize the overall impact on downtime.
KOMTRAX Plus
As par t of a complete ser vice and suppor t program, Komatsu equips ever y mining and quarr y sized machine with KOMTRAX Plus By using a satellite-based communication system, KOMTRAX Plus offers a new vision of monitor ing your valuable assets by providing insight to cr itical operating metr ics and infor mation that can be used to increase availability, lower owning and operating costs and maximize fuel efficiency
The KOMTRAX Plus infor mation available on MyKomatsu com allows ser vice personnel and asset owners to review cautions, operational data, fuel consumption, payloads and key component measurements provided in for ms of trends With KOMTRAX Plus, knowledge becomes the power to fuel your productivity
Quick Change Pump Module
To keep pump change-out time to a minimum, Komatsu has developed a sub-frame module which contains both the steer ing / brake and hoist pumps This module can be removed and replaced as a single unit, helping limit potential downtime and allowing easy access to the hydraulic pumping system.
ADDITIONAL FEATURES
Environmentally Friendly
Komatsu SSDA16V159 Engine
Optional Tier 4 compliant Komatsu SSDA16V159 engine
Less Fluids Than Mechanical Drives
Komatsu electr ic dr ive tr ucks contain 57% less fluid compared to similar class mechanical dr ive tr ucks, creating a lower environmental impact and makes fluid replacement simpler, quicker and more economical
Payload Policy

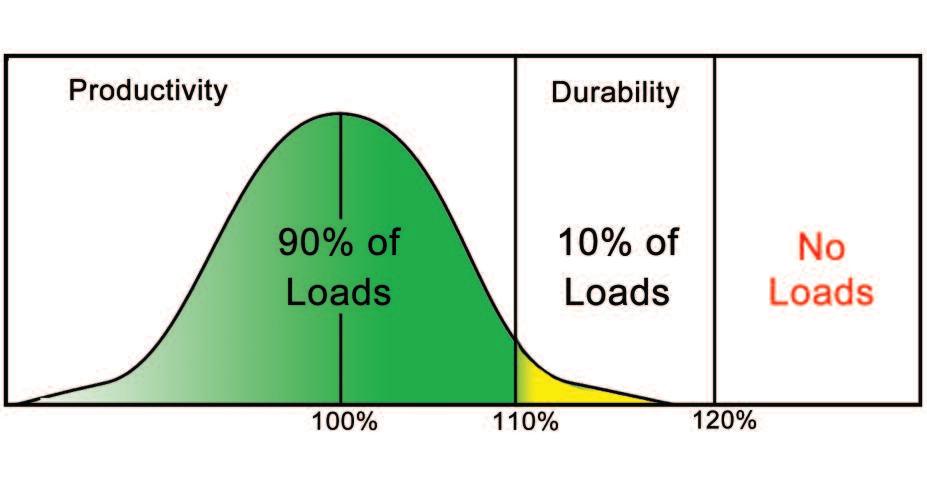

10-10-20 Load Policy Criteria
Recognizing that var iation occurs naturally in mater ial density, fill factors, and loading equipment, Komatsu Amer ica Cor p deems it necessar y to establish a consistent payload policy This payload policy is intended to identify the guidelines and limitations for the loading of Komatsu mining tr ucks, and is valid for approved applications and haul profiles only
1) The average monthly payload must not exceed the rated payload of the tr uck
2) 90% of all loads must be below 110% of the rated payload of the tr uck
3) 10% of all loads may be between 110% and 120% of the rated payload of the tr uck
4) No single payload may exceed 120% of the rated payload of the tr uck
Percent of Rated Payload
ENGINE
Make and model*
Komatsu SSDA16V159
Fuel Diesel
Number of cylinders 16
Operating cycle 4 cycle
Gross horsepower** 1492 kW 2,000 HP @ 1900 r pm
Net flywheel power*** 1405 kW 1,884 HP @ 1900 r pm
* Optional Tier 4 emission compliant engine for North American market Non-emissionized engine for markets outside of North America
** Gross horsepower is the output of the engine as installed in this machine, at gover ned r pm and with engine manufacturer’s approved fuel setting Accessor y losses included are water pump, fuel pump and oil pump
***Net flywheel power is the rated power at the engine flywheel minus the average accessor y losses Accessories include fan and charging alter nator Rating(s) represent net engine perfor mance in accordance with SAE J1349 conditions
ELECTRIC DRIVE
AC/DC CURRENT Alter nator GTA-49
Dual impeller in-line blower 393 m3/min 13,900 cfm
Control
AC Torque Control System Motorized wheels* GEB35 Induction Traction Motors
* Wheel motor application depends upon gross vehicle weight haul road grade haul road length, rolling resistance and other parameters Komatsu and G E must analyze each job condition to assure proper application
TIRES AND RIMS
Rock ser vice, tubeless, radial tires
Standard tire* 37 00R57
Flange mount rim
686 mm x 1448 mm x 152 mm 27'' x 57'' x 6'' rim assembly
Rims rated at 758 kPa 110 psi cold inflation pressure
* Tires should meet application requirements for tkph/tmph, tread, compound, inflation pressure, ply rating or equivalent, etc
BODY
All-welded steel flat floor body with horizontal bolsters and full canopy Eyebrow, rear wheel rock ejectors, body up sling and rubber mounts on frame are standard Pivot exhaust heating optional Floor sheet 16 mm 0.63'' Outer 19 mm 0 75'' Center
1379 MPa 200,000 psi tensile strength steel
Front sheet 10 mm 0.39''
1379 MPa 200,000 psi tensile strength steel
Side sheet 8 mm 0 31''
1379 MPa 200,000 psi tensile strength steel
Canopy sheet 6 mm 0.24''
Capacity struck
SAE heaped 2:1
690 MPa 100,000 psi tensile strength steel
yd3
yd3
Standard Komatsu body weight 28169 kg
CAB
Advanced Operator Environment with integral 4-post ROPS/FOPS
Level 2 cab, adjustable air suspension seat w/lumbar suppor t and ar m rests, full-size passenger seat, maximum R-value insulation, tilt and telescoping steering wheel, electric windshield wipers w/washer, tinted glass, power windows, Komatsu Payload Weighing System, 61,000 Btu/hr heater and defroster, 19,900 Btu/hr air conditioning (HFC - 134A refrigerant)
FRAME
Advanced technology, full butt-welded box sectional ladder-type frame with integral ROPS suppor ts, integral front bumper, rear tubular cross members, steel castings at all critical stress transition zones, rugged continuous horsecollar
Plate material
Drive axle mounting Pin and spherical bushing
Drive axle alignment Swing link between frame and axle
BRAKING SYSTEM
System meets ISO 3450/1996. Ser vice brakes: all-hydraulic actuated Front
Wheel speed disc
Three calipers on a 1213 mm 47 75" O D disc Rear
Emergency brakes
Dual disc armature speed
Two 635 mm 25" O D discs per side
One caliper per disc
Automatically applied prior to hydraulic system pressure dropping below level required to meet secondar y stopping requirements
Wheel brake locks Switch-activated
Parking brakes .
.Spring-applied, hydraulically released, with speed application protection
Electric dynamic retarder (continuous) 2387 kW 3,200 hp
Continuously rated high-density blown grids w/retard at engine idle and retard in reverse propulsion
SUSPENSION
Variable rate hydro-pneumatic with integral rebound control Max front stroke
mm 12.28'' Max rear stroke
Max rear axle oscillation
COOLING SYSTEM
L&M radiator assembly, split-flow, with deaerator-type top tank
Radiator frontal area 4 65 m2 50 1 ft2
SERVICE CAPACITIES
* Includes lube oil filters
DIMENSIONS
*Exact load height may var y due to tire make, type, and inflation pressure
HYDRAULIC SYSTEM
Steering Accumulator assisted with twin double acting cylinders provide constant rate steering Secondar y steering automatically supplied by accumulator
Tur ning circle diameter (SAE)
Reser voir
27 2 m 89'
. 511 L 135 U.S. gal
Filtration In-line replaceable elements
Suction Single, full flow, 100 mesh
Hoist and steering Dual, in-line, high pressure
Brake component cabinet Above deck, easily accessible with diagnostic test connections
Hoist Two 3-stage dual-acting outboard cylinders, inter nal cushion valve, over-center dampening
Hoist times
Power-up loaded 19 sec
Power-down 10 5 sec
Float-down empty 12 sec
Pumps Two pumps, single package, end of alter nator
Hoist and brake cooling
Tandem gear pump with output of 666 lpm 176 gpm at 1900 r pm
Pressure-compensating
ELECTRICAL SYSTEM
4 x 8D 1450 CCA, 12 volt, in series/parallel, 220-ampere-hour
batteries, bumper-mounted with disconnect switch
Alternator
Lighting
24 volt, 250 amp
24 volt
Cranking motors Two/24 volt
System relief pressures
Hoist
PERFORMANCE CHART

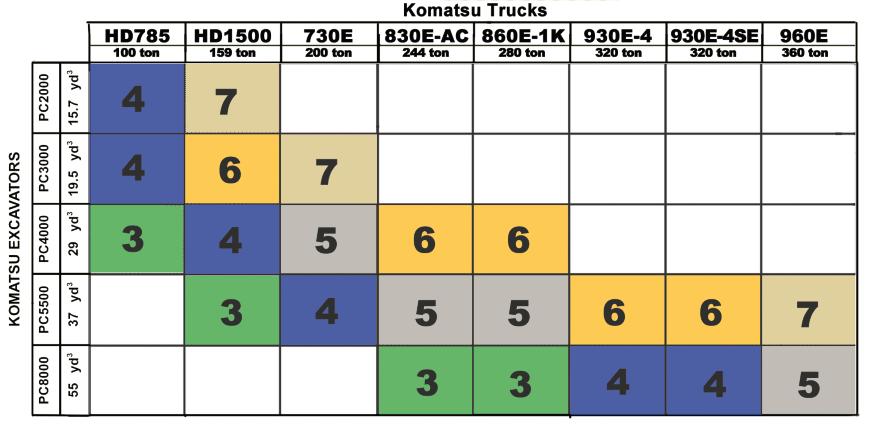

KOMATSU PRODUCT LINE LOADER/TRUCK MATCHING
Typical Number of Passes to Load
Nominal payload is defined by Komatsu America Corp’s payload policy documentation. In general, the nominal payload must be adjusted for the specific vehicle configuration and site application The figures above are provided for basic product description purposes Please contact your Komatsu distributor for specific application requirements
STANDARD EQUIPMENT
• Air cleaners, Donaldson® w/evacuators
• Alternator (24 volt/250A)
• Auto lubrication system w/ground level fill & level indicator
• Back up alarm
• Batteries–4 x 8D (1450 CCA’s)
• Batter y charging cable and socket
• Body over center device
• Body impact plate
• Brakes: dry front & rear
• Cruise speed control
• Deck guard rails
• Electric star t
• Fast-fill fuel system (in tank and left side remote)
• Filters, high pressure hydraulic
• Fuel tank sight gauge (3)
• Ground level radiator fill
• L&M Radiator
• Mud flaps
• Muffled exhaust–deck-mounted
• Power supply, 24 volt and 12 volt DC
• Quick disconnects (hoist and diagnostics)
• Radiator sight gauge
• Removable power module unit (radiator, engine, alternator, blower)
• Reverse retarding
• Ser vice center–LH
• Thermostatic fan clutch
OPERATOR ENVIRONMENT & CONTROL
• All hydraulic ser vice brakes w/auto apply
• Auxiliar y hydraulic system
• Batter y disconnect switch
• Brake lock and drive system interlock
• Circuit breakers, 24 volt
• Dedicated auxiliar y circuits in operator cab (ladder lights, 2-way radios, fire suppression power)
• Diagonal ladder tread cap plates
• Dynamic retarding with continuous rated element grids
• Engine access guard rail
• Engine shutdown at ground level
• Hoist propulsion interlock
• Horns (electric–front and back-up)
• Hydraulic tank ladder
• Integral ROPS/FOPS Level 2 cab
OPTIONAL EQUIPMENT
• Isolation mounted cab
• Maintenance and power lockout
• Parking brakes with warning light & speed application protection
• Power steering w/auto secondary steering
• Protective deck handrails
• Pre-shift brake test
• Pump driveline protector
• Radiator fan guard
• RH & LH multi-cambered convex mirrors
• Seat belts
- Operator 3-point 76 mm 3" retractable
- Passenger lap 76 mm 3" retractable
• Slip-resistant / dimpled surface on walkways
• Stairway
STANDARD HIGH VISIBILITY DELUXE CAB
• AC drive interface display
• Actia Dash & Status Panel
- Body up
- Parking brake
- Propulsion system not ready
- No DC link voltage
- High engine oil temp
- No propel
- Ser vice brake applied
- Wheel brake lock applied
- Maintenance monitor
• Air cleaner vacuum gauges
• Air conditioner HFC-134A
• AM/FM radio with CD, USB & MP3
• Column mounted speed control
• Digital tachometer and speedometer
• Dome light
• Engine hourmeter, oil pressure gauge, coolant temperature gauge, hydraulic oil temperature gauge
• Engine shutdown w/ “Smar t Timer” delay
• Floor mat (double barrier)
• Fuel gauge in cab
• Fuel low level light and buzzer
• Gauges (w/backlight)
• Headlight switch
• Heater and defroster (heavy-duty)
• Heater switch
• High beam selector and indicator
Note: Optional equipment may change operating weight
• Accumulators (cold weather)
• Antifreeze (-40ºC)
• Body Liners*
• Bumper mounted headlights
• Extended canopy
• Eyebrow
• Fire extinguisher 9 kg 20 lb
• Heated body
• HID headlights
• Hot star t engine coolant (220V 2-2500W)
• Hot star t engine oil (220V 2-500W)
• Hot star t hydraulic oil
• Hydraulic folding access ladder
• ISRI 3 point seat
• Mudflaps on hydraulic tank & fuel tank
• Scoreboard PLM III Display
• Horn (center of steering wheel)
• Indicator lights (blue)
- Engine ser vice
- KOMTRAX Plus snapshot (IM)
• Insulation (Max R-Value)
• Komatsu Payload Meter III®
• KOMTRAX Plus with ORBCOMM
• Operator seat, adjustable w/air suspension, lumbar suppor t and arm rests
• Panel lighting (adjustable)
• Passenger seat, mechanical suspension
• Power windows
• Pressurized cab air system w/fan on
• Single brake/retarder pedal
• Star ter key switch
• Sunvisor (adjustable)
• Tilt & telescoping steering column
• Voltmeter (batter y output)
• Windshield (tinted plate)
• Windshield wiper (dual) and washer (electric)
LIGHTING
• Auxiliar y box (LED)
• Back-up lights–R and L - deck mount (2) halogen
• Brake and retard lights on top of cab (LED)
• Brake cabinet (LED)
• Clearance lights (LED)
• Control cabinet ser vice light (LED)
• Dynamic retarding, rear (2) (LED)
• Engine compar tment ser vice lights
• Fog lights (2) halogen
• Halogen headlights- all high & low beam positions (10)
• HID-style backup/ berm light
• Manual back-up light, switch and indicator
• Payload lights R and L (LED)
• Platform lights R, L and Center
• Recessed corner marker/ signal lighting (LED)
• Stairway lights
• Stop & tail lights (4) (LED)
• Turn signals (LED)
• Under-hood ser vice lights
• Ser vice center–RH
• Shutters (radiator)
• Smar t (speed) rims
• Special language decals
• Suspensions, cold weather
• Wiggins Quick Fluid Fill & Engine Oil Evacuation System
*Available factor y installed or non-installed All other options and accessor ies listed are available factor y installed only
