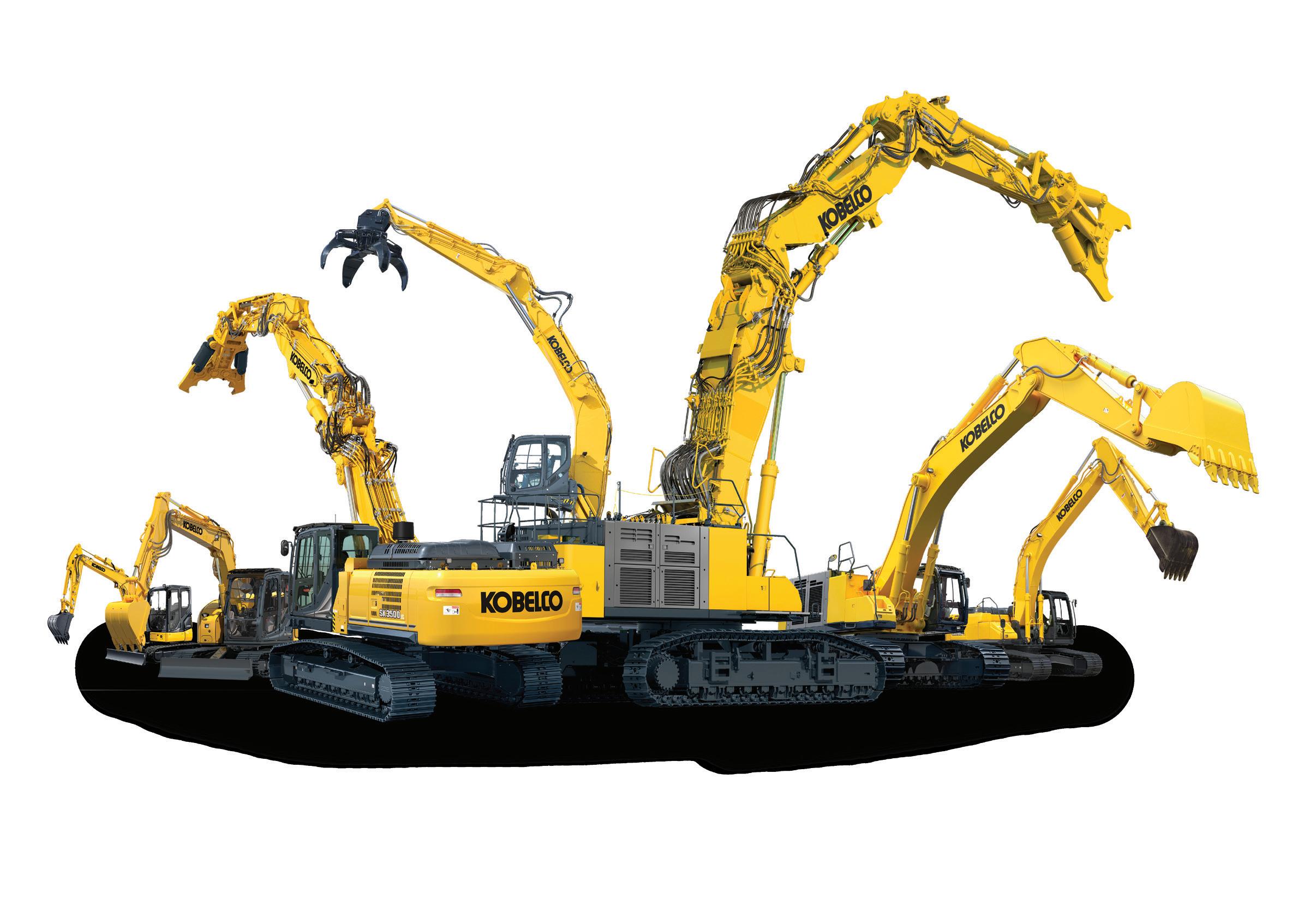

FULL PRODUCT LINEUP

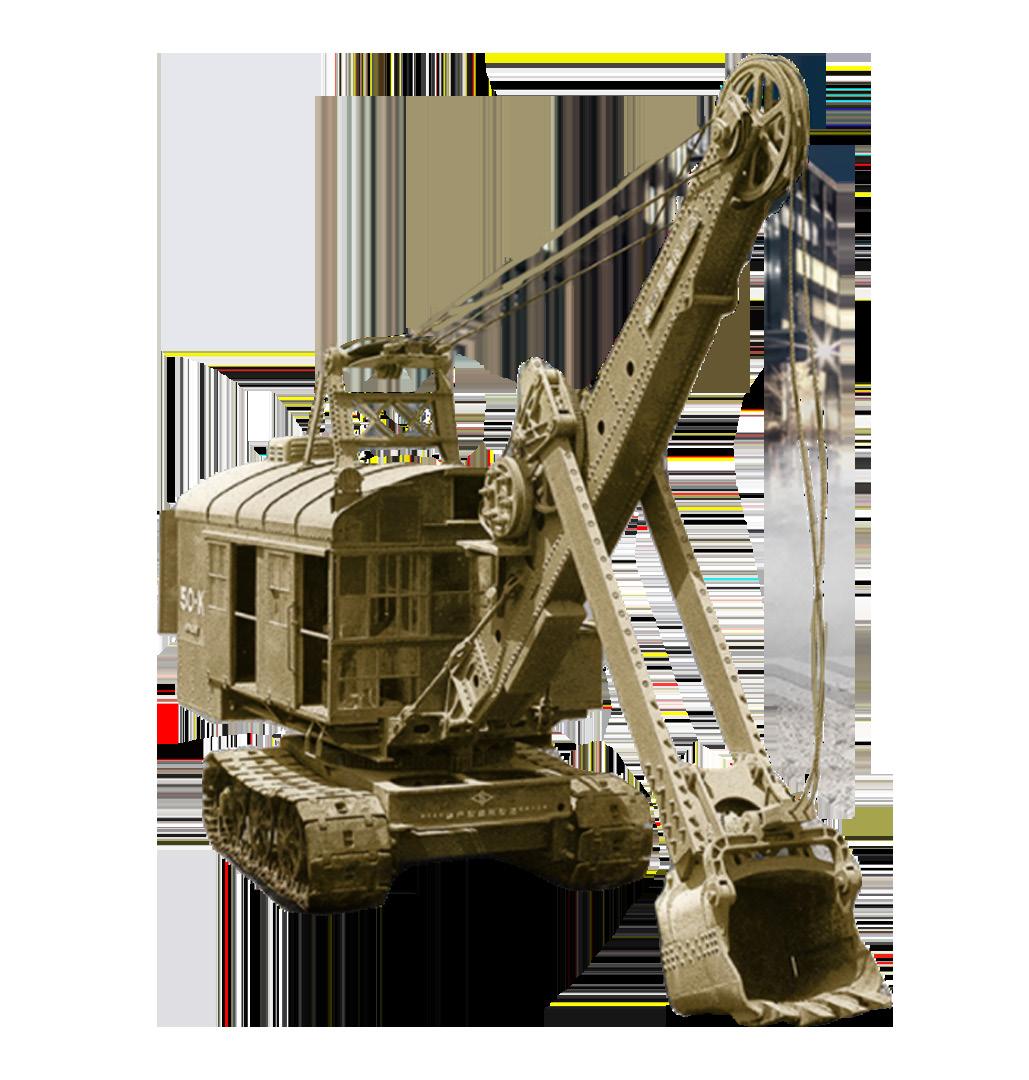

KOBELCO HISTORY
It’s been almost 100 years since KOBELCO created Japan’s first electric mining shovel in 1930, an innovation that would go on to have a significant impact on both the business and the worldwide construction industry. We’ve seen our way through the first 10KT (6ft) and 20KT (10ft) truck cranes being released in Japan in 1953, to the release of the first crawler-type hydraulic excavator produced using KOBELCO proprietary technology in 1967, to generations of KOBELCO legacy excavators, our development of the first short rear swing excavator, and the record-breaking demolition machine with the longest reach in the world. We remain committed to excellence, quality, and innovation without compromises.

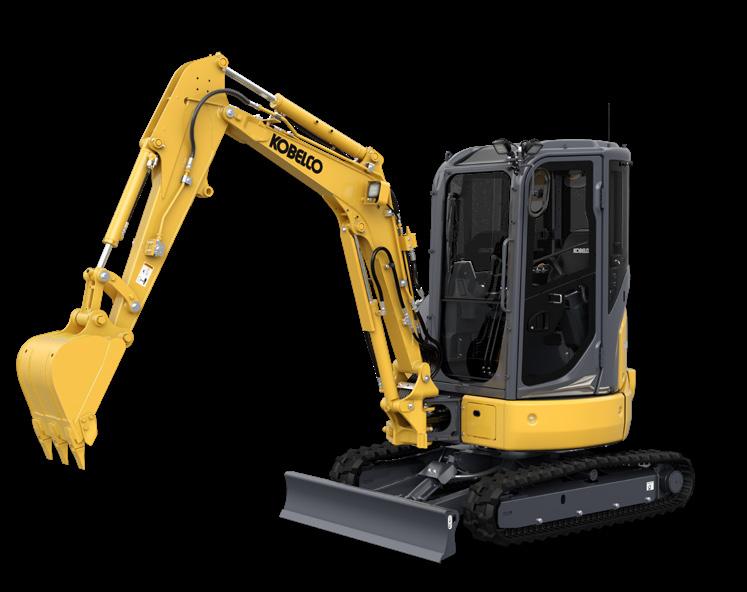

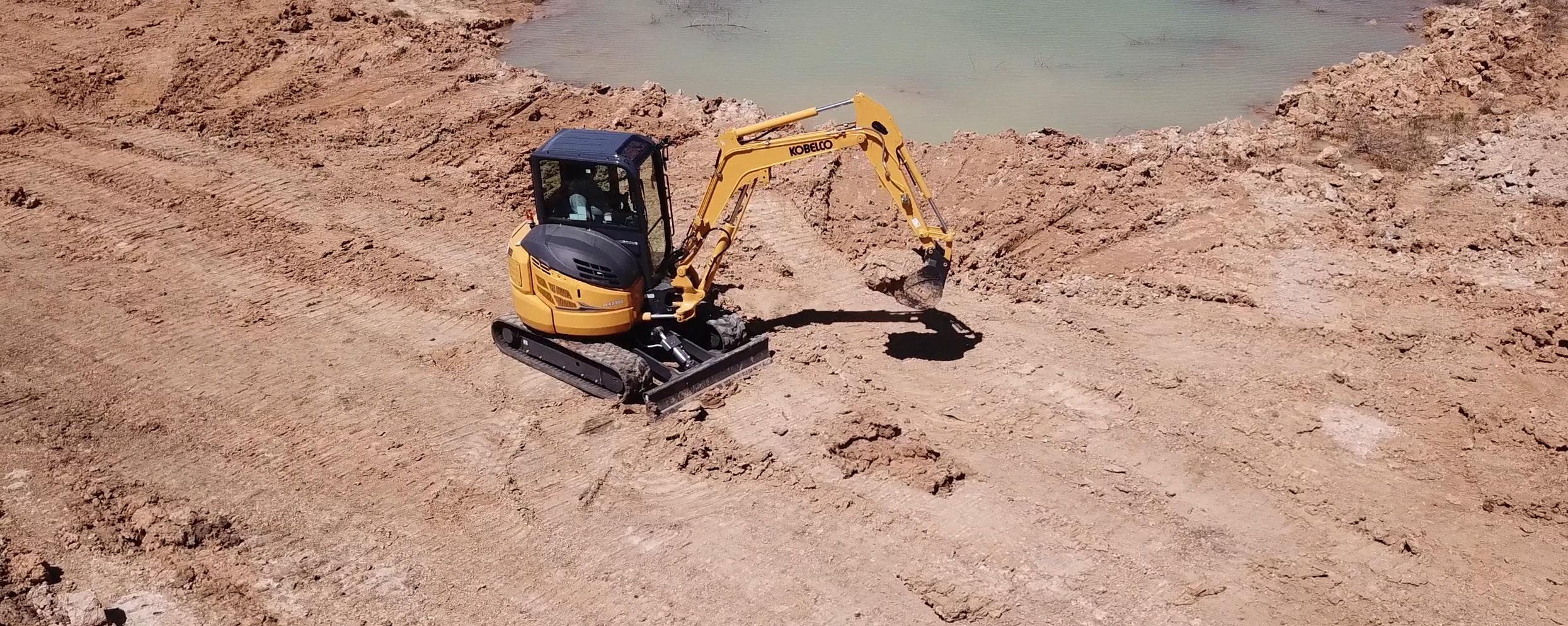

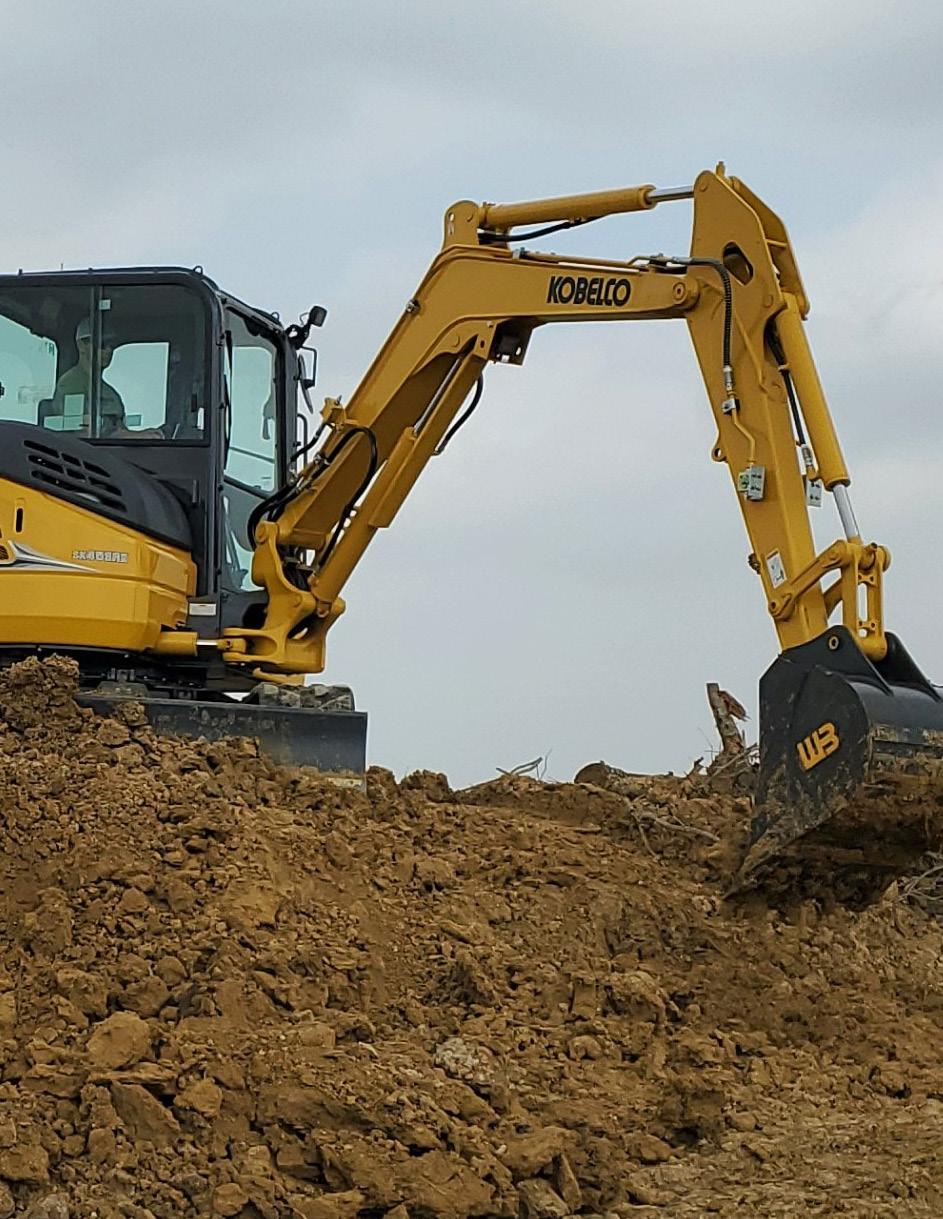

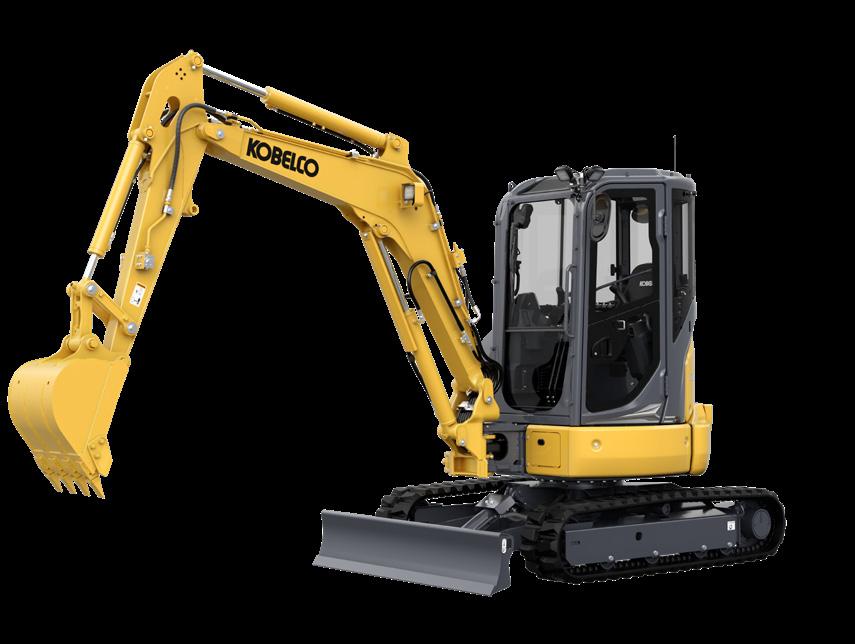

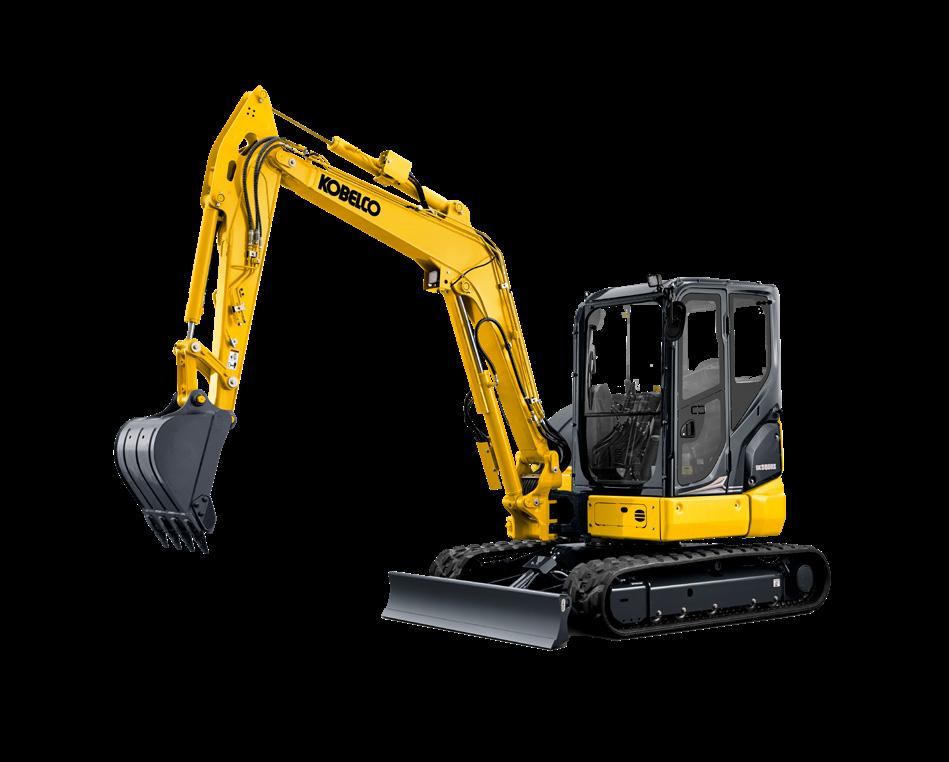

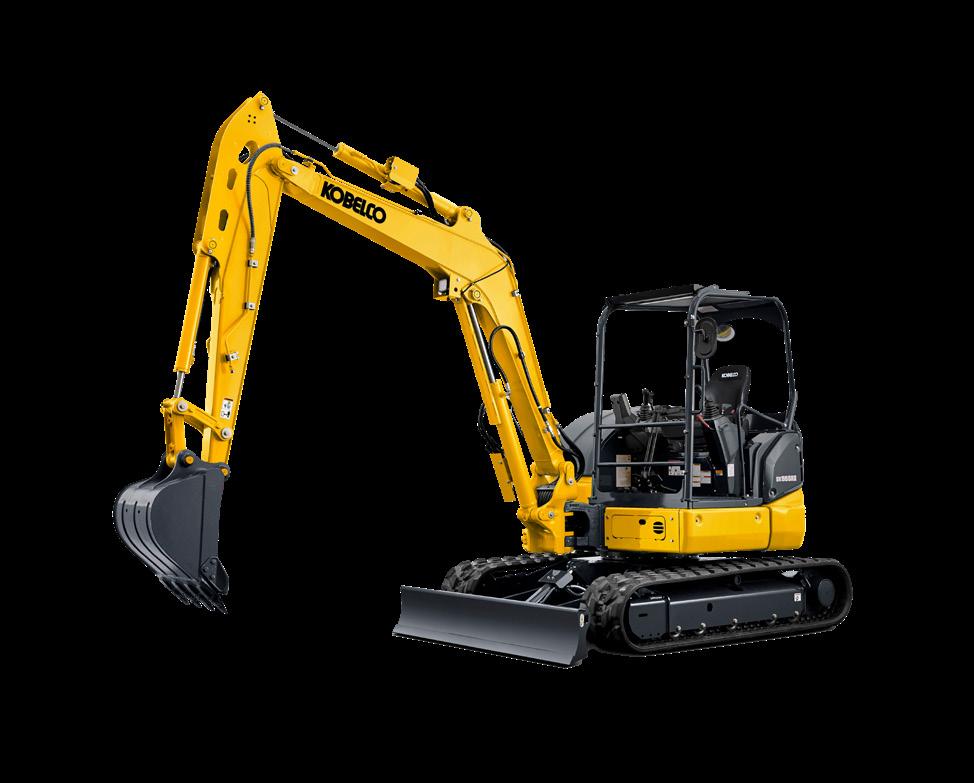

MINI
KOBELCO minis might be smaller, but they have every bit of dedication and reliability we have put into our larger machines over the decades. With minimal rear swing radius (zero tail overhang) and a simple design that makes routine maintenance easy, these machines pack full-size performance into a highly portable frame.
SERIES 7 MINIS COME STANDARD WITH
MINI CAN BE MIGHTY TOO.
BI-DIRECTIONAL AUXILIARY HYDRAULICS iNDr COOLING BACKLIT LED CONTROLS SUSPENSION SEAT
AIR CONDITIONING (CAB ONLY) HANDS-FREE CALLING (CAB ONLY)
USB/AUX PORT
GROUND LEVEL HOUR METER COLOR MONITOR
ERGONOMIC LEVER ANGLES

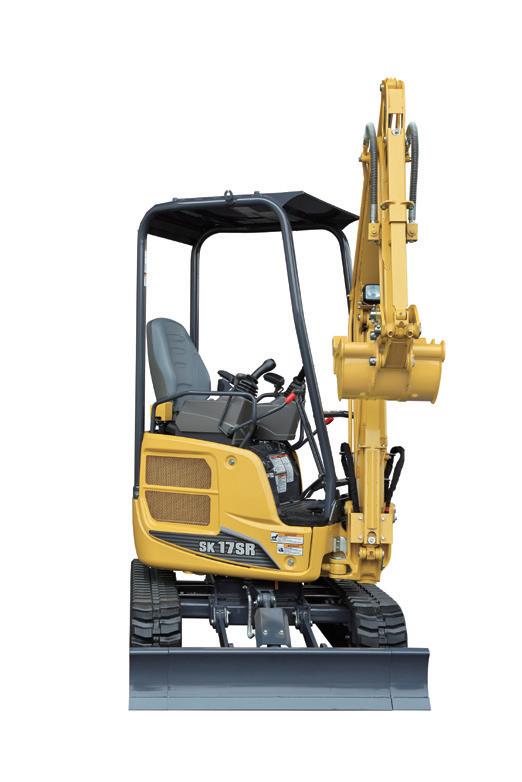

SK17SR-6E 3,681 LBS
SK26SR-7 6,790 LBS
SK35SR-7
CAB OR CANOPY
9,000 - 9,600 LBS
SK45SRX-7
CAB OR CANOPY
10,295 - 10,648 LBS
SK55SRX-7
CAB OR CANOPY
11,817 - 12,147 LBS

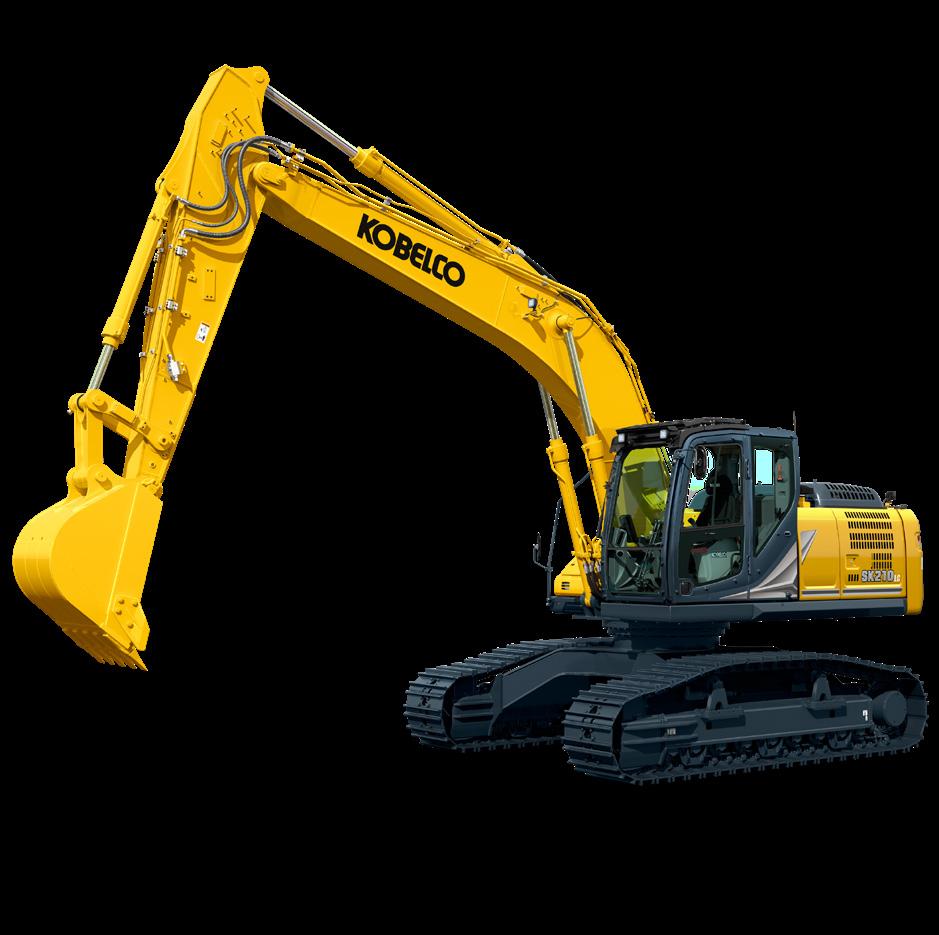

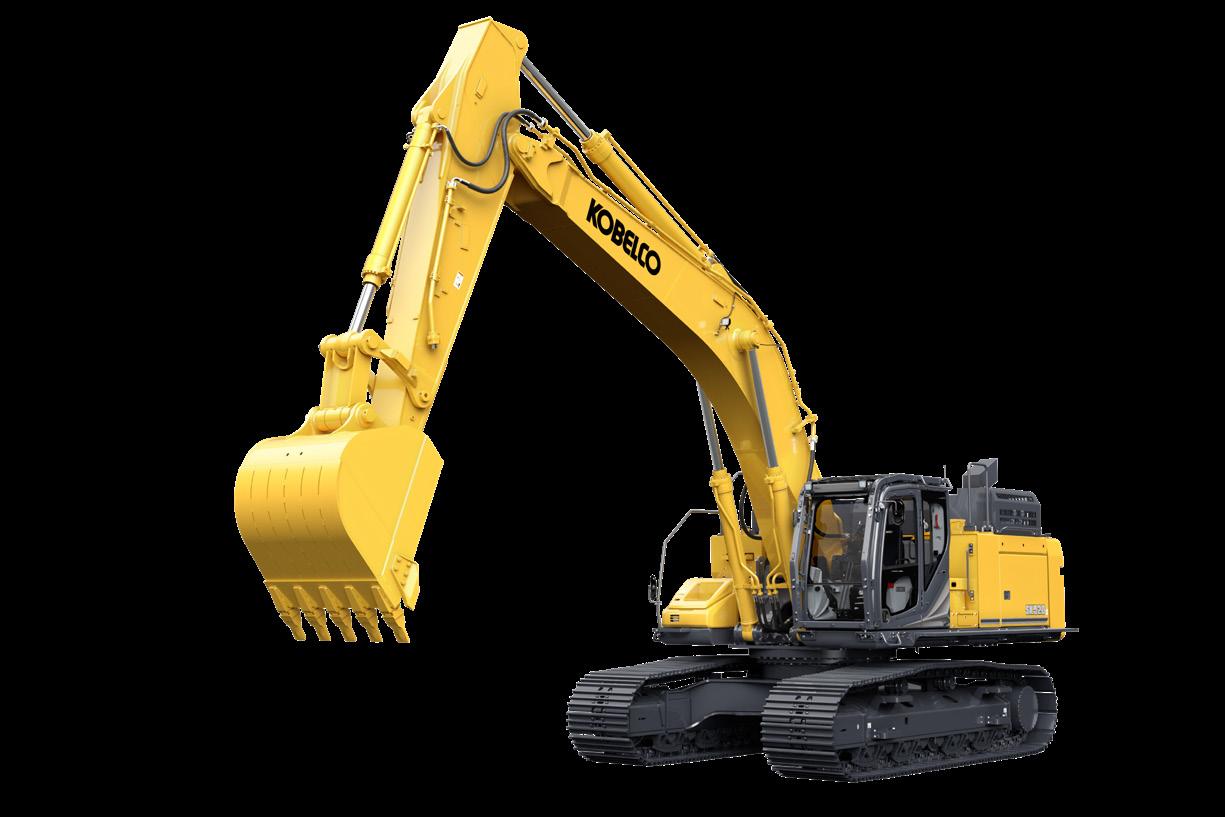

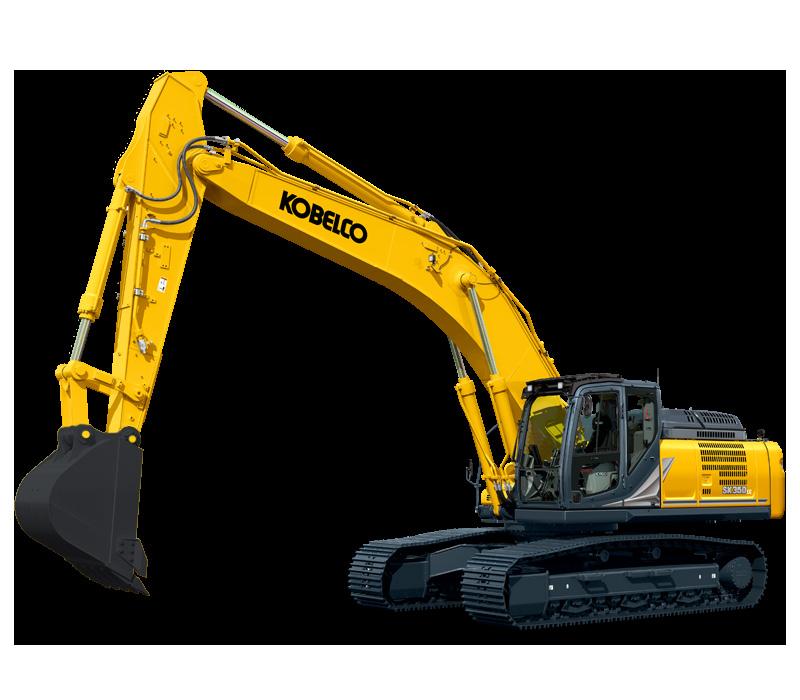

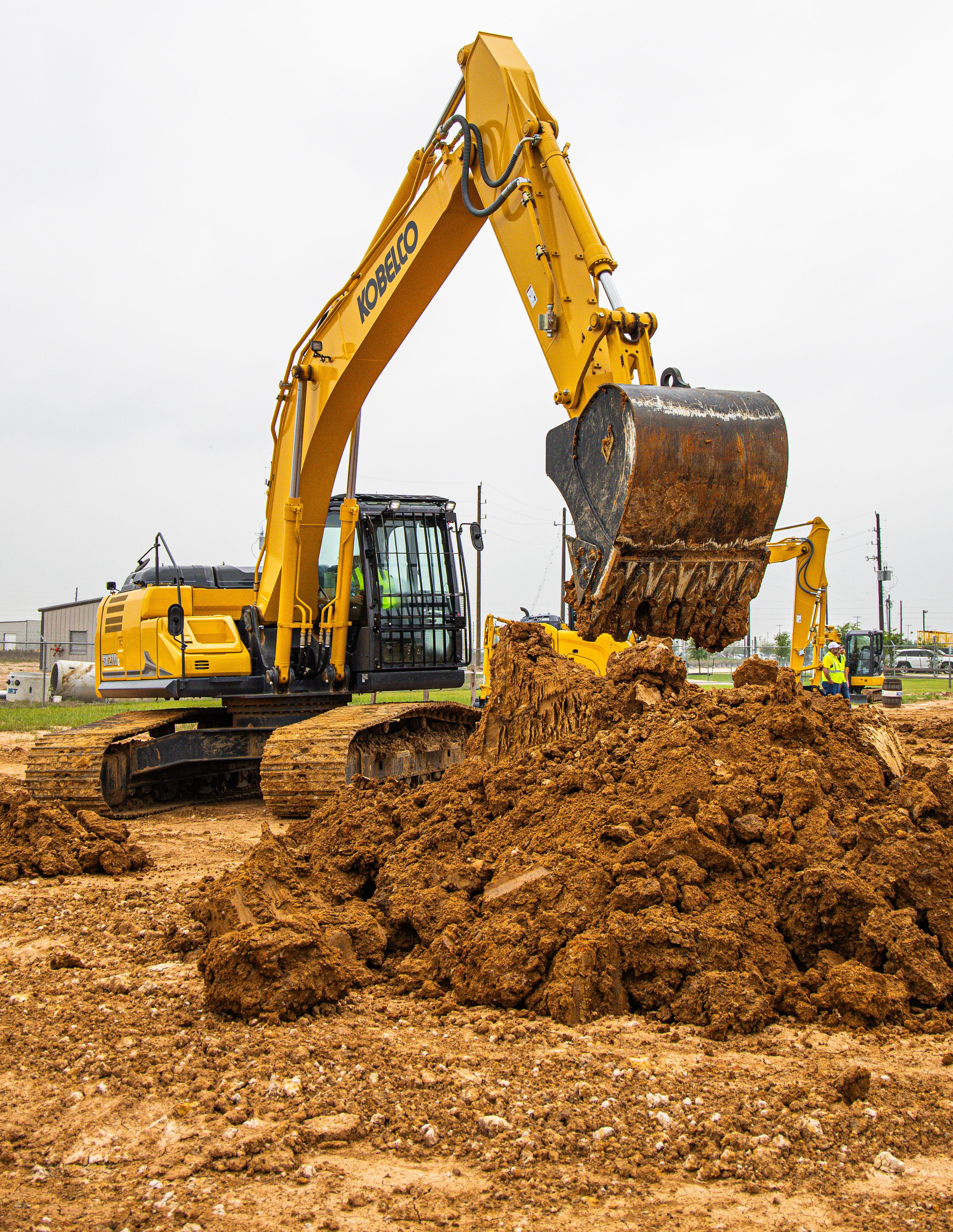

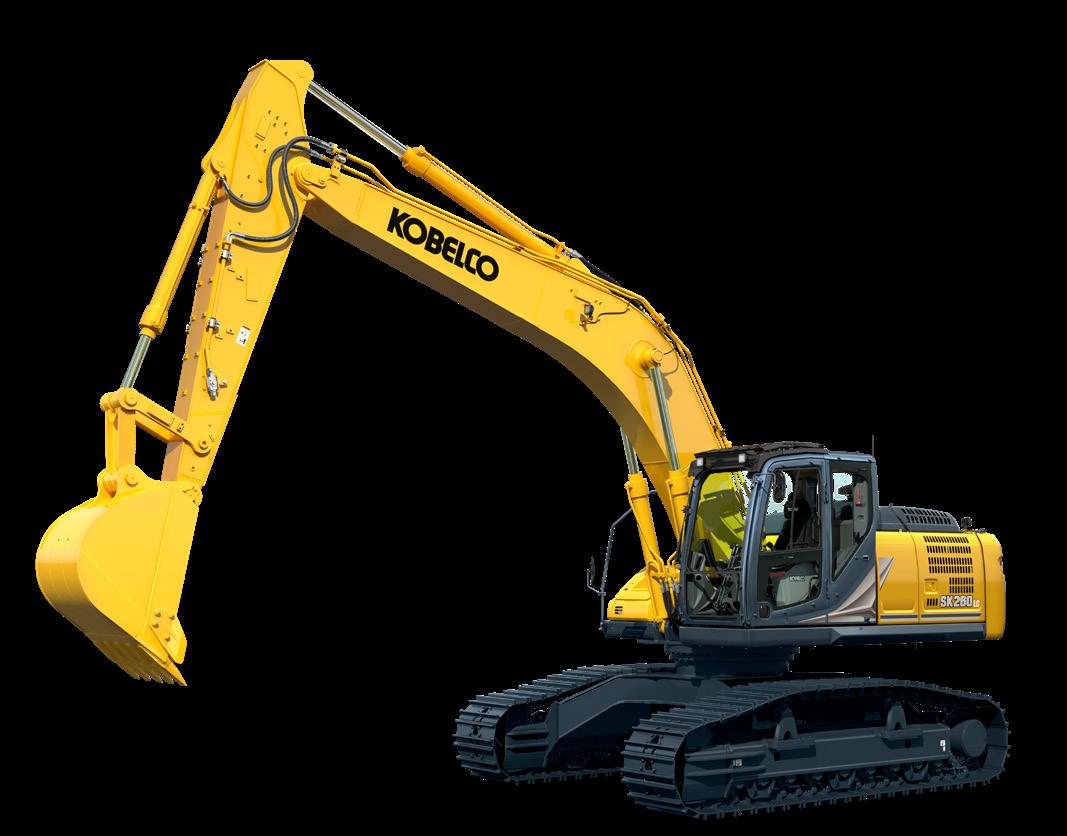

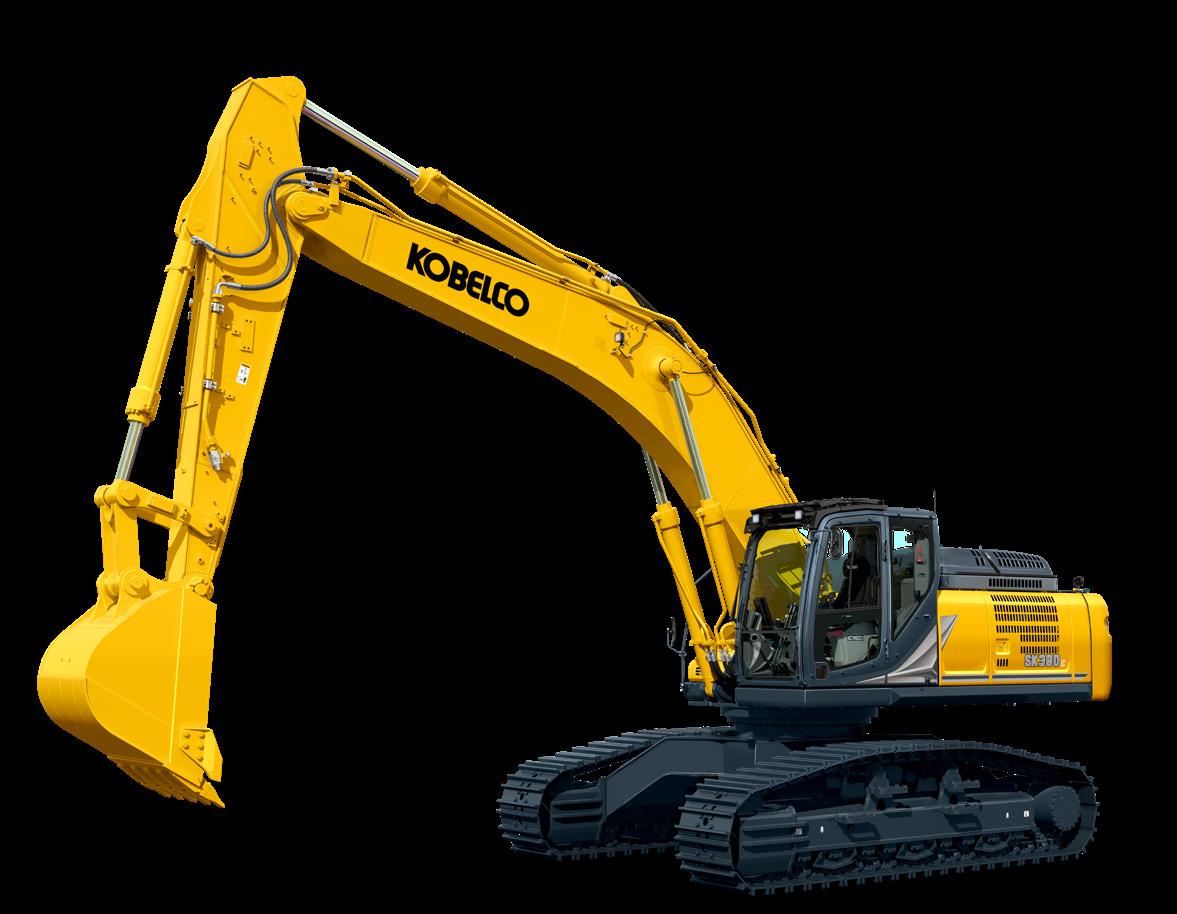

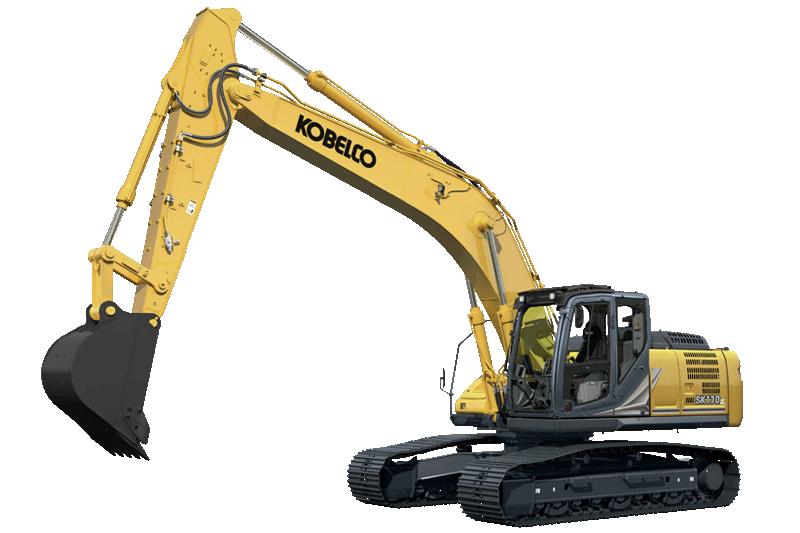

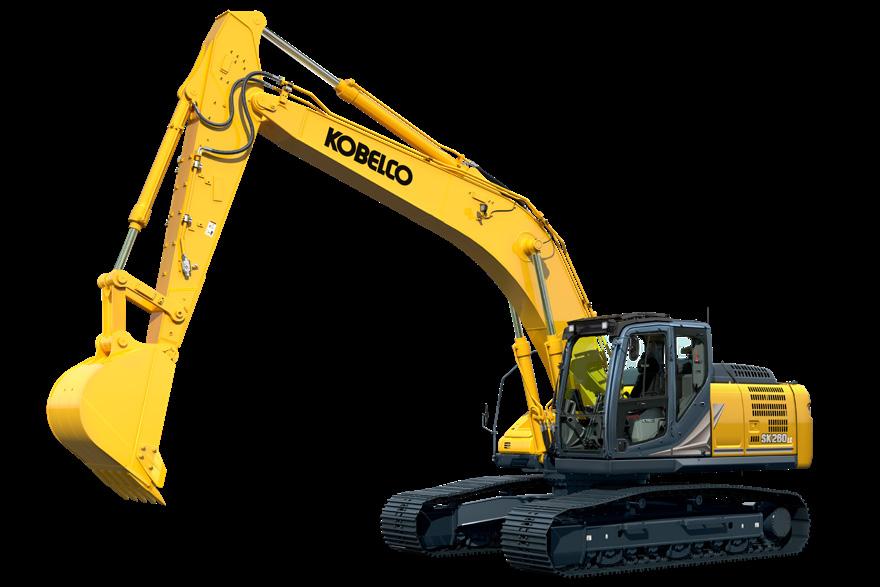

CONVENTIONAL
Don’t let their name fool you. KOBELCO conventional excavators are anything but. With high-quality construction and low-cost maintenance, they’re as costeffective as they are dependable.

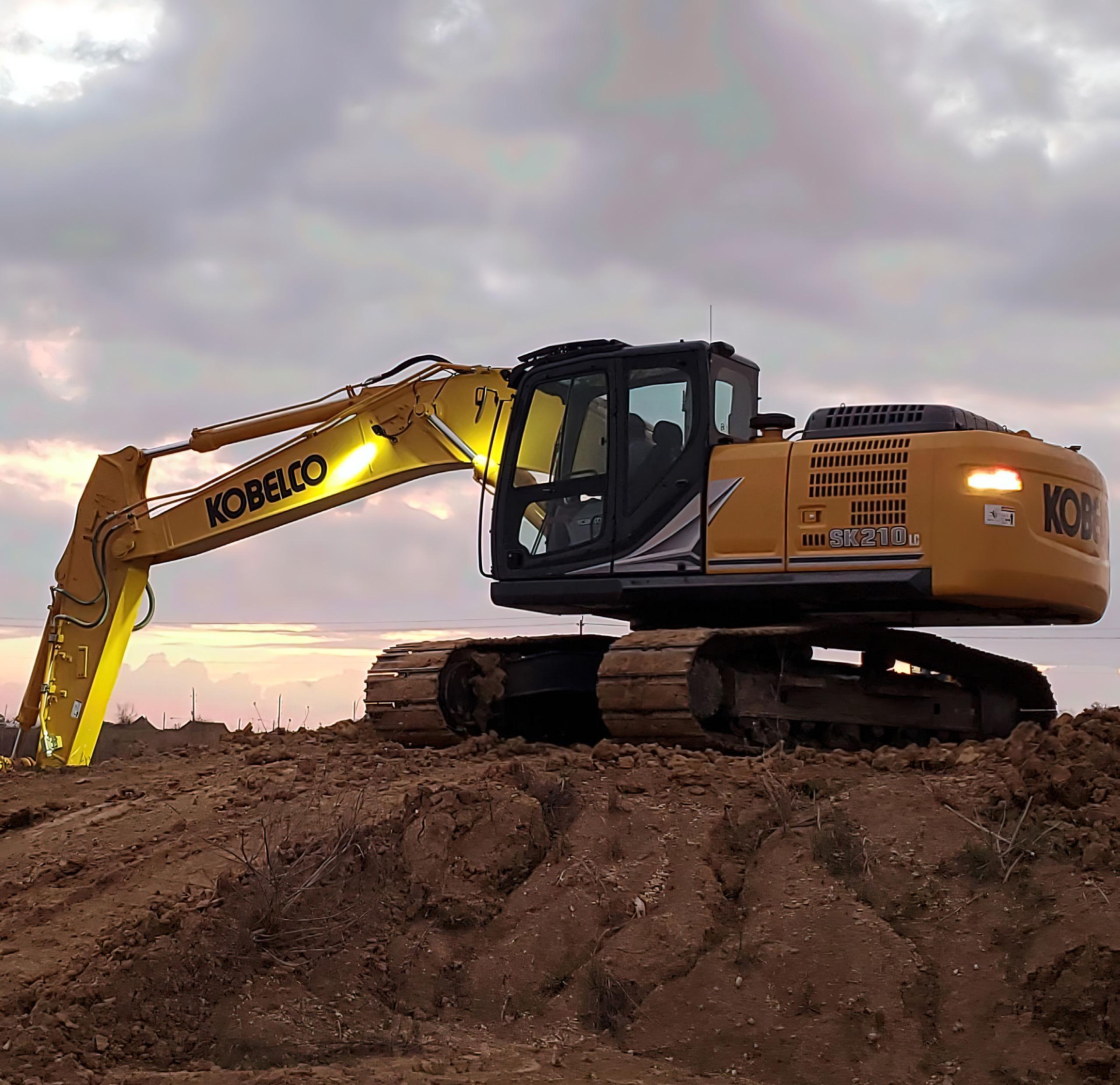

SK210LC-11
LBS
SK260LC-11

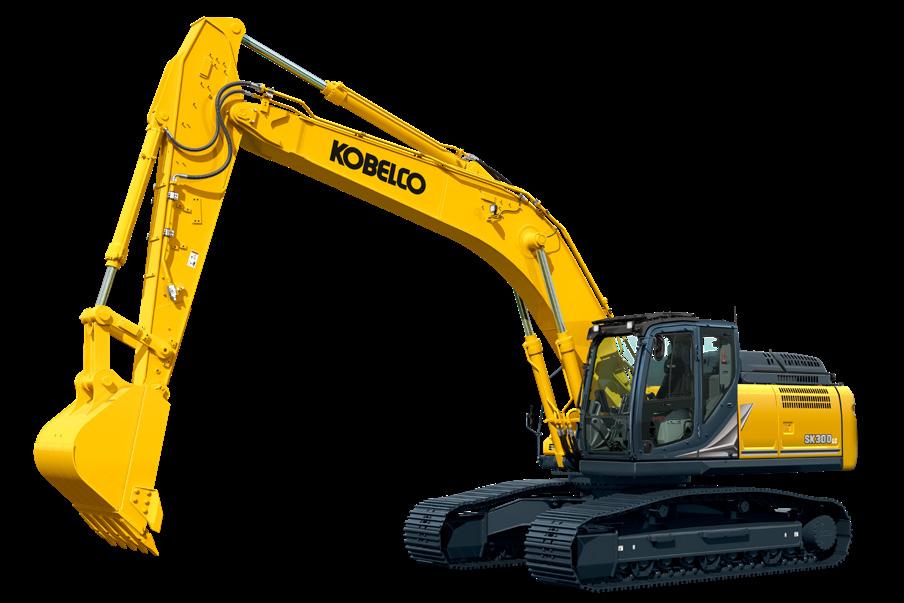

LBS SK300LC-11
LBS

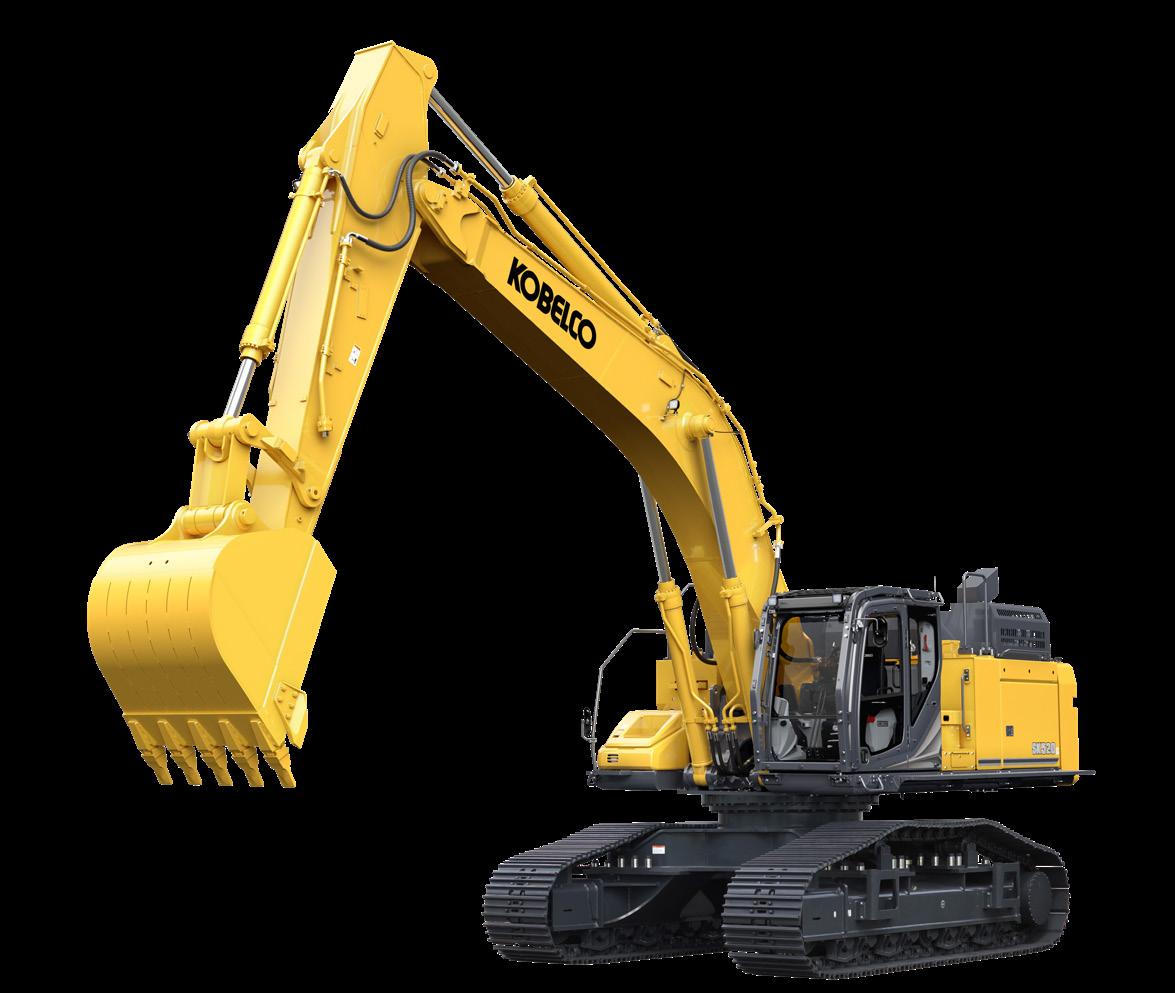

LBS SK520LC-11
LBS
LBS

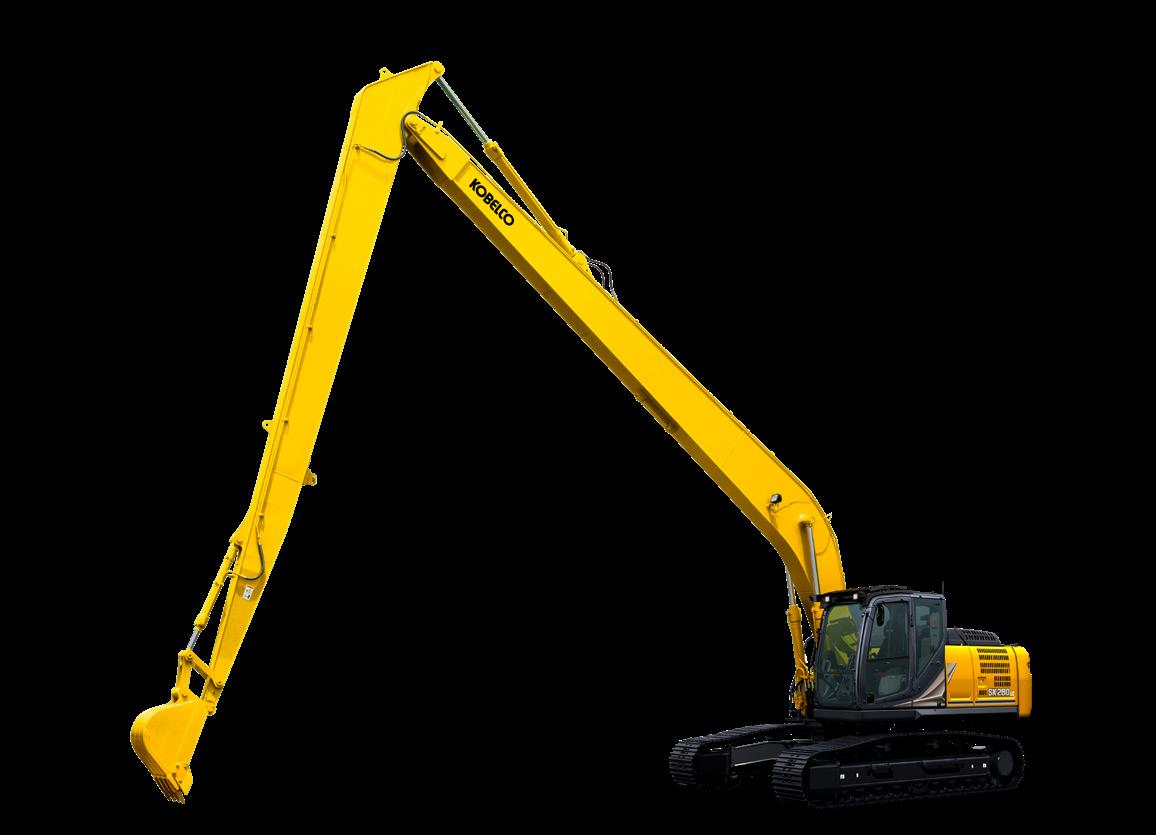

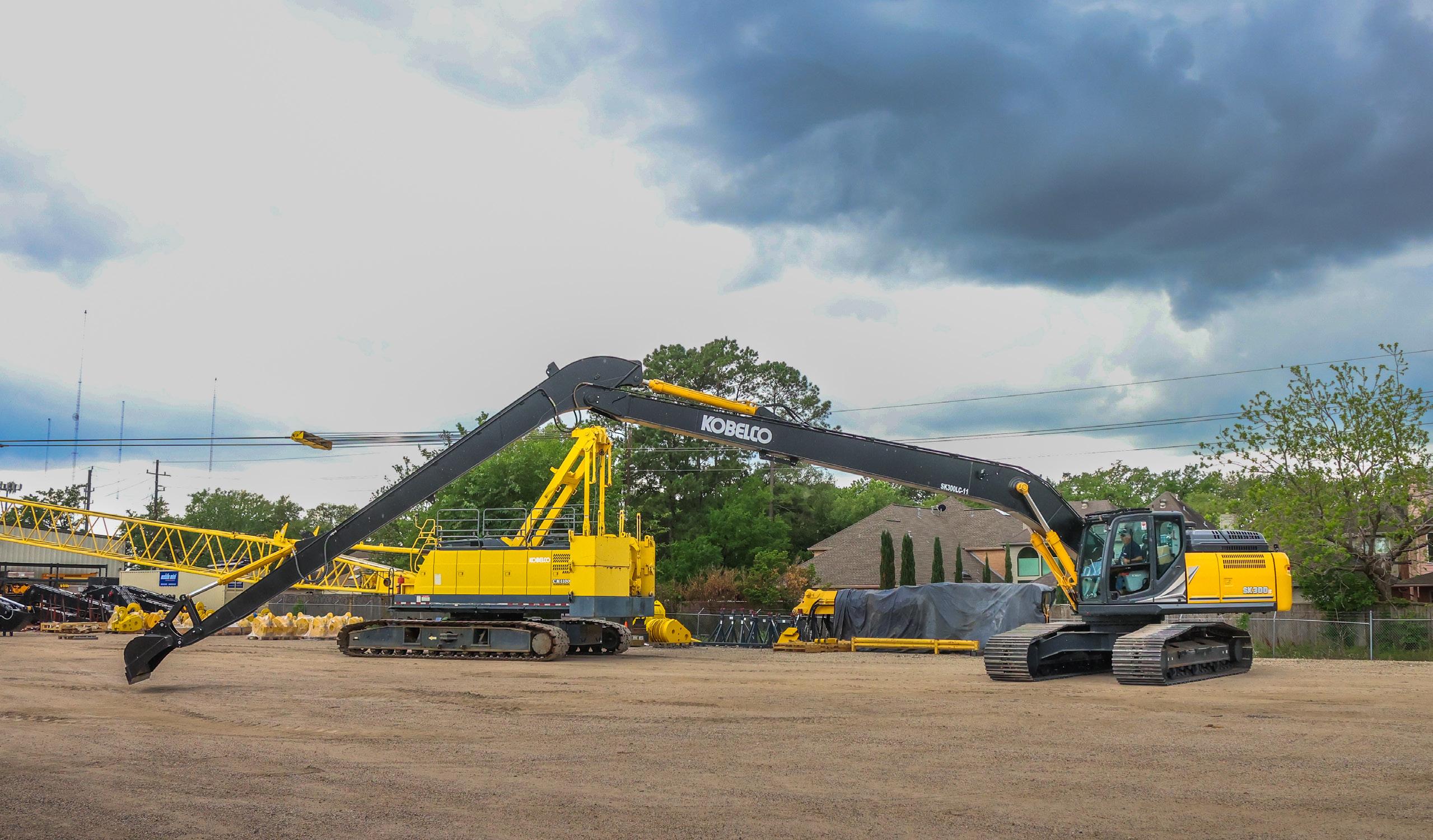

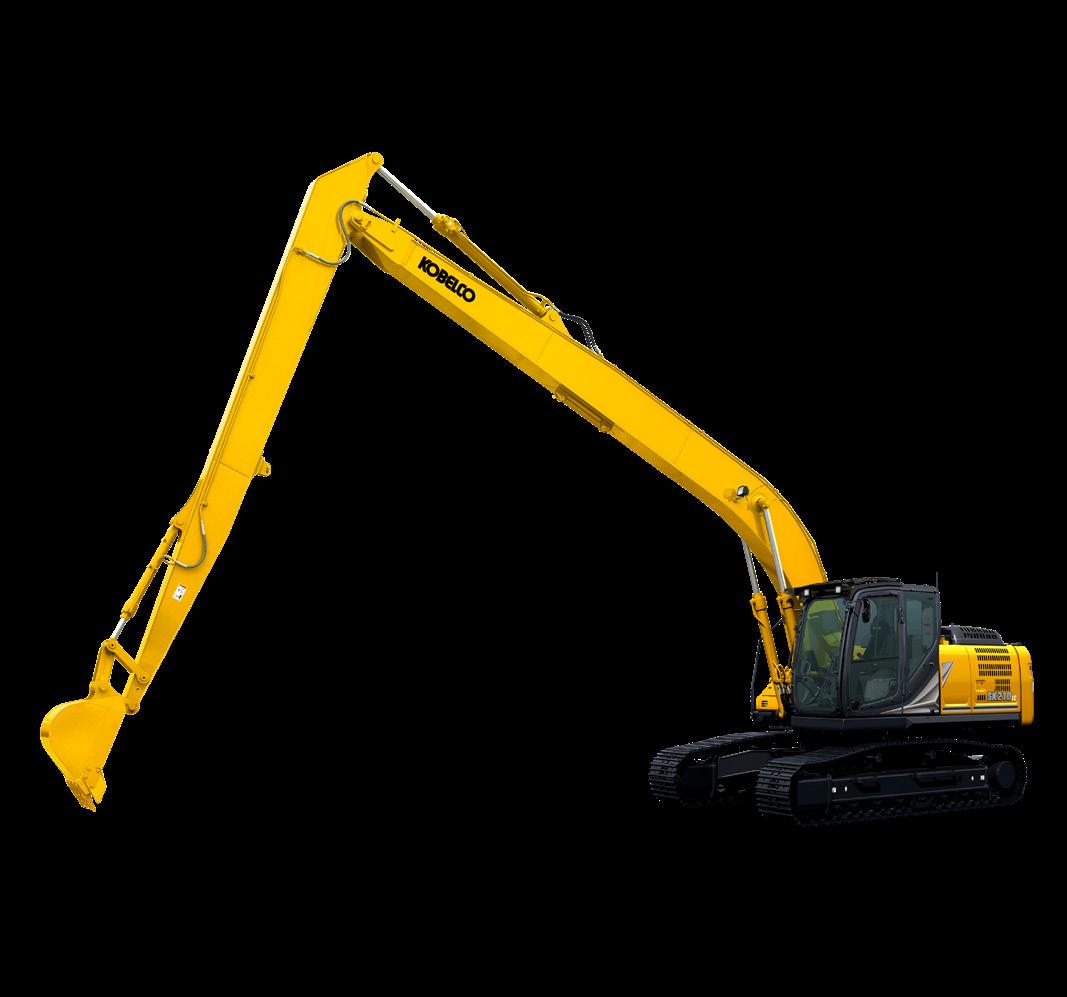

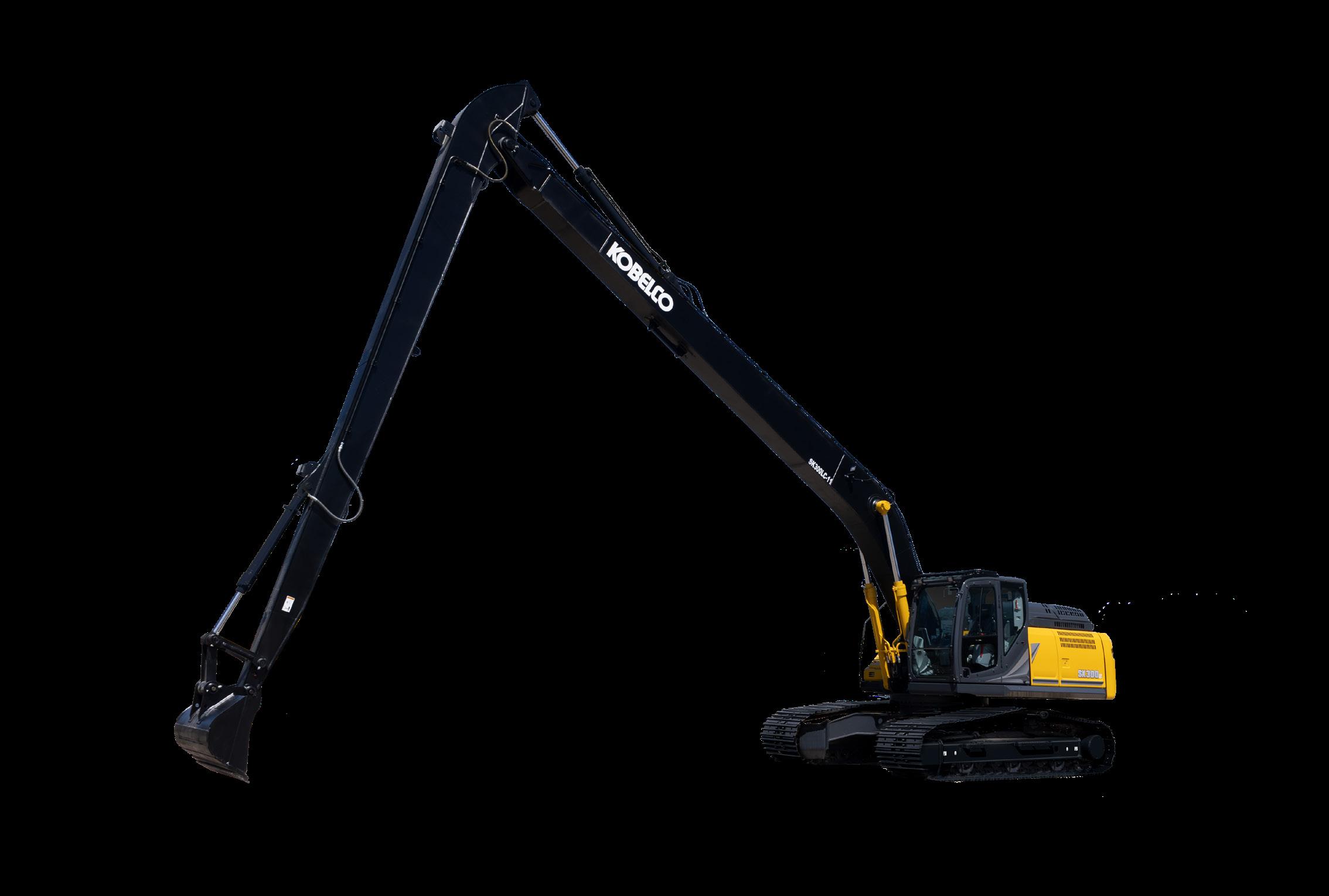

LONG REACH
Nothing is out of bounds with KOBELCO long reach excavators. Safely and securely tackle a wide variety of dredging, ditch cleaning and sloping jobs.
SK210LC-11
52,900 LBS LONG REACH
SK260LC-11
61,900 LBS LONG REACH
SK300LC-11
79,160 LBS
HIGH & WIDE
With their wider stance and increased clearance, our High & Wide excavators can take on jobs usually reserved for bigger machines like forestry work, craning large pipe and loading out trucks. KOBELCO High & Wides are designed to be stable under the heaviest of loads.

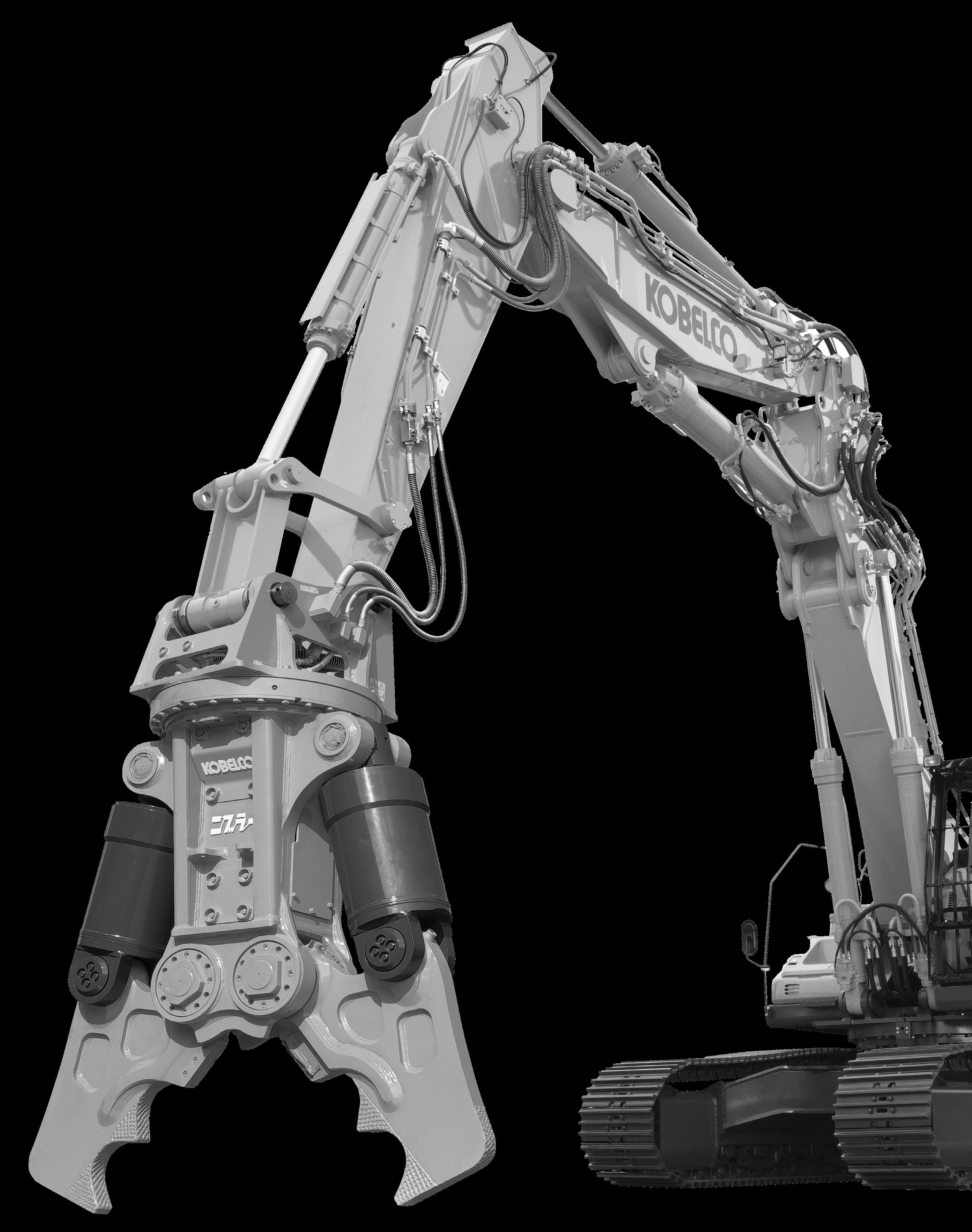

SPECIALTY
Special jobs require specially equipped machines. KOBELCO has engineered these specialty excavators to take on unique applications that no ordinary excavator could touch.

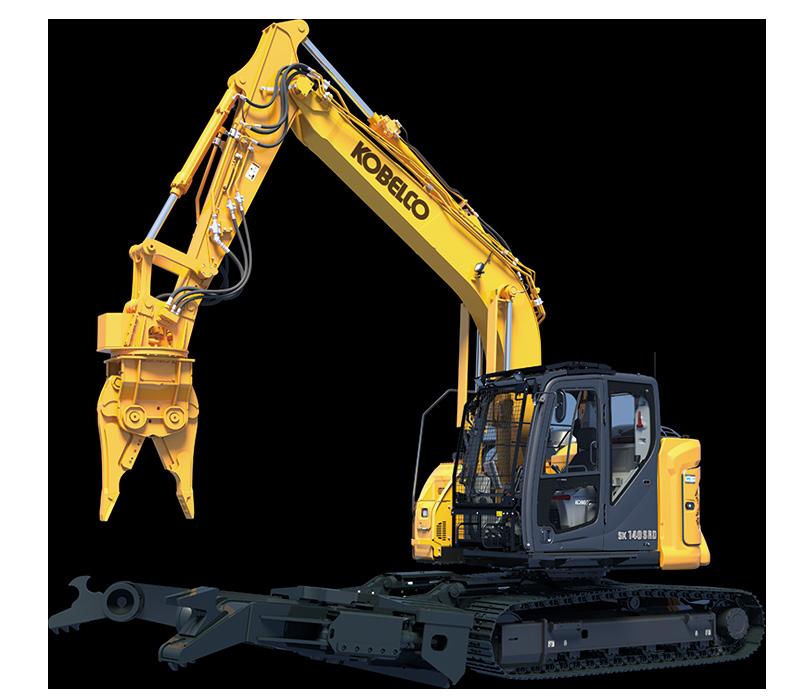

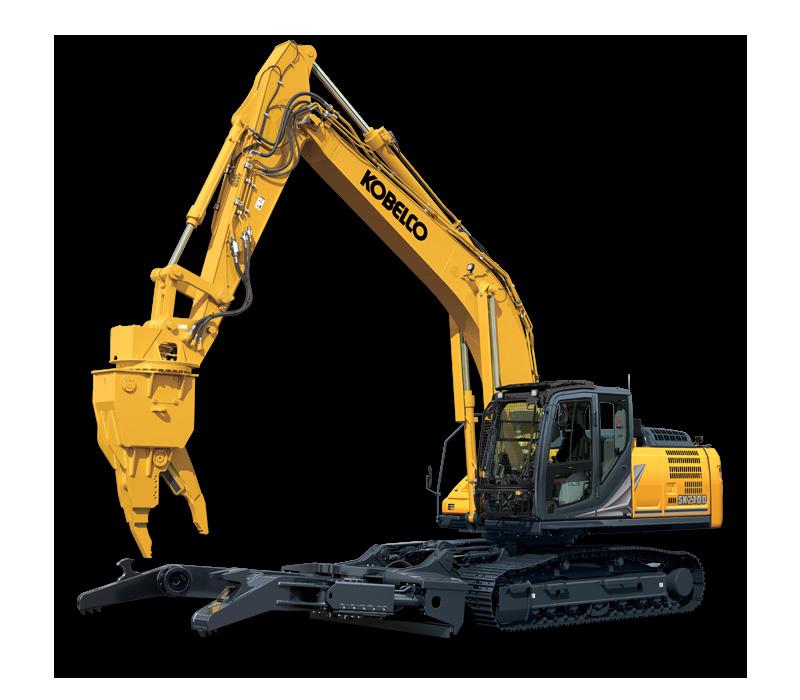

AUTO DISMANTLING

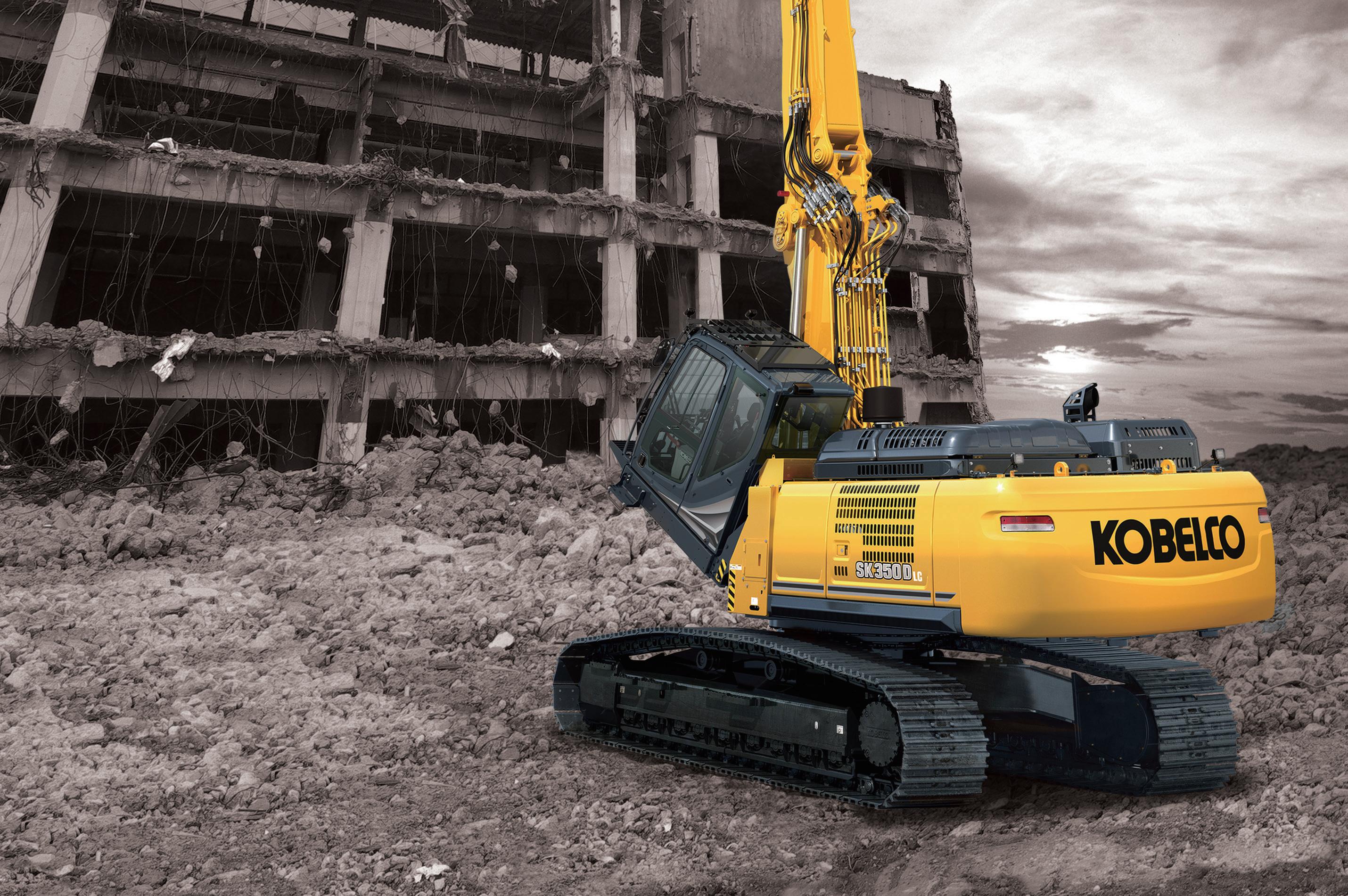

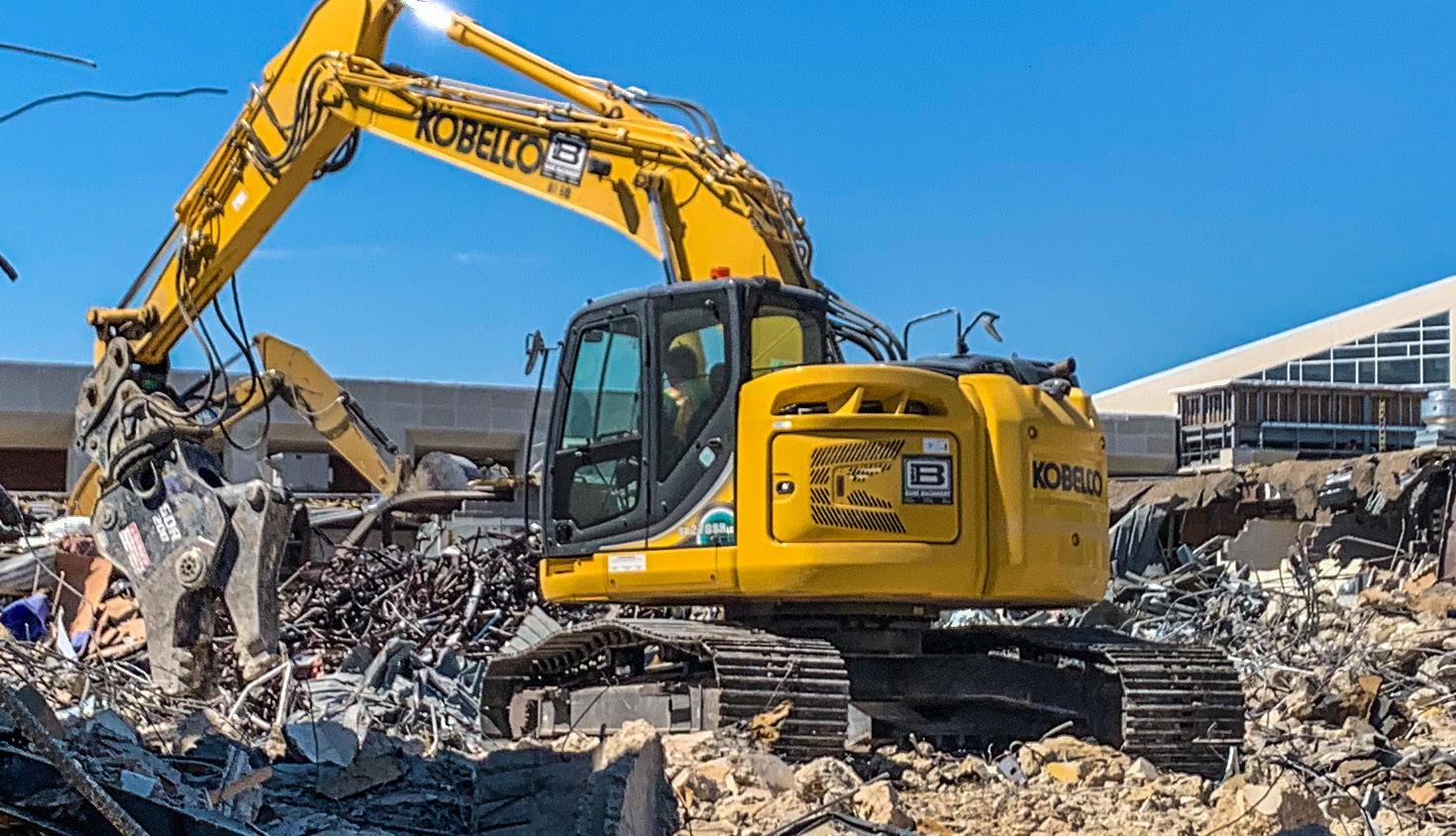

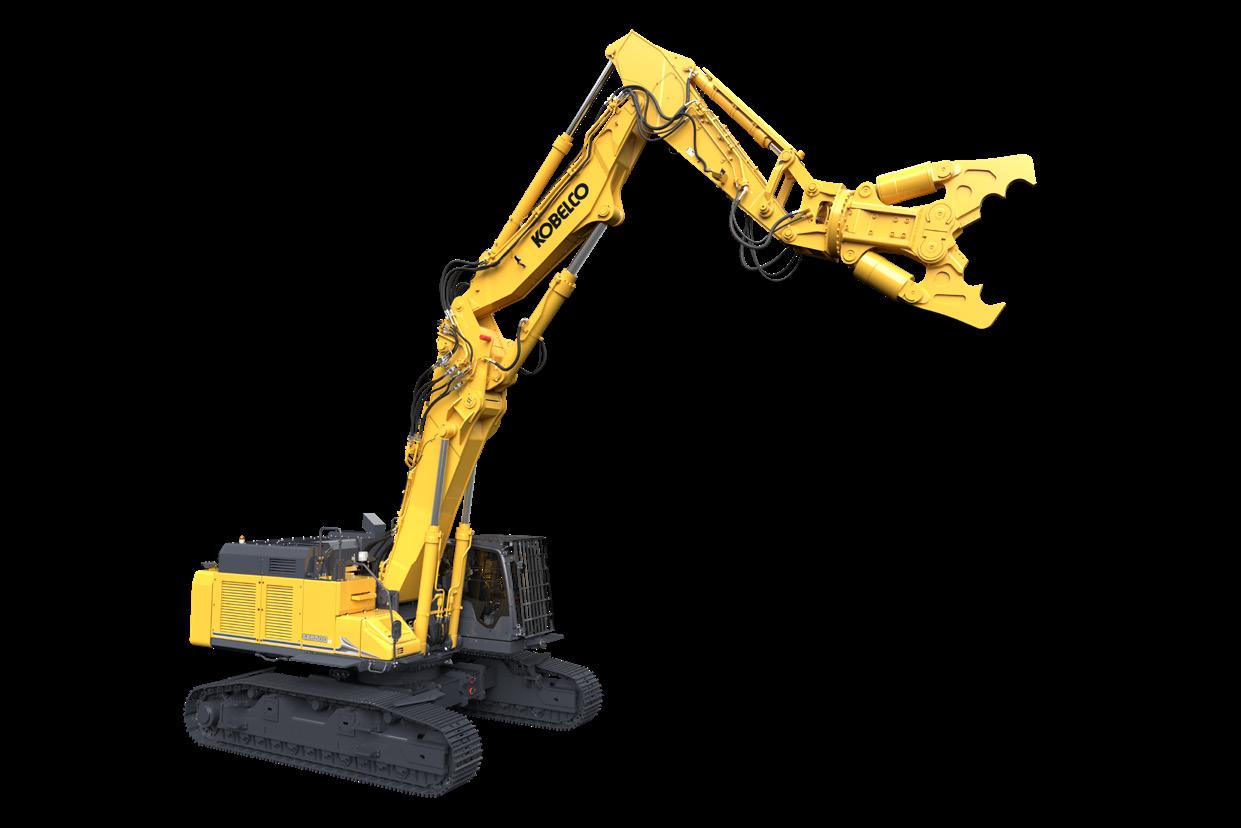

BUILDING DEMO
Mini Lineup Equipment Chart
Engine
Hydraulics System Cabin
Equipment
Engine manufacturer
Tier IV final certified engine
DEF required
DPF only
Auto deceleration
2 work modes: H & S
Remote N&B pressure relief adjustment
N&B 2 way aux. hydraulics
Combination secondary rotation circuit
Hose burst valve for boom & arm cylinder
Integrated-flow pump system
Multi-function color display
Adjustable N&B & rotation attachment presets
Automatic cab climate control
Radio (AM/FM, aux, wireless, & hands-free)
12V power outlet & USB charge port
Suspension seat
Slide open windows
Working Equipment
Angle dozer blade (float included) ***
Center swing boom
Pattern changer
Thumb mounting bracket
Additional bolt-on counterweight
Structure & Undercarriage
Lower swivel guard
Belly guards
Boom cylinder rod guard
Arm & bucket cylinder rod guard
Rubber tracks
Double grouser shoes
LED lights
Swing flasher
ROPS compliant cab or canopy
Mesh-type front guard for cab or canopy
Mesh-type top guard for cab
4 year/4,000 hour warranty
iNDr cooling system
Double air filter element
Engine
-7 Short Radius Equipment Chart
Equipment
Engine manufacturer
Tier IV final certified engine
DEF required
only
with SCR
SCR only
Auto idle shut down
Auto warm-up
Hydraulics System Cabin
N&B 2 way aux. hydraulics
Combination secondary rotation circuit
Hose burst valve for boom & arm cylinder
Boom to arm regeneration
Independent travel
Heavy lift
Power boost (unlimited time)
10-inch monitor w/ jog dial

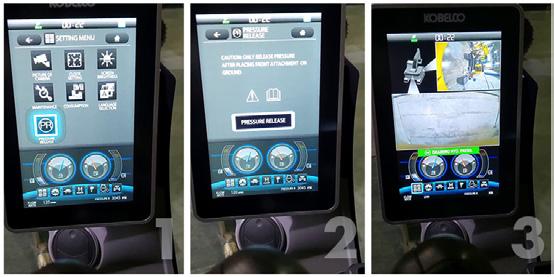

Hydraulic pressure release (from cab monitor)
10 preset attachment settings
Automatic cab climate control
Radio (AM/FM, aux, wireless, & hands-free)
12V power outlet & USB charge port
Air ride heated suspension seat
Dozer blade (float included)
Machine guidance ready brackets
boom
boom option*
K-LOAD payload weighing ***
Single pedal travel
Pattern changer
Additional bolt-on counterweight
Arm guard rock weldment
Angled upper deck guards
swivel guard
Belly guards
Heavy duty boom/arm
Pre-drilled shoes for rubber pads
LED lights
Overhead cab guard heavy duty FOPS level II
Front cab guard
270° 3-camera system
4 year/4,000 hour warranty

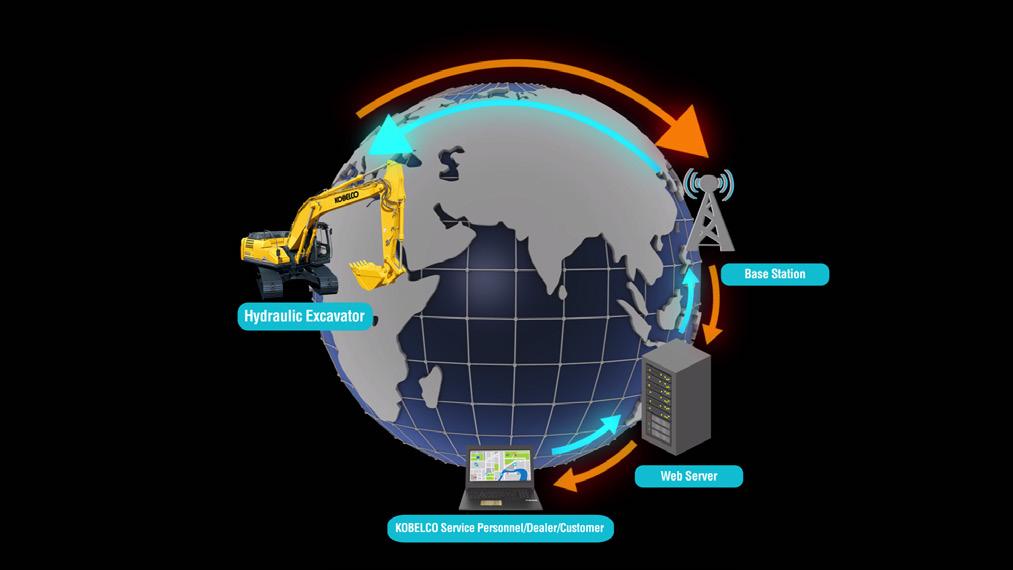

Telematics for warranty term
iNDr cooling system
Battery disconnect switch
Isuzu Isuzu Yanmar Yanmar Isuzu
-11 Conventional Equipment Chart
Engine
Equipment
Engine manufacturer
Tier IV final certified engine
DEF required
SCR only
DPF only
DPF with SCR
Auto warm-up
Auto idle shut down
N&B 2 way aux. hydraulics
Combination secondary rotation circuit
Hose burst valve for boom & arm cylinder
Boom to arm regeneration
Independent travel
Heavy lift
Power boost (unlimited time)
10-inch monitor w/ jog dial
Hydraulic pressure release (from cab monitor)
10 preset attachment settings
Automatic cab climate control
Radio (AM/FM, aux, wireless, & hands-free)
12V power outlet & USB charge port
Air ride heated suspension seat
Dozer blade (float included)
Machine guidance ready brackets
Quick coupler ready piping
K-LOAD payload weighing ***
Single pedal travel
Pattern changer
High & wide undercariage option
Long reach boom & stick option
Removable counterweight
Arm guard rock weldment
Angled upper deck guards
Lower swivel guard
Belly guards
Heavy duty boom/arm
Reversible fan
Catwalk
LED lights
Swing flashers
Overhead cab guard heavy duty FOPS level II
Front cab guard
270° 3-camera system
4 year/4,000 hour warranty
Telematics for warranty term
Battery disconnect switch
-11 High & Wide + Long Reach Equipment Chart
Equipment
Engine
Engine manufacturer
Tier IV final certified engine
DEF required
SCR only
DPF only
DPF with SCR
3 work modes: H, S, Eco
Auto warm-up
Auto idle shut down
N&B 2 way aux. hydraulics
Combination secondary rotation circuit
Hose burst valve for boom & arm cylinders
Boom to arm regeneration
Independent travel
Heavy lift
Power boost (unlimited time)
10-inch monitor w/ jog dial
Hydraulic pressure release (from cab monitor)
10 preset attachment settings
Automatic cab climate control
Radio (AM/FM, aux, wireless, & hands-free)
12V power outlet & USB charge port
Air ride heated suspension seat
Machine guidance ready system
Quick coupler ready system
K-LOAD payload weighing ***
Single pedal travel
Pattern changer
Removable counterweight
Arm guard rock weldment
Angled upper deck guards
Lower swivel guard
guards
Heavy duty boom/arm
Reversible fan
Catwalk
LED lights
Swing flashers
Overhead cab guard heavy duty FOPS level II
Front cab guard
270° 3-camera system
4 year/4,000 hour warranty
3 year/3,000 hour warranty
Telematics for warranty term
Yanmar Isuzu Isuzu Isuzu
-7/-11 Auto Dismantler Machines Equipment Chart
Engine
Hydraulics System
Cabin
Working Equipment
Counterweight
Structure & Undercarriage
Lights & Safety
Others
Equipment
Engine manufacturer
Tier IV final certified engine
DEF required
SCR only
DPF with SCR
Auto warm-up
Auto idle shut down
Combination secondary rotation circuit
Hose burst valve for boom & arm cylinder
Specialized cab for dismantling
10-inch monitor w/ jog dial
Hydraulic pressure release (from cab monitor)
Automatic cab climate control
Radio (AM/FM, aux, wireless, & hands-free)
12V power outlet & USB charge port
Air ride heated suspension seat
Dedicated lower frame w/ clamp arm structure
Heavy duty boom 15’ 4” {4.68m}
Heavy duty arm 7’ 10” {2.38m}
Heavy duty boom 18’ 6” {5.65m}
Heavy duty arm 9’ 8” {2.94m}
Pattern changer
Standard & additional bolt-on C/W 8,270 lb {3,750 kg}
Heavier C/W 12,100 lb {5,490 kg}
Arm guard rock weldment
Angled upper deck guards
Lower swivel guards
Belly guards
Work boots tray
Boom foot cover
Boom cylinder guard
Track guides (one per side)
LED lights
Swing flashers
Overhead cab guard heavy duty FOPS level II
Mesh type front guard
Bar type front guard
Cab interference prevention system
PA system
270° 3-camera system
3 year/3,000 hour warranty
Telematics for warranty term
iNDr cooling system
SK140SRD-7 SK210D-11
Standard Isuzu
Standard N/A
N/A
Standard
Standard

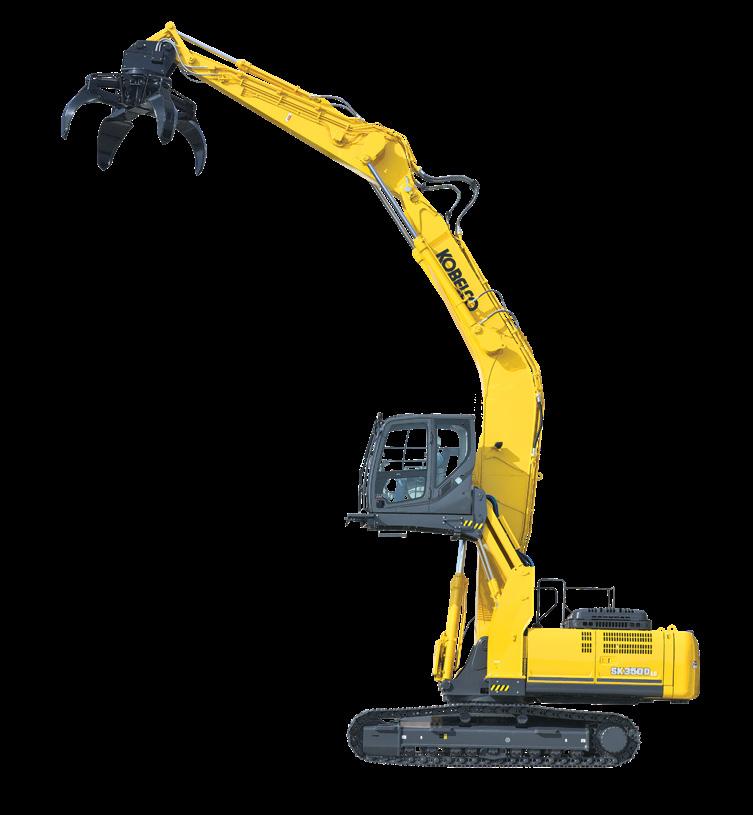

-11 Scrap Handler Machines Equipment
Equipment
Engine manufacturer
Tier IV final certified engine
DEF required
Engine
Hydraulics System
Cabin
Working Equipment
Counterweight
Structure & Undercarriage
Lights & Safety
Others
SCR only
DPF with SCR
Auto warm-up
Auto idle shut down
Combination secondary rotation circuit
Hose burst valve for boom & arm cylinder
Boom to arm regeneration
Independent travel
Heavy lift
Power boost (unlimited time)
10-inch monitor w/ jog dial
Hydraulic pressure release (from cab monitor)
Automatic cab climate control
Radio (AM/FM, aux, wireless, & hands-free)
12V power outlet & USB charge port
Air ride heated suspension seat
Link type elevator cab
Scrap loader straight boom & droop nose arm
Material handler bent boom linkage arm
Quick coupler piping ready brackets
Single pedal travel
Pattern changer
Heavier C/W 20,700 lb {9,400 kg}
Angled upper deck guards
Lower swivel guards
Belly guards
Cylinder guard (main boom foot)
23.6” {600 mm} flat shoes
23.6” {600 mm} triple grouser shoes
27.6” {700 mm} triple grouser shoes
31.5” {800 mm} triple grouser shoes
35.4” {900 mm} triple grouser shoes
Reinforced travel motors
Reinforced additional track guide
LED lights Swing flashers
Tilt open cab guard heavy duty FOPS level II
Mesh type front guard
Bar type front guard
Cab interference prevention system
PA system
Cab lift alarm
Cab emergency lowering device
Elevator lower step
270° 3-camera system
3 year/3,000 hour warranty
Telematics for warranty term
Battery disconnect switch
SK260D-11 Scrap Loader

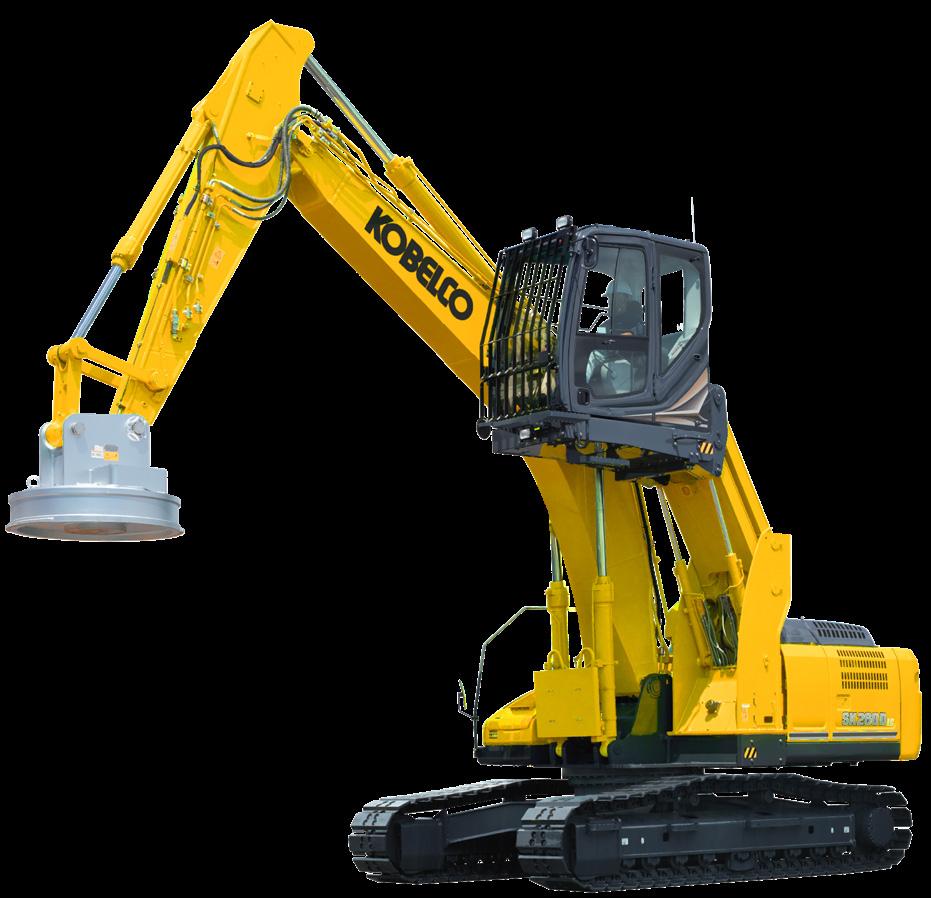

SK260D-11 Material Handler

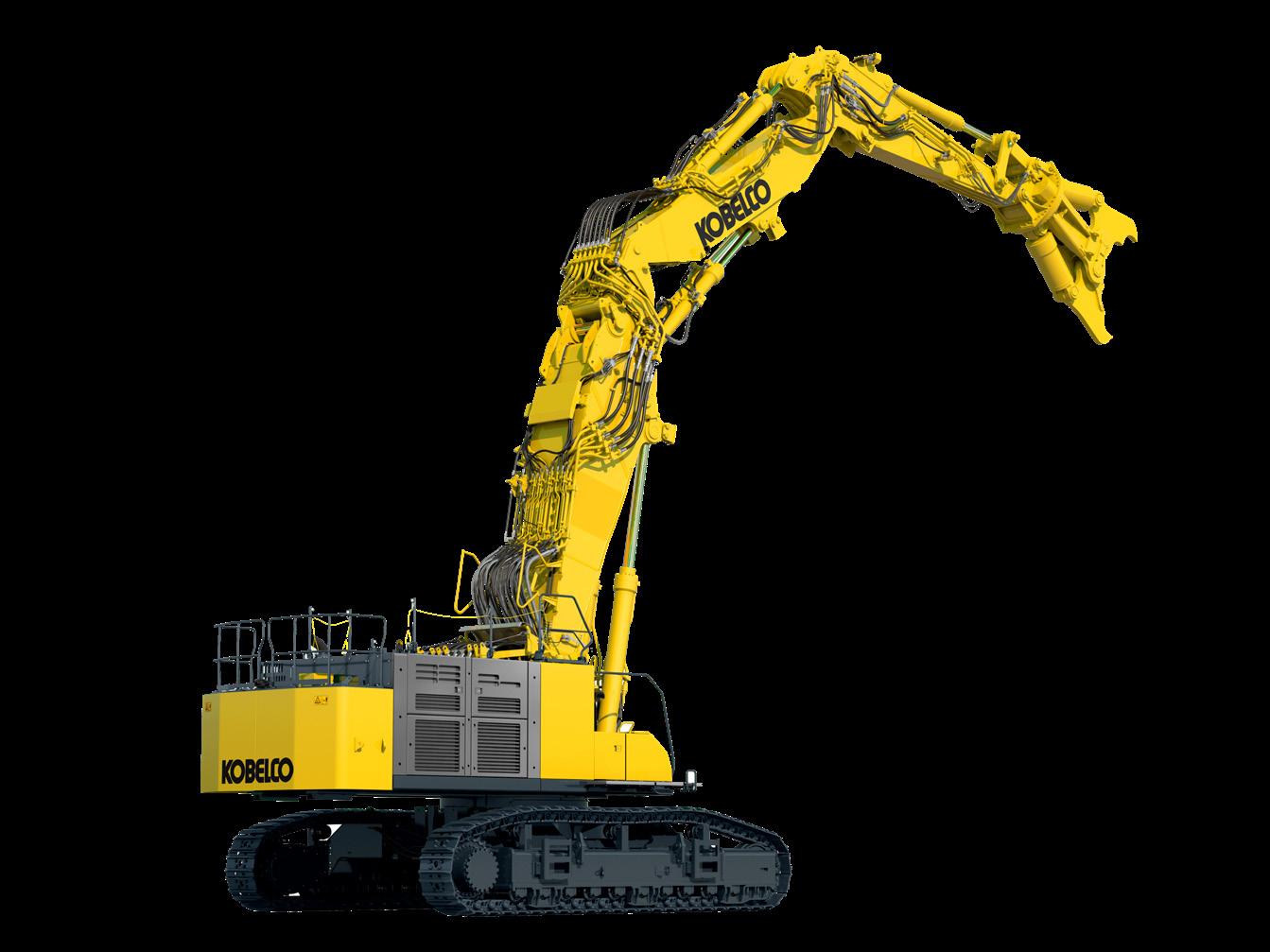

-11 Building Demolition Machines Equipment Chart
Equipment
Engine manufacturer
Tier IV final certified engine
DEF required
SCR only
Engine
Hydraulics System
Cabin
Working Equipment
Counterweight
Structure & Undercarriage
Lights & Safety
Others
DPF with SCR
Auto warm-up
Auto idle shut down
Reversible fan
3 work modes: H, S, Eco
Combination secondary rotation circuit
Hose burst valve for boom & arm cylinder
Boom to arm regeneration
Independent travel
Heavy lift
Power boost (unlimited time)
Demolition spec cab with 30° tilt
10-inch monitor w/ jog dial
Hydraulic pressure release (from cab monitor)
Automatic cab climate control
Radio (AM/FM, aux, wireless, & hands-free)
12V power outlet & USB charge port
Additional monitor
Separate boom attachment
High reach attachment
Quick coupler ready piping
Single pedal travel Air ride heated suspension seat
Pattern changer
Arm camera
Bracket for machine lifting
Translifter with synchronized four-leg control
Hydraulic retractable crawler
NEXT joint system
NEXT water spray non-pressurized system
NEXT pin removal equipment
Heavy C/W 20,900 lb {9,460 kg}
Layered C/W 33,500 lb {15,200 kg}
Layered C/W 48,300 lb {21,900 kg}
Removable C/W
Angled upper deck guards
Catwalk
31.5” {800mm} triple grouser shoe
23.6” {600mm} triple grouser heavy duty shoe
25.6” {650mm} triple grouser heavy duty shoe
Track guides (three per side)
LED lights
Swing flashers
Overhead cab guard heavy duty FOPS level II
Bar type front guard
Cab interference prevention system
Stability warning system
Falling object deflector
Handrail + stanchion + wire rope
PA system
270° 3-camera system
3 year/3,000 hour warranty
Telematics for warranty term
Auto lubrication system
Battery disconnect switch

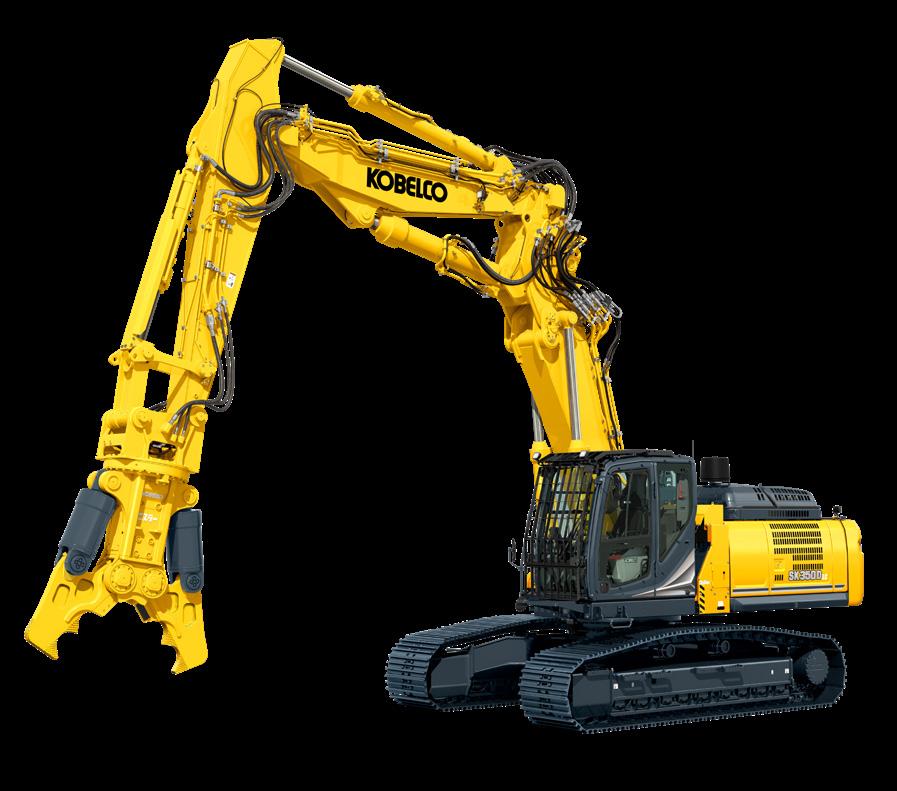

SK350DLC-11 Separate Boom
Mini & Short Radius Standard Specifications
Models
SK17SR-6E
SK26SR-7 Canopy [Cab]
SK35SR-7 Canopy [Cab]
SK45SRX-7 Canopy [Cab]
SK55SRX-7 Canopy [Cab]
SK75SR-7
SK85CS-7
SK140SRLC-7
SK140SRLC-7 Offset
Conventional Standard Specifications
SK130LC-11 Models
SK170LC-11
SK210LC-11
SK210LC-11 LR
SK210LC-11 H&W
SK260LC-11
SK260LC-11 LR
SK260LC-11 H&W
SK300LC-11
19’ 2”
20' 5"
22' 7"
24' 7"
28' 11" 25' 9"
BUILT TO DO MORE
From the operator’s seat to the service service bay, KOBELCO continues to innovate –integrating advanced technology that makes KOBELCO machines responsive, intuitive, durable, and easy to maintain.
Dedicates one hydraulic pump to travel and another to the attachment. This ensures smooth and consistent movement, even while operating the boom or swing functions, enhancing efficiency on the job site.
Enables operators to release residual hydraulic pressure from the comfort of the cab, facilitating safer and quicker attachment changes without manual intervention.
Every machine equipped with a dozer blade automatically comes standard with the float function so you can grade and backfill with ease.
The iNDr system utilizes a high-density, stainless steel mesh filter to reduce engine noise and prevent dust ingress, ensuring a quieter and cleaner operating environment.
An advanced system that measures the weight of materials being loaded, aiding in precise load management and preventing overloading.
A unique joint design used in KOBELCO building demolition machines that simplifies the assembly and disassembly of the machine’s front attachment, enhancing versatility and ease of maintenance.
KOBELCO Construction Machinery USA proudly introduces The Ranch, a premier customer and dealer experience center in Hockley, Texas. This state-of-the-art facility combines cutting-edge technology, hands-on training, and true Texas hospitality to deliver an unmatched learning and demo experience.
Situated on 15 acres, The Ranch features a 10,000-square-foot training and entertainment space, an outdoor demo area, and dedicated machine operation zones. Visitors can test KOBELCO excavators in real-world conditions, explore key features, and gain in-depth product knowledge.
But The Ranch is more than just a training ground – it’s a place where relationships grow and connections strengthen. The welcoming environment extends beyond the machines, with a full kitchen, barbecue grill, pool table, shuffleboard, and comfortable lounge areas that create the perfect setting for networking, team-building, and unwinding after a day in the dirt. Whether participating in expert-led training sessions or sharing a classic Texas barbecue, every visit is designed to leave a lasting impression.
The Ranch represents KOBELCO USA’s commitment to innovation, customer support, and dealer success, ensuring that those who rely on KOBELCO equipment have the tools, knowledge, and confidence to excel in their work.
Plan your visit today – contact your local KOBELCO dealer to experience The Ranch firsthand!
4-Year/4000-Hour
Comprehensive
Warranty
Genuine
OEM Parts
GOOD SUPPORT MATTERS
4Y/4K WARRANTY -
Any 2021 or newer model year full-size (SK75 and larger) excavator products come with a full machine four-year or 4,000-hour standard warranty and KOMEXS machine monitoring for the life of the warranty. That’s serious protection for nearly every component in your excavator. *
* Terms and conditions apply. Optional Extended warranty is also available.
Specialty machines and the SK300LC-11 Long Reach receive a three-year or 3,000-hour standard warranty.
4Y/4K MINI WARRANTY -
All 2024 and newer model year compact excavator products now receive a four-year or 4,000-hour standard warranty. *
Our KOMEXS telematics service provides warning alerts when your machine needs service and offers easy access to all your maintenance history. From anywhere you have internet access, you can see where your machines are located along with work status, total operating hours and fuel consumption. KOMEXS is included for the length of every warranty term on our mid- and full-size excavators, or it’s available as a standalone service.
The KOBELCO Premium Protection Plan (KPPP) allows you to customize coverage to fit your needs and budget. Choose from full extended base coverage or PT+HYD component coverage* for both new and used machines. When you purchase KPPP for your excavator, you’re managing the cost of unexpected repairs after the standard warranty period expires. Should you need repairs, you’ll deal directly with your nearest KOBELCO dealer to facilitate the repairs quickly using original OEM parts.
Why risk it with second hand parts when you can have KOBELCO Genuine Parts shipped the next day?
Designed and manufactured to factory specifications, KOBELCO Genuine Parts are guaranteed to maintain the quality, power and efficiency of your machine – all at the lowest cost possible.
KOBELCO Financial Services (KFS) understands the environment you are competing in and the power a new equipment solution can play in increasing your productivity and competitiveness. KOBELCO and Wells Fargo Bank have formed a business alliance to provide fast, simple, and reliable financing solutions that can help you achieve your business goals. Financing for the KFS program is provided by Wells Fargo Bank, NA. Financing available only in North America.
*See component coverage listing for all covered items. See terms and conditions for details.
Note: This catalog may contain attachments and optional equipment that are not available in your area. And it may contain photographs of machines with specifications that differ from those of machines sold in your areas. Please consult your nearest KOBELCO distributor for those items you require. Due to our policy of continuous product improvements all designs and specifications are subject to change without advance notice.
