OFFROAD
2026 GENUINE ACCESSORIES & APPAREL
* Professional Riders on a Closed Course *
Kawasaki cautions you that whenever the power output of a motorcycle is increased, reliability and durability may decrease. Therefore, proper and perhaps more frequent maintenance and repair work becomes especially important. The Kawasaki Service Manual contains information that will help enable you to perform essential maintenance and repairs. This manual can be obtained from any authorized Kawasaki dealer or online at Kawasaki.com. • Installation of race parts requires mechanical knowledge, proper tools and, in some cases, the re-tuning of engine and suspension components. For best results, an experienced tuner should make racing modifications. You may wish to take your vehicle to an authorized Kawasaki dealer to have race parts installed on your motorcycle. There will be a charge for installation. • Prices, product and specifications are subject to change without notice or liability. Availability is subject to production, stocking and demand. The purchaser accepts all responsibility concerning installation of race parts, including quality, performance, cost or service and/or necessary repairs. • Kawasaki Accessories or other items in this Performance Parts section are subject to the following conditions: • These items are intended for closed-course competition only. • Alteration of emissions-related components can constitute violation of federal and/or state laws. Substantial fines and penalties can result if used for other than closed-course competition use. • Use of unauthorized components and use of a vehicle in competition can affect a vehicle’s warranty coverage. • Kawasaki Accessories used in competition are not covered by any warranty and are not returnable. • Quantities may be limited and replacement parts may not be available.
* Professional Driver on a Closed Course *
KX™ FI CALIBRATION KIT (HANDHELD)
Requires Wire Harness (26011-0933) and Bracket (11056-0505) to operate
KX™ FI CALIBRATION KIT
The KX™ FI Calibration Kit features a handheld KX™ FI Calibration Controller which enables riders to adjust engine characteristics, by rewriting actual data maps, to suit their preference • Use without a PC: simply plug the KX™ FI Calibration Controller in the engine’s ECU • Built-in color LCD screen with easy-to-use interface • SD card compatible for data transfer of maps between the controller and a PC • Seven preset settings for easy ECU adjustment to suit track conditions • ECU maps for fuel injection volume and ignition timing based on throttle position and rpm • The KX™ FI Calibration Controller displays the status of a running engine when connected to the ECU • Water-resistant • Includes transfer and diagnostic cables, SD memory card, user manual, and carrying case • Requires Sub Harness (26011-0933) and Bracket (11056-0505) to operate • Fits KX™ 250F (13-18), KX™ 450F (09-10) and (12-18), KX™ 250 (19-20), KX™ 450 (19-20) • Does not fit KX™ 450F (11)
The KX FI Calibration Controller contains seven preset settings that can be quickly and easily used to adjust the ECU to suit track conditions. The provided settings are shown below.
KX™ FI Calibration Kit (Handheld) Connects KX™ FI Calibration Kit (Handheld) (99999-0613) to the main vehicle wiring harness
KX™450F (09-10), KX™450F (12-18), * Does not fit KX™450F (11), KX™450 (19-26), KX™250F (13-18), KX™250 (19-26)
KX™ FI Calibration Kit 99999-0615
Sub Harness ...................................................................26011-0933
Tube Clamp 92037-1794
KX™450 (19-21)
User Manual CD 41080-0707
KX™450SR (22-23)
KX™ FI Calibration CD ................................................... 57011-0010
KX™450F (09-10), KX™450F (12-18),
* Does not fit KX™450F (11), KX™250F (13-18), KX™250 (19-26)
Bracket 11056-0505
SUB HARNESS
DESCRIPTION
Connects KX™ FI Calibration Kit (Handheld) (999990615) to the main vehicle wiring harness
KX™450F (09-10), KX™450F (12-18),
* Does not fit KX™450F (11), KX™450 (19-26), KX™250F (13-18), KX™250 (19-26)
Sub Harness 26011-0933
TUBE CLAMP
Attaches 2019 KX™450 FI Calibration Kit Sub Harness (26011-0933) to the vehicle frameKX™ FI Calibration Kit
KX™450 (19-26)
Tube Clamp 92037-1794
BRACKET
Attaches KX FI Calibration Kit (Handheld) (999990615) to the vehicle frame
KX™450F (09-10), KX™450F (12-18),
* Does not fit KX™450F (11), KX™250F (13-18), KX™250 (19-26)
Bracket 11056-0505
KX™450 / KX™250 OFFROAD

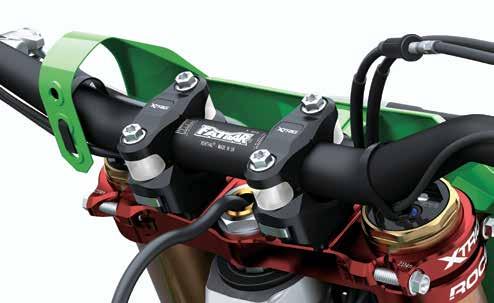

HANDLEBAR CLAMP
Used on the KX450SR and Monster Energy®️ Kawasaki race team • The Xtrig PHDS (Progressive Handlebar Dampening System) is a system supported by elastomers designed to absorb engine and chassis vibrations • The system also dampens the forces acting on the handlebar in a horizontal and vertical direction, maintaining steering precision • The handlebar can be adjusted in 12 different positions when the PHDS is mounted • Precision machined and manufactured
KX™450 (22-26)
Handlebar Clamp

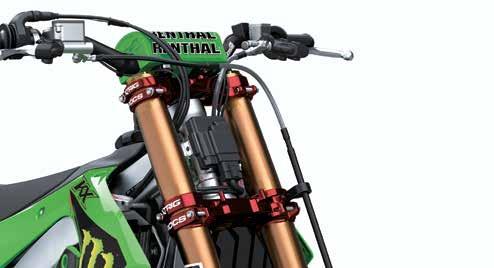

FORK CLAMP
Used on the KX450SR and Monster Energy ®️ Kawasaki race team • The XTrig Revolutionary Opposed Clamping System (ROCS) was designed to clamp the upper fork tubes from opposite directions to hold the tubes more evenly and securely • This design reduces inner tube distortion and allows the fork to flex naturally
• The triple clamp system’s flexibility is adapted specifically to the forks and chassis which results in improved front wheel traction and positive feedback
• Handlebars can be mounted in 12 different positions when using the Progressive Handlebar Dampening System (PHDS) handlebar mounts, sold separately
Features:
• Opposing bolts allow for precise clamping of the fork tubes
• Split clamps improve the bending line of the forks which improves fork response
• CNC manufactured from high-grade aluminum
• Steering head bearing already mounted on steering stem with standard offset
• Lightweight thanks to the removal of material between clamping screws
• Progressive Handlebar Dampening System (PHDS) KX™450 (22-26)
Fork Clamp

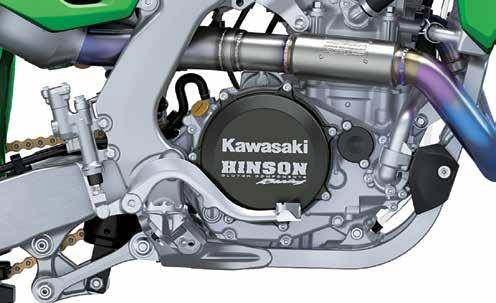

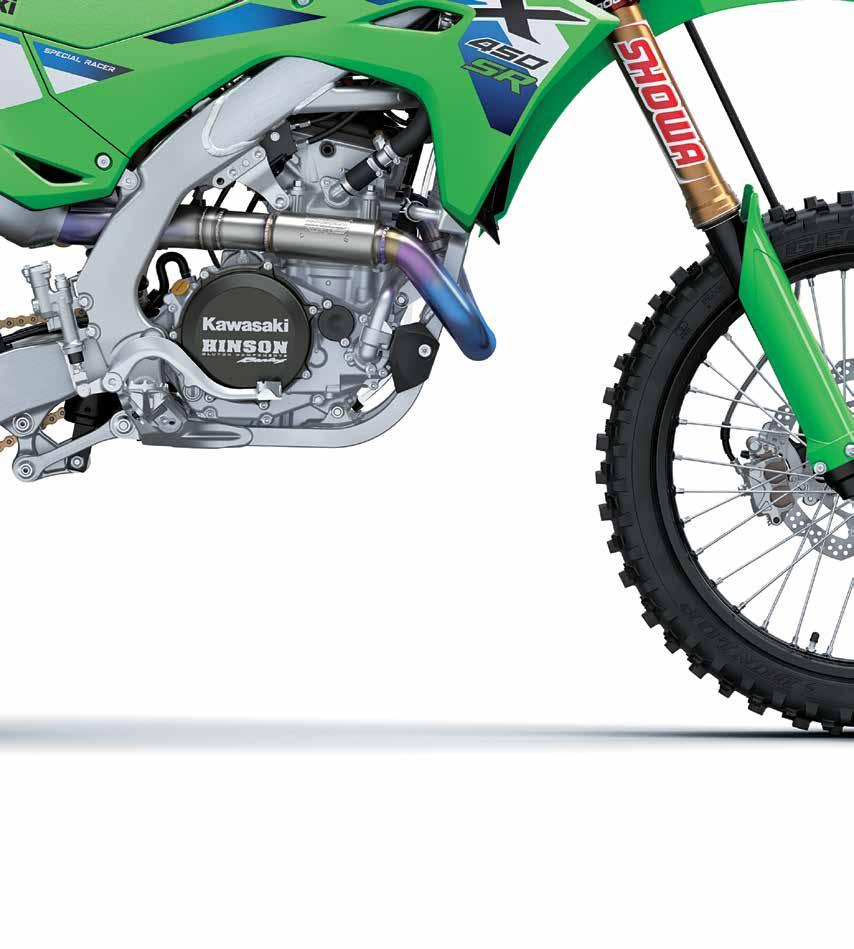

HINSON CLUTCH COVER
HANDLEBAR CLAMP
FORK CLAMP
99969-3880
The Hinson Clutch Cover is precision machined from billet T-6 aircraft quality aluminum making it stronger than stock. The Hinson Clutch Cover increases oil capacity in the transmission which helps dissipate heat for maximum performance. To help your motorcycle perform optimally the Hinson Clutch Cover directs oil back into the case, keeping the operating temperature cooler.
• Race proven worldwide by Team Honda and Team Suzuki World MX on their World MX Championship RM250 and RMZ450.
• Improves heat dissipation.
• Stronger than stock.
• Oversize covers increase oil capacity in transmission and direct oil back in clutch, both features greatly increasing heat dissipation.
• Precision machined from billet T-6 aircraft quality aluminum to aerospace tolerances.
KX™450 (22-26)
Hinson Clutch Cover
99969-3879
HINSON CLUTCH COVER
PRO CIRCUIT EXHAUST HEAD PIPE
Pro Circuit's Ti-6 Pro Titanium Exhaust System was created for professional racers competing in a series such as AMA Supercross or AMA Motocross to ensure they pass AMA/FIM sound regulations • The Ti-6 Pro Titanium Exhaust System is constructed of titanium throughout the head pipe and mid pipe • The Ti-6 Pro is the next generation of professional level race exhausts
The Ti-6 Pro is a full race system intended for closedcourse racing only.
Features Include:
• Passes AMA/FIM sound regulations
• Titanium construction throughout head pipe and mid pipe
• Machined mid pipe to head pipe joint for a better, leak free fit
• Rubber bracket mount
• TIG precision welding
• Made in the USA
KX™450 (25-26)
Pro Circuit Exhaust Head Pipe 99969-3985
KX™450 (19-23)

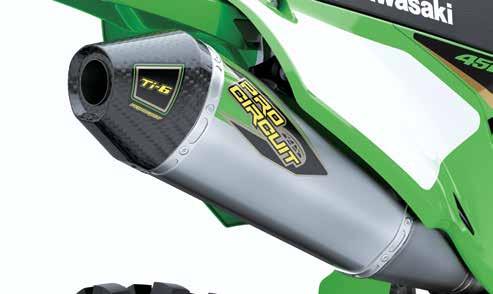

PRO CIRCUIT SLIP-ON MUFFLER
Pro Circuit's Ti-6 Pro Titanium Exhaust System was created for professional racers competing in a series such as AMA Supercross or AMA Motocross to ensure they pass AMA/FIM sound regulations • The Ti-6 Pro Titanium Exhaust System is constructed of titanium throughout the canister while the end-cap is carbon fiber • The Ti-6 Pro is the next generation of professional level race exhausts For the 2019-2021 models, a rubber mount has been inserted into the bracket to help prevent potential cracking of the subframe. The Ti-6 Pro is a full race system intended for closed-course racing only.
Features Include:
• Passes AMA/FIM sound regulations
• Titanium construction canister
• Carbon fiber end-cap
• Equipped with RC-4 Resonance Chamber
• Machined aluminum muffler bracket for increased strength and durability
• Asymmetrical muffler configuration for increased packing volume
• TIG precision welding
• Made in the USA
KX™450 (25-26)
Pro Circuit Slip-On Muffler
KX™450 (22-24)
Pro Circuit Slip-On Muffler
99969-3986
KX™450 / KX™250 OFFROAD

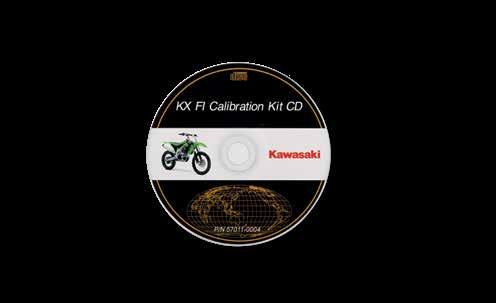

KX™ FI CALIBRATION CD
Contains 2019-2021 KX™ 450 fuel and ignition maps • The parameters are adjustable to suit specific tracks, surfaces and riding styles
The KX™ FI Calibration Kit allows the user to easily choose from seven preprogrammed fuel and ignition maps • The parameters are adjustable to suit specific tracks, surfaces and riding styles
1. controller sub-harness
2. USB cable
software CD-ROM
power supply harness
ECU mounting bracket (replacement part for use with kit)??
controller bracket
7. ECU controller
8. wire harness clamp
9. controller bands
10. upper/lower controller dampers
11. controller damper
?Part revised for 10MY kit.
??Part added for 11MY kit.
KX™450SR (22)
KX™ FI Calibration CD ................................................... 57011-0010
KX™450SR (22-23)
KX™ FI Calibration CD 57011-0010

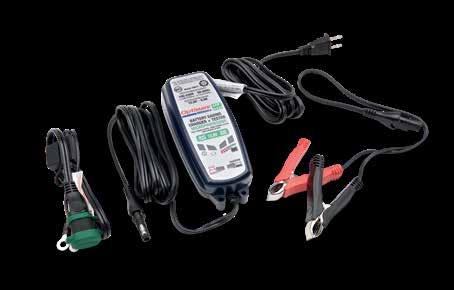

OPTIMATE TM-471 LITHIUM BATTERY CHARGER .8A
The OptiMate TM-471 Maintenance Charger by TecMate • The OptiMate TM-471 is a 0.8 amp charger • It charges and/or maintains most 12V lithium batteries
• Unique LiFePO4 battery protection
8-Step Program
1. Low Volt Start (0.5V) 2. Ultra LOW VOLT SAVE 3. LOW VOLT SAVE cell monitoring 4. TEST cell damage
5. Cell-balancing CHARGE
6. OPTIMIZE
7. TEST after CHARGE
8. OptiMate Maintenance
KX™450 (19-26)
Optimate TM-471 Lithium Battery Charger .8A ........... C57001471

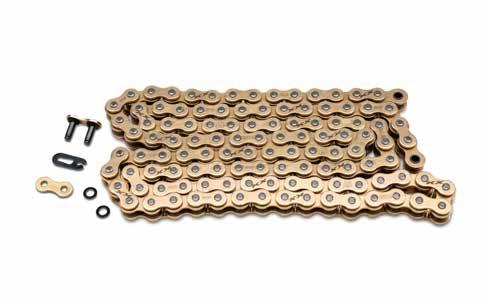

CHAIN KIT
Chromoly steel construction with solid rollers and bushings • Clip-type link
KX™450 (24-25) Chain Kit ......................................................................... 99994-1945
CHAIN KIT
SIDE PANEL (GREEN) FRONT / REAR FENDER (GREEN)
RADIATOR SHROUD, RIGHT
REPLACEMENT PLASTICS
Kawasaki Factory OEM plastics used by our Factory Motocross, Supercross and Team GreenTM riders
KX™450 (21-26) / KX™450X (21-26)
Number Plate, Green 58029-0014-290
Fender-Front, Green .............................................35038-0008-290
NUMBER PLATE (GREEN)
RADIATOR SHROUD, LEFT
NUMBER PLATE (WHITE)
KX™450 (24-26) / KX™450X (24-26)

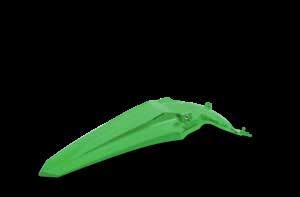

Fender-Rear, Green
KX™450 (21-23) / KX™450X (21-23)
35023-0495-290
Fender-Rear, Green .............................................. 35023-0445-290
KX™450 (24-26) / KX™450X (24-26)
Side Panel, Left, Upper, Green
36001-0737-290
Side Panel, Left, Lower, Green 36001-0738-290
Side Panel, Right, Lower Green 36001-0739-290
KX™450 (21-23) / KX™450X (21-23)
Side Panel, Left, Green 36001-0660-290
Side Panel, Right, Green 36001-0662-290
KX™450 (24-26) / KX™450X (24-26)
Radiator Shroud, Left, without Decals ............... 49089-1168-290
Radiator Shroud, Right, without Decals 49089-1169-290
KX™450 (19-23) / KX™450X (21-23)
Radiator Shroud, Left, without Decals 49089-0946-290
Radiator Shroud, Right, without Decals 49089-0947-290
KX™450 (26)
Radiator Shroud, Left, with Decals 49136-5469-290
Radiator Shroud, Right, with Decals 49136-5470-290
KX™450 (25)
Radiator Shroud, Left, with Decals 49136-5279-290
Radiator Shroud, Right, with Decals ................. 49136-5280-290
KX™450 (24)
Radiator Shroud, Left, with Decals
Radiator Shroud, Right, with Decals
49136-5056-290
49136-5057-290 KX™450 (23)
Radiator Shroud, Left, with Decals
Radiator Shroud, Right, with Decals
KX™450 (22)
Radiator Shroud, Left, with Decals
49135-5414-290
49135-5415-290
49135-5283-290
Radiator Shroud, Right, with Decals ..................49135-5284-290
KX™450X (26)
Radiator Shroud, Left, with Decals
Radiator Shroud, Right, with Decals
KX™450X (25)
Radiator Shroud, Left, with Decals
Radiator Shroud, Right, with Decals
KX™450X (24)
Radiator Shroud, Left, with Decals
Radiator Shroud, Right, with Decals ..................
KX™450X (23)
Radiator Shroud, Left, with Decals
Radiator Shroud, Right, with Decals
KX™450X (22)
Radiator Shroud, Left, with Decals
Radiator Shroud, Right, with Decals
49136-5473-290
49136-5474-290
49136-5321-290
49136-5322-290
49136-5169-290
49136-5170-290
49135-5437-290
49135-5438-290
49135-5285-290
49135-5286-290
26 with Decals
26 with Decals
26 without Decals
26 without Decals
REPLACEMENT PLASTICS
Kawasaki Factory OEM plastics used by our Factory Motocross, Supercross and Team Green rid
REPLACEMENT PLASTICS
Kawasaki Factory OEM plastics used by our Factory Motocross, Supercross and Team GreenTM riders
KX™250 (21-26) / KX™250X (21-26)
Number Plate, Green ............................................ 58029-0014-290
Fender-Front, Green 35038-0008-290
KX™250 (25-26) / KX™250X (25-26)
Fender-Rear, Green 35023-0495-290
KX™250 (21-24) / KX™250X (21-24)
Fender-Rear, Green 35023-0445-290
KX™250 (25-26) / KX™250X (25-26)
Side Panel, Left, Upper, Green 36001-0737-290
Side Panel, Left, Lower, Green 36001-0738-290
Side Panel, Right, Lower, Green ..........................36001-0739-290
KX™250 (21-24) / KX™250X (21-24)
Side Panel, Left, Green 36001-0660-290
Side Panel, Right, Green 36001-0662-290
KX™250 (25-26) / KX™250X (25-26)
Radiator Shroud, Left, without Decals
49089-1168-290
Radiator Shroud, Right, without Decals 49089-1169-290
KX™250 (21-24) / KX™250X (21-24)
Radiator Shroud, Left, without Decals
49089-0946-290
Radiator Shroud, Right, without Decals ........... 49089-0947-290
KX™250 (26)
Radiator Shroud, Right, with Decals
Radiator Shroud, Left, with Decals
KX™250 (25)
Radiator Shroud, Right, with Decals
49135-5466-290
49135-5465-290
49135-5282-290
Radiator Shroud, Left, with Decals 49135-5281-290
KX™250 (24)
Radiator Shroud, Right, with Decals
49135-5136-290
Radiator Shroud, Left, with Decals ..................... 49135-5135-290
KX™250 (23)
Radiator Shroud, Right, with Decals
49135-5350-290
Radiator Shroud, Left, with Decals 49135-5351-290
KX™250 (22)
Radiator Shroud, Right, with Decals ..................49135-5268-290
Radiator Shroud, Left, with Decals 49135-5269-290
X™250X (26)
Radiator Shroud, Left, with Decals
49136-5467-290
Radiator Shroud, Right, with Decals ................. 49136-5468-290
KX™250X (25)
Radiator Shroud, Left, with Decals
49136-5339-290
Radiator Shroud, Right, with Decals 49136-5340-290
KX™250X (24)
Radiator Shroud, Left, with Decals ..................... 49136-5137-290
Radiator Shroud, Right, with Decals 49136-5138-290
KX™250X (23)
Radiator Shroud, Left, with Decals
49135-5453-290
Radiator Shroud, Right, with Decals 49135-5454-290
KX™250X (22)
Radiator Shroud, Left, with Decals 49135-5270-290
Radiator Shroud, Right, with Decals 49135-5271-290
SIDE PANEL (GREEN)
RADIATOR SHROUD, RIGHT
NUMBER PLATE (GREEN)
RADIATOR SHROUD, LEFT

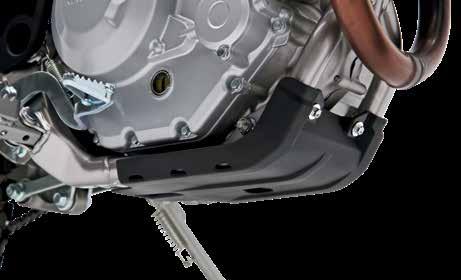

POLYCARBONATE SKID PLATE KIT
FRONT / REAR FENDER (GREEN)
26 with Decals
26 with Decals
26 without Decals
26 without Decals
POLYCARBONATE SKID PLATE KIT
POLYCARBONATE SKID PLATE
4 Flanged Bolts,6X9 (92154-0546) required for fitting onto the KX450 motorcycle • Kawasaki Factory OEM plastics used by our Factory Motocross, Supercross and Team GreenTM riders
KX™450 (19-25)
Polycarbonate Skid Plate
Flanged Bolt
55020-1893
92154-0546
POLYCARBONATE SKID PLATE KIT
Kit contains skid plate and 4 Flanged Bolts for fitting onto the KX™ 450 or KX™ 250 motorcycle • Kawasaki Factory OEM plastics used by our Factory Motocross, Supercross and Team Green™ riders
KX™450 (21) / KX™250 (21)
Polycarbonate Skid Plate Kit
99994-1532
KLX® OFFROAD
Kawasaki cautions you that whenever the power output of a motorcycle is increased, reliability and durability may decrease. Therefore, proper and perhaps more frequent maintenance and repair work becomes especially important. The Kawasaki Service Manual contains information that will help enable you to perform essential maintenance and repairs. This manual can be obtained from any authorized Kawasaki dealer or online at Kawasaki.com. • Installation of race parts requires mechanical knowledge, proper tools and, in some cases, the re-tuning of engine and suspension components. For best results, an experienced tuner should make racing modifications. You may wish to take your vehicle to an authorized Kawasaki dealer to have race parts installed on your motorcycle. There will be a charge for installation. • Prices, product and specifications are subject to change without notice or liability. Availability is subject to production, stocking and demand. The purchaser accepts all responsibility concerning installation of race parts, including quality, performance, cost or service and/or necessary repairs. • Kawasaki Accessories or other items in this Performance Parts section are subject to the following conditions: • These items are intended for closed-course competition only. • Alteration of emissions-related components can constitute violation of federal and/or state laws. Substantial fines and penalties can result if used for other than closed-course competition use. • Use of unauthorized components and use of a vehicle in competition can affect a vehicle’s warranty coverage. • Kawasaki Accessories used in competition are not covered by any warranty and are not returnable. • Quantities may be limited and replacement parts may not be available.
* Professional Driver on a Closed Course *

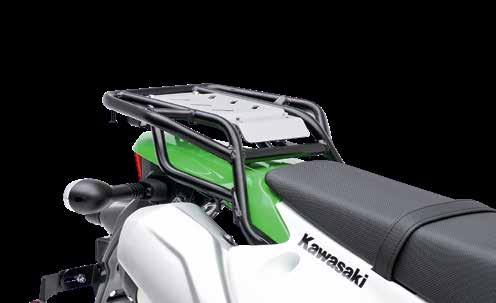

REAR CARRIER
Durable tubular steel black finish construction with bright aluminum center plate mounts to the rear chassis • Provides 6.5 pound (3.0 Kg) cargo capacity • Rack dimensions approximately 10" x 10" • Includes four welded bungee hooks • Does not fit KLX®️ 230 off road version
KLX®230 (20-26)
Rear Carrier ...................................................................
KLX®230 S (25-26)
Rear Carrier, Large
HELMET LOCK
99994-1280
99994-2019
Lock your helmet conveniently when you’re off the road • Chassis mounted lock utilizes the Kawasaki One Key System, allowing you to use your ignition key • Steel construction • All required brackets and hardware included • Dealer installation required • Does not fit KLX®️ 230 off road version
KLX®230 (20-26)
Helmet Lock
KLX®230 S (25-26)
Helmet Lock ...................................................................
99994-1279
99994-2176
FRAME SLIDER
Help protect your engine shrouds from tip-over damage • Includes required brackets, hardware and installation instructions • Note: Frame Sliders help protect your motorcycle but will not prevent all types of damage
KLX®230 S (25-26)
Frame Slider
KLX®230 SM (24-26)
Frame Slider
SKID PLATE
99994-2050-458
99994-2050-18R
Durable black ABS plastic construction • Provides full coverage protection of the chassis bottom rails • Includes oil drain hole to allow oil to be changed without removing skid plate
KLX®230/KLX®230R (20-26)
Skid Plate
KLX®230 S (25-26) Skid Plate
99994-1246
99994-2020
HAND GUARD SET
Hand Guard Shell Set is constructed of rugged plastic
• All hardware and instructions included
LX®230/KLX®230R (20-26)
Hand Guard Set, Black
KLX®230 S (24-26)
Hand Guard Set, Black
KLX®230/KLX®230R (20-26)
Hand Guard Set, Black
KLX®230 S (25-26)
Hand Guard Set, Black

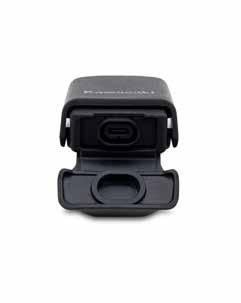

USB OUTLET KIT
99994-1248-6C
99994-2073-6C
99994-1248-68L
99994-2073-68L
Charge your USB devices on the go with a USB Socket Kit • Installs directly under the seat • 12 volt input with 5 volt - 4.2 amp, output port • Dealer installation recommended • Requires Relay Kit (999941985) sold separately
KLX®230 S (25-26)
USB Outlet Kit Type-C
FRAME COVER
99994-2051
Durable black ABS plastic construction • Helps provide scuff protection for the chassis side rails • All hardware and instructions included
KLX®230/KLX®230R (20-26)
Frame Cover
HANDLE BAR PAD
99994-1466
Thick foam cover for stock handlebar cross bar
• Features the KLX®️ logo
KLX®230/KLX®230R (20-26)
Handle Bar Pad

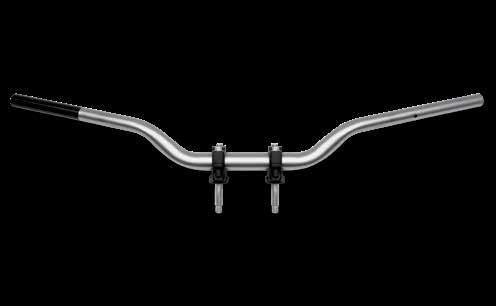

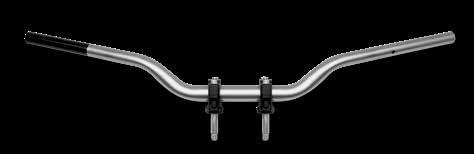

TAPERED HANDLE BAR
99994-1274
Rugged tapered steel design has robust 1 1/8" (28.5 mm) clamping diameter with matching aluminum riser bar clamps • Replaces stock handlebar and clamps
KLX®230/KLX®230R (20-26)
Tapered Handle Bar, Silver

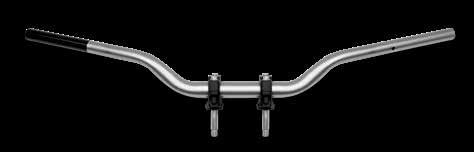

FAT TYPE HANDLE BAR
99994-1250-458
Rugged tapered steel design has robust 1 1/8" (28.5 mm) clamping diameter with matching aluminum riser bar clamps • Replaces stock handlebar and clamps
KLX®230 S (25-26)
Fat Type Handle Bar
KLX®230 SM (23-26)
Fat Type Handle Bar
99994-1508-18R
99994-1508-18R
HAND GUARD SET
FRAME COVER
USB OUTLET KIT
HANDLE BAR PAD
TAPERED HANDLE BAR FAT TYPE HANDLE BAR
ERGO-FIT® REDUCED REACH SEAT ERGO-FIT® EXTENDED REACH SEAT

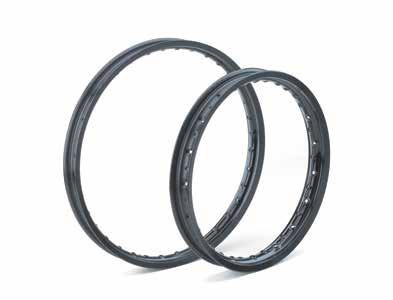

RIM SET, BLACK
Black finish front and rear wheel rims replace stock silver finish rims • Dealer installation recommended KLX®230/KLX®230R (20-26)
Rim Set, Black
99994-1251-WC

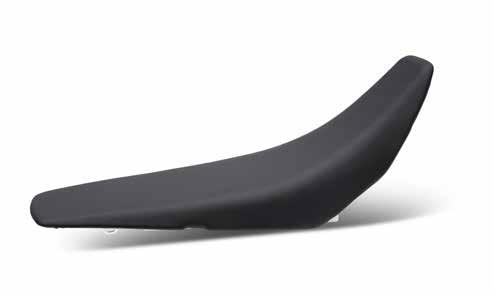

ERGO-FIT® REDUCED REACH SEAT
ERGO-FIT ®️ Extended Reach Seat extends the seat height 35mm (1 3/8") facilitating the reach to the ground for increased confidence and comfort • The seat cover is the same cold-resistant, high-elasticitytype material used on the standard seats • Made to fit and complement the KLR™650 motorcycle • Includes all necessary hardware • Utilizes factory seat base
KLX®230 S (25-26)
ERGO-FIT® Reduced Reach Seat
KLX®230 RS (25-26)
ERGO-FIT® Reduced Reach Seat
99994-2144-MA
99994-2049-MA

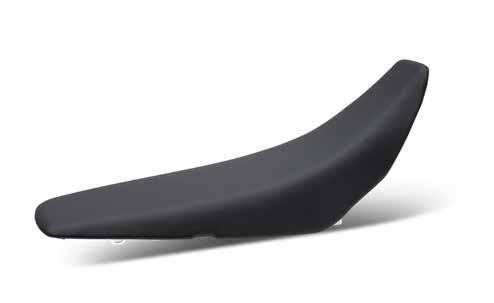

ERGO-FIT® EXTENDED REACH SEAT
ERGO-FIT ®️ Extended Reach Seat extends the seat height 35mm (1 3/8") facilitating the reach to the ground for increased confidence and comfort • The seat cover is the same cold-resistant, high-elasticitytype material used on the standard seats • Made to fit and complement the KLX™230 motorcycle • Includes all necessary hardware • Utilizes factory seat base
KLX®230 RS (25-26)
ERGO-FIT® Extended Reach Seat ........................ 99994-2048-MA
KLX®230 S (25-26)
ERGO-FIT® Extended Reach Seat
99994-2143-MA
