Product brochure

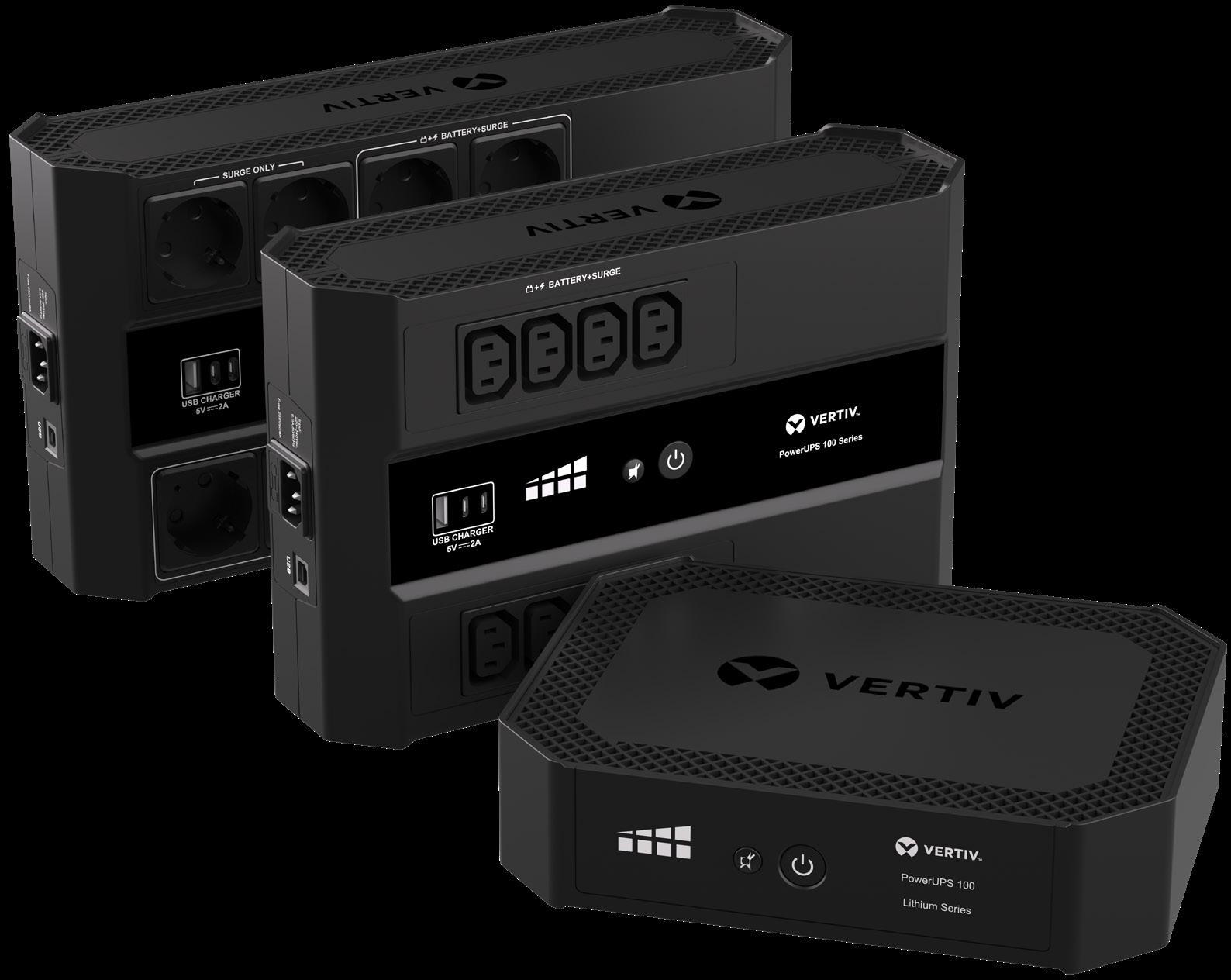

Vertiv™ PowerUPS 100 Standby Series
350VA to 900VA, 230V
Reliable, a ordable desktop power protection for PCs, workstations and essential electronics.
Reliable protection. Modern design. Everyday peace of mind.
The Vertiv™ PowerUPS 100 Series delivers dependable desktop power protection in a sleek, space-saving design, keeping your electronics safe with built-in battery backup and surge protection. Available in Lithium and VRLA versions, the series lets you choose the option that best fits your usage and lifestyle.
What’s in the box:
• Vertiv PowerUPS 100 UPS
• Quick Installation Guide
• Safety Instructions
• USB Cable, Type A to B
• Power Cord
Applications:
• Personal computers
• Workstations
• Gaming consoles
• Kiosks
• Smart home devices
• Surveillance systems
• Wireless networks
• Retail Point-of-Sale (POS) equipment
• AI PC’s (e.g. DGX Spark, Dell GB10)
Vertiv™ PowerUPS 100 Standby Series 230V
Vertiv™ PowerUPS 100 Lithium Standby Series highlights
Features and benefits
Lithium-ion battery:
Lithium-ion technology delivers up to 3 times the life expectancy of lead-acid batteries which reduces maintenance, labor and replacement costs.
Battery and surge protected outlets:
4 total outlets with 3 backup outlets o er enough space and capacity to protect all your critical electronics.
Wall-mountable:
O ers two conveniently located keyhole sockets for mounting the UPS.
Runtime LED indicators:
4 indicators provide a quick view of remaining battery capacity.
Alarm management:
A dedicated mute button allows you to quickly silence alarms.
5-Year warranty:
Full unit coverage, including the battery, with an advanced replacement warranty.
Equipment Protection Plan (EPP):
The Equipment Protection Plan o ers reimbursement or replacement for any devices damaged by power surges while connected to your Vertiv™ PowerUPS 100 Standby UPS.

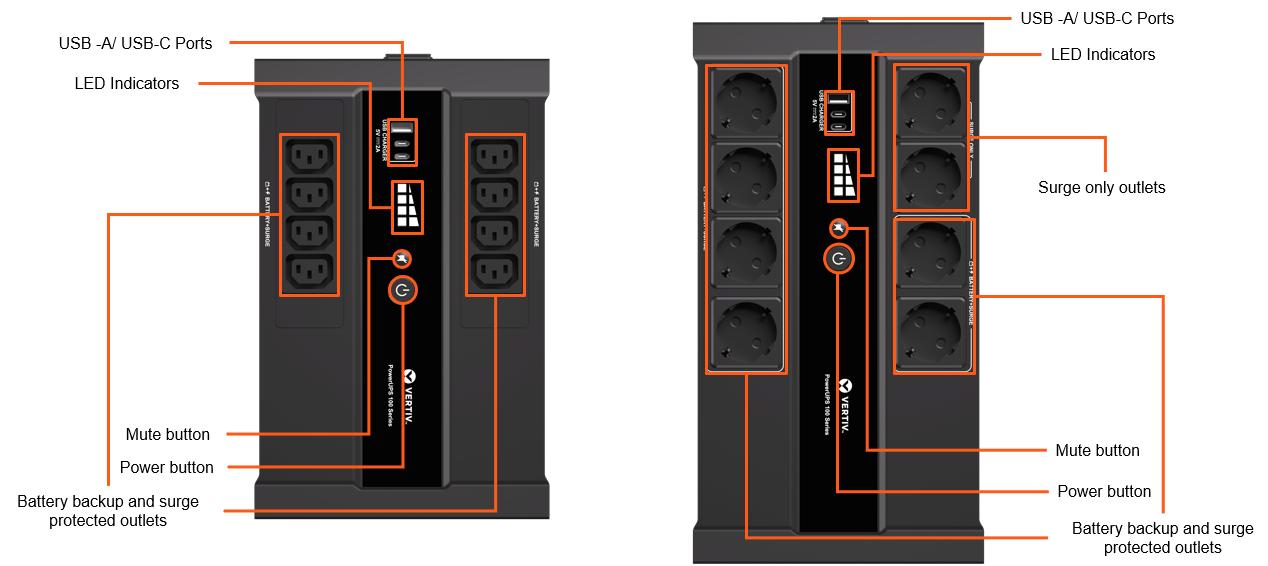

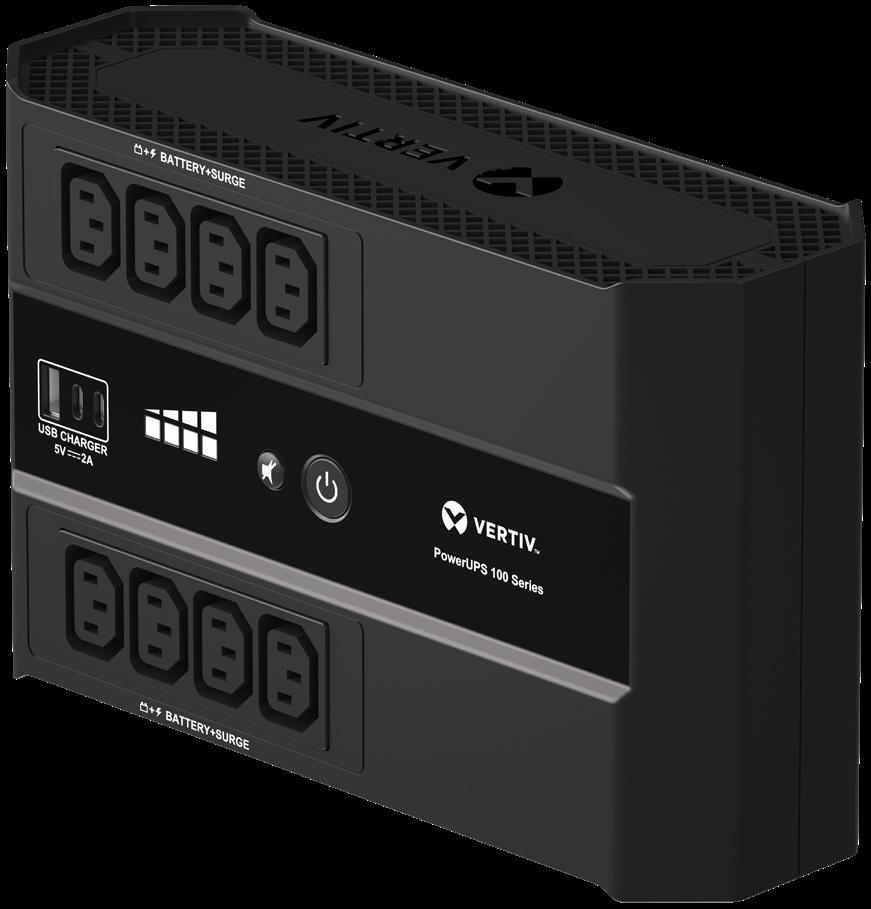

Vertiv™ PowerUPS 100 Standby Series highlights
Features and benefits
Up to 8 outlets:
Available with up to 6 battery backup and surge protected outlets and 2 surge only outlets for all your critical devices.
User-replaceable batteries:
Quickly and safely swap out batteries to extend UPS life.
USB-A and USB-C charging ports:
Convenient charging for your mobile devices.
Wall mountable:
Conveniently located keyhole sockets allow the UPS to be easily mounted to a wall or desk.
Runtime LED Indicators:
4 indicators provide a quick view of remaining battery capacity.
Wide range of capacity options:
Alarm management:
A dedicated mute button allows you to quickly silence alarms.
3-year warranty:
Full unit coverage, including the battery, with advanced replacement warranty.
Equipment Protection Plan (EPP):
The Equipment Protection Plan o ers reimbursement or replacement for any devices damaged by power surges while connected to your Vertiv™ PowerUPS 100 Standby UPS.
Free management software*:
Vertiv™ Power Assist gracefully shuts down your devices during power outages. It is easy to install and helps protect your devices from data loss and equipment damage.
Choose from 500VA, 700VA, 900VA models to match the power capacity and runtime requirements of your connected devices. *Excluding PST6-500IT-IEC & PST6=500IT-SCH
Lithium-Ion key benefits vs VRLA
Lithium-ion is game-changing technology when it comes to UPS batteries. When compared to traditional valveregulated lead-acid (VRLA) batteries, lithium-ion batteries have greater power density, last up to 3 times longer, recharge much more quickly, and can endure up to 10x more discharge cycles. With a 5-year standard warranty, more than double the useful life, and more runtime, the Vertiv™ PowerUPS 100 Lithium is an ideal choice for electronics that need reliable and economical power protection.
• Up to 3x battery life
• Lowest TCO
• 5-year standard warranty
• Longer runtime
• Quicker recharge times
• Smaller and lighter
• Up to 10x more discharge cycles
• Greater battery performance in higher temperature environments
Technical specifications - Vertiv™ PowerUPS 100 Standby Series
Model number
IEC models
Schuko models
Unit
(VA / W)
mm (in) W x D x H
PST6-500IT-IEC
PST6-500IT-SCH
/
PST6-700IT-IEC
PST6-700IT-SCH
PST6-900IT-IEC
PST6-900IT-SCH
Shipping dimensions, mm (in) W x D x H
Schuko models
Input AC Nominal
VAC Voltage
VAC
Frequency range 50/60Hz +/- 5 Hz (auto-sensing)
Protection Resettable Circuit Breaker
Surge protection Line-Neutral, Line-Ground, and Neutral-Ground
Surge energy rating 600 Joules
Input cord 6 ft. IEC C14
Output AC (on utility)
Nominal voltage 220-240 VAC
Voltage range 195-255 VAC
Frequency range
50/60Hz +/- 1 Hz (auto-sensing)
Efficiency Up to 95% @100% Load
Output AC (on battery)
Nominal voltage 230 VAC
Voltage range 230 +/- 10% VAC
Frequency range
50/60Hz +/- 1 Hz (auto-sensing)
Waveform Simulated Sinewave
Transfer time 2-6 ms, typical (10 ms max)
Overload capacity 110% for 5 seconds, 120% immediate shutdown
Protection Electronic (over current, short circuit, over charge)
Backup time (full load / half load) mins
/
Battery type Sealed Valve Regulated Lead Acid (VRLA)
Battery backed & surge protected outlets
IEC Models 8 (IEC)
Schuko Models 6 (Schuko)
Surge only outlets
Schuko Models 2 (Schuko)
Environmental requirements
Operating temperature °C (°F) 0 to 40 (32 - 104)
Operating elevation, m (ft)
0 - 3,000 (0 - 10,000 feet)
Relative humidity 0-90% non-condensing
Storage temperature °C (°F) -20 to 40 (-4 to 104)
Storage elevation, m (ft)
Audible noise
Agency
0 - 3,000 (0 - 10,000 feet)
Safety CB, CE, EN/IEC 62040-1, UKCA, RCM, EAC
RFI / EMI EN/IEC 62040-2, EN/IEC 61000-3-2, EN 61000-3-3, CAT: C2
Surge immunity IEC 61000-4-5
Environmental RoHS, REACH, WEEE
Transportation ISTA Procedure 3A
Protection plan
Equipment protection plan
$200,000
Technical specifications - Vertiv™ PowerUPS 100 Lithium Standby Series
Model number
Capacity (VA / W)
Unit dimensions, mm (in) W x D x H
Unit weight, kg (lbs.)
PUL-350IMT-IEC
350 / 210
243 x 187 x 58 (9.57 x 7.36 x 2.28)
1.40 kg (3.10 lbs)
Shipping dimensions, mm (in) W x D x H 340 x 283 x 150 (13.39 x 11.14 x 5.91)
Shipping weight, kg (lbs.)
Input AC
Nominal voltage
Voltage range
Frequency range
Protection
Surge protection
Surge energy rating
Input cord
Output AC (on utility)
Nominal voltage
Voltage range
Frequency range
Efficiency
Output AC (on battery)
Nominal voltage
Voltage range
Frequency range
Waveform
Transfer time
2.30 kg (5.10 lbs)
220-240 VAC
160-278 VAC
50/60Hz +/- 5 Hz (auto-sensing)
Replaceable Fuse
Line-Neutral, Line-Ground, and Neutral-Ground
375 Joules
6 ft. IEC C14
230 VAC
160-278 VAC
50/60Hz +/- 5 Hz (auto-sensing)
Up to 97% @100% Load
230 VAC
230 +/- 8% VAC
50/60Hz +/- 5 Hz (auto-sensing)
Simulated Sinewave
8 ms, typical (10 ms max)
Overload capacity 110% for 5 seconds, 120% immediate shutdown
Protection
Backup time (full load / half load) mins
Battery type
Battery backed & surge protected outlets
Surge only outlets
Environmental requirements
Operating temperature °C (°F)
Operating elevation, m (ft)
Relative humidity
Electronic (over current, short circuit, over load)
2 mins / 8 mins
Lithium-Ion
3 (IEC)
1 (IEC)
32 - 104 (0 to 40)
0 - 10,000 (0 - 3,000)
0-95% non-condensing
Storage temperature °C (°F) -10 to 50 (14 to 122)
Storage elevation, m (ft)
Audible noise
Agency
Safety
RFI / EMI
Surge immunity
0 - 10,000 (0-3,000)
3ft <45dBA @ 1m (3ft) from all sides
CB, CE, EN/IEC 62040-1
EN/IEC 62040-2, EN/IEC 61000-4-1, CAT: C2
IEC 61000-4-5 +/-2KV
Environmental RoHS, REACH, WEEE
Transportation ISTA Procedure 3A
Protection plan
Equipment protection plan
$200,000
Internal replacement battery kits
Replacement battery kit
VBATKIT102
VBATKIT104
Compatible UPS model
PST6-500IT-IEC ; PST6-500IT-SCH ; PST6-700IT-IEC
PST6-700IT-SCH ; PST6-900IT-IEC ; PST6 - 900IT-SCH
