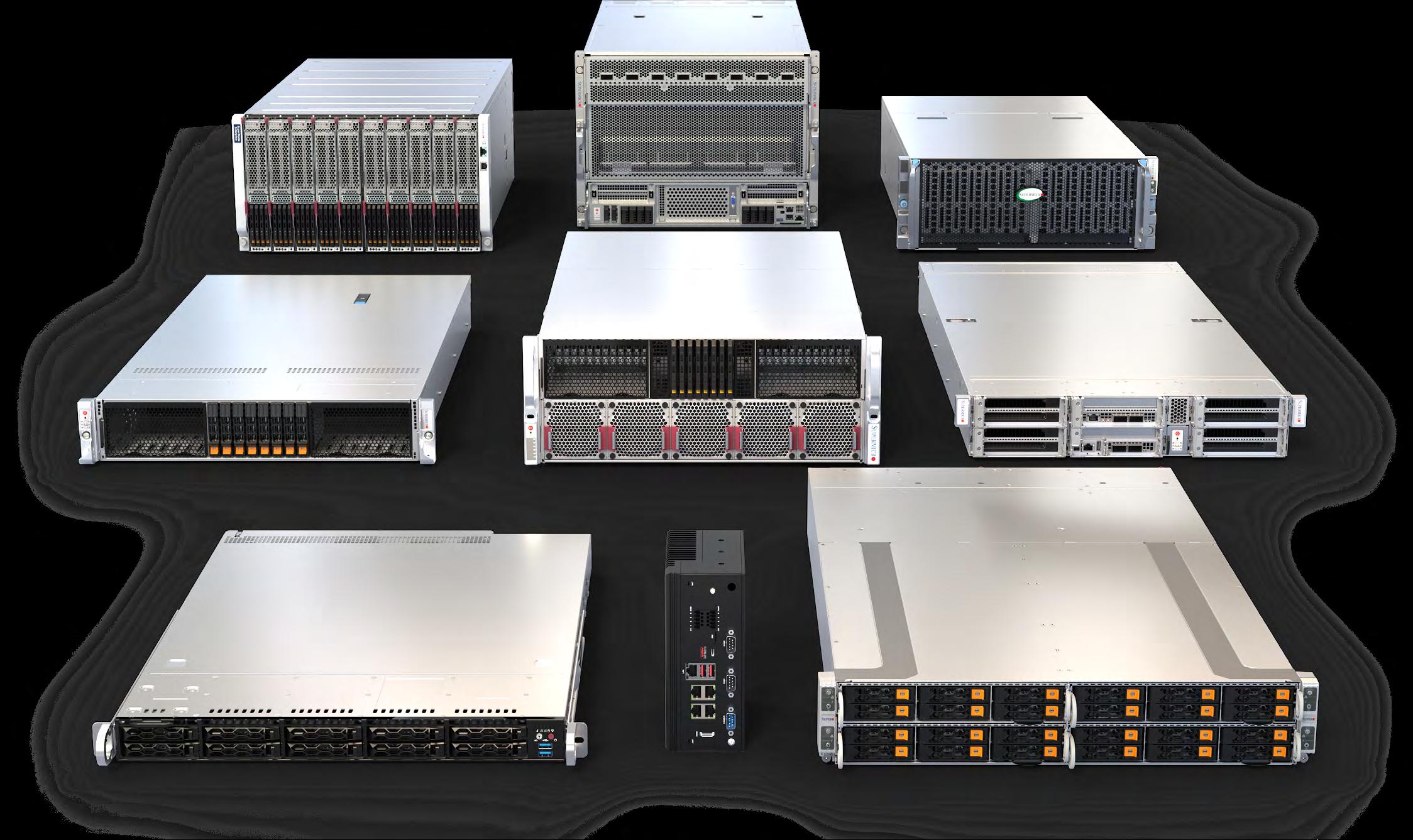

Ready-to-Deploy Best-Selling Server Platforms, Pre-Configured with Key Components for Reduced Lead Times For Enterprise AI, Compute, Storage, and Edge
Supermicro Ready-to-Ship Gold Series
Pre-Configured Systems
Supermicro Gold Series systems take the guesswork out of enterprise server acquisition, with pre-configured systems ready to ship directly from our warehouses. All Gold Series servers are optimized for specific AI, cloud, storage, and edge workloads, and include CPUs, GPUs (enterprise AI only), memory, storage, networking, and power supplies preinstalled and ready to power-on out of the box.
Purchase with Confidence
Based on our most popular server products, Supermicro Gold Series systems are pre-configured for specific workloads, complete with CPUs, GPUs (enterprise AI only), memory, storage, networking, and power supplies. These configurations have been pre-tested and are ready to go from day one.
Short Lead Times
Gold Series products are pre-configured and ready to ship, meaning no need to wait for parts and assembly. In most cases, Gold Series systems will ship from Supermicro’s warehouse on the next business day.
Effortless Implementation
Systems are delivered to the customer with components already installed and pretested. Simply unpack, rack, and connect power & networking to get started.
Enterprise Data Center
Maximum Performance and Flexibility Rackmount Platform
Benefits & Advantages:
• Single processor configurations
• Compact 1U and 2U form factor maximize compute density per rack unit
• Flexible I/O and storage allows the addition of components as workloads evolve
• Tool-less platform for ease of servicing and maintenance
Enterprise Data Center

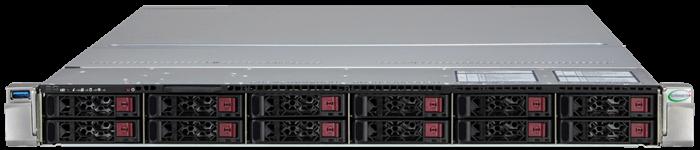

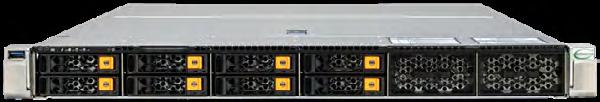

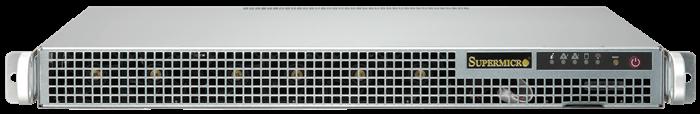

1U Hyper
1U Hyper
1U Hyper
In-Memory Database for AI Inferencing IaaS – Compute/Virtualization Bare Metal IaaS – Compute/Virtualization Bare Metal
Model SYS-112H-TN-01-G2 SYS-112H-TN-02-G2 AS -1126HS-TN-01-G2
Memory 512GB (6400MT/s) Total Memory 1TB (6400MT/s) Total Memory
Storage 7.6TB Total Flash Storage 7.6TB Total Flash Storage
Networking 10GbE Networking 10GbE Networking

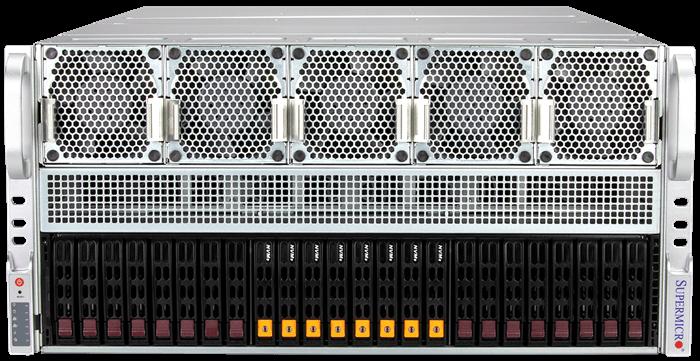

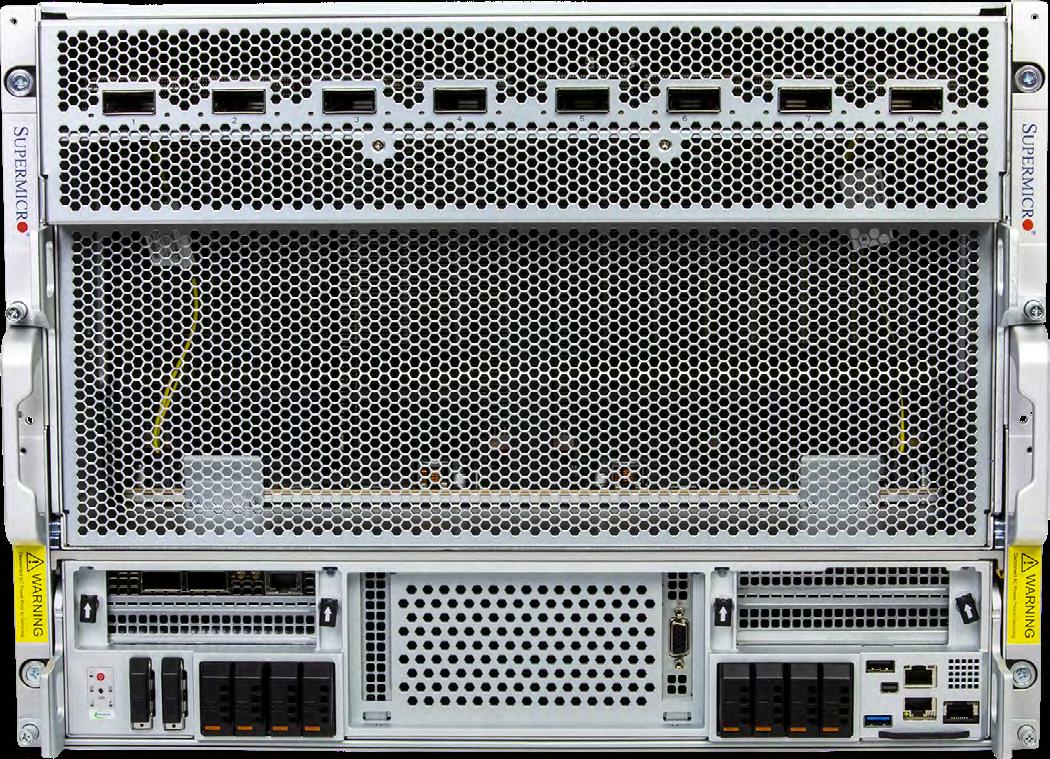

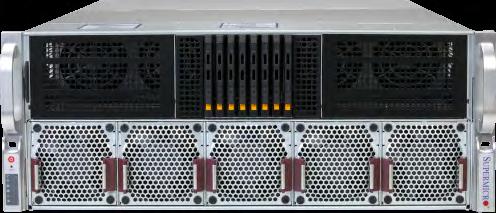

5U 2-GPU System
SaaS - Agent Flow AI Inference
Model AS -5126GS-TNRT-01-G2
GPU
CPU 64 cores / 3.55GHz (Dual 5th Gen AMD EPYC™ processors)
Memory 1.5TB (6400MT/s) Total Memory
Storage 960GB Total Flash Storage
Networking 10GbE Networking
Front Loading Storage
High-Capacity Configuration Optimized for Software-Defined Storage, HPC Workloads, Object Storage, Video Streaming, Cold Archive, and Media Content Delivery
Benefits & Advantages:
• 2U form factor with eight 24TB HDDs for large datasets and virtual machine storage pools
• High memory bandwidth improves performance of caching layers, metadata services, and storage controllers
• 25GbE dual-port networking design ensures fast data movement and low-latency access
Front Loading Storage

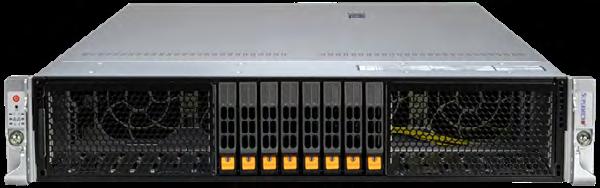

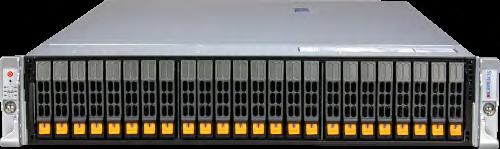

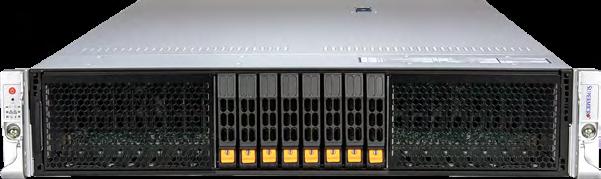

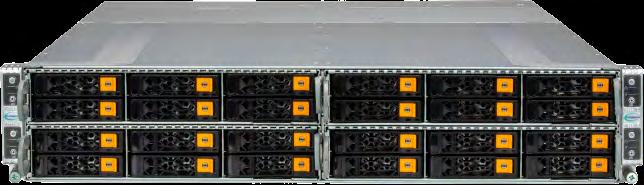

2U CloudDC
Storage Hardware for IaaS
Model AS -2015CS-TNR-01-G2
CPU 48 cores / 3.15GHz (5th Gen AMD EPYC™ processor)
Memory 768GB (6400 MT/s) Total Memory
Storage 8TB Total Flash Storage 192TB Raw Storage Capacity (AMD EPYC™ integrated SATA)
Networking 25GbE Networking
Simply Double Storage
Large-Scale Storage Building Block in a Standard Rackmount Form Factor
Benefits & Advantages:
• Unique dual-loading design improves density without impacting serviceability
• Direct access to 24 drives with ease
• Dense HDD storage system for data lifecycle management and multi-cloud data protection
• Pre-configured and pre-tested with SAS controller
Simply Double Storage

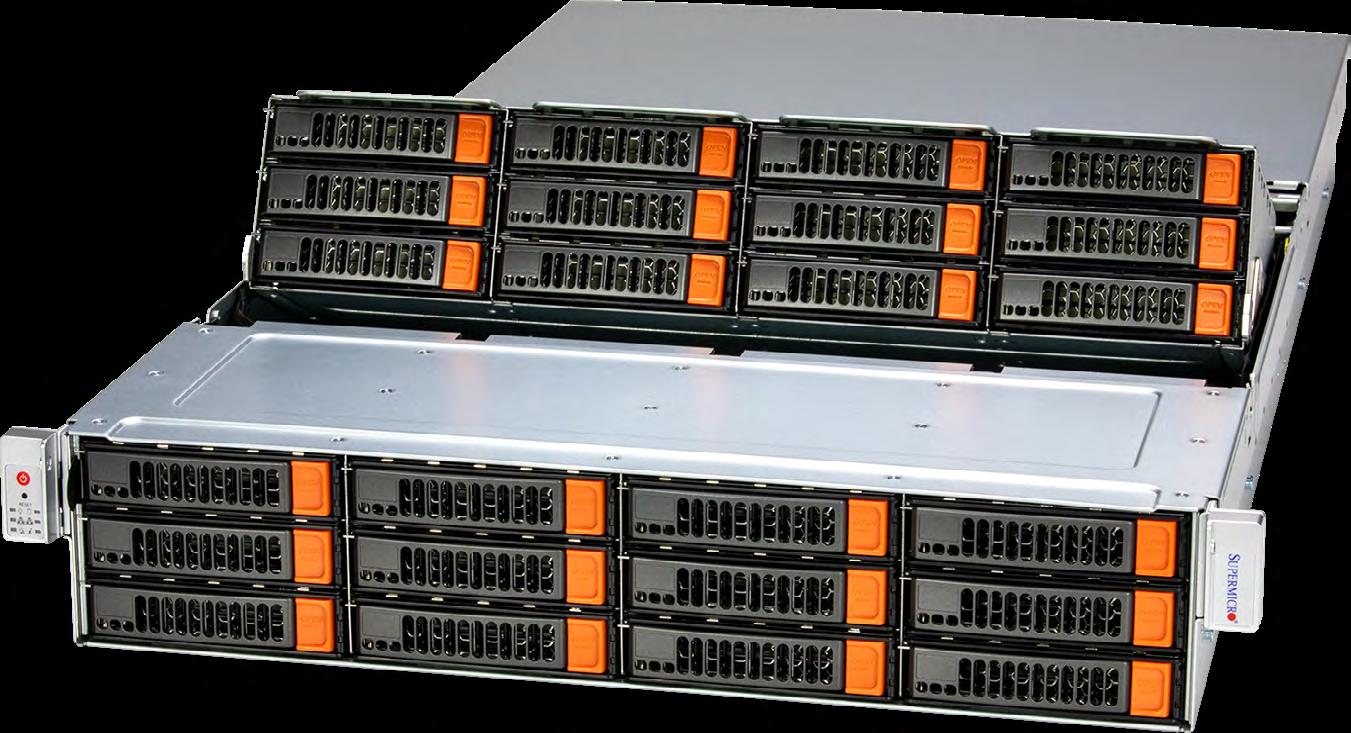

2U Simply Double
Big Data Analytics/Content Repository
Model ASG-2015S-E1CR24L-01-G2
CPU 32 cores / 2.7GHz (4th Gen AMD EPYC™ processor)
Memory 512GB (4800 MT/s) Total Memory
Storage 528TB Raw Storage Capacity 960GB Total Flash Storage
Networking 100GbE Networking
Storage Controller Broadcom® 3808 HBA
Top-Loading Storage
Accessibility and Efficiency for Large-Scale Data Centers
Benefits & Advantages:
• Ideal mix of storage density, efficiency, and economy for large-scale object storage and data lake applications
• Front-access drawer architecture allows easy access to drives
• Tool-less drive brackets simplify installation and maintenance
Top-Loading Storage

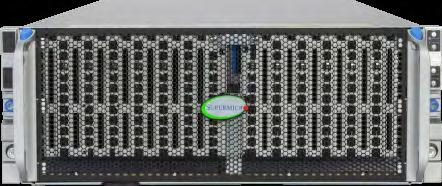

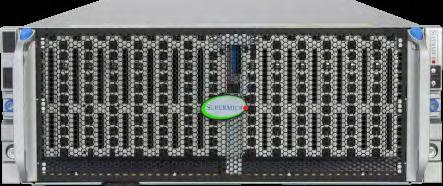

4U Top-Loading
Cloud-Scale Object Storage
Model SSG-542B-E1CR60-01-G2
CPU
32 cores / 2.5GHz (Intel® Xeon® 6 processor)
Memory 512GB (5200 MT/s) Total Memory
Storage 1.9TB Total Flash Storage; 1,440TB Raw Storage Capacity (Broadcom® 3916 HW RAID)
Networking 25GbE Networking
4U 2-Node Top-Loading
Cloud-Scale Object Storage
Model SSG-542B-DE1CR90-01-G2
CPU
36 cores / 2GHz (Intel® Xeon® 6 processor) per node
Memory 512GB (5200 MT/s) Total Memory per node
Storage 1,080TB Raw Storage Capacity (Broadcom® 3816 HBA) per node; 1.9TB Total Flash Storage per node
Networking 200GbE/HDR200 Networking per node
Intelligent Edge
Compact Systems for the Intelligent Edge, Ready to be Deployed in Remote Environments or Integrated into Specialized Equipment
Benefits & Advantages:
• Power-efficient compute and performance to environments, such as retail, manufacturing, healthcare, and public spaces
• Ready to be deployed in remote environments or integrated into existing infrastructure
Memory 64GB (5600MT/s) Total Memory 16GB Onboard Memory
Storage 3.8TB Total Flash Storage
256GB Total Flash Storage
Networking 2.5GbE Networking 10GbE Networking

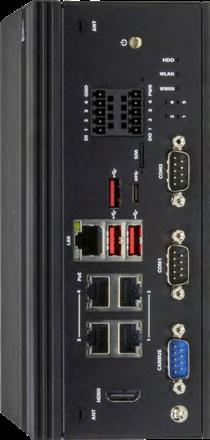

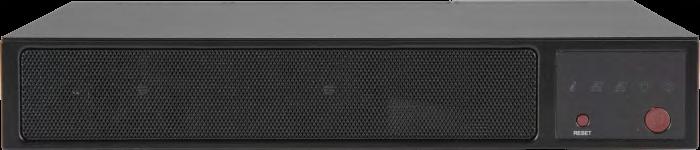

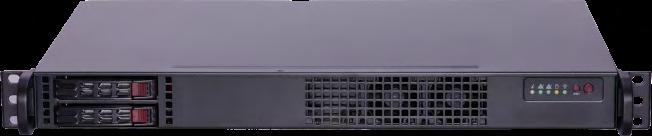

Compact Edge System
Branch Office / Store Appliance
Model AS -E300-14GR-01-G2
Compact Edge System
Branch Office / Store Appliance
SYS-E300-14AR-01-G2
CPU 16 cores / 3.0GHz (5th Gen AMD EPYC™ processor) 14 cores / 3.0GHz (Intel® Core™ Ultra 5 processor)
Memory 32GB (5600MT/s) Total Memory
Storage 960GB Total Flash Storage
32GB (5600MT/s) Total Memory
960GB Total Flash Storage Networking 1GbE Networking 10GbE Networking
System Management Software
Leverage Supermicro’s management software suite to meet your IT infrastructure challenges
With a comprehensive range of high-end software solutions, Supermicro gives IT administrators the tools to optimize the management of IT systems and increase the utilization of computing and storage infrastructure. Whether you are looking to manage individual systems, optimize server lifecycle processes, or streamline operations for an entire data center, Supermicro has the right software to help you accomplish your goals.
• Obtain valuable insights in your infrastructure
• Monitor the health of servers and critical components
• Get proactive alerts
• Maintain system uptime to meet SLAs
• Early symptom detection to prevent component failure
• Remote management and troubleshooting
System Management Software Suite Bundles
• Protect your IT infrastructure from external threats
• Centralized patch and BIOS management
• Extensive security features
Supermicro’s System Management Software Suite consists of a set of specialized applications. These are available in the following bundles.
Description
Key Features*
Covers all core functionality to effectively set up, manage, and monitor your Supermicro systems. These features are available to all Supermicro users.
Secure remote console (KVM/ HTML5)
System temperature monitoring
System power thresholds & alerts
Component monitoring
Email alerting
Remote configuration
Offline diagnostics
Crash dump
License management
Extends the core functionality and makes system management easier with additional features, such as remote BIOS management and system updates.
Remote BMC management
Remote BIOS management
Out-of-Band systems checks
TPM Provisioning
Mount/Unmount ISO images from Samba/HTTP
Basic Redfish APIs
CIM management
SysLog
Delivers a broad set of tools to help administrators improve the performance, up-time, and monitoring of Supermicro systems.
Remote OS deployment
Auto-discovery
Power capping RAID monitoring and configuration
HDD monitoring
Advanced Redfish APIs
FW update policy
System lock down
Crash screen/video capture
* For detailed information, please check with your Supermicro sales representative or refer to Supermicro website: https://www.supermicro.com/en/solutions/management-software
Offers an extensive platform to manage large data centers and coordinate automated lifecycle management, software-defined infrastructure, and more in a single pane of glass.
