Brochure - Networking Products 2025

Page 1


Meet Hikvision Networking

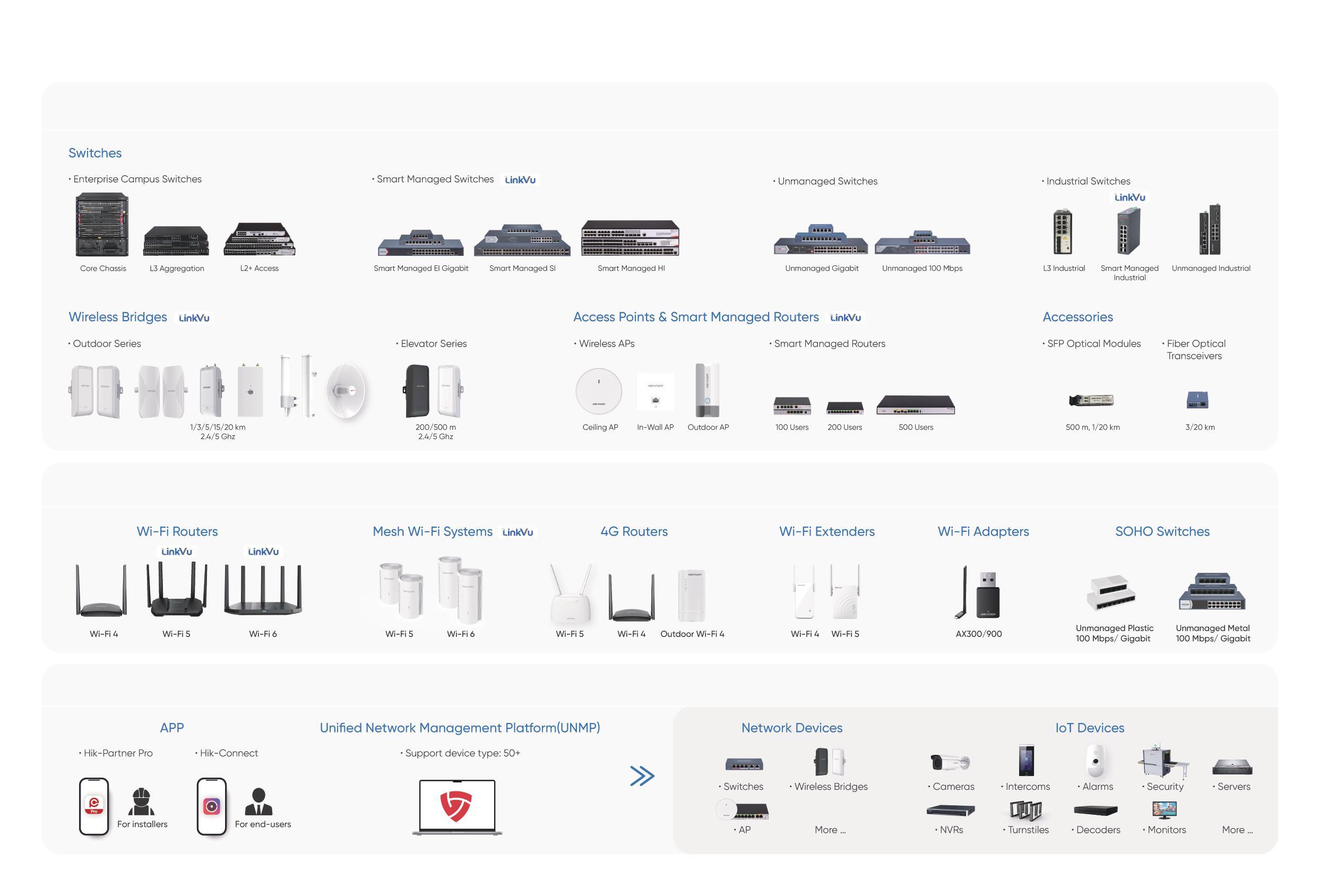

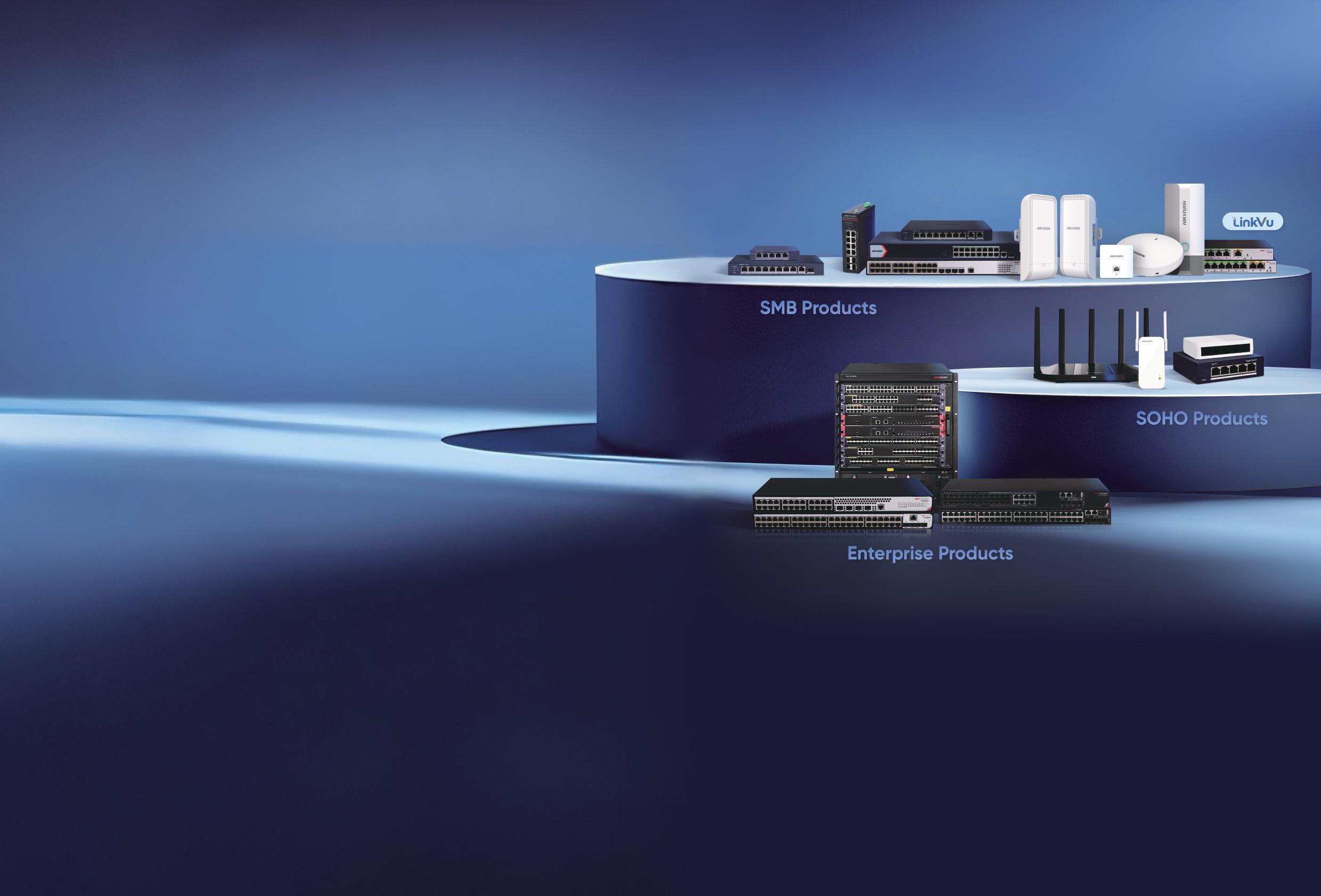

Hikvision Networking Products Family

Business Networking Products

SOHO Networking Products
Unified IoT Network Management

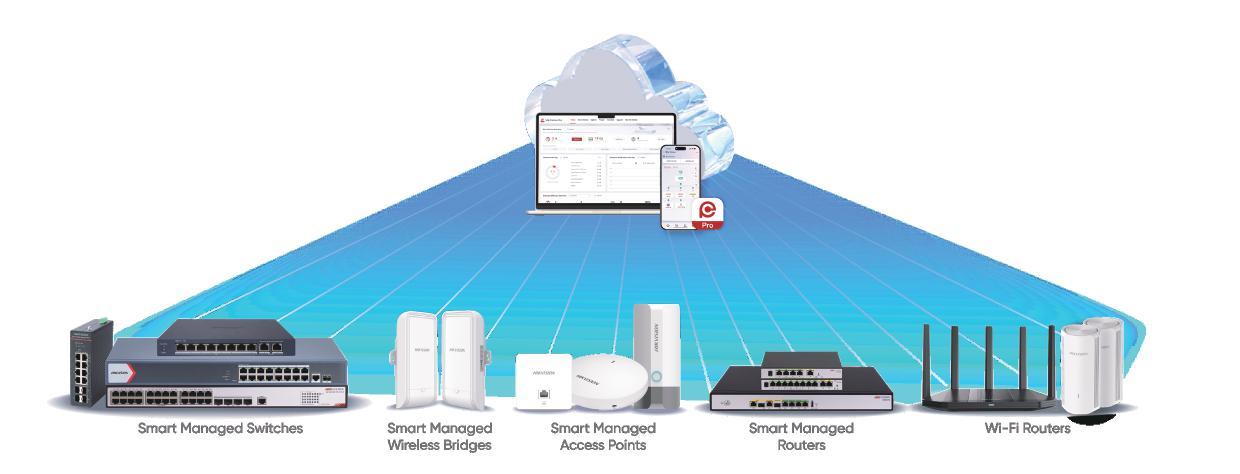

Introducing LinkVu Series Products Integrated IoT Networking Solution with LinkVu Series Products

Hikvision LinkVu o ers a diverse range of cloud-managed networking products and one-stop integrated IoT networking solutions.

This simplifies workflows and enhances e ciency for installers, allowing for e ortless product selection and solution design, quick deployment, as well as

Easy Product & Solution Selection

Intuitive tools for selecting diverse cloud-managed products & solutions

Management

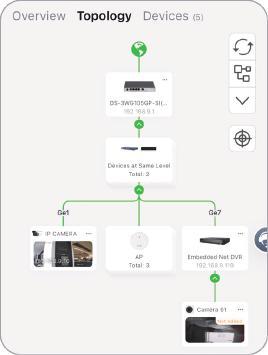

Easy links, all in view

Unified IoT Network Management

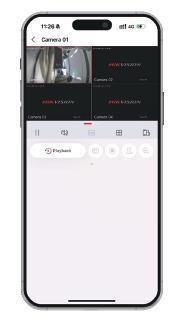

1. Video visibility (IP/analog)

View and manage both IP and analog video sources seamlessly via HPP

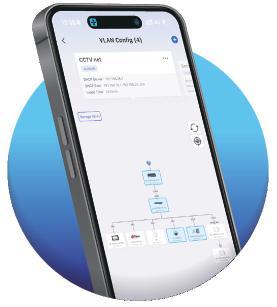

2. Global VLAN configuration

Support wizard-based configuration and batch deployment.

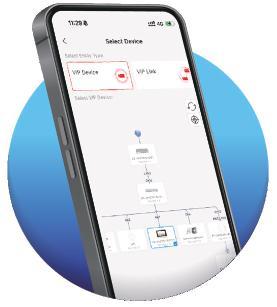

3. Network VIP

Set specific terminals (e.g. IP cameras) high-priority for networkwide forwarding in congestion.

Professional Security Solution

Rich product specifications designed for SMB security projects of all scales

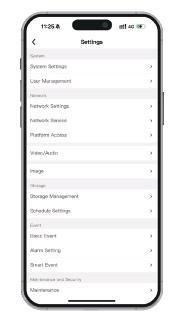

Cloud management, one app handles diverse security devices

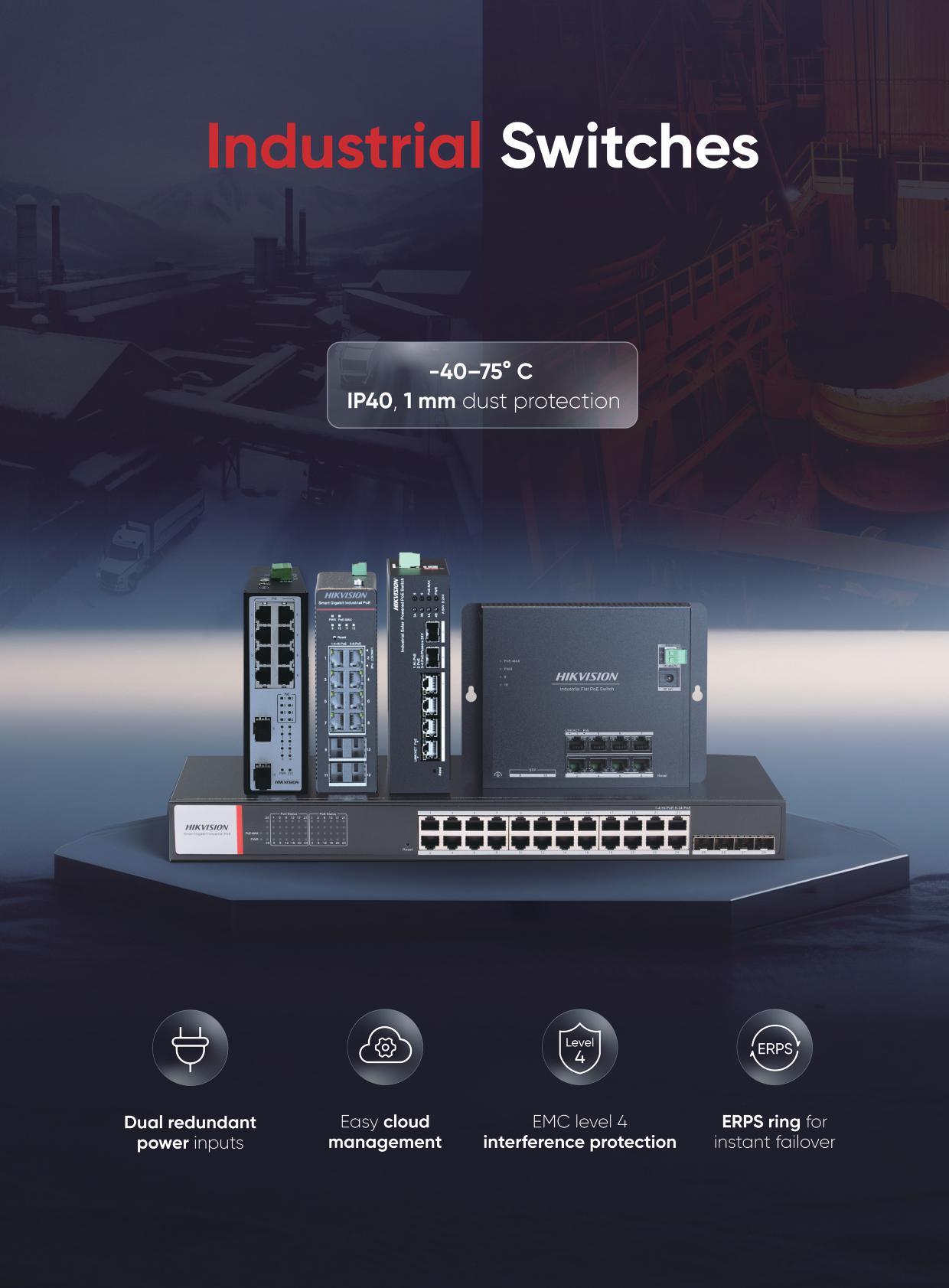

Industrial switches operate reliably in harsh conditions

Various security features include long-distance transmission, Hi-PoE, PoE watchdog, and 6 KV surge protection, ensuring stable performance

Comparison of EI, SI, and HI Series

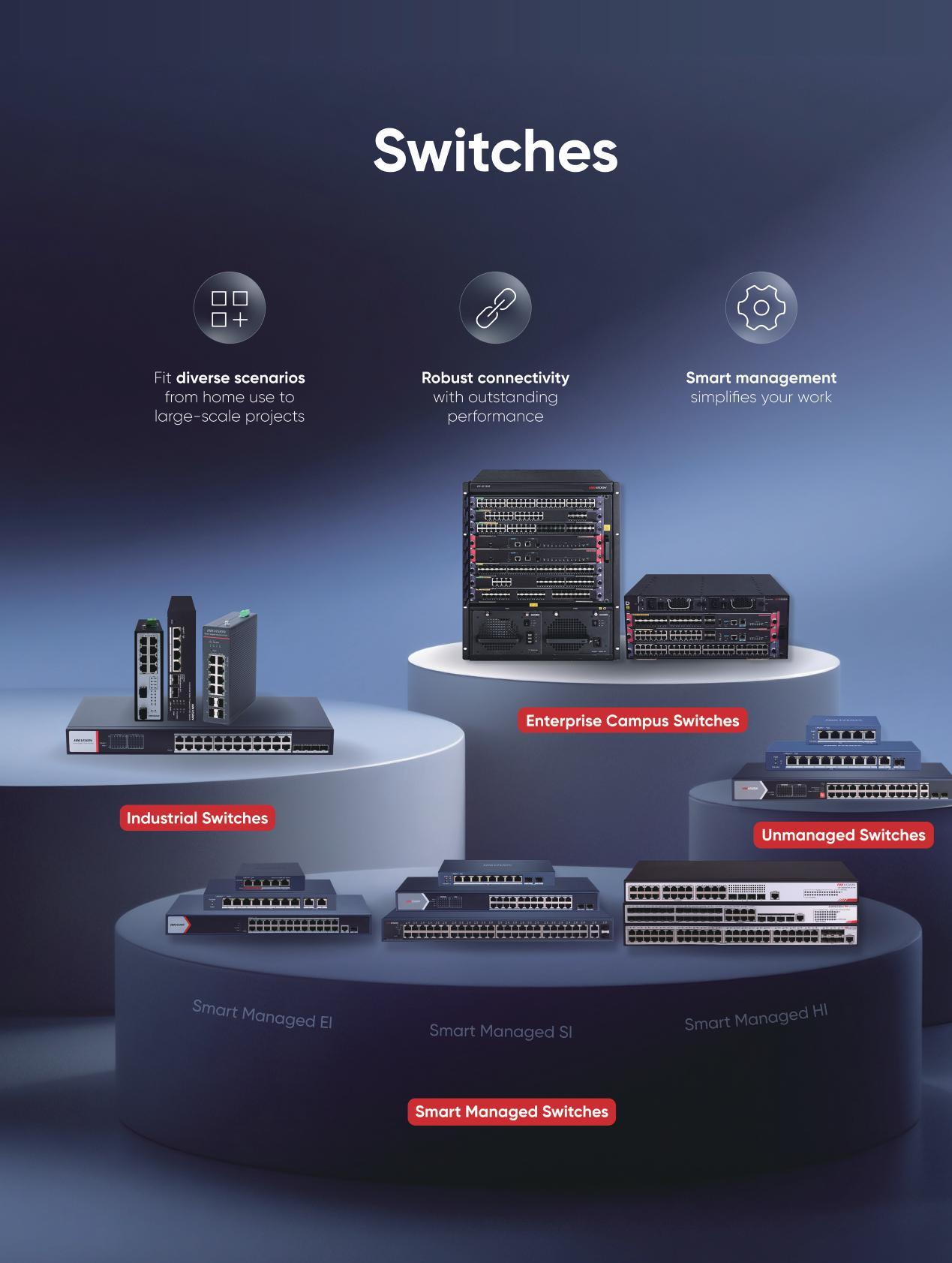

Network Switches - Value Series

Network Switches - Pro Series

Network Switches - Ultra Series

DS-3E2728-HI-24T4X

Full & Smart Managed HI Gigabit

Unmanaged Switches - Value Series

Unmanaged 100 Mbps

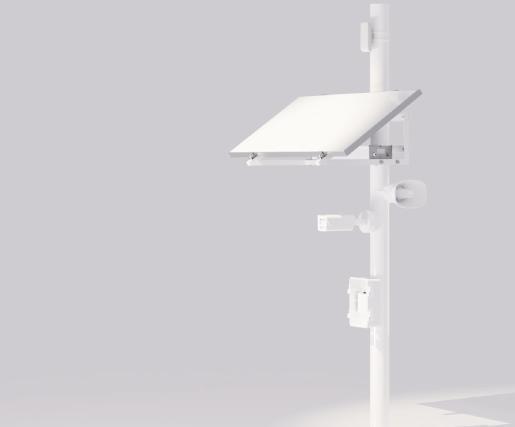

Industrial Perimeter Application Solution

Industrial Power Supplies

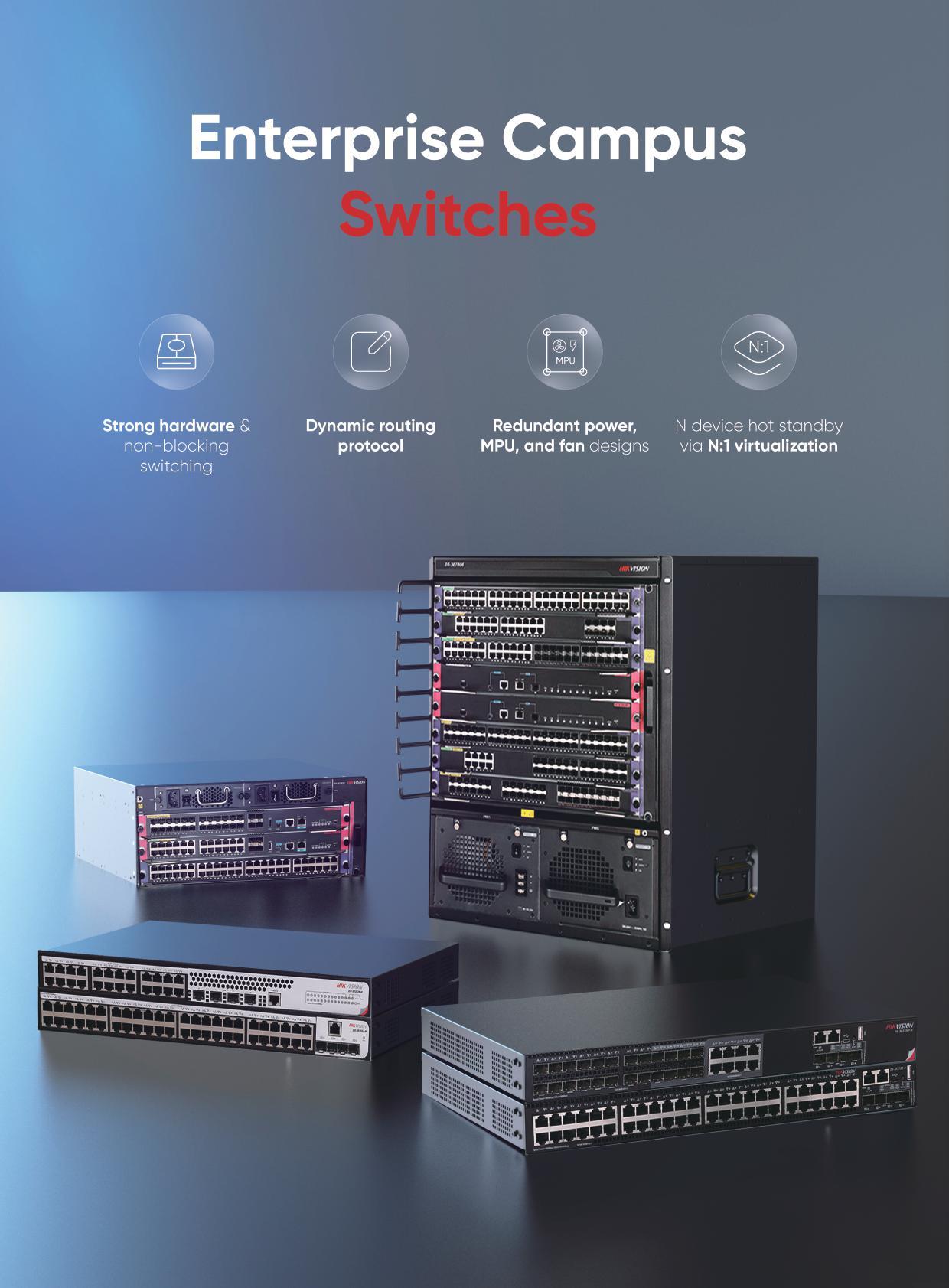

Enterprise Campus Switches

Campus Core Aggregation Switches

Campus Aggregation Switches

Campus Access Switches

Professional Outdoor Design

Outdoor

Flexible Deployment

Multiple working modes

Standard PoE input & output

Smart Cloud Management

Solution & Application Scenarios

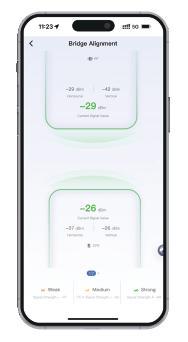

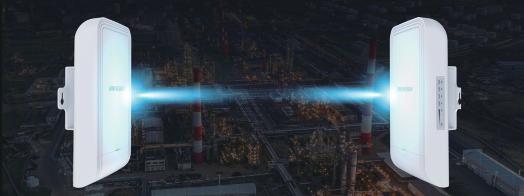

Wireless Bridges

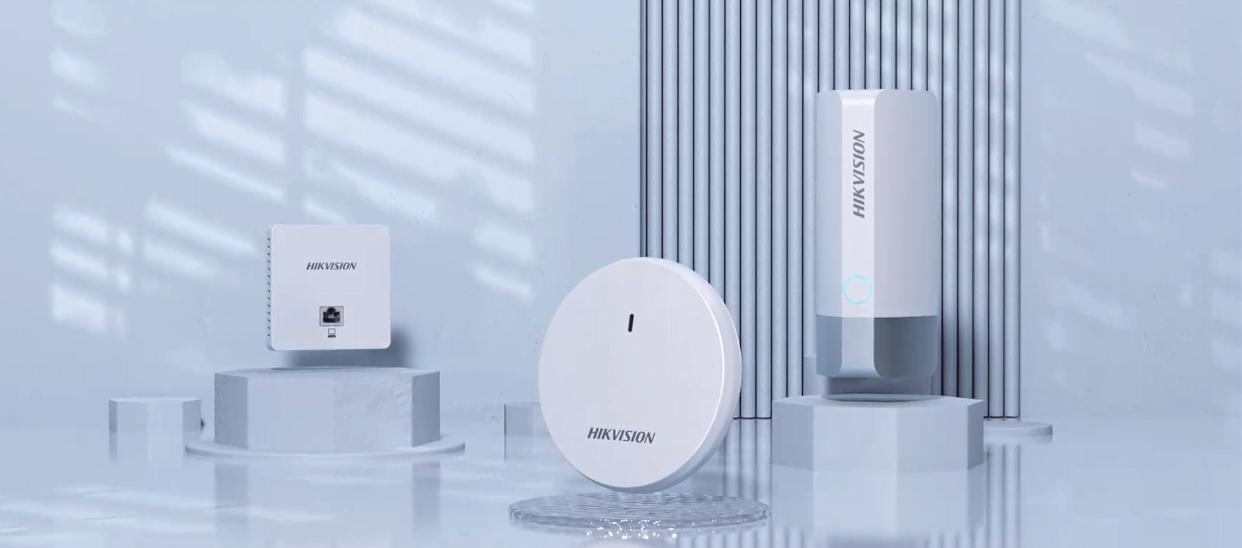

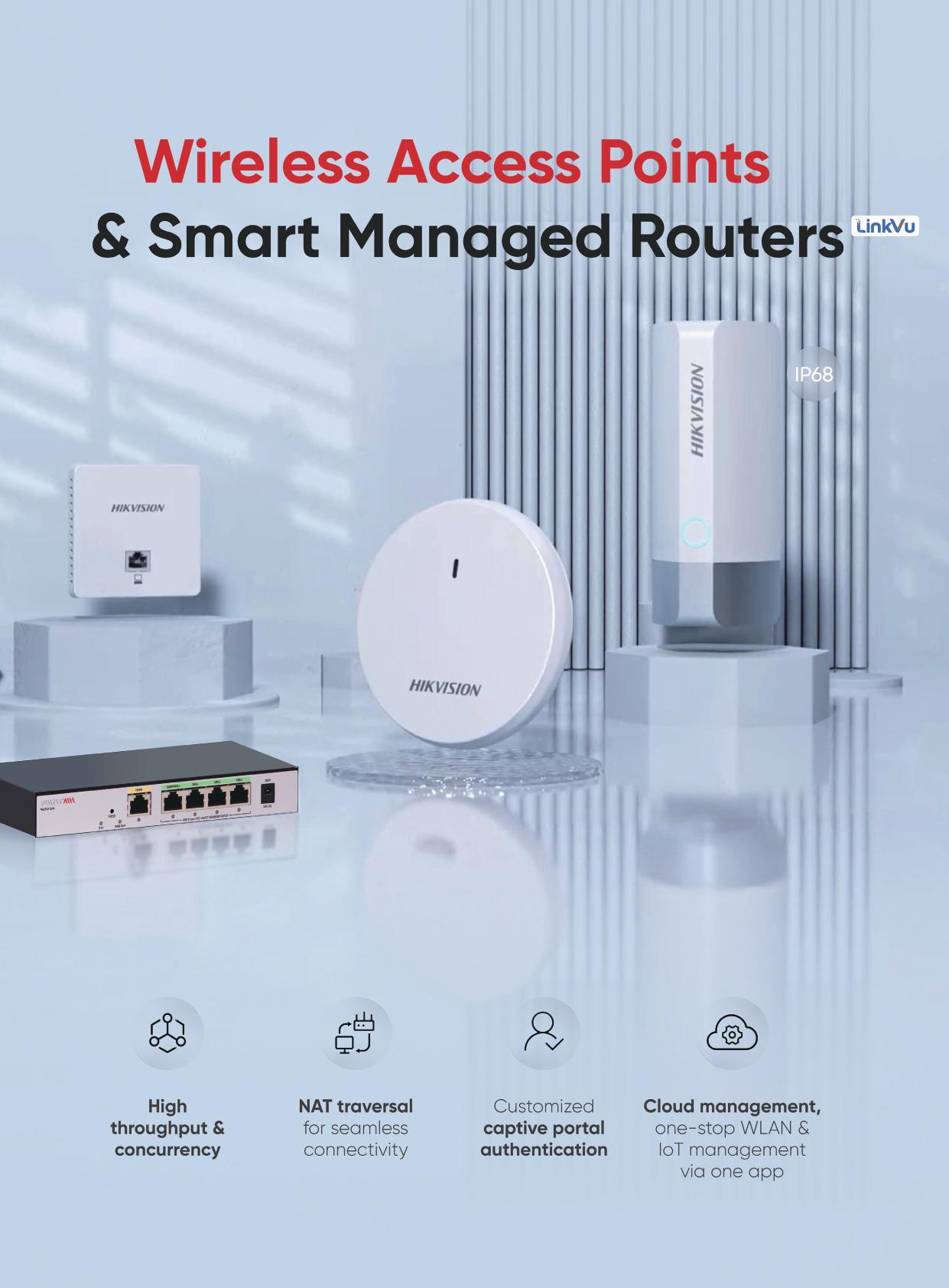

Wireless Access Points

Smart Managed Routers Rich Networking Applications

Wireless Access Points

WLAN Solutions

AP & AC Solution

APs must work with an AC Router for centralized management

Enjoy rich network features including NAT traversal, captive portal authentication, one-click guest Wi-Fi, network optimization, block/allow lists, fault diagnosis, and network usage monitoring

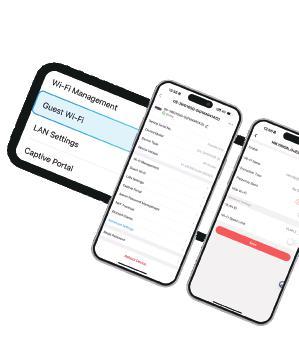

Cloud management o ers simple setup and unified management on a phone

Seamless roaming ensures a stable network

Perfect for SSMB and SMB projects such as o ces, retail stores, hotels, banks, etc.

Standalone AP Solution

APs can work alone, connecting directly to cloud without an AC Router

Easy setup, compatible with 3rd-party routers

Cloud management o ers simple setup and unified management on a phone

Seamless roaming ensures a stable network

Perfect for SSMB projects such as small o ces, cafés, villas, hostels, etc.

Smart Managed Routers

In-Wall APs

Accessories

- Fiber Optical Transceivers

Model Appearance Main Feature

DS-3D01T-A(B)

DS-3D01R-A(B)

DS-3D501T-3

1 10/100 M RJ45 Ports, 1 10/100 M SFP Ports (SC Optical Module Integrated, Single-Mode, Single-Fiber), 20 km Distance, Tx1310nm/Rx1550nm, -20~60 °C

1 10/100 M RJ45 Ports, 1 10/100 M SFP Ports (SC Optical Module Integrated, Single-Mode, Single-Fiber), 20 km Distance, Tx1550nm/Rx1310nm, -20~60 °C

1 Gigabit RJ45 Ports, 1 Gigabit SFP Ports (SC Optical Module Integrated, Single-Mode, Single-Fiber), 3 km Distance, Tx1310nm/Rx1550nm, -20~60 °C

DS-3D501R-3 1 Gigabit RJ45 Ports, 1 Gigabit SFP Ports (SC Optical Module Integrated, Single-Mode, Single-Fiber), 3 km Distance, Tx1550nm/Rx1310nm, -20~60 °C

DS-3D501T-A 1 Gigabit RJ45 Ports, 1 Gigabit SFP Ports (SC Optical Module Integrated, Single-Mode, Single-Fiber), 20 km Distance, Tx1310nm/Rx1550nm,-20~60 °C

DS-3D501R-A

1 Gigabit RJ45 Ports, 1 Gigabit SFP Ports (SC Optical Module Integrated, Single-Mode, Single-Fiber), 20 km Distance, Tx1550nm/Rx1310nm, -20~60 °C

Accessories - SFP Optical Modules

HK-SFP-1.25G-20-1550 TX1550nm/1.25G, RX1310nm/1.25G, LC, Single Mode and Single Fiber, 20 km, 0 70 °C, SFP, Should Work with HKSFP-1.25G-20-1310 as a Pair

HK-SFP-1.25G-1310-DF-MM

HK-SFP-1.25G-20-1310-DF

HK-SFP-1.25G-850-DF-MM

HK-SFP+-10G-20-1310-DF

HK-SFP+-10G-20-1270

HK-SFP+-10G-20-1330

TX1310nm/1.25G, RX1310nm/1.25G, LC, Multi Mode and Duplex Fiber, 1 km, 0 70 °C, SFP

TX1310nm/1.25G, RX1310nm/1.25G, LC, Single Mode and Duplex Fiber, 20 km, 0 70 °C, SFP

TX850nm/1.25G, RX850nm/1.25G, LC, Multi Mode and Duplex Fiber, 500 m, 0 70 °C, SFP

TX1310nm/10G, RX1310nm/10G, LC, Single Mode and Duplex Fiber, 20 km, 0 70 °C, SFP

Tx1270nm/10G, Rx1330nm/10G, LC, Single Mode and Single Fiber, 20 km, 0 70 °C, SFP+, Should Work with HKSFP+-10G-20-1330 as a Pair

Tx1330nm/10G, Rx1270nm/10G, LC, Single Mode and Single Fiber, 20 km, 0 70 °C, SFP+, Should Work with HKSFP+-10G-20-1270 as a Pair

Accessories - PoE Repeaters

Accessories - Injectors

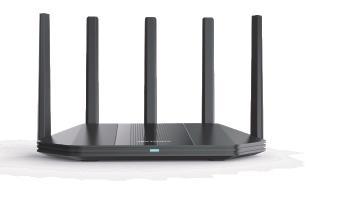

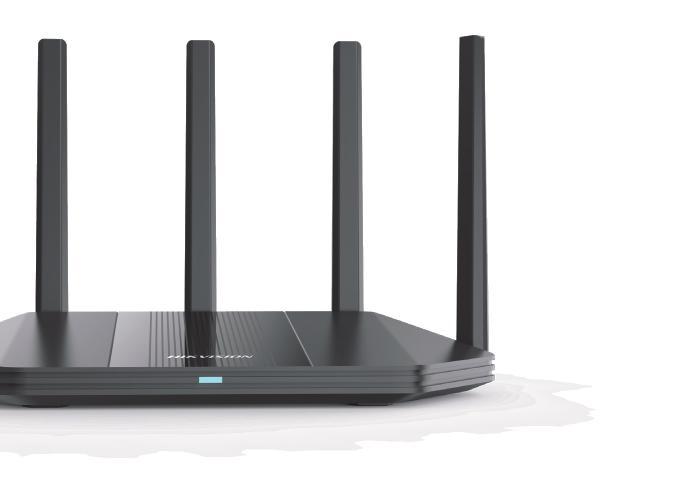

Wi-Fi Routers

Faster

Speed, Stronger Signal

Wi-Fi 6 up to 6000 Mbps

One more antenna, stronger signal

Whole-Home Network

Parental Control

with

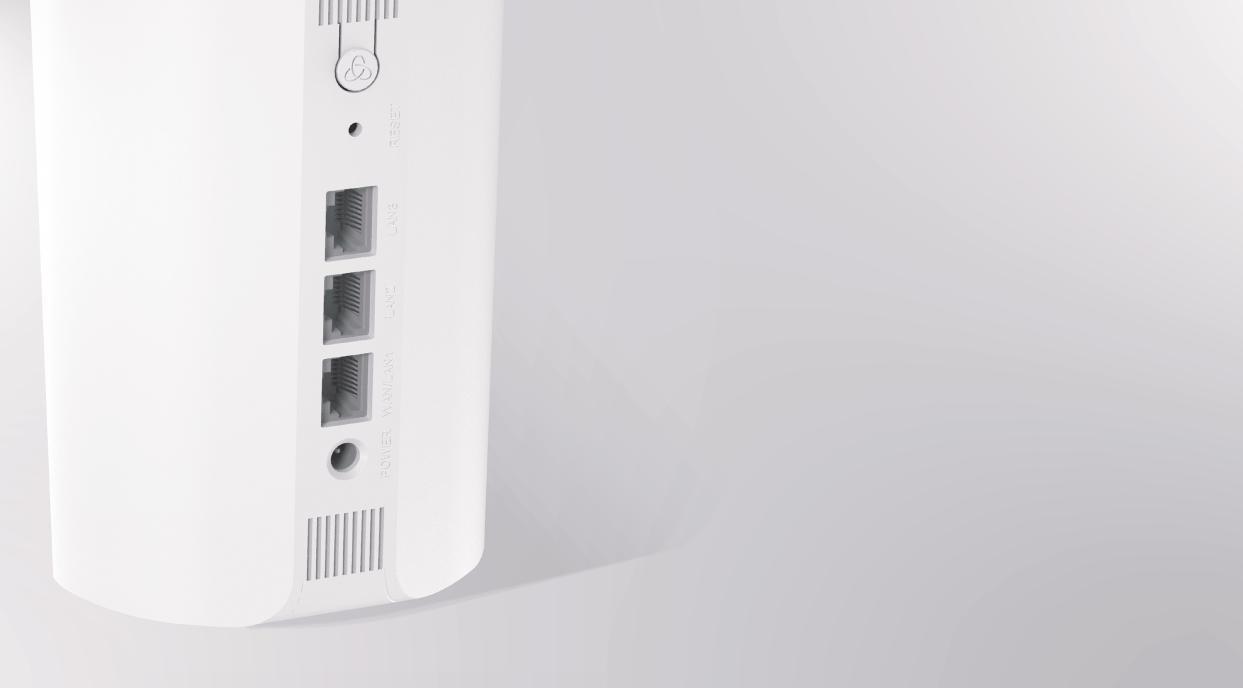

Mesh Wi-Fi Systems

One seamless Wi-Fi network covering your entire home

Hikvision Mesh

Quick Setup

Connect multiple routers with one click

Easy Control

Manage system as one device

Seamless Roaming for smooth transitions

Built-in 5 antennas

Gigabit Ethernet Ports

Dual Backhaul Support

Combine wireless & wired backhaul for broader, more stable coverage

Adaptive Routing the fastest path for you

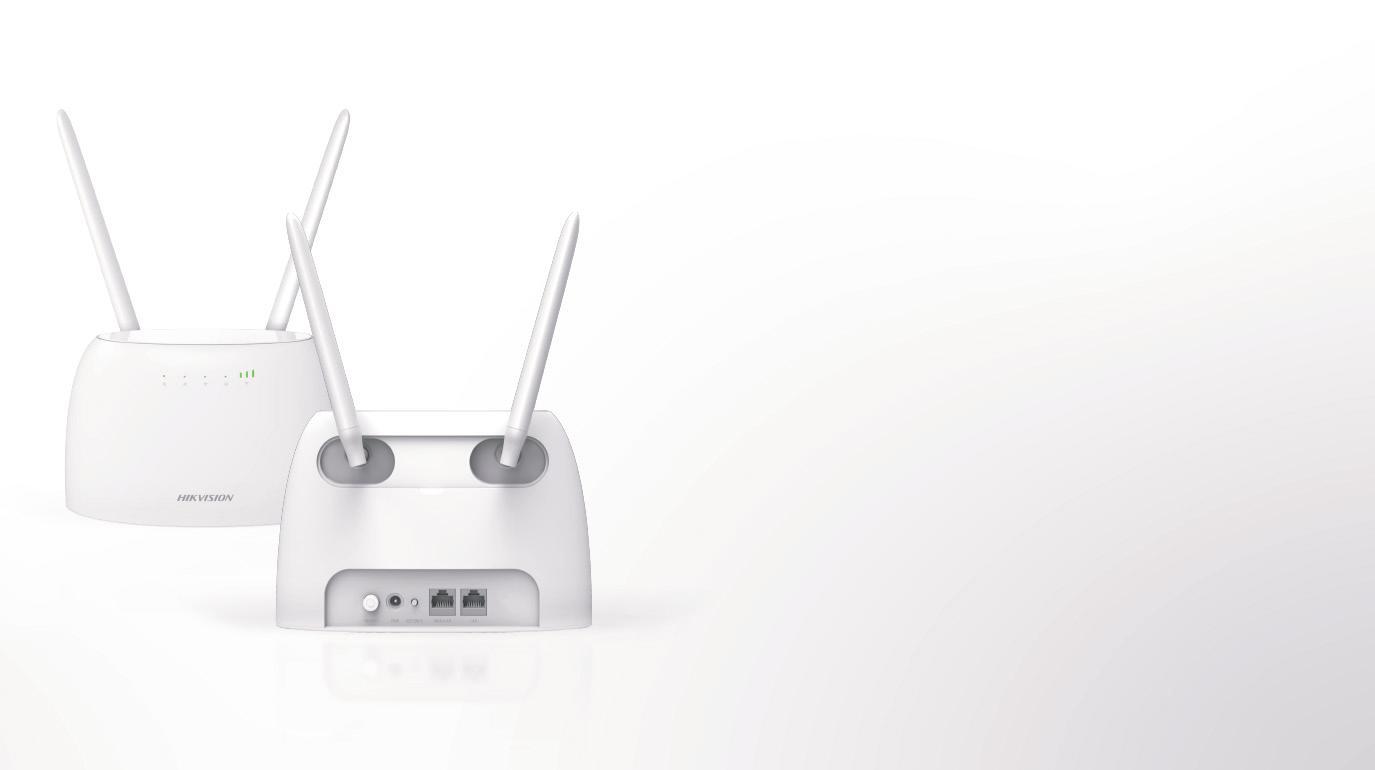

Multiple Working Modes

3G/4G router mode

Wireless router mode

Plug and Play

Plug in a SIM card to enjoy the network instantly.

Application Scenarios

Multiple VPN Modes

Support PPTP and L2TP for strong data encryption

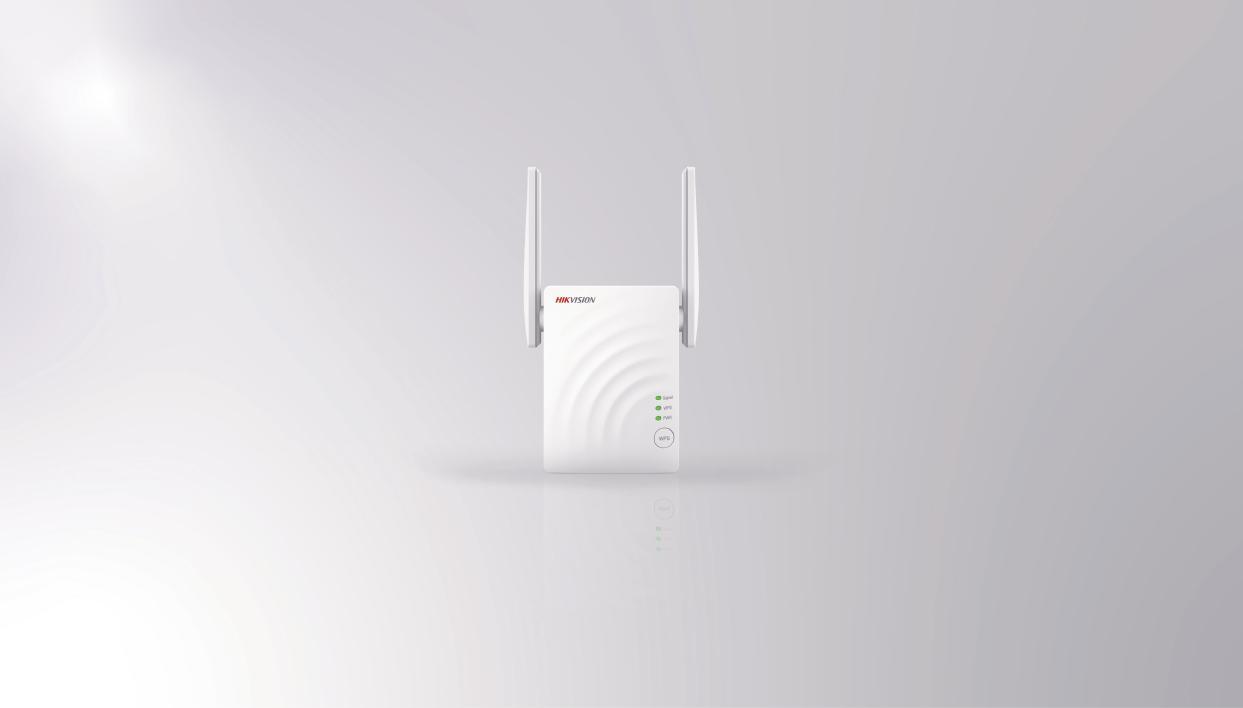

Wi-Fi Extenders

Easy Setup

Expand Wi-Fi with WPS, same name & password

Intelligent Signal Indicator

One-click connectivity, complete network isolation

Flexible Connection Methods

Wireless repeater mode

Wired repeater mode

Compatibility

Work with any brand routers without limitations

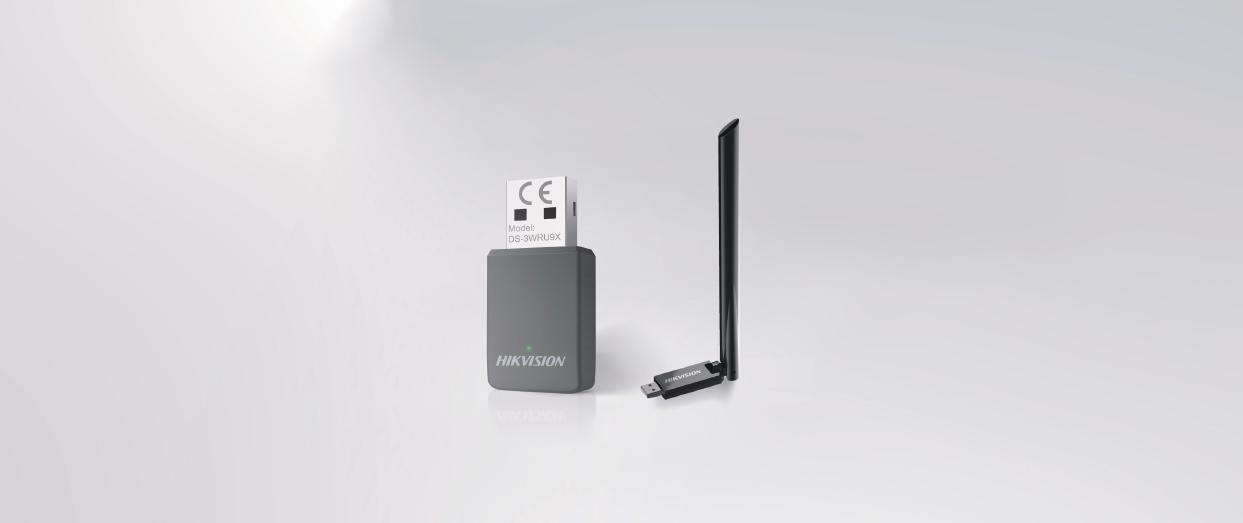

Wi-Fi Adapters

external

for strong, stable signal

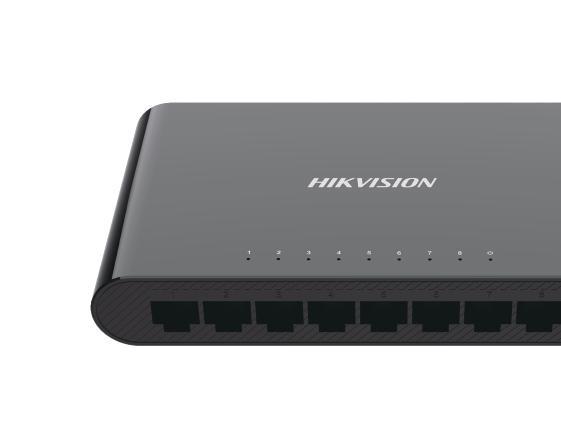

SOHO Switches

Adaptive Ports

Port self-adaptation and backward compatibility meet di erent needs

Various Mounting Ways

Desk/wall mounting enables adaptation to di erent environments

Plug and Play

Connecting multiple devices with no configuration, enabling swift network setup

Silent Operation

The

for quiet o ces, allowing e cient work

Metal & Plastic Cases

The entire case is made of either metal or plastic for di erent needs
