ADC - NextGen Track with Halo

Page 1

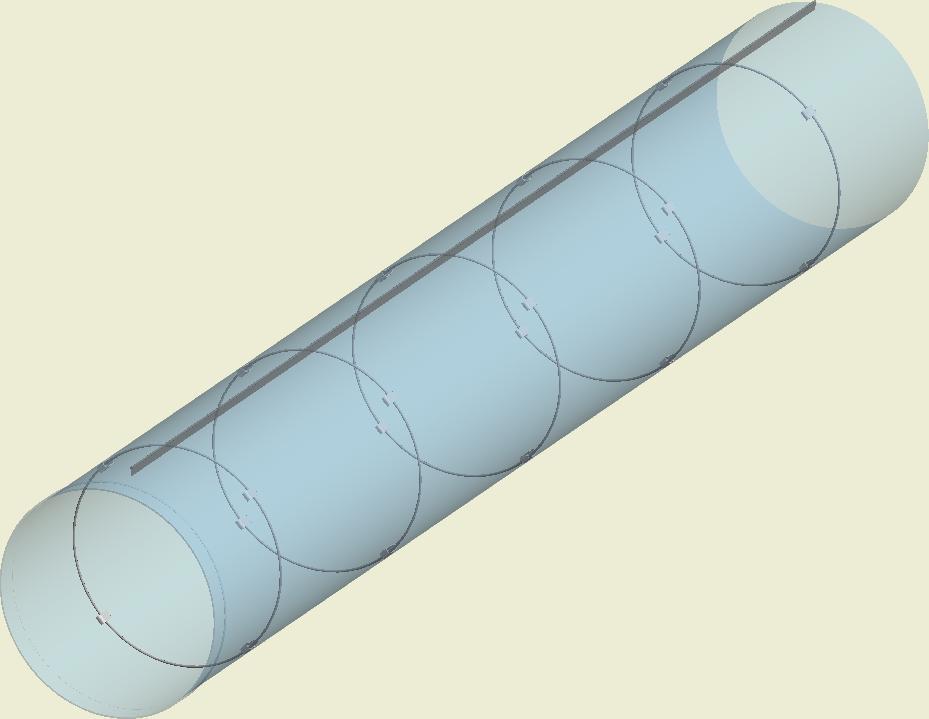

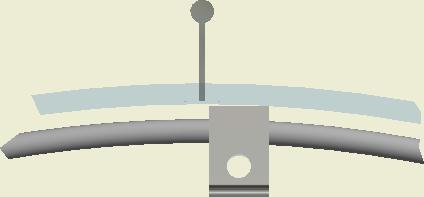

NextGen Track with Halo, Single Suspension OS-0014-DK-01 Lock at 12 o’clock if duct diameter exceeds Lås ved kl 12 15 3/4”

hvis pose over Ø399

B

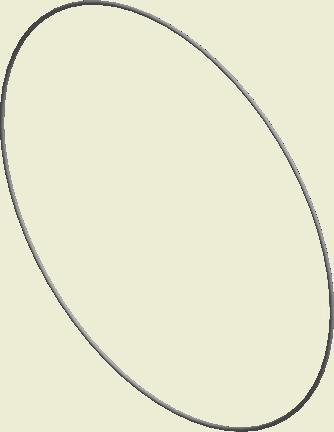

Duct diameter Ring size Ring Dimension:

8" to 25" 630 =1/8" 26" to 48"

=5/32"

3’mm

0 100

A

If duct diameter exceeds 20” Poserare over Ø500 separately (to be rings included Medsendes ringende installed on site) løst
