ADC - NextGen Track - Triple

NextGen Track Suspension Options

OS-0004-US-04

Suspension type

Suspension type

Refer to the delivery note for chosen suspension type.

Refer to the delivery note for chosen suspension type.

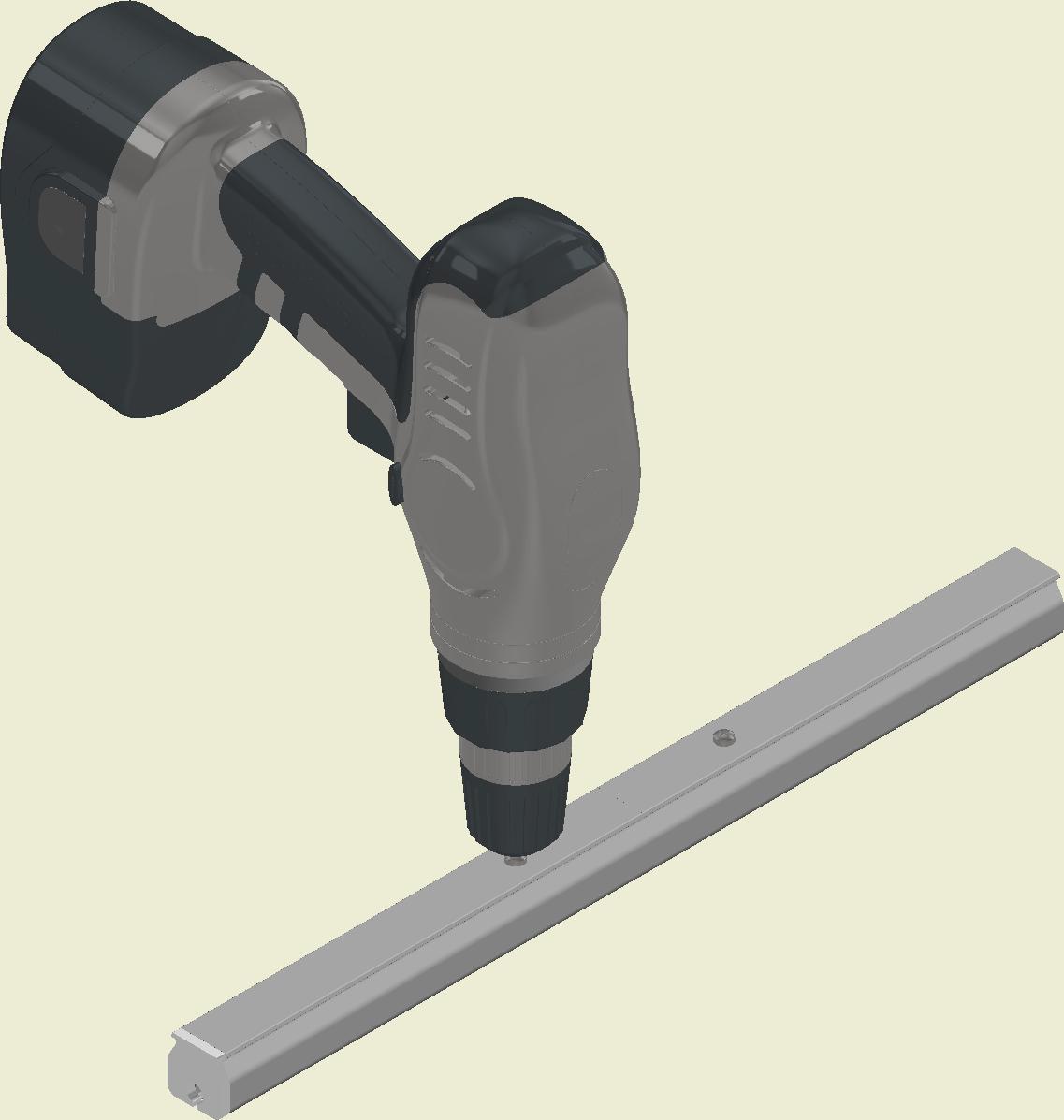

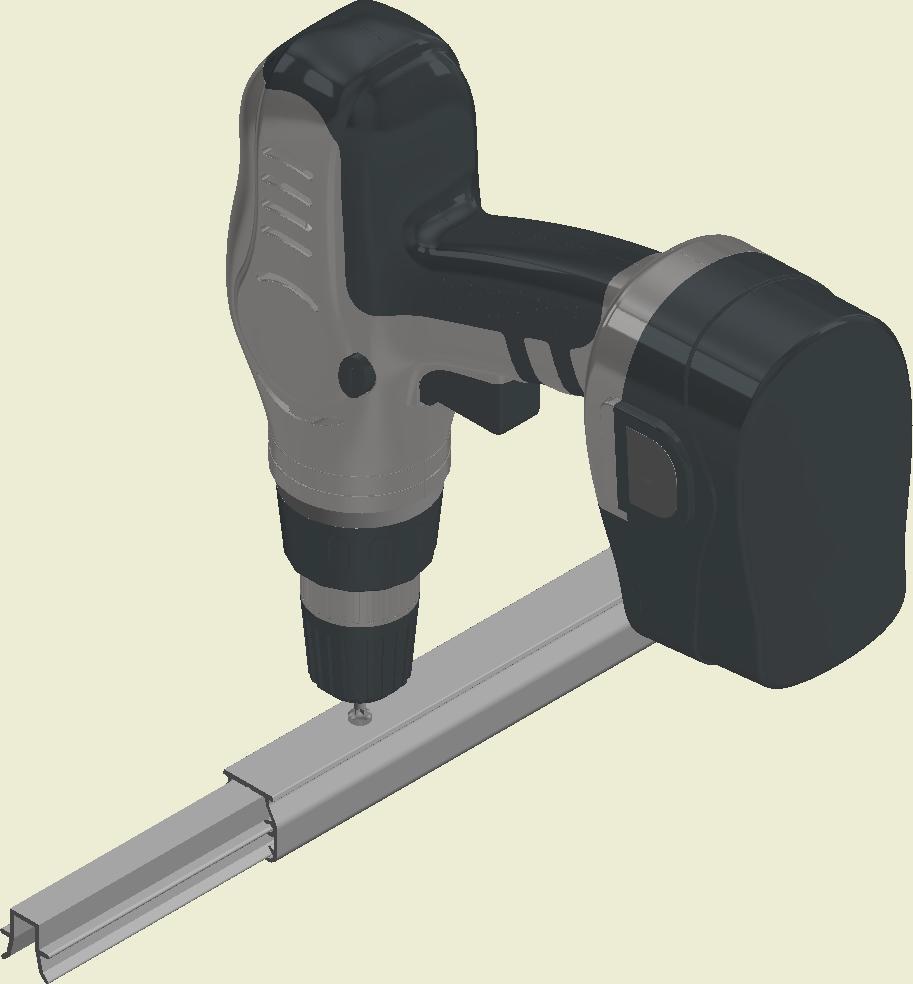

Install rail system according ro drawing and enclosed mounting instructions. Please note below installation of rail systems with SafeCeil option (A).

Install rail system according to drawings and enclosed mounting instructions. Please note below installation of rail systems with SafeCeil option (A).

A. SafeCeil

A.SafeCeil

B. Gripple (M6)

B.Gripple (M6)

C. Wood screw (M6)

C.Wood screw (M6)

D. Expansion bolt (M6)

D.Expansion bolt (M6)

E. Thread flange (M6)

E.Thread flange (M6)

F. Cable with eyebolt (M6)

F.Cable with eyebolt (M6)

G. SafeStrapUp (M6)

G.SafeStrapUp (M6)

H. Alu Suspension Section

H.Alu Suspension Section

C D E F G A B H

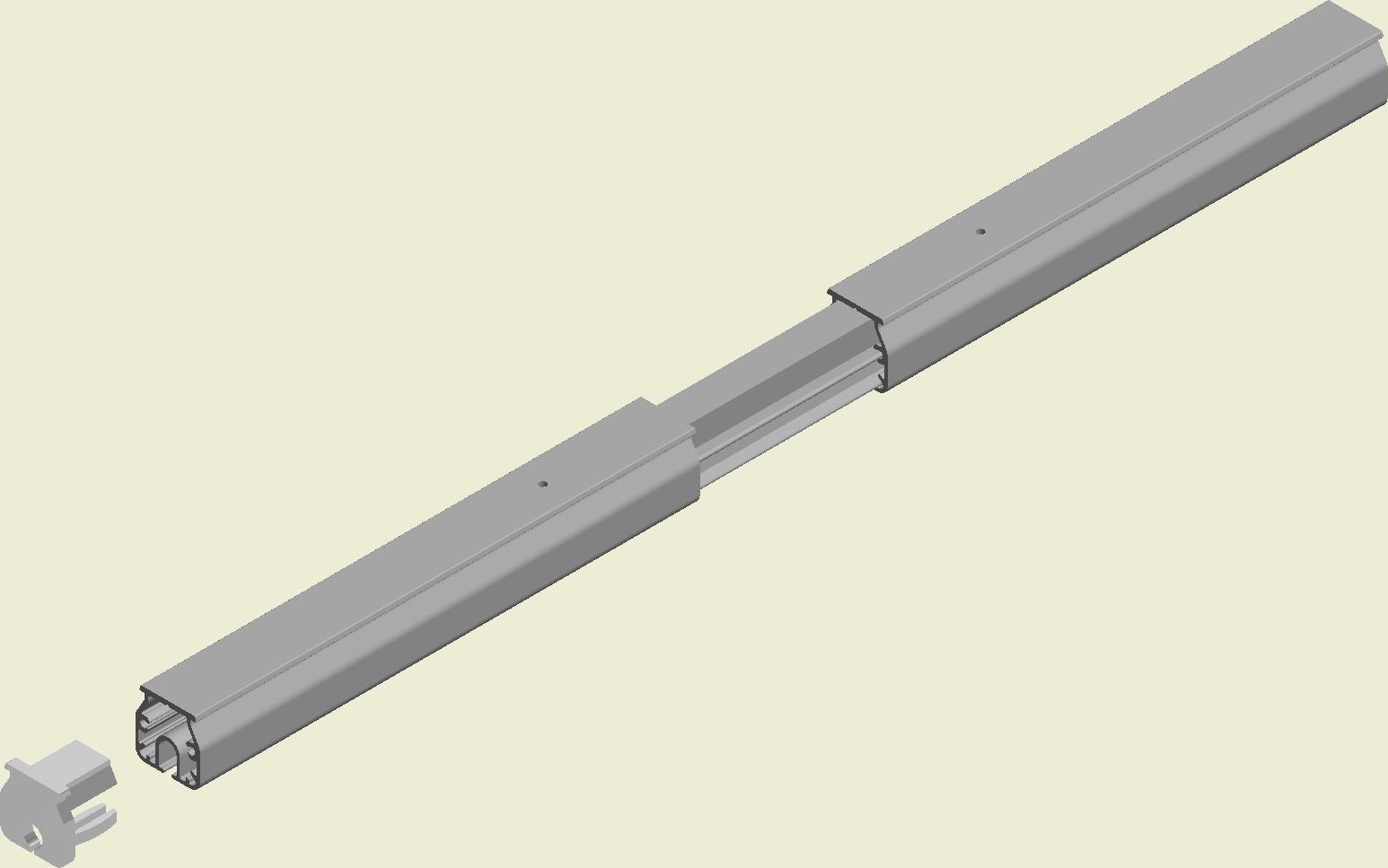

NextGen Track Suspension

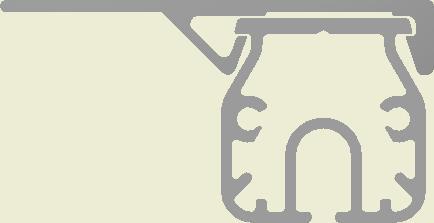

Keder (12 o'clock)

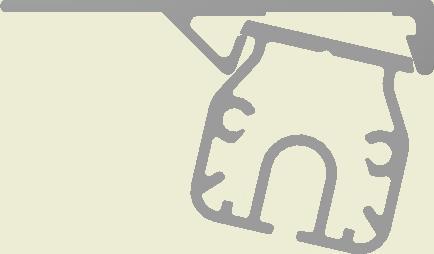

Slider (12 o’clock) Slider (3 & 9 o'clock Keder (3 & 9 o'clock)

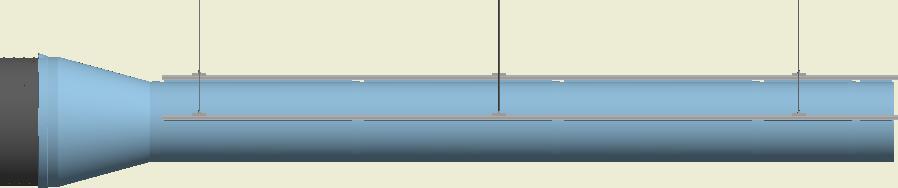

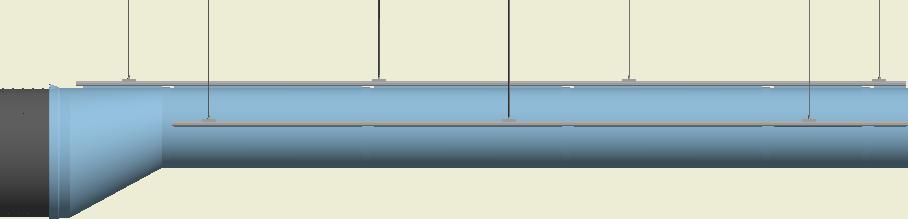

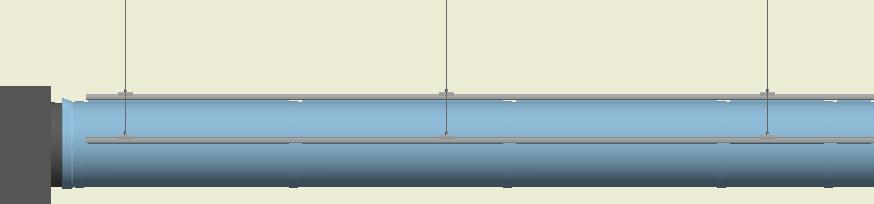

NextGen Track - Triple Suspension

B C D E

G F A A B C D E

Højde forskellen Z1 beregnes på følgende vis ved ret underkant Ø Plenum/2 - Ø forgrening/2 = Z1

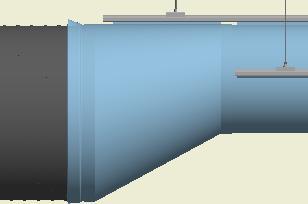

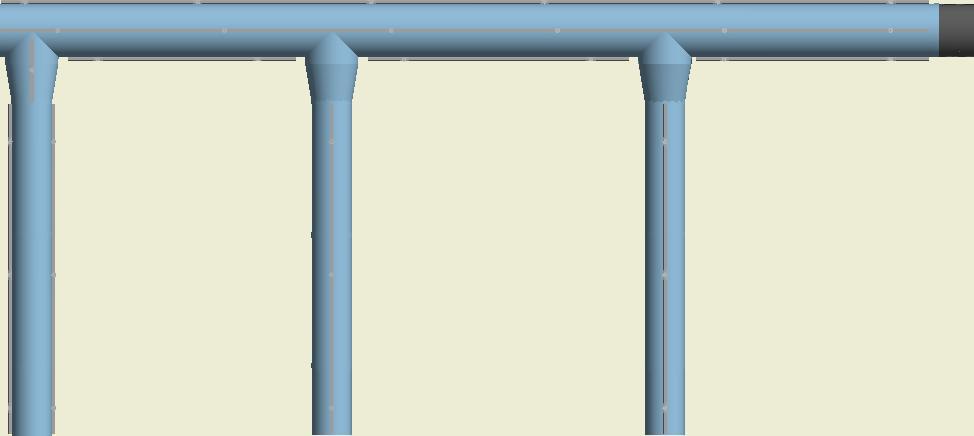

For ducts flat on bottom: Height difference Z1 is calculated as follows: (Ø plenum/2)-(Ø duct/2)=Z1

Ex.: Plenum Ø25”, duct Ø12”: (25/2)-(12/2)=1/4”

Eks: Plenum ø630mm - Forgrening ø300mm (630/2) - (300/2) = 165mm

Note for sockets

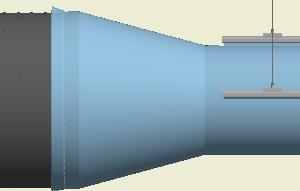

Sockets exceeding L= 20” and with flat top allow for 1 row of suspension

Note for studse 1 række ophæng er mulig ved studse hvor L er over 500mm og studsen sidder med Ret overkant!

NextGen Options - Triple Track

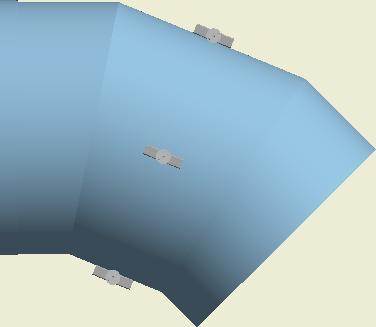

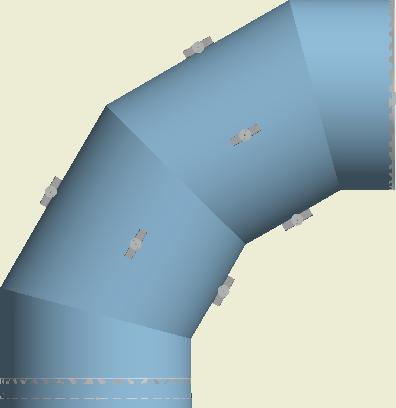

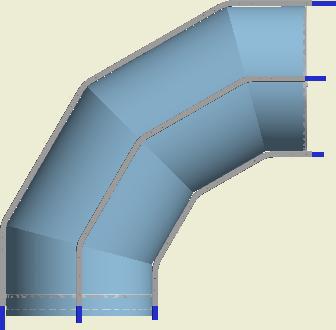

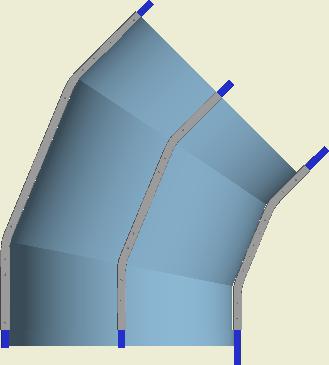

Gored Elbow 45° / Gored Elbow 90°

Gored Elbow 45° / Gored Elbow 90°

(OS-0009-US-02)

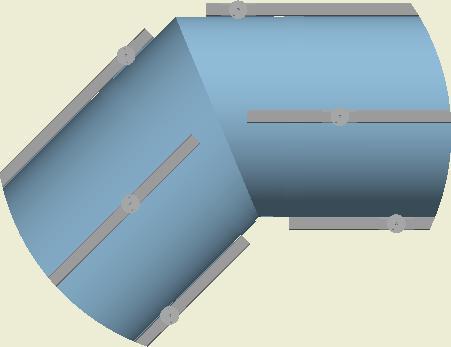

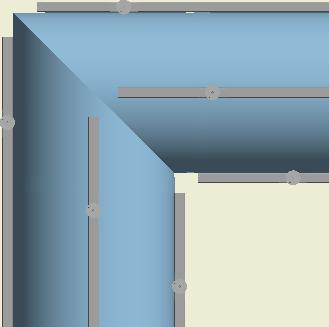

Mitered Elbow / Mitered Elbow 90°
