Next Gen Suspension
OS-0004-US-04
Suspension type
Suspension type
Refer to the delivery note for chosen suspension type.
Refer to the delivery note for chosen suspension type.

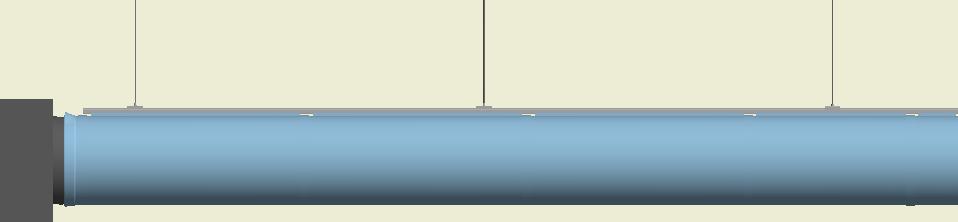

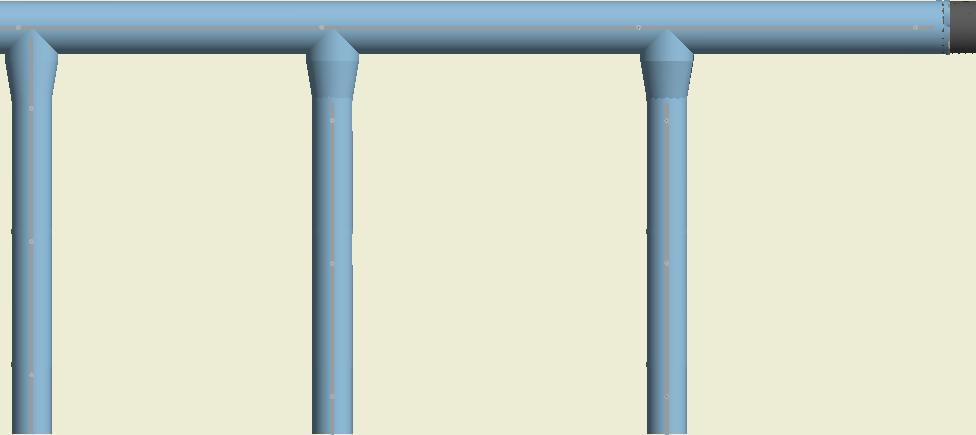

Next Gen Vertical Support & Next Gen Vertical Support Snap Lock

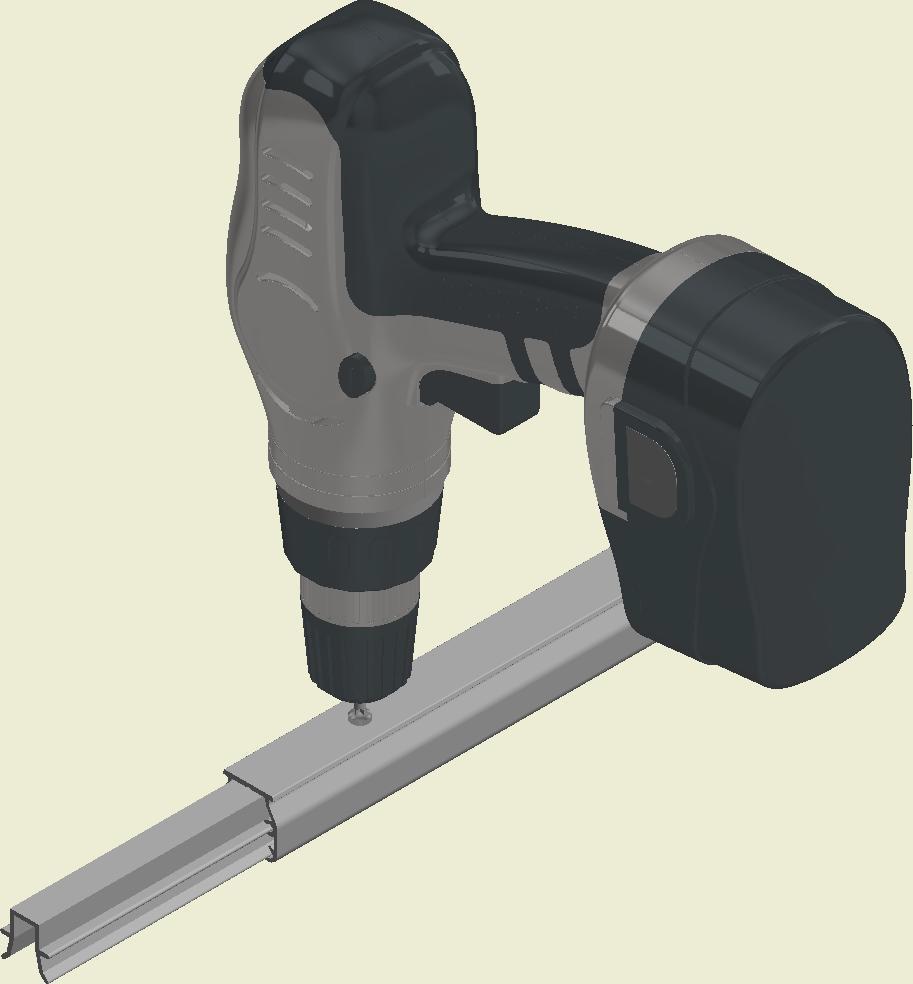

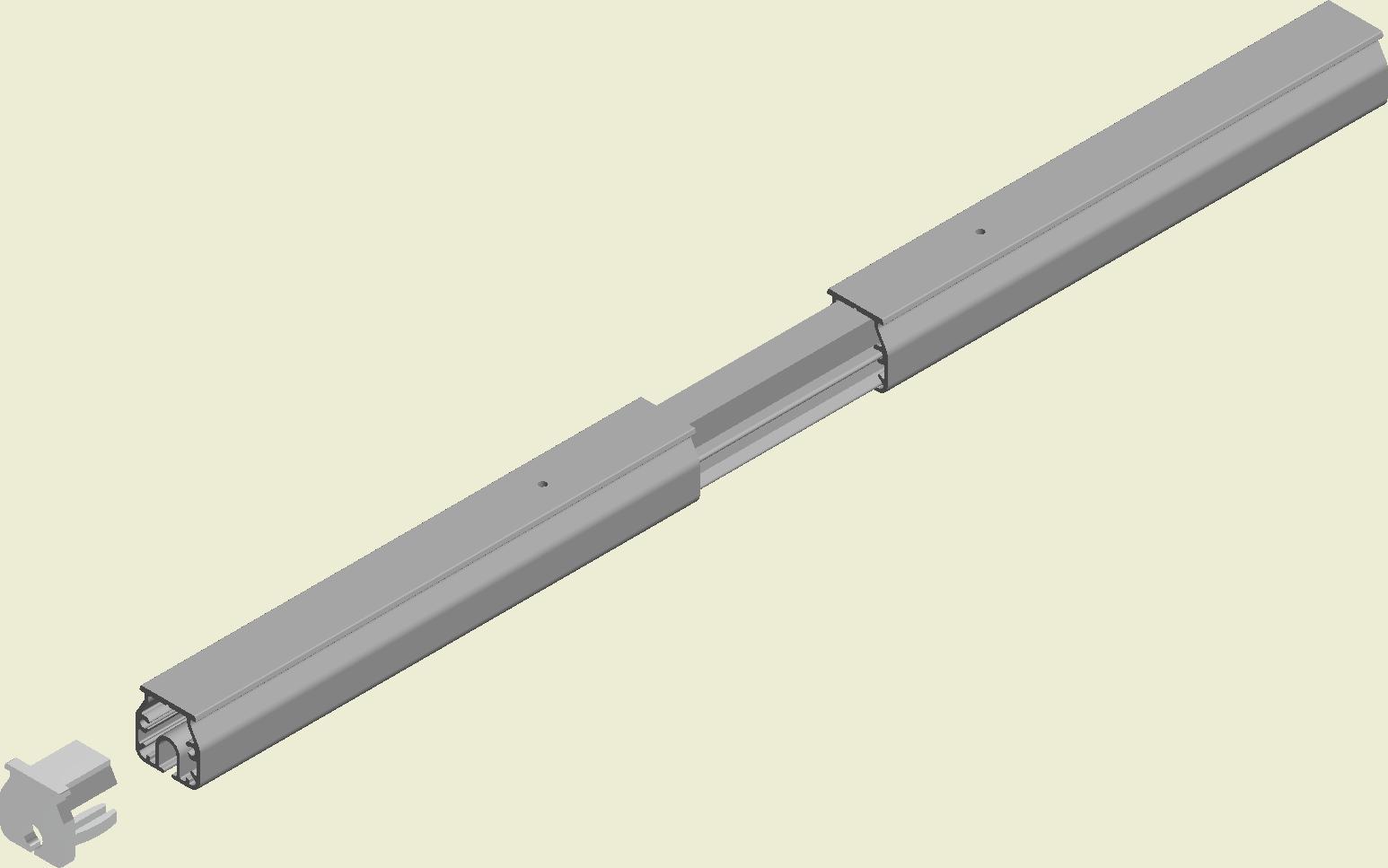

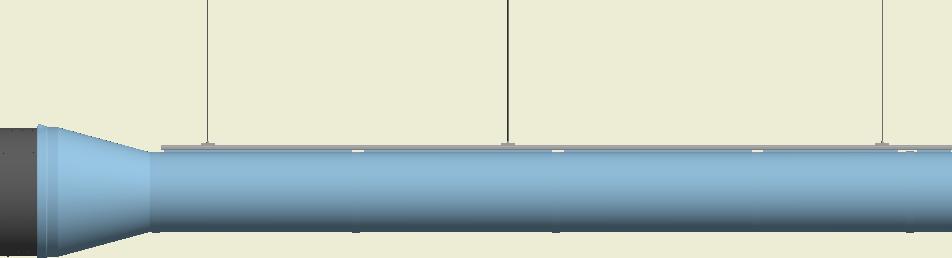

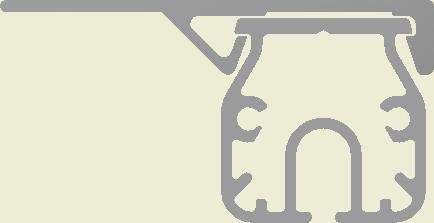

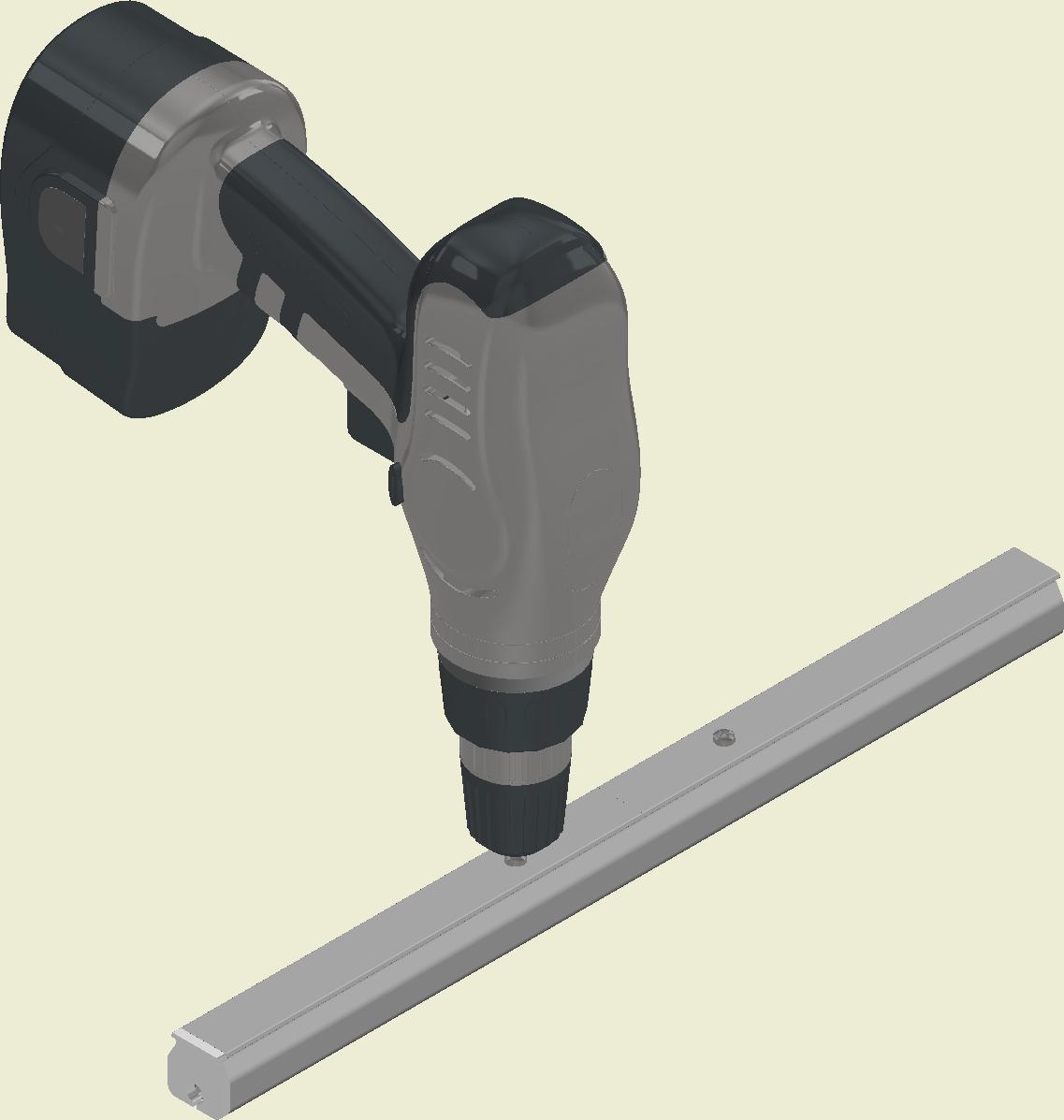

Next Gen Single Support Rail

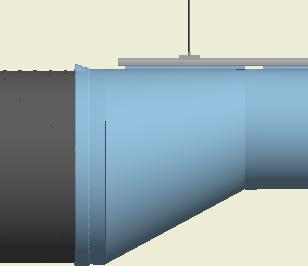

OS-0005-DK-01

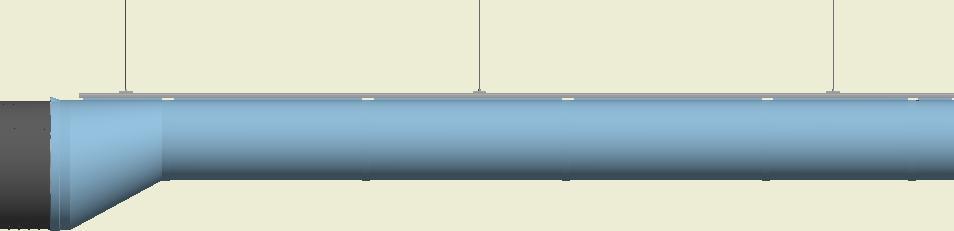

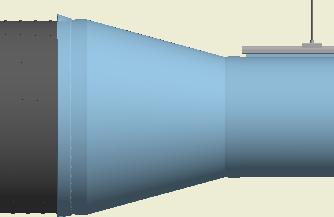

H= Ø/2-ø/2-montagehøjde Eks. ø650/2-ø400/2-46=79mm
H=Ø1/2-Ø2/2-mounting height
Ex.: Ø26” - Ø16” - 1 13/16” = 3 3/16” 2 2
Next Gen Single Track Elbow Options

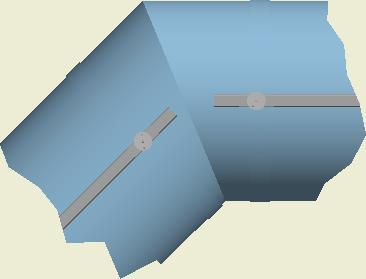

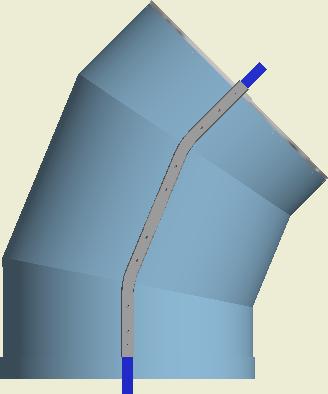

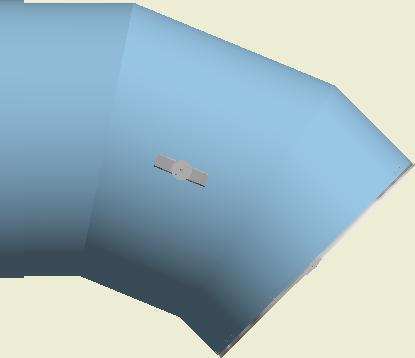

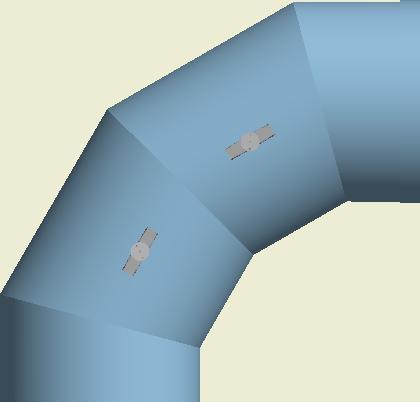

Gored Elbow 45° / Gored Elbow 90°
(OS-0007-US-02)
(OS-0008-US-02)

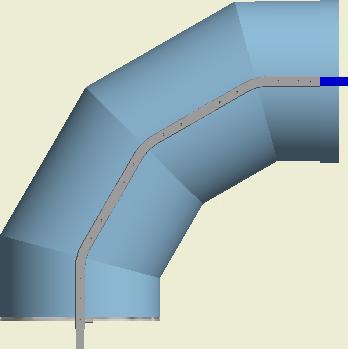

Gored Elbow 45° / Gored Elbow 90°
(OS-0009-US-02) (OS-0010-US-02) (OS-0011-US-02) (OS-0012-US-02)

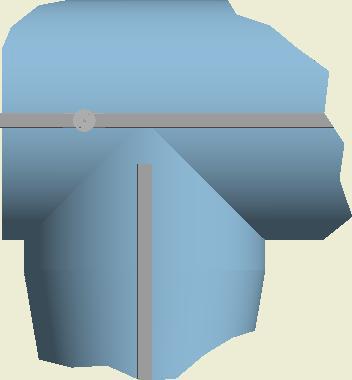

ADC -Mitered Elbow (random angle) / ADC-Mitered Elbow 90°
