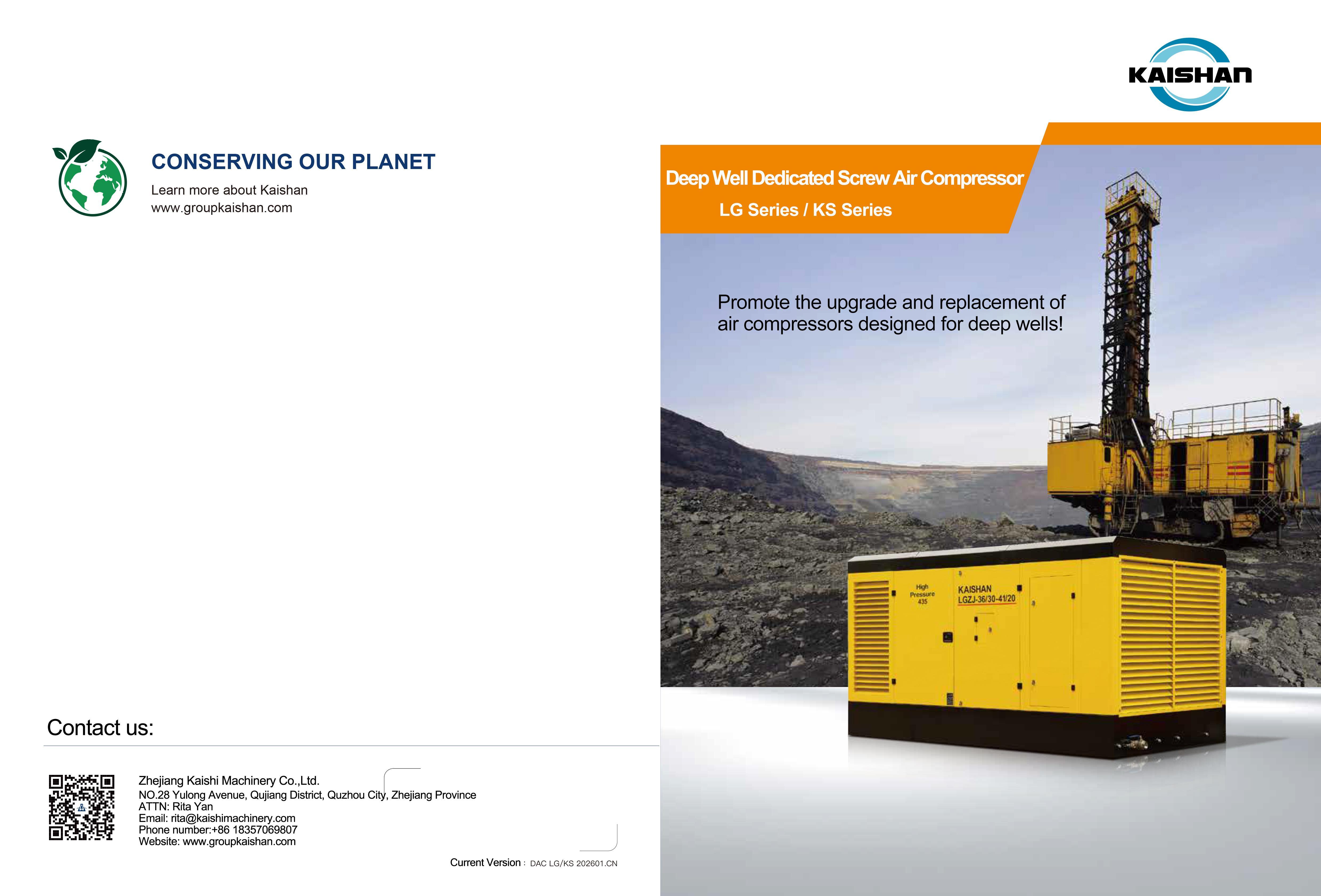

CONSERVING OUR PLANET
Learn more about Kaishan www.groupkaishan.com
Email: rita@kaishimachinery.com
Phone number:+86 18357069807
Website: www.groupkaishan.com

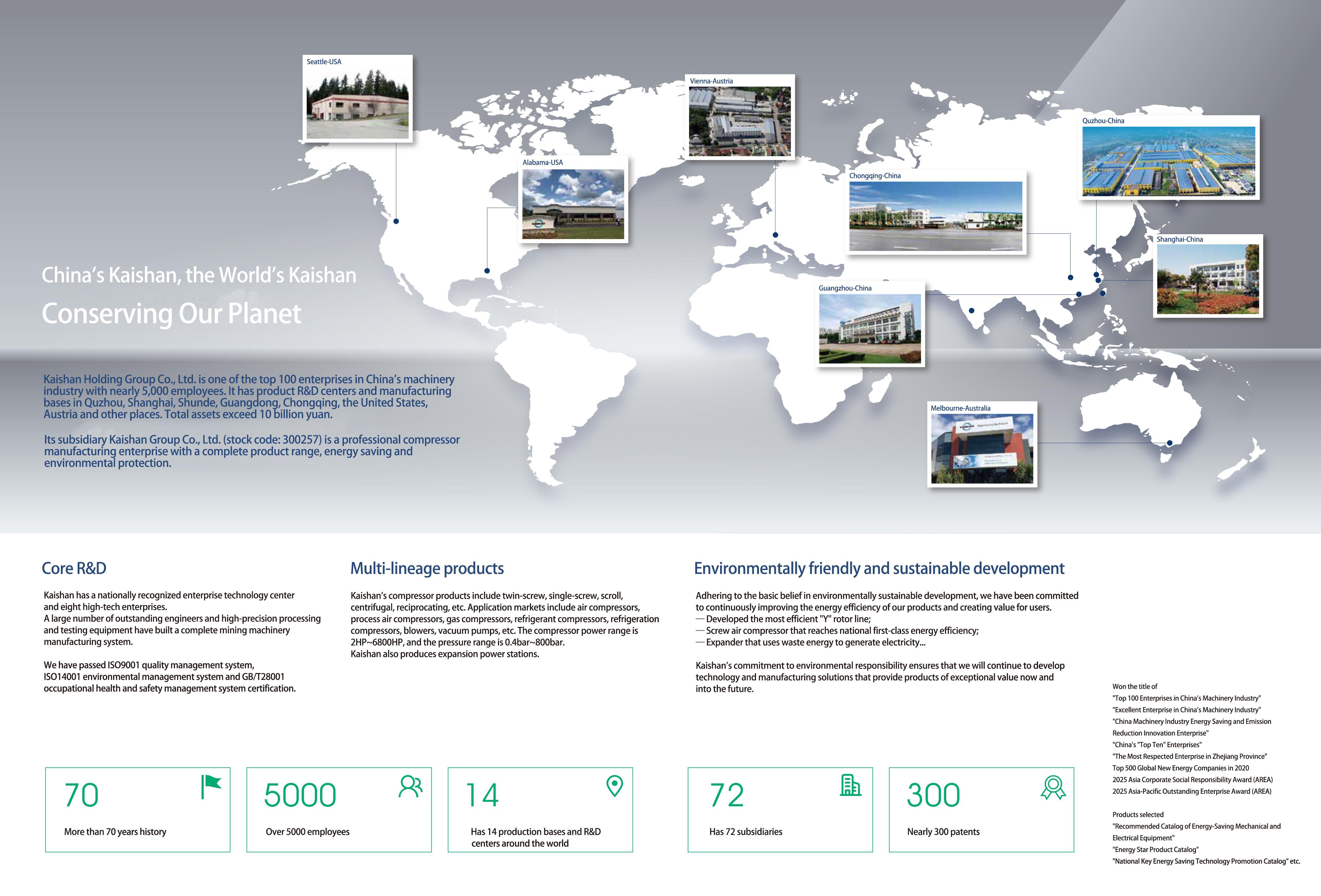

China's Kaishan, the World's Kaishan
Conserving Our Planet
Kaishan Holding Group Co. Ltd. is one of the top 100 enterprises in China's machinery industry with nearly 5,000 employees.It has product R&D centers and manufacturing bases in Quzhou, Shanghai, Shunde, Guangdong, Chongqing, the United States, Austria and other places. Total assets exceed 10 billion yuan.
Its subsidiary Kaishan Group Co., Ltd. (stock code:300257) is a professional compressor manufacturing enterprise with a complete product range, energy saving and environmental protection.
Core R&D Multi-lineage products
Kaishan has a nationally recognized enterprise technology center and eight high-tech enterprises.
A large number of outstanding engineers and high-precision processing and testing equipment have built a complete mining machinery manufacturing system.
We have passed ISO9001 quality management system, ISO14001 environmental management system and GB/T28001 occupational health and safety management system certification.
Kaishan's compressor products include twin-screw, single-screw, scroll, centrifugal, reciprocating, etc. Application markets include air compressors, process air compressors,gas compressors, refrigerant compressors,refrigeration compressors, blowers, vacuum pumps, etc.The compressor power range is 2HP~6800HP,and the pressure range is 0.4bar~800bar. Kaishan also produces expansion power stations.
Environmentally friendly and sustainable development
Adhering to the basic belief in environmentally sustainable development,we have been committed to continuously improving the energy efficiency of our products and creating value for users.
—Developed the most efficient "Y" rotor line;
—Screw air compressor that reaches national first-class energy efficiency; —Expander that uses waste energy to generate electricity...
Kaishan's commitment to environmental responsibility ensures that we will ontinue to develop technology and manufacturing solutions that provide products of exceptional value now and into the future.
激口面缩机四鲁有服会向

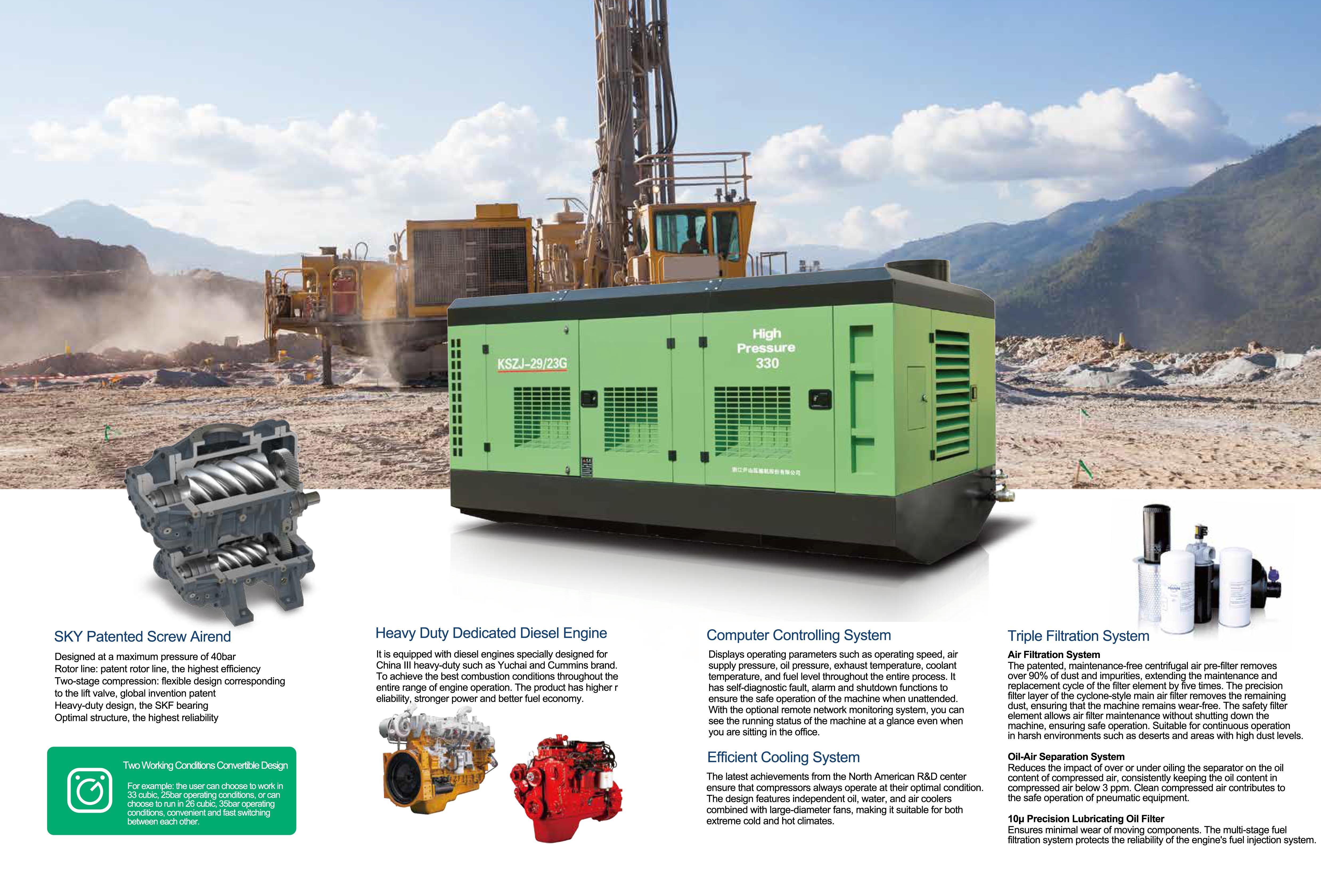

SKY Patented Screw Airend Heavy Duty Dedicated Diesel Engine Computer Controlling System Triple Filtration System
Designed at a maximum pressure of 40bar Rotor line: patent rotor line, the highest efficiency Two-stage compression:flexible design corresponding to the lift valve, global invention patent Heavy-duty design, the SKF bearing Optimal structure, the highest reliability
TwoWorking Conditions Convertible Design
For example: the user can choose to work in 33 cubic,25bar operating conditions, or can choose to run in 26 cubic, 35bar operating conditions, convenient and fast switching between each other.
It is equipped with diesel engines specially designed for China I heavy-duty such as Yuchai and Cummins brand. To achieve the best combustion conditions throughout the entire range of engine operation. The product has higher r eliability, stronger power and better fuel economy.
Displays operating parameters such as operating speed, air supply pressure, oil pressure, exhaust temperature, coolant temperature, and fuel level throughout the entire process. It has self-diagnostic fault, alarm and shutdown functions to ensure the safe operation of the machine when unattended. With the optional remote network monitoring system, you can see the running status of the machine at a glance even when you are sitting in the office.
Efficient Cooling System
The latest achievements from the North American R&D center ensure that compressors always operate at their optimal condition. The design features independent oil, water,and air coolers combined with large-diameter fans, making it suitable for both extreme cold and hot climates.
Air Filtration System
The patented, maintenance-free centrifugal air pre-filter removes over 90of dust and impurities, extending the maintenance and replacement cycle of the filter element by five times. The precision filter layer of the cyclone-style main air filter removes the remaining dust, ensuring that the machine remains wear-free. The safety filter element allows air filter maintenance without shutting down the machine, ensuring safe operation. Suitable for continuous operation in harsh environments such as deserts and areas with high dust levels.
Oil-Air Separation System
Reduces the impact of over or under oiling the separator on the oil content of compressed air, consistently keeping the oil content in compressed air below 3 ppm. Clean compressed air contributes to the safe operation of pneumatic equipment.
10μ Precision Lubricating Oil Filter
Ensures minimal wear of moving components. The multi-stage fuel filtration system protects the reliability of the engine's fuel injection system.

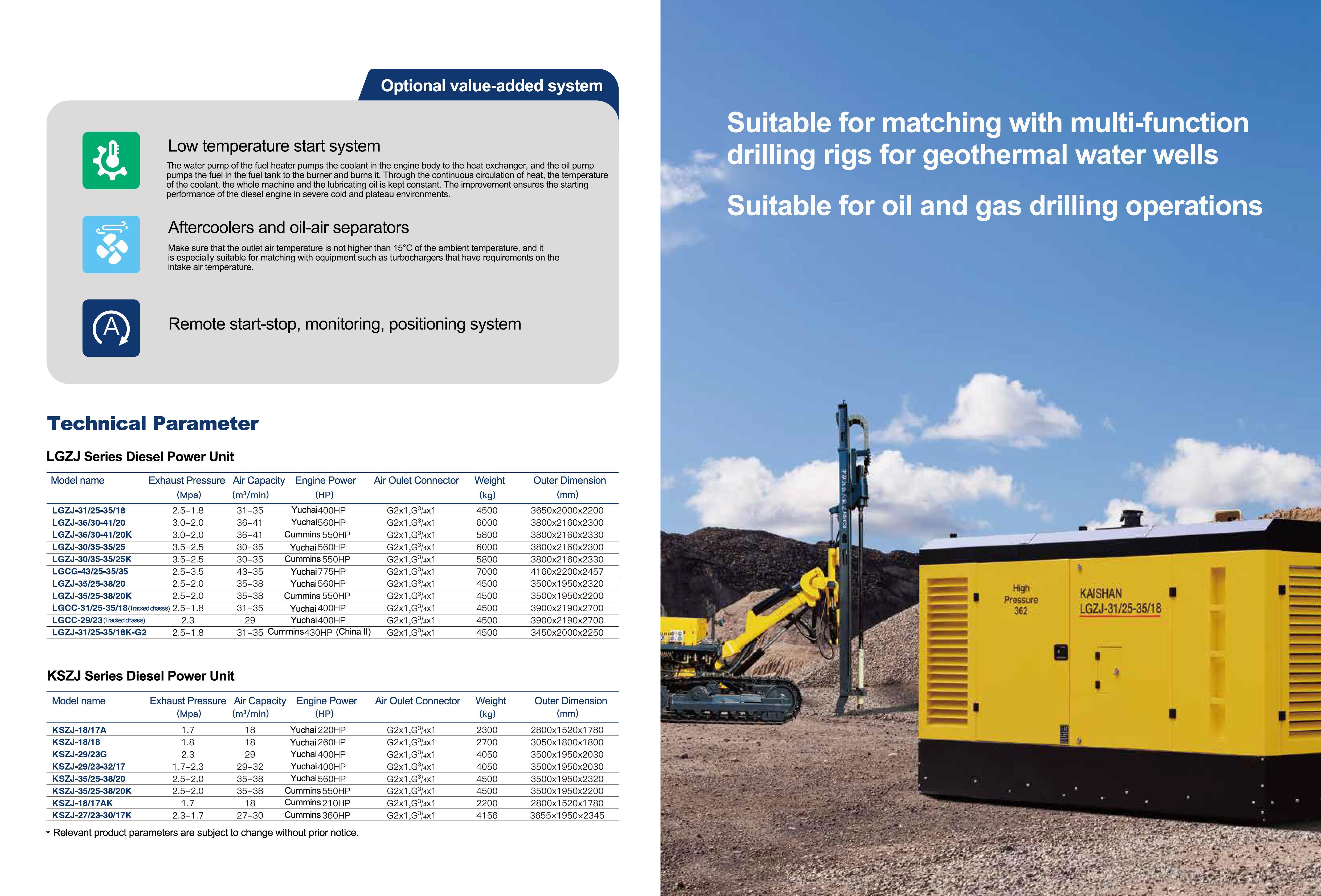

Optional value-added system
Low temperature start system
The water pump of the fuel heater pumps the coolant in the engine body to the heat exchanger, and the oil pump pumps the fuel in the fuel tank to the burner and burns it. Through the continuous circulation of heat, the temperature of the coolant,the whole machine and the lubricating oil is kept constant. The improvement ensures the starting performance of the diesel engine in severe cold and plateau environments.
Aftercoolers and oil-air separators
Make sure that the outlet air temperature is not higher than 15℃ of the ambient temperature,and it is especially suitable for matching with equipment such as turbochargers that have requirements on the intake air temperature.
Remote start-stop, monitoring, positioning system
Technical Parameter
LGZJ Series Diesel Power Unit
LGZJ-31/25-35/18
2.5-1.8 31-35 Yuchai400HP G2x1,G3|4×1 4500 3650×2000×2200
LGZJ-36/30-41/20 3.0-2.0 36-41 Yuchai560HP G2x1,G34x1 6000 3800x2160×2300
LGZJ-36/30-41/20K 3.0-2.0 36-41 Cummins 550HP G2x1,G34x1 5800 3800x2160×2330
LGZJ-30/35-35/25 3.5-2.5 30-35 Yuchai 560HP G2x1,G34×1 6000 3800x2160×2300
LGZJ-30/35-35/25K
3.5-2.5 30-35 Cummins550HP G2x1,G34x1 5800 3800x2160×2330
LGCG-43/25-35/35 2.5-3.5 43-35 Yuchai775HP G2x1,G34x1 7000 4160×2200×2457
LGZJ-35/25-38/20 2.5-2.0 35-38 Yuchai560HP G2×1,G3/4x1 4500 3500×1950×2320
LGZJ-35/25-38/20K 2.5-2.0 35-38 Cummins 550HP G2x1,G3/4×1 4500 3500x1950×2200
LGCC-31/25-35/18(Tradkedchassis) 2.5-1.8 31-35 Yuchai400HP G2x1,G34×1 4500 3900x2190×2700
LGCC-29/23(Tradked chassis) 2.3 29 Yuchai40OHP G2x1,G3/4×1 4500 3900×2190×2700
LGZJ-31/25-35/18K-G2 2.5-1.8 31-35 Cummins430HP(China II) G2x1,G3|4×1 4500 3450×2000×2250
KSZJ Series Diesel Power Unit
KSZJ-18/17A 1.7 18 Yuchai220HP G2x1,G3/4x1 2300 2800x1520×1780
KSZJ-18/18 1.8 18 Yuchai 260HP G2x1,G34x1 2700 3050×1800x1800
KSZJ-29/23G 2.3 29 Yuchai400HP G2x1,G34x1 4050 3500x1950×2030
KSZJ-29/23-32/17 1.7-2.3 29-32 Yuchai40OHP G2x1,G34x1 4050 3500x1950×2030
KSZJ-35/25-38/20 2.5-2.0 35-38 Yuchai560HP G2x1,G34x1 4500 3500x1950×2320
KSZJ-35/25-38/20K 2.5-2.0 35-38 Cummins550HP G2x1,G34x1 4500 3500×1950×2200
KSZJ-18/17AK 1.7 18 Cummins 210HP G2x1,G3/4x1 2200 2800×1520×1780
KSZJ-27123-30/17K 2.3-1.7 27-30 Cummins 360HP G2x1,G34x1 4156 3655×1950×2345
* Relevant product parameters are subject to change without prior notice.
Suitable for matching with multi-function drilling rigs for geothermal water wells
Suitable for oil and gas drilling operations
