[ 8 - 19 pg ]-----------------------------
MultiSpeciality Hospital Orthopedic Clinic
Beach Resort Hillside Resort
Vedicshala School Secondary School
[ 20- 29 pg ]---Mixed Used High Rise Building [21 Floors]
Restaurant City Centre Mall
[ 30 - 39 pg ]-----------------------------------Memorial Museum

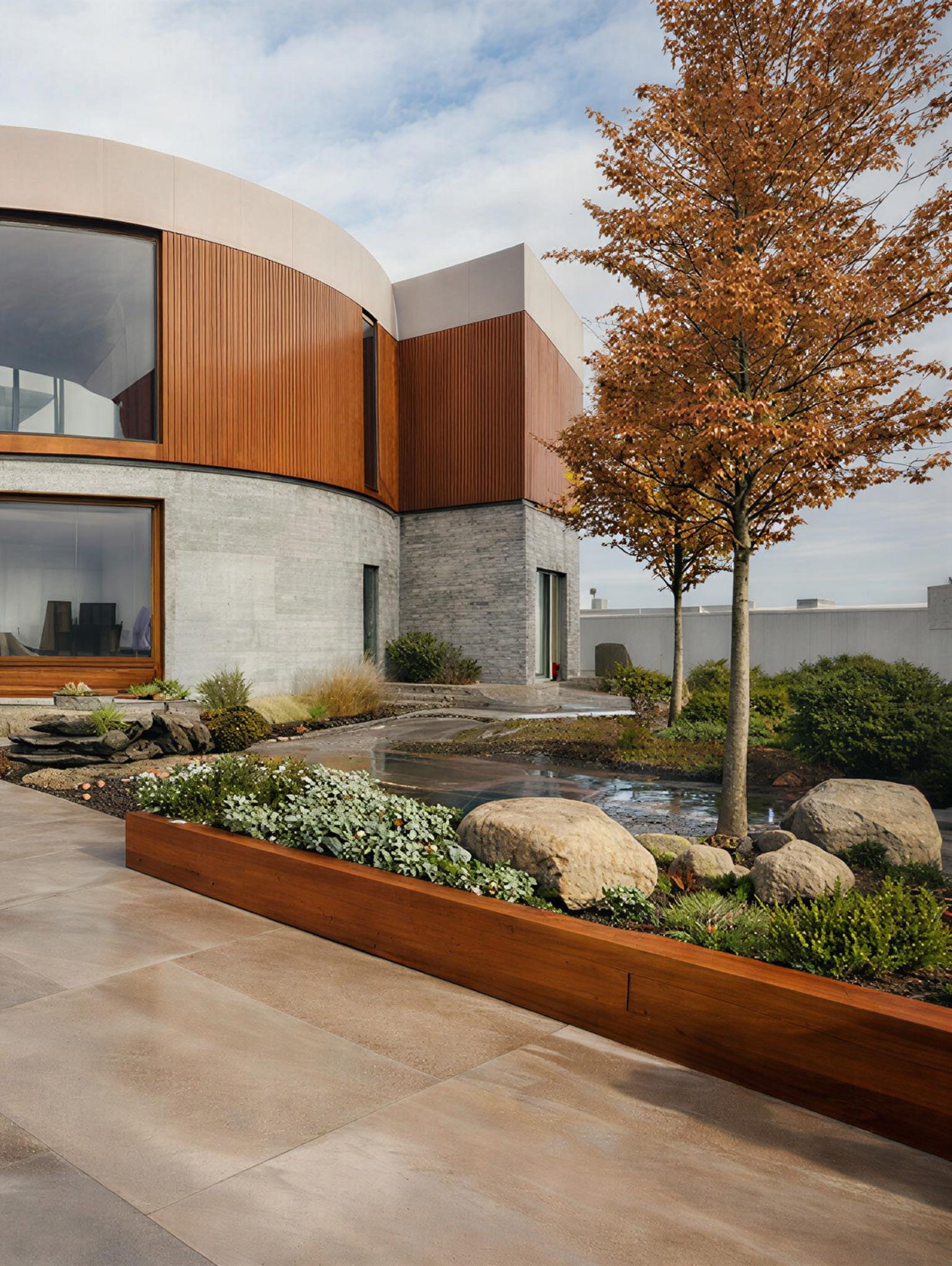

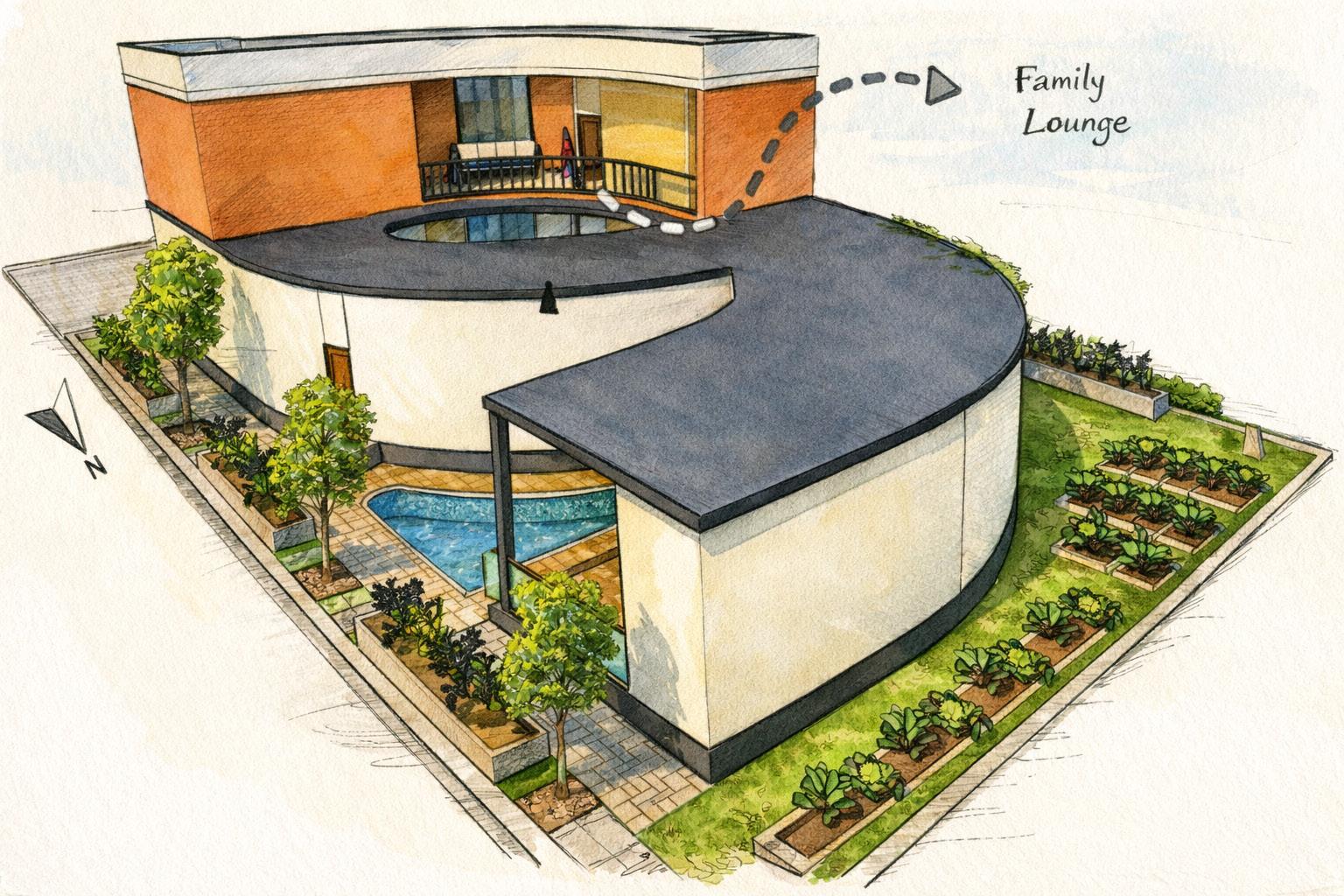

Composite House [4 BHK ]
[40 - 45 pg ]------------------------

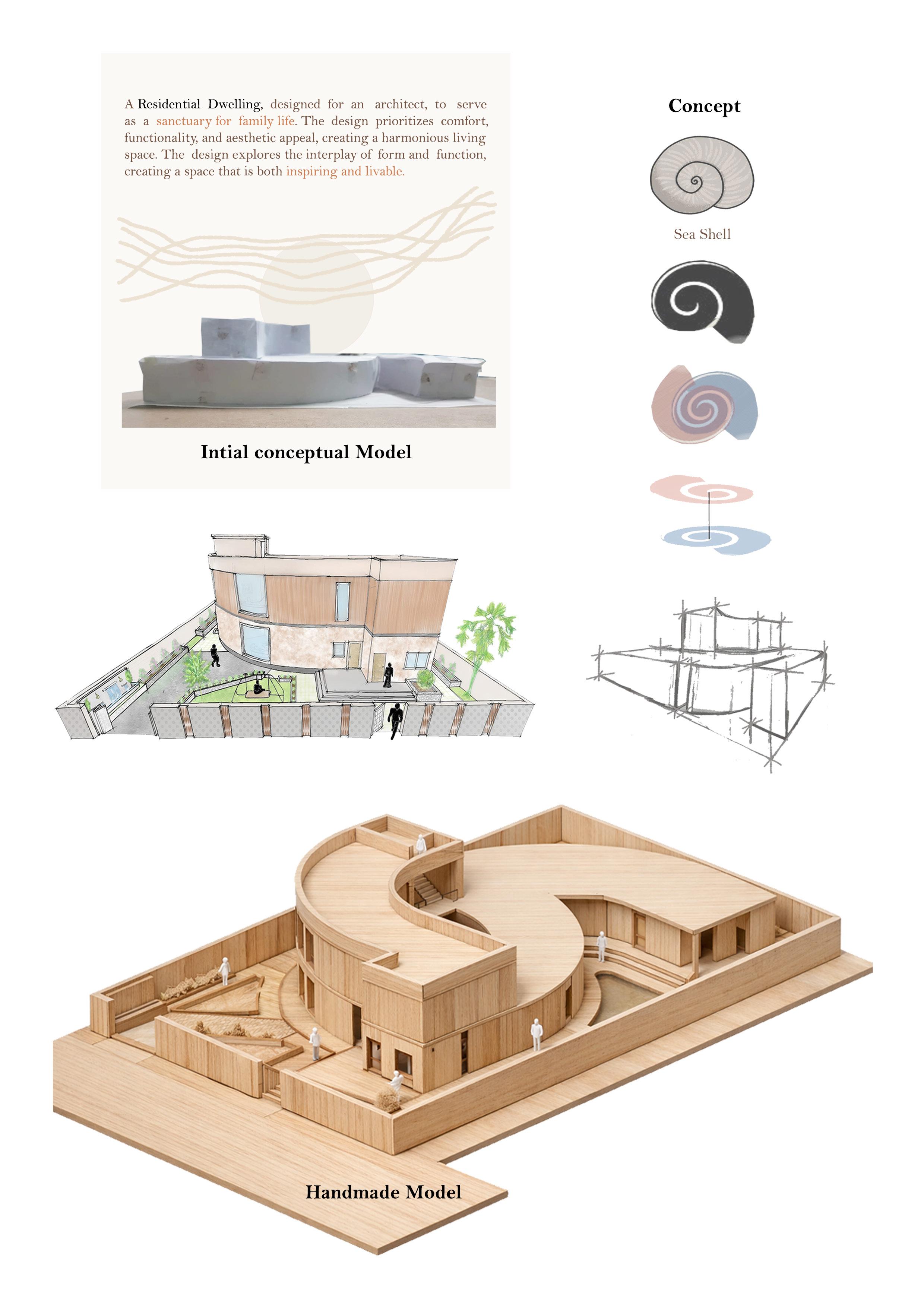

Residential house [5 BHK ]
Residential house [2 BHK ] Beach view Apartments Student Hostel
Timber Pergola Deck Pavilion

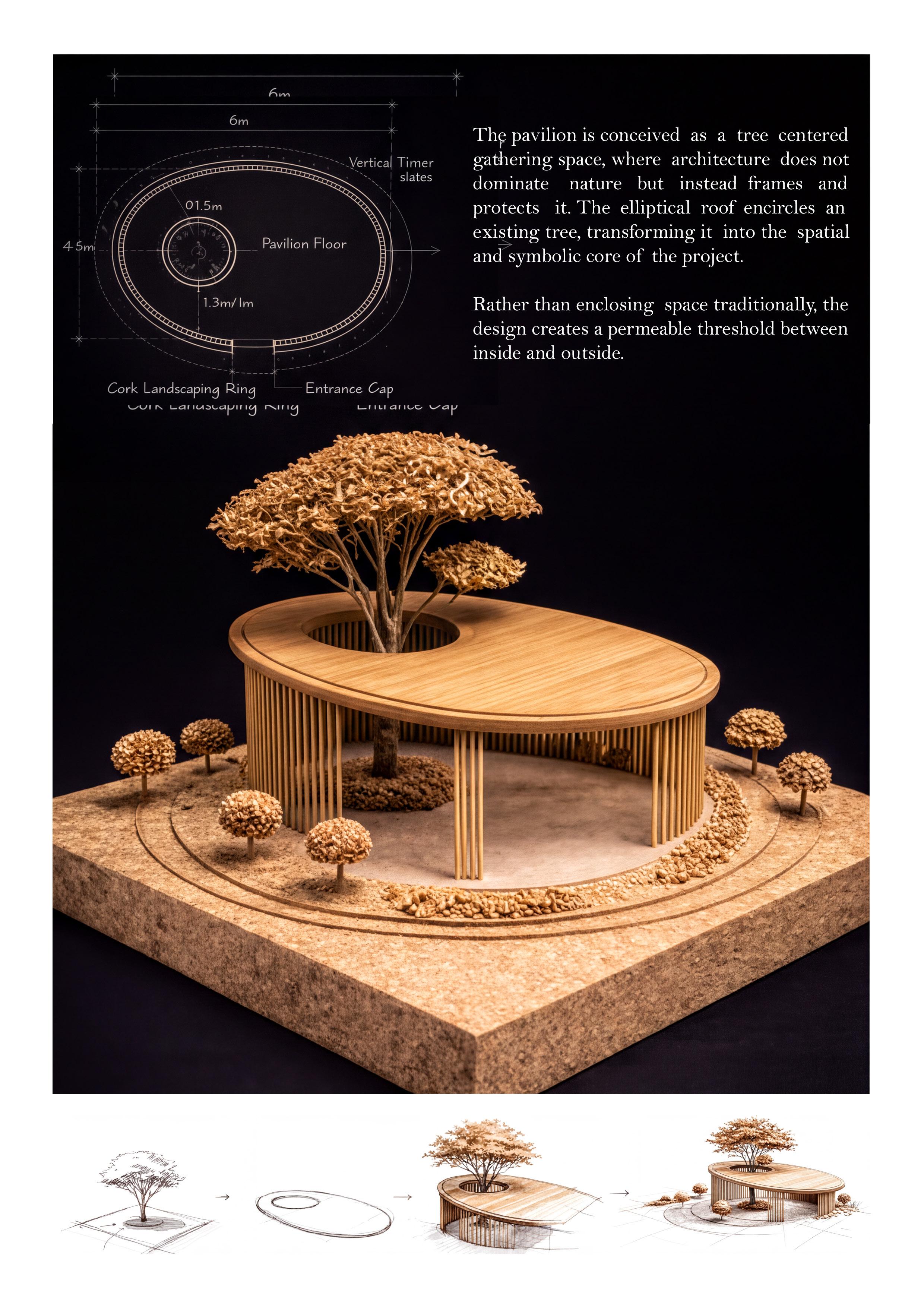

[46 - 47 pg ]-------------------------------Tree Centred Pavilion
Vertical Urban Block [24 Floors ] Temple
Astronaut Training Center Space Analog Habitat

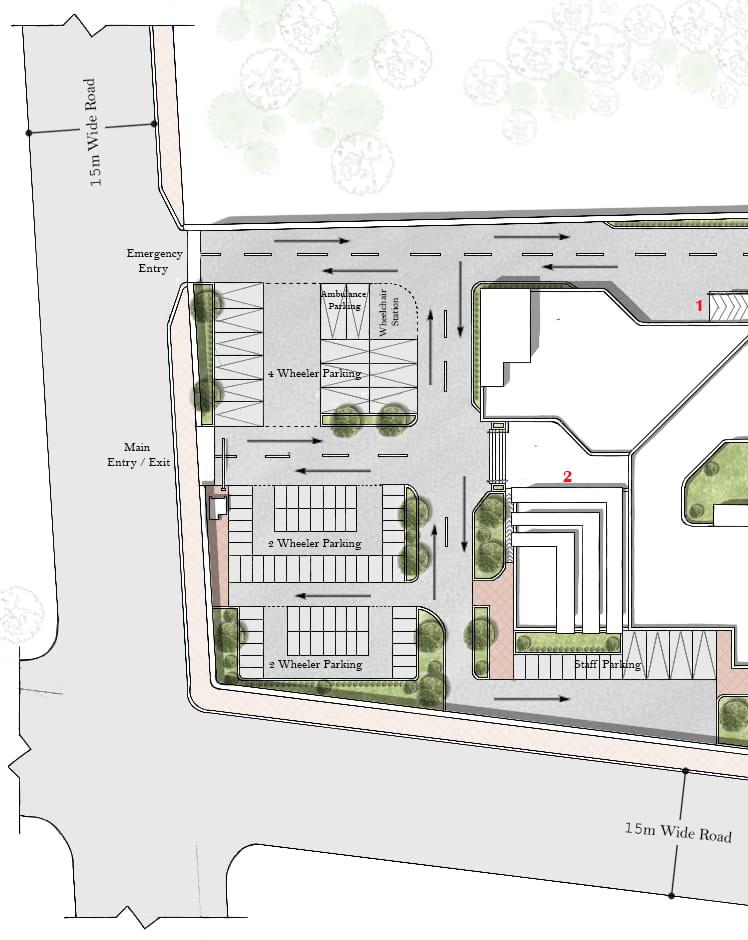

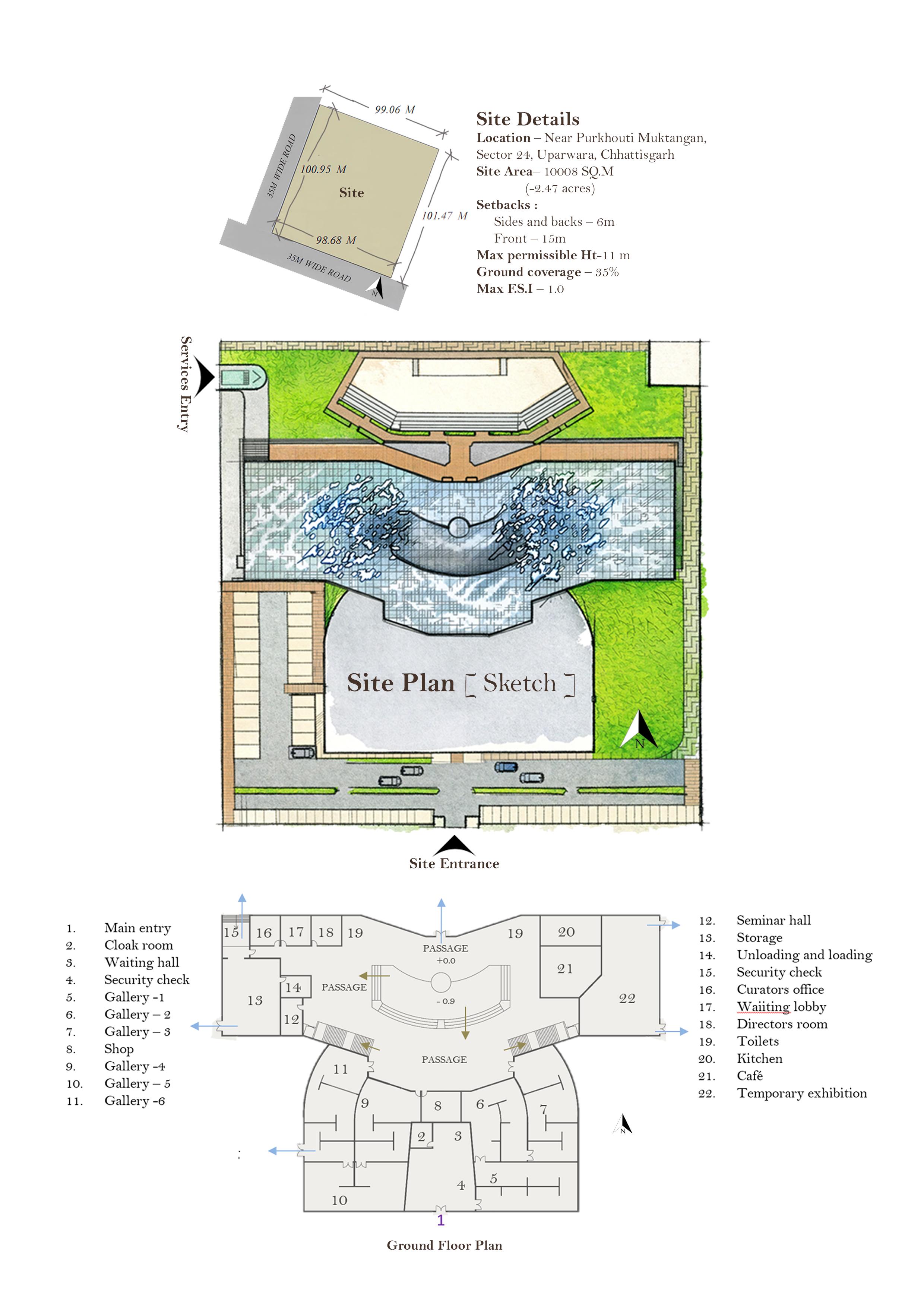

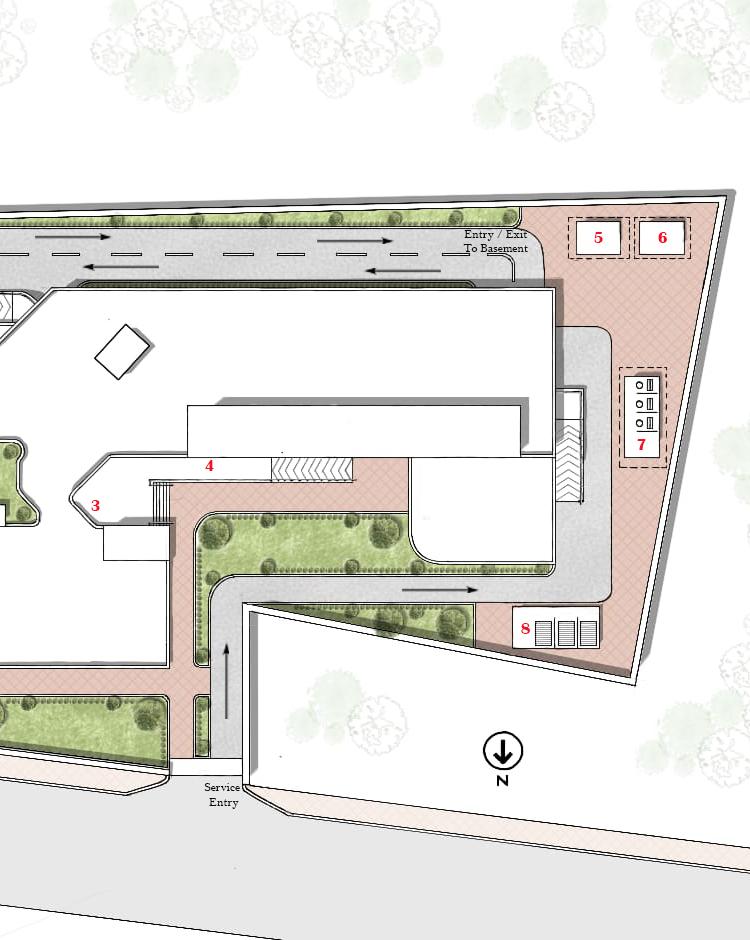

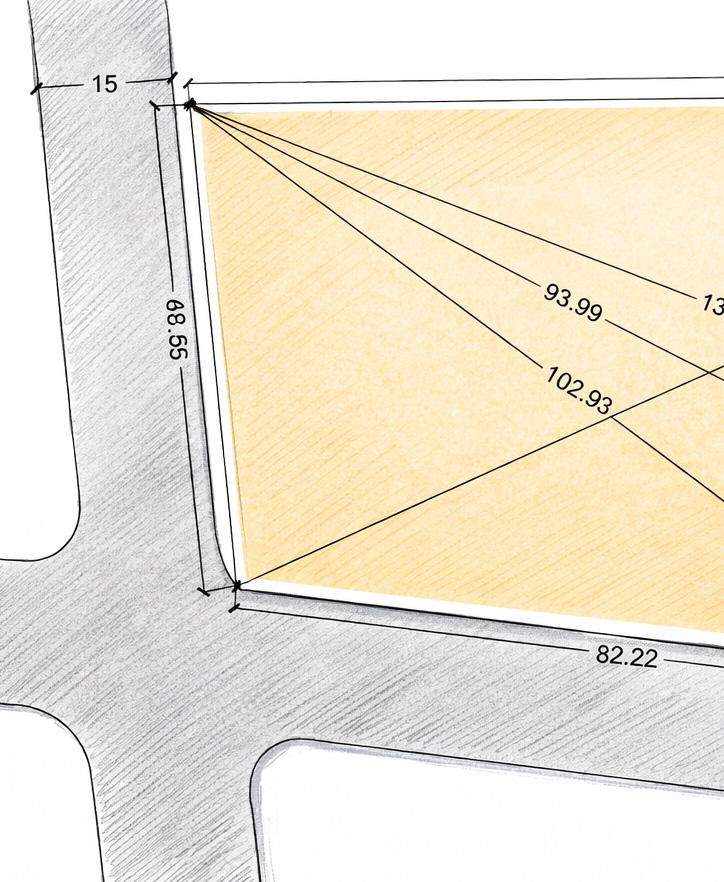

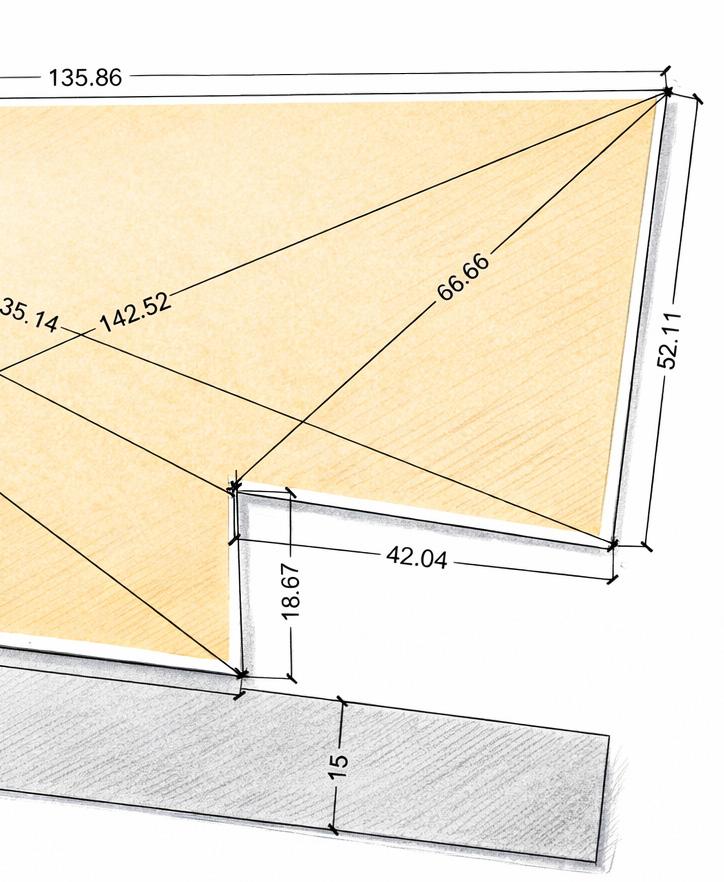

Site Plan

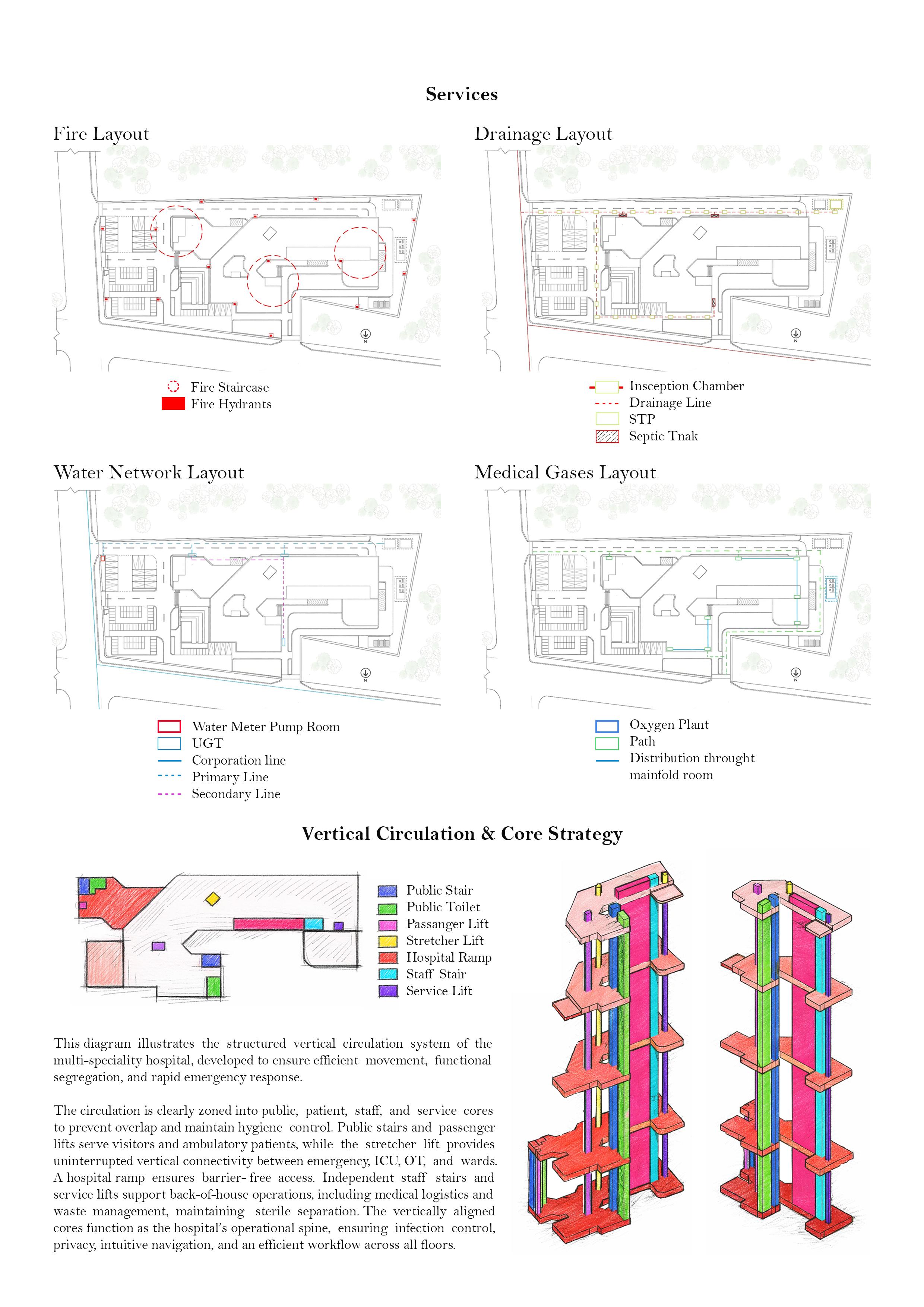

Circulation

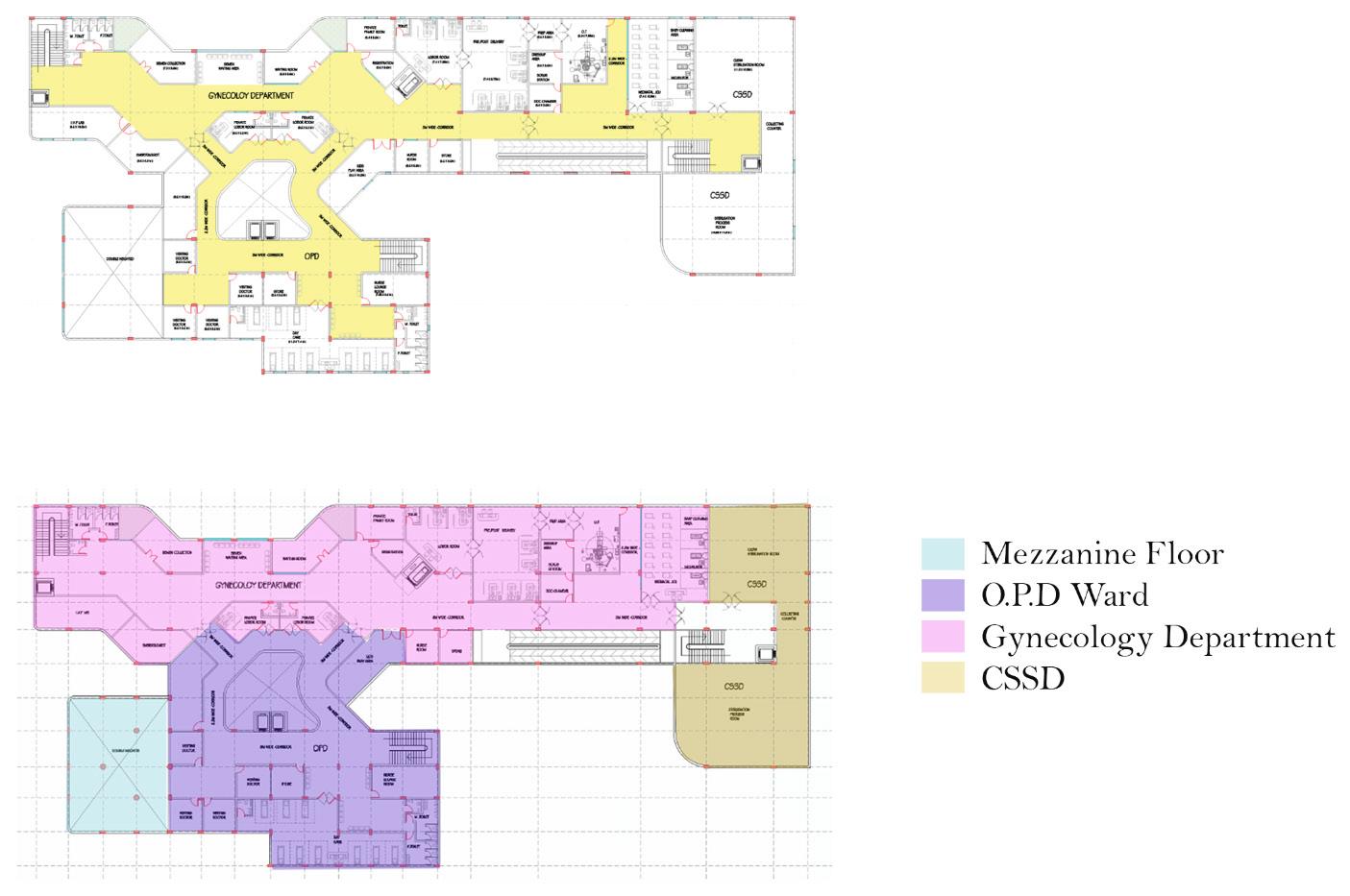

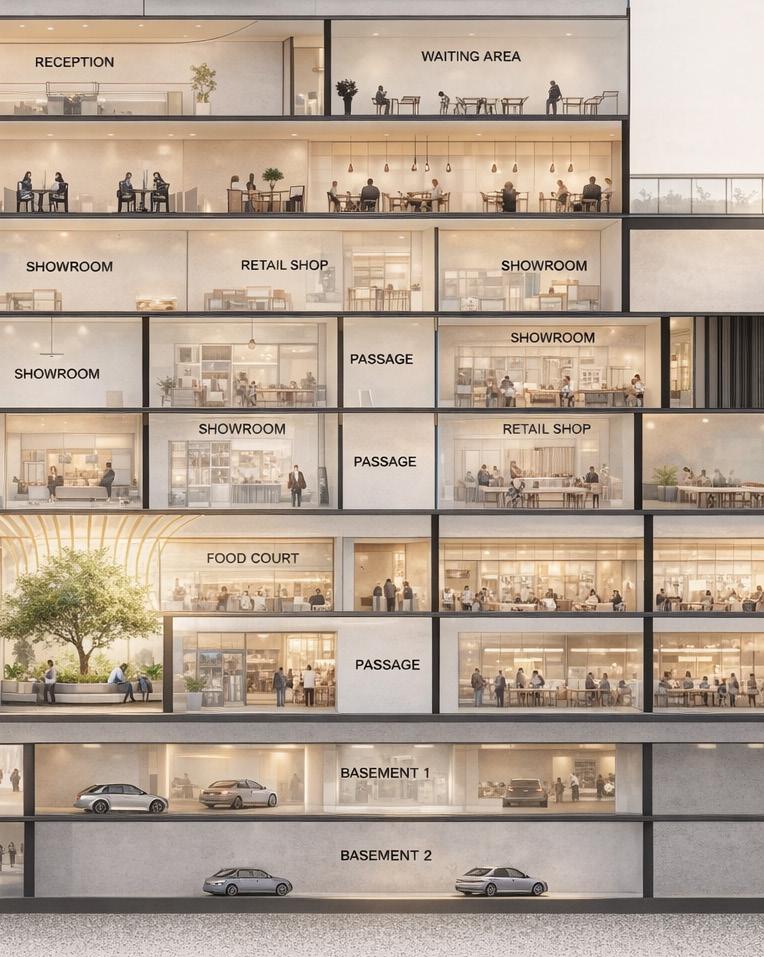

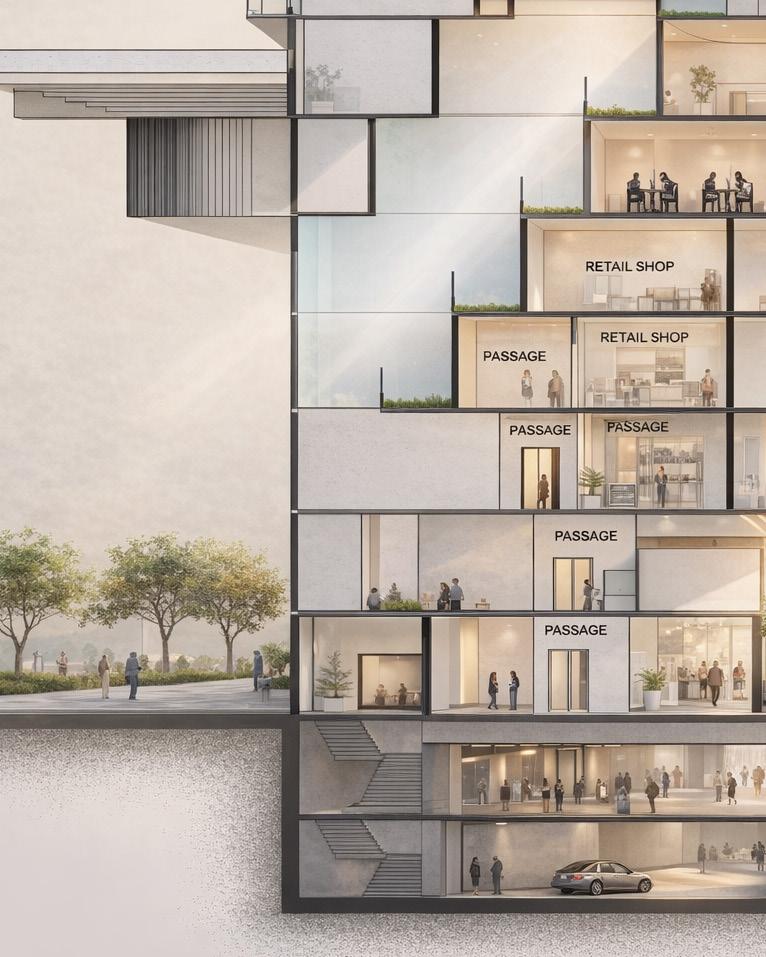

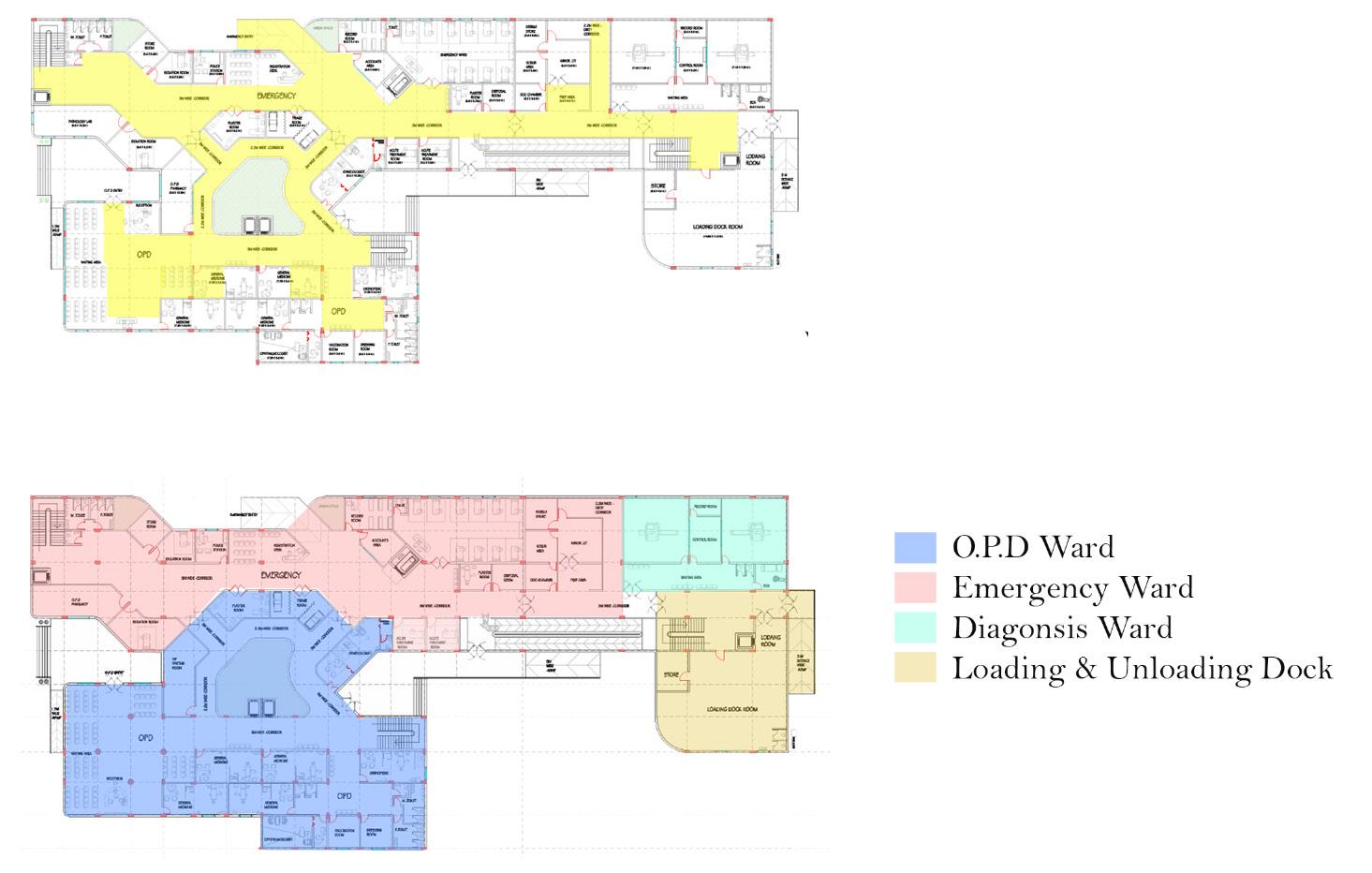

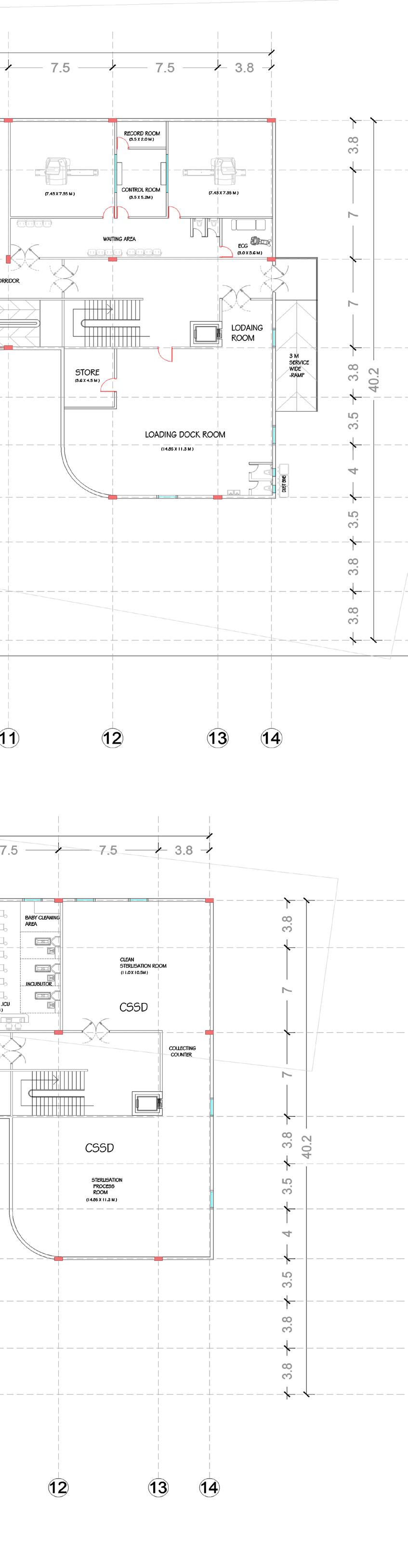

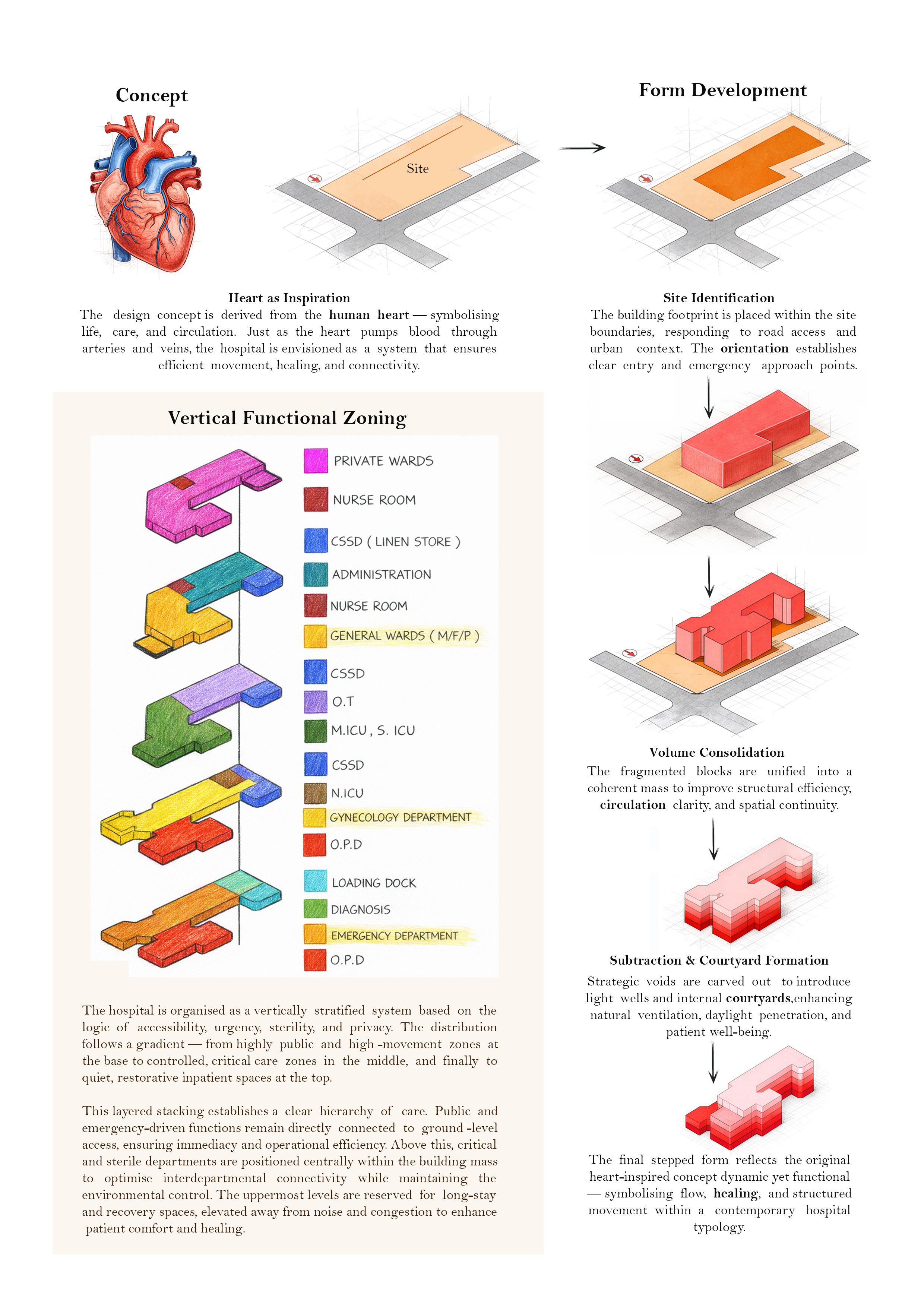

Floor -Wise Zoning
Circulation

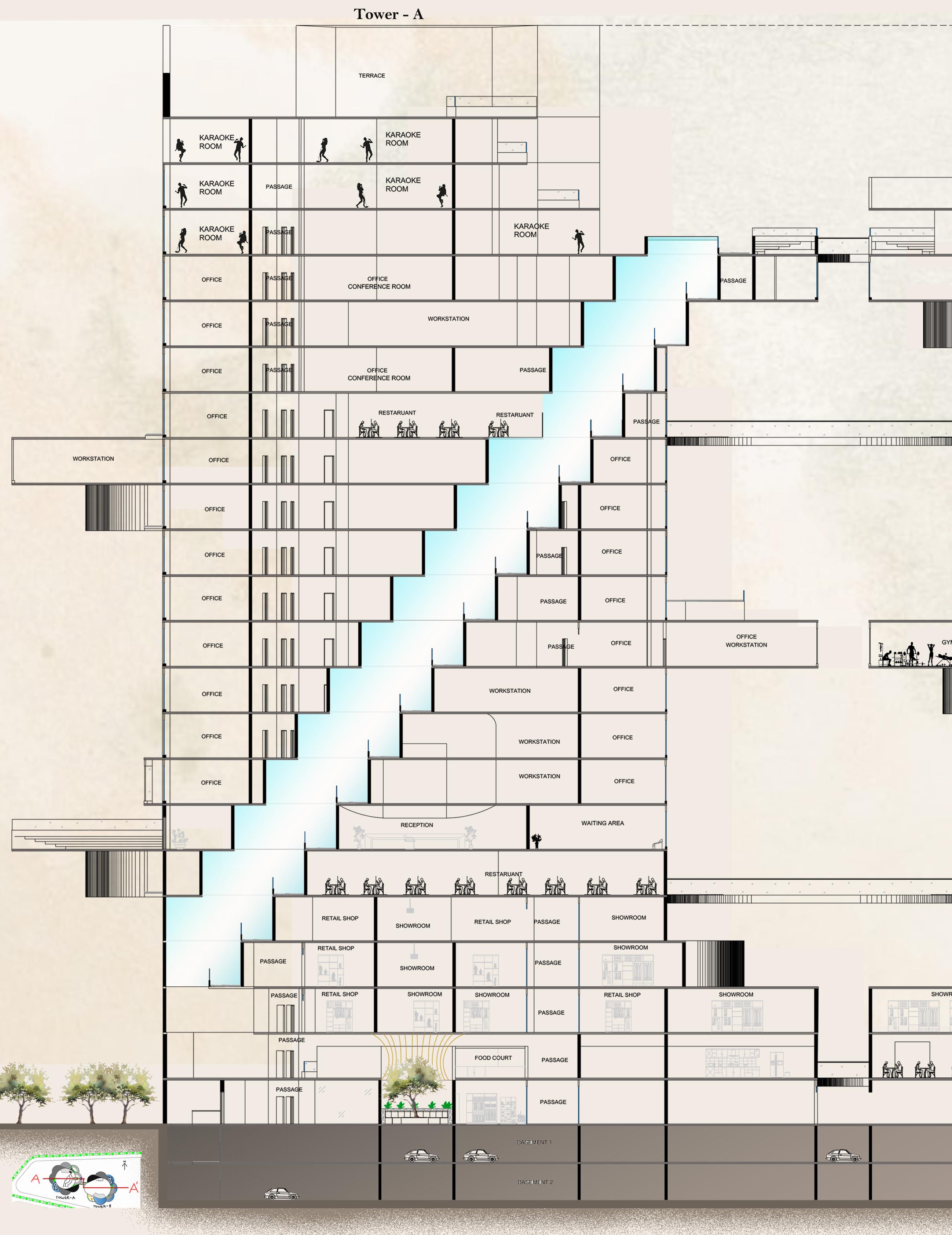

Floor -Wise Zoning

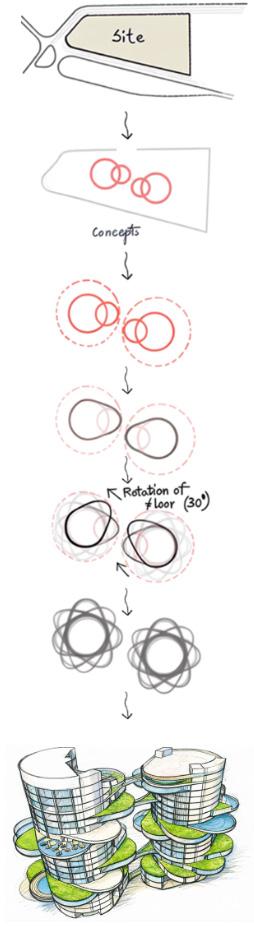

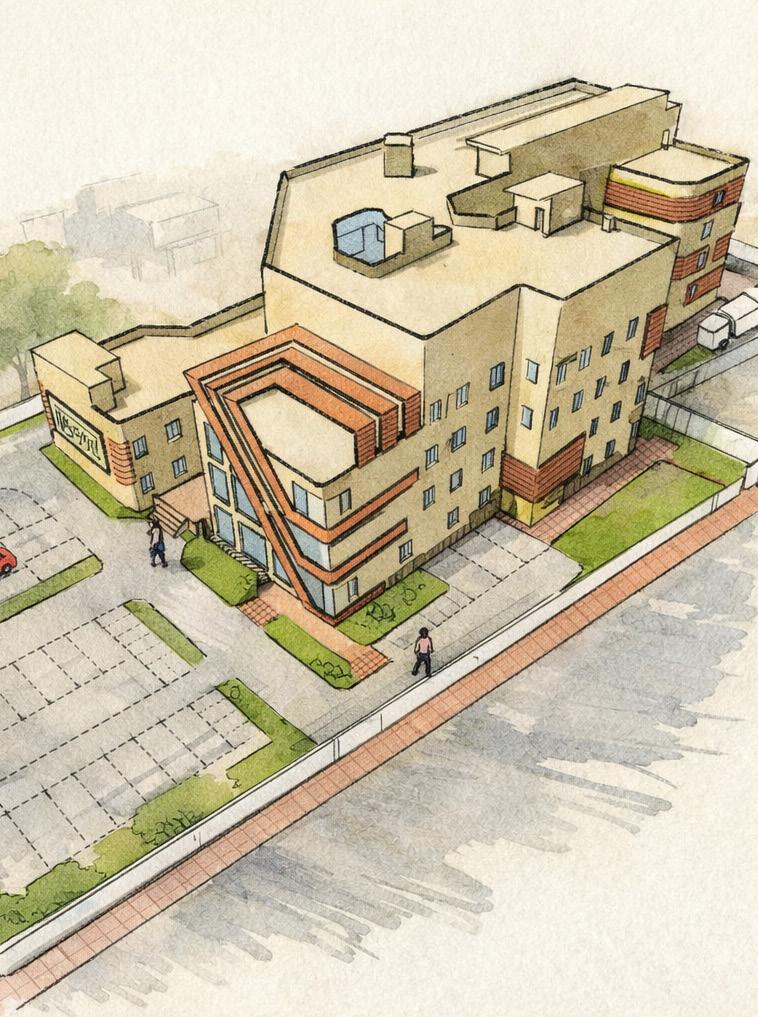

Perspective View Sketch

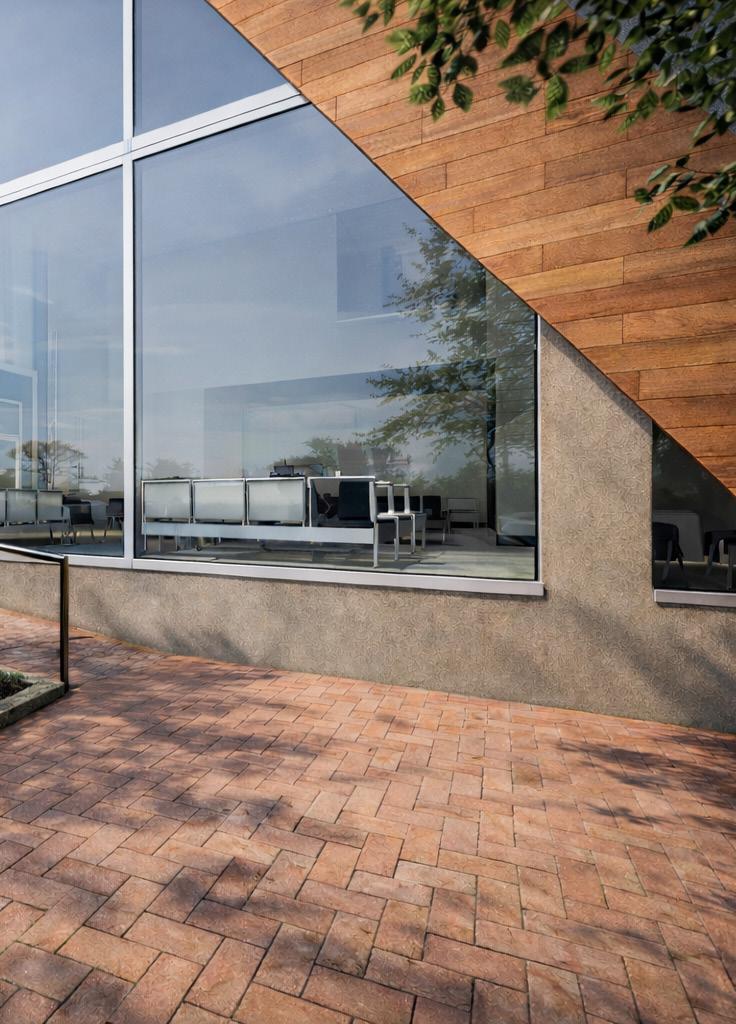

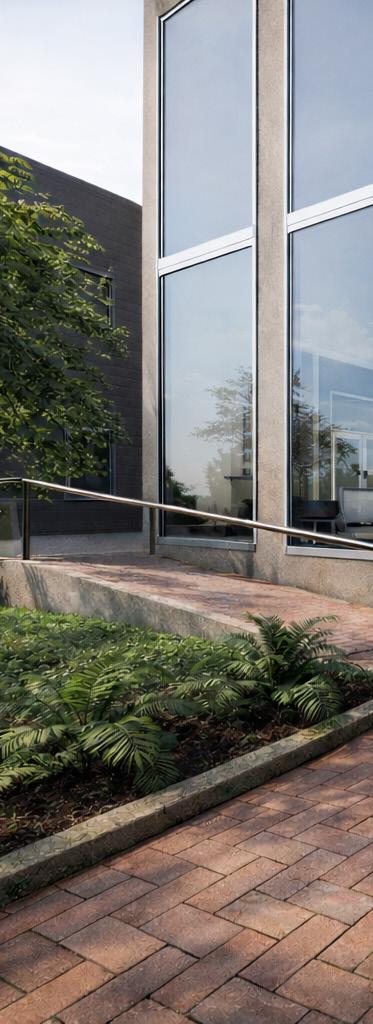

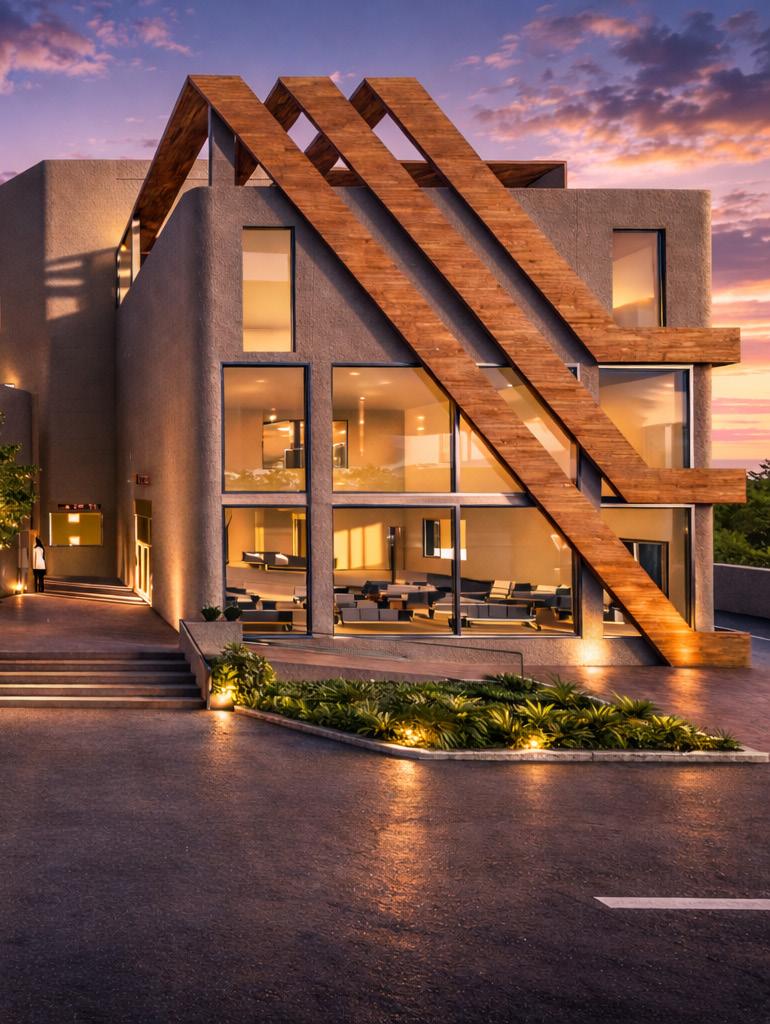

Material Study
The façade combines full -height glazing, exposed concrete, and timber cladding to create a balanced healthcare environment.
Large glazed panels enhance transparency and daylight penetration, promoting a sense of openness and patient comfort. Exposed concrete provides structural clarity and durability, while the warm timber accent softens the composition, adding a humane and welcoming character. Brick paving and landscape elements further strengthen the connection between the built form and healing outdoor spaces.

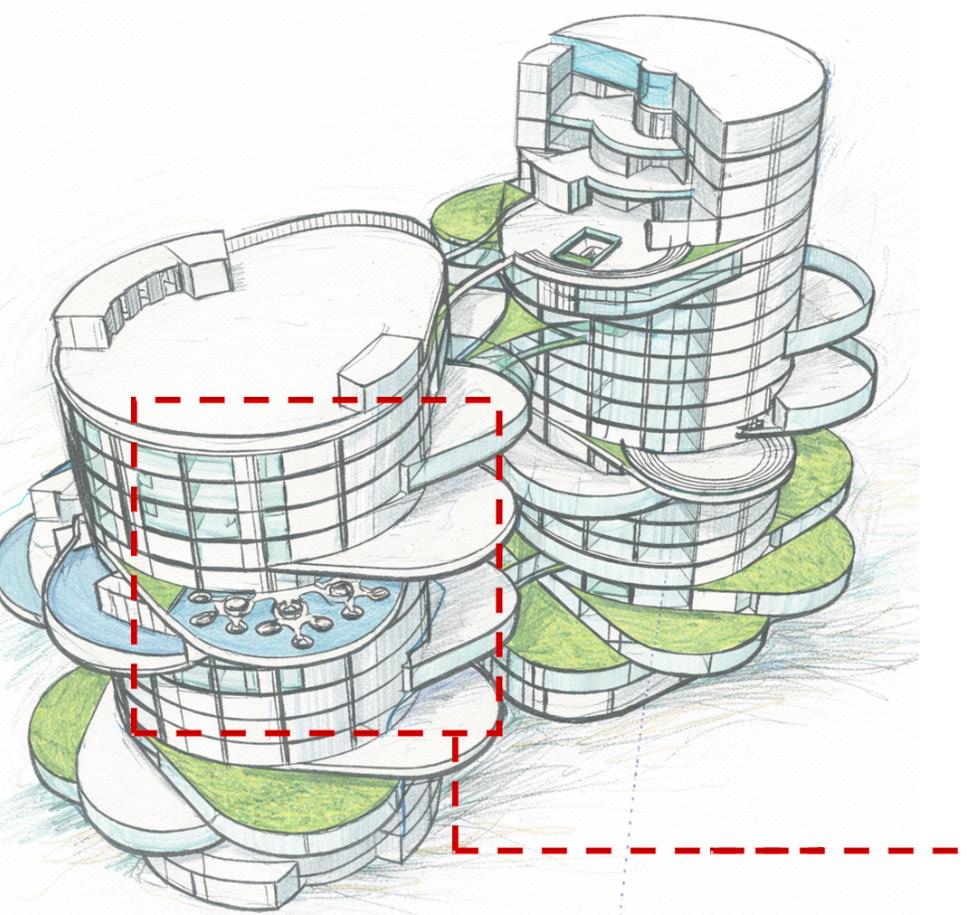

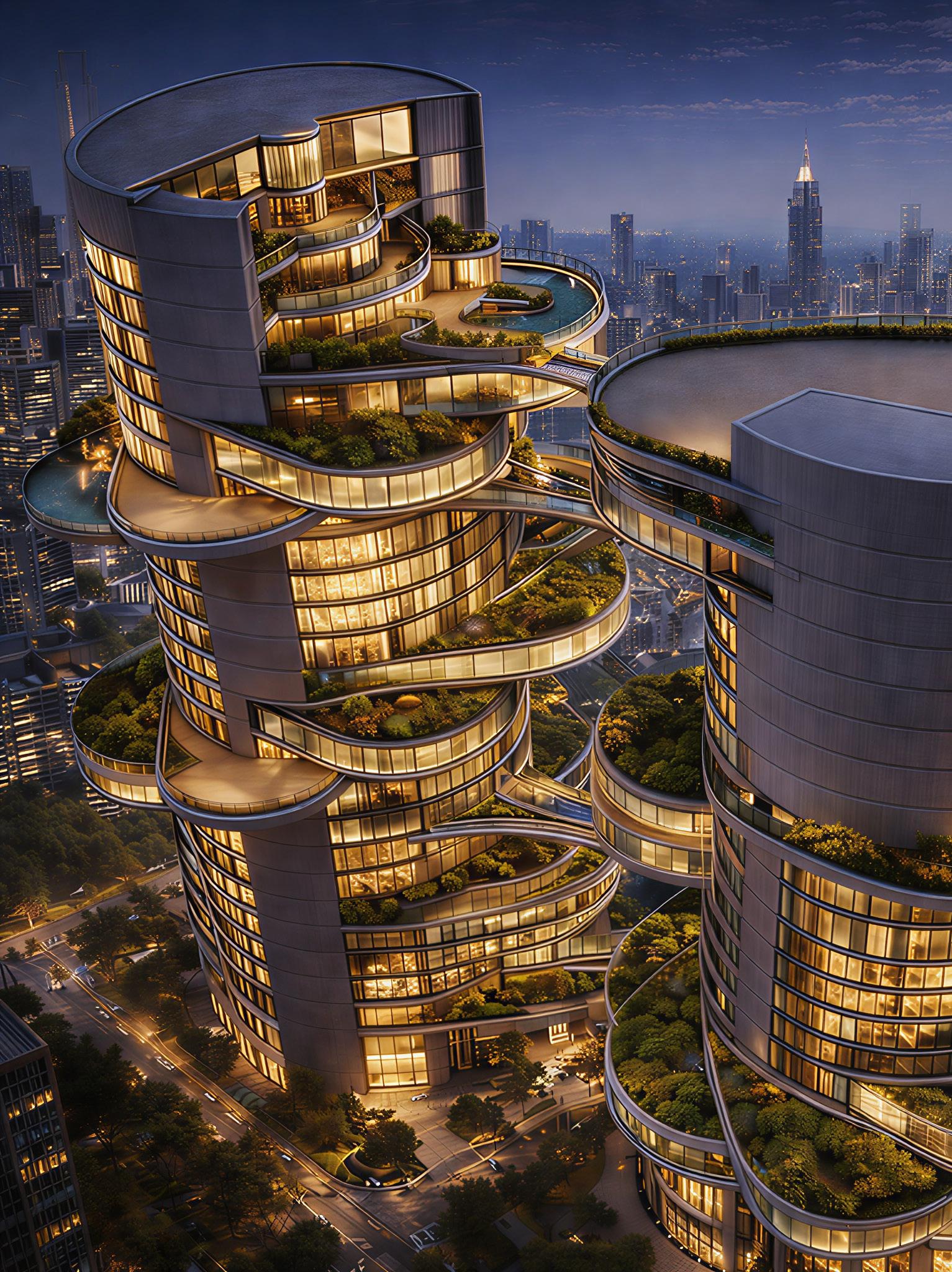

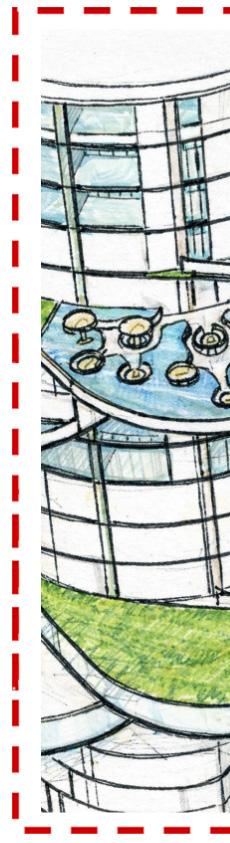

Perspective View Sketch Perspective

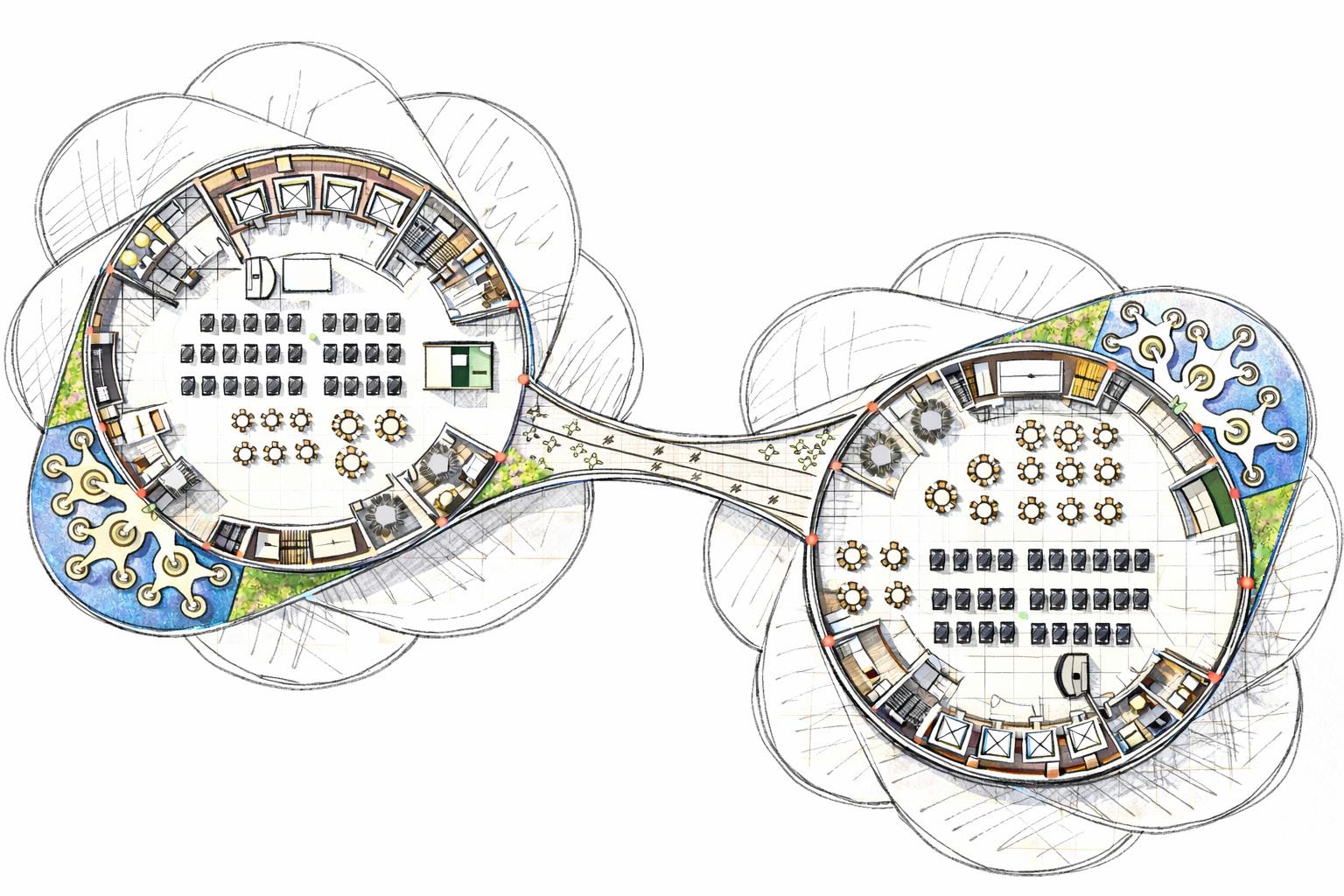

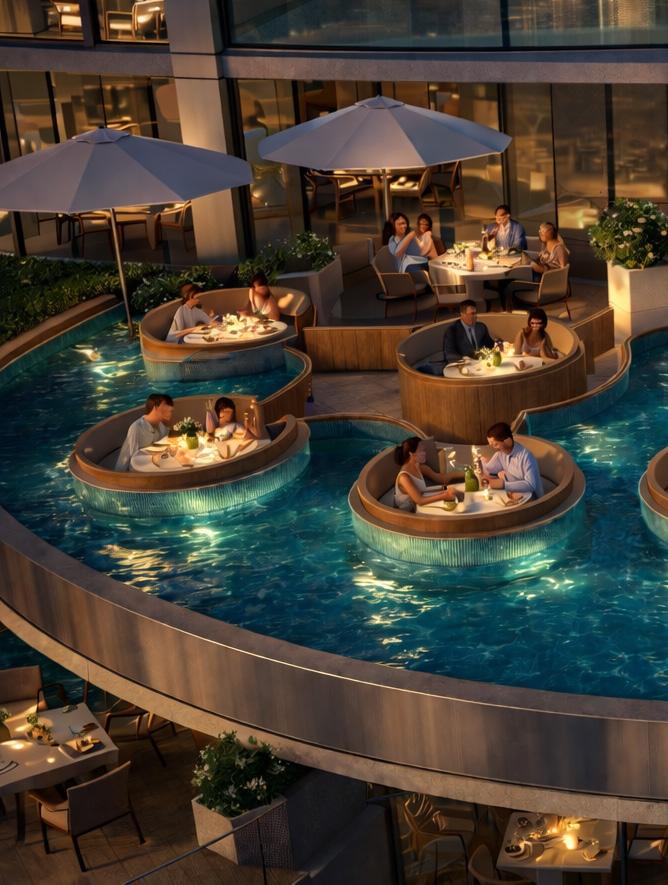

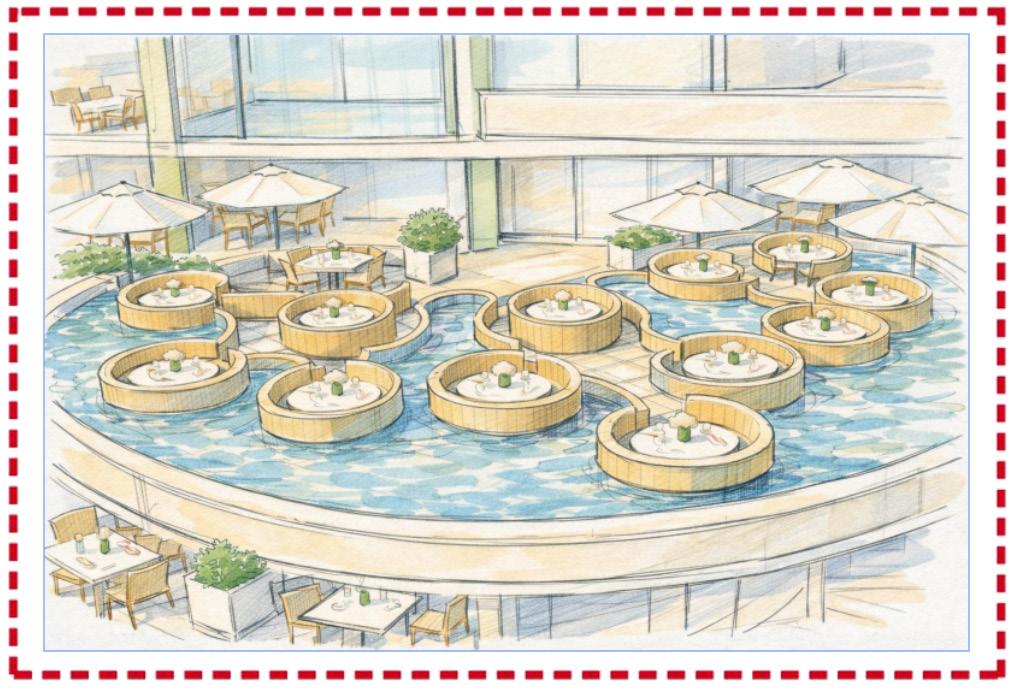

The 14th-floor terrace restaurant is conceived as a climate-responsive rooftop landscape that merges hospitality with environmental performance.
A continuous shallow water plane promotes evaporative cooling, reducing heat gain and enhancing thermal comfort in the semi-open dining areas. The organic layout also helps diffuse wind at height, creating a more stable and comfortable microclimate.
Integrated greenery acts as a thermal buffer while improving air quality and visual comfort. Shading elements minimize direct solar exposure without obstructing daylight or views, allowing the terrace to function as both a social destination and a sustainable extension of the high-rise ecosystem.

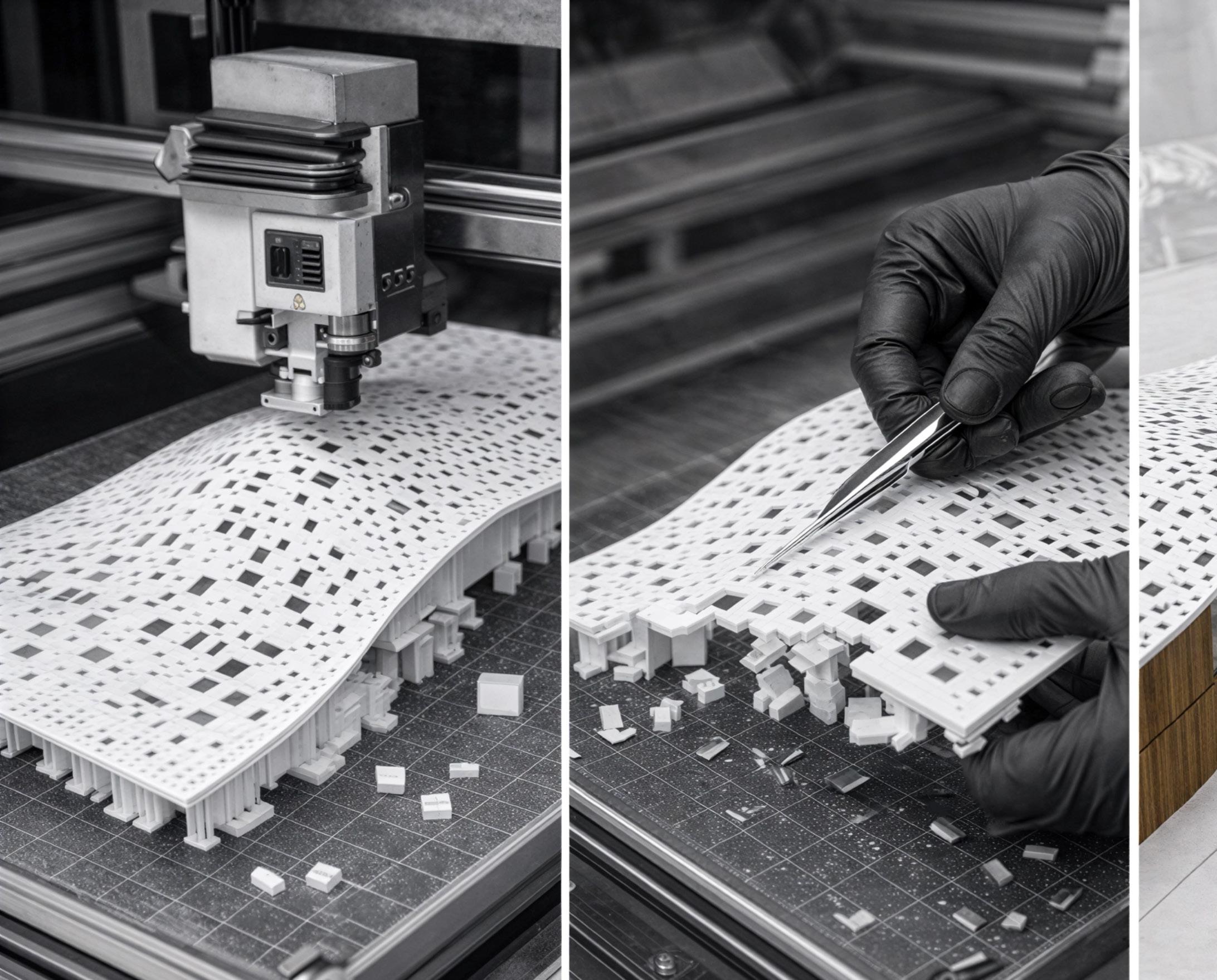

Perforated Organic Roof: Rapid Prototyping Workflow
Perforated Organic Roof
Computational Fabrication Study
Digital Precision ---Physical Craft
Parametric Generation
Gradient perforation developed in Rhino + Grasshopper using attractor logic, structural zoning, and controlled shell offset to achieve a lightweight yet structurally coherent surface.
Fabrication Calibration
Optimised 1.0mm watertight mesh prepared for high-resolution additive manufacturing.
Additive Production
FDM printed in white PLA
0.15mm layers | 20% infill | ~8-hour controlled build
Material Resolution
Sanded, bonded, and hand-finished to integrate seamlessly within the hybrid architectural model.

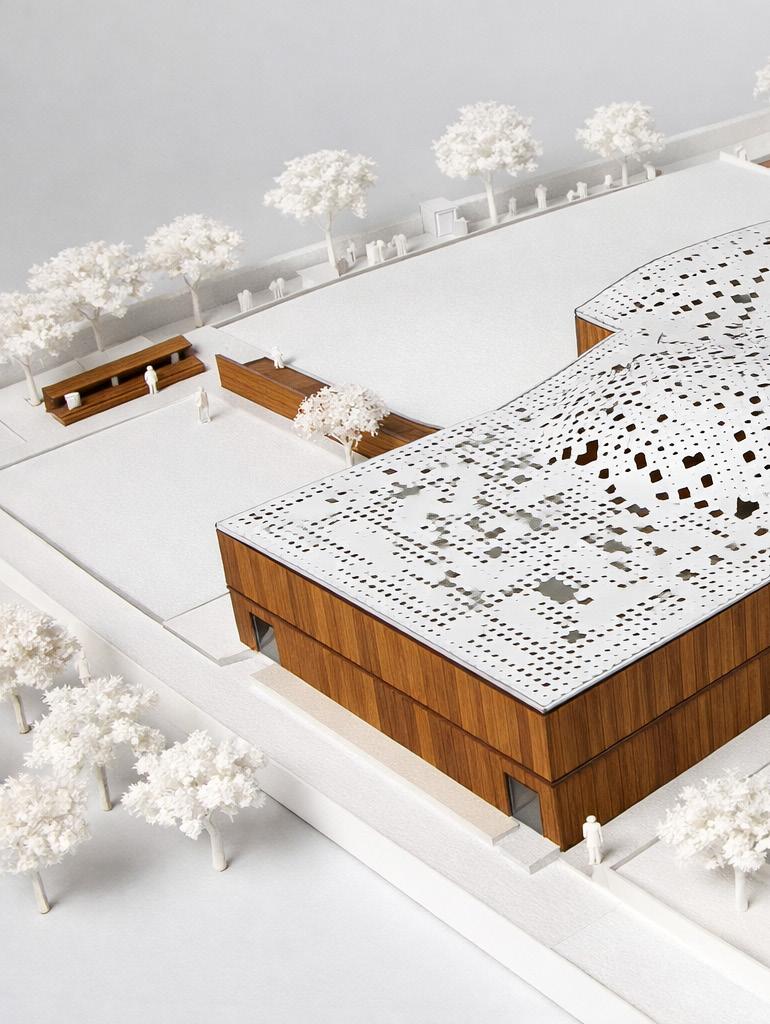

Physical Model

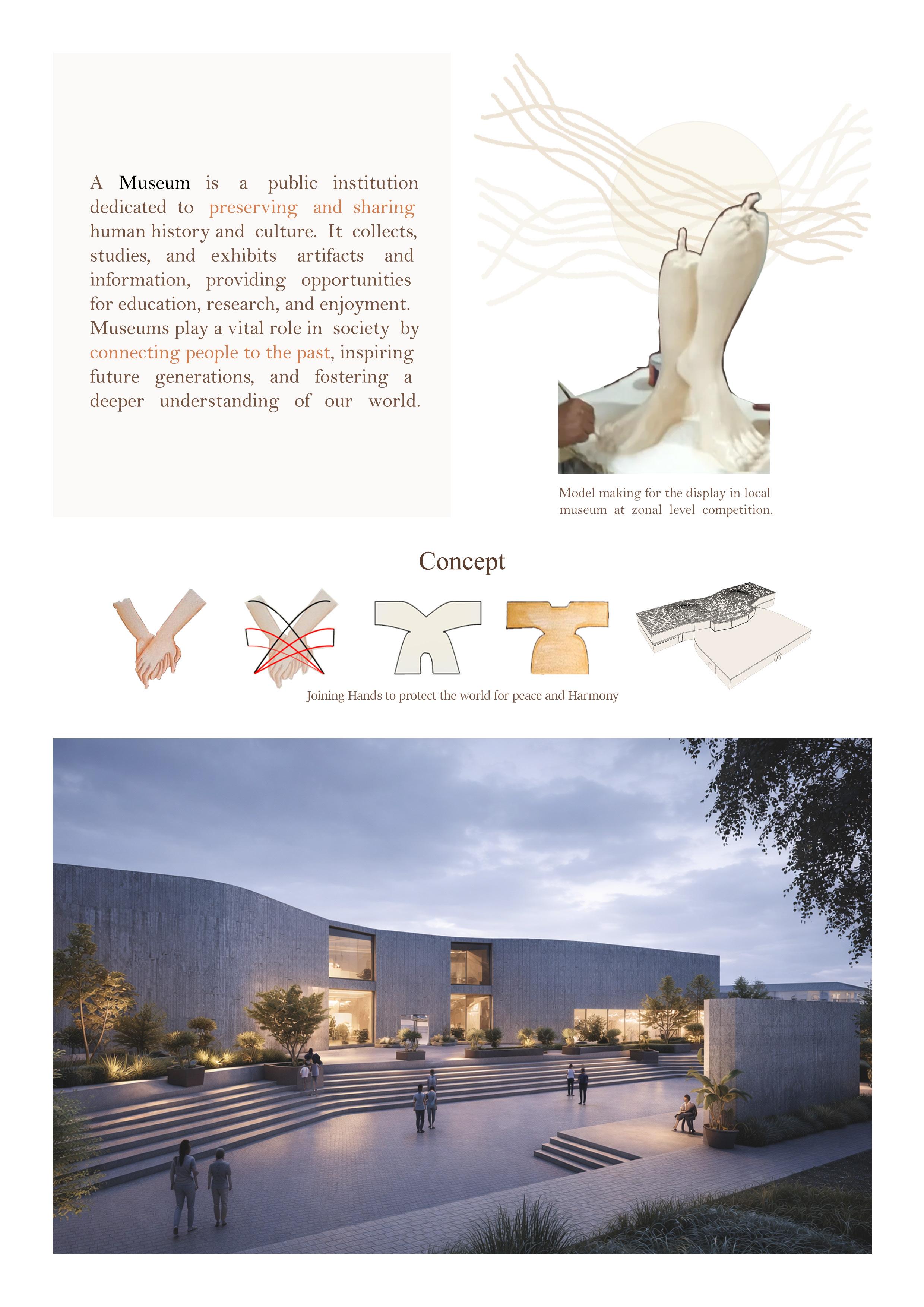

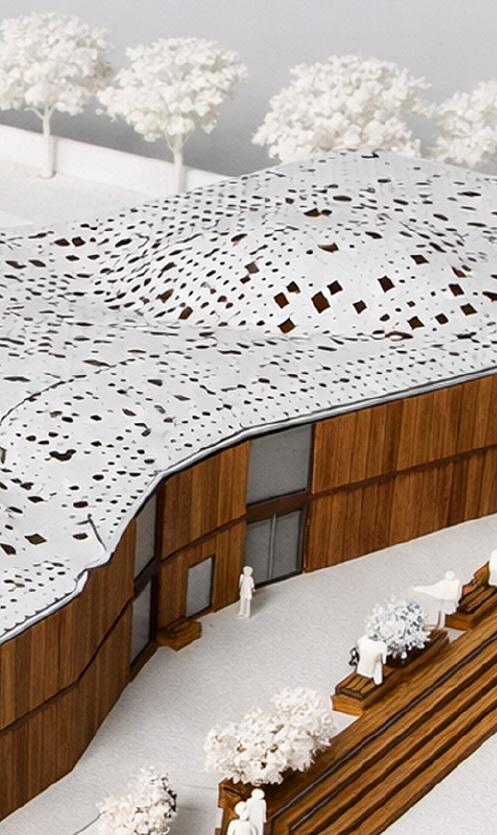

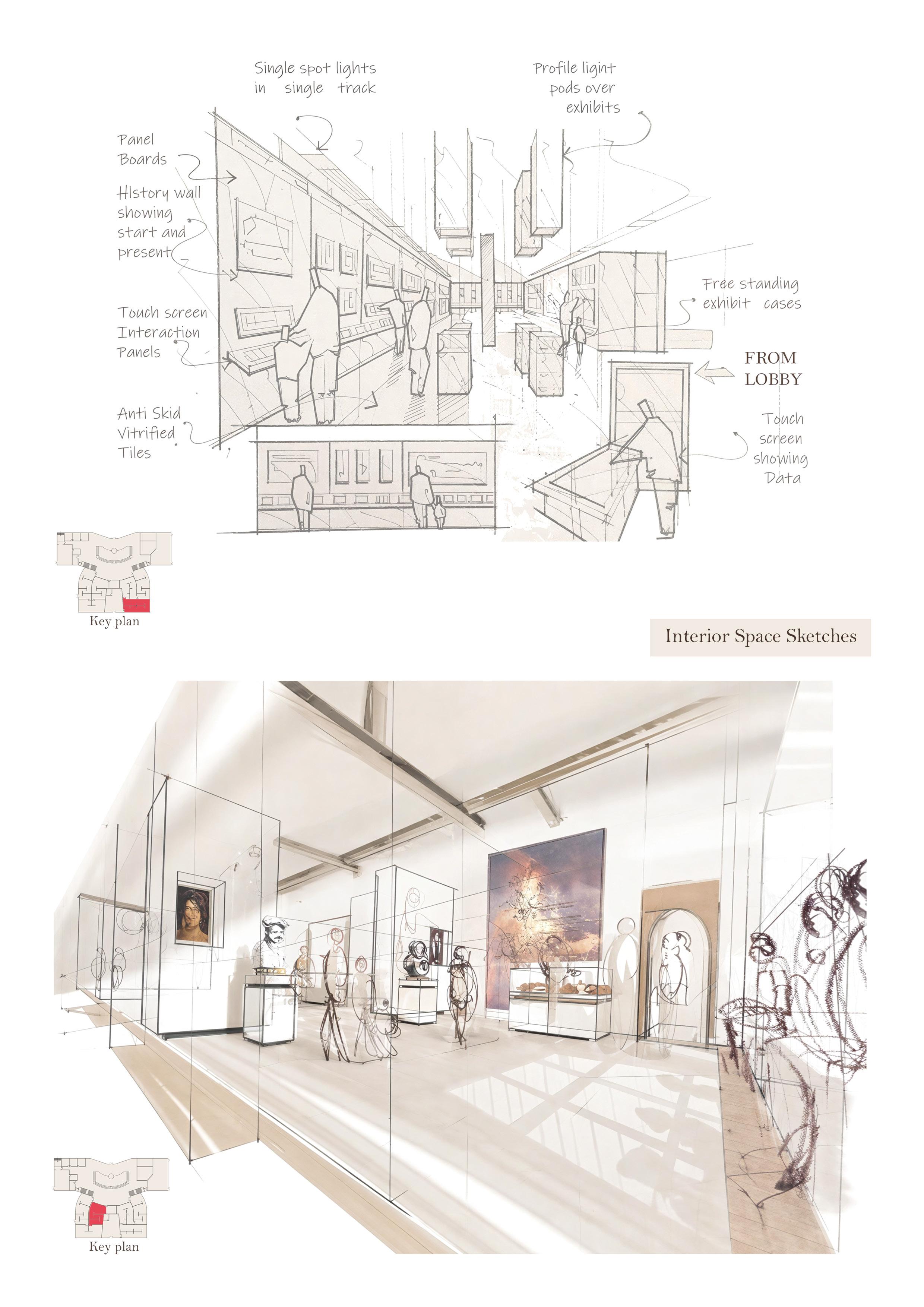

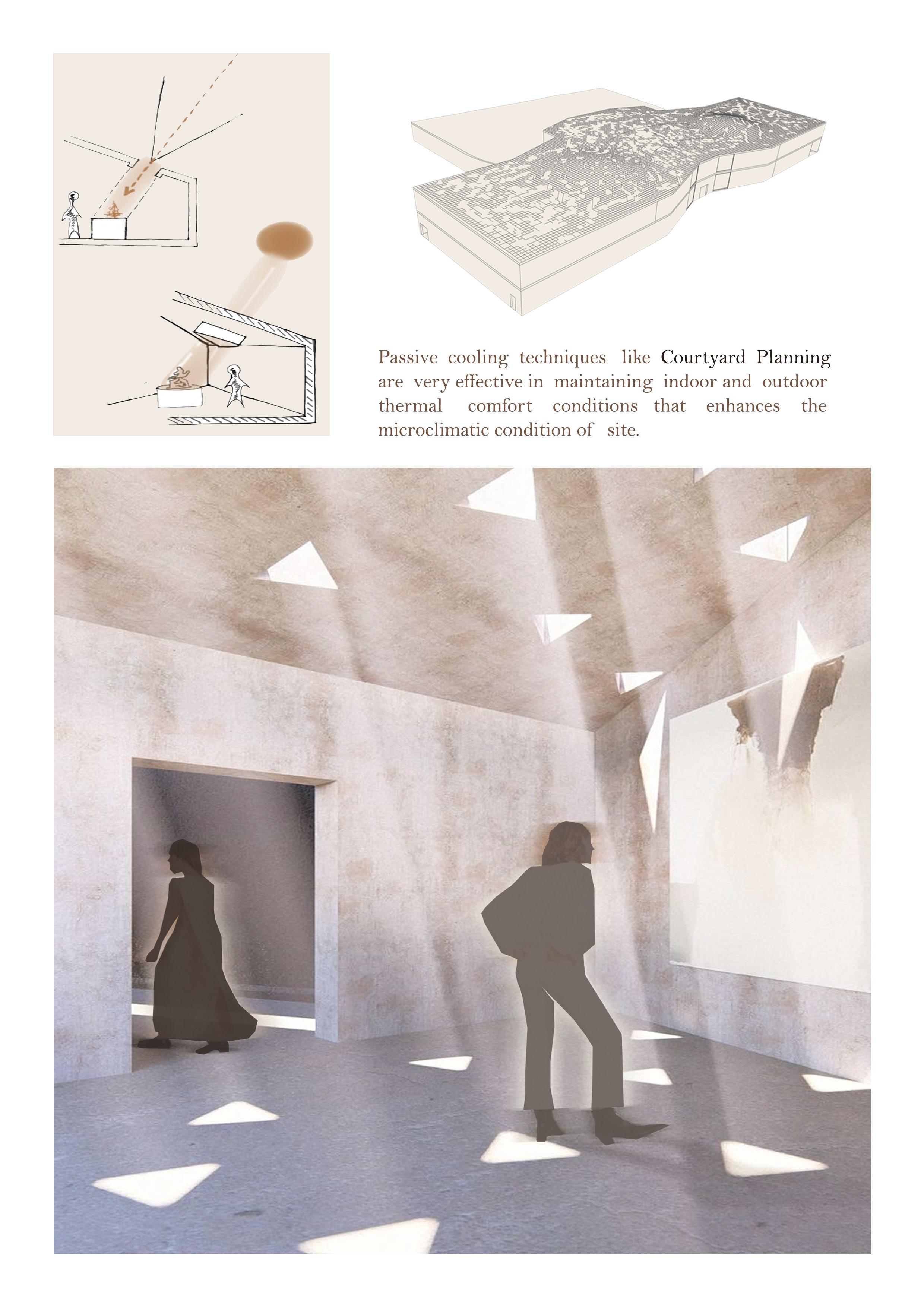

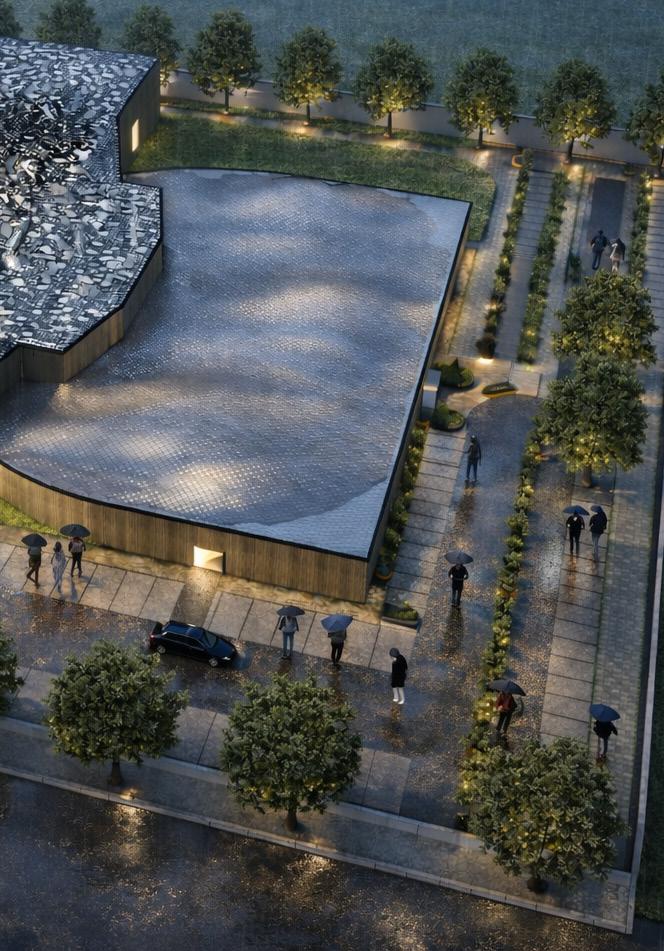

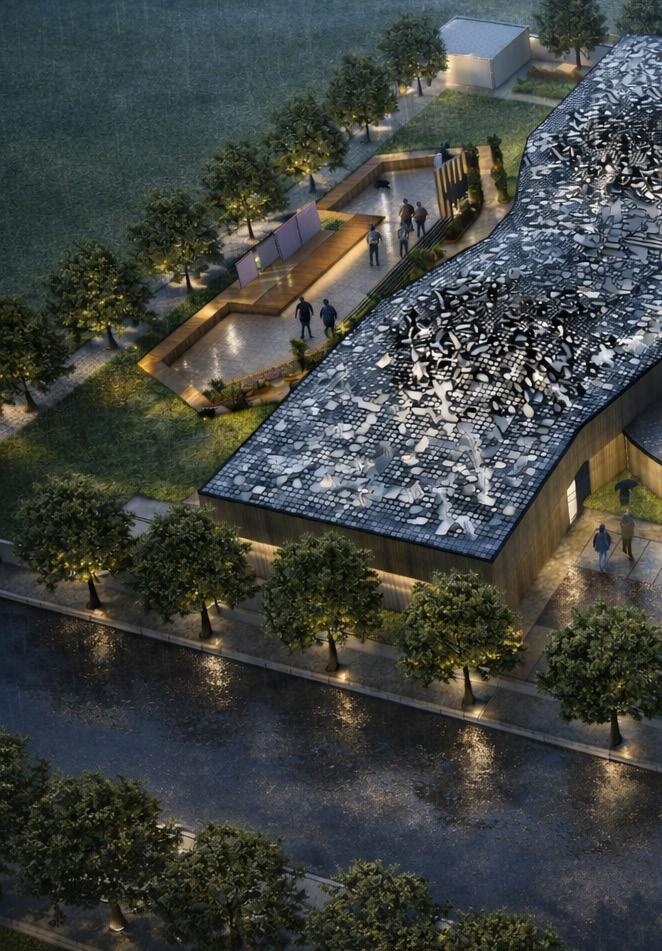

MEMORIAL MUSEUM
Project Type: Conceptual Handmade Model
Focus: Form Exploration | Light & Shadow | Material Expression
Design Approach
• Sculpted perforated roof to filter natural light
• Organic massing integrated with stepped public plaza
• Emphasis on movement, flow, and human interaction
Materials Used
• Foam board / Mount board – Primary roof and wall massing
• Ivory sheet / Card sheet – Perforated roof detailing
• Wooden veneer – Vertical façade cladding and stepped seating
• MDF / Plywood base – Site platform
• Handcrafted miniature trees & figures – Scale and spatial reference
Material Expression
• Timber-clad vertical volumes
• Monochromatic base to highlight form clarity
• Handcrafted detailing to express texture and depth
Spatial Intent
The stepped seating and open forecourt encourage gathering, circulation, and visual connectivity, reinforcing the building’s civic and public character.
Terrace
First Floor

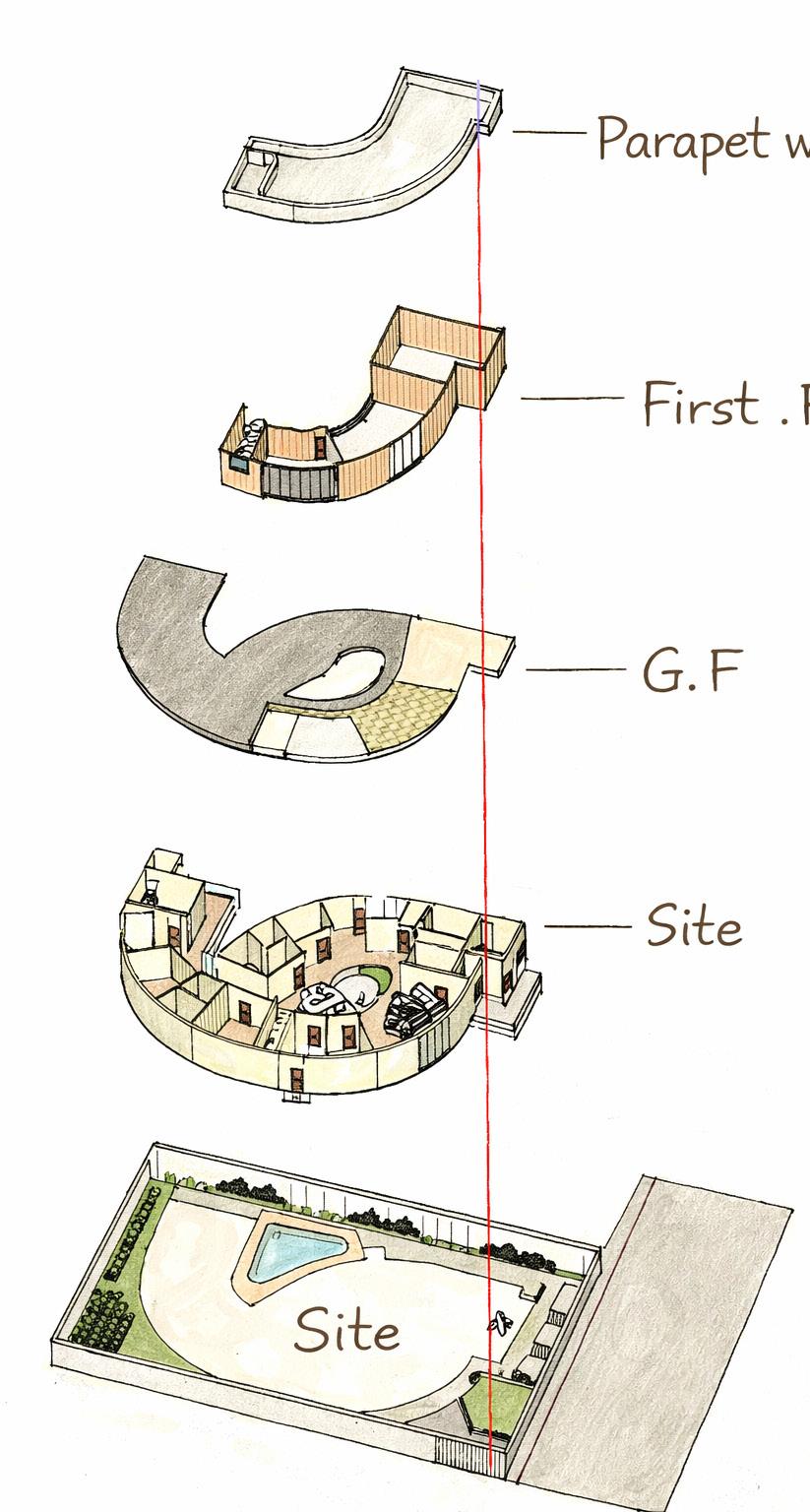

Exploded Axnometric View Sketch

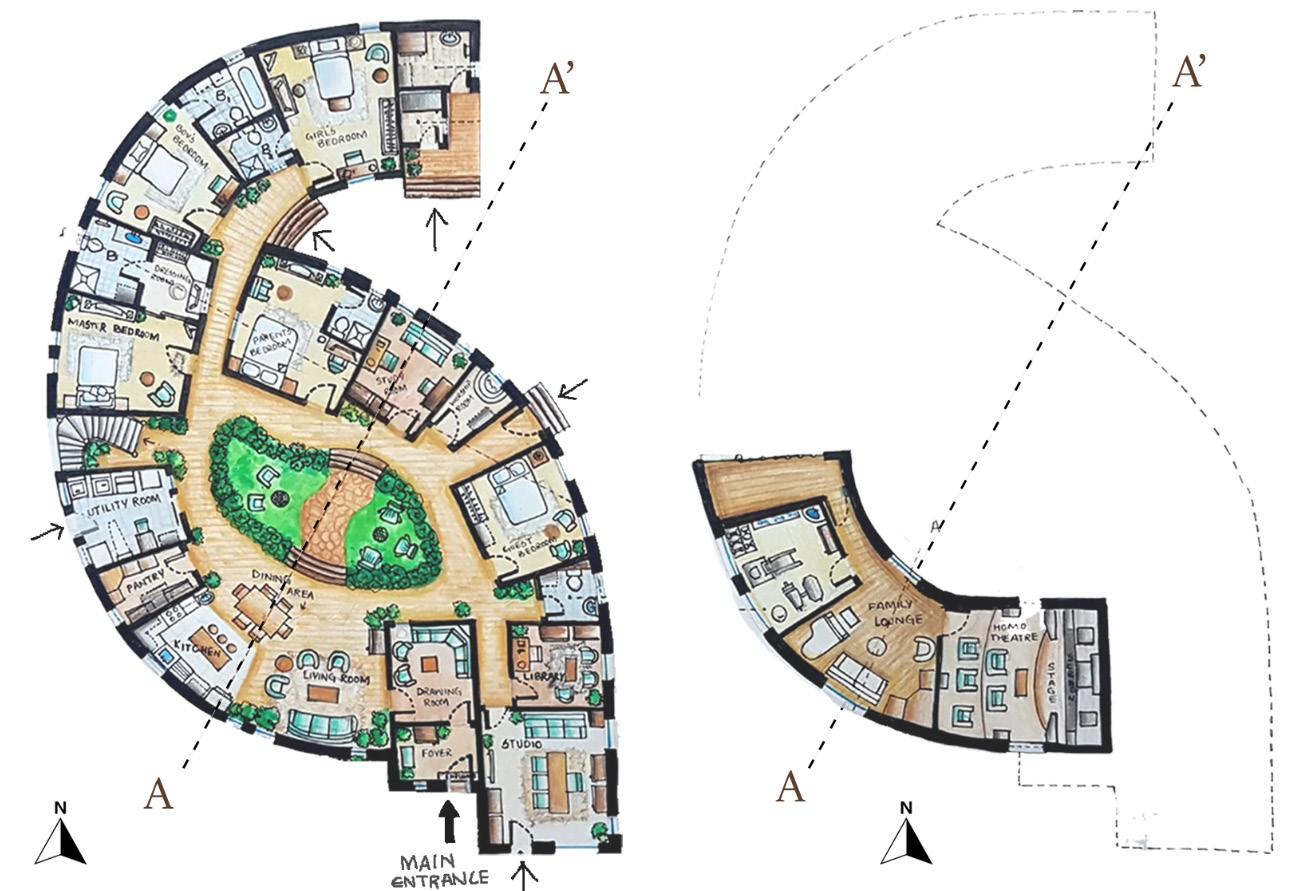

First Floor [Flooring ]
Ground Floor
