North Nashville Transit Center
Location: 2521 Clarksville Pike, Nashville, TN 37208
Client: WeGo Public Transit
Architect: Smith Gee Studio
Lighting Designer: Domingo Gonzalez Associates
Project Status: Completed in August 2024.
Role: Junior Designer - was involved from concept design through the beginning of the construction administration phase, contributing to design development, presentation materials, consultant coordination, and documentation support.
This project aims to enhance connectivity and safety through thoughtful interior and exterior lighting that supports wayfinding, comfort, and the center’s cultural identity.
KINDORF BEAM CLAMP OR EQUAL
(2) 1-1/2" X 3/4" KINDORF OR EQUAL CHANNEL, PAINTED
ADJUSTABLE SUSPENSION CABLE
JUNCTION BOX
RIGID CONDUIT RUN TIGHT TO STRUCTURE TO JUNCTION BOX
6" DIA. 1/4" THICK STEEL MOUNTING PLATE WITH 1-1/2" DIA. HOLE, PAINTED
CONDUIT STRAP
Detail 03 - L6/L6A Detail
Scale: 3/4”=1’-0”
4'-0"
Detail 01 - L6 Vignette
Scale: 1/8”=1’-0”
(1) 10-CONDUCTOR CABLE OR (2) 5-CONDUCTOR LEADER CABLES FOR POWER AND CONTROLS
1-1/2" X 1-1/2" KINDORF OR EQUAL CHANNEL BACK-TO-BACK WELDED, PAINTED
6" DIA. 1/4" THICK STEEL MOUNTING PLATE WITH 1-1/2" DIA. HOLE, PAINTED ADJUSTABLE SUSPENSION CABLE
Detail 04 - L6/L6A Detail
Scale: 1½” = 1’-0”
(4) ADJUSTABLE SUSPENSION CABLES 6'-0"
(6) ADJUSTABLE SUSPENSION CABLES
Detail 02 - L6A Vignette
Scale: 3/32”=1’-0”
WIRELESS CONTROL NODE MOUNTED TO NEMA 7-PIN RECEPTACLE
KINDORF OR EQUAL CHANNEL
6" DIA. 1/4" THICK STEEL MOUNTING PLATE WITH 1-1/2" DIA. HOLE, PAINTED
Detail 05 - L6 Plan
Scale: 1/4”=1’-0”
REINFORCED HANDHOLE WITH TAMPER-RESISTANT FASTENERS
RIGID CONDUIT(S)
Detail 08 X1/X1A Vignette
Scale: 1/8”=1’-0”
JUNCTION BOX
CONDUIT RUN TIGHT TO STRUCTURE TO JUNCTION BOX
1-1/2" X 1-1/2" KINDORF OR EQUAL CHANNEL BACK-TO-BACK WELDED, PAINTED
6" DIA. 1/4" THICK STEEL MOUNTING PLATE WITH 1-1/2" DIA. HOLE, PAINTED
GRIPPER ASSEMBLY TO LEVEL MIDDLE RING
L6: (4) ADJUSTABLE SUSPENSION CABLE
L6A: (6) ADJUSTABLE SUSPENSION CABLE
CONDUIT STRAP
GRIPPER ASSEMBLY TO LEVEL FIXTURE
KINDORF OR EQUAL CHANNEL
Detail 06 - L6A Plan
Scale: 1/4”=1’-0”
FLOOD LIGHT (NOT IN CONTRACT) MOUNTED TO KINDORF
WEATHERPROOF J-BOX WITH IN USE WEATHERPROOF OUTLET, ELV DIMMABLE
REINFORCED HANDHOLE WITH TAMPER-RESISTANT FASTENERS RIGID CONDUIT(S)
Detail 09 - X1B/X1C Vignette
Scale: 1/8”=1’-0”
WIRELESS CONTROL NODE WITH ELV DIMMABLE MODULE INSIDE LIGHTPOLE
6" DIA. 1/4" THICK STEEL MOUNTING PLATE WITH 1-1/2" DIA. HOLE, PAINTED
Detail 07 - L6/L6A Mounting Detail
Scale: 3/4”=1’-0”
6" DIA. 1/4" THICK MIDDLE RING WITH 1-1/2" DIA. HOLE, PAINTED
INDIRECT LEDS CIRCUITED SEPARATELY FROM DIRECT LEDS
DIRECT LEDS CIRCUITED SEPARATELY FROM INDIRECT LEDS, PROVIDE BARRIER FOR EM FIXTURES
REINFORCED HANDHOLE WITH TAMPERRESISTANT FASTENERS TAPERED 3 GA. GALVANIZED STEEL POLE, 9" DIA. AT BOTTOM AND 6.76" DIA. TOP, PAINTED.
Detail 10 X2P Vignette
Scale: 1/8”=1’-0”
Detail 11 - X2 Vignette
Scale: 1/16”=1’-0”
GENERAL: RECESSED NOM. 2' X 2' 25W 3033 LUMENS 3500K LED TROFFER WITH DIFFUSE LENS; 0-10V DIMMING
LOCATION: OFFICE, BREAKROOM, BREAKROOM TOILET, SECURITY
MOUNTING: RECESSED GRID AND GWB.
LAMPING: 3500K WHITE LED, 3033 DELIVERED LUMENS, LUMEN MAINTENANCE L80: MIN 60,000 HRS, YEAR WARRANTY.
DISTRIBUTION: SYMMETRICAL DISTRIBUTION WITH SPACING CRITERION (0-180): 1.24 (90-270): 1.24, (DIAGONAL): 1.34.
LENS: DIFFUSED RIBBED ACRYLIC ROUND LENS, REMOVABLE FOR MAINTENANCE.
DIMENSIONS: NOMINAL 23-13/16" WIDE X 23-13/16" LONG 2-3/8" HIGH LUMINAIRE.
MATERIAL: PRECISION DIE-FORMED 22-GAUGE C.R.S. HOUSING.
FINISH: MIN. 4 MIL, SEMI-GLOSS, POLYESTER POWDER COAT, WHITE.
LISTINGS: UL LISTED FOR DRY OR DAMP LOCATION, BUY AMERICA COMPLIANT.
DRIVER: INTEGRAL HIGH POWER FACTOR (>0.9), 50-60HZ, CLASS A SOUND RATING, 120-277V AC INPUT, DRIVER WITH THD LESS THAN OR EQUAL TO 20%. DRIVER SHALL HAVE A 5 YEAR WARRANTY.
STAND ALONE SYSTEM.
OFFICE/SECURITY: VACANCY SENSOR WITH LOCAL DIMMER SWITCH.
BREAKROOM: OCCUPANCY SENSOR TURN ON AT 50% WITH LOCAL DIMMER SWITCH. INACTIVE STATE TURNS OF FIXTURES.
BREAKROOM TOILET: VACANCY SENSOR WITH LOCAL TOGGLE SWITCH.
HE WILLIAMS #PT-2-2-L43-8-35RA-L30-DIM-UNVEQCLIPS FOR BREAKROOM TOILET: ADD -DFK-2424W OR APPROVED EQUAL BY LITHONIA, METALUX, COLUMBIA.
GENERAL: RECESSED NOM. 6" DIA. 10W 900 LUMENS 3500K LED DOWNLIGHT; ELV DIMMING
L3 CONNECT TO NETWORK CONTROLS.
LOCATION: RESTROOMS
MOUNTING: RECESSED.
LAMPING: 3000K WHITE LED, 900 DELIVERED LUMENS, LUMEN MAINTENANCE L70: MIN 25,000 HRS. 3 YEAR WARRANTY.
DISTRIBUTION: SYMMETRICAL DISTRIBUTION WITH SPACING CRITERION (0-180): 0.60 (90-270): 0.60, (DIAGONAL): 0.62. LENS: NONE.
DIMENSIONS: NOMINAL 7-1/2" WIDE X 10" LONG X 7-1/4" HIGH UMINAIRE.
MATERIAL: ACRYLIC ENAMELED 100% ALUMINUM HOUSING.
FINISH: SPECULAR ALZAK REFLECTOR WITH PAINTED WHITE FLANGE.
LISTINGS: UL LISTED FOR WET, DAMP OR DRY LOCATION, BUY AMERICA COMPLIANT.
DRIVER: NONE.
OCCUPANCY SENSOR TURN ON AT 100% AND DIM TO 50% DURING INACTIVE STATE. ASTRONOMICAL TIMECLOCK TO TURN OFF FIXTURES 1 HOUR AFTER BUSINESS HOURS AND TURN ON FIXTURES 1 HOUR BEFORE BUSINESS HOURS.
HOUSING: KIRLIN #IRR-06079-31 OR APPROVED EQUAL BY GOTHAM, EDISON PRICE.
LAMP: PHILIPS #10PAR38-COR-930 -F40-DIM-120V T20 6-1FB OR APPROVED EQUAL BY SATCO, CREE

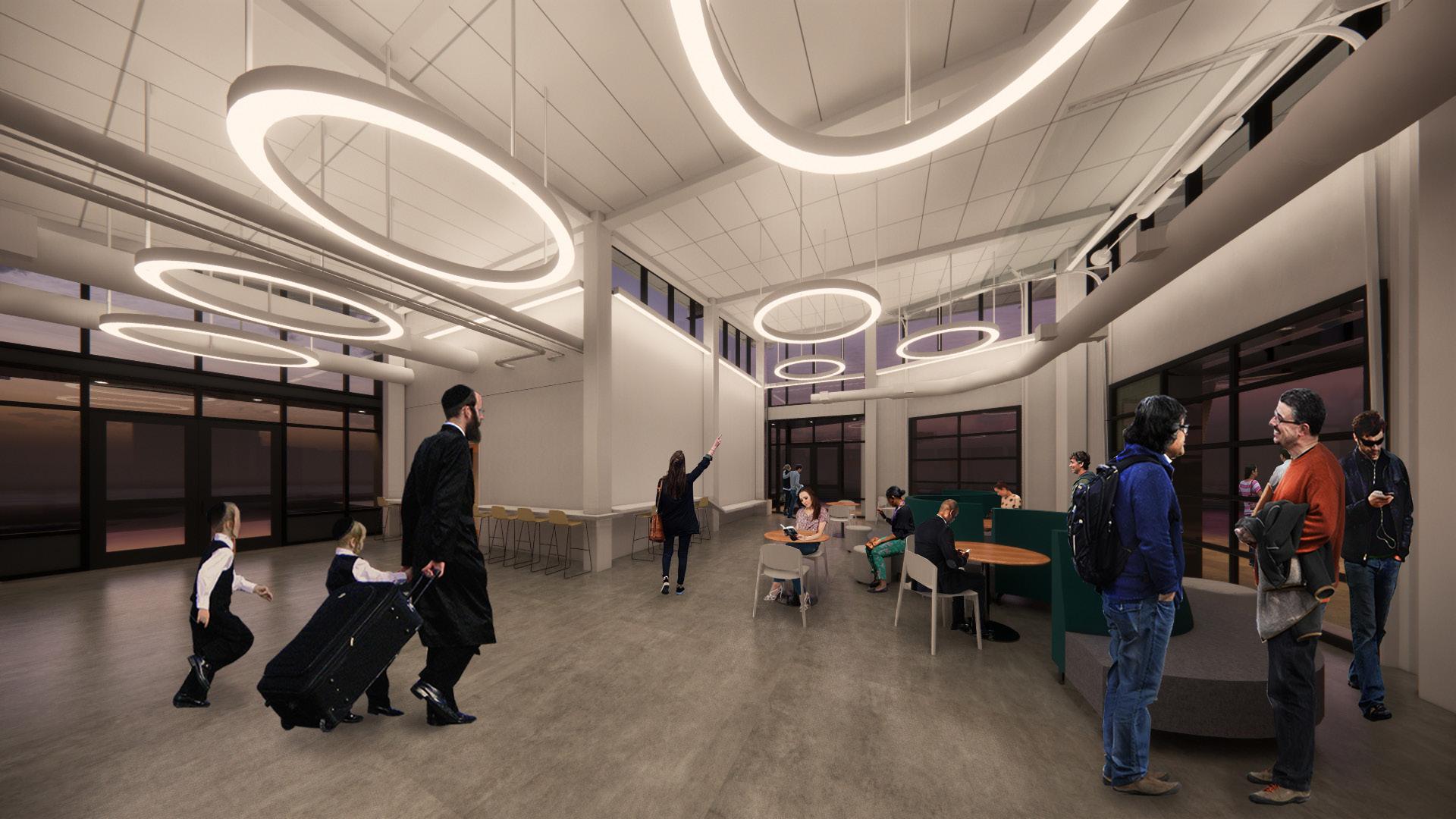

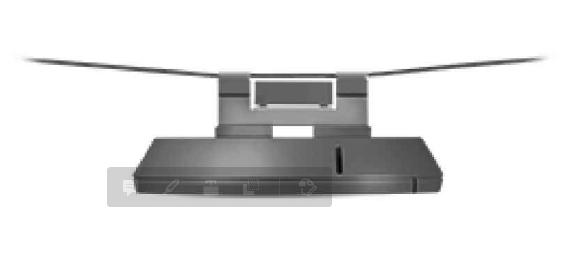

GENERAL: PENDANT MTD. NOM. 4' DIA. 82W 8170 LUMENS 3500K LED DIRECT AND INDIRECT LUMINAIRE; 0-10V DIMMING, 2-SWITCH LEGS
LOCATION: LOBBY.
MOUNTING: PENDANT MOUNTED.
LAMPING: 3500K WHITE LED, 8170 DELIVERED LUMENS (50% DIRECT, 50% INDIRECT), LUMEN MAINTENANCE L70: MIN 50,000 HRS, 5 YEAR WARRANTY.
DISTRIBUTION: SYMMETRICAL DIRECT/INDIRECT DISTRIBUTION.
LENS: WHITE OPAL LENS.
DIMENSIONS: NOMINAL 3" WIDE X 4.75" HIGH X 4' DIA. LUMINAIRE.
MATERIAL: SOLID 6063-T5 EXTRUDED ALLOY HOUSING.
FINISH: MIN. MIL, SEMI-GLOSS, POLYESTER POWDER COAT, COLOR PER ARCHITECT.
LISTINGS: UL LISTED FOR DAMP LOCATION, BUY AMERICA COMPLIANT.
DRIVER: INTEGRAL TWO (2) HIGH POWER FACTOR (>0.9), 50-60HZ, CLASS SOUND RATING, 120-277V AC INPUT, DRIVERS WITH THD LESS THAN OR EQUAL TO 20%. DRIVERS SHALL HAVE A 5 YEAR WARRANTY.
CONNECT TO NETWORK CONTROLS.
CONTROL VIA PRESET SCENES. ASTRONOMICAL TIME CLOCK OVERRIDE.
FIXTURES IN DAYLIGHT ZONES SHALL HAVE REMOTE DAYLIGHT HARVESTING SENSORS.
FORUM #ARCUD-43-325LED35 /325LED35-WOL/WOLC[SEE DETAIL]-CIR -4'DIA-UNV-FINISH PER ARCHITECTF-D10V-SW
FOR EM: ADD: -EC OR APPROVED EQUAL BY XAL, OCL.
GENERAL: PENDANT MTD. NOM. 4-3/4" WIDE X 4' LONG 56W 7664 LUMENS 3500K LED DOWNLIGHT WITH DIFFUSE LENS; MTD. AT 9'-0" A.F.F.; 0-10V DIMMING
LOCATION: MECHANICAL ELECTRICAL ROOMS
MOUNTING: PENDANT MOUNTED.
LAMPING: 3500K WHITE LED, 7664 DELIVERED LUMENS, LUMEN MAINTENANCE L70: MIN 60,000 HRS, YEAR WARRANTY.
DISTRIBUTION: SYMMETRICAL DISTRIBUTION WITH SPACING CRITERION (0-180): 1.20 (90-270): 1.28, (DIAGONAL): 1.36.
LENS: DIFFUSED ACRYLIC LENS, REMOVABLE FOR MAINTENANCE.
DIMENSIONS: NOMINAL 4-3/4" WIDE X 4'-0" LONG X 3-13/16" HIGH LUMINAIRE.
MATERIAL: 22-GAUGE DIE-FORMED C.R.S. HOUSING.
FINISH: MIN. 4 MIL, SEMI-GLOSS, POLYESTER POWDER COAT, WHITE.
LISTINGS: UL LISTED FOR DAMP LOCATION, BUY AMERICA COMPLIANT.
DRIVER: INTEGRAL HIGH POWER FACTOR (>0.9), 50-60HZ, CLASS A SOUND RATING, 120-277V AC INPUT, DRIVER WITH THD LESS THAN OR EQUAL TO 20%. DRIVER SHALL HAVE A 5 YEAR WARRANTY.
STAND ALONE SYSTEM.
MECHANICAL & ELECTRICAL: TIMER SWITCH WITH BLINK WARNING BEFORE SHUTOFF
HE WILLIAMS #76R-4-L94-8-35L78-DIM-UNV OR APPROVED EQUAL BY LITHONIA, METALUX, COLUMBIA.
GENERAL: CONTINUOUS SURFACE MTD. NOM. 0.6" WIDE 3.7W/LF 310LM/LF 3500K LED TAPE LIGHT; 120V PHASE DIMMING
L4 CONNECT TO NETWORK CONTROLS.
LOCATION: RESTROOMS
MOUNTING: SURFACE MOUNTED IN COVE.
LAMPING: 3500K WHITE LED, 310 DELIVERED LUMENS PER LINEAR FOOT, LUMEN MAINTENANCE L70: MIN 50,000 HRS, YEAR WARRANTY.
DISTRIBUTION: SYMMETRICAL DISTRIBUTION WITH SPACING CRITERION (0-180): 1.24 (90-270): 1.28, (DIAGONAL): 1.38.
LENS: PVC UL94 5VA RATED
DIMENSIONS: NOMINAL 0.63" WIDE X 0.31 HIGH UMINAIRE. SEE LAYOUT FOR LENGTHS.
MATERIAL: PVC UL94 5VA RATED JACKETING.
FINISH: NONE.
LISTINGS: UL LISTED FOR WET LOCATION, IP65 CERTIFIED, BUY AMERICA COMPLIANT.
DRIVER: NONE.
OCCUPANCY SENSOR TURN ON AT 100% AND DIM TO 50% DURING INACTIVE STATE. ASTRONOMICAL TIMECLOCK TO TURN OFF FIXTURES 1 HOUR AFTER BUSINESS HOURS AND TURN ON FIXTURES 1 HOUR BEFORE BUSINESS HOURS.
DIODE LED #DI-120-INFBSC335-SEE PLAN FOR RUN LENGTH-CHA OR APPROVED EQUAL BY APOGEE, Q TRAN, ORGANIC LIGHTING, JESCO LIGTHTING.
GENERAL: PENDANT MTD. NOM. 6' DIA. 123W 12252 LUMENS 3500K LED DIRECT AND INDIRECT LUMINAIRE; 0-10V DIMMING, 2-SWITCH LEGS
LOCATION: LOBBY
MOUNTING: PENDANT MOUNTED.
LAMPING: 3500K WHITE LED, 12252 DELIVERED LUMENS, (50% DIRECT, 50% INDIRECT), LUMEN MAINTENANCE L70: MIN 50,000 HRS, 5 YEAR WARRANTY.
DISTRIBUTION: SYMMETRICAL DIRECT/INDIRECT DISTRIBUTION.
LENS: WHITE OPAL LENS.
DIMENSIONS: NOMINAL 3" WIDE X 4.75" HIGH LUMINAIRE.
MATERIAL: SOLID 6063-T5 EXTRUDED ALLOY HOUSING.
FINISH: MIN. MIL, SEMI-GLOSS, POLYESTER POWDER COAT, COLOR PER ARCHITECT.
LISTINGS: UL LISTED FOR DAMP LOCATION, BUY AMERICA COMPLIANT.
DRIVER: INTEGRAL TWO (2) HIGH POWER FACTOR (>0.9), 50-60HZ, CLASS SOUND RATING, 120-277V AC INPUT, DRIVERS WITH THD LESS THAN OR EQUAL TO 20%. DRIVERS SHALL HAVE A 5 YEAR WARRANTY.
CONNECT TO NETWORK CONTROLS.
CONTROL VIA PRESET SCENES. ASTRONOMICAL TIME CLOCK OVERRIDE.
FIXTURES IN DAYLIGHT ZONES SHALL HAVE REMOTE DAYLIGHT HARVESTING SENSORS.
FORUM #ARCUD-43-325LED35 /325LED35-WOL/WOLC[SEE DETAIL]-CIR -6'DIA-UNV-FINISH PER ARCHITECTF-D10V-SW
FOR EM: ADD: -EC OR APPROVED EQUAL BY XAL, OCL.
GENERAL: POLE MTD. NOM. 20-9/16" DIA. X 25-5/16" HIGH 33W 3919 LUMENS 3000K LED LUMINAIRE WITH TYPE 5 DISTRIBUTION; MTD. TO 12'-0" TALL POLE; 0-10V DIMMING
LOCATION: WALKWAY/DRIVEWAYS
MOUNTING: POLE MOUNTED.
LAMPING: 3000K WHITE LED, 3919 DELIVERED LUMENS, LUMEN MAINTENANCE L70: MIN 70,000 HRS, 5 YEAR WARRANTY.
PHOTOSENSOR ENERGIZED WITH ASTRONOMICAL TIMECLOCK TO DIM AND DE-ENERGIZE.
L2A STAND ALONE SYSTEM.
GENERAL: WALL MTD. NOM. 4-3/4" WIDE X 4' LONG 56W 7664 LUMENS 3500K LED DOWNLIGHT WITH DIFFUSE LENS; MTD. ABOVE DOOR FRAME; 0-10V DIMMING.
LOCATION: ABOVE JANITOR CLOSET DOOR MOUNTING: WALL MOUNTED.
LAMPING: 3500K WHITE LED, 7664 DELIVERED LUMENS, LUMEN MAINTENANCE L70: MIN 60,000 HRS, YEAR WARRANTY.
DISTRIBUTION: SYMMETRICAL DISTRIBUTION WITH SPACING CRITERION (0-180): 1.20 (90-270): 1.28, (DIAGONAL): 1.36.
LUMINAIRE.
MATERIAL: 22-GAUGE DIE-FORMED C.R.S. HOUSING.
FINISH: MIN. 4 MIL, SEMI-GLOSS, POLYESTER POWDER COAT, WHITE.
LISTINGS: UL LISTED FOR DAMP LOCATION, BUY
DRIVER SHALL HAVE A 5 YEAR WARRANTY.
TIMER SWITCH WITH BLINK WARNING BEFORE SHUTOFF
HE WILLIAMS #76R-4-L94-8-35L78-DIM-UNV OR APPROVED EQUAL BY LITHONIA, METALUX, COLUMBIA.
LOCATION: LOBBY
MOUNTING: WALL MOUNTED.
LAMPING: 3500K WHITE LED, 650 DELIVERED LUMENS PER LN. FT. (50% DIRECT, 50% INDIRECT), LUMEN MAINTENANCE L70: MIN 50,000 HRS, YEAR WARRANTY.
DISTRIBUTION: SYMMETRICAL DIRECT/INDIRECT DISTRIBUTION.
LENS: WHITE OPAL LENS.
DIMENSIONS: NOMINAL 4.5" WIDE X 4.75" HIGH LUMINAIRE WITH 8" LONG ARM.
MATERIAL: SOLID 6063-T5 EXTRUDED ALLOY HOUSING.
FINISH: MIN. MIL, SEMI-GLOSS, POLYESTER POWDER COAT, COLOR PER ARCHITECT.
LISTINGS: UL LISTED FOR DAMP LOCATION, BUY AMERICA COMPLIANT.
DRIVER: INTEGRAL TWO (2) HIGH POWER FACTOR (>0.9), 50-60HZ, CLASS A SOUND RATING, 120-277V AC INPUT, DRIVERS WITH THD LESS THAN OR EQUAL TO 20%. DRIVERS SHALL HAVE A 5 YEAR WARRANTY. CONNECT TO NETWORK CONTROLS.
CONTROL VIA PRESET SCENES. ASTRONOMICAL TIME CLOCK OVERRIDE.
L5 FORUM # SAUD-44-325LED35 /325LED35-WOL/WOLW-SEE PLAN FOR RUN LENGTHUNV-FINISH PER ARCHITECTSF-D10V-F-SW OR APPROVED EQUAL BY XAL, OCL. GENERAL: CONTINUOUS WALL MTD. NOM. 4.5" WIDE 6.5W/LF 650LM/LF 3500K LED DIRECT AND INDIRECT LENSED LUMINAIRE; 0-10V DIMMING, 2-SWITCH LEGS
DISTRIBUTION: SYMMETRICAL DISTRIBUTION WITH SPACING CRITERION (0-180): 6.90 (90-270): 6.56, (DIAGONAL): 5.26.
LENS: PATTERNED ACRYLIC WITH SILICONE OPTICS
DIMENSIONS: NOMINAL 20-9/16" DIA. X 25-5/16" HIGH UMINAIRE.
MATERIAL: CAST ALUMINUM HOUSING
FINISH: MIN. MIL, SEMI-GLOSS, POLYESTER POWDER COAT, COLOR PER ARCHITECT.
LISTINGS: UL LISTED FOR WET LOCATION, IP65 CERTIFIED, BUY AMERICA COMPLIANT.
DRIVER: INTEGRAL HIGH POWER FACTOR (>0.9), 50-60HZ, CLASS A SOUND RATING, 120-277V AC INPUT, DRIVER WITH THD LESS THAN OR EQUAL TO 20%. DRIVER SHALL HAVE A YEAR WARRANTY.

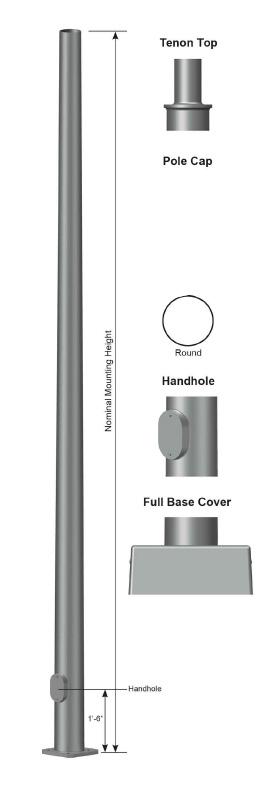

POLE: POLE SHALL BE ROUND TAPERED ALUMINUM (POLE HEIGHT NOM. 12' A.F.G, BOTTOM NOM. 5" O.D., TOP NOM. 3-1/2" O.D.), MOUNTED OVER REINFORCED CONCRETE FOUNDATION (SEE CIVIL/STRUCTURAL ENGINEER'S DRAWINGS). POLE FINISH SHALL BE MIN. 4 MIL POLYESTER POWDER COAT, COLOR PER ARCHITECT. POLE & ANCHORING SHALL BE CAPABLE OF WITHSTANDING 90 MPH WINDS WITH 1.14 GUST FACTOR U.O.N. THE CONTRACTOR SHALL OBTAIN TENNESSEE LICENSED STRUCTURAL ENGINEER TO PREPARE CALCULATIONS OF THE LIGHT POLE WITH ALL THE POLE ATTACHMENTS. CONNECT TO NETWORK CONTROLS.
X1/ X1B SELUX LUMINAIRE: #MST-R5R-1-5G350 -30-XX-FINISH PER ARCHITECT-UNV-DM -TLR POLE: #AT535-12-FINISH COLOR PER ARCHITECT-BC5 FOR X1B: ADD TO POLE: REC2-KINDORF[SEE DETAIL] OR APPROVED EQUAL BY INVUE, KIM LIGHTING, LITHONIA.
4 MIL, SEMI-GLOSS, POLYESTER POWDER COAT, COLOR PER ARCHITECT.
LISTINGS: UL LISTED FOR WET LOCATION, IP66 CERTIFIED, BUY AMERICA COMPLIANT. DRIVER: REMOTE HIGH POWER FACTOR (>0.9),
