2 0 0 9 D A S S A U L T F A L C O N 7 X
SPECIFICATION - Apr-26
AIRCRAFT OVERVIEW
2009 DASSAULT FALCON 7X SN 7X-33
HIGHLIGHTS:
Engines enrolled on P&W ESP Gold
APU enrolled on Honeywell MSP Gold
Swift Broadband Wi-Fi
Always Hangared
No Damage History
2008 Interior | 2025 Exterior | 12 Pax
ADDITIONAL FEATURES:
Honeywell Primus Epic EASy II (5 Gen) th
HUD | SVS | EVS
FANS-I/A (CPDLC, ADS-C) | CPDLC-ATN
ADS-B Out | WAAS/LPV
Securaplane 500 w/ 2 Ext. Cameras
Quiet Brake Ops. SB 7X-431-R1 inst. 25-Apr-19
High Accomplishment of SBs
The content wherein is intended for informational purposes and does not constitute representations or warranties Interested buyers are responsible for confirming the accuracy of all details Images shown may have been edited, including removing identifying information to respect the privacy of the current owner. This aircraft may be removed from the market without notice.
AIRCRAFT SPECIFICATIONS
2009 DASSAULT FALCON 7X SN 7X-33
PERFORMANCE:
TAKEOFF PERFORMANCE: SL ISA BFL
ft 5000' +20C BFL 8,045 ft RANGE: LONG-RANGE CRUISE (4 Pax) 5,754 nm FERRY (2 Crew + Full Tanks) 5,840 nm SEATS FULL 5,466 nm MAX CRUISE 5,195 nm
AIRCRAFT SPECIFICATIONS
2009 DASSAULT FALCON 7X SN 7X-33
Registration: N7X
Base Location: Amelia Island - FL, USA (KFHB)
Year of Manufacture: 2008
Entry Into Service: 2009
Total Hours*: 2,458
Total Landings*: 906 AIRFRAME:
Honeywell GTCP36-150 (FN) P-146 Total Hours* 1,199 Total Starts* 2,077
PROGRAMS:
ENGINES: P&W ESP Gold
APU: Honeywell MSP Gold
AVIONICS: HAPP & CASP
Maintenance Tracking: CAMP
**Inspectionintervalsandduedatesshownarebasedonthelatestavailablemaintenancestatusreports Certaintasksassociatedwithscheduledinspectionsmaybeperformedoutofsequencein accordancewiththeapprovedmaintenanceprogram.Allmaintenanceinformationissubjecttoverificationbytheaircraft’smaintenanceproviderandreviewofthecompleteaircraftrecords.
AIRCRAFT SPECIFICATIONS
2009 DASSAULT FALCON 7X SN 7X-33
AVIONICS: HONEYWELL PRIMUS EPIC EASy II (5 Gen) th
ADF: Dual Honeywell DF-855
AHRS: Single Honeywell KSG-7200
AP/FD: Dual Honeywell
COMMS (HF): Dual Honeywell KHF-1050 w/ SELCAL
COMMS (VHF): Triple Honeywell TR-866B
CVR/FDR: Dual Honeywell AR-Combi
DME: Dual Honeywell DM-855
EFIS: 4-Tube Honeywell DU-1310
FMS: Triple Honeywell
GPS: Dual Honeywell NV-875X
IRS: Triple Honeywell Laseref V MIRU
NAV: Dual Honeywell NV-875X
RAD ALT: Dual Honeywell KRA-405B
TAWS: Single Honeywell EGP-100 EGPWS w/ Windshear Detect
TCAS: Single ACSS TCAS-3000 TCAS-II w/ ch.7.1
XPDR: Dual Honeywell XS-857A (Mode S) WX RAD: Single Honeywell Primus 880
AIRCRAFT SPECIFICATIONS
2009 DASSAULT FALCON 7X SN 7X-33
ADDITIONAL EQUIPMENT:
AIR DATA MODULE: Triple Honeywell AZ-200
AUDIO PANEL: Triple Honeywell AV-900
CURSOR CONTROL DEVICE: Dual Honeywell CC-700
ELT: Single Honeywell RESCU 406AF
ESIS: Single Honeywell EASy
FLIGHT GUIDANCE PANEL: Single Honeywell GP-500
LIGHTNING SENSOR SYSTEM: Single Honeywell LSZ-860
MODULAR AVIONICS UNIT: Triple Honeywell MAU-913
MODULAR RADIO CABINET: Dual Honeywell MRC-855A
MULTI-PURPOSE CONTROLLER: Triple Honeywell MC-850
QUICK ACCESS RECORDER: Single Honeywell
SATCOM: Single Thrane Aero HSD+ Satcom AeroH+ w/ 3 Sigma7 Handsets
AIRCRAFT SPECIFICATIONS
2009 DASSAULT FALCON 7X SN 7X-33
ADDITIONAL FEATURES:

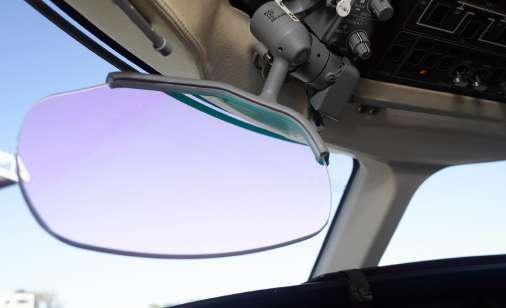

HUD - Collins HGS-5860
FANS-1/A (CPDLC, ADS-C)
EASy Central Maintenance Computer
Miltope TP-4840 Flight Deck Printer
SmartView SVS
Cat I. Manual & Cat. II Monitoring
ADS-B Out | WAAS/LPV
EASy CMF w/ (AFIS/SATAFIS)
EVS - Suresight CMC-2600
Securaplane 500 w/ 2 Ext. Cameras
Jeppesen Electronic Charts
Auto-Descent Mode

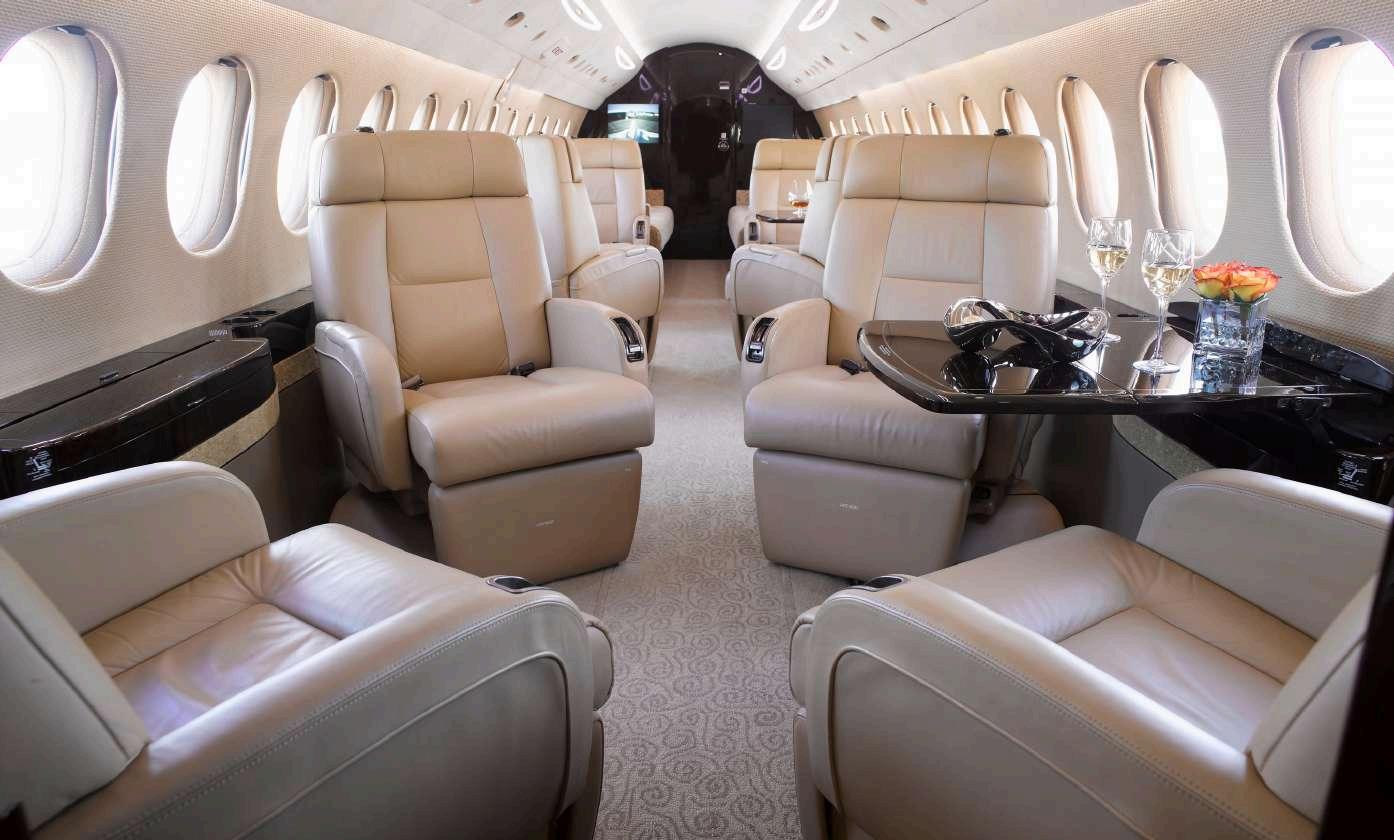

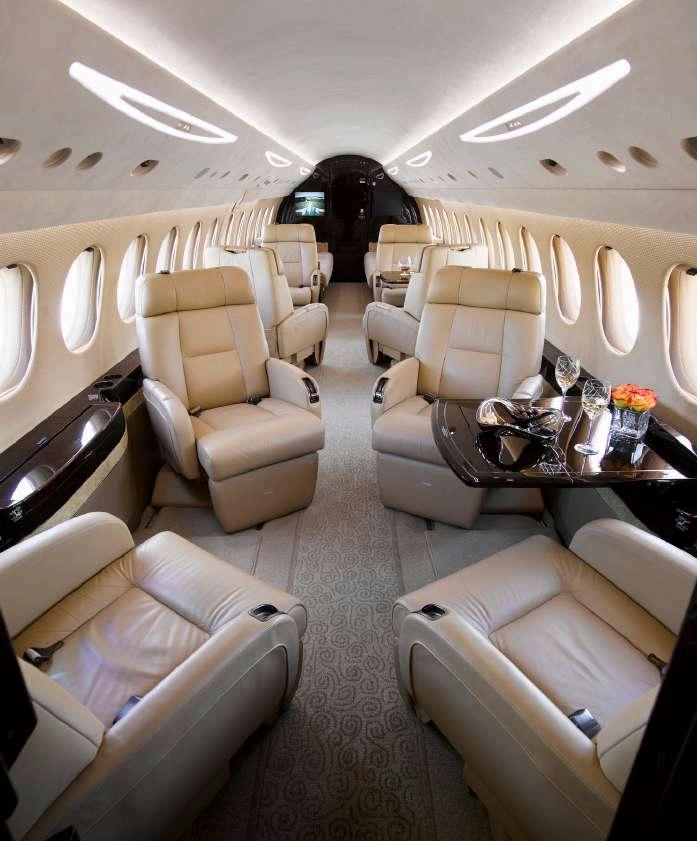

AIRCRAFT INTERIOR
2009 DASSAULT FALCON 7X SN 7X-33

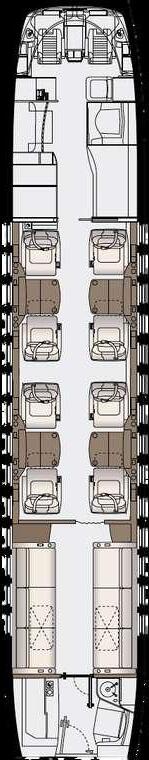

LAYOUT:
Configuration: Twelve (12) Passengers
Seating:

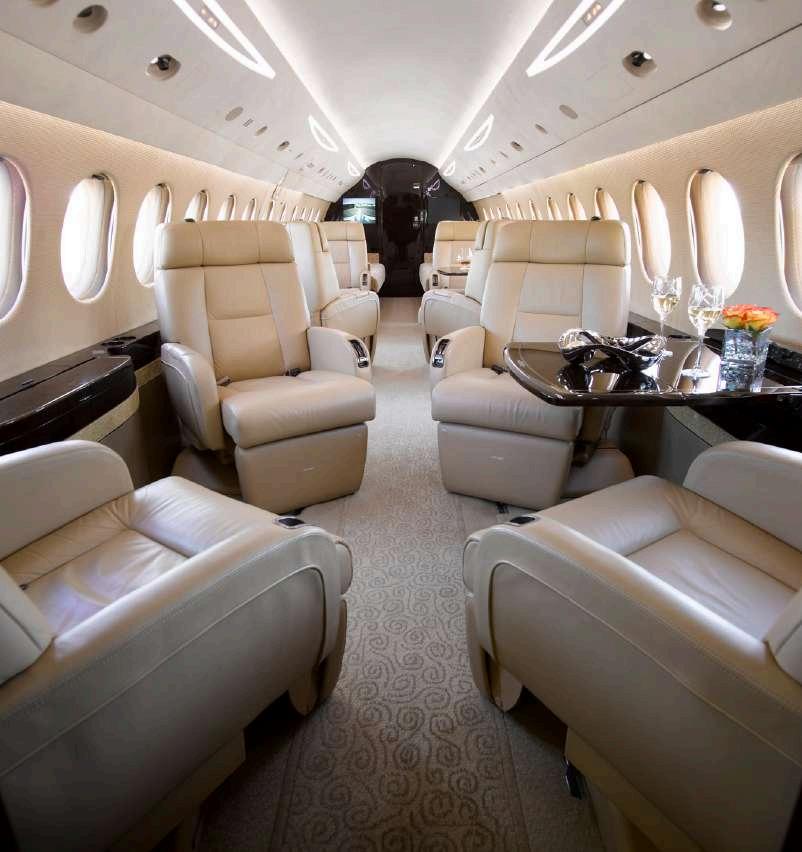

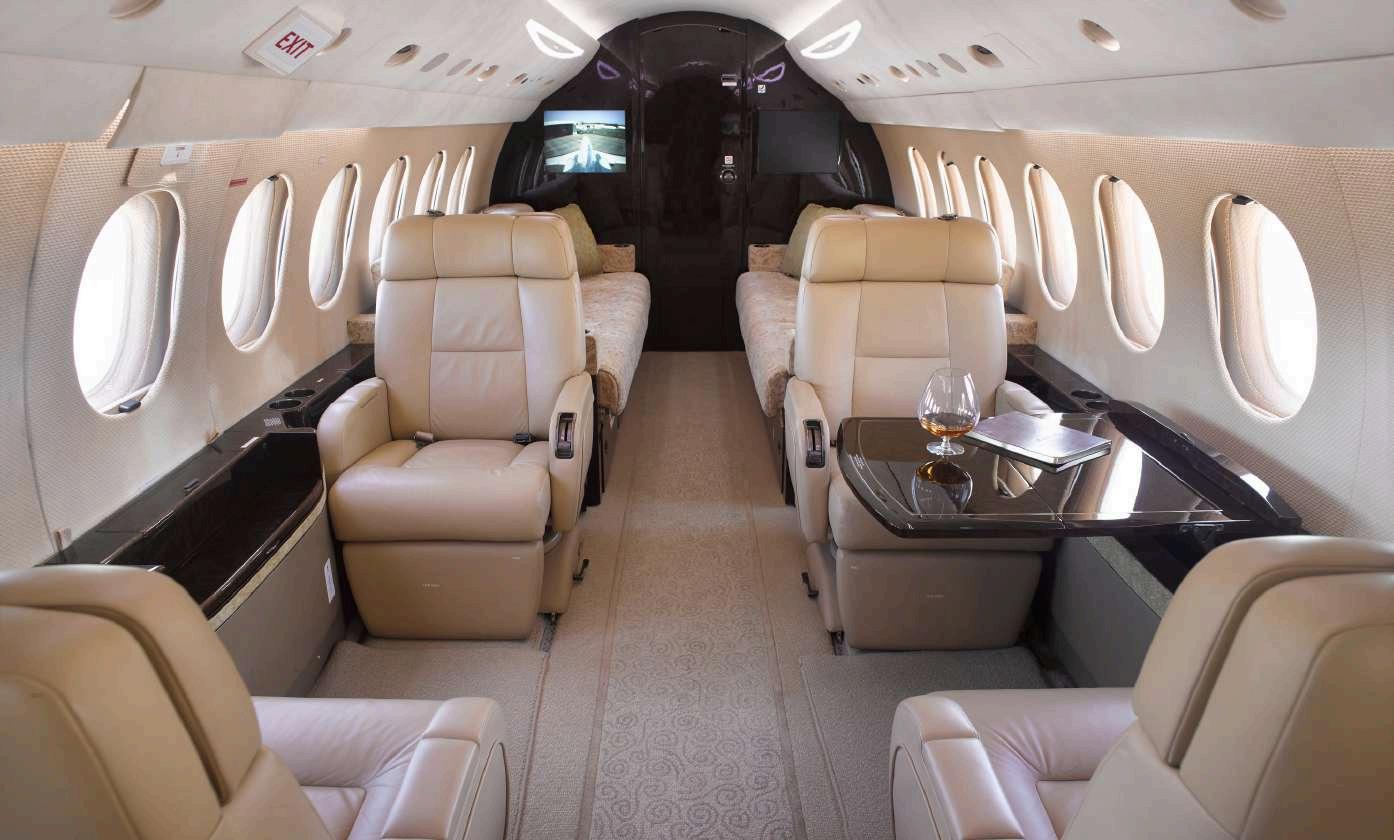

Forward Cabin:
Four-Place (4) Club w/ Fold-Out Tables
Mid Cabin:
Four-Place (4) Club w/ Fold-Out Tables
Aft Cabin:
Three-Place (3) Divan
Opposite Three-Place (3) Divan
(RH & LH Divan certified for only Two (2) Pax at TT&L)
Jump Seat: Yes

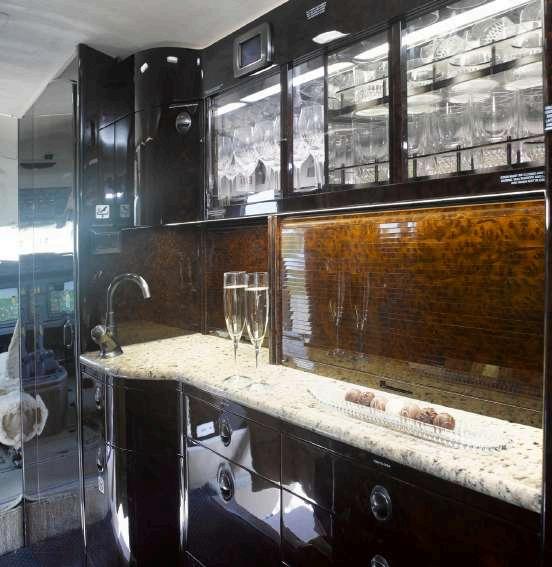

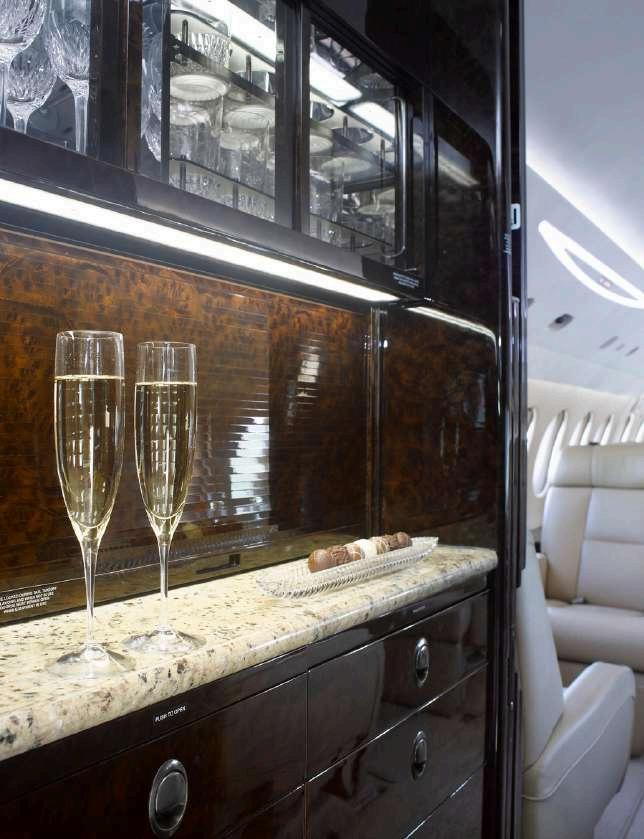

GALLEY:

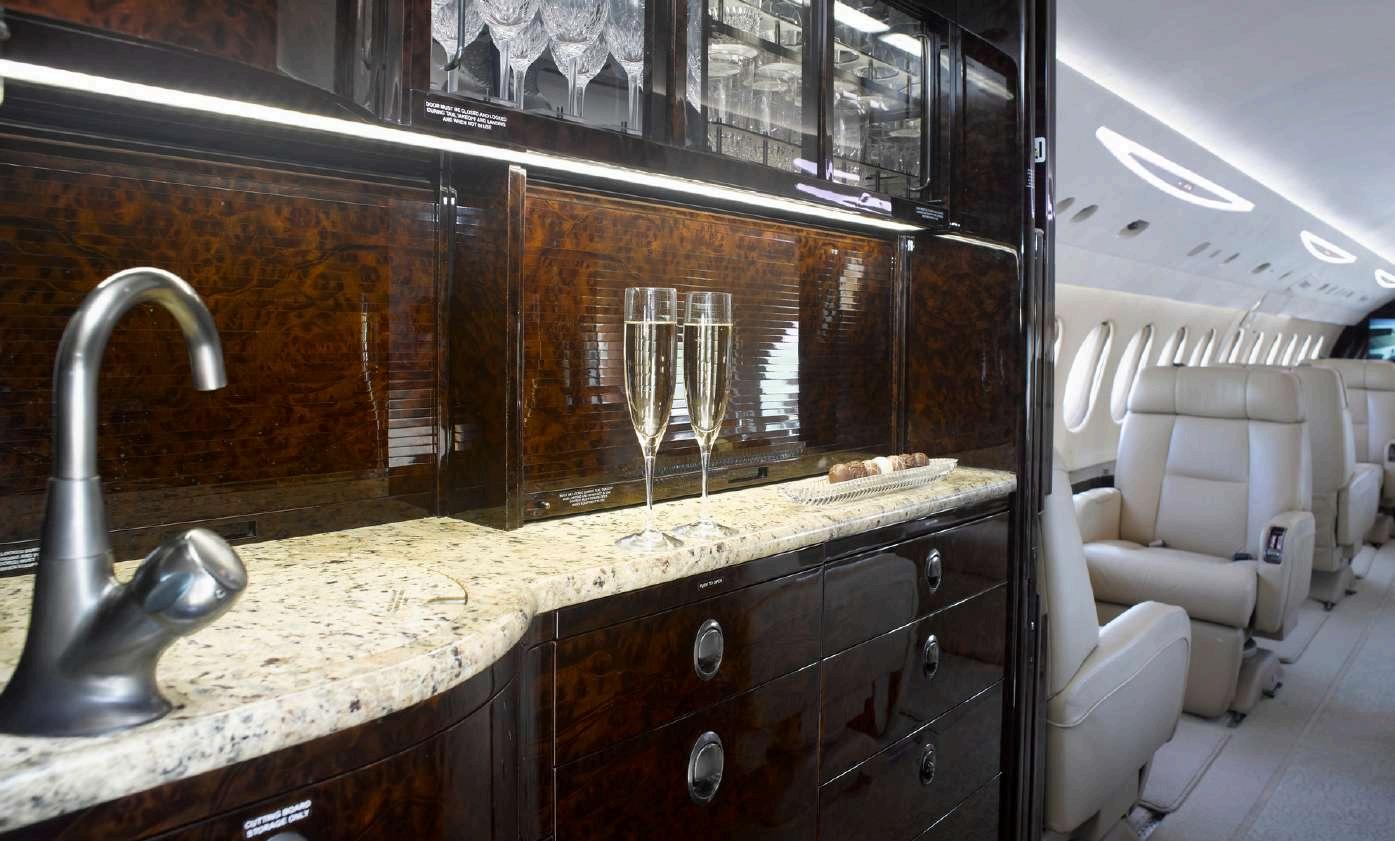

Forward Full-Service Galley with granite countertops, TIA Microwave, TIA Oven, Lacobucci Espresso Machine, Wine Bottle & China Storage
LAVATORY:
Forward Crew + Aft Executive Lavatories
Other Noticeable Features:
Club Seats with Swivel, Leg Rest
CONNECTIVITY & ENTERTAINMENT:
Swift Broadband (802.11g) Wi-Fi
LAN Ethernet Capability (3 Ports)
Collins Cabin Management System
Dual Collins 21.3” LCD Forward Monitors
Dual Collins 17” LCD Aft Monitors
Collins DVD/CD/MP3 Player
Collins LCD Touchscreen Pax Controls
Collins Airshow 4000
Collins Tailwind Sat TV (USA/EUR/UAE)
Baker Audio Amplifiers (3 EA)
DTSystem Cabin Speakers
DTSystem Cabin Amplifiers
Collins RF Remote Control
Brother 575 Fax/Copier/Scanner/Printer
interfaced with Aero H Satcom
AIRCRAFT INTERIOR
2009 DASSAULT FALCON 7X SN 7X-33
AESTHETICS:
Colors: Beige, Light Brown & Dark Brown
Condition: Original 2009
AIRCRAFT INTERIOR
AIRCRAFT INTERIOR
2009 DASSAULT FALCON 7X SN 7X-33
AIRCRAFT INTERIOR
2009 DASSAULT FALCON 7X SN 7X-33
AIRCRAFT INTERIOR
2009 DASSAULT FALCON 7X SN 7X-33
MIDCABIN
AIRCRAFT INTERIOR
2009 DASSAULT FALCON 7X SN 7X-33

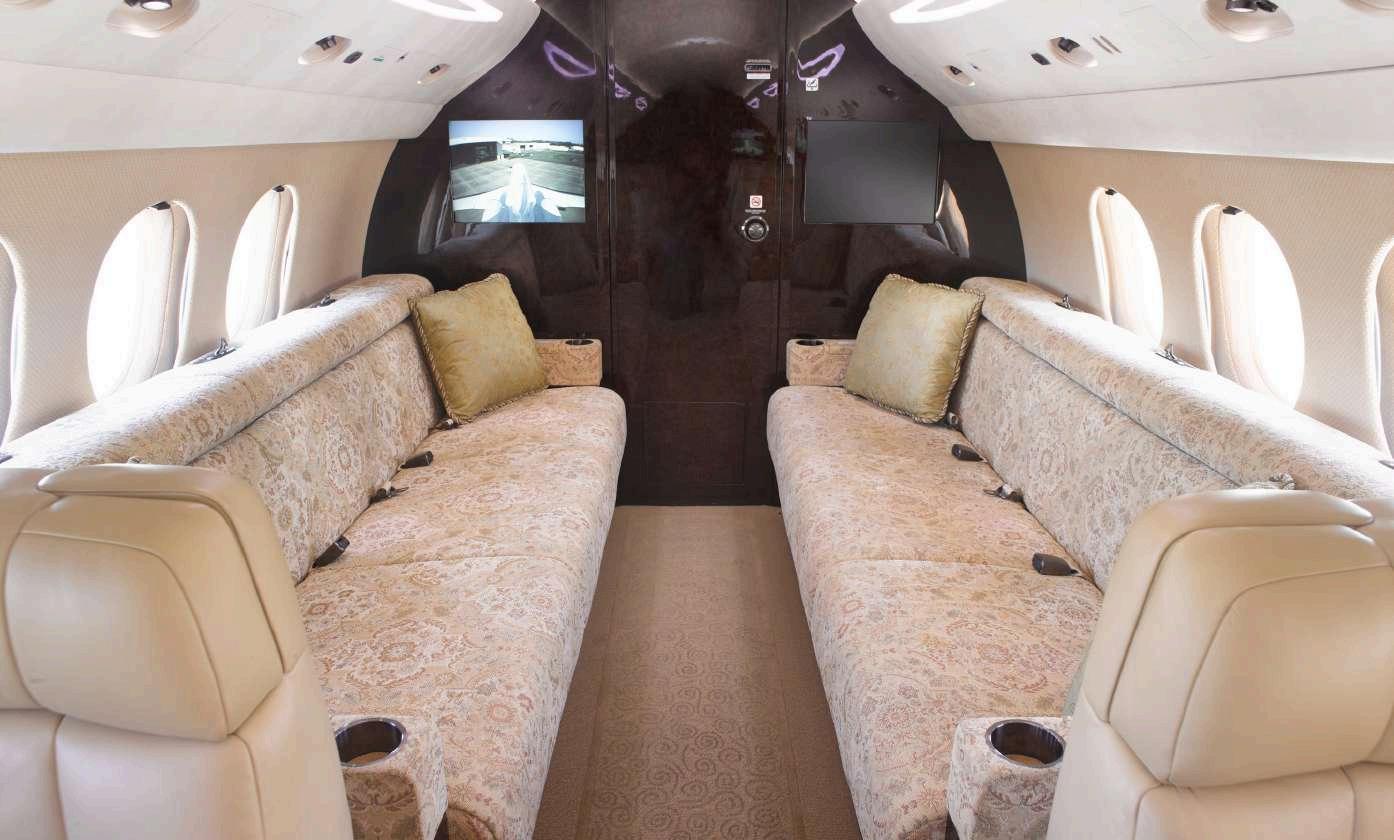

AFTCABIN
AIRCRAFT INTERIOR
2009 DASSAULT FALCON 7X SN 7X-33

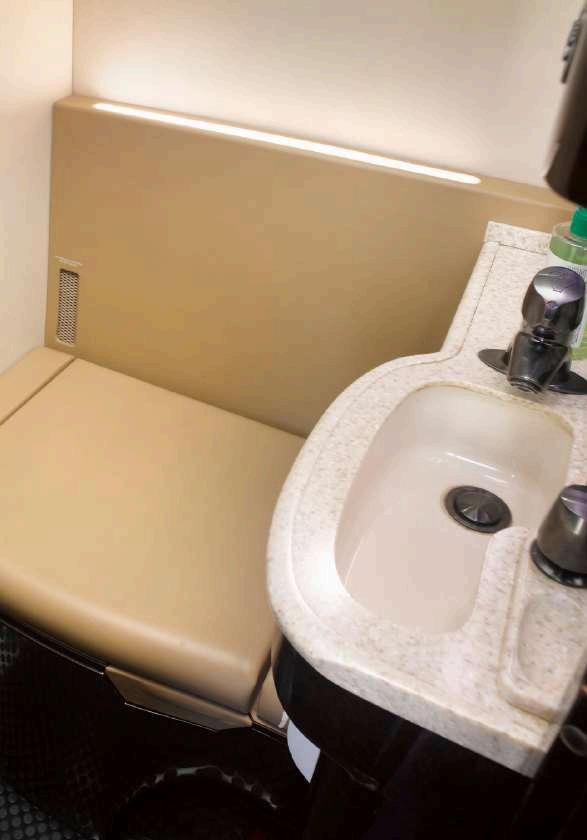

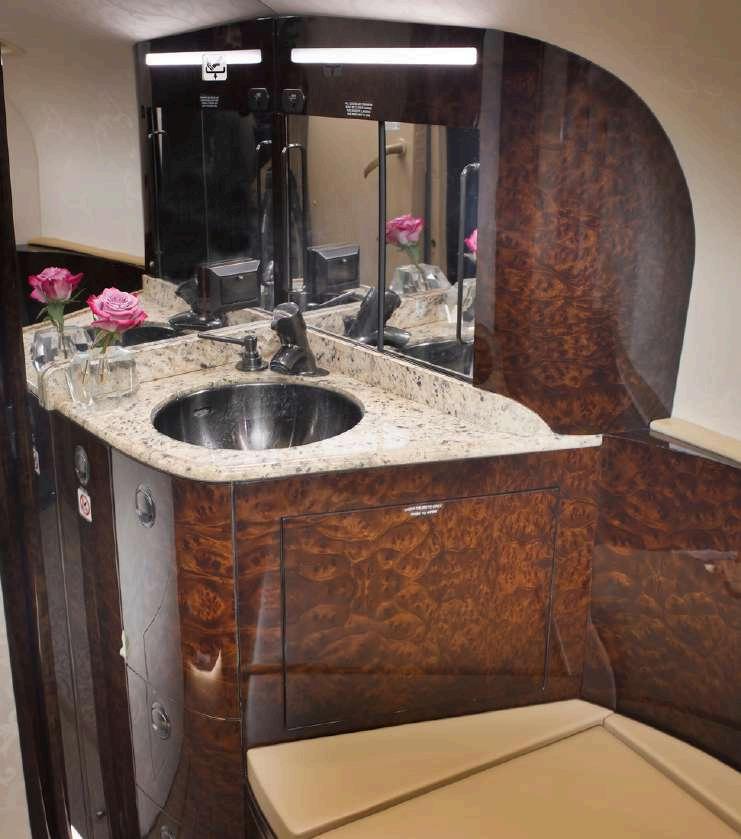

FORWARDLAVATORY
AFTLAVATORY

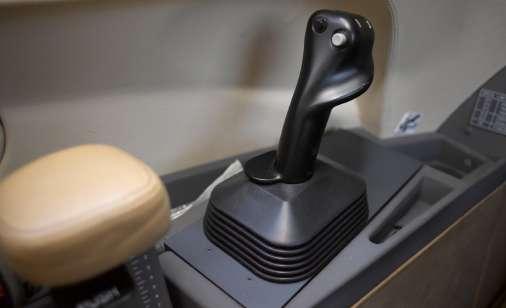

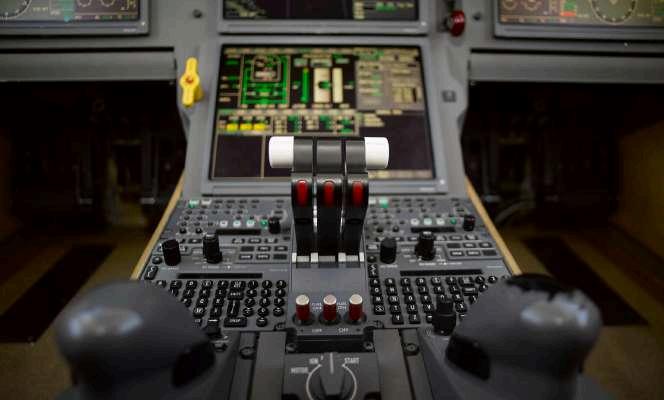

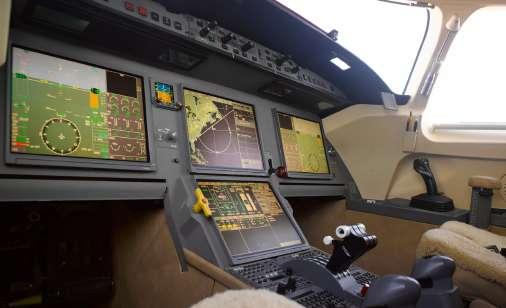

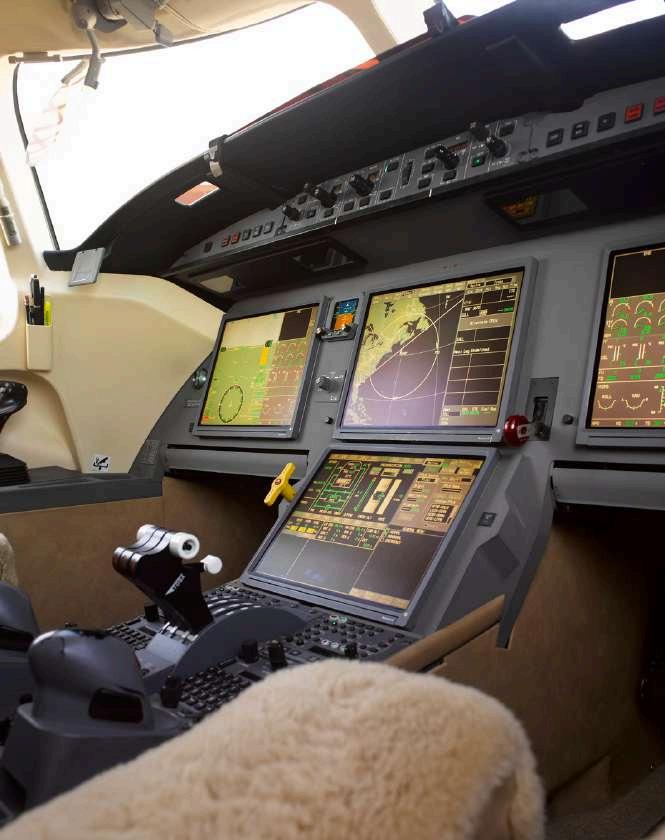

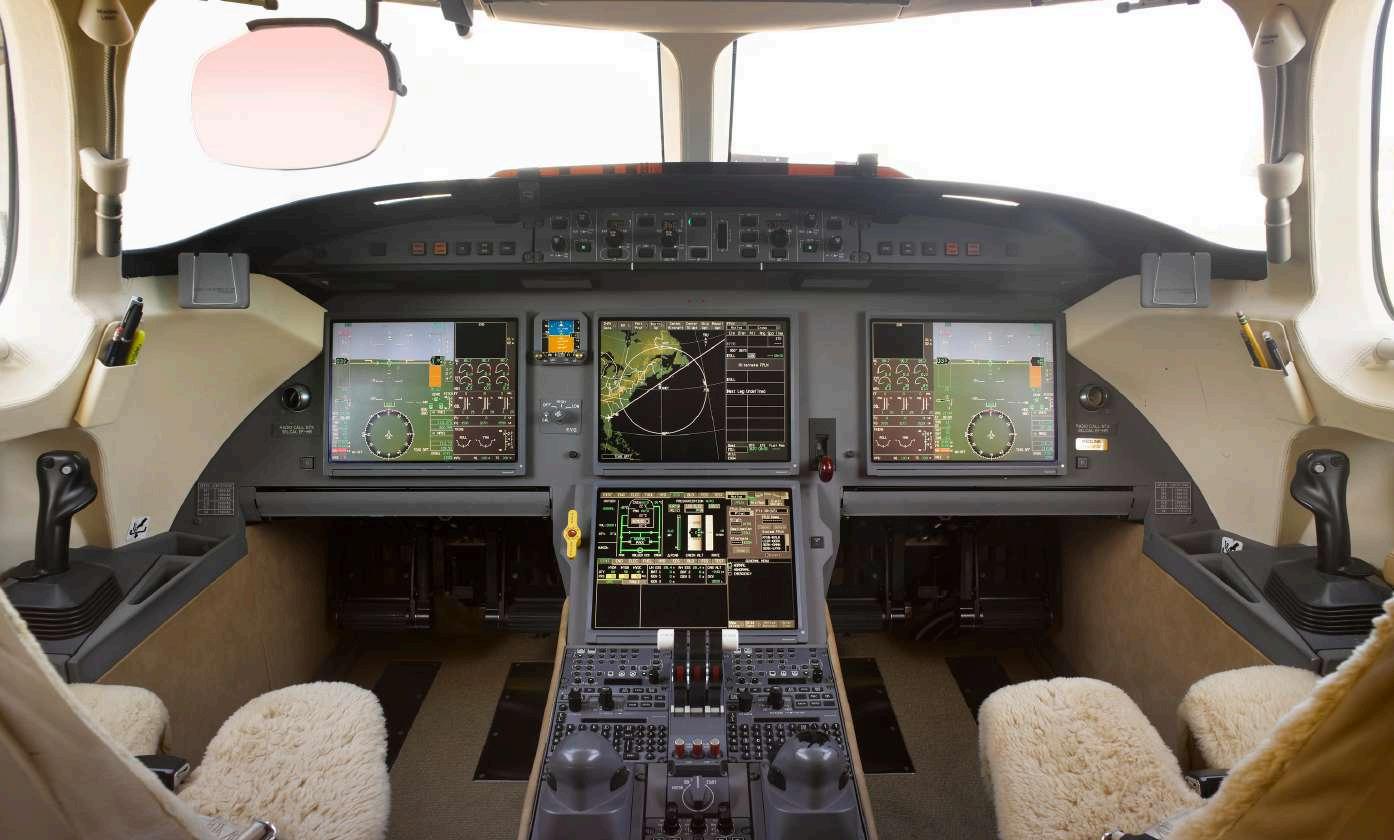

FLIGHT DECK
FLIGHT DECK

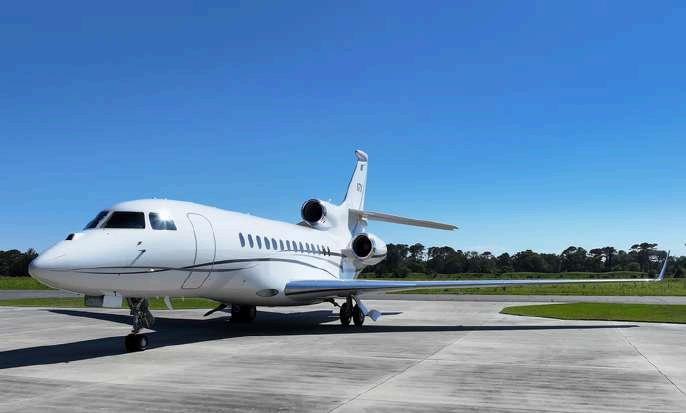

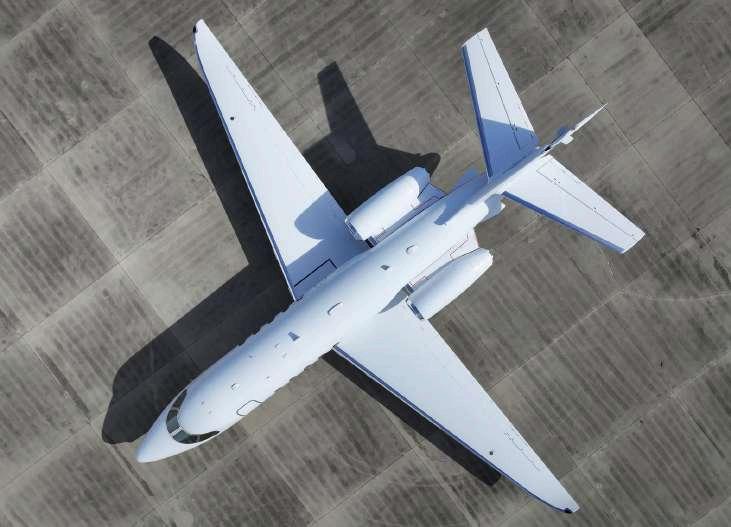

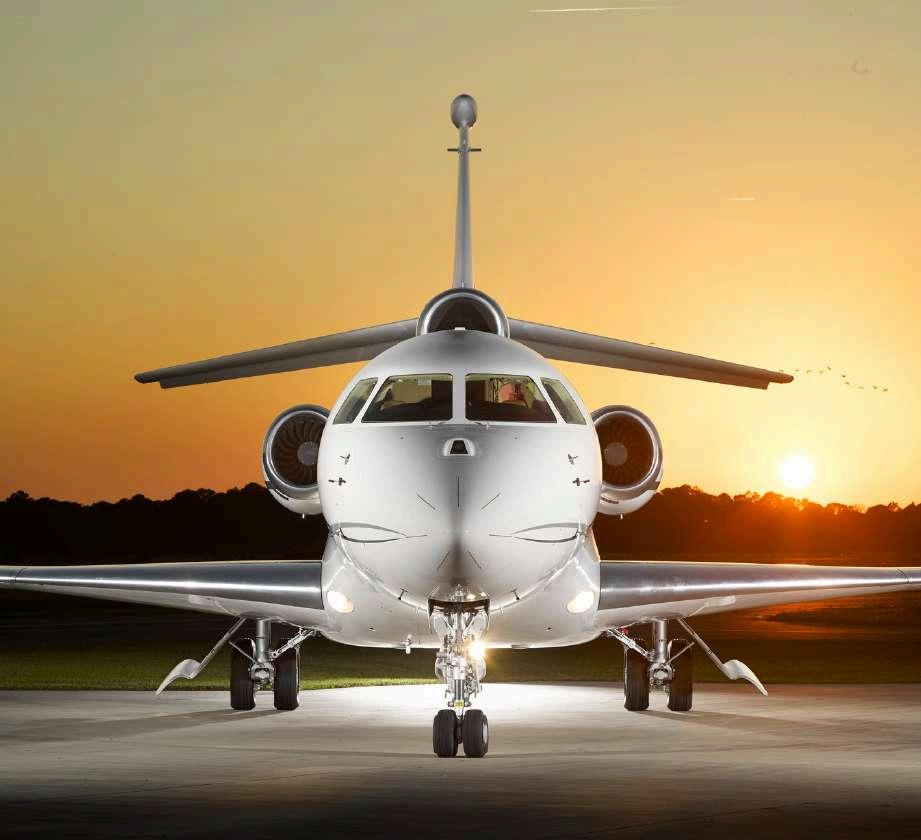

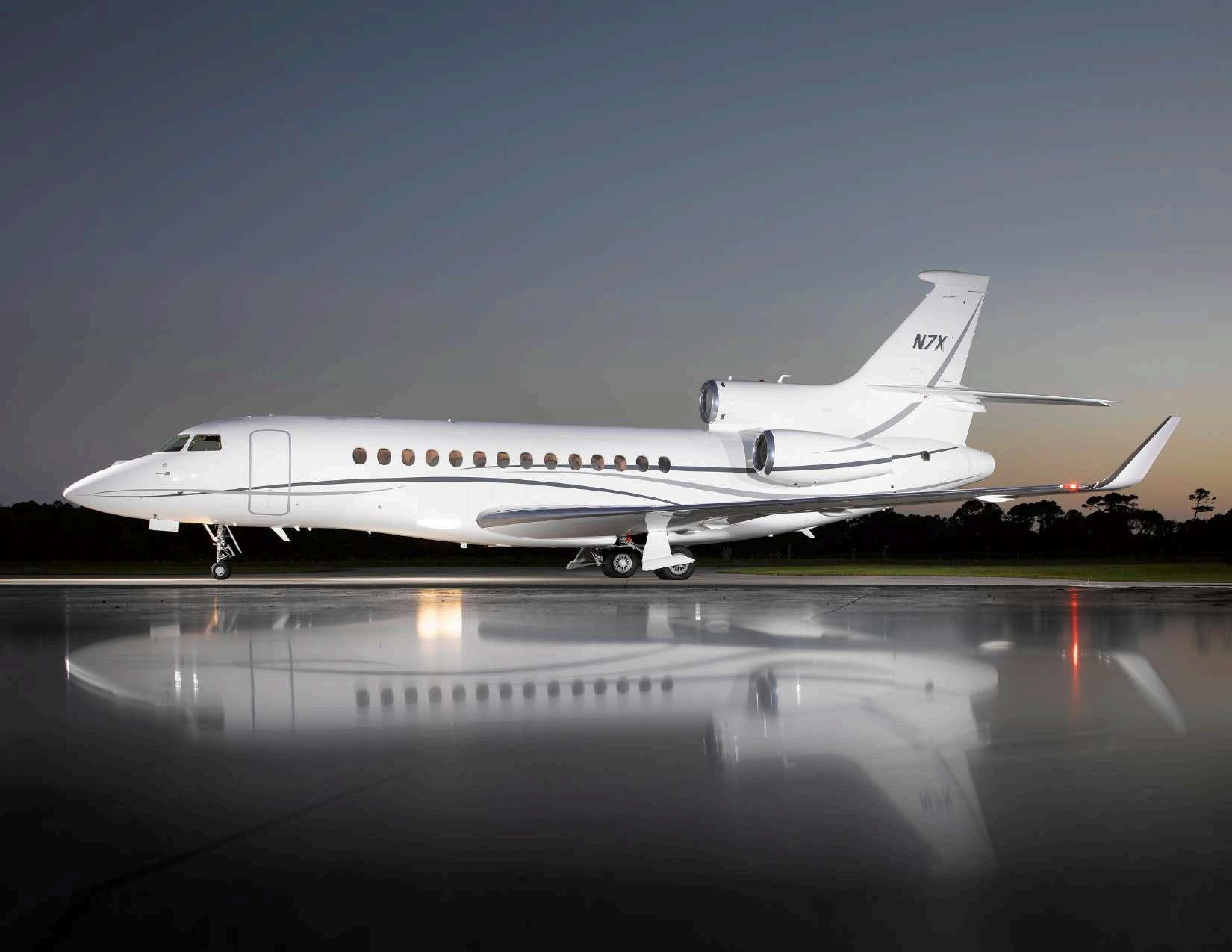

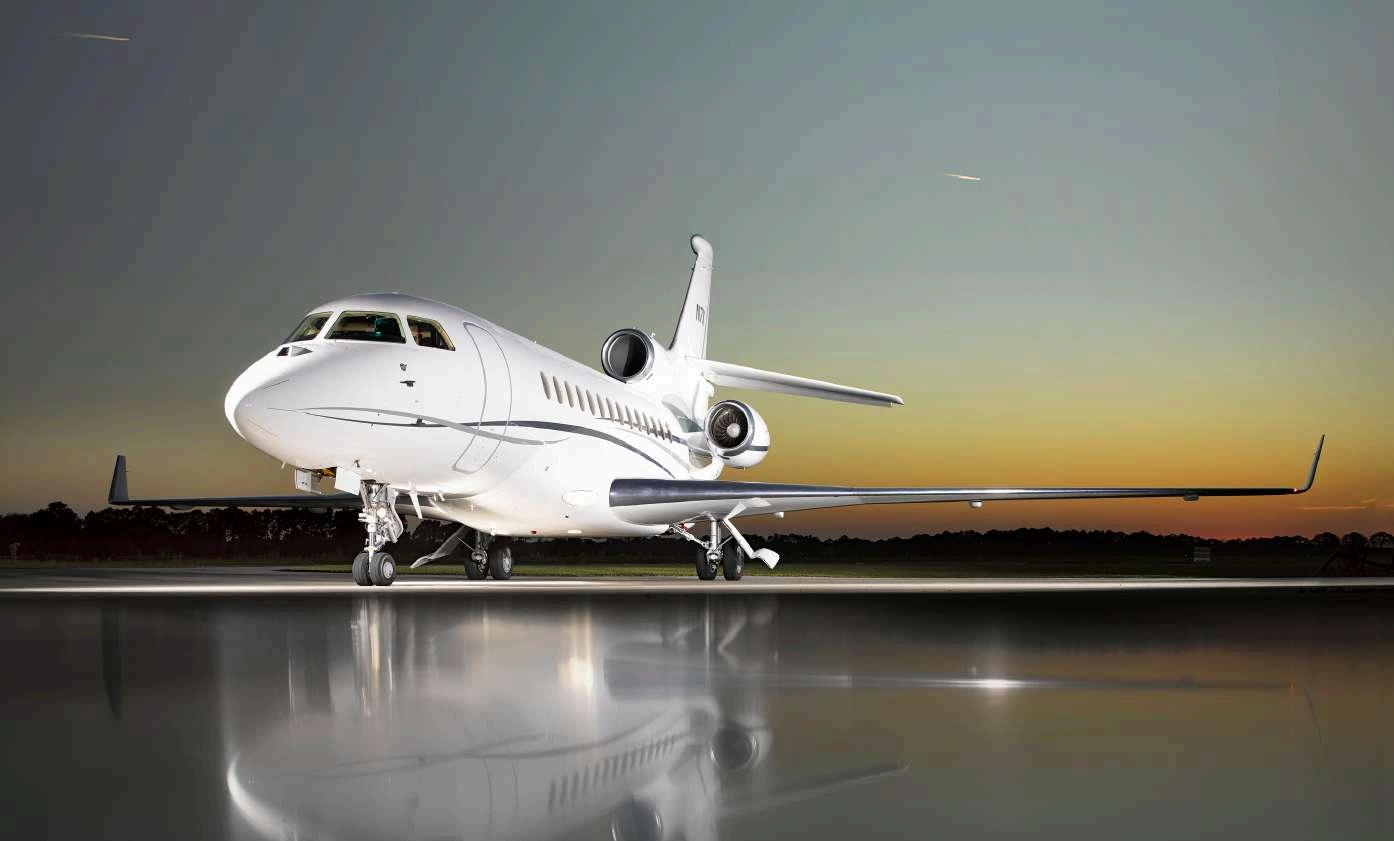

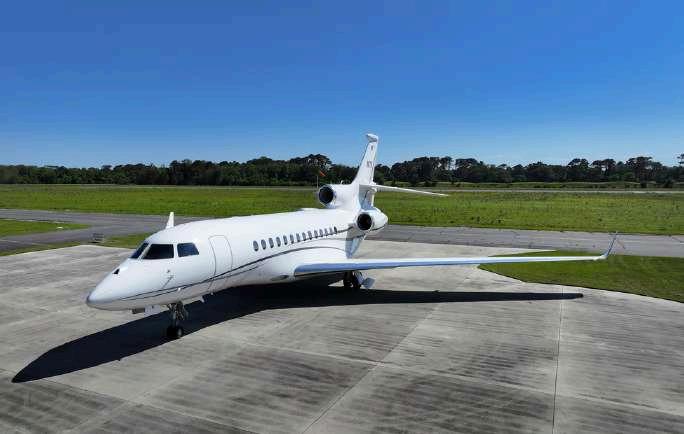

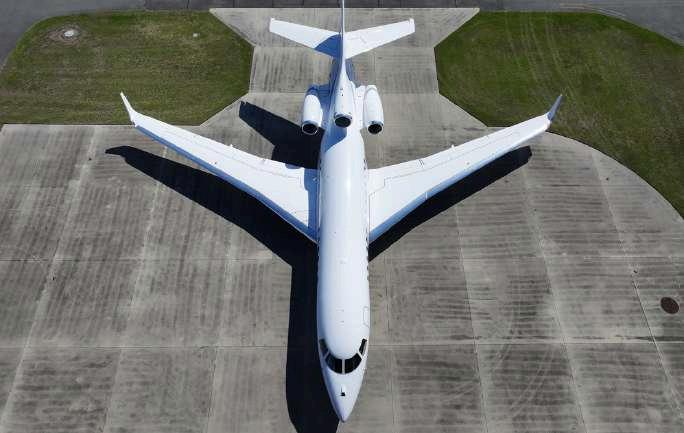

AIRCRAFT EXTERIOR
2009 DASSAULT FALCON 7X SN 7X-33
AESTHETICS:
Base Paint: White
Accent Colors: Blue & Grey
Condition: Re-Painted May 2025
AIRCRAFT EXTERIOR
2009 DASSAULT FALCON 7X SN 7X-33
AIRCRAFT EXTERIOR
2009 DASSAULT FALCON 7X SN 7X-33
