AIRCRAFT OVERVIEW
HIGHLIGHTS
Ø Engines enrolled on Rolls-Royce Corporate Care
Ø APU enrolled on Honeywell MSP Gold
Ø Airframe enrolled on Bombardier Smart Parts Plus
Ø 180 M Insp. c/w Dec-25
Ø Swift Broadband Wi-Fi
Ø Primus 2000XP Batch 3.3 | HUD | EVS | FANS-1/A+
Ø 2010 Interior (2020 Carpet) | 2014 Exterior | 14/15 Pax
AIRFRAME
Serial Number 9266 Registration N104DA Base Location London, UK (EGKB)
Entry Into Service 2010

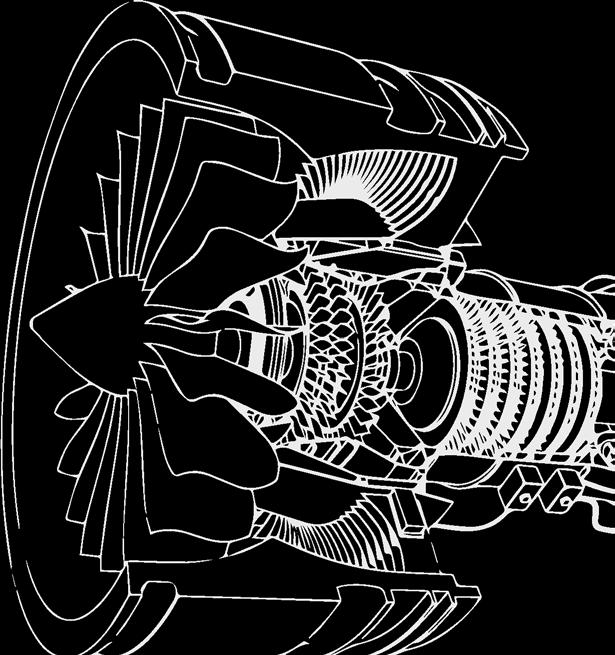

ENGINES
Rolls Royce BR710A2-20 Engine 1 Engine 2
*Times & Cycles as of 08-Dec-25
Time Between Overhaul* On Condition On Condition
APU
Honeywell RE-220 (GX)
Number P-390
AIRCRAFT DETAILS

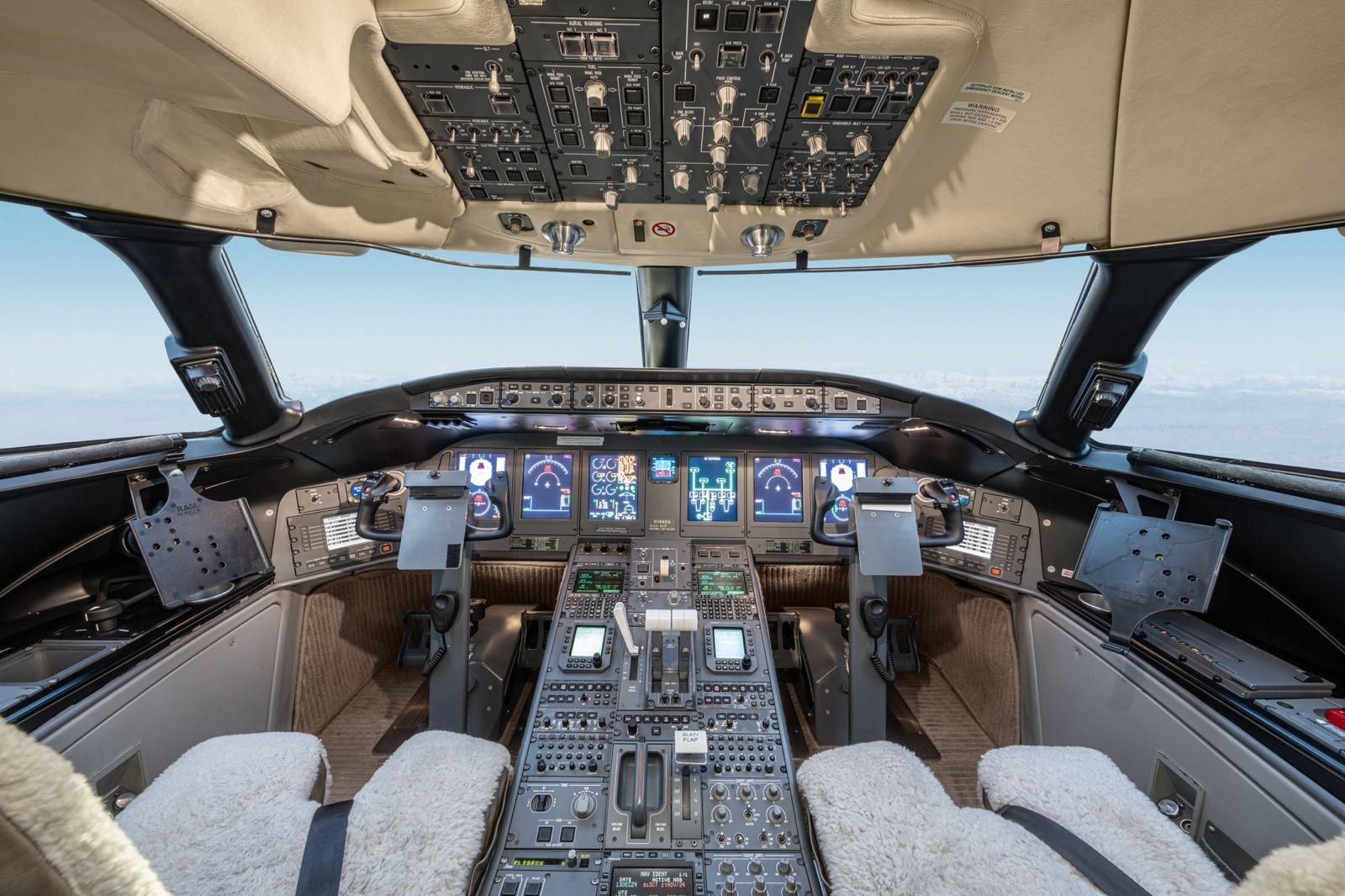

AVIONICS – HONEYWELL 2000XP INTEGRATED
COMPONENT QTY MODEL
Ø AVIONICS
COMPUTERS: Triple IC-800 Integrated Avionics Computers
Ø CMS: Single Central Aircraft Information Maintenance System
Ø COMM RADIOS Single
Honeywell RCZ-833M Integrated COM/ Ident Radios w/ Enhanced Mode S Diversity Transponders
Ø CSD: Single Avtech CSD-714 SELCAL
Ø DAQ: Quadruple Honeywell DA-810 Data Acquisition Units
Ø DATA LOADER: Single DL-950
Ø DME: Dual
Ø EFIS: Sextuple
Honeywell RNZ-851 Integrated NAV Radios with VOR / ILS / MKR / ADF / DME
8"x 7" DU-870 Color EFIS displays, 2 PFD/2 EICAS/2 MFD
Ø EGPWS: Single Honeywell Mark V
Ø FADEC: Single Full Authority Digital Engine Control System
COMPONENT QTY MODEL
Ø FMS: Triple
Honeywell CD-820 Integrated Flight Management System
Ø GPS: Dual Honeywell GPS w/ SBAS LVP Approach
Ø HF COMM: Dual Collins HF-9031 HF Communication System
Ø IRU: Triple Honeywell HG2001GD03 Inertial Reference Units
Ø MADC: Triple Honeywell AZ-950 Micro Air Data Computers
Ø RADIO ALT: Dual Collins ALT-4000 Radio Altimeters
Ø RMU: Single
Honeywell Primus II RM-855 Radio Management Units
Ø TCAS: Single Honeywell TCAS 2000 w/ 7.1
Ø VHF COM: Triple 3rd VHF Comm Installation Honeywell RCZ-833
Ø WX RADAR: Single
Honeywell Primus 880 Color Weather Radar w/ Lightning Sensor System
AIRCRAFT DETAILS
ADDITIONAL FEATURES
230V/50Hz Outlets in Cockpit, Cabin & Lavatories
ADS-B Out
ARTEX B406-4 ELT w/ Nav Interface
Honeywell Primus 2000XP Batch 3.3
Flight Deck Printer
FANS-1/A+ & RNP 4 30/30
Heads Up Display w/ Enhanced Vision System (SB70034-050 to Support Batch 3)
Honeywell SSCVR Digital Cockpit Voice Recorder w/ Datalink Storage
ICS-100 Iridium Telephone System Logo Lights MNPS, RNP4/5/10, RVSM Capable
Securaplane 500 w/ Camera System
Teledyne ACARS Datalink System
Thrane & Thrane Aviator 700D SATCOM w/ Swift Broadband
Honeywell SSFDR Digital Flight Data Recorder w/ QAR
AIRCRAFT DETAILS
MAINTENANCE
AIRCRAFT DETAILS

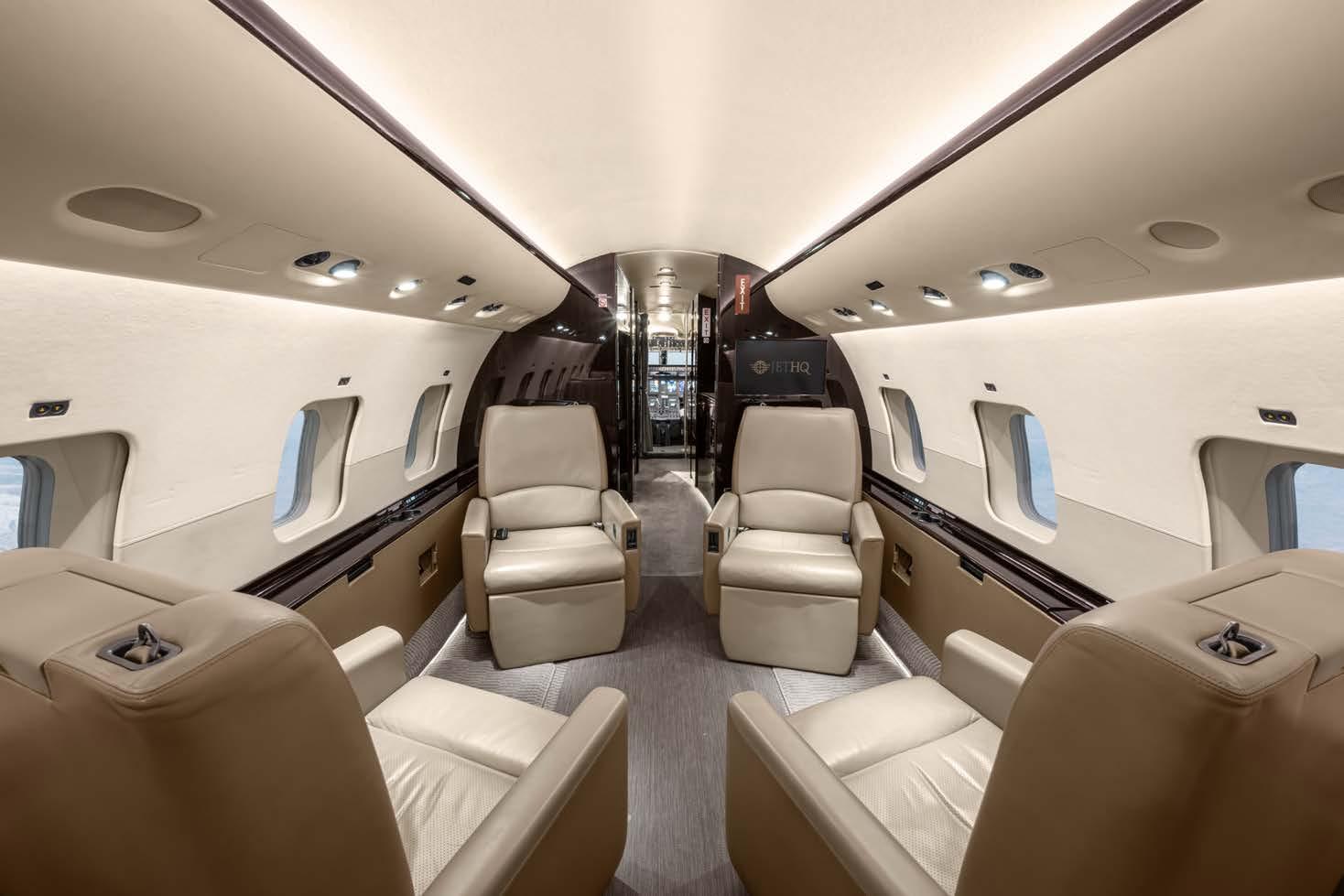

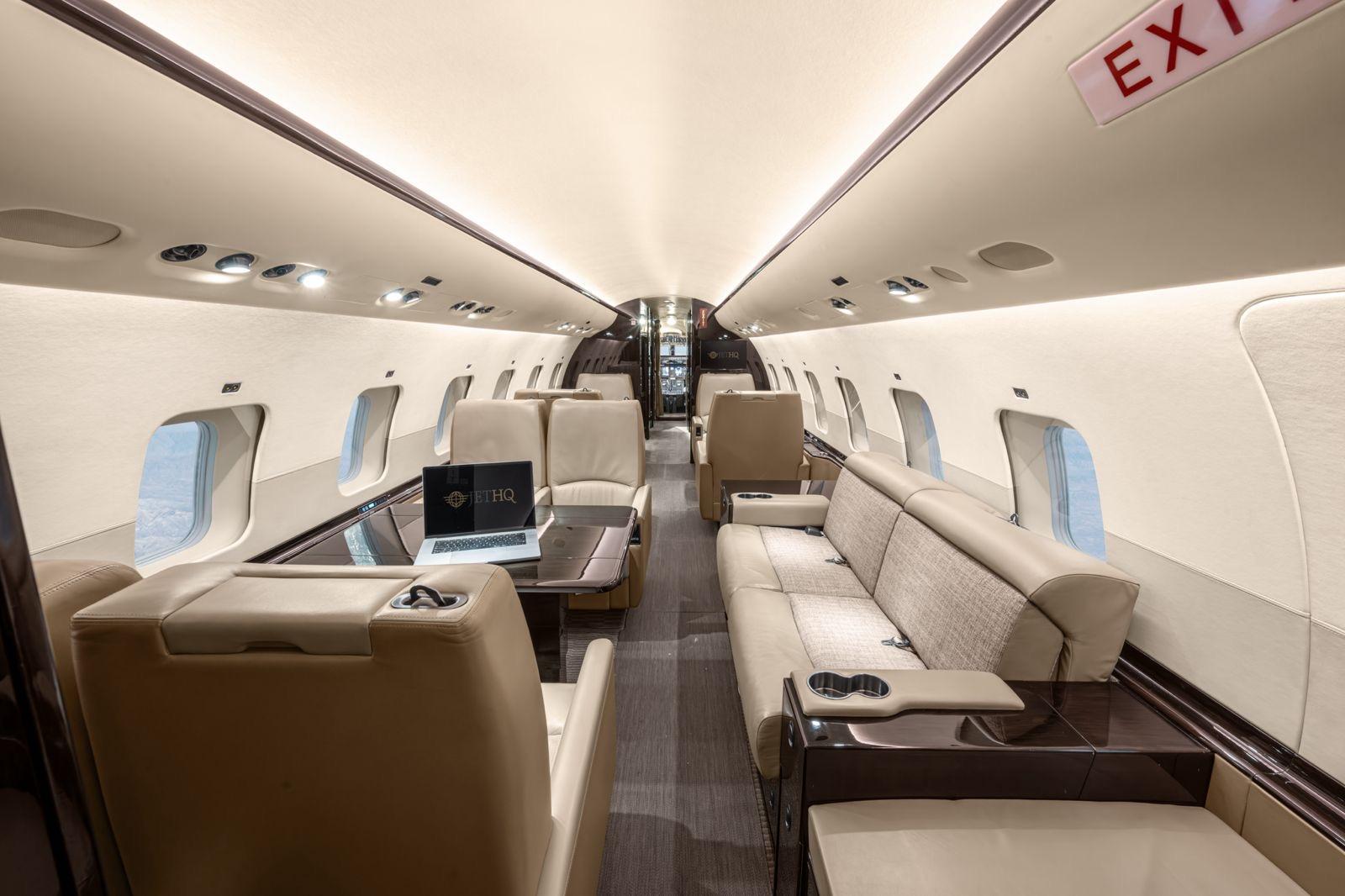

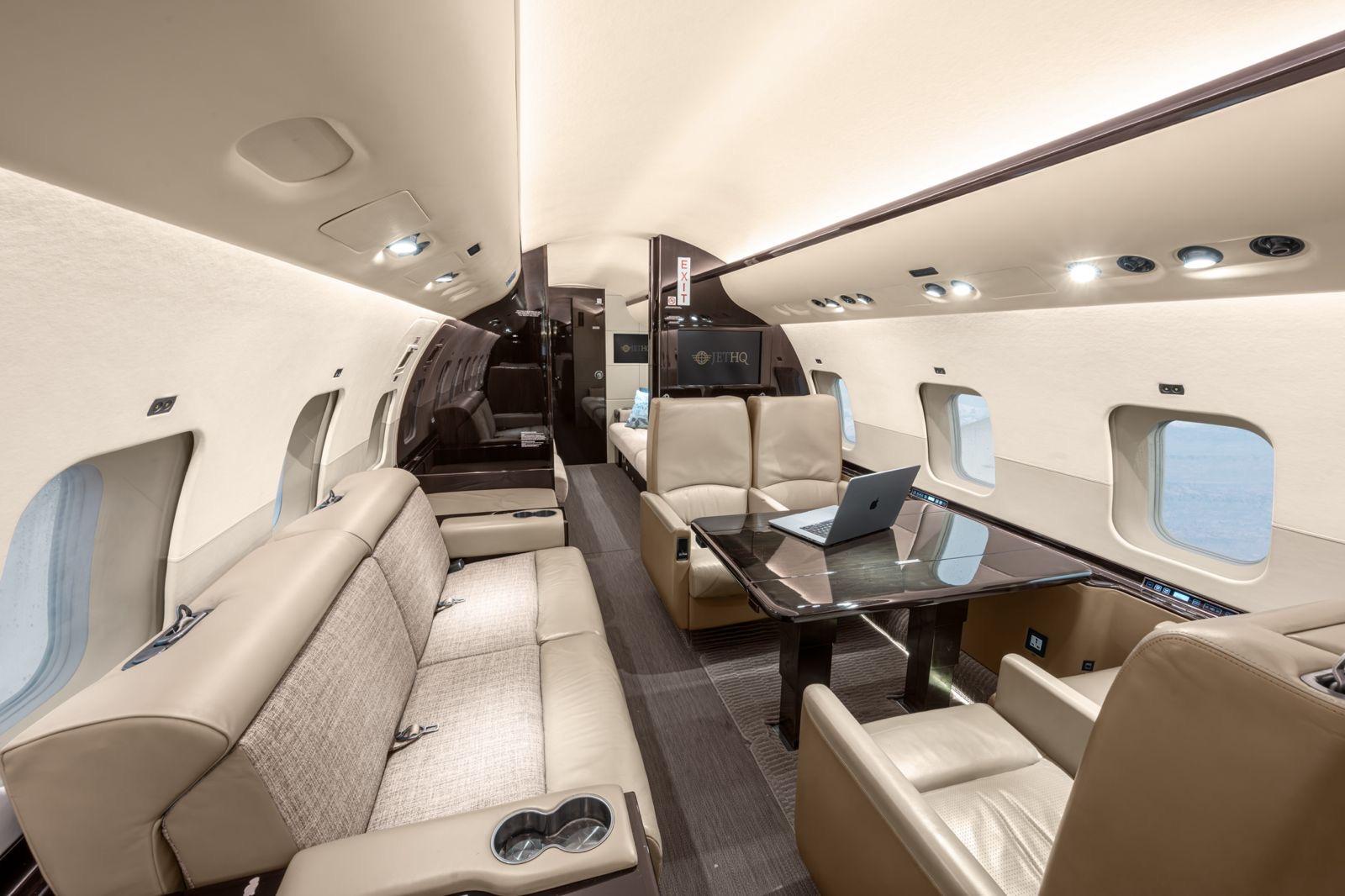

INTERIOR

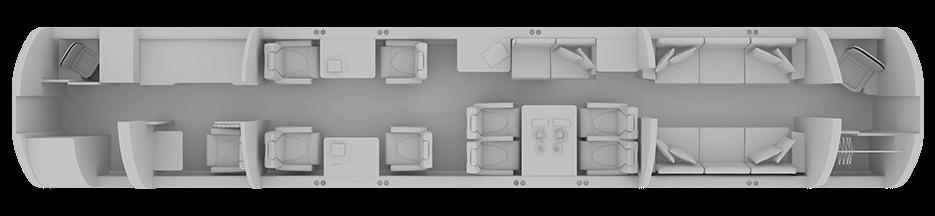

Configuration / PAX:
Fourteen/Fifteen (14/15) Passenger Configuration

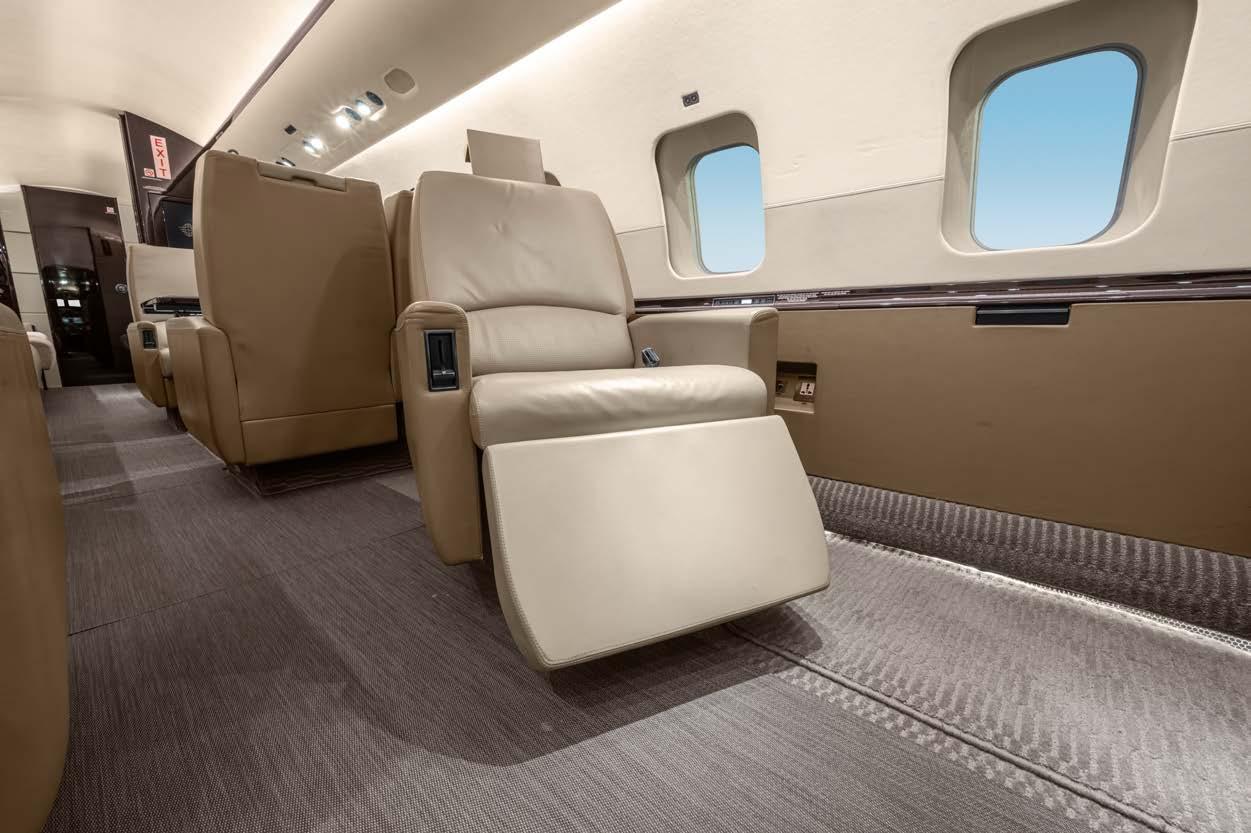

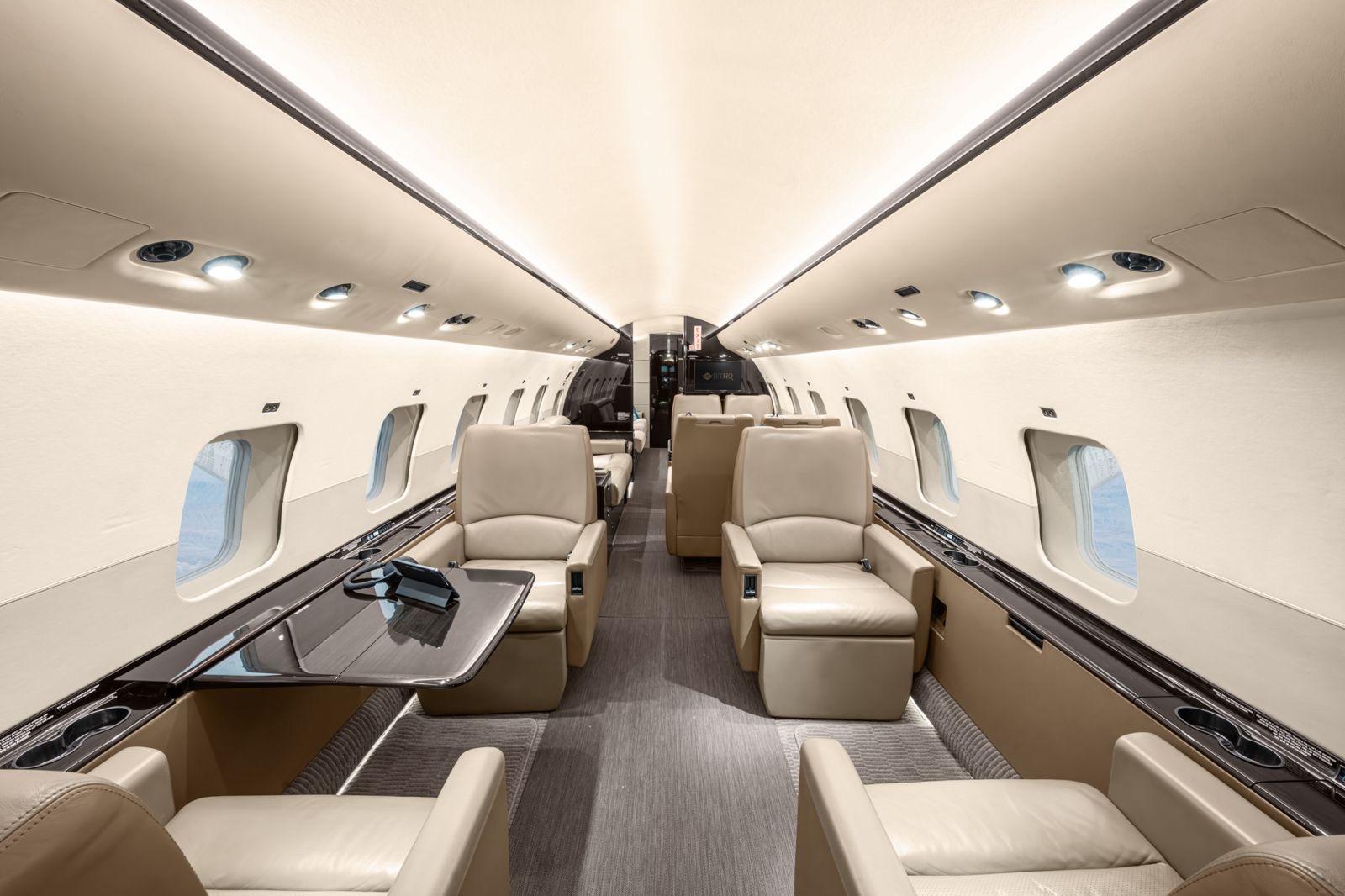

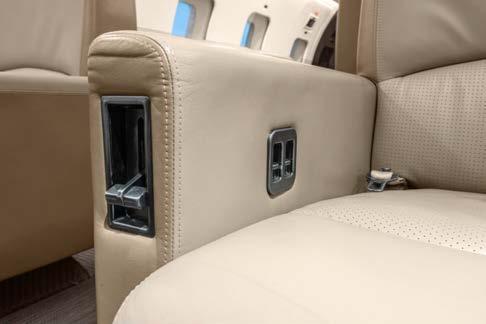

Seating:

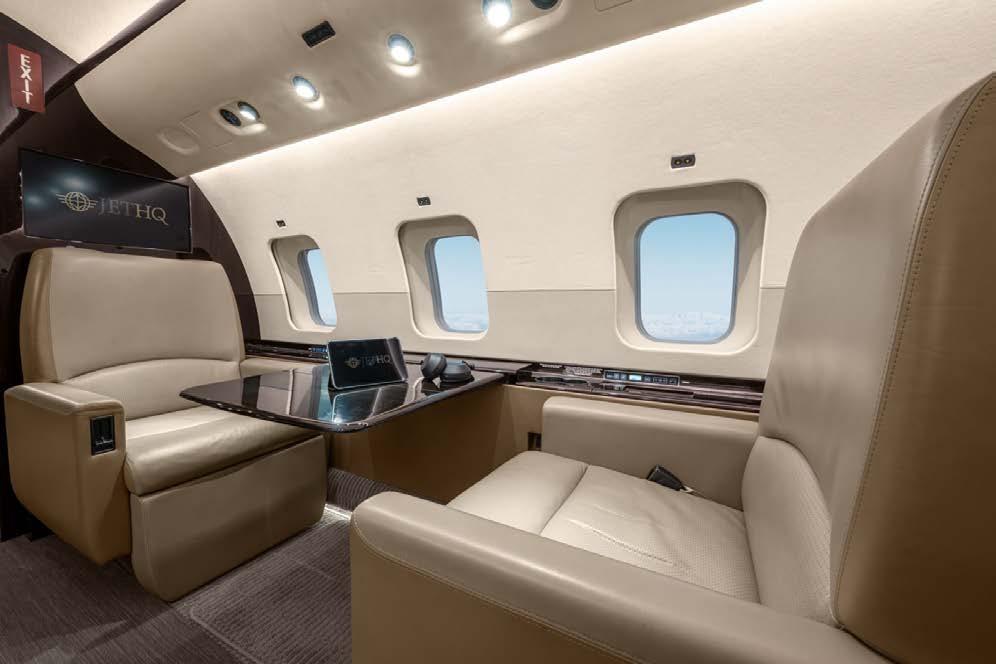

Forward Cabin: Four (4) Place Club w/ Fold-Out Tables
Mid Cabin: Four (4) Place Conference Group Opposite
Two (2) Place Divan

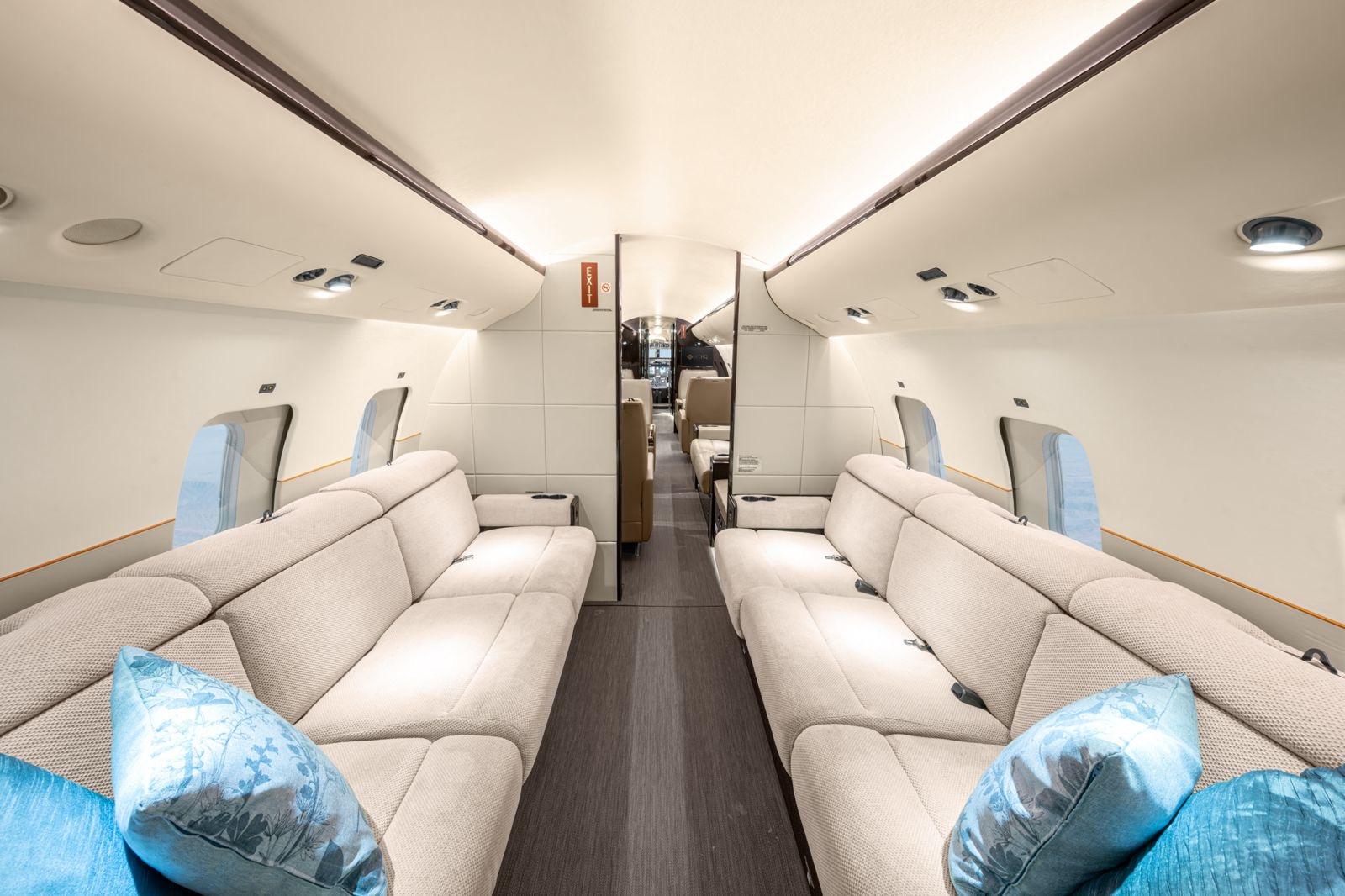

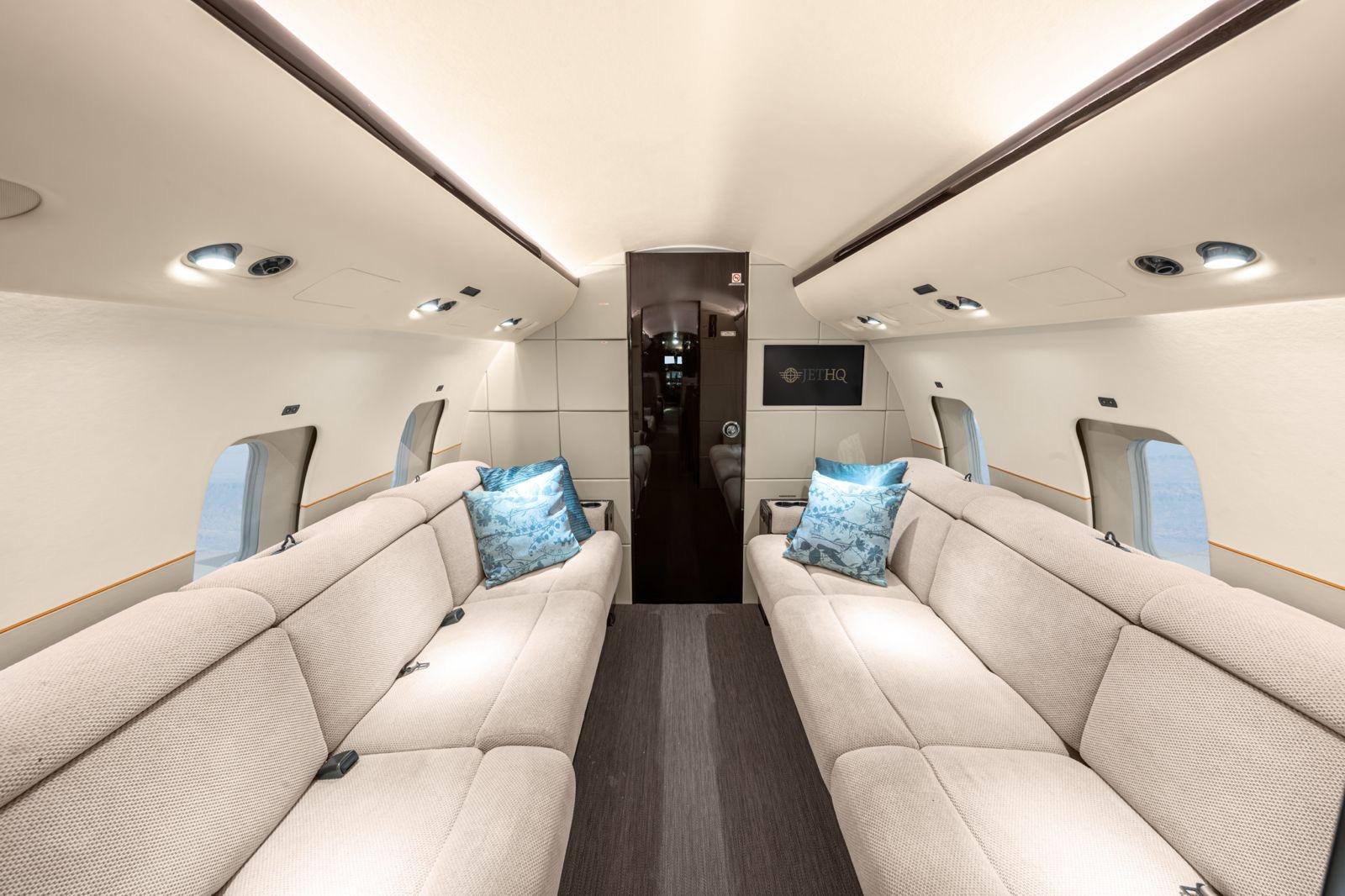

Aft Cabin: RH Three (3) Place Berthable Divan (Certified for Two (2) w/ Removable Bulkhead Installed) Opposite
LH Three (3) Place Berthable Divan (Certified for Two (2))
Galley / Refreshment Location & Equipment:

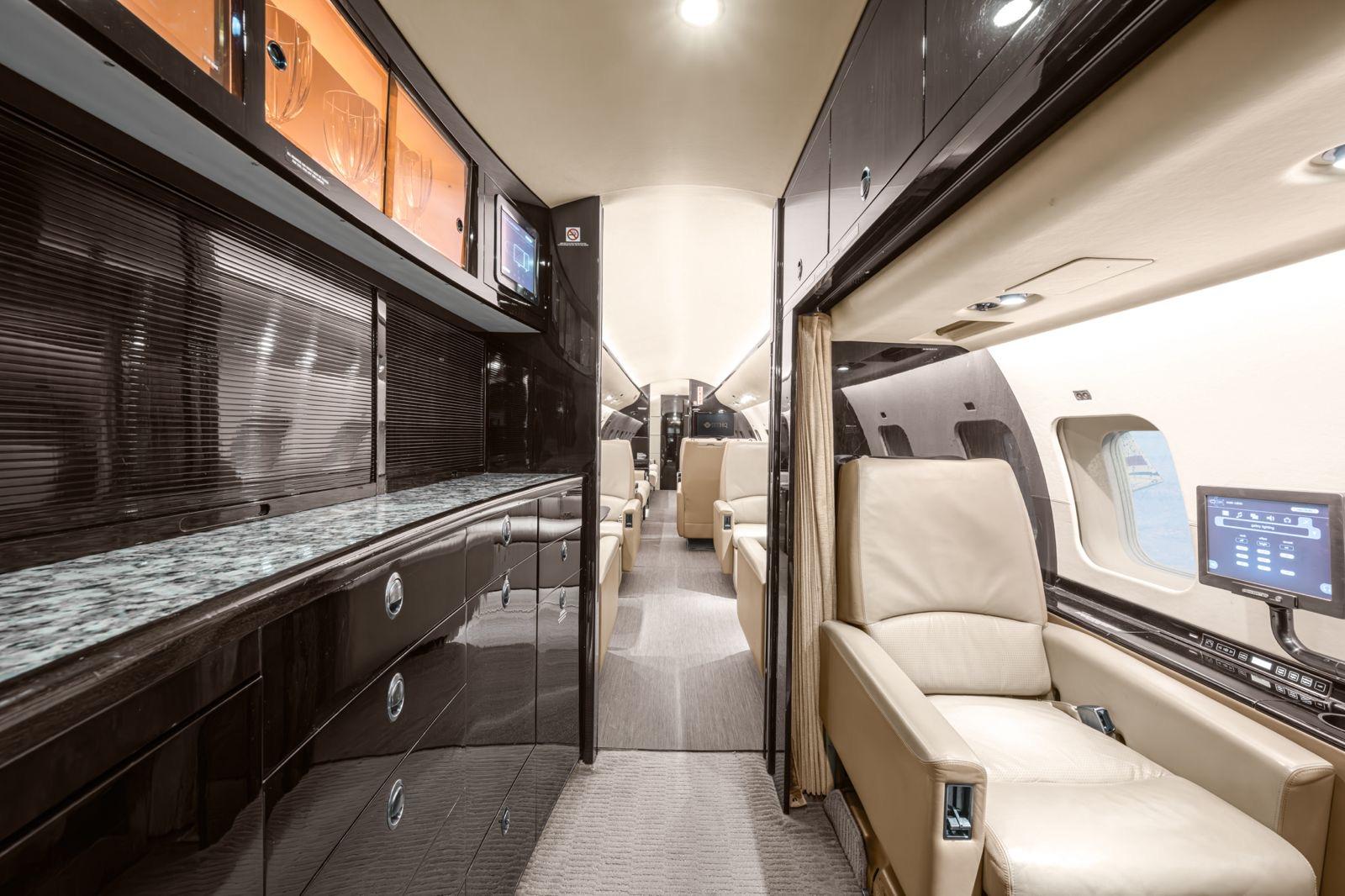

Forward Full-Service Galley w/ TIA High Temp Oven, Espresso Maker, and Microwave
Displayed color swatches are an approximation
Crew Rest / Jump Seat:
One (1) Jump Seat and One (1) LH Crew Rest

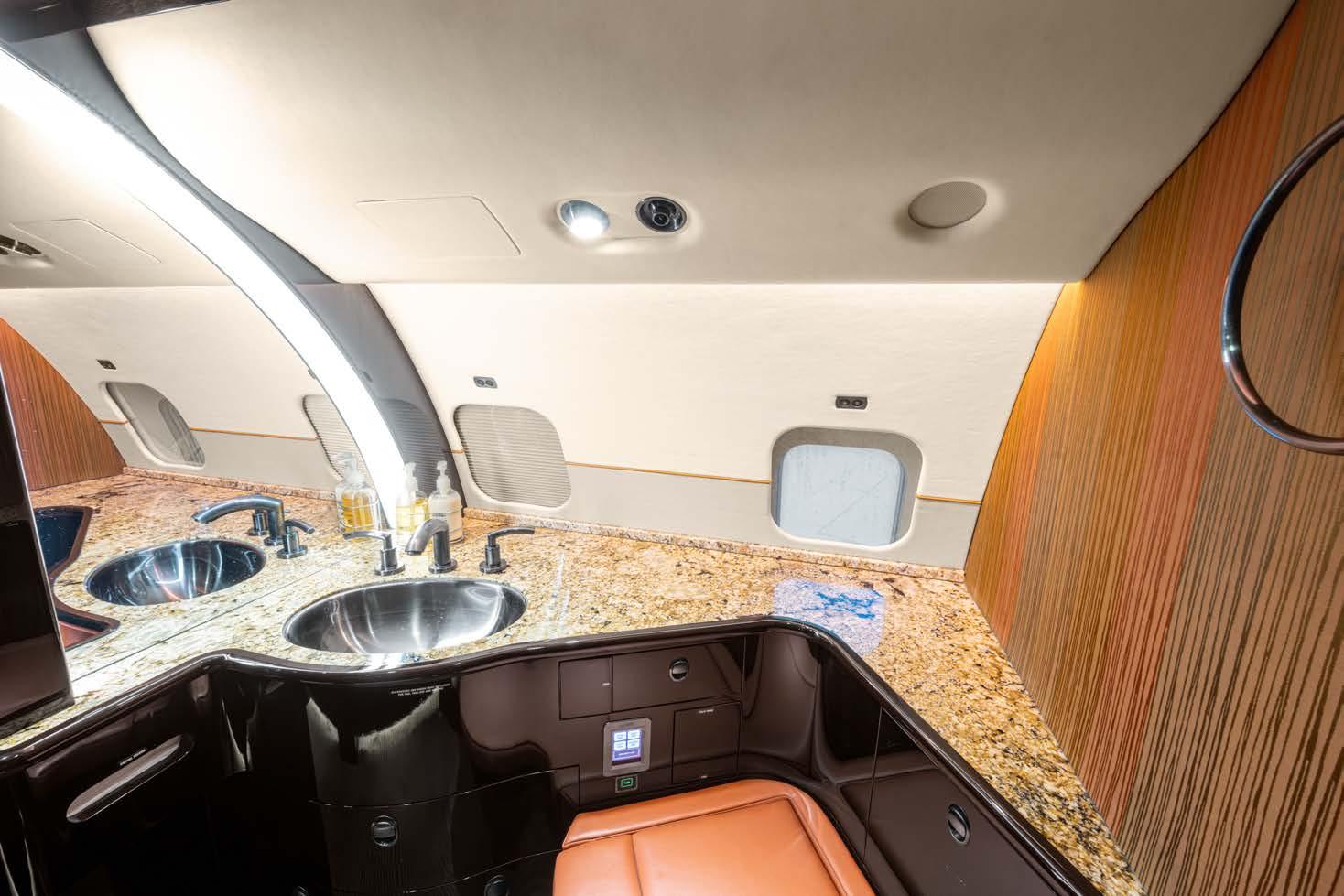

Lavatory:

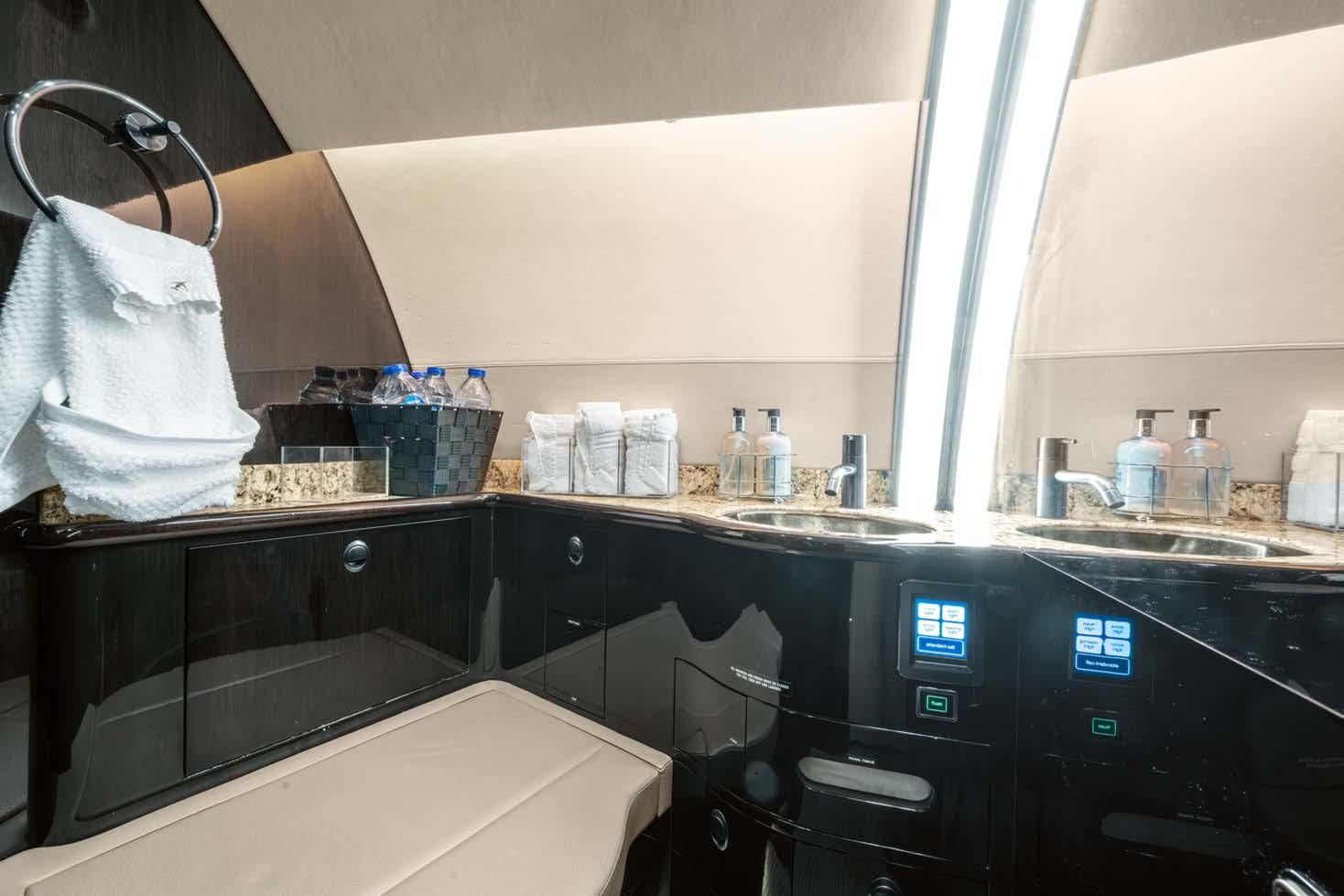

One (1) Forward Crew Lavatory and One (1) Aft Lavatory

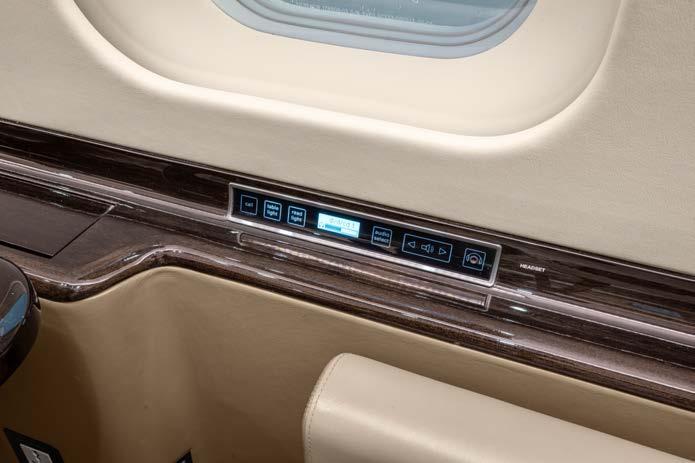

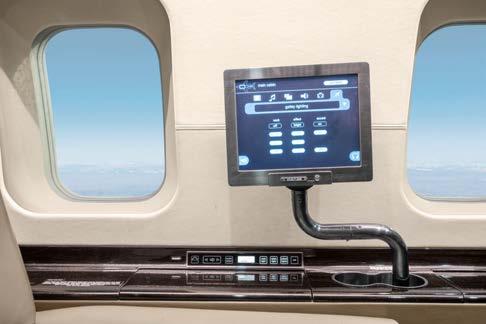

Connectivity/Entertainment:
Swift Broadband | Wireless Cabin LAN
Airshow 4000
230-volt/50 Hz outlets
23” Fwd, Mid & Aft Bulkhead LCD Monitors
Dual CD/DVD Player
Condition:
Original 2010. New Carpet 2020.
AIRCRAFT DETAILS

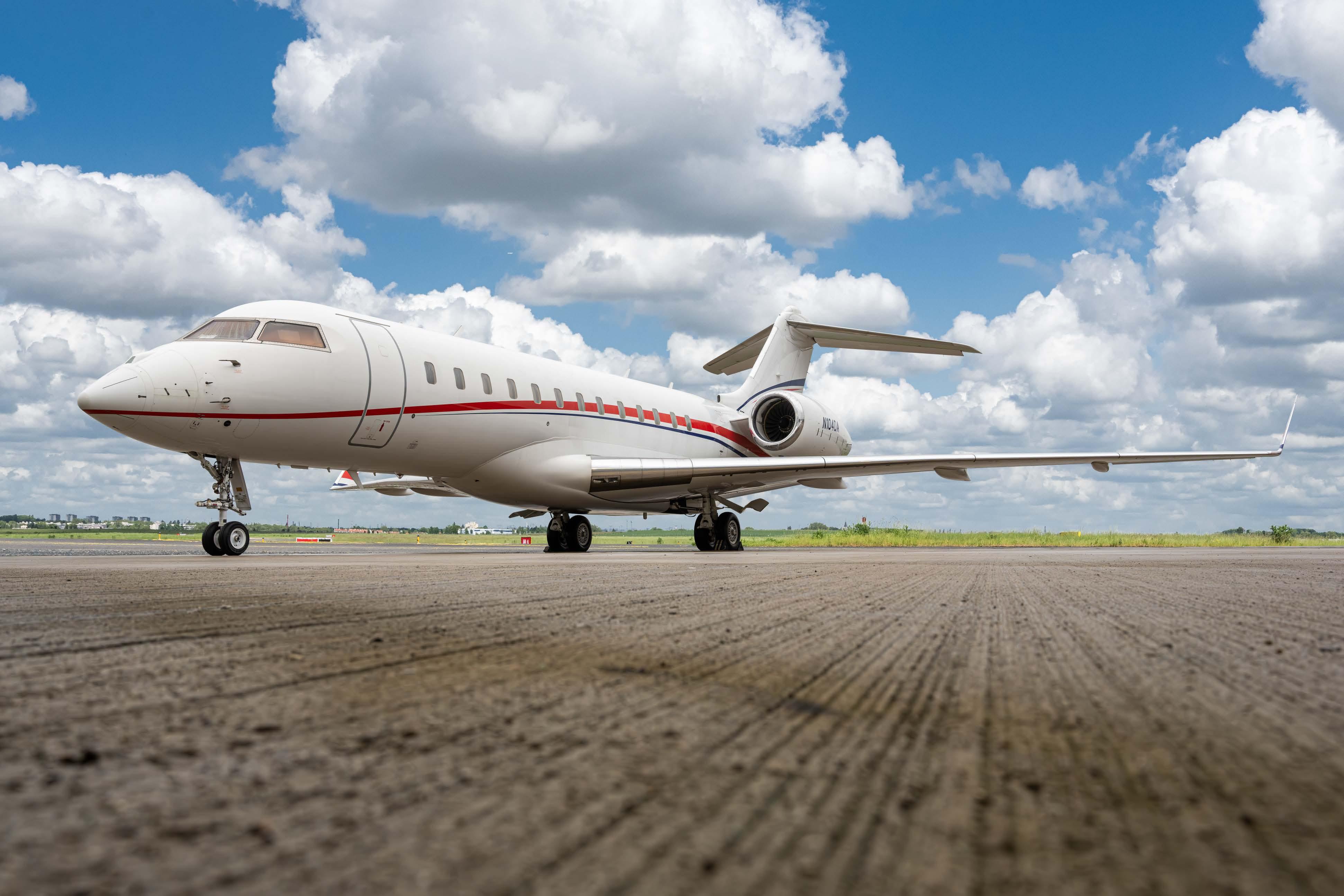

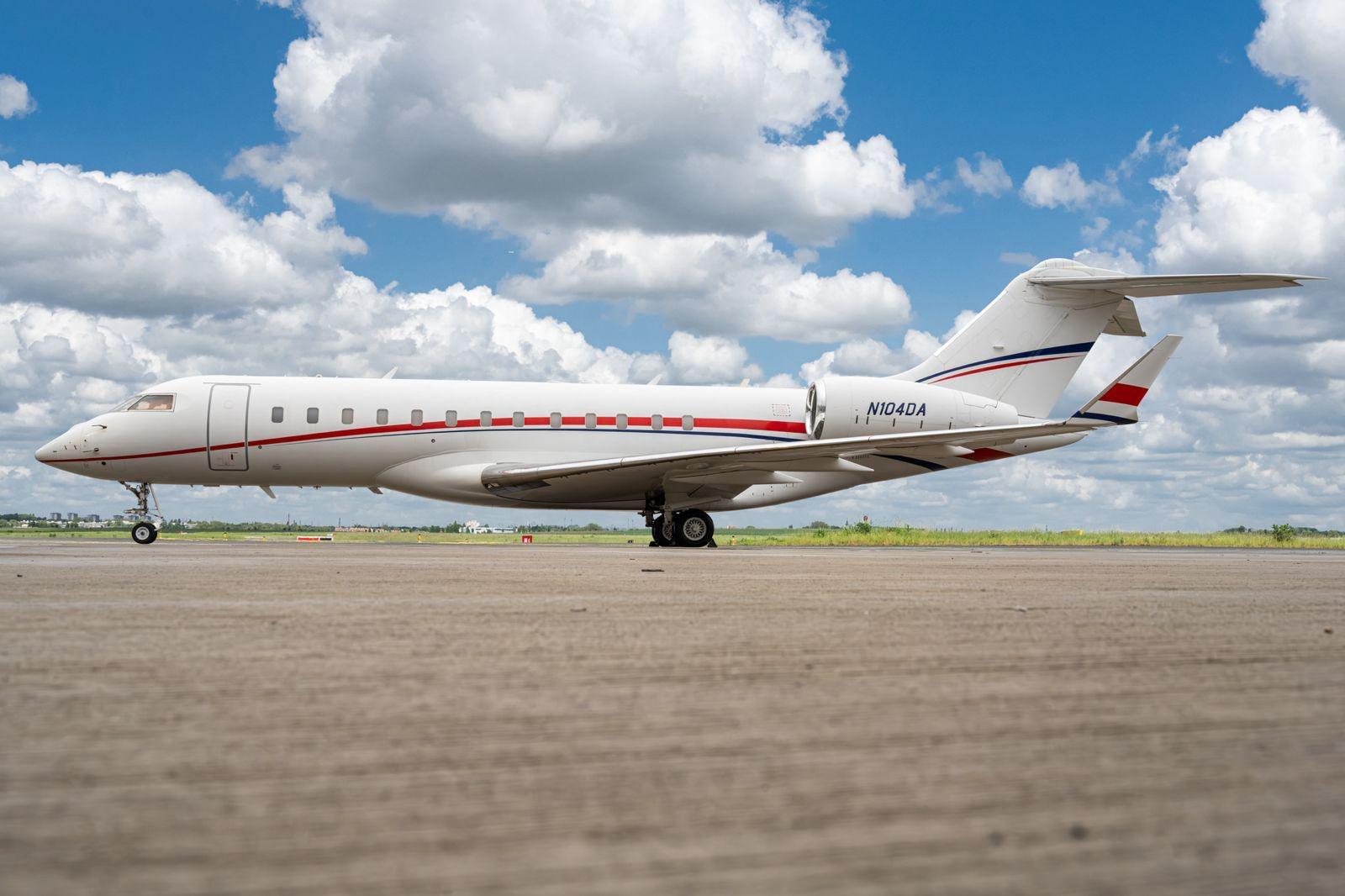

EXTERIOR
