Architectural Portfolio by Jessa Cleo

selected works

portfolio.

Cleo Baldevarona + architecture

Jessa Cleo C. Baldevarona

Address: 8 Bon Echo Crt, Scarborough, ON M1B 6C3

Cell: +1 (647) 829-3762

Profile

e-mail: jessabaldevarona@gmail.com

LinkedIn: https://www.linkedin.com/in/jessacleo/

Adaptable, keen, and detail-oriented on drafting with an excellent eye for design eager to practice my professional expertise on architecture with a creative and critical-thinking approach to provide quality work

Highlights of Qualifications

• Currently enrolled in Architectural Technology – 3-year Advanced Diploma Co-op Program

• Came from an architectural background with general experience on designing and manual or computer-aided drafting for various residential, commercial, and mixed -use projects

• Knowledgeable of the Ontario Building Code and LEED principles

• Excels in time management and work ing under pressure with skills in organization on individual tasks and group settings

• A team player with collaborative skills with individuals from different backgrounds

• Articulate in both oral and written communication

• Fluent in English and Filipino

Technical Skills

• 2D Drafting: AutoCAD, Revit, ArchiCAD

• 3D Modelling and Rendering: Revit, Sketchup, ArchiCAD. Lumion, Enscape, VRay

• Microsoft Office: Word, PowerPoint, Excel

• Adobe: Photoshop, Illustrator, InDesign

• Others: Figma, Canva

Education & Training

Architectural Technology Advanced Diploma Co -op Program Centennial College, Scarborough, ON

Relevant Courses to Date

• Construction Health and Safety

• Builders and Contractors

• Environment 1, 2, & 3

• Structures

Academic Projects:

• Design and Drafting construction drawings for Strip Mall

Jessa Cleo C. Baldevarona

Address: 8 Bon Echo Crt, Scarborough, ON M1B 6C3

Cell: +1 (647) 829-3762

Education & Training (continuation)

e-mail: jessabaldevarona@gmail.com

LinkedIn: https://www.linkedin.com/in/jessacleo/

• Attended Seminars and Participated in ANTHOLOGY: Architecture + Design Festival

• Participated in Nippon AYDA Design Competition

• Staff writer for The Buttress: Saint Louis University School of Engineering and Architecture’s Official Publication

• Student Council Campaign Manager

Primary to Secondary Education

Future Generation Philippine International School, Riyadh, Saudi Arabia

Related Work Experience

Architecture Apprentice (Diversified Architectural Training)

Arkispain Design and Build, Baguio City, Philippines

• Communicated with clients and head architect for conceptualization, space planning, architectural design, and project presentations including architectural drawings – floor plans, elevations, sections, and site development plan(s), 3D modelling, and render ing of interior and exterior visualizations

• Applied architectural lay outing of structural, mechanical, electrical, plumbing, and sanitary systems

• Prepared contract documents, specifications, cost estimates, and general conditions

• Conducted pre-design activities such as economic and financial feasibility studies

• Practiced Project Management and Administration on -site including supervision on workflow and quality of finishings, reporting to head architect, and problem solving by maki ng immediate decisions independently when needed

Other Work Experience

Freelancer

Remote Work

January 2023 - Present Present

Architecture and Interior Design

- Drafting of Architectural Drawings

- Modifying construction drawings

- Space planning

• Contracts, Law, Professional Practice & Ethics

• Design and Computer Aided Drafting

• Materials and Methods

• Architectural graphics

• Designing and Drafting construction drawings for Elementary school (ongoing)

• Manual Drafting and detailing of construction drawings for residential and commercial buildings

• Applying Ontario Building Code and LEED principles on projects

• Identifying and filling out applicable contracts for projects

Bachelor of Science in Architecture

Saint Louis University, Baguio City, Philippines

• Conducted a Thesis Study on The Redevelopment for Baguio City’s Public Library using the Third Place Theory

Aug. 2015 – May 2020

- Interior design of house renovation

- Interior Design of bedroom

References Available Upon Request

• Architectural Portfolio

• Multimedia Design portfolio

• Cover Letter

Graphic Design

- Logo Design

- Calling Card Design

- Branding

- Poster Design

- T-shirt print Design

2004 - 2015 Aug. 2020 – Feb. 2022

2020 - Present

June

CONTENTS 1

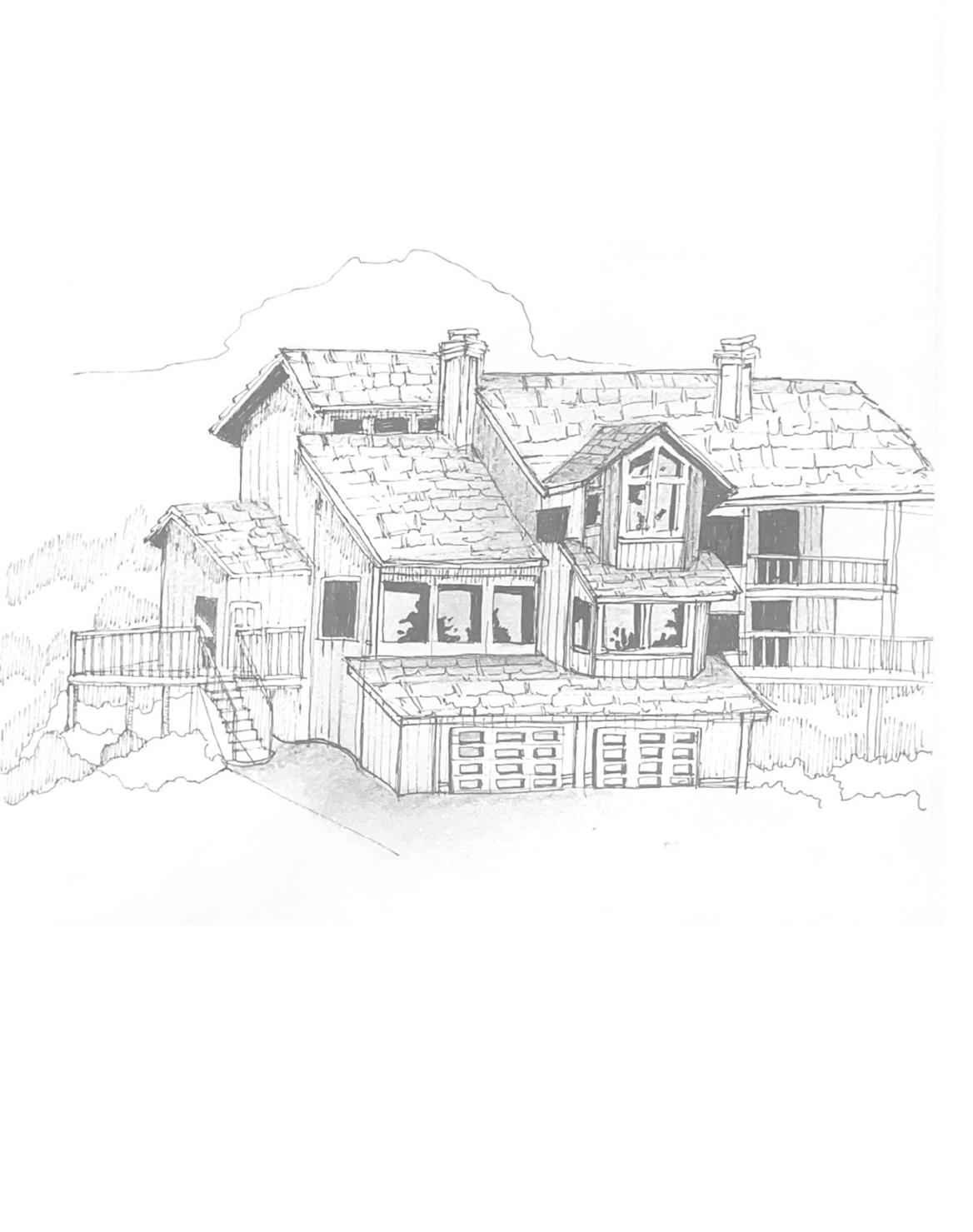

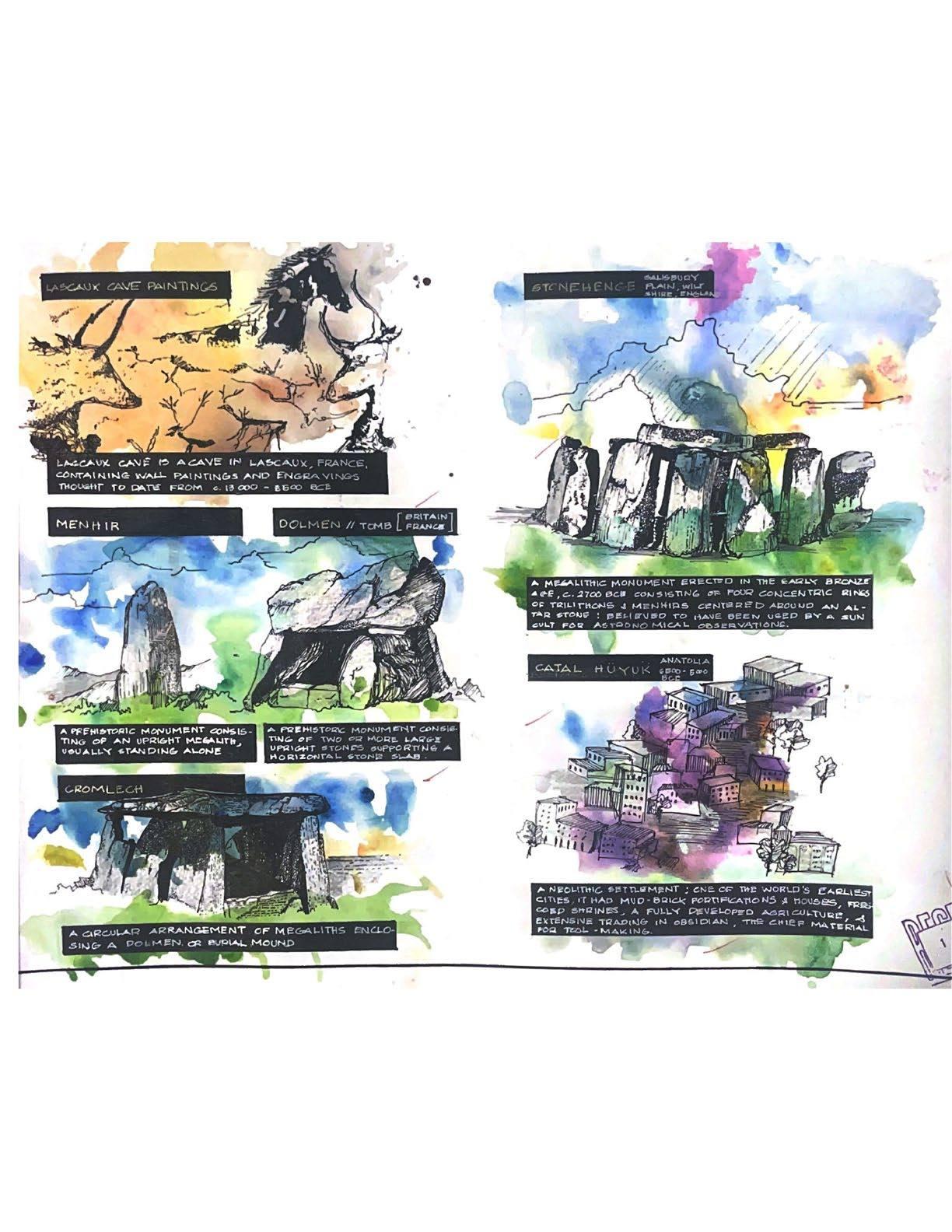

4 Baguio City Public Library Glo Residences Tropical Sanctuary Other Works . . . . . . . . . . . . . . . . 57 - 80 21 - 34 35 - 56 81 - 86 5 Strip Mall . . . . 1 - 20

2 3

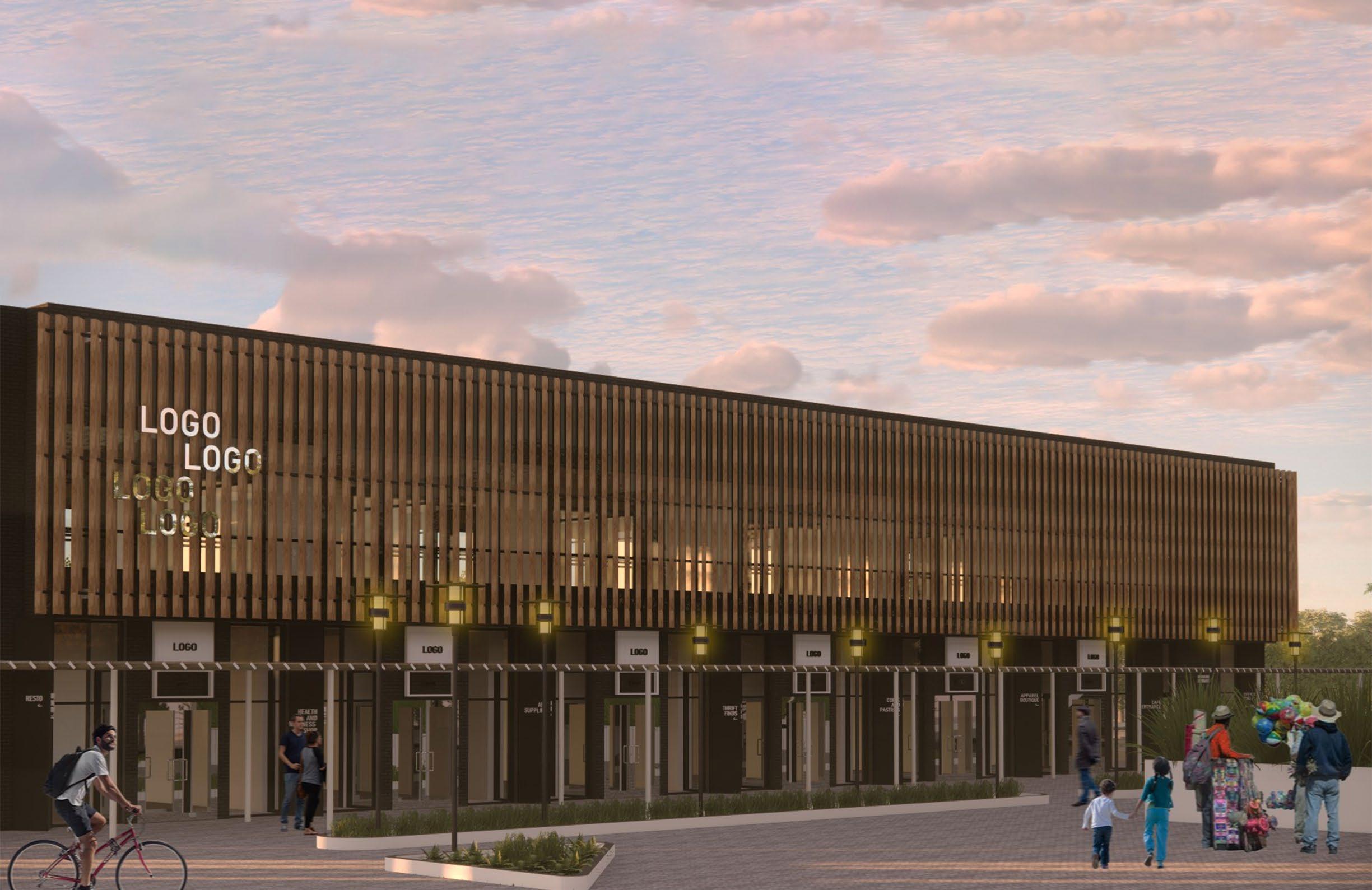

STRIP MALL

Location: 7431 (7437, 7439, 7441) Kingston Road. Scarborough, ON, M1B 5S3

Project under: Design and CAD Project 3

Year: 2023

Zoning: Commercial Residential 0.7 SS3 - City ZOning By-law 569-2013

Lot Area: 12,621.48 sqm.

Minimum GFA: 33% ofLot Area - 4,164.93 sqm.

Maximum Building Height: 11.0 M

The main goal of this project is to focus on a pedestrian friendly design while incorporating sustainable design elements, preserving vegetation, introducing functional landscaping, and creating a pleasant experience on both interior and outdoor areas through the use of covered walkways and a combination of weather protection elements.

THE GENERAL CONTRACTOR SHALL CHECK AND VERIFY ALL INFORMATION SHOWN HEREIN AND SHALL REPORT ERRORS AND OMISSIONS TO THE DESIGNER. THIS DRAWING IS THE PROPERTY OF CENTENNIAL COLLEGE AND SHALL NOT REPRODUCED WITHOUT WRITTEN AUTHORIZATION. THIS DRAWING MUST NOT BE SCALED. ISSUED DATE DRAWING NO: DATE: DRAWN BY: PROJECT NO: DRAWING NAME: PROJECT NAME: SCALE: CHECKED BY: A2.01 4/19 /2023 J CLEO B BEHRANG ASSIGNMENT 5

STATISTICS

DRAWINGS

74XX Kingston R Scarborough, ON M1B SITE DEVELOPMENT PLAN

SITE

CONSTRUCTION

100%

WALL ASSEMBLIES

POURED CONCRETE FOUNDATION FOOTING:

POURED CONCRETE FOOTING - REFER TO STRUCTURAL DRAWINGS.

CEILING ASSEMBLIES

GLASS BLOCK WALL:

NUBIO - 60 ; DIMENSIONS: 8x8x4 WITH FIRE RATING OF 60 minutes; U/R VALUE OF .48/2.22 WIITH LIGHT TRANSMISSION OF 57%; SHADING COEFFICIENT OF .55%; SOUND LOSS AT 42 DB; 7.7 LB PER BLOCK; 22.7 LLBS PER SQ. FT.

NOTES:

1. Face dimensions of blocks are nominal. Actual dimensions are 1/4” smaller than stated.

2. Thickness indicated is nominal. 3 ” thick is 3-1/8” and 4” thick is 3-7/8”

3. Dimensions shown for Corner Blocks and AllBends are height and thickness only

FLOOR ASSEMBLIES

TYPICAL FOUNDATION WALL (BELOW GRADE):

WATERPROOFING FROM GRADE TO 300mm BELOW TOP OF INTERIOR SLAB,,POURED CONCRETE WALLS MIN. 1200mm

WASHROOM INTERIOR PARTITION

WALLS:

16mm GYPSUM WALL SHEATHING (USE WATER RESISTANT BOARD)

TYPICAL COMPOUND CEILING:

13mm CEILING BOARD ON 19mm FURRING CHANNEL @ 600mm O/C, ON 64mm MTL. CHANNELS @ 1200mm O/C.

TYPICAL BRICK VENEER WALL:

90mm BRICK VENEER LATERALLY SUPPORTED BY 25mm x 175mm x 22 GA. STAINLESS STEEL BRICK TIES @ 400mm O/C HORIZONTAL & 600mm O/C VERTICAL, 38mm AIR SPACE, 75mm THICK RIGID INSULATION BOARD WITH JOINTS TAPED AT ALL OPENINGS AND BETWEEN BOARDS AND OTHER SURFACES, 6mm AIR BARRIER ON 13mm PLYWOOD SHEATHING, ON 152mm METAL STUDS @ 400mm O/C, R-20 FIBERGLASS INSULATION, 6mm POLY VAPOUR BARRIER CONNECTED TO WALL VAPOUR BARRIER AT GROUND FLOOR LEVEL AND SEALED AT BOTTOM PLATE, WITH JOINTS TAPED AND CAULKED, INCLUDING AT ALL ELECTRICAL / MECHANICAL PENETRATIONS, 13mm GYPSUM WALL SHEATHING, TAPE, PLASTER, SKIM COAT, SAND, PRIME AND PAINT 2 COATS.

TAPE, PLASTER, SKIM COAT, SAND, PRIME AND PAINT 2 COATS MIN., ON 102mm METAL STUDS @ 400mm O/C, 100mm SPACE FOR PLUMBING, 92mm AIR SPACE, 102mm METAL STUDS @ 400mm O/C, 16mm GYPSUM WALL SHEATHING (USE WATER RESISTANT BOARD) TAPE, PLASTER, SKIM COAT, SAND, PRIME AND PAINT 2 COATS MIN. WHERE THERE IS MILLWORK PROVIDE 19mm PLYWOOD BACKING.

SLAB ON GRADE:

150mm CONCRETE SLAB ON 60 mm POLY VAPOUR BARRIER ON 76.2mm RIGID FOAM INSULATION. PROVIDE EXPANDABLE JOINT FILLER BETWEEN SLAB AND FOUNDATION WALL. ; PROVIDE UNDERSLAB WEEPING TILES (REFER TO SOIL REPORT)

TYPICAL CONCRETE FLOOR:

5mm TILE FINISH 75mm POURED CONCRETE ON 50.8mm COMPOSITE METAL DECKING ON SPRAY FIREPROOFED STEEL JOISTS. 45 MIN. FIRE RATING

TYPICAL INTERIOR PARTITION WALLS:

2 LAYERS OF 16mm GYPSUM WALL SHEATHING BOTH SIDES (USE WATER RESISTANT BOARD AROUND TUBS AND SHOWERS) TAPE, PLASTER, SKIM COAT, SAND, PRIME AND PAINT 2 COATS MIN., ON 64mm METAL STUDS @ 400mm O/C, C/W SINGLE BOTTOM PLATE AND DOUBLE TOP PLATE. WHERE THERE IS MILLWORK PROVIDE 19mm PLYWOOD BACKING.

TYPICAL PARAPET:

2 PLY MODIFIED BITUMEN ROOF, 13mm PROTECTION BOARD, RIGID FOAM INSULATION, STEEL ANGLE, 50.8mm COMPOSITE METAL DECKING, METAL COPING, FLASHING MEMBRANE, SCREWS, WOOD BLOCK, WOOD CANT STRIP, 13mm PLYWOOD SHEATHING, 152mm STEEL STUD AND BATT INSULATION, 13mm SHEATHING, 75mm RIGID FOAM INSULATION, 6mm AIR/VAPOUR BARRIER, 38mm AIR SPACE, 90mm BRICK VENEER

ROOF ASSEMBLIES

TYPICAL ROOF:

2 PLY MODIFIED BITUMEN ROOF, 13mm PROTECTION BOARD, RIGID FOAM INSULATION, 50.8mm COMPOSITE METAL DECKING

CURTAIN WALL:

ALUMINUM FRAMING, DOUBLE PANE, LOW -EMISSIVITY INSULATED GLASS; SILICONE SEALANT AND EPDM GASKETS USED AT ALL JOINTS AND CONNECTIONS, WITH U-VALUE OF 0.30 OR LOWER, SHOULD COMPLY WITH LOCAL FIRE CODE

GREEN ROOF : 50mm GRASS/SOIL, 60mmSUBSTRATE, FILTER MEMBRANE, 60mm DRAINAGE SYSTEM,2.5mm VAPOUR BARRIER, 50.8mm METAL ROOF DECKING

Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail A107 LEGENDS STRIP MALL J CLEO B No. Description

www.autodesk.com/revit

P1 W5 W1 W2 W3 FN2 FN1 R1 R2 C1 F1 F2

BUILDING C FIRST FLOOR PLAN

UP K L M J 1 A112 14 15 16 17 18 19 20 21 22 23 24 25 N O m² VESTIBULE 53 m² LOBBY 4 m² VESTIBULE 4 m² ELEVATOR 3 m² WASHROOM 15 m² STAIRWELL 8 m² RECYCLING ROOM m² Room 79 m² RETAIL SPACE 2 m² VESTIBULE m² VESTIBULE 2 m² VESTIBULE 2 m² VESTIBULE m² VESTIBULE m² VESTIBULE 38 m² STAIRWELL 6 m² VESTIBULE m² VESTIBULE 4 m² VESTIBULE 34 m² KITCHEN m² STORAGE m² PANTRY m² UNIV.W.C. 22 m² MEN'S W.C. 27 m² WOMEN'S W.C. 302 m² DINING AREA 79 m² RETAIL SPACE 2 79 m² RETAIL SPACE 3 80 m² RETAIL SPACE 80 m² RETAIL SPACE 5 80 m² RETAIL SPACE 6 3 m² UNIV. W.C. 3 m² STAFF RM. 3 m² UNIV. W.C. 3 m² STAFF RM. m² UNIV. W.C. 3 m² STAFF RM. 3 m² UNIV. W.C. 3 m² STAFF RM. 3 m² UNIV. W.C. 3 m² STAFF RM. 3 m² UNIV. W.C. m² STAFF RM. 10 m² STORAGE 10 m² STORAGE 10 m² STORAGE 10 m² STORAGE 10 m² STORAGE 10 m² STORAGE 2 A112 1 A115 2 A115 3 A115 4 A115 60846 19000 41846 5846 6000 6000 6001 6002 5999 5998 4000 5000 5000 5000 23776 6000 5995 4130 7651 4967 2684 7438 2742 1444 5845 2300 1382 1760 2029 1255 1400 1442 1825 1636 2395 4271 1947 2324 2300 1382 2300 1382 2300 1372 2300 1378 2300 1382 2300 1382 1351 2136 2324 1636 2584 1351 2136 2324 1636 2584 1388 2325 2098 1636 2559 1384 2325 2103 1379 2136 2297 1636 2559 1636 2559 3800 10054 4650 446 917 466 4592 446 4580 917 466 4728 8882 4016 3679 292 3061 1834 5054 7273 2200 2669 2404 4639 7273 1859 1490 2854 239 255 W3 W3 W1 W4 W4 W1 200 201 204 223 222 288 221 199 194 198 193 192 197 196 191 195 286 270 271 272 273 274 275 282 279 280 283 260 276 W2 240 247 246 245 244 243 242 248 249 250 251 252 253 W3 W3 W3 W3 W3 W1 W1 W3 W1 W1 W3 W1 W3 W3 W1 W1 W3 W1 W3 W1 W3 W1 W3 W1 W3 W3 W1 W1 W1 W3 W1 W1 W3 W3 W3 W3 W3 W3 W3 W1 W3 W3 W3 W1 W1 W1 W1 W2 W2 W2 W2 W2 W2 W2 W2 W2 W4 W1 W1 W2 W6 W6 W2 W2 W2 W2 W1 W2 W1 W2 W2 W1 W2 W1 W2 W1 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 W2 www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail A108 FLOOR PLANS STRIP MALL J CLEO B No. Description 1 100 BLDG. C LEVEL 1 1

BUILDING C SECOND FLOOR PLAN

DN K L M J A112 14 15 16 17 18 19 20 21 22 23 24 25 N O 50 m² OFFICE SPACE 2 50 m² OFFICE SPACE 3 50 m² OFFICE SPACE 4 50 m² OFFICE SPACE 5 51 m² OFFICE SPACE 6 38 m² STAIRWELL 52 m² OFFICE SPACE 1 13 m² MEN'S W.C. 13 m² WOMEN'S W.C. 113 m² CORRIDOR 8 m² STORAGE 16 m² STAIRWELL 45 m² OFFICE SPACE 7 45 m² OFFICE SPACE 8 45 m² OFFICE SPACE 9 45 m² OFFICE SPACE 10 45 m² OFFICE SPACE 11 43 m² OFFICE SPACE 12 2 A112 45846 41846 4000 5846 6000 6000 6001 6000 6000 5998 16125 7651 23776 6000 5995 4130 4967 2684 2649 292 2775 4567 1775 2039 3997 1391 2842 3063 5933 6025 5999 6002 6000 5783 7923 7923 7923 7923 7923 7938 1730 8867 8867 8867 8867 8867 8867 3718 9971 2138 1935 5816 5811 5811 5811 5811 5806 208 207 206 287 220 214 215 209 210 216 211 217 212 218 213 219 284 W2 W3 W3 W6 W3 W1 W1 W4 W2 W3 W1 W2 W2 W2 W2 W6 W2 W6 W6 W6 W6 W1 W3 W3 W3 W3 W3 W3 W2 W2 W2 W2 W1 W1 W1 W1 W3 W2 W2 W2 W6 W2 W2 W2 W2 W6 W6 W6 W6 W6 W6 W6 W6 W6 W6 W6 W6 W6 W6 W6 W6 www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail A109 FLOOR PLAN STRIP MALL J CLEO B No. Description 1 100 BUILDING C LEVEL 2 1

BUILDING C ELEVATIONS

FOOTING -1200 BLDG. C LEVEL1 FFL 0 RESTAURANT T.O PARAPET 6000 LEVEL 2 FFL 4710 LEVEL 2 FCL 7900 BUILDING C T.O PARAPET 9800 LEVEL 1 FCL 4000 14 15 16 17 18 19 20 21 22 23 24 25 2 A112 276 283 240 247 246 245 244 243 242 239 FOOTING -1200 BLDG. C LEVEL1 FFL 0 RESTAURANT T.O PARAPET 6000 LEVEL 2 FFL 4710 LEVEL 2 FCL 7900 BUILDING C T.O PARAPET 9800 LEVEL 1 FCL 4000 14 15 16 17 18 19 20 21 22 23 24 25 - 2 A112 www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail A110 ELEVATIONS STRIP MALL J CLEO B No. Description 1 : 100 BUILDING C NORTH 1 1 : 100 BUILDING C SOUTH 2

BUILDING C ELEVATIONS

FOOTING -1200 K L M J BLDG. C LEVEL1 FFL 0 RESTAURANT T.O PARAPET 6000 LEVEL 2 FFL 4710 LEVEL 2 FCL 7900 BUILDING C T.O PARAPET 9800 LEVEL 1 FCL 4000 N O 1 A106 4 A107 FOOTING -1200 K L M J BLDG. C LEVEL1 FFL 0 RESTAURANT T.O PARAPET 6000 LEVEL 2 FFL 4710 LEVEL 2 FCL 7900 BUILDING C T.O PARAPET 9800 LEVEL 1 FCL 4000 N O 1 A106 www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail A111 ELEVATIONS STRIP MALL J CLEO B Issue No. Description 1 : 100 BUILDING C EAST 1 1 : 100 BUILDING C WEST 2

BUILDING C SECOND FLOOR PLAN

FOOTING -1200 BLDG. C LEVEL1 FFL 0 RESTAURANT T.O PARAPET 6000 LEVEL 2 FFL 4710 LEVEL 2 FCL 7900 BUILDING C T.O PARAPET 9800 LEVEL 1 FCL 4000 14 15 16 17 18 19 20 21 22 23 24 2580 m² RETAIL SPACE 6 80 m² RETAIL SPACE 80 m² RETAIL SPACE 4 79 m² RETAIL SPACE 3 79 m² RETAIL SPACE 2 79 m² RETAIL SPACE 1 53 m² LOBBY 15 m² STAIRWELL 302 m² DINING AREA 45 m² OFFICE SPACE 45 m² OFFICE SPACE 45 m² OFFICE SPACE 45 m² OFFICE SPACE 10 45 m² OFFICE SPACE 11 43 m² OFFICE SPACE 12 2 A112 1 A113 2 A113 3 A113 3957 543 214 1286 3297 757 1086 P1 P1 P1 W5 W2 W2 W2 W2 W3 W1 P1 P1 C1 C1 C1 C1 C1 C1 C1 C1 W2 W2 223 205 203 288 189 199 186 198 183 197 180 W1 196 177 195 173 270 271 272 282 279 W3 W3 W3 W3 W3 W3 W3 W3 W3 W4 W1 FTN1 FTN2 C1 C1 C1 C1 C1 C1 C1 F1 FTN2 FTN2 FTN2 FTN2 FTN2 FTN2 FTN2 FTN2 FTN2 FTN2 FTN2 FTN1 FTN1 FTN1 FTN1 FTN1 FTN1 FTN1 FTN1 FTN1 FTN1 FTN1 F2 RESTAURANT LEVEL 1 0 T/O FOOTING -1200 K L M J BLDG. C LEVEL1 FFL 1 A112 RESTAURANT T.O PARAPET 6000 LEVEL 2 FFL 4710 LEVEL 2 FCL 7900 BUILDING C T.O PARAPET 9800 LEVEL 1 FCL 4000 79 m² RETAIL SPACE 1 10 m² STORAGE 3 m² UNIV. W.C. 52 m² OFFICE SPACE 1 113 m² CORRIDOR 45 m² OFFICE SPACE 7 2 m² VESTIBULE 1086 757 3207 755 3994 2336 415 FTN2 FTN1 190 188 W2 W2 W2 W2 W2 221 242 248 W2 P1 F2 C1 C1 C1 C1 C1 W2 W2 W1 W1 P1 W3 W6 W6 F1 www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail A112 SECTIONS STRIP MALL J CLEO B No. Description 1 100 LONGITUDINAL SECTION 1 1 100 CROSS SECTION 2

FOOTING -1200 BLDG. C LEVEL1 FFL 0 RESTAURANT T.O PARAPET 6000 LEVEL 1 FCL 4000 25 INT. EXT. 1 A114 2 A114 W3 W1 P1 W2 C1 FOOTING -1200 BLDG. C LEVEL1 FFL 0 LEVEL 2 FFL 4710 LEVEL 2 FCL 7900 BUILDING C T.O PARAPET 9800 LEVEL 1 FCL 4000 21 3 A114 4 A114 INT. EXT. INT. INT. P1 W1 W3 C1 C1 W2 C1 W2 W2 P1 FOOTING -1200 BLDG. C LEVEL1 FFL 0 BUILDING C LEVEL 2 FCL 8500 LEVEL 2 FFL 4710 LEVEL 2 FCL 7900 BUILDING C T.O PARAPET 9800 LEVEL 1 FCL 4000 14 INT. EXT. 5 A114 6 A114 W1 W3 W1 W4 W1 W3 C1 P1 www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail A113 WALL SECTIONS STRIP MALL J CLEO B No. Description 1 : 25 1 STOREY WALL SECTION 1 1 : 25 INTERSECTION SECTION 2 1 : 25 2 STOREY WALL SECTION 3 WALL SECTIONS

WALL SECTION DETAILS

RESTAURANT T.O PARAPET 6000 LEVEL 1 FCL 4000 25 INT. EXT. P1 P1 C1 302 m² DINING AREA W1 STEEL BEAM 500mm OPEN WEB JOISTS COMPOUND CEILING 90 MM BRICK VENEER 38 mm AIR GAP 13 mm PLYWOOD SHEATHING 75 MM RIGID INSULATION 152 mm STEEL FRAMING + BATT INSULATION 13 mm GYPSUM BOARD 38 13 163 45 43 500 13 152 75 13 38 90 FOOTING -1200 BLDG. C LEVEL1 FFL 0 25 W3 W2 INT. EXT. 302 m² DINING AREA RIGID INSULATION EXPANSION JOINT CURTAIN WALL SLAB ON GRADE 249 239 7 150 RESTAURANT T.O PARAPET 6000 LEVEL 2 FFL 4710 LEVEL 1 FCL 4000 21 W3 P1 W2 INT. EXT. INT. INT. 45 43 500 38 13 163 45 43 500 50 160 75 13 38 90 13 152 METAL COPING FLASHING OVER WATERPROOF MEMBRANE RIGID INSULATION 13 mm PLYWOOD SHEATHING 38 mm METAL DECK STEEL BEAM C1 C1 BATT INSULATION 38 mm AIR GAP COMPOUND CEILING 500 mm OPEN WEB JOIST COMPOUND CEILING 500 mm OPEN WEB JOIST 13 mm GYPSUM BOARD 152 mm STEEL FRAMING + BATT INSULATION 43 m² OFFICE SPACE 12 80 m² RETAIL SPACE 302 m² DINING AREA FOOTING -1200 BLDG. C LEVEL1 FFL 0 21 W2 INT. INT. 302 m² DINING AREA 80 m² RETAIL SPACE 6 82 150 82 150 16 16 125 16 16 RIGID INSULATION SLAB ON GRADE RIGID INSULATION SLAB ON GRADE 2 LAYER GYPSUM BOARD 2 LAYER GYPSUM BOARD BUILDING C LEVEL 2 FCL 8500 LEVEL 2 FCL 7900 BUILDING C T.O PARAPET 9800 14 C1 P1 W3 W1 P1 W3 EXT. EXT. INT. 15 m² STAIRWELL STEEL BEAM 500 mm OPEN WEB STEEL JOIST COMPOUND CEILING CURTAIN WALL FLASHING OVER WATERRPROOF MEMBRANE RIGID INSULATION 13 mm PLYWOOD SHEATHING 38 mm METAL DECK 90 mm BRICK VENEER 38 mm AIR GAP 13 mm PLYWOOD SHEATHING 75 mm RIGID INSULATION 152 mm STEEL FRAMING + BATT INSULATION 38 176 12 45 90 38 13 75 152 13 FOOTING -1200 BLDG. C LEVEL1 FFL 0 14 W1 W4 R @ 24 187.5 mm EXT. INT. 15 m² STAIRWELL FIRE RATED GLASS BLOCKS 90 38 13 75 152 13 300 SLAB ON GRADE RIGID INSULATION SLAB ON GRADE www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail 1 10 A114 SECTION DETAILS 0001 STRIP MALL J CLEO B Issue Date Author Checker No. Description Date 1 : 10 DETAIL 1 1 1 10 DETAIL 2 2 1 : 10 DETAIL 3 3 1 : 10 DETAIL 4 4 1 : 10 DETAIL 5 5 1 : 10 DETAIL 6 6 METAL COPING FLASHING OVER WATERPROOF MEMBRANE RIGID INSULATION 38mm METAL DECK PLYWOOD SHEATHING

K 15 16 16 125 16 16 189 95 95 189 16 16 125 16 16 W2 W5 W2 79 m² RETAIL SPACE 1 53 m² LOBBY STEEL COLUMN L 15 W2 W5 W2 W2 79 m² RETAIL SPACE 1 53 m² LOBBY m² RECYCLING ROOM METAL STUDS STEEL COLUMN 2 LAYER GYPSUM BOARD 136 189 136 16 16 125 16 16 136 189 136 16 1663 6316 16 1 A106 M 14 W4 W1 W1 15 m² STAIRWELL EXT. EXT, STEEL COLUMN METAL STUDS 13 mm GYPSUM BOARD 2 LAYER GYPSUM BOARD FIRE RATED GLASS BLOCKS 90 mm BRICK VENEER 38 mm AIR GAP 13 mm PLYWOOD SHEATHING RIGID INSULATION 90 38 13 75 300 90 38 13 75 216 M 22 W4 W2 W2 W5 302 m² DINING AREA 22 m² MEN'S W.C. 27 m² WOMEN'S W.C. STEEL COLUMN 2 LAYER GYPSUM BOARD METAL STUD BATT INSULATION BATT INSULATION 13 mm GYPSUM BOARD 13 mm GYPSUM BOARD BATT INSULATION 2 LAYER GYPSUM BOARD BATT INSULATION 32 124 33 16 16 124 17 16 210 189 53 32 125 32 16 16 63 63 16 16 210 189 53 96 100 96 16 6416 100 16 64 16 www.autodesk.com/revit Scale Project number Date Drawn by Checked by Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail Consultant Address Address Phone Fax e-mail A115 PLAN DETAILS STRIP MALL J CLEO B No. Description 1 : 10 DETAIL 7 1 1 : 10 DETAIL 8 2 1 10 DETAIL 9 3 1 10 DETAIL 10 4 PLAN DETAILS

GLO RESIDENCES

Project Title: Proposed 4-storey Apartment Building for students with Commercial Space

Location: Fairview, Quezon City, Philippines

Project under: Achitectural Appernticeship

Zoning: R-3

This project is located within the vicinity of a busy neighborhood near schools and universities resulting to challenges such as road noise and air pollution. With an R-3 zoning, placing firewalls on all 3 sides and the use of air wells were made part of the design to utilize the lot area.

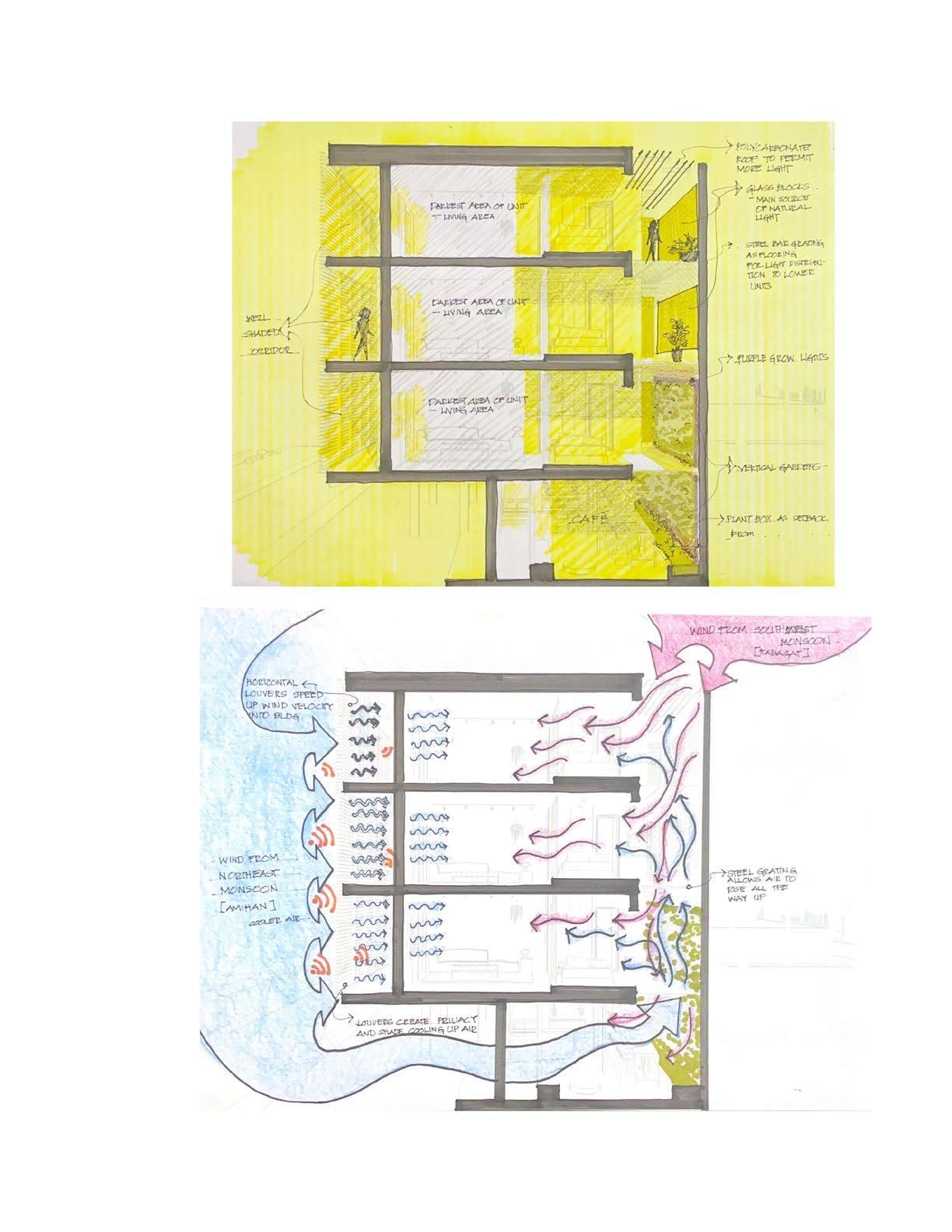

The Design Process focused on the concept of curating its air wells into a much more effective building element that provides fresh air by placing vertical gardens within its premises and the use of Purple Grow Lights that would benefit the vegetation due to the limited amount of sunlight that enters the building. Fire-rated glass blocks were also used on the firewalls at top floors and divisions of units to permit and distribute natural light throughout the living spaces. The use of Purple Grow Lights then played major role in the play of lights that will create the building character.

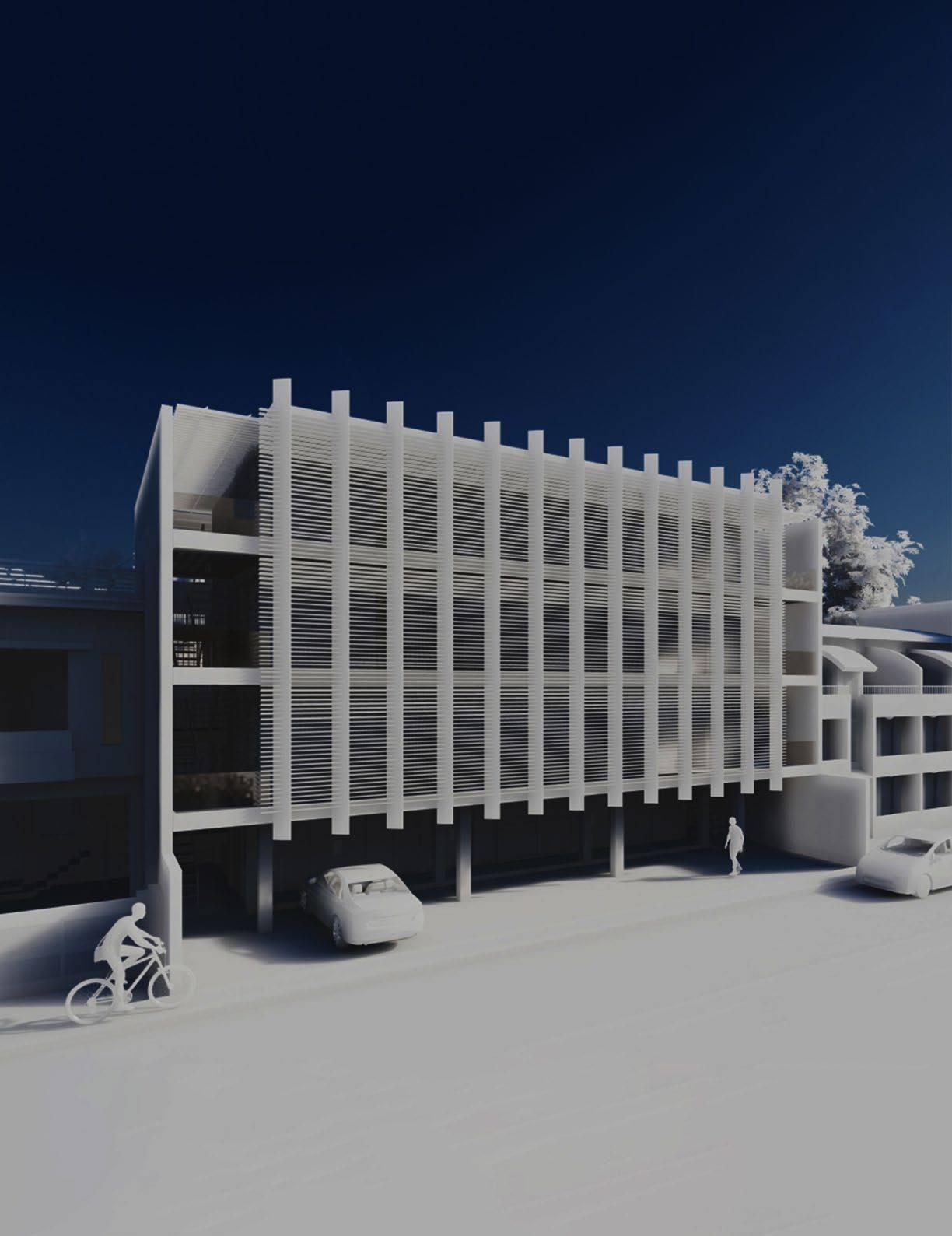

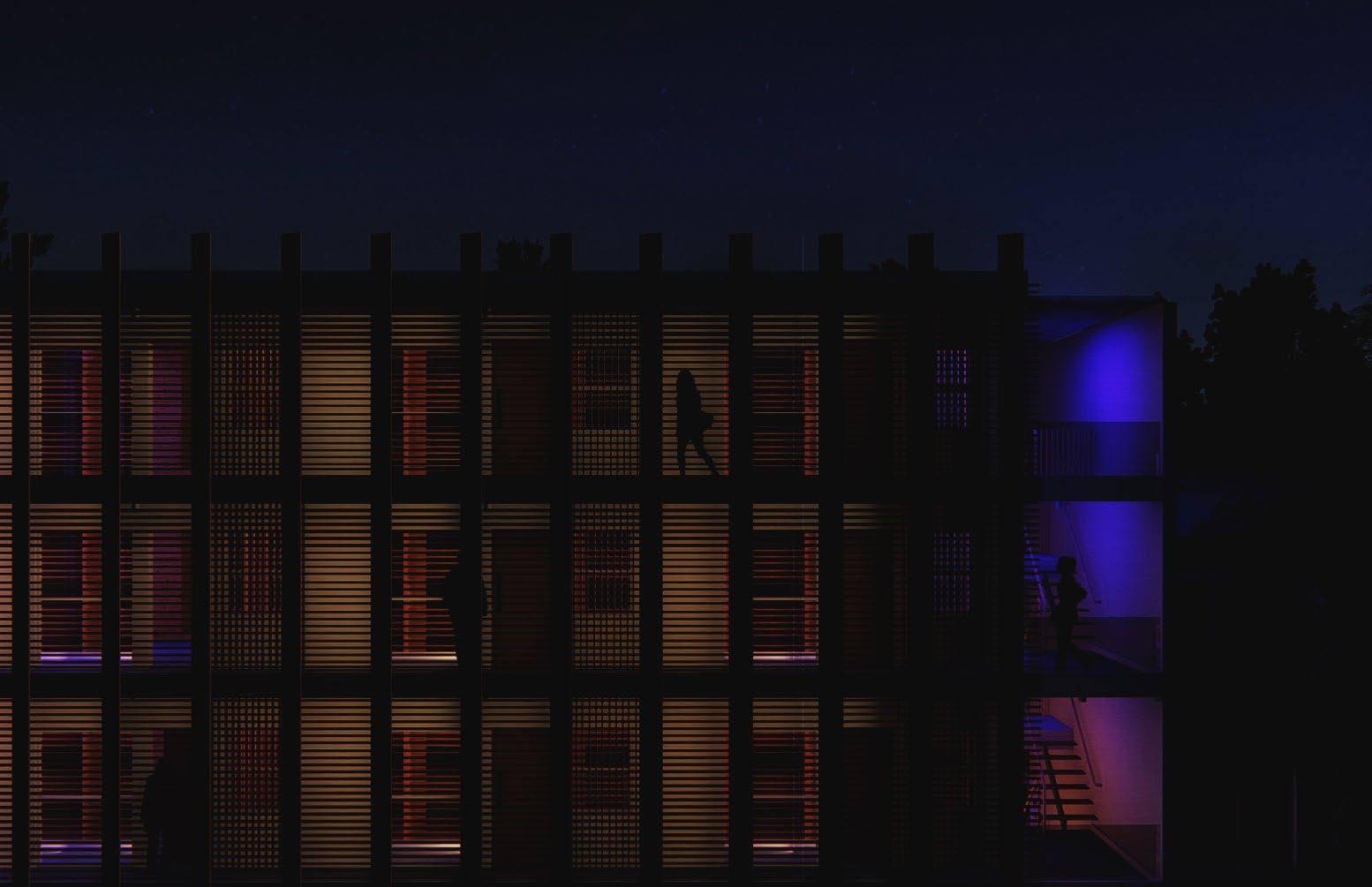

The Exterior composed of horizontal louvers angled against the Northeast Monsoon redirects the wind towards the building entering through horizontal louvers that are thinly spaced to speed up the wind These louvers also serve their purpose for shading, minimizing road noise, and privacy. Natural Light Analysis Wind and Noise Analysis

FIRST FLOOR PLAN

THIRD FLOOR PLAN

Steel grating to allow air and natural light to pass through and be distributed to units above and below Wood planks

Rotating vertical louvers used as space divider, Also used to control light and wind path.

Raised platform with storage beneath

up up 5.14 5.14 5.14 3.20 2.55 1.71 4.92 2.40 7.47 3.04 1.26 1.26 2.95 5.00 1.35 up up 5.14 5.14 5.14 3.20 2.55 1.71 1.20 3.59 1.20 3.59 1.20 3.54 2.03 2.00 1.50 4.15 2.97 1.79 0.87 2 5 6

a Commercial Space 1 b Commercial Space 2 c Restroom d Cafe e Cafe Restroom1 Cafe Restroom2 g Carport N SECOND FLOOR PLAN h Unit 1 Unit 3 Unit 3 N ANNOTATIONS 1 - plant box 2 - vertical garden 3 - glass block 4- vertical louver divider 5 AC outdoor unit 6 vertical louvers a b c d e g h up up 5.14 5.14 5.14 3.20 2.55 1.71 1.20 3.59 1.20 3.59 1.20 3.54 2.03 2.00 1.50 4.15 2.97 1.79 0.87 down down 5.14 5.14 5.14 3.20 2.55 1.71 1.20 3.59 1.20 3.59 1.20 3.54 2.03 2.00 1.50 4.15 2.97 1.79 0.87 4 4

k Unit 4 Unit 5 m Unit 6

FLOOR PLAN n Unit 7 o Unit 8 p Unit 9 N N ANNOTATIONS 1 plant box 2 vertical garden 3 glass block 4- vertical louver divider 5 AC outdoor unit 6 - vertical louvers k m n o p

FOURTH

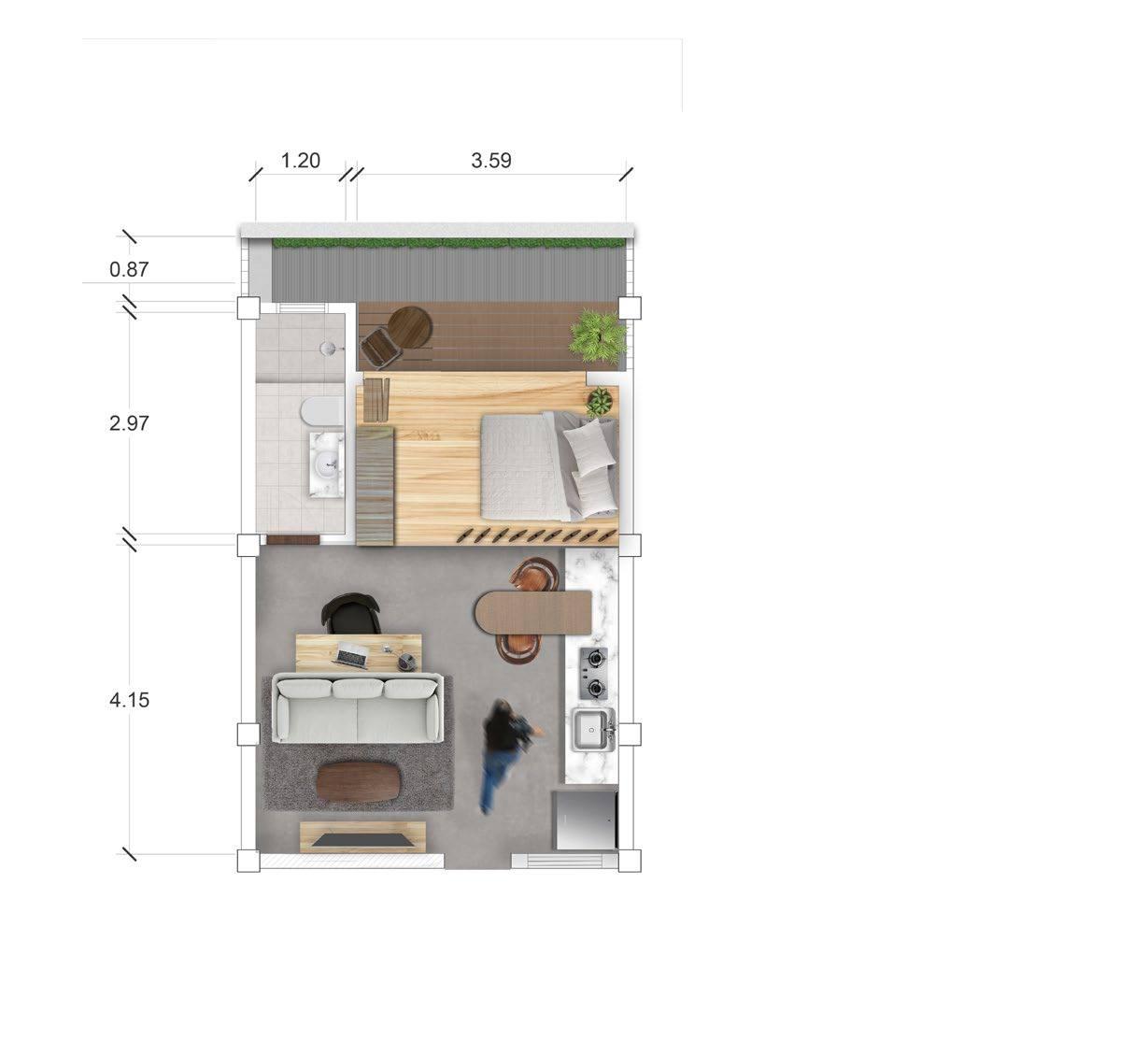

KEY FLOORPLAN PER UNIT a Kitchen b Living Area c Dining d Bedroom e Bathroom Airwell a b c d e f Vertical Garden

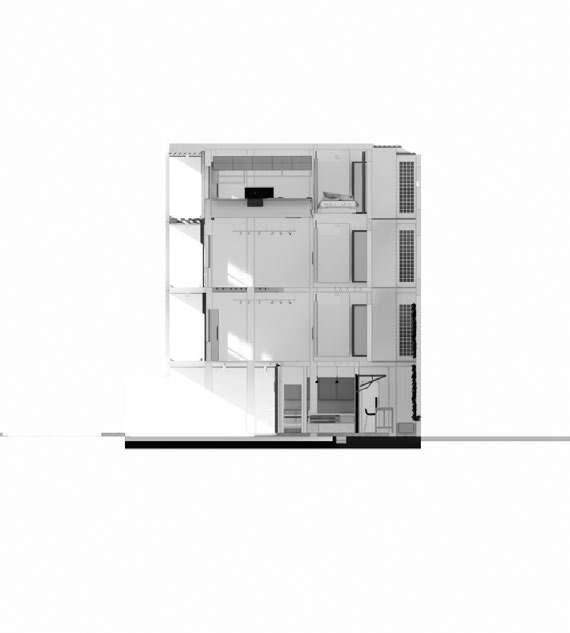

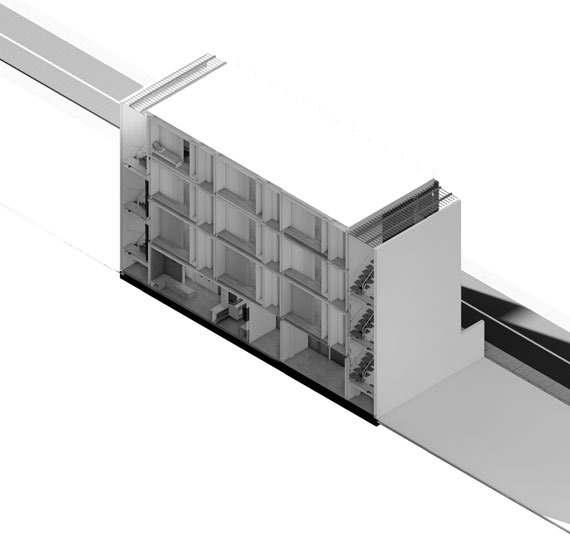

longitudinal section

cross section front elevation

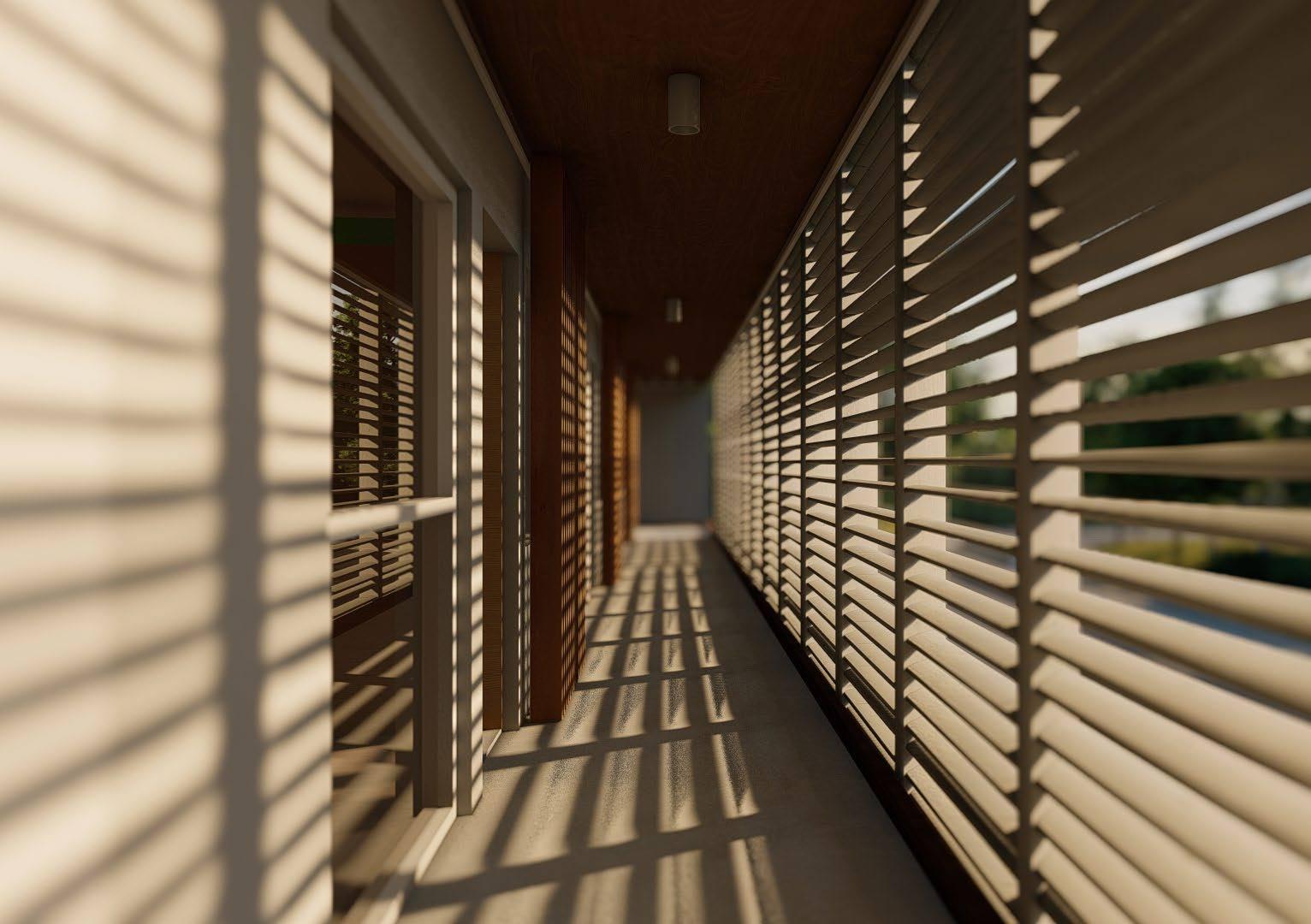

Apparment Building corridor oriented towards the North

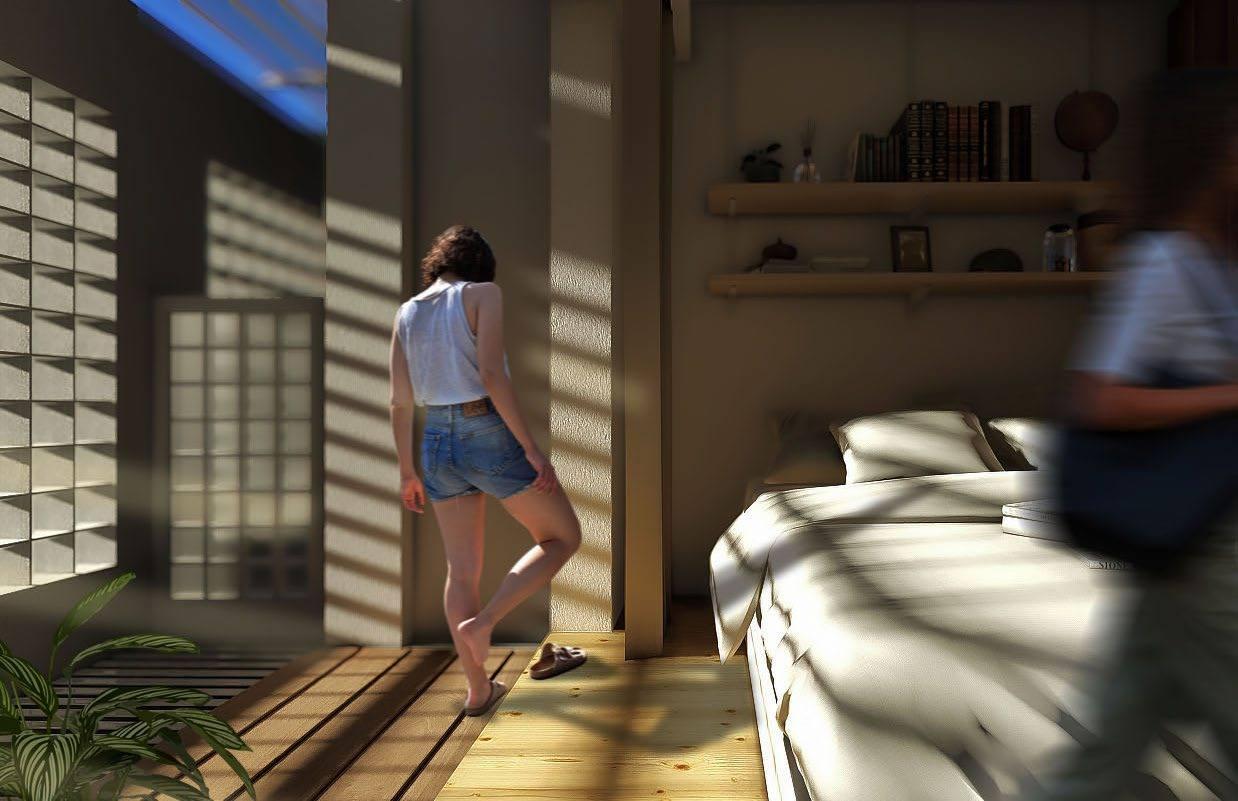

Unit at 4th floor opening to the airwell with glass blocks on the firewall creating a well lit living space where tenants could experience an outdoor sense of space.

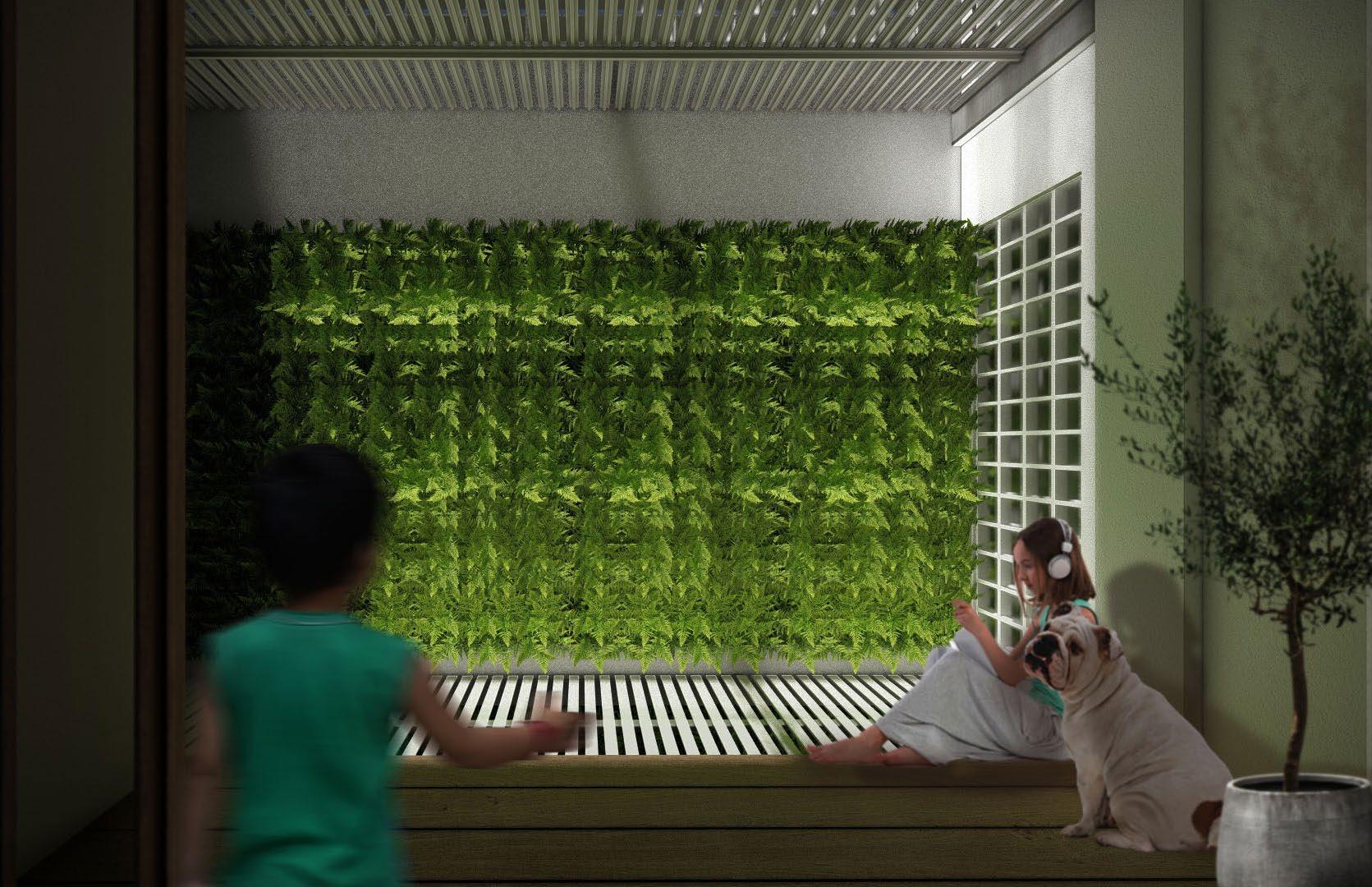

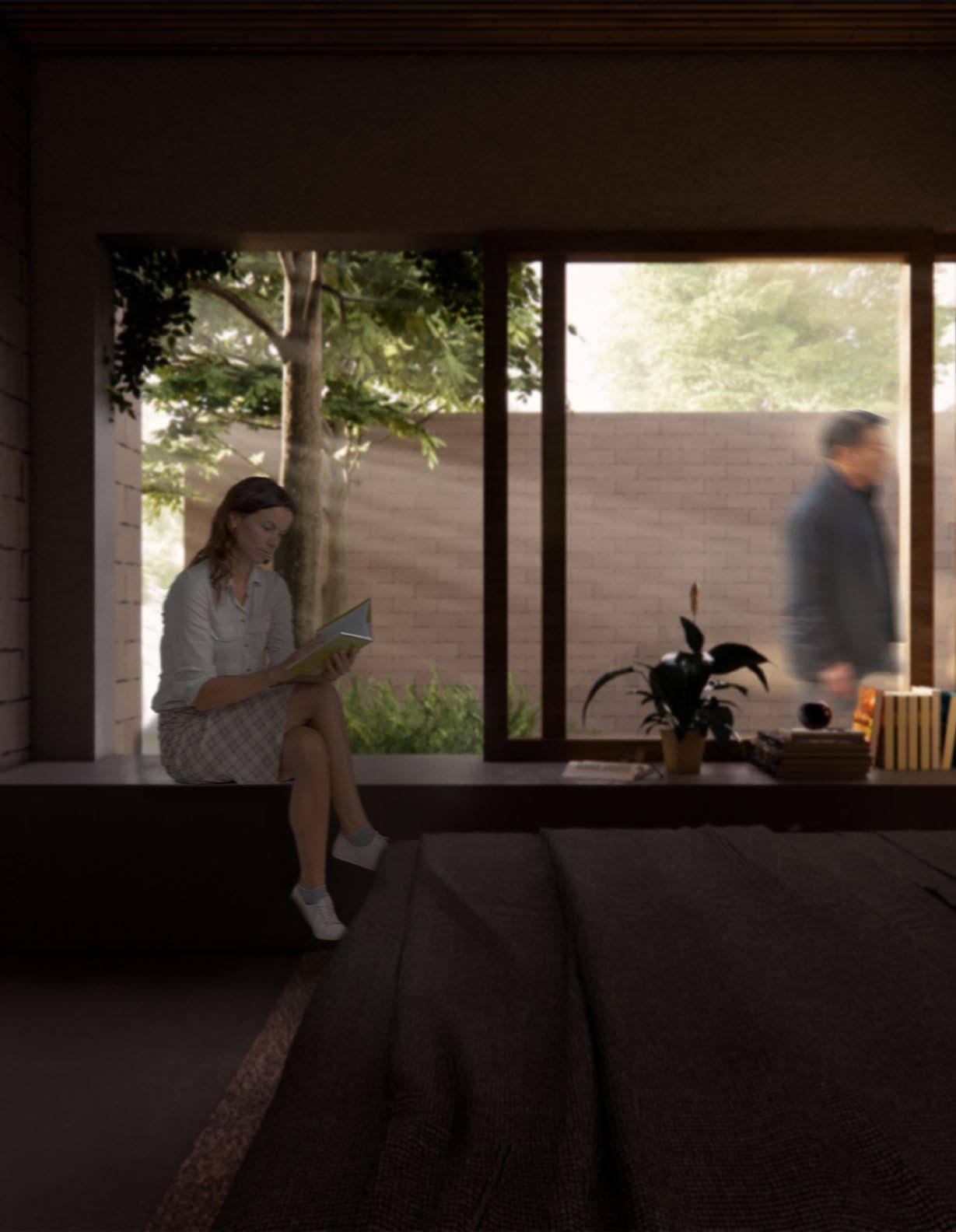

Unit at the 3rd floor opening to the airwell with vertical gardens hung on the firewall still having sufficient sunlight and be able to experience an outdoor living space.

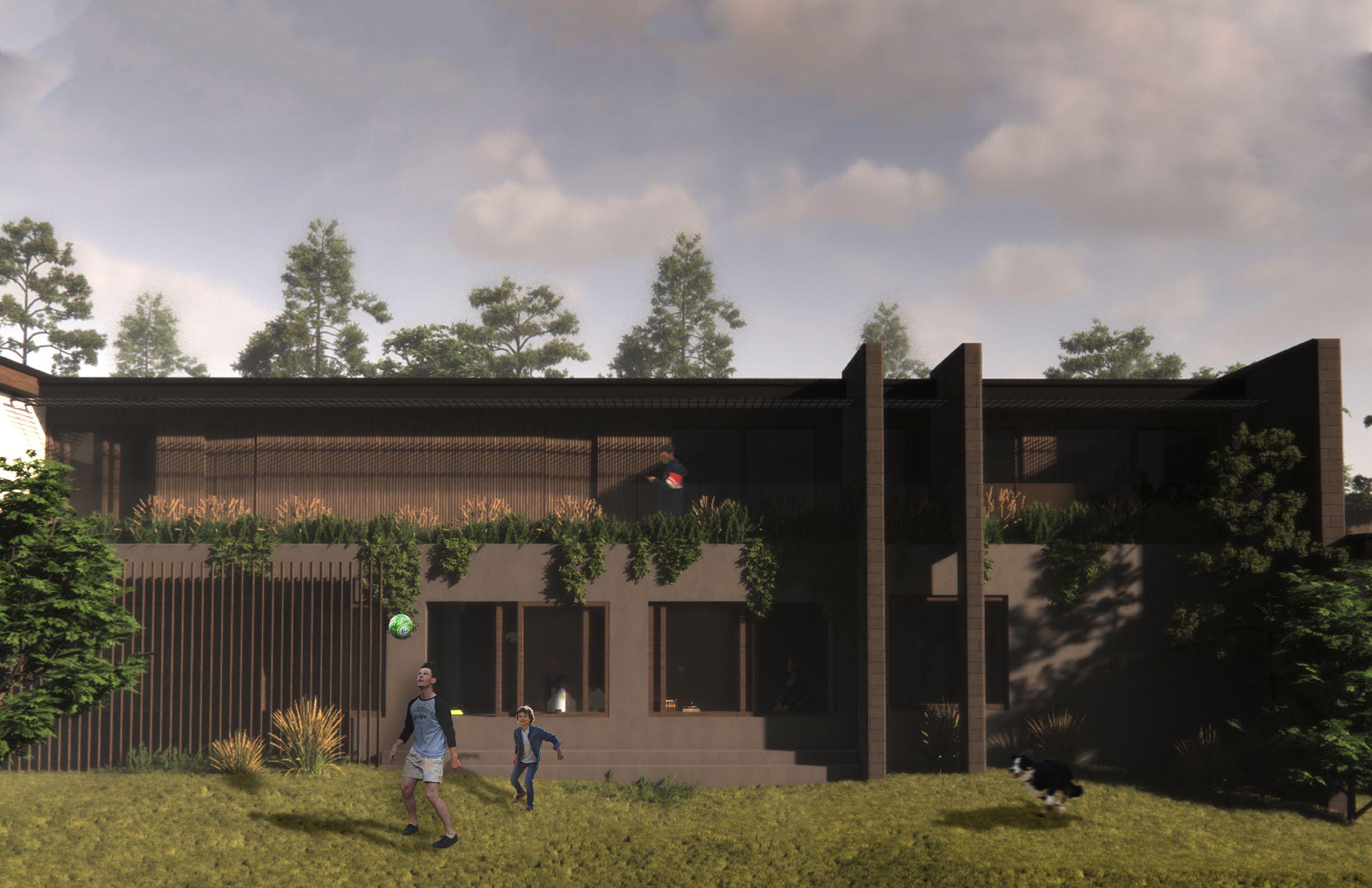

TROPICAL SANCTUARY

Project: Proposed 2-Storey Residential Building

Location: Baguio City

Project under: Architectural Design 6

Zoning: R-1

This project sits on the terrains of Baguio City which is rich in vegetation with gentle topography variations creating a landscape that could be enjoyed within every part of the home. As a vacation house, the living spaces are designed to engage inhabitants to the nature enveloping the home giving each a piece of their own sanctuary and privacy despite staying within the city proper. The building footprint is carefully placed on the lot keeping its natural terrain while creating a seemingly flat surface within the home. Existing vegetation also dictated the outdoor living areas the inhabitants could enjoy.

Tropical design played a major role in the design process to apply passive cooling and heating to utilize the cooler winds that can only be experienced in the mountain of Baguio City. The use of louvers and brise soleil to redirect sun rays and wind greatly influenced the exterior character of the building.

The study on the drainage and flow of rainfall also gave the home an interior garden on a raised slab of concrete oriented towards the southwest direction surrounded by floor to ceilling windows, which was made into the main living area’s source of natural light and thermal mass that is needed to balance the temparature during the cold night.

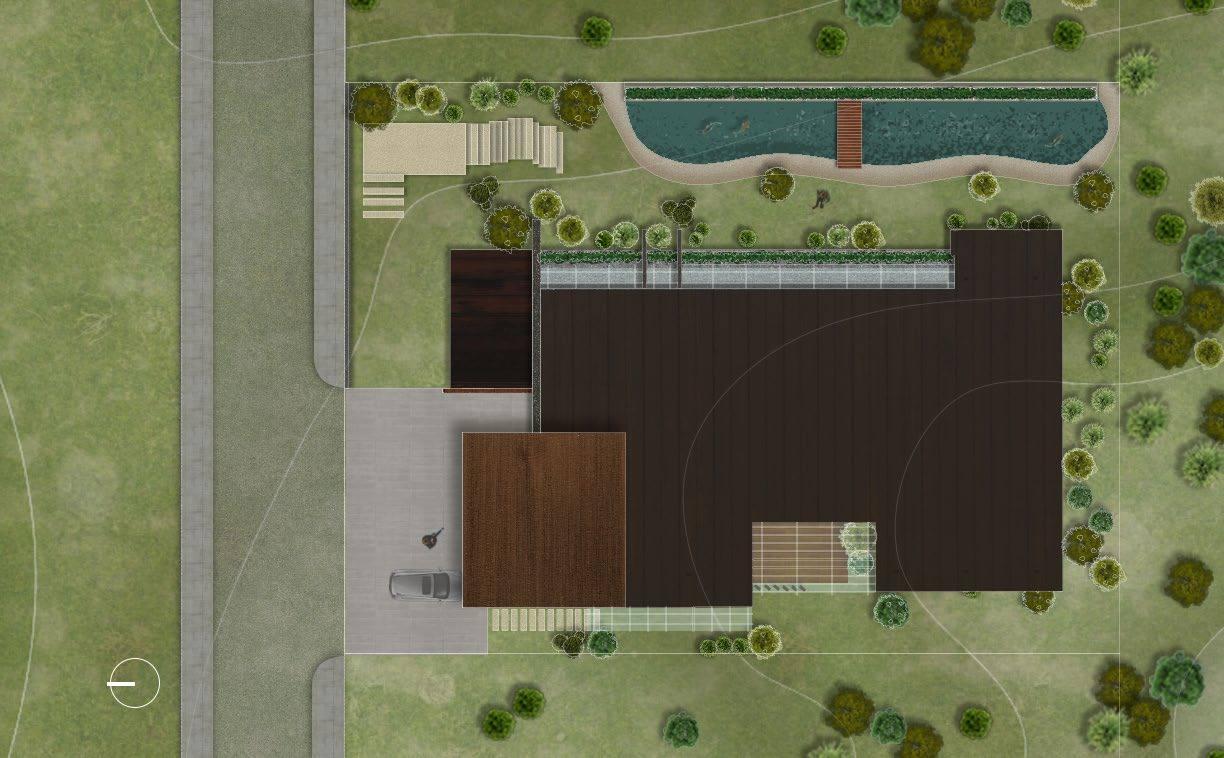

SITE DEVELOPMENT PLAN A 10 METER ROAD B DRIVEWAY C GARDEN D FORMAL GARDEN E LAKE F BRIDGE A B C D E F N

up up up up up up 3.40 0.90 3.00 2.20 4.15 2.18 1.98 0.40 2.80 2.25 3.90 2.18 3.90 3.50 3.82 2.48 4.10 2.40 0.60 3.90 2.70 7.60 2.50 3.30 3.60 2.30 7.15 3.70 3.70 6.60 1 1 2 4 4 6 7 9 9 11 12 A-A B-B 13 down down down 3.90 3.50 3.82 2.48 4.10 2.40 0.60 3.90 2.70 3.30 1.53 1.53 3.30 7.70 2.20 3.70 5.90 3.60 3.00 6.60 8.33 6.00 3.60 2.30 3.85 2.20 7.60 1.50 3.40 3.00 2.20 4.15 2.18 1.98 0.40 2.25 3.90 2.18 6.60 1 1 1 1 8 8 2 10 10 10 10 12 A-A B-B FIRST FLOOR PLAN a Game Room b Garage c In-suite Bathroom 1 d Powder Room 1 e Laundry Room f Storage g Bedroom 1 h Kitchen Bedroom 2 Dining Area k Outdoor Dining In-suite Bathroom 2 m Powder Room 2 n First Floor Master Bedroom - walk-in closet o Master In-suite Bathroom p Living Area q Raised Indoor Garden ANNOTATIONS 1 - pocket door 2 - refrigerator 3 - kitchen burner 4- bath spa 5 - outdoor tub 6 - washing machine 7 - dryer 8 - vertical louvers 9 - concrete platform 10 - balcony plant box 11 - outdoor faucet 12 - dumbwaiter 13 - indoor garden drainage

FLOOR PLAN r Bedroom 3 s In-suite Bathroom 3 t Gym u Bathroom 1 v Bedroom 4 w In-suite Bathroom 4 x Kitchen and Bar y Library z Master Bedroom Loft b a c d e f g h k m n o p r s t u v w x y z N N q ANNOTATIONS 1 - pocket door 2 - refrigerator 3 - kitchen burner 4- bath spa 5 - outdoor tub 6 - washing machine 7 - dryer 8 - vertical louvers 9 - concrete platform 10 - balcony plant box 11 - outdoor faucet 12 - dumbwaiter 13 - indoor garden drainage

SECOND

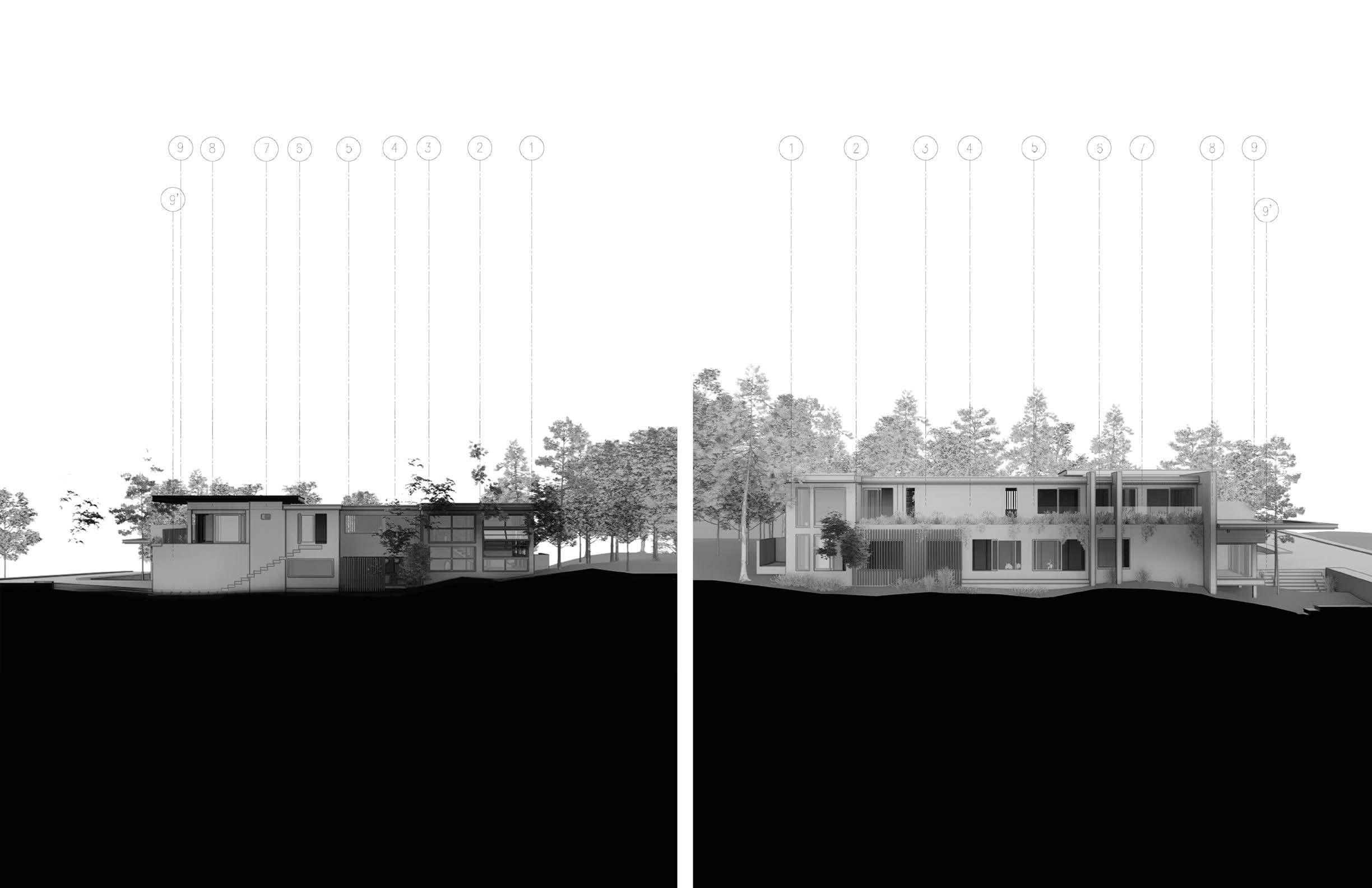

FRONT ELEVATION REAR ELEVATION

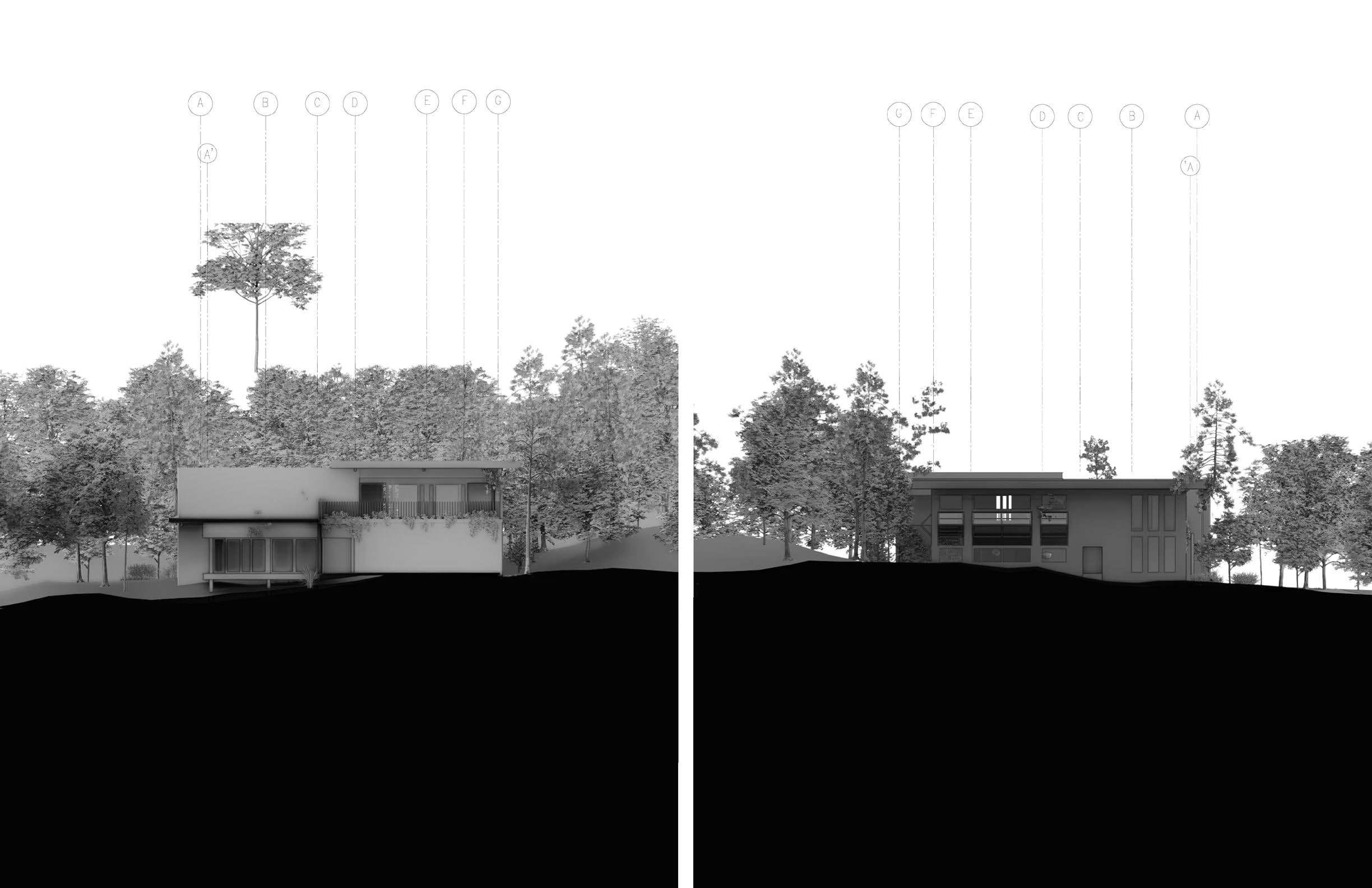

LEFT ELEVATION RIGHT ELEVATION

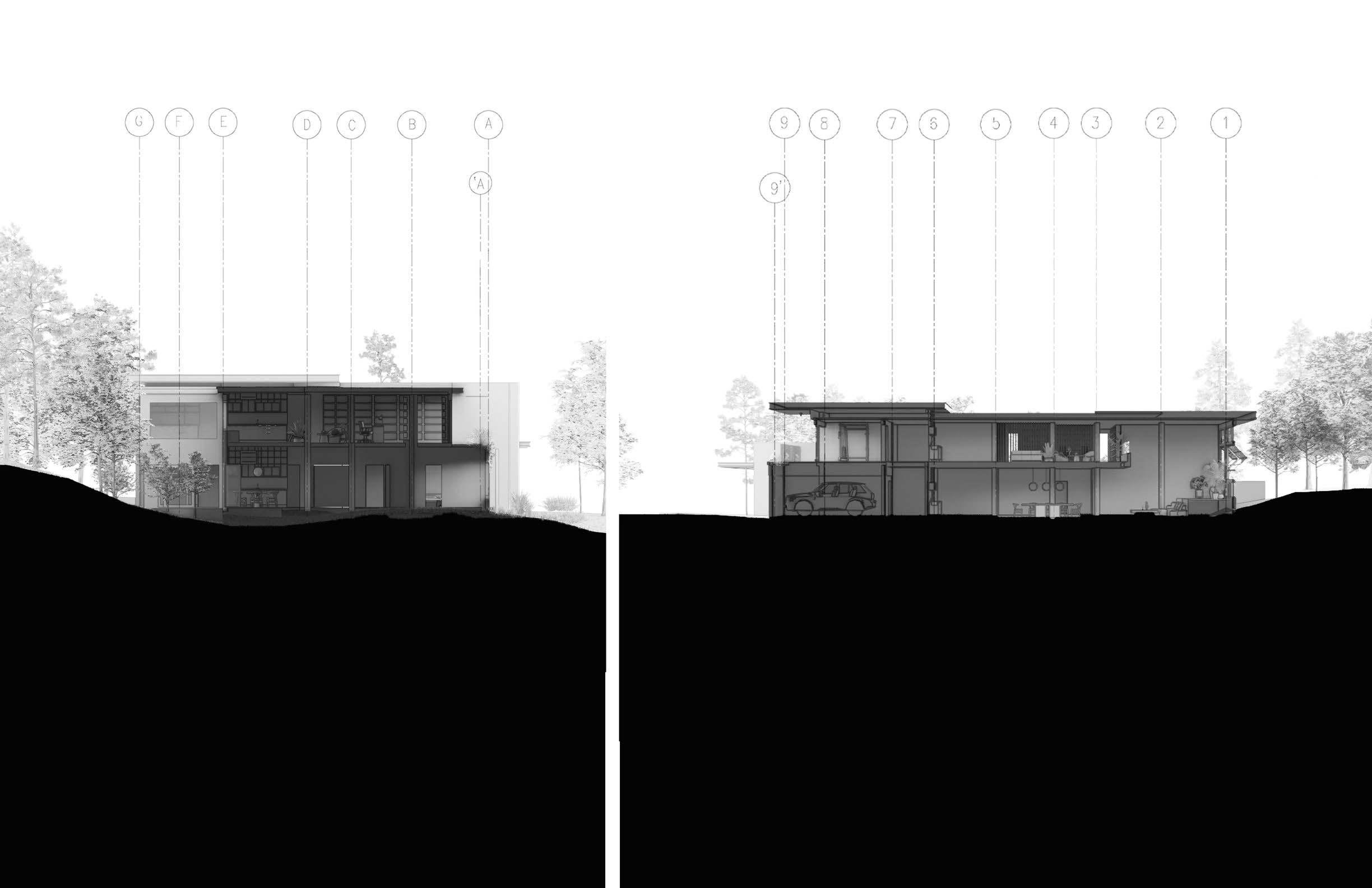

SECTION A - A SECTION B - B

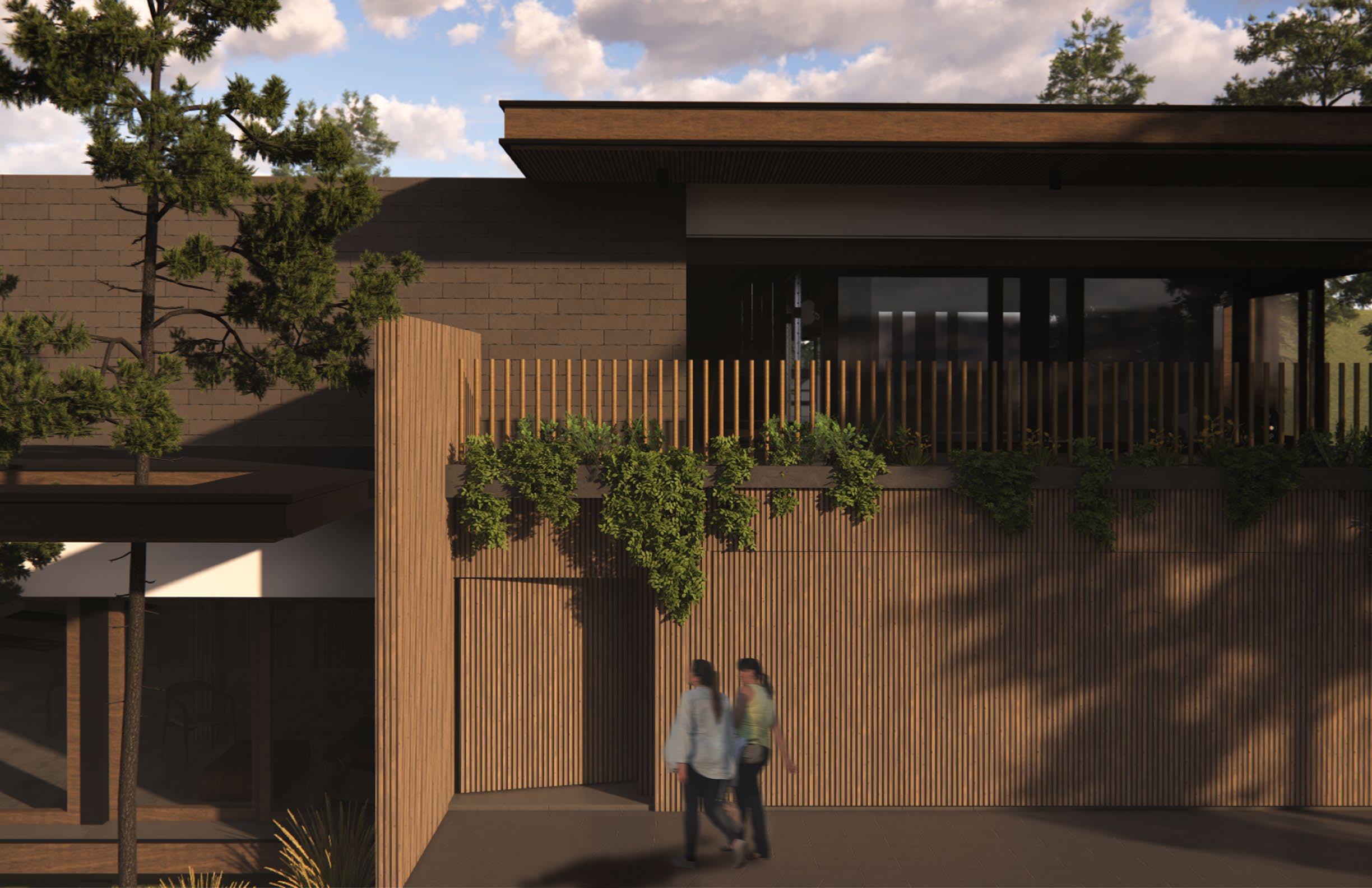

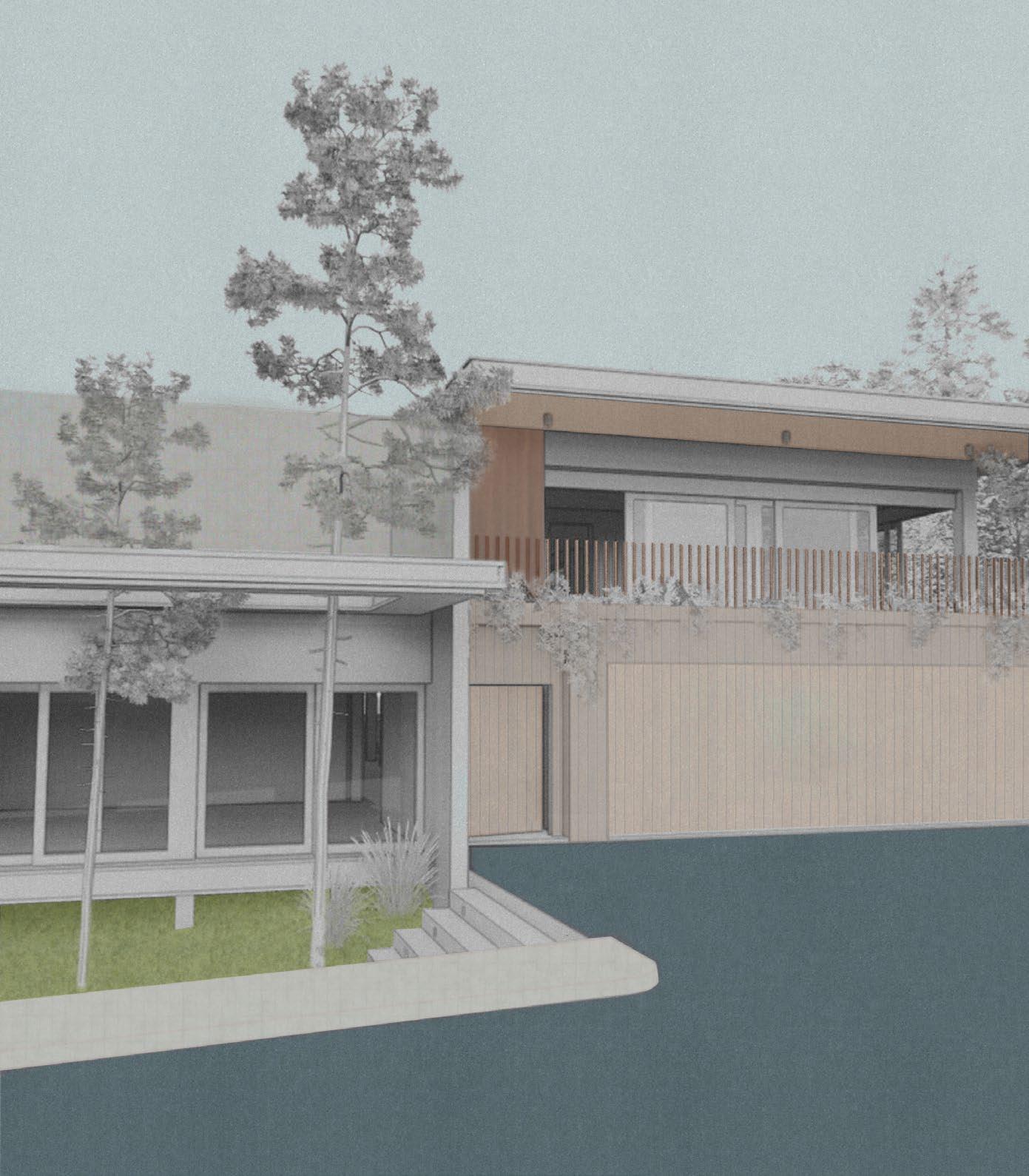

building facade

left elevation in perspective

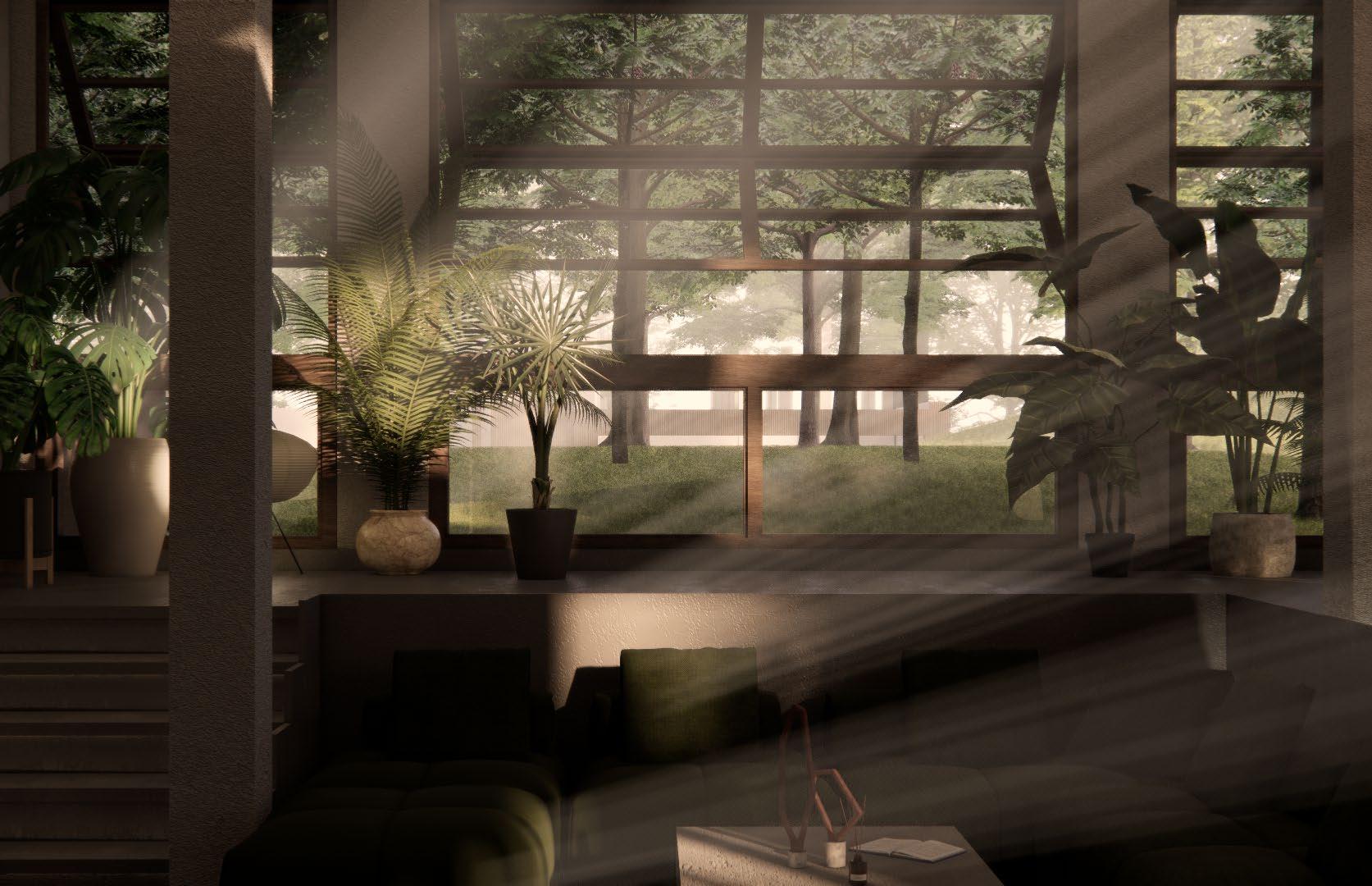

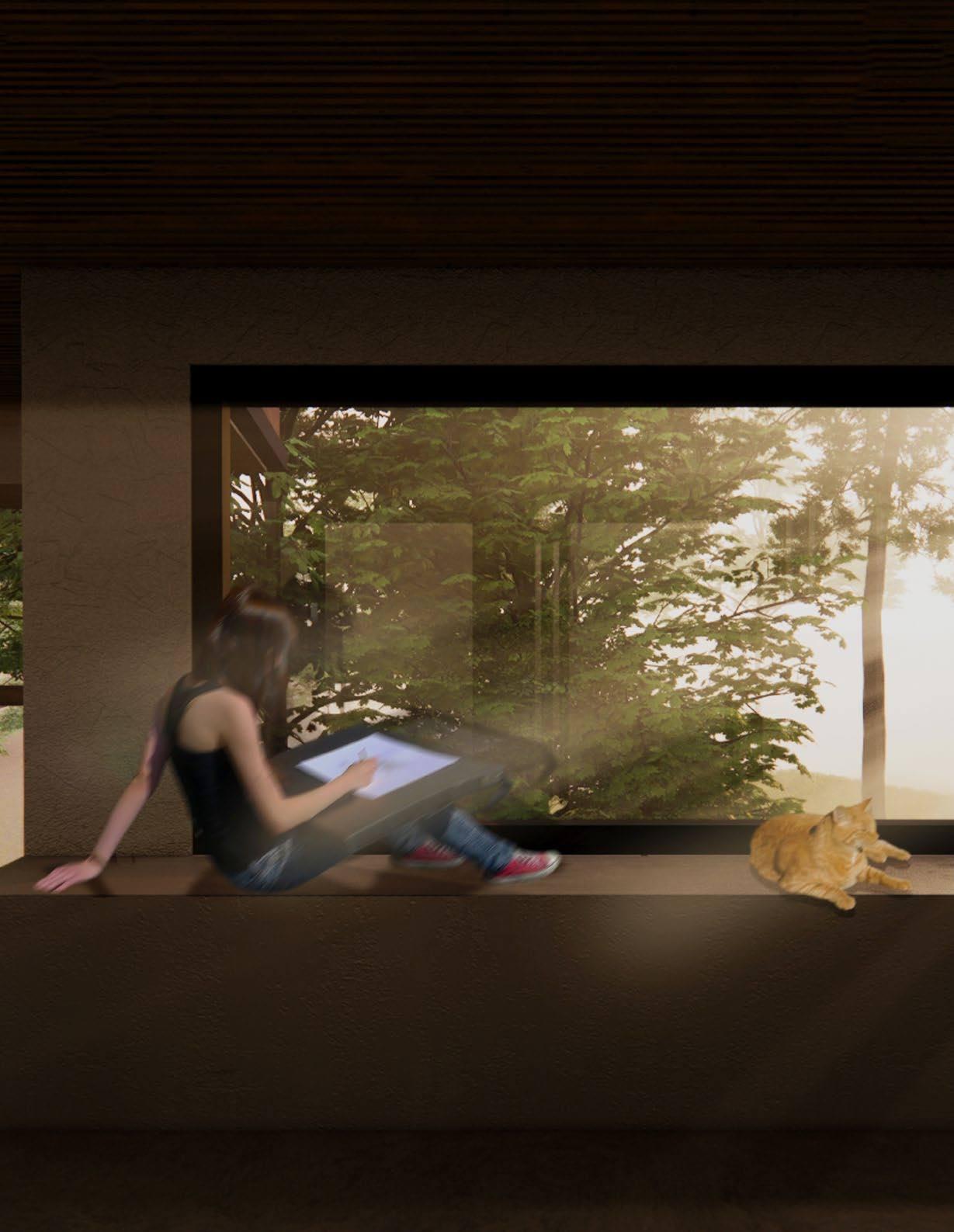

The use of concete slabs as a thermal mass is widely used in the living areas of the home and are multipurposely used for storage and seating. This picture window adjacent the library on the second floor creates an ambient lighting for the reading area that wouldn’t cause harsh light that can damage the books. Library in perspective

The concrete slab is equipped ith drainage for the plants and occasional intrusion of rainfall to compensate for the large openings of the windows. floor to ceiling fixed and folding windows are located at the living area to utilize natural light, wind, and heat especially for plants that will be placed at the elevated indoor garden.

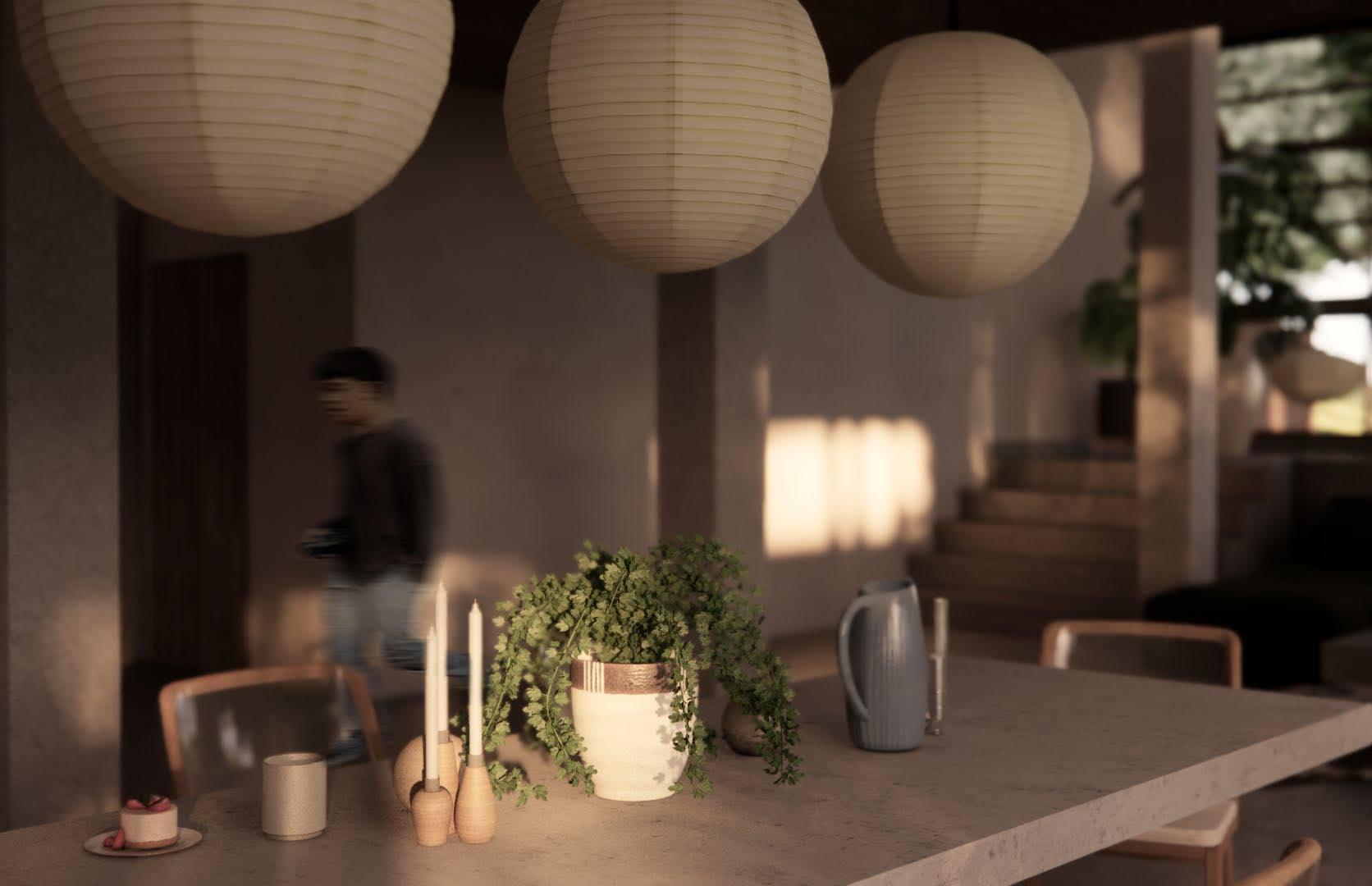

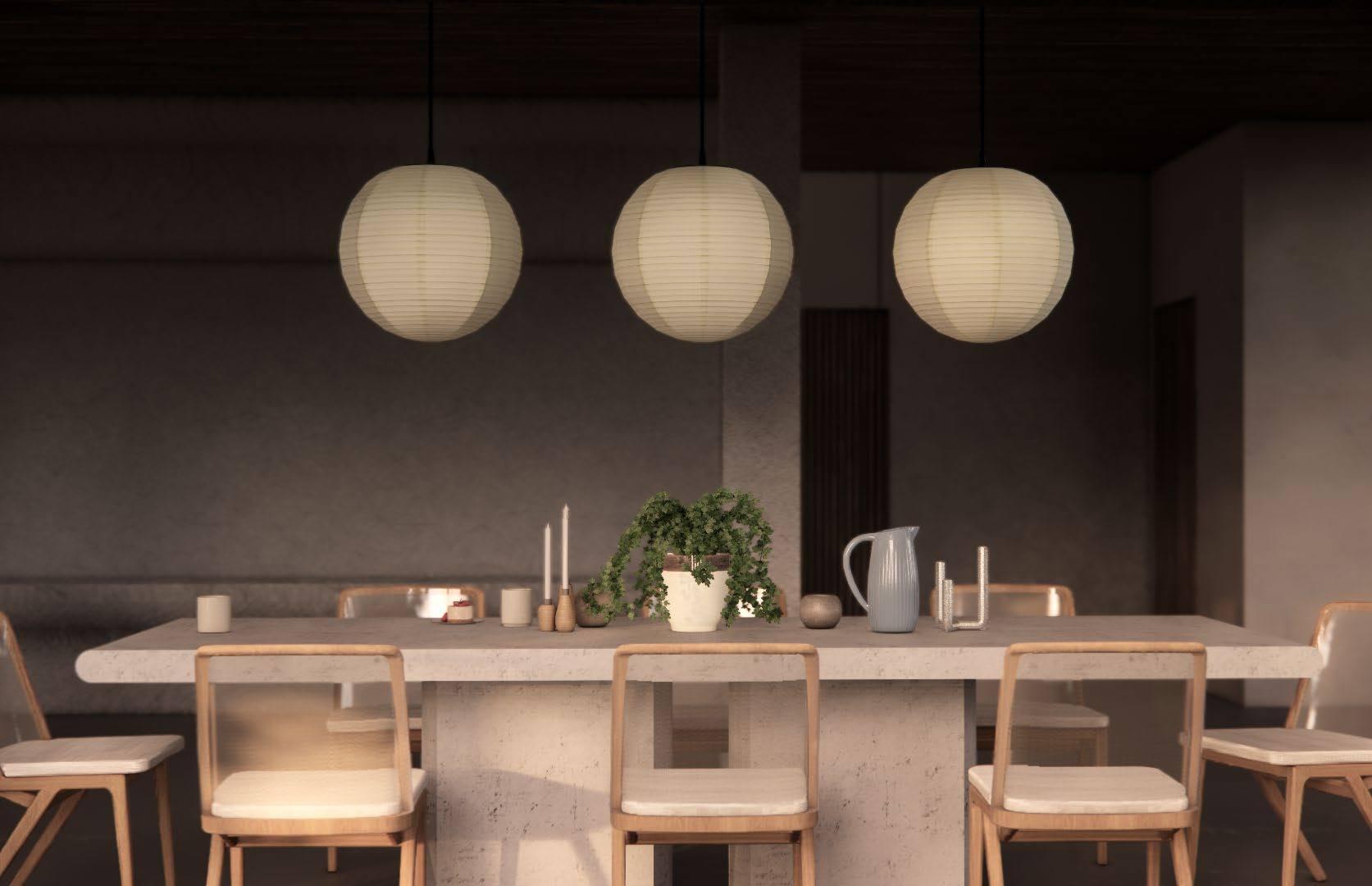

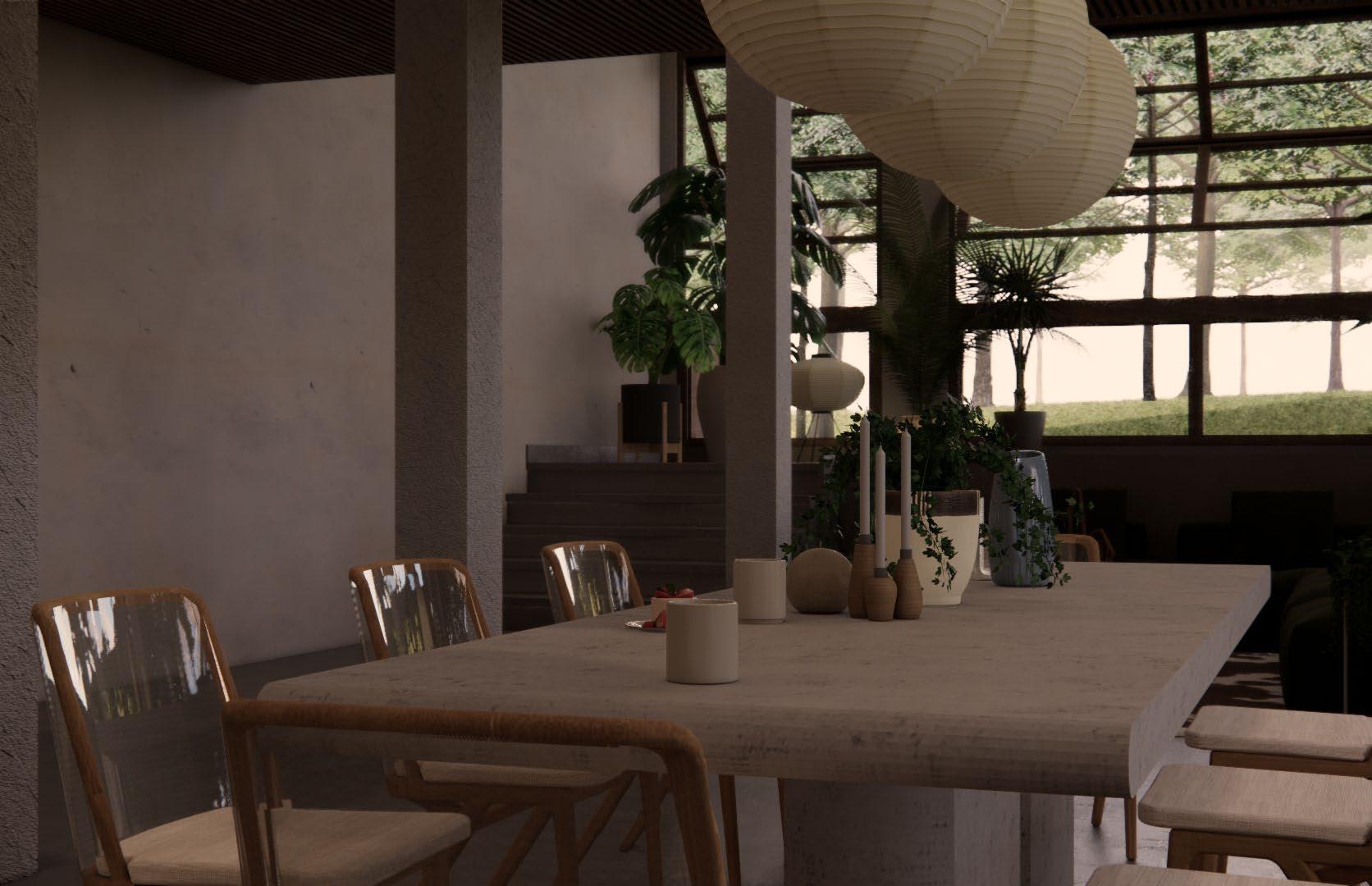

The Dining Area is located at the heart of the home where meals are enjoyed as much as the view. Doors of bedrooms, powder rooms, and bathrooms are not directly faced towards gathering spaces for privacy

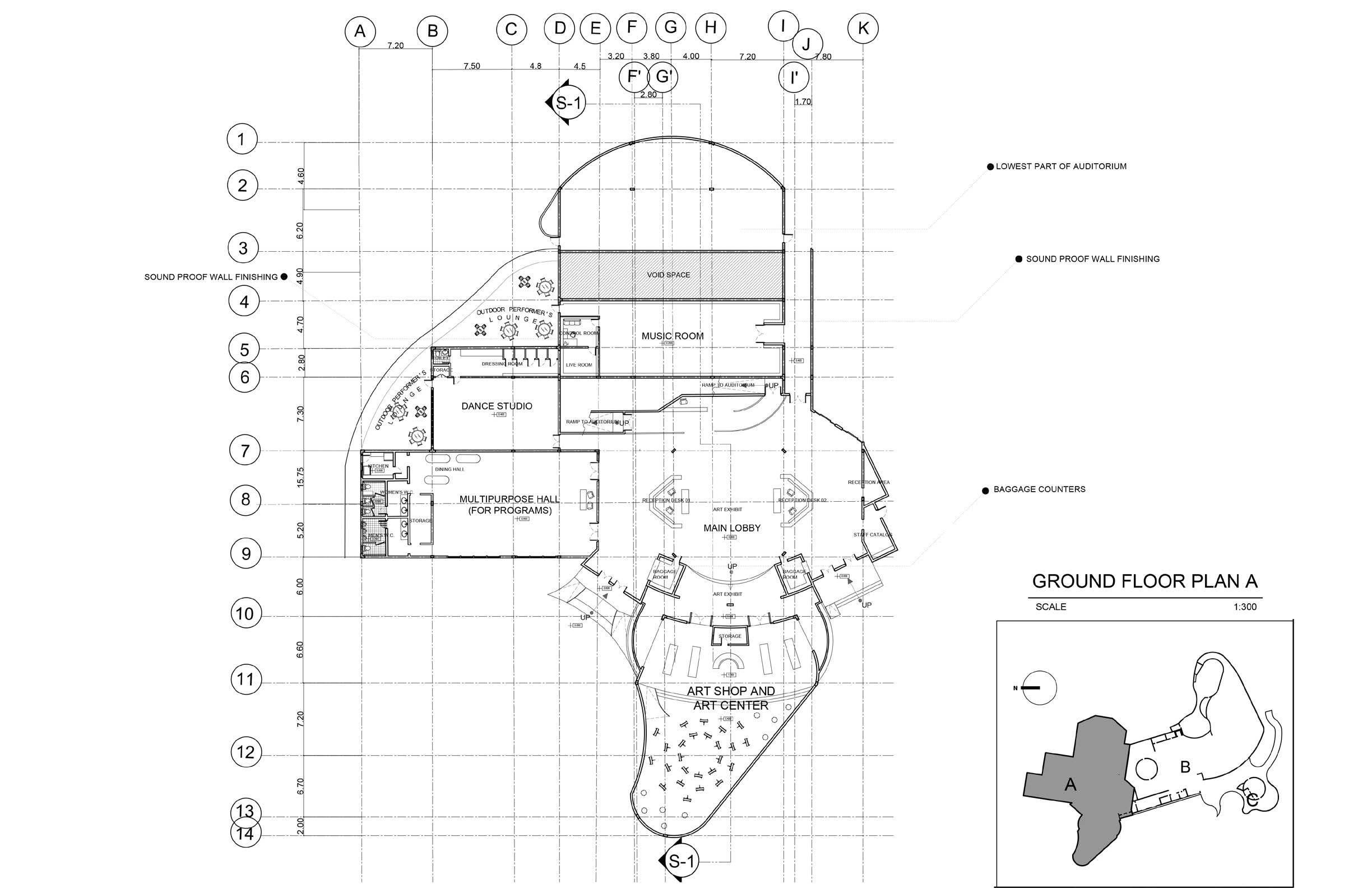

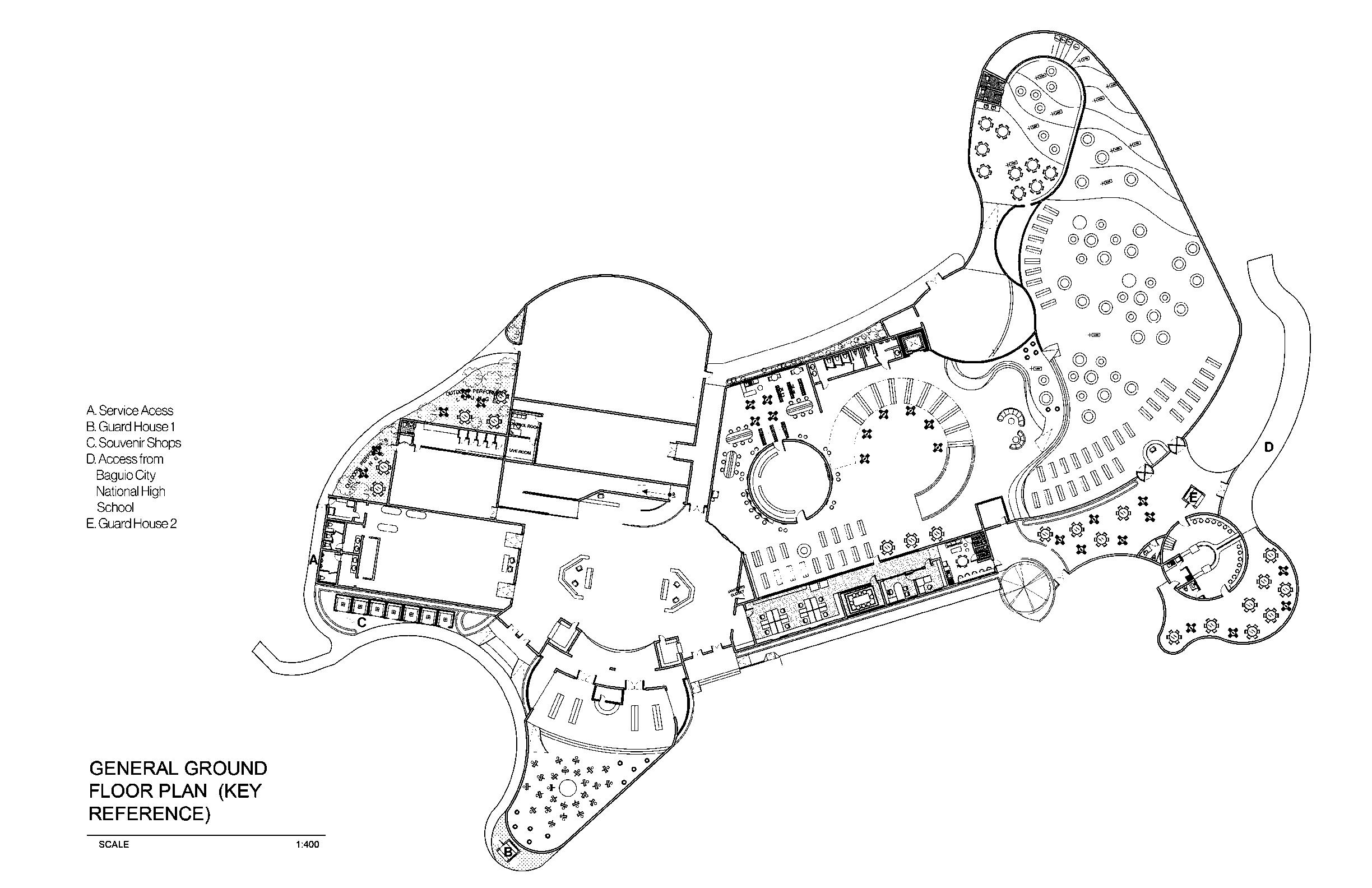

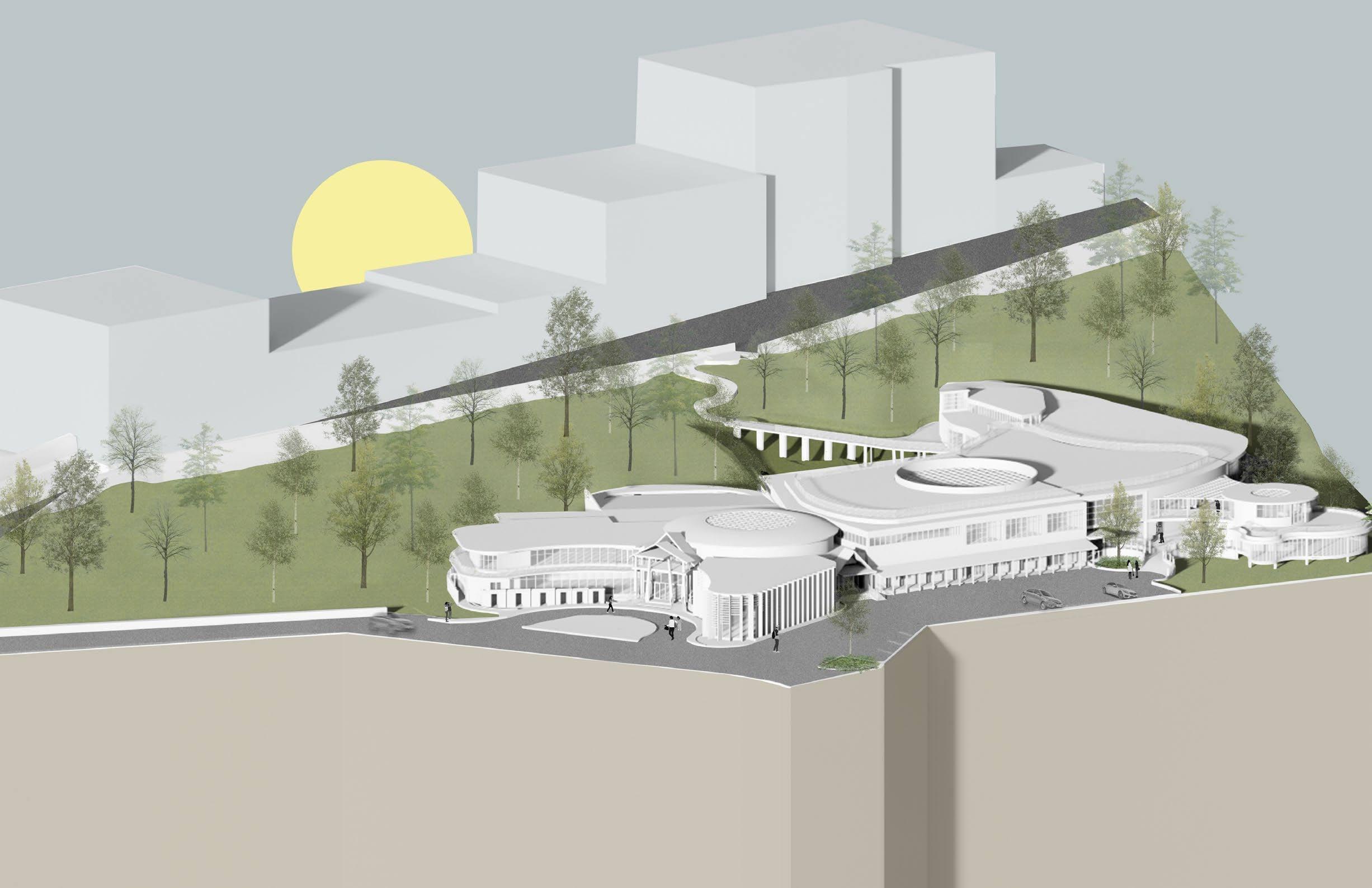

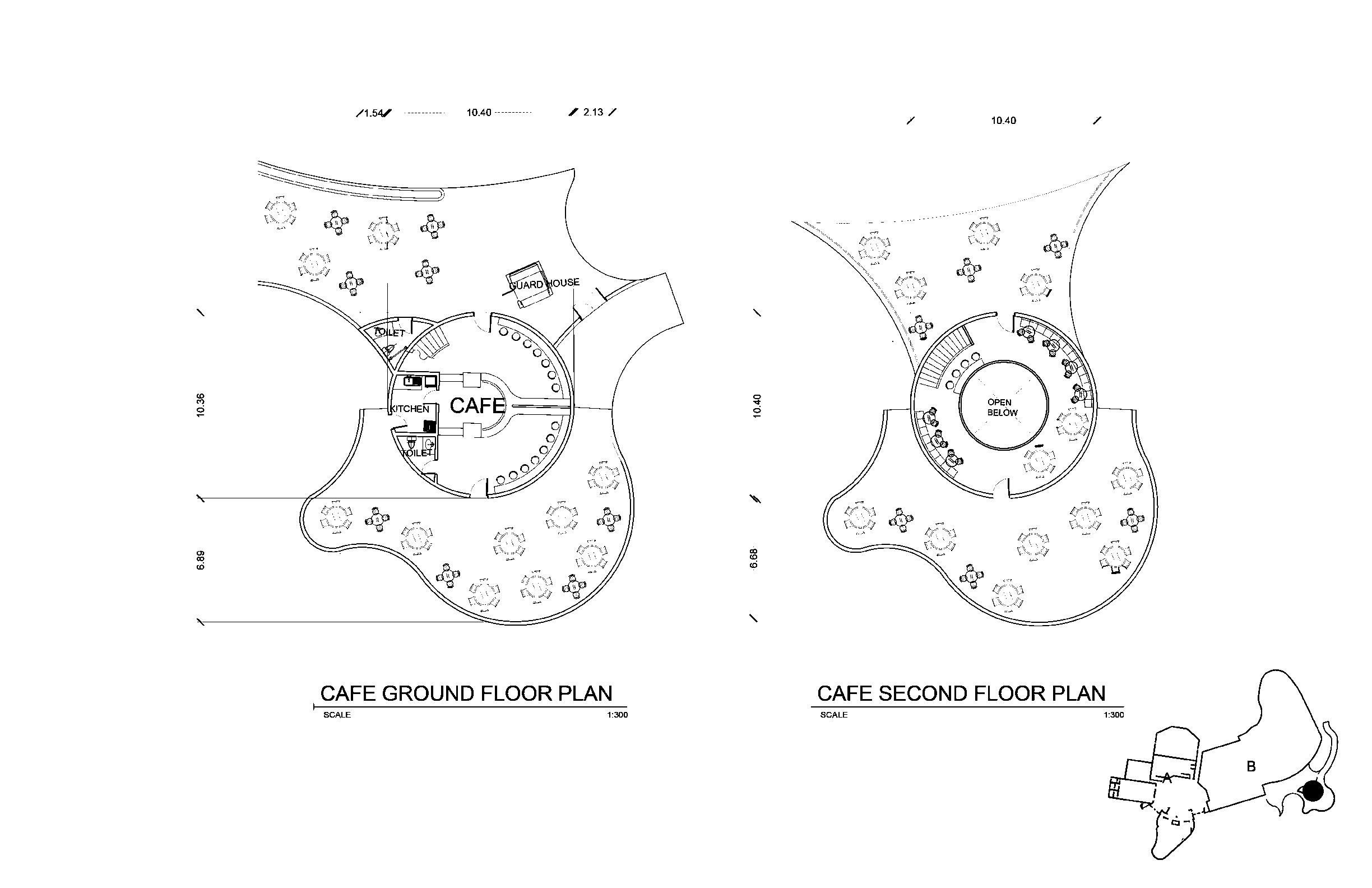

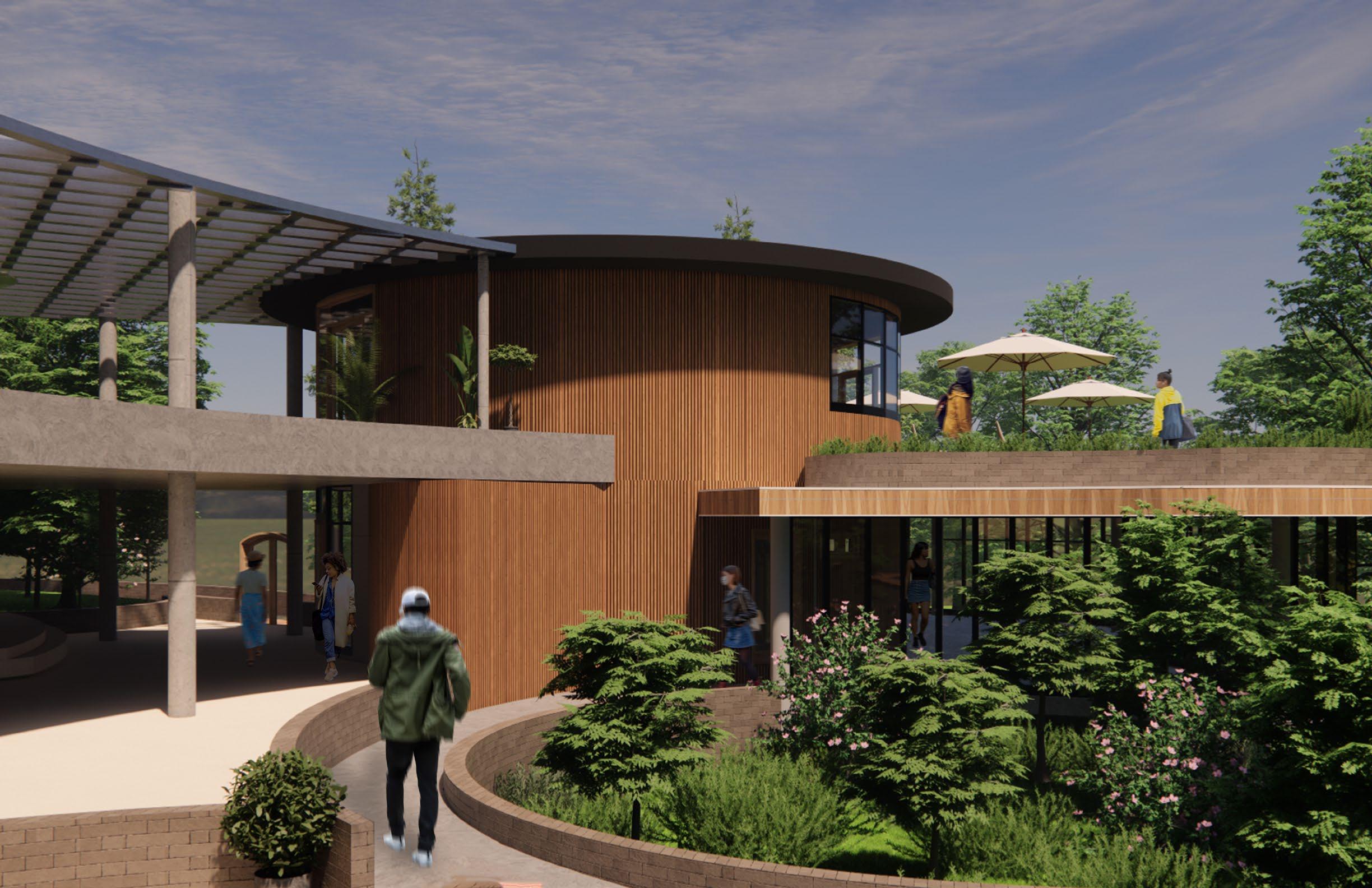

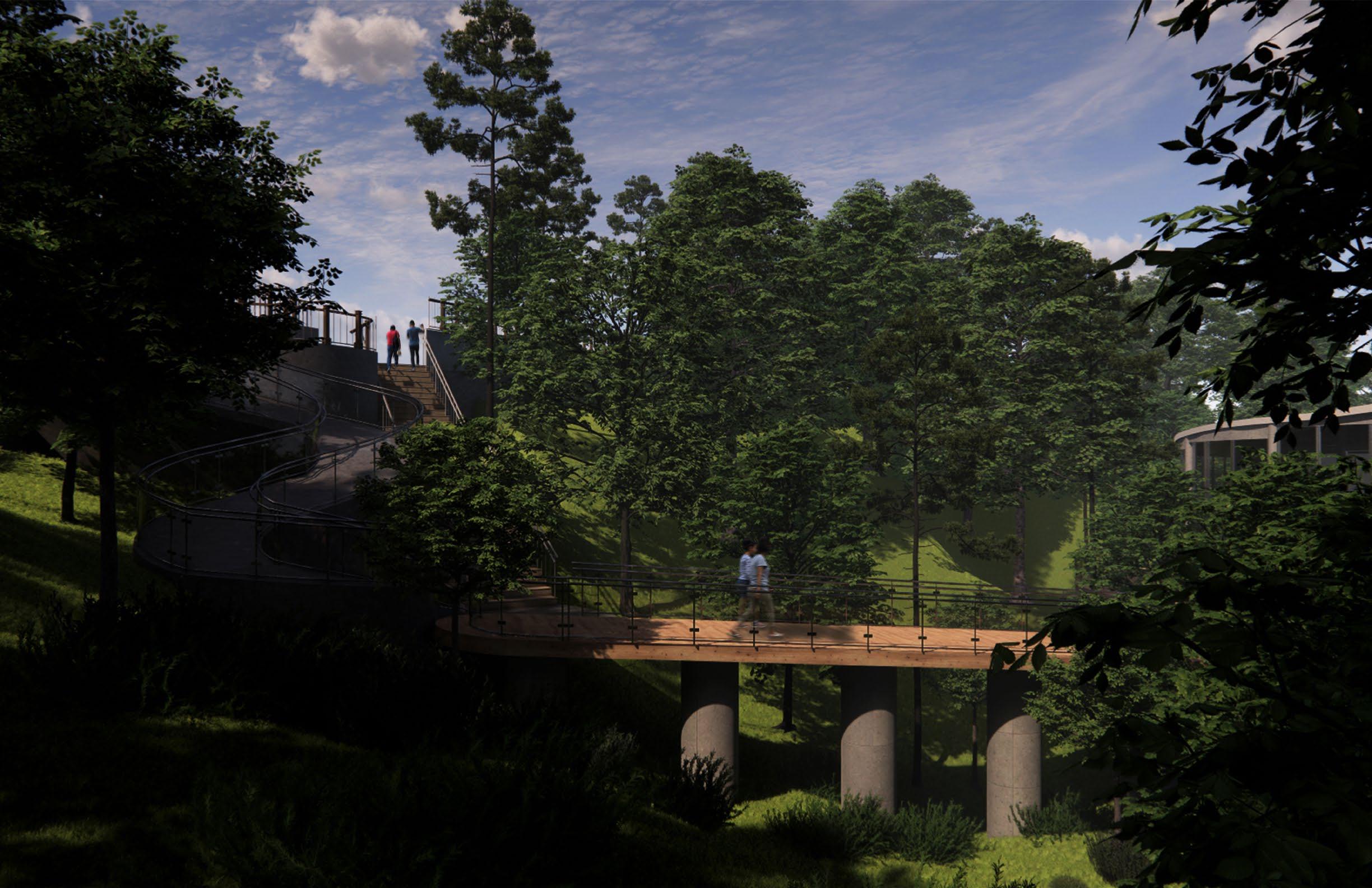

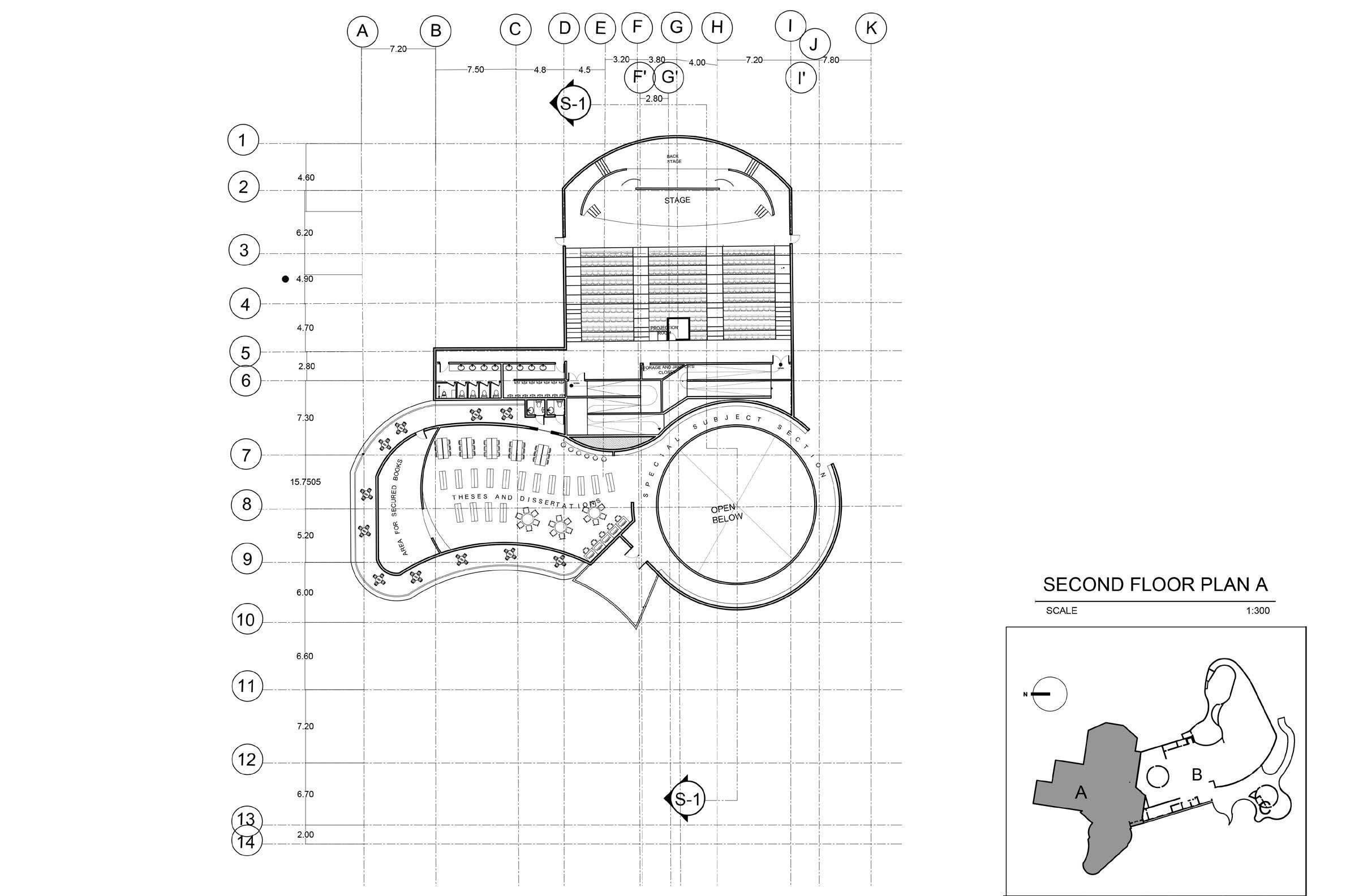

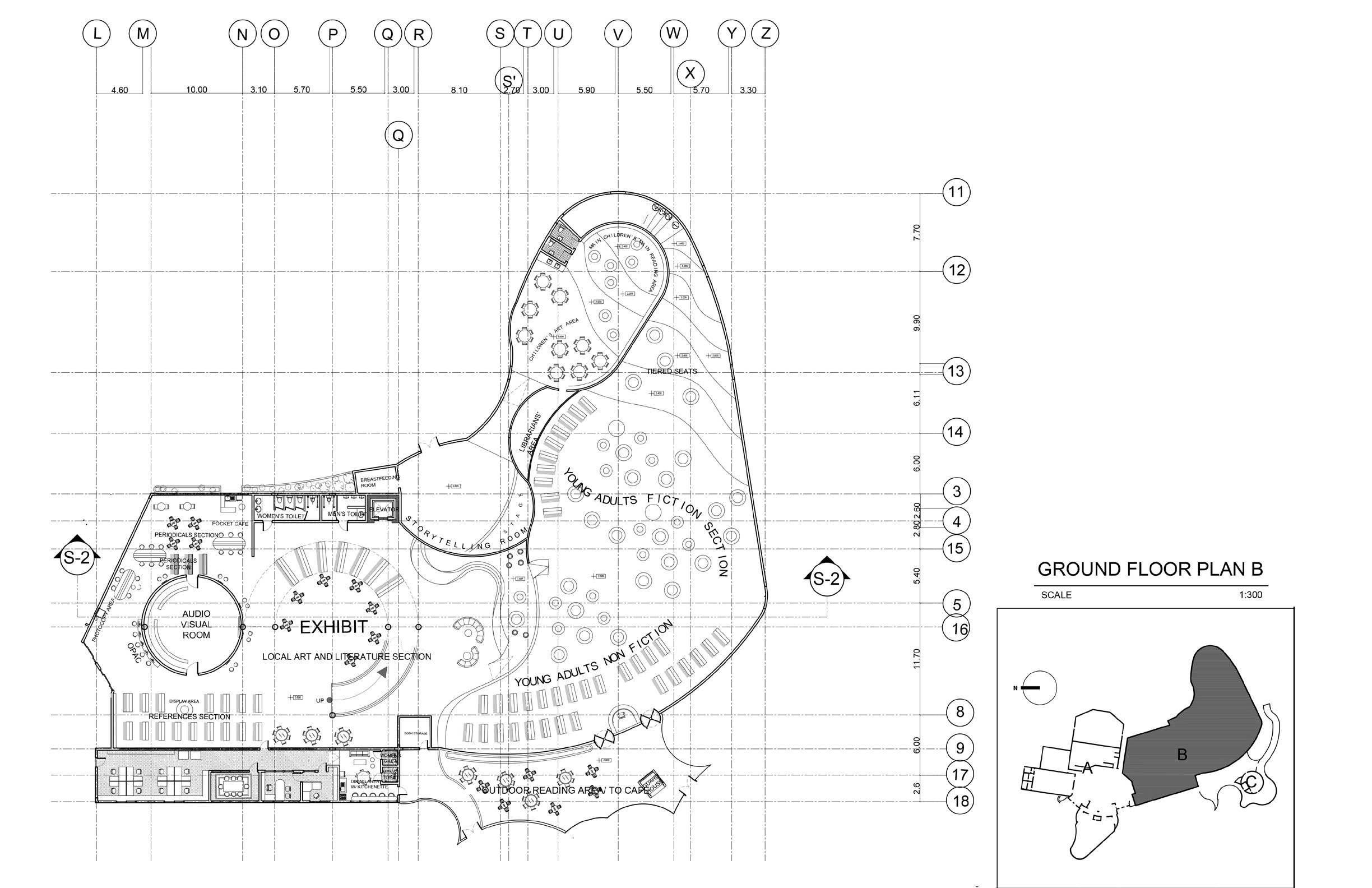

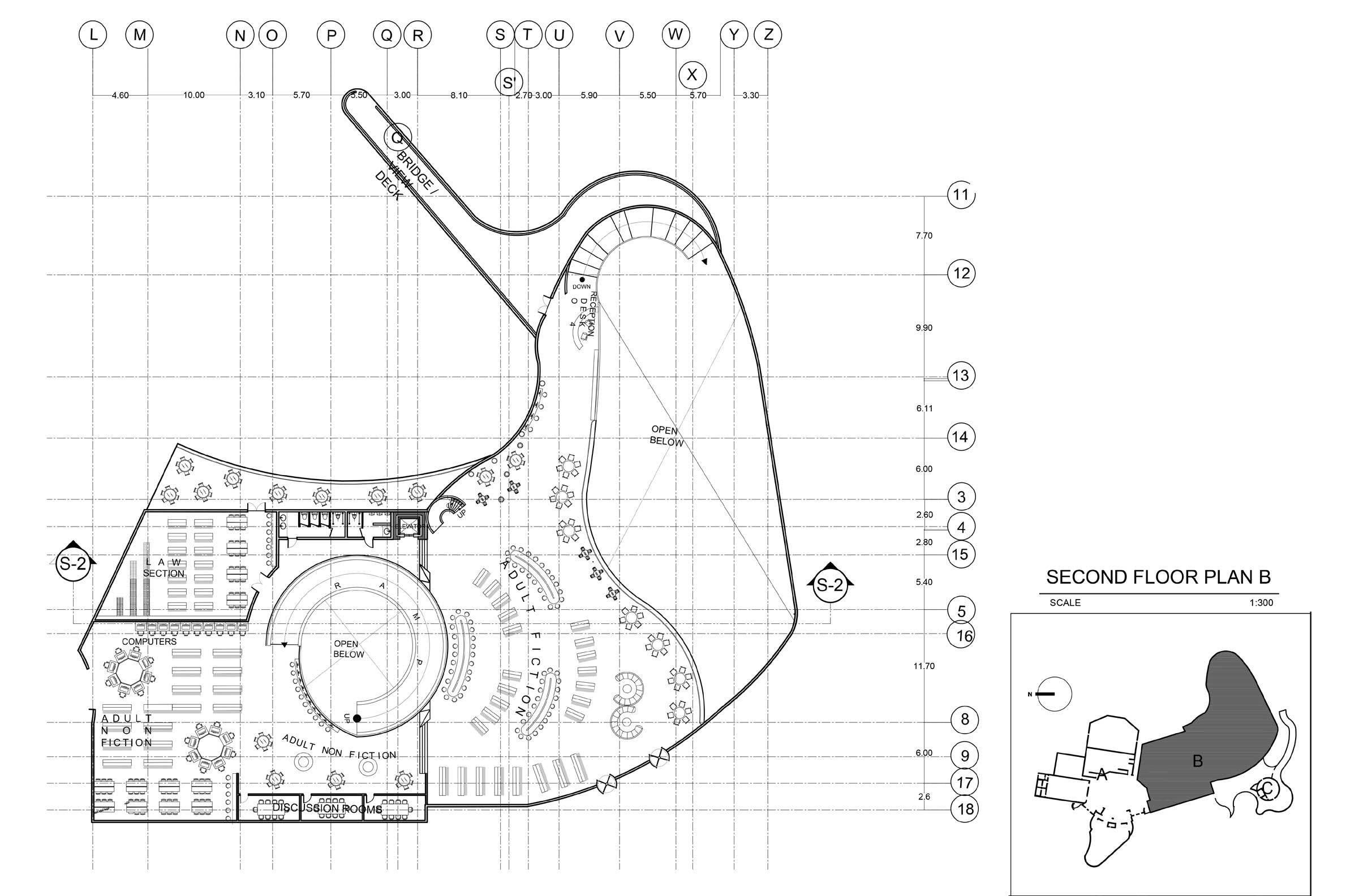

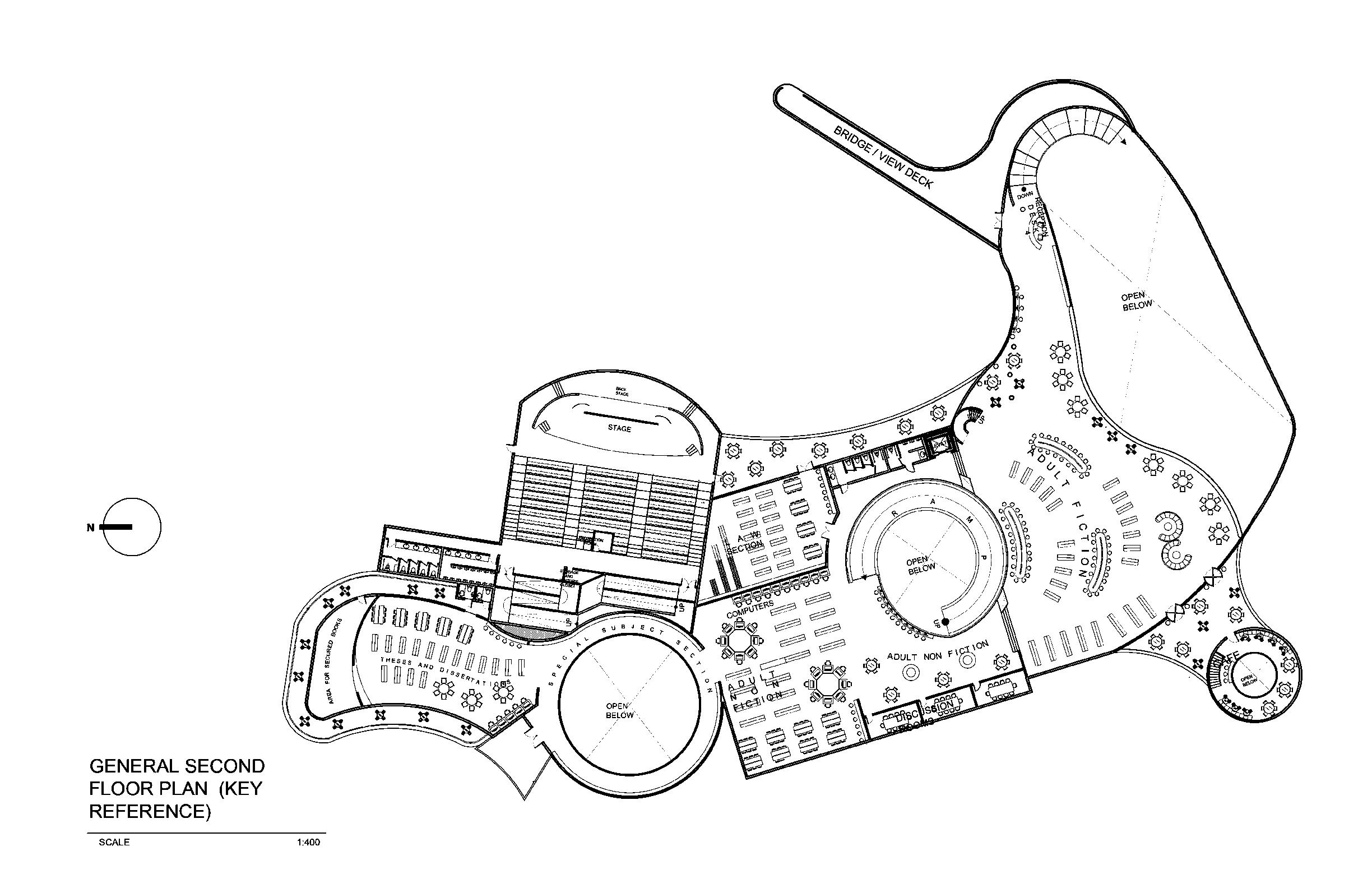

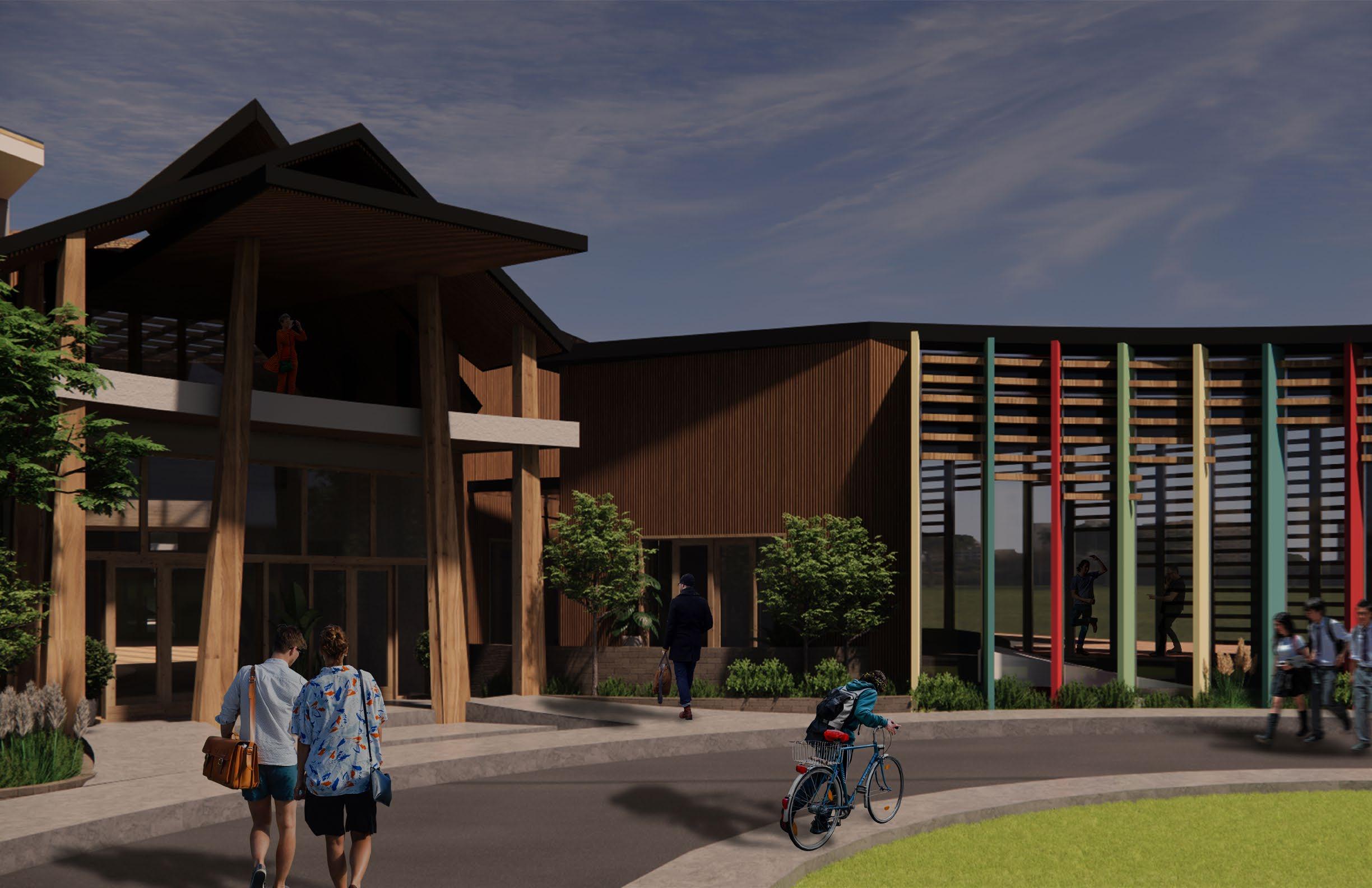

BAGUIO CITY PUBLIC LIBRARY

Project Title: Third Space: Theory: Placemaking Approach to Baguio City Public LIbrary’s Redevelopment

Location: Baguio City, Philippines

Project under: Thesis - Architectural Design 10

Zoning: Institutional

The current Baguio City Public Library is an institution that has lost its prime relevance due to past improper relocations and lack of development in the past two decades leading to inadequacy of appropriate interior spaces to accommodate the increasing population.

This case study used a placemaking approach and comparative analyses between progressive local and international libraries to redefine the local establishment and to identify concepts, trends, library design, and sustainable design strategies. Through the Third Space Theory, this study goes beyond traditional library design, creating a more creative and interactive role of the Baguio City Public library in its community.

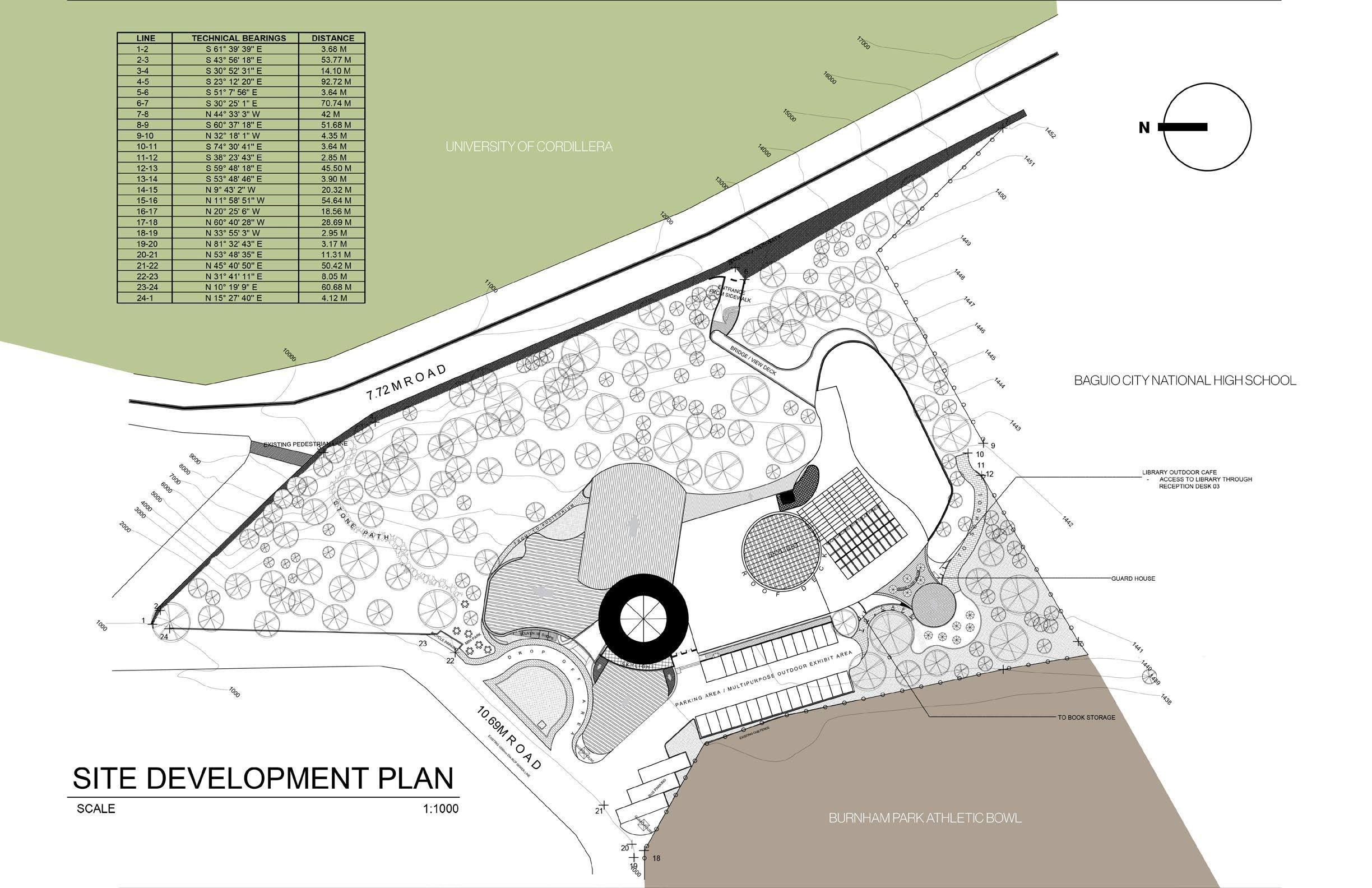

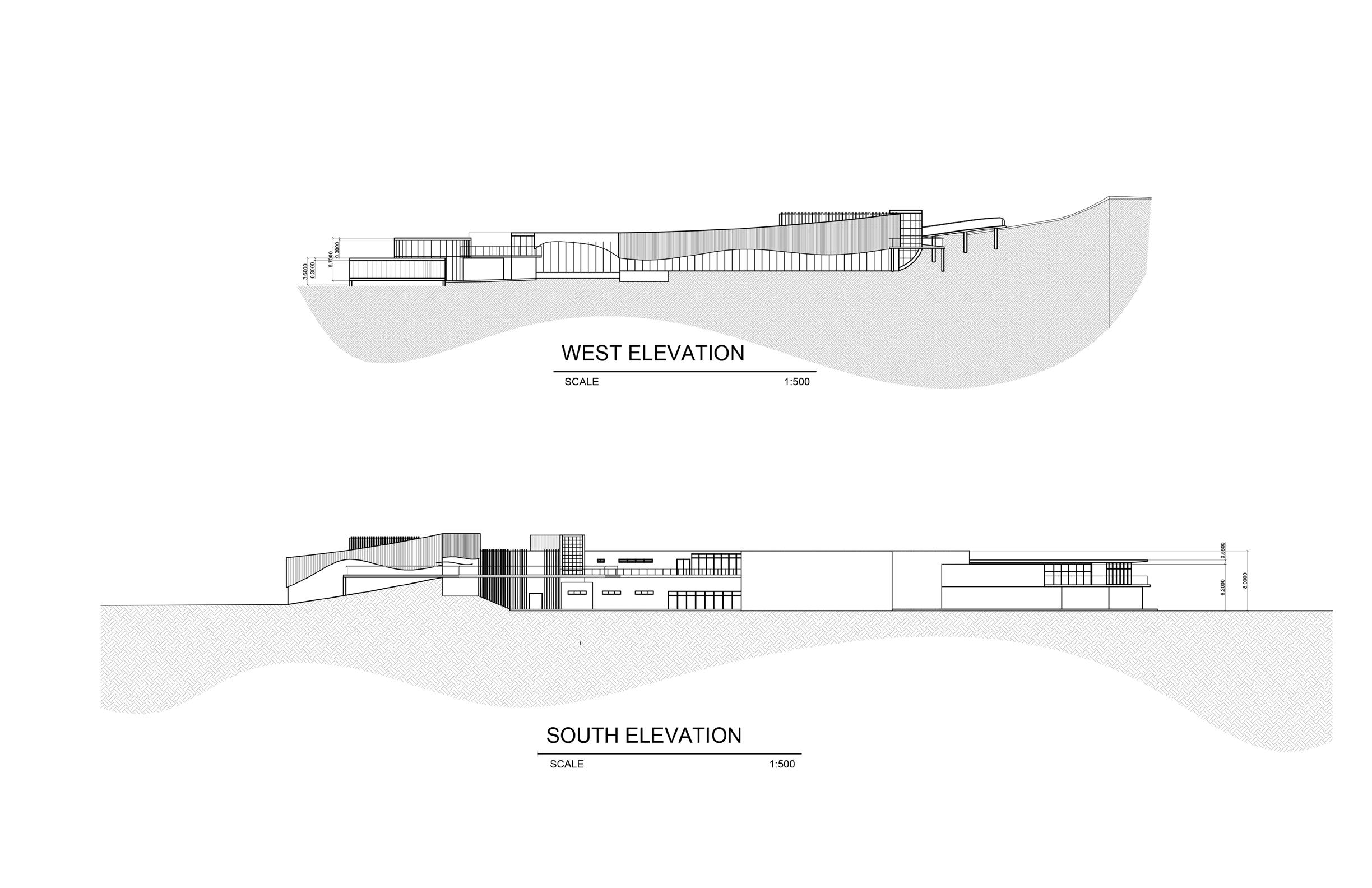

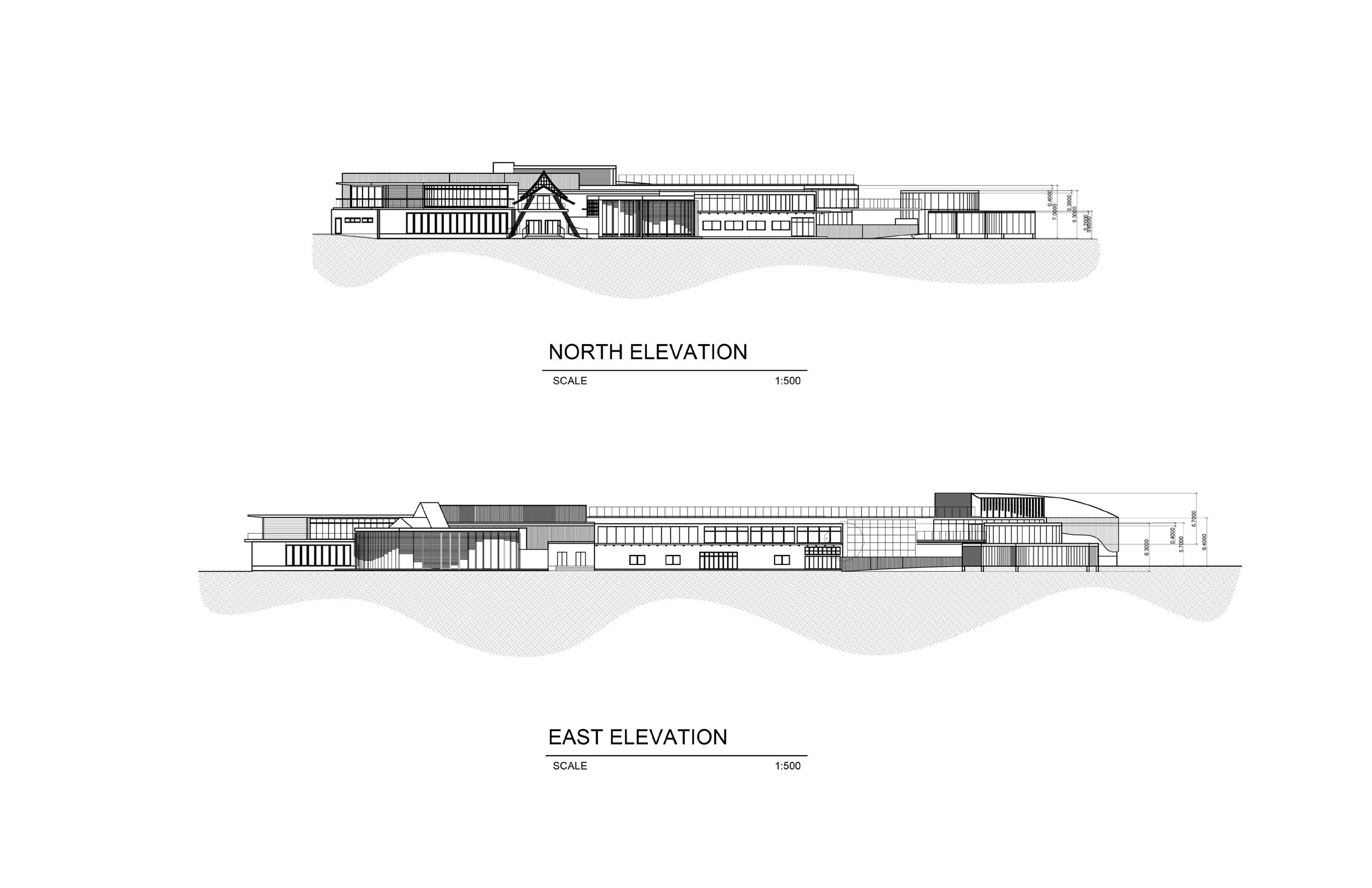

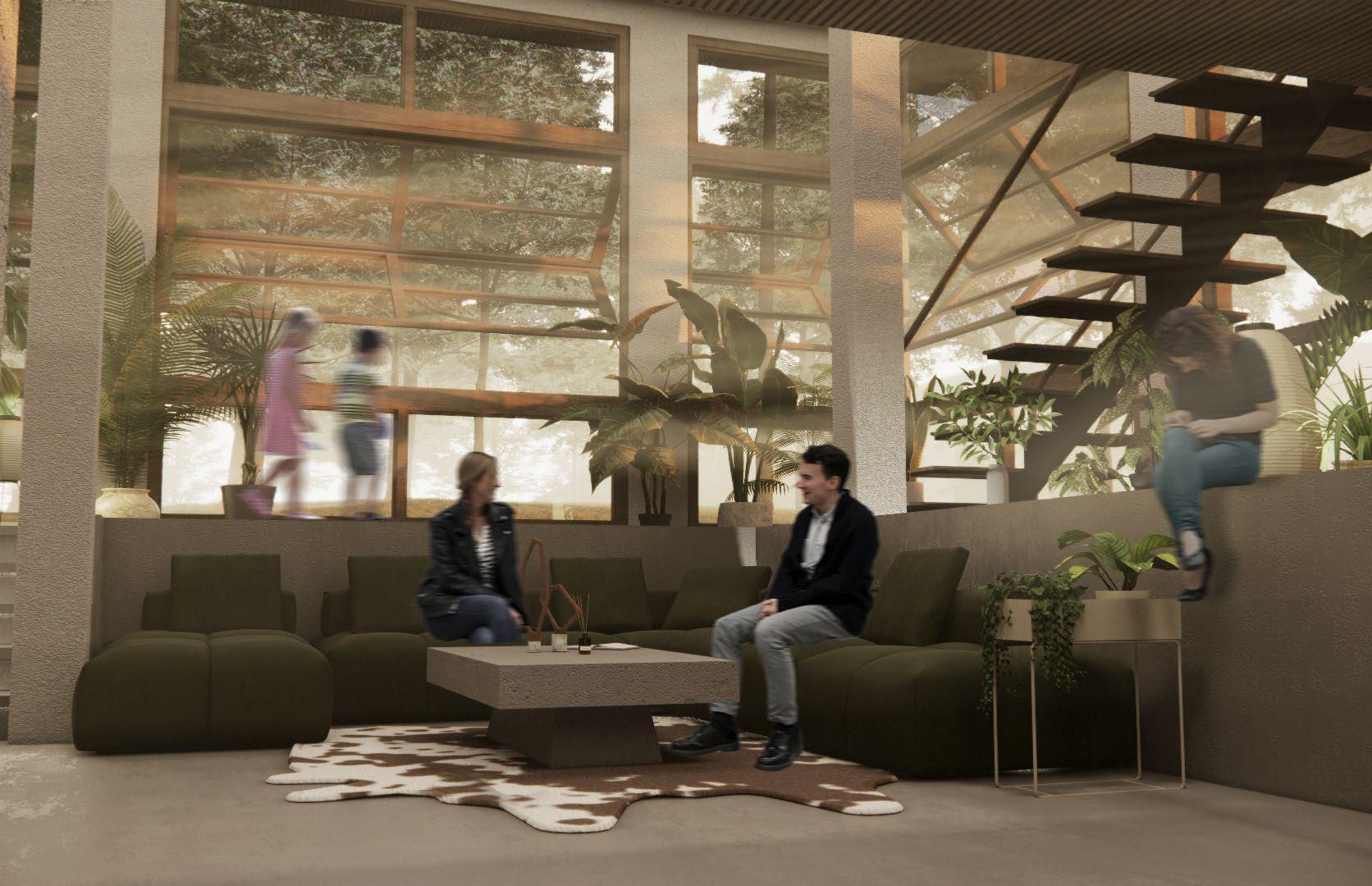

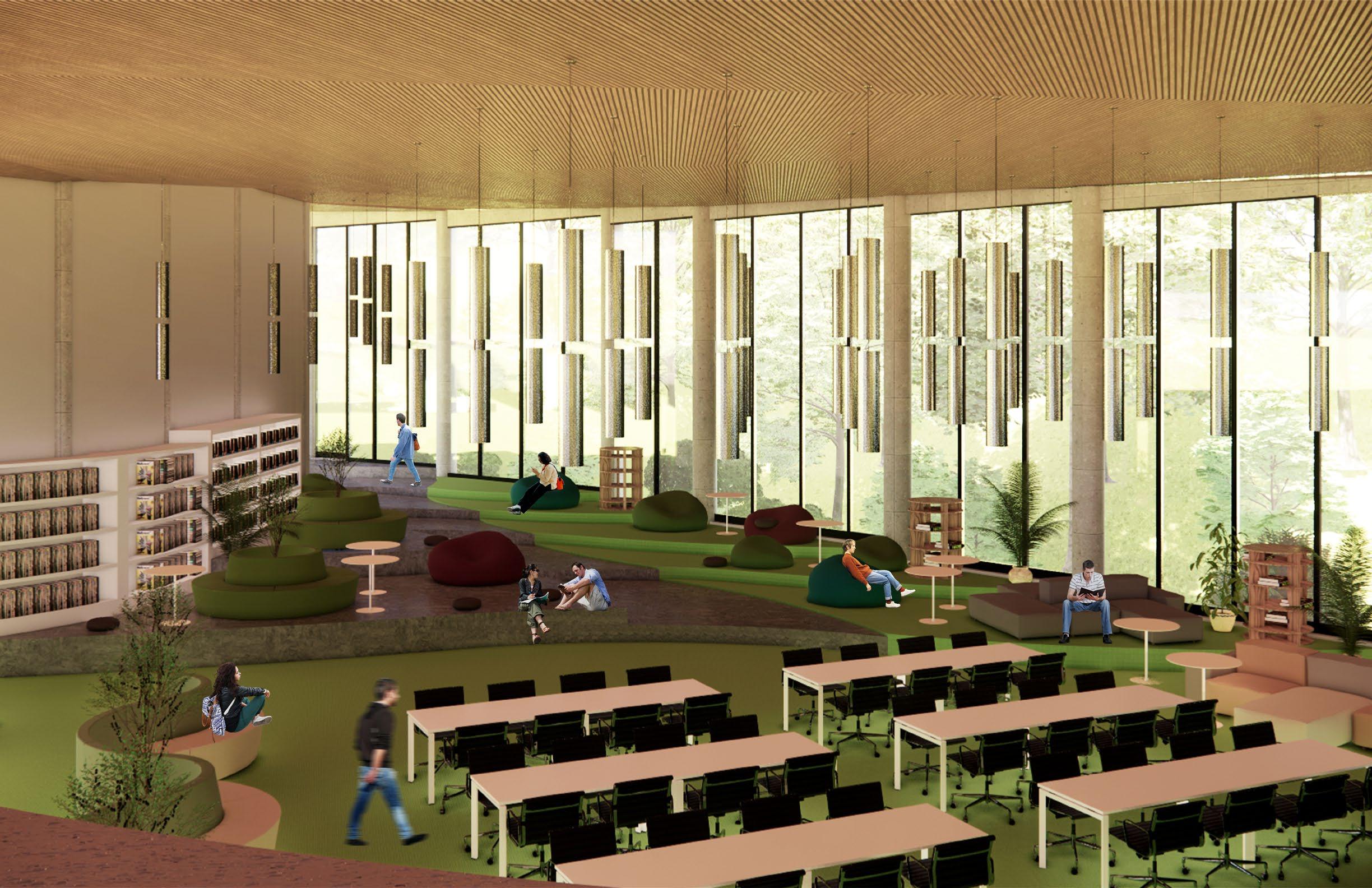

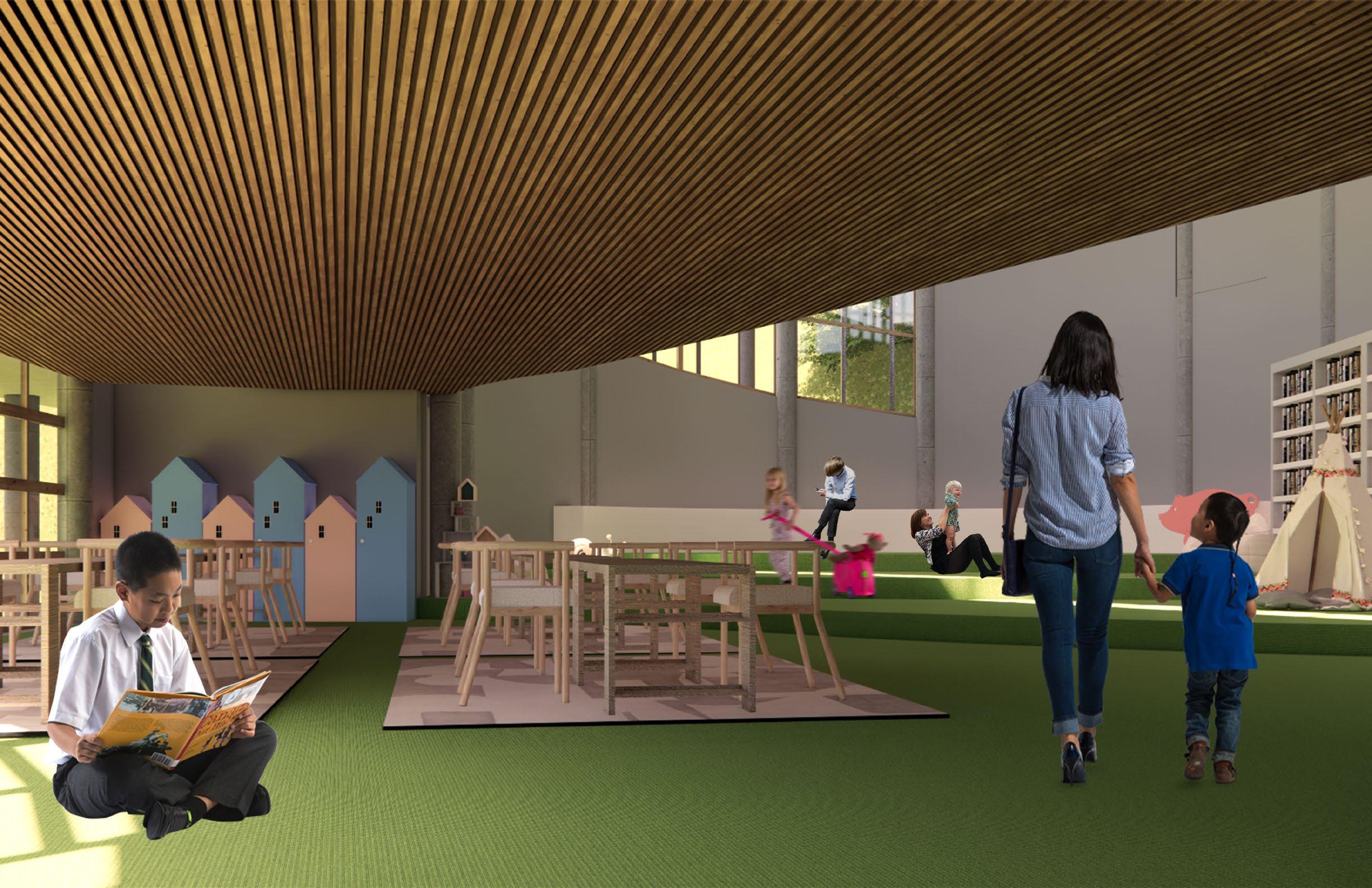

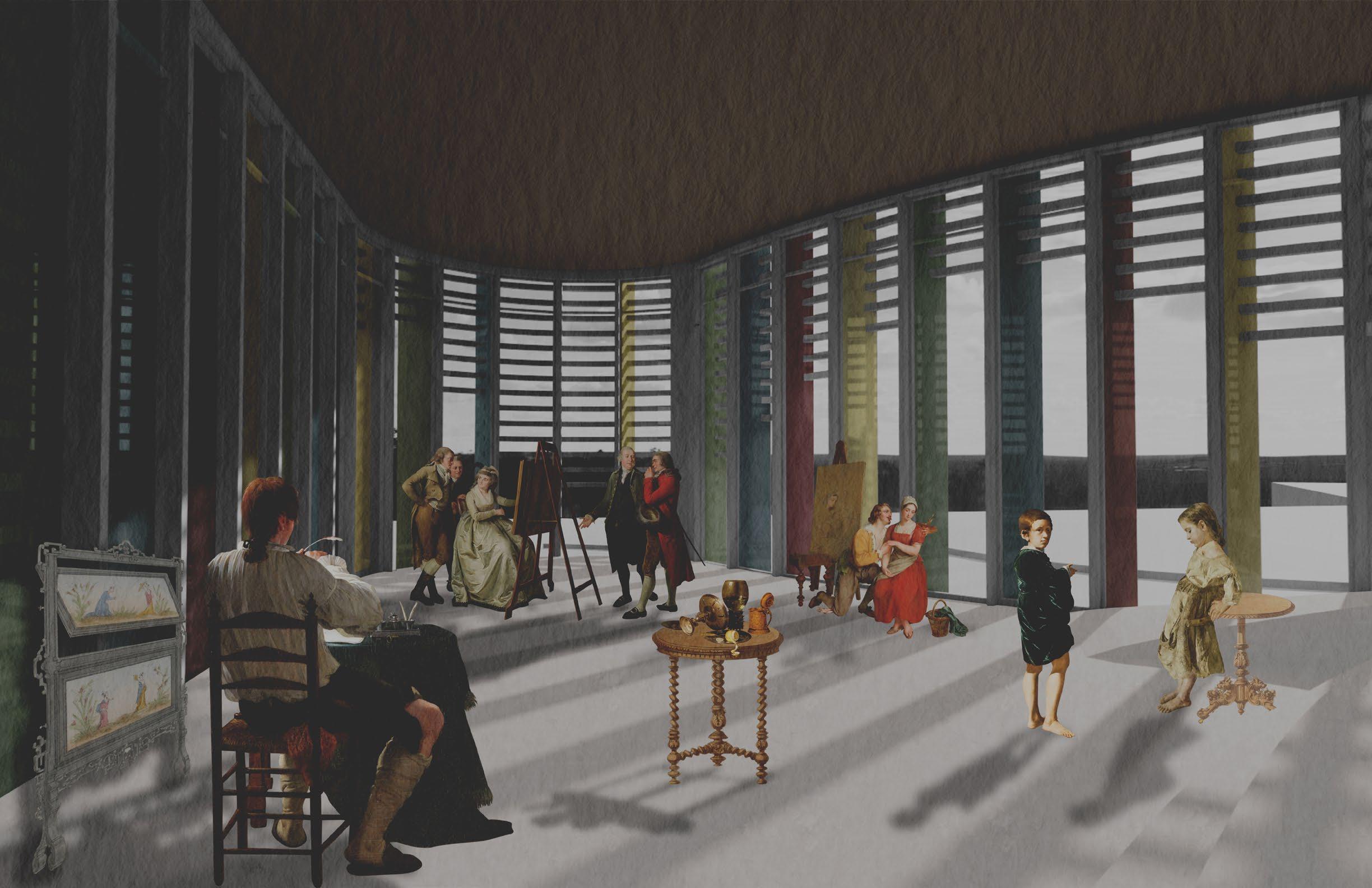

The library also includes spaces dedicated for art music, and the permormance arts like art galleries, exhibits, workshop areas, a music room, auditorium, dance studio, audiovisual room and a multipurpose hall to give the city the opportunity to promote and showcase the city’s creative aspects.
