I am passionate about developing innovative designs that may improve quality of life, and I constantly make an effort to approach every project with fresh insight and committed effort in order to produce outstanding outcomes. I’m also eager to expand my understanding of visualization techniques to enhance my innovation skills.
I am excited to continue pursuing my passion and journey towards a fulfilling career in architecture.
Tangerang, Indonesia
+62 821 2584 2531
jelenanaja07@gmail.com
EDUCATIONAL BACKROUND.
Aug 2020 - Jun 2024
Jul 2017 - Apr 2020 SKILLS.
Architectural
Universitas Multimedia Nusantara
Major in Architecture
SMAN 6 Kota Tangerang Selatan
Major in Social Sciences
Concept Design, Socio-Culture Analyze, Architectural Design, Architectural Drawing, Architectural Modelling, Architectural Drafting, Rendering, Interior Design, Model Making
Visual Design
Illustration, PPT, Poster, Logo Design
Creative Production
Video Rendering, Video Editing, Photography, Videography,
Evential
Event planning, Management, Execution
SOFTWARES ABILITIES.
Architectural Softwares
Autodesk Revit
Rhinoceros
Autocad
Archicad
SketchUp
Enscape
Twinmotion
Adobe Softwares
Photoshop
Illustrator
InDesign
Premiere Pro
Indonesian
Native or bilingual proficiency
English
Professional working proficiency
Apr 2022 - Jun 2022
Le ‘Arch 4.0 - Workshop “Introduction to digital software of architecture (AutoCad & Rhino)”
Division Coordinator (Equipment and Documentation)
Acquired skills:
- Event preparation: creating participant data collection forms, preparing software download materials for participants.
- Event execution: Provides a zoom link for the event, helping participants with technical difficulties.
- Special task : contact person (cp)
Sep 2021 - Dec 2021
Archisport 2021 - Sports Event for UMN Architectural Student
Secretary - (Badan Pengurus Harian)
Acquired skills:
- Event planning: Document preparation (Proposals, Term of Reference, etc.)
- Event execution: Maintain discipline in the implementation of the event in accordance with a predetermined schedule so that the event can run well.
- Event execution: Maintain discipline in the implementation of the event in accordance with a predetermined schedule so that the event can take place properly
- Special task : Speaker (mc-ing)
UMN Merit Scholarship
Issued by Prodi Arsitektur Universitas Multimedia Nusantara. 2023/2024
; 50-60% tuition fee reduction
The Best Teamwork and Master Plan of Architectural Design 3
Issued by Prodi Arsitektur Universitas Multimedia Nusantara. Jun 2022
; Urban lifestyle project located in Sudirman, Jakarta
Jul 2023 - Dec 2023
RAW Architecture
Internship - Architectural Designer Assistant
Belitung Getaway 1.
Captures the essence of travel: “Getaway” immediately suggests a journey, relaxation, and escape, which are all positive associations with air travel and tourism. Connects to the destination: Including “Belitung” in the title clearly identifies the location and reinforces the project’s purpose. It grounds the design in its specific context.
a Final project about redesigning an airport located in Tanjung Pandan, Belitung. With all the tourism developments taking place in this region, H.A.S Hanandjoeddin Airport holds great influence as the only gateway for air routes from within and outside the country on Belitung Island. The redesign of H.A.S Hanandjoeddin Airport was carried out using spatial configuration theory to overcome circulation density problems.

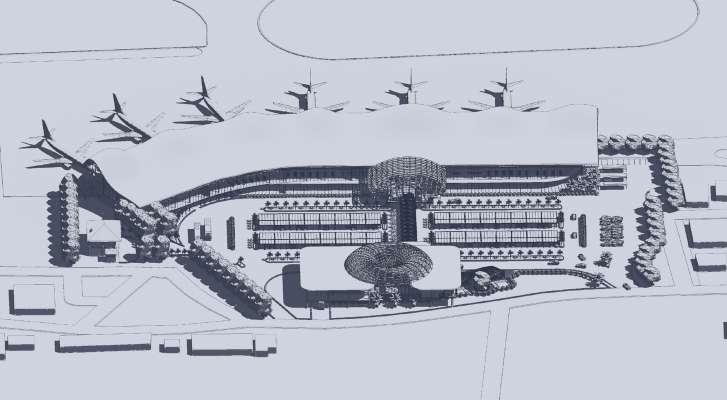

Bandara H.A.S Hanandjoeddin

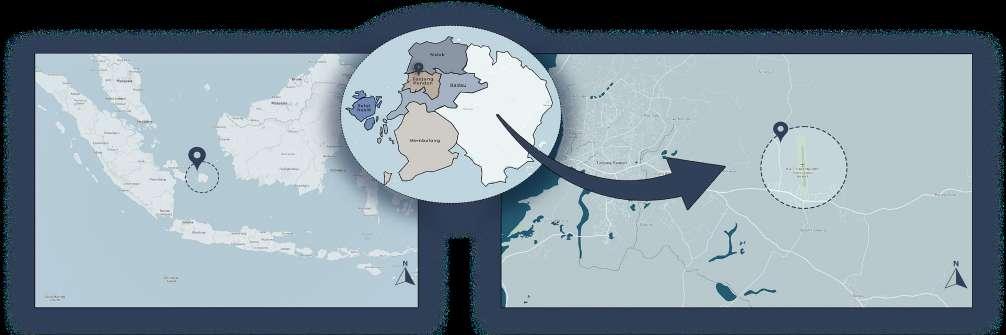

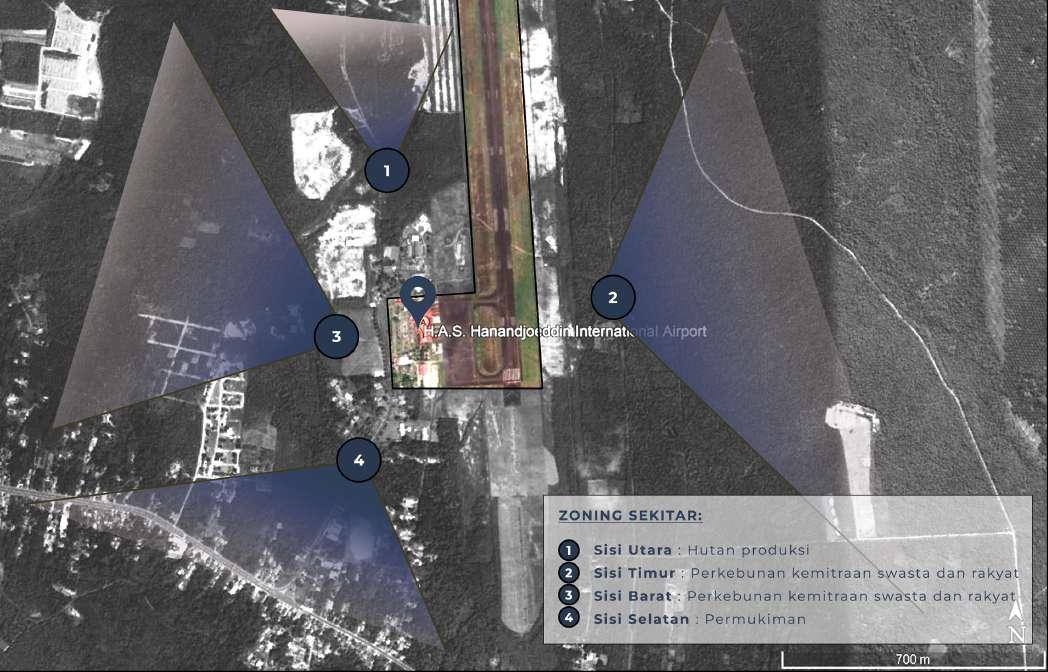

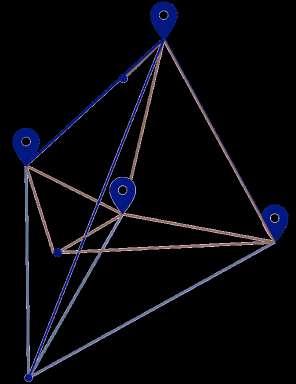

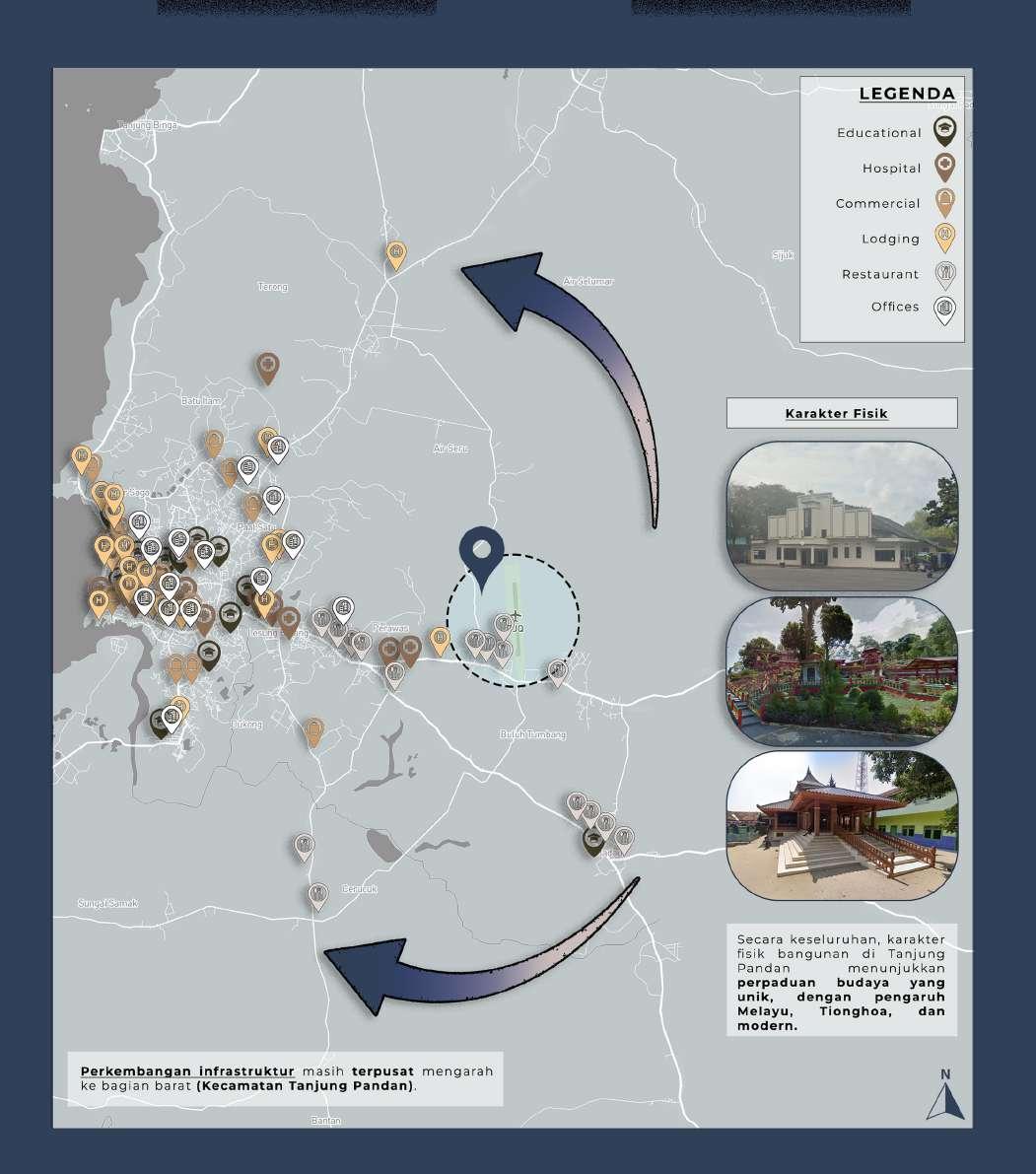

SITE ANALYSIS
Connectivity & Accessibility | Zoning & Legal | I Infrastructure
ACTIVITY STUDY | DESIGN CONCEPT
ISSUES & POTENTIAL
SPACIAL CONFIGURATION
SPACIAL CONFIGURATION

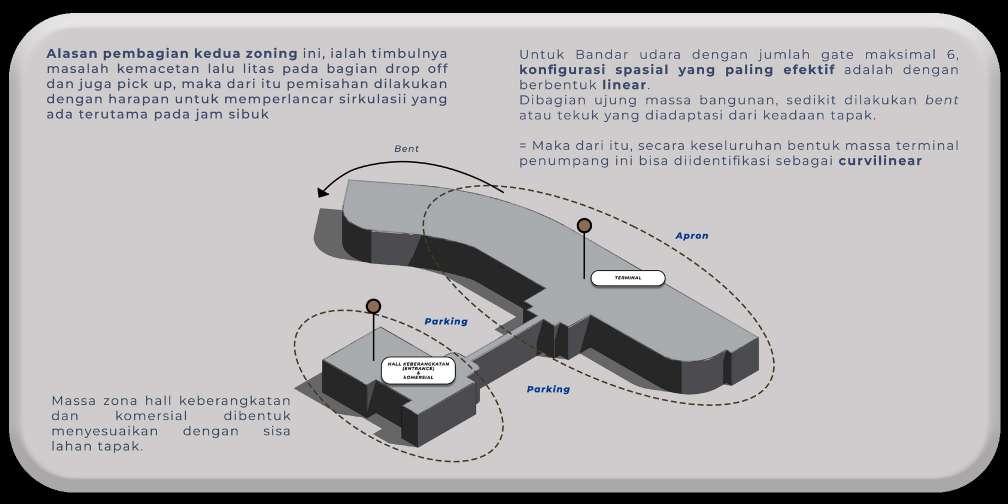

FORM REASONING

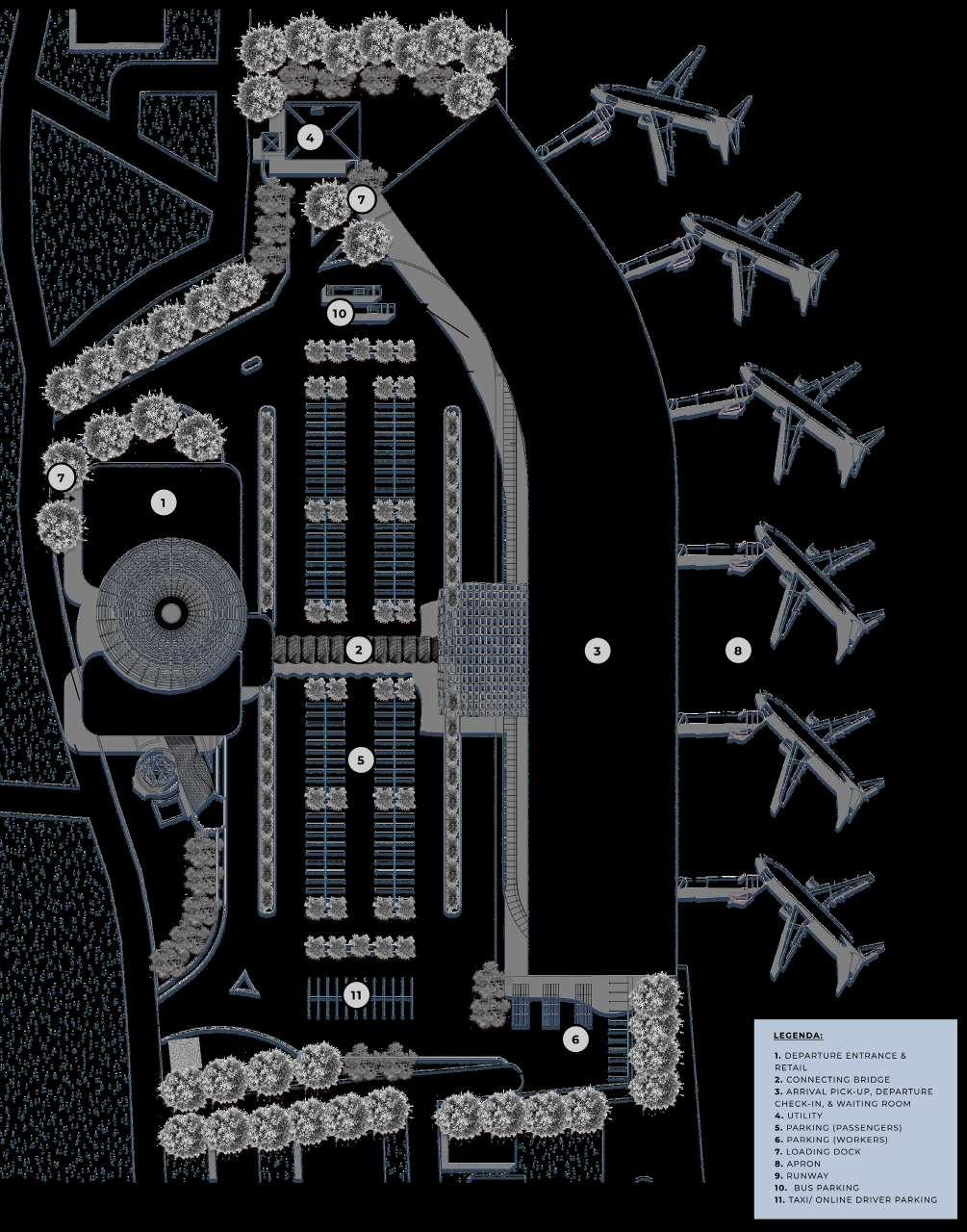

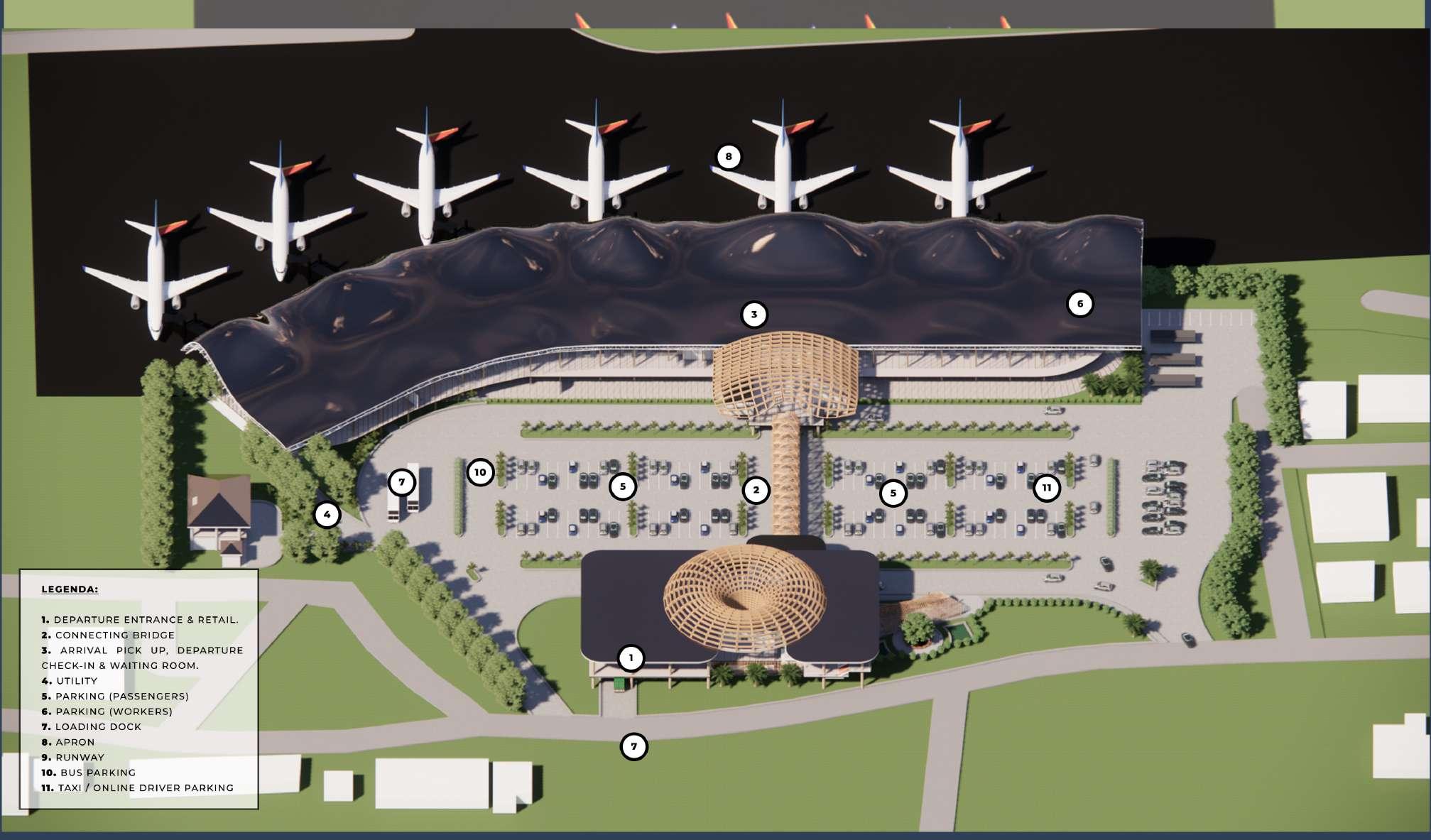

DESIGN RESULTS
Bandara H.A.S

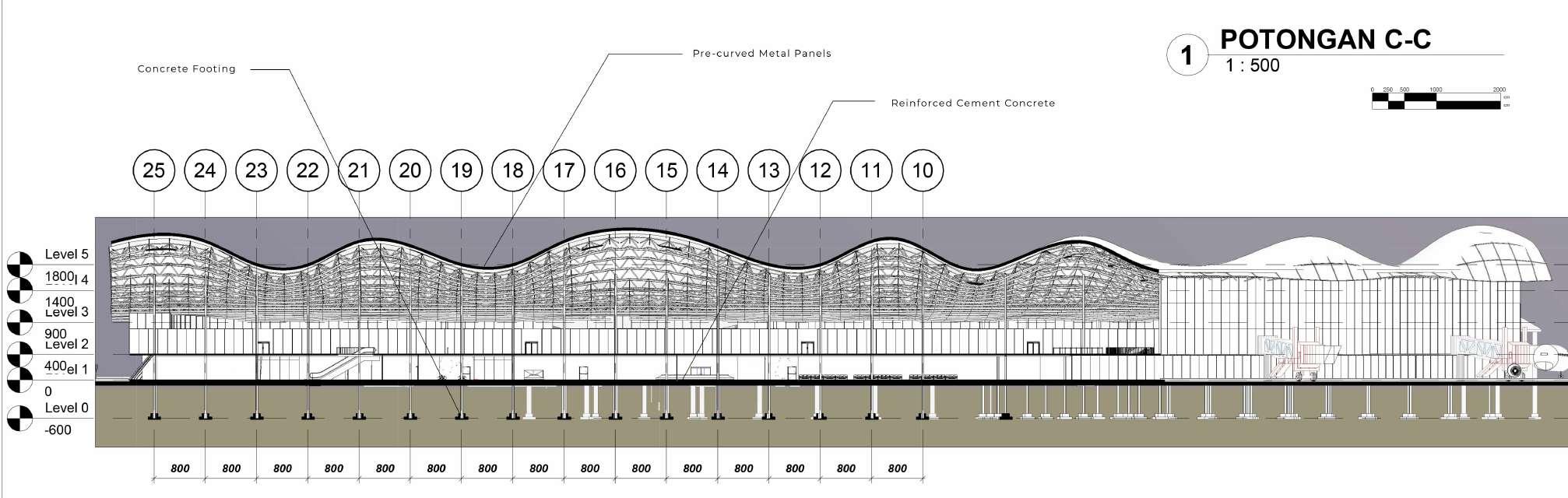

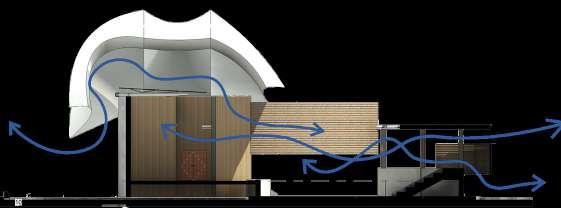

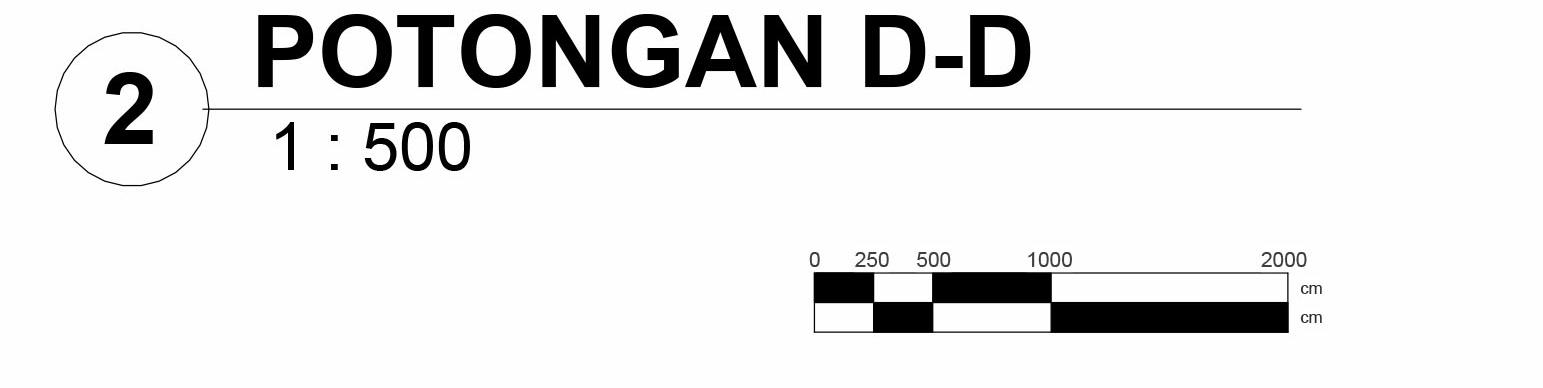

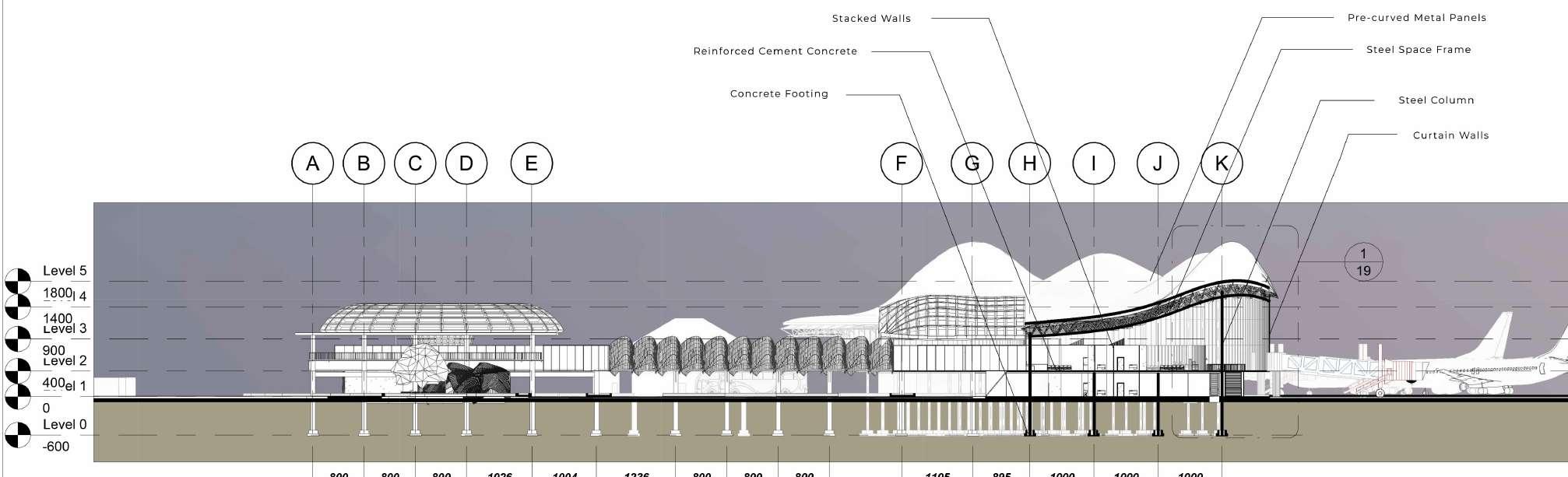

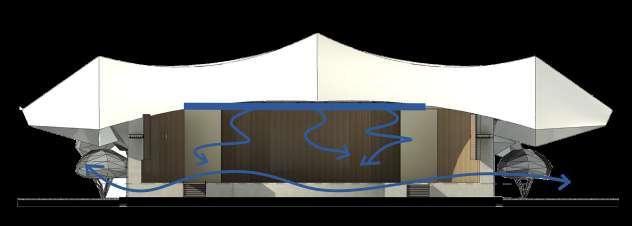

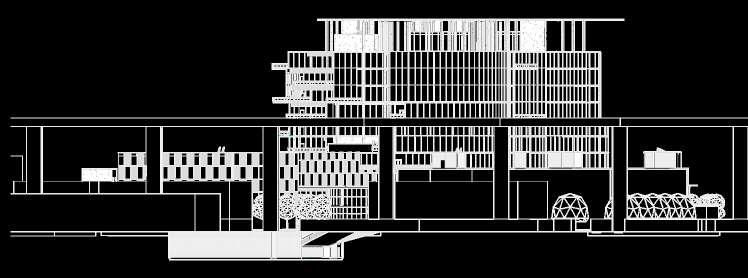

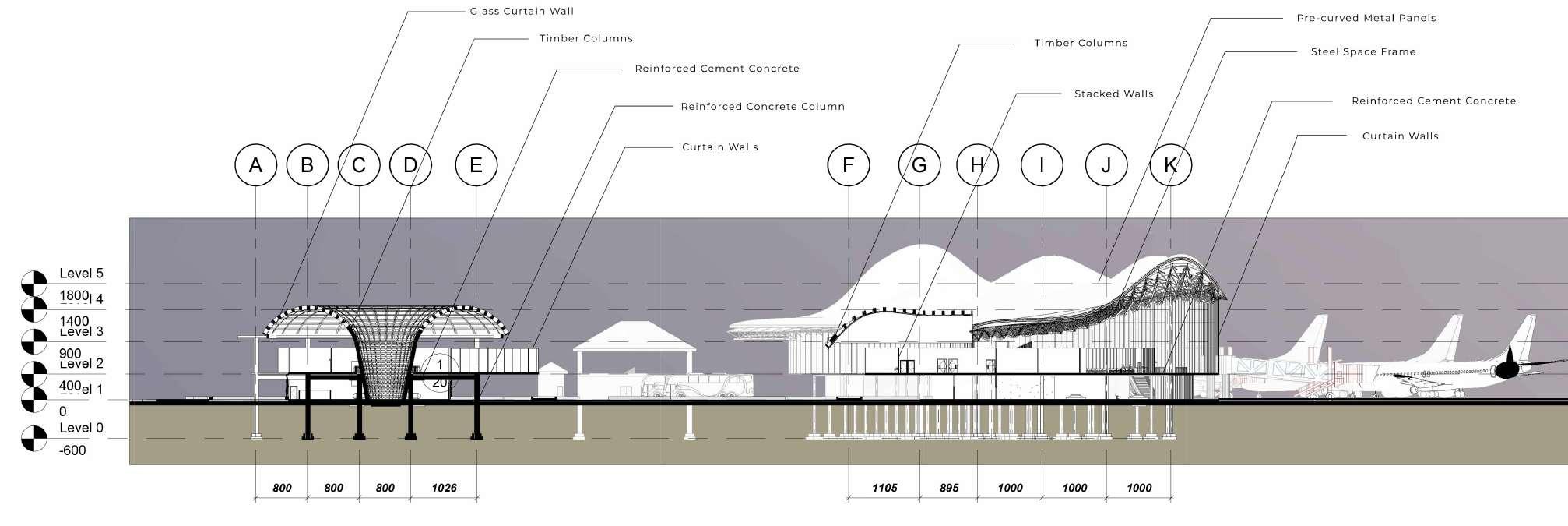

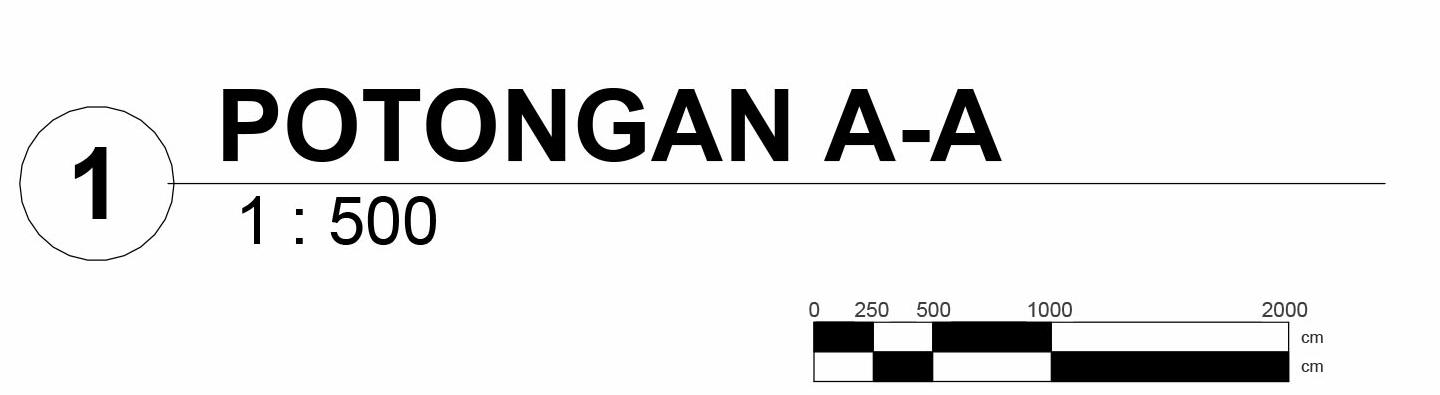

SECTION

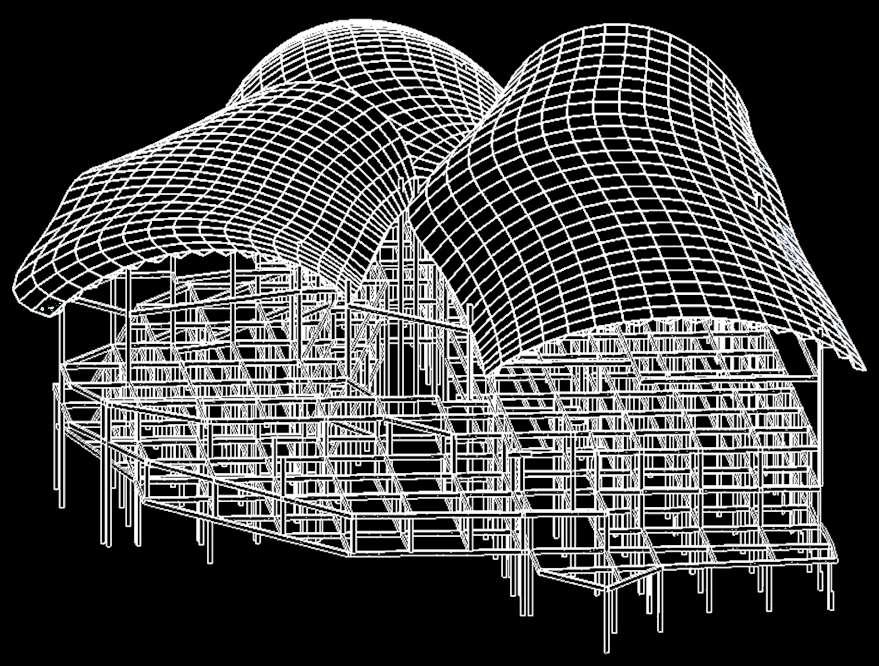

STRUCTURE
LOCALITY
SUSTAINABILITY

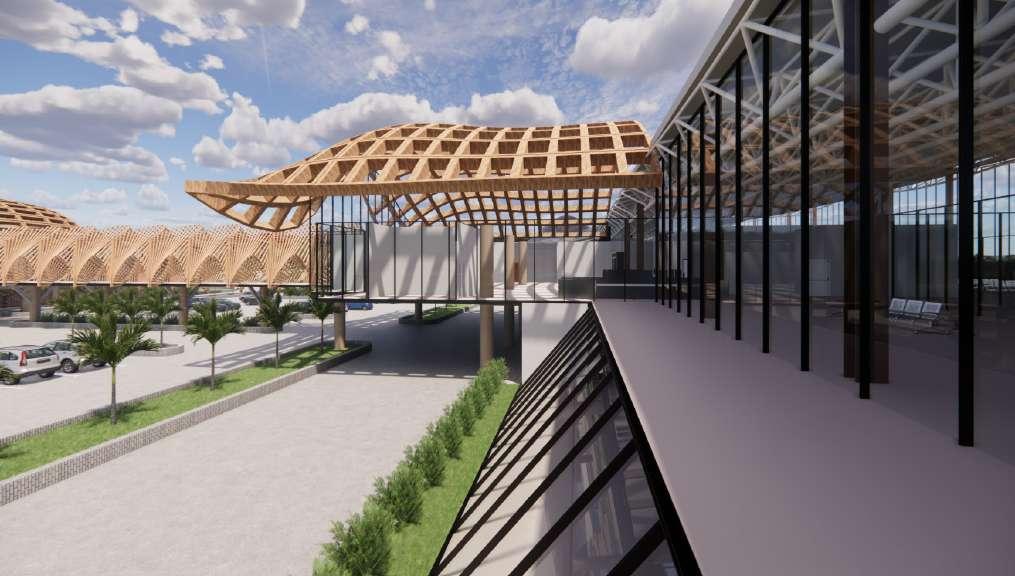

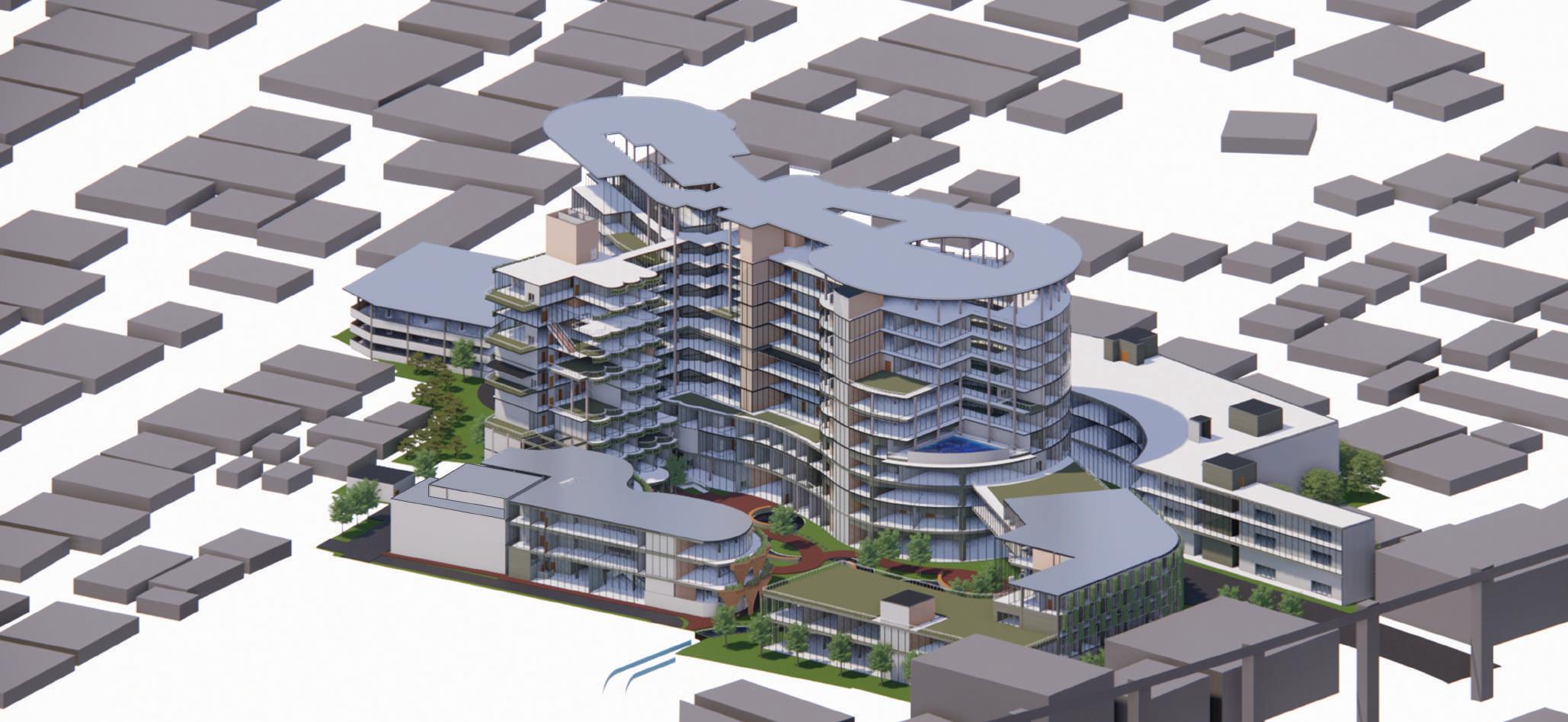

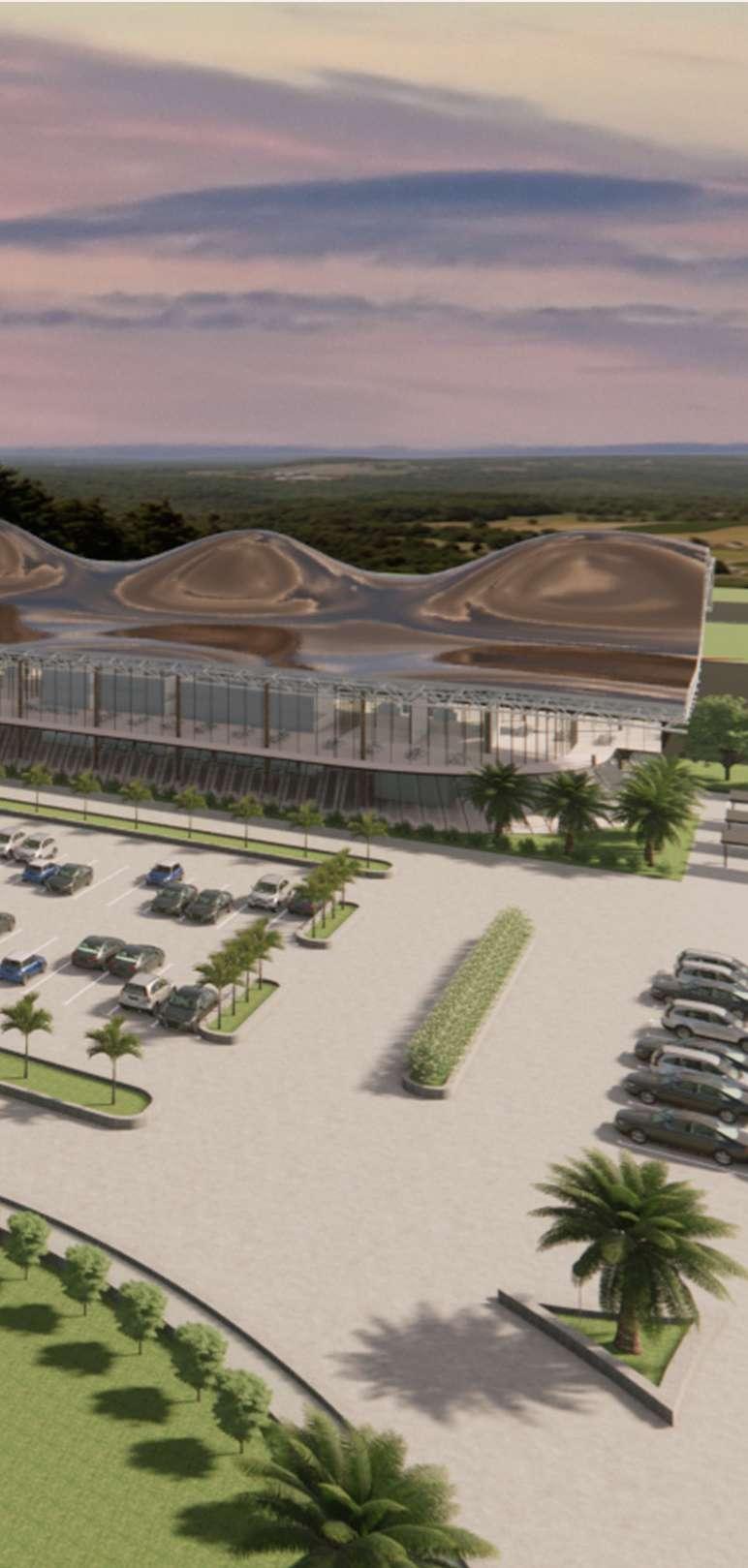

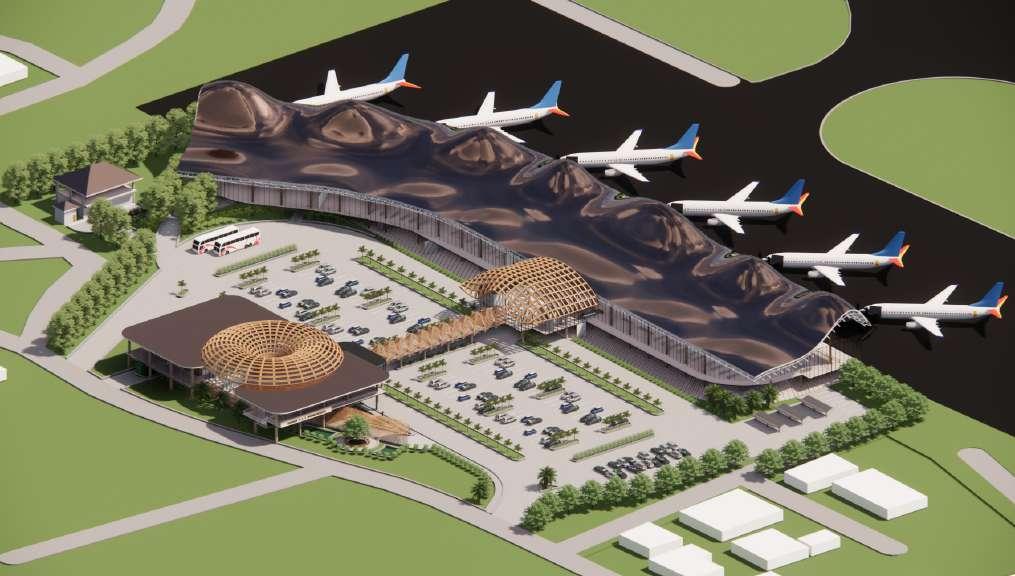

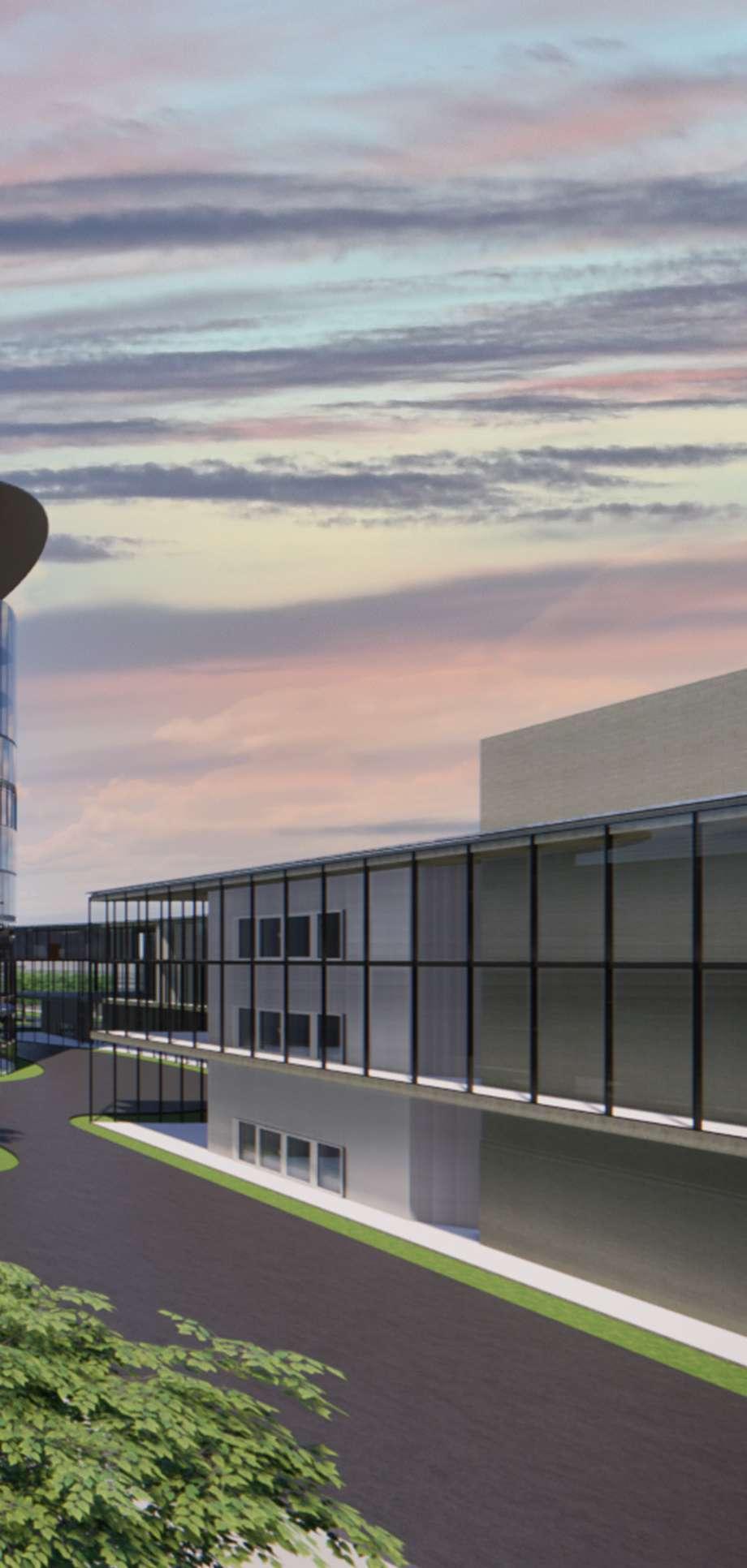

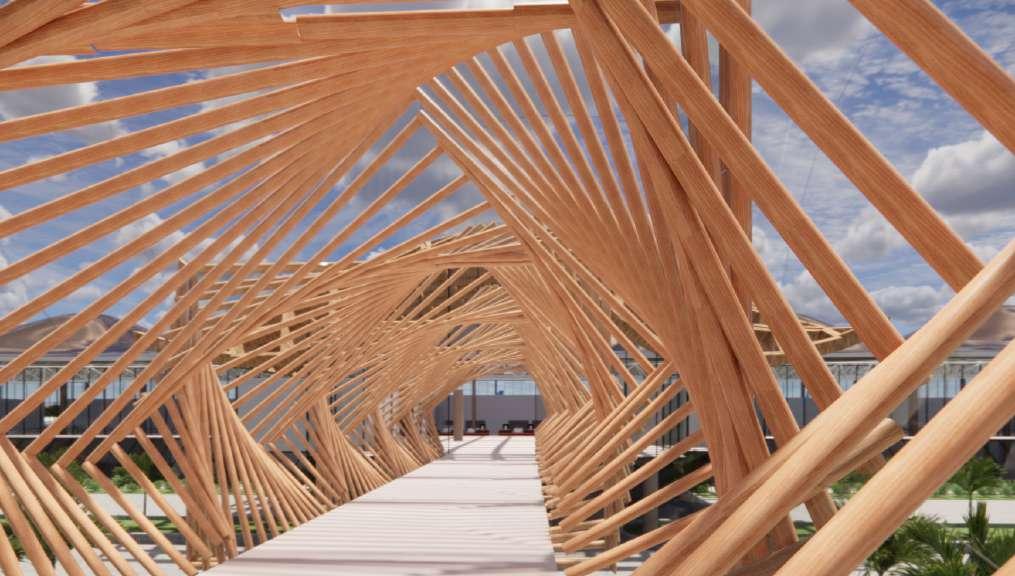

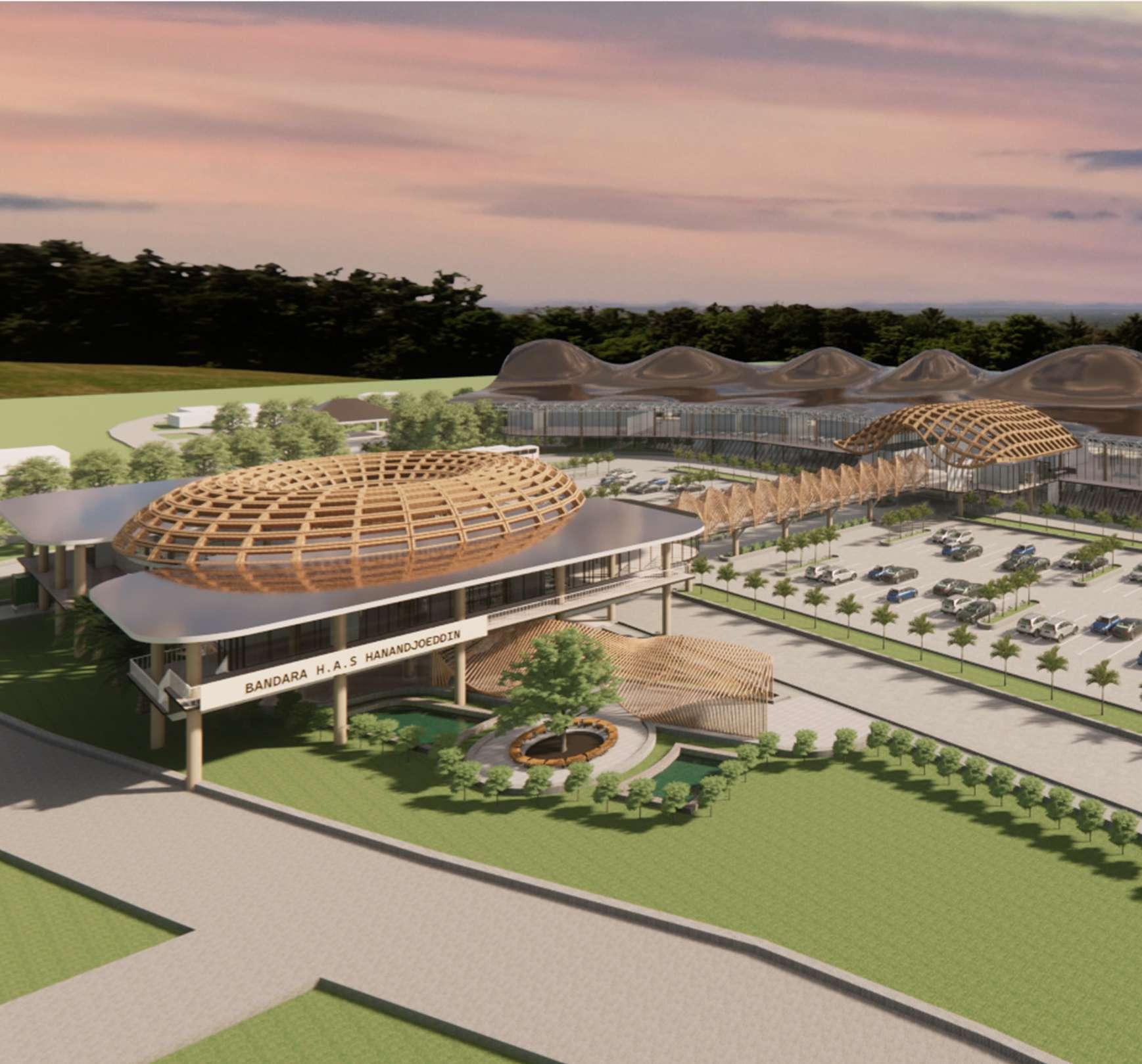

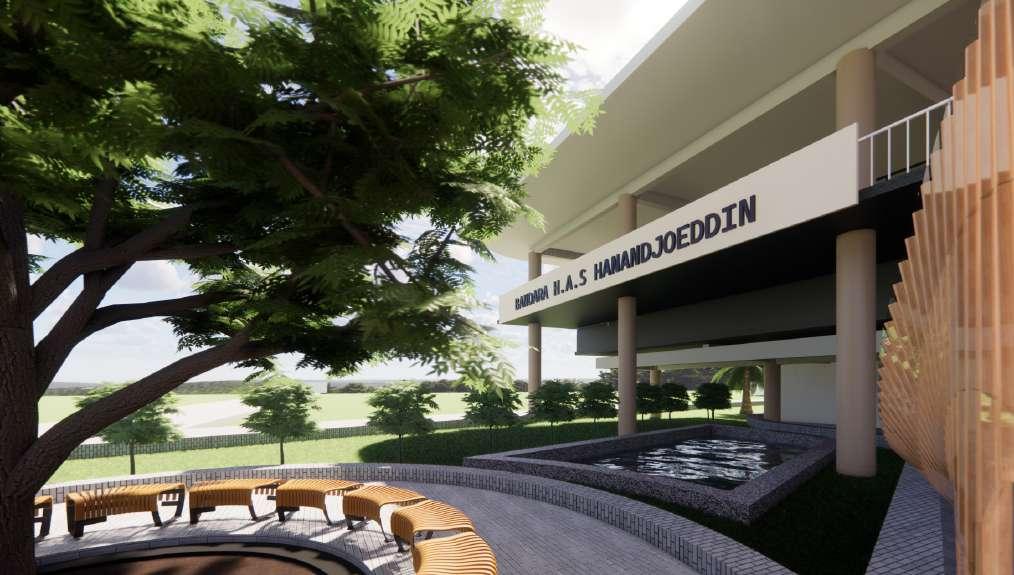

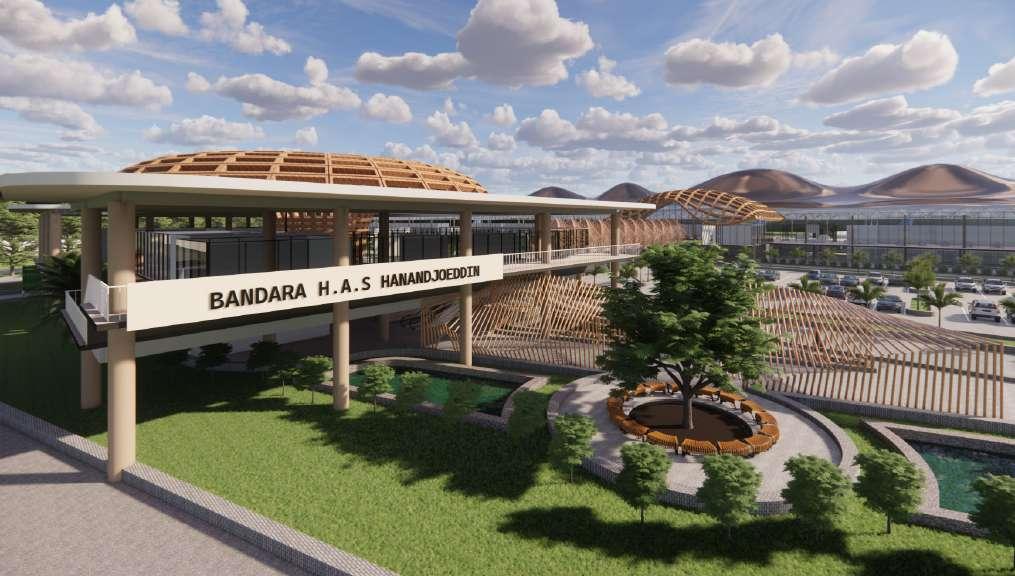

EXTERIOR & LANDSCAPE RENDER
EXONEMA 2.
Mixed-use Hospitality
Exonema [exonomist]; Movement caused by ambient stimuli. Exonema [Exono]; Movement from outside to inside Exonema [Cinema]; Offer something to enjoy
In this project, it is required to design a building typology with a medium to high level of complexity, with multiple functions (mixed-use), multi-mass consisting of 3 (three) masses, with 1 (one) or more main building masses. The choice of building functions to be appointed includes; the hospitality function (as the main function), as for other additional functions, which can be in the form of commercial, educational, residential functions, etc., according to the context, site analysis and concept. With efforts to create design works with a sustainable architectural context approach.

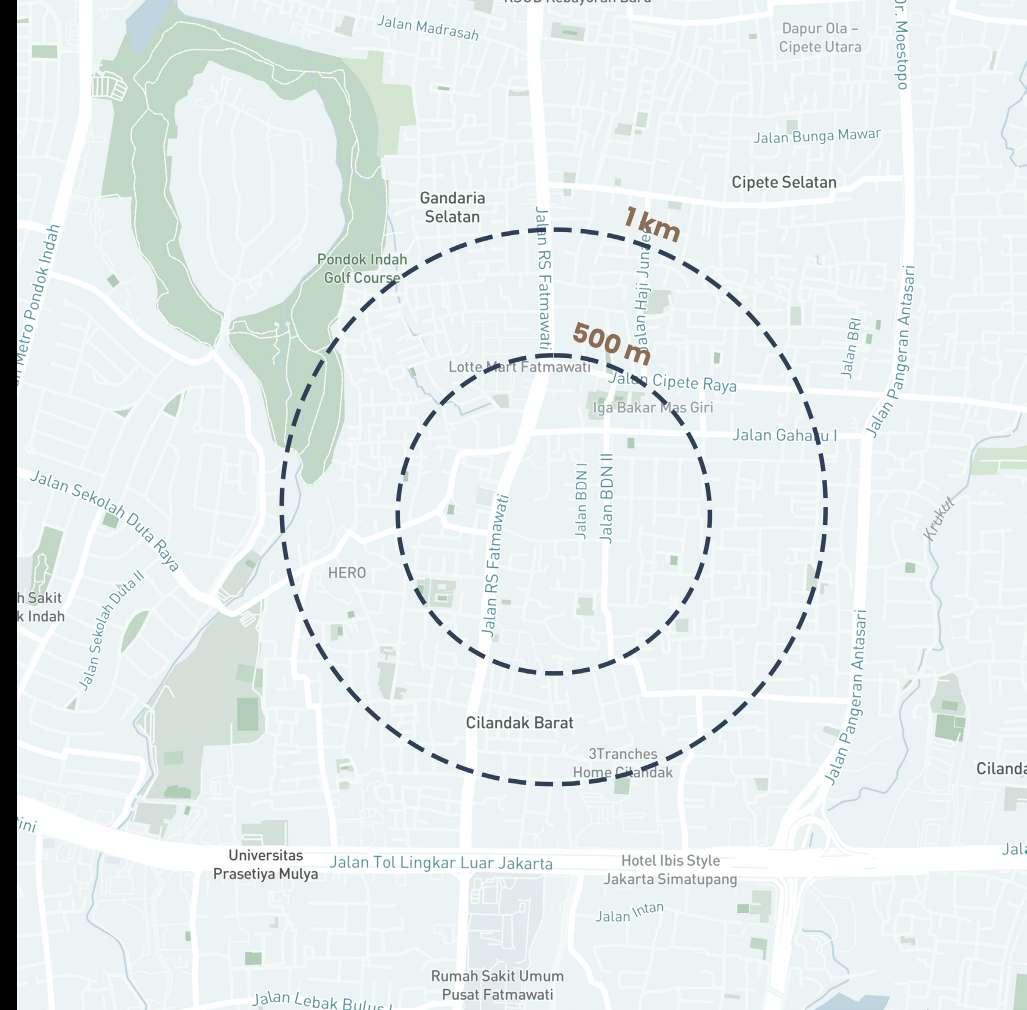

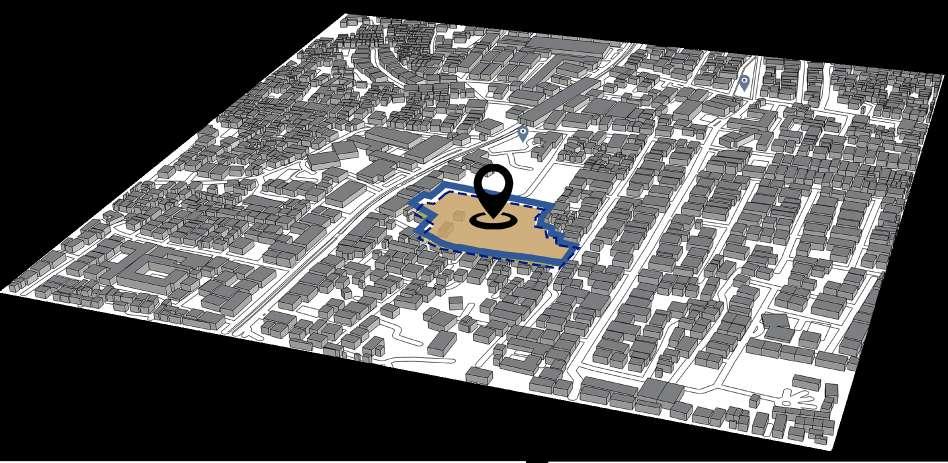

SITE ANALYSIS
Land Use | Morphology | Network
Background SWOT (Summary)
Location : Jl. RS. Fatmawati No. 45, Kecamatan Cilandak, Jakarta Selatan Area : 2,6 Ha
Weakness : Contrast orientation between commercial and residential areas.
Opportunities : With areas that are mostly filled with business and retail districts, the site can offer new functions that can complement each other.
Threat : The hierarchy in the aisles around (access to the site) is low so there is potential for it not being able to attract visitors to enter the site.
Vital Network for Public Transportation
PROJECT GOALS

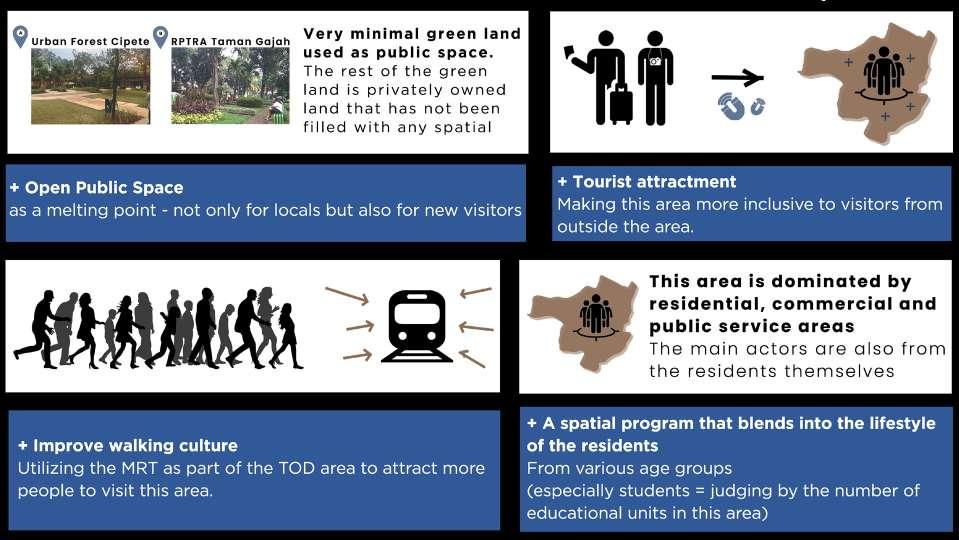

Issues | Potential
The primary network is formed due to the goals of migrants who use public transportation who want to work or migrants who want to have fun
Primary Network Secondary Network
Secondary networks are formed from activities that are not primary

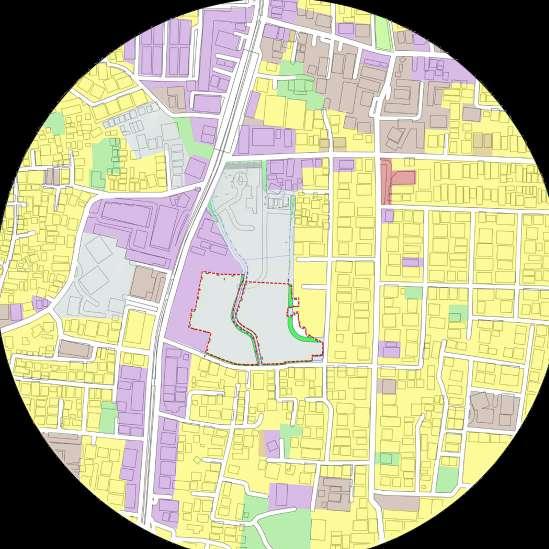

Land Use
There are not many unique/interesting space programs to attract visitors from outside the area, so the majority of this place is packed with people who do activities here on daily.
Concept
Unanimity is a word for a group of people all being of one mind.
>> Just like uniforms make people look alike, this similar word indicates people are thinking alike.
Removing the image of a region that is “Very-Jaksel”, so that it is easier to be approached by various ages & social groups.
(Melting/Receiving/Becoming one)
Not only prioritizing tourist crowds, this area is also expected to provide space that can accommodate the daily activities of local residents.
It aims to establish a green public space which is also hoped to be able to slowly train a walking culture for all its visitors
Unanimity
Inclusive
Assimilate
Healthy Green
SPACE PLAN PROPOSAL
Programming
(Public Spaces)
Lack of green land for local people who just want to refresh from the hectic and fast paced atmosphere of the city.
& Culinary)
Proposed space program targeted at making visitors able to do their activities longer in this area.
One of the mandatory programs that can accommodate and serve tourists or newcomers when they want to do activities in this area.
A gathering place for creative people who come from various communities and age groups.

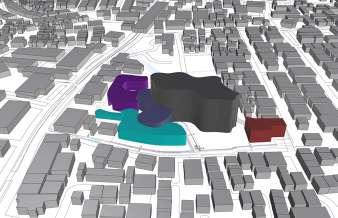

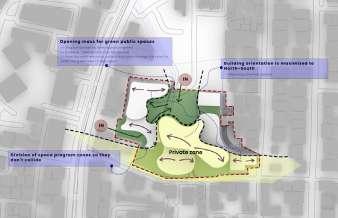

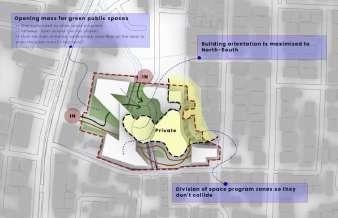

Mass Study | Form Finding
The space program is presented to be able to entertain visitors and become a means of channeling artistic talent which may also come from the creative hub.
Several considerations are taken during these phrases to achieve maximum results.

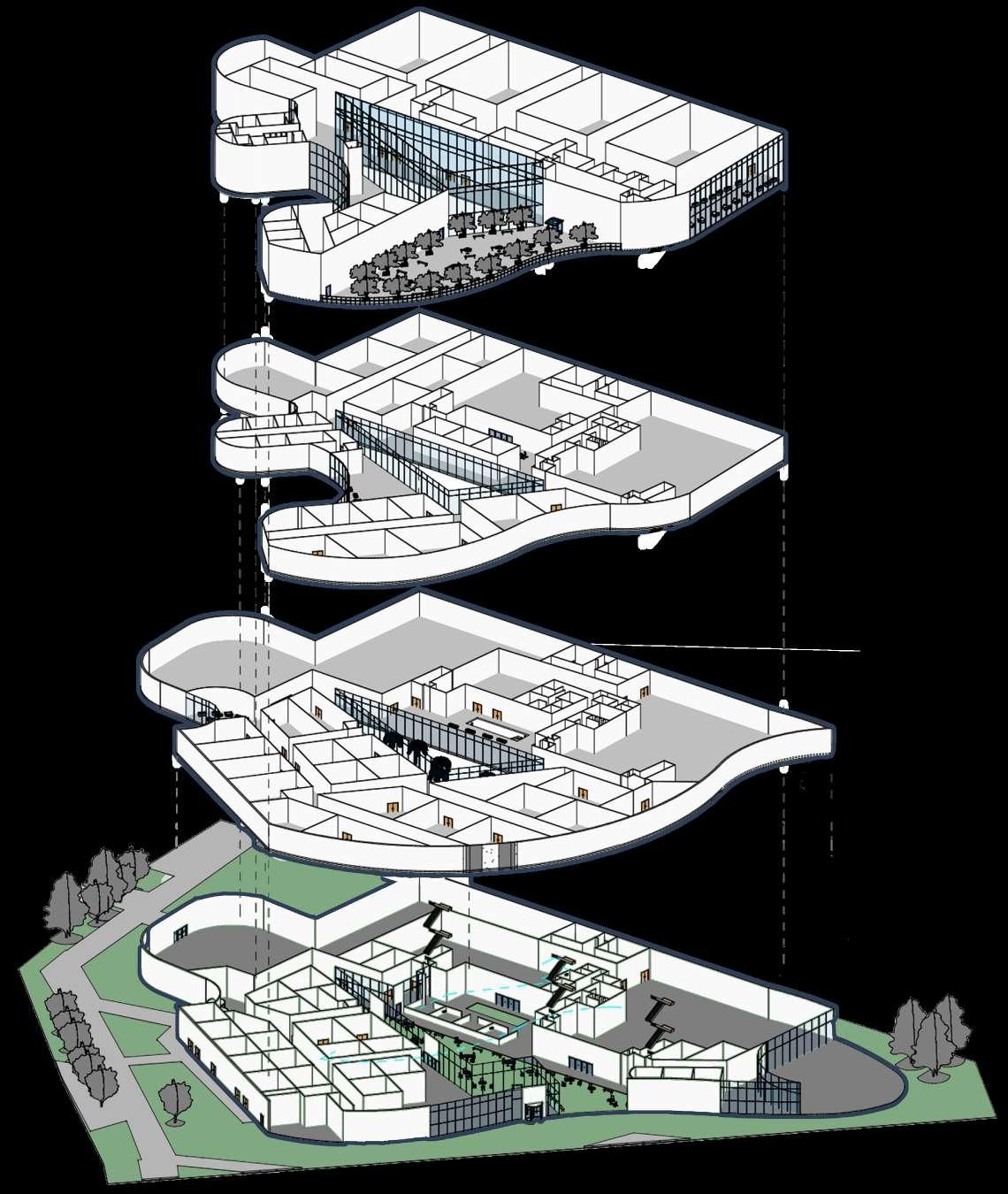

SPACE PROGRAM PLACEMENT

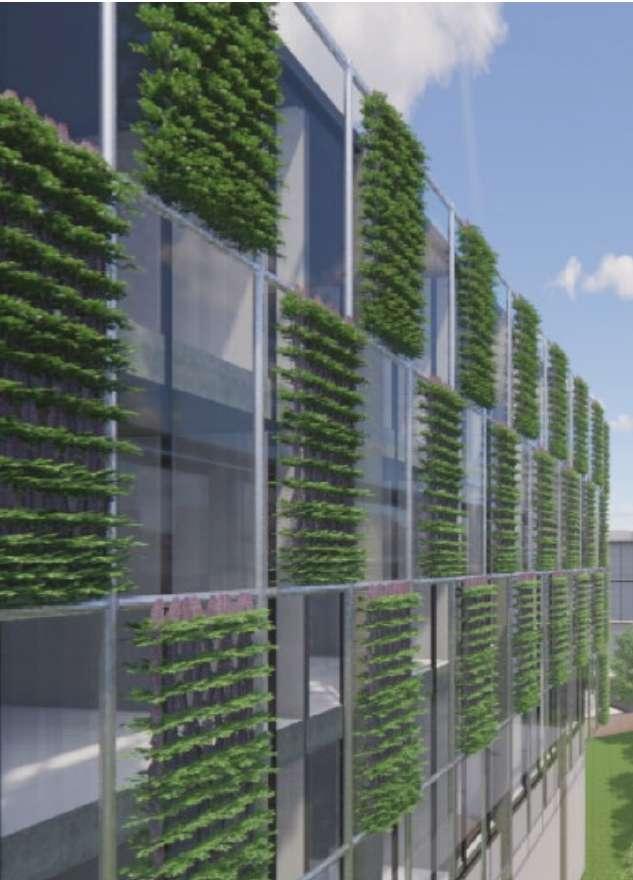

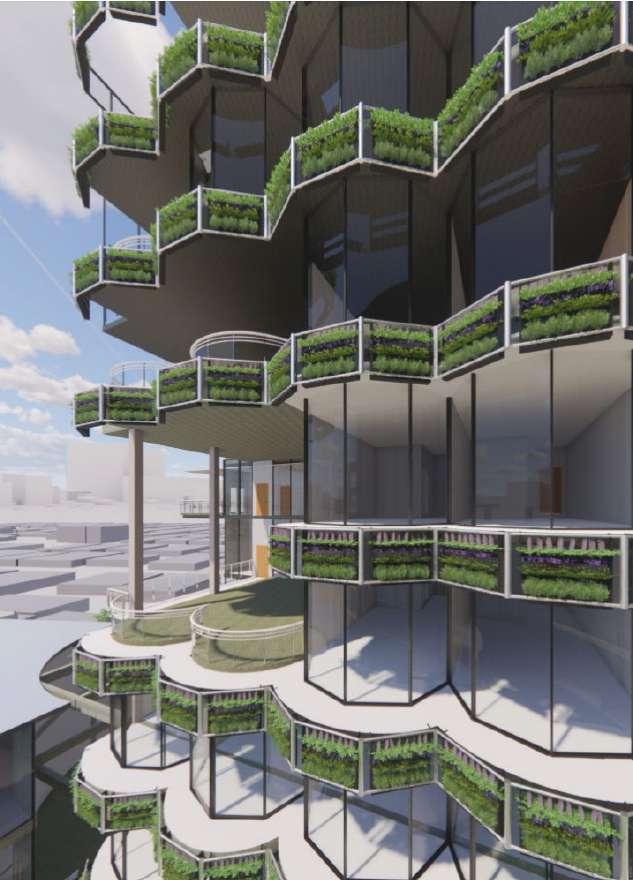

GREEN FACADE

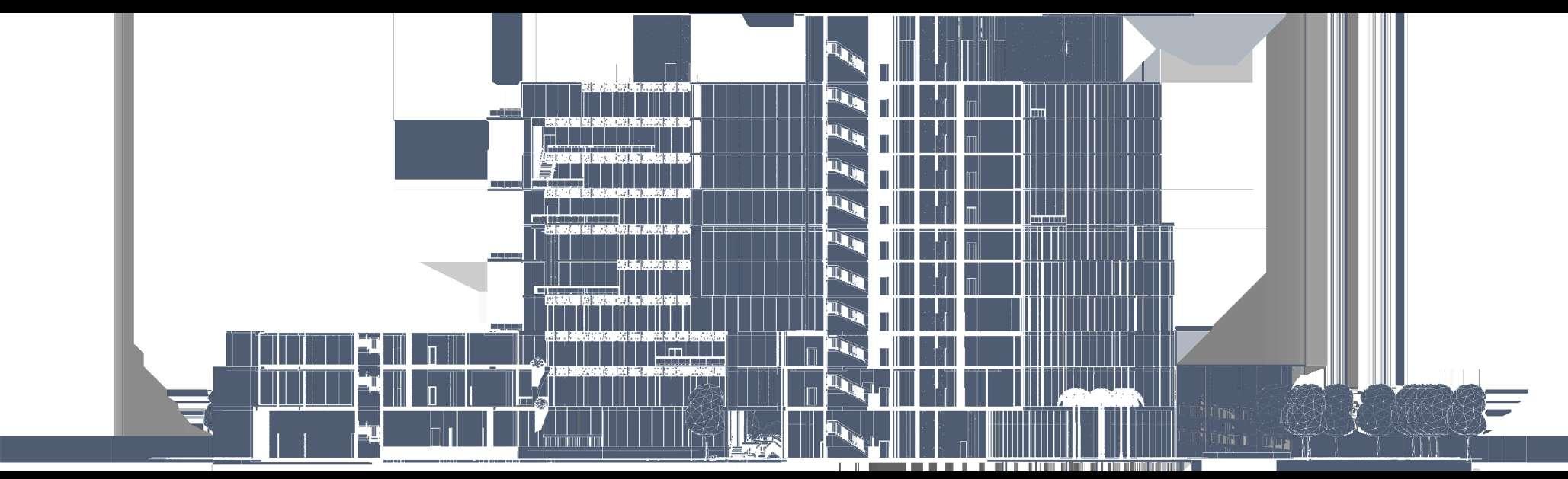

North Elevation
East Elevation
South Elevation
West Elevation

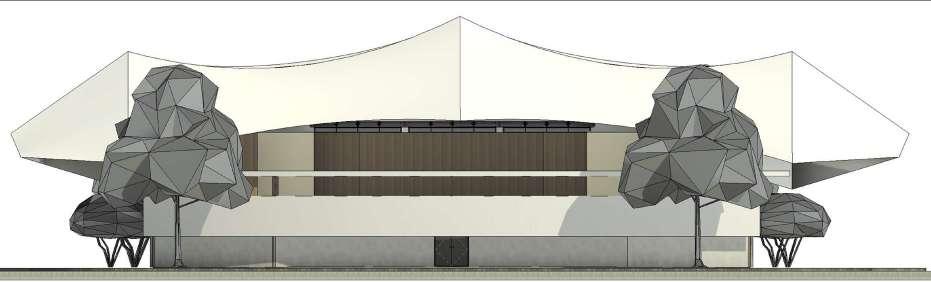

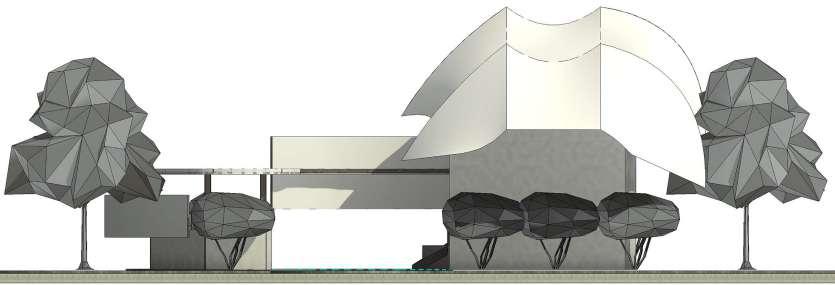

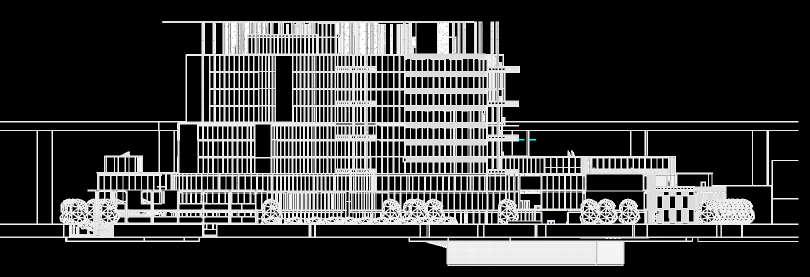

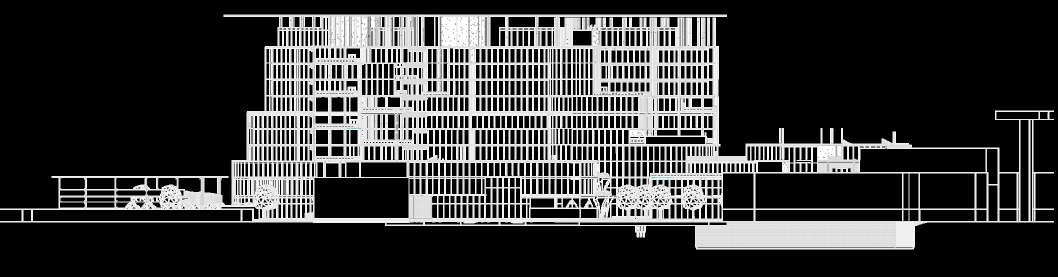

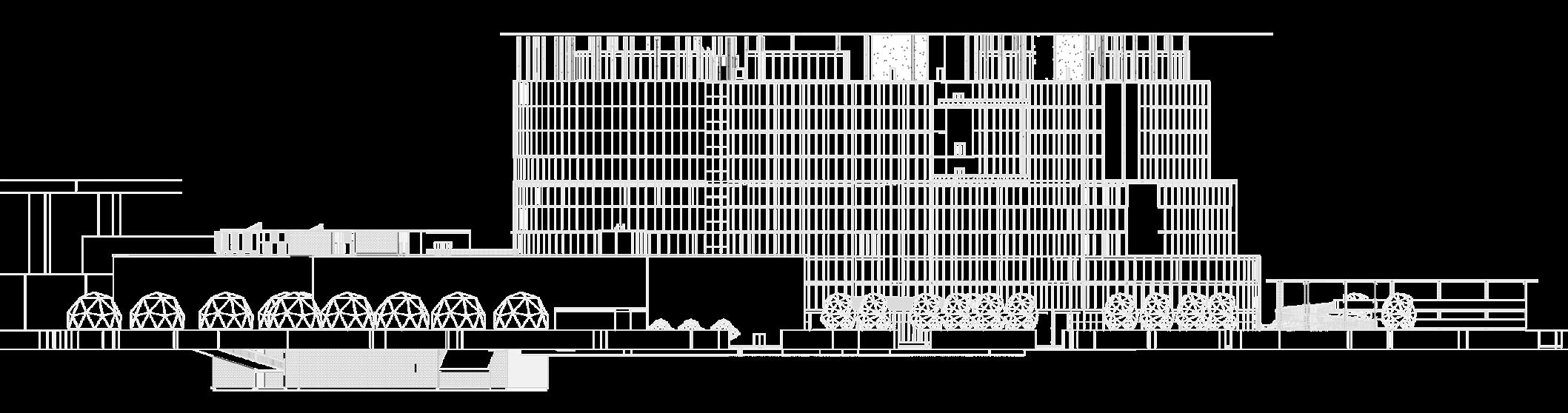

ELEVATION
INTERIOR DESIGN
Clean Water Black & Grey Water

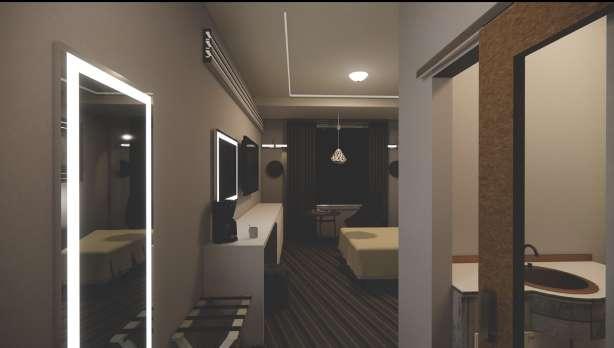

Bedroom (Hotel)

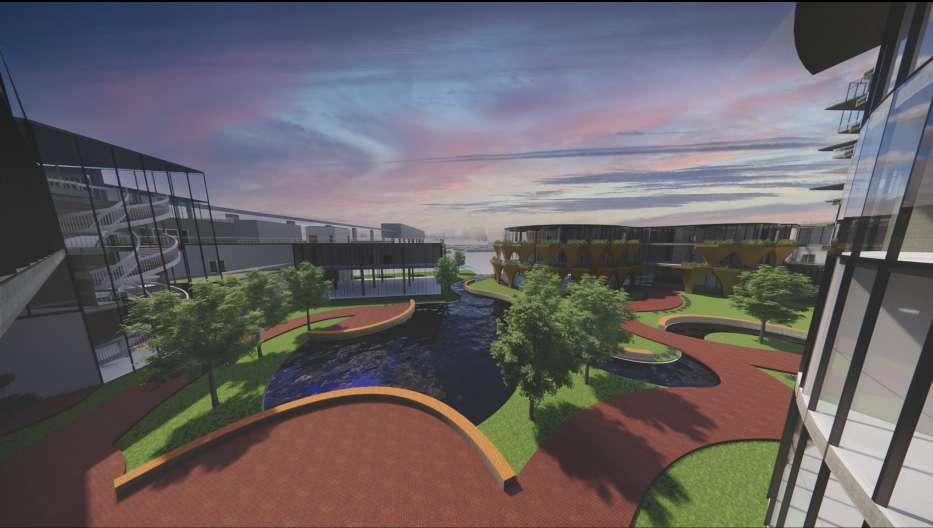

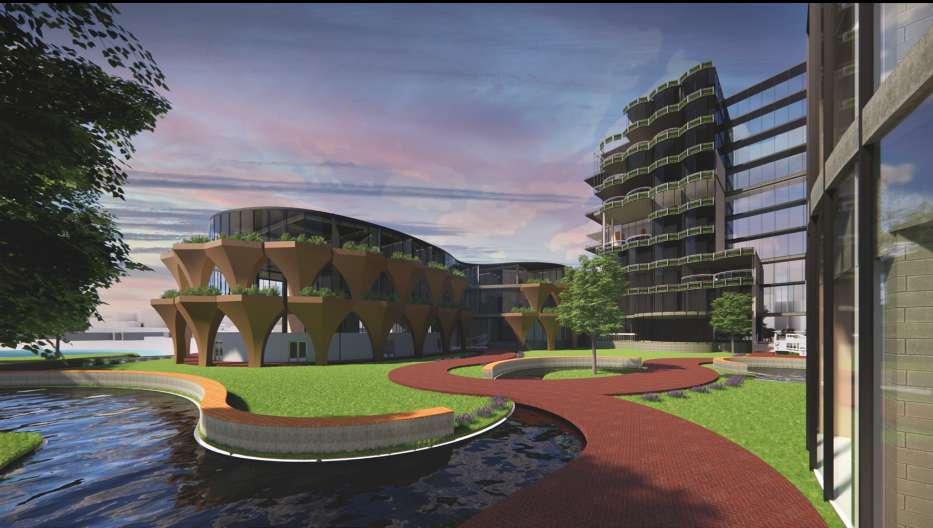

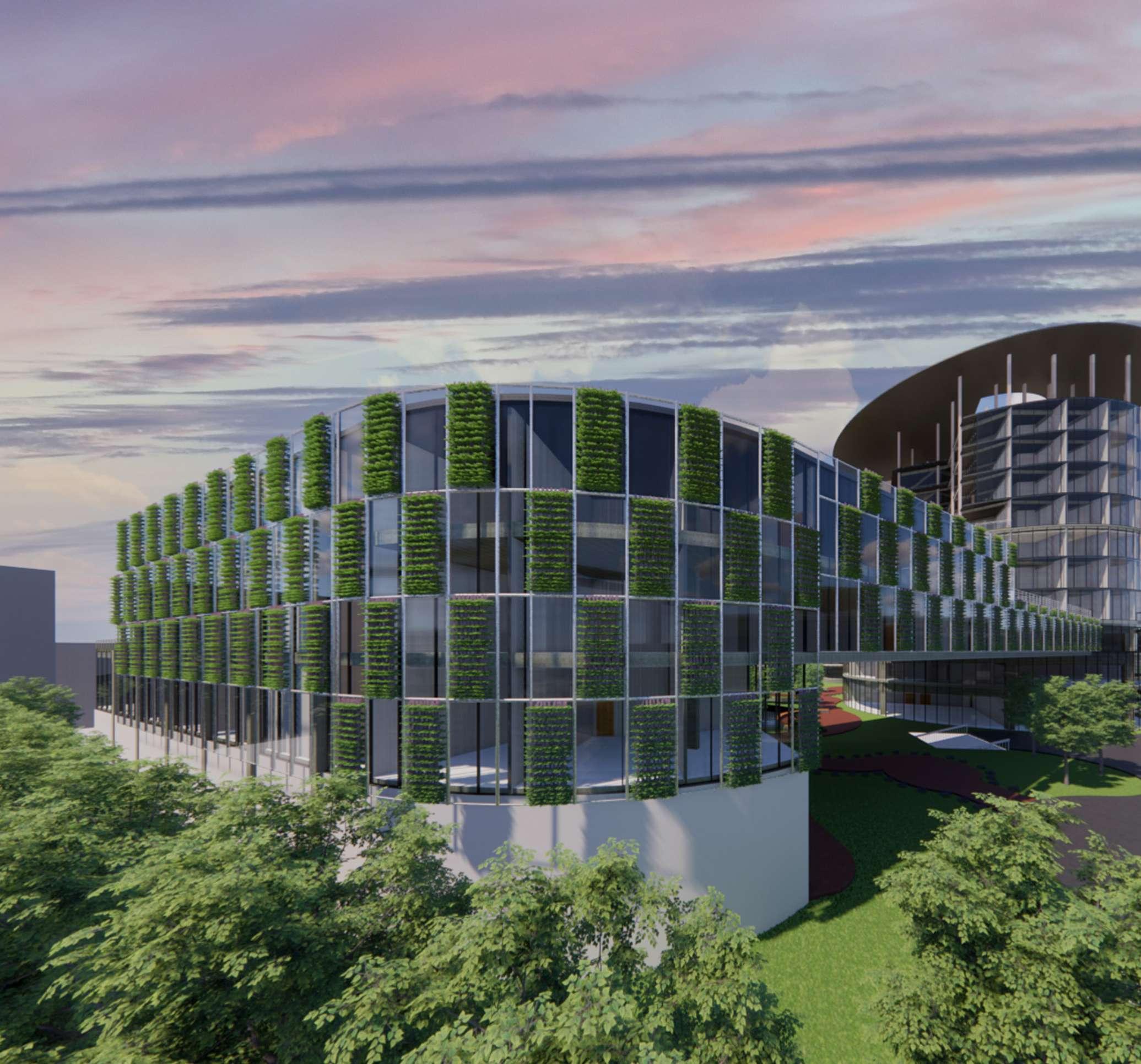

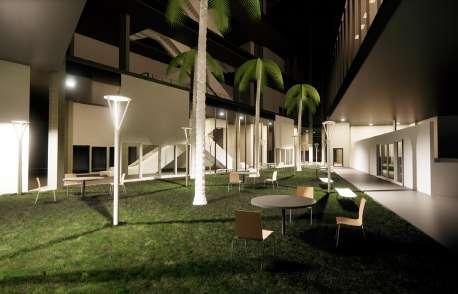

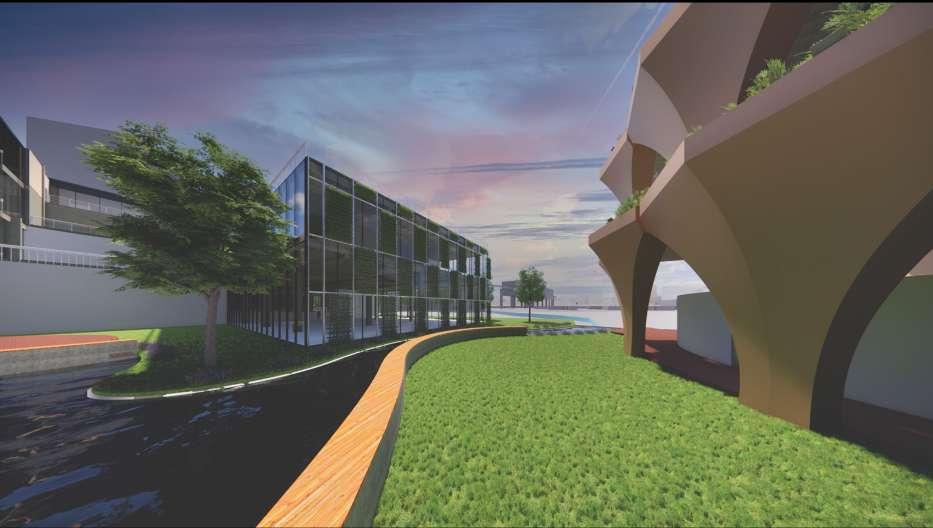

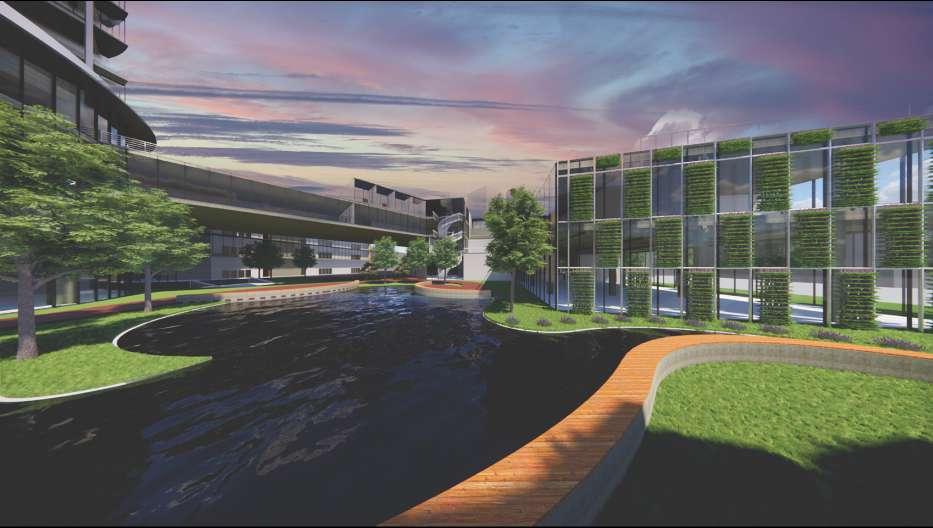

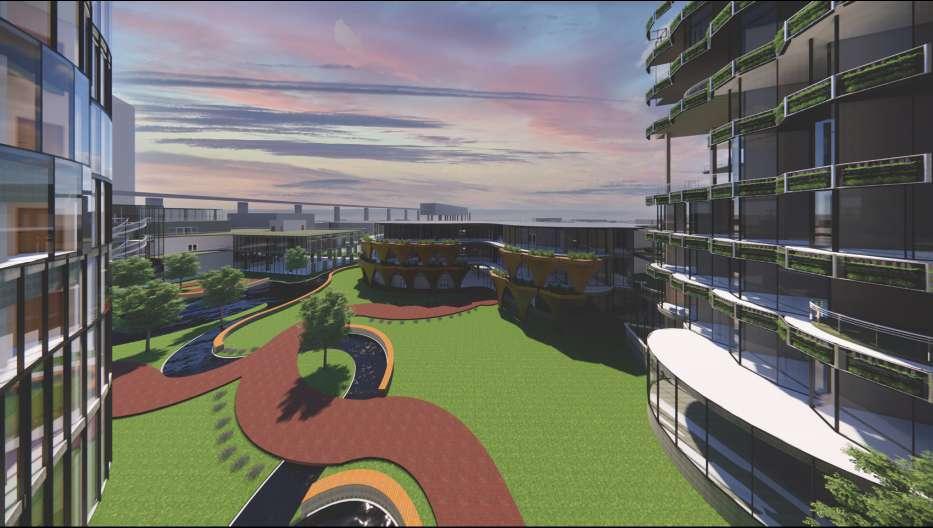

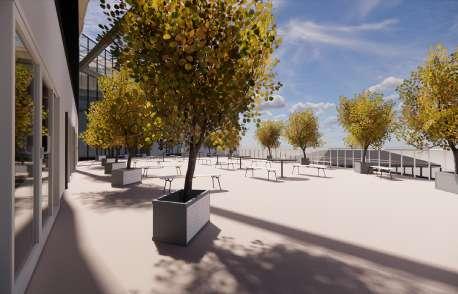

EXTERIOR & LANDSCAPE RENDER
3.
De’Man
Shorten from “arcaDE sudirMAN”, aims to make the building a place that can provide joy and pleasure for visitors | Also can be read as Demand which refers to consumer’s desire to purchase goods and services.
This project carries the theme of urban lifestyle based on TOD which is located in Jakarta. Area development is carried out in groups and then divided per site area for further design with complementary building functions
Shopping Mall
SITE ANALYSIS
SIte Scope | SWOT
Background
Location : Kawasan Sudirman, Kecamatan Menteng, Kelurahan Kebon Melati, Jakarta Pusat
Area : 2,34 Ha
Year : 2022
SWOT (Summary)
Strength : Very strategic location + part of the TOD area (MRT Dukuh Atas)
Weakness : Further away from the station, the quieter it is (contrast). The pedestrian path is filled with street vendors
Opportunities : Security around the site is guaranteed by the active frontage of various activities on the site.
Threat : Minimal parking space for private vehicles --> Massive roadside parking.
POTENCIES
Become an active transit area (TOD Area)
Various active users
Utilizing the Kendal Tunnel as a channel for crowds of visitors in neighboring areas (Dukuh Atas)
Site Scope
ISSUES
The site site is part of a strategic area (SCBD). However, this area is quite passive especially when compared to the neighboring area (Dukuh Atas).
> Potential sites are not processed properly

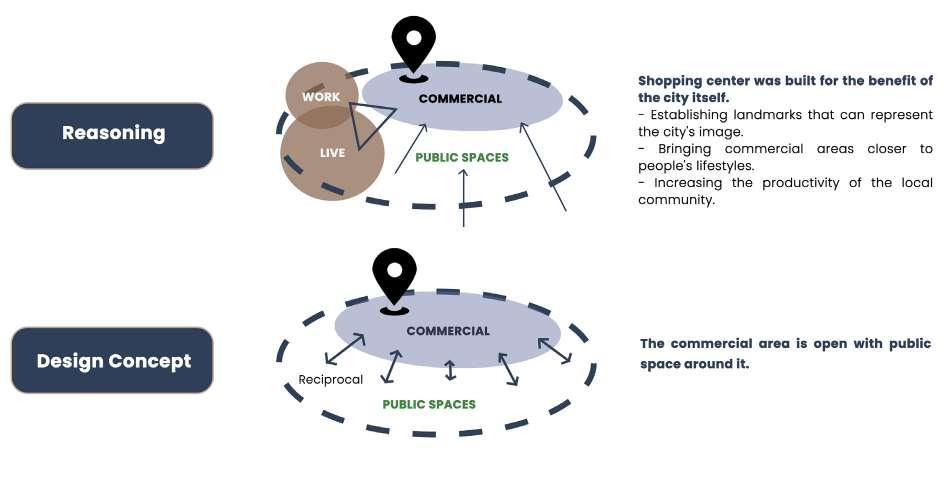

PROJECT CONCEPT BRIEF
Keywords
Commercial & Lifestyle | Connectivity | Public Space & Sustainability

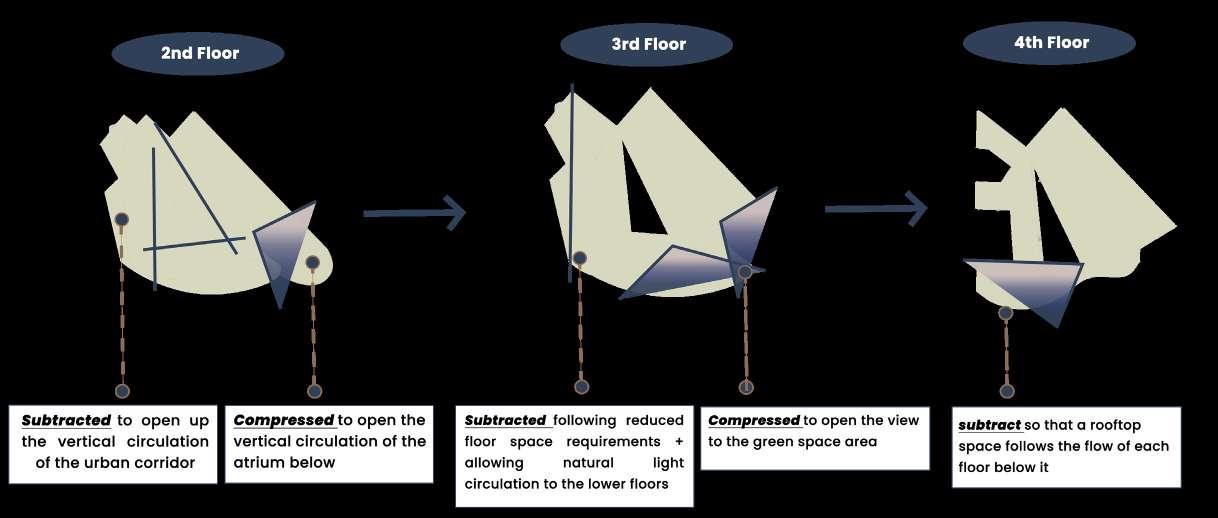

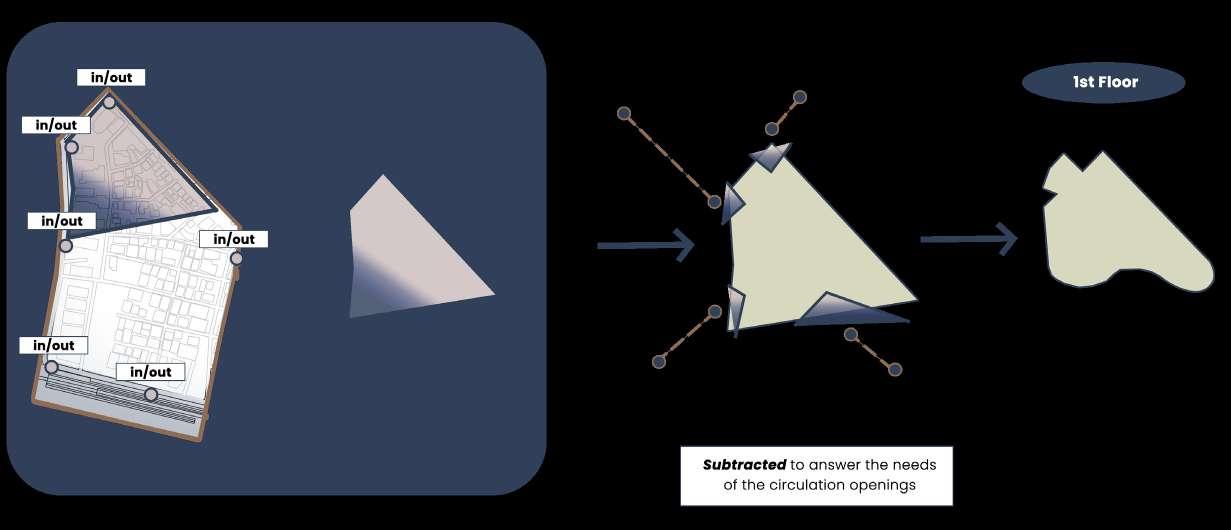

FORM FINDING

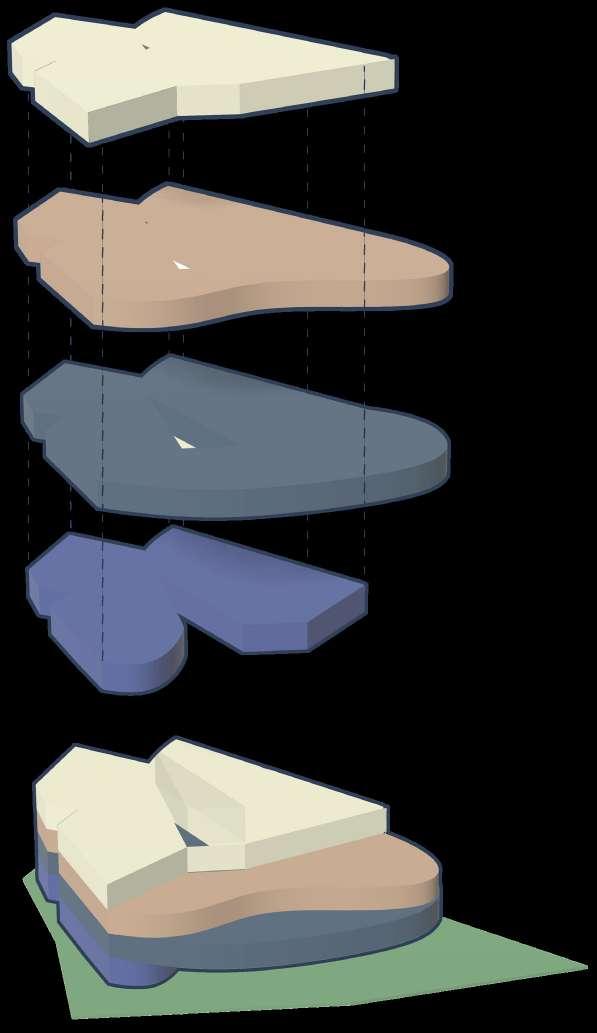

Massing Response Exploded Mass Study

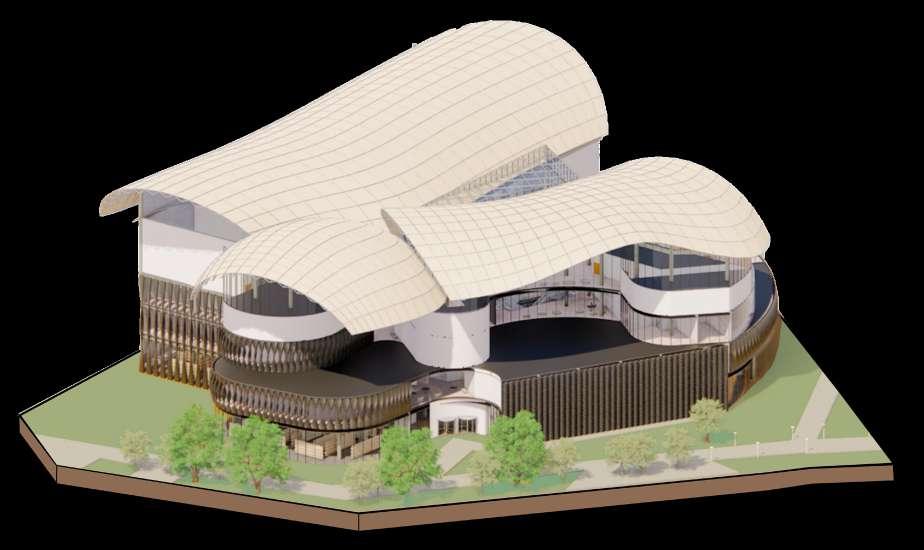

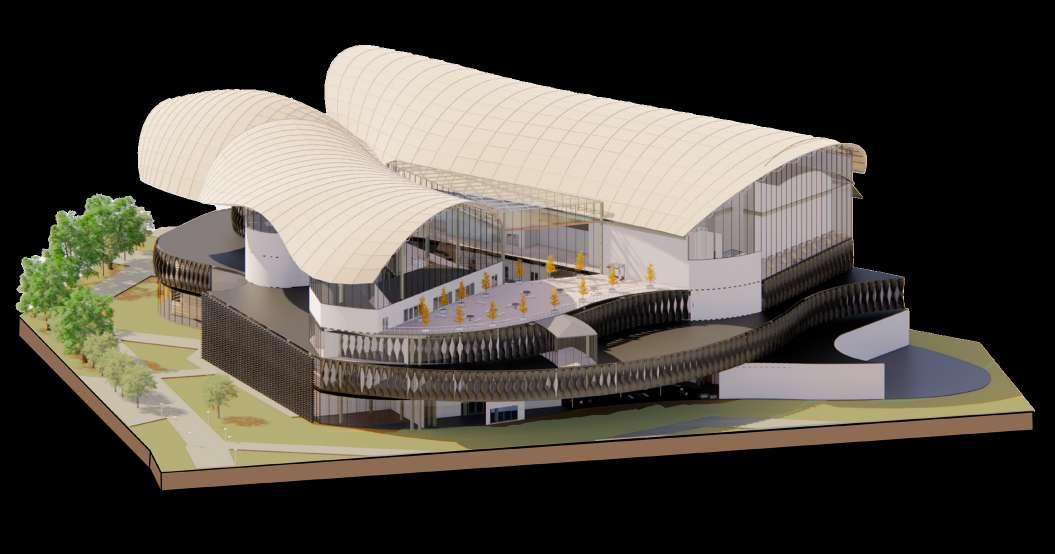

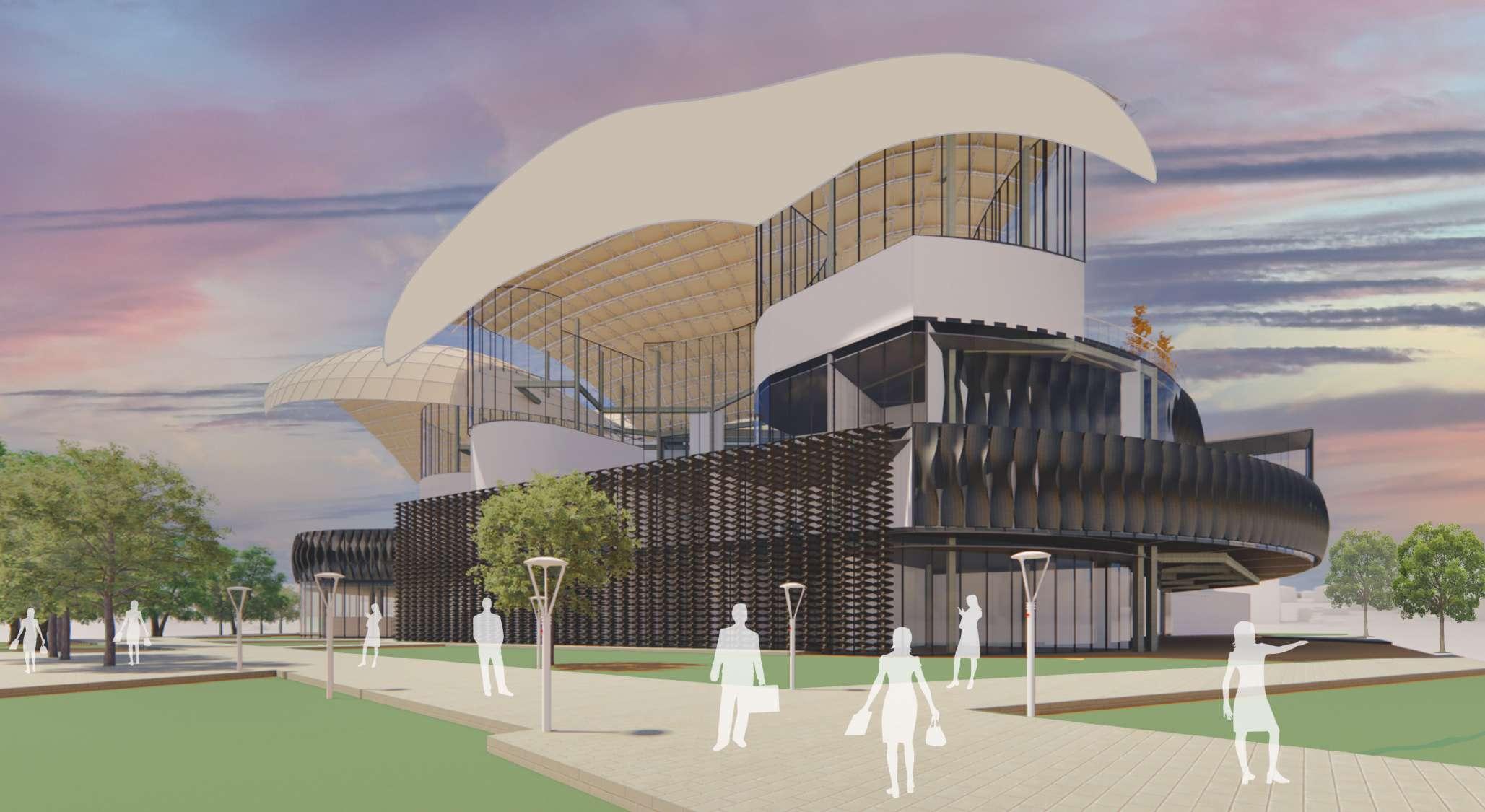

DESIGN RESULTS

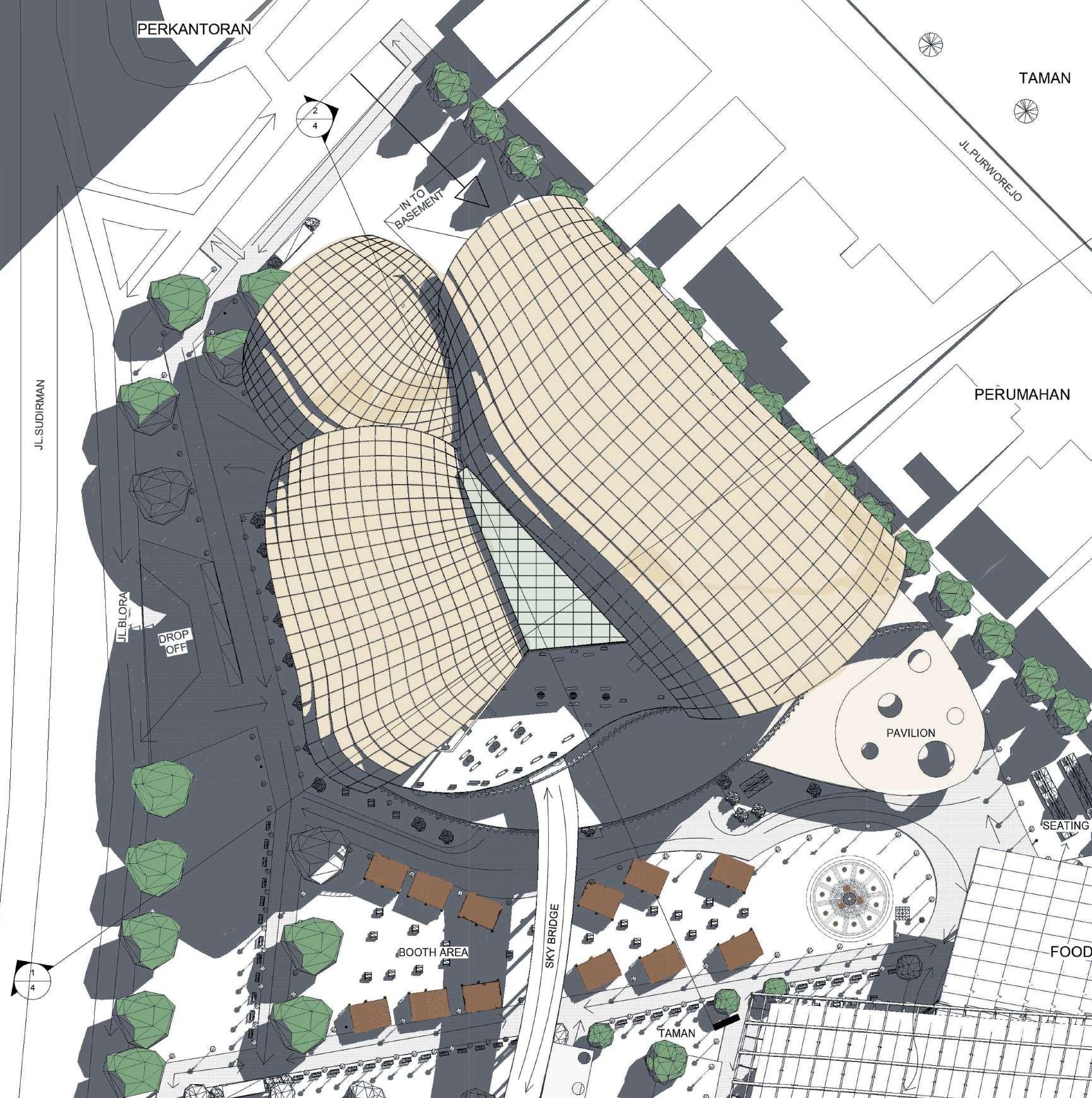

BLOCK PLAN

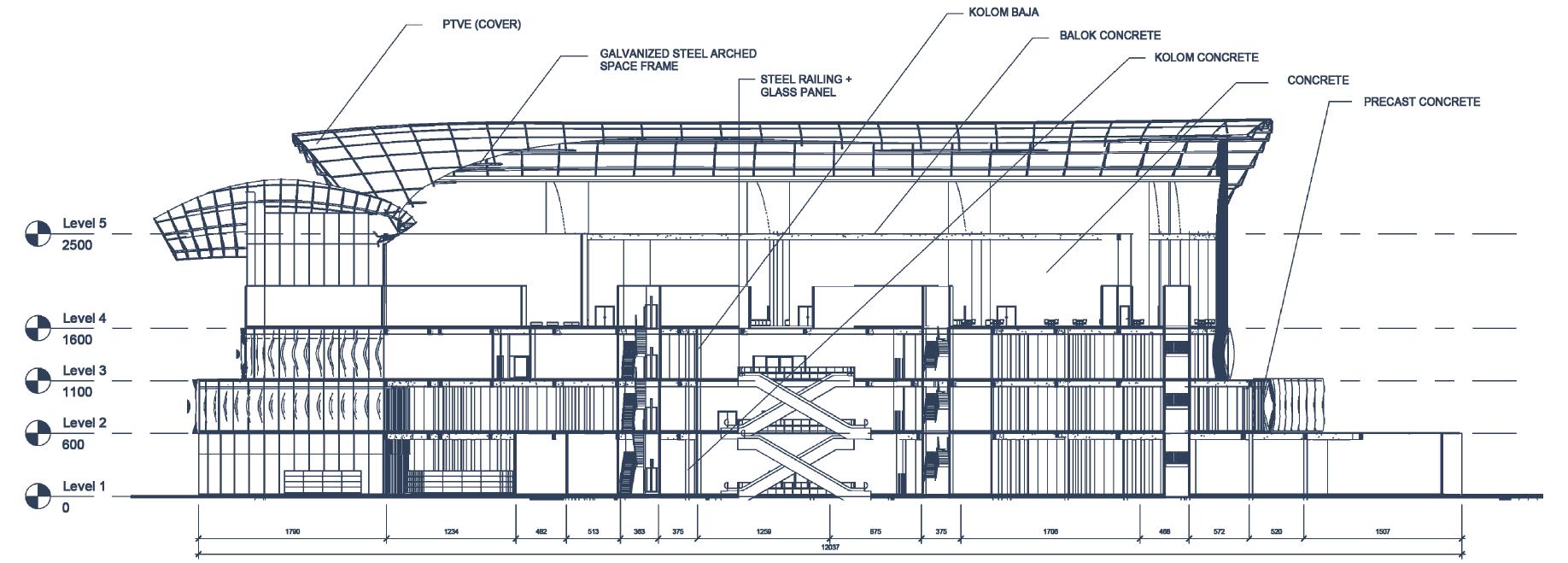

ORTHOGRAPHIC PROJECTION

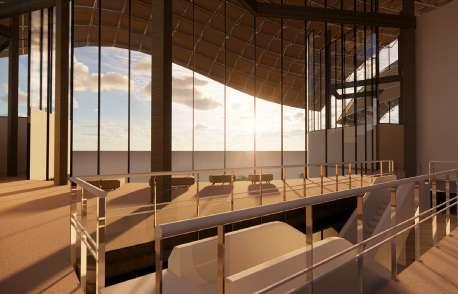

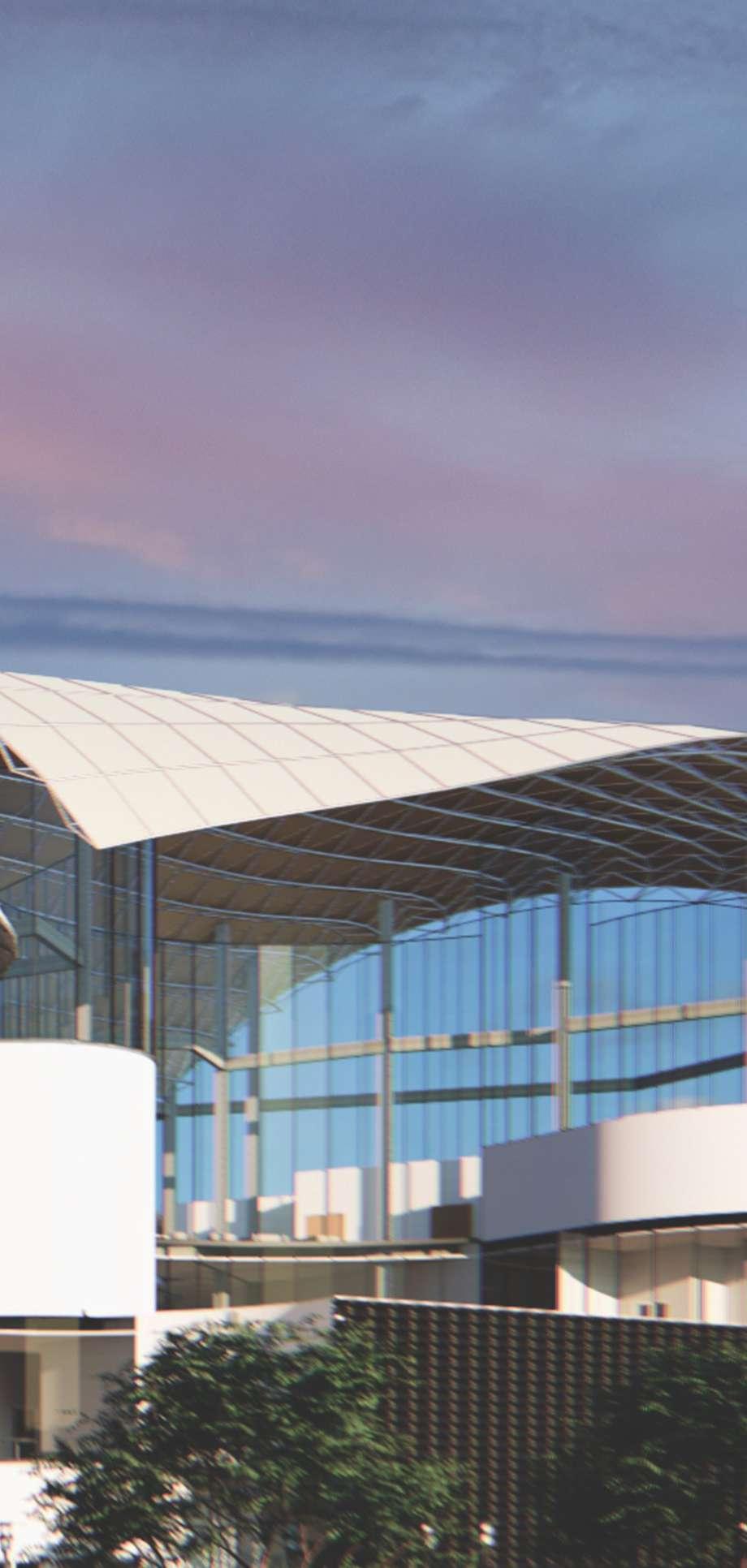

INTERIOR RENDER

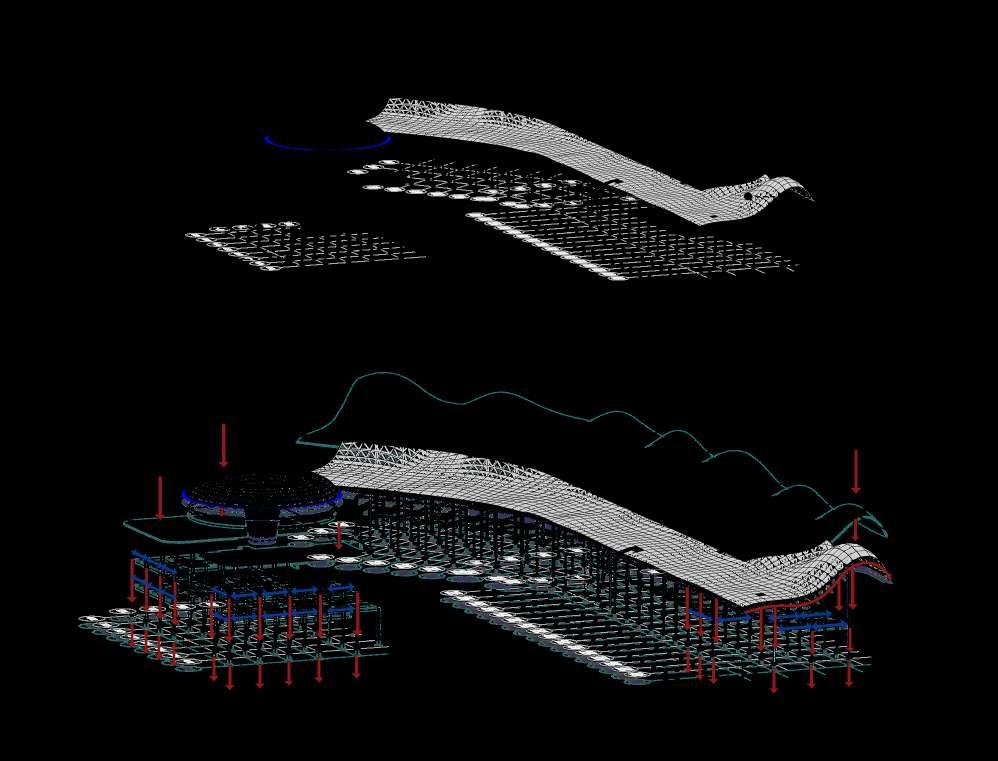

STRUCTURE
Wide Span Building Columns
- Concrete (39.6 cm x 39.6 cm)
- Steel (39.6 cm x 39.6 cm)
Long - Span Roof
- Material : Galvanized steel arched space frames
- Connection (support) : Pinned

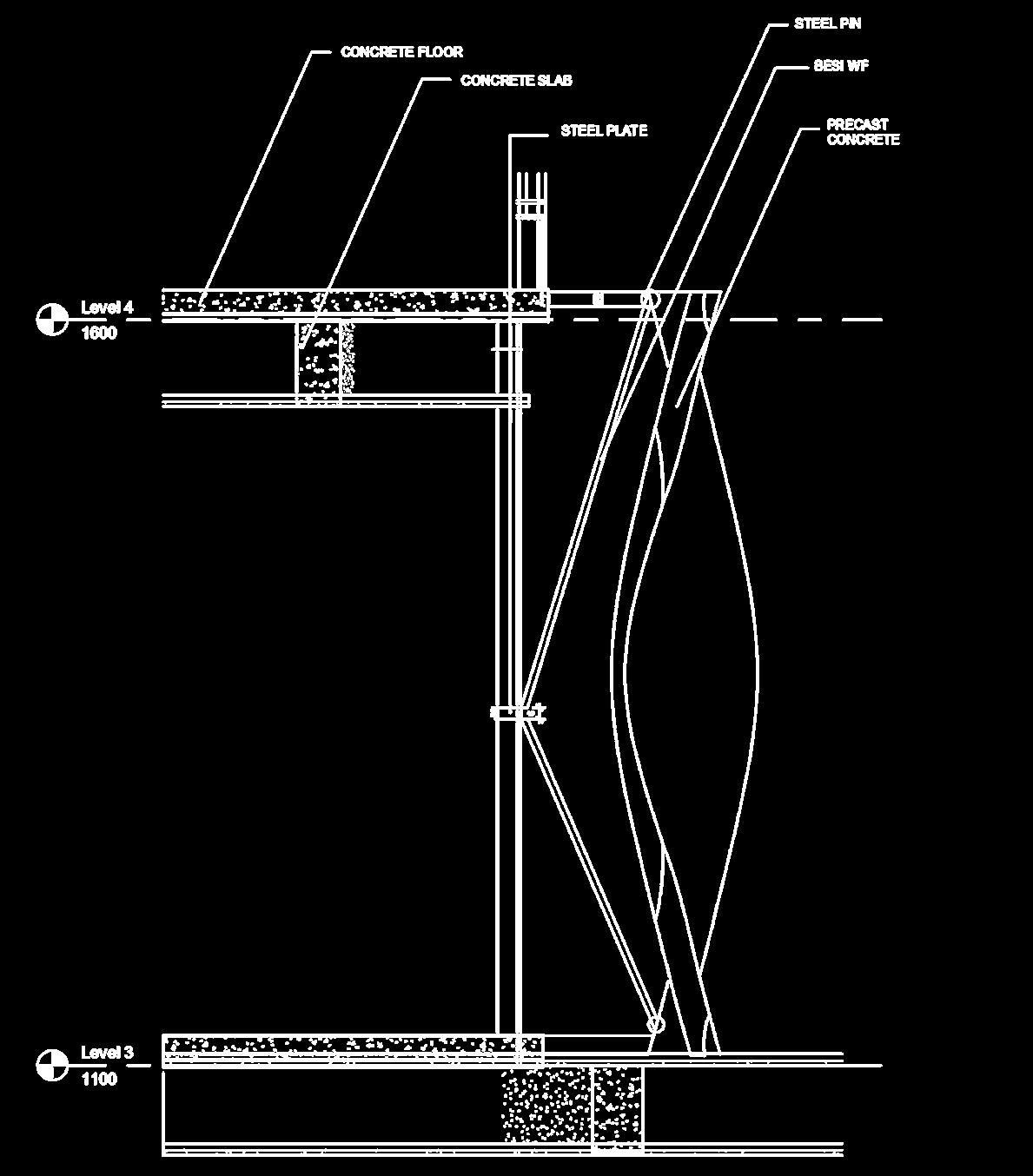

FACADE
Low Building Beams
- Concrete (58.3 cm x 19.6 cm)
- Steel (58.3 cm x 19.6 cm)
Low Building Column
- Concrete (39.6 cm x 39.6 cm)
- Dilation is also available in case of an earthquake -
Reflecting sunlight from the east so that it can enter a room facing south.

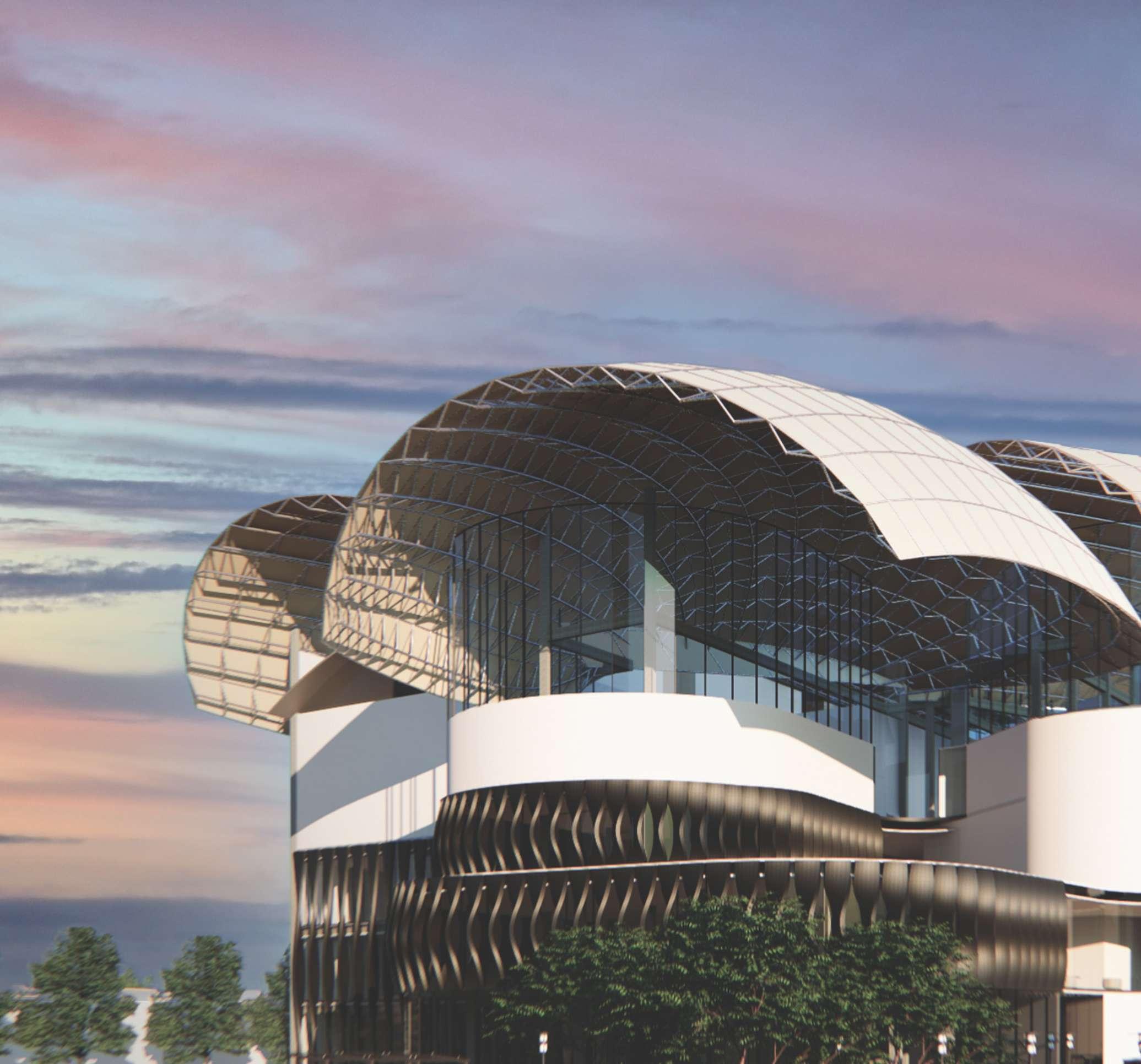

Long-Span Roof

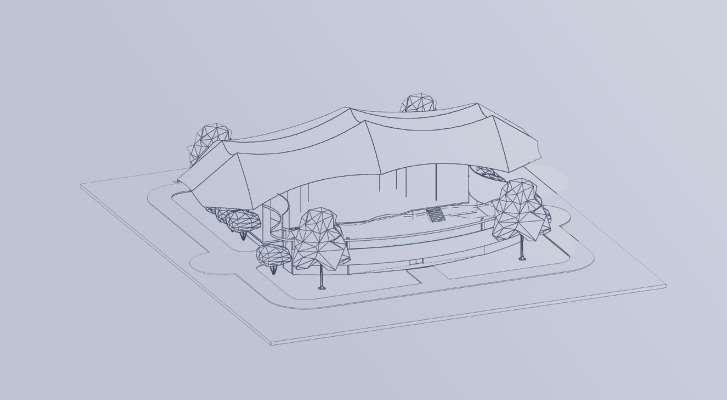

SPORAM 4.
Outdoor Auditorium
Sporam is derived from the Latin word “sporadicus,” which means scattered or irregular. The name relates to the business description of thermal and auditory comfort as it implies a sense of irregularity or variability in the way comfort is experienced.
The work on this project focuses more on the building science calculations based on aspects of acoustic, thermal comfort, as well as the application of passive building design
SITE ANALYSIS
Allocation | Noise Sources
Form | Orientation
Location : Universitas Multimedia Nusantara
Area : 634 m2
Year : 2022
Background Noise Sources
Capacity : 140 People
Jembatan Naga : People were passing from the lobby of building B towards buildings C and D.
Canteen : The voice of the conversation of people who are active in it.
Open Space in Gedung D : The voice of the conversation of people who are active in it.
Parking : Vehicle sound.
Highway : The sound of vehicles

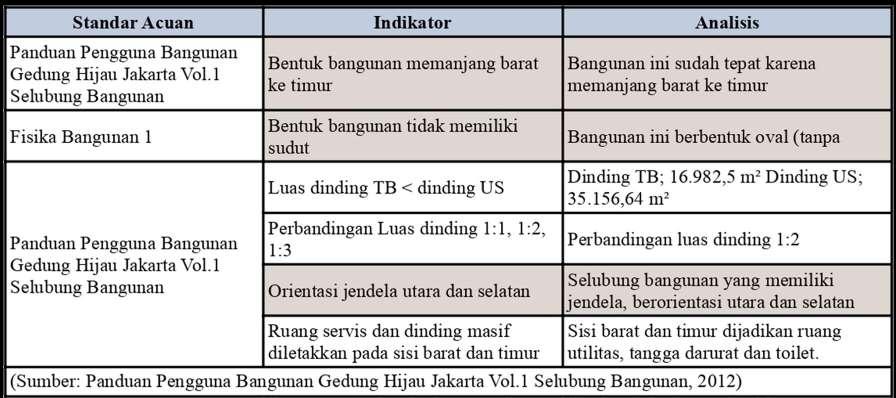

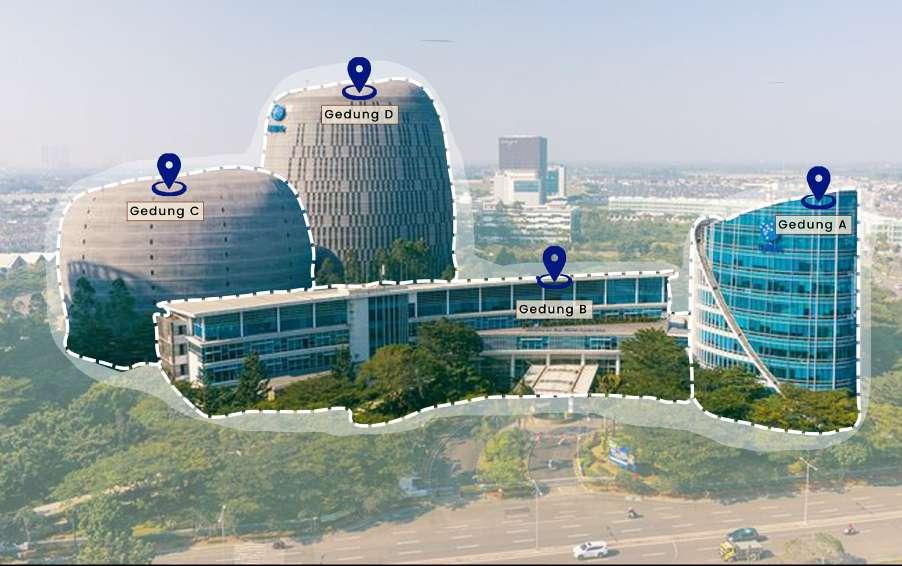

Passive Design Elements in UMN Buildings
The shape of the building mass that has no angles can maximize the flow of moving air and the orientation that extends to the east and west can reduce solar radiation.
DESIGN SOLUTION & REQUIREMENTS
1. The floor of the audience is multilevel = so that everyone gets an equal sound and nothing is obstructed.
2. Audience corners are designed to be as blunt as possible so as not to create a curved back wall
Circulation
3. The back wall is made as straight as possible = so that there is no concentration of sound at a certain point.
4. Passive Design Elements = Green Area (Tier 1), Shading (Tier 1), Natural Ventilation (Tier 2)
DESIGN RESULTS

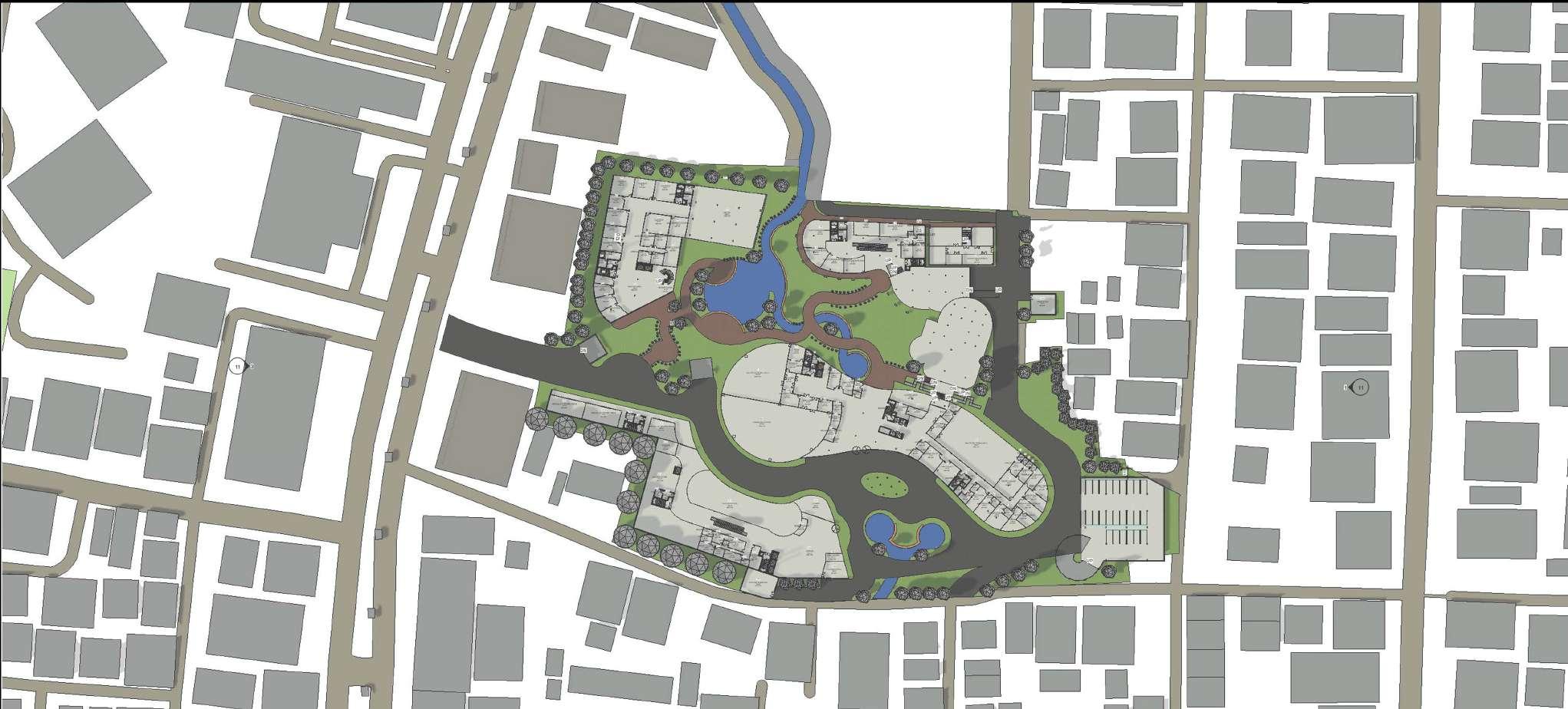

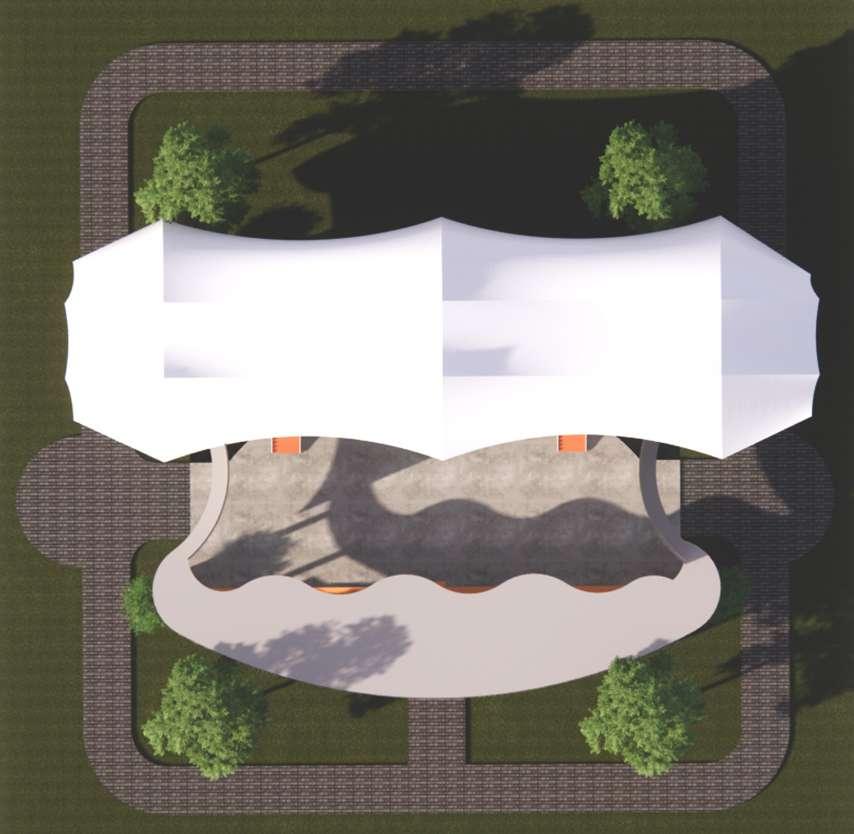

Masterplan

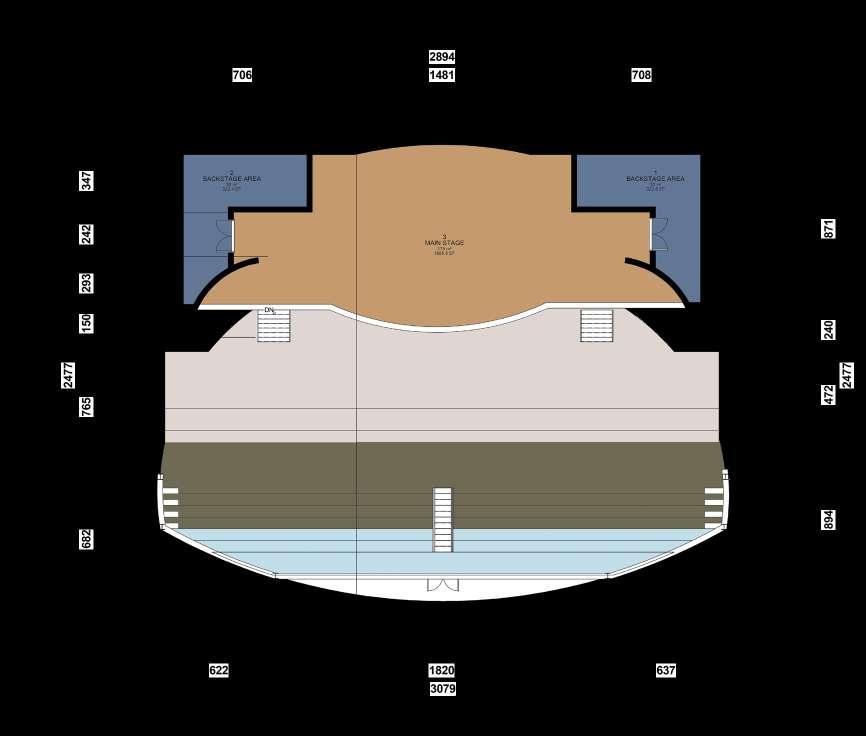

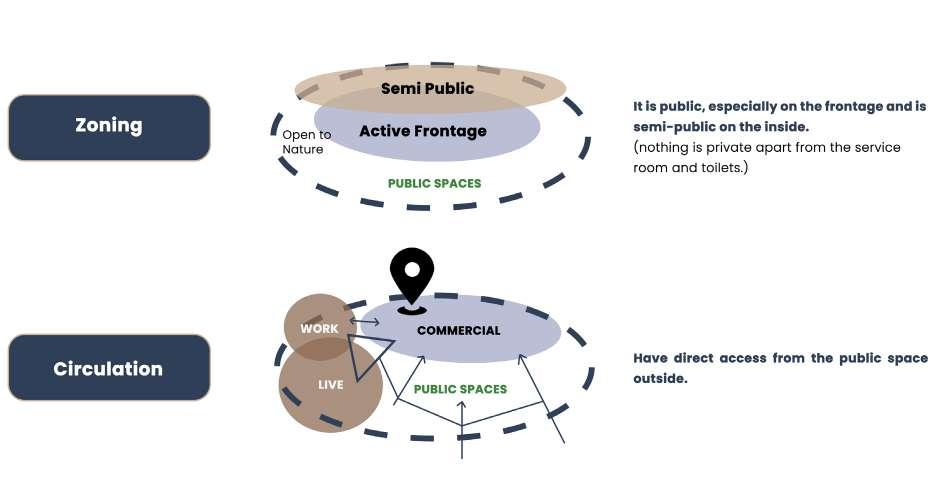

Plan | Zoning

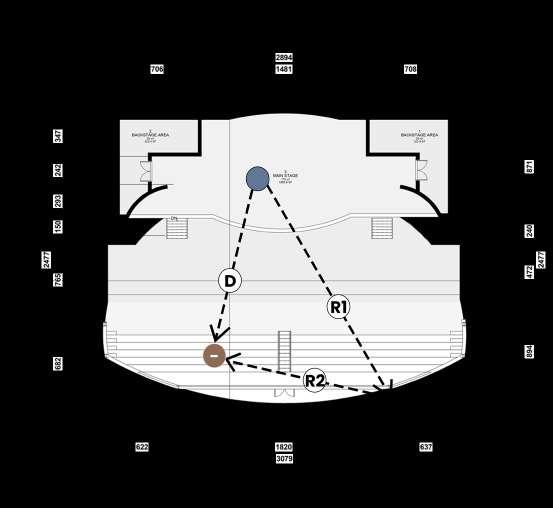

ACOUSTIC COMFORT DESIGN
Echo | Delay

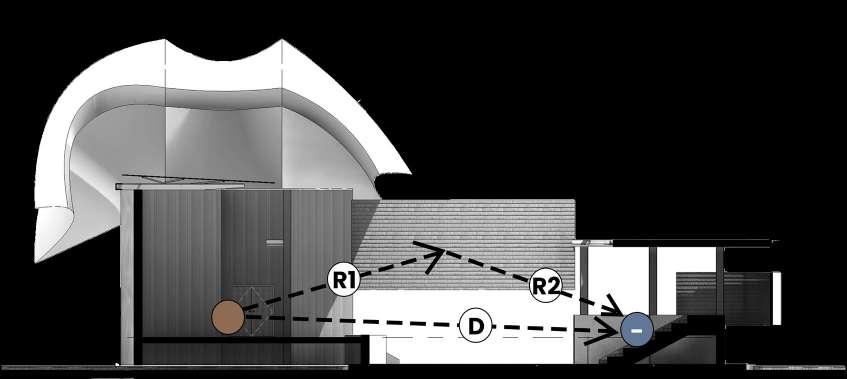

Echo Prevention Formula
MATERIALS REASONING
ART AUDITORIUM
(R1 + R2 - D ) < 34 m
= (21+ 13 - 15 ) < 34 m = 19 < 34 m
Spaces that have an ITDG value of 12 to 25 ms are considered short, so it can be concluded that the space is intimate.
(Beranek, 2004)
Delay Time Formula
There are 2 reflectors - Ceiling/roof - Arch elements
(R1 + R2 - D ) : 0.34 < 30 ms
= (18 + 7 - 12 ) : 0,34
= 13 : 0,34 = 38,2 < 34 m

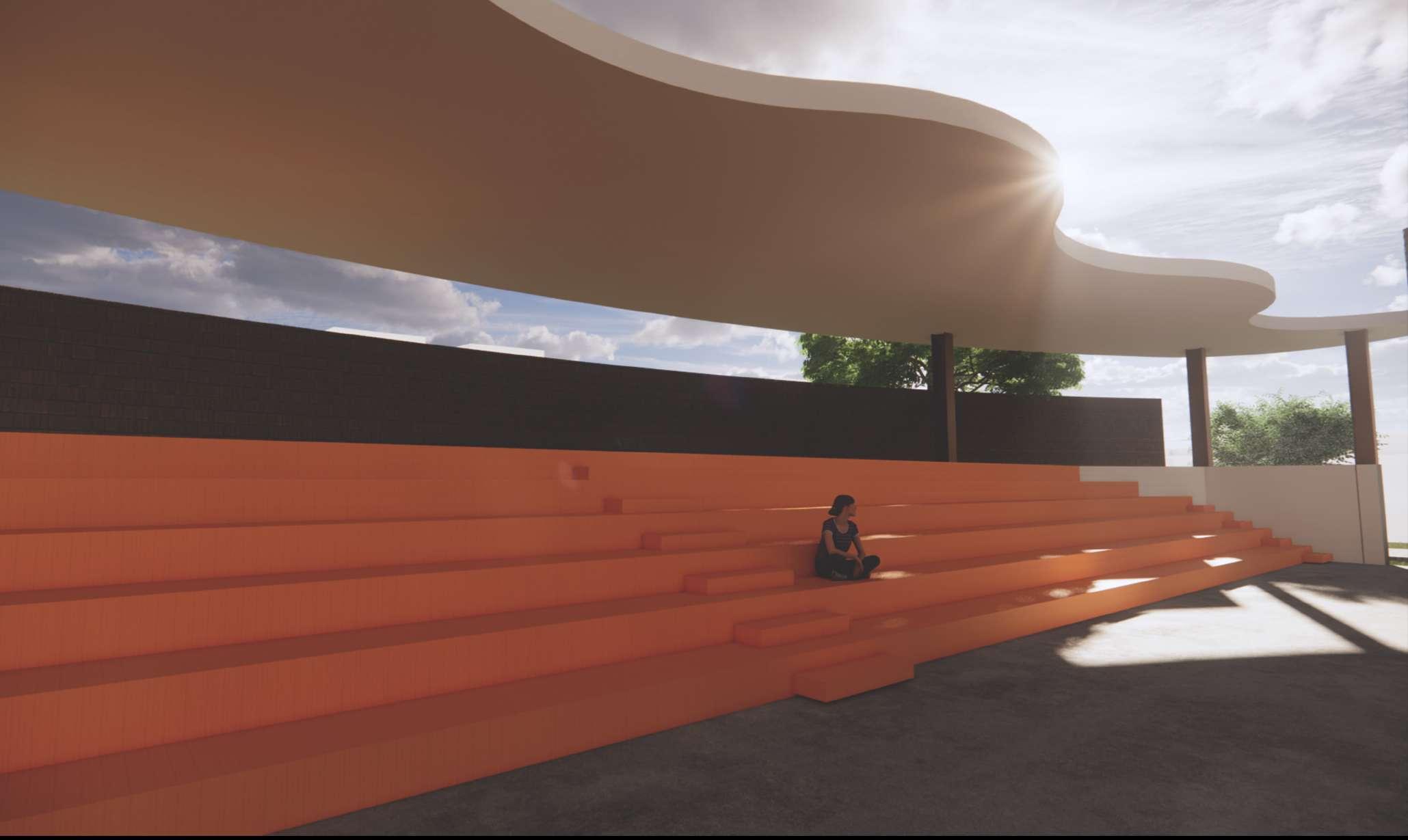

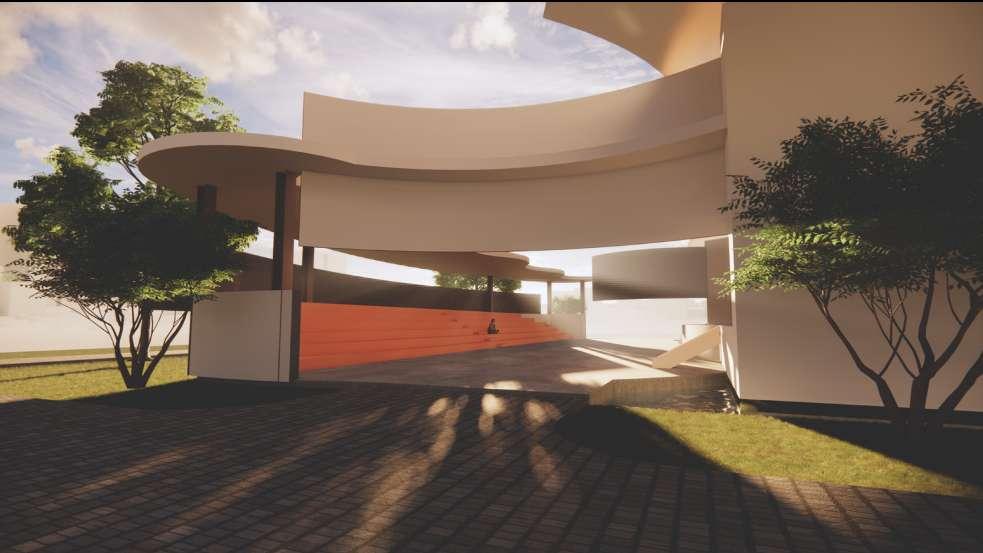

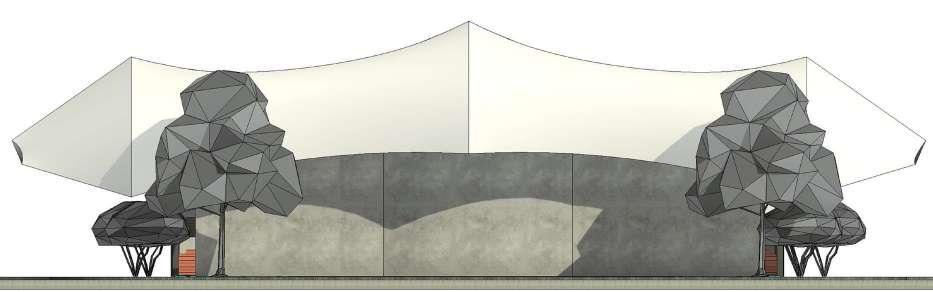

RENDERED VIEW

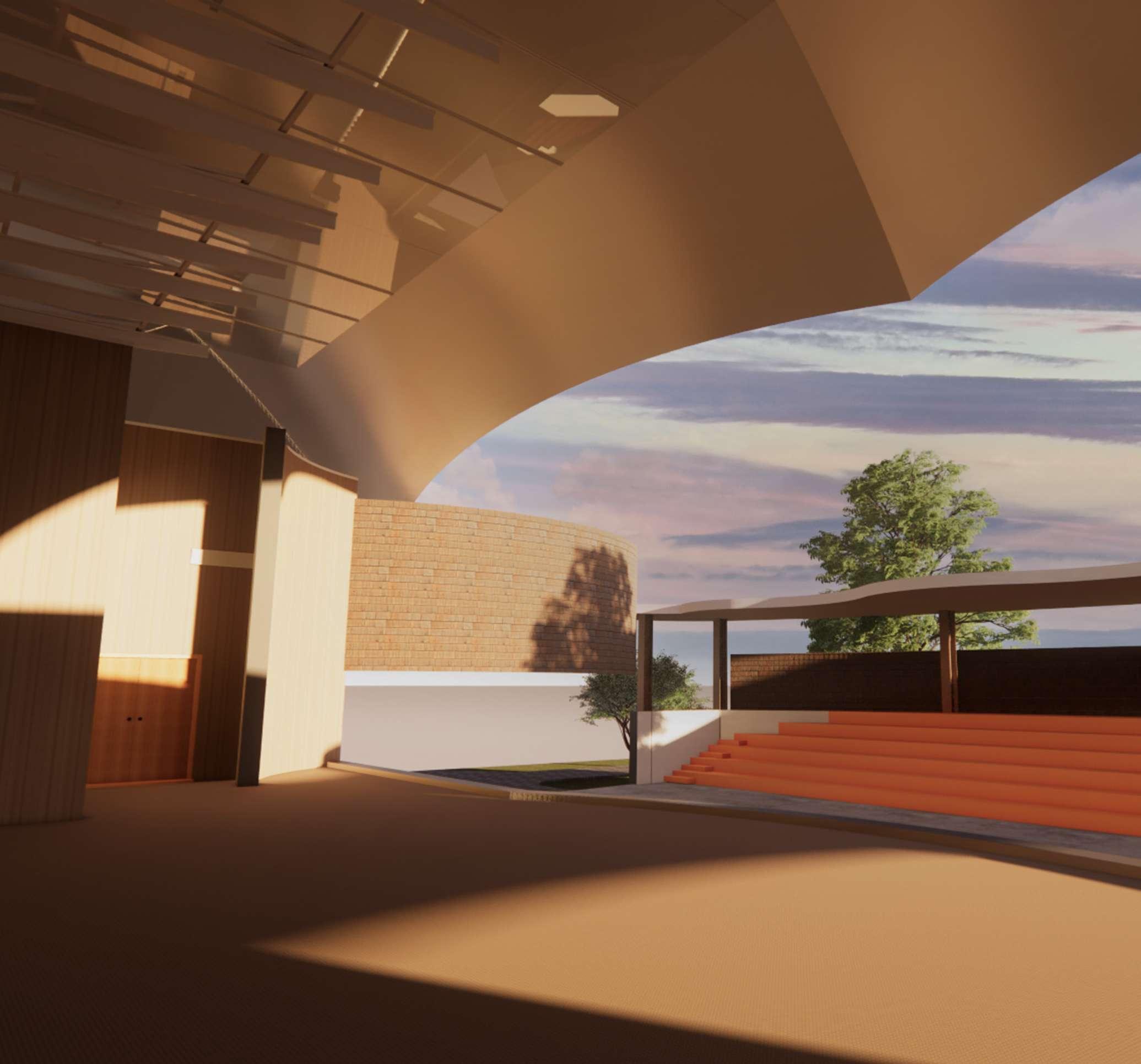

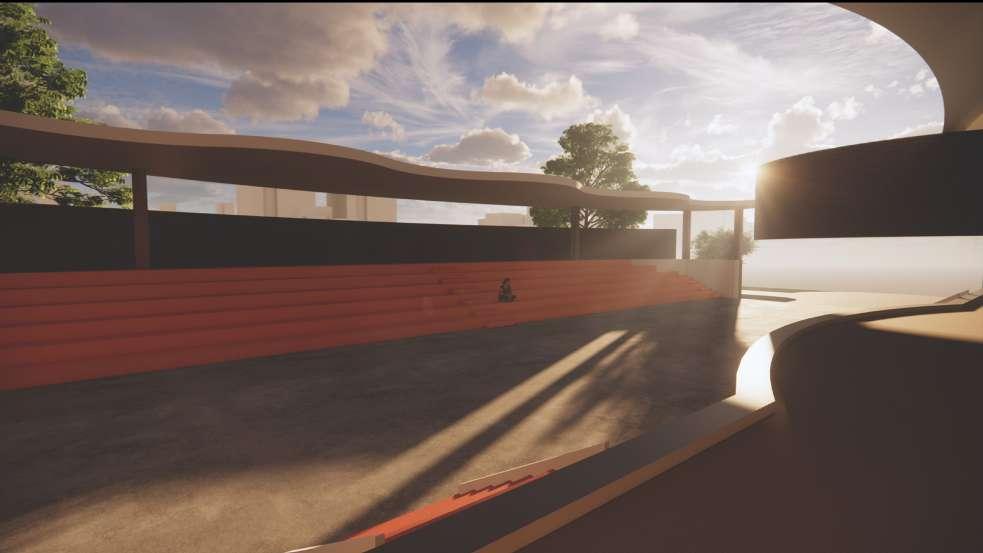

View From Stage
View From Outside
OTHER WORKS

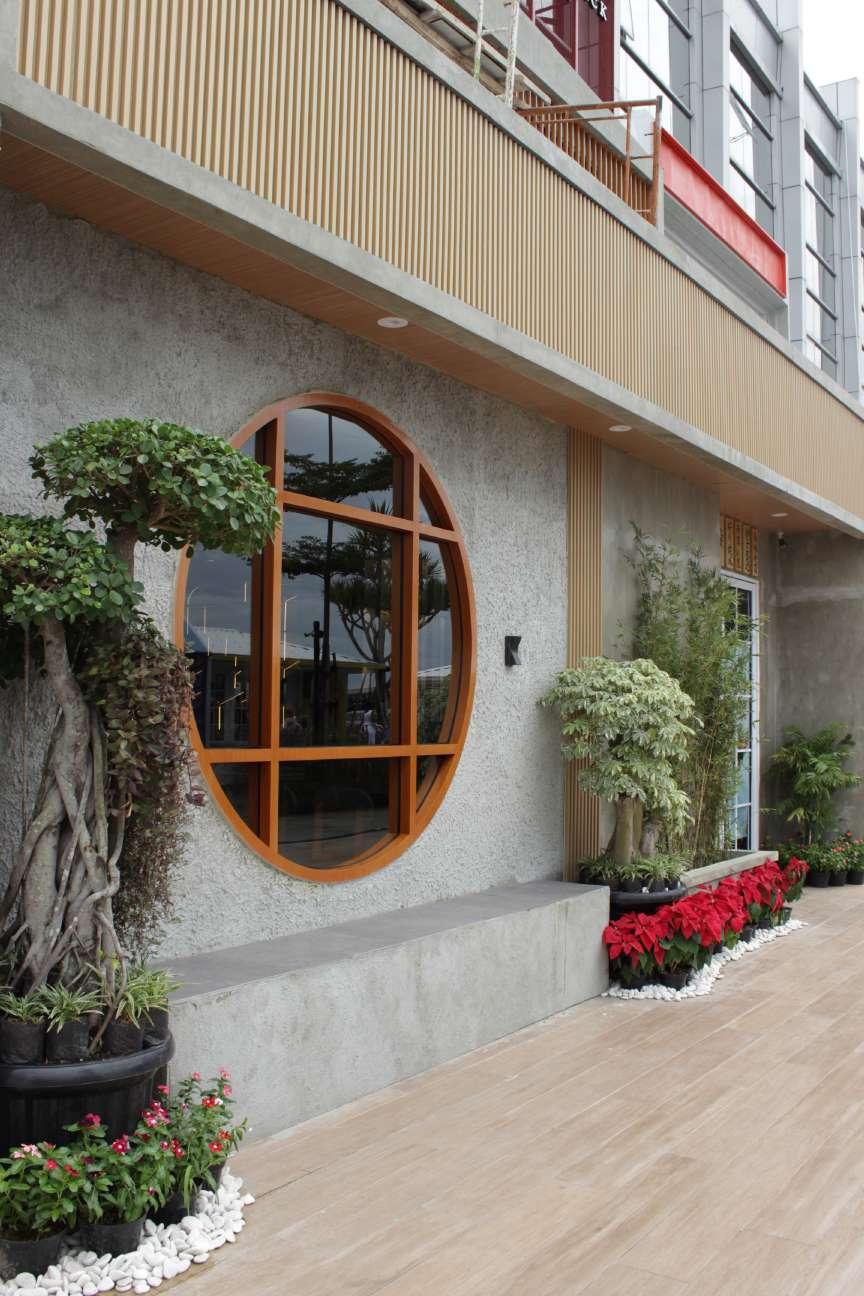

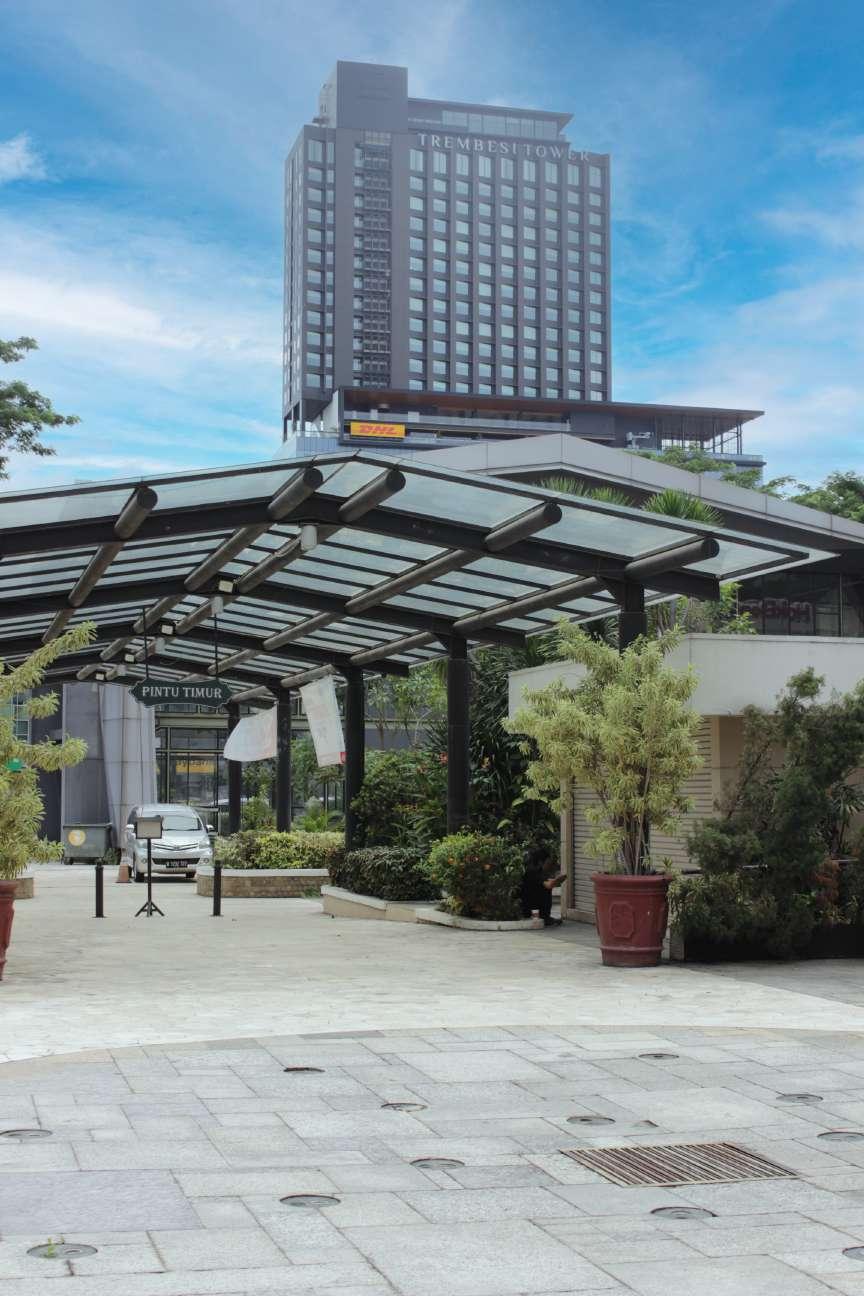

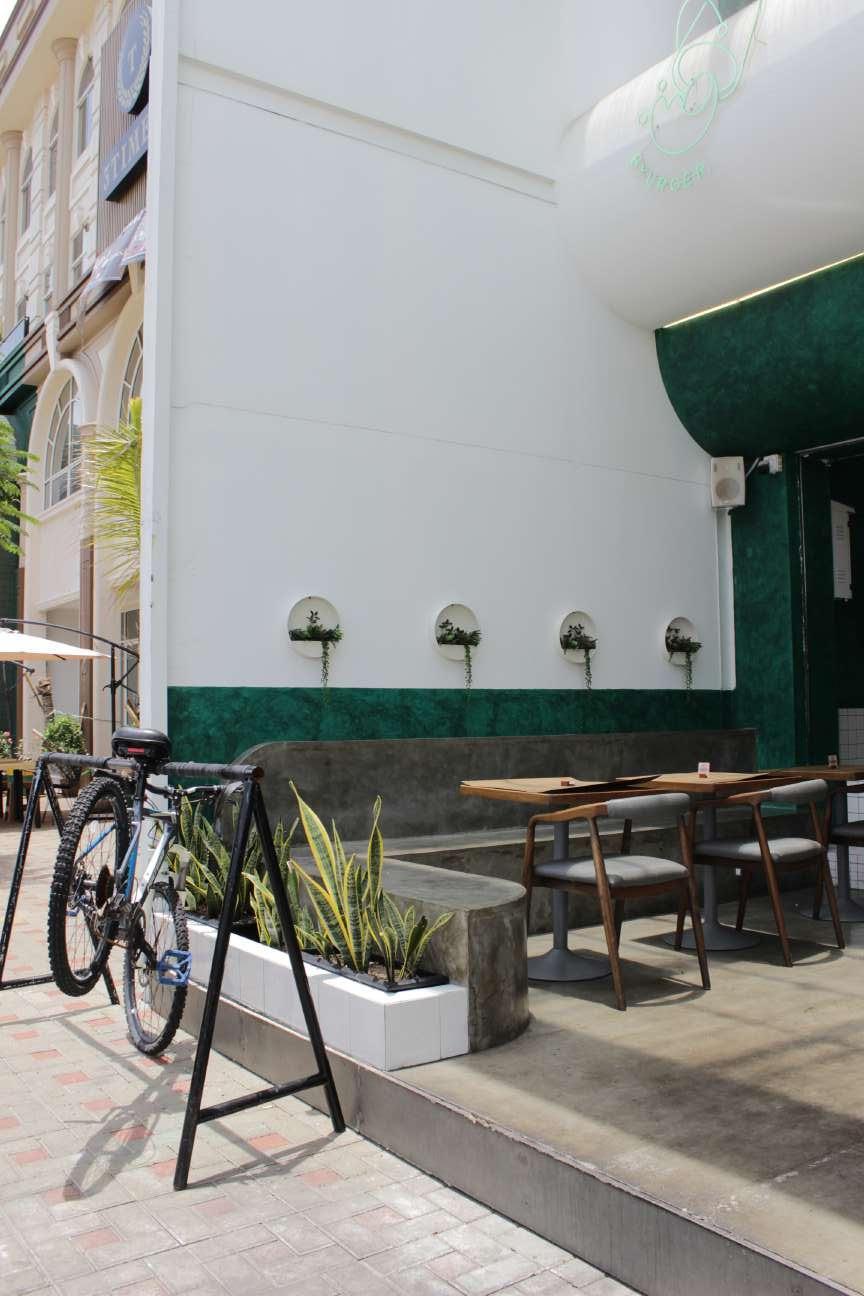

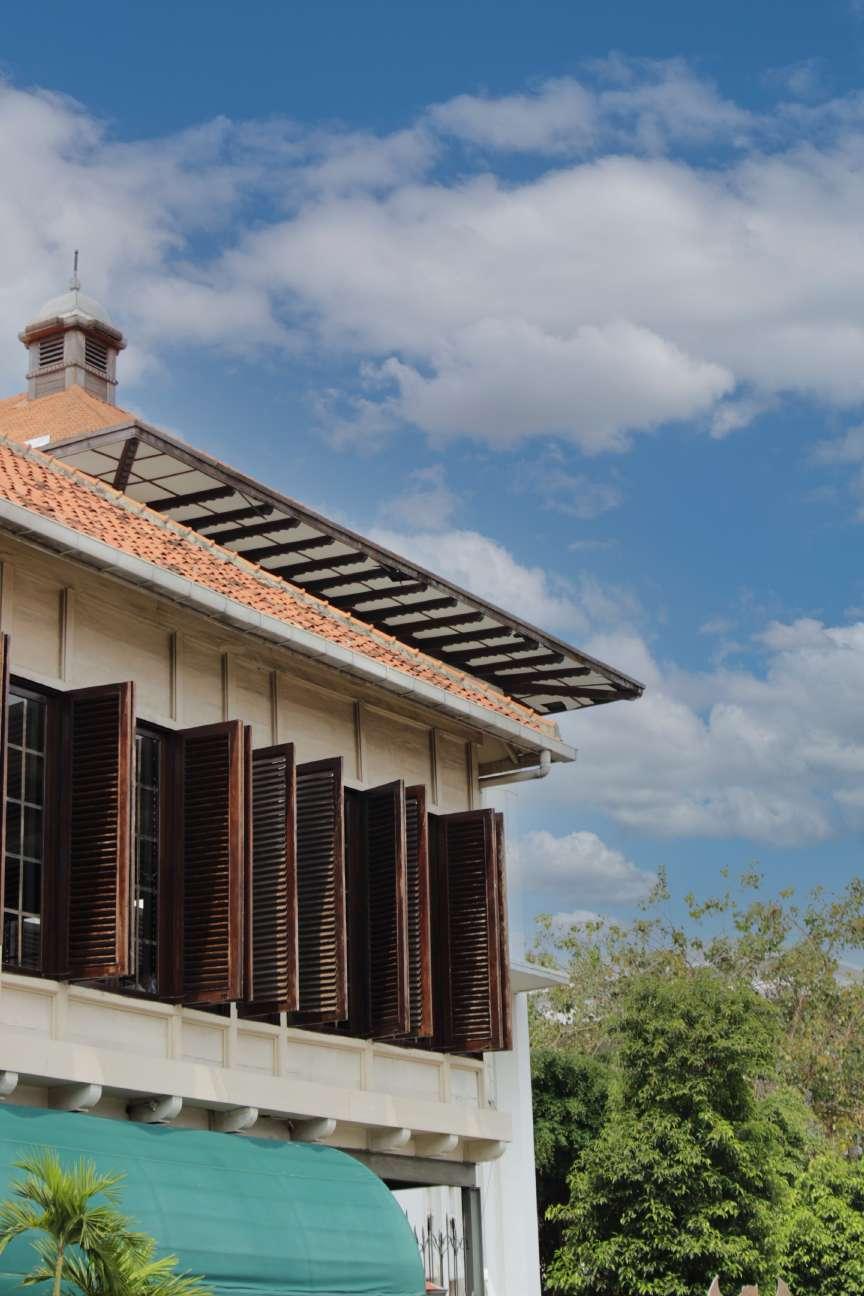

Architectural Photography
Architectural Photography
Spacious Spacious
Aperture : f/5.6
Exposure : 1/500
ISO : 100
Aperture : f/5.6
Exposure : 1/400
ISO : 100

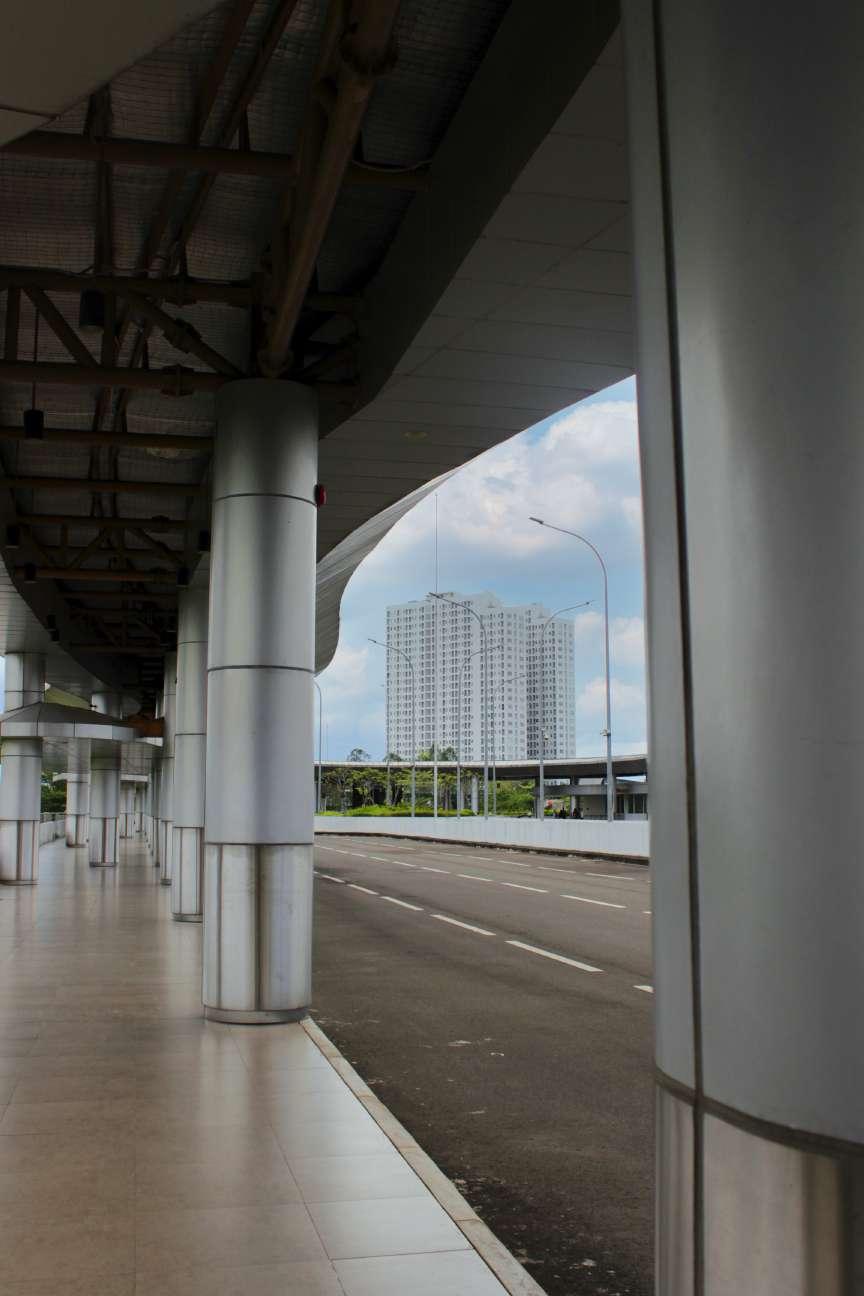

Focal length : 30 mm High-rise Building Through The Pillars
