Stagehand 17206 Pilewind jcjoel.com
sales@jcjoel.com

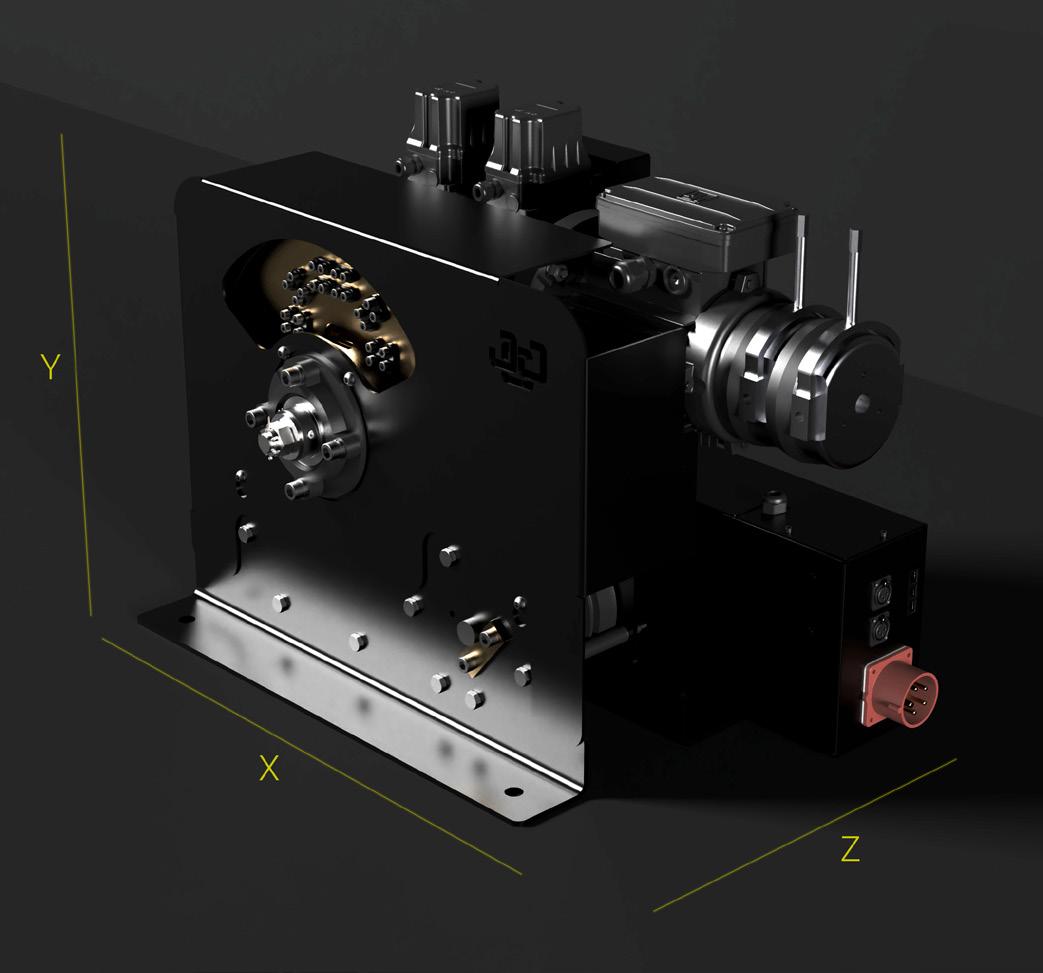

At a Glance The Stagehand 17206 Pilewind brings additional safety at a cost effective price for theatre lifting applications. It comes fully EN 17206:2020 compliant for UC1 and UC2 and CE marked. We offer a range of standard variants which are shown in the table overleaf. Custom options are available upon request.
Standard Features • MGM Motor with self-sustaining gearbox • Two Precima Brakes with manual release • Load-cell head pulley • Overload and underload protection • Two limit switches for end & ultimate travel • Redundant rope keeps on the drum • Floor, wall or ceiling mountable • EN 17206:2020 Compliant for UC1 & UC2 • CE Marked
Optional Features • Soft start/stop & variable speed • Absolute Encoder • Slack line detection • Motor overheat detection • Brake release sensors

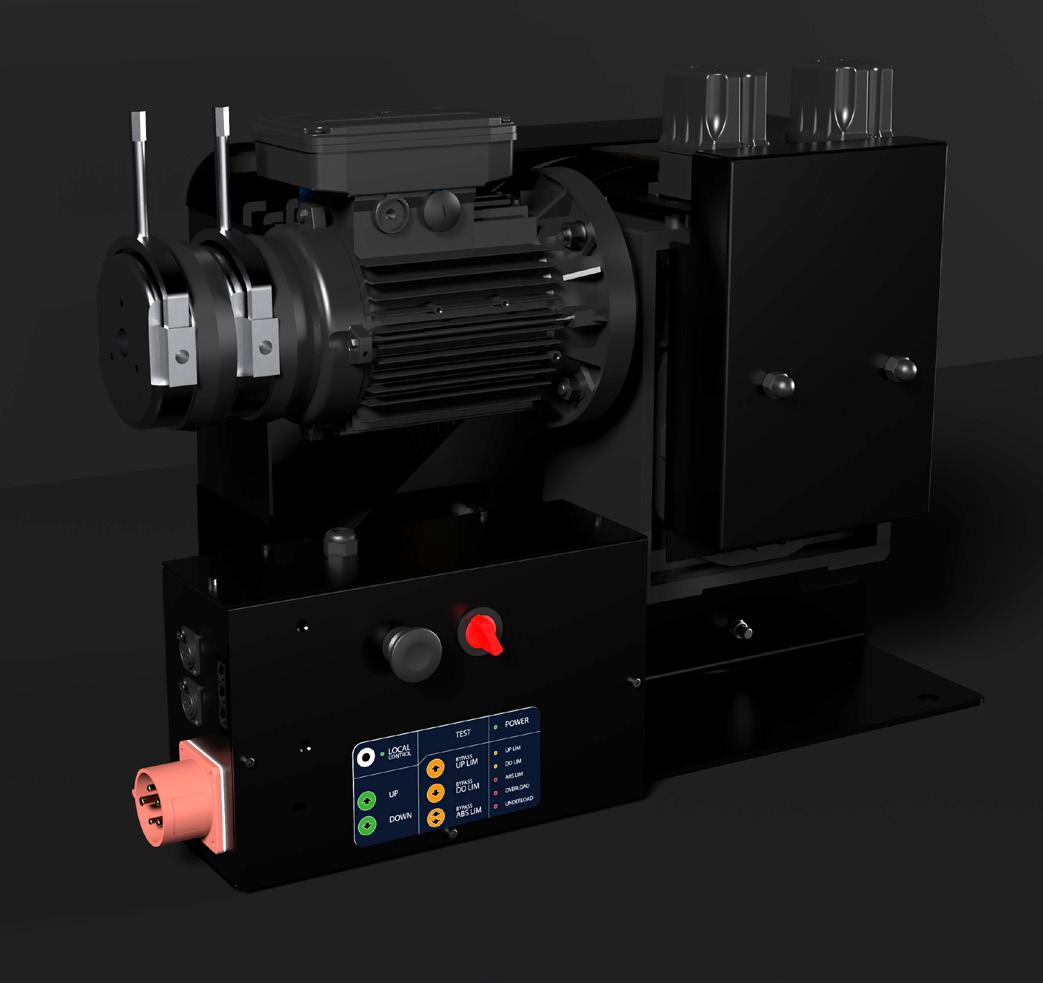

Local Control Features Every Stagehand 17206 comes with a local control box which includes a series of features that ensure EN 17206:2020 compliancy. It uses a toggle switch for local and remote control. A set of LEDs indicate the status of
Local Control Interface POWER
BYPASS
UP LIM
• Limit struck indication
DO LIM
• Limit switch bypass for testing
ABS LIM
• Overload / Underload detection
OVERLOAD
• Power source failure indication
UNDERLOAD
• Local e-stop for individual winch
UP LIM
UP
BYPASS
DO LIM
DOWN
• Local / remote control selection toggle
TEST
CONTROL
BYPASS
ABS LIM
• Power status indication
• Local isolator on control box
Page 1
LOCAL
the hoist; e.g. if it is overloaded or a limit is struck.
