SINGLE PHASE ENERGY METER WITH THEFT DETECTION

Shruti Mahant 1 , Deepak Nishad2 , Prabha Nishad 3 , Sarita Sahu4 , Yuvraaj Suryawanshi ⁵, Prof. A.K. Jain⁶

12345UG Student, Department of Electrical & Electronics Engineering, CEC Bilaspur, Chhattisgarh, India

6Professor , Department of Electrical & Electronics Engineering, CEC Bilaspur, Chhattisgarh, India

ABSTRACT - Oneofthe biggestissuesfacing powerdistribution firmsis electricitytheft,whichcauseslargefinancial losses and power system instability. The “Single Phase Energy Meter with Theft Detection” technology that is being suggested is intended to detect unauthorized electricity use while also precisely measuring energy consumption. In order to continuously monitor electrical characteristics, this system integrates an Arduino board with current and voltage sensors using a microcontroller-based method. The system looks for any unusual discrepancy between the energy supplied and the load actually consumed, which could point to theft situations such illegal tapping or meter bypassing. In order to stop further abuse, the system disconnects the supply using a relay module and sends out realtimealertsviaanLCDdisplayandbuzzerupondetection.Theproject'sexecutionimprovesenergymonitoringsystems' dependability, efficiency, and security. It also lowers non-technical losses and encourages equitable use of electricity. The suggested model is a useful addition to contemporary smart energy management systems since it is affordable, simpletouse,andappropriateforbothresidentialandsmall-scalebusinessapplications.

KEY WORDS: Arduino, Energy Meter, Theft Detection, Current Sensor, Voltage Sensor, Relay Module, Smart Monitoring, Power System

INTRODUCTION

The efficient use and management of electrical energy is crucial in today's world since it is used in many commercial, industrial, and residential settings. However, electricity theft has become a major problem that impacts consumers as well as power distribution corporations by resulting in diminished system reliability, power imbalance, and financial losses. Conventional energy meters are not able to identify illegal use or tampering because their main purpose is to quantify consumption. The idea of a smart energy meter with theft detection has been presented to get around these restrictions. ThegoalofthisprojectistouseArduinotechnologytodesignasinglephaseenergymeterthatisintegrated with an advanced theft detection system. In order to find differences, the system continuously monitors electrical parameters and compares actual consumption with expected levels. The system enhances accuracy and guarantees promptresponsetotheftscenariosbyintegratingautomation,real-timemonitoring,andalertmethods.Becauseofthis, itisa workablewaytoimproveenergydistributionsystems'efficiencyand transparency.Additionally,thedemandfor electricity has increased dramatically due to the fast population development and growing reliance on electrical appliances,placingfurtherstrainonthecurrentpowergenerationanddistributionnetworks.Insuchasituation,evena tinypercentageofelectricitytheftmighteventuallyresultinsignificantlossesthathaveanimpactonthepowersector’s overall sustainability and efficiency. Authorities find it challenging to act quickly since traditional surveillance techniques are frequently labor-intensive, manual, and unable to identify theft in real time. This emphasizes how urgently an automated and intelligent system that can precisely assess energy consumption and quickly identify anomaliesisneeded.

METHODOLOGY

Continuousmonitoring,datacollection,processing,anddecision-makingformthefoundationofthesuggested system's methodology. A voltage sensor linked in parallel and a current sensor connected in series with the load are used to monitor the system's initial single-phase AC power supply. The Arduino microcontroller receives the analog signals produced by these sensors' real-time electrical parameter measurements. After processing these signals, the Arduino uses the proper calculations to determine the power usage. The computed load consumption and the provided energy values that are stored in the system are then compared.The system detects a theft condition if the difference between these numbers is greater than a predetermined threshold. When theft is detected, the Arduino shows the warning messageandreal-timedataontheLCDscreenandsoundsabuzzertoprovideanauralnotice.Inordertostopadditional unauthorizeduse,a relaymoduleissimultaneously activatedtocutoffthepowerstimedetectionandpromptintervention are ensured bythe continuousoperationoftheentireprocess.Reliablesystem performance is ensured by appropriate connectionsmadewithjumperwiresandasteadypowersource.

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 13 Issue: 04 | Apr 2026 www.irjet.net p-ISSN: 2395-0072

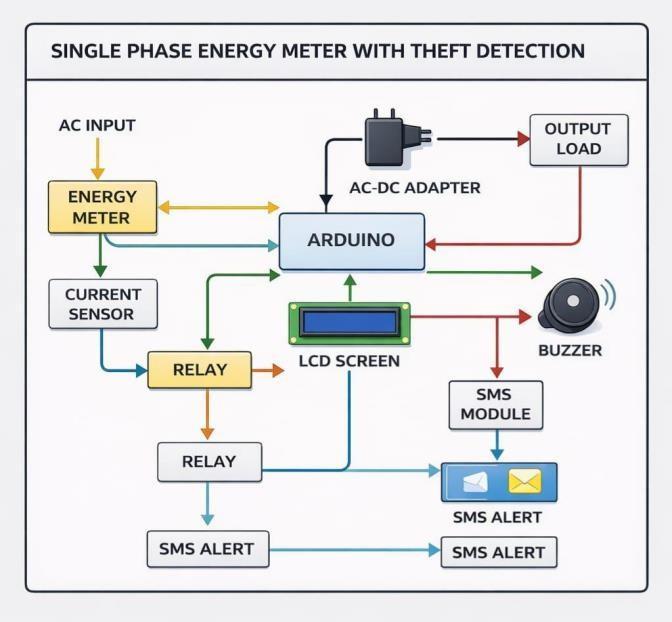

BLOCK DIAGRAM

MATERIALS

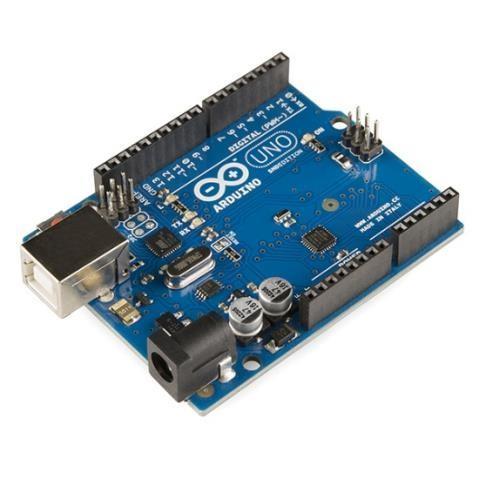

1.ARDUINO- A key component of contemporary embedded systems and electronics projects is Arduino, an opensource microcontroller-baseddevelopment platform, particularly inapplications likea single phase energy meter with theft detection. It functions as the system's brain, processing inputs, carrying out preprogrammed commands, and regulatingoutputsinresponsetoreal-timedata.Becauseoftheirsimplicity,adaptability,andeaseofprogrammingwith theArduinoIDE,Arduinoboards liketheArduinoUno arebasedonmicrocontrollersliketheATmega328P.Inorder to identify any anomalies, Arduino gathers information from current and voltage sensors, examines electrical parameters,andcontraststhepowersuppliedandused.Arduinoactivatesoutputdeviceslikerelays,buzzers,andLCD displaystonotifyusersandtakeappropriateactionifa discrepancyisdiscovered, suggestingpotentialelectricitytheft. It is very compatible with a wide range of sensors and modules because it accepts both analog and digital inputs. Arduinoisacrucialpartincreatingeffective,dependable,andaffordablesmartenergy systems because of its capacity for automatedcontrol,real-timeprocessing,andcontinuousmonitoring.

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 13 Issue: 04 | Apr 2026 www.irjet.net p-ISSN: 2395-0072

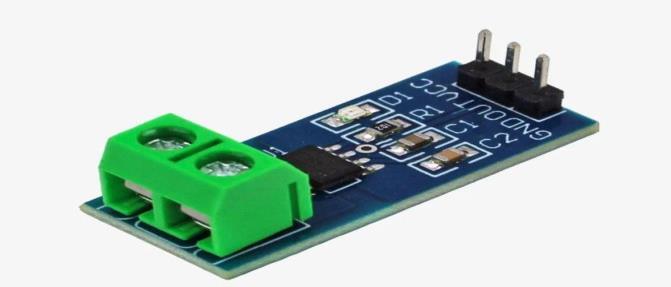

2. CURRENT SENSOR – An essential tool for tracking power use and identifying irregularities in energy use is a currentsensor,whichmeasurestheflowofelectriccurrentinacircuit.Thecurrentsensorinasinglephaseenergymeter with a theft detection system continuously detects the current flowing through the load and transforms it into a measurableelectricalsignalthattheArduinocanread.Hall-effectsensorsandshuntresistorsarecommoncurrentsensor typesthatofferprecise,real-timemeasurementswithoutinterferingwiththecircuit.Bycomparingthisinformationwith the anticipated or supplied current, the sensor assists in figuring out how muchcurrenttheconnectedloadisactually using. Unauthorized tapping or theft may be indicated if there is a disparity, such as lower recorded consumption comparedtosuppliedcurrent.Dependingontheirdesign,currentsensorscanmeasurebothACandDCcurrentsandare extremely sensitive and dependable. They play a crucial role in guaranteeing accurate energy monitoring, enhancing systemeffectiveness,andmakingitpossibletoidentifyillicitactivityintheelectricalnetwork.

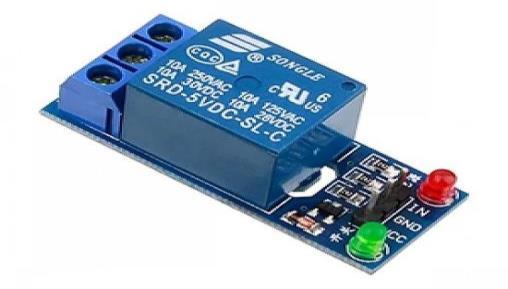

3. RELAY MODULE – Relay modules are electrically operated switches that enable safe control of high-power electricalequipmentusinglow-powersignalsfrommicrocontrollerssuchasArduino.Whentheftorunusualbehavioris detected,therelaymoduleinasinglephaseenergymeterwiththeftdetectionautomaticallycutsoffthepowersupply.It operatesbymeansofanelectromagneticdevicethat,inresponsetoasignalfromtheArduino,opensorshutsthecircuit. The Arduino signals the relay to turn off theelectricitysupplytothesuspectedlineorload when the system detects a discrepancy in energy use that suggests potential theft. Relay modules ensure safety and shield delicate components from harm by isolating high voltage power circuits from low voltage control circuits. They are extensively utilized in automationsystemswhenautomaticorremoteswitchingisnecessarysincetheyareverydependable.Bydetectingtheft andactingquicklytostopadditionalloss,therelaymoduleincreasesthesystem’sefficacy.

4. BUZZER – Abuzzerisanaudiosignalingdevicethatsoundstonotifyusersofacertainsystemstatusoroccurrence. Whenunusualorunauthorizedelectricityusageisdetected,thebuzzerinatheftdetectionenergymeteractsasaninstant warningsystem.ThebuzzeralertsusersorauthoritiestopossibletheftwhentheArduinodetectsadiscrepancybetween supplied and utilized power Buzzers are simple to interface with microcontrollers and come in a variety of forms, includingpassiveandactive.Theyareincrediblyefficientforreal-timealertsystemsanduseverylittleelectricity.Even fromadistance,thebuzzer’ssoundaidsinswiftlyattractingattention, ensuringthattheproblemisidentifiedanddealt with right away. By offering both visual (LCD) and audio alarms, this increases the system’s security and makes the monitoringsystemmorereliableanduser-friendly.

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 13 Issue: 04 | Apr 2026 www.irjet.net p-ISSN: 2395-0072

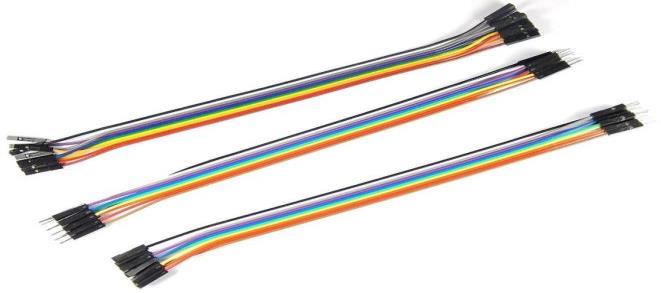

5.JUMPER WIRES - Jumper wires are straightforward but crucial pieces that create electrical connections between various circuit components without the need for soldering. They are frequently utilized during the testing and prototypingphasesofelectronicprojects,particularlywhenusingdevelopmentboardsandbreadboardslikeArduino.To ensureappropriatesignal andpower flow throughoutthesystem,jumper wiresareusedto link sensors, modules,and other components to the Arduino in the energy meter with theft detection system. Depending on the needs of the connection,thesewirescan bemale-to-male,male-to-female,orfemale-to-female.Theyareperfectforrapidlycreating and altering circuits since they are adaptable, reusable, and simple to work with. Despite their seemingly insignificant size,theyplayacriticalroleinpreservingdependableandstableconnections,whichdirectlyaffectsthesystem’soverall accuracyandperformance.

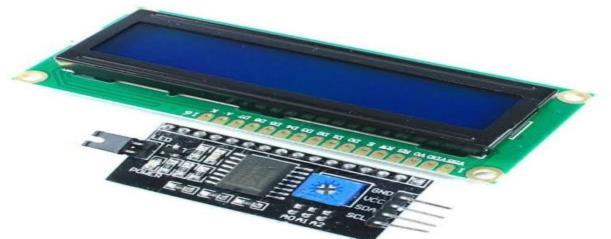

6. LIQUID CRYSTAL DISPLAY– An LCD (Liquid CrystalDisplay)screenisanoutputdevicethatmakesitsimplerforuserstokeepaneyeonsystemsettingsandstatus bydisplayinginformationinavisualformat.Voltage,current,powerconsumption,andtheftalarmsarealldisplayedin real time on the LCD screen of a single phase energy meter with theft detection.Without the need for complicated equipment or software, it offers an intuitive interface that makessystemoperationsimpletocomprehend.A 16x2 LCD display,whichcandisplay16charactersperlineacrosstwolines,istypicallyutilized.TheLCDshowstheprocesseddata in a legible format after receiving it from theArduino. Additionally, warning messages are displayed on the screen to assistusersintaking promptactioninthe event of any abnormal conditionoridentified theft.LCDpanelsarea crucial part in improving the system’s usability and efficacy because they are extremely dependable, energy-efficient, and simpletouse.

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 13 Issue: 04 | Apr 2026 www.irjet.net p-ISSN: 2395-0072

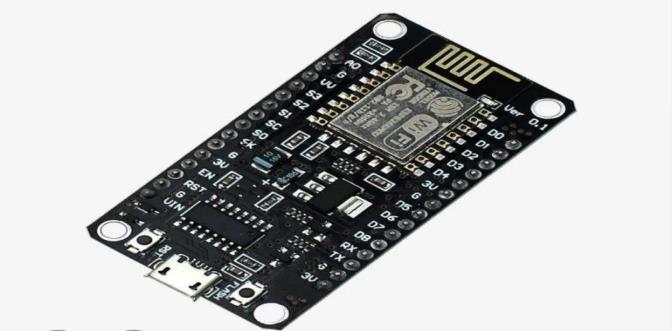

8.WIFI MODULE (ESP8266MOD)-

TheESP8266MOD is an inexpensive, highly effective Wi-Fi module that is frequently used to facilitate wireless communicationandinternetconnectivityinembeddedsystemsandInternetofThings-basedprojects.Itsfoundationis theESP8266microcontroller,whichhasanintegratedTCP/IPprotocolstackthatenablesdevicestoconnectstraighttoa Wi-Fi network without the need for other hardware. This module is perfect for clever applications like a single phase energymeterwiththeftdetectionbecauseofitspowerfulcapabilitiesandsmallsize. Real-time data, including voltage, current powerconsumption,andtheft status,canbewirelesslysenttodistantservers,mobileapps,orcloudplatforms formonitoringandanalysisbyincludingtheESP8266MODintothesystem.

TheESP8266MODusesserialcommunication(UART)toconnecttomicrocontrollerssuchasArduinoandrunsona3.3V powersource.Itoffersversatilityinimplementationbysupportingmanymodesofoperation,suchasaccesspointmode (building its own network), station mode (connecting to an existing Wi-Fi network), and both together. The module in thisprojectcanbeconfiguredtosendmessagesorwarningswheneverelectricitytheftisdiscovered,allowing usersor authoritiestorespondquicklyevenwhentheyarefaraway.Additionally,ithastheabilitytosendandpreserveprevious data,whichcanbeusedtoanalyzetrendsofenergyconsumptionandspotsuspectactivityovertime.

WORKING PRINCIPLE

A single phase energy meter with theft detection operates by continuously measuring, comparing, and analyzing electrical parameters to find any discrepancy between energy delivered and consumed. A voltage sensor linked in parallel and a current sensor connected in series with the load are used to monitor the single-phase AC supply that powers the system. The voltage and current passing through the circuit are continuously measured by these sensors, which then translate the results into proportionate analog outputs. The Arduino microcontroller, which serves as the system’scentralprocessingunit,receivesthesesignalsafterthat.

The Arduino uses the relationship between voltage and current to compute the power usage after reading the sensor data. It continuously contrasts the measured load consumption with the system-programmed expected or supplied energy values. The input supply and the load consumption stay balanced within a particular range under normal circumstances. However, the system identifies any notable divergence as a possible theft circumstance, such as when electricityisunlawfullydrawnfromthelineorthemeteriscircumvented.

The Arduino starts responding as soon as it detects a mismatch. In order to show the current values and a warning message about potential theft, it transmits signals to the LCD panel. In order to ensure that the problem is promptly identified,abuzzerissimultaneouslyturnedontoofferanauditoryindication.Inordertostopadditionalunlawfuluseof electricity,theArduinoalsomanagesarelaymodulethatcancutoffthepowersupplytotheimpactedlineorload.

Thesystemisabletocontinuouslymonitor,identify,andreacttoanyaberrantstatebecausethisentireprocessoccursin real-time. The system is dependable and effective for contemporary energy management applications because of the integrationofsensor,processing,and control components, which guarantees preciseenergymeasurementandefficienttheftdetection.

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 13 Issue: 04 | Apr 2026 www.irjet.net p-ISSN: 2395-0072

CIRCUIT DIAGRAM

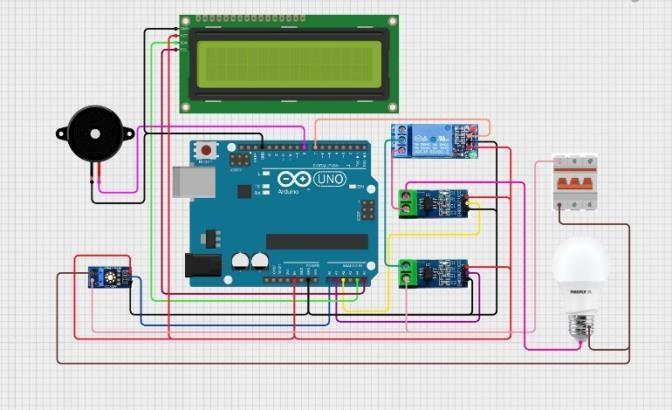

CIRCUIT DIAGRAM OF SINGLE PHASEENERGYMETERWITHTHEFTDETECTION

RESULTS AND DISCUSSIONS

The suggested approach was successfully put into practice and evaluated in a variety of scenarios to assess its effectiveness. The outcomes showed that the system’s real-time measurements of voltage, current, and power consumption are accurate. The system showed reliable readings and no false alarms when it was operating normally. The system successfully identified the anomaly and activated the alarm mechanis ms when an imbalance between suppliedandusedenergywasintroducedtosimulateatheftcondition.TheLCDshowedreal-timeparametersandatheft warningmessageassoonasthebuzzerwentoff.Bysuccessfullycuttingoffthepowersupply,therelaymodulestopped more energy loss. Under many conditions, the system demonstrated dependability, effectiveness, and responsiveness. However, environmental variables and component limits caused some variances in sensor readings, which can be reducedwithappropriatecalibrationandsophisticatedcomponents.

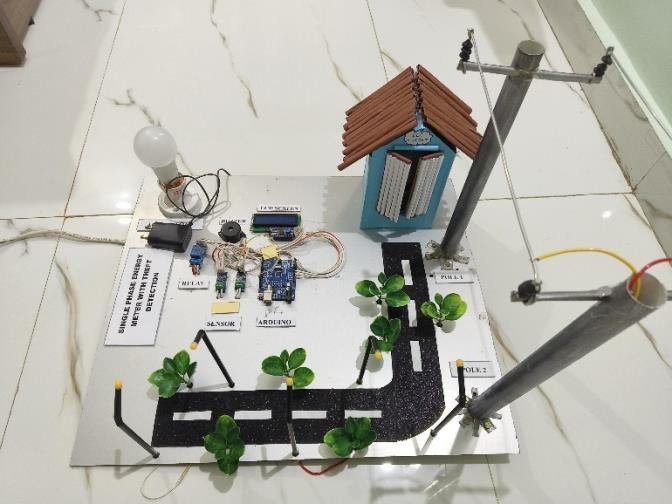

FIG.10OURMODEL ADVANTAGES AND APPLICATIONS Advantages:

1. Providesaccuratemeasurementofelectricityconsumptioninrealtime.

2. Effectively detects electricity theft bycomparingsuppliedandconsumedenergy.

3. Reducespowerlossesandimprovesefficiencyofthedistributionsystem.

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 13 Issue: 04 | Apr 2026 www.irjet.net p-ISSN: 2395-0072

4. Relay module enables immediatedisconnectionofpowersupplyduringtheft.

5. Minimizes human intervention throughautomationandcontinuousmonitoring.

6. Cost-effective and easy to implement usingsimpleelectroniccomponents.

7. Enhances reliability and transparency inenergyusage.

8. AutomaticalertsystemusingbuzzerandLCDdisplayforquicknotification

Applications:

1. Used in homes to keep an eye on power consumptionanddetertheft.

2. Suitablefor small businesses,such asstoresandoffice.

3. Helpselectricityboardsidentifyandmanageunauthorizedpoweruse.

4. It can be used for sophisticated energy managementinsmartgridsystems.

5. Suitableforsmall-scaleindustrialsettingstotrackloadandidentifyirregularities.

6. WhencombinedwithIOTdevices,itfacilitatesremoteenergymonitoring.

7. Beneficial in isolated and rural locationswhereelectricitytheftismoreprevalent.

8. Itcanbeusedforequitableusagetrackinginsharedbuildings,hostels,andresidences.

CONCLUSION

In conclusion, the project on a single phase energy meter with theft detection offers a workable and efficient solution to electricitytheft,oneofthemainproblemsthepowerdistributionindustryfaces.Usingcutting-edgeembeddedtechnology, the system effectively combines the capabilities of precise energy measurement and intelligent monitoring. The system can continually monitor electrical parameters and detect any discrepancy between provided and consumed energy by integratingcomponentslikevoltageandcurrentsensorswithanArduinomicrocontroller.Thesystemisveryresponsive anddependablebecauseofthiscomparison-basedmethod,whichguaranteesthatevenminuteabnormalitiescanbefound in real time.By clearly and promptly notifying users of any abnormal situation, alertmechanisms such an LCD display and buzzer improve userawareness.Additionally,theaddition ofa relaymoduleaddsa crucial control featurethat enablesthesystemtoinstantlycutoffthepowersupplyinthecasethattheftisdetected,preventingadditionalenergyloss. In addition to lowering the requirement for manual inspection, this automation raises the monitoring process’s general efficacy and efficiency. The project is economically achievable while maintaining great performance thanks to the use of straightforwardandaffordablecomponents.

Another significantaspectof thisproject is its flexibility and potential for future enhancement. The system can be easily upgraded by integrating communication technologies such as Wi-Fi or IoT modules like ESP8266, enabling remote monitoring,datalogging,andreal-timealertsthroughmobileorwebapplications. Thisopensthedoorforitsapplication insmartgridsandadvancedenergymanagementsystems.Additionally,theprojectpromotesresponsibleelectricityusage amongconsumersbydiscouragingillegalpracticesandensuringfairdistributionofpower.

All things considered, the single phase energy meter with theft detection shows how automation and embedded technologiesmay besuccessfullyappliedtosolvepractical issues.Ithelpstolower non-technical lossesandincreasethe dependability of power systems in addition to improving the precision and transparency of energy usage. The project emphasizes the significance of implementing clever solutions for sustainable and effective energy management in the futureandprovidesasolidbasisforfutureinnovationinsmartmeteringtechnology.
