COMPARITIVE ANALYSIS OF RCC STRUCTURE ON SLOPING GROUND AGAINST SEISMIC LOADING BY USING FVD VS SHEAR

1

ABSTRACT

2

WALL

VS BRACINGS

Consider recent construction and its failures in India and also helps well as its urbanization. And also, well as considering the elemental entities like industrialization, include in multi-story structures when the surface is considered to be in non-uniform. What is known as slope, considering the construction of the multi-story under these areas, is one of the important and also as well as Complex task. So, in order to overcome this systemic and all kind of load which affects the story while constructing in the area of slope for hilly regions. Extra support is needed to be given to the structure in order to reduce the effects. Considering the structure to be lying on the areas where the slope is a major factor. Sometimes the effect is unpredictable, hence the elements like bracings, shear wall and also as well as fluid viscous damper, is necessary to be provided in order to safeguard the multi-story structure. All the analysis has been considered under the code of response spectrum analysis considering the code book IS 1893:2002 all the valid values has been considered and respect to page number is also be noted in further project details. Response spectrum is one of the best methodologies in order to study the number of modes of the elements under the application of different loads. The main aim of the is to analyses the model under the behavior of the RCC structure over bracings and also as well as shear wall including fluid viscous damper

Key words: FVD, Shear Wall, Bracings, Response Spectrum,slope.

[1]INTRODUCTION

As discussed the multi-story structure considering its construction in the slope area is one of the most complicated task, and also it is considered to be most dangerous where due to the sudden drop in the climate which directly affects the ground levels and causes the ground to undergo a process of erosion where the construction of the multi-story structure will become much and much complicated. Hence we need to consider some of the important factor which can we overcome these effects, and to provide most long life effect to the structure to overcome all the climate changes including

soil Erosion as well. So it is important to consider many elements like share wall at different locations and providingthesharewallattheSamelocationasproviding thebracingsandalsoaswellasfluidviscousdamper.

[2]OBJECTIVE

Following are the objective to be studied to compare the seismic response of buildings with and without fluid viscousdamper

1. To develop structure in Slope ground using ETABS and fixingthemodelusingrestrains.

2.TouseIS1893:2002standardcodebook,forevaluation ofresultsunderResponsespectrumanalysis.

3. Comparing the models with bracing, damper and shear wallandplottingtheresults.

4. Best outcomes among the design elements needed to concluded by passing the minimum criteria of response spectrum,basereactionandresponsereductionfactor

[3]LITERATUREREVIEW

Chandrasekaran and Rao (2002);investigated analysis and the design of multi‐ storied RCC thecarriedoutthe important analysis of the systemic intensity of the structure under the reinforced concrete over the multistory building with a complex structural design and analysis.

theanalysisisconsideredunderusingthesamecodebook 1893 2002 the seismic forces and also as well as axial forcesincludingtheshapeofbendingmomentandsomeof the important displacement in the stress-strain and also considering the important factor like support reactions including import and analysis like response spectrum is carriedout.

Birajdar and Nalawade (2004); studied “seismic performance of buildings resting on sloping ground”. the effect on the loss of the structure depends upon the conditionsoftheangleoftheslope.

International Research Journal of Engineering and Technology (IRJET) e-ISSN:2395-0056

Volume: 09 Issue: 08 | Aug 2022 www.irjet.net p-ISSN:2395-0072

Inthisanalysiszone3isconsideredforthe3Danalysisof the structure including the torsional effect which is consideredbyusingtheresponsespectrummethodwhich is one of the best method in order to study the proper nature of the structure in order to overcome all kind of irregularloadconditions.

Liya Mathew and C.Prabha Title :Effectof FluidViscousDampersinMultiStoriedBuildingYear:2014This paper deals with buildings aresubjected tovarious loadingconditions.The fluid viscos damper (FVD)gives importance here. This paper explains to find the most harmful properties to reinforce concrete frames. The analysis is done in symmetricalsquarebuildingusingSAP2000 software.

Sachin Kukian, Mohamed Parvez, Avinash A R and Kiran Kamath Title: A Study on Seismic ResponseofReinforcedStructuresRetrofittedwithFluid ViscousDampersin Shear Walls Year:2015 Paper description This paper is related to the investigation of the earthquake wave behavior on the structures with several floors. It is done with the devices that are located in the lateral load thatresist the elements of the building The study gives detailed information about the fluid viscousdamper.

[4]METHODOLOGY

Response spectrum analysis

Thismethodmakesuseofdampinglevelandtimehistory to measure pseudo spectral acceleration, displacement or velocity to provide dynamic behavior of a structure For each structural period experienced by the structure there is a smooth curve on that gives peak response in a responsespectraforthe dynamicresponsethis methodis related with the type of the structure selection this method is useful for thedecision makingfor thedesign of aparticularstructure

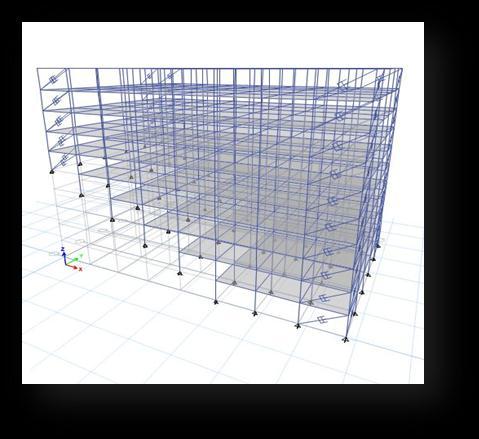

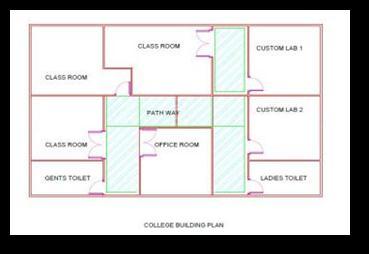

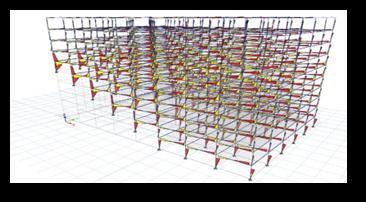

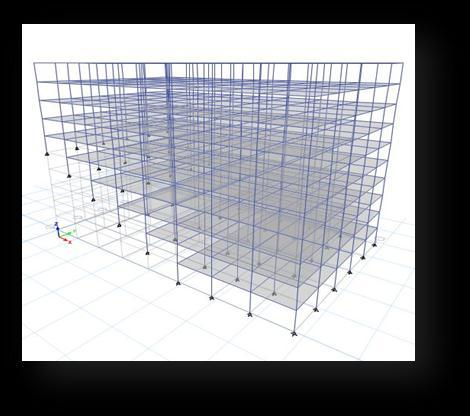

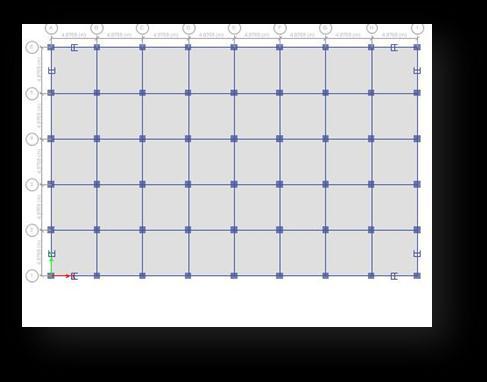

BUILDING PLAN AND LAYOUT

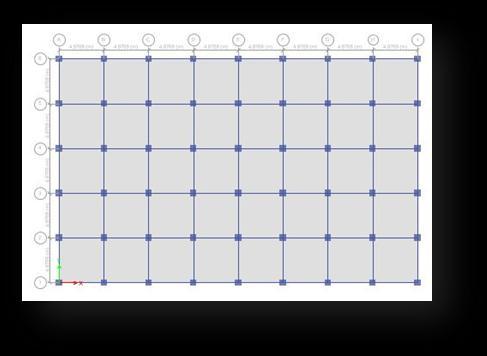

COLUMNLAYOUT

Building description

Gradeofconcrete :M45

Gradeofsteel :Fe250 Beam :700x500mm Column :700x700

Onewayslab :200mm StoryHeight :3m No.Ofstories :10

Seismic Loads

All the Values for the seismic design and evaluation consideredfromthecodebookofIS:1893:2002.Valuefor thezonefactoris zone0.16.Thevalueswhichissupposed tobealsoenteredintothe E tabsaswell isasgiven below

ZoneFactor :0.16

ImportanceFactor :1.5

Responsereductionfactor:3 SoilType :Medium StructureType :RCFrameStructure

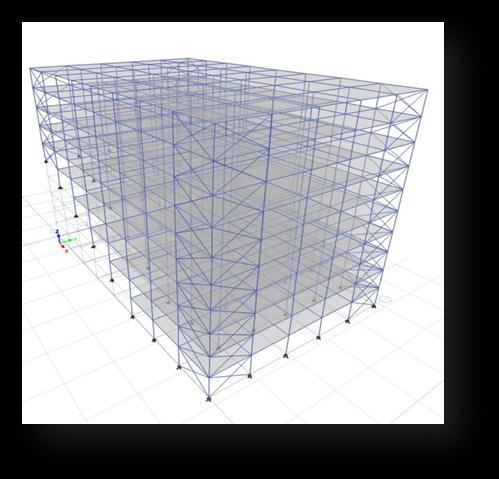

[5]MODELINGANDANALYSIS

TheanalysisiscarriedoutusingETABS

Introduction to ETABS

ETABS is software used for analysis purpose and also in design of buildings. ETABS is characterized by powerful graphicalinterfacecoupledwithcommondatabasewhich is integrated with unmatched modelling, analysis, design anddetailingprocedures

Merits of ETABS

ETABS includes various features with which geometryofabuildinghavingsimpleandstraight forward symmetry with horizontal beam and vertical columns and floors can be established withminimumefforts. 





ETABS reduces the modelling and design time of the building having many floors but similar structure.

ETABS gives the accurate design of the structure with formulation of member stiffness in the buildings having small or large bay width and story height. These dimensions highly affect the stiffnessoftheframe

International Research Journal of Engineering and Technology (IRJET) e-ISSN:2395-0056

Volume: 09 Issue: 08 | Aug 2022 www.irjet.net p-ISSN:2395-0072

International Research Journal of Engineering and Technology (IRJET) e-ISSN:2395-0056

Volume: 09 Issue: 08 | Aug 2022 www.irjet.net p-ISSN:2395-0072

International Research Journal of Engineering and Technology (IRJET) e-ISSN:2395-0056

Volume: 09 Issue: 08 | Aug 2022 www.irjet.net p-ISSN:2395-0072

International Research Journal of Engineering and Technology (IRJET) e-ISSN:2395-0056

Volume: 09 Issue: 08 | Aug 2022 www.irjet.net p-ISSN:2395-0072

International Research Journal of Engineering and Technology (IRJET) e-ISSN:2395-0056

Volume: 09 Issue: 08 | Aug 2022 www.irjet.net p-ISSN:2395-0072

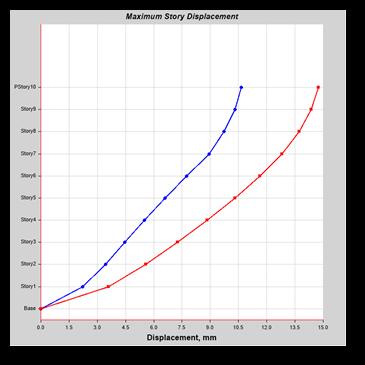

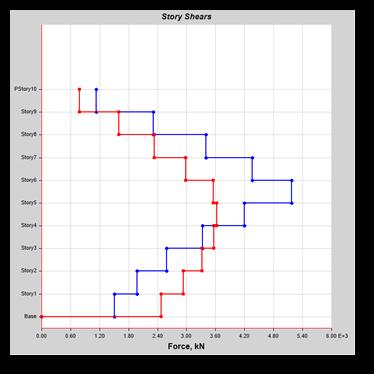

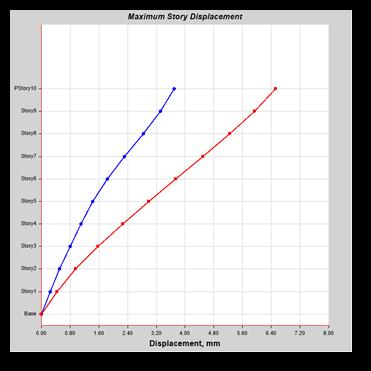

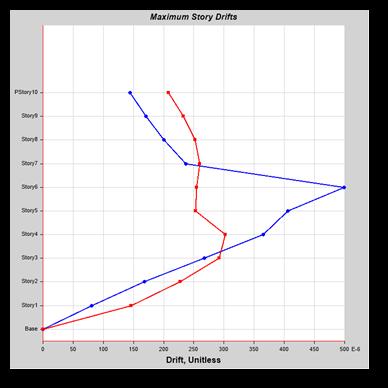

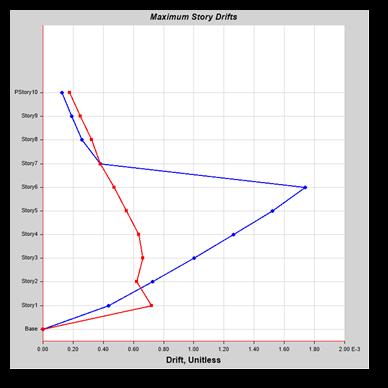

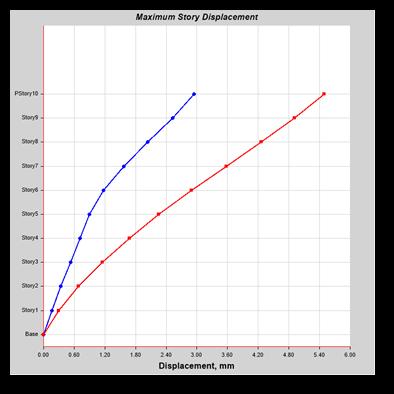

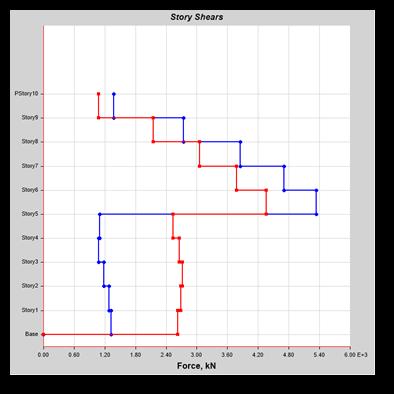

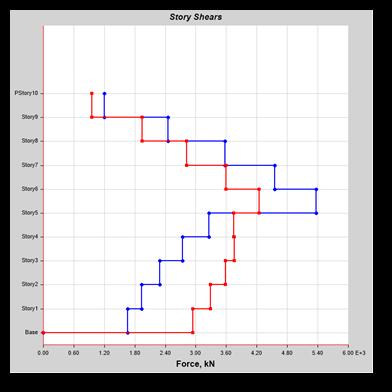

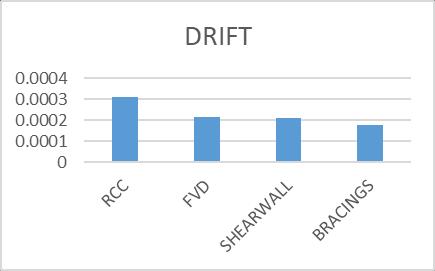

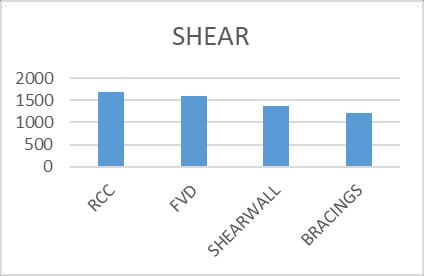

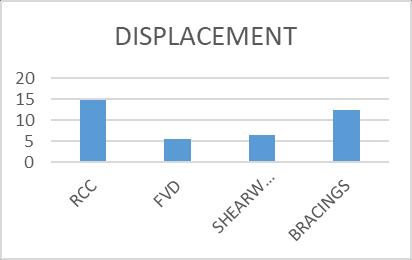

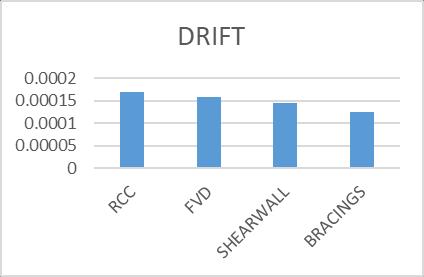

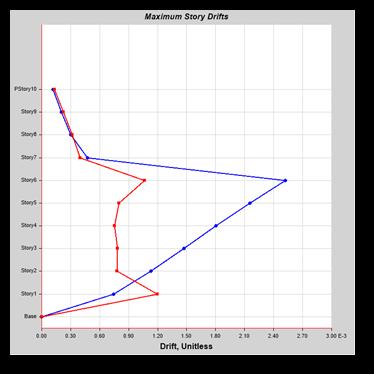

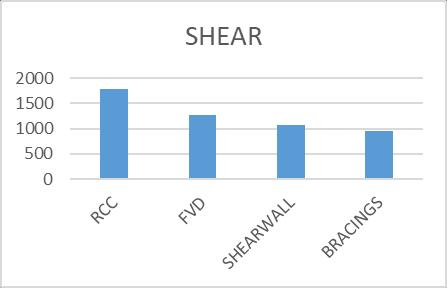

Considering all the possible and maximum Result passing the X bracing is found to Better Performing when compared to all other models. While all the elements like FVDandShearwallisprovidedatsamePosition.Xbracing will remainBetterChoice whileconsidering Slope ground Analysis.

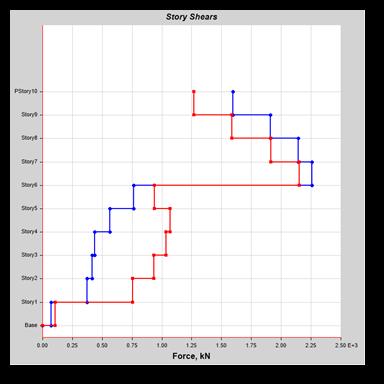

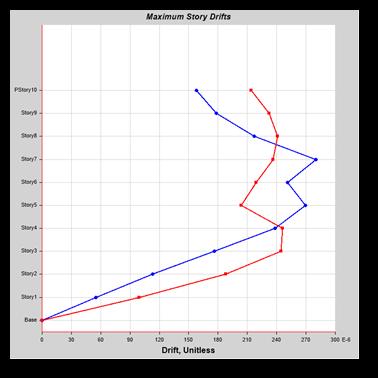

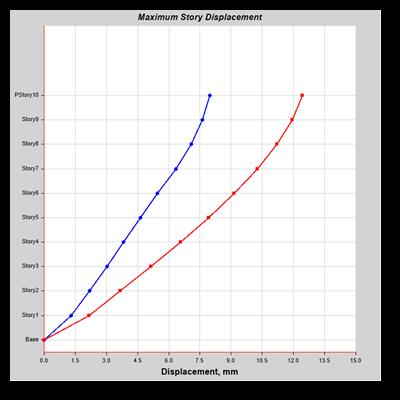

Y DIRECTION:
