POWER QUALITY IMPROVEMENT OF DISTRIBUTION GRID USING ULTRA CAPACITOR INTEGRATED DYNAMIC VOLTAGE RESTORER

1student, Department of EPS Government college of Engineering Amravati M.H. India

2professor, Department of EPS Government college of Engineering Amravati M.H. India ***

Abstract- The expense of various power carport innovationisquicklydecliningwiththecomingofbrilliant framework,andtheir reconciliationinto the power lattice is turning into a reality. One item that might give progressed voltage droop and swell remuneration with powercarportreconciliationistheuniquevoltagerestorer (DVR). Very capacitors (UCAP) have a low strength thickness and a powerful thickness, which makes them ideal for repaying voltage droops and voltage expands, every one of which require exorbitant power for speedy timeframes. The fuse of battery powered UCAP based energy carport into the DVR geography is the paper's clever commitment. Due to this reconciliation, the UCAP DVR device can have the option to make up for transient voltagelistsand expandsonitsown,insteadofrelyingon thematrixtogetuptospeedwithlatticedeficienciessince it has inside the past. The included UCAP DVR machine makes up for voltage hangs and grows that excess from 3 seconds to 1 moment. The plan and oversee intricacies of both the dc ac inverter and the dc converter are talked about. The general machine reenactment model has been advanced,andtheresultshavebeengiven.

1. INTRODUCTION

THE Conception of utilizing inverter grounded dynamic voltage restorers( DVRs) for blocking visitors from transitory voltage unsettling influences on the mileage side was shown interestingly by Woodley etal.( 1). The origination of involving the DVR as a power quality item has acquired huge stylishness since its most memorable use. In( 1), the creators propose the activity of the DVR with battery powered energy storage facility at the dc terminaltomeetthedynamicpowerstatesofthenetwork during voltage aggravations. To stay away from and limit the dynamic power infusion into the lattice, the creators likewise referenced an imperative outcome which is to makeupforthevoltageslackbyfittingahaulingvoltagein quadraturewiththelinecurrent.Becauseofthesignificant expense of battery powered energy storage facility, beautiful different kinds of control methodologies have likewise been created in the writing to limit the dynamic power infusion from the DVR. The significant expense of the battery powered energy storage facility forestalls the infiltrationoftheDVRasapowerqualityitem.inanycase, theexpenseofbattery poweredenergystoragefacilityhas

beenwaningradicallyinthenewhistorybecauseofbright mechanical turns of events and because of cutting edge entrance in the solicitation as advantageous energy storagefacilityfordispersedenergymoneychests(DERs) comparable as wind, sunlight based, cutthroat electric vehicles(HEVs),andmodulemuttelectricvehicle(PHEVs). accordingly, there has been restored interest in the writing to coordinate battery powered energy storage facility again at the dc outstation of force quality items comparative as static compensator( STATCOM) and DVR. Various kinds of battery powered energy storage facility advancements grounded on superconducting attractions(SMES),flywheels(FESS),batteries(BESS),and ultracapacitors( UCAPs) are analyzed in for combination into cutting edge power activities comparative as DVR. sweats have been made to coordinate energy storage facility into the DVR framework, which will give the frameworkdynamicpowerabilitythatmakesitfreeofthe matrix during voltage aggravations. In( 11), projected H ground grounded DVR with a thyristor controlled inductor is proposed to limit the energy storage facility conditions. In( 12), flywheel energy storage facility is coordinated into the DVR framework to enhance its consistent state series and shuntcompensation. Of all the battery powered energy storage facility advances, UCAPs areimpeccablyappropriatefortaskswhichneeddynamic power support in the milliseconds to seconds timescale. hence, UCAP grounded coordination into the DVR framework is great, as the ordinary term of transitory voltagehangs and growsis inthe milliseconds toseconds range(15). UCAPshave low energy consistency and high power thickness ideal qualities for repaying voltage droops and voltage enlarges, which are the two occasions that bear high quantum of force for limited abilities to focus time. UCAPs likewise have progressed number of charge/release cycles when contrasted with batteries and forasimilarmodulesize,UCAPshaveprogressedterminal voltage when contrasted with batteries, which makes the mix more straightforward. With the frequence of sustainable power sources on the dissemination lattice and the relating expansion in power quality issues, the requirement for DVRs on the dispersion framework is adding ( 16). Supercapacitor grounded energy storage facility coordination into the DVR for the dissemination framework is proposed in( 16) and( 17). in any case, the origination is presented exclusively through reproduction

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056

Volume: 09 Issue: 07 | July 2022 www.irjet.net p ISSN: 2395 0072

andthetrialresultsaren'tintroduced.Inthispaper,UCAP grounded energy storage facility reconciliation to a DVR into the circulation network is proposed and the accompanyingactivityregionsaretendedto.

1) Integration of the UCAP with DVR framework gives dynamic power capacity to the framework, which is important for separately remunerating voltage hangs and enlarges.

2) Experimental affirmation of the UCAP, dc dc engine, andinvertertheirpointofinteractionandcontrol.

3)Developmentofinverteranddc dcenginecontrolsto giveslackandswellpaytothedisseminationframework.

4)recreationresultandexecutionaffirmationofthe coordinatedDVR UCAP

slack(0.1 0.9p.u.) and voltage swell(1.1 1.2p.u.), which lastfrom3sto1min.

3.DVR

The major objectsare to increase thecapacityapplication of distribution affluents( by minimizing the rms values of the line currents for a specified power demand), reduce the losses and ameliorate power quality at the cargo machine. The major supposition was to neglect the variations

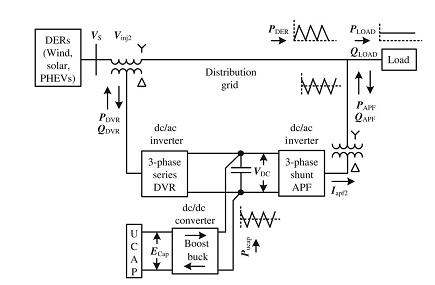

Fig 1.One linediagramofDVRwithUCAPenergystorage.

2 .THREE-PHASE SERIES INVERTER

A.ThePower StageFigure 1depictsthesystem'sone line diagram. The power stage is a three phase voltage source inverter that is connected in series to the grid and is in chargeofcompensatingfor voltagesagsandswells;Fig.2 depicts the model of the series DVR and its controller. An insulated gate bipolar transistor (IGBT) module, its gate driver,anLCfilter,andanisolationtransformercomprise theinvertersystem.Thedc linkvoltageVdcissetto260V for optimal converter performance, and the line line voltageVabissetto208V;basedonthese,themodulation indexmoftheinverterisgivenby m=2√2√3Vdc∗nVab(rms).……….(1)

wherenistheturnsrateoftheinsulationmotor. Substituting n as2.5 in( 1), the needed modulation indicatoriscalculatedas0.52.

Thus,theaffairofthedc dcmotorshouldberegulatedat 260 V for furnishing accurate voltage compensation. The idealoftheintegratedUCAPDVRsystemwithactivepower capability is to compensate for temporary voltage

In the source voltages. This basically implies that the dynamics of the source voltage is important slower than thecargodynamics.Whenthefastvariationsinthesource voltage can not be ignored, these can affect the performanceofcriticalloadssimilaras(a)semiconductor fabrication shops( b) paper manufactories( c) food processingshopsand(d)automotiveassemblyshops.The mostcommon disturbances inthesource voltages are the voltage sags or swells that can be due to( i) disturbances arising in the transmission system,( ii) conterminous confluent faults and( iii) fuse or swell operation. Voltage sags of indeed 10 lasting for 5 10 cycles can affect in expensive damage in critical loads. The voltage sags can arise due to symmetrical or unsymmetrical faults. In the ultimatecase,negativeand zerosequencefactorsarealso present. Uncompensated nonlinear loads in the distribution system can beget harmonious factors in the force voltages. To alleviate the problems caused by poor qualityofpowerforce,seriesconnectedcompensatorsare used.ThesearecalledasDynamicVoltageRestorer(DVR) in the literature as their primary operation is to compensate for voltage sags and swells. Their configuration is analogous to that of SSSC, bandied in chapter7.still,thecontrol waysaredifferent.Also,a DVR isanticipatedtorespondpresto(lowerthan1/4cycle)and therefore employs PWM transformersusingIGBT or IGCT bias. The first DVR entered marketable service on the Duke Power System inU.S.A. in August 1996. It has a standingof2MVAwith660kJofenergystorehouseandis able of compensating 50 voltage slack for a period of0.5 alternate( 30 cycles). It was installed to cover a largely automated yarn manufacturing and hairpiece weaving installation.Sincealso,severalDVRshavebeeninstalledto cover microprocessor fabrication shops, paper manufactories etc. generally, DVRs are made of modular design with a module standing of 2 MVA or 5 MVA. They've been installed in substations of voltage standing from 11 kV to 69 kV. A DVR has to supply energy to the cargo during the voltage sags. However, it's accessible to givea shunt motorthat'sconnectedtotheDVR onthe DC side,IfaDVRhastosupplyactivepoweroverlongerages. As a matter of fact one could image a combination of DSTATCOM and DVR connected on the DC side to compensateforbothcargoandforcevoltagevariations.In this section, we bandy the operation of DVR for

© 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page103

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056

Volume: 09 Issue: 07 | July 2022 www.irjet.net p ISSN: 2395 0072

fundamental frequence voltage. The voltage source motor is generally one or further transformers connected in seriestogivetheneededvoltagestanding.TheDVRcanfit a( fundamental frequence) voltage in each phase of neededmagnitudeandphase.TheDVR hastwooperating modes

1.Standby(alsonominatedasshortcircuitoperation(SCO) mode)wherethevoltagefittedhaszeromagnitude.

2. Boost( when the DVR injects a needed voltage of applicable magnitude and phase to restore the prefault cargomachinevoltage).

The power circuit of DVR shown inFig.14.1 has four factorslistedbelow.

.VoltageSourceMotor(VSC)

Thiscouldbea3phase 3lineVSCor3phase 4lineVSC. The ultimate permits the injection of zero sequence voltages.Eitheraconventionaltwopositionmotor(Graetz ground)orathreepositionmotorisused.

.BoostorInjectionMills

Three single phase mills are connected in series with the distribution confluent to couple the VSC( at the lower voltage position) to the advanced distribution voltage position. The three single mills can be connected with star/ open star winding or delta/ open star winding. The ultimatedoesn'tpermitthe injectionofthezerosequence voltage. The choice of the injection motor winding dependsontheconnectionsofthestepdowntrans former that feeds the load. However, there's no need to compensatethezerosequencevoltages,Ifastarconnected motor is used. still if star star connection with neutral grounding isused, the zero sequencevoltagemayhave to becompensated.It'sessentialtoavoidtheachromatismin theinjectionmills.

.PassivePollutants

Theunresistantpollutantscanbeplacedmoreoveronthe highvoltagesideorthemotorsideoftheboostmills.The advantagesofthemotorsidepollutantsare a)thefactorsareratedatlowervoltage

(b)advancedorderharmoniouscurrents(duetotheVSC) don't ° enjoy through the motor windings. The disadvantages are that the sludge inductor causes voltage drop and phase( angle) shift in the( fundamental element of) voltage fitted . This can affect the control scheme of DVR. The position of the sludge of the high voltage side overcomes the downsides( the leakage reactance of the motor can be used as a sludge inductor), but results in

advanced conditions of the mills as high frequence currentscanflowthroughthewindings.

.EnergyStorage

This is needed to give active power to the cargo during deep voltage sags. Lead acid batteries, SMES can be used forenergystorehouse.It'salsopossibletogivetheneeded power on the DC side of the VSC by an supplementary groundmotorthat'sfedfromansupplementaryACforce.

4.ULTRACAPACITOR

The electrochemical ultra capacitor is an arising technology that promises to play an important part in meeting the demands of electronic bias and systems both now and in the future. This recently available technology of ultra capacitors is making it easier for masterminds to balance their use of both energy and power. Energy storehouse bias like ultra capacitors are typically used alongwithbatteriestocompensateforthelimitedbattery power capability. putatively, the proper control of the energy storehouse systems presents both a challenge and are occasion for the power and energy operation system. This paper traces the history of the development of the technology and exploresthe principles and proposition of operation of the ultra capacitors. The use of ultracapacitors in colorful operations are bandied and their advantages over indispensable technologies are considered.

To give exemplifications with which to outline practical perpetration issues, systems incorporating ultra capacitorsasvitalfactorsarealsoexplored.Thispaperhas aimed to give a brief overview of ultra capacitor technology as it stands moment. former development sweats have been described to place the current state of the technology within an literal environment. Scientific background has also been covered in order to more understand performance characteristics. Possible operations of ultra capacitor technology have also been described to illustrate the wide range of possibilities that live.

Because of the advantages of charging effectiveness, long continuance, fast response, and wide operating temperature range, it's tempting to try and apply ultra capacitors to any operation that requires energy storehouse.Thelimitationsofthecurrenttechnologymust be completely appreciated, still, and it's important to realize that ultra capacitors are only useful within a finite range of energy and power conditions. Outside of these boundariesotherdruthersarelikelytobethebetterresult. The most important thing to flash back about ultra capacitors technology is that it's a new and different technologyinitsownright.

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056

Volume: 09 Issue: 07 | July 2022 www.irjet.net p ISSN: 2395 0072

There may live some parallels between ultracapacitor operationandtheoperationofelectrostaticcapacitors,but there are fundamental differences that affect from the different physical processes involved and these must be appreciated. Problemsmay be encountered ifsystemsare designedgroundedonthesuppositionthatultracapacitors bear like normal capacitors. Ultra capacitors are, at any rate, a part of the new surge of advanced energy storehouse bias that will foster the drive towards lesser energy effectiveness and further sustainable druthers . They will be a useful tool with which to wangle largely effectiveelectricalandelectronicsystems,andasthestate of the technology advances they will come precipitously morecommonplace.

5.propositionofOperation

It'sclearfrom the literature that renewable intermittency smoothing is one operation that requires active power supportfromenergystorehouseinthesecondstotwinkles time scale. Reactive power support is another operation which is gaining wide recognition with proffers for reactivepowerpricing.VoltageslackandSwellsarepower qualityproblemsondistributiongridthathavetobeeased. slack/ swell compensation needs active power support from th storehouse in the milli seconds to 1minduration( 11). All the below functionalities can be realized by integrating energy storehouse into the grid through a power conditioner topology. Of all the rechargeable energy storehouse technologies superconducting attraction energy storehouse( SMES), flywheelenergystorehousesystem(FESS),batteryenergy storehouse system( BESS), and ultra capacitors( UCAPs), UCAPs are ideal for furnishing active power support for events on the distribution grid which bear active power support in the seconds to twinkles time scale like voltage sags swells, active/ reactive power support, and renewable intermittency smoothing( 7) energy In this paper, UCAP grounded energy storehouse integration through a power conditioner into the distribution grid is proposed,andthefollowingoperationareasareaddressed

1) Integration of the UCAP with power conditioner frameworkgivestheframeworkdynamicpowerability.

2) Active power ability is important for autonomously remunerating voltage hangs/grows and to give dynamic/responsive power backing and discontinuity smoothingtothematrix.

3) Simulation of the UCAP, dc converter, inverter their connectionpoint,andcontrol.

4) Development of inverter and dc converter controls to give hang/expand remuneration and dynamic/receptive helptotheappropriationmatrix..

6.End

In this paper, the idea of coordinating UCAP based battery poweredenergycapacitytotheDVRframeworkto further develop its voltage reclamation abilities is investigated. With thiscoordination,the DVR will actually want to freely repay voltage lists and enlarges without dependingontheframeworktomakeupforshortcomings on the lattice. The UCAP incorporation through a bidirectionaldcconverteratthedc connectionoftheDVR is proposed. The power stage and control system of the series inverter, which goes about as the DVR, are examined. The control procedure is straightforward and dependsoninfusingvoltagesin stagewiththeframework voltage and is simpler to carry out when the DVR frameworkcangivedynamicpower.Amoreelevatedlevel coordinated regulator, which takes choices in light of the frameworkboundaries,givescontributionstotheinverter and dc converter regulators to complete their control activities. Plans of significant parts in the power phase of the bidirectional dc converter are examined. Normal currentmodecontrolisutilizedtodirecttheresultvoltage of the dc converter because of its intrinsically steady trademark.ThereproductionoftheUCAP DVRframework, whichcomprisesoftheUCAP,dcconverter,andthelattice tied inverter, is done utilizing MATLAB. recreation of the coordinated framework is introduced and the capacity to give transitory voltage hang and swell remuneration in each of the three stages to the appropriation lattice progressivelyistried.Resultsfortransientreactionduring voltage droops/enlarges in two stages will be remembered for the full rendition of this paper. UCAP based energy stockpiles can be sent later on the circulation framework to answer dynamic changes in the voltage profiles of the lattice and keep delicate burdens fromvoltageaggravations.

3. CONCLUSION

Fig 2On LinediagramofpowerconditionerwithUCAP energystorage

In this paper, planning UCAP based battery fueled energy abilitytotheDVR systemto additionallyfosteritsvoltage reconstructingcapacitiesisexamined.Withthisblend,the

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056

Volume: 09 Issue: 07 | July 2022 www.irjet.net p ISSN: 2395 0072

DVR will really need to independently reimburse voltage hangs and amplifies without relying upon the lattice to compensate for issues on the structure. The UCAP joining through a bidirectional dc converter at the dc association of the DVR is proposed. The power stage and control arrangementoftheseriesinverter,whichgoesprobablyas theDVR,areinspected.Thecontrolprocedureisclearand relies upon mixing voltages in stage with the system voltage and is less complex to complete when the DVR structure can give dynamic power. A more critical level consolidatedcontroller,whichtakesdecisionsconsidering the structure parameters,provides commitments to the inverter and dc converter controllers to finish their control exercises. Plans of critical parts in the power period of the bidirectional dc converter are discussed. Ordinary current mode control is used to deal with the outcomevoltageofthedcconverterinviewofitsnaturally consistentbrandname.ThereenactmentoftheUCAP DVR system,which involves the UCAP, dc converter, and the latticetiedinverter,isfinishedusingMATLAB.

7 . REFERENCES

[1] N. H. Woodley, L. Morgan, and A. Sundaram, “Experience with an inverter based dynamic voltage restorer,”IEEETrans.PowerDel.,vol.14,no.3,pp.1181 1186,Jul.1999.

[2] J. G. Nielsen, M. Newman, H. Nielsen, and F. Blaabjerg, “Control and testing of a dynamic voltage restorer (DVR) atmediumvoltagelevel,”IEEETrans.PowerElectron.,vol. 19,no.3,pp.806 813,May2004.

[3] V. Soares, P. Verdelho, and G. D. Marques, “An instantaneous active and reactive current component methodforactivefilters,”IEEETrans.PowerElectron.,vol. 15,no.4,pp.660 669,Jul.2000.

[4]H.Akagi,E.H.Watanabe,andM.Aredes,Instantaneous Reactive Power Theory and Applications to Power Conditioning,1sted.Hoboken,NJ,USA:Wiley/IEEEPress, 2007.

[5] K. Sahay and B. Dwivedi, “Supercapacitors energy storage system for power quality improvement: An overview,”J.EnergySources,vol.10,no.10,pp.1 8,2009.

[6] B. M. Han and B. Bae, “Unified power quality conditioner withsuper capacitorfor energystorage,” Eur. Trans.Elect.Power,vol.18,pp.327 343,Apr.2007.

[7]P.F.Ribeiro,B.K.Johnson,M.L.Crow,A.Arsoy,andY. Liu, “Energy storage systems for advanced power applications,”Proc. IEEE, vol. 89, no. 12, pp. 1744 1756, Dec.2001.

[8]A.B.Arsoy,Y.Liu,P.F.Ribeiro,andF.Wang,“StatCom SMES,”IEEE Ind. Appl. Mag., vol. 9, no. 2, pp. 21 28, Mar. 2003.

[9] J. Rittershausen and M. McDonagh,Moving Energy Storage from Concept to Reality: Southern California Edison’s Approach to Evaluating Energy Storage [Online]. Available: http://www.edison.com/content/ dam/ eix/ documents/innovation/smart grids/Energy Storage Concept toReality Edison.pdf,accessedon15Jul.,2014.

[10]M.Branda,H.Johal,andL.Ion,“EnergystorageforLV gridsupportinAustralia,”inProc.IEEEInnov.SmartGrid Tech.Asia(ISGT),Nov.13 16,2011,pp.1 8.

[11]W.Li,G.Joos,andJ.Belanger,“Real timesimulationof a wind turbine generator coupled with a battery supercapacitor energy storage system,” IEEE Trans. Ind. Electron.,vol.57,no.4,pp.1137 1145,Apr.2010.

[12]P.Thounthong,A.Luksanasakul,P.Koseeyaporn,and B. Davat, “Intelligent model based control of a standalone photovoltaic/fuel cell power plant with supercapacitor energy storage,”IEEE Trans. Sustain. Energy, vol. 4, no. 1, pp.240 249,Jan.2013.

[13] X. Li, D. Hui, and X. Lai, “Battery energy storage station (BESS) based smoothing control of photovoltaic (PV)andwindpowergenerationfluctuations,”IEEETrans. Sustain.Energy,vol.4,no.2,pp.464 473,Apr.2013.

[14] J. Tant, F. Geth, D. Six, P. Tant, and J. Driesen, “Multiobjective battery storage to improve PV integration in residential distribution grids,”IEEE Trans. Sustain. Energy,vol.4,no.1,pp.182 191,Jan.2013.

[15] Y. Ru, J. Kleissl, and S. Martinez, “Storage size determination for gridconnected photovoltaic systems,”IEEE Trans. Sustain. Energy,vol.4, no. 1, pp. 68 81,Jan.2013

[16] S. Teleke, M. E. Baran, S. Bhattacharya, and A. Q. Huang, “Rule based control of battery energy storage for dispatching intermittent renewable sources,” IEEE Trans. Sustain.Energy,vol.1,no.3,pp.117 124,Oct.2010.

[17] T. K. A. Brekkenet al., “Optimal energy storage sizing and control for wind power applications,”IEEE Trans. Sustain.Energy,vol.2,no.1,pp.69 77,Jan.2011.

[18]S.Santoso,M.F.McGranaghan,R.C.Dugan,andH.W. Beaty,ElectricalPowerSystemsQuality,3rded.NewYork, NY,USA:McGraw Hill,Jan.2012.

[19] R. W. Erickson and D. Maksimovic,Fundamentals of Power Electronics, 2nd ed. Norwell, MA, USA: Kluwer, 2001

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056 Volume: 09 Issue: 07 | July 2022 www.irjet.net p ISSN: 2395 0072

[20] Maxwell Technologies. [Online]. Available: http://www.maxwell com/products/ultracapacitors/docs/201202_whitepaper_ application_for_ups.pdf
