Gas Leakage Detection, Prediction & Alert System Using Raspberry Pi & Cloud Computing

International Research Journal of Engineering and Technology (IRJET) e ISSN:2395 0056

Volume: 09 Issue: 06 | June 2022 www.irjet.net p ISSN:2395 0072

Gas Leakage Detection, Prediction & Alert System Using Raspberry Pi & Cloud Computing

5

Abstract Gas leakage is a common problem in various places, including residential properties, industries, manufacturing facilities, and gas stations. For example, LPG (Liquified Petroleum Gas) is a highly combustible gas which can lead to building fire, suffocation or an explosion. Methane explosions, which occur when a buildup of methane gas, a by product of coal, comes into touch with a heat source, are highly prevalent in coal mines. This can lead to coal mine fire and severe life damage. One of the preventive methods to stop this kind of dangerous accidents associated with gas leakage is to install gas leakage detection systems at vulnerable places. The aim of this IoT project is to build a model that can automatically detect, alert and minimize the chances of calamity. The gas sensor which is used in the model detects any type of gas leakage. Once the sensor detects any leakage, it will send the data to the raspberry pi from there it will be uploaded to the cloud. On cloud the sensor data will be analyzed to determine the severity of the situation and actions will be performed accordingly. If the situation is detected as low (no leakage) no action is performed and the device continuously collects the sensor data. If the situation is detected as high (Leakage), then all the concerned persons are notified via MQTT dashboard app, buzzer will go off and the relay is turned on to perform preventive operations. Our model also predicts the air quality index of the surrounding based on the sensor data using Machine Learning algorithm. With the help of this model, we are able to achieve our aim and we are able to reduce the damage as much as possible.

1. INTRODUCTION

There are many different types of gases that play a vital role in human life, and some of these gases are odourless and colourless, therefore they are not detectable by human senses. The majority of people lack sufficient

***

knowledge of how to handle gas-powered products,

making gas detection challenging in real life. Gas leaking causesseriousaccidentsineverydaylife.

LPG is the most common gas used in households and industries.LPGconsistsofgasseslikepropaneandbutane. Thesegasesarehighlycombustible.LPGgasisalsousedas propellant,fuelandasarefrigerant.Whentheleakoccurs, it may cause an explosion. The death rate due to LPG gas leakage and their explosion has increased. Therefore, the leakage should be controlled to protect people from danger.

InpastaccidentsliketheBhopalgastragedyonDecember 1984 more than 3000 people were killed when methyl isocyanate was leaked out. Andhra Pradesh's Nagaram The line became rusted in June 2014, resulting in a gas leak, a blast at the Gas Authority of India Limited's plant, and the deaths of 29 persons. So, to protect people from this hazardous disaster we need to upgrade the technologies.

Sensors are crucial part in our model. There are various types ofgassensors suchas MQ2,MQ5 whichareused to detectdifferenttypesofgasinthesurrounding.

Ourproposedmethodologyisutilizedtoidentifygasleaks andsendoutalertmessagestothosewhoneedtoknow.It canalsobeusedtodeterminehowmuchgasispresentin theenvironmentandcommunicatethatinformationtothe user. This system sounds an alarm when a gas level exceeds a preset threshold and also performs preventive maintenance.

2. RELATED WORK

[1] Subramanian M Athish developed a model to detect gas leakage with push notification feature. The system using a lighter that releases a gas we want to detect and for this he is using MQ5 sensor. As the gas is leaked the

International Research Journal of Engineering and Technology (IRJET) e ISSN:2395 0056

Volume: 09 Issue: 06 | June 2022 www.irjet.net p ISSN:2395 0072

Buzzerlightisturnedonandnotificationfrompushbullet issendtotheuser.

[2] According to the author of this paper, LPG is commonly used as a fuel in homes, companies, and automobiles. The United States Bureau of Mines investigatedgasin1910,initiallydevelopedbyDr.Walter Snelling, to see if there was any explanation why it dispersed so quickly, and discovered that the vanishing gaseswerepropane,butane,andotherlighthydrocarbons. BothLPGandgaseouspetrolarenaturalfriendlyandmay be easily distinguished. These gases are usually stored in pressured steel chambers in a fluid frame, where they dissolveatnormaltemperatures.LPGisheavierasaresult of the air correlation; it flows down the floor and settles into cosy depression regions, making it difficult to disperse.

[3] According to Chaitali Bagwe, GSM is an extension of theinternetnotion.GSMreferstotheuseoftheinternetto connect multiple physical devices. Sensors are wired together in a physical device. The data collected was sent across the internet from one device to another. Using the GSMprinciple,theauthorcreatedanovelgasalertsystem

[4] Rohan Chandra Pandey used the internet to create a new method for gas notifications. This system was designed to detect harmful levels of LPG gas and send an alarm to the user. This system displays the value on the LCDpanel.Thebuzzergoesoffwhenthegaslevelreaches thethresholdvalue,andtheARMboardsendsanemail to theuserviatheinternet.

[5] Gas leakage and gas sensing, according to Anandhakrishnan S, is a difficult issue in today's world. Themajorityofthegasesareverycombustible.Thegoalof this planned method was to prevent unwelcome kitchen difficulties. This technology was primarily used to detect gas levels and send individuals SMS alert messages. Gas wastage in the home and industry was also tracked using infraredsensors.

3. MOTIVATION AND PROBLEM STATEMENT

Gas leaks cause a variety of consequences, including financial loss and human life. The environment has a critical impact in human health issues in everyday life. Fire,suffocation,andexplosionrisksarealldeterminedby physical attributes like as flammability and toxicity. The number of people killed by gas cylinder explosions has beenrisinginrecentyears.

These are some of the model's specific problem statements:

• Gas leaks have a variety of consequences, including financiallossesaswellashumanlife.

• Inhaling leaked gas in an inside space, like your home mayendupinanexceedinglylackofoxygenwithintheair andcausehypoxia.

•Leakedfossilfuelmostlymethanemaybeapowerfulgas. it's a big contributor to global climate change and also contribute into smog which causes asthma and other respiratoryproblems.

4. OBJECTIVES

1 Tobuildaprototypethatcandetectthegasleakageand measure the humidity and temperature which will be uploadedonthecloudforcloudcomputation.

2 To determine the level of gas leakage and alert the concerned person depending upon the gas leakage via MQTTDashboard.

3. To perform preventive operations and to predict the upcoming gas leakage based on previous data using MachineLearningAlgorithm.

5. TOOLS USED

International Research Journal of Engineering and Technology (IRJET) e ISSN:2395 0056

Volume: 09 Issue: 06 | June 2022 www.irjet.net p ISSN:2395 0072

6. BLOCK DIAGRAM

Thisisthemethodologyweusedinourmodel:

1. First the system is turned on and the gas sensor start readingthegasconcentration

2.Systemthendetermineifthegasleakageisthereornot.

3. If the gas is not leaking then it continues to read the data.

4.Ifthegasisleakingthenitdeterminestheseverityofthe gasleakage.

5. If the severity is of high level system will start the buzzer and alert the concerned person and start the preventiveoperation.

6. Air quality is also predicted with the help of data on cloudserverandpredictionmodelandisdisplayedonthe MQTTdashboardapp.

7.Itwillkeeponreadingthedatausinggassensor.

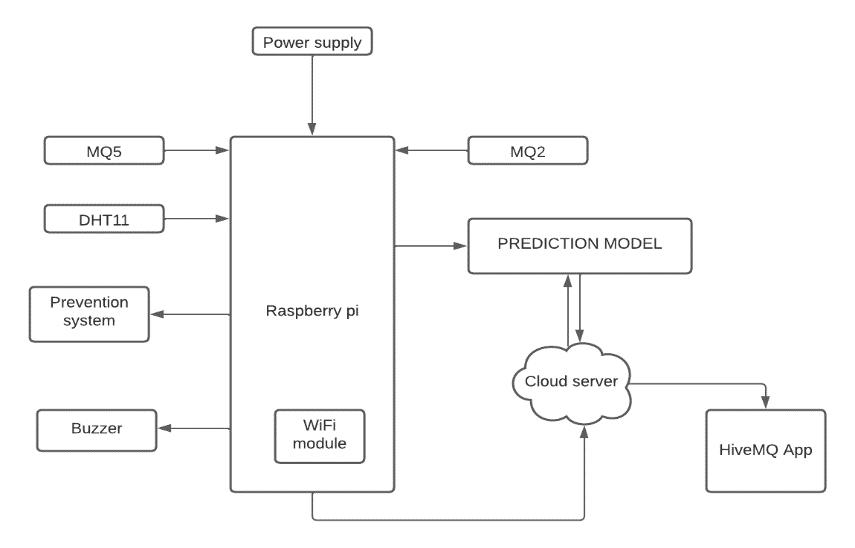

Fig 1:Block diagramoftheproposedmethodology

7. METHODOLOGY

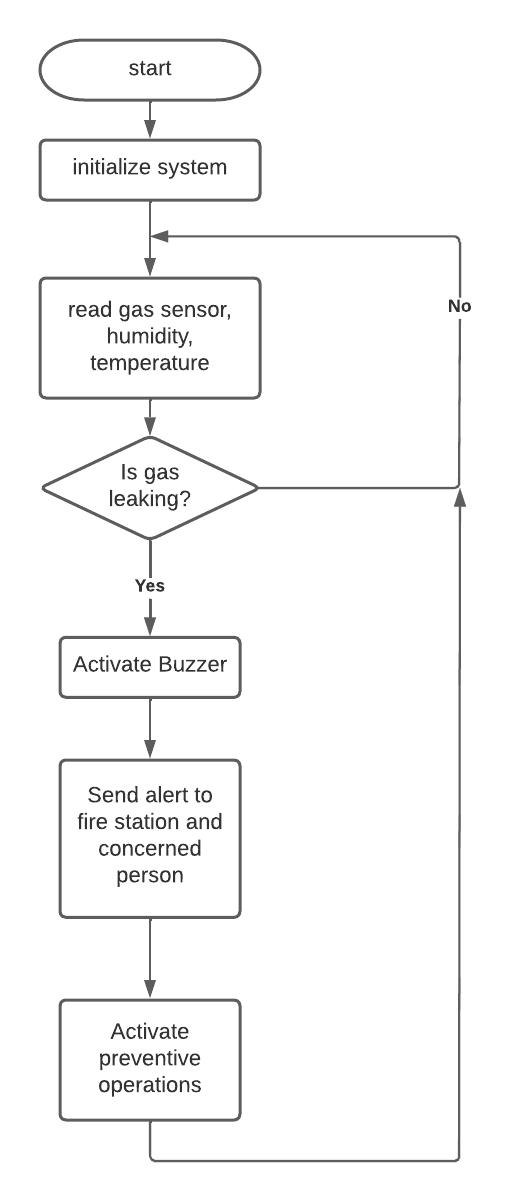

Fig 2:Flow chartofthemodel

8. RESULTS

WhenGasLeakageisnotpresent:

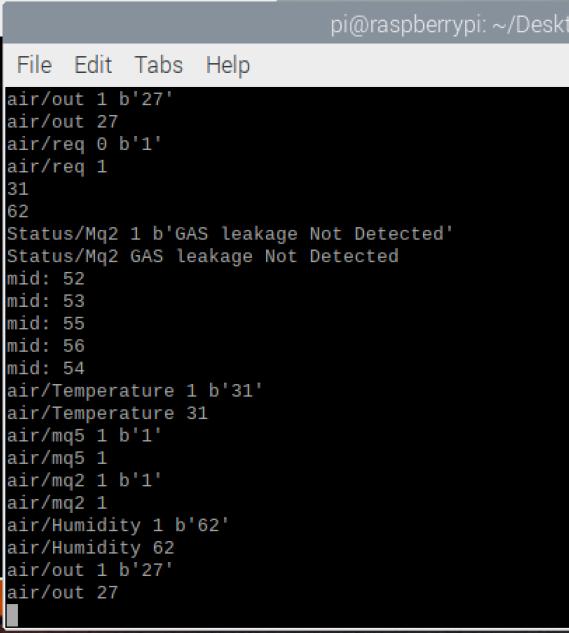

Fig 3:RealTimeData

International Research Journal of Engineering and Technology (IRJET) e ISSN:2395 0056

International Research Journal of Engineering and Technology (IRJET) e ISSN:2395 0056

Volume: 09 Issue: 06 | June 2022 www.irjet.net p ISSN:2395 0072

System using IoT with integrated notifications using Pushbullet 359 362. doi:10.1109/ICISC47916.2020.9171093

[2] Mallik, Avijit, et al. "IoT Utilized Gas Leakage Monitoring System with Adaptive Controls Applicable to Dual Fuel Powered Naval Vessels/Ships: Development & Implementation." Cybernetics and Information Technologies20.1(2020):138 155.

[3] ChaitaliBagwe,VidyaGhadi,VinayshriNaikandNeha Kunte, 2018, “GSM Based Gas Leakage Detection System with Database Logging, Prediction and Smart Alerting” Review IOSR Journal of Engineering , ISSN: 2278 8719, Vol.1,pp25 28.

[4] RohanChandra Pandey,Manish VermLumeshKumar Sahu(2017),“InternetofThings(GSM)BasedGasLeakage Monitoring and Alerting System with MQ 2 Sensor “, International Journal of Engineering Development and Research,Vol.No,2,|ISSN:2321 9939,pp2135 2137.

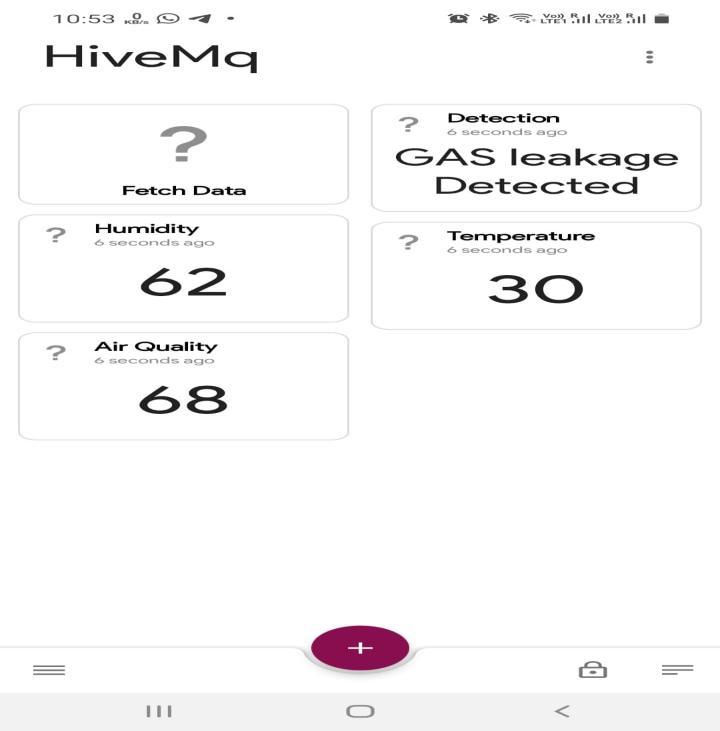

Fig 8:MQTTDashboard(GasLeakage present)

9. CONCLUSION

Intermsofsafety,theproposedgasleakagedetectorlooks promising. During the development of this prototype, the goalwastocreatearevolutioninthefieldofsafetyagainst the leaking of hazardous and toxic gas in order to reduce and thereby eliminate any significant or minor hazard caused by gas leakage. The proposed method demonstrates how a gas leak can be detected and the harm caused by it controlled. Once a gas leak has been identified by the sensor, an alert has been sent to the appropriate person, who will takeappropriate preventive action. One of the most important benefit is that the data can be accessed from anywhere around the globe. The model isverymuchreliableandsecureasMQTTprotocol is being used for communication between raspberry pi board and user i.e MQTT dashboard mobile application. Relay has been added in the model to perform different preventive operations as per requirement such as switchingontheventilationfan.

10. REFERENCES

[1] Subramanian, M Athish; Selvam, Naveen; Rajkumar; Mahalakshmi, Ramprabhakar, (2020). [IEEE 2020 Fourth International Conference on Inventive Systems and Control (ICISC) Coimbatore, India (2020.1.8 2020.1.10)]

2020 Fourth International Conference on Inventive Systems and Control (ICISC) Gas Leakage Detection

[5] Anandhakrishnan S,DeepeshNair,RakeshK, Sampath K,GayathriSNair,2017,“GSMBasedSmartGasMonitoring System”, org National Conference on "Emerging Research Trends in Electrical, Electronics & Instrumentation, ISSN: 2320 3331,pp.82 87
