Smart Trolley in Mega Mall Using Zigbee

Pradip R. Jadhav1, Rohit Y. Patil2, Kishor S. Shinde3 , A. A. Patil4

1, 2, 3 B Tech Student, ATS’s College of Engineering & Technology, Miraj. 4Assistant Professor, Department of Electrical Engineering ***

Abstract Shopping is a need of people that covers different fields from vegetable and grocery to clothing. The statistics of the minor and major shopping malls comes over the years throughout the world due to the request of the community. Thus, this leads to rise in the level and structure of a shopping mall. In our country, there is still an ample need for upgrading the facilities for providing the worthiest shopping experience to customers. Customers frequently deal with difficulties and problems while shopping. These problems also contain worrying trends about the total amount of money, waiting in the queue at the billing counter for the bill which heads to the wastage of unnecessary time. For resolving the problems stated above different methods are developed. Examples of these various existing methods such as barcode technology, where the price is stored in barcode and RFID technology are implemented for smart shopping. Radio Frequency Identification (RFID) reader helps to scan through the tagand display the product number and price with total billing amount on LCD display. Zigbee serves as a transmitter and receiver. All the components are interfaced with central PC which has database of a particular product. The goal of this task is to improve the speed of shopping. Hence, this system provides time efficient, cost effective, reliable, andeco friendly solution for shopping.

Key Words: Smart Shopping, RFID tag, RFID reader, Zigbee, LCD display, Central PC.

1. INTRODUCTION

Peoplehavealistofitemswhichtheywanttobuy. The moving ahead in technology changes the way of shoppingoverthelasttenyears.Theownersofmalls and mega malls are working to improve the facilities for customerstomakesurethecustomersarehappywiththe shopping experienceandat thesametime factors such as providingthecustomerneedsandtomeettheexpectedsales growth and profit are also believed. The first thing is to eliminatethewaitingtimetakenforbillingtheitemsandin addition to this people prefer to have a then and there checkingoftheincreasingcount,rateofeachandeveryitem thatisaddedintothesmarttrolley.Thecustomerspreferto haveshortlookofamountandpriceleveltomakepurchase decisions. Anyways, increase in capital cost and accuracy when the shopping trolley if full with items are the major badresultofthissmarttrolleysystem.

Microcontrollerbaseddesignhasboughtthestatus ofmosthappeningfieldinelectronics.Thisisveryspecial

field that has the power of combining different things together so they work as a one unit as the thousands of transistors on a single silicon chip. Recently in mall for buying relatedvarietyofitemsitneedstrolley.Everytime customer has to pull the trolley from rack to rack for collecting items and at the same time customer has to do calculation of those item and need to compare it with his budgetinpocket.

Afterthisprocedure,customerhastowaitinqueue forbilling.So,toavoidheadachelikepullingtrolley,waiting inbillingqueue,thinkingaboutbudget,weareintroducing new concept that is “SMART TROLLEY IN MEGA MALL USINGZIGBEE”.

Whenthecustomerswanttopurchaseitemsthen customerhastoholdtheRFtagsideoftheproductwrapper in front of RF Reader. Then corresponding data regarding productwillbedisplayedondisplay.Byusingthistrolley, customercanbuylargenumberofproductsinverylesstime withlesseffort.Atthebillingcounter,computer(centralPC) canbeeasilyinterfacedforverificationandbillprintout.

2. LITERATURE SURVEY

1] “Implementation of Smart Trolley System in Malls”, International Journal for Research in Applied Science & EngineeringTechnology

Thispapersuggestsimplementinga smarttrolley systembasedonRFIDinordertoreducethebillingtimeby creating two modes Auto and Manual mode. Auto mode guides and moves forward before the customer to find productwhentheyarenewtothesupermarketandinthe Manualmodecustomershavetodragthetrolley.Inaddition tothis,thesmarttrolleyiscapableidentifyingtheproduct withthehelpofRFIDreader,addsorreducesanddisplays itscountandproductpriceandcalculationsoffinalpriceof purchased product to the cashier or server with trolley number for cash settlement using wireless transmission reducingthewastageoftimeinthequeue.

2] “RFID Based Smart Shopping Trolley with IR Sensor”, International Journal of ScientificResearch in Scienceand Technology.

ThistrolleysystemusedRFIDtagsonproductsthat onewantstobuy,whicharereadbybarcodescannerand thecostisdisplayedonLCDscreenattachedtothesystem.

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056

Volume: 09 Issue: 06 | Jun 2022 www.irjet.net p ISSN: 2395 0072

Ascustomerbuythenextproductitspriceaddedwiththe previous amount. The cost of the product is given to the microcontroller by using Zigbee communication from the host PC. Zigbee supports a bidirectional communication betweenhostPCandmicrocontroller.Customergetdirect billatthebillingsectionwhichisalreadystoredathostPC whichultimatelyreducesqueue.

3]“AdvancementofshoppingcartforSupermarket”,IEEE.

Thispaperproposedmicrocontroller basedsmart shoppinghandcartforsupermarketstomaketheshopping experience very convenient for customers. This work can potentially reduce the human efforts and manpower requirementatthebillingdesk.RFIDreaderhelpstoscan through the tag and display product information on LCD screen.Zigbeeservesasthetransceiver.Allthecomponents areinterfacedwithmicrocontrollerwhichhasdatabaseof the particular product in its memory. So, whenever tag is swipedthemicrocontrollerchecksthedatabaseanddisplays thedetailsoftheproduct.Atthefinalstage,thelistofdetails of the products is maintained and convenient payment solutionisprovidedwhenshoppingisfinished.

4]“SmartTrolleyShoppingSystem”,International Journal forResearchinAppliedScience&EngineeringTechnology.

ThispaperproposestheuseofRFIDtagstoidentify eachproductandtoeliminatetheproblemoflongwaiting lines.ThemicrocontrollerwillreadtheRFIDinputwillthen search for the RFID tags number in the computer file and returntheproductsprice.TheproposedsystemusesanLCD displaytoaddjustthetotalamountwhichwillbedisplayed on the display. However, no more information about the productcanbeviewedusingthisproposedsystem.Also,itis not possible to use RFID tags on every item specially the cheaper ones. So, this proposed system will be good for storeshavingonlyexpensiveitems,butforputtingintousea smartshoppingexperienceinmallshavingcheaperproducts also,thissystemneedstobechanged.

3. SYSTEM DESIGN AND DEVELOPMENT BLOCK DIAGRAM

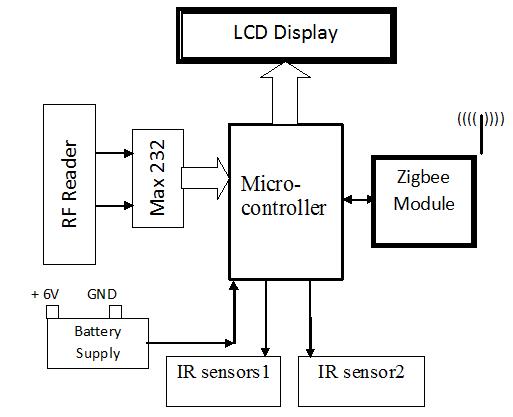

Figure: Block Diagram of Trolley Side

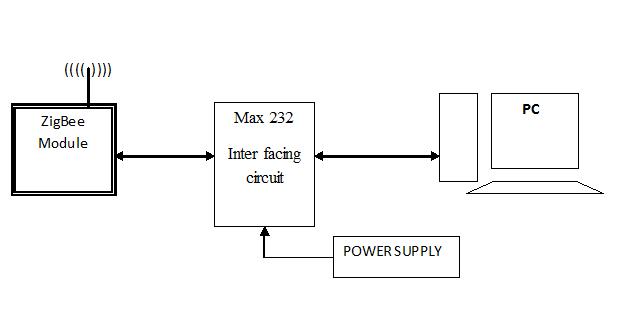

Figure: Block Diagram of Central PC Side HARDWARE MODULES

1) MICROCONTROLLER AT59S52:

TheAT59S52microcontrollerisalowvoltage,high performance,powerfulCMOS8 bitmicrocomputer,whichis highlyflexibleandprovidescosteffectivesolutiontomany embeddedcontrolapplicationsbycombininganadaptable 8 bit control processing unit with a flash on a monolithic chip.Atmel’shighdensitynonvolatilememorytechnologyis usedinmanufacturingthisdevice.AT59S52microcontroller is designed with static logic for operation down to 0 frequencyanditwillsupport2softwareselectableenergy savingmodes.WhileallowingtheRAM,Serialport,counter ortimerandinterruptsystemtocontinuefunctioning,the idlemodestopsCPU.

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056

Volume: 09 Issue: 06 | Jun 2022 www.irjet.net p ISSN: 2395 0072

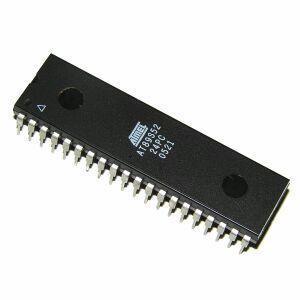

Figure: Microcontroller AT59S52

2) VOLTAGE REGULATOR:

Voltage regulator are used for good regulation, stabilizationandtemperatureindependentofloadvoltage. IC voltage regulators are compact in size, light in weight, cheaper in cost, provided with inbuilt protection ciecuits.Voltage sources in a circuit may have fluctuations resultinginnotgivingfixedoutputvoltage.Voltageregulator ICmaintainstheoutputvoltageataconstantvalue.IC7805 provides+5voltsregulatedpowersupplywithprovisionsto addheatsinkaswell.

Figure: LCD Display

4) POWER SUPPLY:

The system requires 5 V power supply for the properfunctioningforthatpurposewedesignedthepower supplywhichhascircuitryasshowninfigure.

The input ac voltage, typically 220V RMS, is connected to a transformer, which steps that ac voltage downtothelevelofthe9Vdcoutput.Adioderectifierthen providesafullwaverectifiedvoltagethatisinitiallyfiltered by a simple capacitor filter to provide a dc voltage. This resulting dc voltage usually has some ripple or ac voltage variation. A regulator circuit removes the ripple and also remainsthesamedcvalueeveniftheinputdcvoltagevaries. This voltage regulation is usually obtained using voltage regulatorICunits.

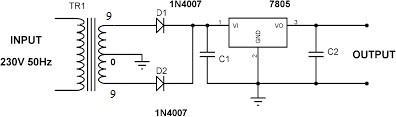

Figure: Power supply

Figure: IC LM7805 Voltage regulator

3) LCD :

LCDinterfacedwiththeport 0(D0 D7)thatisfrompin number32topinnumber39.Inotherwords,thedata bus D0 D7isconnectedtoport 0ofIC89S52.PinRSisdirectly connected to Pin11 of controller and one more another importantPinEN(LCDEnable)isdirectlyconnectedtoPin 14ofcontroller.OnotherhandPinR/WofLCDisconnected toground.TheLCDinterfacingisdonehere forindicating variousdisplaymessagefortheuser.

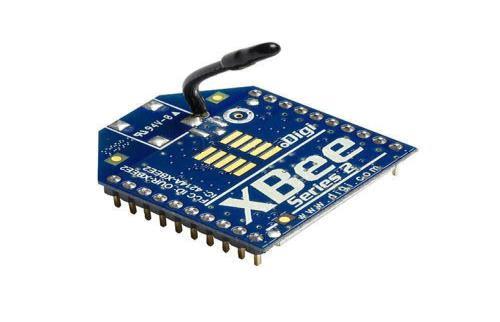

5) ZIGBEE:

ZigbeeisanIEEE802.15.4 basedspecificationfora suiteofhigh levelcommunicationprotocolsusedtocreate personalareanetworkwithsmall,low powerdigitalradios. Itisawirelessnetworkcommunicationtool.Here,weuse ZigbeeasatransceiverintrolleysideandcentralPCside.

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056

Volume: 09 Issue: 06 | Jun 2022 www.irjet.net p ISSN: 2395 0072

6) IR SENSORS:

IRSensorworksbyusingaspecificlightsensorto detect a light wavelength in the Infra Red (IR) spectrum. Whenanobjectisclosetothesensor,thelightfromtheLED bounces off from the object and into the light sensor, and thatcanbedetectedusinga threshold.IR Sensorincludes photodiode and IR LED that play the role of receiver and transmitterrespectively.

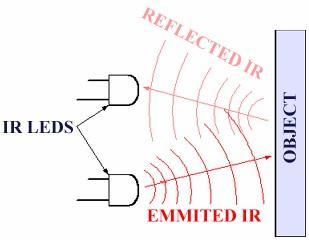

Figure: IR Sensor

7) RFID MODULE:

The RFID reader used in proposed system is EM18 is shown on figure. When a customer puts product in the trolley the RFID reader scans the product and details regardingtheproductprizedisplayonLCDscreen.

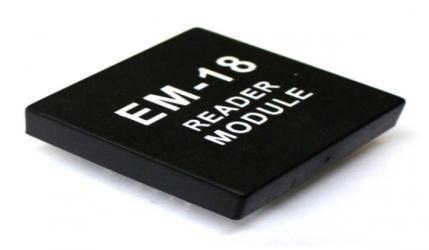

Figure: RFID reader module EM18

8) RFID TAG:

AnRFIDtagisamicrochipcombinedwithanantennain acompactpackage.Thepackagingisstructuredtoallowthe RFIDtagtobeattachedtoanobjecttobetracked.RFIDtags areverysmall.TheRFIDtagisattachedtoaproduct.

SOFTWARE

Keil uVision5 EmbeddedinCprogramming. 

Proteus Designsystem. 

Visual Basic 6.0 Server side or Central PC side Programming.

4. IMPLEMENTATION RESULTS AND DISCUSSION

Followingfiguresshowtheresultsofoursystem.As inoursystem,whenthecustomerwantstopurchaseanitem then customer has held the RF tag side of the product wrapperinfrontofRFreader.Thenthecorrespondingdata regardingproductdisplayonscreen.

Figure 1 shows the LCD display in smart trolley having the customer taking one product. Then the correspondingpriceofproduct,totalbillofthetrolleyand numberofproductsareaddedintrolleyareshowninLCD screen.

(P Price of product, T Total bill, Q Total number of productsaddedintrolley)

Figure 1

Figure2showsLCDDisplayinsmarttrolleyhaving the customer take second product. And individual second product price, total bill and number of products in smart trolleyareshowninLCDdisplay.

Figure 2

Similarly, Figure 3 and figure 4 shows the correspondingdatarelatedtocorrespondingproduct3and 4 as per price, total bill and number of products in smart trolley.

Figure: RFID Tag

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056

Volume: 09 Issue: 06 | Jun 2022 www.irjet.net p ISSN: 2395 0072

Fromfigure1to6,itisclearthatthecustomercantake decisionwhethertotaketheproductreremovetheproduct aspertotalbilldisplayedonscreen.So,theprocesstimewill saveinoursystemsothiswillprovethesystemhasfaster. And in display shows the total bill socustomers only give printofbillandpaythebilleasily.

Figure 3

5. ADVANTAGES AND APPLICATIONS

ADVANTAGES:

RFtaggivestotalinformationaboutproductrelated data.

RFtagmaintainssecrecy.

Figure 4

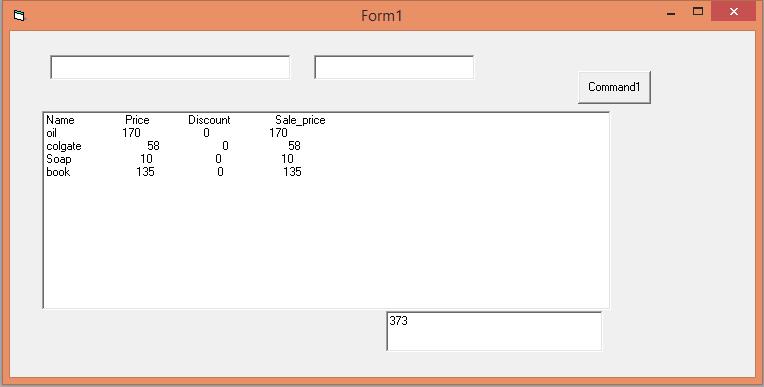

Infigure4, weseethe total bill ofthesmarttrolleyis 373Rs.Therefore,thebillinCentralPCsideisalsoshownin figure5.

Ifthecustomer has not enoughmoney forpaying the bill, then the customer has choice to remove any products from the smart trolley. Figure 6 shows the LCD displayinsmarttrolleyhavingbillof3productsbecausewe haveremovedoneproductinsmarttrolley.So,thebillcan easilypay.

Userinteractivesystem.

Quickershoppingandsavingmuchtime.

ImprovedshoppingExperience.

APPLICATIONS:

Wirelessdataloggersystem.

Billingsystem.

Supermarket.

6. CONCLUSION AND FUTURE SCOPE

As in our system the customer can take decision whethertotakealltheproductorremovesomeproductas perthetotalbilldisplayedonthescreen.So,theprocesstime will be saved in our system so, this will prove the faster system.Andtherushatthebillingcounterwillbereduced due to this system. In the system we can also add billing process.So,afteraddingthebillingprocessthiswillbethe much faster system and this will prove best and faster systemaswehavegoingtodevelop.

Allthebillinginformationinmicrocontrollercanbesend to central computer using Zigbee technology. Trolley handlingcanbeaddedusingGPSsystemorremote.

ACKNOWLEDGMENT

Figure 5

Figure 6

ThisresearchwassupportedbyATS’scollegeofengineering &technology.WearethankfultoourguideMs.Aishwarya PatilMamwhoprovidedexpertisethatgreatlyassistedthe research.

REFERENCES

[1] Karthikeyan, R. Ramya, P. Soundharya and A. V. S. Sudharsanji,“Implementationofsmarttrolleysystemin malls”, May 2020, International Research Journal of EngineeringandTechnology(IRJET)

International Research Journal of Engineering and Technology (IRJET) e ISSN: 2395 0056

[2] SubhanvaliShaik, Mohammad Jabirullah, Anish Kumar Vishwakarma and RakeshRanjan, “Advancement of shoppingcartforSupermarket”2020,IEEE.

[3] Ankit Anil Agarwal, Sourabh Kumar Sultania, Gourav Jaiswal and Prateek Jain on “RFID Based Automatic ShoppingCart”inControlTheoryandInformatics;ISSN 2224 5774(print)ISSN2225=0492(online),Vol.1,No.1, 2011.

[4] SarmadAliandMahreenRiaz,“SmartTrolley”,August 2015,ResearchDOI:10.13140/RG.2.2.2230.2567.

[5] Udita Gangwal, Sanchita Roy, Jyotsna Bapat, Smart Shopping Cart for Automated Billing Purpose Using WirelessSensorNetworks,ICCMIT7026.

[6] MainiE,SheltarJ,“WirelessIntelligentBillingTrolleyfor Malls”, International Journal of Scientific Engineering andTechnology,2014Sep;3(9):1175 78.

[7] J. Thangakumar, S. Sainath, K. Surender, V. VikramArvind,“AutomatedShoppingTrolleyforSuper Market Billing System”, International Journal of Computer Applications (0975 8887) International Conference on Communication, Computing and InformationTechnology(ICCCMIT 2014).
