An Execution of Building Information Modelling for Factories and Warehouse Projects Construction in by IRJET Journal

An Execution of Building Information Modelling for Factories and Warehouse Projects Construction in India – ETO India

Mr. Manoj Bhimalli1, Prof. A. N. Bhirud2 , Prof.Dr. N.V. Khadake3

PG Student, M.E. CM, Dept of Civil Engineering, JSPM’s Imperial College Of Engineering & Research Wagholi, Pune 1

Assistant Professor, M.E. CM, Dept of Civil Engineering, JSPM’s Imperial College Of Engineering & Research Wagholi, Pune 2 , Professor & HOD, Dept of Civil Engineering, JSPM’s Imperial College Of Engineering & Research Wagholi, Pune 3

Abstract Building information modelling is one of the most promising breakthroughs in the architectural, engineering, and construction (AEC) business (BIM). BIM technology generates a precise digital depiction of a building. When completed, the computer generated model will have exact geometry and vital data to aid in the design, manufacture, and procurement of the structure. Many of the functions necessary to model a building's lifetime are also accommodated by BIM, setting the framework for new construction capabilities as well as changes in project team duties and interactions. BIM, when utilised properly, enables a more collaborative and errorless design and construction process, resulting in higher quality buildings at lower costs and shorter project schedules. This chapter begins with an examination of existing building procedures and the inefficiencies they involve. It then describes the technology underpinning BIM as well as how to properly employ the new business processes it provides throughout the lifespan of a building. It concludes with a review of the many challenges that may develop throughout the transition to BIM technology.

Keyword: Building Information Modeling, Revit, AEC Industry, BIM, Digital Modeling, Digital Construction, VDC, AugmentedReality.

1. INTRODUCTION

A key issue throughout the building process is a lack of coordination across varied professional backgrounds among construction stakeholders and other relevant parties. Rapid technology improvements, along with severe rivalry in the construction market for improved services,havesparkeda fundamental shifttowardtheuse of new approaches in the building sector. BIM creates a machine readable digital representation of Industrial shadedatatoimprovedesign,construction,andoperation processes, as well as to improve Industrial shade lifecycle functions. Despite technological developments, industry adoption of BIM remains limited due to the risks and

obstacles involved with this transition. Sustainable constructiondevelopmentisaworldwideissue.

Various concepts and methods to environmental challenges have been created over the last decades, including green Industrial shade certification (GBC) and Industrialshadeinformationmodelling(BIM).

However, in order to drive more innovation and optimize the process, an integrated approach is essential. Green Industrialshadeaccreditationencouragestheuseofgreen Industrial shade concepts. This new initiative intends to enhance the purchase of environmentally friendly industrialshadesorinfrastructure.

1.1. BIM in construction industry

BIM helps owners improve Industrial shade performance, decreasefinancial risks,shortenprojecttimelines,acquire reliable and precise cost estimates, verify programme compliance, and optimize facility administration and maintenance. BIM increases Industrial shade design, analysis, simulation, and checking from the standpoint of an architect, and so offers a foundation for developing a better conceptual design, consistent construction documentation, and integration and communication among disciplines. BIM applications for contractors include constructability analysis and conflict detection, quantity take off and cost estimation, construction planning and controlling, offsite fabrication, and streamlinedhandoverandcommissioning.

1.2 Clash Detection

Clashdetectionisthebasicneedofeverymultidisciplinary projectinwhichacompositedesignmustbeevaluatedfor conflicts. Clash Detection is a way of evaluating and recognizing numerous interferences that usually occur throughout the coordinating process of 3D models developedinvariouscurrentsoftwareapplicationssuchas Revit Architectural, Revit Structural, and Revit MEP. 3D

----------------------------------------------------------------------*** ----------------------------------------------------------------------

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

models for various sorts such as structural, civil, and architectural&MEPareusedinBIM(Mechanical,Electrical andPlumbing).Whenallofthesedifferenttypesofmodels are combined to create a complete BIM model, there is a chance that these elements will clash; in clash detection test,itdetectstheclashesormismatchesbetweendifferent elements within 3D Industrial shade Information Model before actual construction begins, and thus time optimization in the construction schedule, cost reduction, and change orders. Increase the efficiency of design and construction projects by employing collision detection applicationsintheAECsector.

1.3 Need of Clash Detection

Organizationspreparefortheexecutionstagebyarranging contracts with contractors, purchasing supplies, guaranteeing proper coordination and assembly order of the various systems of a project. When the contractor receives the design drawings and everyone is on site and working, the most disputes are discovered. It compares two dimensional designs to detect conflict disputes betweenspecialistdesigns.Becausespecialtycontributors, such as structural engineers and MEP engineers, draught their ideas separately, it is easy to spot incompatibilities when comparing these designs on distinct drawings. Contractors must ensure that structural elements, plumbing, electrical lines, and other components are properly detailed. If one of these clashes results in a change order, the consequences include project delays, designchanges,materialcosts,andbudgetoverruns.Using BIM and the Clash Detection program, possible problems to discovered in design or initial phases of engineering in the design process and rectified with more effective methodsbeforeconstructionbegins.

2. OBJECTIVES

Revit Architecture software was used to generate a 3D model of the apartment's architecture for this project. RevitStructuresoftwarewasusedtodesignthestructural detailsforthisIndustrial shade,whileRevitMEPsoftware was used to create the MEP (Mechanical, Electrical, and Plumbing)services.AndMicrosoftProjecthadhandledthe schedule (MSP). The architectural, structural, and service models were integrated into Navisworks software to discover conflicts between disciplines. The conflicts were foundandhandled,andthe3DBIMmodelwasupdatedto reflect these resolutions. Finally, quantity analysis was performed on this model before and after collision detection

[1] To create a Analyze Accuracy in Budget Planning alongwith4D&5DdepictionoftheIndustrialproject construction

[2] To Reduce rework by implementing adequate coordination,whichresultsincostandtimesavings.

[3] Toprovidea standardizedandstreamlinedapproach fortheconflictdetectionprocess.

3. LITERATURE SURVEY

“An Implementation of Building Information Modelling for Industrial Projects Construction in India – ETO India”: IJIRSET, Volume 11, Issue 2, February 2022 Mr. ManojBhimalli,Prof.A.N.Bhirud

One of the most promising advances in the architectural, engineering, and construction (AEC) industry is building information modelling (BIM). BIM innovation makes a carefullymadecorrectvirtualrepresentationofabuilding. When wrapped up, the computer generated demonstrate willincorporateexactgeometryandcriticalinformationto assist the building's development, fabricating, and obtainment exercises. BIM moreover obliges numerous of the assignments required to show a building's lifecycle, layingthebaseworkformoderndevelopmentcapabilities aswellaschangesinextendgroupdutiesandconnections. When utilized accurately, BIM permits for a more coordinates plan and development handle, coming about in higher quality buildings at costs viable and shorter extend timelines. This chapter opens with a dialog of currentdevelopmentforms,aswellasthewastefulaspects thatthesehonesinvolve.Itatthatpointgoesontoportray the innovation fundamental BIM as well as how to successfully take utilize of the modern commerce forms it offers all through a building's entire lifecycle. It wraps up with a dialog of the various issues which will emerge whereastransitioningtoBIMinnovation.

A review of tertiary BIM education for advanced engineering communication with visualization: Badrinath, Amarnath Chegu, Yun‐Tsui Chang, and Shang‐HsienHsieh.

Presently a day, the engineering, designing and development with an operation (AECO) industry is persuaded to utilize graduates taught approximately Building Data Modeling (BIM) instruments, procedures, and forms, which offer assistance them to superior collaborative visuals and information and data into their ventures. In line with today’s AECO industry necessities and government venture prerequisites, all inclusive dynamic BIM specialists and analysts are planning BIM

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

educating workflow and syllabus, educational program and courses. These educationalists and analysts are moreover creating arrangements to the impediments confronted amid integration of BIM instruction into mainlandinstructionframeworks(TESs).Bethatasitmay, BIManalystshavetakenfewendeavorsasoflatetosupply a diagram of the level of BIM instruction over the world through audit and investigation of the most recent distributions related with BIM instruction in TESs. Consequently,thispondersendeavorstofillthiscreviceby giving an audit of the endeavors of around the world dynamic instructors and specialists and analysts to teach AECO understudies approximately BIM within the setting ofprogressedinnovativeinstructionwithvisualization.

A Preliminary Study on BIM Enabled Design Warning Analysis in T3A Terminal of Chongqing Jiangbei International Airport: AmarnathCheguBadrinath1,Yun Tsui Chang2 , Emerson Lin3 , Shang Hsien Hsieh4 & Bin Zhao5

Integrated design collaboration is one of the important focus areas in the design phase of an Architecture, Building, engineering development & Operation (AECO) venture life cycle. Jumbled or no connect disciplinary checks may cause development mistakes, revamps, fabric wastage, extra alter orders, time, taken a toll overwhelms and so on. Subsequently, it is crucial to diminish the plan noticesandimprovetheplanconveyancehandleinsidethe AECO extend life cycle. As of late, Building Data Modeling (BIM) is considered as the one of a kind and alluring apparatus, procedure and handle for progressing the plan conveyance prepare by worldwide AECO industry. AnalystswithinthepasthaveendeavoredBIMempowered plan caution investigation but less consideration was drawntowardsproactiverectifymodelingmethods,i.e.on how to re use the collected information for lessening the plan coordination issues in up and coming plans. In this investigate, we attempted a preparatory ponder on BIM empowered plan blunders investigation. This think about center on theBIM utilizationinside the T3Aterminal plan improvement and integration handle (Development timeline: 2012 2016) to move forward the T3B terminal plan conveyance handle (development time: 2016 20). Yieldfromthisconsidercanbeutilizedforhelpingtheplan groups, i.e. 2D CAD & BIM groups related with Chongqing Jiangbei Worldwide Airplane terminal venture, to make stridestheirefficiencyandtheirorganizationalBIMusage.

BIM IMPLEMENTATION IN DESIGN FIRMS. RISK RESPONSE STRATEGIES TO SUPPORT CHANGE MANAGEMENT

41St IAHS WORLD CONGRESS, Sustainability and Innovation for the Future 16th September 2016Albufeira, Algarve,Portugal

Thispaperpresentsainquireaboutextendwhichisbeing carried out at Politecnico di Milano approximately the subject of BIM usage in plan firms. The in general development industry is confronting a transformation approximatelyinnovation&informationandsystemsetup administration.BuildingDataDisplaying(BIM)isboththe innovation and strategy obtaining this alter. Indeed, in spite of the fact that benefits inferred from an sufficient information and handle administration by utilizing BIM are profoundly recognized and the innovation is quickly developing, the pace of BIM selection within the Italian settingisstillmoderate.Thealterprepareincludesvarious challenges and many risks components, interrelated to obstructions to overcome, got to be overseen: 1) Administrative: adjust and onetime obtainment and PLM; 2) Social/cultural: Challenge in appropriation of unused innovationandtallrateofLittleandMediumUndertakings (SMEs); 3) Specialized: ineffectual synchronization among the distinctive program; 4) Organization: need of government back as well as national benchmarks and rules; 5) Prudent: tall venture prerequisites. Until presently, numerous inquire about endeavors have been concentratedonbenefits,hencehandleyields,determining from BIM Usage instep, small intrigued has been set in mapping BIM inputs. The inquire about extend points to fill up this crevice by overseeing BIM execution in plan firms through the advancement of risk response methodologies. This investigate venture, which is still progressing,isbeingconductedintwostages.Theprimary one in which the conventional plan handle has been broken down in phases and exercises, distinguishing, for eachofthem,yieldsandincludedpartners.

RESEARCH ON BUILDING INFORMATION MODEL (BIM) TECHNOLOGY

: TianqiYang1*andLihuiLiao

In this paper we may take a logical definition of the BIM; portrays the BIM six most successful and specialized characteristics;pointedoutthepithofBIMinnovation;the paperputsforwardninedevelopBIMinnovationstandard BIM innovation; portrays the improvement apparatuses and execution achievability of the specialized course of other innovation integration and advancement; to appear the development of BIM life cycle administration procedures and strategies based on two measurements; from subjective and quantitative BIM innovation and

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 09 Issue: 05 | May 2022 www.irjet.net p-ISSN: 2395-0072

vitality utilization examination instruments are illustrations of advantageous combination; to center consideration on the focal points of BIM innovation, cleverly green and feasible plan issues; expansion of related innovation for direction and dialog; at last, the applicationprospectofBIM innovationinChinaDesigning hone is talked about. At display, from the by and large point of view, improvement and application of building data show (BIM) innovation begins late in our nation, developmentstrategies,thescaleisn'tidealize,framework and innovation arrangement, laws and directions frameworkhashowevertobesetup;localizationofsingle key specialized saves and coordinates specialized framework of building a body of inquire about and applicationarerequiredtoadvanceextend,theconceptof BIM plan needs encourage direction, Bim and mechanical participation and trade at domestic and overseas to be in full swing, the popularization and application of BIM Technology, still ought to reinforce the purposeful publicity,energeticallybolster,effectivelyadvance.Istand within the enormous information, cloud computing data unused time and cleverly society cusp, bear BIM Innovationdispersal,enablersverifiablemission.

4. PROBLEM STATEMENT

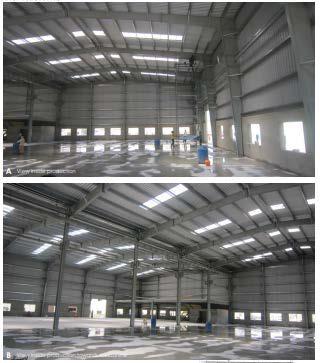

To determine the applications and benefits of BIM, the industrial shade, at Dodballapur industrial area in north Bangalore shed project was chosen. Having mezzanine floorforofficeusage,and1shedhas2partswithdifferent temperature one is ambient, and one is 18 degrees centigrade. The facility getting used for automobile parts manufacturing for German automobile company. Building has planned and constructed with using 3d model and Constructiondocumentationwasextractedfrom3dmodel and other details regarding the construction project are providedbelow. 4.1

5. RESEARCH METHODOLOGY

The BIM strategy looks for to coordinated forms and experts included in designing assignments by working on stages with facilitated and brilliantly 3D virtual models. BIM has incredible potential for basic building companies (SEC)andtacklestheirmoststrikingissues.

Basically, in BIM implementation project phases are similar like Initiation, Planning, Execution, Monitoring & controlling, Closure for Engineering development. Afterall this engineering process we use that model for different BIMuses. Below mentioned work flow followed from start to end of thisProject.

DATA

1. Name

2. Location

3. GMAP – Lat:

4. Industrial shade Type: Industrialshade 5. Number of Stories:

6. Number of Phases

COLLECTION

of Construction Company: FSIPL,Pune.

of the Project: KAIDB, Dodballapur, Banglore

Long: 13.260774977662916, 77.5644935979936

PEBwithUtilityArea.

Name of the Project Head: Mr. Aniruddha Kshirsagar 8. Created Project Charter Scope of Project, Baseline Schedule, Communication Matrix, Conceptual Project development plan. Existing SiteCondition,Possibleriskassessment.

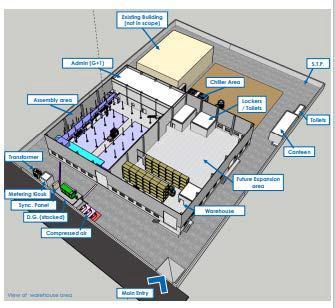

Software Usage Sketchup,Revit,Navisworks, MSProject,MSOffice,BIM360. Fig 1 FSIPL, Pune

–

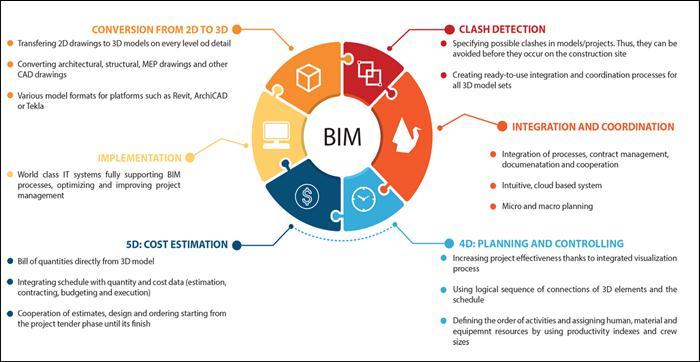

1. Creationof2Dand3D(Conceptual&BIM)

ClashDetection

Integration&Coordination

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 09 Issue: 05 | May 2022 www.irjet.net p-ISSN: 2395-0072

Building Data Modeling is the source of computerized changewithintheAECindustry.ThemethodofBIMusage empowers real time collaboration and plan modifications for minimizing superfluous issues among the partners. Excelize encourages Engineering, Building and

6. ANALYSIS

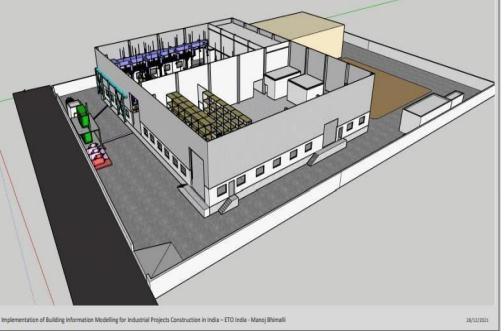

BIM has an excellent visualization tool. It represented the Industrial shade in three dimensions (3D). The construction manager will give renderings, walkthroughs, estimating, and sequencing of the model during the Industrial shadephaseoftheprojecttobetter expressthe notion of BIM in 3D perspective. Visualization improves comprehension of the finished output of Industrial shadow. It detracts from the process of pulling together several standard 2D views to produce the intricacies of a 3D image. One of the most fundamental applications of BIM is the use of 3D modelling to produce a depiction of the structure. The designs are made in three dimensions, whichaddsperspectiveofIndustrialshadowtothepicture as well as the ability to exhibit numerous viewpoints and angles. When compared to two dimensional graphics, this delivers greater clarity and ease of use. BIM software generates3Dmodels,albeittheLODineachmodelvaries.

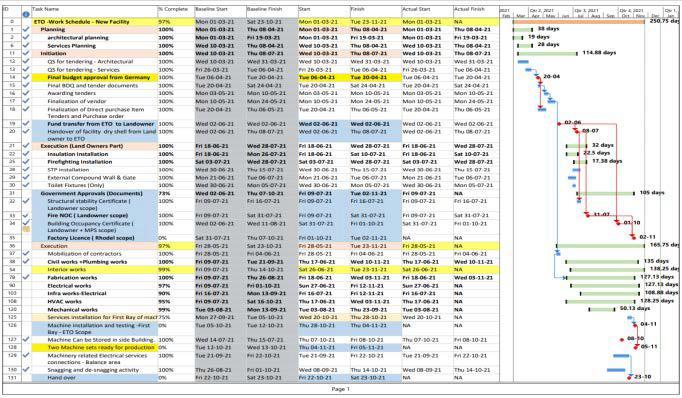

© 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008Certified Journal | Page3375 4. 4DPlanning&controlling 5. 5DCostEstimation 6. Implementation for different BIM uses (ConstructionUsage) 5.1 Detailed method BIM project for execution

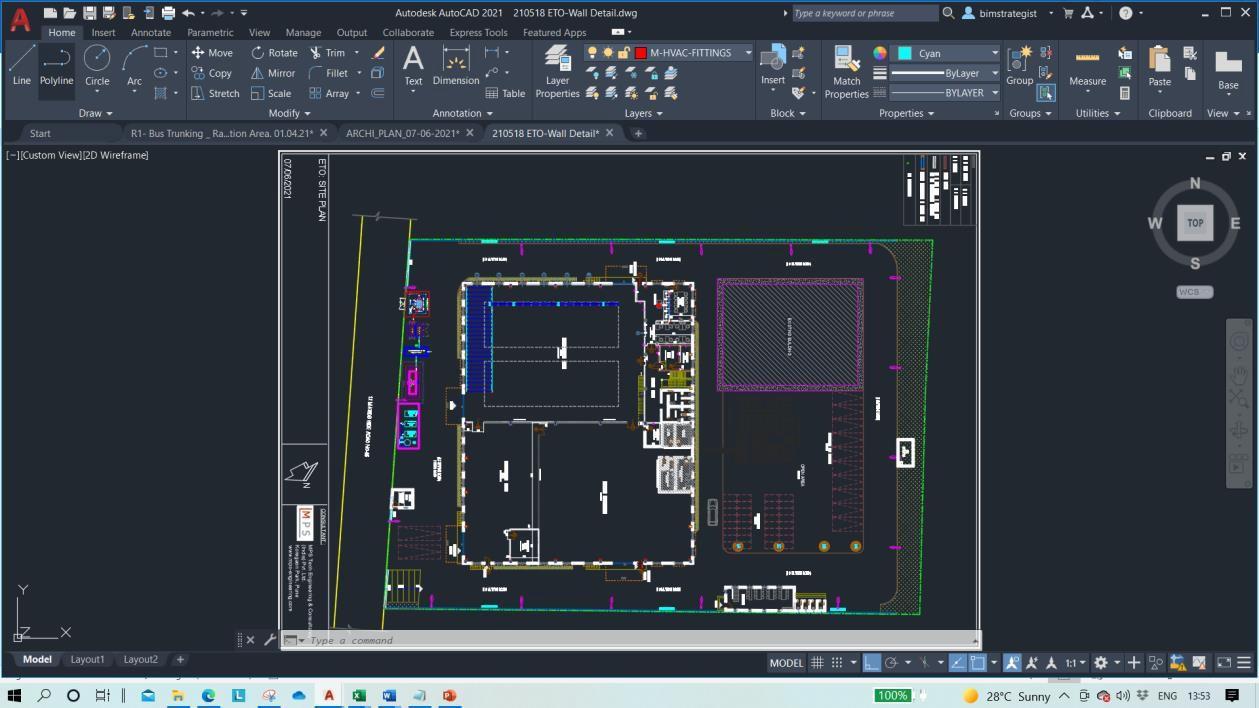

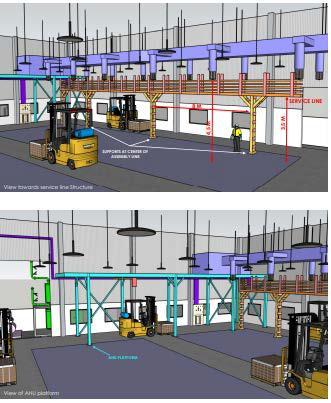

Fig2AutoCADPlan Fig4DetailinginSketchup

2395-0056 Volume: 09 Issue: 05 | May 2022 www.irjet.net p-ISSN: 2395-0072

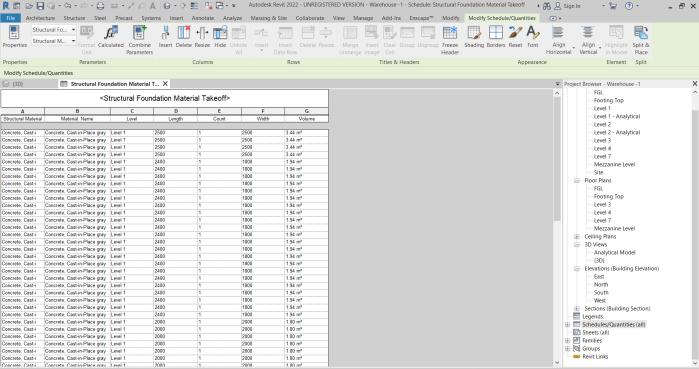

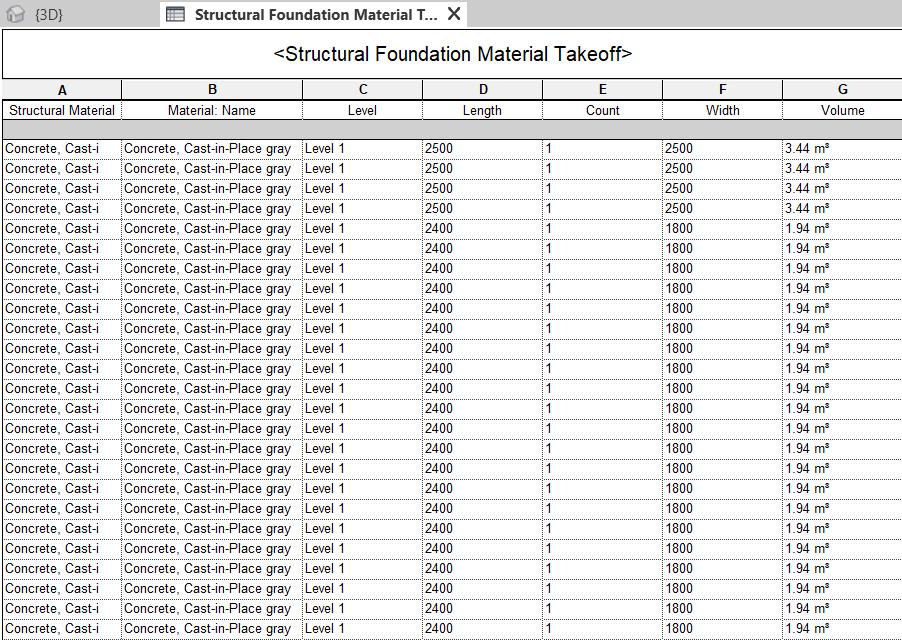

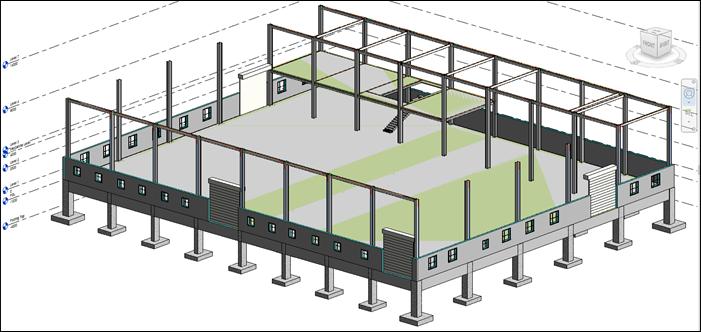

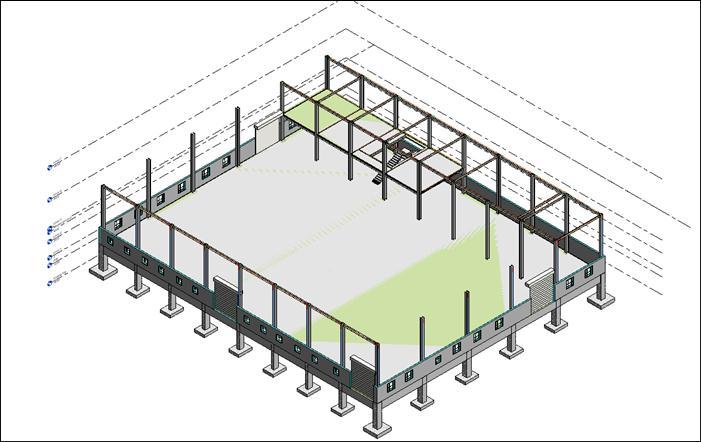

© 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008Certified Journal | Page3376 Fig5DetailinginRevit Fig6DetailinginRevit 6.1 Analysis - ETO Project Baseline Plan Fig6BaselineVSActualTrackinMSProject 6.2 Material Take off

International Research Journal of Engineering and Technology (IRJET) e-ISSN:

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

7. RESULT & DISCUSSION



Cost savings: - Diminish human mistakes that can leadtoextenddelaysaswellasdrearyorre examined documentation. Moreover, we might control the modifications.

communication,tendstoless wastagein development stage since we have advanced show some time recently progressing to begin real development execution.

8. CONCLUSION



More Efficient / Effective Projects Engineering & designing

By utilizing BIM, designers can begin planning the building early, which implies development can moreover take put early. Improved workflow moreover speeds up the method as each group part is working from the same set of models. • For case, an designer might choose to have certain parts of the extend pre assembled in bulk utilizing mechanical autonomy. This permits the development group to simply secure the pieces in put when they arriveonlocationwhichsparesapartoftime.

Improved Communications BIM movesforward communication between all parties included in a venture counting temporary workers, originators, clients, and designers who all play a imperative part within the process. The reason for this is often since BIM depends on a ‘single source of truth’ which implies each piece of data relating to costs, models, and plan notes are put away and available from a central area. This gives everybody with full perceivability of the venture and guarantees they are workingincouple.It’satrueformofcollaborationthat makes a difference to dispose of any miscommunicationsothatall partiescandiscoverthe leadingarrangement.

Faster and Easier Prefabrication and Modular

Especially during building and renovation phases, dynamic updates empower real time insights about a building. If you change X variable in a BIM plan, it updates Y and Z affected systems, to show a true to form model of what those changes look like and what theymeanforfacilitiesaswhole.Thisintuitiveaction reaction relationship cuts down on the guesswork of modifyingfacilities. 

Using collision detection algorithms helps to reduce coordination errors and human errors, resulting in excellent model accuracy. As a consequence, re buildingwillbeavoided. 

Navisworks customers should first set up the components or items that they wish to compare during collision detection under the Batch tab before startingwithaconflicttest. 

Navisworks users may accomplish this by heading to the conflict detective tool and selecting the Batch tab. Oneofthemostimportanttasks forNavisworksusers is to detect and arrange disagreements based on commonalities. 

When AEC professionals in construction are placed together based on their potential to cause barriers, it issimplerforthemtograspthenatureofconflicts. 

Construction

By utilizing BIM computer program, you'll make nitty gritty generation models that can at that point be pre fabricated off location. By planning, enumerating, and building pieces off site in a controlled environment you'll be able progress productivity while diminishing squander, work, and fabric costs. This too spares you and your group important time as these segments can effectively be collected.As well as,modelershave more openingsto plan secluded pieces of engineering that can be fitted together and incorporate complex resistance calculations. This spares temporary workers time and assetsonlocationastheyarenotbuildingpiecesfrom scratch.

Using BIM technology reduced the total cost of the project throughout the building stage by assisting in thesuccessful identification, inspection,andreporting ofaprojectmodel.
