The study reviews the characteristics of ultra high performance fiber reinforced concrete with admixtures. The historical background and workability actions of steel fibres in plain and ultra high performance fiber reinforced concrete (UHPFRC) is investigated in this research. This research improves the strength and workability with help of admixture and steel fiber 1%,2% and 3%. As a result, the next sections offer extensive results from diverse studies on the effects of mineral admixtures and fibre on the behavior of fresh UHPC.

Key Words: Steel fiber, UHPFRC, mineral admixture, workability.

1. INTRODUCTION

Due to unanticipated societal demands, such as high rise buildings,long spanbridges,andhighearthquake resistant concrete constructions, among others, the properties of concrete have been upgraded. Concrete must perform admirablyintermsoffreshness,mechanical strength,and durabilitytosatisfythesedesires.Ultra high performance concrete (UHPC) and ultra high performance fiber reinforced concrete (UHP FRC)/ultra high performance hybridfiber reinforcedconcrete(UHP HFRC)arecurrently being developed to achieve the aforementioned specifications.[1]UHPC has a high compressive strength (more than 150 MPa), tensile strength (greater than 10 MPa), and strong tensile strain hardening and softening behaviour,aswellasalowpermeabilitythatallowsharmful compounds like water and chlorides to pass through. In addition,conventional concreteequipmentcan beused to cast structural parts made of self compacting UHP FRC [2].As a result, UHPC has improved resistance to harsh environmentalconditions,canwithstandlateralloading,and has a long service life. In order to depict the evolution of concretefromitsbeginningtothepresent,theauthorsused aninvertedtriangle,asshowninFigure1.Theintroduction of concrete in a society accelerated infrastructure

development,asindicatedbythelowertipoftheinverted triangle. The researchers were pushed to develop more resilientandlong lastingconcretebecauseofthelimitations of ordinary concrete. The developed concrete had a poor microstructureandhadlimitationsintermsofdurabilityat an early stage. Mineral admixtures (such as fly ash, slag, silica fume, and metakaolin) and chemical admixtures (plasticizers) were used in the concrete to help overcome theselimitationstosome extent.Table1lists examplesof the addition/replacement of several types of mineral admixturesaswellascementcontenttobuildtheUHPC.The useofsmallerparticlesizesinmineraladmixtureswasfound to promote the chemical reaction due to the increased surfacearea,withalowerwater to cementratiopromoting theformationofcalciumsilicatehydrate(C S H)gel,leading tothedevelopmentofhigh strengthconcrete.Concrete,on theotherhand,getsmorebrittleasitsstrengthincreases.

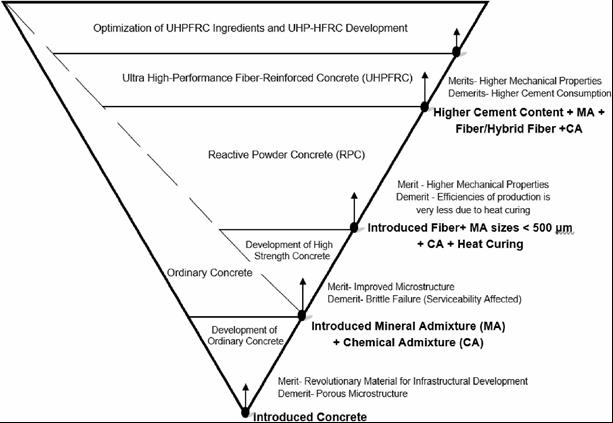

Figure1.Historyofdevelopmentofconcretefromordinary concretetoUHP HFRC[1]

REFERENCE TYPE OFADMIXTURE ADDITIONOF ADMIXTURE CEMENT CONTENTIN REFERENCE (Kg/m3)

[3] Nanosilica Additionby1%,2%, 3%,4%and5wt% ofcement

439.5

[4] Silicafume Additionby25wt% ofcement 788

[5] Nanosilica Additionby1%,2%, 3%,and4wt%of cement

[6] ClassFflyash Replacedby10%, 20%,30%and40% ofcement

[7] ClassFflyash Replacedby20%, 40%,60%and70% ofcement

[8] Ricehuskash Replacedby16.66%, 33.33%,50%, 66.66%,83.33and 100%withsilica fume

[9] Ricehuskash Replacedby16.66%, 33.33%,50%, 66.66%,83.33and 100%withsilica fume

950

657

produced using strict curing regimes (200°C autoclave curingor90°Cthermalcuring)thatresultinlowefficiency and significant energy consumption [17,18]. Ultra high performance concrete (UHPC) is a type of RPC that has a dense matrix microstructure[19],[20],[21],[22] high mechanicalstrength[23 25]andsuperiorworkability.UHPC is also acknowledged as a viable material due to its exceptionalfeatures[26 28].

2.WORKIBILITY OF CONCRETE:

935

920

800

The quality that defines the effort necessary to handle a freshly mixed quantity of concrete with minimal loss of homogeneity(uniformity)isknownasworkability[29].The early ageprocessesofputting,compacting,andcompleting areallincludedinthetermmanipulate[30].Theworkability of concrete is influenced by the addition of finer mineral admixtures and fibres to improve the properties/performance of the concrete. The viscosity of UHPCisgenerallyhigherthanthatofordinaryconcrete[31] The viscous flow of UHPC is due to the radically different designmixcomposition(tightpackingoffinecomponents) compared to standard concrete, the characteristics of the materials, and the exceptionally low water to binder ratio.Furthermore, the mechanical and durability characteristicsofUHPCaregovernedbyitsperformancein the fresh state [31]. As a result, the next sections offer extensive results from diverse studies on the effects of mineral admixtures and fibre on the behaviour of fresh UHPC[32,33]

2.1 Effects of the usage of mineral admixtures:

Steel fiber reinforced concrete, slurry infiltrated concrete (SIFCON),densesilicaparticle(DSP)concrete,andmacro defect free(MDF)concrete/pastewerealldevelopedinthe 1980stoimproveconcretequalities.Steelfibreconcreteand SIFCON were introduced in studies by Hoff [10]and Lankard[11]. Following that, numerous studies were conductedtoincreasethestrengthandfailurebehaviourof concrete and to transition it from high strength concrete (HSC) to high performance concrete (HPC) (HPC). The introduction of dense silica particle (DSP) concrete and macro defect free (MDF) concrete/paste [12,13] Compressive strengths of DSP and MDF paste/concrete range from 120 to 270 MPa and greater than 200 MPa, respectively. Furthermore, in the 1990s, a technological breakthrough was made with the creation of reactive powderconcrete(RPC),whichhasacompressivestrengthof more than 200 MPa.and perhaps up to 800 MPa, with 40 kJ/m2 fracture energy [13 15]. Ordinary Portland cement (OPC),silicafume(SF),veryfinegranulometryaggregates, sand with an average grain diameter of 250 m, crushed quartz(averagegraindiameterof10m),andmetallicfibre make up the RPC composition [16]. RPC is typically

Researchershavetriedavarietyofadditivestoimprovethe performanceofconcreteandproduceUHPC,includingnano silica(NS),RHA,ultra finepalmoilfuelash(UPOFA),SF,MK, andfibres,amongothers.InthegreenstageofUHPC,NSand RHAinconcreteabsorbasubstantialamountofwaterdueto theirhighersurfacearea.Asaresult,theamountoflubricant wateravailableisreduced.Asaresult,UHPC'sworkability (slump flow values) has decreased significantly [26,34] commentedonthepotentialofredmud(RM)forUHPCina recent study. A modified Andreasen & Andersen (MAA) modelisusedtocreatetheUHPCmixdesign.Atthetimeof replacement,thecementcontentwasreplacedwithRMthere arethreestages(20percent,40percent,and60percent). InthecontrolUHPCmix,amaximumslumpflowof260mm was achieved. The integration of RM, on the other hand, reduces workability by 49.23 percent, 57.69 percent, and 59.62percent,respectively,atRMmixlevelsof20percent, 40percent,and60percent.

Figure.2SilicafumeandFlyash

TheeffectsofaddingUPOFAontheworkabilityofultra high strengthconcrete(UHSC)havealsobeeninvestigatedinthe hunt for a suitable mineral admixture to increase the workabilityofUHPC.Ithasbeenreportedthatincorporating UPOFAintoUHPCincreasesitsusability.BecauseUPOFAhas alowerspecificgravity,theincreasedbinderpastevolume obtained at a higher replacement percentage improves concrete workability. Furthermore, because UPOFA has a largersurfacearea,increasingthereplacementpercentage raises the viscosity of the UHPC. [35]UPOFA covers aggregate particles and fills gaps between aggregate particles effect. The workability of fresh concrete is improvedwhenSFisusedinsteadofcement.Thiscouldbe becauseSFcontainsfinesphericalparticlesthatfunctionas lubricants.Whenmorethan20%ofthecementisreplaced by SF, however, the workability drops considerably [36]. Amanjean et al.[36] investigated the effects of mineral admixtureparticlemorphologies(SFandMK)onthefresh characteristicsofUHPC.Theauthorsfoundthattheregular, round shape of silica fume influences the slump more favourablythantheirregularkindandplateletformofMK. Inaddition,theviscosityoftheplasticdoesnotdramatically increaseduringthetest.Theelongated,angular,andplatelet typesofmetakaolinmightresultinagreaterviscosityvalue; also, the presence of fibres boosts the mix's structuration capability.[37]Kim et al.In comparison to the usual UHPC mix, binary states of industrial by products (GGBFS and REOS)boostflowby45.6percent,accordingtotheauthor. The synergistic effect was found to be more beneficial to improveworkability.

Asaresult,itcanbeinferredthattheworkabilityofUHPCis mostly determined by physical properties, SCM material addition/replacement %, mono or dual type SCM particle use.SCMsmodifytheflowbehaviourofUHPCbychanging theviscosityandyieldstressoffreshconcrete.SCMsthatare responsibleforlimitingworkabilitylimittheuseofUHPCto structuresthatrequireahigherworkabilityofthemix,such astunnelsandsuper high risebuildings[38]

2.2 Effects of the usage of fiber:

Oneormoretypesoffibre,aswellasmineraladmixtures, areaddedtothetraditionalconstituentsofconcreteduring the UHP FRC/UHP HFRC manufacturing process. The workabilityofUHP FRCandUHP HFRCisinfluencedbythe fibregeometry,surfacearea,volumepercentage,andform

[39 41]. In the fresh stage of UHPC, the addition of fibres reducestherelativedroopandincreasestheaircontent.The detrimental impacts of adding fibres to UHPC can be mitigatedbyloweringthecementcontentandusingproper particle packing. The addition of steel fibres reduces the workability of UHP-FRC by increasing the cohesive force between the paste and the fibres [41]. A better understanding of steel fibre cohesion and distribution.Knowledgeoftherheologicalcharacteristicsof UHPCisrequiredinthematrix.Theinfluenceofultra-highperformancemortarrheologyfeaturesonfibredistribution wasinvestigatedbyWangetal.[39].Whencomparedtothe viscosity of the fresh mix, the yield stress is the crucial rheologicalparameterforauniformdistributionoffibreand depth.In a mix withhighyieldstress and plasticviscosity, fibre dispersion becomes difficult, whereas too low yield stress and plastic viscosity might result in significant segregation during the casting process. As a result, the authorrecommendedayieldstressrangeof900 1000Pa, 700 900 Pa, and 400 800 Pa for UHPC mixtures with 1 percent, 2 percent, and 3 percent fibre volume fractions, respectively.

The workability of UHP-HFRC can be determined using a factordubbedthe'fibrefactor,'accordingtoKwonetal.[42]. Theequationf=Vflf/dfcanbeusedtocalculatethe'fibre factor,'whereVfisthevolumeoffibre,fisthefibrefactor,lf isthefibrelength,anddfisthefibrediameter.Straightfibres (S)andhookedfibres(H)eachgettheirownfvalue,whichis summedtogether.Table6showsthefibrefactorrangefor UHPCdevelopment.Withanupperlimitof'fibrefactor'in therangeof2 2.5,theresultsindicatethatasthefibrefactor grows,theslumpofUHP-FRCdecreases.References[43,44] made a similar observation. Micro-steel fibre at 2% by volume in UHPC is the best dosage for consistent fibre distribution,accordingtoMengandKhayat[45].Whenthe optimal small V-funnel flow time of suspended mortar is utilised,i.e.,462s,equaltotheoptimalplasticviscosity(53 3s), a uniform fibre dispersion is ensured. Furthermore, Ferrara et al. [46], Kang and Kim [47]discovered that the typeoffreshUHPCinsertioninthemould,ratherthanthe casting technique used, has a substantial impact on fibre distributionuniformity.FreshUHPCisplacedfromoneedge ofthemouldandlettoflowtotheotherendinalongitudinal direction, demonstrating a more advantageous fibre orientationforachievingthedesiredresulttheReferences [48,49]madeasimilarobservation.

3. CONCLUSIONS

ThispaperexhaustivelyreviewedtheworkabilityofUHPFRC withsteelfiber.Becauseofwritingreview,afewsignificant discoverieswereacquired,andtheaccompanyingendscould bedrawnfromtheaboveconversations.

The viscosity of the matrix is raised and a rapid loss of workabilityisobservedinUHPCduetothesmallerparticle sizeandhighersuperplasticizerconcentration,whichlimits

theuseofUHPCinpracticalapplications[50].Whenfibreis addedtothematrix,thislossofworkabilitybecomesscary. Due to the absence of high workability necessary for structuressuchastunnelsandsuper high risebuildings,a stiff mix of UHPC/UHP FRC and UHP HFRC restricts the usage of this material. More advanced rheology studies demonstratethattheviscosityyieldstress,ratherthanthe viscosityofUHPC,isabetterreflectionoffreshbehaviour.
