EXERCISE ORIENTED SMARTBAND IN HEALTH AND FITNESS

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 09 Issue: 12 | Dec 2022 www.irjet.net p-ISSN: 2395-0072

EXERCISE ORIENTED SMARTBAND IN HEALTH AND FITNESS

Prof. Ajay Talale1

DepartmentofElectronicsand Telecommunication

VishwakarmaInstituteofTechnology Pune,India

Sakshi Jaiswal2

DepartmentofElectronicsand Telecommunication

VishwakarmaInstituteofTechnology Pune,India

Kaustubh Chavan2 DepartmentofElectronicsand Telecommunication

VishwakarmaInstituteofTechnology Pune,India

Suraj Mane2

DepartmentofElectronicsand Telecommunication

VishwakarmaInstituteofTechnology Pune,India

***

Abstract - Exercise helps us to lose weight and lowertherisk of some diseases. Physical exercise is important for maintaining weight, regulating the digestive system,building, and maintaining healthy bone density, muscle strength etc. Pushups are the most fundamental exercise type. Here to maintain ourselves in shape, pushups are the best motion exercise that require specific technique to avoid major injury. The smart band will support general exercise development for the same reason. The band "BE FIT SMART BAND" is a brand new, cutting edge, precise and user-friendly smart band that enables the user to exercise properly and to daily track their progress. In addition to measuring the user's BPM, this band forces them to perform pushups and pullups properly. The proposed system upholds accuracy and superior product. Future fitness tools are being provided via fundamental innovation.

Key Words: Pushes, Health, Exercise,Technology,SoC-System on Chip, Innovation, Smart band.

I. INTRODUCTION

Figure1FitnessBand

Thefast-transferringera,allowthegreatsmartwatches holdatpacewithyou. Smartwatchesarerighthere,whether you want to exercise or relaxation. Smartwatches are preparedwithacoupleofenergeticsportsactivitiesmodes, likebiking,workout,walking,takingwalks,mountaineering, and others making staying match smooth. Not simply bodilyhealth,theidealsmartwatchesadditionallyassistyou maintain a check to your intellectual health with guided

Prapti Duddalwar2

DepartmentofElectronicsand Telecommunication

VishwakarmaInstituteofTechnology Pune,India

Dipali Kadam2

DepartmentofElectronicsand Telecommunication

VishwakarmaInstituteofTechnology Pune,India

meditation.CompanieslikeBoat,Xiomi,Apple,Fitbit,Noise, etc.aresomeoftheleadingmanufacturersoffitnesssmart bands.

These fine of fine clever watches may even help you always live linked with smart notifications for texts, calls, reminders, and alarms. Experience faraway track and cameracontroloutofyourhealthwatch.Withinthefieldof wearables, additionally got here up with the exceptional cleverwatchesforladiesThishealthsmartwatchcomeswith amenstrualcycletrackingfeaturethatallowsyoutoliveon pinnacleofyourperiodscycle,andlogonyourbodilyand emotionalsymptoms.Itsbatteryexistenceofuptotendays willmaintainyoualwaysalertwithsmartnotificationsfrom your smartphone and vibration signals for calls, texts, timetable reminders, alarms, & extra. While other fitness bands emphasize activities that need a lot of heart rate, including walking, jogging, cycling, swimming, etc. The motion warm-up activities that are helpful for muscle growthandhavingcorrecttrainingwithcrispaccuracyare theemphasisofthisproposedsystem.[1]

II. LITERATURE SURVEY

Themarketisfullofmanyfitnessbandsnow.However,a Japanesescientistnamed‘Dr.YoshiroHatano’developedthe first fitness band in 1965. The smart band initially just includedatimerandapedometer,whichtrackedtheuser's steps and computed how many calories were burned. His mainaimsweretoreduceweightandmaintaintrackofhis dailyfitness.Butnow,smartwatcheshavethepotentialto supporthealthineverydaylivingbyenablingself-monitoring of personal activity; obtaining feedback based on activity measures;allowingforin-situsurveystoidentifypatternsof behavior;andsupportingbi-directionalcommunicationwith healthcareprovidersandfamilymembers.However,smart watchesareanemergingtechnologyandresearchwiththese devicesisatanascentstage.[9]Studyingvarioussmartbands and their features, these smart bands work on calorie measurementtechniqueandstepcountwhichhelpstheuser tokeeptrackonhiscalorieburnandfitnessactivity.These

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 09 Issue: 12 | Dec 2022 www.irjet.net p-ISSN: 2395-0072

bands work with couple of sensors like Accelerometer, Optical Heart rate sensor, Gyroscope sensor and have the compatibilityfeaturewhichhelpsthemtoeasilyconnectwith Android and iOS devices of some desired versions using Bluetooth.These

smartwatchescomewithLithiumpolymerbatterywhich makesthemtoperformcontinuouslyupto6-7days.These features are easily available in modern smart bands. But therearesomeextrafeatureslikeCallandSMSnotification, Camera,Memorycardreading,GPS,builtinAIlikeAlexaor Siri(forApplewatchesonly)whicharespecificallyinstalled inhighendsmartbandslikeApplewatchseries7,Fitbitpro, BoatXtendband,NoiseColorfitpro,etc.Thesefeaturesare required for outdoor workout or cardio based exercise activities.[3]

Health and fitness are most fundamental aspects of human life. But due to Covid-19 pandemic and regular stressfullifestylepeopleareignoringtheirpersonalphysical aswellasmentalhealth.Thisiscausingahugeadverseeffect on every individual’s lifestyle. Considering these factors, everyindividualmustexercisetokeephimself/herselffitand healthy.Therearesomebandslike“CoronaWarriorSmart Bands”whichmeasuresthehealthparameterssuchaspulse rate,temperature,andoxygencontentpresentinbloodofthe user.[19]

Somemotionexerciseslikepushupscanbeeasilydoneat homewithoutanyheavyequipment.Butperformingthese kinds of motion exercises requires proper technique and attentionorelseitmightgetyouaseriousinjury.Toavoid this,thereshouldbesometrackertomonitorourexercise. But designing something which would be used in house, whichwouldbecertainexercisebasedandwhichwouldbe pocket friendly for the users. For this, wehave designeda systemwhichwillmaketheusersworkouteasyandfocused basedonproperexercise.Thisbandwillaidtheusertodo his/herPushupsneatlywithoutgettinganyinjuryormuscle pain.

III. PROPOSED SYSTEM

The proposed system presented is an upcoming innovative smart band which helps the user to perform pushupsneatlywithproper techniqueandpreventing the risk of muscle injury to the user. As it is focused to a particularexercise,itperformsonitsfullpotentialwhilethe user exercises. It measures the distance between the user andthegroundandwhenasatisfactorydistanceisachieved itgeneratesacountofpushupsperformed.Also,itmeasures the speed of the user while exercising to maintain a track recordofhis/herexerciseconsistency.Unlikeothersmart bands,itiseasytouse.Itsperformancespeaksmorethanits features.[2]

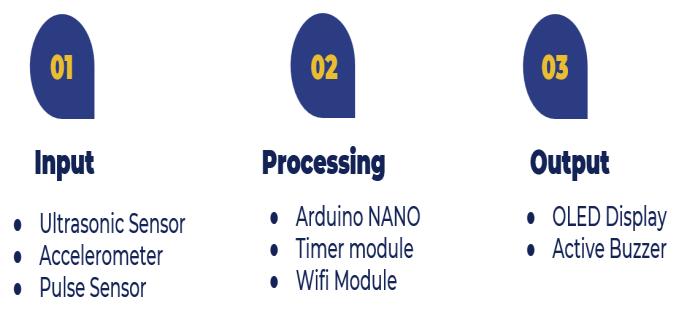

Figure2TechnicalImplementationoftheproposed system

AttheinputstagewehaveusedanUltrasonicsensor,an Accelerometer, and a Pulse Oximeter sensor. At the processingstagewehaveusedanArduinoNanoasourmain microcontrollerboard,atimermodule,andaWi-Fimodule. Attheoutputstage,wehaveinstalledanOLEDdisplayand an active buzzer. We have used Arduino IDE and Things Speaksoftwareplatforms.[2]

A. Input

1. Ultrasonicsensor(HC-SR04)

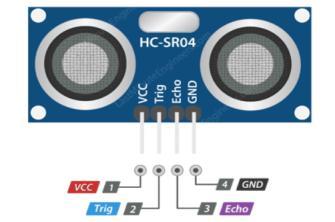

Figure3Ultrasonicsensor

Distance measurement becomes easier using Ultrasonic sensors.Itisusedtomeasurethedistancebetweenbodyand ground. It is tied at the chest level. When the distance betweenbodyandgroundcrosses10cm,itgeneratesacount. [8]

2. Accelerometer(ADXL335)

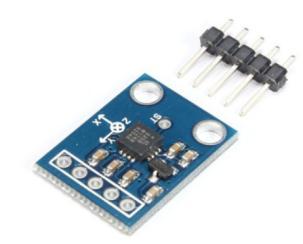

Figure4Accelerometer

Itisusedtomeasurethespeedofthebodyoftheuserwhile exercising.Thisspeedismonitoredtokeepatrackrecordof his/herdailyexerciseperformance.[3]

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 09 Issue: 12 | Dec 2022 www.irjet.net p-ISSN: 2395-0072

3. PulseOximetersensor(MAX30100)

daysoftheweek,dates,months,andyears.Thisisusedto displaytimeanddatetotheuser.Thisincreasesspecificityin keepingthetrackrecordofexerciseactivity.[6]

3. Wi-FiModule(ESP8266)

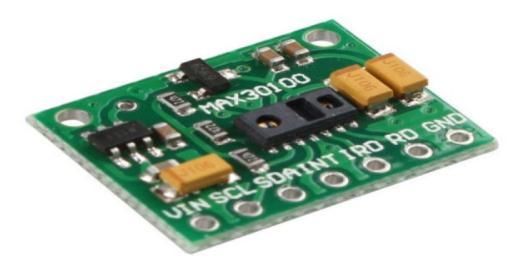

Figure5PulseandOximetersensor

A sensor system with just an embedded pulse oximeter & cardiacmonitorisnamedMAX30100.Itisusedtomeasure pulse rate and oxygen level in the user's body before exercising,duringexercisingandafterexercising.Thisdata helpstheusertokeepaneyeonhishealthaswellastoplan hisexerciseroutine.[21]

B. Processing

1. ArduinoNano(ATMEGA328P)

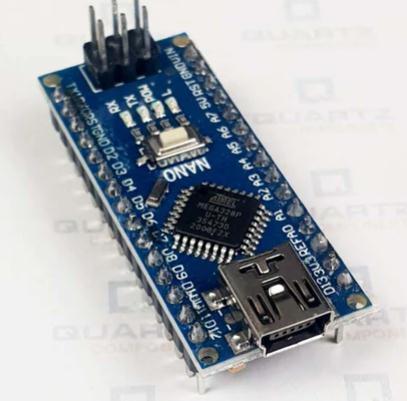

Figure6ArduinoNANO

ArduinoNanoisusedasourmainmicrocontrollerboard.Its miniaturesizemakesiteasyandsuitableformakingcompact andlightweightcircuitdesigns.Theuser-friendlydesignand lightweightfactorswon’tdisturbtheuserwhileperforming his/herexerciseactivity.[9]

2. TimerModule(DS3231)

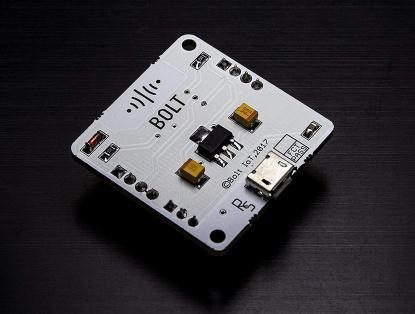

Figure8Wi-Fimodule

UsingtheWi-Fimodule,thesystemprohibitsanythird-party softwaretotransferormaintaindata.[15]

4. Li-Ionbattery(RYX-NX9)

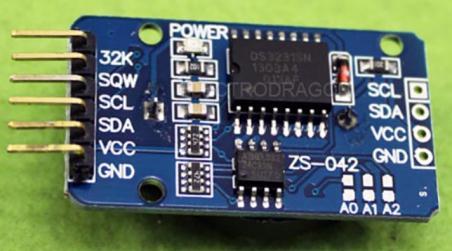

Figure7Timermodule

The DS3231 is an I2C real-time clock with an embedded crystal oscillator and crystal that is low-cost and high precision. RTC keeps a record of seconds, minutes, hours,

Figure9Li-ionrechargeablebattery

Li-ion battery is used as power source for our band. Its 380MAHpowerstorageallowstheBandtooperate6days easily. It is rechargeable in nature, so there’s never a problemofbatteryreplacement.

C. Output

1. OLEDdisplayscreen(SSD1306)

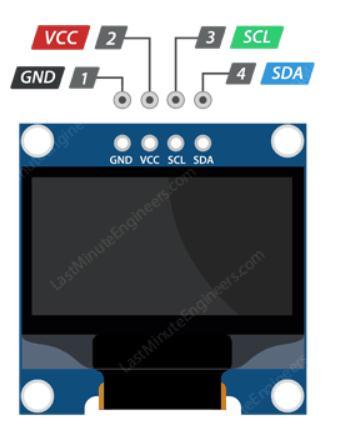

Figure10OLEDdisplayscreen

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 09 Issue: 12 | Dec 2022 www.irjet.net p-ISSN: 2395-0072

Itisoneofthemostattractivedisplaysofamicrocontroller. TheOLEDdisplaywilldisplayexercisecount,pulserateand oxygenleveloftheuser.TheclarityoftheOLEDdisplayis betterthanothers.[1]

2. ActiveBuzzer

Figure11Activebuzzer

Intheproposedsystem,anactivebuzzercanturnitONand OFFtomakevarioussounds.Itindicateswhenapersonhalts for more time while exercising to indicate to him/her to completetheexercisequickly.Aftercompletionofexercise thebuzzerblowscontinuouslyforaminimumof10second. Ifthebuzzerbeeps,itindicatestheusertocompletehis/her setexercise.[2]

IV. METHODOLOGY

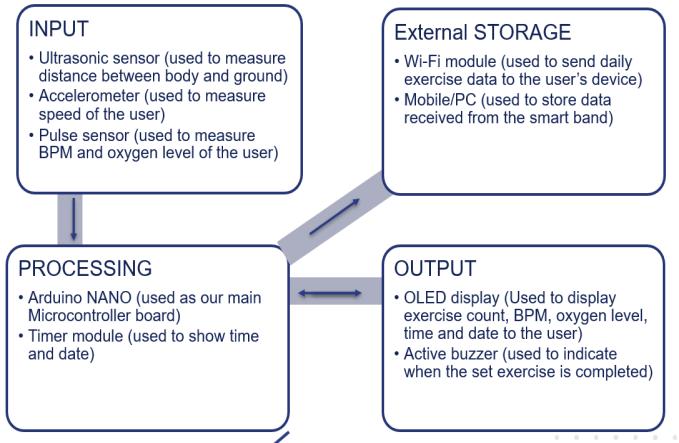

Figure12Workingoftheproposedsystem

Inthissmartband,anUltrasonicsensorisplacedatthe chest level. Also, an accelerometer is placed beside the ultrasonic sensor. The user must set the count of exercise he/shewantstoperformandthenstarttheexercise.Asthe user starts exercising, the ultrasonic sensor measures the distancebetweenbodyandground.Theaccelerometerused measuresthespeedoftheuserwhileexercising.Thepulse oximetersensormeasurestheBPM(BeatsPerMinute)and Oxygen level content present in the user before exercise, duringexerciseandafterexercise.Thishelpstokeepaneye onhis/herhealthandavoidexertion.Allthedatacollected

from the sensors is sent to the microcontroller board for storingandprocessingpurposes.Atimermoduleisalsoused to display Time and Date to the user. If the user halts for morethan20secwhileexercising,there’sabuzzerringing indicatingtheusertodohis/herexercisequickly.Whenthe user completes the set exercise count, buzzer blows indicating that the exercise is completed. Exercise count, BPM, Oxygen level and Time and Date is displayed on the OLEDdisplay.

AWi-Fimoduleisusedtosendtheexercisedatatotheuser’s smartphoneorPC.Thisdatahelpstheusertokeepatrack recordonhis/herexercise.[2][4]

V. CONCLUSION

Table1Comparisontable

Pushups Counter smart band BE FIT SMART BAND

Usesultrasonicsensor for pushups measurement.

Uses accelerometer and Ultrasonic sensor forpushupsmonitoring

UsesMAX30100sensor for BPM and oxygen levelmonitoring. Usessimple16x2LCD display

Uses only pulse sensor for BPM measurement

Uses external power supply

Uses OLED display for clearvisuals. UsesarechargeableLiionbattery.

Comparingsomemoresmartwatcheswiththeproposed systemmodel,showsthattheoperationofthisbandisquite different from other smart bands as it only focuses on a particulartypeofexercise.

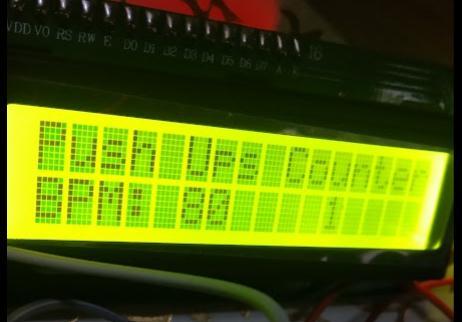

Figure13Outputoftheproposedsystemmodel

Figure13.showstypeofexercisei.e.,Pushups,pulserate (BPM)oftheuserandthecountofpushupsperformedby theuserusingtheproposedsystemmodel.

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 09 Issue: 12 | Dec 2022 www.irjet.net p-ISSN: 2395-0072

Table2Pushupsspeedmonitoring

Mon Tue Wed Thurs Fri Sat

19 18 11 15 18 20 19 19 16 15 18 20

17 19 16 18 20 20 20 20 18 17 16 18 19 20 18 17 19 18 18 20 19 19 18 17

19 18 20 19 18 15

18 19 20 20 15 19 20 18 20 19 14 19

17 18 20 18 15 14

17 18 17 15 16 15 19 20 17 16 17 14 19 20 18 15 16 17 19 17 19 12 17 10

17 15 15 10 17 15 20 18 12 10 20 16 18 11 16 15 20 18 15 16 14 14 12 19 18 18 19 18 16 16

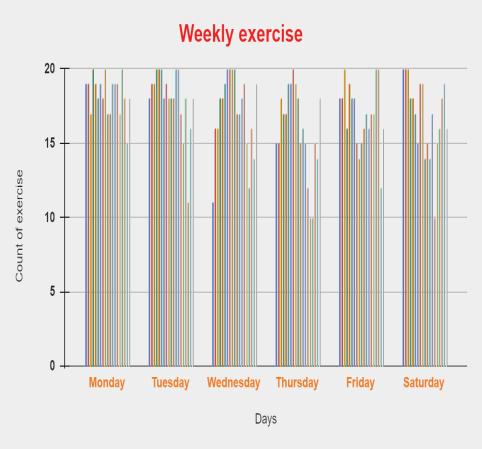

Figure14Weeklyexerciseoutput

Figure14.showtheconsistencyinexercisebytheuser. As the user performs exercise while using the proposed system,theaccelerometerusedinitmeasuresthespeedof user’s body and monitors it. Also, a graph is plotted for virtual representation of consistency in user’s exercise routine.Theusercankeepatrackofexerciseusingsuchdata andcandevelophis/herexerciseroutine.

Table2Workingstatistics

Ultrasonic count

Accelerometer count Actual pushups 10 19 1 10 19 1 10 17 1 10 15 1 10 18 1 10 19 1 10 19 1 10 17 1 10 18 1 10 20 1 0

BEFITSMARTBANDworking statistics

50 1 2 3 4 5 6 7 8 9 10

Ultrasoniccount Accelerometercount

Figure15WorkingstatisticsofBEFITSMARTBAND

Figure 15. shows the statistical analysis of the proposed system. It is seen that while operating this band, it gives precise outputs indicating the accuracy of sensors calibration and performance. Green line indicates Actual pushupsperformedbytheuserwhileusingthisband.The BluelineindicatescountgeneratedbyUltrasonicsensorand the red line shows the speed of the user marked by the Accelerometerused.

Figure16BPMmonitoring

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 09 Issue: 12 | Dec 2022 www.irjet.net p-ISSN: 2395-0072

Figure 16. show the pulse rate i.e., BPM of the user while exercisingandafterexercising.Thisdatahelpstheuserto avoid fatigue and exertion while exercising. This data is purelybasedonsensor’ssensitivityanduser’sheartrateat thetimeofmonitoring.

accurate. But Be Fit smart bands aren't that expensive, anyonecangetit,andpush-upsarecountedaccurately,so the accuracy is 100%. Therefore, the Be Fit smart band is cheaper and quite different compared to the smart bands alreadyimplemented.

TheBeFitSmartBandworkseffectivelyandshowsthe exercise,countofexercise,pulserateandoxygenlevelofthe user on the display screen. This device helps the user to perform his/her exercise and to be in-shape. All the componentsworkeffectivelyandgiveprecisereadings.The tableaboveshowsthereadingsmeasuredbyAccelerometer whileperformingexercise.TheBPMandOxygenleveldatais displayedvirtuallyusingtheThingSpeakplatform.[2][11]

ACKNOWLEDGMENT

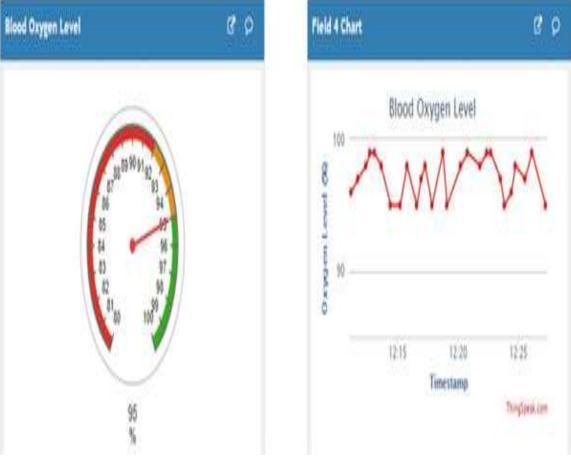

Figure17Oxygenlevelmonitoring

Figure 17showsOxygenlevel in theuser while using this band.Oxygenlevelmonitoringisdonetobestableandavoid exertion. This data is also purely based on sensor’s sensitivityanduser’sheartrateatthetimeofmonitoring.

WewouldliketothankourguideDr.AjayTalalesirandour fellowteammatesformakingthisideatransformintoreality. Wewouldalsoliketothankourparentswhosupportedusin everypossibleway.

References

[1] Abhishek M. Bhandari, Mahammadajir Awati and ShreehariDurg,“DesignandImplementationofAndroid based Wearable Smartband”, vol. IV, BVBCET, 2015, pp.548-550.

[2] Kaustubh Chavan, “Use of Technology in Health and Fitness:"BEFITSMARTBAND",” International Journel of Advance computer and technology, pp.64-68,2021.

[3] Hyun-Seo Hwang and II Young Moon, “Study of Wearable Smart Band for User Motion Recognition System”, vol V, Korean University of Technology and Education,2014,pp.33-44.

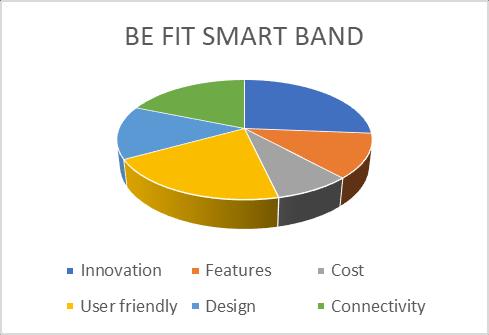

Figure18User'sfeedback

Figure18.showstheactivefeedbackgivenbytheusersafter usingBEFITSMARTBAND.Thepie-chartillustratesusers likeliness’tothefeaturesofthisband.Asthisisaprototype, its features are less compared to other smart bands. But looking to other aspects it is user friendly and pocket friendlytoo.Theuniquedesignandsmartinnovationalso catcheyeoftheuser.[2]

Other smart bands already implemented measure a varietyofthingsthataretheresultofphysicalactivity,such assteps,heartrate,caloriesburned,anddistancetravelled. Butsofar,nobandhasbeenimplementedtocountpush-ups and pull-ups for users wearing Be Fit smart bands. Smart bandsalreadyimplementedareveryexpensive.Ifwedidn't use them, we could have spent your money on something more convenient, and these smart bands aren't 100%

[4] Alessio Carullo, “An Ultrasonic sensor for distance measurement in automotive applications”, vol. I, PolitecnicodiTorino,2001,pp.143-147.

[5] Neramitr Chirakanphaisarn and Yuwathida Chiwpreecher,“Heartratemeasurementandelectrical pulsesignalanalysisforsubjectsspanof20-80years”, vol V, Huachiew Chalremprakiet University, 2015, pp. 112-120.

[6] Andre Henriksen, Martin Haugen Mikalsen, Ashenfi Zebene Woldaregay, Miroslav Muzny, Gunnar Hartvigsen, Laila Arnesdattar Hopstock and Sameline Grimsgaard,“UsingFitnessTrackersandSmartwatches to measure Physical Activity in Research”, vol. 20, UniversityofTromso,2018,pp.1-19.

[7] Ved Prakash, “Heart Rate Monitoring System”, vol. V, AmityUniversityGurgaon,2018,pp.879-886.

International Research Journal of Engineering and Technology (IRJET) e-ISSN: 2395-0056

Volume: 09 Issue: 12 | Dec 2022 www.irjet.net p-ISSN: 2395-0072

[8] G. Andria, F. Attvissimo, and A. Lanzolla, “Digital Measuring Techniques for high accuracy ultrasonic sensorapplication”,vol.II,St.Paul,1998,pp.1056-1061.

[9] DorenaRajanenandMinWeng``Digitizationforfunor reward?: A study of acceptance wearable devices for personalhealthcare”The21stInternationalAcademic Mindtrek Conference, Third International Symposium on Intelligent Information Technology Application (ISIITA),pp.7695-3859.IEEE,2009.

[10] Sultan, N. “Reflective thoughts on the potential and challenges of wearable technology for healthcare provisionandmedicaleducation”.InternationalJournel ofInformationmanagement,35(5),521-526(2015).

[11] Lavie, C. J., Ozemek, C., Carbone, S., Katzmarzyk, P. T., and Blair, S. N. “Sedentary Behavior, Exercise, and Cardiovascular Health. Circ”. Res. 124, 799–815. doi: 10.1161/CIRCRESAHA.118.312669 Google Scholar (2019).

[12] Harleen Kaur, Tushar Singh, Yogesh Kumar Arya and Shalini Mittal “Physical Fitness and Exercise during Covid-19 Pandemic: A Qualitative Enquiry”. Front. Psychol., 29 October 2020 | https://doi.org/10.3389/fpsyg.2020.590172(2020).

[13] Tehrani, K., & Michael, A. “Wearable technology and wearable devices: Everything you need to know”. WearableDevicesMagazine.GoogleScholar(2014).

[14] Lunney,A.,Cunningham,N.R.,&Eastin,M.S.“Wearable fitness technology: A structural investigation into acceptanceandperceivedfitnessoutcomes.Computers inHumanBehavior”,65,114-120(2016).

[15] SafaviS.,&Shukur,Z.“Conceptual privacyframework for health information on wearable device”. PloS one, 9(12),(2014).

[16] [16] Chen, P.,Mao,L.,Nassis,G.P.,Harmer,P., Ainsworth,B.E.,andLi,F.“Coronavirusdisease(COVID19):Theneedtomaintainregularphysicalactivitywhile takingprecautions”.J.SportHealthSci.2020:103.doi: 10.1016/j.jshs.2020.02.001GoogleScholar(2020).

[17] HidayatulMuttaqin,ItaArfyanti.“AndroidBasedHeart RateDetectionToolswithArduinoNano”,March2021.

[18] Jurak,G.,Morrison,S.A.,Leskošek,B.,Kovač,M.,Hadžić, V.,Vodičar,J.,etal.”Physicalactivityrecommendations duringthecoronavirusdisease-2019virusoutbreak”.J. Sport Health Sci. 9, 325–327. doi: 10.1016/j.jshs.2020.05.003(2020).

[19] Soham Methul, S.K. Varma, A.S. Chandak. “Corona Warrior Smart Band”, Computational Vision and Bio-

Inspired Computing, Advances in Intelligent Systems and Computing 1420, https://doi.org/10.1007/978981-16-9573-5_16

[20] https://components101.com/misc/buzzer-pinoutworking-datasheet

[21] https://cdn-shop.adafruit.com/datasheets/SSD1306.pdf

[22] https://lastminuteengineers.com/arduino-sr04ultrasonic-sensor-tutorial/

[23] https://www.electronicscomp.com/adxl335-triple-axislinearaccelerometer?gclid=CjwKCAjw_b6WBhAQEiwAp4HyIC 95dcANNXpYwp6mshcJ_o1K97CU0-zcFIUTw5iQoqmU9Sh5hzRcxoCSgwQAvD_BwE

[24] https://quartzcomponents.com/products/arduinonano-v3-0-soldered-without-cable

[25] https://www.electrodragon.com/product/ds3231-rtcbreakout-board-r2/

[26] https://quartzcomponents.com/products/nodemcudevelopment-board

[27] https://lastminuteengineers.com/oled-display-arduinotutorial/

[28] https://www.electronicscomp.com/active-buzzermodule-5v-india

2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page786
