IOT-BASED HAZARDOUS GAS LEAKAGE DETECTION
1Assistant Professor, Department of Electrical and Electronics Engineering, SRM Institute of Science and Technology, Ramapuram, Chennai, India
1*Student, Department of Electrical and Electronics Engineering, SRM Institute of Science and Technology, Ramapuram, Chennai, India
2Student, Department of Electrical and Electronics Engineering, SRM Institute of Science and Technology, Ramapuram, Chennai, India
3Student, Department of Electrical and Electronics Engineering, SRM Institute of Science and Technology, Ramapuram, Chennai, India ***
Abstract - Human beings and all the living organisms in this world needs fresh and healthy air to survive. In recent years, with the increase in gas consumption, gas leakage has become a problem. Leaked gas causes gas waste, especially because of its combustible property, it can harm living organisms and various industries. All components are controlled by an Arduino which acts as the central processing unit of the setup. When the sensor detects a leak ofthe many combustible gases, it sounds an alarm witha buzzer. This alarm supports a small LCD that displays theamount of the gas leak and alerts personnel to turn on the exhaust fan or stop the incoming gas at a particular section. This will notify to take immediate security measures. The capabilities of this gas detection system are not only to monitor the various surroundings but also help to prevent the gas leak and hence minimize the chances of fireand leakage damages.
Keywords- Gas detection, Arduino, Buzzer, LCD, Alert, etc
1. INTRODUCTION
The Internet of Things strives to make life easier and fasterbyautomatingallthesmalltasksinvolvedinhuman life. Today technological advances like IOT are making everything smart. Since IoT is very beneficial in automating tasks, the advantage of IoT can also help improveconvenientsecuritymethods.
Security performs a significant role at the same time as constructing homes, buildings, and industries in addition to towns. The enlarged focus of certain gases within the surroundings are maybe exceptionally unsafe. Nowadays, everyonewishesfora facilitythatreduceseffortandtime aswellasexpectstheirworktobeaseasyaspossible.The primeaimofthepaperistoalertpeoplewiththehelpofa buzzer and detect the hazardous gases present in the air. ThisisdoneusinganMQ5sensor.TheMQ5sensorisused to detect gas leakages for various applications. The MQ5
sensor detects the concentration levels of the gases and outputsananalogvaluewhichcanbelaterconvertedinto a digital signal.Assoonasthegasis detected by the MQ5 sensor it displays alert messages on the LCD screen. The userwillgetalertedviamessagesontheLCDscreen.This is an efficient way to automaticallydetect and control gas leaks.Italsopreventsaccidents. The idea ofgasdetection andcontrolcanbeimplementedonalargescaleinvarious industries. The system can be installed in kitchens, hostel cafeterias, etc. This helps reduce accidents caused by gas leaks in homes and commercial facilities. This system is low cost, so it is affordable, prevents many accidents, saves many accidents, saves many properties and lives. The MQ5 sensor is used to detect H2 (molecular hydrogen), LPG, CH4 (methane), CO (carbon monoxide), andalcohol.Thissystemisnotonlycapable ofdetectinga gas leakage as well as alerting the user of the gas leakage throughabuzzeralarm.
2. LITERATURE SURVEY
Belkacem Khadi et al [1] has proposed in an endeavor on the concept of multi-robot intellect referred to as SR(swarm robotics), inspired by the nature and observing groups such as groups of ants, flock of birds, schools of fish and groups of bees. In SR, if a group of robots performs a task in an intellectual approach then they are referred to as SI (swarm intelligence), it is a passive networking system in which every distinct bot of thegroupinteractswithoneanotherandwiththeoutside ambiance. The field deals with the design of a large number of simple robots, their physical properties, and their controlling behavior. There are various simulation platformsthatareusedtotestthestructureandalgorithm of swarm robots. R. Imtiaz, et al [2] has proposed a work on implementing two different kinds of robots, which included an explorer robot and a carrier robot. In this configuration there are four robots, one master robot or explorer robot which works as the leader and three slave robots or carrier robots. The explorer robot travels the entire path set towards target and gives the instruction
International Research Journal of Engineering and Technology (IRJET) e-ISSN:2395-0056
Volume: 09 Issue: 11 | Nov 2022 www.irjet.net p-ISSN:2395-0072
aboutthepathtothecarrierrobots.Carrier robotsfollow the path according to master robots command. Thus, any work can be completed in less time and much efficiently. Zigbee module is used as the communication device for the intercommunication between robots, and is used in eachrobots.
Mohd. Daneel Khan, et al [3] has proposed work on the application of S-bots in disaster management. Swarm intelligence provides a collective work to perform acertaintaskwhichismuchaccurateandefficient.During earthquakes when large number of buildings fall down andlotsofpeoplearetrappedunderthebuildingswarmit is impossible by humans to reach that places and rescue people. In this situation swarm of learning, birds can be used to provide the information about the areas and give datatomakeaccuratedecisions.Itisalsousedforlocating a safe location and to give the exact path of the location. Abhishek,P.Bharath,etal[4]gasleakagecanbedetected by using the gas sensor, when a small amount of gas is brought near the sensor it starts alerting the user about the leakage of the gas using iot. P. M. Vidya, S. Abinaya, G. G. Rajeswari, and N. Guna, et al [5] has suggested that the leakage of the gas can be detected by using various gas sensors
Kavitha B et al [6] has designed an alarming systemfortheindustrybasedonthehugeamountofleak of gas from the container. Kalpesh Gupta et al [7] has designed an automatic window opening system when the gasisleakedatacertainamountofvolumecontinuously.
3. SYSTEM OVERVIEW
HardwareRequirements
Arduino Uno

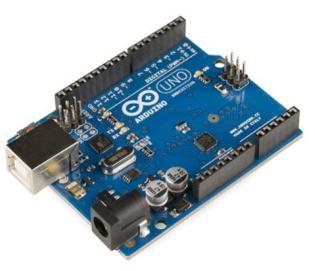

TheArduinoUNOisanopen-sourcemicrocontrollerboard based onMicrochip's ATmega328P microcontroller and developed by Arduino. cc. its main aim is to make electronics to be as easy as possible. It uses different microcontrollers, containing several input and output pins. It provides an integrated development environment (IDE). Arduino contains several numbers of parts and integratedinterfacesinaparticularcircuitboard.
Relay
A relay is an electrical switch that is used to control all other electronic devices by using the electromagnetic mechanicaltoggle
Figure.1
Figure.2
LCD display

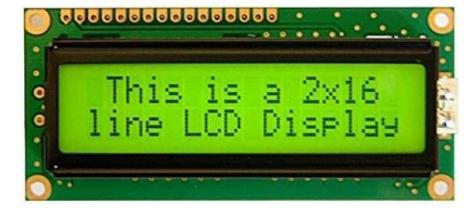

TheLCD isusedto display the message"Gas in Zone Detected" on the first coded display in the program to indicate hazards. All messages, data, and commandsdisplayed on theLCDareLCD registers. its operatingpowersupplyrangesfrom+5.0Vor+3.0V.
Figure.3
ESP8266 WIFI Module

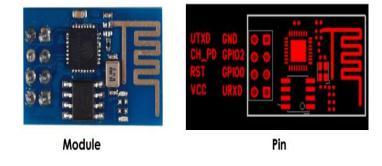

ESP8266 isa low-cost WIFI microchip witha completeTCP/IP stack and microcontrollerfunctionality fromEspressifSystems.
Figure.4
MQ-5 Sensor
The Grove Gas SensorModule(MQ5) is useful for gasleakdetection(homeandindustrial). Suitable for the detectionofH2,LPG,CH4,COandalcohol.Highsensitivity and fast response time allows the measurements to be
International Research Journal of Engineering and Technology (IRJET) e-ISSN:2395-0056
madequicklyaspossible.Thesensitivityofthesensorcan beadjustedwithapotentiometer.
buzzer will make a sound. Users can view sensor status andtakenecessaryactionsaccordingly.
Figure 7 depicts the architectural block diagram of the proposedgasleakagedetectionsystem
Figure.5
Buzzer
A buzzer orbuzzerisamechanical,electromechanicalor piezoelectric (piezo forshort) audible signalling device. Commonusesofbuzzersandbeepsincludealarmdevices, timers, anduser acknowledgmentof user input such as mouseclicksandkeys.

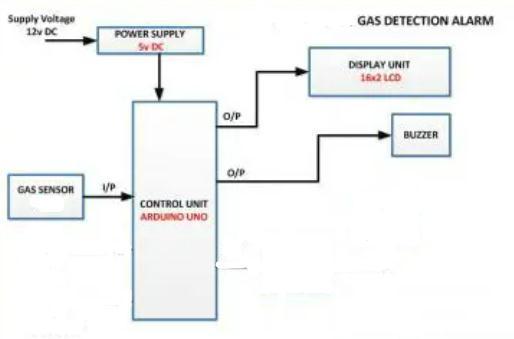

Figure7.Architectureofgasleakagedetectionsystem.
Figure.6
SoftwareRequirements
A) ArduinoIDE B) LanguageC++
4. SYSTEM OPERATION
Inthisproposedsystem,thegasleakageisdetectedbyMQ 5sensorwhichisinterfacedbyArduinouno,whenthegas leakageisdetectedthroughtheMQ5sensorthelightsgets off with buzzer alarm and display alert message in LCD display. Further, working of this proposed system is as below
This gas sensor is used to detect hazardous gases in industry.Thissensorcandetectthefollowinggases:
•CarbonMonoxideCO1-1000ppm,
•EthanolC2H6OH10-500ppm,
•HydrogenH21-1000ppm,
•AmmoniaNH31-500ppm,
•MethaneCH4>1000ppm
Whendetected,itwillautomaticallyturnon.Thedetected values are sent as inputs to the main component, and the
Volume: 09 Issue: 11 | Nov 2022 www.irjet.net p-ISSN:2395-0072 © 2022, IRJET | Impact Factor value: 7.529 | ISO 9001:2008 Certified Journal | Page345
Figure8.Flowdiagramoftheactivitiesofthegasleakage detectionsystem
International Research Journal of Engineering and Technology (IRJET) e-ISSN:2395-0056
Volume: 09 Issue: 11 | Nov 2022 www.irjet.net p-ISSN:2395-0072
5. EXPERIMENTAL RESULTS

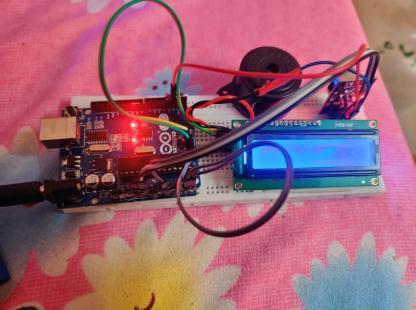

TheprototypeoftheprojectsystemisshowninFigures9 and 10. This proposed system is developed to detect and monitor gas leakage. when a small amount of gas is brought near the MQ5 sensor, it displays the message in LCD i.e “GAS LEAKAGE DETECTED” and the gas value is also shown at the time of the detection of the leakage of the gas and the system monitors the LPG level and displays the message with the gas value. The developed system will be helpful to the customer. It helps them to upgrade their safety norms and aids to prevent the major disaster. It also helps in protecting lifeand property from apparent accidents. The primary aim of this proposed system is therefore to detect the gas leakage which is detectedthough gassensorandusershouldbenotifiedto preventinjureoroutburstviabuzzerandalerttheuser.
It helps them to upgrade their safety norms and aids to prevent the major disaster. It also helps in protecting life andpropertyfromapparentaccidents.Theprimaryaimof thisproposedsystemisthereforetodetectthegasleakage which is detected though gas sensor and user should be notifiedto preventinjureor outburstvia buzzerandalert theuser.
Analogvalueofthegassensor

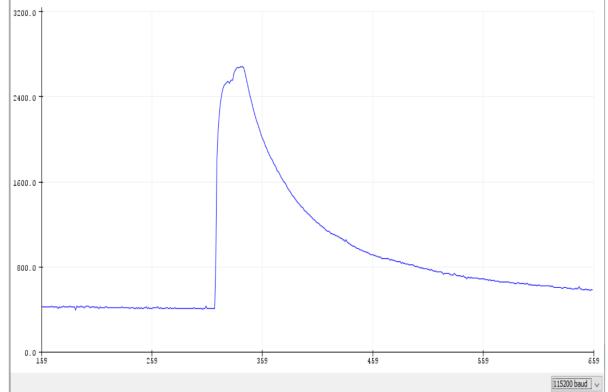

When small amount of gas is brought closer to the MQ5 sensor,theanalogvaluespikesabove1000.
6. CONCLUSION
Thispaperaimstoensurethemonitoringanddetectionof hazardous gases to meet safety standards. The system detects gas in the atmosphere and continuously updates anddisplaysthegasvalueswhichcanbeeasilyviewedby the user via a LCD screen. The system is quite responsive and can stop crisis situations more quickly than manual methods. The system alerts and responds to leakage by alerting theuser.Inthefuture,thissystem will be packed with advanced features to provide users with greater security and relaxation. The popularity of handheld devices has advanced the field of smart gas sensors, greatly expanding the range. The need to ensure workplace safety is expected to be the main driver of the marketintheupcomingyears.
