Electricity generation from modular piezoelement array in vehicle Tire Gaurav Seetaprasad Mishra1, Yash Gavit2, Prathviraj Mahesh Chavan3 1,2,3,Under Graduate Students, Department of Mechanical Engineering,
College of Engineering Pune Technological university ---------------------------------------------------------------------***--------------------------------------------------------------------mechanical vibrations, presenting an untapped source of Abstract - This research investigates the potential of energy. Harnessing this energy through the integration of piezoelectric materials within vehicle tires offers a compelling solution to address the pressing need for renewable energy sources. This research explores the potential of utilizing the piezoelectric effect to convert mechanical vibrations from tire-wheel interactions into electrical energy. By investigating the fundamental principles of piezoelectricity and its application in energy harvesting, this study aims to elucidate the feasibility and efficacy of employing piezoelectric materials to power various electronic devices, thus reducing reliance on conventional energy sources and advancing sustainable engineering practices. Through experimental analysis and theoretical modeling, we aim to quantify the energy output of piezoelectric systems integrated into tires and assess their potential impact on mitigating carbon emissions and promoting environmentally friendly transportation technologies. This introduction sets the stage for our investigation into the transformative potential of harnessing vehicular vibrations for sustainable energy generation using piezoelectric materials.
utilizing piezoelectric materials to harvest energy from vehicle wheels, capitalizing on their unique ability to convert mechanical energy into electrical energy. Through experimental analysis, we quantify the energy output of piezoelectric materials affixed to vehicle wheels and compare it with the energy requirements of various electronic devices. Our findings demonstrate substantial promise for piezoelectric energy harvesting to power a wide array of devices, thereby reducing reliance on conventional power sources. Moreover, the study evaluates the efficiency of energy harvesting systems in capturing and converting mechanical vibrations from wheels, highlighting their practicality and versatility across different applications. Additionally, we discuss the environmental benefits, emphasizing the role of this technology in mitigating carbon emissions and promoting sustainable engineering practices. Looking ahead, the research underscores the need for further exploration and optimization of piezoelectric energy harvesting technologies to advance renewable energy solutions and address global energy challenges effectively. Key Words: Piezoelectric material, module, array, tire, electricity, energy.
1.INTRODUCTION There is an escalating demand for energy resources globally as societal development and expansion continue unabated. This heightened demand has amplified concerns regarding the depletion of conventional energy resources, prompting a search for alternative, sustainable solutions. Modern society has increasingly embraced non-traditional energy sources such as solar cells, wind energy, hydroelectric power, geothermal energy, and biogas plants. However, the burgeoning automotive sector, particularly with the advent of Hybrid Electric Vehicles (HEVs) and Electric Vehicles (EVs), presents a unique challenge. The immense energy required to power these vehicles necessitates innovative approaches to energy utilization. Piezoelectric materials and their effect play a pivotal role in addressing this challenge.

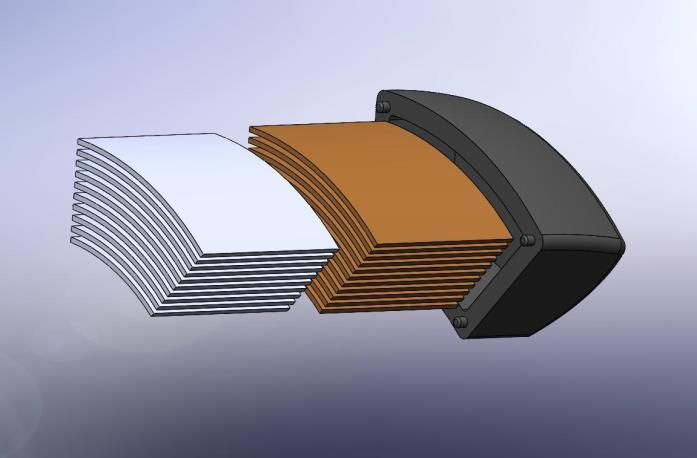

Fig -1:Piezoelectric module
The piezoelectric effect, a phenomenon wherein certain materials generate electric charge in response to mechanical stress, holds immense promise for sustainable energy generation. As vehicles traverse roadways, the interaction between tires and the road surface creates
© 2024, IRJET
|
Impact Factor value: 8.226
1.1 LITERATURE REVIEW The concept of Piezoelectric energy harvesting has been around for some time. Efforts have been made to
|
