Design and Optimization of Open Differential in EFFIQUE-ADAS Pushkar Bendre1, Suyash Kadam2, 1,2 Department of Mechanical Engineering, Smt. Kashibai Navale College of Engineering, Pune, Maharashtra, India
---------------------------------------------------------------------***---------------------------------------------------------------------
Abstract – The purpose of this paper is to select, design, and
vehicle has limited track width, a compact size differential is essential. The Open differential was best suited for those applications and meets all of our requirements. For Designing each of the components we used SolidWorks software. The stress concentration analysis and factor of safety of each component is done on Ansys software. The final results are verified by all analytical calculations and softwares.
analyze an open differential for EFFIQUE-ADAS vehicle for Team Stallion Effi-cycle. EFFIQUE-ADAS is a single-seater fourwheeled electric vehicle equipped with advanced drive assistance systems. The differentials play a crucial role in the power transmission of the vehicle at cornering conditions, improve stability enhance overall performance, thus improve vehicle dynamics which is essential in the competition. To focus on designing an efficient open differential, optimal standard design principles are used that eventually integrate with vehicle needs. The Design procedure is strictly followed from the SAE-NIS Effi-cycle’s 2024 rulebook, ensuring overall compliance with restrictions and guidelines throughout the entire design procedure.
1.2 DIFFERENTIAL REQUIREMENTS IN EFFI QUEADAS VEHICLE. 1. 2. 3. 4. 5. 6.
Key Words: Open Differential, Effi que – ADAS, Stallion Effi cycle, Bevel Gear, Pinion, Centrepin, SOLIDWORKS, ANSYS.
Independent rotation for both wheels. Proper Traction Control. Proper Torque Distribution. Compact size. Equipped with Chain Drive. Reduce Steering effort.
1. INTRODUCTION
2. ANALYTICAL CALCULATIONS
An open differential is a part of a powertrain system consisting of gear assembly, casing, center pin, and bearings. The primary function of the system is to transmit variable speed to the wheels especially when making sharp turns. It is a critical component of the powertrain system it facilitates effortless turns while cornering conditions. During straight conditions, it maintains the same speed for both wheels whereas varies speed during cornering. It is widely preferred in automobiles due to its functions and simplicity.
2.1 Material Selection for Gears. Table -1: Material Selection for gears. Material Properties
EN24
EN36
20MnCr5 Steel
Ultimate Tensile Strength
850
1100
1300
Yield Strength (N/mm2 )
650
846
1000
BHN
350
400
500
( N/mm2 )
2.2 Gear Teeth Calculations

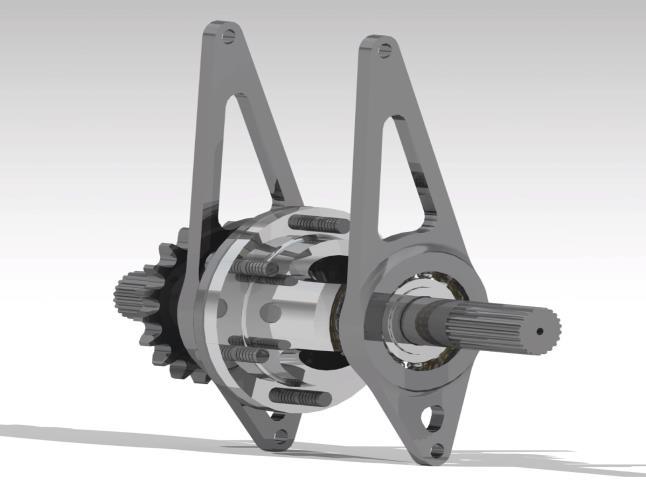

Fig -1: Conventional Open Differential
1.1 METHOD OF APPROACH The research and studies of the differentials are done from various standard books. There are various categories of differentials as per their applications. We have several requirements such as Space efficiency, Easy Lubrication, Simplicity and 50%-50% torque distribution, etc. As the
© 2024, IRJET
|
Impact Factor value: 8.226
Fig -2: Gear tooth Terminology.
|
