DESIGN OF 7 LEVEL MULTILEVEL INVERTER WITH REDUCED SWITCHES Santhosh Kumar D1, Preethi A2, Shobana S3 Assistant professor, Department of EEE ,Vivekanandha College of Engineering forWomen, TamilNadu Assistant Professor,Department of EEE,Vivekanandha College of Engineering forWomen, TamilNadu Research Scholar, Department of EEE ,Vivekanandha College of Engineering forWomen, TamilNadu ------------------------------------------------------------------------***------------------------------------------------------------------------Abstract A Multilevel inverter is a force electronic gadget that is utilized for high voltage and high force applications and has numerous favourable circumstances like, low exchanging pressure, low absolute consonant twisting (THD). Thus, the size and cumbersomeness of detached channels can be diminished. This work proposes another geography of a 7-level fell staggered inverter with decreased number of switches than that of traditional sort which has 12 switches. The geographies comprise of circuit with 7 switches for a similar 7-level yield. Hence with less number of switches, there will be a decrease in door drive hardware and furthermore not many switches will lead for explicit timespans. The SPWM procedure is executed utilizing multicarrier wave signals. The circuit is displayed and recreated with the assistance of MATLAB/SIMULINK.
Keywords: Cascaded Multilevel Inverter(CMLI), Diode Clamped Multilevel Inverter(DCMLI), Flying Capacitor, Pulse Width Modulation (PWM), Selective Harmonic Elimination
1
INTRODUCTION

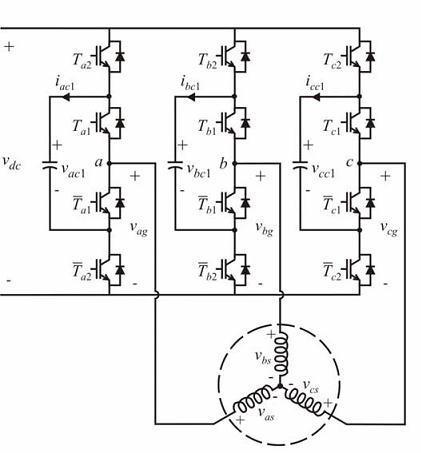

As of late, the requirement for high force mechanical assembly has been determined by various modern applications. Medium voltage engine drives and utility applications are a few models, since they require medium voltage and megawatt power level. Another application respects medium voltage matrices, where it is problematic to interface just one force semiconductor switch straightforwardly. Therefore, a few staggered power converter structures have been presented as an option in high force and medium voltage applications. Staggered converters accomplish high force appraisals, yet additionally empower the utilization of environmentally friendly power sources. This part examines about the kinds of staggered inverters and its preferences. 1.1 Multilevel Inverters Multilevel converters not just create the yield voltages with low bending, yet in addition lessen the dv/dt stresses, henceforth electromagnetic compatibility (EMC) issues can be diminished. In addition, three diverse major staggered converter designs, for example, fell H-spans converter with isolated dc sources, diode clipped (nonpartisan clasped) and flying capacitors (capacitor braced) have been accounted for in the writing. 1.1.1 Cascaded Multilevel Inverter A Cascaded Multilevel Inverter (CMLI) is a force electronic gadget intended to create an AC voltage from DC voltages of a few levels. This design of CMLI comprises of a progression of H-connect (single-stage full extension) inverter units in every one of its three stages. Every H-connect unit has its own dc source. Through various blends of the four switches, S1-S4, every converter level can produce three diverse voltage yields, +Vdc, - Vdc and zero. The AC yields of various full-connect converters in a similar stage are associated in arrangement with the end goal that the incorporated voltage waveform is the amount of the individual converter yields. Every H-connect unit creates a semi square waveform by stage moving its positive and negative stage legs exchanging time. Each exchanging gadget consistently leads for 180° paying little heed to the beat width of the semi square wave. This exchanging strategy causes current pressure of the whole exchanging gadgets as equivalent. A three-phase CMLI topology is essentially composed of three identical phase legs of the series- chain of H-bridge converters, which can possibly generate different output voltage waveforms and offers phase-balancing for AC system. This feature is impossible in other VSI topologies utilizing a common DC link. Since this topology consists of series power conversion cells, the voltage and power level may be easily scaled. The dc link supply for each full bridge converter is provided separately.
